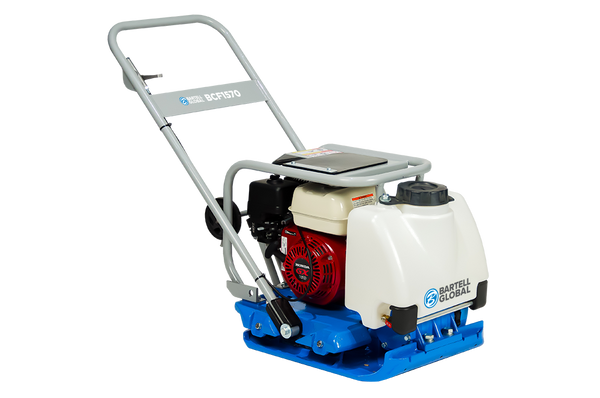

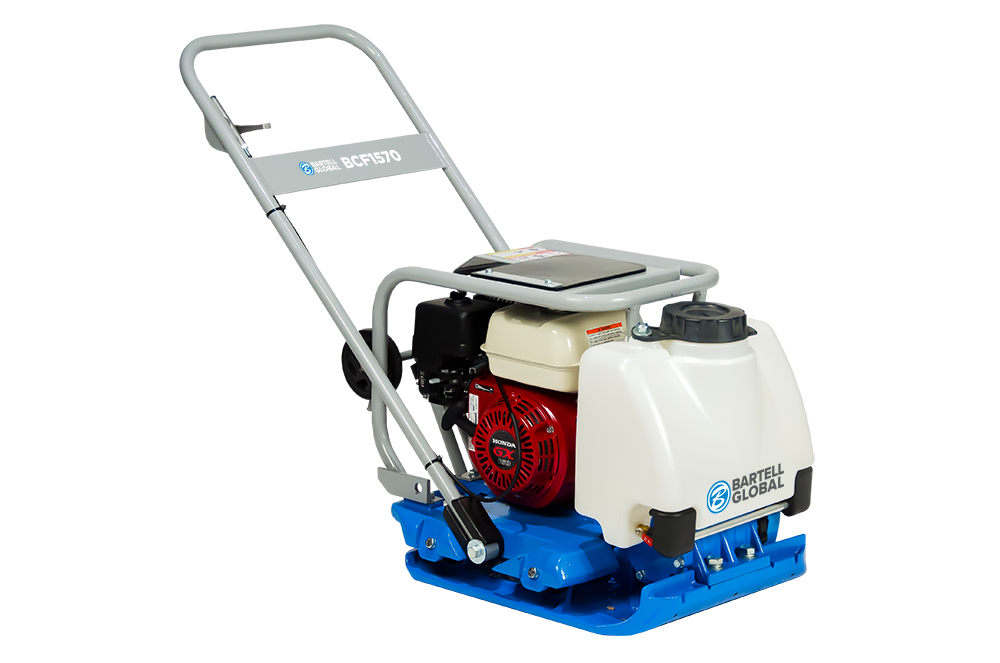

Bartell BCF1570 Plate Compactor

Name: Bartell BCF1570 Plate Compactor
Brand: Bartell
Price: 2625.0 USD
Availability: InStock

The parts bench

Need the PDF? ↓

Page 4 — VIBRATOR: BCF1570

Bartell BCF1570 Plate Compactor VIBRATOR: BCF1570 parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty
1	651011	VIBRATOR ASSEMBLY	1	ADD TO CART
VIBRATOR ASSEMBLY 651011 · qty on machine: 1 view full part page → $1107.01
2	65CPC-95-02A	OIL PLUG, M12-1.25 x 10MM	1	PARTS REQUEST
PHOTO COMING OIL PLUG, M12-1.25 x 10MM 65CPC-95-02A · qty on machine: 1 PARTS REQUEST
3	60848	WASHER, SEALING, M12	1	PARTS REQUEST
PHOTO COMING WASHER, SEALING, M12 60848 · qty on machine: 1 PARTS REQUEST
4	651078	HHCS, M16-2.0x45MM	4	PARTS REQUEST
PHOTO COMING HHCS, M16-2.0x45MM 651078 · qty on machine: 4 PARTS REQUEST
5	31260	LOCK WASHER, M16	4	PARTS REQUEST
PHOTO COMING LOCK WASHER, M16 31260 · qty on machine: 4 PARTS REQUEST
6	651073	WASHER, FLAT, M16	4	ADD TO CART
WASHER, FLAT, M16 651073 · qty on machine: 4 view full part page → $36.64
7	65CPC-95-07A	VIBRATOR SHAFT	1	ADD TO CART
VIBRATOR SHAFT 65CPC-95-07A · qty on machine: 1 view full part page → $251.98
8	60845	BEARING 6211	2	ADD TO CART
BEARING 6211 60845 · qty on machine: 2 view full part page → $124.4
9	65CPC-95-09A	CASE RIGHT COVER	1	PARTS REQUEST
PHOTO COMING CASE RIGHT COVER 65CPC-95-09A · qty on machine: 1 PARTS REQUEST
10	65CPC-95-010A	CASE LEFT COVER	1	ADD TO CART
CASE LEFT COVER 65CPC-95-010A · qty on machine: 1 view full part page → $98.58
11	65CPC-95-011A	BELT COVER GUARD	1	PARTS REQUEST
PHOTO COMING BELT COVER GUARD 65CPC-95-011A · qty on machine: 1 PARTS REQUEST
12	60873	OIL SEAL, 35x48x10	1	ADD TO CART
OIL SEAL, 35x48x10 60873 · qty on machine: 1 view full part page → $50.41
13	60843	O-RING 100 x 3	2	ADD TO CART
O-RING 100 x 3 60843 · qty on machine: 2 view full part page → $41.47
14	11619	HHCS, M8-1.25x25MM	8	PARTS REQUEST
PHOTO COMING HHCS, M8-1.25x25MM 11619 · qty on machine: 8 PARTS REQUEST
15	11614	LOCK WASHER, M8	8	PARTS REQUEST
PHOTO COMING LOCK WASHER, M8 11614 · qty on machine: 8 PARTS REQUEST
16	651113	PULLEY, 2.125"	1	ADD TO CART
PULLEY, 2.125" 651113 · qty on machine: 1 view full part page → $86.57
17	651094	KEY 8x7x20	1	ADD TO CART
KEY 8x7x20 651094 · qty on machine: 1 view full part page → $53.28
18	14998	FENDER WASHER M10	1	PARTS REQUEST
PHOTO COMING FENDER WASHER M10 14998 · qty on machine: 1 PARTS REQUEST
19	13348	HHCS, M10-1.5x25MM	1	PARTS REQUEST
PHOTO COMING HHCS, M10-1.5x25MM 13348 · qty on machine: 1 PARTS REQUEST
20	11621	LOCKWASHER, M10	1	PARTS REQUEST
PHOTO COMING LOCKWASHER, M10 11621 · qty on machine: 1 PARTS REQUEST
1.2	65CPC-95-01A	VIBRATING CASE	1	ADD TO CART
VIBRATING CASE 65CPC-95-01A · qty on machine: 1 view full part page → $537.53
15.17	11667	WASHER, FLAT, M8	8	PARTS REQUEST
PHOTO COMING WASHER, FLAT, M8 11667 · qty on machine: 8 PARTS REQUEST

Page 6 — BODY: BCF1570

Bartell BCF1570 Plate Compactor BODY: BCF1570 parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty
1	10999	HHCS M8-1.25X20MM LG	4	PARTS REQUEST
PHOTO COMING HHCS M8-1.25X20MM LG 10999 · qty on machine: 4 PARTS REQUEST
2	11614	LOCKWASHER, M8	13	PARTS REQUEST
PHOTO COMING LOCKWASHER, M8 11614 · qty on machine: 13 PARTS REQUEST
3	11667	FLAT WASHER, M8	12	PARTS REQUEST
PHOTO COMING FLAT WASHER, M8 11667 · qty on machine: 12 PARTS REQUEST
4	64003	FENDER WASHER M8	2	ADD TO CART
FENDER WASHER M8 64003 · qty on machine: 2 view full part page → $37.64
5	651225	BUSHING	4	PARTS REQUEST
PHOTO COMING BUSHING 651225 · qty on machine: 4 PARTS REQUEST
6	651226	LIFTING HOOK	1	PARTS REQUEST
PHOTO COMING LIFTING HOOK 651226 · qty on machine: 1 PARTS REQUEST
7	651227	PIN, 14MM x 50MM	2	PARTS REQUEST
PHOTO COMING PIN, 14MM x 50MM 651227 · qty on machine: 2 PARTS REQUEST
8	13348	HHCS, M10-1.5x25MM	4	PARTS REQUEST
PHOTO COMING HHCS, M10-1.5x25MM 13348 · qty on machine: 4 PARTS REQUEST
9	11621	LOCKWASHER, M10	16	PARTS REQUEST
PHOTO COMING LOCKWASHER, M10 11621 · qty on machine: 16 PARTS REQUEST
10	14447	FLAT WASHER, M6	8	PARTS REQUEST
PHOTO COMING FLAT WASHER, M6 14447 · qty on machine: 8 PARTS REQUEST
13	651176	RUBBER ACCESS FLAP ASSEMBLY	1	ADD TO CART
RUBBER ACCESS FLAP ASSEMBLY 651176 · qty on machine: 1 view full part page → $93.44
14	50622	LOCKNUT, M6X1.0	4	PARTS REQUEST
PHOTO COMING LOCKNUT, M6X1.0 50622 · qty on machine: 4 PARTS REQUEST
15	65CPC-95-37B	GUARD FRAME	1	PARTS REQUEST
PHOTO COMING GUARD FRAME 65CPC-95-37B · qty on machine: 1 PARTS REQUEST
21	65CPC-95-27B	THROTTLE LEVER WITH CABLE	1	PARTS REQUEST
PHOTO COMING THROTTLE LEVER WITH CABLE 65CPC-95-27B · qty on machine: 1 PARTS REQUEST
22	65CPC-95-28B	HANDLE	1	PARTS REQUEST
PHOTO COMING HANDLE 65CPC-95-28B · qty on machine: 1 PARTS REQUEST
24	65CPC-95-29B	COLLAR 13-20-44	2	ADD TO CART
COLLAR 13-20-44 65CPC-95-29B · qty on machine: 2 view full part page → $58.66
25	65CPC-95-30B	RUBBER ISOLATOR 20 x 32 x 28.5	2	ADD TO CART
RUBBER ISOLATOR 20 x 32 x 28.5 65CPC-95-30B · qty on machine: 2 view full part page → $53.75
26	65CPC-95-31B	HANDLE STOPPER	2	PARTS REQUEST
PHOTO COMING HANDLE STOPPER 65CPC-95-31B · qty on machine: 2 PARTS REQUEST
27	14267	WASHER, FLAT, M12	2	PARTS REQUEST
PHOTO COMING WASHER, FLAT, M12 14267 · qty on machine: 2 PARTS REQUEST
28	10735	LOCKWASHER, M12	2	PARTS REQUEST
PHOTO COMING LOCKWASHER, M12 10735 · qty on machine: 2 PARTS REQUEST
29	22675	HHCS, M12-1.75x75MM	2	ADD TO CART
HHCS, M12-1.75x75MM 22675 · qty on machine: 2 view full part page → $39.76
30	10155	HHCS, M8-1.25x35MM	3	PARTS REQUEST
PHOTO COMING HHCS, M8-1.25x35MM 10155 · qty on machine: 3 PARTS REQUEST
31	65CPC-95-22B	BELT COVER	1	PARTS REQUEST
PHOTO COMING BELT COVER 65CPC-95-22B · qty on machine: 1 PARTS REQUEST
32	30024	V-BELT, AX33	1	ADD TO CART
V-BELT, AX33 30024 · qty on machine: 1 view full part page → $83.51
33	65CPC-95-21B	BELT GUARD BACK PLATE	1	ADD TO CART
BELT GUARD BACK PLATE 65CPC-95-21B · qty on machine: 1 view full part page → $154.2
34	11256	FHSCS,5/16"-24UNFx1"LG	1	PARTS REQUEST
PHOTO COMING FHSCS,5/16"-24UNFx1"LG 11256 · qty on machine: 1 PARTS REQUEST
35	30042	CLUTCH RET WASHER	1	ADD TO CART
CLUTCH RET WASHER 30042 · qty on machine: 1 view full part page → $42.28
36	21333-1	ENGINE, GX160	1	ADD TO CART
ENGINE, GX160 21333-1 · qty on machine: 1 view full part page → $890.99
37	10208	KEY, 3/16 SQ x 1.5	1	ADD TO CART
KEY, 3/16 SQ x 1.5 10208 · qty on machine: 1 view full part page → $36.14
38	11745	HHCS, M8-1.25x55MM	4	PARTS REQUEST
PHOTO COMING HHCS, M8-1.25x55MM 11745 · qty on machine: 4 PARTS REQUEST
39	65CPC-95-5B	BASE	1	PARTS REQUEST
PHOTO COMING BASE 65CPC-95-5B · qty on machine: 1 PARTS REQUEST
23.17	30281	HHCS, M6-1.0x25MM, ZP	2	PARTS REQUEST
PHOTO COMING HHCS, M6-1.0x25MM, ZP 30281 · qty on machine: 2 PARTS REQUEST
23.17	30281	HHCS M6-1.0x25MM	2	PARTS REQUEST
PHOTO COMING HHCS M6-1.0x25MM 30281 · qty on machine: 2 PARTS REQUEST

Page 10 — WATER TANK ASSEMBLY: BCF1570

Bartell BCF1570 Plate Compactor WATER TANK ASSEMBLY: BCF1570 parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty
58	651077	WATER TANK ASSEMBLY (INCL. 59-70)	1	ADD TO CART
WATER TANK ASSEMBLY (INCL. 59-70) 651077 · qty on machine: 1 view full part page → $429.46
59	65CPC-95-1-1C	CAP, WATER TANK	1	ADD TO CART
CAP, WATER TANK 65CPC-95-1-1C · qty on machine: 1 view full part page → $64.16
60	31180	HHCS, M12-1.75X30MM	1	PARTS REQUEST
PHOTO COMING HHCS, M12-1.75X30MM 31180 · qty on machine: 1 PARTS REQUEST
61	10993	WASHER, FLAT, M12	2	PARTS REQUEST
PHOTO COMING WASHER, FLAT, M12 10993 · qty on machine: 2 PARTS REQUEST
62	10956	NYLON NUT M10	1	ADD TO CART
NYLON NUT M10 10956 · qty on machine: 1 view full part page → $37.21
63	65CPC-95-2C	WASHER 14.1 x 30 x 1.6	1	PARTS REQUEST
PHOTO COMING WASHER 14.1 x 30 x 1.6 65CPC-95-2C · qty on machine: 1 PARTS REQUEST
64	65CPC-95-3C	BRASS NUT (WATER VALVE)	1	PARTS REQUEST
PHOTO COMING BRASS NUT (WATER VALVE) 65CPC-95-3C · qty on machine: 1 PARTS REQUEST
65	65CPC-95-4C	WATER VALVE	1	ADD TO CART
WATER VALVE 65CPC-95-4C · qty on machine: 1 view full part page → $61.06
66	65CPC-95-5C	SPRINKLING PIPY	1	PARTS REQUEST
PHOTO COMING SPRINKLING PIPY 65CPC-95-5C · qty on machine: 1 PARTS REQUEST
67	65CPC-95-6C	PIPE HOLDER LEFT	1	PARTS REQUEST
PHOTO COMING PIPE HOLDER LEFT 65CPC-95-6C · qty on machine: 1 PARTS REQUEST
68	65CPC-95-7C	PIPE HOLDER RIGHT	1	PARTS REQUEST
PHOTO COMING PIPE HOLDER RIGHT 65CPC-95-7C · qty on machine: 1 PARTS REQUEST
69	10999	HHCS, M8-1.25X20MM	2	PARTS REQUEST
PHOTO COMING HHCS, M8-1.25X20MM 10999 · qty on machine: 2 PARTS REQUEST
70	11043	WASHER, FLAT, 1/4"	1	PARTS REQUEST
PHOTO COMING WASHER, FLAT, 1/4" 11043 · qty on machine: 1 PARTS REQUEST

Page 12 — WHEELS: BCF1570

Bartell BCF1570 Plate Compactor WHEELS: BCF1570 parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty
1	651097	COMPLETE WHEEL KIT	1	ADD TO CART
COMPLETE WHEEL KIT 651097 · qty on machine: 1 view full part page → $227.74
2	65CPC-95-1-02D	WHEELS FRAME 2	1	ADD TO CART
WHEELS FRAME 2 65CPC-95-1-02D · qty on machine: 1 view full part page → $134.62
3	65CPC-95-1-03D	SHAFT	1	PARTS REQUEST
PHOTO COMING SHAFT 65CPC-95-1-03D · qty on machine: 1 PARTS REQUEST
4	65CPC-95-1-04D	COLLAR	2	PARTS REQUEST
PHOTO COMING COLLAR 65CPC-95-1-04D · qty on machine: 2 PARTS REQUEST
5	651085	WHEELS	2	ADD TO CART
WHEELS 651085 · qty on machine: 2 view full part page → $92.12
6	14267	WASHER, FLAT, M12	2	PARTS REQUEST
PHOTO COMING WASHER, FLAT, M12 14267 · qty on machine: 2 PARTS REQUEST
7	65CPC-95-07D	CIRCLIP M12	2	PARTS REQUEST
PHOTO COMING CIRCLIP M12 65CPC-95-07D · qty on machine: 2 PARTS REQUEST
9	651042	RUBBER HOLDER (NOT SHOWN)	1	ADD TO CART
RUBBER HOLDER (NOT SHOWN) 651042 · qty on machine: 1 view full part page → $62.8
1.2	65CPC-95-01D	WHEELS FRAME 1	1	PARTS REQUEST
PHOTO COMING WHEELS FRAME 1 65CPC-95-01D · qty on machine: 1 PARTS REQUEST
