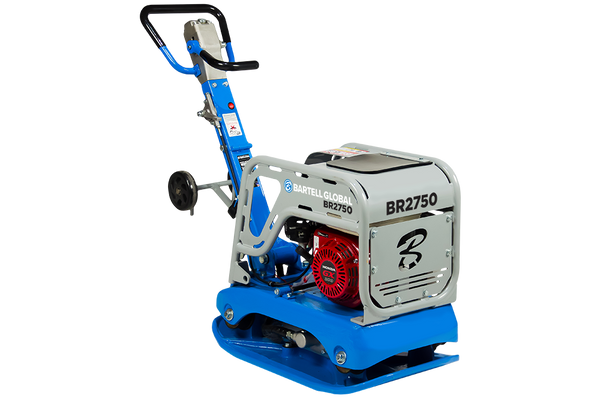

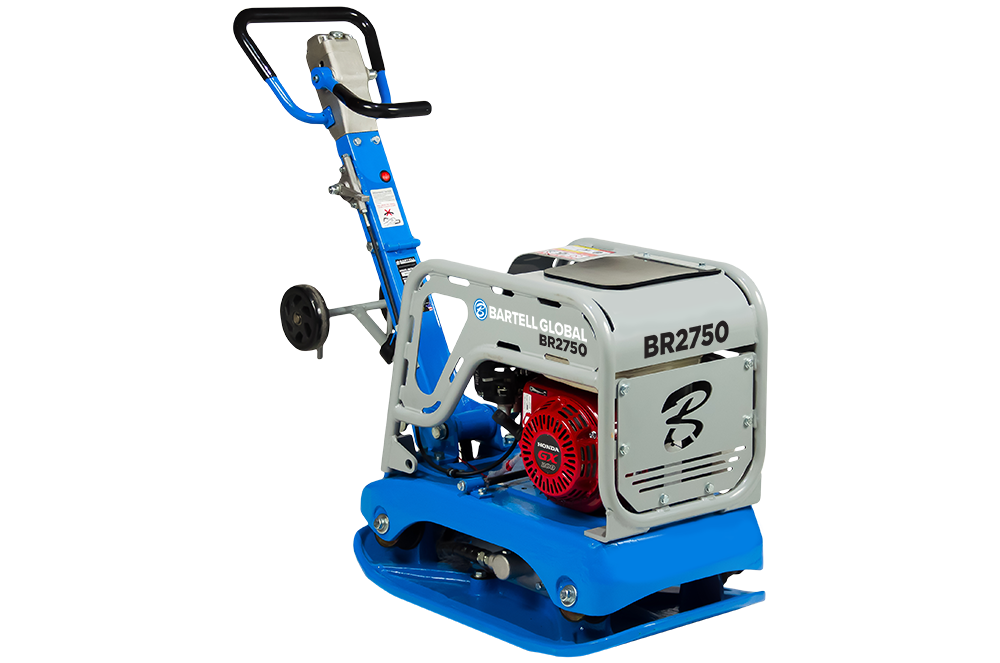

Bartell BR2750 Plate Compactor

Name: Bartell BR2750 Plate Compactor
Brand: Bartell
Price: 5490.0 USD
Availability: InStock

The parts bench

Need the PDF? ↓

Page 5 — VIBRATING PLATE: BR2750

Bartell BR2750 Plate Compactor VIBRATING PLATE: BR2750 parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
1	65CPC-160-1A	VIBRATING PLATE	1	PARTS REQUEST
PHOTO COMING VIBRATING PLATE 65CPC-160-1A · qty on machine: 1 PARTS REQUEST
2	651033	RUBBER MOUNT, SHOCK ABSORBER	4	ADD TO CART
RUBBER MOUNT, SHOCK ABSORBER 651033 · qty on machine: 4 view full part page → $101.86
3	10730	NUT, M12 x 1.75	4	PARTS REQUEST
PHOTO COMING NUT, M12 x 1.75 10730 · qty on machine: 4 PARTS REQUEST
4	10735	LOCKWASHER, M12	8	PARTS REQUEST
PHOTO COMING LOCKWASHER, M12 10735 · qty on machine: 8 PARTS REQUEST
5	31180	HHCS, M12-1.75 x 30MM	4	PARTS REQUEST
PHOTO COMING HHCS, M12-1.75 x 30MM 31180 · qty on machine: 4 PARTS REQUEST
6	10993	WASHER, M12	4	PARTS REQUEST
PHOTO COMING WASHER, M12 10993 · qty on machine: 4 PARTS REQUEST
7	651060	OIL PLUG M16x1.5	1	ADD TO CART
OIL PLUG M16x1.5 651060 · qty on machine: 1 view full part page → $49.47
8	651061	OIL PLUG SEAL, M16	1	ADD TO CART
OIL PLUG SEAL, M16 651061 · qty on machine: 1 view full part page → $54.95

Page 6 — BODY: BR2750

Bartell BR2750 Plate Compactor BODY: BR2750 parts diagram

Parts list — exactly as printed31 rows

No.	Part No.	Part Name	Qty	Remarks
1	65CPC-160-1B	BASE	1		PARTS REQUEST
PHOTO COMING BASE 65CPC-160-1B · qty on machine: 1 PARTS REQUEST
2	21417	HONDA, GX200	1		PARTS REQUEST
PHOTO COMING HONDA, GX200 21417 · qty on machine: 1 PARTS REQUEST
3	11924	HHCS, M10-1.5 X 40MM	3		ADD TO CART
HHCS, M10-1.5 X 40MM 11924 · qty on machine: 3 view full part page → $39.16
4	10077	HHCS, M10-1.5 x 35MM	1		ADD TO CART
HHCS, M10-1.5 x 35MM 10077 · qty on machine: 1 view full part page → $37.68
5	41516	WASHER, M10	4		PARTS REQUEST
PHOTO COMING WASHER, M10 41516 · qty on machine: 4 PARTS REQUEST
6	65CPC-160-6B	BELT COVER PLATE	1		PARTS REQUEST
PHOTO COMING BELT COVER PLATE 65CPC-160-6B · qty on machine: 1 PARTS REQUEST
8	11499	SPACER	1		ADD TO CART
SPACER 11499 · qty on machine: 1 view full part page → $39.13
9	30202	CLUTCH ASSEMBLY	1		ADD TO CART
CLUTCH ASSEMBLY 30202 · qty on machine: 1 view full part page → $444.96
10	10208	KEY 5x5x30	1		ADD TO CART
KEY 5x5x30 10208 · qty on machine: 1 view full part page → $36.14
11	30042	CLUTCH WASHER	1		ADD TO CART
CLUTCH WASHER 30042 · qty on machine: 1 view full part page → $42.28
13	30195	V-BELT, AX34	1		ADD TO CART
V-BELT, AX34 30195 · qty on machine: 1 view full part page → $72.23
14	65CPC-160-14B	DUST COVER	1		PARTS REQUEST
PHOTO COMING DUST COVER 65CPC-160-14B · qty on machine: 1 PARTS REQUEST
15	50621	FHSCS M6-1.0 x 25MM	2		PARTS REQUEST
PHOTO COMING FHSCS M6-1.0 x 25MM 50621 · qty on machine: 2 PARTS REQUEST
16	65CPC-160-16B	SPONGE, DUST COVER	1		ADD TO CART
SPONGE, DUST COVER 65CPC-160-16B · qty on machine: 1 view full part page → $61.25
17	65CPC-160-17B	BELT COVER OUT	1		PARTS REQUEST
PHOTO COMING BELT COVER OUT 65CPC-160-17B · qty on machine: 1 PARTS REQUEST
18	31105	SHCS, M8-1.25 x 60MM LG.	3		ADD TO CART
SHCS, M8-1.25 x 60MM LG. 31105 · qty on machine: 3 view full part page → $40.47
19	14986	SHCS, M8-1.25 x 30MM LG.	1		PARTS REQUEST
PHOTO COMING SHCS, M8-1.25 x 30MM LG. 14986 · qty on machine: 1 PARTS REQUEST
21	651176	RUBBER COVER	1		ADD TO CART
RUBBER COVER 651176 · qty on machine: 1 view full part page → $93.44
22	11619	HHCS, M8-1.25x25MM	2		PARTS REQUEST
PHOTO COMING HHCS, M8-1.25x25MM 11619 · qty on machine: 2 PARTS REQUEST
23	11614	LOCKWASHER, M8	2		PARTS REQUEST
PHOTO COMING LOCKWASHER, M8 11614 · qty on machine: 2 PARTS REQUEST
24	11667	WASHER, M8	2		PARTS REQUEST
PHOTO COMING WASHER, M8 11667 · qty on machine: 2 PARTS REQUEST
25	11617	NYLON NUT M8	2		PARTS REQUEST
PHOTO COMING NYLON NUT M8 11617 · qty on machine: 2 PARTS REQUEST
26	65CPC-160-26B	UNION	1	Kit 651178 Only	PARTS REQUEST
PHOTO COMING UNION 65CPC-160-26B · qty on machine: 1 Kit 651178 Only PARTS REQUEST
27	65CPC-160-27B	DRAIN HOSE	1	Kit 651178 Only	PARTS REQUEST
PHOTO COMING DRAIN HOSE 65CPC-160-27B · qty on machine: 1 Kit 651178 Only PARTS REQUEST
28	65CPC-160-28B	HOSE CLAMP	2	Kit 651178 Only	PARTS REQUEST
PHOTO COMING HOSE CLAMP 65CPC-160-28B · qty on machine: 2 Kit 651178 Only PARTS REQUEST
29	65CPC-160-29B	GASKET	2	Kit 651178 Only	PARTS REQUEST
PHOTO COMING GASKET 65CPC-160-29B · qty on machine: 2 Kit 651178 Only PARTS REQUEST
30	65CPC-160-30B	PLUG	1	Kit 651178 Only	PARTS REQUEST
PHOTO COMING PLUG 65CPC-160-30B · qty on machine: 1 Kit 651178 Only PARTS REQUEST
31	65CPC-160-31B	JOINT BLOCK	1	Kit 651178 Only	PARTS REQUEST
PHOTO COMING JOINT BLOCK 65CPC-160-31B · qty on machine: 1 Kit 651178 Only PARTS REQUEST
32	10999	HHCS, M8-1.25 x 20MM	1	Individual or Kit 651178	PARTS REQUEST
PHOTO COMING HHCS, M8-1.25 x 20MM 10999 · qty on machine: 1 Individual or Kit 651178 PARTS REQUEST
4.5	11621	LOCKWASHER, M10	4		PARTS REQUEST
PHOTO COMING LOCKWASHER, M10 11621 · qty on machine: 4 PARTS REQUEST
12.13	30041	FHSCS, 5/16-24 x 3/4"	4		PARTS REQUEST
PHOTO COMING FHSCS, 5/16-24 x 3/4" 30041 · qty on machine: 4 PARTS REQUEST

Page 10 — VIBRATOR: BR2750

Bartell BR2750 Plate Compactor VIBRATOR: BR2750 parts diagram

Parts list — exactly as printed27 rows

No.	Part No.	Part Name	Qty	Remarks
1	651021	VIBRATOR ASSEMBLY	1		ADD TO CART
VIBRATOR ASSEMBLY 651021 · qty on machine: 1 view full part page → $2741.53
2	24240	ROLLER BEARING, NJ307E	4		ADD TO CART
ROLLER BEARING, NJ307E 24240 · qty on machine: 4 view full part page → $348.03
3	65CPC-160-3C	ROTARY SHAFT, DRIVE	1	Kit 651183 Only	PARTS REQUEST
PHOTO COMING ROTARY SHAFT, DRIVE 65CPC-160-3C · qty on machine: 1 Kit 651183 Only PARTS REQUEST
4	65CPC-160-4C	ROTARY SHAFT, DRIVEN	1	Kit 651182 Only	PARTS REQUEST
PHOTO COMING ROTARY SHAFT, DRIVEN 65CPC-160-4C · qty on machine: 1 Kit 651182 Only PARTS REQUEST
5	31373	STOP RING S-35	8	Individual or in Kits 651182, 651183	ADD TO CART
STOP RING S-35 31373 · qty on machine: 8 Individual or in Kits 651182, 651183 view full part page → $39.85
6	651220	KEY 10x8x19	1	Individual or in Kit 651183	PARTS REQUEST
PHOTO COMING KEY 10x8x19 651220 · qty on machine: 1 Individual or in Kit 651183 PARTS REQUEST
7	24241	BEARING 6907	2	Individual or in Kit 651182	ADD TO CART
BEARING 6907 24241 · qty on machine: 2 Individual or in Kit 651182 view full part page → $192.83
8	65CPC-160-8C	PISTON ROD	1	Kit 651184 Only	PARTS REQUEST
PHOTO COMING PISTON ROD 65CPC-160-8C · qty on machine: 1 Kit 651184 Only PARTS REQUEST
9	651204	PIN 8x50	1	Individual or in Kit 651184	ADD TO CART
PIN 8x50 651204 · qty on machine: 1 Individual or in Kit 651184 view full part page → $48.28
10	24242	BEARING 6000ZZ	2	Individual or in Kit 651184	ADD TO CART
BEARING 6000ZZ 24242 · qty on machine: 2 Individual or in Kit 651184 view full part page → $61.14
11	60083	STOP RING S-10	1	Individual or in Kit 651184	ADD TO CART
STOP RING S-10 60083 · qty on machine: 1 Individual or in Kit 651184 view full part page → $34.09
12	651151	PISTON, 22.4ID	1	Kit 651184 Only	ADD TO CART
PISTON, 22.4ID 651151 · qty on machine: 1 Kit 651184 Only view full part page → $94.84
13	651074	EXCITER PISTON RING	1	Individual or in Kit 651184	ADD TO CART
EXCITER PISTON RING 651074 · qty on machine: 1 Individual or in Kit 651184 view full part page → $58.41
14	651202	STOP RING R-26	1	Individual or in Kit 651184	ADD TO CART
STOP RING R-26 651202 · qty on machine: 1 Individual or in Kit 651184 view full part page → $49.44
15	65CPC-160-15C	ECCENTRIC WEIGHT	4	Kit 651182 or 651183 Only	PARTS REQUEST
PHOTO COMING ECCENTRIC WEIGHT 65CPC-160-15C · qty on machine: 4 Kit 651182 or 651183 Only PARTS REQUEST
16	14985	SHCS, M10-1.50 x 30MM	4	Individual or in Kits 651182 or 651183	PARTS REQUEST
PHOTO COMING SHCS, M10-1.50 x 30MM 14985 · qty on machine: 4 Individual or in Kits 651182 or 651183 PARTS REQUEST
17	651147	OIL SEAL SC-28458	1		ADD TO CART
OIL SEAL SC-28458 651147 · qty on machine: 1 view full part page → $64.04
18	65CPC-160-18C	BEARING COVER	1		PARTS REQUEST
PHOTO COMING BEARING COVER 65CPC-160-18C · qty on machine: 1 PARTS REQUEST
22	651152	SEAL CAP	1		ADD TO CART
SEAL CAP 651152 · qty on machine: 1 view full part page → $55.99
23	651149	CYLINDER	1		ADD TO CART
CYLINDER 651149 · qty on machine: 1 view full part page → $287.71
24	10999	HHCS, M8-1.25 x 20MM	4		PARTS REQUEST
PHOTO COMING HHCS, M8-1.25 x 20MM 10999 · qty on machine: 4 PARTS REQUEST
25	11614	LOCKWASHER, M8	4		PARTS REQUEST
PHOTO COMING LOCKWASHER, M8 11614 · qty on machine: 4 PARTS REQUEST
26	11667	WASHER, M8	4		PARTS REQUEST
PHOTO COMING WASHER, M8 11667 · qty on machine: 4 PARTS REQUEST
27	65CPC-160-27C	GEAR (DRIVE)	1	Kit 651183 Only	PARTS REQUEST
PHOTO COMING GEAR (DRIVE) 65CPC-160-27C · qty on machine: 1 Kit 651183 Only PARTS REQUEST
28	65CPC-160-28C	GEAR (DRIVEN)	1	Kit 651182 Only	PARTS REQUEST
PHOTO COMING GEAR (DRIVEN) 65CPC-160-28C · qty on machine: 1 Kit 651182 Only PARTS REQUEST
29	651081	HYD BOLT, M8-1.25 x 12MM	1		ADD TO CART
HYD BOLT, M8-1.25 x 12MM 651081 · qty on machine: 1 view full part page → $41.38
1.2	65CPC-160-1C	VIBRATING CASE	1		PARTS REQUEST
PHOTO COMING VIBRATING CASE 65CPC-160-1C · qty on machine: 1 PARTS REQUEST

Page 14 — CONTROL: BR2750

Bartell BR2750 Plate Compactor CONTROL: BR2750 parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
2	651050	THROTTLE LEVER ASSEMBLY W/CABLE	1		ADD TO CART
THROTTLE LEVER ASSEMBLY W/CABLE 651050 · qty on machine: 1 view full part page → $133.62
5	65CPC-160-5D	BOLT M16x145T	1		ADD TO CART
BOLT M16x145T 65CPC-160-5D · qty on machine: 1 view full part page → $50.31
6	651073	WASHER, M16	2		ADD TO CART
WASHER, M16 651073 · qty on machine: 2 view full part page → $36.64
7	65CPC-60-7D	SPRING WASHER M16	2		ADD TO CART
SPRING WASHER M16 65CPC-60-7D · qty on machine: 2 view full part page → $42.81
8	60138	LOCKNUT, M16	2		ADD TO CART
LOCKNUT, M16 60138 · qty on machine: 2 view full part page → $49.55
9	651037	SHOCK ABSORBER, STOPPER	1		ADD TO CART
SHOCK ABSORBER, STOPPER 651037 · qty on machine: 1 view full part page → $67.61
10	11622	HEX NUT, M10-1.5	1		PARTS REQUEST
PHOTO COMING HEX NUT, M10-1.5 11622 · qty on machine: 1 PARTS REQUEST
12	651040	HAND PUMP ASSEMBLY	1		ADD TO CART
HAND PUMP ASSEMBLY 651040 · qty on machine: 1 view full part page → $816.78
13	651141	TRAVEL LEVER	1		ADD TO CART
TRAVEL LEVER 651141 · qty on machine: 1 view full part page → $87.5
14	30282	SOCKET HEAD BOLT M10x20T	2		PARTS REQUEST
PHOTO COMING SOCKET HEAD BOLT M10x20T 30282 · qty on machine: 2 PARTS REQUEST
15	651247	COLLAR	1		ADD TO CART
COLLAR 651247 · qty on machine: 1 view full part page → $78.91
16	651223	WAVE WASHER 15.5x20x0.3	4		ADD TO CART
WAVE WASHER 15.5x20x0.3 651223 · qty on machine: 4 view full part page → $44.39
17	10453	HHCS, M8-1.25 x 50MM	2		PARTS REQUEST
PHOTO COMING HHCS, M8-1.25 x 50MM 10453 · qty on machine: 2 PARTS REQUEST
18	11617	LOCKNUT, M8x1.25	2		PARTS REQUEST
PHOTO COMING LOCKNUT, M8x1.25 11617 · qty on machine: 2 PARTS REQUEST
20	65CPC-160-20D	OIL HOSE	1		PARTS REQUEST
PHOTO COMING OIL HOSE 65CPC-160-20D · qty on machine: 1 PARTS REQUEST
21	10999	HHCS, M8-1.25 x 20MM	2		PARTS REQUEST
PHOTO COMING HHCS, M8-1.25 x 20MM 10999 · qty on machine: 2 PARTS REQUEST
22	11614	LOCKWASHER, M8	2		PARTS REQUEST
PHOTO COMING LOCKWASHER, M8 11614 · qty on machine: 2 PARTS REQUEST
23	651205	BREATHER CAP	1		ADD TO CART
BREATHER CAP 651205 · qty on machine: 1 view full part page → $86.39
24	651213	HANDLE BRACKET (L)	1		ADD TO CART
HANDLE BRACKET (L) 651213 · qty on machine: 1 view full part page → $78.61
25	651214	HANDLE BRACKET (R)	1		ADD TO CART
HANDLE BRACKET (R) 651214 · qty on machine: 1 view full part page → $92.81
26	651144	LOCK, HANDLE ASSY	1		ADD TO CART
LOCK, HANDLE ASSY 651144 · qty on machine: 1 view full part page → $70.21
27	651145	SPRING, LOCKING	1		ADD TO CART
SPRING, LOCKING 651145 · qty on machine: 1 view full part page → $40.05
28	651146	SPRING PIN M2x16	1		ADD TO CART
SPRING PIN M2x16 651146 · qty on machine: 1 view full part page → $37.75
29	14989	HHCS, M10-1.5 x 30MM	4		PARTS REQUEST
PHOTO COMING HHCS, M10-1.5 x 30MM 14989 · qty on machine: 4 PARTS REQUEST
31	651142	HANDLE GRIP	1		ADD TO CART
HANDLE GRIP 651142 · qty on machine: 1 view full part page → $116.7
32	30281	HHCS, M6-1.0 x 25MM	2		PARTS REQUEST
PHOTO COMING HHCS, M6-1.0 x 25MM 30281 · qty on machine: 2 PARTS REQUEST
33	14448	LOCKWASHER, M6	2		PARTS REQUEST
PHOTO COMING LOCKWASHER, M6 14448 · qty on machine: 2 PARTS REQUEST
34	14447	WASHER, M6	2		PARTS REQUEST
PHOTO COMING WASHER, M6 14447 · qty on machine: 2 PARTS REQUEST
2.2	651055	THROTTLE CABLE ONLY			ADD TO CART
THROTTLE CABLE ONLY 651055 view full part page → $61.42
4.4	651245	HANDLE UPPER ASSEMBLY	1		ADD TO CART
HANDLE UPPER ASSEMBLY 651245 · qty on machine: 1 view full part page → $457.42
4.4	651245	HANDLE LOWER ASSEMBLY	1		ADD TO CART
HANDLE LOWER ASSEMBLY 651245 · qty on machine: 1 view full part page → $457.42
30.29	11621	LOCKWASHER, M10	1		PARTS REQUEST
PHOTO COMING LOCKWASHER, M10 11621 · qty on machine: 1 PARTS REQUEST
34.34	651035	ON/OFF SWITCH	1	(NOT SHOWN)	ADD TO CART
ON/OFF SWITCH 651035 · qty on machine: 1 (NOT SHOWN) view full part page → $54.48

Page 16 — HAND PUMP ASSEMBLY: BR2750

Bartell BR2750 Plate Compactor HAND PUMP ASSEMBLY: BR2750 parts diagram

Parts list — exactly as printed25 rows

No.	Part No.	Part Name	Qty	Remarks
1	651130	CAM ASSEM (PUMP) INCL. #6,7,8,9	1		ADD TO CART
CAM ASSEM (PUMP) INCL. #6,7,8,9 651130 · qty on machine: 1 view full part page → $131.25
2	65CPC-160-2E	COVER (HAND PUMP)	1		PARTS REQUEST
PHOTO COMING COVER (HAND PUMP) 65CPC-160-2E · qty on machine: 1 PARTS REQUEST
3	651181	PISTON HAND PUMP	1		ADD TO CART
PISTON HAND PUMP 651181 · qty on machine: 1 view full part page → $124.89
4	651131	CONTROL SHAFT (PUMP)	1		ADD TO CART
CONTROL SHAFT (PUMP) 651131 · qty on machine: 1 view full part page → $79.56
5	651209	BUSHING	2		ADD TO CART
BUSHING 651209 · qty on machine: 2 view full part page → $86.13
6	65CPC-160-6E	CAN (PUMP)	1	Kit 651130 Only	PARTS REQUEST
PHOTO COMING CAN (PUMP) 65CPC-160-6E · qty on machine: 1 Kit 651130 Only PARTS REQUEST
7	65CPC-160-7E	BEARING 607ZZ	2	Kit 651130 Only	PARTS REQUEST
PHOTO COMING BEARING 607ZZ 65CPC-160-7E · qty on machine: 2 Kit 651130 Only PARTS REQUEST
8	65CPC-160-8E	SPACER	2	Kit 651130 Only	PARTS REQUEST
PHOTO COMING SPACER 65CPC-160-8E · qty on machine: 2 Kit 651130 Only PARTS REQUEST
9	65CPC-160-9E	PIN M7 x 30MM	1	Kit 651130 Only	PARTS REQUEST
PHOTO COMING PIN M7 x 30MM 65CPC-160-9E · qty on machine: 1 Kit 651130 Only PARTS REQUEST
10	651132	PIN M6 X 26MM	1		ADD TO CART
PIN M6 X 26MM 651132 · qty on machine: 1 view full part page → $63.05
11	65CPC-160-11E	SPRING (PUMP)	1		PARTS REQUEST
PHOTO COMING SPRING (PUMP) 65CPC-160-11E · qty on machine: 1 PARTS REQUEST
12	65CPC-160-12E	STOPPER (PUMP)	1		PARTS REQUEST
PHOTO COMING STOPPER (PUMP) 65CPC-160-12E · qty on machine: 1 PARTS REQUEST
13	651201	PLUG	1		PARTS REQUEST
PHOTO COMING PLUG 651201 · qty on machine: 1 PARTS REQUEST
14	65CPC-160-14E	STOP PLUG	1		PARTS REQUEST
PHOTO COMING STOP PLUG 65CPC-160-14E · qty on machine: 1 PARTS REQUEST
15	651246	HOSE FITTING	1		PARTS REQUEST
PHOTO COMING HOSE FITTING 651246 · qty on machine: 1 PARTS REQUEST
16	31238	SHCS, M6-1.0 X 35MM	4		PARTS REQUEST
PHOTO COMING SHCS, M6-1.0 X 35MM 31238 · qty on machine: 4 PARTS REQUEST
17	651205	BREATHER (PUMP)	1		ADD TO CART
BREATHER (PUMP) 651205 · qty on machine: 1 view full part page → $86.39
18	65CPC-160-18E	O-RING G-25	1	Kit 651129 Only	PARTS REQUEST
PHOTO COMING O-RING G-25 65CPC-160-18E · qty on machine: 1 Kit 651129 Only PARTS REQUEST
19	65CPC-160-19E	O-RING P-20	2	Kit 651129 Only	PARTS REQUEST
PHOTO COMING O-RING P-20 65CPC-160-19E · qty on machine: 2 Kit 651129 Only PARTS REQUEST
20	65CPC-160-20E	O-RING P-15	2	Kit 651129 Only	PARTS REQUEST
PHOTO COMING O-RING P-15 65CPC-160-20E · qty on machine: 2 Kit 651129 Only PARTS REQUEST
21	65CPC-160-21E	O-RING S-67	1	Kit 651129 Only	PARTS REQUEST
PHOTO COMING O-RING S-67 65CPC-160-21E · qty on machine: 1 Kit 651129 Only PARTS REQUEST
22	65CPC-160-22E	O-RING S-8	1	Kit 651129 Only	PARTS REQUEST
PHOTO COMING O-RING S-8 65CPC-160-22E · qty on machine: 1 Kit 651129 Only PARTS REQUEST
23	65CPC-160-23E	O-RING S-22	1	Kit 651129 Only	PARTS REQUEST
PHOTO COMING O-RING S-22 65CPC-160-23E · qty on machine: 1 Kit 651129 Only PARTS REQUEST
24	65CPC-160-24E	O-RING P-18	1	Kit 651129 Only	PARTS REQUEST
PHOTO COMING O-RING P-18 65CPC-160-24E · qty on machine: 1 Kit 651129 Only PARTS REQUEST
1.25	651129	O-RING KIT INCL. #18,19,20,21,22,23,24	1		ADD TO CART
O-RING KIT INCL. #18,19,20,21,22,23,24 651129 · qty on machine: 1 view full part page → $78.03

Page 18 — WHEELS: BR2750

Bartell BR2750 Plate Compactor WHEELS: BR2750 parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty
1	60084	HHCS, M12-1.75 x 125MM	1	PARTS REQUEST
PHOTO COMING HHCS, M12-1.75 x 125MM 60084 · qty on machine: 1 PARTS REQUEST
2	65CPC-160-02F	COLLAR	4	PARTS REQUEST
PHOTO COMING COLLAR 65CPC-160-02F · qty on machine: 4 PARTS REQUEST
5	65CPC-160-04F	WHEELS PLATE	2	PARTS REQUEST
PHOTO COMING WHEELS PLATE 65CPC-160-04F · qty on machine: 2 PARTS REQUEST
6	14267	WASHER, M12	2	PARTS REQUEST
PHOTO COMING WASHER, M12 14267 · qty on machine: 2 PARTS REQUEST
7	10956	LOCKNUT, M12-1.75	1	ADD TO CART
LOCKNUT, M12-1.75 10956 · qty on machine: 1 view full part page → $37.21
8	651079	RETAINING RING	2	ADD TO CART
RETAINING RING 651079 · qty on machine: 2 view full part page → $34.97
9	651085	WHEELS	2	ADD TO CART
WHEELS 651085 · qty on machine: 2 view full part page → $92.12
10	651105	WHEEL KIT ASSEMBLY	1	ADD TO CART
WHEEL KIT ASSEMBLY 651105 · qty on machine: 1 view full part page → $148.26
11	65CPC-160-03F	WHEELS FRAME	1	PARTS REQUEST
PHOTO COMING WHEELS FRAME 65CPC-160-03F · qty on machine: 1 PARTS REQUEST
13	65CPC-160-13F	WASHER DIA 15mm	2	PARTS REQUEST
PHOTO COMING WASHER DIA 15mm 65CPC-160-13F · qty on machine: 2 PARTS REQUEST
11.11	651042	RUBBER HOLDER (NOT SHOWN)	1	ADD TO CART
RUBBER HOLDER (NOT SHOWN) 651042 · qty on machine: 1 view full part page → $62.8

The machine itself

$5,490.00 Get a quote

In stock and ready to order. Freight added at checkout.

Compacts granular base and asphalt patches with flat, even passes. Key numbers: Weight 335 lbs; Power Output 5.5 hp. Available to order from CCE Industries, with freight added at checkout. Factory documentation backs every listing.

Keep-it-running spares

All listed parts →

Every part that fits this machine

10077 HHCS, M10-1.5 x 35MM $37.68

10208 KEY 5x5x30 $36.14

10453 HHCS, M8-1.25 x 50MM

10730 NUT, M12 x 1.75

10735 LOCKWASHER, M12

10956 LOCKNUT, M12-1.75 $37.21

10993 WASHER, M12

10999 HHCS, M8-1.25 x 20MM

11499 SPACER $39.13

11614 LOCKWASHER, M8

11617 NYLON NUT M8

11619 HHCS, M8-1.25x25MM

11621 LOCKWASHER, M10

11622 HEX NUT, M10-1.5

11667 WASHER, M8

11924 HHCS, M10-1.5 X 40MM $39.16

14267 WASHER, M12

14447 WASHER, M6

14448 LOCKWASHER, M6

14985 SHCS, M10-1.50 x 30MM

14986 SHCS, M8-1.25 x 30MM LG.

14989 HHCS, M10-1.5 x 30MM

21417 HONDA, GX200

24240 ROLLER BEARING, NJ307E $348.03

24241 BEARING 6907 $192.83

24242 BEARING 6000ZZ $61.14

30041 FHSCS, 5/16-24 x 3/4"

30042 CLUTCH WASHER $42.28

30195 V-BELT, AX34 $72.23

30202 CLUTCH ASSEMBLY $444.96

30281 HHCS, M6-1.0 x 25MM

30282 SOCKET HEAD BOLT M10x20T

31105 SHCS, M8-1.25 x 60MM LG. $40.47

31180 HHCS, M12-1.75 x 30MM

31238 SHCS, M6-1.0 X 35MM

31373 STOP RING S-35 $39.85

41516 WASHER, M10

50621 FHSCS M6-1.0 x 25MM

60083 STOP RING S-10 $34.09

60084 HHCS, M12-1.75 x 125MM

60138 LOCKNUT, M16 $49.55

651021 VIBRATOR ASSEMBLY $201.50

651033 RUBBER MOUNT, SHOCK ABSORBER $101.86

651035 ON/OFF SWITCH $54.48

651037 SHOCK ABSORBER, STOPPER $67.61

651040 HAND PUMP ASSEMBLY $816.78

651042 RUBBER HOLDER (NOT SHOWN) $62.80

651050 THROTTLE LEVER ASSEMBLY W/CABLE $133.62

651055 THROTTLE CABLE ONLY $61.42

651060 OIL PLUG M16x1.5 $49.47

651061 OIL PLUG SEAL, M16 $54.95

651073 WASHER, M16 $36.64

651074 EXCITER PISTON RING $58.41

651079 RETAINING RING $34.97

651081 HYD BOLT, M8-1.25 x 12MM $41.38

651085 WHEELS $92.12

651105 WHEEL KIT ASSEMBLY $148.26

651129 O-RING KIT INCL. #18,19,20,21,22,23,24 $78.03

651130 CAM ASSEM (PUMP) INCL. #6,7,8,9 $131.25

651131 CONTROL SHAFT (PUMP) $79.56

651132 PIN M6 X 26MM $63.05

651141 TRAVEL LEVER $87.50

651142 HANDLE GRIP $116.70

651144 LOCK, HANDLE ASSY $70.21

651145 SPRING, LOCKING $40.05

651146 SPRING PIN M2x16 $37.75

651147 OIL SEAL SC-28458 $64.04

651149 CYLINDER $287.71

651151 PISTON, 22.4ID $94.84

651152 SEAL CAP $55.99

651176 RUBBER COVER $93.44

651181 PISTON HAND PUMP $124.89

651201 PLUG

651202 STOP RING R-26 $49.44

651204 PIN 8x50 $48.28

651205 BREATHER CAP $86.39

651209 BUSHING $86.13

651213 HANDLE BRACKET (L) $78.61

651214 HANDLE BRACKET (R) $92.81

651220 KEY 10x8x19

651223 WAVE WASHER 15.5x20x0.3 $44.39

651245 HANDLE UPPER ASSEMBLY $457.42

651246 HOSE FITTING

651247 COLLAR $78.91

65CPC-160-02F COLLAR

65CPC-160-03F WHEELS FRAME

65CPC-160-04F WHEELS PLATE

65CPC-160-11E SPRING (PUMP)

65CPC-160-12E STOPPER (PUMP)

65CPC-160-13F WASHER DIA 15mm

65CPC-160-14B DUST COVER

65CPC-160-14E STOP PLUG

65CPC-160-15C ECCENTRIC WEIGHT

65CPC-160-16B SPONGE, DUST COVER $61.25

65CPC-160-17B BELT COVER OUT

65CPC-160-18C BEARING COVER

65CPC-160-18E O-RING G-25

65CPC-160-19E O-RING P-20

65CPC-160-1A VIBRATING PLATE

65CPC-160-1B BASE

65CPC-160-1C VIBRATING CASE

65CPC-160-20D OIL HOSE

65CPC-160-20E O-RING P-15

65CPC-160-21E O-RING S-67

65CPC-160-22E O-RING S-8

65CPC-160-23E O-RING S-22

65CPC-160-24E O-RING P-18

65CPC-160-26B UNION

65CPC-160-27B DRAIN HOSE

65CPC-160-27C GEAR (DRIVE)

65CPC-160-28B HOSE CLAMP

65CPC-160-28C GEAR (DRIVEN)

65CPC-160-29B GASKET

65CPC-160-2E COVER (HAND PUMP)

65CPC-160-30B PLUG

65CPC-160-31B JOINT BLOCK

65CPC-160-3C ROTARY SHAFT, DRIVE

65CPC-160-4C ROTARY SHAFT, DRIVEN

65CPC-160-5D BOLT M16x145T $50.31

65CPC-160-6B BELT COVER PLATE

65CPC-160-6E CAN (PUMP)

65CPC-160-7E BEARING 607ZZ

65CPC-160-8C PISTON ROD

65CPC-160-8E SPACER

65CPC-160-9E PIN M7 x 30MM

65CPC-60-7D SPRING WASHER M16 $42.81

From the guides desk

Guide · 2026-07-31

How to Operate Bartell Global Plate Compactors Safely

Step-by-step guide for contractors operating Bartell Global plate compactors. Pre-op checks, startup, shutdown, and safety rules for new ...

Read it →

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Bartell BR2750 Plate Compactor

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

How to Operate Bartell Global Plate Compactors Safely

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
