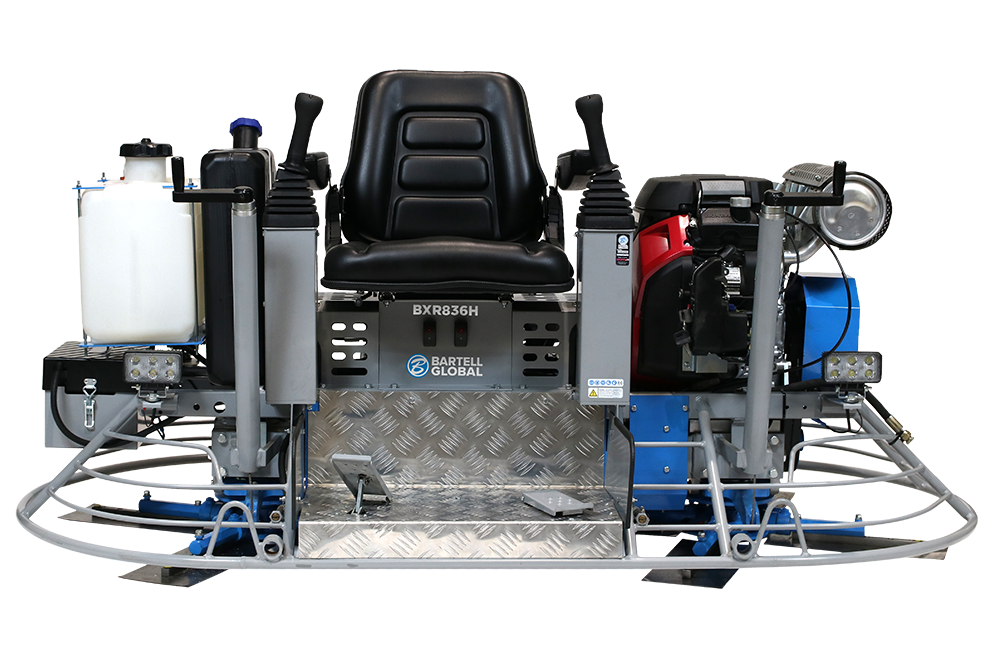

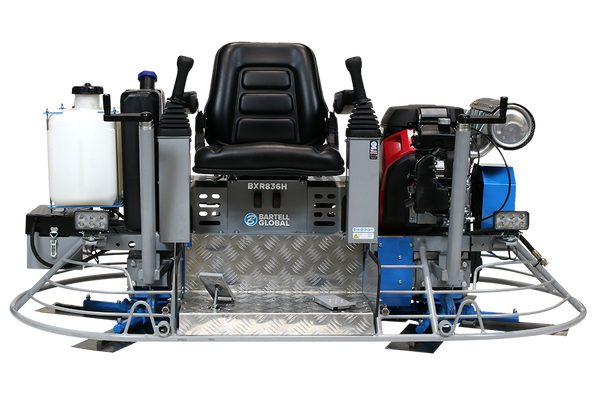

Bartell BXR836 HYDRAULIC Ride-On Power Trowel
The parts bench
Need the PDF? ↓Page 4 — BXR836HYD, FRAME
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 88836H0453 | SEAT | 1 | PARTS REQUEST | |
|
COMING SEAT
88836H0453 · qty on machine: 1 | |||||
| 2 | 88836H0879 | SEAT FRAME | 1 | PARTS REQUEST | |
|
COMING SEAT FRAME
88836H0879 · qty on machine: 1 | |||||
| 3 | 88836H0538 | COVER PLATE, BOTTOM | 1 | PARTS REQUEST | |
|
COMING COVER PLATE, BOTTOM
88836H0538 · qty on machine: 1 | |||||
| 4 | 88836H1436 | FOOT PLATE | 1 | PARTS REQUEST | |
|
COMING FOOT PLATE
88836H1436 · qty on machine: 1 | |||||
| 5 | 88836H0539L | COVER PLATE, LEFT | 1 | PARTS REQUEST | |
|
COMING COVER PLATE, LEFT
88836H0539L · qty on machine: 1 | |||||
| 6 | 88836H0539R | COVER PLATE, RIGHT | 1 | PARTS REQUEST | |
|
COMING COVER PLATE, RIGHT
88836H0539R · qty on machine: 1 | |||||
| 7 | 24248 | BELT GUARD | 1 | PARTS REQUEST | |
|
COMING BELT GUARD
24248 · qty on machine: 1 | |||||
| 8 | 24243 | BATTERY COVER | 1 | ADD TO CART | |
| 9 | 888360464 | BATTERY BOX | 1 | PARTS REQUEST | |
|
COMING BATTERY BOX
888360464 · qty on machine: 1 | |||||
| 10 | 888360019 | BATTERY | 1 | PARTS REQUEST | |
|
COMING BATTERY
888360019 · qty on machine: 1 | |||||
| 11 | 918361437 | COVER PLATE, THROTTLE | 1 | PARTS REQUEST | |
|
COMING COVER PLATE, THROTTLE
918361437 · qty on machine: 1 | |||||
| 12 | 88836H0452 | GUARD RING | 1 | PARTS REQUEST | |
|
COMING GUARD RING
88836H0452 · qty on machine: 1 | |||||
| 13 | 88836H054R | HANDLE FRAME, RIGHT | 1 | PARTS REQUEST | |
|
COMING HANDLE FRAME, RIGHT
88836H054R · qty on machine: 1 | |||||
| 14 | 88836H054L | HANDLE FRAME, LEFT | 1 | PARTS REQUEST | |
|
COMING HANDLE FRAME, LEFT
88836H054L · qty on machine: 1 | |||||
| 15 | 888360598 | LIGHT | 2 | PARTS REQUEST | |
|
COMING LIGHT
888360598 · qty on machine: 2 | |||||
| 16 | 888361073 | WATER TANK, PLASTIC | 1 | ADD TO CART | |
| 17 | 18150 | KIT CARB FUEL TANK & PARTS 6 GAL | 1 | ADD TO CART | |
| 18 | 24253 | TANK CAP FOR PLASTIC WATERTANK | 1 | ADD TO CART | |
| 19 | 888360592a | THROTTLE CONTROL PEDAL | 1 | PARTS REQUEST | |
|
COMING THROTTLE CONTROL PEDAL
888360592a · qty on machine: 1 | |||||
| 20 | 24216 | SAFETY SWITCH PEDAL | 1 | ADD TO CART | |
| 21 | 888360968 | CONNECTOR, BATTERY | 2 | PARTS REQUEST | |
|
COMING CONNECTOR, BATTERY
888360968 · qty on machine: 2 | |||||
| 22 | 888369539 | SWITCH | 1 | PARTS REQUEST | |
|
COMING SWITCH
888369539 · qty on machine: 1 | |||||
| 23 | 888361425 | FOOT THROTTLE PART | 1 | PARTS REQUEST | |
|
COMING FOOT THROTTLE PART
888361425 · qty on machine: 1 | |||||
| 24 | 888361426 | FOOT THROTTLE PART | 1 | PARTS REQUEST | |
|
COMING FOOT THROTTLE PART
888361426 · qty on machine: 1 | |||||
| 25 | 888361427 | FOOT THROTTLE PART | 1 | PARTS REQUEST | |
|
COMING FOOT THROTTLE PART
888361427 · qty on machine: 1 | |||||
| 26 | 888361428 | FOOT THROTTLE PART | 1 | PARTS REQUEST | |
|
COMING FOOT THROTTLE PART
888361428 · qty on machine: 1 | |||||
| 27 | 24216 | SAFETY SWITCH | 1 | ADD TO CART | |
| 28 | 884365403 | CLAMP | 1 | PARTS REQUEST | |
|
COMING CLAMP
884365403 · qty on machine: 1 | |||||
| 29 | 88836H1378 | TANK FRAME | 2 | PARTS REQUEST | |
|
COMING TANK FRAME
88836H1378 · qty on machine: 2 | |||||
| 30 | 889902 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
889902 · qty on machine: 4 | |||||
| 31 | 889023 | NUT | 4 | PARTS REQUEST | |
|
COMING NUT
889023 · qty on machine: 4 | |||||
| 32 | 889098 | BOLT | 8 | PARTS REQUEST | |
|
COMING BOLT
889098 · qty on machine: 8 | |||||
| 33 | 889037 | SPRING WASHER | 20 | PARTS REQUEST | |
|
COMING SPRING WASHER
889037 · qty on machine: 20 | |||||
| 34 | 889038 | WASHER | 20 | PARTS REQUEST | |
|
COMING WASHER
889038 · qty on machine: 20 | |||||
| 35 | 889306 | NUT | 8 | PARTS REQUEST | |
|
COMING NUT
889306 · qty on machine: 8 | |||||
| 36 | 889511 | BOLT | 1 | PARTS REQUEST | |
|
COMING BOLT
889511 · qty on machine: 1 | |||||
| 37 | 889661 | WASHER | 3 | PARTS REQUEST | |
|
COMING WASHER
889661 · qty on machine: 3 | |||||
| 38 | 889504 | SPRING WASHER | 3 | PARTS REQUEST | |
|
COMING SPRING WASHER
889504 · qty on machine: 3 | |||||
| 39 | 889512 | BOLT | 2 | PARTS REQUEST | |
|
COMING BOLT
889512 · qty on machine: 2 | |||||
| 40 | 889133 | BOLT | 8 | PARTS REQUEST | |
|
COMING BOLT
889133 · qty on machine: 8 | |||||
| 41 | 889022 | SPRING WASHER | 16 | PARTS REQUEST | |
|
COMING SPRING WASHER
889022 · qty on machine: 16 | |||||
| 42 | 889330 | WASHER | 16 | PARTS REQUEST | |
|
COMING WASHER
889330 · qty on machine: 16 | |||||
| 43 | 889097 | BOLT | 12 | PARTS REQUEST | |
|
COMING BOLT
889097 · qty on machine: 12 | |||||
| 44 | 889380 | BOLT | 8 | PARTS REQUEST | |
|
COMING BOLT
889380 · qty on machine: 8 | |||||
| 45 | 889236 | NUT | 4 | PARTS REQUEST | |
|
COMING NUT
889236 · qty on machine: 4 | |||||
| 46 | 889040 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
889040 · qty on machine: 4 | |||||
Page 8 — BXR836HYD, POWER SYSTEM
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 24247 | PULLEY | 1 | ADD TO CART | |
| 2 | 24218 | MOUNTING PLATE, TENSIONER | 1 | PARTS REQUEST | |
|
COMING MOUNTING PLATE, TENSIONER
24218 · qty on machine: 1 | |||||
| 3 | 24219 | TENSIONER PLATE, PULLEY | 1 | ADD TO CART | |
| 4 | 888361461A | TENSIONER | 1 | PARTS REQUEST | |
|
COMING TENSIONER
888361461A · qty on machine: 1 | |||||
| 5 | 888361610 | BOLT | 1 | PARTS REQUEST | |
|
COMING BOLT
888361610 · qty on machine: 1 | |||||
| 6 | 888361423 | ENGINE MOUNTING BAR | 1 | PARTS REQUEST | |
|
COMING ENGINE MOUNTING BAR
888361423 · qty on machine: 1 | |||||
| 7 | 888361424 | ENGINE MOUNTING BAR | 1 | PARTS REQUEST | |
|
COMING ENGINE MOUNTING BAR
888361424 · qty on machine: 1 | |||||
| 8 | 88836H1423 | ENGINE MOUNTING BAR | 1 | PARTS REQUEST | |
|
COMING ENGINE MOUNTING BAR
88836H1423 · qty on machine: 1 | |||||
| 9 | 88836H1424 | ENGINE MOUNTING BAR | 1 | PARTS REQUEST | |
|
COMING ENGINE MOUNTING BAR
88836H1424 · qty on machine: 1 | |||||
| 10 | 88JG846A030006 | BUSHING | 1 | PARTS REQUEST | |
|
COMING BUSHING
88JG846A030006 · qty on machine: 1 | |||||
| 11 | 888360060 | WASHER | 1 | PARTS REQUEST | |
|
COMING WASHER
888360060 · qty on machine: 1 | |||||
| 12 | 888361611G | BOLT | 1 | PARTS REQUEST | |
|
COMING BOLT
888361611G · qty on machine: 1 | |||||
| 13 | 21400 | ENGINE, GX690 | 1 | PARTS REQUEST | |
|
COMING ENGINE, GX690
21400 · qty on machine: 1 | |||||
| 14 | 888361607G | OIL TUBE | 1 | PARTS REQUEST | |
|
COMING OIL TUBE
888361607G · qty on machine: 1 | |||||
| 15 | 888361786 | SPRING | 1 | PARTS REQUEST | |
|
COMING SPRING
888361786 · qty on machine: 1 | |||||
| 16 | 888369063A | BEARING | 2 | PARTS REQUEST | |
|
COMING BEARING
888369063A · qty on machine: 2 | |||||
| 17 | 24201 | BELT | 2 | ADD TO CART | |
| 18 | 10269 | BOLT | 1 | PARTS REQUEST | |
|
COMING BOLT
10269 · qty on machine: 1 | |||||
| 19 | 13491 | SPRING WASHER | 3 | ADD TO CART | |
| 20 | 888369155 | KEY | 1 | PARTS REQUEST | |
|
COMING KEY
888369155 · qty on machine: 1 | |||||
| 21 | 24200 | CLUTCH | 1 | PARTS REQUEST | |
|
COMING CLUTCH
24200 · qty on machine: 1 | |||||
| 22 | 884365403 | CLAMP | 1 | PARTS REQUEST | |
|
COMING CLAMP
884365403 · qty on machine: 1 | |||||
| 23 | 888369019 | BOLT | 1 | PARTS REQUEST | |
|
COMING BOLT
888369019 · qty on machine: 1 | |||||
| 24 | 24238 | THROTTLE CABLE | 1 | ADD TO CART | |
| 25 | 888369523 | THROTTLE CABLE SLEEVE | 1 | PARTS REQUEST | |
|
COMING THROTTLE CABLE SLEEVE
888369523 · qty on machine: 1 | |||||
| 26 | 88836H0551 | FLANGE | 1 | PARTS REQUEST | |
|
COMING FLANGE
88836H0551 · qty on machine: 1 | |||||
| 27 | 88836H0552 | SUPPORTING FRAME | 1 | PARTS REQUEST | |
|
COMING SUPPORTING FRAME
88836H0552 · qty on machine: 1 | |||||
| 28 | 889605 | BOLT | 1 | PARTS REQUEST | |
|
COMING BOLT
889605 · qty on machine: 1 | |||||
| 29 | 889036 | NUT | 4 | PARTS REQUEST | |
|
COMING NUT
889036 · qty on machine: 4 | |||||
| 30 | 889018 | BOLT | 9 | PARTS REQUEST | |
|
COMING BOLT
889018 · qty on machine: 9 | |||||
| 31 | 889046 | SPRING WASHER | 9 | PARTS REQUEST | |
|
COMING SPRING WASHER
889046 · qty on machine: 9 | |||||
| 32 | 889047 | WASHER | 9 | PARTS REQUEST | |
|
COMING WASHER
889047 · qty on machine: 9 | |||||
| 33 | 889098 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
889098 · qty on machine: 4 | |||||
| 34 | 889037 | SPRING WASHER | 6 | PARTS REQUEST | |
|
COMING SPRING WASHER
889037 · qty on machine: 6 | |||||
| 35 | 889038 | WASHER | 6 | PARTS REQUEST | |
|
COMING WASHER
889038 · qty on machine: 6 | |||||
| 36 | 889330 | WASHER | 12 | PARTS REQUEST | |
|
COMING WASHER
889330 · qty on machine: 12 | |||||
| 37 | 889022 | SPRING WASHER | 12 | PARTS REQUEST | |
|
COMING SPRING WASHER
889022 · qty on machine: 12 | |||||
| 38 | 889093 | BOLT | 12 | PARTS REQUEST | |
|
COMING BOLT
889093 · qty on machine: 12 | |||||
| 39 | 889232 | BOLT | 2 | PARTS REQUEST | |
|
COMING BOLT
889232 · qty on machine: 2 | |||||
| 40 | 11869 | FHSCS, M6-1X8MM | 2 | PARTS REQUEST | |
|
COMING FHSCS, M6-1X8MM
11869 · qty on machine: 2 | |||||
| 41 | 889262 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
889262 · qty on machine: 4 | |||||
| 42 | 889040 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
889040 · qty on machine: 4 | |||||
Page 12 — BXR836HYD, STEERING AND BLADE PITCH SYSTEM
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 888360484A | BRACKET, LEFT | 1 | PARTS REQUEST | |
|
COMING BRACKET, LEFT
888360484A · qty on machine: 1 | |||||
| 2 | 888360491A | BRACKET, RIGHT | 1 | PARTS REQUEST | |
|
COMING BRACKET, RIGHT
888360491A · qty on machine: 1 | |||||
| 3 | 888360494A | BRACKET | 1 | PARTS REQUEST | |
|
COMING BRACKET
888360494A · qty on machine: 1 | |||||
| 4 | 888360485A | BOLT | 3 | PARTS REQUEST | |
|
COMING BOLT
888360485A · qty on machine: 3 | |||||
| 5 | 88836H0492A | BOLT | 1 | PARTS REQUEST | |
|
COMING BOLT
88836H0492A · qty on machine: 1 | |||||
| 6 | 88B8360470 | PITCH HANDLE | 2 | PARTS REQUEST | |
|
COMING PITCH HANDLE
88B8360470 · qty on machine: 2 | |||||
| 7 | 884465502 | BUSHING | 2 | PARTS REQUEST | |
|
COMING BUSHING
884465502 · qty on machine: 2 | |||||
| 8 | 884365503 | ADJUST SHAFT | 2 | PARTS REQUEST | |
|
COMING ADJUST SHAFT
884365503 · qty on machine: 2 | |||||
| 9 | 884365504 | WASHER | 2 | PARTS REQUEST | |
|
COMING WASHER
884365504 · qty on machine: 2 | |||||
| 10 | 884465505 | ADJUST SHAFT BUSHING | 2 | PARTS REQUEST | |
|
COMING ADJUST SHAFT BUSHING
884465505 · qty on machine: 2 | |||||
| 11 | 24215 | PITCH CONTROL CABLE | 2 | ADD TO CART | |
| 12 | 24202 | GEARBOX, RIGHT | 1 | PARTS REQUEST | |
|
COMING GEARBOX, RIGHT
24202 · qty on machine: 1 | |||||
| 13 | 24203 | GEARBOX, LEFT | 1 | PARTS REQUEST | |
|
COMING GEARBOX, LEFT
24203 · qty on machine: 1 | |||||
| 14 | 24230 | RUBBER COVER | 2 | PARTS REQUEST | |
|
COMING RUBBER COVER
24230 · qty on machine: 2 | |||||
| 15 | 24229 | U-JOINT SHAFT | 1 | PARTS REQUEST | |
|
COMING U-JOINT SHAFT
24229 · qty on machine: 1 | |||||
| 16 | 21712 | EXTERNAL RETAINING RING | 2 | ADD TO CART | |
| 17 | 21725 | SHCS,M6-1x6MM | 2 | PARTS REQUEST | |
|
COMING SHCS,M6-1x6MM
21725 · qty on machine: 2 | |||||
| 18 | 21724 | SPRING PIN, M5x35MM | 4 | ADD TO CART | |
| 19 | 889016 | NUT | 2 | PARTS REQUEST | |
|
COMING NUT
889016 · qty on machine: 2 | |||||
| 20 | 889025 | BEARING | 2 | PARTS REQUEST | |
|
COMING BEARING
889025 · qty on machine: 2 | |||||
| 21 | 889093 | BOLT | 2 | PARTS REQUEST | |
|
COMING BOLT
889093 · qty on machine: 2 | |||||
Page 14 — BXR836HYD, GEARBOX ASSEMBLY LEFT (CW)
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 888364003L | GEARBOX CASING, LEFT | 1 | PARTS REQUEST | |
|
COMING GEARBOX CASING, LEFT
888364003L · qty on machine: 1 | |||||
| 3 | 888364005 | GEARBOX COVER | 1 | PARTS REQUEST | |
|
COMING GEARBOX COVER
888364005 · qty on machine: 1 | |||||
| 4 | 21734 | PRESSURE WASHER | 1 | ADD TO CART | |
| 5 | 884344007 | BOLT | 2 | PARTS REQUEST | |
|
COMING BOLT
884344007 · qty on machine: 2 | |||||
| 6 | 884364100 | RELEASE VALVE | 1 | PARTS REQUEST | |
|
COMING RELEASE VALVE
884364100 · qty on machine: 1 | |||||
| 8 | 888364010L | BRONZE GEAR, LEFT | 1 | PARTS REQUEST | |
|
COMING BRONZE GEAR, LEFT
888364010L · qty on machine: 1 | |||||
| 10 | 21818 | SHAFT, YOKE ARM | 1 | ADD TO CART | |
| 11 | 24206 | YOKE ARM | 1 | PARTS REQUEST | |
|
COMING YOKE ARM
24206 · qty on machine: 1 | |||||
| 12 | 888364011L | MAIN SHAFT, LEFT | 1 | ADD TO CART | |
| 14 | 21739 | BEARING FLANGE | 1 | PARTS REQUEST | |
|
COMING BEARING FLANGE
21739 · qty on machine: 1 | |||||
| 16 | 888364013L | COUNTER SHAFT, LEFT | 1 | PARTS REQUEST | |
|
COMING COUNTER SHAFT, LEFT
888364013L · qty on machine: 1 | |||||
| 18 | 888364014 | BEARING FLANGE | 1 | PARTS REQUEST | |
|
COMING BEARING FLANGE
888364014 · qty on machine: 1 | |||||
| 20 | 21770 | PRESSURE PLATE COVER | 1 | ADD TO CART | |
| 21 | 888366003 | PRESSURE PLATE | 1 | PARTS REQUEST | |
|
COMING PRESSURE PLATE
888366003 · qty on machine: 1 | |||||
| 22 | 24209 | LEFT SPIDER PLATE | 1 | ADD TO CART | |
| 24 | 24234 | BUSHING | 1 | PARTS REQUEST | |
|
COMING BUSHING
24234 · qty on machine: 1 | |||||
| 25 | 24232 | LIFT LEVER | 4 | PARTS REQUEST | |
|
COMING LIFT LEVER
24232 · qty on machine: 4 | |||||
| 27 | 24207 | TROWEL ARM | 4 | ADD TO CART | |
| 28 | 20660 | BLADE, 6”x14” | 4 | ADD TO CART | |
| 30 | 889043 | BOLT | 12 | PARTS REQUEST | |
|
COMING BOLT
889043 · qty on machine: 12 | |||||
| 31 | 889118 | BOLT | 8 | PARTS REQUEST | |
|
COMING BOLT
889118 · qty on machine: 8 | |||||
| 32 | 21754 | BEARING | 1 | PARTS REQUEST | |
|
COMING BEARING
21754 · qty on machine: 1 | |||||
| 33 | 31369 | BEARING | 1 | ADD TO CART | |
| 34 | 889064 | SIGHT GLASS | 1 | ADD TO CART | |
| 35 | 889055 | SEAL | 2 | PARTS REQUEST | |
|
COMING SEAL
889055 · qty on machine: 2 | |||||
| 36 | 889531 | KEY | 1 | PARTS REQUEST | |
|
COMING KEY
889531 · qty on machine: 1 | |||||
| 37 | 31438 | BEARING | 1 | ADD TO CART | |
| 38 | 10603 | BEARING | 1 | ADD TO CART | |
| 39 | 21757 | SEAL | 1 | ADD TO CART | |
| 40 | 50459 | KEY | 1 | ADD TO CART | |
| 41 | 889156 | KEY | 1 | PARTS REQUEST | |
|
COMING KEY
889156 · qty on machine: 1 | |||||
| 42 | 21747 | PLUG | 12 | ADD TO CART | |
| 43 | 889532 | KEY | 2 | PARTS REQUEST | |
|
COMING KEY
889532 · qty on machine: 2 | |||||
| 44 | 21776 | BEARING | 1 | ADD TO CART | |
| 45 | 889066 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
889066 · qty on machine: 4 | |||||
| 46 | 889067 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
889067 · qty on machine: 4 | |||||
| 47 | 889059 | NUT | 8 | PARTS REQUEST | |
|
COMING NUT
889059 · qty on machine: 8 | |||||
| 48 | 889071 | BOLT | 8 | PARTS REQUEST | |
|
COMING BOLT
889071 · qty on machine: 8 | |||||
| 49 | 889037 | SPRING WASHER | 8 | PARTS REQUEST | |
|
COMING SPRING WASHER
889037 · qty on machine: 8 | |||||
| 50 | 11903 | BOLT | 1 | PARTS REQUEST | |
|
COMING BOLT
11903 · qty on machine: 1 | |||||
| 51 | 889202 | RETAINER PLUG | 2 | PARTS REQUEST | |
|
COMING RETAINER PLUG
889202 · qty on machine: 2 | |||||
| 52 | 889072 | PLUG | 4 | PARTS REQUEST | |
|
COMING PLUG
889072 · qty on machine: 4 | |||||
Page 18 — BXR836HYD, GEARBOX ASSEMBLY RIGHT (CCW)
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 888364003R | GEARBOX CASING, RIGHT | 1 | PARTS REQUEST | |
|
COMING GEARBOX CASING, RIGHT
888364003R · qty on machine: 1 | |||||
| 3 | 888364005 | GEARBOX COVER | 1 | PARTS REQUEST | |
|
COMING GEARBOX COVER
888364005 · qty on machine: 1 | |||||
| 4 | 21734 | PRESSURE WASHER | 1 | ADD TO CART | |
| 6 | 884364100 | RELEASE VALVE | 2 | PARTS REQUEST | |
|
COMING RELEASE VALVE
884364100 · qty on machine: 2 | |||||
| 9 | 888364010R | BRONZE GEAR, RIGHT | 1 | PARTS REQUEST | |
|
COMING BRONZE GEAR, RIGHT
888364010R · qty on machine: 1 | |||||
| 10 | 21818 | SHAFT, YOKE ARM | 1 | ADD TO CART | |
| 11 | 24206 | YOKE ARM | 1 | PARTS REQUEST | |
|
COMING YOKE ARM
24206 · qty on machine: 1 | |||||
| 13 | 888364011R | MAIN SHAFT, RIGHT | 1 | PARTS REQUEST | |
|
COMING MAIN SHAFT, RIGHT
888364011R · qty on machine: 1 | |||||
| 14 | 21739 | BEARING FLANGE | 1 | PARTS REQUEST | |
|
COMING BEARING FLANGE
21739 · qty on machine: 1 | |||||
| 15 | 888364013R | COUNTER SHAFT RIGHT | 1 | PARTS REQUEST | |
|
COMING COUNTER SHAFT RIGHT
888364013R · qty on machine: 1 | |||||
| 17 | 21741 | BEARING FLANGE | 1 | PARTS REQUEST | |
|
COMING BEARING FLANGE
21741 · qty on machine: 1 | |||||
| 20 | 88446002 | PRESSURE PLATE COVER | 1 | PARTS REQUEST | |
|
COMING PRESSURE PLATE COVER
88446002 · qty on machine: 1 | |||||
| 21 | 888366003 | PRESSURE PLATE | 1 | PARTS REQUEST | |
|
COMING PRESSURE PLATE
888366003 · qty on machine: 1 | |||||
| 23 | 888366005R | RIGHT SPIDER PLATE | 1 | PARTS REQUEST | |
|
COMING RIGHT SPIDER PLATE
888366005R · qty on machine: 1 | |||||
| 24 | 24234 | BUSHING | 1 | PARTS REQUEST | |
|
COMING BUSHING
24234 · qty on machine: 1 | |||||
| 26 | 24233 | LIFT LEVER | 4 | PARTS REQUEST | |
|
COMING LIFT LEVER
24233 · qty on machine: 4 | |||||
| 27 | 24207 | TROWEL ARM | 4 | ADD TO CART | |
| 28 | 20660 | BLADE, 6”x14” | 4 | ADD TO CART | |
| 29 | 889145 | BOLT | 1 | PARTS REQUEST | |
|
COMING BOLT
889145 · qty on machine: 1 | |||||
| 30 | 21754 | BOLT | 12 | PARTS REQUEST | |
|
COMING BOLT
21754 · qty on machine: 12 | |||||
| 31 | 31369 | BOLT | 8 | ADD TO CART | |
| 32 | 889143 | BEARING | 1 | PARTS REQUEST | |
|
COMING BEARING
889143 · qty on machine: 1 | |||||
| 33 | 889141 | BEARING | 1 | PARTS REQUEST | |
|
COMING BEARING
889141 · qty on machine: 1 | |||||
| 34 | 889064 | SIGHT GLASS | 1 | ADD TO CART | |
| 35 | 889055 | SEAL | 1 | PARTS REQUEST | |
|
COMING SEAL
889055 · qty on machine: 1 | |||||
| 36 | 889531 | KEY | 1 | PARTS REQUEST | |
|
COMING KEY
889531 · qty on machine: 1 | |||||
| 37 | 31438 | BEARING | 1 | ADD TO CART | |
| 38 | 10603 | BEARING | 1 | ADD TO CART | |
| 39 | 21757 | SEAL | 1 | ADD TO CART | |
| 40 | 50459 | KEY | 1 | ADD TO CART | |
| 41 | 889156 | KEY | 1 | PARTS REQUEST | |
|
COMING KEY
889156 · qty on machine: 1 | |||||
| 42 | 21747 | PLUG | 2 | ADD TO CART | |
| 43 | 889532 | KEY | 1 | PARTS REQUEST | |
|
COMING KEY
889532 · qty on machine: 1 | |||||
| 44 | 21776 | BEARING | 1 | ADD TO CART | |
| 45 | 889066 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
889066 · qty on machine: 4 | |||||
| 46 | 889067 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
889067 · qty on machine: 4 | |||||
| 47 | 889059 | NUT | 8 | PARTS REQUEST | |
|
COMING NUT
889059 · qty on machine: 8 | |||||
| 48 | 889071 | NBOLT | 8 | PARTS REQUEST | |
|
COMING NBOLT
889071 · qty on machine: 8 | |||||
| 49 | 889037 | SPRING WASHER | 8 | PARTS REQUEST | |
|
COMING SPRING WASHER
889037 · qty on machine: 8 | |||||
| 50 | 11903 | BOLT | 1 | PARTS REQUEST | |
|
COMING BOLT
11903 · qty on machine: 1 | |||||
| 51 | 889202 | RETAINING RING | 2 | PARTS REQUEST | |
|
COMING RETAINING RING
889202 · qty on machine: 2 | |||||
| 52 | 889072 | PLUG | 4 | PARTS REQUEST | |
|
COMING PLUG
889072 · qty on machine: 4 | |||||
Page 22 — BXR836HYD, HYDRUALIC SYSTEM COMPONENTS
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 889791 | OIL FILTER | 1 | PARTS REQUEST | |
|
COMING OIL FILTER
889791 · qty on machine: 1 | |||||
| 2 | 889791-DP | SHIMMING | 1 | PARTS REQUEST | |
|
COMING SHIMMING
889791-DP · qty on machine: 1 | |||||
| 3 | 889793 | OIL TANK CAP | 1 | PARTS REQUEST | |
|
COMING OIL TANK CAP
889793 · qty on machine: 1 | |||||
| 4 | 889793-DP | SHIMMING | 1 | PARTS REQUEST | |
|
COMING SHIMMING
889793-DP · qty on machine: 1 | |||||
| 5 | 889795 | VALVE | 1 | PARTS REQUEST | |
|
COMING VALVE
889795 · qty on machine: 1 | |||||
| 6 | 889796 | HYDRAULIC PUMP | 1 | PARTS REQUEST | |
|
COMING HYDRAULIC PUMP
889796 · qty on machine: 1 | |||||
| 7 | 889798 | HYDROCYLINDER | 3 | PARTS REQUEST | |
|
COMING HYDROCYLINDER
889798 · qty on machine: 3 | |||||
| 8 | 889801-Z | HYDRAULIC CONTROL LEVER | 1 | PARTS REQUEST | |
|
COMING HYDRAULIC CONTROL LEVER
889801-Z · qty on machine: 1 | |||||
| 9 | 889801-Y | HYDRAULIC CONTROL LEVER | 1 | PARTS REQUEST | |
|
COMING HYDRAULIC CONTROL LEVER
889801-Y · qty on machine: 1 | |||||
| 10 | 889803 | SPILL VALVE | 1 | PARTS REQUEST | |
|
COMING SPILL VALVE
889803 · qty on machine: 1 | |||||
| 11 | 889805 | TEMPERATURE GAUGE | 1 | PARTS REQUEST | |
|
COMING TEMPERATURE GAUGE
889805 · qty on machine: 1 | |||||
| 12 | 889807 | OIL PRESSURE GAUGE | 1 | PARTS REQUEST | |
|
COMING OIL PRESSURE GAUGE
889807 · qty on machine: 1 | |||||
| 13 | 889809 | COUPLING | 1 | ADD TO CART | |
| 14 | 889812-836H | OIL GAUGE | 1 | PARTS REQUEST | |
|
COMING OIL GAUGE
889812-836H · qty on machine: 1 | |||||
| 15 | 889811 | PLUG | 1 | PARTS REQUEST | |
|
COMING PLUG
889811 · qty on machine: 1 | |||||
| 17 | 889815 | CONNECTOR | 1 | PARTS REQUEST | |
|
COMING CONNECTOR
889815 · qty on machine: 1 | |||||
| 18 | 889816 | CONNECTOR | 1 | PARTS REQUEST | |
|
COMING CONNECTOR
889816 · qty on machine: 1 | |||||
| 19 | 889817 | CONNECTOR | 6 | PARTS REQUEST | |
|
COMING CONNECTOR
889817 · qty on machine: 6 | |||||
| 20 | 889818 | CONNECTOR | 2 | PARTS REQUEST | |
|
COMING CONNECTOR
889818 · qty on machine: 2 | |||||
| 21 | 889819 | TEE CONNECTOR | 1 | PARTS REQUEST | |
|
COMING TEE CONNECTOR
889819 · qty on machine: 1 | |||||
| 22 | 889820 | TEE CONNECTOR | 1 | PARTS REQUEST | |
|
COMING TEE CONNECTOR
889820 · qty on machine: 1 | |||||
| 23 | 889821 | TEE CONNECTOR | 1 | PARTS REQUEST | |
|
COMING TEE CONNECTOR
889821 · qty on machine: 1 | |||||
| 24 | 889822 | TEE CONNECTOR | 1 | PARTS REQUEST | |
|
COMING TEE CONNECTOR
889822 · qty on machine: 1 | |||||
| 25 | 889823 | TEE CONNECTOR | 1 | PARTS REQUEST | |
|
COMING TEE CONNECTOR
889823 · qty on machine: 1 | |||||
| 26 | 889824 | CONNECTOR | 10 | PARTS REQUEST | |
|
COMING CONNECTOR
889824 · qty on machine: 10 | |||||
| 27 | 889825 | PLUG | 2 | PARTS REQUEST | |
|
COMING PLUG
889825 · qty on machine: 2 | |||||
| 28 | 889826 | PLUG | 1 | PARTS REQUEST | |
|
COMING PLUG
889826 · qty on machine: 1 | |||||
| 29 | 889827 | CONNECTOR | 7 | PARTS REQUEST | |
|
COMING CONNECTOR
889827 · qty on machine: 7 | |||||
| 30 | 889828 | CONNECTOR | 1 | PARTS REQUEST | |
|
COMING CONNECTOR
889828 · qty on machine: 1 | |||||
| 31 | 889829 | CONNECTOR | 1 | PARTS REQUEST | |
|
COMING CONNECTOR
889829 · qty on machine: 1 | |||||
| 32 | 889830 | CONNECTOR | 1 | PARTS REQUEST | |
|
COMING CONNECTOR
889830 · qty on machine: 1 | |||||
| 33 | 88836H-YX | OIL TANK | 1 | PARTS REQUEST | |
|
COMING OIL TANK
88836H-YX · qty on machine: 1 | |||||
| 34 | 88836HYX-FLG | FLANGE | 1 | PARTS REQUEST | |
|
COMING FLANGE
88836HYX-FLG · qty on machine: 1 | |||||
| 35 | 88836HYX-FLG-DP | SHIMMING | 1 | PARTS REQUEST | |
|
COMING SHIMMING
88836HYX-FLG-DP · qty on machine: 1 | |||||
| 36 | 88836H-FJ3 | BASE PLATE | 1 | PARTS REQUEST | |
|
COMING BASE PLATE
88836H-FJ3 · qty on machine: 1 | |||||
| 37 | 88M6*16 | HARDWARE KIT | 14 | PARTS REQUEST | |
|
COMING HARDWARE KIT
88M6*16 · qty on machine: 14 | |||||
| 38 | 88M6*55 | HARDWARE KIT | 4 | PARTS REQUEST | |
|
COMING HARDWARE KIT
88M6*55 · qty on machine: 4 | |||||
| 39 | 88M8*22 | HARDWARE KIT | 4 | PARTS REQUEST | |
|
COMING HARDWARE KIT
88M8*22 · qty on machine: 4 | |||||
| 40 | 88M14*60 | HARDWARE KIT | 2 | PARTS REQUEST | |
|
COMING HARDWARE KIT
88M14*60 · qty on machine: 2 | |||||
| 41 | 88M14*50 | HARDWARE KIT | 4 | PARTS REQUEST | |
|
COMING HARDWARE KIT
88M14*50 · qty on machine: 4 | |||||
Page 24 — BXR836, FOOT THROTTLE KIT
Page 25 — BXR836HYD, SPRAY SYSTEM
Page 26 — BXR836, SPRAY SYSTEM
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 22594 | TRANSPORTER FRAME | 1 | PARTS REQUEST | |
|
COMING TRANSPORTER FRAME
22594 · qty on machine: 1 | |||||
| 3 | 11200 | 3/8” WASHER | 1 | PARTS REQUEST | |
|
COMING 3/8” WASHER
11200 · qty on machine: 1 | |||||
| 4 | 12859 | HHCS, 3/8-16 UNC X 2” LC | 1 | PARTS REQUEST | |
|
COMING HHCS, 3/8-16 UNC X 2” LC
12859 · qty on machine: 1 | |||||
| 5 | 10317 | 3/8-16 LOCKNUT, NYLON | 1 | ADD TO CART | |
| 6 | 13198 | WHEEL 16” DIA X 4” HUB | 2 | ADD TO CART | |
| 7 | 12487 | HITCH PIN LARGE 3-1/2” LG | 2 | PARTS REQUEST | |
|
COMING HITCH PIN LARGE 3-1/2” LG
12487 · qty on machine: 2 | |||||
| 8 | 50265 | COTTER PIN 1/8” DIA | 2 | PARTS REQUEST | |
|
COMING COTTER PIN 1/8” DIA
50265 · qty on machine: 2 | |||||
| 9 | 10509 | HANDLE GRIP | 2 | ADD TO CART | |
| 10 | 14717 | PICKUP BAR | 1 | PARTS REQUEST | |
|
COMING PICKUP BAR
14717 · qty on machine: 1 | |||||
| 11 | 14715 | TRANSPORTER BRACKET | 2 | PARTS REQUEST | |
|
COMING TRANSPORTER BRACKET
14715 · qty on machine: 2 | |||||
| 12 | 14716 | CHAIN LINK W/ 3/8” WASHER | 1 | PARTS REQUEST | |
|
COMING CHAIN LINK W/ 3/8” WASHER
14716 · qty on machine: 1 | |||||
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
Covers big pours fast: ride-on finishing with overlapping rotors for flat, hard-troweled floors. Quote-only through CCE Industries: tell us where the machine is headed and we will spec it with freight. Factory documentation backs every listing.
Keep-it-running spares
All listed parts →Every part that fits this machine
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
