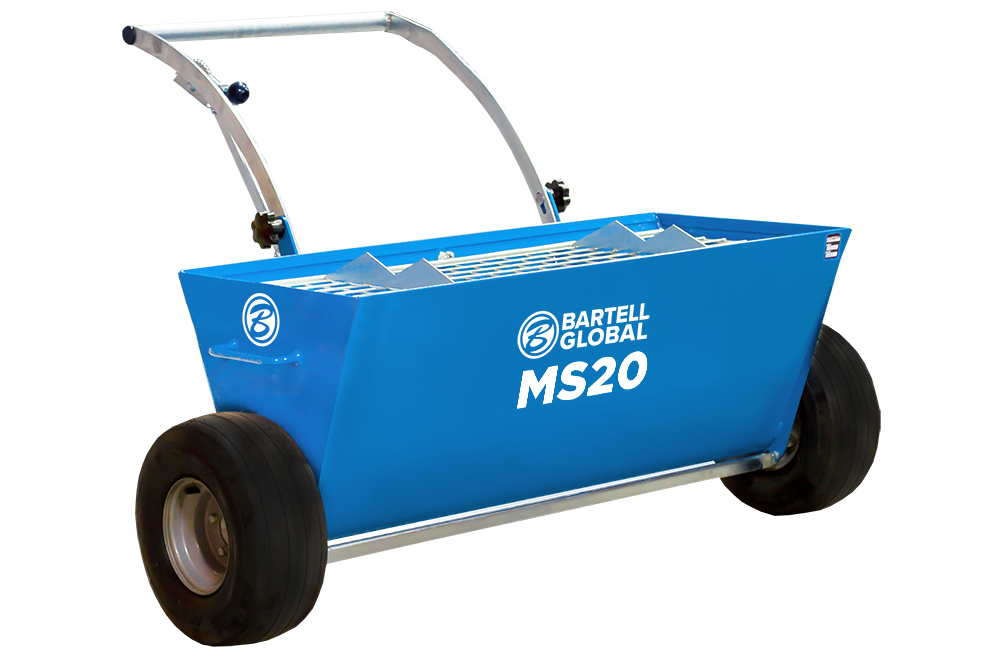

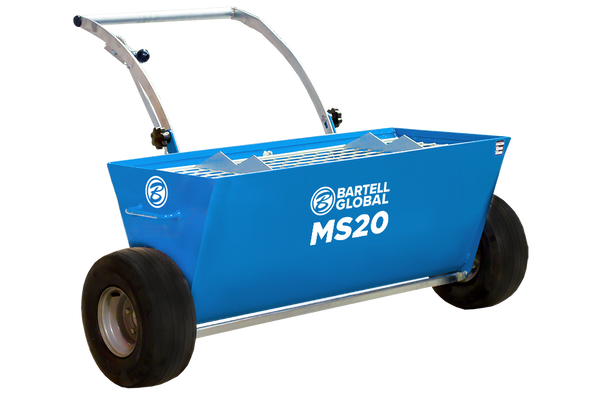

Bartell MS20 Material Spreader

Name: Bartell MS20 Material Spreader
Brand: Bartell

The parts bench

Need the PDF? ↓

Page 12 — PARTS PAGE 13

Bartell MS20 Material Spreader PARTS PAGE 13 parts diagram

Parts list — exactly as printed25 rows

No.	Part No.	Part Name
1	88001	WHEEL 2	PARTS REQUEST
PHOTO COMING WHEEL 2 88001 PARTS REQUEST
2	88002	PLATE 2	PARTS REQUEST
PHOTO COMING PLATE 2 88002 PARTS REQUEST
3	88003	DIAMOND BEARING	PARTS REQUEST
PHOTO COMING DIAMOND BEARING 88003 PARTS REQUEST
4	88004	BEARING BLOCK	PARTS REQUEST
PHOTO COMING BEARING BLOCK 88004 PARTS REQUEST
5	88005	WHEEL SHAFT	PARTS REQUEST
PHOTO COMING WHEEL SHAFT 88005 PARTS REQUEST
6	88006	AXLE	PARTS REQUEST
PHOTO COMING AXLE 88006 PARTS REQUEST
7	88007	BEARING BLOCK 2	PARTS REQUEST
PHOTO COMING BEARING BLOCK 2 88007 PARTS REQUEST
8	88008	BEARING 2	PARTS REQUEST
PHOTO COMING BEARING 2 88008 PARTS REQUEST
9	88009	KNOB 2	PARTS REQUEST
PHOTO COMING KNOB 2 88009 PARTS REQUEST
10	88010	SPRING 1	PARTS REQUEST
PHOTO COMING SPRING 1 88010 PARTS REQUEST
11	88011	STAND	PARTS REQUEST
PHOTO COMING STAND 88011 PARTS REQUEST
12	88012	CONNECTING ROD	PARTS REQUEST
PHOTO COMING CONNECTING ROD 88012 PARTS REQUEST
13	88013	BAFFLE	PARTS REQUEST
PHOTO COMING BAFFLE 88013 PARTS REQUEST
14	88014	PLUG	PARTS REQUEST
PHOTO COMING PLUG 88014 PARTS REQUEST
15	88015	BEARING HOUSING 1	PARTS REQUEST
PHOTO COMING BEARING HOUSING 1 88015 PARTS REQUEST
16	88016	LOCK PIN 1	PARTS REQUEST
PHOTO COMING LOCK PIN 1 88016 PARTS REQUEST
17	88017	SHORT ROD 2	PARTS REQUEST
PHOTO COMING SHORT ROD 2 88017 PARTS REQUEST
18	88018	LONG ROD 1	PARTS REQUEST
PHOTO COMING LONG ROD 1 88018 PARTS REQUEST
19	88019	BALL	PARTS REQUEST
PHOTO COMING BALL 88019 PARTS REQUEST
20	88020	SPRING	PARTS REQUEST
PHOTO COMING SPRING 88020 PARTS REQUEST
21	88021	CONTROL KNOB	PARTS REQUEST
PHOTO COMING CONTROL KNOB 88021 PARTS REQUEST
22	88022	ADJUSTER	PARTS REQUEST
PHOTO COMING ADJUSTER 88022 PARTS REQUEST
23	88023	ROD 1	PARTS REQUEST
PHOTO COMING ROD 1 88023 PARTS REQUEST
24	88024	NET 1	PARTS REQUEST
PHOTO COMING NET 1 88024 PARTS REQUEST
25	88025	HOPPER 1	PARTS REQUEST
PHOTO COMING HOPPER 1 88025 PARTS REQUEST

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

Spreads topping and dry-shake material evenly across fresh slabs. Key numbers: Weight 132 lbs. Quote-only through CCE Industries: tell us where the machine is headed and we will spec it with freight. Factory documentation backs every listing.
