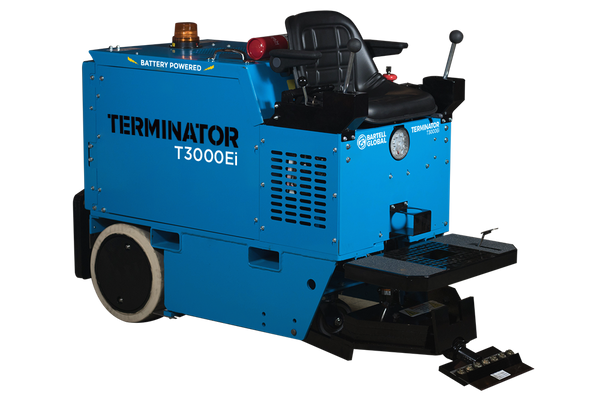

Bartell T3000EI Floor Scraper

Name: Bartell T3000EI Floor Scraper
Brand: Bartell

The parts bench

Need the PDF? ↓

Page 18 — PARTS PAGE 19

Bartell T3000EI Floor Scraper PARTS PAGE 19 parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty
101	12-0018-06	Lock Washer, M6	4	PARTS REQUEST
PHOTO COMING Lock Washer, M6 12-0018-06 · qty on machine: 4 PARTS REQUEST
102	12-0026	Hex Head Cap Screw, M6-1.0 x 12mm	4	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M6-1.0 x 12mm 12-0026 · qty on machine: 4 PARTS REQUEST
103	12-0043-16	Serrated Flange Cap Screw, M6-1.0 x 16mm	35	PARTS REQUEST
PHOTO COMING Serrated Flange Cap Screw, M6-1.0 x 16mm 12-0043-16 · qty on machine: 35 PARTS REQUEST
104	13-0049	GT50 Seat	1	ADD TO CART
GT50 Seat 13-0049 · qty on machine: 1 view full part page → $826.37
105	53-0363	Uni-Frame Assembly	1	PARTS REQUEST
PHOTO COMING Uni-Frame Assembly 53-0363 · qty on machine: 1 PARTS REQUEST
106	53-0370	Uni-Frame Front Side Panel	2	ADD TO CART
Uni-Frame Front Side Panel 53-0370 · qty on machine: 2 view full part page → $170.56
107	53-0371	EI Front Panel	1	PARTS REQUEST
PHOTO COMING EI Front Panel 53-0371 · qty on machine: 1 PARTS REQUEST
108	53-0376	Uni-Frame Cup Holder	1	PARTS REQUEST
PHOTO COMING Uni-Frame Cup Holder 53-0376 · qty on machine: 1 PARTS REQUEST
109	53-0397	Uni-Frame Seat Mounting Bracket	2	PARTS REQUEST
PHOTO COMING Uni-Frame Seat Mounting Bracket 53-0397 · qty on machine: 2 PARTS REQUEST
110	96-0344	EI Right Console Assembly	1	PARTS REQUEST
PHOTO COMING EI Right Console Assembly 96-0344 · qty on machine: 1 PARTS REQUEST
111	96-0370	Uni-Frame Left Console Assembly	1	PARTS REQUEST
PHOTO COMING Uni-Frame Left Console Assembly 96-0370 · qty on machine: 1 PARTS REQUEST
112	96-0390	EI Seat Platform Assembly	1	PARTS REQUEST
PHOTO COMING EI Seat Platform Assembly 96-0390 · qty on machine: 1 PARTS REQUEST

Page 19 — Front Exterior (1) Breakdown

Bartell T3000EI Floor Scraper Front Exterior (1) Breakdown parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
201	12-0018-06	Lock Washer, M6	2	PARTS REQUEST
PHOTO COMING Lock Washer, M6 12-0018-06 · qty on machine: 2 PARTS REQUEST
202	12-0018-12	Lock Washer, M12	4	PARTS REQUEST
PHOTO COMING Lock Washer, M12 12-0018-12 · qty on machine: 4 PARTS REQUEST
203	12-0027-12	Hex Nut, M12-1.75	4	PARTS REQUEST
PHOTO COMING Hex Nut, M12-1.75 12-0027-12 · qty on machine: 4 PARTS REQUEST
204	12-0043-16	Serrated Flange Cap Screw, M6-1.0 x 16mm	2	PARTS REQUEST
PHOTO COMING Serrated Flange Cap Screw, M6-1.0 x 16mm 12-0043-16 · qty on machine: 2 PARTS REQUEST
205	12-0046	Flange Head Cap Screw, M12-1.75 x 90mm	4	ADD TO CART
Flange Head Cap Screw, M12-1.75 x 90mm 12-0046 · qty on machine: 4 view full part page → $38.85
206	22-0065	4.5” LED Headlight	1	ADD TO CART
4.5” LED Headlight 22-0065 · qty on machine: 1 view full part page → $128.94
207	53-0400	Headlight Mount	1	PARTS REQUEST
PHOTO COMING Headlight Mount 53-0400 · qty on machine: 1 PARTS REQUEST
208	96-0353	Uni-Frame Foot Rest Assembly	1	ADD TO CART
Uni-Frame Foot Rest Assembly 96-0353 · qty on machine: 1 view full part page → $1742.77

Page 20 — PARTS PAGE 21

Bartell T3000EI Floor Scraper PARTS PAGE 21 parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty
301	11-0035	USS Flat Washer, 3/8”	8	PARTS REQUEST
PHOTO COMING USS Flat Washer, 3/8” 11-0035 · qty on machine: 8 PARTS REQUEST
302	11-0041	Lock Washer, 1/2"	2	PARTS REQUEST
PHOTO COMING Lock Washer, 1/2" 11-0041 · qty on machine: 2 PARTS REQUEST
303	11-0045	Adjustable Clevis Pin, 5/8” x 3” L	2	ADD TO CART
Adjustable Clevis Pin, 5/8” x 3” L 11-0045 · qty on machine: 2 view full part page → $38.21
304	11-0052	Hitch Pin	6	PARTS REQUEST
PHOTO COMING Hitch Pin 11-0052 · qty on machine: 6 PARTS REQUEST
305	12-0021-10	Nyloc Nut, M10-1.5	4	PARTS REQUEST
PHOTO COMING Nyloc Nut, M10-1.5 12-0021-10 · qty on machine: 4 PARTS REQUEST
306	12-0034-40	Hex Head Cap Screw, M10-1.5 x 40mm	4	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M10-1.5 x 40mm 12-0034-40 · qty on machine: 4 PARTS REQUEST
307	12-0046	Flange Head Cap Screw, M12-1.75 x 90mm	2	ADD TO CART
Flange Head Cap Screw, M12-1.75 x 90mm 12-0046 · qty on machine: 2 view full part page → $38.85
308	13-0378	Caster Wheel Replacement	1	ADD TO CART
Caster Wheel Replacement 13-0378 · qty on machine: 1 view full part page → $393.35
309	31-0043	Hydraulic Fitting, 90 deg 4 JIC – 8 SAE	2	ADD TO CART
Hydraulic Fitting, 90 deg 4 JIC – 8 SAE 31-0043 · qty on machine: 2 view full part page → $86.34
310	34-0015	Front Hydraulic Ram (90 deg)	1	ADD TO CART
Front Hydraulic Ram (90 deg) 34-0015 · qty on machine: 1 view full part page → $593.6
311	51-1070	Uni-Frame Pivoting Jaw Weight	3	PARTS REQUEST
PHOTO COMING Uni-Frame Pivoting Jaw Weight 51-1070 · qty on machine: 3 PARTS REQUEST
312	96-0386	Pivoting Jaw Assembly	1	ADD TO CART
Pivoting Jaw Assembly 96-0386 · qty on machine: 1 view full part page → $2534.28

Page 21 — Front Interior Breakdown

Bartell T3000EI Floor Scraper Front Interior Breakdown parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
401	12-0035-08	Flat Washer, M8	8	PARTS REQUEST
PHOTO COMING Flat Washer, M8 12-0035-08 · qty on machine: 8 PARTS REQUEST
402	11-0069	Lock Washer, 1/4 “	2	PARTS REQUEST
PHOTO COMING Lock Washer, 1/4 “ 11-0069 · qty on machine: 2 PARTS REQUEST
403	11-0092	Hex Head Cap Screw, 1/4"-20 x 1/2"	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, 1/4"-20 x 1/2" 11-0092 · qty on machine: 2 PARTS REQUEST
404	12-0021-05	Nyloc Nut, M5-0.8	4	PARTS REQUEST
PHOTO COMING Nyloc Nut, M5-0.8 12-0021-05 · qty on machine: 4 PARTS REQUEST
405	12-0021-08	Nyloc Nut, M8-1.25	4	ADD TO CART
Nyloc Nut, M8-1.25 12-0021-08 · qty on machine: 4 view full part page → $46.94
406	12-0032-45	Hex Head Cap Screw, M8-1.25 x 45mm	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M8-1.25 x 45mm 12-0032-45 · qty on machine: 2 PARTS REQUEST
407	12-0043-16	Serrated Flange Cap Screw, M6-1.0 x 16mm	2	PARTS REQUEST
PHOTO COMING Serrated Flange Cap Screw, M6-1.0 x 16mm 12-0043-16 · qty on machine: 2 PARTS REQUEST
408	12-0047-25	Pan Head Philips Screw, M5-0.8 x 25mm	1	PARTS REQUEST
PHOTO COMING Pan Head Philips Screw, M5-0.8 x 25mm 12-0047-25 · qty on machine: 1 PARTS REQUEST
409	24-0199	48-12V DC Converter	1	PARTS REQUEST
PHOTO COMING 48-12V DC Converter 24-0199 · qty on machine: 1 PARTS REQUEST
410	31-0051	Hydraulic Fitting, 90 deg 12 JIC – 12 SAE	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 90 deg 12 JIC – 12 SAE 31-0051 · qty on machine: 1 PARTS REQUEST
411	31-0052	Hydraulic Fitting, 90 deg 10 JIC – 12 SAE	1	ADD TO CART
Hydraulic Fitting, 90 deg 10 JIC – 12 SAE 31-0052 · qty on machine: 1 view full part page → $96.11
412	35-0036	Hydraulic Oil Filter	1	ADD TO CART
Hydraulic Oil Filter 35-0036 · qty on machine: 1 view full part page → $568.87
413	53-0371	EI Front Panel	1	PARTS REQUEST
PHOTO COMING EI Front Panel 53-0371 · qty on machine: 1 PARTS REQUEST
414	53-0398	Filter Bracket	1	PARTS REQUEST
PHOTO COMING Filter Bracket 53-0398 · qty on machine: 1 PARTS REQUEST
415	96-0345	Power Control Module	1	ADD TO CART
Power Control Module 96-0345 · qty on machine: 1 view full part page → $1390.11

Page 22 — Battery Area Breakdown

Bartell T3000EI Floor Scraper Battery Area Breakdown parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty
501	12-0043-16	Serrated Flange Cap Screw, M6-1.0 x 16mm	4	PARTS REQUEST
PHOTO COMING Serrated Flange Cap Screw, M6-1.0 x 16mm 12-0043-16 · qty on machine: 4 PARTS REQUEST
502	12-0045-20	Flat Head Phillips Screw, M6-1.0 x 20mm	4	PARTS REQUEST
PHOTO COMING Flat Head Phillips Screw, M6-1.0 x 20mm 12-0045-20 · qty on machine: 4 PARTS REQUEST
503	51-1050	Uni-Frame Battery Guide, Front	2	PARTS REQUEST
PHOTO COMING Uni-Frame Battery Guide, Front 51-1050 · qty on machine: 2 PARTS REQUEST
504	53-0399	Uni-Frame Battery Stop	2	PARTS REQUEST
PHOTO COMING Uni-Frame Battery Stop 53-0399 · qty on machine: 2 PARTS REQUEST
505	53-0405	Uni-Frame Battery Guide Spacer, Front	2	PARTS REQUEST
PHOTO COMING Uni-Frame Battery Guide Spacer, Front 53-0405 · qty on machine: 2 PARTS REQUEST
506	71-0014	T3000EI Battery Pack, Non-AGM	1	ADD TO CART
T3000EI Battery Pack, Non-AGM 71-0014 · qty on machine: 1 view full part page → $7989.41

Page 23 — PARTS PAGE 22

Bartell T3000EI Floor Scraper PARTS PAGE 22 parts diagram

Parts list — exactly as printed24 rows

No.	Part No.	Part Name	Qty
601	11-0024	Nyloc Nut, 1/4"-20	2	PARTS REQUEST
PHOTO COMING Nyloc Nut, 1/4"-20 11-0024 · qty on machine: 2 PARTS REQUEST
602	11-0040	Lock Washer, 5/16”	2	PARTS REQUEST
PHOTO COMING Lock Washer, 5/16” 11-0040 · qty on machine: 2 PARTS REQUEST
603	11-0067	Hex Nut, 5/16”-18	2	PARTS REQUEST
PHOTO COMING Hex Nut, 5/16”-18 11-0067 · qty on machine: 2 PARTS REQUEST
604	11-0073	Cotter Pin	2	PARTS REQUEST
PHOTO COMING Cotter Pin 11-0073 · qty on machine: 2 PARTS REQUEST
605	11-0175	Hex Head Cap Screw, 5/16”-18 x 3”	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, 5/16”-18 x 3” 11-0175 · qty on machine: 2 PARTS REQUEST
606	11-0232	Fender Washer, 5/16”	2	PARTS REQUEST
PHOTO COMING Fender Washer, 5/16” 11-0232 · qty on machine: 2 PARTS REQUEST
607	11-0277	Clevis Pin, 5/16” x 1”	2	PARTS REQUEST
PHOTO COMING Clevis Pin, 5/16” x 1” 11-0277 · qty on machine: 2 PARTS REQUEST
608	11-0294-16	Socket Head Shoulder Screw, 5/16” x 1”, 1/4"-20	2	PARTS REQUEST
PHOTO COMING Socket Head Shoulder Screw, 5/16” x 1”, 1/4"-20 11-0294-16 · qty on machine: 2 PARTS REQUEST
609	11-0303	Triple Wave Washer, 1/4" – 5/16”	4	PARTS REQUEST
PHOTO COMING Triple Wave Washer, 1/4" – 5/16” 11-0303 · qty on machine: 4 PARTS REQUEST
610	11-0352	Hex Jam Nut, 5/16”-24	2	PARTS REQUEST
PHOTO COMING Hex Jam Nut, 5/16”-24 11-0352 · qty on machine: 2 PARTS REQUEST
611	12-0018-10	Lock Washer, M10	1	PARTS REQUEST
PHOTO COMING Lock Washer, M10 12-0018-10 · qty on machine: 1 PARTS REQUEST
612	12-0021-08	Nyloc Nut, M8-1.25	4	ADD TO CART
Nyloc Nut, M8-1.25 12-0021-08 · qty on machine: 4 view full part page → $46.94
613	12-0027-10	Hex Nut, M10-1.5	2	PARTS REQUEST
PHOTO COMING Hex Nut, M10-1.5 12-0027-10 · qty on machine: 2 PARTS REQUEST
614	12-0032-25	Hex Head Cap Screw, M8-1.25 x 25mm	4	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M8-1.25 x 25mm 12-0032-25 · qty on machine: 4 PARTS REQUEST
615	12-0035-08	Flat Washer, M8	4	PARTS REQUEST
PHOTO COMING Flat Washer, M8 12-0035-08 · qty on machine: 4 PARTS REQUEST
616	13-0300	Knob, SØ 1 7/8”, 5/8”-11	2	ADD TO CART
Knob, SØ 1 7/8”, 5/8”-11 13-0300 · qty on machine: 2 view full part page → $54.71
617	13-0380	Linkage Yoke End	2	PARTS REQUEST
PHOTO COMING Linkage Yoke End 13-0380 · qty on machine: 2 PARTS REQUEST
618	13-0381	Linkage Rod End	2	ADD TO CART
Linkage Rod End 13-0381 · qty on machine: 2 view full part page → $58.66
619	13-0383	Knob, SØ 35mm, M10-1.5	1	ADD TO CART
Knob, SØ 35mm, M10-1.5 13-0383 · qty on machine: 1 view full part page → $42.79
620	51-0699	Yoke Anchor	2	ADD TO CART
Yoke Anchor 51-0699 · qty on machine: 2 view full part page → $198.93
621	53-0409	Uni-Frame Jaw Joystick Rod	1	PARTS REQUEST
PHOTO COMING Uni-Frame Jaw Joystick Rod 53-0409 · qty on machine: 1 PARTS REQUEST
622	53-0371	EI Front Panel	1	PARTS REQUEST
PHOTO COMING EI Front Panel 53-0371 · qty on machine: 1 PARTS REQUEST
623	53-0389	Uni-Frame Joy Stick Rod	2	ADD TO CART
Uni-Frame Joy Stick Rod 53-0389 · qty on machine: 2 view full part page → $304.9
624	96-0390	EI Seat Platform Assembly	1	PARTS REQUEST
PHOTO COMING EI Seat Platform Assembly 96-0390 · qty on machine: 1 PARTS REQUEST

Page 23 — PARTS PAGE 24

Bartell T3000EI Floor Scraper PARTS PAGE 24 parts diagram

Parts list — exactly as printed24 rows

No.	Part No.	Part Name	Qty
601	11-0024	Nyloc Nut, 1/4"-20	2	PARTS REQUEST
PHOTO COMING Nyloc Nut, 1/4"-20 11-0024 · qty on machine: 2 PARTS REQUEST
602	11-0040	Lock Washer, 5/16”	2	PARTS REQUEST
PHOTO COMING Lock Washer, 5/16” 11-0040 · qty on machine: 2 PARTS REQUEST
603	11-0067	Hex Nut, 5/16”-18	2	PARTS REQUEST
PHOTO COMING Hex Nut, 5/16”-18 11-0067 · qty on machine: 2 PARTS REQUEST
604	11-0073	Cotter Pin	2	PARTS REQUEST
PHOTO COMING Cotter Pin 11-0073 · qty on machine: 2 PARTS REQUEST
605	11-0175	Hex Head Cap Screw, 5/16”-18 x 3”	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, 5/16”-18 x 3” 11-0175 · qty on machine: 2 PARTS REQUEST
606	11-0232	Fender Washer, 5/16”	2	PARTS REQUEST
PHOTO COMING Fender Washer, 5/16” 11-0232 · qty on machine: 2 PARTS REQUEST
607	11-0277	Clevis Pin, 5/16” x 1”	2	PARTS REQUEST
PHOTO COMING Clevis Pin, 5/16” x 1” 11-0277 · qty on machine: 2 PARTS REQUEST
608	11-0294-16	Socket Head Shoulder Screw, 5/16” x 1”, 1/4"-20	2	PARTS REQUEST
PHOTO COMING Socket Head Shoulder Screw, 5/16” x 1”, 1/4"-20 11-0294-16 · qty on machine: 2 PARTS REQUEST
609	11-0303	Triple Wave Washer, 1/4" – 5/16”	4	PARTS REQUEST
PHOTO COMING Triple Wave Washer, 1/4" – 5/16” 11-0303 · qty on machine: 4 PARTS REQUEST
610	11-0352	Hex Jam Nut, 5/16”-24	2	PARTS REQUEST
PHOTO COMING Hex Jam Nut, 5/16”-24 11-0352 · qty on machine: 2 PARTS REQUEST
611	12-0018-10	Lock Washer, M10	1	PARTS REQUEST
PHOTO COMING Lock Washer, M10 12-0018-10 · qty on machine: 1 PARTS REQUEST
612	12-0021-08	Nyloc Nut, M8-1.25	4	ADD TO CART
Nyloc Nut, M8-1.25 12-0021-08 · qty on machine: 4 view full part page → $46.94
613	12-0027-10	Hex Nut, M10-1.5	2	PARTS REQUEST
PHOTO COMING Hex Nut, M10-1.5 12-0027-10 · qty on machine: 2 PARTS REQUEST
614	12-0032-25	Hex Head Cap Screw, M8-1.25 x 25mm	4	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M8-1.25 x 25mm 12-0032-25 · qty on machine: 4 PARTS REQUEST
615	12-0035-08	Flat Washer, M8	4	PARTS REQUEST
PHOTO COMING Flat Washer, M8 12-0035-08 · qty on machine: 4 PARTS REQUEST
616	13-0300	Knob, SØ 1 7/8”, 5/8”-11	2	ADD TO CART
Knob, SØ 1 7/8”, 5/8”-11 13-0300 · qty on machine: 2 view full part page → $54.71
617	13-0380	Linkage Yoke End	2	PARTS REQUEST
PHOTO COMING Linkage Yoke End 13-0380 · qty on machine: 2 PARTS REQUEST
618	13-0381	Linkage Rod End	2	ADD TO CART
Linkage Rod End 13-0381 · qty on machine: 2 view full part page → $58.66
619	13-0383	Knob, SØ 35mm, M10-1.5	1	ADD TO CART
Knob, SØ 35mm, M10-1.5 13-0383 · qty on machine: 1 view full part page → $42.79
620	51-0699	Yoke Anchor	2	ADD TO CART
Yoke Anchor 51-0699 · qty on machine: 2 view full part page → $198.93
621	53-0409	Uni-Frame Jaw Joystick Rod	1	PARTS REQUEST
PHOTO COMING Uni-Frame Jaw Joystick Rod 53-0409 · qty on machine: 1 PARTS REQUEST
622	53-0371	EI Front Panel	1	PARTS REQUEST
PHOTO COMING EI Front Panel 53-0371 · qty on machine: 1 PARTS REQUEST
623	53-0389	Uni-Frame Joy Stick Rod	2	ADD TO CART
Uni-Frame Joy Stick Rod 53-0389 · qty on machine: 2 view full part page → $304.9
624	96-0390	EI Seat Platform Assembly	1	PARTS REQUEST
PHOTO COMING EI Seat Platform Assembly 96-0390 · qty on machine: 1 PARTS REQUEST

Page 25 — PARTS PAGE 26

Bartell T3000EI Floor Scraper PARTS PAGE 26 parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty
701	22-0007	Oil Temperature Switch	1	ADD TO CART
Oil Temperature Switch 22-0007 · qty on machine: 1 view full part page → $191.27
702	31-0022	Hydraulic Fitting, Flow Reducer 4 JIC – 6 SAE	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, Flow Reducer 4 JIC – 6 SAE 31-0022 · qty on machine: 1 PARTS REQUEST
703	31-0024	Hydraulic Fitting, 4 JIC – 6 SAE	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 4 JIC – 6 SAE 31-0024 · qty on machine: 1 PARTS REQUEST
704	31-0045	Hydraulic Fitting, 8 SAE – 1/4" NPTF	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 8 SAE – 1/4" NPTF 31-0045 · qty on machine: 1 PARTS REQUEST
705	31-0048	Hydraulic Fitting, 90 deg 10 JIC – 8 SAE	2	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 90 deg 10 JIC – 8 SAE 31-0048 · qty on machine: 2 PARTS REQUEST
706	31-0056	Hydraulic Fitting, 90 deg 6 JIC – 6 SAE	4	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 90 deg 6 JIC – 6 SAE 31-0056 · qty on machine: 4 PARTS REQUEST
707	35-0050	3-Section Hydraulic Control Valve	1	ADD TO CART
3-Section Hydraulic Control Valve 35-0050 · qty on machine: 1 view full part page → $1610.08

Page 26 — PARTS PAGE 27

Bartell T3000EI Floor Scraper PARTS PAGE 27 parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty
801	11-0005	Hex Head Cap Screw, 5/16”-18 x 3”	4	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, 5/16”-18 x 3” 11-0005 · qty on machine: 4 PARTS REQUEST
802	11-0025	Nyloc Nut, 5/16”-18	4	PARTS REQUEST
PHOTO COMING Nyloc Nut, 5/16”-18 11-0025 · qty on machine: 4 PARTS REQUEST
803	11-0034	USS Flat Washer, 5/16”	8	PARTS REQUEST
PHOTO COMING USS Flat Washer, 5/16” 11-0034 · qty on machine: 8 PARTS REQUEST
804	11-0129	Lock Washer, 3/8”	2	PARTS REQUEST
PHOTO COMING Lock Washer, 3/8” 11-0129 · qty on machine: 2 PARTS REQUEST
805	11-0295-20	Hex Head Cap Screw, 3/8”-24 x 1 1/4"	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, 3/8”-24 x 1 1/4" 11-0295-20 · qty on machine: 2 PARTS REQUEST
806	12-0018-10	Lock Washer, M10	2	PARTS REQUEST
PHOTO COMING Lock Washer, M10 12-0018-10 · qty on machine: 2 PARTS REQUEST
807	12-0024	Hex Head Cap Screw, M10-1.5 x 30mm	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M10-1.5 x 30mm 12-0024 · qty on machine: 2 PARTS REQUEST
808	23-0002	48V Electric Motor	1	ADD TO CART
48V Electric Motor 23-0002 · qty on machine: 1 view full part page → $2552.4
809	31-0020	EI Gear Pump	1	ADD TO CART
EI Gear Pump 31-0020 · qty on machine: 1 view full part page → $732.08
810	31-0038	Hydraulic Fitting, 90 deg 10 JIC – 10 SAE	2	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 90 deg 10 JIC – 10 SAE 31-0038 · qty on machine: 2 PARTS REQUEST
811	53-0396	EI Motor Mount	2	PARTS REQUEST
PHOTO COMING EI Motor Mount 53-0396 · qty on machine: 2 PARTS REQUEST

Page 27 — Tank Fittings Breakdown

Bartell T3000EI Floor Scraper Tank Fittings Breakdown parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
901	31-0124	Threaded Tank Fitting, 2” Male, 1” x 1” Female	2	PARTS REQUEST
PHOTO COMING Threaded Tank Fitting, 2” Male, 1” x 1” Female 31-0124 · qty on machine: 2 PARTS REQUEST
902	31-0128	Hydraulic Fitting, 90 deg 12 JIC – 1” NPTF Male	2	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 90 deg 12 JIC – 1” NPTF Male 31-0128 · qty on machine: 2 PARTS REQUEST
903	31-0252	Hex Head Pipe Plug, 2” NPT	1	PARTS REQUEST
PHOTO COMING Hex Head Pipe Plug, 2” NPT 31-0252 · qty on machine: 1 PARTS REQUEST
904	35-0004	Pipe Nipple, 1” NPT x 6” L	1	PARTS REQUEST
PHOTO COMING Pipe Nipple, 1” NPT x 6” L 35-0004 · qty on machine: 1 PARTS REQUEST
905	35-0047	Pipe Nipple, 1” NPT x 2” L	1	PARTS REQUEST
PHOTO COMING Pipe Nipple, 1” NPT x 2” L 35-0047 · qty on machine: 1 PARTS REQUEST
906	35-0051	Drain Plug, M14-1.5	1	PARTS REQUEST
PHOTO COMING Drain Plug, M14-1.5 35-0051 · qty on machine: 1 PARTS REQUEST
907	35-0052	Hydraulic Breather Cap	1	ADD TO CART
Hydraulic Breather Cap 35-0052 · qty on machine: 1 view full part page → $80.15
908	53-0277	Dip Stick Unit	1	PARTS REQUEST
PHOTO COMING Dip Stick Unit 53-0277 · qty on machine: 1 PARTS REQUEST

Page 28 — PARTS PAGE 29

Bartell T3000EI Floor Scraper PARTS PAGE 29 parts diagram

Page 31 — PARTS PAGE 32

Bartell T3000EI Floor Scraper PARTS PAGE 32 parts diagram

Page 31 — PARTS PAGE 30

Bartell T3000EI Floor Scraper PARTS PAGE 30 parts diagram

Page 32 — PARTS PAGE 33

Bartell T3000EI Floor Scraper PARTS PAGE 33 parts diagram

Page 32 — PARTS PAGE 31

Bartell T3000EI Floor Scraper PARTS PAGE 31 parts diagram

Page 34 — PARTS PAGE 35

Bartell T3000EI Floor Scraper PARTS PAGE 35 parts diagram

Page 35 — PARTS PAGE 36

Bartell T3000EI Floor Scraper PARTS PAGE 36 parts diagram

Page 35 — PARTS PAGE 34

Bartell T3000EI Floor Scraper PARTS PAGE 34 parts diagram

Page 36 — PARTS PAGE 37

Bartell T3000EI Floor Scraper PARTS PAGE 37 parts diagram

Page 38 — PARTS PAGE 39

Bartell T3000EI Floor Scraper PARTS PAGE 39 parts diagram

Page 39 — PARTS PAGE 38

Bartell T3000EI Floor Scraper PARTS PAGE 38 parts diagram

Page 39 — PARTS PAGE 40

Bartell T3000EI Floor Scraper PARTS PAGE 40 parts diagram

Page 40 — PARTS PAGE 41

Bartell T3000EI Floor Scraper PARTS PAGE 41 parts diagram

Page 46 — PARTS PAGE 45

Bartell T3000EI Floor Scraper PARTS PAGE 45 parts diagram

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

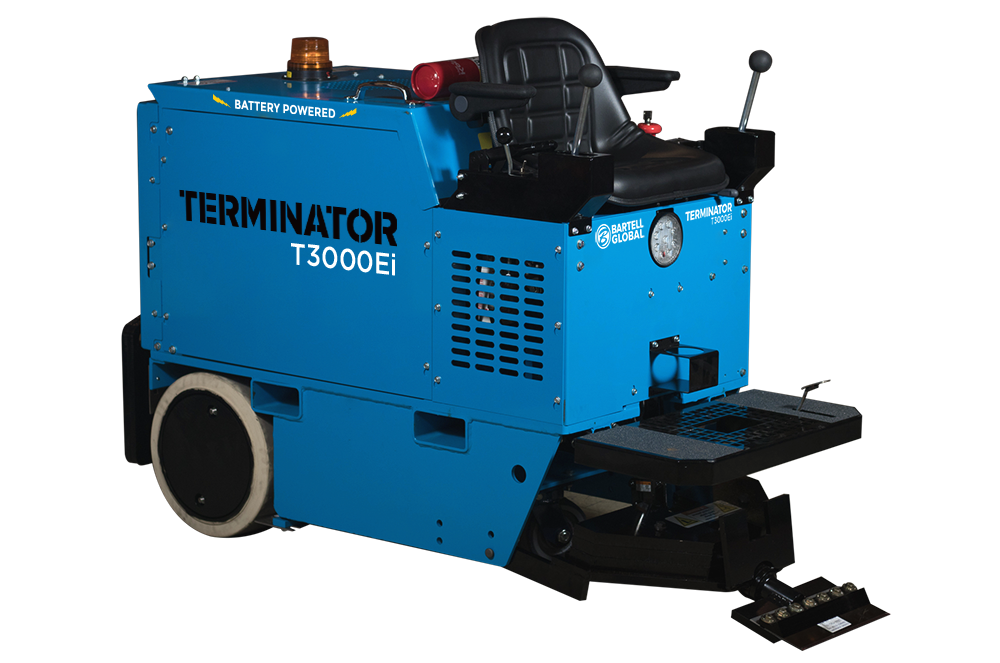

Strips tile, carpet, glue and coatings off floors without hand labor. Key numbers: Weight 2800 lb; Machine Only 2470 lb. Quote-only through CCE Industries: tell us where the machine is headed and we will spec it with freight. Factory documentation backs every listing.
