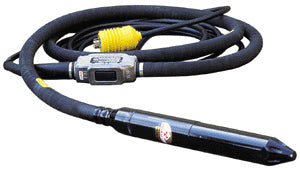

Multiquip FXA60 375" High-Cycle Concrete Vibrator
Factory parts book · interactive
Multiquip FXA60 375" High-Cycle Concrete Vibrator
Pick your options below. We build the exact machine and start your quote.
The parts bench
Need the PDF? ↓Page 6 — FX30E6 ASSY.
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| A | 111931101 | SWITCH BOX ASSY | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING SWITCH BOX ASSY
111931101 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: B@, C@, 1-1M@, 5@, 6@, 7@, 8@, 9@, 11@, 14@, 15@, 16@, 17@, 18@, 19@, 20@, 21@, 22@, 23@, 24@, 25@, 26@, 27@, 28@, 29#@, 36@, 38@, 40&@, 44@, 45#@, 46#@ | |||||
| B@ | 111931130 | RUBBER TUBE SET, D3.5 | 1 | INCLUDES ITEMS W/& CUT FOR NEEDED LENGTH | PARTS REQUEST |
|
COMING RUBBER TUBE SET, D3.5
111931130 · qty on machine: 1 INCLUDES ITEMS W/& CUT FOR NEEDED LENGTH Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| C@ | 111931220 | CONTRACTION TUBE SET | 1 | INCLUDES ITEMS W/# CUT FOR NEEDED LENGTH | PARTS REQUEST |
|
COMING CONTRACTION TUBE SET
111931220 · qty on machine: 1 INCLUDES ITEMS W/# CUT FOR NEEDED LENGTH Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 1-1M@ | 111450190 | HEAD CAP | 1 | PARTS REQUEST | |
|
COMING HEAD CAP
111450190 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 1-1R | 111457150 | RUBBER HEAD CAP (D32) | 1 | PARTS REQUEST | |
|
COMING RUBBER HEAD CAP (D32)
111457150 · qty on machine: 1 | |||||
| 5@ | 111344920 | MOTOR CASE W/S, H | 1 | PARTS REQUEST | |
|
COMING MOTOR CASE W/S, H
111344920 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 6@ | 151448330 | HEAD CASE | 1 | PARTS REQUEST | |
|
COMING HEAD CASE
151448330 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 7@ | 111436520 | ECCENTRIC ROTATOR | 1 | ADD TO CART | |
| 8@ | 042506000 | BEARING, 6000ZZSG | 2 | ADD TO CART | |
| 9@ | 080200100 | STOP RING, S-10 | 1 | ADD TO CART | |
| 11@ | 050300240 | O-RING, S-24 | 2 | PARTS REQUEST | |
|
COMING O-RING, S-24
050300240 · qty on machine: 2 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 14@ | 042500608 | BEARING, 608ZZSG | 1 | PARTS REQUEST | |
|
COMING BEARING, 608ZZSG
042500608 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 15@ | 080300060 | STOP RING, E-6 | 1 | ADD TO CART | |
| 16@ | 042500686 | BEARING, 686ZZSG | 2 | PARTS REQUEST | |
|
COMING BEARING, 686ZZSG
042500686 · qty on machine: 2 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 17@ | 080300050 | STOP RING, E-5 | 1 | ADD TO CART | |
| 18@ | 111013630 | ROTOR | 1 | PARTS REQUEST | |
|
COMING ROTOR
111013630 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 19@ | 111426720 | SEAT | 1 | PARTS REQUEST | |
|
COMING SEAT
111426720 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 20@ | 111425560 | TUBE, 3.2 X 4.2 X 40L | 3 | ADD TO CART | |
| 21@ | 121437650 | CORD HOLDER, 10-19-45L | 1 | ADD TO CART | |
| 22@ | 111448350 | GUIDE HOLDER | 1 | ADD TO CART | |
| 23@ | 080100220 | STOP RING, R-22 | 1 | PARTS REQUEST | |
|
COMING STOP RING, R-22
080100220 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 24@ | 111457080 | CORD BUSH, D15-2.9 | 1 | ADD TO CART | |
| 25@ | 111457100 | CORD PROTECTOR (LEAD) | 1 | ADD TO CART | |
| 26@ | 121437551 | SLIP WASHER | 1 | ADD TO CART | |
| 27@ | 050200200 | O-RING, P-20 | 1 | ADD TO CART | |
| 28@ | 111461350 | NUT, CORD PROTECTOR | 1 | ADD TO CART | |
| 29#@ | 959027101 | CONTRACTION TUBE, 3/4"-60 | 1 | PARTS REQUEST | |
|
COMING CONTRACTION TUBE, 3/4"-60
959027101 · qty on machine: 1 Also included in kit C - CONTRACTION TUBE SET (111931220); kit A - SWITCH BOX ASSY (111931101) | |||||
| 36@ | 121437660 | HOSE COUPLING | 1 | PARTS REQUEST | |
|
COMING HOSE COUPLING
121437660 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 37-1 | 121437690 | HOSE CLAMP 35D-50L | 1 | PARTS REQUEST | |
|
COMING HOSE CLAMP 35D-50L
121437690 · qty on machine: 1 | |||||
| 37-2 | 111010220 | CLAMP AB2050 | 2 | ADD TO CART | |
| 37-2 | 121010221 | CLAMP JS202-1 | 2 | PARTS REQUEST | |
|
COMING CLAMP JS202-1
121010221 · qty on machine: 2 | |||||
| 38@ | 111448390 | TUBE 7D-10D-46L | 1 | ADD TO CART | |
| 40&@ | 959026729 | RUBBER TUBE, D3.5-1M | 1 | 1 PC = 1 M | PARTS REQUEST |
|
COMING RUBBER TUBE, D3.5-1M
959026729 · qty on machine: 1 1 PC = 1 M Also included in kit A - SWITCH BOX ASSY (111931101); kit B - RUBBER TUBE SET, D3.5 (111931130) | |||||
| 44@ | 121010030 | TERMINAL SLEEVE TMDB-2 | 3 | PARTS REQUEST | |
|
COMING TERMINAL SLEEVE TMDB-2
121010030 · qty on machine: 3 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 45#@ | 959026529 | CONTRACTION TUBE, D6-1M | 1 | 1 PC = 1 M | PARTS REQUEST |
|
COMING CONTRACTION TUBE, D6-1M
959026529 · qty on machine: 1 1 PC = 1 M Also included in kit C - CONTRACTION TUBE SET (111931220); kit A - SWITCH BOX ASSY (111931101) | |||||
| 46#@ | 959027029 | CONTRACTION TUBE, D14-1M | 1 | 1 PC = 1 M | PARTS REQUEST |
|
COMING CONTRACTION TUBE, D14-1M
959027029 · qty on machine: 1 1 PC = 1 M Also included in kit C - CONTRACTION TUBE SET (111931220); kit A - SWITCH BOX ASSY (111931101) | |||||
| 48 | 111013920 | TERMINAL TMEX 2-5M | 6 | PARTS REQUEST | |
|
COMING TERMINAL TMEX 2-5M
111013920 · qty on machine: 6 | |||||
| 49 | 121010221 | CLAMP JS202-1 | 1 | PARTS REQUEST | |
|
COMING CLAMP JS202-1
121010221 · qty on machine: 1 | |||||
Page 8 — FX30E6 ASSY. (CONT'D.)
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 51@ | 111347473 | CURLY CODE (2 SQ. MM) | 1 | PARTS REQUEST | |
|
COMING CURLY CODE (2 SQ. MM)
111347473 · qty on machine: 1 Also included in kit 300 - VIBRATOR HEAD ASSY (111912121) | |||||
| 52 | 959028211 | HOSE, 31-19-2P (UNIT/METER) | 1 | PARTS REQUEST | |
|
COMING HOSE, 31-19-2P (UNIT/METER)
959028211 · qty on machine: 1 Kit includes: 91$, 92$, 93%$, 94$, 95$, 96$, 97$, 98$, 101$, 102$, 111$, 112$, 113$, 203$ | |||||
| 91$ | 111457231 | PUSH COVER | 1 | PARTS REQUEST | |
|
COMING PUSH COVER
111457231 · qty on machine: 1 Also included in kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 92$ | 111343571 | SWITCH ASSY | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING SWITCH ASSY
111343571 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 93%$ | 094010033 | SCREW 5 X 10 LOCK, WASHER (S) | 6 | PARTS REQUEST | |
|
COMING SCREW 5 X 10 LOCK, WASHER (S)
094010033 · qty on machine: 6 Also included in kit 92 - SWITCH ASSY (111343571); kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 94$ | 091605025 | SCREW 5 X 25 LOCK/FLAT, WASHER | 4 | PARTS REQUEST | |
|
COMING SCREW 5 X 25 LOCK/FLAT, WASHER
091605025 · qty on machine: 4 Also included in kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 95$ | 111437890 | INSULATING PAPER | 1 | PARTS REQUEST | |
|
COMING INSULATING PAPER
111437890 · qty on machine: 1 Also included in kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 96$ | 111449120 | SEAL RING | 1 | ADD TO CART | |
| 97$ | 111213700 | COVER, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING COVER, SWITCH BOX
111213700 · qty on machine: 1 Also included in kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 98$ | 002200620 | BOLT 6 X 20, LOCK, WASHER | 4 | ADD TO CART | |
| 101$ | 111213680 | SWITCH BOX | 1 | ADD TO CART | |
| 102$ | 111457110 | CORD BUSH/TAPER/SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING CORD BUSH/TAPER/SWITCH BOX
111457110 · qty on machine: 1 Also included in kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 111$ | 111013510 | PRESSURE RUBBER, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING PRESSURE RUBBER, SWITCH BOX
111013510 · qty on machine: 1 Also included in kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 112$ | 111435810 | SLIPWASHER 16-24-1T | 1 | PARTS REQUEST | |
|
COMING SLIPWASHER 16-24-1T
111435810 · qty on machine: 1 Also included in kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 113$ | 111437760 | NUT, (16D) SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING NUT, (16D) SWITCH BOX
111437760 · qty on machine: 1 Also included in kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 114 | 111335850 | CORD PROTECTOR, SW. BOX | 1 | ADD TO CART | |
| 115 | 121010210 | CLAMP JS 253 | 1 | PARTS REQUEST | |
|
COMING CLAMP JS 253
121010210 · qty on machine: 1 | |||||
| 116 | 959024410 | CABTYRE CORD, 2-3C (UNIT/M) | 1 | 1 PC = 1 M | PARTS REQUEST |
|
COMING CABTYRE CORD, 2-3C (UNIT/M)
959024410 · qty on machine: 1 1 PC = 1 M | |||||
| 116 | 959024415 | CABTYRE CORD, 2 X 3 X 15M | 1 | ADD TO CART | |
| 120 | 111013622 | PLUG ASSY. (MALE) GRAY | 1 | ADD TO CART | |
| 120 | 111013542 | PLUG ASSY. (MALE) GREEN | 1 | REPLACES P/N 111013731 | ADD TO CART |
| 201@ | 920100600 | DECAL: M-MARK 54D | 1 | ADD TO CART | |
| 203$ | 920111390 | DECAL: SERIAL NO. | 1 | PARTS REQUEST | |
|
COMING DECAL: SERIAL NO.
920111390 · qty on machine: 1 Also included in kit 52 - HOSE, 31-19-2P (UNIT/METER (959028211) | |||||
| 300 | 111912121 | VIBRATOR HEAD ASSY | 1 | INCLUDES ITEMS W/@ | ADD TO CART |
 VIBRATOR HEAD ASSY
111912121 · qty on machine: 1 INCLUDES ITEMS W/@ Kit includes: 51@, 201@ view full part page → $1924.95 IN A KIT + SOLD SOLO | |||||
Page 10 — FX40G6 ASSY.
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| A | 111931101 | SWITCH BOX ASSY | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING SWITCH BOX ASSY
111931101 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: B@, C@, 1-3@, 2@, 3@, 4@, 5@, 7@, 8@, 9@, 10@, 11@, 12@, 13@, 14@, 15@, 16@, 17@, 18@, 19@, 20@, 21@, 22@, 23@, 24@, 25@, 26@, 29@, 30@, 31&@, 33#@, 34#@ | |||||
| B@ | 111931130 | RUBBER TUBE SET, D3.5 | 1 | INCLUDES ITEMS W/& CUT FOR NEEDED LENGTH | PARTS REQUEST |
|
COMING RUBBER TUBE SET, D3.5
111931130 · qty on machine: 1 INCLUDES ITEMS W/& CUT FOR NEEDED LENGTH Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| C@ | 111931260 | CONTRACTION TUBE SET | 1 | INCLUDES ITEMS W/# CUT FOR NEEDED LENGTH | PARTS REQUEST |
|
COMING CONTRACTION TUBE SET
111931260 · qty on machine: 1 INCLUDES ITEMS W/# CUT FOR NEEDED LENGTH Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 1-1R | 111457160 | RUBBER HEAD CAP | 1 | PARTS REQUEST | |
|
COMING RUBBER HEAD CAP
111457160 · qty on machine: 1 | |||||
| 1-2 | 111351060 | HEAD CASE | 1 | PARTS REQUEST | |
|
COMING HEAD CASE
111351060 · qty on machine: 1 | |||||
| 1-3@ | 111351040 | HEAD CASE | 1 | ADD TO CART | |
| 2@ | 111435640 | ECCENTRIC ROTATOR | 1 | ADD TO CART | |
| 3@ | 044606202 | BEARING, 6202VVSGR | 2 | ADD TO CART | |
| 4@ | 080200150 | STOP RING, S-15 | 1 | ADD TO CART | |
| 5@ | 111343520 | MOTOR CASE W/STATOR | 1 | ADD TO CART | |
| 7@ | 111435650 | CASE JOINTER | 1 | ADD TO CART | |
| 8@ | 050100300 | O-RING, G-30 | 1 | PARTS REQUEST | |
|
COMING O-RING, G-30
050100300 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 9@ | 111013280 | ROTOR | 1 | ADD TO CART | |
 ROTOR
111013280 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) view full part page → $386.95 IN A KIT + SOLD SOLO | |||||
| 10@ | 042506001 | BEARING, 6001ZZSG | 1 | ADD TO CART | |
| 11@ | 080200120 | STOP RING, S-12 | 1 | ADD TO CART | |
| 12@ | 042500607 | BEARING, 607ZZSG | 1 | ADD TO CART | |
| 13@ | 080300060 | STOP RING, E-6 | 1 | ADD TO CART | |
| 14@ | 080100280 | STOP RING, R-28 | 1 | ADD TO CART | |
| 15@ | 050200300 | O-RING, P-30 | 1 | PARTS REQUEST | |
|
COMING O-RING, P-30
050200300 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 16@ | 151446030 | TUBE, 3.2-4.2-20L | 3 | ADD TO CART | |
| 17@ | 111465700 | CORD HOLDER, TAPER | 1 | ADD TO CART | |
| 18@ | 111465710 | HOLDER | 1 | ADD TO CART | |
| 19@ | 111435680 | HOLDER | 1 | ADD TO CART | |
| 20@ | 151448571 | PROTECT TUBE | 1 | ADD TO CART | |
| 21@ | 121437580 | HOSE COUPLING, VH-42 | 1 | ADD TO CART | |
| 22@ | 111457100 | CORD PROTECTOR (LEAD) | 1 | ADD TO CART | |
| 23@ | 121437551 | SLIP WASHER | 1 | ADD TO CART | |
| 24@ | 111461350 | NUT, CORD PROTECTOR | 1 | ADD TO CART | |
| 25@ | 121010030 | TERMINAL SLEEVE TMDB-2 | 3 | PARTS REQUEST | |
|
COMING TERMINAL SLEEVE TMDB-2
121010030 · qty on machine: 3 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 26@ | 111347473 | CURLY CORD, (2 SQ. MM) | 1 | PARTS REQUEST | |
|
COMING CURLY CORD, (2 SQ. MM)
111347473 · qty on machine: 1 Also included in kit A - SWITCH BOX ASSY (111931101) | |||||
| 27 | 959028111 | HOSE, 35-19-2P | 1 | ADD TO CART | |
| 28-1 | 111461330 | HOSE CLAMP | 1 | PARTS REQUEST | |
|
COMING HOSE CLAMP
111461330 · qty on machine: 1 | |||||
| 28-2 | 111010220 | CLAMP, AB2050 | 2 | ADD TO CART | |
| 28-2 | 122010060 | CLAMP, JS 245 | 2 | ADD TO CART | |
| 29@ | 920100600 | DECAL: M-MARK 54D | 1 | ADD TO CART | |
| 30@ | 111457080 | CORD BUSH, D15-2.9 | 1 | ADD TO CART | |
| 31&@ | 959026729 | RUBBER TUBE, D3.5-1M | 1 | 1 PC = 1 M | PARTS REQUEST |
|
COMING RUBBER TUBE, D3.5-1M
959026729 · qty on machine: 1 1 PC = 1 M Also included in kit A - SWITCH BOX ASSY (111931101); kit B - RUBBER TUBE SET, D3.5 (111931130) | |||||
| 33#@ | 959027029 | CONTRACTION TUBE, D14-1M | 1 | 1 PC = 1 M | PARTS REQUEST |
|
COMING CONTRACTION TUBE, D14-1M
959027029 · qty on machine: 1 1 PC = 1 M Also included in kit C - CONTRACTION TUBE SET (111931260); kit A - SWITCH BOX ASSY (111931101) | |||||
| 34#@ | 959027101 | CONTRACTION TUBE, 3/4"-60 | 1 | PARTS REQUEST | |
|
COMING CONTRACTION TUBE, 3/4"-60
959027101 · qty on machine: 1 Also included in kit C - CONTRACTION TUBE SET (111931260); kit A - SWITCH BOX ASSY (111931101) | |||||
Page 12 — FX40G6 ASSY. (CONT'D.)
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 51 | 122010060 | CLAMP, JS 245 | 1 | ADD TO CART | |
| 52$ | 111213680 | SWITCH BOX | 1 | ADD TO CART | |
| 53$ | 111457231 | PUSH COVER | 1 | PARTS REQUEST | |
|
COMING PUSH COVER
111457231 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 54$ | 111343571 | SWITCH ASSY | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING SWITCH ASSY
111343571 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 55$ | 091605025 | SCREW 5 X 25 W/LOCK/FLAT WASHER | 4 | PARTS REQUEST | |
|
COMING SCREW 5 X 25 W/LOCK/FLAT WASHER
091605025 · qty on machine: 4 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 56 | 111013920 | TERMINAL, TMEX2-5M | 6 | PARTS REQUEST | |
|
COMING TERMINAL, TMEX2-5M
111013920 · qty on machine: 6 | |||||
| 57$ | 111457110 | CORD BUSH, TAPER/SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING CORD BUSH, TAPER/SWITCH BOX
111457110 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 58%$ | 094010033 | SCREW, 5 X 10 W/LOCK WASHER (S) | 6 | PARTS REQUEST | |
|
COMING SCREW, 5 X 10 W/LOCK WASHER (S)
094010033 · qty on machine: 6 Also included in kit 54 - SWITCH ASSY (111343571); kit 51 - CLAMP, JS 245 (122010060) | |||||
| 59$ | 111437890 | INSULATING PAPER | 1 | PARTS REQUEST | |
|
COMING INSULATING PAPER
111437890 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 60$ | 111449120 | SEAL RING | 1 | ADD TO CART | |
| 61$ | 111213700 | COVER, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING COVER, SWITCH BOX
111213700 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 62$ | 002200620 | BOLT, 6 X 20 LOCK WASHER | 4 | ADD TO CART | |
| 63$ | 111013510 | PRESSURE RUBBER, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING PRESSURE RUBBER, SWITCH BOX
111013510 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 64$ | 111435810 | SLIP WASHER 16-24-1T | 1 | PARTS REQUEST | |
|
COMING SLIP WASHER 16-24-1T
111435810 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 65$ | 111437760 | NUT, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING NUT, SWITCH BOX
111437760 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 66 | 111335850 | CORD PROTECTOR, SWITCH BOX | 1 | ADD TO CART | |
| 67 | 121010210 | CLAMP, JS 253 | 1 | PARTS REQUEST | |
|
COMING CLAMP, JS 253
121010210 · qty on machine: 1 | |||||
| 68 | 959024410 | CABTYRE CORD, 2-3C (UNIT/M) | 1 | 1 PC = 1 M | PARTS REQUEST |
|
COMING CABTYRE CORD, 2-3C (UNIT/M)
959024410 · qty on machine: 1 1 PC = 1 M | |||||
| 68 | 959024415 | CABTYRE CORD, 2 X 3 X 15M | 1 | ADD TO CART | |
| 69 | 111013622 | PLUG ASSY. (MALE) GRAY | 1 | ADD TO CART | |
| 69 | 111013542 | PLUG ASSY. (MALE) GREEN | 1 | REPLACES P/N 111013731 | ADD TO CART |
| 81 | 920105890 | DECAL: MODEL 40 | 1 | PARTS REQUEST | |
|
COMING DECAL: MODEL 40
920105890 · qty on machine: 1 | |||||
| 83$ | 920112340 | DECAL: SERIAL NO. | 1 | PARTS REQUEST | |
|
COMING DECAL: SERIAL NO.
920112340 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 100 | 111912111 | VIBRATOR HEAD ASSY | 1 | INCLUDES ITEMS W/@ | ADD TO CART |
Page 14 — FX50G6 ASSY.
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| A | 111931101 | SWITCH BOX ASSY | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING SWITCH BOX ASSY
111931101 · qty on machine: 1 INCLUDES ITEMS W/$ | |||||
| B | 111931150 | RUBBER TUBE SET, D4.5 | 1 | INCLUDES ITEMS W/& CUT FOR NEEDED LENGTH | PARTS REQUEST |
|
COMING RUBBER TUBE SET, D4.5
111931150 · qty on machine: 1 INCLUDES ITEMS W/& CUT FOR NEEDED LENGTH Kit includes: 31&@ | |||||
| C | 111931260 | CONTRACTION TUBE SET | 1 | INCLUDES ITEMS W/# CUT FOR NEEDED LENGTH | PARTS REQUEST |
|
COMING CONTRACTION TUBE SET
111931260 · qty on machine: 1 INCLUDES ITEMS W/# CUT FOR NEEDED LENGTH Kit includes: 33#@, 34#@ | |||||
| 1-1R | 111457170 | RUBBER HEAD CAP | 1 | PARTS REQUEST | |
|
COMING RUBBER HEAD CAP
111457170 · qty on machine: 1 | |||||
| 1-2 | 111351070 | HEAD CASE | 1 | PARTS REQUEST | |
|
COMING HEAD CASE
111351070 · qty on machine: 1 Kit includes: 1-3@, 2@, 3@, 4@, 5@, 7@, 8@, 9@, 10@, 11@, 12@, 13@, 14@, 15@, 16@, 17@, 18@, 19@, 20@, 21@, 22@, 23@, 24@, 25@, 26@, 29@, 30@, 31&@, 33#@, 34#@ | |||||
| 1-3@ | 111351050 | HEAD CASE | 1 | ADD TO CART | |
 HEAD CASE
111351050 · qty on machine: 1 Also included in kit 1-2 - HEAD CASE (111351070) view full part page → $307.95 IN A KIT + SOLD SOLO | |||||
| 2@ | 111435610 | ECCENTRIC ROTATOR | 1 | ADD TO CART | |
| 3@ | 044606302 | BEARING, 6302VVSGR | 2 | ADD TO CART | |
| 4@ | 080200150 | STOP RING, S-15 | 1 | ADD TO CART | |
| 5@ | 111343530 | MOTOR CASE W/STATOR | 1 | ADD TO CART | |
| 7@ | 111435630 | CASE JOINTER | 1 | ADD TO CART | |
| 8@ | 050100400 | O-RING, G-40 | 1 | ADD TO CART | |
| 9@ | 111013370 | ROTOR | 1 | ADD TO CART | |
 ROTOR
111013370 · qty on machine: 1 Also included in kit 1-2 - HEAD CASE (111351070) view full part page → $405.95 IN A KIT + SOLD SOLO | |||||
| 10@ | 042506002 | BEARING, 6002ZZSG | 1 | ADD TO CART | |
| 11@ | 080200150 | STOP RING, S-15 | 1 | ADD TO CART | |
| 12@ | 042500608 | BEARING, 608ZZSG | 1 | PARTS REQUEST | |
|
COMING BEARING, 608ZZSG
042500608 · qty on machine: 1 Also included in kit 1-2 - HEAD CASE (111351070) | |||||
| 13@ | 080300070 | STOP RING, E-7 | 1 | ADD TO CART | |
| 14@ | 080100320 | STOP RING, R-32 | 1 | ADD TO CART | |
| 15@ | 050200360 | O-RING, P-36 | 1 | ADD TO CART | |
| 16@ | 959021422 | TUBE, 4D-5D-20L | 3 | ADD TO CART | |
| 17@ | 111465780 | CORD HOLDER, TAPER | 1 | ADD TO CART | |
| 18@ | 111465790 | HOLDER, IN | 1 | ADD TO CART | |
| 19@ | 111435210 | HOLDER | 1 | ADD TO CART | |
| 20@ | 111448400 | PROTECT TUBE | 1 | ADD TO CART | |
| 21@ | 121437710 | HOSE COUPLING, VH-52 | 1 | ADD TO CART | |
| 22@ | 111457090 | CORD PROTECTOR (LEAD) | 1 | ADD TO CART | |
| 23@ | 121437551 | SLIP WASHER | 1 | ADD TO CART | |
| 24@ | 111461350 | NUT, CORD PROTECTOR | 1 | ADD TO CART | |
| 25@ | 111013290 | TERMINAL SLEEVE, TG-B-5.5 | 3 | ADD TO CART | |
| 26@ | 111347483 | CURLY CORD (3 SQ. MM) | 1 | PARTS REQUEST | |
|
COMING CURLY CORD (3 SQ. MM)
111347483 · qty on machine: 1 Also included in kit 1-2 - HEAD CASE (111351070) | |||||
| 27 | 959028111 | HOSE, 35-19-2P | 1 | ADD TO CART | |
| 28-1 | 111461330 | HOSE CLAMP | 1 | PARTS REQUEST | |
|
COMING HOSE CLAMP
111461330 · qty on machine: 1 | |||||
| 28-2 | 111010220 | CLAMP, AB2050 | 2 | ADD TO CART | |
| 28-2 | 122010060 | CLAMP, JS 245 | 2 | ADD TO CART | |
| 29@ | 920100600 | DECAL: M-MARK 54D | 1 | ADD TO CART | |
| 30@ | 111457070 | CORD BUSH, D15-3.8 | 1 | ADD TO CART | |
| 31&@ | 959026829 | RUBBER TUBE, D4.5-1M | 1 | 1 PC = 1 M | ADD TO CART |
| 33#@ | 959027029 | CONTRACTION TUBE, D14-1M | 1 | 1 PC = 1 M | PARTS REQUEST |
|
COMING CONTRACTION TUBE, D14-1M
959027029 · qty on machine: 1 1 PC = 1 M Also included in kit C - CONTRACTION TUBE SET (111931260); kit 1-2 - HEAD CASE (111351070) | |||||
| 34#@ | 959027101 | CONTRACTION TUBE, 3/4"-60 | 1 | PARTS REQUEST | |
|
COMING CONTRACTION TUBE, 3/4"-60
959027101 · qty on machine: 1 Also included in kit C - CONTRACTION TUBE SET (111931260); kit 1-2 - HEAD CASE (111351070) | |||||
Page 16 — FX50G6 ASSY. (CONT'D.)
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 51 | 122010060 | CLAMP, JS 245 | 1 | ADD TO CART | |
| 52$ | 111213680 | SWITCH BOX | 1 | ADD TO CART | |
| 53$ | 111457231 | PUSH COVER | 1 | PARTS REQUEST | |
|
COMING PUSH COVER
111457231 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 54$ | 111343571 | SWITCH ASSY | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING SWITCH ASSY
111343571 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 55$ | 091605025 | SCREW, 5 X 25 W/LOCK/FLAT WASHER | 4 | PARTS REQUEST | |
|
COMING SCREW, 5 X 25 W/LOCK/FLAT WASHER
091605025 · qty on machine: 4 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 56 | 111013930 | TERMINAL TMEX3.5-5S | 6 | PARTS REQUEST | |
|
COMING TERMINAL TMEX3.5-5S
111013930 · qty on machine: 6 | |||||
| 57$ | 111457110 | CORD BUSH, TAPER, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING CORD BUSH, TAPER, SWITCH BOX
111457110 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 58%$ | 094010033 | SCREW 5 X 10 LOCK WASHER (S) | 6 | PARTS REQUEST | |
|
COMING SCREW 5 X 10 LOCK WASHER (S)
094010033 · qty on machine: 6 Also included in kit 54 - SWITCH ASSY (111343571); kit 51 - CLAMP, JS 245 (122010060) | |||||
| 59$ | 111437890 | INSULATING PAPER | 1 | PARTS REQUEST | |
|
COMING INSULATING PAPER
111437890 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 60$ | 111449120 | SEAL RING | 1 | ADD TO CART | |
| 61$ | 111213700 | COVER, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING COVER, SWITCH BOX
111213700 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 62$ | 002200620 | BOLT 6 X 20 LOCK, WASHER | 4 | ADD TO CART | |
| 63$ | 111435820 | PRESSURE RUBBER, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING PRESSURE RUBBER, SWITCH BOX
111435820 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 64$ | 111435810 | SLIP WASHER 16-24-1T | 1 | PARTS REQUEST | |
|
COMING SLIP WASHER 16-24-1T
111435810 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 65$ | 111437760 | NUT, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING NUT, SWITCH BOX
111437760 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 66 | 111335420 | CORD PROTECTOR, SWITCH BOX | 1 | ADD TO CART | |
| 67 | 121010210 | CLAMP, JS 253 | 1 | PARTS REQUEST | |
|
COMING CLAMP, JS 253
121010210 · qty on machine: 1 | |||||
| 68 | 959024023 | CABTYRE CORD, 3.5 X 3 X 15M | 1 | ADD TO CART | |
| 68 | 959024090 | CABTYRE CORD, 3.5 (UNIT/M) | 1 | 1 PC = 1 M | ADD TO CART |
| 69 | 111013622 | PLUG ASSY. (MALE) GRAY | 1 | ADD TO CART | |
| 69 | 111013542 | PLUG ASSY. (MALE) GREEN | 1 | REPLACES P/N 111013731 | ADD TO CART |
| 81 | 920105870 | DECAL: MODEL 50 | 1 | PARTS REQUEST | |
|
COMING DECAL: MODEL 50
920105870 · qty on machine: 1 | |||||
| 83$ | 920112340 | DECAL: SERIAL NO. | 1 | PARTS REQUEST | |
|
COMING DECAL: SERIAL NO.
920112340 · qty on machine: 1 Also included in kit 51 - CLAMP, JS 245 (122010060) | |||||
| 100 | 111912131 | VIBRATOR HEAD ASSY | 1 | INCLUDES ITEMS W/@ | ADD TO CART |

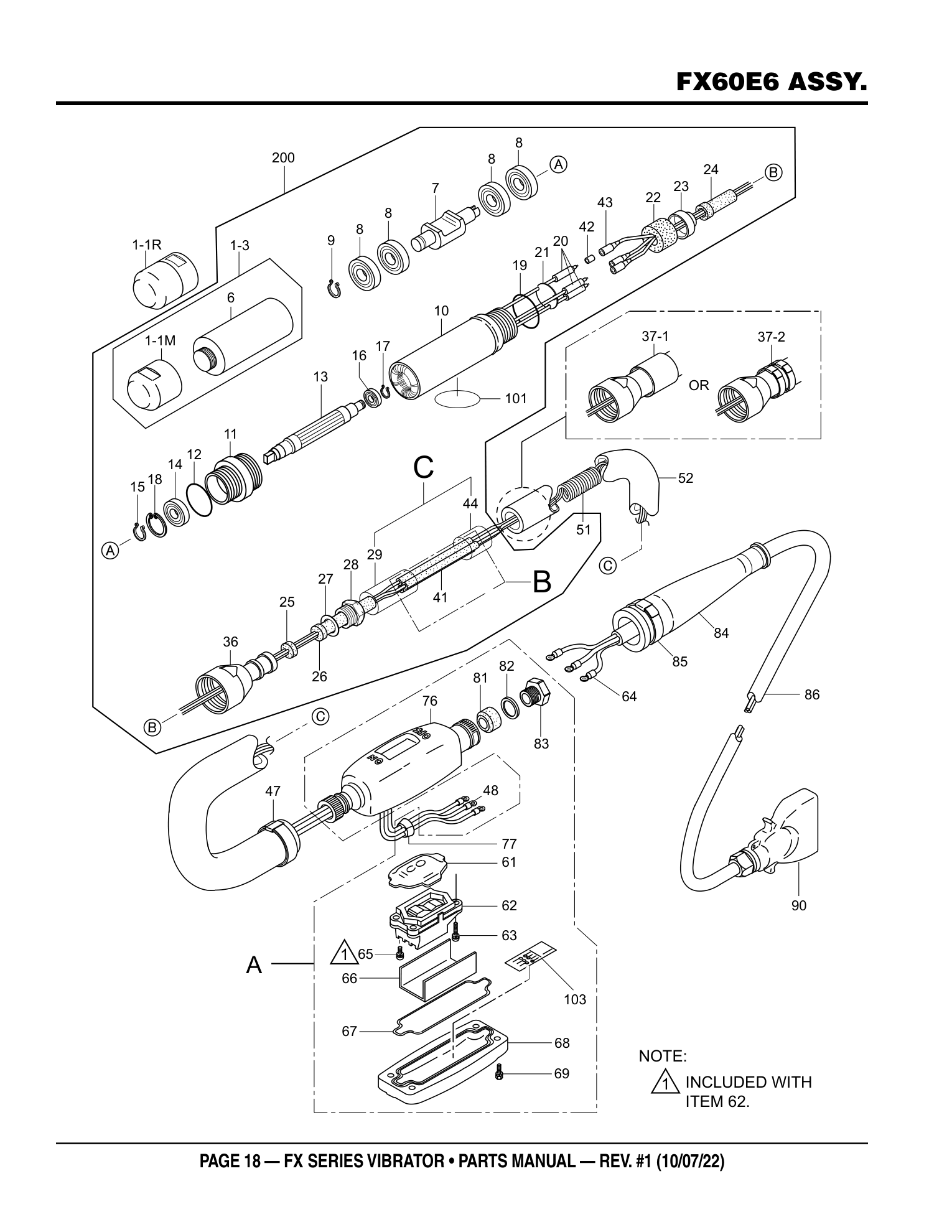

Page 18 — FX60E6 ASSY.
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| A | 111931101 | SWITCH BOX ASSY | 1 | INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING SWITCH BOX ASSY
111931101 · qty on machine: 1 INCLUDES ITEMS W/$ | |||||
| B | 111931250 | RUBBER TUBE SET, D4.5 | 1 | 3 PCS = 1 SET INCLUDES ITEMS W/+ | PARTS REQUEST |
|
COMING RUBBER TUBE SET, D4.5
111931250 · qty on machine: 1 3 PCS = 1 SET INCLUDES ITEMS W/+ Kit includes: 41+* | |||||
| C | 111931270 | CONTRACTION TUBE SET | 1 | INCLUDES ITEMS W/& CUT FOR NEEDED LENGTH | PARTS REQUEST |
|
COMING CONTRACTION TUBE SET
111931270 · qty on machine: 1 INCLUDES ITEMS W/& CUT FOR NEEDED LENGTH Kit includes: 29&*, 44&* | |||||
| 1-1M#* | 111456890 | METAL HEAD CAP | 1 | PARTS REQUEST | |
|
COMING METAL HEAD CAP
111456890 · qty on machine: 1 Also included in kit 1-3* - VIBRATION CASE W/HEAD (111931190) | |||||
| 1-1R | 111457180 | RUBBER HEAD CAP | 1 | PARTS REQUEST | |
|
COMING RUBBER HEAD CAP
111457180 · qty on machine: 1 | |||||
| 1-3* | 111931190 | VIBRATION CASE W/HEAD | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 6#* | 111343580 | VIBRATION CASE | 1 | PARTS REQUEST | |
|
COMING VIBRATION CASE
111343580 · qty on machine: 1 Also included in kit 1-3* - VIBRATION CASE W/HEAD (111931190) | |||||
| 7* | 111324040 | ECCENTRIC ROTATOR | 1 | ADD TO CART | |
| 8* | 044606205 | BEARING, 6205VVSGR | 4 | ADD TO CART | |
| 9* | 080200250 | STOP RING, S-25 | 1 | PARTS REQUEST | |
|
COMING STOP RING, S-25
080200250 · qty on machine: 1 | |||||
| 10* | 111343820 | MOTOR CASE W/STATOR | 1 | ADD TO CART | |
| 11* | 111434140 | CASE JOINTER | 1 | ADD TO CART | |
| 12* | 050200480 | O-RING, P-48 | 1 | PARTS REQUEST | |
|
COMING O-RING, P-48
050200480 · qty on machine: 1 | |||||
| 13* | 111331400 | ROTOR | 1 | ADD TO CART | |
| 14* | 042506203 | BEARING, 6203ZZSG | 1 | ADD TO CART | |
| 15* | 080200170 | STOP RING, S-17 | 1 | ADD TO CART | |
| 16* | 042506000 | BEARING, 6000ZZSG | 1 | ADD TO CART | |
| 17* | 080200100 | STOP RING, S-10 | 1 | ADD TO CART | |
| 18* | 080100400 | STOP RING, R-40 | 1 | ADD TO CART | |
| 19* | 050200480 | O-RING, P-48 | 1 | PARTS REQUEST | |
|
COMING O-RING, P-48
050200480 · qty on machine: 1 | |||||
| 20* | 959021422 | TUBE, 4D-5D-20L | 3 | ADD TO CART | |
| 21* | 111428960 | SEAT | 1 | ADD TO CART | |
| 22* | 111449290 | CORD HOLDER | 1 | ADD TO CART | |
| 23* | 111448470 | HOLDER | 1 | ADD TO CART | |
| 24* | 111448400 | PROTECT TUBE | 1 | ADD TO CART | |
| 25* | 111457070 | CORD BUSH, D15-3.8 | 1 | ADD TO CART | |
| 26* | 111457090 | CORD PROTECTOR (LEAD) | 1 | ADD TO CART | |
| 27* | 121437551 | SLIP WASHER | 1 | ADD TO CART | |
| 28* | 111461350 | NUT, CORD PROTECTOR | 1 | ADD TO CART | |
| 29&* | 959027101 | CONTRACTION TUBE, 3/4"-60 | 1 | PARTS REQUEST | |
|
COMING CONTRACTION TUBE, 3/4"-60
959027101 · qty on machine: 1 Also included in kit C - CONTRACTION TUBE SET (111931270) | |||||
| 36* | 111448440 | HOSE COUPLING | 1 | ADD TO CART | |
| 37-1 | 111435220 | HOSE CLAMP | 1 | PARTS REQUEST | |
|
COMING HOSE CLAMP
111435220 · qty on machine: 1 | |||||
| 37-2 | 111010220 | CLAMP, AB2050 | 2 | ADD TO CART | |
| 37-2 | 122010060 | CLAMP, JS 245 | 2 | ADD TO CART | |
| 41+* | 959026829 | RUBBER TUBE, D4.5-1M | 1 | 1 PC = 1 M | ADD TO CART |
| 42* | 111012270 | TERMINAL SLEEVE, P-5.5 | 3 | ADD TO CART | |
| 43* | 111012280 | TERMINAL CAP, 43932-F | 3 | ADD TO CART | |
| 44&* | 959027029 | CONTRACTION TUBE, D14-1M | 1 | 1 PC = 1 M | PARTS REQUEST |
|
COMING CONTRACTION TUBE, D14-1M
959027029 · qty on machine: 1 1 PC = 1 M Also included in kit C - CONTRACTION TUBE SET (111931270) | |||||
| 47 | 122010060 | CLAMP, JS 245 | 1 | ADD TO CART | |
| 48 | 111010130 | TERMINAL, 3.5-4 | 3 | PARTS REQUEST | |
|
COMING TERMINAL, 3.5-4
111010130 · qty on machine: 3 Factory replaced this part - current number 111013140 | |||||
Page 20 — FX60E6 ASSY. (CONT'D)
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 51* | 111347693 | CURLY CORD (3 SQ. MM) | 1 | PARTS REQUEST | |
|
COMING CURLY CORD (3 SQ. MM)
111347693 · qty on machine: 1 | |||||
| 52 | 959023610 | RUBBER TUBE, 37.5D | 1 | ADD TO CART | |
| 61$ | 111457231 | PUSH COVER | 1 | PARTS REQUEST | |
|
COMING PUSH COVER
111457231 · qty on machine: 1 Also included in kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 62$ | 111343571 | SWITCH ASSY | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING SWITCH ASSY
111343571 · qty on machine: 1 INCLUDES ITEMS W/% Also included in kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 63$ | 091605025 | SCREW, 5 X 25 W/LOCK/FLAT WASHER | 4 | PARTS REQUEST | |
|
COMING SCREW, 5 X 25 W/LOCK/FLAT WASHER
091605025 · qty on machine: 4 Also included in kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 64 | 111013930 | TERMINAL, TMEX3.5-5S | 3 | PARTS REQUEST | |
|
COMING TERMINAL, TMEX3.5-5S
111013930 · qty on machine: 3 | |||||
| 65%$ | 094010033 | SCREW, 5 X 10 LOCK WASHER (S) | 6 | PARTS REQUEST | |
|
COMING SCREW, 5 X 10 LOCK WASHER (S)
094010033 · qty on machine: 6 Also included in kit 62 - SWITCH ASSY (111343571); kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 66$ | 111437890 | INSULATING PAPER | 1 | PARTS REQUEST | |
|
COMING INSULATING PAPER
111437890 · qty on machine: 1 Also included in kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 67$ | 111449120 | SEAL RING | 1 | ADD TO CART | |
| 68$ | 111213700 | COVER, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING COVER, SWITCH BOX
111213700 · qty on machine: 1 Also included in kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 69$ | 002200620 | BOLT 6 X 20 W/LOCK WASHER | 4 | ADD TO CART | |
| 76$ | 111213680 | SWITCH BOX | 1 | ADD TO CART | |
| 77$ | 111457110 | CORD BUSH, TAPER/SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING CORD BUSH, TAPER/SWITCH BOX
111457110 · qty on machine: 1 Also included in kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 81$ | 111435820 | PRESSURE RUBBER, SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING PRESSURE RUBBER, SWITCH BOX
111435820 · qty on machine: 1 Also included in kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 82$ | 111435810 | SLIP WASHER 16-24-1T | 2 | PARTS REQUEST | |
|
COMING SLIP WASHER 16-24-1T
111435810 · qty on machine: 2 Also included in kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 83$ | 111437760 | NUT, (16D) SWITCH BOX | 1 | PARTS REQUEST | |
|
COMING NUT, (16D) SWITCH BOX
111437760 · qty on machine: 1 Also included in kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 84 | 111335420 | CORD PROTECTOR, SWITCH BOX | 1 | ADD TO CART | |
| 85 | 122010210 | CLAMP, JS 253 | 1 | PARTS REQUEST | |
|
COMING CLAMP, JS 253
122010210 · qty on machine: 1 | |||||
| 86 | 959024090 | CABTYRE CORD, 3.5 | 1 | ADD TO CART | |
| 90 | 111013622 | PLUG ASSY. (MALE) GRAY | 1 | ADD TO CART | |
| 90 | 111013542 | PLUG ASSY. (MALE) GREEN | 1 | REPLACES P/N 111013731 | ADD TO CART |
| 101* | 920100600 | DECAL: M-MARK 54D | 1 | ADD TO CART | |
| 103$ | 920111390 | DECAL: SERIAL NO. | 1 | PARTS REQUEST | |
|
COMING DECAL: SERIAL NO.
920111390 · qty on machine: 1 Also included in kit 52 - RUBBER TUBE, 37.5D (959023610) | |||||
| 200 | 111912081 | VIBRATOR HEAD ASSY | 1 | INCLUDES ITEMS W/* | PARTS REQUEST |
|
COMING VIBRATOR HEAD ASSY
111912081 · qty on machine: 1 INCLUDES ITEMS W/* | |||||
The machine itself
Machine
Engine
The Multiquip FXA60A4 is a concrete vibrator built for consolidating freshly poured concrete and driving trapped air out of forms, slabs, and walls. Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
111013280
Multiquip 111013280 Rotor FX-40 - OEM Replacement Part
$386.95
111013370
Multiquip 111013370 Rotor FX-50 - OEM Replacement Part
$405.95
111013542
Multiquip 111013542 Plug Assembly Male Green FX - OEM Replacement Part
$153.95
111013622
Multiquip 111013622 Plug Assembly (Male) Gray - OEM Replacement Part
$165.95
111213680
Multiquip 111213680 Box Switch VH32/42/52A/VHW62A - OEM Replacement Part
$107.95
111343520
Multiquip 111343520 Motor Case Assembly - OEM Replacement Part
$577.95
111343530
Multiquip 111343530 Motor Case Assembly - OEM Replacement Part
$499.95
111351040
Multiquip 111351040 Head Case FX40G6 - OEM Replacement Part
$242.95
111351050
Multiquip 111351050 Head Case FXA50A VH52A - OEM Replacement Part
$307.95
111435610
Multiquip 111435610 Eccentric Rotator FX-50 - OEM Replacement Part
$164.95
111435630
Multiquip 111435630 Jointer Case FXA-50A - OEM Replacement Part
$126.95
111435640
Multiquip 111435640 Eccentric Rotator FX-40 - OEM Replacement Part
$145.95
111435650
Multiquip 111435650 Case Jointer FX-40 - OEM Replacement Part
$122.95
111436520
Multiquip 111436520 Rotator Eccentric VH-32 - OEM Replacement Part
$177.95
111912111
Multiquip 111912111 Vibrator Head Assembly FX-40 - OEM Replacement Part
$1,824.95
111912121
Multiquip 111912121 Vibrator Head Assembly FX-30 - OEM Replacement Part
$1,924.95
111912131
Multiquip 111912131 Vibrator Head Assembly FX-50 - OEM Replacement Part
$1,633.95
121437580
Multiquip 121437580 Coupling Hose VH42 - OEM Replacement Part
$224.95
121437710
Multiquip 121437710 Coupling Hose VH52 - OEM Replacement Part
$261.95
959024023
Multiquip 959024023 Cabtyre Cord 3.5x3x15M - OEM Replacement Part
$384.95
959028111
Multiquip 959028111 Hose - OEM Replacement Part
$86.95
002200620
BOLT 6 X 20, LOCK, WASHER
$1.62
042500607
BEARING, 607ZZSG
$19.95
042500608
BEARING, 608ZZSG
042500686
BEARING, 686ZZSG
042506000
BEARING, 6000ZZSG
$4.95
042506001
BEARING, 6001ZZSG
$17.95
042506002
BEARING, 6002ZZSG
$15.95
044606202
BEARING, 6202VVSGR
$18.95
044606302
BEARING, 6302VVSGR
$18.95
050100300
O-RING, G-30
050100400
O-RING, G-40
$2.76
050200200
O-RING, P-20
$2.95
050200300
O-RING, P-30
050200360
O-RING, P-36
$2.95
050300240
O-RING, S-24
080100220
STOP RING, R-22
080100280
STOP RING, R-28
$1.95
080100320
STOP RING, R-32
$1.95
080200100
STOP RING, S-10
080200120
STOP RING, S-12
$0.95
080200150
STOP RING, S-15
$1.63
080300050
STOP RING, E-5
$0.95
080300060
STOP RING, E-6
$0.95
080300070
STOP RING, E-7
$0.95
091605025
SCREW 5 X 25 LOCK/FLAT, WASHER
094010033
SCREW, 5 X 10 W/LOCK WASHER (S)
1-1R
111457180
111010130
TERMINAL, 3.5-4
111010220
CLAMP AB2050
$24.95
111013290
TERMINAL SLEEVE, TG-B-5.5
$2.83
111013510
PRESSURE RUBBER, SWITCH BOX
111013630
ROTOR
111013920
TERMINAL TMEX 2-5M
111013930
TERMINAL TMEX3.5-5S
111213700
COVER, SWITCH BOX
111335420
CORD PROTECTOR, SWITCH BOX
$11.95
111335850
CORD PROTECTOR, SW. BOX
$20.95
111343571
SWITCH ASSY
111344920
MOTOR CASE W/S, H
111347473
CURLY CODE (2 SQ. MM)
111347483
CURLY CORD (3 SQ. MM)
111351060
HEAD CASE
111351070
HEAD CASE
111425560
TUBE, 3.2 X 4.2 X 40L
$2.93
111426720
SEAT
111435210
HOLDER
$3.95
111435680
HOLDER
$2.95
111435810
SLIPWASHER 16-24-1T
111435820
PRESSURE RUBBER, SWITCH BOX
111437760
NUT, (16D) SWITCH BOX
111437890
INSULATING PAPER
111448350
GUIDE HOLDER
$5.95
111448390
TUBE 7D-10D-46L
$1.95
111448400
PROTECT TUBE
$3.95
111449120
SEAL RING
$9.95
111450190
HEAD CAP
111457070
CORD BUSH, D15-3.8
$2.68
111457080
CORD BUSH, D15-2.9
$2.68
111457090
CORD PROTECTOR (LEAD)
$5.95
111457100
CORD PROTECTOR (LEAD)
$5.95
111457110
CORD BUSH/TAPER/SWITCH BOX
111457150
RUBBER HEAD CAP (D32)
111457160
RUBBER HEAD CAP
111457170
RUBBER HEAD CAP
111457231
PUSH COVER
111461330
HOSE CLAMP
111461350
NUT, CORD PROTECTOR
$15.95
111465700
CORD HOLDER, TAPER
$3.95
111465710
HOLDER
$8.95
111465780
CORD HOLDER, TAPER
$3.95
111465790
HOLDER, IN
$9.95
111912081
VIBRATOR HEAD ASSY
121010030
TERMINAL SLEEVE TMDB-2
121010210
CLAMP JS 253
121010221
CLAMP JS202-1
121437551
SLIP WASHER
$0.94
121437650
CORD HOLDER, 10-19-45L
$6.95
121437660
HOSE COUPLING
121437690
HOSE CLAMP 35D-50L
122010060
CLAMP, JS 245
$9.95
122010210
CLAMP, JS 253
151446030
TUBE, 3.2-4.2-20L
$0.95
151448330
HEAD CASE
151448571
PROTECT TUBE
$3.95
37-1
111435220
37-2
111010220
920100600
DECAL: M-MARK 54D
$8.95
920111390
DECAL: SERIAL NO.
920112340
DECAL: SERIAL NO.
959021422
TUBE, 4D-5D-20L
$1.43
959023610
RUBBER TUBE, 37.5D
$19.95
959024090
CABTYRE CORD, 3.5 (UNIT/M)
959024410
CABTYRE CORD, 2-3C (UNIT/M)
959026529
CONTRACTION TUBE, D6-1M
959026729
RUBBER TUBE, D3.5-1M
959026829
RUBBER TUBE, D4.5-1M
$17.95
959027101
CONTRACTION TUBE, 3/4"-60
959028211
HOSE, 31-19-2P (UNIT/METER)
HOLDER
1
ROTOR
1
SEAT
1
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
