Multiquip GBBAT3 Battery-Powered Balloon Light
The parts bench

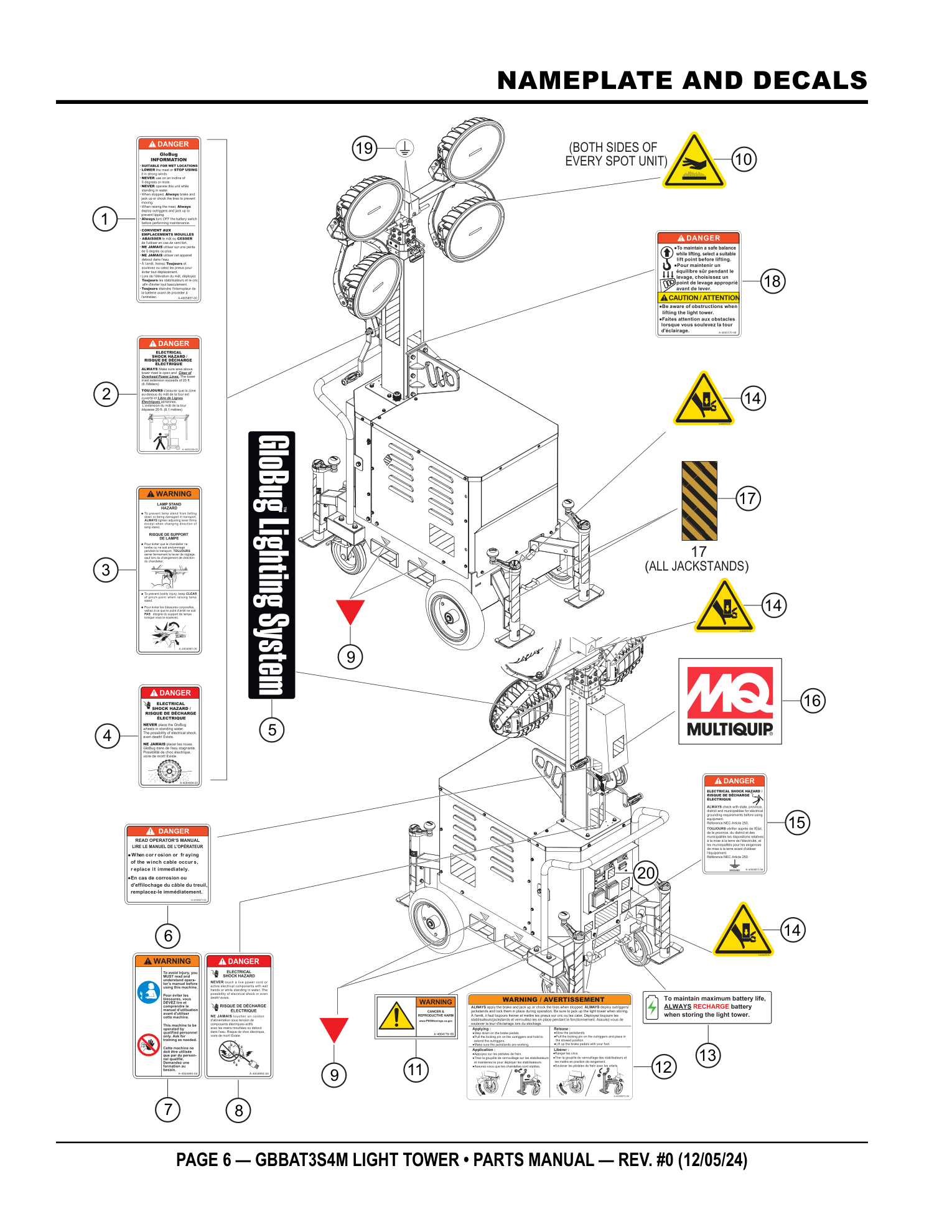

Need the PDF? ↓Page 6 — UNKNOWN
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A400585700 | DECAL: GLOBUG INFORMATION | 1 | PARTS REQUEST | |
|
COMING DECAL: GLOBUG INFORMATION
A400585700 · qty on machine: 1 | |||||
| 2 | A400555800 | DECAL: DANGER, POWER LINE | 1 | PARTS REQUEST | |
|
COMING DECAL: DANGER, POWER LINE
A400555800 · qty on machine: 1 | |||||
| 3 | A400498700 | DECAL: LAMPSTAND | 1 | PARTS REQUEST | |
|
COMING DECAL: LAMPSTAND
A400498700 · qty on machine: 1 | |||||
| 4 | A400499400 | DECAL: DANGER, TIRE | 1 | PARTS REQUEST | |
|
COMING DECAL: DANGER, TIRE
A400499400 · qty on machine: 1 | |||||
| 5 | A400447600 | DECAL: NAME, GLOBUG FRAME | 1 | ADD TO CART | |
| 6 | A400557100 | DECAL: DANGER, WINCH CABLE | 1 | PARTS REQUEST | |
|
COMING DECAL: DANGER, WINCH CABLE
A400557100 · qty on machine: 1 | |||||
| 7 | A400499500 | DECAL: MANUAL | 1 | PARTS REQUEST | |
|
COMING DECAL: MANUAL
A400499500 · qty on machine: 1 | |||||
| 8 | A400499300 | DECAL: DANGER, ELECTRICAL SHOCK | 1 | PARTS REQUEST | |
|
COMING DECAL: DANGER, ELECTRICAL SHOCK
A400499300 · qty on machine: 1 | |||||
| 9 | A400111200 | DECAL: TRIANGLE RED | 4 | ADD TO CART | |
| 10 | A400492200 | DECAL: BURN HAZARD | 8 | ADD TO CART | |
| 11 | A400477900 | DECAL: PROP 65 | 1 | ADD TO CART | |
| 12 | A400557300 | DECAL: WARNING, BRAKE, OUTRIGGER | 1 | PARTS REQUEST | |
|
COMING DECAL: WARNING, BRAKE, OUTRIGGER
A400557300 · qty on machine: 1 | |||||
| 13 | A400591500 | DECAL: RECHARGER | 1 | PARTS REQUEST | |
|
COMING DECAL: RECHARGER
A400591500 · qty on machine: 1 | |||||
| 14 | A400447800 | DECAL: FINGER CAUTION | 4 | ADD TO CART | |
| 15 | A400591700 | DECAL: GROUND | 1 | PARTS REQUEST | |
|
COMING DECAL: GROUND
A400591700 · qty on machine: 1 | |||||
| 16 | A400447300 | DECAL: MQ LOGO | 1 | ADD TO CART | |
| 17 | A300469300 | SAFETY STRIPE TAPE | 4 | ADD TO CART | |
| 18 | A400557000 | DECAL: DANGER, CAUTION, LIFT POINT | 1 | PARTS REQUEST | |
|
COMING DECAL: DANGER, CAUTION, LIFT POINT
A400557000 · qty on machine: 1 | |||||
| 19 | A400372800 | DECAL: GROUND | 3 | PARTS REQUEST | |
|
COMING DECAL: GROUND
A400372800 · qty on machine: 3 | |||||
| 20 | A400594200 | DECAL: MQ LOGO ZERO | 2 | PARTS REQUEST | |
|
COMING DECAL: MQ LOGO ZERO
A400594200 · qty on machine: 2 | |||||

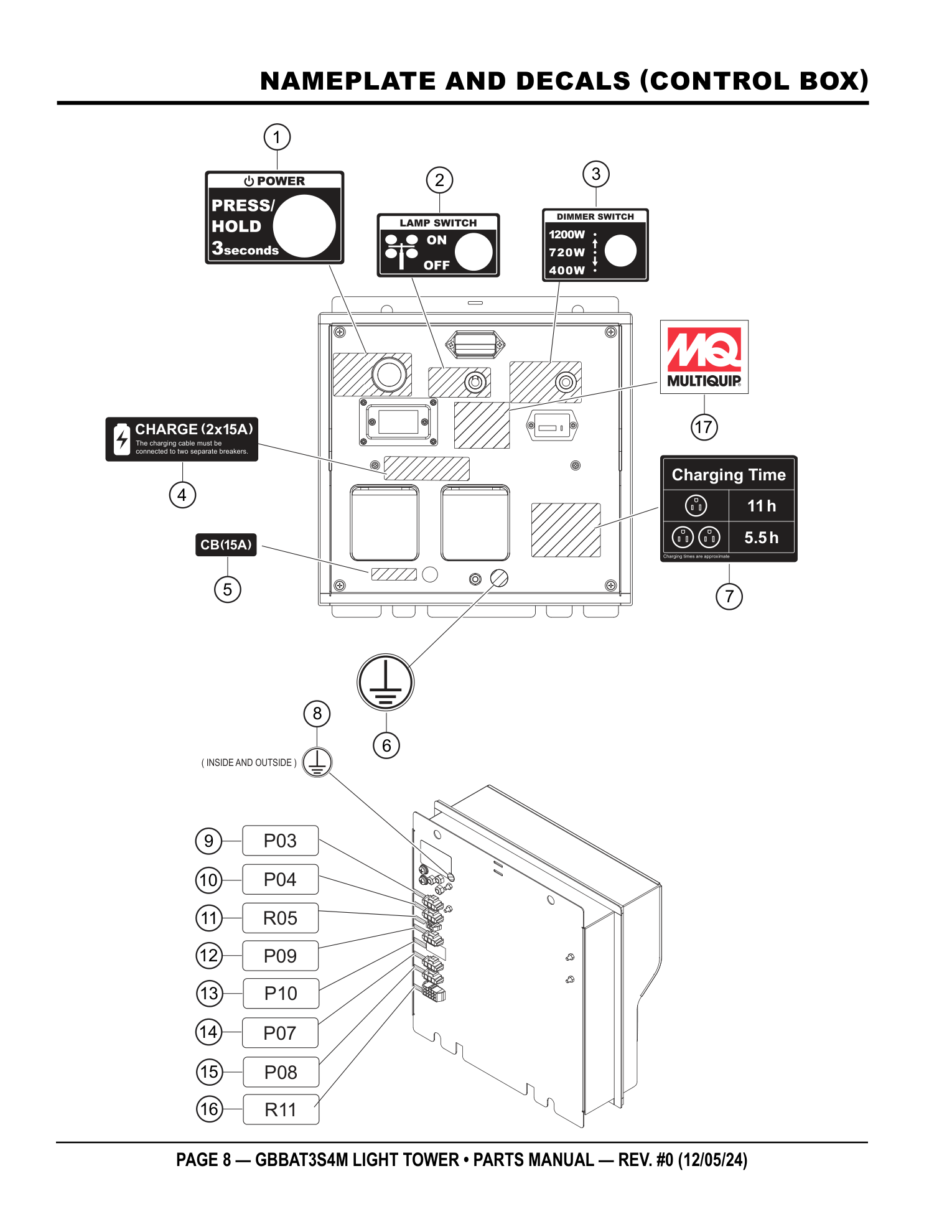

Page 8 — UNKNOWN
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A400590800 | DECAL: POWER SWITCH | 1 | PARTS REQUEST | |
|
COMING DECAL: POWER SWITCH
A400590800 · qty on machine: 1 | |||||
| 2 | A400590900 | DECAL: LIGHT SWITCH | 1 | PARTS REQUEST | |
|
COMING DECAL: LIGHT SWITCH
A400590900 · qty on machine: 1 | |||||
| 3 | A400591000 | DECAL: DIMMER SWITCH | 1 | PARTS REQUEST | |
|
COMING DECAL: DIMMER SWITCH
A400591000 · qty on machine: 1 | |||||
| 4 | A400591100 | DECAL: CHARGE, 2X15A | 1 | PARTS REQUEST | |
|
COMING DECAL: CHARGE, 2X15A
A400591100 · qty on machine: 1 | |||||
| 5 | A400591200 | DECAL: CB 15A | 1 | PARTS REQUEST | |
|
COMING DECAL: CB 15A
A400591200 · qty on machine: 1 | |||||
| 6 | A400457300 | DECAL: GROUND Φ25 | 1 | ADD TO CART | |
| 7 | A400591300 | DECAL: CHARGING TIME | 1 | PARTS REQUEST | |
|
COMING DECAL: CHARGING TIME
A400591300 · qty on machine: 1 | |||||
| 8 | A400372800 | DECAL: GROUND | 2 | PARTS REQUEST | |
|
COMING DECAL: GROUND
A400372800 · qty on machine: 2 | |||||
| 9 | A400591800 | DECAL: CN03, P03, UPPER LIGHTS | 1 | PARTS REQUEST | |
|
COMING DECAL: CN03, P03, UPPER LIGHTS
A400591800 · qty on machine: 1 | |||||
| 10 | A400591900 | DECAL: CN, P04 | 1 | PARTS REQUEST | |
|
COMING DECAL: CN, P04
A400591900 · qty on machine: 1 | |||||
| 11 | A400592000 | DECAL: CN, R5 | 1 | PARTS REQUEST | |
|
COMING DECAL: CN, R5
A400592000 · qty on machine: 1 | |||||
| 12 | A400592100 | DECAL: CN9, P09 | 1 | PARTS REQUEST | |
|
COMING DECAL: CN9, P09
A400592100 · qty on machine: 1 | |||||
| 13 | A400592200 | DECAL: CN10, P10 | 1 | PARTS REQUEST | |
|
COMING DECAL: CN10, P10
A400592200 · qty on machine: 1 | |||||
| 14 | A400592300 | DECAL: CONNECTOR, P07 | 1 | PARTS REQUEST | |
|
COMING DECAL: CONNECTOR, P07
A400592300 · qty on machine: 1 | |||||
| 15 | A400592400 | DECAL: CN8, P08 | 1 | PARTS REQUEST | |
|
COMING DECAL: CN8, P08
A400592400 · qty on machine: 1 | |||||
| 16 | A400592500 | DECAL: CN11,R11 | 1 | PARTS REQUEST | |
|
COMING DECAL: CN11,R11
A400592500 · qty on machine: 1 | |||||
| 17 | A400594200 | DECAL: MQ LOGO | 1 | PARTS REQUEST | |
|
COMING DECAL: MQ LOGO
A400594200 · qty on machine: 1 | |||||

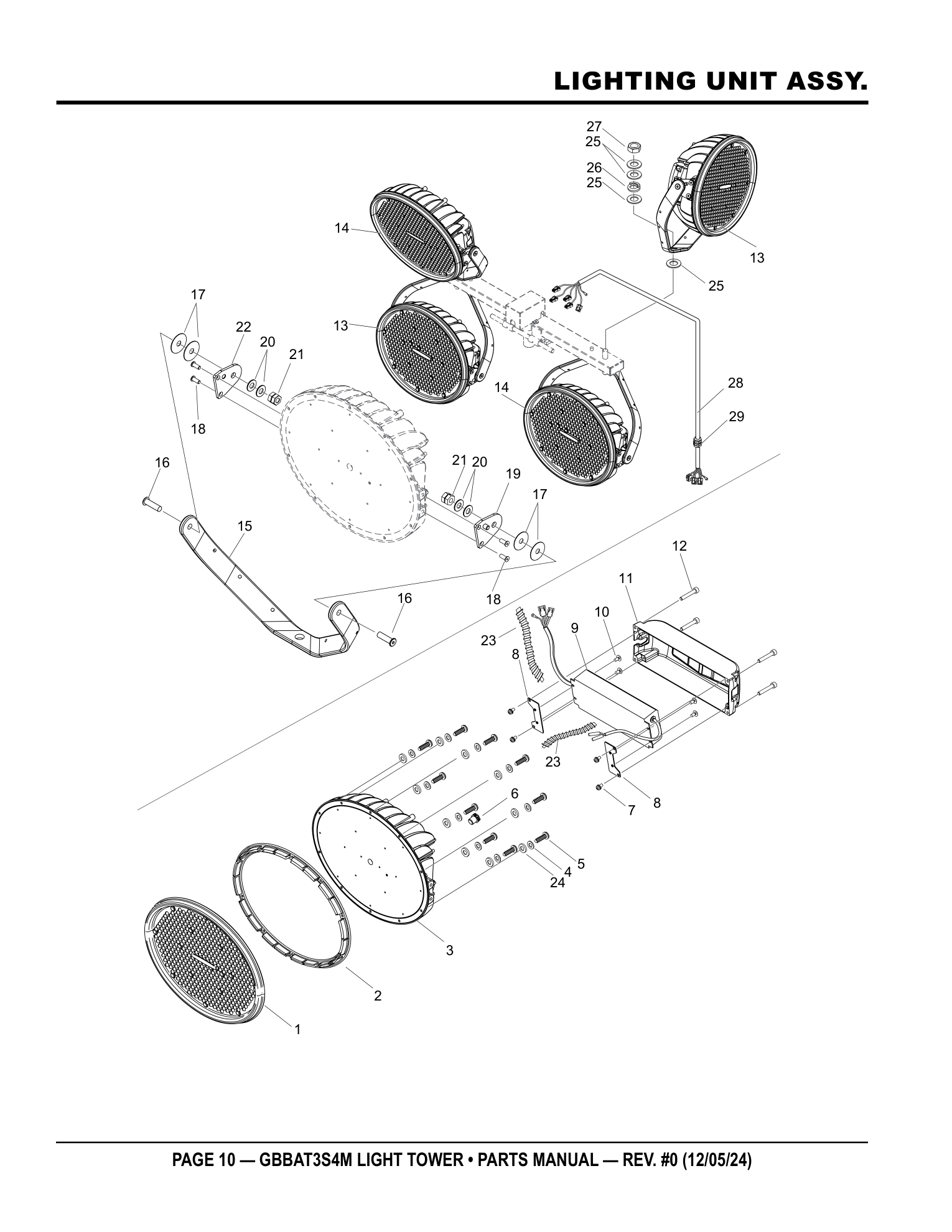

Page 10 — LIGHTING UNIT ASSY.
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A100181300 | LENS COVER, 300W LED SPOT | 4 | ADD TO CART | |
| 2 | A200291200 | GASKET | 4 | PARTS REQUEST | |
|
COMING GASKET
A200291200 · qty on machine: 4 | |||||
| 3 | A000110300 | HEAT SINK ASSY. W/LED ILLUMINANTS | 4 | ADD TO CART | |
| 4 | 0046105000 | WASHER M5, BLACK | 40 | PARTS REQUEST | |
|
COMING WASHER M5, BLACK
0046105000 · qty on machine: 40 | |||||
| 5 | 0027505020 | TAPPING SCREW M5X20, BLACK | 40 | SPECIFIED TORQUE: 1.5N•m | PARTS REQUEST |
|
COMING TAPPING SCREW M5X20, BLACK
0027505020 · qty on machine: 40 SPECIFIED TORQUE: 1.5N•m | |||||
| 6 | E000119700 | VENT FILTER | 4 | SPECIFIED TORQUE: 0.7N•m | PARTS REQUEST |
|
COMING VENT FILTER
E000119700 · qty on machine: 4 SPECIFIED TORQUE: 0.7N•m | |||||
| 7 | 0027405012 | SCREW AND WASHER ASSY. M5X12 | 16 | PARTS REQUEST | |
|
COMING SCREW AND WASHER ASSY. M5X12
0027405012 · qty on machine: 16 | |||||
| 8 | A400553800 | PLATE, POWER SUPPLY | 8 | PARTS REQUEST | |
|
COMING PLATE, POWER SUPPLY
A400553800 · qty on machine: 8 | |||||
| 9 | A200195802 | POWER SUPPLY (US) | 4 | PARTS REQUEST | |
|
COMING POWER SUPPLY (US)
A200195802 · qty on machine: 4 | |||||
| 10 | 0022404008 | TRUSS HEAD SCREW M4X8 | 16 | PARTS REQUEST | |
|
COMING TRUSS HEAD SCREW M4X8
0022404008 · qty on machine: 16 | |||||
| 11 | A100181500 | CASE, POWER SUPPLY | 4 | ADD TO CART | |
| 12 | 0017405030 | HEX. SOCKET HEAD BOLT SUS M5X30 | 16 | ADD TO CART | |
| 13 | A000118701 | LED 300W SPOT LIGHT UNIT LEFT ASSY. | 2 | PARTS REQUEST | |
|
COMING LED 300W SPOT LIGHT UNIT LEFT ASSY.
A000118701 · qty on machine: 2 | |||||
| 14 | A000118801 | LED 300W SPOT LIGHT UNIT RIGHT ASSY. | 2 | PARTS REQUEST | |
|
COMING LED 300W SPOT LIGHT UNIT RIGHT ASSY.
A000118801 · qty on machine: 2 | |||||
| 15 | A100190000 | ARM, LED SPOT | 4 | ADD TO CART | |
| 16 | 0017510035 | SLIM HEAD SCREW M10X35, BLACK | 8 | ADD TO CART | |
| 17 | A400517900 | WASHER, 38 DIA. | 16 | ADD TO CART | |
| 18 | 0017508020 | SLIM HEAD SCREW M8X20, BLACK | 16 | ADD TO CART | |
| 19 | A300459000 | BRACKET, ARM LEFT | 4 | ADD TO CART | |
| 20 | A400418100 | WASHER M10 | 16 | ADD TO CART | |
| 21 | 0036410000 | HARD LOCK NUT M10 | 8 | SPECIFIED TORQUE: CONVEX NUT: 10N•m, CONCAVE NUT: 24N•m | PARTS REQUEST |
|
COMING HARD LOCK NUT M10
0036410000 · qty on machine: 8 SPECIFIED TORQUE: CONVEX NUT: 10N•m, CONCAVE NUT: 24N•m | |||||
| 22 | A300459100 | BRACKET, ARM RIGHT | 4 | ADD TO CART | |
| 23 | A400573501 | CORRUGATED TUBE, L=16” (406 MM) | 12 | PARTS REQUEST | |
|
COMING CORRUGATED TUBE, L=16” (406 MM)
A400573501 · qty on machine: 12 | |||||
| 24 | E000282800 | WASHER, WATER PROOF M5 | 40 | PARTS REQUEST | |
|
COMING WASHER, WATER PROOF M5
E000282800 · qty on machine: 40 | |||||
| 25 | E000144001 | WASHER M16, FLUORINE | 16 | ADD TO CART | |
| 26 | 1042000230 | SPRING, LAMP | 4 | ADD TO CART | |
| 27 | 0034116000 | NUT M16, LOW | 4 | ADD TO CART | |
| 28 | A200197100 | LAMP CABLE, US-BAT | 1 | INCLUDES ITEM W/$ | PARTS REQUEST |
|
COMING LAMP CABLE, US-BAT
A200197100 · qty on machine: 1 INCLUDES ITEM W/$ Kit includes: 29$ | |||||
| 29$ | E000267900 | CABLE GLAND | 1 | PARTS REQUEST | |
|
COMING CABLE GLAND
E000267900 · qty on machine: 1 Also included in kit 28 - LAMP CABLE, US-BAT (A200197100) | |||||

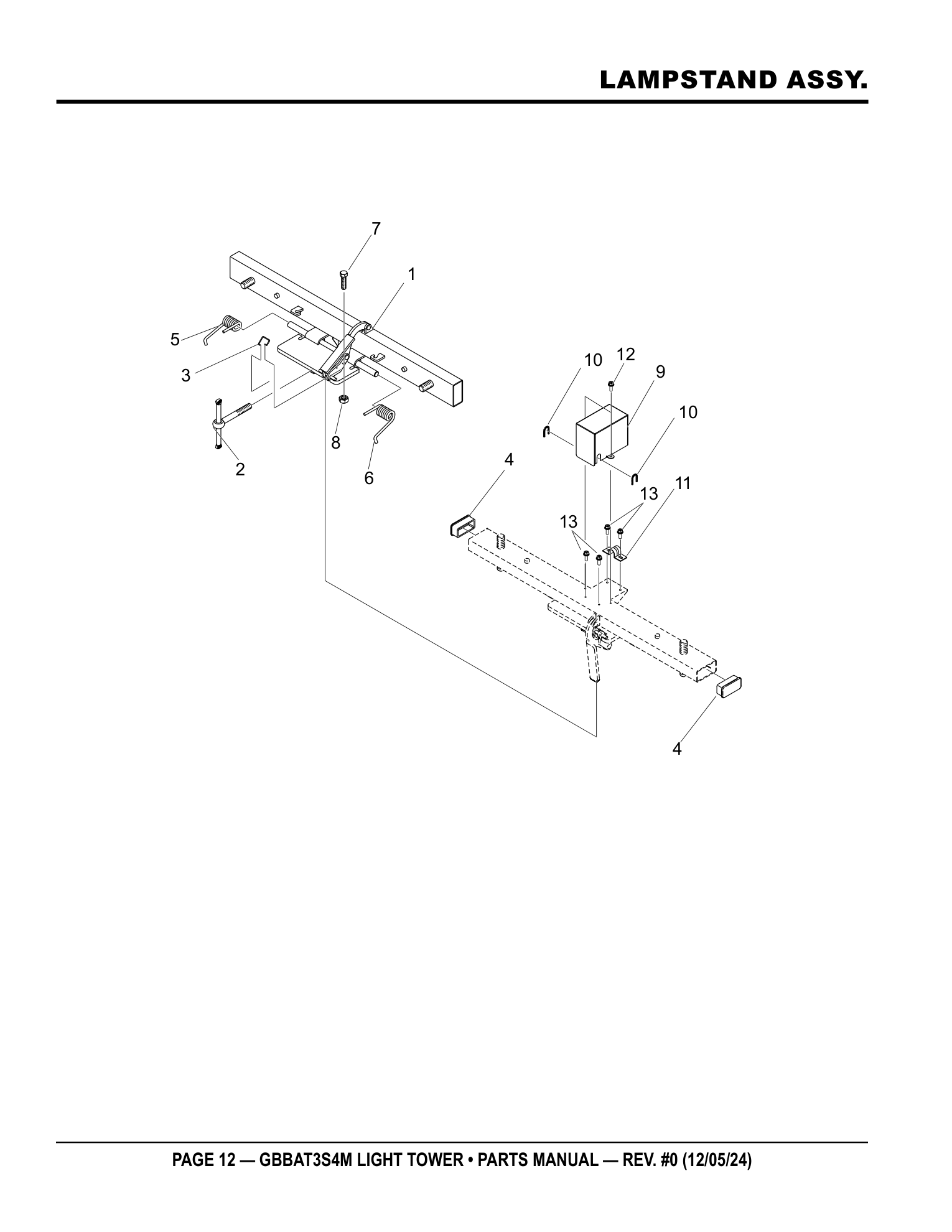

Page 12 — LAMPSTAND ASSY.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A000086001 | LAMP STAND ASSY | 1 | INCLUDES ITEMS W/# | ADD TO CART |
| 2 | 2072310114 | ADJUST LEVER, LAMP STAND | 1 | ADD TO CART | |
| 3# | 1045000130 | SPRING, LEVER | 1 | ADD TO CART | |
| 4# | 1652000131 | CAP | 2 | PARTS REQUEST | |
|
COMING CAP
1652000131 · qty on machine: 2 Also included in kit 1 - LAMP STAND ASSY (A000086001) | |||||
| 5# | A300093000 | SPRING, LAMP STAND LEFT | 1 | PARTS REQUEST | |
|
COMING SPRING, LAMP STAND LEFT
A300093000 · qty on machine: 1 Also included in kit 1 - LAMP STAND ASSY (A000086001) | |||||
| 6# | A300092600 | SPRING, LAMP STAND RIGHT | 1 | PARTS REQUEST | |
|
COMING SPRING, LAMP STAND RIGHT
A300092600 · qty on machine: 1 Also included in kit 1 - LAMP STAND ASSY (A000086001) | |||||
| 7# | 011208030 | HEX BOLT, M8X30 | 1 | REPLACES P/N 0010308030 | ADD TO CART |
| 8# | 0033108000 | NUT, M8 | 1 | ADD TO CART | |
| 9 | A200195400 | COVER, CONNECTOR | 1 | PARTS REQUEST | |
|
COMING COVER, CONNECTOR
A200195400 · qty on machine: 1 | |||||
| 10 | E000012000 | TRIM SEAL, L=2.4” (60.96 MM) | 2 | PARTS REQUEST | |
|
COMING TRIM SEAL, L=2.4” (60.96 MM)
E000012000 · qty on machine: 2 | |||||
| 11 | 1603000130 | CLAMP | 1 | NO LONGER AVAILABLE | |
|
COMING CLAMP
1603000130 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 12 | 0028204012 | UPSET BOLT ASSY.,SS, M4X12 | 2 | ADD TO CART | |
| 13 | 0023304012 | SCREW AND WASHER ASSY., M4X12 | 4 | ADD TO CART | |

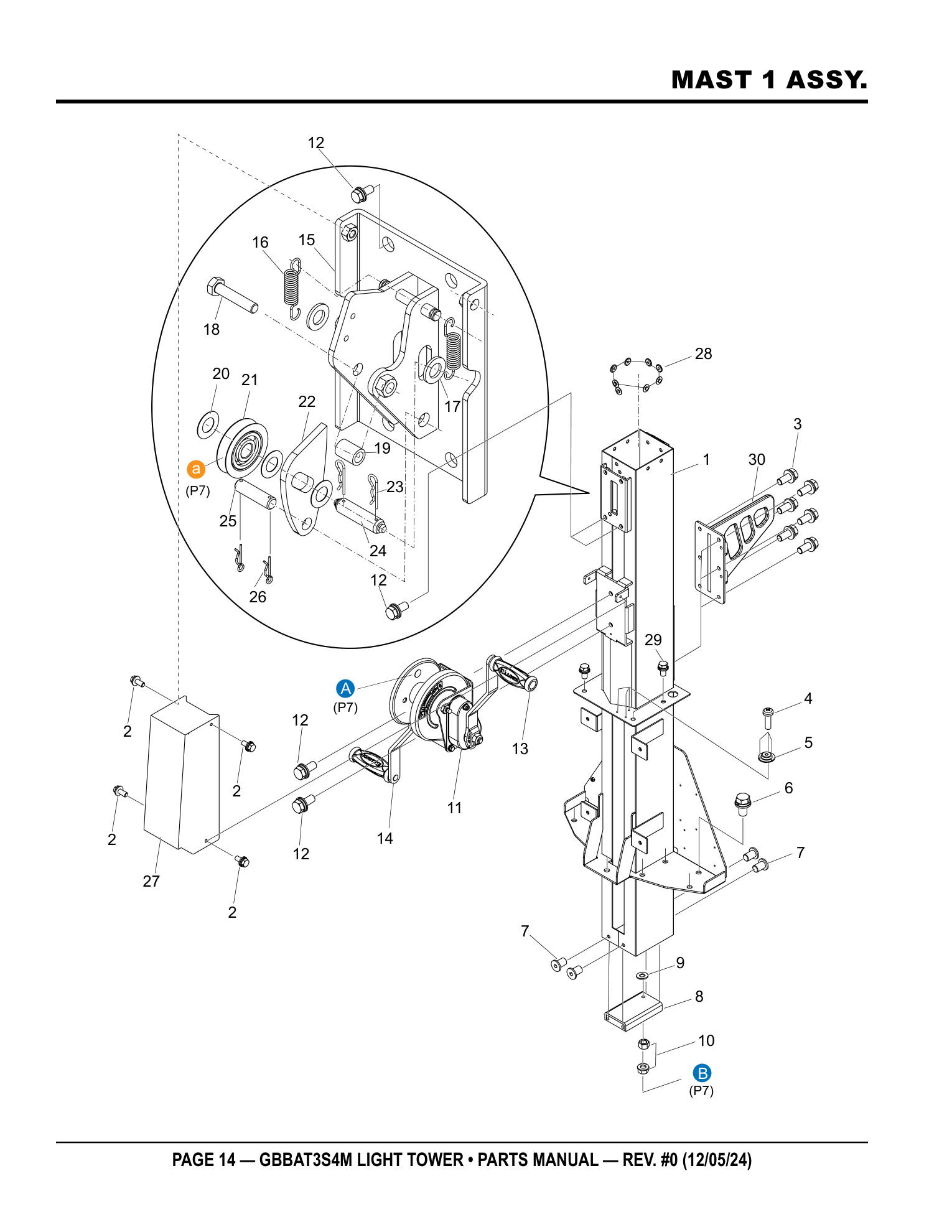

Page 14 — MAST 1 ASSY.
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A100191901 | FIRST MAST | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING FIRST MAST
A100191901 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 28# | |||||
| 2 | 0012506015 | BOLT AND WASHER ASSY., M6X15 | 4 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY., M6X15
0012506015 · qty on machine: 4 | |||||
| 3 | 0012510022 | BOLT AND WASHER ASSY., M10X22 | 6 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY., M10X22
0012510022 · qty on machine: 6 | |||||
| 4 | 0023503006 | SCREW M3X6 | 3 | APPLY THREE BOND 1401B | PARTS REQUEST |
|
COMING SCREW M3X6
0023503006 · qty on machine: 3 APPLY THREE BOND 1401B | |||||
| 5 | E000182900 | BUBBLE LEVEL GUIDE | 1 | ADD TO CART | |
| 6 | 0012512025 | BOLT AND WASHER ASSY. M12X25 | 9 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY. M12X25
0012512025 · qty on machine: 9 | |||||
| 7 | 0015608012 | SLIM HEAD SCREW M8X12 | 4 | PARTS REQUEST | |
|
COMING SLIM HEAD SCREW M8X12
0015608012 · qty on machine: 4 | |||||
| 8 | A300437100 | BRACKET, 1ST MAST | 1 | PARTS REQUEST | |
|
COMING BRACKET, 1ST MAST
A300437100 · qty on machine: 1 | |||||
| 9 | 0044108000 | WASHER M8 | 1 | PARTS REQUEST | |
|
COMING WASHER M8
0044108000 · qty on machine: 1 | |||||
| 10 | 0034808000 | HARDLOCK NUT M8 | 1 | PARTS REQUEST | |
|
COMING HARDLOCK NUT M8
0034808000 · qty on machine: 1 | |||||
| 11 | A100157700 | WINCH, DUAL HANDLE | 1 | ADD TO CART | |
| 12 | 0012510020 | BOLT AND WASHER ASSY., M10X20 | 6 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY., M10X20
0012510020 · qty on machine: 6 | |||||
| 13 | E000249100 | HANDLE RIGHT, WINCH | 1 | ADD TO CART | |
| 14 | E000249000 | HANDLE LEFT, WINCH | 1 | ADD TO CART | |
| 15 | A100197100 | BRACKET, PULLEY | 1 | PARTS REQUEST | |
|
COMING BRACKET, PULLEY
A100197100 · qty on machine: 1 | |||||
| 16 | A400285400 | SPRING, PULLEY | 2 | ADD TO CART | |
| 17 | E000258700 | PARALLEL WASHER, PULLEY | 2 | PARTS REQUEST | |
|
COMING PARALLEL WASHER, PULLEY
E000258700 · qty on machine: 2 | |||||
| 18 | 0013108040 | BOLT M8X40 | 1 | ADD TO CART | |
| 19 | E000257600 | SPACER 1, PULLEY | 1 | PARTS REQUEST | |
|
COMING SPACER 1, PULLEY
E000257600 · qty on machine: 1 | |||||
| 20 | E000176600 | WASHER D12.5 X D26 X T0.5 | 3 | PARTS REQUEST | |
|
COMING WASHER D12.5 X D26 X T0.5
E000176600 · qty on machine: 3 | |||||
| 21 | A400362700 | PULLEY | 1 | PARTS REQUEST | |
|
COMING PULLEY
A400362700 · qty on machine: 1 | |||||
| 22 | A400520500 | STOPPER | 1 | PARTS REQUEST | |
|
COMING STOPPER
A400520500 · qty on machine: 1 | |||||
| 23 | 0053512000 | COTTER, PIN #12 | 2 | ADD TO CART | |
| 24 | A400519900 | PIN, PULLEY | 1 | PARTS REQUEST | |
|
COMING PIN, PULLEY
A400519900 · qty on machine: 1 | |||||
| 25 | A400284700 | PIN, STOPPER | 1 | ADD TO CART | |
| 26 | 0053510000 | COTTER PIN, #10 | 2 | ADD TO CART | |
| 27 | A200174302 | COVER, WINCH | 1 | PARTS REQUEST | |
|
COMING COVER, WINCH
A200174302 · qty on machine: 1 | |||||
| 28# | A400563302 | SLIDER | 8 | APPLY STRONG ADHESIVE | ADD TO CART |
| 29 | 0012508020 | BOLT AND WASHER ASSY., M8X20 | 4 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY., M8X20
0012508020 · qty on machine: 4 | |||||
| 30 | A200178600 | HANGER | 1 | PARTS REQUEST | |
|
COMING HANGER
A200178600 · qty on machine: 1 | |||||

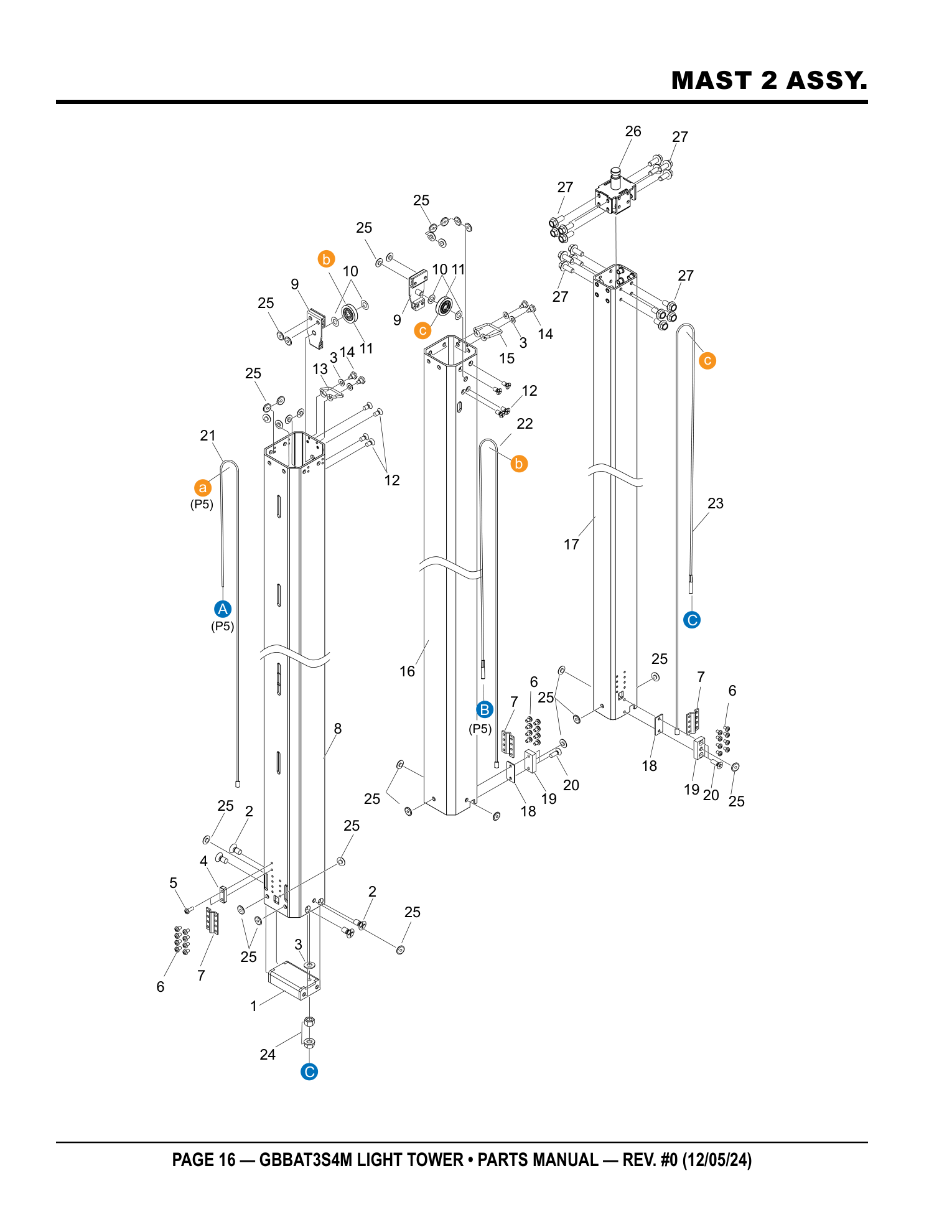

Page 16 — MAST 2 ASSY.
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A300360600 | BRACKET, FOURTH MAST | 1 | ADD TO CART | |
| 2 | 0025008016 | COUNTERSUNK SCREW M8X16 | 4 | APPLY MEDIUM ADHESIVE | ADD TO CART |
| 3 | 0043108000 | WASHER M8 | 5 | ADD TO CART | |
| 4 | A400555502 | STOPPER, MAST | 1 | PARTS REQUEST | |
|
COMING STOPPER, MAST
A400555502 · qty on machine: 1 | |||||
| 5 | 0027205012 | SCREW M5X12 | 2 | APPLY BLUE LOCTITE 242 | PARTS REQUEST |
|
COMING SCREW M5X12
0027205012 · qty on machine: 2 APPLY BLUE LOCTITE 242 | |||||
| 6 | 0027205008 | SCREW M5X8 | 24 | APPLY BLUE LOCTITE 242 | ADD TO CART |
| 7 | A400333600 | BRACKET, WIRE | 3 | ADD TO CART | |
| 8 | A300447705 | SECOND MAST | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING SECOND MAST
A300447705 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 16#, 17#, 25# | |||||
| 9 | A300284501 | BRACKET 2, PULLEY | 2 | ADD TO CART | |
| 10 | A400285200 | WASHER, PULLEY | 4 | ADD TO CART | |
| 11 | A400333800 | PULLEY | 2 | ADD TO CART | |
| 12 | 0025006012 | COUNTERSUNK SCREW M6X12 | 8 | WITH LOCK TIGHT | ADD TO CART |
| 13 | A400431000 | BRACKET 4, CABLE | 1 | PARTS REQUEST | |
|
COMING BRACKET 4, CABLE
A400431000 · qty on machine: 1 | |||||
| 14 | A400434000 | BOLT, CABLE | 4 | ADD TO CART | |
| 15 | A400431100 | BRACKET 5, CABLE | 1 | PARTS REQUEST | |
|
COMING BRACKET 5, CABLE
A400431100 · qty on machine: 1 | |||||
| 16# | A300448002 | THIRD MAST | 1 | PARTS REQUEST | |
|
COMING THIRD MAST
A300448002 · qty on machine: 1 Also included in kit 8 - SECOND MAST (A300447705) | |||||
| 17# | A300448102 | FOURTH MAST | 1 | PARTS REQUEST | |
|
COMING FOURTH MAST
A300448102 · qty on machine: 1 Also included in kit 8 - SECOND MAST (A300447705) | |||||
| 18 | A400427300 | PLATE, SLIDER 2-2 | 2 | ADD TO CART | |
| 19 | A400333402 | PLATE, SLIDER 2-1 | 2 | ADD TO CART | |
| 20 | 0027106018 | COUNTERSUNK SCREW M6X18 | 4 | APPLY MEDIUM ADHESIVE | ADD TO CART |
| 21 | A400549702 | WIRE ROPE 3, GREY | 1 | PARTS REQUEST | |
|
COMING WIRE ROPE 3, GREY
A400549702 · qty on machine: 1 | |||||
| 22 | A400549502 | WIRE ROPE 2, BLUE | 1 | PARTS REQUEST | |
|
COMING WIRE ROPE 2, BLUE
A400549502 · qty on machine: 1 | |||||
| 23 | A400549402 | WIRE ROPE, 1 YELLOW | 1 | PARTS REQUEST | |
|
COMING WIRE ROPE, 1 YELLOW
A400549402 · qty on machine: 1 | |||||
| 24 | 0033808000 | HARDLOCK NUT M8 | 1 | ADD TO CART | |
| 25# | A400563302 | SLIDER | 29 | APPLY STRONG ADHESIVE | ADD TO CART |
| 26 | A200174805 | ADAPTER | 1 | PARTS REQUEST | |
|
COMING ADAPTER
A200174805 · qty on machine: 1 | |||||
| 27 | 0011608020 | FLANGE BOLT M8X20 | 16 | APPLY BLUE LOCTITE 242 TIGHTENING TORQUE: 13 N•m | PARTS REQUEST |
|
COMING FLANGE BOLT M8X20
0011608020 · qty on machine: 16 APPLY BLUE LOCTITE 242 TIGHTENING TORQUE: 13 N•m | |||||

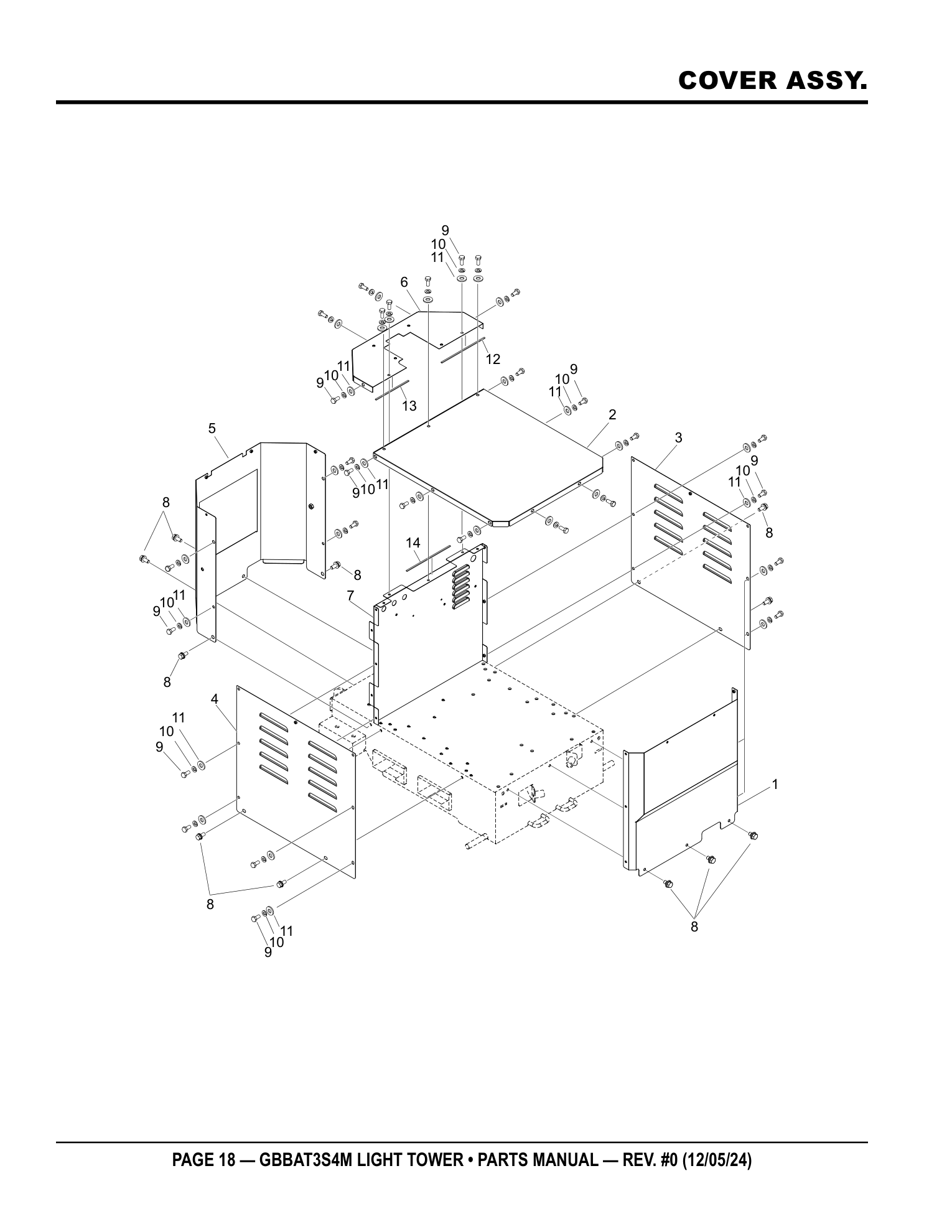

Page 18 — COVER ASSY.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A200173902 | FRONT COVER | 1 | PARTS REQUEST | |
|
COMING FRONT COVER
A200173902 · qty on machine: 1 | |||||
| 2 | A200195200 | FRONT TOP COVER | 1 | PARTS REQUEST | |
|
COMING FRONT TOP COVER
A200195200 · qty on machine: 1 | |||||
| 3 | A100196601 | REAR SIDE COVER, LEFT | 1 | PARTS REQUEST | |
|
COMING REAR SIDE COVER, LEFT
A100196601 · qty on machine: 1 | |||||
| 4 | A100196501 | REAR SIDE COVER, RIGHT | 1 | PARTS REQUEST | |
|
COMING REAR SIDE COVER, RIGHT
A100196501 · qty on machine: 1 | |||||
| 5 | A100196800 | REAR COVER | 1 | PARTS REQUEST | |
|
COMING REAR COVER
A100196800 · qty on machine: 1 | |||||
| 6 | A100196700 | REAR TOP COVER | 1 | PARTS REQUEST | |
|
COMING REAR TOP COVER
A100196700 · qty on machine: 1 | |||||
| 7 | A300466504 | PLATE, EV FRONT | 1 | PARTS REQUEST | |
|
COMING PLATE, EV FRONT
A300466504 · qty on machine: 1 | |||||
| 8 | 0012508015 | BOLT AND WASHER ASSY. M8X15 | 11 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY. M8X15
0012508015 · qty on machine: 11 | |||||
| 9 | 0013306015 | BOLT M6X15 | 29 | PARTS REQUEST | |
|
COMING BOLT M6X15
0013306015 · qty on machine: 29 | |||||
| 10 | 0044006000 | WASHER, LOCK M6 | 29 | PARTS REQUEST | |
|
COMING WASHER, LOCK M6
0044006000 · qty on machine: 29 | |||||
| 11 | E000290100 | WASHER, FLAT M6 | 29 | PARTS REQUEST | |
|
COMING WASHER, FLAT M6
E000290100 · qty on machine: 29 | |||||
| 12 | A400593400 | PACKING 230, L=9”, 230 MM | 1 | PARTS REQUEST | |
|
COMING PACKING 230, L=9”, 230 MM
A400593400 · qty on machine: 1 | |||||
| 13 | A400593300 | PACKING 175, L=7”, 175 MM | 1 | PARTS REQUEST | |
|
COMING PACKING 175, L=7”, 175 MM
A400593300 · qty on machine: 1 | |||||
| 14 | A400593500 | PACKING 232, L=9.1”, 232 MM | 1 | PARTS REQUEST | |
|
COMING PACKING 232, L=9.1”, 232 MM
A400593500 · qty on machine: 1 | |||||

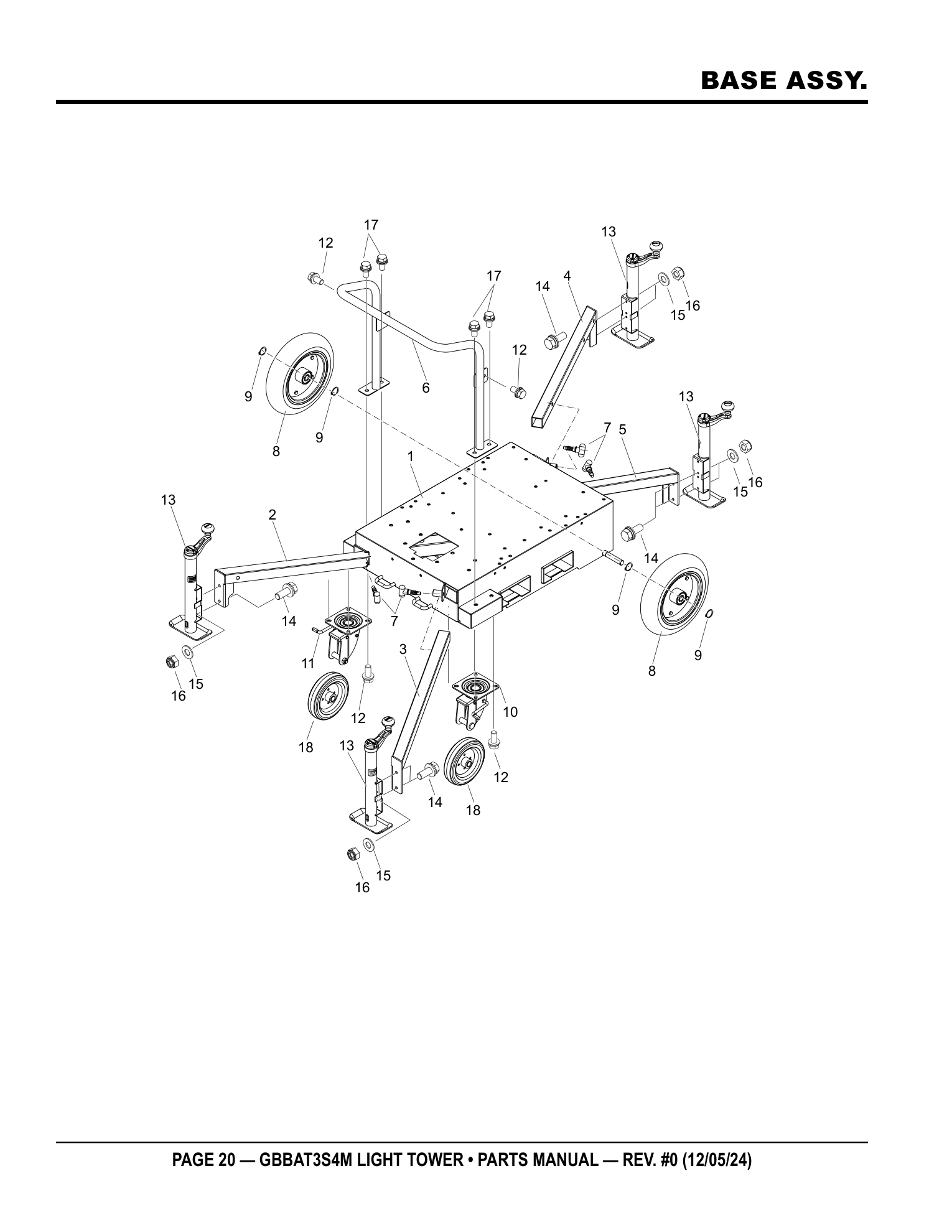

Page 20 — BASE ASSY.
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A100190802 | BASE | 1 | PARTS REQUEST | |
|
COMING BASE
A100190802 · qty on machine: 1 | |||||
| 2 | A100178602 | OUTRIGGER, LEFT REAR | 1 | PARTS REQUEST | |
|
COMING OUTRIGGER, LEFT REAR
A100178602 · qty on machine: 1 | |||||
| 3 | A100178701 | OUTRIGGER, RIGHT REAR | 1 | PARTS REQUEST | |
|
COMING OUTRIGGER, RIGHT REAR
A100178701 · qty on machine: 1 | |||||
| 4 | A100178801 | OUTRIGGER, LEFT FRONT | 1 | PARTS REQUEST | |
|
COMING OUTRIGGER, LEFT FRONT
A100178801 · qty on machine: 1 | |||||
| 5 | A100178901 | OUTRIGGER, RIGHT FRONT | 1 | PARTS REQUEST | |
|
COMING OUTRIGGER, RIGHT FRONT
A100178901 · qty on machine: 1 | |||||
| 6 | A200172605 | PIPE HANDLE | 1 | PARTS REQUEST | |
|
COMING PIPE HANDLE
A200172605 · qty on machine: 1 | |||||
| 7 | E000256200 | PULL PIN | 4 | ADD TO CART | |
| 8 | E000279700 | TIRE, FRONT SOLID, DIA. 13.8 IN./350 MM | 2 | PARTS REQUEST | |
|
COMING TIRE, FRONT SOLID, DIA. 13.8 IN./350 MM
E000279700 · qty on machine: 2 | |||||
| 9 | 0040720000 | SNAP RING | 4 | ADD TO CART | |
| 10 | E000285100 | CASTER W/BRAKE, RIGHT | 1 | W/O WHEEL | PARTS REQUEST |
|
COMING CASTER W/BRAKE, RIGHT
E000285100 · qty on machine: 1 W/O WHEEL | |||||
| 11 | E000285200 | CASTER W/BRAKE, LEFT | 1 | W/O WHEEL | PARTS REQUEST |
|
COMING CASTER W/BRAKE, LEFT
E000285200 · qty on machine: 1 W/O WHEEL | |||||
| 12 | 0012510025 | BOLT AND WASHER ASSY., M10X25 | 10 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY., M10X25
0012510025 · qty on machine: 10 | |||||
| 13 | E000267800 | JACKSTAND | 4 | ADD TO CART | |
| 14 | 0012508022 | BOLT AND WASHER ASSY., M8X22 | 8 | APPLY RED LOCTITE 262 | PARTS REQUEST |
|
COMING BOLT AND WASHER ASSY., M8X22
0012508022 · qty on machine: 8 APPLY RED LOCTITE 262 | |||||
| 15 | 0044108000 | WASHER M8 | 8 | PARTS REQUEST | |
|
COMING WASHER M8
0044108000 · qty on machine: 8 | |||||
| 16 | 0035608000 | SELF LOCK NUT M8 | 8 | PARTS REQUEST | |
|
COMING SELF LOCK NUT M8
0035608000 · qty on machine: 8 | |||||
| 17 | 0012512025 | BOLT AND WASHER ASSY. M12X25 | 4 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY. M12X25
0012512025 · qty on machine: 4 | |||||
| 18 | E000278400 | WHEEL, SOLID, DIA. 7.9 IN./200 MM | 2 | PARTS REQUEST | |
|
COMING WHEEL, SOLID, DIA. 7.9 IN./200 MM
E000278400 · qty on machine: 2 | |||||

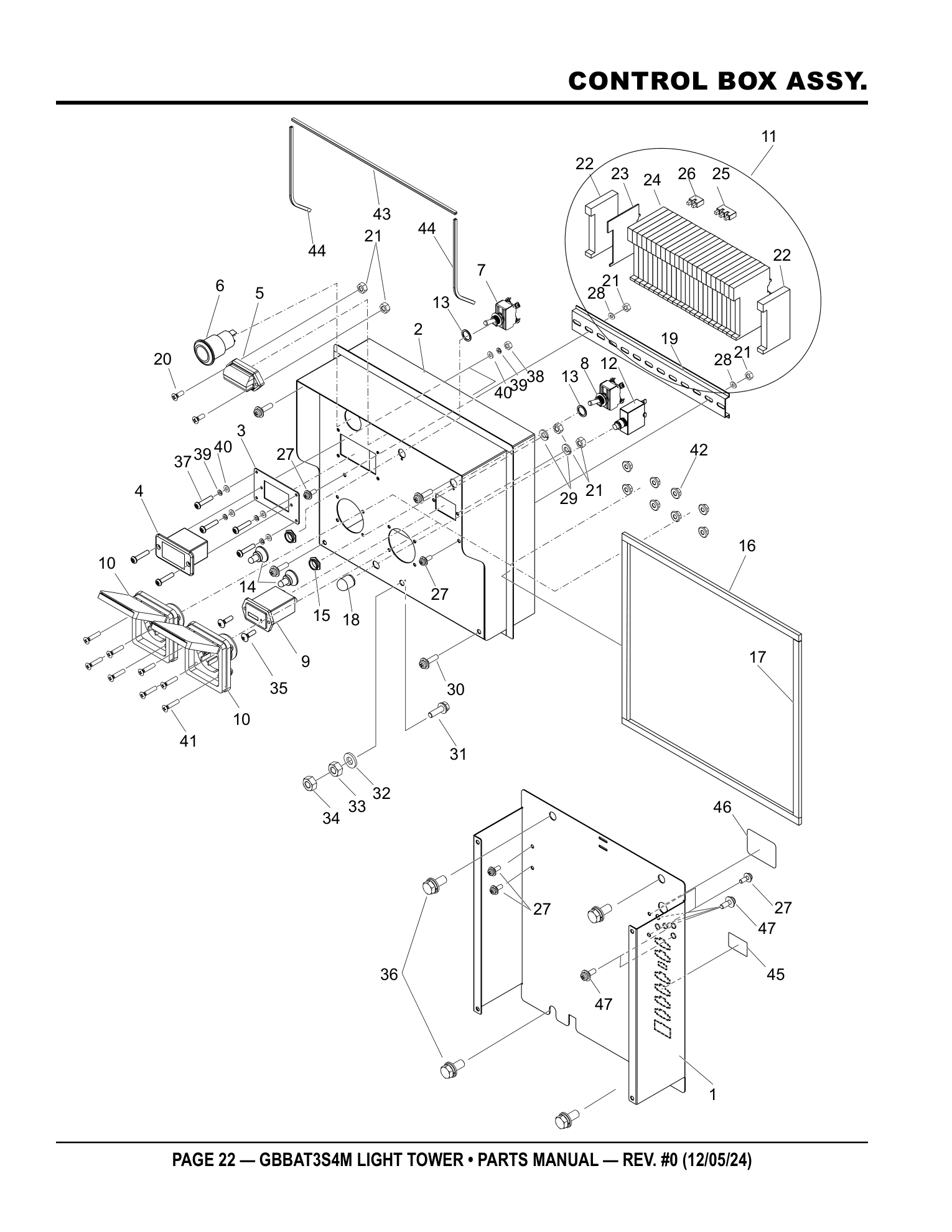

Page 22 — CONTROL BOX ASSY.
Parts list — exactly as printed35 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A200195101 | CONTROL BOX, PANEL | 1 | 1 INCLUDES ITEMS W/$ | PARTS REQUEST |
|
COMING CONTROL BOX, PANEL
A200195101 · qty on machine: 1 1 INCLUDES ITEMS W/$ | |||||
| 2 | A200193304 | CONTROL BOX EV US, PANEL 2 | 1 | PARTS REQUEST | |
|
COMING CONTROL BOX EV US, PANEL 2
A200193304 · qty on machine: 1 | |||||
| 3 | A400582600 | GAUGE PLATE, RIGHT | 1 | PARTS REQUEST | |
|
COMING GAUGE PLATE, RIGHT
A400582600 · qty on machine: 1 | |||||
| 4 | E000284900 | GAUGE METER, BATTERY | 1 | PARTS REQUEST | |
|
COMING GAUGE METER, BATTERY
E000284900 · qty on machine: 1 | |||||
| 5 | A300473800 | PANEL LIGHT AND INDICATOR W/CABLES | 1 | PARTS REQUEST | |
|
COMING PANEL LIGHT AND INDICATOR W/CABLES
A300473800 · qty on machine: 1 | |||||
| 6 | A400595800 | MOMENTARY PUSH BUTTON SWITCH | 1 | PARTS REQUEST | |
|
COMING MOMENTARY PUSH BUTTON SWITCH
A400595800 · qty on machine: 1 | |||||
| 7 | E000153400 | TOGGLE SWITCH, LIGHTING UNIT | 1 | ADD TO CART | |
| 8 | E000191500 | TOGGLE SWITCH, DIMMING | 1 | PARTS REQUEST | |
|
COMING TOGGLE SWITCH, DIMMING
E000191500 · qty on machine: 1 | |||||
| 9 | A300473600 | HOUR METER W/CABLE | 1 | PARTS REQUEST | |
|
COMING HOUR METER W/CABLE
A300473600 · qty on machine: 1 | |||||
| 10 | E000285600 | INLET, W/SCREW AND NUT | 2 | APPLY LOCTITE | PARTS REQUEST |
|
COMING INLET, W/SCREW AND NUT
E000285600 · qty on machine: 2 APPLY LOCTITE | |||||
| 11 | A300473500 | TERMINAL BLOCK | 1 | 1 INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING TERMINAL BLOCK
A300473500 · qty on machine: 1 1 INCLUDES ITEMS W/# Kit includes: 19#, 22#, 23#, 24#, 25#, 26# | |||||
| 12 | A300473700 | CIRCUIT BREAKER, 15A | 1 | INCLUDES ITEM W/% | PARTS REQUEST |
|
COMING CIRCUIT BREAKER, 15A
A300473700 · qty on machine: 1 INCLUDES ITEM W/% Kit includes: 18% | |||||
| 13 | E000153700 | SWITCH WASHER, RUBBER | 2 | ADD TO CART | |
| 14 | E000153500 | SWITCH CAP | 2 | ADD TO CART | |
| 15 | E000153600 | SWITCH NUT | 2 | ADD TO CART | |
| 16 | A400593000 | SEALING PACKING, L=13 IN./325 MM | 2 | PARTS REQUEST | |
|
COMING SEALING PACKING, L=13 IN./325 MM
A400593000 · qty on machine: 2 | |||||
| 17 | A400593100 | SEALING PACKING, L=11 IN./282 MM | 2 | PARTS REQUEST | |
|
COMING SEALING PACKING, L=11 IN./282 MM
A400593100 · qty on machine: 2 | |||||
| 18% | E000168900 | CAP, CIRCUIT BREAKER | 1 | ADD TO CART | |
| 19# | A300449500 | DIN RAIL L=10 IN./255 MM | 1 | PARTS REQUEST | |
|
COMING DIN RAIL L=10 IN./255 MM
A300449500 · qty on machine: 1 Also included in kit 11 - TERMINAL BLOCK (A300473500) | |||||
| 20 | 0027904012 | OVAL HEAD SCREW, M4X12 | 2 | APPLY BLUE LOCTITE 242 | PARTS REQUEST |
|
COMING OVAL HEAD SCREW, M4X12
0027904012 · qty on machine: 2 APPLY BLUE LOCTITE 242 | |||||
| 21 | 0031204000 | NUT, M4 | 6 | APPLY THREE BOND 1401B | PARTS REQUEST |
|
COMING NUT, M4
0031204000 · qty on machine: 6 APPLY THREE BOND 1401B | |||||
| 22# | E000185100 | TERMINAL END STOPPER | 2 | ADD TO CART | |
| 23# | E000184400 | END PLATE | 1 | PARTS REQUEST | |
|
COMING END PLATE
E000184400 · qty on machine: 1 Also included in kit 11 - TERMINAL BLOCK (A300473500) | |||||
| 24# | E000184600 | TERMINAL BLOCK, 15A | 23 | W/ MARKERS 1-23 | PARTS REQUEST |
|
COMING TERMINAL BLOCK, 15A
E000184600 · qty on machine: 23 W/ MARKERS 1-23 Also included in kit 11 - TERMINAL BLOCK (A300473500) | |||||
| 25# | E000212100 | TERMINAL BLOCK JUMPER 4-3 | 1 | PARTS REQUEST | |
|
COMING TERMINAL BLOCK JUMPER 4-3
E000212100 · qty on machine: 1 Also included in kit 11 - TERMINAL BLOCK (A300473500) | |||||
| 26# | E000184000 | TERMINAL BLOCK JUMPER 3-2 | 1 | PARTS REQUEST | |
|
COMING TERMINAL BLOCK JUMPER 3-2
E000184000 · qty on machine: 1 Also included in kit 11 - TERMINAL BLOCK (A300473500) | |||||
| 27 | 0027304012 | BOLT AND WASHER ASSY., M4X12 | 6 | APPLY BLUE LOCTITE 242 | PARTS REQUEST |
|
COMING BOLT AND WASHER ASSY., M4X12
0027304012 · qty on machine: 6 APPLY BLUE LOCTITE 242 | |||||
| 28 | 0044104000 | WASHER, M4 | 2 | PARTS REQUEST | |
|
COMING WASHER, M4
0044104000 · qty on machine: 2 | |||||
| 29 | 0044004000 | WASHER, LOCK M4 | 2 | PARTS REQUEST | |
|
COMING WASHER, LOCK M4
0044004000 · qty on machine: 2 | |||||
| 30 | 0027305020 | BOLT AND WASHER ASSY., M5X20 | 4 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY., M5X20
0027305020 · qty on machine: 4 | |||||
| 31 | 0012506020 | BOLT AND WASHER ASSY., M6X20 | 1 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY., M6X20
0012506020 · qty on machine: 1 | |||||
| 32 | 0044106000 | WASHER, M6 | 1 | PARTS REQUEST | |
|
COMING WASHER, M6
0044106000 · qty on machine: 1 | |||||
| 33 | 0031206000LB | NUT, M6 | 1 | APPLY BLUE LOCTITE 242 | ADD TO CART |
| 34 | 0031206000LB | NUT, M6 | 1 | ADD TO CART | |
| 35 | 0023504015 | PAN HEAD SCREW, M4X15 | 2 | PARTS REQUEST | |
|
COMING PAN HEAD SCREW, M4X15
0023504015 · qty on machine: 2 | |||||

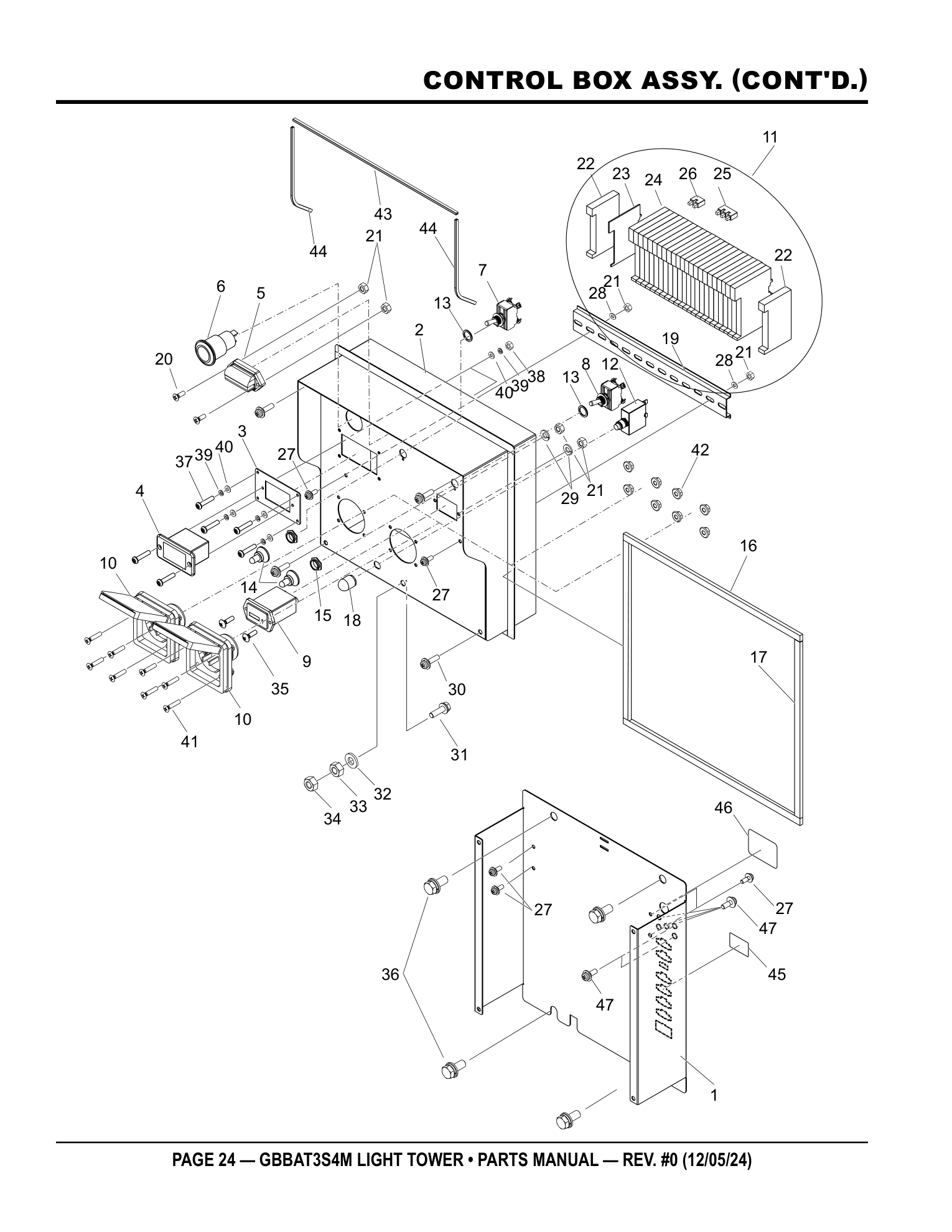

Page 24 — CONTROL BOX ASSY. (CONT'D.)
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 36 | 0012508020 | BOLT AND WASHER ASSY., M8X20 | 4 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY., M8X20
0012508020 · qty on machine: 4 | |||||
| 37 | 0023503015 | PAN HEAD SCREW, M3X15 | 6 | APPLY BLUE LOCTITE 242 | PARTS REQUEST |
|
COMING PAN HEAD SCREW, M3X15
0023503015 · qty on machine: 6 APPLY BLUE LOCTITE 242 | |||||
| 38 | 0031203000 | NUT, M3 | 2 | APPLY THREE BOND 1401B | PARTS REQUEST |
|
COMING NUT, M3
0031203000 · qty on machine: 2 APPLY THREE BOND 1401B | |||||
| 39 | 0044003000 | WASHER, LOCK M3 | 6 | PARTS REQUEST | |
|
COMING WASHER, LOCK M3
0044003000 · qty on machine: 6 | |||||
| 40 | 0044103000 | WASHER, M3 | 6 | PARTS REQUEST | |
|
COMING WASHER, M3
0044103000 · qty on machine: 6 | |||||
| 41 | 0023404020 | OVAL HEAD SCREW, M4X20 | 8 | APPLY BLUE LOCTITE 242 | PARTS REQUEST |
|
COMING OVAL HEAD SCREW, M4X20
0023404020 · qty on machine: 8 APPLY BLUE LOCTITE 242 | |||||
| 42 | 0033404000 | FLANGE NUT, M4 | 8 | PARTS REQUEST | |
|
COMING FLANGE NUT, M4
0033404000 · qty on machine: 8 | |||||
| 43 | A400593600 | TRIM SEAL, TOP L=12 IN./300 MM | 1 | PARTS REQUEST | |
|
COMING TRIM SEAL, TOP L=12 IN./300 MM
A400593600 · qty on machine: 1 | |||||
| 44 | A400593700 | TRIM SEAL, SIDE L=7 IN./170 MM | 2 | ADD TO CART | |
| 45$ | A400589500 | TRIM SEAL, 20X35, 0.8”X1.4” | 1 | PARTS REQUEST | |
|
COMING TRIM SEAL, 20X35, 0.8”X1.4”
A400589500 · qty on machine: 1 Also included in kit 44 - TRIM SEAL, SIDE L=7 IN./17 (A400593700) | |||||
| 46$ | A400554300 | TRIM SEAL, 54X35, 2.1”X1.4” | 1 | PARTS REQUEST | |
|
COMING TRIM SEAL, 54X35, 2.1”X1.4”
A400554300 · qty on machine: 1 Also included in kit 44 - TRIM SEAL, SIDE L=7 IN./17 (A400593700) | |||||
| 47 | 0027306010 | BOLT AND WASHER ASSY., M6X10 | 5 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY., M6X10
0027306010 · qty on machine: 5 | |||||

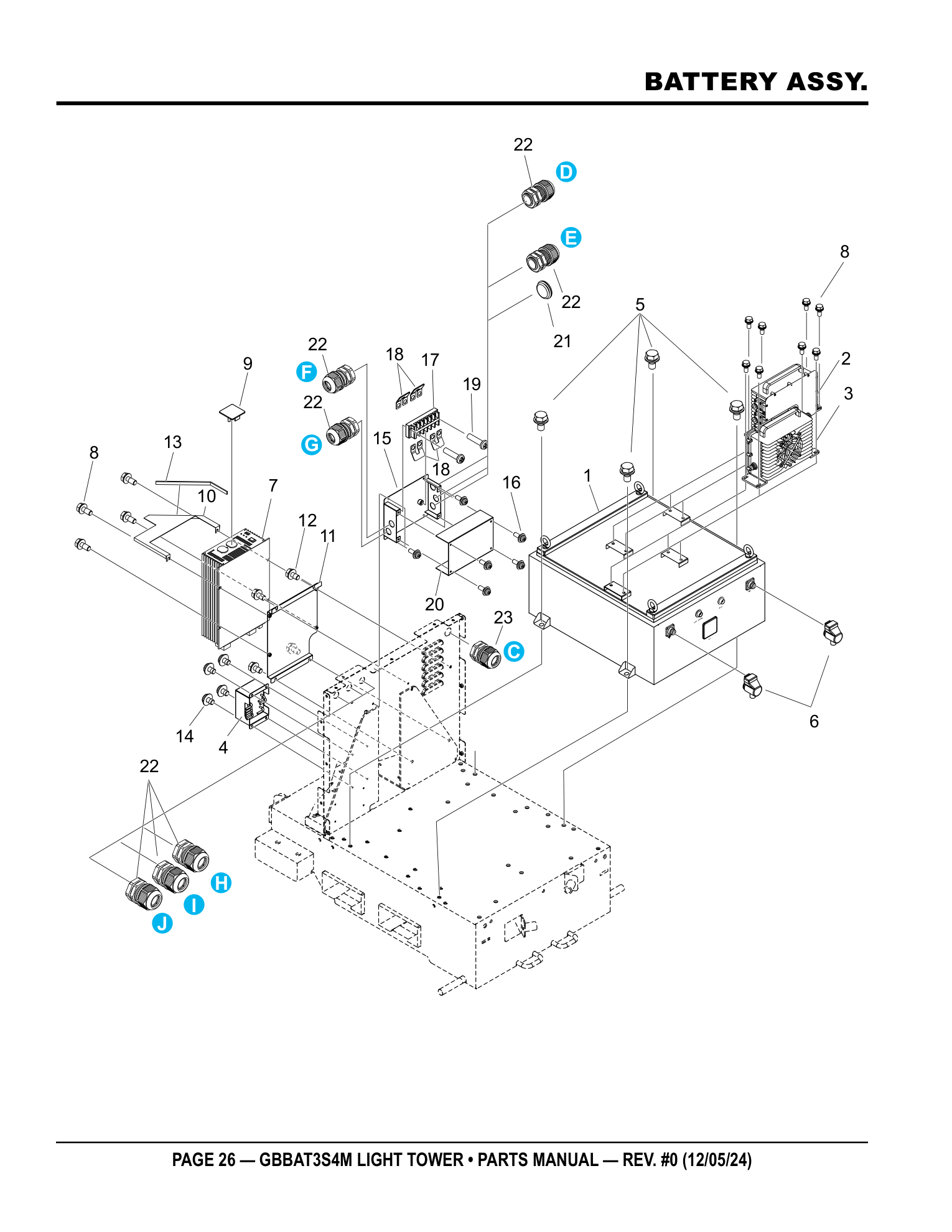

Page 26 — BATTERY ASSY.
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E000289600 | BATTERY | 1 | PARTS REQUEST | |
|
COMING BATTERY
E000289600 · qty on machine: 1 | |||||
| 2 | A300475600 | BATTERY CHARGER 1, W/CABLES | 1 | ADD TO CART | |
| 3 | A300475700 | BATTERY CHARGER 2, W/CABLES | 1 | ADD TO CART | |
| 4 | A300474900 | CONTROL, CIRCUIT BOARD ASSY. | 1 | ADD TO CART | |
| 5 | 0012510020 | BOLT AND WASHER ASSY. M10X20 | 4 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY. M10X20
0012510020 · qty on machine: 4 | |||||
| 6 | E000280000 | TERMINAL COVER, BATTERY | 1 | 1 SET = 1 RED AND 1 BLK. | PARTS REQUEST |
|
COMING TERMINAL COVER, BATTERY
E000280000 · qty on machine: 1 1 SET = 1 RED AND 1 BLK. | |||||
| 7 | E000283200 | INVERTER | 1 | ADD TO CART | |
| 8 | 0012506015 | BOLT AND WASHER ASSY. M6X15 | 12 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY. M6X15
0012506015 · qty on machine: 12 | |||||
| 9 | E000292500 | PLUG COVER | 1 | PARTS REQUEST | |
|
COMING PLUG COVER
E000292500 · qty on machine: 1 | |||||
| 10 | A200197800 | DIVIDER PLATE | 1 | PARTS REQUEST | |
|
COMING DIVIDER PLATE
A200197800 · qty on machine: 1 | |||||
| 11 | A200195300 | BRACKET, INVERTER | 1 | PARTS REQUEST | |
|
COMING BRACKET, INVERTER
A200195300 · qty on machine: 1 | |||||
| 12 | 0012506010 | BOLT AND WASHER ASSY. M6X10 | 4 | PARTS REQUEST | |
|
COMING BOLT AND WASHER ASSY. M6X10
0012506010 · qty on machine: 4 | |||||
| 13 | A400593200 | PACKING, L=9.3”, 237 MM | 1 | PARTS REQUEST | |
|
COMING PACKING, L=9.3”, 237 MM
A400593200 · qty on machine: 1 | |||||
| 14 | 0027305008 | SCREW AND WASHER M5X8 | 4 | PARTS REQUEST | |
|
COMING SCREW AND WASHER M5X8
0027305008 · qty on machine: 4 | |||||
| 15 | A200195900 | JUNCTION BOX | 1 | PARTS REQUEST | |
|
COMING JUNCTION BOX
A200195900 · qty on machine: 1 | |||||
| 16 | 0027304012 | SCREW AND WASHER ASSY. M4X12 | 8 | PARTS REQUEST | |
|
COMING SCREW AND WASHER ASSY. M4X12
0027304012 · qty on machine: 8 | |||||
| 17 | E000289200 | TERMINAL BLOCK | 1 | INCLUDES ITEM W/# | PARTS REQUEST |
|
COMING TERMINAL BLOCK
E000289200 · qty on machine: 1 INCLUDES ITEM W/# Kit includes: 18# | |||||
| 18# | E000289300 | SHORT BAR | 4 | PARTS REQUEST | |
|
COMING SHORT BAR
E000289300 · qty on machine: 4 Also included in kit 17 - TERMINAL BLOCK (E000289200) | |||||
| 19 | 0023505020 | SCREW M5X20 | 2 | APPLY BLUE LOCTITE 242 | PARTS REQUEST |
|
COMING SCREW M5X20
0023505020 · qty on machine: 2 APPLY BLUE LOCTITE 242 | |||||
| 20 | A200196000 | JUNCTION BOX COVER | 1 | PARTS REQUEST | |
|
COMING JUNCTION BOX COVER
A200196000 · qty on machine: 1 | |||||
| 21 | E000289800 | GROMMET, W/FILM | 1 | PARTS REQUEST | |
|
COMING GROMMET, W/FILM
E000289800 · qty on machine: 1 | |||||
| 22 | E000290700 | CABLE GLAND | 7 | PARTS REQUEST | |
|
COMING CABLE GLAND
E000290700 · qty on machine: 7 | |||||
| 23 | E000288900 | CABLE GLAND | 1 | PARTS REQUEST | |
|
COMING CABLE GLAND
E000288900 · qty on machine: 1 | |||||

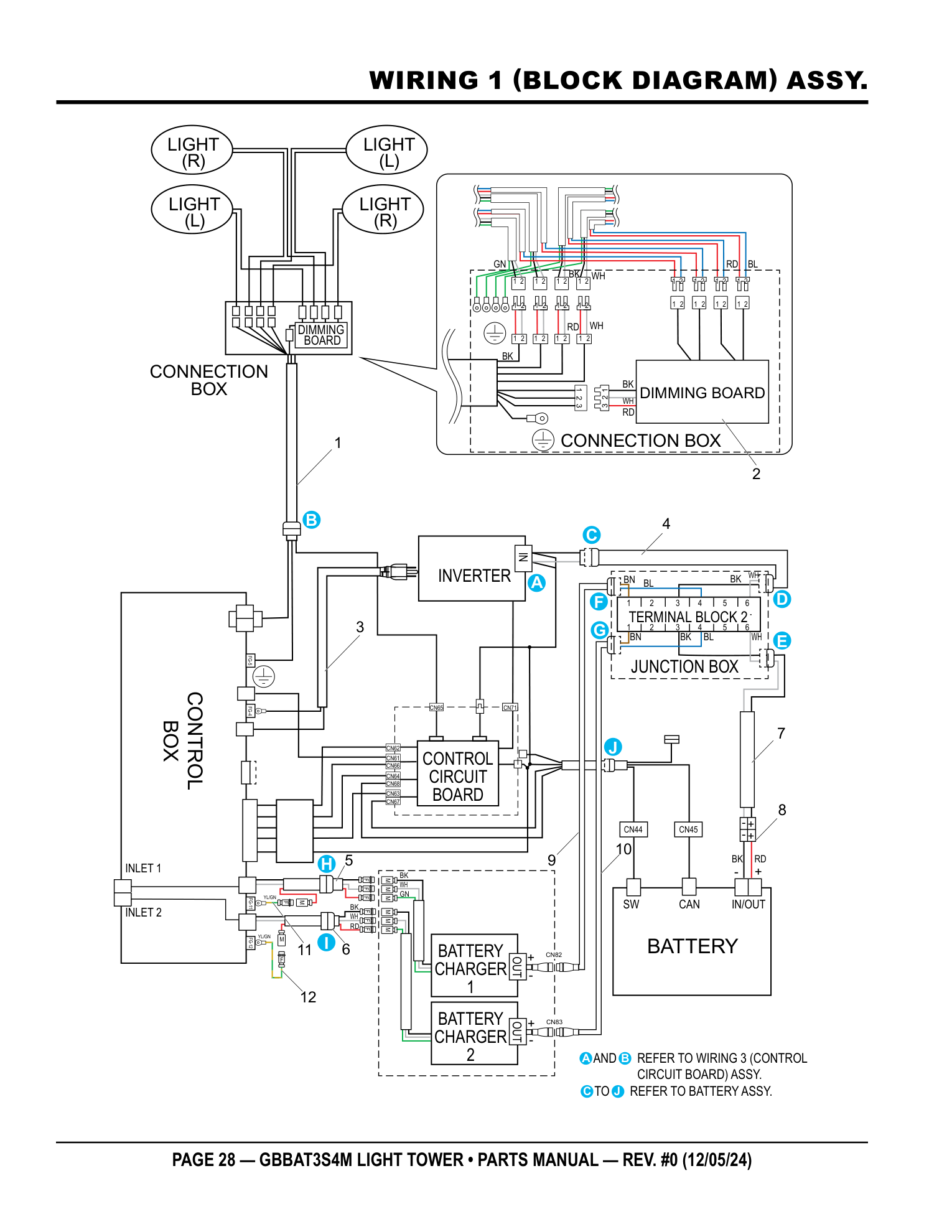

Page 28 — WIRING 1 (BLOCK DIAGRAM) ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A200197102 | LAMP CABLE, US BATT | 1 | PARTS REQUEST | |
|
COMING LAMP CABLE, US BATT
A200197102 · qty on machine: 1 | |||||
| 2 | A300474800 | DIMMING BOARD ASSY. | 1 | ADD TO CART | |
| 3 | A300474200 | POWER CABLE, INVERTER | 1 | PARTS REQUEST | |
|
COMING POWER CABLE, INVERTER
A300474200 · qty on machine: 1 | |||||
| 4 | A300474100 | INVERTER POWER FEED CABLE | 1 | PARTS REQUEST | |
|
COMING INVERTER POWER FEED CABLE
A300474100 · qty on machine: 1 | |||||
| 5 | A300472500 | CHARGER 1 CABLE | 1 | PARTS REQUEST | |
|
COMING CHARGER 1 CABLE
A300472500 · qty on machine: 1 | |||||
| 6 | A300472600 | CHARGER 2 CABLE | 1 | PARTS REQUEST | |
|
COMING CHARGER 2 CABLE
A300472600 · qty on machine: 1 | |||||
| 7 | A300474500 | DC IN/OUT RELAY CABLE, BATTERY 1 | 1 | PARTS REQUEST | |
|
COMING DC IN/OUT RELAY CABLE, BATTERY 1
A300474500 · qty on machine: 1 | |||||
| 8 | A300474600 | DC IN/OUT CABLE, BATTERY 1 | 1 | PARTS REQUEST | |
|
COMING DC IN/OUT CABLE, BATTERY 1
A300474600 · qty on machine: 1 | |||||
| 9 | A300475400 | DC RELAY CABLE (CHARGER 1) | 1 | PARTS REQUEST | |
|
COMING DC RELAY CABLE (CHARGER 1)
A300475400 · qty on machine: 1 | |||||
| 10 | A300475500 | DC RELAY CABLE (CHARGER 2) | 1 | PARTS REQUEST | |
|
COMING DC RELAY CABLE (CHARGER 2)
A300475500 · qty on machine: 1 | |||||
| 11 | A400587900 | WIRE (CHARGER 1 FG) | 1 | TO FG.11 | PARTS REQUEST |
|
COMING WIRE (CHARGER 1 FG)
A400587900 · qty on machine: 1 TO FG.11 | |||||
| 12 | A400588000 | WIRE (CHARGER 2 FG) | 1 | TO FG.12 | PARTS REQUEST |
|
COMING WIRE (CHARGER 2 FG)
A400588000 · qty on machine: 1 TO FG.12 | |||||

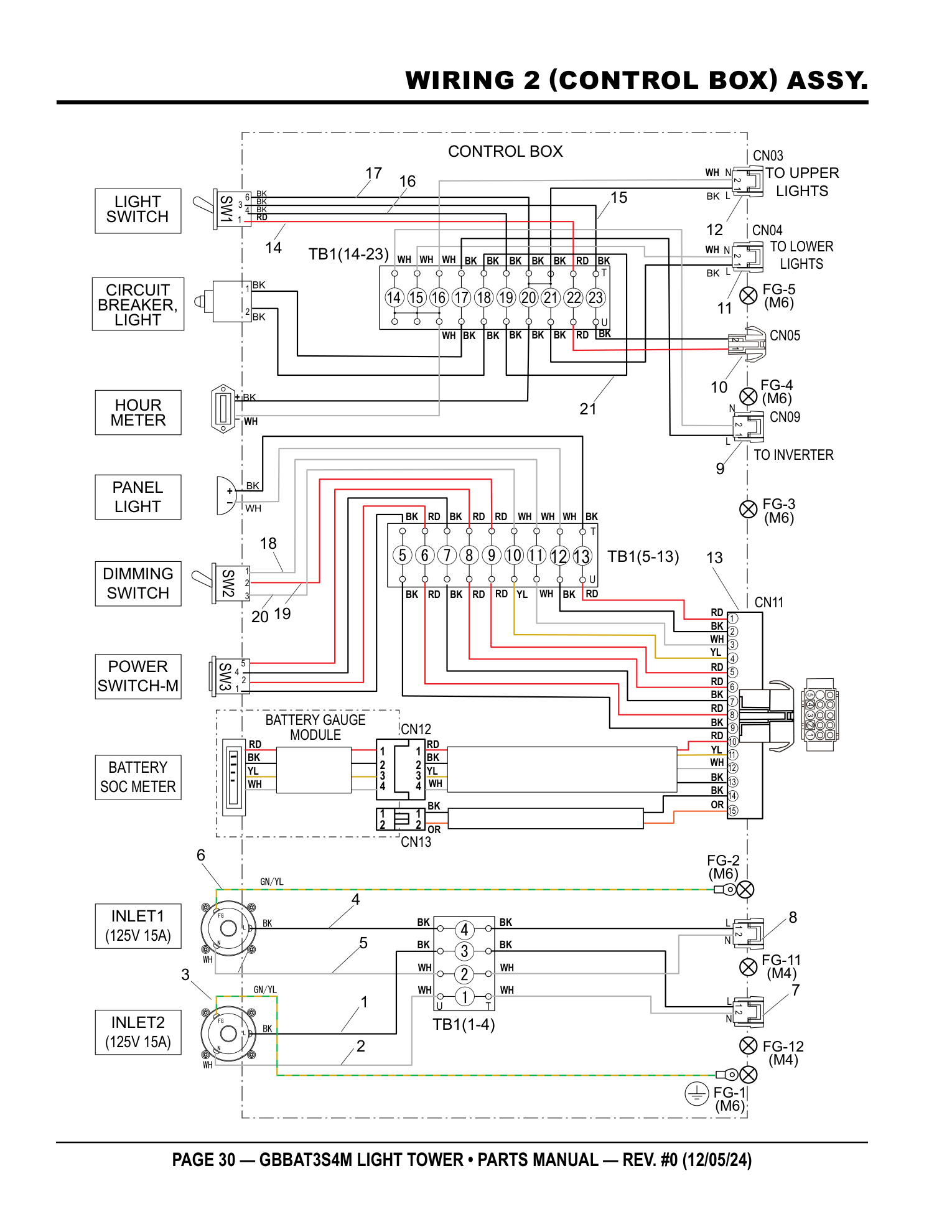

Page 30 — WIRING 2 (CONTROL BOX) ASSY.
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A400587600 | WIRE, INLET2-L_TB1-3U | 1 | PARTS REQUEST | |
|
COMING WIRE, INLET2-L_TB1-3U
A400587600 · qty on machine: 1 | |||||
| 2 | A400587700 | WIRE, INLET2-N_TB1-1U | 1 | PARTS REQUEST | |
|
COMING WIRE, INLET2-N_TB1-1U
A400587700 · qty on machine: 1 | |||||
| 3 | A400587800 | WIRE, INLET2-FG_FG-1 | 1 | PARTS REQUEST | |
|
COMING WIRE, INLET2-FG_FG-1
A400587800 · qty on machine: 1 | |||||
| 4 | A400587300 | WIRE, INLET1-L_TB1-4U | 1 | PARTS REQUEST | |
|
COMING WIRE, INLET1-L_TB1-4U
A400587300 · qty on machine: 1 | |||||
| 5 | A400587400 | WIRE, INLET1-N_TB1-2U | 1 | PARTS REQUEST | |
|
COMING WIRE, INLET1-N_TB1-2U
A400587400 · qty on machine: 1 | |||||
| 6 | A400587500 | WIRE, INLET1-FG_FG-2 | 1 | PARTS REQUEST | |
|
COMING WIRE, INLET1-FG_FG-2
A400587500 · qty on machine: 1 | |||||
| 7 | A300472400 | CHARGER 2 POWER FEED CABLE | 1 | PARTS REQUEST | |
|
COMING CHARGER 2 POWER FEED CABLE
A300472400 · qty on machine: 1 | |||||
| 8 | A300472300 | CHARGER 1 POWER FEED CABLE | 1 | PARTS REQUEST | |
|
COMING CHARGER 1 POWER FEED CABLE
A300472300 · qty on machine: 1 | |||||
| 9 | A300472200 | INVERTER CABLE | 1 | PARTS REQUEST | |
|
COMING INVERTER CABLE
A300472200 · qty on machine: 1 | |||||
| 10 | A400588400 | LIGHTING ON/OFF CONFIRM. CABLE 1 | 1 | PARTS REQUEST | |
|
COMING LIGHTING ON/OFF CONFIRM. CABLE 1
A400588400 · qty on machine: 1 | |||||
| 11 | A300472100 | LIGHTING LOWER POWER FEED CABLE | 1 | PARTS REQUEST | |
|
COMING LIGHTING LOWER POWER FEED CABLE
A300472100 · qty on machine: 1 | |||||
| 12 | A300472000 | LIGHTING UPPER POWER FEED CABLE | 1 | PARTS REQUEST | |
|
COMING LIGHTING UPPER POWER FEED CABLE
A300472000 · qty on machine: 1 | |||||
| 13 | A200197500 | CONTROL SIGNAL RELAY CABLE 1 | 1 | PARTS REQUEST | |
|
COMING CONTROL SIGNAL RELAY CABLE 1
A200197500 · qty on machine: 1 | |||||
| 14 | A400588500 | WIRE, TB1-22T_SW1-1 | 1 | PARTS REQUEST | |
|
COMING WIRE, TB1-22T_SW1-1
A400588500 · qty on machine: 1 | |||||
| 15 | A400588600 | WIRE, TB1-23T_SW1-3 | 1 | PARTS REQUEST | |
|
COMING WIRE, TB1-23T_SW1-3
A400588600 · qty on machine: 1 | |||||
| 16 | A400586600 | WIRE, TB1-19T_SW1-4 | 1 | PARTS REQUEST | |
|
COMING WIRE, TB1-19T_SW1-4
A400586600 · qty on machine: 1 | |||||
| 17 | A400586700 | WIRE, TB1-20T_SW1-6 | 1 | PARTS REQUEST | |
|
COMING WIRE, TB1-20T_SW1-6
A400586700 · qty on machine: 1 | |||||
| 18 | A400586800 | WIRE, TB1-11T_SW2-1 | 1 | PARTS REQUEST | |
|
COMING WIRE, TB1-11T_SW2-1
A400586800 · qty on machine: 1 | |||||
| 19 | A400587000 | WIRE, TB1-9T_SW2-2 | 1 | PARTS REQUEST | |
|
COMING WIRE, TB1-9T_SW2-2
A400587000 · qty on machine: 1 | |||||
| 20 | A400586900 | WIRE, TB1-10T_SW2-3 | 1 | PARTS REQUEST | |
|
COMING WIRE, TB1-10T_SW2-3
A400586900 · qty on machine: 1 | |||||
| 21 | A400588700 | WIRE, TB1-18T_TB1-19U | 1 | PARTS REQUEST | |
|
COMING WIRE, TB1-18T_TB1-19U
A400588700 · qty on machine: 1 | |||||
Page 32 — WIRING 3 (CONTROL CIRCUIT BOARD) ASSY.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | A300473900 | LIGHTING ON/OFF CONFIRM. CABLE 2 | 1 | PARTS REQUEST | |
|
COMING LIGHTING ON/OFF CONFIRM. CABLE 2
A300473900 · qty on machine: 1 | |||||
| 2 | A200197400 | CONTROL SIGNAL RELAY CABLE 2 | 1 | PARTS REQUEST | |
|
COMING CONTROL SIGNAL RELAY CABLE 2
A200197400 · qty on machine: 1 | |||||
| 3 | A200197000 | BATTERY SIGNAL RELAY CABLE | 1 | PARTS REQUEST | |
|
COMING BATTERY SIGNAL RELAY CABLE
A200197000 · qty on machine: 1 | |||||
| 4 | A400589400 | INVERTER REMOTE CABLE | 1 | PARTS REQUEST | |
|
COMING INVERTER REMOTE CABLE
A400589400 · qty on machine: 1 | |||||
| 5 | A400595700 | CABLE, BATTERY 1 SWITCH CUSTOM | 1 | PARTS REQUEST | |
|
COMING CABLE, BATTERY 1 SWITCH CUSTOM
A400595700 · qty on machine: 1 | |||||
| 6 | A300477200 | SOC METER CABLE, BATTERY 1 | 1 | PARTS REQUEST | |
|
COMING SOC METER CABLE, BATTERY 1
A300477200 · qty on machine: 1 | |||||
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine

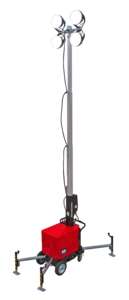

The Multiquip GBBAT3S4M is a lighting built for lighting night work zones, road crews, and events with wide, glare-free coverage. Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
A000086001
Multiquip A000086001 Lamp Assembly GB43LED - OEM Replacement Part
$804.95
A000110300
Multiquip A000110300 Heat Sink Assembly - OEM Replacement Part
$1,054.95
A100157700
Multiquip A100157700 GBX III Winch Dual Handle - OEM Replacement Part
$614.95
A100181300
Multiquip A100181300 Lens Cover GBX12SK - OEM Replacement Part
$116.95
A100181500
Multiquip A100181500 Power Supply Case - OEM Replacement Part
$172.95
A100190000
Multiquip A100190000 Arm Led Spot GBX12SK - OEM Replacement Part
$330.95
A300360600
Multiquip A300360600 GBX III Mast Bracket 4th Mast - OEM Replacement Part
$646.95
A400333800
Multiquip A400333800 GBX III Pulley - OEM Replacement Part for Globug Light Towers
$45.95
A400517900
Multiquip A400517900 GBX III Washer 38 Dia - OEM Replacement Part
$33.95
E000153400
Multiquip E000153400 Switch - OEM Replacement Part for Globug Lighting
$60.95
E000168900
Multiquip E000168900 GBX III Cap Breaker - OEM Replacement Part for Globug Light Towers
$33.95
E000256200
Multiquip E000256200 GBX Spring Loaded Pin - OEM Replacement Part
$88.95
E000267800
Multiquip E000267800 Jack TTL48 - OEM Globug Lighting Replacement Part
$201.95
0011608020
FLANGE BOLT M8X20
0012506010
BOLT AND WASHER ASSY. M6X10
0012506015
BOLT AND WASHER ASSY. M6X15
0012506020
BOLT AND WASHER ASSY., M6X20
0012508015
BOLT AND WASHER ASSY. M8X15
0012508020
BOLT AND WASHER ASSY., M8X20
0012508022
BOLT AND WASHER ASSY., M8X22
0012510020
BOLT AND WASHER ASSY., M10X20
0012510022
BOLT AND WASHER ASSY., M10X22
0012510025
BOLT AND WASHER ASSY., M10X25
0012512025
BOLT AND WASHER ASSY. M12X25
0013108040
BOLT M8X40
$0.95
0013306015
BOLT M6X15
0015608012
SLIM HEAD SCREW M8X12
0017405030
HEX. SOCKET HEAD BOLT SUS M5X30
$1.33
0017508020
SLIM HEAD SCREW M8X20, BLACK
$2.09
0017510035
SLIM HEAD SCREW M10X35, BLACK
$24.95
0022404008
TRUSS HEAD SCREW M4X8
0023304012
SCREW AND WASHER ASSY., M4X12
0023404020
OVAL HEAD SCREW, M4X20
0023503006
SCREW M3X6
0023503015
PAN HEAD SCREW, M3X15
0023504015
PAN HEAD SCREW, M4X15
0023505020
SCREW M5X20
0025006012
COUNTERSUNK SCREW M6X12
$2.95
0025008016
COUNTERSUNK SCREW M8X16
$3.95
0027106018
COUNTERSUNK SCREW M6X18
$1.27
0027205012
SCREW M5X12
0027304012
BOLT AND WASHER ASSY., M4X12
0027305008
SCREW AND WASHER M5X8
0027305020
BOLT AND WASHER ASSY., M5X20
0027306010
BOLT AND WASHER ASSY., M6X10
0027405012
SCREW AND WASHER ASSY. M5X12
0027505020
TAPPING SCREW M5X20, BLACK
0027904012
OVAL HEAD SCREW, M4X12
0028204012
UPSET BOLT ASSY.,SS, M4X12
$0.45
0031206000LB
NUT, M6
$0.67
0033808000
HARDLOCK NUT M8
$28.95
0034116000
NUT M16, LOW
$0.94
0034808000
HARDLOCK NUT M8
0035608000
SELF LOCK NUT M8
0036410000
HARD LOCK NUT M10
0040720000
SNAP RING
$0.65
0044003000
WASHER, LOCK M3
0044004000
WASHER, LOCK M4
0044006000
WASHER, LOCK M6
0044103000
WASHER, M3
0044106000
WASHER, M6
0044108000
WASHER M8
0046105000
WASHER M5, BLACK
0053510000
COTTER PIN, #10
$0.48
0053512000
COTTER, PIN #12
$0.86
011208030
HEX BOLT, M8X30
$1.30
1042000230
SPRING, LAMP
$16.95
1045000130
SPRING, LEVER
$4.95
1603000130
CLAMP
1652000131
CAP
A000118701
LED 300W SPOT LIGHT UNIT LEFT ASSY.
A000118801
LED 300W SPOT LIGHT UNIT RIGHT ASSY.
A100178602
OUTRIGGER, LEFT REAR
A100178701
OUTRIGGER, RIGHT REAR
A100178801
OUTRIGGER, LEFT FRONT
A100178901
OUTRIGGER, RIGHT FRONT
A100190802
BASE
A100191901
FIRST MAST
A100196501
REAR SIDE COVER, RIGHT
A100196601
REAR SIDE COVER, LEFT
A100196700
REAR TOP COVER
A100196800
REAR COVER
A100197100
BRACKET, PULLEY
A200172605
PIPE HANDLE
A200173902
FRONT COVER
A200174302
COVER, WINCH
A200178600
HANGER
A200195101
CONTROL BOX, PANEL 1
A200195200
FRONT TOP COVER
A200195300
BRACKET, INVERTER
A200195400
COVER, CONNECTOR
A200195802
POWER SUPPLY (US)
A200195900
JUNCTION BOX
A200197000
BATTERY SIGNAL RELAY CABLE
A200197100
LAMP CABLE, US-BAT
A200197102
LAMP CABLE, US BATT
A200197400
CONTROL SIGNAL RELAY CABLE 2
A200197500
CONTROL SIGNAL RELAY CABLE 1
A200197800
DIVIDER PLATE
A200291200
GASKET
A300092600
SPRING, LAMP STAND RIGHT
A300093000
SPRING, LAMP STAND LEFT
A300437100
BRACKET, 1ST MAST
A300447705
SECOND MAST
A300448002
THIRD MAST
A300448102
FOURTH MAST
A300449500
DIN RAIL L=10 IN./255 MM
A300459000
BRACKET, ARM LEFT
$29.95
A300459100
BRACKET, ARM RIGHT
$29.95
A300466504
PLATE, EV FRONT
A300469300
SAFETY STRIPE TAPE
$11.95
A300472000
LIGHTING UPPER POWER FEED CABLE
A300472100
LIGHTING LOWER POWER FEED CABLE
A300472200
INVERTER CABLE
A300472300
CHARGER 1 POWER FEED CABLE
A300472400
CHARGER 2 POWER FEED CABLE
A300472500
CHARGER 1 CABLE
A300472600
CHARGER 2 CABLE
A300473600
HOUR METER W/CABLE
A300473700
CIRCUIT BREAKER, 15A
A300473800
PANEL LIGHT AND INDICATOR W/CABLES
A300473900
LIGHTING ON/OFF CONFIRM. CABLE 2
A300474100
INVERTER POWER FEED CABLE
A300474200
POWER CABLE, INVERTER
A300474500
DC IN/OUT RELAY CABLE, BATTERY 1
A300474600
DC IN/OUT CABLE, BATTERY 1
A300474800
DIMMING BOARD ASSY.
$163.30
A300474900
CONTROL, CIRCUIT BOARD ASSY.
$801.58
A300475400
DC RELAY CABLE (CHARGER 1)
A300475500
DC RELAY CABLE (CHARGER 2)
A300475600
BATTERY CHARGER 1, W/CABLES
$1,059.85
A300475700
BATTERY CHARGER 2, W/CABLES
$1,059.85
A300477200
SOC METER CABLE, BATTERY 1
A400111200
DECAL: TRIANGLE RED
$0.48
A400284700
PIN, STOPPER
$26.95
A400285200
WASHER, PULLEY
$4.95
A400285400
SPRING, PULLEY
$29.95
A400333402
PLATE, SLIDER 2-1
$26.95
A400333600
BRACKET, WIRE
$25.95
A400362700
PULLEY
A400372800
DECAL: GROUND
A400418100
WASHER M10
$3.95
A400427300
PLATE, SLIDER 2-2
$10.95
A400431100
BRACKET 5, CABLE
A400434000
BOLT, CABLE
$4.95
A400447300
DECAL: MQ LOGO
$10.95
A400447600
DECAL: NAME, GLOBUG FRAME
$29.95
A400447800
DECAL: FINGER CAUTION
$2.95
A400457300
DECAL: GROUND Φ25
$0.48
A400477900
DECAL: PROP 65
$18.95
A400492200
DECAL: BURN HAZARD
$1.27
A400498700
DECAL: LAMPSTAND
A400499300
DECAL: DANGER, ELECTRICAL SHOCK
A400499400
DECAL: DANGER, TIRE
A400499500
DECAL: MANUAL
A400519900
PIN, PULLEY
A400520500
STOPPER
A400549402
WIRE ROPE, 1 YELLOW
A400549502
WIRE ROPE 2, BLUE
A400553800
PLATE, POWER SUPPLY
A400554300
TRIM SEAL, 54X35, 2.1”X1.4”
A400555502
STOPPER, MAST
A400555800
DECAL: DANGER, POWER LINE
A400557000
DECAL: DANGER, CAUTION, LIFT POINT
A400557100
DECAL: DANGER, WINCH CABLE
A400557300
DECAL: WARNING, BRAKE, OUTRIGGER
A400563302
SLIDER
$2.95
A400573501
CORRUGATED TUBE, L=16” (406 MM)
A400582600
GAUGE PLATE, RIGHT
A400585700
DECAL: GLOBUG INFORMATION
A400586600
WIRE, TB1-19T_SW1-4
A400586700
WIRE, TB1-20T_SW1-6
A400586800
WIRE, TB1-11T_SW2-1
A400586900
WIRE, TB1-10T_SW2-3
A400587000
WIRE, TB1-9T_SW2-2
A400587300
WIRE, INLET1-L_TB1-4U
A400587400
WIRE, INLET1-N_TB1-2U
A400587500
WIRE, INLET1-FG_FG-2
A400587600
WIRE, INLET2-L_TB1-3U
A400587700
WIRE, INLET2-N_TB1-1U
A400587800
WIRE, INLET2-FG_FG-1
A400587900
WIRE (CHARGER 1 FG)
A400588400
LIGHTING ON/OFF CONFIRM. CABLE 1
A400588500
WIRE, TB1-22T_SW1-1
A400588600
WIRE, TB1-23T_SW1-3
A400588700
WIRE, TB1-18T_TB1-19U
A400589400
INVERTER REMOTE CABLE
A400589500
TRIM SEAL, 20X35, 0.8”X1.4”
A400590800
DECAL: POWER SWITCH
A400590900
DECAL: LIGHT SWITCH
A400591000
DECAL: DIMMER SWITCH
A400591100
DECAL: CHARGE, 2X15A
A400591200
DECAL: CB 15A
A400591300
DECAL: CHARGING TIME
A400591500
DECAL: RECHARGER
A400591700
DECAL: GROUND
A400591800
DECAL: CN03, P03, UPPER LIGHTS
A400591900
DECAL: CN, P04
A400592000
DECAL: CN, R5
A400592100
DECAL: CN9, P09
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
