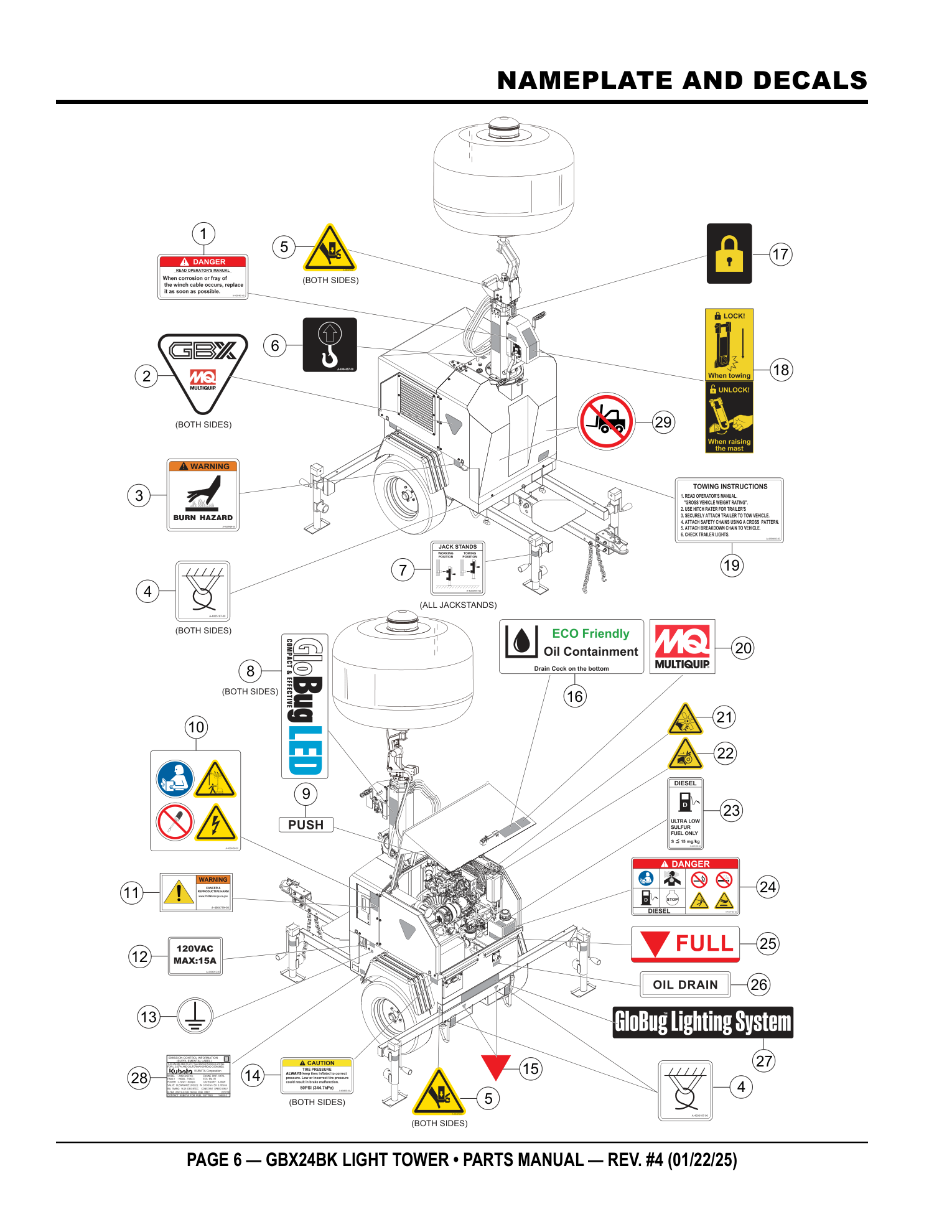

Page 6 — UNKNOWN

Multiquip GBX24 Light Tower UNKNOWN parts diagram

Parts list — exactly as printed29 rows

No.	Part No.	Part Name	Qty
1	A400446100	DECAL; WINCH CABLE	1	ADD TO CART
DECAL; WINCH CABLE A400446100 · qty on machine: 1 view full part page → $5.95
2	A300376400	DECAL; GBX LOGO	2	ADD TO CART
DECAL; GBX LOGO A300376400 · qty on machine: 2 view full part page → $20.95
3	A400445400	DECAL; BURN HAZARD	1	ADD TO CART
DECAL; BURN HAZARD A400445400 · qty on machine: 1 view full part page → $4.95
4	A400518700	DECAL; TIE DOWN	4	ADD TO CART
DECAL; TIE DOWN A400518700 · qty on machine: 4 view full part page → $1.95
5	A400447800	DECAL; FINGER CAUTION	6	ADD TO CART
DECAL; FINGER CAUTION A400447800 · qty on machine: 6 view full part page → $2.95
6	A400445700	DECAL; LIFTING POINT	1	ADD TO CART
DECAL; LIFTING POINT A400445700 · qty on machine: 1 view full part page → $5.95
7	A400518100	DECAL; JACKSTANDS	4	ADD TO CART
DECAL; JACKSTANDS A400518100 · qty on machine: 4 view full part page → $1.95
8	A300402500	DECAL; GLO BUG LED	2	ADD TO CART
DECAL; GLO BUG LED A300402500 · qty on machine: 2 view full part page → $15.95
9	A400518800	DECAL; PUSH	1	ADD TO CART
DECAL; PUSH A400518800 · qty on machine: 1 view full part page → $2.77
10	A400445900	DECAL; CAUTION, READ MANUAL	1	ADD TO CART
DECAL; CAUTION, READ MANUAL A400445900 · qty on machine: 1 view full part page → $44.95
11	A400477900	DECAL; WARNING (CALIFORNIA-P65)	1	ADD TO CART
DECAL; WARNING (CALIFORNIA-P65) A400477900 · qty on machine: 1 view full part page → $18.95
12	A400491200	DECAL; OUTLET	1	ADD TO CART
DECAL; OUTLET A400491200 · qty on machine: 1 view full part page → $2.95
13	A400457300	DECAL; EARTH ø25	1	ADD TO CART
DECAL; EARTH ø25 A400457300 · qty on machine: 1 view full part page → $0.48
14	A400445800	DECAL; TIRE PRESSURE	2	ADD TO CART
DECAL; TIRE PRESSURE A400445800 · qty on machine: 2 view full part page → $4.95
15	A400111200	DECAL; TRIANGLE, RED	2	ADD TO CART
DECAL; TRIANGLE, RED A400111200 · qty on machine: 2 view full part page → $0.48
16	A300426200	DECAL; OIL CONTAINMENT	1	ADD TO CART
DECAL; OIL CONTAINMENT A300426200 · qty on machine: 1 view full part page → $7.95
17	A400488400	DECAL; LOCK	1	ADD TO CART
DECAL; LOCK A400488400 · qty on machine: 1 view full part page → $2.77
18	A300402200	DECAL; LOCK/UNLOCK	1	ADD TO CART
DECAL; LOCK/UNLOCK A300402200 · qty on machine: 1 view full part page → $10.95
19	A400446000	DECAL; TOWING INSTRUCTION	1	ADD TO CART
DECAL; TOWING INSTRUCTION A400446000 · qty on machine: 1 view full part page → $44.95
20	A400447300	DECAL; MQ LOGO	1	ADD TO CART
DECAL; MQ LOGO A400447300 · qty on machine: 1 view full part page → $10.95
21	A400481700	DECAL; DANGEROUS 1	1	ADD TO CART
DECAL; DANGEROUS 1 A400481700 · qty on machine: 1 view full part page → $2.95
22	A400481800	DECAL; DANGEROUS 2	1	ADD TO CART
DECAL; DANGEROUS 2 A400481800 · qty on machine: 1 view full part page → $2.77
23	A400518900	DECAL; DIESEL	1	ADD TO CART
DECAL; DIESEL A400518900 · qty on machine: 1 view full part page → $4.95
24	A400445502	DECAL; DANGER, FUEL	1	ADD TO CART
DECAL; DANGER, FUEL A400445502 · qty on machine: 1 view full part page → $7.95
25	A400491900	DECAL; FULL	1	ADD TO CART
DECAL; FULL A400491900 · qty on machine: 1 view full part page → $3.95
26	A400518600	DECAL; OIL DRAIN	1	ADD TO CART
DECAL; OIL DRAIN A400518600 · qty on machine: 1 view full part page → $2.95
27	A400447600	DECAL; GLOBUG FRAME	1	ADD TO CART
DECAL; GLOBUG FRAME A400447600 · qty on machine: 1 view full part page → $29.95
28	EEN0021200	DECAL; EPA EXHAUST CERTIFICATION	1	ADD TO CART
DECAL; EPA EXHAUST CERTIFICATION EEN0021200 · qty on machine: 1 view full part page → $6.95
29	A400551800	DECAL; NO FORKLIFT	2	ADD TO CART
DECAL; NO FORKLIFT A400551800 · qty on machine: 2 view full part page → $5.95

Page 8 — UNKNOWN

Parts list — exactly as printed23 rows

No.	Part No.	Part Name	Qty

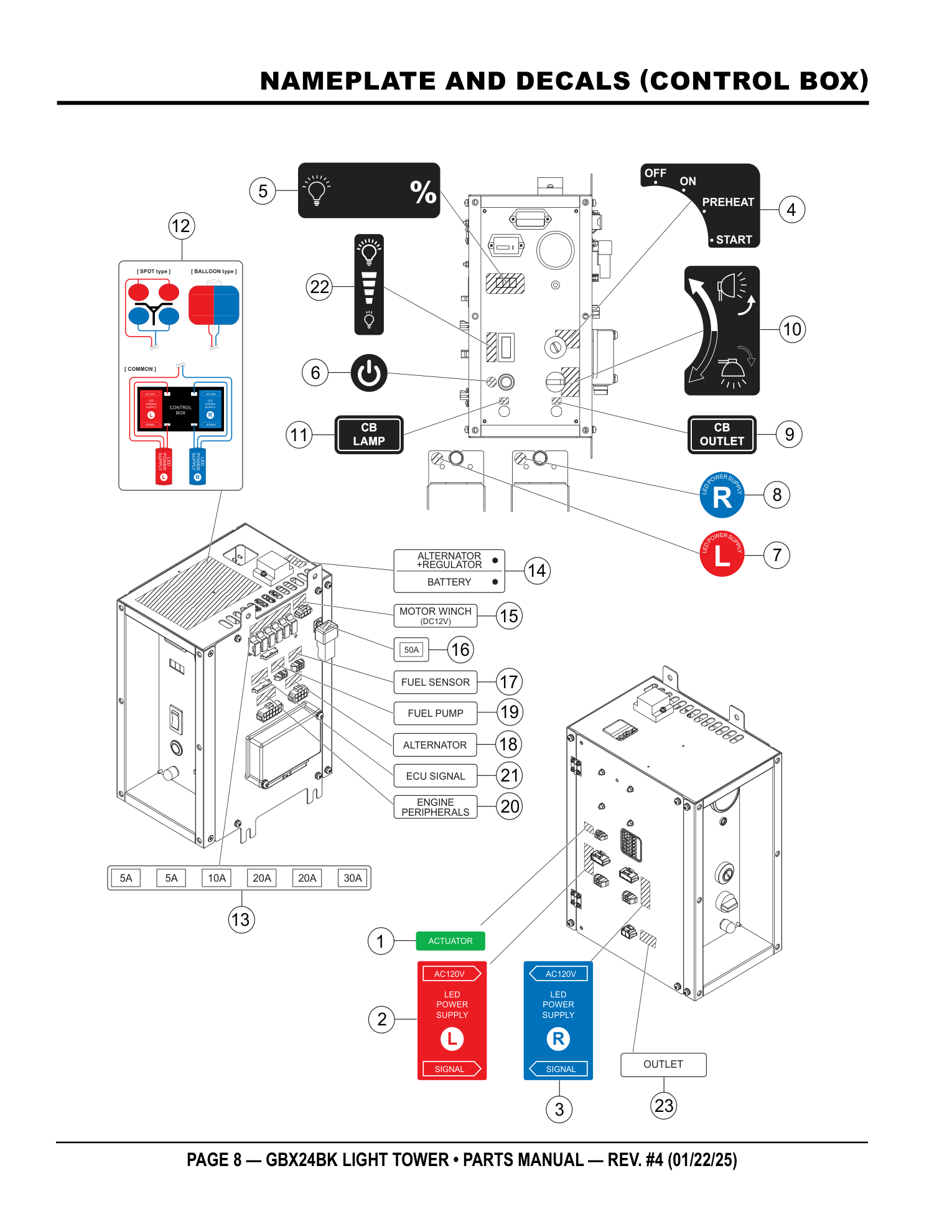

1	A400490000	DECAL; ACTUATOR	1	ADD TO CART
DECAL; ACTUATOR A400490000 · qty on machine: 1 view full part page → $10.95
2	A400489800	DECAL; LED POWER SPLY. (L) CONNECT.	1	ADD TO CART
DECAL; LED POWER SPLY. (L) CONNECT. A400489800 · qty on machine: 1 view full part page → $12.95
3	A400489900	DECAL; LED POWER SPLY. (R) CONNECT.	1	ADD TO CART
DECAL; LED POWER SPLY. (R) CONNECT. A400489900 · qty on machine: 1 view full part page → $12.95
4	A400487400	DECAL; IGNITION KEY SWITCH	1	ADD TO CART
DECAL; IGNITION KEY SWITCH A400487400 · qty on machine: 1 view full part page → $11.95
5	A400448501	DECAL; DIMMING	1	ADD TO CART
DECAL; DIMMING A400448501 · qty on machine: 1 view full part page → $36.95
6	A400481301	DECAL; LIGHT SWITCH	1	ADD TO CART
DECAL; LIGHT SWITCH A400481301 · qty on machine: 1 view full part page → $18.95
7	A400488700	DECAL; LED POWER SUPPLY, LEFT	1	ADD TO CART
DECAL; LED POWER SUPPLY, LEFT A400488700 · qty on machine: 1 view full part page → $10.95
8	A400488800	DECAL; LED POWER SUPPLY, RIGHT	1	ADD TO CART
DECAL; LED POWER SUPPLY, RIGHT A400488800 · qty on machine: 1 view full part page → $10.95
9	A400490900	DECAL; CB OUTLET	1	ADD TO CART
DECAL; CB OUTLET A400490900 · qty on machine: 1 view full part page → $23.95
10	A400487500	DECAL; ACTUATOR SWITCH	1	ADD TO CART
DECAL; ACTUATOR SWITCH A400487500 · qty on machine: 1 view full part page → $11.95
11	A400487600	DECAL; CB LAMP	1	ADD TO CART
DECAL; CB LAMP A400487600 · qty on machine: 1 view full part page → $11.95
12	A400488600	DECAL; LED POWER CONNECTION	1	ADD TO CART
DECAL; LED POWER CONNECTION A400488600 · qty on machine: 1 view full part page → $40.95
13	A400488900	DECAL; FUSES	1	PARTS REQUEST
PHOTO COMING DECAL; FUSES A400488900 · qty on machine: 1 PARTS REQUEST
14	A400490200	DECAL; ALTERNATOR + REGULATOR	1	ADD TO CART
DECAL; ALTERNATOR + REGULATOR A400490200 · qty on machine: 1 view full part page → $13.95
15	A400489000	DECAL; MOTOR WINCH, DC12V	1	ADD TO CART
DECAL; MOTOR WINCH, DC12V A400489000 · qty on machine: 1 view full part page → $12.95
16	A400490100	DECAL; FUSE, 50A	1	PARTS REQUEST
PHOTO COMING DECAL; FUSE, 50A A400490100 · qty on machine: 1 Factory replaced this part - current number 50A PARTS REQUEST
17	A400489100	DECAL; FUEL SENSOR	1	ADD TO CART
DECAL; FUEL SENSOR A400489100 · qty on machine: 1 view full part page → $12.95
18	A400489600	DECAL; ALTERNATOR	1	ADD TO CART
DECAL; ALTERNATOR A400489600 · qty on machine: 1 view full part page → $12.95
19	A400489200	DECAL; FUEL PUMP	1	ADD TO CART
DECAL; FUEL PUMP A400489200 · qty on machine: 1 view full part page → $12.95
20	A400489700	DECAL; ENGINE PERIPHERALS	1	ADD TO CART
DECAL; ENGINE PERIPHERALS A400489700 · qty on machine: 1 view full part page → $12.95
21	A400489500	DECAL; ECU SIGNAL	1	ADD TO CART
DECAL; ECU SIGNAL A400489500 · qty on machine: 1 view full part page → $12.95
22	A400481400	DECAL; DIMMING CONTROL SWITCH	1	ADD TO CART
DECAL; DIMMING CONTROL SWITCH A400481400 · qty on machine: 1 view full part page → $21.95
23	A400491700	DECAL; OUTLET	1	PARTS REQUEST
PHOTO COMING DECAL; OUTLET A400491700 · qty on machine: 1 PARTS REQUEST

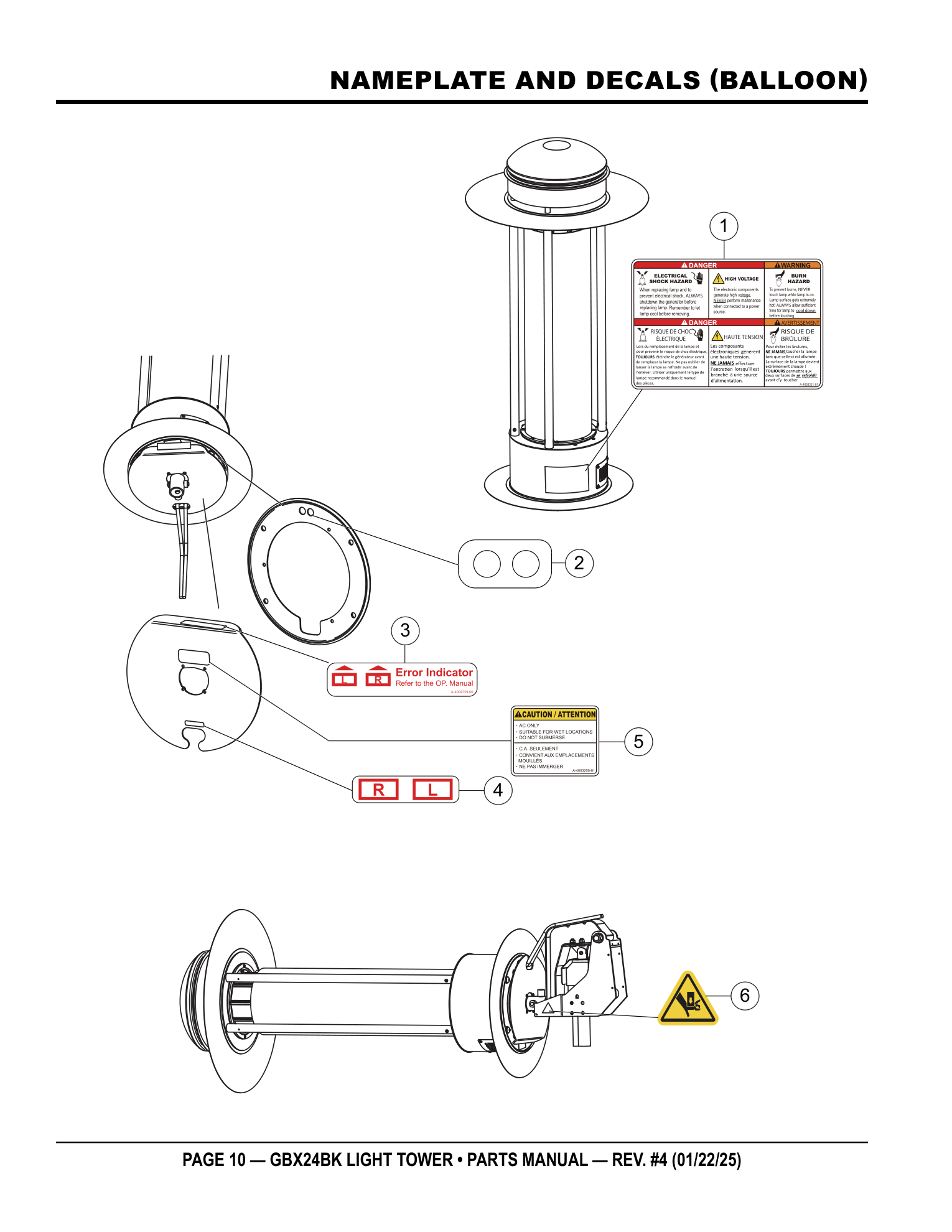

Page 10 — UNKNOWN

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty
1	A400325101	DECAL; DANGER, ELECTRICAL SHOCK HAZARD	1	ADD TO CART
DECAL; DANGER, ELECTRICAL SHOCK HAZARD A400325101 · qty on machine: 1 view full part page → $22.95
2	A400475600	DECAL; CLEAR	1	ADD TO CART
DECAL; CLEAR A400475600 · qty on machine: 1 view full part page → $75.95
3	A400475900	DECAL; ERROR INDICATOR	1	ADD TO CART
DECAL; ERROR INDICATOR A400475900 · qty on machine: 1 view full part page → $12.95
4	A400476100	DECAL; L-R	1	ADD TO CART
DECAL; L-R A400476100 · qty on machine: 1 view full part page → $10.95
5	A400325001	DECAL; DANGER, BALLOON INFORMATION	1	ADD TO CART
DECAL; DANGER, BALLOON INFORMATION A400325001 · qty on machine: 1 view full part page → $15.95
6	A400447800	DECAL; FINGER CAUTION	1	ADD TO CART
DECAL; FINGER CAUTION A400447800 · qty on machine: 1 view full part page → $2.95

Page 12 — BASE GROUP 1 ASSY.

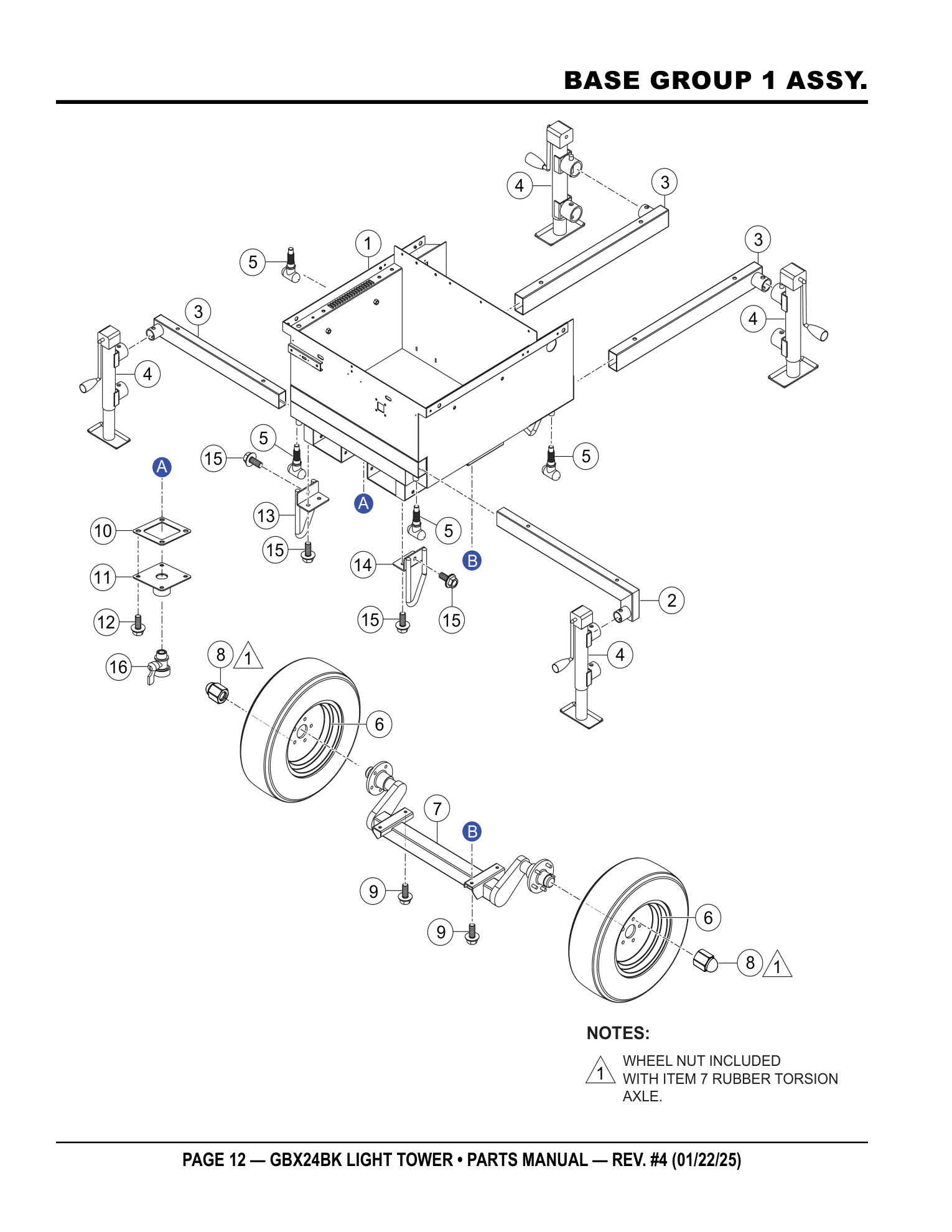

Multiquip GBX24 Light Tower BASE GROUP 1 ASSY. parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty	Remarks
1	A100159000	FRAME	1	S/N G4600166 AND BELOW	ADD TO CART
FRAME A100159000 · qty on machine: 1 S/N G4600166 AND BELOW view full part page → $9463.95
1	A100199602	FRAME	1	S/N G4600167 AND ABOVE	ADD TO CART
FRAME A100199602 · qty on machine: 1 S/N G4600167 AND ABOVE view full part page → $4514.95
2	A100150302	FRONT LEFT OUTRIGGER	1		ADD TO CART
FRONT LEFT OUTRIGGER A100150302 · qty on machine: 1 view full part page → $390.95
3	A100150202	FRONT RIGHT OUTRIGGER	3		ADD TO CART
FRONT RIGHT OUTRIGGER A100150202 · qty on machine: 3 view full part page → $336.95
4	A300445700	TOP WIND JACK STAND	4		ADD TO CART
TOP WIND JACK STAND A300445700 · qty on machine: 4 view full part page → $154.95
5	E000256200	SPRING LOADED OUTRIGGER PIN	4		ADD TO CART
SPRING LOADED OUTRIGGER PIN E000256200 · qty on machine: 4 view full part page → $88.95
6	EE45318	WHEEL/TIRE ST175/80-13 LR C	2		NO LONGER AVAILABLE
PHOTO COMING WHEEL/TIRE ST175/80-13 LR C EE45318 · qty on machine: 2 NO LONGER AVAILABLE
7	A100152700	RUBBBER TORSION AXLE W/WHEEL NUT	1	INCLUDES ITEMS W/#	ADD TO CART
RUBBBER TORSION AXLE W/WHEEL NUT A100152700 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 8# view full part page → $1221.95 IN A KIT + SOLD SOLO
8#	E000188700	WHEEL LUG NUT 1/2	10		ADD TO CART
WHEEL LUG NUT 1/2 E000188700 · qty on machine: 10 Also included in kit 7 - RUBBBER TORSION AXLE W/WHE (A100152700) view full part page → $15.95 IN A KIT + SOLD SOLO
9	0013512030	BOLT AND WASHER ASSY. M12X30	4		ADD TO CART
BOLT AND WASHER ASSY. M12X30 0013512030 · qty on machine: 4 view full part page → $10.95
10	A400474700	OIL PAN GASKET	1		ADD TO CART
OIL PAN GASKET A400474700 · qty on machine: 1 view full part page → $29.95
11	A400473101	OIL PAN PLATE	1		ADD TO CART
OIL PAN PLATE A400473101 · qty on machine: 1 view full part page → $163.95
12	0016806015	FLANGE BOLT, M6X15	4		ADD TO CART
FLANGE BOLT, M6X15 0016806015 · qty on machine: 4 view full part page → $0.48
13	A300419400	TIE DOWN POST, LEFT	1		ADD TO CART
TIE DOWN POST, LEFT A300419400 · qty on machine: 1 view full part page → $118.95
14	A300419500	TIE DOWN POST, RIGHT	1		ADD TO CART
TIE DOWN POST, RIGHT A300419500 · qty on machine: 1 view full part page → $118.95
15	0013512025	BOLT AND WASHER ASSY. M12X25	6		ADD TO CART
BOLT AND WASHER ASSY. M12X25 0013512025 · qty on machine: 6 view full part page → $1.44
16	E000236100	OIL BALL VALVE	1		ADD TO CART
OIL BALL VALVE E000236100 · qty on machine: 1 view full part page → $72.95

Page 14 — BASE GROUP 2 ASSY.

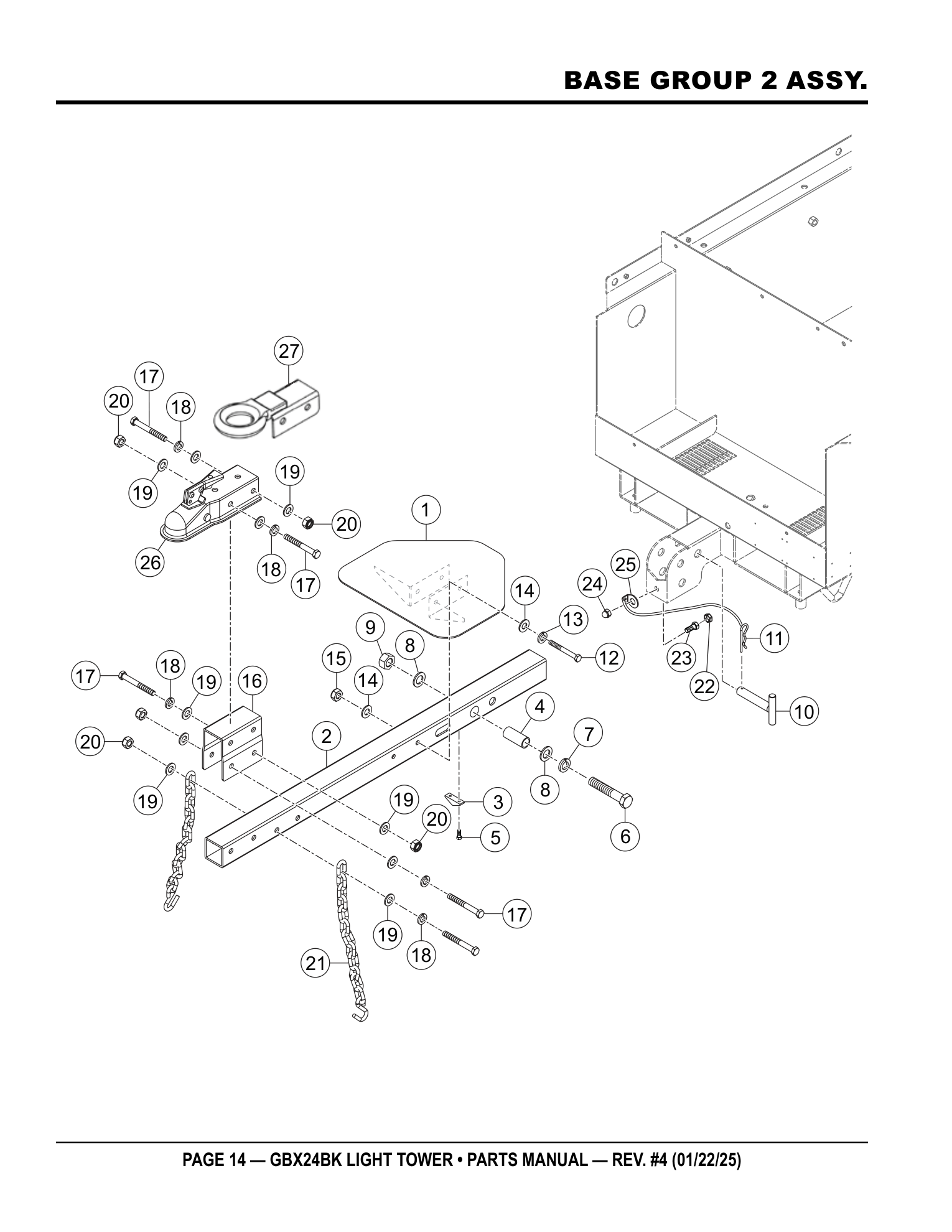

Multiquip GBX24 Light Tower BASE GROUP 2 ASSY. parts diagram

Parts list — exactly as printed29 rows

No.	Part No.	Part Name	Qty	Remarks
1	A100142701	STEP PLATFORM	1		PARTS REQUEST
PHOTO COMING STEP PLATFORM A100142701 · qty on machine: 1 PARTS REQUEST
2	A100153201	TOW BAR ASSY	1	S/N G4600166 AND BELOW	ADD TO CART
TOW BAR ASSY A100153201 · qty on machine: 1 S/N G4600166 AND BELOW view full part page → $381.95
2	A100153202	TOW BAR ASSY	1	S/N G4600167 AND ABOVE	ADD TO CART
TOW BAR ASSY A100153202 · qty on machine: 1 S/N G4600167 AND ABOVE view full part page → $381.95
3	A400425100	TOW BAR BUMPER PAD	1		ADD TO CART
TOW BAR BUMPER PAD A400425100 · qty on machine: 1 view full part page → $44.95
4	A400496001	TOW BAR BUSHING	1		ADD TO CART
TOW BAR BUSHING A400496001 · qty on machine: 1 view full part page → $9.95
5	0015305015	BUMPER PAD BOLT, M5X15	2		ADD TO CART
BUMPER PAD BOLT, M5X15 0015305015 · qty on machine: 2 view full part page → $1.95
6	0013120110	BOLT, M20X110	1	S/N G4600166 AND BELOW	ADD TO CART
BOLT, M20X110 0013120110 · qty on machine: 1 S/N G4600166 AND BELOW view full part page → $60.95
6	0013120125	BOLT, M20X125	1	S/N G4600167 AND ABOVE	PARTS REQUEST
PHOTO COMING BOLT, M20X125 0013120125 · qty on machine: 1 S/N G4600167 AND ABOVE PARTS REQUEST
7	0043220000	WASHER, LOCK M20	1		ADD TO CART
WASHER, LOCK M20 0043220000 · qty on machine: 1 view full part page → $40.95
8	0043120000	WASHER, M20	2		ADD TO CART
WASHER, M20 0043120000 · qty on machine: 2 view full part page → $2.95
9	0033220000	SELF-LOCK NUT, M20	1		ADD TO CART
SELF-LOCK NUT, M20 0033220000 · qty on machine: 1 view full part page → $31.95
10	A300410001	TOW BAR "T" BOLT	1		ADD TO CART
TOW BAR "T" BOLT A300410001 · qty on machine: 1 view full part page → $65.95
11	E000245100	"T" BOLT SAFETY CLIP	1		ADD TO CART
"T" BOLT SAFETY CLIP E000245100 · qty on machine: 1 view full part page → $1.27
12	0013110090	BOLT, M10X90	2		ADD TO CART
BOLT, M10X90 0013110090 · qty on machine: 2 view full part page → $10.95
13	0043210000	WASHER, LOCK M10	2		ADD TO CART
WASHER, LOCK M10 0043210000 · qty on machine: 2 view full part page → $0.48
14	0043110000	WASHER, M10	4		ADD TO CART
WASHER, M10 0043110000 · qty on machine: 4 view full part page → $0.48
15	0033210000	SELF-LOCK NUT M10	2		ADD TO CART
SELF-LOCK NUT M10 0033210000 · qty on machine: 2 view full part page → $1.95
16	A300412801	COUPLER BRACKET	1		ADD TO CART
COUPLER BRACKET A300412801 · qty on machine: 1 view full part page → $77.95
17	0013110100	BOLT, M12X100	5		PARTS REQUEST
PHOTO COMING BOLT, M12X100 0013110100 · qty on machine: 5 PARTS REQUEST
18	0043212000	WASHER, LOCK M12	5		ADD TO CART
WASHER, LOCK M12 0043212000 · qty on machine: 5 view full part page → $0.48
19	0043112000	WASHER M12	10		ADD TO CART
WASHER M12 0043112000 · qty on machine: 10 view full part page → $0.48
20	0033212000	SELF-LOCK NUT, M12	5		ADD TO CART
SELF-LOCK NUT, M12 0033212000 · qty on machine: 5 view full part page → $9.95
21	13363KITLT	SAFETY CHAIN ASSY.	2		ADD TO CART
SAFETY CHAIN ASSY. 13363KITLT · qty on machine: 2 view full part page → $194.95
22	E000236300	CAP BOLT, M10	1		ADD TO CART
CAP BOLT, M10 E000236300 · qty on machine: 1 view full part page → $9.95
23	0013110025	BOLT, M10X25	1		ADD TO CART
BOLT, M10X25 0013110025 · qty on machine: 1 view full part page → $4.95
24	0036110000	CAP NUT, M10 BLACK	1		ADD TO CART
CAP NUT, M10 BLACK 0036110000 · qty on machine: 1 view full part page → $9.95
25	A400520100	WIRE, TOW BAR CABLE W/WASHER	1		ADD TO CART
WIRE, TOW BAR CABLE W/WASHER A400520100 · qty on machine: 1 view full part page → $48.95
26	29546	2" BALL COUPLER	1		ADD TO CART
2" BALL COUPLER 29546 · qty on machine: 1 view full part page → $34.95
27	34953	LOOP COUPLER	1	OPTIONAL CONTACT MQ SALES	ADD TO CART
LOOP COUPLER 34953 · qty on machine: 1 OPTIONAL CONTACT MQ SALES view full part page → $63.95

Page 16 — FRAME 1 ASSY. (MUFFLER)

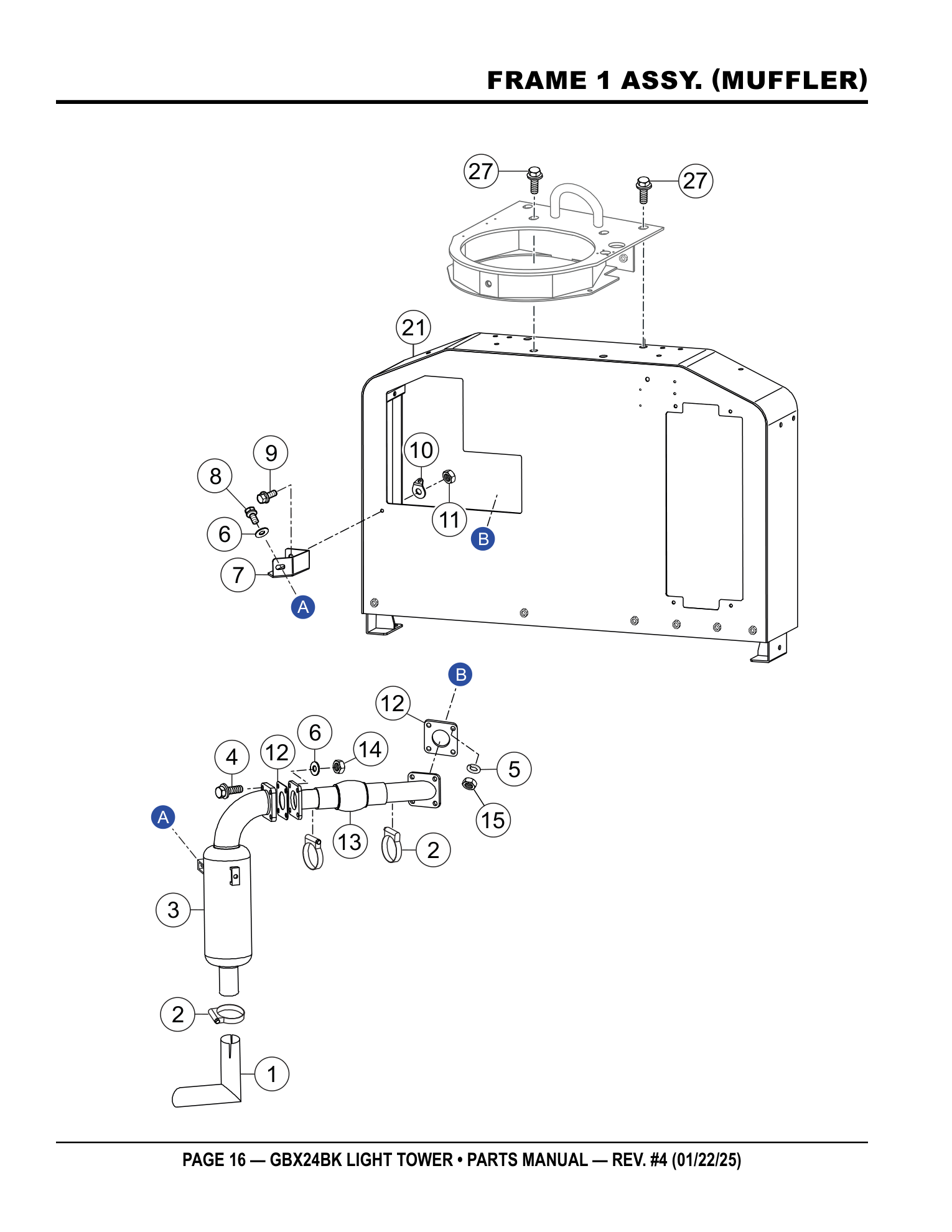

Multiquip GBX24 Light Tower FRAME 1 ASSY. (MUFFLER) parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty	Remarks
1	A300409002	MUFFLER, ELBOW PIPE	1		ADD TO CART
MUFFLER, ELBOW PIPE A300409002 · qty on machine: 1 view full part page → $124.95
2	E000183100	MUFFLER, CLAMP	3		ADD TO CART
MUFFLER, CLAMP E000183100 · qty on machine: 3 view full part page → $4.95
3	E000210000	MUFFLER	1		ADD TO CART
MUFFLER E000210000 · qty on machine: 1 view full part page → $471.95
4	0013508030	BOLT AND WASHER ASSY. M8X30	4		ADD TO CART
BOLT AND WASHER ASSY. M8X30 0013508030 · qty on machine: 4 view full part page → $5.95
5	EEN0020800	WASHER, LOCK M8	4		ADD TO CART
WASHER, LOCK M8 EEN0020800 · qty on machine: 4 view full part page → $11.95
6	0043108000	WASHER, M8	5		ADD TO CART
WASHER, M8 0043108000 · qty on machine: 5 view full part page → $0.62
7	A300391102	BRACKET, MUFFLER	1		ADD TO CART
BRACKET, MUFFLER A300391102 · qty on machine: 1 view full part page → $56.95
8	0013506016	BOLT AND WASHER ASSY. M6X16	1		ADD TO CART
BOLT AND WASHER ASSY. M6X16 0013506016 · qty on machine: 1 view full part page → $0.48
9	0013508025	BOLT AND WASHER ASSY. M8X25	1		ADD TO CART
BOLT AND WASHER ASSY. M8X25 0013508025 · qty on machine: 1 view full part page → $0.67
10	2204510110	CABLE, FASTENER WASHER	1		ADD TO CART
CABLE, FASTENER WASHER 2204510110 · qty on machine: 1 view full part page → $9.95
11	0033108000	NUT, M8	1		ADD TO CART
NUT, M8 0033108000 · qty on machine: 1 view full part page → $0.48
12	E000209500	MUFFLER, GASKET	2		ADD TO CART
MUFFLER, GASKET E000209500 · qty on machine: 2 view full part page → $20.95
13	A200145800	MUFFLER, EXHAUST PIPE	1	INCLUDES HEAT SHIELD WRAP	ADD TO CART
MUFFLER, EXHAUST PIPE A200145800 · qty on machine: 1 INCLUDES HEAT SHIELD WRAP view full part page → $451.95
14	0033208000	SELF-LOCK NUT, M8	4		ADD TO CART
SELF-LOCK NUT, M8 0033208000 · qty on machine: 4 view full part page → $1.75
15	EEN0020700	NUT, M8	4		ADD TO CART
NUT, M8 EEN0020700 · qty on machine: 4 view full part page → $22.95
21	A100158900	FRONT CABINET COVER	1		ADD TO CART
FRONT CABINET COVER A100158900 · qty on machine: 1 view full part page → $1563.95
27	0013512025	BOLT AND WASHER ASSY. M12X25	4		ADD TO CART
BOLT AND WASHER ASSY. M12X25 0013512025 · qty on machine: 4 view full part page → $1.44

Page 18 — FRAME 2 ASSY. (CONTROL BOX)

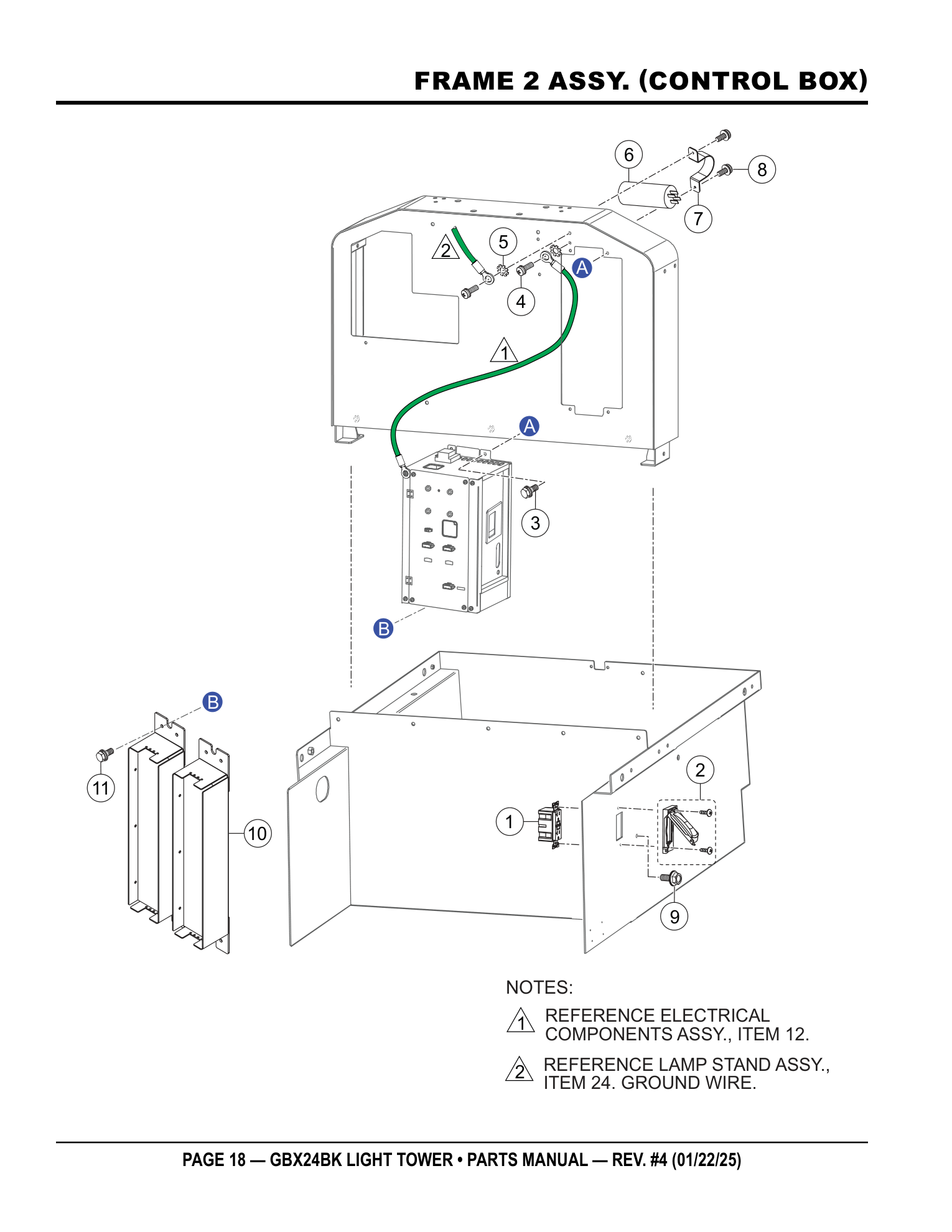

Multiquip GBX24 Light Tower FRAME 2 ASSY. (CONTROL BOX) parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty
1	E000213401	GFCI	1	PARTS REQUEST
PHOTO COMING GFCI E000213401 · qty on machine: 1 PARTS REQUEST
2	E000170800	COVER, GFCI W/SCREW M4X25	1	ADD TO CART
COVER, GFCI W/SCREW M4X25 E000170800 · qty on machine: 1 view full part page → $9.95
3	0013508020	BOLT AND WASHER ASSY. M8X20	4	ADD TO CART
BOLT AND WASHER ASSY. M8X20 0013508020 · qty on machine: 4 view full part page → $0.74
4	0023305010	SCREW AND WASHER ASSY. M5X10	2	ADD TO CART
SCREW AND WASHER ASSY. M5X10 0023305010 · qty on machine: 2 view full part page → $1.95
5	0043905000	TOOTHED LOCK WASHER, M5	2	ADD TO CART
TOOTHED LOCK WASHER, M5 0043905000 · qty on machine: 2 view full part page → $1.95
6	EEN0021100	CAPACITOR, 20μF, SIZE 2"X4"	1	ADD TO CART
CAPACITOR, 20μF, SIZE 2"X4" EEN0021100 · qty on machine: 1 view full part page → $200.95
7	E000215500	CAPACITOR HOLDER W/WASHER	1	ADD TO CART
CAPACITOR HOLDER W/WASHER E000215500 · qty on machine: 1 view full part page → $3.95
8	0023304010	SCREW AND WASHER ASSY. M4X10	2	ADD TO CART
SCREW AND WASHER ASSY. M4X10 0023304010 · qty on machine: 2 view full part page → $1.95
9	0016806015	FLANGE BOLT, M6X15	1	ADD TO CART
FLANGE BOLT, M6X15 0016806015 · qty on machine: 1 view full part page → $0.48
10	A000094004	LED POWER SUPPLY ASSY.	2	ADD TO CART
LED POWER SUPPLY ASSY. A000094004 · qty on machine: 2 view full part page → $3374.95
11	0013510025	BOLT AND WASHER ASSY. M10X25	2	ADD TO CART
BOLT AND WASHER ASSY. M10X25 0013510025 · qty on machine: 2 view full part page → $0.95

Page 20 — ENGINE BASE ASSY.

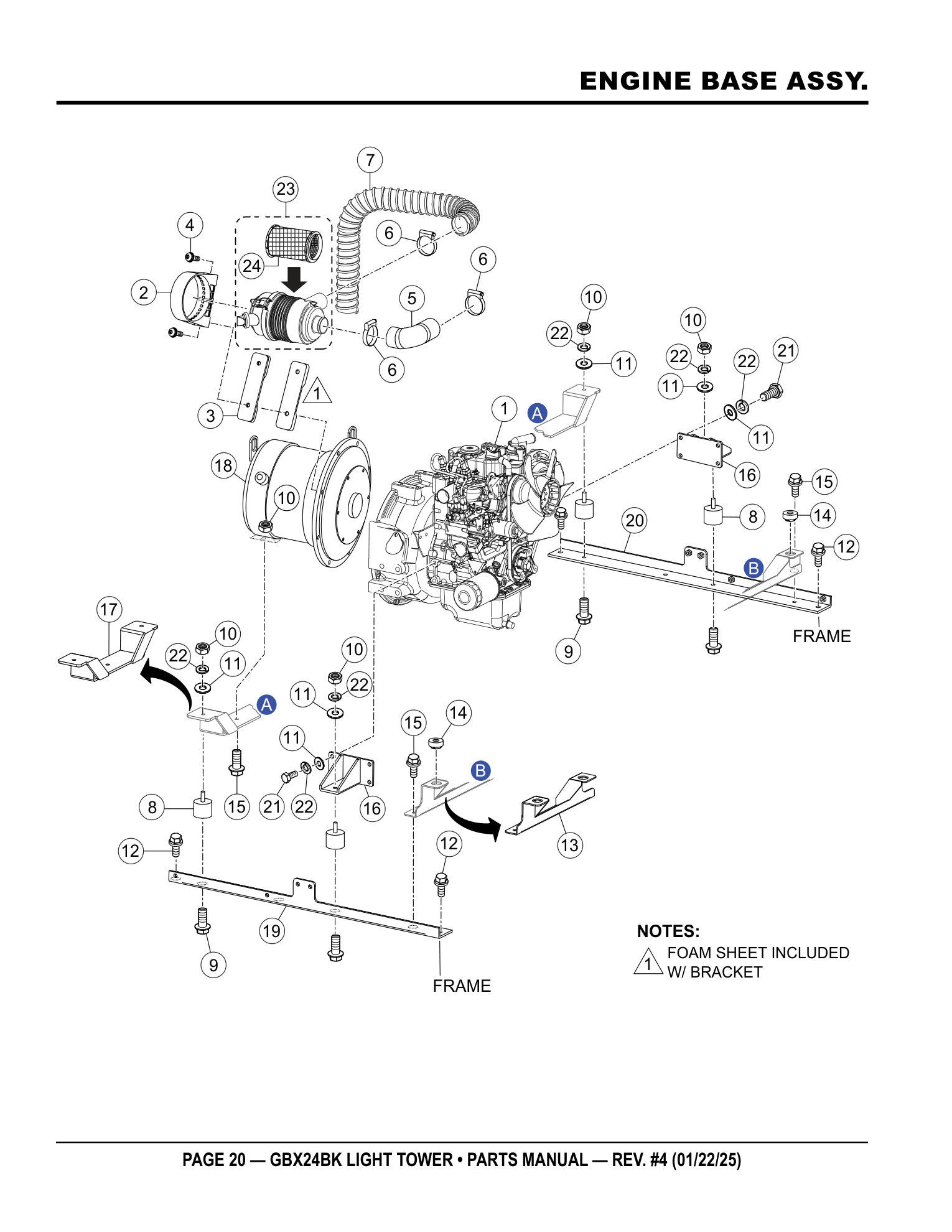

Multiquip GBX24 Light Tower ENGINE BASE ASSY. parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
1	EEN0019800	ENGINE, KUBOTA Z482	1		ADD TO CART
ENGINE, KUBOTA Z482 EEN0019800 · qty on machine: 1 view full part page → $5096.95
2	EEN0019900	AIR CLEANER HOLDER	1		ADD TO CART
AIR CLEANER HOLDER EEN0019900 · qty on machine: 1 view full part page → $367.95
3	A300411800	AIR CLEANER BRACKET W/SHEET	1		ADD TO CART
AIR CLEANER BRACKET W/SHEET A300411800 · qty on machine: 1 view full part page → $353.95
4	0014808025	BTN. BOLT AND WASHER ASSY. M8X25	2	S/N G4600166 AND BELOW	ADD TO CART
BTN. BOLT AND WASHER ASSY. M8X25 0014808025 · qty on machine: 2 S/N G4600166 AND BELOW view full part page → $2.89
4	0014808030	BTN. BOLT AND WASHER ASSY. M8X30	2	S/N G4600167 AND ABOVE	PARTS REQUEST
PHOTO COMING BTN. BOLT AND WASHER ASSY. M8X30 0014808030 · qty on machine: 2 S/N G4600167 AND ABOVE PARTS REQUEST
5	A300382402	AIR CLEANER HOSE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER HOSE A300382402 · qty on machine: 1 PARTS REQUEST
6	E000214900	HOSE CLEANER C CLAMP	3		ADD TO CART
HOSE CLEANER C CLAMP E000214900 · qty on machine: 3 view full part page → $13.95
7	A400482000	AIR CLEANER ELBOW HOSE	1	S/N G4600165 AND BELOW	ADD TO CART
AIR CLEANER ELBOW HOSE A400482000 · qty on machine: 1 S/N G4600165 AND BELOW view full part page → $199.95
7	A400482001	AIR CLEANER ELBOW HOSE	1	S/N G4600166 AND ABOVE	ADD TO CART
AIR CLEANER ELBOW HOSE A400482001 · qty on machine: 1 S/N G4600166 AND ABOVE view full part page → $199.95
8	E000215200	ENGINE ANTI-VIBRATION PAD	4		ADD TO CART
ENGINE ANTI-VIBRATION PAD E000215200 · qty on machine: 4 view full part page → $29.95
9	0013510040	BOLT AND WASHER ASSY. M10X40	4		ADD TO CART
BOLT AND WASHER ASSY. M10X40 0013510040 · qty on machine: 4 view full part page → $9.95
10	0033110000	NUT, M10	5		ADD TO CART
NUT, M10 0033110000 · qty on machine: 5 view full part page → $1.95
11	0043110000	WASHER, M10	12		ADD TO CART
WASHER, M10 0043110000 · qty on machine: 12 view full part page → $0.48
12	0013512025	BOLT AND WASHER ASSY. M12X25	4		ADD TO CART
BOLT AND WASHER ASSY. M12X25 0013512025 · qty on machine: 4 view full part page → $1.44
13	A100153001	RADIATOR BRACKET	1		ADD TO CART
RADIATOR BRACKET A100153001 · qty on machine: 1 view full part page → $414.95
14	E000208000	RADIATOR ANTI-VIBRATION PAD	2		ADD TO CART
RADIATOR ANTI-VIBRATION PAD E000208000 · qty on machine: 2 view full part page → $6.95
15	0013510025	BOLT AND WASHER ASSY. M10X25	3		ADD TO CART
BOLT AND WASHER ASSY. M10X25 0013510025 · qty on machine: 3 view full part page → $0.95
16	A200158001	ENGINE BRACKET	2		PARTS REQUEST
PHOTO COMING ENGINE BRACKET A200158001 · qty on machine: 2 PARTS REQUEST
17	A100141601	GENERATOR BRACKET	1		PARTS REQUEST
PHOTO COMING GENERATOR BRACKET A100141601 · qty on machine: 1 PARTS REQUEST
18	A300397500	GENERATOR	1		ADD TO CART
GENERATOR A300397500 · qty on machine: 1 view full part page → $189.95
19	A200157800	MAIN ENGINE BASE LEFT	1		ADD TO CART
MAIN ENGINE BASE LEFT A200157800 · qty on machine: 1 view full part page → $967.95
20	A200157900	MAIN ENGINE BASE RIGHT	1		ADD TO CART
MAIN ENGINE BASE RIGHT A200157900 · qty on machine: 1 view full part page → $759.95
21	E000217900	BOLT, M10X25X1.25	8		ADD TO CART
BOLT, M10X25X1.25 E000217900 · qty on machine: 8 view full part page → $5.95
22	0043210000	WASHER, LOCK M10	12		ADD TO CART
WASHER, LOCK M10 0043210000 · qty on machine: 12 view full part page → $0.48
23	EEN0020000	AIR CLEANER ASSY	1	INCLUDES ITEMS W/#	ADD TO CART
AIR CLEANER ASSY EEN0020000 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 24# view full part page → $1366.95 IN A KIT + SOLD SOLO
24#	1G65911220	ELEMENT, AIR FILTER	1		ADD TO CART
ELEMENT, AIR FILTER 1G65911220 · qty on machine: 1 Also included in kit 23 - AIR CLEANER ASSY (EEN0020000) view full part page → $33.95 IN A KIT + SOLD SOLO

Page 22 — ENGINE BASE ASSY. (RADIATOR)

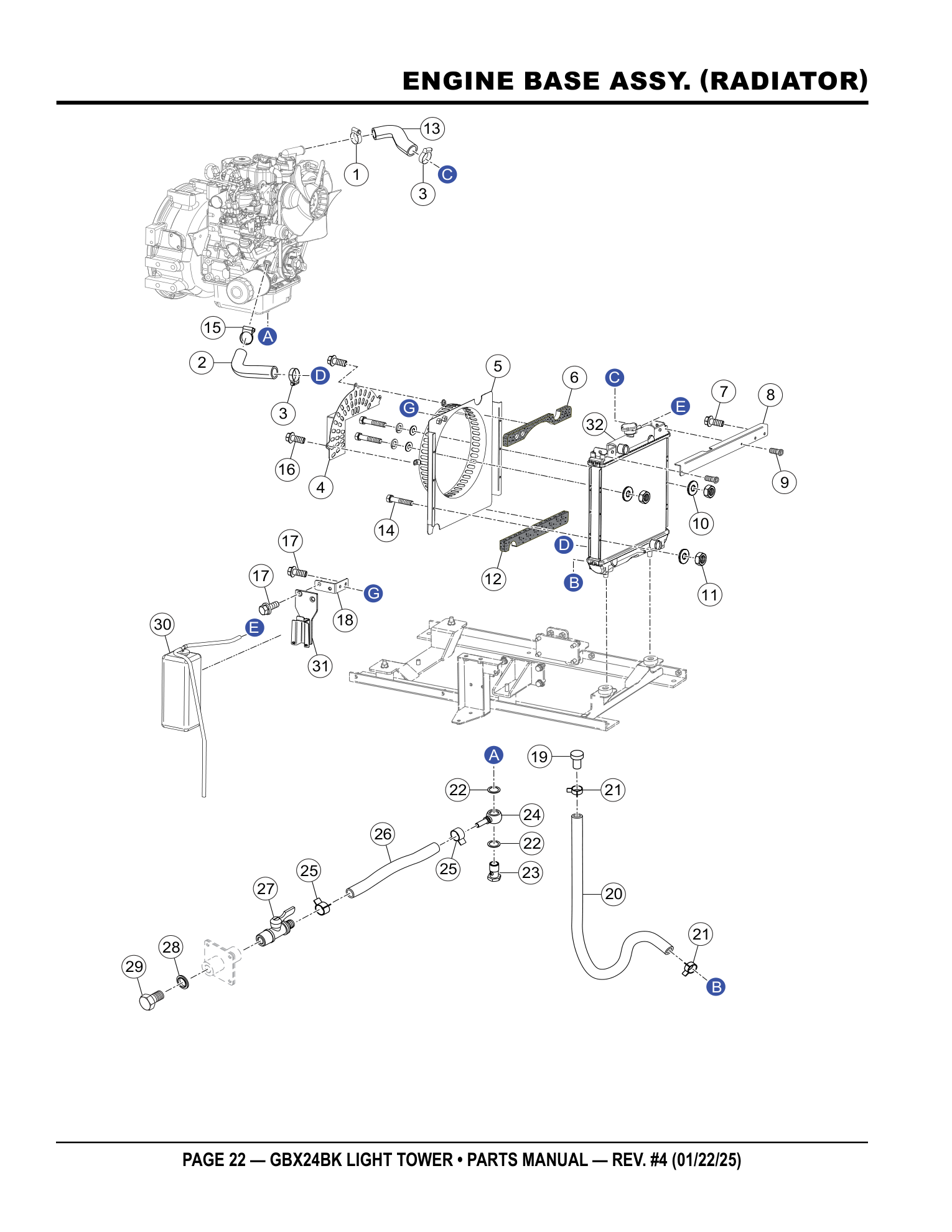

Multiquip GBX24 Light Tower ENGINE BASE ASSY. (RADIATOR) parts diagram

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty
1	E000214800	HOSE BAND 1	1	ADD TO CART
HOSE BAND 1 E000214800 · qty on machine: 1 view full part page → $1.95
2	A300382502	HOSE 1, RADIATOR	1	ADD TO CART
HOSE 1, RADIATOR A300382502 · qty on machine: 1 view full part page → $120.95
3	E000214700	HOSE BAND 2	2	ADD TO CART
HOSE BAND 2 E000214700 · qty on machine: 2 view full part page → $1.95
4	A200145700	GUARD, FAN	1	ADD TO CART
GUARD, FAN A200145700 · qty on machine: 1 view full part page → $296.95
5	A100145100	SHROUD, FAN	1	ADD TO CART
SHROUD, FAN A100145100 · qty on machine: 1 view full part page → $967.95
6	A300394500	RADIATOR GASKET, UPPER	1	ADD TO CART
RADIATOR GASKET, UPPER A300394500 · qty on machine: 1 view full part page → $92.95
7	0013506016	BOLT AND WASHER ASSY. M6X16	2	ADD TO CART
BOLT AND WASHER ASSY. M6X16 0013506016 · qty on machine: 2 view full part page → $0.48
8	A200158301	BRACKET 2, RADIATOR	1	ADD TO CART
BRACKET 2, RADIATOR A200158301 · qty on machine: 1 view full part page → $139.95
9	0027006010	FLAT HD. SCREW, M6X10	2	ADD TO CART
FLAT HD. SCREW, M6X10 0027006010 · qty on machine: 2 view full part page → $1.95
10	0043105000	WASHER, M5	6	ADD TO CART
WASHER, M5 0043105000 · qty on machine: 6 view full part page → $0.48
11	0033105000	NUT, M5	6	ADD TO CART
NUT, M5 0033105000 · qty on machine: 6 view full part page → $0.48
12	A300394600	RADIATOR GASKET, LOWER	1	ADD TO CART
RADIATOR GASKET, LOWER A300394600 · qty on machine: 1 view full part page → $92.95
13	A300382602	ELBOW HOSE, RADIATOR	1	ADD TO CART
ELBOW HOSE, RADIATOR A300382602 · qty on machine: 1 view full part page → $126.95
14	0013505045	BOLT AND WASHER ASSY. M5X45	6	PARTS REQUEST
PHOTO COMING BOLT AND WASHER ASSY. M5X45 0013505045 · qty on machine: 6 PARTS REQUEST
15	E000262100	HOSE BAND	1	PARTS REQUEST
PHOTO COMING HOSE BAND E000262100 · qty on machine: 1 PARTS REQUEST
16	0013505010	BOLT AND WASHER ASSY. M5X10	3	ADD TO CART
BOLT AND WASHER ASSY. M5X10 0013505010 · qty on machine: 3 view full part page → $1.95
17	0013508020	BOLT AND WASHER ASSY. M8X20	4	ADD TO CART
BOLT AND WASHER ASSY. M8X20 0013508020 · qty on machine: 4 view full part page → $0.74
18	A400457200	BRACKET, RESERVOIR TANK	1	ADD TO CART
BRACKET, RESERVOIR TANK A400457200 · qty on machine: 1 view full part page → $75.95
19	E000241400	RADIATOR PLUG	1	ADD TO CART
RADIATOR PLUG E000241400 · qty on machine: 1 view full part page → $36.95
20	A400520900	HOSE, RADIATOR 23.6 IN. (599 MM)	1	PARTS REQUEST
PHOTO COMING HOSE, RADIATOR 23.6 IN. (599 MM) A400520900 · qty on machine: 1 PARTS REQUEST
21	E000221000	HOSE CLAMP, RADIATOR	2	ADD TO CART
HOSE CLAMP, RADIATOR E000221000 · qty on machine: 2 view full part page → $9.95
22	E000236900	COPPER WASHER, M22	2	ADD TO CART
COPPER WASHER, M22 E000236900 · qty on machine: 2 view full part page → $13.95
23	E000236501	BANJO BOLT, M22X1.5	1	PARTS REQUEST
PHOTO COMING BANJO BOLT, M22X1.5 E000236501 · qty on machine: 1 PARTS REQUEST
24	E000236601	HOSE BANJO, M22X1.5X1/2"	1	PARTS REQUEST
PHOTO COMING HOSE BANJO, M22X1.5X1/2" E000236601 · qty on machine: 1 PARTS REQUEST
25	E000219700	HOSE CLAMP, RADIATOR DRAIN	2	ADD TO CART
HOSE CLAMP, RADIATOR DRAIN E000219700 · qty on machine: 2 view full part page → $13.95
26	A400535400	OIL DRAIN HOSE, 11.8 IN. (300 MM)	1	PARTS REQUEST
PHOTO COMING OIL DRAIN HOSE, 11.8 IN. (300 MM) A400535400 · qty on machine: 1 PARTS REQUEST
27	E000236200	BALL VALVE	1	ADD TO CART
BALL VALVE E000236200 · qty on machine: 1 view full part page → $77.95
28	E000182700	SEAL WASHER, M16	1	ADD TO CART
SEAL WASHER, M16 E000182700 · qty on machine: 1 view full part page → $4.95
29	0013116020	BOLT, M16X20	1	ADD TO CART
BOLT, M16X20 0013116020 · qty on machine: 1 view full part page → $5.95
30	EEN0020100	OVERFLOW RADIATOR TANK	1	ADD TO CART
OVERFLOW RADIATOR TANK EEN0020100 · qty on machine: 1 view full part page → $367.95
31	EEN0020200	BRACKET, RADIATOR OVERFLOW TANK	1	ADD TO CART
BRACKET, RADIATOR OVERFLOW TANK EEN0020200 · qty on machine: 1 view full part page → $367.95
32	EEN0021000	RADIATOR	1	ADD TO CART
RADIATOR EEN0021000 · qty on machine: 1 view full part page → $2297.95

Page 24 — FUEL ASSY.

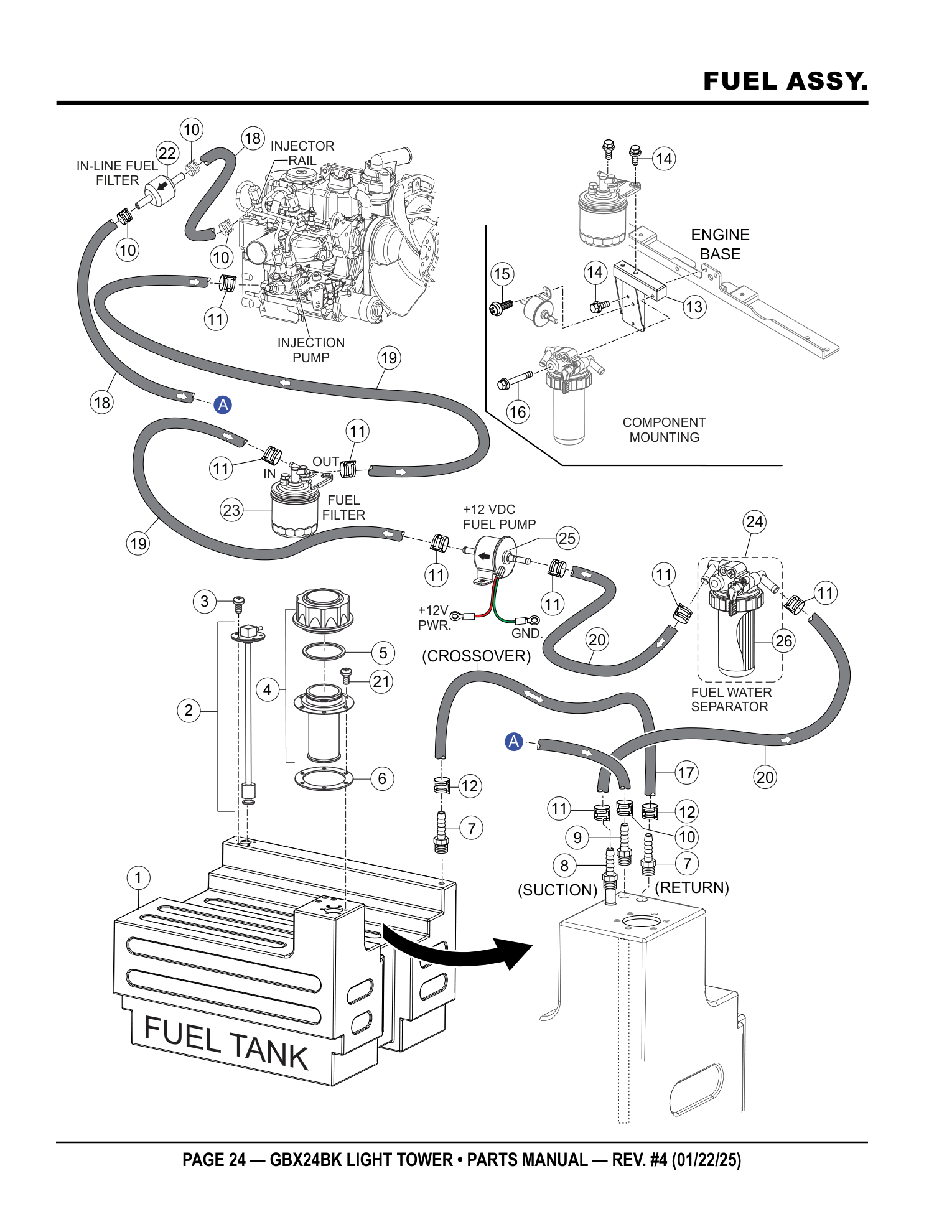

Multiquip GBX24 Light Tower FUEL ASSY. parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
1	A100151100	FUEL TANK	1		ADD TO CART
FUEL TANK A100151100 · qty on machine: 1 view full part page → $902.95
2	A300397400	OIL TANK LEVEL SENSOR	1		ADD TO CART
OIL TANK LEVEL SENSOR A300397400 · qty on machine: 1 view full part page → $557.95
3	0019005012	BOLT, SMALL HEAD M5X12	5		ADD TO CART
BOLT, SMALL HEAD M5X12 0019005012 · qty on machine: 5 view full part page → $15.95
4	E000170600	FUEL CAP SET W/FILTER	1		ADD TO CART
FUEL CAP SET W/FILTER E000170600 · qty on machine: 1 view full part page → $34.95
5	A400449101	FUEL CAP O-RING	1		ADD TO CART
FUEL CAP O-RING A400449101 · qty on machine: 1 view full part page → $78.95
6	A400448900	BASE GASKET, FUEL FILL	1		ADD TO CART
BASE GASKET, FUEL FILL A400448900 · qty on machine: 1 view full part page → $15.95
7	E000217400	HOSE BARB NIPPLE	2		ADD TO CART
HOSE BARB NIPPLE E000217400 · qty on machine: 2 view full part page → $27.95
8	A400478000	HOSE BARB W/JOINT PIPE	1		ADD TO CART
HOSE BARB W/JOINT PIPE A400478000 · qty on machine: 1 view full part page → $607.95
9	E000256100	HOSE BARB NIPPLE	1		PARTS REQUEST
PHOTO COMING HOSE BARB NIPPLE E000256100 · qty on machine: 1 PARTS REQUEST
10	E000214300	HOSE CLAMP 001	4		PARTS REQUEST
PHOTO COMING HOSE CLAMP 001 E000214300 · qty on machine: 4 PARTS REQUEST
11	E000214500	HOSE CLAMP 005	8		ADD TO CART
HOSE CLAMP 005 E000214500 · qty on machine: 8 view full part page → $7.95
12	E000221000	HOSE CLAMP 003	2		ADD TO CART
HOSE CLAMP 003 E000221000 · qty on machine: 2 view full part page → $9.95
13	A200155202	FUEL FILTER BRACKET	1		ADD TO CART
FUEL FILTER BRACKET A200155202 · qty on machine: 1 view full part page → $200.95
14	0013508025	BOLT AND WASHER ASSY. M8X25	4		ADD TO CART
BOLT AND WASHER ASSY. M8X25 0013508025 · qty on machine: 4 view full part page → $0.67
15	0023305015	SCREW AND WASHER ASSY. M5X15	2		ADD TO CART
SCREW AND WASHER ASSY. M5X15 0023305015 · qty on machine: 2 view full part page → $0.48
16	0013508070	BOLT AND WASHER ASSY. M8X70	1		ADD TO CART
BOLT AND WASHER ASSY. M8X70 0013508070 · qty on machine: 1 view full part page → $9.95
17	A400485600	HOSE, FUEL TANK 23.6 IN. (599 MM)	1		ADD TO CART
HOSE, FUEL TANK 23.6 IN. (599 MM) A400485600 · qty on machine: 1 view full part page → $30.95
18	A400485300	HOSE 1, FUEL TANK 141.6 IN. (3597 MM)	2	INCLUDES CORRUGATED TUBE	ADD TO CART
HOSE 1, FUEL TANK 141.6 IN. (3597 MM) A400485300 · qty on machine: 2 INCLUDES CORRUGATED TUBE view full part page → $75.95
19	A400485400	HOSE 2, FUEL TANK 11.8 IN. (300 MM)	2	INCLUDES CORRUGATED TUBE	ADD TO CART
HOSE 2, FUEL TANK 11.8 IN. (300 MM) A400485400 · qty on machine: 2 INCLUDES CORRUGATED TUBE view full part page → $83.95
20	A400485500	HOSE 3, FUEL TANK 7.9 IN. (201 MM)	2	INCLUDES CORRUGATED TUBE	ADD TO CART
HOSE 3, FUEL TANK 7.9 IN. (201 MM) A400485500 · qty on machine: 2 INCLUDES CORRUGATED TUBE view full part page → $163.95
21	0010505010	BOLT, M5X10	6		ADD TO CART
BOLT, M5X10 0010505010 · qty on machine: 6 view full part page → $0.48
22	EEN0020300	FUEL LINE CHECK VALVE	1		ADD TO CART
FUEL LINE CHECK VALVE EEN0020300 · qty on machine: 1 view full part page → $289.95
23	EEN0020400	FUEL FILTER	1		ADD TO CART
FUEL FILTER EEN0020400 · qty on machine: 1 view full part page → $171.95
24	EEN0020500	WATER SEPARATOR	1	INCLUDES ITEMS W/$	ADD TO CART
WATER SEPARATOR EEN0020500 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 26$ view full part page → $240.95 IN A KIT + SOLD SOLO
25	A300397600	FUEL PUMP	1		ADD TO CART
FUEL PUMP A300397600 · qty on machine: 1 view full part page → $847.95
26$	1T02143560	ELEMENT, FUEL/WATER SEPARATOR	1		ADD TO CART
ELEMENT, FUEL/WATER SEPARATOR 1T02143560 · qty on machine: 1 Also included in kit 24 - WATER SEPARATOR (EEN0020500) view full part page → $14.95 IN A KIT + SOLD SOLO

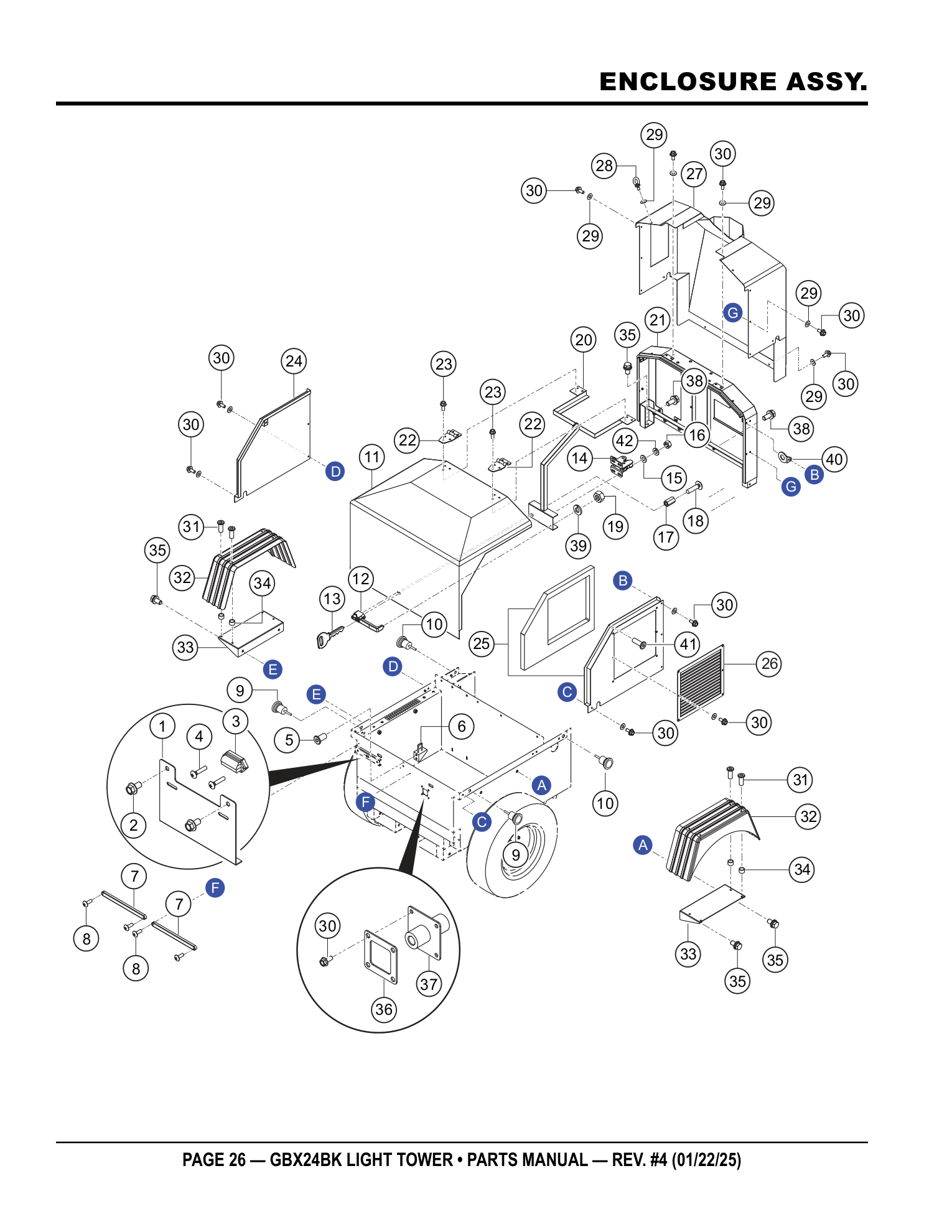

Page 26 — ENCLOSURE ASSY.

Multiquip GBX24 Light Tower ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	A300409700	BACK PLATE	1		ADD TO CART
BACK PLATE A300409700 · qty on machine: 1 view full part page → $92.95
2	0016808015	FLANGE BOLT, M8X15	2		ADD TO CART
FLANGE BOLT, M8X15 0016808015 · qty on machine: 2 view full part page → $3.95
3	A300398300	LICENSE PLATE LAMP	1		ADD TO CART
LICENSE PLATE LAMP A300398300 · qty on machine: 1 view full part page → $189.95
4	0026904012	COUNTERSUNK HEAD SCREW, M4X12	2		ADD TO CART
COUNTERSUNK HEAD SCREW, M4X12 0026904012 · qty on machine: 2 view full part page → $1.95
5	0016008015	SOCKET HEAD BOLT, M8X15, BLACK	2		ADD TO CART
SOCKET HEAD BOLT, M8X15, BLACK 0016008015 · qty on machine: 2 view full part page → $13.95
6	A300409103	STRIKER	1		ADD TO CART
STRIKER A300409103 · qty on machine: 1 view full part page → $66.95
7	A400537200	REAR TAIL LAMP	2	S/N G4600025 ~ G4600064	ADD TO CART
REAR TAIL LAMP A400537200 · qty on machine: 2 S/N G4600025 ~ G4600064 view full part page → $47.95
7	A400524400	REAR TAIL LAMP	2	S/N G4600065 AND ABOVE	ADD TO CART
REAR TAIL LAMP A400524400 · qty on machine: 2 S/N G4600065 AND ABOVE view full part page → $75.95
8	0023104005	PAN HEAD SREW, M4X5	4	S/N G4600025 AND ABOVE	PARTS REQUEST
PHOTO COMING PAN HEAD SREW, M4X5 0023104005 · qty on machine: 4 S/N G4600025 AND ABOVE PARTS REQUEST
9	A300438300	REAR SIDE LAMP, RED	2		PARTS REQUEST
PHOTO COMING REAR SIDE LAMP, RED A300438300 · qty on machine: 2 PARTS REQUEST
10	A300438200	FRONT SIDE LAMP	2		PARTS REQUEST
PHOTO COMING FRONT SIDE LAMP A300438200 · qty on machine: 2 PARTS REQUEST
11	A100154700	REAR COVER	1		ADD TO CART
REAR COVER A100154700 · qty on machine: 1 view full part page → $1376.95
12	E000235700	HANDLE, PUSH-BUTTON LOCKING	1	INCLUDES ITEMS W/#	ADD TO CART
HANDLE, PUSH-BUTTON LOCKING E000235700 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 17#, 18# view full part page → $144.95 IN A KIT + SOLD SOLO
13	E000249600	KEY, BACK COVER	1		ADD TO CART
KEY, BACK COVER E000249600 · qty on machine: 1 view full part page → $5.95
14	E000212900	REAR COVER LOCK ASSY.	1		ADD TO CART
REAR COVER LOCK ASSY. E000212900 · qty on machine: 1 view full part page → $46.95
15	0043104000	WASHER, M4	4		ADD TO CART
WASHER, M4 0043104000 · qty on machine: 4 view full part page → $0.48
16	0033104000	NUT, M4	4		ADD TO CART
NUT, M4 0033104000 · qty on machine: 4 view full part page → $0.62
17#	0034005015	NUT, COUPLING, M5X15	1		ADD TO CART
NUT, COUPLING, M5X15 0034005015 · qty on machine: 1 Also included in kit 12 - HANDLE, PUSH-BUTTON LOCKIN (E000235700) view full part page → $2.95 IN A KIT + SOLD SOLO
18#	0016005020	SCREW, M5X20 PAN HEAD	1		PARTS REQUEST
PHOTO COMING SCREW, M5X20 PAN HEAD 0016005020 · qty on machine: 1 Also included in kit 12 - HANDLE, PUSH-BUTTON LOCKIN (E000235700) PARTS REQUEST
19	0033106000	NUT, M6	2		ADD TO CART
NUT, M6 0033106000 · qty on machine: 2 view full part page → $1.95
20	A100154300	CABINET COVER BRACKET	1		ADD TO CART
CABINET COVER BRACKET A100154300 · qty on machine: 1 view full part page → $589.95
21	A100158901	BASE COMPLETE	1		PARTS REQUEST
PHOTO COMING BASE COMPLETE A100158901 · qty on machine: 1 PARTS REQUEST
22	E000235800	REAR COVER HINGE	2		ADD TO CART
REAR COVER HINGE E000235800 · qty on machine: 2 view full part page → $123.95
23	0013808020	FLANGE BOLT, M8X20	10		ADD TO CART
FLANGE BOLT, M8X20 0013808020 · qty on machine: 10 view full part page → $2.95
24	A100154401	SIDE COVER, LEFT	1		ADD TO CART
SIDE COVER, LEFT A100154401 · qty on machine: 1 view full part page → $307.95
25	A100154501	SIDE COVER, RIGHT	1	INCLUDES SND. PROOF FOAM	ADD TO CART
SIDE COVER, RIGHT A100154501 · qty on machine: 1 INCLUDES SND. PROOF FOAM view full part page → $341.95
26	A100143100	AIR INLET LOUVER	1		ADD TO CART
AIR INLET LOUVER A100143100 · qty on machine: 1 view full part page → $969.95
27	A100158802	FRONT COVER	1		ADD TO CART
FRONT COVER A100158802 · qty on machine: 1 view full part page → $1506.95
28	0014406000	EYEBOLT, M6X10	1		ADD TO CART
EYEBOLT, M6X10 0014406000 · qty on machine: 1 view full part page → $13.95
29	E000181900	WASHER, PLASTIC	28		ADD TO CART
WASHER, PLASTIC E000181900 · qty on machine: 28 view full part page → $0.48
30	0016806015	FLANGE BOLT, M6X15	31		ADD TO CART
FLANGE BOLT, M6X15 0016806015 · qty on machine: 31 view full part page → $0.48
31	0016006015	SOCKET HEAD BOLT, M6X15, BLACK	8		PARTS REQUEST
PHOTO COMING SOCKET HEAD BOLT, M6X15, BLACK 0016006015 · qty on machine: 8 PARTS REQUEST
32	A100153900	FENDER	2		ADD TO CART
FENDER A100153900 · qty on machine: 2 view full part page → $401.95
33	A100152900	FENDER SUPPORT PLATE	2		ADD TO CART
FENDER SUPPORT PLATE A100152900 · qty on machine: 2 view full part page → $144.95
34	E000242300	FENDER SPACER	8		ADD TO CART
FENDER SPACER E000242300 · qty on machine: 8 view full part page → $0.42
35	0013512025	BOLT AND WASHER ASSY. M12X25	6		ADD TO CART
BOLT AND WASHER ASSY. M12X25 0013512025 · qty on machine: 6 view full part page → $1.44
36	A400474700	OIL DISCHARGE GASKET	1		ADD TO CART
OIL DISCHARGE GASKET A400474700 · qty on machine: 1 view full part page → $29.95
37	A400507301	OIL DISCHARGE FLANGE DRAIN	1		PARTS REQUEST
PHOTO COMING OIL DISCHARGE FLANGE DRAIN A400507301 · qty on machine: 1 PARTS REQUEST
38	0013508020	BOLT AND WASHER ASSY. M8X20	4		ADD TO CART
BOLT AND WASHER ASSY. M8X20 0013508020 · qty on machine: 4 view full part page → $0.74
39	0043206000	WASHER, LOCK M6	2		ADD TO CART
WASHER, LOCK M6 0043206000 · qty on machine: 2 view full part page → $1.95
40	2204510110	CABLE WASHER	1		ADD TO CART
CABLE WASHER 2204510110 · qty on machine: 1 view full part page → $9.95
41	0015305015	SLIM HEAD CAP BOLT M5X15	1		ADD TO CART
SLIM HEAD CAP BOLT M5X15 0015305015 · qty on machine: 1 view full part page → $1.95
42	0043204000	WASHER, LOCK M4	4		ADD TO CART
WASHER, LOCK M4 0043204000 · qty on machine: 4 view full part page → $0.62

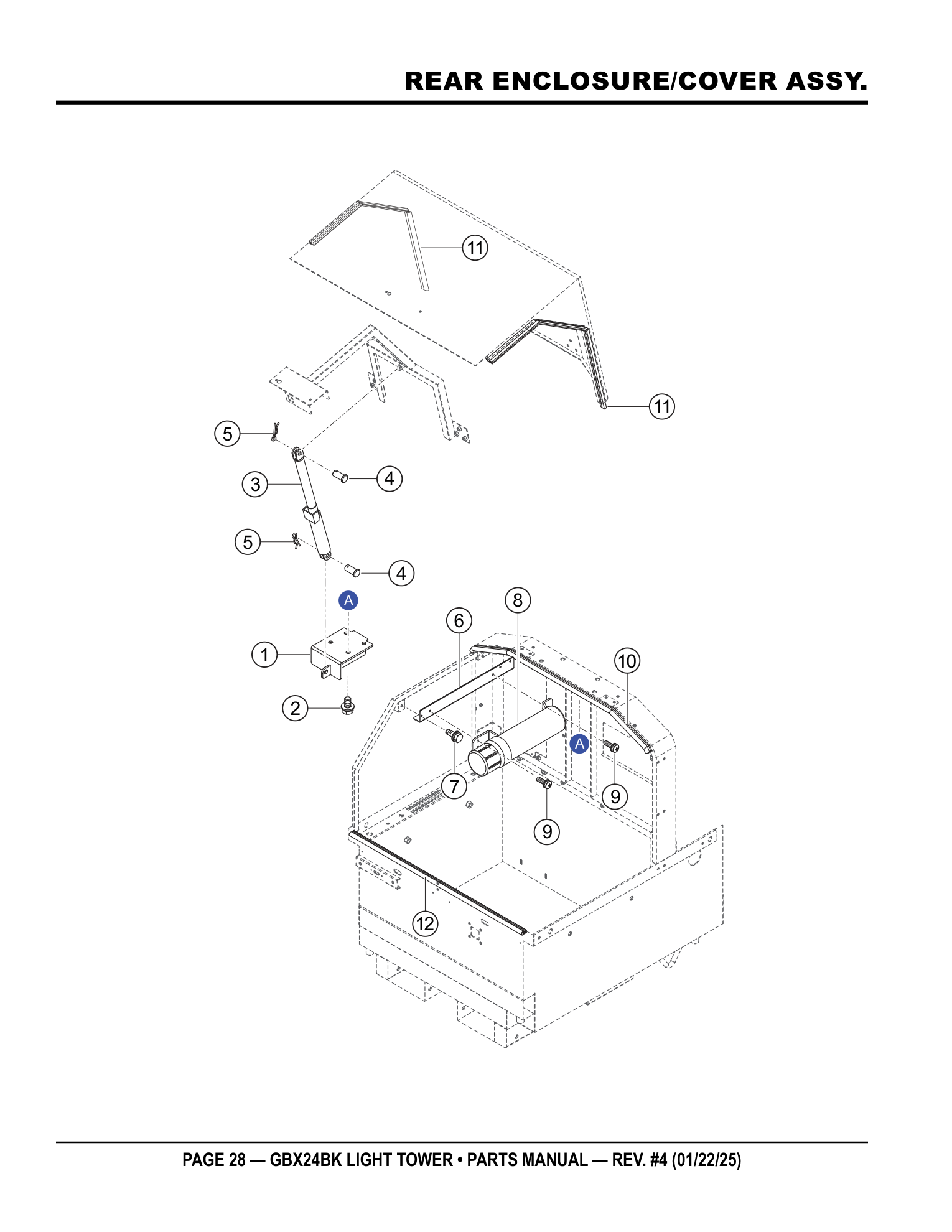

Page 28 — REAR ENCLOSURE/COVER ASSY.

Multiquip GBX24 Light Tower REAR ENCLOSURE/COVER ASSY. parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1	A300414701	GAS BRACKET	1		ADD TO CART
GAS BRACKET A300414701 · qty on machine: 1 view full part page → $200.95
2	0013510020	BOLT AND WASHER ASSY. M10X20	4		ADD TO CART
BOLT AND WASHER ASSY. M10X20 0013510020 · qty on machine: 4 view full part page → $3.95
3	A300415001	GAS SPRING ASSY.	1		ADD TO CART
GAS SPRING ASSY. A300415001 · qty on machine: 1 view full part page → $199.95
4	A400443400	PIN, GAS SPRING ASSY.	2		ADD TO CART
PIN, GAS SPRING ASSY. A400443400 · qty on machine: 2 view full part page → $53.95
5	0053510000	SAFETY CLIP PIN 10	2		ADD TO CART
SAFETY CLIP PIN 10 0053510000 · qty on machine: 2 view full part page → $0.48
6	A200161200	DOCUMENT HOLDER BRACKET	1		ADD TO CART
DOCUMENT HOLDER BRACKET A200161200 · qty on machine: 1 view full part page → $171.95
7	0013506016	BOLT AND WASHER ASSY. M6X16	3		ADD TO CART
BOLT AND WASHER ASSY. M6X16 0013506016 · qty on machine: 3 view full part page → $0.48
8	E000171400	DOCUMENT HOLDER	1		ADD TO CART
DOCUMENT HOLDER E000171400 · qty on machine: 1 view full part page → $16.95
9	0020105015	SCREW, M5X15	2		PARTS REQUEST
PHOTO COMING SCREW, M5X15 0020105015 · qty on machine: 2 PARTS REQUEST
10	A400535300	CABINET GASKET 940 MM	1	1 PC = 37 IN.	ADD TO CART
CABINET GASKET 940 MM A400535300 · qty on machine: 1 1 PC = 37 IN. view full part page → $26.95
11	A400535100	CABINET GASKET 900MM	2	1 PC = 35 IN.	ADD TO CART
CABINET GASKET 900MM A400535100 · qty on machine: 2 1 PC = 35 IN. view full part page → $29.95
12	A400535200	CABINET GASKET 840MM	1	1 PC = 33 IN.	ADD TO CART
CABINET GASKET 840MM A400535200 · qty on machine: 1 1 PC = 33 IN. view full part page → $25.95

Page 30 — MAST GROUP 1 ASSY.

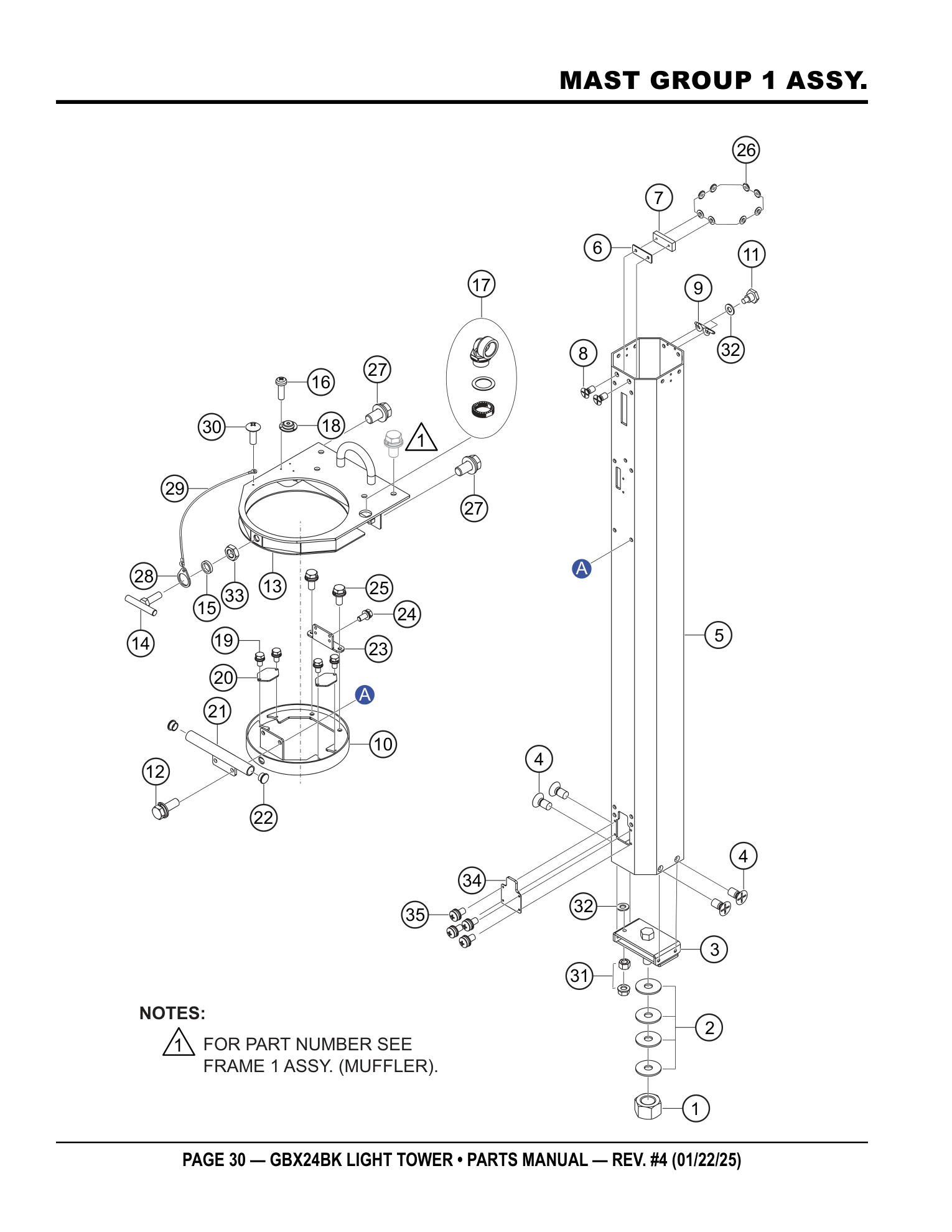

Multiquip GBX24 Light Tower MAST GROUP 1 ASSY. parts diagram

Parts list — exactly as printed36 rows

No.	Part No.	Part Name	Qty	Remarks
1	0035220000	SELF-LOCK NUT, M20	1		PARTS REQUEST
PHOTO COMING SELF-LOCK NUT, M20 0035220000 · qty on machine: 1 PARTS REQUEST
2	A400362100	WASHER, MAST	4		ADD TO CART
WASHER, MAST A400362100 · qty on machine: 4 view full part page → $83.95
3	A200145601	BRACKET, MAST 2	1		ADD TO CART
BRACKET, MAST 2 A200145601 · qty on machine: 1 view full part page → $908.95
4	0025008016	COUNTERSUNK SCREW, M8X16	4	W/LOCTITE	ADD TO CART
COUNTERSUNK SCREW, M8X16 0025008016 · qty on machine: 4 W/LOCTITE view full part page → $3.95
5	A300415101	FIRST MAST W/SLIDER	1	S/N G4600092 AND BELOW	ADD TO CART
FIRST MAST W/SLIDER A300415101 · qty on machine: 1 S/N G4600092 AND BELOW view full part page → $1047.95
5	A300415102	FIRST MAST W/SLIDER	1	S/N G4600093 AND ABOVE	PARTS REQUEST
PHOTO COMING FIRST MAST W/SLIDER A300415102 · qty on machine: 1 S/N G4600093 AND ABOVE PARTS REQUEST
6	A400427200	PLATE 1-2, SLIDER	1		ADD TO CART
PLATE 1-2, SLIDER A400427200 · qty on machine: 1 view full part page → $40.95
7	A400362501	PLATE, SLIDER	1		ADD TO CART
PLATE, SLIDER A400362501 · qty on machine: 1 view full part page → $98.95
8	0025006012	COUNTERSUNK SCREW, M6X12	2	W/LOCTITE	ADD TO CART
COUNTERSUNK SCREW, M6X12 0025006012 · qty on machine: 2 W/LOCTITE view full part page → $2.95
9	A400430801	CABLE BRACKET, MAST 2	1		ADD TO CART
CABLE BRACKET, MAST 2 A400430801 · qty on machine: 1 view full part page → $106.95
10	A100153301	GUIDE, MAST 2	1		ADD TO CART
GUIDE, MAST 2 A100153301 · qty on machine: 1 view full part page → $967.95
11	A400434000	BOLT, CABLE	2		ADD TO CART
BOLT, CABLE A400434000 · qty on machine: 2 view full part page → $4.95
12	0013510030	BOLT AND WASHER ASSY. M10X30	2		ADD TO CART
BOLT AND WASHER ASSY. M10X30 0013510030 · qty on machine: 2 view full part page → $0.95
13	A100149902	MAIN GUIDE, MAST 1	1		ADD TO CART
MAIN GUIDE, MAST 1 A100149902 · qty on machine: 1 view full part page → $1515.95
14	A400497402	MAST LOCKING KNOB	1		ADD TO CART
MAST LOCKING KNOB A400497402 · qty on machine: 1 view full part page → $45.95
15	A300417001	MOTOR WINCH CONNECTOR	1		ADD TO CART
MOTOR WINCH CONNECTOR A300417001 · qty on machine: 1 view full part page → $150.95
16	0023103010	SCREW, M3X10	11		ADD TO CART
SCREW, M3X10 0023103010 · qty on machine: 11 view full part page → $1.95
17	E000215300	CABLE GLAND W/WASHER AND NUT	1		ADD TO CART
CABLE GLAND W/WASHER AND NUT E000215300 · qty on machine: 1 view full part page → $52.95
18	E000182900	BUBBLE LEVEL GUIDE	1		ADD TO CART
BUBBLE LEVEL GUIDE E000182900 · qty on machine: 1 view full part page → $163.95
19	0013505010	BOLT AND WASHER ASSY. M5X10	4		ADD TO CART
BOLT AND WASHER ASSY. M5X10 0013505010 · qty on machine: 4 view full part page → $1.95
20	A400503200	PLATE, CAP	2		ADD TO CART
PLATE, CAP A400503200 · qty on machine: 2 view full part page → $27.95
21	A300419600	MAST HANDLE	1		ADD TO CART
MAST HANDLE A300419600 · qty on machine: 1 view full part page → $36.95
22	E000241000	INNER CAP	2		ADD TO CART
INNER CAP E000241000 · qty on machine: 2 view full part page → $1.95
23	A400507400	BRACKET, MAST GUIDE	1		ADD TO CART
BRACKET, MAST GUIDE A400507400 · qty on machine: 1 view full part page → $83.95
24	0013505012	BOLT AND WASHER ASSY. M5X12	4		ADD TO CART
BOLT AND WASHER ASSY. M5X12 0013505012 · qty on machine: 4 view full part page → $1.95
25	0013508020	BOLT AND WASHER ASSY. M8X20	2		ADD TO CART
BOLT AND WASHER ASSY. M8X20 0013508020 · qty on machine: 2 view full part page → $0.74
26	A400423800	SLIDER	8		ADD TO CART
SLIDER A400423800 · qty on machine: 8 view full part page → $2.95
27	0013512025	BOLT AND WASHER ASSY. M12X25	2		ADD TO CART
BOLT AND WASHER ASSY. M12X25 0013512025 · qty on machine: 2 view full part page → $1.44
28	A400510800	ROTATING BRACKET	1		ADD TO CART
ROTATING BRACKET A400510800 · qty on machine: 1 view full part page → $27.95
29	A400520000	T LOCK WIRE	1		ADD TO CART
T LOCK WIRE A400520000 · qty on machine: 1 view full part page → $42.95
30	0026004012	TRUSS HEAD SCREW, M4X10	1		ADD TO CART
TRUSS HEAD SCREW, M4X10 0026004012 · qty on machine: 1 view full part page → $0.54
31	0033808000	HARDLOCK NUT, M8	1		ADD TO CART
HARDLOCK NUT, M8 0033808000 · qty on machine: 1 view full part page → $28.95
32	0043108000	WASHER, M8	3		ADD TO CART
WASHER, M8 0043108000 · qty on machine: 3 view full part page → $0.62
33	0034116000	NUT M16, LOW	1		ADD TO CART
NUT M16, LOW 0034116000 · qty on machine: 1 view full part page → $0.94
34	A400530900	COVER, MAST	1		PARTS REQUEST
PHOTO COMING COVER, MAST A400530900 · qty on machine: 1 PARTS REQUEST
35	0023305010	SCREW ASSY. M5X10	4		ADD TO CART
SCREW ASSY. M5X10 0023305010 · qty on machine: 4 view full part page → $1.95

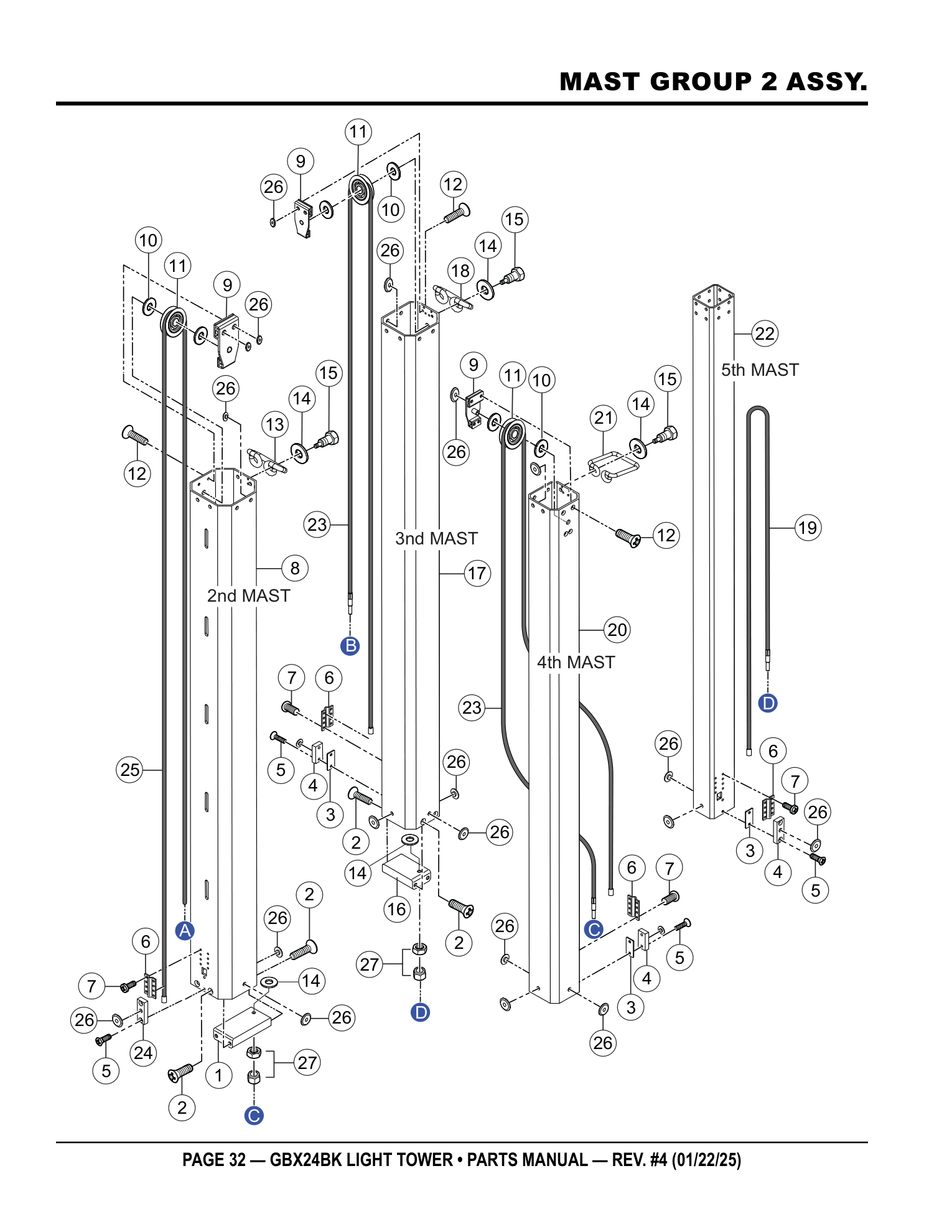

Page 32 — MAST GROUP 2 ASSY.

Multiquip GBX24 Light Tower MAST GROUP 2 ASSY. parts diagram

Parts list — exactly as printed31 rows

No.	Part No.	Part Name	Qty	Remarks
1	A300360500	BRACKET, MAST THREE	1		ADD TO CART
BRACKET, MAST THREE A300360500 · qty on machine: 1 view full part page → $759.95
2	0025008016	COUNTERSUNK SCREW, M8X16	8	W/LOCTITE	ADD TO CART
COUNTERSUNK SCREW, M8X16 0025008016 · qty on machine: 8 W/LOCTITE view full part page → $3.95
3	A400427300	SLIDER PLATE, 2-2	3		ADD TO CART
SLIDER PLATE, 2-2 A400427300 · qty on machine: 3 view full part page → $10.95
4	A400333402	SLIDER PLATE, 2-1	3		ADD TO CART
SLIDER PLATE, 2-1 A400333402 · qty on machine: 3 view full part page → $26.95
5	0027106018	COUNTERSUNK SCREW, M6X18	8		ADD TO CART
COUNTERSUNK SCREW, M6X18 0027106018 · qty on machine: 8 view full part page → $1.27
6	A400333600	WIRE BRACKET	4		ADD TO CART
WIRE BRACKET A400333600 · qty on machine: 4 view full part page → $25.95
7	0027205008	SCREW, M5X8	32	W/LOCTITE	ADD TO CART
SCREW, M5X8 0027205008 · qty on machine: 32 W/LOCTITE view full part page → $0.48
8	A300415200	SECOND MAST W/SLIDER	1	S/N G4600092 AND BELOW	ADD TO CART
SECOND MAST W/SLIDER A300415200 · qty on machine: 1 S/N G4600092 AND BELOW view full part page → $820.95
8	A300415201	SECOND MAST W/SLIDER	1	S/N G4600093 AND ABOVE	PARTS REQUEST
PHOTO COMING SECOND MAST W/SLIDER A300415201 · qty on machine: 1 S/N G4600093 AND ABOVE PARTS REQUEST
9	A300284501	PULLEY BRACKET 2	3		ADD TO CART
PULLEY BRACKET 2 A300284501 · qty on machine: 3 view full part page → $967.95
10	A400285200	WASHER, PULLEY	6		ADD TO CART
WASHER, PULLEY A400285200 · qty on machine: 6 view full part page → $4.95
11	A400333800	PULLEY	3		ADD TO CART
PULLEY A400333800 · qty on machine: 3 view full part page → $45.95
12	0025006012	COUNTERSUNK SCREW, M6X12	12	W/LOCTITE	ADD TO CART
COUNTERSUNK SCREW, M6X12 0025006012 · qty on machine: 12 W/LOCTITE view full part page → $2.95
13	A400430901	CABLE BRACKET 3	1		ADD TO CART
CABLE BRACKET 3 A400430901 · qty on machine: 1 view full part page → $106.95
14	0043108000	WASHER, M8	8		ADD TO CART
WASHER, M8 0043108000 · qty on machine: 8 view full part page → $0.62
15	A400434000	BOLT, CABLE	6		ADD TO CART
BOLT, CABLE A400434000 · qty on machine: 6 view full part page → $4.95
16	A300360600	MAST BRACKET, FOURTH MAST	1		ADD TO CART
MAST BRACKET, FOURTH MAST A300360600 · qty on machine: 1 view full part page → $646.95
17	A300415300	THIRD MAST W/SLIDER	1	S/N G4600092 AND BELOW	ADD TO CART
THIRD MAST W/SLIDER A300415300 · qty on machine: 1 S/N G4600092 AND BELOW view full part page → $866.95
17	A300415301	THIRD MAST W/SLIDER	1	S/N G4600093 AND ABOVE	PARTS REQUEST
PHOTO COMING THIRD MAST W/SLIDER A300415301 · qty on machine: 1 S/N G4600093 AND ABOVE PARTS REQUEST
18	A400431001	CABLE BRACKET 4	1		ADD TO CART
CABLE BRACKET 4 A400431001 · qty on machine: 1 view full part page → $29.95
19	A400432004	WIRE ROPE 1	1		ADD TO CART
WIRE ROPE 1 A400432004 · qty on machine: 1 view full part page → $74.95
20	A300415400	FOURTH MAST W/SLIDER	1	S/N G4600092 AND BELOW	ADD TO CART
FOURTH MAST W/SLIDER A300415400 · qty on machine: 1 S/N G4600092 AND BELOW view full part page → $1667.95
20	A300415401	FOURTH MAST W/SLIDER	1	S/N G4600093 AND ABOVE	ADD TO CART
FOURTH MAST W/SLIDER A300415401 · qty on machine: 1 S/N G4600093 AND ABOVE view full part page → $564.95
21	A400431101	CABLE BRACKET 5	1		ADD TO CART
CABLE BRACKET 5 A400431101 · qty on machine: 1 view full part page → $29.95
22	A300415500	FIFTH MAST W/SLIDER	1	S/N G4600092 AND BELOW	ADD TO CART
FIFTH MAST W/SLIDER A300415500 · qty on machine: 1 S/N G4600092 AND BELOW view full part page → $1366.95
22	A300415501	FIFTH MAST W/SLIDER	1	S/N G4600093 AND ABOVE	ADD TO CART
FIFTH MAST W/SLIDER A300415501 · qty on machine: 1 S/N G4600093 AND ABOVE view full part page → $454.95
23	A400432104	WIRE ROPE 2	2		ADD TO CART
WIRE ROPE 2 A400432104 · qty on machine: 2 view full part page → $74.95
24	A400521900	SLIDER PLATE, 3	1		PARTS REQUEST
PHOTO COMING SLIDER PLATE, 3 A400521900 · qty on machine: 1 PARTS REQUEST
25	A400431902	WIRE ROPE COMPLETE	1		ADD TO CART
WIRE ROPE COMPLETE A400431902 · qty on machine: 1 view full part page → $74.95
26	A400563302	SLIDER	40		ADD TO CART
SLIDER A400563302 · qty on machine: 40 view full part page → $2.95
27	0033808000	HARDLOCK NUT, M8	2		ADD TO CART
HARDLOCK NUT, M8 0033808000 · qty on machine: 2 view full part page → $28.95

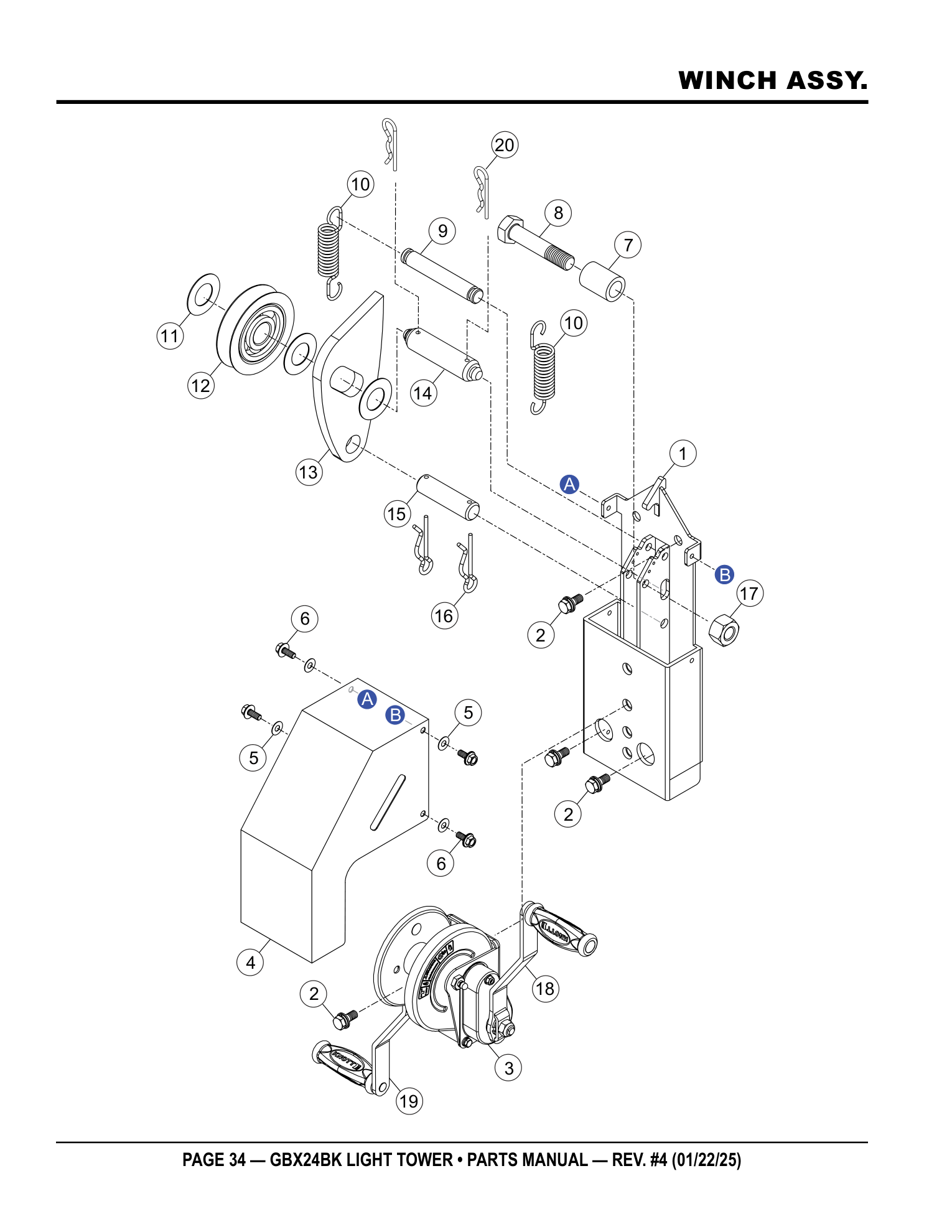

Page 34 — WINCH ASSY.

Multiquip GBX24 Light Tower WINCH ASSY. parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty
1	A100153102	PULLEY BRACKET 1 COMPLETE	1	PARTS REQUEST
PHOTO COMING PULLEY BRACKET 1 COMPLETE A100153102 · qty on machine: 1 PARTS REQUEST
2	0013510025	BOLT AND WASHER ASSY. M10X25	6	ADD TO CART
BOLT AND WASHER ASSY. M10X25 0013510025 · qty on machine: 6 view full part page → $0.95
3	A100157700	WINCH, DUAL HANDLE	1	ADD TO CART
WINCH, DUAL HANDLE A100157700 · qty on machine: 1 view full part page → $614.95
4	A100154000	COVER, WINCH	1	ADD TO CART
COVER, WINCH A100154000 · qty on machine: 1 view full part page → $133.95
5	E000181900	WASHER, PLASTIC	4	ADD TO CART
WASHER, PLASTIC E000181900 · qty on machine: 4 view full part page → $0.48
6	0013806010	FLANGE BOLT, M6X10	4	ADD TO CART
FLANGE BOLT, M6X10 0013806010 · qty on machine: 4 view full part page → $0.48
7	A400285000	PULLEY SPACER, 1	1	ADD TO CART
PULLEY SPACER, 1 A400285000 · qty on machine: 1 view full part page → $16.95
8	0013108040	BOLT, M8X40	1	ADD TO CART
BOLT, M8X40 0013108040 · qty on machine: 1 view full part page → $0.95
9	A400333700	PULLEY PIN, 2	1	ADD TO CART
PULLEY PIN, 2 A400333700 · qty on machine: 1 view full part page → $22.95
10	A400285400	PULLEY SPRING	2	ADD TO CART
PULLEY SPRING A400285400 · qty on machine: 2 view full part page → $29.95
11	A400285200	PULLEY WASHER	3	ADD TO CART
PULLEY WASHER A400285200 · qty on machine: 3 view full part page → $4.95
12	A400333800	PULLEY	1	ADD TO CART
PULLEY A400333800 · qty on machine: 1 view full part page → $45.95
13	A400333200	STOPPER	1	ADD TO CART
STOPPER A400333200 · qty on machine: 1 view full part page → $23.95
14	A400284500	PIN 1, PULLEY	1	ADD TO CART
PIN 1, PULLEY A400284500 · qty on machine: 1 view full part page → $63.95
15	A400284700	PIN, STOPPER	1	ADD TO CART
PIN, STOPPER A400284700 · qty on machine: 1 view full part page → $26.95
16	0053510000	COTTER PIN 10	2	ADD TO CART
COTTER PIN 10 0053510000 · qty on machine: 2 view full part page → $0.48
17	0033208000	SELF-LOCK NUT, M8	1	ADD TO CART
SELF-LOCK NUT, M8 0033208000 · qty on machine: 1 view full part page → $1.75
18	E000249100	HANDLE RIGHT, WINCH	1	ADD TO CART
HANDLE RIGHT, WINCH E000249100 · qty on machine: 1 view full part page → $25.95
19	E000249000	HANDLE LEFT, WINCH	1	ADD TO CART
HANDLE LEFT, WINCH E000249000 · qty on machine: 1 view full part page → $31.95
20	0053512000	COTTER PIN 12	2	ADD TO CART
COTTER PIN 12 0053512000 · qty on machine: 2 view full part page → $0.86

Page 36 — LAMP STAND ASSY.

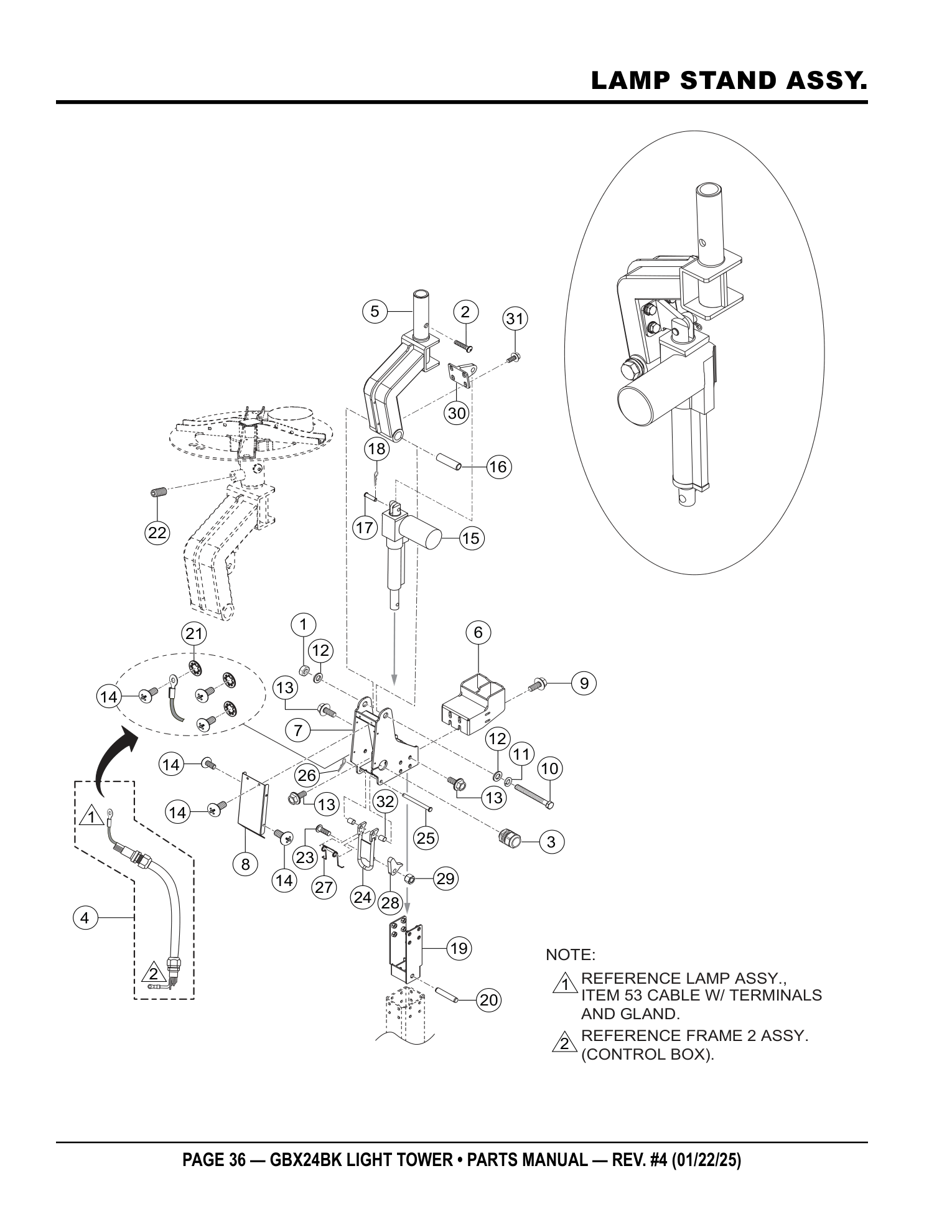

Multiquip GBX24 Light Tower LAMP STAND ASSY. parts diagram

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty
1	0033216000	SELF-LOCK NUT, M16	1	ADD TO CART
SELF-LOCK NUT, M16 0033216000 · qty on machine: 1 view full part page → $2.95
2	0014710060	HEX BOLT AND WASHER ASSY. M10X60	1	ADD TO CART
HEX BOLT AND WASHER ASSY. M10X60 0014710060 · qty on machine: 1 view full part page → $5.95
3	E000174200	CABLE GLAND	1	ADD TO CART
CABLE GLAND E000174200 · qty on machine: 1 view full part page → $31.95
4	A200149301	CABLE, LAMP-Z482 W/CABLE GLAND	1	ADD TO CART
CABLE, LAMP-Z482 W/CABLE GLAND A200149301 · qty on machine: 1 view full part page → $1441.95
5	A100168900	STAND, BALLOON		ADD TO CART
STAND, BALLOON A100168900 view full part page → $1133.62
6	A200168500	SUPPORT, BALLOON	1	ADD TO CART
SUPPORT, BALLOON A200168500 · qty on machine: 1 view full part page → $113.95
7	A100148904	ADAPTER LAMP STAND	1	ADD TO CART
ADAPTER LAMP STAND A100148904 · qty on machine: 1 view full part page → $361.95
8	A300409501	COVER, ADAPTER	1	ADD TO CART
COVER, ADAPTER A300409501 · qty on machine: 1 view full part page → $23.95
9	0013808025	FLANGE BOLT, M8X25	4	ADD TO CART
FLANGE BOLT, M8X25 0013808025 · qty on machine: 4 view full part page → $10.95
10	0013516110	BOLT AND WASHER ASSY. M16X110	1	ADD TO CART
BOLT AND WASHER ASSY. M16X110 0013516110 · qty on machine: 1 view full part page → $7.95
11	0043216000	WASHER, LOCK M16	1	ADD TO CART
WASHER, LOCK M16 0043216000 · qty on machine: 1 view full part page → $0.45
12	0043116000	WASHER, M16	2	ADD TO CART
WASHER, M16 0043116000 · qty on machine: 2 view full part page → $0.45
13	0013808020	FLANGE BOLT, M8X20	12	ADD TO CART
FLANGE BOLT, M8X20 0013808020 · qty on machine: 12 view full part page → $2.95
14	0026004010	TRUSS HEAD SCREW, M4X10	7	ADD TO CART
TRUSS HEAD SCREW, M4X10 0026004010 · qty on machine: 7 view full part page → $1.95
15	A300437400	ACTUATOR	1	ADD TO CART
ACTUATOR A300437400 · qty on machine: 1 view full part page → $146.95
16	A400430200	SPACER	1	ADD TO CART
SPACER A400430200 · qty on machine: 1 view full part page → $118.95
17	E000243700	CLEVIS PIN	1	ADD TO CART
CLEVIS PIN E000243700 · qty on machine: 1 view full part page → $2.76
18	0053510000	COTTER PIN 10	1	ADD TO CART
COTTER PIN 10 0053510000 · qty on machine: 1 view full part page → $0.48
19	A200155702	BRACKET COMPLETE, ACTUATOR	1	PARTS REQUEST
PHOTO COMING BRACKET COMPLETE, ACTUATOR A200155702 · qty on machine: 1 PARTS REQUEST
20	A400430000	PARALLEL PIN	1	ADD TO CART
PARALLEL PIN A400430000 · qty on machine: 1 view full part page → $11.95
21	0043904000	TOOTHED LOCK WASHER, M4	3	ADD TO CART
TOOTHED LOCK WASHER, M4 0043904000 · qty on machine: 3 view full part page → $1.95
22	0021712020	SET SCREW SUS, M12X20	1	ADD TO CART
SET SCREW SUS, M12X20 0021712020 · qty on machine: 1 view full part page → $18.95
23	0015305015	SLIM HEAD SCREW, M5X15	1	ADD TO CART
SLIM HEAD SCREW, M5X15 0015305015 · qty on machine: 1 view full part page → $1.95
24	A300409602	SHACKLE W/PLATE	1	ADD TO CART
SHACKLE W/PLATE A300409602 · qty on machine: 1 view full part page → $154.95
25	E000241300	HINGE PIN	1	ADD TO CART
HINGE PIN E000241300 · qty on machine: 1 view full part page → $2.95
26	0053508000	COTTER PIN 8	1	ADD TO CART
COTTER PIN 8 0053508000 · qty on machine: 1 view full part page → $0.48
27	A400488201	RETURN SPRING	1	ADD TO CART
RETURN SPRING A400488201 · qty on machine: 1 view full part page → $116.95
28	A400497301	PLATE, STOPPER	1	ADD TO CART
PLATE, STOPPER A400497301 · qty on machine: 1 view full part page → $4.95
29	0033205000	SELF-LOCK NUT, M5	1	ADD TO CART
SELF-LOCK NUT, M5 0033205000 · qty on machine: 1 view full part page → $1.95
30	A400529500	BRACKET, ACTUATOR	1	ADD TO CART
BRACKET, ACTUATOR A400529500 · qty on machine: 1 view full part page → $121.95
31	0013508020	BOLT AND WASHER ASSY. M8X 20	2	ADD TO CART
BOLT AND WASHER ASSY. M8X 20 0013508020 · qty on machine: 2 view full part page → $0.74
32	E000245500	SPACER	2	ADD TO CART
SPACER E000245500 · qty on machine: 2 view full part page → $0.48

Page 38 — LAMP ASSY.

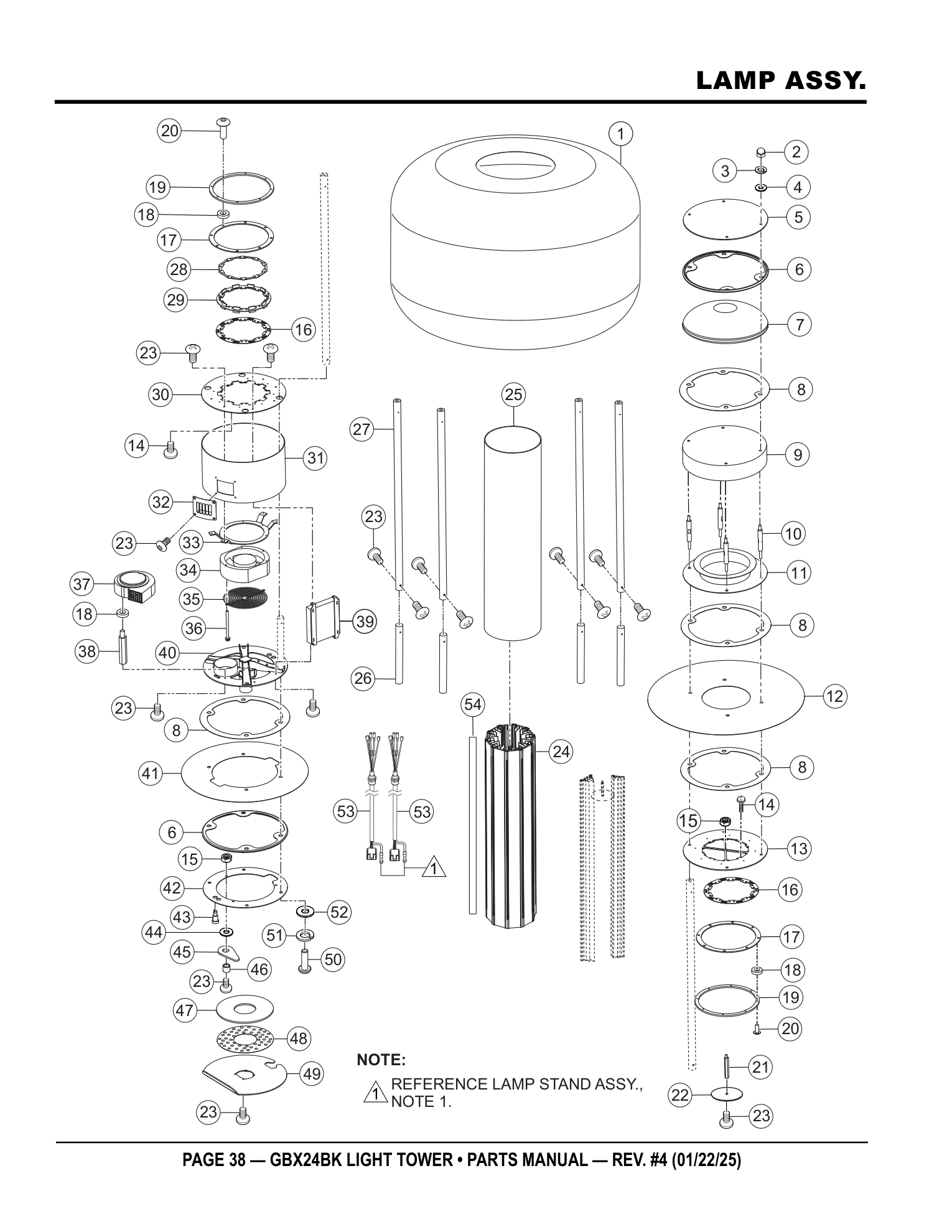

Multiquip GBX24 Light Tower LAMP ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	A100140900	MAIN BALLOON BAG	1		ADD TO CART
MAIN BALLOON BAG A100140900 · qty on machine: 1 view full part page → $451.95
2	0030308000	CAP NUT, M8	4		ADD TO CART
CAP NUT, M8 0030308000 · qty on machine: 4 view full part page → $3.95
3	0043208000	WASHER, LOCK M8	4		ADD TO CART
WASHER, LOCK M8 0043208000 · qty on machine: 4 Factory replaced this part - current number 030208200 view full part page → $0.23 IN A KIT + SOLD SOLO
4	E000132100	SUS BD WASHER, M8	4		ADD TO CART
SUS BD WASHER, M8 E000132100 · qty on machine: 4 view full part page → $3.95
5	2204220130	TOP CAP PLATE	1		ADD TO CART
TOP CAP PLATE 2204220130 · qty on machine: 1 view full part page → $120.95
6	2204500230	SEAL, PACKING (WHITE)	2	S/N G4600166 AND BELOW	ADD TO CART
SEAL, PACKING (WHITE) 2204500230 · qty on machine: 2 S/N G4600166 AND BELOW view full part page → $79.95
6	2204500231	SEAL, PACKING (BLACK)	2	S/N G4600167 AND ABOVE	ADD TO CART
SEAL, PACKING (BLACK) 2204500231 · qty on machine: 2 S/N G4600167 AND ABOVE view full part page → $79.95
7	A100146600	VINYL BALLOON COVER	1		ADD TO CART
VINYL BALLOON COVER A100146600 · qty on machine: 1 view full part page → $625.95
8	2204500130	SEAL, NORMAL	4		ADD TO CART
SEAL, NORMAL 2204500130 · qty on machine: 4 view full part page → $59.95
9	A200137101	BEZEL, TOP	1		ADD TO CART
BEZEL, TOP A200137101 · qty on machine: 1 view full part page → $1024.95
10	A400463701	SPACER, TOP	4		ADD TO CART
SPACER, TOP A400463701 · qty on machine: 4 view full part page → $282.95
11	A200140200	PLATE, TOP	1		ADD TO CART
PLATE, TOP A200140200 · qty on machine: 1 view full part page → $1472.95
12	A100144600	TOP ZIPPER SHEET	1		ADD TO CART
TOP ZIPPER SHEET A100144600 · qty on machine: 1 view full part page → $176.95
13	A200144201	PLATE, LAMP TOP	1		ADD TO CART
PLATE, LAMP TOP A200144201 · qty on machine: 1 view full part page → $1081.95
14	0023004015	PAN HD SCR. AND WASHER ASSY. M4X15	40		ADD TO CART
PAN HD SCR. AND WASHER ASSY. M4X15 0023004015 · qty on machine: 40 view full part page → $0.67
15	0033104000	NUT, M4	4		ADD TO CART
NUT, M4 0033104000 · qty on machine: 4 view full part page → $0.62
16	A400385101	GASKET, IN	2		ADD TO CART
GASKET, IN A400385101 · qty on machine: 2 view full part page → $1492.95
17	A300379601	GASKET, GUARD	2		ADD TO CART
GASKET, GUARD A300379601 · qty on machine: 2 view full part page → $969.95
18	E000205600	SPACER	19		ADD TO CART
SPACER E000205600 · qty on machine: 19 view full part page → $1.27
19	A300379501	FRAME, GUARD	2		ADD TO CART
FRAME, GUARD A300379501 · qty on machine: 2 view full part page → $480.95
20	0024304010	TRUSS SCREW, M4X10 W/LOCTITE	16		ADD TO CART
TRUSS SCREW, M4X10 W/LOCTITE 0024304010 · qty on machine: 16 view full part page → $0.48
21	E000194800	SUPPORT BOLT, M4X50 F-M	1		ADD TO CART
SUPPORT BOLT, M4X50 F-M E000194800 · qty on machine: 1 view full part page → $18.95
22	A400462900	PLATE, HEATSINK	1		ADD TO CART
PLATE, HEATSINK A400462900 · qty on machine: 1 view full part page → $251.95
23	0024304008	TRUSS SCREW, M4X8 W/LOCTITE	31		ADD TO CART
TRUSS SCREW, M4X8 W/LOCTITE 0024304008 · qty on machine: 31 view full part page → $0.95
24	A000082100	HEATSINK ASSY.	10		ADD TO CART
HEATSINK ASSY. A000082100 · qty on machine: 10 view full part page → $1239.95
25	A300378500	GUARD, LED	1		ADD TO CART
GUARD, LED A300378500 · qty on machine: 1 view full part page → $260.95
26	A400463600	SPACER, BOTTOM	4		ADD TO CART
SPACER, BOTTOM A400463600 · qty on machine: 4 view full part page → $53.95
27	A300387702	POLE COMPLETE	4		ADD TO CART
POLE COMPLETE A300387702 · qty on machine: 4 view full part page → $57.95
28	A300380001	GASKET, CIRCUIT BOARD	1		ADD TO CART
GASKET, CIRCUIT BOARD A300380001 · qty on machine: 1 view full part page → $1285.95
29	A000083600	ADAPTER, CIRCUIT BOARD	1		ADD TO CART
ADAPTER, CIRCUIT BOARD A000083600 · qty on machine: 1 view full part page → $576.95
30	A200144301	PLATE, LAMP BOTTOM	1		ADD TO CART
PLATE, LAMP BOTTOM A200144301 · qty on machine: 1 view full part page → $1024.95
31	A300354102	BEZEL	1		PARTS REQUEST
PHOTO COMING BEZEL A300354102 · qty on machine: 1 PARTS REQUEST
32	A300379800	COVER, BEZEL	1		ADD TO CART
COVER, BEZEL A300379800 · qty on machine: 1 view full part page → $1116.95
33	A200140400	BRACKET, FAN	1		ADD TO CART
BRACKET, FAN A200140400 · qty on machine: 1 view full part page → $1366.95
34	A300394100	DC FAN MOTOR ASSY.	1		ADD TO CART
DC FAN MOTOR ASSY. A300394100 · qty on machine: 1 view full part page → $451.95
35	E000205300	FAN GUARD	1		ADD TO CART
FAN GUARD E000205300 · qty on machine: 1 view full part page → $33.95
36	0023304060	PAN HD SCR. AND WASHER ASSY. M4X60	4		ADD TO CART
PAN HD SCR. AND WASHER ASSY. M4X60 0023304060 · qty on machine: 4 view full part page → $2.95
37	A300394200	DC BLOWER ASSY.	1		ADD TO CART
DC BLOWER ASSY. A300394200 · qty on machine: 1 view full part page → $451.95
38	E000194900	SUPPORT BOLT, M4X30 F-M	3		ADD TO CART
SUPPORT BOLT, M4X30 F-M E000194900 · qty on machine: 3 view full part page → $1.95
39	A000083102	CONTROL BOARD COMPLETE	1		ADD TO CART
CONTROL BOARD COMPLETE A000083102 · qty on machine: 1 view full part page → $1168.95
40	A100144501	FLANGE	1		ADD TO CART
FLANGE A100144501 · qty on machine: 1 view full part page → $3363.95
41	A100144700	BALLOON SHEET, BOTTOM	1		ADD TO CART
BALLOON SHEET, BOTTOM A100144700 · qty on machine: 1 view full part page → $132.95
42	A300379701	PLATE, BOTTOM	1		ADD TO CART
PLATE, BOTTOM A300379701 · qty on machine: 1 view full part page → $967.95

Page 40 — LAMP ASSY. (CONT'D.)

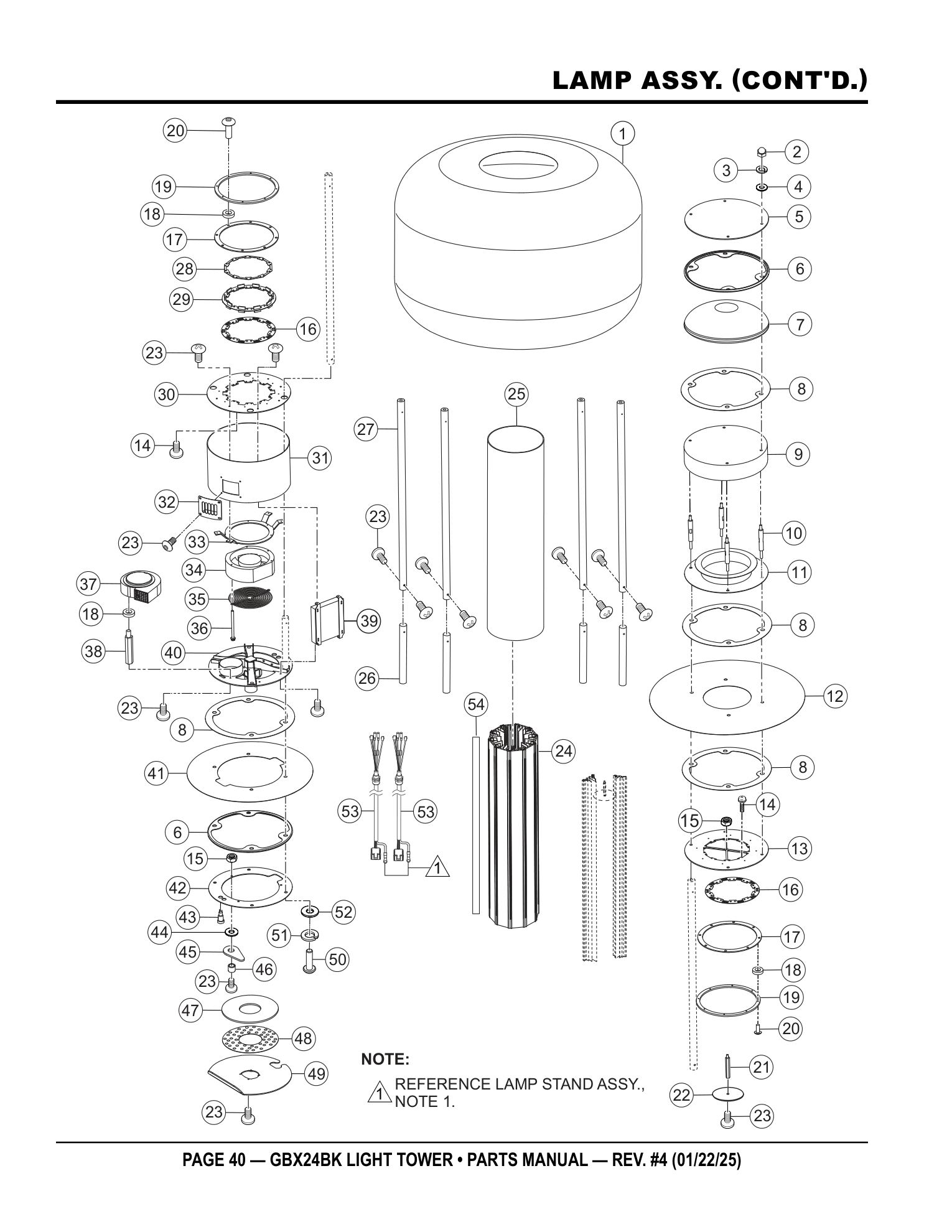

Multiquip GBX24 Light Tower LAMP ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
43	A300393001	ERROR INDICATOR ASSY	1	INCLUDES PLATE AND NUTS	PARTS REQUEST
PHOTO COMING ERROR INDICATOR ASSY A300393001 · qty on machine: 1 INCLUDES PLATE AND NUTS PARTS REQUEST
44	E000119300	WAVE WASHER, M6	3		ADD TO CART
WAVE WASHER, M6 E000119300 · qty on machine: 3 view full part page → $0.77
45	A400030700	STOPPER, FILTER	3		ADD TO CART
STOPPER, FILTER A400030700 · qty on machine: 3 view full part page → $7.95
46	E000077500	SPACER, M4X5	3		ADD TO CART
SPACER, M4X5 E000077500 · qty on machine: 3 view full part page → $1.27
47	A400454700	FILTER	1		ADD TO CART
FILTER A400454700 · qty on machine: 1 view full part page → $28.95
48	A300384900	PLATE, AIR	1		ADD TO CART
PLATE, AIR A300384900 · qty on machine: 1 view full part page → $646.95
49	A300379201	COVER, BOTTOM	1		ADD TO CART
COVER, BOTTOM A300379201 · qty on machine: 1 view full part page → $908.95
50	0014710035	BUTTON BOLT, M10X35	4		ADD TO CART
BUTTON BOLT, M10X35 0014710035 · qty on machine: 4 view full part page → $2.95
51	0043210000	WASHER, LOCK M10	4		ADD TO CART
WASHER, LOCK M10 0043210000 · qty on machine: 4 view full part page → $0.48
52	0043110000	WASHER, M10	4		ADD TO CART
WASHER, M10 0043110000 · qty on machine: 4 view full part page → $0.48
53	A300388502	POWER CABLE, LED	2400	2 INCLUDES TERMINALS AND CABLE GLAND	ADD TO CART
POWER CABLE, LED A300388502 · qty on machine: 2400 2 INCLUDES TERMINALS AND CABLE GLAND view full part page → $502.95
54	A400522100	ALUMINUM TAPE, 29 IN.	10		ADD TO CART
ALUMINUM TAPE, 29 IN. A400522100 · qty on machine: 10 view full part page → $1.25

Page 42 — BATTERY ASSY.

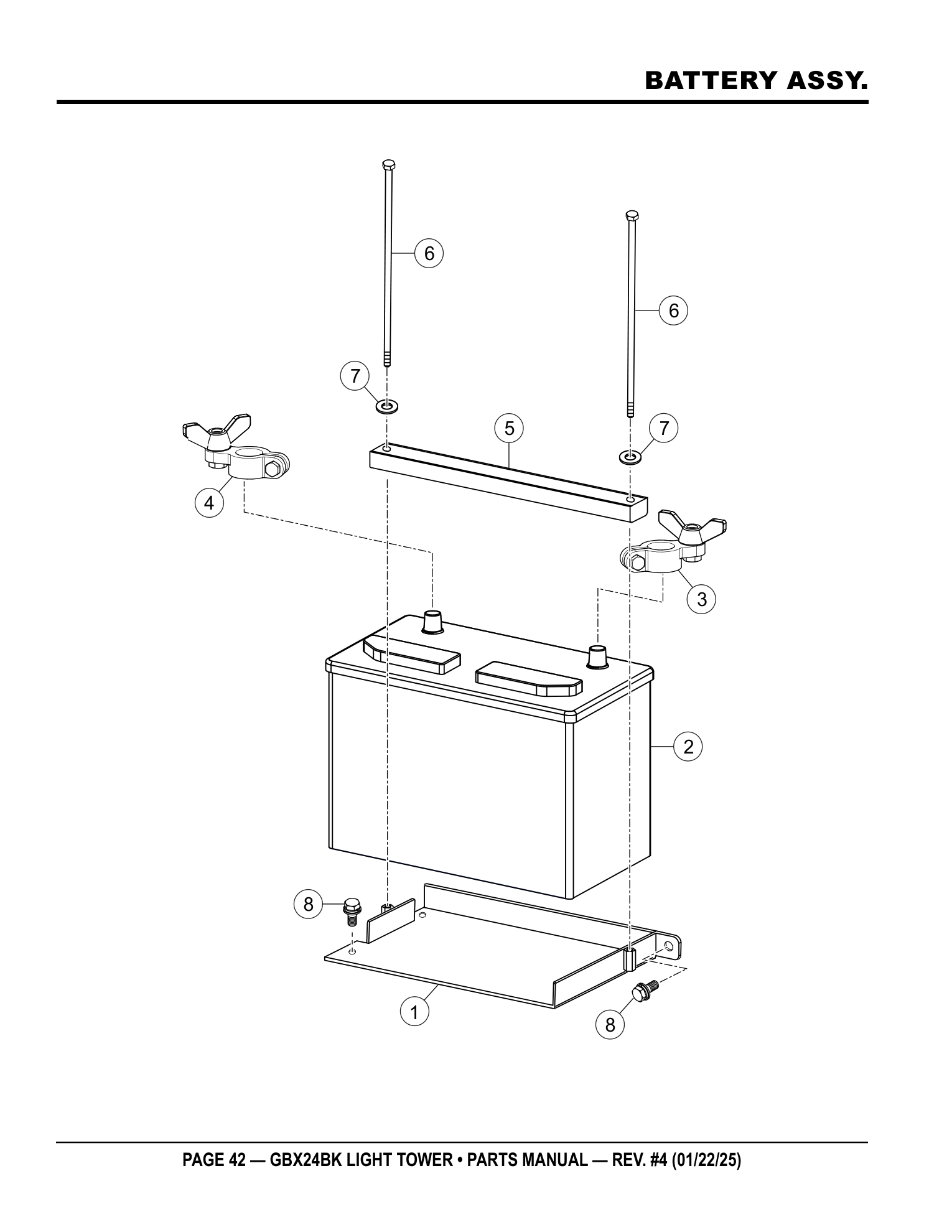

Multiquip GBX24 Light Tower BATTERY ASSY. parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
1	A200149101	BATTERY BRACKET	1	ADD TO CART
BATTERY BRACKET A200149101 · qty on machine: 1 view full part page → $400.95
2	10315	BATTERY, 12V GROUP 24 WET CELL	1	ADD TO CART
BATTERY, 12V GROUP 24 WET CELL 10315 · qty on machine: 1 view full part page → $236.95
3	E000215100	BATTERY TERMINAL, NEGATIVE POLE	1	ADD TO CART
BATTERY TERMINAL, NEGATIVE POLE E000215100 · qty on machine: 1 view full part page → $92.95
4	E000215000	BATTERY TERMINAL, POSITIVE POLE	1	ADD TO CART
BATTERY TERMINAL, POSITIVE POLE E000215000 · qty on machine: 1 view full part page → $92.95
5	A300414800	HOLDER, BATTERY	1	ADD TO CART
HOLDER, BATTERY A300414800 · qty on machine: 1 view full part page → $282.95
6	0013108210	BOLT, M8X210	2	ADD TO CART
BOLT, M8X210 0013108210 · qty on machine: 2 view full part page → $19.95
7	0043108000	WASHER, M8	2	ADD TO CART
WASHER, M8 0043108000 · qty on machine: 2 view full part page → $0.62
8	0013508020	BOLT AND WASHER ASSY. M8X20	3	ADD TO CART
BOLT AND WASHER ASSY. M8X20 0013508020 · qty on machine: 3 view full part page → $0.74

Page 44 — CONTROL PANEL ASSY.

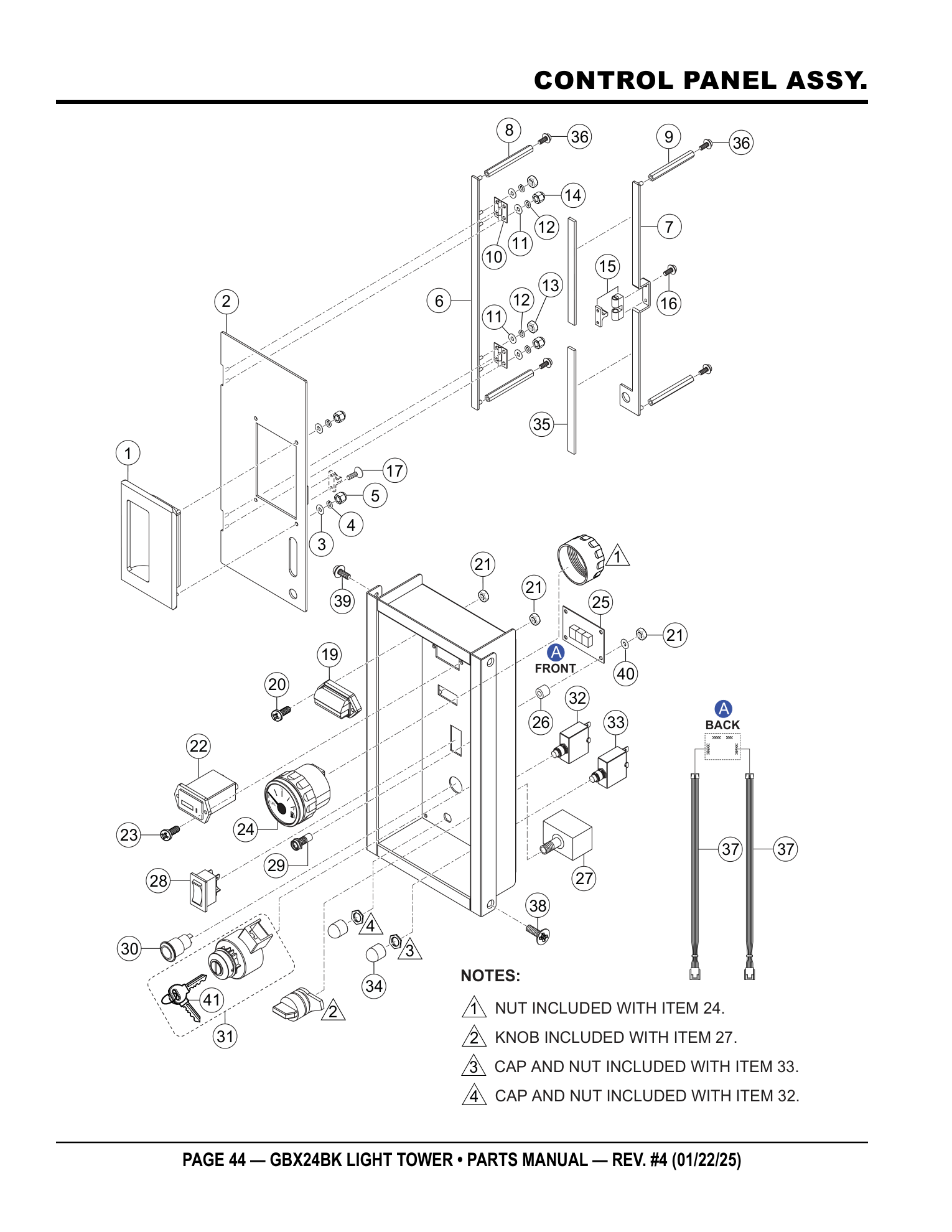

Multiquip GBX24 Light Tower CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty
1	E000242400	CONTROL BOX HANDLE	1	ADD TO CART
CONTROL BOX HANDLE E000242400 · qty on machine: 1 view full part page → $38.95
2	A200162500	CONTROL BOX PANEL COVER	1	PARTS REQUEST
PHOTO COMING CONTROL BOX PANEL COVER A200162500 · qty on machine: 1 PARTS REQUEST
3	0043104000	WASHER, M4	4	ADD TO CART
WASHER, M4 0043104000 · qty on machine: 4 view full part page → $0.48
4	0043204000	WASHER LOCK, M4	4	ADD TO CART
WASHER LOCK, M4 0043204000 · qty on machine: 4 view full part page → $0.62
5	0033304000	CAP NUT, M4	4	ADD TO CART
CAP NUT, M4 0033304000 · qty on machine: 4 view full part page → $0.62
6	A300420901	BRACKET, COVER-PANEL 1	1	ADD TO CART
BRACKET, COVER-PANEL 1 A300420901 · qty on machine: 1 view full part page → $282.95
7	A300421001	BRACKET, COVER-PANEL 2	1	ADD TO CART
BRACKET, COVER-PANEL 2 A300421001 · qty on machine: 1 view full part page → $42.95
8	E000245000	HEX SPACER, STEEL M4-70	2	ADD TO CART
HEX SPACER, STEEL M4-70 E000245000 · qty on machine: 2 view full part page → $20.95
9	E000244900	HEX SPACER, STEEL M4-65	2	ADD TO CART
HEX SPACER, STEEL M4-65 E000244900 · qty on machine: 2 view full part page → $4.95
10	E000249700	HINGE, B-1100-1	2	ADD TO CART
HINGE, B-1100-1 E000249700 · qty on machine: 2 view full part page → $2.95
11	0043103000	WASHER, M3	8	ADD TO CART
WASHER, M3 0043103000 · qty on machine: 8 view full part page → $1.95
12	0043203000	WASHER LOCK, M3	8	ADD TO CART
WASHER LOCK, M3 0043203000 · qty on machine: 8 view full part page → $1.95
13	0033103000	NUT, M3	4	ADD TO CART
NUT, M3 0033103000 · qty on machine: 4 view full part page → $0.62
14	0033303000	CAP NUT, M3	4	ADD TO CART
CAP NUT, M3 0033303000 · qty on machine: 4 view full part page → $7.95
15	E000241100	BALL CATCH LATCH	1	ADD TO CART
BALL CATCH LATCH E000241100 · qty on machine: 1 view full part page → $13.95
16	0023303008	SCREW AND WASHER ASSY. M3X8	2	ADD TO CART
SCREW AND WASHER ASSY. M3X8 0023303008 · qty on machine: 2 view full part page → $0.62
17	0023203005	SCREW, COUNTERSUNK HEAD M3X5	2	ADD TO CART
SCREW, COUNTERSUNK HEAD M3X5 0023203005 · qty on machine: 2 view full part page → $0.62
18	A100151602	CONTROL BOX PANEL-24B	1	ADD TO CART
CONTROL BOX PANEL-24B A100151602 · qty on machine: 1 view full part page → $696.95
19	A300398300	LAMP, CONTROL PANEL	1	ADD TO CART
LAMP, CONTROL PANEL A300398300 · qty on machine: 1 view full part page → $189.95
20	0026904012	COUNTERSUNK SCREW, M4X12	2	ADD TO CART
COUNTERSUNK SCREW, M4X12 0026904012 · qty on machine: 2 view full part page → $1.95
21	0033104000	NUT, M4	8	ADD TO CART
NUT, M4 0033104000 · qty on machine: 8 view full part page → $0.62
22	A300399901	HOUR METER W/WIRE	1	ADD TO CART
HOUR METER W/WIRE A300399901 · qty on machine: 1 view full part page → $90.95
23	0026004010	TRUSS HEAD SCREW, M4X12	2	ADD TO CART
TRUSS HEAD SCREW, M4X12 0026004010 · qty on machine: 2 view full part page → $1.95
24	A300400001	FUEL GAUGE METER ASSY. W/NUT	1	ADD TO CART
FUEL GAUGE METER ASSY. W/NUT A300400001 · qty on machine: 1 view full part page → $246.95
25	A000076100	DIMMING BOARD W/7-SEGMENT LEDS	1	ADD TO CART
DIMMING BOARD W/7-SEGMENT LEDS A000076100 · qty on machine: 1 view full part page → $361.95
26	E000181800	PLASTIC SPACER, M4X7L	4	ADD TO CART
PLASTIC SPACER, M4X7L E000181800 · qty on machine: 4 view full part page → $2.95
27	A300401000	LAMP ACTUATOR SWITCH ASSY. W/WIRE	1	ADD TO CART
LAMP ACTUATOR SWITCH ASSY. W/WIRE A300401000 · qty on machine: 1 view full part page → $266.95
28	A300366702	DIMMING SWITCH	1	ADD TO CART
DIMMING SWITCH A300366702 · qty on machine: 1 view full part page → $126.95
29	A300399702	ENGINE GLOW LAMP, WARNING W/NUT	1	ADD TO CART
ENGINE GLOW LAMP, WARNING W/NUT A300399702 · qty on machine: 1 view full part page → $325.95
30	A400479500	LIGHT SWITCH W/NUT	1	ADD TO CART
LIGHT SWITCH W/NUT A400479500 · qty on machine: 1 view full part page → $240.95
31	E000209100	IGNITION SWITCH W/KEY	1	ADD TO CART
IGNITION SWITCH W/KEY E000209100 · qty on machine: 1 view full part page → $113.95
32	A300398001	AC BREAKER, 25A W/CAP	1	ADD TO CART
AC BREAKER, 25A W/CAP A300398001 · qty on machine: 1 view full part page → $122.95
33	A300398101	CIRCUIT BREAKER OUTLET 15A W/CAP	1	ADD TO CART
CIRCUIT BREAKER OUTLET 15A W/CAP A300398101 · qty on machine: 1 view full part page → $107.95
34	E000168900	CAP, BREAKER	2	ADD TO CART
CAP, BREAKER E000168900 · qty on machine: 2 view full part page → $33.95
35	E000208200	GASKET STRIP	2	PARTS REQUEST
PHOTO COMING GASKET STRIP E000208200 · qty on machine: 2 PARTS REQUEST
36	0023304010	SCREW AND WASHER ASSY. M4X10	4	ADD TO CART
SCREW AND WASHER ASSY. M4X10 0023304010 · qty on machine: 4 view full part page → $1.95
37	A300397701	CABLE, CONTROL BOX	2	ADD TO CART
CABLE, CONTROL BOX A300397701 · qty on machine: 2 view full part page → $98.95
38	0023205010	COUNTERSUNK HEAD SCREW, M5X10	2	ADD TO CART
COUNTERSUNK HEAD SCREW, M5X10 0023205010 · qty on machine: 2 view full part page → $1.95
39	0023305010	SCREW AND WASHER ASSY. M5X10	2	ADD TO CART
SCREW AND WASHER ASSY. M5X10 0023305010 · qty on machine: 2 view full part page → $1.95
40	E000181600	PLASTIC WASHER, M4	4	ADD TO CART
PLASTIC WASHER, M4 E000181600 · qty on machine: 4 view full part page → $1.95
41	EEN0020900	START KEY, IGNITION SWITCH	1	ADD TO CART
START KEY, IGNITION SWITCH EEN0020900 · qty on machine: 1 view full part page → $17.95

Page 46 — ELECTRICAL COMPONENTS ASSY.

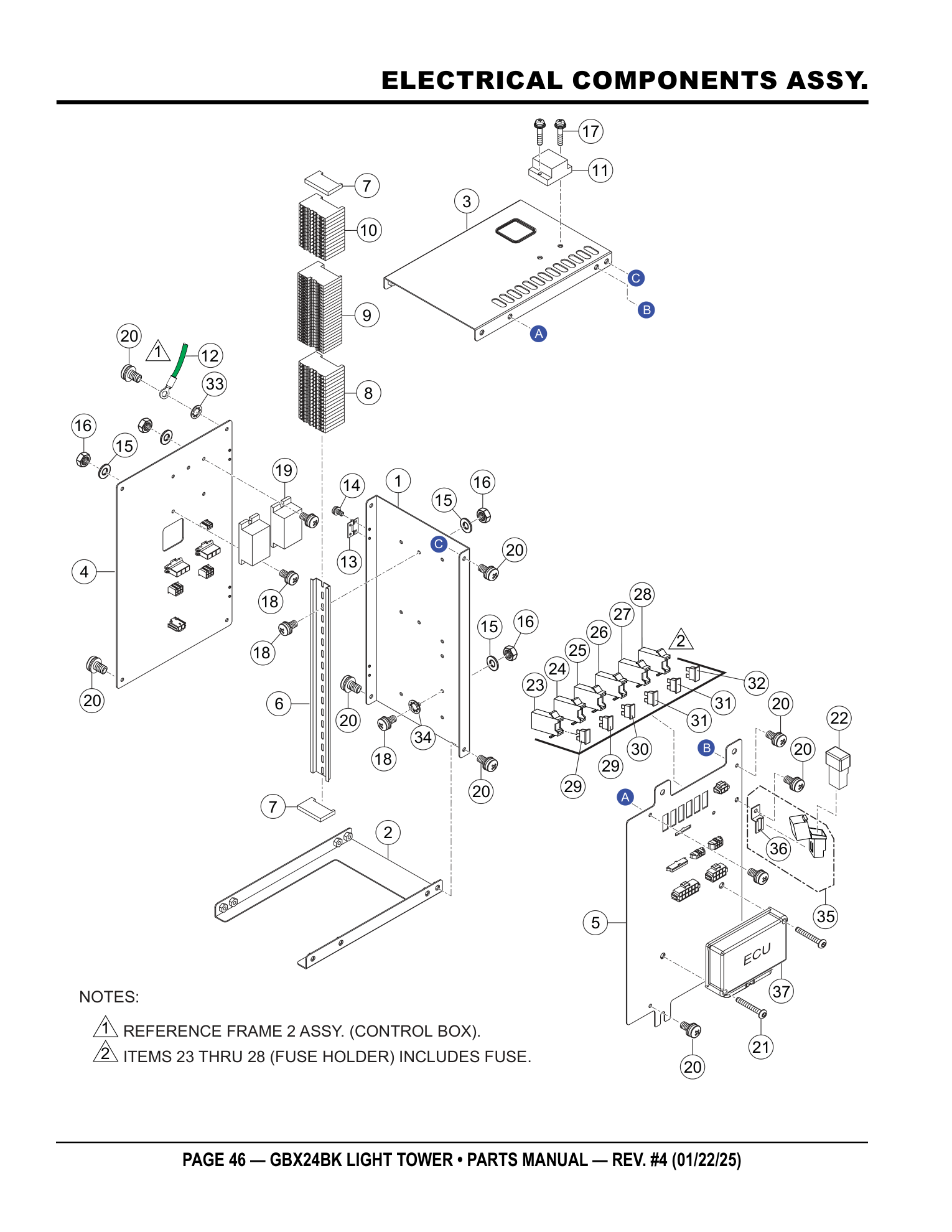

Multiquip GBX24 Light Tower ELECTRICAL COMPONENTS ASSY. parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
1	A100151202	PLATE, CONTROL PANEL, BACK	1		PARTS REQUEST
PHOTO COMING PLATE, CONTROL PANEL, BACK A100151202 · qty on machine: 1 PARTS REQUEST
2	A200156203	PLATE, CONTROL PANEL, BOTTOM	1		PARTS REQUEST
PHOTO COMING PLATE, CONTROL PANEL, BOTTOM A200156203 · qty on machine: 1 PARTS REQUEST
3	A200156303	PLATE, CONTROL PANEL, TOP	1		PARTS REQUEST
PHOTO COMING PLATE, CONTROL PANEL, TOP A200156303 · qty on machine: 1 PARTS REQUEST
4	A200160101	CONTROL PANEL, RELAY B	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL, RELAY B A200160101 · qty on machine: 1 PARTS REQUEST
5	A100157900	CONTROL PANEL, RELAY C	1		ADD TO CART
CONTROL PANEL, RELAY C A100157900 · qty on machine: 1 view full part page → $237.95
6	E000185200	TERMINAL BLOCK SUPPORT RAIL	1		ADD TO CART
TERMINAL BLOCK SUPPORT RAIL E000185200 · qty on machine: 1 view full part page → $267.95
7	E000185100	TERMINAL END	2		ADD TO CART
TERMINAL END E000185100 · qty on machine: 2 view full part page → $15.95
8	A300401500	TERMINAL BLOCK, (36-51)	1		ADD TO CART
TERMINAL BLOCK, (36-51) A300401500 · qty on machine: 1 view full part page → $614.95
9	A300401400	TERMINAL BLOCK, (13-35)	1		ADD TO CART
TERMINAL BLOCK, (13-35) A300401400 · qty on machine: 1 view full part page → $174.95
10	A300401300	TERMINAL BLOCK, (1-12)	1		ADD TO CART
TERMINAL BLOCK, (1-12) A300401300 · qty on machine: 1 view full part page → $475.95
11	E000210200	TERMINAL BLOCK	1		ADD TO CART
TERMINAL BLOCK E000210200 · qty on machine: 1 view full part page → $40.95
12	A400484900	CONTROL BOX CABLE, 44	1		ADD TO CART
CONTROL BOX CABLE, 44 A400484900 · qty on machine: 1 view full part page → $36.95
13	E000249700	HINGE, B-1100-1	2		ADD TO CART
HINGE, B-1100-1 E000249700 · qty on machine: 2 view full part page → $2.95
14	0023103006	SCREW, M3X6	8		ADD TO CART
SCREW, M3X6 0023103006 · qty on machine: 8 view full part page → $0.62
15	0043104000	WASHER, M4	10		ADD TO CART
WASHER, M4 0043104000 · qty on machine: 10 view full part page → $0.48
16	0033104000	NUT, M4	10		ADD TO CART
NUT, M4 0033104000 · qty on machine: 10 view full part page → $0.62
17	0023304020	SCREW AND WASHER ASSY. M4X20	2		ADD TO CART
SCREW AND WASHER ASSY. M4X20 0023304020 · qty on machine: 2 view full part page → $1.95
18	0023304012	SCREW AND WASHER ASSY. M4X12	10		ADD TO CART
SCREW AND WASHER ASSY. M4X12 0023304012 · qty on machine: 10 Factory replaced this part - current number 0023305015 view full part page → $0.48 IN A KIT + SOLD SOLO
19	E000169000	RELAY	2		ADD TO CART
RELAY E000169000 · qty on machine: 2 view full part page → $67.95
20	0023305010	SCREW AND WASHER ASSY. M5X10	13		ADD TO CART
SCREW AND WASHER ASSY. M5X10 0023305010 · qty on machine: 13 view full part page → $1.95
21	0023306045	SCREW AND WASHER ASSY. M6X45	2		ADD TO CART
SCREW AND WASHER ASSY. M6X45 0023306045 · qty on machine: 2 view full part page → $2.95
22	E000220300	A TYPE FUSE, 50A	1		PARTS REQUEST
PHOTO COMING A TYPE FUSE, 50A E000220300 · qty on machine: 1 Factory replaced this part - current number 50A PARTS REQUEST
23	A400483301	FUSE 1, HOLDER W/FUSE	1		PARTS REQUEST
PHOTO COMING FUSE 1, HOLDER W/FUSE A400483301 · qty on machine: 1 PARTS REQUEST
24	A400483401	FUSE 2, HOLDER W/FUSE	1		PARTS REQUEST
PHOTO COMING FUSE 2, HOLDER W/FUSE A400483401 · qty on machine: 1 PARTS REQUEST
25	A400483501	FUSE 3, HOLDER W/FUSE	1		PARTS REQUEST
PHOTO COMING FUSE 3, HOLDER W/FUSE A400483501 · qty on machine: 1 PARTS REQUEST
26	A400483601	FUSE 4, HOLDER W/FUSE	1		PARTS REQUEST
PHOTO COMING FUSE 4, HOLDER W/FUSE A400483601 · qty on machine: 1 PARTS REQUEST
27	A400483702	FUSE 5, HOLDER W/FUSE	1		PARTS REQUEST
PHOTO COMING FUSE 5, HOLDER W/FUSE A400483702 · qty on machine: 1 PARTS REQUEST
28	A400483802	FUSE 6, HOLDER W/FUSE	1		PARTS REQUEST
PHOTO COMING FUSE 6, HOLDER W/FUSE A400483802 · qty on machine: 1 PARTS REQUEST
29	E000219900	FUSE 1, 5A	2		PARTS REQUEST
PHOTO COMING FUSE 1, 5A E000219900 · qty on machine: 2 PARTS REQUEST
30	E000220000	FUSE 2, 10A	1		PARTS REQUEST
PHOTO COMING FUSE 2, 10A E000220000 · qty on machine: 1 PARTS REQUEST
31	E000220100	FUSE 3, 20A	2		PARTS REQUEST
PHOTO COMING FUSE 3, 20A E000220100 · qty on machine: 2 PARTS REQUEST
32	E000220200	FUSE 4, 30A	1		PARTS REQUEST
PHOTO COMING FUSE 4, 30A E000220200 · qty on machine: 1 PARTS REQUEST
33	0043905000	TOOTHED LOCK WASHER, M5	1		ADD TO CART
TOOTHED LOCK WASHER, M5 0043905000 · qty on machine: 1 view full part page → $1.95
34	0043904000	TOOTHED LOCK WASHER, M4	4		ADD TO CART
TOOTHED LOCK WASHER, M4 0043904000 · qty on machine: 4 view full part page → $1.95
35	A300401101	FUSE HOLDER, 50A	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING FUSE HOLDER, 50A A300401101 · qty on machine: 1 INCLUDES ITEMS W/# PARTS REQUEST
36		BRACKET, FUSE HOLDER	1		SEE REMARKS
PHOTO COMING BRACKET, FUSE HOLDER · qty on machine: 1 SEE REMARKS
37	1J32260601	ENGINE CONTROLLER UNIT	1		PARTS REQUEST
PHOTO COMING ENGINE CONTROLLER UNIT 1J32260601 · qty on machine: 1 Factory replaced this part - current number 1J32260603 PARTS REQUEST

Page 48 — AC WIRING ASSY.

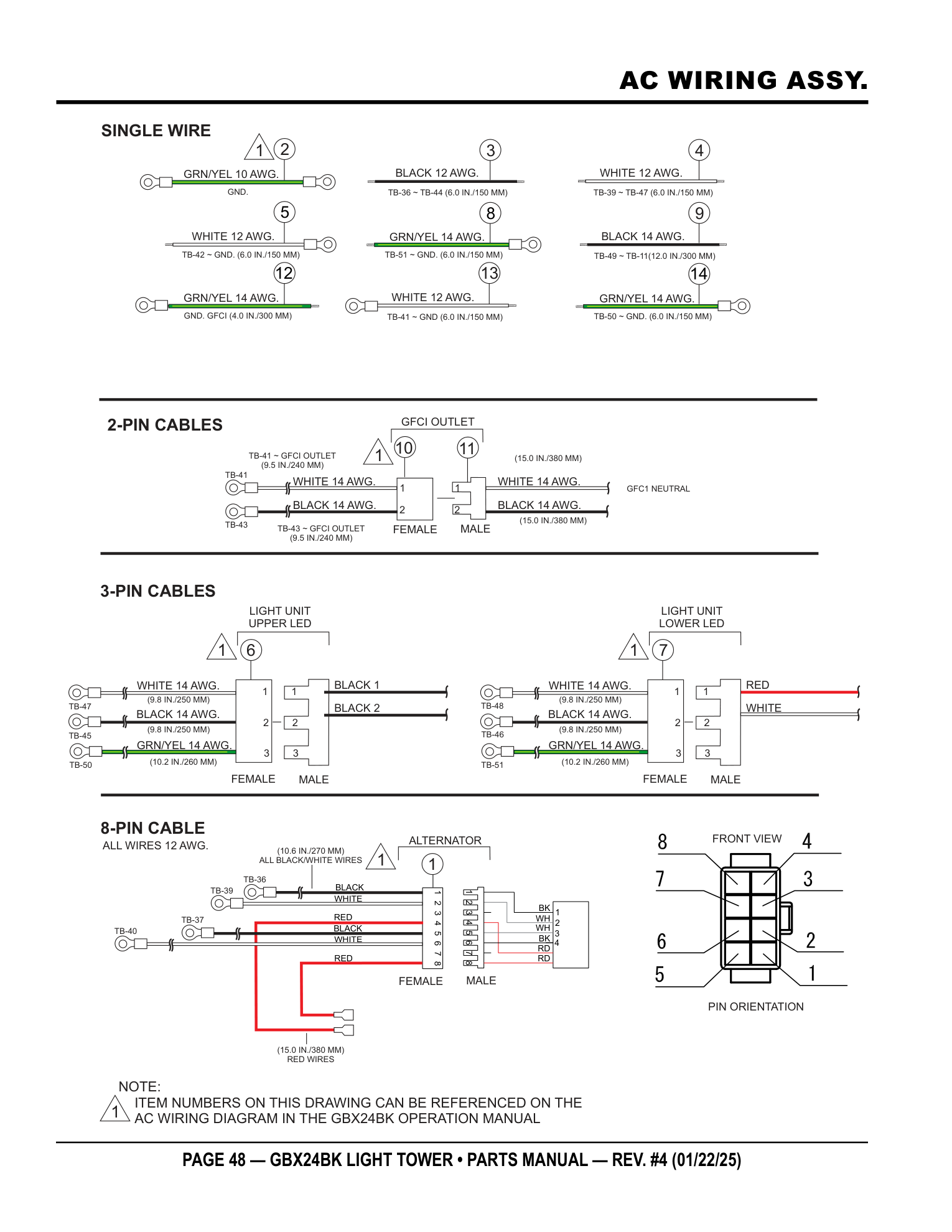

Multiquip GBX24 Light Tower AC WIRING ASSY. parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty
1	A300400601	ALTERNATOR, 8-PIN CABLE (FEMALE)	1	ADD TO CART
ALTERNATOR, 8-PIN CABLE (FEMALE) A300400601 · qty on machine: 1 view full part page → $244.95
2	A400482300	WIRE, GRN/YEL 10 AWG.	1	ADD TO CART
WIRE, GRN/YEL 10 AWG. A400482300 · qty on machine: 1 view full part page → $52.95
3	A400484501	WIRE, BLACK 12 AWG.	1	ADD TO CART
WIRE, BLACK 12 AWG. A400484501 · qty on machine: 1 view full part page → $27.95
4	A400484601	WIRE, WHITE 12 AWG.	1	ADD TO CART
WIRE, WHITE 12 AWG. A400484601 · qty on machine: 1 view full part page → $26.95
5	A400502500	WIRE, WHITE 12 AWG.	1	ADD TO CART
WIRE, WHITE 12 AWG. A400502500 · qty on machine: 1 view full part page → $36.95
6	A300417600	LIGHT UNIT UPPER LED, 3-PIN CABLE	1	ADD TO CART
LIGHT UNIT UPPER LED, 3-PIN CABLE A300417600 · qty on machine: 1 view full part page → $60.95
7	A300417700	LIGHT UNIT LOWER LED, 3-PIN CABLE	1	ADD TO CART
LIGHT UNIT LOWER LED, 3-PIN CABLE A300417700 · qty on machine: 1 view full part page → $60.95
8	A400502600	WIRE, GRN/YEL 14 AWG.	1	ADD TO CART
WIRE, GRN/YEL 14 AWG. A400502600 · qty on machine: 1 view full part page → $18.95
9	A400484101	WIRE, BLACK 14 AWG.	1	ADD TO CART
WIRE, BLACK 14 AWG. A400484101 · qty on machine: 1 view full part page → $27.95
10	A300417501	GFCI OUTLET, 2-PIN CABLE FEMALE	1	ADD TO CART
GFCI OUTLET, 2-PIN CABLE FEMALE A300417501 · qty on machine: 1 view full part page → $36.95
11	A300417400	GFCI OUTLET, 2-PIN CABLE MALE	1	ADD TO CART
GFCI OUTLET, 2-PIN CABLE MALE A300417400 · qty on machine: 1 view full part page → $44.95
12	A300376000	WIRE, GRN/YEL 14 AWG.	1	ADD TO CART
WIRE, GRN/YEL 14 AWG. A300376000 · qty on machine: 1 view full part page → $92.95
13	A400484301	WIRE, WHITE 12 AWG.	1	ADD TO CART
WIRE, WHITE 12 AWG. A400484301 · qty on machine: 1 view full part page → $36.95
14	A400484401	WIRE, GRN/YEL 14 AWG.	1	ADD TO CART
WIRE, GRN/YEL 14 AWG. A400484401 · qty on machine: 1 view full part page → $18.95

Page 50 — DC WIRING ASSY.

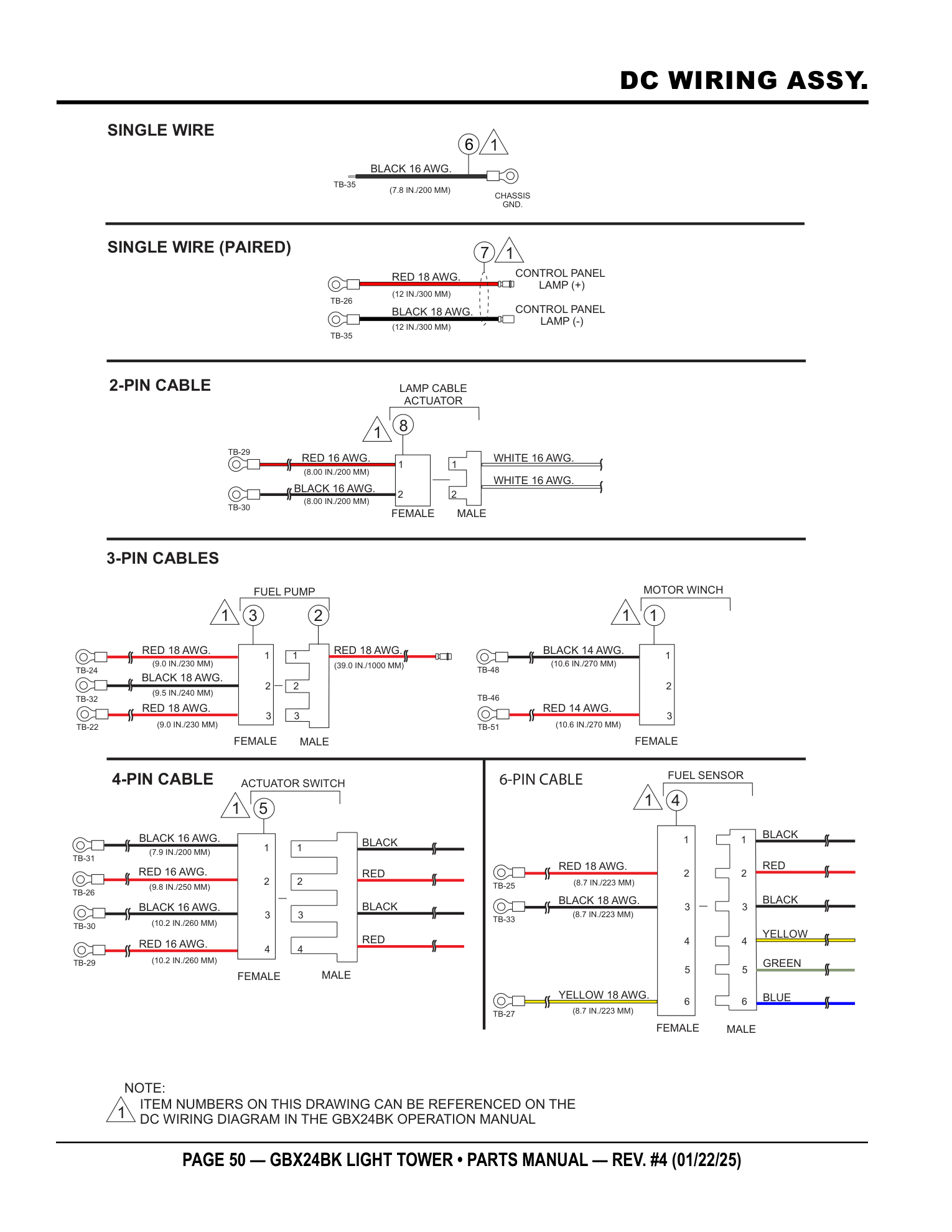

Multiquip GBX24 Light Tower DC WIRING ASSY. parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty	Remarks
1	A300417100	MOTOR WINCH, 2-PIN CABLE FEMALE	1		ADD TO CART
MOTOR WINCH, 2-PIN CABLE FEMALE A300417100 · qty on machine: 1 view full part page → $40.95
2	A400482401	FUEL PUMP, 2 PIN CABLE MALE	1		ADD TO CART
FUEL PUMP, 2 PIN CABLE MALE A400482401 · qty on machine: 1 view full part page → $98.95
3	A300400401	FUEL PUMP, 3 PIN CABLE FEMALE	1		ADD TO CART
FUEL PUMP, 3 PIN CABLE FEMALE A300400401 · qty on machine: 1 view full part page → $44.95
4	A300400901	FUEL SENSOR, 6 PIN CABLE FEMALE	1		ADD TO CART
FUEL SENSOR, 6 PIN CABLE FEMALE A300400901 · qty on machine: 1 view full part page → $83.95
5	A300400501	ACTUATOR SW, 4 PIN CABLE FEMALE	1		ADD TO CART
ACTUATOR SW, 4 PIN CABLE FEMALE A300400501 · qty on machine: 1 view full part page → $60.95
6	A400484201	WIRE, BLACK 16 AWG.	1		ADD TO CART
WIRE, BLACK 16 AWG. A400484201 · qty on machine: 1 view full part page → $18.95
7	A400484801	CTRL. PANEL LAMP, 2 PIN CABLE M/F	1		ADD TO CART
CTRL. PANEL LAMP, 2 PIN CABLE M/F A400484801 · qty on machine: 1 view full part page → $67.95
8	A300398801	LAMP CABLE ACTUATOR, 2 PIN CABLE	1	(F)	ADD TO CART
LAMP CABLE ACTUATOR, 2 PIN CABLE A300398801 · qty on machine: 1 (F) view full part page → $36.95

Page 52 — ENGINE WIRING 1 ASSY.

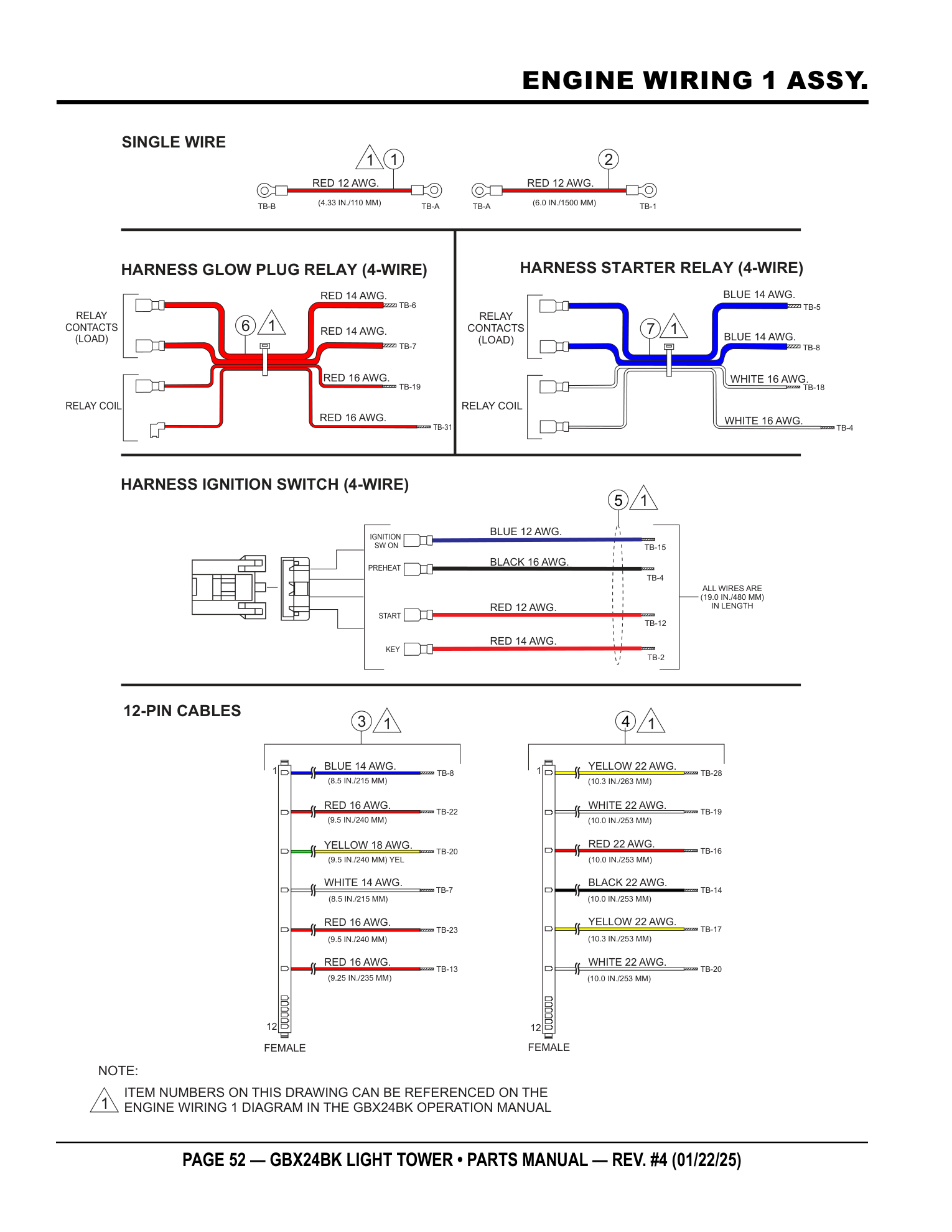

Multiquip GBX24 Light Tower ENGINE WIRING 1 ASSY. parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty
1	A400483900	WIRE, RED 12 AWG.	1	ADD TO CART
WIRE, RED 12 AWG. A400483900 · qty on machine: 1 view full part page → $27.95
2	A400484001	WIRE, RED 12 AWG.	1	ADD TO CART
WIRE, RED 12 AWG. A400484001 · qty on machine: 1 view full part page → $36.95
3	A300400701	CONNECTOR, FEMALE 12-PIN	1	ADD TO CART
CONNECTOR, FEMALE 12-PIN A300400701 · qty on machine: 1 view full part page → $119.95
4	A400484701	CONNECTOR, FEMALE 12-PIN	1	ADD TO CART
CONNECTOR, FEMALE 12-PIN A400484701 · qty on machine: 1 view full part page → $111.95
5	A300399801	IGNITION SWITCH HARNESS, 4-WIRE	1	ADD TO CART
IGNITION SWITCH HARNESS, 4-WIRE A300399801 · qty on machine: 1 view full part page → $92.95
6	A300417300	GLOW RELAY HARNESS, 4-WIRE	1	ADD TO CART
GLOW RELAY HARNESS, 4-WIRE A300417300 · qty on machine: 1 view full part page → $259.95
7	A300417201	STARTER RELAY HARNESS, 4-WIRE	1	ADD TO CART
STARTER RELAY HARNESS, 4-WIRE A300417201 · qty on machine: 1 view full part page → $267.95

Page 54 — ENGINE WIRING 2 ASSY.

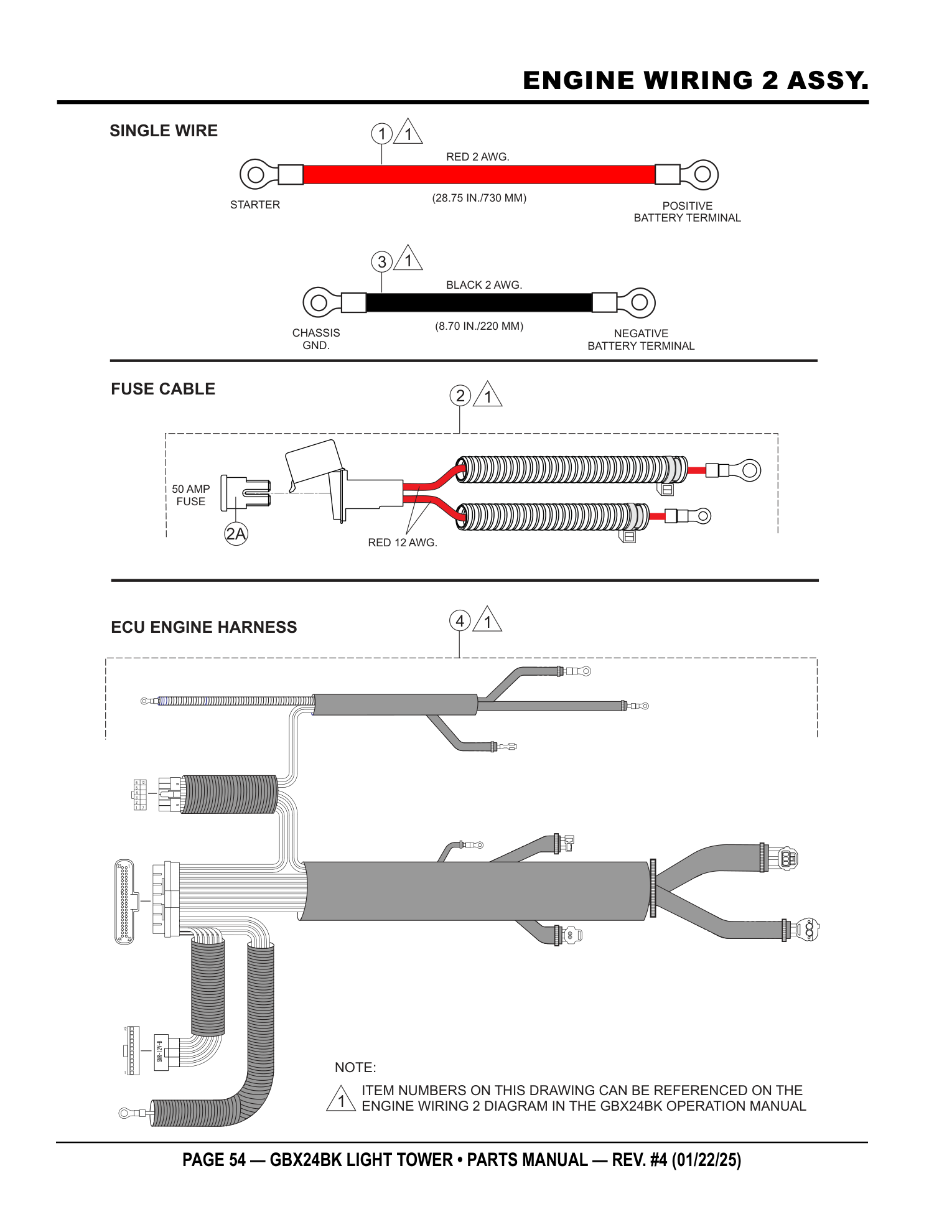

Multiquip GBX24 Light Tower ENGINE WIRING 2 ASSY. parts diagram

Parts list — exactly as printed5 rows

No.	Part No.	Part Name	Qty	Remarks
1	A300397202	CABLE, BATTERY (28.75 IN./730 MM)	1		ADD TO CART
CABLE, BATTERY (28.75 IN./730 MM) A300397202 · qty on machine: 1 view full part page → $380.95
2	A300401102	CABLE W/FUSE HOLDER	1	INCLUDES ITMEM W/#	PARTS REQUEST
PHOTO COMING CABLE W/FUSE HOLDER A300401102 · qty on machine: 1 INCLUDES ITMEM W/# Kit includes: 2A# PARTS REQUEST
2A#	E000220300	FUSE, 50 AMP			PARTS REQUEST
PHOTO COMING FUSE, 50 AMP E000220300 Also included in kit 2 - CABLE W/FUSE HOLDER (A300401102) PARTS REQUEST
3	A300397302	CABLE, BATTERY (8.70 IN./220 MM)	1		ADD TO CART
CABLE, BATTERY (8.70 IN./220 MM) A300397302 · qty on machine: 1 view full part page → $222.95
4	A200149201	ECU ENGINE HARNESS	1	KUBOTA Z482	ADD TO CART
ECU ENGINE HARNESS A200149201 · qty on machine: 1 KUBOTA Z482 view full part page → $1616.95

Page 56 — TRAILER WIRING LIGHTS ASSY.

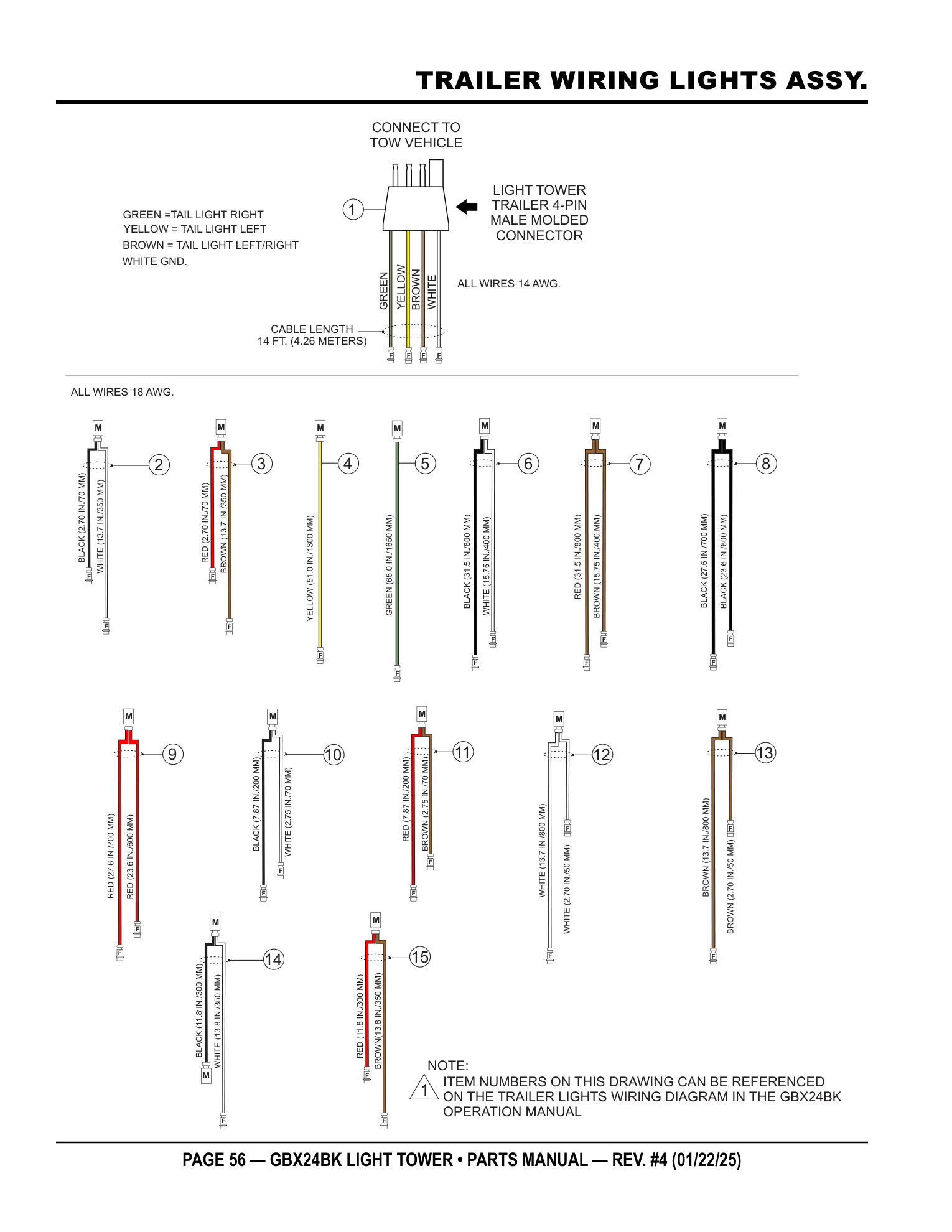

Multiquip GBX24 Light Tower TRAILER WIRING LIGHTS ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
1	A300400800	TRAILER CABLE LIGHTS, 4-PIN MALE	1	ADD TO CART
TRAILER CABLE LIGHTS, 4-PIN MALE A300400800 · qty on machine: 1 view full part page → $381.95
2	A400485900	BRANCH CABLE, NEGATIVE (BLK/WHITE)	1	ADD TO CART
BRANCH CABLE, NEGATIVE (BLK/WHITE) A400485900 · qty on machine: 1 view full part page → $44.95
3	A400486000	BRANCH CABLE POSITIVE (RED/BROWN)	1	ADD TO CART
BRANCH CABLE POSITIVE (RED/BROWN) A400486000 · qty on machine: 1 view full part page → $44.95
4	A400486100	WIRE, YELLOW POSITIVE	1	ADD TO CART
WIRE, YELLOW POSITIVE A400486100 · qty on machine: 1 view full part page → $44.95
5	A400486200	WIRE, GREEN POSITIVE	1	ADD TO CART
WIRE, GREEN POSITIVE A400486200 · qty on machine: 1 view full part page → $44.95
6	A400486300	BRANCH CABLE, NEGATIVE (BLK/WHITE)	1	ADD TO CART
BRANCH CABLE, NEGATIVE (BLK/WHITE) A400486300 · qty on machine: 1 view full part page → $52.95
7	A400486400	BRANCH CABLE, POSITIVE (RED/BROWN)	1	ADD TO CART
BRANCH CABLE, POSITIVE (RED/BROWN) A400486400 · qty on machine: 1 view full part page → $52.95
8	A400486500	BRANCH CABLE, NEGATIVE (BLK/BLK)	1	ADD TO CART
BRANCH CABLE, NEGATIVE (BLK/BLK) A400486500 · qty on machine: 1 view full part page → $52.95
9	A400486600	BRANCH CABLE, POSITIVE (RED/RED)	1	ADD TO CART
BRANCH CABLE, POSITIVE (RED/RED) A400486600 · qty on machine: 1 view full part page → $52.95
10	A400486700	BRANCH CABLE, NEGATIVE (BLK/WHITE)	1	ADD TO CART
BRANCH CABLE, NEGATIVE (BLK/WHITE) A400486700 · qty on machine: 1 view full part page → $44.95
11	A400486800	BRANCH CABLE, POSITIVE (RED/BROWN)	1	ADD TO CART
BRANCH CABLE, POSITIVE (RED/BROWN) A400486800 · qty on machine: 1 view full part page → $44.95
12	A400486900	BRANCH CABLE, NEGATIVE (WHT/WHT)	1	ADD TO CART
BRANCH CABLE, NEGATIVE (WHT/WHT) A400486900 · qty on machine: 1 view full part page → $60.95
13	A400487000	BRANCH CABLE, POSITIVE (BRN/BRN)	1	ADD TO CART
BRANCH CABLE, POSITIVE (BRN/BRN) A400487000 · qty on machine: 1 view full part page → $60.95
14	A400487100	BRANCH CABLE, NEGATIVE (BLK/WHITE)	1	ADD TO CART
BRANCH CABLE, NEGATIVE (BLK/WHITE) A400487100 · qty on machine: 1 view full part page → $60.95
15	A400487200	BRANCH CABLE, POSITIVE (RED/BROWN)	1	ADD TO CART
BRANCH CABLE, POSITIVE (RED/BROWN) A400487200 · qty on machine: 1 view full part page → $60.95

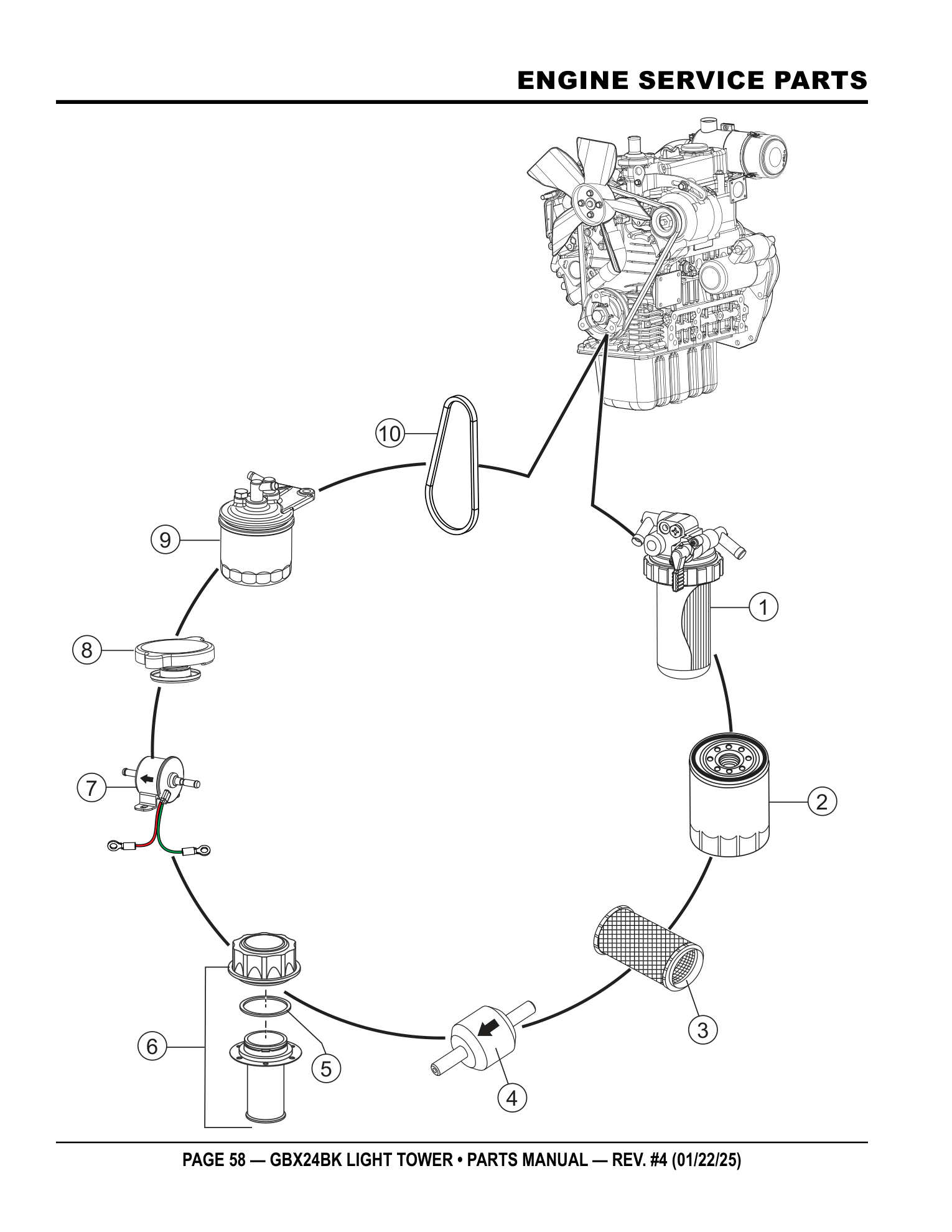

Page 58 — UNKNOWN

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty
1	1T02143560	ELEMENT, FUEL WATER SEPARATOR	1	ADD TO CART
ELEMENT, FUEL WATER SEPARATOR 1T02143560 · qty on machine: 1 view full part page → $14.95
2	1J09032430	CARTRIDGE, OIL FILTER	1	ADD TO CART
CARTRIDGE, OIL FILTER 1J09032430 · qty on machine: 1 view full part page → $29.95
3	1G65911220	ELEMENT, AIR FILTER	1	ADD TO CART
ELEMENT, AIR FILTER 1G65911220 · qty on machine: 1 Factory replaced this part - current number 1G65911222 view full part page → $33.95 IN A KIT + SOLD SOLO
4	1C01042461	IN-LINE FUEL FILTER	1	ADD TO CART
IN-LINE FUEL FILTER 1C01042461 · qty on machine: 1 view full part page → $47.95
5	A400449101	FUEL CAP, O-RING	1	ADD TO CART
FUEL CAP, O-RING A400449101 · qty on machine: 1 view full part page → $78.95
6	E000170600	FUEL CAP SET W/FILTER	1	ADD TO CART
FUEL CAP SET W/FILTER E000170600 · qty on machine: 1 view full part page → $34.95
7	36920-4	FUEL PUMP, +12 VDC	1	ADD TO CART
FUEL PUMP, +12 VDC 36920-4 · qty on machine: 1 view full part page → $311.95
8	0602011079	CAP, RADIATOR	1	ADD TO CART
CAP, RADIATOR 0602011079 · qty on machine: 1 view full part page → $137.95
9	1522443010	CANISTER, FUEL FILTER	1	ADD TO CART
CANISTER, FUEL FILTER 1522443010 · qty on machine: 1 view full part page → $142.95
10	1980572530	V-BELT, 34.5 IN. (876 MM)	1	ADD TO CART
V-BELT, 34.5 IN. (876 MM) 1980572530 · qty on machine: 1 view full part page → $25.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip GBX24BK is a lighting built for lighting night work zones, road crews, and events with wide, glare-free coverage. It runs a GBX24BK engine. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0013120110 Multiquip 0013120110 GBX III Bolt M20 X 110 - OEM Replacement Part for Globug Lighting $60.95

0043220000 Multiquip 0043220000 GBX III Spring Washer M20 - OEM Replacement Part $40.95

0602011079 Multiquip 0602011079 Radiator Cap Denyo - OEM Replacement Part $137.95

10315 Multiquip 10315 Battery 12V Group 24 Wet Cell - OEM Replacement Part $236.95

13363KITLT Multiquip 13363KITLT Chain/Connector Assembly - OEM Replacement Part for Globug Lighting $194.95

1522443010 Multiquip 1522443010 Fuel Filter Assembly V1205B - OEM Replacement Part $142.95

1C01042461 Multiquip 1C01042461 In-Line Fuel Filter GBX24BK - OEM Replacement Part $47.95

2204220130 Multiquip 2204220130 Plate Cap - OEM Replacement Part for Globug Lighting $120.95

2204500130 Multiquip 2204500130 Seal (Normal) - OEM Replacement Part $59.95

2204500230 Multiquip 2204500230 Packing White - OEM Replacement Part for Globug Light Tower $79.95

29546 Multiquip 29546 2" Ball Hitch Fixed - OEM Replacement Part for Globug Light Towers $34.95

34953 Multiquip 34953 Hitch Pintle Fixed Assembly LT6 Series - OEM Replacement Part $63.95

36920-4 Multiquip 36920-4 Fuel Pump for Kubota DF972 Engine - OEM Replacement Part $311.95

A000076100 Multiquip A000076100 Dimming Board - OEM Replacement Part for Globug LED Light Towers $361.95

A000082100 Multiquip A000082100 GBX III Heatsink - OEM Replacement Part $1,239.95

A000083102 Multiquip A000083102 GBX III Control Board - OEM Replacement Part $1,168.95

A000083600 Multiquip A000083600 GBX III Adapter Board - OEM Replacement Part $576.95

A000094004 Multiquip A000094004 GBX III LED Power Supply - OEM Replacement Part $3,374.95

A100140900 Multiquip A100140900 GBX III Main Balloon Bag - OEM Replacement Part $451.95

A100144501 Multiquip A100144501 GBX III Flange - OEM Replacement Part $3,363.95

A100144600 Multiquip A100144600 GBX III Top Zipper Sheet - OEM Replacement Part $176.95

A100144700 Multiquip A100144700 GBX III Balloon Sheet (Bottom) - OEM Replacement Part $132.95

A100145100 Multiquip A100145100 GBX III Shroud Fan - OEM Replacement Part $967.95

A100146600 Multiquip A100146600 GBX III Vinyl Balloon Cover - OEM Replacement Part $625.95

A100148904 Multiquip A100148904 GBX III Lamp Adapter - OEM Replacement Part $361.95

A100149902 Multiquip A100149902 GBX III Main Guide Mast 1 - OEM Replacement Part $1,515.95

A100150202 Multiquip A100150202 GBX III Front Right Outrigger - OEM Replacement Part $336.95

A100150302 Multiquip A100150302 GBX III Front Left Outrigger - OEM Replacement Part $390.95

A100151100 Multiquip A100151100 GBX III Fuel Tank - OEM Replacement Part $902.95

A100151602 Multiquip A100151602 GBX III Control Box Panel-24B - OEM Replacement Part $696.95

A100152700 Multiquip A100152700 GBX III Rubber Torsion Axle - OEM Replacement Part $1,221.95

A100152900 Multiquip A100152900 GBX III Fender Support Plate - OEM Replacement Part $144.95

A100153001 Multiquip A100153001 GBX III Radiator Bracket - OEM Replacement Part $414.95

A100153201 Multiquip A100153201 GBX III Tow Bar Assembly - OEM Replacement Part $381.95

A100153301 Multiquip A100153301 GBX III Guide Mast 2 - OEM Replacement Part $967.95

A100153900 Multiquip A100153900 GBX III Fender - OEM Replacement Part $401.95

A100154000 Multiquip A100154000 GBX III Cover Winch - OEM Replacement Part $133.95

A100154300 Multiquip A100154300 GBX III Cabinet Cover Bracket - OEM Replacement Part $589.95

A100154401 Multiquip A100154401 GBX III Side Cover Left - OEM Replacement Part $307.95

A100154501 Multiquip A100154501 GBX III Side Cover Right with Soundproof - OEM Replacement Part $341.95

A100154700 Multiquip A100154700 GBX III Rear Cover - OEM Replacement Part $1,376.95

A100157700 Multiquip A100157700 GBX III Winch Dual Handle - OEM Replacement Part $614.95

A100157900 Multiquip A100157900 GBX III Control Panel Relay C - OEM Replacement Part $237.95

A100158802 Multiquip A100158802 GBX III Front Cover - OEM Replacement Part $1,506.95

A100158900 Multiquip A100158900 GBX III Front Cabinet Cover - OEM Replacement Part $1,563.95

A100159000 Multiquip A100159000 GBX III Frame Assembly - OEM Replacement Part $9,463.95

A200137101 Multiquip A200137101 GBX III Bezel (Top) - OEM Replacement Part $1,024.95

A200140200 Multiquip A200140200 GBX III Plate (Top) - OEM Replacement Part $1,472.95

A200140400 Multiquip A200140400 GBX III Fan Bracket - OEM Replacement Part $1,366.95

A200144201 Multiquip A200144201 GBX III Plate (Lamp) Top - OEM Replacement Part $1,081.95

A200144301 Multiquip A200144301 GBX III Plate (Lamp Bottom) - OEM Replacement Part $1,024.95

A200145601 Multiquip A200145601 GBX III Mast Bracket 2 - OEM Replacement Part $908.95

A200145700 Multiquip A200145700 GBX III Guard Fan - OEM Replacement Part $296.95

A200145800 Multiquip A200145800 Exhaust Pipe - GBX III OEM Replacement Part $451.95

A200149101 Multiquip A200149101 GBX III Battery Bracket - OEM Replacement Part $400.95

A200149201 Multiquip A200149201 GBX III Cable Z482 - OEM Replacement Part $1,616.95

A200149301 Multiquip A200149301 GBX III Cable Lamp-Z482 with Cable Gland - OEM Replacement Part $1,441.95

A200155202 Multiquip A200155202 GBX III Fuel Filter Bracket - OEM Replacement Part $200.95

A200157800 Multiquip A200157800 GBX III Main Engine Base Left - OEM Replacement Part $967.95

A200157900 Multiquip A200157900 GBX III Main Engine Base Right - OEM Replacement Part $759.95

A200158301 Multiquip A200158301 GBX III Bracket 2 Radiator - OEM Replacement Part $139.95

A200161200 Multiquip A200161200 GBX III Document Holder Bracket - OEM Replacement Part $171.95

A300360500 Multiquip A300360500 GBX III Mast Bracket 3 - OEM Replacement Part $759.95

A300360600 Multiquip A300360600 GBX III Mast Bracket 4th Mast - OEM Replacement Part $646.95

A300366702 Multiquip A300366702 GBX III Dimming Switch - OEM Replacement Part $126.95

A300376000 Multiquip A300376000 GBX III Ground Cable GFCI - OEM Replacement Part $92.95

A300378500 Multiquip A300378500 GBX III Guard (LED) - OEM Replacement Part $260.95

A300379201 Multiquip A300379201 GBX III Cover (Bottom) - OEM Replacement Part $908.95

A300379501 Multiquip A300379501 GBX III Frame Guard - OEM Replacement Part $480.95

A300379601 Multiquip A300379601 GBX III Gasket Guard - OEM Replacement Part $969.95

A300379701 Multiquip A300379701 GBX III Plate (Bottom) - OEM Replacement Part $967.95

A300379800 Multiquip A300379800 GBX III Cover (Bezel) - OEM Replacement Part $1,116.95

A300380001 Multiquip A300380001 GBX III Gasket (Board) - OEM Replacement Part $1,285.95

A300382502 Multiquip A300382502 Radiator Hose - OEM Replacement Part for Globug Light Towers $120.95

A300382602 Multiquip A300382602 Elbow Hose Radiator - OEM Replacement Part $126.95

A300384900 Multiquip A300384900 GBX III Plate (Air) - OEM Replacement Part $646.95

A300387702 Multiquip A300387702 GBX III Pole CP - OEM Replacement Part $57.95

A300388502 Multiquip A300388502 GBX III Power Cable - OEM Replacement Part $502.95

A300391102 Multiquip A300391102 GBX III Bracket Muffler - OEM Replacement Part $56.95

A300394100 Multiquip A300394100 GBX III DC Fan Motor - OEM Replacement Part $451.95

A300394200 Multiquip A300394200 GBX III DC Blower Assembly - OEM Replacement Part $451.95

A300394500 Multiquip A300394500 GBX III Radiator Gasket Upper - OEM Replacement Part $92.95

A300394600 Multiquip A300394600 GBX III Radiator Gasket Lower - OEM Replacement Part $92.95

A300397202 Multiquip A300397202 GBX III Cable Battery Positive - OEM Replacement Part $380.95

A300397302 Multiquip A300397302 GBX III Cable Battery Negative - OEM Replacement Part $222.95

A300397400 Multiquip A300397400 GBX III Oil Tank Level Sensor - OEM Replacement Part $557.95

A300397500 Multiquip A300397500 GBX III Generator - OEM Replacement Part $189.95

A300397701 Multiquip A300397701 GBX III Cable Control Box - OEM Replacement Part $98.95

A300398001 Multiquip A300398001 GBX III AC Breaker 25A with Cap - OEM Replacement Part $122.95

A300398101 Multiquip A300398101 GBX III Circuit Breaker Outlet 15A with Cap - OEM Replacement Part $107.95

A300398300 Multiquip A300398300 Control Panel Lamp - OEM Replacement Part for Globug Light Towers $189.95

A300398801 Multiquip A300398801 GBX III Control Box Cable 26" - OEM Replacement Part $36.95

A300399702 Multiquip A300399702 GBX III Engine Glow Lamp Warning - OEM Replacement Part $325.95

A300399801 Multiquip A300399801 GBX III Cable (Key Switch) - OEM Replacement Part $92.95

A300399901 Multiquip A300399901 GBX III Hour Meter - OEM Replacement Part $90.95

A300400001 Multiquip A300400001 Fuel Gauge Meter with Nut - OEM Replacement Part for Globug Lighting $246.95

A300400401 Multiquip A300400401 GBX III Control Box Cable 21 - OEM Replacement Part $44.95

A300400501 Multiquip A300400501 GBX III Control Box Cable 19 - OEM Replacement Part $60.95

A300400601 Multiquip A300400601 GBX III Control Box Cable 2 - OEM Replacement Part $244.95

A300400701 Multiquip A300400701 GBX III Control Box Cable 29" - OEM Replacement Part $119.95

A300400800 Multiquip A300400800 GBX III Trailer Cable 1 - OEM Replacement Part $381.95

A300400901 Multiquip A300400901 GBX III Control Box Cable 17 - OEM Replacement Part $83.95

A300401000 Multiquip A300401000 GBX III Lamp Actuator Switch - OEM Replacement Part $266.95

A300401300 Multiquip A300401300 GBX III Terminal Block (1-12) - OEM Replacement Part $475.95

A300401400 Multiquip A300401400 GBX III Terminal Block (13-35) - OEM Replacement Part $174.95

A300401500 Multiquip A300401500 GBX III Terminal Block - OEM Replacement Part $614.95

A300409002 Multiquip A300409002 GBX III Muffler Elbow Pipe - OEM Replacement Part $124.95

A300409103 Multiquip A300409103 GBX III - OEM Replacement Part $66.95

A300409602 Multiquip A300409602 GBX III Shackle - OEM Replacement Part $154.95

A300409700 Multiquip A300409700 GBX III Back Plate - OEM Replacement Part $92.95

A300410001 Multiquip A300410001 GBX III Tow Bar T Bolt - OEM Replacement Part $65.95

A300411800 Multiquip A300411800 GBX III Air Cleaner Bracket - OEM Replacement Part $353.95

A300412801 Multiquip A300412801 GBX III Coupler Bracket - OEM Replacement Part $77.95

A300414701 Multiquip A300414701 GBX III Gas Bracket - OEM Replacement Part $200.95

A300414800 Multiquip A300414800 GBX III Battery Holder - OEM Replacement Part $282.95

A300415001 Multiquip A300415001 Gas Spring Assembly - OEM Replacement Part for Globug Light Towers $199.95

A300415300 Multiquip A300415300 GBX III 3rd Mast with Slider - OEM Replacement Part $866.95

A300415400 Multiquip A300415400 GBX III 4th Mast with Slider - OEM Replacement Part $1,667.95

A300415500 Multiquip A300415500 GBX III 5th Mast with Slider - OEM Replacement Part $1,366.95

A300417001 Multiquip A300417001 GBX III Motor Winch Connector - OEM Replacement Part $150.95

A300417100 Multiquip A300417100 GBX III Motor Winch Cable - OEM Replacement Part $40.95

A300417201 Multiquip A300417201 GBX III Cable Relay - OEM Replacement Part $267.95

A300417300 Multiquip A300417300 GBX III Cable Glow Relay - OEM Replacement Part $259.95

A300417400 Multiquip A300417400 GBX III Cable 1 GFCI - OEM Replacement Part $44.95

A300417501 Multiquip A300417501 GBX III Cable 2 GFCI - OEM Replacement Part $36.95

A300417600 Multiquip A300417600 GBX III Control Box Cable (10ft) - OEM Replacement Part $60.95

A300417700 Multiquip A300417700 GBX III Control Box Cable 10ft - OEM Replacement Part $60.95

A300419400 Multiquip A300419400 GBX III Tie Down Post Left - OEM Replacement Part $118.95

A300419500 Multiquip A300419500 GBX III Tie Down Post Right - OEM Replacement Part $118.95

A300419600 Multiquip A300419600 GBX III Mast Handle - OEM Replacement Part $36.95

A300420901 Multiquip A300420901 GBX III Cover Panel Parts - OEM Replacement Part $282.95

A300421001 Multiquip A300421001 GBX III Bracket Cover Panel 2 - OEM Replacement Part $42.95

A300437400 Multiquip A300437400 Actuator GBX12SK - OEM Replacement Part for Globug Light Towers $146.95

A300445700 Multiquip A300445700 GBX Jack Top Wind - OEM Replacement Part $154.95

A400284500 Multiquip A400284500 GBX III PIN 1 Pulley - OEM Replacement Part $63.95

A400333800 Multiquip A400333800 GBX III Pulley - OEM Replacement Part for Globug Light Towers $45.95

A400362100 Multiquip A400362100 GBX III Washer Mast - OEM Replacement Part $83.95

A400362501 Multiquip A400362501 GBX III Plate Slider - OEM Replacement Part $98.95

A400385101 Multiquip A400385101 GBX III Gasket (IN) - OEM Replacement Part $1,492.95

A400425100 Multiquip A400425100 GBX III Tow Bar Bumper Pad - OEM Replacement Part $44.95

A400430200 Multiquip A400430200 GBX III Spacer - OEM Replacement Part $118.95

A400431902 Multiquip A400431902 GBX III Wire Rope Assembly - OEM Replacement Part $74.95

A400432004 Multiquip A400432004 GBX III Wire Rope - OEM Replacement Part $74.95

A400432104 Multiquip A400432104 GBX III Wire Rope - OEM Replacement Part $74.95

A400443400 Multiquip A400443400 Gas Spring Assembly Pin - OEM Replacement Part for Globug Light Towers $53.95

A400445900 Multiquip A400445900 GBX III Decal Caution - OEM Replacement Part $44.95

A400446000 Multiquip A400446000 GBX III Decal Towing Instruction - OEM Replacement Part $44.95

A400448501 Multiquip A400448501 GBX III Decal Dimming - OEM Replacement Part $36.95

A400449101 Multiquip A400449101 GBX III Fuel Cap O Ring - OEM Replacement Part $78.95

A400457200 Multiquip A400457200 GBX III Bracket Reservoir Tank - OEM Replacement Part $75.95

A400462900 Multiquip A400462900 GBX III Plate Heatsink - OEM Replacement Part $251.95

A400463600 Multiquip A400463600 GBX III Spacer (Bottom) - OEM Replacement Part $53.95

A400463701 Multiquip A400463701 GBX III Spacer (Top) - OEM Replacement Part $282.95

A400473101 Multiquip A400473101 GBX III Oil Pan Plate - OEM Replacement Part $163.95

A400475600 Multiquip A400475600 GBX III Decal Clear - OEM Replacement Part $75.95

A400478000 Multiquip A400478000 GBX III Hose Barb with Joint Pipe - OEM Replacement Part $607.95

A400479500 Multiquip A400479500 GBX III Light Switch with Nut - OEM Replacement Part $240.95

A400482000 Multiquip A400482000 GBX III Air Cleaner Elbow Hose - OEM Replacement Part $199.95

A400482300 Multiquip A400482300 GBX III Cable (-) CP - OEM Replacement Part $52.95

A400482401 Multiquip A400482401 GBX III Cable Pump - OEM Replacement Part $98.95

A400484001 Multiquip A400484001 GBX III Control Box Cable 28 - OEM Replacement Part $36.95

A400484301 Multiquip A400484301 GBX III Control Box Cable 6(41) - OEM Replacement Part $36.95

A400484701 Multiquip A400484701 GBX III Control Box Cable 30 - OEM Replacement Part $111.95

A400484801 Multiquip A400484801 GBX III Control Box Cable 23 - OEM Replacement Part $67.95

A400484900 Multiquip A400484900 GBX III Control Box Cable 44 - OEM Replacement Part $36.95

A400485300 Multiquip A400485300 Fuel Tank Hose - GBX III OEM Replacement Part $75.95

A400485500 Multiquip A400485500 GBX III Fuel Tank Hose - OEM Replacement Part $163.95

A400485900 Multiquip A400485900 GBX III Branch Cable 1 N - OEM Replacement Part $44.95

A400486000 Multiquip A400486000 GBX III Branch Cable 1 P - OEM Replacement Part $44.95

A400486100 Multiquip A400486100 GBX III Tail Lamp Cable Assembly - OEM Replacement Part $44.95

A400486200 Multiquip A400486200 GBX III Tail Lamp Cable Right Green - OEM Replacement Part $44.95

A400486300 Multiquip A400486300 GBX III Branch Cable 2 N - OEM Replacement Part $52.95

A400486400 Multiquip A400486400 GBX III Branch Cable 2 P - OEM Replacement Part $52.95

A400486500 Multiquip A400486500 GBX III Branch Cable 3 N - OEM Replacement Part $52.95

A400486600 Multiquip A400486600 GBX III Branch Cable 3 P - OEM Replacement Part $52.95

A400486700 Multiquip A400486700 GBX III Branch Cable 4 N - OEM Replacement Part $44.95

A400486800 Multiquip A400486800 GBX III Branch Cable 4 P - OEM Replacement Part $44.95

A400486900 Multiquip A400486900 GBX III Branch Cable 5 N - OEM Replacement Part $60.95

A400487000 Multiquip A400487000 GBX III Branch Cable 5 P - OEM Replacement Part $60.95

A400487100 Multiquip A400487100 GBX III Branch Cable 6 N - OEM Replacement Part $60.95

A400487200 Multiquip A400487200 GBX III Branch Cable 6 P - OEM Replacement Part $60.95

A400488201 Multiquip A400488201 GBX III Return Spring - OEM Replacement Part $116.95

A400488600 Multiquip A400488600 GBX III Decal LED Power Connection - OEM Replacement Part $40.95

A400497402 Multiquip A400497402 GBX III Mast Locking Knob - OEM Replacement Part $45.95

A400502500 Multiquip A400502500 GBX III Control Box Cable 6(42) - OEM Replacement Part $36.95

A400507400 Multiquip A400507400 GBX III Mast Guide Bracket - OEM Replacement Part $83.95

A400520000 Multiquip A400520000 GBX III T Lock Wire - OEM Replacement Part $42.95

A400520100 Multiquip A400520100 GBX III Wire Tow Bar Cable with Washer - OEM Replacement Part $48.95

A400529500 Multiquip A400529500 GBX III Bracket Actuator - OEM Replacement Part $121.95

A400537200 Multiquip A400537200 GBX III Tail Lamp - OEM Replacement Part $47.95

E000168900 Multiquip E000168900 GBX III Cap Breaker - OEM Replacement Part for Globug Light Towers $33.95

E000169000 Multiquip E000169000 GBX III Relay - OEM Replacement Part for Globug Lighting Systems $67.95

E000170600 Multiquip E000170600 GBX III Fuel Cap Set with Filter - OEM Replacement Part $34.95

E000182900 Multiquip E000182900 GBX III Bubble Level Guide - OEM Replacement Part $163.95

E000185200 Multiquip E000185200 GBX III Terminal Block Support Rail - OEM Replacement Part $267.95

E000205300 Multiquip E000205300 GBX III Fan Guard - OEM Replacement Part $33.95

E000209100 Multiquip E000209100 GBX III Ignition Switch - OEM Replacement Part $113.95

E000210000 Multiquip E000210000 GBX III Muffler - OEM Replacement Part $471.95

E000210200 Multiquip E000210200 GBX III Terminal Block - OEM Replacement Part $40.95

E000212900 Multiquip E000212900 GBX III Rear Cover Lock Assembly - OEM Replacement Part $46.95

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip GBX24 Light Tower

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
