Wacker Neuson ACBe Internal Vibrator
Factory parts book · interactive
Wacker Neuson ACBe Internal Vibrator
Pick your options below. We build the exact machine and start your quote.
The parts bench

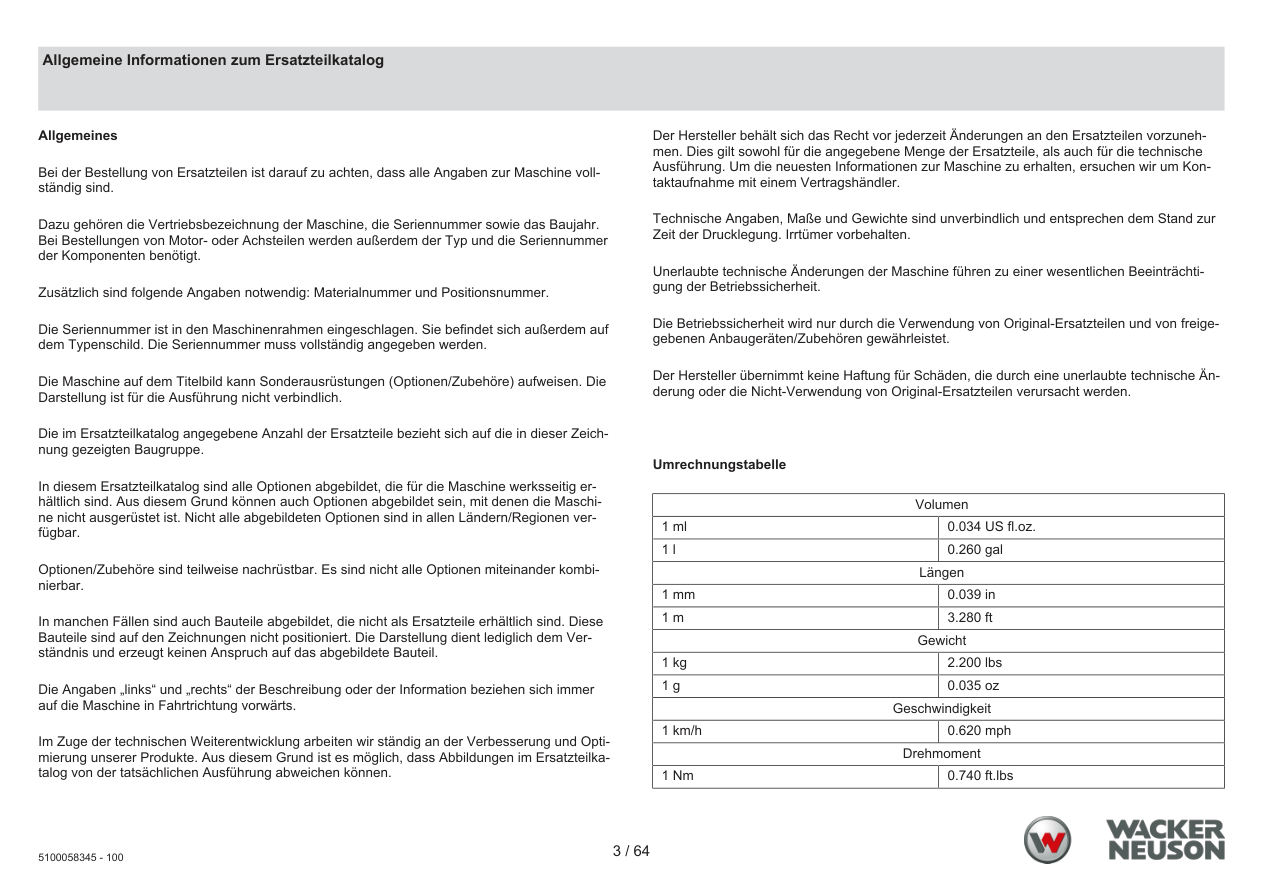

Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||

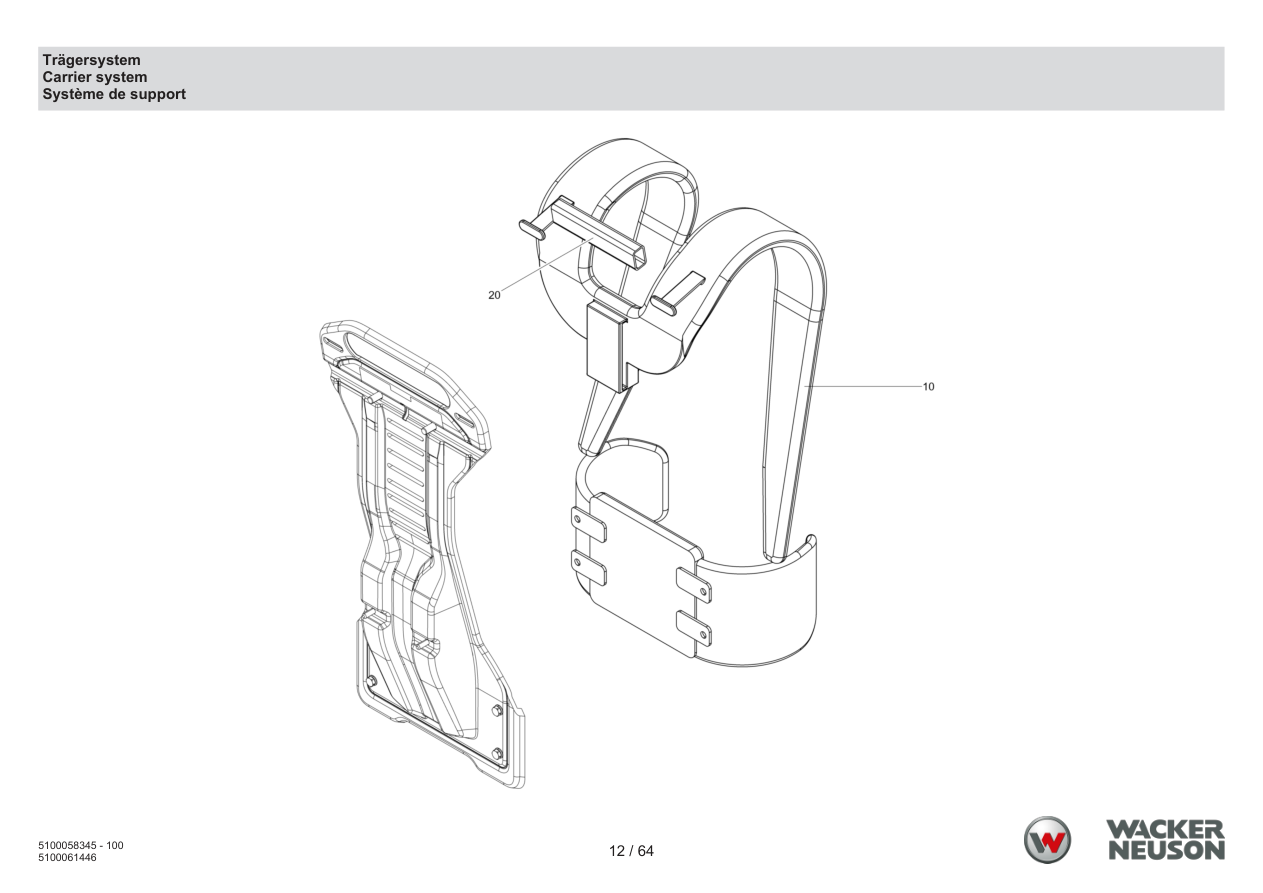

Page 12 — Carrier system
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100071513 | Carrier system | 1 | PARTS REQUEST | |
|
COMING Carrier system
5100071513 · qty on machine: 1 | |||||
| 20 | 5100060812 | Handle pad | 1 | PARTS REQUEST | |
|
COMING Handle pad
5100060812 · qty on machine: 1 | |||||

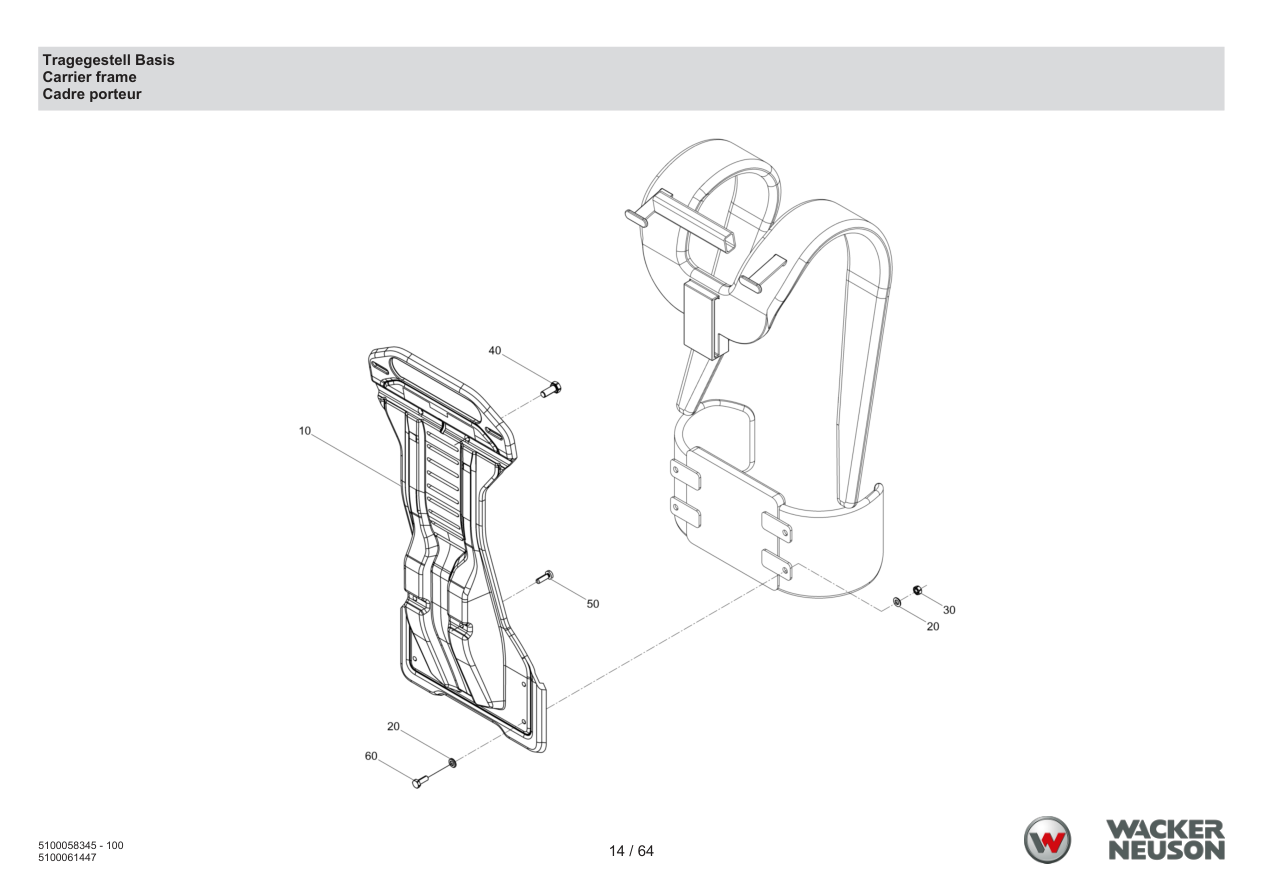

Page 14 — Carrying Frame Base
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058420 | Backplate | 1 | PARTS REQUEST | |
|
COMING Backplate
5100058420 · qty on machine: 1 | |||||
| 20 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 30 | 5000010880 | Hexagon nut | 4 | ADD TO CART | |
| 40 | 5000012362 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 50 | 5000222605 | Oval head screw | 2 | ADD TO CART | |
| 60 | 5000014663 | Hexagonal head cap screw | 4 | ADD TO CART | |

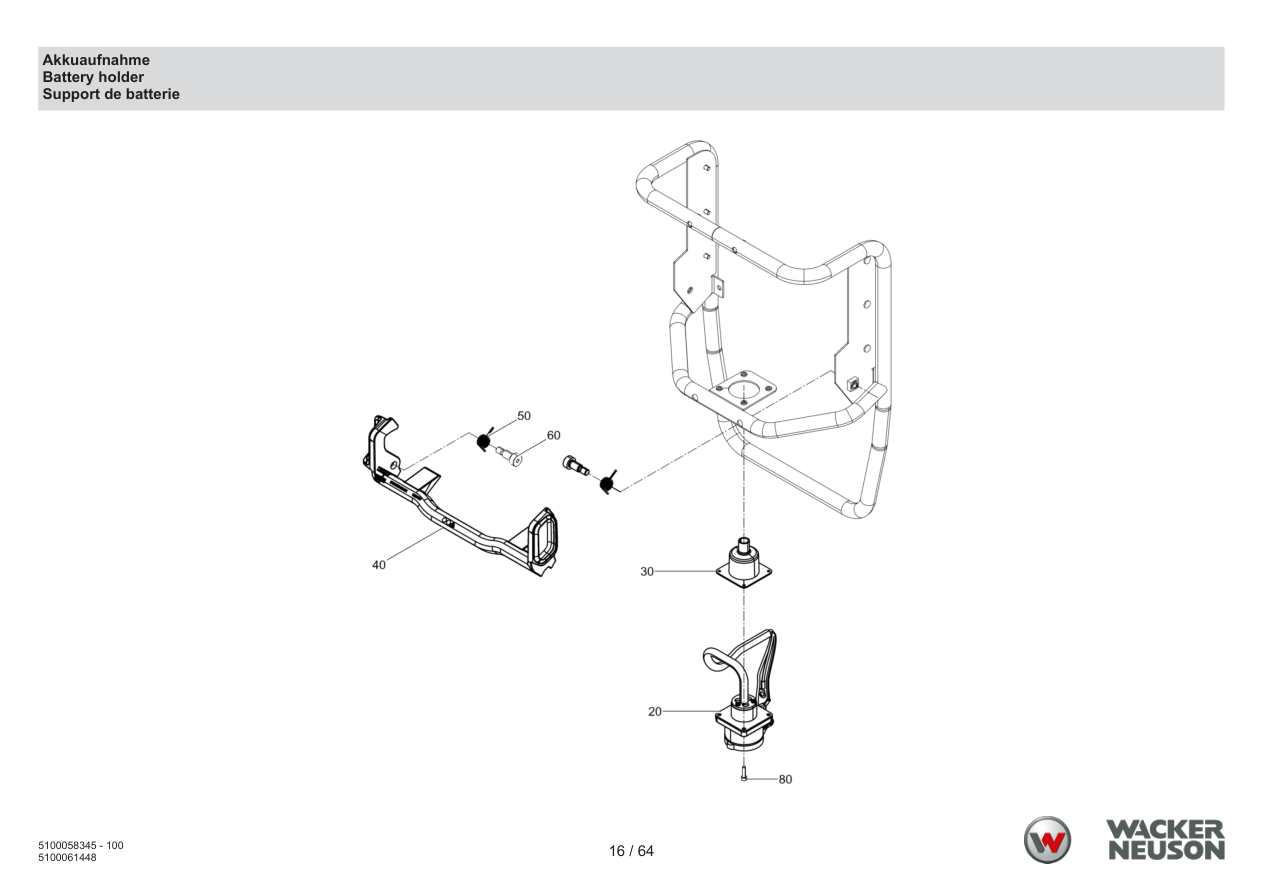

Page 16 — Battery holder
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100058752 | Mounting socket cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Mounting socket cpl.
5100058752 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 30 | 5000212677 | Protective cap | 1 | PARTS REQUEST | |
|
COMING Protective cap
5000212677 · qty on machine: 1 | |||||
| 40 | 5100058418 | Safety catch | 1 | PARTS REQUEST | |
|
COMING Safety catch
5100058418 · qty on machine: 1 | |||||
| 50 | 5100025600 | Leg spring | 2 | ADD TO CART | |
| 60 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 80 | 5000011570 | Cheese head screw | 4 | ADD TO CART | |
| 10 | 5100058300 | Battery holder | 1 | PARTS REQUEST | |
|
COMING Battery holder
5100058300 · qty on machine: 1 | |||||

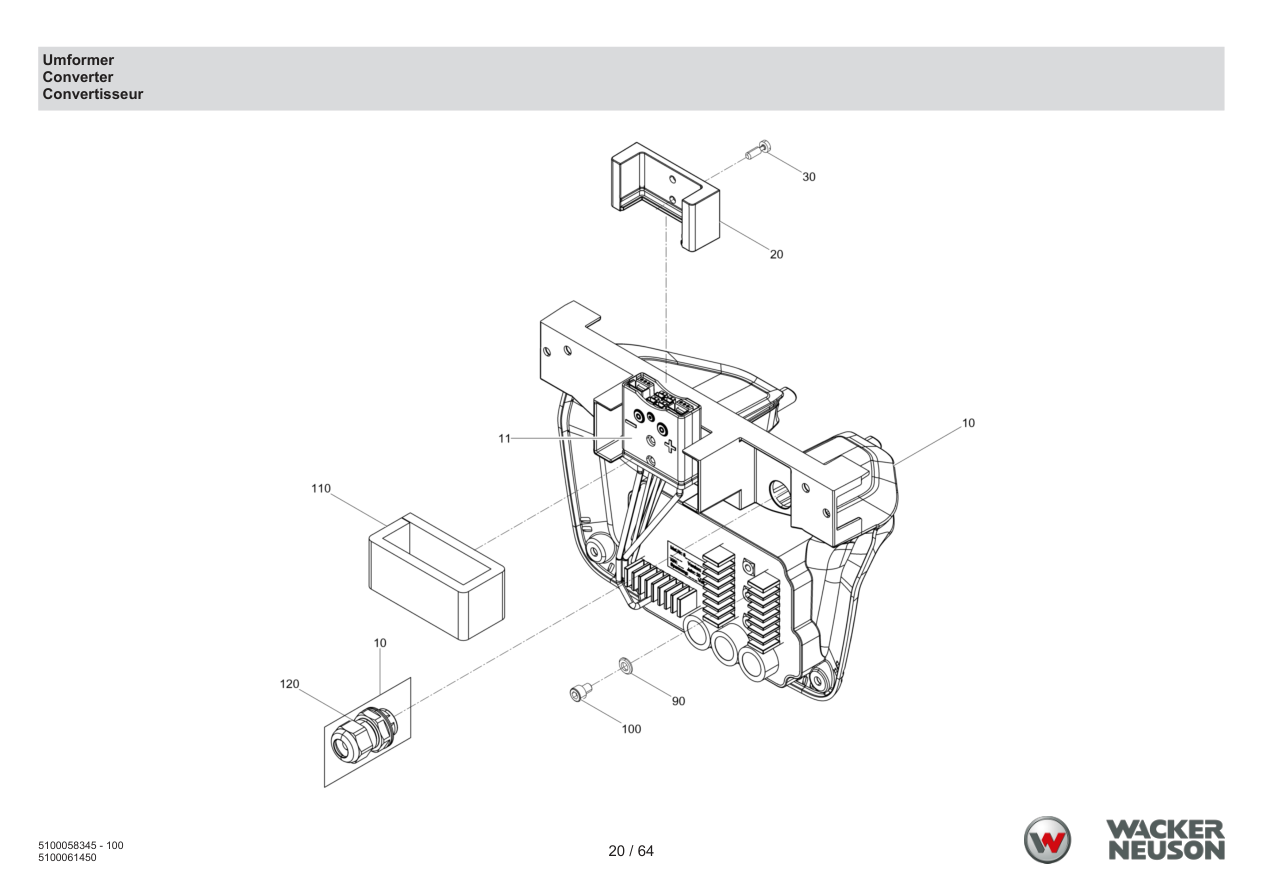

Page 20 — Converter
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060859 | Converter | 1 | PARTS REQUEST | |
|
COMING Converter
5100060859 · qty on machine: 1 | |||||
| 11 | 5100001742 | Plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 20 | 5100025637 | Bracket | 1 | ADD TO CART | |
| 30 | 5100010127 | Oval head screw | 2 | ADD TO CART | |
| 90 | 5000010624 | Flat washer | 3 | ADD TO CART | |
| 100 | 5000014425 | Cheese head screw | 3 | PARTS REQUEST | |
|
COMING Cheese head screw
5000014425 · qty on machine: 3 | |||||
| 110 | 5100002878 | Foam | 1 | ADD TO CART | |
| 120 | 5100059342 | Screw connection | 1 | PARTS REQUEST | |
|
COMING Screw connection
5100059342 · qty on machine: 1 | |||||

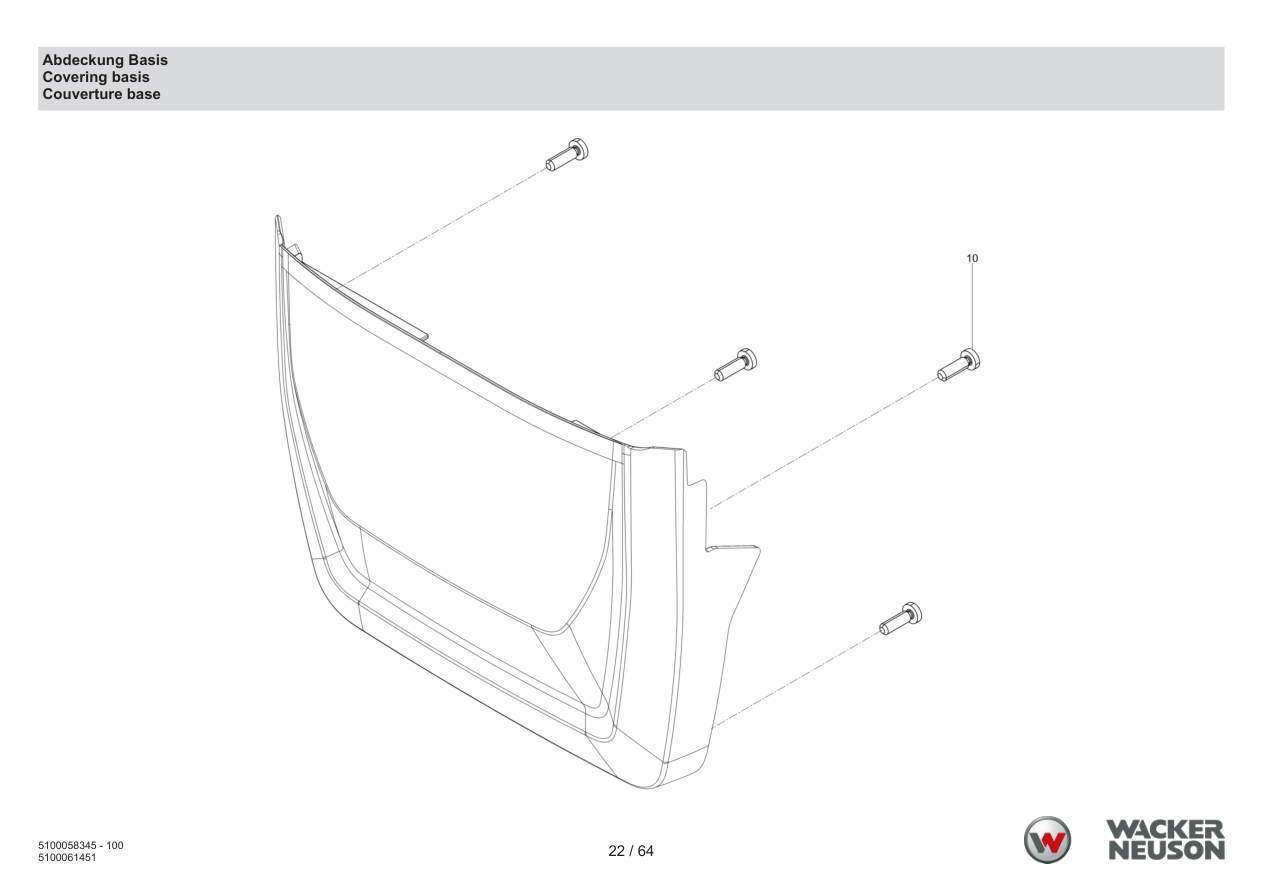

Page 22 — Covering basis
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000222605 | Oval head screw | 4 | ADD TO CART | |

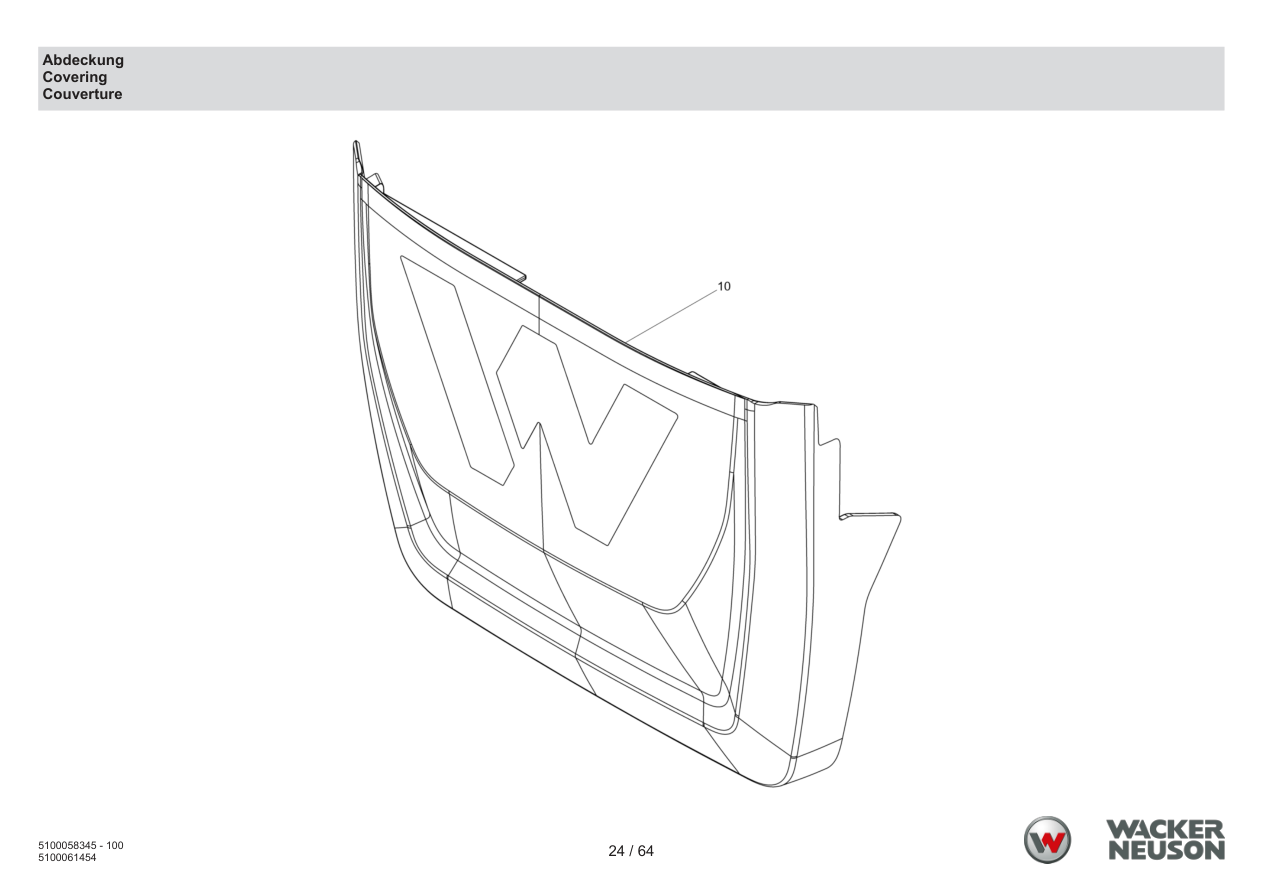

Page 24 — Covering
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060572 | Covering cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Covering cpl.
5100060572 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

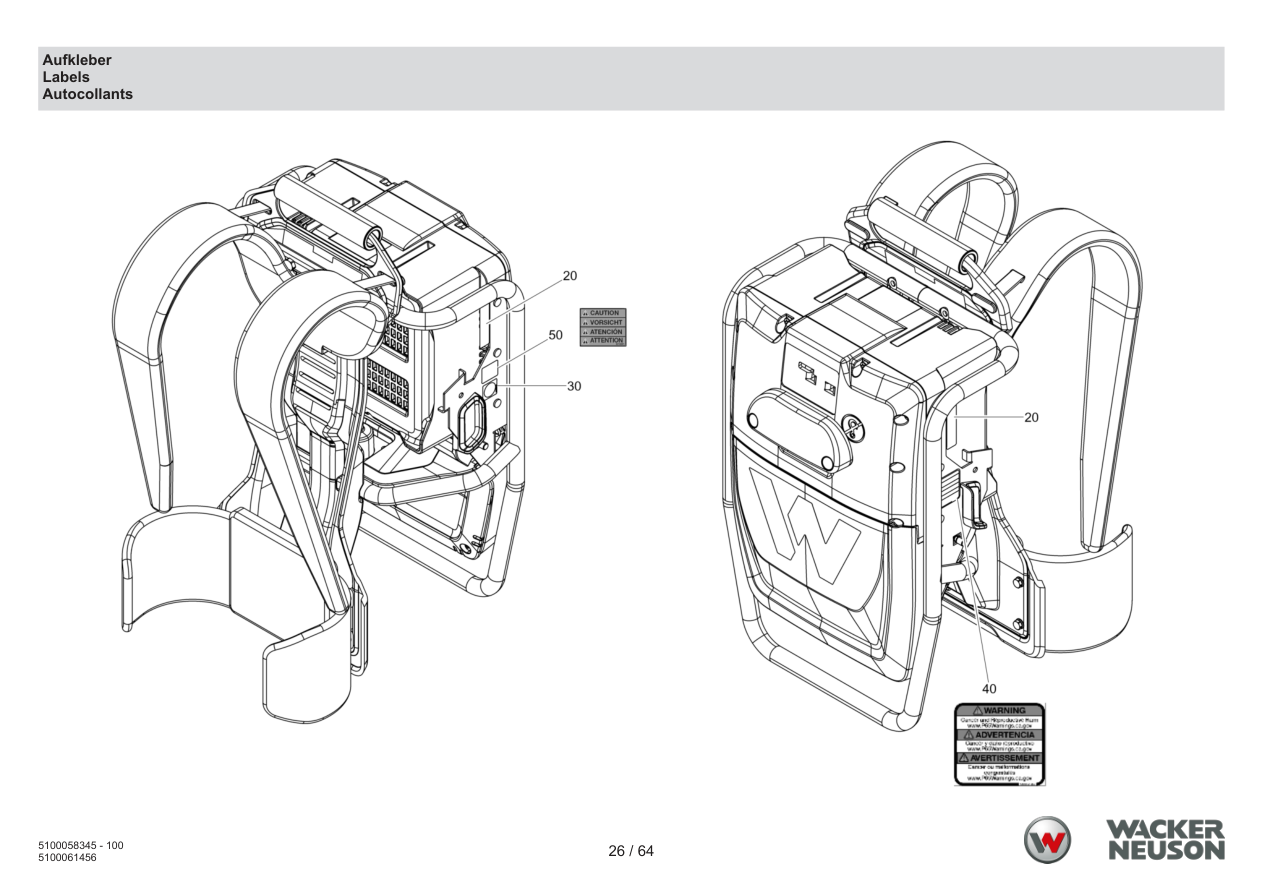

Page 26 — Decal
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100050538 | Type label | 2 | PARTS REQUEST | |
|
COMING Type label
5100050538 · qty on machine: 2 | |||||
| 30 | 5100050773 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100050773 · qty on machine: 1 | |||||
| 40 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 50 | 5000219261 | Labels | 1 | ADD TO CART | |
Page 28 — Battery BP1000
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025709 | Battery bp1000 | 1 | PARTS REQUEST | |
|
COMING Battery bp1000
5100025709 · qty on machine: 1 | |||||
| 7 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 8 | 5100052875 | Label type bp1000 | 1 | ADD TO CART | |
| 9 | 5100057481 | Label type bp1000 | 1 | ADD TO CART | |
| 10 | 5100053801 | Label | 1 | ADD TO CART | |
| 11 | 5100051760 | Transport box cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Transport box cpl.
5100051760 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 12 | 5100057039 | Label | 1 | ADD TO CART | |
| 13 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 14 | 5100052073 | Label un3480 | 1 | ADD TO CART | |
| 15 | 5000220000 | Instruction label | 1 | ADD TO CART | |

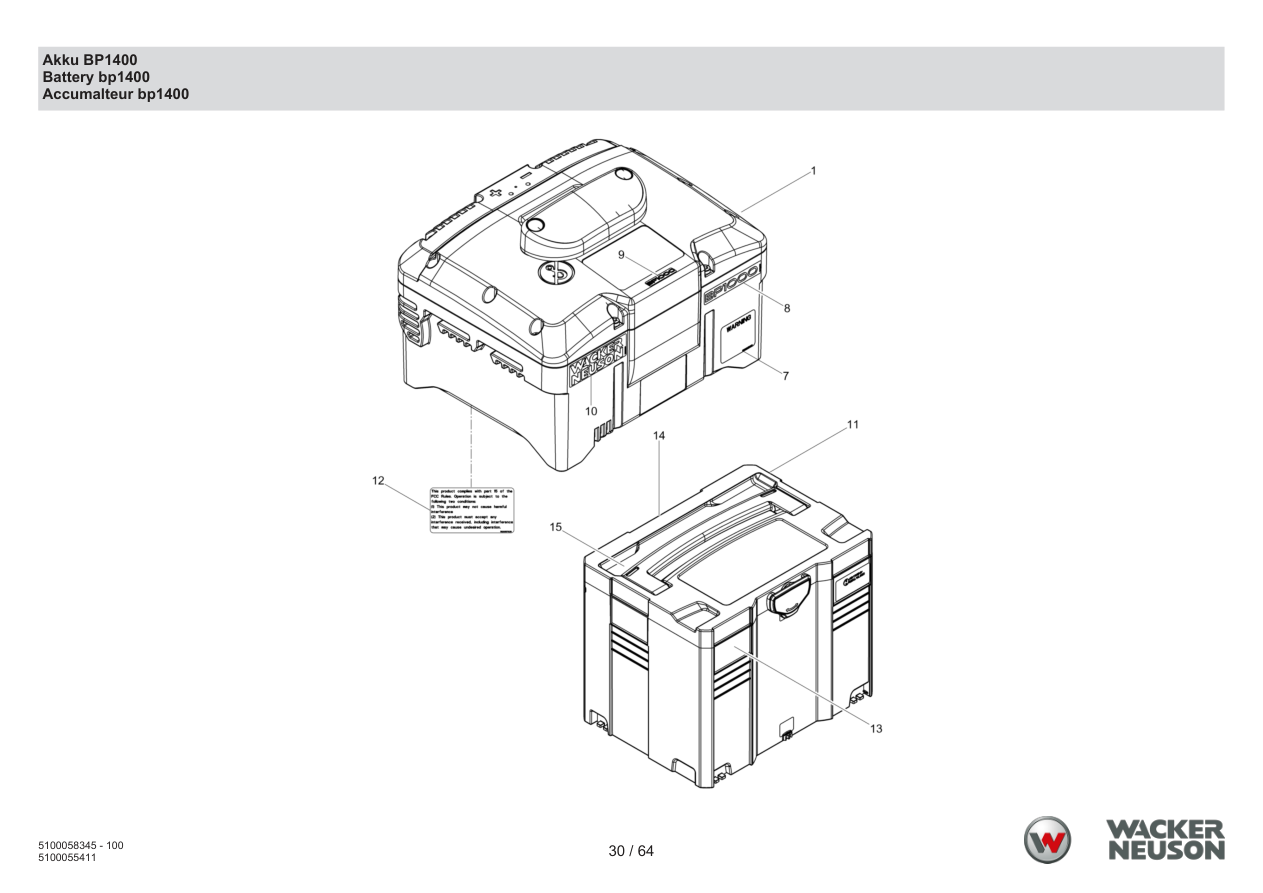

Page 30 — Battery BP1400
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100054269 | Label | 1 | ADD TO CART | |
| 11 | 5100050600 | Transportbox | 1 | PARTS REQUEST | |
|
COMING Transportbox
5100050600 · qty on machine: 1 | |||||
| 12 | 5100057039 | Label | 1 | ADD TO CART | |
| 13 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 14 | 5100052073 | Label un3480 | 1 | ADD TO CART | |
| 15 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 1 | 5100048620 | Battery bp1400 | 1 | PARTS REQUEST | |
|
COMING Battery bp1400
5100048620 · qty on machine: 1 | |||||
| 7 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 8 | 5100052876 | Label | 1 | ADD TO CART | |
| 10 | 5100053801 | Label | 1 | ADD TO CART | |

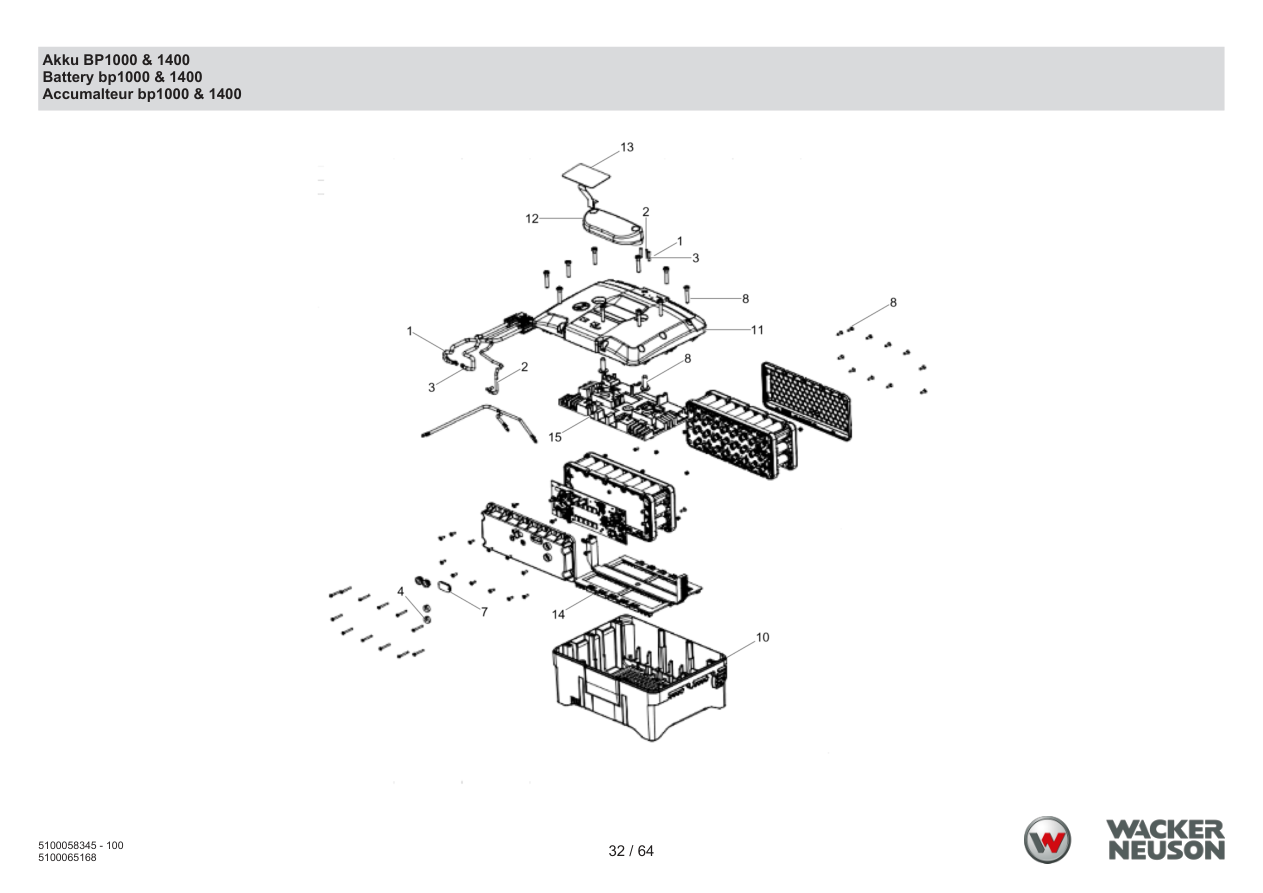

Page 32 — Battery BP1000 & 1400
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 13 | 5100027161 | Foil | 1 | PARTS REQUEST | |
|
COMING Foil
5100027161 · qty on machine: 1 | |||||
| 14 | 5100052030 | Rubber inlay | 1 | ADD TO CART | |
| 15 | 5100052031 | Rubber inlay | 1 | ADD TO CART | |
| 1 | 5100058287 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100058288 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100058289 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100058291 | Sealing plug | 1 | ADD TO CART | |
| 7 | 5100058298 | Strain relief | 1 | ADD TO CART | |
| 8 | 5100058302 | Set of screws | 1 | ADD TO CART | |
| 10 | 5100001730 | Housing | 1 | ADD TO CART | |
| 11 | 5100003034 | Housing cover | 1 | ADD TO CART | |
| 12 | 5100010753 | Handle | 1 | ADD TO CART | |

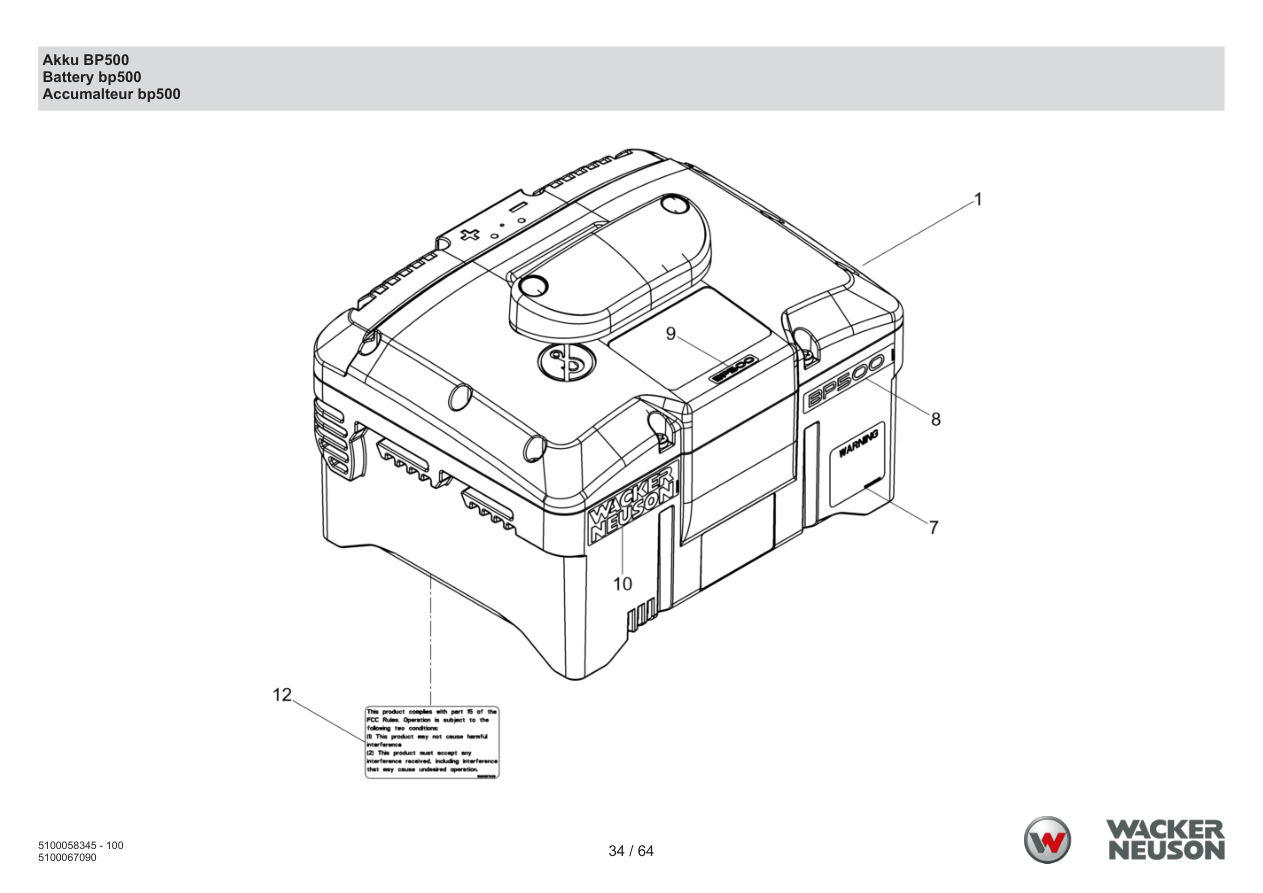

Page 34 — Battery BP500
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 15 | 5100052031 | Rubber inlay | 1 | ADD TO CART | |
| 1 | 5100060982 | Battery bp500 | 1 | PARTS REQUEST | |
|
COMING Battery bp500
5100060982 · qty on machine: 1 | |||||
| 7 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 8 | 5100061007 | Type label bp500 | 1 | PARTS REQUEST | |
|
COMING Type label bp500
5100061007 · qty on machine: 1 | |||||
| 9 | 5100061006 | Type label bp500 | 1 | PARTS REQUEST | |
|
COMING Type label bp500
5100061006 · qty on machine: 1 | |||||
| 10 | 5100053801 | Label | 1 | ADD TO CART | |
| 12 | 5100057039 | Label | 1 | ADD TO CART | |
| 1 | 5100058287 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100058288 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100058289 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100058291 | Sealing plug | 1 | ADD TO CART | |
| 10 | 5100001730 | Housing | 1 | ADD TO CART | |
| 7 | 5100058298 | Strain relief | 1 | ADD TO CART | |
| 8 | 5100058302 | Set of screws | 1 | ADD TO CART | |
| 11 | 5100003034 | Housing cover | 1 | ADD TO CART | |
| 12 | 5100010753 | Handle | 1 | ADD TO CART | |
| 13 | 5100027161 | Foil | 1 | PARTS REQUEST | |
|
COMING Foil
5100027161 · qty on machine: 1 | |||||
| 14 | 5100052030 | Rubber inlay | 1 | ADD TO CART | |

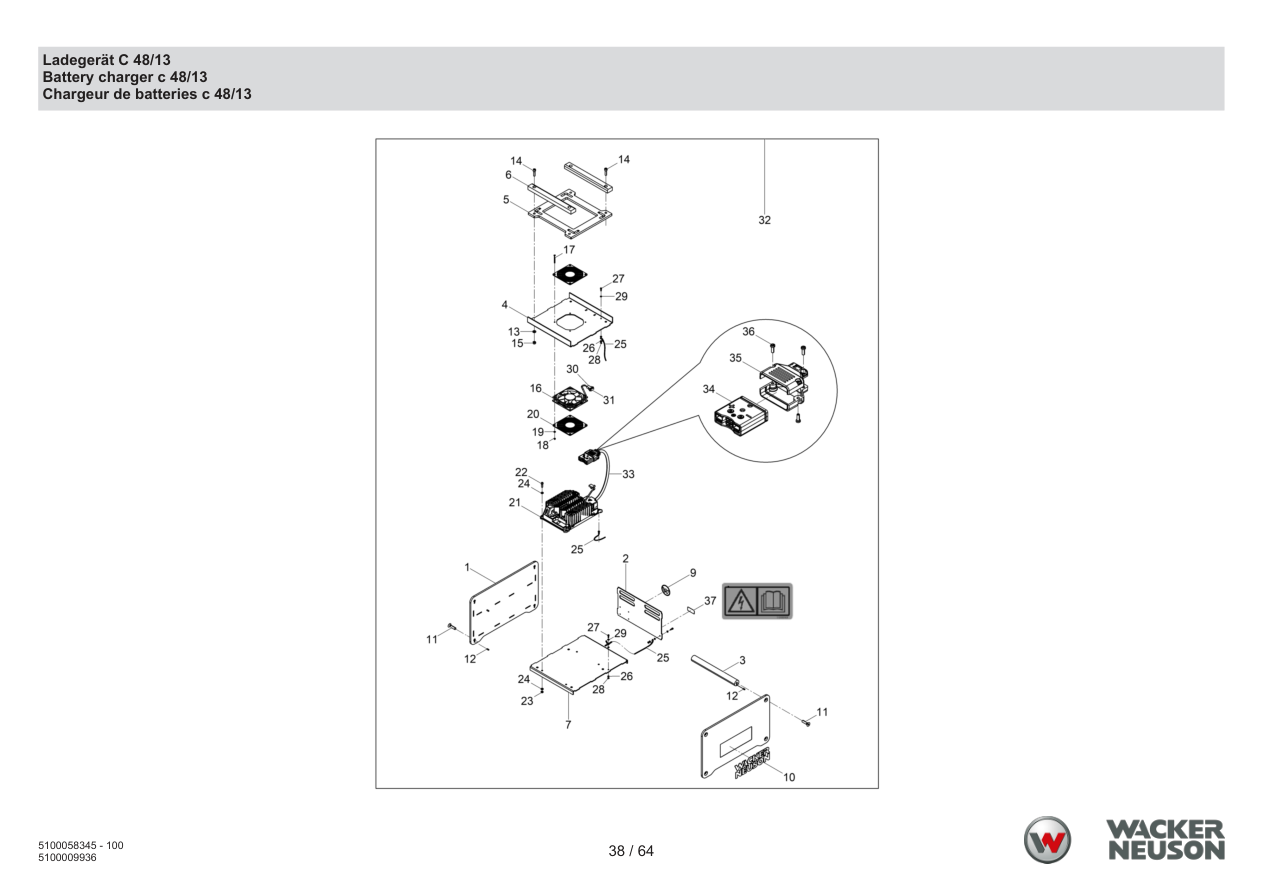

Page 38 — Battery charger c 48/13
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100003170 | Bar | 2 | ADD TO CART | |
| 7 | 5100002789 | Plate | 1 | ADD TO CART | |
| 9 | 5000222085 | Label symbol | 1 | ADD TO CART | |
| 10 | 5000222130 | Label logo | 2 | ADD TO CART | |
| 11 | 5100064118 | Countersunk bolt | 8 | ADD TO CART | |
| 12 | 5000013591 | Spring pin | 8 | PARTS REQUEST | |
|
COMING Spring pin
5000013591 · qty on machine: 8 | |||||
| 13 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 14 | 5000011541 | Cheese head screw | 4 | PARTS REQUEST | |
|
COMING Cheese head screw
5000011541 · qty on machine: 4 | |||||
| 15 | 5000033356 | Hexagon nut | 4 | ADD TO CART | |
| 16 | 5100004447 | Fan | 1 | ADD TO CART | |
| 17 | 5100005910 | Countersunk bolt | 4 | ADD TO CART | |
| 18 | 5000105210 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5000105210 · qty on machine: 4 | |||||
| 19 | 5000010628 | Flat washer | 4 | ADD TO CART | |
| 20 | 5100005889 | Screen grid | 2 | ADD TO CART | |
| 21 | 5100005836 | Charger | 1 | ADD TO CART | |
| 22 | 5000011551 | Cheese head screw | 4 | ADD TO CART | |
| 23 | 5000010880 | Hexagon nut | 4 | ADD TO CART | |
| 24 | 5000010624 | Flat washer | 8 | ADD TO CART | |
| 25 | 5100034450 | Ground wire 2,5 qmm | 3 | ADD TO CART | |
| 26 | 5100004421 | Contact disk | 6 | ADD TO CART | |
| 27 | 5000011571 | Cheese head screw | 3 | ADD TO CART | |
| 28 | 5000010872 | Hexagon nut | 3 | PARTS REQUEST | |
|
COMING Hexagon nut
5000010872 · qty on machine: 3 | |||||
| 29 | 5000010628 | Flat washer | 3 | ADD TO CART | |
| 30 | 5100005908 | Plug cap | 1 | ADD TO CART | |
| 31 | 5100005909 | Plug | 1 | ADD TO CART | |
| 32 | 5100002543 | Battery charger | 1 | PARTS REQUEST | |
|
COMING Battery charger
5100002543 · qty on machine: 1 | |||||
| 33 | 5100004465 | Charging cable | 1 | ADD TO CART | |
| 34 | 5100001742 | Plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 35 | 5100008927 | Cord grip | 2 | ADD TO CART | |
| 36 | 5000213543 | Oval head screw | 4 | ADD TO CART | |
| 37 | 5100061987 | Label | 1 | ADD TO CART | |
| 5100009484 | Ac cable | 1 | ADD TO CART | ||
| 1 | 5100002644 | Plate | 2 | ADD TO CART | |
| 2 | 5100002647 | Plate | 1 | ADD TO CART | |
| 3 | 5100002673 | Connecting rod | 4 | ADD TO CART | |
| 4 | 5100002703 | Plate | 1 | ADD TO CART | |
| 5 | 5100002720 | Rubber plate | 1 | ADD TO CART | |

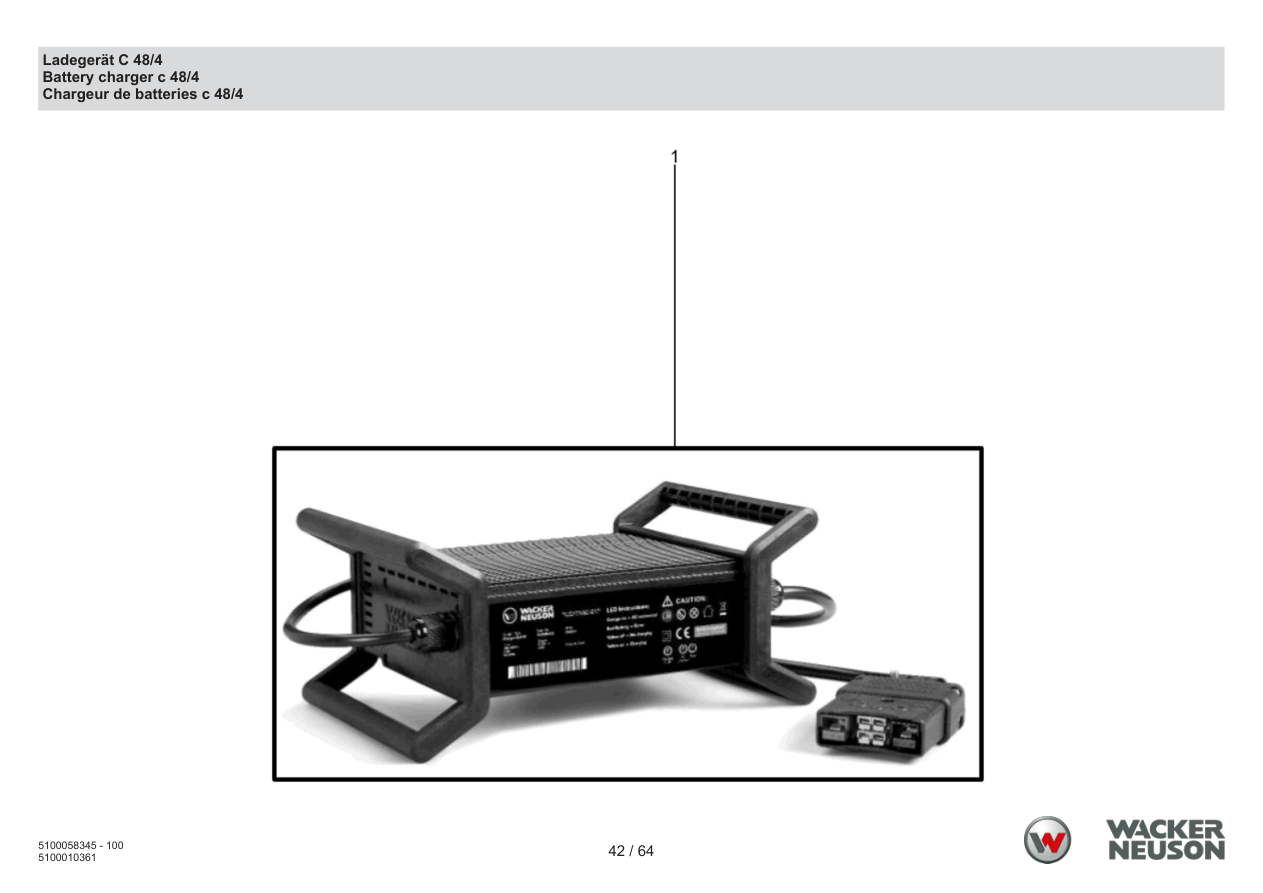

Page 42 — Battery charger c 48/4
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006221 | Battery charger | 1 | PARTS REQUEST | |
|
COMING Battery charger
5100006221 · qty on machine: 1 | |||||

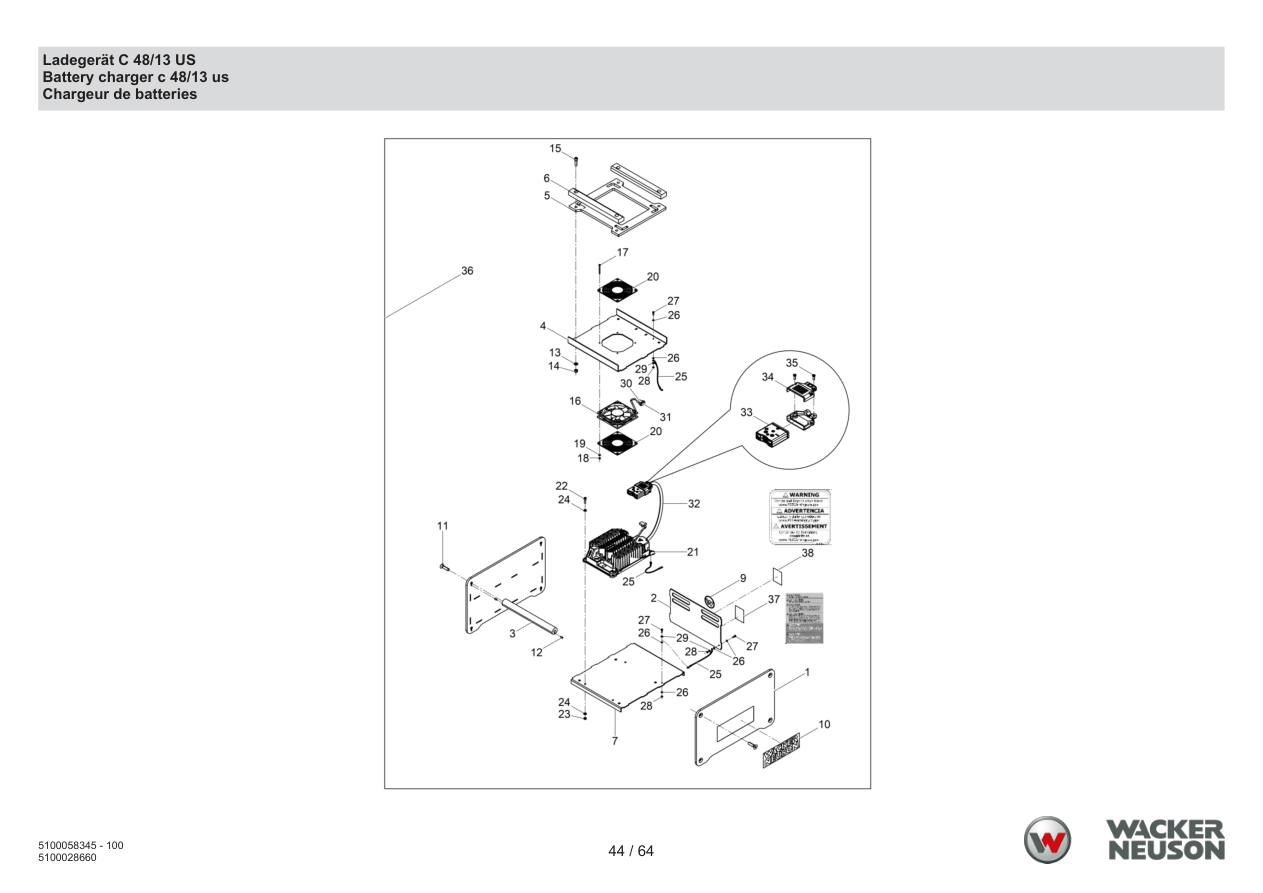

Page 44 — Battery charger c 48/13 us
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5100002789 | Plate | 1 | ADD TO CART | |
| 9 | 5000222085 | Label symbol | 1 | ADD TO CART | |
| 10 | 5000222130 | Label logo | 2 | ADD TO CART | |
| 11 | 5000206837 | Countersunk bolt | 8 | ADD TO CART | |
| 12 | 5000013591 | Spring pin | 8 | PARTS REQUEST | |
|
COMING Spring pin
5000013591 · qty on machine: 8 | |||||
| 13 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 14 | 5000011541 | Cheese head screw | 4 | PARTS REQUEST | |
|
COMING Cheese head screw
5000011541 · qty on machine: 4 | |||||
| 15 | 5000033356 | Hexagon nut | 4 | ADD TO CART | |
| 16 | 5100004447 | Fan | 1 | ADD TO CART | |
| 17 | 5100005910 | Countersunk bolt | 4 | ADD TO CART | |
| 18 | 5000105210 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5000105210 · qty on machine: 4 | |||||
| 19 | 5000010628 | Flat washer | 4 | ADD TO CART | |
| 20 | 5100005889 | Screen grid | 2 | ADD TO CART | |
| 21 | 5100028169 | Battery charger | 1 | ADD TO CART | |
| 22 | 5000011551 | Cheese head screw | 4 | ADD TO CART | |
| 23 | 5000010880 | Hexagon nut | 4 | ADD TO CART | |
| 24 | 5000010624 | Flat washer | 8 | ADD TO CART | |
| 25 | 5100034450 | Ground wire 2,5 qmm | 3 | ADD TO CART | |
| 26 | 5100004421 | Contact disk | 6 | ADD TO CART | |
| 27 | 5000011571 | Cheese head screw | 3 | ADD TO CART | |
| 28 | 5000010872 | Hexagon nut | 3 | PARTS REQUEST | |
|
COMING Hexagon nut
5000010872 · qty on machine: 3 | |||||
| 29 | 5000010628 | Flat washer | 3 | ADD TO CART | |
| 30 | 5100005908 | Plug cap | 1 | ADD TO CART | |
| 31 | 5100005909 | Plug | 2 | ADD TO CART | |
| 32 | 5100004465 | Charging cable | 1 | ADD TO CART | |
| 33 | 5100001742 | Plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 34 | 5100008927 | Cord grip | 2 | ADD TO CART | |
| 35 | 5000213543 | Oval head screw | 4 | ADD TO CART | |
| 36 | 5100028231 | Battery charger c 48/13 us | 1 | PARTS REQUEST | |
|
COMING Battery charger c 48/13 us
5100028231 · qty on machine: 1 | |||||
| 37 | 5100069226 | Label warning | 1 | ADD TO CART | |
| 38 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 5100028195 | Ac cable | 1 | ADD TO CART | ||
| 1 | 5100002644 | Plate | 2 | ADD TO CART | |
| 2 | 5100002647 | Plate | 1 | ADD TO CART | |
| 3 | 5100002673 | Connecting rod | 4 | ADD TO CART | |
| 4 | 5100002703 | Plate | 1 | ADD TO CART | |
| 5 | 5100002720 | Rubber plate | 1 | ADD TO CART | |
| 6 | 5100003170 | Bar | 2 | ADD TO CART | |

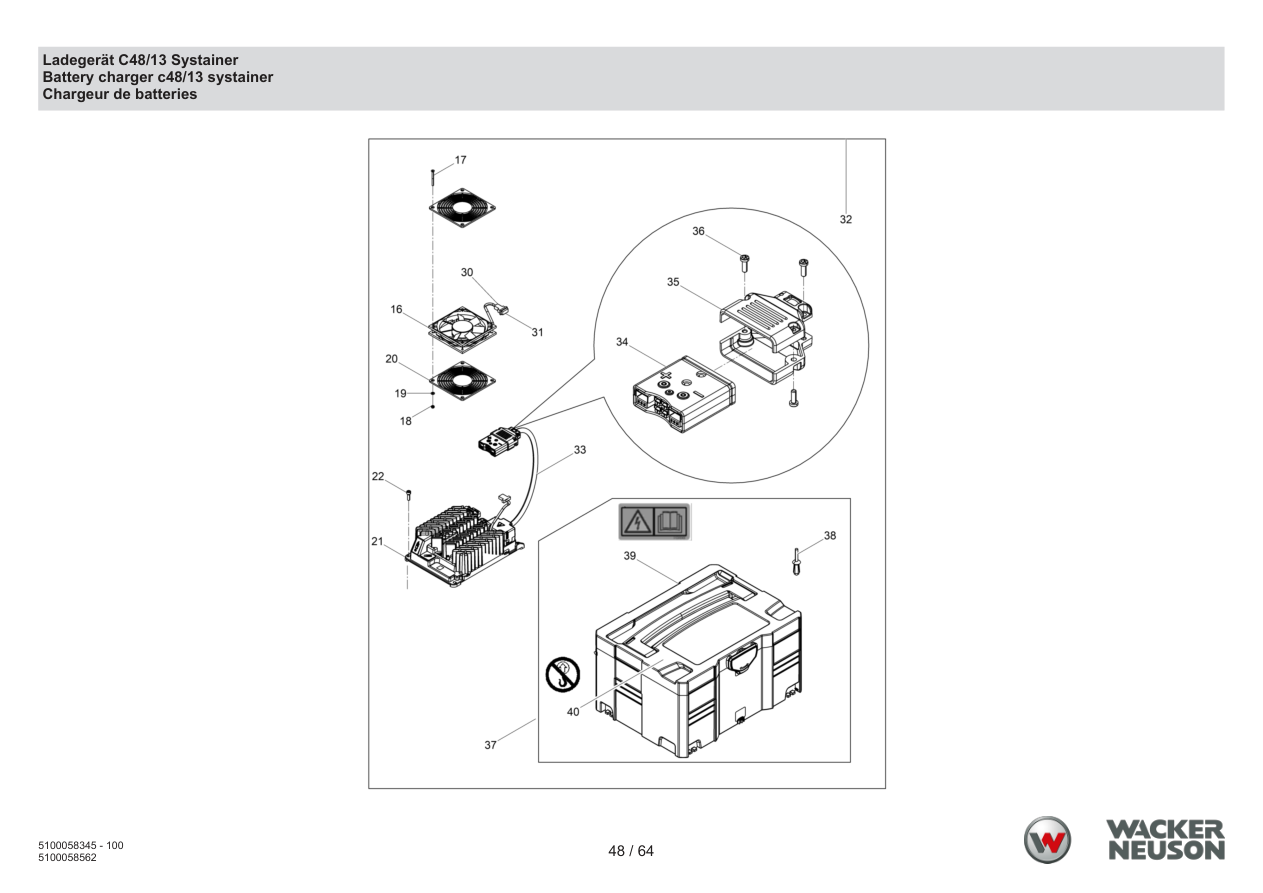

Page 48 — Battery charger c48/13 systainer
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 19 | 5000010628 | Flat washer | 4 | ADD TO CART | |
| 20 | 5100005889 | Screen grid | 2 | ADD TO CART | |
| 21 | 5100005836 | Charger | 1 | ADD TO CART | |
| 22 | 5000011551 | Cheese head screw | 4 | ADD TO CART | |
| 30 | 5100005908 | Plug cap | 1 | ADD TO CART | |
| 31 | 5100005909 | Plug | 1 | ADD TO CART | |
| 32 | 5100050107 | Battery charger c48/13 systainer | 1 | PARTS REQUEST | |
|
COMING Battery charger c48/13 systainer
5100050107 · qty on machine: 1 | |||||
| 33 | 5100004465 | Charging cable | 1 | ADD TO CART | |
| 34 | 5100001742 | Plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 35 | 5100008927 | Cord grip | 2 | ADD TO CART | |
| 36 | 5000213543 | Oval head screw | 4 | ADD TO CART | |
| 37 | 5100069429 | Transportbox systainersystainer t-loc iii cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 38 | 5100059054 | Converter | 4 | ADD TO CART | |
| 39 | 5100061987 | Label | 1 | ADD TO CART | |
| 40 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 5100009484 | Ac cable | 1 | ADD TO CART | ||
| 16 | 5100004447 | Fan | 1 | ADD TO CART | |
| 17 | 5100005910 | Countersunk bolt | 4 | ADD TO CART | |
| 18 | 5000105210 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5000105210 · qty on machine: 4 | |||||

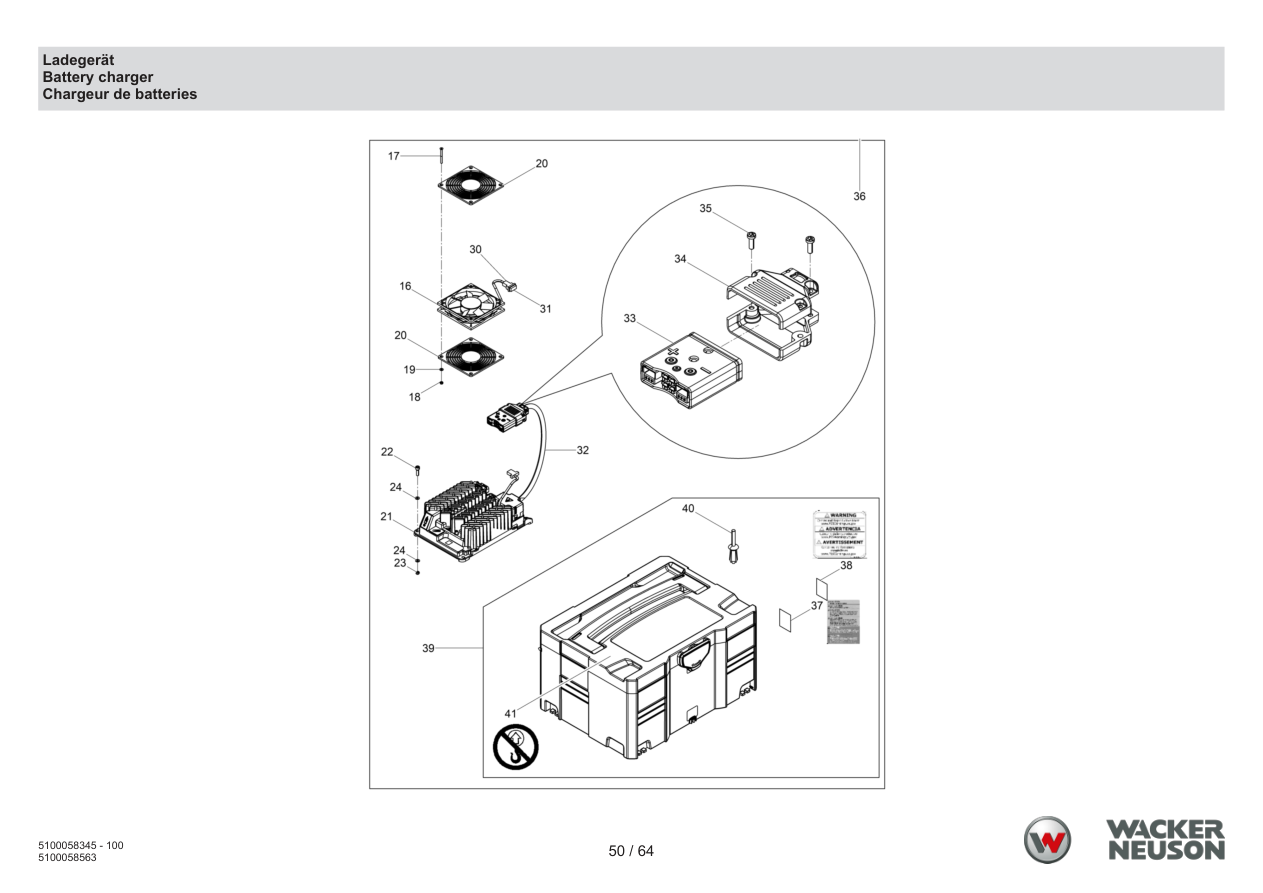

Page 50 — Battery charger
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 36 | 5100028231 | Battery charger c 48/13 us | 1 | PARTS REQUEST | |
|
COMING Battery charger c 48/13 us
5100028231 · qty on machine: 1 | |||||
| 37 | 5100069226 | Label warning | 1 | ADD TO CART | |
| 38 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 39 | 5100069429 | Transportbox systainersystainer t-loc iii cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5100028195 | Ac cable | 1 | ADD TO CART | ||
| 16 | 5100004447 | Fan | 1 | ADD TO CART | |
| 17 | 5100005910 | Countersunk bolt | 4 | ADD TO CART | |
| 18 | 5000105210 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5000105210 · qty on machine: 4 | |||||
| 19 | 5000010628 | Flat washer | 4 | ADD TO CART | |
| 20 | 5100005889 | Screen grid | 2 | ADD TO CART | |
| 21 | 5100028169 | Battery charger | 1 | ADD TO CART | |
| 22 | 5000011551 | Cheese head screw | 4 | ADD TO CART | |
| 23 | 5000010880 | Hexagon nut | 4 | ADD TO CART | |
| 24 | 5000010624 | Flat washer | 8 | ADD TO CART | |
| 30 | 5100005908 | Plug cap | 1 | ADD TO CART | |
| 31 | 5100005909 | Plug | 2 | ADD TO CART | |
| 32 | 5100004465 | Charging cable | 1 | ADD TO CART | |
| 33 | 5100001742 | Plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 34 | 5100008927 | Cord grip | 2 | ADD TO CART | |
| 35 | 5000213543 | Oval head screw | 4 | ADD TO CART | |
| 40 | 5100059054 | Converter | 4 | ADD TO CART | |
| 41 | 5000220000 | Instruction label | 1 | ADD TO CART | |

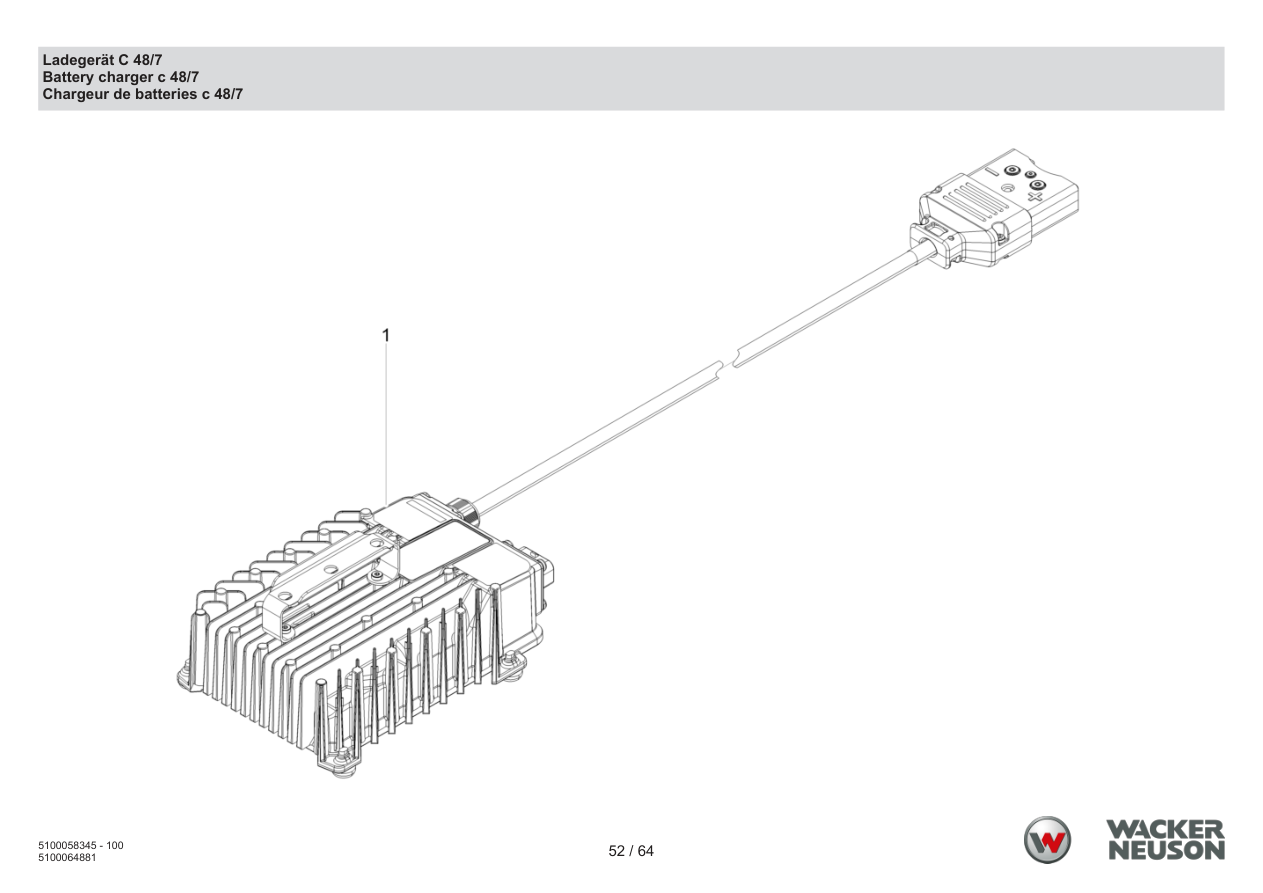

Page 52 — Battery charger c 48/7
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061939 | Battery charger c48/7 | 1 | PARTS REQUEST | |
|
COMING Battery charger c48/7
5100061939 · qty on machine: 1 | |||||
Page 54 — Battery charger c 48/7 us
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061940 | Battery charger c48/7 us | 1 | PARTS REQUEST | |
|
COMING Battery charger c48/7 us
5100061940 · qty on machine: 1 | |||||

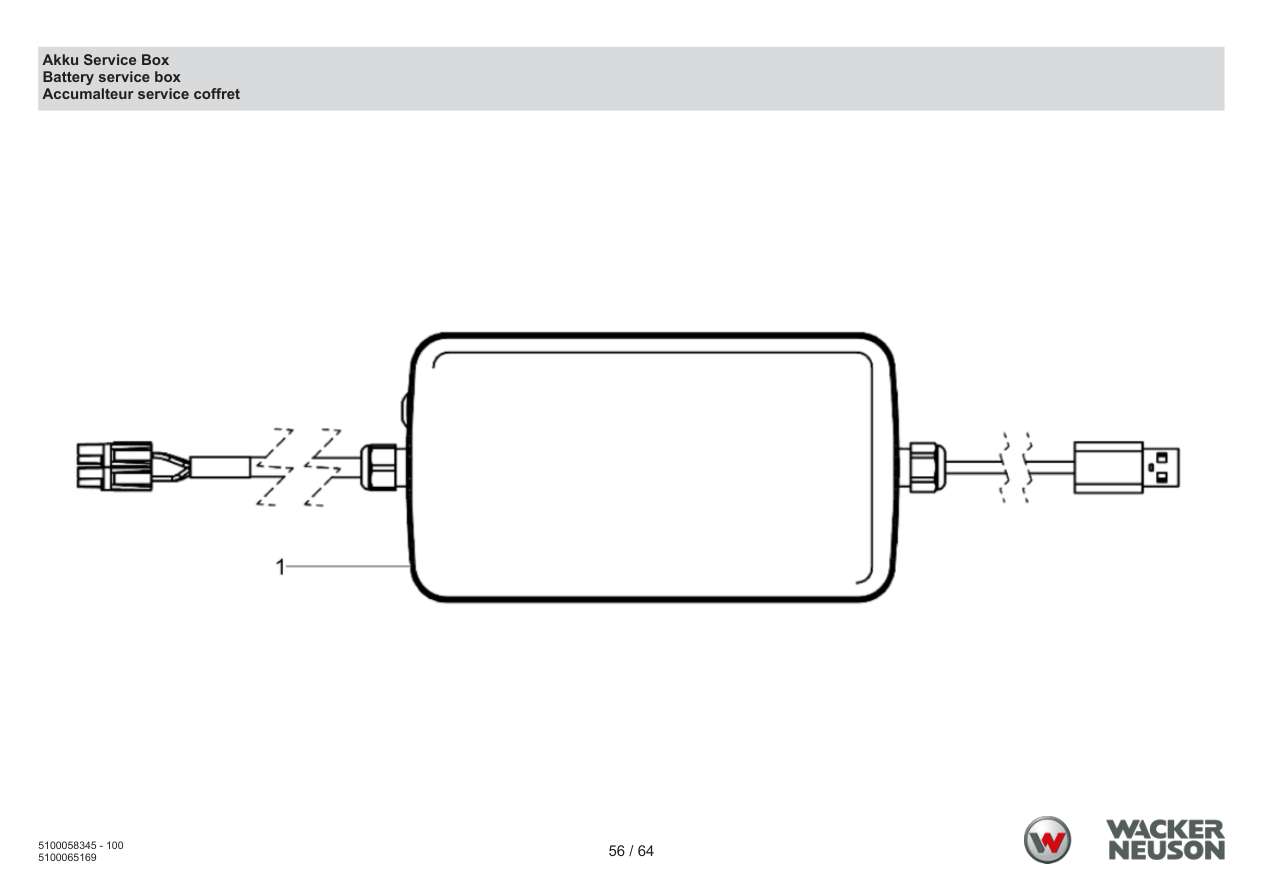

Page 56 — Battery service box
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061983 | Battery service box | 1 | PARTS REQUEST | |
|
COMING Battery service box
5100061983 · qty on machine: 1 | |||||

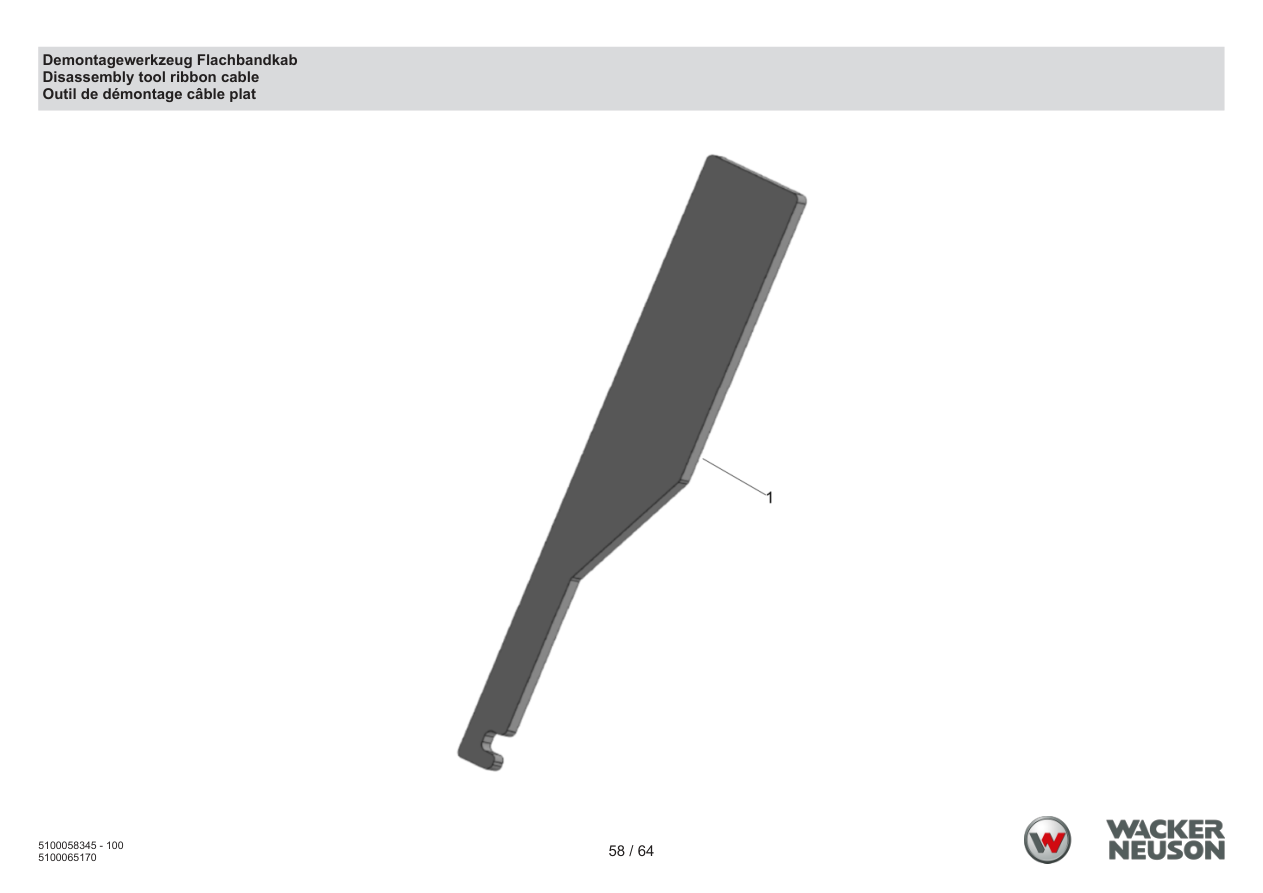

Page 58 — Disassembly tool ribbon cable
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061984 | Disassembly tool ribbon cable | 1 | PARTS REQUEST | |
|
COMING Disassembly tool ribbon cable
5100061984 · qty on machine: 1 | |||||

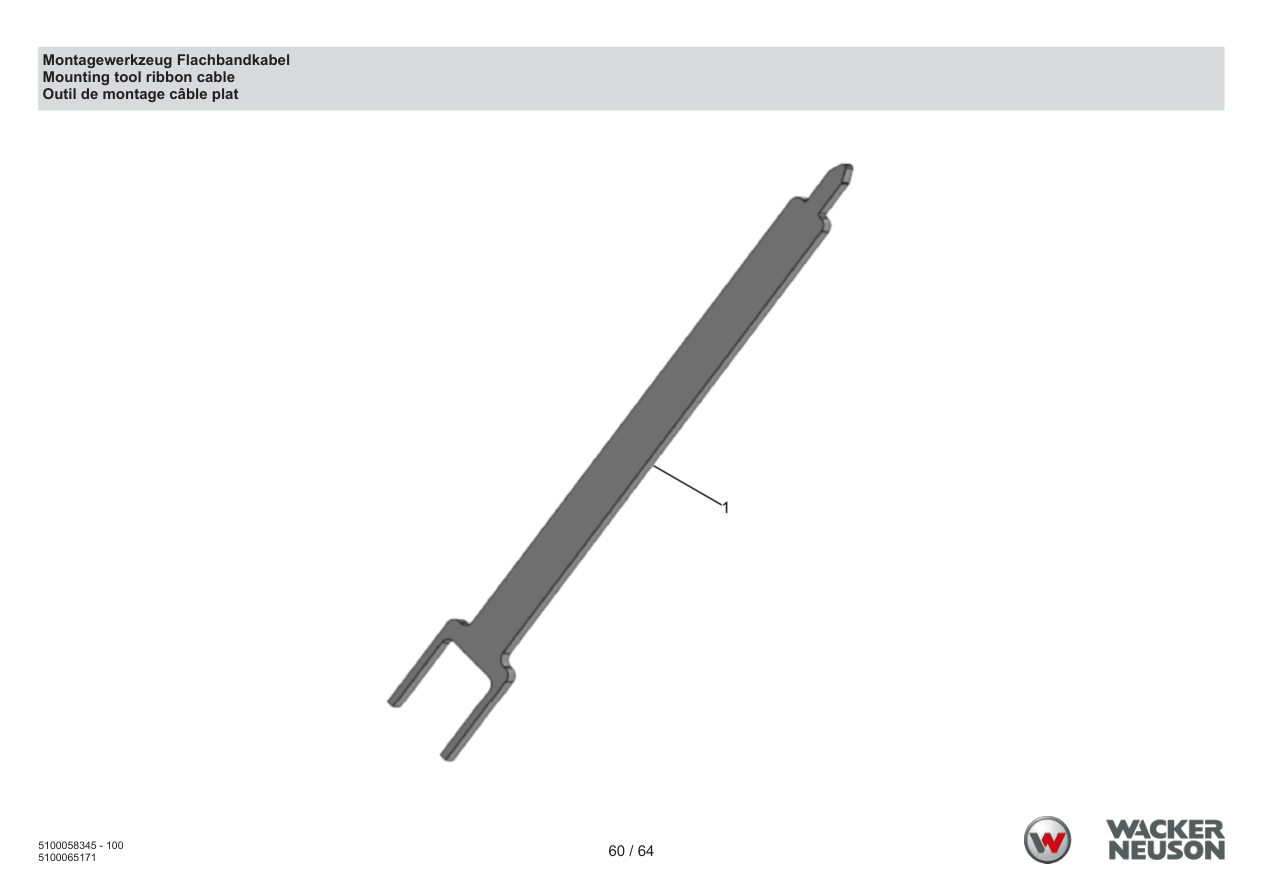

Page 60 — Assembly tool flat ribbon cable
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061985 | Mounting tool ribbon cable | 1 | PARTS REQUEST | |
|
COMING Mounting tool ribbon cable
5100061985 · qty on machine: 1 | |||||
The machine itself
Machine
Engine
Wacker Neuson ACBe internal vibrator.
Available in 3 configurations.
List price: $1,470.00 – $7,335.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5000010622
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010628
Flat washer
$0.95
5000010872
Hexagon nut
5000010880
Hexagon nut
$0.95
5000011541
Cheese head screw
5000011551
Cheese head screw
$0.95
5000011570
Cheese head screw
$0.95
5000011571
Cheese head screw
$0.95
5000012362
Hexagonal head cap screw
$0.95
5000013591
Spring pin
5000014425
Cheese head screw
5000014663
Hexagonal head cap screw
$0.95
5000033356
Hexagon nut
$0.95
5000105210
Hexagon nut
5000206837
Countersunk bolt
$1.95
5000212677
Protective cap
5000213543
Oval head screw
$0.95
5000219261
Labels
$29.95
5000220000
Instruction label
$2.95
5000222085
Label symbol
$25.95
5000222130
Label logo
$39.95
5000222605
Oval head screw
$0.95
5100001730
Housing
$423.95
5100001742
Plug cpl.
$98.95
5100002543
Battery charger
5100002644
Plate
$245.95
5100002647
Plate
$97.95
5100002673
Connecting rod
$95.95
5100002703
Plate
$190.95
5100002720
Rubber plate
$79.95
5100002789
Plate
$196.95
5100002878
Foam
$27.95
5100003034
Housing cover
$253.95
5100003170
Bar
$412.95
5100004421
Contact disk
$0.95
5100004447
Fan
$511.95
5100004465
Charging cable
$306.95
5100005556
Shim screw
$2.95
5100005836
Charger
$1,407.95
5100005889
Screen grid
$38.95
5100005908
Plug cap
$9.95
5100005909
Plug
$2.95
5100005910
Countersunk bolt
$0.95
5100006221
Battery charger
5100008927
Cord grip
$19.95
5100009484
Ac cable
$63.95
5100010127
Oval head screw
$0.95
5100010753
Handle
$32.95
5100025600
Leg spring
$3.95
5100025637
Bracket
$12.95
5100025709
Battery bp1000
5100027161
Foil
5100028169
Battery charger
$1,608.95
5100028195
Ac cable
$55.95
5100028231
Battery charger c 48/13 us
5100034450
Ground wire 2,5 qmm
$9.95
5100045462
Decal proposition 65
5100048620
Battery bp1400
5100050107
Battery charger c48/13 systainer
5100050538
Type label
5100050600
Transportbox
5100050773
Label
5100051760
Transport box cpl.
5100052030
Rubber inlay
$148.95
5100052031
Rubber inlay
$105.95
5100052073
Label un3480
$18.95
5100052875
Label type bp1000
$9.95
5100052876
Label
$11.95
5100053801
Label
$6.95
5100054269
Label
$11.95
5100057039
Label
$4.95
5100057481
Label type bp1000
$9.95
5100058287
Supply line cpl.
$17.95
5100058288
Supply line cpl.
$48.95
5100058289
Supply line cpl.
$20.95
5100058291
Sealing plug
$2.95
5100058298
Strain relief
$6.95
5100058300
Battery holder
5100058302
Set of screws
$12.95
5100058418
Safety catch
5100058420
Backplate
5100058752
Mounting socket cpl.
5100059054
Converter
$0.95
5100059342
Screw connection
5100060572
Covering cpl.
5100060812
Handle pad
5100060859
Converter
5100060982
Battery bp500
5100061006
Type label bp500
5100061007
Type label bp500
5100061939
Battery charger c48/7
5100061940
Battery charger c48/7 us
5100061983
Battery service box
5100061984
Disassembly tool ribbon cable
5100061985
Mounting tool ribbon cable
5100061987
Label
$2.95
5100064118
Countersunk bolt
$1.95
5100069226
Label warning
$11.95
5100069429
Transportbox systainersystainer t-loc iii cpl.
$505.95
5100071513
Carrier system
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
