Wacker Neuson APS1340 Vibratory Plate
Pick your options below. We build the exact machine and start your quote.
The parts bench
Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||

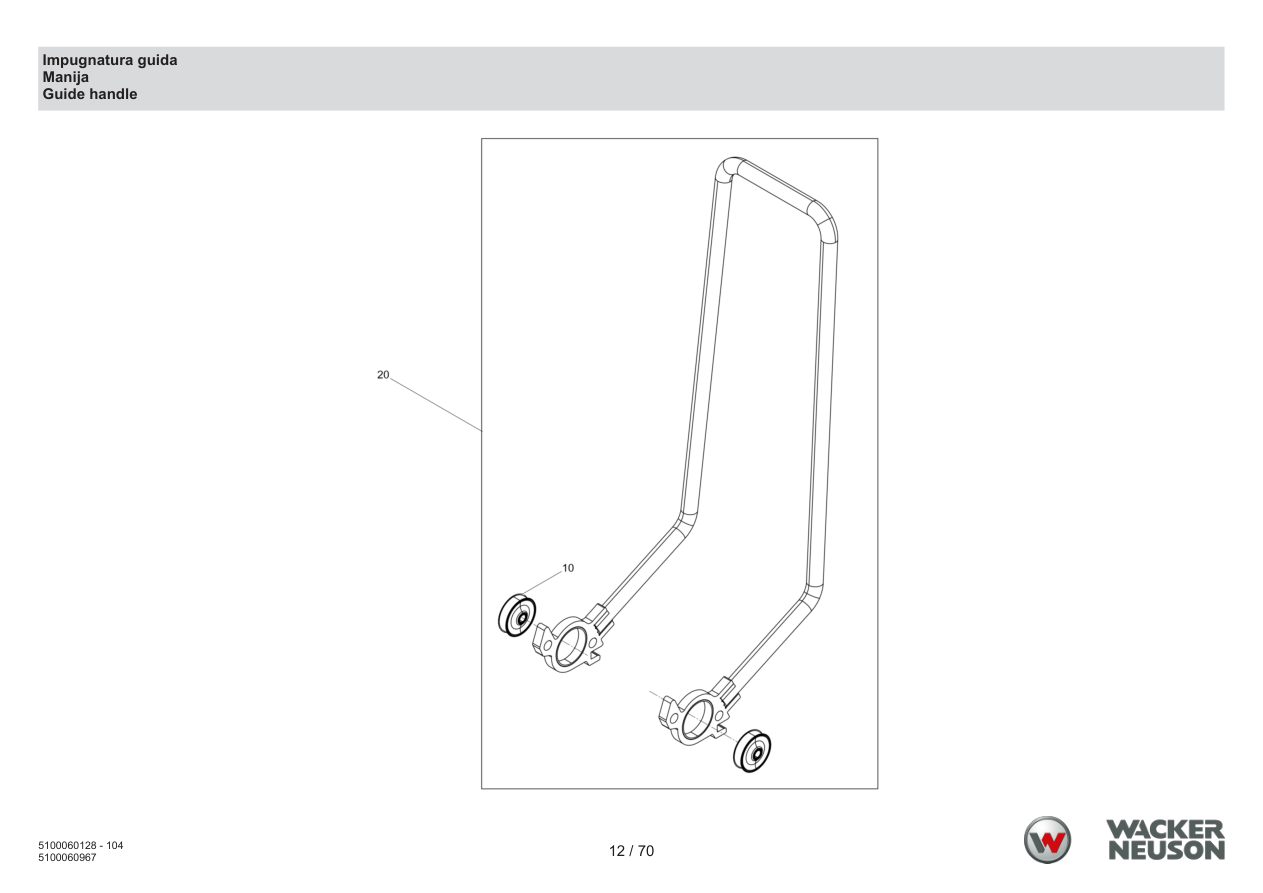

Page 12 — Handle guide
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052430 | Bearing | 2 | ADD TO CART | |
| 20 | 5100058578 | Guiding frame cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

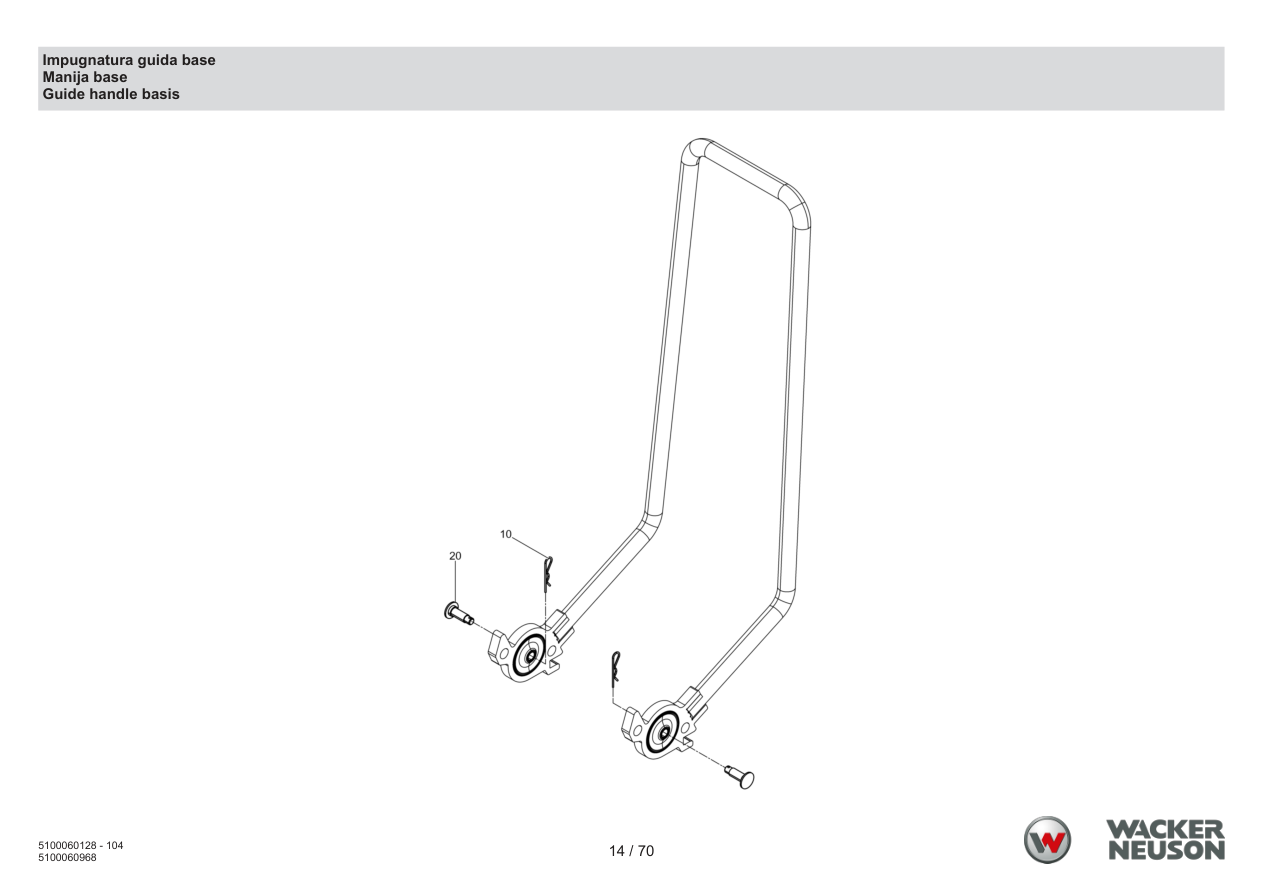

Page 14 — Handle guide base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100052431 | Bolt | 2 | ADD TO CART | |
| 10 | 5100052432 | Spring pin | 2 | ADD TO CART | |

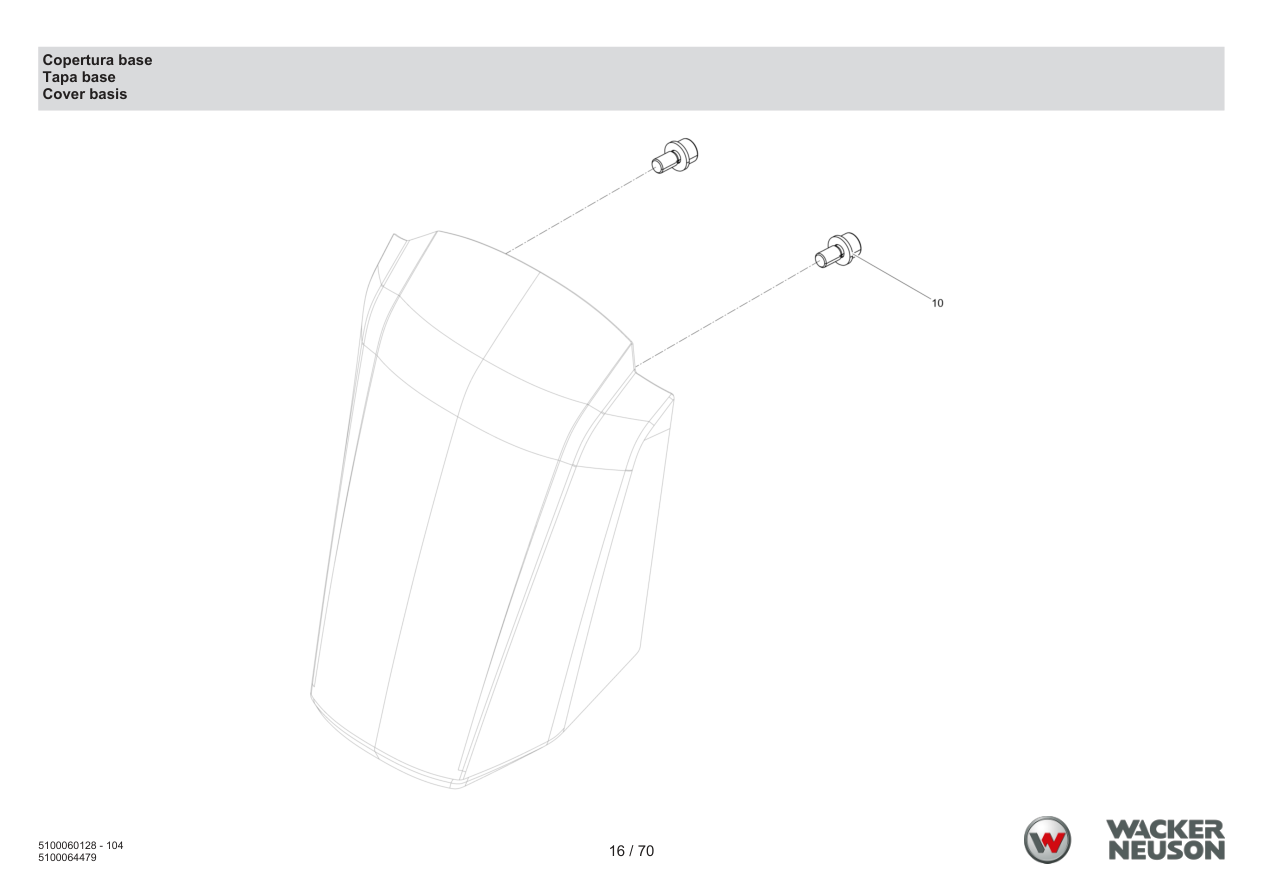

Page 16 — Base cover
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059594 | Cheese head screw | 2 | ADD TO CART | |

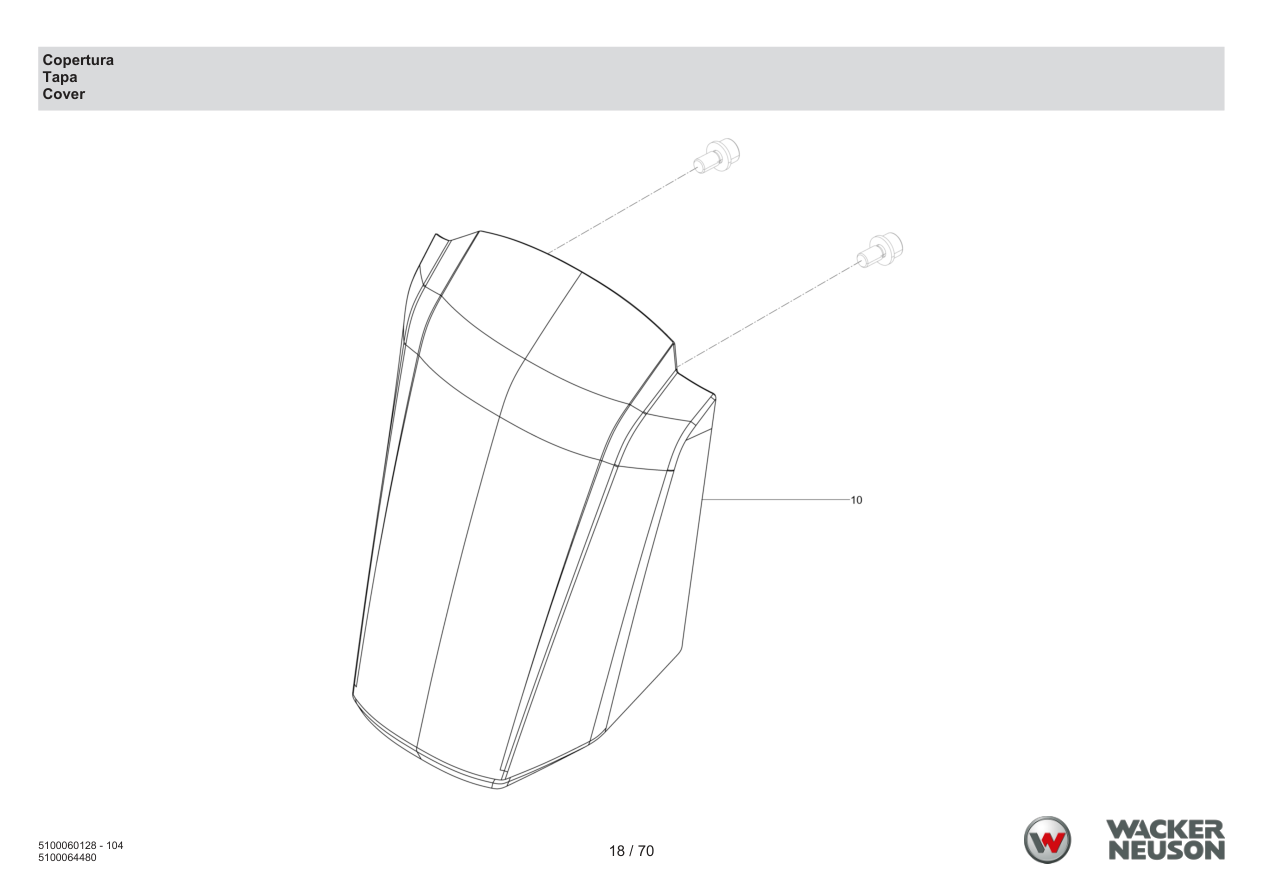

Page 18 — Cover
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059052 | Cover | 1 | ADD TO CART | |

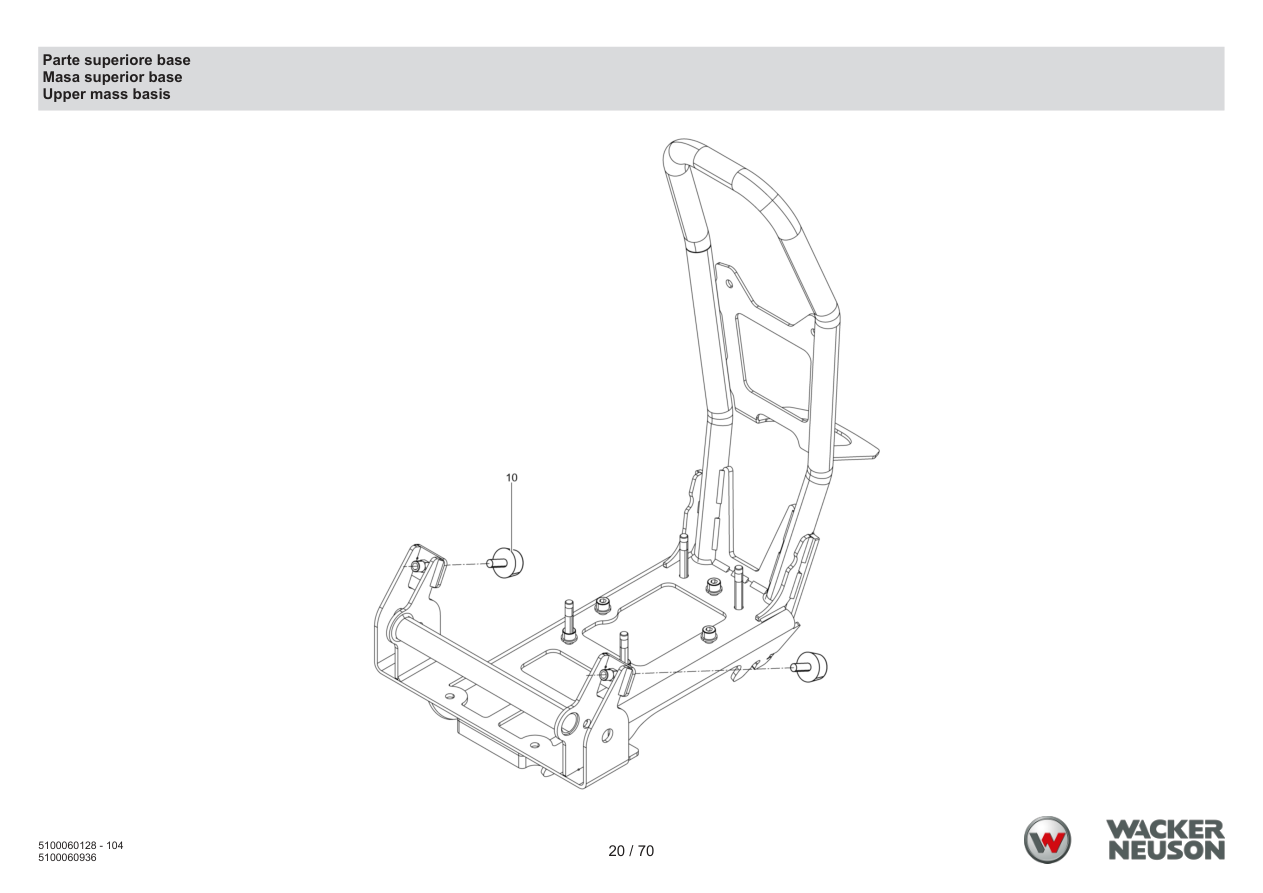

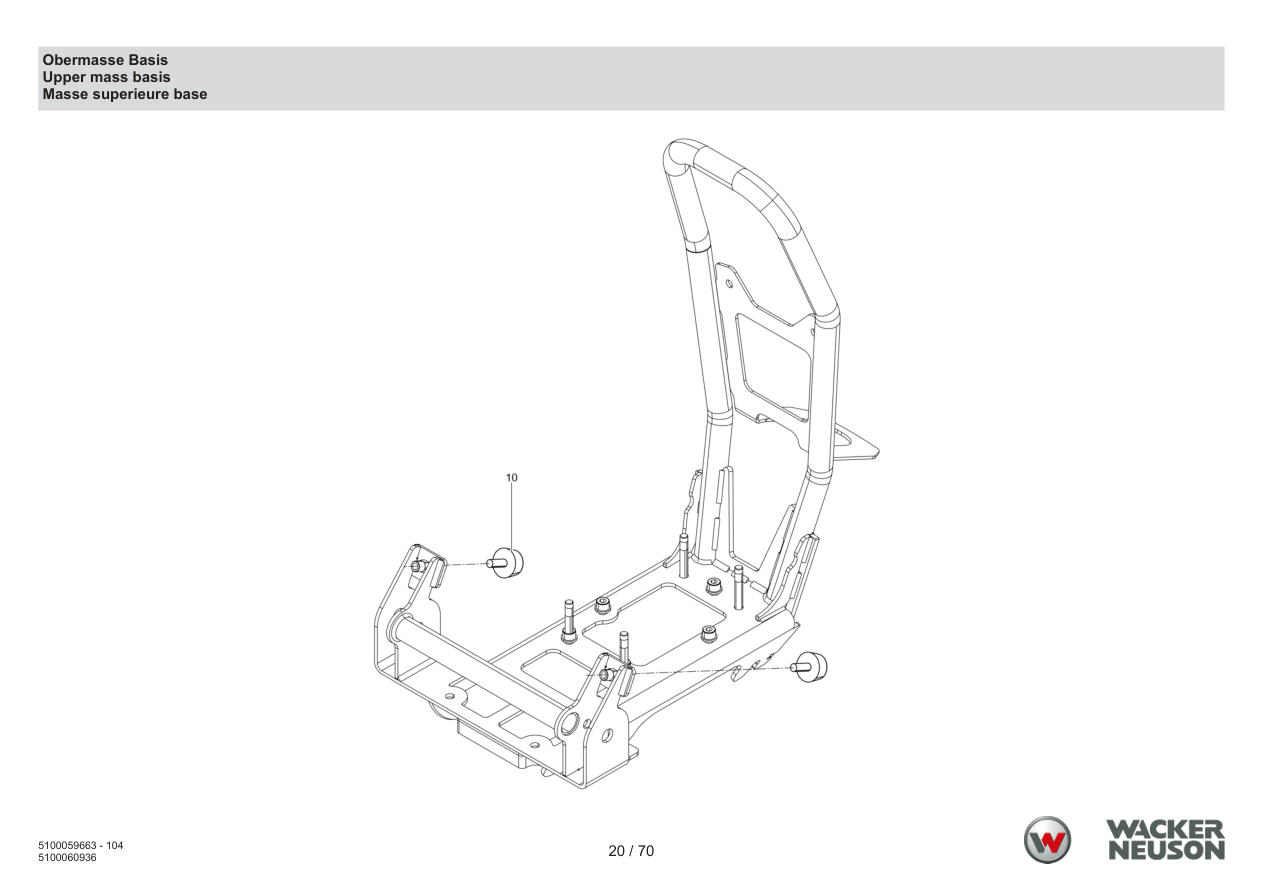

Page 20 — Upper part base
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100016317 | Shockmount | 2 | ADD TO CART | |

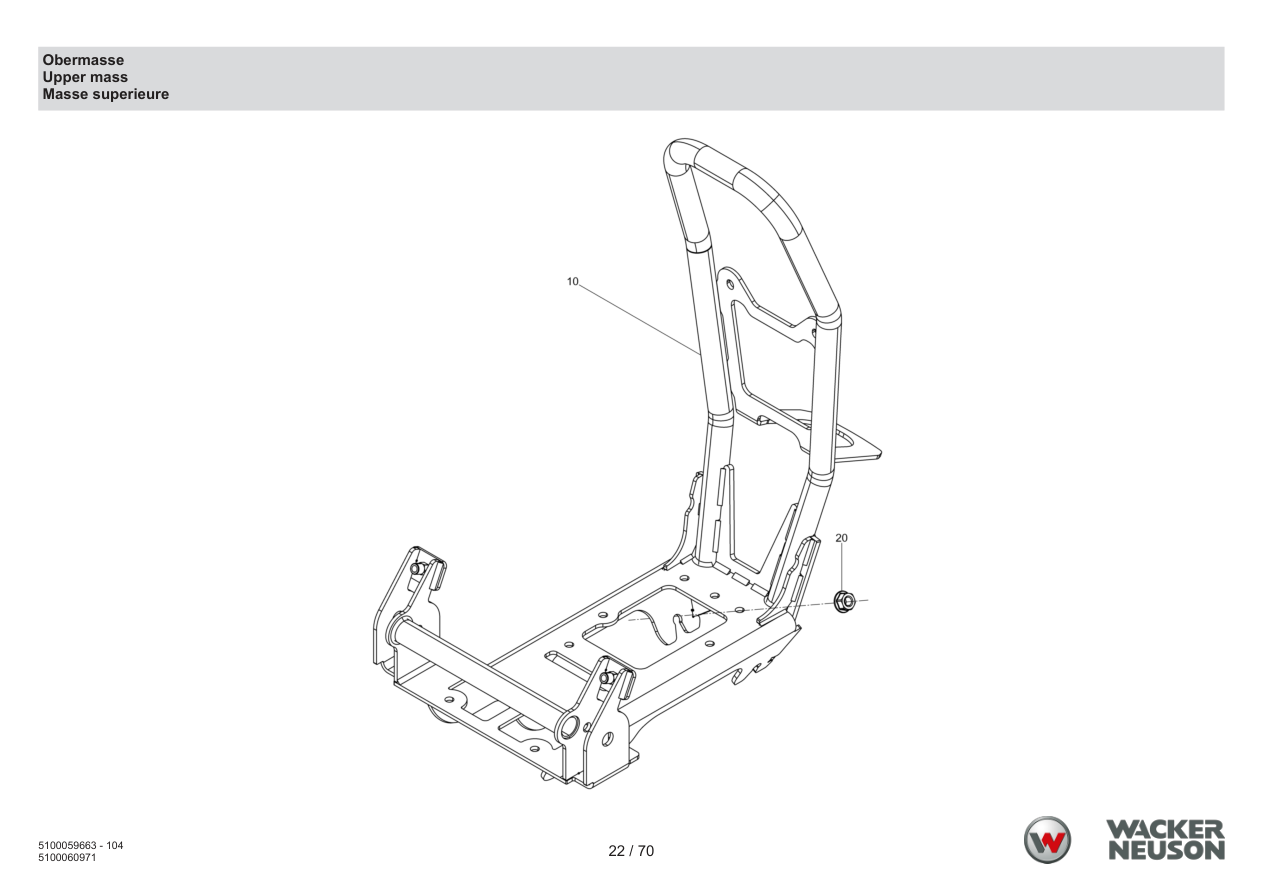

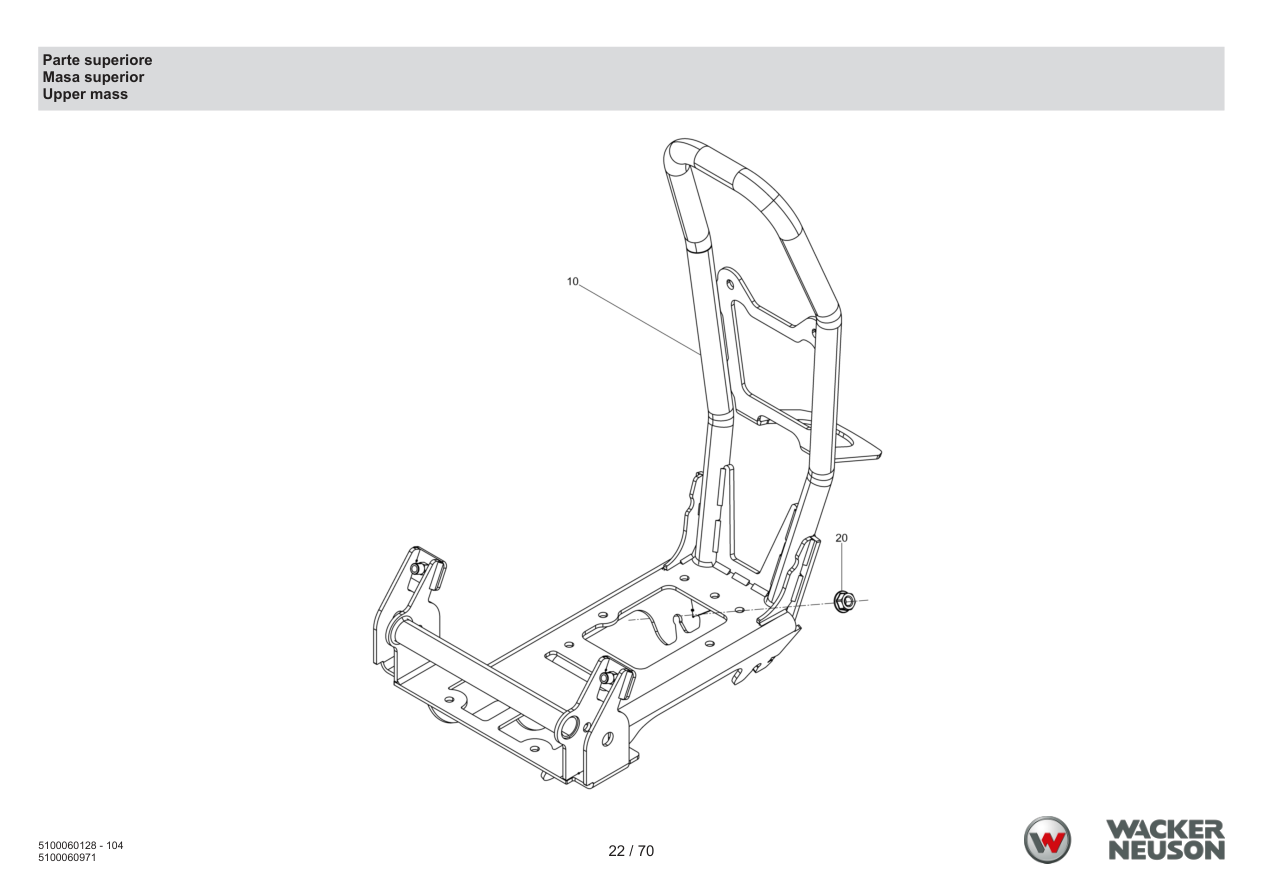

Page 22 — Upper part
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052424 | Upper mass | 1 | ADD TO CART | |
| 20 | 5000096087 | Hexagon nut | 4 | ADD TO CART | |

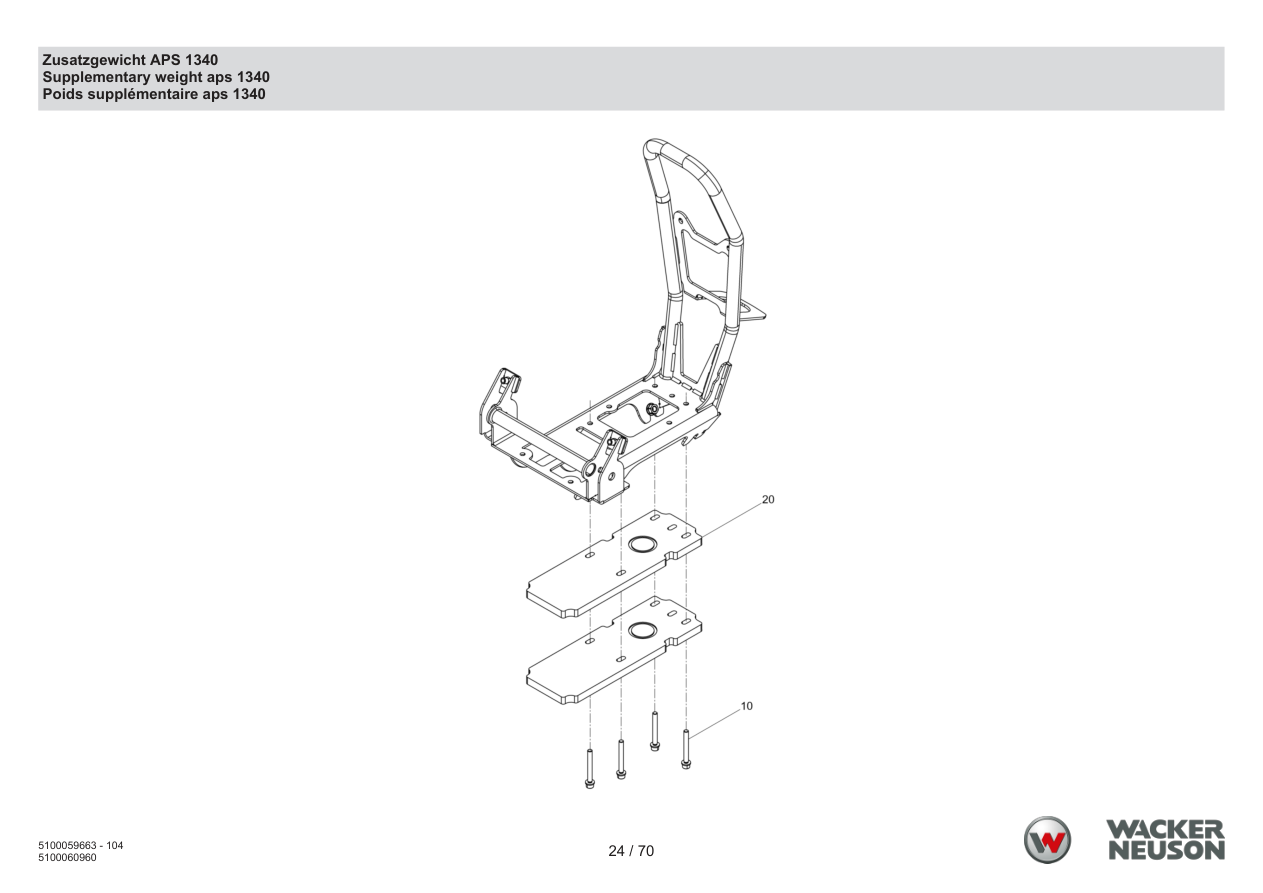

Page 24 — Additional weight aps 1340
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059596 | Cheese head screw | 3 | ADD TO CART | |
| 20 | 5100056944 | Supplementary weight | 2 | ADD TO CART | |

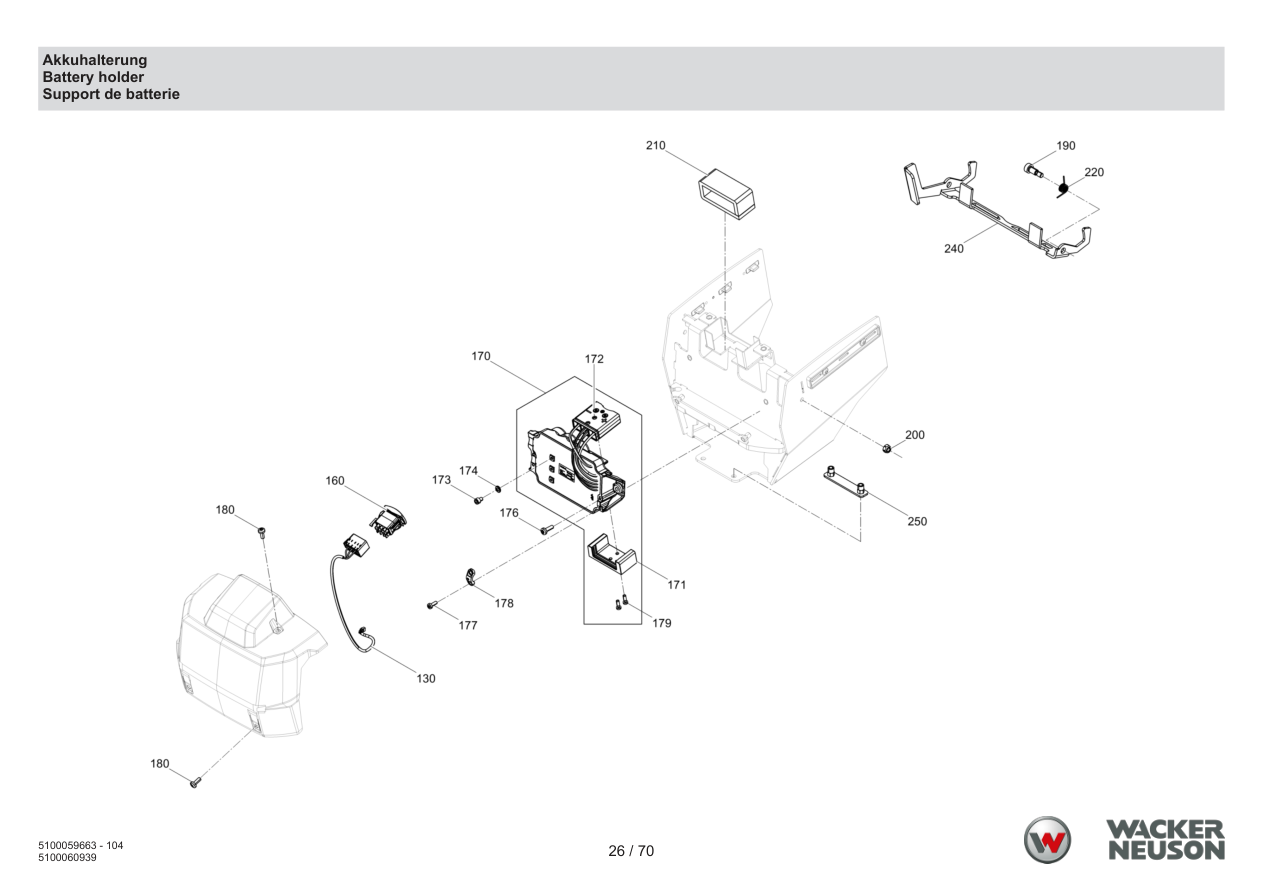

Page 26 — Battery support
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 130 | 5100059794 | Switch cable | 1 | ADD TO CART | |
| 160 | 5100045196 | Switch | 1 | ADD TO CART | |
| 170 | 5100061317 | Converter | 1 | ADD TO CART | |
| 171 | 5100025637 | Bracket | 1 | ADD TO CART | |
| 172 | 5100001742 | Plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 173 | 5000014425 | Cheese head screw | 3 | PARTS REQUEST | |
|
COMING Cheese head screw
5000014425 · qty on machine: 3 | |||||
| 174 | 5000010624 | Flat washer | 3 | ADD TO CART | |
| 176 | 5000108372 | Pan head screw | 2 | ADD TO CART | |
| 177 | 5000222073 | Screw | 4 | ADD TO CART | |
| 178 | 5100000179 | Clamp | 2 | ADD TO CART | |
| 179 | 5100010127 | Oval head screw | 2 | ADD TO CART | |
| 180 | 5100063195 | Pan head screw | 4 | ADD TO CART | |
| 190 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 200 | 5000033356 | Hexagon nut | 2 | ADD TO CART | |
| 210 | 5100002878 | Foam | 1 | ADD TO CART | |
| 220 | 5100025600 | Leg spring | 2 | ADD TO CART | |
| 240 | 5100054130 | Locking plate | 1 | ADD TO CART | |
| 250 | 5100058806 | Bar cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5100068061 | Protection | 1 | ADD TO CART | |
| 30 | 5100079554 | Guide rail | 2 | PARTS REQUEST | |
|
COMING Guide rail
5100079554 · qty on machine: 2 | |||||
| 40 | 5100082229 | Pan head screw | 4 | PARTS REQUEST | |
|
COMING Pan head screw
5100082229 · qty on machine: 4 | |||||
| 50 | 5100068184 | Battery holder | 1 | ADD TO CART | |

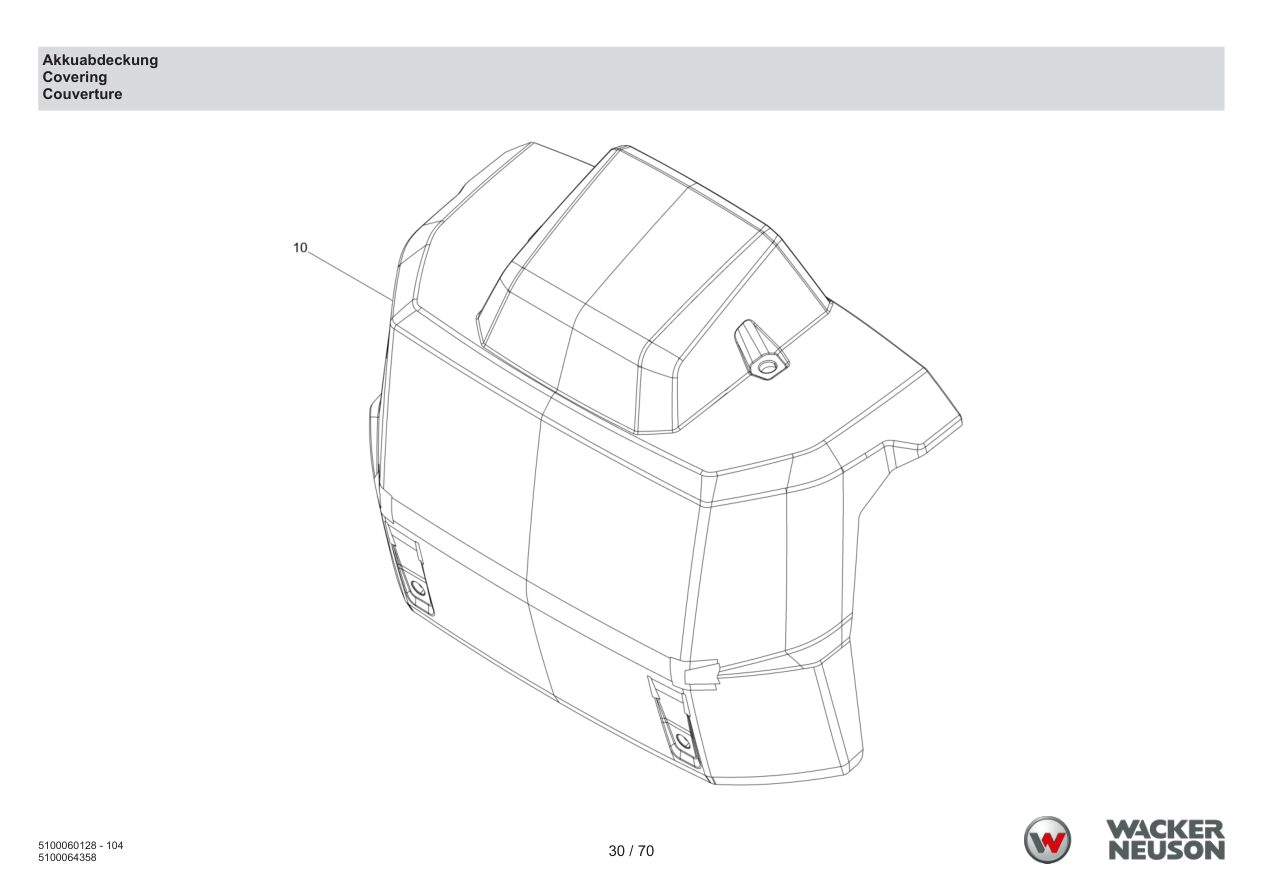

Page 30 — Covering
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100054131 | Covering | 1 | ADD TO CART | |

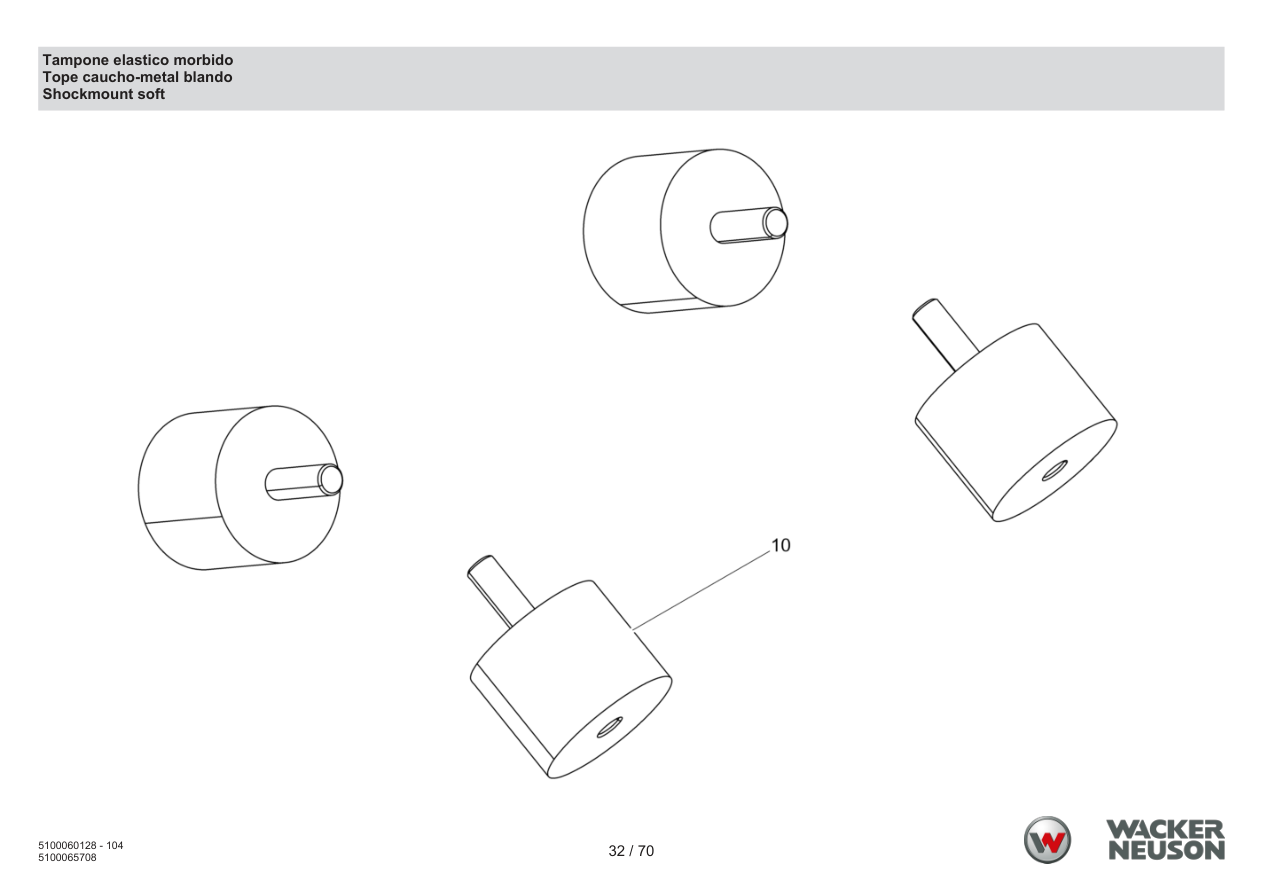

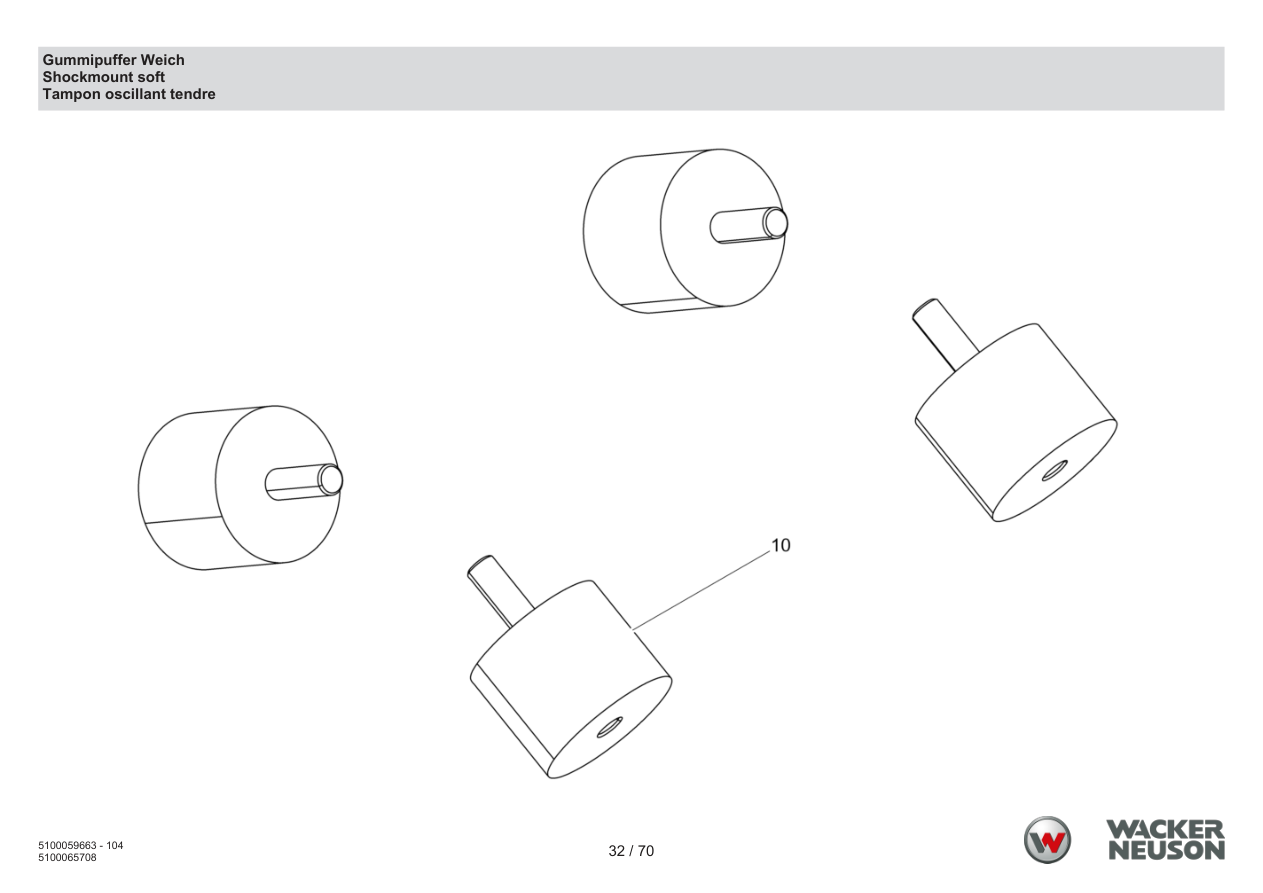

Page 32 — Soft rubber buffer
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059959 | Shockmount | 4 | ADD TO CART | |

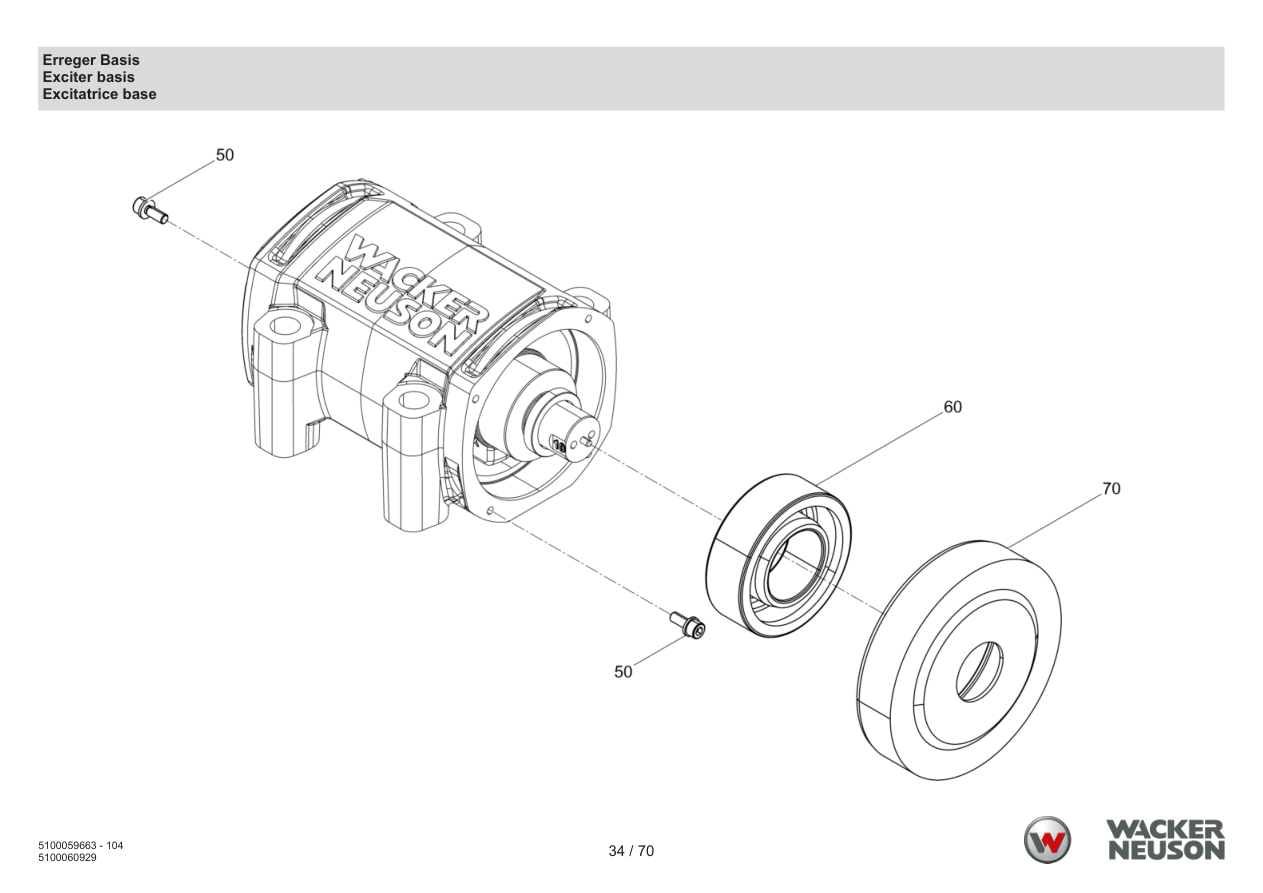

Page 34 — Vibrator base
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100059593 | Cheese head screw | 8 | ADD TO CART | |
| 60 | 5000105139 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 70 | 5100062507 | Bearing seat | 1 | ADD TO CART | |
| 20 | 5100054570 | Bearing cover right | 1 | ADD TO CART | |
| 40 | 5100054285 | Bearing cover left | 1 | ADD TO CART | |
| 190 | 5000010820 | Hexagon nut | 2 | ADD TO CART | |
| 200 | 5100060555 | Seal washer | 2 | ADD TO CART | |
| 210 | 5100054340 | Motor armature | 1 | ADD TO CART | |
| 220 | 5100062179 | Bearing seat | 2 | ADD TO CART | |

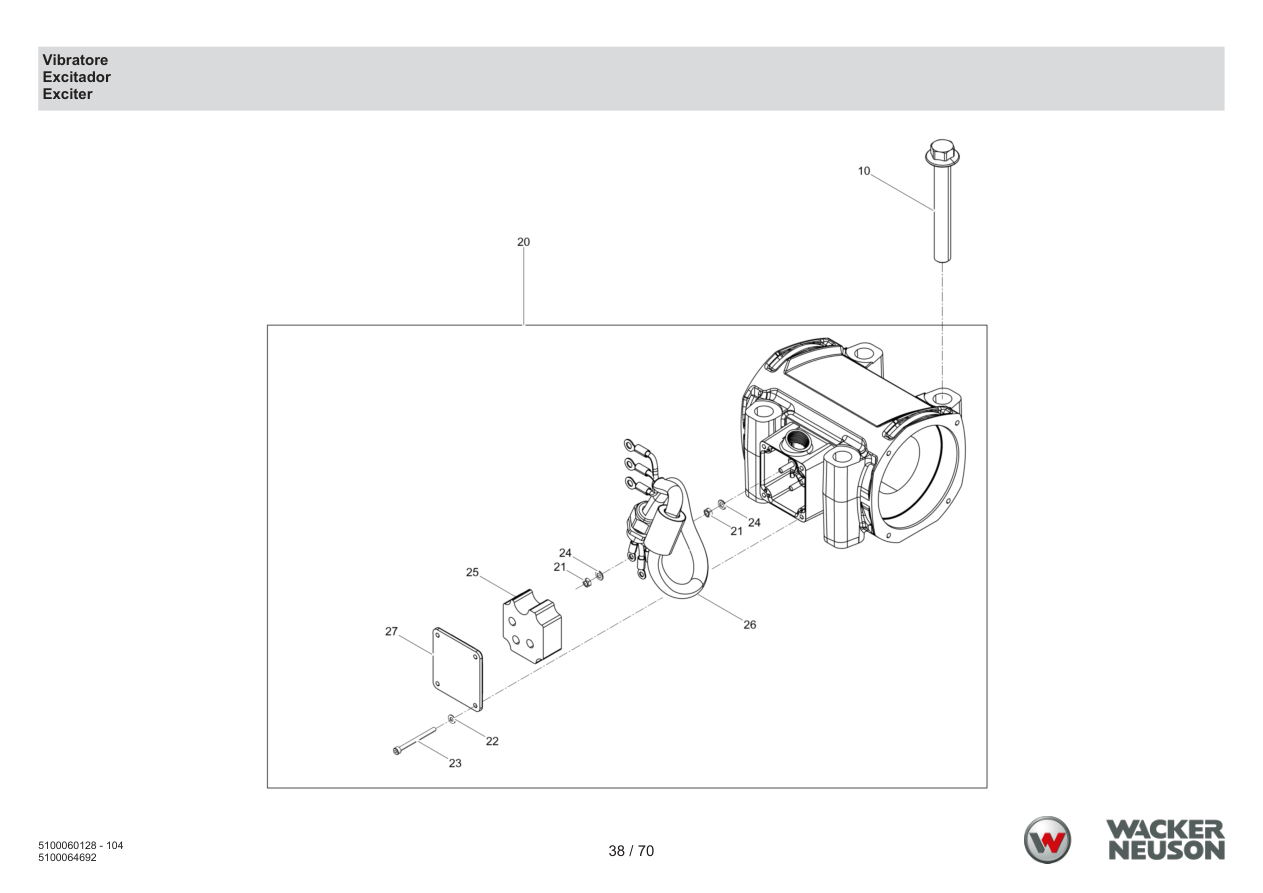

Page 38 — Vibrator
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100063187 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 20 | 5100064290 | Motor housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 21 | 5000012997 | Hexagon nut | 6 | ADD TO CART | |
| 22 | 5000010628 | Flat washer | 4 | ADD TO CART | |
| 23 | 5100045195 | Cheese head screw | 4 | ADD TO CART | |
| 24 | 5000012643 | Flat washer | 6 | ADD TO CART | |
| 25 | 5100060010 | Gasket | 1 | ADD TO CART | |
| 26 | 5100054443 | Power supply cable | 1 | ADD TO CART | |
| 27 | 5100054442 | Terminal box cover | 1 | ADD TO CART | |

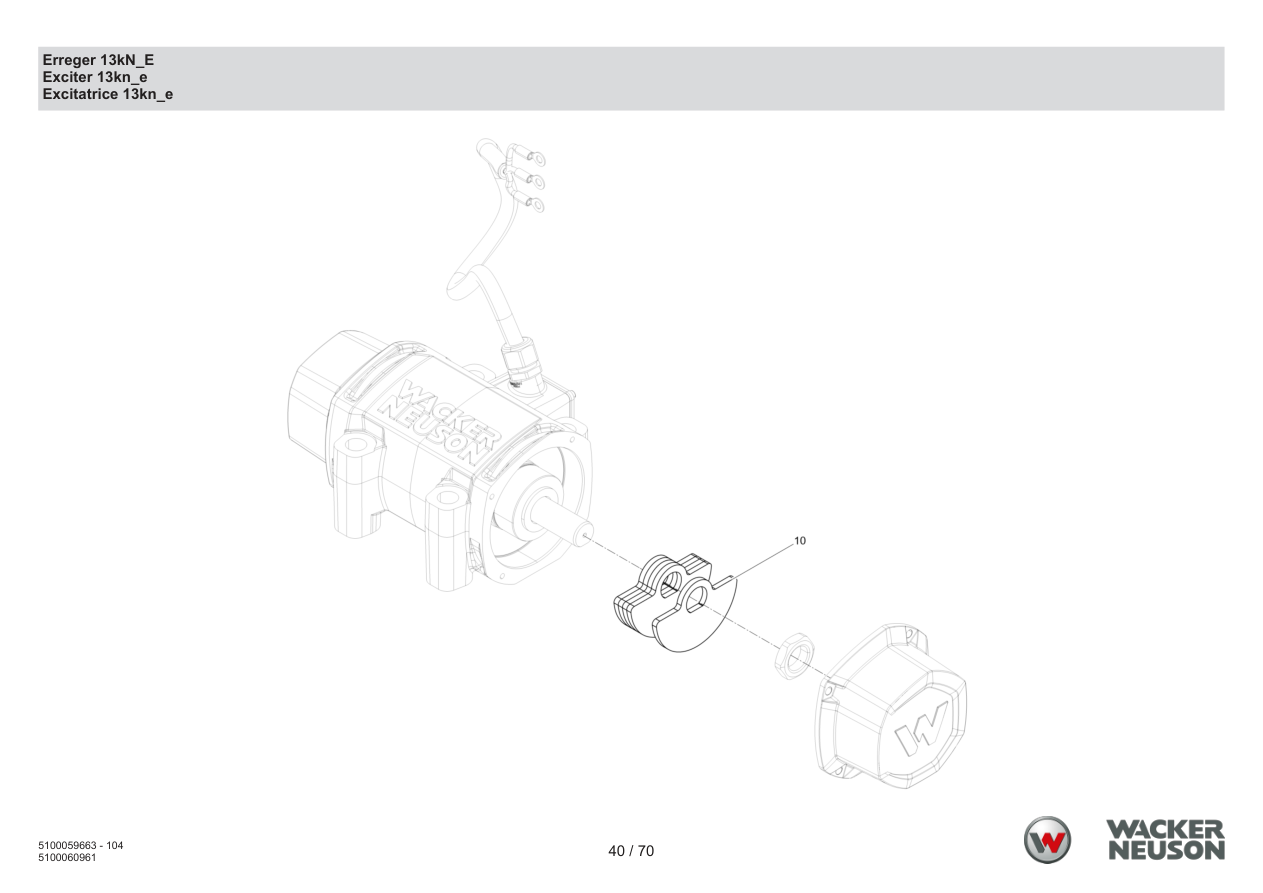

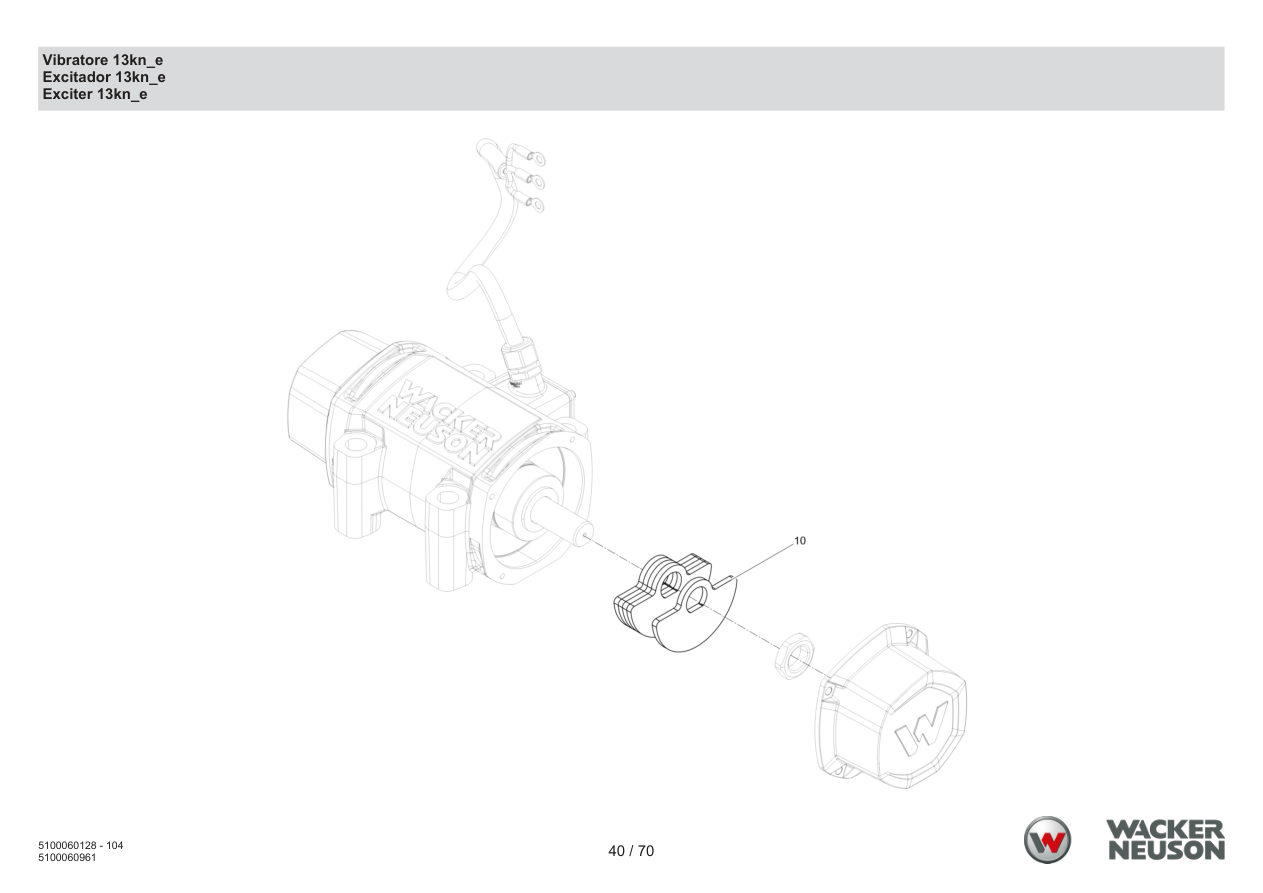

Page 40 — Vibrator 13kn_e
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100054500 | Eccentric weight | 14 | ADD TO CART | |

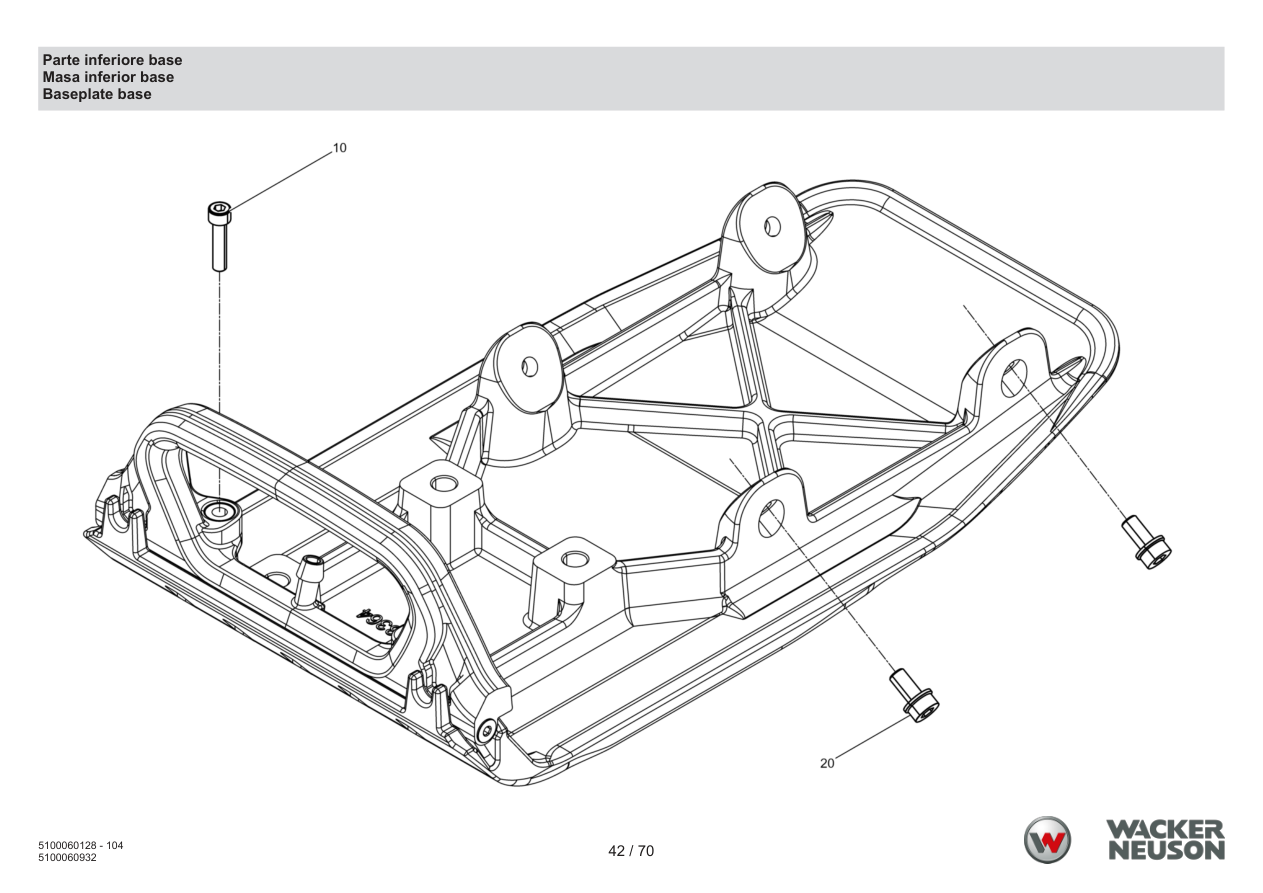

Page 42 — Lower part base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 20 | 5000210111 | Corrugated-head screw | 4 | ADD TO CART | |

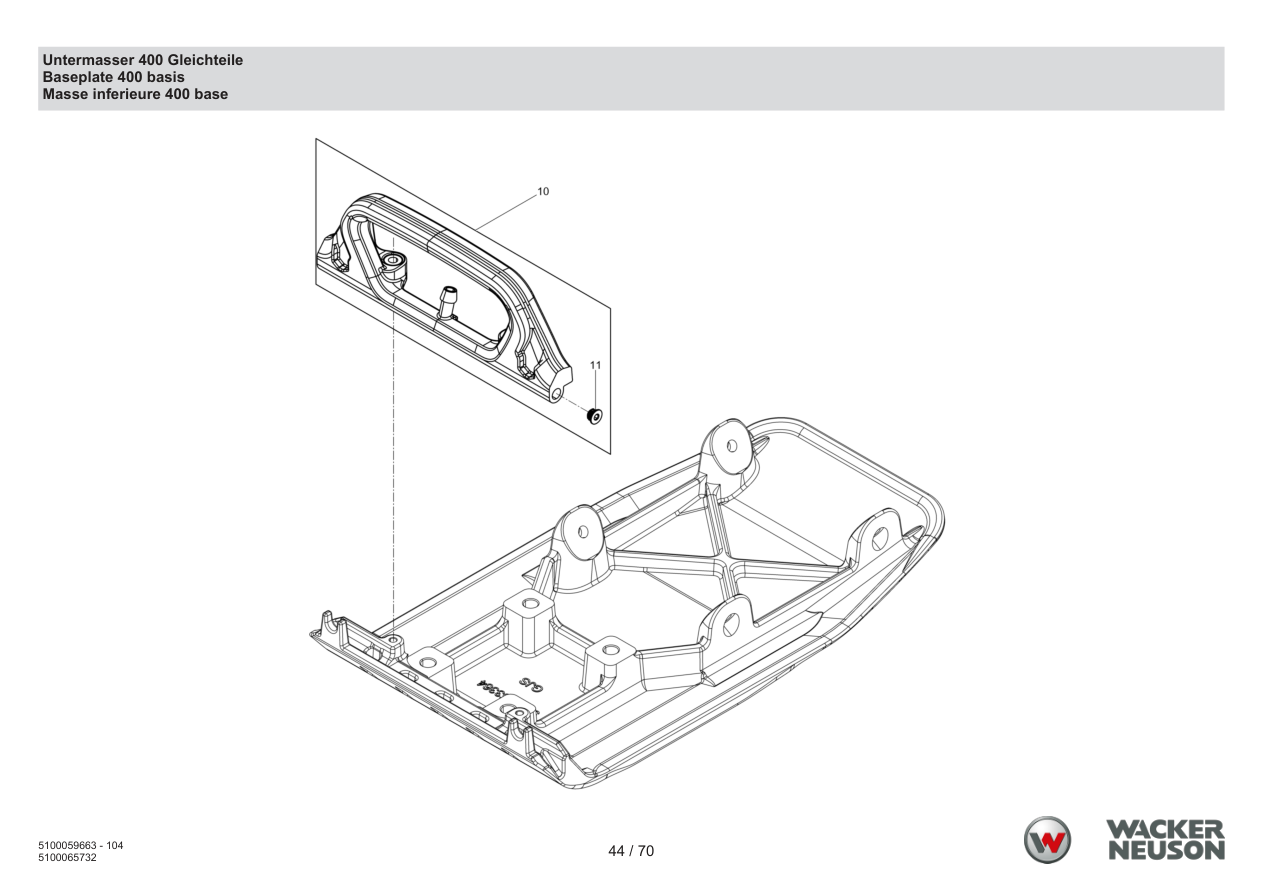

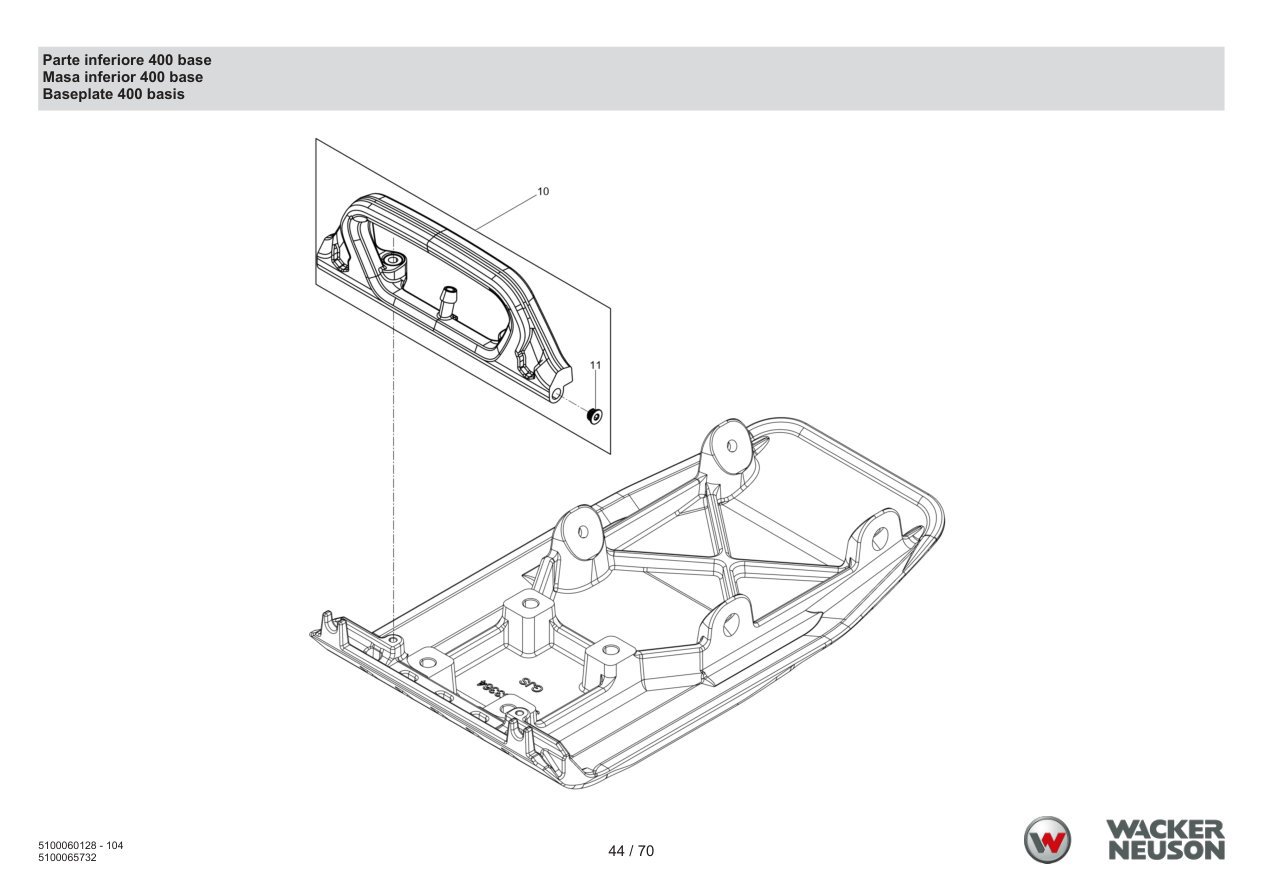

Page 44 — Lower part 400 base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058122 | Spinkler system cpl. (40 cm) | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5100041150 | Locking plug | 2 | ADD TO CART | |

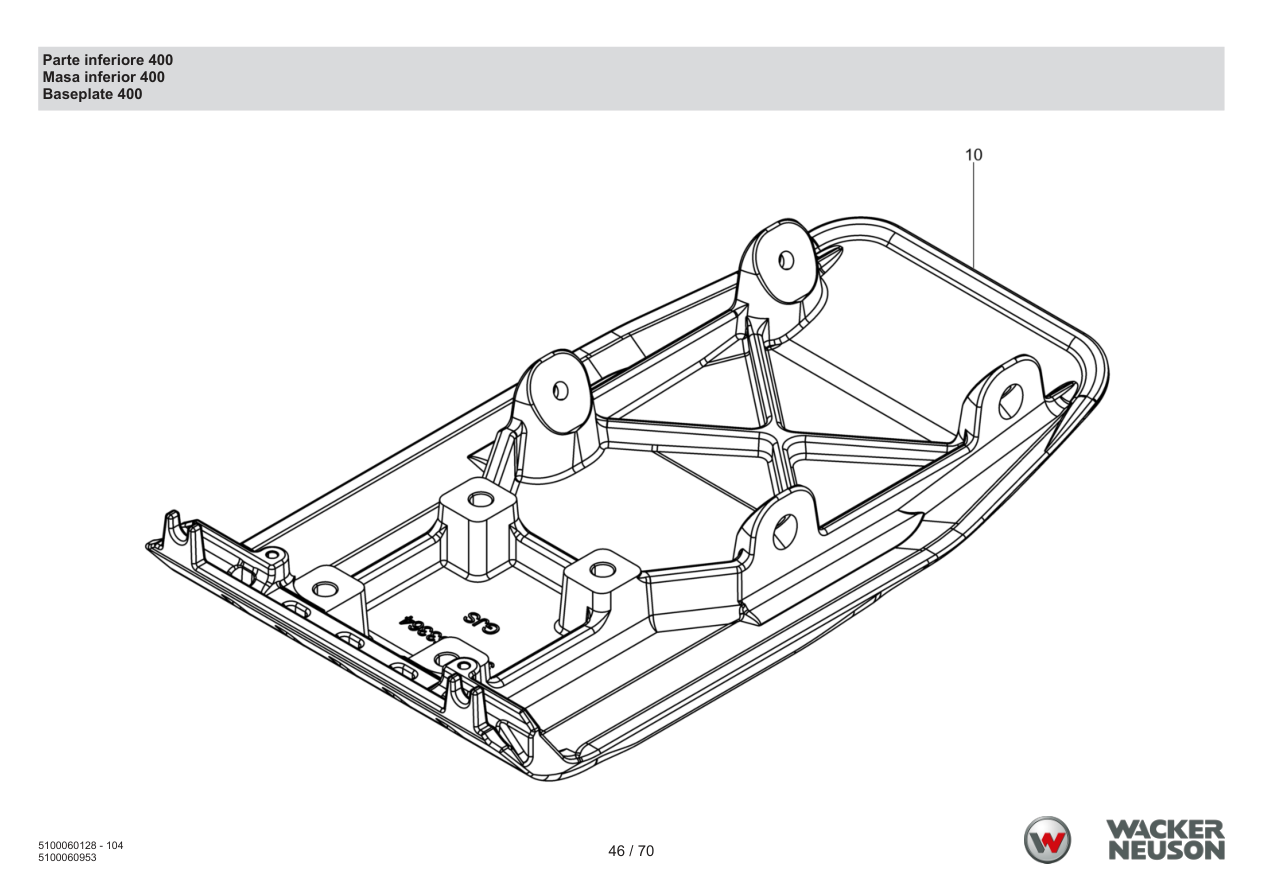

Page 46 — Lower part 400
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100053566 | Baseplate 40cm | 1 | ADD TO CART | |

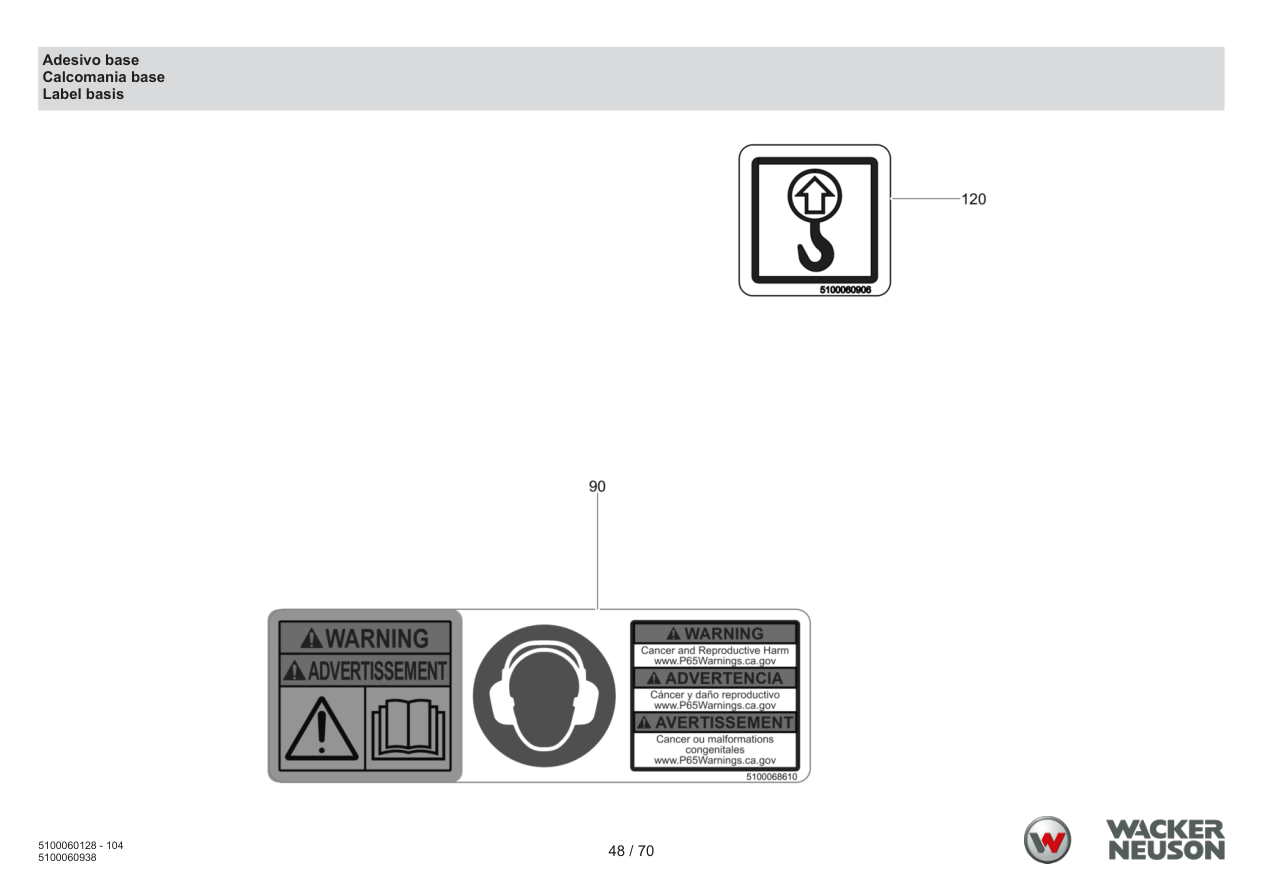

Page 48 — Base sticker
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 90 | 5100068610 | Label | 2 | ADD TO CART | |
| 120 | 5100060906 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100060906 · qty on machine: 1 | |||||

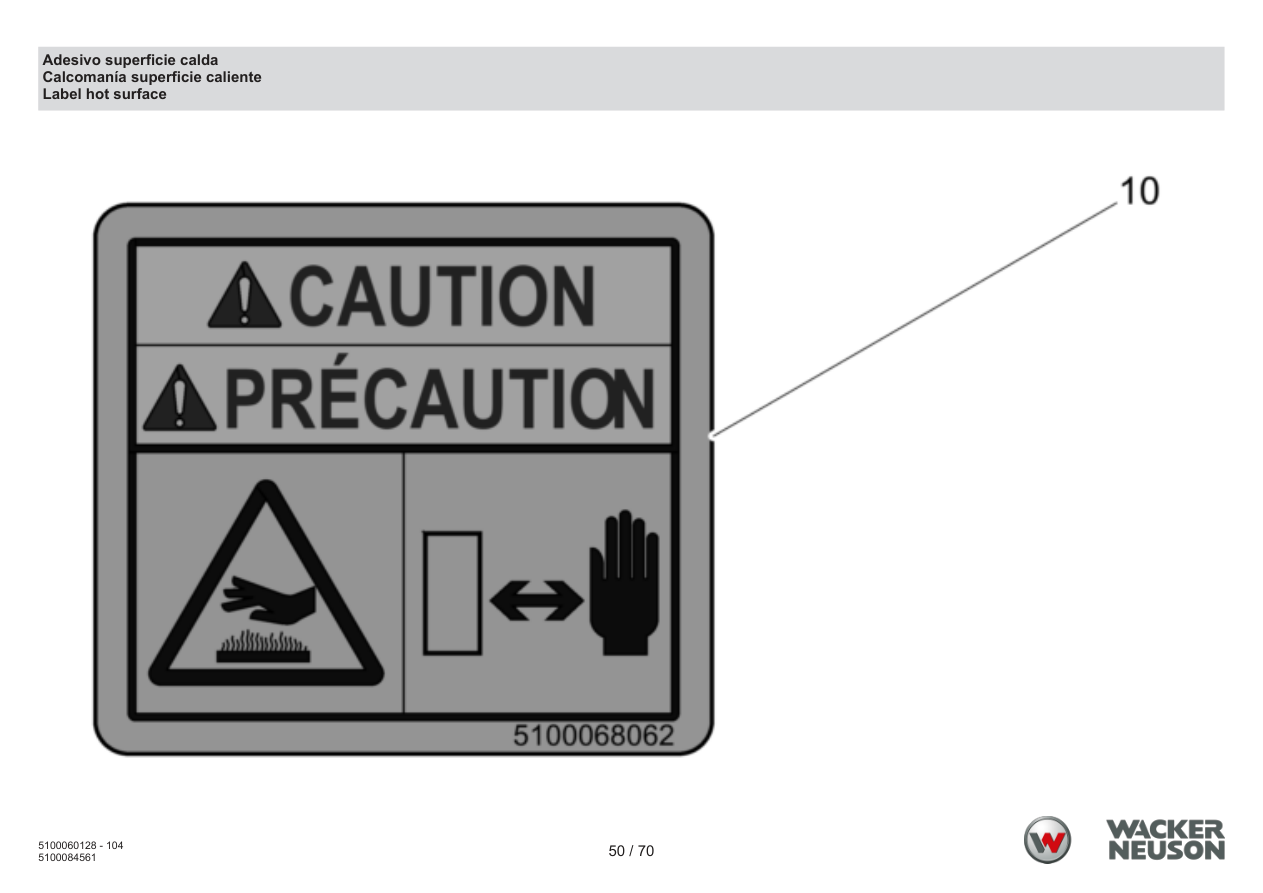

Page 50 — Hot surface sticker
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068062 | Label | 1 | ADD TO CART | |

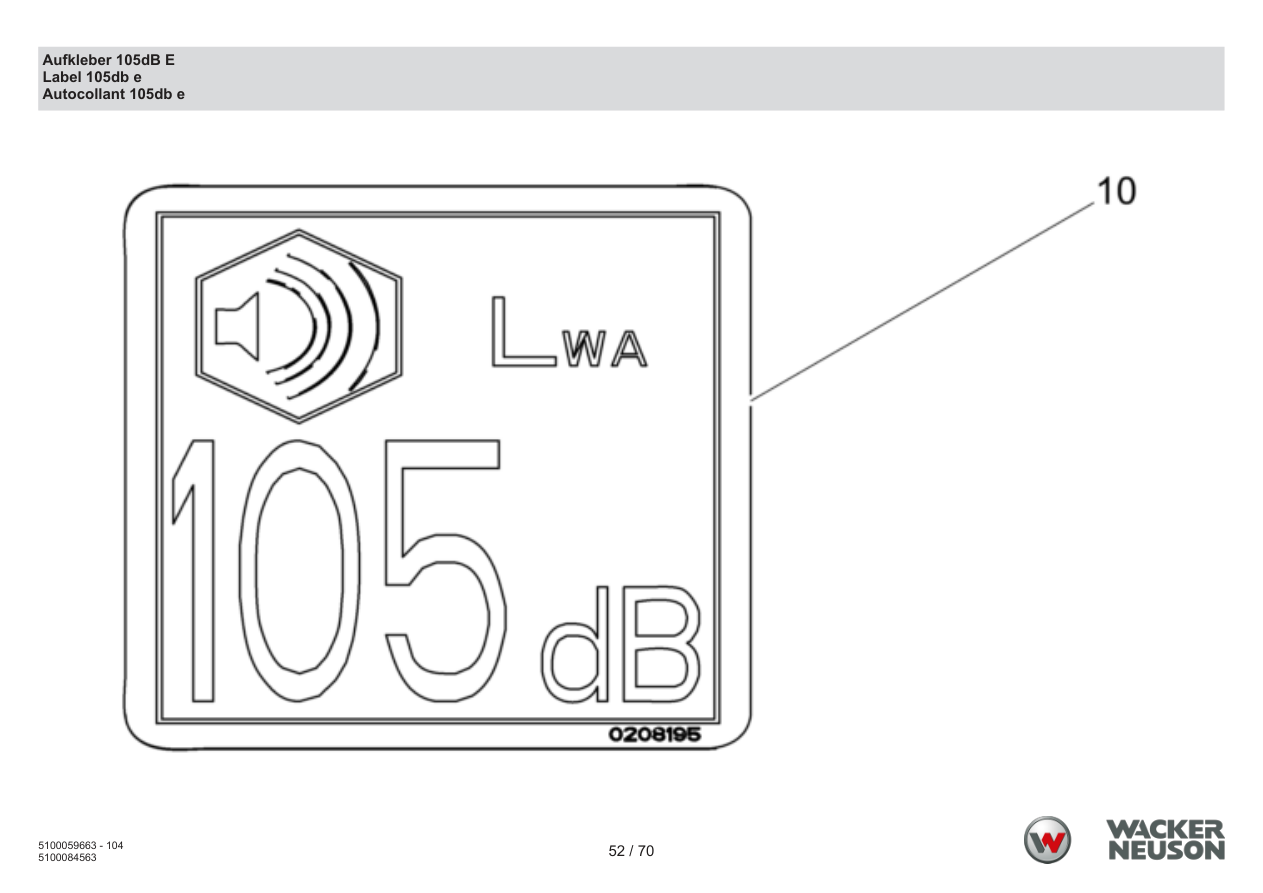

Page 52 — Adhesive label 105db e
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000208195 | Decal-sound power level | 1 | ADD TO CART | |

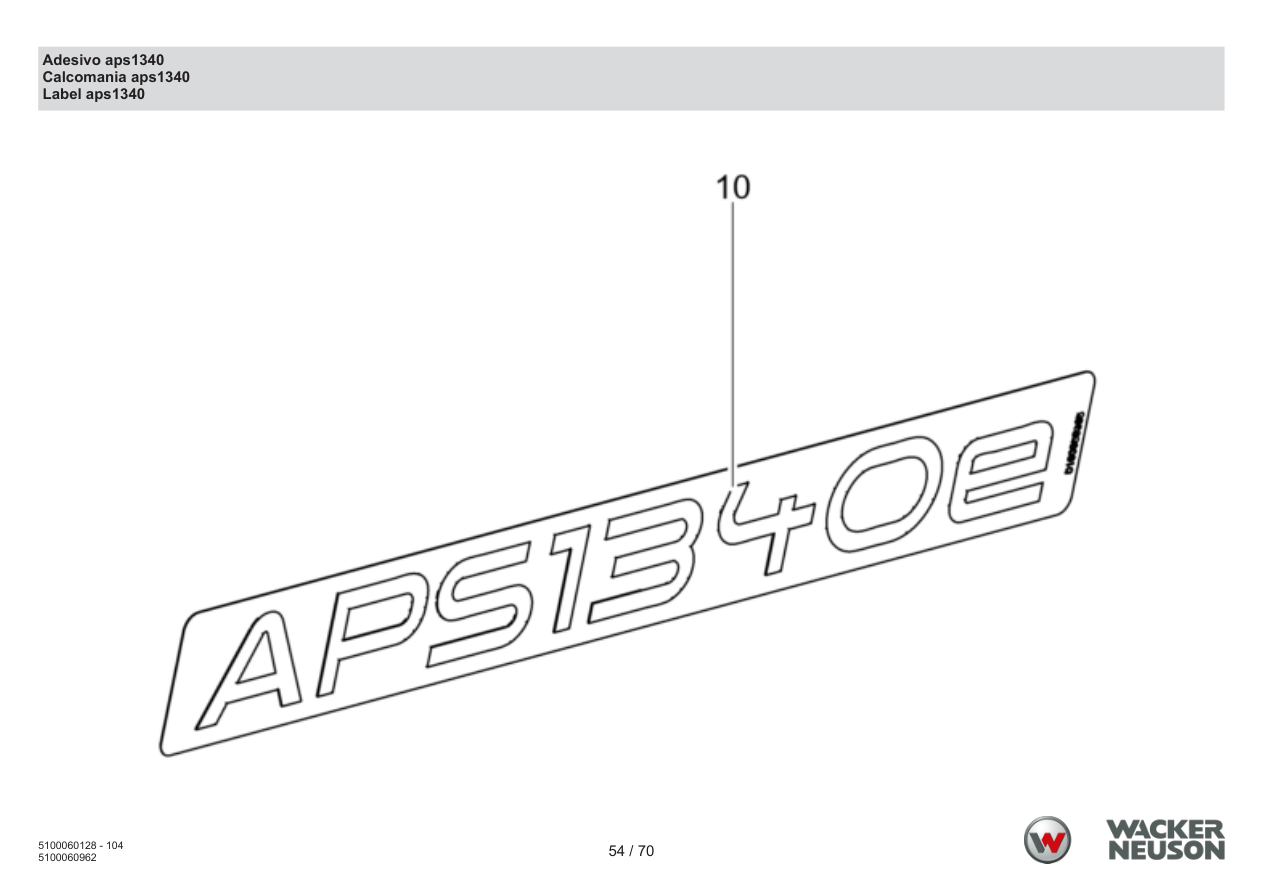

Page 54 — Adhesive label aps1340
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059365 | Type label | 1 | ADD TO CART | |

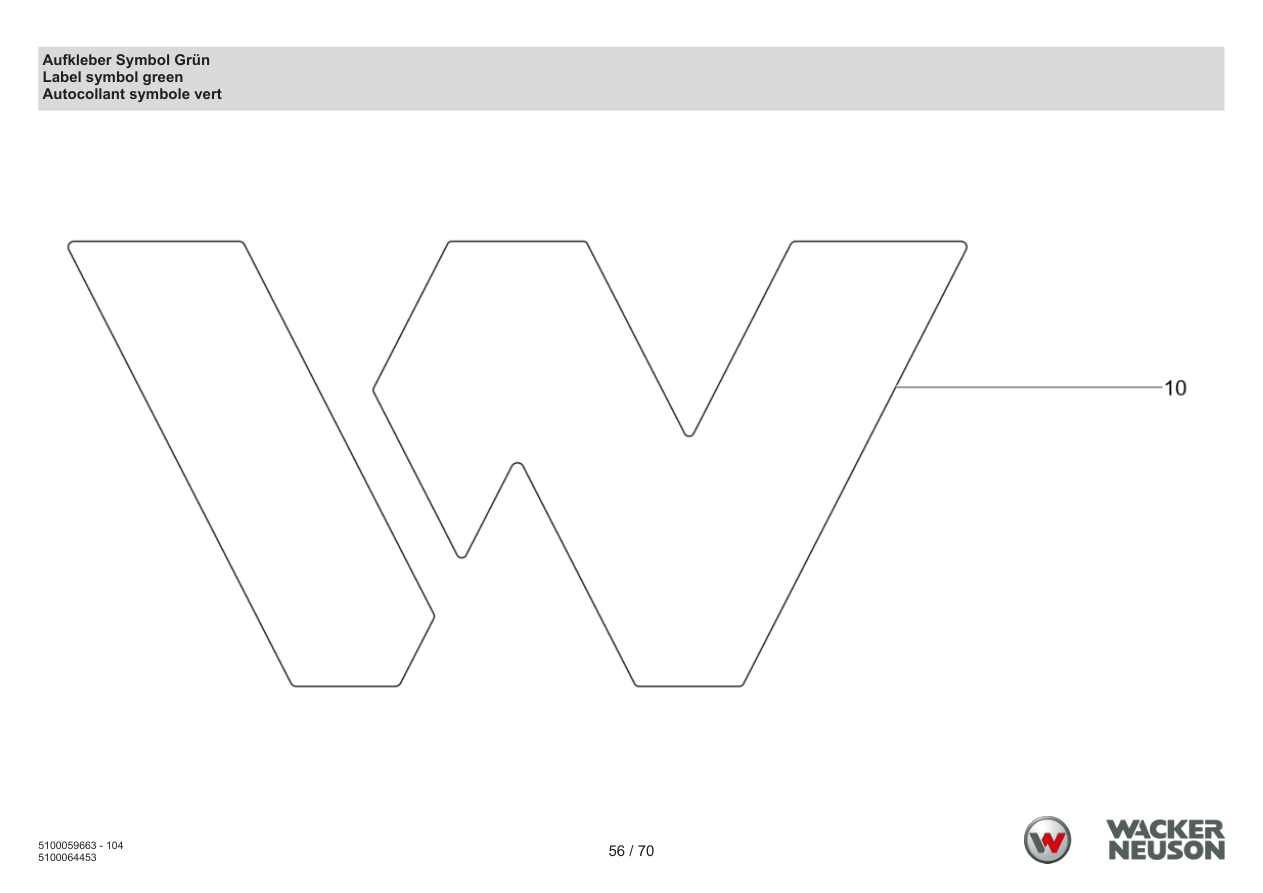

Page 56 — Label symbol green
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058734 | Label symbol | 1 | ADD TO CART | |

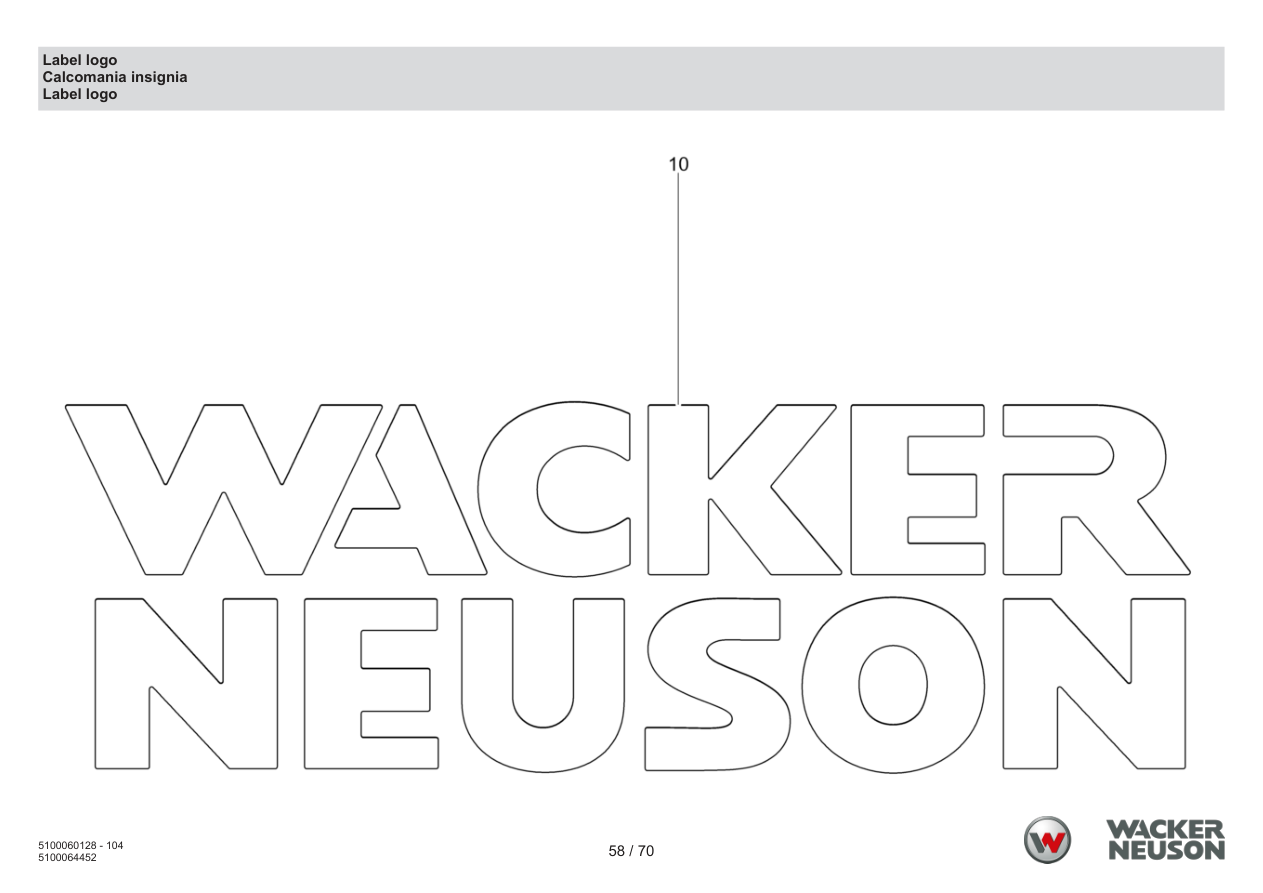

Page 58 — Label logo
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059680 | Label logo | 1 | ADD TO CART | |

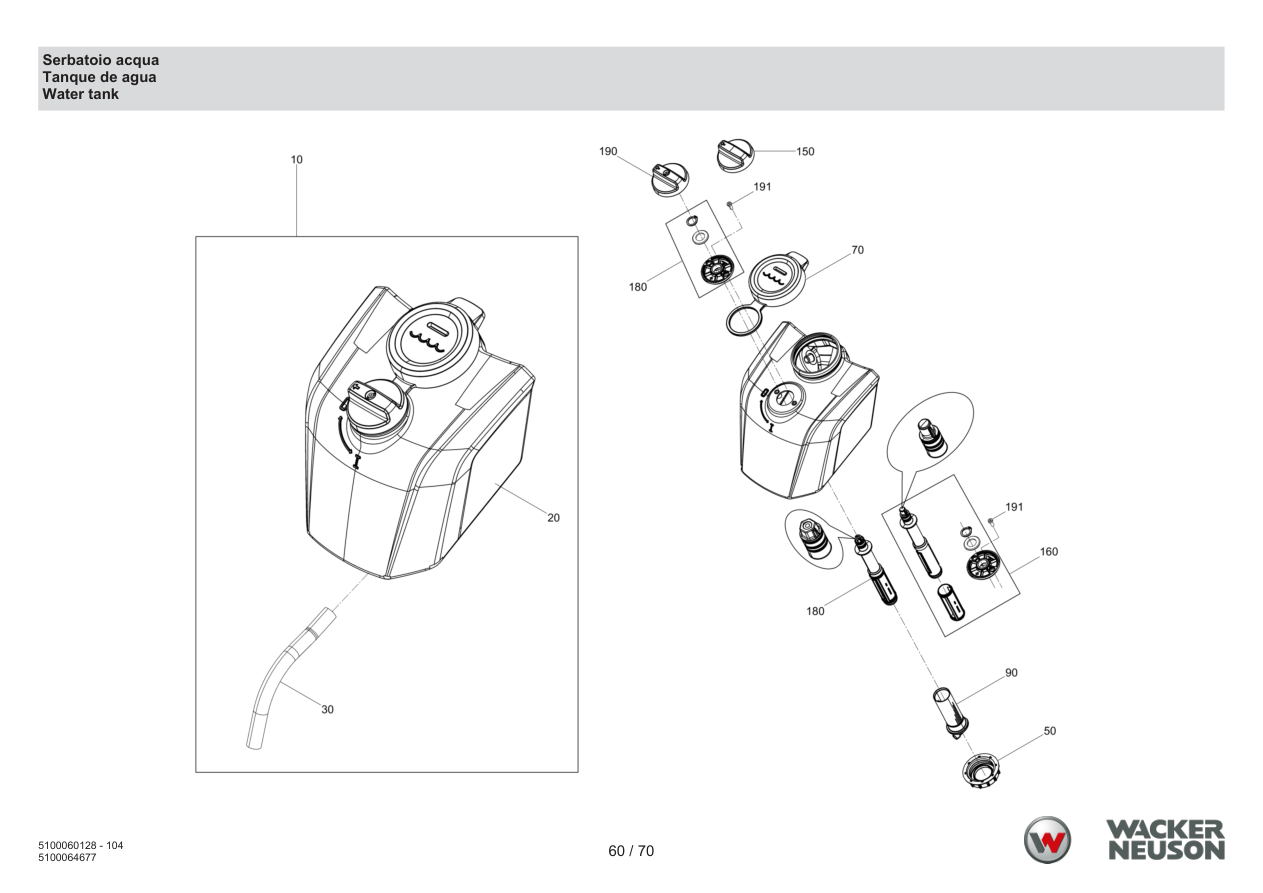

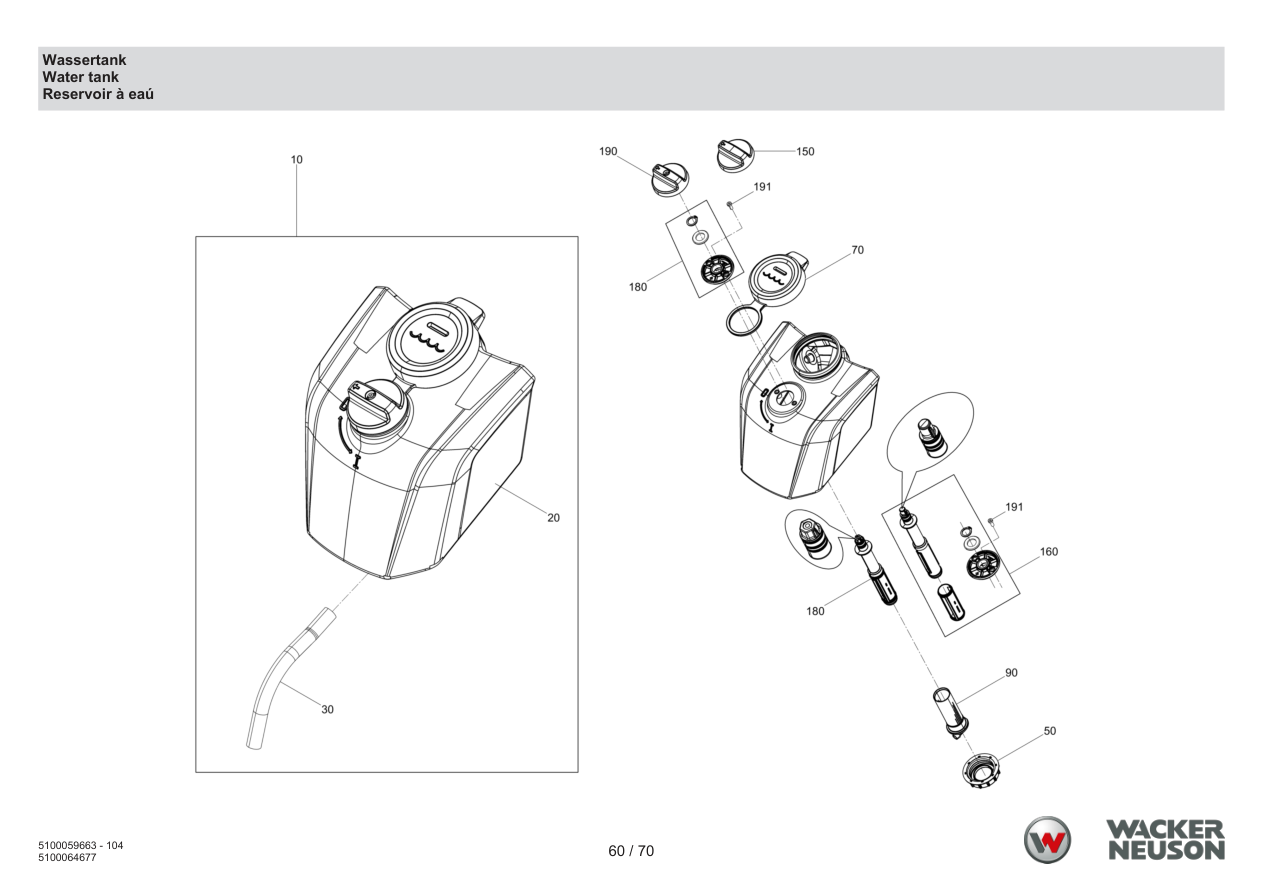

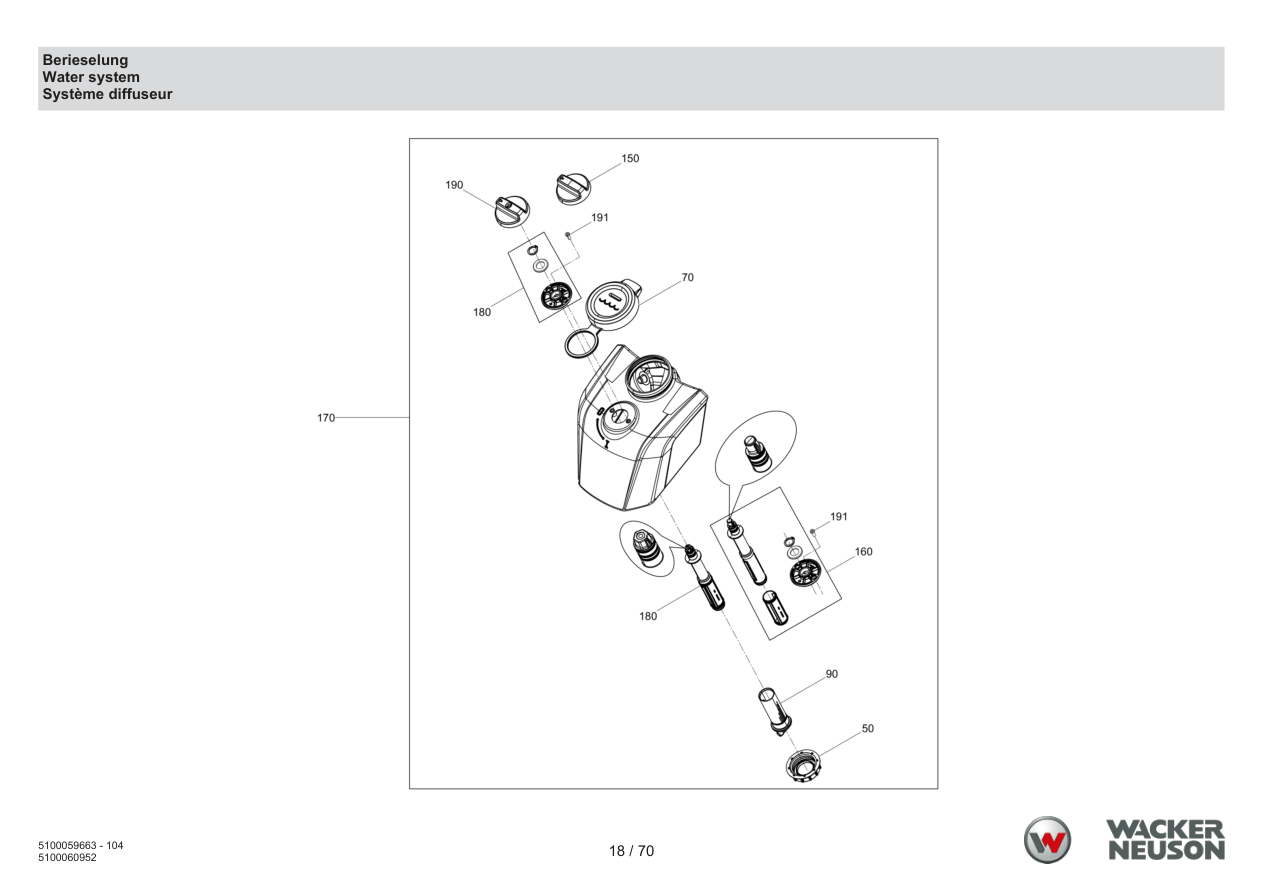

Page 60 — Water tank
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060499 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl.
5100060499 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 20 | 5100054177 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5100054175 | Hose | 1 | ADD TO CART | |
| 50 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 70 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 90 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 150 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 160 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 180 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 190 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 191 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||

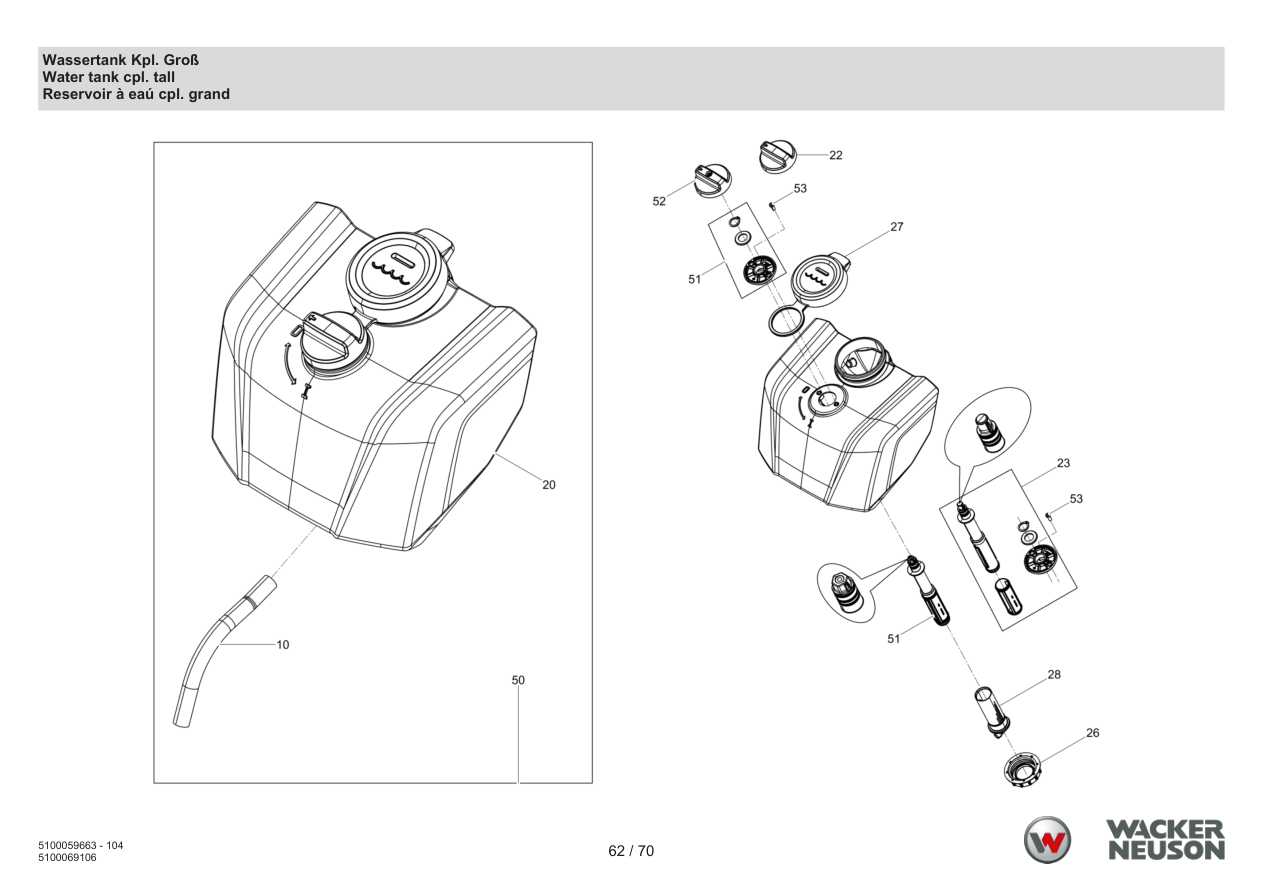

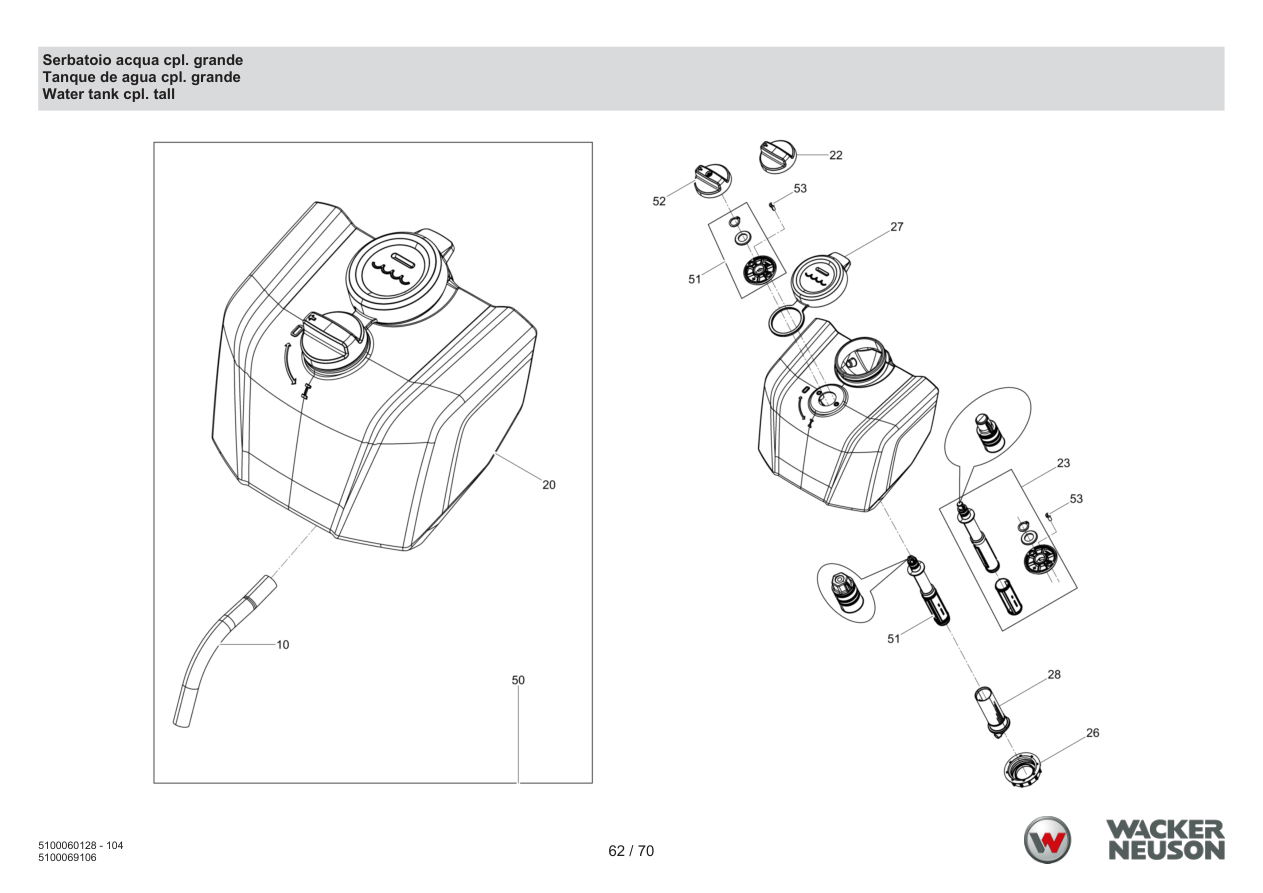

Page 62 — Water tank cpl. large
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100054175 | Hose | 1 | ADD TO CART | |
| 20 | 5100064647 | Watertank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 23 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 26 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 27 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 28 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 50 | 5100068642 | Water tank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl. big
5100068642 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 51 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 52 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 53 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||

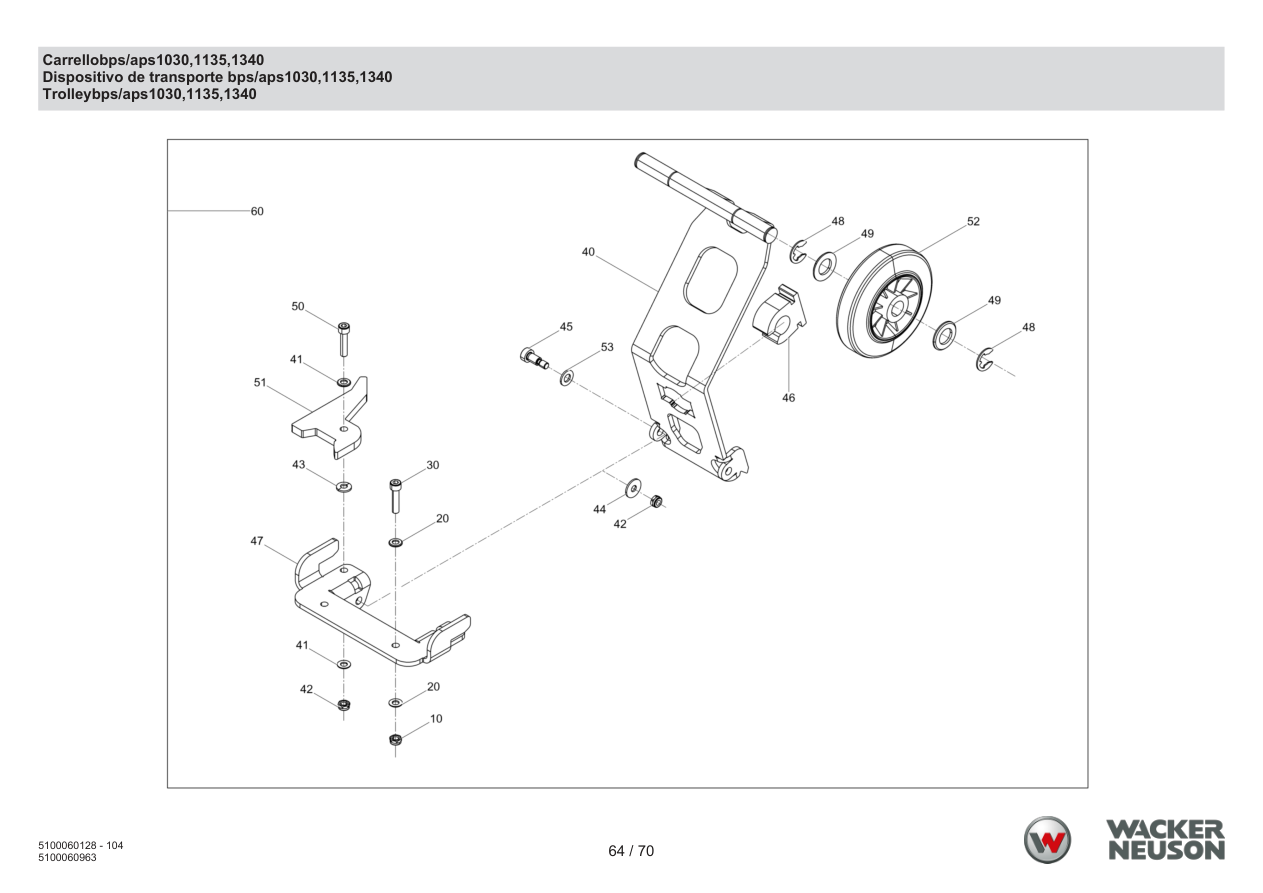

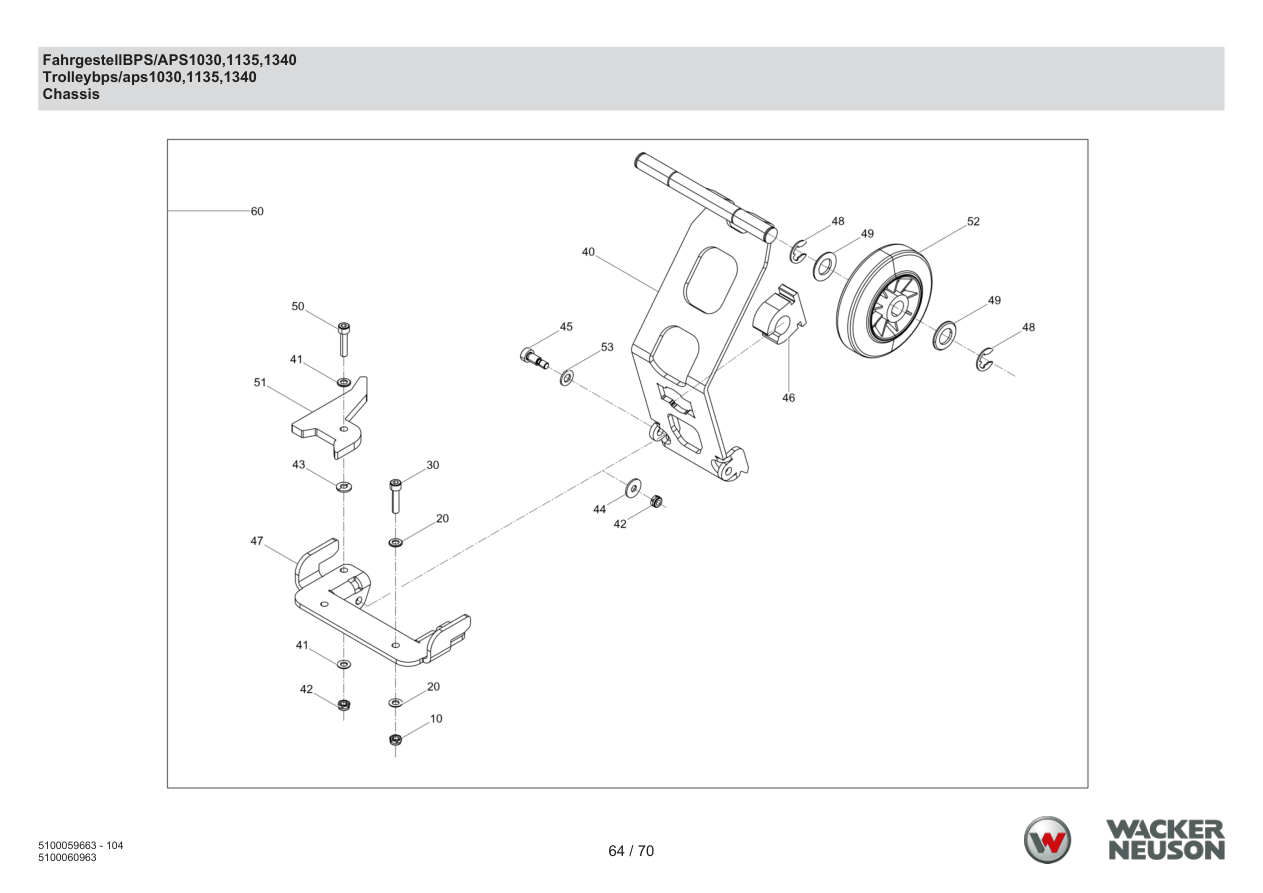

Page 64 — Undercarriage bps/aps1030,1135,1340
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000010367 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 30 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5100055542 | Trolley | 1 | ADD TO CART | |
| 41 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 42 | 5000010367 | Hexagon nut | 4 | ADD TO CART | |
| 43 | 5000033198 | Lockwasher | 2 | ADD TO CART | |
| 44 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 45 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 46 | 5100058750 | Bracket | 1 | ADD TO CART | |
| 47 | 5100058735 | Base plate | 1 | ADD TO CART | |
| 48 | 5000103834 | Lock washer | 4 | ADD TO CART | |
| 49 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 50 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 51 | 5100077951 | Lock bolt | 2 | ADD TO CART | |
| 52 | 5000021466 | Tire | 2 | ADD TO CART | |
| 53 | 5000128241 | Flat washer | 2 | ADD TO CART | |
| 60 | 5100060429 | Trolley cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Trolley cpl.
5100060429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

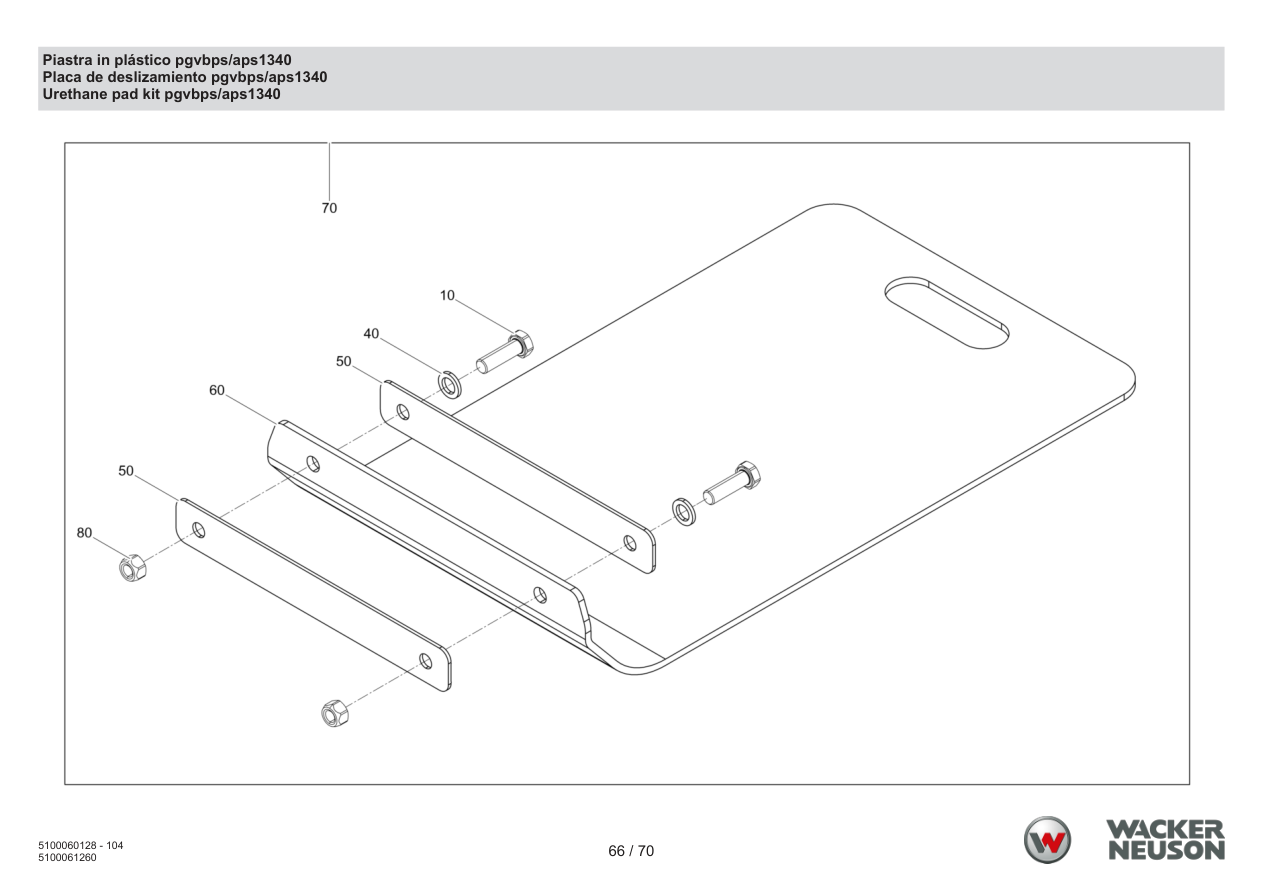

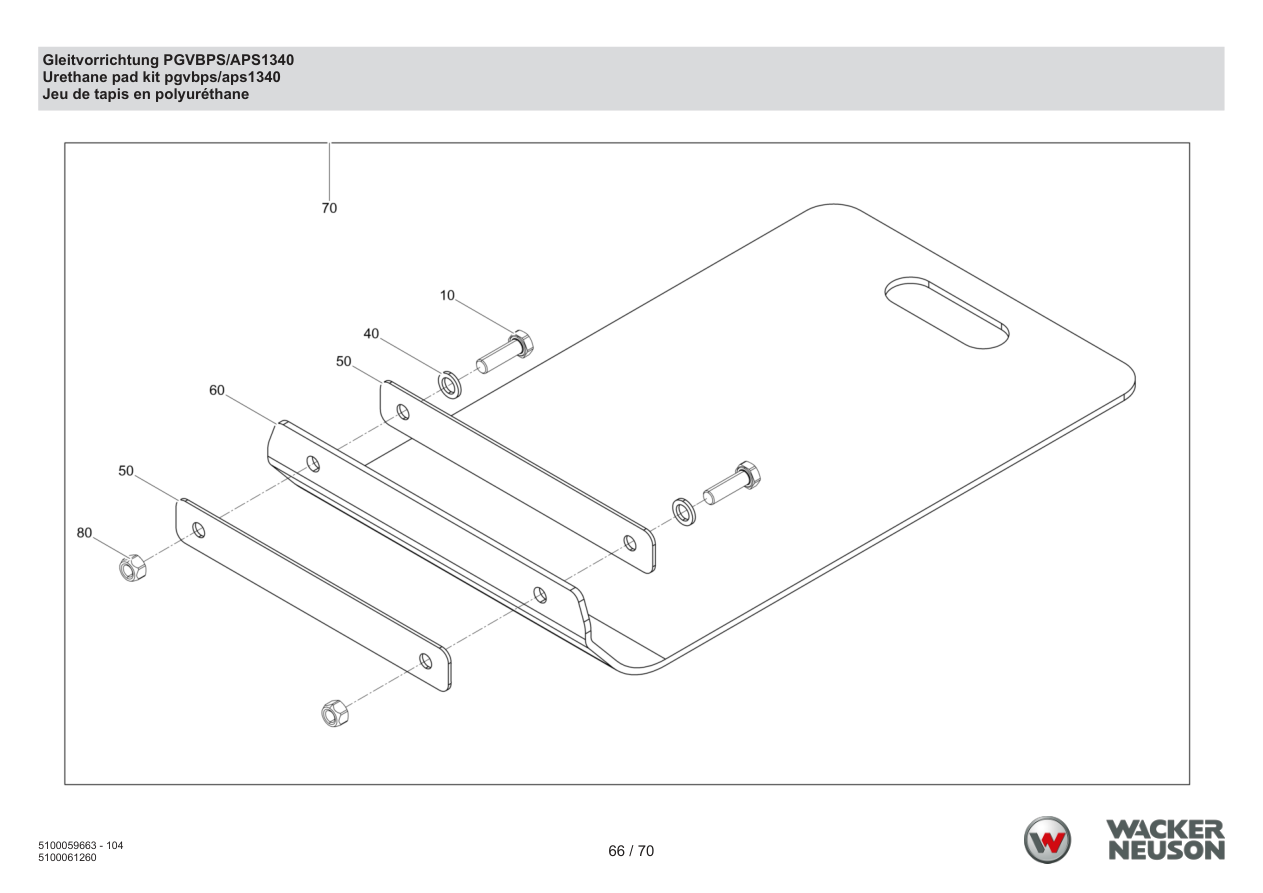

Page 66 — Sliding plate pgvbps/aps1340
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011421 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 2 | |||||
| 40 | 5000010665 | Washer | 2 | ADD TO CART | |
| 50 | 5100054241 | Bar | 2 | ADD TO CART | |
| 60 | 5100054246 | Urethane plate | 1 | ADD TO CART | |
| 70 | 5100060427 | Urethane pad kit pgv | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv
5100060427 · qty on machine: 1 | |||||
| 80 | 5000015061 | Hexagon nut | 2 | ADD TO CART | |
Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 12 — Guide handle basis
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052432 | Spring pin | 2 | ADD TO CART | |
| 20 | 5100052431 | Bolt | 2 | ADD TO CART | |
Page 14 — Guide handle
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052430 | Bearing | 2 | ADD TO CART | |
| 20 | 5100058578 | Guiding frame cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

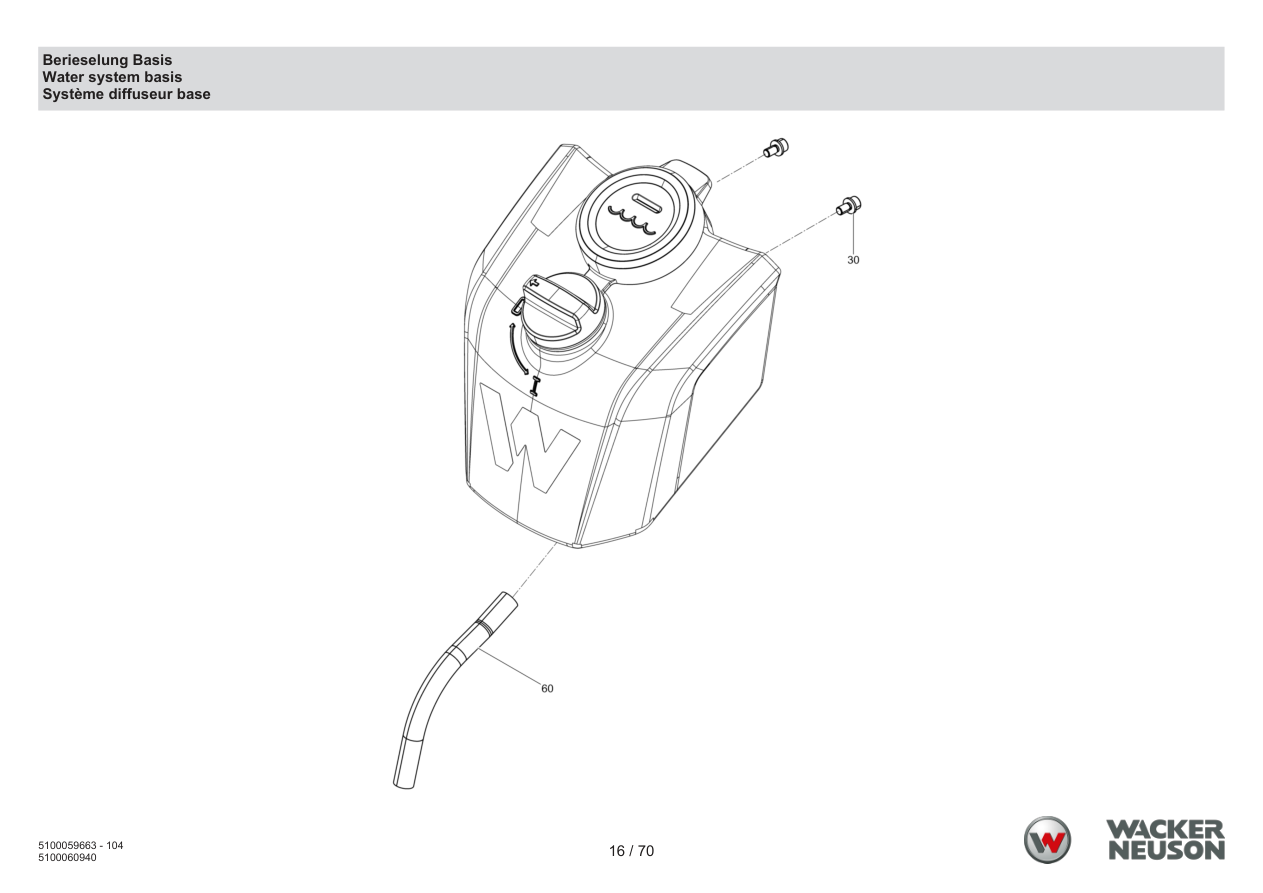

Page 16 — Sprinkler system base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100059594 | Cheese head screw | 2 | ADD TO CART | |
| 60 | 5100054175 | Hose | 1 | ADD TO CART | |
Page 18 — Sprinkler system
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 70 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 90 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 150 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 160 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 170 | 5100054177 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 180 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 190 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 191 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 20 — Upper mass base
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100016317 | Shockmount | 2 | ADD TO CART | |
Page 22 — Upper mass
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052424 | Upper mass | 1 | ADD TO CART | |
| 20 | 5000096087 | Hexagon nut | 4 | ADD TO CART | |
Page 24 — Additional weight APS 1340
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059596 | Cheese head screw | 3 | ADD TO CART | |
| 20 | 5100056944 | Supplementary weight | 2 | ADD TO CART | |
Page 26 — Battery bracket
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 130 | 5100059794 | Switch cable | 1 | ADD TO CART | |
| 160 | 5100045196 | Switch | 1 | ADD TO CART | |
| 170 | 5100061317 | Converter | 1 | ADD TO CART | |
| 171 | 5100025637 | Bracket | 1 | ADD TO CART | |
| 172 | 5100001742 | Plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 173 | 5000014425 | Cheese head screw | 3 | PARTS REQUEST | |
|
COMING Cheese head screw
5000014425 · qty on machine: 3 | |||||
| 174 | 5000010624 | Flat washer | 3 | ADD TO CART | |
| 176 | 5000108372 | Pan head screw | 2 | ADD TO CART | |
| 177 | 5000222073 | Screw | 4 | ADD TO CART | |
| 178 | 5100000179 | Clamp | 2 | ADD TO CART | |
| 179 | 5100010127 | Oval head screw | 2 | ADD TO CART | |
| 180 | 5100063195 | Pan head screw | 4 | ADD TO CART | |
| 190 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 200 | 5000033356 | Hexagon nut | 2 | ADD TO CART | |
| 210 | 5100002878 | Foam | 1 | ADD TO CART | |
| 220 | 5100025600 | Leg spring | 2 | ADD TO CART | |
| 240 | 5100054130 | Locking plate | 1 | ADD TO CART | |
| 250 | 5100058806 | Bar cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5100068061 | Protection | 1 | ADD TO CART | |
| 30 | 5100079554 | Guide rail | 2 | PARTS REQUEST | |
|
COMING Guide rail
5100079554 · qty on machine: 2 | |||||
| 40 | 5100082229 | Pan head screw | 4 | PARTS REQUEST | |
|
COMING Pan head screw
5100082229 · qty on machine: 4 | |||||
| 50 | 5100068184 | Battery holder | 1 | ADD TO CART | |
Page 30 — Covering
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100054131 | Covering | 1 | ADD TO CART | |
Page 32 — Rubber buffer soft
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059959 | Shockmount | 4 | ADD TO CART | |
Page 34 — Exciter base
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100059593 | Cheese head screw | 8 | ADD TO CART | |
| 60 | 5000105139 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 70 | 5100062507 | Bearing seat | 1 | ADD TO CART | |
| 20 | 5100054570 | Bearing cover right | 1 | ADD TO CART | |
| 40 | 5100054285 | Bearing cover left | 1 | ADD TO CART | |
| 190 | 5000010820 | Hexagon nut | 2 | ADD TO CART | |
| 200 | 5100060555 | Seal washer | 2 | ADD TO CART | |
| 210 | 5100054340 | Motor armature | 1 | ADD TO CART | |
| 220 | 5100062179 | Bearing seat | 2 | ADD TO CART | |
Page 38 — Exciter
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100063187 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 20 | 5100064290 | Motor housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 21 | 5000012997 | Hexagon nut | 6 | ADD TO CART | |
| 22 | 5000010628 | Flat washer | 4 | ADD TO CART | |
| 23 | 5100045195 | Cheese head screw | 4 | ADD TO CART | |
| 24 | 5000012643 | Flat washer | 6 | ADD TO CART | |
| 25 | 5100060010 | Gasket | 1 | ADD TO CART | |
| 26 | 5100054443 | Power supply cable | 1 | ADD TO CART | |
| 27 | 5100054442 | Terminal box cover | 1 | ADD TO CART | |
Page 40 — Exciter 13kN_E
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100054500 | Eccentric weight | 14 | ADD TO CART | |
Page 42 — Lower mass base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 20 | 5000210111 | Corrugated-head screw | 4 | ADD TO CART | |
Page 44 — Lower mass 400 common parts
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058122 | Spinkler system cpl. (40 cm) | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5100041150 | Locking plug | 2 | ADD TO CART | |
Page 46 — Lower mass 400
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100053566 | Baseplate 40cm | 1 | ADD TO CART | |
Page 48 — Decal base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 90 | 5100068610 | Label | 2 | ADD TO CART | |
| 120 | 5100060906 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100060906 · qty on machine: 1 | |||||
Page 50 — Label hot surface
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068062 | Label | 1 | ADD TO CART | |
Page 52 — Decal 105dB E
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000208195 | Decal-sound power level | 1 | ADD TO CART | |
Page 54 — Decal APS1340
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059365 | Type label | 1 | ADD TO CART | |
Page 56 — Label symbol green
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058734 | Label symbol | 1 | ADD TO CART | |
Page 58 — Decal logo
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059680 | Label logo | 1 | ADD TO CART | |
Page 60 — Water tank
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060499 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl.
5100060499 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 20 | 5100054177 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5100054175 | Hose | 1 | ADD TO CART | |
| 50 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 70 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 90 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 150 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 160 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 180 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 190 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 191 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 62 — Water tank cpl. tall
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100054175 | Hose | 1 | ADD TO CART | |
| 20 | 5100064647 | Watertank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 23 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 26 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 27 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 28 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 50 | 5100068642 | Water tank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl. big
5100068642 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 51 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 52 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 53 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 64 — Trolleybps/aps1030,1135,1340
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000010367 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 30 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5100055542 | Trolley | 1 | ADD TO CART | |
| 41 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 42 | 5000010367 | Hexagon nut | 4 | ADD TO CART | |
| 43 | 5000033198 | Lockwasher | 2 | ADD TO CART | |
| 44 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 45 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 46 | 5100058750 | Bracket | 1 | ADD TO CART | |
| 47 | 5100058735 | Base plate | 1 | ADD TO CART | |
| 48 | 5000103834 | Lock washer | 4 | ADD TO CART | |
| 49 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 50 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 51 | 5100077951 | Lock bolt | 2 | ADD TO CART | |
| 52 | 5000021466 | Tire | 2 | ADD TO CART | |
| 53 | 5000128241 | Flat washer | 2 | ADD TO CART | |
| 60 | 5100060429 | Trolley cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Trolley cpl.
5100060429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
Page 66 — Slip-form device PGVBPS/APS1340
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011421 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 2 | |||||
| 40 | 5000010665 | Washer | 2 | ADD TO CART | |
| 50 | 5100054241 | Bar | 2 | ADD TO CART | |
| 60 | 5100054246 | Urethane plate | 1 | ADD TO CART | |
| 70 | 5100060427 | Urethane pad kit pgv | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv
5100060427 · qty on machine: 1 | |||||
| 80 | 5000015061 | Hexagon nut | 2 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson APS1340 vibratory plate.
Available in 8 configurations.
List price: $2,815.00 – $10,165.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5000010367
Hexagon nut
$0.95
5000010374
Flat washer
$0.95
5000010616
Flat washer
$0.95
5000010622
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010628
Flat washer
$0.95
5000010665
Washer
$0.95
5000010820
Hexagon nut
$3.95
5000010872
Hexagon nut
5000010880
Hexagon nut
$0.95
5000011421
Hexagonal head cap screw
5000011540
Cheese head screw
$0.95
5000011541
Cheese head screw
5000011551
Cheese head screw
$0.95
5000011571
Cheese head screw
$0.95
5000012643
Flat washer
$0.95
5000012997
Hexagon nut
$0.95
5000013591
Spring pin
5000014425
Cheese head screw
5000015061
Hexagon nut
$0.95
5000021466
Tire
$13.95
5000033198
Lockwasher
$0.95
5000033356
Hexagon nut
$0.95
5000069425
Cheese head screw
5000096087
Hexagon nut
$0.95
5000103834
Lock washer
$0.95
5000105139
Cylindrical roller bearing
$71.95
5000105210
Hexagon nut
5000108372
Pan head screw
$1.95
5000128241
Flat washer
$0.95
5000206837
Countersunk bolt
$1.95
5000208195
Decal-sound power level
$6.95
5000210111
Corrugated-head screw
$6.95
5000213543
Oval head screw
$0.95
5000219181
Labels
$12.95
5000220000
Instruction label
$2.95
5000222073
Screw
$1.95
5000222085
Label symbol
$25.95
5000222130
Label logo
$39.95
5100000179
Clamp
$2.95
5100001730
Housing
$423.95
5100001742
Plug cpl.
$98.95
5100002543
Battery charger
5100002644
Plate
$245.95
5100002647
Plate
$97.95
5100002673
Connecting rod
$95.95
5100002703
Plate
$190.95
5100002720
Rubber plate
$79.95
5100002789
Plate
$196.95
5100002878
Foam
$27.95
5100003034
Housing cover
$253.95
5100003170
Bar
$412.95
5100004421
Contact disk
$0.95
5100004447
Fan
$511.95
5100004465
Charging cable
$306.95
5100005556
Shim screw
$2.95
5100005836
Charger
$1,407.95
5100005889
Screen grid
$38.95
5100005908
Plug cap
$9.95
5100005909
Plug
$2.95
5100005910
Countersunk bolt
$0.95
5100006221
Battery charger
5100008927
Cord grip
$19.95
5100009484
Ac cable
$63.95
5100010127
Oval head screw
$0.95
5100010753
Handle
$32.95
5100014183
Hexagonal head cap screw
$3.95
5100016317
Shockmount
$12.95
5100025600
Leg spring
$3.95
5100025637
Bracket
$12.95
5100025709
Battery bp1000
5100027161
Foil
5100028169
Battery charger
$1,608.95
5100028195
Ac cable
$55.95
5100028231
Battery charger c 48/13 us
5100034432
Label
$39.95
5100034450
Ground wire 2,5 qmm
$9.95
5100034545
Washer
5100041150
Locking plug
$7.95
5100045195
Cheese head screw
$0.95
5100045196
Switch
$33.95
5100045462
Label
5100051760
Transport box cpl.
5100051775
Water tank
$143.95
5100051963
Filter
5100051982
Water tank cap
$39.95
5100052030
Rubber inlay
$148.95
5100052031
Rubber inlay
$105.95
5100052073
Label un3480
$18.95
5100052424
Upper mass
$854.95
5100052430
Bearing
$38.95
5100052431
Bolt
$6.95
5100052432
Spring pin
$0.95
5100052875
Label type bp1000
$9.95
5100053566
Baseplate 40cm
$668.95
5100053603
Cap screw
$14.95
5100053801
Label
$6.95
5100054130
Locking plate
$117.95
5100054131
Covering
$60.95
5100054175
Hose
$4.95
5100054177
Water tank cpl.
$280.95
5100054241
Bar
$30.95
5100054246
Urethane plate
$213.95
5100054248
Bush
$2.95
5100054285
Bearing cover left
$18.95
5100054340
Motor armature
$459.95
5100054442
Terminal box cover
$8.95
5100054443
Power supply cable
$79.95
5100054500
Eccentric weight
$6.95
5100054570
Bearing cover right
$18.95
5100055542
Trolley
$371.95
5100055547
Lock bolt
$44.95
5100056944
Supplementary weight
$51.95
5100057039
Label
$4.95
5100057481
Label type bp1000
$9.95
5100057642
Fixing ring
5100057643
Turning handle
5100057654
Gasket
5100057675
Control rod
5100058122
Spinkler system cpl. (40 cm)
$91.95
5100058287
Supply line cpl.
$17.95
5100058288
Supply line cpl.
$48.95
5100058289
Supply line cpl.
$20.95
5100058290
Circuit board cpl. bms bp1000
$721.95
5100058291
Sealing plug
$2.95
5100058298
Strain relief
$6.95
5100058301
Circuit board cpl. bms bp1400
$1,058.95
5100058302
Set of screws
$12.95
5100058578
Guiding frame cpl.
$414.95
5100058734
Label symbol
$13.95
5100058735
Base plate
$154.95
5100058750
Bracket
$82.95
5100058806
Bar cpl.
$8.95
5100059052
Cover
$30.95
5100059365
Type label
$15.95
5100059593
Cheese head screw
$0.95
5100059594
Cheese head screw
$1.95
5100059595
Cheese head screw
$1.95
5100059596
Cheese head screw
$1.95
5100059597
Hexagonal head cap screw
$5.95
5100059680
Label logo
$13.95
5100059681
Starting note decal
$13.95
5100059794
Switch cable
$34.95
5100059959
Shockmount
$5.95
5100060002
Motor housing cpl.
5100060010
Gasket
$7.95
5100060427
Urethane pad kit pgv
5100060429
Trolley cpl.
5100060499
Water tank cpl.
5100060555
Seal washer
$9.95
5100060906
Label
5100061317
Converter
$687.95
5100061983
Battery service box
5100061984
Disassembly tool ribbon cable
5100061985
Mounting tool ribbon cable
5100061987
Label
$2.95
5100062179
Bearing seat
$46.95
5100062507
Bearing seat
$71.95
5100062529
Label
$2.95
5100062535
Label
$55.95
5100063187
Hexagonal head cap screw
$5.95
5100063195
Pan head screw
$0.95
5100064118
Countersunk bolt
$1.95
5100064290
Motor housing cpl.
$1,519.95
5100064583
Watertank big
5100064647
Watertank cpl. big
$271.95
5100065517
Kit-rebuild exciter housing
5100065519
Kit-rebuild screw
$22.95
5100065615
Motor housing cpl.
5100068061
Protection
$80.95
5100068062
Label
$2.95
5100068184
Battery holder
$694.95
5100068610
Label
$6.95
5100068642
Water tank cpl. big
5100069226
Label warning
$11.95
5100072171
Control rod cpl.
5100072172
Turning handle cpl.
5100072173
Filter cpl.
$12.95
5100077951
Lock bolt
$35.95
5100079293
Control rod cpl.
$75.95
5100079294
Turning handle cpl.
$99.95
5100079554
Guide rail
5100082229
Pan head screw
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
