Wacker Neuson APU3050 Vibratory Plate
Factory parts book · interactive
Wacker Neuson APU3050 Vibratory Plate
Pick your options below. We build the exact machine and start your quote.
The parts bench

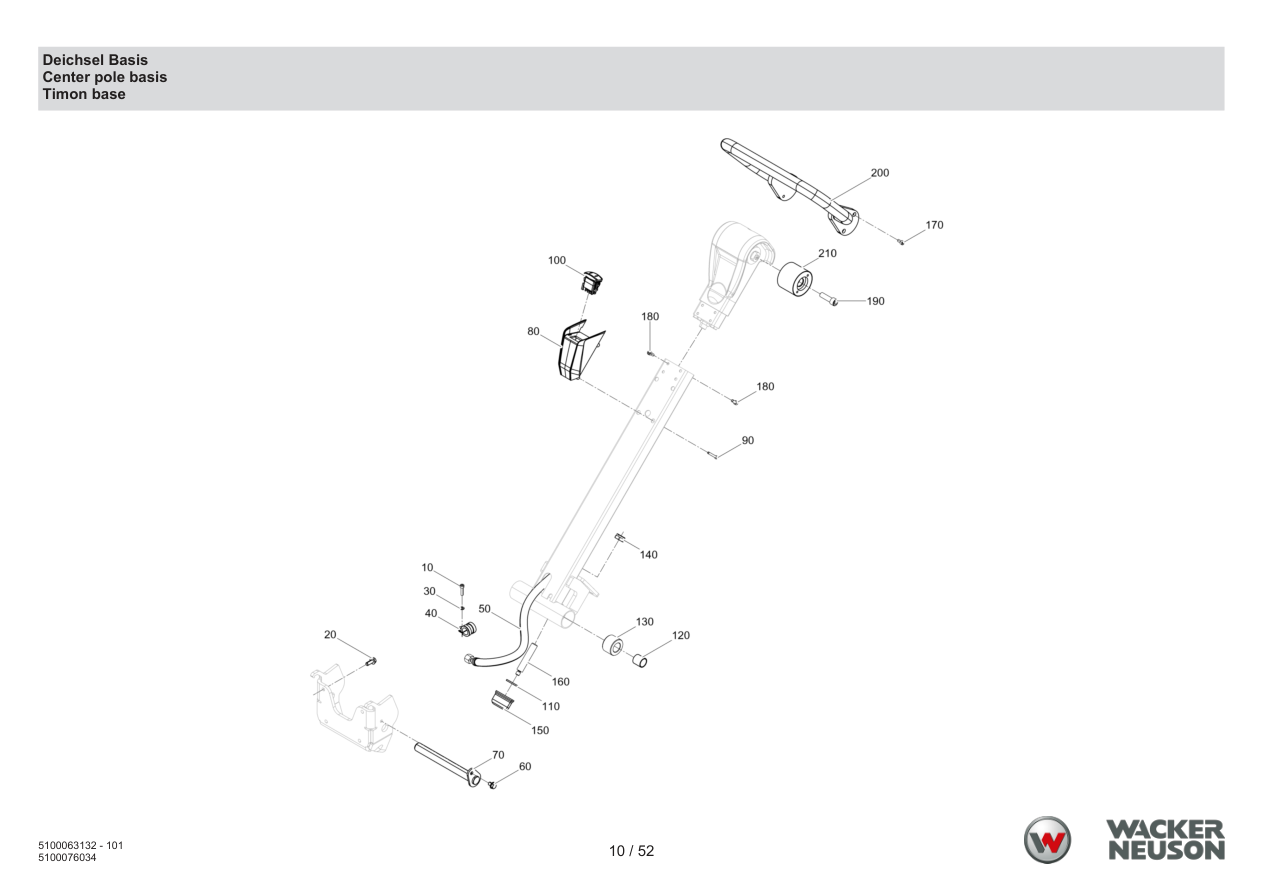

Need the PDF? ↓Page 10 — Center pole basis
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011550 | Cheese head screw | 1 | ADD TO CART | |
| 20 | 5000105944 | Screw | 4 | ADD TO CART | |
| 30 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 40 | 5000206551 | Clamp | 1 | ADD TO CART | |
| 50 | 5100065246 | Hydraulic hose line | 1 | ADD TO CART | |
| 60 | 5100050635 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100050635 · qty on machine: 1 | |||||
| 70 | 5100064894 | Axle | 1 | ADD TO CART | |
| 80 | 5100065532 | Switch box | 1 | ADD TO CART | |
| 90 | 5100065529 | Oval head screw | 4 | ADD TO CART | |
| 100 | 5100045196 | Switch | 1 | ADD TO CART | |
| 110 | 5000012976 | Washer | 1 | ADD TO CART | |
| 120 | 5000126164 | Slide bush | 2 | ADD TO CART | |
| 130 | 5000201018 | Bush | 2 | ADD TO CART | |
| 140 | 5000013496 | Hexagon nut | 1 | ADD TO CART | |
| 150 | 5000127085 | Shockmount | 1 | ADD TO CART | |
| 160 | 5000201009 | Threaded spindle | 1 | ADD TO CART | |
| 170 | 5000011554 | Cheese head screw | 4 | ADD TO CART | |
| 180 | 5000011553 | Cheese head screw | 8 | ADD TO CART | |
| 190 | 5100010091 | Cheese head screw | 2 | ADD TO CART | |
| 200 | 5000214990 | Clamp | 1 | ADD TO CART | |
| 210 | 5000215035 | Shockmount | 2 | ADD TO CART | |

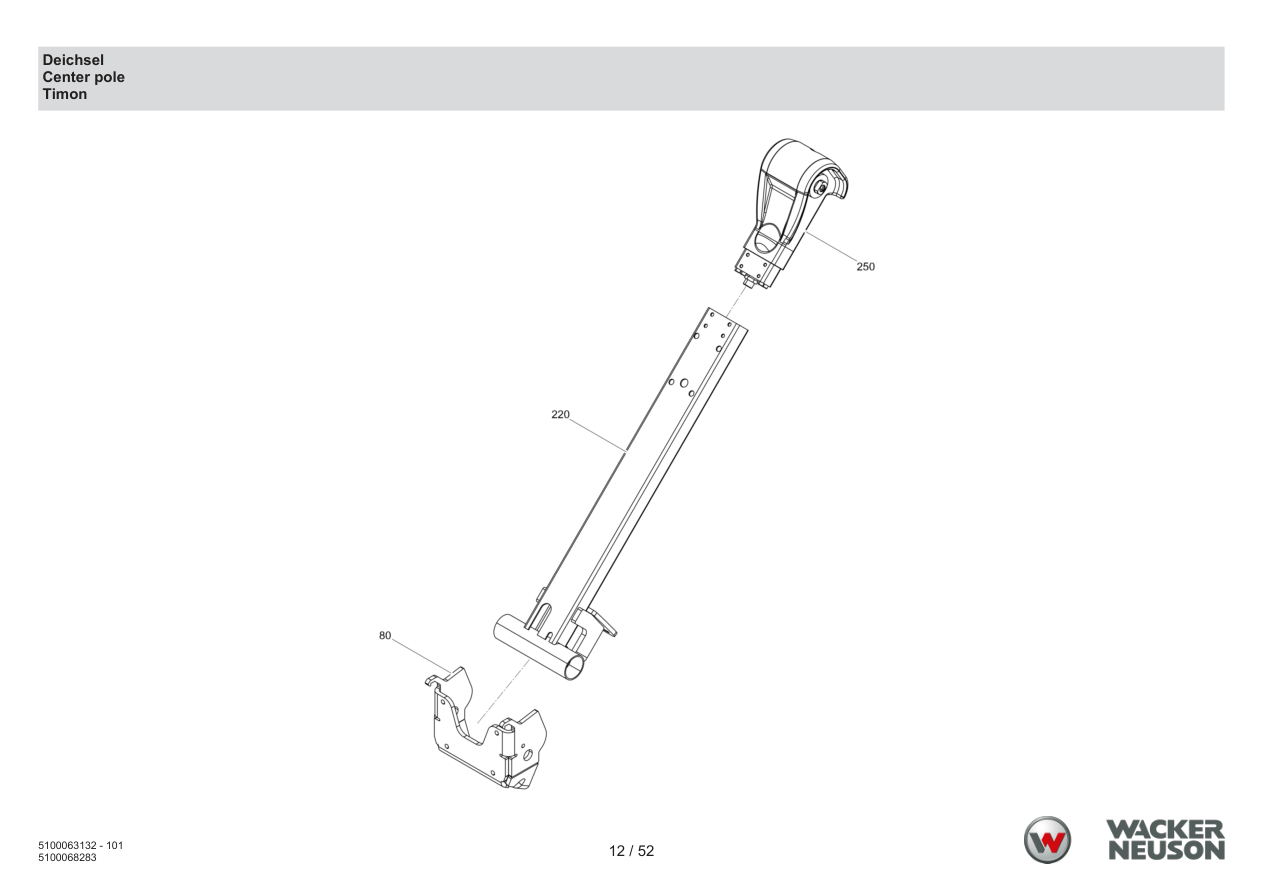

Page 12 — Center pole
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 80 | 5100064926 | Support | 1 | ADD TO CART | |
| 220 | 5100065530 | Center pole | 1 | ADD TO CART | |
| 250 | 5000125336 | Centre pole head | 1 | ADD TO CART | |

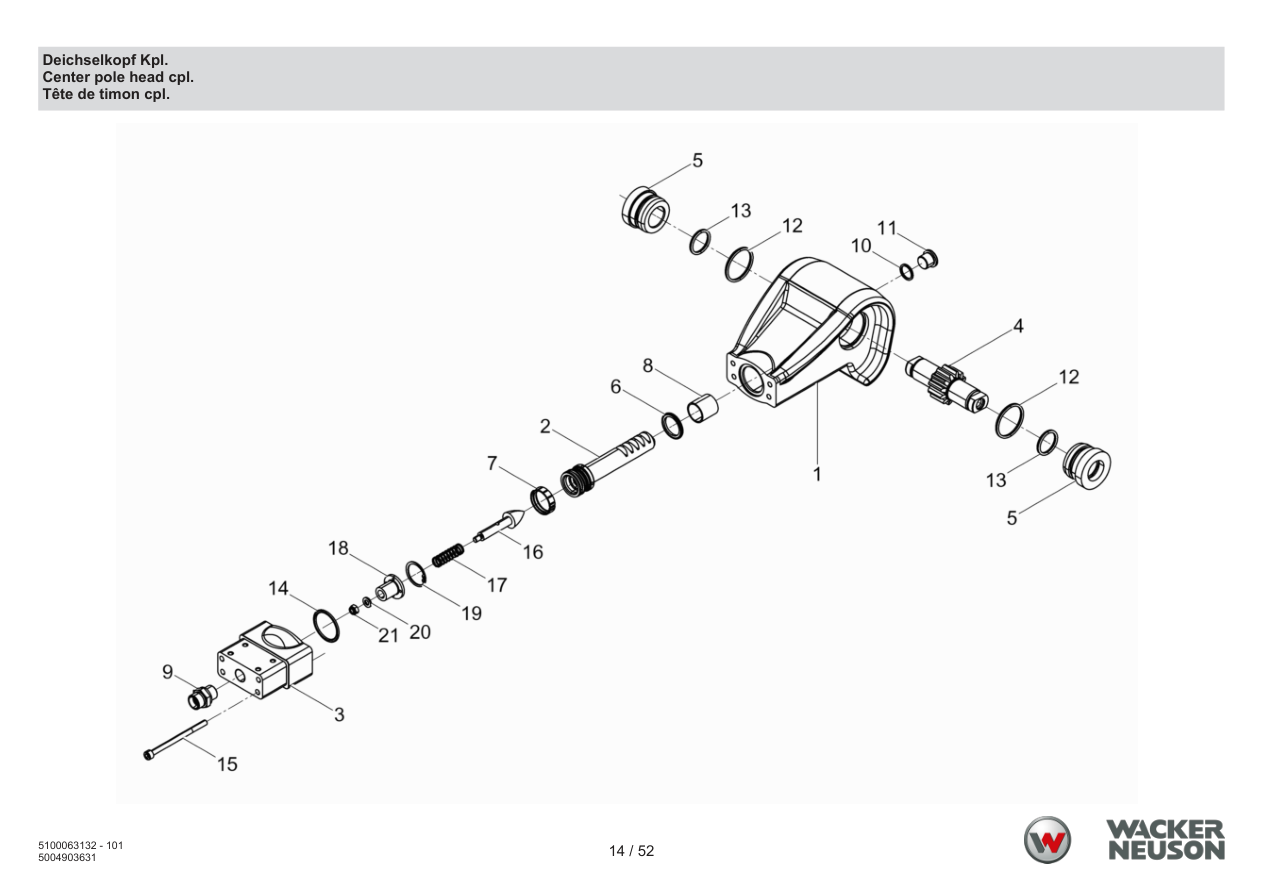

Page 14 — Center pole head cpl.
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000125363 | Center pole head | 1 | ADD TO CART | |
| 2 | 5100018558 | Piston rod | 1 | ADD TO CART | |
| 3 | 5000125924 | Guide pole head adapter | 1 | ADD TO CART | |
| 4 | 5000069726 | Long face pinion | 1 | ADD TO CART | |
| 5 | 5000125926 | Spacer | 2 | ADD TO CART | |
| 6 | 5000129269 | Compact seal | 1 | ADD TO CART | |
| 7 | 5000126163 | Piston guide ring | 1 | ADD TO CART | |
| 8 | 5000126164 | Slide bush | 1 | ADD TO CART | |
| 9 | 5000046092 | Screwed socket | 1 | ADD TO CART | |
| 10 | 5000012082 | Seal ring | 1 | ADD TO CART | |
| 11 | 5000011050 | Plug (threaded) | 1 | ADD TO CART | |
| 12 | 5000068752 | O-ring | 2 | ADD TO CART | |
| 13 | 5000018194 | O-ring | 2 | ADD TO CART | |
| 14 | 5000067781 | O-ring | 1 | ADD TO CART | |
| 15 | 5000200651 | Cheese head screw | 4 | ADD TO CART | |
| 16 | 5100018559 | Seal cone | 1 | ADD TO CART | |
| 17 | 5100018591 | Compression spring | 1 | ADD TO CART | |
| 18 | 5100018590 | Guide sleeve | 1 | ADD TO CART | |
| 19 | 5002001695 | Retaining ring | 1 | ADD TO CART | |
| 20 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 21 | 5000010368 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5000010368 · qty on machine: 1 | |||||

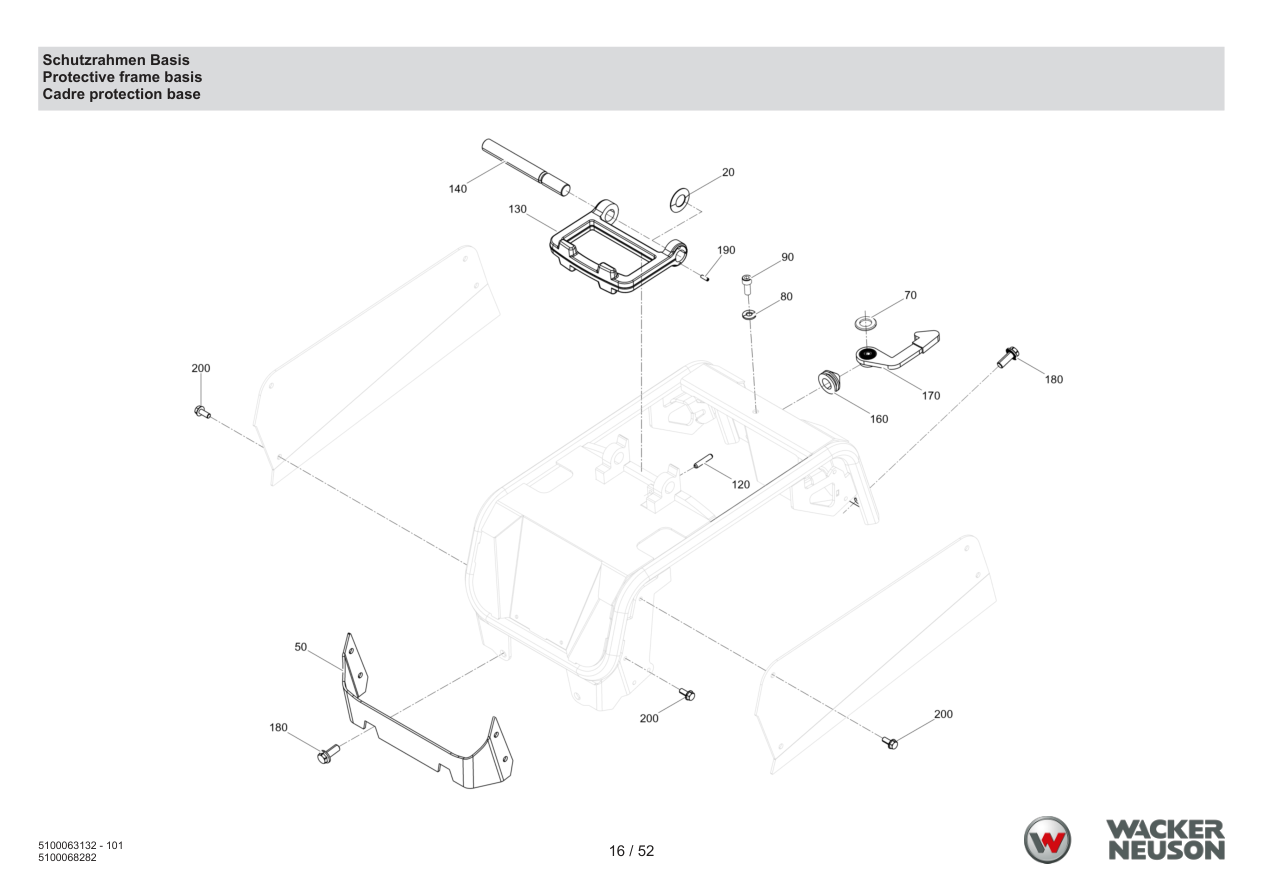

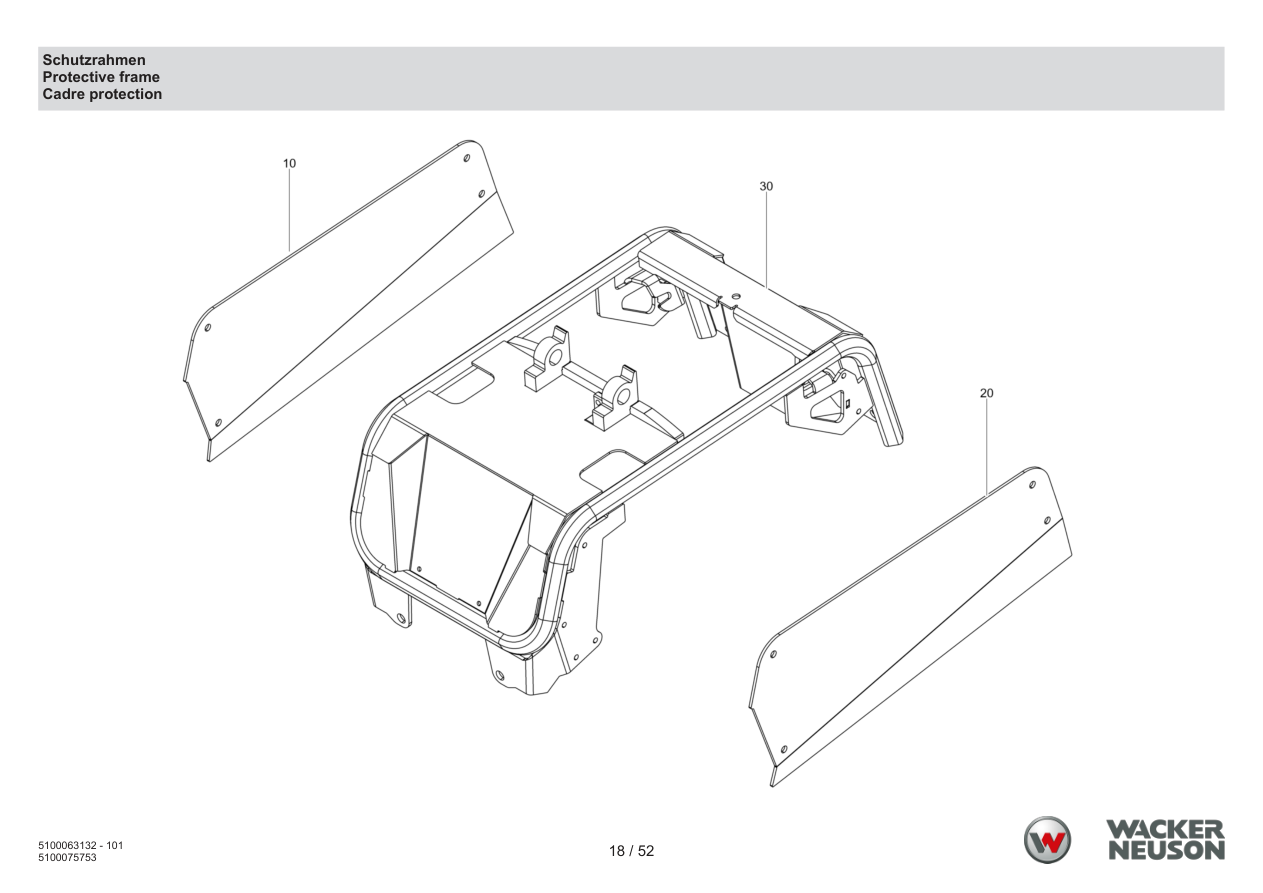

Page 16 — Protective frame basis
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5000202829 | Cup spring | 2 | ADD TO CART | |
| 50 | 5100064521 | Cover | 1 | ADD TO CART | |
| 70 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 80 | 5000033988 | Lockwasher | 1 | ADD TO CART | |
| 90 | 5000011535 | Cheese head screw | 1 | ADD TO CART | |
| 120 | 5100058126 | Roll pin | 1 | ADD TO CART | |
| 130 | 5100057544 | Jack ring | 1 | ADD TO CART | |
| 140 | 5100057560 | Axle | 1 | ADD TO CART | |
| 160 | 5000200617 | Shockmount | 1 | ADD TO CART | |
| 170 | 5000200616 | Carrier cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 180 | 5100018059 | Corrugated-head screw | 4 | ADD TO CART | |
| 190 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 200 | 5000105944 | Screw | 12 | ADD TO CART | |
Page 18 — Protective frame
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100064520 | Hood right | 1 | ADD TO CART | |
| 20 | 5100064519 | Hood left | 1 | ADD TO CART | |
| 30 | 5100064514 | Protective frame | 1 | ADD TO CART | |

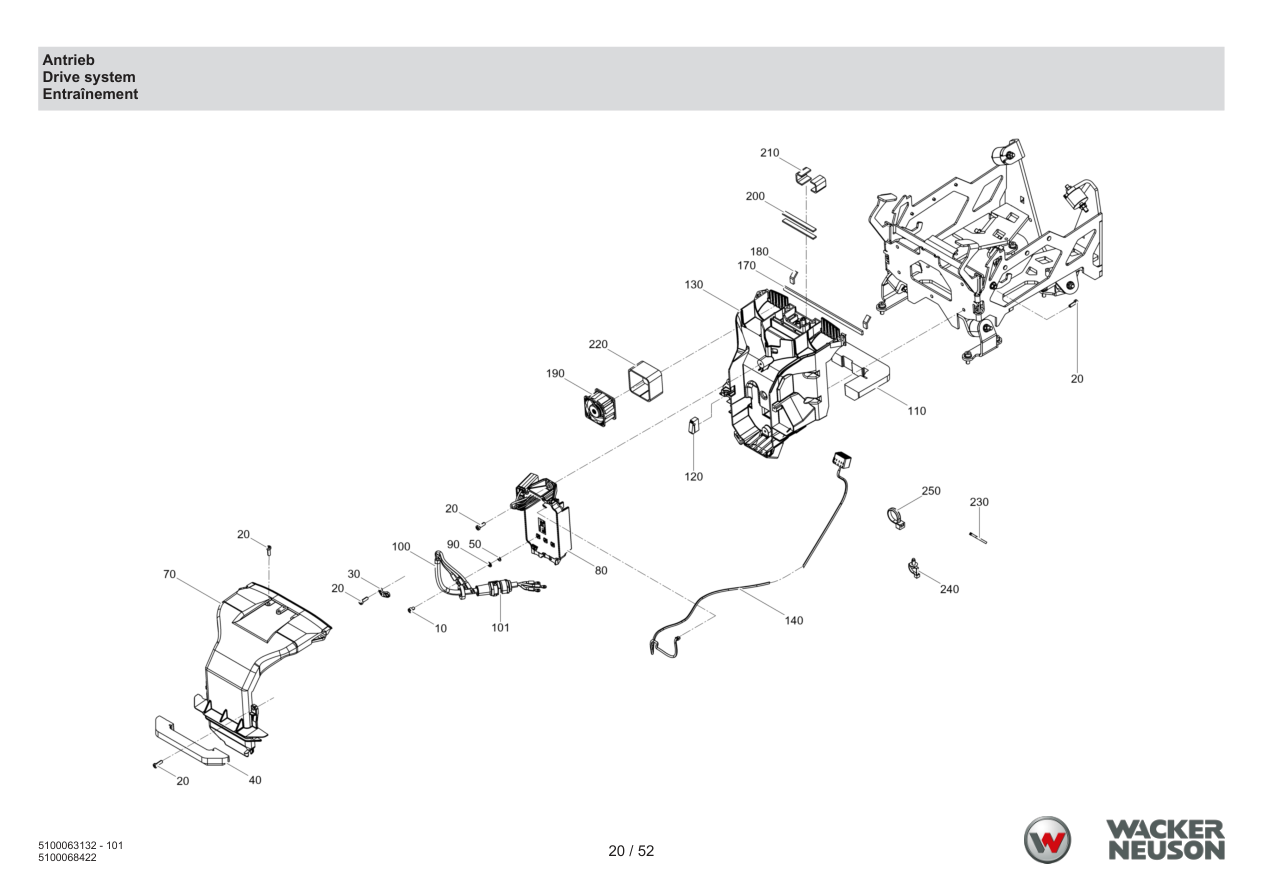

Page 20 — Drive system
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000014425 | Cheese head screw | 3 | PARTS REQUEST | |
|
COMING Cheese head screw
5000014425 · qty on machine: 3 | |||||
| 20 | 5100013871 | Oval head screw | 15 | ADD TO CART | |
| 30 | 5100000179 | Clamp | 1 | ADD TO CART | |
| 40 | 5100065716 | Gasket | 1 | ADD TO CART | |
| 50 | 5000202098 | Toothed lock washer | 3 | ADD TO CART | |
| 70 | 5100065718 | Air ducting cover | 1 | ADD TO CART | |
| 80 | 5100065069 | Umformer | 1 | ADD TO CART | |
| 90 | 5000010624 | Flat washer | 3 | ADD TO CART | |
| 100 | 5100066494 | Cable | 1 | ADD TO CART | |
| 110 | 5100065717 | Gasket | 1 | ADD TO CART | |
| 120 | 5100067071 | Gasket | 1 | ADD TO CART | |
| 130 | 5100065719 | Air ducting air support | 1 | ADD TO CART | |
| 140 | 5100064652 | Switch cable | 1 | ADD TO CART | |
| 170 | 5100067991 | Sealing tape | 1 | ADD TO CART | |
| 180 | 5100067989 | Sealing tape | 2 | ADD TO CART | |
| 190 | 5100065176 | Axial fan | 2 | ADD TO CART | |
| 191 | 5000201171 | Screw connection | 1 | ADD TO CART | |
| 200 | 5100067822 | Sealing tape | 2 | ADD TO CART | |
| 210 | 5100067824 | Sealing tape | 3 | ADD TO CART | |
| 220 | 5100067823 | Sealing tape | 2 | ADD TO CART | |
| 230 | 5000206683 | Cable yarn t30l | 1 | ADD TO CART | |
| 240 | 5100011341 | Tie cable | 3 | ADD TO CART | |
| 250 | 5000038489 | Tie cable | 1 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 1 | |||||

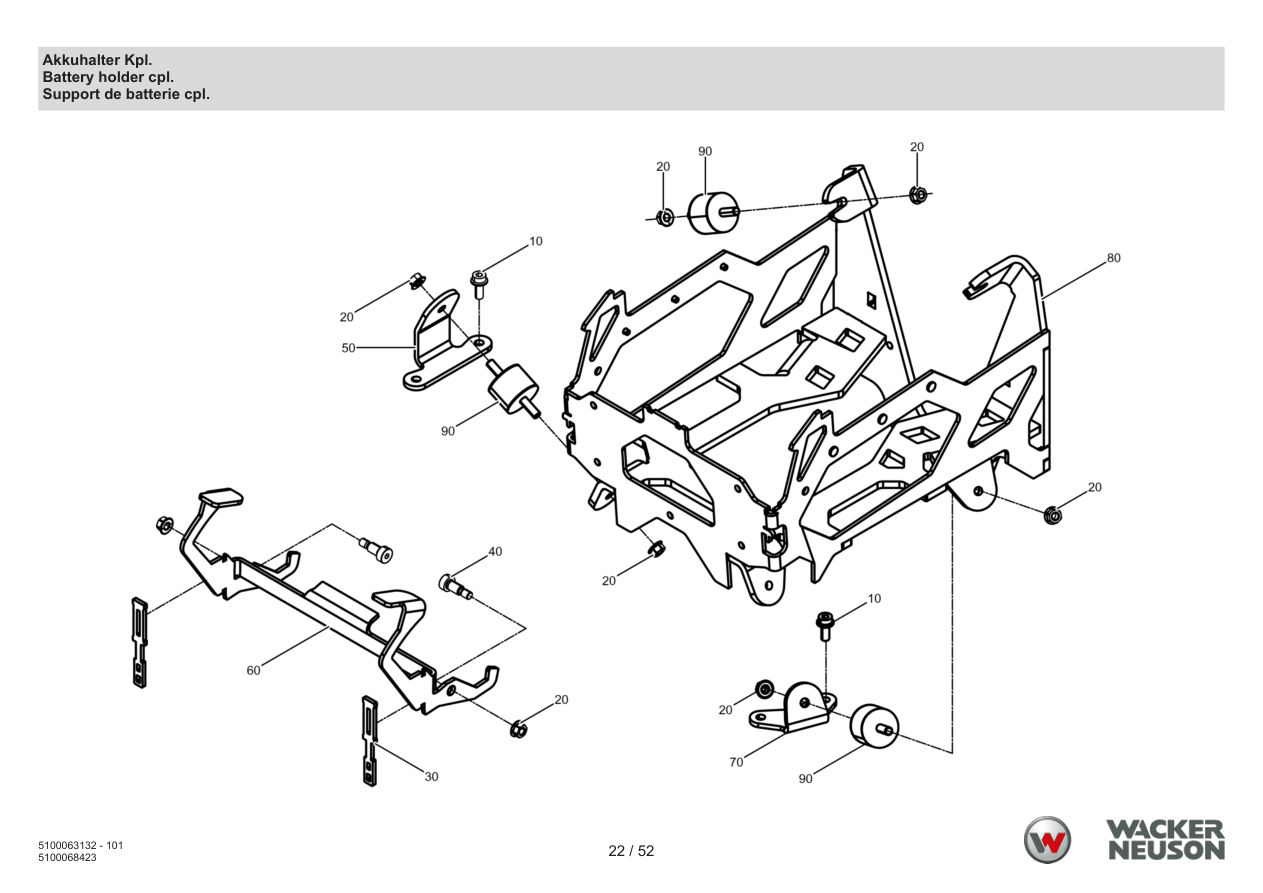

Page 22 — Battery holder cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000098649 | Socket head cap screw | 8 | ADD TO CART | |
| 20 | 5000096677 | Hexagon nut | 14 | ADD TO CART | |
| 30 | 5100065720 | Rubber strap | 2 | ADD TO CART | |
| 40 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 50 | 5100064893 | Bumper support front | 2 | ADD TO CART | |
| 60 | 5100064925 | Lever | 1 | ADD TO CART | |
| 70 | 5100064892 | Bumper support rear | 2 | ADD TO CART | |
| 80 | 5100064517 | Battery holder | 1 | ADD TO CART | |
| 90 | 5100065174 | Shockmount | 6 | ADD TO CART | |

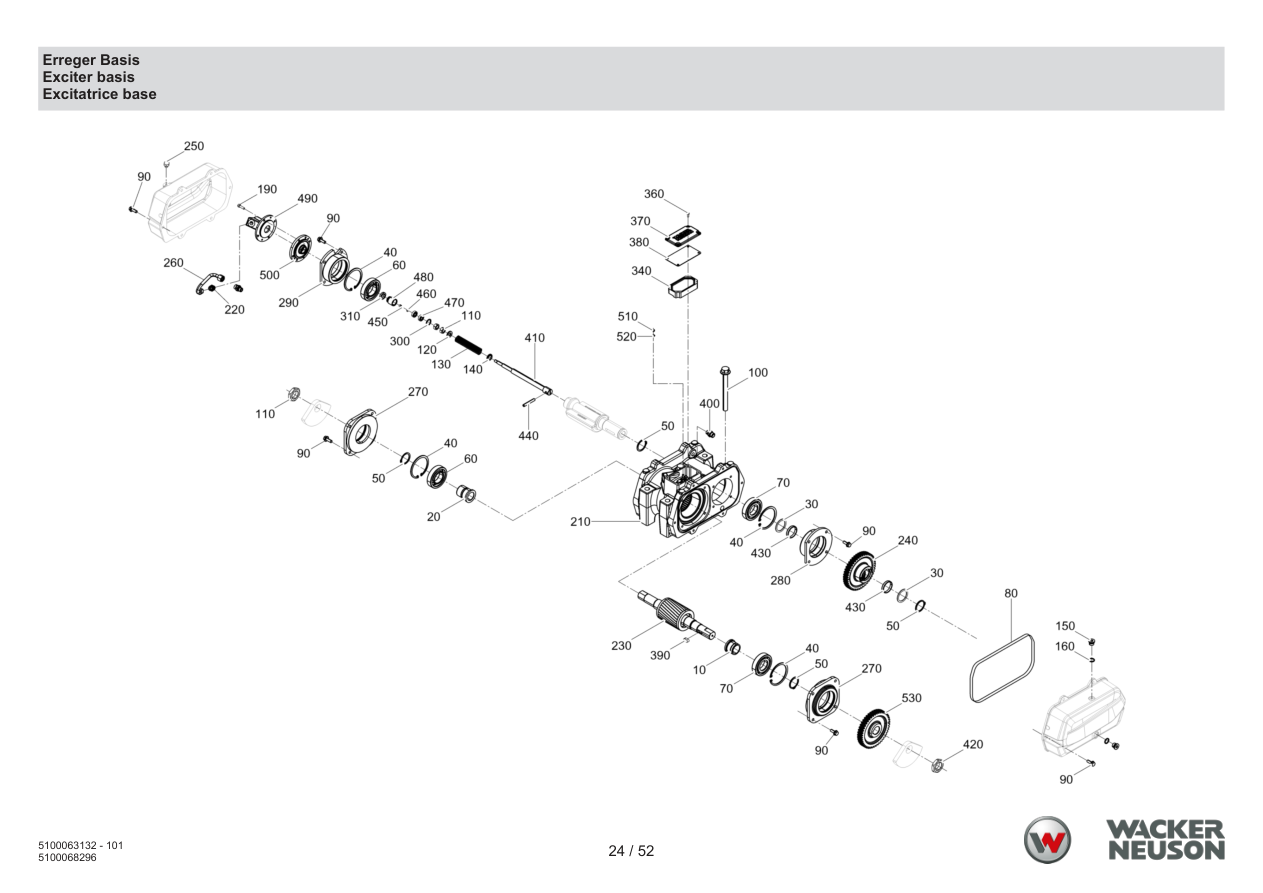

Page 24 — Exciter base
Parts list — exactly as printed47 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100067083 | Bearing seat | 1 | ADD TO CART | |
| 20 | 5100067082 | Bearing seat | 1 | ADD TO CART | |
| 30 | 5000220075 | Supporting washer | 2 | PARTS REQUEST | |
|
COMING Supporting washer
5000220075 · qty on machine: 2 | |||||
| 40 | 5002004928 | Retaining ring | 4 | ADD TO CART | |
| 50 | 5002004474 | Retaining ring | 4 | ADD TO CART | |
| 60 | 5100065180 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 70 | 5100065181 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 80 | 5100066698 | O-ring | 2 | ADD TO CART | |
| 90 | 5100066697 | Hexagonal head cap screw | 28 | ADD TO CART | |
| 100 | 5100066696 | Hexagonal head cap screw | 6 | ADD TO CART | |
| 110 | 5000010884 | Hexagon nut | 2 | ADD TO CART | |
| 120 | 5100066438 | Washer | 1 | ADD TO CART | |
| 130 | 5100067053 | Compression spring | 1 | ADD TO CART | |
| 140 | 5100066435 | Washer | 1 | ADD TO CART | |
| 150 | 5000011050 | Plug (threaded) | 2 | ADD TO CART | |
| 160 | 5000012082 | Seal ring | 2 | ADD TO CART | |
| 190 | 5000012373 | Cheese head screw | 4 | ADD TO CART | |
| 210 | 5100066012 | Motor housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 220 | 5100064783 | Screwed socket | 2 | ADD TO CART | |
| 230 | 5100065591 | Motor armature | 1 | ADD TO CART | |
| 240 | 5100060178 | Adjusting sleeve | 1 | ADD TO CART | |
| 250 | 5001103030 | Vent screw | 1 | ADD TO CART | |
| 260 | 5100065065 | Hydraulic line | 1 | ADD TO CART | |
| 270 | 5100064534 | Bearing bracket front | 2 | ADD TO CART | |
| 280 | 5100064536 | Bearing bracket rear left | 1 | ADD TO CART | |
| 290 | 5100064535 | Bearing bracket rear right | 1 | ADD TO CART | |
| 300 | 5002004979 | Retaining ring | 1 | ADD TO CART | |
| 310 | 5000220356 | Lip seal ring | 1 | ADD TO CART | |
| 340 | 5000069291 | Rubber isolator | 1 | ADD TO CART | |
| 360 | 5000095509 | Cheese head screw | 4 | ADD TO CART | |
| 370 | 5000067945 | Cover | 1 | ADD TO CART | |
| 380 | 5000068755 | Seal | 1 | ADD TO CART | |
| 390 | 5100047188 | Fitting key | 1 | ADD TO CART | |
| 400 | 5000046461 | Screwed socket | 1 | PARTS REQUEST | |
|
COMING Screwed socket
5000046461 · qty on machine: 1 | |||||
| 410 | 5100060053 | Indexing bolt | 1 | ADD TO CART | |
| 420 | 5000010822 | Hexagon nut | 2 | ADD TO CART | |
| 430 | 5000220072 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000220072 · qty on machine: 2 | |||||
| 440 | 5000220073 | Tripping pin | 1 | ADD TO CART | |
| 450 | 5000024617 | Cheese head screw | 1 | ADD TO CART | |
| 460 | 5000010625 | Flat washer | 1 | ADD TO CART | |
| 470 | 5002006596 | Grooved ball bearing | 2 | ADD TO CART | |
| 480 | 5000220355 | Piston | 1 | ADD TO CART | |
| 490 | 5000220220 | Cylinder cover | 1 | ADD TO CART | |
| 500 | 5000220216 | Cover | 1 | ADD TO CART | |
| 510 | 5000012997 | Hexagon nut | 3 | ADD TO CART | |
| 520 | 5000012643 | Flat washer | 3 | ADD TO CART | |
| 530 | 5100072139 | Gear | 1 | PARTS REQUEST | |
|
COMING Gear
5100072139 · qty on machine: 1 | |||||

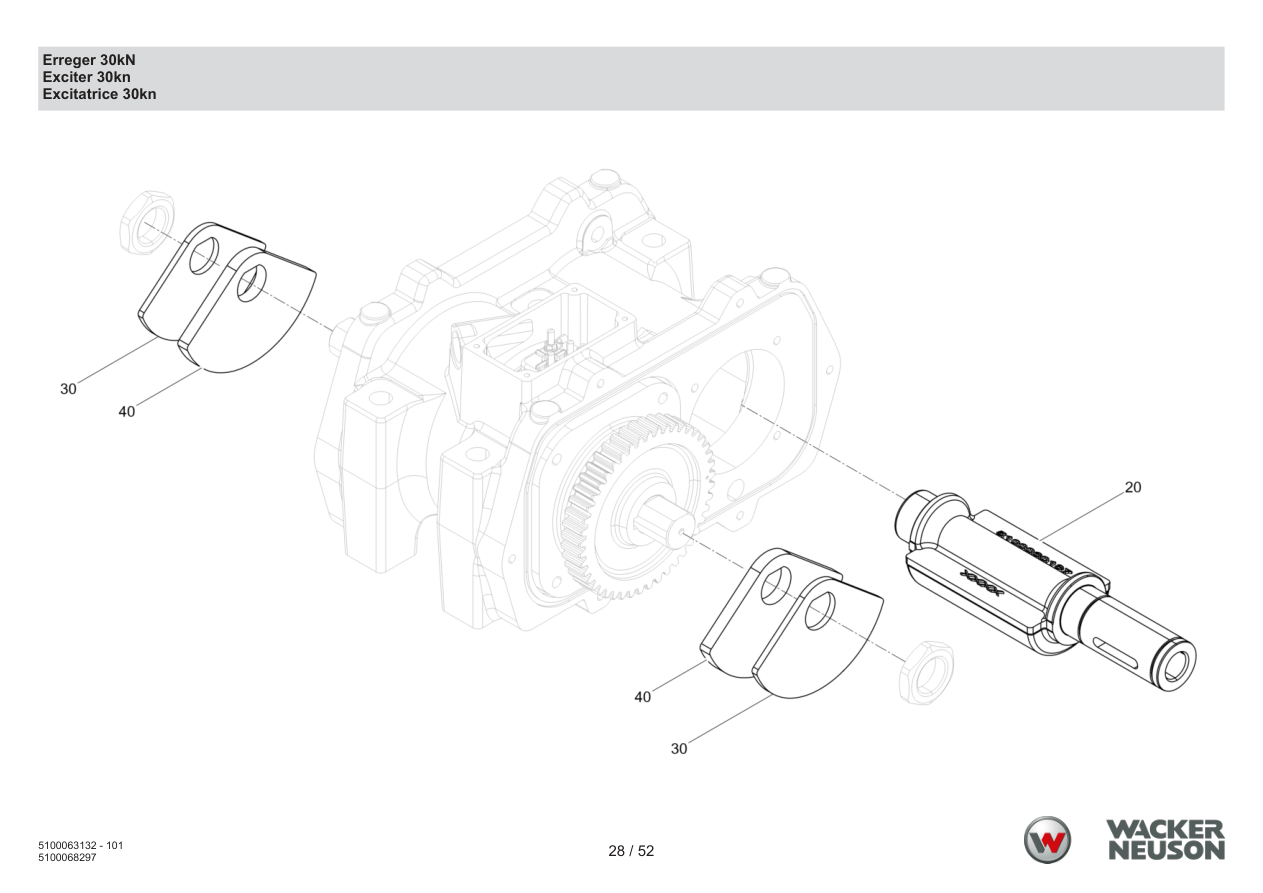

Page 28 — Exciter 30kN
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100063164 | Setting shaft | 1 | ADD TO CART | |
| 30 | 5100071921 | Eccentric weight | 2 | PARTS REQUEST | |
|
COMING Eccentric weight
5100071921 · qty on machine: 2 | |||||
| 40 | 5100071922 | Eccentric weight | 2 | PARTS REQUEST | |
|
COMING Eccentric weight
5100071922 · qty on machine: 2 | |||||

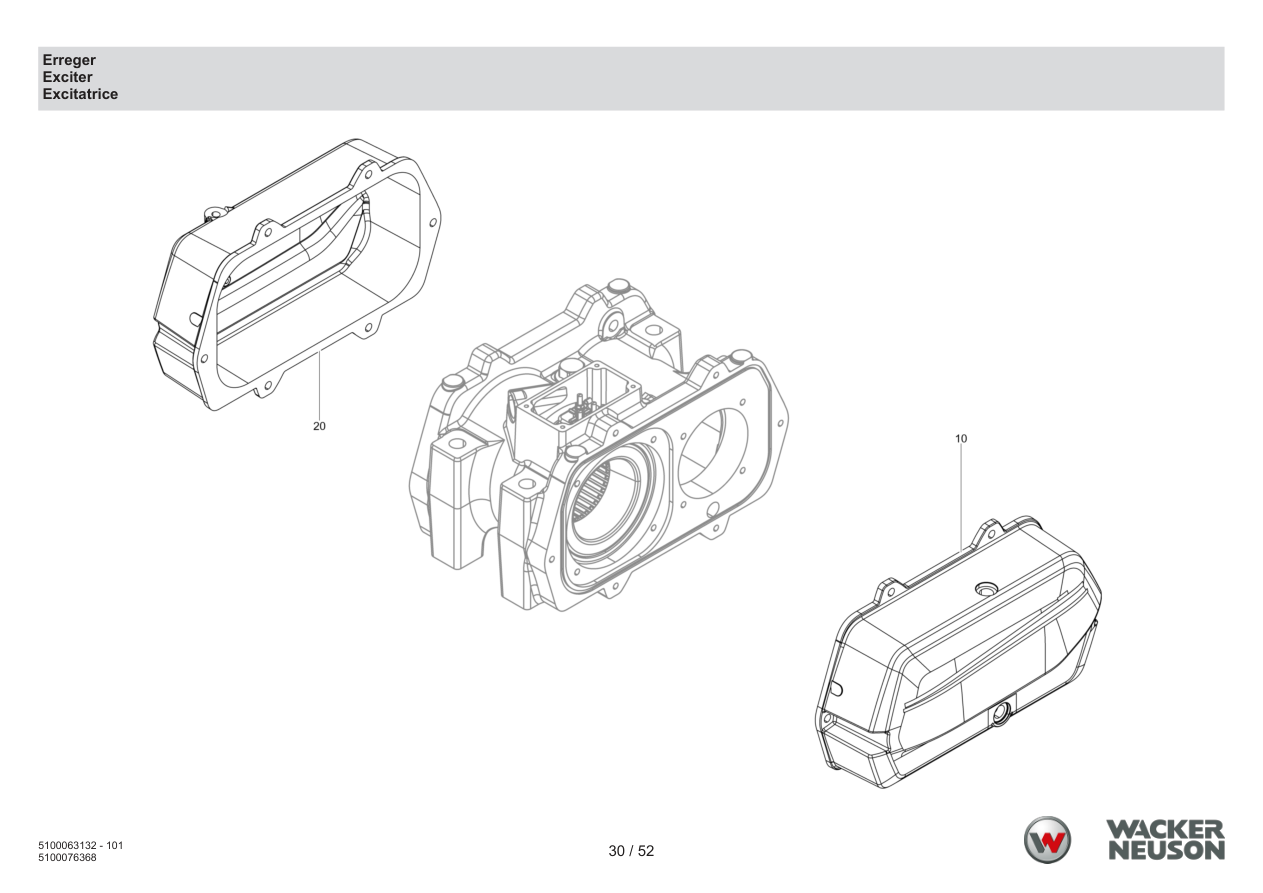

Page 30 — Exciter
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060182 | Side cap left | 1 | ADD TO CART | |
| 20 | 5100060180 | Side cap right | 1 | ADD TO CART | |

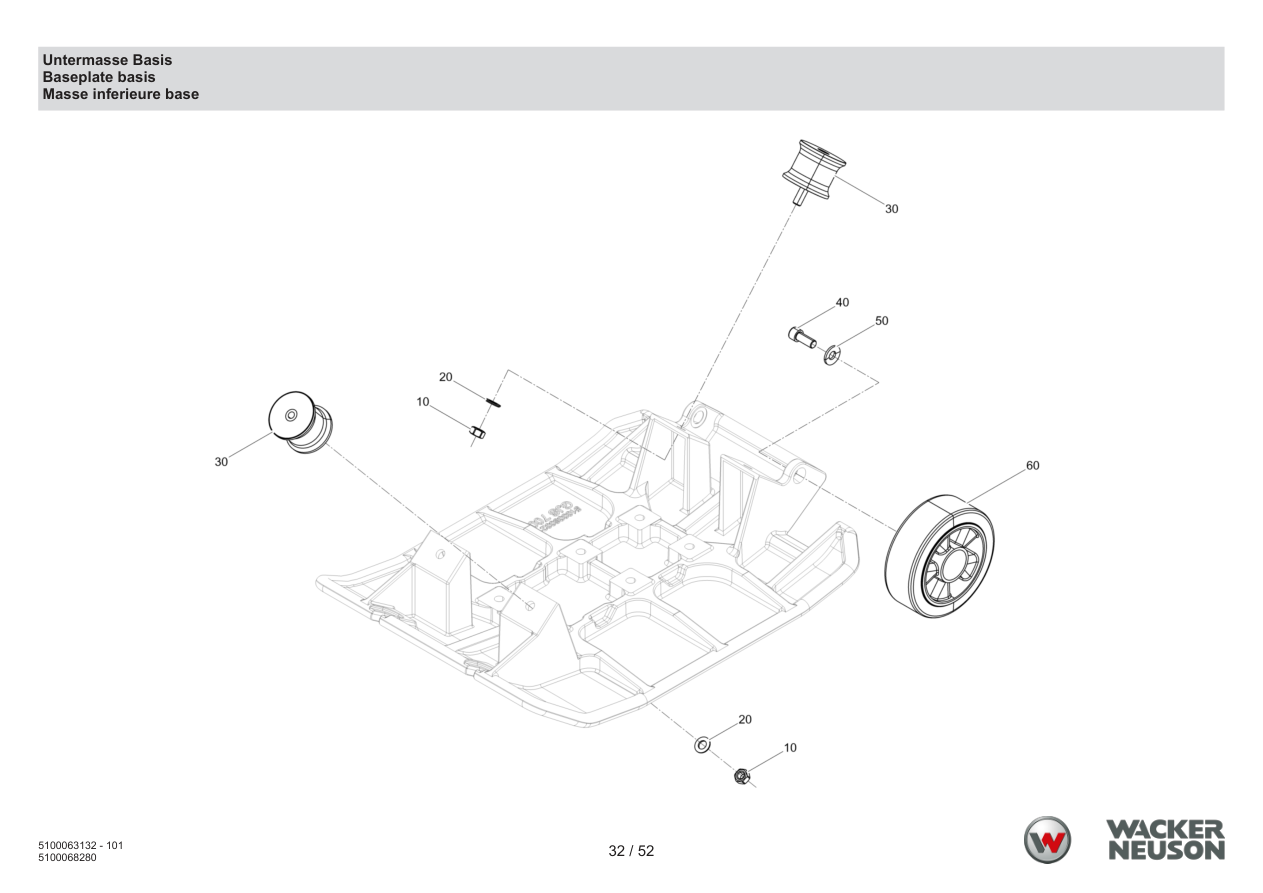

Page 32 — Lower mass base
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000010884 | Hexagon nut | 4 | ADD TO CART | |
| 20 | 5000010620 | Flat washer | 4 | ADD TO CART | |
| 30 | 5000125931 | Shockmount | 4 | ADD TO CART | |
| 40 | 5000011529 | Cheese head screw | 2 | ADD TO CART | |
| 50 | 5000031565 | Lockwasher | 2 | ADD TO CART | |
| 60 | 5000125927 | Tire | 2 | ADD TO CART | |

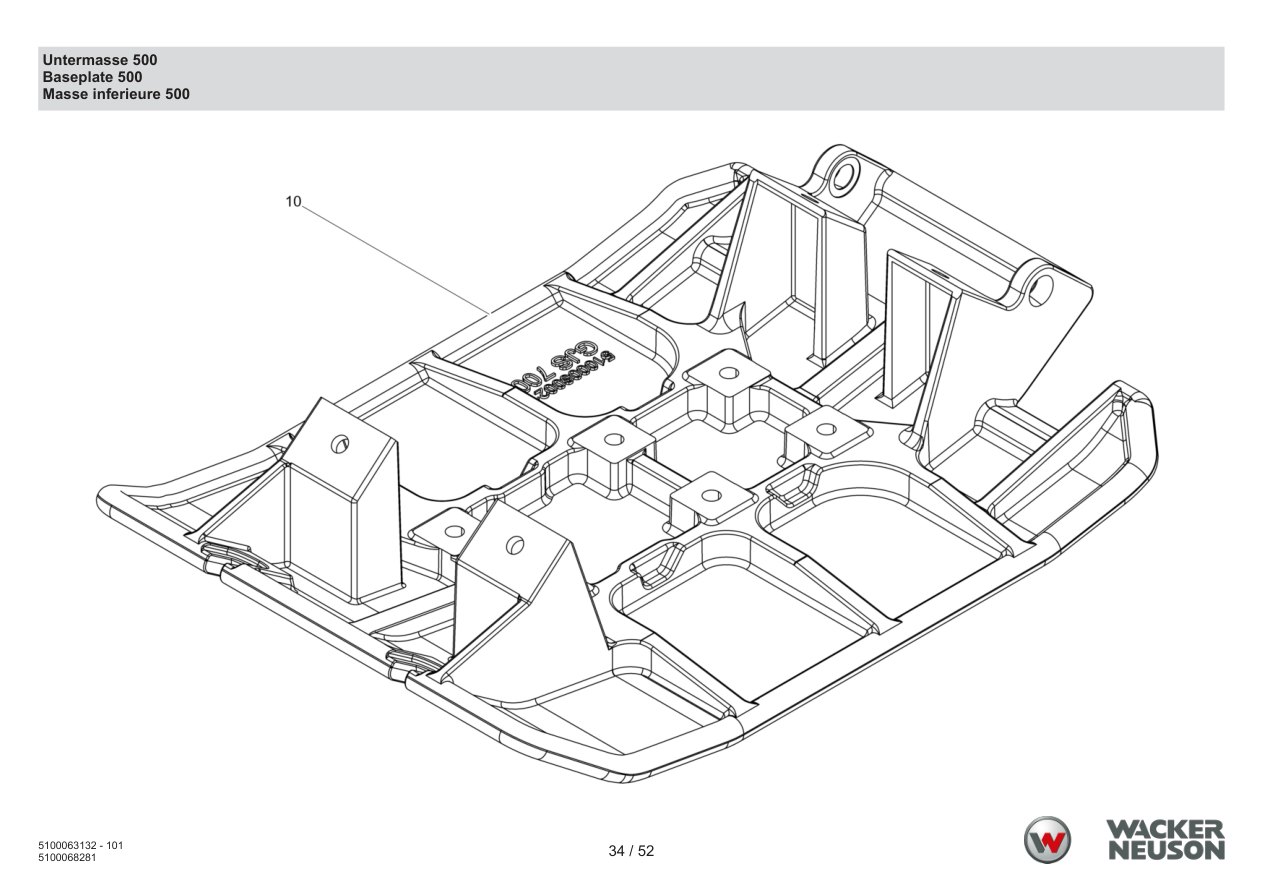

Page 34 — Lower mass 500
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060020 | Base plate | 1 | ADD TO CART | |

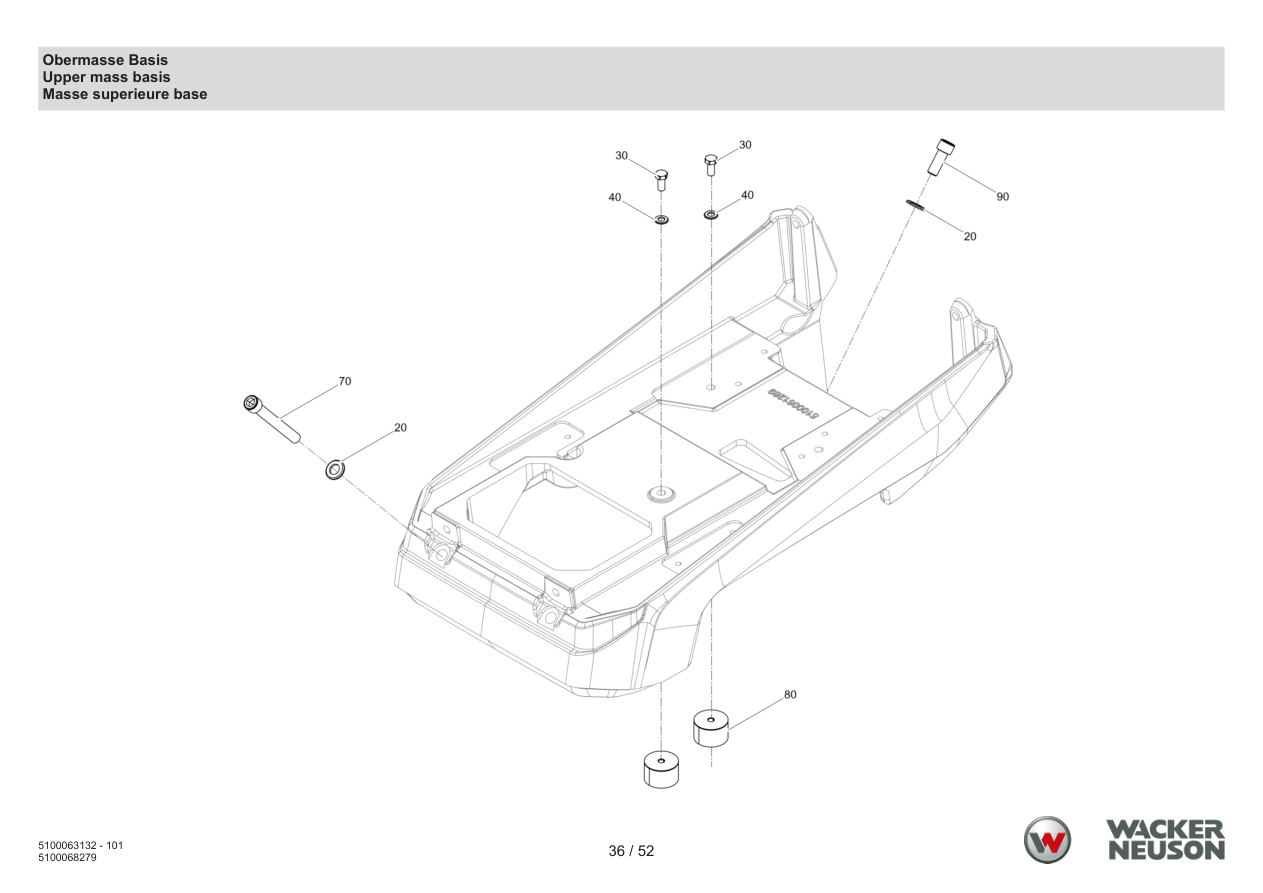

Page 36 — Upper mass base
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5000010620 | Flat washer | 4 | ADD TO CART | |
| 30 | 5000013551 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 40 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 70 | 5100065172 | Cheese head screw | 2 | ADD TO CART | |
| 80 | 5000201017 | Shockmount | 4 | ADD TO CART | |
| 90 | 5000011530 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000011530 · qty on machine: 2 | |||||

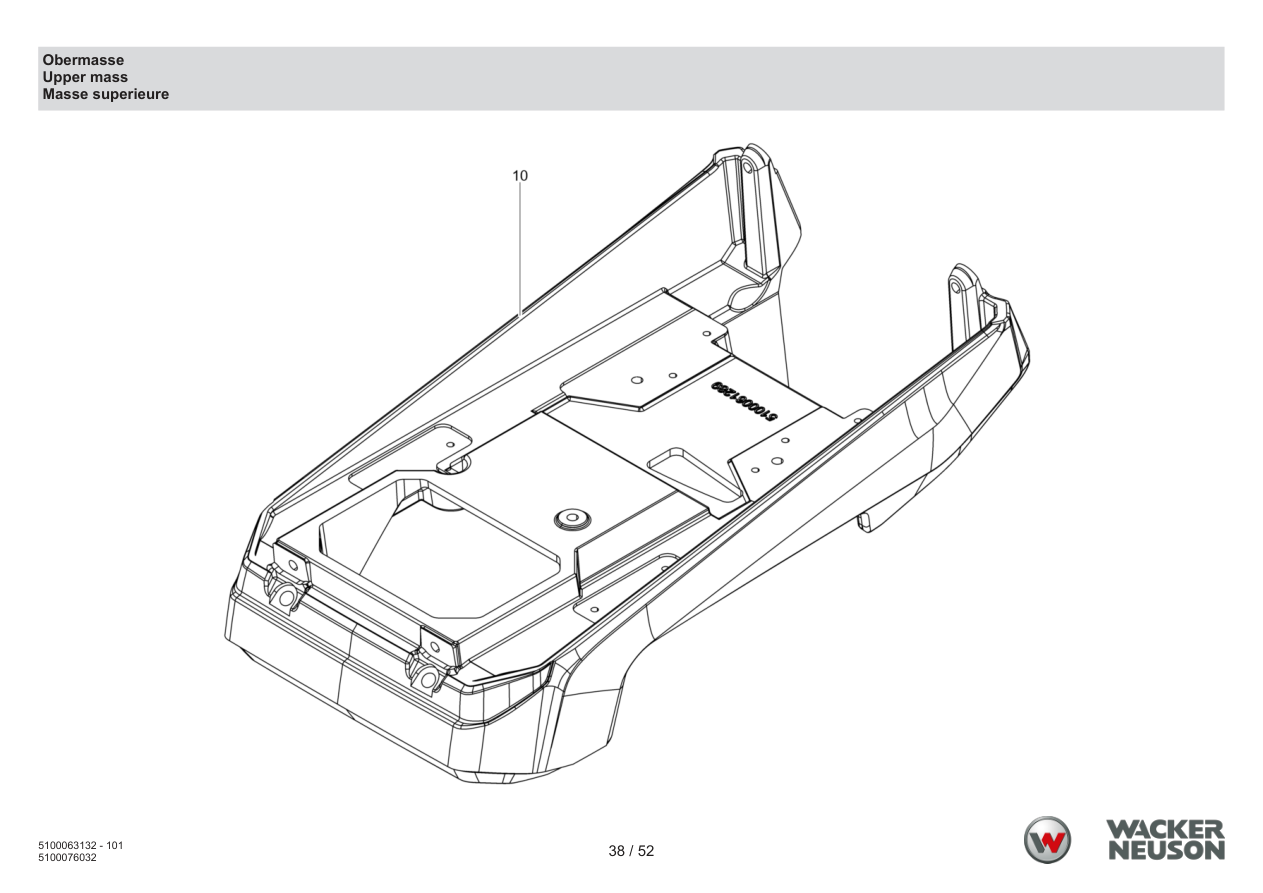

Page 38 — Upper mass
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100061290 | Upper mass | 1 | ADD TO CART | |

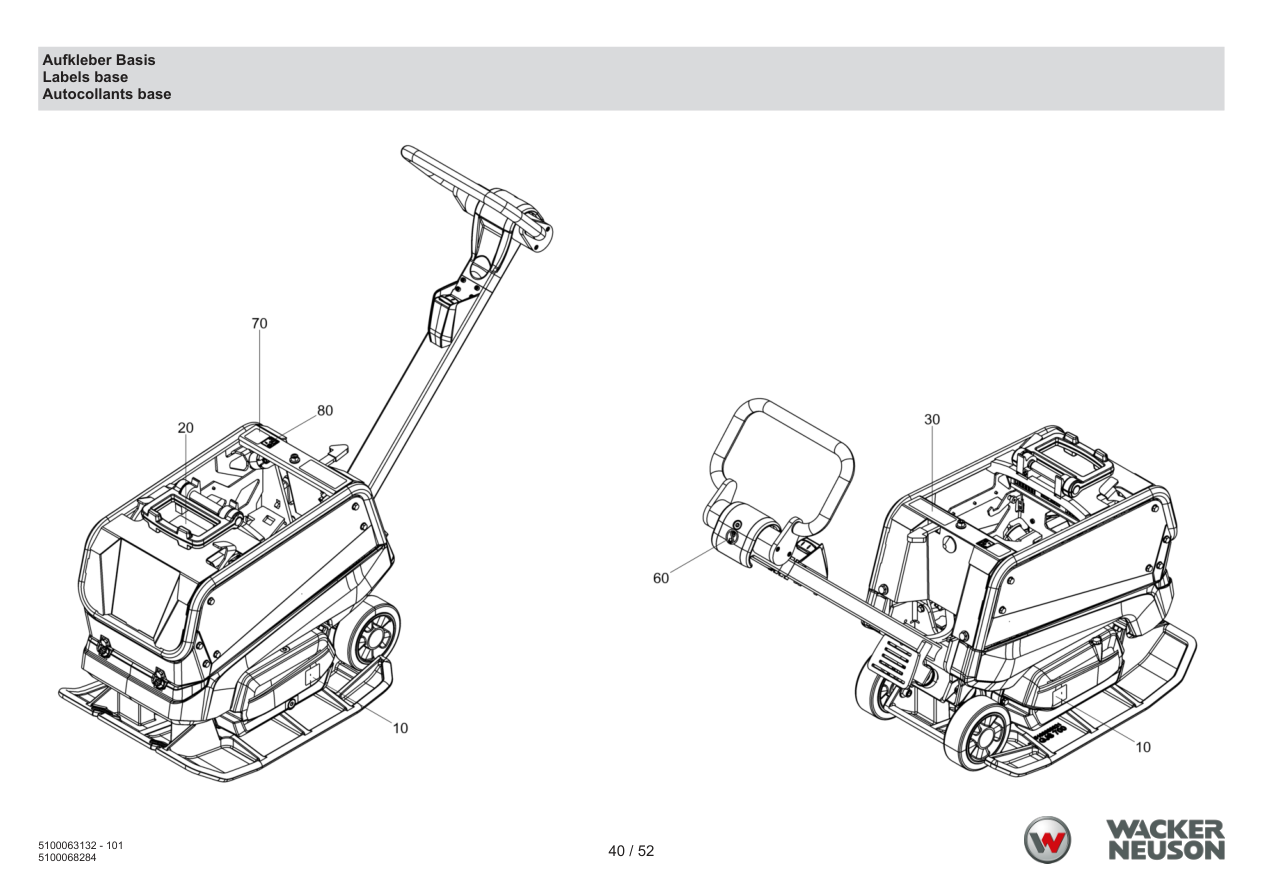

Page 40 — Decal base
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068062 | Label | 2 | ADD TO CART | |
| 20 | 5100060907 | Label | 1 | ADD TO CART | |
| 30 | 5100067817 | Label | 1 | ADD TO CART | |
| 60 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 70 | 5100045462 | Decal | 1 | PARTS REQUEST | |
|
COMING Decal
5100045462 · qty on machine: 1 | |||||
| 80 | 5000129784 | Decal-sound power level | 1 | ADD TO CART | |

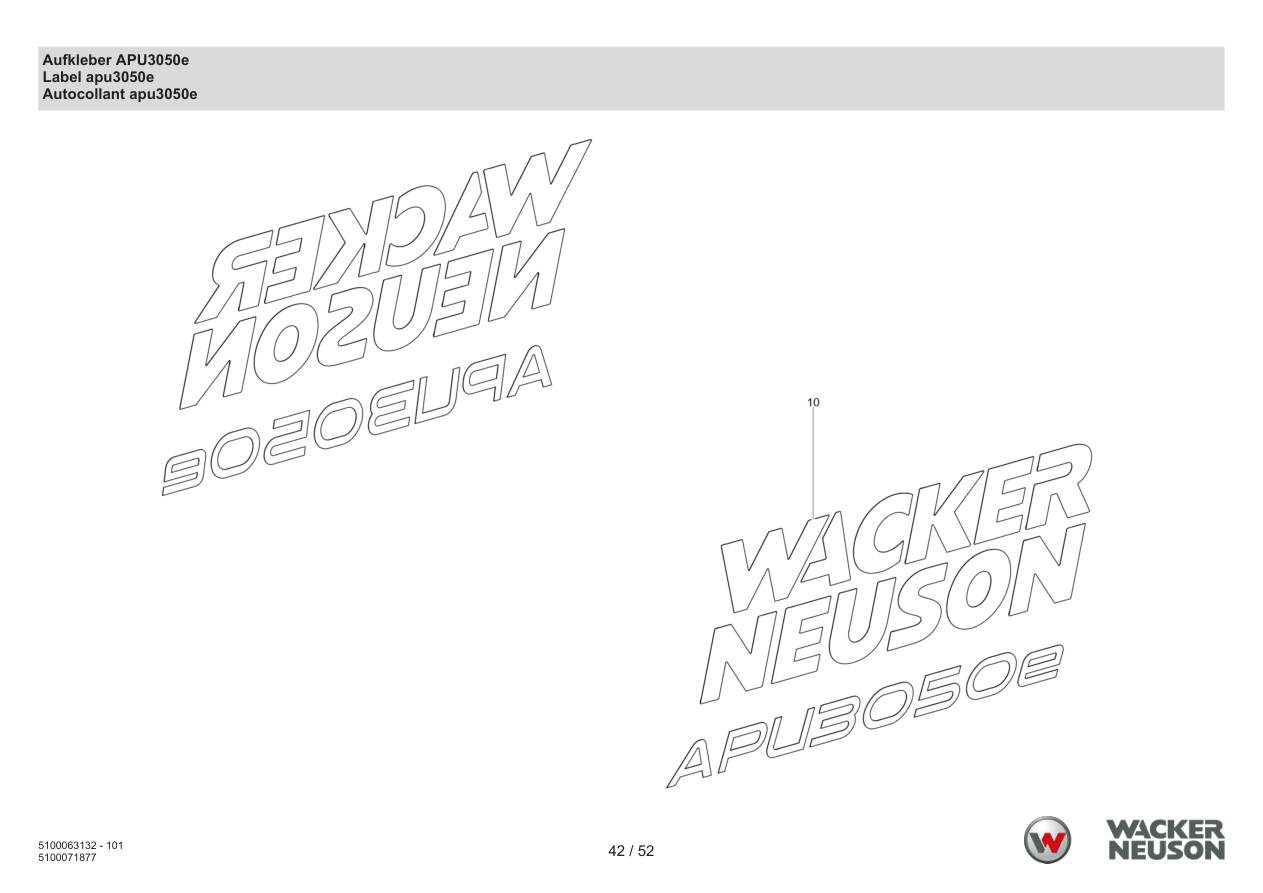

Page 42 — Decal APU3050e
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068406 | Type label | 2 | ADD TO CART | |

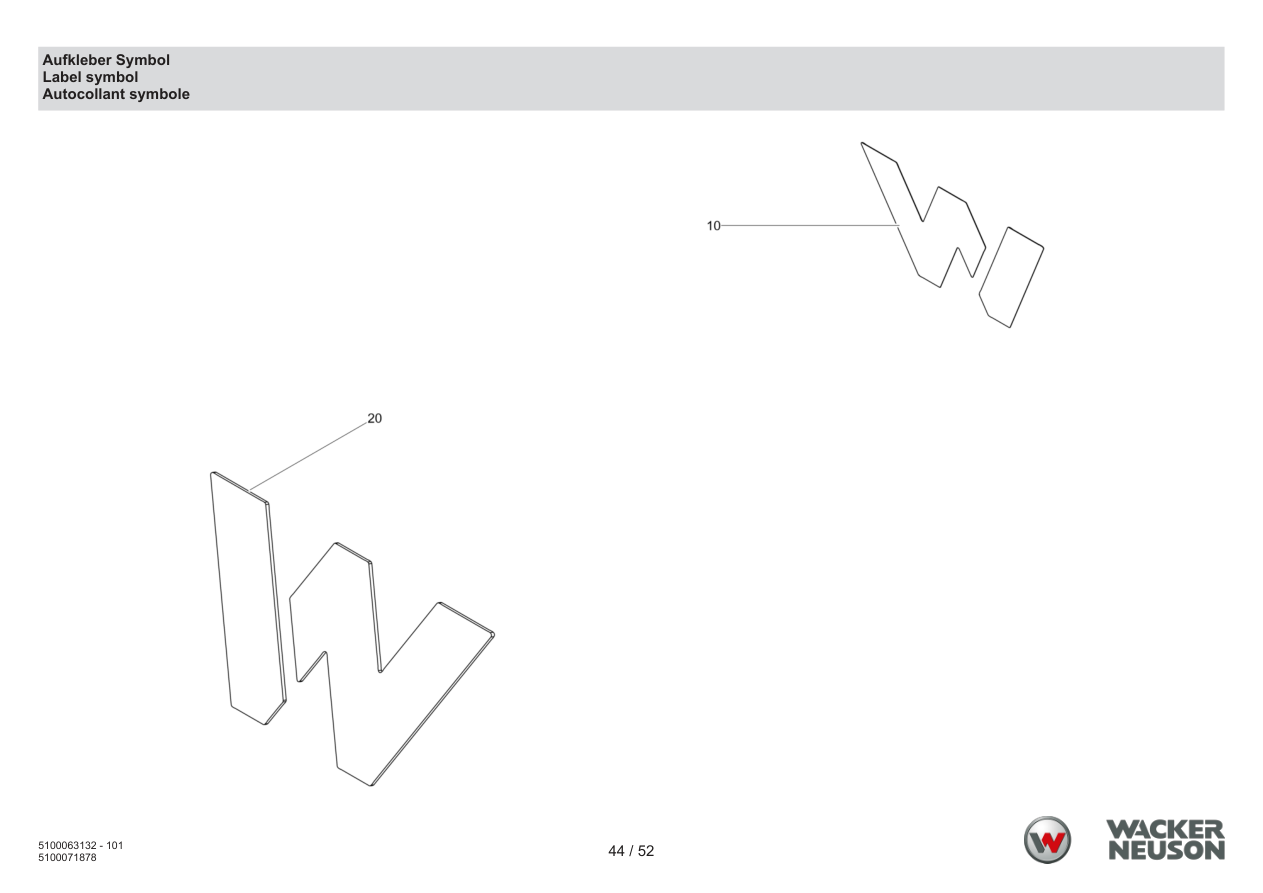

Page 44 — Decal symbol
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058734 | Label symbol | 1 | ADD TO CART | |
| 20 | 5100067909 | Label symbol | 1 | ADD TO CART | |

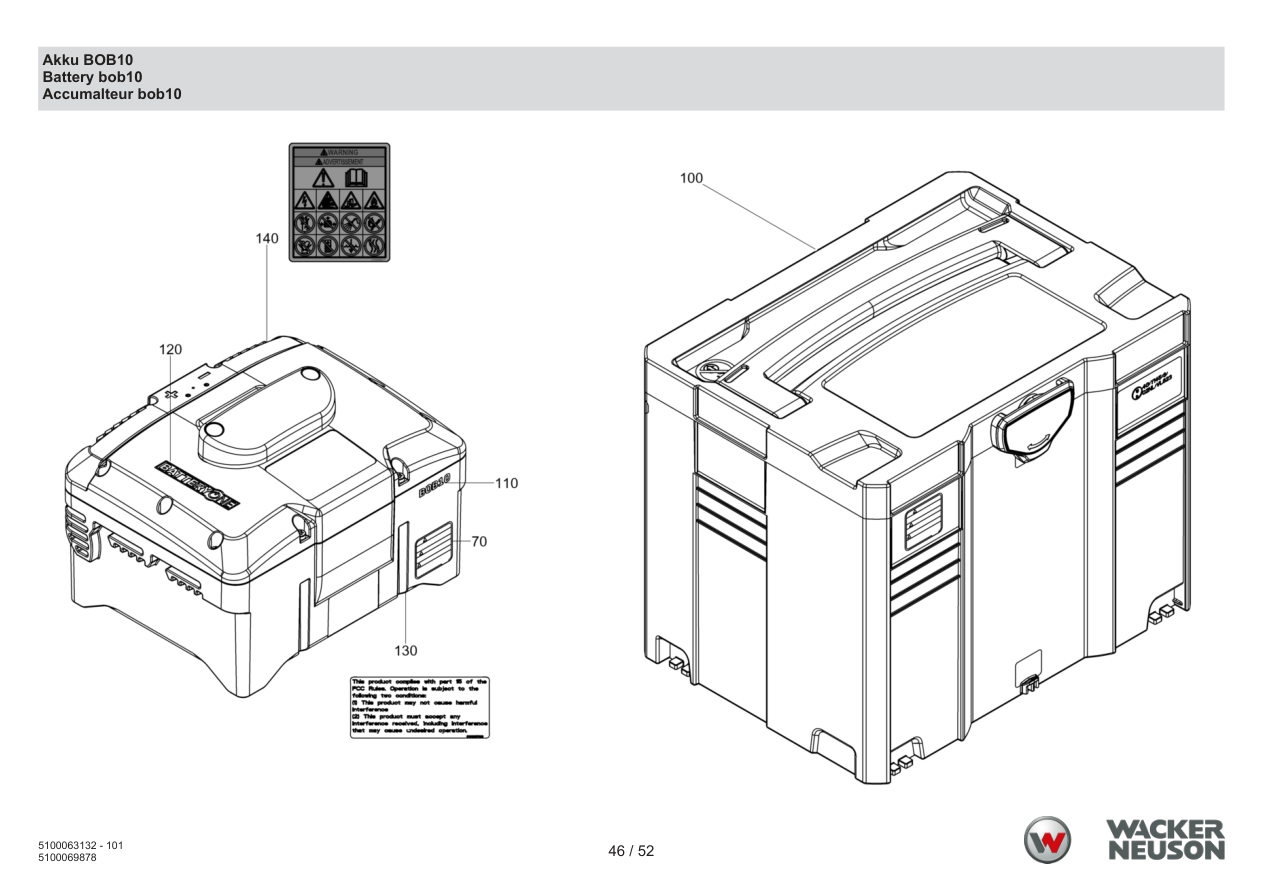

Page 46 — Battery BOB10
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 70 | 5100045462 | Decal | 1 | PARTS REQUEST | |
|
COMING Decal
5100045462 · qty on machine: 1 | |||||
| 100 | 5100069478 | Battery tranport box | 1 | PARTS REQUEST | |
|
COMING Battery tranport box
5100069478 · qty on machine: 1 | |||||
| 110 | 5100069067 | Label bob10 | 1 | ADD TO CART | |
| 120 | 5100069069 | Label bob logo | 1 | ADD TO CART | |
| 130 | 5100057039 | Label | 1 | ADD TO CART | |
| 140 | 5100068611 | Label battery | 1 | ADD TO CART | |
Page 48 — Battery BOB14
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 70 | 5100045462 | Decal | 1 | PARTS REQUEST | |
|
COMING Decal
5100045462 · qty on machine: 1 | |||||
| 100 | 5100069478 | Battery tranport box | 1 | PARTS REQUEST | |
|
COMING Battery tranport box
5100069478 · qty on machine: 1 | |||||
| 110 | 5100069068 | Label bob14 | 1 | ADD TO CART | |
| 120 | 5100069069 | Label bob logo | 1 | ADD TO CART | |
| 130 | 5100057039 | Label | 1 | ADD TO CART | |
| 140 | 5100068611 | Label battery | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson APU3050 vibratory plate.
Available in 3 configurations.
List price: $8,810.00 – $16,050.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000010368
Hexagon nut
5000010616
Flat washer
$0.95
5000010620
Flat washer
$0.95
5000010622
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010625
Flat washer
$0.95
5000010822
Hexagon nut
$4.95
5000010884
Hexagon nut
$0.95
5000011050
Plug (threaded)
$7.95
5000011529
Cheese head screw
$0.95
5000011530
Cheese head screw
5000011535
Cheese head screw
$0.95
5000011550
Cheese head screw
$0.95
5000011553
Cheese head screw
$0.95
5000011554
Cheese head screw
$0.95
5000012082
Seal ring
$0.95
5000012373
Cheese head screw
$0.95
5000012643
Flat washer
$0.95
5000012976
Washer
$0.95
5000012997
Hexagon nut
$0.95
5000013496
Hexagon nut
$0.95
5000013551
Hexagonal head cap screw
$0.95
5000014425
Cheese head screw
5000018194
O-ring
$0.95
5000024617
Cheese head screw
$0.95
5000031565
Lockwasher
$0.95
5000033988
Lockwasher
$0.95
5000038489
Tie cable
5000046092
Screwed socket
$18.95
5000046461
Screwed socket
5000067781
O-ring
$0.95
5000067945
Cover
$54.95
5000068752
O-ring
$0.95
5000068755
Seal
$5.95
5000069291
Rubber isolator
$19.95
5000069726
Long face pinion
$421.95
5000095509
Cheese head screw
$0.95
5000096677
Hexagon nut
$0.95
5000098649
Socket head cap screw
$3.95
5000105944
Screw
$0.95
5000106536
Hexagon nut
5000125336
Centre pole head
$985.95
5000125363
Center pole head
$551.95
5000125924
Guide pole head adapter
$255.95
5000125926
Spacer
$51.95
5000125927
Tire
$142.95
5000125931
Shockmount
$30.95
5000126163
Piston guide ring
$13.95
5000126164
Slide bush
$2.95
5000126187
Threaded pin
$0.95
5000127085
Shockmount
$16.95
5000129269
Compact seal
$9.95
5000129784
Decal-sound power level
$2.95
5000200616
Carrier cpl.
$164.95
5000200617
Shockmount
$12.95
5000200651
Cheese head screw
$0.95
5000201009
Threaded spindle
$19.95
5000201017
Shockmount
$7.95
5000201018
Bush
$8.95
5000201171
Screw connection
$24.95
5000202098
Toothed lock washer
$1.95
5000202829
Cup spring
$1.95
5000206551
Clamp
$3.95
5000206683
Cable yarn t30l
$0.95
5000214990
Clamp
$287.95
5000215035
Shockmount
$62.95
5000220000
Instruction label
$2.95
5000220072
Bushing
5000220073
Tripping pin
$7.95
5000220075
Supporting washer
5000220216
Cover
$115.95
5000220220
Cylinder cover
$220.95
5000220355
Piston
$67.95
5000220356
Lip seal ring
$9.95
5001103030
Vent screw
$4.95
5002001695
Retaining ring
$7.95
5002004474
Retaining ring
$0.95
5002004928
Retaining ring
$1.95
5002004979
Retaining ring
$0.95
5002006596
Grooved ball bearing
$4.95
5100000179
Clamp
$2.95
5100005556
Shim screw
$2.95
5100010091
Cheese head screw
$1.95
5100011341
Tie cable
$1.95
5100013871
Oval head screw
$1.95
5100018059
Corrugated-head screw
$2.95
5100018558
Piston rod
$129.95
5100018559
Seal cone
$17.95
5100018590
Guide sleeve
$22.95
5100018591
Compression spring
$4.95
5100045196
Switch
$33.95
5100045462
Decal
5100047188
Fitting key
$1.95
5100050635
Screw
5100057039
Label
$4.95
5100057544
Jack ring
$224.95
5100057560
Axle
$76.95
5100058126
Roll pin
$3.95
5100058734
Label symbol
$13.95
5100060020
Base plate
$2,076.95
5100060053
Indexing bolt
$71.95
5100060178
Adjusting sleeve
$244.95
5100060179
Gear
5100060180
Side cap right
$179.95
5100060182
Side cap left
$174.95
5100060907
Label
$13.95
5100061290
Upper mass
$2,143.95
5100063164
Setting shaft
$407.95
5100064514
Protective frame
$1,314.95
5100064517
Battery holder
$764.95
5100064519
Hood left
$191.95
5100064520
Hood right
$191.95
5100064521
Cover
$195.95
5100064534
Bearing bracket front
$294.95
5100064535
Bearing bracket rear right
$220.95
5100064536
Bearing bracket rear left
$208.95
5100064652
Switch cable
$65.95
5100064783
Screwed socket
$3.95
5100064892
Bumper support rear
$27.95
5100064893
Bumper support front
$33.95
5100064894
Axle
$170.95
5100064925
Lever
$199.95
5100064926
Support
$294.95
5100065065
Hydraulic line
$27.95
5100065069
Umformer
$593.95
5100065172
Cheese head screw
$2.95
5100065174
Shockmount
$10.95
5100065176
Axial fan
$235.95
5100065180
Cylindrical roller bearing
$98.95
5100065181
Cylindrical roller bearing
$112.95
5100065213
Eccentric weight
5100065246
Hydraulic hose line
$51.95
5100065529
Oval head screw
$0.95
5100065530
Center pole
$629.95
5100065532
Switch box
$50.95
5100065591
Motor armature
$791.95
5100065716
Gasket
$35.95
5100065717
Gasket
$49.95
5100065718
Air ducting cover
$126.95
5100065719
Air ducting air support
$204.95
5100065720
Rubber strap
$91.95
5100066012
Motor housing cpl.
$3,378.95
5100066435
Washer
$8.95
5100066438
Washer
$4.95
5100066494
Cable
$132.95
5100066696
Hexagonal head cap screw
$11.95
5100066697
Hexagonal head cap screw
$2.95
5100066698
O-ring
$9.95
5100067053
Compression spring
$10.95
5100067071
Gasket
$4.95
5100067082
Bearing seat
$31.95
5100067083
Bearing seat
$27.95
5100067817
Label
$25.95
5100067822
Sealing tape
$1.95
5100067823
Sealing tape
$1.95
5100067824
Sealing tape
$0.95
5100067909
Label symbol
$23.95
5100067989
Sealing tape
$0.95
5100067991
Sealing tape
$1.95
5100068062
Label
$2.95
5100068406
Type label
$21.95
5100068611
Label battery
$14.95
5100069067
Label bob10
$4.95
5100069068
Label bob14
$4.95
5100069069
Label bob logo
$4.95
5100069478
Battery tranport box
5100071921
Eccentric weight
5100071922
Eccentric weight
5100072139
Gear
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
