Wacker Neuson AS50 Vibratory Rammer
Factory parts book · interactive
Wacker Neuson AS50 Vibratory Rammer
Pick your options below. We build the exact machine and start your quote.
The parts bench

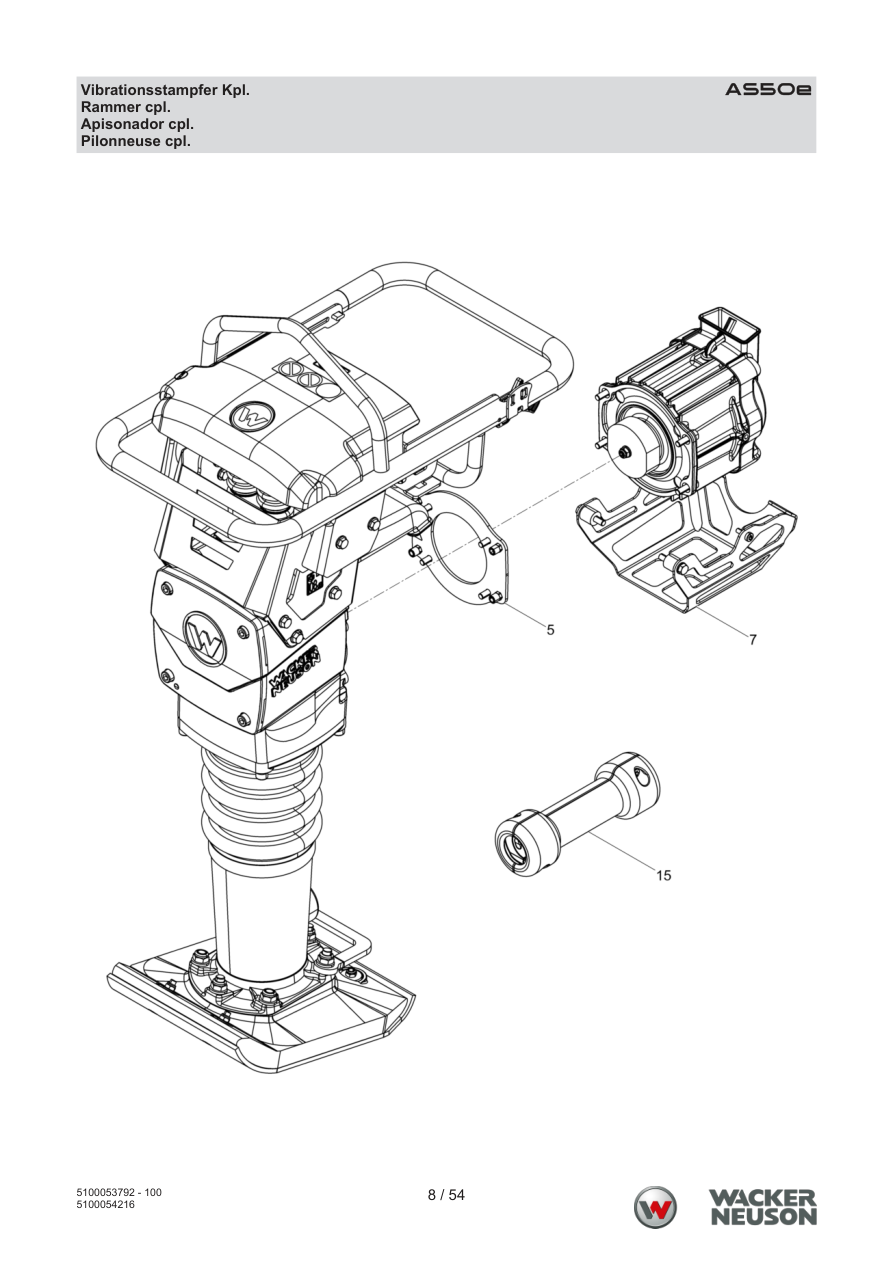

Need the PDF? ↓Page 8 — Rammer cpl.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100011019 | Adaptor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5100025683 | Protective frame cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 15 | 5100042619 | Transport roller cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

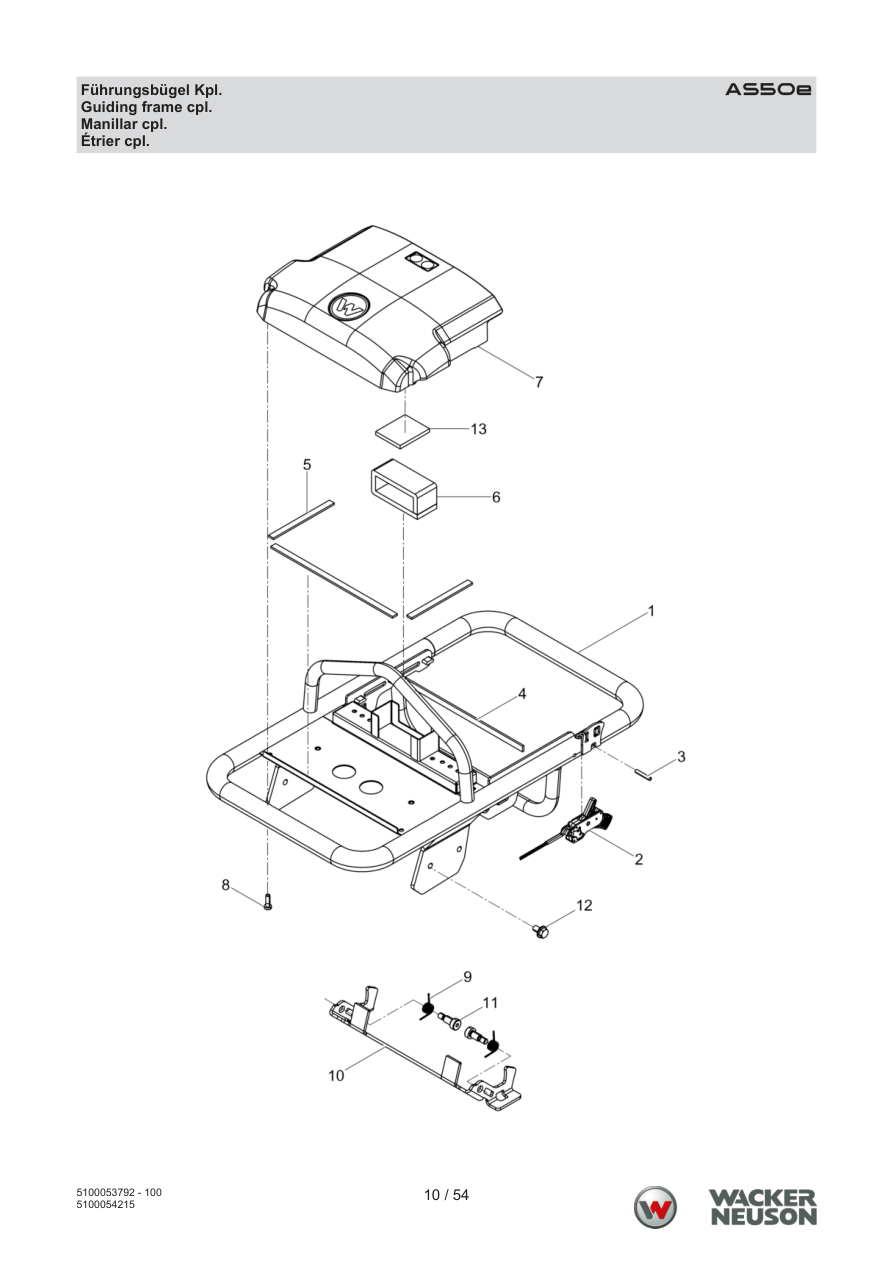

Page 10 — Guiding frame cpl.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100051676 | Guide handle | 1 | ADD TO CART | |
| 2 | 5100002571 | Switch | 1 | ADD TO CART | |
| 3 | 5100009734 | Grooved pin | 2 | ADD TO CART | |
| 4 | 5100002886 | Sealing tape long | 2 | ADD TO CART | |
| 5 | 5100002888 | Sealing tape short | 2 | PARTS REQUEST | |
|
COMING Sealing tape short
5100002888 · qty on machine: 2 | |||||
| 6 | 5100002878 | Foam | 1 | ADD TO CART | |
| 7 | 5100001723 | Protective hood cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000222605 | Oval head screw | 6 | M 6 x 20 | ADD TO CART |
| 9 | 5100025600 | Leg spring | 2 | ADD TO CART | |
| 10 | 5100025574 | Locking plate | 1 | ADD TO CART | |
| 11 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 12 | 5100027072 | Screw | 4 | PARTS REQUEST | |
|
COMING Screw
5100027072 · qty on machine: 4 | |||||
| 13 | 5100068447 | Sponge rubber | 1 | ADD TO CART | |

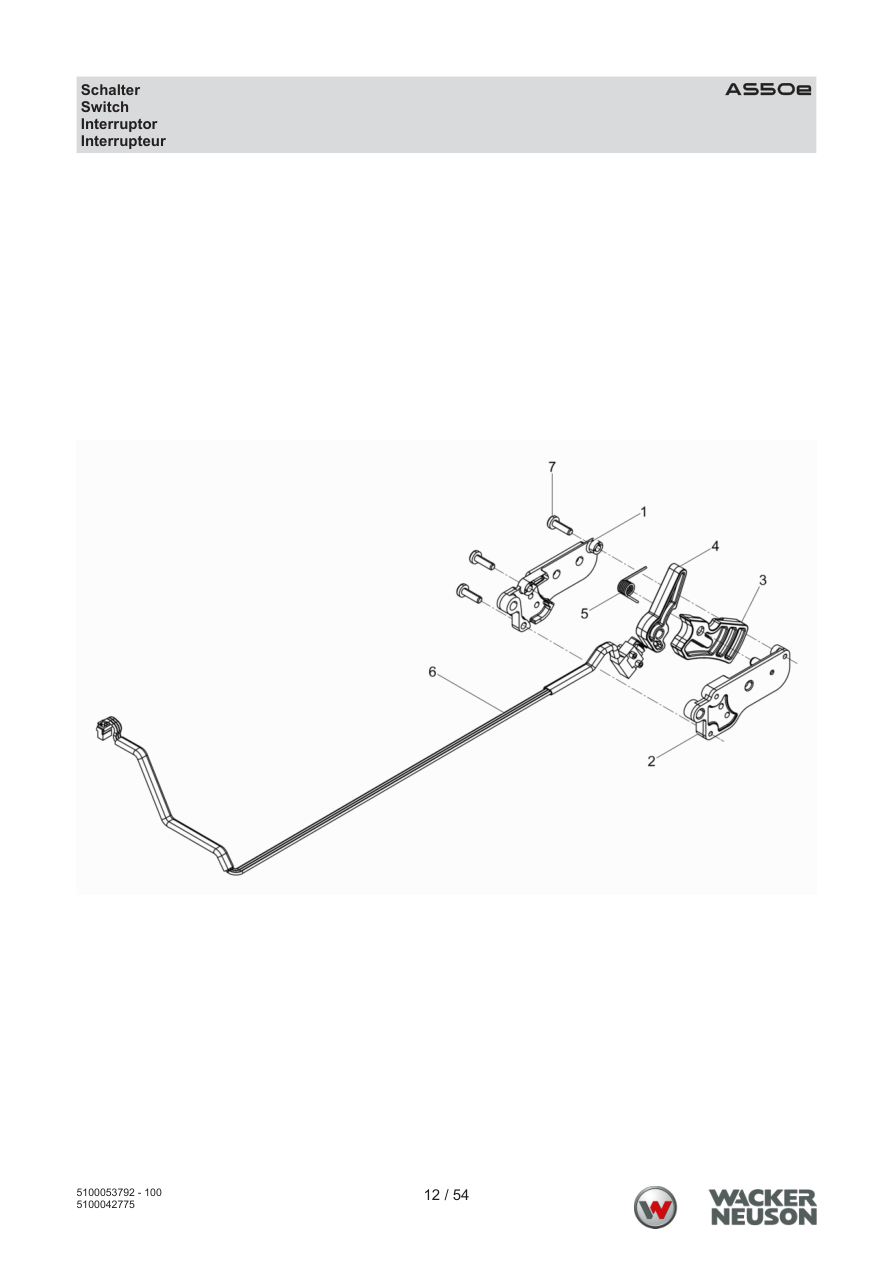

Page 12 — AS50e Switch
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100001729 | Housing half right | 1 | ADD TO CART | |
| 2 | 5100001731 | Housing half left | 1 | ADD TO CART | |
| 3 | 5100001735 | Retainer | 1 | ADD TO CART | |
| 4 | 5100001737 | Shift lever | 1 | ADD TO CART | |
| 5 | 5100003006 | Leg spring | 1 | ADD TO CART | |
| 6 | 5100004436 | Switch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5100009739 | Oval head screw | 3 | ADD TO CART | |

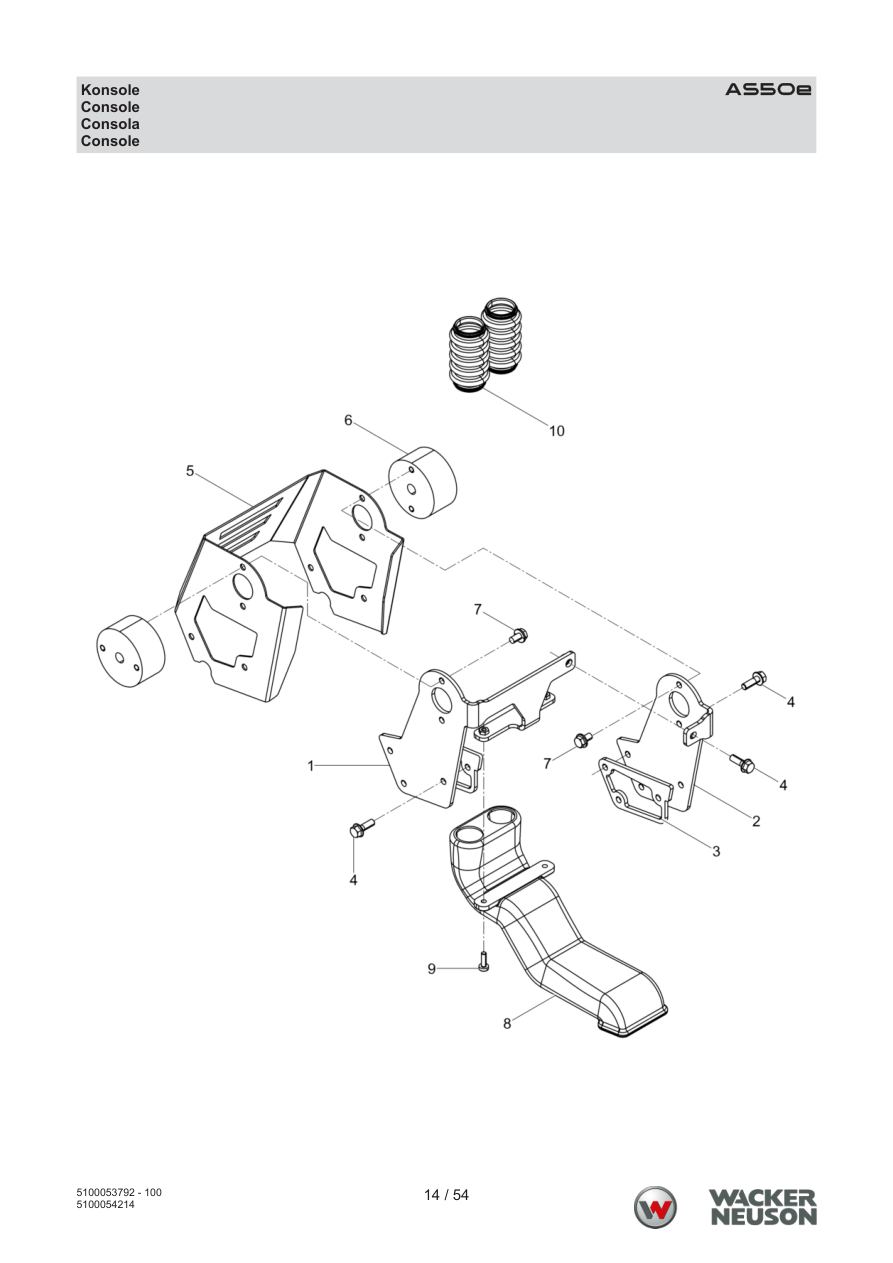

Page 14 — AS50e Console
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100052239 | Side plate left cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100052237 | Side plate right | 1 | ADD TO CART | |
| 3 | 5100052236 | Plate | 2 | ADD TO CART | |
| 4 | 5100025436 | Hexagonal head cap screw | 7 | M8 x 25 | ADD TO CART |
| 5 | 5100052260 | Guard plate | 1 | ADD TO CART | |
| 6 | 5000102274 | Shockmount | 2 | ADD TO CART | |
| 7 | 5100027072 | Screw | 4 | PARTS REQUEST | |
|
COMING Screw
5100027072 · qty on machine: 4 | |||||
| 8 | 5100009616 | Air ducting | 1 | ADD TO CART | |
| 9 | 5000108372 | Pan head screw | 2 | M6 x 20 | ISO7045 | ADD TO CART |
| 10 | 5000128482 | Bellows | 2 | ADD TO CART | |

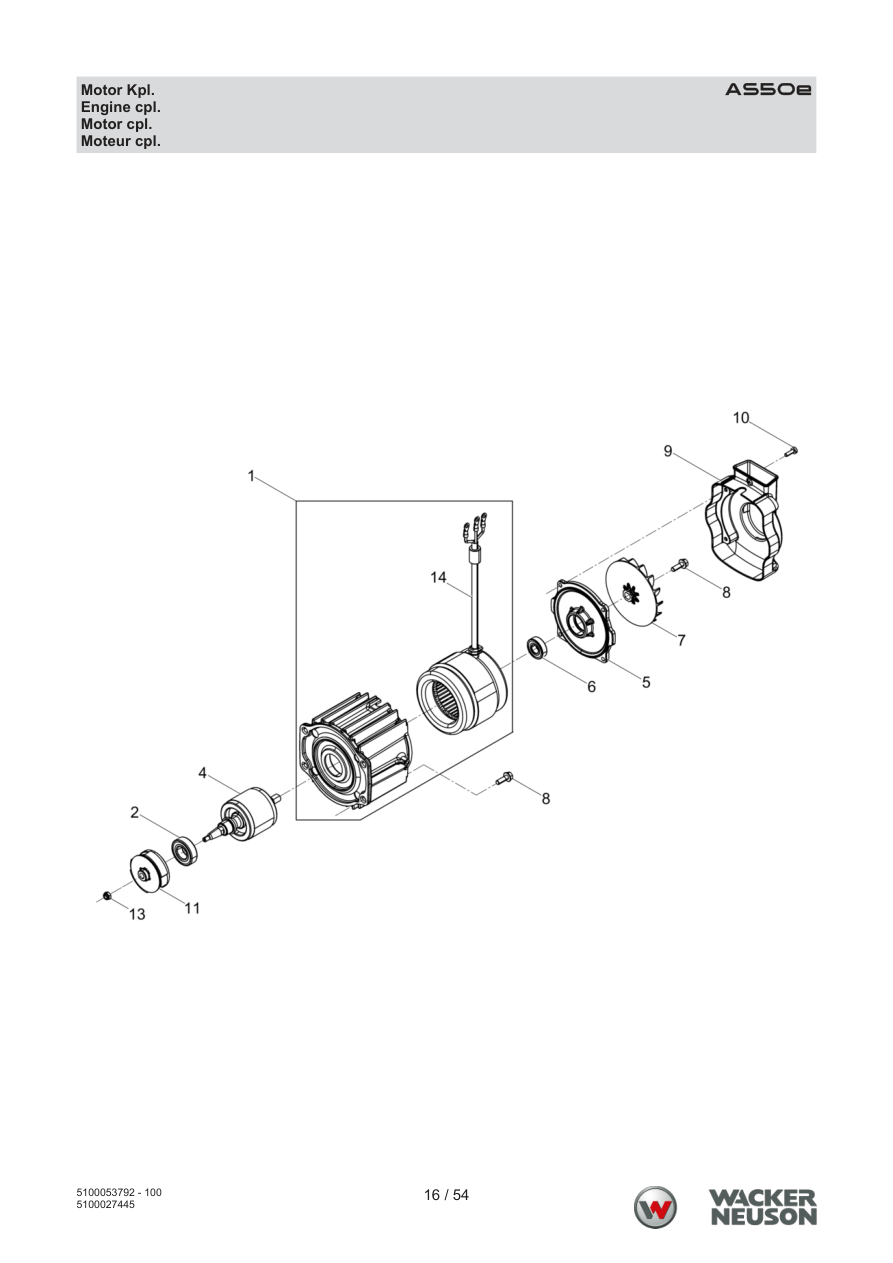

Page 16 — Engine complete
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100025701 | Motor armature cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5100025704 | Bearing bracket | 1 | ADD TO CART | |
| 6 | 5000048467 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000048467 · qty on machine: 1 | |||||
| 7 | 5100025705 | Fan wheel | 1 | ADD TO CART | |
| 8 | 5100025436 | Hexagonal head cap screw | 5 | M8 x 25 25Nm/18ft.lbs | ADD TO CART |
| 9 | 5100060517 | Fan cover | 1 | 95Nm/70ft.lbs | ADD TO CART |
| 10 | 5000108372 | Pan head screw | 4 | M6 x 20 10Nm/7ft.lbs | ISO7045 | ADD TO CART |
| 11 | 5100045607 | Centrifugal clutch | 1 | ADD TO CART | |
| 13 | 5000010367 | Hexagon nut | 1 | 25Nm/18ft.lbs | DIN985 | ADD TO CART |
| 14 | 5100069487 | Hose piece | 1 | ADD TO CART | |
| 1 | 5100085068 | Motor housing cpl. as50e/60e | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Motor housing cpl. as50e/60e
5100085068 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100055599 | Grooved ball bearing | 1 | ADD TO CART | |

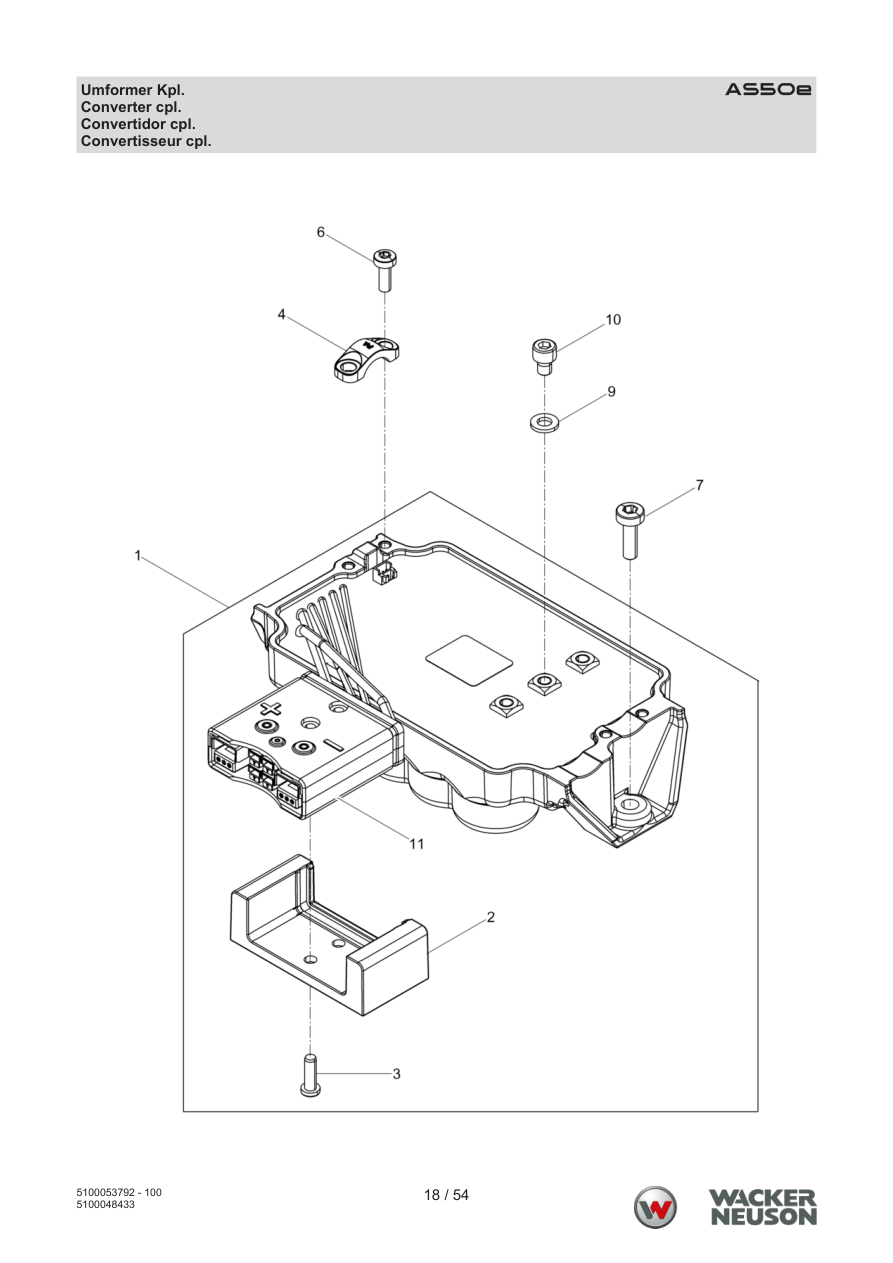

Page 18 — Converter cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100058800 | Converter | 1 | ADD TO CART | |
| 2 | 5100025637 | Bracket | 1 | ADD TO CART | |
| 3 | 5100010127 | Oval head screw | 2 | 5x16 2.5Nm/2ft.lbs | ADD TO CART |
| 4 | 5100000179 | Clamp | 2 | ADD TO CART | |
| 6 | 5000222073 | Screw | 4 | ADD TO CART | |
| 7 | 5000108372 | Pan head screw | 2 | M6 x 20 10Nm/7ft.lbs | ISO7045 | ADD TO CART |
| 9 | 5000010624 | Flat washer | 3 | ADD TO CART | |
| 10 | 5000014425 | Cheese head screw | 3 | 10Nm/7ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000014425 · qty on machine: 3 10Nm/7ft.lbs | |||||
| 11 | 5100001742 | Plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

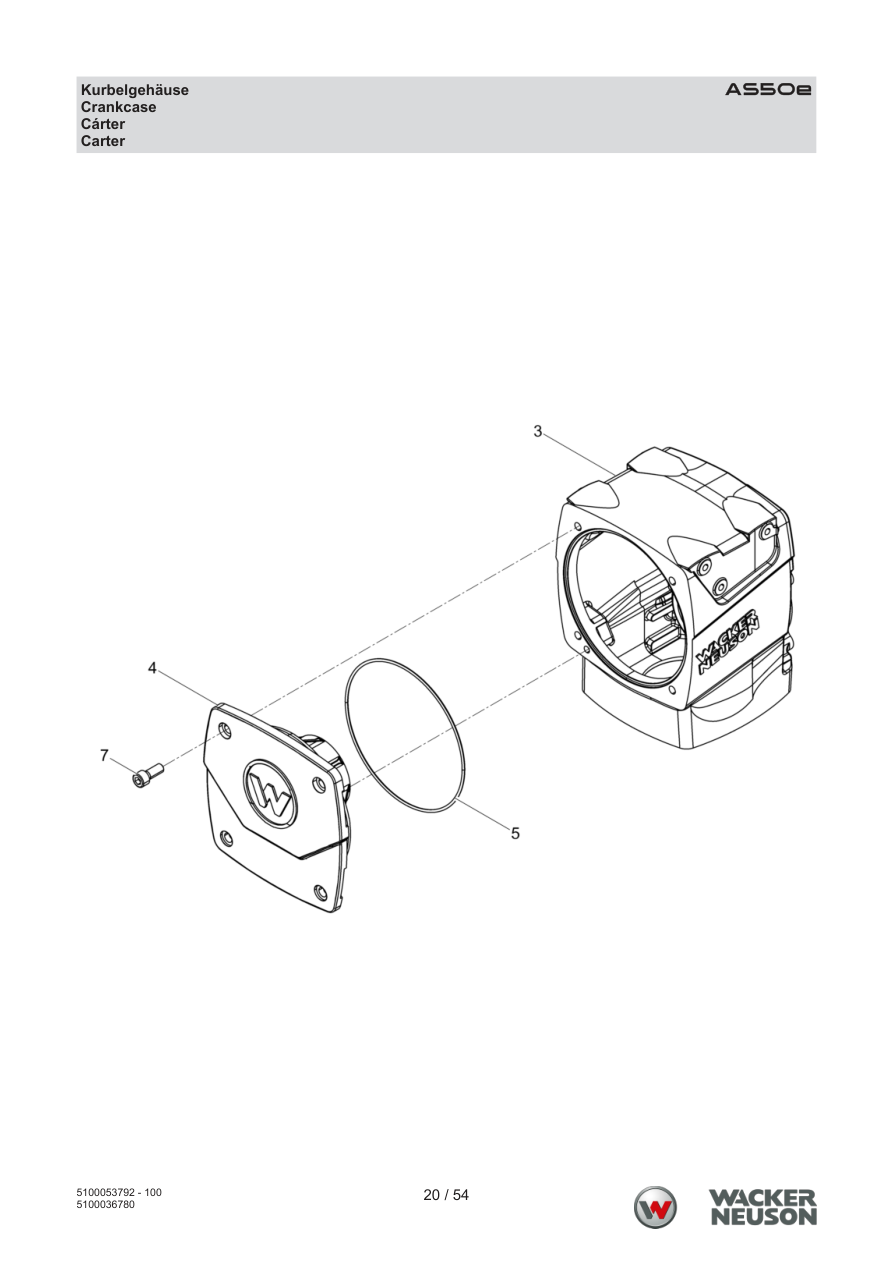

Page 20 — Crankcase
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5200003538 | Crankcase | 1 | PARTS REQUEST | |
|
COMING Crankcase
5200003538 · qty on machine: 1 | |||||
| 4 | 5100032132 | Crankcase cover | 1 | ADD TO CART | |
| 5 | 5100033181 | O-ring | 1 | ADD TO CART | |
| 7 | 5000011535 | Cheese head screw | 4 | ADD TO CART | |

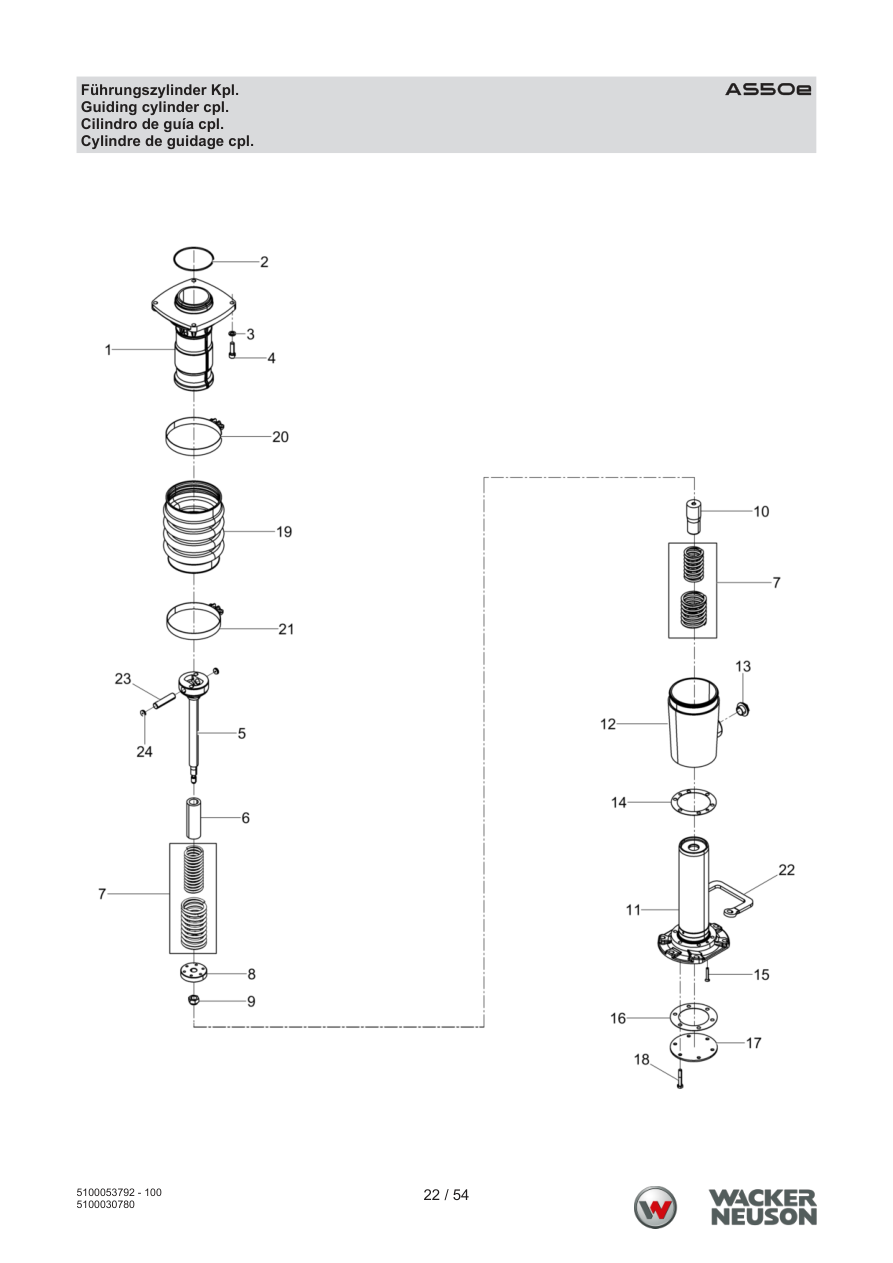

Page 22 — Guiding cylinder cpl.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100038429 | Guide cylinder | 1 | PARTS REQUEST | |
|
COMING Guide cylinder
5100038429 · qty on machine: 1 | |||||
| 2 | 5000031880 | O-ring | 1 | 96 x 3 | ADD TO CART |
| 3 | 5000010644 | Lock washer | 4 | A10 | DIN128 | ADD TO CART |
| 4 | 5000011533 | Cheese head screw | 4 | 49Nm/36ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000011533 · qty on machine: 4 49Nm/36ft.lbs | ISO4762 | |||||
| 5 | 5100038472 | Guide piston | 1 | ADD TO CART | |
| 6 | 5100032036 | Bushing | 1 | ADD TO CART | |
| 7 | 5100071907 | Spring set | 2 | ADD TO CART | |
| 8 | 5100032038 | Piston guide | 1 | ADD TO CART | |
| 9 | 5000110196 | Lock nut | 1 | ADD TO CART | |
| 10 | 5100032039 | Damper | 1 | ADD TO CART | |
| 11 | 5100045300 | Spring cylinder | 1 | ADD TO CART | |
| 12 | 5100052097 | Protective pipe | 1 | ADD TO CART | |
| 13 | 5100033182 | Sight glass | 1 | ADD TO CART | |
| 14 | 5100032110 | Gasket | 1 | ADD TO CART | |
| 15 | 5000155017 | Countersunk screw | 2 | M6 x 40 | ISO10642 | PARTS REQUEST |
|
COMING Countersunk screw
5000155017 · qty on machine: 2 M6 x 40 | ISO10642 | |||||
| 16 | 5100032111 | Gasket | 1 | ADD TO CART | |
| 17 | 5100031608 | Cover | 1 | ADD TO CART | |
| 18 | 5000011343 | Hexagonal head cap screw | 6 | M8 x 50 25Nm/18ft.lbs | DIN931 | ADD TO CART |
| 19 | 5100032112 | Bellows | 1 | ADD TO CART | |
| 20 | 5000110537 | Clamp | 1 | ADD TO CART | |
| 21 | 5000110528 | Clamp | 1 | ADD TO CART | |
| 22 | 5100031620 | Handle | 1 | ADD TO CART | |
| 23 | 5100032026 | Piston pin | 1 | ADD TO CART | |
| 24 | 5100058422 | Plug | 2 | ADD TO CART | |

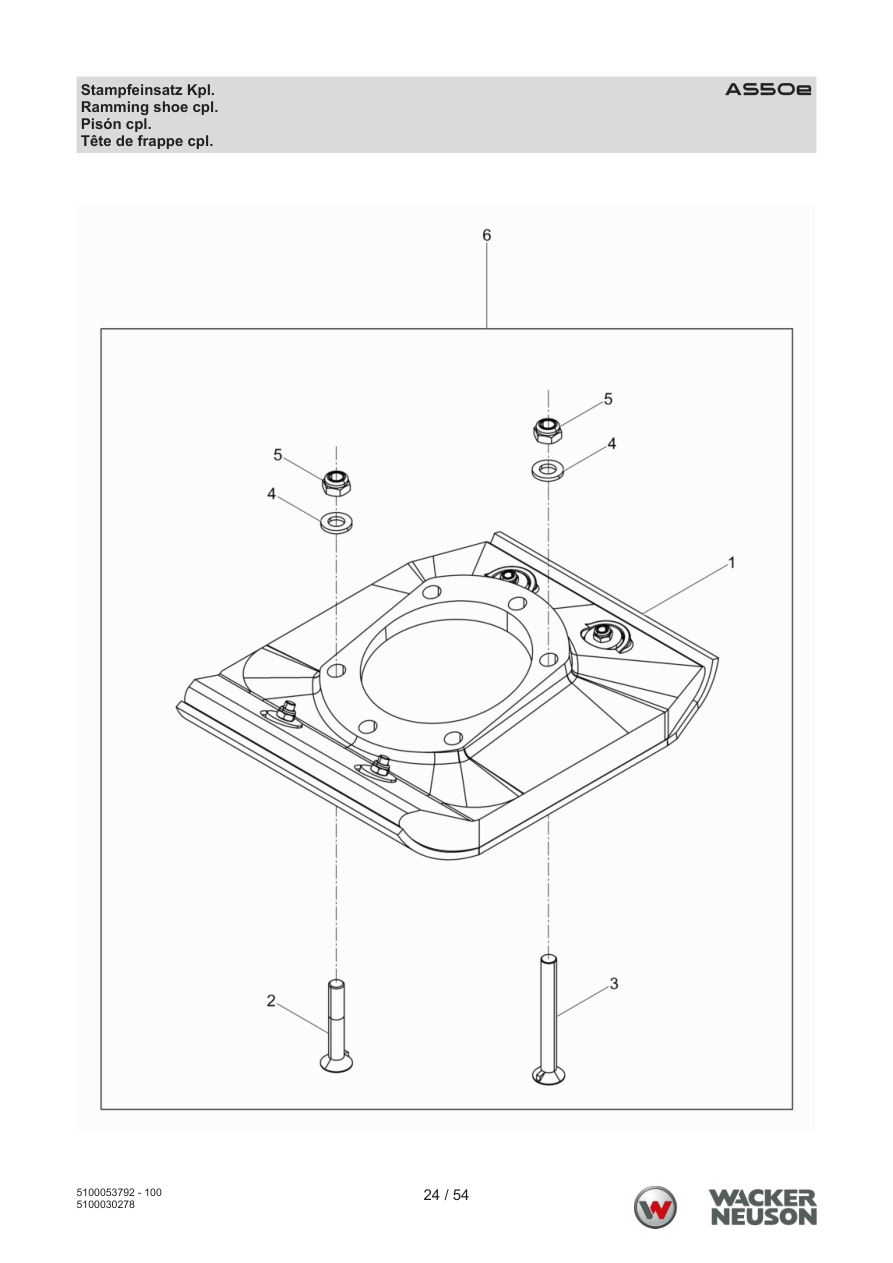

Page 24 — Ramming shoe cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100032114 | Ramming shoe 11in | 1 | ADD TO CART | |
| 2 | 5000011158 | Countersunk bolt | 3 | M12 x 75 86Nm/63ft.lbs | DIN604 | ADD TO CART |
| 3 | 5000012983 | Countersunk bolt | 3 | M12 x 110 86Nm/63ft.lbs | DIN604 | ADD TO CART |
| 4 | 5000021465 | Lock washer | 6 | ADD TO CART | |
| 5 | 5000010366 | Hexagon nut | 6 | ADD TO CART | |
| 6 | 5100042452 | Ramming shoe cpl. 11in | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

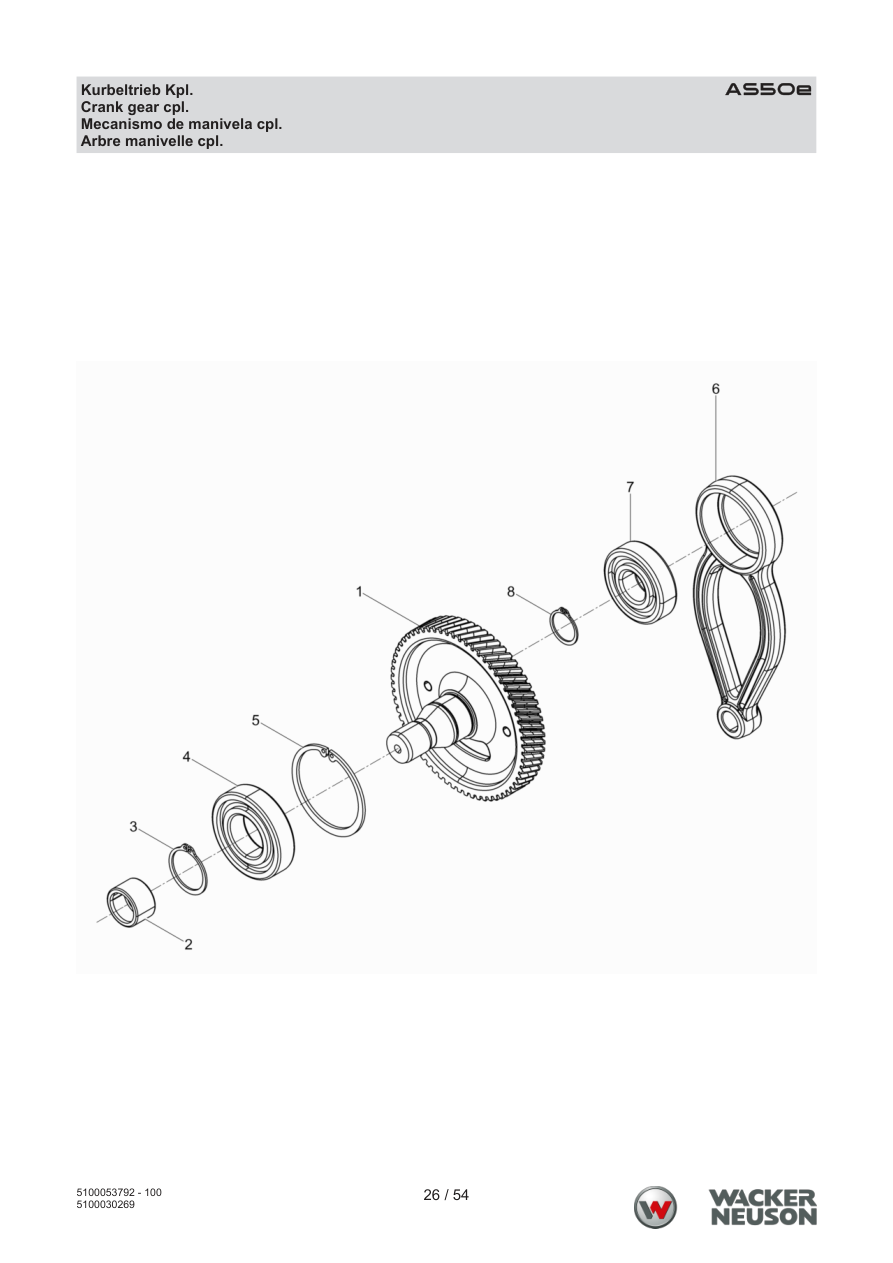

Page 26 — Crank gear cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100037297 | Crank gear | 1 | ADD TO CART | |
| 2 | 5000072061 | Needle bearing | 1 | ADD TO CART | |
| 3 | 5002003022 | Retaining ring | 1 | 35 x 1,5 | DIN471 | ADD TO CART |
| 4 | 5002003021 | Grooved ball bearing | 1 | ADD TO CART | |
| 5 | 5002003023 | Retaining ring | 1 | 72 x 2,5 | DIN472 | ADD TO CART |
| 6 | 5100037875 | Connecting rod | 1 | ADD TO CART | |
| 7 | 5000045190 | Grooved ball bearing | 1 | ADD TO CART | |
| 8 | 5002001041 | Retaining ring | 1 | 25 x 1,2 | DIN471 | ADD TO CART |

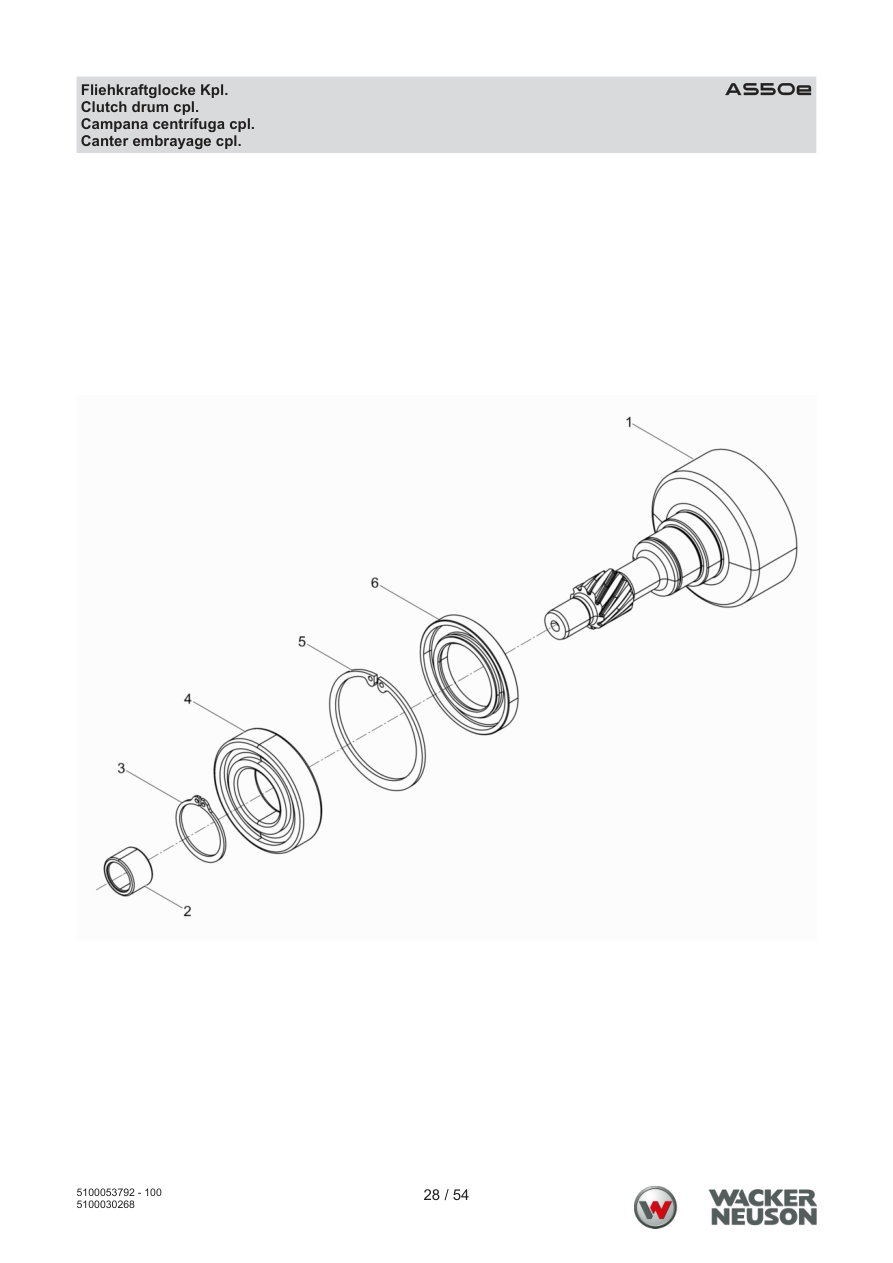

Page 28 — Clutch drum cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100038030 | Clutch drum | 1 | ADD TO CART | |
| 2 | 5000039020 | Needle bearing | 1 | ADD TO CART | |
| 3 | 5002003022 | Retaining ring | 1 | 35 x 1,5 | DIN471 | ADD TO CART |
| 4 | 5002003021 | Grooved ball bearing | 1 | ADD TO CART | |
| 5 | 5002003023 | Retaining ring | 1 | 72 x 2,5 | DIN472 | ADD TO CART |
| 6 | 5000039050 | Shaft seal | 1 | ADD TO CART | |

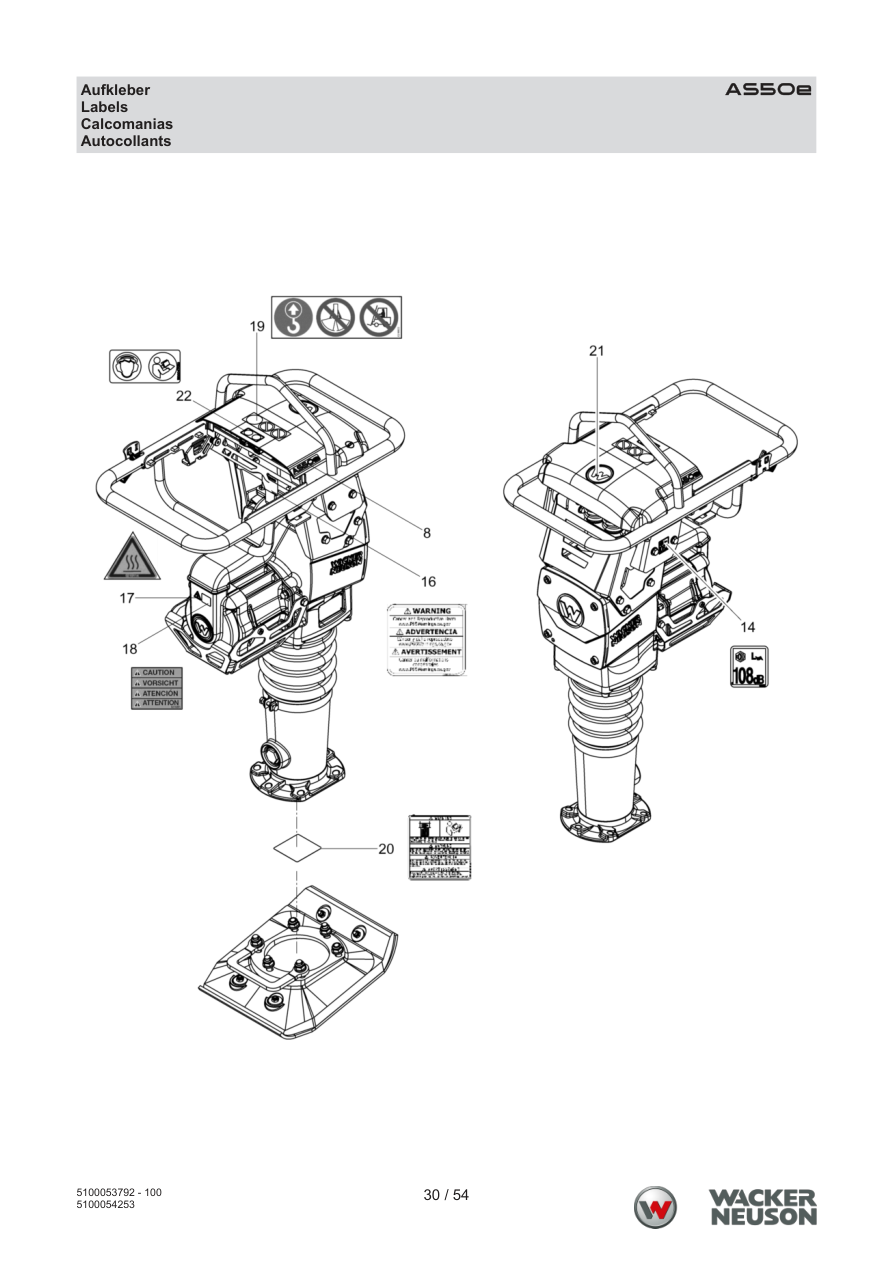

Page 30 — AS50e Sticker
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 8 | 5100011415 | Type label | 2 | ADD TO CART | |
| 14 | 5000129784 | Decal-sound power level | 1 | ADD TO CART | |
| 16 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 17 | 5000219114 | Labels | 1 | ADD TO CART | |
| 18 | 5000219261 | Labels | 1 | ADD TO CART | |
| 19 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 20 | 5100031692 | Label compression spring us | 1 | ADD TO CART | |
| 21 | 5100052440 | Label symbol | 1 | ADD TO CART | |
| 22 | 5100047020 | Label | 1 | ADD TO CART | |

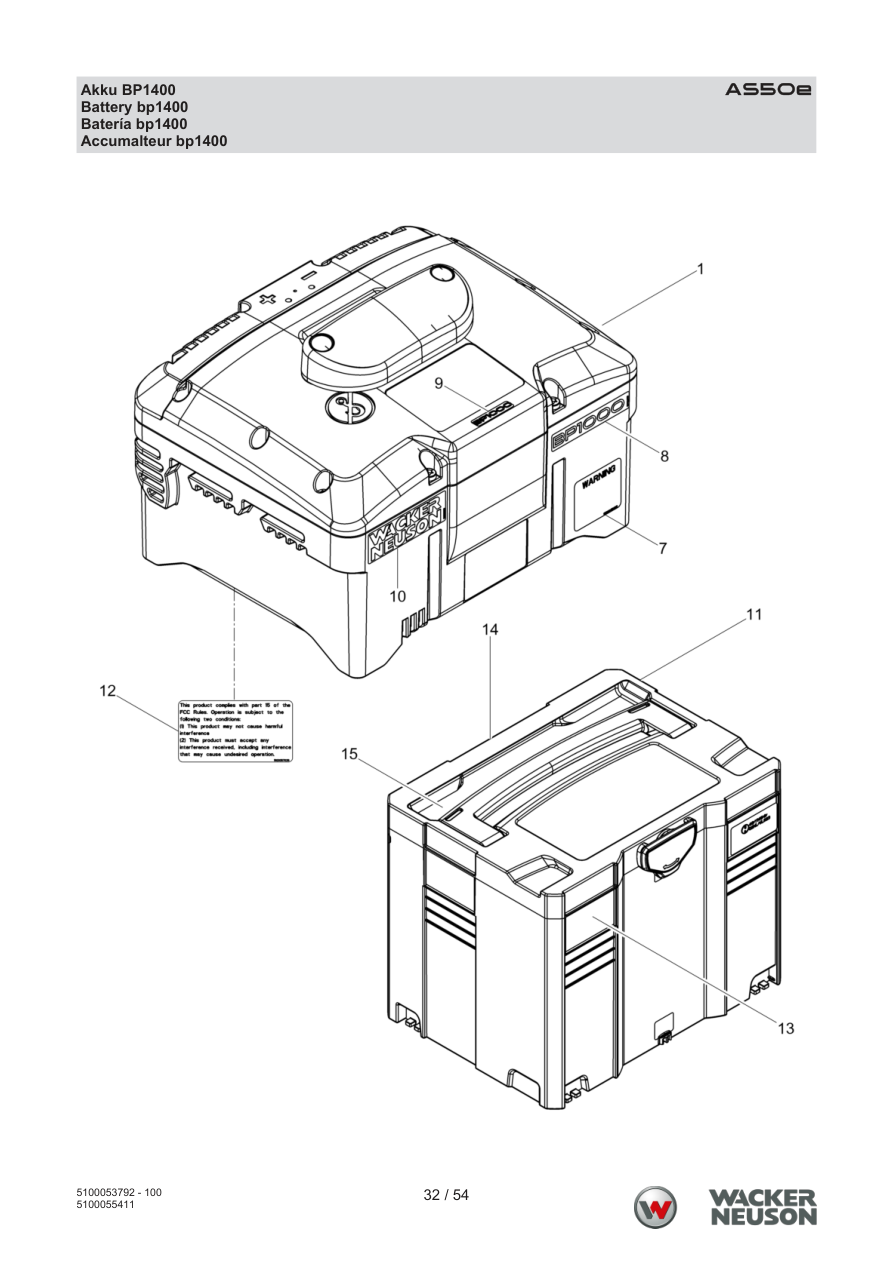

Page 32 — AS50e Battery BP1400
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100048620 | Battery bp1400 | 1 | PARTS REQUEST | |
|
COMING Battery bp1400
5100048620 · qty on machine: 1 | |||||
| 7 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 8 | 5100052876 | Label | 1 | ADD TO CART | |
| 9 | 5100054269 | Label | 1 | ADD TO CART | |
| 10 | 5100053801 | Label | 1 | ADD TO CART | |
| 11 | 5100050600 | Transportbox | 1 | PARTS REQUEST | |
|
COMING Transportbox
5100050600 · qty on machine: 1 | |||||
| 12 | 5100057039 | Label | 1 | ADD TO CART | |
| 13 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 14 | 5100052073 | Label un3480 | 1 | ADD TO CART | |
| 15 | 5000220000 | Instruction label | 1 | ADD TO CART | |

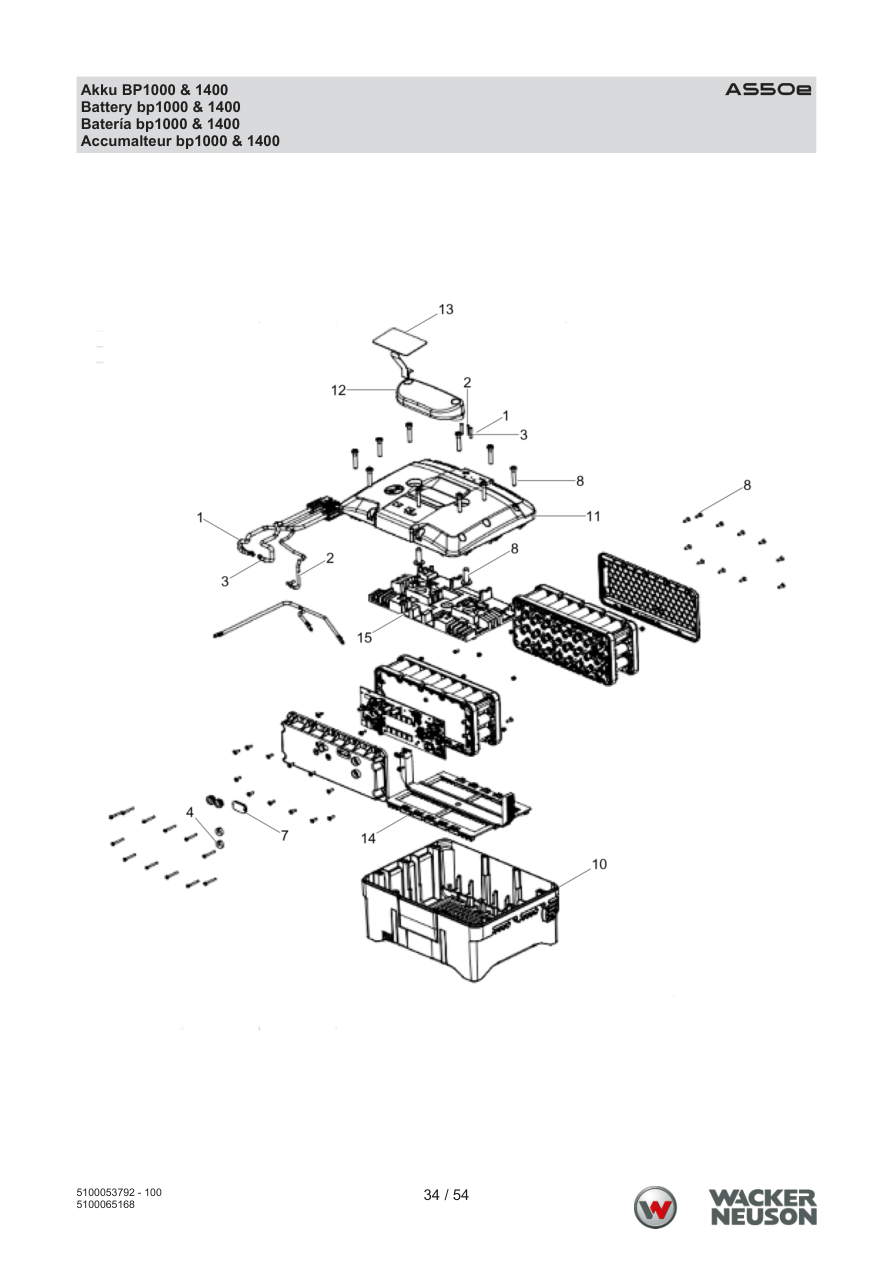

Page 34 — AS50e Battery BP1000 & 1400
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100058287 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100058288 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100058289 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100058291 | Sealing plug | 1 | ADD TO CART | |
| 7 | 5100058298 | Strain relief | 1 | ADD TO CART | |
| 8 | 5100058302 | Set of screws | 1 | ADD TO CART | |
| 10 | 5100001730 | Housing | 1 | ADD TO CART | |
| 11 | 5100003034 | Housing cover | 1 | ADD TO CART | |
| 12 | 5100010753 | Handle | 1 | ADD TO CART | |
| 13 | 5100027161 | Foil | 1 | PARTS REQUEST | |
|
COMING Foil
5100027161 · qty on machine: 1 | |||||
| 14 | 5100052030 | Rubber inlay | 1 | ADD TO CART | |
| 15 | 5100052031 | Rubber inlay | 1 | ADD TO CART | |

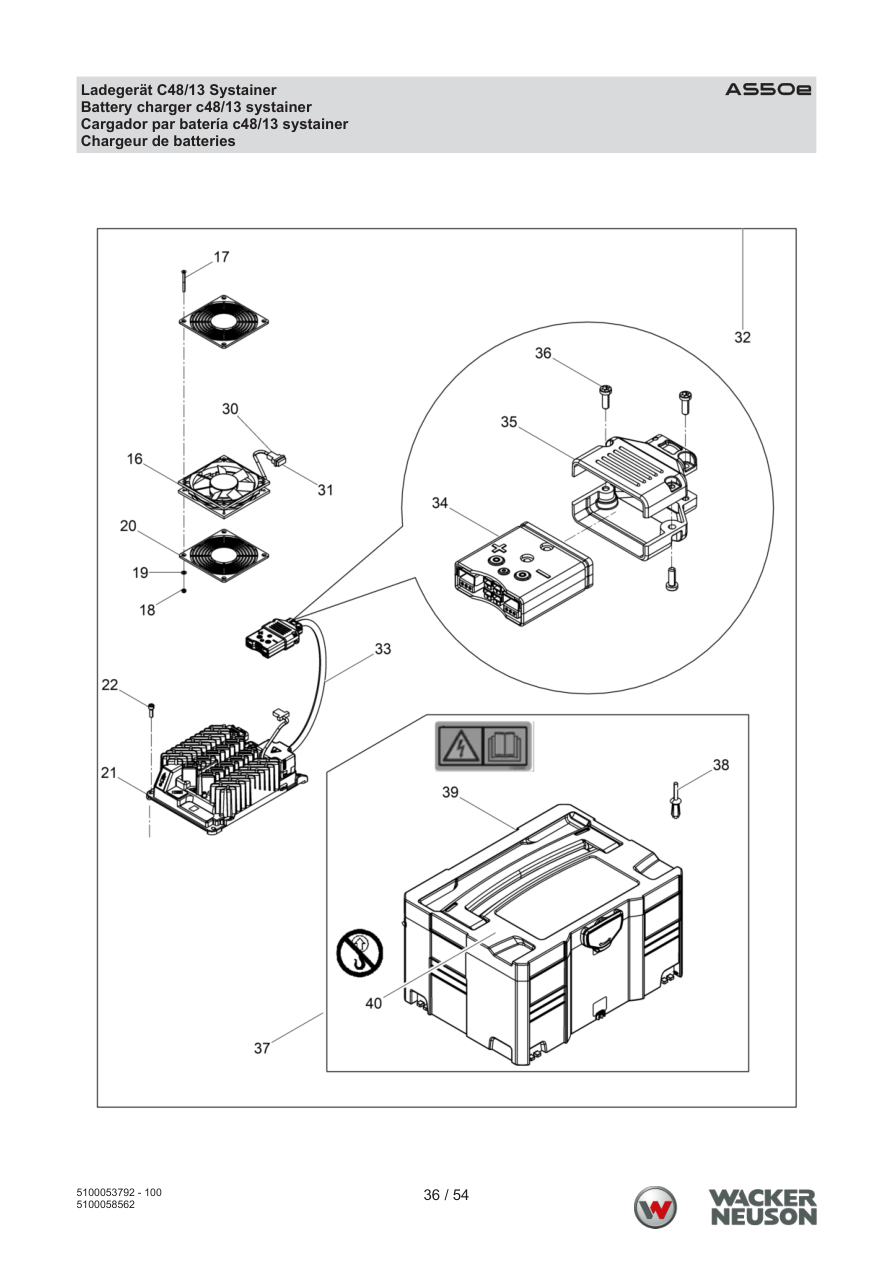

Page 36 — Battery charger c48/13 systainer
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5100009484 | Ac cable | 1 | ADD TO CART | ||
| 16 | 5100004447 | Fan | 1 | ADD TO CART | |
| 17 | 5100005910 | Countersunk bolt | 4 | M4x45 1.5Nm/1ft.lbs | ADD TO CART |
| 18 | 5000105210 | Hexagon nut | 4 | VM4 | DIN980 | PARTS REQUEST |
|
COMING Hexagon nut
5000105210 · qty on machine: 4 VM4 | DIN980 | |||||
| 19 | 5000010628 | Flat washer | 4 | ADD TO CART | |
| 20 | 5100005889 | Screen grid | 2 | ADD TO CART | |
| 21 | 5100005836 | Charger | 1 | ADD TO CART | |
| 22 | 5000011551 | Cheese head screw | 4 | ADD TO CART | |
| 30 | 5100005908 | Plug cap | 1 | ADD TO CART | |
| 31 | 5100005909 | Plug | 1 | ADD TO CART | |
| 32 | 5100050107 | Battery charger c48/13 systainer | 1 | PARTS REQUEST | |
|
COMING Battery charger c48/13 systainer
5100050107 · qty on machine: 1 | |||||
| 33 | 5100004465 | Charging cable | 1 | ADD TO CART | |
| 34 | 5100001742 | Plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 35 | 5100008927 | Cord grip | 2 | ADD TO CART | |
| 36 | 5000213543 | Oval head screw | 4 | ADD TO CART | |
| 37 | 5100069429 | Transportbox systainersystainer t- | 1 | ADD TO CART | |
| 38 | 5100059054 | Converter | 4 | ADD TO CART | |
| 39 | 5100061987 | Label | 1 | ADD TO CART | |
| 40 | 5000220000 | Instruction label | 1 | ADD TO CART | |

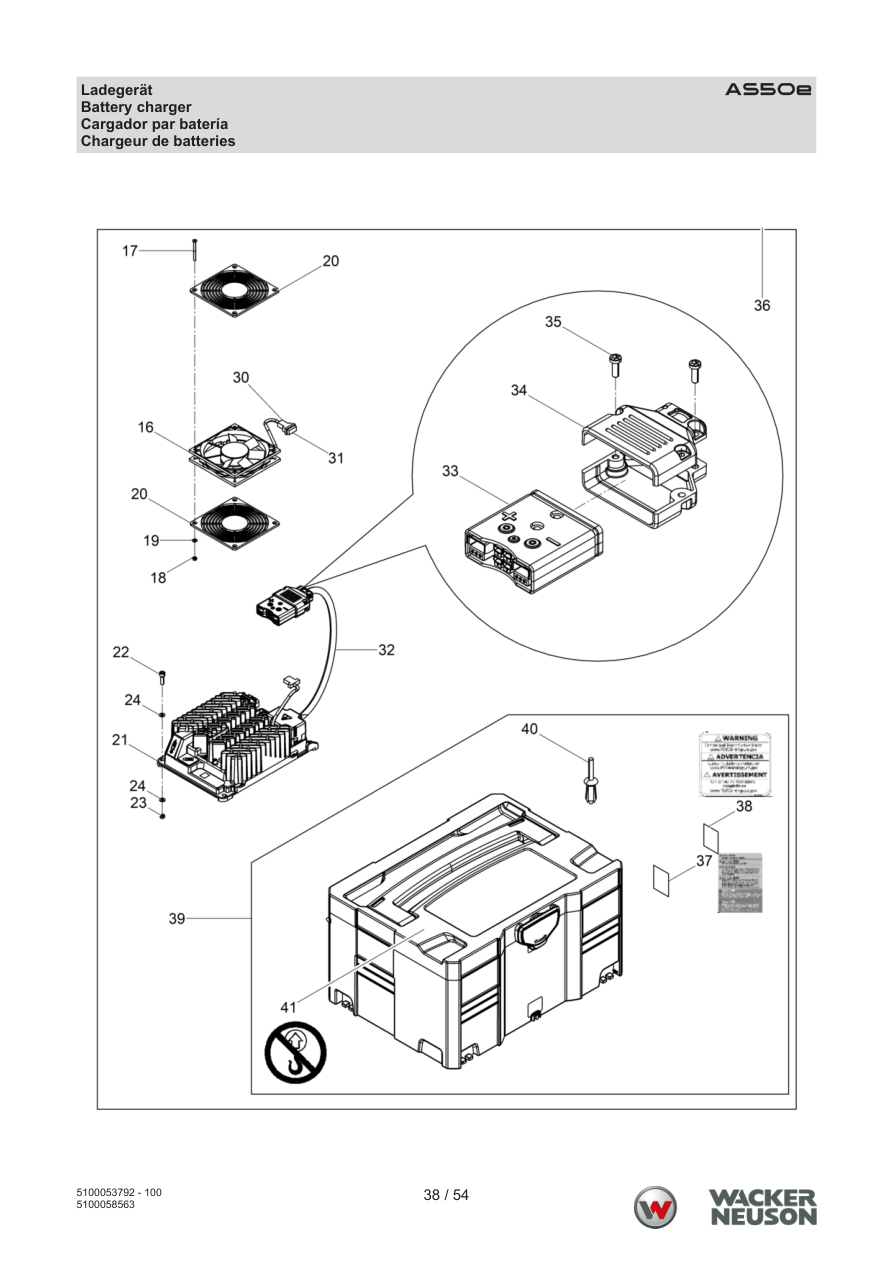

Page 38 — Battery charger
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5100028195 | Ac cable | 1 | ADD TO CART | ||
| 16 | 5100004447 | Fan | 1 | ADD TO CART | |
| 17 | 5100005910 | Countersunk bolt | 4 | ADD TO CART | |
| 18 | 5000105210 | Hexagon nut | 4 | VM4 | DIN980 | PARTS REQUEST |
|
COMING Hexagon nut
5000105210 · qty on machine: 4 VM4 | DIN980 | |||||
| 19 | 5000010628 | Flat washer | 4 | ADD TO CART | |
| 20 | 5100005889 | Screen grid | 2 | ADD TO CART | |
| 21 | 5100028169 | Battery charger | 1 | ADD TO CART | |
| 22 | 5000011551 | Cheese head screw | 4 | ADD TO CART | |
| 23 | 5000010880 | Hexagon nut | 4 | ADD TO CART | |
| 24 | 5000010624 | Flat washer | 8 | ADD TO CART | |
| 30 | 5100005908 | Plug cap | 1 | ADD TO CART | |
| 31 | 5100005909 | Plug | 2 | ADD TO CART | |
| 32 | 5100004465 | Charging cable | 1 | ADD TO CART | |
| 33 | 5100001742 | Plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 34 | 5100008927 | Cord grip | 2 | ADD TO CART | |
| 35 | 5000213543 | Oval head screw | 4 | ADD TO CART | |
| 36 | 5100028231 | Battery charger c 48/13 us | 1 | PARTS REQUEST | |
|
COMING Battery charger c 48/13 us
5100028231 · qty on machine: 1 | |||||
| 37 | 5100069226 | Label warning | 1 | ADD TO CART | |
| 38 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 39 | 5100069429 | Transportbox systainersystainer t- | 1 | ADD TO CART | |
| 40 | 5100059054 | Converter | 4 | ADD TO CART | |
| 41 | 5000220000 | Instruction label | 1 | ADD TO CART | |

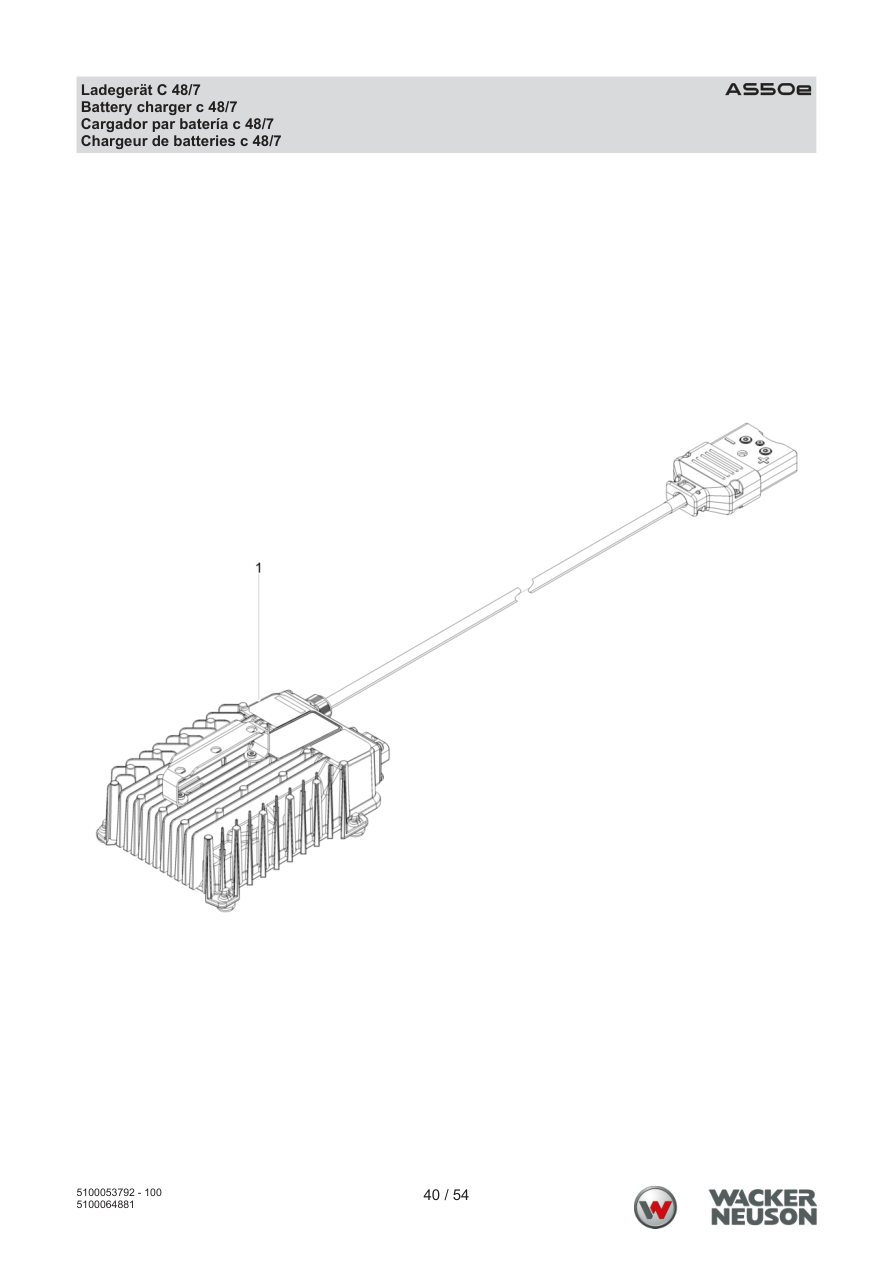

Page 40 — Battery charger c 48/7
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061939 | Battery charger c48/7 | 1 | PARTS REQUEST | |
|
COMING Battery charger c48/7
5100061939 · qty on machine: 1 | |||||

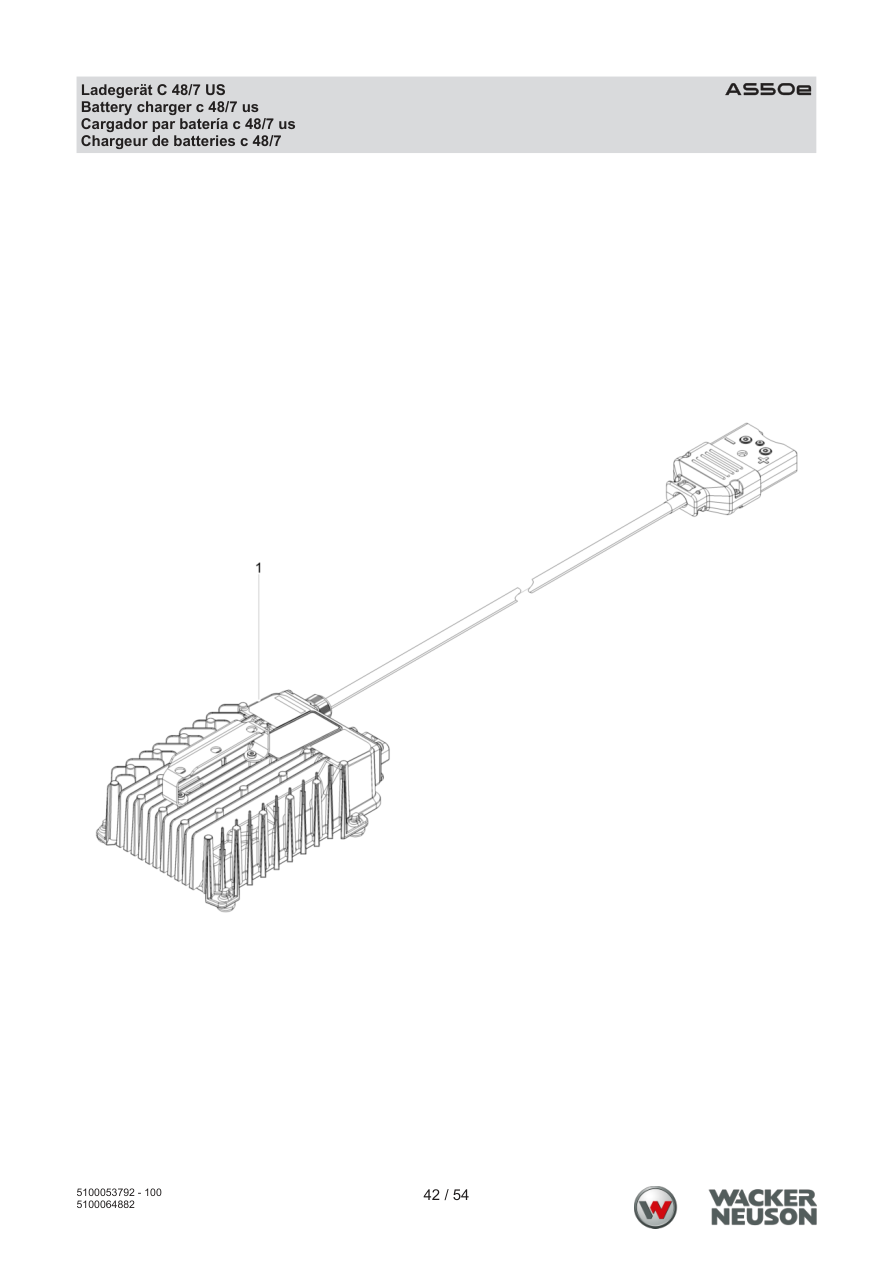

Page 42 — Battery charger c 48/7 us
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061940 | Battery charger c48/7 us | 1 | PARTS REQUEST | |
|
COMING Battery charger c48/7 us
5100061940 · qty on machine: 1 | |||||

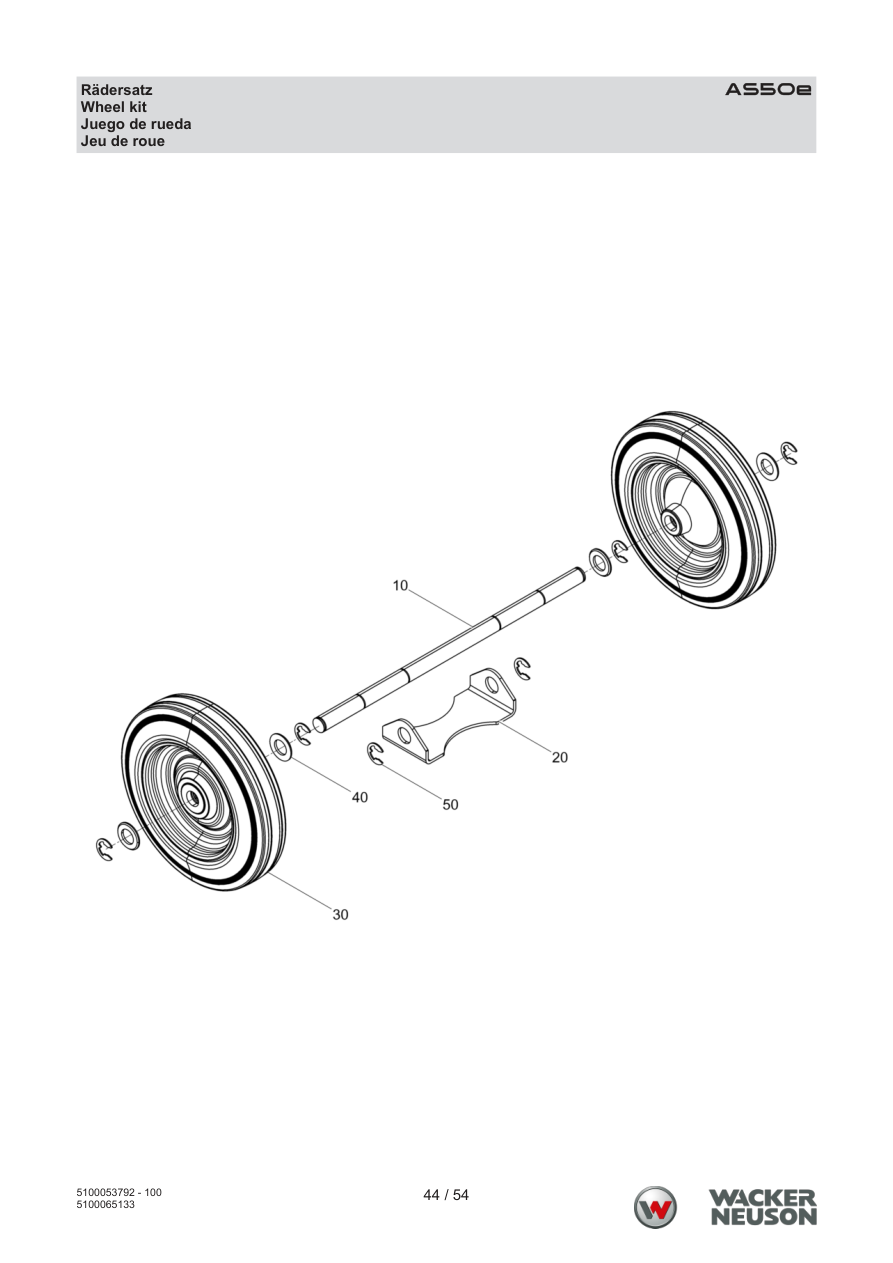

Page 44 — Wheel kit
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100064461 | Axle | 1 | ADD TO CART | |
| 20 | 5100064462 | Plate | 1 | ADD TO CART | |
| 30 | 5100064463 | Tire | 2 | ADD TO CART | |
| 40 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 50 | 5000103834 | Lock washer | 6 | 15 | DIN6799 | ADD TO CART |

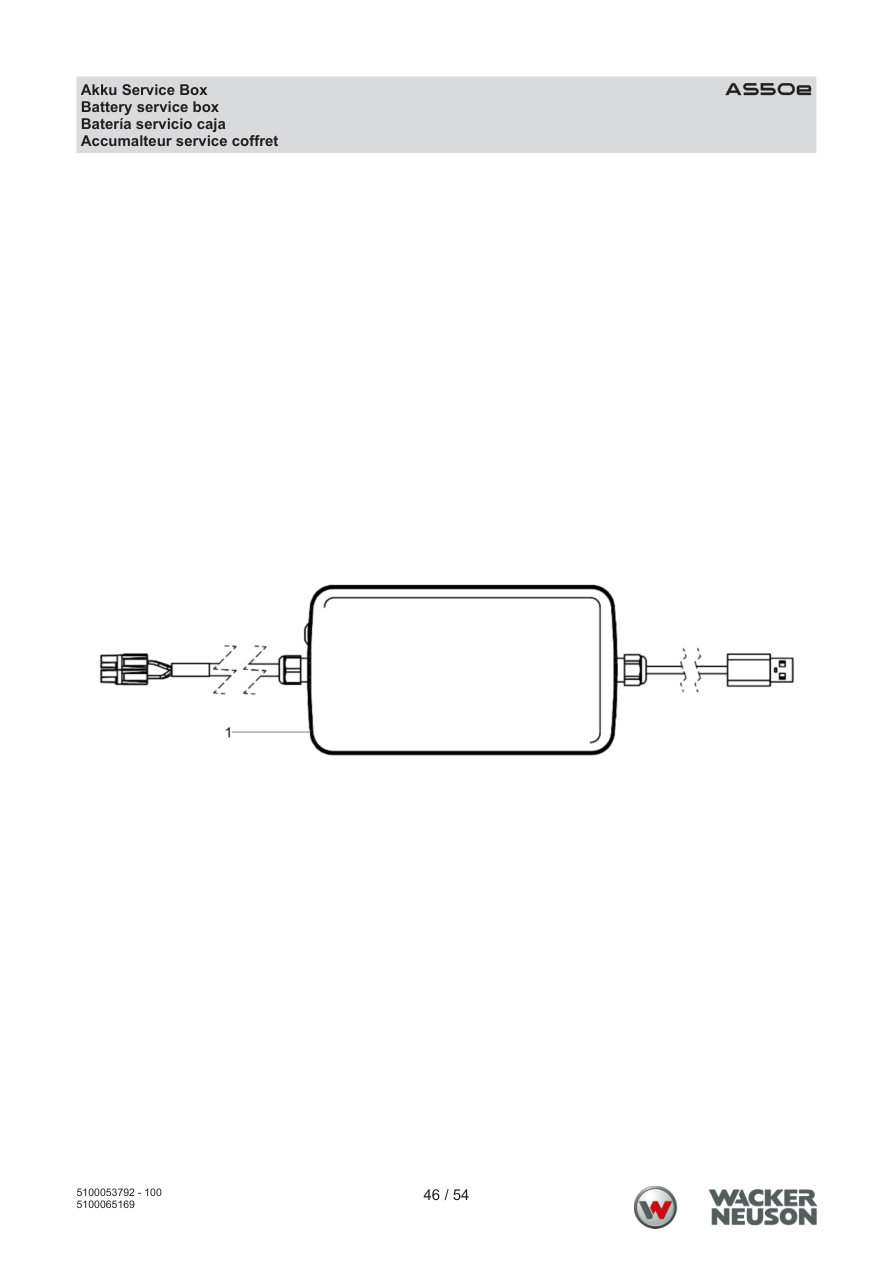

Page 46 — AS50e Battery Service Box
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061983 | Battery service box | 1 | PARTS REQUEST | |
|
COMING Battery service box
5100061983 · qty on machine: 1 | |||||

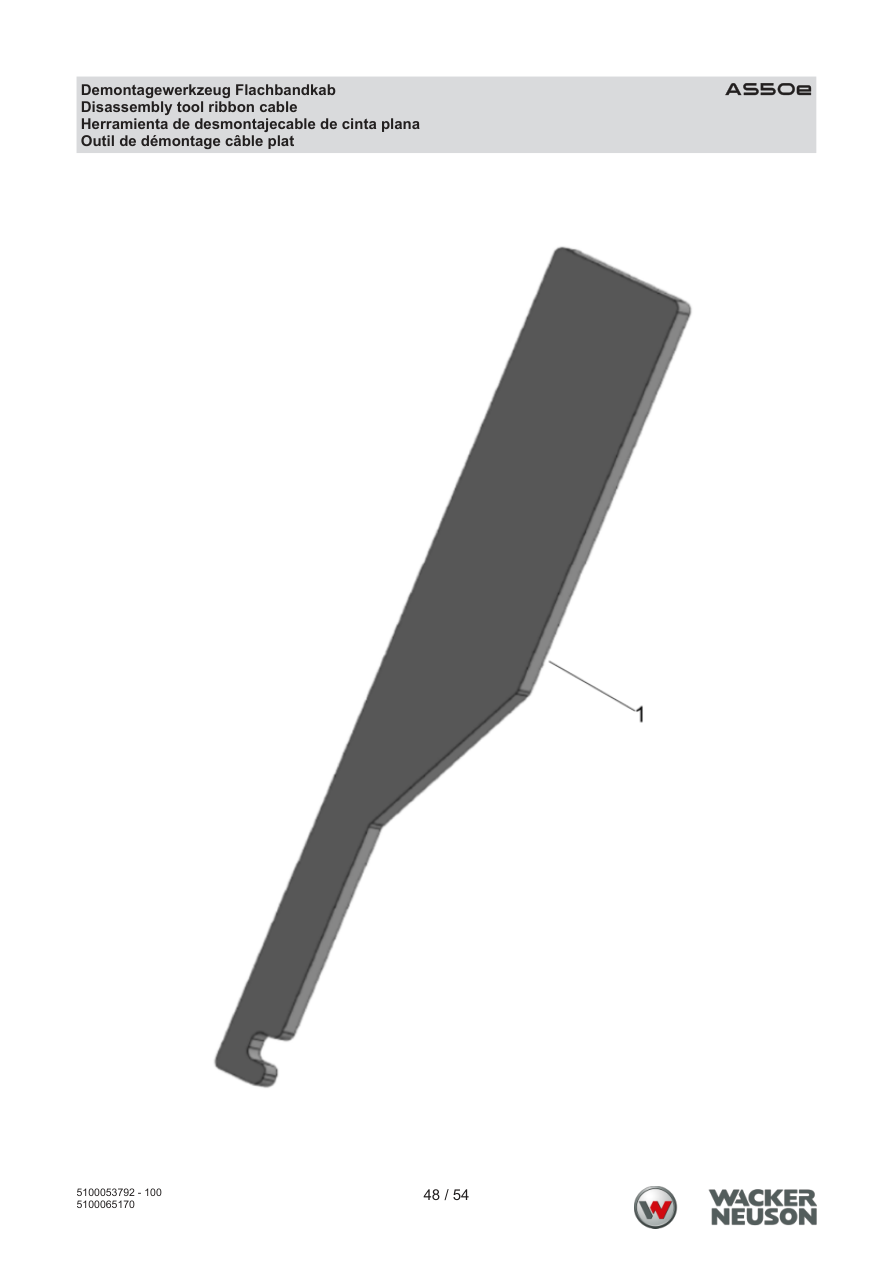

Page 48 — AS50e Disassembly tool flat ribbon cable
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061984 | Disassembly tool ribbon cable | 1 | PARTS REQUEST | |
|
COMING Disassembly tool ribbon cable
5100061984 · qty on machine: 1 | |||||

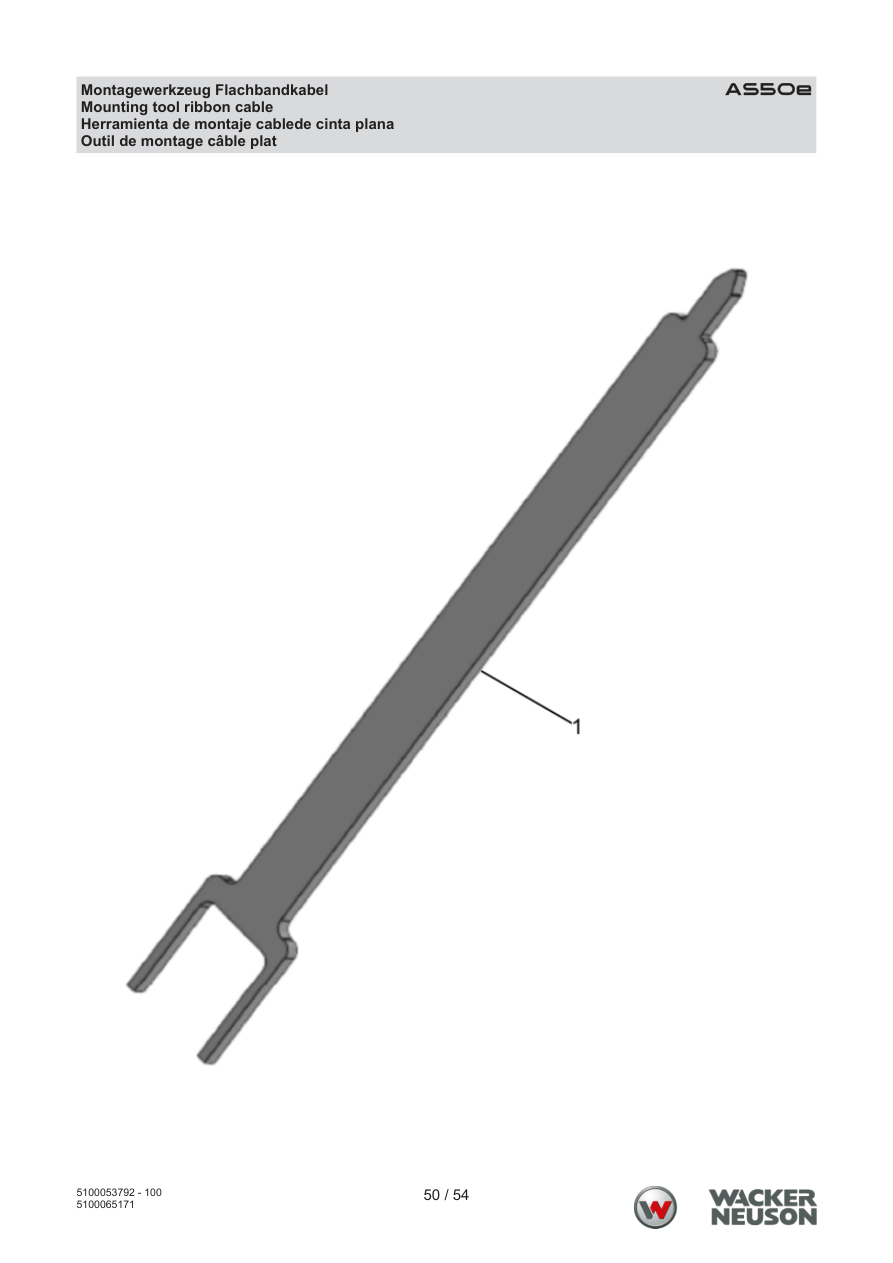

Page 50 — AS50e Assembly tool flat ribbon cable
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061985 | Mounting tool ribbon cable | 1 | PARTS REQUEST | |
|
COMING Mounting tool ribbon cable
5100061985 · qty on machine: 1 | |||||
The machine itself
Machine
Engine
Wacker Neuson AS50 vibratory rammer.
Available in 3 configurations.
List price: $4,380.00 – $10,245.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000010366
Hexagon nut
$0.95
5000010367
Hexagon nut
$0.95
5000010616
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010628
Flat washer
$0.95
5000010644
Lock washer
$0.95
5000010880
Hexagon nut
$0.95
5000011158
Countersunk bolt
$2.95
5000011343
Hexagonal head cap screw
$0.95
5000011533
Cheese head screw
5000011535
Cheese head screw
$0.95
5000011551
Cheese head screw
$0.95
5000012983
Countersunk bolt
$3.95
5000014425
Cheese head screw
5000021465
Lock washer
$1.95
5000031880
O-ring
$2.95
5000039020
Needle bearing
$7.95
5000039050
Shaft seal
$44.95
5000045190
Grooved ball bearing
$6.95
5000048467
Grooved ball bearing
5000072061
Needle bearing
$7.95
5000102274
Shockmount
$33.95
5000103834
Lock washer
$0.95
5000105210
Hexagon nut
5000108372
Pan head screw
$1.95
5000110196
Lock nut
$0.95
5000110528
Clamp
$11.95
5000110537
Clamp
$11.95
5000128482
Bellows
$11.95
5000129784
Decal-sound power level
$2.95
5000155017
Countersunk screw
5000213543
Oval head screw
$0.95
5000216633
Instruction label
$4.95
5000219114
Labels
$2.95
5000219261
Labels
$29.95
5000220000
Instruction label
$2.95
5000222073
Screw
$1.95
5000222605
Oval head screw
$0.95
5002001041
Retaining ring
$0.95
5002003021
Grooved ball bearing
$7.95
5002003022
Retaining ring
$0.95
5002003023
Retaining ring
$1.95
5100000179
Clamp
$2.95
5100001723
Protective hood cpl.
$218.95
5100001729
Housing half right
$5.95
5100001730
Housing
$423.95
5100001731
Housing half left
$5.95
5100001735
Retainer
$3.95
5100001737
Shift lever
$2.95
5100001742
Plug cpl.
$98.95
5100002571
Switch
$125.95
5100002878
Foam
$27.95
5100002886
Sealing tape long
$4.95
5100002888
Sealing tape short
5100003006
Leg spring
$4.95
5100003034
Housing cover
$253.95
5100004436
Switch cpl.
$56.95
5100004447
Fan
$511.95
5100004465
Charging cable
$306.95
5100005556
Shim screw
$2.95
5100005836
Charger
$1,407.95
5100005889
Screen grid
$38.95
5100005908
Plug cap
$9.95
5100005909
Plug
$2.95
5100005910
Countersunk bolt
$0.95
5100008927
Cord grip
$19.95
5100009484
Ac cable
$63.95
5100009616
Air ducting
$139.95
5100009734
Grooved pin
$1.95
5100009739
Oval head screw
$0.95
5100010127
Oval head screw
$0.95
5100010753
Handle
$32.95
5100011019
Adaptor cpl.
$185.95
5100011415
Type label
$34.95
5100025436
Hexagonal head cap screw
$0.95
5100025574
Locking plate
$170.95
5100025600
Leg spring
$3.95
5100025637
Bracket
$12.95
5100025683
Protective frame cpl.
$222.95
5100025701
Motor armature cpl.
$381.95
5100025704
Bearing bracket
$204.95
5100025705
Fan wheel
$13.95
5100027072
Screw
5100027161
Foil
5100028169
Battery charger
$1,608.95
5100028195
Ac cable
$55.95
5100028231
Battery charger c 48/13 us
5100031608
Cover
$16.95
5100031620
Handle
$66.95
5100031692
Label compression spring us
$8.95
5100032026
Piston pin
$22.95
5100032036
Bushing
$15.95
5100032038
Piston guide
$24.95
5100032039
Damper
$29.95
5100032110
Gasket
$6.95
5100032111
Gasket
$7.95
5100032112
Bellows
$140.95
5100032114
Ramming shoe 11in
$449.95
5100032132
Crankcase cover
$73.95
5100033181
O-ring
$2.95
5100033182
Sight glass
$14.95
5100037297
Crank gear
$168.95
5100037875
Connecting rod
$173.95
5100038030
Clutch drum
$149.95
5100038429
Guide cylinder
5100038472
Guide piston
$323.95
5100042452
Ramming shoe cpl. 11in
$406.95
5100042619
Transport roller cpl.
$35.95
5100045300
Spring cylinder
$853.95
5100045462
Decal proposition 65
5100045607
Centrifugal clutch
$247.95
5100047020
Label
$11.95
5100048620
Battery bp1400
5100050107
Battery charger c48/13 systainer
5100050600
Transportbox
5100051676
Guide handle
$753.95
5100052030
Rubber inlay
$148.95
5100052031
Rubber inlay
$105.95
5100052073
Label un3480
$18.95
5100052097
Protective pipe
$174.95
5100052236
Plate
$22.95
5100052237
Side plate right
$105.95
5100052239
Side plate left cpl.
$257.95
5100052260
Guard plate
$235.95
5100052440
Label symbol
$17.95
5100052876
Label
$11.95
5100053801
Label
$6.95
5100054269
Label
$11.95
5100055599
Grooved ball bearing
$16.95
5100057039
Label
$4.95
5100058287
Supply line cpl.
$17.95
5100058288
Supply line cpl.
$48.95
5100058289
Supply line cpl.
$20.95
5100058291
Sealing plug
$2.95
5100058298
Strain relief
$6.95
5100058302
Set of screws
$12.95
5100058422
Plug
$0.95
5100058800
Converter
$552.95
5100059054
Converter
$0.95
5100060517
Fan cover
$31.95
5100061939
Battery charger c48/7
5100061940
Battery charger c48/7 us
5100061983
Battery service box
5100061984
Disassembly tool ribbon cable
5100061985
Mounting tool ribbon cable
5100061987
Label
$2.95
5100064461
Axle
$223.95
5100064462
Plate
$130.95
5100064463
Tire
$35.95
5100068447
Sponge rubber
$2.95
5100069226
Label warning
$11.95
5100069429
Transportbox systainersystainer t-
$505.95
5100069487
Hose piece
$6.95
5100071907
Spring set
$31.95
5100085068
Motor housing cpl. as50e/60e
5200003538
Crankcase
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
