Wacker Neuson BPS1340 Vibratory Plate
Pick your options below. We build the exact machine and start your quote.
The parts bench
Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 14 — Guide handle
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052430 | Bearing | 2 | ADD TO CART | |
| 20 | 5100058578 | Guiding frame cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 16 — Guide handle basis
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052432 | Spring pin | 2 | ADD TO CART | |
| 20 | 5100052431 | Bolt | 2 | ADD TO CART | |

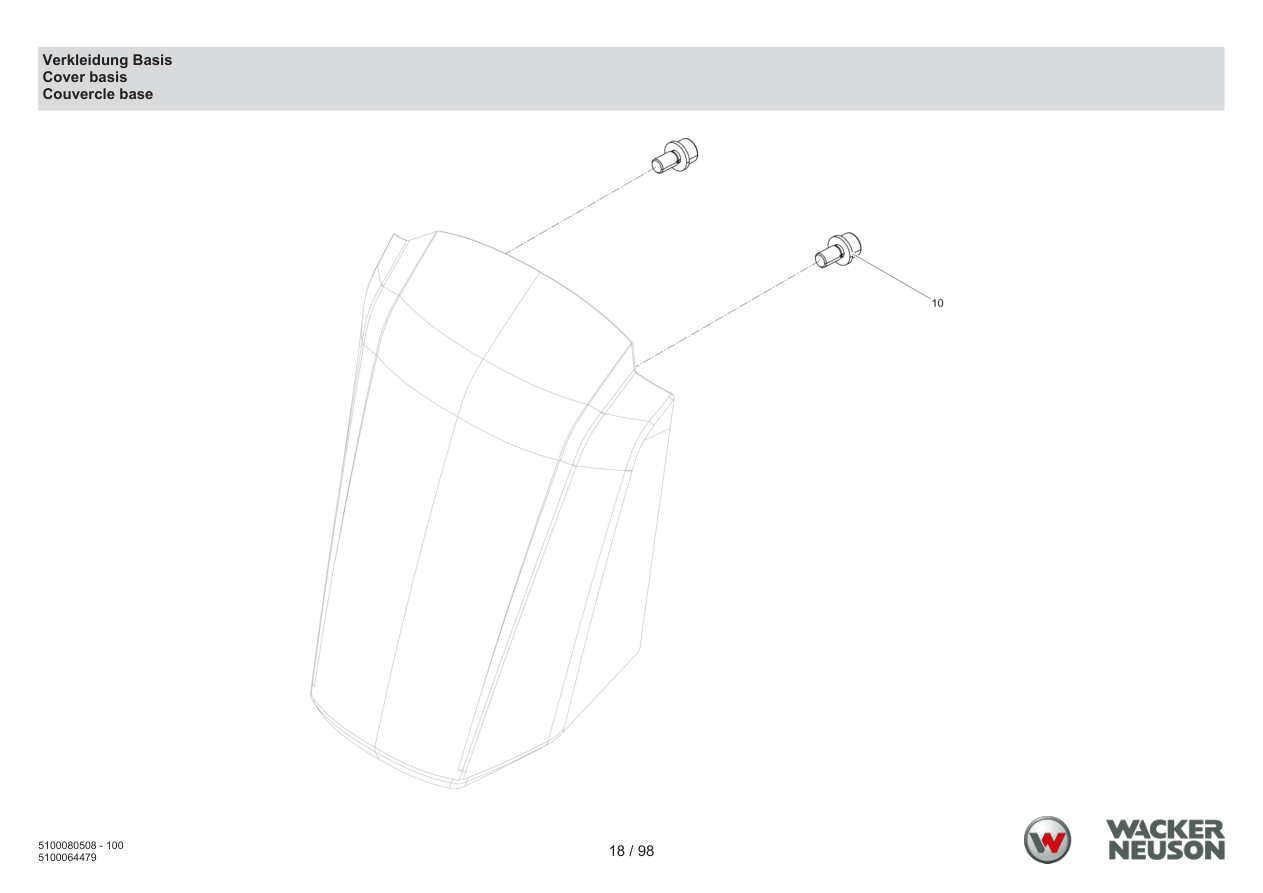

Page 18 — Cover basis
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059594 | Cheese head screw | 2 | ADD TO CART | |

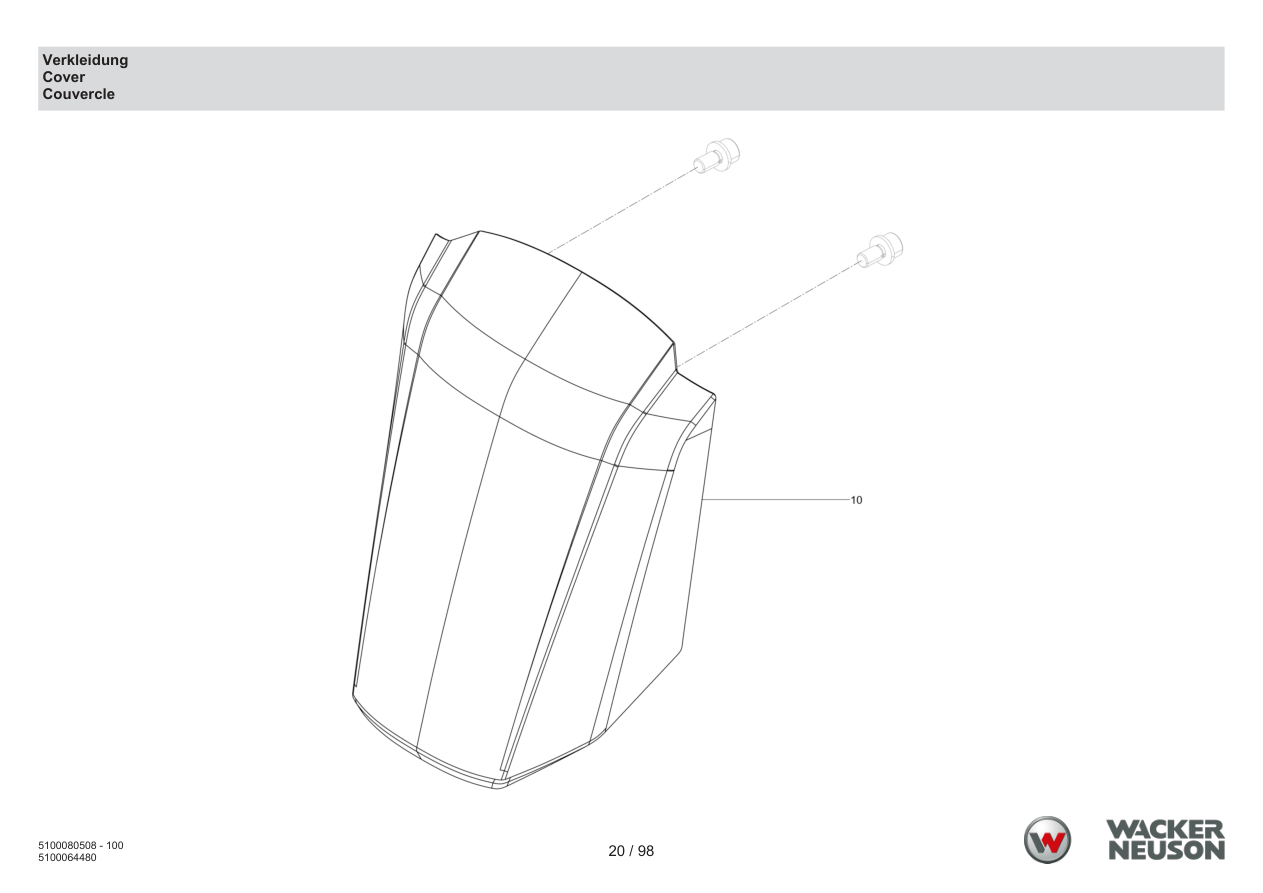

Page 20 — Cover
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059052 | Cover | 1 | ADD TO CART | |

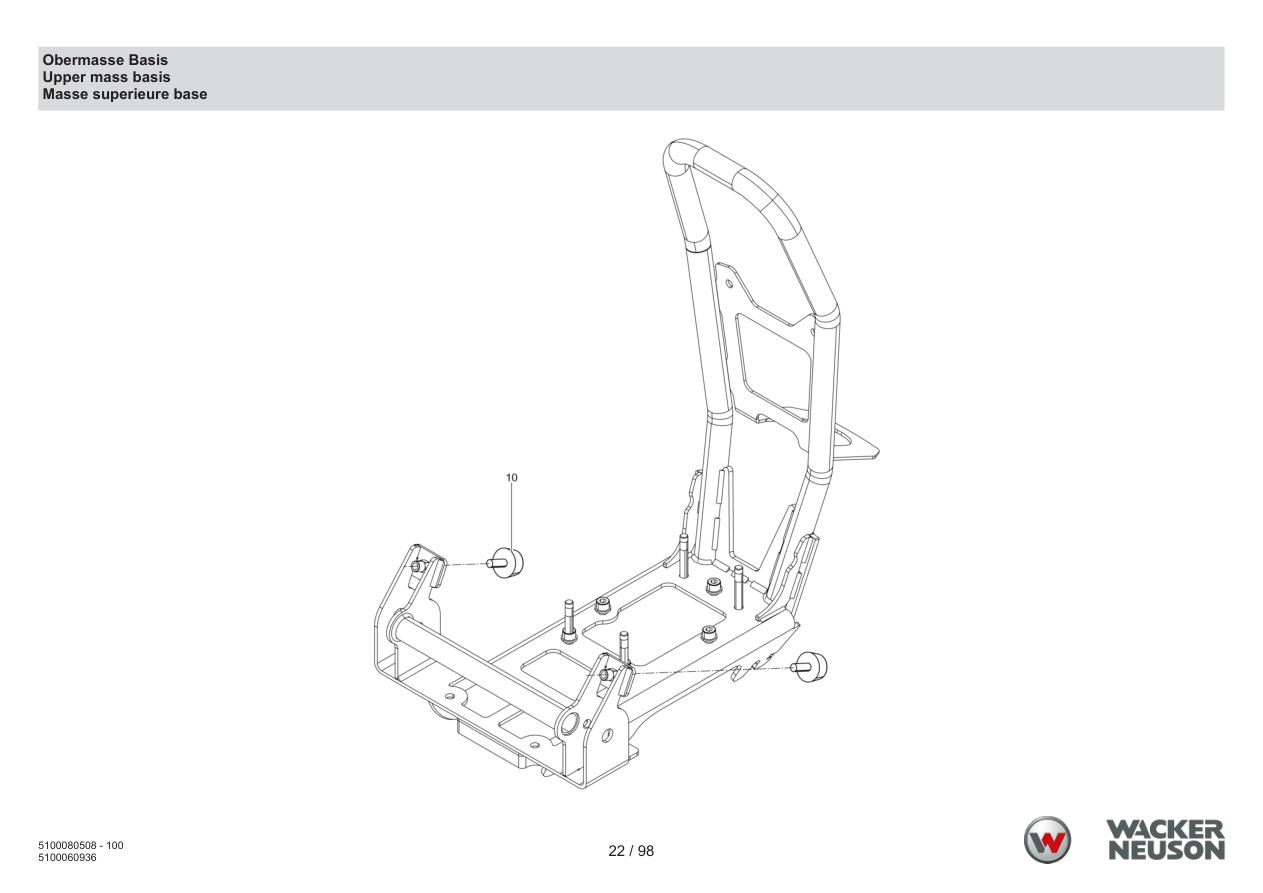

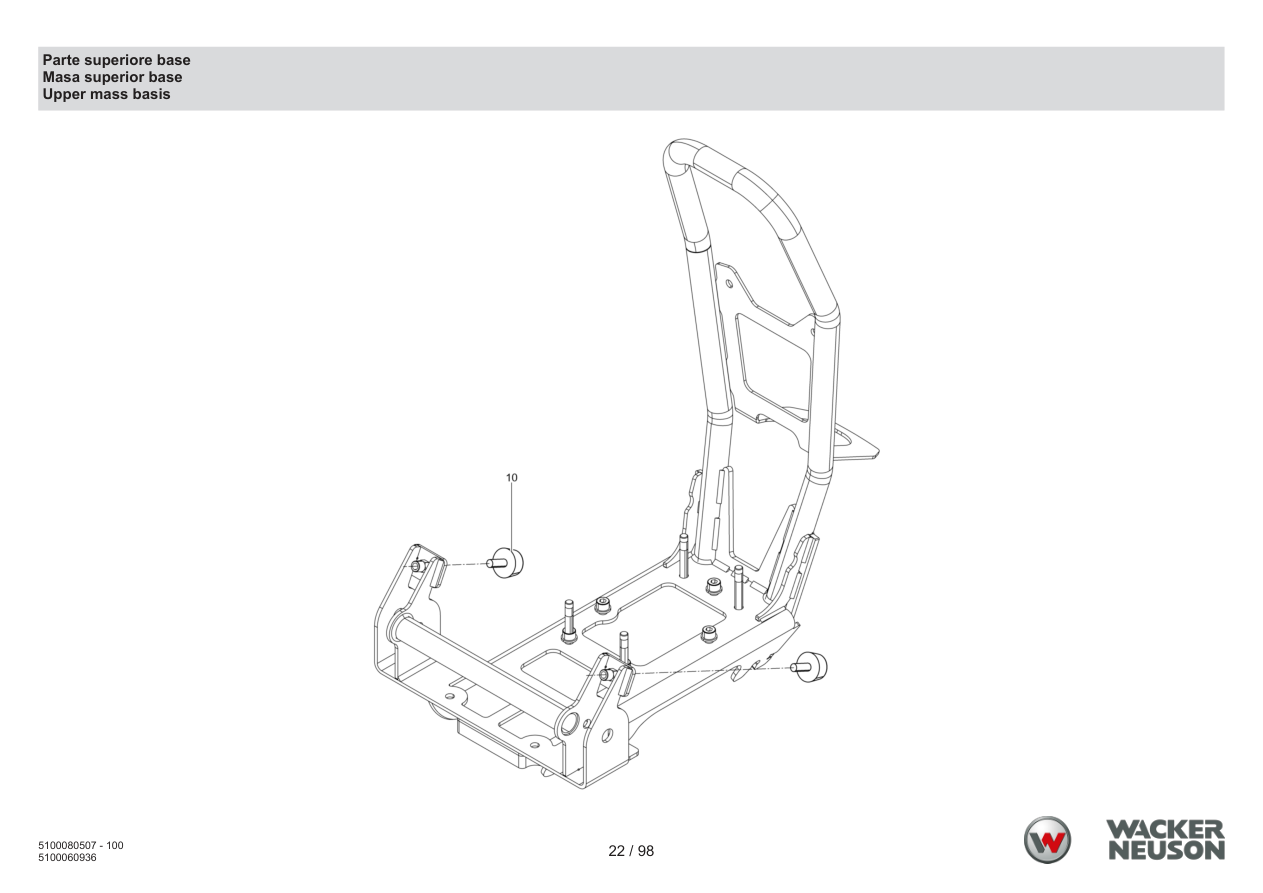

Page 22 — Upper mass base
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100016317 | Shockmount | 2 | ADD TO CART | |

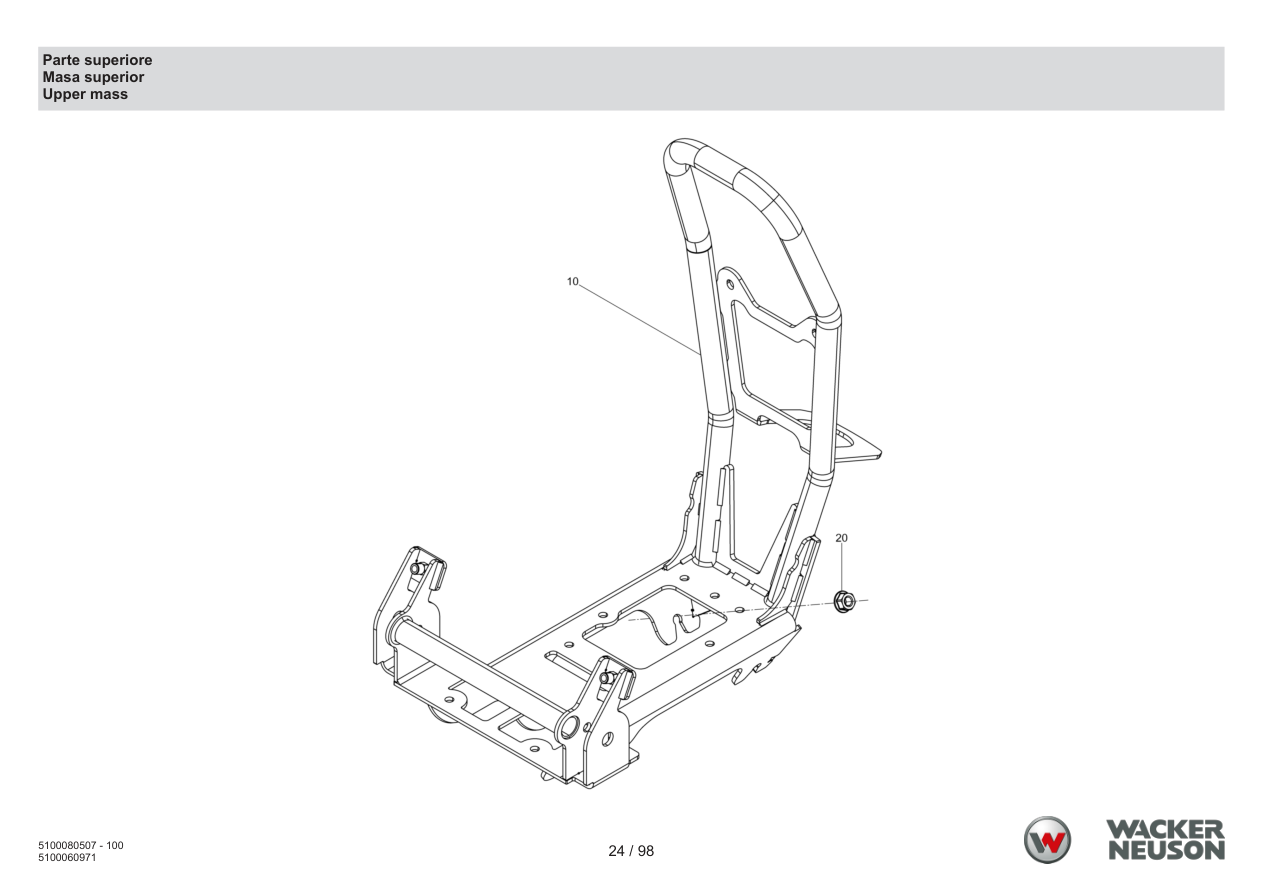

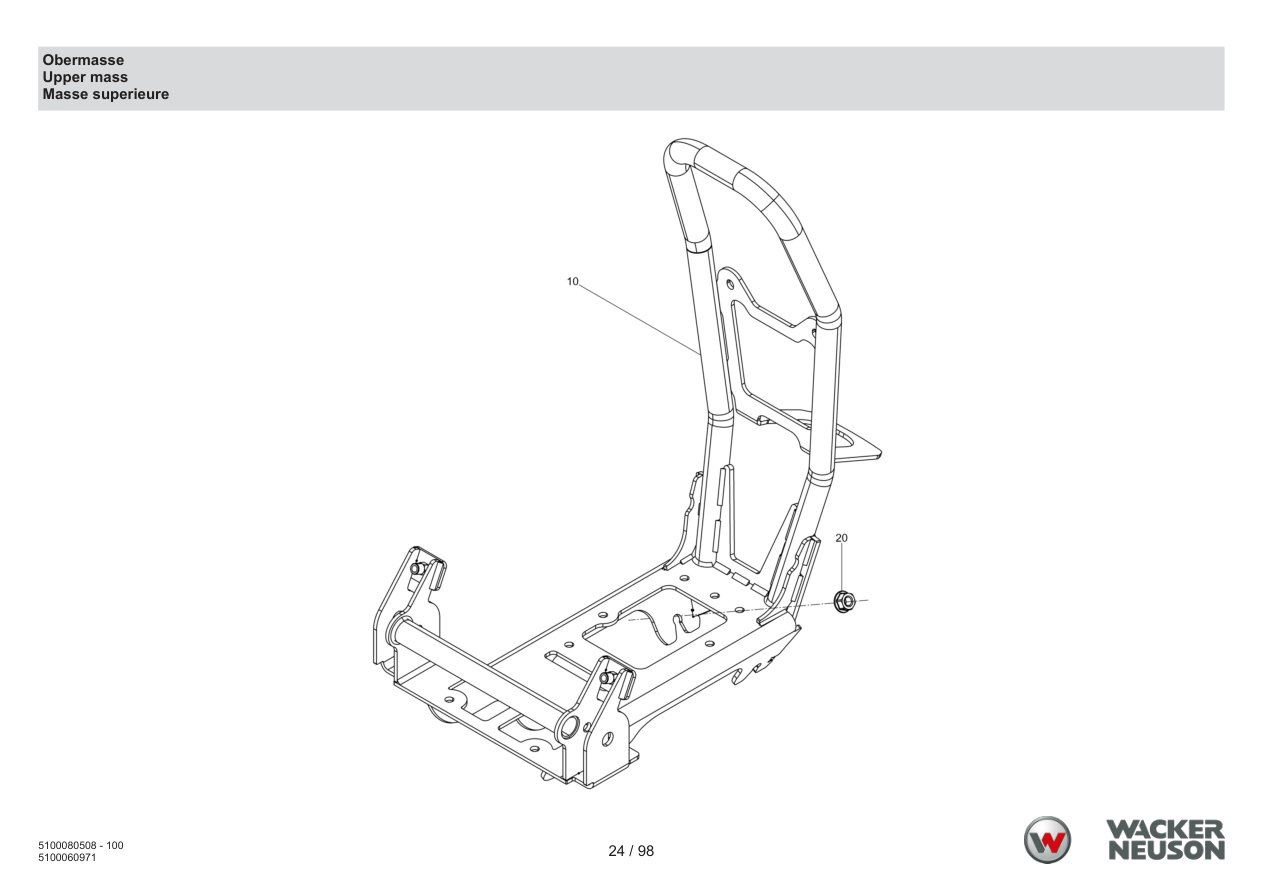

Page 24 — Upper mass
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052424 | Upper mass | 1 | ADD TO CART | |
| 20 | 5000096087 | Hexagon nut | 4 | ADD TO CART | |

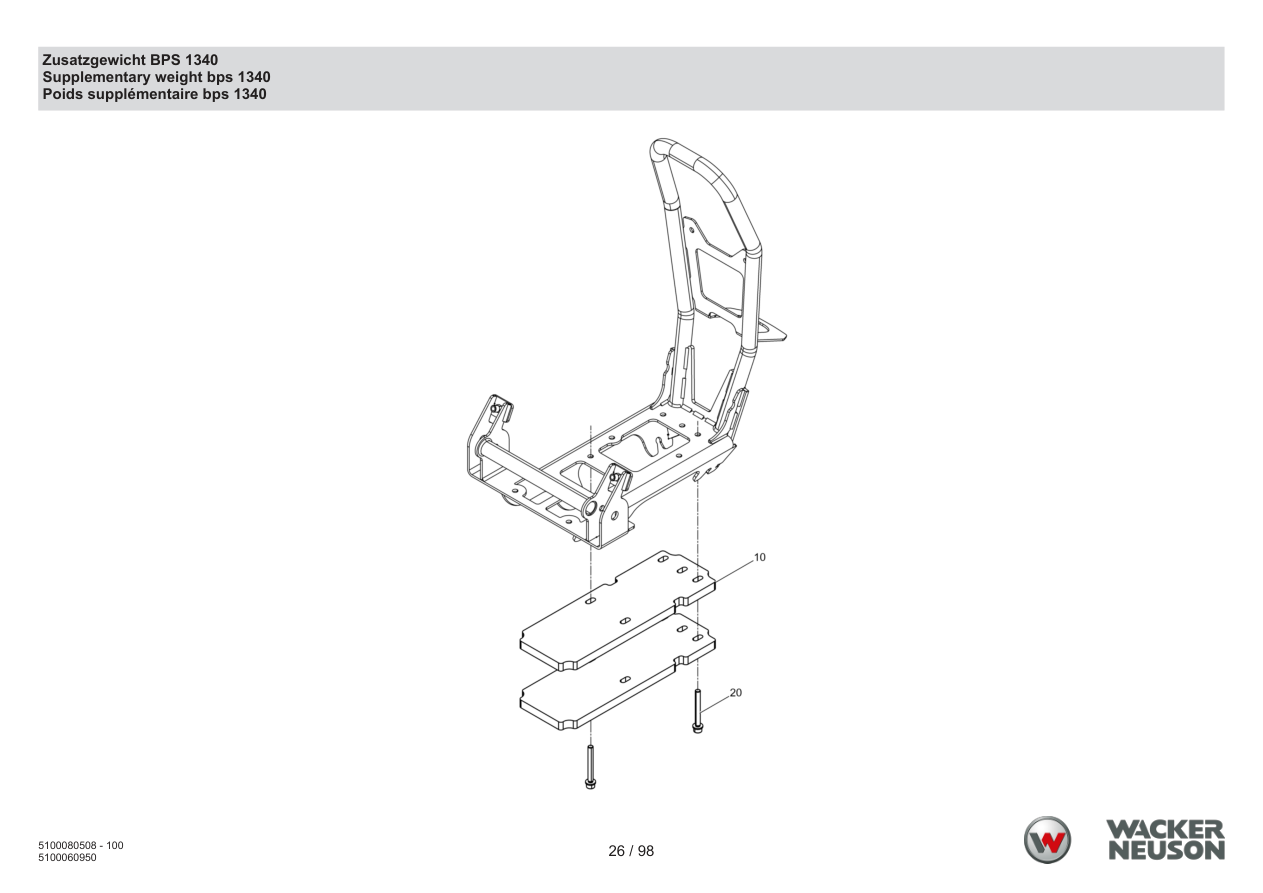

Page 26 — Additional weight BPS 1340
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100056944 | Supplementary weight | 2 | ADD TO CART | |
| 20 | 5100059596 | Cheese head screw | 4 | ADD TO CART | |

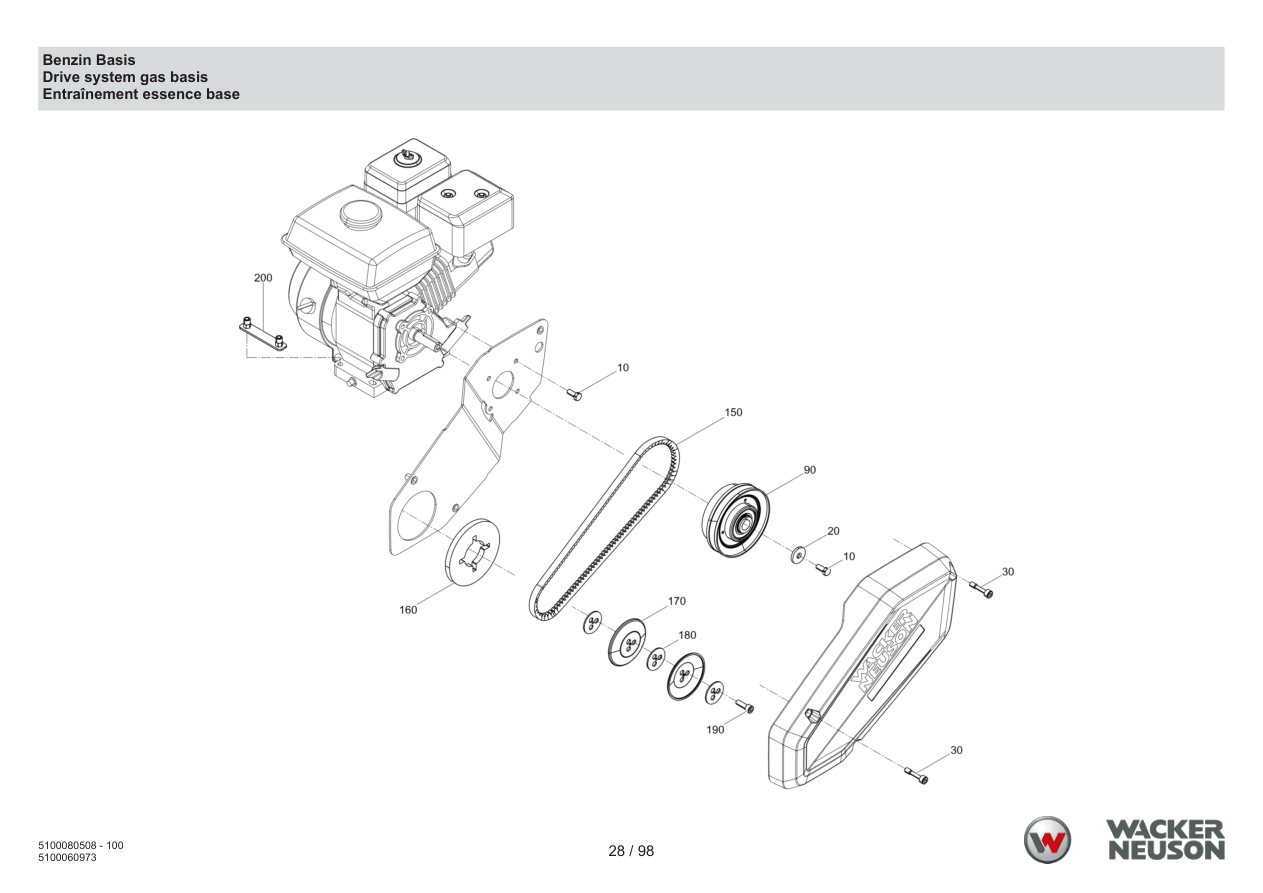

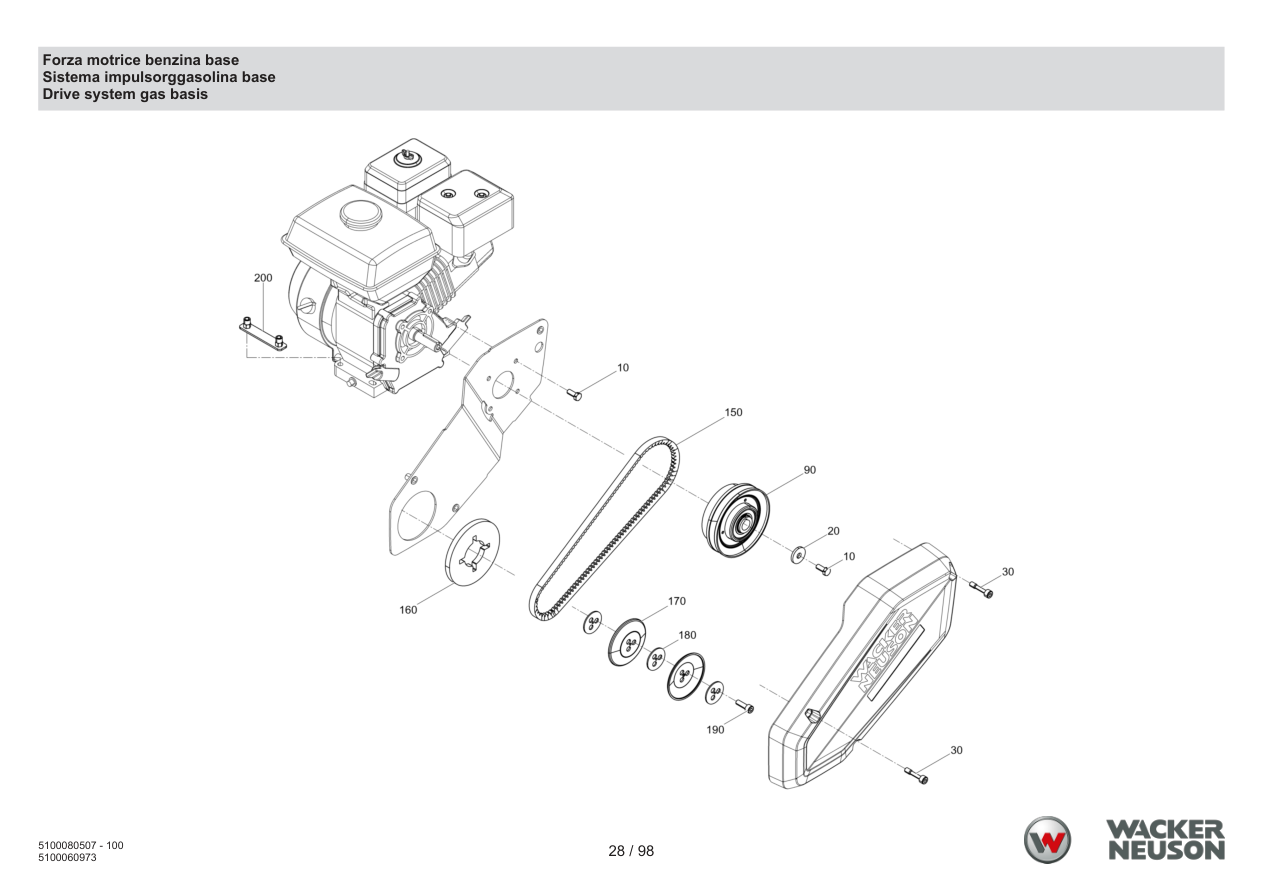

Page 28 — Gasoline base
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000026169 | Hexagonal head cap screw | 5 | ADD TO CART | |
| 20 | 5100016321 | Washer | 1 | ADD TO CART | |
| 30 | 5000216658 | Screw | 3 | ADD TO CART | |
| 90 | 5100054097 | Centrifugal clutch | 1 | ADD TO CART | |
| 150 | 5100031195 | V-belt | 1 | ADD TO CART | |
| 160 | 5100054135 | Gasket | 1 | ADD TO CART | |
| 170 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 180 | 5100064172 | Plate | 3 | ADD TO CART | |
| 190 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 200 | 5100058806 | Bar cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

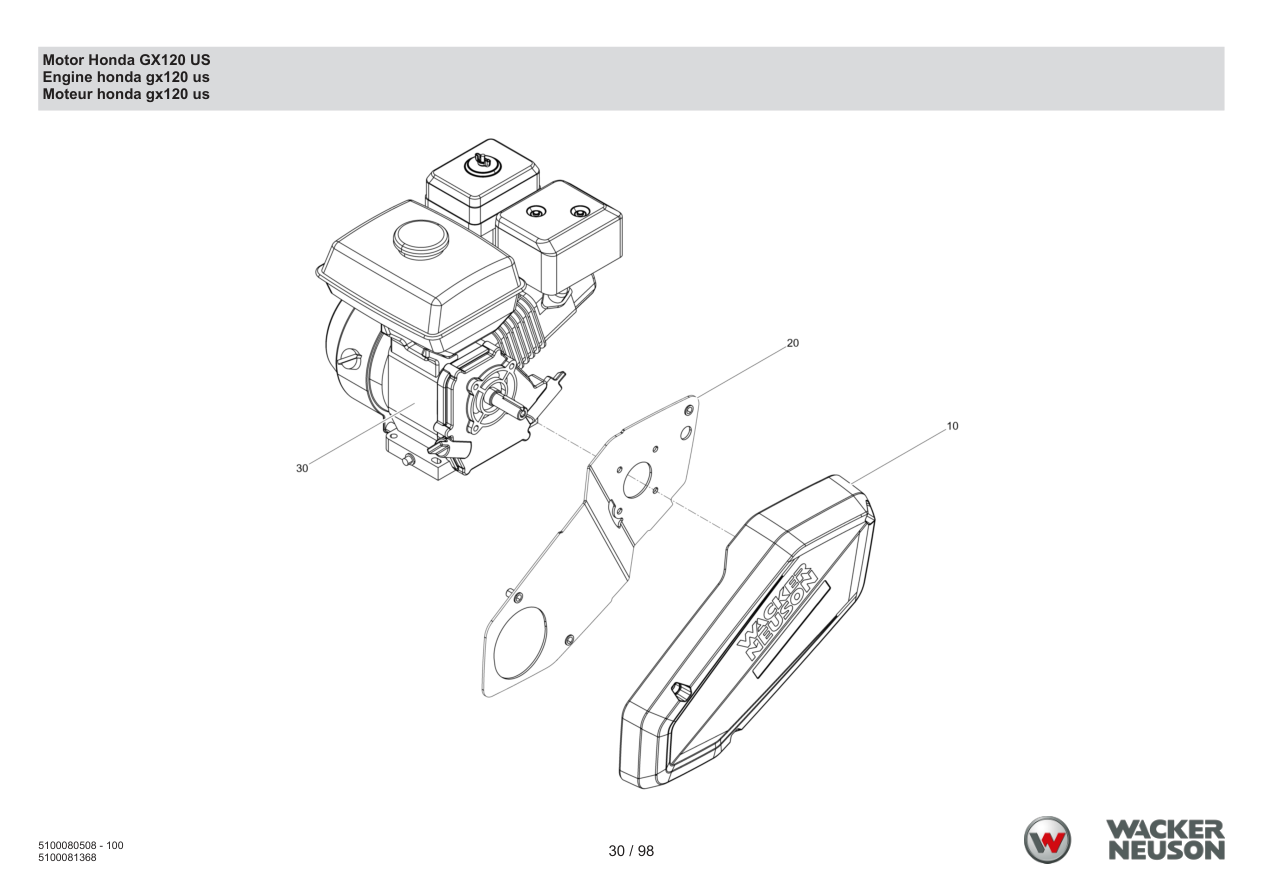

Page 30 — Motor Honda GX120 US
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058484 | Belt guard | 1 | ADD TO CART | |
| 20 | 5100058486 | Guard plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5100080501 | Gas engine | 1 | ADD TO CART | |

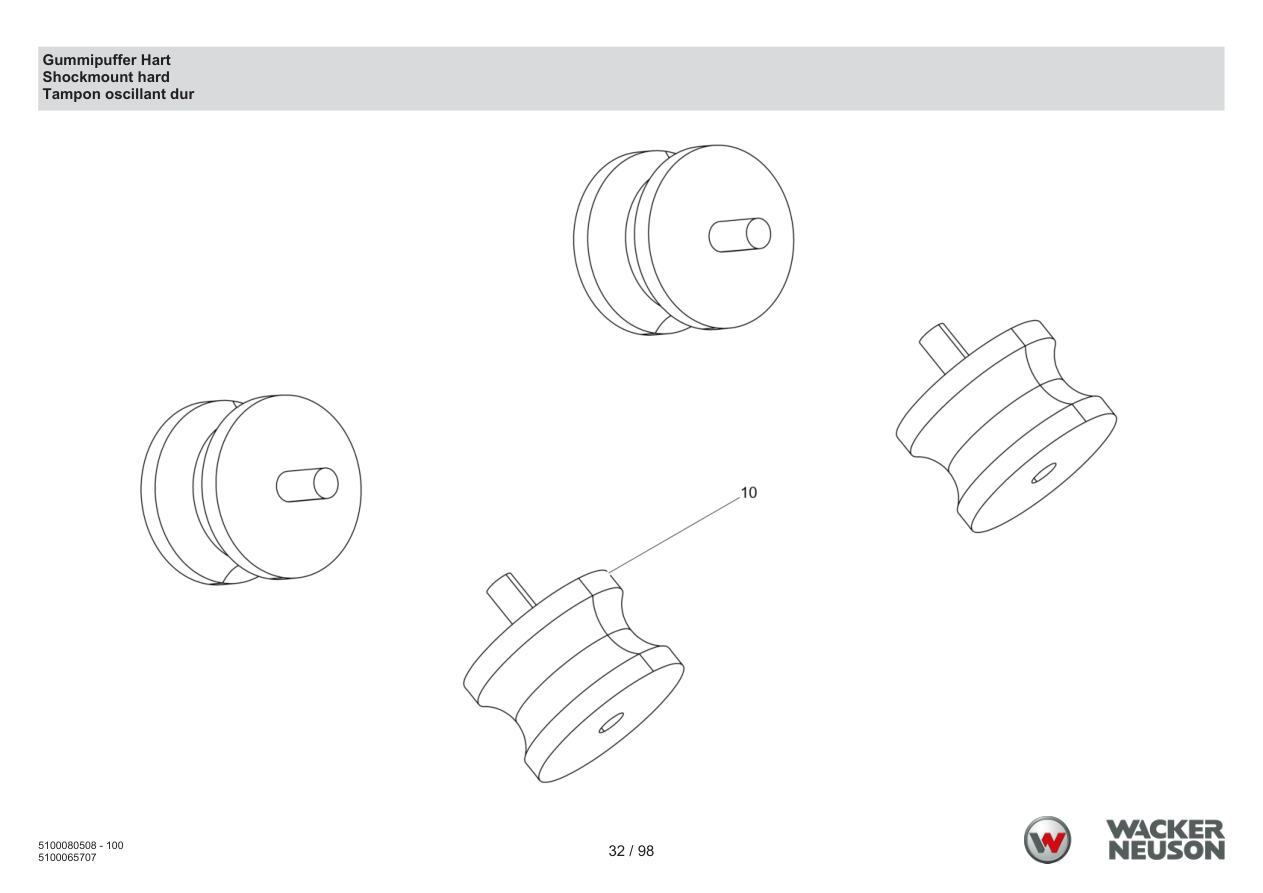

Page 32 — Rubber buffer hard
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000037378 | Shockmount | 4 | ADD TO CART | |

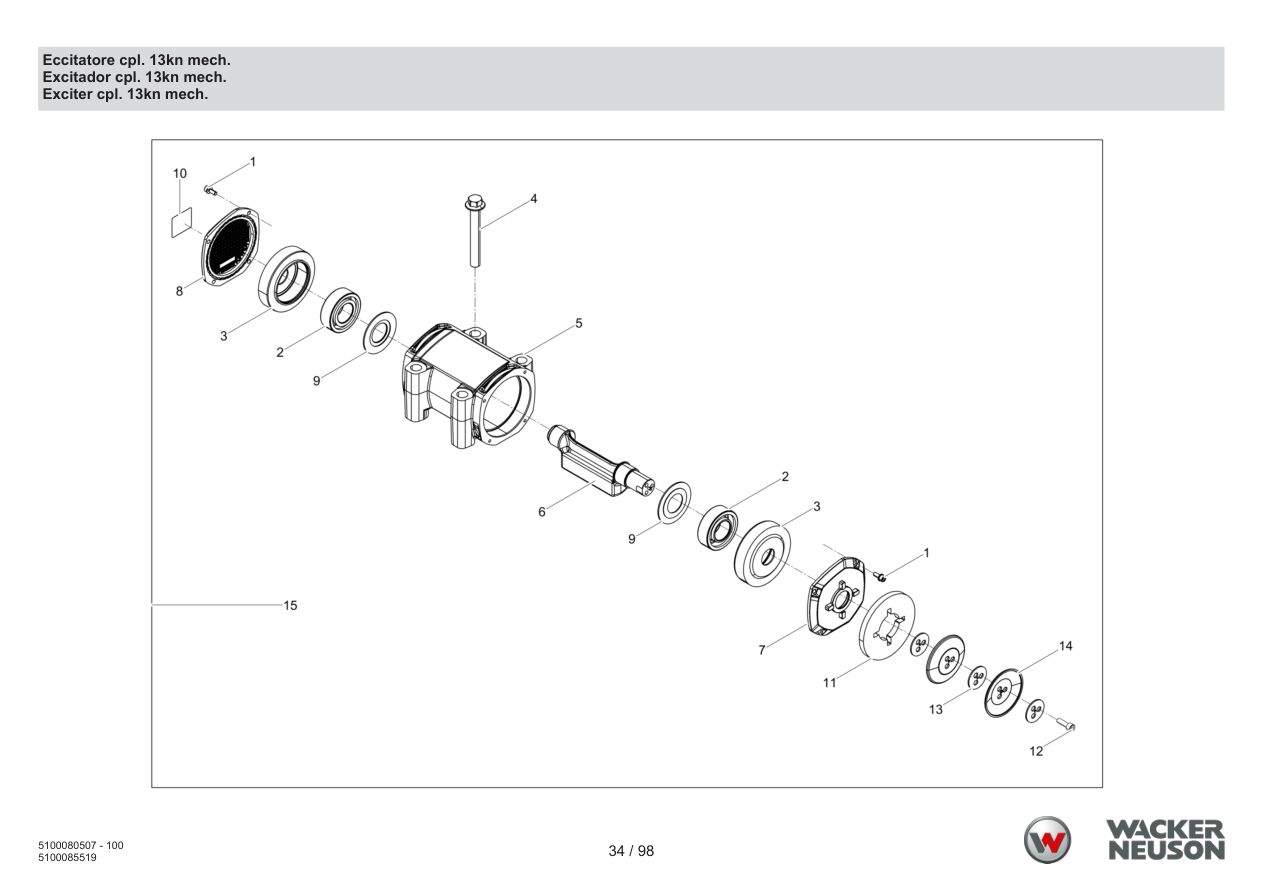

Page 34 — Exciter cpl. 13kn mech.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059593 | Cheese head screw | 8 | ADD TO CART | |
| 2 | 5000105139 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 3 | 5100062507 | Bearing seat | 2 | ADD TO CART | |
| 4 | 5100063187 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 5 | 5100063189 | Exciter housing | 1 | ADD TO CART | |
| 6 | 5100065522 | Eccentric shaft | 1 | ADD TO CART | |
| 7 | 5100054628 | Bearing cover right | 1 | ADD TO CART | |
| 8 | 5100054629 | Bearing cover left | 1 | ADD TO CART | |
| 9 | 5100063663 | Seal washer | 1 | ADD TO CART | |
| 10 | 5100068062 | Label | 1 | ADD TO CART | |
| 11 | 5100054135 | Gasket | 1 | ADD TO CART | |
| 12 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 13 | 5100064172 | Plate | 3 | ADD TO CART | |
| 14 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 15 | 5100084112 | Exciter cpl. 13kn | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. 13kn
5100084112 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

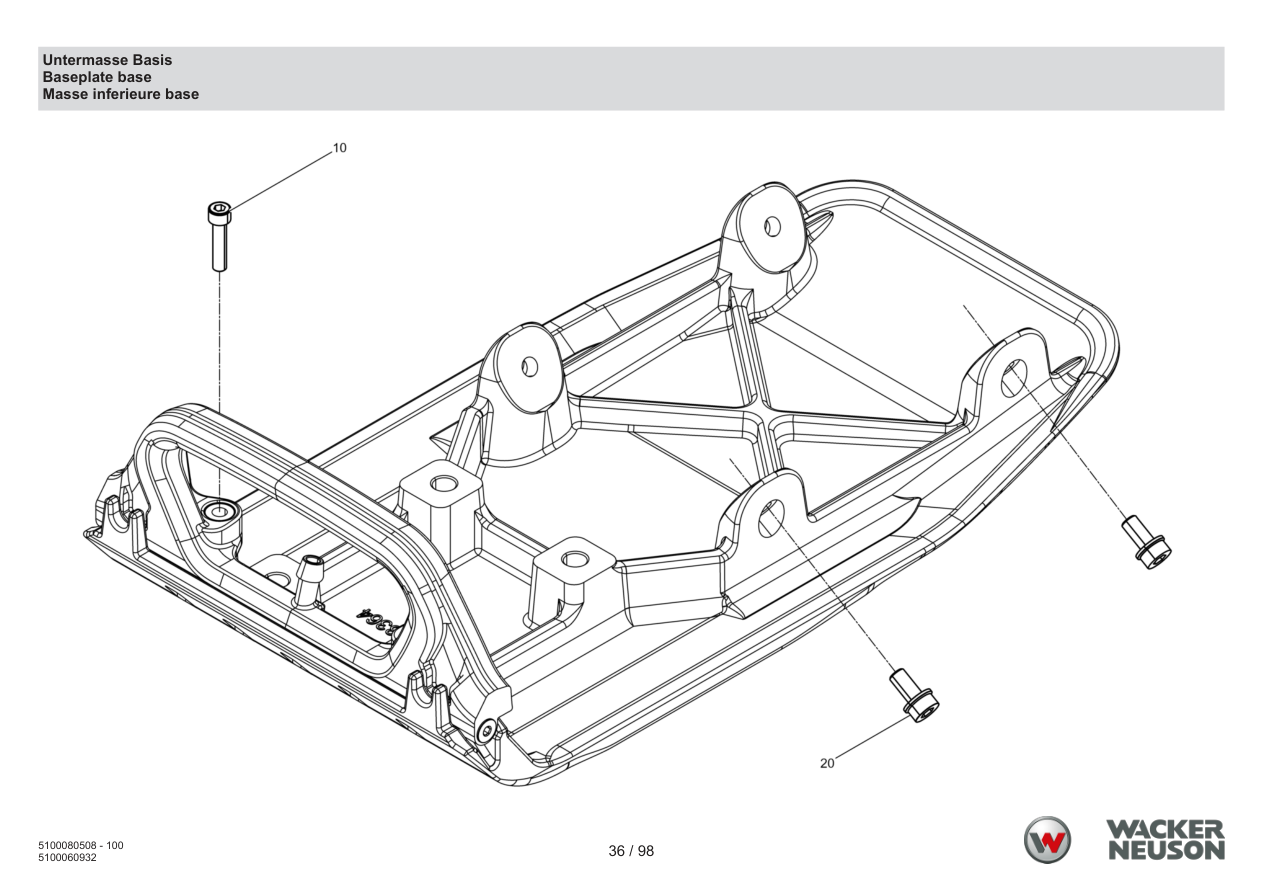

Page 36 — Lower mass base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 20 | 5000210111 | Corrugated-head screw | 4 | ADD TO CART | |

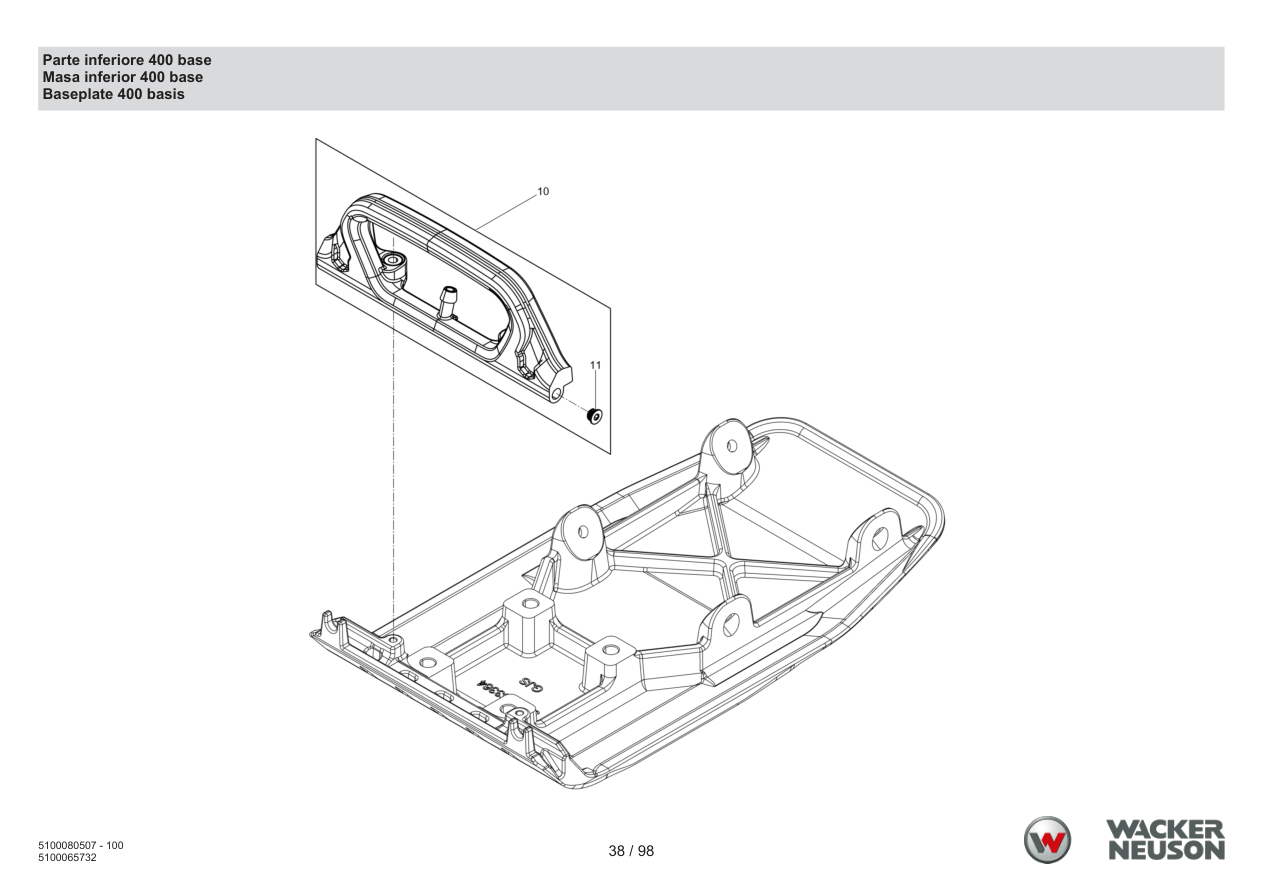

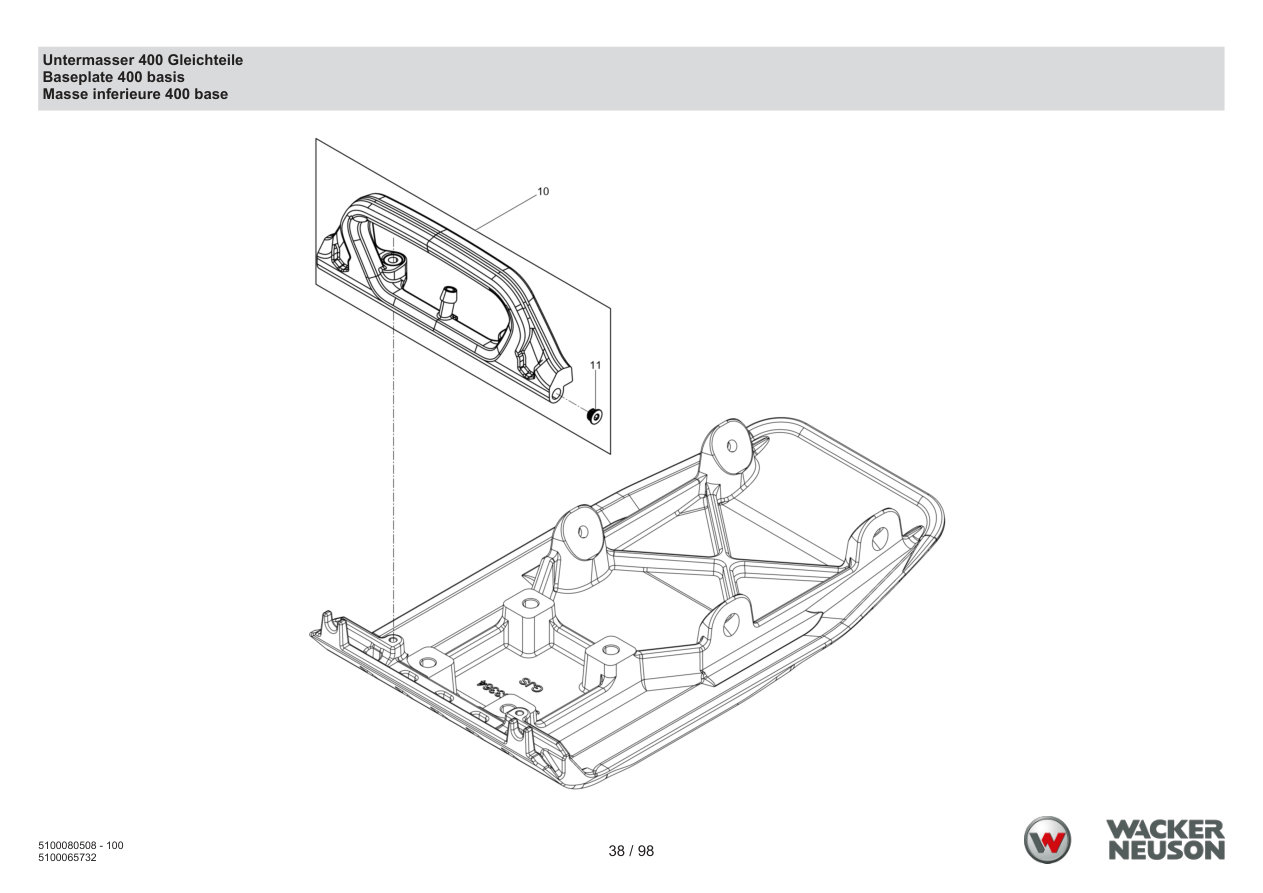

Page 38 — Lower mass 400 common parts
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058122 | Spinkler system cpl. (40 cm) | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5100041150 | Locking plug | 2 | ADD TO CART | |

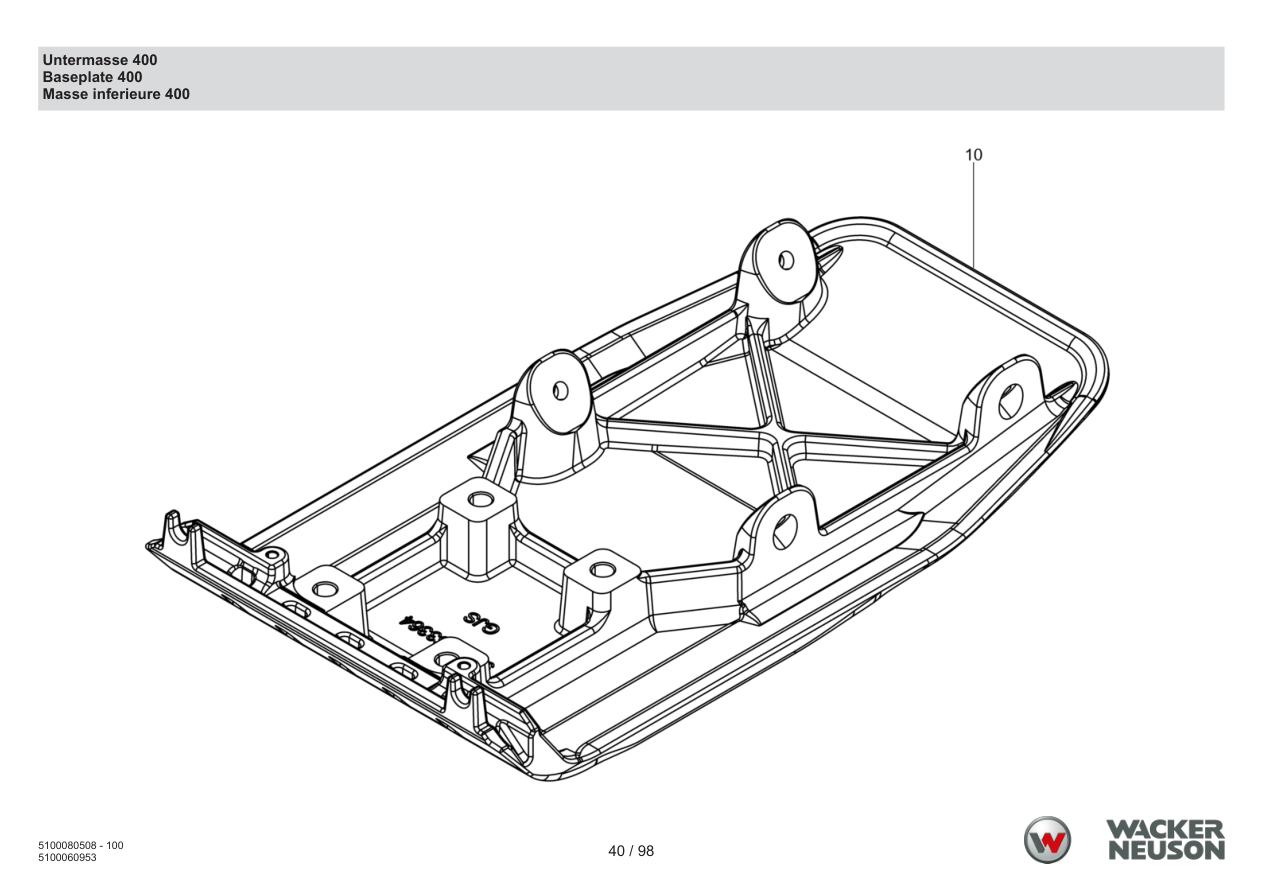

Page 40 — Lower mass 400
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100053566 | Baseplate 40cm | 1 | ADD TO CART | |

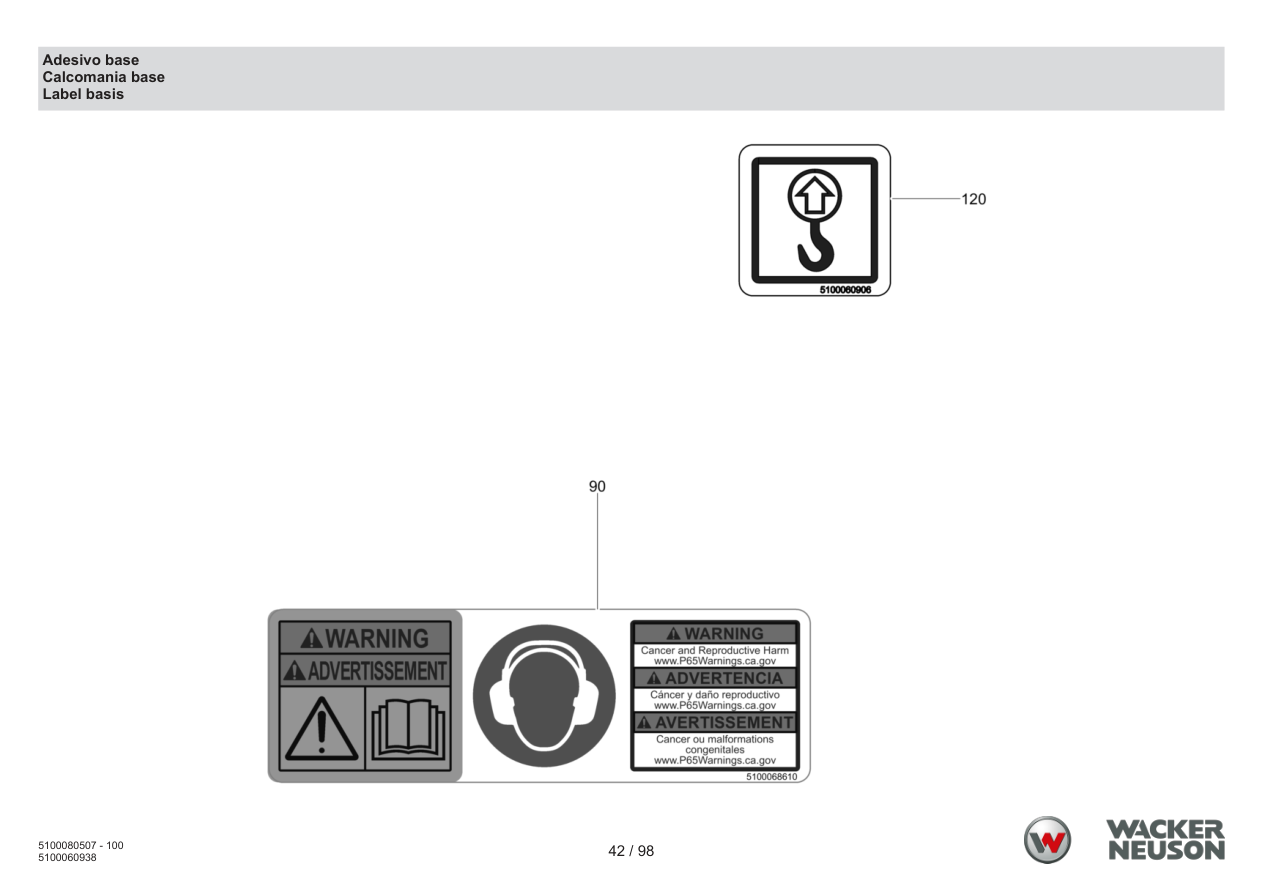

Page 42 — Decal base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 90 | 5100068610 | Label | 2 | ADD TO CART | |
| 120 | 5100060906 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100060906 · qty on machine: 1 | |||||

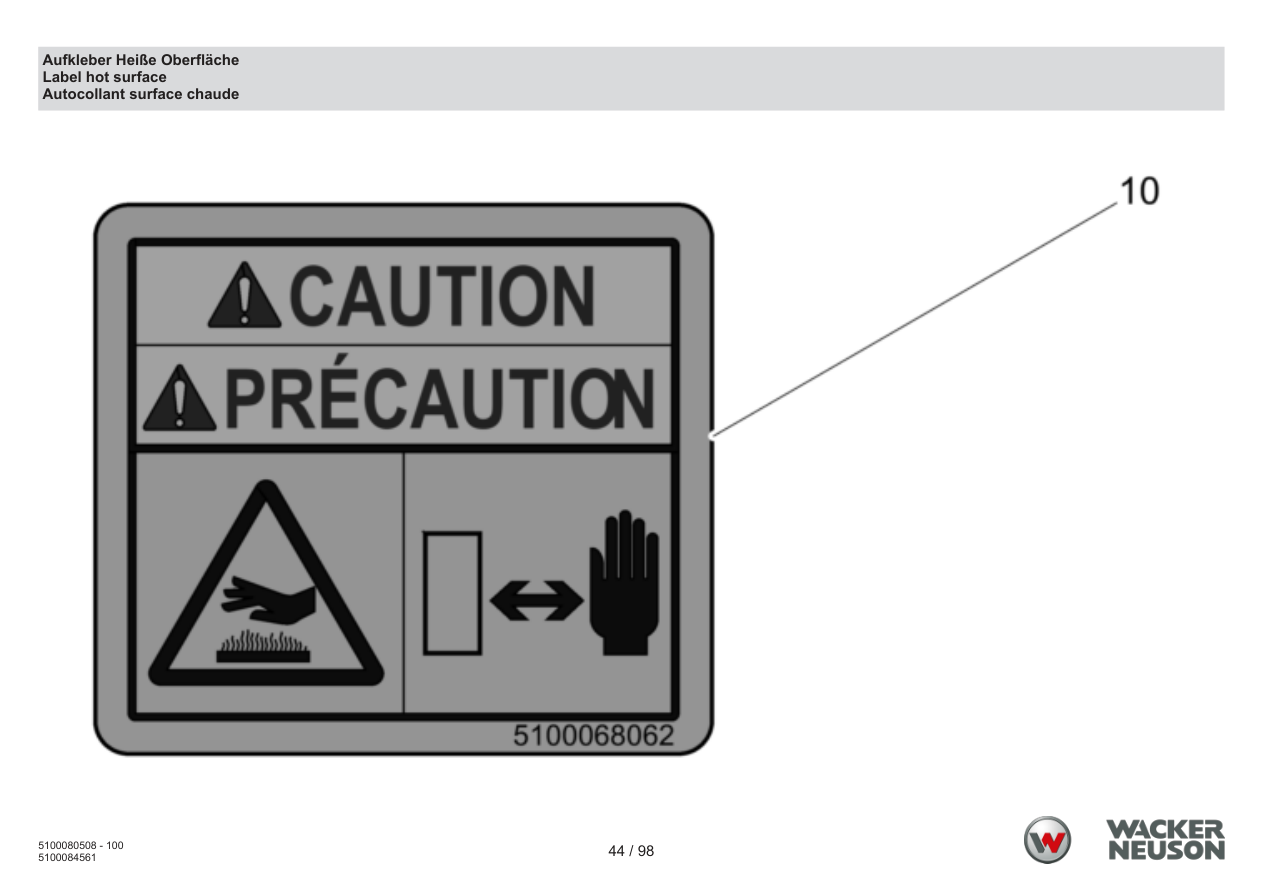

Page 44 — Label hot surface
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068062 | Label | 1 | ADD TO CART | |

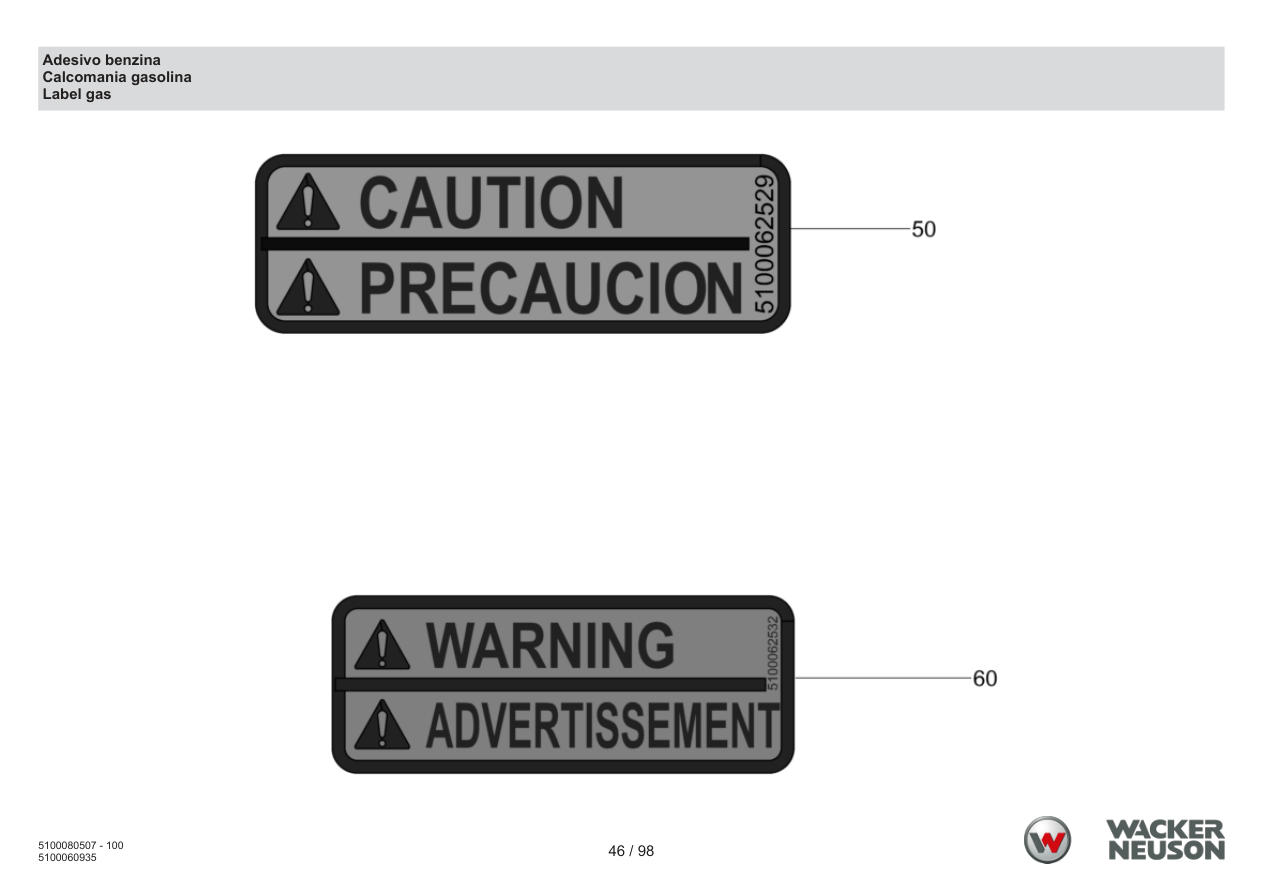

Page 46 — Decal gasoline
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100062529 | Label | 1 | ADD TO CART | |
| 60 | 5100062532 | Label | 1 | ADD TO CART | |

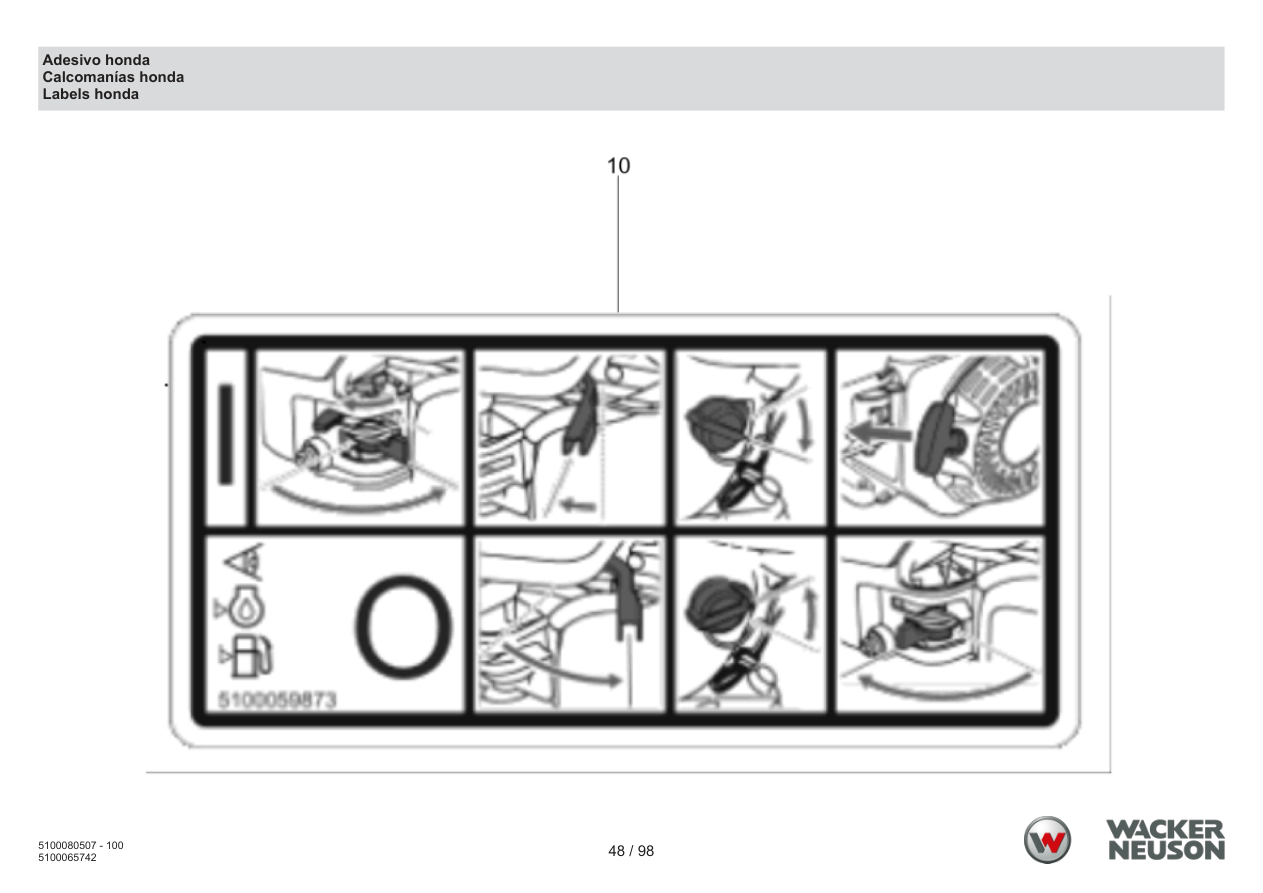

Page 48 — Decal Honda
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059873 | Starting note decal | 1 | PARTS REQUEST | |
|
COMING Starting note decal
5100059873 · qty on machine: 1 | |||||

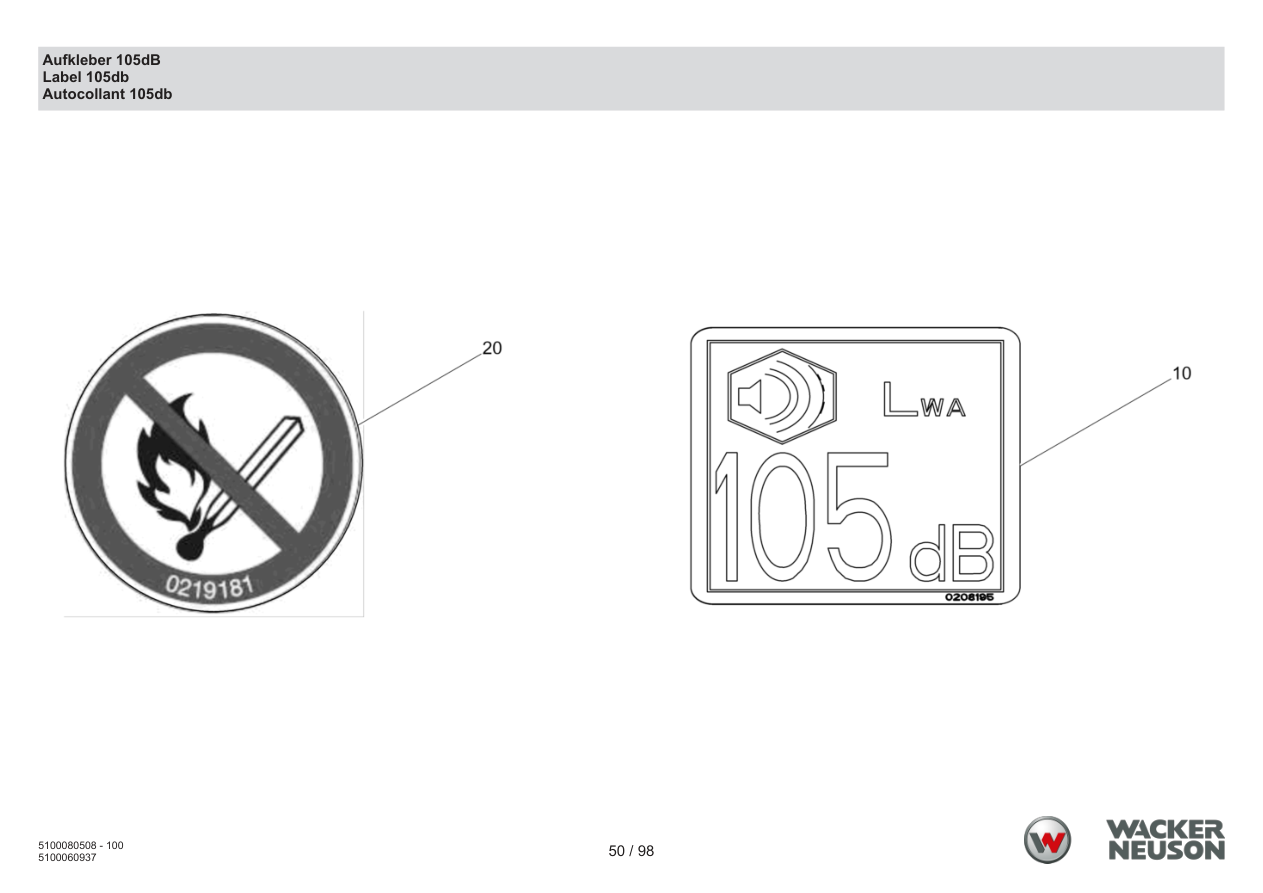

Page 50 — Decal 105dB
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000208195 | Decal-sound power level | 1 | ADD TO CART | |
| 20 | 5000219181 | Labels | 1 | ADD TO CART | |

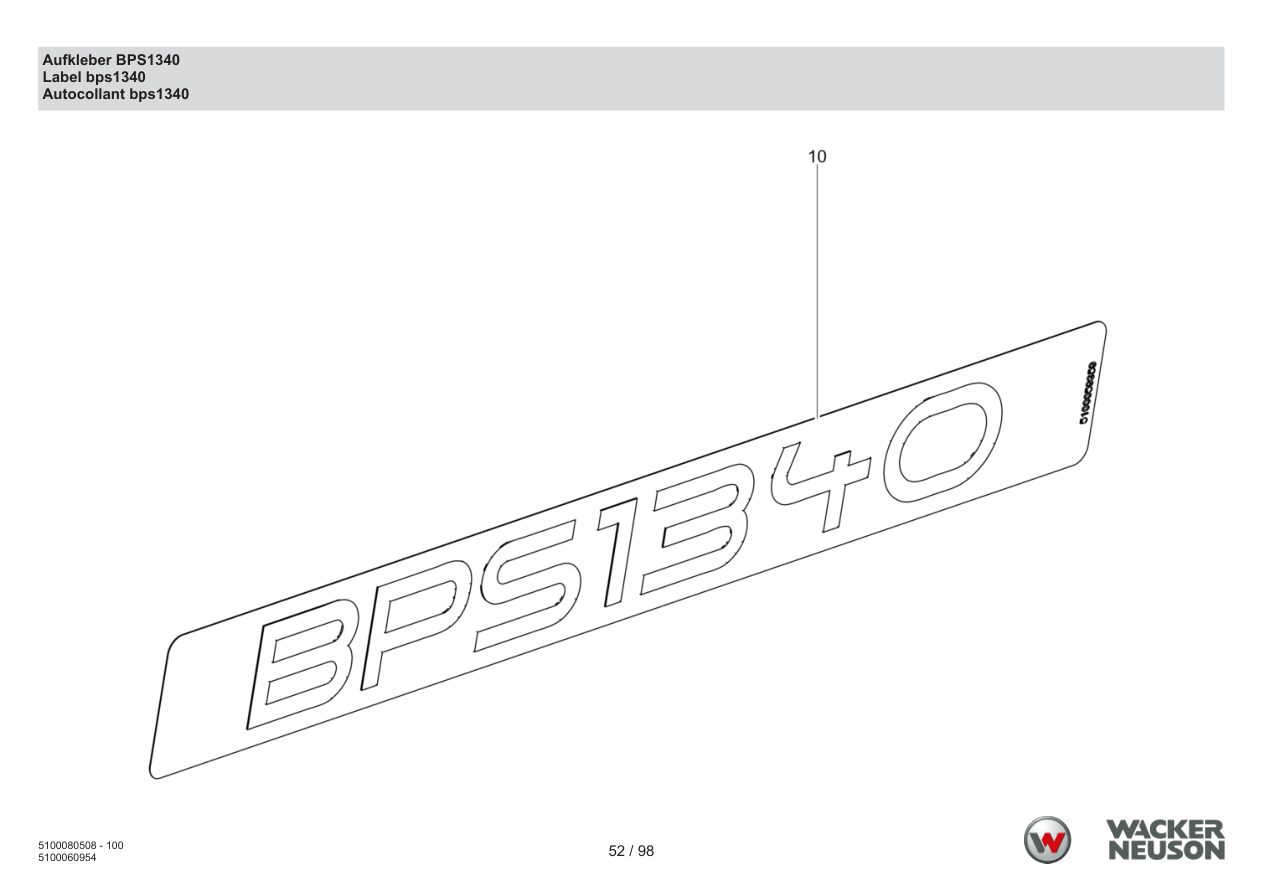

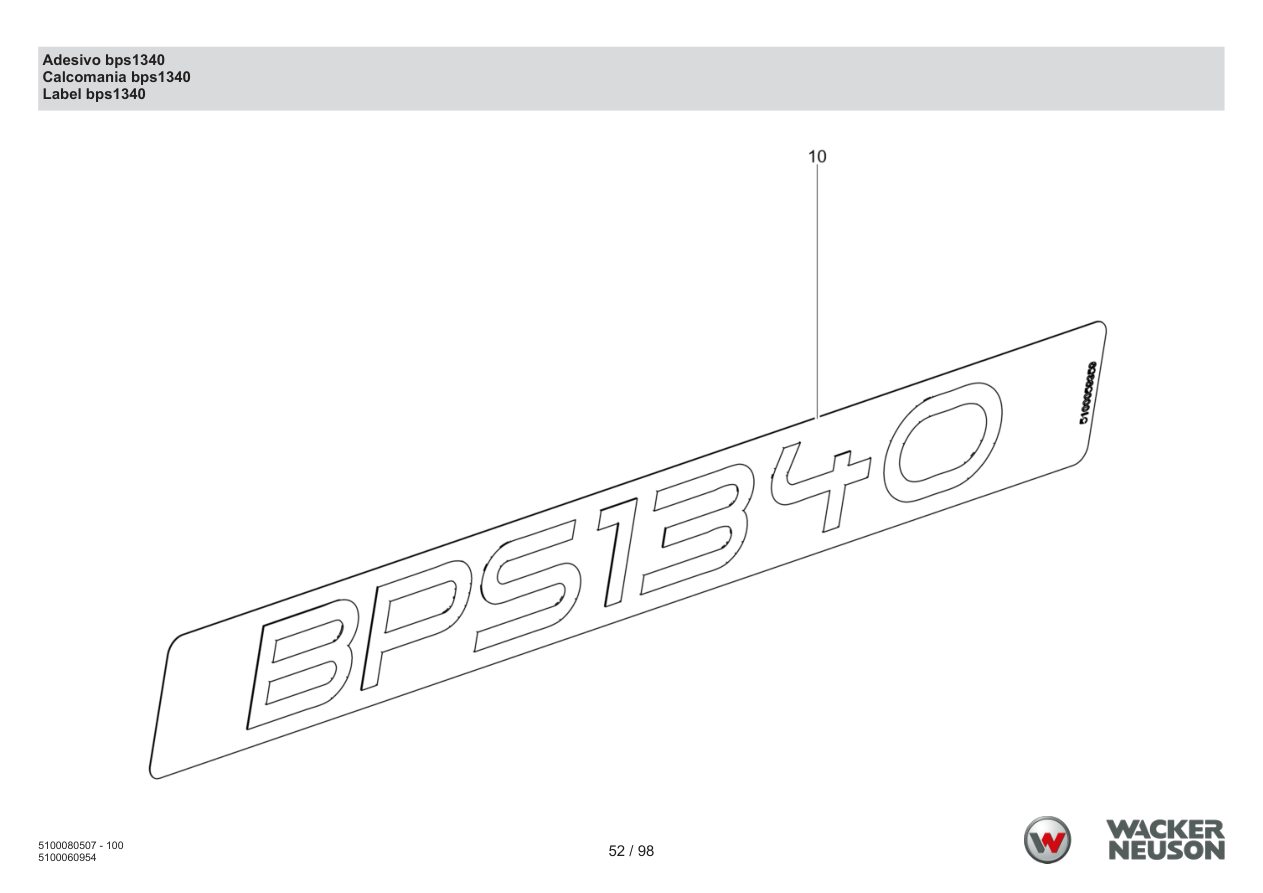

Page 52 — Decal BPS1340
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059359 | Type label | 1 | ADD TO CART | |

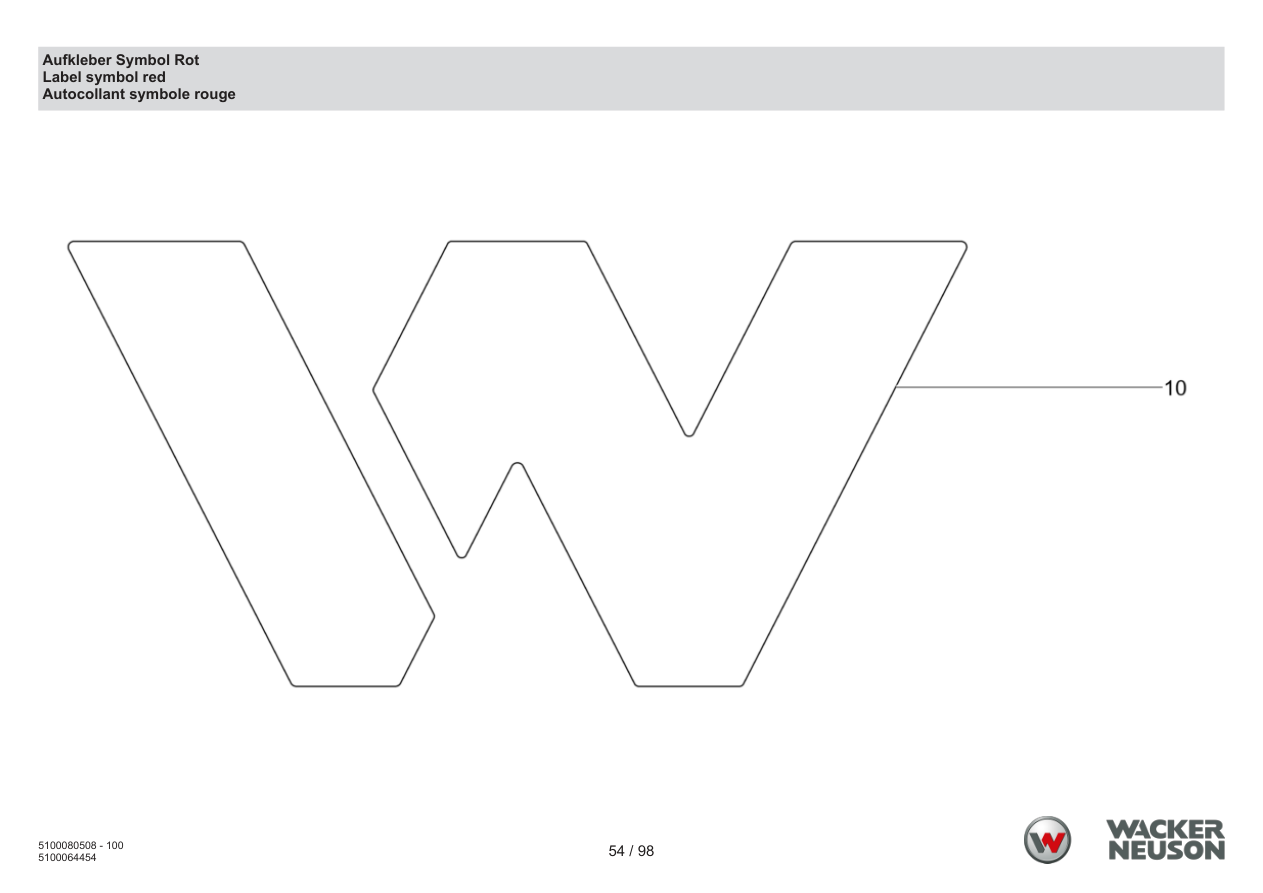

Page 54 — Decal symbol red
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058733 | Label symbol | 1 | ADD TO CART | |

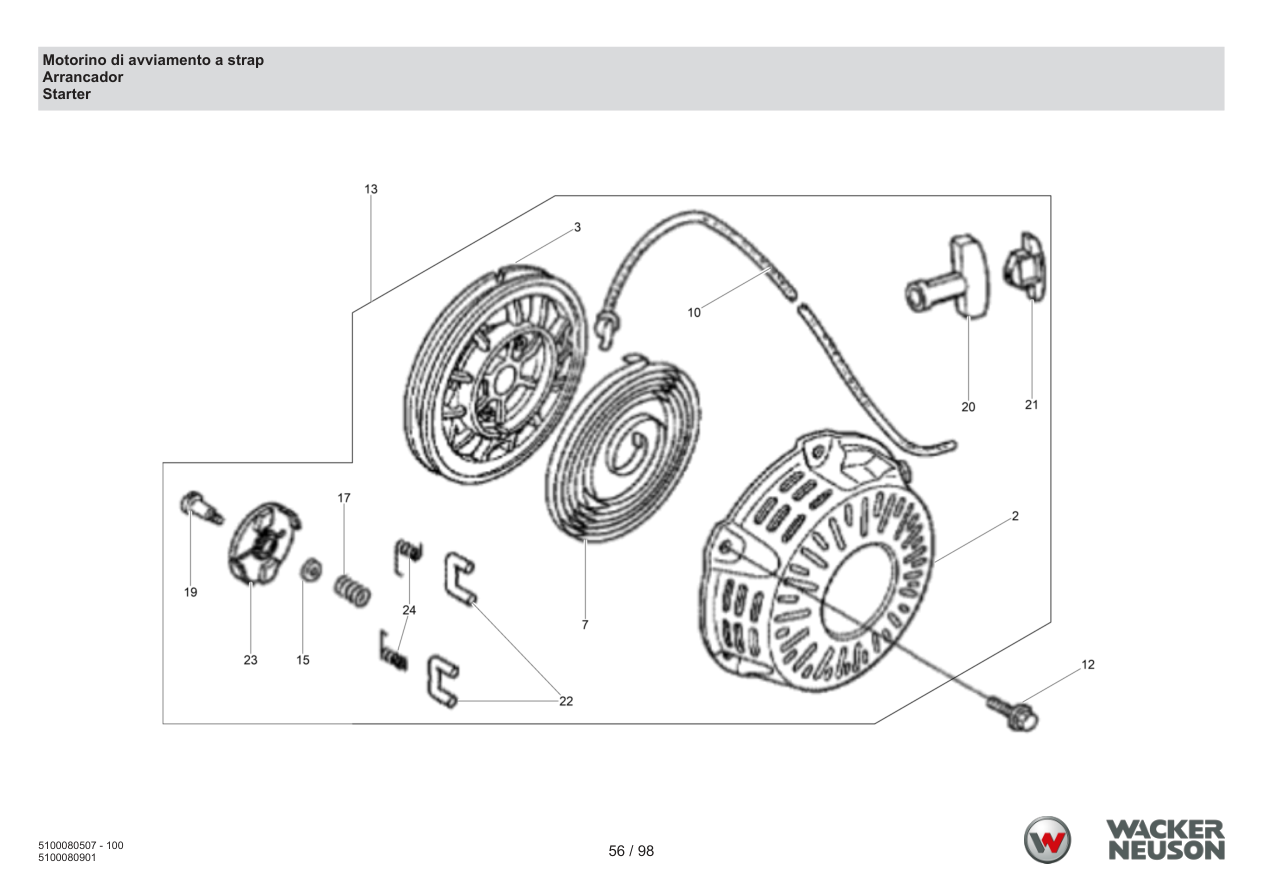

Page 56 — Recoil starter
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100005307 | Housing cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Housing cpl. (black)
5100005307 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100036077 | Starter pulley | 1 | PARTS REQUEST | |
|
COMING Starter pulley
5100036077 · qty on machine: 1 | |||||
| 7 | 5000081777 | Spring | 1 | ADD TO CART | |
| 10 | 5000081781 | Rope | 1 | ADD TO CART | |
| 12 | 5000081750 | Screw | 3 | ADD TO CART | |
| 13 | 5100039021 | Recoil starter | 1 | PARTS REQUEST | |
|
COMING Recoil starter
5100039021 · qty on machine: 1 | |||||
| 15 | 5000160748 | Friction plate | 1 | ADD TO CART | |
| 17 | 5000160747 | Friction spring | 1 | ADD TO CART | |
| 19 | 5000207991 | Screw | 1 | ADD TO CART | |
| 20 | 5100005413 | Starter handle | 1 | PARTS REQUEST | |
|
COMING Starter handle
5100005413 · qty on machine: 1 | |||||
| 21 | 5100005310 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005310 · qty on machine: 1 | |||||
| 22 | 5100036078 | Ratchet | 2 | ADD TO CART | |
| 23 | 5100036079 | Guide | 1 | ADD TO CART | |
| 24 | 5100036230 | Return spring | 2 | ADD TO CART | |

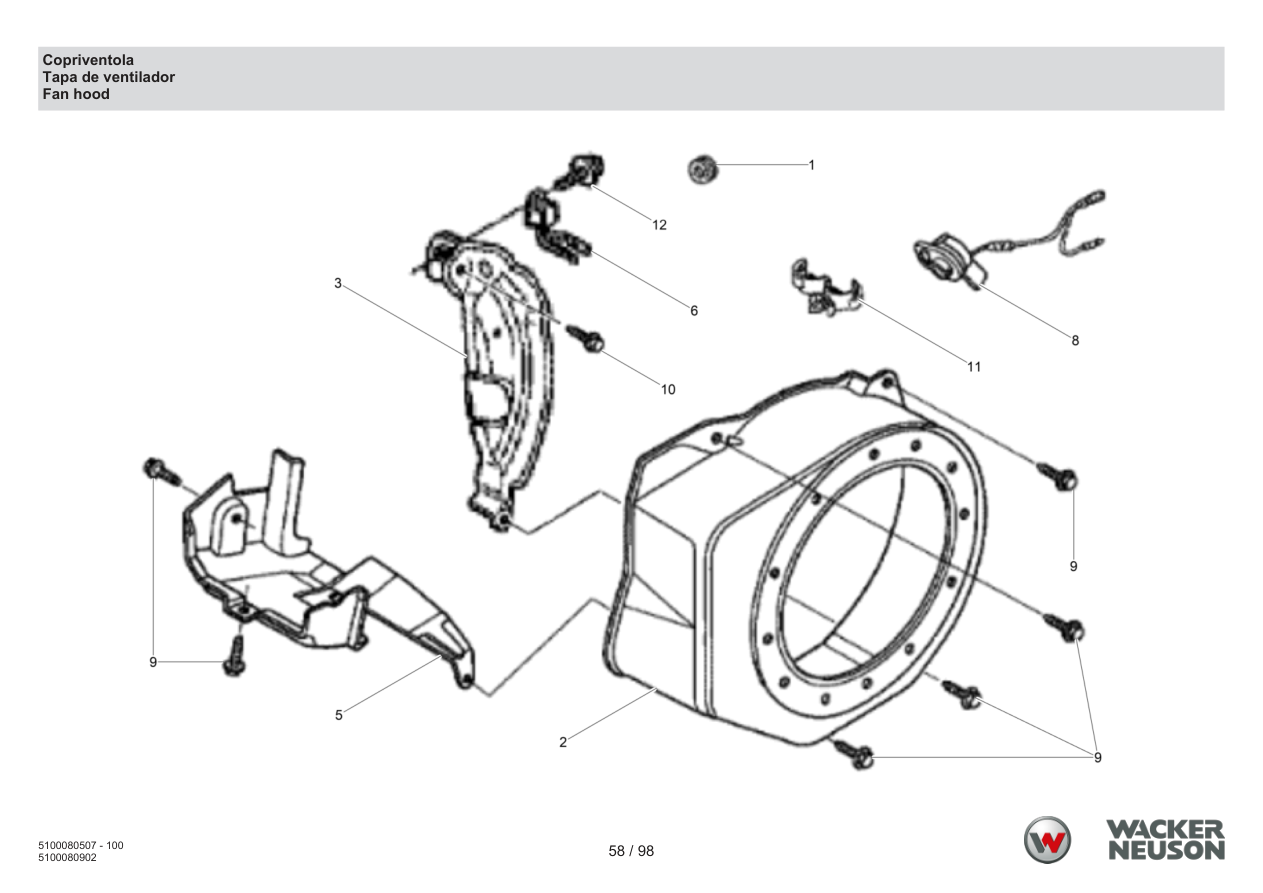

Page 58 — Fan hood
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000070979 | Grommet | 1 | ADD TO CART | |
| 2 | 5000117150 | Blower housing | 1 | ADD TO CART | |
| 3 | 5000153137 | Plate | 1 | ADD TO CART | |
| 5 | 5000153139 | Duct | 1 | ADD TO CART | |
| 6 | 5100005313 | Oil sensor | 1 | ADD TO CART | |
| 8 | 5100051235 | Actuator | 1 | PARTS REQUEST | |
|
COMING Actuator
5100051235 · qty on machine: 1 | |||||
| 9 | 5000053990 | Screw | 6 | ADD TO CART | |
| 10 | 5000071055 | Screw | 1 | ADD TO CART | |
| 11 | 5000151700 | Clamp | 1 | ADD TO CART | |
| 12 | 5000081750 | Screw | 1 | ADD TO CART | |

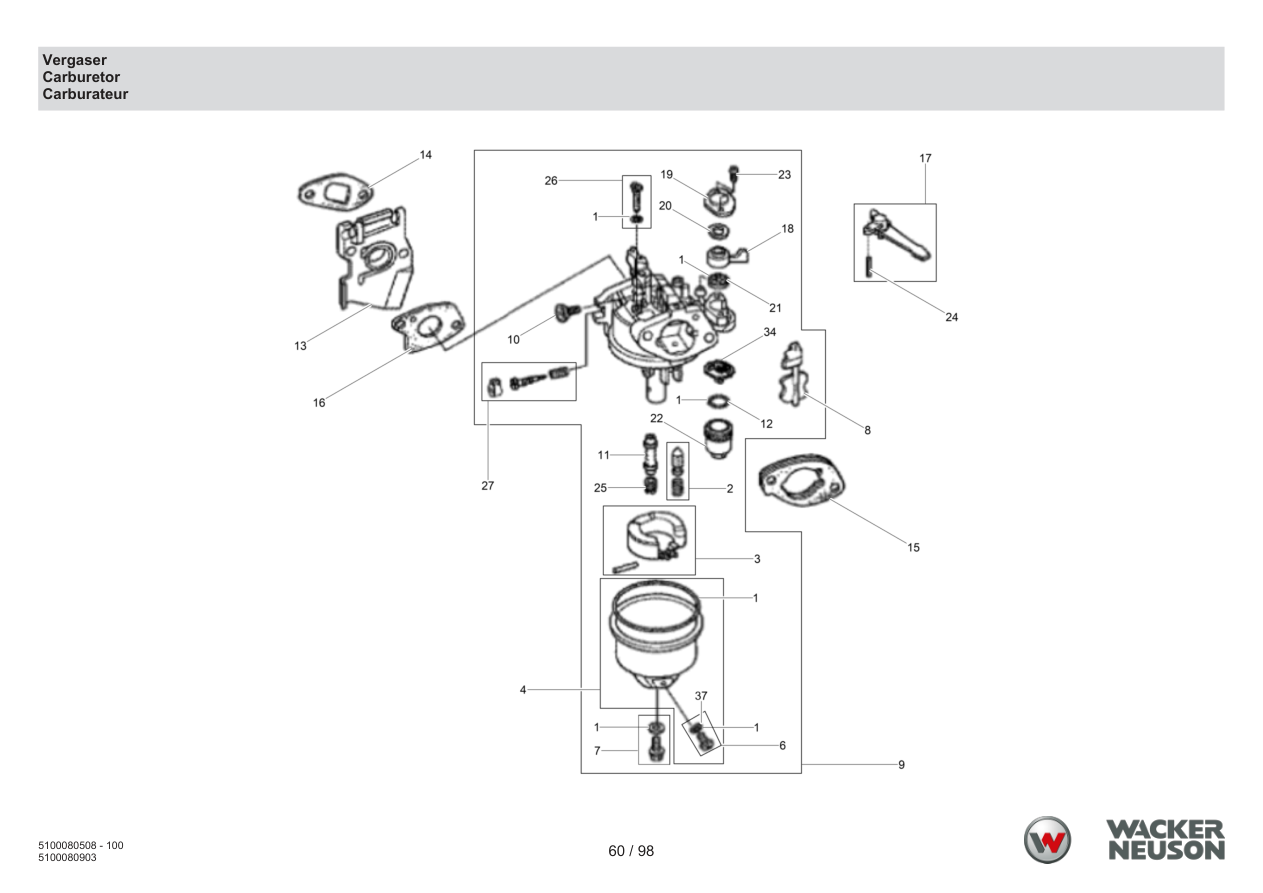

Page 60 — Carburetor
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000072781 | Set-gaskets | 1 | ADD TO CART | |
| 2 | 5000071022 | Set-float valve | 1 | ADD TO CART | |
| 3 | 5000209764 | Set-carburetor float | 1 | ADD TO CART | |
| 4 | 5100005314 | Float housing | 1 | PARTS REQUEST | |
|
COMING Float housing
5100005314 · qty on machine: 1 | |||||
| 6 | 5200000430 | Screw w/washer | 1 | ADD TO CART | |
| 7 | 5200000431 | Screw w/washer | 1 | ADD TO CART | |
| 8 | 5000071025 | Set-engine choke | 1 | ADD TO CART | |
| 9 | 5100049546 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 11 | 5100049547 | Main jet | 1 | ADD TO CART | |
| 12 | 5000071024 | Gasket | 1 | ADD TO CART | |
| 13 | 5000071010 | Insulator | 1 | ADD TO CART | |
| 14 | 5000081794 | Gasket | 1 | ADD TO CART | |
| 15 | 5000071015 | Spacer | 1 | ADD TO CART | |
| 16 | 5000081762 | Gasket | 1 | ADD TO CART | |
| 17 | 5100051236 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 18 | 5000071013 | Choke control lever | 1 | ADD TO CART | |
| 19 | 5000073269 | Plate | 1 | ADD TO CART | |
| 20 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 21 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 22 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 23 | 5000106954 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5000106954 · qty on machine: 2 | |||||
| 24 | 5000071014 | Pin | 1 | ADD TO CART | |
| 25 | 5000153141 | Main jet | 1 | ADD TO CART | |
| 25 | 5000153142 | Main jet | 1 | ADD TO CART | |
| 25 | 5100049538 | Main jet 62 | 1 | ADD TO CART | |
| 26 | 5000081997 | Set-pilot jet | 1 | ADD TO CART | |
| 27 | 5100039006 | Screw | 1 | ADD TO CART | |
| 34 | 5100000396 | Filter | 1 | ADD TO CART | |
| 37 | 5100036241 | Disc | 1 | ADD TO CART | |

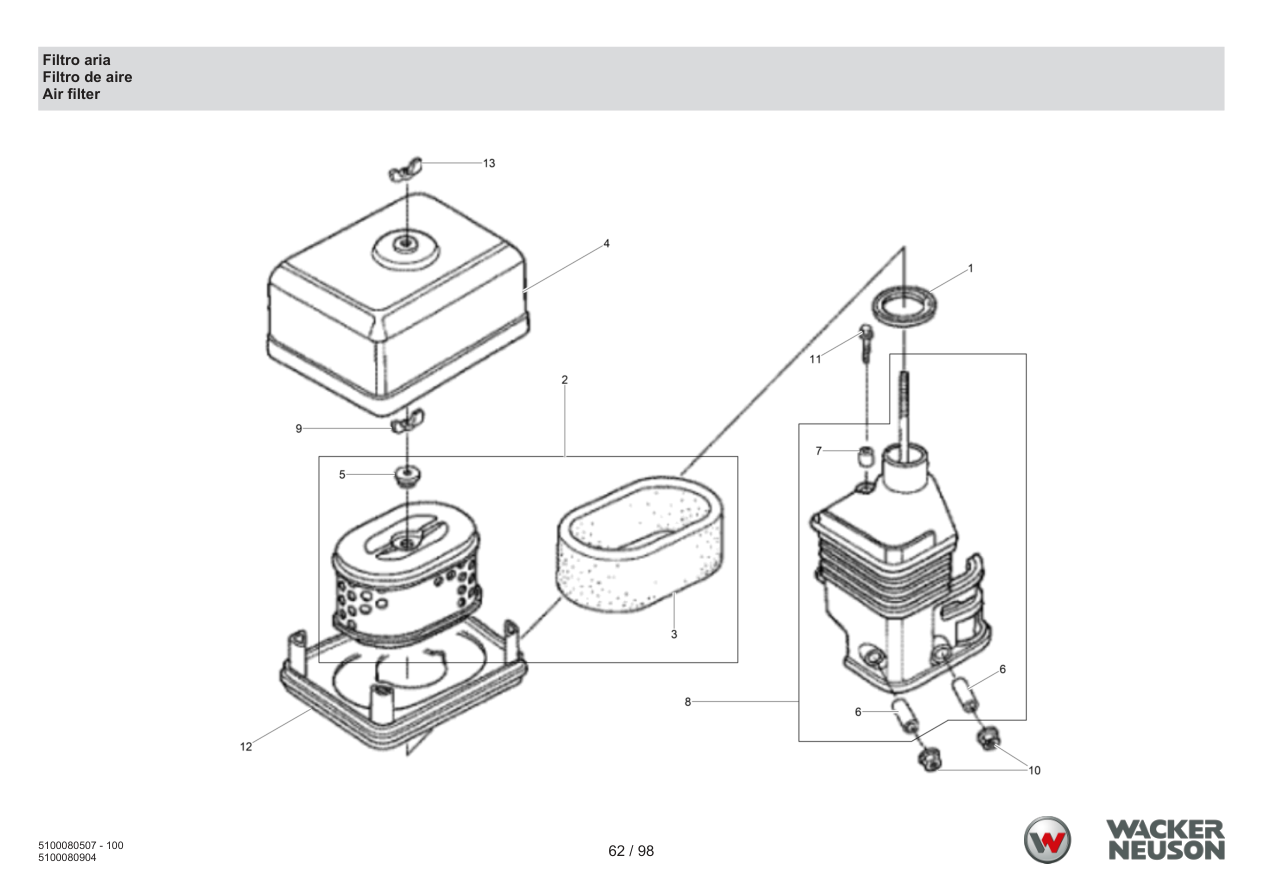

Page 62 — Air filter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000071056 | Nut | 2 | ADD TO CART | |
| 1 | 5000071032 | Gasket | 1 | ADD TO CART | |
| 2 | 5000217458 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000076944 | Prefilter element | 1 | PARTS REQUEST | |
|
COMING Prefilter element
5000076944 · qty on machine: 1 | |||||
| 4 | 5100019660 | Air cleaner cover | 1 | ADD TO CART | |
| 5 | 5000072343 | Grommet | 1 | ADD TO CART | |
| 6 | 5000081746 | Sleeve | 2 | ADD TO CART | |
| 7 | 5000071035 | Sleeve | 1 | ADD TO CART | |
| 8 | 5000406642 | Air cleaner mount | 1 | ADD TO CART | |
| 9 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 11 | 5100003499 | Flange screw | 1 | PARTS REQUEST | |
|
COMING Flange screw
5100003499 · qty on machine: 1 | |||||
| 12 | 5100005360 | Filter bracket | 1 | ADD TO CART | |
| 13 | 5100031333 | Wing nut | 1 | ADD TO CART | |

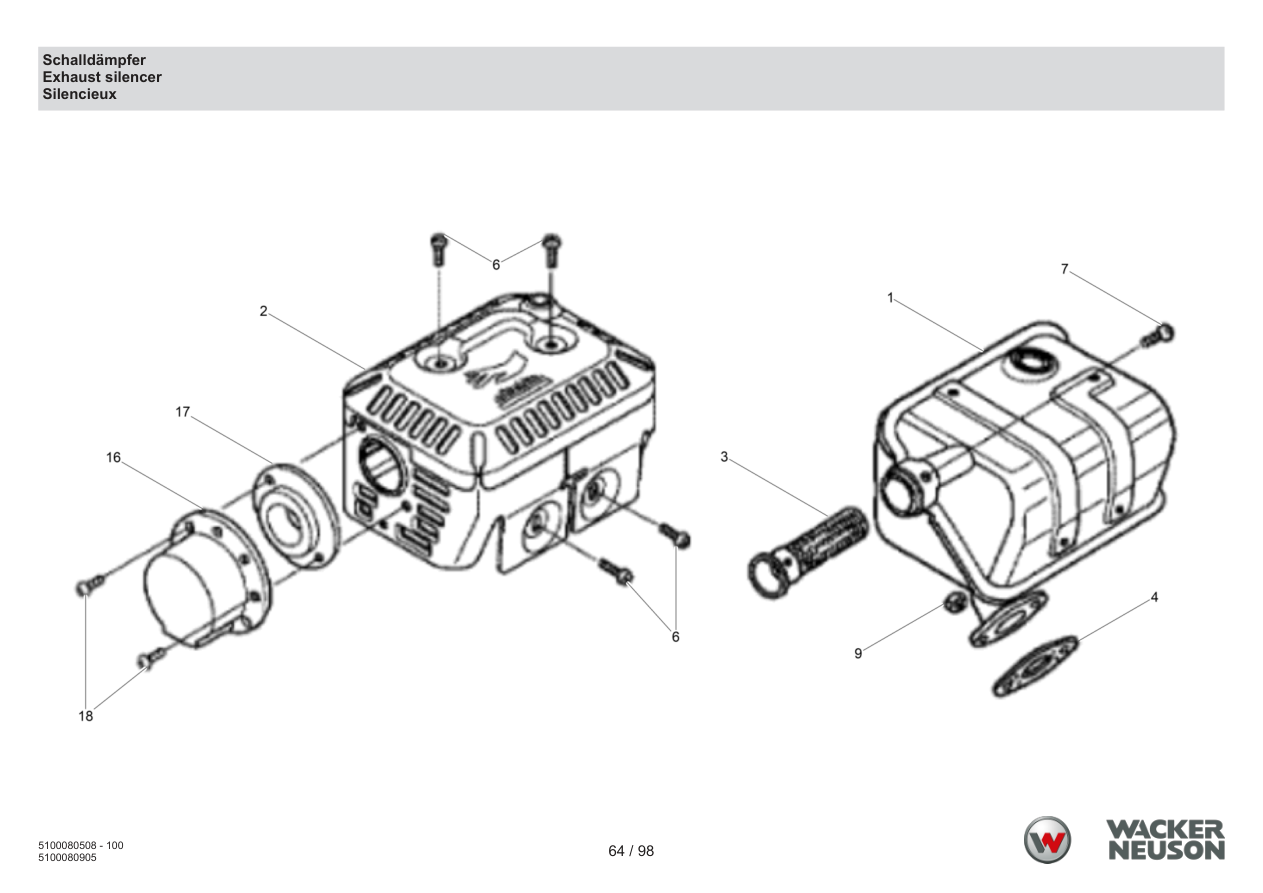

Page 64 — Exhaust silencer
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000406644 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5000406644 · qty on machine: 1 | |||||
| 1 | 5100005364 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Muffler cpl.
5100005364 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000406646 | Guard | 1 | PARTS REQUEST | |
|
COMING Guard
5000406646 · qty on machine: 1 | |||||
| 3 | 5000071075 | Spark arrester | 1 | ADD TO CART | |
| 4 | 5000216516 | Gasket | 1 | ADD TO CART | |
| 6 | 5000071070 | Screw | 4 | ADD TO CART | |
| 7 | 5000150916 | Screw | 1 | ADD TO CART | |
| 9 | 5000071076 | Nut | 2 | ADD TO CART | |
| 16 | 5000081756 | Exhaust baffle | 1 | ADD TO CART | |
| 17 | 5000081757 | Guide | 1 | ADD TO CART | |
| 18 | 5000209783 | Self-tapping screw | 2 | ADD TO CART | |

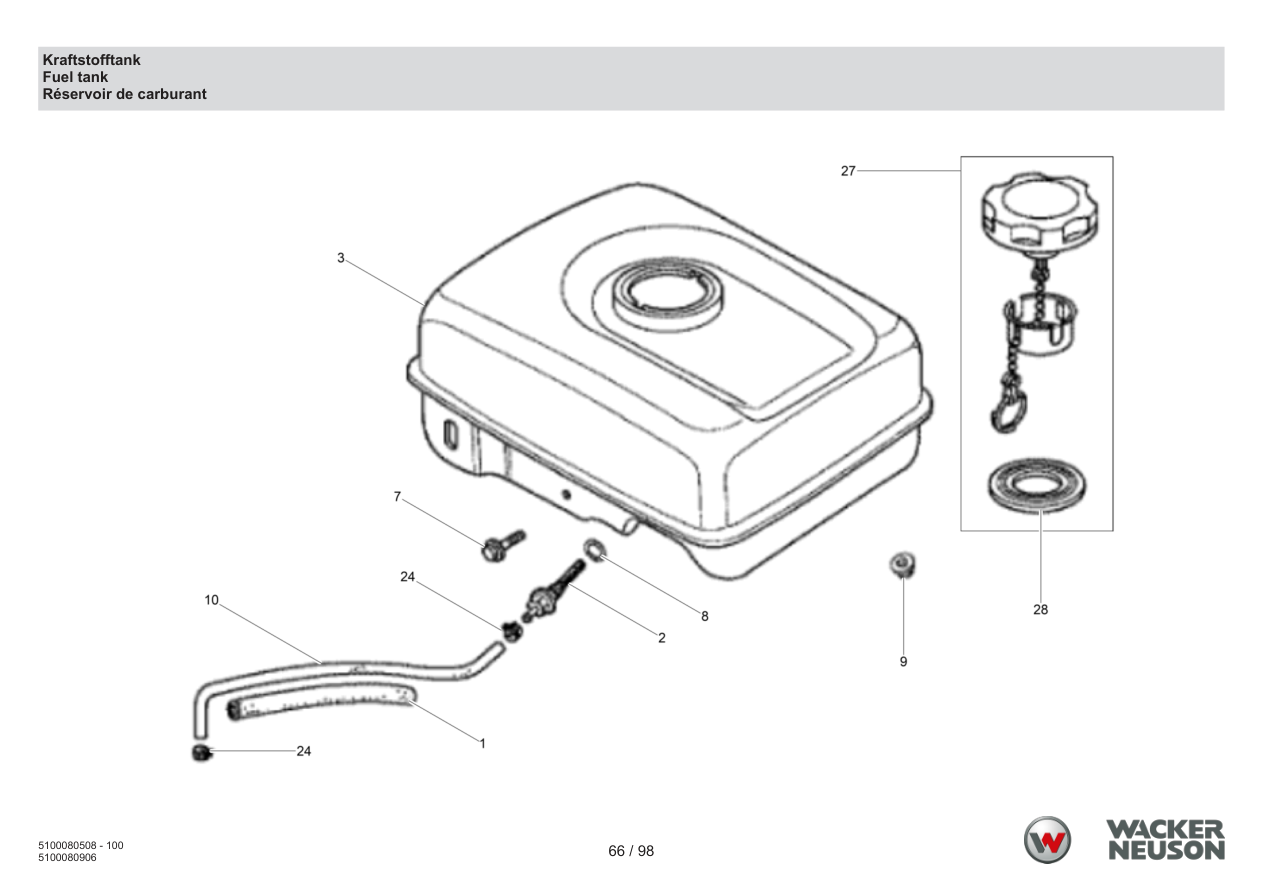

Page 66 — Fuel tank
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 2 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 3 | 5000406692 | Fuel tank | 1 | ADD TO CART | |
| 7 | 5000209771 | Flange bolt | 1 | ADD TO CART | |
| 8 | 5000071082 | O-ring | 1 | ADD TO CART | |
| 9 | 5000071056 | Nut | 2 | ADD TO CART | |
| 10 | 5100080973 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100080973 · qty on machine: 1 | |||||
| 24 | 5000208617 | Clamp | 2 | ADD TO CART | |
| 27 | 5100080974 | Tank cover | 1 | PARTS REQUEST | |
|
COMING Tank cover
5100080974 · qty on machine: 1 | |||||
| 28 | 5000209770 | Gasket | 1 | ADD TO CART | |

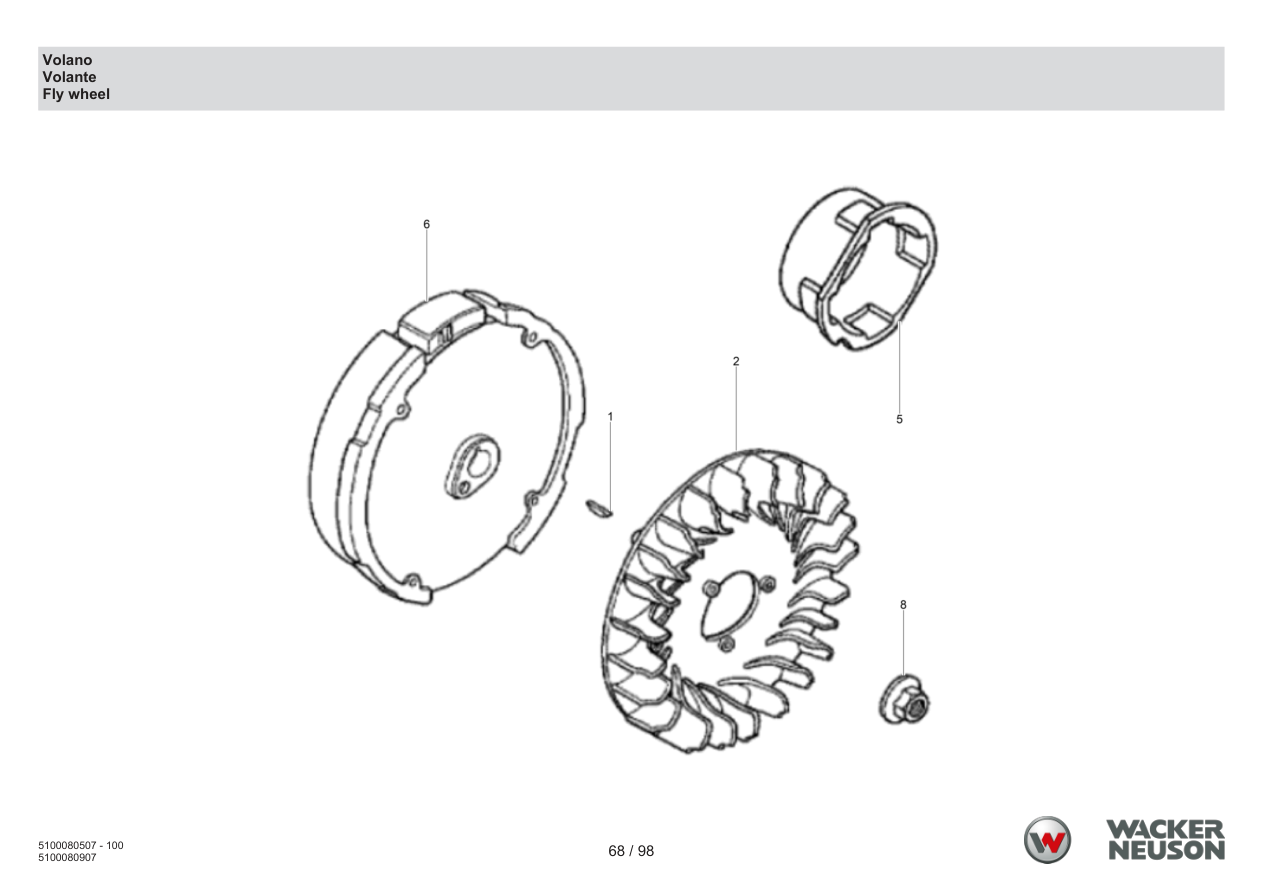

Page 68 — Flywheel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100056809 | Woodruff key | 1 | ADD TO CART | |
| 2 | 5000070976 | Fan | 1 | ADD TO CART | |
| 5 | 5100049549 | Carrier | 1 | ADD TO CART | |
| 6 | 5100049548 | Fly wheel | 1 | ADD TO CART | |
| 8 | 5000162686 | Nut | 1 | ADD TO CART | |

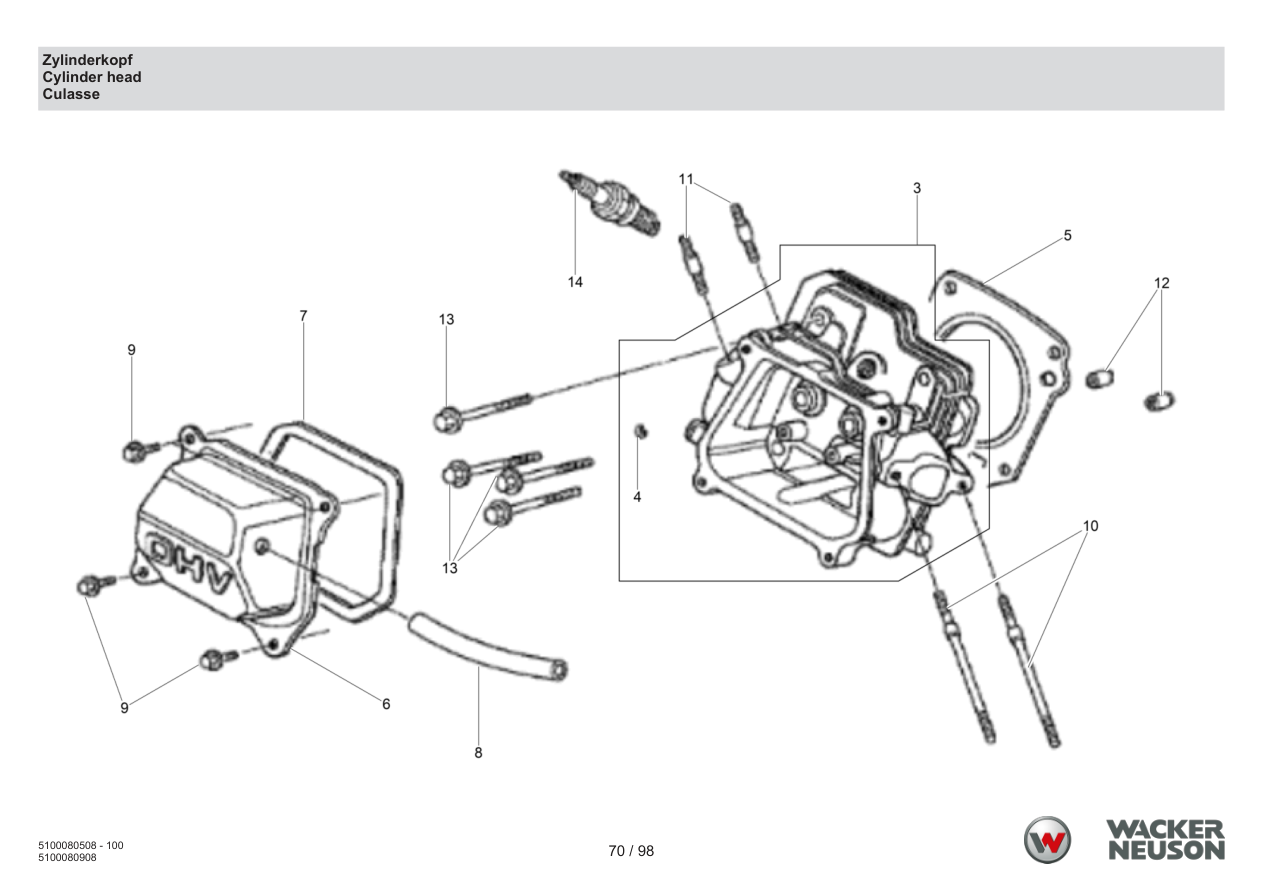

Page 70 — Cylinder head
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100049550 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000081744 | Retaining ring | 1 | ADD TO CART | |
| 5 | 5100049551 | Cylinder head gasket | 1 | ADD TO CART | |
| 6 | 5100049540 | Cover-cylinder head | 1 | ADD TO CART | |
| 7 | 5100080975 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100080975 · qty on machine: 1 | |||||
| 8 | 5000081761 | Breather tube | 1 | ADD TO CART | |
| 9 | 5000053990 | Screw | 4 | ADD TO CART | |
| 10 | 5000406696 | Stud | 2 | ADD TO CART | |
| 11 | 5000070948 | Stud | 2 | ADD TO CART | |
| 12 | 5000070950 | Dowel pin | 2 | ADD TO CART | |
| 13 | 5000217519 | Flange bolt | 4 | ADD TO CART | |
| 14 | 5000150914 | Spark plug | 1 | ADD TO CART | |

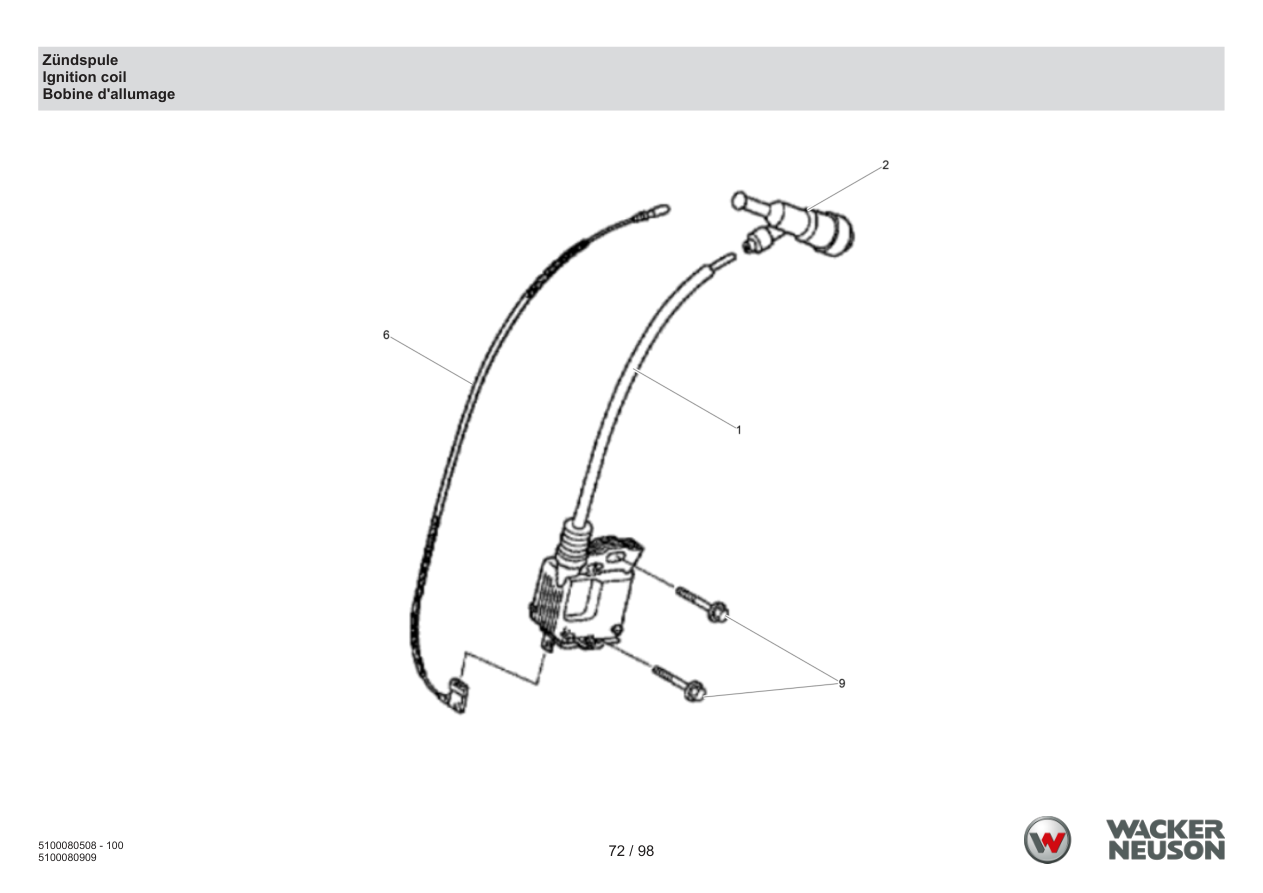

Page 72 — Ignition coil
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100003455 | Ignition coil cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Ignition coil cpl.
5100003455 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000162680 | Spark plug terminal cap | 1 | ADD TO CART | |
| 6 | 5100031335 | Cable | 1 | ADD TO CART | |
| 9 | 5000081737 | Screw | 2 | ADD TO CART | |

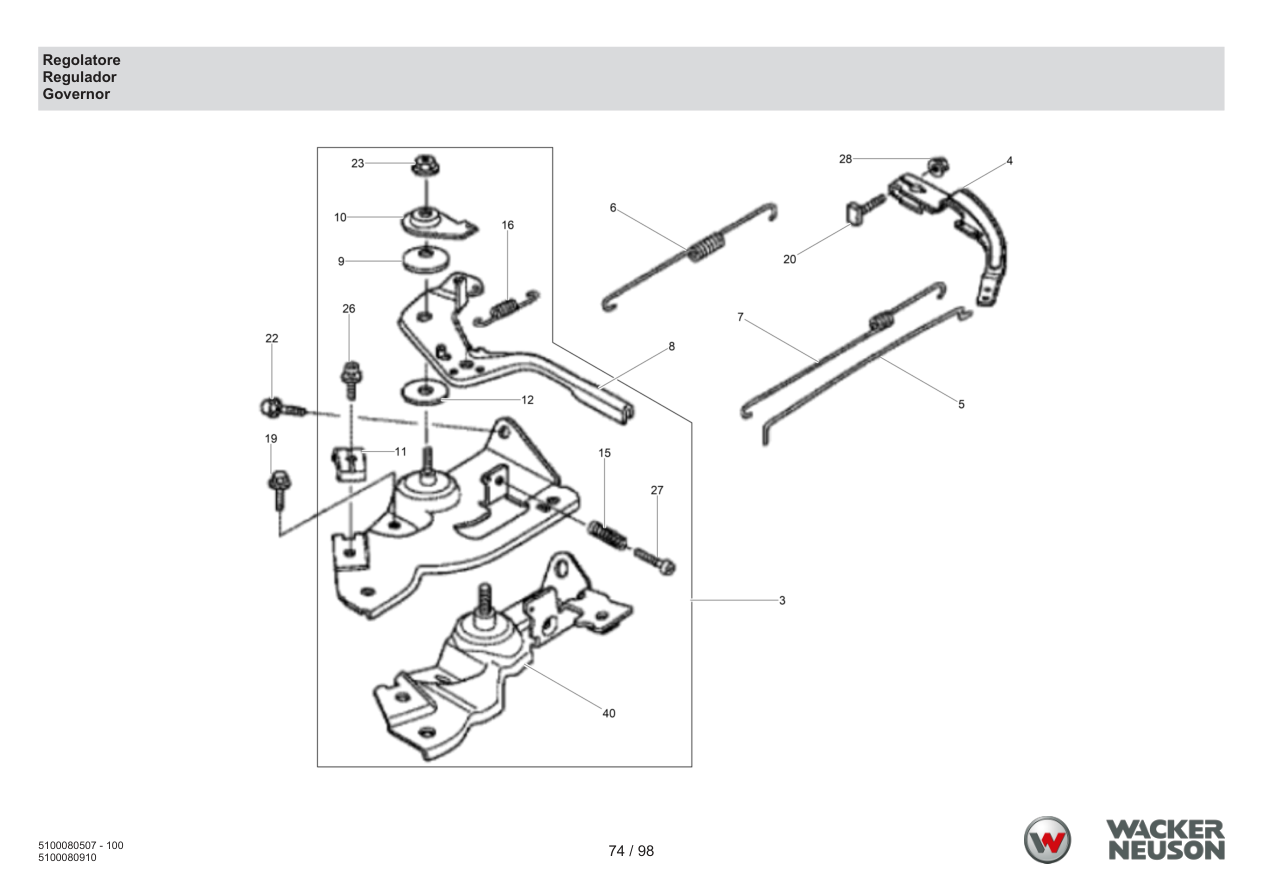

Page 74 — Regulator
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5000406698 | Control cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100005425 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5100005425 · qty on machine: 1 | |||||
| 5 | 5000071068 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5000071068 · qty on machine: 1 | |||||
| 6 | 5100049553 | Tension spring | 1 | ADD TO CART | |
| 7 | 5100049554 | Tension spring | 1 | ADD TO CART | |
| 8 | 5000406699 | Lever | 1 | ADD TO CART | |
| 9 | 5000071058 | Spring | 1 | ADD TO CART | |
| 10 | 5000071057 | Washer | 1 | ADD TO CART | |
| 11 | 5000071062 | Cable holder | 1 | ADD TO CART | |
| 12 | 5000071064 | Spacer | 1 | ADD TO CART | |
| 15 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 16 | 5000071667 | Spring | 1 | ADD TO CART | |
| 19 | 5000053990 | Screw | 1 | ADD TO CART | |
| 20 | 5000068966 | Screw | 1 | ADD TO CART | |
| 21 | 5000071055 | Screw | 1 | ADD TO CART | |
| 22 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 26 | 5000110112 | Screw | 1 | ADD TO CART | |
| 27 | 5000081990 | Screw | 1 | ADD TO CART | |
| 28 | 5000071056 | Nut | 1 | ADD TO CART | |
| 40 | 5100029313 | Bracket | 1 | ADD TO CART | |

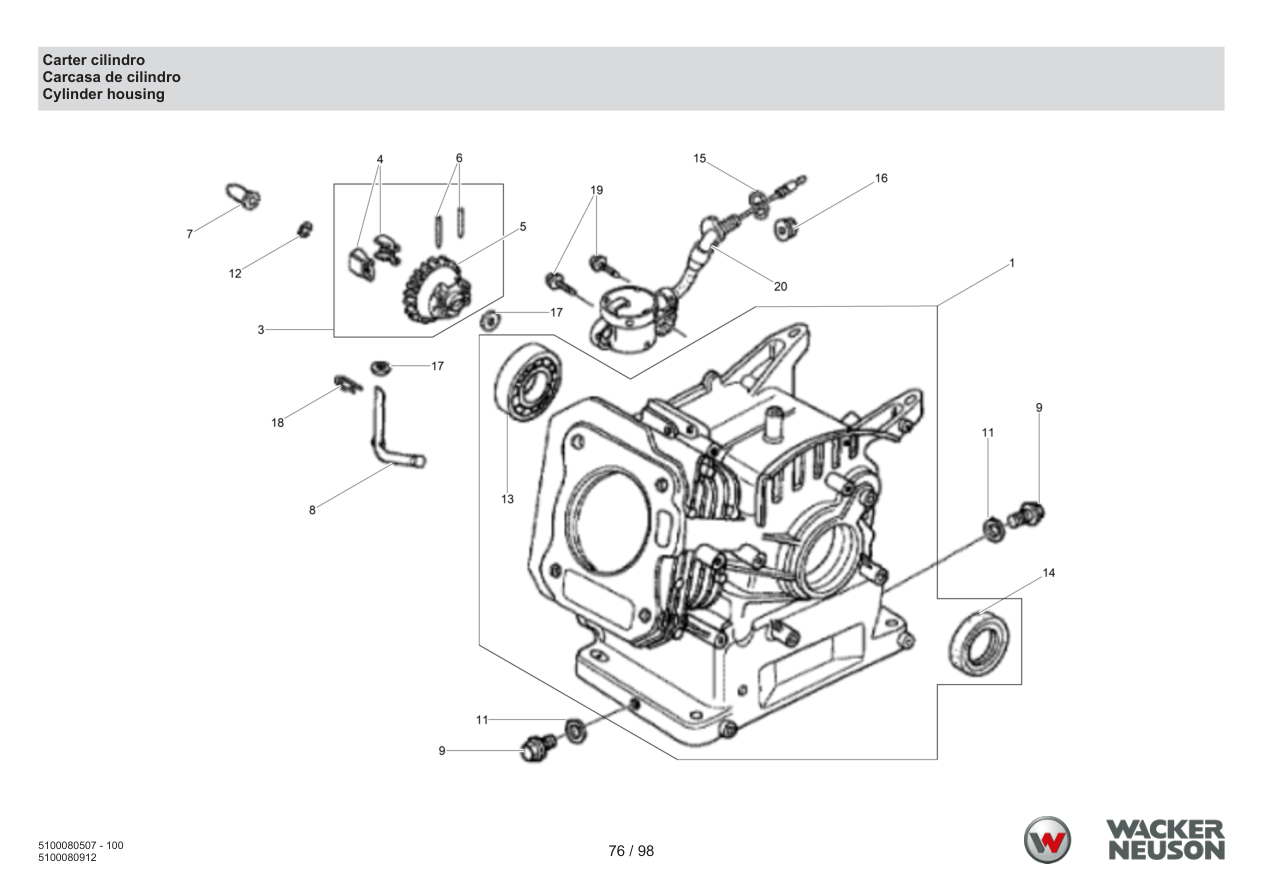

Page 76 — Cylinder housing
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049556 | Motor housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100005429 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100005429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100005430 | Weight | 2 | PARTS REQUEST | |
|
COMING Weight
5100005430 · qty on machine: 2 | |||||
| 4 | 5100005431 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100005431 · qty on machine: 1 | |||||
| 5 | 5000156689 | Pin | 2 | ADD TO CART | |
| 6 | 5000406670 | Slider | 1 | PARTS REQUEST | |
|
COMING Slider
5000406670 · qty on machine: 1 | |||||
| 7 | 5100005433 | Governor | 1 | PARTS REQUEST | |
|
COMING Governor
5100005433 · qty on machine: 1 | |||||
| 8 | 5000070964 | Plug (threaded) | 2 | ADD TO CART | |
| 11 | 5000070963 | Washer | 2 | ADD TO CART | |
| 12 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 13 | 5000070961 | Grooved ball bearing | 1 | ADD TO CART | |
| 14 | 5000070962 | Shaft seal | 1 | ADD TO CART | |
| 15 | 5000071082 | O-ring | 1 | ADD TO CART | |
| 16 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 17 | 5000071639 | Washer | 2 | ADD TO CART | |
| 18 | 5000054033 | Pin | 1 | ADD TO CART | |
| 19 | 5000072333 | Screw | 2 | ADD TO CART | |
| 20 | 5100056844 | Oil switch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

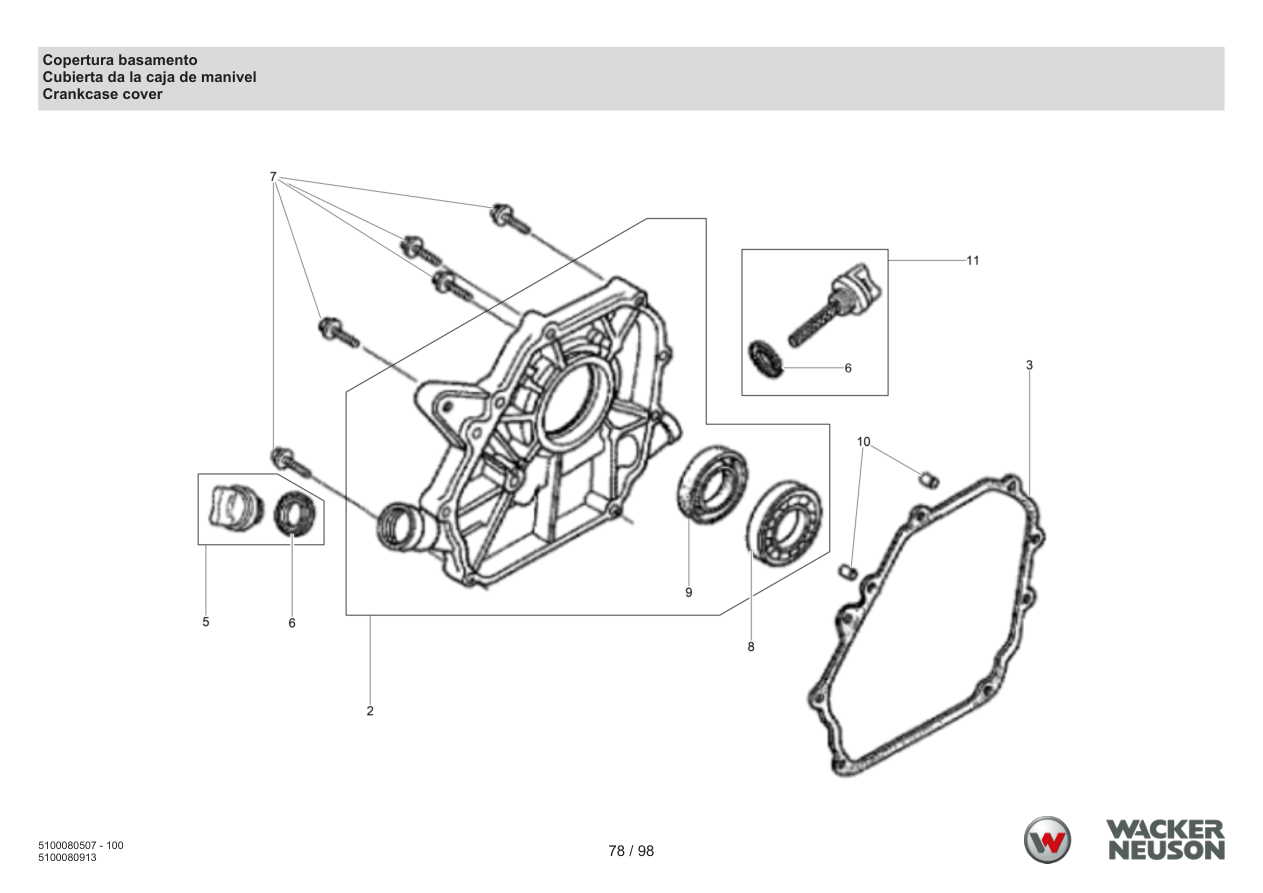

Page 78 — Crankcase cover
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000081740 | Cover | 1 | ADD TO CART | |
| 3 | 5000081783 | Gasket | 1 | ADD TO CART | |
| 5 | 5100031607 | Oil filler cap | 1 | ADD TO CART | |
| 6 | 5000162647 | Gasket | 1 | ADD TO CART | |
| 7 | 5000070966 | Screw | 2 | ADD TO CART | |
| 8 | 5000070961 | Grooved ball bearing | 1 | ADD TO CART | |
| 9 | 5000070969 | Shaft seal | 1 | ADD TO CART | |
| 10 | 5000053995 | Dowel pin | 2 | ADD TO CART | |
| 11 | 5000162645 | Dipstick assembly | 1 | ADD TO CART | |

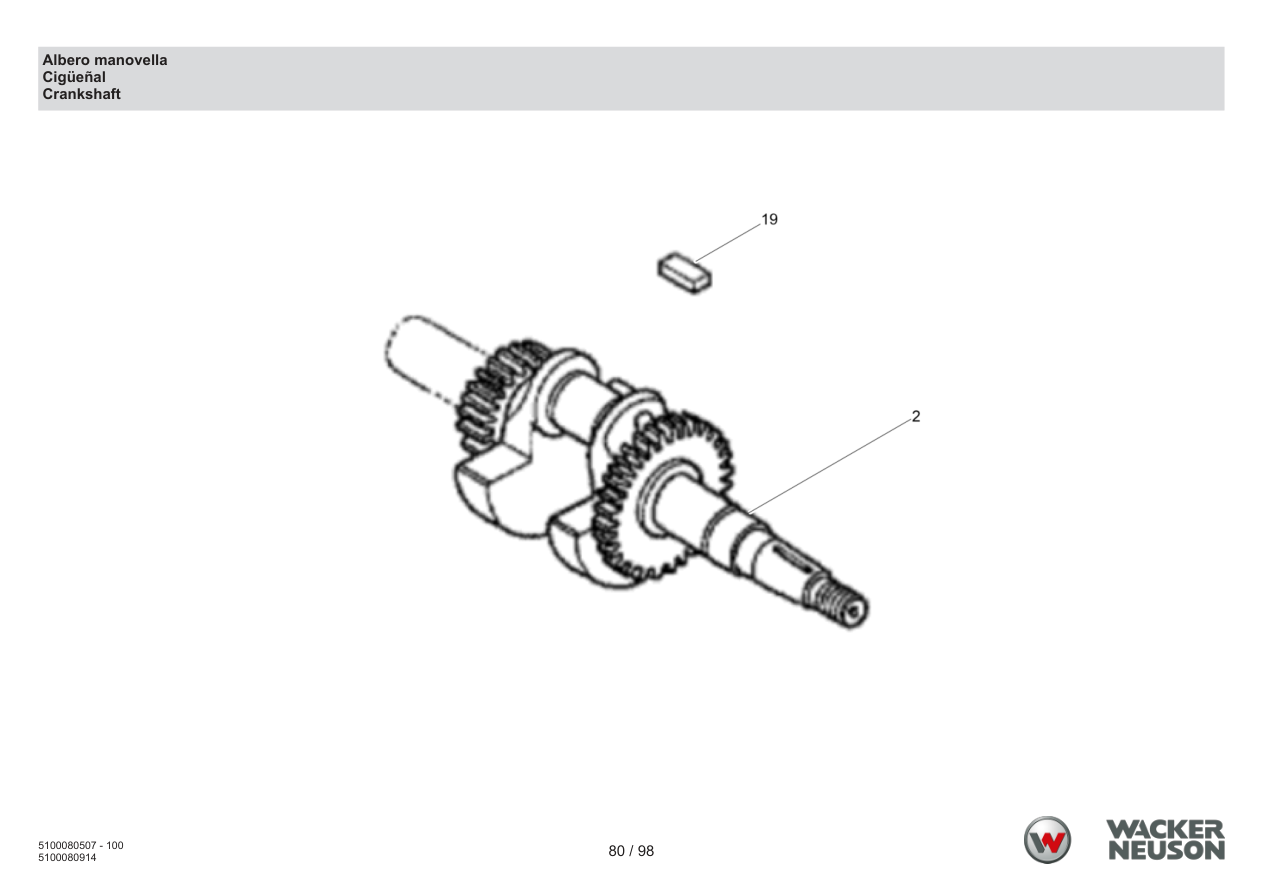

Page 80 — Crankshaft
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100049557 | Crankshaft | 1 | ADD TO CART | |
| 19 | 5000070999 | Fitting key | 1 | ADD TO CART | |

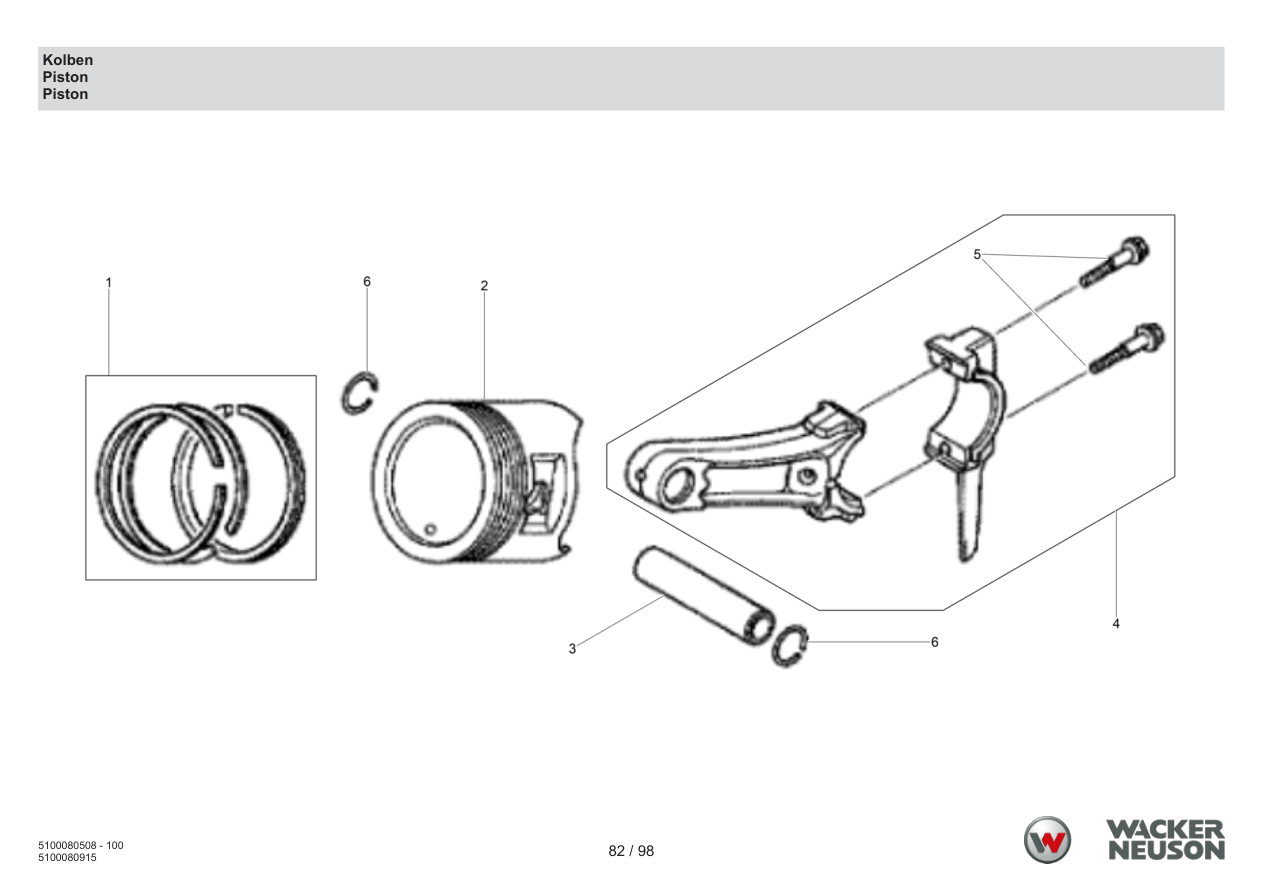

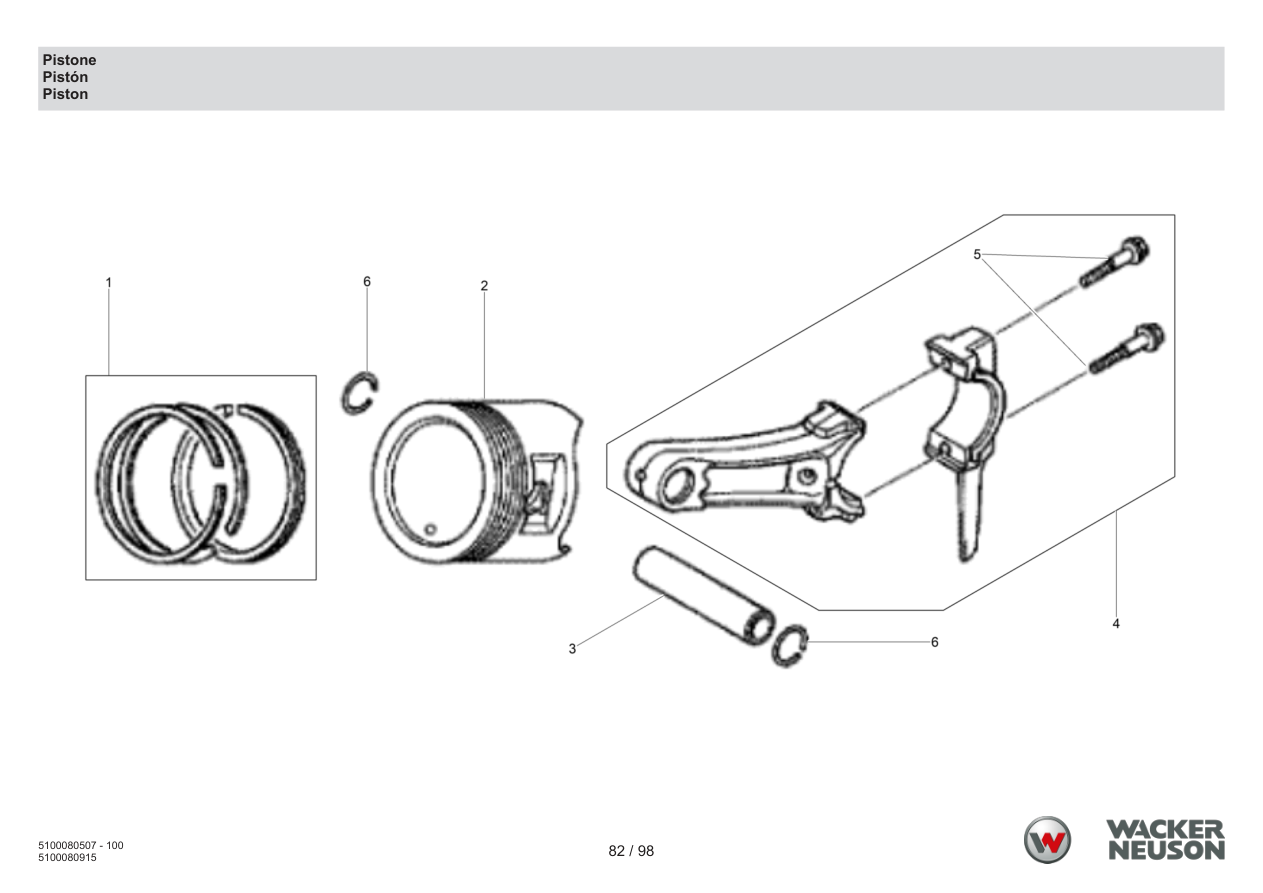

Page 82 — Piston
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049559 | Set of piston rings | 1 | ADD TO CART | |
| 2 | 5100049569 | Piston | 1 | ADD TO CART | |
| 3 | 5100049246 | Piston pin | 1 | ADD TO CART | |
| 4 | 5000209799 | Connecting rod | 1 | ADD TO CART | |
| 5 | 5100051877 | Bolt,connecting rod | 2 | PARTS REQUEST | |
|
COMING Bolt,connecting rod
5100051877 · qty on machine: 2 | |||||
| 6 | 5000081751 | Retaining ring | 2 | ADD TO CART | |

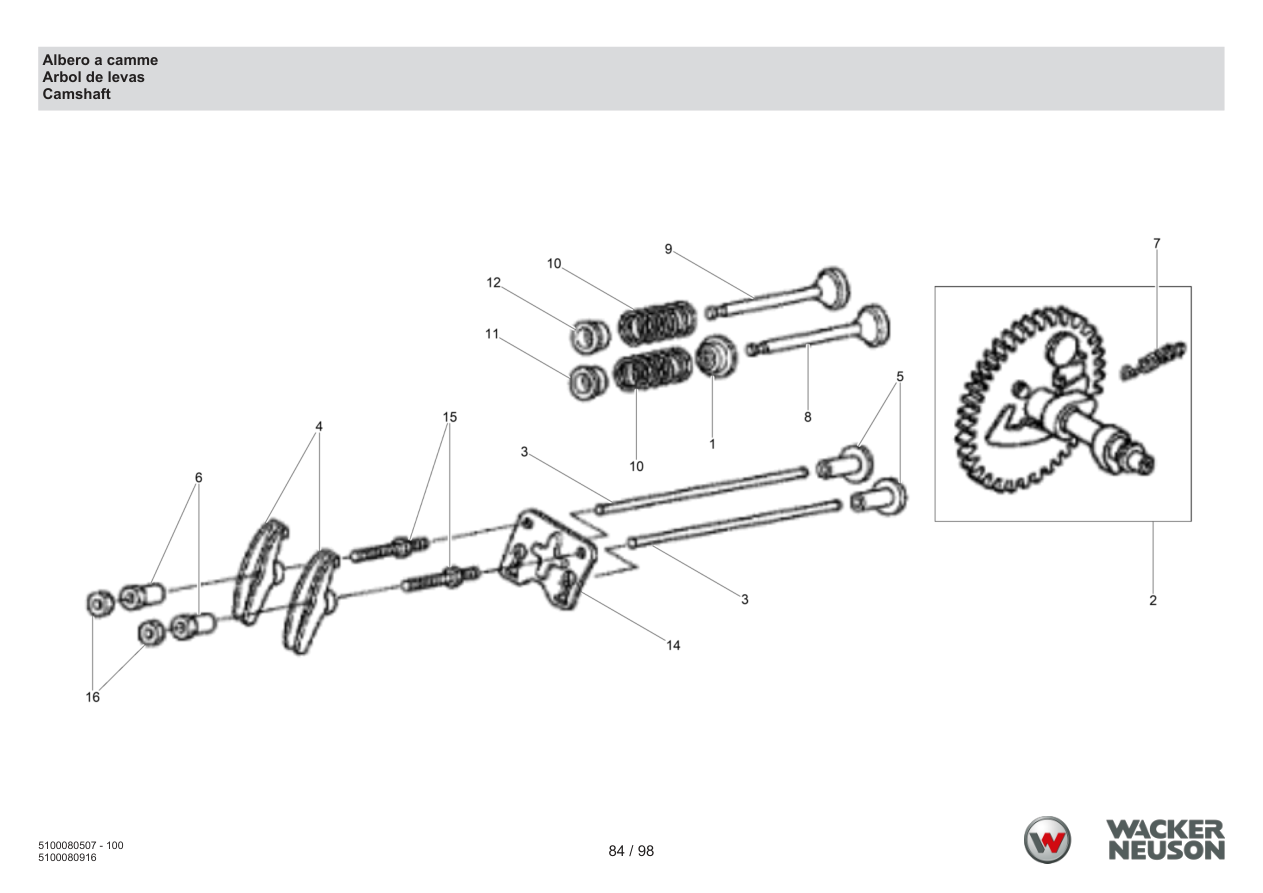

Page 84 — Camshaft
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005349 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100005349 · qty on machine: 1 | |||||
| 2 | 5100049560 | Camshaft | 1 | ADD TO CART | |
| 3 | 5100049561 | Valve push rod | 1 | ADD TO CART | |
| 4 | 5000070986 | Rocker arm | 2 | ADD TO CART | |
| 5 | 5000070990 | Valve tappet | 2 | ADD TO CART | |
| 6 | 5000070985 | Rocker arm pivot | 2 | ADD TO CART | |
| 7 | 5000151028 | Spring | 2 | ADD TO CART | |
| 8 | 5100049562 | Intake valve | 1 | ADD TO CART | |
| 9 | 5100029317 | Exhaust valve | 1 | ADD TO CART | |
| 10 | 5000081760 | Spring | 2 | ADD TO CART | |
| 11 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 12 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 14 | 5100049563 | Guide plate | 1 | ADD TO CART | |
| 15 | 5000072778 | Stud | 2 | ADD TO CART | |
| 16 | 5000070984 | Locknut | 2 | ADD TO CART | |

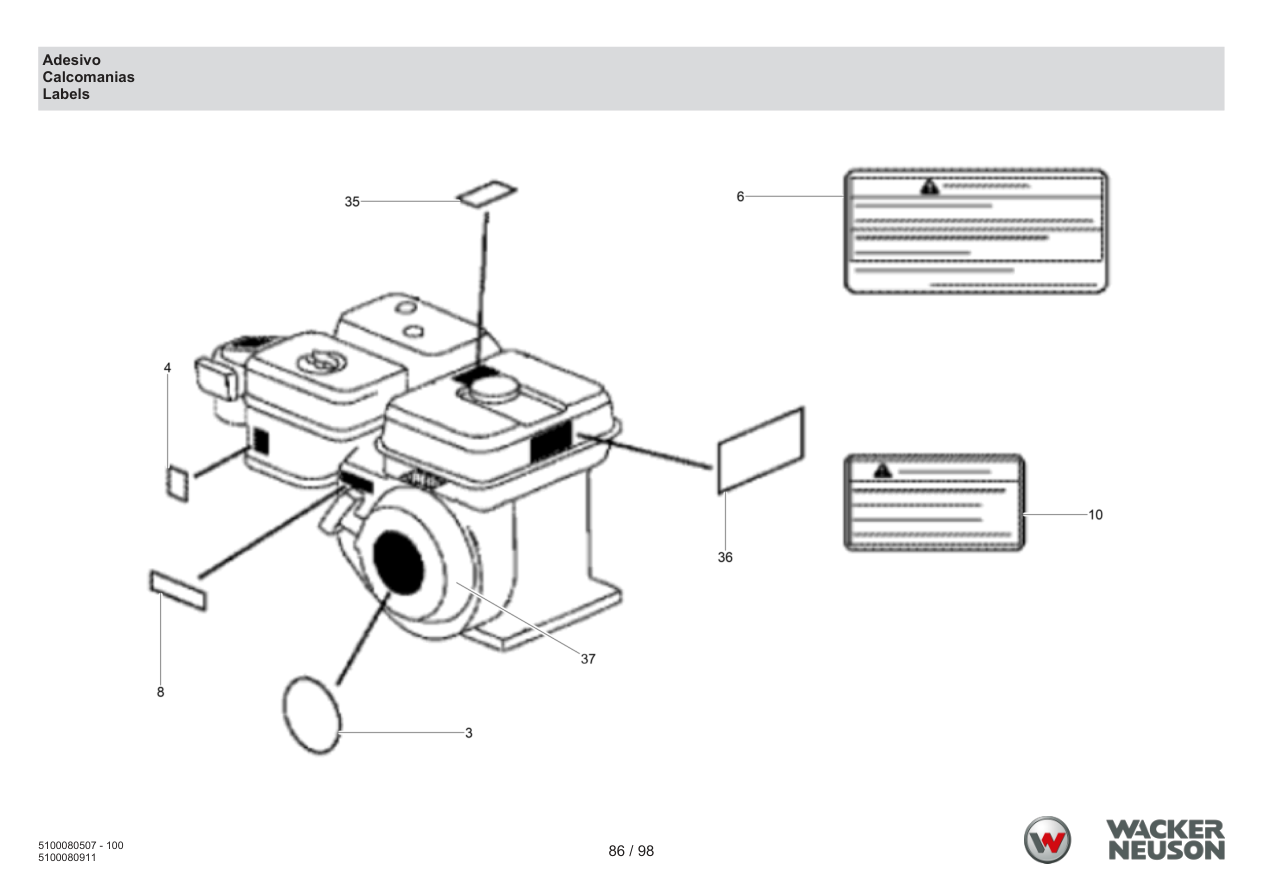

Page 86 — Decal
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100029316 | Label | 1 | ADD TO CART | |
| 6 | 5100080978 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080978 · qty on machine: 1 | |||||
| 7 | 5100005336 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100005336 · qty on machine: 1 | |||||
| 8 | 5000208623 | Labels | 1 | ADD TO CART | |
| 10 | 5100005339 | Label | 1 | ADD TO CART | |
| 35 | 5100005340 | Label | 1 | ADD TO CART | |
| 36 | 5100080976 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080976 · qty on machine: 1 | |||||
| 37 | 5100080977 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080977 · qty on machine: 1 | |||||

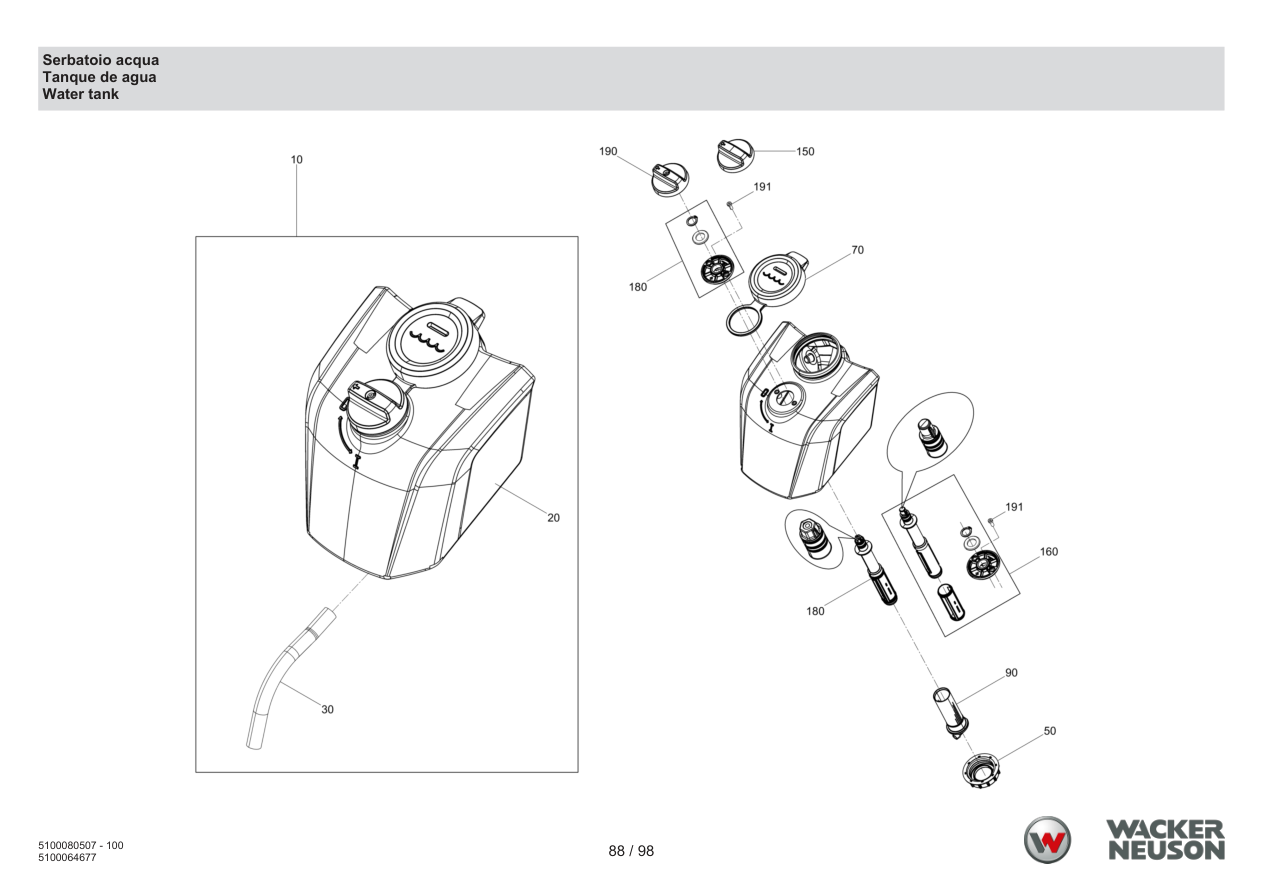

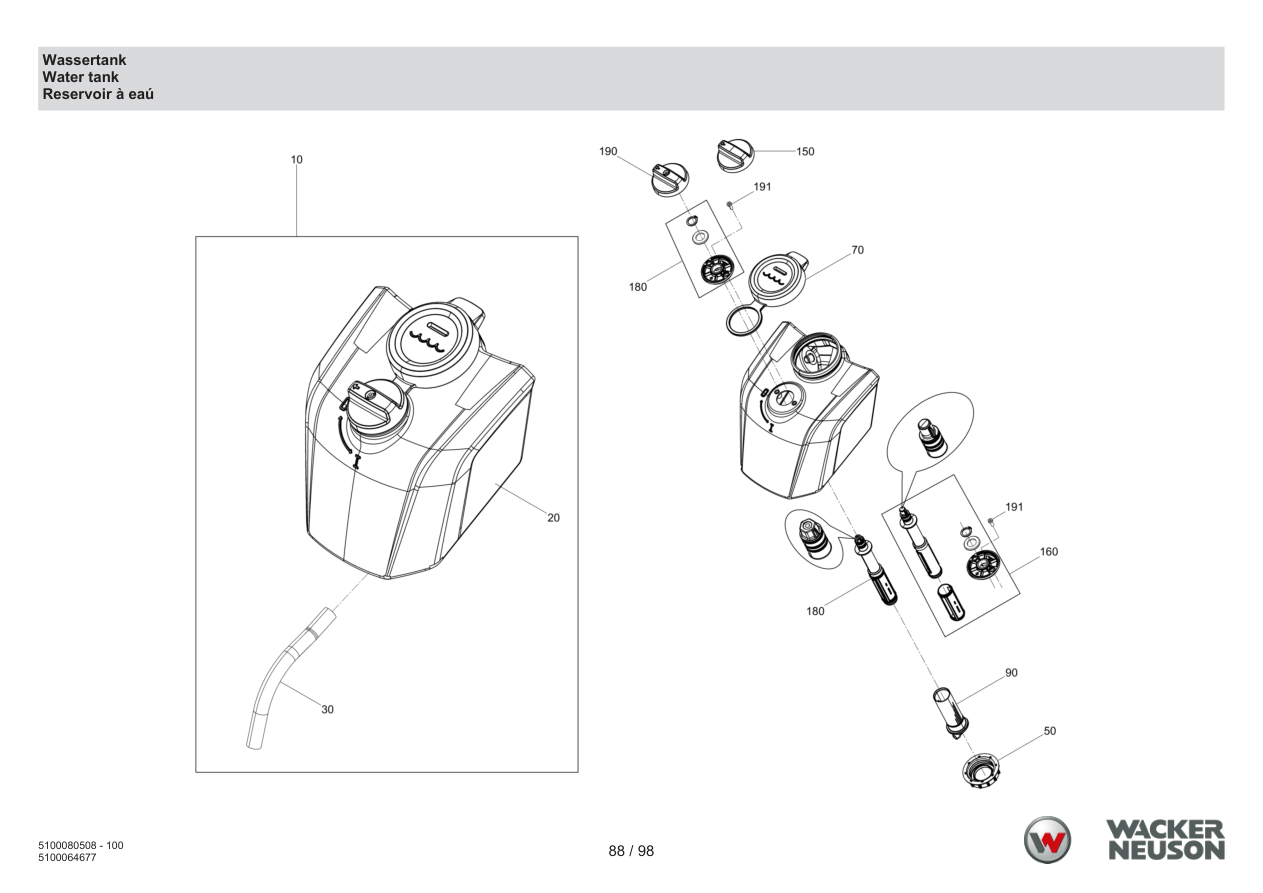

Page 88 — Water tank
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060499 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl.
5100060499 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 20 | 5100054177 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5100054175 | Hose | 1 | ADD TO CART | |
| 50 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 70 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 90 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 150 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 160 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 180 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 190 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 191 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||

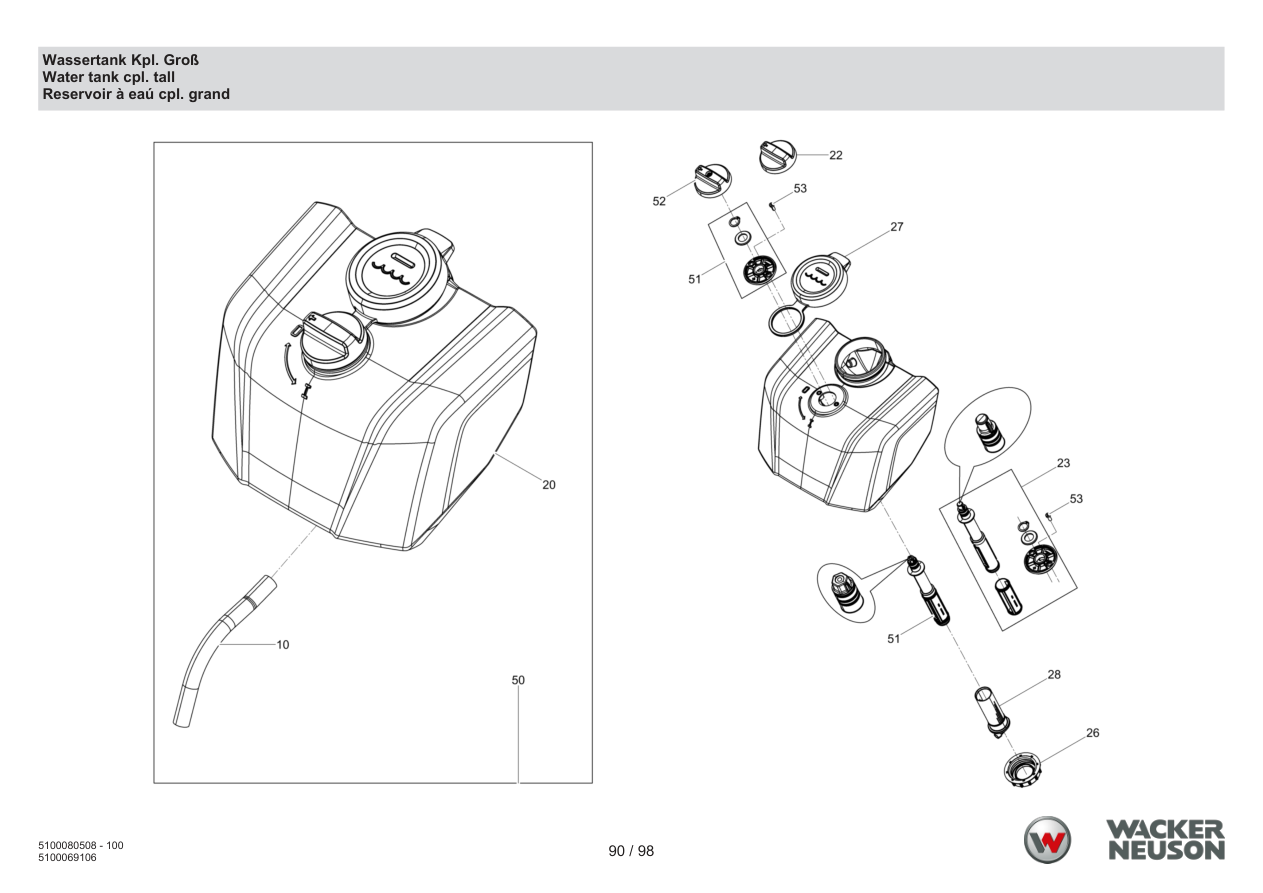

Page 90 — Water tank cpl. tall
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100054175 | Hose | 1 | ADD TO CART | |
| 20 | 5100064647 | Watertank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 23 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 26 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 27 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 28 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 50 | 5100068642 | Water tank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl. big
5100068642 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 51 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 52 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 53 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||

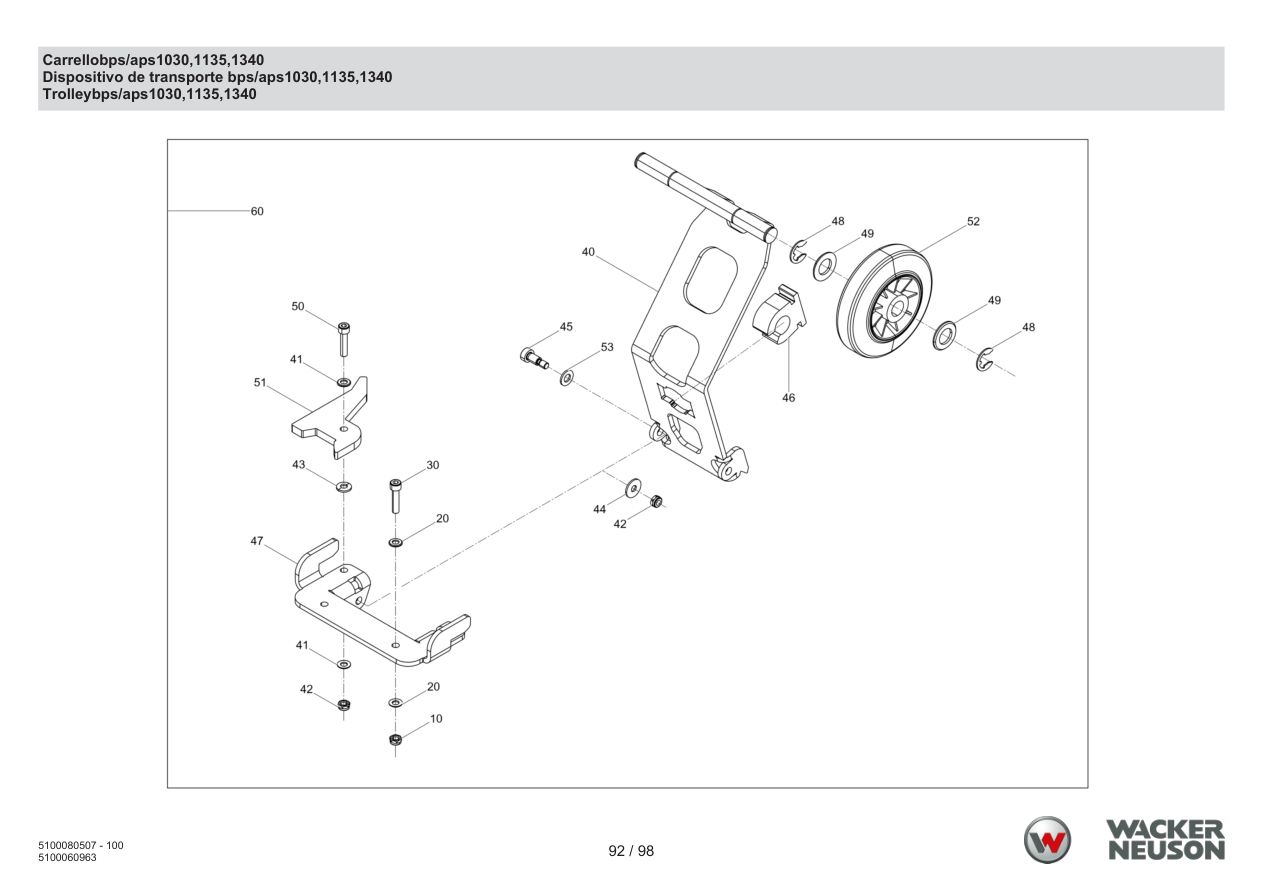

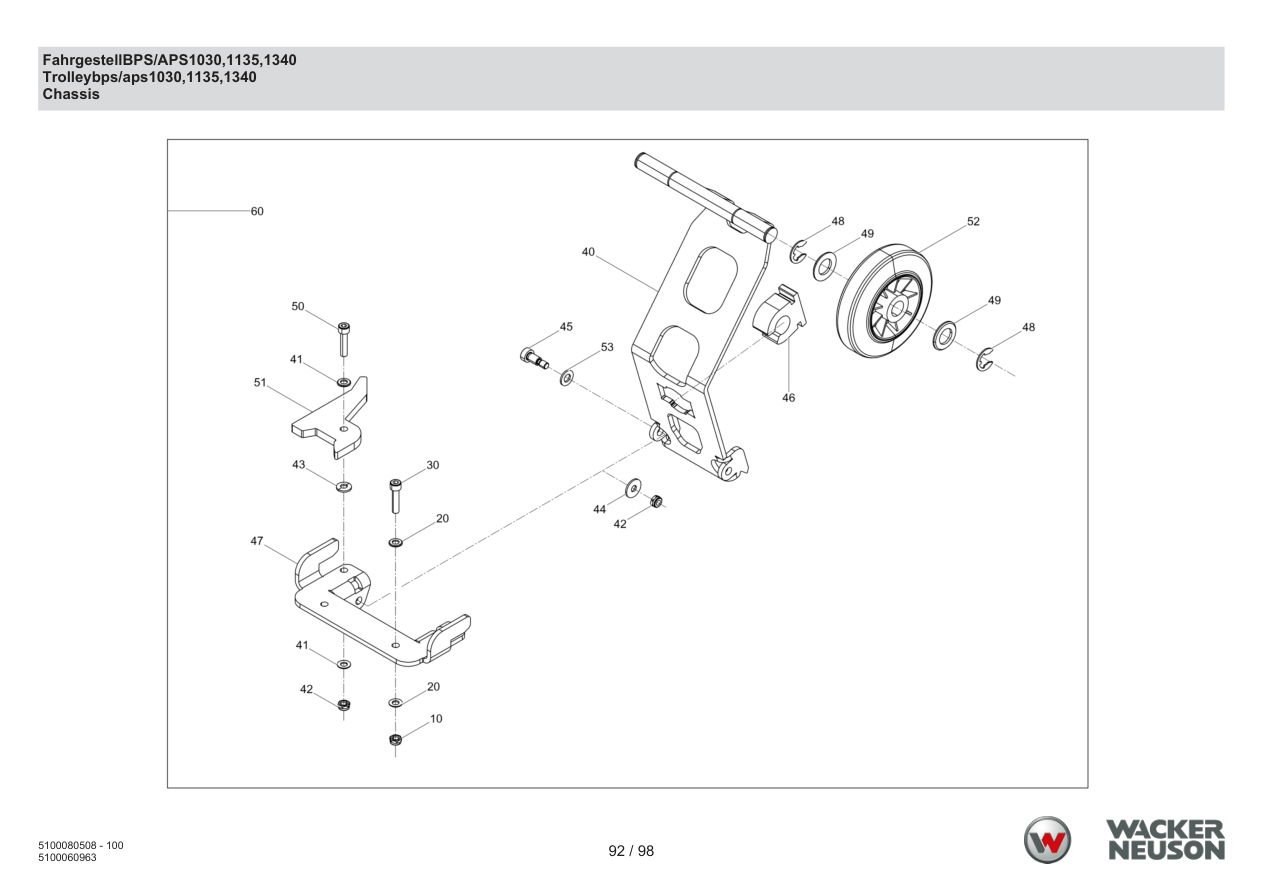

Page 92 — Trolleybps/aps1030,1135,1340
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000010367 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 30 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5100055542 | Trolley | 1 | ADD TO CART | |
| 41 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 42 | 5000010367 | Hexagon nut | 4 | ADD TO CART | |
| 43 | 5000033198 | Lockwasher | 2 | ADD TO CART | |
| 44 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 45 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 46 | 5100058750 | Bracket | 1 | ADD TO CART | |
| 47 | 5100058735 | Base plate | 1 | ADD TO CART | |
| 48 | 5000103834 | Lock washer | 4 | ADD TO CART | |
| 49 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 50 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 51 | 5100077951 | Lock bolt | 2 | ADD TO CART | |
| 52 | 5000021466 | Tire | 2 | ADD TO CART | |
| 53 | 5000128241 | Flat washer | 2 | ADD TO CART | |
| 60 | 5100060429 | Trolley cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Trolley cpl.
5100060429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

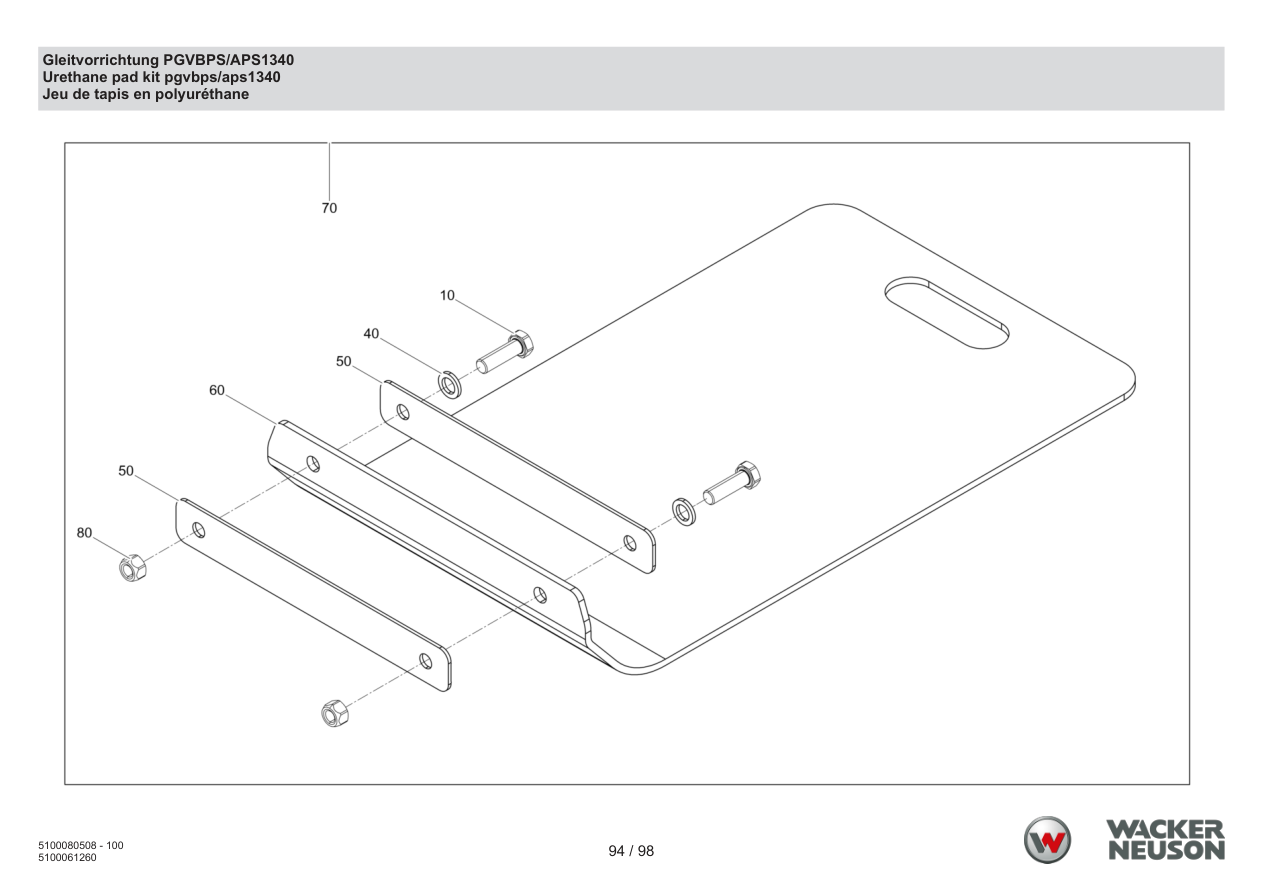

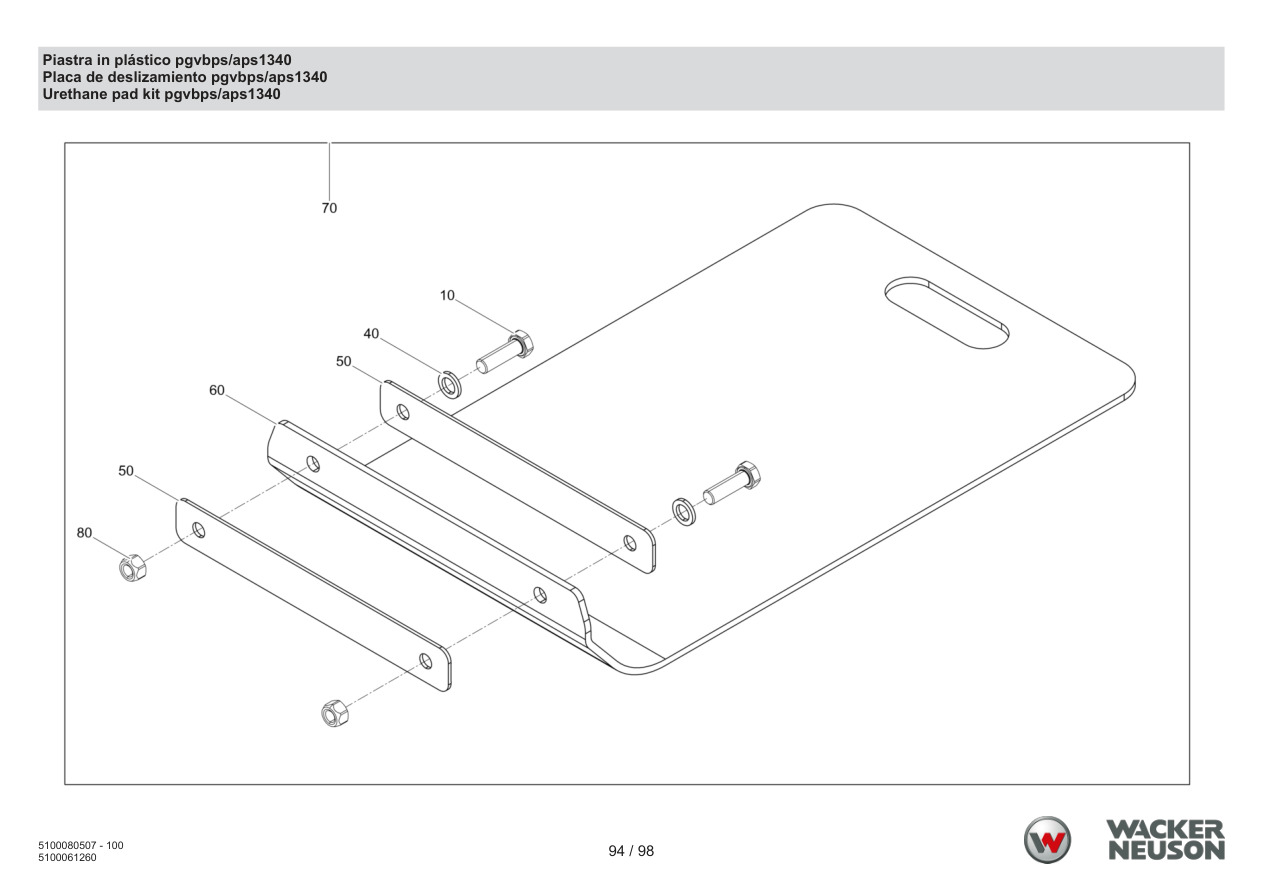

Page 94 — Slip-form device PGVBPS/APS1340
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011421 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 2 | |||||
| 40 | 5000010665 | Washer | 2 | ADD TO CART | |
| 50 | 5100054241 | Bar | 2 | ADD TO CART | |
| 60 | 5100054246 | Urethane plate | 1 | ADD TO CART | |
| 70 | 5100060427 | Urethane pad kit pgv | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv
5100060427 · qty on machine: 1 | |||||
| 80 | 5000015061 | Hexagon nut | 2 | ADD TO CART | |
Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 14 — Handle guide base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052432 | Spring pin | 2 | ADD TO CART | |
| 20 | 5100052431 | Bolt | 2 | ADD TO CART | |
Page 16 — Handle guide
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052430 | Bearing | 2 | ADD TO CART | |
| 20 | 5100058578 | Guiding frame cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

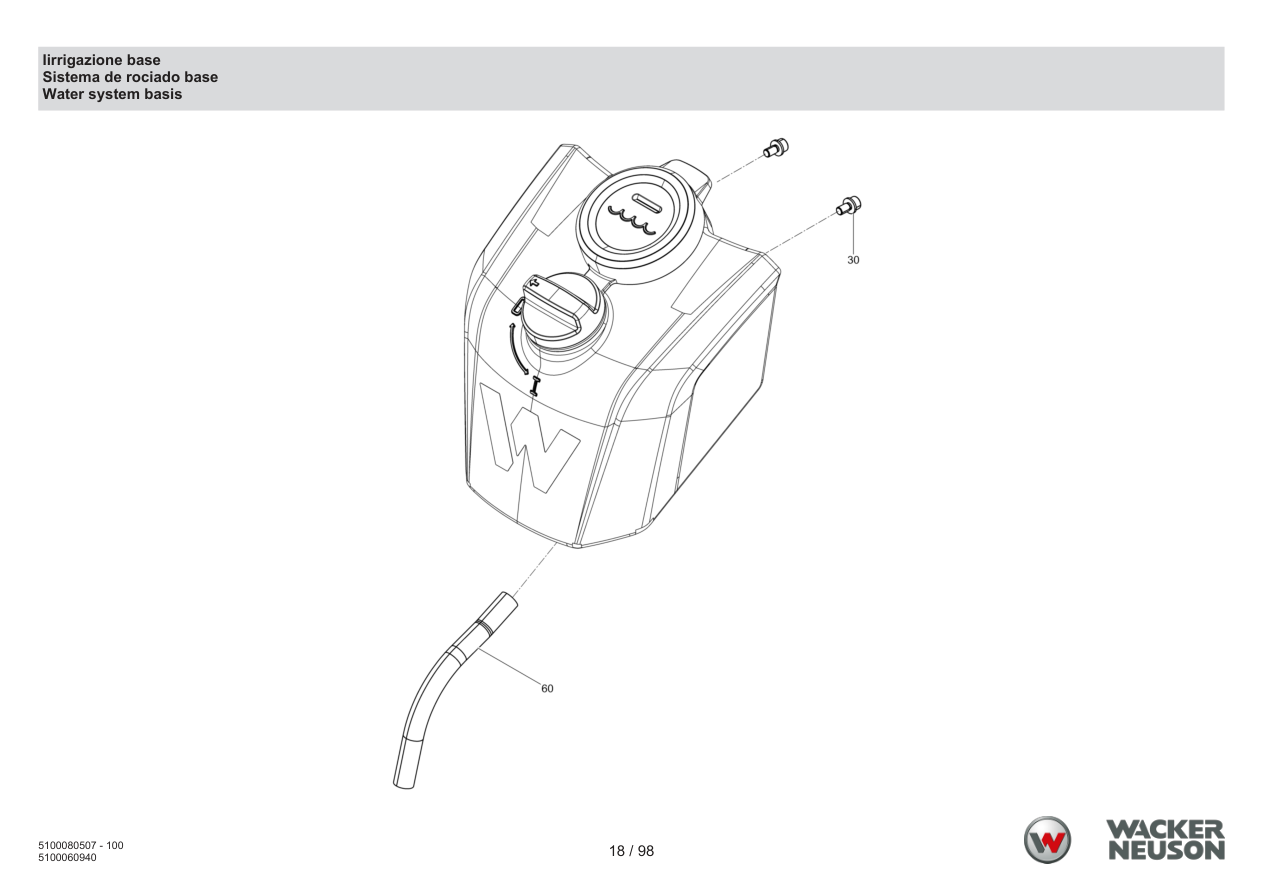

Page 18 — Irrigation base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100059594 | Cheese head screw | 2 | ADD TO CART | |
| 60 | 5100054175 | Hose | 1 | ADD TO CART | |

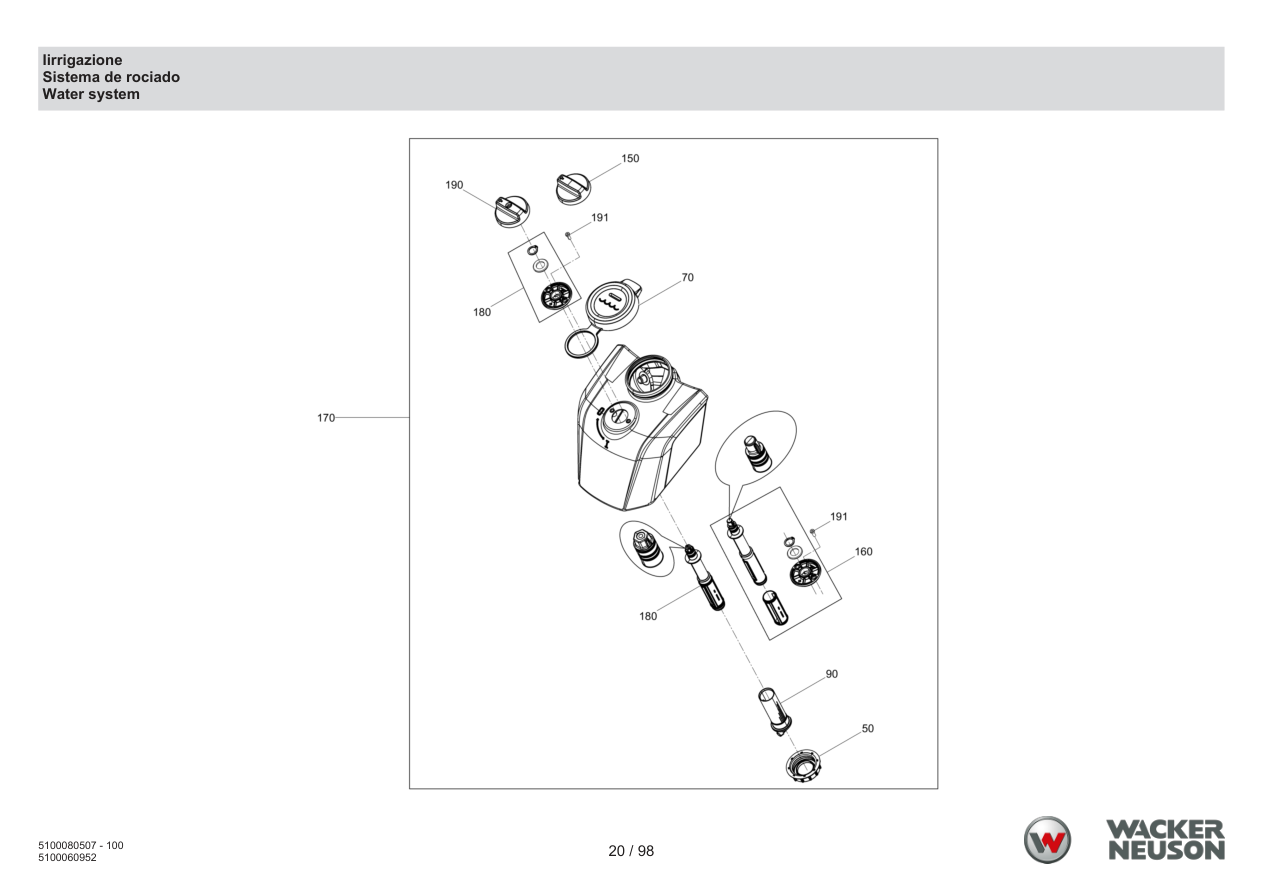

Page 20 — Irrigation
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 70 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 90 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 150 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 160 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 170 | 5100054177 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 180 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 190 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 191 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 22 — Upper part base
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100016317 | Shockmount | 2 | ADD TO CART | |
Page 24 — Upper part
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052424 | Upper mass | 1 | ADD TO CART | |
| 20 | 5000096087 | Hexagon nut | 4 | ADD TO CART | |
Page 26 — Additional weight bps 1340
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100056944 | Supplementary weight | 2 | ADD TO CART | |
| 20 | 5100059596 | Cheese head screw | 4 | ADD TO CART | |
Page 28 — Gasoline drive unit base
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000026169 | Hexagonal head cap screw | 5 | ADD TO CART | |
| 20 | 5100016321 | Washer | 1 | ADD TO CART | |
| 30 | 5000216658 | Screw | 3 | ADD TO CART | |
| 90 | 5100054097 | Centrifugal clutch | 1 | ADD TO CART | |
| 150 | 5100031195 | V-belt | 1 | ADD TO CART | |
| 160 | 5100054135 | Gasket | 1 | ADD TO CART | |
| 170 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 180 | 5100064172 | Plate | 3 | ADD TO CART | |
| 190 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 200 | 5100058806 | Bar cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 30 — Honda gx120 us engine
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058484 | Belt guard | 1 | ADD TO CART | |
| 20 | 5100058486 | Guard plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5100080501 | Gas engine | 1 | ADD TO CART | |
Page 32 — Hard rubber buffer
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000037378 | Shockmount | 4 | ADD TO CART | |
Page 34 — Exciter cpl. 13kn mech.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059593 | Cheese head screw | 8 | ADD TO CART | |
| 2 | 5000105139 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 3 | 5100062507 | Bearing seat | 2 | ADD TO CART | |
| 4 | 5100063187 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 5 | 5100063189 | Exciter housing | 1 | ADD TO CART | |
| 6 | 5100065522 | Eccentric shaft | 1 | ADD TO CART | |
| 7 | 5100054628 | Bearing cover right | 1 | ADD TO CART | |
| 8 | 5100054629 | Bearing cover left | 1 | ADD TO CART | |
| 9 | 5100063663 | Seal washer | 1 | ADD TO CART | |
| 10 | 5100068062 | Label | 1 | ADD TO CART | |
| 11 | 5100054135 | Gasket | 1 | ADD TO CART | |
| 12 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 13 | 5100064172 | Plate | 3 | ADD TO CART | |
| 14 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 15 | 5100084112 | Exciter cpl. 13kn | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. 13kn
5100084112 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
Page 36 — Lower part base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 20 | 5000210111 | Corrugated-head screw | 4 | ADD TO CART | |
Page 38 — Lower part 400 base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058122 | Spinkler system cpl. (40 cm) | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5100041150 | Locking plug | 2 | ADD TO CART | |
Page 40 — Lower part 400
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100053566 | Baseplate 40cm | 1 | ADD TO CART | |
Page 42 — Base sticker
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 90 | 5100068610 | Label | 2 | ADD TO CART | |
| 120 | 5100060906 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100060906 · qty on machine: 1 | |||||
Page 44 — Hot surface sticker
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068062 | Label | 1 | ADD TO CART | |
Page 46 — Gasoline sticker
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100062529 | Label | 1 | ADD TO CART | |
| 60 | 5100062532 | Label | 1 | ADD TO CART | |
Page 48 — Honda sticker
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059873 | Starting note decal | 1 | PARTS REQUEST | |
|
COMING Starting note decal
5100059873 · qty on machine: 1 | |||||
Page 50 — Adhesive label 105db
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000208195 | Decal-sound power level | 1 | ADD TO CART | |
| 20 | 5000219181 | Labels | 1 | ADD TO CART | |
Page 52 — Sticker bps1340
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059359 | Type label | 1 | ADD TO CART | |
Page 54 — Label symbol red
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058733 | Label symbol | 1 | ADD TO CART | |
Page 56 — Recoil starter
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100005307 | Housing cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Housing cpl. (black)
5100005307 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100036077 | Starter pulley | 1 | PARTS REQUEST | |
|
COMING Starter pulley
5100036077 · qty on machine: 1 | |||||
| 7 | 5000081777 | Spring | 1 | ADD TO CART | |
| 10 | 5000081781 | Rope | 1 | ADD TO CART | |
| 12 | 5000081750 | Screw | 3 | ADD TO CART | |
| 13 | 5100039021 | Recoil starter | 1 | PARTS REQUEST | |
|
COMING Recoil starter
5100039021 · qty on machine: 1 | |||||
| 15 | 5000160748 | Friction plate | 1 | ADD TO CART | |
| 17 | 5000160747 | Friction spring | 1 | ADD TO CART | |
| 19 | 5000207991 | Screw | 1 | ADD TO CART | |
| 20 | 5100005413 | Starter handle | 1 | PARTS REQUEST | |
|
COMING Starter handle
5100005413 · qty on machine: 1 | |||||
| 21 | 5100005310 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005310 · qty on machine: 1 | |||||
| 22 | 5100036078 | Ratchet | 2 | ADD TO CART | |
| 23 | 5100036079 | Guide | 1 | ADD TO CART | |
| 24 | 5100036230 | Return spring | 2 | ADD TO CART | |
Page 58 — Fan cover
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000070979 | Grommet | 1 | ADD TO CART | |
| 2 | 5000117150 | Blower housing | 1 | ADD TO CART | |
| 3 | 5000153137 | Plate | 1 | ADD TO CART | |
| 5 | 5000153139 | Duct | 1 | ADD TO CART | |
| 6 | 5100005313 | Oil sensor | 1 | ADD TO CART | |
| 8 | 5100051235 | Actuator | 1 | PARTS REQUEST | |
|
COMING Actuator
5100051235 · qty on machine: 1 | |||||
| 9 | 5000053990 | Screw | 6 | ADD TO CART | |
| 10 | 5000071055 | Screw | 1 | ADD TO CART | |
| 11 | 5000151700 | Clamp | 1 | ADD TO CART | |
| 12 | 5000081750 | Screw | 1 | ADD TO CART | |
Page 60 — Carburetor
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000072781 | Set-gaskets | 1 | ADD TO CART | |
| 2 | 5000071022 | Set-float valve | 1 | ADD TO CART | |
| 3 | 5000209764 | Set-carburetor float | 1 | ADD TO CART | |
| 4 | 5100005314 | Float housing | 1 | PARTS REQUEST | |
|
COMING Float housing
5100005314 · qty on machine: 1 | |||||
| 6 | 5200000430 | Screw w/washer | 1 | ADD TO CART | |
| 7 | 5200000431 | Screw w/washer | 1 | ADD TO CART | |
| 8 | 5000071025 | Set-engine choke | 1 | ADD TO CART | |
| 9 | 5100049546 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 11 | 5100049547 | Main jet | 1 | ADD TO CART | |
| 12 | 5000071024 | Gasket | 1 | ADD TO CART | |
| 13 | 5000071010 | Insulator | 1 | ADD TO CART | |
| 14 | 5000081794 | Gasket | 1 | ADD TO CART | |
| 15 | 5000071015 | Spacer | 1 | ADD TO CART | |
| 16 | 5000081762 | Gasket | 1 | ADD TO CART | |
| 17 | 5100051236 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 18 | 5000071013 | Choke control lever | 1 | ADD TO CART | |
| 19 | 5000073269 | Plate | 1 | ADD TO CART | |
| 20 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 21 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 22 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 23 | 5000106954 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5000106954 · qty on machine: 2 | |||||
| 24 | 5000071014 | Pin | 1 | ADD TO CART | |
| 25 | 5000153141 | Main jet | 1 | ADD TO CART | |
| 25 | 5000153142 | Main jet | 1 | ADD TO CART | |
| 25 | 5100049538 | Main jet 62 | 1 | ADD TO CART | |
| 26 | 5000081997 | Set-pilot jet | 1 | ADD TO CART | |
| 27 | 5100039006 | Screw | 1 | ADD TO CART | |
| 34 | 5100000396 | Filter | 1 | ADD TO CART | |
| 37 | 5100036241 | Disc | 1 | ADD TO CART | |
Page 62 — Air Filter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5000071035 | Sleeve | 1 | ADD TO CART | |
| 6 | 5000081746 | Sleeve | 2 | ADD TO CART | |
| 1 | 5000071032 | Gasket | 1 | ADD TO CART | |
| 2 | 5000217458 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000076944 | Prefilter element | 1 | PARTS REQUEST | |
|
COMING Prefilter element
5000076944 · qty on machine: 1 | |||||
| 4 | 5100019660 | Air cleaner cover | 1 | ADD TO CART | |
| 5 | 5000072343 | Grommet | 1 | ADD TO CART | |
| 8 | 5000406642 | Air cleaner mount | 1 | ADD TO CART | |
| 9 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 10 | 5000071056 | Nut | 2 | ADD TO CART | |
| 11 | 5100003499 | Flange screw | 1 | PARTS REQUEST | |
|
COMING Flange screw
5100003499 · qty on machine: 1 | |||||
| 12 | 5100005360 | Filter bracket | 1 | ADD TO CART | |
| 13 | 5100031333 | Wing nut | 1 | ADD TO CART | |
Page 64 — Muffler
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000406644 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5000406644 · qty on machine: 1 | |||||
| 1 | 5100005364 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Muffler cpl.
5100005364 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000406646 | Guard | 1 | PARTS REQUEST | |
|
COMING Guard
5000406646 · qty on machine: 1 | |||||
| 3 | 5000071075 | Spark arrester | 1 | ADD TO CART | |
| 4 | 5000216516 | Gasket | 1 | ADD TO CART | |
| 6 | 5000071070 | Screw | 4 | ADD TO CART | |
| 7 | 5000150916 | Screw | 1 | ADD TO CART | |
| 9 | 5000071076 | Nut | 2 | ADD TO CART | |
| 16 | 5000081756 | Exhaust baffle | 1 | ADD TO CART | |
| 17 | 5000081757 | Guide | 1 | ADD TO CART | |
| 18 | 5000209783 | Self-tapping screw | 2 | ADD TO CART | |
Page 66 — Fuel tank
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 2 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 3 | 5000406692 | Fuel tank | 1 | ADD TO CART | |
| 7 | 5000209771 | Flange bolt | 1 | ADD TO CART | |
| 8 | 5000071082 | O-ring | 1 | ADD TO CART | |
| 9 | 5000071056 | Nut | 2 | ADD TO CART | |
| 10 | 5100080973 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100080973 · qty on machine: 1 | |||||
| 24 | 5000208617 | Clamp | 2 | ADD TO CART | |
| 27 | 5100080974 | Tank cover | 1 | PARTS REQUEST | |
|
COMING Tank cover
5100080974 · qty on machine: 1 | |||||
| 28 | 5000209770 | Gasket | 1 | ADD TO CART | |
Page 68 — Flywheel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100056809 | Woodruff key | 1 | ADD TO CART | |
| 2 | 5000070976 | Fan | 1 | ADD TO CART | |
| 5 | 5100049549 | Carrier | 1 | ADD TO CART | |
| 6 | 5100049548 | Fly wheel | 1 | ADD TO CART | |
| 8 | 5000162686 | Nut | 1 | ADD TO CART | |
Page 70 — Cylinder Head
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100049550 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000081744 | Retaining ring | 1 | ADD TO CART | |
| 5 | 5100049551 | Cylinder head gasket | 1 | ADD TO CART | |
| 6 | 5100049540 | Cover-cylinder head | 1 | ADD TO CART | |
| 7 | 5100080975 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100080975 · qty on machine: 1 | |||||
| 8 | 5000081761 | Breather tube | 1 | ADD TO CART | |
| 9 | 5000053990 | Screw | 4 | ADD TO CART | |
| 10 | 5000406696 | Stud | 2 | ADD TO CART | |
| 11 | 5000070948 | Stud | 2 | ADD TO CART | |
| 12 | 5000070950 | Dowel pin | 2 | ADD TO CART | |
| 13 | 5000217519 | Flange bolt | 4 | ADD TO CART | |
| 14 | 5000150914 | Spark plug | 1 | ADD TO CART | |
Page 72 — Ignition coil
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100003455 | Ignition coil cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Ignition coil cpl.
5100003455 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000162680 | Spark plug terminal cap | 1 | ADD TO CART | |
| 6 | 5100031335 | Cable | 1 | ADD TO CART | |
| 9 | 5000081737 | Screw | 2 | ADD TO CART | |
Page 74 — Regulator
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5000406698 | Control cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100005425 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5100005425 · qty on machine: 1 | |||||
| 5 | 5000071068 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5000071068 · qty on machine: 1 | |||||
| 6 | 5100049553 | Tension spring | 1 | ADD TO CART | |
| 7 | 5100049554 | Tension spring | 1 | ADD TO CART | |
| 8 | 5000406699 | Lever | 1 | ADD TO CART | |
| 9 | 5000071058 | Spring | 1 | ADD TO CART | |
| 10 | 5000071057 | Washer | 1 | ADD TO CART | |
| 11 | 5000071062 | Cable holder | 1 | ADD TO CART | |
| 12 | 5000071064 | Spacer | 1 | ADD TO CART | |
| 15 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 16 | 5000071667 | Spring | 1 | ADD TO CART | |
| 19 | 5000053990 | Screw | 1 | ADD TO CART | |
| 20 | 5000068966 | Screw | 1 | ADD TO CART | |
| 21 | 5000071055 | Screw | 1 | ADD TO CART | |
| 22 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 26 | 5000110112 | Screw | 1 | ADD TO CART | |
| 27 | 5000081990 | Screw | 1 | ADD TO CART | |
| 28 | 5000071056 | Nut | 1 | ADD TO CART | |
| 40 | 5100029313 | Bracket | 1 | ADD TO CART | |
Page 76 — Cylinder crankcase
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049556 | Motor housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100005429 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100005429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100005430 | Weight | 2 | PARTS REQUEST | |
|
COMING Weight
5100005430 · qty on machine: 2 | |||||
| 4 | 5100005431 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100005431 · qty on machine: 1 | |||||
| 5 | 5000156689 | Pin | 2 | ADD TO CART | |
| 6 | 5000406670 | Slider | 1 | PARTS REQUEST | |
|
COMING Slider
5000406670 · qty on machine: 1 | |||||
| 7 | 5100005433 | Governor | 1 | PARTS REQUEST | |
|
COMING Governor
5100005433 · qty on machine: 1 | |||||
| 8 | 5000070964 | Plug (threaded) | 2 | ADD TO CART | |
| 11 | 5000070963 | Washer | 2 | ADD TO CART | |
| 12 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 13 | 5000070961 | Grooved ball bearing | 1 | ADD TO CART | |
| 14 | 5000070962 | Shaft seal | 1 | ADD TO CART | |
| 15 | 5000071082 | O-ring | 1 | ADD TO CART | |
| 16 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 17 | 5000071639 | Washer | 2 | ADD TO CART | |
| 18 | 5000054033 | Pin | 1 | ADD TO CART | |
| 19 | 5000072333 | Screw | 2 | ADD TO CART | |
| 20 | 5100056844 | Oil switch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 78 — Base cover
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000081740 | Cover | 1 | ADD TO CART | |
| 3 | 5000081783 | Gasket | 1 | ADD TO CART | |
| 5 | 5100031607 | Oil filler cap | 1 | ADD TO CART | |
| 6 | 5000162647 | Gasket | 1 | ADD TO CART | |
| 7 | 5000070966 | Screw | 2 | ADD TO CART | |
| 8 | 5000070961 | Grooved ball bearing | 1 | ADD TO CART | |
| 9 | 5000070969 | Shaft seal | 1 | ADD TO CART | |
| 10 | 5000053995 | Dowel pin | 2 | ADD TO CART | |
| 11 | 5000162645 | Dipstick assembly | 1 | ADD TO CART | |
Page 80 — Crankshaft
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100049557 | Crankshaft | 1 | ADD TO CART | |
| 19 | 5000070999 | Fitting key | 1 | ADD TO CART | |
Page 82 — Piston
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049559 | Set of piston rings | 1 | ADD TO CART | |
| 2 | 5100049569 | Piston | 1 | ADD TO CART | |
| 3 | 5100049246 | Piston pin | 1 | ADD TO CART | |
| 4 | 5000209799 | Connecting rod | 1 | ADD TO CART | |
| 5 | 5100051877 | Bolt,connecting rod | 2 | PARTS REQUEST | |
|
COMING Bolt,connecting rod
5100051877 · qty on machine: 2 | |||||
| 6 | 5000081751 | Retaining ring | 2 | ADD TO CART | |
Page 84 — Camshaft
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005349 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100005349 · qty on machine: 1 | |||||
| 2 | 5100049560 | Camshaft | 1 | ADD TO CART | |
| 3 | 5100049561 | Valve push rod | 1 | ADD TO CART | |
| 4 | 5000070986 | Rocker arm | 2 | ADD TO CART | |
| 5 | 5000070990 | Valve tappet | 2 | ADD TO CART | |
| 6 | 5000070985 | Rocker arm pivot | 2 | ADD TO CART | |
| 7 | 5000151028 | Spring | 2 | ADD TO CART | |
| 8 | 5100049562 | Intake valve | 1 | ADD TO CART | |
| 9 | 5100029317 | Exhaust valve | 1 | ADD TO CART | |
| 10 | 5000081760 | Spring | 2 | ADD TO CART | |
| 11 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 12 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 14 | 5100049563 | Guide plate | 1 | ADD TO CART | |
| 15 | 5000072778 | Stud | 2 | ADD TO CART | |
| 16 | 5000070984 | Locknut | 2 | ADD TO CART | |
Page 86 — Adhesive label
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100029316 | Label | 1 | ADD TO CART | |
| 6 | 5100080978 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080978 · qty on machine: 1 | |||||
| 7 | 5100005336 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100005336 · qty on machine: 1 | |||||
| 8 | 5000208623 | Labels | 1 | ADD TO CART | |
| 10 | 5100005339 | Label | 1 | ADD TO CART | |
| 35 | 5100005340 | Label | 1 | ADD TO CART | |
| 36 | 5100080976 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080976 · qty on machine: 1 | |||||
| 37 | 5100080977 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080977 · qty on machine: 1 | |||||
Page 88 — Water tank
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060499 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl.
5100060499 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 20 | 5100054177 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5100054175 | Hose | 1 | ADD TO CART | |
| 50 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 70 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 90 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 150 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 160 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 180 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 190 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 191 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 90 — Water tank cpl. large
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100054175 | Hose | 1 | ADD TO CART | |
| 20 | 5100064647 | Watertank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 23 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 26 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 27 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 28 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 50 | 5100068642 | Water tank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl. big
5100068642 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 51 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 52 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 53 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 92 — Undercarriage bps/aps1030,1135,1340
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000010367 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 30 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5100055542 | Trolley | 1 | ADD TO CART | |
| 41 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 42 | 5000010367 | Hexagon nut | 4 | ADD TO CART | |
| 43 | 5000033198 | Lockwasher | 2 | ADD TO CART | |
| 44 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 45 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 46 | 5100058750 | Bracket | 1 | ADD TO CART | |
| 47 | 5100058735 | Base plate | 1 | ADD TO CART | |
| 48 | 5000103834 | Lock washer | 4 | ADD TO CART | |
| 49 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 50 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 51 | 5100077951 | Lock bolt | 2 | ADD TO CART | |
| 52 | 5000021466 | Tire | 2 | ADD TO CART | |
| 53 | 5000128241 | Flat washer | 2 | ADD TO CART | |
| 60 | 5100060429 | Trolley cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Trolley cpl.
5100060429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
Page 94 — Sliding plate pgvbps/aps1340
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011421 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 2 | |||||
| 40 | 5000010665 | Washer | 2 | ADD TO CART | |
| 50 | 5100054241 | Bar | 2 | ADD TO CART | |
| 60 | 5100054246 | Urethane plate | 1 | ADD TO CART | |
| 70 | 5100060427 | Urethane pad kit pgv | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv
5100060427 · qty on machine: 1 | |||||
| 80 | 5000015061 | Hexagon nut | 2 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson BPS1340 vibratory plate.
A: Honda Engine.
Available in 2 configurations.
List price: $2,545.00 – $2,725.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5000010367
Hexagon nut
$0.95
5000010374
Flat washer
$0.95
5000010616
Flat washer
$0.95
5000010622
Flat washer
$0.95
5000010665
Washer
$0.95
5000011421
Hexagonal head cap screw
5000011540
Cheese head screw
$0.95
5000015061
Hexagon nut
$0.95
5000021466
Tire
$13.95
5000026169
Hexagonal head cap screw
$0.95
5000033198
Lockwasher
$0.95
5000037378
Shockmount
$24.95
5000053990
Screw
$2.95
5000053995
Dowel pin
$3.95
5000054033
Pin
$1.95
5000054088
Adjusting spring
$8.95
5000068966
Screw
$5.95
5000069425
Cheese head screw
5000070948
Stud
$7.95
5000070950
Dowel pin
$5.95
5000070961
Grooved ball bearing
$64.95
5000070962
Shaft seal
$10.95
5000070963
Washer
$1.95
5000070964
Plug (threaded)
$5.95
5000070966
Screw
$6.95
5000070969
Shaft seal
$11.95
5000070976
Fan
$74.95
5000070979
Grommet
$2.95
5000070984
Locknut
$7.95
5000070985
Rocker arm pivot
$10.95
5000070986
Rocker arm
$12.95
5000070990
Valve tappet
$24.95
5000070999
Fitting key
$25.95
5000071010
Insulator
$33.95
5000071013
Choke control lever
$18.95
5000071014
Pin
$2.95
5000071015
Spacer
$9.95
5000071018
Throttle stop screw
$20.95
5000071022
Set-float valve
$49.95
5000071023
Fuel filter
$24.95
5000071024
Gasket
$7.95
5000071025
Set-engine choke
$62.95
5000071032
Gasket
$5.95
5000071035
Sleeve
$7.95
5000071055
Screw
$5.95
5000071056
Nut
$0.95
5000071057
Washer
$9.95
5000071058
Spring
$4.95
5000071062
Cable holder
$8.95
5000071064
Spacer
$9.95
5000071068
Governor rod
5000071070
Screw
$2.95
5000071075
Spark arrester
$26.95
5000071076
Nut
$1.95
5000071082
O-ring
$3.95
5000071621
Wing nut
$9.95
5000071639
Washer
$0.95
5000071667
Spring
$3.95
5000072332
Flange nut
5000072333
Screw
$2.95
5000072343
Grommet
$9.95
5000072778
Stud
$14.95
5000072781
Set-gaskets
$21.95
5000072782
Locknut
$6.95
5000073269
Plate
$7.95
5000073270
Spring washer
$4.95
5000073272
Gasket
$4.95
5000076944
Prefilter element
5000081615
Retaining ring
$1.95
5000081737
Screw
$4.95
5000081740
Cover
$237.95
5000081744
Retaining ring
$1.95
5000081746
Sleeve
$7.95
5000081750
Screw
$7.95
5000081751
Retaining ring
$1.95
5000081756
Exhaust baffle
$28.95
5000081757
Guide
$22.95
5000081760
Spring
$7.95
5000081761
Breather tube
$7.95
5000081762
Gasket
$2.95
5000081764
Protective hose
$8.95
5000081777
Spring
$31.95
5000081781
Rope
$20.95
5000081783
Gasket
$10.95
5000081794
Gasket
$3.95
5000081990
Screw
$1.95
5000081997
Set-pilot jet
$39.95
5000096087
Hexagon nut
$0.95
5000103834
Lock washer
$0.95
5000105139
Cylindrical roller bearing
$71.95
5000106954
Screw
5000110112
Screw
$1.95
5000117150
Blower housing
$120.95
5000128241
Flat washer
$0.95
5000150914
Spark plug
$5.95
5000150916
Screw
$1.95
5000151028
Spring
$5.95
5000151700
Clamp
$4.95
5000153137
Plate
$19.95
5000153139
Duct
$28.95
5000153141
Main jet
$14.95
5000153142
Main jet
$18.95
5000156689
Pin
$2.95
5000160747
Friction spring
$6.95
5000160748
Friction plate
$8.95
5000162645
Dipstick assembly
$1.95
5000162647
Gasket
$5.95
5000162680
Spark plug terminal cap
$10.95
5000162686
Nut
$4.95
5000207991
Screw
$7.95
5000208195
Decal-sound power level
$6.95
5000208617
Clamp
$3.95
5000208623
Labels
$5.95
5000209764
Set-carburetor float
$44.95
5000209770
Gasket
$0.95
5000209771
Flange bolt
$1.95
5000209783
Self-tapping screw
$0.95
5000209799
Connecting rod
$63.95
5000210111
Corrugated-head screw
$6.95
5000216516
Gasket
$5.95
5000216658
Screw
$3.95
5000217458
Air filter insert cpl.
$9.95
5000217519
Flange bolt
$13.95
5000219181
Labels
$12.95
5000406642
Air cleaner mount
$15.95
5000406644
Muffler
5000406646
Guard
5000406670
Slider
5000406692
Fuel tank
$601.95
5000406696
Stud
$7.95
5000406698
Control cpl.
$102.95
5000406699
Lever
$5.95
5100000395
Fuel filter
5100000396
Filter
$8.95
5100003455
Ignition coil cpl.
5100003499
Flange screw
5100005307
Housing cpl. (black)
5100005310
Covering
5100005313
Oil sensor
$88.95
5100005314
Float housing
5100005336
Label
5100005339
Label
$7.95
5100005340
Label
$7.95
5100005349
Gasket
5100005360
Filter bracket
$4.95
5100005364
Muffler cpl.
5100005413
Starter handle
5100005425
Governor lever
5100005429
Governor cpl.
5100005430
Weight
5100005431
Bracket
5100005433
Governor
5100005556
Shim screw
$2.95
5100016317
Shockmount
$12.95
5100016321
Washer
$3.95
5100019660
Air cleaner cover
$4.95
5100029313
Bracket
$67.95
5100029316
Label
$2.95
5100029317
Exhaust valve
$114.95
5100029787
Cheese head screw
$0.95
5100031195
V-belt
$37.95
5100031333
Wing nut
$1.95
5100031335
Cable
$4.95
5100031339
Holder
5100031607
Oil filler cap
$11.95
5100036077
Starter pulley
5100036078
Ratchet
$11.95
5100036079
Guide
$13.95
5100036230
Return spring
$5.95
5100036241
Disc
$0.95
5100039006
Screw
$19.95
5100039021
Recoil starter
5100041150
Locking plug
$7.95
5100049246
Piston pin
$12.95
5100049538
Main jet 62
$34.95
5100049540
Cover-cylinder head
$9.95
5100049546
Carburetor cpl.
$422.95
5100049547
Main jet
$103.95
5100049548
Fly wheel
$671.95
5100049549
Carrier
$101.95
5100049550
Cylinder head cpl.
$434.95
5100049551
Cylinder head gasket
$28.95
5100049553
Tension spring
$6.95
5100049554
Tension spring
$7.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
