Wacker Neuson BPU5260 Vibratory Plate
Factory parts book · interactive
Wacker Neuson BPU5260 Vibratory Plate
The parts bench

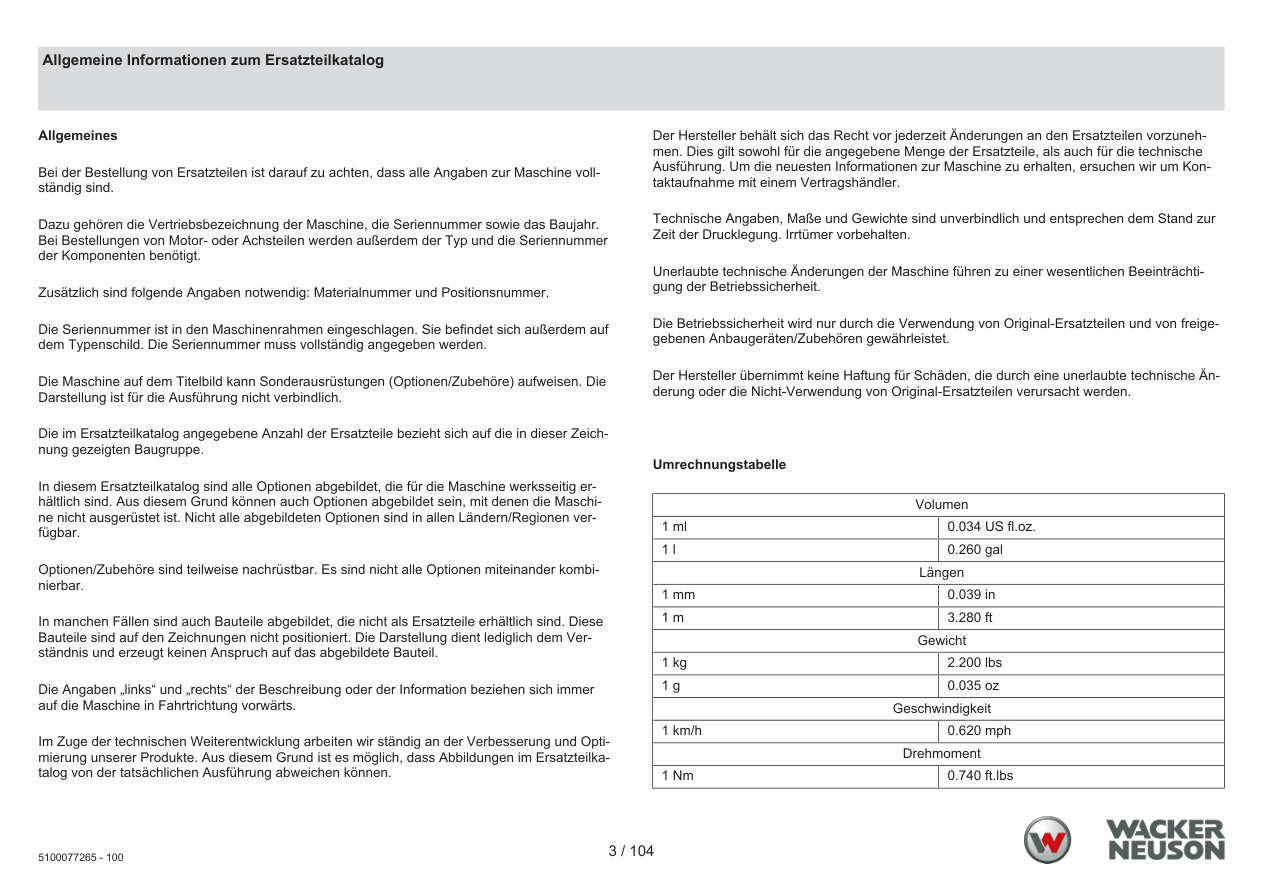

Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||

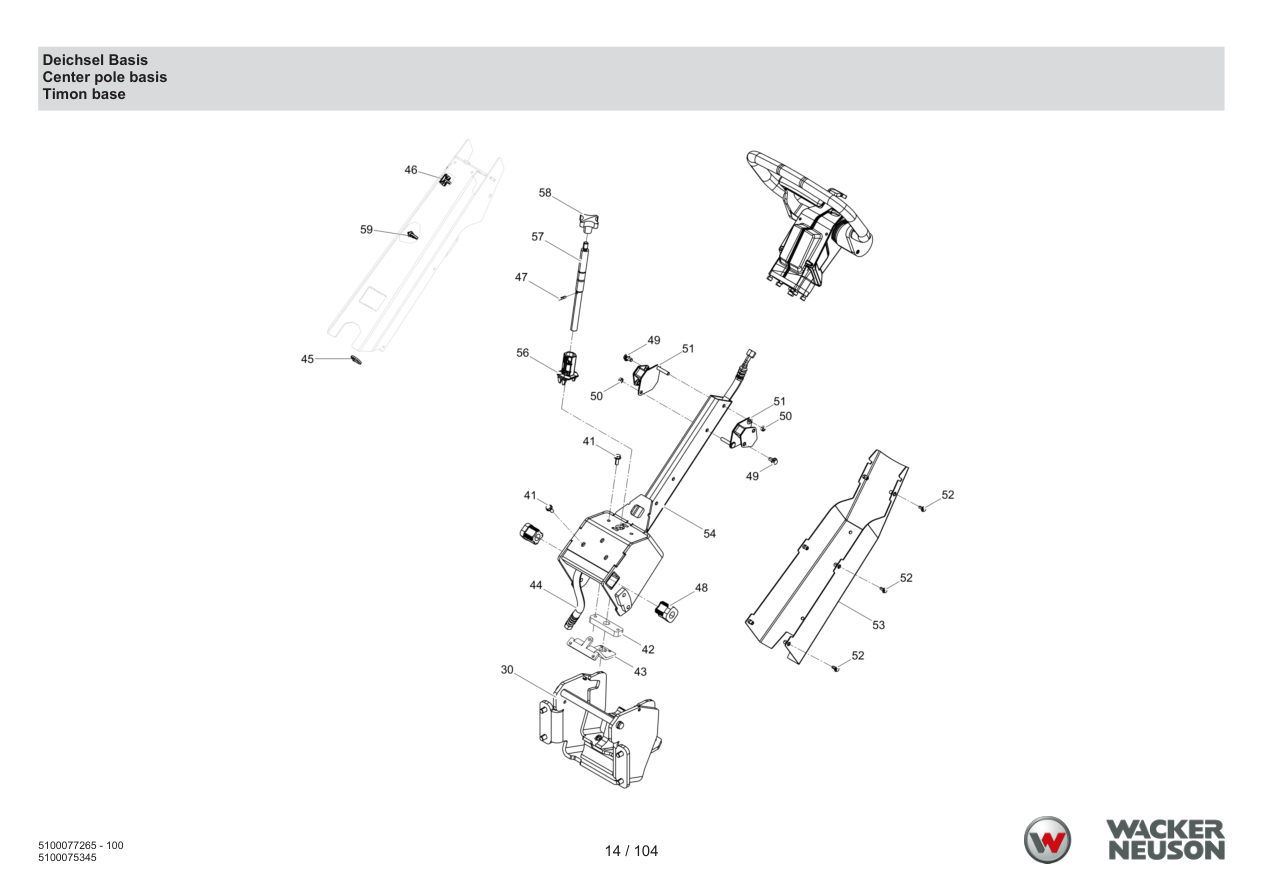

Page 14 — Center pole basis
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100069616 | Support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Support cpl.
5100069616 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 41 | 5000105944 | Screw | 5 | ADD TO CART | |
| 42 | 5100071927 | Threaded plate | 1 | ADD TO CART | |
| 43 | 5100071926 | Holder | 1 | ADD TO CART | |
| 44 | 5100070487 | Hose pipe | 1 | ADD TO CART | |
| 45 | 5000038489 | Tie cable | 3 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 3 | |||||
| 46 | 5100017849 | Clamp | 1 | ADD TO CART | |
| 47 | 5100070161 | Groove pin | 1 | ADD TO CART | |
| 48 | 5100069614 | Bushing | 2 | ADD TO CART | |
| 49 | 5000211795 | Corrugated-head screw | 8 | ADD TO CART | |
| 50 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |
| 51 | 5100073065 | Shockmount | 4 | ADD TO CART | |
| 52 | 5000210194 | Corrugated-head screw | 6 | ADD TO CART | |
| 53 | 5100069541 | Covering cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 54 | 5100069532 | Center pole lower part welded | 1 | ADD TO CART | |
| 56 | 5100069543 | Collar | 1 | ADD TO CART | |
| 57 | 5100069612 | Spindle | 1 | ADD TO CART | |
| 58 | 5100005496 | Star-handle | 1 | ADD TO CART | |
| 59 | 5100064264 | Cable tie | 2 | ADD TO CART | |

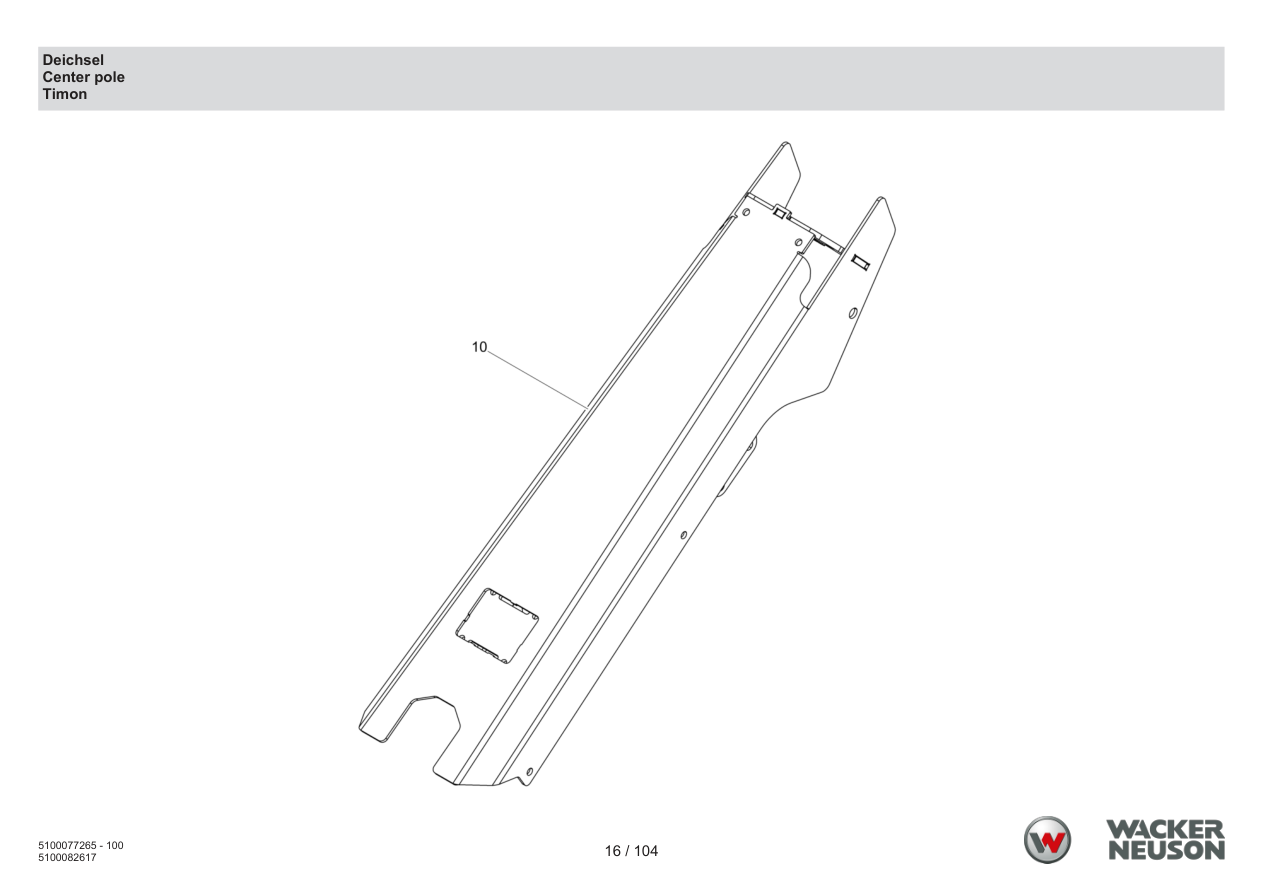

Page 16 — Center pole
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100069538 | Center pole | 1 | ADD TO CART | |

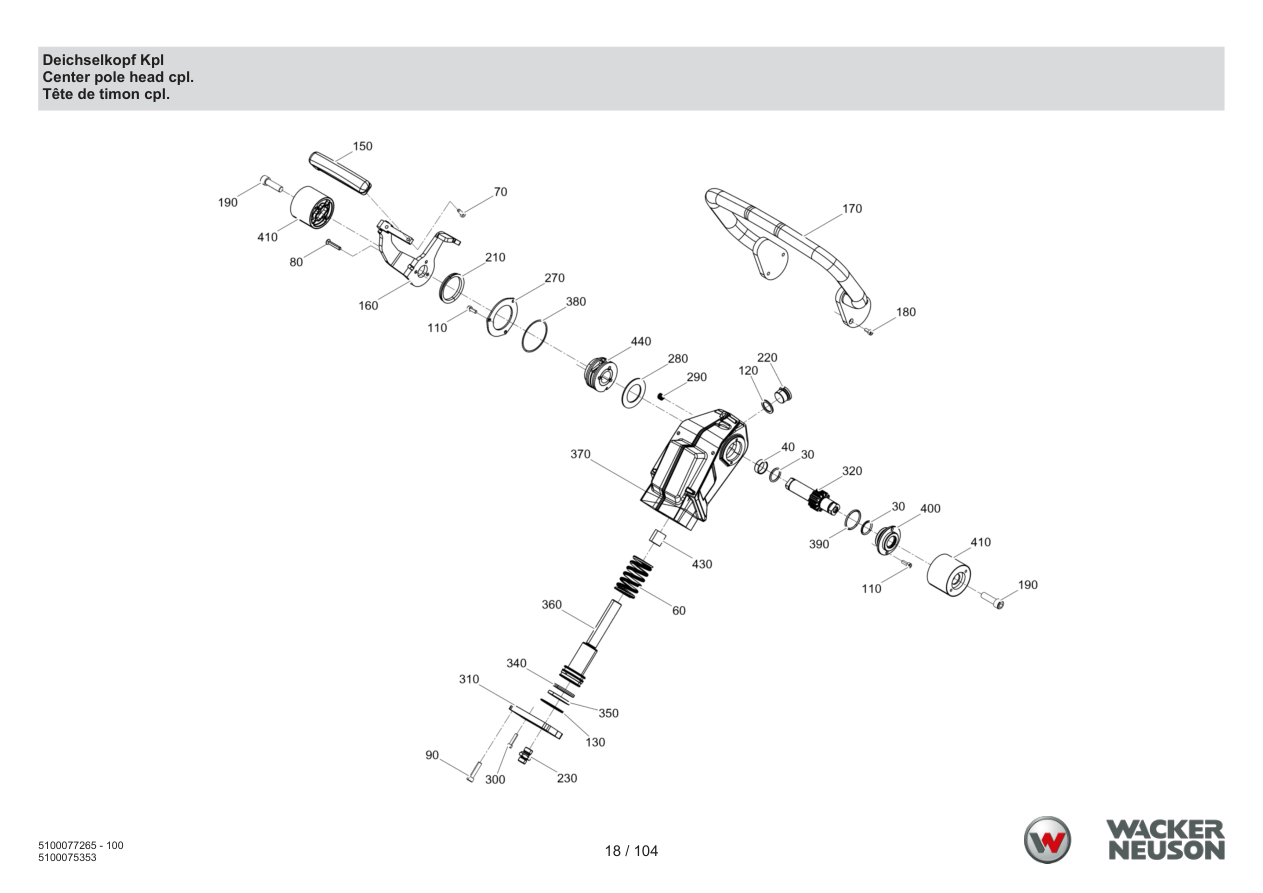

Page 18 — Center pole head cpl.
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100050265 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5100050265 · qty on machine: 2 | |||||
| 40 | 5100057490 | Bushing | 1 | ADD TO CART | |
| 60 | 5100047169 | Compression spring | 1 | ADD TO CART | |
| 70 | 5000222605 | Oval head screw | 2 | ADD TO CART | |
| 80 | 5100050634 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
5100050634 · qty on machine: 3 | |||||
| 90 | 5100078571 | Cheese head screw | 4 | ADD TO CART | |
| 110 | 5000011553 | Cheese head screw | 5 | ADD TO CART | |
| 120 | 5000032006 | Gasket | 1 | ADD TO CART | |
| 130 | 5100050264 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5100050264 · qty on machine: 1 | |||||
| 150 | 5100049058 | Gas lever | 1 | ADD TO CART | |
| 160 | 5100049057 | Speed control lever | 1 | ADD TO CART | |
| 170 | 5100049037 | Shackle | 1 | ADD TO CART | |
| 180 | 5000011554 | Cheese head screw | 4 | ADD TO CART | |
| 190 | 5000011527 | Cheese head screw | 2 | ADD TO CART | |
| 210 | 5100047194 | V-ring | 1 | ADD TO CART | |
| 220 | 5100019617 | Oil plug | 1 | ADD TO CART | |
| 230 | 5000069225 | Screwed socket | 1 | ADD TO CART | |
| 270 | 5100049052 | Cover disc | 1 | ADD TO CART | |
| 280 | 5100049047 | Check disc | 1 | ADD TO CART | |
| 290 | 5100050638 | Compression spring | 6 | ADD TO CART | |
| 300 | 5000011550 | Cheese head screw | 2 | ADD TO CART | |
| 310 | 5100049042 | Cylinder cover | 1 | ADD TO CART | |
| 320 | 5100049040 | Gear | 1 | ADD TO CART | |
| 340 | 5100047191 | Piston packing | 1 | ADD TO CART | |
| 350 | 5100047192 | Guide belt | 1 | ADD TO CART | |
| 360 | 5100049038 | Control piston | 1 | ADD TO CART | |
| 370 | 5100057461 | Center pole head | 1 | ADD TO CART | |
| 380 | 5100064265 | O-ring | 1 | ADD TO CART | |
| 390 | 5000068752 | O-ring | 1 | ADD TO CART | |
| 400 | 5100062246 | Bearing | 1 | ADD TO CART | |
| 410 | 5100064552 | Shockmount | 2 | ADD TO CART | |
| 430 | 5100069303 | Slide bush | 1 | ADD TO CART | |
| 440 | 5100057464 | Robe drum | 1 | ADD TO CART | |

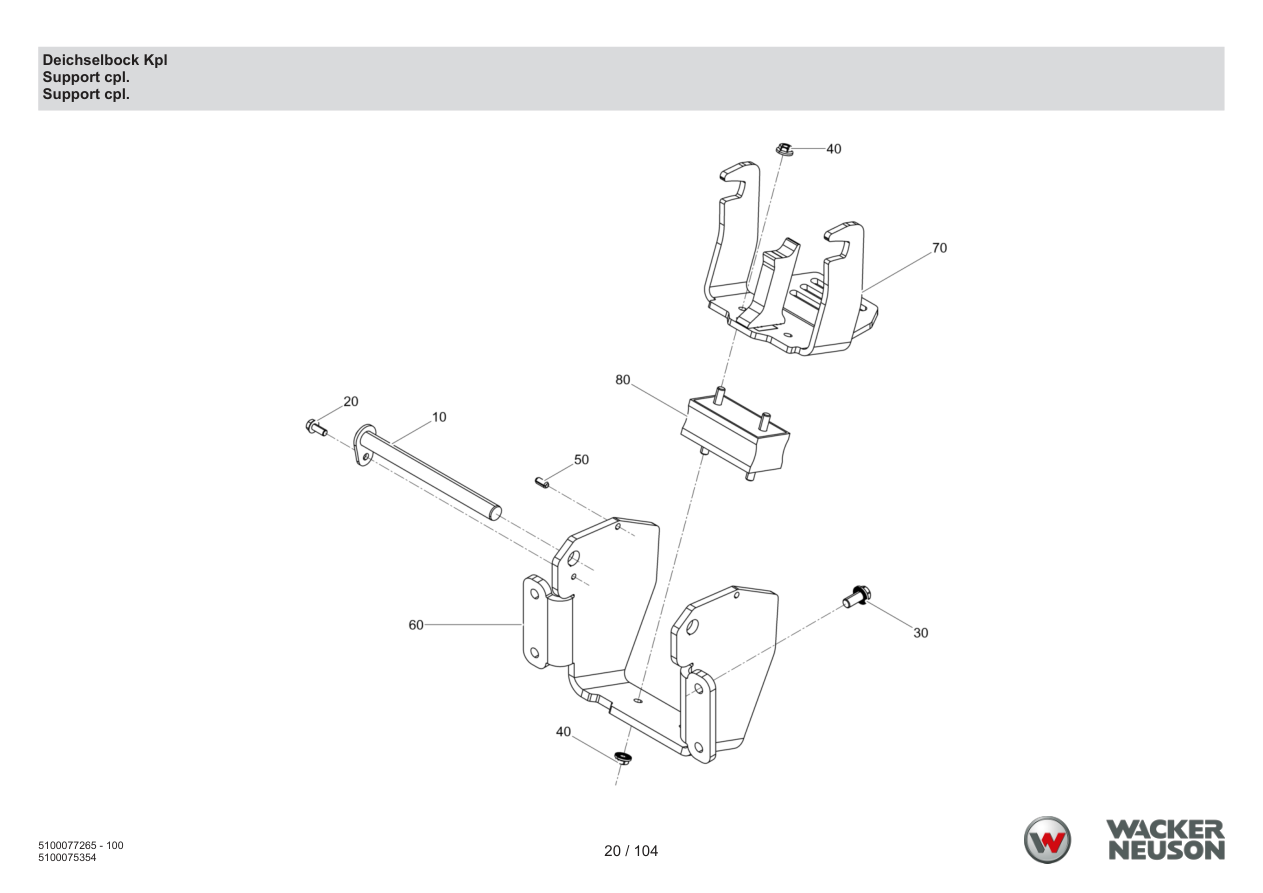

Page 20 — Support cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100005617 | Bolt | 1 | ADD TO CART | |
| 20 | 5000105944 | Screw | 1 | ADD TO CART | |
| 30 | 5100018059 | Corrugated-head screw | 4 | ADD TO CART | |
| 40 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 50 | 5100057239 | Roll pin | 2 | ADD TO CART | |
| 60 | 5100069520 | Support | 1 | ADD TO CART | |
| 70 | 5100069523 | Pedal welded | 1 | ADD TO CART | |
| 80 | 5100073066 | Shockmount | 1 | ADD TO CART | |

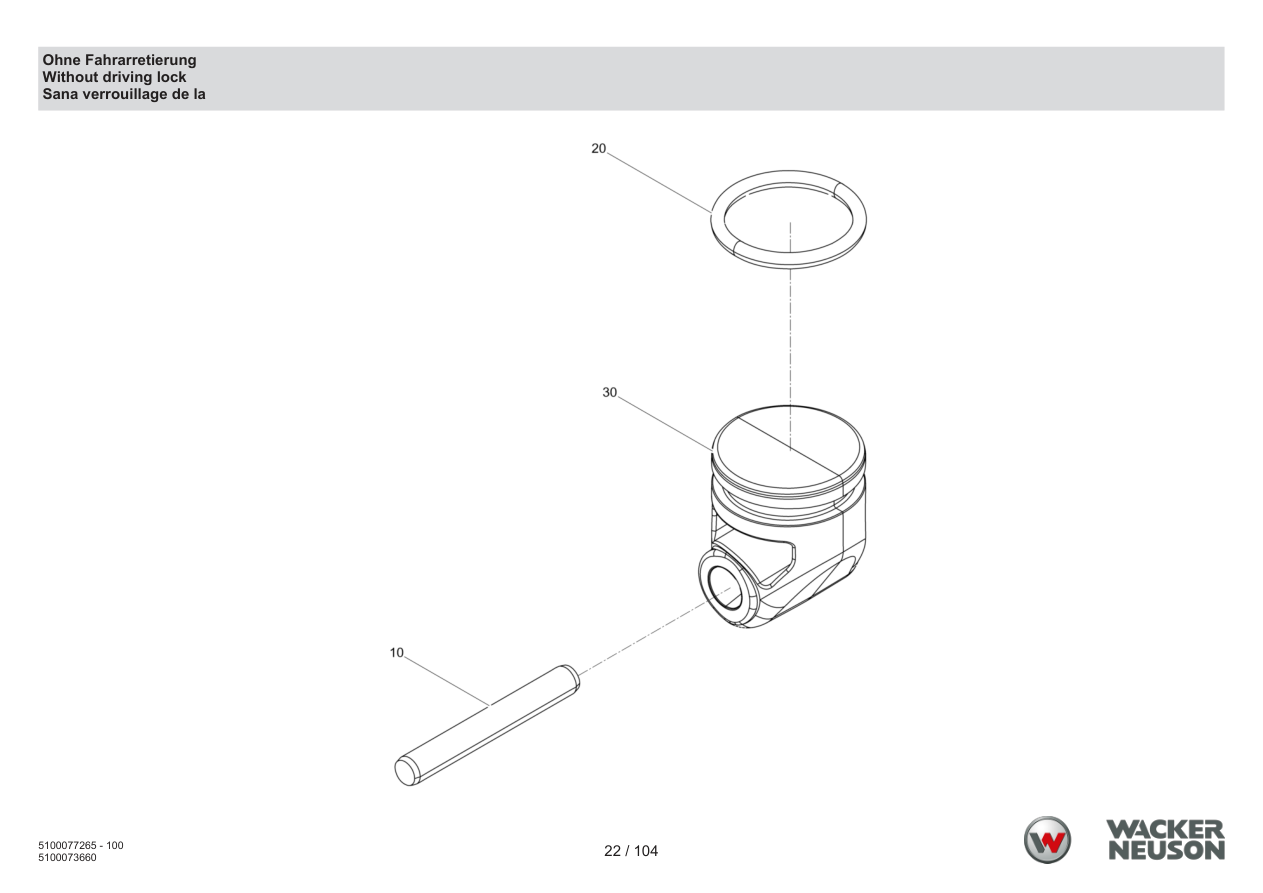

Page 22 — Without travel lock
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100050262 | Straight pin | 1 | PARTS REQUEST | |
|
COMING Straight pin
5100050262 · qty on machine: 1 | |||||
| 20 | 5100050265 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5100050265 · qty on machine: 1 | |||||
| 30 | 5100060887 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100060887 · qty on machine: 1 | |||||

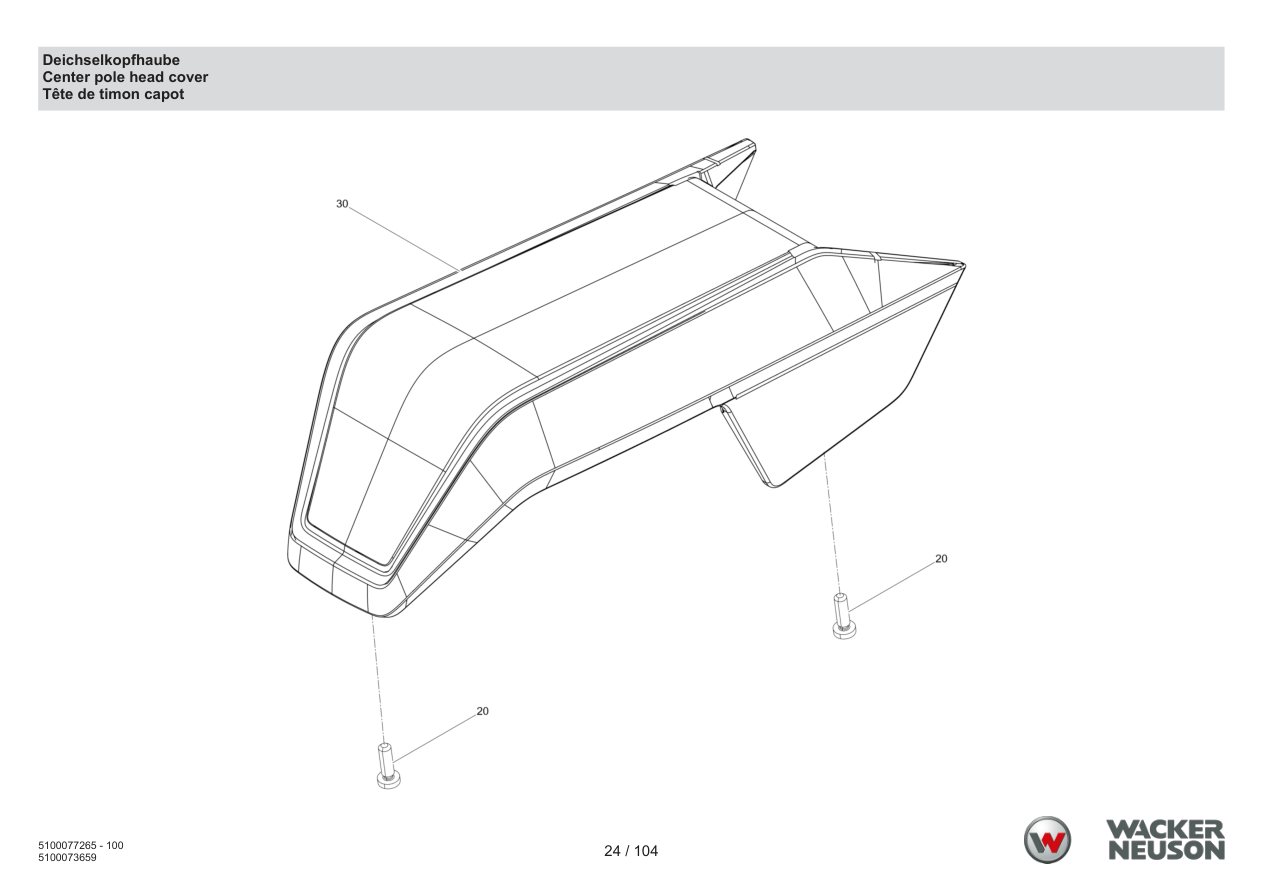

Page 24 — Center pole head cover
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5000222605 | Oval head screw | 5 | ADD TO CART | |
| 30 | 5100061975 | Bonnet | 1 | PARTS REQUEST | |
|
COMING Bonnet
5100061975 · qty on machine: 1 | |||||

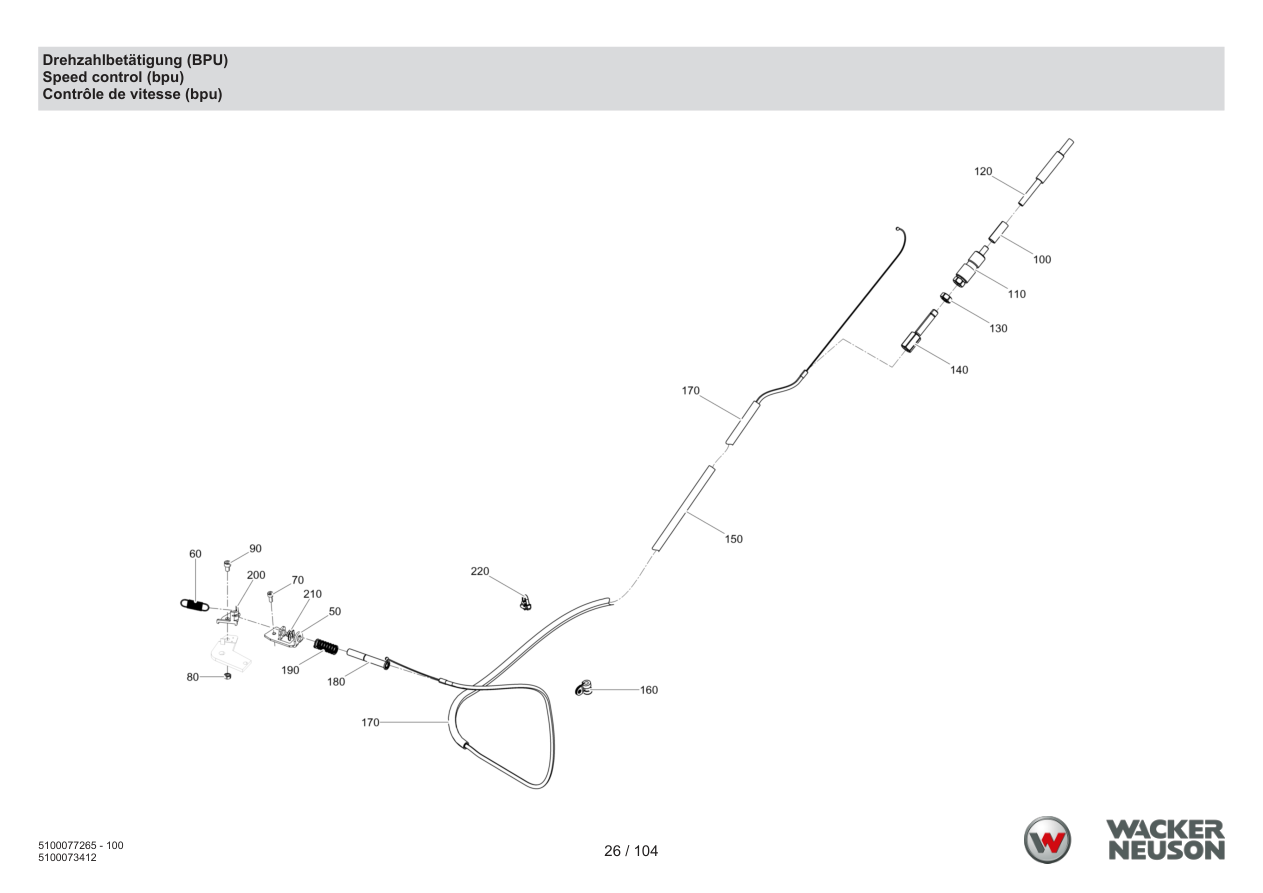

Page 26 — Speed control (bpu)
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100059257 | Holder | 1 | ADD TO CART | |
| 60 | 5100058139 | Tension spring | 1 | ADD TO CART | |
| 70 | 5000043307 | Cheese head screw | 1 | ADD TO CART | |
| 80 | 5000010880 | Hexagon nut | 1 | ADD TO CART | |
| 90 | 5000011555 | Cheese head screw | 1 | ADD TO CART | |
| 100 | 5100071801 | Hose piece | 1 | ADD TO CART | |
| 110 | 5100049056 | Bolt | 1 | ADD TO CART | |
| 120 | 5100049055 | Sleeve | 1 | ADD TO CART | |
| 130 | 5000010883 | Hexagon nut | 1 | ADD TO CART | |
| 140 | 5100058133 | Adjusting screw | 1 | ADD TO CART | |
| 150 | 5100068386 | Tube | 1 | ADD TO CART | |
| 160 | 5000212143 | Clamp | 1 | ADD TO CART | |
| 170 | 5100070485 | Bowden cable | 1 | ADD TO CART | |
| 180 | 5100068407 | Sleeve | 1 | ADD TO CART | |
| 190 | 5100068382 | Compression spring | 1 | ADD TO CART | |
| 200 | 5100059258 | Lever | 1 | ADD TO CART | |
| 210 | 5100068383 | Retaining ring | 1 | ADD TO CART | |
| 220 | 5100064264 | Cable tie | 1 | ADD TO CART | |

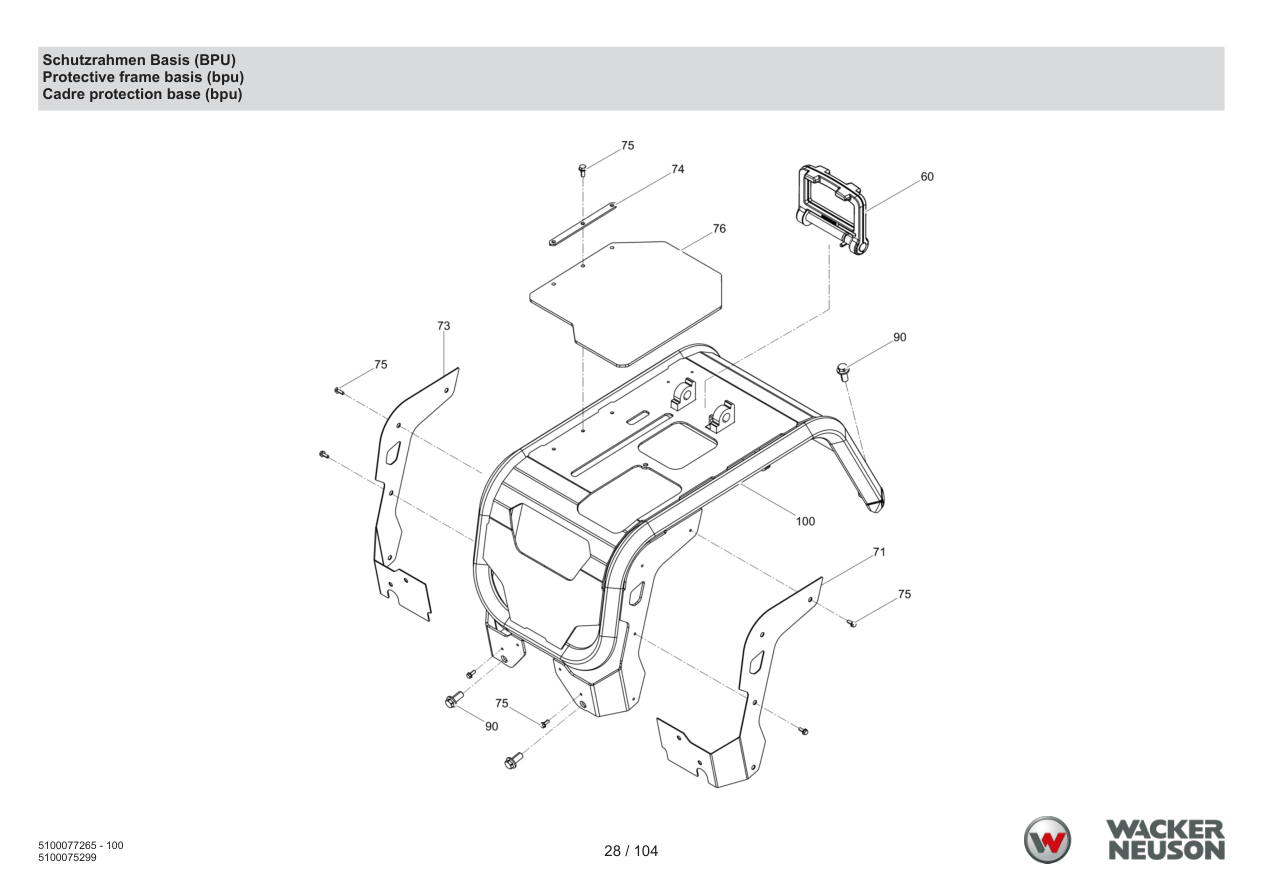

Page 28 — Protective frame basis (bpu)
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 60 | 5100059129 | Jack ring cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Jack ring cpl.
5100059129 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 71 | 5100059141 | Cover left | 1 | ADD TO CART | |
| 73 | 5100068461 | Cover right | 1 | ADD TO CART | |
| 74 | 5100071735 | Plate | 1 | ADD TO CART | |
| 75 | 5000105944 | Screw | 15 | ADD TO CART | |
| 76 | 5100077232 | Cover plate | 1 | PARTS REQUEST | |
|
COMING Cover plate
5100077232 · qty on machine: 1 | |||||
| 90 | 5100061590 | Corrugated-head screw | 4 | PARTS REQUEST | |
|
COMING Corrugated-head screw
5100061590 · qty on machine: 4 | |||||
| 100 | 5100059131 | Protective frame | 1 | ADD TO CART | |

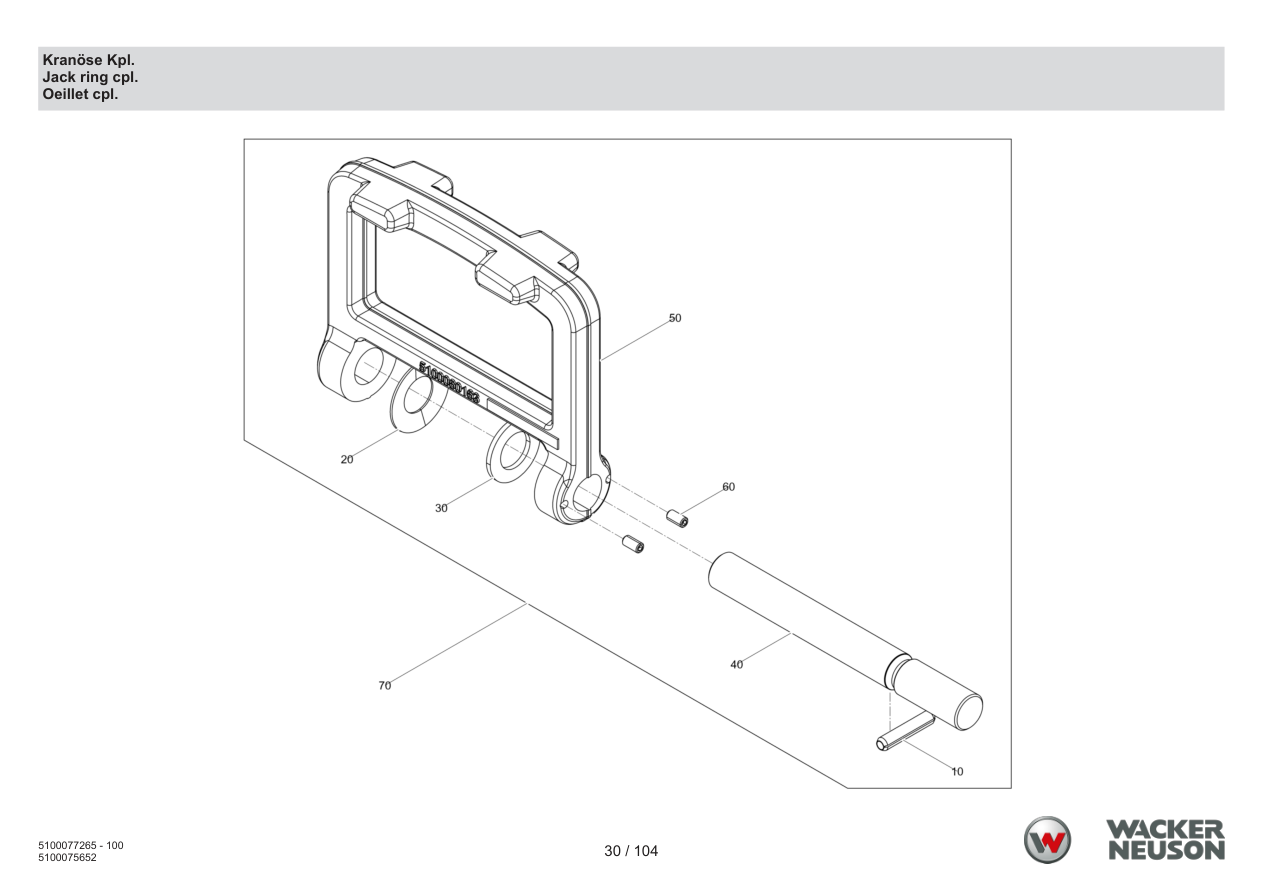

Page 30 — Jack ring cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058126 | Roll pin | 1 | ADD TO CART | |
| 20 | 5000202829 | Cup spring | 1 | ADD TO CART | |
| 30 | 5100058131 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5100058131 · qty on machine: 1 | |||||
| 40 | 5100057560 | Axle | 1 | ADD TO CART | |
| 50 | 5100057544 | Jack ring | 1 | ADD TO CART | |
| 60 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 70 | 5100059129 | Jack ring cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Jack ring cpl.
5100059129 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

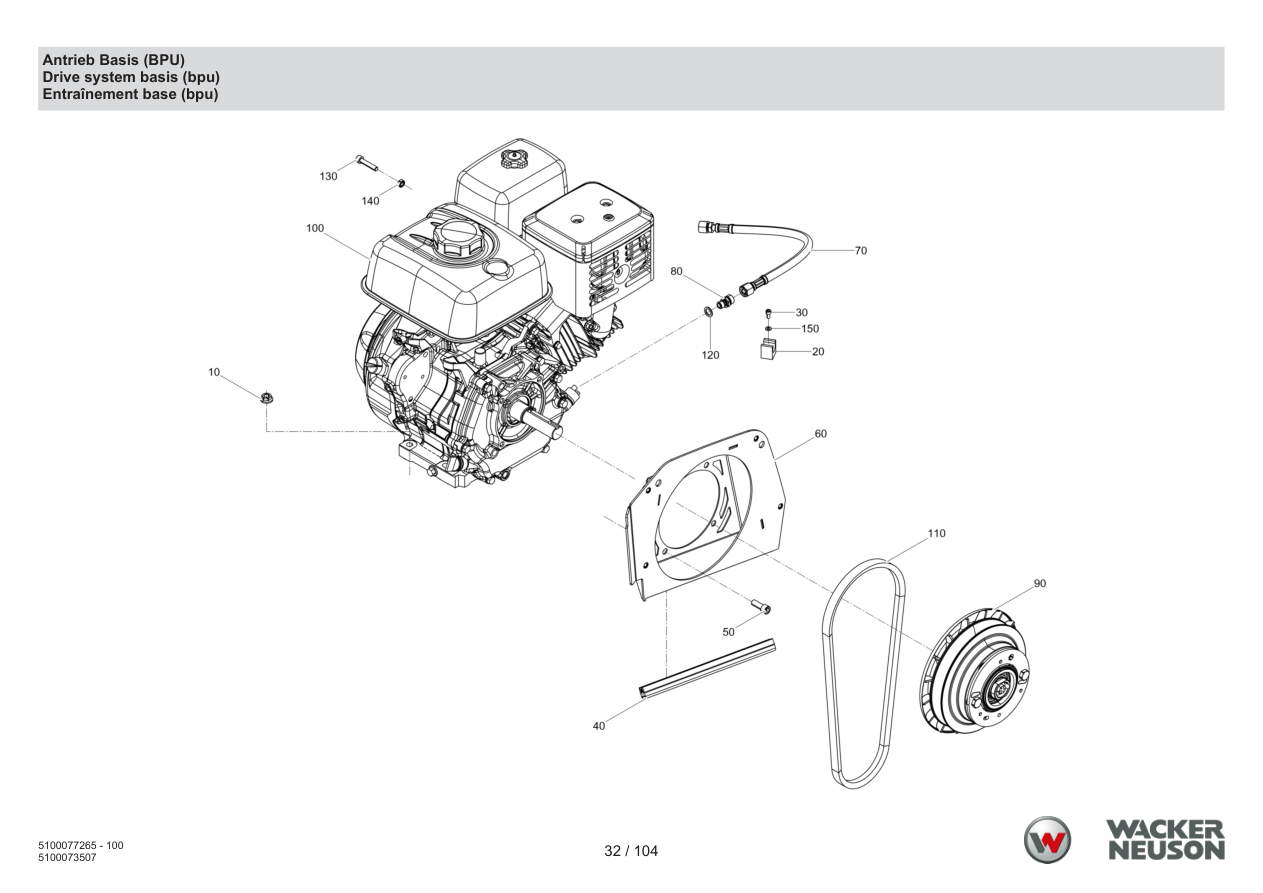

Page 32 — Drive system basis (bpu)
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 20 | 5100010281 | Clamp | 1 | ADD TO CART | |
| 30 | 5000024617 | Cheese head screw | 1 | ADD TO CART | |
| 40 | 5100066550 | Edge protection | 1 | ADD TO CART | |
| 50 | 5100077060 | Cheese head screw | 4 | ADD TO CART | |
| 60 | 5100059220 | Plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 70 | 5100058552 | Oil drain hose | 1 | ADD TO CART | |
| 80 | 5000125155 | Screwed socket | 1 | ADD TO CART | |
| 90 | 5100059247 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Coupling cpl.
5100059247 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 100 | 5100045997 | Gas engine | 1 | ADD TO CART | |
| 110 | 5000058889 | V-belt | 1 | ADD TO CART | |
| 120 | 5000013444 | Gasket | 1 | ADD TO CART | |
| 130 | 5000108180 | Cheese head screw | 1 | ADD TO CART | |
| 140 | 5000010879 | Hexagon nut | 1 | ADD TO CART | |
| 150 | 5000010625 | Flat washer | 1 | ADD TO CART | |

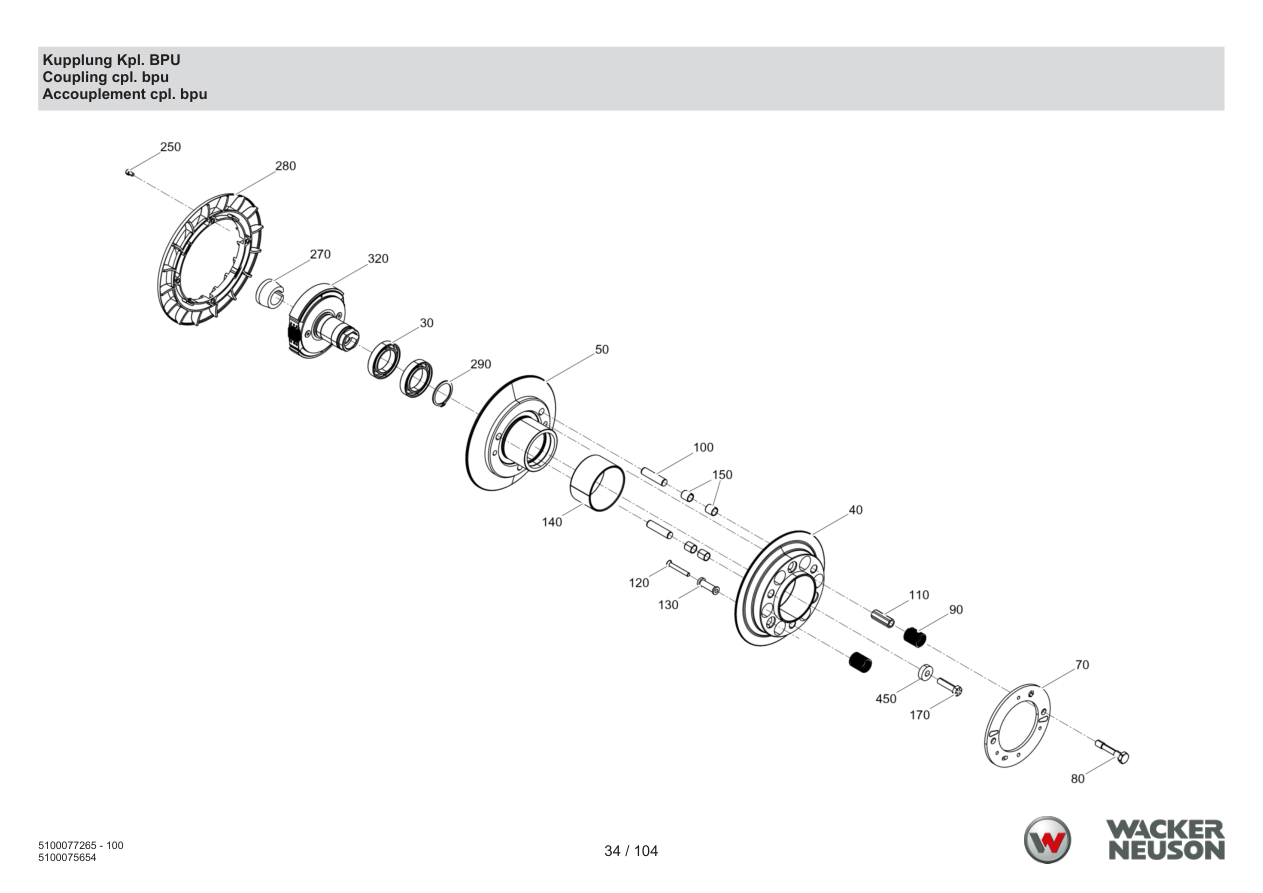

Page 34 — Coupling cpl. bpu
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100047174 | Grooved ball bearing | 2 | ADD TO CART | |
| 40 | 5100077229 | V-belt pulley half | 1 | ADD TO CART | |
| 50 | 5100077230 | Clutch drum | 1 | ADD TO CART | |
| 70 | 5100057035 | Covering | 1 | ADD TO CART | |
| 80 | 5100059965 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 90 | 5100050636 | Compression spring | 6 | ADD TO CART | |
| 100 | 5100057034 | Pin | 3 | ADD TO CART | |
| 110 | 5100057032 | Sleeve | 2 | ADD TO CART | |
| 120 | 5100057237 | Screw | 3 | ADD TO CART | |
| 130 | 5100057036 | Spacer | 3 | ADD TO CART | |
| 140 | 5100057492 | Bushing | 1 | ADD TO CART | |
| 150 | 5100057491 | Bushing | 6 | ADD TO CART | |
| 170 | 5100059958 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 250 | 5000049190 | Cheese head screw | 4 | ADD TO CART | |
| 270 | 5100070007 | Tightening element | 1 | ADD TO CART | |
| 280 | 5100066120 | Fan wheel | 1 | ADD TO CART | |
| 290 | 5002004474 | Retaining ring | 1 | ADD TO CART | |
| 320 | 5100068650 | Centrifugal clutch | 1 | ADD TO CART | |
| 450 | 5100077439 | Washer | 1 | ADD TO CART | |

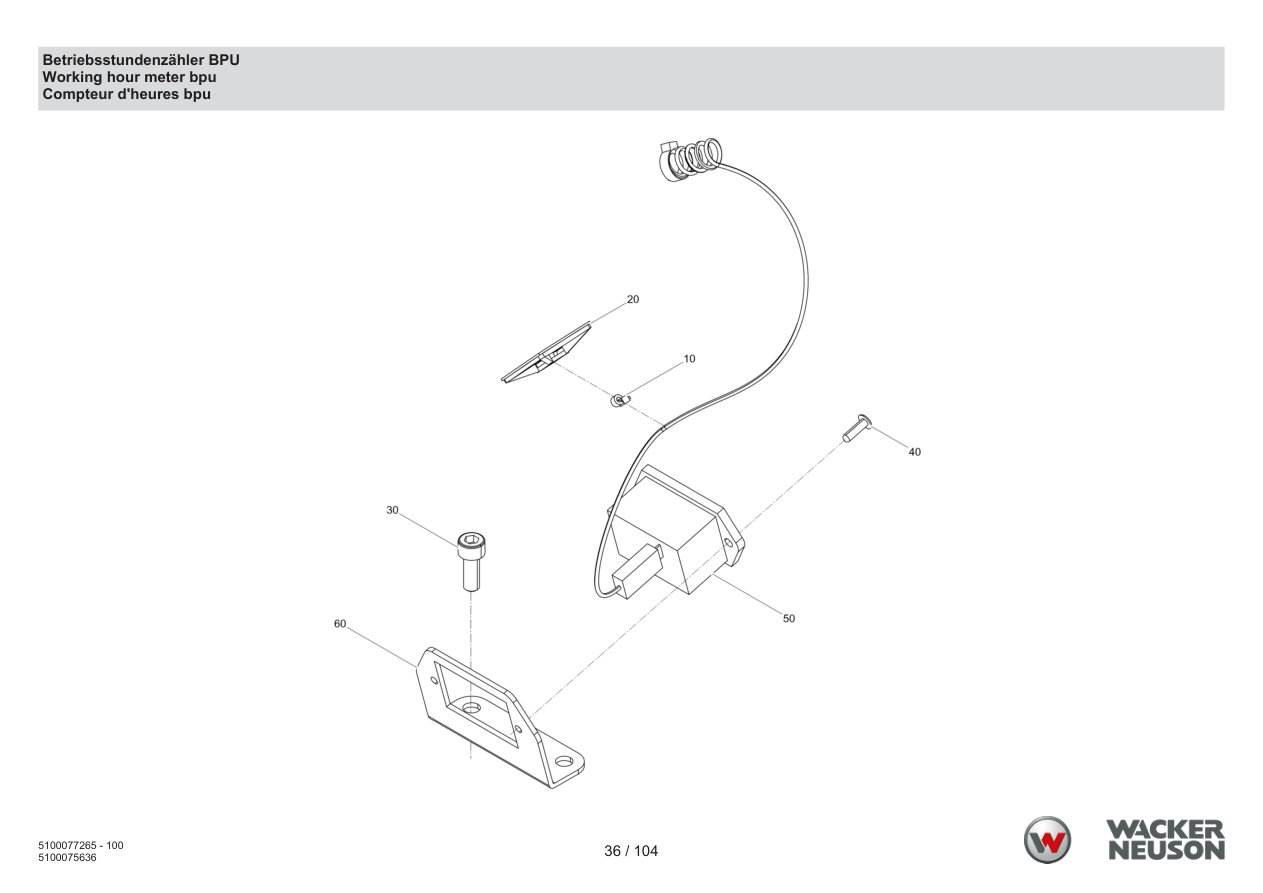

Page 36 — Working hour meter bpu
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100037079 | Cable tie | 1 | PARTS REQUEST | |
|
COMING Cable tie
5100037079 · qty on machine: 1 | |||||
| 20 | 5100017849 | Clamp | 1 | ADD TO CART | |
| 30 | 5000011553 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5100059277 | Blind rivet | 2 | PARTS REQUEST | |
|
COMING Blind rivet
5100059277 · qty on machine: 2 | |||||
| 50 | 5100034578 | Working hour meter | 1 | ADD TO CART | |
| 60 | 5100059246 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100059246 · qty on machine: 1 | |||||

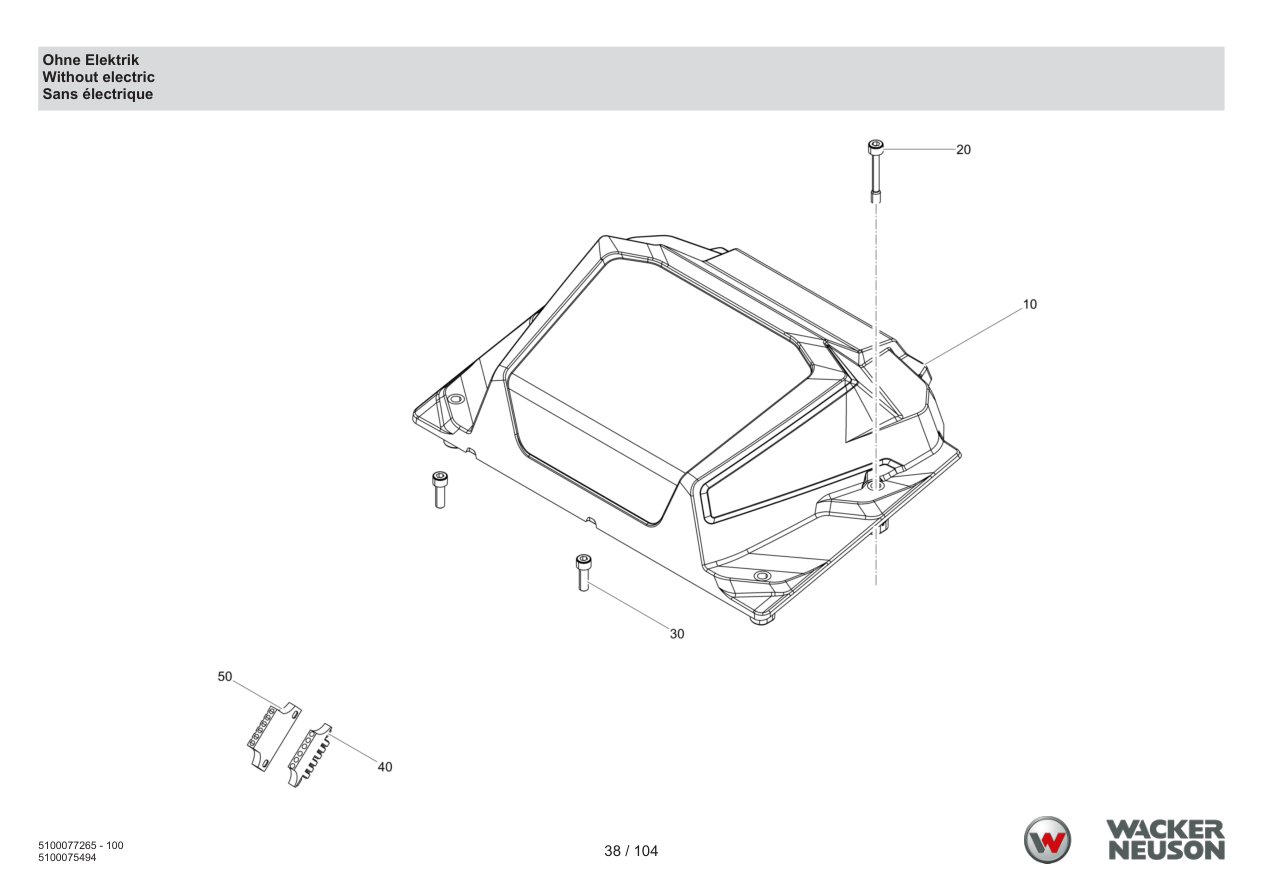

Page 38 — Without electrics
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100070049 | Battery protection | 1 | ADD TO CART | |
| 20 | 5000216659 | Screw | 4 | ADD TO CART | |
| 30 | 5000011542 | Cheese head screw | 2 | ADD TO CART | |
| 40 | 5000095073 | Plug (threaded) | 1 | ADD TO CART | |
| 50 | 5000095074 | Connector | 1 | ADD TO CART | |

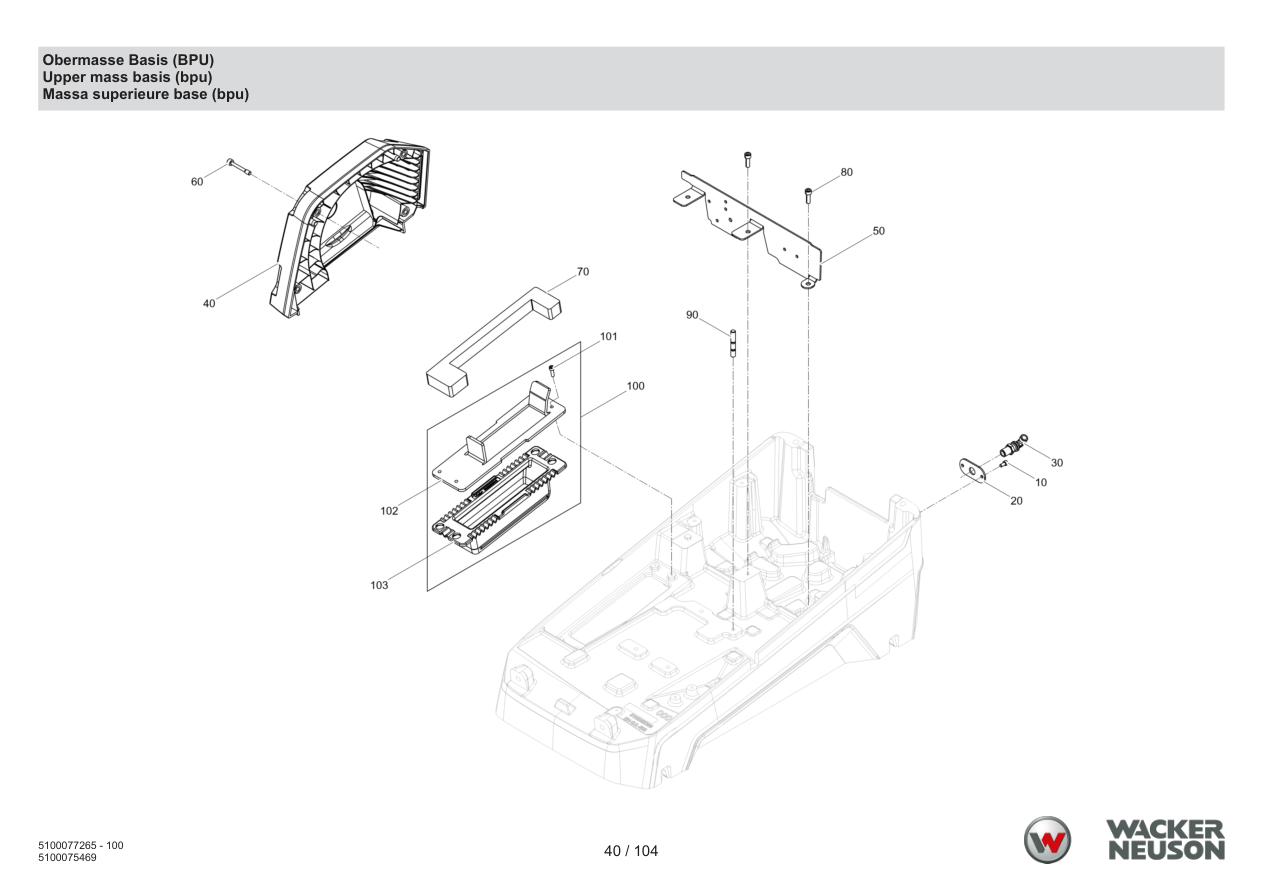

Page 40 — Upper mass base (BPU)
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011554 | Cheese head screw | 2 | ADD TO CART | |
| 20 | 5100072539 | Plate | 1 | ADD TO CART | |
| 30 | 5000205238 | Screw connection | 1 | ADD TO CART | |
| 40 | 5100059218 | Belt guard | 1 | ADD TO CART | |
| 50 | 5100070008 | Separating plate | 1 | ADD TO CART | |
| 60 | 5000216659 | Screw | 4 | ADD TO CART | |
| 70 | 5100066547 | Gasket | 1 | ADD TO CART | |
| 80 | 5000011542 | Cheese head screw | 3 | ADD TO CART | |
| 90 | 5100064496 | Stud bolt | 4 | ADD TO CART | |
| 100 | 5100071918 | Belt stabilizer cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 101 | 5000011551 | Cheese head screw | 1 | ADD TO CART | |
| 102 | 5100056999 | Stone guard | 4 | ADD TO CART | |
| 103 | 5100058915 | Belt stabilizer | 1 | ADD TO CART | |

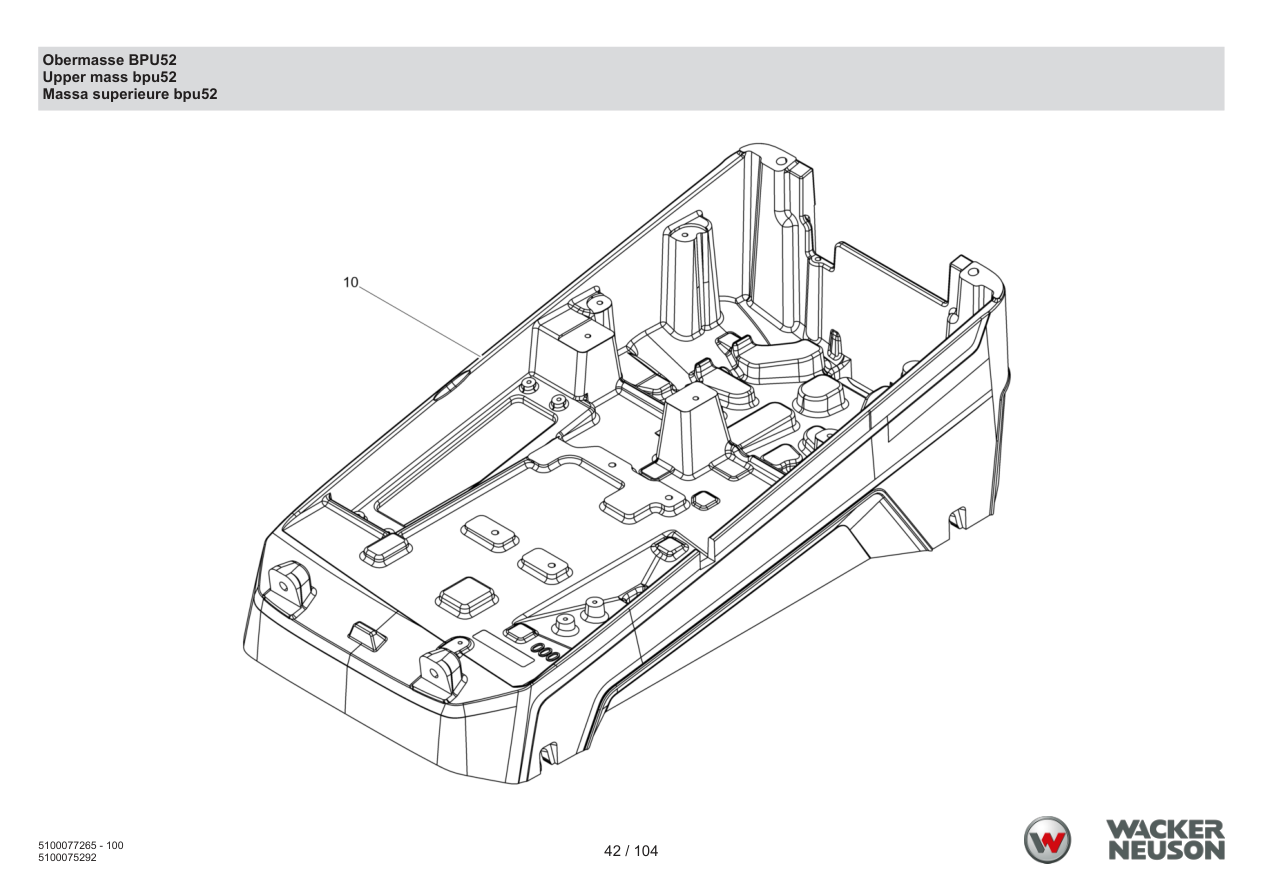

Page 42 — Upper mass BPU52
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100062070 | Upper mass | 1 | ADD TO CART | |

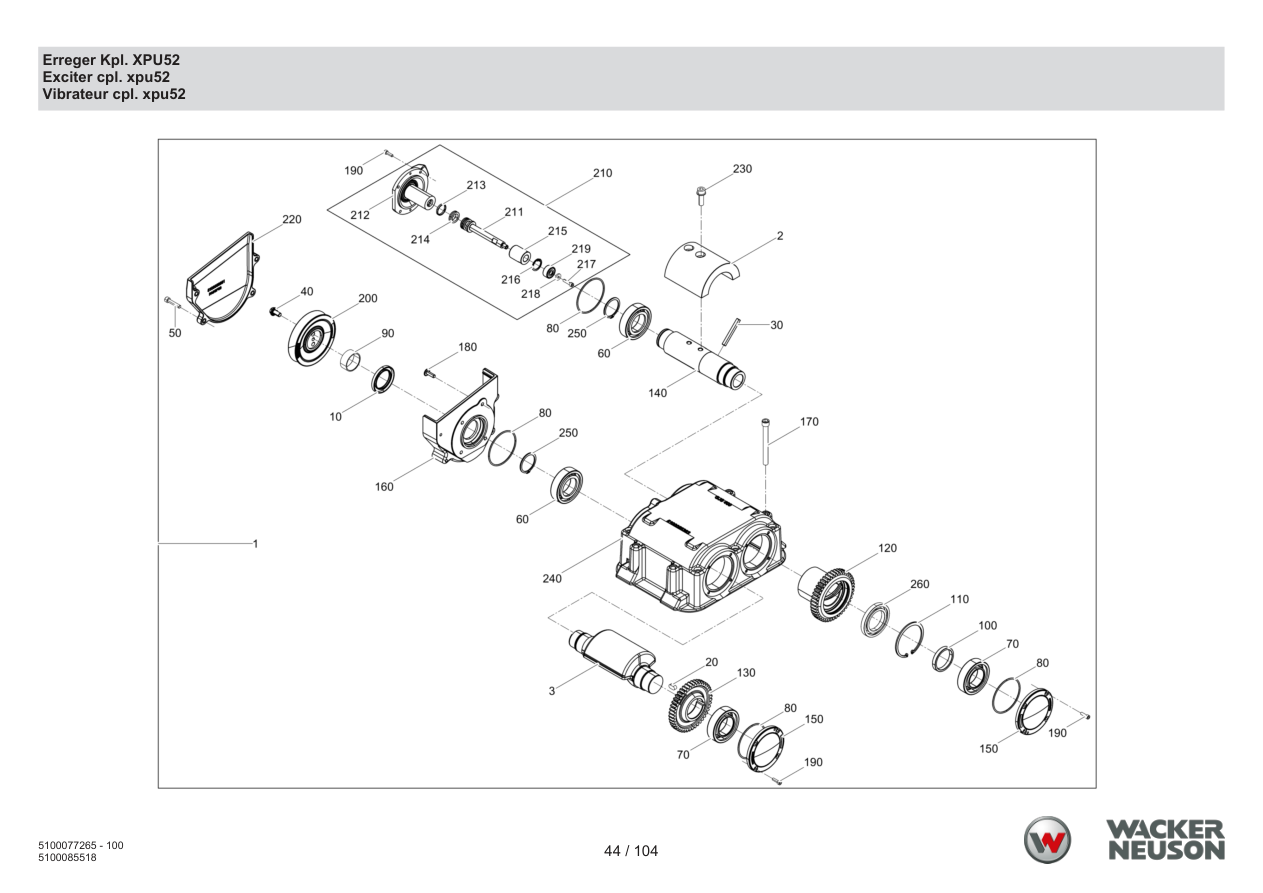

Page 44 — Exciter cpl. xpu52
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100084738 | Exciter cpl. xpu52 | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. xpu52
5100084738 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100057708 | Eccentric weight | 1 | ADD TO CART | |
| 3 | 5100056586 | Eccentric shaft | 1 | ADD TO CART | |
| 10 | 5100047183 | Rotary shaft seal | 1 | ADD TO CART | |
| 20 | 5100047188 | Fitting key | 1 | ADD TO CART | |
| 30 | 5100047408 | Tripping pin | 1 | ADD TO CART | |
| 40 | 5100068052 | Corrugated-head screw | 2 | ADD TO CART | |
| 50 | 5000011539 | Cheese head screw | 4 | ADD TO CART | |
| 60 | 5100057784 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 70 | 5100057783 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 80 | 5100010516 | O-ring | 4 | ADD TO CART | |
| 90 | 5100047189 | Bearing inner ring | 1 | ADD TO CART | |
| 100 | 5100047403 | Spacer sleeve | 1 | PARTS REQUEST | |
|
COMING Spacer sleeve
5100047403 · qty on machine: 1 | |||||
| 110 | 5002007057 | Retaining ring | 1 | ADD TO CART | |
| 120 | 5100047166 | Adjusting sleeve | 1 | ADD TO CART | |
| 130 | 5100047168 | Gear wheel | 1 | ADD TO CART | |
| 140 | 5100056768 | Hollow shaft xpu | 1 | ADD TO CART | |
| 150 | 5100056765 | Cover | 2 | ADD TO CART | |
| 160 | 5100056860 | Belt guard | 1 | ADD TO CART | |
| 170 | 5000094518 | Cheese head screw | 10 | ADD TO CART | |
| 180 | 5100077058 | Pan head screw | 4 | ADD TO CART | |
| 190 | 5100082309 | Cheese head screw m 6x 20 | 12 | PARTS REQUEST | |
|
COMING Cheese head screw m 6x 20
5100082309 · qty on machine: 12 | |||||
| 200 | 5100048224 | V-belt pulley | 1 | ADD TO CART | |
| 210 | 5100058928 | Adjustment cylinder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 211 | 5100056998 | Piston rod | 1 | ADD TO CART | |
| 212 | 5100056997 | Adjustment cylinder | 1 | ADD TO CART | |
| 213 | 5100047190 | Piston guide ring | 1 | ADD TO CART | |
| 214 | 5100047193 | Grooved ring | 1 | ADD TO CART | |
| 215 | 5100047406 | Piston | 1 | ADD TO CART | |
| 216 | 5100047184 | Retaining ring | 1 | ADD TO CART | |
| 217 | 5000220001 | Cheese head screw | 1 | ADD TO CART | |
| 218 | 5000124717 | Washer | 1 | ADD TO CART | |
| 218 | 5100047119 | Inclined ball bearing | 1 | ADD TO CART | |
| 220 | 5100056861 | Belt guard cover | 1 | ADD TO CART | |
| 230 | 5000220325 | Screw | 2 | ADD TO CART | |
| 240 | 5100055384 | Exciter housing | 1 | ADD TO CART | |
| 250 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 260 | 5000220133 | Grooved ball bearing | 1 | ADD TO CART | |

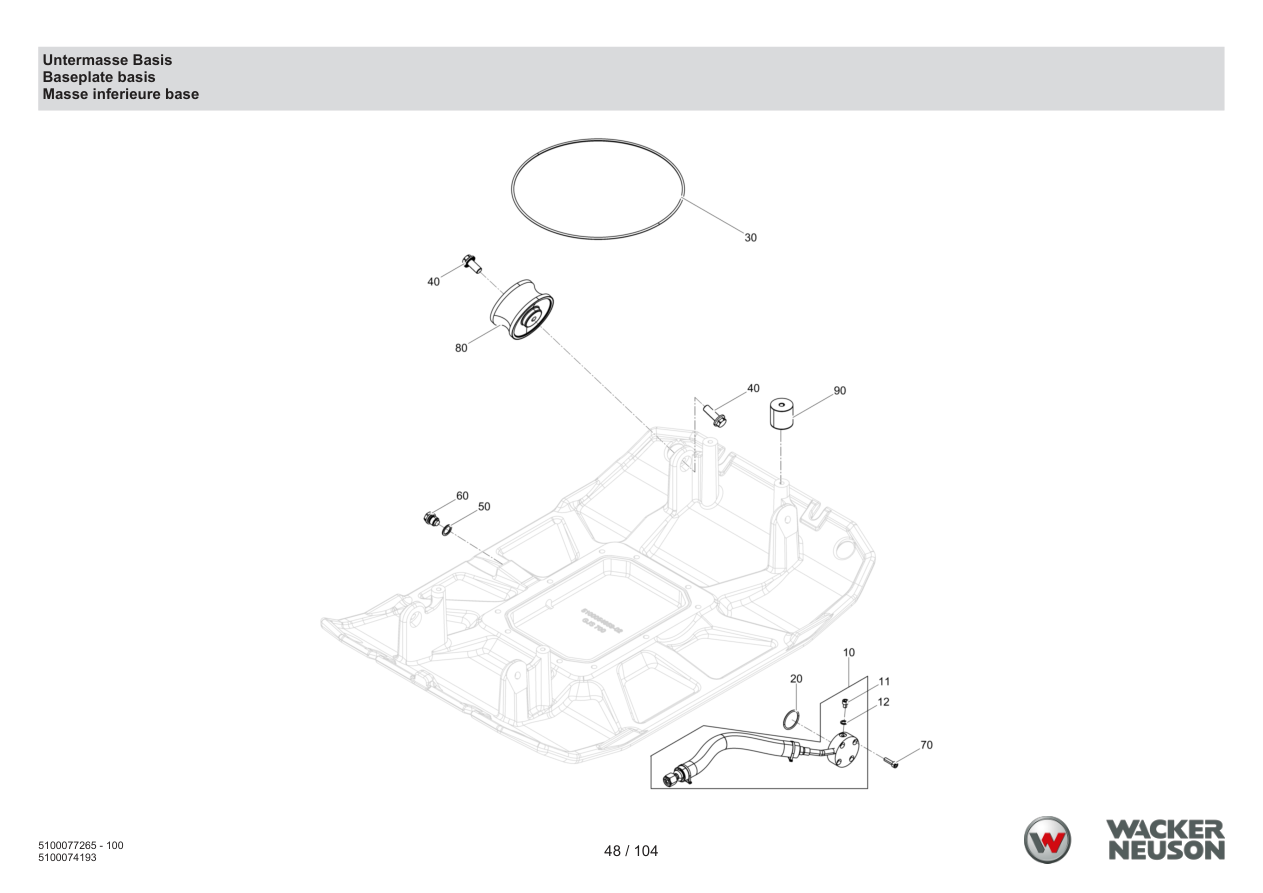

Page 48 — Lower mass base
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100046191 | Hose pipe | 1 | ADD TO CART | |
| 11 | 5000014425 | Cheese head screw | 1 | PARTS REQUEST | |
|
COMING Cheese head screw
5000014425 · qty on machine: 1 | |||||
| 12 | 5100022402 | Gasket | 1 | ADD TO CART | |
| 20 | 5100047663 | O-ring | 1 | ADD TO CART | |
| 30 | 5100057493 | O-ring | 1 | ADD TO CART | |
| 40 | 5100018059 | Corrugated-head screw | 8 | ADD TO CART | |
| 50 | 5100047185 | Seal ring | 1 | ADD TO CART | |
| 60 | 5000014535 | Plug (threaded) | 1 | ADD TO CART | |
| 70 | 5000012373 | Cheese head screw | 4 | ADD TO CART | |
| 80 | 5002004814 | Shockmount | 4 | ADD TO CART | |
| 90 | 5000216644 | Shockmount | 4 | ADD TO CART | |

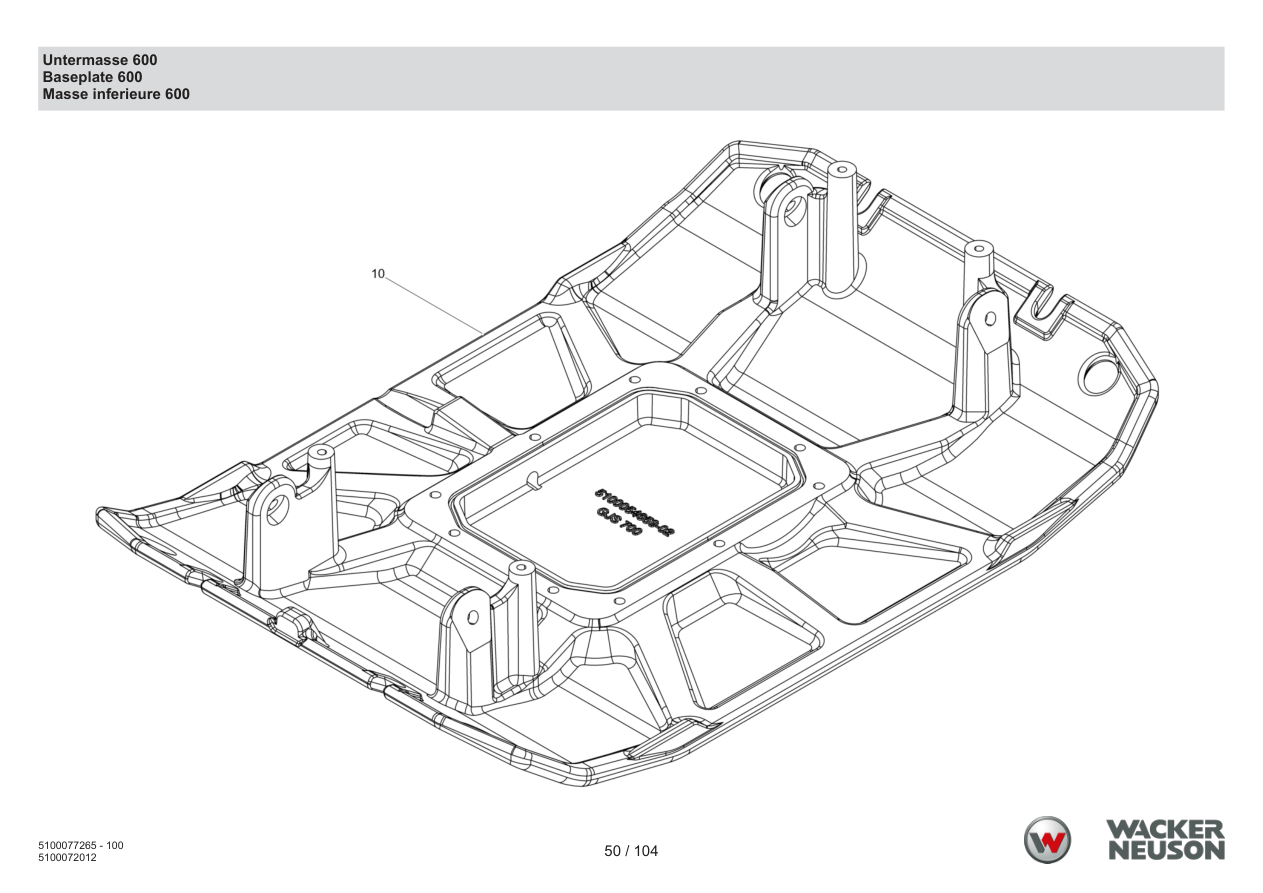

Page 50 — Lower mass 600
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100055380 | Baseplate | 1 | ADD TO CART | |

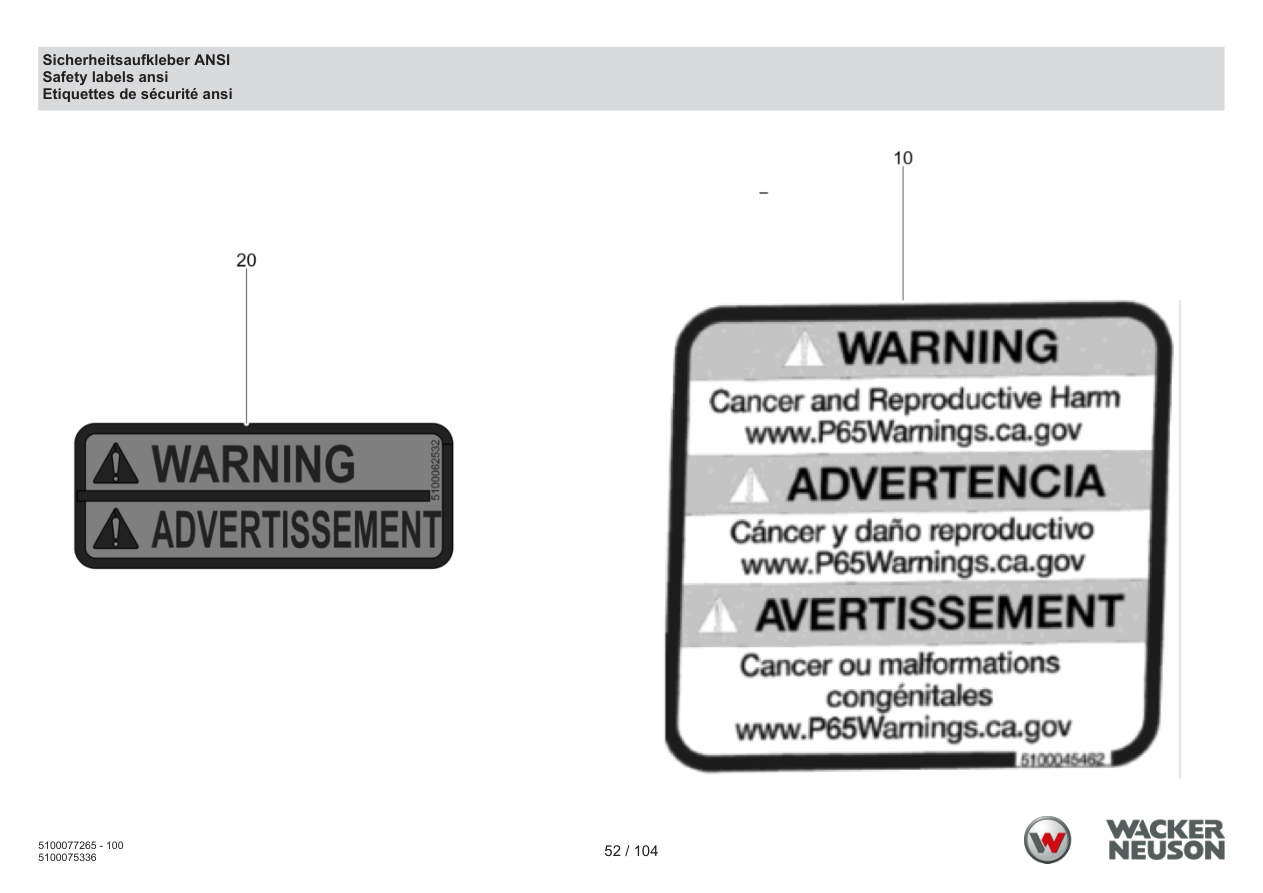

Page 52 — Safety decals ANSI
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 20 | 5100062532 | Label | 1 | ADD TO CART | |

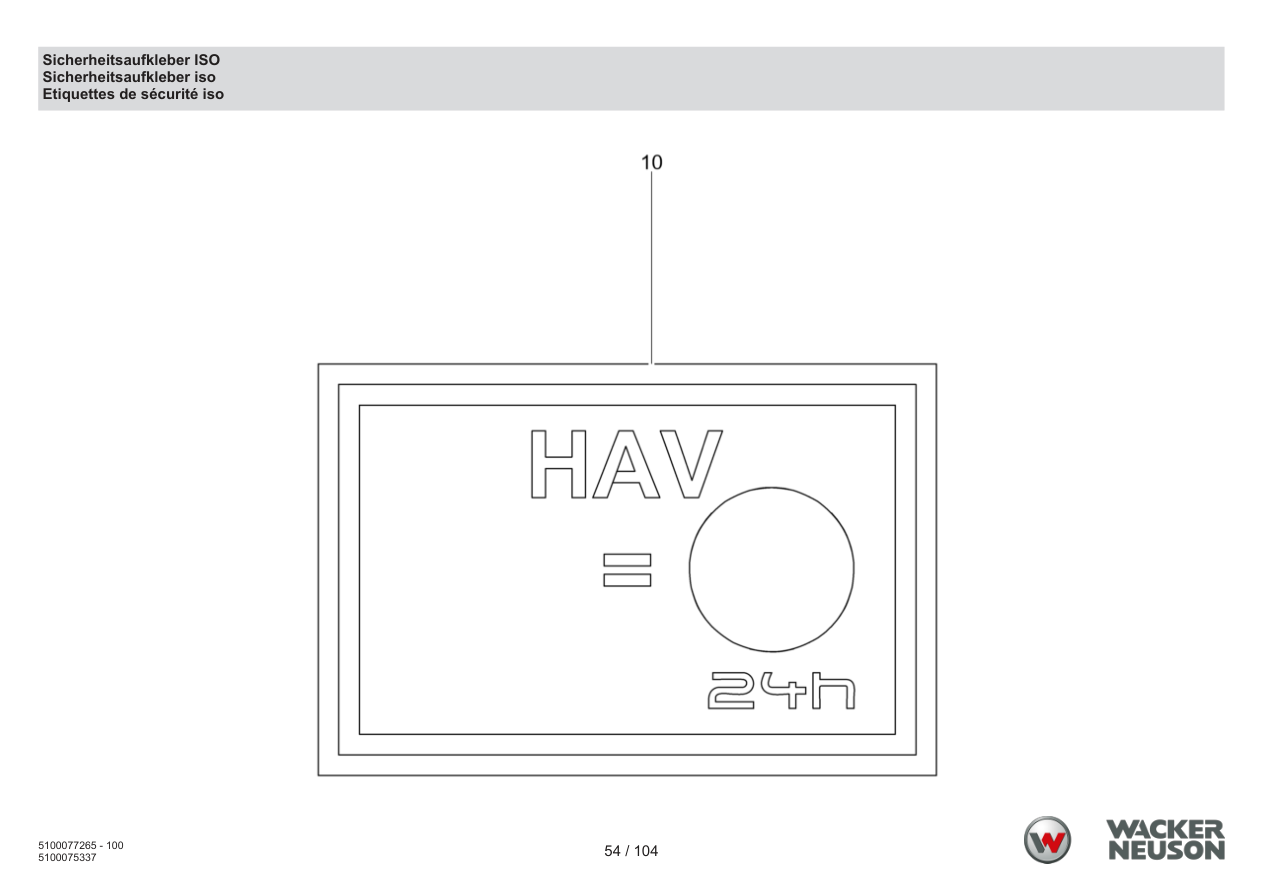

Page 54 — Safety decals ISO
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100011227 | Label hav 24h | 1 | ADD TO CART | |

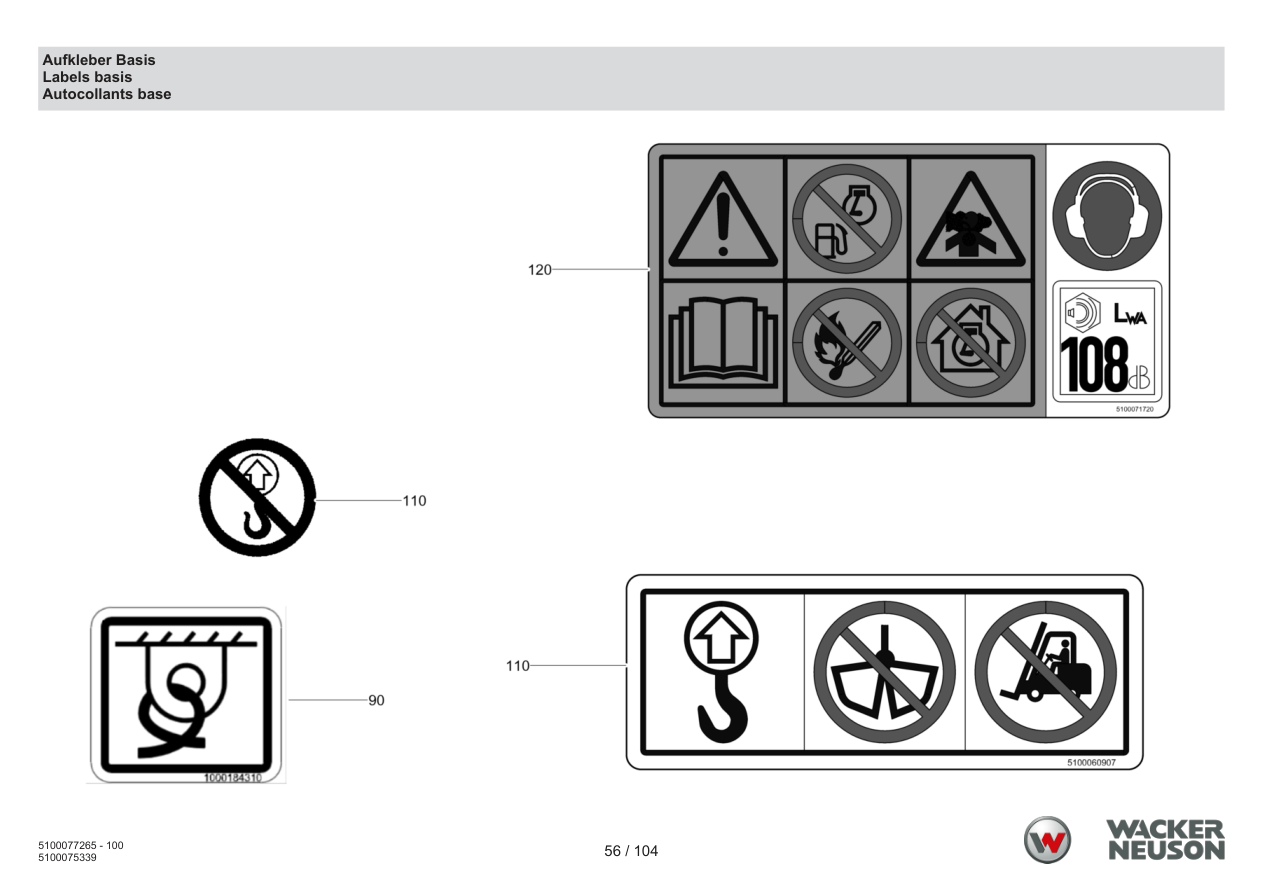

Page 56 — Decal base
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 90 | 5100085618 | Label | 8 | PARTS REQUEST | |
|
COMING Label
5100085618 · qty on machine: 8 | |||||
| 100 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 110 | 5100060907 | Label | 1 | ADD TO CART | |
| 120 | 5100071720 | Label sdcl_exhaust fumes om | 1 | ADD TO CART | |

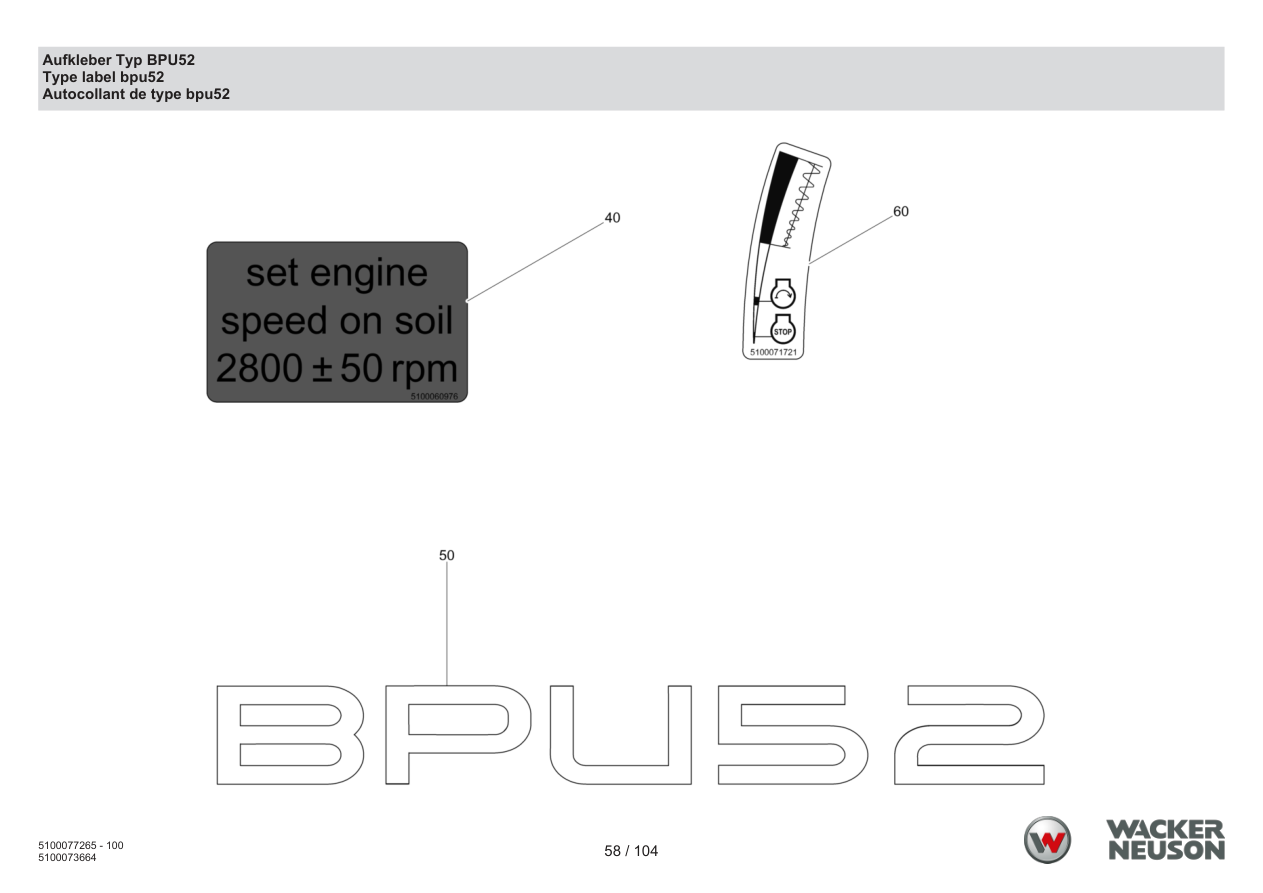

Page 58 — Decal type BPU52
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 40 | 5100080753 | Type label bpu52 | 2 | PARTS REQUEST | |
|
COMING Type label bpu52
5100080753 · qty on machine: 2 | |||||
| 50 | 5100060976 | Label | 1 | ADD TO CART | |
| 60 | 5100071721 | Label idcl_speed dpu | 1 | ADD TO CART | |

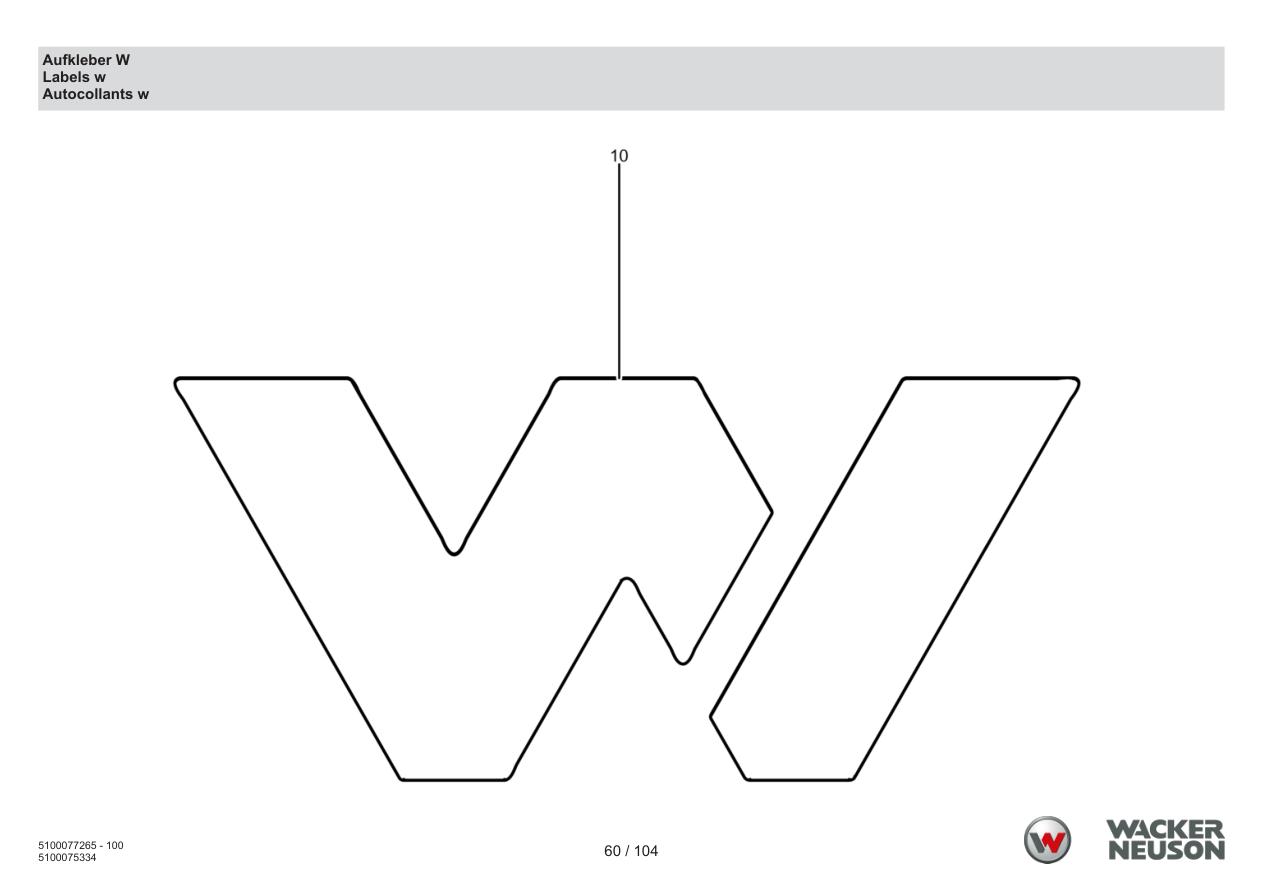

Page 60 — Decal W
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058733 | Label symbol | 2 | ADD TO CART | |

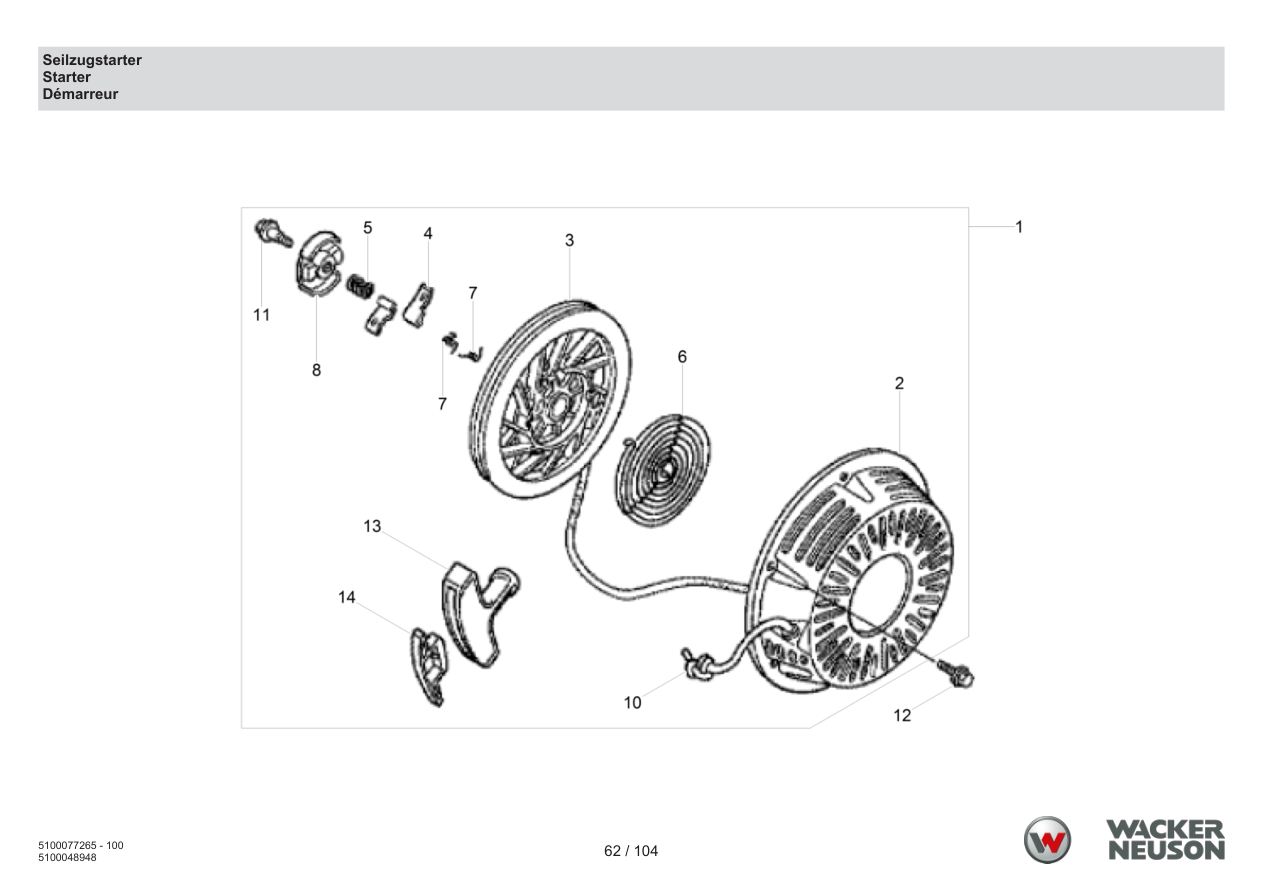

Page 62 — Recoil starter
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100003448 | Recoil starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Recoil starter cpl.
5100003448 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000082839 | Starter housing | 1 | ADD TO CART | |
| 3 | 5000082840 | Starter pulley | 1 | ADD TO CART | |
| 4 | 5000081645 | Ratchet | 2 | ADD TO CART | |
| 5 | 5000081646 | Spring | 1 | ADD TO CART | |
| 6 | 5000081647 | Spring | 1 | ADD TO CART | |
| 7 | 5000081648 | Spring | 2 | ADD TO CART | |
| 8 | 5000081649 | Spring housing | 1 | ADD TO CART | |
| 10 | 5000082842 | Rope | 1 | PARTS REQUEST | |
|
COMING Rope
5000082842 · qty on machine: 1 | |||||
| 11 | 5000081658 | Screw | 1 | ADD TO CART | |
| 12 | 5000158458 | Flange bolt | 3 | ADD TO CART | |
| 13 | 5100000428 | Handle | 1 | PARTS REQUEST | |
|
COMING Handle
5100000428 · qty on machine: 1 | |||||
| 13 | 5100039004 | Handle | 1 | PARTS REQUEST | |
|
COMING Handle
5100039004 · qty on machine: 1 | |||||
| 14 | 5100000429 | Handle | 1 | ADD TO CART | |

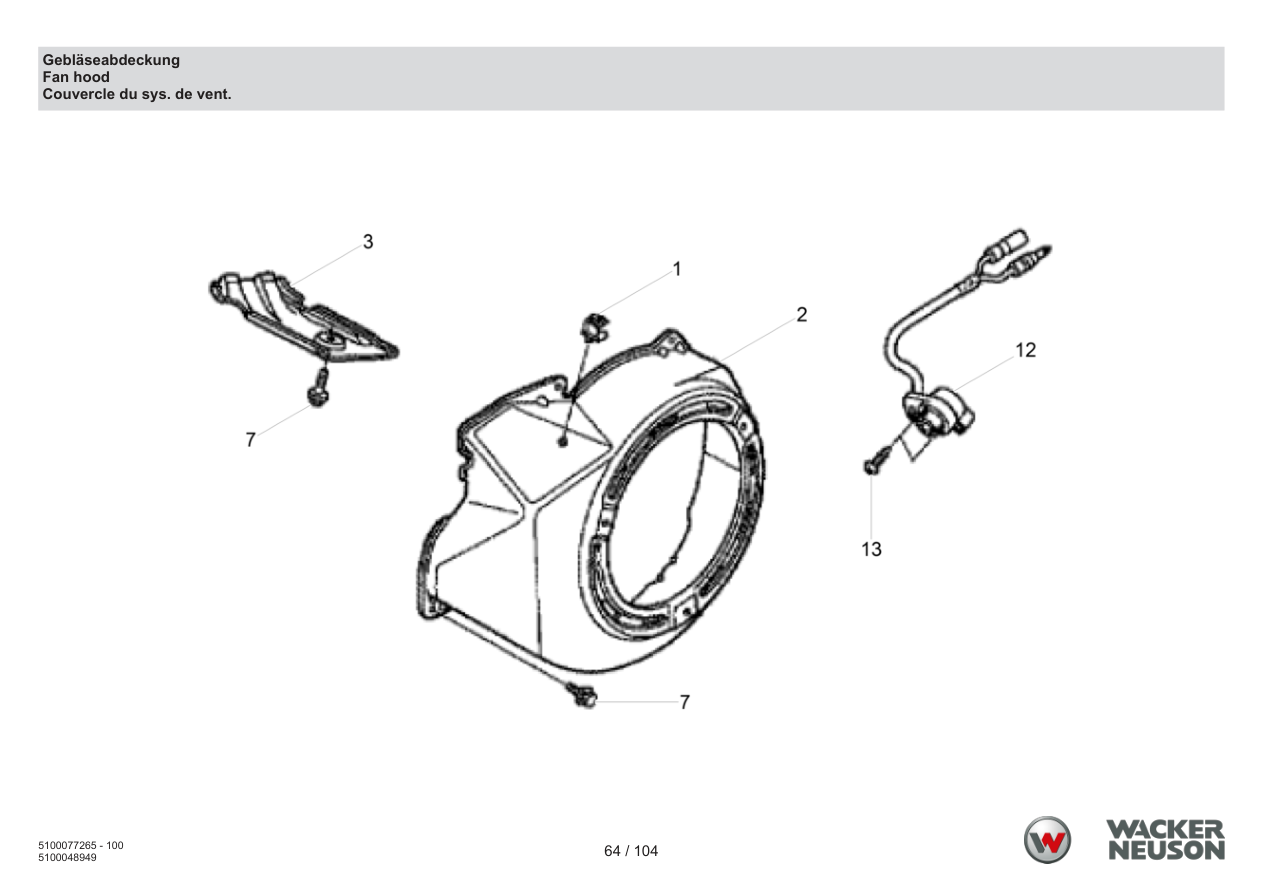

Page 64 — Fan hood
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000074689 | Clip | 1 | ADD TO CART | |
| 2 | 5100000418 | Cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cover cpl.
5100000418 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5200000426 | Cover | 1 | ADD TO CART | |
| 7 | 5000053990 | Screw | 6 | ADD TO CART | |
| 12 | 5100000436 | Engine stop cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 13 | 5100000448 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100000448 · qty on machine: 2 | |||||

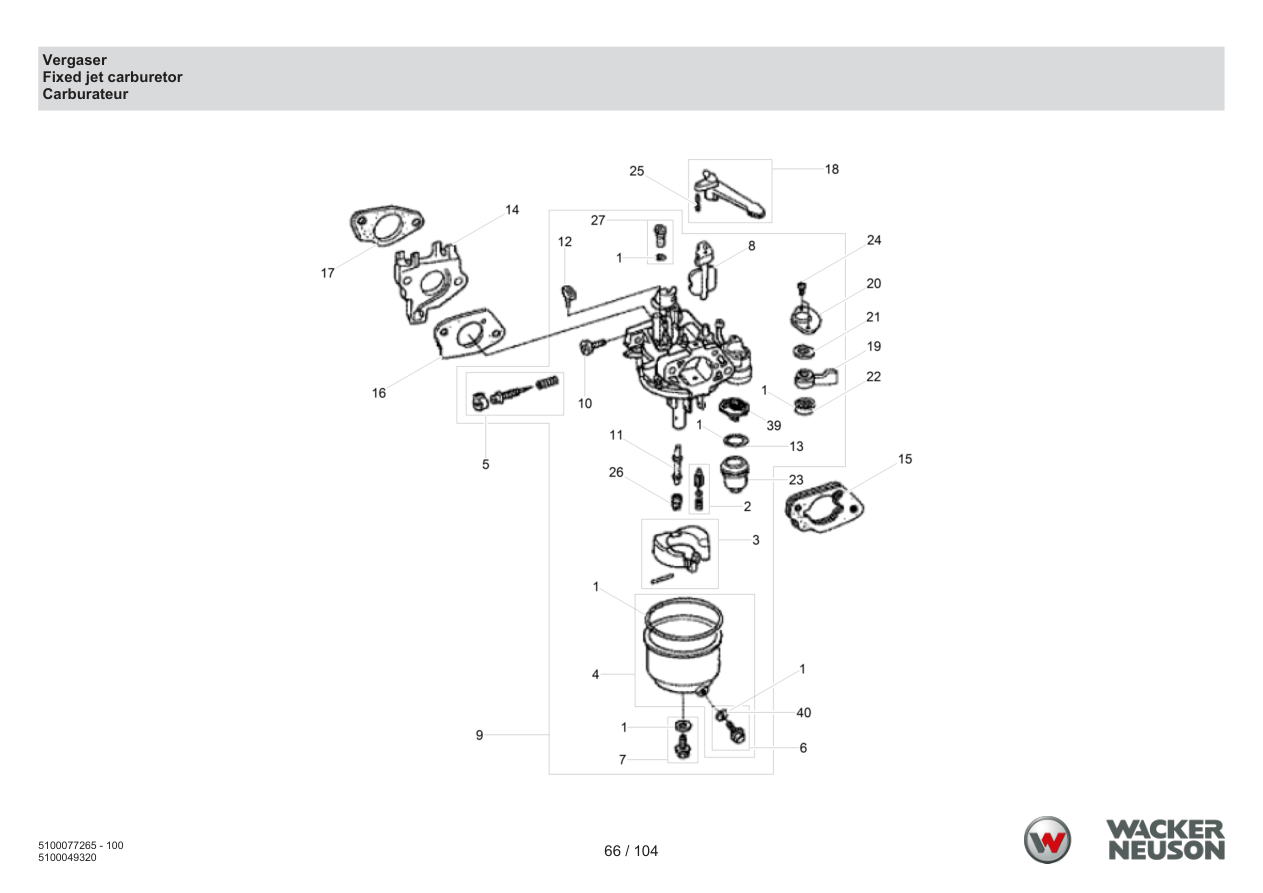

Page 66 — Carburetor
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 17 | 5200000438 | Gasket | 1 | ADD TO CART | |
| 15 | 5000074761 | Carburetor mount spacer | 1 | ADD TO CART | |
| 1 | 5100039005 | Gasket set | 1 | PARTS REQUEST | |
|
COMING Gasket set
5100039005 · qty on machine: 1 | |||||
| 2 | 5000074759 | Float needle | 1 | ADD TO CART | |
| 3 | 5000217483 | Set-carburetor float | 1 | ADD TO CART | |
| 4 | 5200000429 | Carburetor float set | 1 | ADD TO CART | |
| 5 | 5000089286 | Setscrew | 1 | ADD TO CART | |
| 6 | 5200000430 | Screw w/washer | 1 | ADD TO CART | |
| 7 | 5200000431 | Screw w/washer | 1 | ADD TO CART | |
| 8 | 5200000432 | Choke shaft set | 1 | ADD TO CART | |
| 9 | 5100001090 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 11 | 5100049529 | Main jet | 1 | ADD TO CART | |
| 12 | 5000089281 | Set-collar | 1 | ADD TO CART | |
| 13 | 5000125839 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000125839 · qty on machine: 1 | |||||
| 14 | 5200000436 | Insulator | 1 | ADD TO CART | |
| 16 | 5200000437 | Gasket | 1 | ADD TO CART | |
| 18 | 5000071013 | Choke control lever | 1 | ADD TO CART | |
| 19 | 5000150266 | Fuel valve lever | 1 | ADD TO CART | |
| 20 | 5000073269 | Plate | 1 | ADD TO CART | |
| 21 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 22 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 23 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 24 | 5100005317 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005317 · qty on machine: 2 | |||||
| 25 | 5000071014 | Pin | 1 | ADD TO CART | |
| 26 | 5000162705 | Main jet | 1 | ADD TO CART | |
| 26 | 5000162706 | Main jet | 1 | ADD TO CART | |
| 26 | 5100000456 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100000456 · qty on machine: 1 | |||||
| 27 | 5000081997 | Set-pilot jet | 1 | ADD TO CART | |
| 39 | 5100000396 | Filter | 1 | ADD TO CART | |
| 40 | 5100036241 | Disc | 1 | ADD TO CART | |

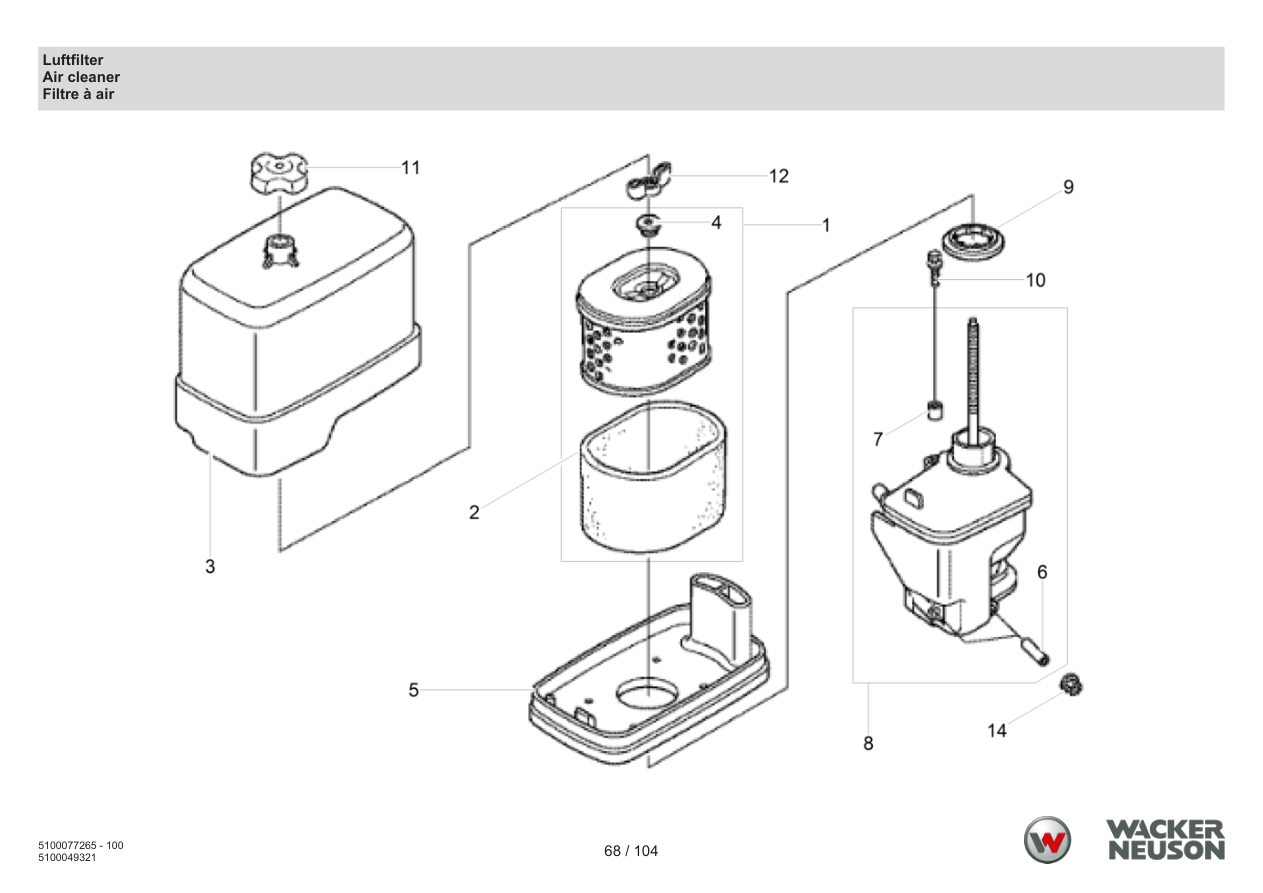

Page 68 — Air filter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049530 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Air filter insert cpl.
5100049530 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000078887 | Prefilter element | 1 | ADD TO CART | |
| 3 | 5200000441 | Air cleaner cover | 1 | ADD TO CART | |
| 4 | 5000072343 | Grommet | 1 | ADD TO CART | |
| 5 | 5100001091 | Bracket | 1 | ADD TO CART | |
| 6 | 5000076372 | Collar | 2 | ADD TO CART | |
| 7 | 5000071035 | Sleeve | 1 | ADD TO CART | |
| 8 | 5100049531 | Air cleaner mount | 1 | ADD TO CART | |
| 9 | 5200000440 | Air cleaner gasket | 1 | ADD TO CART | |
| 10 | 5000217494 | Screw w/washer | 1 | ADD TO CART | |
| 11 | 5100000590 | Wing nut | 1 | PARTS REQUEST | |
|
COMING Wing nut
5100000590 · qty on machine: 1 | |||||
| 12 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 14 | 5000071056 | Nut | 2 | ADD TO CART | |

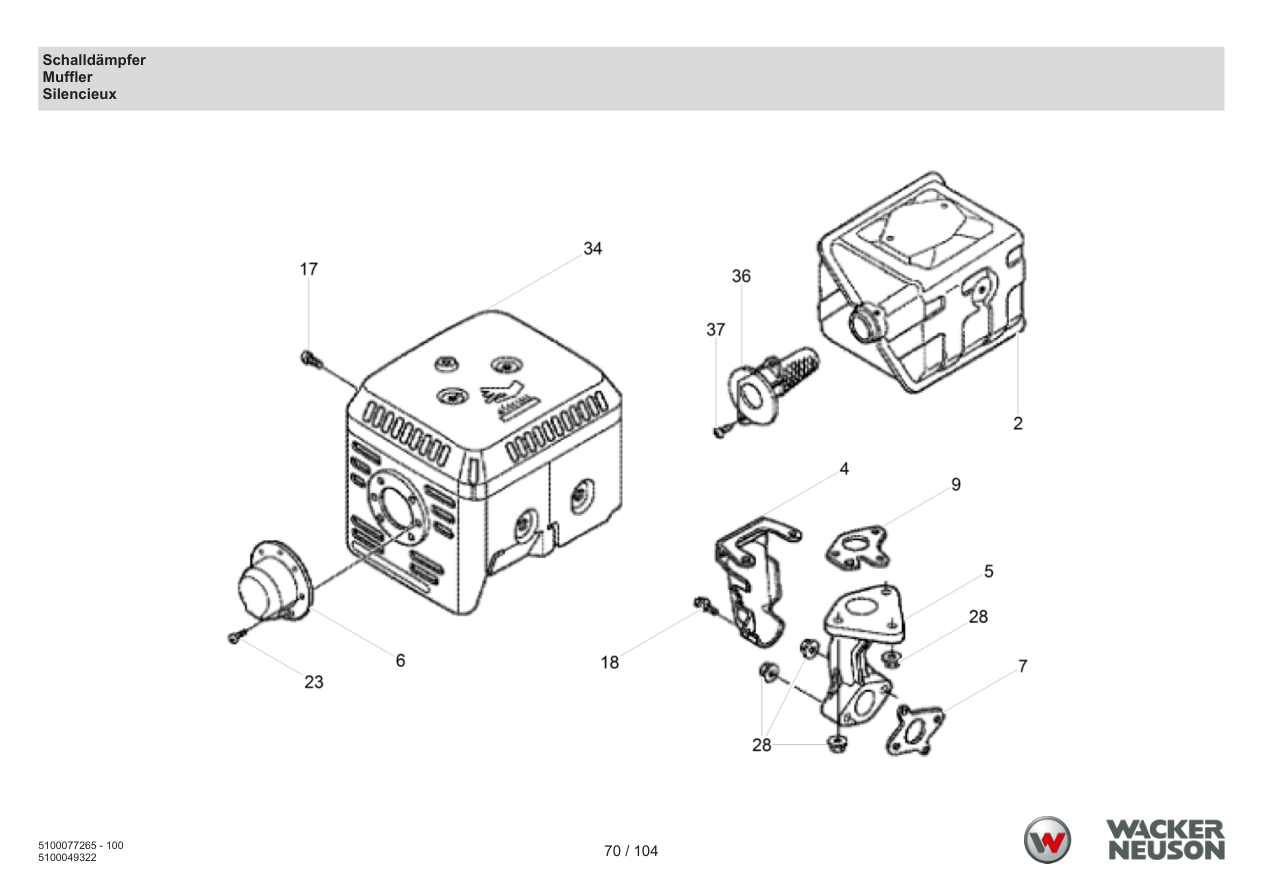

Page 70 — Muffler
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100039136 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Muffler cpl.
5100039136 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100049532 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100049532 · qty on machine: 1 | |||||
| 5 | 5200000448 | Exhaust pipe | 1 | ADD TO CART | |
| 6 | 5000217513 | Exhaustdeflector | 1 | PARTS REQUEST | |
|
COMING Exhaustdeflector
5000217513 · qty on machine: 1 | |||||
| 7 | 5000162672 | Exhaust seal | 1 | ADD TO CART | |
| 9 | 5100000410 | Exhaust gasket | 1 | ADD TO CART | |
| 17 | 5000089284 | Screw | 1 | ADD TO CART | |
| 18 | 5000053990 | Screw | 1 | ADD TO CART | |
| 23 | 5000150916 | Screw | 3 | ADD TO CART | |
| 28 | 5000074738 | Flange nut | 5 | ADD TO CART | |
| 34 | 5100000406 | Housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5200000449 | Spark arrester | 1 | ADD TO CART | |
| 37 | 5000071070 | Screw | 2 | ADD TO CART | |

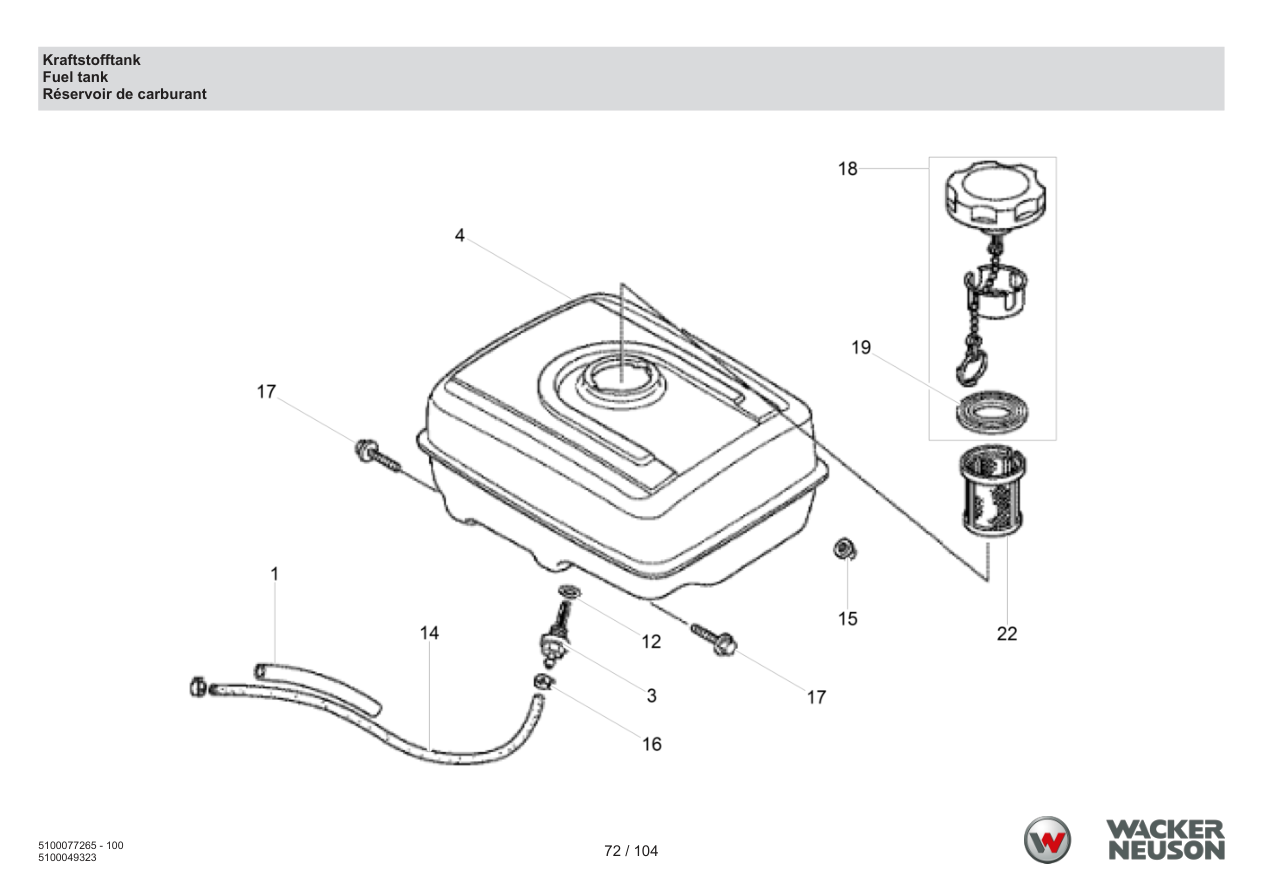

Page 72 — Fuel tank
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 3 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 4 | 5100039042 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 12 | 5000208616 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000208616 · qty on machine: 1 | |||||
| 14 | 5100000455 | Fuel hose | 1 | ADD TO CART | |
| 15 | 5000074738 | Flange nut | 2 | ADD TO CART | |
| 16 | 5000208617 | Clamp | 2 | ADD TO CART | |
| 17 | 5000074751 | Screw | 2 | ADD TO CART | |
| 18 | 5000406694 | Fuel tank cap | 1 | PARTS REQUEST | |
|
COMING Fuel tank cap
5000406694 · qty on machine: 1 | |||||
| 19 | 5000209770 | Gasket | 1 | ADD TO CART | |
| 22 | 5000217453 | Fuel filter | 1 | ADD TO CART | |

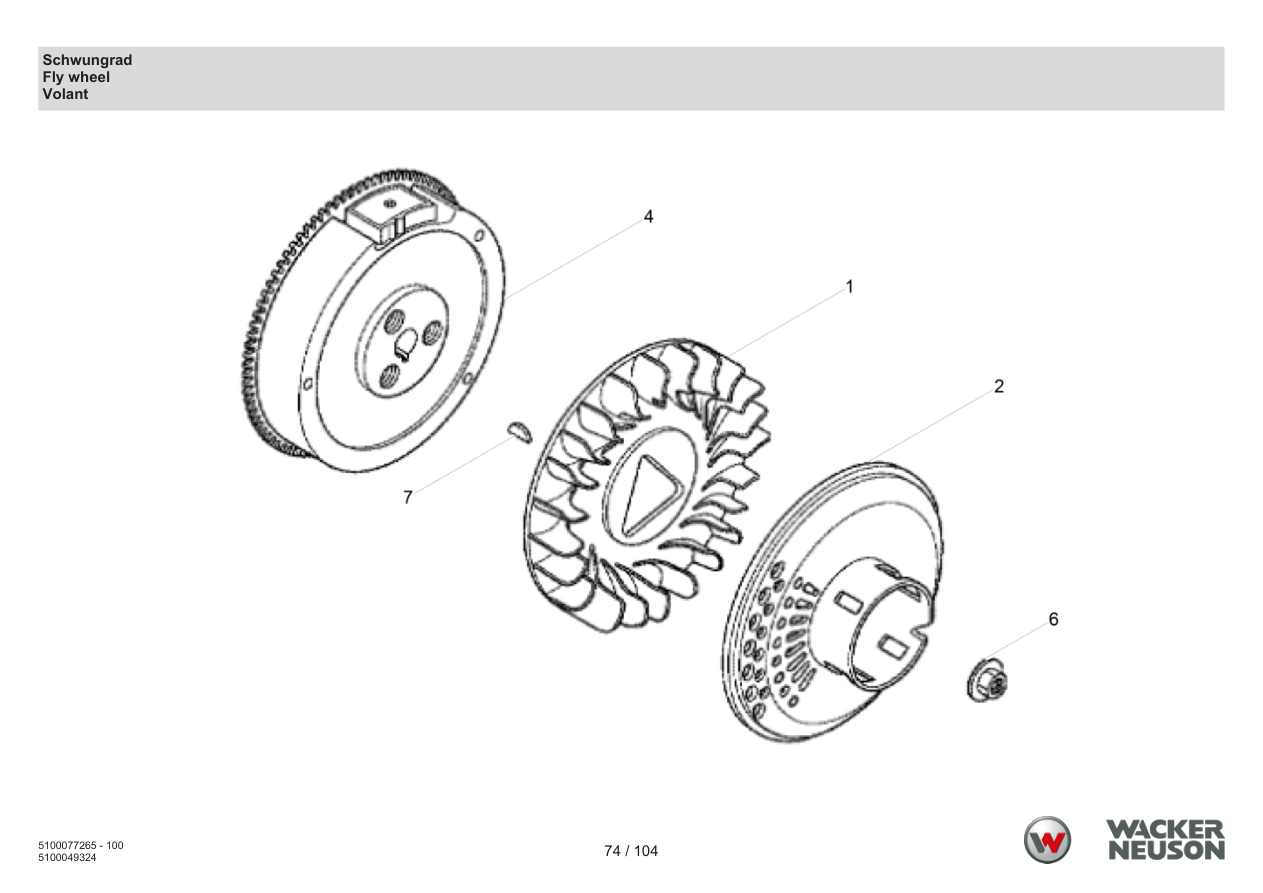

Page 74 — Flywheel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000075813 | Fan | 1 | ADD TO CART | |
| 2 | 5000082841 | Puller | 1 | ADD TO CART | |
| 4 | 5100000433 | Fly wheel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5000116736 | Nut | 1 | ADD TO CART | |
| 7 | 5000074672 | Woodruff key | 1 | ADD TO CART | |

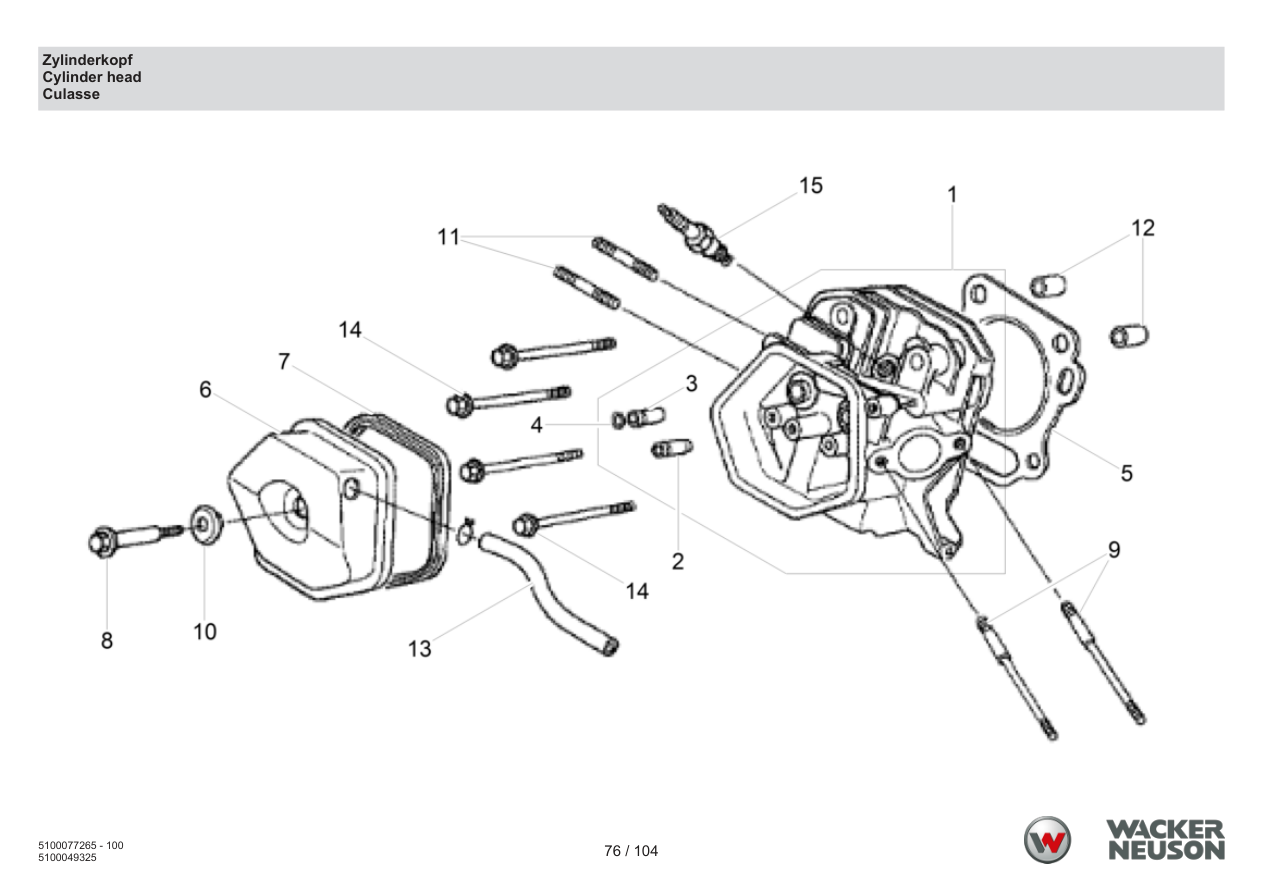

Page 76 — Cylinder head
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100038229 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000110602 | Valve guide | 1 | ADD TO CART | |
| 3 | 5000074648 | Valve guide | 1 | ADD TO CART | |
| 4 | 5000074660 | Retaining ring | 1 | ADD TO CART | |
| 5 | 5100000356 | Cylinder head gasket | 1 | ADD TO CART | |
| 6 | 5000089273 | Valve hood | 1 | ADD TO CART | |
| 7 | 5000074645 | Cylinder head gasket | 1 | ADD TO CART | |
| 8 | 5200000468 | Bolt | 1 | ADD TO CART | |
| 9 | 5000075798 | Stud | 2 | ADD TO CART | |
| 10 | 5000074657 | Washer | 1 | ADD TO CART | |
| 11 | 5000217497 | Stud bolt | 2 | PARTS REQUEST | |
|
COMING Stud bolt
5000217497 · qty on machine: 2 | |||||
| 12 | 5000074652 | Dowel pin | 2 | ADD TO CART | |
| 13 | 5200000467 | Breather tube | 1 | ADD TO CART | |
| 14 | 5100003507 | Flange screw | 4 | PARTS REQUEST | |
|
COMING Flange screw
5100003507 · qty on machine: 4 | |||||
| 15 | 5000158498 | Spark plug | 1 | ADD TO CART | |

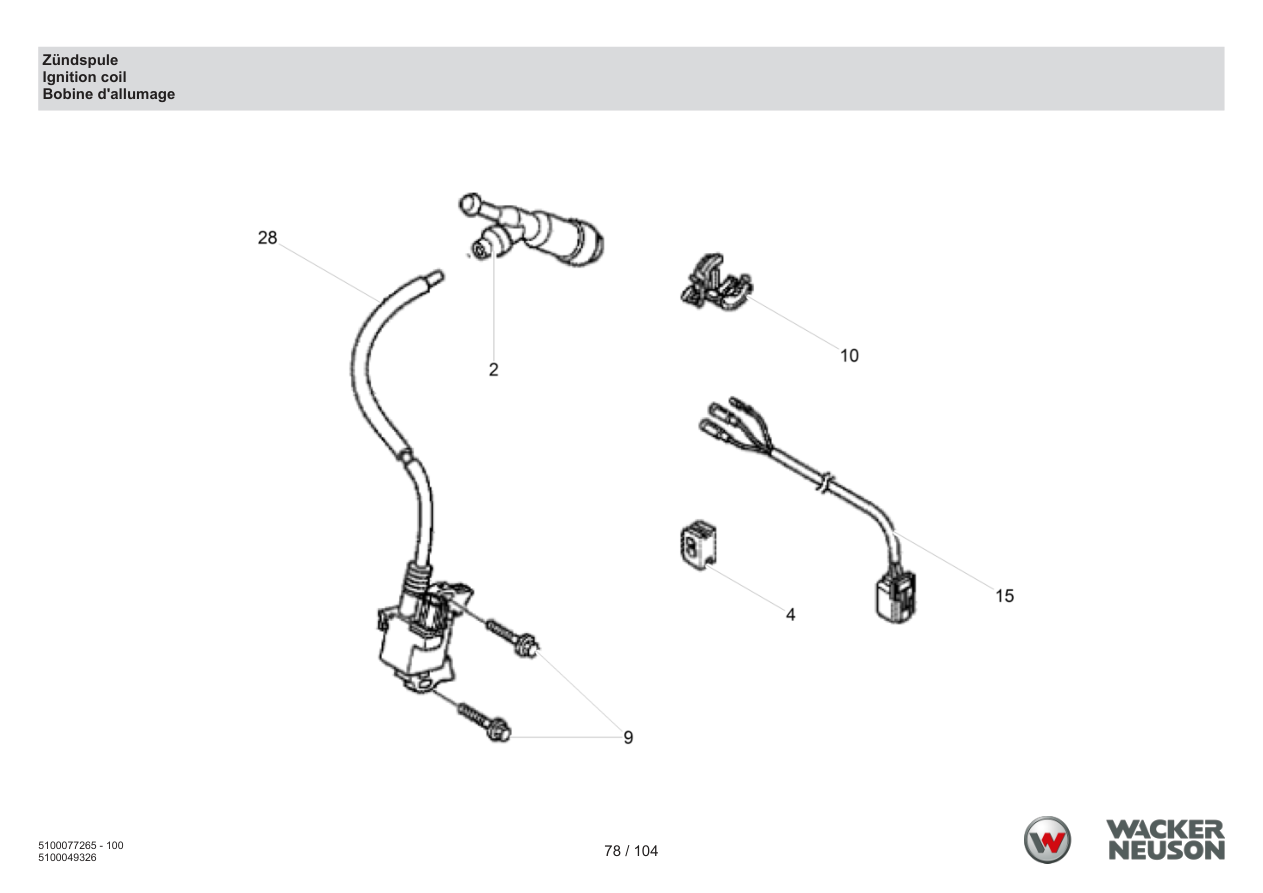

Page 78 — Ignition coil
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000217491 | Spark plug terminal cap | 1 | ADD TO CART | |
| 4 | 5000081611 | Grommet | 1 | ADD TO CART | |
| 9 | 5000070966 | Screw | 2 | ADD TO CART | |
| 10 | 5000076375 | Clip | 1 | PARTS REQUEST | |
|
COMING Clip
5000076375 · qty on machine: 1 | |||||
| 15 | 5100000434 | Wire harnes cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 28 | 5200000453 | Ignition coil | 1 | ADD TO CART | |

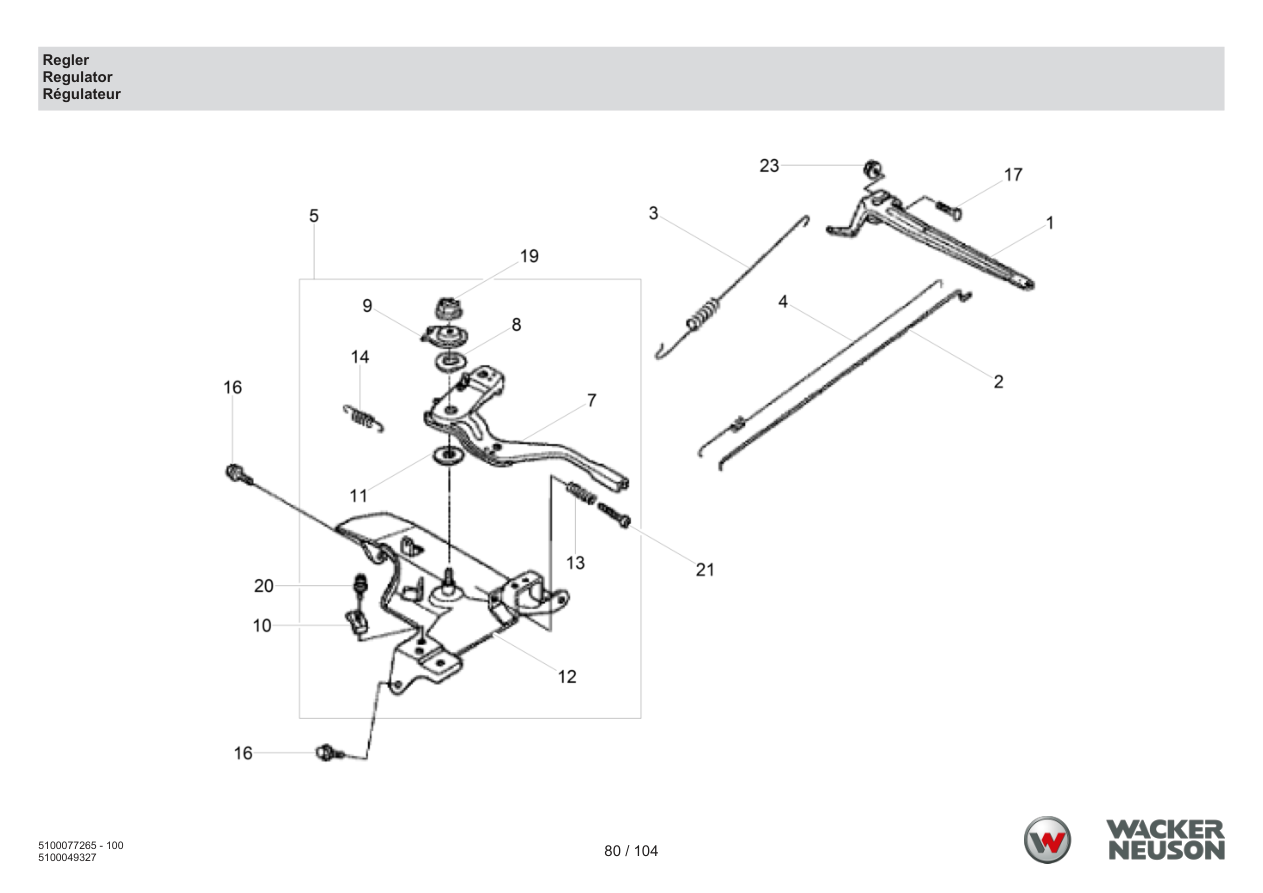

Page 80 — Regulator
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000075845 | Governor lever | 1 | ADD TO CART | |
| 2 | 5000075844 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5000075844 · qty on machine: 1 | |||||
| 3 | 5000075842 | Governor spring | 1 | ADD TO CART | |
| 4 | 5000075843 | Spring | 1 | ADD TO CART | |
| 5 | 5100000392 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5200001609 | Control cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control cpl.
5200001609 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 7 | 5000082831 | Lever | 1 | ADD TO CART | |
| 8 | 5000071058 | Spring | 1 | ADD TO CART | |
| 9 | 5000081633 | Washer | 1 | ADD TO CART | |
| 10 | 5000071062 | Cable holder | 1 | ADD TO CART | |
| 11 | 5000071064 | Spacer | 1 | ADD TO CART | |
| 12 | 5100000394 | Regulating plate | 1 | ADD TO CART | |
| 13 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 14 | 5000074730 | Spring | 1 | ADD TO CART | |
| 16 | 5000053990 | Screw | 2 | ADD TO CART | |
| 17 | 5100000451 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100000451 · qty on machine: 1 | |||||
| 19 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 20 | 5000110112 | Screw | 1 | ADD TO CART | |
| 21 | 5000011791 | Pan head screw | 1 | ADD TO CART | |
| 23 | 5000071056 | Nut | 1 | ADD TO CART | |

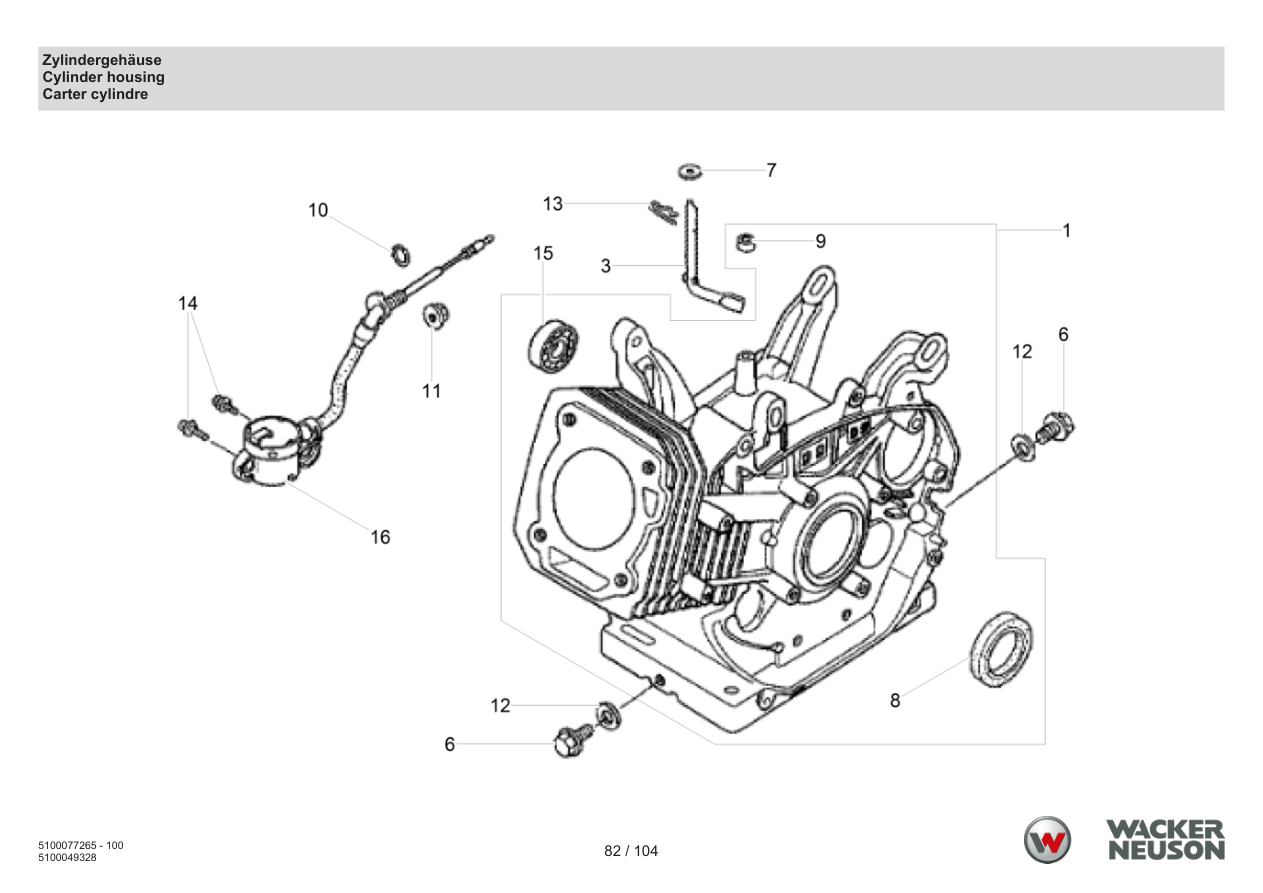

Page 82 — Cylinder housing
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5200000469 | Cylinder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000110114 | Governor shaft | 1 | ADD TO CART | |
| 6 | 5100038225 | Drain screw | 2 | ADD TO CART | |
| 7 | 5000074656 | Washer | 1 | ADD TO CART | |
| 8 | 5200000471 | Shaft seal | 1 | ADD TO CART | |
| 9 | 5000157749 | Oil seal | 1 | PARTS REQUEST | |
|
COMING Oil seal
5000157749 · qty on machine: 1 | |||||
| 10 | 5000208616 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000208616 · qty on machine: 1 | |||||
| 11 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 12 | 5000053994 | Ring seal | 2 | ADD TO CART | |
| 13 | 5000110110 | Cotter pin | 1 | ADD TO CART | |
| 14 | 5100003498 | Flange screw | 2 | PARTS REQUEST | |
|
COMING Flange screw
5100003498 · qty on machine: 2 | |||||
| 15 | 5100003509 | Grooved ball bearing | 1 | ADD TO CART | |
| 16 | 5000217492 | Switch assembly | 1 | ADD TO CART | |

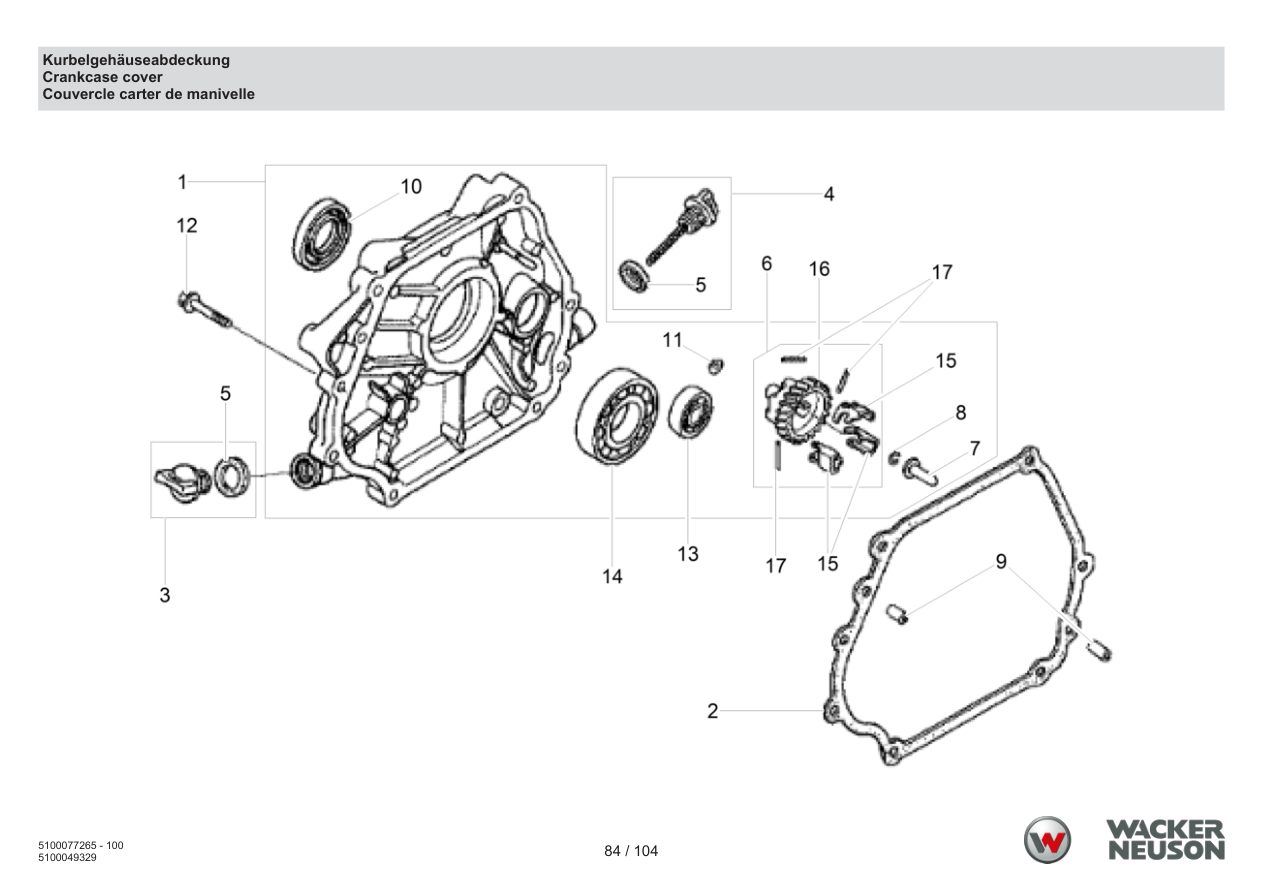

Page 84 — Crankcase cover
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000347 | Crankcase cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100000350 | Gasket | 1 | ADD TO CART | |
| 3 | 5000162646 | Oil filler cap | 1 | ADD TO CART | |
| 4 | 5000217482 | Oil dip stick cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000162647 | Gasket | 2 | ADD TO CART | |
| 6 | 5000082828 | Kit-governor | 1 | ADD TO CART | |
| 7 | 5000074632 | Slider | 1 | ADD TO CART | |
| 8 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 9 | 5000081617 | Dowel pin | 2 | ADD TO CART | |
| 10 | 5200000471 | Shaft seal | 1 | ADD TO CART | |
| 11 | 5000071639 | Washer | 1 | ADD TO CART | |
| 12 | 5000116734 | Bolt | 7 | ADD TO CART | |
| 13 | 5100003509 | Grooved ball bearing | 1 | ADD TO CART | |
| 14 | 5100003512 | Grooved ball bearing | 1 | ADD TO CART | |
| 15 | 5000075788 | Weight | 3 | ADD TO CART | |
| 16 | 5000082829 | Holder | 1 | ADD TO CART | |
| 17 | 5000074634 | Pin | 3 | ADD TO CART | |

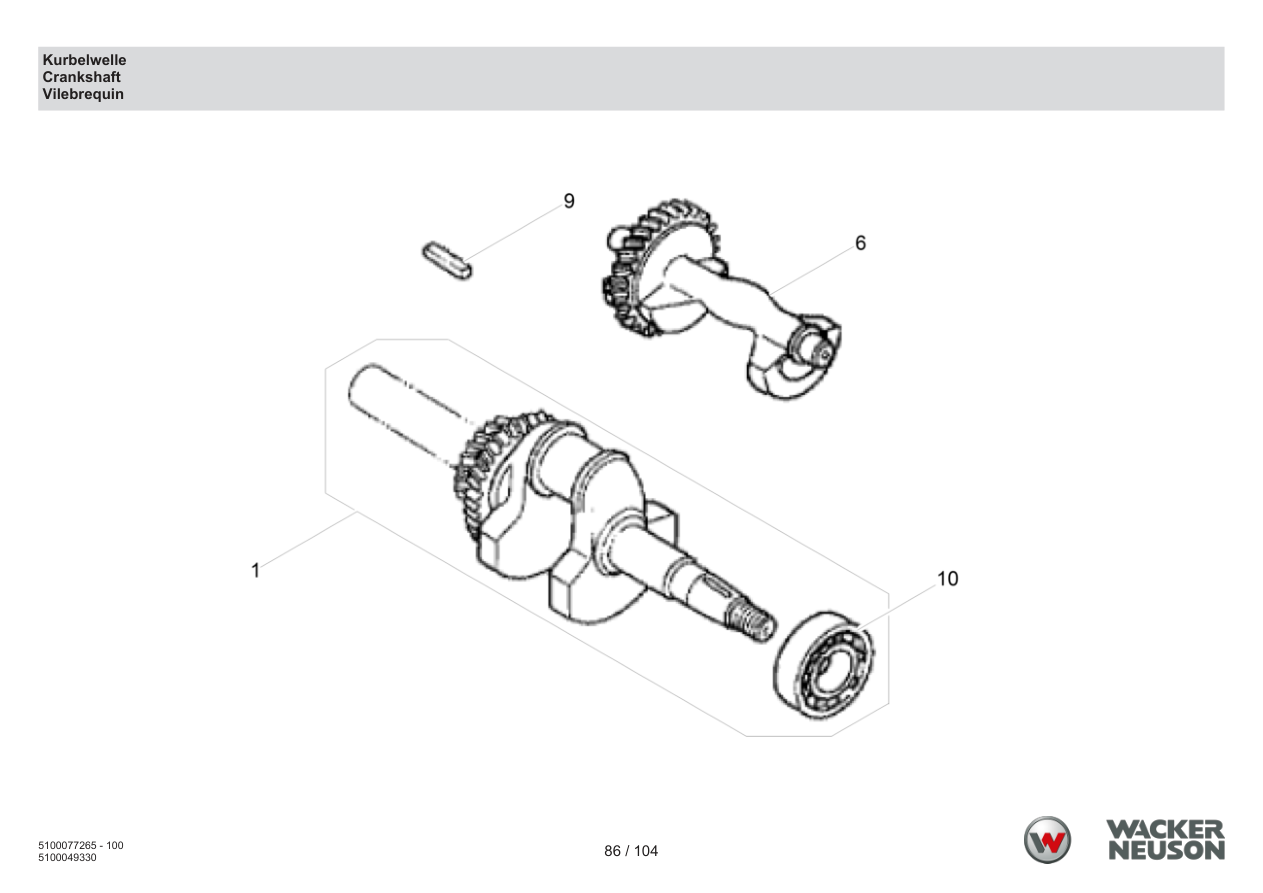

Page 86 — Crankshaft
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000212753 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100049534 | Shaft | 1 | PARTS REQUEST | |
|
COMING Shaft
5100049534 · qty on machine: 1 | |||||
| 9 | 5000074686 | Fitting key | 1 | ADD TO CART | |
| 10 | 5100003486 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003486 · qty on machine: 1 | |||||

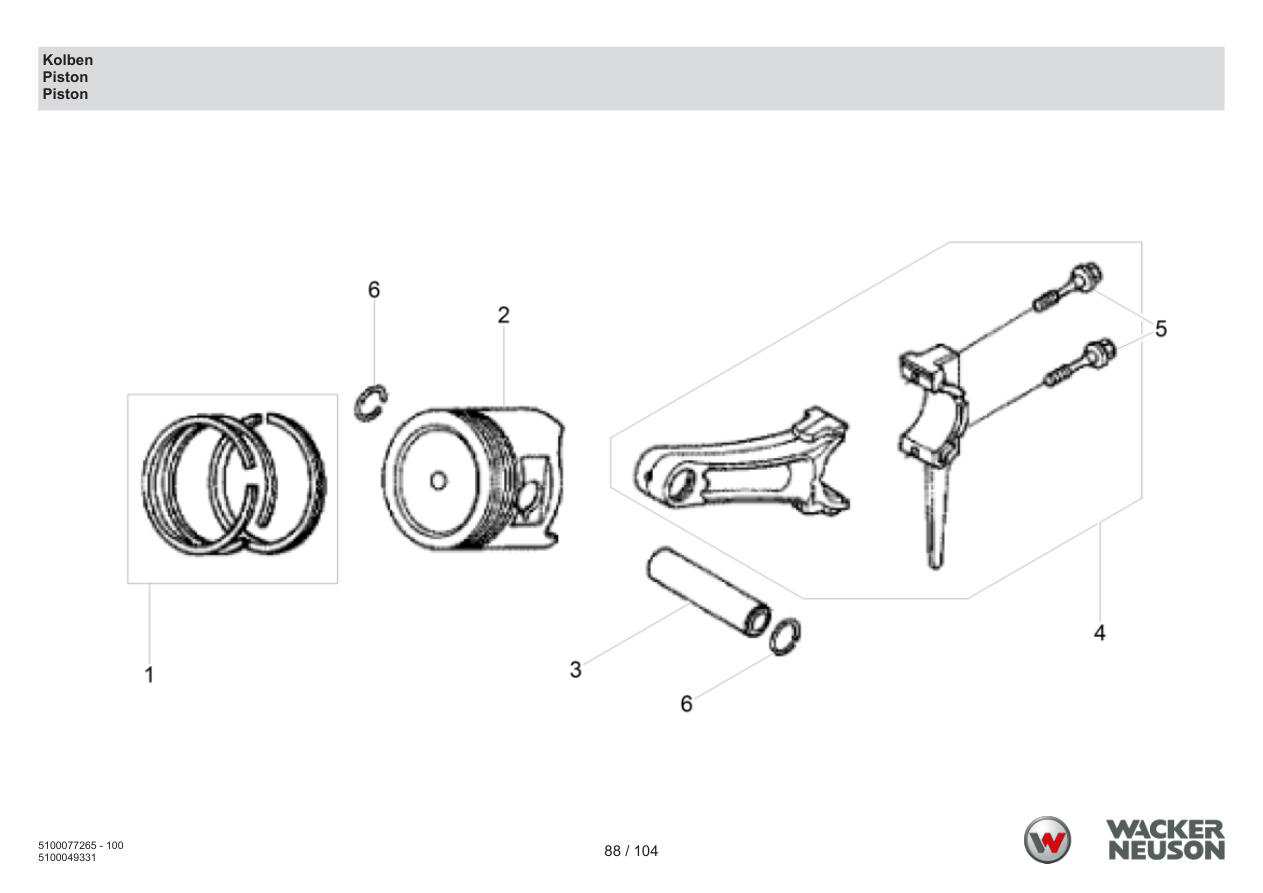

Page 88 — Piston
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217428 | Set-piston rings | 1 | ADD TO CART | |
| 1 | 5100000358 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5100000358 · qty on machine: 1 | |||||
| 1 | 5100000362 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5100000362 · qty on machine: 1 | |||||
| 1 | 5100003364 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5100003364 · qty on machine: 1 | |||||
| 2 | 5100000370 | Piston (0,50) | 1 | PARTS REQUEST | |
|
COMING Piston (0,50)
5100000370 · qty on machine: 1 | |||||
| 2 | 5100038232 | Piston | 1 | ADD TO CART | |
| 2 | 5200000487 | Piston | 1 | ADD TO CART | |
| 2 | 5200000489 | Piston | 1 | ADD TO CART | |
| 3 | 5200000490 | Piston pin | 1 | ADD TO CART | |
| 4 | 5100000375 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Connecting rod cpl.
5100000375 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5200000540 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000075807 | Screw | 2 | ADD TO CART | |
| 6 | 5000075804 | Retaining ring | 2 | ADD TO CART | |

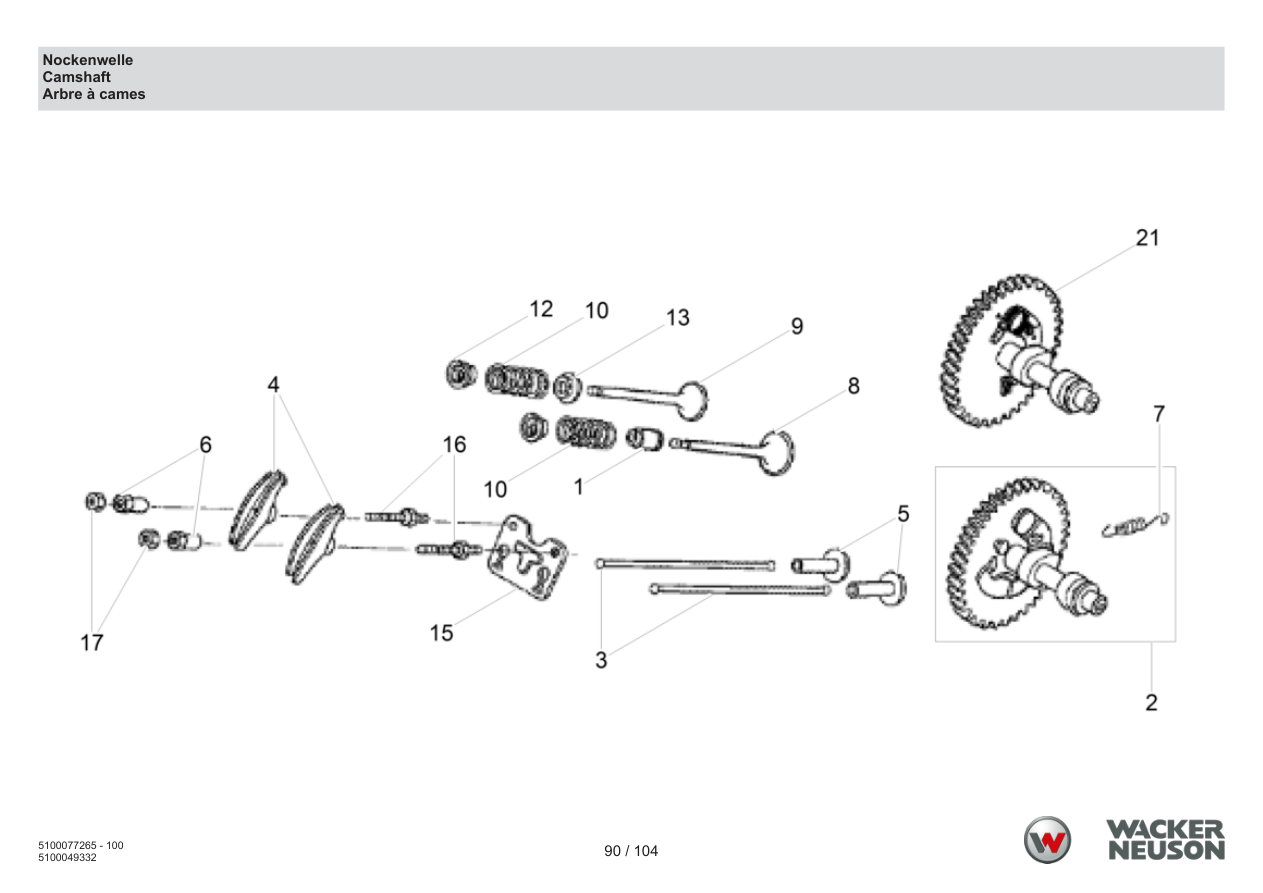

Page 90 — Camshaft
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000151750 | Gasket | 1 | ADD TO CART | |
| 2 | 5100000379 | Camshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Camshaft cpl.
5100000379 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5200000542 | Push rod | 2 | ADD TO CART | |
| 4 | 5000074675 | Rocker arm | 2 | ADD TO CART | |
| 5 | 5000074678 | Valve tappet | 2 | ADD TO CART | |
| 7 | 5000151028 | Spring | 1 | ADD TO CART | |
| 8 | 5200001634 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5200001634 · qty on machine: 1 | |||||
| 9 | 5200001635 | Exhaust valve | 1 | PARTS REQUEST | |
|
COMING Exhaust valve
5200001635 · qty on machine: 1 | |||||
| 10 | 5000217481 | Spring | 2 | ADD TO CART | |
| 12 | 5200000496 | Spring holder | 1 | PARTS REQUEST | |
|
COMING Spring holder
5200000496 · qty on machine: 1 | |||||
| 13 | 5000074659 | Spring | 1 | ADD TO CART | |
| 15 | 5200000543 | Plate | 1 | ADD TO CART | |
| 16 | 5000072778 | Stud | 2 | ADD TO CART | |
| 17 | 5000070984 | Locknut | 2 | ADD TO CART | |
| 21 | 5200000541 | Camshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5000070985 | Rocker arm pivot | 2 | ADD TO CART | |

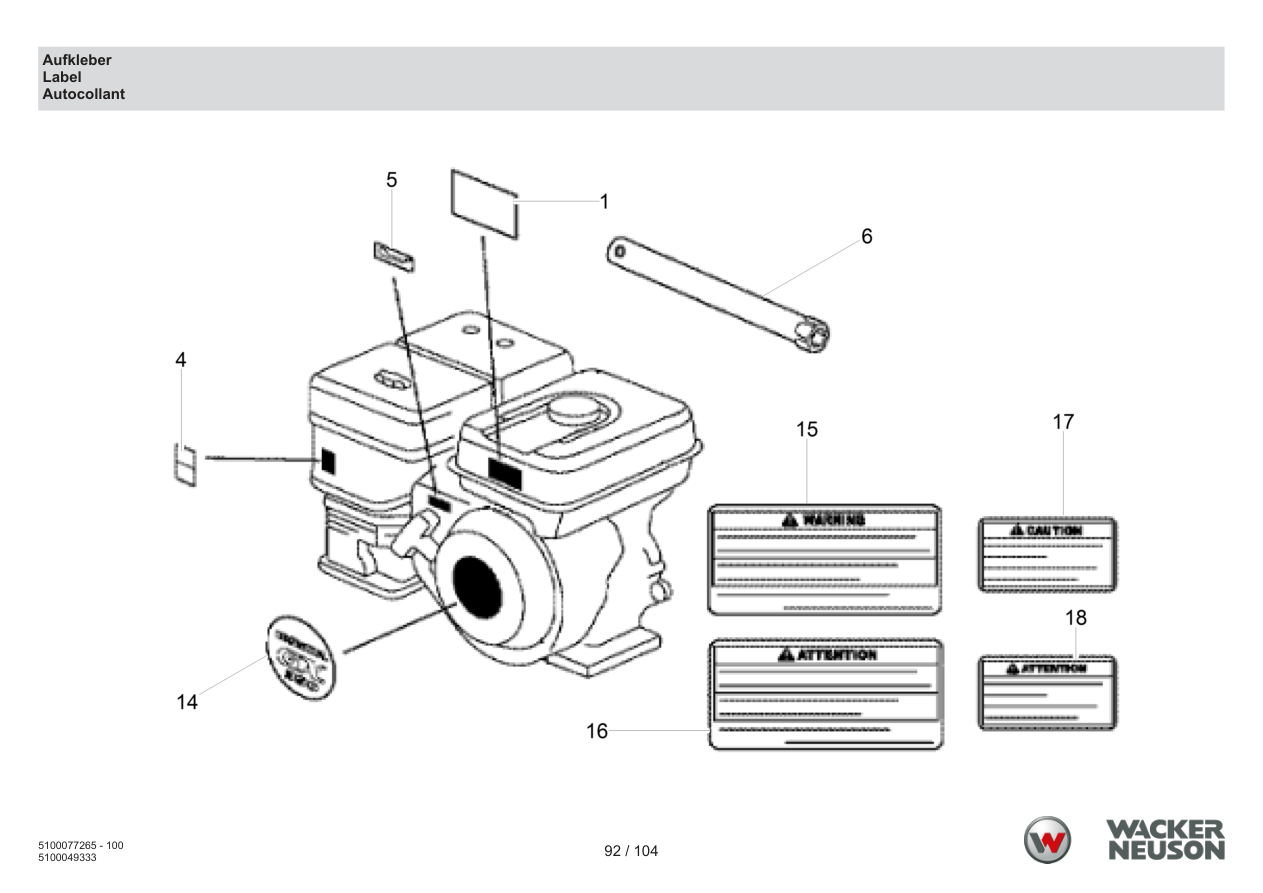

Page 92 — Decal
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5200000462 | Label | 1 | ADD TO CART | |
| 4 | 5200000461 | Label-choke | 1 | ADD TO CART | |
| 5 | 5000208623 | Labels | 1 | ADD TO CART | |
| 6 | 5000217462 | Key | 1 | ADD TO CART | |
| 14 | 5200000460 | Label | 1 | ADD TO CART | |
| 15 | 5100000437 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000437 · qty on machine: 1 | |||||
| 16 | 5100000438 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000438 · qty on machine: 1 | |||||
| 17 | 5000226523 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5000226523 · qty on machine: 1 | |||||
| 18 | 5000226525 | Label | 1 | ADD TO CART | |

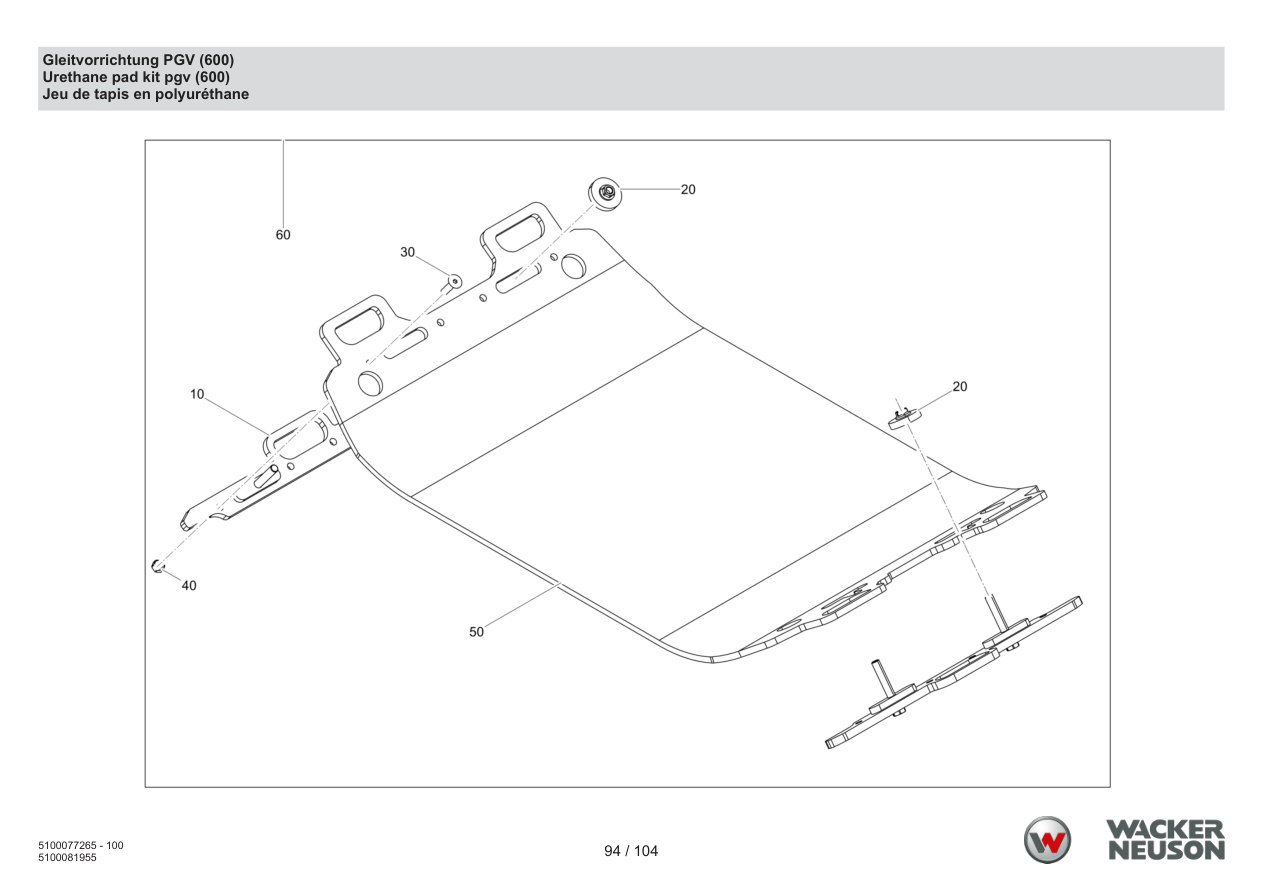

Page 94 — Slip-form device PGV (600)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100072540 | Fastening strip cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 20 | 5100072541 | Disc cpl. | 4 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5000206837 | Countersunk bolt | 4 | ADD TO CART | |
| 40 | 5000125153 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
5000125153 · qty on machine: 4 | |||||
| 50 | 5100051740 | Urethane plate (600) | 1 | ADD TO CART | |
| 60 | 5100066303 | Urethane pad kit pgvdpu/bpu 52/62 60cm | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgvdpu/bpu 52/62 60cm
5100066303 · qty on machine: 1 | |||||

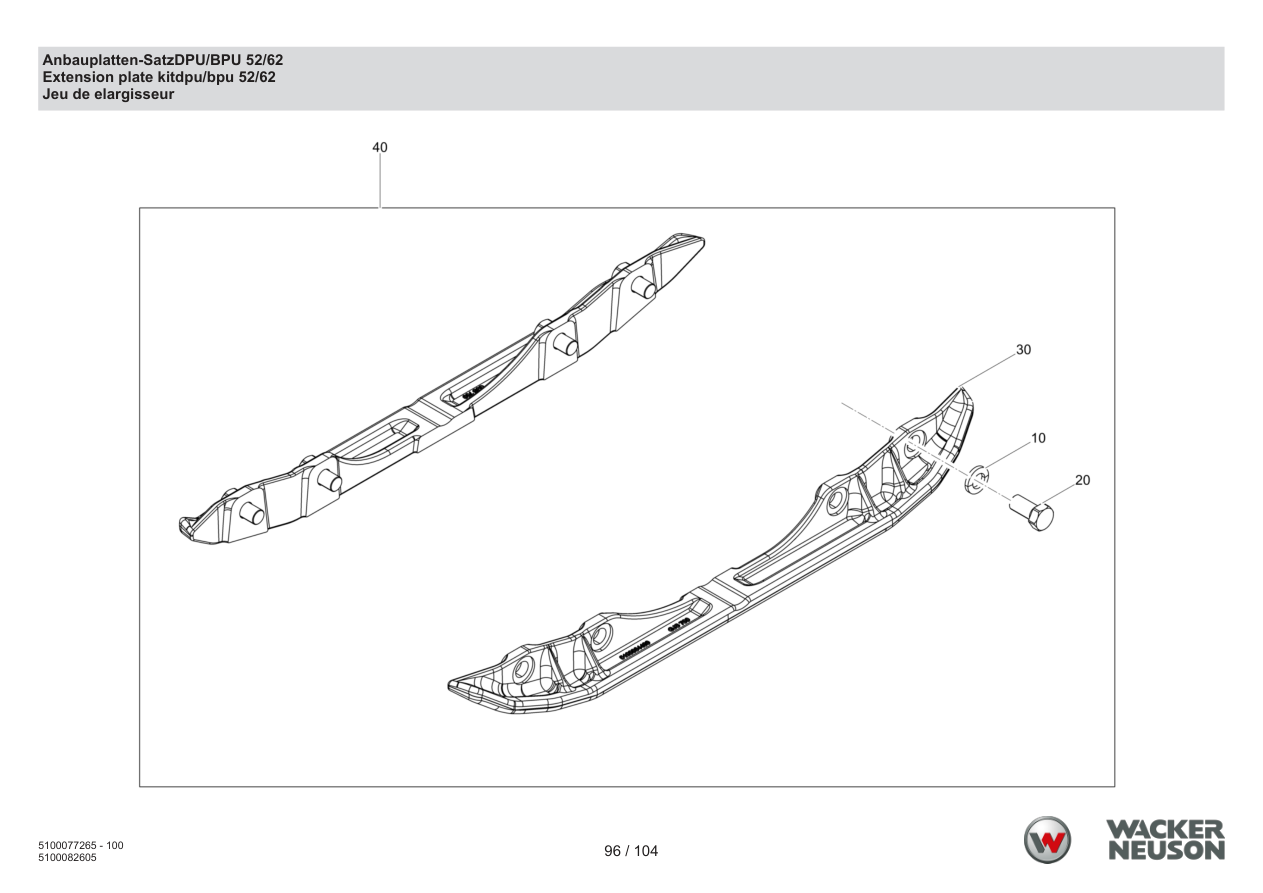

Page 96 — Mounting plate set DPU/BPU 52/62
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100070830 | Lock washer | 8 | ADD TO CART | |
| 20 | 5100064495 | Hexagonal head cap screw | 8 | ADD TO CART | |
| 30 | 5100064498 | Extension plate | 2 | ADD TO CART | |
| 40 | 5100082421 | Extension plate xpu 52/62 | 1 | PARTS REQUEST | |
|
COMING Extension plate xpu 52/62
5100082421 · qty on machine: 1 | |||||

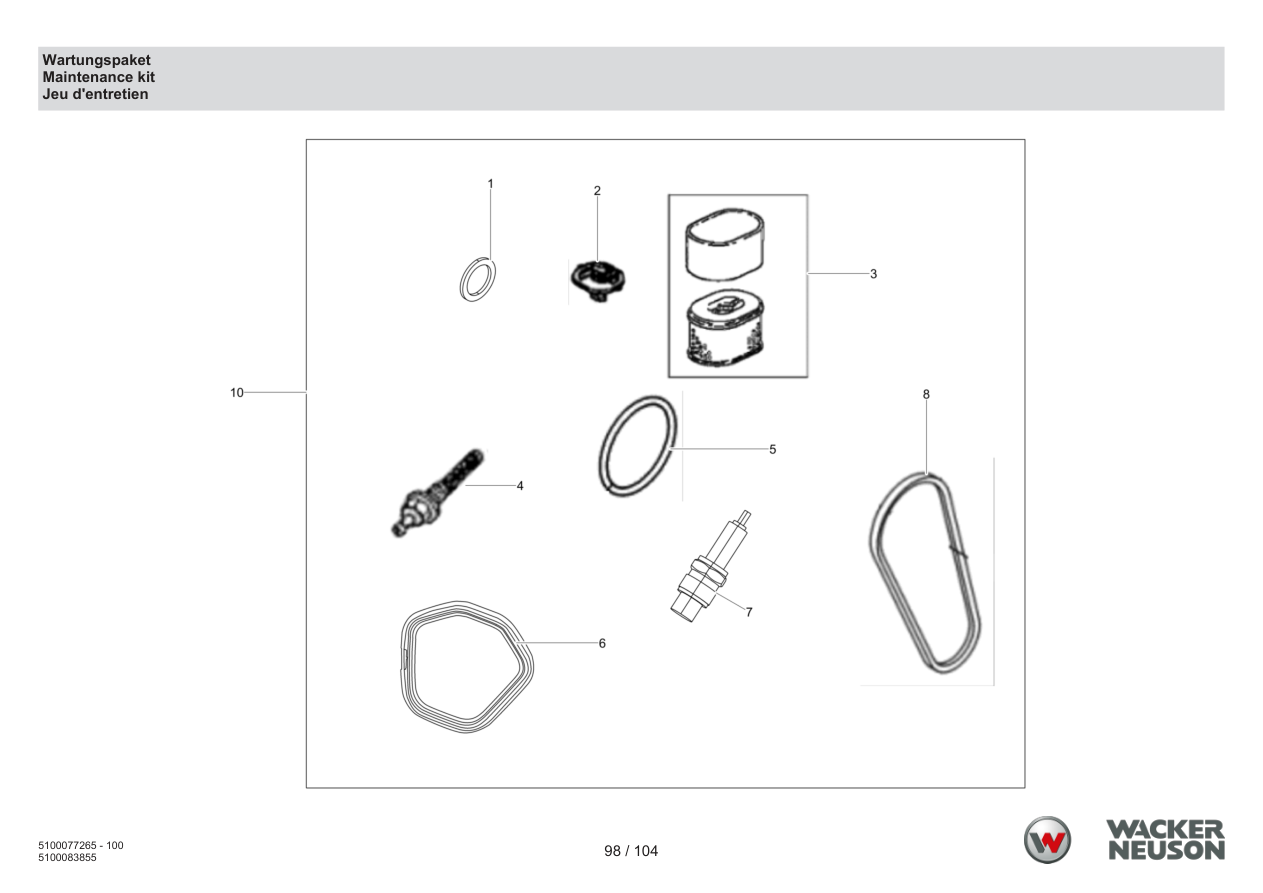

Page 98 — Maintenance kit
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100000396 | Filter | 1 | ADD TO CART | |
| 1 | 5000071024 | Gasket | 1 | ADD TO CART | |
| 3 | 5000075847 | Air cleaner element | 1 | ADD TO CART | |
| 4 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 5 | 5000071082 | O-ring | 1 | ADD TO CART | |
| 6 | 5000074645 | Cylinder head gasket | 1 | ADD TO CART | |
| 7 | 5000158498 | Spark plug | 1 | ADD TO CART | |
| 8 | 5000058889 | V-belt | 1 | ADD TO CART | |
| 10 | 5100083226 | Maintenance kit bpu52/62 | 1 | PARTS REQUEST | |
|
COMING Maintenance kit bpu52/62
5100083226 · qty on machine: 1 | |||||

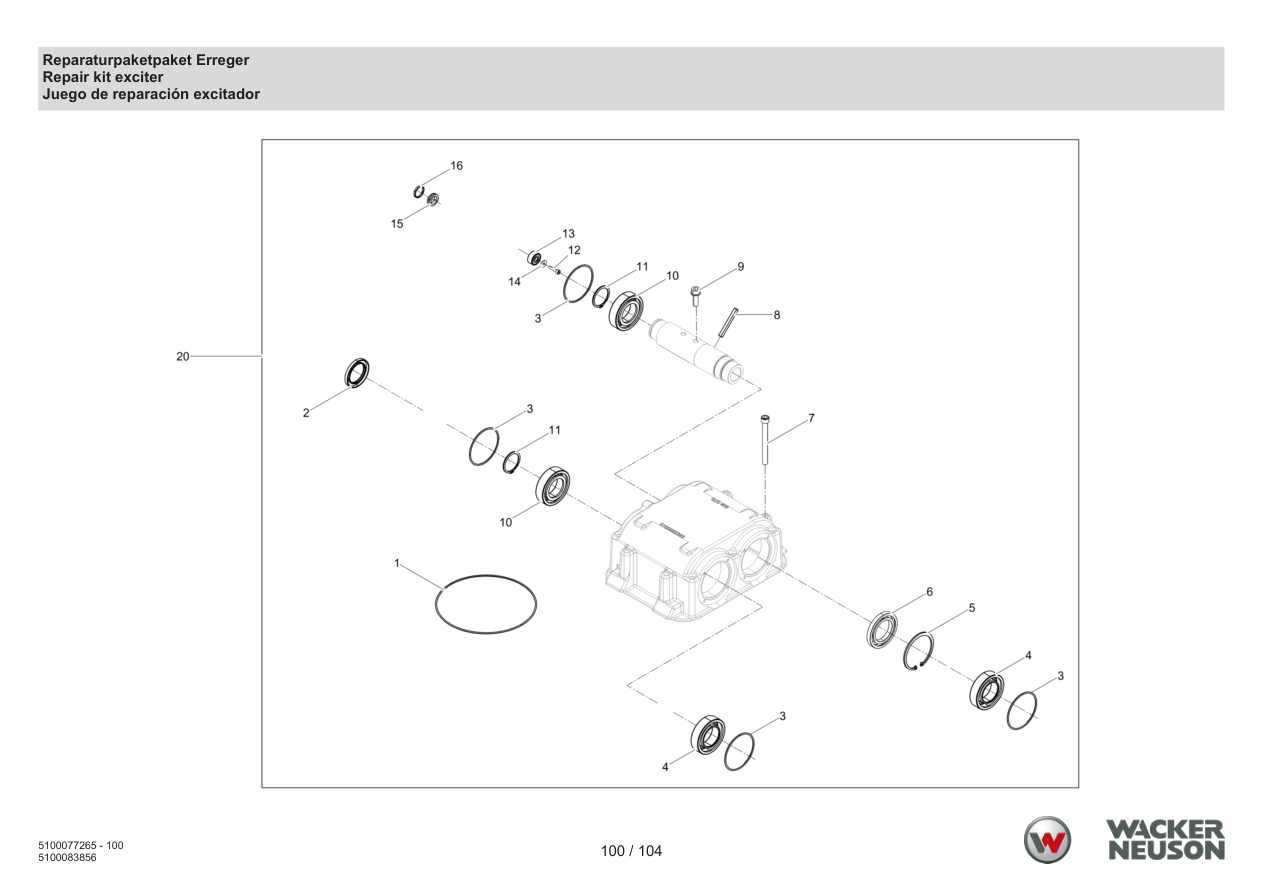

Page 100 — Repair kit exciter
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100057493 | O-ring | 1 | ADD TO CART | |
| 2 | 5100047183 | Rotary shaft seal | 2 | ADD TO CART | |
| 3 | 5100010516 | O-ring | 4 | ADD TO CART | |
| 4 | 5100057783 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 5 | 5002007057 | Retaining ring | 1 | ADD TO CART | |
| 6 | 5000220133 | Grooved ball bearing | 1 | ADD TO CART | |
| 7 | 5000094518 | Cheese head screw | 10 | ADD TO CART | |
| 8 | 5100047408 | Tripping pin | 1 | ADD TO CART | |
| 9 | 5000220325 | Screw | 1 | ADD TO CART | |
| 10 | 5100057784 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 11 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 12 | 5000220001 | Cheese head screw | 1 | ADD TO CART | |
| 13 | 5000124717 | Washer | 1 | ADD TO CART | |
| 14 | 5100047119 | Inclined ball bearing | 1 | ADD TO CART | |
| 15 | 5100047193 | Grooved ring | 1 | ADD TO CART | |
| 16 | 5100047190 | Piston guide ring | 1 | ADD TO CART | |
| 20 | 5100083254 | Repair kit exciter | 1 | PARTS REQUEST | |
|
COMING Repair kit exciter
5100083254 · qty on machine: 1 | |||||
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
Wacker Neuson BPU5260 vibratory plate.
List price: $15,000.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5000010625
Flat washer
$0.95
5000010879
Hexagon nut
$0.95
5000010880
Hexagon nut
$0.95
5000010882
Hexagon nut
$0.95
5000010883
Hexagon nut
$0.95
5000011527
Cheese head screw
$1.95
5000011539
Cheese head screw
$0.95
5000011542
Cheese head screw
$0.95
5000011550
Cheese head screw
$0.95
5000011551
Cheese head screw
$0.95
5000011553
Cheese head screw
$0.95
5000011554
Cheese head screw
$0.95
5000011555
Cheese head screw
$0.95
5000011791
Pan head screw
$1.95
5000012373
Cheese head screw
$0.95
5000013444
Gasket
$2.95
5000014425
Cheese head screw
5000014535
Plug (threaded)
$6.95
5000024617
Cheese head screw
$0.95
5000032006
Gasket
$1.95
5000038489
Tie cable
5000043307
Cheese head screw
$0.95
5000049190
Cheese head screw
$0.95
5000053990
Screw
$2.95
5000053994
Ring seal
$1.95
5000054088
Adjusting spring
$8.95
5000058889
V-belt
$25.95
5000068752
O-ring
$0.95
5000069225
Screwed socket
$10.95
5000070966
Screw
$6.95
5000070984
Locknut
$7.95
5000070985
Rocker arm pivot
$10.95
5000071013
Choke control lever
$18.95
5000071014
Pin
$2.95
5000071018
Throttle stop screw
$20.95
5000071023
Fuel filter
$24.95
5000071024
Gasket
$7.95
5000071035
Sleeve
$7.95
5000071056
Nut
$0.95
5000071058
Spring
$4.95
5000071062
Cable holder
$8.95
5000071064
Spacer
$9.95
5000071070
Screw
$2.95
5000071082
O-ring
$3.95
5000071621
Wing nut
$9.95
5000071639
Washer
$0.95
5000072332
Flange nut
5000072343
Grommet
$9.95
5000072778
Stud
$14.95
5000072782
Locknut
$6.95
5000073269
Plate
$7.95
5000073270
Spring washer
$4.95
5000073272
Gasket
$4.95
5000074632
Slider
$6.95
5000074634
Pin
$2.95
5000074645
Cylinder head gasket
$13.95
5000074648
Valve guide
$37.95
5000074652
Dowel pin
$5.95
5000074656
Washer
$2.95
5000074657
Washer
$10.95
5000074659
Spring
$6.95
5000074660
Retaining ring
$4.95
5000074672
Woodruff key
$6.95
5000074675
Rocker arm
$15.95
5000074678
Valve tappet
$28.95
5000074686
Fitting key
$19.95
5000074689
Clip
$5.95
5000074730
Spring
$5.95
5000074738
Flange nut
$1.95
5000074751
Screw
$2.95
5000074759
Float needle
$75.95
5000074761
Carburetor mount spacer
$13.95
5000075788
Weight
$12.95
5000075798
Stud
$15.95
5000075804
Retaining ring
$3.95
5000075807
Screw
$7.95
5000075813
Fan
$58.95
5000075842
Governor spring
$9.95
5000075843
Spring
$8.95
5000075844
Governor rod
5000075845
Governor lever
$30.95
5000075847
Air cleaner element
$20.95
5000076372
Collar
$7.95
5000076375
Clip
5000078887
Prefilter element
$14.95
5000081611
Grommet
$6.95
5000081615
Retaining ring
$1.95
5000081617
Dowel pin
$4.95
5000081633
Washer
$9.95
5000081645
Ratchet
$12.95
5000081646
Spring
$10.95
5000081647
Spring
$31.95
5000081648
Spring
$8.95
5000081649
Spring housing
$24.95
5000081658
Screw
$6.95
5000081764
Protective hose
$8.95
5000081997
Set-pilot jet
$39.95
5000082828
Kit-governor
$54.95
5000082829
Holder
$32.95
5000082831
Lever
$24.95
5000082839
Starter housing
$223.95
5000082840
Starter pulley
$76.95
5000082841
Puller
$73.95
5000082842
Rope
5000089273
Valve hood
$109.95
5000089281
Set-collar
$11.95
5000089284
Screw
$2.95
5000089286
Setscrew
$35.95
5000094518
Cheese head screw
$3.95
5000095073
Plug (threaded)
$27.95
5000095074
Connector
$35.95
5000105944
Screw
$0.95
5000108180
Cheese head screw
$0.95
5000110110
Cotter pin
$1.95
5000110112
Screw
$1.95
5000110114
Governor shaft
$26.95
5000110602
Valve guide
$41.95
5000116734
Bolt
$1.95
5000116736
Nut
$16.95
5000124717
Washer
$0.95
5000125153
Hexagon nut
5000125155
Screwed socket
$10.95
5000125839
O-ring
5000126187
Threaded pin
$0.95
5000150266
Fuel valve lever
$17.95
5000150916
Screw
$1.95
5000151028
Spring
$5.95
5000151750
Gasket
$9.95
5000157749
Oil seal
5000158458
Flange bolt
$2.95
5000158498
Spark plug
$5.95
5000162646
Oil filler cap
$1.95
5000162647
Gasket
$5.95
5000162672
Exhaust seal
$3.95
5000162705
Main jet
$12.95
5000162706
Main jet
$12.95
5000202829
Cup spring
$1.95
5000205238
Screw connection
$28.95
5000206837
Countersunk bolt
$1.95
5000208616
O-ring
5000208617
Clamp
$3.95
5000208623
Labels
$5.95
5000209770
Gasket
$0.95
5000210194
Corrugated-head screw
$0.95
5000211795
Corrugated-head screw
$1.95
5000212143
Clamp
$1.95
5000212753
Crankshaft cpl.
$400.95
5000216640
Locknut
$1.95
5000216644
Shockmount
$16.95
5000216659
Screw
$3.95
5000217428
Set-piston rings
$225.95
5000217453
Fuel filter
$12.95
5000217462
Key
$7.95
5000217481
Spring
$6.95
5000217482
Oil dip stick cpl.
$12.95
5000217483
Set-carburetor float
$89.95
5000217491
Spark plug terminal cap
$10.95
5000217492
Switch assembly
$115.95
5000217494
Screw w/washer
$2.95
5000217497
Stud bolt
5000217513
Exhaustdeflector
5000220000
Instruction label
$2.95
5000220001
Cheese head screw
$0.95
5000220133
Grooved ball bearing
$34.95
5000220325
Screw
$2.95
5000222605
Oval head screw
$0.95
5000226523
Label
5000226525
Label
$6.95
5000406694
Fuel tank cap
5002004474
Retaining ring
$0.95
5002004814
Shockmount
$68.95
5002006113
Retaining ring
$0.95
5002007057
Retaining ring
$1.95
5100000347
Crankcase cover cpl.
$863.95
5100000350
Gasket
$19.95
5100000356
Cylinder head gasket
$29.95
5100000358
Set of piston rings
5100000362
Set of piston rings
5100000370
Piston (0,50)
5100000375
Connecting rod cpl.
5100000379
Camshaft cpl.
5100000392
Governor cpl.
$124.95
5100000394
Regulating plate
$10.95
5100000395
Fuel filter
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
