Wacker Neuson BS50-2 Vibratory Rammer
Factory parts book · interactive
Wacker Neuson BS50-2 Vibratory Rammer
Pick your options below. We build the exact machine and start your quote.
The parts bench

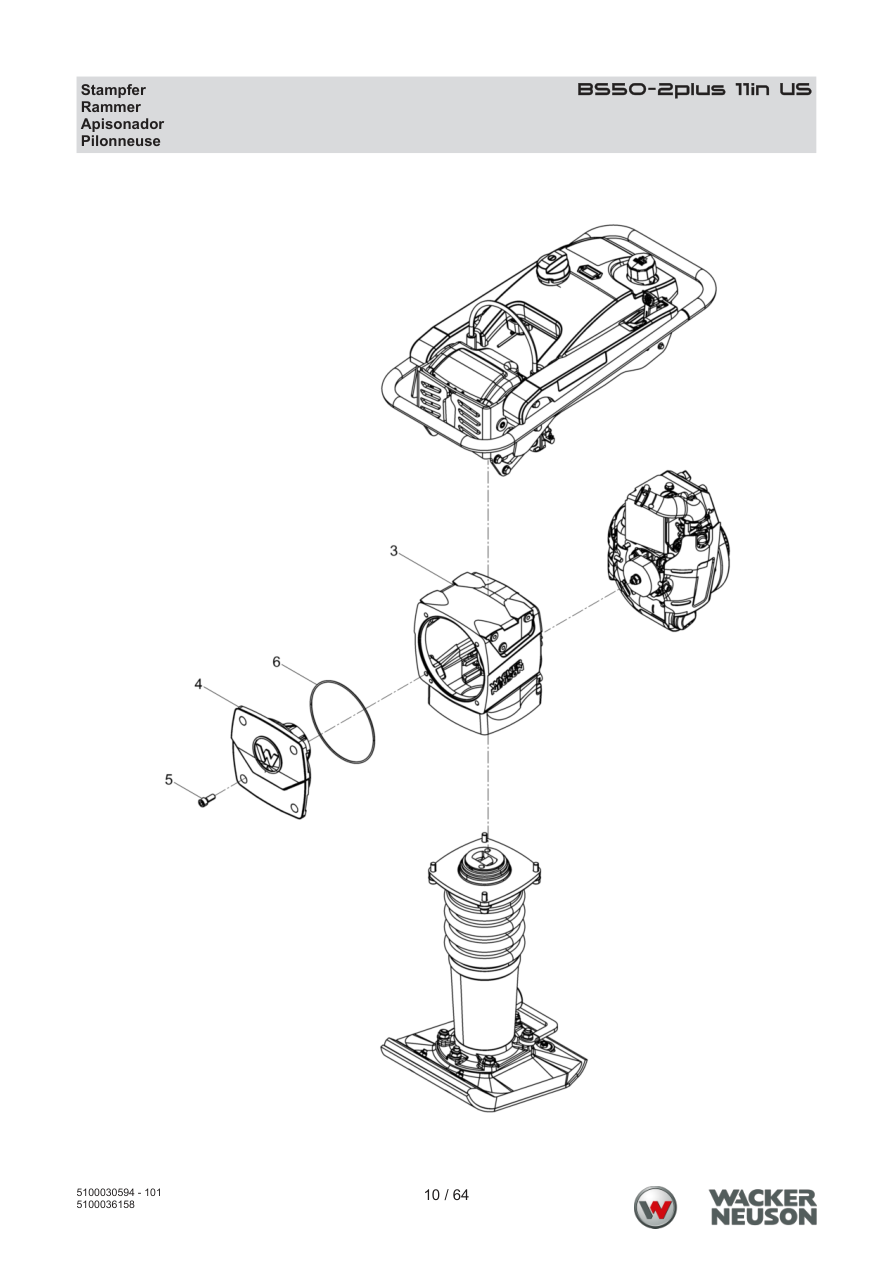

Need the PDF? ↓Page 10 — US Rammer
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100045479 | Crankcase | 1 | ADD TO CART | |
| 4 | 5100032132 | Crankcase cover | 1 | ADD TO CART | |
| 5 | 5000011535 | Cheese head screw | 4 | ADD TO CART | |
| 6 | 5100033181 | O-ring | 1 | ADD TO CART | |
| 24 | 5100032274 | Roller kit | 1 | ADD TO CART | |

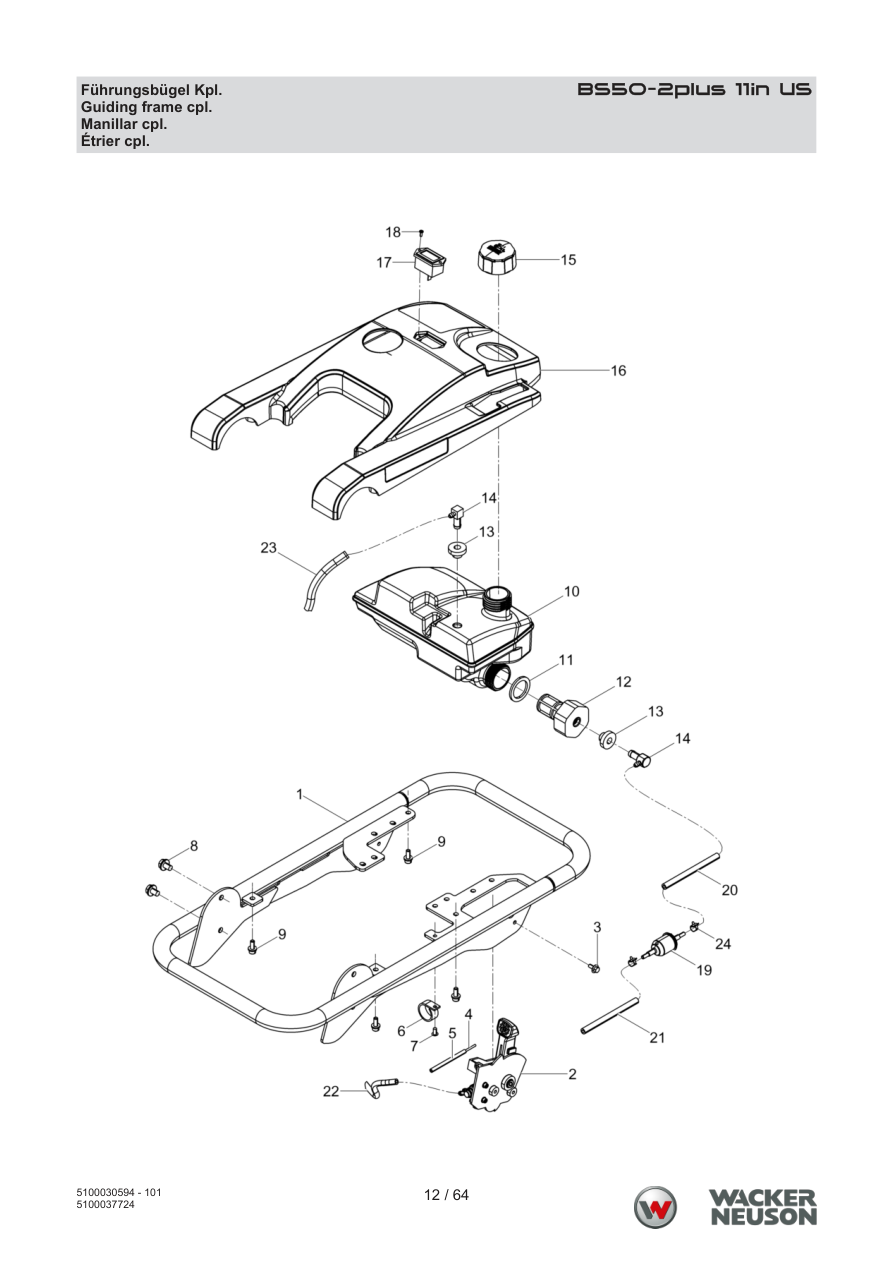

Page 12 — US Guiding frame cpl.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100032226 | Outer bowden cable | 1 | ADD TO CART | |
| 6 | 5000155562 | Clip | 1 | ADD TO CART | |
| 7 | 5100035983 | Blind rivet | 1 | ADD TO CART | |
| 8 | 5100027071 | Screw | 4 | ADD TO CART | |
| 9 | 5000160861 | Screw | 8 | M6 x 16 | ADD TO CART |
| 10 | 5100030302 | Fuel tank | 1 | ADD TO CART | |
| 11 | 5000086312 | Ring seal | 1 | ADD TO CART | |

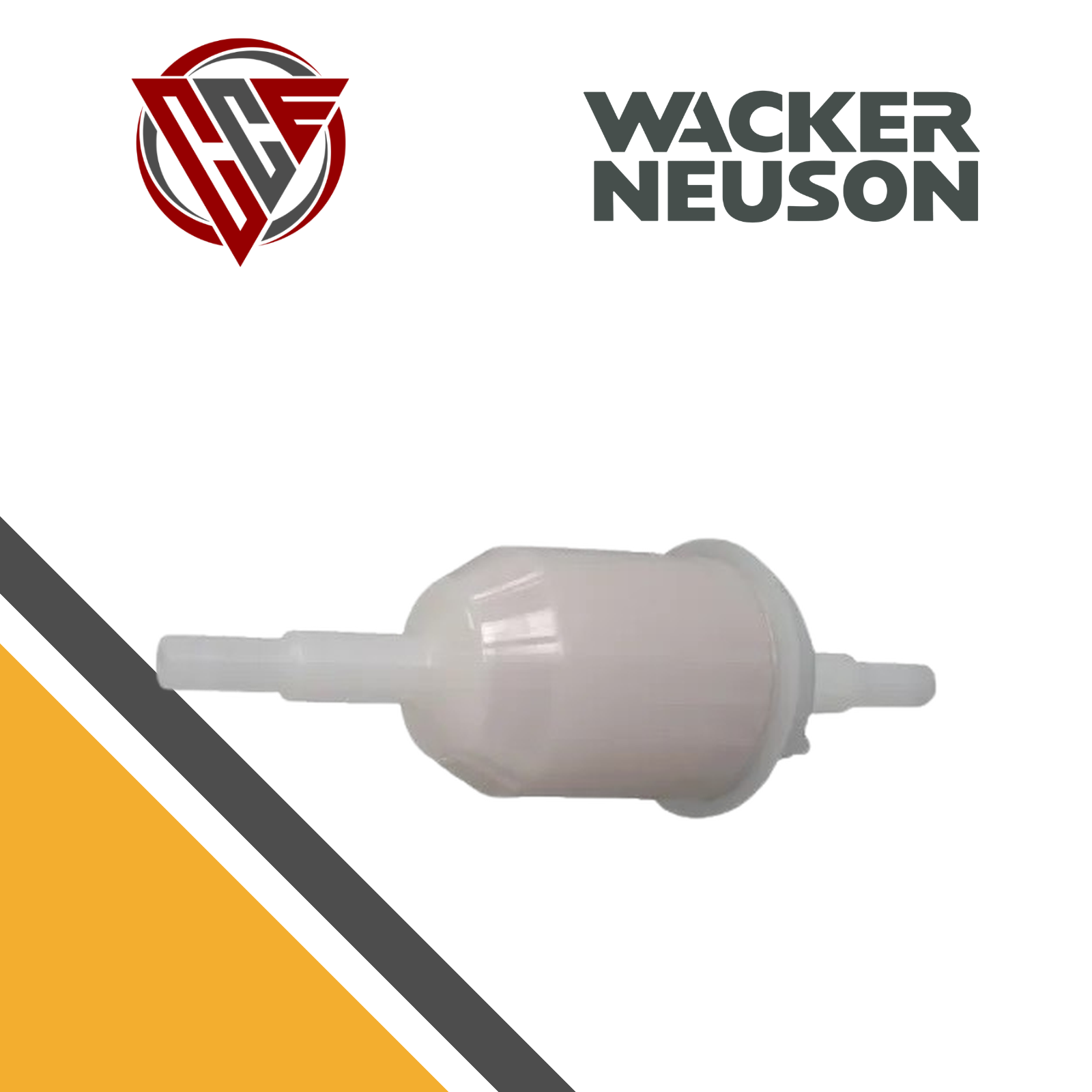

| 12 | 5100028935 | Water filter | 1 | ADD TO CART | |
| 13 | 5100032258 | Bush | 2 | ADD TO CART | |
| 14 | 5100066546 | Connecting nipple | 2 | ADD TO CART | |

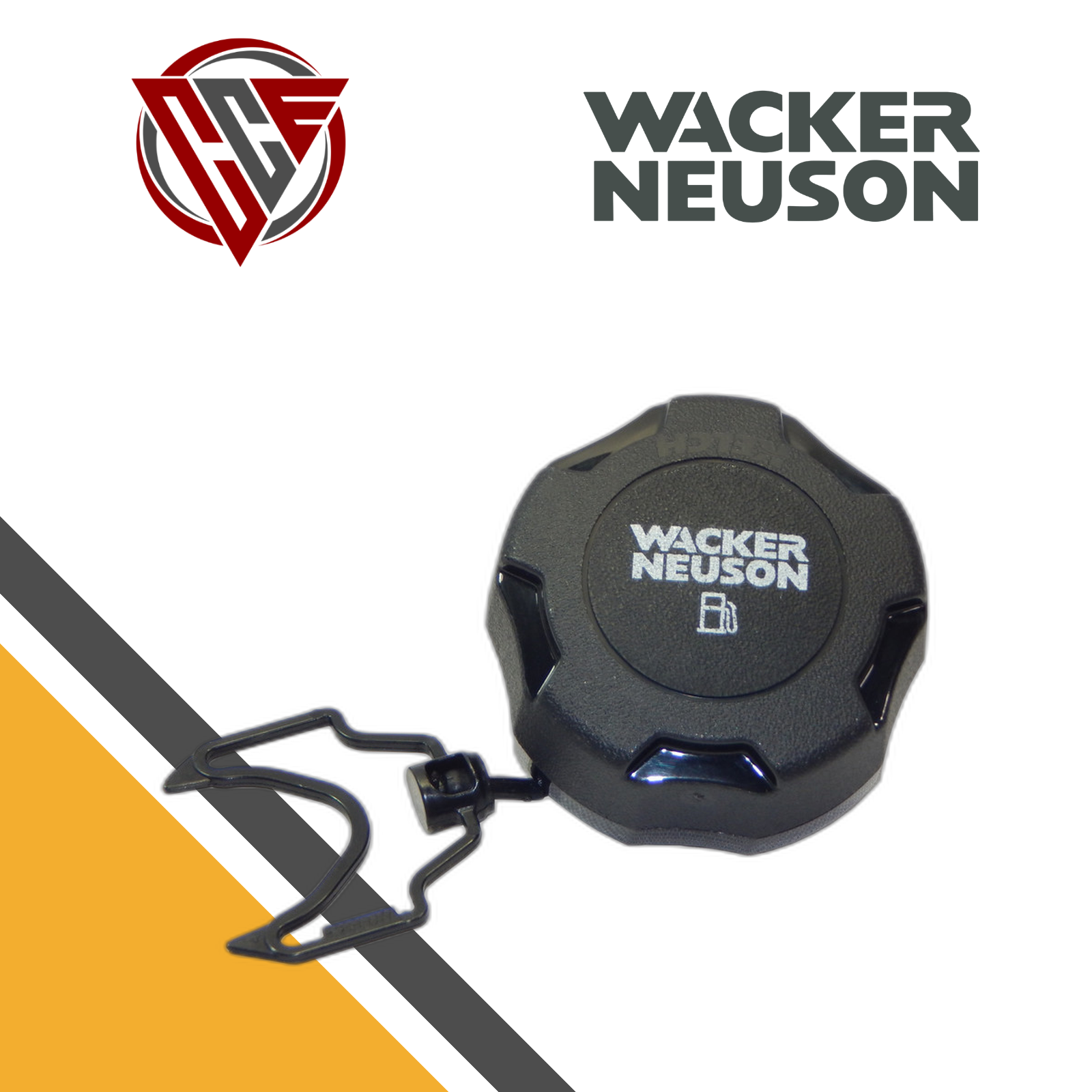

| 15 | 5100030407 | Tank cap | 1 | ADD TO CART | |
| 16 | 5100031423 | Covering | 1 | ADD TO CART | |
| 17 | 5100034578 | Working hour meter | 1 | ADD TO CART | |
| 18 | 5000209453 | Screw | 2 | ADD TO CART | |
| 19 | 5100068032 | Fuel filter | 1 | ADD TO CART | |
| 20 | 5100037400 | Fuel hose | 1 | ADD TO CART | |
| 21 | 5100019507 | Fuel hose w/spring | 1 | ADD TO CART | |
| 22 | 5100037402 | Fuel hose | 1 | ADD TO CART | |
| 23 | 5100037403 | Fuel hose | 1 | ADD TO CART | |
| 24 | 5000171698 | Clamp | 2 | ADD TO CART | |
| 1 | 5100028600 | Guide handle | 1 | ADD TO CART | |
| 2 | 5100030465 | Throttle control cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000155845 | Hexagonal head cap screw | 2 | M5 x 12 | ADD TO CART |
| 4 | 5100032225 | Bowden cable | 1 | ADD TO CART | |

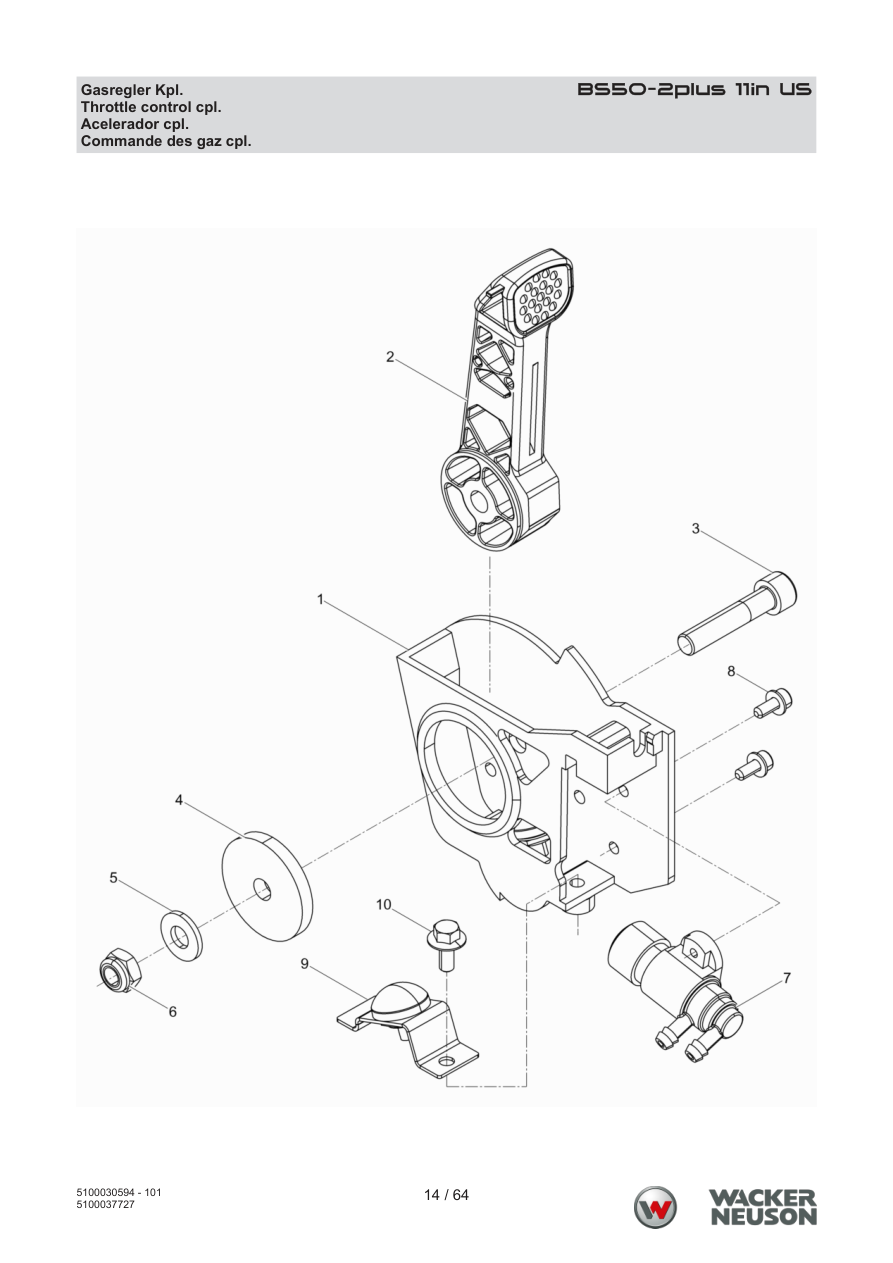

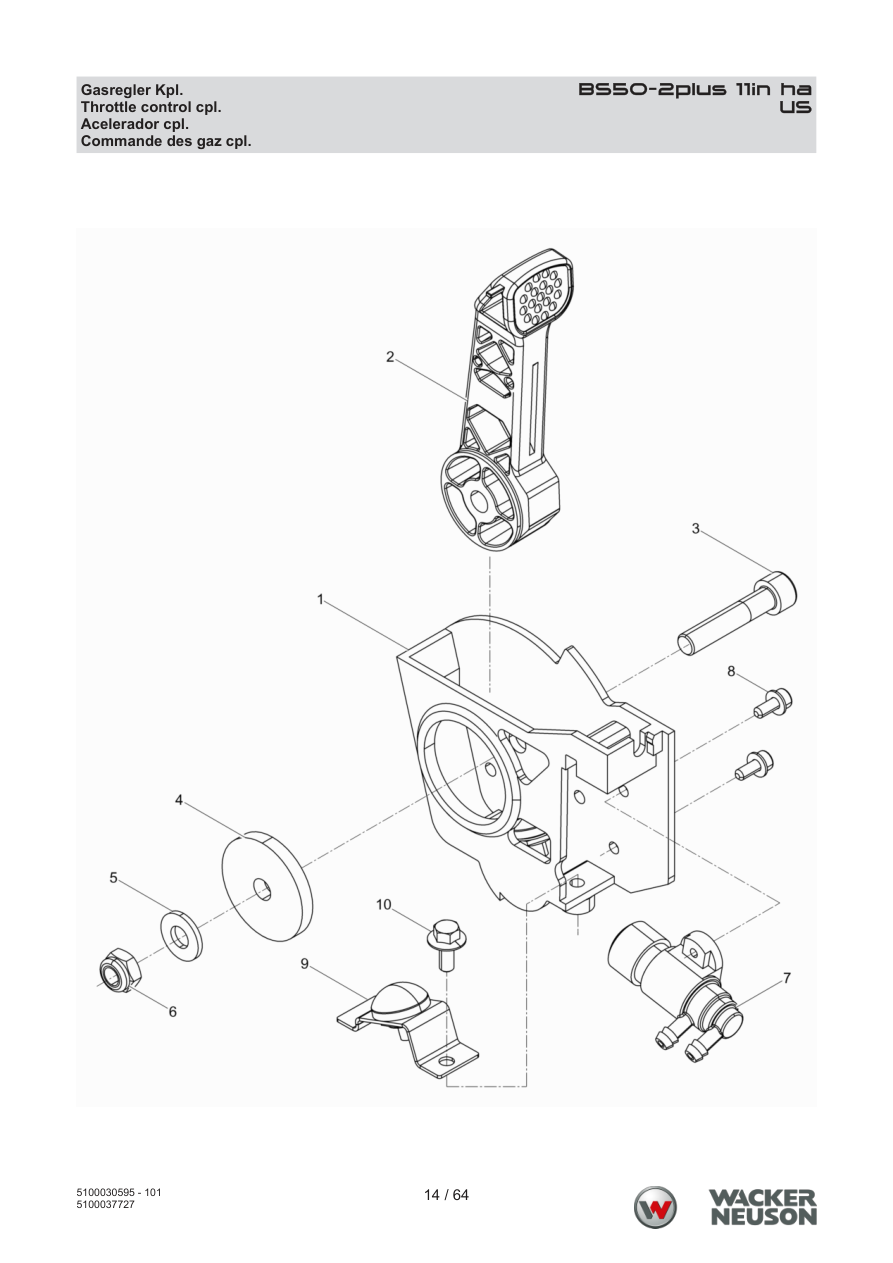

Page 14 — US Throttle control cpl.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100032228 | Bracket | 1 | ADD TO CART | |
| 2 | 5100032229 | Throttle lever | 1 | ADD TO CART | |
| 3 | 5000011539 | Cheese head screw | 1 | M8 x 40 25Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 4 | 5000105194 | Washer | 1 | M8 x 1,5in | ADD TO CART |
| 5 | 5000033198 | Lockwasher | 1 | ADD TO CART | |
| 6 | 5000010367 | Hexagon nut | 1 | ADD TO CART | |
| 7 | 5100032270 | Fuel cock | 1 | ADD TO CART | |
| 8 | 5000165047 | Socket head cap screw | 2 | M4 x 10 | PARTS REQUEST |
|
COMING Socket head cap screw
5000165047 · qty on machine: 2 M4 x 10 | |||||
| 9 | 5100032271 | Stop switch | 1 | ADD TO CART | |
| 10 | 5000155845 | Hexagonal head cap screw | 1 | M5 x 12 | ADD TO CART |

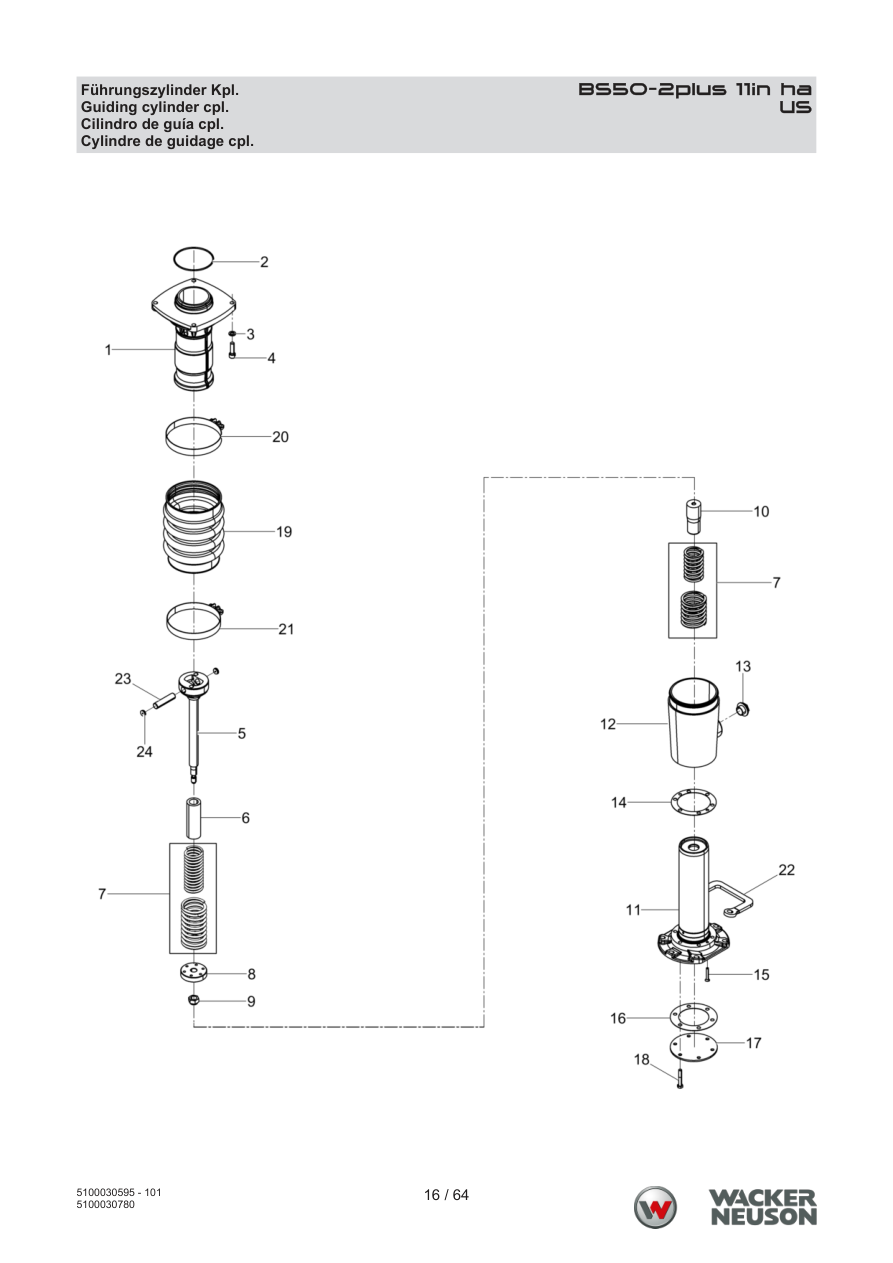

Page 16 — US Guiding cylinder cpl.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 14 | 5100032110 | Gasket | 1 | ADD TO CART | |
| 15 | 5000155017 | Countersunk screw | 2 | M6 x 40 | ISO10642 | PARTS REQUEST |
|
COMING Countersunk screw
5000155017 · qty on machine: 2 M6 x 40 | ISO10642 | |||||
| 16 | 5100032111 | Gasket | 1 | ADD TO CART | |
| 17 | 5100031608 | Cover | 1 | ADD TO CART | |
| 18 | 5000011343 | Hexagonal head cap screw | 6 | M8 x 50 25Nm/18ft.lbs | DIN931 | ADD TO CART |
| 19 | 5100032112 | Bellows | 1 | ADD TO CART | |
| 20 | 5000110537 | Clamp | 1 | ADD TO CART | |
| 21 | 5000110528 | Clamp | 1 | ADD TO CART | |
| 22 | 5100031620 | Handle | 1 | ADD TO CART | |
| 23 | 5100032026 | Piston pin | 1 | ADD TO CART | |
| 24 | 5100058422 | Plug | 2 | ADD TO CART | |
| 1 | 5100038429 | Guide cylinder | 1 | PARTS REQUEST | |
|
COMING Guide cylinder
5100038429 · qty on machine: 1 | |||||
| 2 | 5000031880 | O-ring | 1 | 96 x 3 | ADD TO CART |
| 3 | 5000010644 | Lock washer | 4 | A10 | DIN128 | ADD TO CART |
| 4 | 5000011533 | Cheese head screw | 4 | 49Nm/36ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000011533 · qty on machine: 4 49Nm/36ft.lbs | ISO4762 | |||||
| 5 | 5100038472 | Guide piston | 1 | ADD TO CART | |
| 6 | 5100032036 | Bushing | 1 | ADD TO CART | |
| 7 | 5100071907 | Spring set | 2 | ADD TO CART | |
| 8 | 5100032038 | Piston guide | 1 | ADD TO CART | |
| 9 | 5000110196 | Lock nut | 1 | ADD TO CART | |
| 10 | 5100032039 | Damper | 1 | ADD TO CART | |
| 11 | 5100045300 | Spring cylinder | 1 | ADD TO CART | |
| 12 | 5100052097 | Protective pipe | 1 | ADD TO CART | |
| 13 | 5100033182 | Sight glass | 1 | ADD TO CART | |

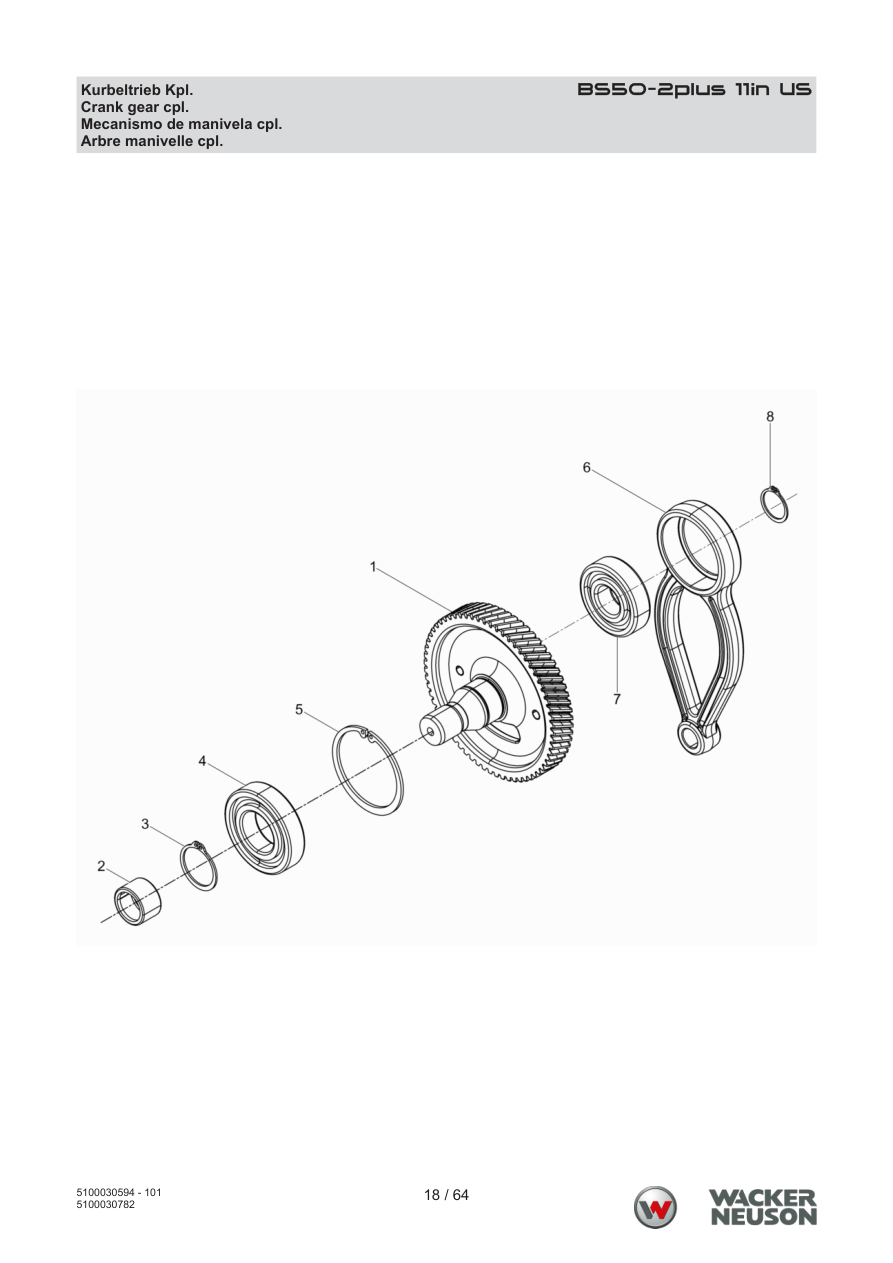

Page 18 — US Crank gear cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100037296 | Crank gear | 1 | ADD TO CART | |
| 2 | 5000072061 | Needle bearing | 1 | ADD TO CART | |
| 3 | 5002003022 | Retaining ring | 1 | 35 x 1,5 | DIN471 | ADD TO CART |
| 4 | 5002003021 | Grooved ball bearing | 1 | ADD TO CART | |
| 5 | 5002003023 | Retaining ring | 1 | 72 x 2,5 | DIN472 | ADD TO CART |
| 6 | 5100037875 | Connecting rod | 1 | ADD TO CART | |
| 7 | 5000045190 | Grooved ball bearing | 1 | ADD TO CART | |
| 8 | 5002001041 | Retaining ring | 1 | 25 x 1,2 | DIN471 | ADD TO CART |

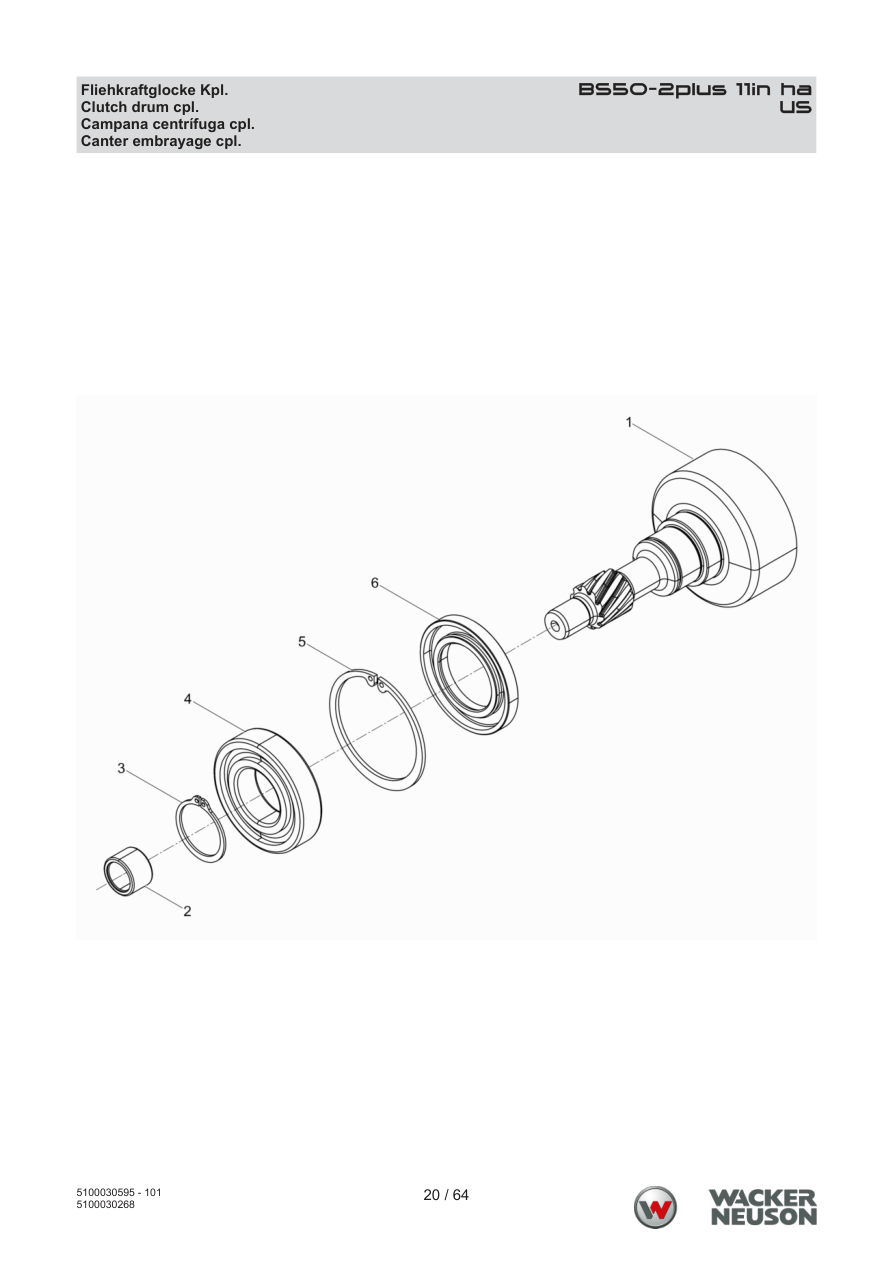

Page 20 — US Clutch drum cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5000039050 | Shaft seal | 1 | ADD TO CART | |
| 1 | 5100038030 | Clutch drum | 1 | ADD TO CART | |
| 2 | 5000039020 | Needle bearing | 1 | ADD TO CART | |
| 3 | 5002003022 | Retaining ring | 1 | 35 x 1,5 | DIN471 | ADD TO CART |
| 4 | 5002003021 | Grooved ball bearing | 1 | ADD TO CART | |
| 5 | 5002003023 | Retaining ring | 1 | 72 x 2,5 | DIN472 | ADD TO CART |

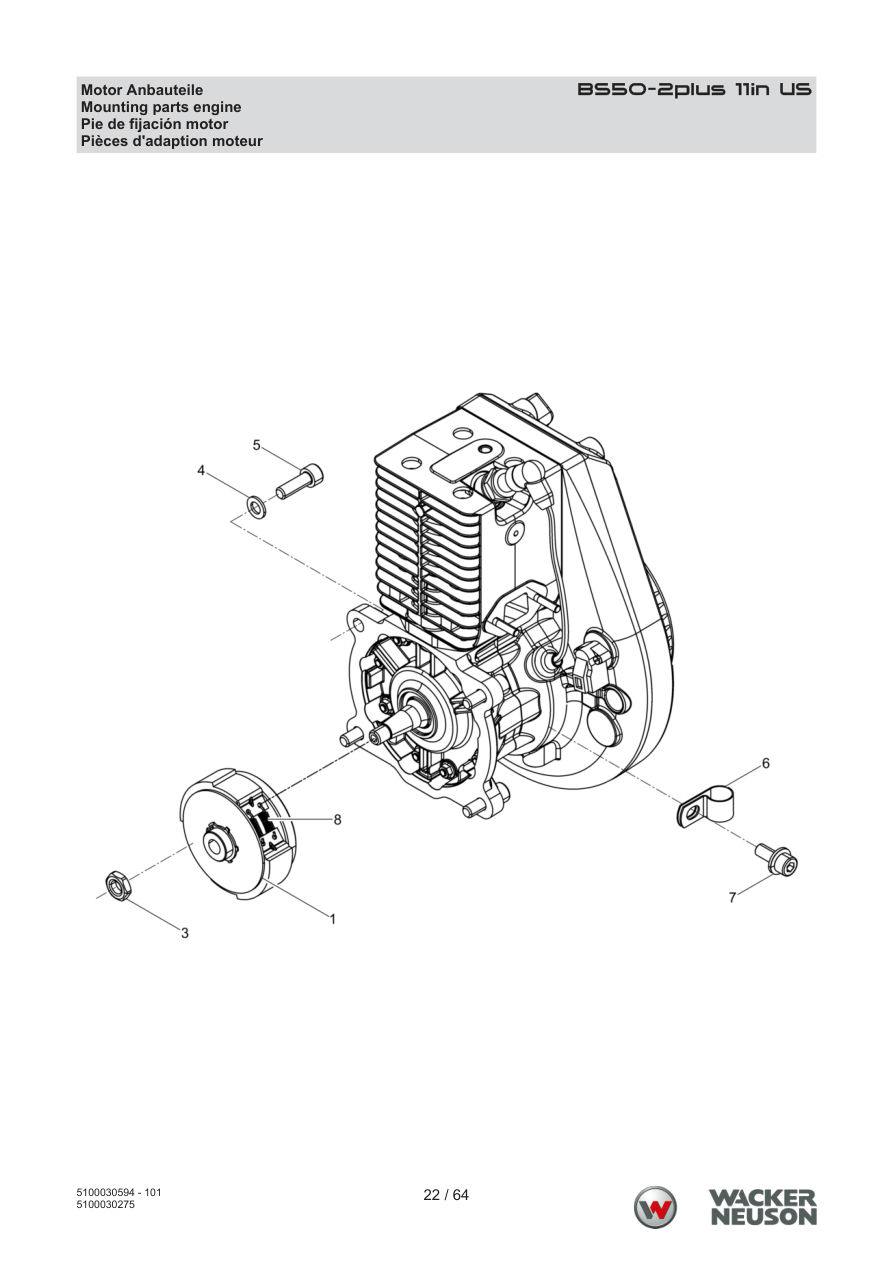

Page 22 — BS50-2plus 11in ha Engine attachments
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100045607 | Centrifugal clutch | 1 | ADD TO CART | |
| 3 | 5000010883 | Hexagon nut | 1 | ADD TO CART | |
| 4 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 5 | 5000151559 | Cheese head screw | 4 | M8 x 25 27Nm/20ft.lbs | ISO4762 | ADD TO CART |
| 6 | 5000156954 | Hose clamp | 1 | ADD TO CART | |
| 7 | 5000177452 | Screw | 1 | ADD TO CART | |

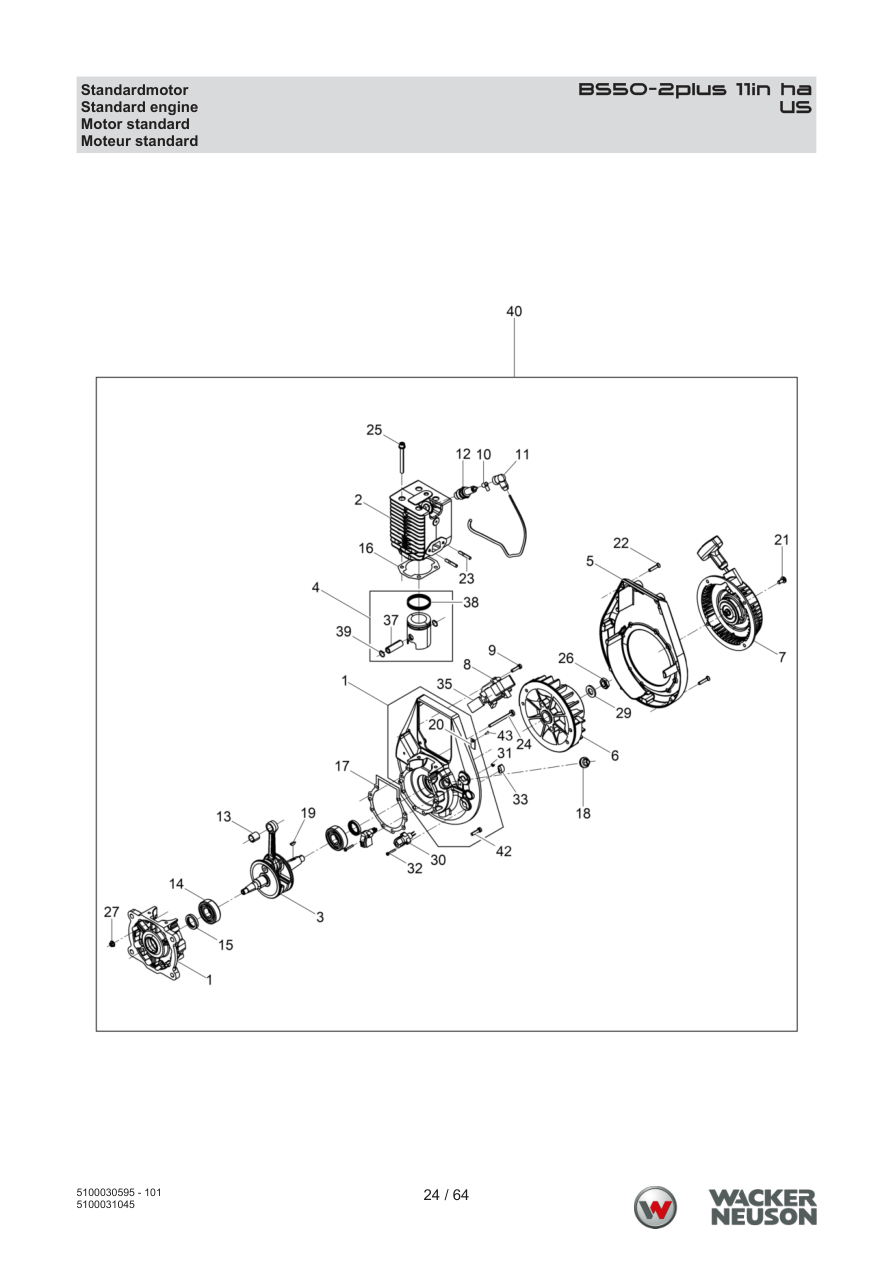

Page 24 — BS50-2plus 11in ha Standard engine
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5000064446 | Recoil starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Recoil starter cpl.
5000064446 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 8 | 5000181216 | Ignition module | 1 | ADD TO CART | |
| 9 | 5100049413 | Screw | 3 | ADD TO CART | |
| 10 | 5000153124 | Spark plug (terminal) cap | 1 | ADD TO CART | |
| 11 | 5000153125 | Spark plug (terminal) cap | 1 | ADD TO CART | |
| 12 | 5000172332 | Spark plug | 1 | PARTS REQUEST | |
|
COMING Spark plug
5000172332 · qty on machine: 1 | |||||
| 13 | 5000034835 | Needle bearing | 1 | ADD TO CART | |
| 14 | 5100065070 | Grooved ball bearing | 2 | ADD TO CART | |
| 15 | 5100006052 | Shaft seal | 2 | ADD TO CART | |
| 16 | 5100025323 | Cylinder gasket | 1 | ADD TO CART | |
| 17 | 5100025322 | Gasket | 1 | ADD TO CART | |
| 18 | 5100060760 | Cable passage | 1 | ADD TO CART | |
| 19 | 5000010388 | Woodruff key | 1 | 3 x 5 | DIN6888 | ADD TO CART |
| 20 | 5000045906 | Retainer | 2 | ADD TO CART | |
| 21 | 5000153273 | Pan head screw | 4 | M6 x 12 | DIN85 | ADD TO CART |
| 22 | 5000153272 | Screw | 7 | M5 x 25 | DIN964 | ADD TO CART |
| 23 | 5100027617 | Stud | 2 | ADD TO CART | |
| 24 | 5000215365 | Cheese head screw | 8 | M 5x 60 | ADD TO CART |
| 25 | 5000095917 | Cheese head screw | 4 | M6 x 60 | ADD TO CART |
| 26 | 5000045914 | Hexagon nut | 1 | M12 x 1,5 | ISO8675 | ADD TO CART |
| 27 | 5000183750 | Hexagon nut | 8 | ADD TO CART | |
| 29 | 5000010620 | Flat washer | 1 | ADD TO CART | |
| 30 | 5000080502 | Terminal post | 2 | ADD TO CART | |
| 31 | 5000102116 | Hexagon nut | 1 | M3 | ISO10511 | PARTS REQUEST |
|
COMING Hexagon nut
5000102116 · qty on machine: 1 M3 | ISO10511 | |||||
| 32 | 5000011730 | Cheese head screw | 4 | M3 x 20 | ISO1207 | ADD TO CART |
| 33 | 5000049586 | Protective cap | 1 | ADD TO CART | |
| 35 | 5000164990 | Foam | 1 | ADD TO CART | |
| 37 | 5000012199 | Piston pin | 1 | ADD TO CART | |
| 38 | 5000045904 | Piston ring | 2 | 45 x 1,5 | DIN70910 | ADD TO CART |
| 39 | 5000012257 | Retaining ring | 2 | A12 | DIN73123 | ADD TO CART |
| 40 | 5100009684 | Wm 80 engine | 1 | ADD TO CART | |
| 42 | 5100049413 | Screw | 3 | ADD TO CART | |
| 1 | 5100009983 | Crankcase cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000213076 | Cylinder | 1 | ADD TO CART | |
| 3 | 5100021110 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000115324 | Piston | 1 | ADD TO CART | |
| 5 | 5000105067 | Fan hood | 1 | PARTS REQUEST | |
|
COMING Fan hood
5000105067 · qty on machine: 1 | |||||
| 6 | 5000045041 | Fan | 1 | ADD TO CART | |

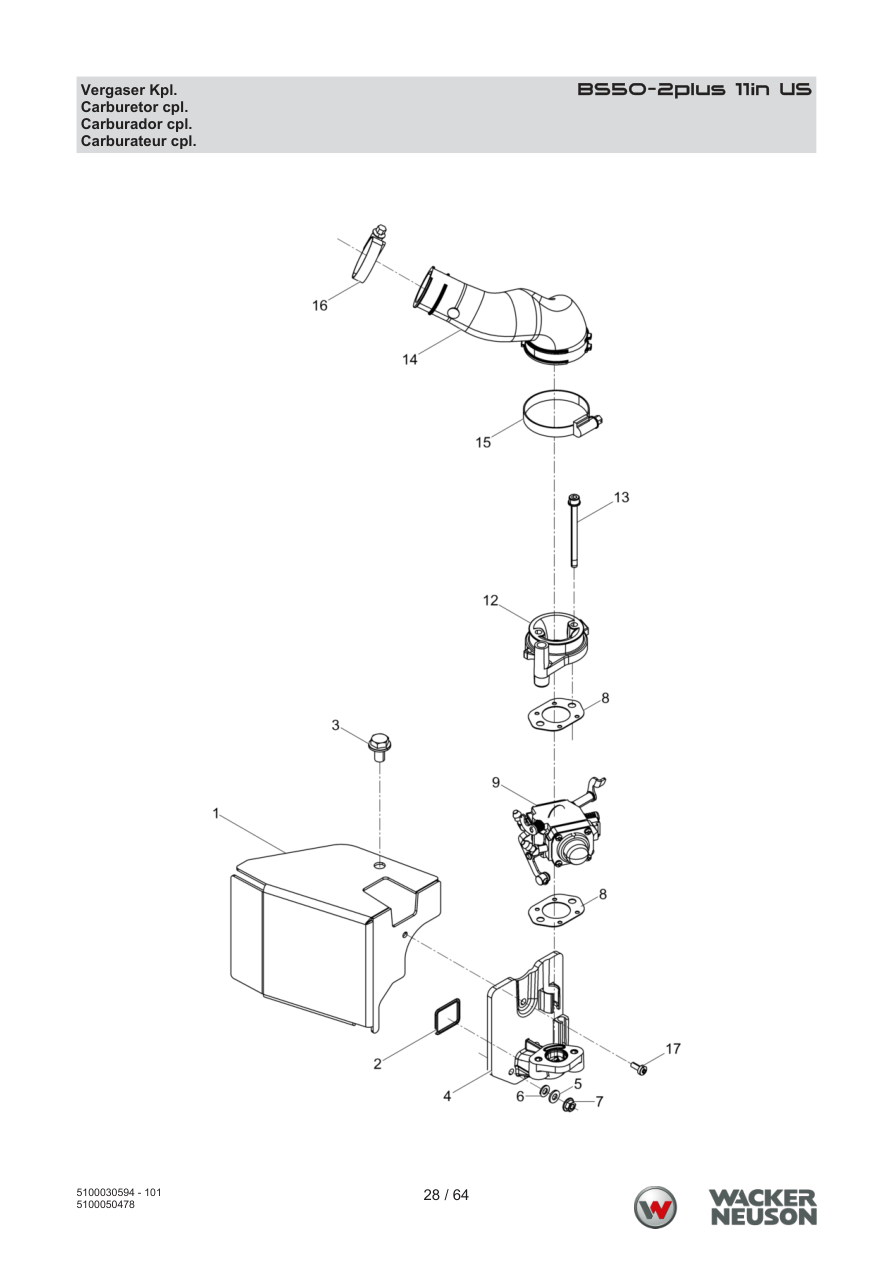

Page 28 — US Carburetor cpl.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059332 | Air duct plate | 1 | ADD TO CART | |
| 2 | 5100002961 | O-ring | 1 | ADD TO CART | |
| 3 | 5100027072 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100027072 · qty on machine: 1 | |||||
| 4 | 5100048930 | Carburetor flange | 1 | PARTS REQUEST | |
|
COMING Carburetor flange
5100048930 · qty on machine: 1 | |||||
| 5 | 5000103212 | Washer | 2 | 5 | DIN134 | ADD TO CART |
| 6 | 5000103211 | Lockwasher | 2 | 5 | DIN6796 | ADD TO CART |
| 7 | 5000047488 | Hexagon nut | 2 | M5 7Nm/5ft.lbs | DIN6923 | PARTS REQUEST |
|
COMING Hexagon nut
5000047488 · qty on machine: 2 M5
7Nm/5ft.lbs | DIN6923 | |||||
| 8 | 5000095774 | Seal | 2 | ADD TO CART | |
| 9 | 5100061745 | Carburetor | 1 | ADD TO CART | |
| 12 | 5100032275 | Adaptor | 1 | ADD TO CART | |
| 13 | 5100075649 | Screw m 5x 65 | 2 | ADD TO CART | |
| 14 | 5100032179 | Air tube | 1 | ADD TO CART | |
| 15 | 5000078844 | Clamp | 1 | ADD TO CART | |
| 16 | 5100033186 | Clamp | 1 | ADD TO CART | |
| 17 | 5000222072 | Screw | 1 | M 4x 10 | ADD TO CART |

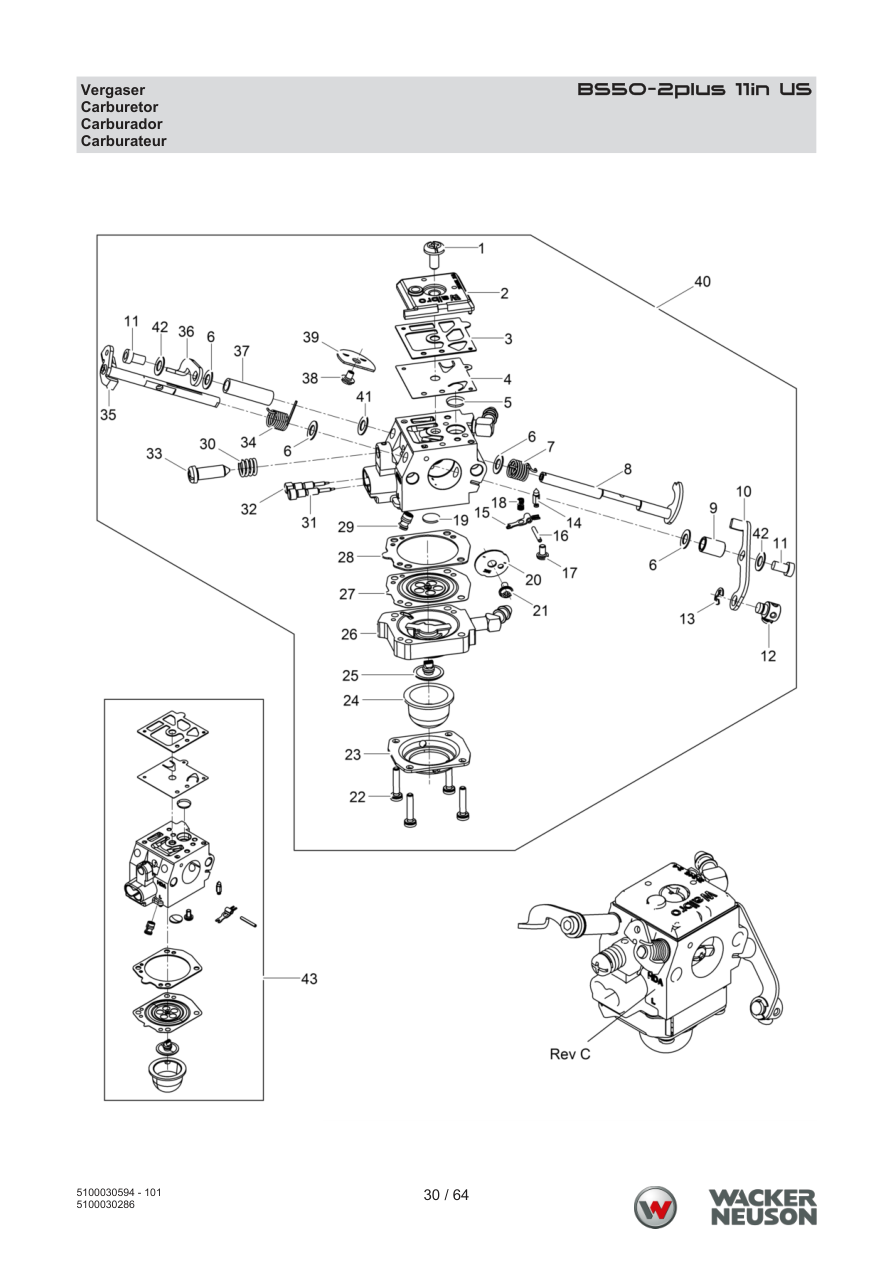

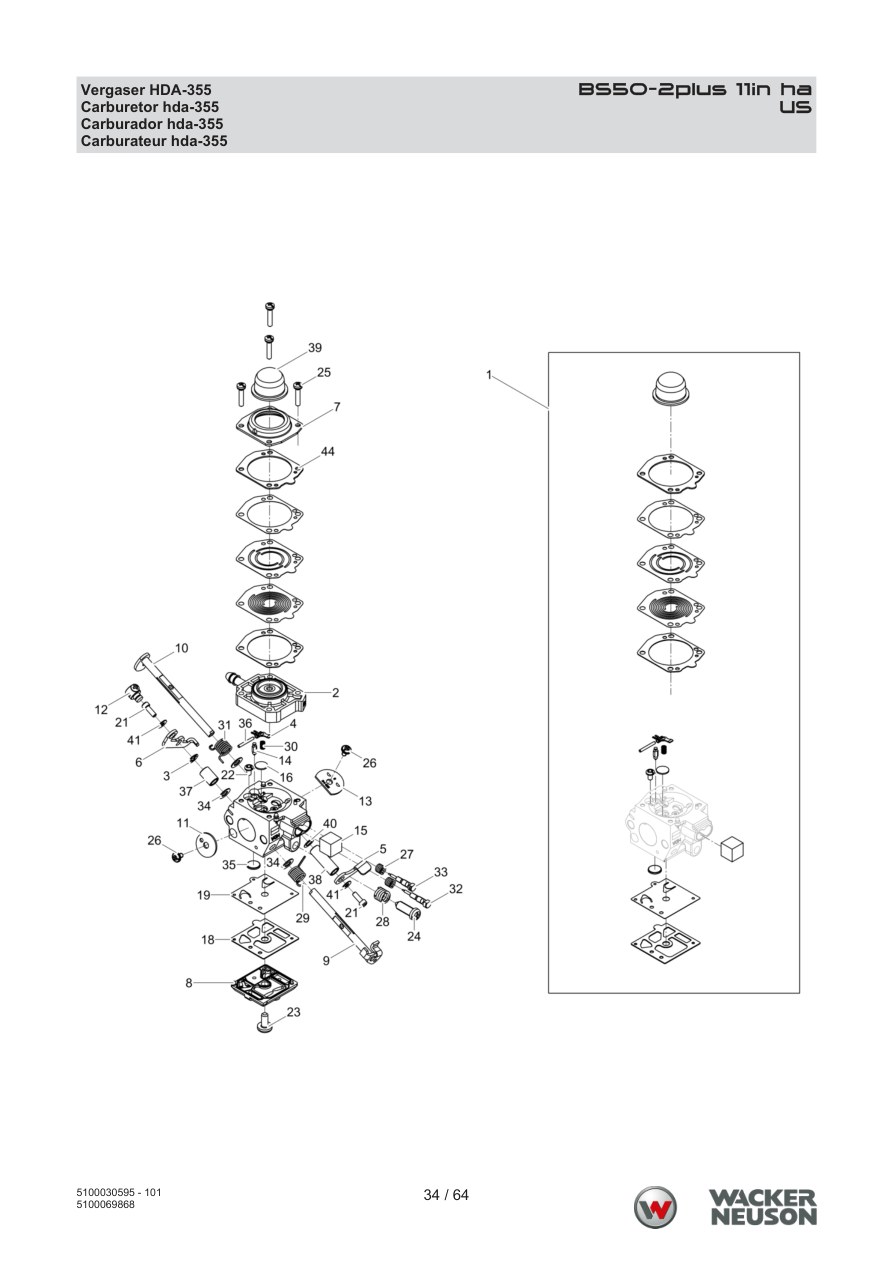

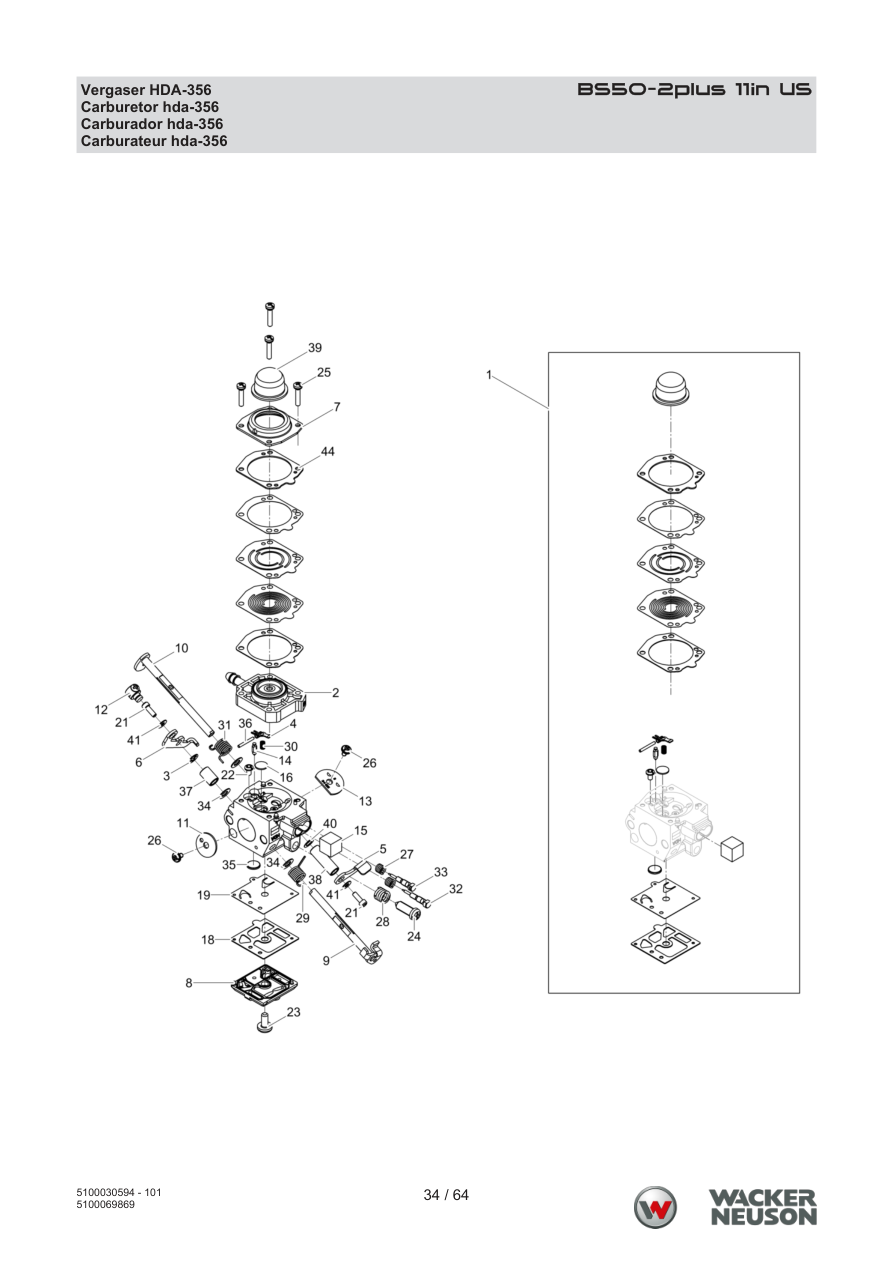

Page 30 — BS50-2plus 11in ha Carburetor
Parts list — exactly as printed43 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 15 | 5000182770 | Lever | 1 | ADD TO CART | |
| 16 | 5000182771 | Pin | 1 | ADD TO CART | |
| 17 | 5000222015 | Screw | 1 | ADD TO CART | |
| 18 | 5000175306 | Spring | 1 | ADD TO CART | |
| 19 | 5000182772 | Plug | 1 | ADD TO CART | |
| 20 | 5000183356 | Throttle valve | 1 | ADD TO CART | |
| 21 | 5000175305 | Screw | 1 | ADD TO CART | |
| 22 | 5000175307 | Screw | 4 | ADD TO CART | |
| 23 | 5000182773 | Cover | 1 | ADD TO CART | |
| 24 | 5000182774 | Bulb | 1 | ADD TO CART | |
| 25 | 5000180019 | Valve | 1 | PARTS REQUEST | |
|
COMING Valve
5000180019 · qty on machine: 1 | |||||
| 26 | 5000182775 | Air purge cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Air purge cpl.
5000182775 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 27 | 5000182776 | Diaphragm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 28 | 5000182777 | Gasket | 1 | ADD TO CART | |
| 29 | 5000182784 | Nozzle | 1 | ADD TO CART | |
| 30 | 5000182778 | Spring | 1 | ADD TO CART | |
| 31 | 5000175319 | Needle | 1 | PARTS REQUEST | |
|
COMING Needle
5000175319 · qty on machine: 1 | |||||
| 32 | 5000182779 | Needle valve | 1 | ADD TO CART | |
| 33 | 5000175310 | Idle speed screw | 1 | ADD TO CART | |
| 34 | 5000182780 | Spring | 1 | ADD TO CART | |
| 35 | 5000182781 | Throttle shaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5000182782 | Choke lever | 1 | ADD TO CART | |
| 37 | 5100028372 | Spacer | 1 | ADD TO CART | |
| 38 | 5000175315 | Screw | 1 | ADD TO CART | |
| 39 | 5000175316 | Choke valve | 1 | ADD TO CART | |
| 40 | 5000183842 | Walbro carburetor | 1 | ADD TO CART | |
| 41 | 5100028374 | Washer | 1 | 0,30 ID x 0,19 | ADD TO CART |
| 42 | 5100028375 | Washer | 2 | ADD TO CART | |
| 43 | 5000171010 | Carburetor repair kit | 1 | ADD TO CART | |
| 1 | 5000182757 | Pan head screw | 1 | ADD TO CART | |
| 2 | 5000182758 | Cover | 1 | ADD TO CART | |
| 3 | 5000182759 | Gasket | 1 | ADD TO CART | |
| 4 | 5000182760 | Diaphragm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000182761 | Screen | 1 | ADD TO CART | |
| 6 | 5000175300 | Washer | 4 | ADD TO CART | |
| 7 | 5000182762 | Spring | 1 | ADD TO CART | |
| 8 | 5200008316 | Choke shaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 9 | 5000182764 | Spacer | 1 | ADD TO CART | |
| 10 | 5000182765 | Throttle lever | 1 | ADD TO CART | |
| 11 | 5100028370 | Socket head screw | 2 | ADD TO CART | |
| 12 | 5000183351 | Swivel | 1 | ADD TO CART | |
| 13 | 5000182768 | Retaining ring | 1 | ADD TO CART | |
| 14 | 5000182769 | Inlet valve | 1 | ADD TO CART | |
Page 34 — BS50-2plus 11in ha Carburetor HDA-355
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5000182768 | Retaining ring | 1 | ADD TO CART | |
| 4 | 5100069843 | Lever | 1 | ADD TO CART | |
| 5 | 5000182782 | Choke lever | 1 | ADD TO CART | |
| 6 | 5000182765 | Throttle lever | 1 | ADD TO CART | |
| 7 | 5000182773 | Cover | 1 | ADD TO CART | |
| 8 | 5000222013 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5000222013 · qty on machine: 1 | |||||
| 9 | 5000182781 | Throttle shaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5100069847 | Choke shaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5000183356 | Throttle valve | 1 | ADD TO CART | |
| 12 | 5000183351 | Swivel | 1 | ADD TO CART | |
| 13 | 5000175316 | Choke valve | 1 | ADD TO CART | |
| 14 | 5000182769 | Inlet valve | 1 | ADD TO CART | |
| 15 | 5000182784 | Nozzle | 1 | ADD TO CART | |
| 16 | 5000182772 | Plug | 1 | ADD TO CART | |
| 18 | 5000182759 | Gasket | 1 | ADD TO CART | |
| 19 | 5000182760 | Diaphragm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 21 | 5100028370 | Socket head screw | 2 | ADD TO CART | |
| 22 | 5000222015 | Screw | 1 | ADD TO CART | |
| 23 | 5000182757 | Pan head screw | 1 | ADD TO CART | |
| 23 | 5000175299 | Pan head screw | 1 | ADD TO CART | |
| 24 | 5000175310 | Idle speed screw | 1 | ADD TO CART | |
| 25 | 5000175307 | Screw | 4 | ADD TO CART | |
| 26 | 5000175305 | Screw | 2 | ADD TO CART | |
| 27 | 5100069850 | Spring | 2 | ADD TO CART | |
| 28 | 5000182778 | Spring | 1 | ADD TO CART | |
| 29 | 5100028371 | Spring | 1 | ADD TO CART | |
| 30 | 5000175306 | Spring | 1 | ADD TO CART | |
| 31 | 5000182762 | Spring | 1 | ADD TO CART | |
| 32 | 5100069852 | Needle valve | 1 | ADD TO CART | |
| 33 | 5100069853 | Needle valve | 1 | ADD TO CART | |
| 34 | 5000175300 | Washer | 3 | ADD TO CART | |
| 36 | 5000182771 | Pin | 1 | ADD TO CART | |
| 37 | 5000182764 | Spacer | 1 | ADD TO CART | |
| 37 | 5100028372 | Spacer | 1 | ADD TO CART | |
| 38 | 5100028373 | Sleeve | 1 | ADD TO CART | |
| 39 | 5000182774 | Bulb | 1 | ADD TO CART | |
| 40 | 5100028374 | Washer | 1 | 0,30 ID x 0,19 | ADD TO CART |
| 41 | 5100028375 | Washer | 2 | ADD TO CART | |
| 44 | 5100069855 | Seal | 1 | ADD TO CART | |
| 1 | 5100068444 | Carburetor repair kit hda355-357 | 1 | ADD TO CART | |
| 2 | 5100069840 | Bleeder valve cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 35 | 5000182761 | Screen | 1 | ADD TO CART | |

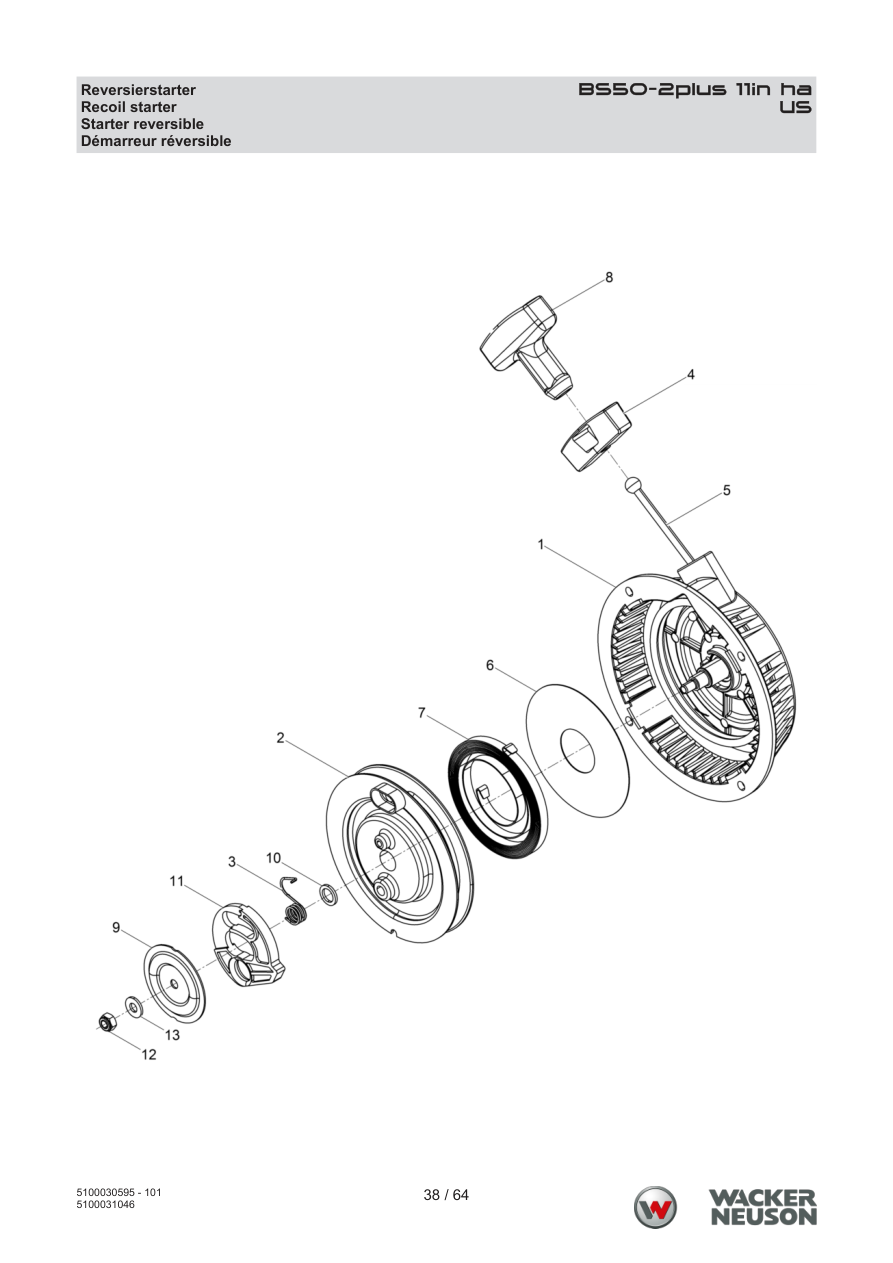

Page 38 — BS50-2plus 11in ha Recoil starter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 8 | 5000059890 | Starter handle | 1 | ADD TO CART | |
| 9 | 5000047997 | Cover | 1 | ADD TO CART | |
| 10 | 5000048062 | Washer | 1 | ADD TO CART | |
| 11 | 5000047998 | Ratchet (pawl) | 1 | ADD TO CART | |
| 12 | 5000058553 | Hexagon nut | 1 | M6 | DIN980 | ADD TO CART |
| 13 | 5000058381 | Lockwasher | 1 | 6 | DIN6796 | ADD TO CART |
| 1 | 5000048063 | Starter housing | 1 | ADD TO CART | |
| 2 | 5000048060 | Starter pulley | 1 | ADD TO CART | |
| 3 | 5000048059 | Spring | 1 | ADD TO CART | |
| 4 | 5000059891 | Retainer | 1 | ADD TO CART | |
| 5 | 5000104548 | Starter rope | 1 | ADD TO CART | |
| 6 | 5000065068 | Check disc | 1 | ADD TO CART | |
| 7 | 5000103163 | Spring | 1 | PARTS REQUEST | |
|
COMING Spring
5000103163 · qty on machine: 1 | |||||

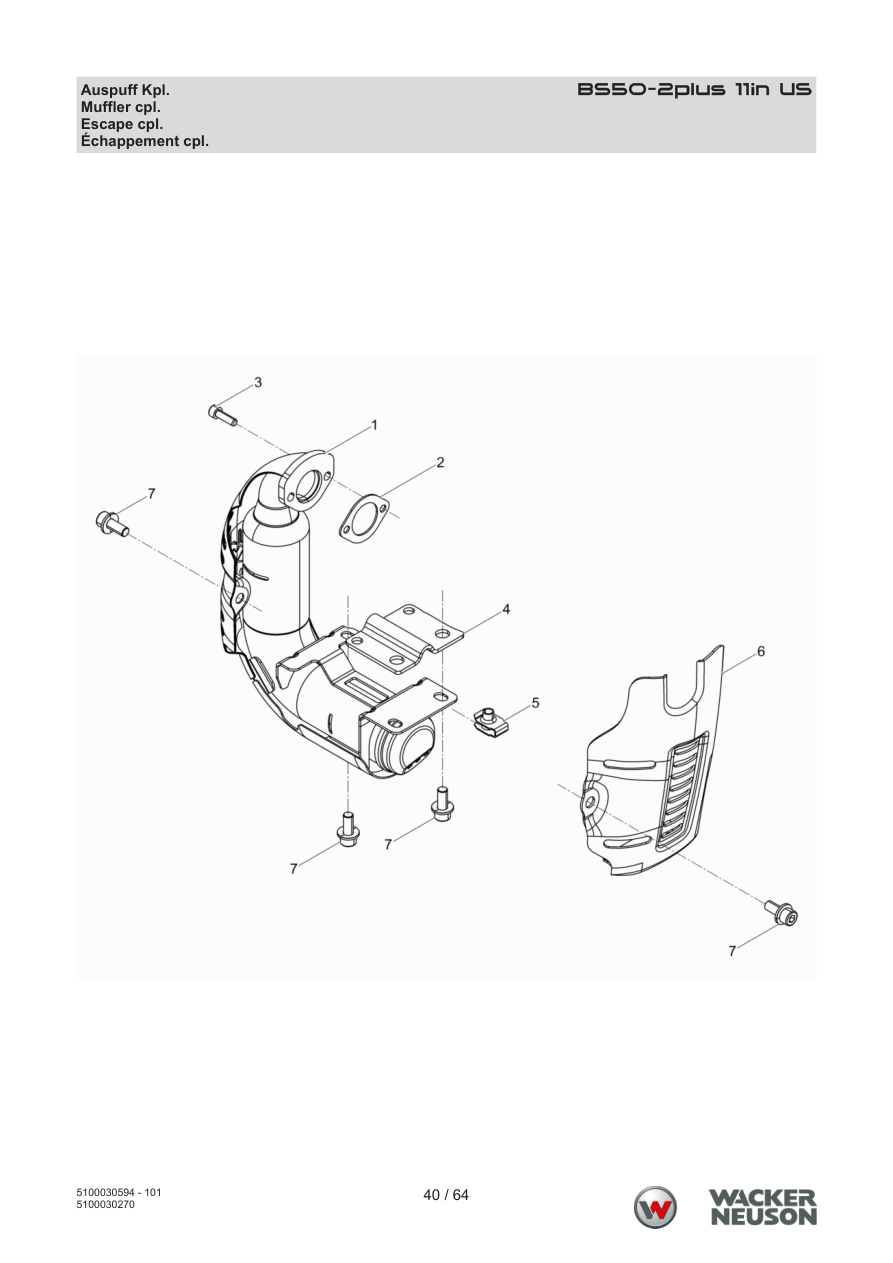

Page 40 — US Muffler cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5000112202 | Cheese head screw | 2 | M6 x 20 | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000112202 · qty on machine: 2 M6 x 20 | ISO4762 | |||||
| 4 | 5100031731 | Muffler bracket | 1 | ADD TO CART | |
| 5 | 5100033184 | Locknut | 2 | ADD TO CART | |
| 6 | 5100032212 | Protection | 1 | ADD TO CART | |
| 7 | 5000177452 | Screw | 7 | ADD TO CART | |
| 1 | 5100032210 | Exhaust | 1 | ADD TO CART | |
| 2 | 5100032211 | Gasket | 1 | ADD TO CART | |

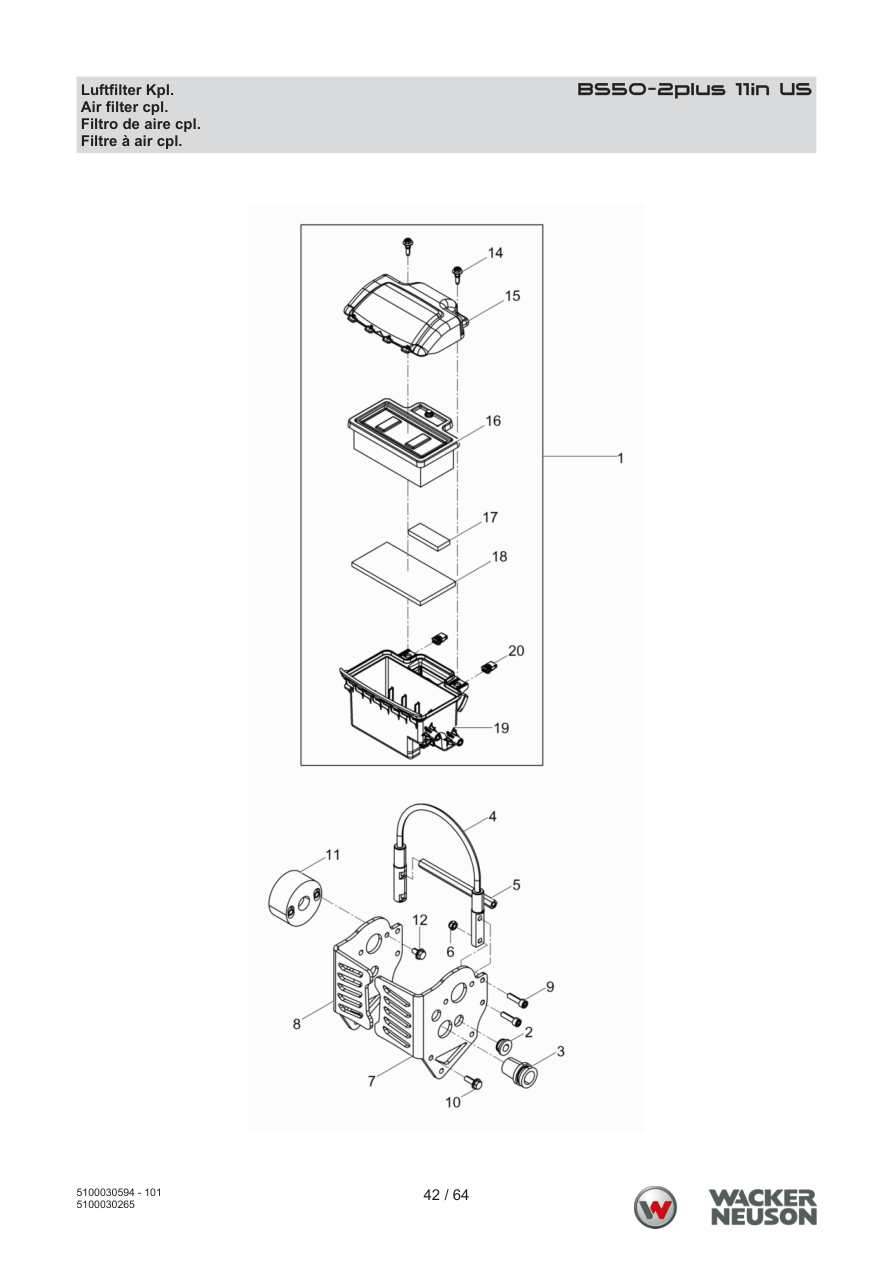

Page 42 — US Air filter cpl.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5000010367 | Hexagon nut | 2 | ADD TO CART | |
| 7 | 5100028527 | Side plate left | 1 | ADD TO CART | |
| 8 | 5100028528 | Side plate right | 1 | PARTS REQUEST | |
|
COMING Side plate right
5100028528 · qty on machine: 1 | |||||
| 9 | 5200023260 | Screw | 4 | PARTS REQUEST | |
|
COMING Screw
5200023260 · qty on machine: 4 | |||||
| 10 | 5200001667 | Screw | 6 | ADD TO CART | |
| 11 | 5100032053 | Shockmount | 2 | ADD TO CART | |
| 12 | 5100027072 | Screw | 4 | PARTS REQUEST | |
|
COMING Screw
5100027072 · qty on machine: 4 | |||||
| 14 | 5000164398 | Screw-filter, air box | 2 | ADD TO CART | |
| 15 | 5200007043 | Air box filter cover | 1 | ADD TO CART | |
| 16 | 5200003062 | Air filter element | 1 | ADD TO CART | |
| 17 | 5200007044 | Prefilter element | 1 | ADD TO CART | |
| 18 | 5200007045 | Foam filter | 1 | ADD TO CART | |
| 19 | 5200007040 | Air box base | 1 | ADD TO CART | |
| 20 | 5000164397 | Air box filter clip | 2 | ADD TO CART | |
| 1 | 5100032027 | Air cleaner | 1 | ADD TO CART | |
| 2 | 5100032029 | Grommet | 4 | PARTS REQUEST | |
|
COMING Grommet
5100032029 · qty on machine: 4 | |||||
| 3 | 5100032050 | Grommet | 1 | ADD TO CART | |
| 4 | 5100057480 | Lifting point | 1 | PARTS REQUEST | |
|
COMING Lifting point
5100057480 · qty on machine: 1 | |||||
| 5 | 5100032052 | Brace | 1 | ADD TO CART | |

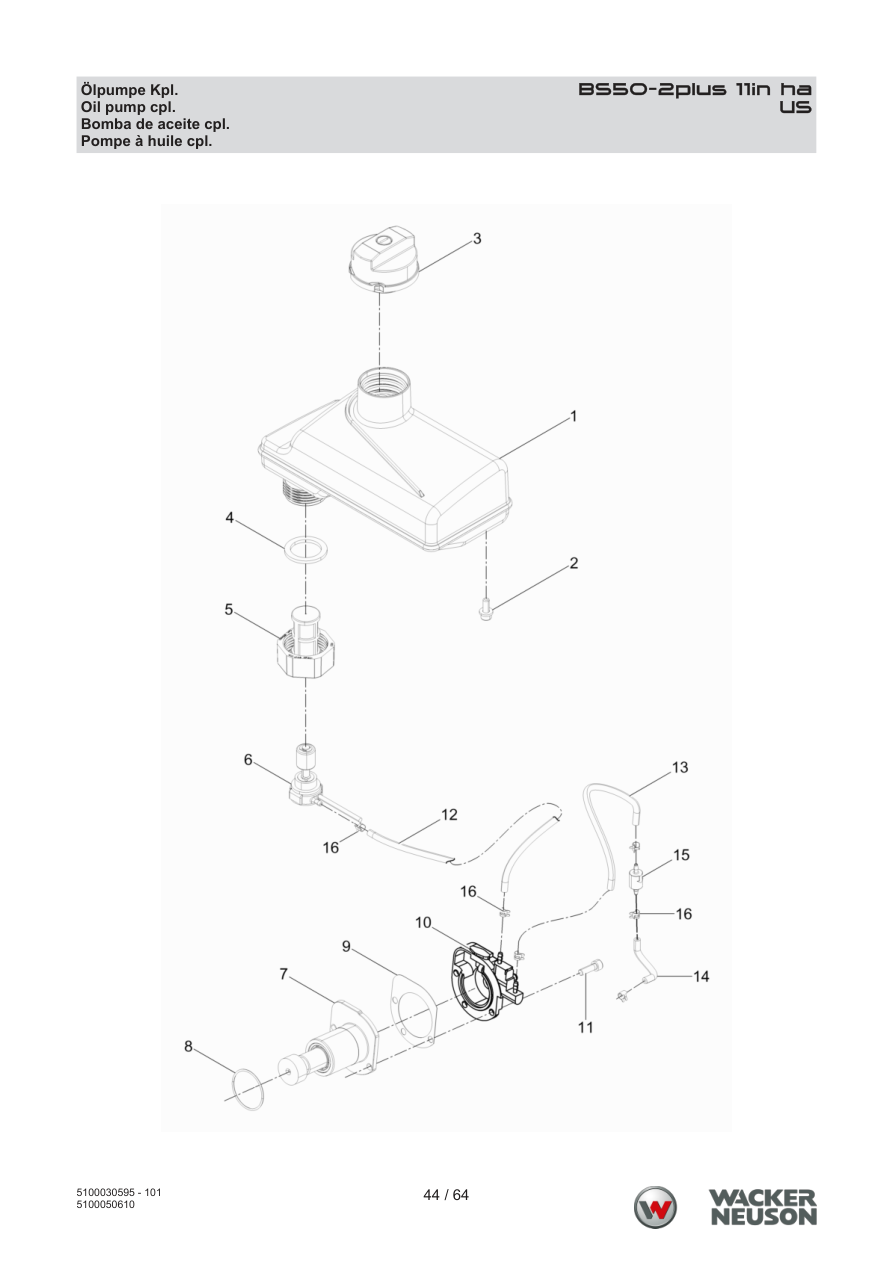

Page 44 — US Oil pump cpl.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100030301 | Oil tank | 1 | ADD TO CART | |
| 2 | 5000160861 | Screw | 4 | M6 x 16 | ADD TO CART |
| 3 | 5100030408 | Oil tank cap | 1 | ADD TO CART | |
| 4 | 5000086312 | Ring seal | 1 | ADD TO CART | |
| 5 | 5100038375 | Oil filter | 1 | ADD TO CART | |
| 6 | 5100034608 | Float switch | 1 | ADD TO CART | |
| 7 | 5100031988 | Driving shaft | 1 | ADD TO CART | |
| 8 | 5000150278 | O-ring | 1 | 1,50 x 0,07in | ADD TO CART |
| 9 | 5100031989 | Gasket | 1 | ADD TO CART | |
| 10 | 5100032060 | Oil pump | 1 | ADD TO CART | |
| 11 | 5000011551 | Cheese head screw | 3 | 95Nm/70ft.lbs | ADD TO CART |
| 12 | 5100035892 | Oil hose | 1 | ADD TO CART | |
| 13 | 5100049757 | Oil hose | 1 | ADD TO CART | |
| 14 | 5100049758 | Oil hose | 1 | ADD TO CART | |
| 15 | 5100035981 | Back pressure valve | 1 | ADD TO CART | |
| 16 | 5100035982 | Clamp | 6 | ADD TO CART | |

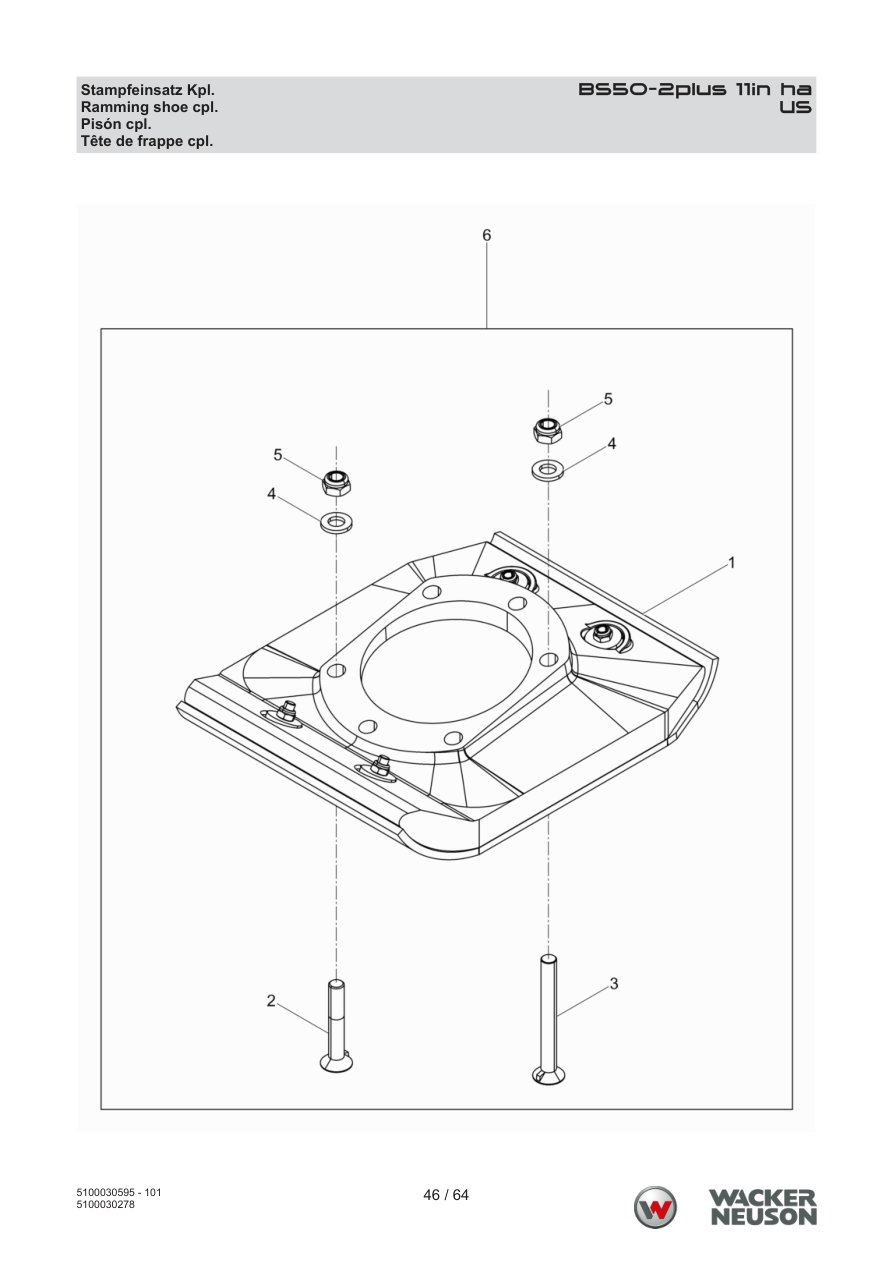

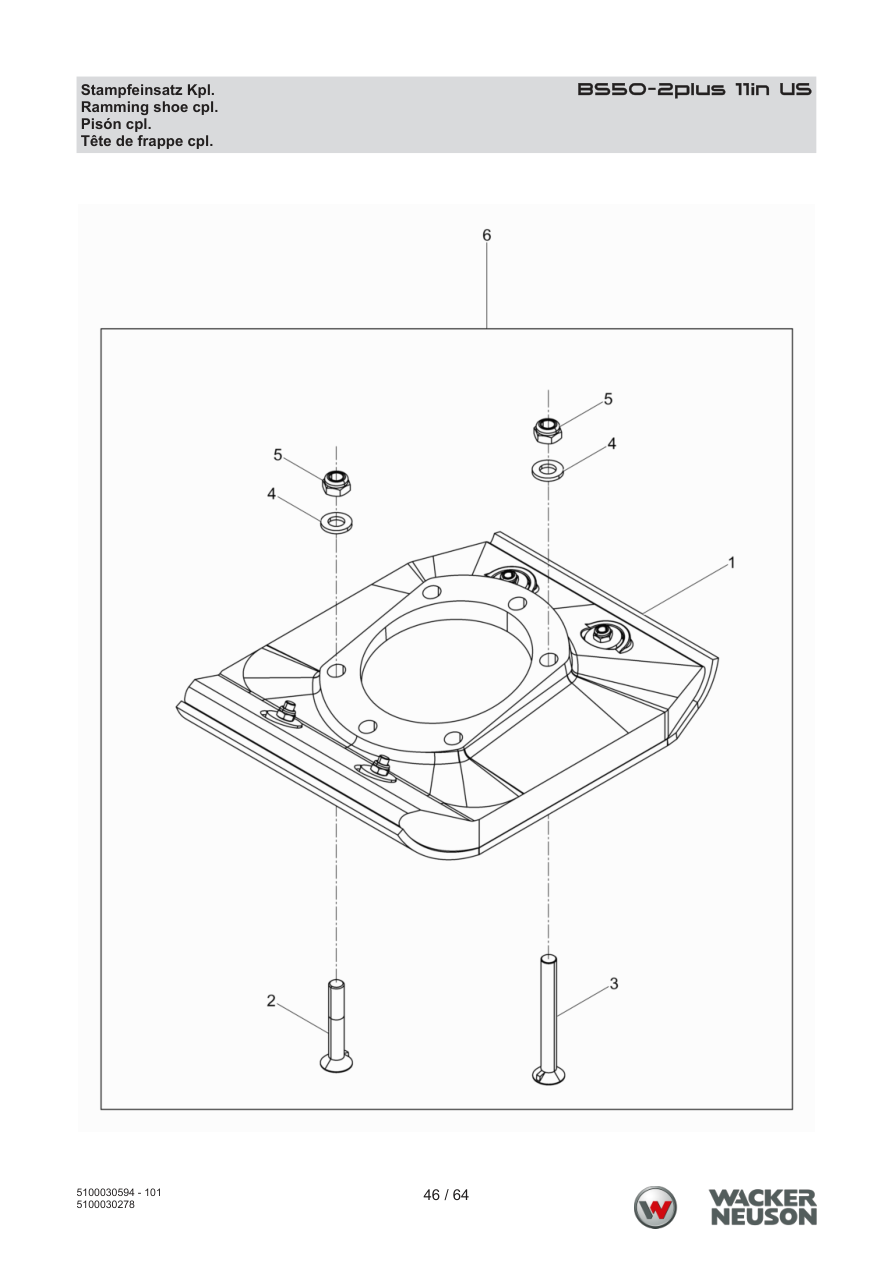

Page 46 — US Ramming shoe cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100032114 | Ramming shoe 11in | 1 | ADD TO CART | |
| 2 | 5000011158 | Countersunk bolt | 3 | M12 x 75 86Nm/63ft.lbs | DIN604 | ADD TO CART |
| 3 | 5000012983 | Countersunk bolt | 3 | M12 x 110 86Nm/63ft.lbs | DIN604 | ADD TO CART |
| 4 | 5000021465 | Lock washer | 6 | ADD TO CART | |
| 5 | 5000010366 | Hexagon nut | 6 | ADD TO CART | |
| 6 | 5100042452 | Ramming shoe cpl. 11in | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

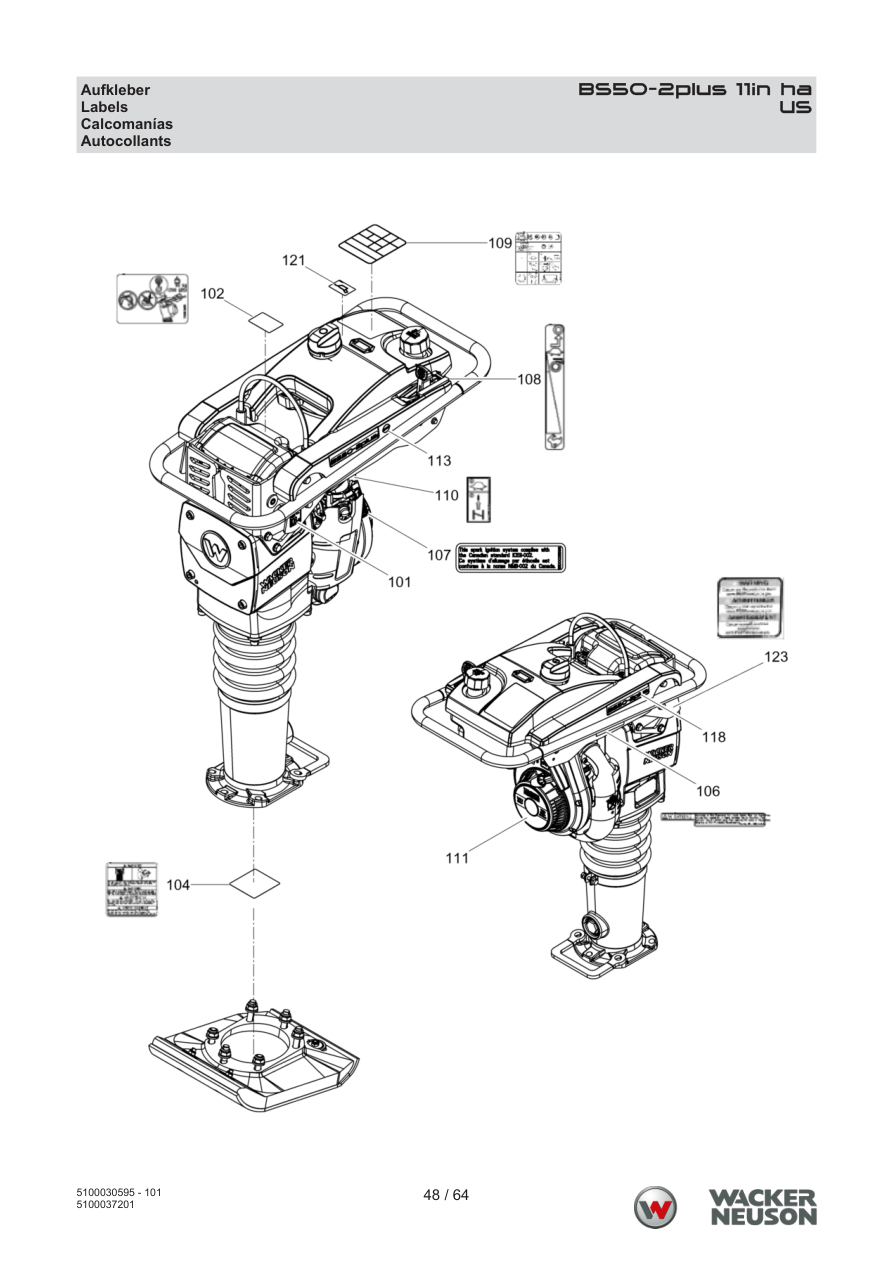

Page 48 — BS50-2plus 11in ha Decals
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 118 | 5100031720 | Type label | 2 | ADD TO CART | |
| 121 | 5100036130 | Label oil can | 1 | ADD TO CART | |
| 123 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 101 | 5000129784 | Decal-sound power level | 1 | ADD TO CART | |
| 102 | 5100031690 | Label lifting point | 1 | ADD TO CART | |
| 104 | 5100031692 | Label compression spring us | 1 | ADD TO CART | |
| 106 | 5100031695 | Label spark | 1 | ADD TO CART | |
| 107 | 5100031696 | Label | 1 | ADD TO CART | |
| 108 | 5100031697 | Label starter | 1 | ADD TO CART | |
| 109 | 5100031698 | Label start-stop auto us | 1 | ADD TO CART | |
| 110 | 5100031703 | Label starter | 1 | ADD TO CART | |
| 111 | 5100031704 | Label wm80 | 1 | ADD TO CART | |
| 113 | 5100009603 | Label eco | 1 | ADD TO CART | |

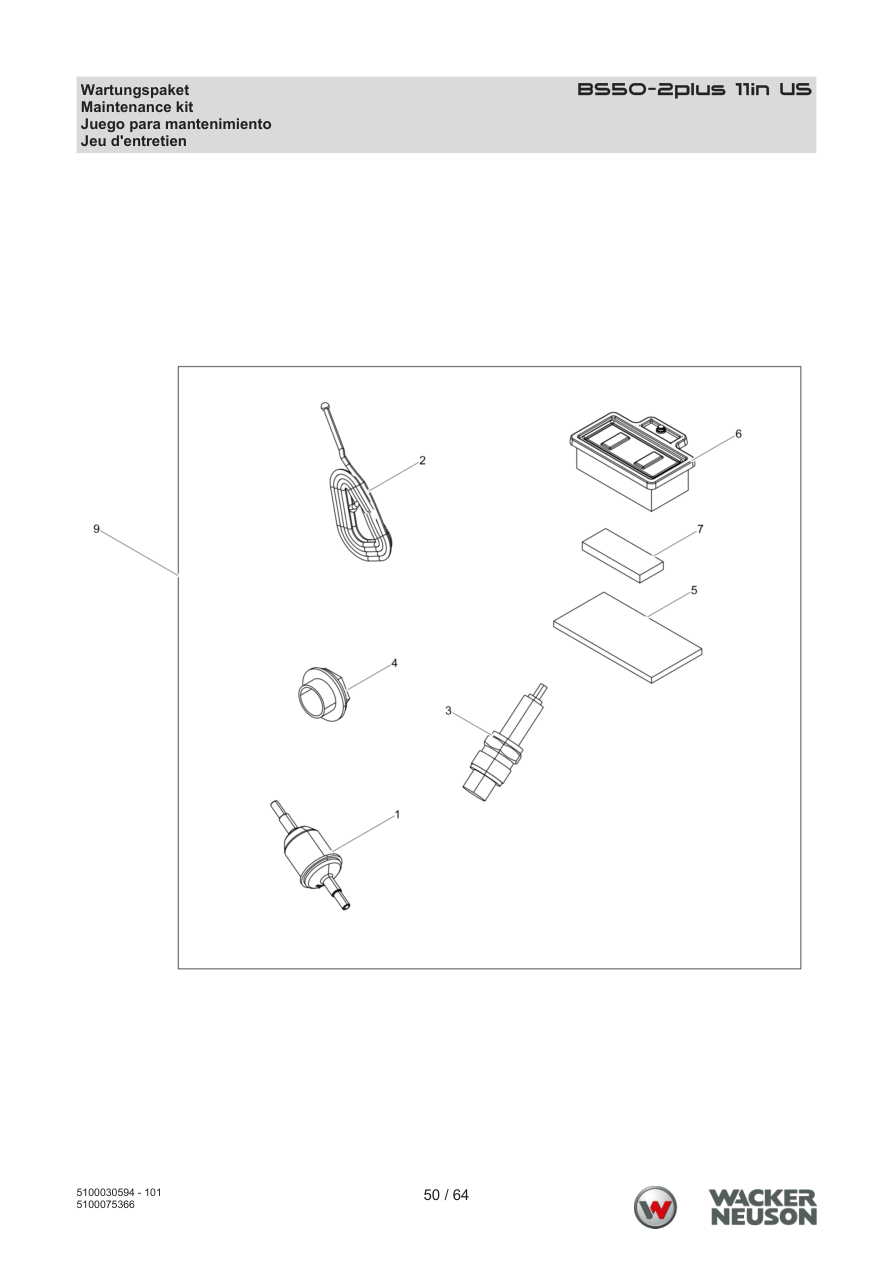

Page 50 — BS50-2plus 11in ha Maintenance kit
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100033182 | Sight glass | 1 | ADD TO CART | |
| 5 | 5200007044 | Prefilter element | 1 | ADD TO CART | |
| 6 | 5200003062 | Air filter element | 1 | ADD TO CART | |
| 7 | 5200007045 | Foam filter | 1 | ADD TO CART | |
| 9 | 5100009863 | Maintenance kit | 1 | ADD TO CART | |
| 1 | 5100068032 | Fuel filter | 1 | ADD TO CART | |
| 2 | 5000104548 | Starter rope | 1 | ADD TO CART | |
| 3 | 5000172332 | Spark plug | 1 | PARTS REQUEST | |
|
COMING Spark plug
5000172332 · qty on machine: 1 | |||||

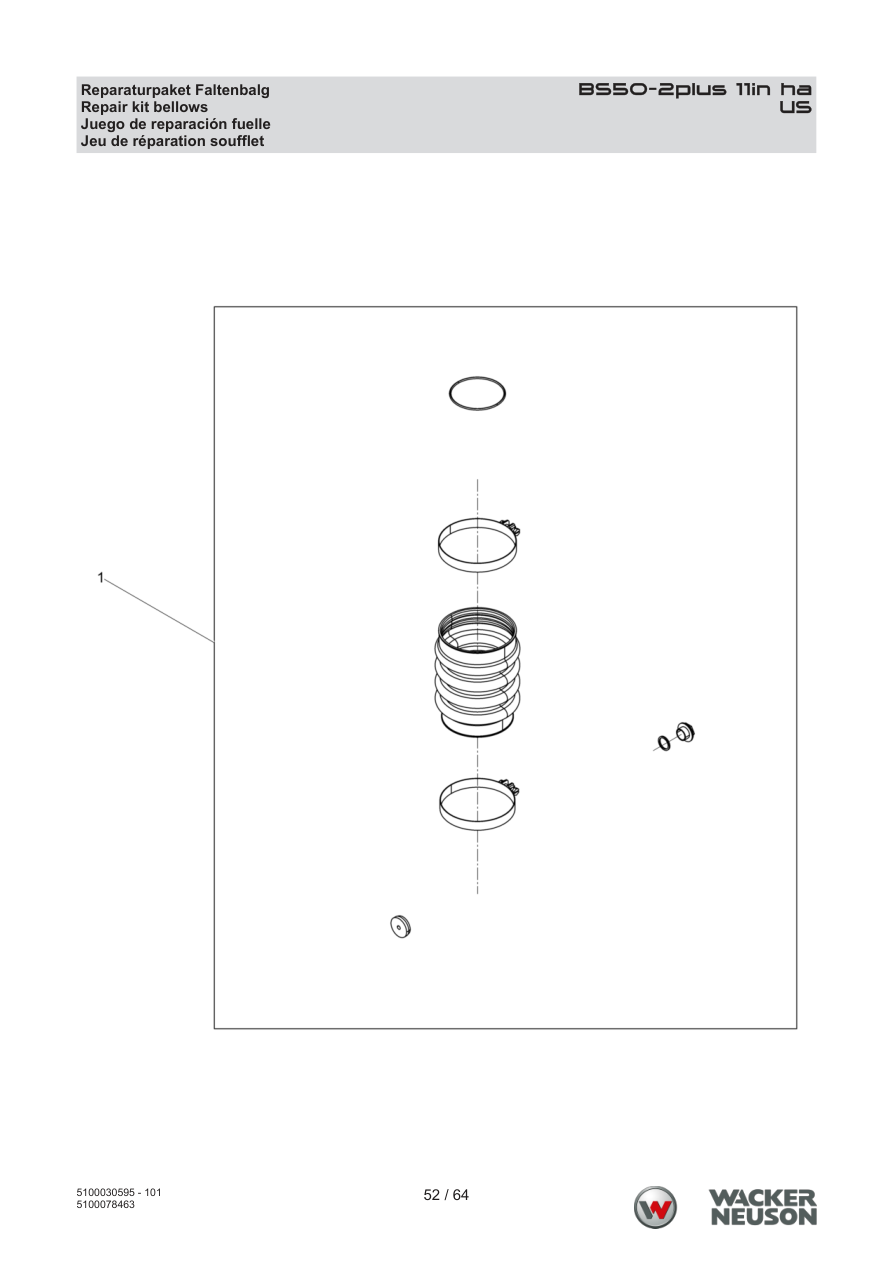

Page 52 — BS50-2plus 11in ha Repair kit bellows
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000227988 | Repair kit bellows | 1 | PARTS REQUEST | |
|
COMING Repair kit bellows
5000227988 · qty on machine: 1 | |||||

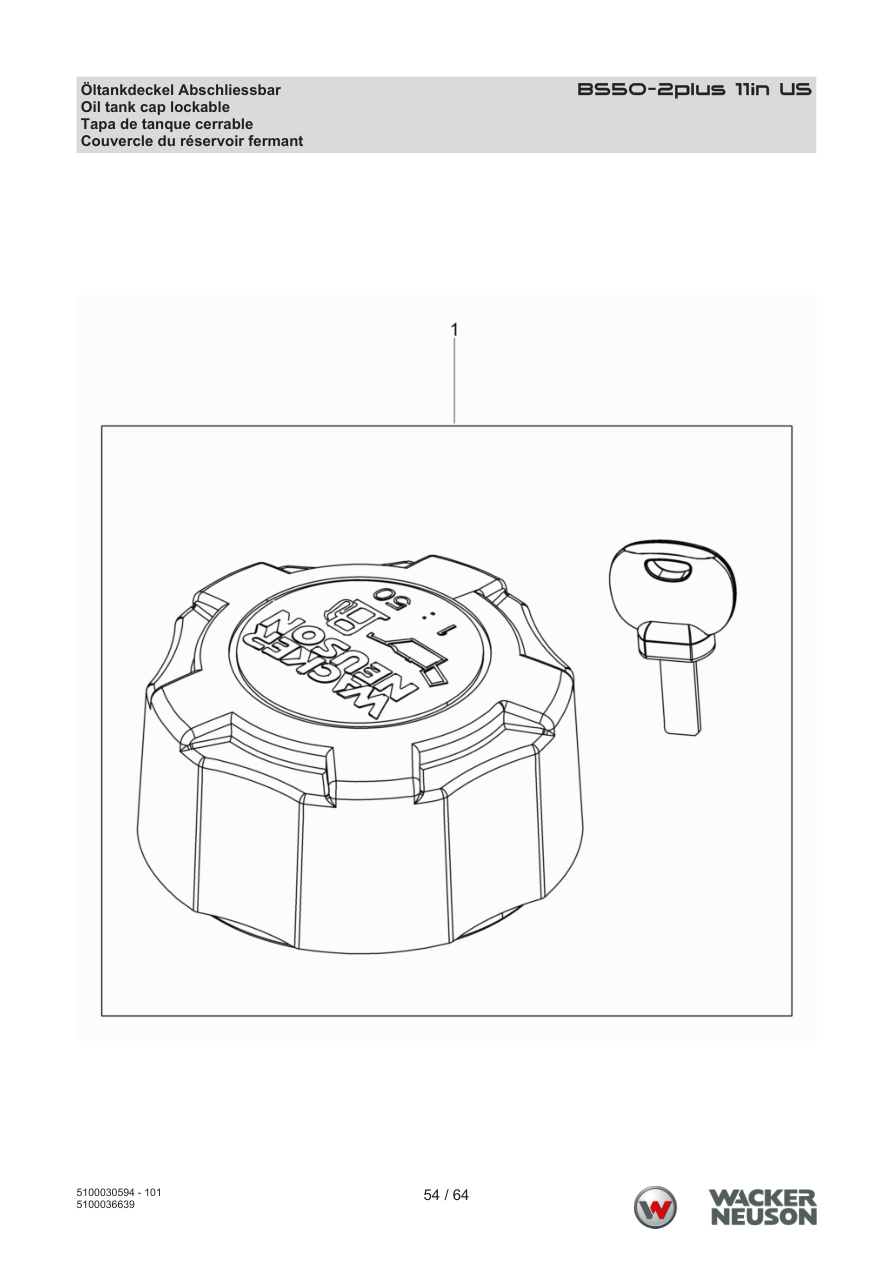

Page 54 — US Oil tank cap lockable
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100035985 | Oil tank cap lockable | 1 | PARTS REQUEST | |
|
COMING Oil tank cap lockable
5100035985 · qty on machine: 1 | |||||

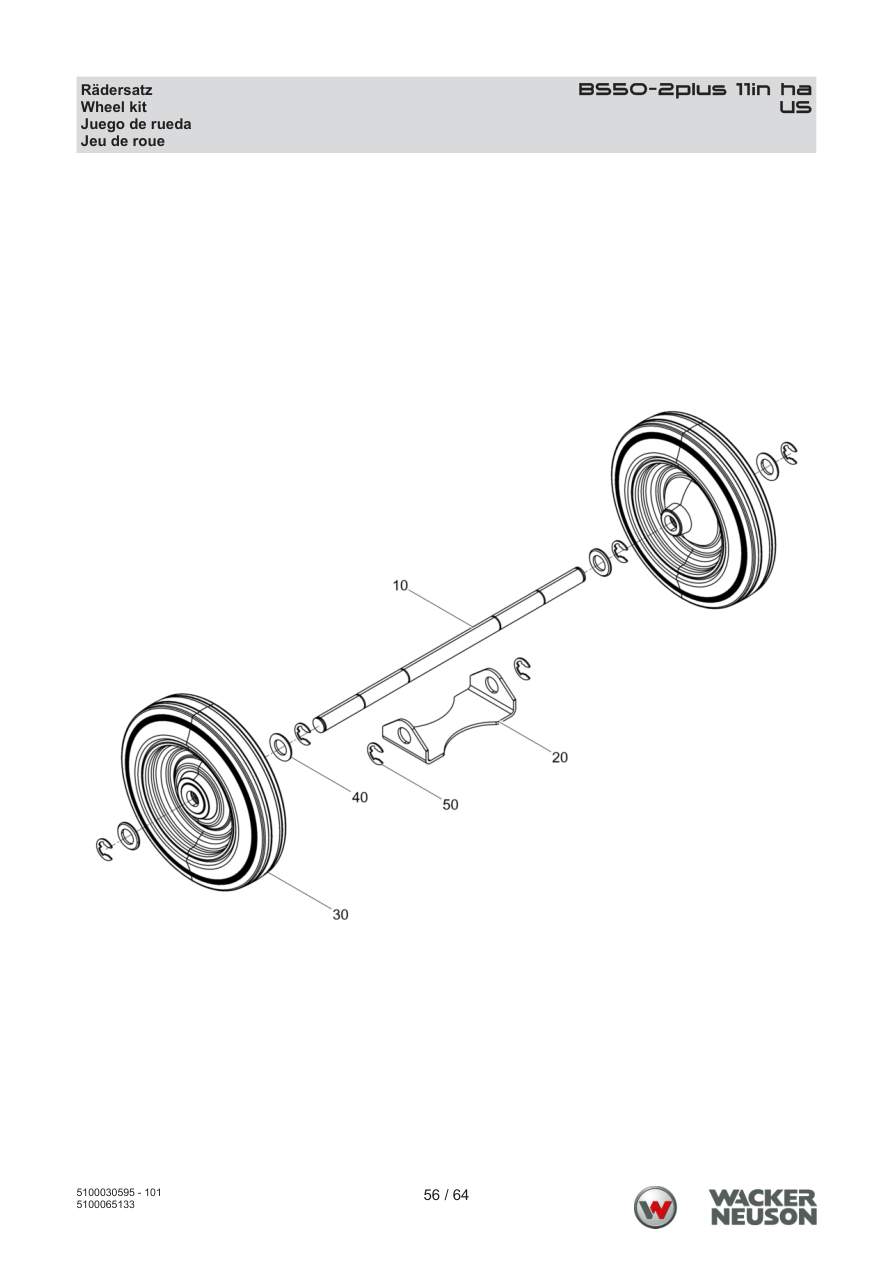

Page 56 — US Wheel kit
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100064461 | Axle | 1 | ADD TO CART | |
| 20 | 5100064462 | Plate | 1 | ADD TO CART | |
| 30 | 5100064463 | Tire | 2 | ADD TO CART | |
| 40 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 50 | 5000103834 | Lock washer | 6 | 15 | DIN6799 | ADD TO CART |

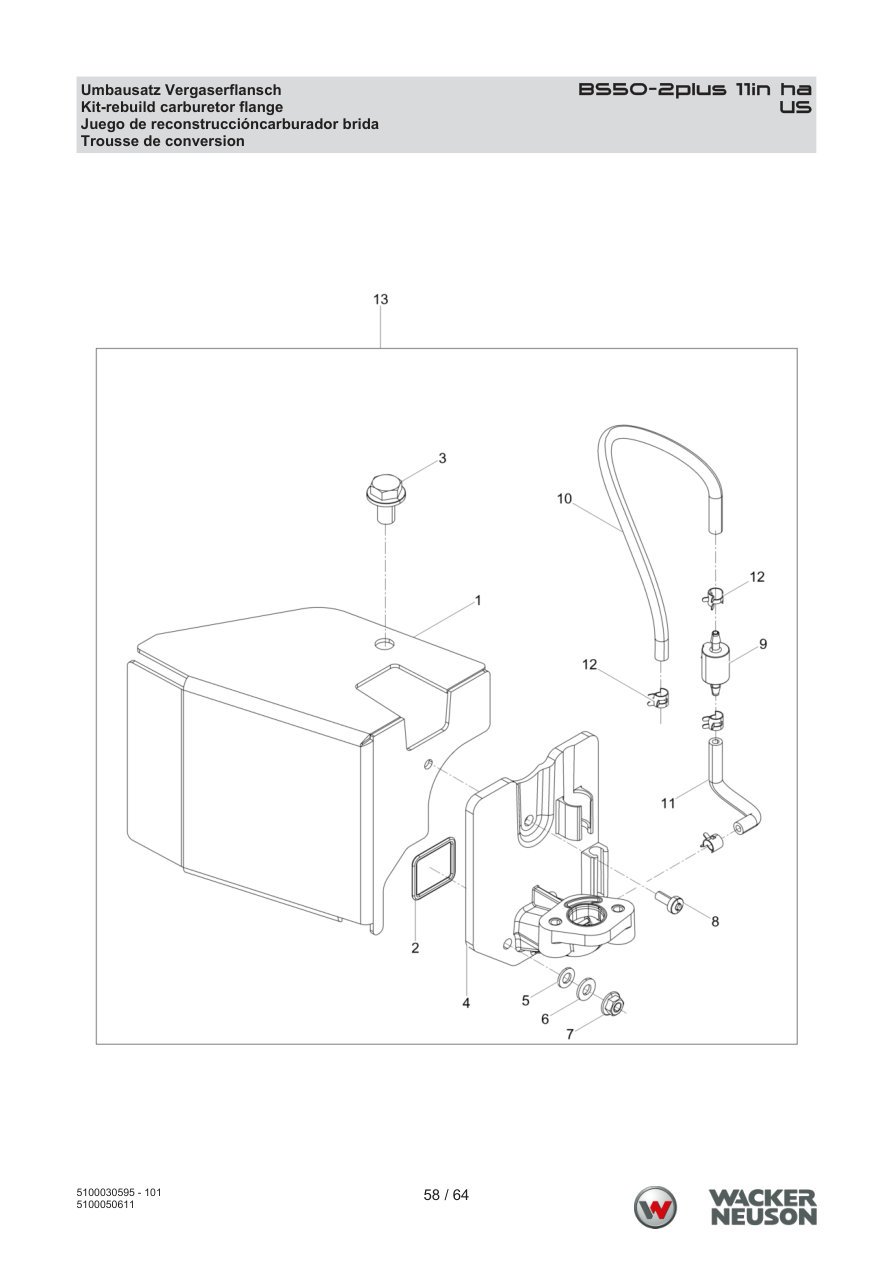

Page 58 — US Kit-rebuild carburetor flange
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5000047488 | Hexagon nut | 2 | M5 7Nm/5ft.lbs | DIN6923 | PARTS REQUEST |
|
COMING Hexagon nut
5000047488 · qty on machine: 2 M5
7Nm/5ft.lbs | DIN6923 | |||||
| 8 | 5000222072 | Screw | 1 | M 4x 10 | ADD TO CART |
| 9 | 5100035981 | Back pressure valve | 1 | ADD TO CART | |
| 10 | 5100049757 | Oil hose | 1 | ADD TO CART | |
| 11 | 5100049758 | Oil hose | 1 | ADD TO CART | |
| 12 | 5100035982 | Clamp | 4 | ADD TO CART | |
| 13 | 5100049418 | Kit-rebuild carburetor flange | 1 | PARTS REQUEST | |
|
COMING Kit-rebuild carburetor flange
5100049418 · qty on machine: 1 | |||||
| 1 | 5100059332 | Air duct plate | 1 | ADD TO CART | |
| 2 | 5100002961 | O-ring | 1 | ADD TO CART | |
| 3 | 5100027072 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100027072 · qty on machine: 1 | |||||
| 4 | 5100048930 | Carburetor flange | 1 | PARTS REQUEST | |
|
COMING Carburetor flange
5100048930 · qty on machine: 1 | |||||
| 5 | 5000103212 | Washer | 2 | 5 | DIN134 | ADD TO CART |
| 6 | 5000103211 | Lockwasher | 2 | 5 | DIN6796 | ADD TO CART |

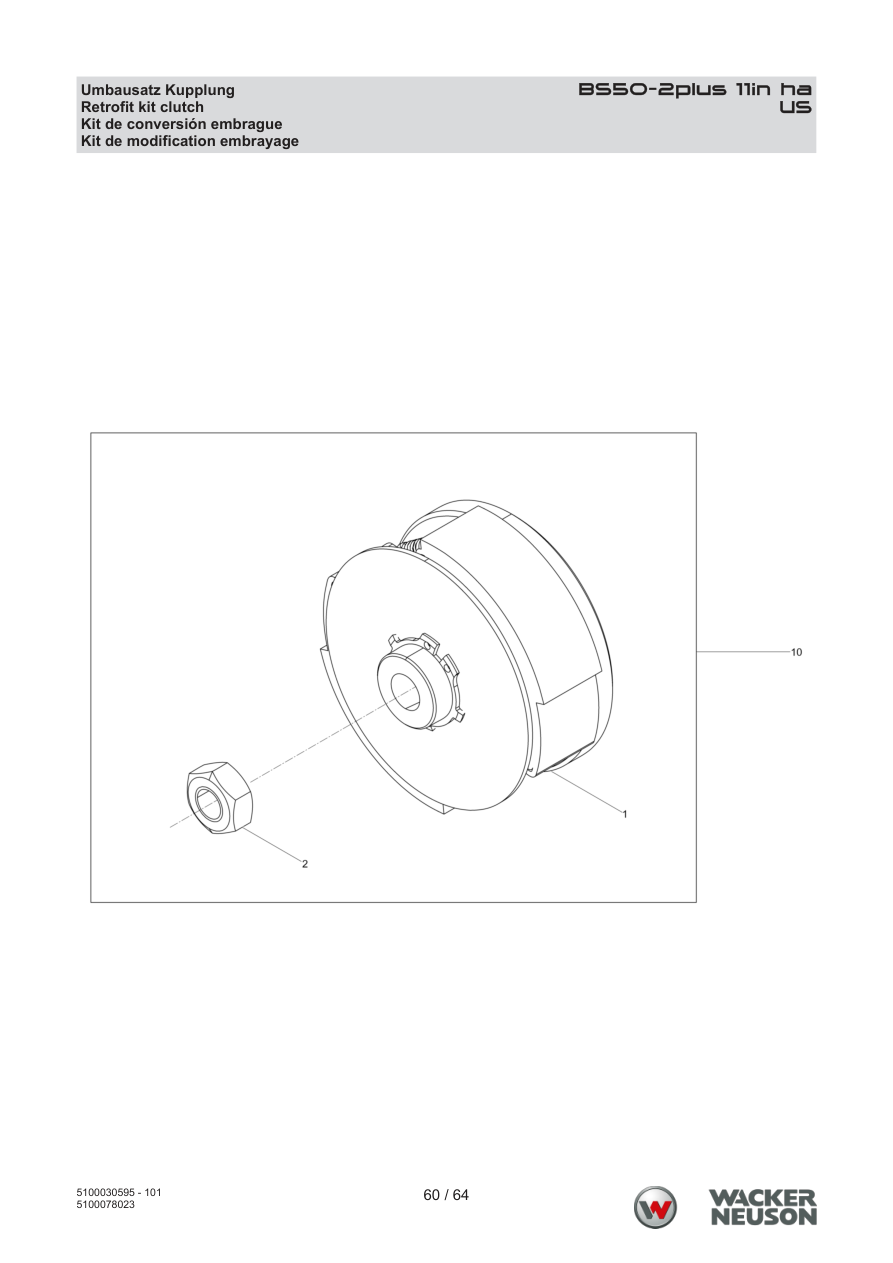

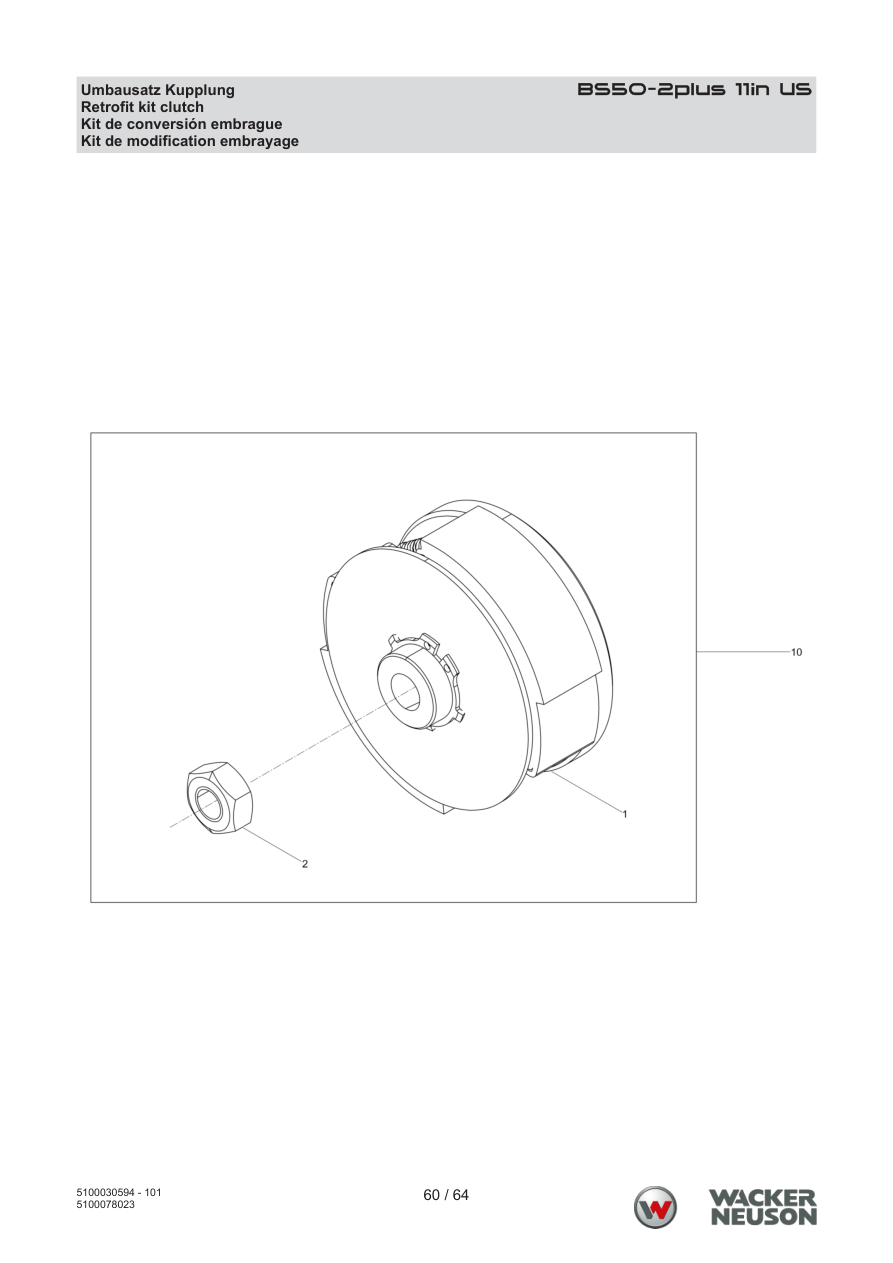

Page 60 — US Retrofit kit clutch
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077646 | Centrifugal clutch | 1 | ADD TO CART | |
| 2 | 5100077645 | Hexagon nut | 1 | ADD TO CART | |
| 10 | 5100077902 | Retrofit kit coupling | 1 | ADD TO CART | |
Page 10 — Rammer
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100045479 | Crankcase | 1 | ADD TO CART | |
| 4 | 5100032132 | Crankcase cover | 1 | ADD TO CART | |
| 5 | 5000011535 | Cheese head screw | 4 | ADD TO CART | |
| 6 | 5100033181 | O-ring | 1 | ADD TO CART | |
| 24 | 5100032274 | Roller kit | 1 | ADD TO CART | |
Page 12 — Guiding frame cpl.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100030465 | Throttle control cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000155845 | Hexagonal head cap screw | 2 | M5 x 12 | ADD TO CART |
| 4 | 5100032225 | Bowden cable | 1 | ADD TO CART | |
| 5 | 5100032226 | Outer bowden cable | 1 | ADD TO CART | |
| 6 | 5000155562 | Clip | 1 | ADD TO CART | |
| 7 | 5100035983 | Blind rivet | 1 | ADD TO CART | |
| 8 | 5100027071 | Screw | 4 | ADD TO CART | |
| 9 | 5000160861 | Screw | 8 | M6 x 16 | ADD TO CART |
| 10 | 5100030302 | Fuel tank | 1 | ADD TO CART | |
| 11 | 5000086312 | Ring seal | 1 | ADD TO CART | |
| 12 | 5100028935 | Water filter | 1 | ADD TO CART | |
| 13 | 5100032258 | Bush | 2 | ADD TO CART | |
| 14 | 5100066546 | Connecting nipple | 2 | ADD TO CART | |
| 15 | 5100030407 | Tank cap | 1 | ADD TO CART | |
| 16 | 5100031423 | Covering | 1 | ADD TO CART | |
| 17 | 5100034578 | Working hour meter | 1 | ADD TO CART | |
| 18 | 5000209453 | Screw | 2 | ADD TO CART | |
| 19 | 5100068032 | Fuel filter | 1 | ADD TO CART | |
| 20 | 5100037400 | Fuel hose | 1 | ADD TO CART | |
| 21 | 5100019507 | Fuel hose w/spring | 1 | ADD TO CART | |
| 22 | 5100037402 | Fuel hose | 1 | ADD TO CART | |
| 23 | 5100037403 | Fuel hose | 1 | ADD TO CART | |
| 24 | 5000171698 | Clamp | 2 | ADD TO CART | |
| 1 | 5100028600 | Guide handle | 1 | ADD TO CART | |
Page 14 — Throttle control cpl.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100032228 | Bracket | 1 | ADD TO CART | |
| 2 | 5100032229 | Throttle lever | 1 | ADD TO CART | |
| 3 | 5000011539 | Cheese head screw | 1 | M8 x 40 25Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 4 | 5000105194 | Washer | 1 | M8 x 1,5in | ADD TO CART |
| 5 | 5000033198 | Lockwasher | 1 | ADD TO CART | |
| 6 | 5000010367 | Hexagon nut | 1 | ADD TO CART | |
| 7 | 5100032270 | Fuel cock | 1 | ADD TO CART | |
| 8 | 5000165047 | Socket head cap screw | 2 | M4 x 10 | PARTS REQUEST |
|
COMING Socket head cap screw
5000165047 · qty on machine: 2 M4 x 10 | |||||
| 9 | 5100032271 | Stop switch | 1 | ADD TO CART | |
| 10 | 5000155845 | Hexagonal head cap screw | 1 | M5 x 12 | ADD TO CART |
Page 16 — Guiding cylinder cpl.
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100038429 | Guide cylinder | 1 | PARTS REQUEST | |
|
COMING Guide cylinder
5100038429 · qty on machine: 1 | |||||
| 2 | 5000031880 | O-ring | 1 | 96 x 3 | ADD TO CART |
| 3 | 5000010644 | Lock washer | 4 | A10 | DIN128 | ADD TO CART |
| 4 | 5000011533 | Cheese head screw | 4 | 49Nm/36ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000011533 · qty on machine: 4 49Nm/36ft.lbs | ISO4762 | |||||
| 5 | 5100038472 | Guide piston | 1 | ADD TO CART | |
| 6 | 5100032036 | Bushing | 1 | ADD TO CART | |
| 7 | 5100071907 | Spring set | 2 | ADD TO CART | |
| 8 | 5100032038 | Piston guide | 1 | ADD TO CART | |
| 9 | 5000110196 | Lock nut | 1 | ADD TO CART | |
| 10 | 5100032039 | Damper | 1 | ADD TO CART | |
| 11 | 5100045300 | Spring cylinder | 1 | ADD TO CART | |
| 12 | 5100052097 | Protective pipe | 1 | ADD TO CART | |
| 13 | 5100033182 | Sight glass | 1 | ADD TO CART | |
| 14 | 5100032110 | Gasket | 1 | ADD TO CART | |
| 15 | 5000155017 | Countersunk screw | 2 | M6 x 40 | ISO10642 | PARTS REQUEST |
|
COMING Countersunk screw
5000155017 · qty on machine: 2 M6 x 40 | ISO10642 | |||||
| 16 | 5100032111 | Gasket | 1 | ADD TO CART | |
| 17 | 5100031608 | Cover | 1 | ADD TO CART | |
| 18 | 5000011343 | Hexagonal head cap screw | 6 | M8 x 50 25Nm/18ft.lbs | DIN931 | ADD TO CART |
| 19 | 5100032112 | Bellows | 1 | ADD TO CART | |
| 20 | 5000110537 | Clamp | 1 | ADD TO CART | |
| 21 | 5000110528 | Clamp | 1 | ADD TO CART | |
| 22 | 5100031620 | Handle | 1 | ADD TO CART | |
| 23 | 5100032026 | Piston pin | 1 | ADD TO CART | |
| 24 | 5100058422 | Plug | 2 | ADD TO CART | |
Page 18 — Crank gear cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100037296 | Crank gear | 1 | ADD TO CART | |
| 2 | 5000072061 | Needle bearing | 1 | ADD TO CART | |
| 3 | 5002003022 | Retaining ring | 1 | 35 x 1,5 | DIN471 | ADD TO CART |
| 4 | 5002003021 | Grooved ball bearing | 1 | ADD TO CART | |
| 5 | 5002003023 | Retaining ring | 1 | 72 x 2,5 | DIN472 | ADD TO CART |
| 6 | 5100037875 | Connecting rod | 1 | ADD TO CART | |
| 7 | 5000045190 | Grooved ball bearing | 1 | ADD TO CART | |
| 8 | 5002001041 | Retaining ring | 1 | 25 x 1,2 | DIN471 | ADD TO CART |
Page 20 — Clutch drum cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100038030 | Clutch drum | 1 | ADD TO CART | |
| 2 | 5000039020 | Needle bearing | 1 | ADD TO CART | |
| 3 | 5002003022 | Retaining ring | 1 | 35 x 1,5 | DIN471 | ADD TO CART |
| 4 | 5002003021 | Grooved ball bearing | 1 | ADD TO CART | |
| 5 | 5002003023 | Retaining ring | 1 | 72 x 2,5 | DIN472 | ADD TO CART |
| 6 | 5000039050 | Shaft seal | 1 | ADD TO CART | |
Page 22 — BS50-2plus 11in US Engine attachments
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077646 | Centrifugal clutch | 1 | ADD TO CART | |
| 3 | 5100077645 | Hexagon nut | 1 | ADD TO CART | |
| 4 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 5 | 5000151559 | Cheese head screw | 4 | M8 x 25 27Nm/20ft.lbs | ISO4762 | ADD TO CART |
| 6 | 5000156954 | Hose clamp | 1 | ADD TO CART | |
| 7 | 5000177452 | Screw | 1 | ADD TO CART | |
| 8 | 5100081903 | Tension spring | 4 | ADD TO CART | |
Page 24 — BS50-2plus 11in US Standard engine
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009983 | Crankcase cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000213076 | Cylinder | 1 | ADD TO CART | |
| 3 | 5100021110 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000115324 | Piston | 1 | ADD TO CART | |
| 5 | 5000105067 | Fan hood | 1 | PARTS REQUEST | |
|
COMING Fan hood
5000105067 · qty on machine: 1 | |||||

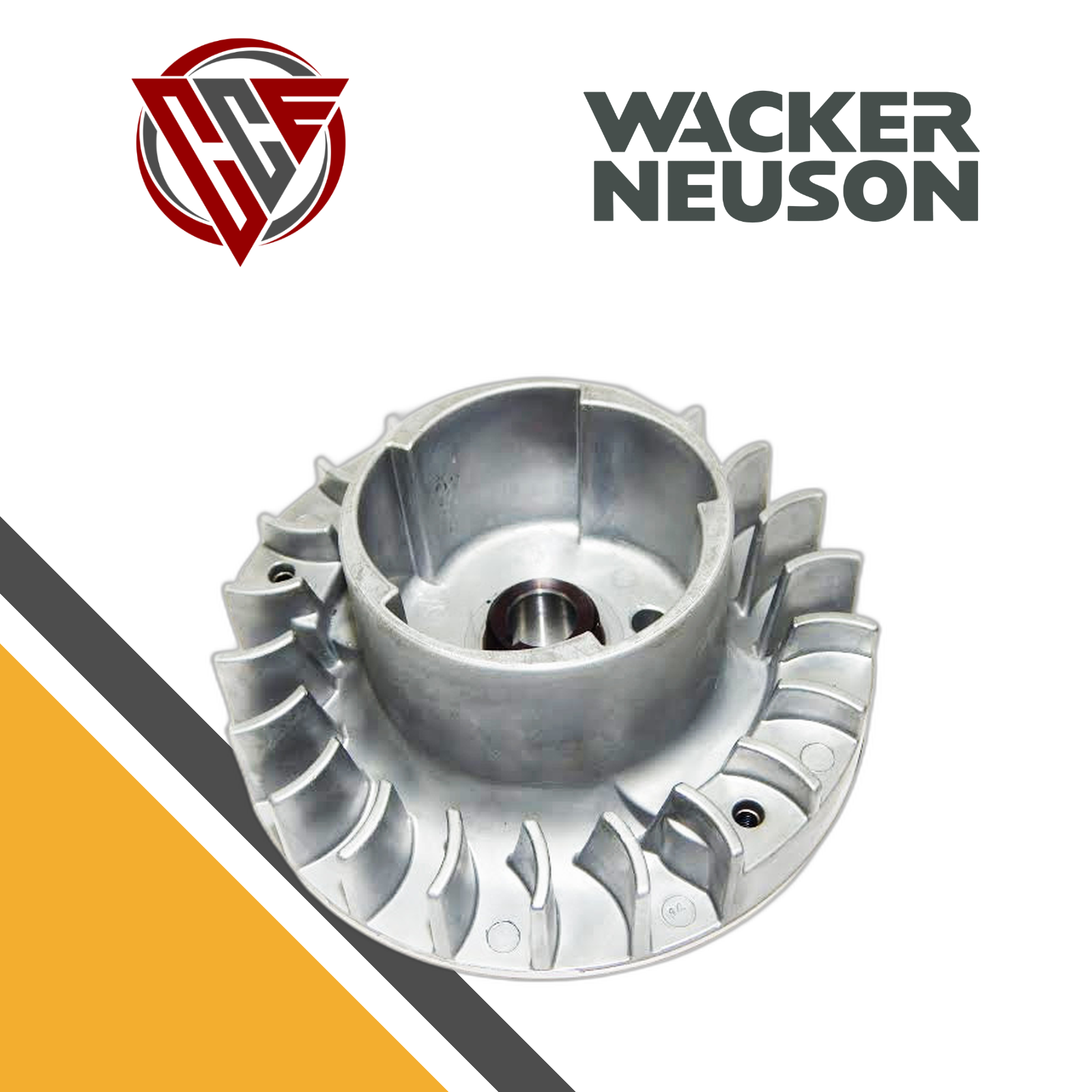

| 6 | 5000045041 | Fan | 1 | ADD TO CART | |
| 7 | 5000064446 | Recoil starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Recoil starter cpl.
5000064446 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 8 | 5000181216 | Ignition module | 1 | ADD TO CART | |
| 9 | 5100049413 | Screw | 3 | ADD TO CART | |
| 10 | 5000153124 | Spark plug (terminal) cap | 1 | ADD TO CART | |
| 11 | 5000153125 | Spark plug (terminal) cap | 1 | ADD TO CART | |
| 12 | 5000172332 | Spark plug | 1 | PARTS REQUEST | |
|
COMING Spark plug
5000172332 · qty on machine: 1 | |||||
| 13 | 5000034835 | Needle bearing | 1 | ADD TO CART | |
| 14 | 5100065070 | Grooved ball bearing | 2 | ADD TO CART | |
| 15 | 5100006052 | Shaft seal | 2 | ADD TO CART | |
| 16 | 5100025323 | Cylinder gasket | 1 | ADD TO CART | |
| 17 | 5100025322 | Gasket | 1 | ADD TO CART | |
| 18 | 5100060760 | Cable passage | 1 | ADD TO CART | |
| 19 | 5000010388 | Woodruff key | 1 | 3 x 5 | DIN6888 | ADD TO CART |
| 20 | 5000045906 | Retainer | 2 | ADD TO CART | |
| 21 | 5000153273 | Pan head screw | 4 | M6 x 12 | DIN85 | ADD TO CART |
| 22 | 5000153272 | Screw | 7 | M5 x 25 | DIN964 | ADD TO CART |
| 23 | 5100027617 | Stud | 2 | ADD TO CART | |
| 24 | 5000215365 | Cheese head screw | 8 | M 5x 60 | ADD TO CART |
| 25 | 5000095917 | Cheese head screw | 4 | M6 x 60 | ADD TO CART |
| 26 | 5000045914 | Hexagon nut | 1 | M12 x 1,5 | ISO8675 | ADD TO CART |
| 27 | 5000183750 | Hexagon nut | 8 | ADD TO CART | |
| 29 | 5000010620 | Flat washer | 1 | ADD TO CART | |
| 30 | 5000080502 | Terminal post | 2 | ADD TO CART | |
| 31 | 5000102116 | Hexagon nut | 1 | M3 | ISO10511 | PARTS REQUEST |
|
COMING Hexagon nut
5000102116 · qty on machine: 1 M3 | ISO10511 | |||||
| 32 | 5000011730 | Cheese head screw | 4 | M3 x 20 | ISO1207 | ADD TO CART |
| 33 | 5000049586 | Protective cap | 1 | ADD TO CART | |
| 35 | 5000164990 | Foam | 1 | ADD TO CART | |
| 37 | 5000012199 | Piston pin | 1 | ADD TO CART | |
| 38 | 5000045904 | Piston ring | 2 | 45 x 1,5 | DIN70910 | ADD TO CART |
| 39 | 5000012257 | Retaining ring | 2 | A12 | DIN73123 | ADD TO CART |
| 40 | 5100009684 | Wm 80 engine | 1 | ADD TO CART | |
| 42 | 5100049413 | Screw | 3 | ADD TO CART | |
| 43 | 5100027591 | Blind rivet | 1 | ADD TO CART | |
Page 28 — Carburetor cpl.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059332 | Air duct plate | 1 | ADD TO CART | |
| 2 | 5100002961 | O-ring | 1 | ADD TO CART | |
| 3 | 5100027072 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100027072 · qty on machine: 1 | |||||
| 4 | 5100048930 | Carburetor flange | 1 | PARTS REQUEST | |
|
COMING Carburetor flange
5100048930 · qty on machine: 1 | |||||
| 5 | 5000103212 | Washer | 2 | 5 | DIN134 | ADD TO CART |
| 6 | 5000103211 | Lockwasher | 2 | 5 | DIN6796 | ADD TO CART |
| 7 | 5000183750 | Hexagon nut | 2 | ADD TO CART | |
| 8 | 5000095774 | Seal | 2 | ADD TO CART | |
| 9 | 5100061746 | Carburetor | 1 | ADD TO CART | |
| 12 | 5100032275 | Adaptor | 1 | ADD TO CART | |
| 13 | 5100075649 | Screw m 5x 65 | 2 | ADD TO CART | |
| 14 | 5100032179 | Air tube | 1 | ADD TO CART | |
| 15 | 5000078844 | Clamp | 1 | ADD TO CART | |
| 16 | 5100033186 | Clamp | 1 | ADD TO CART | |
| 17 | 5000222072 | Screw | 1 | M 4x 10 | ADD TO CART |
Page 30 — BS50-2plus 11in US Carburetor
Parts list — exactly as printed43 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000182757 | Pan head screw | 1 | ADD TO CART | |
| 2 | 5000222013 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5000222013 · qty on machine: 1 | |||||
| 3 | 5000182759 | Gasket | 1 | ADD TO CART | |
| 4 | 5000182760 | Diaphragm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000182761 | Screen | 1 | ADD TO CART | |
| 6 | 5000175300 | Washer | 4 | ADD TO CART | |
| 7 | 5000182762 | Spring | 1 | ADD TO CART | |
| 8 | 5200008316 | Choke shaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 9 | 5000182764 | Spacer | 1 | ADD TO CART | |
| 10 | 5000182765 | Throttle lever | 1 | ADD TO CART | |
| 11 | 5100028370 | Socket head screw | 2 | ADD TO CART | |
| 12 | 5000183351 | Swivel | 1 | ADD TO CART | |
| 13 | 5000182768 | Retaining ring | 1 | ADD TO CART | |
| 14 | 5000182769 | Inlet valve | 1 | ADD TO CART | |
| 15 | 5000182770 | Lever | 1 | ADD TO CART | |
| 16 | 5000182771 | Pin | 1 | ADD TO CART | |
| 17 | 5000222015 | Screw | 1 | ADD TO CART | |
| 18 | 5000175306 | Spring | 1 | ADD TO CART | |
| 19 | 5000182772 | Plug | 1 | ADD TO CART | |
| 20 | 5000183357 | Throttle valve | 1 | ADD TO CART | |
| 21 | 5000175305 | Screw | 1 | ADD TO CART | |
| 22 | 5000175307 | Screw | 4 | ADD TO CART | |
| 23 | 5000182773 | Cover | 1 | ADD TO CART | |
| 24 | 5000182774 | Bulb | 1 | ADD TO CART | |
| 25 | 5000180019 | Valve | 1 | PARTS REQUEST | |
|
COMING Valve
5000180019 · qty on machine: 1 | |||||
| 26 | 5000182775 | Air purge cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Air purge cpl.
5000182775 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 27 | 5000182776 | Diaphragm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 28 | 5000182777 | Gasket | 1 | ADD TO CART | |
| 29 | 5000182784 | Nozzle | 1 | ADD TO CART | |
| 30 | 5000182778 | Spring | 1 | ADD TO CART | |
| 31 | 5000175319 | Needle | 1 | PARTS REQUEST | |
|
COMING Needle
5000175319 · qty on machine: 1 | |||||
| 32 | 5000182779 | Needle valve | 1 | ADD TO CART | |
| 33 | 5000175310 | Idle speed screw | 1 | ADD TO CART | |
| 34 | 5100028371 | Spring | 1 | ADD TO CART | |
| 35 | 5000182781 | Throttle shaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5000182782 | Choke lever | 1 | ADD TO CART | |
| 37 | 5100028373 | Sleeve | 1 | ADD TO CART | |
| 38 | 5000175315 | Screw | 1 | ADD TO CART | |
| 39 | 5000182310 | Choke valve | 1 | ADD TO CART | |
| 40 | 5000183841 | Walbro carburetor | 1 | ADD TO CART | |
| 41 | 5100028374 | Washer | 1 | 0,30 ID x 0,19 | ADD TO CART |
| 42 | 5100028375 | Washer | 2 | ADD TO CART | |
| 43 | 5000171010 | Carburetor repair kit | 1 | ADD TO CART | |
Page 34 — BS50-2plus 11in US Carburetor HDA-356
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068444 | Carburetor repair kit hda355-357 | 1 | ADD TO CART | |
| 2 | 5100069840 | Bleeder valve cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000182768 | Retaining ring | 1 | ADD TO CART | |
| 4 | 5100069843 | Lever | 1 | ADD TO CART | |
| 5 | 5000182782 | Choke lever | 1 | ADD TO CART | |
| 6 | 5000182765 | Throttle lever | 1 | ADD TO CART | |
| 7 | 5000182773 | Cover | 1 | ADD TO CART | |
| 8 | 5000222013 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5000222013 · qty on machine: 1 | |||||
| 9 | 5000182781 | Throttle shaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5100069847 | Choke shaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5000183357 | Throttle valve | 1 | ADD TO CART | |
| 12 | 5000183351 | Swivel | 1 | ADD TO CART | |
| 13 | 5100069856 | Valve throttle | 1 | ADD TO CART | |
| 14 | 5000182769 | Inlet valve | 1 | ADD TO CART | |
| 15 | 5000182784 | Nozzle | 1 | ADD TO CART | |
| 16 | 5000182772 | Plug | 1 | ADD TO CART | |
| 18 | 5000182759 | Gasket | 1 | ADD TO CART | |
| 19 | 5000182760 | Diaphragm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 21 | 5100028370 | Socket head screw | 2 | ADD TO CART | |
| 22 | 5000222015 | Screw | 1 | ADD TO CART | |
| 23 | 5000182757 | Pan head screw | 1 | ADD TO CART | |
| 23 | 5000175299 | Pan head screw | 1 | ADD TO CART | |
| 24 | 5000175310 | Idle speed screw | 1 | ADD TO CART | |
| 25 | 5000175307 | Screw | 4 | ADD TO CART | |
| 26 | 5000175305 | Screw | 2 | ADD TO CART | |
| 27 | 5100069850 | Spring | 2 | ADD TO CART | |
| 28 | 5000182778 | Spring | 1 | ADD TO CART | |
| 29 | 5100028371 | Spring | 1 | ADD TO CART | |
| 30 | 5000175306 | Spring | 1 | ADD TO CART | |
| 31 | 5000182762 | Spring | 1 | ADD TO CART | |
| 32 | 5100069852 | Needle valve | 1 | ADD TO CART | |
| 33 | 5100069853 | Needle valve | 1 | ADD TO CART | |
| 34 | 5000175300 | Washer | 3 | ADD TO CART | |
| 35 | 5000182761 | Screen | 1 | ADD TO CART | |
| 36 | 5000182771 | Pin | 1 | ADD TO CART | |
| 37 | 5000182764 | Spacer | 1 | ADD TO CART | |
| 37 | 5100028372 | Spacer | 1 | ADD TO CART | |
| 38 | 5100028373 | Sleeve | 1 | ADD TO CART | |
| 39 | 5000182774 | Bulb | 1 | ADD TO CART | |
| 40 | 5100028374 | Washer | 1 | 0,30 ID x 0,19 | ADD TO CART |
| 41 | 5100028375 | Washer | 2 | ADD TO CART | |
| 44 | 5100069855 | Seal | 1 | ADD TO CART | |
Page 38 — BS50-2plus 11in US Recoil starter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000048063 | Starter housing | 1 | ADD TO CART | |
| 2 | 5000048060 | Starter pulley | 1 | ADD TO CART | |
| 3 | 5000048059 | Spring | 1 | ADD TO CART | |
| 4 | 5000059891 | Retainer | 1 | ADD TO CART | |
| 5 | 5000104548 | Starter rope | 1 | ADD TO CART | |
| 6 | 5000065068 | Check disc | 1 | ADD TO CART | |
| 7 | 5000103163 | Spring | 1 | PARTS REQUEST | |
|
COMING Spring
5000103163 · qty on machine: 1 | |||||
| 8 | 5000059890 | Starter handle | 1 | ADD TO CART | |
| 9 | 5000047997 | Cover | 1 | ADD TO CART | |
| 10 | 5000048062 | Washer | 1 | ADD TO CART | |
| 11 | 5000047998 | Ratchet (pawl) | 1 | ADD TO CART | |
| 12 | 5000058553 | Hexagon nut | 1 | M6 | DIN980 | ADD TO CART |
| 13 | 5000058381 | Lockwasher | 1 | 6 | DIN6796 | ADD TO CART |
Page 40 — Muffler cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5000177452 | Screw | 7 | ADD TO CART | |
| 1 | 5100032210 | Exhaust | 1 | ADD TO CART | |
| 2 | 5100032211 | Gasket | 1 | ADD TO CART | |
| 3 | 5000112202 | Cheese head screw | 2 | M6 x 20 | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000112202 · qty on machine: 2 M6 x 20 | ISO4762 | |||||
| 4 | 5100031731 | Muffler bracket | 1 | ADD TO CART | |
| 5 | 5100033184 | Locknut | 2 | ADD TO CART | |
| 6 | 5100032212 | Protection | 1 | ADD TO CART | |
Page 42 — Air filter cpl.
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100032027 | Air cleaner | 1 | ADD TO CART | |
| 2 | 5100032029 | Grommet | 4 | PARTS REQUEST | |
|
COMING Grommet
5100032029 · qty on machine: 4 | |||||
| 3 | 5100032050 | Grommet | 1 | ADD TO CART | |
| 4 | 5100057480 | Lifting point | 1 | PARTS REQUEST | |
|
COMING Lifting point
5100057480 · qty on machine: 1 | |||||
| 5 | 5100032052 | Brace | 1 | ADD TO CART | |
| 6 | 5000010367 | Hexagon nut | 2 | ADD TO CART | |
| 7 | 5100028527 | Side plate left | 1 | ADD TO CART | |
| 8 | 5100028528 | Side plate right | 1 | PARTS REQUEST | |
|
COMING Side plate right
5100028528 · qty on machine: 1 | |||||
| 9 | 5200023260 | Screw | 4 | PARTS REQUEST | |
|
COMING Screw
5200023260 · qty on machine: 4 | |||||
| 10 | 5200001667 | Screw | 6 | ADD TO CART | |

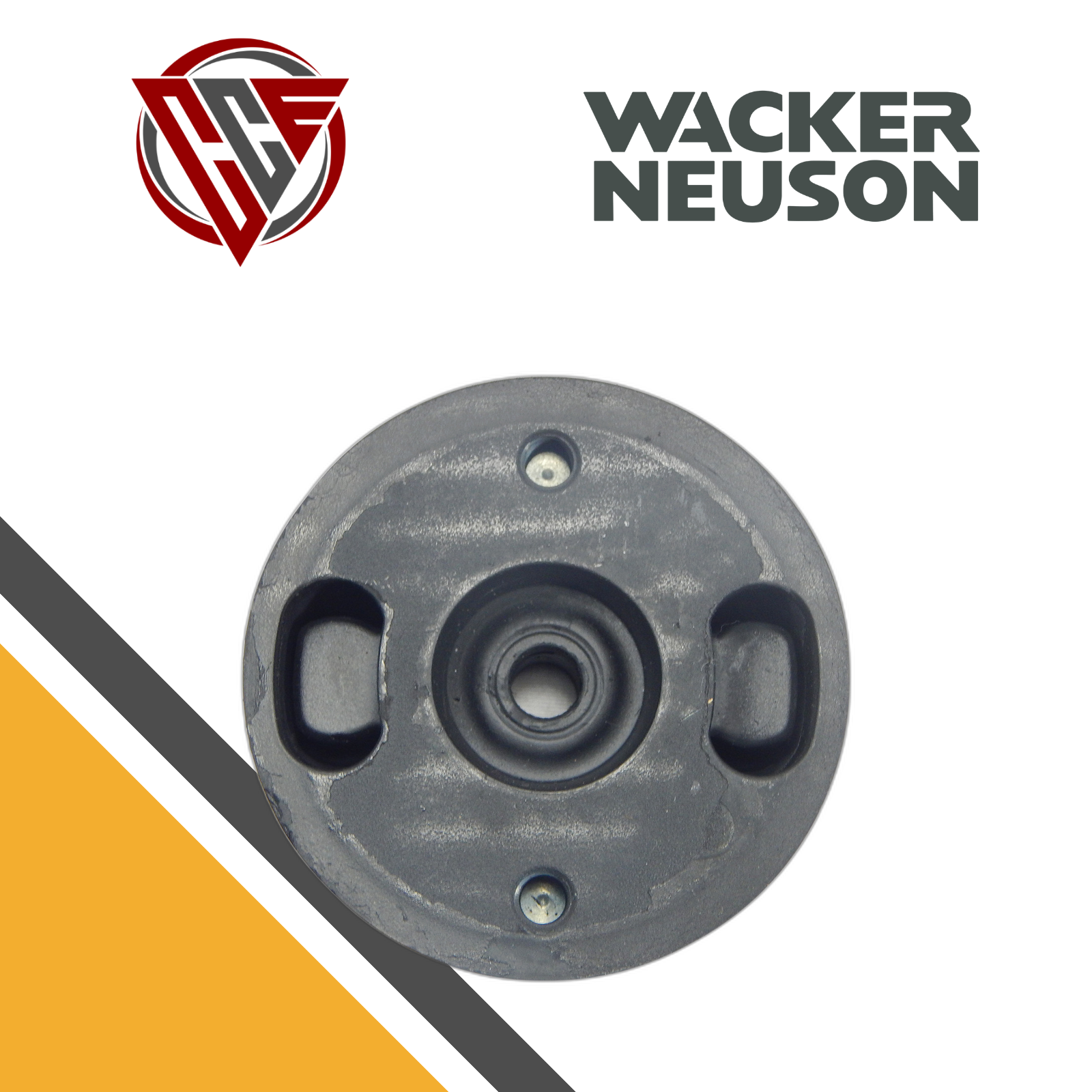

| 11 | 5100032053 | Shockmount | 2 | ADD TO CART | |
| 12 | 5100027072 | Screw | 4 | PARTS REQUEST | |
|
COMING Screw
5100027072 · qty on machine: 4 | |||||
| 14 | 5000164398 | Screw-filter, air box | 2 | ADD TO CART | |
| 15 | 5200007043 | Air box filter cover | 1 | ADD TO CART | |
| 16 | 5200003062 | Air filter element | 1 | ADD TO CART | |
| 17 | 5200007044 | Prefilter element | 1 | ADD TO CART | |
| 18 | 5200007045 | Foam filter | 1 | ADD TO CART | |
| 19 | 5200007040 | Air box base | 1 | ADD TO CART | |
| 20 | 5000164397 | Air box filter clip | 2 | ADD TO CART | |
Page 44 — Oil pump cpl.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 15 | 5100035981 | Back pressure valve | 1 | ADD TO CART | |
| 16 | 5100035982 | Clamp | 6 | ADD TO CART | |
| 1 | 5100030301 | Oil tank | 1 | ADD TO CART | |
| 2 | 5000160861 | Screw | 4 | M6 x 16 | ADD TO CART |
| 3 | 5100030408 | Oil tank cap | 1 | ADD TO CART | |
| 4 | 5000086312 | Ring seal | 1 | ADD TO CART | |
| 5 | 5100038375 | Oil filter | 1 | ADD TO CART | |
| 6 | 5100034608 | Float switch | 1 | ADD TO CART | |
| 7 | 5100031988 | Driving shaft | 1 | ADD TO CART | |
| 8 | 5000150278 | O-ring | 1 | 1,50 x 0,07in | ADD TO CART |
| 9 | 5100031989 | Gasket | 1 | ADD TO CART | |
| 10 | 5100032060 | Oil pump | 1 | ADD TO CART | |
| 11 | 5000011551 | Cheese head screw | 3 | 95Nm/70ft.lbs | ADD TO CART |
| 12 | 5100035892 | Oil hose | 1 | ADD TO CART | |
| 13 | 5100049757 | Oil hose | 1 | ADD TO CART | |
| 14 | 5100049758 | Oil hose | 1 | ADD TO CART | |
Page 46 — Ramming shoe cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100032114 | Ramming shoe 11in | 1 | ADD TO CART | |
| 2 | 5000011158 | Countersunk bolt | 3 | M12 x 75 86Nm/63ft.lbs | DIN604 | ADD TO CART |
| 3 | 5000012983 | Countersunk bolt | 3 | M12 x 110 86Nm/63ft.lbs | DIN604 | ADD TO CART |
| 4 | 5000021465 | Lock washer | 6 | ADD TO CART | |
| 5 | 5000010366 | Hexagon nut | 6 | ADD TO CART | |
| 6 | 5100042452 | Ramming shoe cpl. 11in | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 48 — BS50-2plus 11in US Decals
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 101 | 5000129784 | Decal-sound power level | 1 | ADD TO CART | |
| 102 | 5100031690 | Label lifting point | 1 | ADD TO CART | |
| 104 | 5100031692 | Label compression spring us | 1 | ADD TO CART | |
| 106 | 5100031695 | Label spark | 1 | ADD TO CART | |
| 107 | 5100031696 | Label | 1 | ADD TO CART | |
| 108 | 5100031697 | Label starter | 1 | ADD TO CART | |
| 109 | 5100031698 | Label start-stop auto us | 1 | ADD TO CART | |
| 110 | 5100031703 | Label starter | 1 | ADD TO CART | |
| 111 | 5100031704 | Label wm80 | 1 | ADD TO CART | |
| 113 | 5100009603 | Label eco | 1 | ADD TO CART | |
| 118 | 5100031720 | Type label | 2 | ADD TO CART | |
| 121 | 5100036130 | Label oil can | 1 | ADD TO CART | |
| 123 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 50 — BS50-2plus 11in US Maintenance kit
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068032 | Fuel filter | 1 | ADD TO CART | |
| 2 | 5000104548 | Starter rope | 1 | ADD TO CART | |
| 3 | 5000172332 | Spark plug | 1 | PARTS REQUEST | |
|
COMING Spark plug
5000172332 · qty on machine: 1 | |||||
| 4 | 5100033182 | Sight glass | 1 | ADD TO CART | |
| 5 | 5200007044 | Prefilter element | 1 | ADD TO CART | |
| 6 | 5200003062 | Air filter element | 1 | ADD TO CART | |
| 7 | 5200007045 | Foam filter | 1 | ADD TO CART | |
| 9 | 5100009863 | Maintenance kit | 1 | ADD TO CART | |
Page 52 — BS50-2plus 11in US Repair kit bellows
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000227988 | Repair kit bellows | 1 | PARTS REQUEST | |
|
COMING Repair kit bellows
5000227988 · qty on machine: 1 | |||||
Page 54 — Oil tank cap lockable
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100035985 | Oil tank cap lockable | 1 | PARTS REQUEST | |
|
COMING Oil tank cap lockable
5100035985 · qty on machine: 1 | |||||
Page 56 — Wheel kit
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100064461 | Axle | 1 | ADD TO CART | |
| 20 | 5100064462 | Plate | 1 | ADD TO CART | |
| 30 | 5100064463 | Tire | 2 | ADD TO CART | |
| 40 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 50 | 5000103834 | Lock washer | 6 | 15 | DIN6799 | ADD TO CART |
Page 58 — Kit-rebuild carburetor flange
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5000103211 | Lockwasher | 2 | 5 | DIN6796 | ADD TO CART |
| 7 | 5000047488 | Hexagon nut | 2 | M5 7Nm/5ft.lbs | DIN6923 | PARTS REQUEST |
|
COMING Hexagon nut
5000047488 · qty on machine: 2 M5
7Nm/5ft.lbs | DIN6923 | |||||
| 9 | 5100035981 | Back pressure valve | 1 | ADD TO CART | |
| 10 | 5100049757 | Oil hose | 1 | ADD TO CART | |
| 11 | 5100049758 | Oil hose | 1 | ADD TO CART | |
| 12 | 5100035982 | Clamp | 4 | ADD TO CART | |
| 13 | 5100049418 | Kit-rebuild carburetor flange | 1 | PARTS REQUEST | |
|
COMING Kit-rebuild carburetor flange
5100049418 · qty on machine: 1 | |||||
| 1 | 5100059332 | Air duct plate | 1 | ADD TO CART | |
| 2 | 5100002961 | O-ring | 1 | ADD TO CART | |
| 3 | 5100027072 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100027072 · qty on machine: 1 | |||||
| 4 | 5100048930 | Carburetor flange | 1 | PARTS REQUEST | |
|
COMING Carburetor flange
5100048930 · qty on machine: 1 | |||||
| 5 | 5000103212 | Washer | 2 | 5 | DIN134 | ADD TO CART |
| 8 | 5000222072 | Screw | 1 | M 4x 10 | ADD TO CART |
Page 60 — Retrofit kit clutch
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100077902 | Retrofit kit coupling | 1 | ADD TO CART | |
| 1 | 5100077646 | Centrifugal clutch | 1 | ADD TO CART | |
| 2 | 5100077645 | Hexagon nut | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson BS50-2 vibratory rammer.
PLUS: No-Mix System (oil injected).
Available in 2 configurations.
List price: $2,719.29 – $2,982.45
Keep-it-running spares
All listed parts →Every part that fits this machine
5000010366
Hexagon nut
$0.95
5000010367
Hexagon nut
$0.95
5000010388
Woodruff key
$0.95
5000010616
Flat washer
$0.95
5000010620
Flat washer
$0.95
5000010621
Flat washer
$0.95
5000010622
Flat washer
$0.95
5000010644
Lock washer
$0.95
5000010883
Hexagon nut
$0.95
5000011158
Countersunk bolt
$2.95
5000011343
Hexagonal head cap screw
$0.95
5000011533
Cheese head screw
5000011535
Cheese head screw
$0.95
5000011539
Cheese head screw
$0.95
5000011551
Cheese head screw
$0.95
5000011730
Cheese head screw
$0.95
5000012199
Piston pin
$1.95
5000012257
Retaining ring
$0.95
5000012983
Countersunk bolt
$3.95
5000021465
Lock washer
$1.95
5000031880
O-ring
$2.95
5000033198
Lockwasher
$0.95
5000034835
Needle bearing
$7.95
5000039020
Needle bearing
$7.95
5000039050
Shaft seal
$44.95
5000045041
Fan
$168.95
5000045190
Grooved ball bearing
$6.95
5000045904
Piston ring
$9.95
5000045906
Retainer
$0.95
5000045914
Hexagon nut
$0.95
5000047488
Hexagon nut
5000047997
Cover
$4.95
5000047998
Ratchet (pawl)
$4.95
5000048059
Spring
$2.95
5000048060
Starter pulley
$2.95
5000048062
Washer
$0.95
5000048063
Starter housing
$121.95
5000049586
Protective cap
$0.95
5000053577
Tank valve bushing
5000058381
Lockwasher
$0.95
5000058553
Hexagon nut
$0.95
5000059890
Starter handle
$11.95
5000059891
Retainer
$1.95
5000064446
Recoil starter cpl.
5000065068
Check disc
$1.95
5000072061
Needle bearing
$7.95
5000078844
Clamp
$1.95
5000080502
Terminal post
$9.95
5000086312
Ring seal
$5.95
5000095774
Seal
$1.95
5000095917
Cheese head screw
$0.95
5000102116
Hexagon nut
5000103163
Spring
5000103211
Lockwasher
$0.95
5000103212
Washer
$0.95
5000103834
Lock washer
$0.95
5000104548
Starter rope
$6.95
5000105067
Fan hood
5000105194
Washer
$0.95
5000110196
Lock nut
$0.95
5000110528
Clamp
$11.95
5000110537
Clamp
$11.95
5000112202
Cheese head screw
5000113813
Spring cylinder
5000115324
Piston
$64.95
5000117567
Pin
$0.95
5000129784
Decal-sound power level
$2.95
5000150278
O-ring
$0.95
5000151559
Cheese head screw
$7.95
5000153124
Spark plug (terminal) cap
$0.95
5000153125
Spark plug (terminal) cap
$1.95
5000153271
Cheese head screw
$0.95
5000153272
Screw
$0.95
5000153273
Pan head screw
$0.95
5000155017
Countersunk screw
5000155562
Clip
$4.95
5000155845
Hexagonal head cap screw
$0.95
5000156954
Hose clamp
$6.95
5000160861
Screw
$0.95
5000163956
Clamp
$0.95
5000164397
Air box filter clip
$3.95
5000164398
Screw-filter, air box
$2.95
5000164990
Foam
$1.95
5000165047
Socket head cap screw
5000171010
Carburetor repair kit
$49.95
5000171698
Clamp
$0.95
5000172332
Spark plug
5000175299
Pan head screw
$3.95
5000175300
Washer
$1.95
5000175305
Screw
$1.95
5000175306
Spring
$2.95
5000175307
Screw
$2.95
5000175310
Idle speed screw
$4.95
5000175315
Screw
$1.95
5000175316
Choke valve
$4.95
5000175319
Needle
5000177452
Screw
$1.95
5000180019
Valve
5000181216
Ignition module
$182.95
5000182310
Choke valve
$2.95
5000182757
Pan head screw
$2.95
5000182758
Cover
$6.95
5000182759
Gasket
$1.95
5000182760
Diaphragm cpl.
$3.95
5000182761
Screen
$1.95
5000182762
Spring
$2.95
5000182764
Spacer
$0.95
5000182765
Throttle lever
$2.95
5000182768
Retaining ring
$0.95
5000182769
Inlet valve
$10.95
5000182770
Lever
$2.95
5000182771
Pin
$0.95
5000182772
Plug
$1.95
5000182773
Cover
$7.95
5000182774
Bulb
$6.95
5000182775
Air purge cpl.
5000182776
Diaphragm cpl.
$13.95
5000182777
Gasket
$0.95
5000182778
Spring
$0.95
5000182779
Needle valve
$3.95
5000182780
Spring
$1.95
5000182781
Throttle shaft cpl.
$7.95
5000182782
Choke lever
$1.95
5000182784
Nozzle
$2.95
5000183351
Swivel
$10.95
5000183356
Throttle valve
$1.95
5000183357
Throttle valve
$1.95
5000183750
Hexagon nut
$0.95
5000183841
Walbro carburetor
$150.95
5000183842
Walbro carburetor
$280.95
5000209453
Screw
$0.95
5000213076
Cylinder
$241.95
5000215365
Cheese head screw
$0.95
5000222013
Cover
5000222015
Screw
$3.95
5000222072
Screw
$0.95
5000227988
Repair kit bellows
5002001041
Retaining ring
$0.95
5002001645
Grooved ball bearing
$12.95
5002003021
Grooved ball bearing
$7.95
5002003022
Retaining ring
$0.95
5002003023
Retaining ring
$1.95
5100002961
O-ring
$2.95
5100006052
Shaft seal
$6.95
5100009603
Label eco
$37.95
5100009684
Wm 80 engine
$972.95
5100009863
Maintenance kit
$86.95
5100009983
Crankcase cpl.
$436.95
5100019507
Fuel hose w/spring
$16.95
5100021110
Crankshaft cpl.
$133.95
5100022620
Fuel filter
$4.95
5100025322
Gasket
$16.95
5100025323
Cylinder gasket
$2.95
5100025508
Screw
5100027071
Screw
$1.95
5100027072
Screw
5100027591
Blind rivet
$0.95
5100027617
Stud
$2.95
5100028370
Socket head screw
$2.95
5100028371
Spring
$3.95
5100028372
Spacer
$12.95
5100028373
Sleeve
$6.95
5100028374
Washer
$1.95
5100028375
Washer
$0.95
5100028527
Side plate left
$162.95
5100028528
Side plate right
5100028600
Guide handle
$448.95
5100028935
Water filter
$11.95
5100030301
Oil tank
$87.95
5100030302
Fuel tank
$96.95
5100030407
Tank cap
$25.95
5100030408
Oil tank cap
$38.95
5100030465
Throttle control cpl.
$387.95
5100031423
Covering
$57.95
5100031608
Cover
$16.95
5100031609
Heat shield
5100031620
Handle
$66.95
5100031690
Label lifting point
$6.95
5100031692
Label compression spring us
$8.95
5100031695
Label spark
$4.95
5100031696
Label
$8.95
5100031697
Label starter
$8.95
5100031698
Label start-stop auto us
$26.95
5100031703
Label starter
$2.95
5100031704
Label wm80
$12.95
5100031720
Type label
$27.95
5100031731
Muffler bracket
$44.95
5100031988
Driving shaft
$308.95
5100031989
Gasket
$5.95
5100032026
Piston pin
$22.95
5100032027
Air cleaner
$91.95
5100032029
Grommet
5100032036
Bushing
$15.95
5100032037
Spring set
5100032038
Piston guide
$24.95
5100032039
Damper
$29.95
5100032050
Grommet
$6.95
5100032051
Cable
5100032052
Brace
$12.95
5100032053
Shockmount
$116.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
