Wacker Neuson BS62-4 Vibratory Rammer
The parts bench
Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||

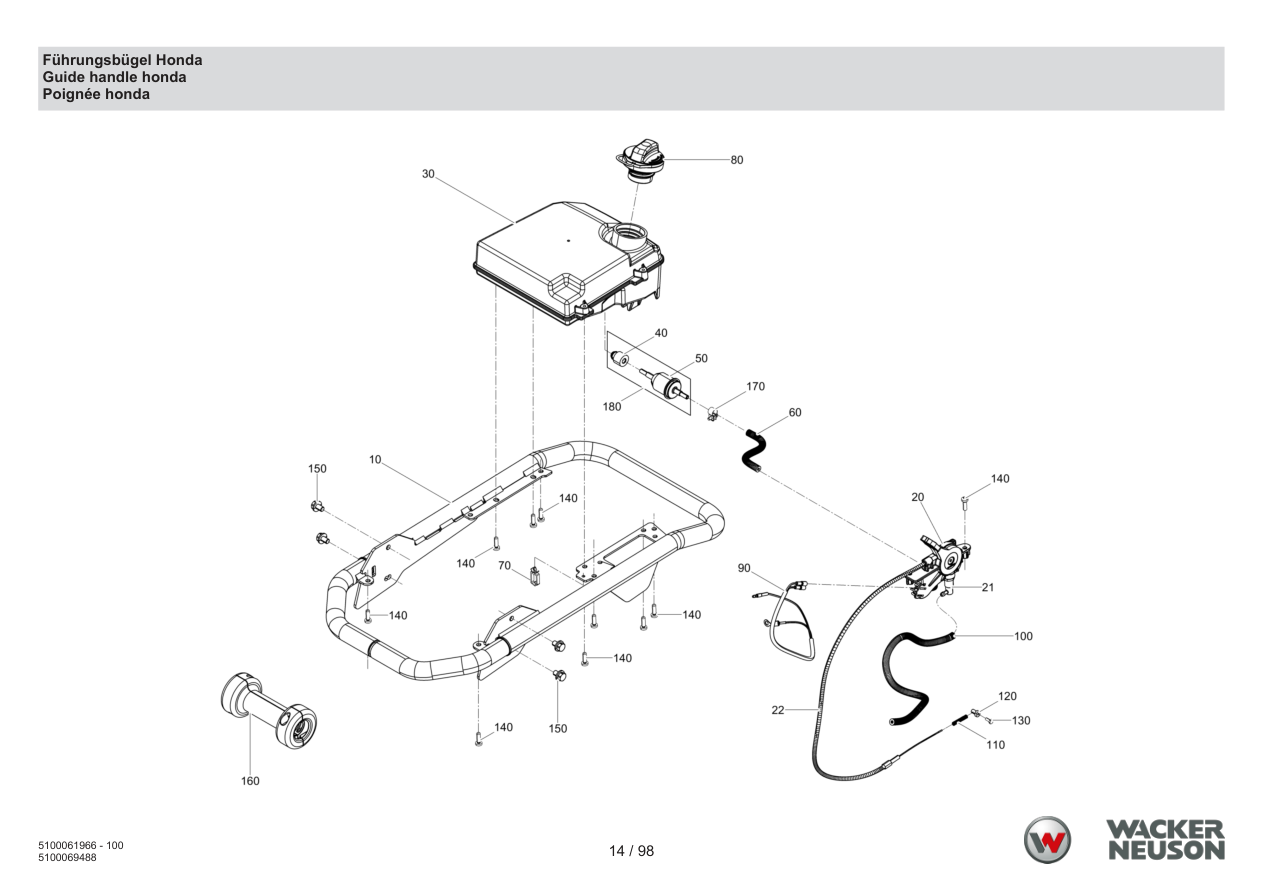

Page 14 — Guide handle honda
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 130 | 5000124429 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 140 | 5000222605 | Oval head screw | 11 | ADD TO CART | |
| 150 | 5100027071 | Screw | 4 | ADD TO CART | |
| 160 | 5100064900 | Transport roller cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 170 | 5100084568 | Hose clamp | 1 | PARTS REQUEST | |
|
COMING Hose clamp
5100084568 · qty on machine: 1 | |||||
| 180 | 5100085456 | Fuel filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel filter cpl.
5100085456 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 10 | 5100061916 | Guiding frame | 1 | ADD TO CART | |
| 20 | 5100061270 | Throttle control cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 21 | 5100066783 | Fuel valve | 1 | ADD TO CART | |
| 22 | 5100066779 | Bowden cable | 1 | ADD TO CART | |
| 30 | 5100064650 | Fuel tank | 1 | ADD TO CART | |
| 40 | 5100065885 | Tank valve bushing | 1 | ADD TO CART | |
| 50 | 5100022620 | Fuel filter | 1 | ADD TO CART | |
| 60 | 5100068453 | Fuel hose | 1 | ADD TO CART | |
| 70 | 5100066686 | Cable clamp | 1 | ADD TO CART | |
| 80 | 5100061924 | Tank cover | 1 | ADD TO CART | |
| 90 | 5100064967 | Shut-off cable | 1 | ADD TO CART | |
| 100 | 5100068456 | Fuel hose | 1 | ADD TO CART | |
| 110 | 5100040147 | Compression spring | 1 | ADD TO CART | |
| 120 | 5000212532 | Screw nipple | 1 | ADD TO CART | |

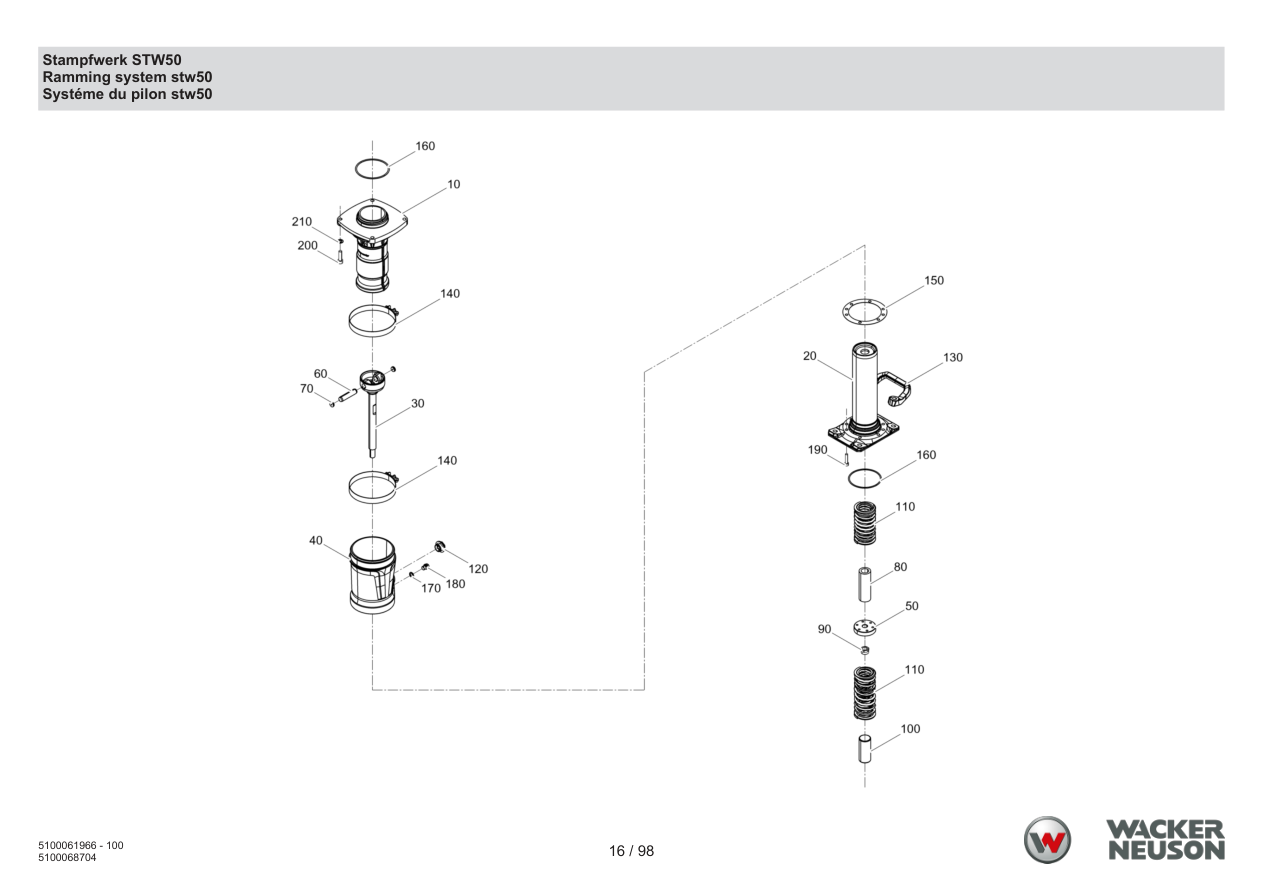

Page 16 — Tamper unit STW50
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100078614 | Guide cylinder | 1 | ADD TO CART | |
| 20 | 5100061472 | Spring cylinder | 1 | ADD TO CART | |
| 30 | 5100061471 | Guide piston | 1 | ADD TO CART | |
| 40 | 5100064624 | Protective pipe | 1 | ADD TO CART | |
| 50 | 5100032038 | Piston guide | 1 | ADD TO CART | |
| 60 | 5100032026 | Piston pin | 1 | ADD TO CART | |
| 70 | 5100058422 | Plug | 2 | ADD TO CART | |
| 80 | 5100032036 | Bushing | 1 | ADD TO CART | |
| 90 | 5000110196 | Lock nut | 1 | ADD TO CART | |
| 100 | 5100066301 | Attenuator | 1 | ADD TO CART | |
| 110 | 5100071907 | Spring set | 2 | ADD TO CART | |
| 120 | 5100033182 | Sight glass | 1 | ADD TO CART | |
| 130 | 5100064582 | Lifting handle | 1 | ADD TO CART | |
| 140 | 5000110537 | Clamp | 2 | ADD TO CART | |
| 150 | 5100062083 | Gasket | 1 | ADD TO CART | |
| 160 | 5100062161 | O-ring | 2 | ADD TO CART | |
| 170 | 5100066685 | Seal ring | 1 | ADD TO CART | |
| 180 | 5100066701 | Plug (threaded) | 1 | ADD TO CART | |
| 190 | 5000011540 | Cheese head screw | 8 | ADD TO CART | |
| 200 | 5000011533 | Cheese head screw | 4 | PARTS REQUEST | |
|
COMING Cheese head screw
5000011533 · qty on machine: 4 | |||||
| 210 | 5000010644 | Lock washer | 4 | ADD TO CART | |

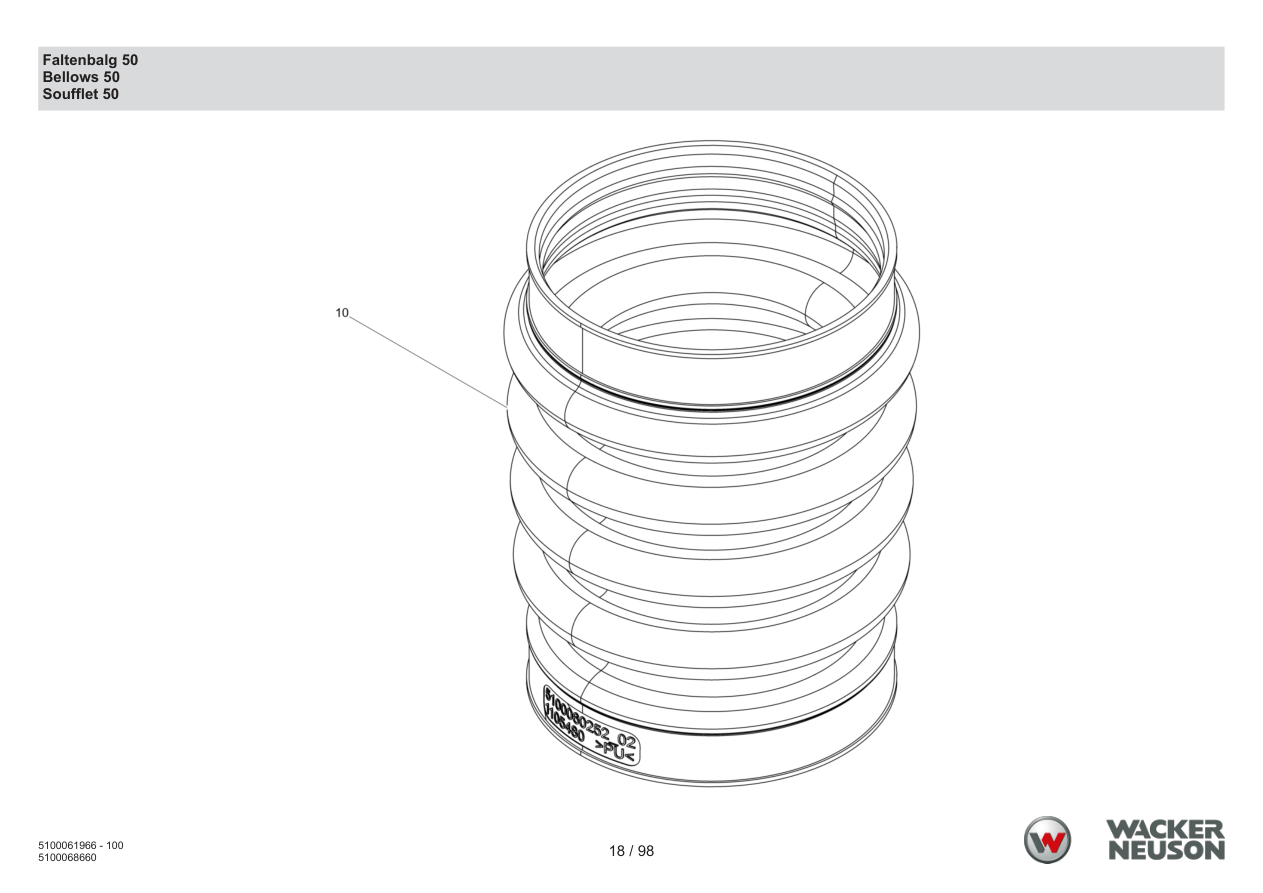

Page 18 — Bellows 50
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060252 | Bellows | 1 | ADD TO CART | |

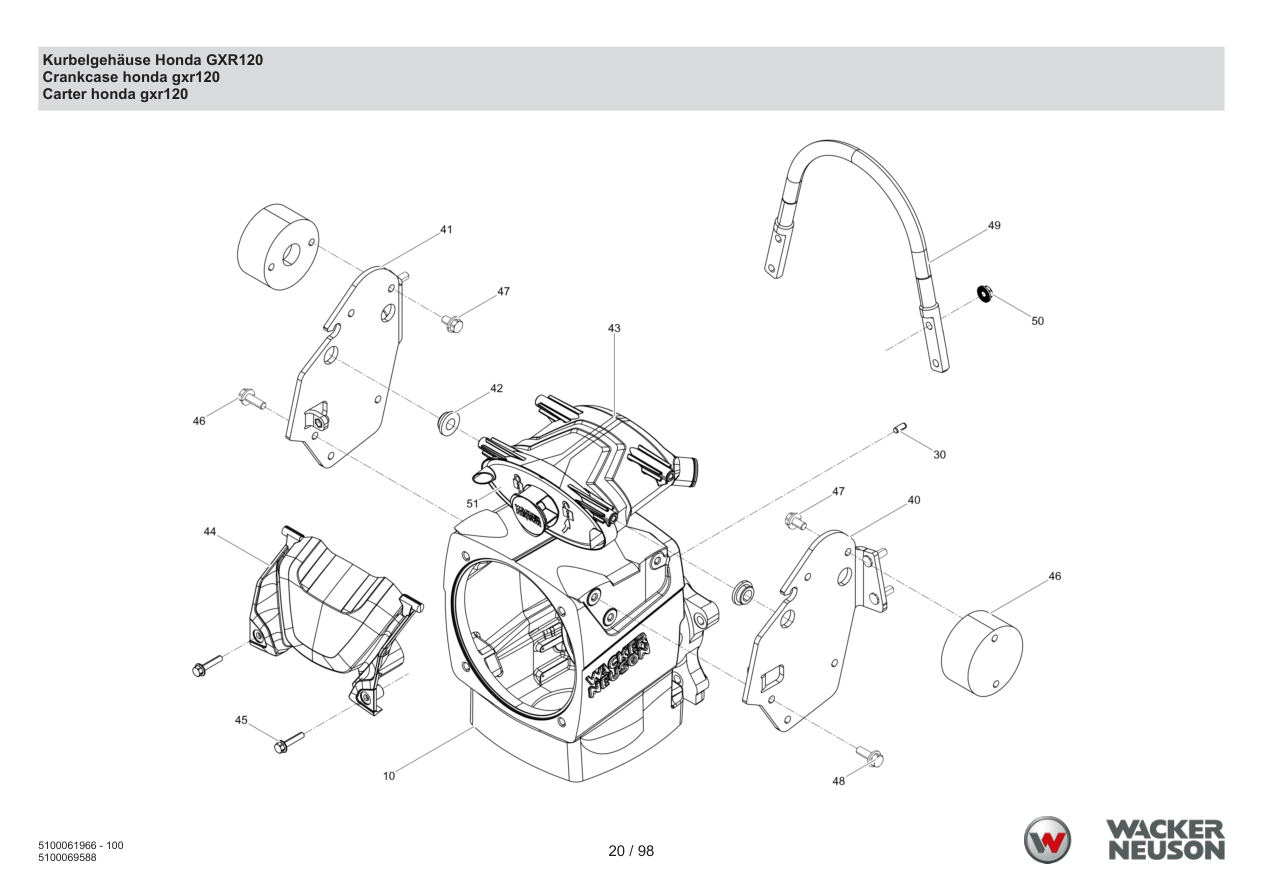

Page 20 — Crankcase honda gxr120
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100061963 | Crankcase | 1 | ADD TO CART | |
| 30 | 5100037204 | Straight pin | 2 | ADD TO CART | |
| 40 | 5100061297 | Side plate left | 1 | ADD TO CART | |
| 41 | 5100062524 | Side plate right | 1 | ADD TO CART | |
| 42 | 5100065097 | Grommet | 4 | ADD TO CART | |
| 43 | 5100062421 | Air cleaner cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 44 | 5100061298 | Covering | 1 | ADD TO CART | |
| 45 | 5100062984 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 46 | 5100032053 | Shockmount | 2 | ADD TO CART | |
| 47 | 5100027072 | Screw | 4 | PARTS REQUEST | |
|
COMING Screw
5100027072 · qty on machine: 4 | |||||
| 48 | 5200001667 | Screw | 6 | ADD TO CART | |
| 49 | 5100065096 | Suspension | 1 | ADD TO CART | |
| 50 | 5100017158 | Locknut | 4 | ADD TO CART | |
| 51 | 5100063083 | Air cleaner element | 1 | ADD TO CART | |
| 52 | 5100082020 | Prefilter | 1 | ADD TO CART | |

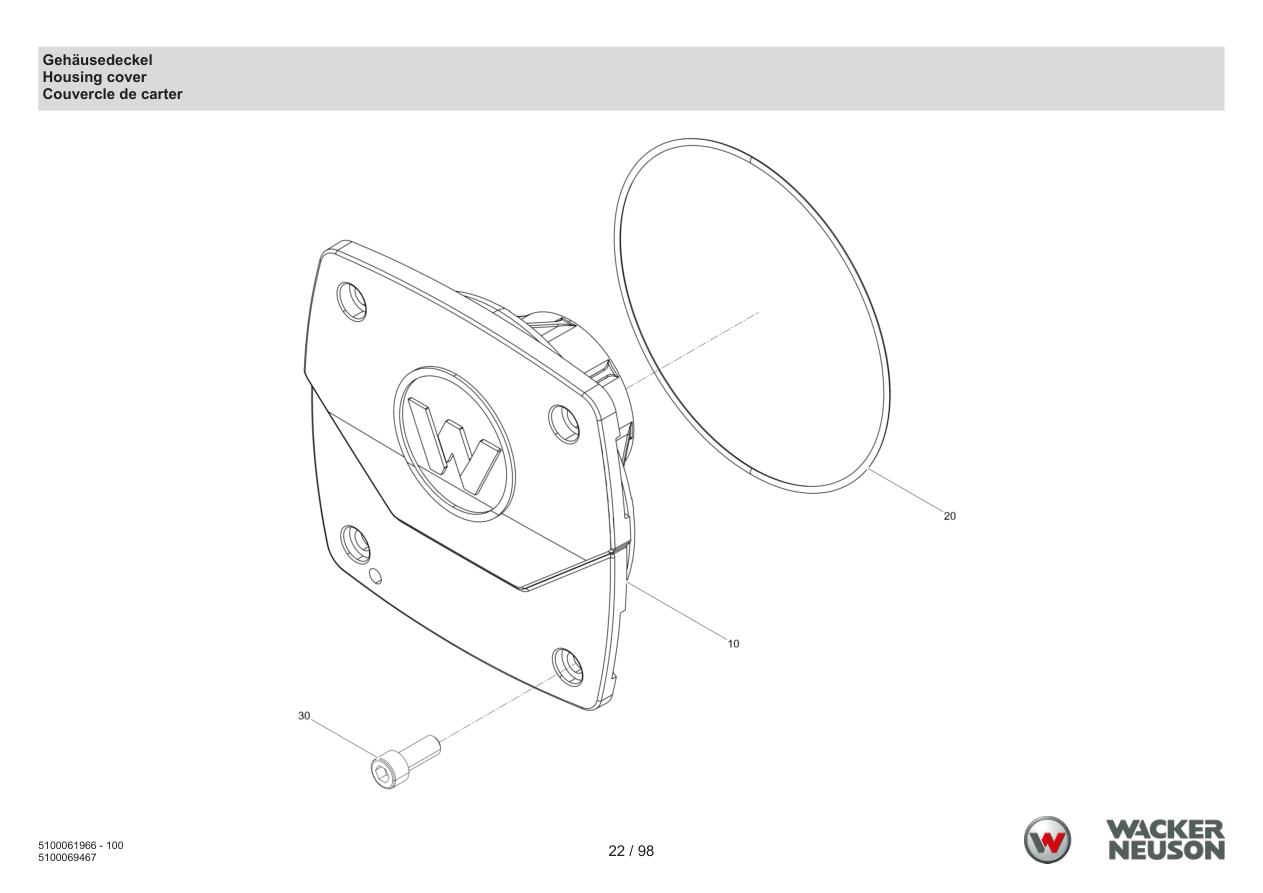

Page 22 — Housing cover
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100032132 | Crankcase cover | 1 | ADD TO CART | |
| 20 | 5100033181 | O-ring | 1 | ADD TO CART | |
| 30 | 5000011535 | Cheese head screw | 4 | ADD TO CART | |

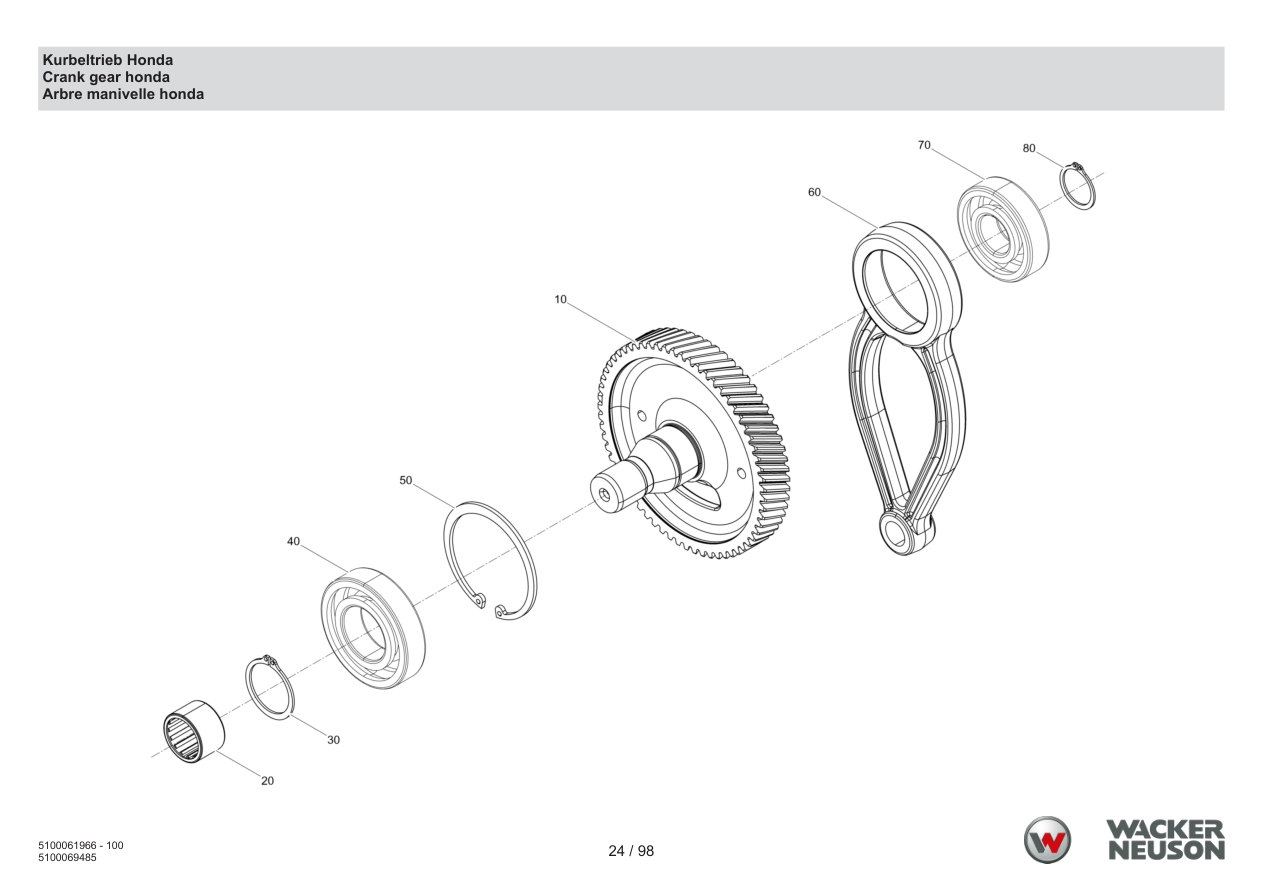

Page 24 — Crank mechanism Honda
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5002003023 | Retaining ring | 1 | ADD TO CART | |
| 60 | 5100037875 | Connecting rod | 1 | ADD TO CART | |
| 70 | 5000045190 | Grooved ball bearing | 1 | ADD TO CART | |
| 80 | 5002001041 | Retaining ring | 1 | ADD TO CART | |
| 10 | 5100061296 | Crank gear | 1 | ADD TO CART | |
| 20 | 5000072061 | Needle bearing | 1 | ADD TO CART | |
| 30 | 5002003022 | Retaining ring | 1 | ADD TO CART | |
| 40 | 5002003021 | Grooved ball bearing | 1 | ADD TO CART | |

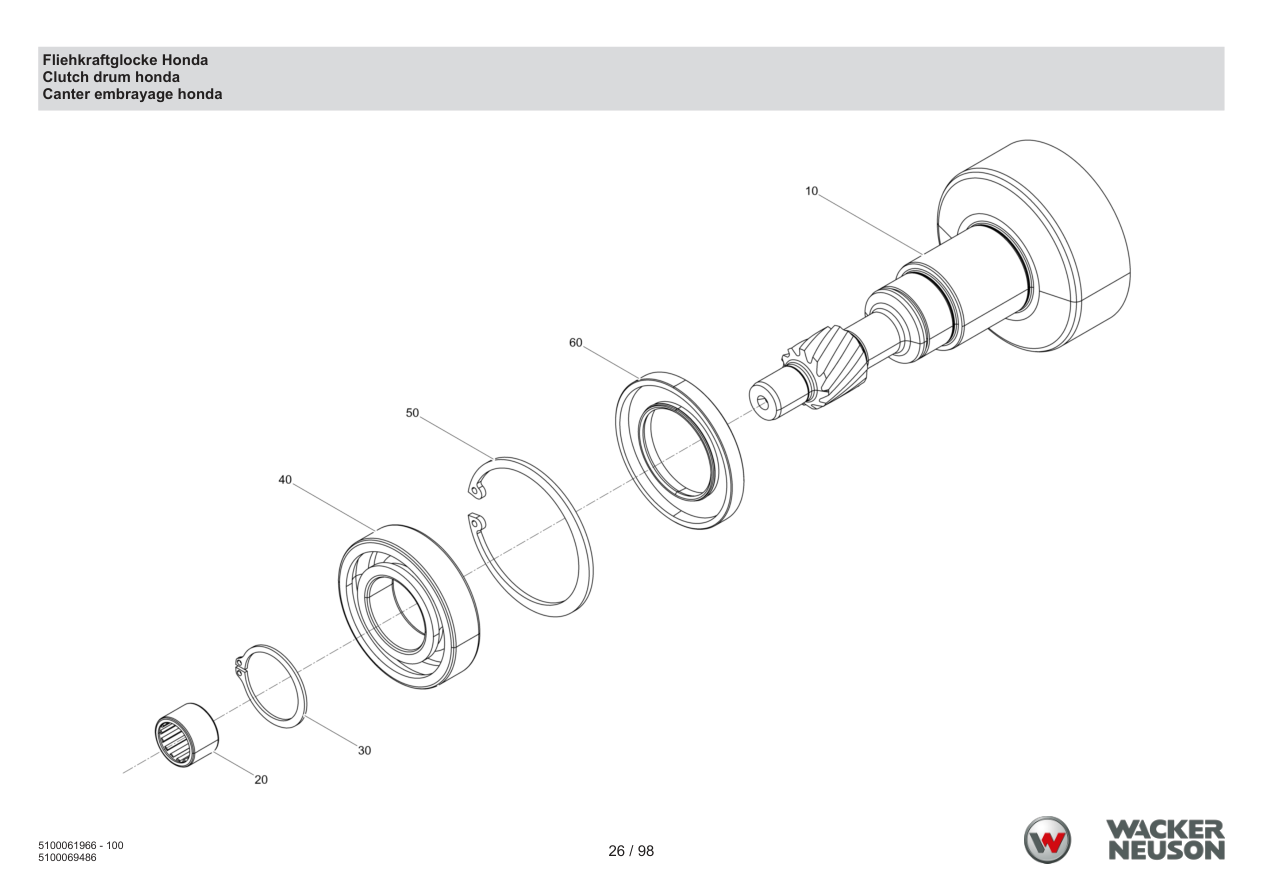

Page 26 — Centrifugal clutch bell Honda
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 40 | 5002003021 | Grooved ball bearing | 1 | ADD TO CART | |
| 50 | 5002003023 | Retaining ring | 1 | ADD TO CART | |
| 60 | 5000039050 | Shaft seal | 1 | ADD TO CART | |
| 10 | 5100060640 | Clutch drum | 1 | ADD TO CART | |
| 20 | 5000039020 | Needle bearing | 1 | ADD TO CART | |
| 30 | 5002003022 | Retaining ring | 1 | ADD TO CART | |

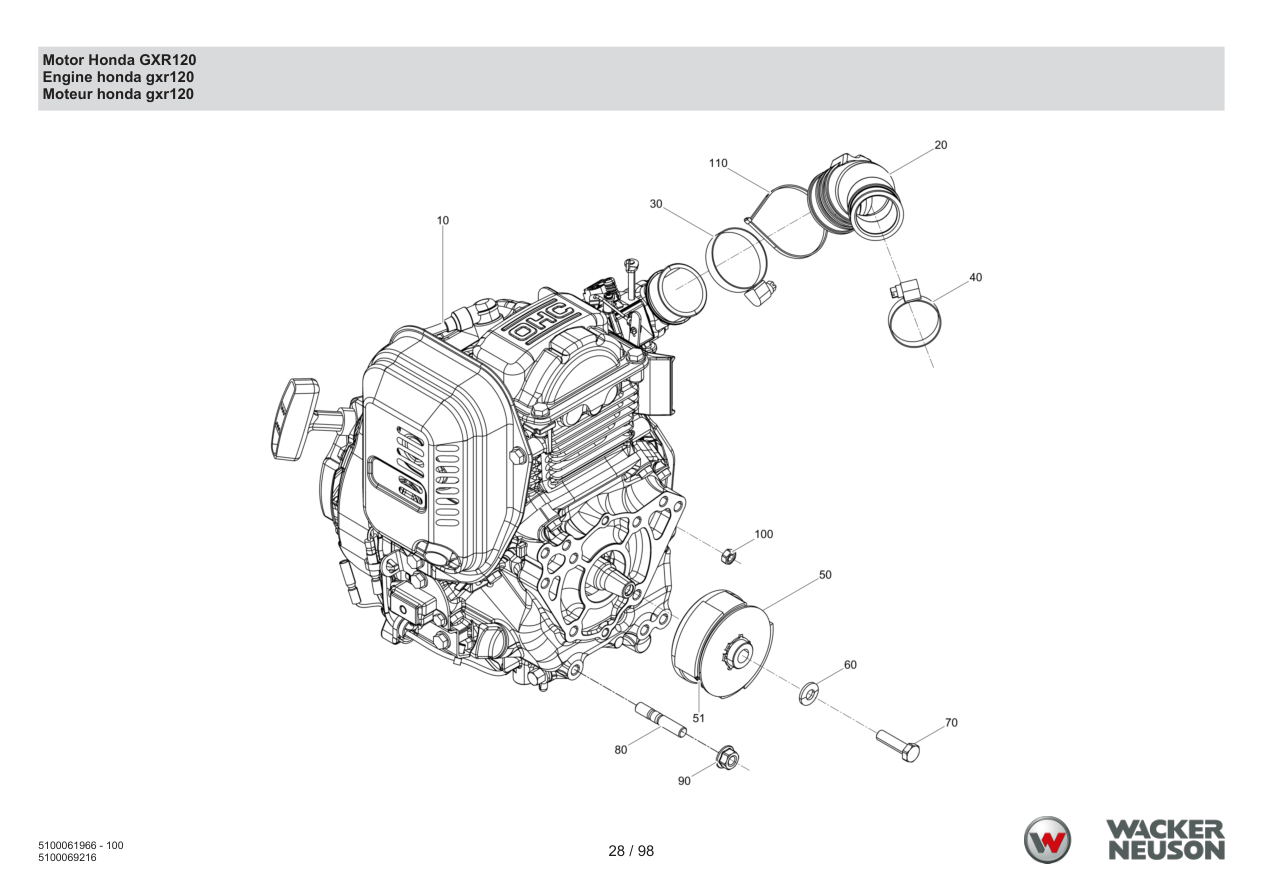

Page 28 — Motor Honda GXR120
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 100 | 5000010880 | Hexagon nut | 2 | ADD TO CART | |
| 110 | 5000206683 | Cable yarn t30l | 1 | ADD TO CART | |
| 10 | 5100060986 | Gas engine | 1 | ADD TO CART | |
| 20 | 5100061349 | Air pipe | 1 | ADD TO CART | |
| 30 | 5000078844 | Clamp | 1 | ADD TO CART | |
| 40 | 5100033186 | Clamp | 1 | ADD TO CART | |
| 50 | 5100061273 | Centrifugal clutch | 1 | ADD TO CART | |
| 51 | 5100081903 | Tension spring | 4 | ADD TO CART | |
| 60 | 5000033198 | Lockwasher | 1 | ADD TO CART | |
| 70 | 5000011456 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 80 | 5100025334 | Stud | 4 | ADD TO CART | |
| 90 | 5000096677 | Hexagon nut | 4 | ADD TO CART | |

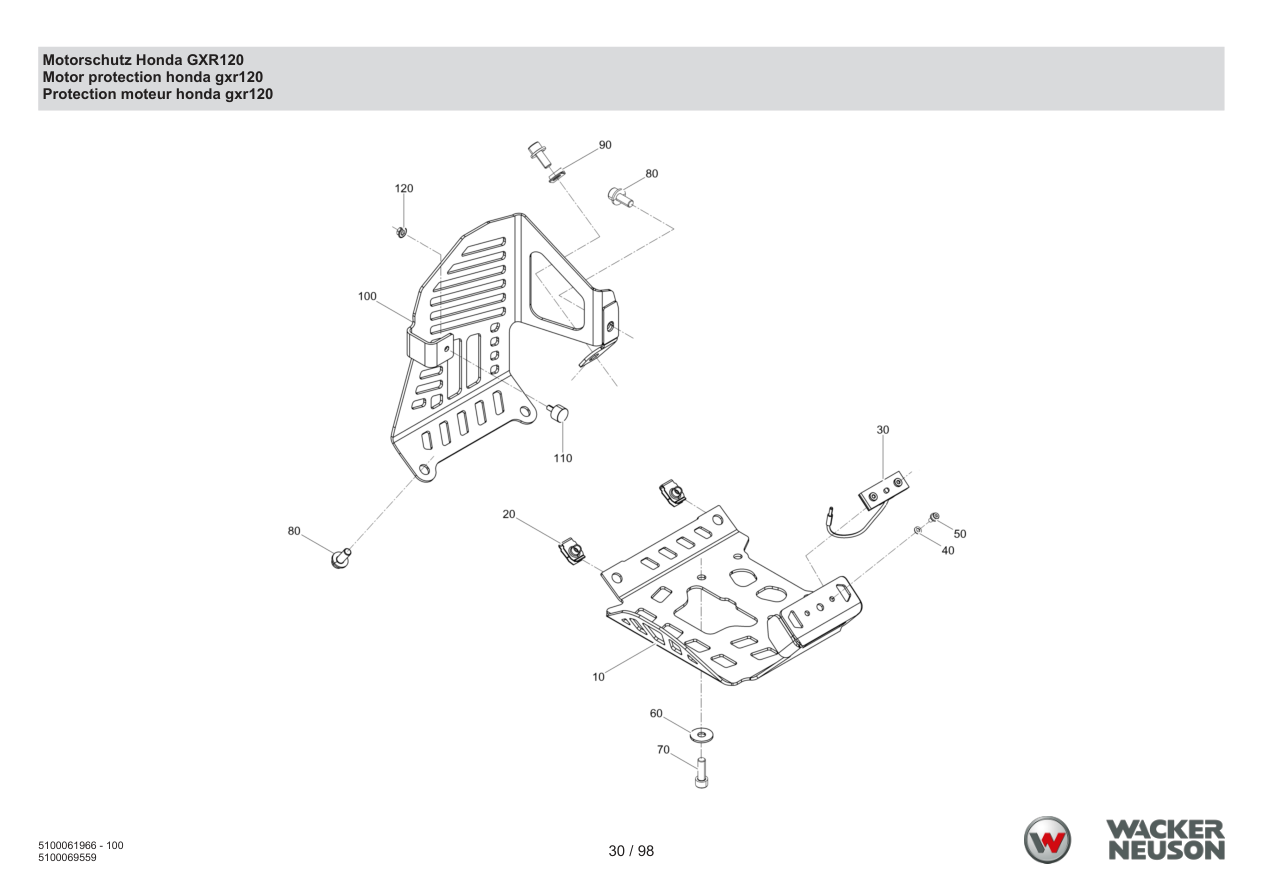

Page 30 — Motor protection honda gxr120
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 110 | 5100032209 | Bumper | 1 | ADD TO CART | |
| 120 | 5000047488 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5000047488 · qty on machine: 1 | |||||
| 10 | 5100052490 | Motor protection bottom | 1 | PARTS REQUEST | |
|
COMING Motor protection bottom
5100052490 · qty on machine: 1 | |||||
| 20 | 5100033184 | Locknut | 3 | ADD TO CART | |
| 30 | 5100032208 | Low oil pressure display | 1 | ADD TO CART | |
| 40 | 5100004421 | Contact disk | 2 | ADD TO CART | |
| 50 | 5000165047 | Socket head cap screw | 2 | PARTS REQUEST | |
|
COMING Socket head cap screw
5000165047 · qty on machine: 2 | |||||
| 60 | 5000010374 | Flat washer | 4 | ADD TO CART | |
| 70 | 5000157152 | Socket head cap screw m8 x 25 | 4 | ADD TO CART | |
| 80 | 5000177452 | Screw | 4 | ADD TO CART | |
| 90 | 5000156954 | Hose clamp | 1 | ADD TO CART | |
| 100 | 5100052491 | Motor protection top cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Motor protection top cpl.
5100052491 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

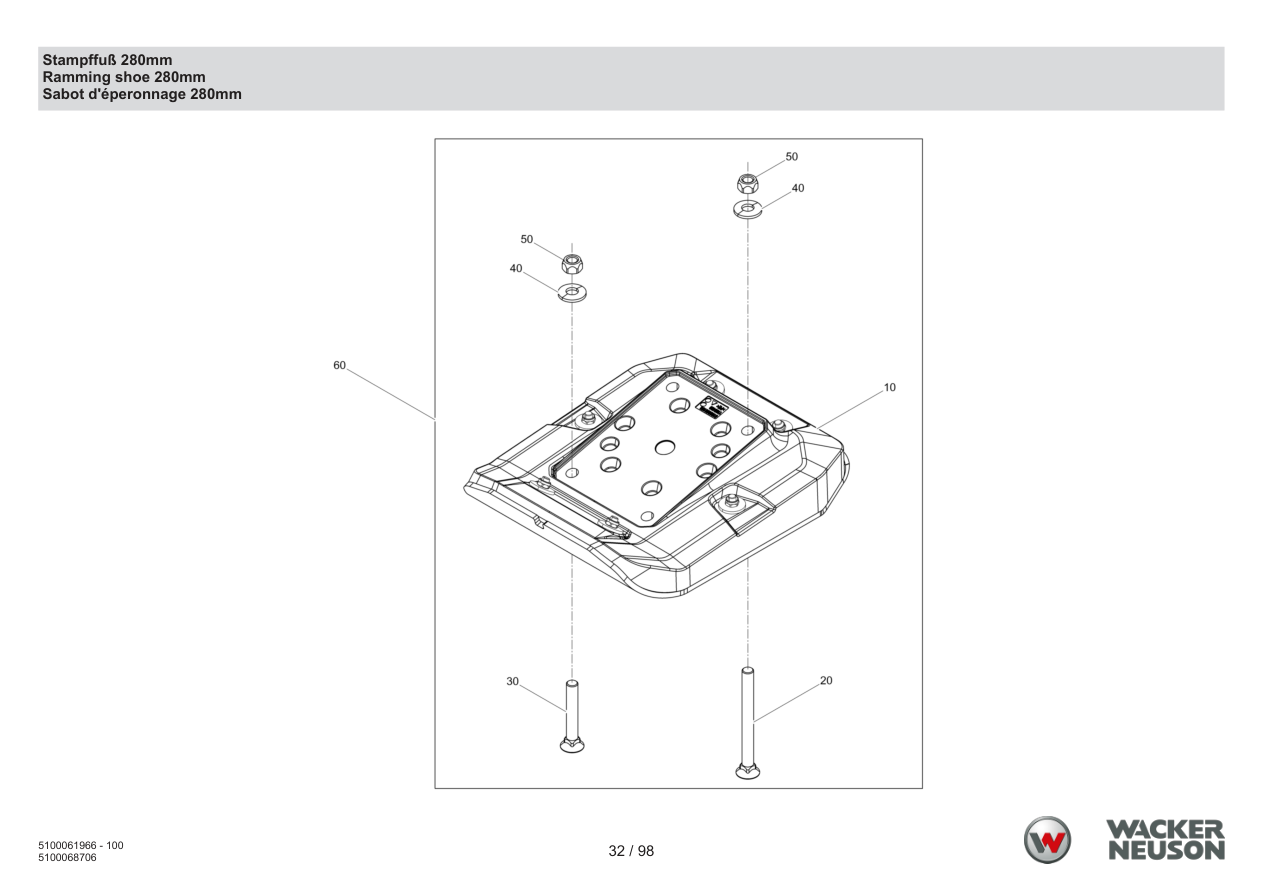

Page 32 — Ramming Shoe 280mm
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100076966 | Hexagon nut | 4 | ADD TO CART | |
| 60 | 5100072561 | Ramming shoe with screws 280 | 1 | ADD TO CART | |
| 10 | 5100066167 | Ramming shoe cpl. 280mm | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 20 | 5100062090 | Countersunk screw | 2 | ADD TO CART | |
| 30 | 5100062449 | Countersunk screw | 2 | ADD TO CART | |
| 40 | 5000031565 | Lockwasher | 4 | ADD TO CART | |

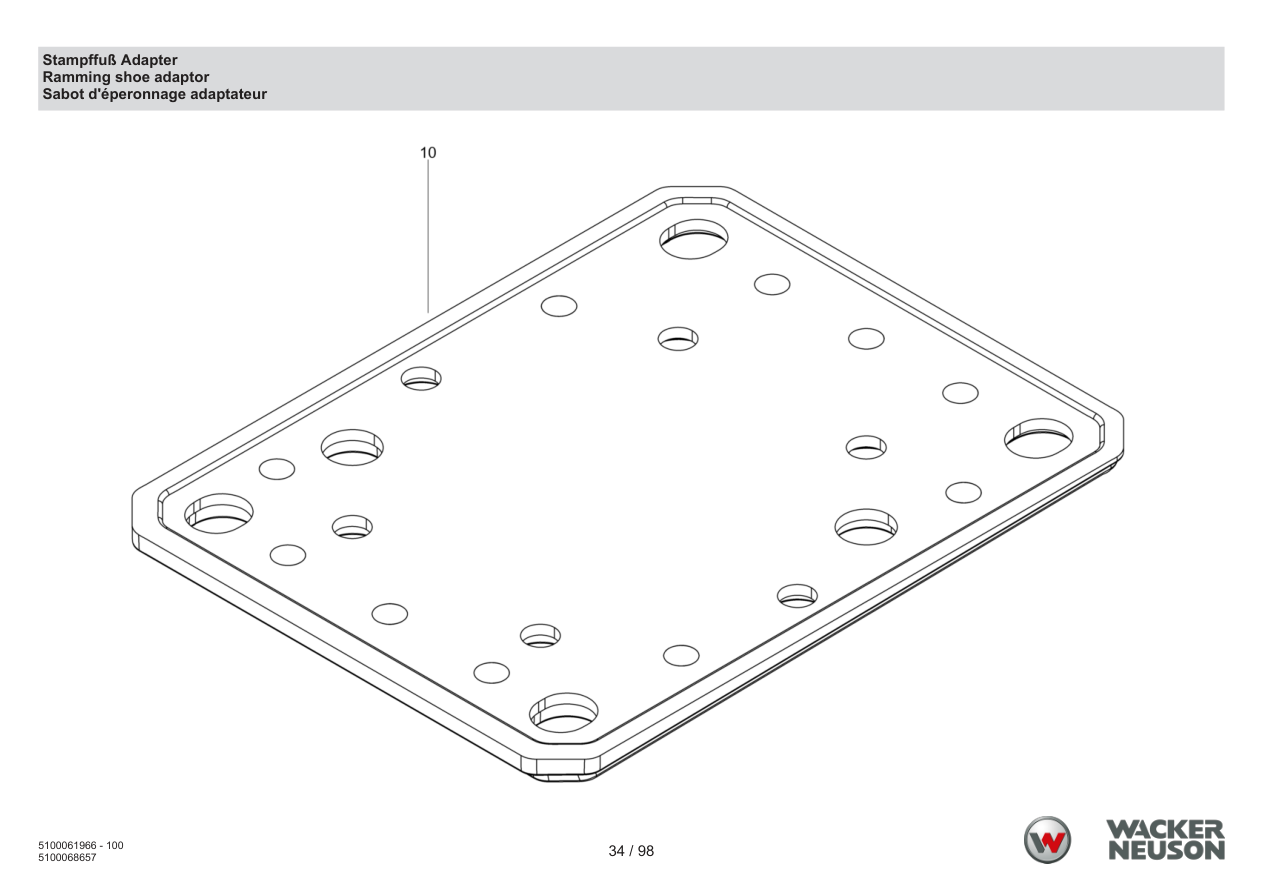

Page 34 — Ramming Shoe Adapter
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100066067 | Adapter plate | 1 | ADD TO CART | |

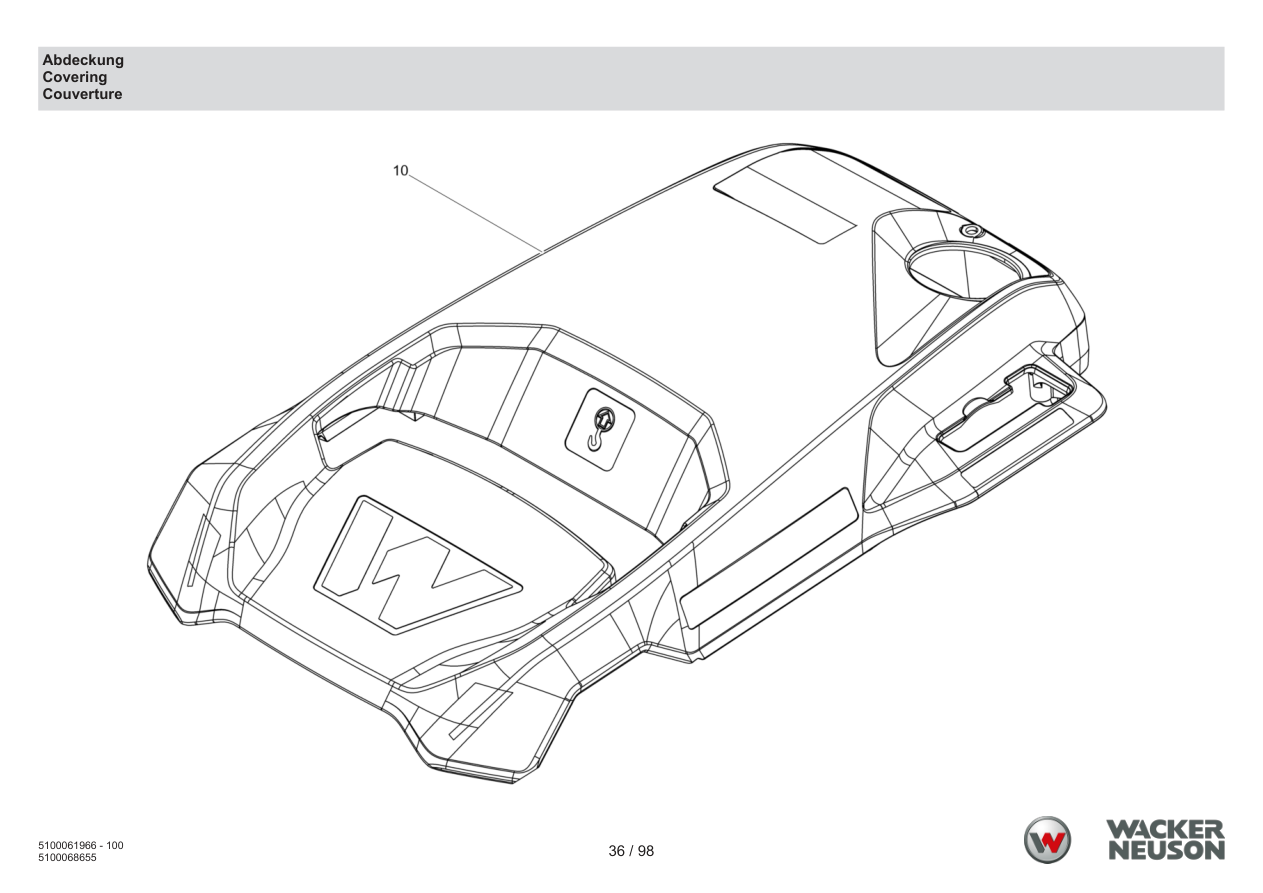

Page 36 — Covering
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100061914 | Covering | 1 | ADD TO CART | |

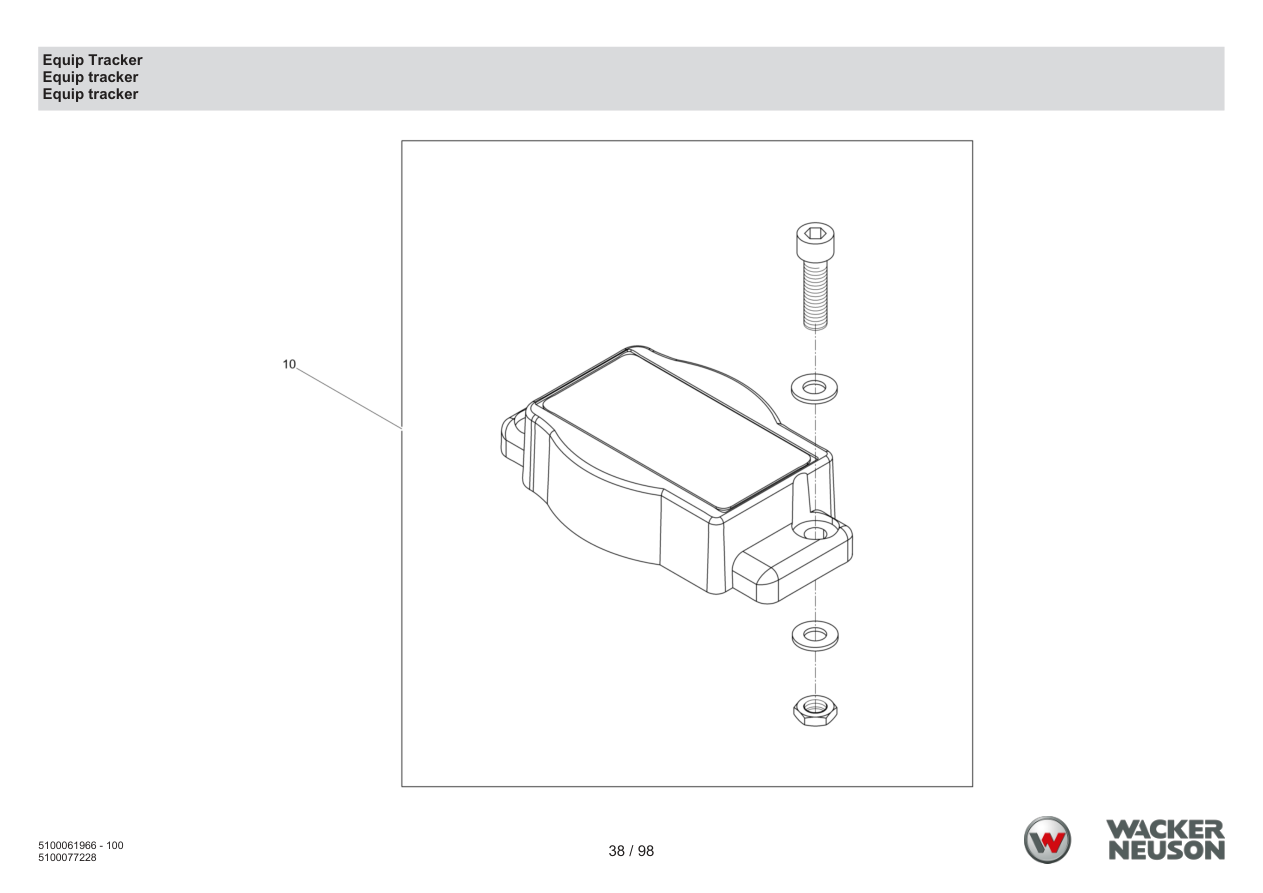

Page 38 — Equip Tracker
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100071908 | Equiptracker | 1 | PARTS REQUEST | |
|
COMING Equiptracker
5100071908 · qty on machine: 1 | |||||

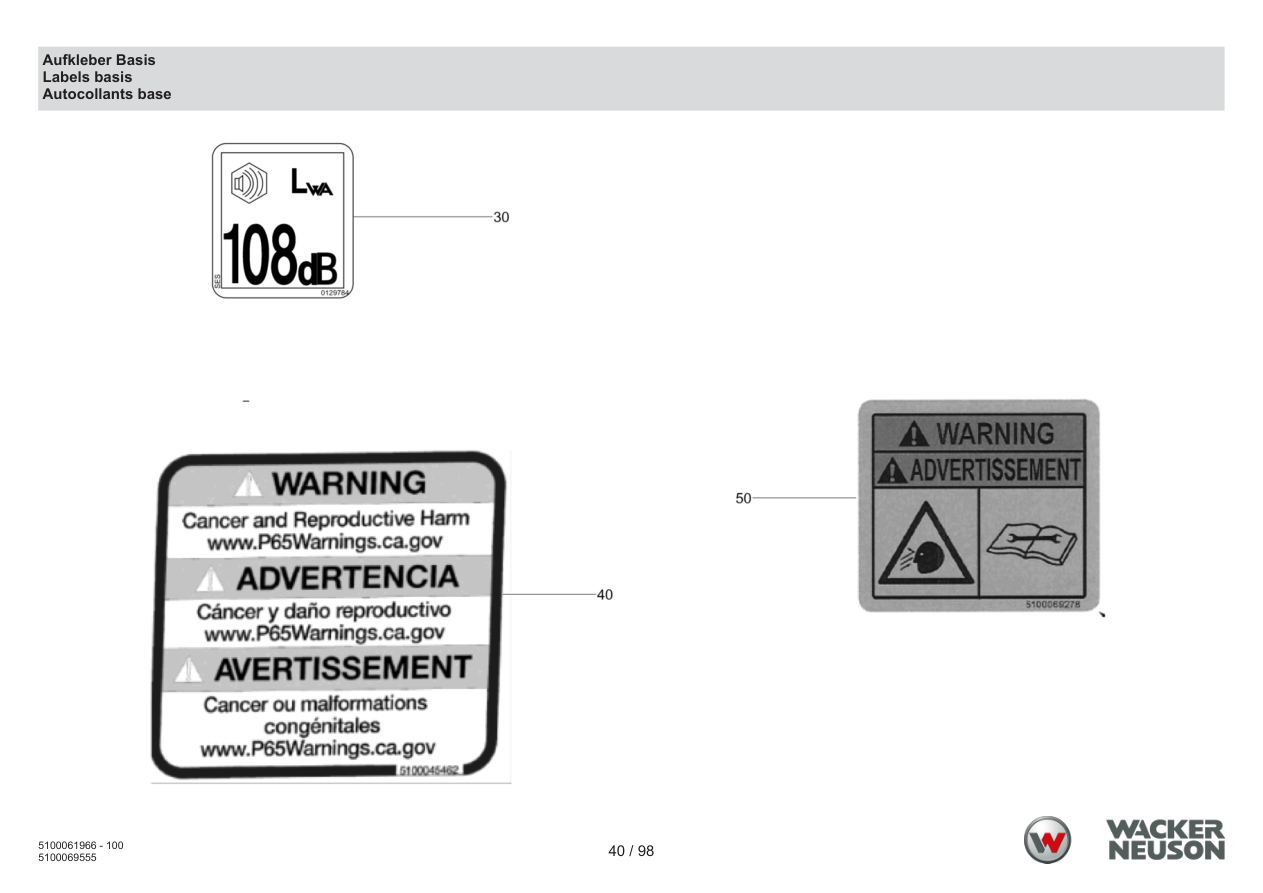

Page 40 — Decal base
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5000129784 | Decal-sound power level | 1 | ADD TO CART | |
| 40 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 50 | 5100069278 | Label | 1 | ADD TO CART | |

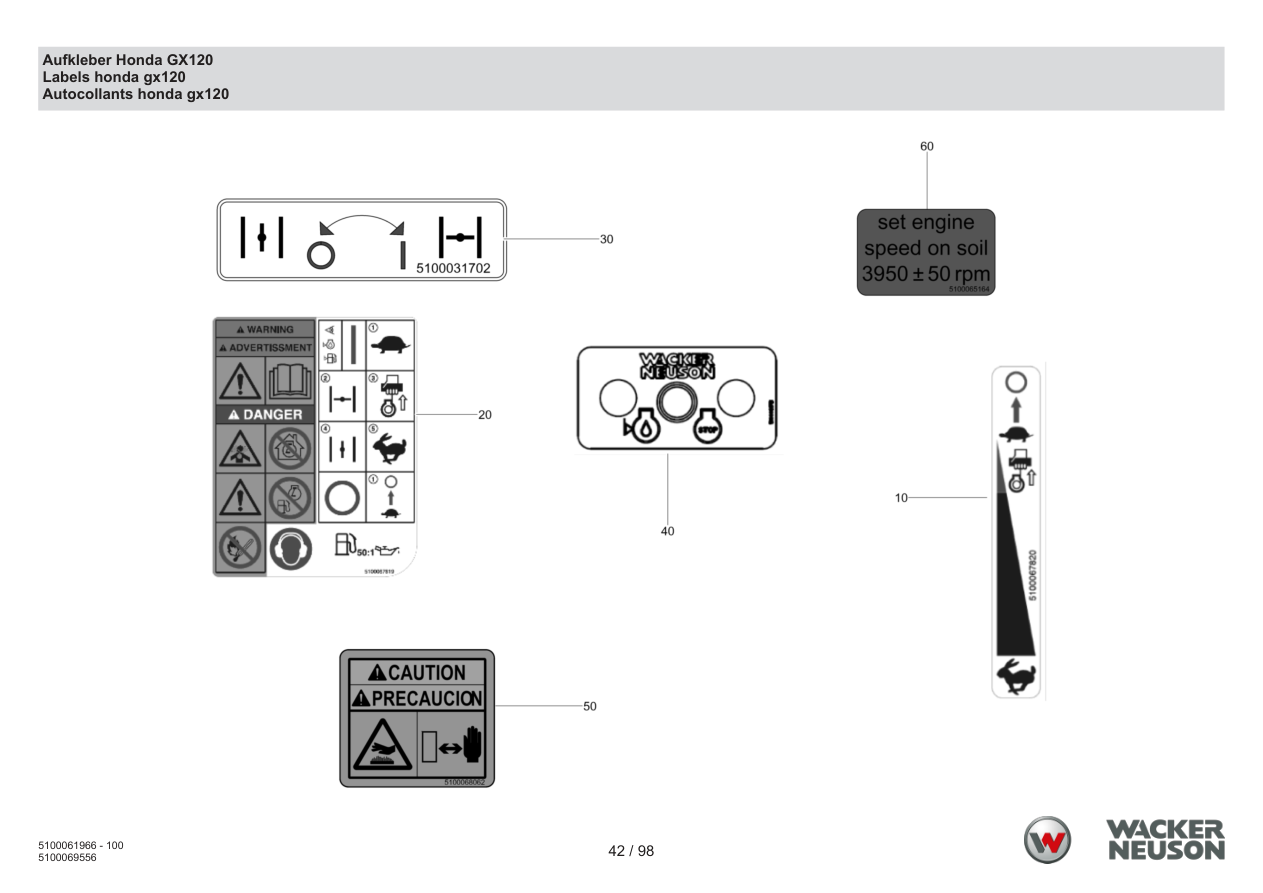

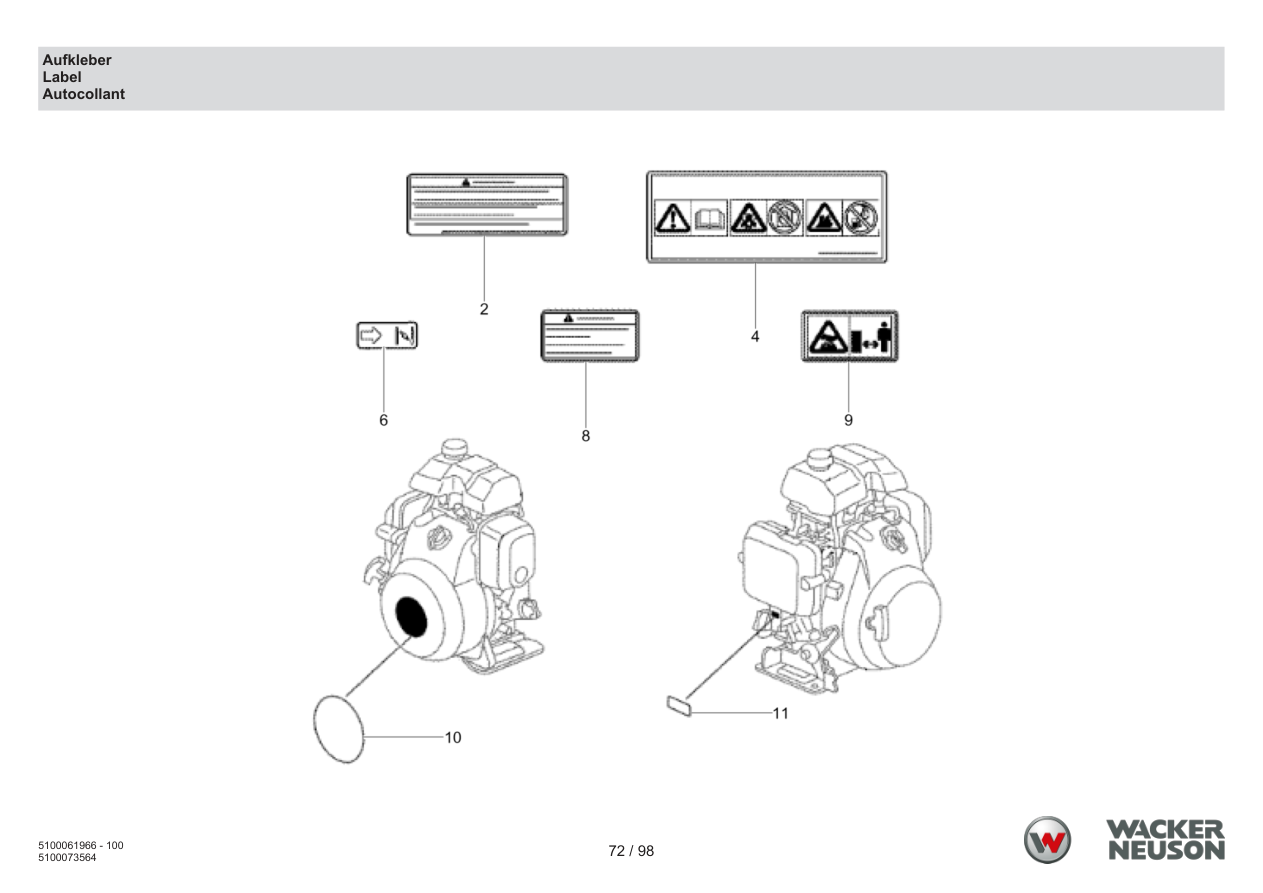

Page 42 — Decal Honda GX120
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 40 | 5100031711 | Label | 1 | ADD TO CART | |
| 50 | 5100068062 | Label | 1 | ADD TO CART | |
| 60 | 5100065164 | Label | 1 | ADD TO CART | |
| 10 | 5100067820 | Label | 1 | ADD TO CART | |
| 20 | 5100067819 | Label | 1 | ADD TO CART | |
| 30 | 5100031702 | Label starter | 1 | ADD TO CART | |

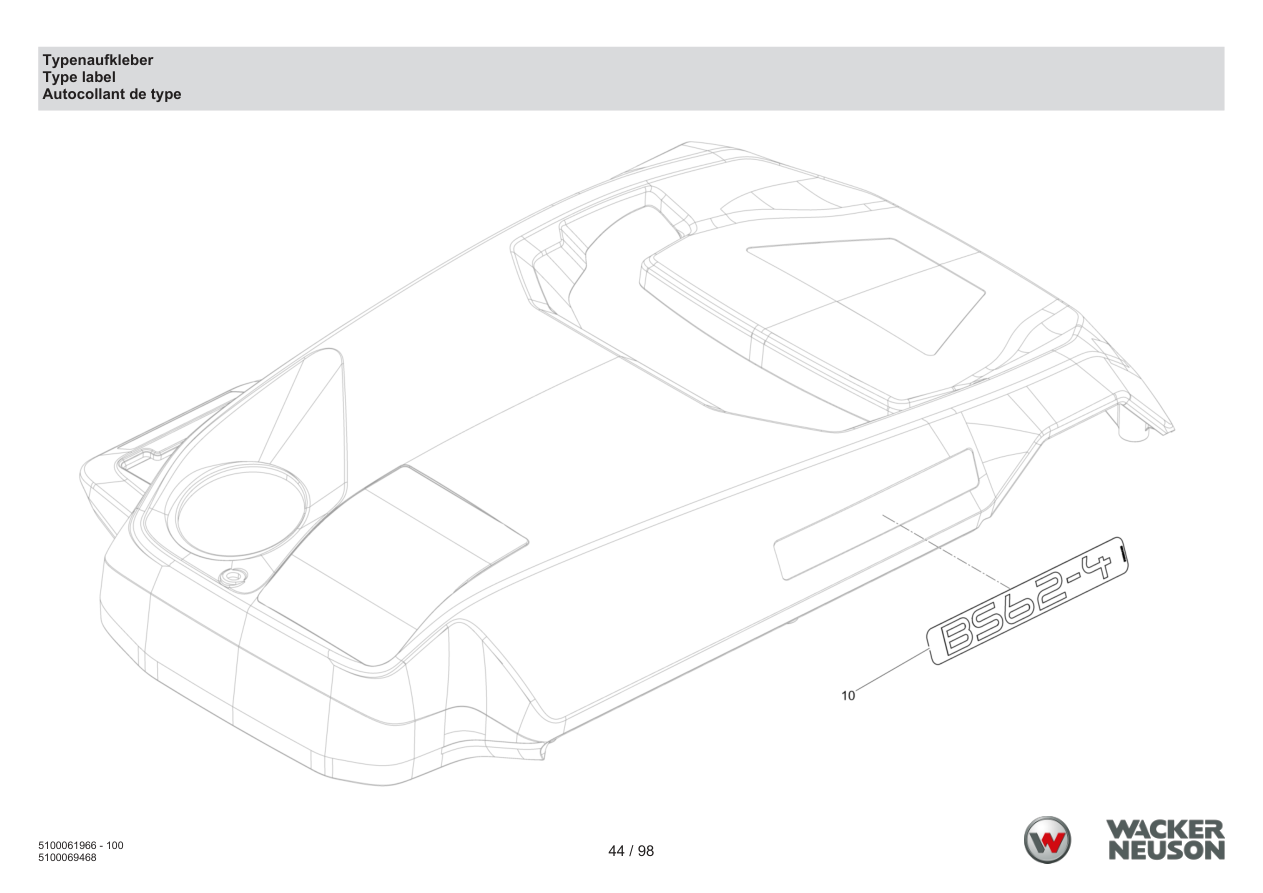

Page 44 — Type labels
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100064195 | Type label bs62-4 | 2 | ADD TO CART | |

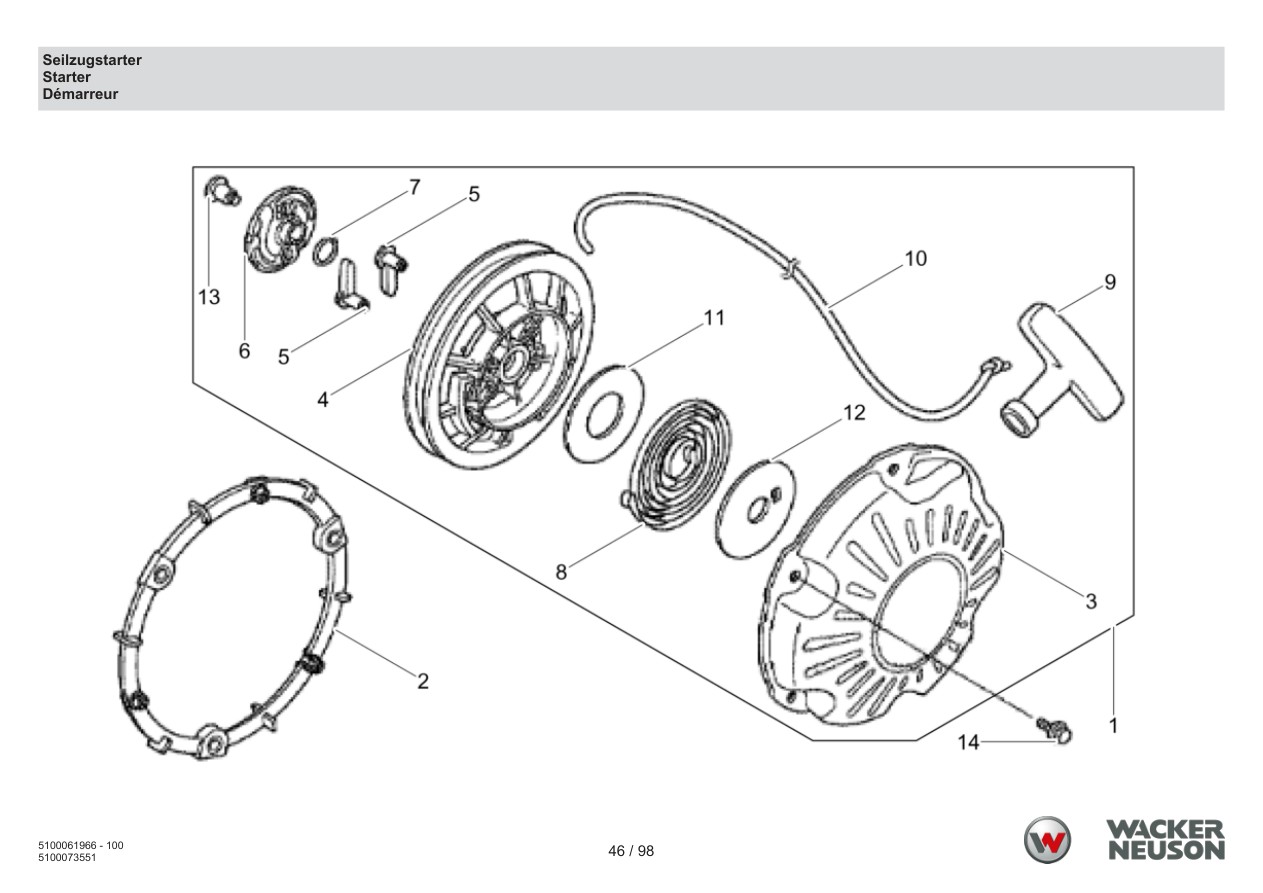

Page 46 — Recoil starter
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5000162073 | Friction spring | 1 | ADD TO CART | |
| 8 | 5000081777 | Spring | 1 | ADD TO CART | |
| 9 | 5100049068 | Starter handle | 1 | ADD TO CART | |
| 10 | 5100049069 | Starter rope | 1 | ADD TO CART | |
| 11 | 5000162075 | Side plate | 1 | ADD TO CART | |
| 12 | 5000162076 | Side plate | 1 | ADD TO CART | |
| 13 | 5000081782 | Screw | 1 | ADD TO CART | |
| 14 | 5000151935 | Bolt | 3 | ADD TO CART | |
| 1 | 5100031000 | Recoil starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100049065 | Spacer | 1 | ADD TO CART | |
| 3 | 5100049066 | Starter housing | 1 | ADD TO CART | |
| 4 | 5100049067 | Rope disc | 1 | ADD TO CART | |
| 5 | 5000109668 | Ratchet | 2 | PARTS REQUEST | |
|
COMING Ratchet
5000109668 · qty on machine: 2 | |||||
| 6 | 5000156729 | Ratchet guide | 1 | ADD TO CART | |

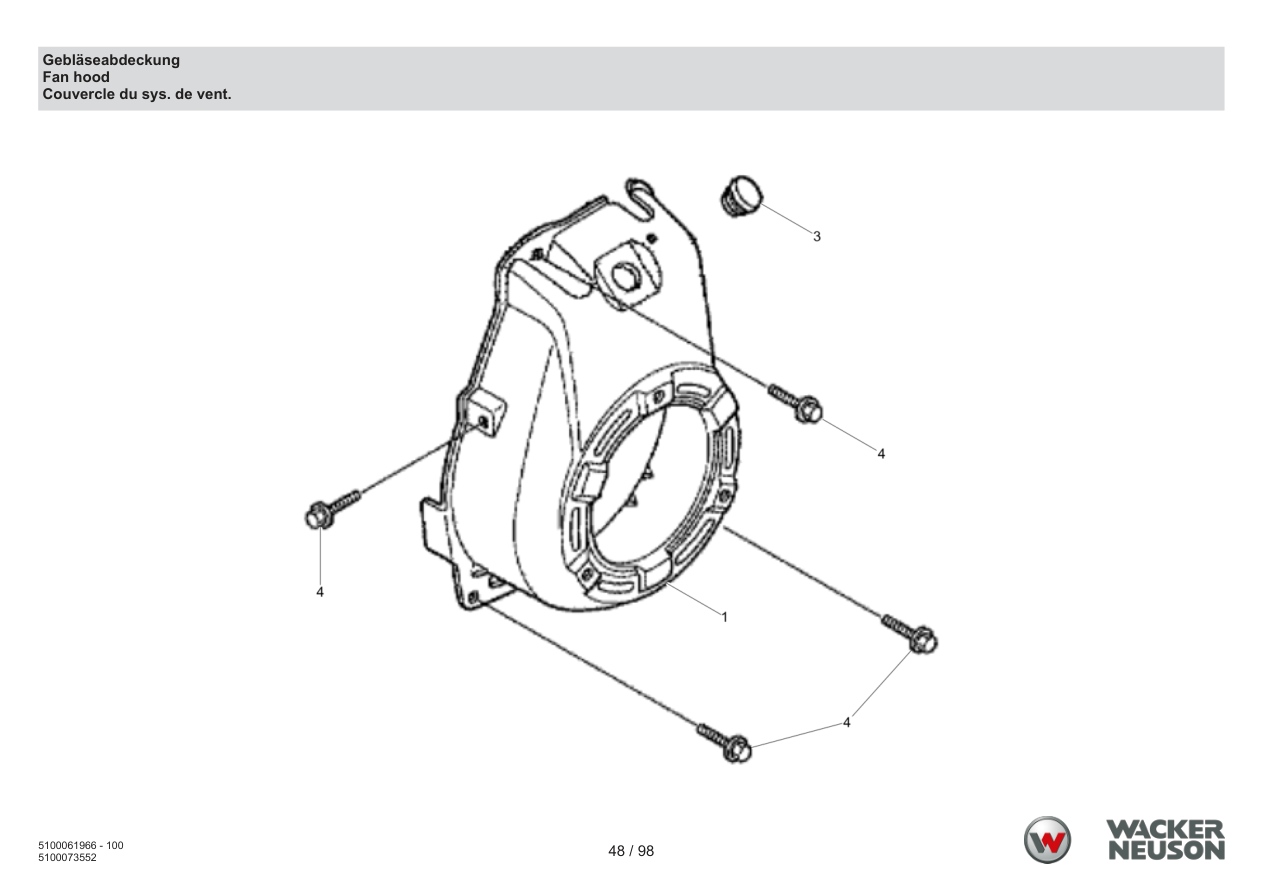

Page 48 — Fan hood
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049170 | Air ducting housing | 1 | ADD TO CART | |
| 3 | 5000071813 | Rubber plug | 1 | ADD TO CART | |
| 4 | 5000152487 | Bolt | 4 | ADD TO CART | |

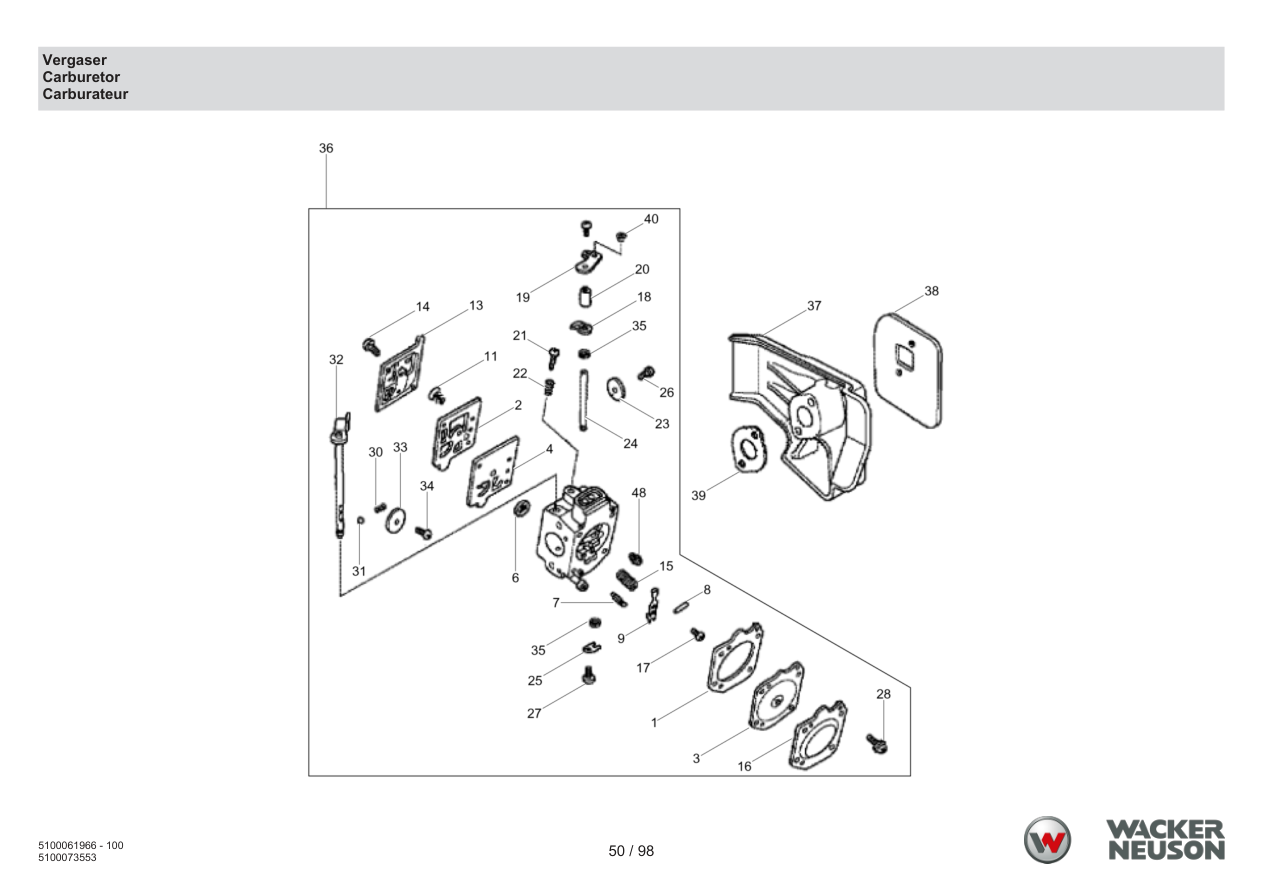

Page 50 — Carburetor
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100073580 | Diaphragm | 1 | ADD TO CART | |
| 1 | 5200015251 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5200015251 · qty on machine: 1 | |||||
| 2 | 5100049172 | Gasket | 1 | ADD TO CART | |
| 4 | 5100049174 | Diaphragm | 1 | ADD TO CART | |
| 6 | 5100049175 | Screen | 1 | ADD TO CART | |
| 7 | 5000157497 | Needle valve | 1 | ADD TO CART | |
| 8 | 5000157500 | Pin | 1 | ADD TO CART | |
| 8 | 5000217167 | Pin | 1 | ADD TO CART | |
| 9 | 5100049176 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100049176 · qty on machine: 1 | |||||
| 11 | 5000157508 | Spring | 1 | ADD TO CART | |
| 13 | 5100049179 | Cover | 1 | ADD TO CART | |
| 14 | 5100049180 | Screw | 1 | ADD TO CART | |
| 15 | 5100049181 | Spring | 1 | ADD TO CART | |
| 16 | 5200015260 | Cover | 1 | ADD TO CART | |
| 17 | 5100049182 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100049182 · qty on machine: 1 | |||||
| 18 | 5100031001 | Limit stop | 1 | ADD TO CART | |
| 19 | 5100049183 | Lever | 1 | ADD TO CART | |
| 20 | 5100049184 | Spacer | 1 | ADD TO CART | |
| 21 | 5100049185 | Screw | 1 | ADD TO CART | |
| 22 | 5100049186 | Spring | 1 | ADD TO CART | |
| 23 | 5100049187 | Starter flap | 1 | PARTS REQUEST | |
|
COMING Starter flap
5100049187 · qty on machine: 1 | |||||
| 24 | 5100049188 | Shaft | 1 | ADD TO CART | |
| 25 | 5100049189 | Clamp | 1 | ADD TO CART | |
| 26 | 5100049190 | Screw | 2 | ADD TO CART | |
| 27 | 5100049191 | Screw | 1 | ADD TO CART | |
| 28 | 5100049191 | Screw | 4 | ADD TO CART | |
| 30 | 5100049193 | Spring | 1 | ADD TO CART | |
| 31 | 5100049194 | Ball | 1 | ADD TO CART | |
| 32 | 5100073582 | Choke shaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 33 | 5100049196 | Choke-shutter | 1 | ADD TO CART | |
| 34 | 5100049197 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100049197 · qty on machine: 1 | |||||
| 35 | 5100049198 | Gasket | 2 | ADD TO CART | |
| 36 | 5100073583 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 37 | 5100049200 | Insulator | 1 | PARTS REQUEST | |
|
COMING Insulator
5100049200 · qty on machine: 1 | |||||
| 38 | 5100049201 | Carburetor seal | 1 | ADD TO CART | |
| 39 | 5100049202 | Carburetor seal | 1 | ADD TO CART | |
| 40 | 5100049203 | Sleeve | 1 | PARTS REQUEST | |
|
COMING Sleeve
5100049203 · qty on machine: 1 | |||||
| 48 | 5100049204 | Jet (#46) | 1 | ADD TO CART | |
| 48 | 5100073584 | Nozzle 42 | 1 | ADD TO CART | |
| 48 | 5100073585 | Nozzle 44 | 1 | ADD TO CART | |

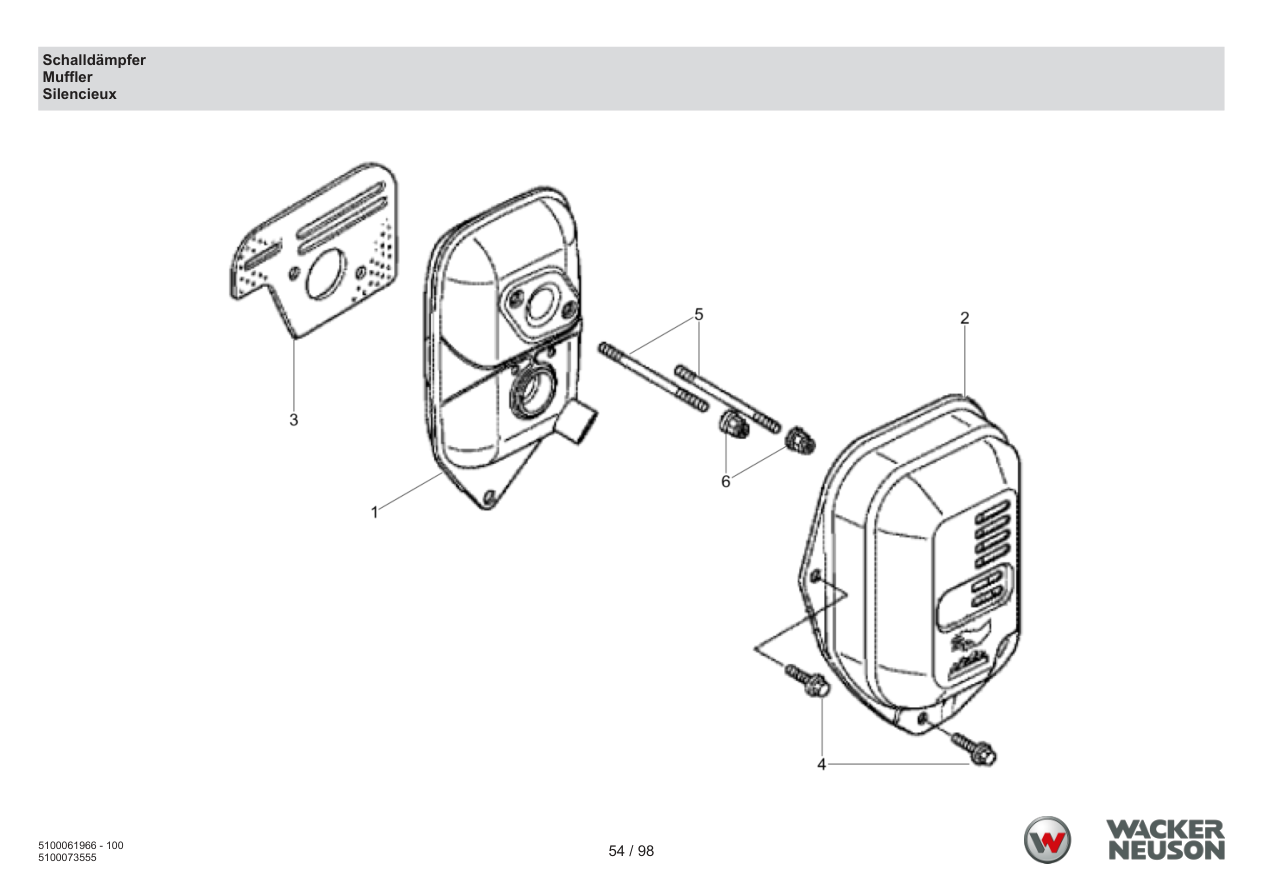

Page 54 — Muffler
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049209 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100049210 | Contact safety device | 1 | ADD TO CART | |
| 3 | 5100049211 | Exhaust seal | 1 | PARTS REQUEST | |
|
COMING Exhaust seal
5100049211 · qty on machine: 1 | |||||
| 4 | 5000152487 | Bolt | 3 | ADD TO CART | |
| 5 | 5100049212 | Stud 6x56.5 | 2 | ADD TO CART | |
| 6 | 5000209834 | Lock nut | 2 | PARTS REQUEST | |
|
COMING Lock nut
5000209834 · qty on machine: 2 | |||||

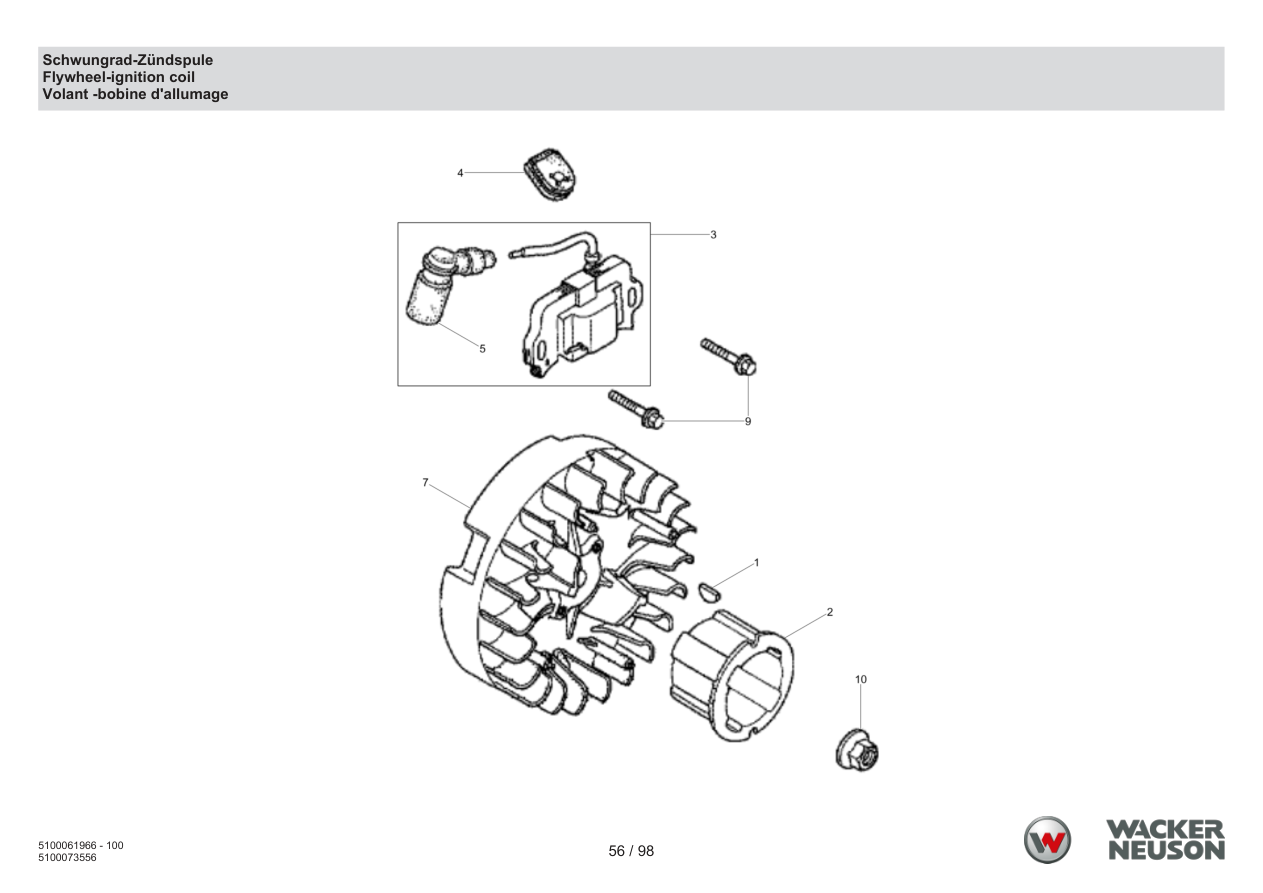

Page 56 — Flywheel-ignition coil
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5000071055 | Screw | 2 | ADD TO CART | |
| 10 | 5000162686 | Nut | 1 | ADD TO CART | |
| 1 | 5100056809 | Woodruff key | 1 | ADD TO CART | |
| 2 | 5100049213 | Carrier | 1 | ADD TO CART | |
| 3 | 5100049214 | Magneto cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000162120 | Grommet | 1 | ADD TO CART | |
| 5 | 5100049215 | Spark plug terminal cap | 1 | PARTS REQUEST | |
|
COMING Spark plug terminal cap
5100049215 · qty on machine: 1 | |||||
| 7 | 5100049216 | Fly wheel | 1 | ADD TO CART | |

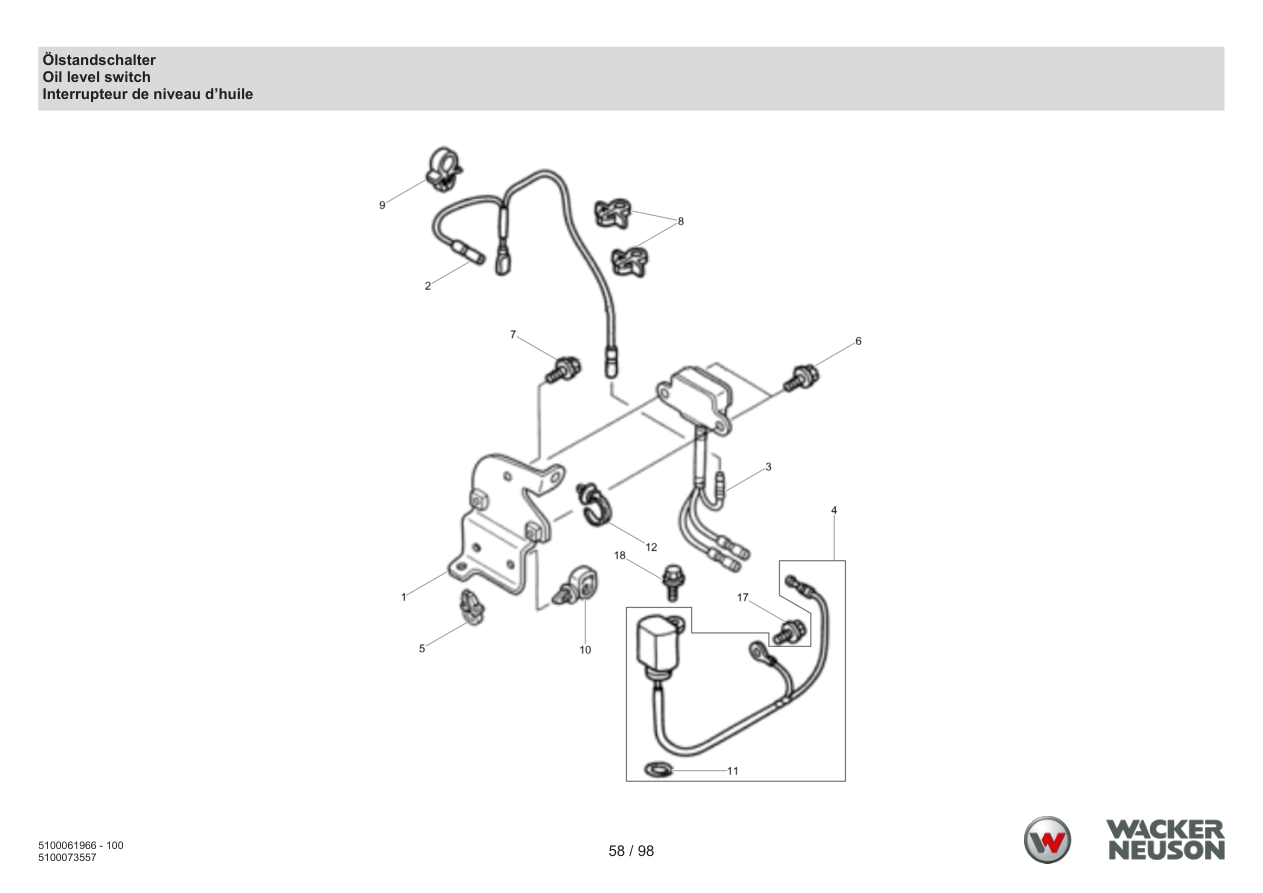

Page 58 — Oil level switch
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 17 | 5000053990 | Screw | 1 | ADD TO CART | |
| 18 | 5000151935 | Bolt | 1 | ADD TO CART | |
| 1 | 5100049217 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100049217 · qty on machine: 1 | |||||
| 2 | 5100049218 | Pipe | 1 | PARTS REQUEST | |
|
COMING Pipe
5100049218 · qty on machine: 1 | |||||
| 3 | 5100049219 | Oil level switch | 1 | ADD TO CART | |
| 4 | 5100049220 | Oil level switch | 1 | ADD TO CART | |
| 5 | 5000070978 | Holder | 1 | ADD TO CART | |
| 6 | 5100049221 | Flange screw 5x8 | 2 | ADD TO CART | |
| 7 | 5000152487 | Bolt | 2 | ADD TO CART | |
| 8 | 5100049222 | Clip | 2 | ADD TO CART | |
| 9 | 5000151800 | Clamp | 1 | ADD TO CART | |
| 10 | 5100049223 | Clip | 1 | ADD TO CART | |
| 11 | 5100049224 | O-ring | 1 | ADD TO CART | |
| 12 | 5100049225 | Clip | 1 | ADD TO CART | |

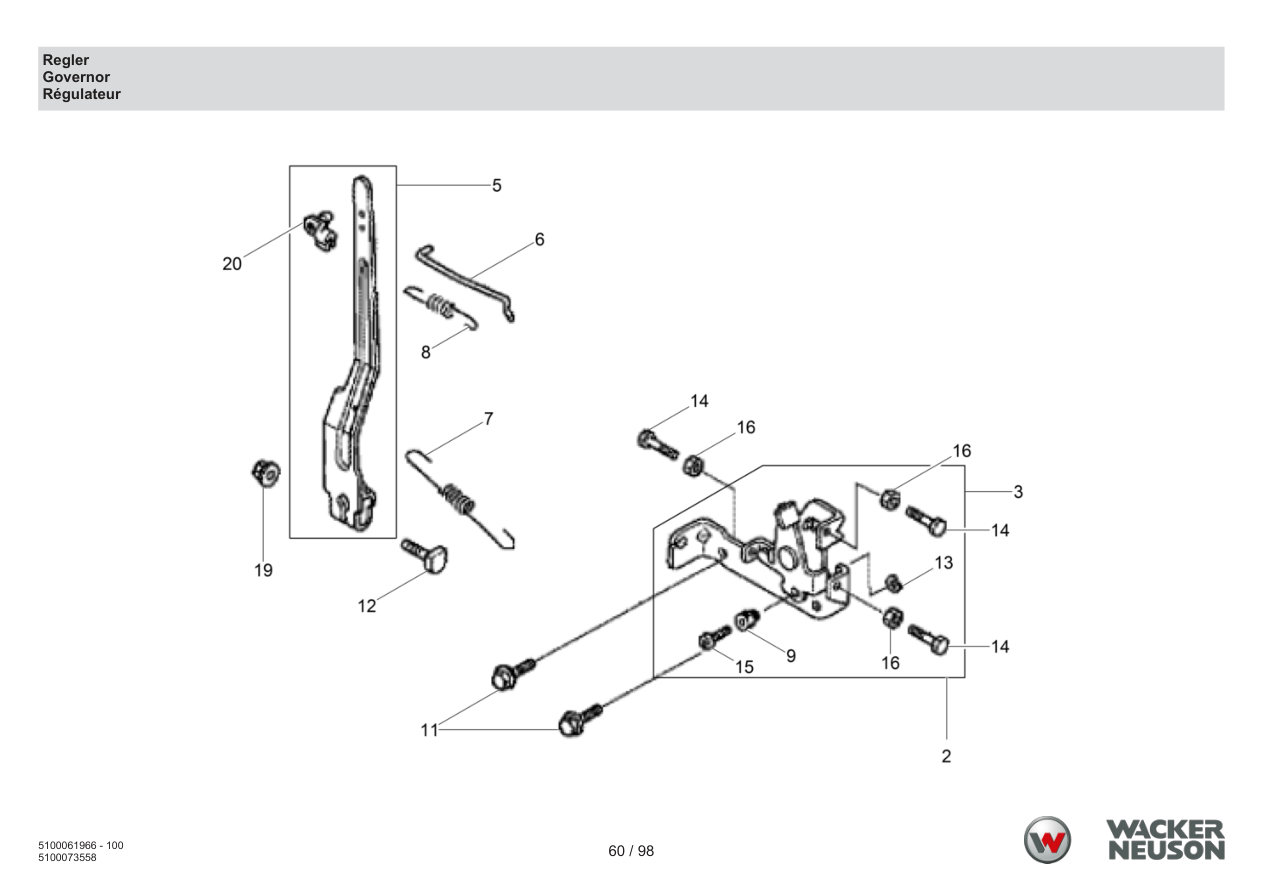

Page 60 — Regulator
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100073587 | Speed control module cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5100049227 | Governor lever | 1 | ADD TO CART | |
| 6 | 5100049228 | Governor rod | 1 | ADD TO CART | |
| 7 | 5100049229 | Tension spring | 1 | ADD TO CART | |
| 8 | 5100049230 | Tension spring | 1 | ADD TO CART | |
| 9 | 5000151819 | Clamping piece | 1 | ADD TO CART | |
| 11 | 5000152487 | Bolt | 2 | ADD TO CART | |
| 12 | 5100000451 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100000451 · qty on machine: 1 | |||||
| 13 | 5000151823 | Lock washer | 1 | ADD TO CART | |
| 14 | 5100049231 | Hexagon nut 5x20 | 2 | ADD TO CART | |
| 15 | 5000151824 | Screw | 1 | ADD TO CART | |
| 16 | 5100049232 | Hexagon nut 5mm | 2 | ADD TO CART | |
| 19 | 5000071056 | Nut | 1 | ADD TO CART | |
| 20 | 5000152475 | Rod | 1 | ADD TO CART | |

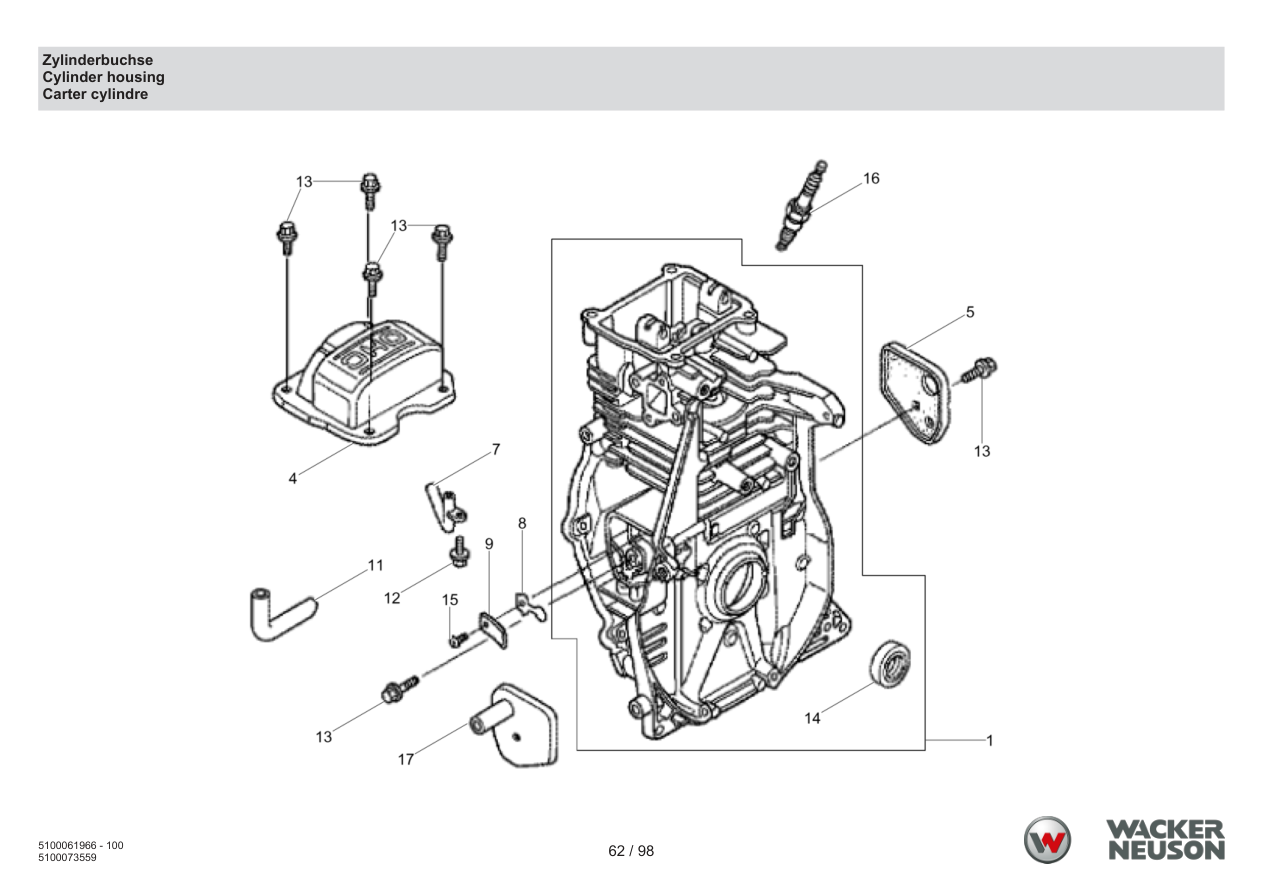

Page 62 — Cylinder liner
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049233 | Motor housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000162136 | Cylinder head | 1 | PARTS REQUEST | |
|
COMING Cylinder head
5000162136 · qty on machine: 1 | |||||
| 5 | 5000162137 | Cover | 1 | ADD TO CART | |
| 7 | 5100049234 | Breather tube | 1 | PARTS REQUEST | |
|
COMING Breather tube
5100049234 · qty on machine: 1 | |||||
| 8 | 5100049235 | Valve | 1 | PARTS REQUEST | |
|
COMING Valve
5100049235 · qty on machine: 1 | |||||
| 9 | 5000162140 | Plate | 1 | ADD TO CART | |
| 11 | 5100049236 | Breather tube | 1 | PARTS REQUEST | |
|
COMING Breather tube
5100049236 · qty on machine: 1 | |||||
| 12 | 5100049237 | Flange screw 4x10 | 1 | ADD TO CART | |
| 13 | 5000152487 | Bolt | 6 | ADD TO CART | |
| 14 | 5000070962 | Shaft seal | 1 | ADD TO CART | |
| 15 | 5000162143 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000162143 · qty on machine: 1 | |||||
| 16 | 5000157610 | Spark plug | 1 | ADD TO CART | |
| 17 | 5100049239 | Covering | 1 | ADD TO CART | |

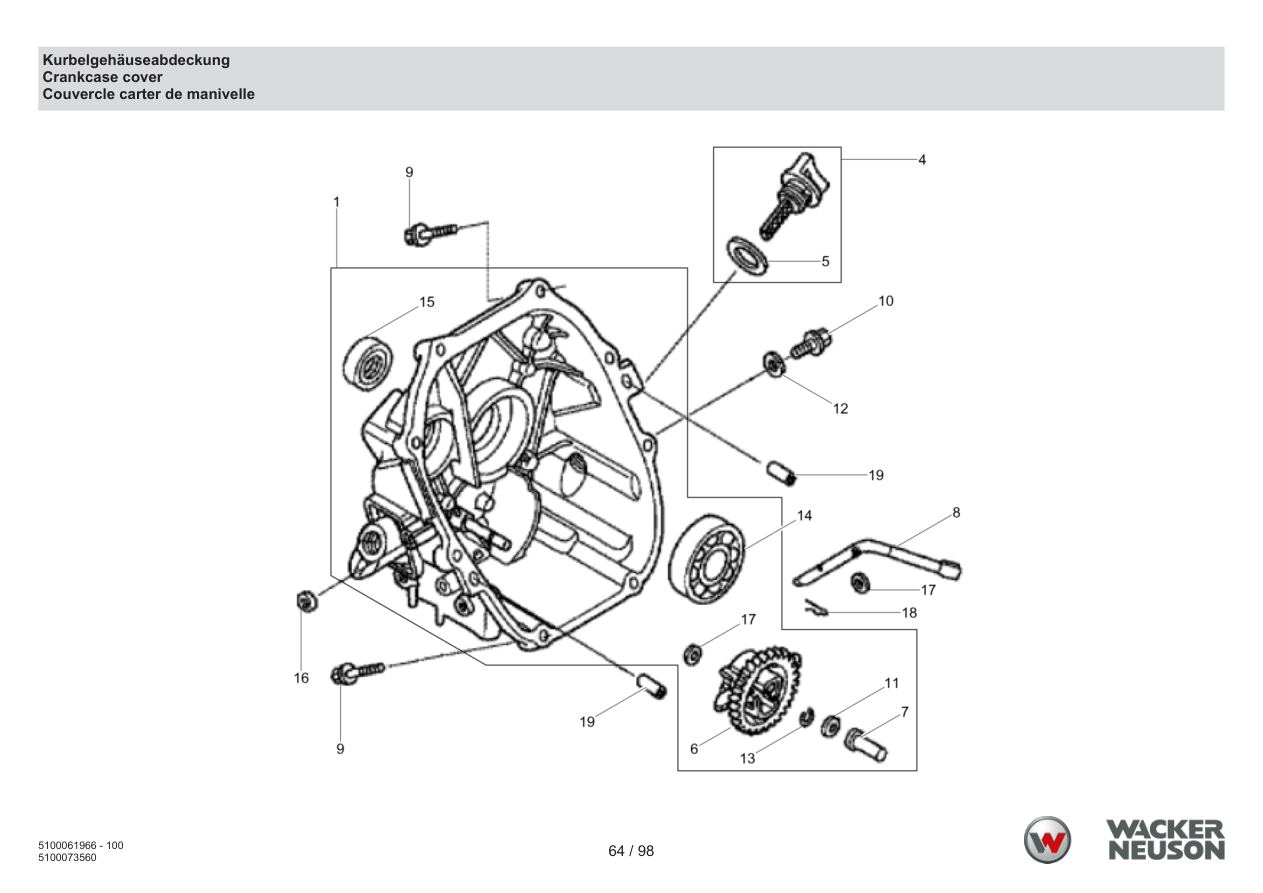

Page 64 — Crankcase cover
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049240 | Engine housing cover | 1 | ADD TO CART | |
| 4 | 5000217161 | Oil filler cap | 1 | ADD TO CART | |
| 5 | 5100051314 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100051314 · qty on machine: 1 | |||||
| 6 | 5000162152 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5100073588 | Regulator slider | 1 | PARTS REQUEST | |
|
COMING Regulator slider
5100073588 · qty on machine: 1 | |||||
| 8 | 5000162153 | Governor shaft | 1 | ADD TO CART | |
| 9 | 5000081737 | Screw | 8 | ADD TO CART | |
| 10 | 5000070964 | Plug (threaded) | 1 | ADD TO CART | |
| 11 | 5100073589 | Thrust washer | 1 | PARTS REQUEST | |
|
COMING Thrust washer
5100073589 · qty on machine: 1 | |||||
| 12 | 5000070963 | Washer | 1 | ADD TO CART | |
| 13 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 14 | 5000070961 | Grooved ball bearing | 1 | ADD TO CART | |
| 15 | 5000070969 | Shaft seal | 1 | ADD TO CART | |
| 16 | 5100049241 | Shaft seal 6x11x4 | 1 | ADD TO CART | |
| 17 | 5000071639 | Washer | 2 | ADD TO CART | |
| 18 | 5000054033 | Pin | 1 | ADD TO CART | |
| 19 | 5000162155 | Dowel pin | 2 | ADD TO CART | |

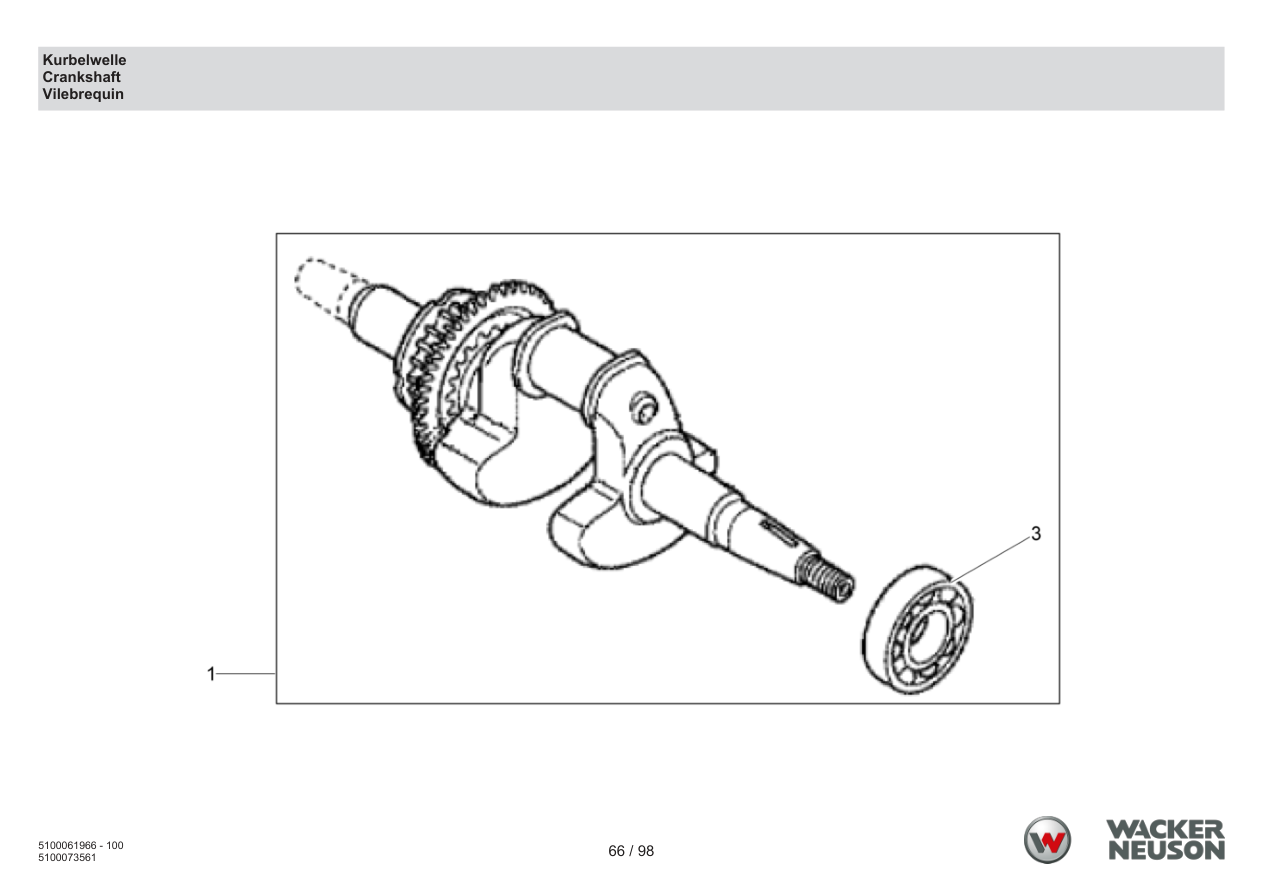

Page 66 — Crankshaft
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100073590 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100049242 | Ball bearing | 1 | ADD TO CART | |

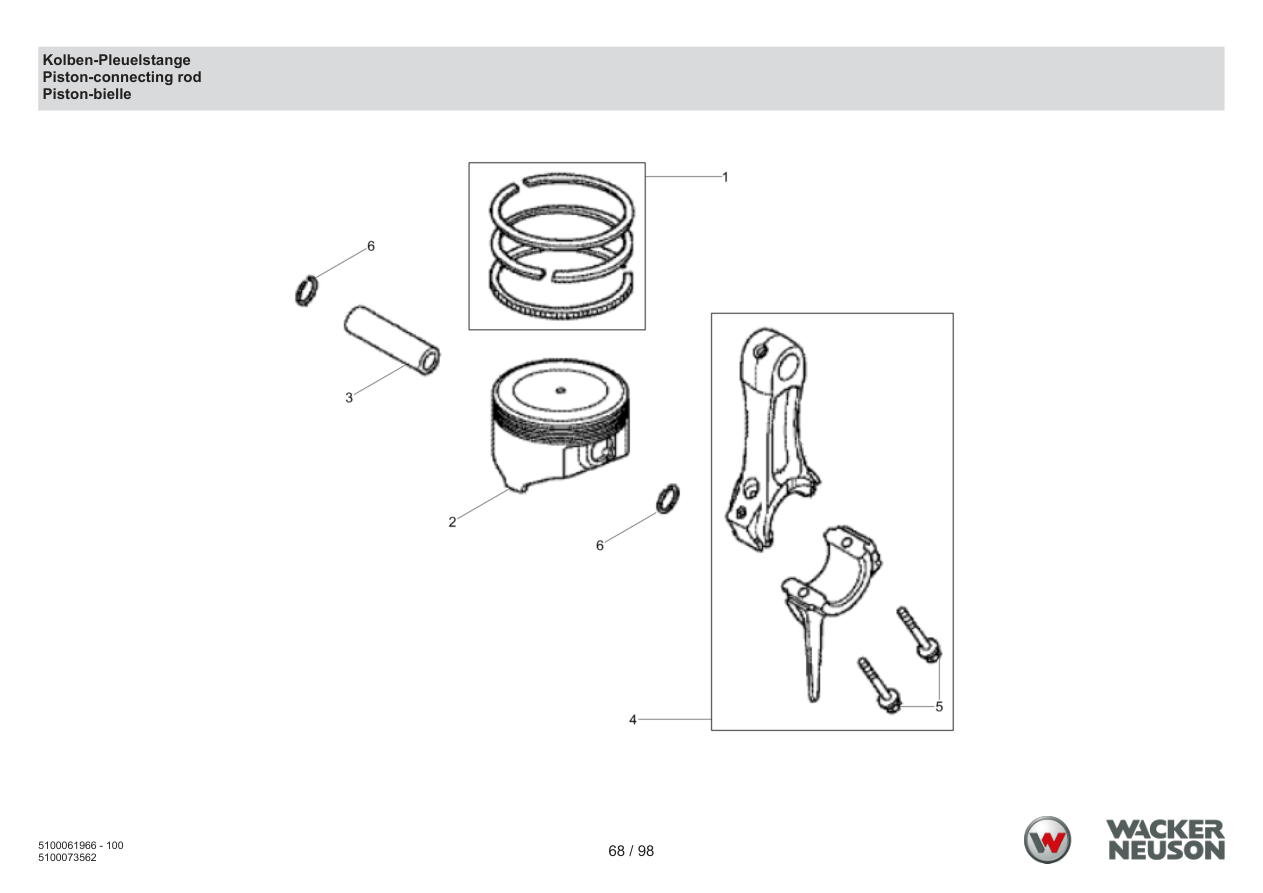

Page 68 — Piston-Connecting Rod
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100049249 | Flange screw 6x32 | 2 | ADD TO CART | |
| 6 | 5000081751 | Retaining ring | 2 | ADD TO CART | |
| 1 | 5100073591 | Set of piston rings | 1 | ADD TO CART | |
| 2 | 5100073592 | Piston | 1 | ADD TO CART | |
| 3 | 5100049246 | Piston pin | 1 | ADD TO CART | |
| 4 | 5100015796 | Connecting rod | 1 | ADD TO CART | |

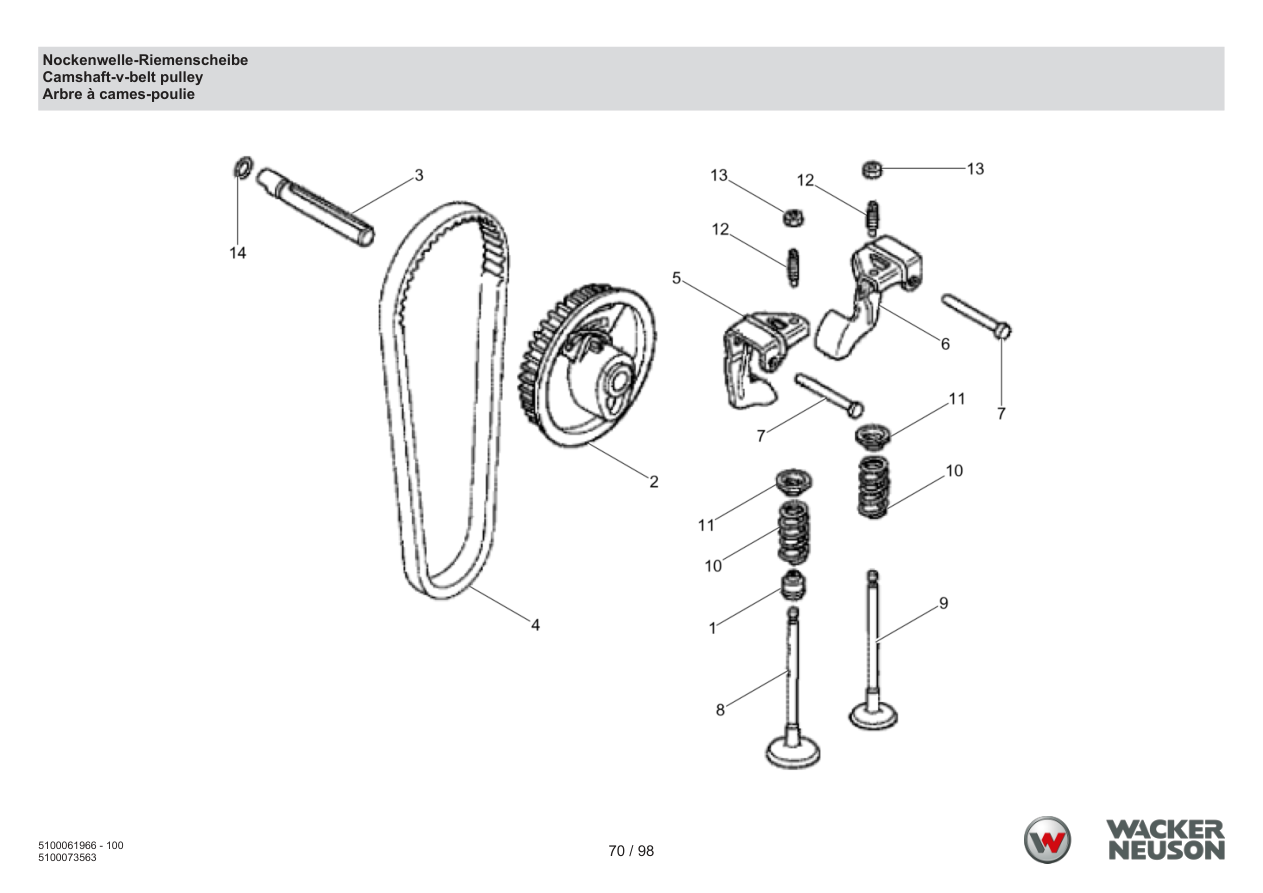

Page 70 — Camshaft-Pulley
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000162176 | Seal | 1 | ADD TO CART | |
| 2 | 5100049250 | V-belt pulley | 1 | PARTS REQUEST | |
|
COMING V-belt pulley
5100049250 · qty on machine: 1 | |||||
| 3 | 5000162165 | Camshaft | 1 | ADD TO CART | |
| 4 | 5100049251 | Tooth belt | 1 | ADD TO CART | |
| 5 | 5100049252 | Rocker arm | 1 | ADD TO CART | |
| 6 | 5100049253 | Rocker arm | 1 | ADD TO CART | |
| 7 | 5000162169 | Rocker arm shaft | 2 | ADD TO CART | |
| 8 | 5100049254 | Intake valve | 1 | ADD TO CART | |
| 9 | 5100049255 | Exhaust valve | 1 | ADD TO CART | |
| 10 | 5000162172 | Valve spring | 2 | ADD TO CART | |
| 11 | 5100073593 | Holder | 2 | ADD TO CART | |
| 12 | 5000162173 | Tappet adjusting screw | 2 | PARTS REQUEST | |
|
COMING Tappet adjusting screw
5000162173 · qty on machine: 2 | |||||
| 13 | 5000162174 | Tappet adjusting nut | 2 | ADD TO CART | |
| 14 | 5000162175 | O-ring | 1 | ADD TO CART | |
Page 72 — Decal
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100005340 | Label | 1 | ADD TO CART | |
| 10 | 5100073597 | Label | 1 | ADD TO CART | |
| 11 | 5100073581 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100073581 · qty on machine: 1 | |||||
| 2 | 5100073594 | Label | 1 | ADD TO CART | |
| 2 | 5100073595 | Label | 1 | ADD TO CART | |
| 4 | 5100073596 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100073596 · qty on machine: 1 | |||||
| 6 | 5000162131 | Label | 1 | ADD TO CART | |
| 8 | 5100005337 | Label | 1 | ADD TO CART | |
| 8 | 5100005339 | Label | 1 | ADD TO CART | |

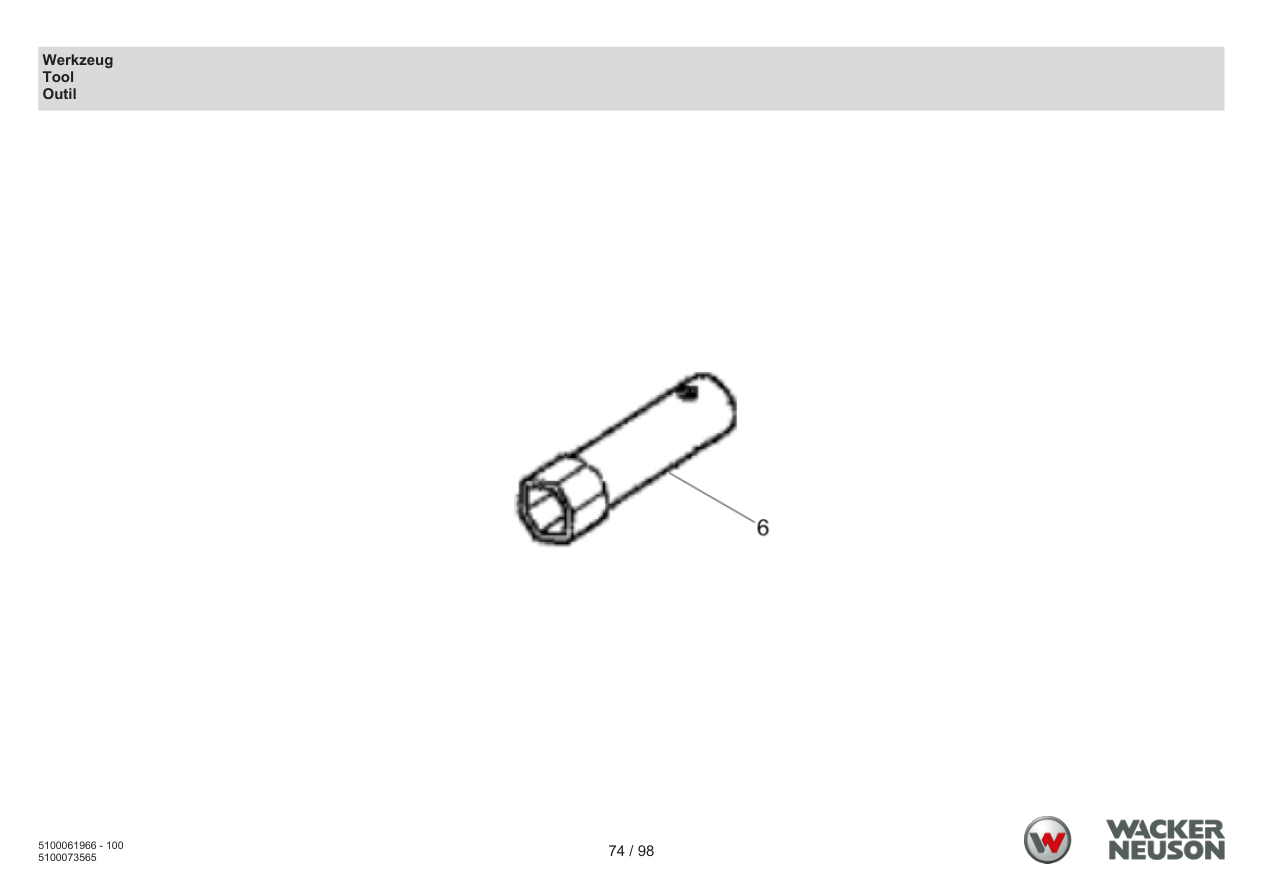

Page 74 — Tool
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100031004 | Key | 1 | ADD TO CART | |

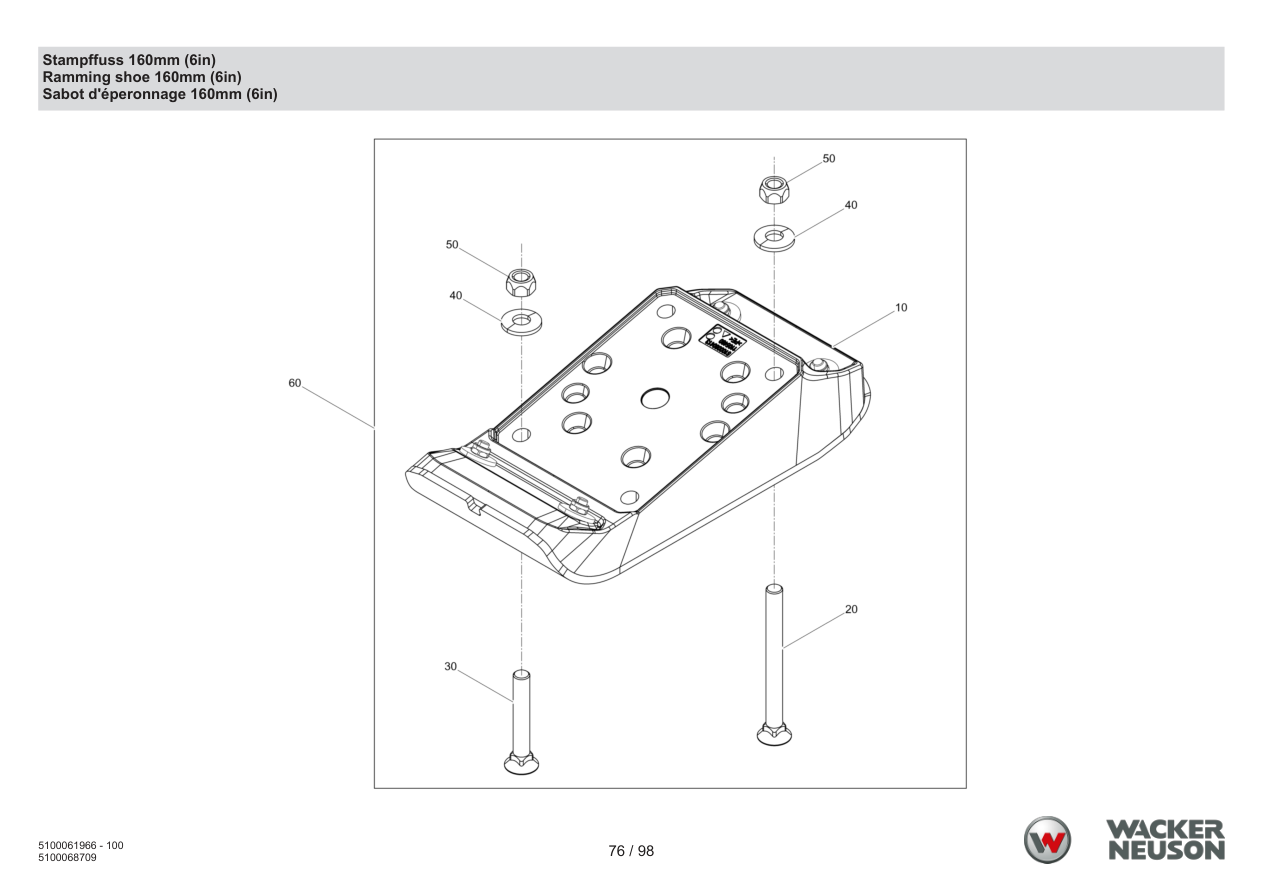

Page 76 — Ramming Shoe 160mm (6in)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100061012 | Ramming shoe cpl. 160 | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 20 | 5100062090 | Countersunk screw | 2 | ADD TO CART | |
| 30 | 5100062449 | Countersunk screw | 2 | ADD TO CART | |
| 40 | 5000031565 | Lockwasher | 4 | ADD TO CART | |
| 50 | 5100076966 | Hexagon nut | 4 | ADD TO CART | |
| 60 | 5100072559 | Ramming shoe with screws 160 | 1 | ADD TO CART | |

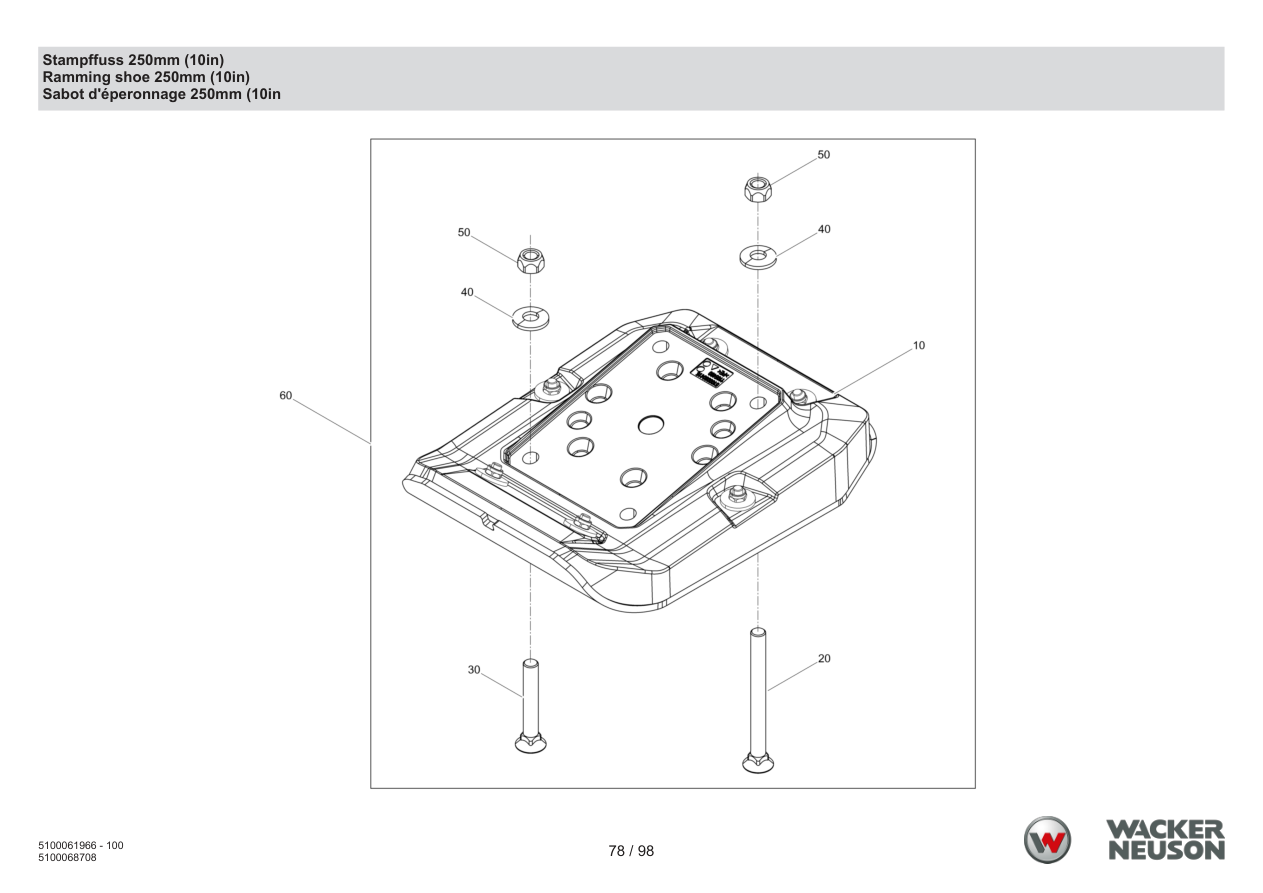

Page 78 — Ramming Shoe 250mm (10in)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100061014 | Ramming shoe cpl. 250 | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 20 | 5100062090 | Countersunk screw | 2 | ADD TO CART | |
| 30 | 5100062449 | Countersunk screw | 2 | ADD TO CART | |
| 40 | 5000031565 | Lockwasher | 4 | ADD TO CART | |
| 50 | 5100076966 | Hexagon nut | 4 | ADD TO CART | |
| 60 | 5100072560 | Ramming shoe with screws 250 | 1 | ADD TO CART | |

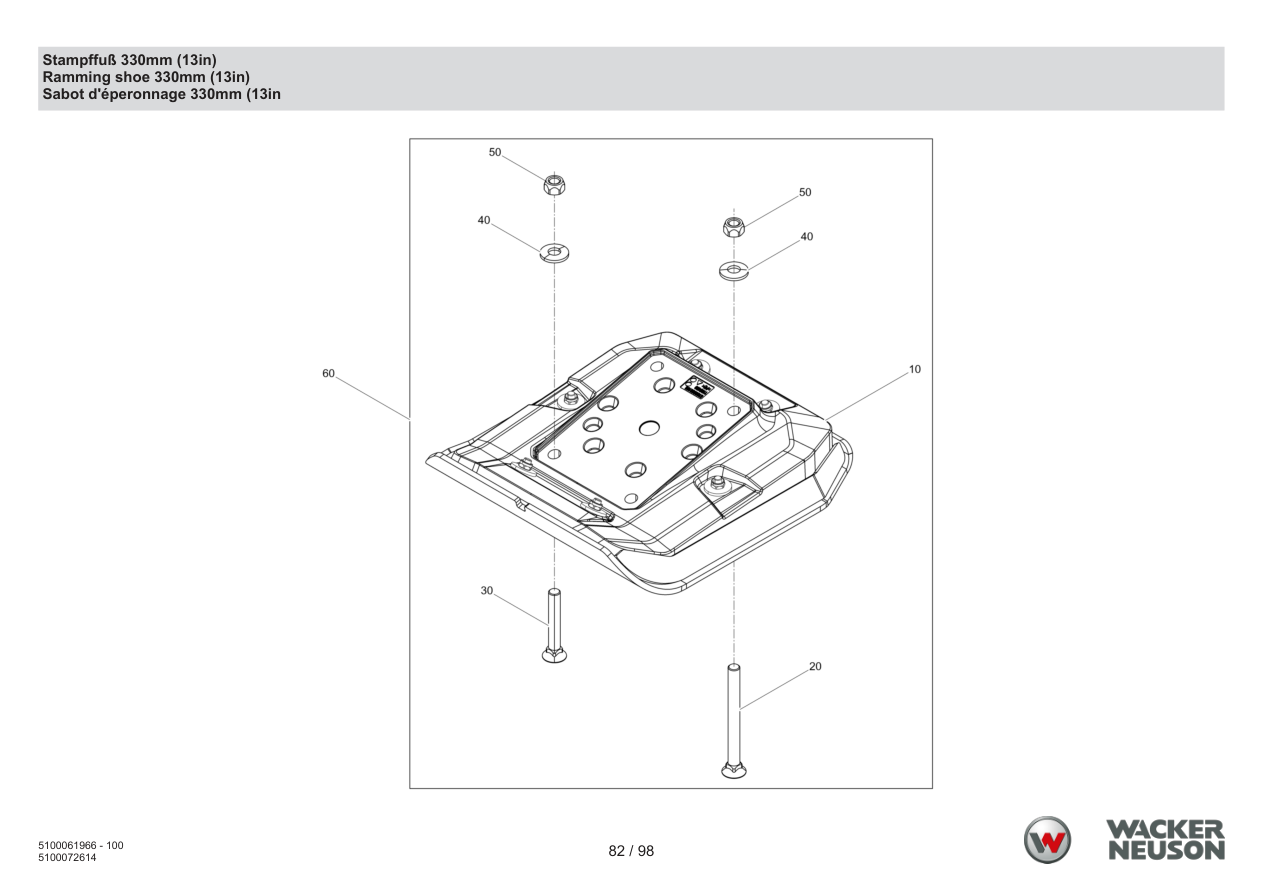

Page 82 — Ramming Shoe 330mm (13in)
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100062090 | Countersunk screw | 2 | ADD TO CART | |
| 30 | 5100062449 | Countersunk screw | 2 | ADD TO CART | |
| 40 | 5000031565 | Lockwasher | 4 | ADD TO CART | |
| 50 | 5100076966 | Hexagon nut | 4 | ADD TO CART | |
| 60 | 5100072562 | Ramming shoe with screws 330 | 1 | ADD TO CART | |
| 10 | 5100066168 | Ramming shoe cpl. 330 | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

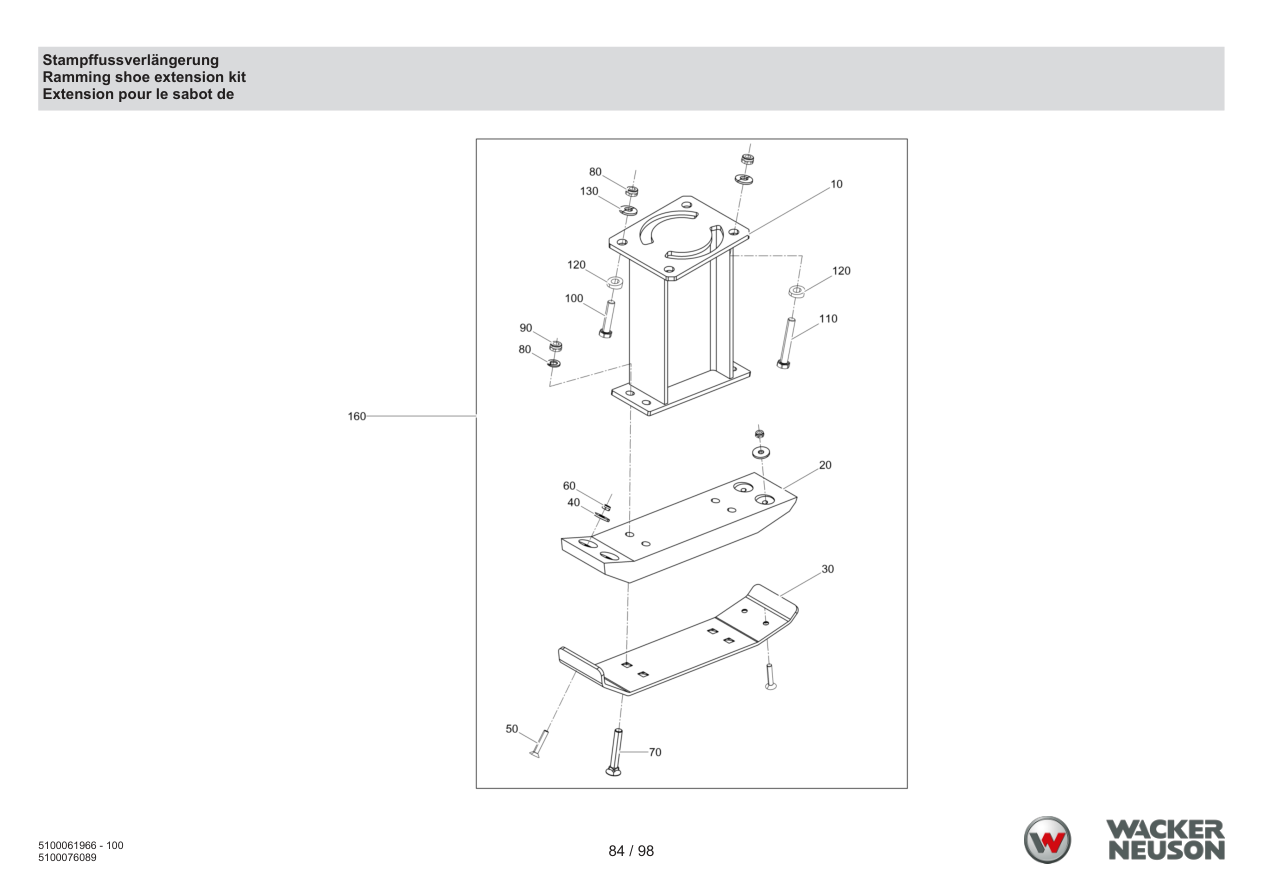

Page 84 — Ramming shoe extension kit
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100072566 | Shoe extension | 1 | ADD TO CART | |
| 20 | 5100061393 | Ramming shoe | 1 | ADD TO CART | |
| 30 | 5100072754 | Bottom sheet | 1 | ADD TO CART | |
| 40 | 5100072615 | Washer | 4 | ADD TO CART | |
| 50 | 5100061279 | Countersunk screw | 4 | ADD TO CART | |
| 60 | 5000010367 | Hexagon nut | 4 | ADD TO CART | |
| 70 | 5100062449 | Countersunk screw | 4 | ADD TO CART | |
| 80 | 5000012648 | Lock washer | 4 | ADD TO CART | |
| 90 | 5000010366 | Hexagon nut | 8 | ADD TO CART | |
| 100 | 5000011418 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 110 | 5000011413 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 120 | 5100072569 | Disc | 4 | ADD TO CART | |
| 130 | 5000031565 | Lockwasher | 4 | ADD TO CART | |
| 160 | 5100073461 | Ramming shoe extension kit | 1 | PARTS REQUEST | |
|
COMING Ramming shoe extension kit
5100073461 · qty on machine: 1 | |||||

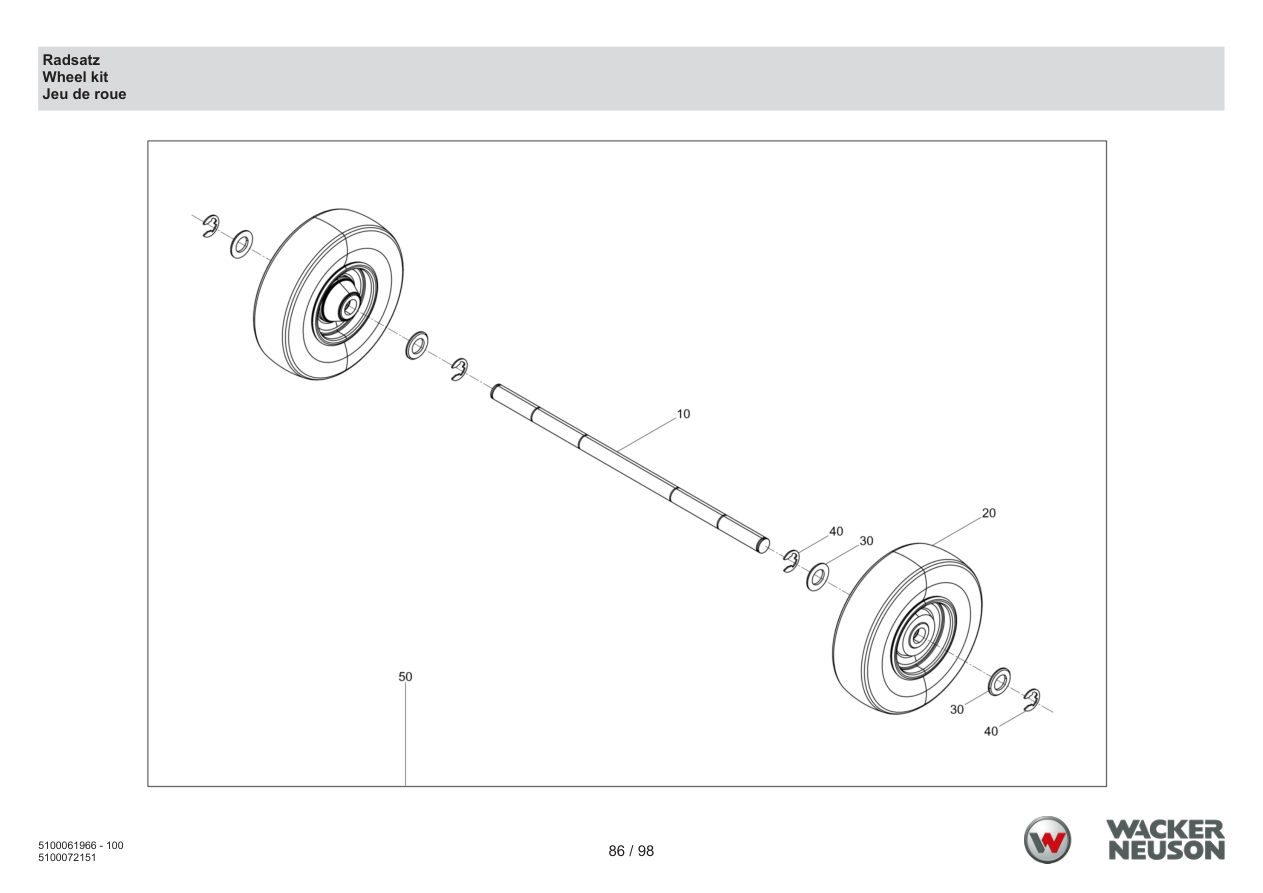

Page 86 — Wheel set
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100075925 | Wheel | 2 | ADD TO CART | |
| 30 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 40 | 5000103834 | Lock washer | 4 | ADD TO CART | |
| 50 | 5100071448 | Wheel kit | 1 | PARTS REQUEST | |
|
COMING Wheel kit
5100071448 · qty on machine: 1 | |||||
| 10 | 5100064461 | Axle | 1 | ADD TO CART | |

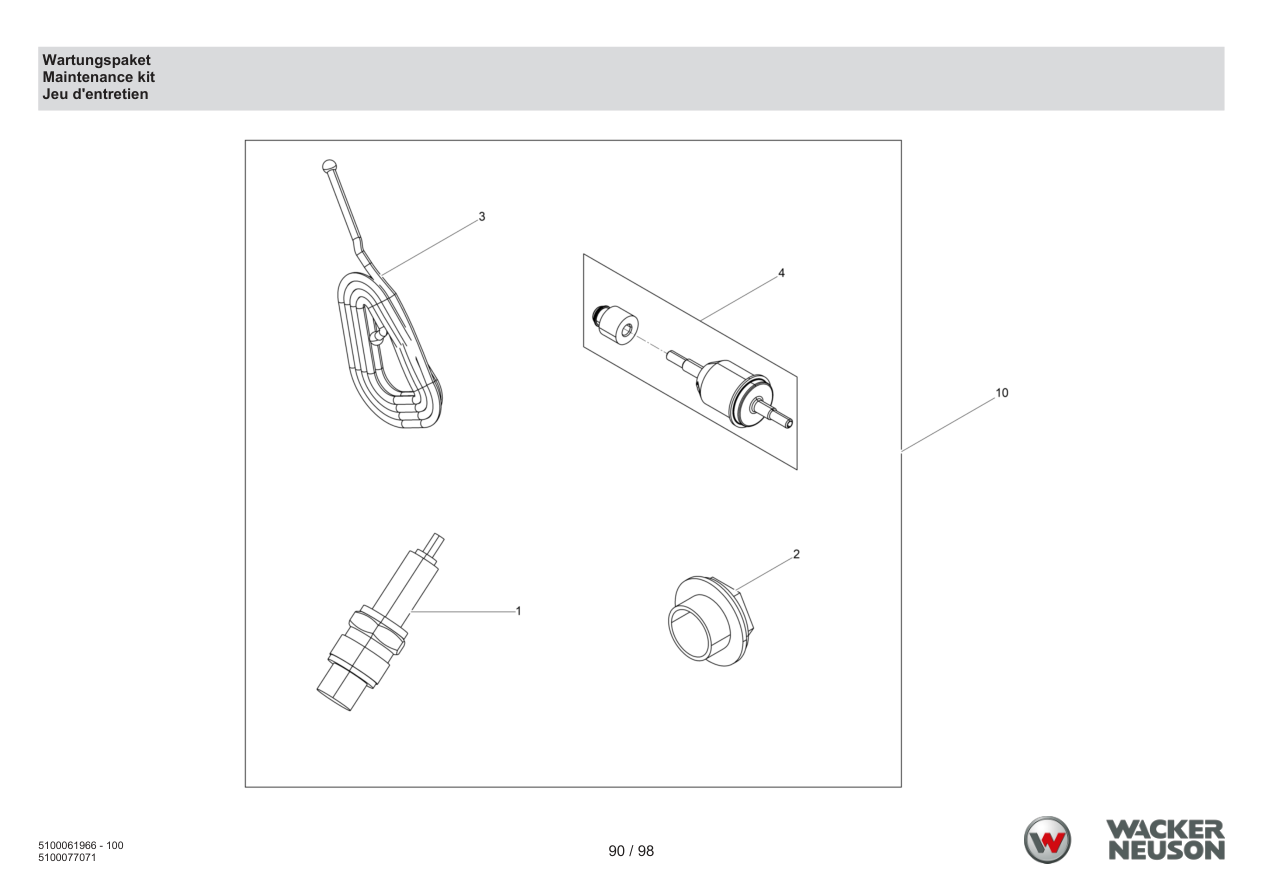

Page 90 — Maintenance kit
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000157610 | Spark plug | 1 | ADD TO CART | |
| 2 | 5100033182 | Sight glass | 1 | ADD TO CART | |
| 3 | 5100049069 | Starter rope | 1 | ADD TO CART | |
| 4 | 5100085456 | Fuel filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel filter cpl.
5100085456 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 10 | 5100076366 | Maintenance kit | 1 | ADD TO CART | |

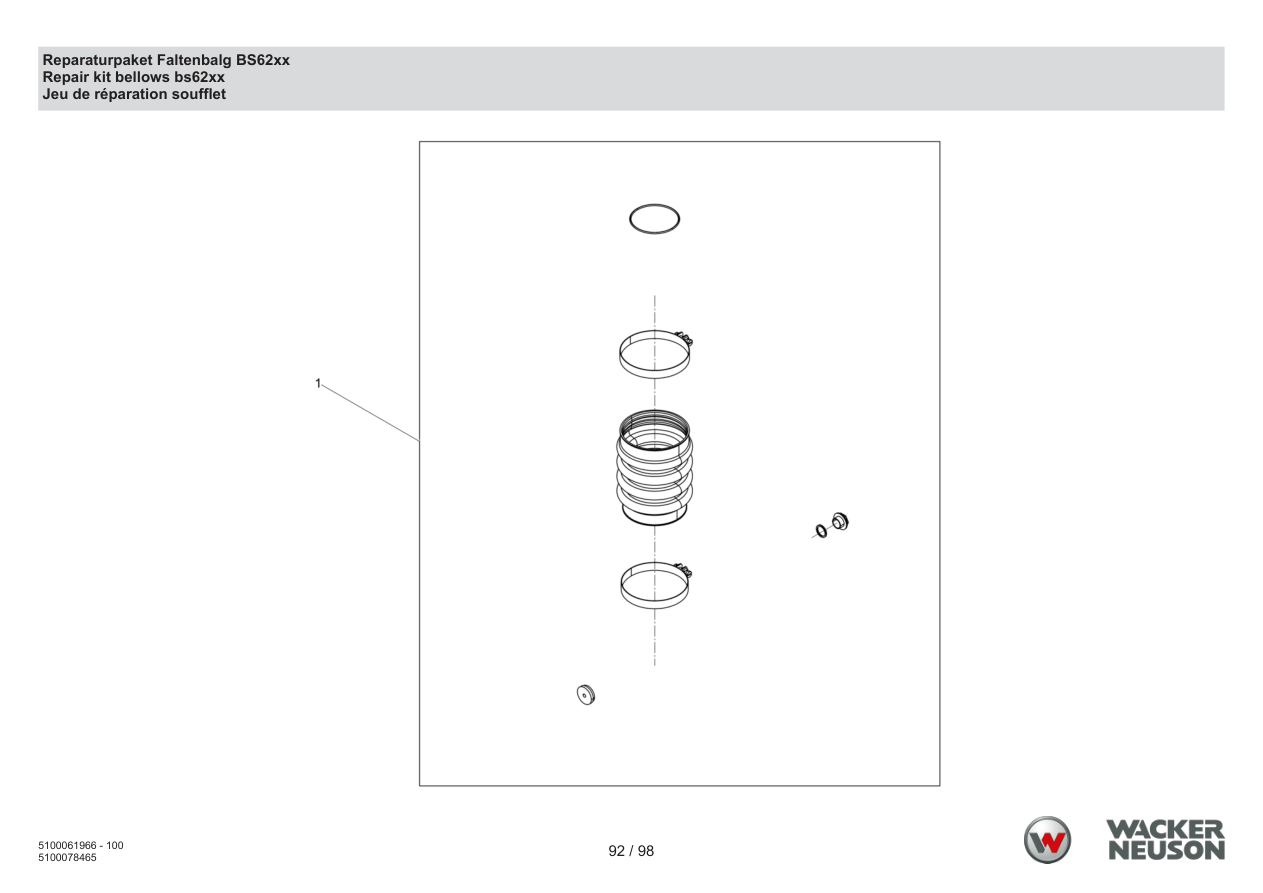

Page 92 — Repair kit bellows BS62xx
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077024 | Repair kit bellows | 1 | ADD TO CART | |
Page 94 — Repair kit bellows BS68xx
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100077025 | Repair kit bellows | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson BS62-4 vibratory rammer.
List price: $4,340.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5000010366
Hexagon nut
$0.95
5000010367
Hexagon nut
$0.95
5000010374
Flat washer
$0.95
5000010616
Flat washer
$0.95
5000010644
Lock washer
$0.95
5000010880
Hexagon nut
$0.95
5000011413
Hexagonal head cap screw
$2.95
5000011418
Hexagonal head cap screw
$3.95
5000011456
Hexagonal head cap screw
$0.95
5000011533
Cheese head screw
5000011535
Cheese head screw
$0.95
5000011540
Cheese head screw
$0.95
5000012648
Lock washer
$0.95
5000031565
Lockwasher
$0.95
5000033198
Lockwasher
$0.95
5000039020
Needle bearing
$7.95
5000039050
Shaft seal
$44.95
5000045190
Grooved ball bearing
$6.95
5000047488
Hexagon nut
5000053990
Screw
$2.95
5000054033
Pin
$1.95
5000070961
Grooved ball bearing
$64.95
5000070962
Shaft seal
$10.95
5000070963
Washer
$1.95
5000070964
Plug (threaded)
$5.95
5000070969
Shaft seal
$11.95
5000070978
Holder
$4.95
5000071055
Screw
$5.95
5000071056
Nut
$0.95
5000071639
Washer
$0.95
5000071813
Rubber plug
$15.95
5000072061
Needle bearing
$7.95
5000078844
Clamp
$1.95
5000081615
Retaining ring
$1.95
5000081737
Screw
$4.95
5000081751
Retaining ring
$1.95
5000081777
Spring
$31.95
5000081782
Screw
$11.95
5000096677
Hexagon nut
$0.95
5000103834
Lock washer
$0.95
5000109668
Ratchet
5000110196
Lock nut
$0.95
5000110537
Clamp
$11.95
5000124429
Hexagonal head cap screw
$0.95
5000129784
Decal-sound power level
$2.95
5000151800
Clamp
$6.95
5000151819
Clamping piece
$15.95
5000151823
Lock washer
$6.95
5000151824
Screw
$1.95
5000151935
Bolt
$1.95
5000152475
Rod
$1.95
5000152487
Bolt
$5.95
5000156729
Ratchet guide
$12.95
5000156954
Hose clamp
$6.95
5000157152
Socket head cap screw m8 x 25
$0.95
5000157497
Needle valve
$9.95
5000157500
Pin
$1.95
5000157508
Spring
$2.95
5000157610
Spark plug
$5.95
5000162073
Friction spring
$8.95
5000162075
Side plate
$9.95
5000162076
Side plate
$11.95
5000162120
Grommet
$7.95
5000162131
Label
$3.95
5000162136
Cylinder head
5000162137
Cover
$16.95
5000162140
Plate
$2.95
5000162143
Screw
5000162152
Governor cpl.
$20.95
5000162153
Governor shaft
$14.95
5000162155
Dowel pin
$3.95
5000162165
Camshaft
$8.95
5000162169
Rocker arm shaft
$4.95
5000162172
Valve spring
$5.95
5000162173
Tappet adjusting screw
5000162174
Tappet adjusting nut
$2.95
5000162175
O-ring
$3.95
5000162176
Seal
$11.95
5000162686
Nut
$4.95
5000165047
Socket head cap screw
5000177452
Screw
$1.95
5000206683
Cable yarn t30l
$0.95
5000209834
Lock nut
5000212532
Screw nipple
$3.95
5000217161
Oil filler cap
$11.95
5000217167
Pin
$2.95
5000222605
Oval head screw
$0.95
5002001041
Retaining ring
$0.95
5002003021
Grooved ball bearing
$7.95
5002003022
Retaining ring
$0.95
5002003023
Retaining ring
$1.95
5100000451
Screw
5100004421
Contact disk
$0.95
5100005337
Label
$7.95
5100005339
Label
$7.95
5100005340
Label
$7.95
5100015796
Connecting rod
$41.95
5100017158
Locknut
$0.95
5100022620
Fuel filter
$4.95
5100025334
Stud
$2.95
5100027071
Screw
$1.95
5100027072
Screw
5100031000
Recoil starter cpl.
$39.95
5100031001
Limit stop
$18.95
5100031004
Key
$39.95
5100031702
Label starter
$6.95
5100031711
Label
$35.95
5100032026
Piston pin
$22.95
5100032036
Bushing
$15.95
5100032038
Piston guide
$24.95
5100032053
Shockmount
$116.95
5100032132
Crankcase cover
$73.95
5100032208
Low oil pressure display
$67.95
5100032209
Bumper
$4.95
5100033181
O-ring
$2.95
5100033182
Sight glass
$14.95
5100033184
Locknut
$2.95
5100033186
Clamp
$1.95
5100037204
Straight pin
$0.95
5100037875
Connecting rod
$173.95
5100040147
Compression spring
$26.95
5100045462
Decal proposition 65
5100049065
Spacer
$83.95
5100049066
Starter housing
$326.95
5100049067
Rope disc
$128.95
5100049068
Starter handle
$39.95
5100049069
Starter rope
$28.95
5100049170
Air ducting housing
$313.95
5100049172
Gasket
$9.95
5100049174
Diaphragm
$28.95
5100049175
Screen
$8.95
5100049176
Lever
5100049179
Cover
$13.95
5100049180
Screw
$6.95
5100049181
Spring
$17.95
5100049182
Screw
5100049183
Lever
$41.95
5100049184
Spacer
$23.95
5100049185
Screw
$20.95
5100049186
Spring
$12.95
5100049187
Starter flap
5100049188
Shaft
$85.95
5100049189
Clamp
$11.95
5100049190
Screw
$1.95
5100049191
Screw
$1.95
5100049193
Spring
$6.95
5100049194
Ball
$2.95
5100049196
Choke-shutter
$24.95
5100049197
Screw
5100049198
Gasket
$4.95
5100049200
Insulator
5100049201
Carburetor seal
$5.95
5100049202
Carburetor seal
$4.95
5100049203
Sleeve
5100049204
Jet (#46)
$37.95
5100049209
Muffler cpl.
$252.95
5100049210
Contact safety device
$31.95
5100049211
Exhaust seal
5100049212
Stud 6x56.5
$14.95
5100049213
Carrier
$47.95
5100049214
Magneto cpl.
$384.95
5100049215
Spark plug terminal cap
5100049216
Fly wheel
$553.95
5100049217
Bracket
5100049218
Pipe
5100049219
Oil level switch
$242.95
5100049220
Oil level switch
$237.95
5100049221
Flange screw 5x8
$9.95
5100049222
Clip
$1.95
5100049223
Clip
$13.95
5100049224
O-ring
$2.95
5100049225
Clip
$14.95
5100049227
Governor lever
$60.95
5100049228
Governor rod
$10.95
5100049229
Tension spring
$11.95
5100049230
Tension spring
$9.95
5100049231
Hexagon nut 5x20
$1.95
5100049232
Hexagon nut 5mm
$1.95
5100049233
Motor housing cpl.
$884.95
5100049234
Breather tube
5100049235
Valve
5100049236
Breather tube
5100049237
Flange screw 4x10
$7.95
5100049239
Covering
$34.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
