Wacker Neuson BV50 Internal Vibrator
The parts bench

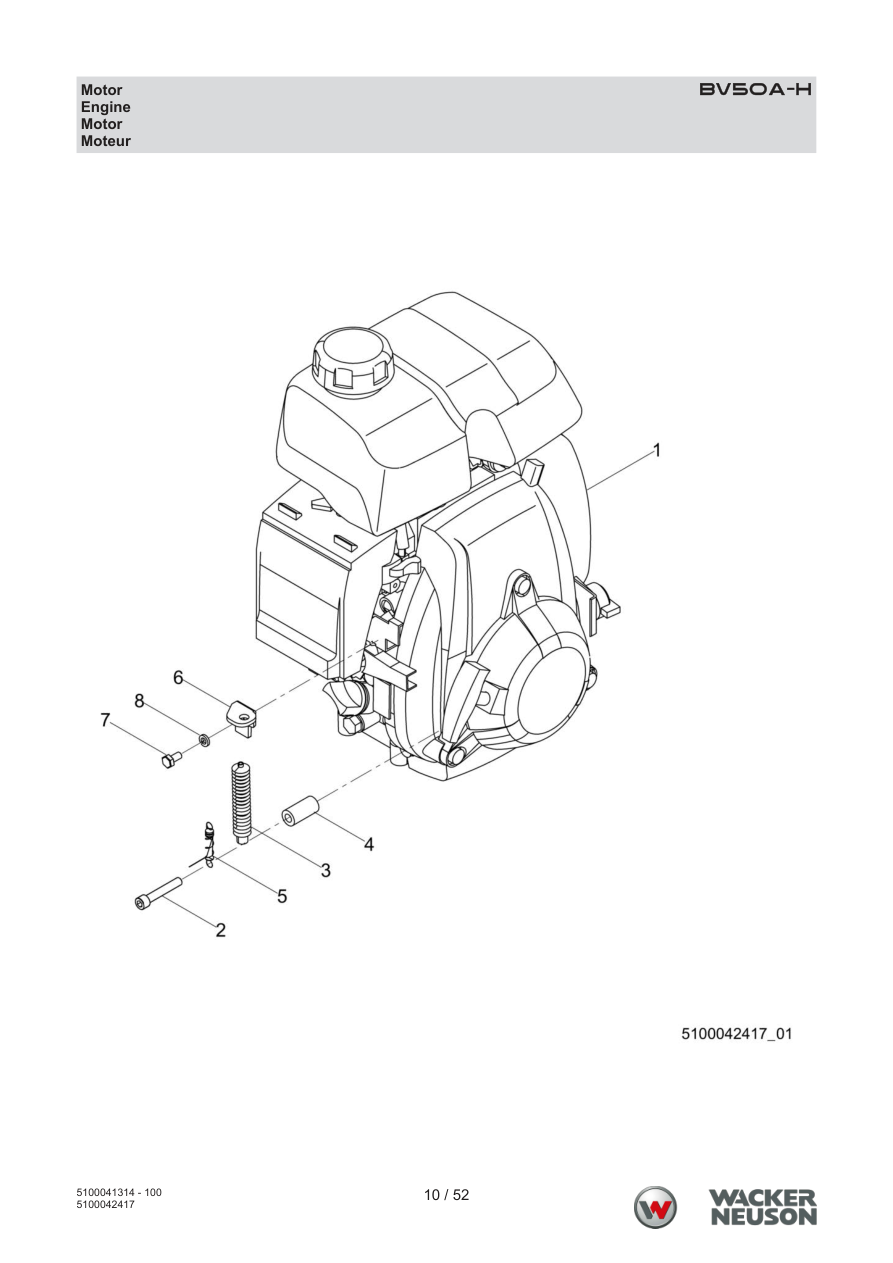

Need the PDF? ↓Page 10 — BV50A-H Engine
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000174886 | Engine-honda | 1 | PARTS REQUEST | |
|
COMING Engine-honda
5000174886 · qty on machine: 1 | |||||
| 2 | 5000174444 | Bolt | 1 | M6 x 35 | PARTS REQUEST |
|
COMING Bolt
5000174444 · qty on machine: 1 M6 x 35 | |||||
| 3 | 5000174879 | Flexible tube | 1 | PARTS REQUEST | |
|
COMING Flexible tube
5000174879 · qty on machine: 1 | |||||
| 4 | 5000174841 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000174841 · qty on machine: 1 | |||||
| 5 | 5000174874 | Spring | 1 | PARTS REQUEST | |
|
COMING Spring
5000174874 · qty on machine: 1 | |||||
| 6 | 5000174876 | Throttle control mount | 1 | PARTS REQUEST | |
|
COMING Throttle control mount
5000174876 · qty on machine: 1 | |||||
| 7 | 5000174809 | Bolt | 1 | M5 x 10 | PARTS REQUEST |
|
COMING Bolt
5000174809 · qty on machine: 1 M5 x 10 | |||||
| 8 | 5100042565 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5100042565 · qty on machine: 1 | |||||

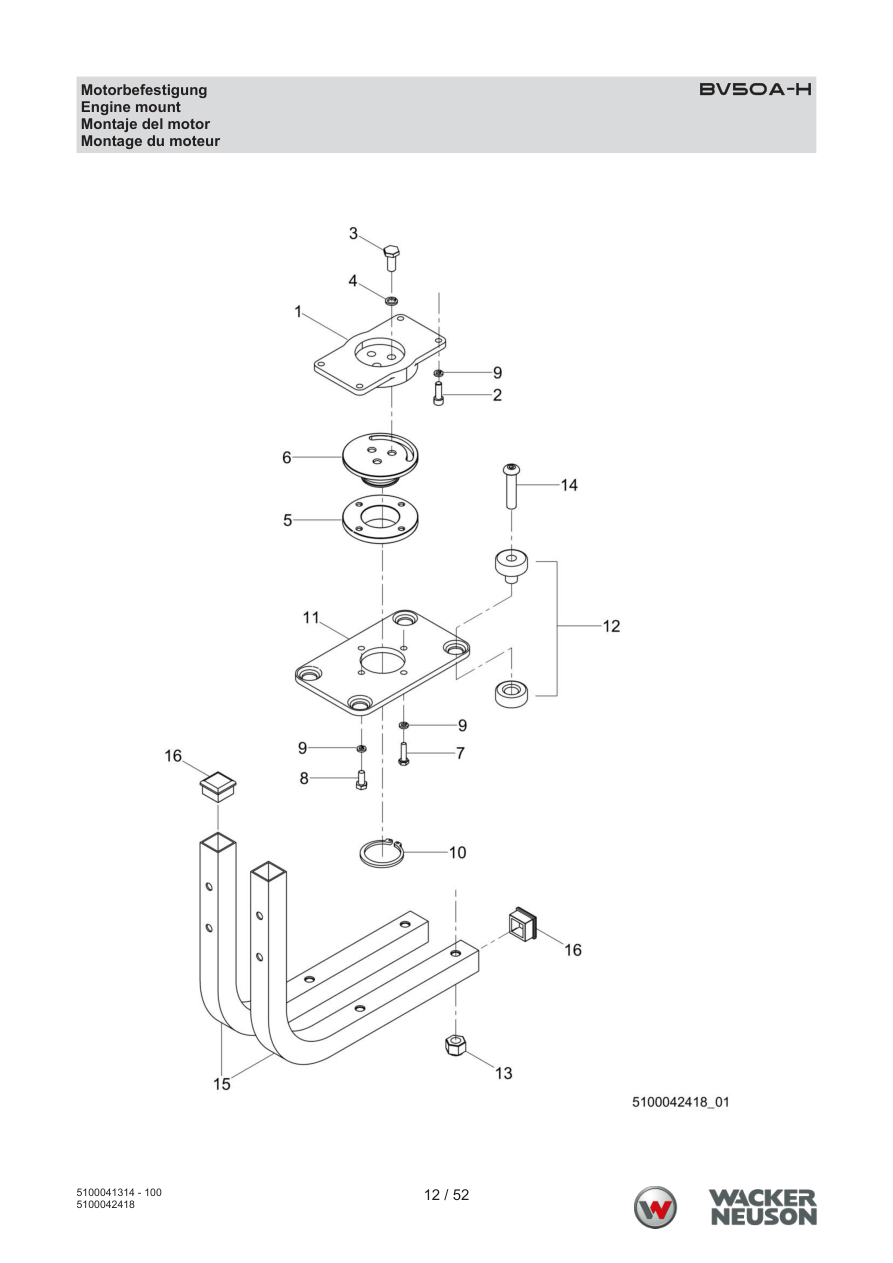

Page 12 — BV50A-H Engine Mount
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100042556 | Filter housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Filter housing cpl.
5100042556 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100042567 | Bolt | 4 | M6 x 18 | PARTS REQUEST |
|
COMING Bolt
5100042567 · qty on machine: 4 M6 x 18 | |||||
| 3 | 5000174827 | Bolt | 3 | M8 x 20 | PARTS REQUEST |
|
COMING Bolt
5000174827 · qty on machine: 3 M8 x 20 | |||||
| 4 | 5000174805 | Spring washer | 3 | PARTS REQUEST | |
|
COMING Spring washer
5000174805 · qty on machine: 3 | |||||
| 5 | 5000174766 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000174766 · qty on machine: 1 | |||||
| 6 | 5000174767 | Flange | 1 | PARTS REQUEST | |
|
COMING Flange
5000174767 · qty on machine: 1 | |||||
| 7 | 5100042568 | Bolt | 1 | M6 x 20 | PARTS REQUEST |
|
COMING Bolt
5100042568 · qty on machine: 1 M6 x 20 | |||||
| 8 | 5000157752 | Screw | 3 | M6 x 10 | PARTS REQUEST |
|
COMING Screw
5000157752 · qty on machine: 3 M6 x 10 | |||||
| 9 | 5000174804 | Spring washer | 4 | PARTS REQUEST | |
|
COMING Spring washer
5000174804 · qty on machine: 4 | |||||
| 10 | 5000174768 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5000174768 · qty on machine: 1 | |||||
| 11 | 5100042569 | Mounting plate | 1 | PARTS REQUEST | |
|
COMING Mounting plate
5100042569 · qty on machine: 1 | |||||
| 12 | 5100042572 | Shockmount set | 4 | PARTS REQUEST | |
|
COMING Shockmount set
5100042572 · qty on machine: 4 | |||||
| 13 | 5000174831 | Locknut | 4 | PARTS REQUEST | |
|
COMING Locknut
5000174831 · qty on machine: 4 | |||||
| 14 | 5100042570 | Bolt | 4 | 5/16 x 2,00in | PARTS REQUEST |
|
COMING Bolt
5100042570 · qty on machine: 4 5/16 x 2,00in | |||||
| 15 | 5100042574 | Tube | 2 | PARTS REQUEST | |
|
COMING Tube
5100042574 · qty on machine: 2 | |||||
| 16 | 5100042577 | End cap | 4 | PARTS REQUEST | |
|
COMING End cap
5100042577 · qty on machine: 4 | |||||

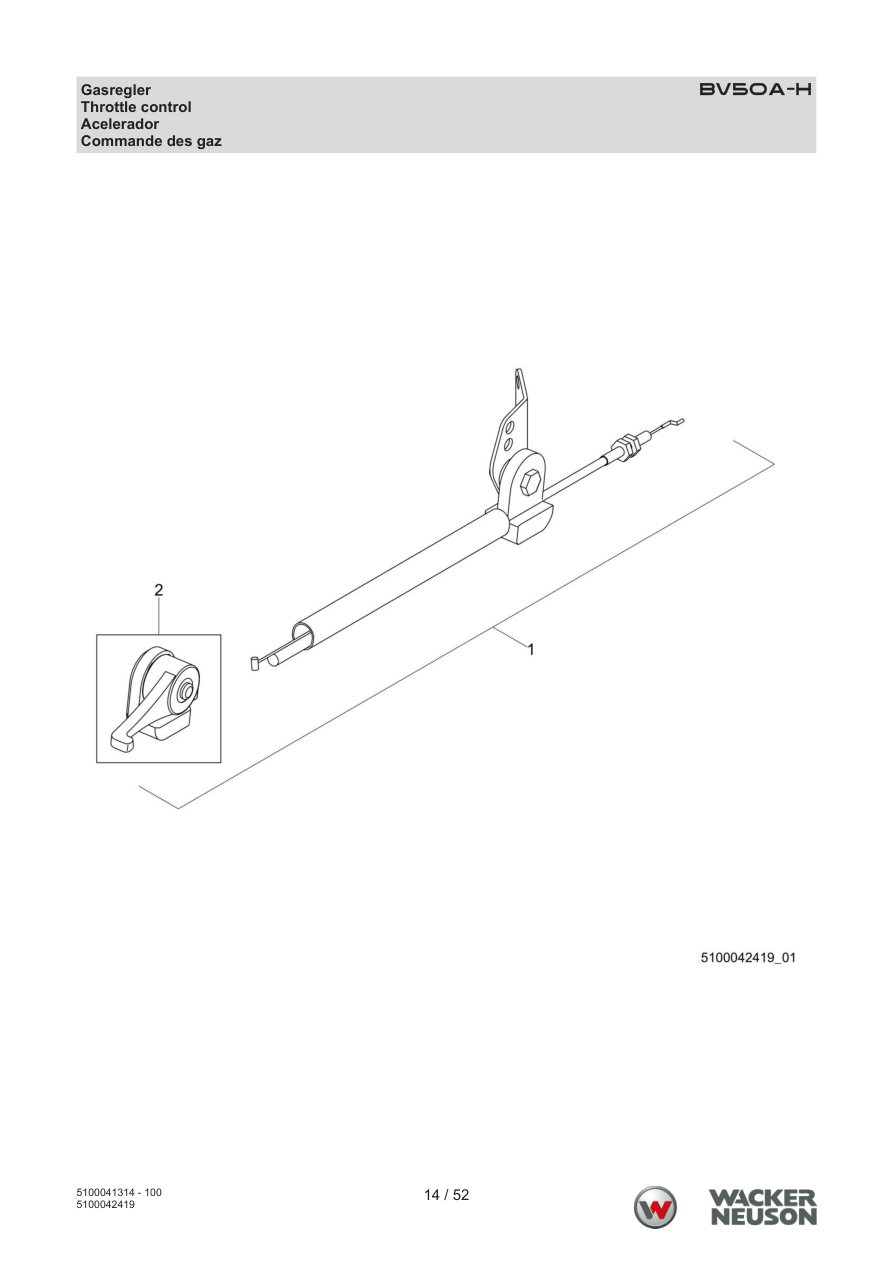

Page 14 — BV50A-H Gas Regulator
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100042579 | Throttle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Throttle cpl.
5100042579 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100042580 | Throttle lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Throttle lever cpl.
5100042580 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

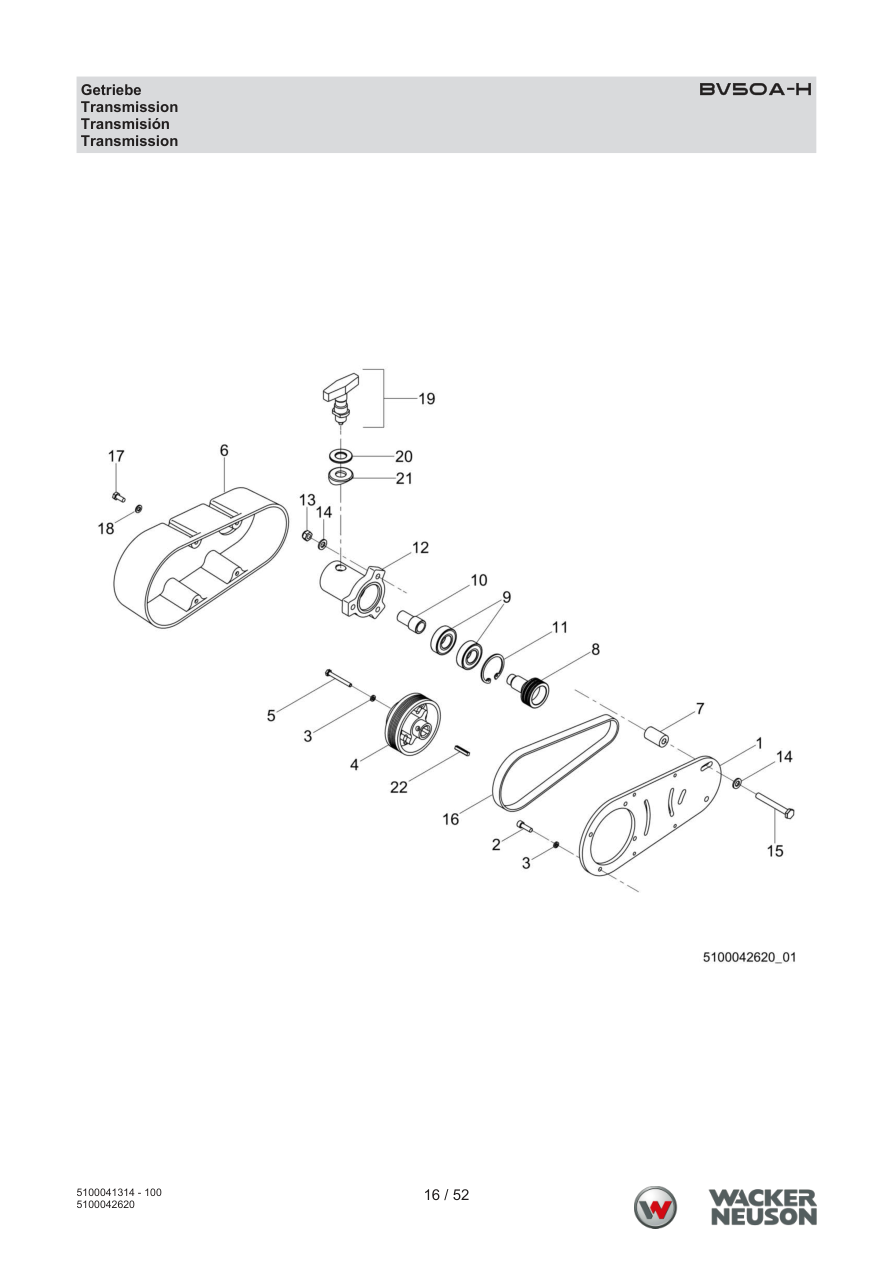

Page 16 — BV50A-H Transmission
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 8 | 5100042586 | Shaft | 1 | PARTS REQUEST | |
|
COMING Shaft
5100042586 · qty on machine: 1 | |||||
| 1 | 5100042581 | Mounting plate | 1 | PARTS REQUEST | |
|
COMING Mounting plate
5100042581 · qty on machine: 1 | |||||
| 2 | 5000174843 | Socket head cap screw | 4 | 1/4-28 x 3/4 | PARTS REQUEST |
|
COMING Socket head cap screw
5000174843 · qty on machine: 4 1/4-28 x 3/4 | |||||
| 3 | 5000174804 | Spring washer | 5 | PARTS REQUEST | |
|
COMING Spring washer
5000174804 · qty on machine: 5 | |||||
| 4 | 5100042583 | Clutch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Clutch cpl.
5100042583 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 5 | 5100042582 | Bolt | 1 | 1/4-20 x 1/2in | PARTS REQUEST |
|
COMING Bolt
5100042582 · qty on machine: 1 1/4-20 x 1/2in | |||||
| 6 | 5100042584 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100042584 · qty on machine: 1 | |||||
| 7 | 5100042585 | Spacer | 3 | PARTS REQUEST | |
|
COMING Spacer
5100042585 · qty on machine: 3 | |||||
| 9 | 5200019321 | Bearing | 2 | PARTS REQUEST | |
|
COMING Bearing
5200019321 · qty on machine: 2 | |||||
| 10 | 5200019323 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5200019323 · qty on machine: 1 | |||||
| 11 | 5100042587 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5100042587 · qty on machine: 1 | |||||
| 12 | 5100042588 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100042588 · qty on machine: 1 | |||||
| 13 | 5000174803 | Locknut | 3 | PARTS REQUEST | |
|
COMING Locknut
5000174803 · qty on machine: 3 | |||||
| 14 | 5000174834 | Washer | 6 | PARTS REQUEST | |
|
COMING Washer
5000174834 · qty on machine: 6 | |||||
| 15 | 5100042589 | Bolt | 3 | M6 x 65 | PARTS REQUEST |
|
COMING Bolt
5100042589 · qty on machine: 3 M6 x 65 | |||||
| 16 | 5100042590 | Belt | 1 | PARTS REQUEST | |
|
COMING Belt
5100042590 · qty on machine: 1 | |||||
| 17 | 5000157752 | Screw | 4 | M6 x 10 | PARTS REQUEST |
|
COMING Screw
5000157752 · qty on machine: 4 M6 x 10 | |||||
| 18 | 5100042595 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5100042595 · qty on machine: 4 | |||||
| 19 | 5200019312 | Plunger cpl. (hms) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Plunger cpl. (hms)
5200019312 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 20 | 5000174853 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000174853 · qty on machine: 1 | |||||
| 21 | 5000174478 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000174478 · qty on machine: 1 | |||||
| 22 | 5100043963 | Key | 1 | 3/16 x 3/4in | PARTS REQUEST |
|
COMING Key
5100043963 · qty on machine: 1 3/16 x 3/4in | |||||

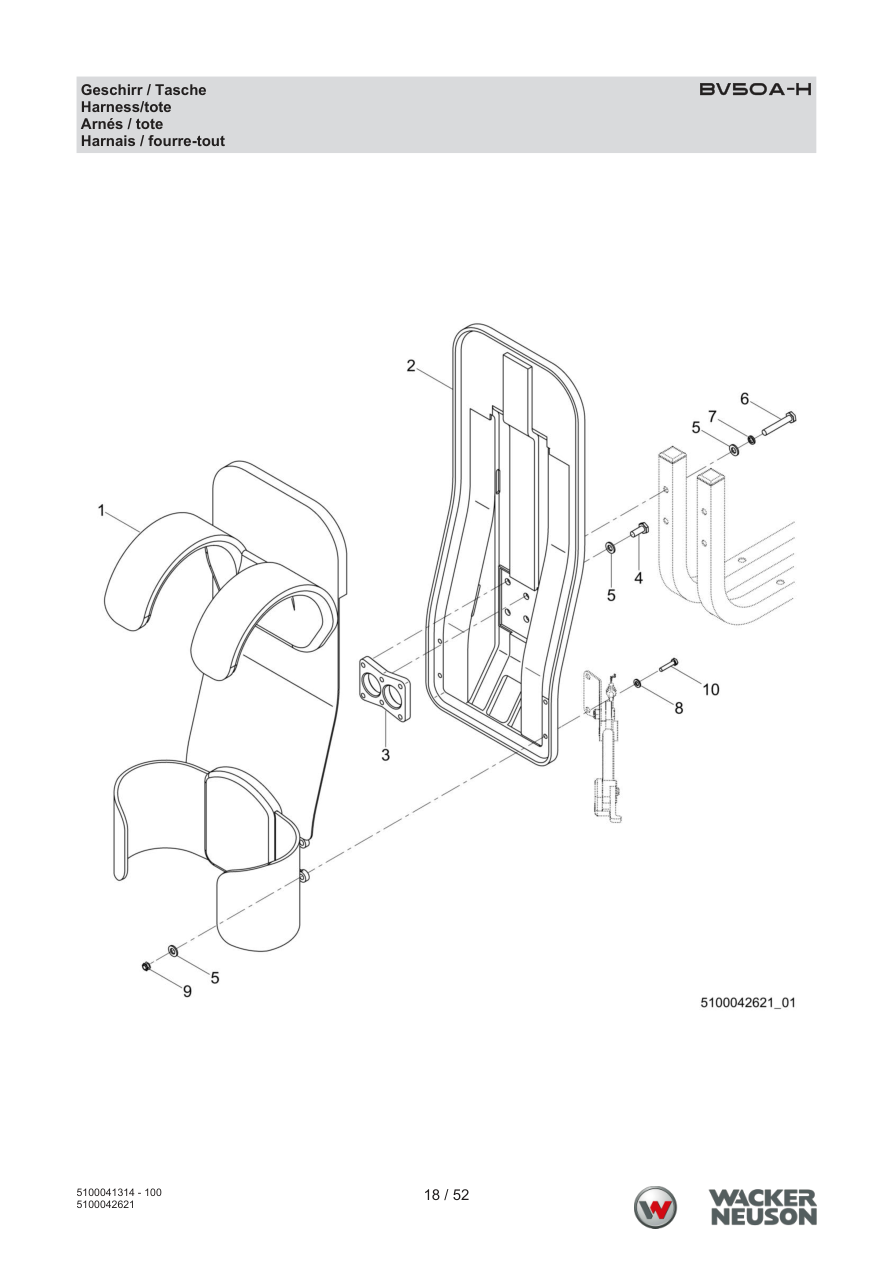

Page 18 — BV50A-H Harness / Bag
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100042591 | Harness cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Harness cpl.
5100042591 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100042592 | Tote | 1 | PARTS REQUEST | |
|
COMING Tote
5100042592 · qty on machine: 1 | |||||
| 3 | 5100042593 | Tote mount | 1 | PARTS REQUEST | |
|
COMING Tote mount
5100042593 · qty on machine: 1 | |||||
| 4 | 5000174827 | Bolt | 2 | M8 x 20 | PARTS REQUEST |
|
COMING Bolt
5000174827 · qty on machine: 2 M8 x 20 | |||||
| 5 | 5000174834 | Washer | 10 | PARTS REQUEST | |
|
COMING Washer
5000174834 · qty on machine: 10 | |||||
| 6 | 5100042594 | Bolt | 4 | M8 x 50 | PARTS REQUEST |
|
COMING Bolt
5100042594 · qty on machine: 4 M8 x 50 | |||||
| 7 | 5000174805 | Spring washer | 4 | PARTS REQUEST | |
|
COMING Spring washer
5000174805 · qty on machine: 4 | |||||
| 8 | 5100042595 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5100042595 · qty on machine: 4 | |||||
| 9 | 5000174808 | Locknut | 4 | PARTS REQUEST | |
|
COMING Locknut
5000174808 · qty on machine: 4 | |||||
| 10 | 5100042616 | Bolt | 4 | M6 x 25 | PARTS REQUEST |
|
COMING Bolt
5100042616 · qty on machine: 4 M6 x 25 | |||||

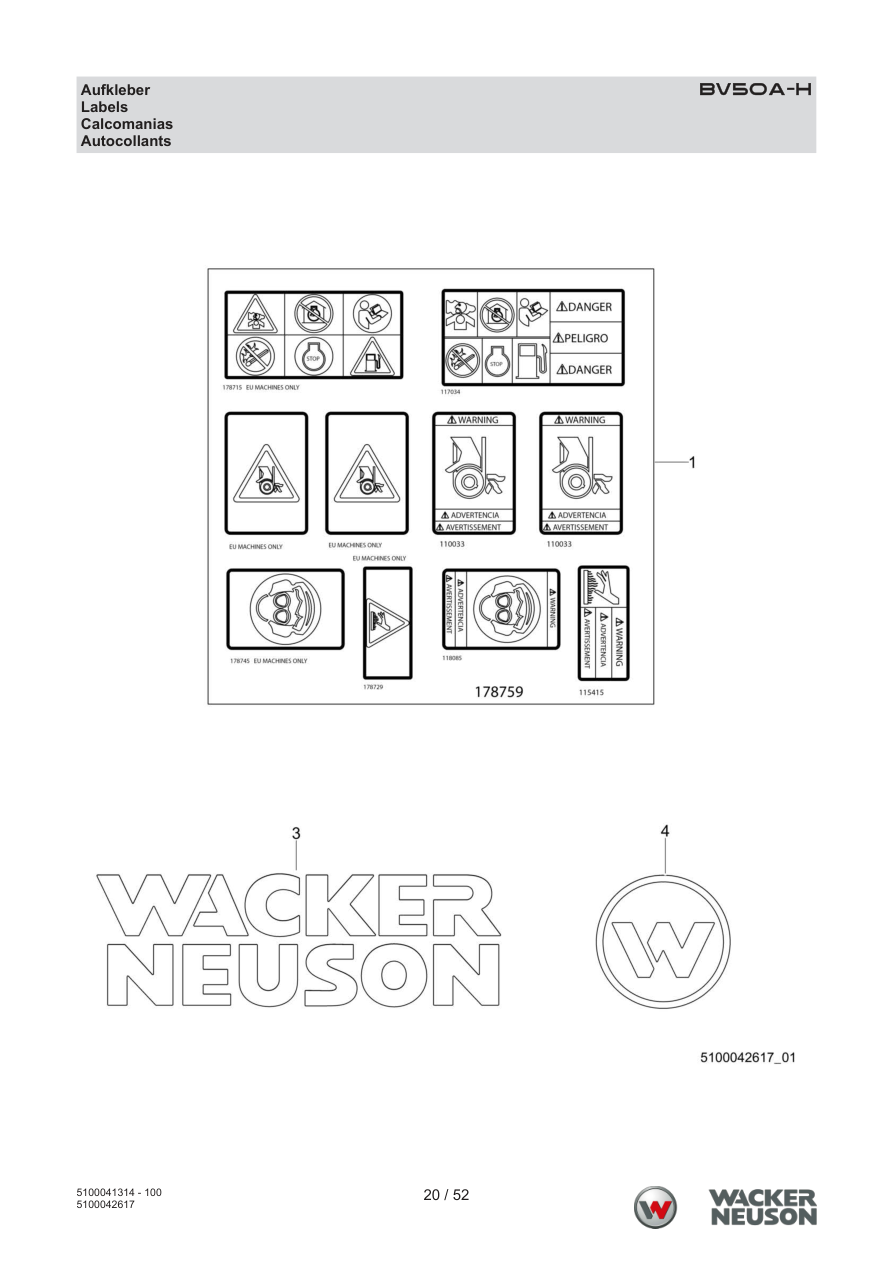

Page 20 — BV50A-H Decals
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000178759 | Label sheet-eu | 1 | PARTS REQUEST | |
|
COMING Label sheet-eu
5000178759 · qty on machine: 1 | |||||
| 3 | 5000222101 | Label-wacker neuson logo | 1 | PARTS REQUEST | |
|
COMING Label-wacker neuson logo
5000222101 · qty on machine: 1 | |||||
| 4 | 5000222084 | Label symbol | 1 | ADD TO CART | |

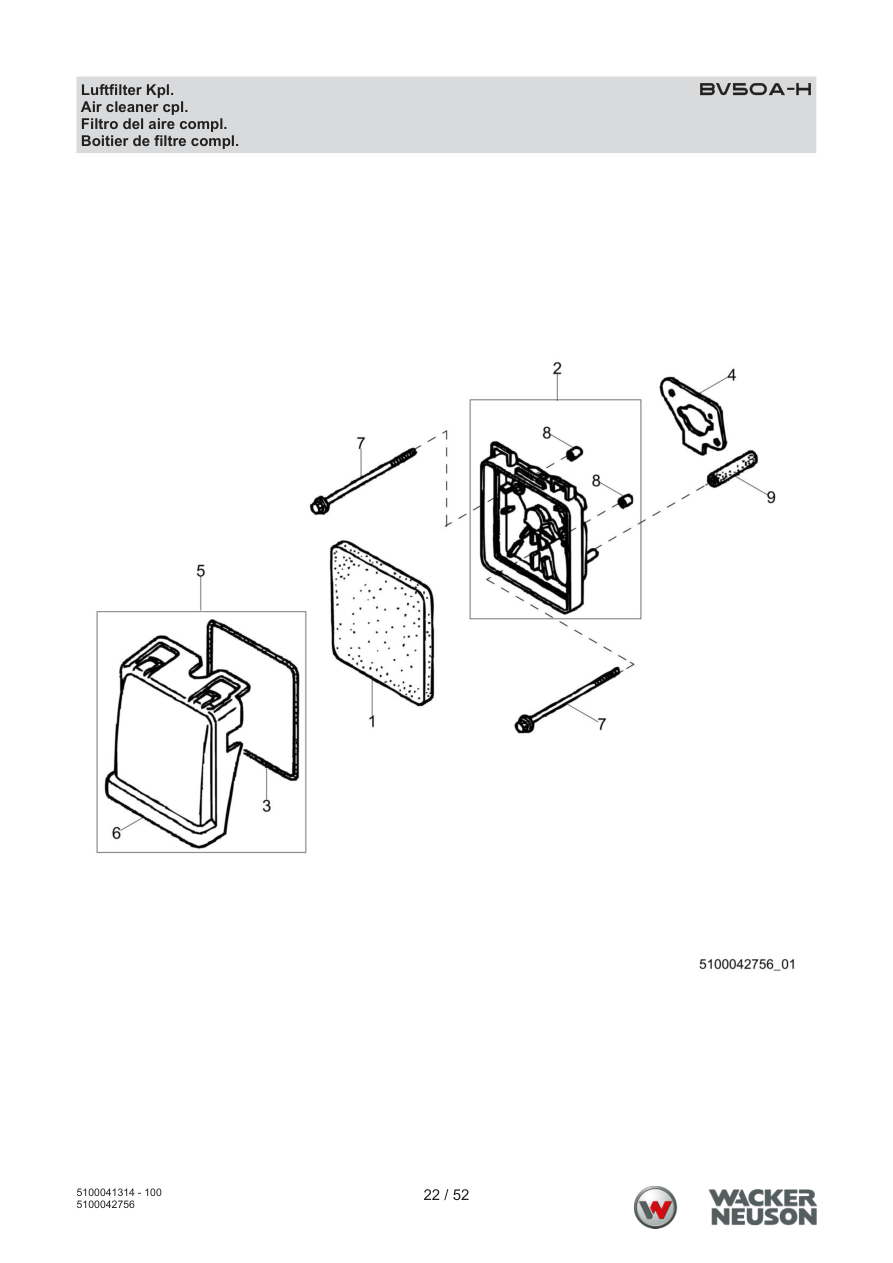

Page 22 — Air cleaner cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215791 | Air cleaner element | 1 | PARTS REQUEST | |
|
COMING Air cleaner element
5000215791 · qty on machine: 1 | |||||
| 2 | 5000217187 | Air cleaner housing | 1 | PARTS REQUEST | |
|
COMING Air cleaner housing
5000217187 · qty on machine: 1 | |||||
| 3 | 5000217188 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5000217188 · qty on machine: 1 | |||||
| 5 | 5000217190 | Air cleaner cover | 1 | PARTS REQUEST | |
|
COMING Air cleaner cover
5000217190 · qty on machine: 1 | |||||
| 6 | 5000217192 | Air cleaner cover | 1 | PARTS REQUEST | |
|
COMING Air cleaner cover
5000217192 · qty on machine: 1 | |||||
| 7 | 5000217246 | Flange bolt | 2 | 5 x 75 | PARTS REQUEST |
|
COMING Flange bolt
5000217246 · qty on machine: 2 5 x 75 | |||||
| 8 | 5000217278 | Collar | 2 | PARTS REQUEST | |
|
COMING Collar
5000217278 · qty on machine: 2 | |||||
| 9 | 5000157556 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5000157556 · qty on machine: 1 | |||||

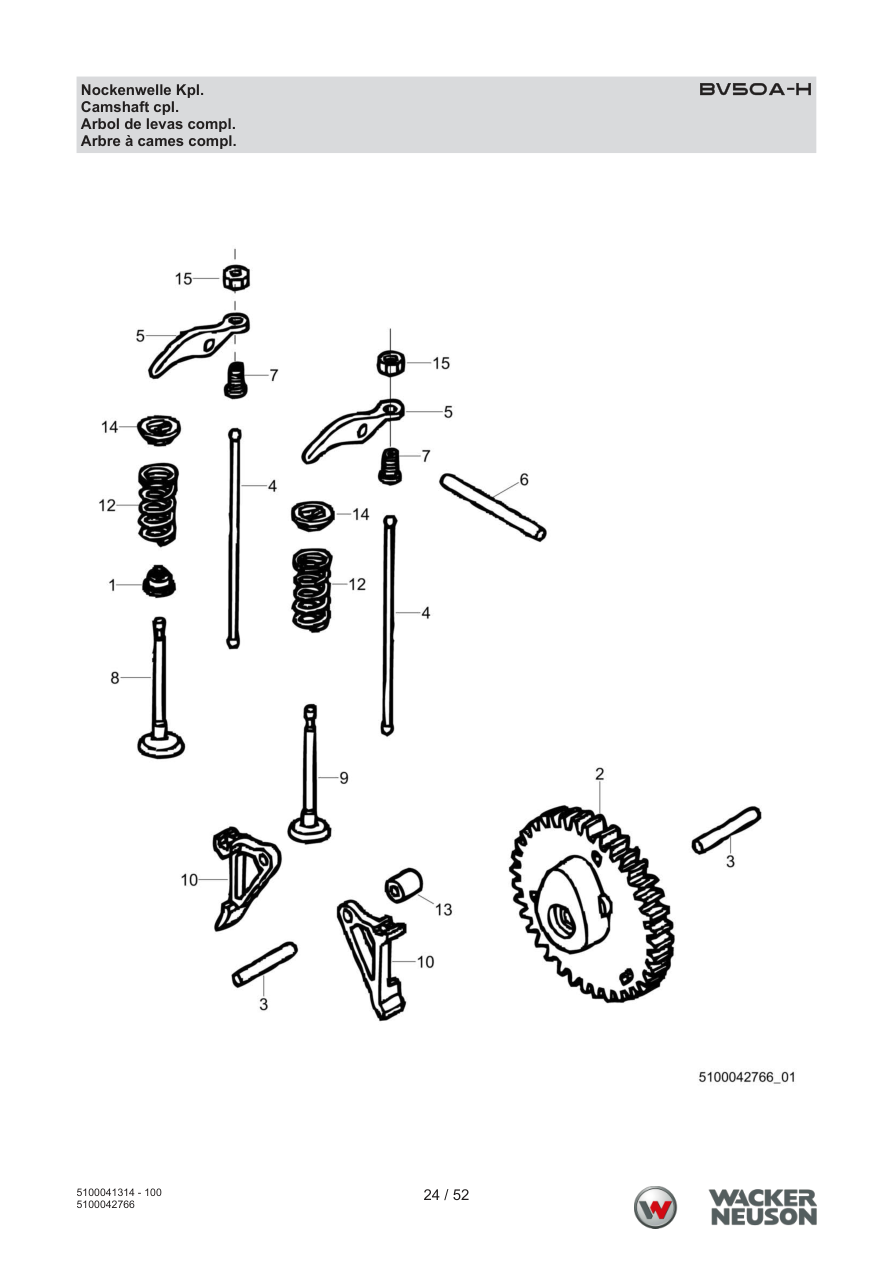

Page 24 — Camshaft cpl.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100042751 | Exhaust valve | 1 | PARTS REQUEST | |
|
COMING Exhaust valve
5100042751 · qty on machine: 1 | |||||
| 10 | 5000217153 | Valve | 2 | PARTS REQUEST | |
|
COMING Valve
5000217153 · qty on machine: 2 | |||||
| 12 | 5000217156 | Valve spring | 2 | PARTS REQUEST | |
|
COMING Valve spring
5000217156 · qty on machine: 2 | |||||
| 13 | 5000217157 | Collar | 1 | PARTS REQUEST | |
|
COMING Collar
5000217157 · qty on machine: 1 | |||||
| 14 | 5000157487 | Valve holder | 2 | ADD TO CART | |
| 15 | 5000217266 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000217266 · qty on machine: 2 | |||||
| 1 | 5000217123 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5000217123 · qty on machine: 1 | |||||
| 2 | 5000217138 | Camshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Camshaft cpl.
5000217138 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000217139 | Roller | 2 | 3 x 28,8 | PARTS REQUEST |
|
COMING Roller
5000217139 · qty on machine: 2 3 x 28,8 | |||||
| 4 | 5000217142 | Push rod | 2 | PARTS REQUEST | |
|
COMING Push rod
5000217142 · qty on machine: 2 | |||||
| 5 | 5000217144 | Valve | 2 | PARTS REQUEST | |
|
COMING Valve
5000217144 · qty on machine: 2 | |||||
| 6 | 5000217145 | Roller | 1 | 4 x 37,8 | PARTS REQUEST |
|
COMING Roller
5000217145 · qty on machine: 1 4 x 37,8 | |||||
| 7 | 5000217147 | Pivot | 2 | PARTS REQUEST | |
|
COMING Pivot
5000217147 · qty on machine: 2 | |||||
| 8 | 5000217149 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5000217149 · qty on machine: 1 | |||||

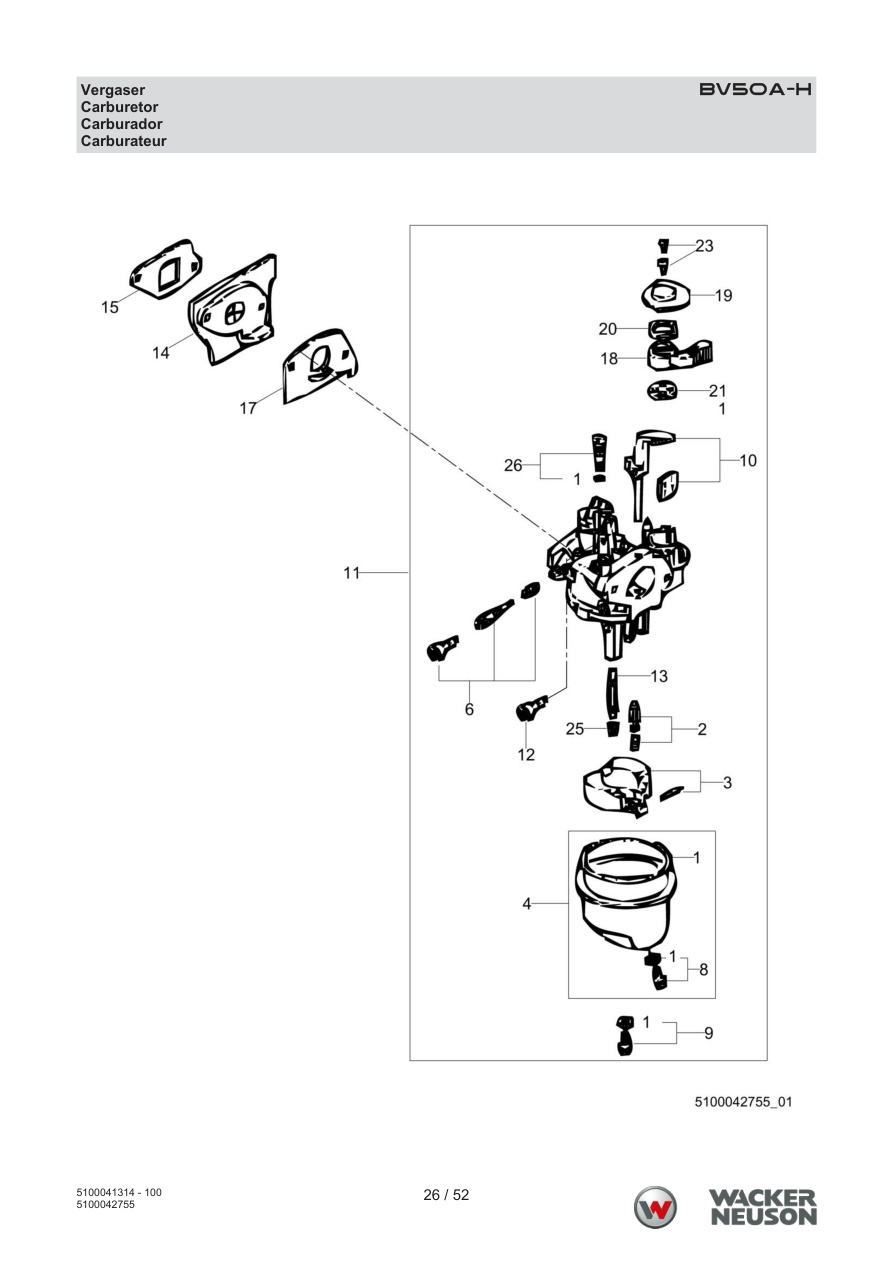

Page 26 — BV50A-H Carburetor
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 15 | 5000217174 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217174 · qty on machine: 1 | |||||
| 17 | 5000078545 | Seal | 1 | ADD TO CART | |
| 1 | 5100042623 | Gasket set | 1 | PARTS REQUEST | |
|
COMING Gasket set
5100042623 · qty on machine: 1 | |||||
| 2 | 5000071022 | Set-float valve | 1 | ADD TO CART | |
| 3 | 5000156666 | Float cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000156667 | Float cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Float cpl.
5000156667 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 6 | 5000158522 | Threaded pin | 1 | ADD TO CART | |
| 8 | 5000073273 | Screw w/washer | 1 | ADD TO CART | |
| 9 | 5000156669 | Setscrew | 1 | ADD TO CART | |
| 10 | 5000217169 | Choke set | 1 | PARTS REQUEST | |
|
COMING Choke set
5000217169 · qty on machine: 1 | |||||
| 11 | 5000217171 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Carburetor cpl.
5000217171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 12 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 13 | 5000217172 | Main nozzle jet | 1 | PARTS REQUEST | |
|
COMING Main nozzle jet
5000217172 · qty on machine: 1 | |||||
| 14 | 5000217173 | Insulator | 1 | PARTS REQUEST | |
|
COMING Insulator
5000217173 · qty on machine: 1 | |||||
| 18 | 5000078547 | Fuel cock | 1 | PARTS REQUEST | |
|
COMING Fuel cock
5000078547 · qty on machine: 1 | |||||
| 19 | 5000073269 | Plate | 1 | ADD TO CART | |
| 20 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 21 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 22 | 5000217289 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5000217289 · qty on machine: 1 | |||||
| 23 | 5100042624 | Screw | 2 | M3 x 6 | PARTS REQUEST |
|
COMING Screw
5100042624 · qty on machine: 2 M3 x 6 | |||||
| 25 | 5100042625 | Jet | 1 | PARTS REQUEST | |
|
COMING Jet
5100042625 · qty on machine: 1 | |||||
| 25 | 5100042627 | Jet | 1 | PARTS REQUEST | |
|
COMING Jet
5100042627 · qty on machine: 1 | |||||
| 26 | 5000162092 | Pilot jet | 1 | ADD TO CART | |

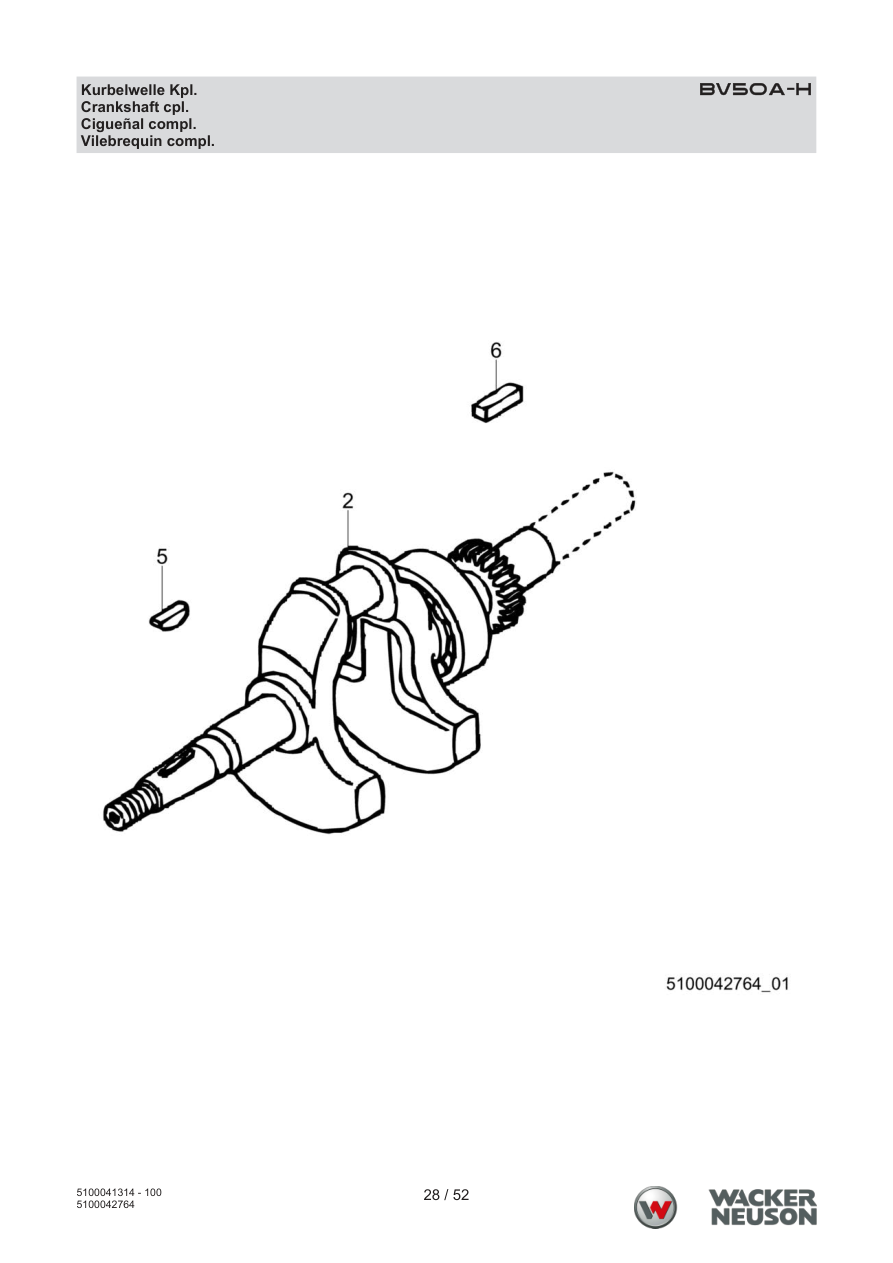

Page 28 — Crankshaft cpl.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000217137 | Crankshaft | 1 | PARTS REQUEST | |
|
COMING Crankshaft
5000217137 · qty on machine: 1 | |||||
| 5 | 5000162118 | Woodruff key | 1 | ADD TO CART | |
| 6 | 5000217271 | Key | 1 | PARTS REQUEST | |
|
COMING Key
5000217271 · qty on machine: 1 | |||||

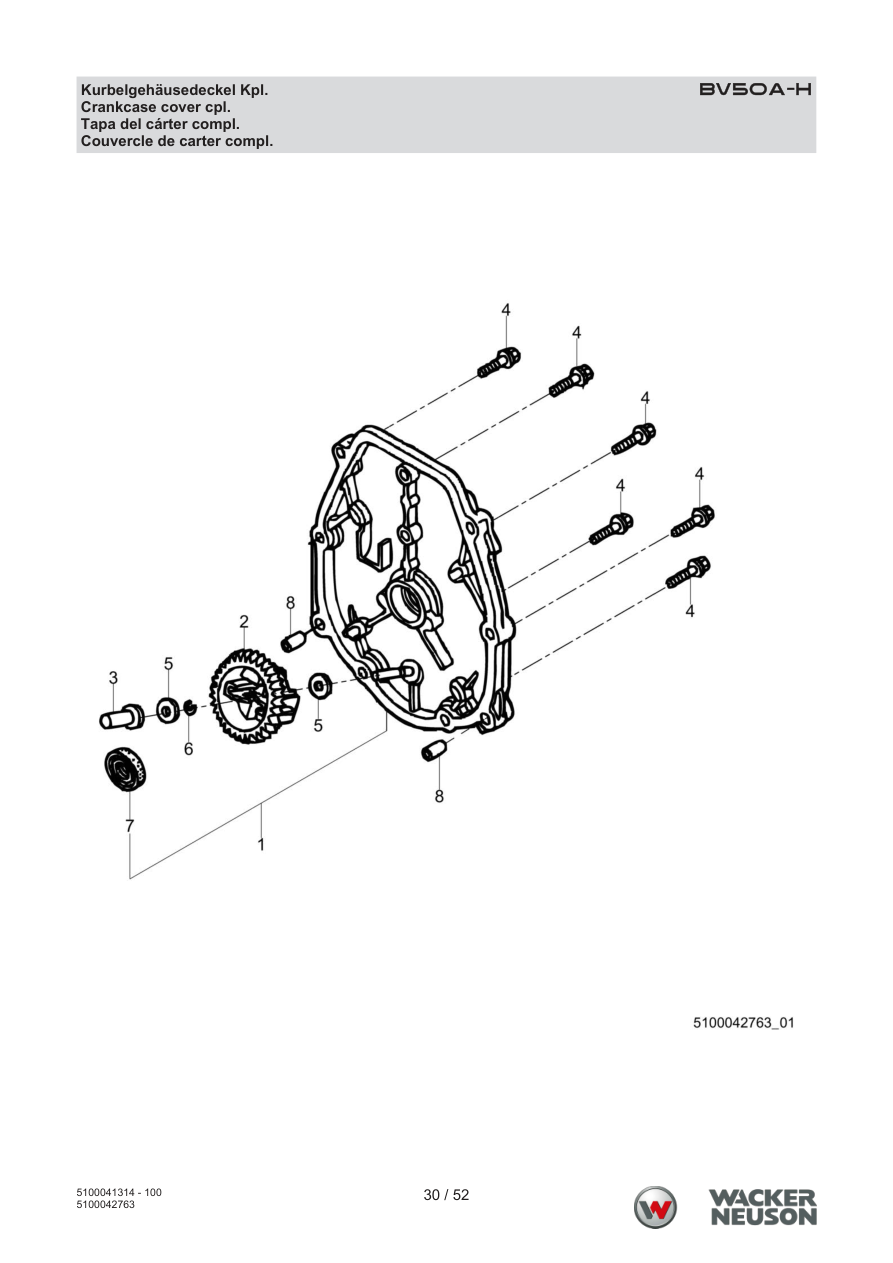

Page 30 — Crankcase cover cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5000217270 | Clip | 1 | PARTS REQUEST | |
|
COMING Clip
5000217270 · qty on machine: 1 | |||||
| 7 | 5100042746 | Oil seal | 1 | 17 x 27 x 5 | PARTS REQUEST |
|
COMING Oil seal
5100042746 · qty on machine: 1 17 x 27 x 5 | |||||
| 8 | 5000217282 | Dowel pin | 2 | 6 x 10 | PARTS REQUEST |
|
COMING Dowel pin
5000217282 · qty on machine: 2 6 x 10 | |||||
| 1 | 5000217120 | Crankcase cover | 1 | PARTS REQUEST | |
|
COMING Crankcase cover
5000217120 · qty on machine: 1 | |||||
| 2 | 5000217176 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5000217176 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000217177 | Slider | 1 | PARTS REQUEST | |
|
COMING Slider
5000217177 · qty on machine: 1 | |||||
| 4 | 5000217247 | Flange bolt | 6 | 5 x 23 | PARTS REQUEST |
|
COMING Flange bolt
5000217247 · qty on machine: 6 5 x 23 | |||||
| 5 | 5000217267 | Washer | 2 | 4,2 x 13 | PARTS REQUEST |
|
COMING Washer
5000217267 · qty on machine: 2 4,2 x 13 | |||||

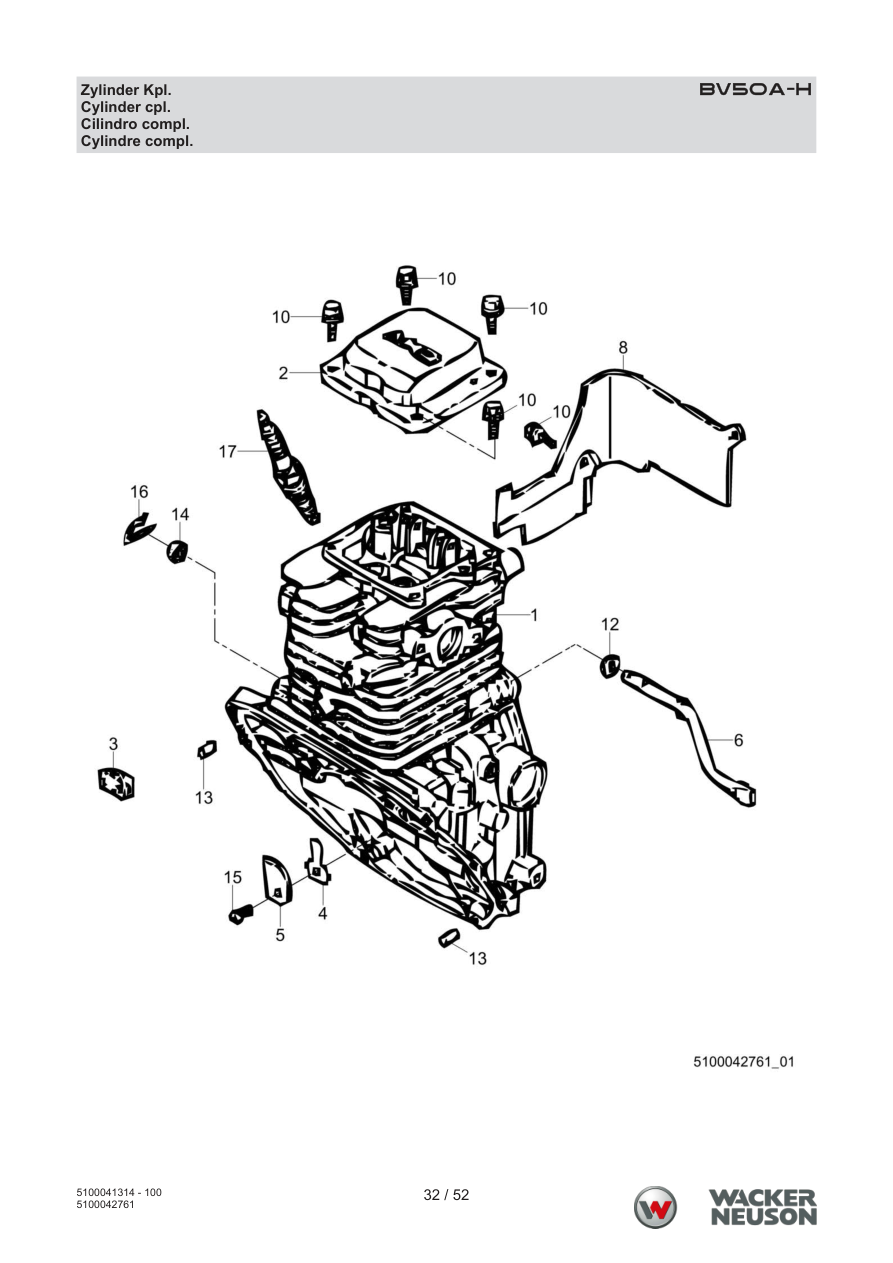

Page 32 — Cylinder cpl.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100042744 | Cylinder | 1 | PARTS REQUEST | |
|
COMING Cylinder
5100042744 · qty on machine: 1 | |||||
| 2 | 5000217125 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5000217125 · qty on machine: 1 | |||||
| 3 | 5100042745 | Filter | 1 | PARTS REQUEST | |
|
COMING Filter
5100042745 · qty on machine: 1 | |||||
| 4 | 5000162139 | Valve | 1 | ADD TO CART | |
| 5 | 5000162140 | Plate | 1 | ADD TO CART | |
| 6 | 5000217178 | Shaft | 1 | PARTS REQUEST | |
|
COMING Shaft
5000217178 · qty on machine: 1 | |||||
| 8 | 5000217214 | Shroud | 1 | PARTS REQUEST | |
|
COMING Shroud
5000217214 · qty on machine: 1 | |||||
| 10 | 5000217244 | Flange bolt | 5 | 5 x 12 | PARTS REQUEST |
|
COMING Flange bolt
5000217244 · qty on machine: 5 5 x 12 | |||||
| 12 | 5000217268 | Washer | 1 | 5,2 x 9 | PARTS REQUEST |
|
COMING Washer
5000217268 · qty on machine: 1 5,2 x 9 | |||||
| 13 | 5000217275 | Oil seal | 1 | 5 x 11 x 5 | PARTS REQUEST |
|
COMING Oil seal
5000217275 · qty on machine: 1 5 x 11 x 5 | |||||
| 14 | 5000217275 | Oil seal | 1 | 5 x 11 x 5 | PARTS REQUEST |
|
COMING Oil seal
5000217275 · qty on machine: 1 5 x 11 x 5 | |||||
| 15 | 5000157555 | Pan head screw | 1 | M3 x 5 | ADD TO CART |
| 16 | 5000217281 | Locking pin | 2 | PARTS REQUEST | |
|
COMING Locking pin
5000217281 · qty on machine: 2 | |||||
| 17 | 5000157610 | Spark plug | 1 | ADD TO CART | |

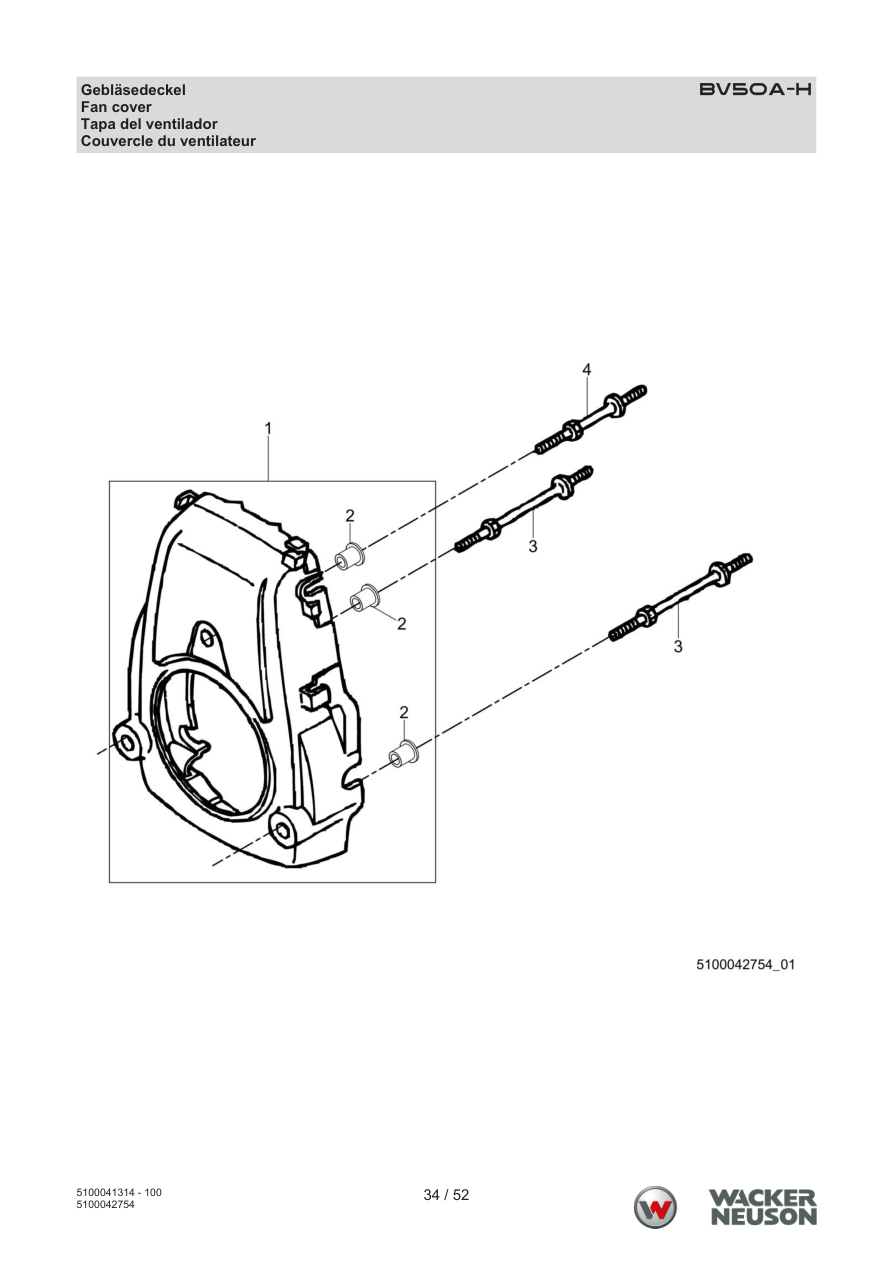

Page 34 — Fan cover
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217211 | Fan cover | 1 | PARTS REQUEST | |
|
COMING Fan cover
5000217211 · qty on machine: 1 | |||||
| 2 | 5100042622 | Collar | 2 | PARTS REQUEST | |
|
COMING Collar
5100042622 · qty on machine: 2 | |||||
| 3 | 5000217261 | Stud bolt | 2 | PARTS REQUEST | |
|
COMING Stud bolt
5000217261 · qty on machine: 2 | |||||
| 4 | 5000217262 | Stud bolt | 1 | PARTS REQUEST | |
|
COMING Stud bolt
5000217262 · qty on machine: 1 | |||||

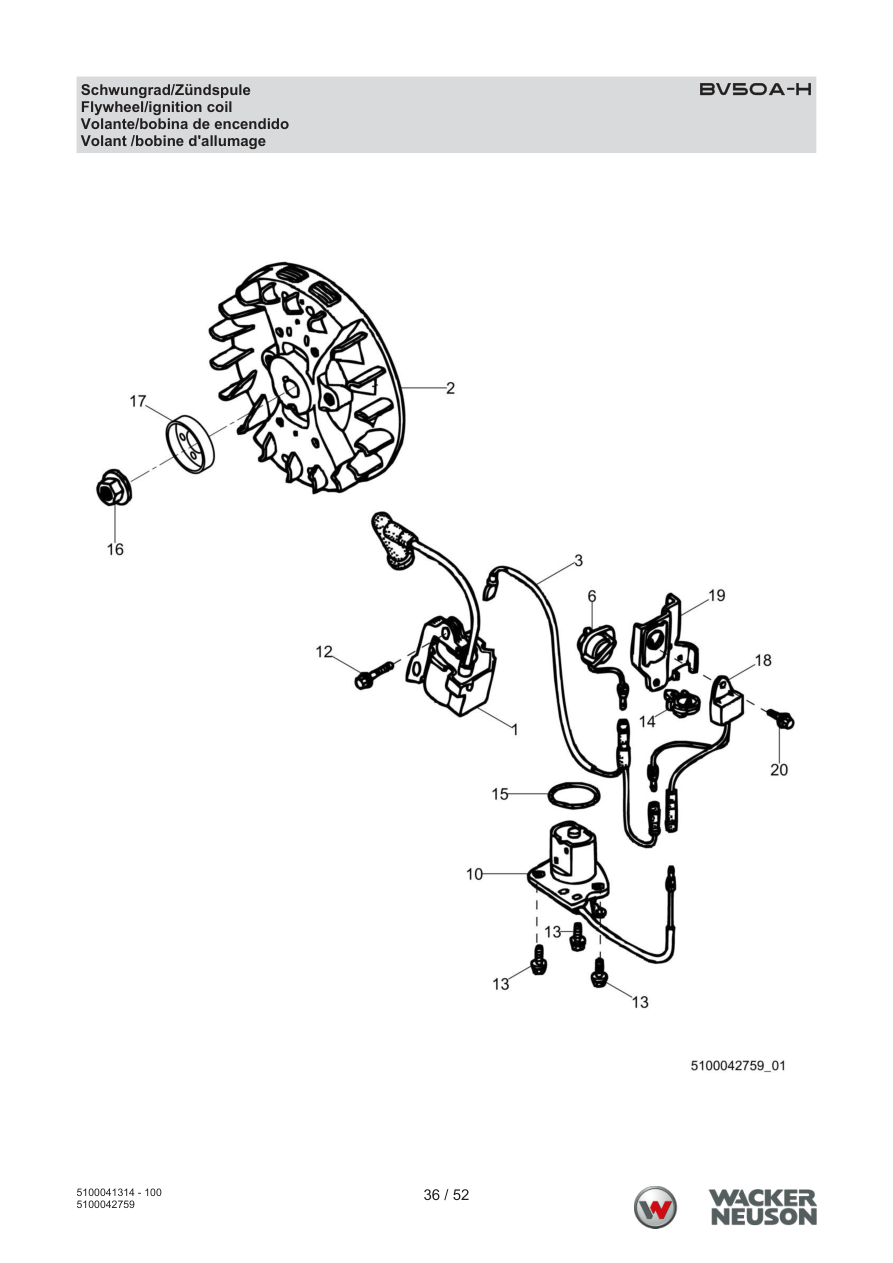

Page 36 — Flywheel/ignition coil
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 18 | 5100005313 | Oil sensor | 1 | ADD TO CART | |
| 19 | 5000217240 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5000217240 · qty on machine: 1 | |||||
| 20 | 5000081750 | Screw | 1 | M6 x 8 | ADD TO CART |
| 1 | 5000217234 | Ignition coil | 1 | PARTS REQUEST | |
|
COMING Ignition coil
5000217234 · qty on machine: 1 | |||||
| 2 | 5000217237 | Flywheel | 1 | PARTS REQUEST | |
|
COMING Flywheel
5000217237 · qty on machine: 1 | |||||
| 3 | 5000217239 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5000217239 · qty on machine: 1 | |||||
| 6 | 5000162079 | Run/stop switch | 1 | ADD TO CART | |
| 10 | 5000217241 | Oil switch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Oil switch cpl.
5000217241 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 12 | 5000217245 | Flange bolt | 1 | 5 x 20 | PARTS REQUEST |
|
COMING Flange bolt
5000217245 · qty on machine: 1 5 x 20 | |||||
| 13 | 5000217252 | Flange bolt | 3 | 5 x 14 | PARTS REQUEST |
|
COMING Flange bolt
5000217252 · qty on machine: 3 5 x 14 | |||||
| 14 | 5000076375 | Clip | 1 | PARTS REQUEST | |
|
COMING Clip
5000076375 · qty on machine: 1 | |||||
| 15 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 15 | 5000217276 | O-ring | 1 | 34,6 x 2,5 | PARTS REQUEST |
|
COMING O-ring
5000217276 · qty on machine: 1 34,6 x 2,5 | |||||
| 16 | 5100042740 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5100042740 · qty on machine: 1 | |||||
| 17 | 5000217229 | Pulley | 1 | PARTS REQUEST | |
|
COMING Pulley
5000217229 · qty on machine: 1 | |||||

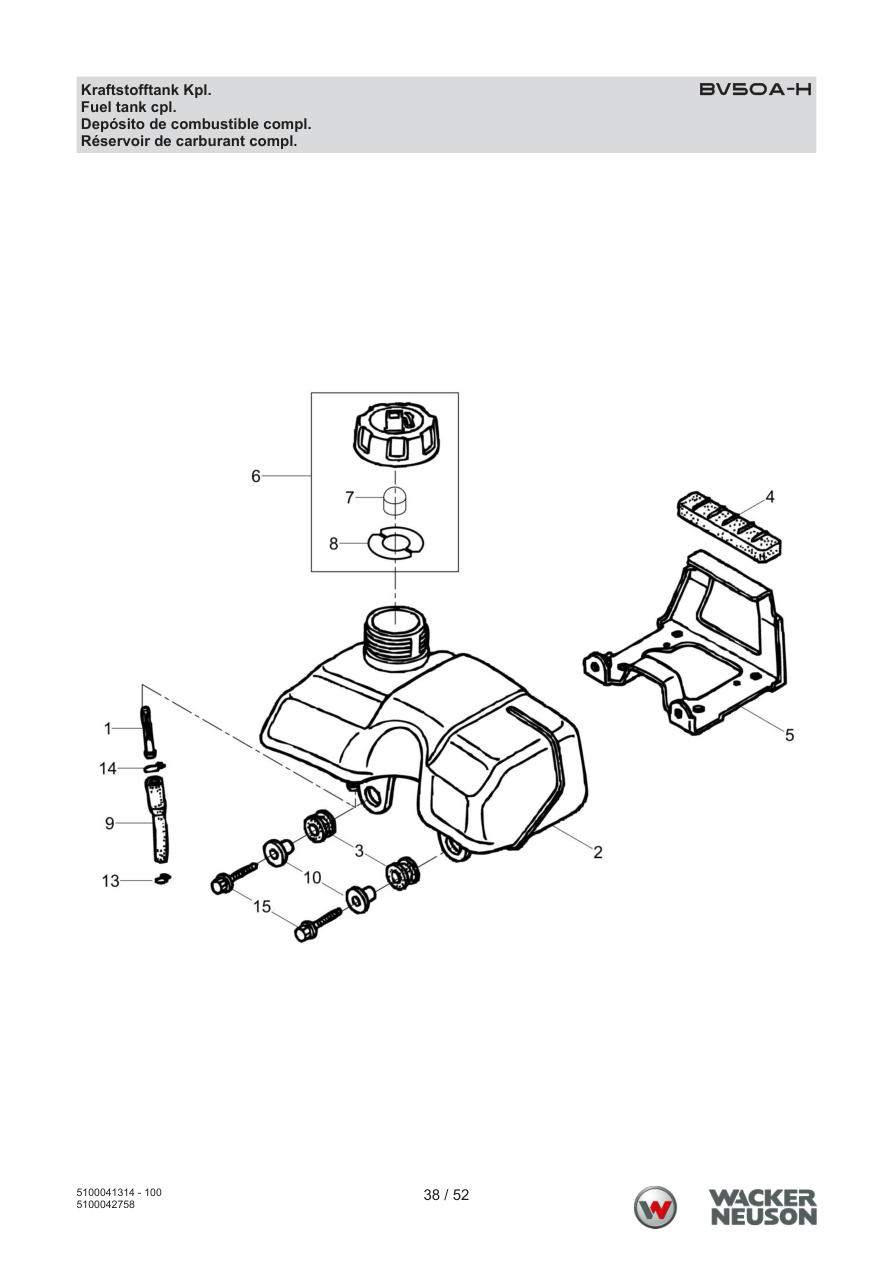

Page 38 — Fuel tank complete
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000162108 | Fuel filter | 1 | ADD TO CART | |
| 2 | 5100042684 | Fuel tank | 1 | PARTS REQUEST | |
|
COMING Fuel tank
5100042684 · qty on machine: 1 | |||||
| 3 | 5000162110 | Mounting bracket | 2 | PARTS REQUEST | |
|
COMING Mounting bracket
5000162110 · qty on machine: 2 | |||||
| 4 | 5000162111 | Mounting bracket | 1 | PARTS REQUEST | |
|
COMING Mounting bracket
5000162111 · qty on machine: 1 | |||||
| 5 | 5000217195 | Fuel tank bracket | 1 | PARTS REQUEST | |
|
COMING Fuel tank bracket
5000217195 · qty on machine: 1 | |||||
| 6 | 5000162113 | Fuel tank cap | 1 | ADD TO CART | |
| 7 | 5100042685 | Filter | 1 | PARTS REQUEST | |
|
COMING Filter
5100042685 · qty on machine: 1 | |||||
| 8 | 5100042687 | Gasket | 2 | PARTS REQUEST | |
|
COMING Gasket
5100042687 · qty on machine: 2 | |||||
| 9 | 5100042688 | Fuel tube | 1 | PARTS REQUEST | |
|
COMING Fuel tube
5100042688 · qty on machine: 1 | |||||
| 10 | 5000162115 | Collar ring | 2 | ADD TO CART | |
| 13 | 5000208617 | Clamp | 1 | ADD TO CART | |
| 14 | 5000151933 | Clip | 1 | ADD TO CART | |
| 15 | 5000217286 | Flange bolt | 2 | 6 x 20 | PARTS REQUEST |
|
COMING Flange bolt
5000217286 · qty on machine: 2 6 x 20 | |||||

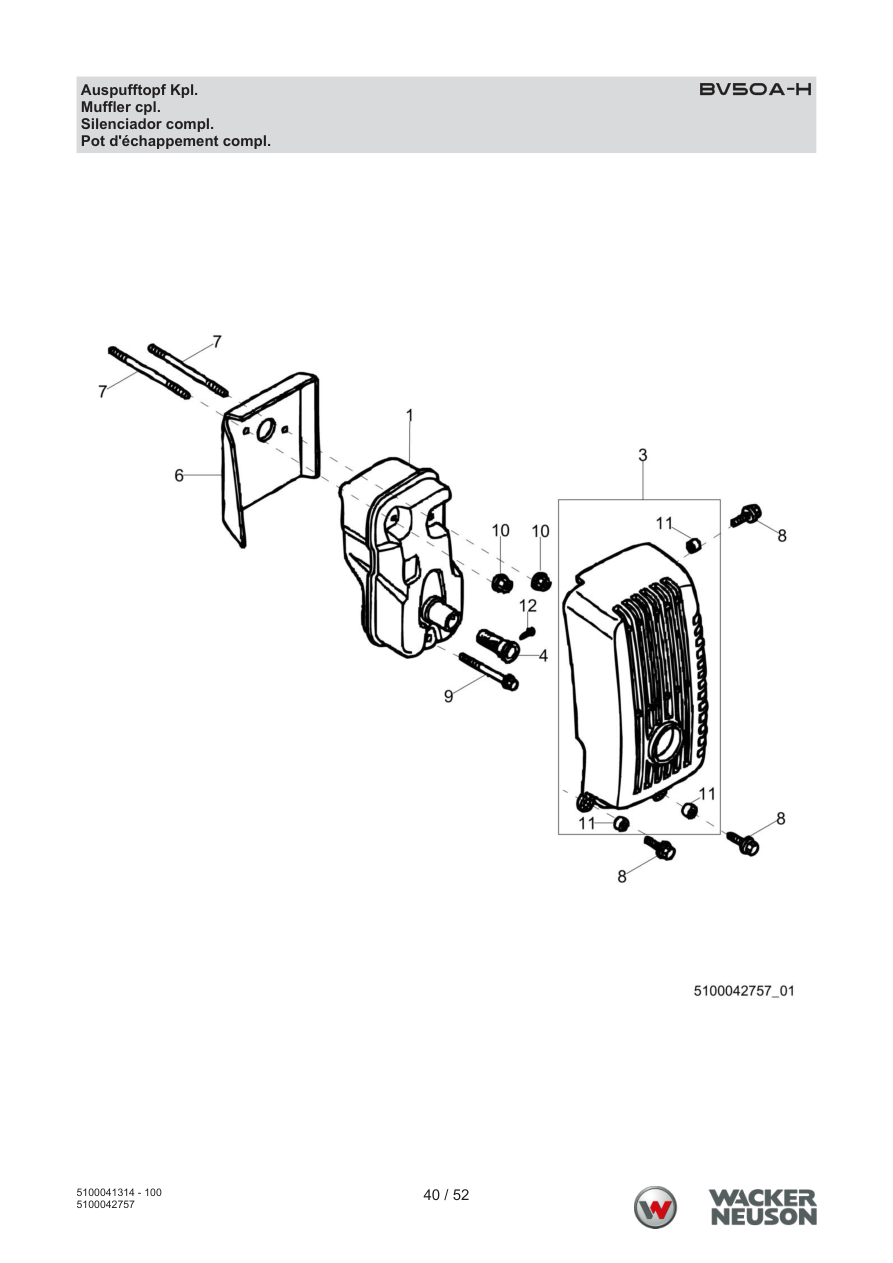

Page 40 — Muffler cpl.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100042628 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5100042628 · qty on machine: 1 | |||||
| 3 | 5000217204 | Protector | 1 | PARTS REQUEST | |
|
COMING Protector
5000217204 · qty on machine: 1 | |||||
| 4 | 5100042629 | Spark arrester | 1 | PARTS REQUEST | |
|
COMING Spark arrester
5100042629 · qty on machine: 1 | |||||
| 6 | 5000217209 | Guide | 1 | PARTS REQUEST | |
|
COMING Guide
5000217209 · qty on machine: 1 | |||||
| 7 | 5000217243 | Stud bolt | 2 | 5 x 55 | PARTS REQUEST |
|
COMING Stud bolt
5000217243 · qty on machine: 2 5 x 55 | |||||
| 8 | 5000217251 | Flange bolt | 3 | 5 x 16 | PARTS REQUEST |
|
COMING Flange bolt
5000217251 · qty on machine: 3 5 x 16 | |||||
| 9 | 5000217263 | Flange bolt | 1 | 5 x 35 | PARTS REQUEST |
|
COMING Flange bolt
5000217263 · qty on machine: 1 5 x 35 | |||||
| 10 | 5000217265 | Lock nut | 2 | PARTS REQUEST | |
|
COMING Lock nut
5000217265 · qty on machine: 2 | |||||
| 11 | 5000157537 | Bushing spacer | 3 | PARTS REQUEST | |
|
COMING Bushing spacer
5000157537 · qty on machine: 3 | |||||
| 12 | 5000217280 | Self-tapping screw | 1 | 4 x 8 | PARTS REQUEST |
|
COMING Self-tapping screw
5000217280 · qty on machine: 1 4 x 8 | |||||

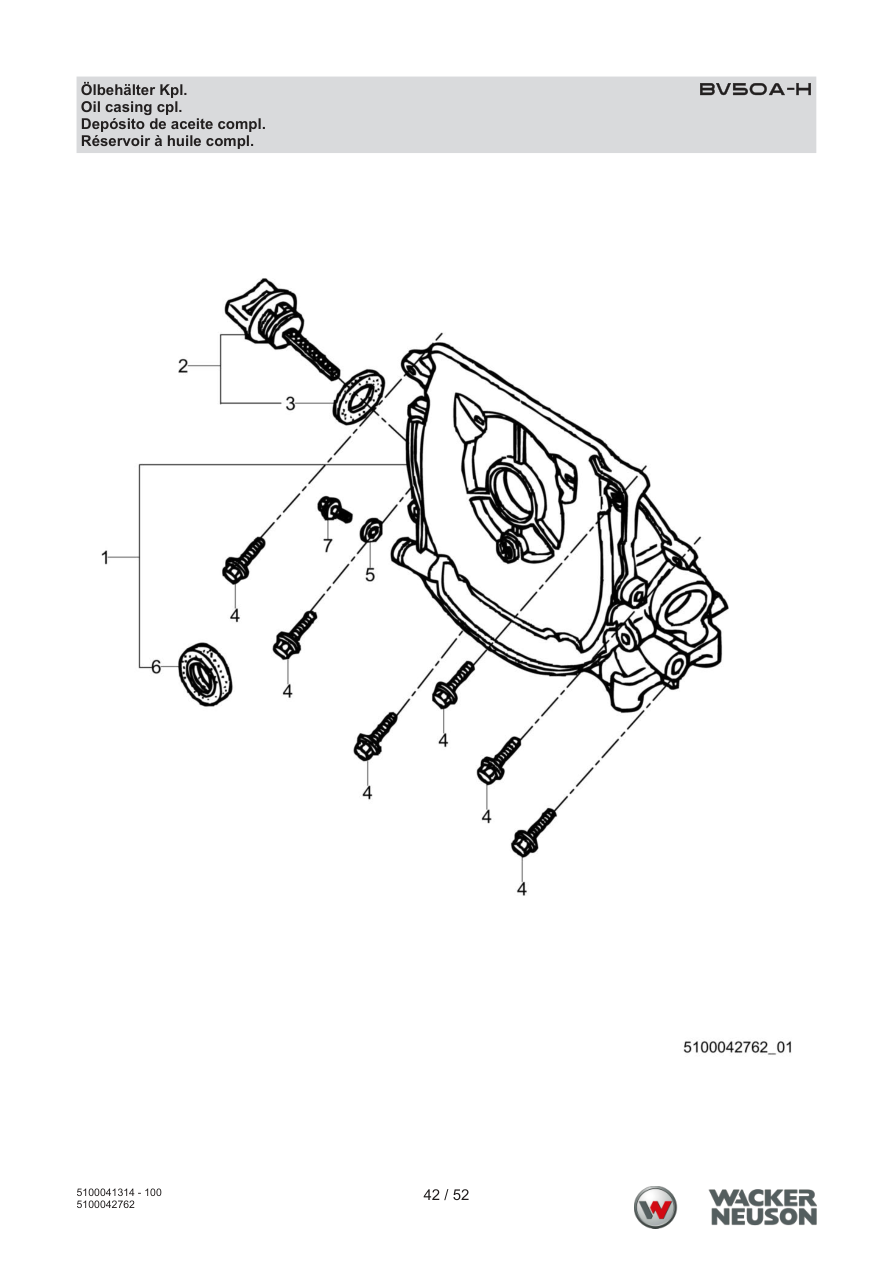

Page 42 — Oil casing cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217119 | Oil casing | 1 | PARTS REQUEST | |
|
COMING Oil casing
5000217119 · qty on machine: 1 | |||||
| 2 | 5200020964 | Oil filler cap | 1 | PARTS REQUEST | |
|
COMING Oil filler cap
5200020964 · qty on machine: 1 | |||||
| 3 | 5000162647 | Gasket | 1 | ADD TO CART | |
| 4 | 5000217247 | Flange bolt | 8 | 5 x 23 | PARTS REQUEST |
|
COMING Flange bolt
5000217247 · qty on machine: 8 5 x 23 | |||||
| 5 | 5000217269 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000217269 · qty on machine: 1 | |||||
| 6 | 5100042746 | Oil seal | 1 | 17 x 27 x 5 | PARTS REQUEST |
|
COMING Oil seal
5100042746 · qty on machine: 1 17 x 27 x 5 | |||||
| 7 | 5000217287 | Flange bolt | 1 | 8 x 12 | PARTS REQUEST |
|
COMING Flange bolt
5000217287 · qty on machine: 1 8 x 12 | |||||

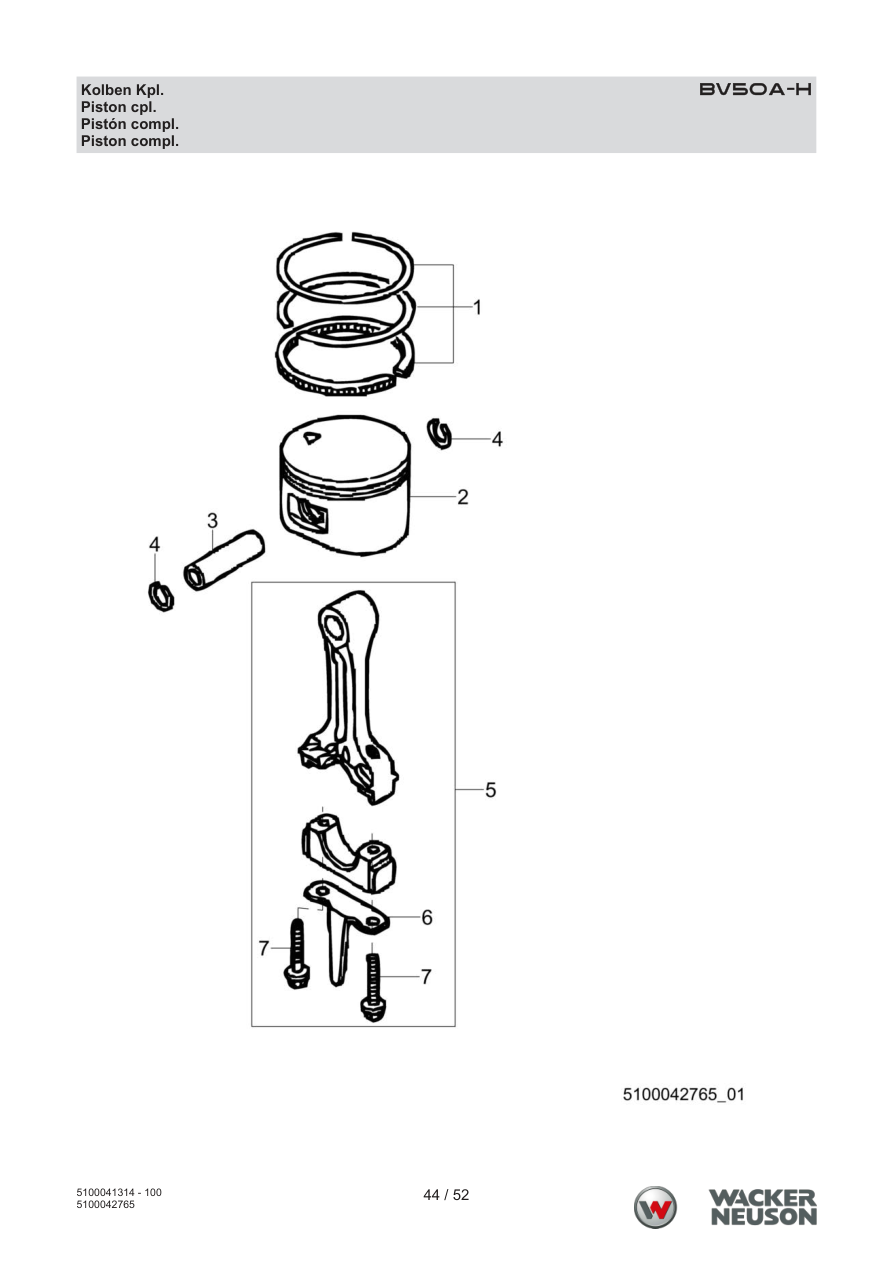

Page 44 — Piston cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217130 | Piston ring set | 1 | PARTS REQUEST | |
|
COMING Piston ring set
5000217130 · qty on machine: 1 | |||||
| 2 | 5000217132 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5000217132 · qty on machine: 1 | |||||
| 3 | 5100042749 | Piston pin | 1 | 10 x 33 | PARTS REQUEST |
|
COMING Piston pin
5100042749 · qty on machine: 1 10 x 33 | |||||
| 4 | 5000156724 | Piston pin clip | 2 | PARTS REQUEST | |
|
COMING Piston pin clip
5000156724 · qty on machine: 2 | |||||
| 5 | 5000217134 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Connecting rod cpl.
5000217134 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 6 | 5100042750 | Dipper | 1 | PARTS REQUEST | |
|
COMING Dipper
5100042750 · qty on machine: 1 | |||||
| 7 | 5000162163 | Bolt | 2 | ADD TO CART | |

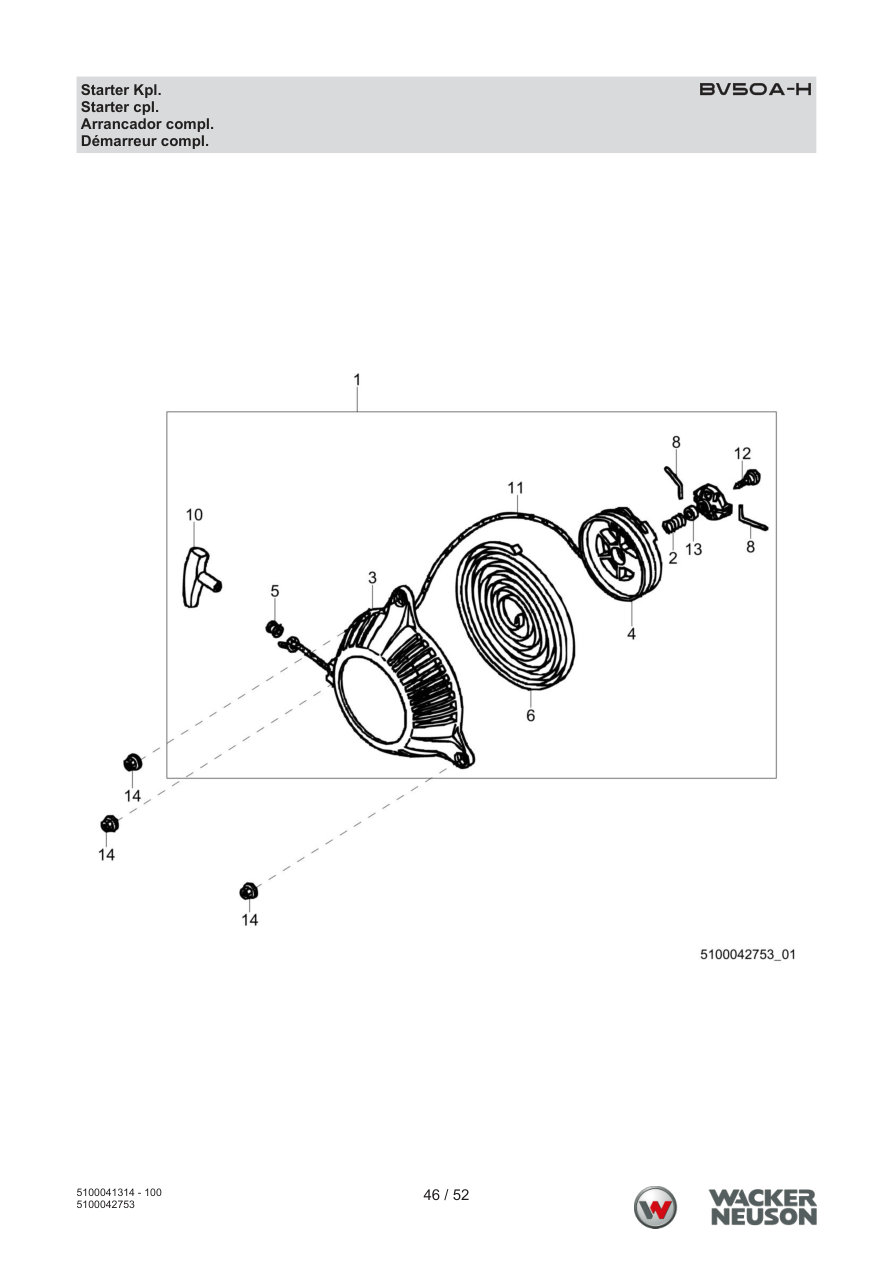

Page 46 — Starter cpl.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217221 | Recoil starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Recoil starter cpl.
5000217221 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000217222 | Spring | 1 | PARTS REQUEST | |
|
COMING Spring
5000217222 · qty on machine: 1 | |||||
| 3 | 5000217224 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000217224 · qty on machine: 1 | |||||
| 4 | 5000217225 | Reel | 1 | PARTS REQUEST | |
|
COMING Reel
5000217225 · qty on machine: 1 | |||||
| 5 | 5000157600 | Guide | 1 | PARTS REQUEST | |
|
COMING Guide
5000157600 · qty on machine: 1 | |||||
| 6 | 5000217227 | Spring | 1 | PARTS REQUEST | |
|
COMING Spring
5000217227 · qty on machine: 1 | |||||
| 7 | 5000217229 | Pulley | 1 | PARTS REQUEST | |
|
COMING Pulley
5000217229 · qty on machine: 1 | |||||
| 8 | 5000217231 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
5000217231 · qty on machine: 1 | |||||
| 10 | 5000157605 | Starter rope handle | 1 | PARTS REQUEST | |
|
COMING Starter rope handle
5000157605 · qty on machine: 1 | |||||
| 11 | 5000217232 | Rope | 1 | PARTS REQUEST | |
|
COMING Rope
5000217232 · qty on machine: 1 | |||||
| 12 | 5000157608 | Setscrew | 1 | PARTS REQUEST | |
|
COMING Setscrew
5000157608 · qty on machine: 1 | |||||
| 13 | 5000217279 | Collar | 1 | PARTS REQUEST | |
|
COMING Collar
5000217279 · qty on machine: 1 | |||||
| 14 | 5000156650 | Flange nut | 3 | ADD TO CART | |

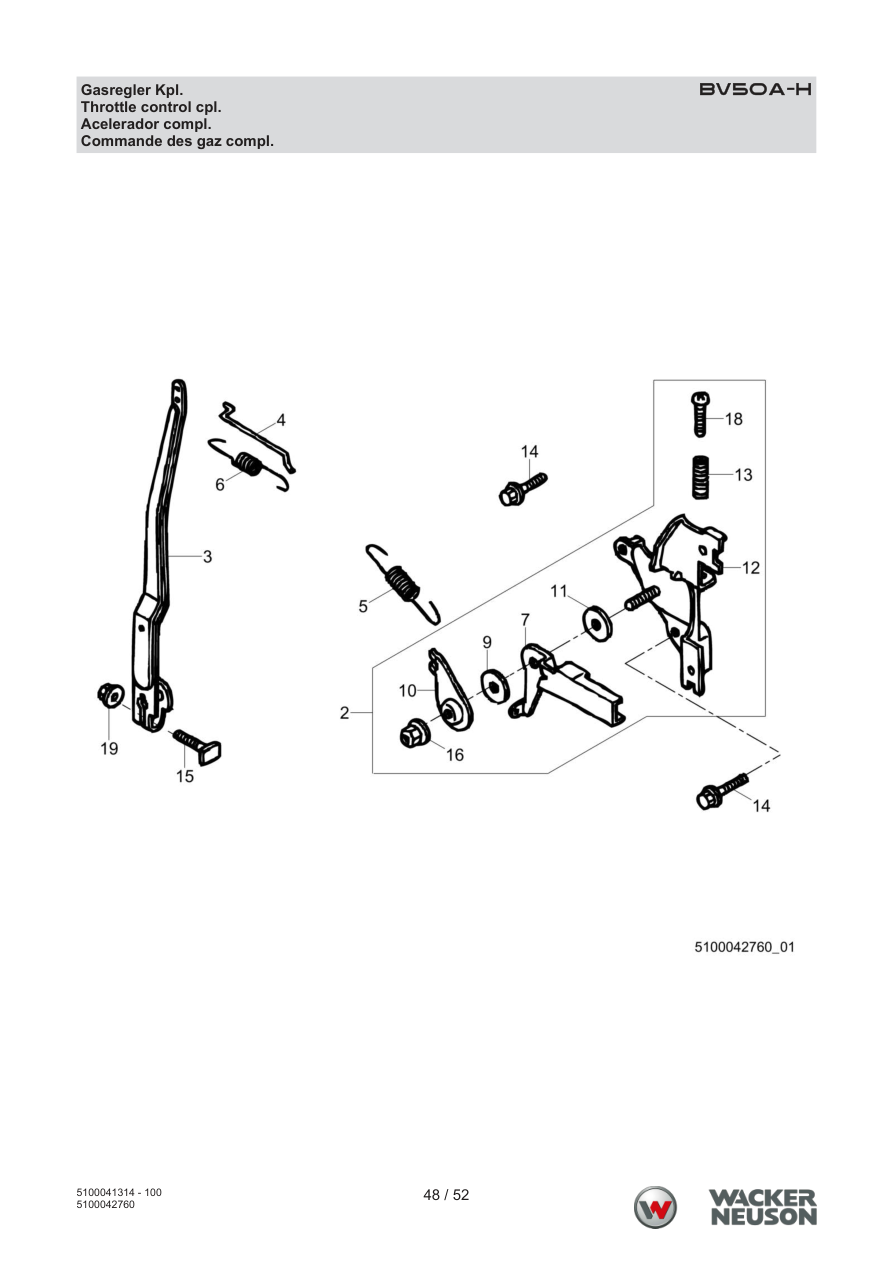

Page 48 — Throttle control cpl.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100042743 | Control cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control cpl.
5100042743 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000217179 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
5000217179 · qty on machine: 1 | |||||
| 4 | 5000217180 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5000217180 · qty on machine: 1 | |||||
| 5 | 5000217181 | Governor spring | 1 | PARTS REQUEST | |
|
COMING Governor spring
5000217181 · qty on machine: 1 | |||||
| 6 | 5000217182 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000217182 · qty on machine: 1 | |||||
| 7 | 5000217183 | Control lever | 1 | PARTS REQUEST | |
|
COMING Control lever
5000217183 · qty on machine: 1 | |||||
| 9 | 5000071058 | Spring | 1 | ADD TO CART | |
| 10 | 5000071057 | Washer | 1 | ADD TO CART | |
| 11 | 5000071064 | Spacer | 1 | ADD TO CART | |
| 12 | 5000217184 | Base | 1 | PARTS REQUEST | |
|
COMING Base
5000217184 · qty on machine: 1 | |||||
| 13 | 5000217185 | Spring | 1 | PARTS REQUEST | |
|
COMING Spring
5000217185 · qty on machine: 1 | |||||
| 14 | 5000217244 | Flange bolt | 2 | 5 x 12 | PARTS REQUEST |
|
COMING Flange bolt
5000217244 · qty on machine: 2 5 x 12 | |||||
| 15 | 5200000457 | Bolt | 1 | ADD TO CART | |
| 16 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 18 | 5000071060 | Pan head screw | 1 | M5 x 20 | PARTS REQUEST |
|
COMING Pan head screw
5000071060 · qty on machine: 1 M5 x 20 | |||||
| 19 | 5000071056 | Nut | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson BV50 internal vibrator.
List price: $2,820.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000071018
Throttle stop screw
$20.95
5000071022
Set-float valve
$49.95
5000071056
Nut
$0.95
5000071057
Washer
$9.95
5000071058
Spring
$4.95
5000071060
Pan head screw
5000071064
Spacer
$9.95
5000072332
Flange nut
5000072782
Locknut
$6.95
5000073269
Plate
$7.95
5000073270
Spring washer
$4.95
5000073272
Gasket
$4.95
5000073273
Screw w/washer
$17.95
5000076375
Clip
5000078545
Seal
$2.95
5000078547
Fuel cock
5000081750
Screw
$7.95
5000151933
Clip
$5.95
5000156650
Flange nut
$1.95
5000156666
Float cpl.
$8.95
5000156667
Float cpl.
5000156669
Setscrew
$25.95
5000156724
Piston pin clip
5000157487
Valve holder
$1.95
5000157537
Bushing spacer
5000157555
Pan head screw
$1.95
5000157556
Hose
5000157600
Guide
5000157605
Starter rope handle
5000157608
Setscrew
5000157610
Spark plug
$5.95
5000157752
Screw
5000158522
Threaded pin
$21.95
5000162079
Run/stop switch
$33.95
5000162092
Pilot jet
$24.95
5000162108
Fuel filter
$10.95
5000162110
Mounting bracket
5000162111
Mounting bracket
5000162113
Fuel tank cap
$9.95
5000162115
Collar ring
$8.95
5000162118
Woodruff key
$4.95
5000162139
Valve
$5.95
5000162140
Plate
$2.95
5000162163
Bolt
$5.95
5000162647
Gasket
$5.95
5000174444
Bolt
5000174478
Spacer
5000174766
Bushing
5000174767
Flange
5000174768
Retaining ring
5000174803
Locknut
5000174804
Spring washer
5000174805
Spring washer
5000174808
Locknut
5000174809
Bolt
5000174827
Bolt
5000174831
Locknut
5000174834
Washer
5000174841
Spacer
5000174843
Socket head cap screw
5000174853
Washer
5000174874
Spring
5000174876
Throttle control mount
5000174879
Flexible tube
5000174886
Engine-honda
5000178759
Label sheet-eu
5000208617
Clamp
$3.95
5000215791
Air cleaner element
5000217119
Oil casing
5000217120
Crankcase cover
5000217123
Seal
5000217125
Cover
5000217130
Piston ring set
5000217132
Piston
5000217134
Connecting rod cpl.
5000217137
Crankshaft
5000217138
Camshaft cpl.
5000217139
Roller
5000217142
Push rod
5000217144
Valve
5000217145
Roller
5000217147
Pivot
5000217149
Intake valve
5000217153
Valve
5000217156
Valve spring
5000217157
Collar
5000217169
Choke set
5000217171
Carburetor cpl.
5000217172
Main nozzle jet
5000217173
Insulator
5000217174
Gasket
5000217176
Governor cpl.
5000217177
Slider
5000217178
Shaft
5000217179
Arm
5000217180
Governor rod
5000217181
Governor spring
5000217182
Spacer
5000217183
Control lever
5000217184
Base
5000217185
Spring
5000217187
Air cleaner housing
5000217188
Seal
5000217190
Air cleaner cover
5000217192
Air cleaner cover
5000217195
Fuel tank bracket
5000217204
Protector
5000217209
Guide
5000217211
Fan cover
5000217214
Shroud
5000217221
Recoil starter cpl.
5000217222
Spring
5000217224
Housing
5000217225
Reel
5000217227
Spring
5000217229
Pulley
5000217231
Arm
5000217232
Rope
5000217234
Ignition coil
5000217237
Flywheel
5000217239
Wire
5000217240
Bracket
5000217241
Oil switch cpl.
5000217243
Stud bolt
5000217244
Flange bolt
5000217245
Flange bolt
5000217246
Flange bolt
5000217247
Flange bolt
5000217251
Flange bolt
5000217252
Flange bolt
5000217261
Stud bolt
5000217262
Stud bolt
5000217263
Flange bolt
5000217265
Lock nut
5000217266
Nut
5000217267
Washer
5000217268
Washer
5000217269
Washer
5000217270
Clip
5000217271
Key
5000217275
Oil seal
5000217276
O-ring
5000217278
Collar
5000217279
Collar
5000217280
Self-tapping screw
5000217281
Locking pin
5000217282
Dowel pin
5000217286
Flange bolt
5000217287
Flange bolt
5000217289
Main jet
5000222084
Label symbol
$13.95
5000222101
Label-wacker neuson logo
5100005313
Oil sensor
$88.95
5100042556
Filter housing cpl.
5100042565
Washer
5100042567
Bolt
5100042568
Bolt
5100042569
Mounting plate
5100042570
Bolt
5100042572
Shockmount set
5100042574
Tube
5100042577
End cap
5100042579
Throttle cpl.
5100042580
Throttle lever cpl.
5100042581
Mounting plate
5100042582
Bolt
5100042583
Clutch cpl.
5100042584
Cover
5100042585
Spacer
5100042586
Shaft
5100042587
Retaining ring
5100042588
Coupling
5100042589
Bolt
5100042590
Belt
5100042591
Harness cpl.
5100042592
Tote
5100042593
Tote mount
5100042594
Bolt
5100042595
Washer
5100042616
Bolt
5100042622
Collar
5100042623
Gasket set
5100042624
Screw
5100042625
Jet
5100042627
Jet
5100042628
Muffler
5100042629
Spark arrester
5100042684
Fuel tank
5100042685
Filter
5100042687
Gasket
5100042688
Fuel tube
5100042740
Flange nut
5100042743
Control cpl.
5100042744
Cylinder
5100042745
Filter
5100042746
Oil seal
5100042749
Piston pin
5100042750
Dipper
5100042751
Exhaust valve
5100043963
Key
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
