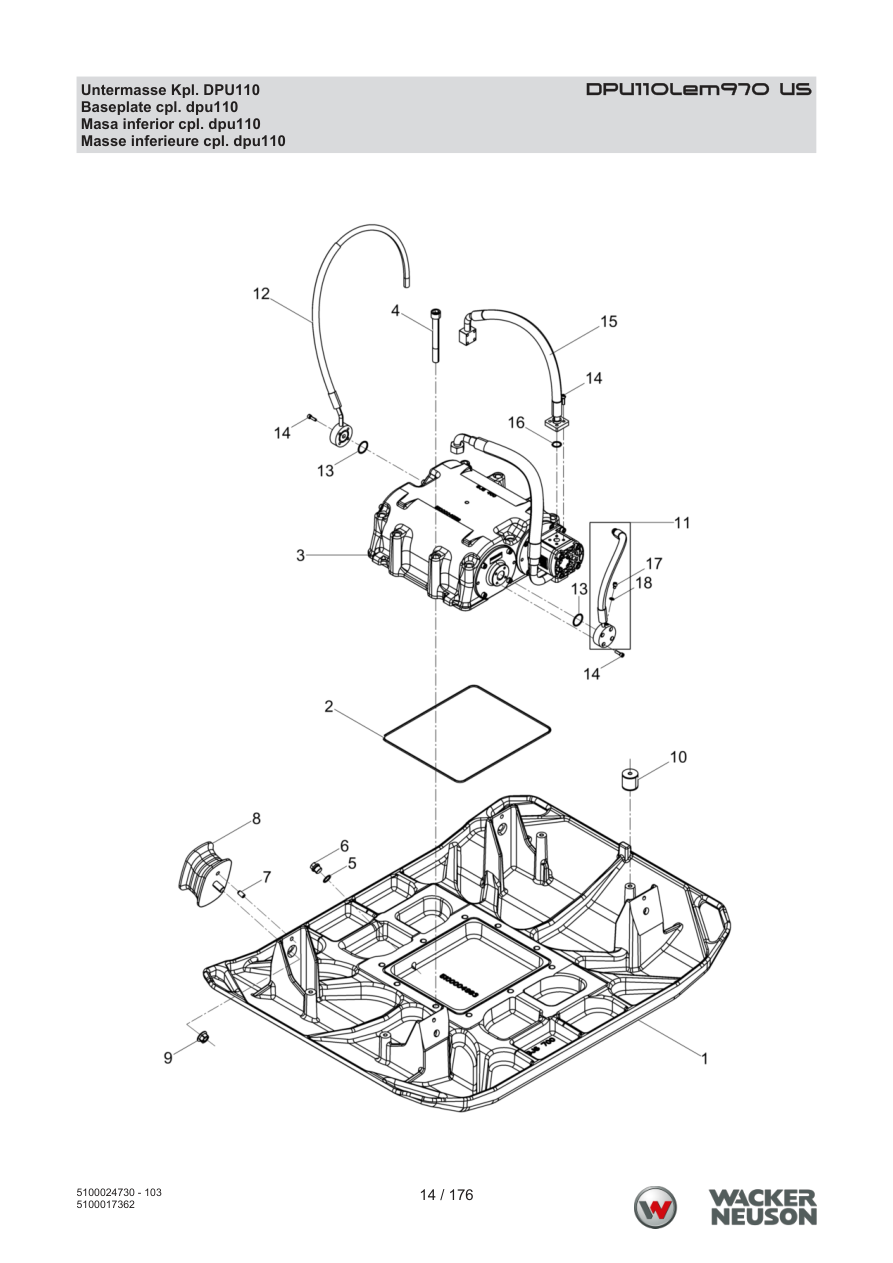

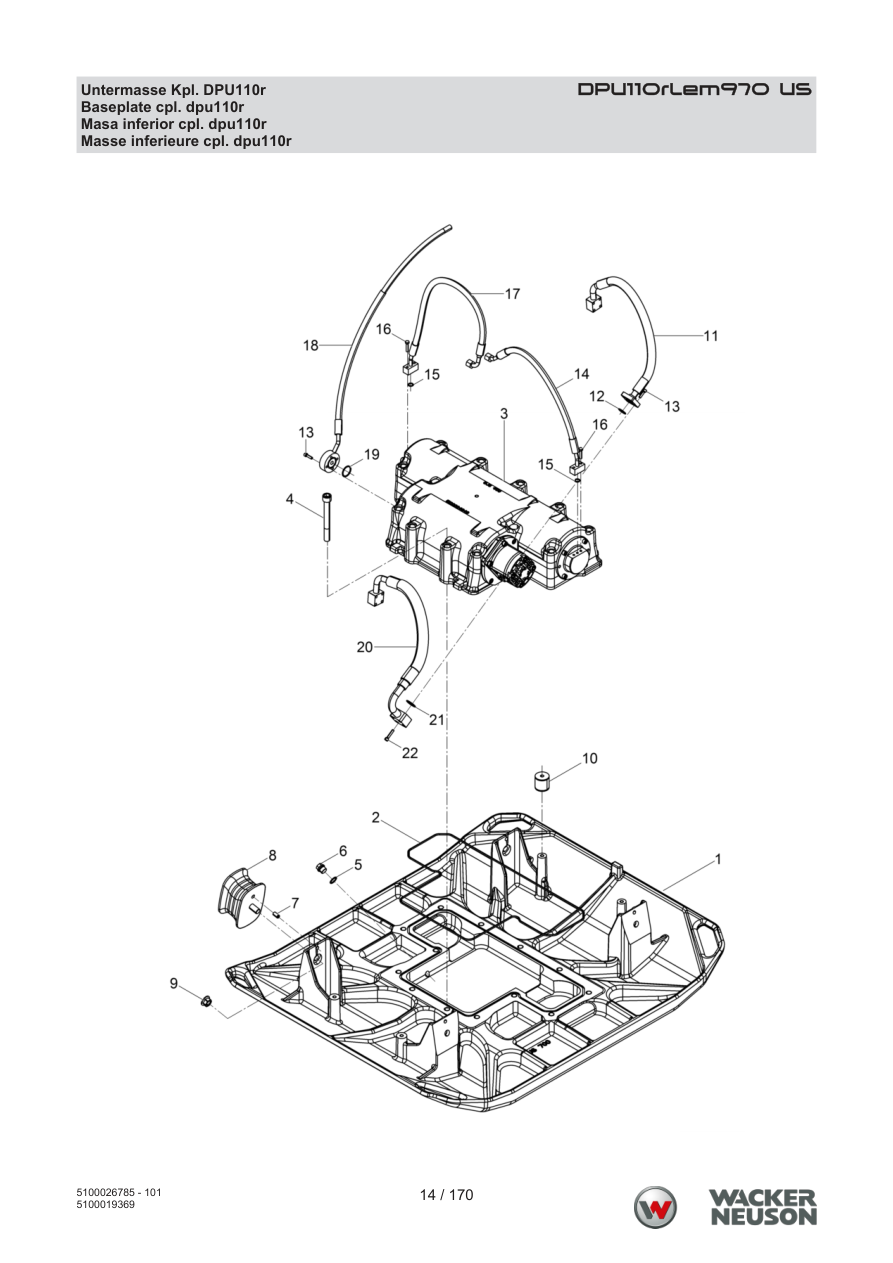

Need the PDF? ↓Page 14 — Baseplate cpl. dpu110
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004984 | Baseplate 870 | 1 | PARTS REQUEST | |
|
COMING Baseplate 870
5100004984 · qty on machine: 1 | |||||
| 1 | 5100004986 | Baseplate 970 | 1 | PARTS REQUEST | |
|
COMING Baseplate 970
5100004986 · qty on machine: 1 | |||||
| 2 | 5100010363 | O-ring | 1 | ADD TO CART | |
| 3 | 5100013824 | Exciter cpl. (dpu110) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu110)
5100013824 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100009777 | Cheese head screw | 10 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5000068222 | Plug (threaded) | 1 | ADD TO CART | |
| 7 | 5000203227 | Roll pin | 4 | ADD TO CART | |
| 8 | 5000216648 | Silent block | 4 | ADD TO CART | |
| 9 | 5000212628 | Locknut | 4 | ADD TO CART | |
| 10 | 5000216644 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100010051 | Hose pipe | 1 | ADD TO CART | |
| 12 | 5100010160 | Breather tube | 1 | ADD TO CART | |
| 13 | 5100010115 | O-ring | 2 | ADD TO CART | |
| 14 | 5000012373 | Cheese head screw | 12 | 10Nm/7ft.lbs | ADD TO CART |
| 15 | 5100031076 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100031076 · qty on machine: 1 | |||||
| 16 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
| 17 | 5000014425 | Cheese head screw | 1 | 10Nm/7ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000014425 · qty on machine: 1 10Nm/7ft.lbs | |||||
| 18 | 5100022402 | Gasket | 1 | ADD TO CART | |

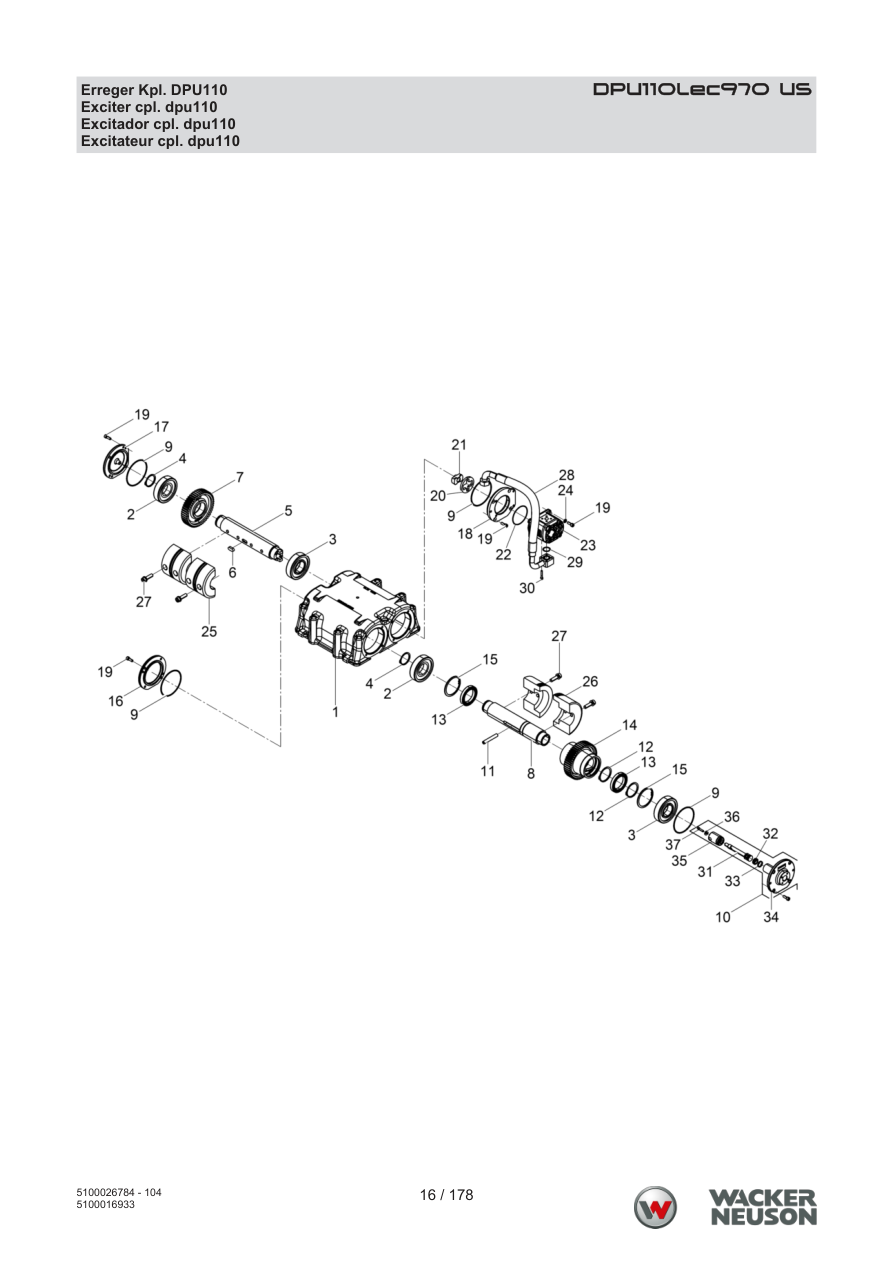

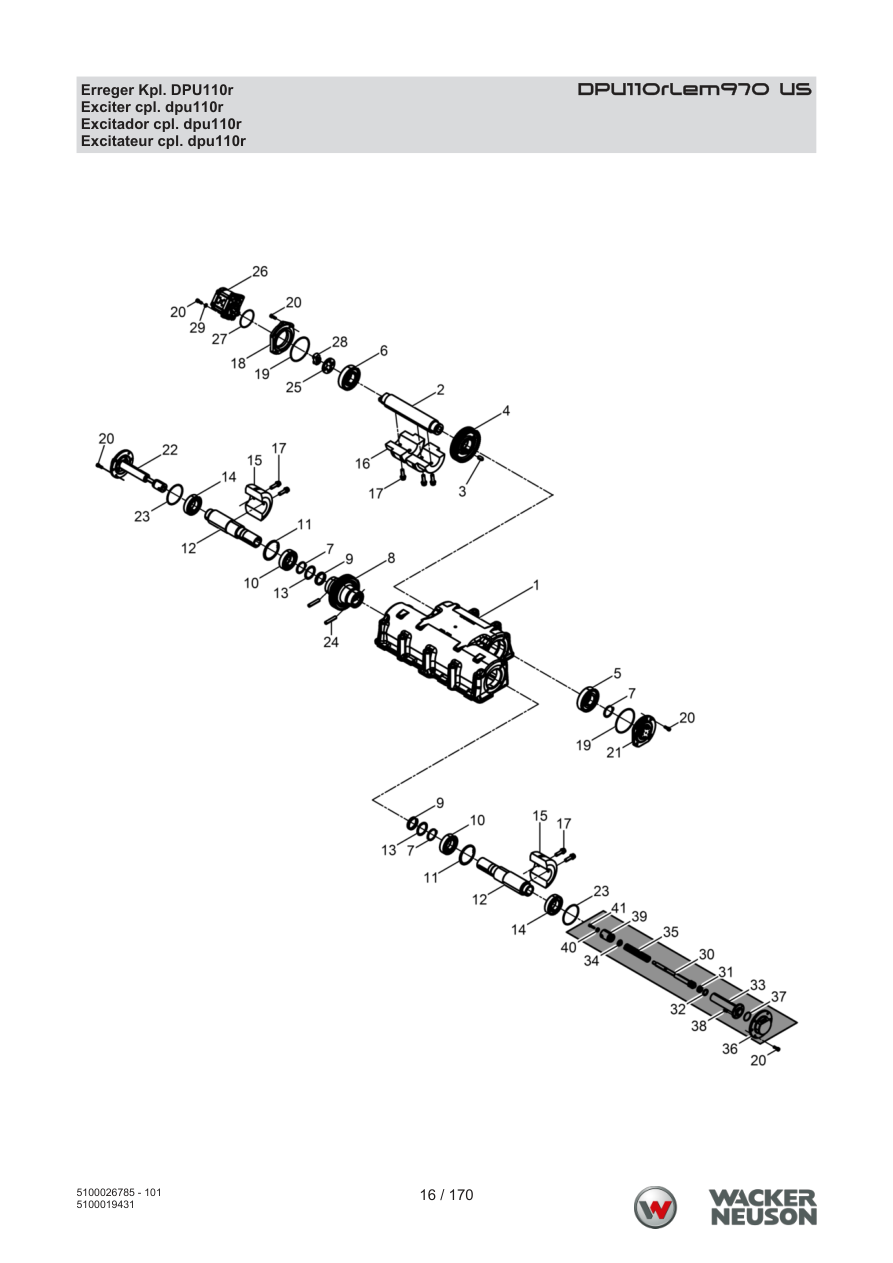

Page 16 — Exciter cpl. dpu110
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004557 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5100010479 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 3 | 5100015097 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 4 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 5 | 5100004298 | Driving shaft | 1 | ADD TO CART | |
| 6 | 5002006603 | Fitting key | 1 | ADD TO CART | |
| 7 | 5100004306 | Gear | 1 | ADD TO CART | |
| 8 | 5100004300 | Shaft | 1 | ADD TO CART | |
| 9 | 5100005660 | O-ring | 4 | ADD TO CART | |
| 10 | 5100004284 | Adjustment cylinder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5100005449 | Tripping pin | 1 | ADD TO CART | |
| 12 | 5000043180 | Retaining ring | 2 | ADD TO CART | |
| 13 | 5100005505 | Grooved ball bearing | 2 | ADD TO CART | |
| 14 | 5100004303 | Adjusting sleeve | 1 | ADD TO CART | |
| 15 | 5100005659 | Retaining ring | 2 | ADD TO CART | |
| 16 | 5100004295 | Cover | 1 | ADD TO CART | |
| 17 | 5100004294 | Vent cover | 1 | ADD TO CART | |
| 18 | 5100004409 | Flange | 1 | ADD TO CART | |
| 19 | 5000012629 | Cheese head screw | 20 | 25Nm/18ft.lbs | ADD TO CART |
| 20 | 5100003535 | Disc | 1 | ADD TO CART | |
| 21 | 5100003696 | Carrier | 1 | ADD TO CART | |
| 22 | 5100004118 | O-ring | 1 | ADD TO CART | |
| 23 | 5100005739 | Gear pump right | 1 | ADD TO CART | |
| 24 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 25 | 5100016126 | Eccentric weight | 2 | ADD TO CART | |
| 26 | 5100016127 | Eccentric weight | 2 | ADD TO CART | |
| 27 | 5100005604 | Corrugated-head screw | 8 | ADD TO CART | |
| 28 | 5100009783 | Hose pipe | 1 | ADD TO CART | |
| 29 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 30 | 5000011549 | Cheese head screw | 4 | 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 31 | 5100004283 | Piston | 1 | ADD TO CART | |
| 32 | 5100005657 | Ring | 1 | ADD TO CART | |
| 33 | 5100005658 | Ring | 1 | ADD TO CART | |
| 34 | 5100004281 | Cylinder | 1 | ADD TO CART | |
| 35 | 5100016693 | Piston cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5000124717 | Washer | 1 | ADD TO CART | |
| 37 | 5000220001 | Cheese head screw | 1 | ADD TO CART | |

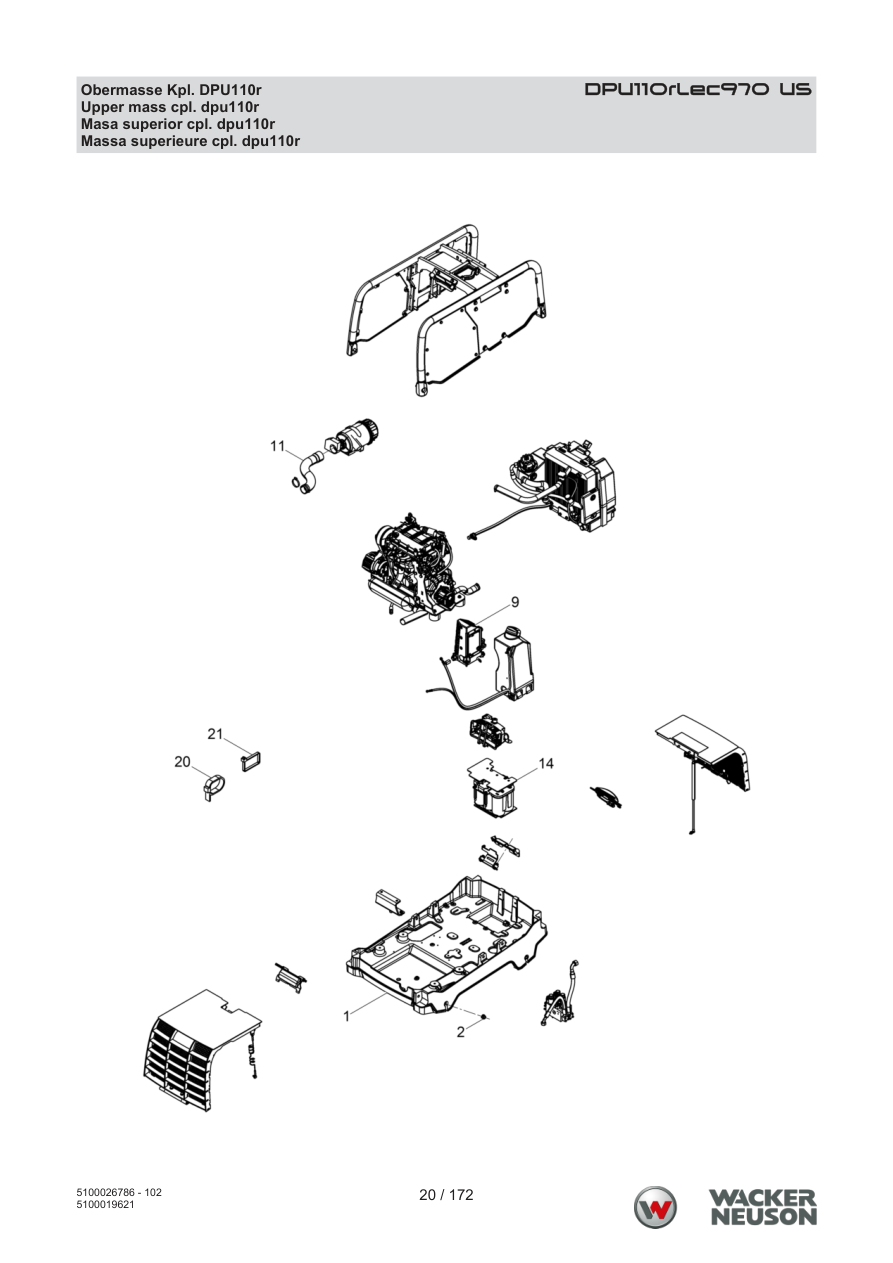

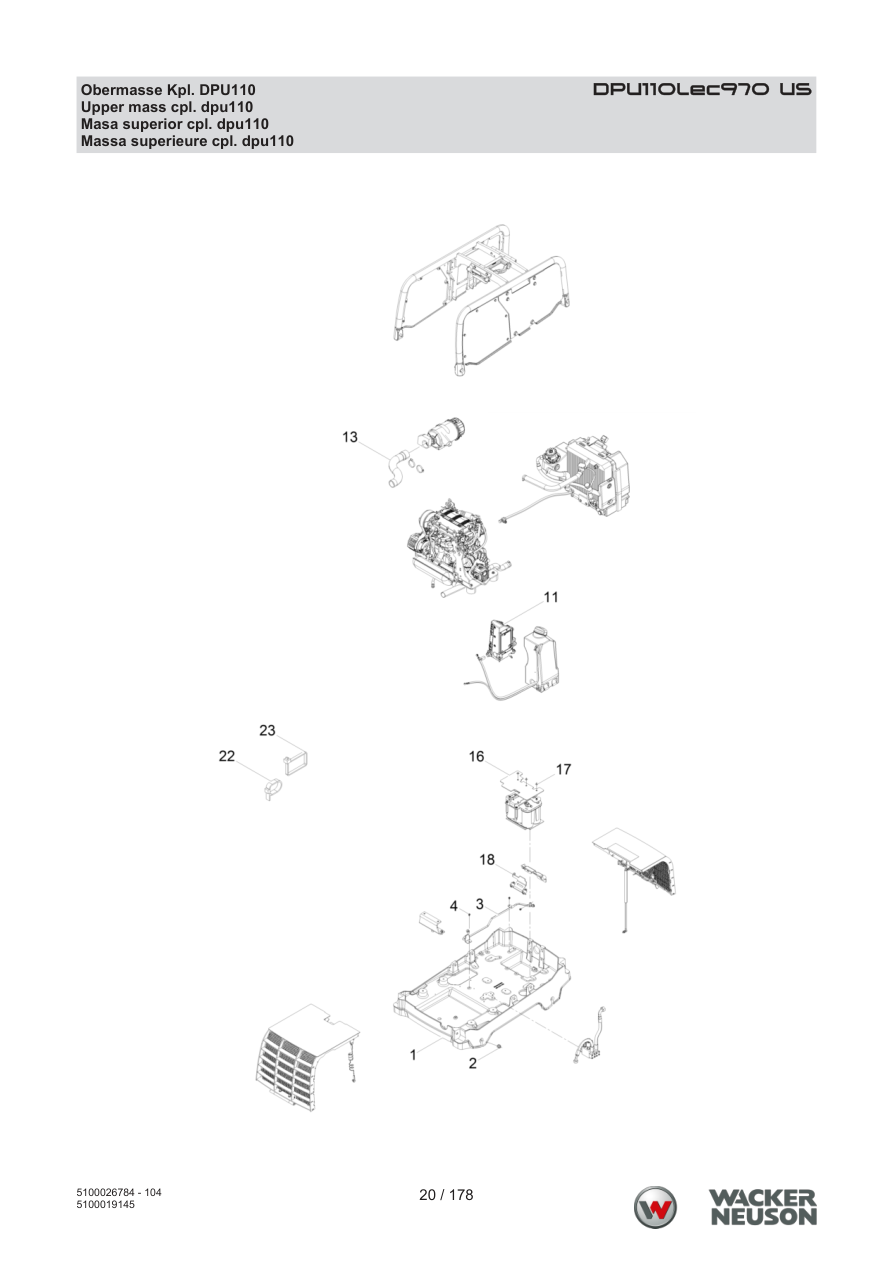

Page 20 — Upper mass cpl. dpu110
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004995 | Upper mass | 1 | ADD TO CART | |
| 2 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 3 | 5100010049 | Pipe | 1 | ADD TO CART | |
| 4 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 11 | 5100013830 | Electric box cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 13 | 5100006055 | Suction hose | 1 | ADD TO CART | |
| 16 | 5100010883 | Protective cloth | 1 | ADD TO CART | |
| 17 | 5100027359 | Disc | 3 | ADD TO CART | |
| 18 | 5100018109 | Locking lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5000047388 | Cable tie | 20 | ADD TO CART | |
| 23 | 5000038489 | Tie cable | 10 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 10 | |||||

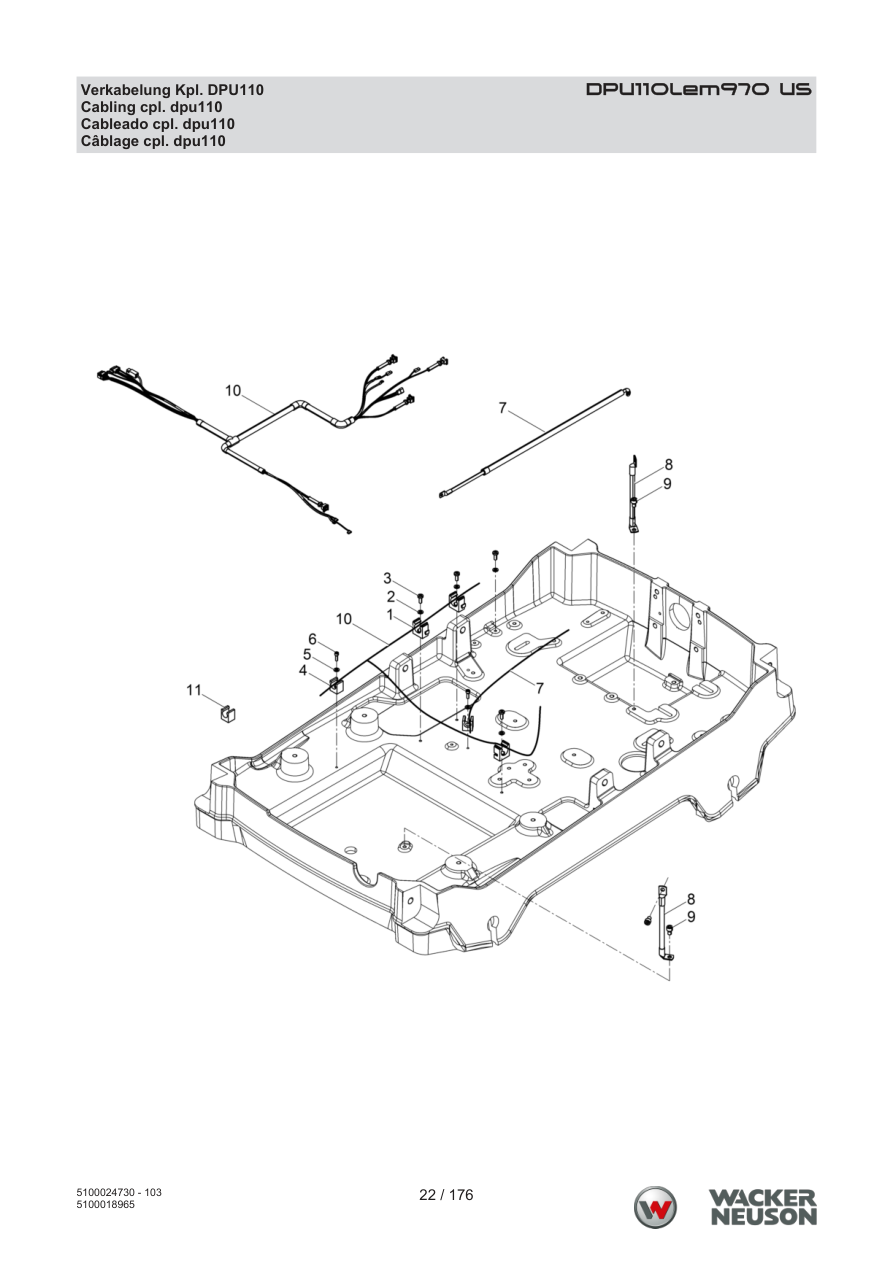

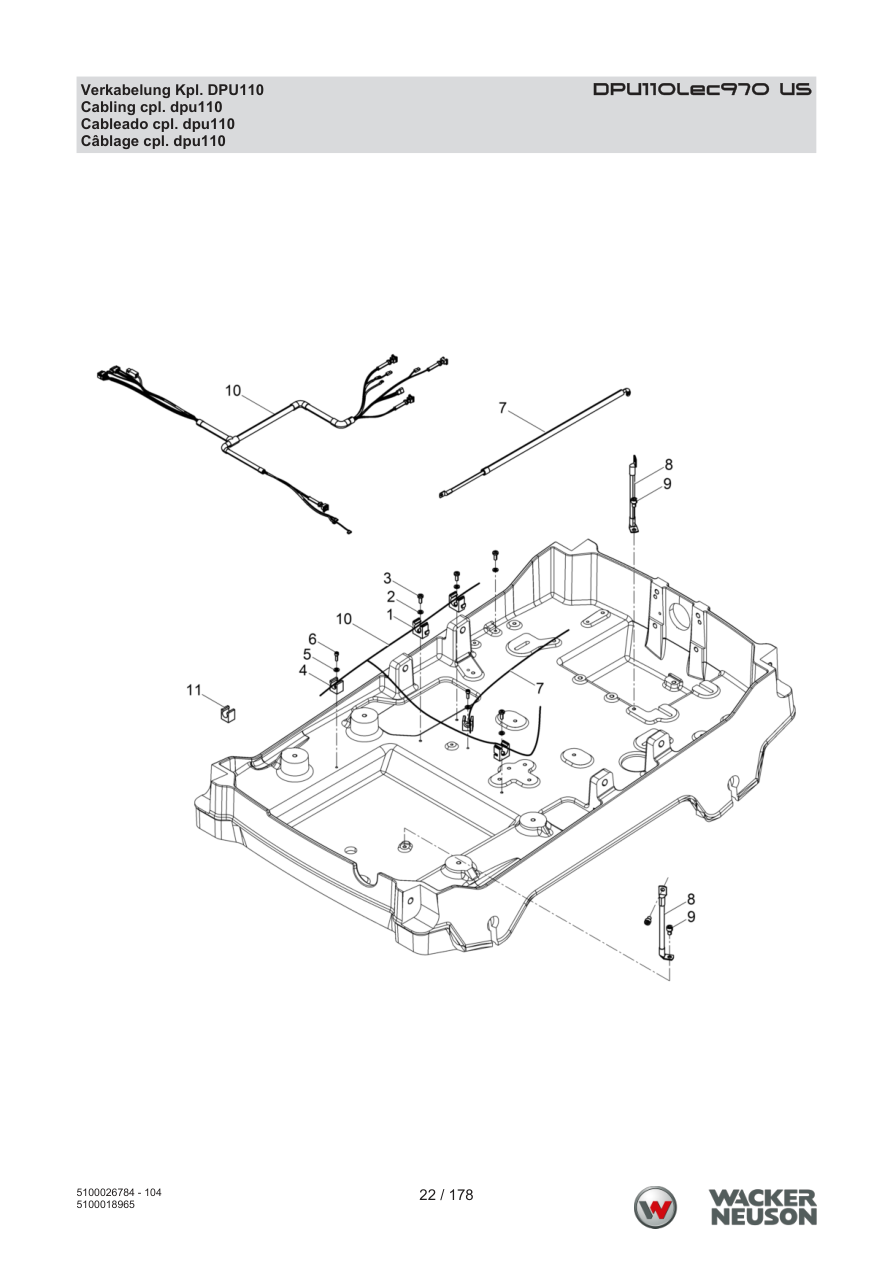

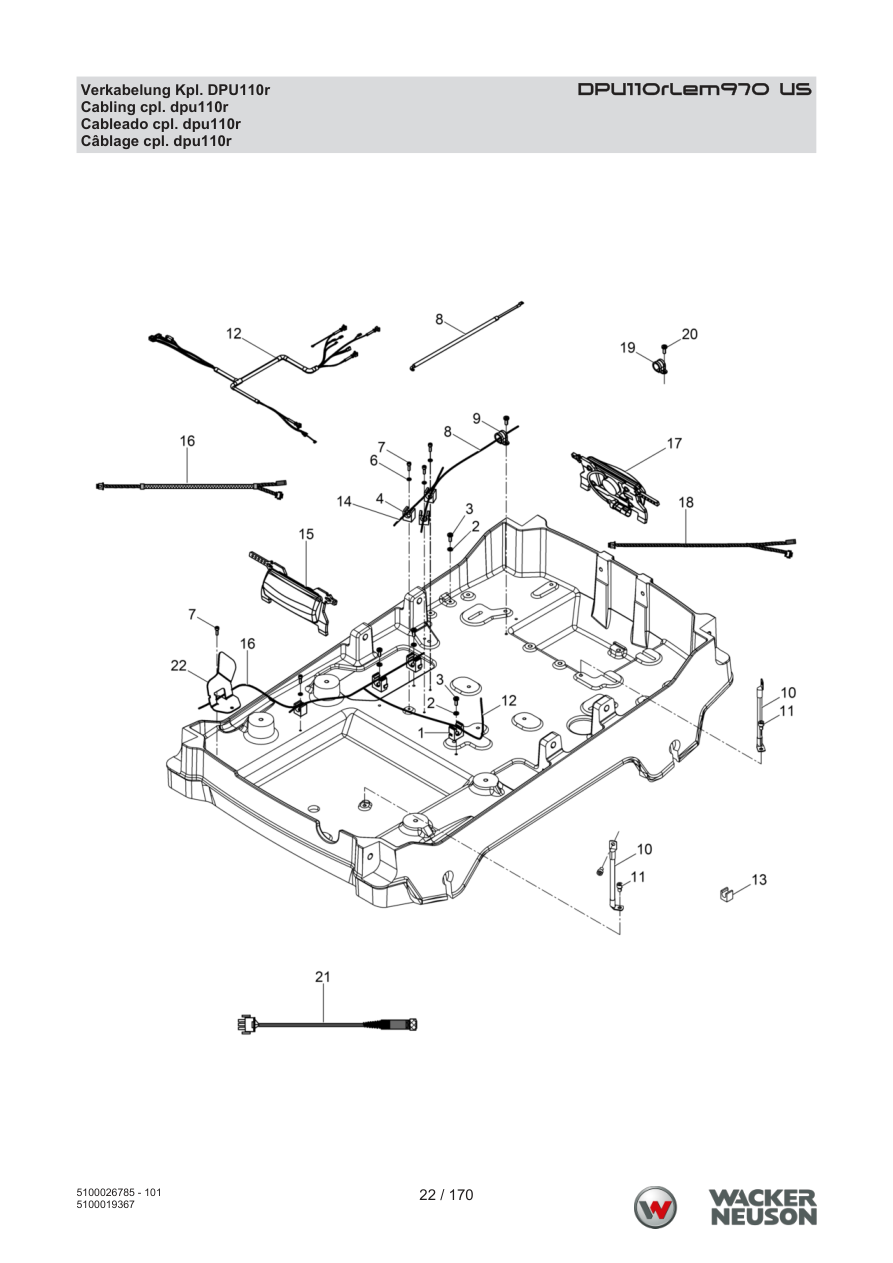

Page 22 — Cabling cpl. dpu110
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210107 | Clamp | 3 | ADD TO CART | |
| 2 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 3 | 5000211755 | Screw | 4 | ADD TO CART | |
| 4 | 5100010281 | Clamp | 2 | ADD TO CART | |
| 5 | 5000010625 | Flat washer | 2 | ADD TO CART | |
| 6 | 5000011561 | Cheese head screw | 2 | ADD TO CART | |
| 7 | 5100005670 | Positive cable | 1 | ADD TO CART | |
| 8 | 5100010152 | Negative pole strap | 2 | ADD TO CART | |
| 9 | 5000013574 | Cheese head screw | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 10 | 5100005669 | Cable harness engine | 1 | ADD TO CART | |
| 11 | 5100017849 | Clamp | 1 | ADD TO CART | |

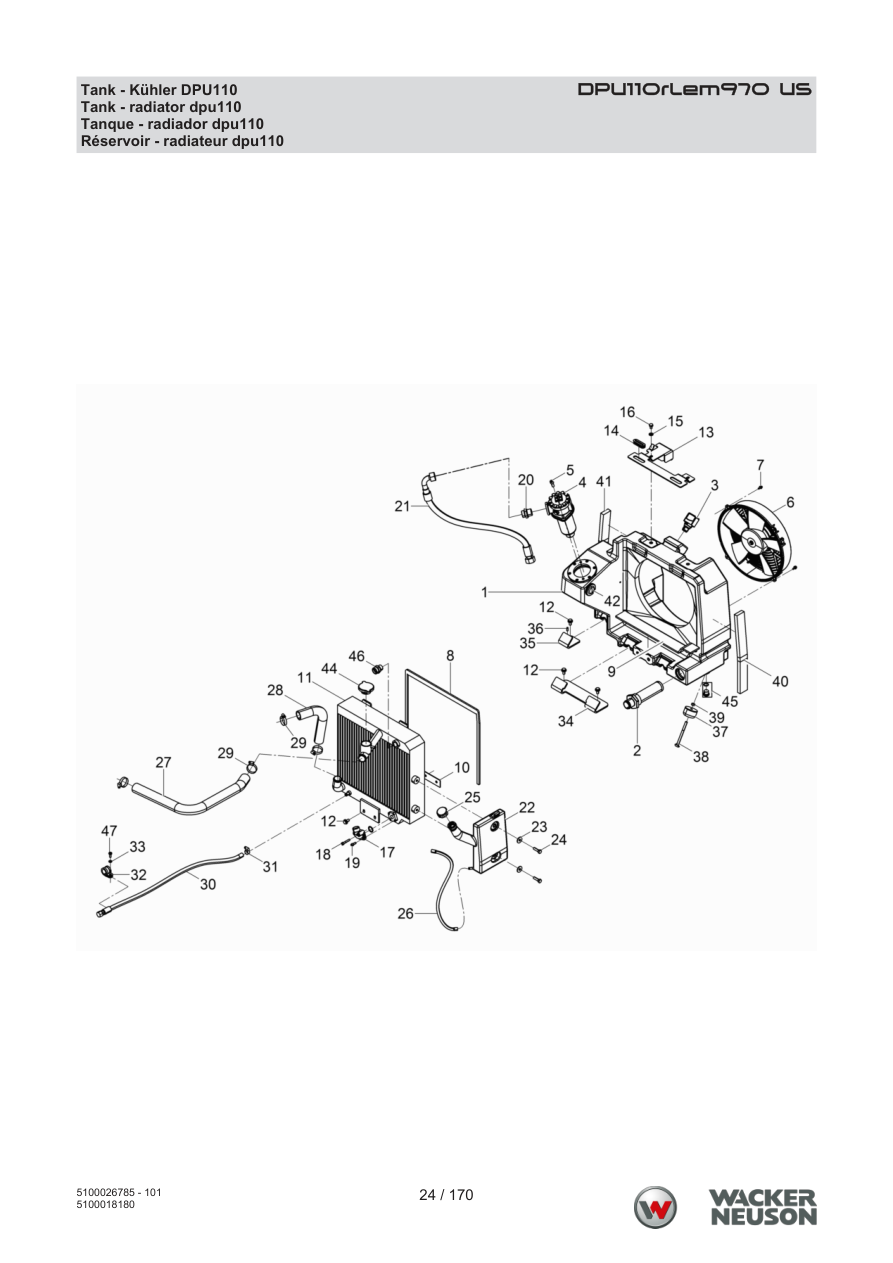

Page 24 — Tank - radiator dpu110
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005485 | Hydraulic tank | 1 | ADD TO CART | |
| 2 | 5100010301 | Filter element | 1 | ADD TO CART | |
| 3 | 5100010303 | Filter element | 1 | PARTS REQUEST | |
|
COMING Filter element
5100010303 · qty on machine: 1 | |||||
| 4 | 5100010302 | Return filter | 1 | ADD TO CART | |
| 5 | 5000012629 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010341 | Fan | 1 | ADD TO CART | |
| 7 | 5100015757 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 8 | 5100016477 | Gasket | 1 | ADD TO CART | |
| 9 | 5100016479 | Gasket | 1 | ADD TO CART | |
| 10 | 5100015887 | Plate | 1 | ADD TO CART | |
| 11 | 5100005486 | Radiator | 1 | ADD TO CART | |
| 12 | 5000211795 | Corrugated-head screw | 5 | ADD TO CART | |
| 13 | 5100014131 | Bracket | 1 | ADD TO CART | |
| 14 | 5100010830 | Cable passage | 2 | ADD TO CART | |
| 15 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 16 | 5000012360 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 17 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 18 | 5000011548 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 19 | 5000011553 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 20 | 5100011096 | Screwed socket | 1 | ADD TO CART | |
| 21 | 5100010253 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100010253 · qty on machine: 1 | |||||
| 22 | 5100009849 | Bottle-overflow | 1 | ADD TO CART | |
| 23 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 24 | 5000011456 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 25 | 5100015982 | Cover | 1 | ADD TO CART | |
| 26 | 5100015647 | Radiator hose | 1 | ADD TO CART | |
| 27 | 5100006060 | Water hose | 1 | ADD TO CART | |
| 28 | 5100006059 | Water hose | 1 | ADD TO CART | |
| 29 | 5002004724 | Worm drive house clip | 4 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 4 | |||||
| 30 | 5100010256 | Hose pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 32 | 5000206551 | Clamp | 1 | ADD TO CART | |
| 33 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 34 | 5100010567 | Bracket | 1 | ADD TO CART | |
| 35 | 5100010568 | Bracket | 1 | ADD TO CART | |
| 36 | 5000097656 | Roll pin | 1 | ADD TO CART | |
| 37 | 5100009991 | Shockmount | 2 | ADD TO CART | |
| 38 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 39 | 5000010882 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100016491 | Gasket | 1 | ADD TO CART | |
| 41 | 5100016492 | Gasket | 1 | ADD TO CART | |
| 42 | 1000262373 | View glass | 1 | PARTS REQUEST | |
|
COMING View glass
1000262373 · qty on machine: 1 | |||||
| 44 | 5100011421 | Cover (bayonet lock) | 1 | ADD TO CART | |
| 45 | 5100015762 | Plug (threaded) | 1 | ADD TO CART | |
| 46 | 5000063739 | Screwed socket | 1 | ADD TO CART | |
| 47 | 5000211755 | Screw | 1 | ADD TO CART | |

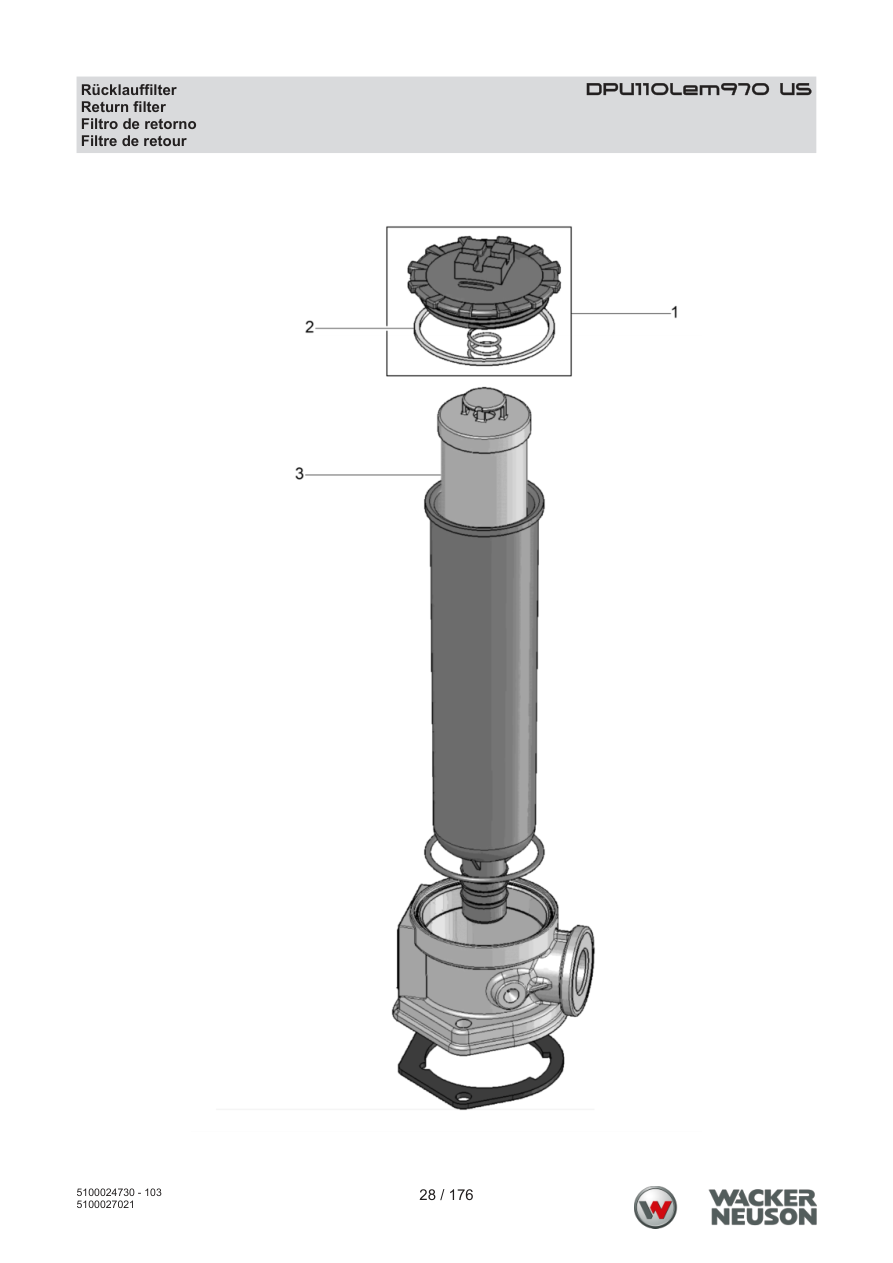

Page 28 — Return filter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220217 | Cover | 1 | ADD TO CART | |
| 2 | 5000220218 | Gasket | 1 | ADD TO CART | |
| 3 | 5100016998 | Filter element | 1 | ADD TO CART | |

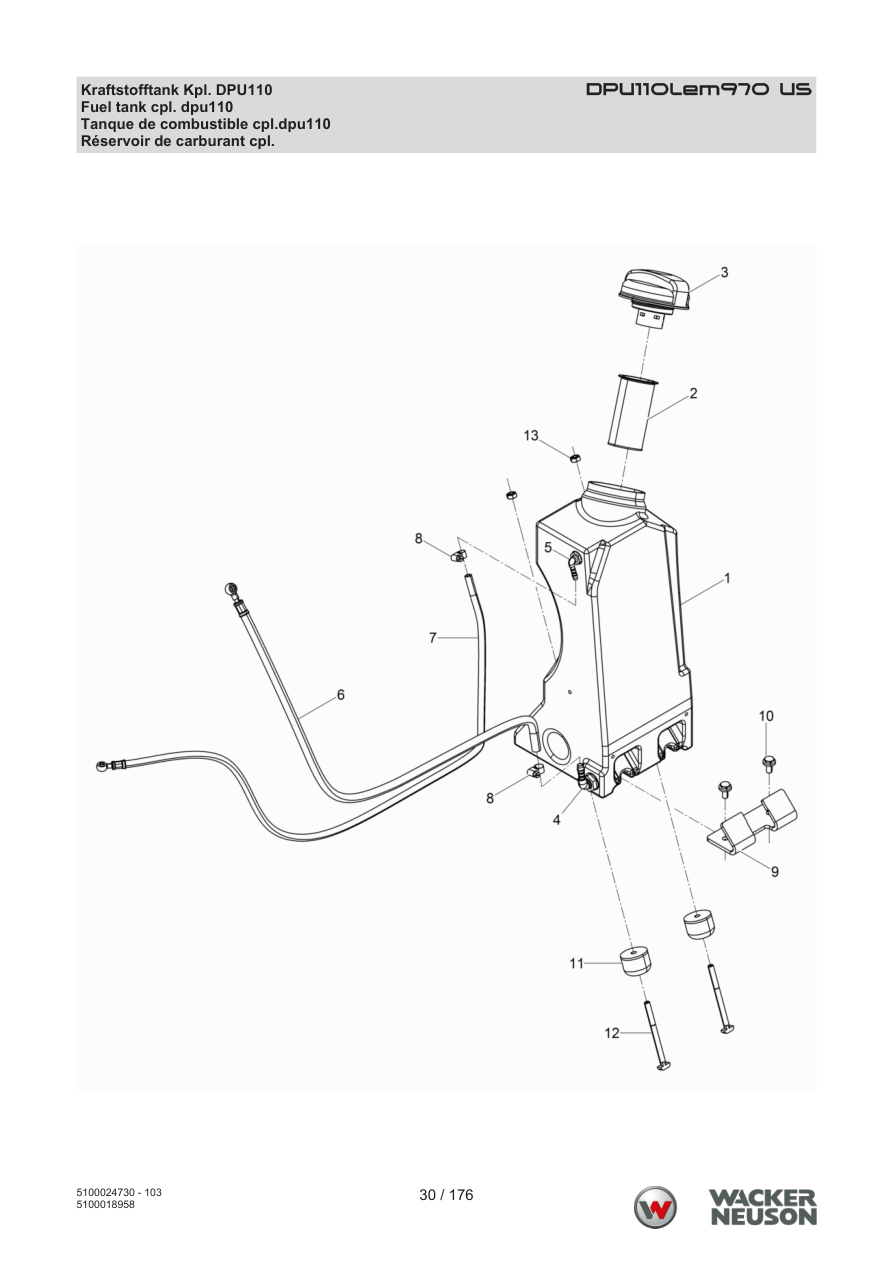

Page 30 — Fuel tank complete dpu110
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 1000051394 | Angle cut piece | 1 | PARTS REQUEST | |
|
COMING Angle cut piece
1000051394 · qty on machine: 1 | |||||
| 5 | 5100010035 | Elbow fitting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100010244 | Fuel hose | 1 | ADD TO CART | |
| 7 | 5100010245 | Fuel hose | 1 | ADD TO CART | |
| 8 | 5000016836 | Clamp | 2 | 3Nm/2ft.lbs | PARTS REQUEST |
|
COMING Clamp
5000016836 · qty on machine: 2 3Nm/2ft.lbs | |||||
| 9 | 5100010569 | Bracket | 1 | ADD TO CART | |
| 10 | 5000211795 | Corrugated-head screw | 2 | 35Nm/26ft.lbs | ADD TO CART |
| 11 | 5100009992 | Shockmount | 2 | ADD TO CART | |
| 12 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 13 | 5000010882 | Hexagon nut | 2 | 6Nm/4ft.lbs | ADD TO CART |
| 1 | 5100038039 | Fuel tank | 1 | ADD TO CART | |
| 2 | 1000267866 | Screen | 1 | PARTS REQUEST | |
|
COMING Screen
1000267866 · qty on machine: 1 | |||||
| 3 | 5100010476 | Tank cover | 1 | ADD TO CART | |

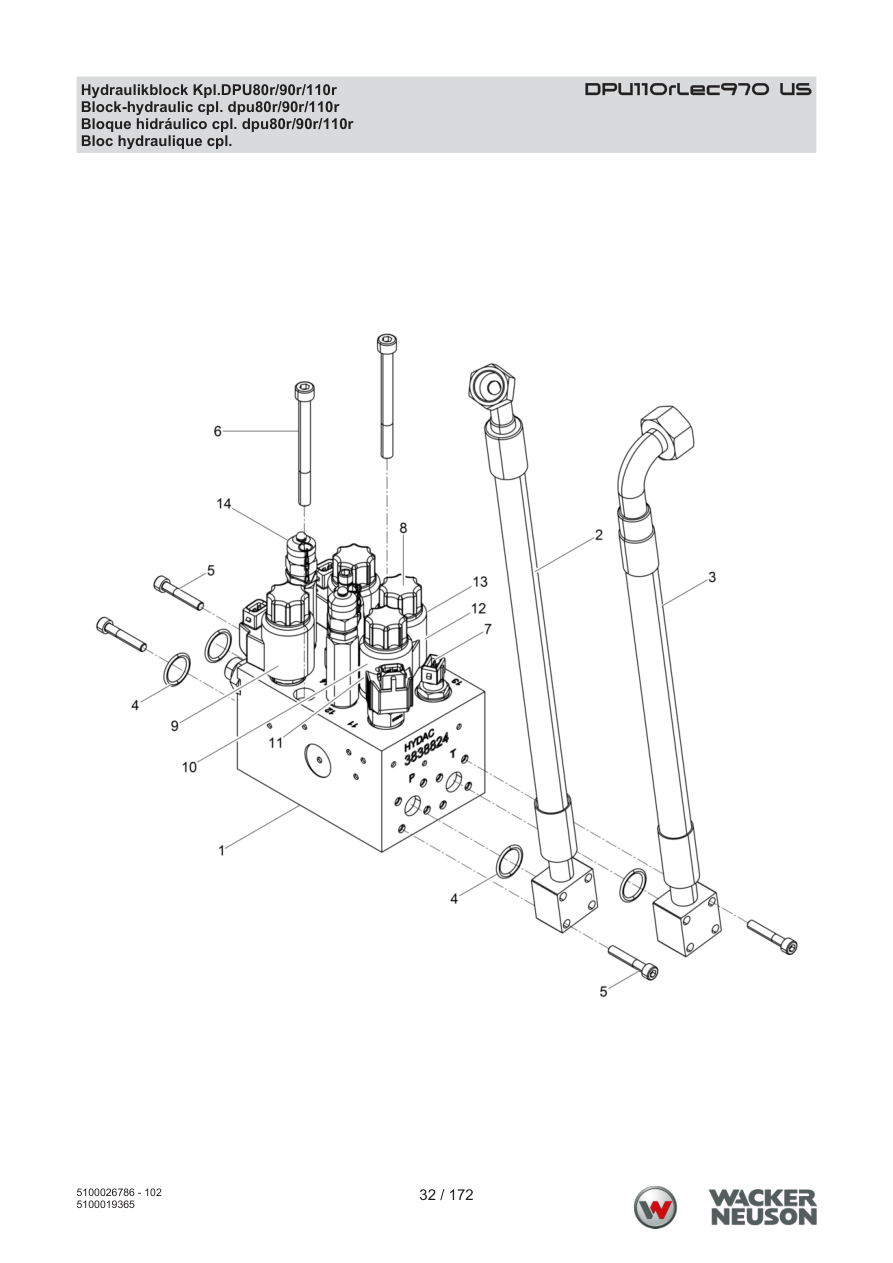

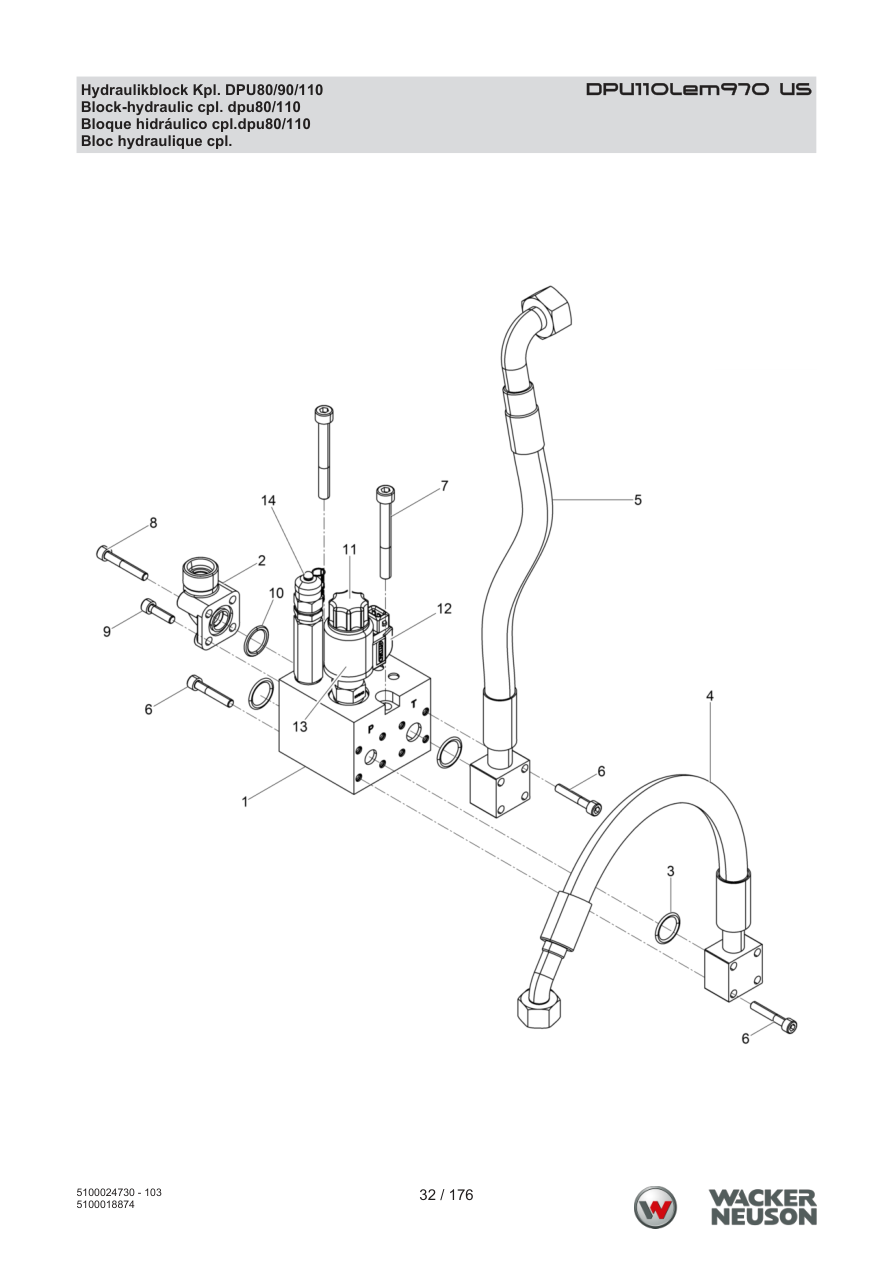

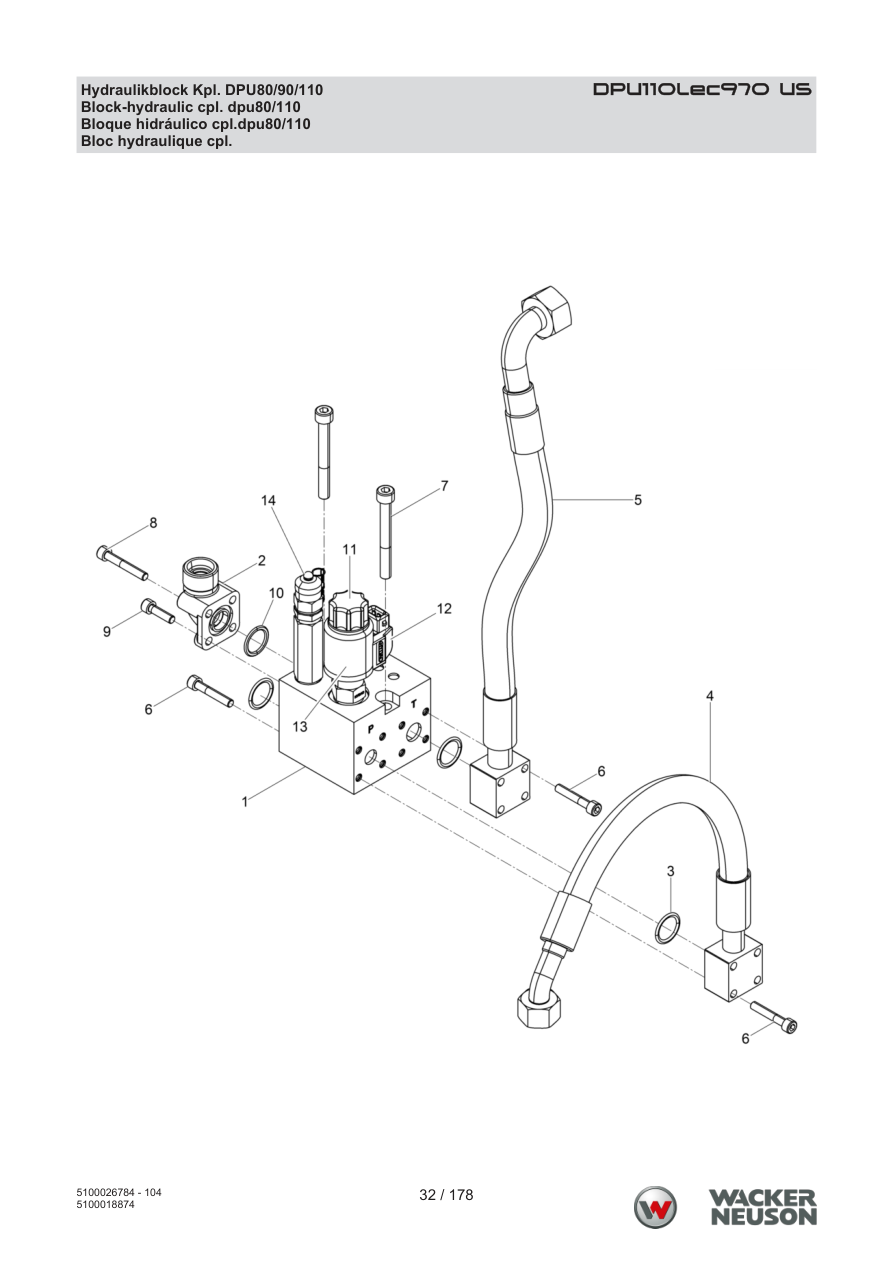

Page 32 — Block-hydraulic cpl. dpu80/110
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005479 | Block-hydraulic | 1 | ADD TO CART | |
| 2 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 3 | 5000210116 | O-ring | 3 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 3 | |||||
| 4 | 5100010247 | Hose pipe | 1 | ADD TO CART | |
| 5 | 5100010251 | Hose pipe | 1 | ADD TO CART | |
| 6 | 5000011548 | Cheese head screw | 12 | 10Nm/7ft.lbs | ADD TO CART |
| 7 | 5000013576 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5000011547 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 9 | 5000012373 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 1000090406 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000090406 · qty on machine: 1 | |||||
| 11 | 5000220194 | Valve cap | 1 | ADD TO CART | |
| 12 | 5100025061 | Valve | 1 | ADD TO CART | |
| 13 | 5100025062 | Solenoid | 1 | ADD TO CART | |
| 14 | 5000220198 | Test port | 1 | PARTS REQUEST | |
|
COMING Test port
5000220198 · qty on machine: 1 | |||||

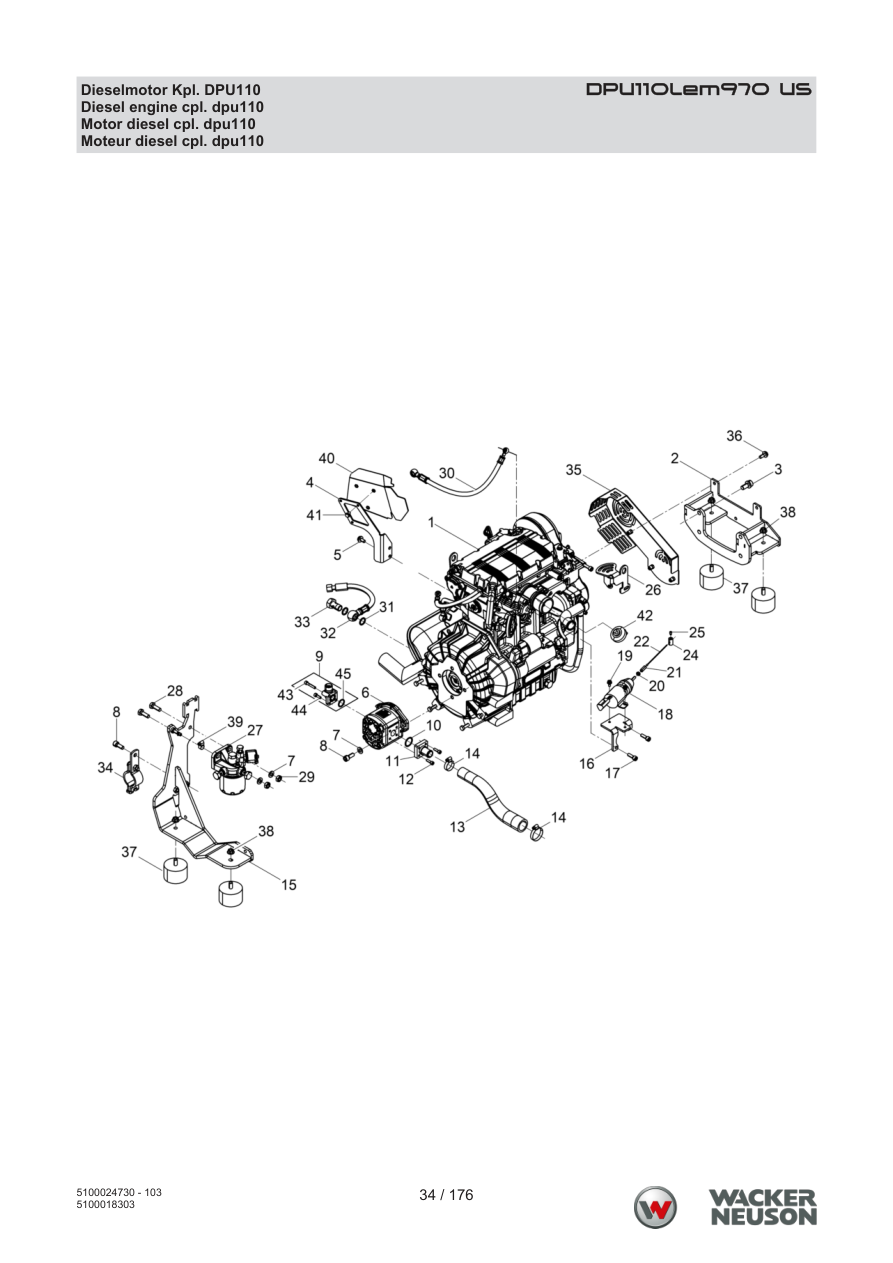

Page 34 — Diesel engine cpl. dpu110
Parts list — exactly as printed45 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049018 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049018 · qty on machine: 1 | |||||
| 2 | 5100005758 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000210165 | Corrugated-head screw | 4 | ADD TO CART | |
| 4 | 5100011317 | Bracket | 1 | ADD TO CART | |
| 5 | 5000211795 | Corrugated-head screw | 2 | ADD TO CART | |
| 6 | 5100015729 | Gear pump | 1 | ADD TO CART | |
| 7 | 5000010621 | Flat washer | 4 | ADD TO CART | |
| 8 | 5000011535 | Cheese head screw | 3 | 49Nm/36ft.lbs | ADD TO CART |
| 9 | 5100046101 | Bolted connection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 11 | 5100010059 | Hose connection | 1 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5100010056 | Suction hose | 1 | ADD TO CART | |
| 14 | 5002004724 | Worm drive house clip | 2 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 2 | |||||
| 15 | 5100005748 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 16 | 5000204549 | Bracket | 1 | ADD TO CART | |
| 17 | 5000011542 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 18 | 5000155486 | Throttle actuator | 1 | ADD TO CART | |
| 19 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 20 | 5000010880 | Hexagon nut | 1 | ADD TO CART | |
| 21 | 5000155487 | Adaptor | 1 | ADD TO CART | |
| 22 | 5000150022 | Cable | 1 | ADD TO CART | |
| 24 | 5000119695 | Collar | 1 | PARTS REQUEST | |
|
COMING Collar
5000119695 · qty on machine: 1 | |||||
| 25 | 5100009861 | Threaded pin | 1 | ADD TO CART | |
| 26 | 5100010901 | Covering | 1 | ADD TO CART | |
| 27 | 5000210173 | Filter-fuel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 28 | 5000011439 | Hexagonal head cap screw | 2 | 49Nm/36ft.lbs | ADD TO CART |
| 29 | 5000010883 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100010246 | Fuel hose | 1 | ADD TO CART | |
| 31 | 5000019156 | Gasket | 2 | ADD TO CART | |
| 32 | 5100010257 | Hose pipe | 1 | ADD TO CART | |
| 33 | 5000207336 | Hollow screw | 1 | ADD TO CART | |
| 34 | 5100011327 | Pipe clamp | 1 | ADD TO CART | |
| 35 | 5100010740 | Belt guard cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5100018058 | Corrugated-head screw | 4 | ADD TO CART | |
| 37 | 5100000973 | Shockmount | 4 | ADD TO CART | |
| 38 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 39 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 40 | 5100024279 | Heat shield cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000210194 | Corrugated-head screw | 3 | ADD TO CART | |
| 42 | 5000206422 | Switch | 1 | ADD TO CART | |
| 43 | 5000011548 | Cheese head screw | 2 | ADD TO CART | |
| 44 | 5000011552 | Cheese head screw | 2 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 45 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||

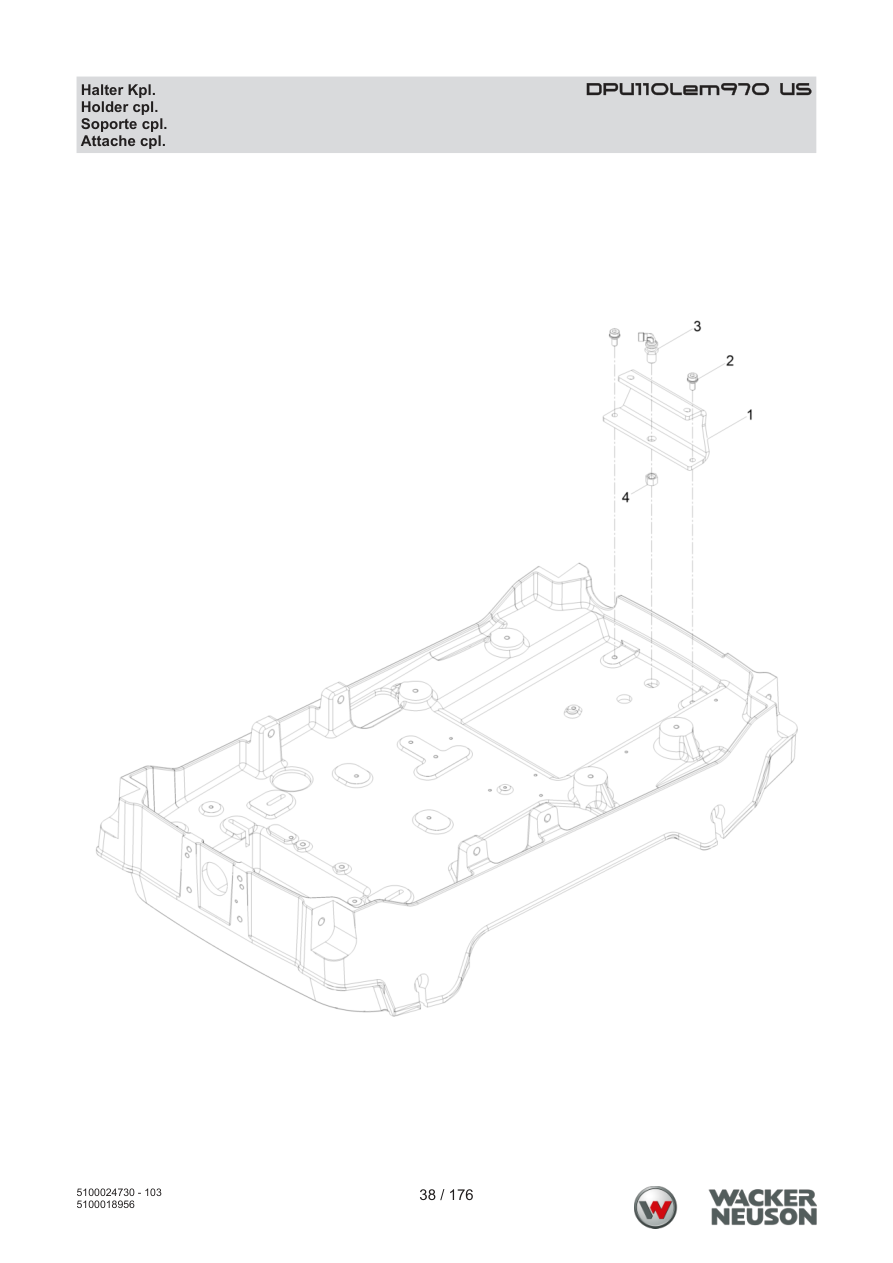

Page 38 — Holder cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010590 | Bracket | 1 | ADD TO CART | |
| 2 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 3 | 5000205238 | Screw connection | 1 | ADD TO CART | |
| 4 | 5000211773 | Nose cap | 1 | 40Nm/30ft.lbs | ADD TO CART |

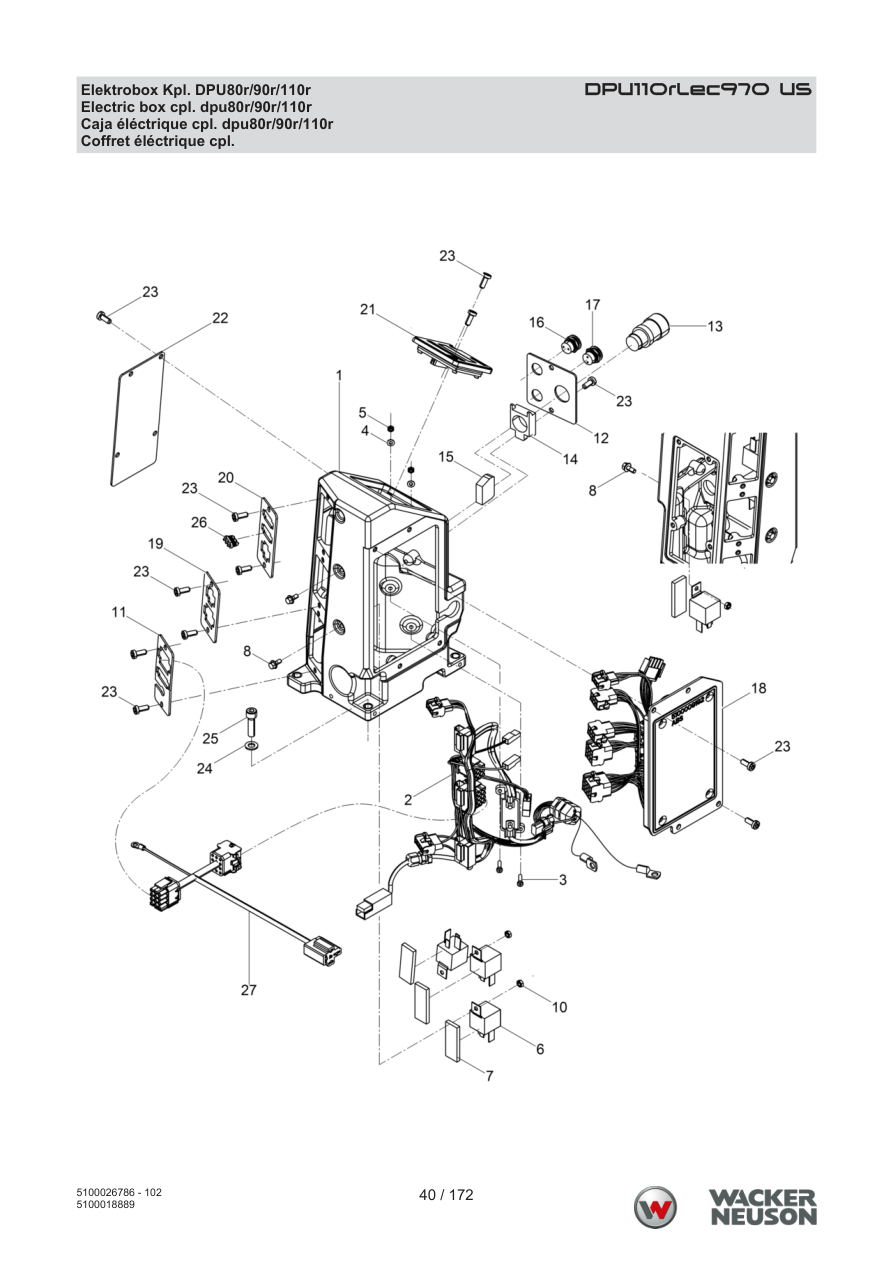

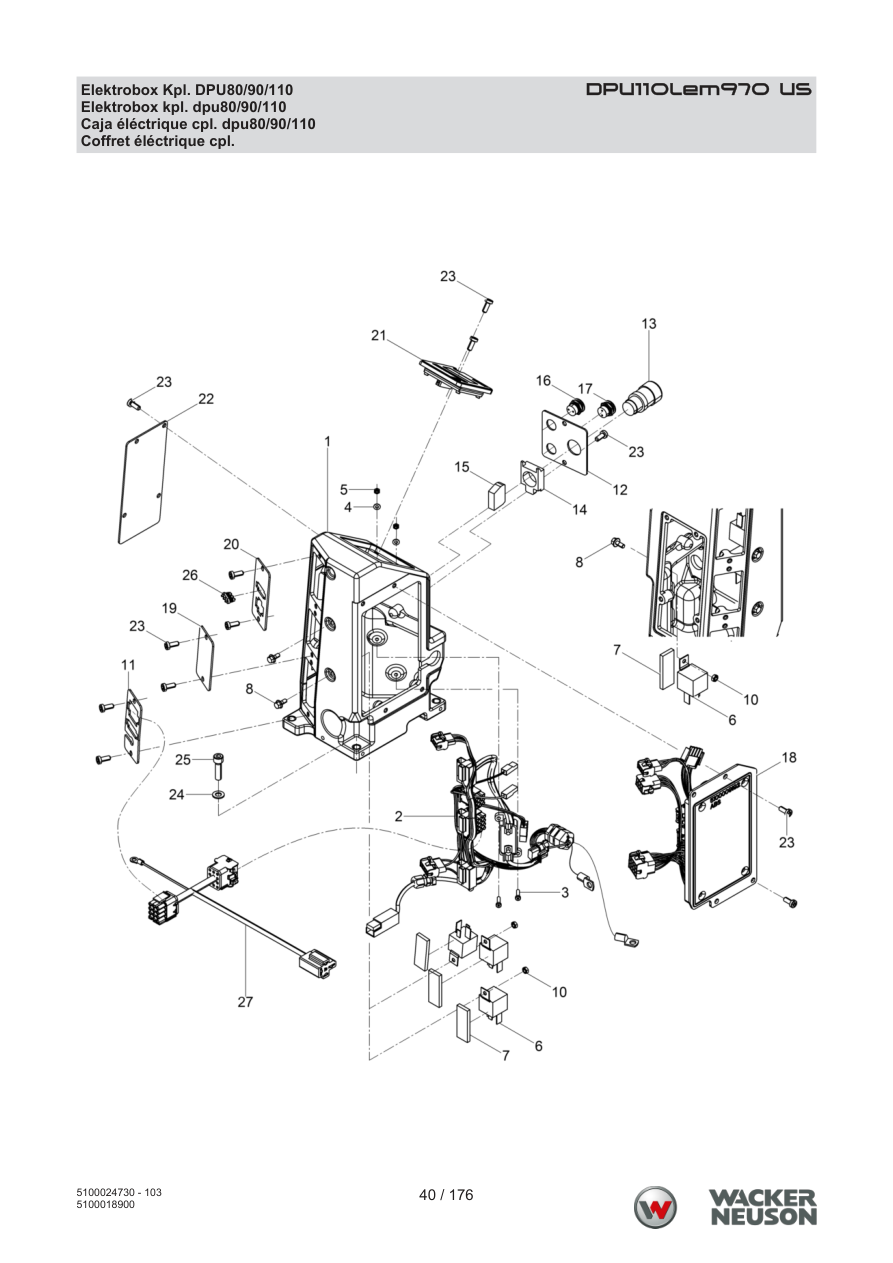

Page 40 — DPU110Lec970 US Electrical Box Cpl. DPU80/90/110
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005376 | Electric components drawer | 1 | ADD TO CART | |
| 2 | 5100010129 | Cable harness e-box | 1 | ADD TO CART | |
| 3 | 5000011570 | Cheese head screw | 2 | 5Nm/4ft.lbs | ADD TO CART |
| 4 | 5000010628 | Flat washer | 2 | ADD TO CART | |
| 5 | 5000010370 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5000085437 | Relay | 4 | ADD TO CART | |
| 7 | 5100016686 | Gasket | 4 | ADD TO CART | |
| 8 | 5100015757 | Hexagonal head cap screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5000010369 | Hexagon nut | 3 | ADD TO CART | |
| 11 | 5100010300 | Connector plate bottom | 1 | ADD TO CART | |
| 12 | 5100010315 | Plate | 1 | ADD TO CART | |
| 13 | 5100010121 | Control | 1 | ADD TO CART | |
| 14 | 5100010109 | Flange | 1 | ADD TO CART | |
| 15 | 5100010110 | Switch | 1 | ADD TO CART | |
| 16 | 5100005715 | Botton switch | 1 | ADD TO CART | |
| 17 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 18 | 5100005762 | Decoder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5100010780 | Connector plate middle | 1 | ADD TO CART | |
| 20 | 5100010781 | Connector plate top | 1 | ADD TO CART | |
| 21 | 5100009818 | Display | 1 | ADD TO CART | |
| 22 | 5100005471 | Cover | 1 | ADD TO CART | |
| 23 | 5000108371 | Oval head screw | 18 | ADD TO CART | |
| 24 | 5000010622 | Flat washer | 3 | ADD TO CART | |
| 25 | 5000011541 | Cheese head screw | 3 | 25Nm/18ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000011541 · qty on machine: 3 25Nm/18ft.lbs | |||||
| 26 | 5100022411 | Blind plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5100061282 | Cable harness | 1 | ADD TO CART | |

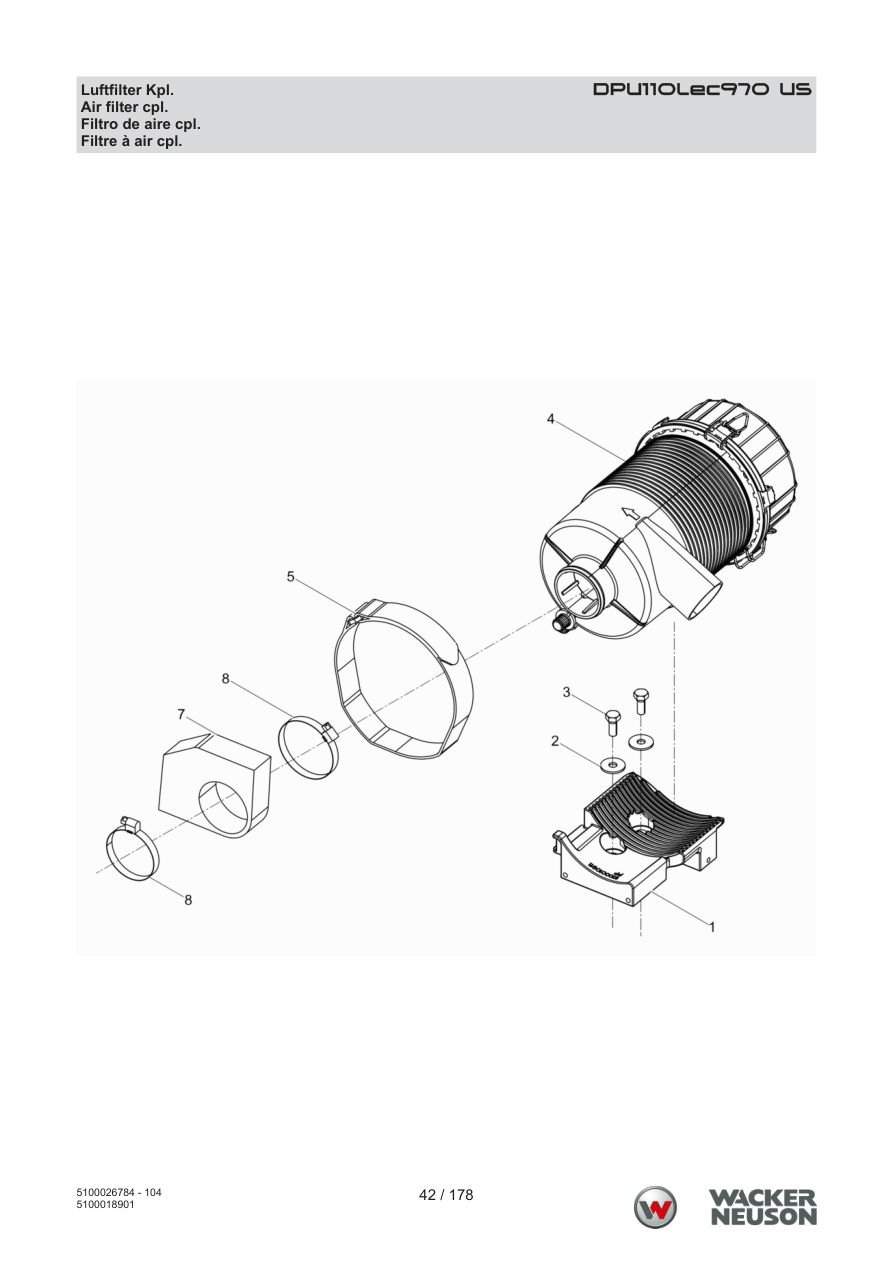

Page 42 — Air filter cpl.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010911 | Bracket | 1 | ADD TO CART | |
| 2 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 3 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 4 | 5100005726 | Air cleaner | 1 | ADD TO CART | |
| 4 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 4 | 5100024489 | Safety elements | 1 | ADD TO CART | |
| 4 | 5100024550 | Clamp | 3 | ADD TO CART | |
| 4 | 5100024551 | Dust discharge valve | 1 | ADD TO CART | |
| 5 | 5100010912 | Tightening strap | 1 | ADD TO CART | |
| 7 | 5100016655 | Gasket | 1 | ADD TO CART | |
| 8 | 5000014996 | Clamp | 2 | ADD TO CART | |

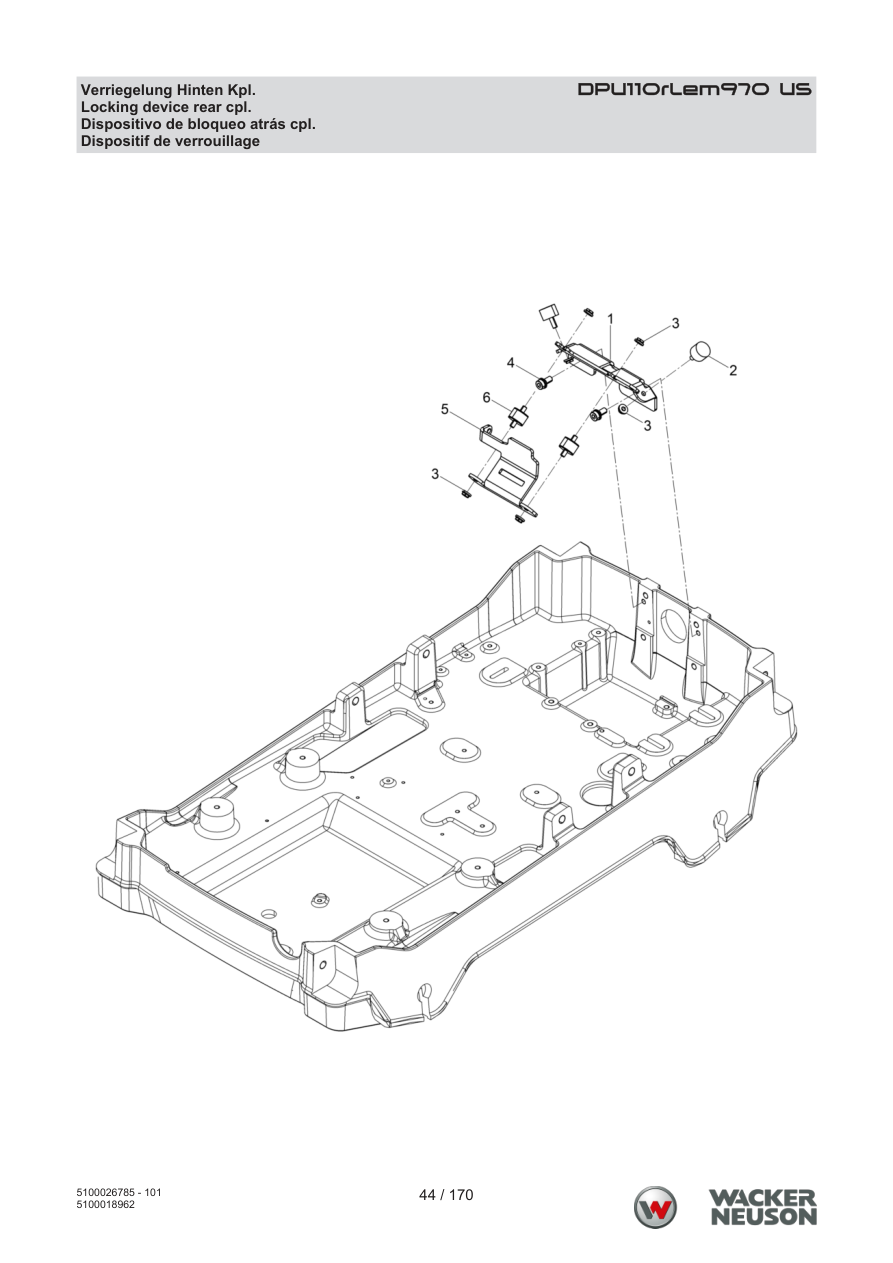

Page 44 — Locking device rear cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010584 | Bracket | 1 | ADD TO CART | |
| 2 | 5000204116 | Shockmount | 2 | ADD TO CART | |
| 3 | 5100017158 | Locknut | 6 | 30Nm/22ft.lbs | ADD TO CART |
| 4 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 5 | 5100010580 | Locking lever rear | 1 | ADD TO CART | |
| 6 | 5100010840 | Shockmount | 2 | ADD TO CART | |

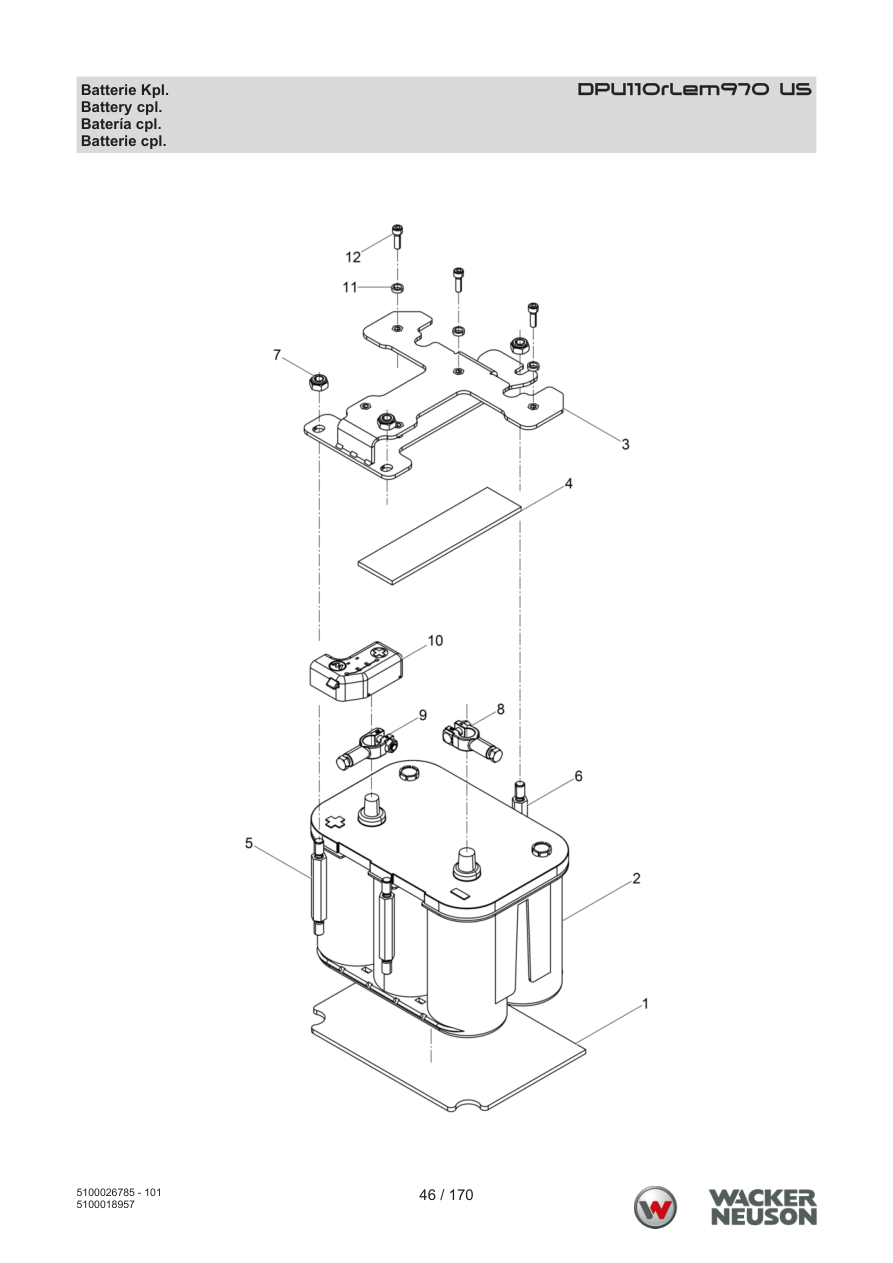

Page 46 — Battery cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209152 | Insulating cushion | 1 | ADD TO CART | |
| 2 | 5000086527 | Battery | 1 | ADD TO CART | |
| 3 | 5100005937 | Battery mounting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100017160 | Gasket | 1 | ADD TO CART | |
| 5 | 5100010891 | Threaded bolt | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010892 | Threaded bolt | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 7 | 5000017313 | Hexagon nut | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 9 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 10 | 5100014022 | Positive pol cover | 1 | ADD TO CART | |
| 11 | 5000212623 | Bushing | 3 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 3 | 10Nm/7ft.lbs | ADD TO CART |

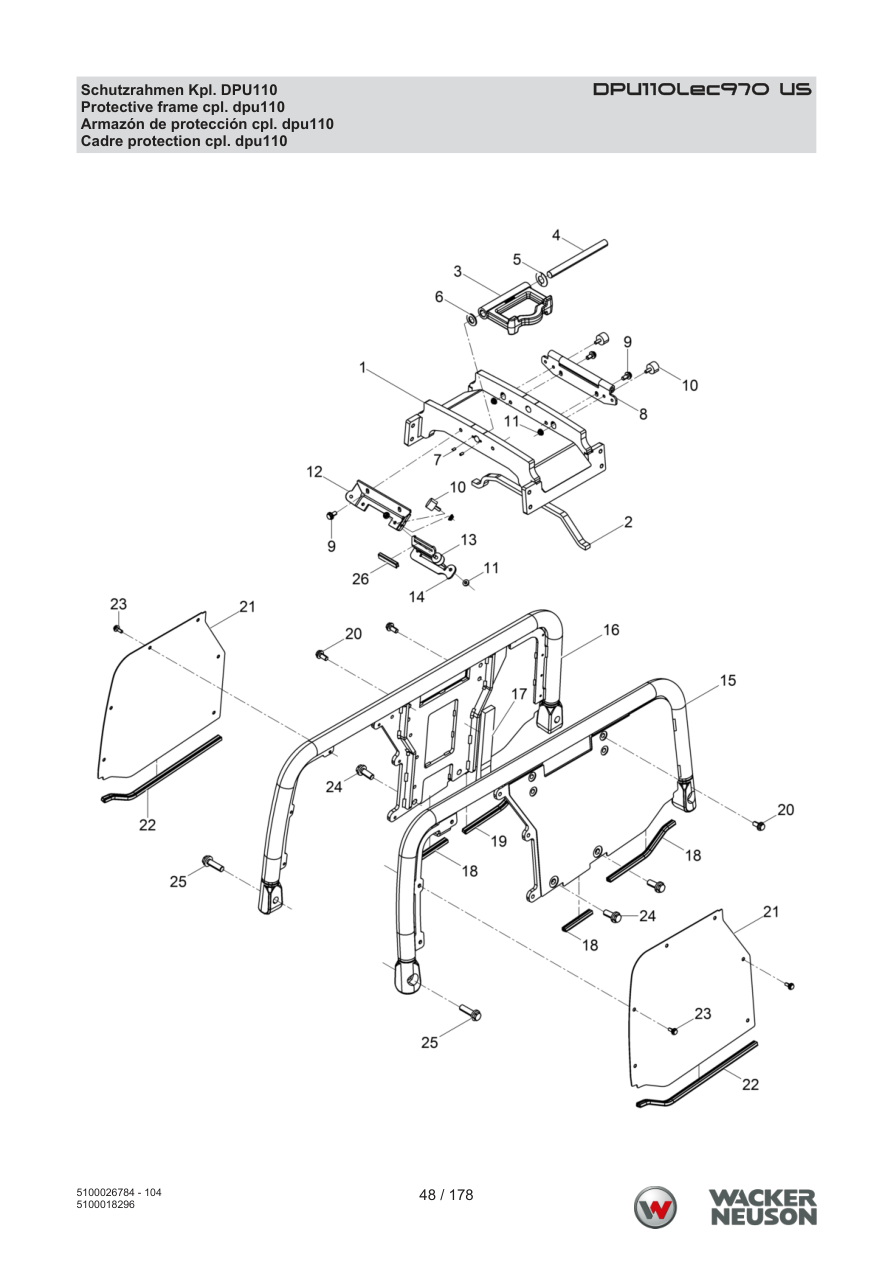

Page 48 — Protective frame cpl. dpu110
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010527 | Cross-beam | 1 | ADD TO CART | |
| 2 | 5100016519 | Gasket | 1 | ADD TO CART | |
| 3 | 5100017413 | Jack ring | 1 | ADD TO CART | |
| 4 | 5100005732 | Axle | 1 | ADD TO CART | |
| 5 | 5000202829 | Cup spring | 1 | ADD TO CART | |
| 6 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 8 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 9 | 5000210112 | Corrugated-head screw | 4 | ADD TO CART | |
| 10 | 5000204116 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100017158 | Locknut | 8 | ADD TO CART | |
| 12 | 5100010583 | Bracket | 1 | ADD TO CART | |
| 13 | 5100010840 | Shockmount | 2 | ADD TO CART | |
| 14 | 5100064251 | Locking lever | 1 | ADD TO CART | |
| 15 | 5100010450 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010450 · qty on machine: 1 | |||||
| 16 | 5100010451 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010451 · qty on machine: 1 | |||||
| 17 | 5100016517 | Gasket | 2 | ADD TO CART | |
| 18 | 5100018100 | Edge protection | 2 | ADD TO CART | |
| 19 | 5100018101 | Edge protection | 2 | ADD TO CART | |
| 20 | 5100018059 | Corrugated-head screw | 8 | ADD TO CART | |
| 21 | 5100010459 | Covering | 2 | PARTS REQUEST | |
|
COMING Covering
5100010459 · qty on machine: 2 | |||||
| 22 | 5100018102 | Edge protection | 2 | ADD TO CART | |
| 23 | 5000211795 | Corrugated-head screw | 12 | ADD TO CART | |
| 24 | 5100011100 | Corrugated-head screw | 4 | ADD TO CART | |
| 25 | 5100011101 | Corrugated-head screw | 4 | PARTS REQUEST | |
|
COMING Corrugated-head screw
5100011101 · qty on machine: 4 | |||||
| 26 | 5100025691 | Handle profile | 1 | ADD TO CART | |

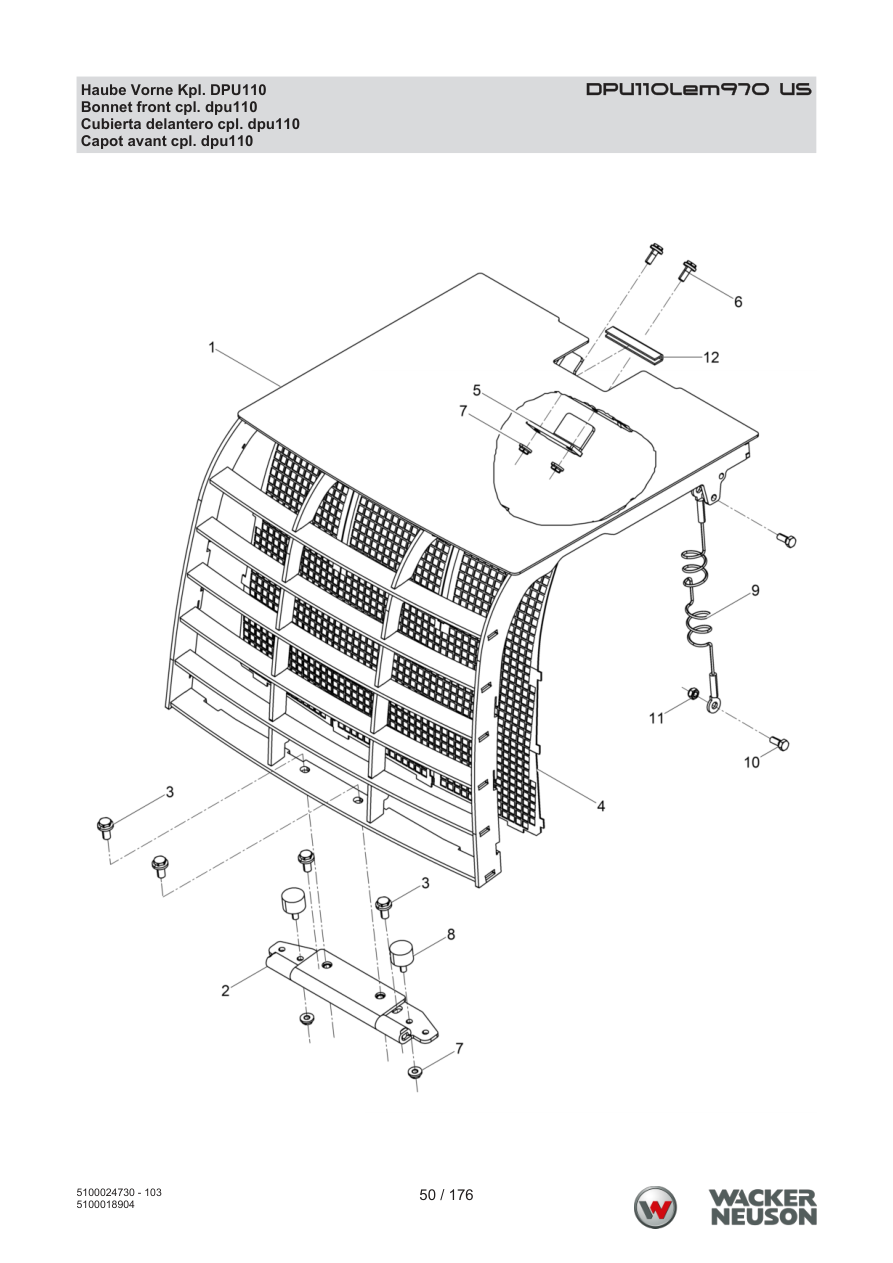

Page 50 — Bonnet front cpl. dpu110
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010437 | Bonnet | 1 | ADD TO CART | |
| 2 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 3 | 5000210112 | Corrugated-head screw | 4 | 85Nm/63ft.lbs | ADD TO CART |
| 4 | 5100010930 | Screen grid front (dpu100) | 1 | ADD TO CART | |
| 4 | 5100018899 | Screen grid front (dpu100r) | 1 | ADD TO CART | |
| 5 | 5100010577 | Locking tab front | 1 | ADD TO CART | |
| 6 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 7 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 8 | 5100024474 | Shockmount | 2 | ADD TO CART | |
| 9 | 5000154402 | Cable | 1 | ADD TO CART | |
| 10 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 11 | 5000033356 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100024476 | Edge protection | 1 | 90Nm/66ft.lbs | ADD TO CART |

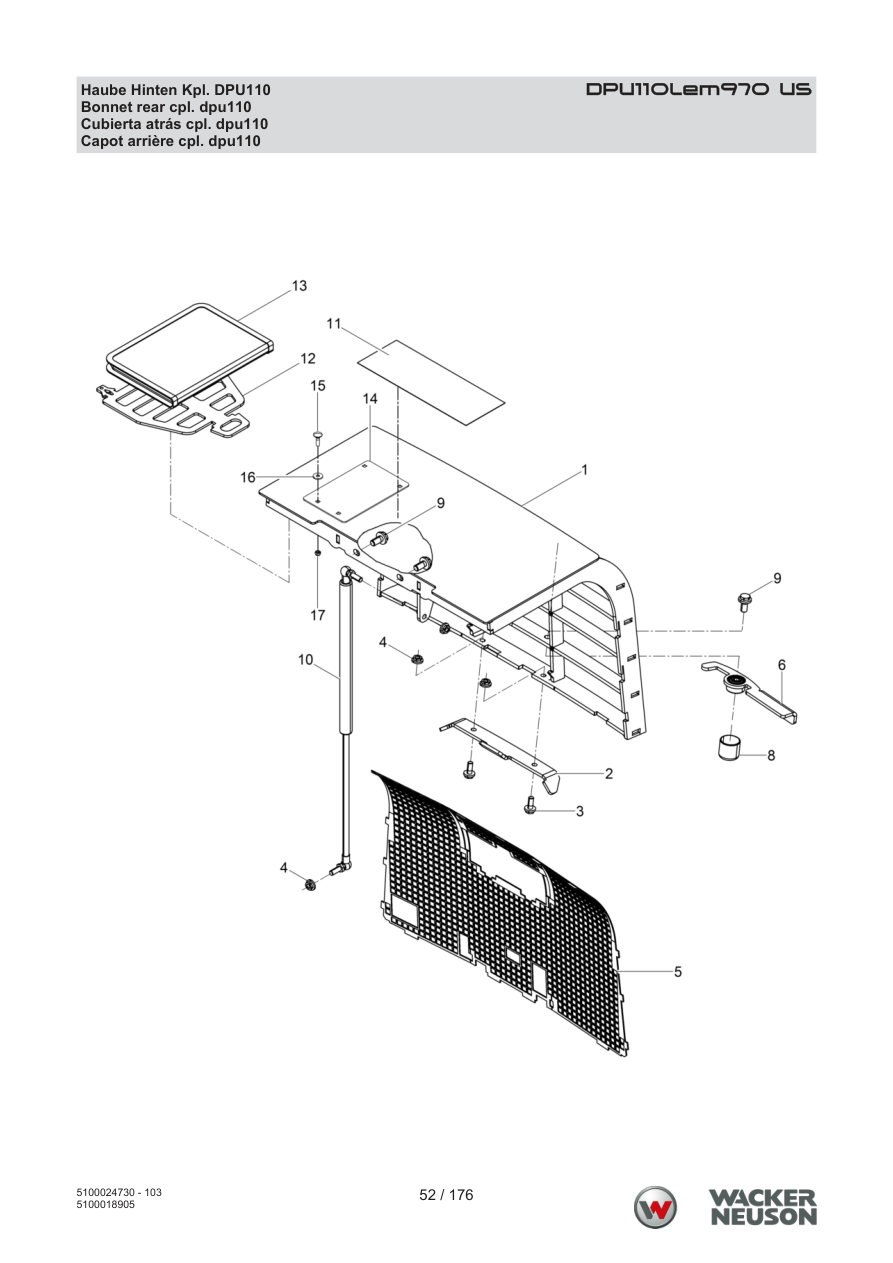

Page 52 — Bonnet rear cpl. dpu110
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010436 | Bonnet | 1 | ADD TO CART | |
| 2 | 5100010578 | Locking tab rear | 1 | ADD TO CART | |
| 3 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 4 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 5 | 5100010932 | Screen grid rear (dpu100) | 1 | ADD TO CART | |
| 5 | 5100018921 | Screen grid rear (dpu100) | 1 | ADD TO CART | |
| 5 | 5100018922 | Screen grid rear (dpu100r,c) | 1 | ADD TO CART | |
| 5 | 5100018923 | Screen grid rear (dpu100r) | 1 | ADD TO CART | |
| 6 | 5100011262 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000068355 | Protective cap | 1 | ADD TO CART | |
| 9 | 5000210112 | Corrugated-head screw | 3 | 85Nm/63ft.lbs | ADD TO CART |
| 10 | 5100005810 | Compr. spring | 1 | ADD TO CART | |
| 11 | 5100017956 | Protection foil | 1 | ADD TO CART | |
| 12 | 5100024201 | Cloth | 1 | ADD TO CART | |
| 13 | 5100025231 | Portfolio | 1 | PARTS REQUEST | |
|
COMING Portfolio
5100025231 · qty on machine: 1 | |||||
| 14 | 5100057038 | Plate | 1 | ADD TO CART | |
| 15 | 5100048321 | Mushroom head bolt | 4 | ADD TO CART | |
| 16 | 5000010372 | Flat washer | 4 | ADD TO CART | |
| 17 | 5000010369 | Hexagon nut | 4 | ADD TO CART | |

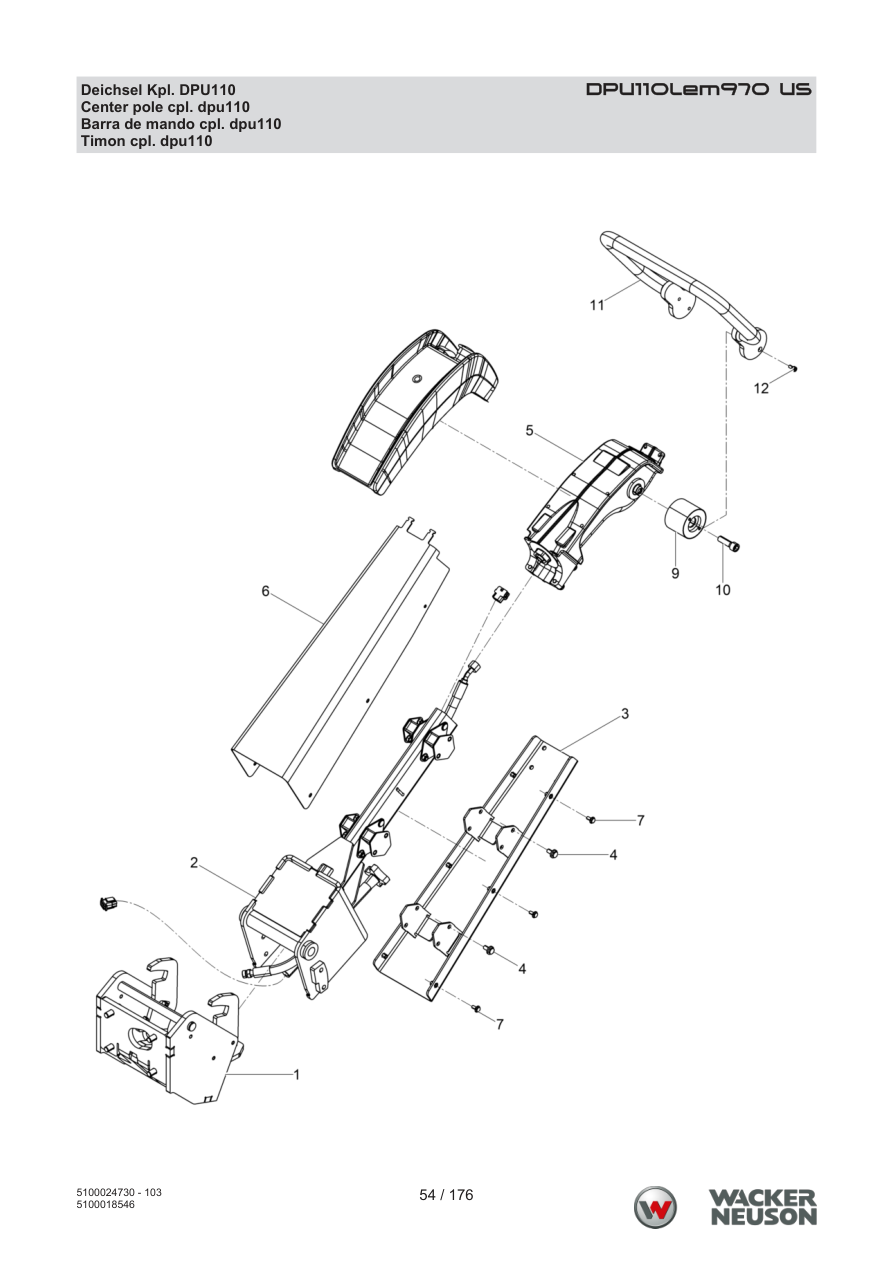

Page 54 — Center pole cpl. dpu110
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100018077 | Support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100018079 | Center pole lower part cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100009640 | Center pole base cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000211795 | Corrugated-head screw | 8 | 42Nm/31ft.lbs | ADD TO CART |
| 5 | 5100018078 | Center pole head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100005601 | Covering | 1 | ADD TO CART | |
| 7 | 5000210194 | Corrugated-head screw | 6 | 19Nm/14ft.lbs | ADD TO CART |
| 9 | 5000215035 | Shockmount | 2 | ADD TO CART | |
| 10 | 5000011527 | Cheese head screw | 2 | 86Nm/63ft.lbs | ADD TO CART |
| 11 | 5100005124 | Clamp | 1 | ADD TO CART | |
| 12 | 5000011554 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5000047388 | Cable tie | 1 | ADD TO CART | |
| 14 | 5000038489 | Tie cable | 5 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 5 | |||||

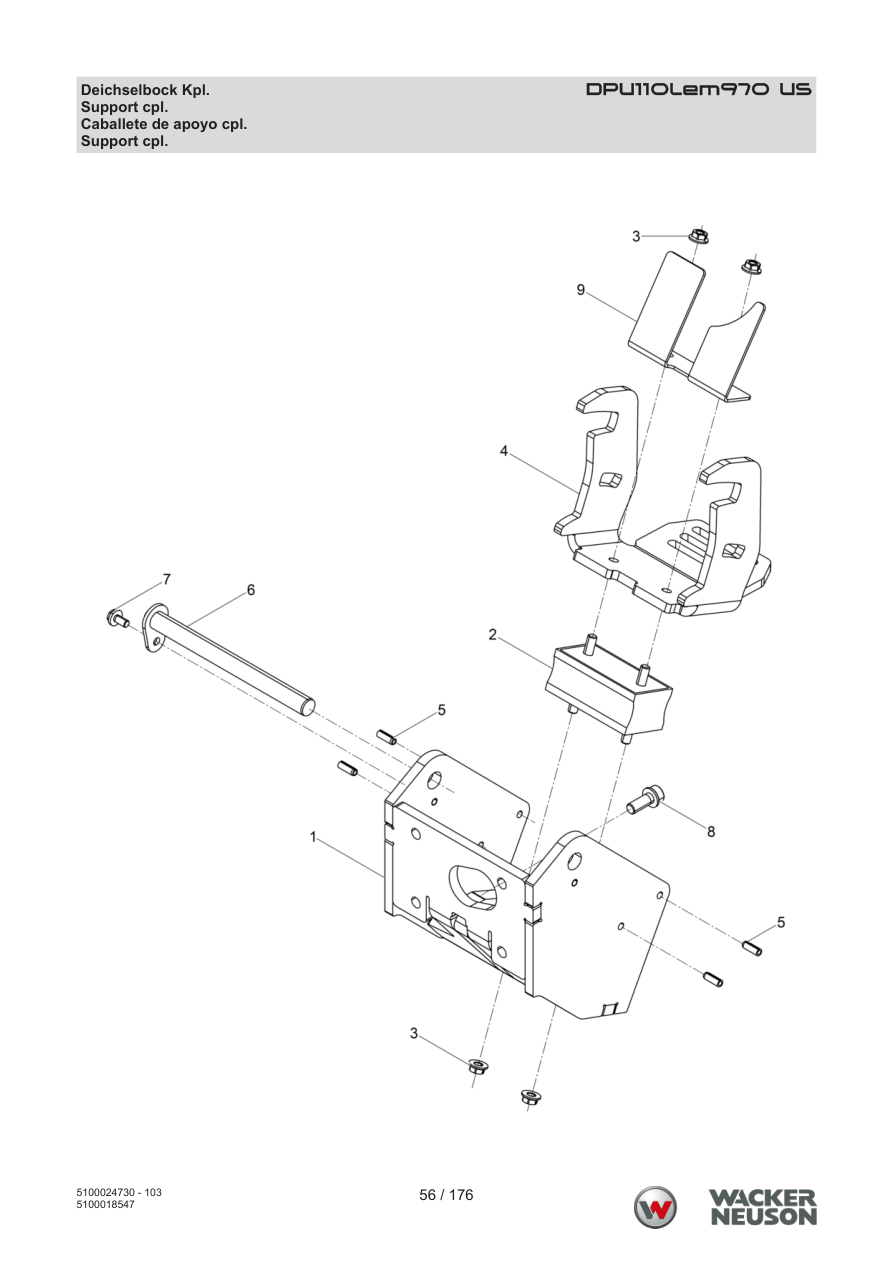

Page 56 — Support cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009748 | Tow bar fixing | 1 | ADD TO CART | |
| 2 | 5100009740 | Shockmount | 1 | ADD TO CART | |
| 3 | 5000216640 | Locknut | 4 | 60Nm/44ft.lbs | ADD TO CART |
| 4 | 5100005619 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100005619 · qty on machine: 1 | |||||
| 5 | 5100018086 | Roll pin | 4 | ADD TO CART | |
| 6 | 5100005617 | Bolt | 1 | ADD TO CART | |
| 7 | 5000211795 | Corrugated-head screw | 1 | 42Nm/31ft.lbs | ADD TO CART |
| 8 | 5100010273 | Corrugated-head screw | 4 | 150Nm/111ft.lbs | ADD TO CART |
| 9 | 5100022612 | Guard plate | 1 | ADD TO CART | |

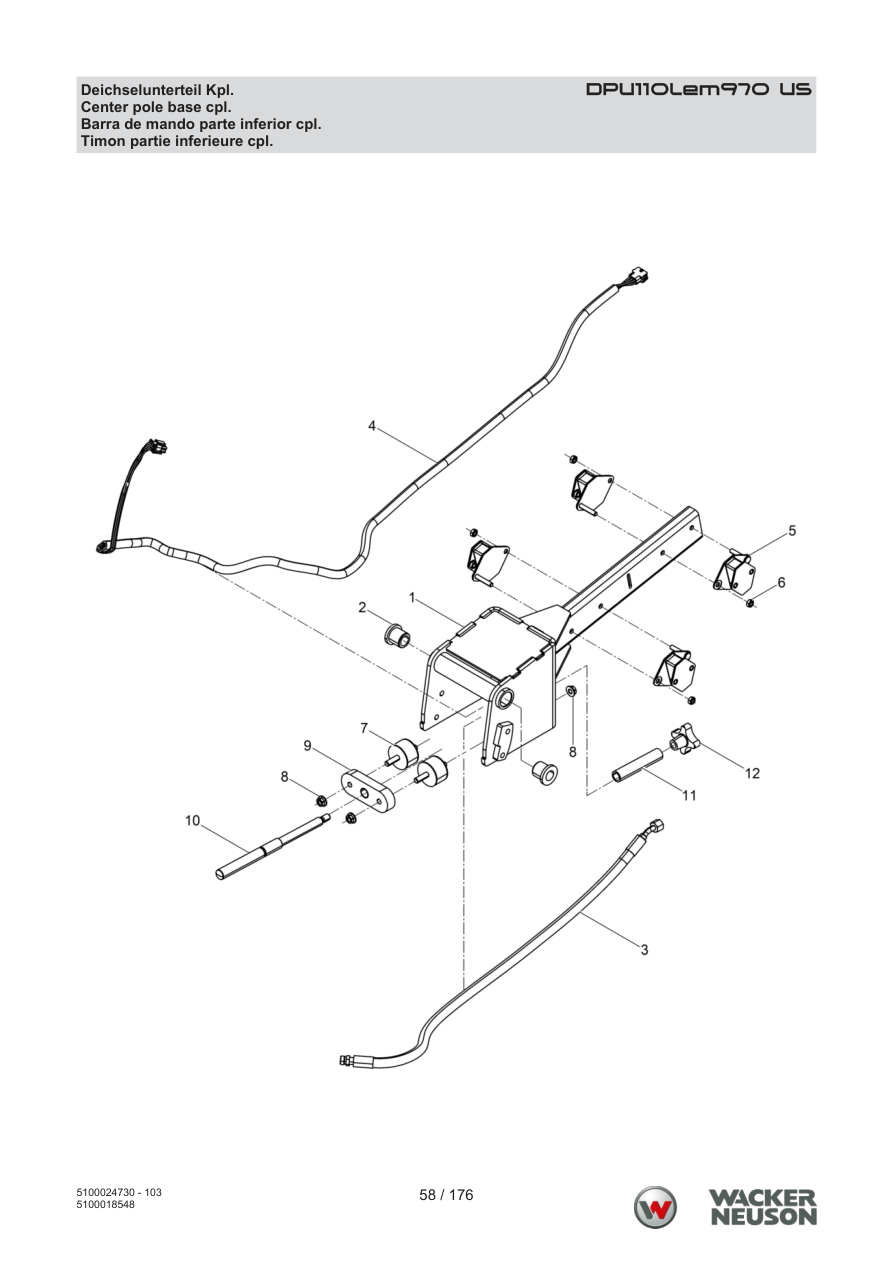

Page 58 — Center pole base cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005592 | Center pole base | 1 | ADD TO CART | |
| 2 | 5000220440 | Bush | 2 | ADD TO CART | |
| 3 | 5100010132 | Hydraulic hose | 1 | 15Nm/11ft.lbs | ADD TO CART |
| 4 | 5100005690 | Wire harness center pole | 1 | ADD TO CART | |
| 5 | 5100010497 | Shockmount | 4 | ADD TO CART | |
| 6 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |
| 7 | 5100017155 | Shockmount | 2 | ADD TO CART | |
| 8 | 5000216640 | Locknut | 4 | 60Nm/44ft.lbs | ADD TO CART |
| 9 | 5100005631 | Bumper support | 1 | ADD TO CART | |
| 10 | 5100005622 | Spindle | 1 | ADD TO CART | |
| 11 | 5100005623 | Pipe | 1 | ADD TO CART | |
| 12 | 5100005496 | Star-handle | 1 | ADD TO CART | |

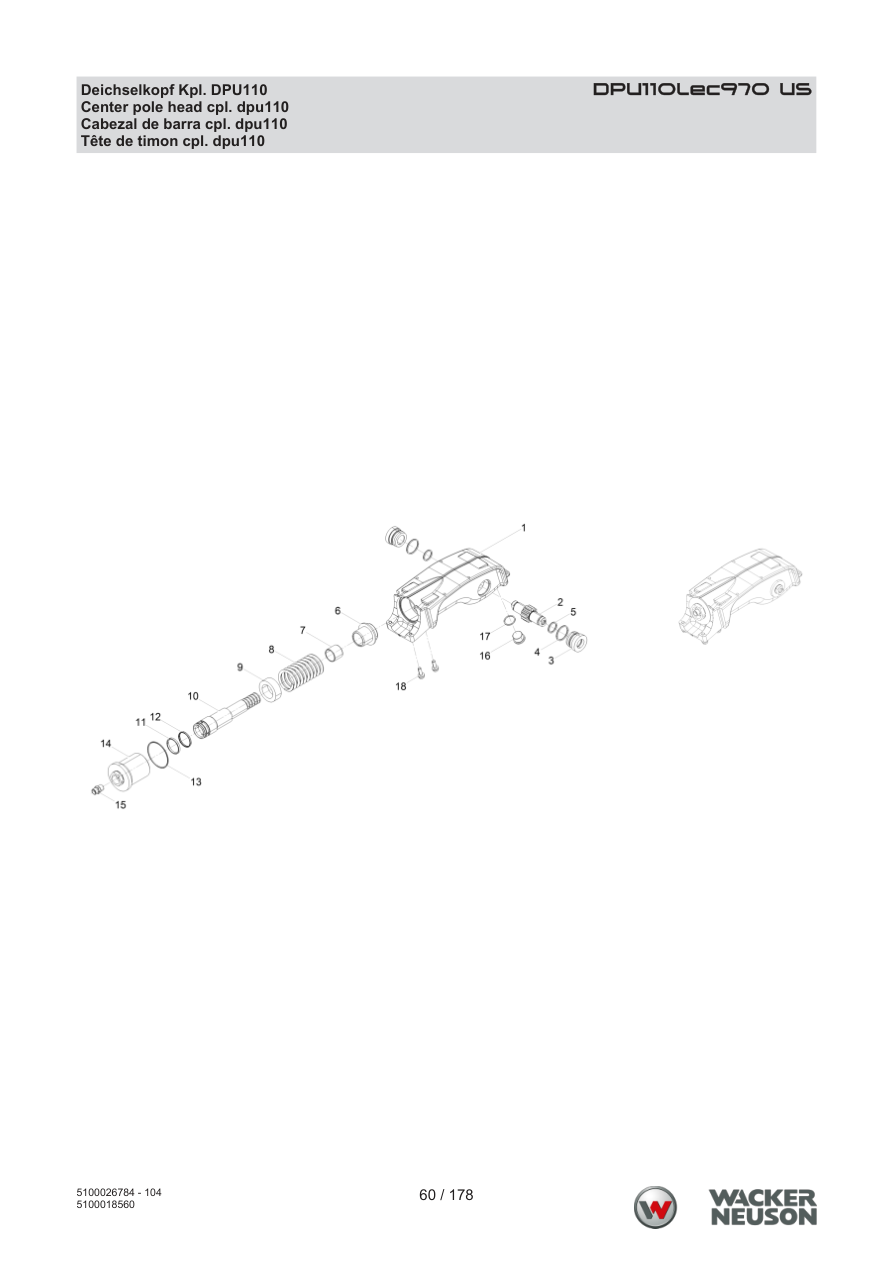

Page 60 — Center pole head cpl. dpu110
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005148 | Center pole head | 1 | ADD TO CART | |
| 2 | 5000069726 | Long face pinion | 1 | ADD TO CART | |
| 3 | 5000125926 | Spacer | 2 | ADD TO CART | |
| 4 | 5000068752 | O-ring | 2 | ADD TO CART | |
| 5 | 5000018194 | O-ring | 2 | ADD TO CART | |
| 6 | 5100005285 | Bearing flange | 1 | ADD TO CART | |
| 7 | 5100005685 | Slide bush | 1 | ADD TO CART | |
| 8 | 5100017017 | Compression spring | 1 | ADD TO CART | |
| 9 | 5100005563 | Collar | 1 | ADD TO CART | |
| 10 | 5100005287 | Piston rod | 1 | ADD TO CART | |
| 11 | 5100005683 | Ring | 1 | ADD TO CART | |
| 12 | 5100005688 | Gasket | 1 | ADD TO CART | |
| 13 | 5100005689 | O-ring | 1 | ADD TO CART | |
| 14 | 5100005284 | Hydraulic cylinder | 1 | 120Nm/89ft.lbs | ADD TO CART |
| 15 | 5000069225 | Screwed socket | 1 | 60Nm/44ft.lbs | ADD TO CART |
| 16 | 5100019617 | Oil plug | 1 | 50Nm/37ft.lbs | ADD TO CART |
| 17 | 5000032006 | Gasket | 1 | ADD TO CART | |
| 18 | 5000129420 | Socket head cap screw | 4 | 45Nm/33ft.lbs | ADD TO CART |

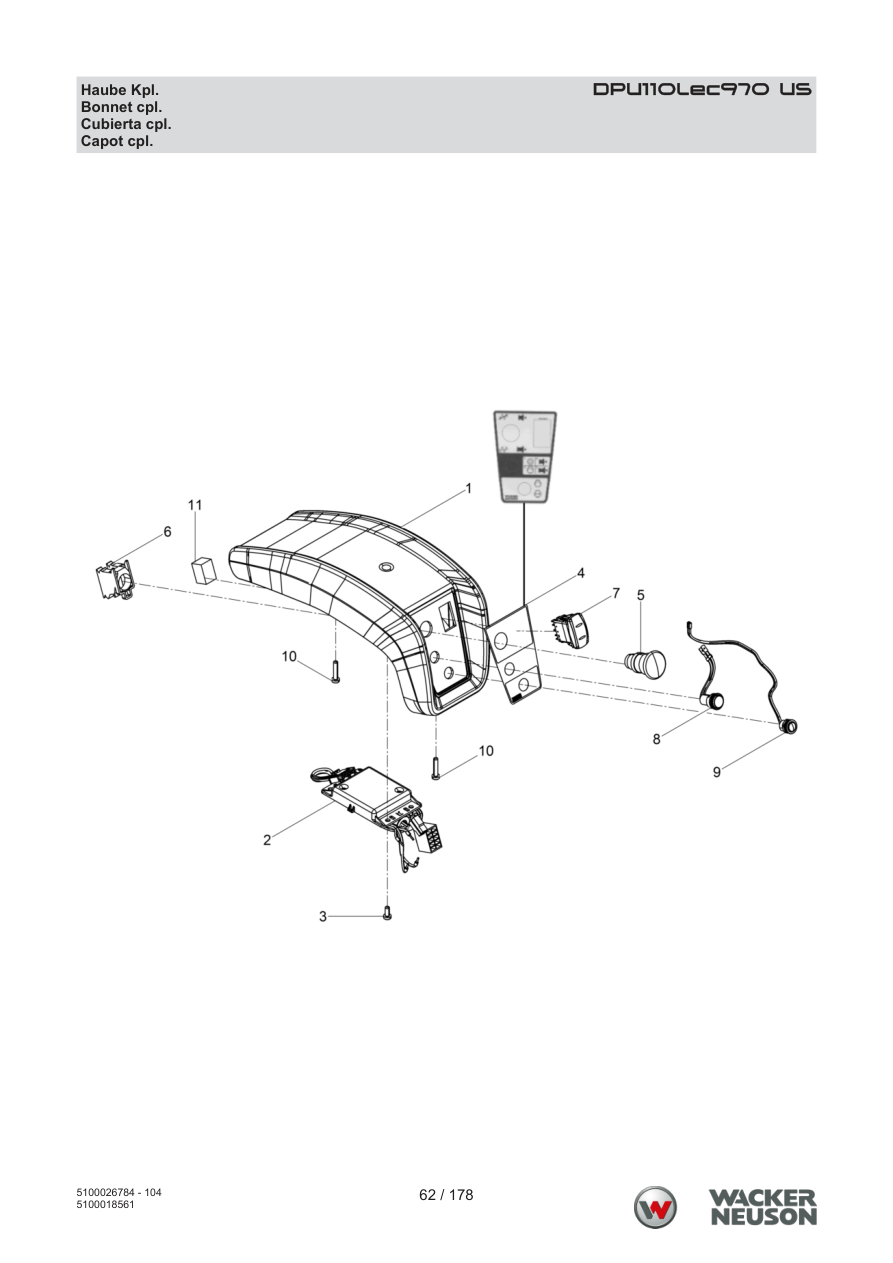

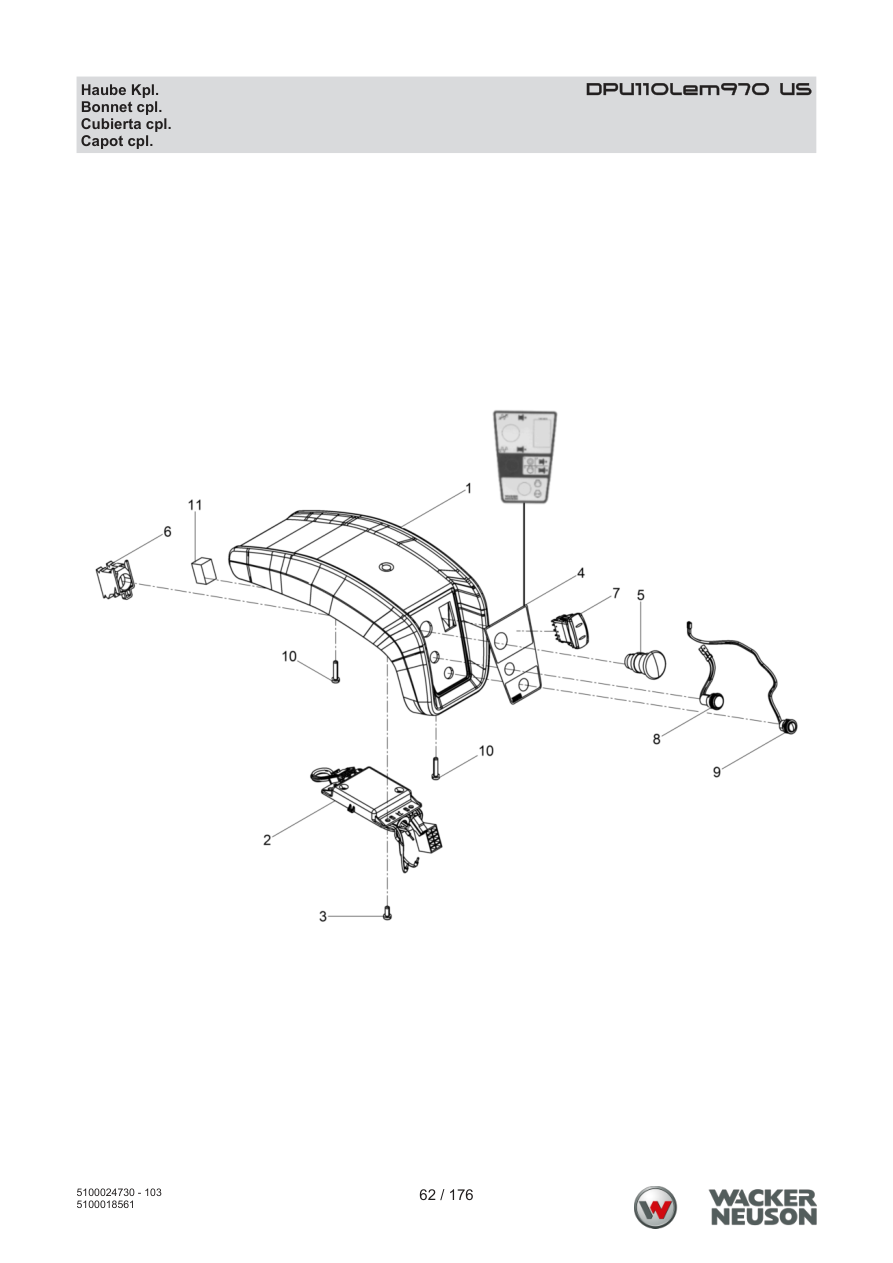

Page 62 — Bonnet cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009242 | Bonnet | 1 | ADD TO CART | |
| 1 | 5100024486 | Bonnet (gray) | 1 | ADD TO CART | |
| 2 | 5100034271 | Steering part | 1 | ADD TO CART | |
| 3 | 5000108371 | Oval head screw | 4 | ADD TO CART | |
| 4 | 5100010274 | Label | 1 | ADD TO CART | |
| 5 | 5100010113 | Button switch | 1 | ADD TO CART | |
| 6 | 5100016488 | Auxiliary owner block | 1 | ADD TO CART | |
| 7 | 5100034270 | Rockerswitch | 1 | ADD TO CART | |
| 8 | 5100010111 | Led | 1 | ADD TO CART | |
| 9 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 10 | 5000108370 | Oval head screw | 6 | ADD TO CART | |
| 11 | 5100034272 | Insulating cushion | 1 | ADD TO CART | |

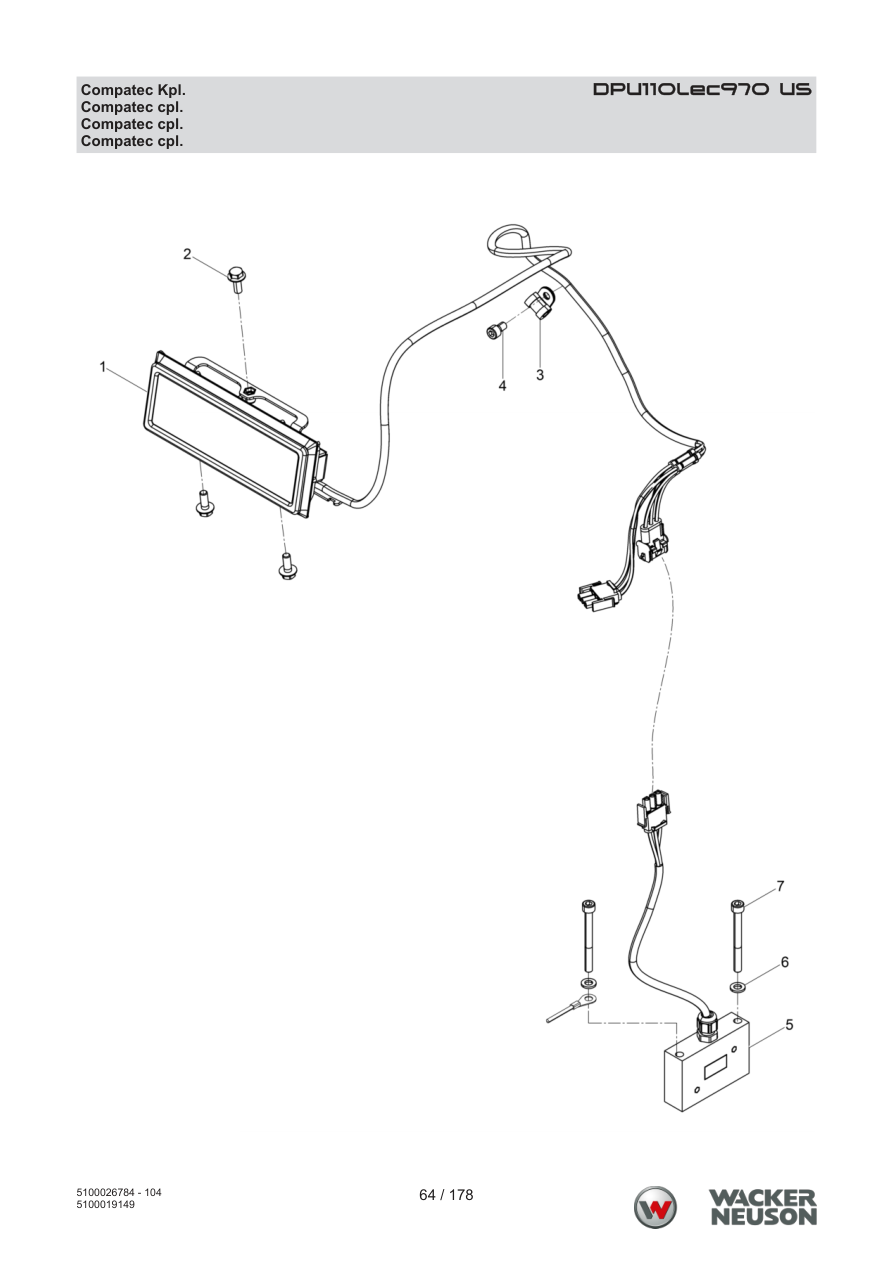

Page 64 — Compatec cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010020 | Display cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100016654 | Corrugated-head screw | 3 | M 6x 16 | ADD TO CART |
| 3 | 5000212143 | Clamp | 1 | ADD TO CART | |
| 4 | 5000011555 | Cheese head screw | 1 | M6 x 10 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 5 | 5100010005 | Sensor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000037071 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |

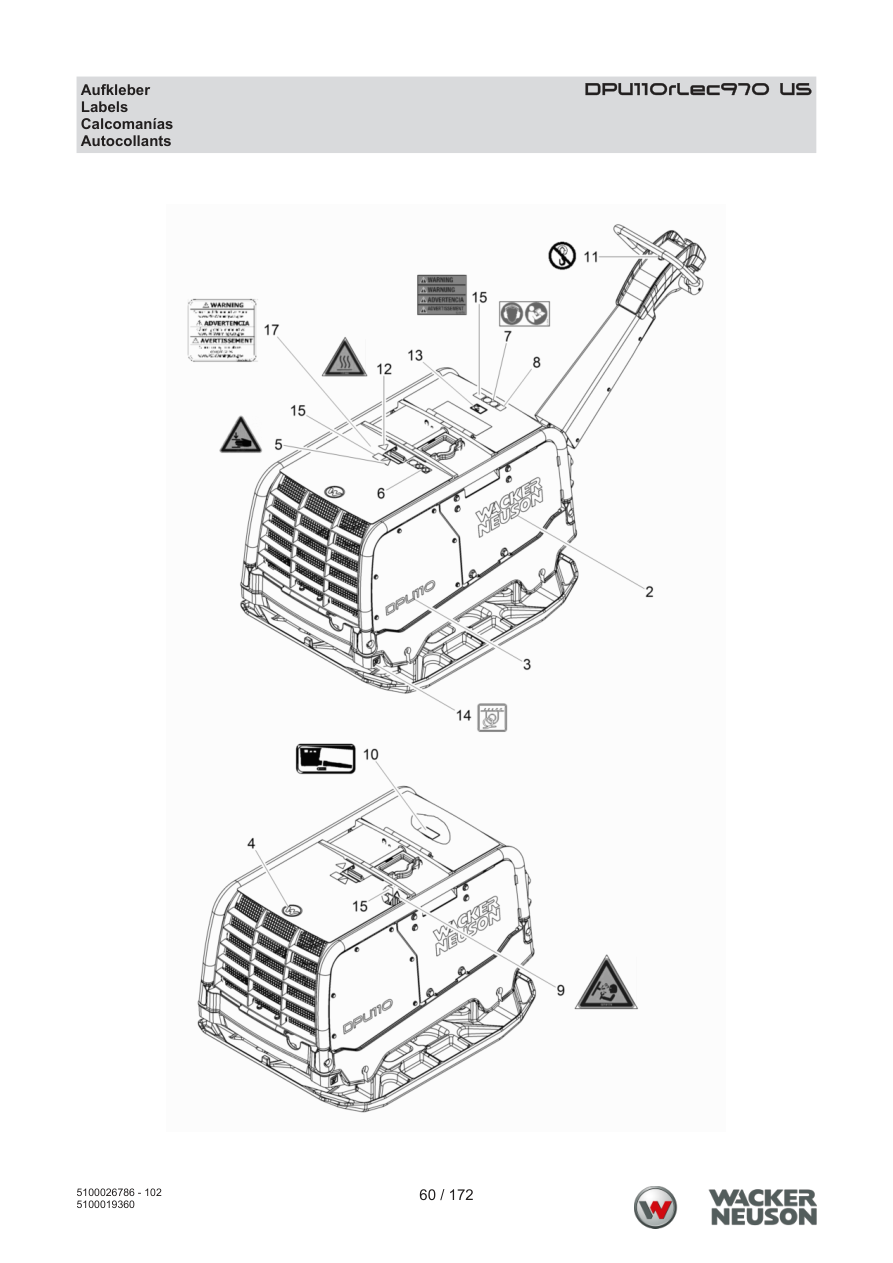

Page 66 — DPU110Lec970 US Decals
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000222103 | Decal, logo | 2 | ADD TO CART | |
| 3 | 5100017952 | Type label dpu110 | 2 | ADD TO CART | |
| 3 | 5100017953 | Type label dpu110r | 2 | ADD TO CART | |
| 3 | 5100017954 | Type label dpu80 | 2 | ADD TO CART | |
| 3 | 5100017955 | Type label dpu80r | 2 | ADD TO CART | |
| 3 | 5100024540 | Type label dpu90 | 2 | PARTS REQUEST | |
|
COMING Type label dpu90
5100024540 · qty on machine: 2 | |||||
| 3 | 5100024541 | Type label dpu90r | 2 | ADD TO CART | |
| 4 | 5000222086 | Label symbol | 1 | ADD TO CART | |
| 5 | 5000207747 | Danger label | 1 | PARTS REQUEST | |
|
COMING Danger label
5000207747 · qty on machine: 1 | |||||
| 6 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 7 | 5000219175 | Labels | 1 | ADD TO CART | |
| 8 | 5000064925 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5000219179 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000219179 · qty on machine: 1 | |||||
| 10 | 5000216635 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000216635 · qty on machine: 1 | |||||
| 11 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 12 | 5000219080 | Labels | 1 | ADD TO CART | |
| 13 | 5100011227 | Label hav 24h | 1 | ADD TO CART | |
| 14 | 5100085618 | Label | 4 | PARTS REQUEST | |
|
COMING Label
5100085618 · qty on machine: 4 | |||||
| 15 | 5000219176 | Labels | 3 | ADD TO CART | |
| 17 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||

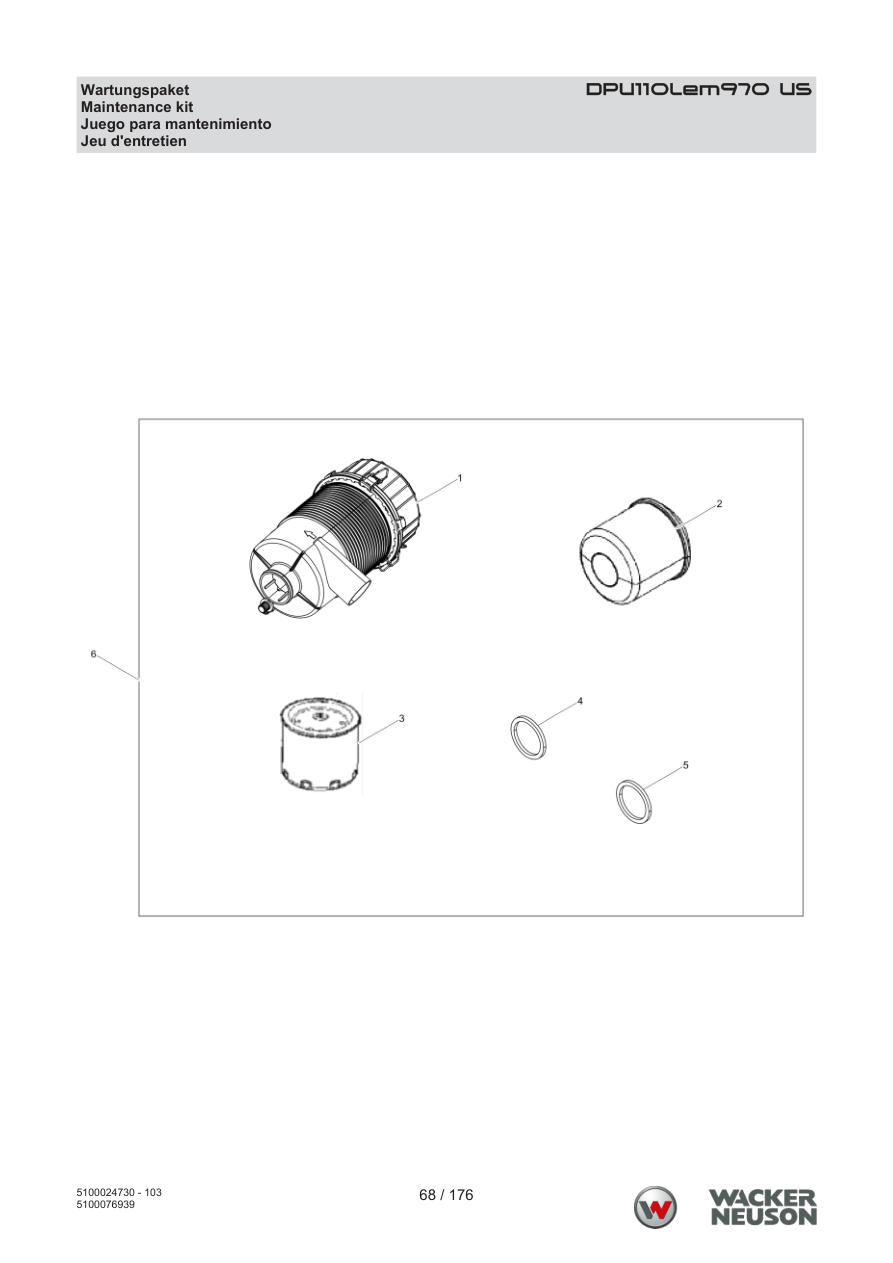

Page 68 — DPU110Lec970 US Maintenance kit
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 2 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 3 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 4 | 5000159568 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5100027618 | Maintenance kit | 1 | ADD TO CART | |

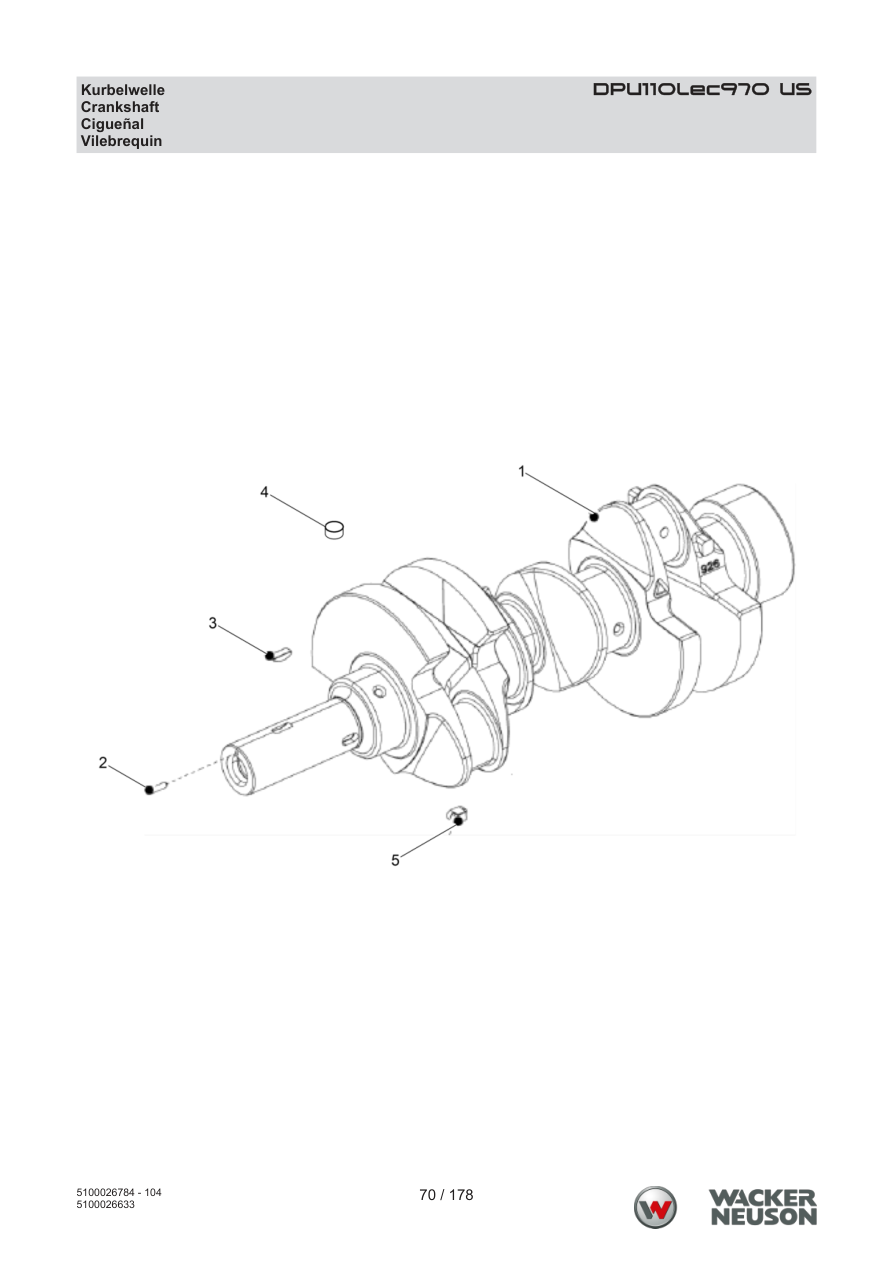

Page 70 — DPU110Lec970 US Crankshaft
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160365 | Crankshaft | 1 | ADD TO CART | |
| 2 | 5000159357 | Pin | 1 | ADD TO CART | |
| 3 | 5000159260 | Woodruff key | 1 | ADD TO CART | |
| 4 | 5000159454 | Plug, threaded | 3 | ADD TO CART | |
| 5 | 5000159261 | Square key | 1 | ADD TO CART | |

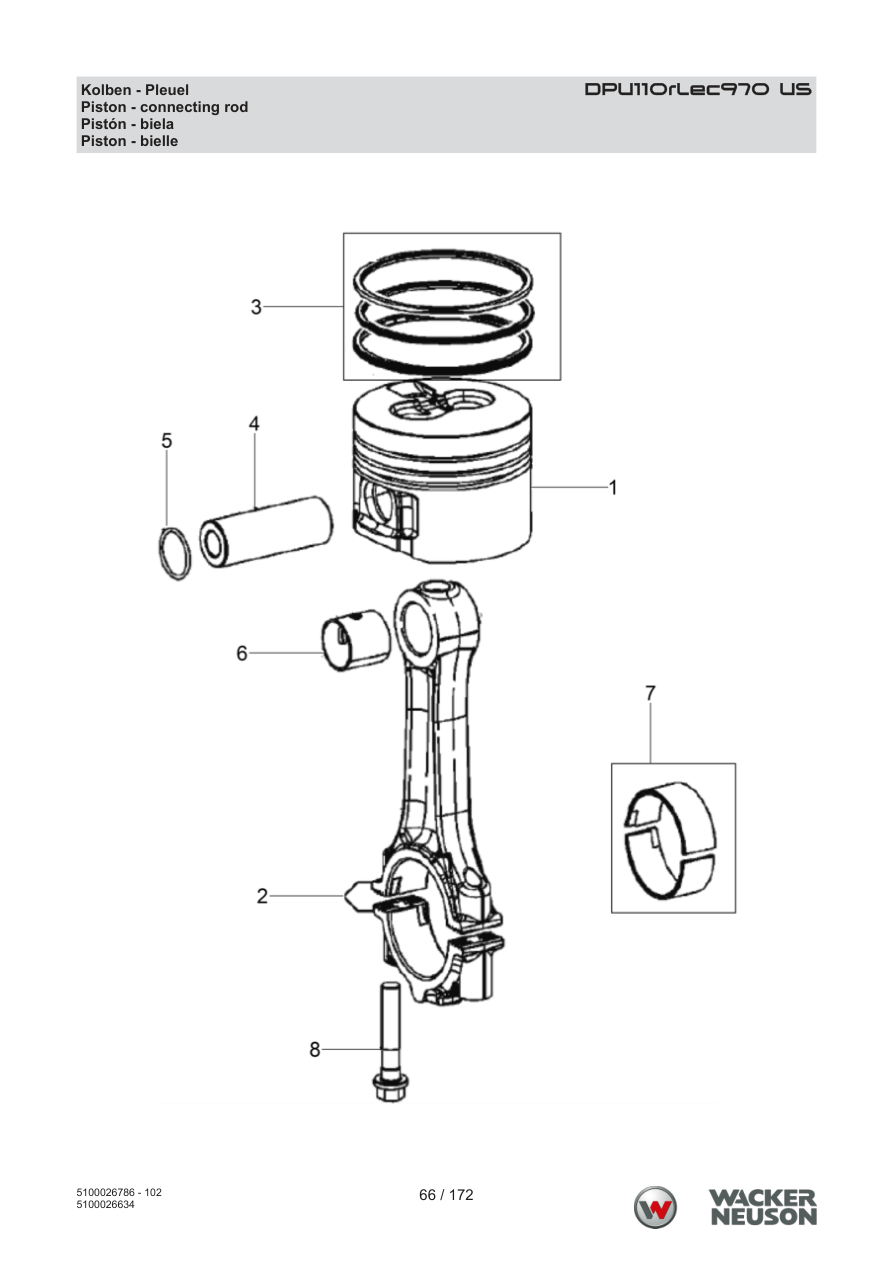

Page 72 — DPU110Lec970 US Piston - Connecting Rod
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160375 | Piston set | 3 | ADD TO CART | |
| 1 | 5000160376 | Piston set | 3 | ADD TO CART | |
| 1 | 5000160377 | Piston set | 3 | ADD TO CART | |
| 2 | 5000160367 | Connecting rod | 3 | PARTS REQUEST | |
|
COMING Connecting rod
5000160367 · qty on machine: 3 | |||||
| 3 | 5000160383 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160384 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160385 | Piston ring set | 2 | ADD TO CART | |
| 4 | 5000215523 | Piston pin | 3 | ADD TO CART | |
| 5 | 5000215477 | Retaining ring | 6 | ADD TO CART | |
| 6 | 5000160368 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000160368 · qty on machine: 2 | |||||
| 7 | 5000155689 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155690 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155691 | Bearing | 2 | ADD TO CART | |
| 8 | 5000084175 | Screw | 4 | ADD TO CART | |

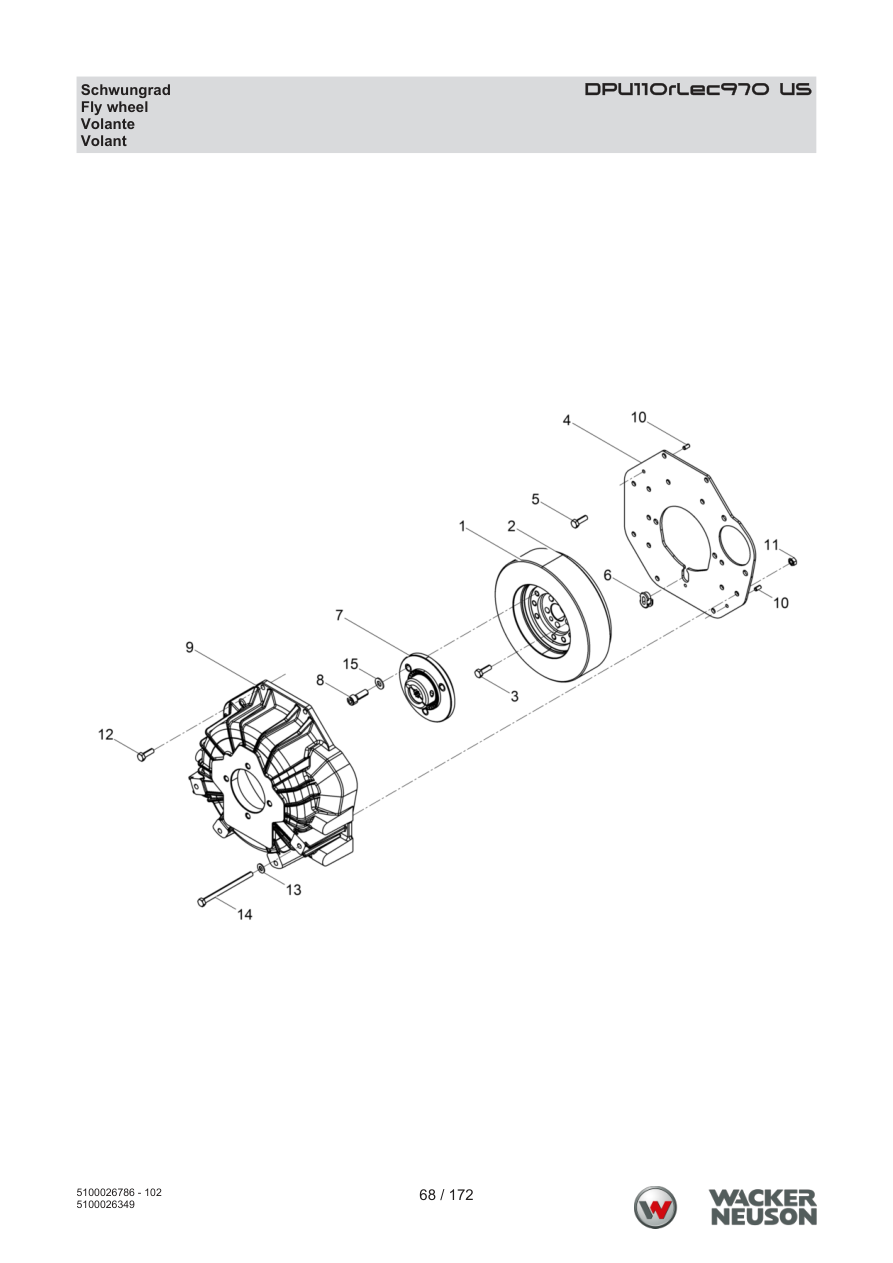

Page 74 — DPU110Lec970 US Flywheel
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215545 | Flywheel | 1 | ADD TO CART | |
| 2 | 5000155693 | Gear crown | 1 | ADD TO CART | |
| 3 | 5000160188 | Bolt | 5 | ADD TO CART | |
| 4 | 5000159326 | Plate | 1 | ADD TO CART | |
| 5 | 5000159254 | Bolt | 9 | ADD TO CART | |
| 6 | 5000215527 | Plug | 1 | ADD TO CART | |
| 7 | 5000211373 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000084164 | Screw | 3 | ADD TO CART | |
| 9 | 5000215567 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5000215567 · qty on machine: 1 | |||||
| 10 | 5000211370 | Pin | 2 | PARTS REQUEST | |
|
COMING Pin
5000211370 · qty on machine: 2 | |||||
| 11 | 5000082140 | Nut | 3 | ADD TO CART | |
| 12 | 5000084123 | Screw | 3 | ADD TO CART | |
| 13 | 5000211371 | Washer | 4 | ADD TO CART | |
| 14 | 5000211372 | Screw | 4 | ADD TO CART | |
| 15 | 5000160231 | Washer | 3 | ADD TO CART | |

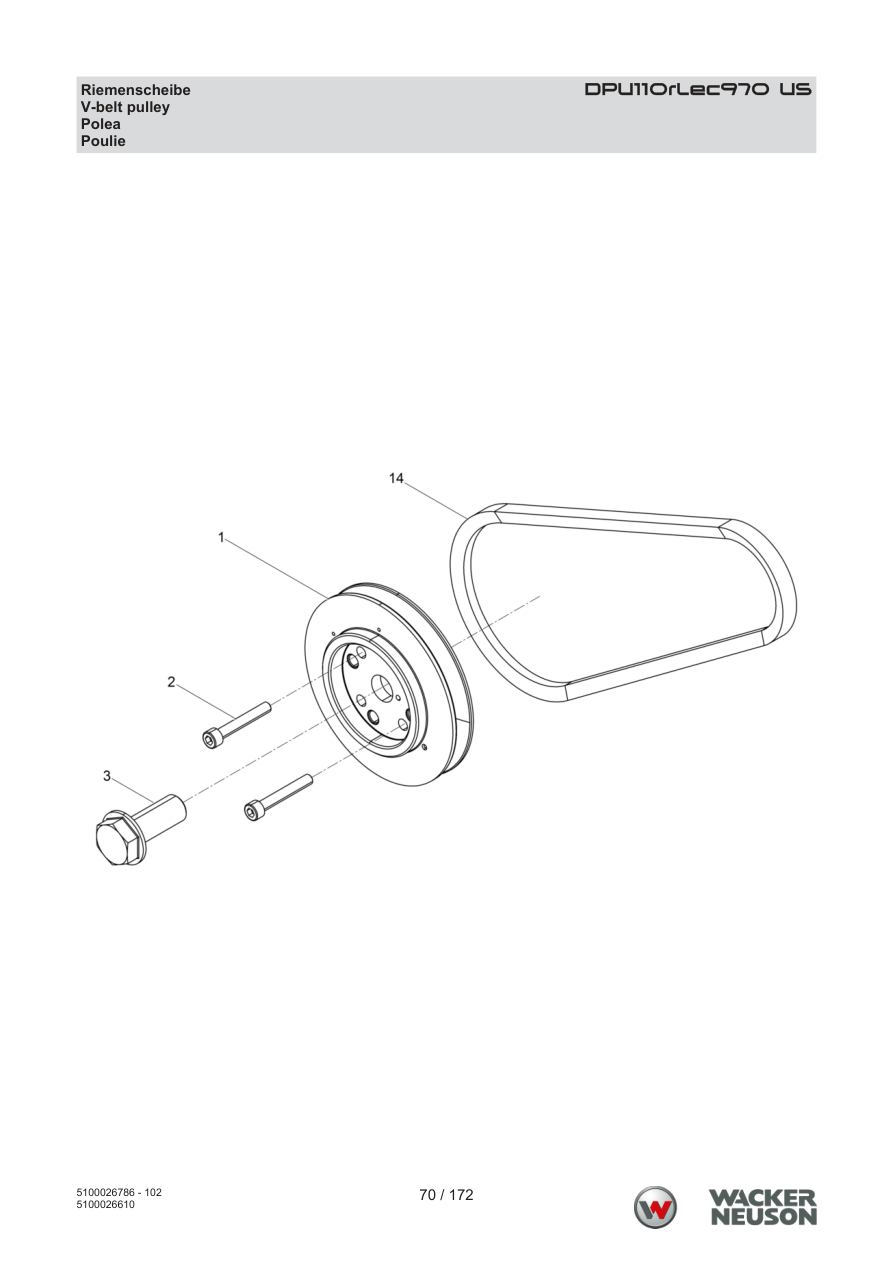

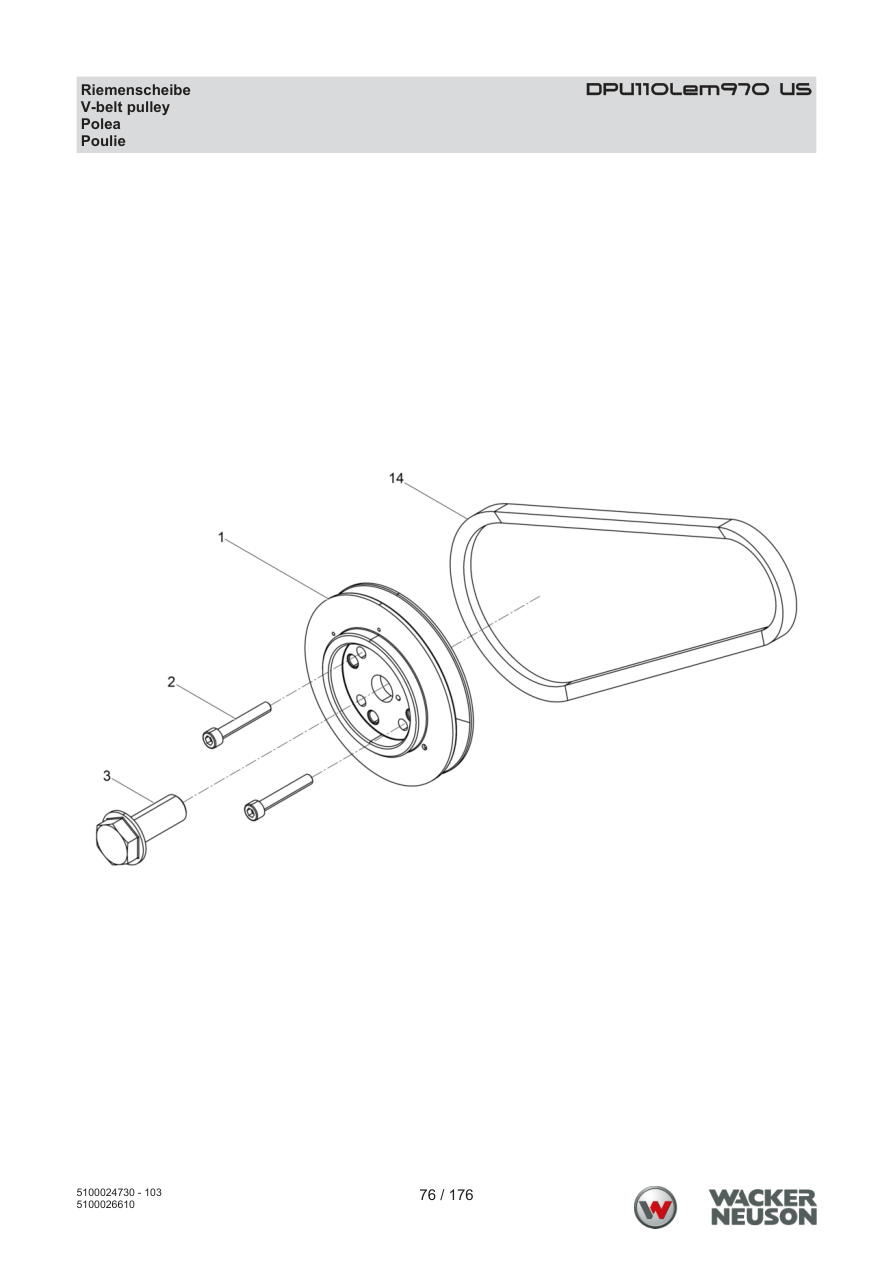

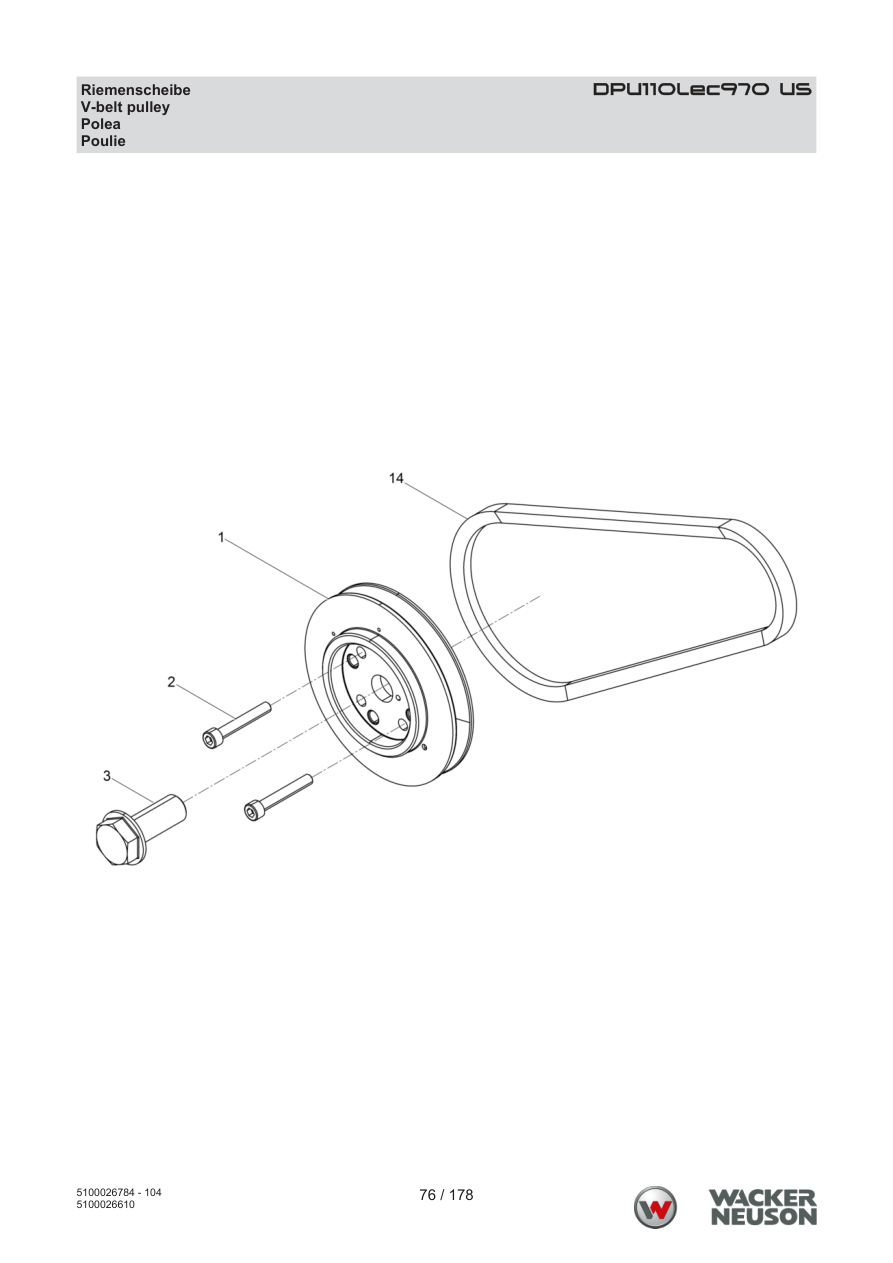

Page 76 — DPU110Lec970 US Pulley
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026267 | V-belt pulley | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5000126935 | Bolt | 1 | ADD TO CART | |
| 14 | 5000215485 | Belt | 1 | ADD TO CART | |

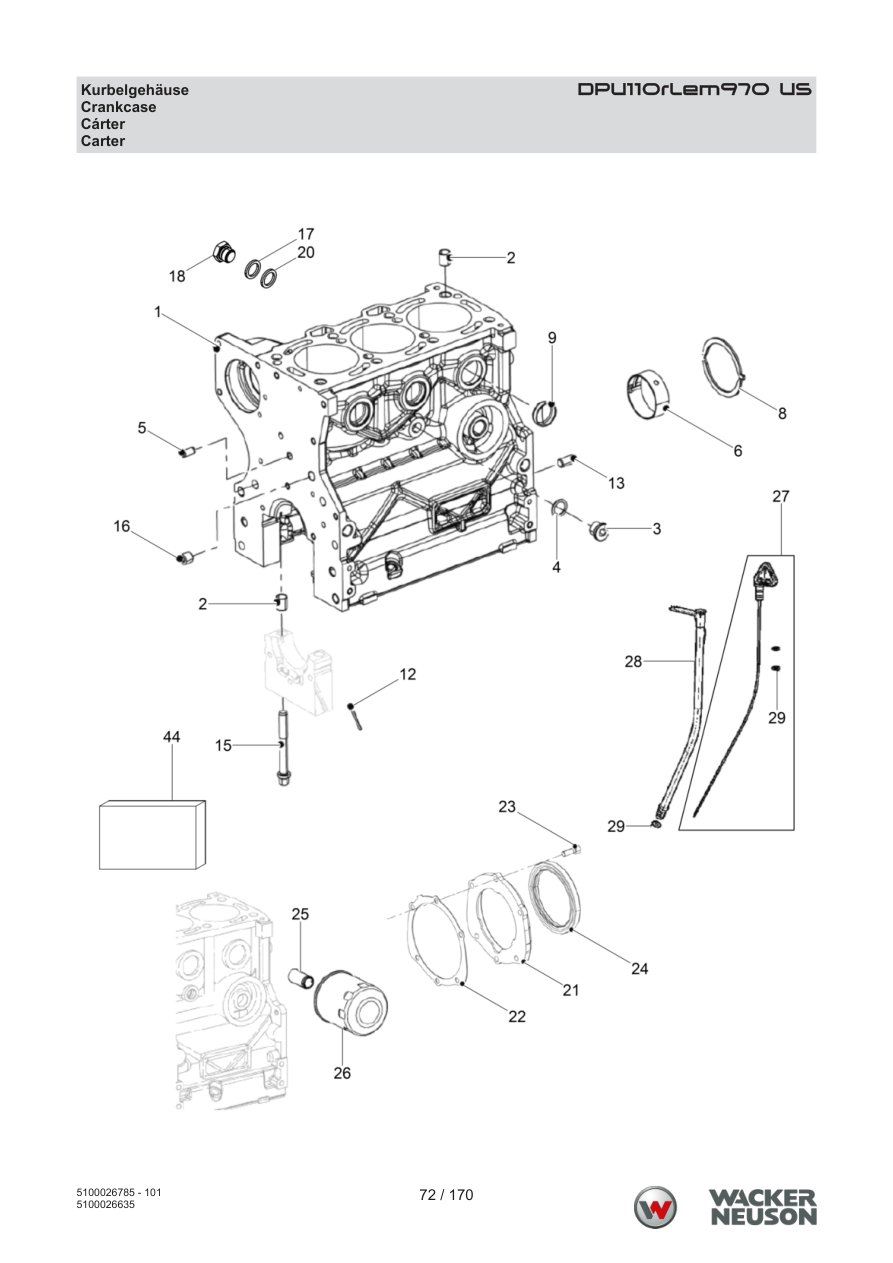

Page 78 — Crankcase
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026422 | Crankcase | 1 | PARTS REQUEST | |
|
COMING Crankcase
5100026422 · qty on machine: 1 | |||||
| 2 | 5000159257 | Sleeve | 2 | ADD TO CART | |
| 3 | 5000206229 | Screw | 1 | ADD TO CART | |
| 4 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000215522 | Pin | 1 | ADD TO CART | |
| 6 | 5000155702 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155703 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155704 | Bearing | 3 | ADD TO CART | |
| 8 | 5000159486 | Disc | 2 | ADD TO CART | |
| 8 | 5000159487 | Disc | 2 | ADD TO CART | |
| 8 | 5000159488 | Disc | 2 | ADD TO CART | |
| 9 | 5000082335 | Threaded plug | 4 | ADD TO CART | |
| 12 | 5000159288 | Gasket | 4 | ADD TO CART | |
| 13 | 5000159360 | Dowel pin | 2 | ADD TO CART | |
| 15 | 5000159480 | Screw | 8 | ADD TO CART | |
| 16 | 5000159456 | Plug | 1 | ADD TO CART | |
| 17 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 18 | 5000215530 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5000215530 · qty on machine: 1 | |||||
| 20 | 5000082183 | Copper washer | 1 | ADD TO CART | |
| 21 | 5000155700 | Flange | 1 | ADD TO CART | |
| 22 | 5000217807 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217807 · qty on machine: 1 | |||||
| 23 | 5000159467 | Screw | 6 | ADD TO CART | |
| 24 | 5000155701 | Rotary shaft seal | 1 | PARTS REQUEST | |
|
COMING Rotary shaft seal
5000155701 · qty on machine: 1 | |||||
| 25 | 5000159341 | Oil filter fitting | 1 | ADD TO CART | |
| 26 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 27 | 5100008859 | Oil dip stick | 1 | PARTS REQUEST | |
|
COMING Oil dip stick
5100008859 · qty on machine: 1 | |||||
| 28 | 5000215533 | Dipstick guard | 1 | ADD TO CART | |
| 29 | 5000063695 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5000063695 · qty on machine: 2 | |||||
| 44 | 5000159397 | Crankcase gasket set | 1 | ADD TO CART | |

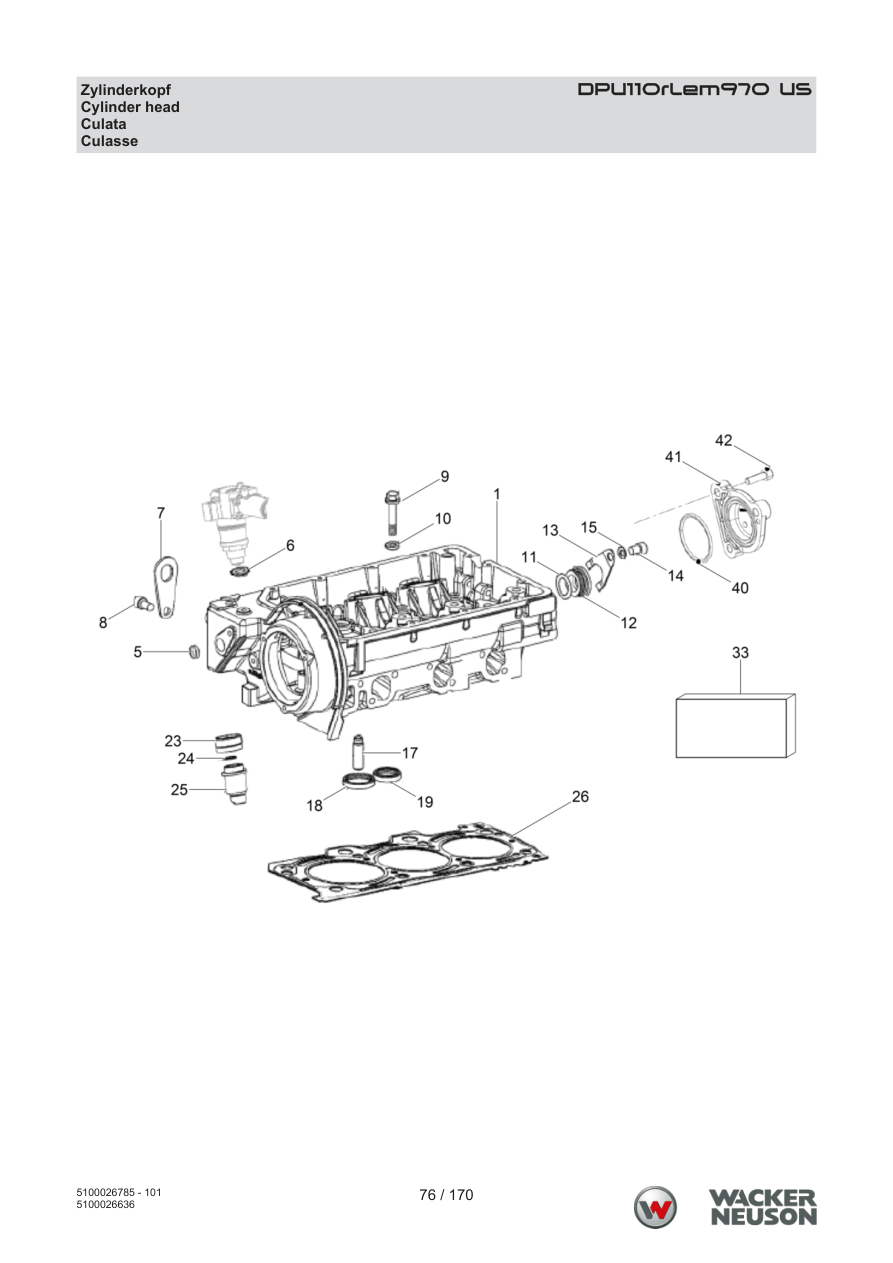

Page 82 — DPU110Lec970 US Cylinder head
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160388 | Cylinder head | 1 | ADD TO CART | |
| 5 | 5000159449 | Plug | 2 | ADD TO CART | |
| 6 | 5000159318 | Spark arrester | 3 | ADD TO CART | |
| 7 | 5000215524 | Lifting point | 2 | ADD TO CART | |
| 8 | 5000084156 | Screw | 1 | ADD TO CART | |
| 9 | 5000217828 | Flange screw | 8 | ADD TO CART | |
| 10 | 5000159350 | Washer | 8 | ADD TO CART | |
| 11 | 5000159231 | O-ring | 1 | ADD TO CART | |
| 12 | 5000159453 | Plug | 1 | ADD TO CART | |
| 13 | 5000159311 | Bracket | 1 | ADD TO CART | |
| 14 | 5000159254 | Bolt | 1 | ADD TO CART | |
| 15 | 5000082292 | Washer | 1 | ADD TO CART | |
| 17 | 5000159303 | Valve guide | 6 | ADD TO CART | |
| 18 | 5000160381 | Seat-valve, intake | 3 | ADD TO CART | |
| 19 | 5000160382 | Seat-valve, exhaust | 3 | ADD TO CART | |
| 23 | 5000159285 | Nut | 3 | ADD TO CART | |
| 24 | 5000215494 | Spacer | 9 | ADD TO CART | |
| 25 | 5000160380 | Precombustion chamber | 3 | ADD TO CART | |
| 26 | 5100026423 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100026423 · qty on machine: 1 | |||||
| 33 | 5000159396 | Cylinder gasket set | 1 | PARTS REQUEST | |
|
COMING Cylinder gasket set
5000159396 · qty on machine: 1 | |||||
| 40 | 5000159234 | Oil seal | 1 | ADD TO CART | |
| 41 | 5000159282 | Flange | 1 | ADD TO CART | |
| 42 | 5000215541 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 3 | |||||

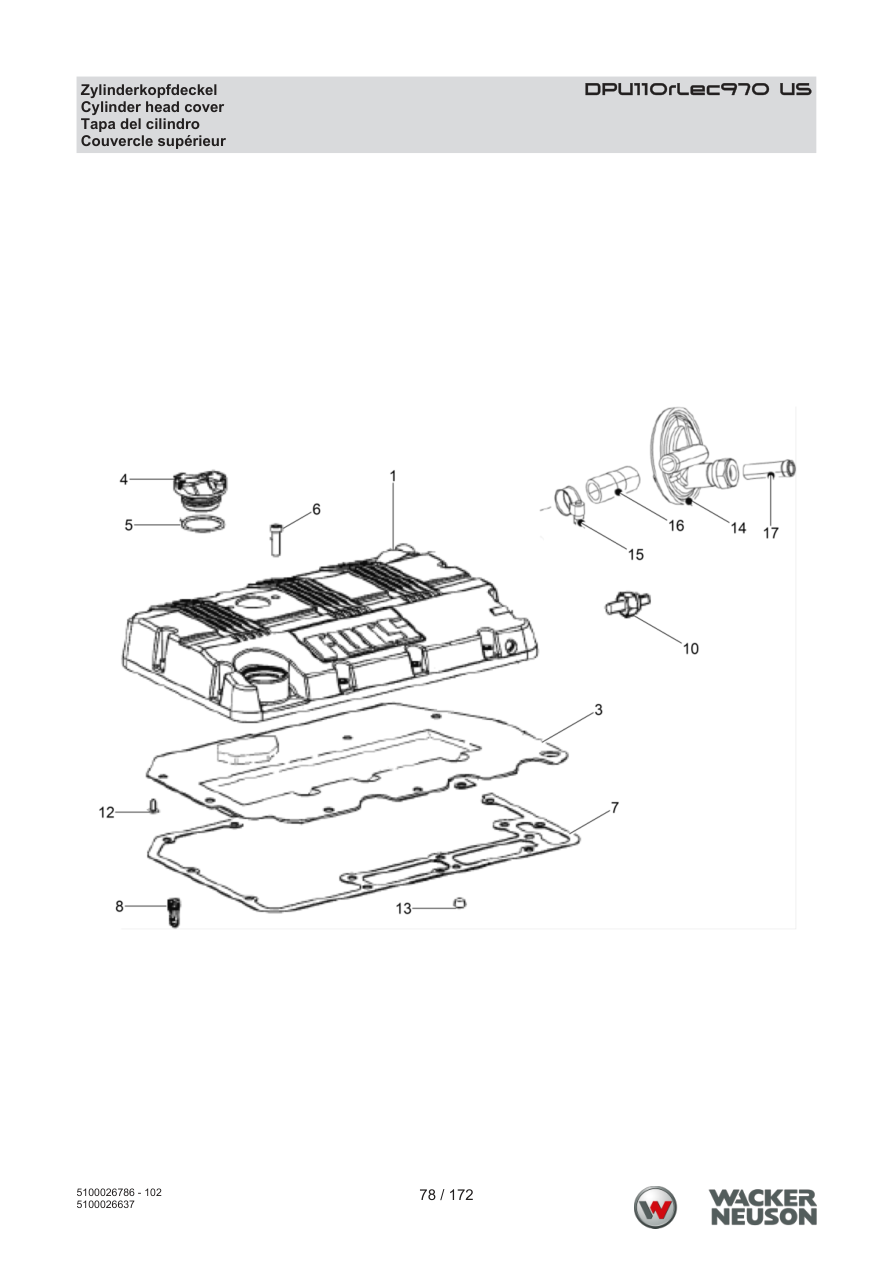

Page 84 — DPU110Lec970 US Cylinder head cover
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026424 | Cylinder head cover | 1 | PARTS REQUEST | |
|
COMING Cylinder head cover
5100026424 · qty on machine: 1 | |||||
| 3 | 5000159305 | Baffle | 1 | ADD TO CART | |
| 4 | 5000227761 | Cap | 1 | PARTS REQUEST | |
|
COMING Cap
5000227761 · qty on machine: 1 | |||||
| 5 | 5000206208 | O-ring | 1 | ADD TO CART | |
| 6 | 5000215541 | Screw | 12 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 12 | |||||
| 7 | 5000160205 | Gasket | 1 | ADD TO CART | |
| 8 | 5000159308 | Connector | 1 | ADD TO CART | |
| 10 | 5100026419 | Oil pressure switch | 1 | PARTS REQUEST | |
|
COMING Oil pressure switch
5100026419 · qty on machine: 1 | |||||
| 12 | 5100008855 | Rivet | 9 | PARTS REQUEST | |
|
COMING Rivet
5100008855 · qty on machine: 9 | |||||
| 13 | 5000159455 | Push-in plug | 1 | ADD TO CART | |
| 14 | 5000155745 | Pressure valve | 1 | ADD TO CART | |
| 15 | 5000160201 | Clamp | 4 | ADD TO CART | |
| 15 | 5000160199 | Clamp | 1 | ADD TO CART | |
| 16 | 5000215505 | Connecting tube | 1 | ADD TO CART | |
| 16 | 5000215535 | Connecting pipe | 1 | ADD TO CART | |
| 17 | 5000215536 | Valve tube | 1 | ADD TO CART | |

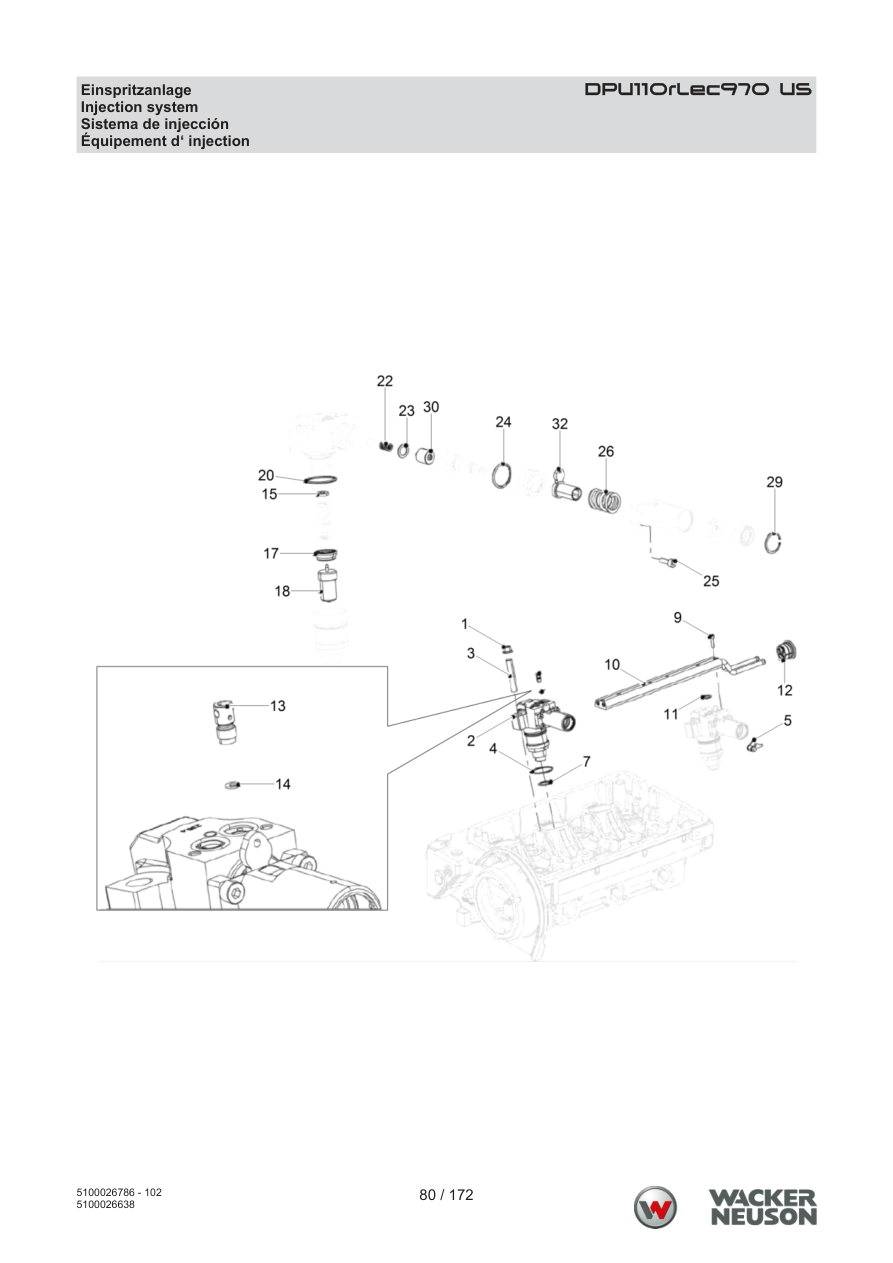

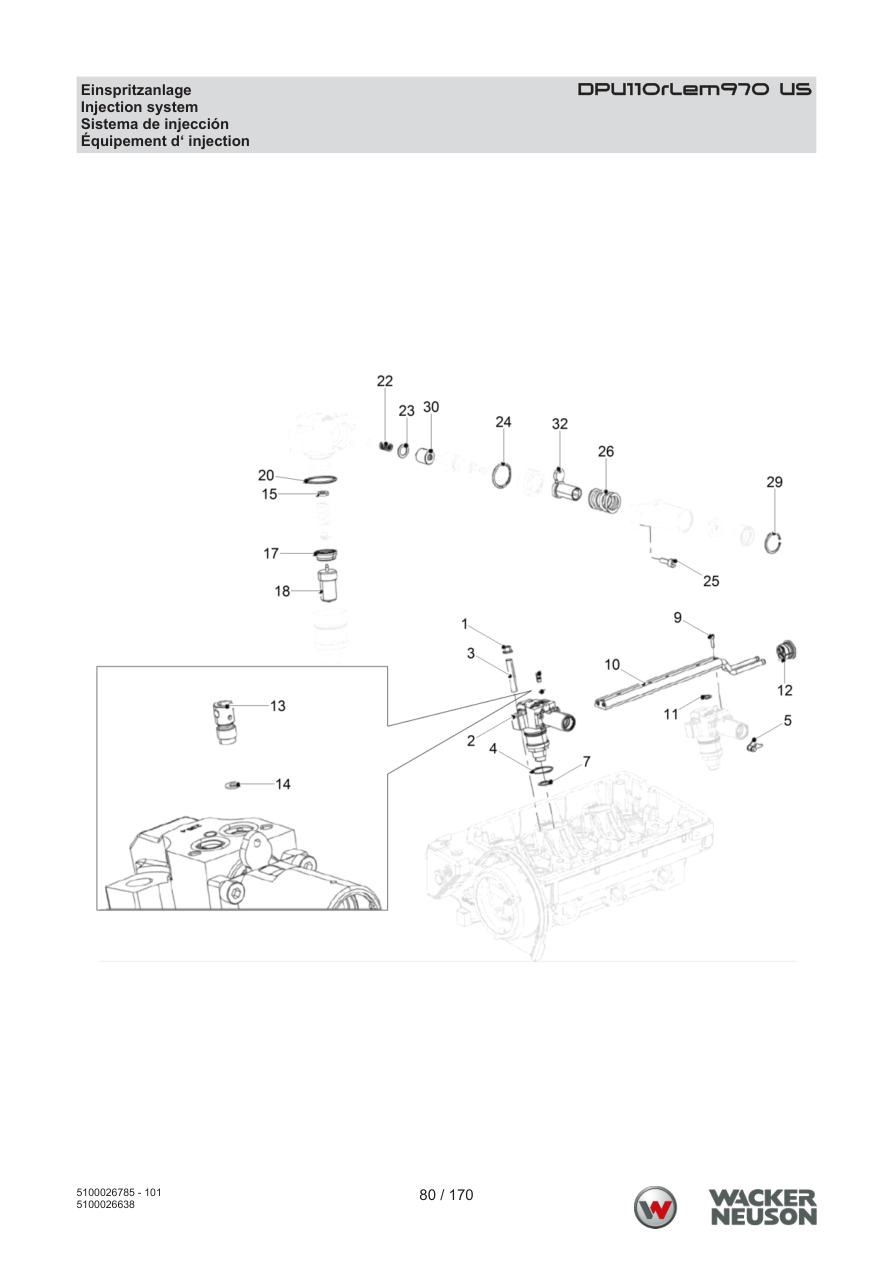

Page 86 — DPU110Lec970 US Injection system
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000203358 | Nut | 4 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 4 | |||||
| 2 | 5000160379 | Injection pump | 3 | ADD TO CART | |
| 3 | 5200009479 | Stud | 6 | ADD TO CART | |
| 4 | 5000159233 | O-ring | 2 | ADD TO CART | |
| 5 | 5100026390 | Bracket | 1 | ADD TO CART | |
| 7 | 5000159300 | Washer | 3 | ADD TO CART | |
| 9 | 5000159473 | Screw | 6 | ADD TO CART | |
| 10 | 5000159459 | Pipe | 1 | ADD TO CART | |
| 11 | 5000159237 | O-ring | 2 | ADD TO CART | |
| 12 | 5000160209 | Gasket | 1 | ADD TO CART | |
| 13 | 5000160391 | Back pressure valve | 2 | ADD TO CART | |
| 14 | 5000159302 | Gasket | 2 | ADD TO CART | |
| 15 | 5000160332 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160332 · qty on machine: 1 | |||||
| 15 | 5000160341 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160341 · qty on machine: 1 | |||||
| 15 | 5000160342 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160342 · qty on machine: 1 | |||||
| 15 | 5000160340 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160340 · qty on machine: 1 | |||||
| 15 | 5000160339 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160339 · qty on machine: 1 | |||||
| 15 | 5000160338 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160338 · qty on machine: 1 | |||||
| 15 | 5000160337 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160337 · qty on machine: 1 | |||||
| 15 | 5000160336 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160336 · qty on machine: 1 | |||||
| 15 | 5000160335 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160335 · qty on machine: 1 | |||||
| 15 | 5000160334 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160334 · qty on machine: 1 | |||||
| 17 | 5000159278 | Spacer | 2 | ADD TO CART | |
| 18 | 5000155710 | Jet | 2 | ADD TO CART | |
| 20 | 5000159238 | O-ring | 2 | ADD TO CART | |
| 22 | 5000215509 | Spring | 2 | PARTS REQUEST | |
|
COMING Spring
5000215509 · qty on machine: 2 | |||||
| 23 | 5000203718 | Cu-ring | 2 | PARTS REQUEST | |
|
COMING Cu-ring
5000203718 · qty on machine: 2 | |||||
| 24 | 5000159236 | O-ring | 2 | ADD TO CART | |
| 25 | 5000159471 | Screw | 4 | ADD TO CART | |
| 26 | 5000159317 | Spring | 2 | ADD TO CART | |
| 29 | 5000159242 | Clamp | 2 | ADD TO CART | |
| 30 | 5200015520 | Pressure valve | 2 | ADD TO CART | |
| 32 | 5000159309 | Shim | 2 | ADD TO CART | |

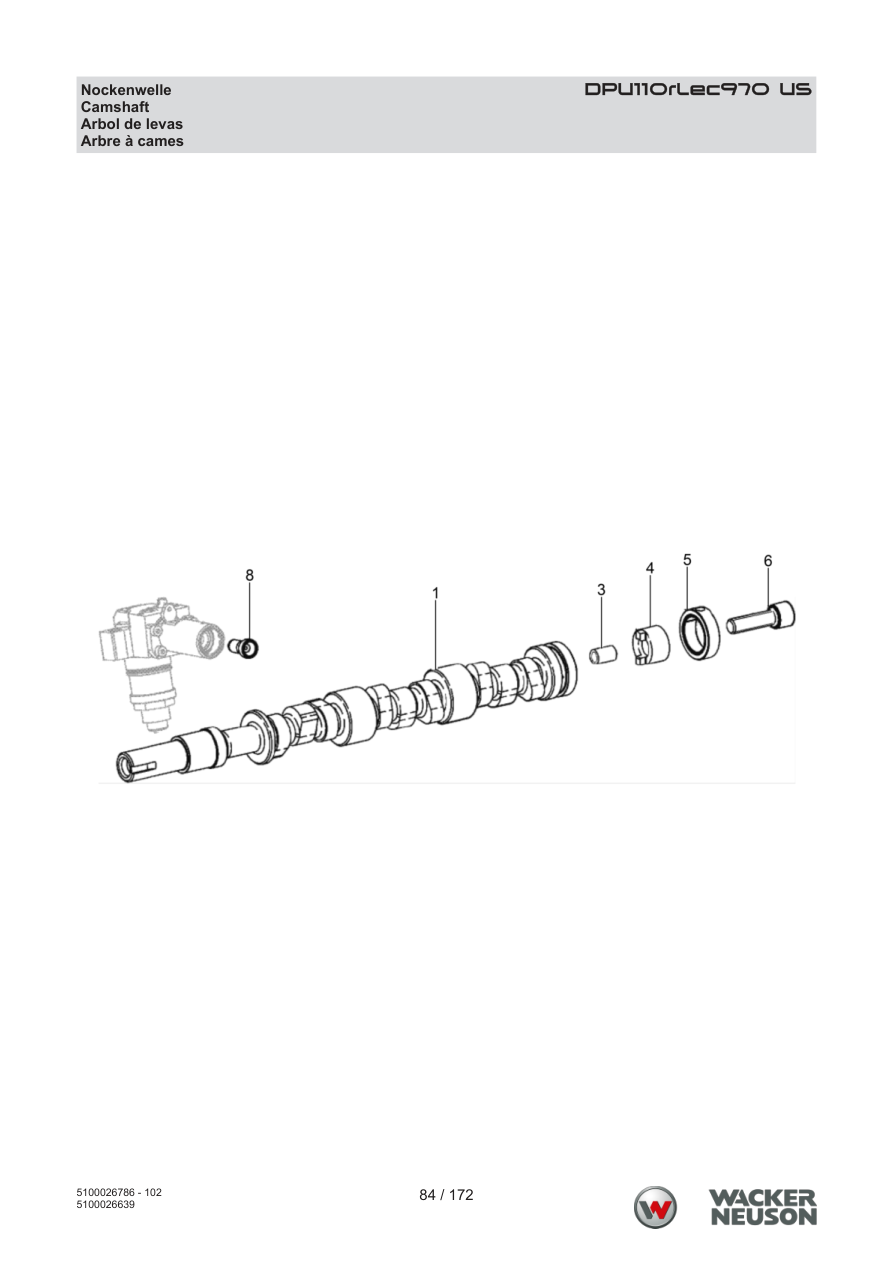

Page 90 — DPU110Lec970 US Camshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026425 | Camshaft | 1 | ADD TO CART | |
| 3 | 5000215482 | Collar | 1 | ADD TO CART | |
| 4 | 5000215497 | Cam | 1 | ADD TO CART | |
| 5 | 5000160753 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000160753 · qty on machine: 1 | |||||
| 6 | 5000215540 | Screw | 1 | ADD TO CART | |
| 8 | 5000159246 | Push rod, valve lifter | 3 | ADD TO CART | |

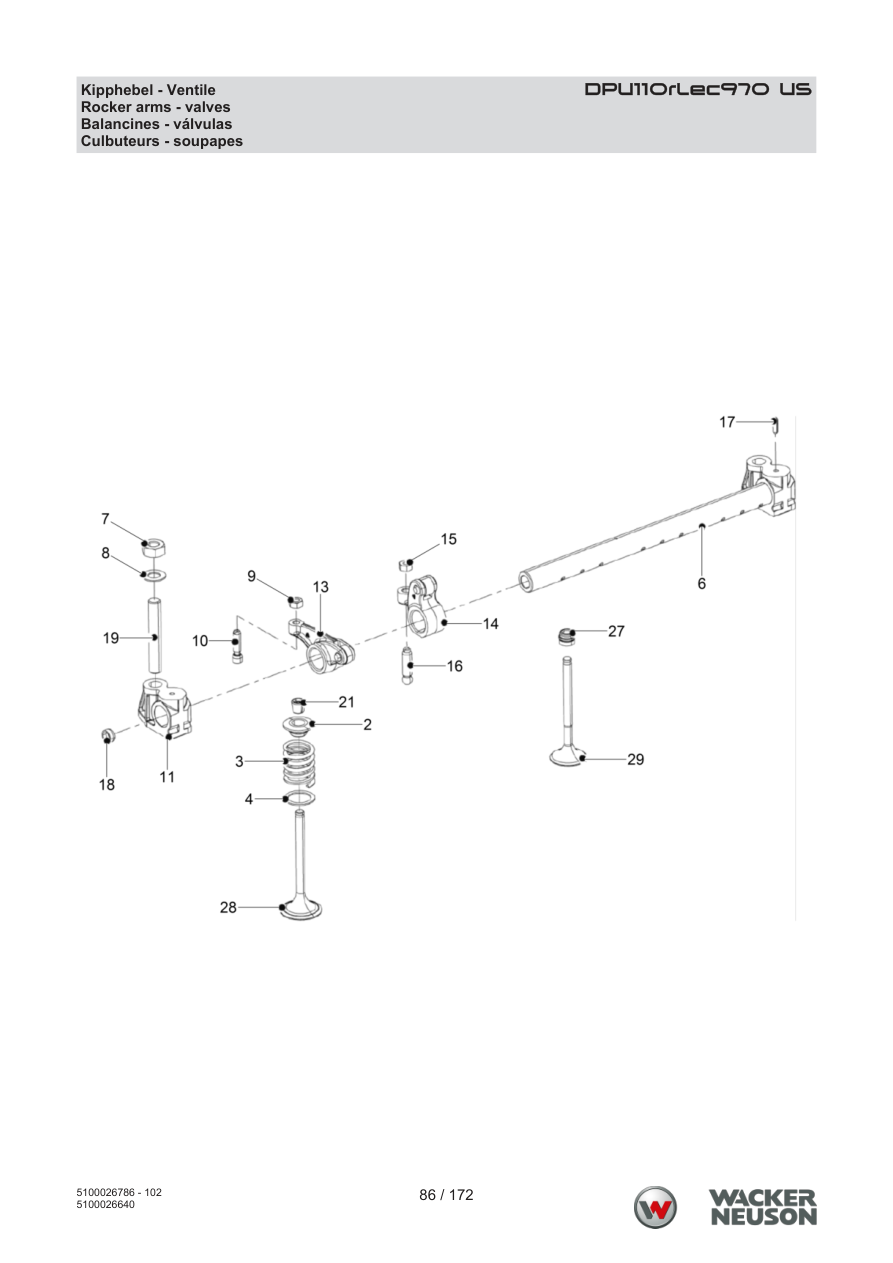

Page 92 — DPU110Lec970 US Rocker arms - Valves
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159328 | Spring housing | 4 | ADD TO CART | |
| 3 | 5000160373 | Spring | 6 | ADD TO CART | |
| 4 | 5000159351 | Washer | 6 | ADD TO CART | |
| 6 | 5000160218 | Rocker arm shaft | 1 | ADD TO CART | |
| 6 | 5000155696 | Rocker arm complete | 1 | ADD TO CART | |
| 7 | 5000083011 | Nut | 4 | ADD TO CART | |
| 8 | 5000159350 | Washer | 4 | ADD TO CART | |
| 9 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000159482 | Screw | 1 | ADD TO CART | |
| 11 | 5000159447 | Shaft support | 4 | ADD TO CART | |
| 13 | 5000159248 | Rocker arm | 6 | PARTS REQUEST | |
|
COMING Rocker arm
5000159248 · qty on machine: 6 | |||||
| 14 | 5000159249 | Rocker arm injector | 3 | ADD TO CART | |
| 15 | 5000159275 | Nut | 1 | ADD TO CART | |
| 16 | 5000159483 | Threaded bolt | 1 | ADD TO CART | |
| 17 | 5000159443 | Pin | 1 | ADD TO CART | |
| 18 | 5000215529 | Plug | 2 | ADD TO CART | |
| 19 | 5000159333 | Threaded stud | 4 | ADD TO CART | |
| 21 | 5100008856 | Bush | 12 | PARTS REQUEST | |
|
COMING Bush
5100008856 · qty on machine: 12 | |||||
| 27 | 5000159297 | Gasket | 6 | ADD TO CART | |
| 28 | 5000160390 | Intake valve | 3 | ADD TO CART | |
| 29 | 5000160392 | Outlet valve | 3 | ADD TO CART | |

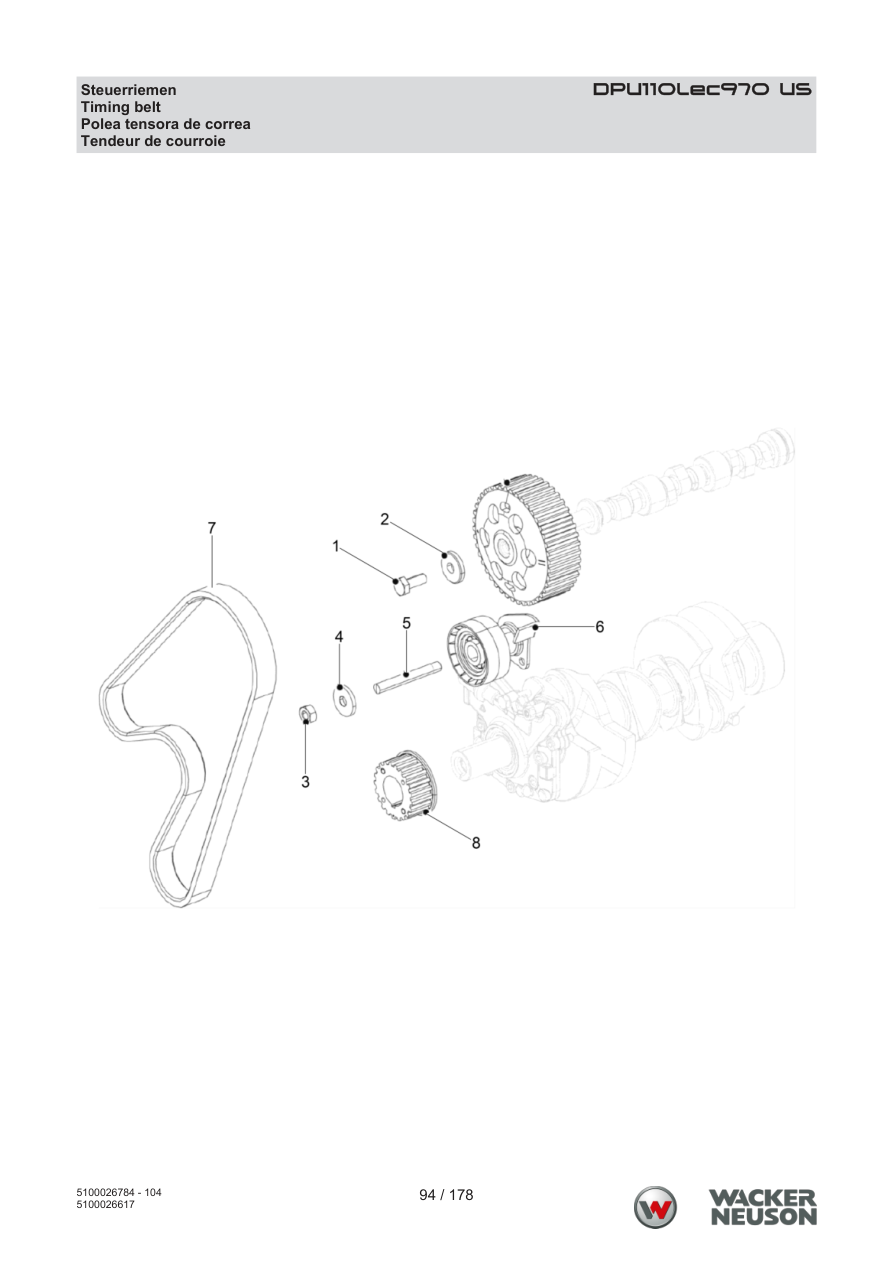

Page 94 — DPU110Lec970 US Timing belt
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159481 | Screw | 1 | ADD TO CART | |
| 2 | 5000159349 | Washer | 1 | ADD TO CART | |
| 3 | 5000083011 | Nut | 1 | ADD TO CART | |
| 4 | 5000159344 | Washer | 1 | ADD TO CART | |
| 5 | 5000159334 | Threaded stud | 1 | ADD TO CART | |
| 6 | 5000159284 | Tensioner pulley | 1 | ADD TO CART | |
| 7 | 5000155697 | Timing belt | 1 | ADD TO CART | |
| 8 | 5000159336 | Belt pulley | 1 | ADD TO CART | |
| 9 | 5000159338 | Belt pulley | 1 | ADD TO CART | |

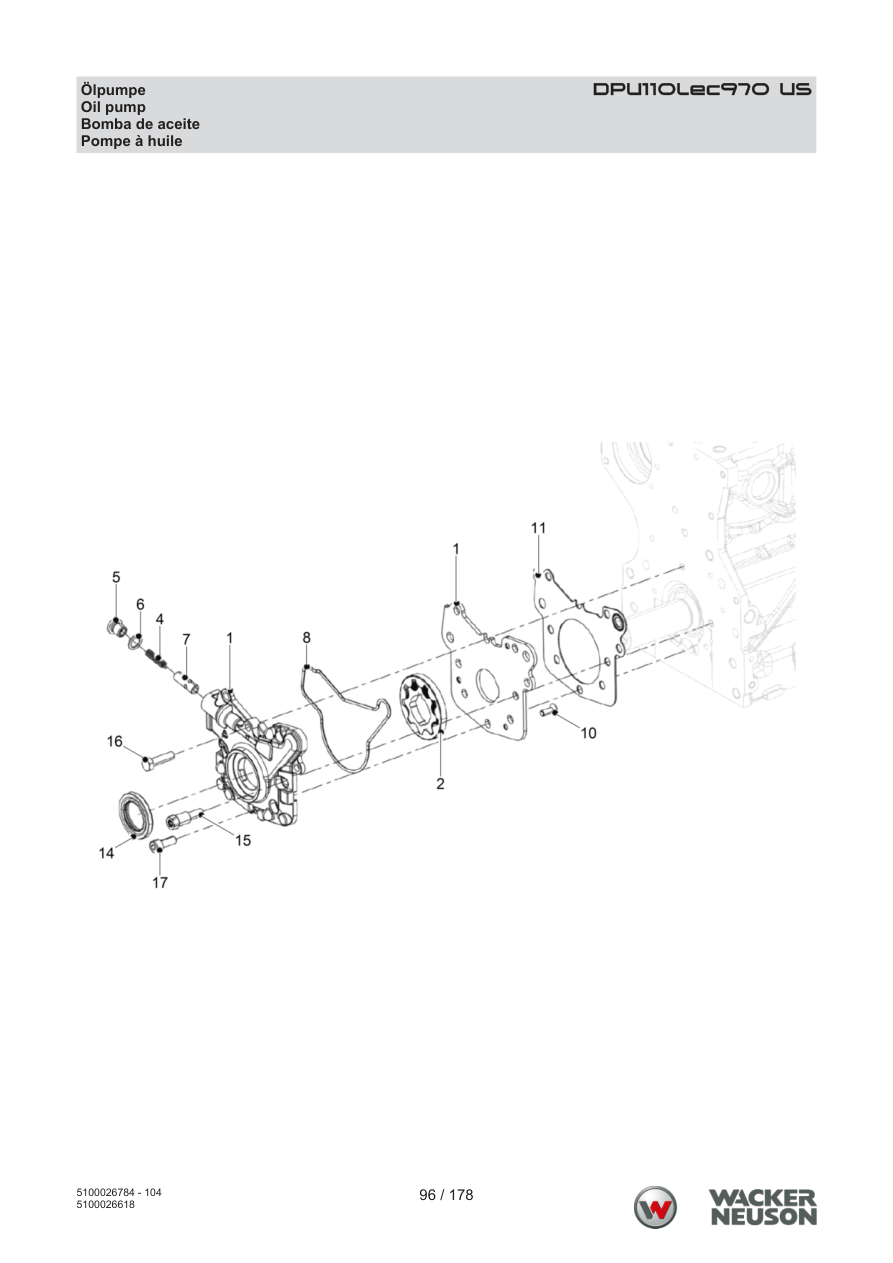

Page 96 — Oil pump
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155735 | Oil pump complete | 1 | ADD TO CART | |
| 2 | 5000160326 | Rotor | 1 | ADD TO CART | |
| 4 | 5000159312 | Spring | 1 | ADD TO CART | |
| 5 | 5000159450 | Lock screw | 1 | ADD TO CART | |
| 6 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 7 | 5000159330 | Rod | 1 | ADD TO CART | |
| 8 | 5000160178 | O-ring | 1 | ADD TO CART | |
| 10 | 5000159478 | Screw | 3 | ADD TO CART | |
| 11 | 5000215709 | Gasket | 1 | ADD TO CART | |
| 14 | 5000155734 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000159484 | Screw | 2 | ADD TO CART | |
| 16 | 5000215479 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 17 | 5000084169 | Screw | 6 | ADD TO CART | |

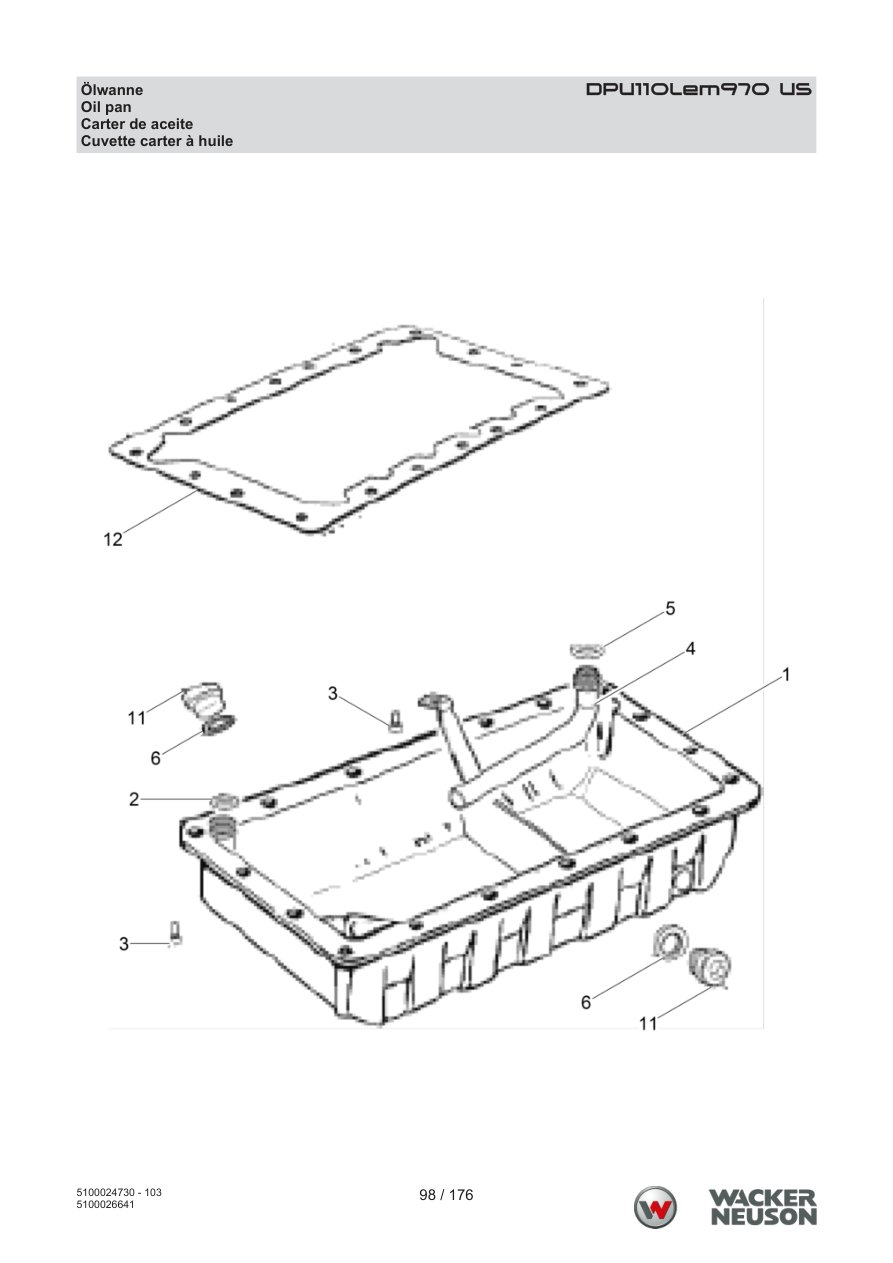

Page 98 — Oil pan
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155738 | Oil pan | 1 | PARTS REQUEST | |
|
COMING Oil pan
5000155738 · qty on machine: 1 | |||||
| 2 | 5000159228 | Oil seal | 1 | ADD TO CART | |
| 3 | 5000159253 | Bolt | 19 | ADD TO CART | |
| 4 | 5000155737 | Hose | 1 | ADD TO CART | |
| 5 | 5000159235 | O-ring | 1 | ADD TO CART | |
| 6 | 5000159568 | Copper washer | 2 | ADD TO CART | |
| 11 | 5000211364 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5000211364 · qty on machine: 2 | |||||
| 12 | 5000159291 | Gasket | 2 | ADD TO CART | |

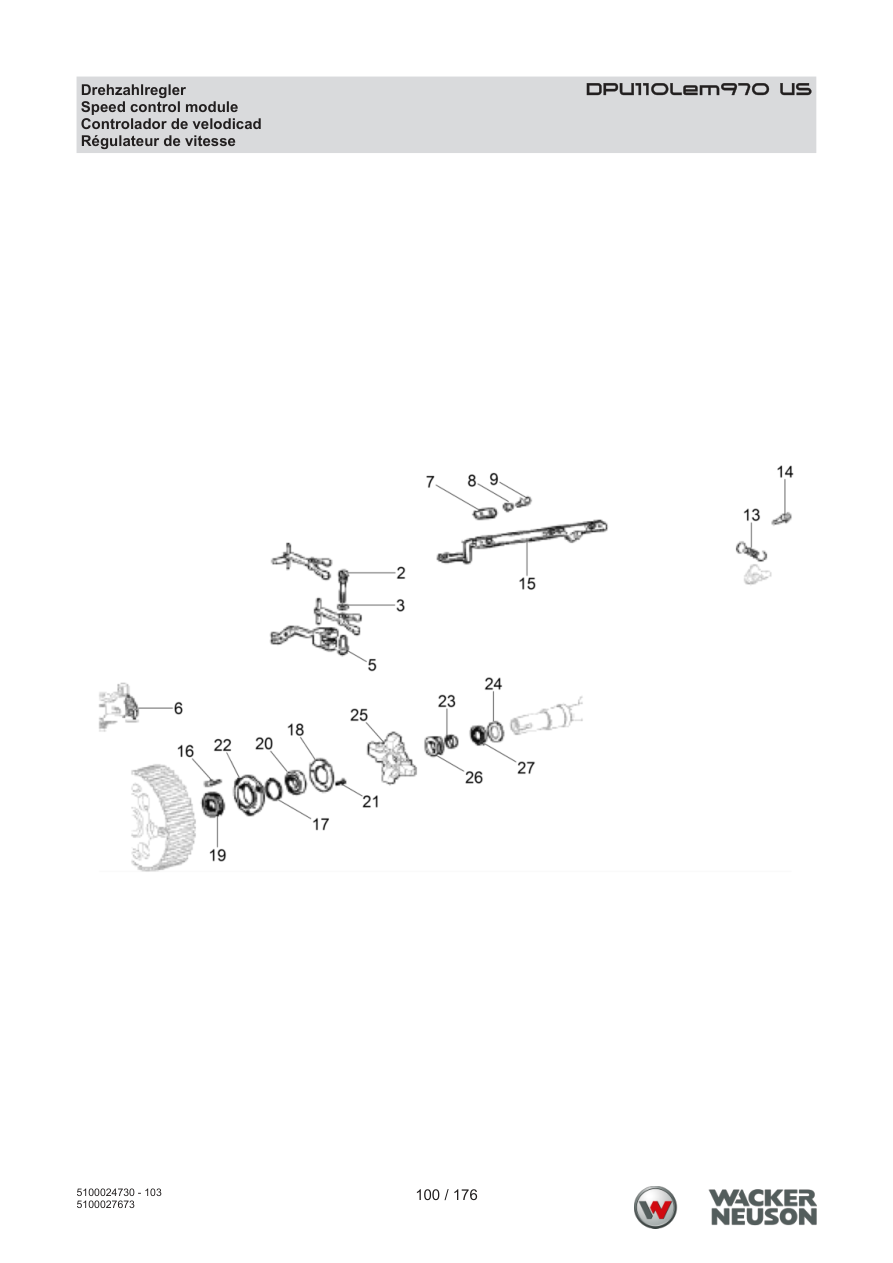

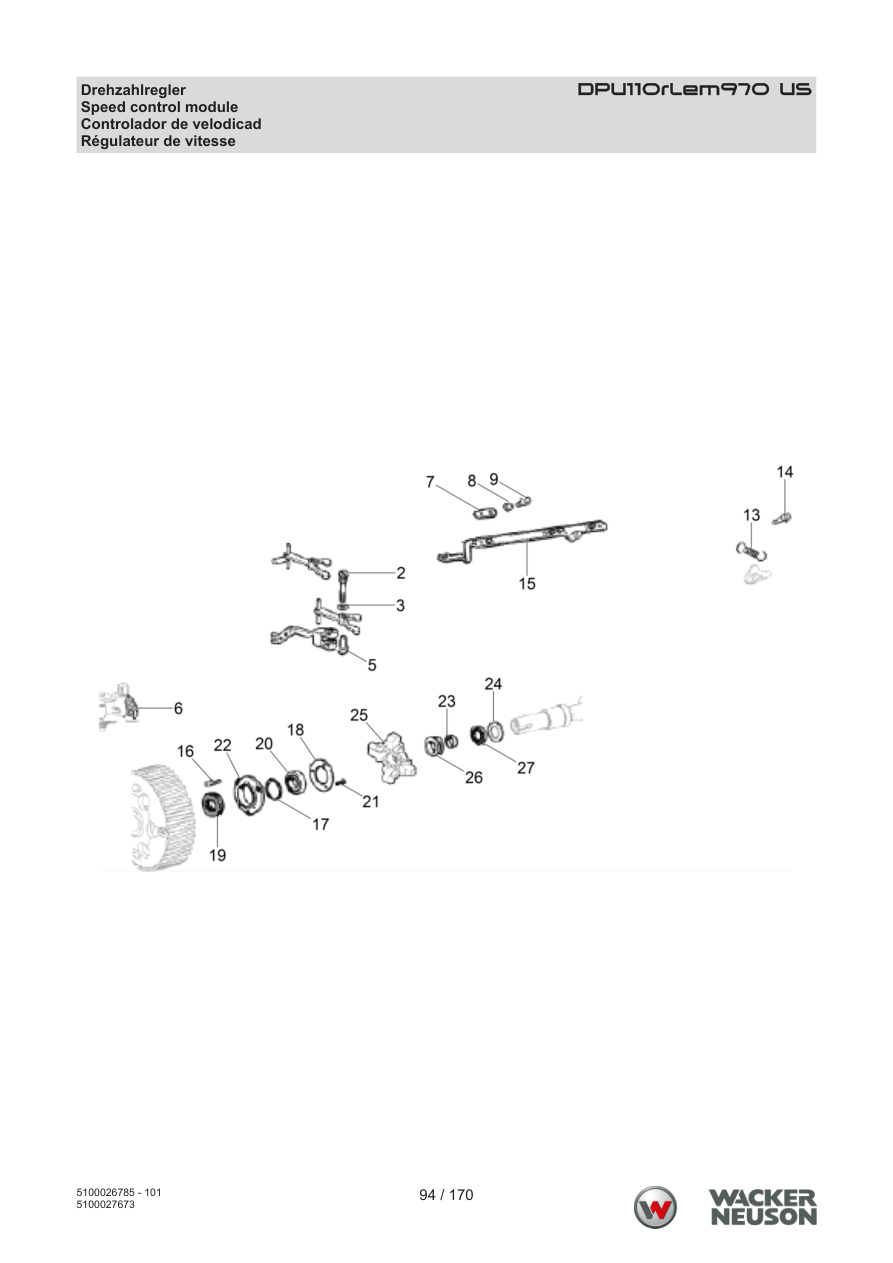

Page 100 — DPU110Lec970 US Speed governor
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159321 | Pin | 1 | ADD TO CART | |
| 3 | 5000159229 | Oil seal | 1 | ADD TO CART | |
| 5 | 5000215480 | Collar | 1 | ADD TO CART | |
| 6 | 5100008864 | Spring | 1 | ADD TO CART | |
| 7 | 5000217813 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5000217813 · qty on machine: 1 | |||||
| 8 | 5000215520 | Washer | 2 | ADD TO CART | |
| 9 | 5000159477 | Screw | 4 | ADD TO CART | |
| 13 | 5000159315 | Spring | 1 | ADD TO CART | |
| 14 | 5000211941 | Screw | 3 | ADD TO CART | |
| 15 | 5000159245 | Linkage | 1 | ADD TO CART | |
| 16 | 5000159467 | Screw | 3 | ADD TO CART | |
| 17 | 5000159239 | O-ring | 1 | ADD TO CART | |
| 18 | 5000159324 | Check disc | 1 | ADD TO CART | |
| 19 | 5000159240 | Lip seal | 1 | PARTS REQUEST | |
|
COMING Lip seal
5000159240 · qty on machine: 1 | |||||
| 20 | 5000159267 | Bearing | 1 | ADD TO CART | |
| 21 | 5100008841 | Screw | 3 | ADD TO CART | |
| 22 | 5000159265 | Cover | 1 | ADD TO CART | |
| 23 | 5000159251 | Collar | 1 | ADD TO CART | |
| 24 | 5000215517 | Check disc | 1 | ADD TO CART | |
| 25 | 5000155698 | Speed control module | 1 | ADD TO CART | |
| 26 | 5000215506 | Collar | 1 | ADD TO CART | |
| 27 | 5000217805 | Bearing | 1 | PARTS REQUEST | |
|
COMING Bearing
5000217805 · qty on machine: 1 | |||||

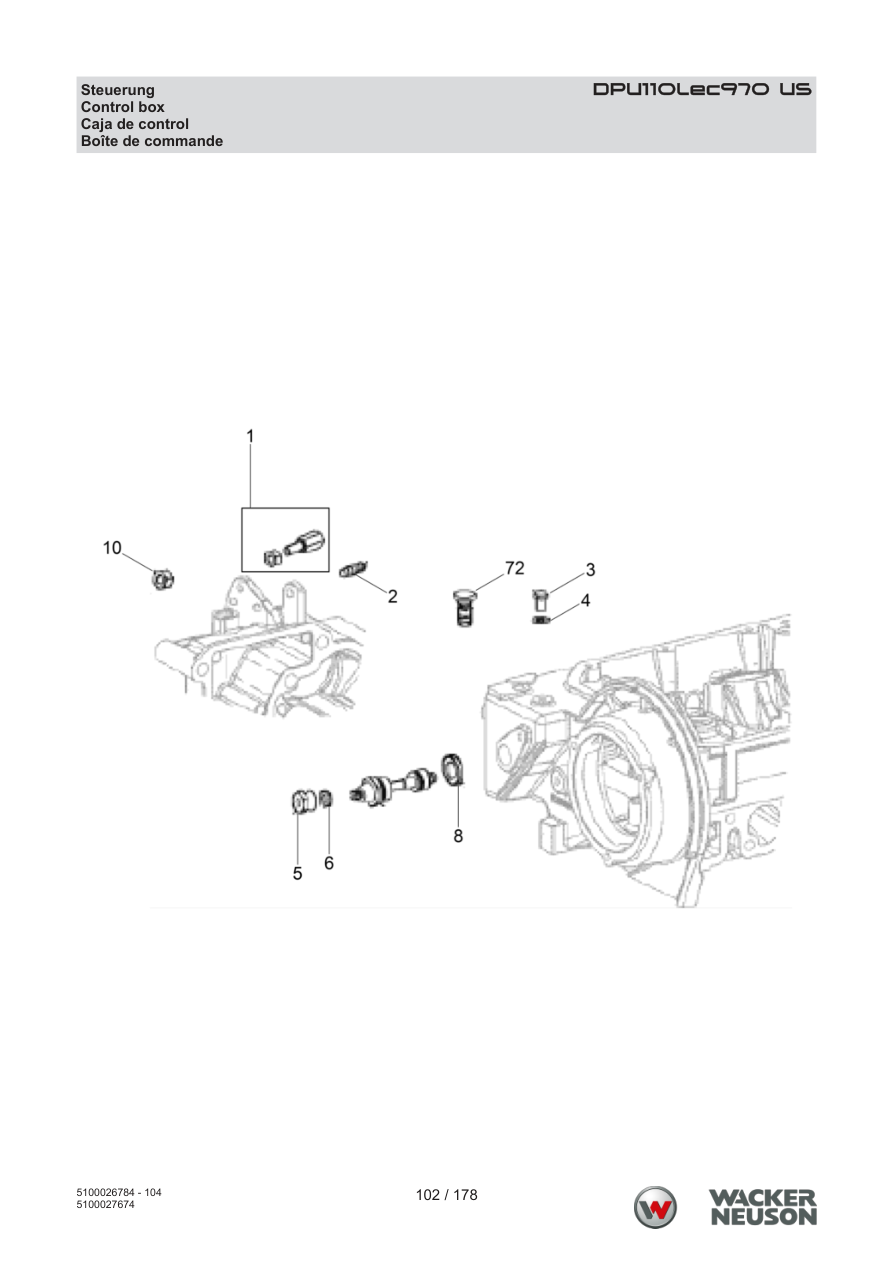

Page 102 — Control box
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5100027675 | Speed control | 1 | ADD TO CART | ||
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 2 | 5000215543 | Screw | 1 | ADD TO CART | |
| 3 | 5000084131 | Screw | 2 | ADD TO CART | |
| 4 | 5000083995 | Washer | 2 | ADD TO CART | |
| 5 | 5000150038 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000150038 · qty on machine: 2 | |||||
| 6 | 5000217818 | Washer | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |

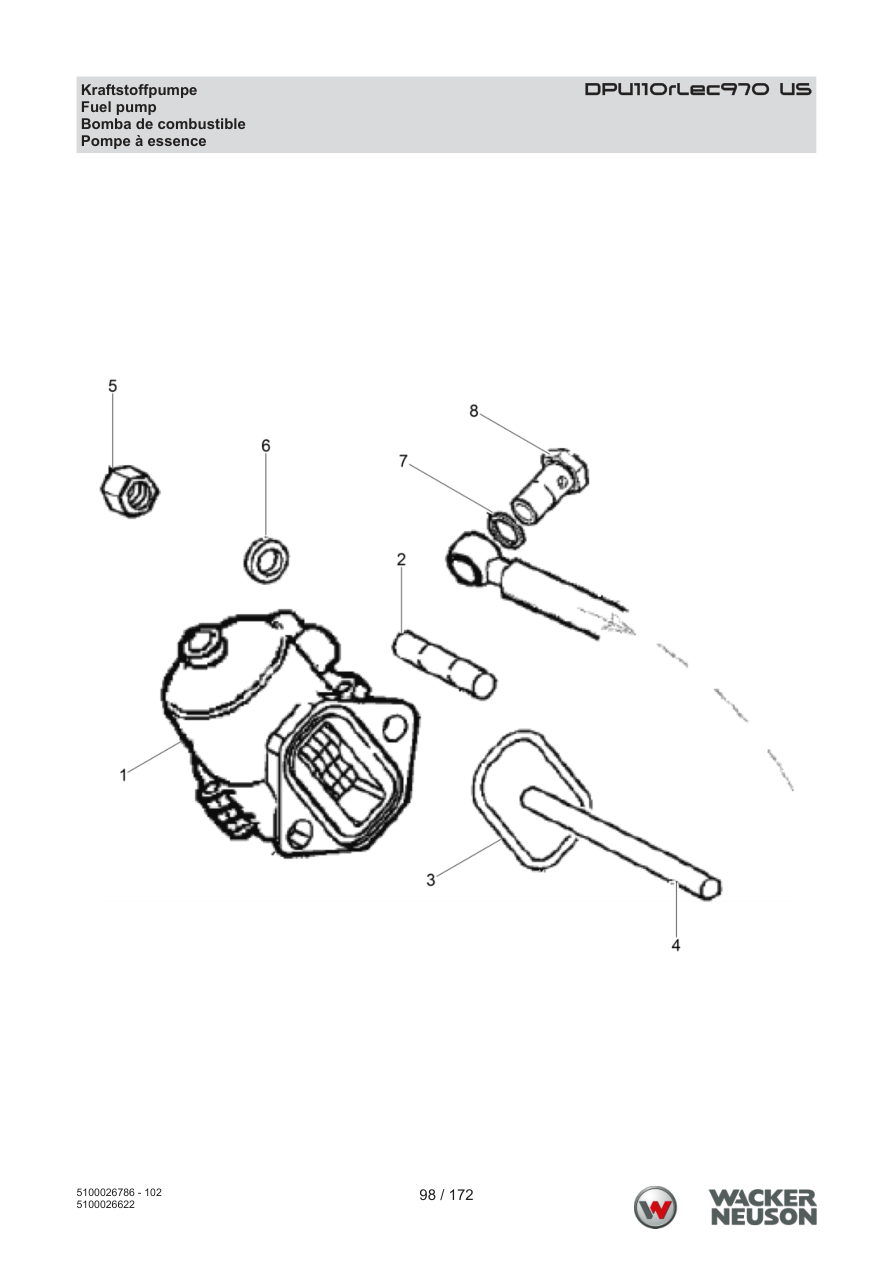

Page 104 — DPU110Lec970 US Fuel pump
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226239 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5000226239 · qty on machine: 1 | |||||
| 2 | 5000082266 | Stud | 2 | ADD TO CART | |
| 3 | 5000110759 | Seal | 1 | ADD TO CART | |
| 4 | 5000160757 | Rod | 1 | ADD TO CART | |
| 5 | 5000203358 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 2 | |||||
| 6 | 5000082285 | Washer | 2 | ADD TO CART | |
| 7 | 5000082183 | Copper washer | 4 | ADD TO CART | |
| 8 | 5000217802 | Banjo bolt | 2 | PARTS REQUEST | |
|
COMING Banjo bolt
5000217802 · qty on machine: 2 | |||||

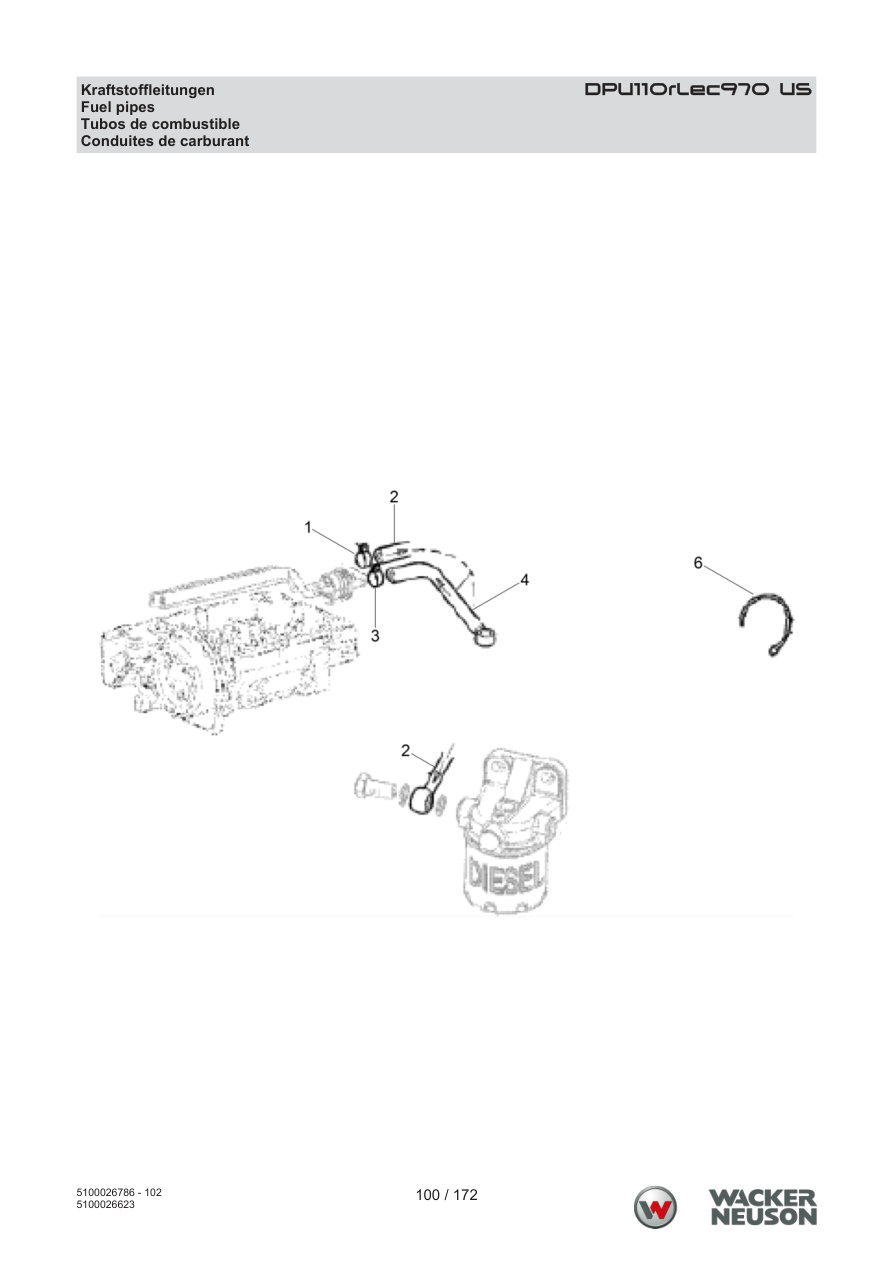

Page 106 — DPU110Lec970 US Fuel lines
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000082155 | Clamp | 1 | ADD TO CART | |
| 2 | 5100026403 | Fuel hose | 1 | ADD TO CART | |
| 3 | 5000215704 | Clamp | 1 | ADD TO CART | |
| 4 | 5100026404 | Fuel hose | 1 | ADD TO CART | |
| 6 | 5000215486 | Collar | 3 | ADD TO CART | |

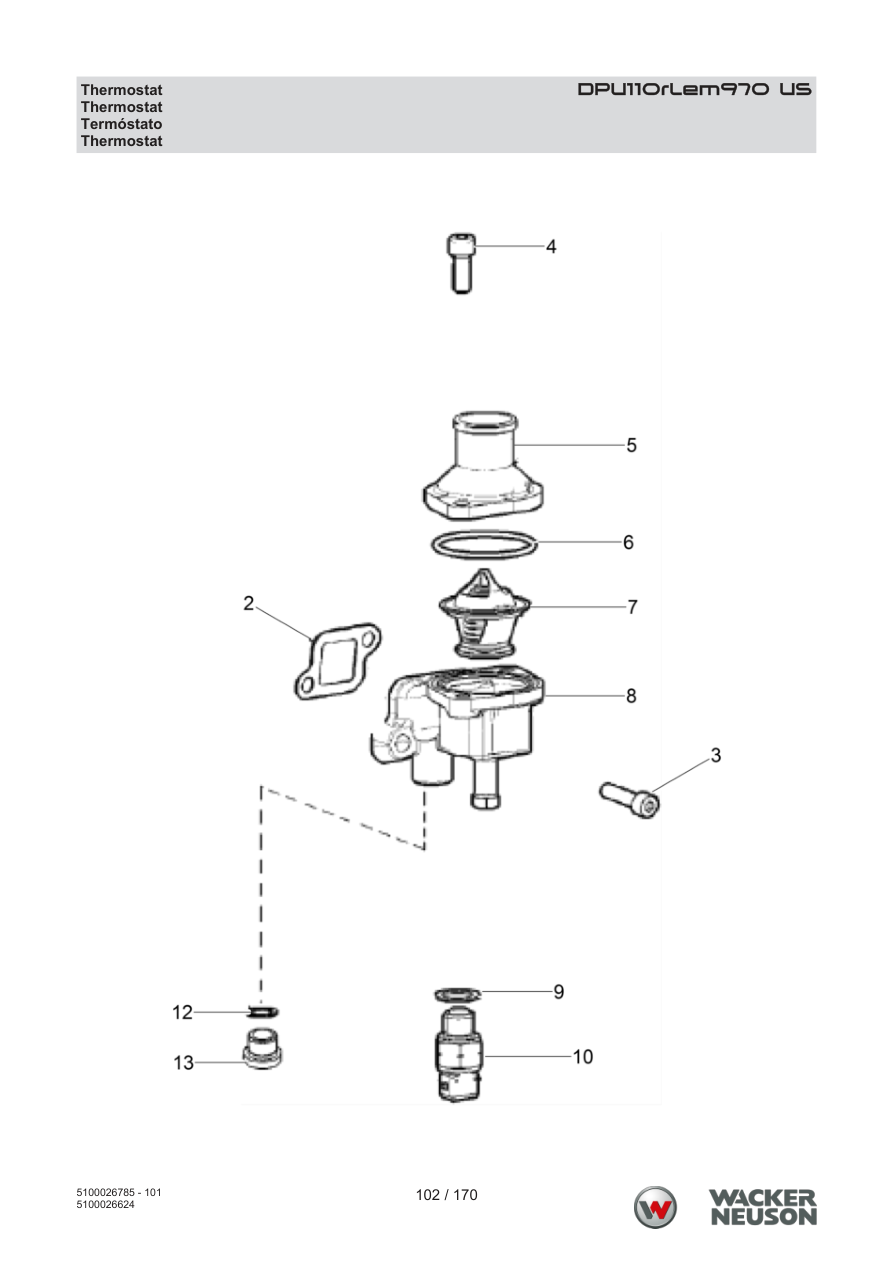

Page 108 — DPU110Lec970 US Thermostat
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000211378 | Gasket | 1 | ADD TO CART | |
| 3 | 5000159476 | Screw | 2 | ADD TO CART | |
| 4 | 5000084169 | Screw | 2 | ADD TO CART | |
| 5 | 5100030694 | Casing adaptor | 1 | ADD TO CART | |
| 6 | 5000159232 | O-ring | 1 | ADD TO CART | |
| 7 | 5000207002 | Valve thermostat | 1 | ADD TO CART | |
| 8 | 5000215489 | Thermostat housing | 1 | ADD TO CART | |
| 9 | 5000203712 | Cu-ring | 1 | PARTS REQUEST | |
|
COMING Cu-ring
5000203712 · qty on machine: 1 | |||||
| 10 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 12 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 13 | 5000159451 | Screw plug | 1 | ADD TO CART | |

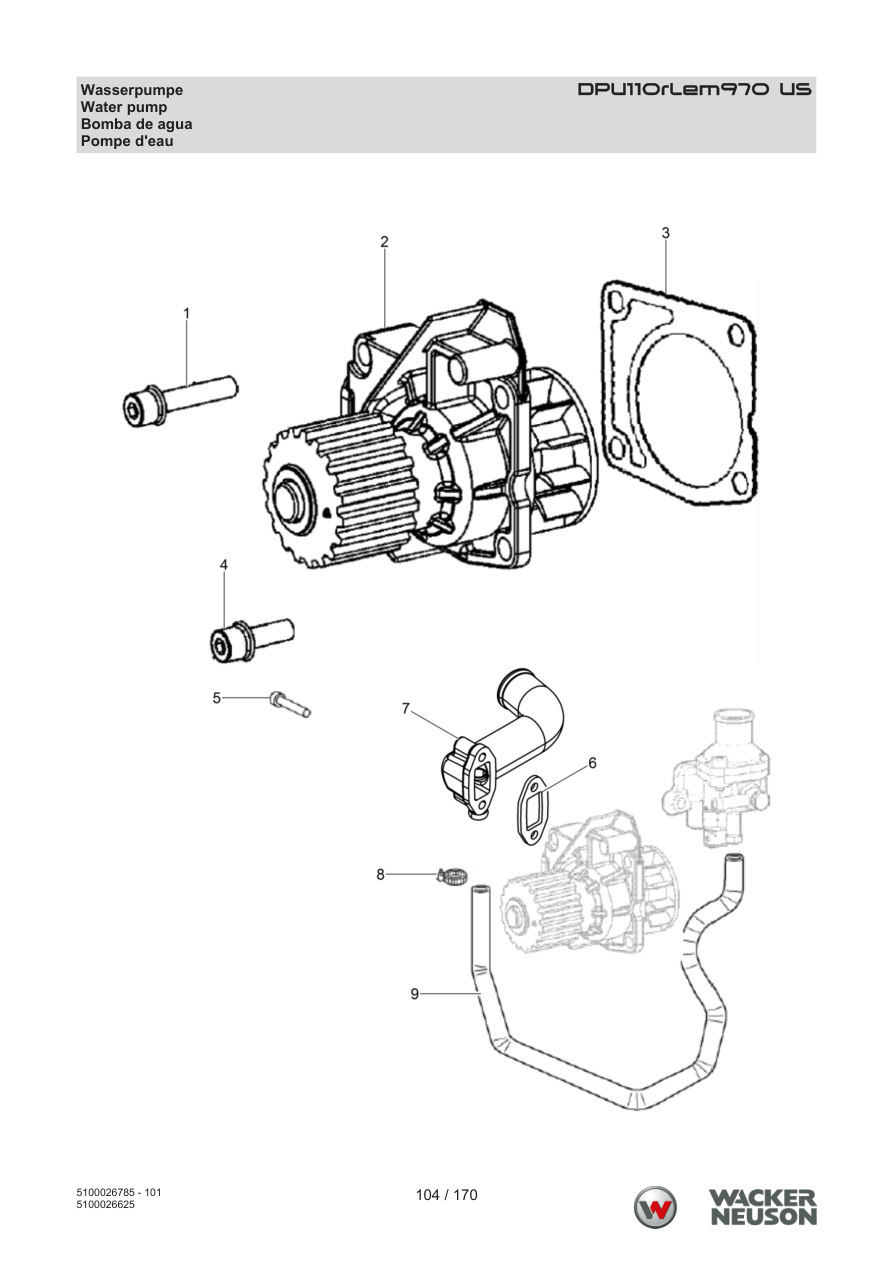

Page 110 — DPU110Lec970 US Water pump
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209105 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 2 | 5100026407 | Water pump | 1 | ADD TO CART | |
| 3 | 5000217809 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217809 · qty on machine: 1 | |||||
| 4 | 5000209107 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000209107 · qty on machine: 2 | |||||
| 5 | 5000160362 | Screw | 2 | ADD TO CART | |
| 6 | 5000217808 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217808 · qty on machine: 1 | |||||
| 7 | 5100026405 | Flange | 1 | ADD TO CART | |
| 8 | 5000160201 | Clamp | 2 | ADD TO CART | |
| 9 | 5100026406 | Hose | 1 | ADD TO CART | |

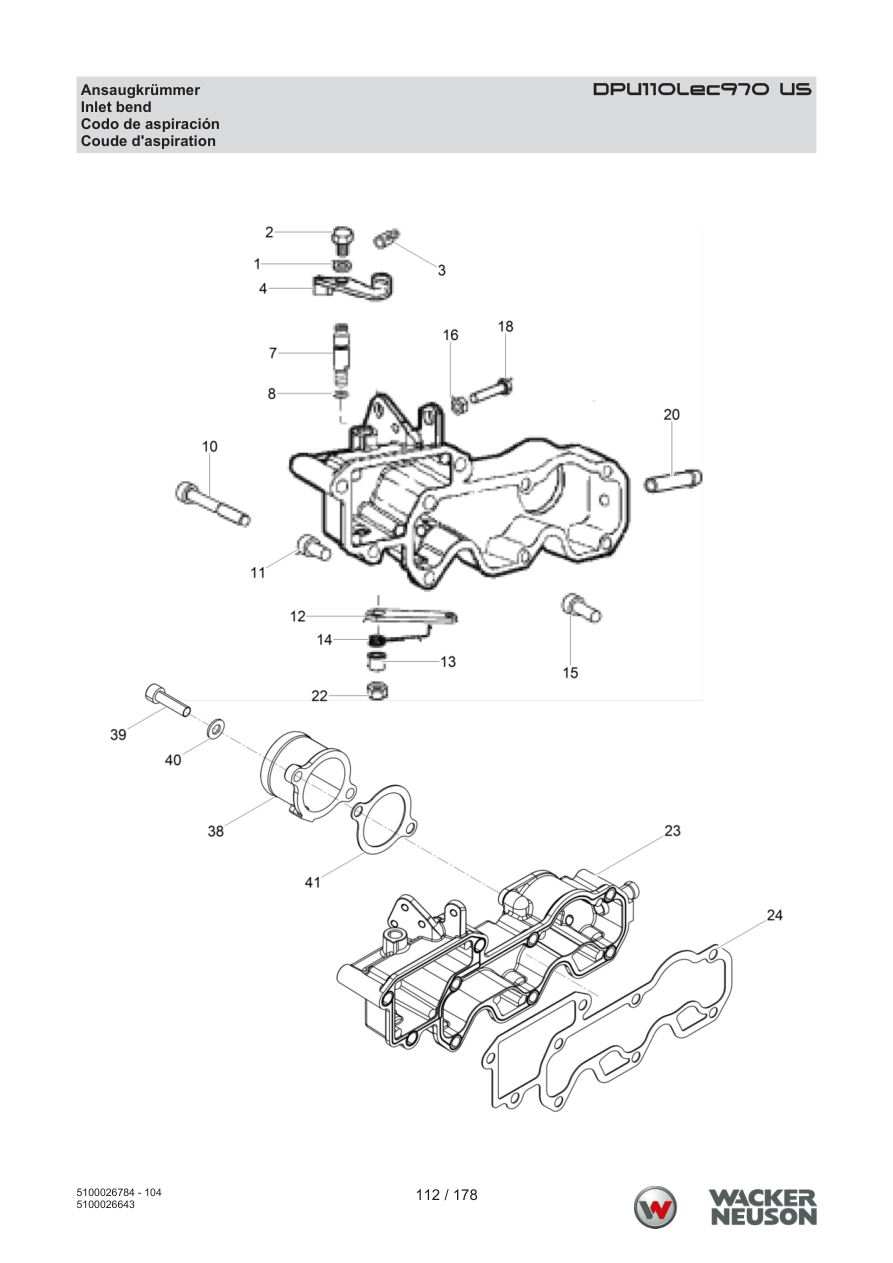

Page 112 — Inlet bend
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217817 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000217817 · qty on machine: 1 | |||||
| 2 | 5000217801 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000217801 · qty on machine: 1 | |||||
| 3 | 5000203352 | Clamping piece | 1 | ADD TO CART | |
| 4 | 5000217810 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5000217810 · qty on machine: 1 | |||||
| 7 | 5100008860 | Shaft | 1 | ADD TO CART | |
| 8 | 5000159230 | Oil seal | 1 | PARTS REQUEST | |
|
COMING Oil seal
5000159230 · qty on machine: 1 | |||||
| 10 | 5000084170 | Screw | 1 | ADD TO CART | |
| 11 | 5000159476 | Screw | 3 | ADD TO CART | |
| 12 | 5000215504 | Lever | 1 | ADD TO CART | |
| 13 | 5000215481 | Collar | 1 | ADD TO CART | |
| 14 | 5000215508 | Spring | 1 | ADD TO CART | |
| 15 | 5000203346 | Screw | 4 | ADD TO CART | |
| 16 | 5000159272 | Nut | 2 | ADD TO CART | |
| 18 | 5100008861 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100008861 · qty on machine: 2 | |||||
| 20 | 5000159462 | Hose | 1 | ADD TO CART | |
| 22 | 5000084232 | Nut | 1 | ADD TO CART | |
| 23 | 5000215487 | Manifold inlet | 1 | ADD TO CART | |
| 24 | 5000160186 | Intake manifold gasket | 1 | ADD TO CART | |
| 38 | 5100026411 | Flange | 1 | ADD TO CART | |
| 39 | 5000084169 | Screw | 2 | ADD TO CART | |
| 40 | 5000082285 | Washer | 2 | ADD TO CART | |
| 41 | 5100026429 | Gasket | 1 | ADD TO CART | |

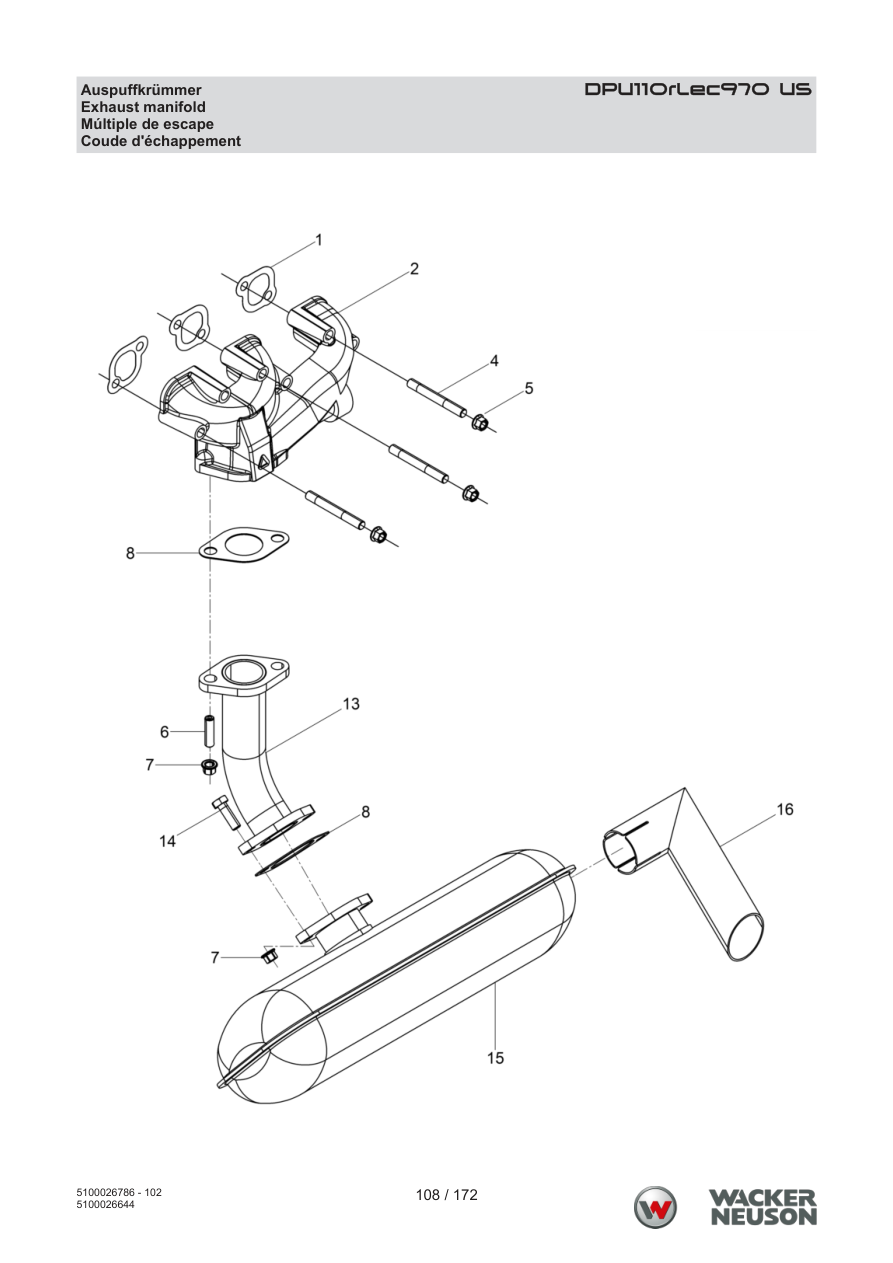

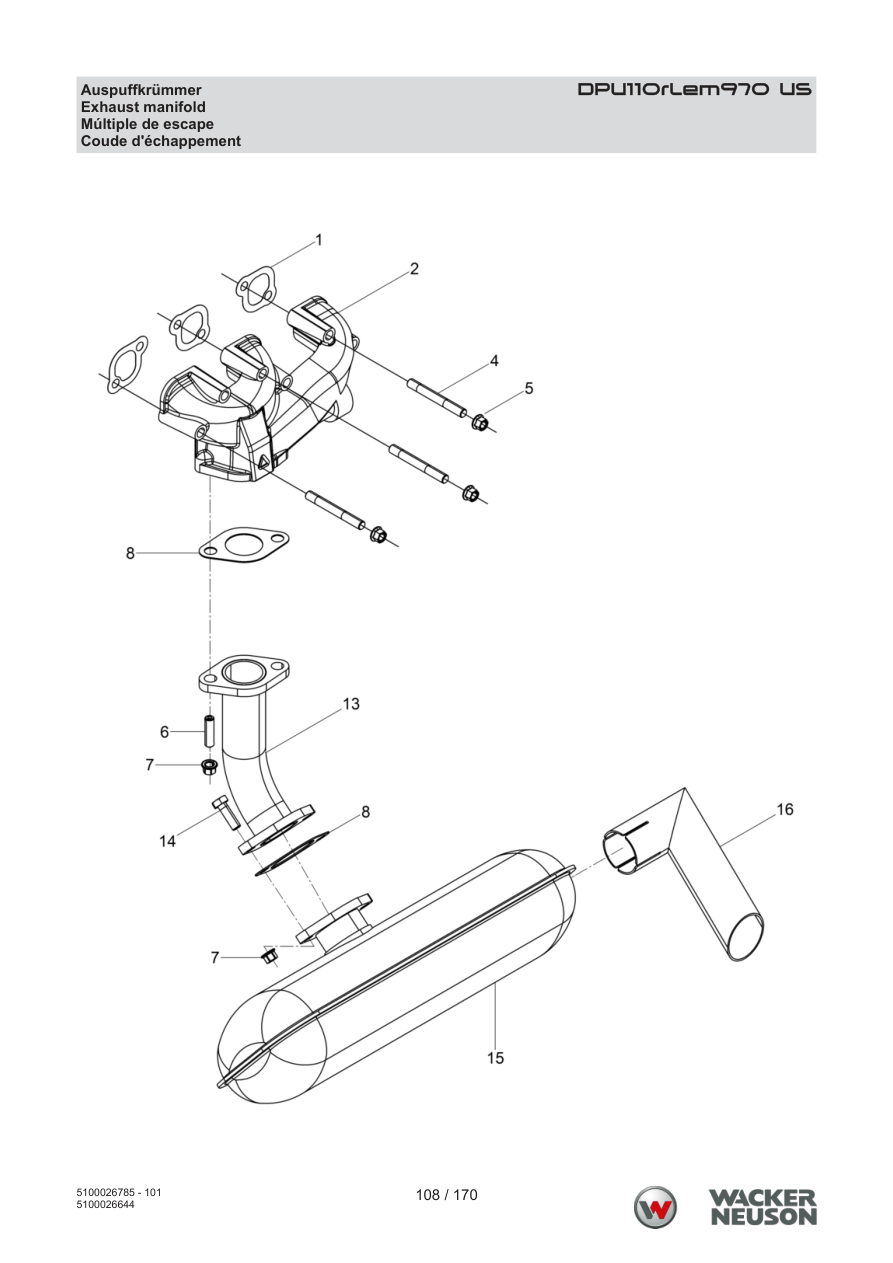

Page 114 — Exhaust manifold
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159290 | Gasket | 3 | ADD TO CART | |
| 2 | 5000159263 | Exhaust manifold | 1 | ADD TO CART | |
| 4 | 5000082267 | Stud | 6 | ADD TO CART | |
| 5 | 5000086331 | Nut | 6 | ADD TO CART | |
| 6 | 5000160228 | Threaded bolt | 2 | ADD TO CART | |
| 7 | 5000086331 | Nut | 4 | ADD TO CART | |
| 8 | 5000159295 | Gasket | 2 | ADD TO CART | |
| 13 | 5100005701 | Exhaust pipe | 1 | ADD TO CART | |
| 14 | 5000215479 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 15 | 5100005522 | Muffler | 1 | ADD TO CART | |
| 16 | 5100005702 | Exhaust-pipe end | 1 | ADD TO CART | |

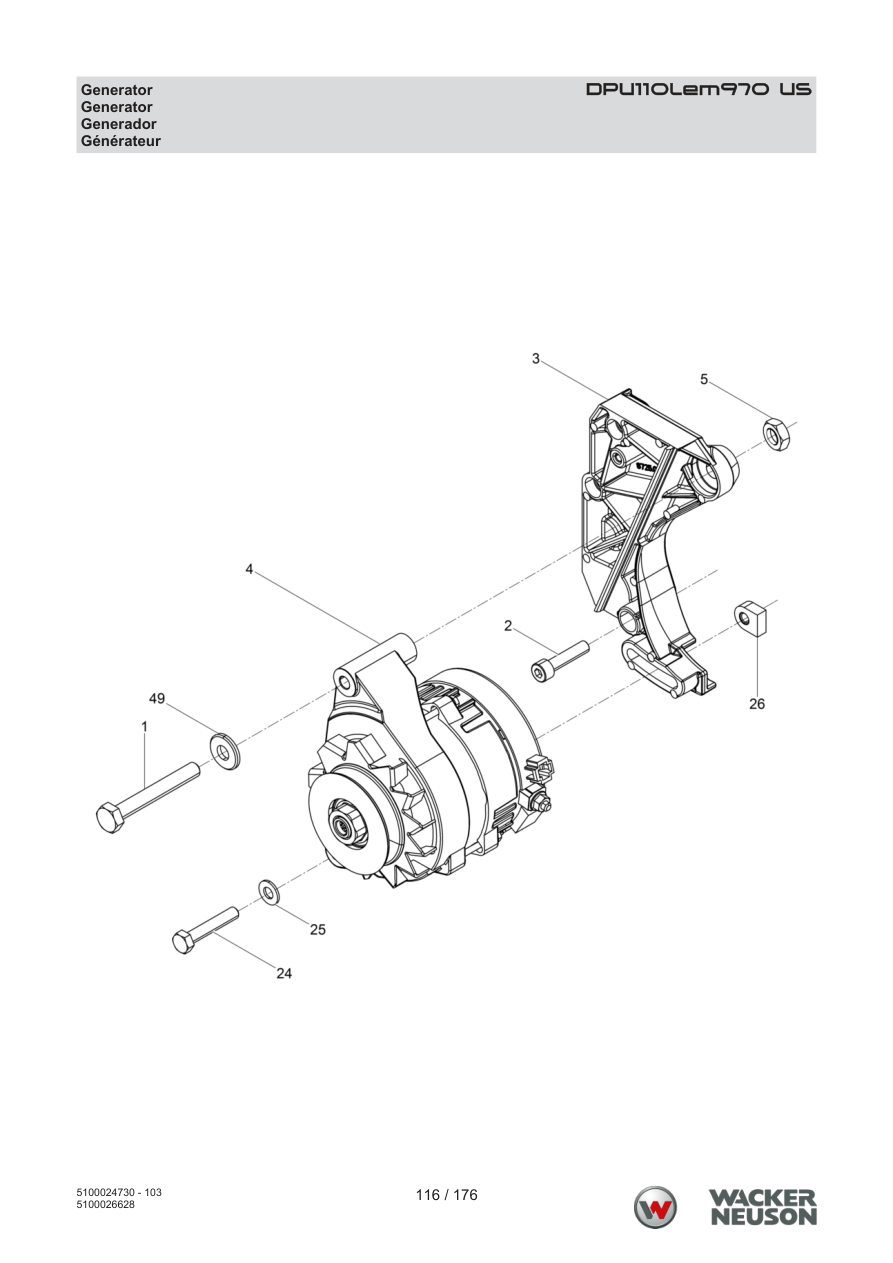

Page 116 — DPU110Lec970 US Generator
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026414 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100026414 · qty on machine: 1 | |||||
| 2 | 5000159476 | Screw | 3 | ADD TO CART | |
| 3 | 5100026415 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100026415 · qty on machine: 1 | |||||
| 4 | 5100026416 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100026416 · qty on machine: 1 | |||||
| 5 | 5000083011 | Nut | 1 | ADD TO CART | |
| 24 | 5000208993 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000208993 · qty on machine: 1 | |||||
| 25 | 5000082293 | Washer | 1 | ADD TO CART | |
| 26 | 5100026417 | Clamp | 1 | ADD TO CART | |
| 49 | 5100026418 | Disc | 1 | ADD TO CART | |

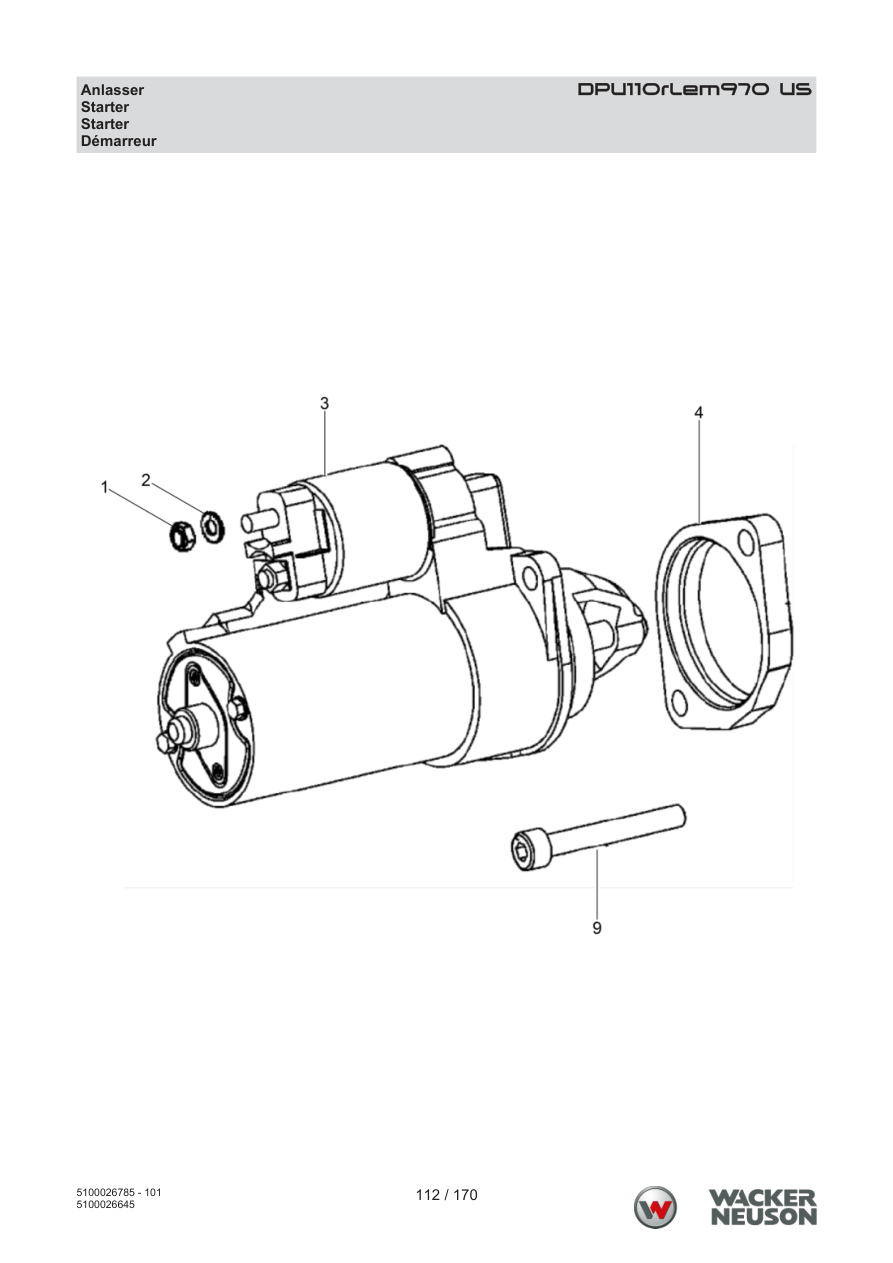

Page 118 — DPU110Lec970 US Starter
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215493 | Hexagon nut | 1 | ADD TO CART | |
| 2 | 5000082288 | Washer | 1 | ADD TO CART | |
| 3 | 5000211380 | Starter | 1 | PARTS REQUEST | |
|
COMING Starter
5000211380 · qty on machine: 1 | |||||
| 4 | 5000206968 | Flange | 1 | ADD TO CART | |
| 9 | 5000083027 | Screw | 2 | ADD TO CART | |

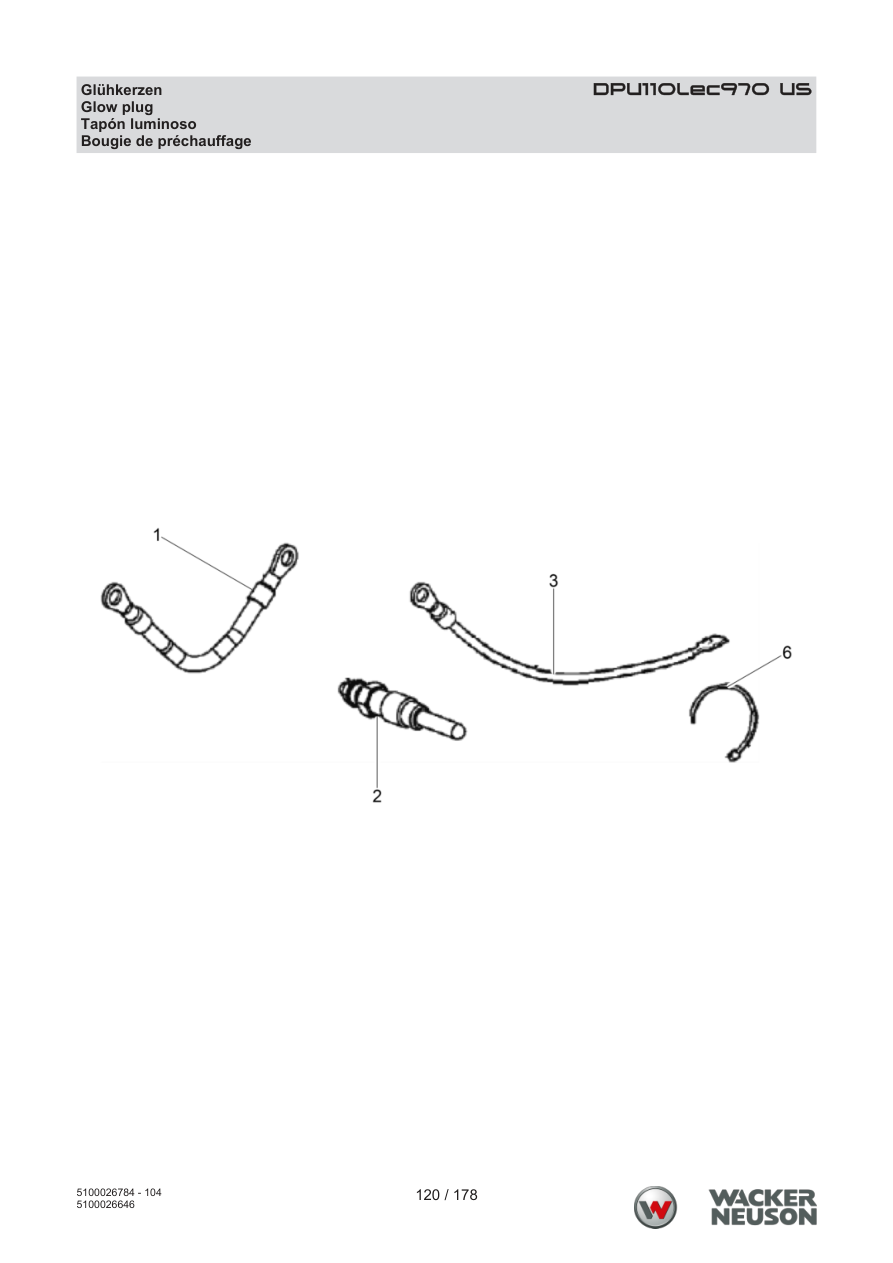

Page 120 — Glow plug
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 2 | ADD TO CART | |
| 2 | 5000155748 | Glow plug | 3 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |

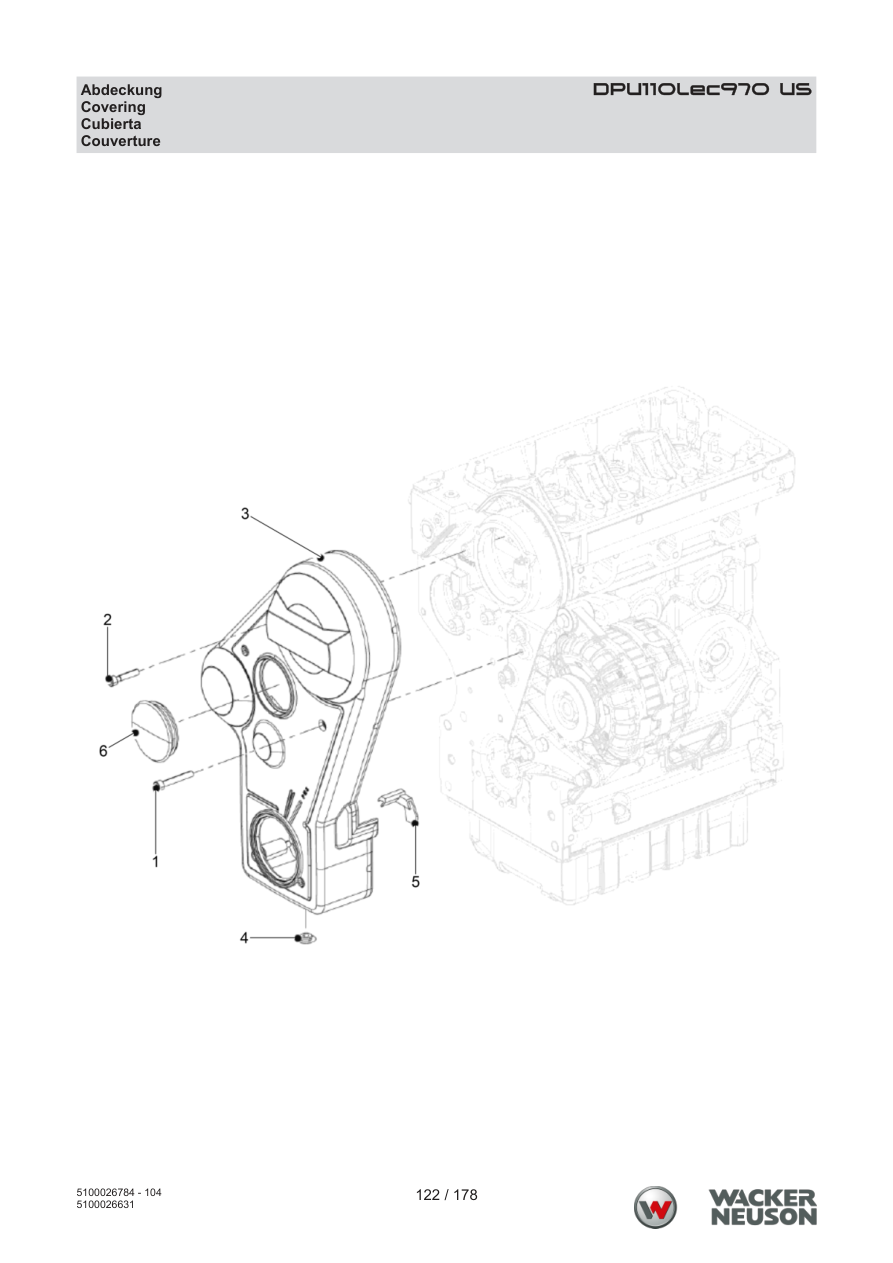

Page 122 — Covering
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159564 | Screw | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5100026420 | Belt guard | 1 | ADD TO CART | |
| 4 | 5000159268 | Plug | 1 | ADD TO CART | |
| 5 | 5000215499 | Gasket | 1 | ADD TO CART | |
| 6 | 5100026421 | Protective cover | 1 | ADD TO CART | |

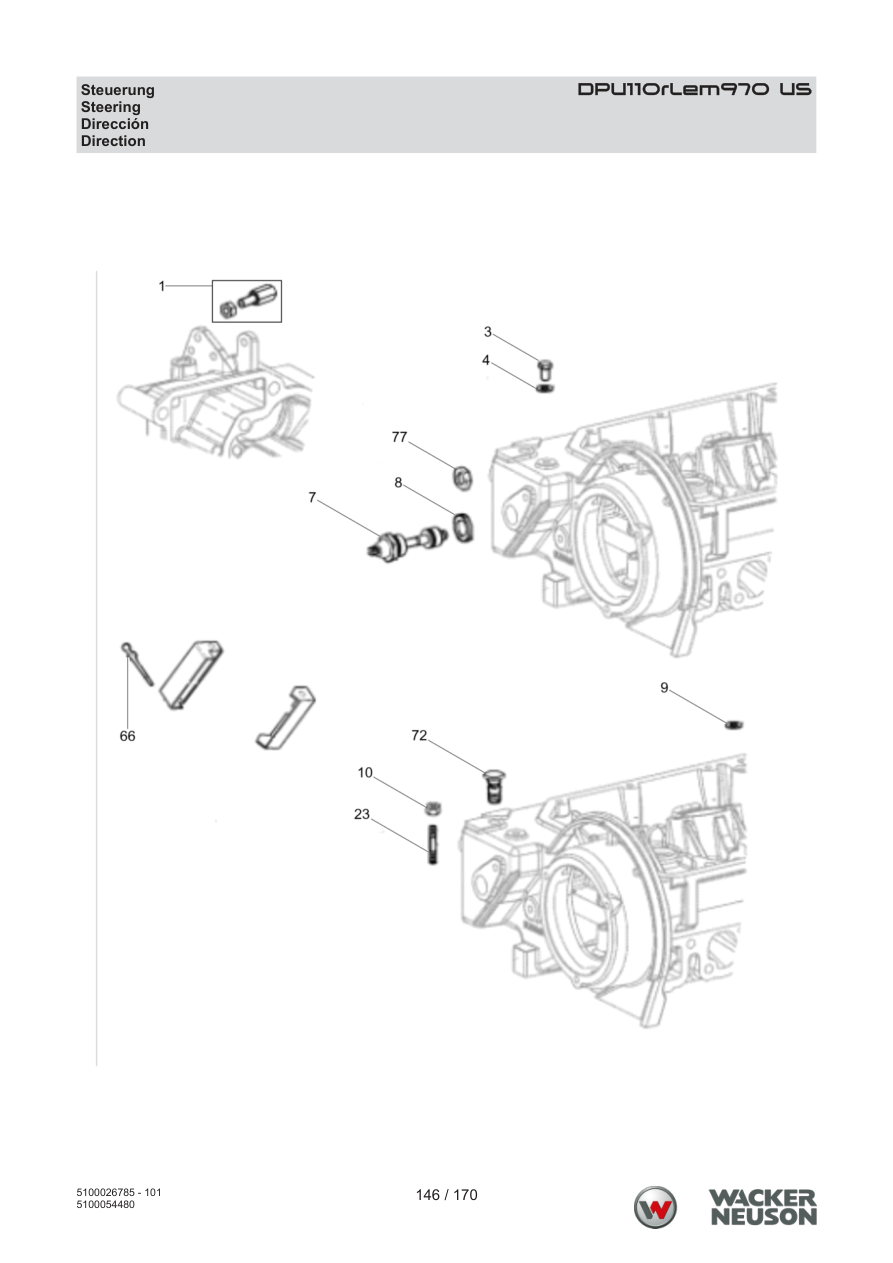

Page 152 — Steering
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 3 | 5000084131 | Screw | 2 | ADD TO CART | |
| 4 | 5000083995 | Washer | 2 | ADD TO CART | |
| 7 | 5000215525 | Fuel valve | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000209012 | Hexagon nut | 1 | ADD TO CART | |
| 23 | 5100042199 | Stud | 1 | ADD TO CART | |
| 66 | 5000215519 | Rivet | 3 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |
| 77 | 5000159276 | Nut | 1 | ADD TO CART | |

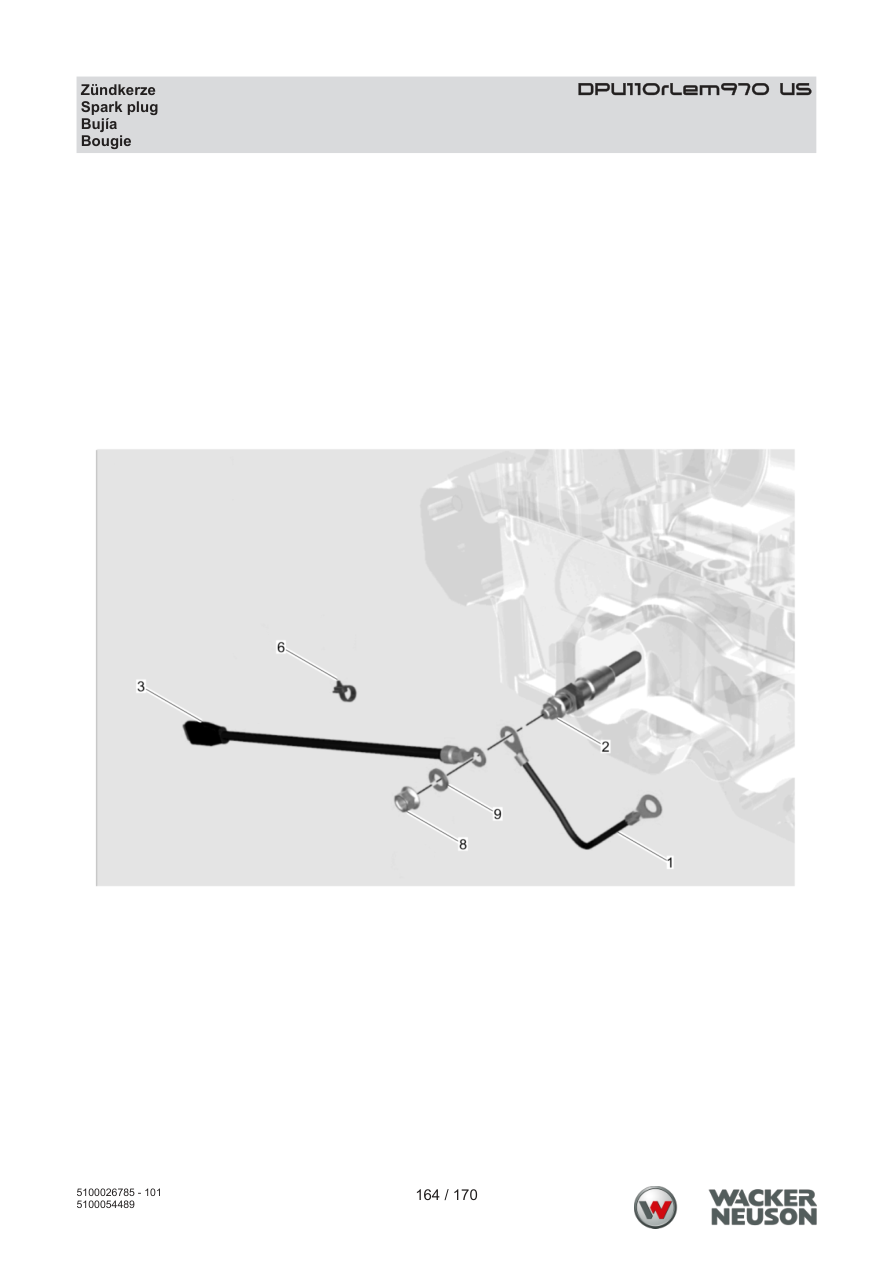

Page 170 — Spark plug
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 2 | ADD TO CART | |
| 2 | 5100042312 | Glow plug | 3 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |
| 8 | 5100049823 | Nut | 3 | PARTS REQUEST | |
|
COMING Nut
5100049823 · qty on machine: 3 | |||||
| 9 | 5000209066 | Washer | 3 | ADD TO CART | |

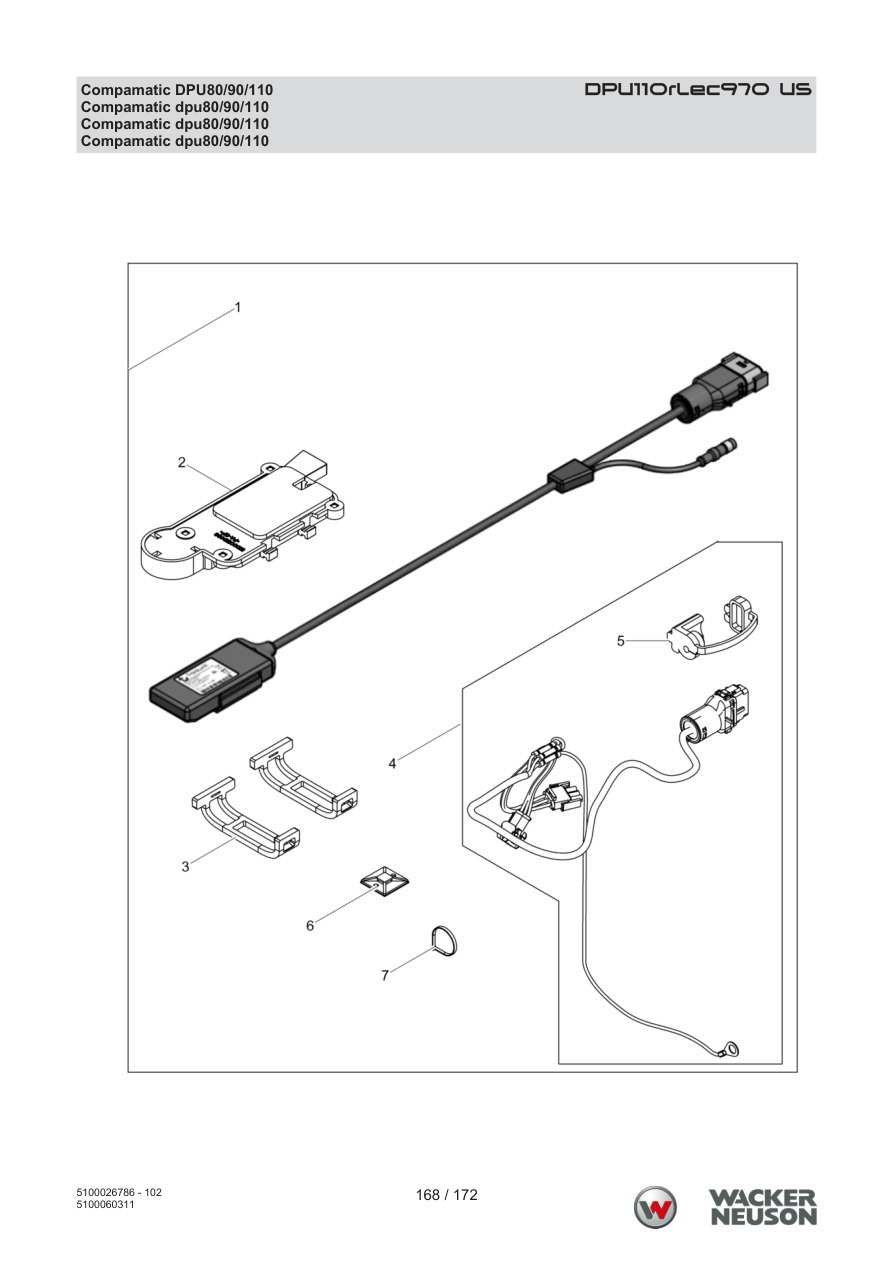

Page 174 — DPU110Lec970 US Compamatic DPU80/90/110
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100056654 | Compamatic cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Compamatic cpl.
5100056654 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100055488 | Bracket (telematic) | 1 | ADD TO CART | |
| 3 | 5100041922 | Tightening strap | 2 | ADD TO CART | |
| 4 | 5100044787 | Cable harness telematik | 1 | ADD TO CART | |
| 5 | 5100049259 | Plug cap | 1 | ADD TO CART | |
| 6 | 5100017849 | Clamp | 2 | ADD TO CART | |
| 7 | 5000038489 | Tie cable | 11 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 11 | |||||
Page 14 — Baseplate cpl. dpu110
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004984 | Baseplate 870 | 1 | PARTS REQUEST | |
|
COMING Baseplate 870
5100004984 · qty on machine: 1 | |||||
| 1 | 5100004986 | Baseplate 970 | 1 | PARTS REQUEST | |
|
COMING Baseplate 970
5100004986 · qty on machine: 1 | |||||
| 2 | 5100010363 | O-ring | 1 | ADD TO CART | |
| 3 | 5100013824 | Exciter cpl. (dpu110) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu110)
5100013824 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100009777 | Cheese head screw | 10 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5000068222 | Plug (threaded) | 1 | ADD TO CART | |
| 7 | 5000203227 | Roll pin | 4 | ADD TO CART | |
| 8 | 5000216648 | Silent block | 4 | ADD TO CART | |
| 9 | 5000212628 | Locknut | 4 | ADD TO CART | |
| 10 | 5000216644 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100010051 | Hose pipe | 1 | ADD TO CART | |
| 12 | 5100010160 | Breather tube | 1 | ADD TO CART | |
| 13 | 5100010115 | O-ring | 2 | ADD TO CART | |
| 14 | 5000012373 | Cheese head screw | 12 | 10Nm/7ft.lbs | ADD TO CART |
| 15 | 5100031076 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100031076 · qty on machine: 1 | |||||
| 16 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
| 17 | 5000014425 | Cheese head screw | 1 | 10Nm/7ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000014425 · qty on machine: 1 10Nm/7ft.lbs | |||||
| 18 | 5100022402 | Gasket | 1 | ADD TO CART | |
Page 16 — Exciter cpl. dpu110
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004557 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5100010479 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 3 | 5100015097 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 4 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 5 | 5100004298 | Driving shaft | 1 | ADD TO CART | |
| 6 | 5002006603 | Fitting key | 1 | ADD TO CART | |
| 7 | 5100004306 | Gear | 1 | ADD TO CART | |
| 8 | 5100004300 | Shaft | 1 | ADD TO CART | |
| 9 | 5100005660 | O-ring | 4 | ADD TO CART | |
| 10 | 5100004284 | Adjustment cylinder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5100005449 | Tripping pin | 1 | ADD TO CART | |
| 12 | 5000043180 | Retaining ring | 2 | ADD TO CART | |
| 13 | 5100005505 | Grooved ball bearing | 2 | ADD TO CART | |
| 14 | 5100004303 | Adjusting sleeve | 1 | ADD TO CART | |
| 15 | 5100005659 | Retaining ring | 2 | ADD TO CART | |
| 16 | 5100004295 | Cover | 1 | ADD TO CART | |
| 17 | 5100004294 | Vent cover | 1 | ADD TO CART | |
| 18 | 5100004409 | Flange | 1 | ADD TO CART | |
| 19 | 5000012629 | Cheese head screw | 20 | 25Nm/18ft.lbs | ADD TO CART |
| 20 | 5100003535 | Disc | 1 | ADD TO CART | |
| 21 | 5100003696 | Carrier | 1 | ADD TO CART | |
| 22 | 5100004118 | O-ring | 1 | ADD TO CART | |
| 23 | 5100005739 | Gear pump right | 1 | ADD TO CART | |
| 24 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 25 | 5100016126 | Eccentric weight | 2 | ADD TO CART | |
| 26 | 5100016127 | Eccentric weight | 2 | ADD TO CART | |
| 27 | 5100005604 | Corrugated-head screw | 8 | ADD TO CART | |
| 28 | 5100009783 | Hose pipe | 1 | ADD TO CART | |
| 29 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 30 | 5000011549 | Cheese head screw | 4 | 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 31 | 5100004283 | Piston | 1 | ADD TO CART | |
| 32 | 5100005657 | Ring | 1 | ADD TO CART | |
| 33 | 5100005658 | Ring | 1 | ADD TO CART | |
| 34 | 5100004281 | Cylinder | 1 | ADD TO CART | |
| 35 | 5100016693 | Piston cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5000124717 | Washer | 1 | ADD TO CART | |
| 37 | 5000220001 | Cheese head screw | 1 | ADD TO CART | |
Page 20 — Upper mass cpl. dpu110
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004995 | Upper mass | 1 | ADD TO CART | |
| 2 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 3 | 5100010049 | Pipe | 1 | ADD TO CART | |
| 4 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 11 | 5100013830 | Electric box cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 13 | 5100006055 | Suction hose | 1 | ADD TO CART | |
| 16 | 5100010883 | Protective cloth | 1 | ADD TO CART | |
| 17 | 5100027359 | Disc | 3 | ADD TO CART | |
| 18 | 5100018109 | Locking lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5000047388 | Cable tie | 20 | ADD TO CART | |
| 23 | 5000038489 | Tie cable | 10 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 10 | |||||
Page 22 — Cabling cpl. dpu110
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210107 | Clamp | 3 | ADD TO CART | |
| 2 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 3 | 5000211755 | Screw | 4 | ADD TO CART | |
| 4 | 5100010281 | Clamp | 2 | ADD TO CART | |
| 5 | 5000010625 | Flat washer | 2 | ADD TO CART | |
| 6 | 5000011561 | Cheese head screw | 2 | ADD TO CART | |
| 7 | 5100005670 | Positive cable | 1 | ADD TO CART | |
| 8 | 5100010152 | Negative pole strap | 2 | ADD TO CART | |
| 9 | 5000013574 | Cheese head screw | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 10 | 5100005669 | Cable harness engine | 1 | ADD TO CART | |
| 11 | 5100017849 | Clamp | 1 | ADD TO CART | |
Page 24 — Tank - radiator dpu110
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005485 | Hydraulic tank | 1 | ADD TO CART | |
| 2 | 5100010301 | Filter element | 1 | ADD TO CART | |
| 3 | 5100010303 | Filter element | 1 | PARTS REQUEST | |
|
COMING Filter element
5100010303 · qty on machine: 1 | |||||
| 4 | 5100010302 | Return filter | 1 | ADD TO CART | |
| 5 | 5000012629 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010341 | Fan | 1 | ADD TO CART | |
| 7 | 5100015757 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 8 | 5100016477 | Gasket | 1 | ADD TO CART | |
| 9 | 5100016479 | Gasket | 1 | ADD TO CART | |
| 10 | 5100015887 | Plate | 1 | ADD TO CART | |
| 11 | 5100005486 | Radiator | 1 | ADD TO CART | |
| 12 | 5000211795 | Corrugated-head screw | 5 | ADD TO CART | |
| 13 | 5100014131 | Bracket | 1 | ADD TO CART | |
| 14 | 5100010830 | Cable passage | 2 | ADD TO CART | |
| 15 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 16 | 5000012360 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 17 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 18 | 5000011548 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 19 | 5000011553 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 20 | 5100011096 | Screwed socket | 1 | ADD TO CART | |
| 21 | 5100010253 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100010253 · qty on machine: 1 | |||||
| 22 | 5100009849 | Bottle-overflow | 1 | ADD TO CART | |
| 23 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 24 | 5000011456 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 25 | 5100015982 | Cover | 1 | ADD TO CART | |
| 26 | 5100015647 | Radiator hose | 1 | ADD TO CART | |
| 27 | 5100006060 | Water hose | 1 | ADD TO CART | |
| 28 | 5100006059 | Water hose | 1 | ADD TO CART | |
| 29 | 5002004724 | Worm drive house clip | 4 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 4 | |||||
| 30 | 5100010256 | Hose pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 32 | 5000206551 | Clamp | 1 | ADD TO CART | |
| 33 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 34 | 5100010567 | Bracket | 1 | ADD TO CART | |
| 35 | 5100010568 | Bracket | 1 | ADD TO CART | |
| 36 | 5000097656 | Roll pin | 1 | ADD TO CART | |
| 37 | 5100009991 | Shockmount | 2 | ADD TO CART | |
| 38 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 39 | 5000010882 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100016491 | Gasket | 1 | ADD TO CART | |
| 41 | 5100016492 | Gasket | 1 | ADD TO CART | |
| 42 | 1000262373 | View glass | 1 | PARTS REQUEST | |
|
COMING View glass
1000262373 · qty on machine: 1 | |||||
| 44 | 5100011421 | Cover (bayonet lock) | 1 | ADD TO CART | |
| 45 | 5100015762 | Plug (threaded) | 1 | ADD TO CART | |
| 46 | 5000063739 | Screwed socket | 1 | ADD TO CART | |
| 47 | 5000211755 | Screw | 1 | ADD TO CART | |
Page 28 — Return filter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220217 | Cover | 1 | ADD TO CART | |
| 2 | 5000220218 | Gasket | 1 | ADD TO CART | |
| 3 | 5100016998 | Filter element | 1 | ADD TO CART | |
Page 30 — Fuel tank complete dpu110
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100038039 | Fuel tank | 1 | ADD TO CART | |
| 2 | 1000267866 | Screen | 1 | PARTS REQUEST | |
|
COMING Screen
1000267866 · qty on machine: 1 | |||||
| 3 | 5100010476 | Tank cover | 1 | ADD TO CART | |
| 5 | 5100010035 | Elbow fitting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100010244 | Fuel hose | 1 | ADD TO CART | |
| 7 | 5100010245 | Fuel hose | 1 | ADD TO CART | |
| 8 | 5000016836 | Clamp | 2 | 3Nm/2ft.lbs | PARTS REQUEST |
|
COMING Clamp
5000016836 · qty on machine: 2 3Nm/2ft.lbs | |||||
| 9 | 5100010569 | Bracket | 1 | ADD TO CART | |
| 10 | 5000211795 | Corrugated-head screw | 2 | 35Nm/26ft.lbs | ADD TO CART |
| 11 | 5100009992 | Shockmount | 2 | ADD TO CART | |
| 12 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 13 | 5000010882 | Hexagon nut | 2 | 6Nm/4ft.lbs | ADD TO CART |
| 4 | 1000051394 | Angle cut piece | 1 | PARTS REQUEST | |
|
COMING Angle cut piece
1000051394 · qty on machine: 1 | |||||
Page 32 — Block-hydraulic cpl. dpu80/110
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005479 | Block-hydraulic | 1 | ADD TO CART | |
| 2 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 3 | 5000210116 | O-ring | 3 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 3 | |||||
| 4 | 5100010247 | Hose pipe | 1 | ADD TO CART | |
| 5 | 5100010251 | Hose pipe | 1 | ADD TO CART | |
| 6 | 5000011548 | Cheese head screw | 12 | 10Nm/7ft.lbs | ADD TO CART |
| 7 | 5000013576 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5000011547 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 9 | 5000012373 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 1000090406 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000090406 · qty on machine: 1 | |||||
| 11 | 5000220194 | Valve cap | 1 | ADD TO CART | |
| 12 | 5100025061 | Valve | 1 | ADD TO CART | |
| 13 | 5100025062 | Solenoid | 1 | ADD TO CART | |
| 14 | 5000220198 | Test port | 1 | PARTS REQUEST | |
|
COMING Test port
5000220198 · qty on machine: 1 | |||||
Page 34 — Diesel engine cpl. dpu110
Parts list — exactly as printed45 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049018 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049018 · qty on machine: 1 | |||||
| 2 | 5100005758 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000210165 | Corrugated-head screw | 4 | ADD TO CART | |
| 4 | 5100011317 | Bracket | 1 | ADD TO CART | |
| 5 | 5000211795 | Corrugated-head screw | 2 | ADD TO CART | |
| 6 | 5100015729 | Gear pump | 1 | ADD TO CART | |
| 7 | 5000010621 | Flat washer | 4 | ADD TO CART | |
| 8 | 5000011535 | Cheese head screw | 3 | 49Nm/36ft.lbs | ADD TO CART |
| 9 | 5100046101 | Bolted connection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 11 | 5100010059 | Hose connection | 1 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5100010056 | Suction hose | 1 | ADD TO CART | |
| 14 | 5002004724 | Worm drive house clip | 2 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 2 | |||||
| 15 | 5100005748 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 16 | 5000204549 | Bracket | 1 | ADD TO CART | |
| 17 | 5000011542 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 18 | 5000155486 | Throttle actuator | 1 | ADD TO CART | |
| 19 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 20 | 5000010880 | Hexagon nut | 1 | ADD TO CART | |
| 21 | 5000155487 | Adaptor | 1 | ADD TO CART | |
| 22 | 5000150022 | Cable | 1 | ADD TO CART | |
| 24 | 5000119695 | Collar | 1 | PARTS REQUEST | |
|
COMING Collar
5000119695 · qty on machine: 1 | |||||
| 25 | 5100009861 | Threaded pin | 1 | ADD TO CART | |
| 26 | 5100010901 | Covering | 1 | ADD TO CART | |
| 27 | 5000210173 | Filter-fuel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 28 | 5000011439 | Hexagonal head cap screw | 2 | 49Nm/36ft.lbs | ADD TO CART |
| 29 | 5000010883 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100010246 | Fuel hose | 1 | ADD TO CART | |
| 31 | 5000019156 | Gasket | 2 | ADD TO CART | |
| 32 | 5100010257 | Hose pipe | 1 | ADD TO CART | |
| 33 | 5000207336 | Hollow screw | 1 | ADD TO CART | |
| 34 | 5100011327 | Pipe clamp | 1 | ADD TO CART | |
| 35 | 5100010740 | Belt guard cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5100018058 | Corrugated-head screw | 4 | ADD TO CART | |
| 37 | 5100000973 | Shockmount | 4 | ADD TO CART | |
| 38 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 39 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 40 | 5100024279 | Heat shield cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000210194 | Corrugated-head screw | 3 | ADD TO CART | |
| 42 | 5000206422 | Switch | 1 | ADD TO CART | |
| 43 | 5000011548 | Cheese head screw | 2 | ADD TO CART | |
| 44 | 5000011552 | Cheese head screw | 2 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 45 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
Page 38 — Holder cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010590 | Bracket | 1 | ADD TO CART | |
| 2 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 3 | 5000205238 | Screw connection | 1 | ADD TO CART | |
| 4 | 5000211773 | Nose cap | 1 | 40Nm/30ft.lbs | ADD TO CART |
Page 40 — DPU110Lem970 US Electrical Box Cpl. DPU80/90/110
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005376 | Electric components drawer | 1 | ADD TO CART | |
| 2 | 5100010129 | Cable harness e-box | 1 | ADD TO CART | |
| 3 | 5000011570 | Cheese head screw | 2 | 5Nm/4ft.lbs | ADD TO CART |
| 4 | 5000010628 | Flat washer | 2 | ADD TO CART | |
| 5 | 5000010370 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5000085437 | Relay | 4 | ADD TO CART | |
| 7 | 5100016686 | Gasket | 4 | ADD TO CART | |
| 8 | 5100015757 | Hexagonal head cap screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5000010369 | Hexagon nut | 3 | ADD TO CART | |
| 11 | 5100010300 | Connector plate bottom | 1 | ADD TO CART | |
| 12 | 5100010315 | Plate | 1 | ADD TO CART | |
| 13 | 5100010121 | Control | 1 | ADD TO CART | |
| 14 | 5100010109 | Flange | 1 | ADD TO CART | |
| 15 | 5100010110 | Switch | 1 | ADD TO CART | |
| 16 | 5100005715 | Botton switch | 1 | ADD TO CART | |
| 17 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 18 | 5100005762 | Decoder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5100010780 | Connector plate middle | 1 | ADD TO CART | |
| 20 | 5100010781 | Connector plate top | 1 | ADD TO CART | |
| 21 | 5100009818 | Display | 1 | ADD TO CART | |
| 22 | 5100005471 | Cover | 1 | ADD TO CART | |
| 23 | 5000108371 | Oval head screw | 18 | ADD TO CART | |
| 24 | 5000010622 | Flat washer | 3 | ADD TO CART | |
| 25 | 5000011541 | Cheese head screw | 3 | 25Nm/18ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000011541 · qty on machine: 3 25Nm/18ft.lbs | |||||
| 26 | 5100022411 | Blind plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5100061282 | Cable harness | 1 | ADD TO CART | |
Page 42 — Air filter cpl.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010911 | Bracket | 1 | ADD TO CART | |
| 2 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 3 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 4 | 5100005726 | Air cleaner | 1 | ADD TO CART | |
| 4 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 4 | 5100024489 | Safety elements | 1 | ADD TO CART | |
| 4 | 5100024550 | Clamp | 3 | ADD TO CART | |
| 4 | 5100024551 | Dust discharge valve | 1 | ADD TO CART | |
| 5 | 5100010912 | Tightening strap | 1 | ADD TO CART | |
| 7 | 5100016655 | Gasket | 1 | ADD TO CART | |
| 8 | 5000014996 | Clamp | 2 | ADD TO CART | |
Page 44 — Locking device rear cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010584 | Bracket | 1 | ADD TO CART | |
| 2 | 5000204116 | Shockmount | 2 | ADD TO CART | |
| 3 | 5100017158 | Locknut | 6 | 30Nm/22ft.lbs | ADD TO CART |
| 4 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 5 | 5100010580 | Locking lever rear | 1 | ADD TO CART | |
| 6 | 5100010840 | Shockmount | 2 | ADD TO CART | |
Page 46 — Battery cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209152 | Insulating cushion | 1 | ADD TO CART | |
| 2 | 5000086527 | Battery | 1 | ADD TO CART | |
| 3 | 5100005937 | Battery mounting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100017160 | Gasket | 1 | ADD TO CART | |
| 5 | 5100010891 | Threaded bolt | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010892 | Threaded bolt | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 7 | 5000017313 | Hexagon nut | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 9 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 10 | 5100014022 | Positive pol cover | 1 | ADD TO CART | |
| 11 | 5000212623 | Bushing | 3 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
Page 48 — Protective frame cpl. dpu110
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010527 | Cross-beam | 1 | ADD TO CART | |
| 2 | 5100016519 | Gasket | 1 | ADD TO CART | |
| 3 | 5100017413 | Jack ring | 1 | ADD TO CART | |
| 4 | 5100005732 | Axle | 1 | ADD TO CART | |
| 5 | 5000202829 | Cup spring | 1 | ADD TO CART | |
| 6 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 8 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 9 | 5000210112 | Corrugated-head screw | 4 | ADD TO CART | |
| 10 | 5000204116 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100017158 | Locknut | 8 | ADD TO CART | |
| 12 | 5100010583 | Bracket | 1 | ADD TO CART | |
| 13 | 5100010840 | Shockmount | 2 | ADD TO CART | |
| 14 | 5100064251 | Locking lever | 1 | ADD TO CART | |
| 15 | 5100010450 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010450 · qty on machine: 1 | |||||
| 16 | 5100010451 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010451 · qty on machine: 1 | |||||
| 17 | 5100016517 | Gasket | 2 | ADD TO CART | |
| 18 | 5100018100 | Edge protection | 2 | ADD TO CART | |
| 19 | 5100018101 | Edge protection | 2 | ADD TO CART | |
| 20 | 5100018059 | Corrugated-head screw | 8 | ADD TO CART | |
| 21 | 5100010459 | Covering | 2 | PARTS REQUEST | |
|
COMING Covering
5100010459 · qty on machine: 2 | |||||
| 22 | 5100018102 | Edge protection | 2 | ADD TO CART | |
| 23 | 5000211795 | Corrugated-head screw | 12 | ADD TO CART | |
| 24 | 5100011100 | Corrugated-head screw | 4 | ADD TO CART | |
| 25 | 5100011101 | Corrugated-head screw | 4 | PARTS REQUEST | |
|
COMING Corrugated-head screw
5100011101 · qty on machine: 4 | |||||
| 26 | 5100025691 | Handle profile | 1 | ADD TO CART | |
Page 50 — Bonnet front cpl. dpu110
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5000154402 | Cable | 1 | ADD TO CART | |
| 1 | 5100010437 | Bonnet | 1 | ADD TO CART | |
| 2 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 3 | 5000210112 | Corrugated-head screw | 4 | 85Nm/63ft.lbs | ADD TO CART |
| 4 | 5100010930 | Screen grid front (dpu100) | 1 | ADD TO CART | |
| 4 | 5100018899 | Screen grid front (dpu100r) | 1 | ADD TO CART | |
| 5 | 5100010577 | Locking tab front | 1 | ADD TO CART | |
| 6 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 7 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 8 | 5100024474 | Shockmount | 2 | ADD TO CART | |
| 10 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 11 | 5000033356 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100024476 | Edge protection | 1 | 90Nm/66ft.lbs | ADD TO CART |
Page 52 — Bonnet rear cpl. dpu110
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010436 | Bonnet | 1 | ADD TO CART | |
| 2 | 5100010578 | Locking tab rear | 1 | ADD TO CART | |
| 3 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 4 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 5 | 5100010932 | Screen grid rear (dpu100) | 1 | ADD TO CART | |
| 5 | 5100018921 | Screen grid rear (dpu100) | 1 | ADD TO CART | |
| 5 | 5100018922 | Screen grid rear (dpu100r,c) | 1 | ADD TO CART | |
| 5 | 5100018923 | Screen grid rear (dpu100r) | 1 | ADD TO CART | |
| 6 | 5100011262 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000068355 | Protective cap | 1 | ADD TO CART | |
| 9 | 5000210112 | Corrugated-head screw | 3 | 85Nm/63ft.lbs | ADD TO CART |
| 10 | 5100005810 | Compr. spring | 1 | ADD TO CART | |
| 11 | 5100017956 | Protection foil | 1 | ADD TO CART | |
| 12 | 5100024201 | Cloth | 1 | ADD TO CART | |
| 13 | 5100025231 | Portfolio | 1 | PARTS REQUEST | |
|
COMING Portfolio
5100025231 · qty on machine: 1 | |||||
| 14 | 5100057038 | Plate | 1 | ADD TO CART | |
| 15 | 5100048321 | Mushroom head bolt | 4 | ADD TO CART | |
| 16 | 5000010372 | Flat washer | 4 | ADD TO CART | |
| 17 | 5000010369 | Hexagon nut | 4 | ADD TO CART | |
Page 54 — Center pole cpl. dpu110
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100018077 | Support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100018079 | Center pole lower part cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100009640 | Center pole base cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000211795 | Corrugated-head screw | 8 | 42Nm/31ft.lbs | ADD TO CART |
| 5 | 5100018078 | Center pole head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100005601 | Covering | 1 | ADD TO CART | |
| 7 | 5000210194 | Corrugated-head screw | 6 | 19Nm/14ft.lbs | ADD TO CART |
| 9 | 5000215035 | Shockmount | 2 | ADD TO CART | |
| 10 | 5000011527 | Cheese head screw | 2 | 86Nm/63ft.lbs | ADD TO CART |
| 11 | 5100005124 | Clamp | 1 | ADD TO CART | |
| 12 | 5000011554 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5000047388 | Cable tie | 1 | ADD TO CART | |
| 14 | 5000038489 | Tie cable | 5 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 5 | |||||
Page 56 — Support cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009748 | Tow bar fixing | 1 | ADD TO CART | |
| 2 | 5100009740 | Shockmount | 1 | ADD TO CART | |
| 3 | 5000216640 | Locknut | 4 | 60Nm/44ft.lbs | ADD TO CART |
| 4 | 5100005619 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100005619 · qty on machine: 1 | |||||
| 5 | 5100018086 | Roll pin | 4 | ADD TO CART | |
| 6 | 5100005617 | Bolt | 1 | ADD TO CART | |
| 7 | 5000211795 | Corrugated-head screw | 1 | 42Nm/31ft.lbs | ADD TO CART |
| 8 | 5100010273 | Corrugated-head screw | 4 | 150Nm/111ft.lbs | ADD TO CART |
| 9 | 5100022612 | Guard plate | 1 | ADD TO CART | |
Page 58 — Center pole base cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005592 | Center pole base | 1 | ADD TO CART | |
| 2 | 5000220440 | Bush | 2 | ADD TO CART | |
| 3 | 5100010132 | Hydraulic hose | 1 | 15Nm/11ft.lbs | ADD TO CART |
| 4 | 5100005690 | Wire harness center pole | 1 | ADD TO CART | |
| 5 | 5100010497 | Shockmount | 4 | ADD TO CART | |
| 6 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |
| 7 | 5100017155 | Shockmount | 2 | ADD TO CART | |
| 8 | 5000216640 | Locknut | 4 | 60Nm/44ft.lbs | ADD TO CART |
| 9 | 5100005631 | Bumper support | 1 | ADD TO CART | |
| 10 | 5100005622 | Spindle | 1 | ADD TO CART | |
| 11 | 5100005623 | Pipe | 1 | ADD TO CART | |
| 12 | 5100005496 | Star-handle | 1 | ADD TO CART | |
Page 60 — Center pole head cpl. dpu110
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5100005683 | Ring | 1 | ADD TO CART | |
| 1 | 5100005148 | Center pole head | 1 | ADD TO CART | |
| 2 | 5000069726 | Long face pinion | 1 | ADD TO CART | |
| 3 | 5000125926 | Spacer | 2 | ADD TO CART | |
| 4 | 5000068752 | O-ring | 2 | ADD TO CART | |
| 5 | 5000018194 | O-ring | 2 | ADD TO CART | |
| 6 | 5100005285 | Bearing flange | 1 | ADD TO CART | |
| 7 | 5100005685 | Slide bush | 1 | ADD TO CART | |
| 8 | 5100017017 | Compression spring | 1 | ADD TO CART | |
| 9 | 5100005563 | Collar | 1 | ADD TO CART | |
| 10 | 5100005287 | Piston rod | 1 | ADD TO CART | |
| 12 | 5100005688 | Gasket | 1 | ADD TO CART | |
| 13 | 5100005689 | O-ring | 1 | ADD TO CART | |
| 14 | 5100005284 | Hydraulic cylinder | 1 | 120Nm/89ft.lbs | ADD TO CART |
| 15 | 5000069225 | Screwed socket | 1 | 60Nm/44ft.lbs | ADD TO CART |
| 16 | 5100019617 | Oil plug | 1 | 50Nm/37ft.lbs | ADD TO CART |
| 17 | 5000032006 | Gasket | 1 | ADD TO CART | |
| 18 | 5000129420 | Socket head cap screw | 4 | 45Nm/33ft.lbs | ADD TO CART |
Page 62 — Bonnet cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009242 | Bonnet | 1 | ADD TO CART | |
| 1 | 5100024486 | Bonnet (gray) | 1 | ADD TO CART | |
| 2 | 5100034271 | Steering part | 1 | ADD TO CART | |
| 3 | 5000108371 | Oval head screw | 4 | ADD TO CART | |
| 4 | 5100010274 | Label | 1 | ADD TO CART | |
| 5 | 5100010113 | Button switch | 1 | ADD TO CART | |
| 6 | 5100016488 | Auxiliary owner block | 1 | ADD TO CART | |
| 7 | 5100034270 | Rockerswitch | 1 | ADD TO CART | |
| 8 | 5100010111 | Led | 1 | ADD TO CART | |
| 9 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 10 | 5000108370 | Oval head screw | 6 | ADD TO CART | |
| 11 | 5100034272 | Insulating cushion | 1 | ADD TO CART | |

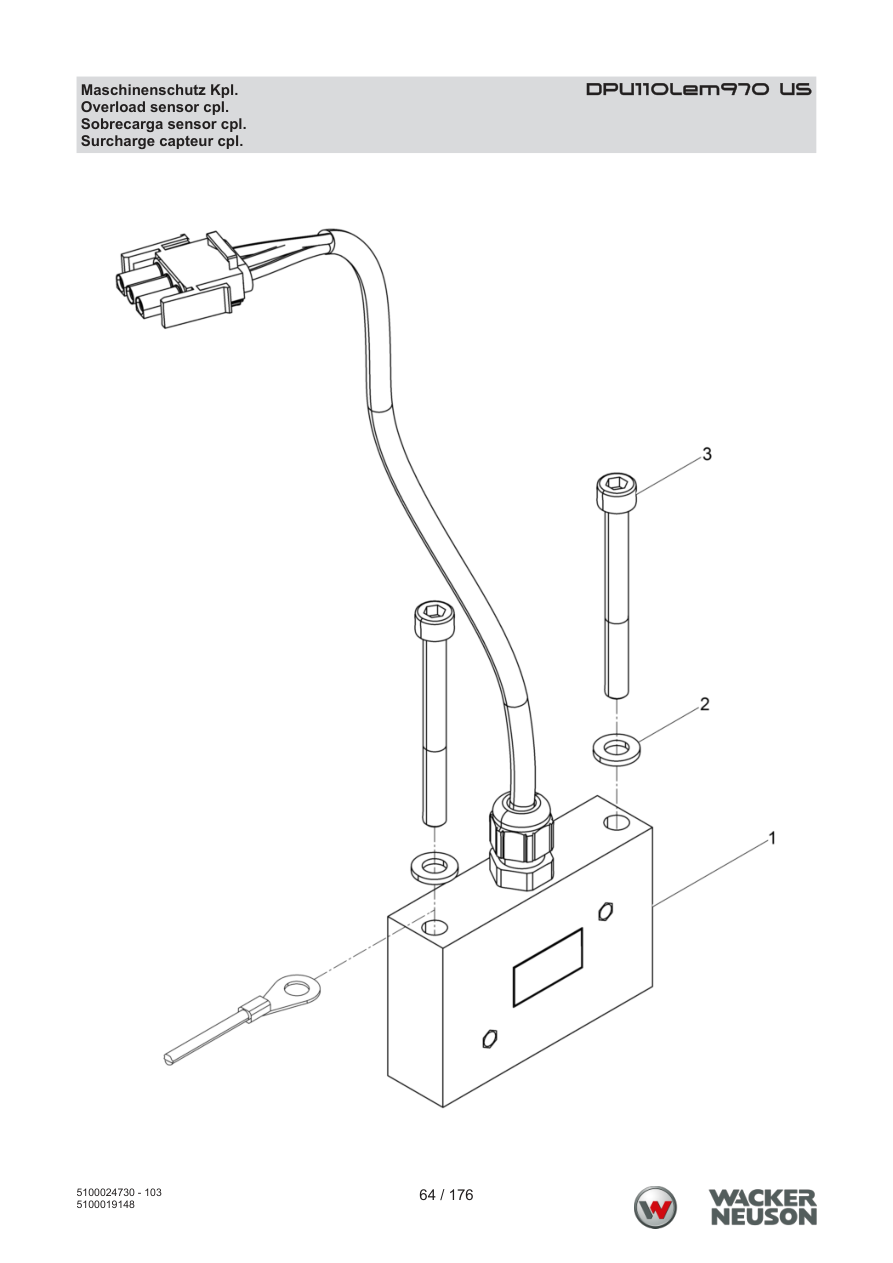

Page 64 — Overload sensor cpl.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010005 | Sensor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 3 | 5000037071 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
Page 66 — DPU110Lem970 US Decals
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000222103 | Decal, logo | 2 | ADD TO CART | |
| 3 | 5100017952 | Type label dpu110 | 2 | ADD TO CART | |
| 3 | 5100017953 | Type label dpu110r | 2 | ADD TO CART | |
| 3 | 5100017954 | Type label dpu80 | 2 | ADD TO CART | |
| 3 | 5100017955 | Type label dpu80r | 2 | ADD TO CART | |
| 3 | 5100024540 | Type label dpu90 | 2 | PARTS REQUEST | |
|
COMING Type label dpu90
5100024540 · qty on machine: 2 | |||||
| 3 | 5100024541 | Type label dpu90r | 2 | ADD TO CART | |
| 4 | 5000222086 | Label symbol | 1 | ADD TO CART | |
| 5 | 5000207747 | Danger label | 1 | PARTS REQUEST | |
|
COMING Danger label
5000207747 · qty on machine: 1 | |||||
| 6 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 7 | 5000219175 | Labels | 1 | ADD TO CART | |
| 8 | 5000064925 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5000219179 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000219179 · qty on machine: 1 | |||||
| 10 | 5000216635 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000216635 · qty on machine: 1 | |||||
| 11 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 12 | 5000219080 | Labels | 1 | ADD TO CART | |
| 13 | 5100011227 | Label hav 24h | 1 | ADD TO CART | |
| 14 | 5100085618 | Label | 4 | PARTS REQUEST | |
|
COMING Label
5100085618 · qty on machine: 4 | |||||
| 15 | 5000219176 | Labels | 3 | ADD TO CART | |
| 17 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 68 — DPU110Lem970 US Maintenance kit
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 2 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 3 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 4 | 5000159568 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5100027618 | Maintenance kit | 1 | ADD TO CART | |
Page 70 — DPU110Lem970 US Crankshaft
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160365 | Crankshaft | 1 | ADD TO CART | |
| 2 | 5000159357 | Pin | 1 | ADD TO CART | |
| 3 | 5000159260 | Woodruff key | 1 | ADD TO CART | |
| 4 | 5000159454 | Plug, threaded | 3 | ADD TO CART | |
| 5 | 5000159261 | Square key | 1 | ADD TO CART | |
Page 72 — DPU110Lem970 US Piston - Connecting Rod
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 8 | 5000084175 | Screw | 4 | ADD TO CART | |
| 1 | 5000160375 | Piston set | 3 | ADD TO CART | |
| 1 | 5000160376 | Piston set | 3 | ADD TO CART | |
| 1 | 5000160377 | Piston set | 3 | ADD TO CART | |
| 2 | 5000160367 | Connecting rod | 3 | PARTS REQUEST | |
|
COMING Connecting rod
5000160367 · qty on machine: 3 | |||||
| 3 | 5000160383 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160384 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160385 | Piston ring set | 2 | ADD TO CART | |
| 4 | 5000215523 | Piston pin | 3 | ADD TO CART | |
| 5 | 5000215477 | Retaining ring | 6 | ADD TO CART | |
| 6 | 5000160368 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000160368 · qty on machine: 2 | |||||
| 7 | 5000155689 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155690 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155691 | Bearing | 2 | ADD TO CART | |
Page 74 — DPU110Lem970 US Flywheel
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215545 | Flywheel | 1 | ADD TO CART | |
| 2 | 5000155693 | Gear crown | 1 | ADD TO CART | |
| 3 | 5000160188 | Bolt | 5 | ADD TO CART | |
| 4 | 5000159326 | Plate | 1 | ADD TO CART | |
| 5 | 5000159254 | Bolt | 9 | ADD TO CART | |
| 6 | 5000215527 | Plug | 1 | ADD TO CART | |
| 7 | 5000211373 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000084164 | Screw | 3 | ADD TO CART | |
| 9 | 5000215567 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5000215567 · qty on machine: 1 | |||||
| 10 | 5000211370 | Pin | 2 | PARTS REQUEST | |
|
COMING Pin
5000211370 · qty on machine: 2 | |||||
| 11 | 5000082140 | Nut | 3 | ADD TO CART | |
| 12 | 5000084123 | Screw | 3 | ADD TO CART | |
| 13 | 5000211371 | Washer | 4 | ADD TO CART | |
| 14 | 5000211372 | Screw | 4 | ADD TO CART | |
| 15 | 5000160231 | Washer | 3 | ADD TO CART | |
Page 76 — DPU110Lem970 US Pulley
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026267 | V-belt pulley | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5000126935 | Bolt | 1 | ADD TO CART | |
| 14 | 5000215485 | Belt | 1 | ADD TO CART | |
Page 78 — Crankcase
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026422 | Crankcase | 1 | PARTS REQUEST | |
|
COMING Crankcase
5100026422 · qty on machine: 1 | |||||
| 2 | 5000159257 | Sleeve | 2 | ADD TO CART | |
| 3 | 5000206229 | Screw | 1 | ADD TO CART | |
| 4 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000215522 | Pin | 1 | ADD TO CART | |
| 6 | 5000155702 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155703 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155704 | Bearing | 3 | ADD TO CART | |
| 8 | 5000159486 | Disc | 2 | ADD TO CART | |
| 8 | 5000159487 | Disc | 2 | ADD TO CART | |
| 8 | 5000159488 | Disc | 2 | ADD TO CART | |
| 9 | 5000082335 | Threaded plug | 4 | ADD TO CART | |
| 12 | 5000159288 | Gasket | 4 | ADD TO CART | |
| 13 | 5000159360 | Dowel pin | 2 | ADD TO CART | |
| 15 | 5000159480 | Screw | 8 | ADD TO CART | |
| 16 | 5000159456 | Plug | 1 | ADD TO CART | |
| 17 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 18 | 5000215530 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5000215530 · qty on machine: 1 | |||||
| 20 | 5000082183 | Copper washer | 1 | ADD TO CART | |
| 21 | 5000155700 | Flange | 1 | ADD TO CART | |
| 22 | 5000217807 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217807 · qty on machine: 1 | |||||
| 23 | 5000159467 | Screw | 6 | ADD TO CART | |
| 24 | 5000155701 | Rotary shaft seal | 1 | PARTS REQUEST | |
|
COMING Rotary shaft seal
5000155701 · qty on machine: 1 | |||||
| 25 | 5000159341 | Oil filter fitting | 1 | ADD TO CART | |
| 26 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 27 | 5100008859 | Oil dip stick | 1 | PARTS REQUEST | |
|
COMING Oil dip stick
5100008859 · qty on machine: 1 | |||||
| 28 | 5000215533 | Dipstick guard | 1 | ADD TO CART | |
| 29 | 5000063695 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5000063695 · qty on machine: 2 | |||||
| 44 | 5000159397 | Crankcase gasket set | 1 | ADD TO CART | |
Page 82 — DPU110Lem970 US Cylinder head
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160388 | Cylinder head | 1 | ADD TO CART | |
| 5 | 5000159449 | Plug | 2 | ADD TO CART | |
| 6 | 5000159318 | Spark arrester | 3 | ADD TO CART | |
| 7 | 5000215524 | Lifting point | 2 | ADD TO CART | |
| 8 | 5000084156 | Screw | 1 | ADD TO CART | |
| 9 | 5000217828 | Flange screw | 8 | ADD TO CART | |
| 10 | 5000159350 | Washer | 8 | ADD TO CART | |
| 11 | 5000159231 | O-ring | 1 | ADD TO CART | |
| 12 | 5000159453 | Plug | 1 | ADD TO CART | |
| 13 | 5000159311 | Bracket | 1 | ADD TO CART | |
| 14 | 5000159254 | Bolt | 1 | ADD TO CART | |
| 15 | 5000082292 | Washer | 1 | ADD TO CART | |
| 17 | 5000159303 | Valve guide | 6 | ADD TO CART | |
| 18 | 5000160381 | Seat-valve, intake | 3 | ADD TO CART | |
| 19 | 5000160382 | Seat-valve, exhaust | 3 | ADD TO CART | |
| 23 | 5000159285 | Nut | 3 | ADD TO CART | |
| 24 | 5000215494 | Spacer | 9 | ADD TO CART | |
| 25 | 5000160380 | Precombustion chamber | 3 | ADD TO CART | |
| 26 | 5100026423 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100026423 · qty on machine: 1 | |||||
| 33 | 5000159396 | Cylinder gasket set | 1 | PARTS REQUEST | |
|
COMING Cylinder gasket set
5000159396 · qty on machine: 1 | |||||
| 40 | 5000159234 | Oil seal | 1 | ADD TO CART | |
| 41 | 5000159282 | Flange | 1 | ADD TO CART | |
| 42 | 5000215541 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 3 | |||||
Page 84 — DPU110Lem970 US Cylinder head cover
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026424 | Cylinder head cover | 1 | PARTS REQUEST | |
|
COMING Cylinder head cover
5100026424 · qty on machine: 1 | |||||
| 3 | 5000159305 | Baffle | 1 | ADD TO CART | |
| 4 | 5000227761 | Cap | 1 | PARTS REQUEST | |
|
COMING Cap
5000227761 · qty on machine: 1 | |||||
| 5 | 5000206208 | O-ring | 1 | ADD TO CART | |
| 6 | 5000215541 | Screw | 12 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 12 | |||||
| 7 | 5000160205 | Gasket | 1 | ADD TO CART | |
| 8 | 5000159308 | Connector | 1 | ADD TO CART | |
| 10 | 5100026419 | Oil pressure switch | 1 | PARTS REQUEST | |
|
COMING Oil pressure switch
5100026419 · qty on machine: 1 | |||||
| 12 | 5100008855 | Rivet | 9 | PARTS REQUEST | |
|
COMING Rivet
5100008855 · qty on machine: 9 | |||||
| 13 | 5000159455 | Push-in plug | 1 | ADD TO CART | |
| 14 | 5000155745 | Pressure valve | 1 | ADD TO CART | |
| 15 | 5000160201 | Clamp | 4 | ADD TO CART | |
| 15 | 5000160199 | Clamp | 1 | ADD TO CART | |
| 16 | 5000215505 | Connecting tube | 1 | ADD TO CART | |
| 16 | 5000215535 | Connecting pipe | 1 | ADD TO CART | |
| 17 | 5000215536 | Valve tube | 1 | ADD TO CART | |
Page 86 — DPU110Lem970 US Injection system
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000203358 | Nut | 4 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 4 | |||||
| 2 | 5000160379 | Injection pump | 3 | ADD TO CART | |
| 3 | 5200009479 | Stud | 6 | ADD TO CART | |
| 4 | 5000159233 | O-ring | 2 | ADD TO CART | |
| 5 | 5100026390 | Bracket | 1 | ADD TO CART | |
| 7 | 5000159300 | Washer | 3 | ADD TO CART | |
| 9 | 5000159473 | Screw | 6 | ADD TO CART | |
| 10 | 5000159459 | Pipe | 1 | ADD TO CART | |
| 11 | 5000159237 | O-ring | 2 | ADD TO CART | |
| 12 | 5000160209 | Gasket | 1 | ADD TO CART | |
| 13 | 5000160391 | Back pressure valve | 2 | ADD TO CART | |
| 14 | 5000159302 | Gasket | 2 | ADD TO CART | |
| 15 | 5000160332 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160332 · qty on machine: 1 | |||||
| 15 | 5000160341 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160341 · qty on machine: 1 | |||||
| 15 | 5000160342 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160342 · qty on machine: 1 | |||||
| 15 | 5000160340 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160340 · qty on machine: 1 | |||||
| 15 | 5000160339 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160339 · qty on machine: 1 | |||||
| 15 | 5000160338 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160338 · qty on machine: 1 | |||||
| 15 | 5000160337 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160337 · qty on machine: 1 | |||||
| 15 | 5000160336 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160336 · qty on machine: 1 | |||||
| 15 | 5000160335 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160335 · qty on machine: 1 | |||||
| 15 | 5000160334 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160334 · qty on machine: 1 | |||||
| 17 | 5000159278 | Spacer | 2 | ADD TO CART | |
| 18 | 5000155710 | Jet | 2 | ADD TO CART | |
| 20 | 5000159238 | O-ring | 2 | ADD TO CART | |
| 22 | 5000215509 | Spring | 2 | PARTS REQUEST | |
|
COMING Spring
5000215509 · qty on machine: 2 | |||||
| 23 | 5000203718 | Cu-ring | 2 | PARTS REQUEST | |
|
COMING Cu-ring
5000203718 · qty on machine: 2 | |||||
| 24 | 5000159236 | O-ring | 2 | ADD TO CART | |
| 25 | 5000159471 | Screw | 4 | ADD TO CART | |
| 26 | 5000159317 | Spring | 2 | ADD TO CART | |
| 29 | 5000159242 | Clamp | 2 | ADD TO CART | |
| 30 | 5200015520 | Pressure valve | 2 | ADD TO CART | |
| 32 | 5000159309 | Shim | 2 | ADD TO CART | |
Page 90 — DPU110Lem970 US Camshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026425 | Camshaft | 1 | ADD TO CART | |
| 3 | 5000215482 | Collar | 1 | ADD TO CART | |
| 4 | 5000215497 | Cam | 1 | ADD TO CART | |
| 5 | 5000160753 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000160753 · qty on machine: 1 | |||||
| 6 | 5000215540 | Screw | 1 | ADD TO CART | |
| 8 | 5000159246 | Push rod, valve lifter | 3 | ADD TO CART | |
Page 92 — DPU110Lem970 US Rocker arms - Valves
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159328 | Spring housing | 4 | ADD TO CART | |
| 3 | 5000160373 | Spring | 6 | ADD TO CART | |
| 4 | 5000159351 | Washer | 6 | ADD TO CART | |
| 6 | 5000160218 | Rocker arm shaft | 1 | ADD TO CART | |
| 6 | 5000155696 | Rocker arm complete | 1 | ADD TO CART | |
| 7 | 5000083011 | Nut | 4 | ADD TO CART | |
| 8 | 5000159350 | Washer | 4 | ADD TO CART | |
| 9 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000159482 | Screw | 1 | ADD TO CART | |
| 11 | 5000159447 | Shaft support | 4 | ADD TO CART | |
| 13 | 5000159248 | Rocker arm | 6 | PARTS REQUEST | |
|
COMING Rocker arm
5000159248 · qty on machine: 6 | |||||
| 14 | 5000159249 | Rocker arm injector | 3 | ADD TO CART | |
| 15 | 5000159275 | Nut | 1 | ADD TO CART | |
| 16 | 5000159483 | Threaded bolt | 1 | ADD TO CART | |
| 17 | 5000159443 | Pin | 1 | ADD TO CART | |
| 18 | 5000215529 | Plug | 2 | ADD TO CART | |
| 19 | 5000159333 | Threaded stud | 4 | ADD TO CART | |
| 21 | 5100008856 | Bush | 12 | PARTS REQUEST | |
|
COMING Bush
5100008856 · qty on machine: 12 | |||||
| 27 | 5000159297 | Gasket | 6 | ADD TO CART | |
| 28 | 5000160390 | Intake valve | 3 | ADD TO CART | |
| 29 | 5000160392 | Outlet valve | 3 | ADD TO CART | |
Page 94 — DPU110Lem970 US Timing belt
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159481 | Screw | 1 | ADD TO CART | |
| 2 | 5000159349 | Washer | 1 | ADD TO CART | |
| 3 | 5000083011 | Nut | 1 | ADD TO CART | |
| 4 | 5000159344 | Washer | 1 | ADD TO CART | |
| 5 | 5000159334 | Threaded stud | 1 | ADD TO CART | |
| 6 | 5000159284 | Tensioner pulley | 1 | ADD TO CART | |
| 7 | 5000155697 | Timing belt | 1 | ADD TO CART | |
| 8 | 5000159336 | Belt pulley | 1 | ADD TO CART | |
| 9 | 5000159338 | Belt pulley | 1 | ADD TO CART | |
Page 96 — Oil pump
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155735 | Oil pump complete | 1 | ADD TO CART | |
| 2 | 5000160326 | Rotor | 1 | ADD TO CART | |
| 4 | 5000159312 | Spring | 1 | ADD TO CART | |
| 5 | 5000159450 | Lock screw | 1 | ADD TO CART | |
| 6 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 7 | 5000159330 | Rod | 1 | ADD TO CART | |
| 8 | 5000160178 | O-ring | 1 | ADD TO CART | |
| 10 | 5000159478 | Screw | 3 | ADD TO CART | |
| 11 | 5000215709 | Gasket | 1 | ADD TO CART | |
| 14 | 5000155734 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000159484 | Screw | 2 | ADD TO CART | |
| 16 | 5000215479 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 17 | 5000084169 | Screw | 6 | ADD TO CART | |
Page 98 — Oil pan
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155738 | Oil pan | 1 | PARTS REQUEST | |
|
COMING Oil pan
5000155738 · qty on machine: 1 | |||||
| 2 | 5000159228 | Oil seal | 1 | ADD TO CART | |
| 3 | 5000159253 | Bolt | 19 | ADD TO CART | |
| 4 | 5000155737 | Hose | 1 | ADD TO CART | |
| 5 | 5000159235 | O-ring | 1 | ADD TO CART | |
| 6 | 5000159568 | Copper washer | 2 | ADD TO CART | |
| 11 | 5000211364 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5000211364 · qty on machine: 2 | |||||
| 12 | 5000159291 | Gasket | 2 | ADD TO CART | |
Page 100 — DPU110Lem970 US Speed governor
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159321 | Pin | 1 | ADD TO CART | |
| 3 | 5000159229 | Oil seal | 1 | ADD TO CART | |
| 5 | 5000215480 | Collar | 1 | ADD TO CART | |
| 6 | 5100008864 | Spring | 1 | ADD TO CART | |
| 7 | 5000217813 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5000217813 · qty on machine: 1 | |||||
| 8 | 5000215520 | Washer | 2 | ADD TO CART | |
| 9 | 5000159477 | Screw | 4 | ADD TO CART | |
| 13 | 5000159315 | Spring | 1 | ADD TO CART | |
| 14 | 5000211941 | Screw | 3 | ADD TO CART | |
| 15 | 5000159245 | Linkage | 1 | ADD TO CART | |
| 16 | 5000159467 | Screw | 3 | ADD TO CART | |
| 17 | 5000159239 | O-ring | 1 | ADD TO CART | |
| 18 | 5000159324 | Check disc | 1 | ADD TO CART | |
| 19 | 5000159240 | Lip seal | 1 | PARTS REQUEST | |
|
COMING Lip seal
5000159240 · qty on machine: 1 | |||||
| 20 | 5000159267 | Bearing | 1 | ADD TO CART | |
| 21 | 5100008841 | Screw | 3 | ADD TO CART | |
| 22 | 5000159265 | Cover | 1 | ADD TO CART | |
| 23 | 5000159251 | Collar | 1 | ADD TO CART | |
| 24 | 5000215517 | Check disc | 1 | ADD TO CART | |
| 25 | 5000155698 | Speed control module | 1 | ADD TO CART | |
| 26 | 5000215506 | Collar | 1 | ADD TO CART | |
| 27 | 5000217805 | Bearing | 1 | PARTS REQUEST | |
|
COMING Bearing
5000217805 · qty on machine: 1 | |||||
Page 102 — Control box
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5100027675 | Speed control | 1 | ADD TO CART | ||
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 2 | 5000215543 | Screw | 1 | ADD TO CART | |
| 3 | 5000084131 | Screw | 2 | ADD TO CART | |
| 4 | 5000083995 | Washer | 2 | ADD TO CART | |
| 5 | 5000150038 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000150038 · qty on machine: 2 | |||||
| 6 | 5000217818 | Washer | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |
Page 104 — DPU110Lem970 US Fuel pump
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226239 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5000226239 · qty on machine: 1 | |||||
| 2 | 5000082266 | Stud | 2 | ADD TO CART | |
| 3 | 5000110759 | Seal | 1 | ADD TO CART | |
| 4 | 5000160757 | Rod | 1 | ADD TO CART | |
| 5 | 5000203358 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 2 | |||||
| 6 | 5000082285 | Washer | 2 | ADD TO CART | |
| 7 | 5000082183 | Copper washer | 4 | ADD TO CART | |
| 8 | 5000217802 | Banjo bolt | 2 | PARTS REQUEST | |
|
COMING Banjo bolt
5000217802 · qty on machine: 2 | |||||
Page 106 — DPU110Lem970 US Fuel lines
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000082155 | Clamp | 1 | ADD TO CART | |
| 2 | 5100026403 | Fuel hose | 1 | ADD TO CART | |
| 3 | 5000215704 | Clamp | 1 | ADD TO CART | |
| 4 | 5100026404 | Fuel hose | 1 | ADD TO CART | |
| 6 | 5000215486 | Collar | 3 | ADD TO CART | |
Page 108 — DPU110Lem970 US Thermostat
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000211378 | Gasket | 1 | ADD TO CART | |
| 3 | 5000159476 | Screw | 2 | ADD TO CART | |
| 4 | 5000084169 | Screw | 2 | ADD TO CART | |
| 5 | 5100030694 | Casing adaptor | 1 | ADD TO CART | |
| 6 | 5000159232 | O-ring | 1 | ADD TO CART | |
| 7 | 5000207002 | Valve thermostat | 1 | ADD TO CART | |
| 8 | 5000215489 | Thermostat housing | 1 | ADD TO CART | |
| 9 | 5000203712 | Cu-ring | 1 | PARTS REQUEST | |
|
COMING Cu-ring
5000203712 · qty on machine: 1 | |||||
| 10 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 12 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 13 | 5000159451 | Screw plug | 1 | ADD TO CART | |
Page 110 — DPU110Lem970 US Water pump
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209105 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 2 | 5100026407 | Water pump | 1 | ADD TO CART | |
| 3 | 5000217809 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217809 · qty on machine: 1 | |||||
| 4 | 5000209107 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000209107 · qty on machine: 2 | |||||
| 5 | 5000160362 | Screw | 2 | ADD TO CART | |
| 6 | 5000217808 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217808 · qty on machine: 1 | |||||
| 7 | 5100026405 | Flange | 1 | ADD TO CART | |
| 8 | 5000160201 | Clamp | 2 | ADD TO CART | |
| 9 | 5100026406 | Hose | 1 | ADD TO CART | |
Page 112 — Inlet bend
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5100008860 | Shaft | 1 | ADD TO CART | |
| 1 | 5000217817 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000217817 · qty on machine: 1 | |||||
| 2 | 5000217801 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000217801 · qty on machine: 1 | |||||
| 3 | 5000203352 | Clamping piece | 1 | ADD TO CART | |
| 4 | 5000217810 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5000217810 · qty on machine: 1 | |||||
| 8 | 5000159230 | Oil seal | 1 | PARTS REQUEST | |
|
COMING Oil seal
5000159230 · qty on machine: 1 | |||||
| 10 | 5000084170 | Screw | 1 | ADD TO CART | |
| 11 | 5000159476 | Screw | 3 | ADD TO CART | |
| 12 | 5000215504 | Lever | 1 | ADD TO CART | |
| 13 | 5000215481 | Collar | 1 | ADD TO CART | |
| 14 | 5000215508 | Spring | 1 | ADD TO CART | |
| 15 | 5000203346 | Screw | 4 | ADD TO CART | |
| 16 | 5000159272 | Nut | 2 | ADD TO CART | |
| 18 | 5100008861 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100008861 · qty on machine: 2 | |||||
| 20 | 5000159462 | Hose | 1 | ADD TO CART | |
| 22 | 5000084232 | Nut | 1 | ADD TO CART | |
| 23 | 5000215487 | Manifold inlet | 1 | ADD TO CART | |
| 24 | 5000160186 | Intake manifold gasket | 1 | ADD TO CART | |
| 38 | 5100026411 | Flange | 1 | ADD TO CART | |
| 39 | 5000084169 | Screw | 2 | ADD TO CART | |
| 40 | 5000082285 | Washer | 2 | ADD TO CART | |
| 41 | 5100026429 | Gasket | 1 | ADD TO CART | |
Page 114 — Exhaust manifold
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159290 | Gasket | 3 | ADD TO CART | |
| 2 | 5000159263 | Exhaust manifold | 1 | ADD TO CART | |
| 4 | 5000082267 | Stud | 6 | ADD TO CART | |
| 5 | 5000086331 | Nut | 6 | ADD TO CART | |
| 6 | 5000160228 | Threaded bolt | 2 | ADD TO CART | |
| 7 | 5000086331 | Nut | 4 | ADD TO CART | |
| 8 | 5000159295 | Gasket | 2 | ADD TO CART | |
| 13 | 5100005701 | Exhaust pipe | 1 | ADD TO CART | |
| 14 | 5000215479 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 15 | 5100005522 | Muffler | 1 | ADD TO CART | |
| 16 | 5100005702 | Exhaust-pipe end | 1 | ADD TO CART | |
Page 116 — DPU110Lem970 US Generator
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026414 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100026414 · qty on machine: 1 | |||||
| 2 | 5000159476 | Screw | 3 | ADD TO CART | |
| 3 | 5100026415 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100026415 · qty on machine: 1 | |||||
| 4 | 5100026416 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100026416 · qty on machine: 1 | |||||
| 5 | 5000083011 | Nut | 1 | ADD TO CART | |
| 24 | 5000208993 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000208993 · qty on machine: 1 | |||||
| 25 | 5000082293 | Washer | 1 | ADD TO CART | |
| 26 | 5100026417 | Clamp | 1 | ADD TO CART | |
| 49 | 5100026418 | Disc | 1 | ADD TO CART | |
Page 118 — DPU110Lem970 US Starter
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215493 | Hexagon nut | 1 | ADD TO CART | |
| 2 | 5000082288 | Washer | 1 | ADD TO CART | |
| 3 | 5000211380 | Starter | 1 | PARTS REQUEST | |
|
COMING Starter
5000211380 · qty on machine: 1 | |||||
| 4 | 5000206968 | Flange | 1 | ADD TO CART | |
| 9 | 5000083027 | Screw | 2 | ADD TO CART | |
Page 120 — Glow plug
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 2 | ADD TO CART | |
| 2 | 5000155748 | Glow plug | 3 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |
Page 122 — Covering
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159564 | Screw | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5100026420 | Belt guard | 1 | ADD TO CART | |
| 4 | 5000159268 | Plug | 1 | ADD TO CART | |
| 5 | 5000215499 | Gasket | 1 | ADD TO CART | |
| 6 | 5100026421 | Protective cover | 1 | ADD TO CART | |
Page 152 — Steering
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 3 | 5000084131 | Screw | 2 | ADD TO CART | |
| 4 | 5000083995 | Washer | 2 | ADD TO CART | |
| 7 | 5000215525 | Fuel valve | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000209012 | Hexagon nut | 1 | ADD TO CART | |
| 23 | 5100042199 | Stud | 1 | ADD TO CART | |
| 66 | 5000215519 | Rivet | 3 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |
| 77 | 5000159276 | Nut | 1 | ADD TO CART | |
Page 170 — Spark plug
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 2 | ADD TO CART | |
| 2 | 5100042312 | Glow plug | 3 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |
| 8 | 5100049823 | Nut | 3 | PARTS REQUEST | |
|
COMING Nut
5100049823 · qty on machine: 3 | |||||
| 9 | 5000209066 | Washer | 3 | ADD TO CART | |
Page 14 — Baseplate cpl. dpu110r
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 19 | 5100010115 | O-ring | 1 | ADD TO CART | |
| 1 | 5100009721 | Baseplate 970 | 1 | PARTS REQUEST | |
|
COMING Baseplate 970
5100009721 · qty on machine: 1 | |||||
| 1 | 5100009877 | Baseplate 870 | 1 | PARTS REQUEST | |
|
COMING Baseplate 870
5100009877 · qty on machine: 1 | |||||
| 2 | 5100010920 | O-ring | 1 | ADD TO CART | |
| 3 | 5100005152 | Exciter cpl. (dpu110r) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu110r)
5100005152 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100009777 | Cheese head screw | 13 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5000068222 | Plug (threaded) | 1 | 100Nm/74ft.lbs | ADD TO CART |
| 7 | 5000203227 | Roll pin | 4 | ADD TO CART | |
| 8 | 5000216648 | Silent block | 4 | ADD TO CART | |
| 9 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 10 | 5000216644 | Shockmount | 4 | 49Nm/36ft.lbs | ADD TO CART |
| 11 | 5100009782 | Hose pipe | 1 | ADD TO CART | |
| 12 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
| 13 | 5000012373 | Cheese head screw | 8 | 10Nm/7ft.lbs | ADD TO CART |
| 14 | 5100009971 | Hose pipe | 1 | ADD TO CART | |
| 15 | 5100010591 | O-ring | 2 | ADD TO CART | |
| 16 | 5000011468 | Hexagonal head cap screw | 4 | M6 x 30 10Nm/7ft.lbs | ISO4017 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000011468 · qty on machine: 4 M6 x 30
10Nm/7ft.lbs | ISO4017 | |||||
| 17 | 5100009970 | Hose pipe | 1 | 40Nm/30ft.lbs | ADD TO CART |
| 18 | 5100010160 | Breather tube | 1 | ADD TO CART | |
| 20 | 5100009784 | Hose pipe | 1 | ADD TO CART | |
| 21 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 22 | 5000011549 | Cheese head screw | 4 | 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
Page 16 — Exciter cpl. dpu110r
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004650 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5100004298 | Driving shaft | 1 | ADD TO CART | |
| 3 | 5002006603 | Fitting key | 1 | ADD TO CART | |
| 4 | 5100004306 | Gear | 1 | ADD TO CART | |
| 5 | 5100010479 | Cylindrical roller bearing | 1 | ADD TO CART | |
| 6 | 5100015097 | Cylindrical roller bearing | 1 | ADD TO CART | |
| 7 | 5002006113 | Retaining ring | 3 | ADD TO CART | |
| 8 | 5100005260 | Adjusting sleeve | 1 | PARTS REQUEST | |
|
COMING Adjusting sleeve
5100005260 · qty on machine: 1 | |||||
| 9 | 5000206436 | Bearing bush | 2 | ADD TO CART | |
| 10 | 5100013880 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 11 | 5002007057 | Retaining ring | 2 | 90 x 3 | DIN472 | ADD TO CART |
| 12 | 5100005161 | Shaft | 2 | ADD TO CART | |
| 13 | 5100017940 | Shim ring | 2 | ADD TO CART | |
| 14 | 5000103469 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 15 | 5100018186 | Eccentric weight | 2 | PARTS REQUEST | |
|
COMING Eccentric weight
5100018186 · qty on machine: 2 | |||||
| 16 | 5100018187 | Eccentric weight | 2 | ADD TO CART | |
| 17 | 5100005604 | Corrugated-head screw | 8 | 150Nm/111ft.lbs | ADD TO CART |
| 18 | 5100005814 | Flange | 1 | ADD TO CART | |
| 19 | 5100005660 | O-ring | 2 | ADD TO CART | |
| 20 | 5000012629 | Cheese head screw | 20 | 25Nm/18ft.lbs | ADD TO CART |
| 21 | 5100004294 | Vent cover | 1 | ADD TO CART | |
| 22 | 5100013845 | Adjustment cylinder cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 23 | 5100010516 | O-ring | 2 | ADD TO CART | |
| 24 | 5000204527 | Tripping pin | 2 | ADD TO CART | |
| 25 | 5100003535 | Disc | 1 | ADD TO CART | |
| 26 | 5100005740 | Gear pump left | 1 | ADD TO CART | |
| 27 | 5100004118 | O-ring | 1 | ADD TO CART | |
| 28 | 5100003696 | Carrier | 1 | ADD TO CART | |
| 29 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 30 | 5100005513 | Piston | 2 | ADD TO CART | |
| 31 | 5100005971 | Grooved ring | 2 | ADD TO CART | |
| 32 | 5100005972 | Guide ring | 2 | ADD TO CART | |
| 33 | 5100005508 | Pipe | 2 | ADD TO CART | |
| 34 | 5100005840 | Stop disc | 2 | ADD TO CART | |
| 35 | 5100005921 | Compression spring | 2 | ADD TO CART | |
| 36 | 5100005507 | Cylinder cover | 2 | ADD TO CART | |
| 37 | 5100005970 | O-ring | 2 | ADD TO CART | |
| 38 | 5000043307 | Cheese head screw | 10 | M5 x 12 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 39 | 5100016693 | Piston cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 40 | 5000124717 | Washer | 2 | ADD TO CART | |
| 41 | 5000220001 | Cheese head screw | 2 | 17.8Nm/13ft.lbs | ADD TO CART |
Page 20 — Upper mass cpl. dpu110r
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004994 | Upper mass | 1 | ADD TO CART | |
| 2 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 9 | 5100013831 | Electric box cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 14 | 5100010883 | Protective cloth | 1 | ADD TO CART | |
| 20 | 5000047388 | Cable tie | 20 | ADD TO CART | |
| 21 | 5000038489 | Tie cable | 10 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 10 | |||||
Page 22 — Cabling cpl. dpu110r
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210107 | Clamp | 3 | ADD TO CART | |
| 2 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 3 | 5000211755 | Screw | 5 | ADD TO CART | |
| 4 | 5100010281 | Clamp | 4 | ADD TO CART | |
| 6 | 5000010625 | Flat washer | 5 | ADD TO CART | |
| 7 | 5000011561 | Cheese head screw | 5 | ADD TO CART | |
| 8 | 5100005670 | Positive cable | 1 | ADD TO CART | |
| 9 | 5100066741 | Pipe clamp | 1 | ADD TO CART | |
| 10 | 5100010152 | Negative pole strap | 2 | ADD TO CART | |
| 11 | 5000013574 | Cheese head screw | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 12 | 5100005669 | Cable harness engine | 1 | ADD TO CART | |
| 13 | 5100017849 | Clamp | 1 | ADD TO CART | |
| 14 | 5100005665 | Cable harness valve | 1 | ADD TO CART | |
| 15 | 5100011350 | Receiver unit front | 1 | ADD TO CART | |
| 16 | 5100005668 | Cable harness receiver unit front | 1 | ADD TO CART | |
| 17 | 5100011351 | Receiver unit rear | 1 | ADD TO CART | |
| 18 | 5100005667 | Cable harnessreceiver unit rear | 1 | ADD TO CART | |
| 19 | 5000212143 | Clamp | 1 | ADD TO CART | |
| 20 | 5000011555 | Cheese head screw | 1 | M6 x 10 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 21 | 5100010511 | Charging cable | 1 | ADD TO CART | |
| 22 | 5100027457 | Heat shield | 1 | ADD TO CART | |
Page 24 — Tank - radiator dpu110
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005485 | Hydraulic tank | 1 | ADD TO CART | |
| 2 | 5100010301 | Filter element | 1 | ADD TO CART | |
| 3 | 5100010303 | Filter element | 1 | PARTS REQUEST | |
|
COMING Filter element
5100010303 · qty on machine: 1 | |||||
| 4 | 5100010302 | Return filter | 1 | ADD TO CART | |
| 5 | 5000012629 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010341 | Fan | 1 | ADD TO CART | |
| 7 | 5100015757 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 8 | 5100016477 | Gasket | 1 | ADD TO CART | |
| 9 | 5100016479 | Gasket | 1 | ADD TO CART | |
| 10 | 5100015887 | Plate | 1 | ADD TO CART | |
| 11 | 5100005486 | Radiator | 1 | ADD TO CART | |
| 12 | 5000211795 | Corrugated-head screw | 5 | ADD TO CART | |
| 13 | 5100014131 | Bracket | 1 | ADD TO CART | |
| 14 | 5100010830 | Cable passage | 2 | ADD TO CART | |
| 15 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 16 | 5000012360 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 17 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 18 | 5000011548 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 19 | 5000011553 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 20 | 5100011096 | Screwed socket | 1 | ADD TO CART | |
| 21 | 5100010253 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100010253 · qty on machine: 1 | |||||
| 22 | 5100009849 | Bottle-overflow | 1 | ADD TO CART | |
| 23 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 24 | 5000011456 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 25 | 5100015982 | Cover | 1 | ADD TO CART | |
| 26 | 5100015647 | Radiator hose | 1 | ADD TO CART | |
| 27 | 5100006060 | Water hose | 1 | ADD TO CART | |
| 28 | 5100006059 | Water hose | 1 | ADD TO CART | |
| 29 | 5002004724 | Worm drive house clip | 4 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 4 | |||||
| 30 | 5100010256 | Hose pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 32 | 5000206551 | Clamp | 1 | ADD TO CART | |
| 33 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 34 | 5100010567 | Bracket | 1 | ADD TO CART | |
| 35 | 5100010568 | Bracket | 1 | ADD TO CART | |
| 36 | 5000097656 | Roll pin | 1 | ADD TO CART | |
| 37 | 5100009991 | Shockmount | 2 | ADD TO CART | |
| 38 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 39 | 5000010882 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100016491 | Gasket | 1 | ADD TO CART | |
| 41 | 5100016492 | Gasket | 1 | ADD TO CART | |
| 42 | 1000262373 | View glass | 1 | PARTS REQUEST | |
|
COMING View glass
1000262373 · qty on machine: 1 | |||||
| 44 | 5100011421 | Cover (bayonet lock) | 1 | ADD TO CART | |
| 45 | 5100015762 | Plug (threaded) | 1 | ADD TO CART | |
| 46 | 5000063739 | Screwed socket | 1 | ADD TO CART | |
| 47 | 5000211755 | Screw | 1 | ADD TO CART | |
Page 28 — Return filter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220217 | Cover | 1 | ADD TO CART | |
| 2 | 5000220218 | Gasket | 1 | ADD TO CART | |
| 3 | 5100016998 | Filter element | 1 | ADD TO CART | |
Page 30 — Fuel tank complete dpu110
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100038039 | Fuel tank | 1 | ADD TO CART | |
| 2 | 1000267866 | Screen | 1 | PARTS REQUEST | |
|
COMING Screen
1000267866 · qty on machine: 1 | |||||
| 3 | 5100010476 | Tank cover | 1 | ADD TO CART | |
| 4 | 1000051394 | Angle cut piece | 1 | PARTS REQUEST | |
|
COMING Angle cut piece
1000051394 · qty on machine: 1 | |||||
| 5 | 5100010035 | Elbow fitting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100010244 | Fuel hose | 1 | ADD TO CART | |
| 7 | 5100010245 | Fuel hose | 1 | ADD TO CART | |
| 8 | 5000016836 | Clamp | 2 | 3Nm/2ft.lbs | PARTS REQUEST |
|
COMING Clamp
5000016836 · qty on machine: 2 3Nm/2ft.lbs | |||||
| 9 | 5100010569 | Bracket | 1 | ADD TO CART | |
| 10 | 5000211795 | Corrugated-head screw | 2 | 35Nm/26ft.lbs | ADD TO CART |
| 11 | 5100009992 | Shockmount | 2 | ADD TO CART | |
| 12 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 13 | 5000010882 | Hexagon nut | 2 | 6Nm/4ft.lbs | ADD TO CART |
Page 32 — Block-hydraulic cpl. dpu80r/90r/110r
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005966 | Block-hydraulic | 1 | ADD TO CART | |
| 2 | 5100010247 | Hose pipe | 1 | ADD TO CART | |
| 3 | 5100010251 | Hose pipe | 1 | ADD TO CART | |
| 4 | 5000210116 | O-ring | 4 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 4 | |||||
| 5 | 5000011548 | Cheese head screw | 16 | 10Nm/7ft.lbs | ADD TO CART |
| 6 | 5000058705 | Cheese head screw | 2 | M8 x 90 25Nm/18ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000058705 · qty on machine: 2 M8 x 90
25Nm/18ft.lbs | ISO4762 | |||||
| 7 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 8 | 5000220194 | Valve cap | 4 | ADD TO CART | |
| 9 | 5100025064 | Valve | 2 | ADD TO CART | |
| 10 | 5100025061 | Valve | 1 | ADD TO CART | |
| 11 | 5100025062 | Solenoid | 1 | ADD TO CART | |
| 12 | 5100025063 | Valve | 1 | ADD TO CART | |
| 13 | 5000220193 | Solenoid | 3 | ADD TO CART | |
| 14 | 5000220198 | Test port | 2 | PARTS REQUEST | |
|
COMING Test port
5000220198 · qty on machine: 2 | |||||
Page 34 — Diesel engine cpl. dpu110
Parts list — exactly as printed45 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049018 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049018 · qty on machine: 1 | |||||
| 2 | 5100005758 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000210165 | Corrugated-head screw | 4 | ADD TO CART | |
| 4 | 5100011317 | Bracket | 1 | ADD TO CART | |
| 5 | 5000211795 | Corrugated-head screw | 2 | ADD TO CART | |
| 6 | 5100015729 | Gear pump | 1 | ADD TO CART | |
| 7 | 5000010621 | Flat washer | 4 | ADD TO CART | |
| 8 | 5000011535 | Cheese head screw | 3 | 49Nm/36ft.lbs | ADD TO CART |
| 9 | 5100046101 | Bolted connection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 11 | 5100010059 | Hose connection | 1 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5100010056 | Suction hose | 1 | ADD TO CART | |
| 14 | 5002004724 | Worm drive house clip | 2 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 2 | |||||
| 15 | 5100005748 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 16 | 5000204549 | Bracket | 1 | ADD TO CART | |
| 17 | 5000011542 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 18 | 5000155486 | Throttle actuator | 1 | ADD TO CART | |
| 19 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 20 | 5000010880 | Hexagon nut | 1 | ADD TO CART | |
| 21 | 5000155487 | Adaptor | 1 | ADD TO CART | |
| 22 | 5000150022 | Cable | 1 | ADD TO CART | |
| 24 | 5000119695 | Collar | 1 | PARTS REQUEST | |
|
COMING Collar
5000119695 · qty on machine: 1 | |||||
| 25 | 5100009861 | Threaded pin | 1 | ADD TO CART | |
| 26 | 5100010901 | Covering | 1 | ADD TO CART | |
| 27 | 5000210173 | Filter-fuel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 28 | 5000011439 | Hexagonal head cap screw | 2 | 49Nm/36ft.lbs | ADD TO CART |
| 29 | 5000010883 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100010246 | Fuel hose | 1 | ADD TO CART | |
| 31 | 5000019156 | Gasket | 2 | ADD TO CART | |
| 32 | 5100010257 | Hose pipe | 1 | ADD TO CART | |
| 33 | 5000207336 | Hollow screw | 1 | ADD TO CART | |
| 34 | 5100011327 | Pipe clamp | 1 | ADD TO CART | |
| 35 | 5100010740 | Belt guard cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5100018058 | Corrugated-head screw | 4 | ADD TO CART | |
| 37 | 5100000973 | Shockmount | 4 | ADD TO CART | |
| 38 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 39 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 40 | 5100024279 | Heat shield cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000210194 | Corrugated-head screw | 3 | ADD TO CART | |
| 42 | 5000206422 | Switch | 1 | ADD TO CART | |
| 43 | 5000011548 | Cheese head screw | 2 | ADD TO CART | |
| 44 | 5000011552 | Cheese head screw | 2 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 45 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
Page 38 — Holder cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010590 | Bracket | 1 | ADD TO CART | |
| 2 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 3 | 5000205238 | Screw connection | 1 | ADD TO CART | |
| 4 | 5000211773 | Nose cap | 1 | 40Nm/30ft.lbs | ADD TO CART |
Page 40 — Electric box cpl. dpu80r/90r/110r
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005376 | Electric components drawer | 1 | ADD TO CART | |
| 2 | 5100010129 | Cable harness e-box | 1 | ADD TO CART | |
| 3 | 5000011570 | Cheese head screw | 2 | 5Nm/4ft.lbs | ADD TO CART |
| 4 | 5000010628 | Flat washer | 2 | ADD TO CART | |
| 5 | 5000010370 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5000085437 | Relay | 4 | ADD TO CART | |
| 7 | 5100016686 | Gasket | 4 | ADD TO CART | |
| 8 | 5100015757 | Hexagonal head cap screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5000010369 | Hexagon nut | 3 | ADD TO CART | |
| 11 | 5100010300 | Connector plate bottom | 1 | ADD TO CART | |
| 12 | 5100010315 | Plate | 1 | ADD TO CART | |
| 13 | 5100010121 | Control | 1 | ADD TO CART | |
| 14 | 5100010109 | Flange | 1 | ADD TO CART | |
| 15 | 5100010110 | Switch | 1 | ADD TO CART | |
| 16 | 5100005715 | Botton switch | 1 | ADD TO CART | |
| 17 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 18 | 5100005763 | Decoder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5100010311 | Connector plate middle | 1 | ADD TO CART | |
| 20 | 5100010312 | Connector plate top | 1 | ADD TO CART | |
| 21 | 5100009818 | Display | 1 | ADD TO CART | |
| 22 | 5100005471 | Cover | 1 | ADD TO CART | |
| 23 | 5000108371 | Oval head screw | 18 | ADD TO CART | |
| 24 | 5000010622 | Flat washer | 3 | ADD TO CART | |
| 25 | 5000011541 | Cheese head screw | 3 | 25Nm/18ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000011541 · qty on machine: 3 25Nm/18ft.lbs | |||||
| 26 | 5100022411 | Blind plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5100061282 | Cable harness | 1 | ADD TO CART | |
Page 42 — Air filter cpl.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010911 | Bracket | 1 | ADD TO CART | |
| 2 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 3 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 4 | 5100005726 | Air cleaner | 1 | ADD TO CART | |
| 4 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 4 | 5100024489 | Safety elements | 1 | ADD TO CART | |
| 4 | 5100024550 | Clamp | 3 | ADD TO CART | |
| 4 | 5100024551 | Dust discharge valve | 1 | ADD TO CART | |
| 5 | 5100010912 | Tightening strap | 1 | ADD TO CART | |
| 7 | 5100016655 | Gasket | 1 | ADD TO CART | |
| 8 | 5000014996 | Clamp | 2 | ADD TO CART | |
Page 44 — Locking device rear cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010584 | Bracket | 1 | ADD TO CART | |
| 2 | 5000204116 | Shockmount | 2 | ADD TO CART | |
| 3 | 5100017158 | Locknut | 6 | 30Nm/22ft.lbs | ADD TO CART |
| 4 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 5 | 5100010580 | Locking lever rear | 1 | ADD TO CART | |
| 6 | 5100010840 | Shockmount | 2 | ADD TO CART | |
Page 46 — Battery cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209152 | Insulating cushion | 1 | ADD TO CART | |
| 2 | 5000086527 | Battery | 1 | ADD TO CART | |
| 3 | 5100005937 | Battery mounting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100017160 | Gasket | 1 | ADD TO CART | |
| 5 | 5100010891 | Threaded bolt | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010892 | Threaded bolt | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 7 | 5000017313 | Hexagon nut | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 9 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 10 | 5100014022 | Positive pol cover | 1 | ADD TO CART | |
| 11 | 5000212623 | Bushing | 3 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
Page 48 — Protective frame cpl. dpu110
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010527 | Cross-beam | 1 | ADD TO CART | |
| 2 | 5100016519 | Gasket | 1 | ADD TO CART | |
| 3 | 5100017413 | Jack ring | 1 | ADD TO CART | |
| 4 | 5100005732 | Axle | 1 | ADD TO CART | |
| 5 | 5000202829 | Cup spring | 1 | ADD TO CART | |
| 6 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 8 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 9 | 5000210112 | Corrugated-head screw | 4 | ADD TO CART | |
| 10 | 5000204116 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100017158 | Locknut | 8 | ADD TO CART | |
| 12 | 5100010583 | Bracket | 1 | ADD TO CART | |
| 13 | 5100010840 | Shockmount | 2 | ADD TO CART | |
| 14 | 5100064251 | Locking lever | 1 | ADD TO CART | |
| 15 | 5100010450 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010450 · qty on machine: 1 | |||||
| 16 | 5100010451 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010451 · qty on machine: 1 | |||||
| 17 | 5100016517 | Gasket | 2 | ADD TO CART | |
| 18 | 5100018100 | Edge protection | 2 | ADD TO CART | |
| 19 | 5100018101 | Edge protection | 2 | ADD TO CART | |
| 20 | 5100018059 | Corrugated-head screw | 8 | ADD TO CART | |
| 21 | 5100010459 | Covering | 2 | PARTS REQUEST | |
|
COMING Covering
5100010459 · qty on machine: 2 | |||||
| 22 | 5100018102 | Edge protection | 2 | ADD TO CART | |
| 23 | 5000211795 | Corrugated-head screw | 12 | ADD TO CART | |
| 24 | 5100011100 | Corrugated-head screw | 4 | ADD TO CART | |
| 25 | 5100011101 | Corrugated-head screw | 4 | PARTS REQUEST | |
|
COMING Corrugated-head screw
5100011101 · qty on machine: 4 | |||||
| 26 | 5100025691 | Handle profile | 1 | ADD TO CART | |
Page 50 — Bonnet front cpl. dpu110
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010437 | Bonnet | 1 | ADD TO CART | |
| 2 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 3 | 5000210112 | Corrugated-head screw | 4 | 85Nm/63ft.lbs | ADD TO CART |
| 4 | 5100010930 | Screen grid front (dpu100) | 1 | ADD TO CART | |
| 4 | 5100018899 | Screen grid front (dpu100r) | 1 | ADD TO CART | |
| 5 | 5100010577 | Locking tab front | 1 | ADD TO CART | |
| 6 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 7 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 8 | 5100024474 | Shockmount | 2 | ADD TO CART | |
| 9 | 5000154402 | Cable | 1 | ADD TO CART | |
| 10 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 11 | 5000033356 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100024476 | Edge protection | 1 | 90Nm/66ft.lbs | ADD TO CART |
Page 52 — Bonnet rear cpl. dpu110
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010436 | Bonnet | 1 | ADD TO CART | |
| 2 | 5100010578 | Locking tab rear | 1 | ADD TO CART | |
| 3 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 4 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 5 | 5100010932 | Screen grid rear (dpu100) | 1 | ADD TO CART | |
| 5 | 5100018921 | Screen grid rear (dpu100) | 1 | ADD TO CART | |
| 5 | 5100018922 | Screen grid rear (dpu100r,c) | 1 | ADD TO CART | |
| 5 | 5100018923 | Screen grid rear (dpu100r) | 1 | ADD TO CART | |
| 6 | 5100011262 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000068355 | Protective cap | 1 | ADD TO CART | |
| 9 | 5000210112 | Corrugated-head screw | 3 | 85Nm/63ft.lbs | ADD TO CART |
| 10 | 5100005810 | Compr. spring | 1 | ADD TO CART | |
| 11 | 5100017956 | Protection foil | 1 | ADD TO CART | |
| 12 | 5100024201 | Cloth | 1 | ADD TO CART | |
| 13 | 5100025231 | Portfolio | 1 | PARTS REQUEST | |
|
COMING Portfolio
5100025231 · qty on machine: 1 | |||||
| 14 | 5100057038 | Plate | 1 | ADD TO CART | |
| 15 | 5100048321 | Mushroom head bolt | 4 | ADD TO CART | |
| 16 | 5000010372 | Flat washer | 4 | ADD TO CART | |
| 17 | 5000010369 | Hexagon nut | 4 | ADD TO CART | |

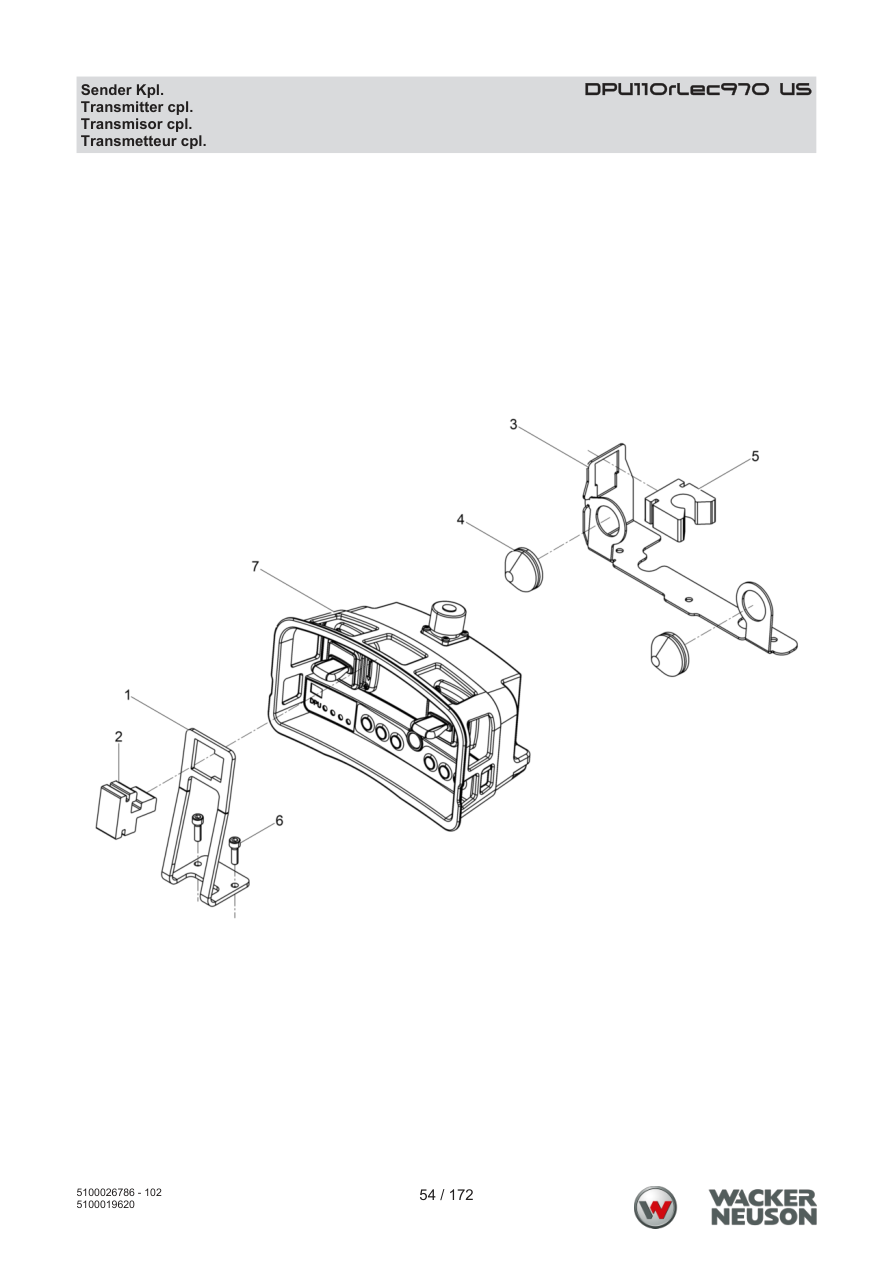

Page 54 — Transmitter cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005938 | Retainer | 1 | ADD TO CART | |
| 2 | 5000207753 | Bracket | 1 | ADD TO CART | |
| 3 | 5100005940 | Terminal strip | 1 | ADD TO CART | |
| 4 | 5000124255 | Shockmount | 2 | ADD TO CART | |
| 5 | 5000208255 | Bracket | 1 | ADD TO CART | |
| 6 | 5000011551 | Cheese head screw | 2 | 95Nm/70ft.lbs | ADD TO CART |
| 7 | 5100018542 | Transmitter | 1 | ADD TO CART | |

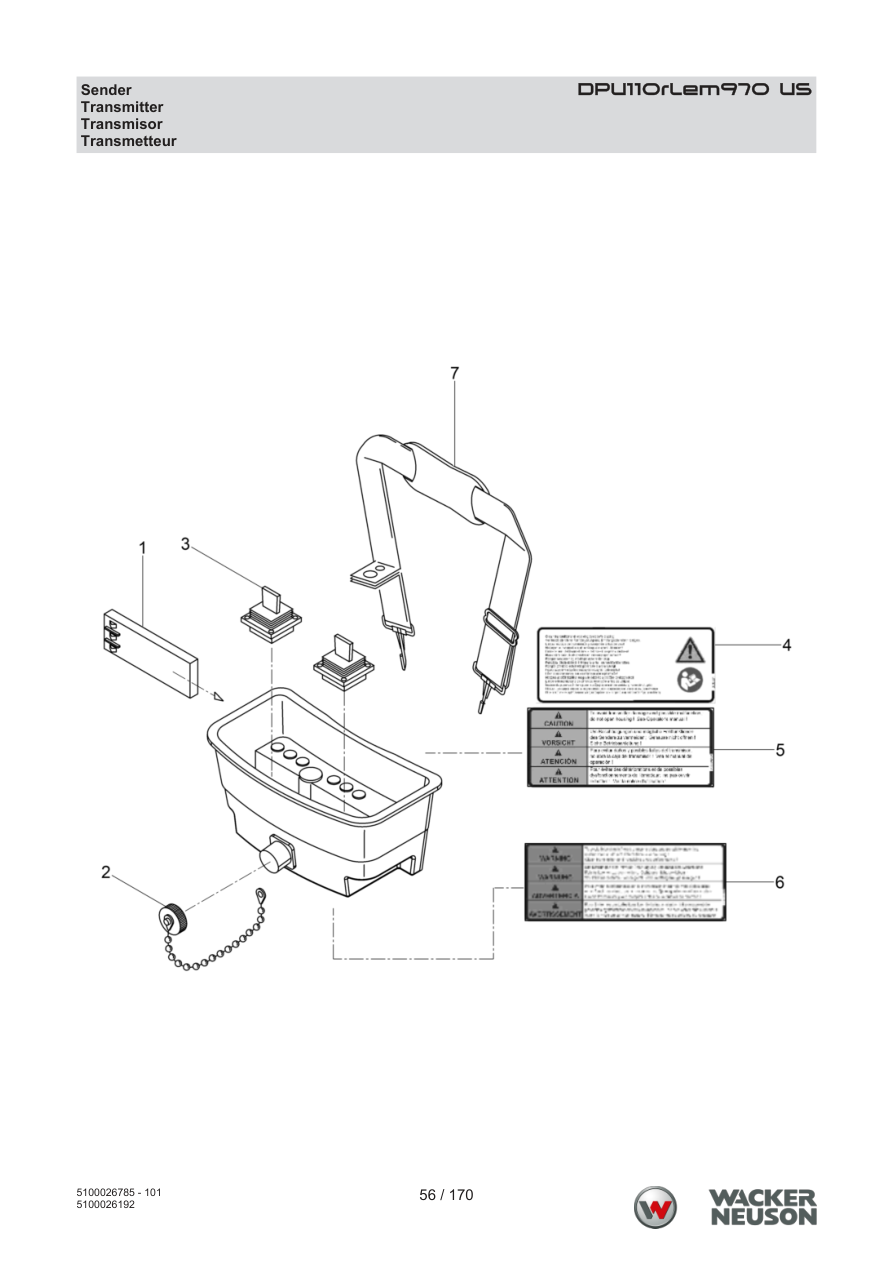

Page 56 — DPU110rLec970 US Sensor
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210156 | Battery | 1 | ADD TO CART | |
| 2 | 5000117184 | Cap | 1 | ADD TO CART | |
| 3 | 5000177083 | Steering lever kit | 2 | ADD TO CART | |
| 4 | 5000226261 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5000226261 · qty on machine: 1 | |||||
| 5 | 5100024202 | Instruction label | 1 | ADD TO CART | |
| 6 | 5100024203 | Label-warning | 1 | ADD TO CART | |
| 7 | 5100024204 | Band | 1 | ADD TO CART | |
Page 58 — Compatec cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010020 | Display cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100016654 | Corrugated-head screw | 3 | M 6x 16 | ADD TO CART |
| 3 | 5000212143 | Clamp | 1 | ADD TO CART | |
| 4 | 5000011555 | Cheese head screw | 1 | M6 x 10 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 5 | 5100010005 | Sensor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000037071 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
Page 60 — DPU110rLec970 US Decals
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000222103 | Decal, logo | 2 | ADD TO CART | |
| 3 | 5100017952 | Type label dpu110 | 2 | ADD TO CART | |
| 3 | 5100017953 | Type label dpu110r | 2 | ADD TO CART | |
| 3 | 5100017954 | Type label dpu80 | 2 | ADD TO CART | |
| 3 | 5100017955 | Type label dpu80r | 2 | ADD TO CART | |
| 3 | 5100024540 | Type label dpu90 | 2 | PARTS REQUEST | |
|
COMING Type label dpu90
5100024540 · qty on machine: 2 | |||||
| 3 | 5100024541 | Type label dpu90r | 2 | ADD TO CART | |
| 4 | 5000222086 | Label symbol | 1 | ADD TO CART | |
| 5 | 5000207747 | Danger label | 1 | PARTS REQUEST | |
|
COMING Danger label
5000207747 · qty on machine: 1 | |||||
| 6 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 7 | 5000219175 | Labels | 1 | ADD TO CART | |
| 8 | 5000064925 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5000219179 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000219179 · qty on machine: 1 | |||||
| 10 | 5000216635 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000216635 · qty on machine: 1 | |||||
| 11 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 12 | 5000219080 | Labels | 1 | ADD TO CART | |
| 13 | 5100011227 | Label hav 24h | 1 | ADD TO CART | |
| 14 | 5100085618 | Label | 4 | PARTS REQUEST | |
|
COMING Label
5100085618 · qty on machine: 4 | |||||
| 15 | 5000219176 | Labels | 3 | ADD TO CART | |
| 17 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 62 — DPU110rLec970 US Maintenance kit
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 2 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 3 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 4 | 5000159568 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5100027618 | Maintenance kit | 1 | ADD TO CART | |
Page 64 — DPU110rLec970 US Crankshaft
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160365 | Crankshaft | 1 | ADD TO CART | |
| 2 | 5000159357 | Pin | 1 | ADD TO CART | |
| 3 | 5000159260 | Woodruff key | 1 | ADD TO CART | |
| 4 | 5000159454 | Plug, threaded | 3 | ADD TO CART | |
| 5 | 5000159261 | Square key | 1 | ADD TO CART | |
Page 66 — DPU110rLec970 US Piston - Connecting Rod
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160375 | Piston set | 3 | ADD TO CART | |
| 1 | 5000160376 | Piston set | 3 | ADD TO CART | |
| 1 | 5000160377 | Piston set | 3 | ADD TO CART | |
| 2 | 5000160367 | Connecting rod | 3 | PARTS REQUEST | |
|
COMING Connecting rod
5000160367 · qty on machine: 3 | |||||
| 3 | 5000160383 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160384 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160385 | Piston ring set | 2 | ADD TO CART | |
| 4 | 5000215523 | Piston pin | 3 | ADD TO CART | |
| 5 | 5000215477 | Retaining ring | 6 | ADD TO CART | |
| 6 | 5000160368 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000160368 · qty on machine: 2 | |||||
| 7 | 5000155689 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155690 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155691 | Bearing | 2 | ADD TO CART | |
| 8 | 5000084175 | Screw | 4 | ADD TO CART | |
Page 68 — DPU110rLec970 US Flywheel
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215545 | Flywheel | 1 | ADD TO CART | |
| 2 | 5000155693 | Gear crown | 1 | ADD TO CART | |
| 3 | 5000160188 | Bolt | 5 | ADD TO CART | |
| 4 | 5000159326 | Plate | 1 | ADD TO CART | |
| 5 | 5000159254 | Bolt | 9 | ADD TO CART | |
| 6 | 5000215527 | Plug | 1 | ADD TO CART | |
| 7 | 5000211373 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000084164 | Screw | 3 | ADD TO CART | |
| 9 | 5000215567 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5000215567 · qty on machine: 1 | |||||
| 10 | 5000211370 | Pin | 2 | PARTS REQUEST | |
|
COMING Pin
5000211370 · qty on machine: 2 | |||||
| 11 | 5000082140 | Nut | 3 | ADD TO CART | |
| 12 | 5000084123 | Screw | 3 | ADD TO CART | |
| 13 | 5000211371 | Washer | 4 | ADD TO CART | |
| 14 | 5000211372 | Screw | 4 | ADD TO CART | |
| 15 | 5000160231 | Washer | 3 | ADD TO CART | |
Page 70 — DPU110rLec970 US Pulley
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026267 | V-belt pulley | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5000126935 | Bolt | 1 | ADD TO CART | |
| 14 | 5000215485 | Belt | 1 | ADD TO CART | |
Page 72 — Crankcase
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5000206229 | Screw | 1 | ADD TO CART | |
| 1 | 5100026422 | Crankcase | 1 | PARTS REQUEST | |
|
COMING Crankcase
5100026422 · qty on machine: 1 | |||||
| 2 | 5000159257 | Sleeve | 2 | ADD TO CART | |
| 4 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000215522 | Pin | 1 | ADD TO CART | |
| 6 | 5000155702 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155703 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155704 | Bearing | 3 | ADD TO CART | |
| 8 | 5000159486 | Disc | 2 | ADD TO CART | |
| 8 | 5000159487 | Disc | 2 | ADD TO CART | |
| 8 | 5000159488 | Disc | 2 | ADD TO CART | |
| 9 | 5000082335 | Threaded plug | 4 | ADD TO CART | |
| 12 | 5000159288 | Gasket | 4 | ADD TO CART | |
| 13 | 5000159360 | Dowel pin | 2 | ADD TO CART | |
| 15 | 5000159480 | Screw | 8 | ADD TO CART | |
| 16 | 5000159456 | Plug | 1 | ADD TO CART | |
| 17 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 18 | 5000215530 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5000215530 · qty on machine: 1 | |||||
| 20 | 5000082183 | Copper washer | 1 | ADD TO CART | |
| 21 | 5000155700 | Flange | 1 | ADD TO CART | |
| 22 | 5000217807 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217807 · qty on machine: 1 | |||||
| 23 | 5000159467 | Screw | 6 | ADD TO CART | |
| 24 | 5000155701 | Rotary shaft seal | 1 | PARTS REQUEST | |
|
COMING Rotary shaft seal
5000155701 · qty on machine: 1 | |||||
| 25 | 5000159341 | Oil filter fitting | 1 | ADD TO CART | |
| 26 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 27 | 5100008859 | Oil dip stick | 1 | PARTS REQUEST | |
|
COMING Oil dip stick
5100008859 · qty on machine: 1 | |||||
| 28 | 5000215533 | Dipstick guard | 1 | ADD TO CART | |
| 29 | 5000063695 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5000063695 · qty on machine: 2 | |||||
| 44 | 5000159397 | Crankcase gasket set | 1 | ADD TO CART | |
Page 76 — DPU110rLec970 US Cylinder head
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160388 | Cylinder head | 1 | ADD TO CART | |
| 5 | 5000159449 | Plug | 2 | ADD TO CART | |
| 6 | 5000159318 | Spark arrester | 3 | ADD TO CART | |
| 7 | 5000215524 | Lifting point | 2 | ADD TO CART | |
| 8 | 5000084156 | Screw | 1 | ADD TO CART | |
| 9 | 5000217828 | Flange screw | 8 | ADD TO CART | |
| 10 | 5000159350 | Washer | 8 | ADD TO CART | |
| 11 | 5000159231 | O-ring | 1 | ADD TO CART | |
| 12 | 5000159453 | Plug | 1 | ADD TO CART | |
| 13 | 5000159311 | Bracket | 1 | ADD TO CART | |
| 14 | 5000159254 | Bolt | 1 | ADD TO CART | |
| 15 | 5000082292 | Washer | 1 | ADD TO CART | |
| 17 | 5000159303 | Valve guide | 6 | ADD TO CART | |
| 18 | 5000160381 | Seat-valve, intake | 3 | ADD TO CART | |
| 19 | 5000160382 | Seat-valve, exhaust | 3 | ADD TO CART | |
| 23 | 5000159285 | Nut | 3 | ADD TO CART | |
| 24 | 5000215494 | Spacer | 9 | ADD TO CART | |
| 25 | 5000160380 | Precombustion chamber | 3 | ADD TO CART | |
| 26 | 5100026423 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100026423 · qty on machine: 1 | |||||
| 33 | 5000159396 | Cylinder gasket set | 1 | PARTS REQUEST | |
|
COMING Cylinder gasket set
5000159396 · qty on machine: 1 | |||||
| 40 | 5000159234 | Oil seal | 1 | ADD TO CART | |
| 41 | 5000159282 | Flange | 1 | ADD TO CART | |
| 42 | 5000215541 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 3 | |||||
Page 78 — DPU110rLec970 US Cylinder head cover
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026424 | Cylinder head cover | 1 | PARTS REQUEST | |
|
COMING Cylinder head cover
5100026424 · qty on machine: 1 | |||||
| 3 | 5000159305 | Baffle | 1 | ADD TO CART | |
| 4 | 5000227761 | Cap | 1 | PARTS REQUEST | |
|
COMING Cap
5000227761 · qty on machine: 1 | |||||
| 5 | 5000206208 | O-ring | 1 | ADD TO CART | |
| 6 | 5000215541 | Screw | 12 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 12 | |||||
| 7 | 5000160205 | Gasket | 1 | ADD TO CART | |
| 8 | 5000159308 | Connector | 1 | ADD TO CART | |
| 10 | 5100026419 | Oil pressure switch | 1 | PARTS REQUEST | |
|
COMING Oil pressure switch
5100026419 · qty on machine: 1 | |||||
| 12 | 5100008855 | Rivet | 9 | PARTS REQUEST | |
|
COMING Rivet
5100008855 · qty on machine: 9 | |||||
| 13 | 5000159455 | Push-in plug | 1 | ADD TO CART | |
| 14 | 5000155745 | Pressure valve | 1 | ADD TO CART | |
| 15 | 5000160201 | Clamp | 4 | ADD TO CART | |
| 15 | 5000160199 | Clamp | 1 | ADD TO CART | |
| 16 | 5000215505 | Connecting tube | 1 | ADD TO CART | |
| 16 | 5000215535 | Connecting pipe | 1 | ADD TO CART | |
| 17 | 5000215536 | Valve tube | 1 | ADD TO CART | |
Page 80 — DPU110rLec970 US Injection system
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000203358 | Nut | 4 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 4 | |||||
| 2 | 5000160379 | Injection pump | 3 | ADD TO CART | |
| 3 | 5200009479 | Stud | 6 | ADD TO CART | |
| 4 | 5000159233 | O-ring | 2 | ADD TO CART | |
| 5 | 5100026390 | Bracket | 1 | ADD TO CART | |
| 7 | 5000159300 | Washer | 3 | ADD TO CART | |
| 9 | 5000159473 | Screw | 6 | ADD TO CART | |
| 10 | 5000159459 | Pipe | 1 | ADD TO CART | |
| 11 | 5000159237 | O-ring | 2 | ADD TO CART | |
| 12 | 5000160209 | Gasket | 1 | ADD TO CART | |
| 13 | 5000160391 | Back pressure valve | 2 | ADD TO CART | |
| 14 | 5000159302 | Gasket | 2 | ADD TO CART | |
| 15 | 5000160332 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160332 · qty on machine: 1 | |||||
| 15 | 5000160341 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160341 · qty on machine: 1 | |||||
| 15 | 5000160342 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160342 · qty on machine: 1 | |||||
| 15 | 5000160340 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160340 · qty on machine: 1 | |||||
| 15 | 5000160339 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160339 · qty on machine: 1 | |||||
| 15 | 5000160338 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160338 · qty on machine: 1 | |||||
| 15 | 5000160337 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160337 · qty on machine: 1 | |||||
| 15 | 5000160336 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160336 · qty on machine: 1 | |||||
| 15 | 5000160335 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160335 · qty on machine: 1 | |||||
| 15 | 5000160334 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160334 · qty on machine: 1 | |||||
| 17 | 5000159278 | Spacer | 2 | ADD TO CART | |
| 18 | 5000155710 | Jet | 2 | ADD TO CART | |
| 20 | 5000159238 | O-ring | 2 | ADD TO CART | |
| 22 | 5000215509 | Spring | 2 | PARTS REQUEST | |
|
COMING Spring
5000215509 · qty on machine: 2 | |||||
| 23 | 5000203718 | Cu-ring | 2 | PARTS REQUEST | |
|
COMING Cu-ring
5000203718 · qty on machine: 2 | |||||
| 24 | 5000159236 | O-ring | 2 | ADD TO CART | |
| 25 | 5000159471 | Screw | 4 | ADD TO CART | |
| 26 | 5000159317 | Spring | 2 | ADD TO CART | |
| 29 | 5000159242 | Clamp | 2 | ADD TO CART | |
| 30 | 5200015520 | Pressure valve | 2 | ADD TO CART | |
| 32 | 5000159309 | Shim | 2 | ADD TO CART | |
Page 84 — DPU110rLec970 US Camshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026425 | Camshaft | 1 | ADD TO CART | |
| 3 | 5000215482 | Collar | 1 | ADD TO CART | |
| 4 | 5000215497 | Cam | 1 | ADD TO CART | |
| 5 | 5000160753 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000160753 · qty on machine: 1 | |||||
| 6 | 5000215540 | Screw | 1 | ADD TO CART | |
| 8 | 5000159246 | Push rod, valve lifter | 3 | ADD TO CART | |
Page 86 — DPU110rLec970 US Rocker arms - Valves
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159328 | Spring housing | 4 | ADD TO CART | |
| 3 | 5000160373 | Spring | 6 | ADD TO CART | |
| 4 | 5000159351 | Washer | 6 | ADD TO CART | |
| 6 | 5000160218 | Rocker arm shaft | 1 | ADD TO CART | |
| 6 | 5000155696 | Rocker arm complete | 1 | ADD TO CART | |
| 7 | 5000083011 | Nut | 4 | ADD TO CART | |
| 8 | 5000159350 | Washer | 4 | ADD TO CART | |
| 9 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000159482 | Screw | 1 | ADD TO CART | |
| 11 | 5000159447 | Shaft support | 4 | ADD TO CART | |
| 13 | 5000159248 | Rocker arm | 6 | PARTS REQUEST | |
|
COMING Rocker arm
5000159248 · qty on machine: 6 | |||||
| 14 | 5000159249 | Rocker arm injector | 3 | ADD TO CART | |
| 15 | 5000159275 | Nut | 1 | ADD TO CART | |
| 16 | 5000159483 | Threaded bolt | 1 | ADD TO CART | |
| 17 | 5000159443 | Pin | 1 | ADD TO CART | |
| 18 | 5000215529 | Plug | 2 | ADD TO CART | |
| 19 | 5000159333 | Threaded stud | 4 | ADD TO CART | |
| 21 | 5100008856 | Bush | 12 | PARTS REQUEST | |
|
COMING Bush
5100008856 · qty on machine: 12 | |||||
| 27 | 5000159297 | Gasket | 6 | ADD TO CART | |
| 28 | 5000160390 | Intake valve | 3 | ADD TO CART | |
| 29 | 5000160392 | Outlet valve | 3 | ADD TO CART | |
Page 88 — DPU110rLec970 US Timing belt
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159481 | Screw | 1 | ADD TO CART | |
| 2 | 5000159349 | Washer | 1 | ADD TO CART | |
| 3 | 5000083011 | Nut | 1 | ADD TO CART | |
| 4 | 5000159344 | Washer | 1 | ADD TO CART | |
| 5 | 5000159334 | Threaded stud | 1 | ADD TO CART | |
| 6 | 5000159284 | Tensioner pulley | 1 | ADD TO CART | |
| 7 | 5000155697 | Timing belt | 1 | ADD TO CART | |
| 8 | 5000159336 | Belt pulley | 1 | ADD TO CART | |
| 9 | 5000159338 | Belt pulley | 1 | ADD TO CART | |
Page 90 — Oil pump
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155735 | Oil pump complete | 1 | ADD TO CART | |
| 2 | 5000160326 | Rotor | 1 | ADD TO CART | |
| 4 | 5000159312 | Spring | 1 | ADD TO CART | |
| 5 | 5000159450 | Lock screw | 1 | ADD TO CART | |
| 6 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 7 | 5000159330 | Rod | 1 | ADD TO CART | |
| 8 | 5000160178 | O-ring | 1 | ADD TO CART | |
| 10 | 5000159478 | Screw | 3 | ADD TO CART | |
| 11 | 5000215709 | Gasket | 1 | ADD TO CART | |
| 14 | 5000155734 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000159484 | Screw | 2 | ADD TO CART | |
| 16 | 5000215479 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 17 | 5000084169 | Screw | 6 | ADD TO CART | |
Page 92 — Oil pan
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155738 | Oil pan | 1 | PARTS REQUEST | |
|
COMING Oil pan
5000155738 · qty on machine: 1 | |||||
| 2 | 5000159228 | Oil seal | 1 | ADD TO CART | |
| 3 | 5000159253 | Bolt | 19 | ADD TO CART | |
| 4 | 5000155737 | Hose | 1 | ADD TO CART | |
| 5 | 5000159235 | O-ring | 1 | ADD TO CART | |
| 6 | 5000159568 | Copper washer | 2 | ADD TO CART | |
| 11 | 5000211364 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5000211364 · qty on machine: 2 | |||||
| 12 | 5000159291 | Gasket | 2 | ADD TO CART | |
Page 94 — DPU110rLec970 US Speed governor
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159321 | Pin | 1 | ADD TO CART | |
| 3 | 5000159229 | Oil seal | 1 | ADD TO CART | |
| 5 | 5000215480 | Collar | 1 | ADD TO CART | |
| 6 | 5100008864 | Spring | 1 | ADD TO CART | |
| 7 | 5000217813 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5000217813 · qty on machine: 1 | |||||
| 8 | 5000215520 | Washer | 2 | ADD TO CART | |
| 9 | 5000159477 | Screw | 4 | ADD TO CART | |
| 13 | 5000159315 | Spring | 1 | ADD TO CART | |
| 14 | 5000211941 | Screw | 3 | ADD TO CART | |
| 15 | 5000159245 | Linkage | 1 | ADD TO CART | |
| 16 | 5000159467 | Screw | 3 | ADD TO CART | |
| 17 | 5000159239 | O-ring | 1 | ADD TO CART | |
| 18 | 5000159324 | Check disc | 1 | ADD TO CART | |
| 19 | 5000159240 | Lip seal | 1 | PARTS REQUEST | |
|
COMING Lip seal
5000159240 · qty on machine: 1 | |||||
| 20 | 5000159267 | Bearing | 1 | ADD TO CART | |
| 21 | 5100008841 | Screw | 3 | ADD TO CART | |
| 22 | 5000159265 | Cover | 1 | ADD TO CART | |
| 23 | 5000159251 | Collar | 1 | ADD TO CART | |
| 24 | 5000215517 | Check disc | 1 | ADD TO CART | |
| 25 | 5000155698 | Speed control module | 1 | ADD TO CART | |
| 26 | 5000215506 | Collar | 1 | ADD TO CART | |
| 27 | 5000217805 | Bearing | 1 | PARTS REQUEST | |
|
COMING Bearing
5000217805 · qty on machine: 1 | |||||
Page 96 — Control box
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5100027675 | Speed control | 1 | ADD TO CART | ||
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 2 | 5000215543 | Screw | 1 | ADD TO CART | |
| 3 | 5000084131 | Screw | 2 | ADD TO CART | |
| 4 | 5000083995 | Washer | 2 | ADD TO CART | |
| 5 | 5000150038 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000150038 · qty on machine: 2 | |||||
| 6 | 5000217818 | Washer | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |
Page 98 — DPU110rLec970 US Fuel pump
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226239 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5000226239 · qty on machine: 1 | |||||
| 2 | 5000082266 | Stud | 2 | ADD TO CART | |
| 3 | 5000110759 | Seal | 1 | ADD TO CART | |
| 4 | 5000160757 | Rod | 1 | ADD TO CART | |
| 5 | 5000203358 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 2 | |||||
| 6 | 5000082285 | Washer | 2 | ADD TO CART | |
| 7 | 5000082183 | Copper washer | 4 | ADD TO CART | |
| 8 | 5000217802 | Banjo bolt | 2 | PARTS REQUEST | |
|
COMING Banjo bolt
5000217802 · qty on machine: 2 | |||||
Page 100 — DPU110rLec970 US Fuel lines
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000082155 | Clamp | 1 | ADD TO CART | |
| 2 | 5100026403 | Fuel hose | 1 | ADD TO CART | |
| 3 | 5000215704 | Clamp | 1 | ADD TO CART | |
| 4 | 5100026404 | Fuel hose | 1 | ADD TO CART | |
| 6 | 5000215486 | Collar | 3 | ADD TO CART | |
Page 102 — DPU110rLec970 US Thermostat
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000211378 | Gasket | 1 | ADD TO CART | |
| 3 | 5000159476 | Screw | 2 | ADD TO CART | |
| 4 | 5000084169 | Screw | 2 | ADD TO CART | |
| 5 | 5100030694 | Casing adaptor | 1 | ADD TO CART | |
| 6 | 5000159232 | O-ring | 1 | ADD TO CART | |
| 7 | 5000207002 | Valve thermostat | 1 | ADD TO CART | |
| 8 | 5000215489 | Thermostat housing | 1 | ADD TO CART | |
| 9 | 5000203712 | Cu-ring | 1 | PARTS REQUEST | |
|
COMING Cu-ring
5000203712 · qty on machine: 1 | |||||
| 10 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 12 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 13 | 5000159451 | Screw plug | 1 | ADD TO CART | |
Page 104 — DPU110rLec970 US Water pump
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209105 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 2 | 5100026407 | Water pump | 1 | ADD TO CART | |
| 3 | 5000217809 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217809 · qty on machine: 1 | |||||
| 4 | 5000209107 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000209107 · qty on machine: 2 | |||||
| 5 | 5000160362 | Screw | 2 | ADD TO CART | |
| 6 | 5000217808 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217808 · qty on machine: 1 | |||||
| 7 | 5100026405 | Flange | 1 | ADD TO CART | |
| 8 | 5000160201 | Clamp | 2 | ADD TO CART | |
| 9 | 5100026406 | Hose | 1 | ADD TO CART | |
Page 106 — Inlet bend
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217817 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000217817 · qty on machine: 1 | |||||
| 2 | 5000217801 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000217801 · qty on machine: 1 | |||||
| 3 | 5000203352 | Clamping piece | 1 | ADD TO CART | |
| 4 | 5000217810 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5000217810 · qty on machine: 1 | |||||
| 7 | 5100008860 | Shaft | 1 | ADD TO CART | |
| 8 | 5000159230 | Oil seal | 1 | PARTS REQUEST | |
|
COMING Oil seal
5000159230 · qty on machine: 1 | |||||
| 10 | 5000084170 | Screw | 1 | ADD TO CART | |
| 11 | 5000159476 | Screw | 3 | ADD TO CART | |
| 12 | 5000215504 | Lever | 1 | ADD TO CART | |
| 13 | 5000215481 | Collar | 1 | ADD TO CART | |
| 14 | 5000215508 | Spring | 1 | ADD TO CART | |
| 15 | 5000203346 | Screw | 4 | ADD TO CART | |
| 16 | 5000159272 | Nut | 2 | ADD TO CART | |
| 18 | 5100008861 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100008861 · qty on machine: 2 | |||||
| 20 | 5000159462 | Hose | 1 | ADD TO CART | |
| 22 | 5000084232 | Nut | 1 | ADD TO CART | |
| 23 | 5000215487 | Manifold inlet | 1 | ADD TO CART | |
| 24 | 5000160186 | Intake manifold gasket | 1 | ADD TO CART | |
| 38 | 5100026411 | Flange | 1 | ADD TO CART | |
| 39 | 5000084169 | Screw | 2 | ADD TO CART | |
| 40 | 5000082285 | Washer | 2 | ADD TO CART | |
| 41 | 5100026429 | Gasket | 1 | ADD TO CART | |
Page 108 — Exhaust manifold
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159290 | Gasket | 3 | ADD TO CART | |
| 2 | 5000159263 | Exhaust manifold | 1 | ADD TO CART | |
| 4 | 5000082267 | Stud | 6 | ADD TO CART | |
| 5 | 5000086331 | Nut | 6 | ADD TO CART | |
| 6 | 5000160228 | Threaded bolt | 2 | ADD TO CART | |
| 7 | 5000086331 | Nut | 4 | ADD TO CART | |
| 8 | 5000159295 | Gasket | 2 | ADD TO CART | |
| 13 | 5100005701 | Exhaust pipe | 1 | ADD TO CART | |
| 14 | 5000215479 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 15 | 5100005522 | Muffler | 1 | ADD TO CART | |
| 16 | 5100005702 | Exhaust-pipe end | 1 | ADD TO CART | |
Page 110 — DPU110rLec970 US Generator
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026414 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100026414 · qty on machine: 1 | |||||
| 2 | 5000159476 | Screw | 3 | ADD TO CART | |
| 3 | 5100026415 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100026415 · qty on machine: 1 | |||||
| 4 | 5100026416 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100026416 · qty on machine: 1 | |||||
| 5 | 5000083011 | Nut | 1 | ADD TO CART | |
| 24 | 5000208993 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000208993 · qty on machine: 1 | |||||
| 25 | 5000082293 | Washer | 1 | ADD TO CART | |
| 26 | 5100026417 | Clamp | 1 | ADD TO CART | |
| 49 | 5100026418 | Disc | 1 | ADD TO CART | |
Page 112 — DPU110rLec970 US Starter
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215493 | Hexagon nut | 1 | ADD TO CART | |
| 2 | 5000082288 | Washer | 1 | ADD TO CART | |
| 3 | 5000211380 | Starter | 1 | PARTS REQUEST | |
|
COMING Starter
5000211380 · qty on machine: 1 | |||||
| 4 | 5000206968 | Flange | 1 | ADD TO CART | |
| 9 | 5000083027 | Screw | 2 | ADD TO CART | |
Page 114 — Glow plug
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 2 | ADD TO CART | |
| 2 | 5000155748 | Glow plug | 3 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |
Page 116 — Covering
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159564 | Screw | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5100026420 | Belt guard | 1 | ADD TO CART | |
| 4 | 5000159268 | Plug | 1 | ADD TO CART | |
| 5 | 5000215499 | Gasket | 1 | ADD TO CART | |
| 6 | 5100026421 | Protective cover | 1 | ADD TO CART | |
Page 146 — Steering
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 3 | 5000084131 | Screw | 2 | ADD TO CART | |
| 4 | 5000083995 | Washer | 2 | ADD TO CART | |
| 7 | 5000215525 | Fuel valve | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000209012 | Hexagon nut | 1 | ADD TO CART | |
| 23 | 5100042199 | Stud | 1 | ADD TO CART | |
| 66 | 5000215519 | Rivet | 3 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |
| 77 | 5000159276 | Nut | 1 | ADD TO CART | |
Page 164 — Spark plug
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 2 | ADD TO CART | |
| 2 | 5100042312 | Glow plug | 3 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |
| 8 | 5100049823 | Nut | 3 | PARTS REQUEST | |
|
COMING Nut
5100049823 · qty on machine: 3 | |||||
| 9 | 5000209066 | Washer | 3 | ADD TO CART | |
Page 168 — DPU110rLec970 US Compamatic DPU80/90/110
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100056654 | Compamatic cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Compamatic cpl.
5100056654 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100055488 | Bracket (telematic) | 1 | ADD TO CART | |
| 3 | 5100041922 | Tightening strap | 2 | ADD TO CART | |
| 4 | 5100044787 | Cable harness telematik | 1 | ADD TO CART | |
| 5 | 5100049259 | Plug cap | 1 | ADD TO CART | |
| 6 | 5100017849 | Clamp | 2 | ADD TO CART | |
| 7 | 5000038489 | Tie cable | 11 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 11 | |||||
Page 14 — Baseplate cpl. dpu110r
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009721 | Baseplate 970 | 1 | PARTS REQUEST | |
|
COMING Baseplate 970
5100009721 · qty on machine: 1 | |||||
| 1 | 5100009877 | Baseplate 870 | 1 | PARTS REQUEST | |
|
COMING Baseplate 870
5100009877 · qty on machine: 1 | |||||
| 2 | 5100010920 | O-ring | 1 | ADD TO CART | |
| 3 | 5100005152 | Exciter cpl. (dpu110r) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu110r)
5100005152 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100009777 | Cheese head screw | 13 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5000068222 | Plug (threaded) | 1 | 100Nm/74ft.lbs | ADD TO CART |
| 7 | 5000203227 | Roll pin | 4 | ADD TO CART | |
| 8 | 5000216648 | Silent block | 4 | ADD TO CART | |
| 9 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 10 | 5000216644 | Shockmount | 4 | 49Nm/36ft.lbs | ADD TO CART |
| 11 | 5100009782 | Hose pipe | 1 | ADD TO CART | |
| 12 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
| 13 | 5000012373 | Cheese head screw | 8 | 10Nm/7ft.lbs | ADD TO CART |
| 14 | 5100009971 | Hose pipe | 1 | ADD TO CART | |
| 15 | 5100010591 | O-ring | 2 | ADD TO CART | |
| 16 | 5000011468 | Hexagonal head cap screw | 4 | M6 x 30 10Nm/7ft.lbs | ISO4017 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000011468 · qty on machine: 4 M6 x 30
10Nm/7ft.lbs | ISO4017 | |||||
| 17 | 5100009970 | Hose pipe | 1 | 40Nm/30ft.lbs | ADD TO CART |
| 18 | 5100010160 | Breather tube | 1 | ADD TO CART | |
| 19 | 5100010115 | O-ring | 1 | ADD TO CART | |
| 20 | 5100009784 | Hose pipe | 1 | ADD TO CART | |
| 21 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 22 | 5000011549 | Cheese head screw | 4 | 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
Page 16 — Exciter cpl. dpu110r
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 19 | 5100005660 | O-ring | 2 | ADD TO CART | |
| 1 | 5100004650 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5100004298 | Driving shaft | 1 | ADD TO CART | |
| 3 | 5002006603 | Fitting key | 1 | ADD TO CART | |
| 4 | 5100004306 | Gear | 1 | ADD TO CART | |
| 5 | 5100010479 | Cylindrical roller bearing | 1 | ADD TO CART | |
| 6 | 5100015097 | Cylindrical roller bearing | 1 | ADD TO CART | |
| 7 | 5002006113 | Retaining ring | 3 | ADD TO CART | |
| 8 | 5100005260 | Adjusting sleeve | 1 | PARTS REQUEST | |
|
COMING Adjusting sleeve
5100005260 · qty on machine: 1 | |||||
| 9 | 5000206436 | Bearing bush | 2 | ADD TO CART | |
| 10 | 5100013880 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 11 | 5002007057 | Retaining ring | 2 | 90 x 3 | DIN472 | ADD TO CART |
| 12 | 5100005161 | Shaft | 2 | ADD TO CART | |
| 13 | 5100017940 | Shim ring | 2 | ADD TO CART | |
| 14 | 5000103469 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 15 | 5100018186 | Eccentric weight | 2 | PARTS REQUEST | |
|
COMING Eccentric weight
5100018186 · qty on machine: 2 | |||||
| 16 | 5100018187 | Eccentric weight | 2 | ADD TO CART | |
| 17 | 5100005604 | Corrugated-head screw | 8 | 150Nm/111ft.lbs | ADD TO CART |
| 18 | 5100005814 | Flange | 1 | ADD TO CART | |
| 20 | 5000012629 | Cheese head screw | 20 | 25Nm/18ft.lbs | ADD TO CART |
| 21 | 5100004294 | Vent cover | 1 | ADD TO CART | |
| 22 | 5100013845 | Adjustment cylinder cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 23 | 5100010516 | O-ring | 2 | ADD TO CART | |
| 24 | 5000204527 | Tripping pin | 2 | ADD TO CART | |
| 25 | 5100003535 | Disc | 1 | ADD TO CART | |
| 26 | 5100005740 | Gear pump left | 1 | ADD TO CART | |
| 27 | 5100004118 | O-ring | 1 | ADD TO CART | |
| 28 | 5100003696 | Carrier | 1 | ADD TO CART | |
| 29 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 30 | 5100005513 | Piston | 2 | ADD TO CART | |
| 31 | 5100005971 | Grooved ring | 2 | ADD TO CART | |
| 32 | 5100005972 | Guide ring | 2 | ADD TO CART | |
| 33 | 5100005508 | Pipe | 2 | ADD TO CART | |
| 34 | 5100005840 | Stop disc | 2 | ADD TO CART | |
| 35 | 5100005921 | Compression spring | 2 | ADD TO CART | |
| 36 | 5100005507 | Cylinder cover | 2 | ADD TO CART | |
| 37 | 5100005970 | O-ring | 2 | ADD TO CART | |
| 38 | 5000043307 | Cheese head screw | 10 | M5 x 12 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 39 | 5100016693 | Piston cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 40 | 5000124717 | Washer | 2 | ADD TO CART | |
| 41 | 5000220001 | Cheese head screw | 2 | 17.8Nm/13ft.lbs | ADD TO CART |
Page 20 — Upper mass cpl. dpu110r
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004994 | Upper mass | 1 | ADD TO CART | |
| 2 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 9 | 5100013831 | Electric box cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 14 | 5100010883 | Protective cloth | 1 | ADD TO CART | |
| 20 | 5000047388 | Cable tie | 20 | ADD TO CART | |
| 21 | 5000038489 | Tie cable | 10 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 10 | |||||
Page 22 — Cabling cpl. dpu110r
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210107 | Clamp | 3 | ADD TO CART | |
| 2 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 3 | 5000211755 | Screw | 5 | ADD TO CART | |
| 4 | 5100010281 | Clamp | 4 | ADD TO CART | |
| 6 | 5000010625 | Flat washer | 5 | ADD TO CART | |
| 7 | 5000011561 | Cheese head screw | 5 | ADD TO CART | |
| 8 | 5100005670 | Positive cable | 1 | ADD TO CART | |
| 9 | 5100066741 | Pipe clamp | 1 | ADD TO CART | |
| 10 | 5100010152 | Negative pole strap | 2 | ADD TO CART | |
| 11 | 5000013574 | Cheese head screw | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 12 | 5100005669 | Cable harness engine | 1 | ADD TO CART | |
| 13 | 5100017849 | Clamp | 1 | ADD TO CART | |
| 14 | 5100005665 | Cable harness valve | 1 | ADD TO CART | |
| 15 | 5100011350 | Receiver unit front | 1 | ADD TO CART | |
| 16 | 5100005668 | Cable harness receiver unit front | 1 | ADD TO CART | |
| 17 | 5100011351 | Receiver unit rear | 1 | ADD TO CART | |
| 18 | 5100005667 | Cable harnessreceiver unit rear | 1 | ADD TO CART | |
| 19 | 5000212143 | Clamp | 1 | ADD TO CART | |
| 20 | 5000011555 | Cheese head screw | 1 | M6 x 10 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 21 | 5100010511 | Charging cable | 1 | ADD TO CART | |
| 22 | 5100027457 | Heat shield | 1 | ADD TO CART | |
Page 24 — Tank - radiator dpu110
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005485 | Hydraulic tank | 1 | ADD TO CART | |
| 2 | 5100010301 | Filter element | 1 | ADD TO CART | |
| 3 | 5100010303 | Filter element | 1 | PARTS REQUEST | |
|
COMING Filter element
5100010303 · qty on machine: 1 | |||||
| 4 | 5100010302 | Return filter | 1 | ADD TO CART | |
| 5 | 5000012629 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010341 | Fan | 1 | ADD TO CART | |
| 7 | 5100015757 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 8 | 5100016477 | Gasket | 1 | ADD TO CART | |
| 9 | 5100016479 | Gasket | 1 | ADD TO CART | |
| 10 | 5100015887 | Plate | 1 | ADD TO CART | |
| 11 | 5100005486 | Radiator | 1 | ADD TO CART | |
| 12 | 5000211795 | Corrugated-head screw | 5 | ADD TO CART | |
| 13 | 5100014131 | Bracket | 1 | ADD TO CART | |
| 14 | 5100010830 | Cable passage | 2 | ADD TO CART | |
| 15 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 16 | 5000012360 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 17 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 18 | 5000011548 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 19 | 5000011553 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 20 | 5100011096 | Screwed socket | 1 | ADD TO CART | |
| 21 | 5100010253 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100010253 · qty on machine: 1 | |||||
| 22 | 5100009849 | Bottle-overflow | 1 | ADD TO CART | |
| 23 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 24 | 5000011456 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 25 | 5100015982 | Cover | 1 | ADD TO CART | |
| 26 | 5100015647 | Radiator hose | 1 | ADD TO CART | |
| 27 | 5100006060 | Water hose | 1 | ADD TO CART | |
| 28 | 5100006059 | Water hose | 1 | ADD TO CART | |
| 29 | 5002004724 | Worm drive house clip | 4 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 4 | |||||
| 30 | 5100010256 | Hose pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 32 | 5000206551 | Clamp | 1 | ADD TO CART | |
| 33 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 34 | 5100010567 | Bracket | 1 | ADD TO CART | |
| 35 | 5100010568 | Bracket | 1 | ADD TO CART | |
| 36 | 5000097656 | Roll pin | 1 | ADD TO CART | |
| 37 | 5100009991 | Shockmount | 2 | ADD TO CART | |
| 38 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 39 | 5000010882 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100016491 | Gasket | 1 | ADD TO CART | |
| 41 | 5100016492 | Gasket | 1 | ADD TO CART | |
| 42 | 1000262373 | View glass | 1 | PARTS REQUEST | |
|
COMING View glass
1000262373 · qty on machine: 1 | |||||
| 44 | 5100011421 | Cover (bayonet lock) | 1 | ADD TO CART | |
| 45 | 5100015762 | Plug (threaded) | 1 | ADD TO CART | |
| 46 | 5000063739 | Screwed socket | 1 | ADD TO CART | |
| 47 | 5000211755 | Screw | 1 | ADD TO CART | |
Page 28 — Return filter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220217 | Cover | 1 | ADD TO CART | |
| 2 | 5000220218 | Gasket | 1 | ADD TO CART | |
| 3 | 5100016998 | Filter element | 1 | ADD TO CART | |
Page 30 — Fuel tank complete dpu110
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100010035 | Elbow fitting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100010244 | Fuel hose | 1 | ADD TO CART | |
| 7 | 5100010245 | Fuel hose | 1 | ADD TO CART | |
| 8 | 5000016836 | Clamp | 2 | 3Nm/2ft.lbs | PARTS REQUEST |
|
COMING Clamp
5000016836 · qty on machine: 2 3Nm/2ft.lbs | |||||
| 9 | 5100010569 | Bracket | 1 | ADD TO CART | |
| 10 | 5000211795 | Corrugated-head screw | 2 | 35Nm/26ft.lbs | ADD TO CART |
| 11 | 5100009992 | Shockmount | 2 | ADD TO CART | |
| 12 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 13 | 5000010882 | Hexagon nut | 2 | 6Nm/4ft.lbs | ADD TO CART |
| 1 | 5100038039 | Fuel tank | 1 | ADD TO CART | |
| 2 | 1000267866 | Screen | 1 | PARTS REQUEST | |
|
COMING Screen
1000267866 · qty on machine: 1 | |||||
| 3 | 5100010476 | Tank cover | 1 | ADD TO CART | |
| 4 | 1000051394 | Angle cut piece | 1 | PARTS REQUEST | |
|
COMING Angle cut piece
1000051394 · qty on machine: 1 | |||||
Page 32 — Block-hydraulic cpl. dpu80r/90r/110r
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005966 | Block-hydraulic | 1 | ADD TO CART | |
| 2 | 5100010247 | Hose pipe | 1 | ADD TO CART | |
| 3 | 5100010251 | Hose pipe | 1 | ADD TO CART | |
| 4 | 5000210116 | O-ring | 4 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 4 | |||||
| 5 | 5000011548 | Cheese head screw | 16 | 10Nm/7ft.lbs | ADD TO CART |
| 6 | 5000058705 | Cheese head screw | 2 | M8 x 90 25Nm/18ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000058705 · qty on machine: 2 M8 x 90
25Nm/18ft.lbs | ISO4762 | |||||
| 7 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 8 | 5000220194 | Valve cap | 4 | ADD TO CART | |
| 9 | 5100025064 | Valve | 2 | ADD TO CART | |
| 10 | 5100025061 | Valve | 1 | ADD TO CART | |
| 11 | 5100025062 | Solenoid | 1 | ADD TO CART | |
| 12 | 5100025063 | Valve | 1 | ADD TO CART | |
| 13 | 5000220193 | Solenoid | 3 | ADD TO CART | |
| 14 | 5000220198 | Test port | 2 | PARTS REQUEST | |
|
COMING Test port
5000220198 · qty on machine: 2 | |||||
Page 34 — Diesel engine cpl. dpu110
Parts list — exactly as printed45 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049018 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049018 · qty on machine: 1 | |||||
| 2 | 5100005758 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000210165 | Corrugated-head screw | 4 | ADD TO CART | |
| 4 | 5100011317 | Bracket | 1 | ADD TO CART | |
| 5 | 5000211795 | Corrugated-head screw | 2 | ADD TO CART | |
| 6 | 5100015729 | Gear pump | 1 | ADD TO CART | |
| 7 | 5000010621 | Flat washer | 4 | ADD TO CART | |
| 8 | 5000011535 | Cheese head screw | 3 | 49Nm/36ft.lbs | ADD TO CART |
| 9 | 5100046101 | Bolted connection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 11 | 5100010059 | Hose connection | 1 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5100010056 | Suction hose | 1 | ADD TO CART | |
| 14 | 5002004724 | Worm drive house clip | 2 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 2 | |||||
| 15 | 5100005748 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 16 | 5000204549 | Bracket | 1 | ADD TO CART | |
| 17 | 5000011542 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 18 | 5000155486 | Throttle actuator | 1 | ADD TO CART | |
| 19 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 20 | 5000010880 | Hexagon nut | 1 | ADD TO CART | |
| 21 | 5000155487 | Adaptor | 1 | ADD TO CART | |
| 22 | 5000150022 | Cable | 1 | ADD TO CART | |
| 24 | 5000119695 | Collar | 1 | PARTS REQUEST | |
|
COMING Collar
5000119695 · qty on machine: 1 | |||||
| 25 | 5100009861 | Threaded pin | 1 | ADD TO CART | |
| 26 | 5100010901 | Covering | 1 | ADD TO CART | |
| 27 | 5000210173 | Filter-fuel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 28 | 5000011439 | Hexagonal head cap screw | 2 | 49Nm/36ft.lbs | ADD TO CART |
| 29 | 5000010883 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100010246 | Fuel hose | 1 | ADD TO CART | |
| 31 | 5000019156 | Gasket | 2 | ADD TO CART | |
| 32 | 5100010257 | Hose pipe | 1 | ADD TO CART | |
| 33 | 5000207336 | Hollow screw | 1 | ADD TO CART | |
| 34 | 5100011327 | Pipe clamp | 1 | ADD TO CART | |
| 35 | 5100010740 | Belt guard cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5100018058 | Corrugated-head screw | 4 | ADD TO CART | |
| 37 | 5100000973 | Shockmount | 4 | ADD TO CART | |
| 38 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 39 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 40 | 5100024279 | Heat shield cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000210194 | Corrugated-head screw | 3 | ADD TO CART | |
| 42 | 5000206422 | Switch | 1 | ADD TO CART | |
| 43 | 5000011548 | Cheese head screw | 2 | ADD TO CART | |
| 44 | 5000011552 | Cheese head screw | 2 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 45 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
Page 38 — Holder cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010590 | Bracket | 1 | ADD TO CART | |
| 2 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 3 | 5000205238 | Screw connection | 1 | ADD TO CART | |
| 4 | 5000211773 | Nose cap | 1 | 40Nm/30ft.lbs | ADD TO CART |
Page 40 — Electric box cpl. dpu80r/90r/110r
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005376 | Electric components drawer | 1 | ADD TO CART | |
| 2 | 5100010129 | Cable harness e-box | 1 | ADD TO CART | |
| 3 | 5000011570 | Cheese head screw | 2 | 5Nm/4ft.lbs | ADD TO CART |
| 4 | 5000010628 | Flat washer | 2 | ADD TO CART | |
| 5 | 5000010370 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5000085437 | Relay | 4 | ADD TO CART | |
| 7 | 5100016686 | Gasket | 4 | ADD TO CART | |
| 8 | 5100015757 | Hexagonal head cap screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5000010369 | Hexagon nut | 3 | ADD TO CART | |
| 11 | 5100010300 | Connector plate bottom | 1 | ADD TO CART | |
| 12 | 5100010315 | Plate | 1 | ADD TO CART | |
| 13 | 5100010121 | Control | 1 | ADD TO CART | |
| 14 | 5100010109 | Flange | 1 | ADD TO CART | |
| 15 | 5100010110 | Switch | 1 | ADD TO CART | |
| 16 | 5100005715 | Botton switch | 1 | ADD TO CART | |
| 17 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 18 | 5100005763 | Decoder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5100010311 | Connector plate middle | 1 | ADD TO CART | |
| 20 | 5100010312 | Connector plate top | 1 | ADD TO CART | |
| 21 | 5100009818 | Display | 1 | ADD TO CART | |
| 22 | 5100005471 | Cover | 1 | ADD TO CART | |
| 23 | 5000108371 | Oval head screw | 18 | ADD TO CART | |
| 24 | 5000010622 | Flat washer | 3 | ADD TO CART | |
| 25 | 5000011541 | Cheese head screw | 3 | 25Nm/18ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000011541 · qty on machine: 3 25Nm/18ft.lbs | |||||
| 26 | 5100022411 | Blind plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5100061282 | Cable harness | 1 | ADD TO CART | |
Page 42 — Air filter cpl.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010911 | Bracket | 1 | ADD TO CART | |
| 2 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 3 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 4 | 5100005726 | Air cleaner | 1 | ADD TO CART | |
| 4 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 4 | 5100024489 | Safety elements | 1 | ADD TO CART | |
| 4 | 5100024550 | Clamp | 3 | ADD TO CART | |
| 4 | 5100024551 | Dust discharge valve | 1 | ADD TO CART | |
| 5 | 5100010912 | Tightening strap | 1 | ADD TO CART | |
| 7 | 5100016655 | Gasket | 1 | ADD TO CART | |
| 8 | 5000014996 | Clamp | 2 | ADD TO CART | |
Page 44 — Locking device rear cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010584 | Bracket | 1 | ADD TO CART | |
| 2 | 5000204116 | Shockmount | 2 | ADD TO CART | |
| 3 | 5100017158 | Locknut | 6 | 30Nm/22ft.lbs | ADD TO CART |
| 4 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 5 | 5100010580 | Locking lever rear | 1 | ADD TO CART | |
| 6 | 5100010840 | Shockmount | 2 | ADD TO CART | |
Page 46 — Battery cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209152 | Insulating cushion | 1 | ADD TO CART | |
| 2 | 5000086527 | Battery | 1 | ADD TO CART | |
| 3 | 5100005937 | Battery mounting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100017160 | Gasket | 1 | ADD TO CART | |
| 5 | 5100010891 | Threaded bolt | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010892 | Threaded bolt | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 7 | 5000017313 | Hexagon nut | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 9 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 10 | 5100014022 | Positive pol cover | 1 | ADD TO CART | |
| 11 | 5000212623 | Bushing | 3 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
Page 48 — Protective frame cpl. dpu110
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010527 | Cross-beam | 1 | ADD TO CART | |
| 2 | 5100016519 | Gasket | 1 | ADD TO CART | |
| 3 | 5100017413 | Jack ring | 1 | ADD TO CART | |
| 4 | 5100005732 | Axle | 1 | ADD TO CART | |
| 5 | 5000202829 | Cup spring | 1 | ADD TO CART | |
| 6 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 8 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 9 | 5000210112 | Corrugated-head screw | 4 | ADD TO CART | |
| 10 | 5000204116 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100017158 | Locknut | 8 | ADD TO CART | |
| 12 | 5100010583 | Bracket | 1 | ADD TO CART | |
| 13 | 5100010840 | Shockmount | 2 | ADD TO CART | |
| 14 | 5100064251 | Locking lever | 1 | ADD TO CART | |
| 15 | 5100010450 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010450 · qty on machine: 1 | |||||
| 16 | 5100010451 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010451 · qty on machine: 1 | |||||
| 17 | 5100016517 | Gasket | 2 | ADD TO CART | |
| 18 | 5100018100 | Edge protection | 2 | ADD TO CART | |
| 19 | 5100018101 | Edge protection | 2 | ADD TO CART | |
| 20 | 5100018059 | Corrugated-head screw | 8 | ADD TO CART | |
| 21 | 5100010459 | Covering | 2 | PARTS REQUEST | |
|
COMING Covering
5100010459 · qty on machine: 2 | |||||
| 22 | 5100018102 | Edge protection | 2 | ADD TO CART | |
| 23 | 5000211795 | Corrugated-head screw | 12 | ADD TO CART | |
| 24 | 5100011100 | Corrugated-head screw | 4 | ADD TO CART | |
| 25 | 5100011101 | Corrugated-head screw | 4 | PARTS REQUEST | |
|
COMING Corrugated-head screw
5100011101 · qty on machine: 4 | |||||
| 26 | 5100025691 | Handle profile | 1 | ADD TO CART | |
Page 50 — Bonnet front cpl. dpu110
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010437 | Bonnet | 1 | ADD TO CART | |
| 2 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 3 | 5000210112 | Corrugated-head screw | 4 | 85Nm/63ft.lbs | ADD TO CART |
| 4 | 5100010930 | Screen grid front (dpu100) | 1 | ADD TO CART | |
| 4 | 5100018899 | Screen grid front (dpu100r) | 1 | ADD TO CART | |
| 5 | 5100010577 | Locking tab front | 1 | ADD TO CART | |
| 6 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 7 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 8 | 5100024474 | Shockmount | 2 | ADD TO CART | |
| 9 | 5000154402 | Cable | 1 | ADD TO CART | |
| 10 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 11 | 5000033356 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100024476 | Edge protection | 1 | 90Nm/66ft.lbs | ADD TO CART |
Page 52 — Bonnet rear cpl. dpu110
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010436 | Bonnet | 1 | ADD TO CART | |
| 2 | 5100010578 | Locking tab rear | 1 | ADD TO CART | |
| 3 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 4 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 5 | 5100010932 | Screen grid rear (dpu100) | 1 | ADD TO CART | |
| 5 | 5100018921 | Screen grid rear (dpu100) | 1 | ADD TO CART | |
| 5 | 5100018922 | Screen grid rear (dpu100r,c) | 1 | ADD TO CART | |
| 5 | 5100018923 | Screen grid rear (dpu100r) | 1 | ADD TO CART | |
| 6 | 5100011262 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000068355 | Protective cap | 1 | ADD TO CART | |
| 9 | 5000210112 | Corrugated-head screw | 3 | 85Nm/63ft.lbs | ADD TO CART |
| 10 | 5100005810 | Compr. spring | 1 | ADD TO CART | |
| 11 | 5100017956 | Protection foil | 1 | ADD TO CART | |
| 12 | 5100024201 | Cloth | 1 | ADD TO CART | |
| 13 | 5100025231 | Portfolio | 1 | PARTS REQUEST | |
|
COMING Portfolio
5100025231 · qty on machine: 1 | |||||
| 14 | 5100057038 | Plate | 1 | ADD TO CART | |
| 15 | 5100048321 | Mushroom head bolt | 4 | ADD TO CART | |
| 16 | 5000010372 | Flat washer | 4 | ADD TO CART | |
| 17 | 5000010369 | Hexagon nut | 4 | ADD TO CART | |
Page 54 — Transmitter cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005938 | Retainer | 1 | ADD TO CART | |
| 2 | 5000207753 | Bracket | 1 | ADD TO CART | |
| 3 | 5100005940 | Terminal strip | 1 | ADD TO CART | |
| 4 | 5000124255 | Shockmount | 2 | ADD TO CART | |
| 5 | 5000208255 | Bracket | 1 | ADD TO CART | |
| 6 | 5000011551 | Cheese head screw | 2 | 95Nm/70ft.lbs | ADD TO CART |
| 7 | 5100018542 | Transmitter | 1 | ADD TO CART | |
Page 56 — DPU110rLem970 US Sensor
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210156 | Battery | 1 | ADD TO CART | |
| 2 | 5000117184 | Cap | 1 | ADD TO CART | |
| 3 | 5000177083 | Steering lever kit | 2 | ADD TO CART | |
| 4 | 5000226261 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5000226261 · qty on machine: 1 | |||||
| 5 | 5100024202 | Instruction label | 1 | ADD TO CART | |
| 6 | 5100024203 | Label-warning | 1 | ADD TO CART | |
| 7 | 5100024204 | Band | 1 | ADD TO CART | |
Page 58 — Overload sensor cpl.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010005 | Sensor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 3 | 5000037071 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
Page 60 — DPU110rLem970 US Decals
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000222103 | Decal, logo | 2 | ADD TO CART | |
| 3 | 5100017952 | Type label dpu110 | 2 | ADD TO CART | |
| 3 | 5100017953 | Type label dpu110r | 2 | ADD TO CART | |
| 3 | 5100017954 | Type label dpu80 | 2 | ADD TO CART | |
| 3 | 5100017955 | Type label dpu80r | 2 | ADD TO CART | |
| 3 | 5100024540 | Type label dpu90 | 2 | PARTS REQUEST | |
|
COMING Type label dpu90
5100024540 · qty on machine: 2 | |||||
| 3 | 5100024541 | Type label dpu90r | 2 | ADD TO CART | |
| 4 | 5000222086 | Label symbol | 1 | ADD TO CART | |
| 5 | 5000207747 | Danger label | 1 | PARTS REQUEST | |
|
COMING Danger label
5000207747 · qty on machine: 1 | |||||
| 6 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 7 | 5000219175 | Labels | 1 | ADD TO CART | |
| 8 | 5000064925 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5000219179 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000219179 · qty on machine: 1 | |||||
| 10 | 5000216635 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000216635 · qty on machine: 1 | |||||
| 11 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 12 | 5000219080 | Labels | 1 | ADD TO CART | |
| 13 | 5100011227 | Label hav 24h | 1 | ADD TO CART | |
| 14 | 5100085618 | Label | 4 | PARTS REQUEST | |
|
COMING Label
5100085618 · qty on machine: 4 | |||||
| 15 | 5000219176 | Labels | 3 | ADD TO CART | |
| 17 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 62 — DPU110rLem970 US Maintenance kit
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 2 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 3 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 4 | 5000159568 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5100027618 | Maintenance kit | 1 | ADD TO CART | |
Page 64 — DPU110rLem970 US Crankshaft
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160365 | Crankshaft | 1 | ADD TO CART | |
| 2 | 5000159357 | Pin | 1 | ADD TO CART | |
| 3 | 5000159260 | Woodruff key | 1 | ADD TO CART | |
| 4 | 5000159454 | Plug, threaded | 3 | ADD TO CART | |
| 5 | 5000159261 | Square key | 1 | ADD TO CART | |
Page 66 — DPU110rLem970 US Piston - Connecting Rod
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160375 | Piston set | 3 | ADD TO CART | |
| 1 | 5000160376 | Piston set | 3 | ADD TO CART | |
| 1 | 5000160377 | Piston set | 3 | ADD TO CART | |
| 2 | 5000160367 | Connecting rod | 3 | PARTS REQUEST | |
|
COMING Connecting rod
5000160367 · qty on machine: 3 | |||||
| 3 | 5000160383 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160384 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160385 | Piston ring set | 2 | ADD TO CART | |
| 4 | 5000215523 | Piston pin | 3 | ADD TO CART | |
| 5 | 5000215477 | Retaining ring | 6 | ADD TO CART | |
| 6 | 5000160368 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000160368 · qty on machine: 2 | |||||
| 7 | 5000155689 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155690 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155691 | Bearing | 2 | ADD TO CART | |
| 8 | 5000084175 | Screw | 4 | ADD TO CART | |
Page 68 — DPU110rLem970 US Flywheel
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 14 | 5000211372 | Screw | 4 | ADD TO CART | |
| 1 | 5000215545 | Flywheel | 1 | ADD TO CART | |
| 2 | 5000155693 | Gear crown | 1 | ADD TO CART | |
| 3 | 5000160188 | Bolt | 5 | ADD TO CART | |
| 4 | 5000159326 | Plate | 1 | ADD TO CART | |
| 5 | 5000159254 | Bolt | 9 | ADD TO CART | |
| 6 | 5000215527 | Plug | 1 | ADD TO CART | |
| 7 | 5000211373 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000084164 | Screw | 3 | ADD TO CART | |
| 9 | 5000215567 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5000215567 · qty on machine: 1 | |||||
| 10 | 5000211370 | Pin | 2 | PARTS REQUEST | |
|
COMING Pin
5000211370 · qty on machine: 2 | |||||
| 11 | 5000082140 | Nut | 3 | ADD TO CART | |
| 12 | 5000084123 | Screw | 3 | ADD TO CART | |
| 13 | 5000211371 | Washer | 4 | ADD TO CART | |
| 15 | 5000160231 | Washer | 3 | ADD TO CART | |
Page 70 — DPU110rLem970 US Pulley
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026267 | V-belt pulley | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5000126935 | Bolt | 1 | ADD TO CART | |
| 14 | 5000215485 | Belt | 1 | ADD TO CART | |
Page 72 — Crankcase
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026422 | Crankcase | 1 | PARTS REQUEST | |
|
COMING Crankcase
5100026422 · qty on machine: 1 | |||||
| 2 | 5000159257 | Sleeve | 2 | ADD TO CART | |
| 3 | 5000206229 | Screw | 1 | ADD TO CART | |
| 4 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000215522 | Pin | 1 | ADD TO CART | |
| 6 | 5000155702 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155703 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155704 | Bearing | 3 | ADD TO CART | |
| 8 | 5000159486 | Disc | 2 | ADD TO CART | |
| 8 | 5000159487 | Disc | 2 | ADD TO CART | |
| 8 | 5000159488 | Disc | 2 | ADD TO CART | |
| 9 | 5000082335 | Threaded plug | 4 | ADD TO CART | |
| 12 | 5000159288 | Gasket | 4 | ADD TO CART | |
| 13 | 5000159360 | Dowel pin | 2 | ADD TO CART | |
| 15 | 5000159480 | Screw | 8 | ADD TO CART | |
| 16 | 5000159456 | Plug | 1 | ADD TO CART | |
| 17 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 18 | 5000215530 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5000215530 · qty on machine: 1 | |||||
| 20 | 5000082183 | Copper washer | 1 | ADD TO CART | |
| 21 | 5000155700 | Flange | 1 | ADD TO CART | |
| 22 | 5000217807 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217807 · qty on machine: 1 | |||||
| 23 | 5000159467 | Screw | 6 | ADD TO CART | |
| 24 | 5000155701 | Rotary shaft seal | 1 | PARTS REQUEST | |
|
COMING Rotary shaft seal
5000155701 · qty on machine: 1 | |||||
| 25 | 5000159341 | Oil filter fitting | 1 | ADD TO CART | |
| 26 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 27 | 5100008859 | Oil dip stick | 1 | PARTS REQUEST | |
|
COMING Oil dip stick
5100008859 · qty on machine: 1 | |||||
| 28 | 5000215533 | Dipstick guard | 1 | ADD TO CART | |
| 29 | 5000063695 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5000063695 · qty on machine: 2 | |||||
| 44 | 5000159397 | Crankcase gasket set | 1 | ADD TO CART | |
Page 76 — DPU110rLem970 US Cylinder head
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160388 | Cylinder head | 1 | ADD TO CART | |
| 5 | 5000159449 | Plug | 2 | ADD TO CART | |
| 6 | 5000159318 | Spark arrester | 3 | ADD TO CART | |
| 7 | 5000215524 | Lifting point | 2 | ADD TO CART | |
| 8 | 5000084156 | Screw | 1 | ADD TO CART | |
| 9 | 5000217828 | Flange screw | 8 | ADD TO CART | |
| 10 | 5000159350 | Washer | 8 | ADD TO CART | |
| 11 | 5000159231 | O-ring | 1 | ADD TO CART | |
| 12 | 5000159453 | Plug | 1 | ADD TO CART | |
| 13 | 5000159311 | Bracket | 1 | ADD TO CART | |
| 14 | 5000159254 | Bolt | 1 | ADD TO CART | |
| 15 | 5000082292 | Washer | 1 | ADD TO CART | |
| 17 | 5000159303 | Valve guide | 6 | ADD TO CART | |
| 18 | 5000160381 | Seat-valve, intake | 3 | ADD TO CART | |
| 19 | 5000160382 | Seat-valve, exhaust | 3 | ADD TO CART | |
| 23 | 5000159285 | Nut | 3 | ADD TO CART | |
| 24 | 5000215494 | Spacer | 9 | ADD TO CART | |
| 25 | 5000160380 | Precombustion chamber | 3 | ADD TO CART | |
| 26 | 5100026423 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100026423 · qty on machine: 1 | |||||
| 33 | 5000159396 | Cylinder gasket set | 1 | PARTS REQUEST | |
|
COMING Cylinder gasket set
5000159396 · qty on machine: 1 | |||||
| 40 | 5000159234 | Oil seal | 1 | ADD TO CART | |
| 41 | 5000159282 | Flange | 1 | ADD TO CART | |
| 42 | 5000215541 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 3 | |||||
Page 78 — DPU110rLem970 US Cylinder head cover
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026424 | Cylinder head cover | 1 | PARTS REQUEST | |
|
COMING Cylinder head cover
5100026424 · qty on machine: 1 | |||||
| 3 | 5000159305 | Baffle | 1 | ADD TO CART | |
| 4 | 5000227761 | Cap | 1 | PARTS REQUEST | |
|
COMING Cap
5000227761 · qty on machine: 1 | |||||
| 5 | 5000206208 | O-ring | 1 | ADD TO CART | |
| 6 | 5000215541 | Screw | 12 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 12 | |||||
| 7 | 5000160205 | Gasket | 1 | ADD TO CART | |
| 8 | 5000159308 | Connector | 1 | ADD TO CART | |
| 10 | 5100026419 | Oil pressure switch | 1 | PARTS REQUEST | |
|
COMING Oil pressure switch
5100026419 · qty on machine: 1 | |||||
| 12 | 5100008855 | Rivet | 9 | PARTS REQUEST | |
|
COMING Rivet
5100008855 · qty on machine: 9 | |||||
| 13 | 5000159455 | Push-in plug | 1 | ADD TO CART | |
| 14 | 5000155745 | Pressure valve | 1 | ADD TO CART | |
| 15 | 5000160201 | Clamp | 4 | ADD TO CART | |
| 15 | 5000160199 | Clamp | 1 | ADD TO CART | |
| 16 | 5000215505 | Connecting tube | 1 | ADD TO CART | |
| 16 | 5000215535 | Connecting pipe | 1 | ADD TO CART | |
| 17 | 5000215536 | Valve tube | 1 | ADD TO CART | |
Page 80 — DPU110rLem970 US Injection system
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000159459 | Pipe | 1 | ADD TO CART | |
| 11 | 5000159237 | O-ring | 2 | ADD TO CART | |
| 1 | 5000203358 | Nut | 4 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 4 | |||||
| 2 | 5000160379 | Injection pump | 3 | ADD TO CART | |
| 3 | 5200009479 | Stud | 6 | ADD TO CART | |
| 4 | 5000159233 | O-ring | 2 | ADD TO CART | |
| 5 | 5100026390 | Bracket | 1 | ADD TO CART | |
| 7 | 5000159300 | Washer | 3 | ADD TO CART | |
| 9 | 5000159473 | Screw | 6 | ADD TO CART | |
| 12 | 5000160209 | Gasket | 1 | ADD TO CART | |
| 13 | 5000160391 | Back pressure valve | 2 | ADD TO CART | |
| 14 | 5000159302 | Gasket | 2 | ADD TO CART | |
| 15 | 5000160332 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160332 · qty on machine: 1 | |||||
| 15 | 5000160341 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160341 · qty on machine: 1 | |||||
| 15 | 5000160342 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160342 · qty on machine: 1 | |||||
| 15 | 5000160340 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160340 · qty on machine: 1 | |||||
| 15 | 5000160339 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160339 · qty on machine: 1 | |||||
| 15 | 5000160338 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160338 · qty on machine: 1 | |||||
| 15 | 5000160337 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160337 · qty on machine: 1 | |||||
| 15 | 5000160336 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160336 · qty on machine: 1 | |||||
| 15 | 5000160335 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160335 · qty on machine: 1 | |||||
| 15 | 5000160334 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160334 · qty on machine: 1 | |||||
| 17 | 5000159278 | Spacer | 2 | ADD TO CART | |
| 18 | 5000155710 | Jet | 2 | ADD TO CART | |
| 20 | 5000159238 | O-ring | 2 | ADD TO CART | |
| 22 | 5000215509 | Spring | 2 | PARTS REQUEST | |
|
COMING Spring
5000215509 · qty on machine: 2 | |||||
| 23 | 5000203718 | Cu-ring | 2 | PARTS REQUEST | |
|
COMING Cu-ring
5000203718 · qty on machine: 2 | |||||
| 24 | 5000159236 | O-ring | 2 | ADD TO CART | |
| 25 | 5000159471 | Screw | 4 | ADD TO CART | |
| 26 | 5000159317 | Spring | 2 | ADD TO CART | |
| 29 | 5000159242 | Clamp | 2 | ADD TO CART | |
| 30 | 5200015520 | Pressure valve | 2 | ADD TO CART | |
| 32 | 5000159309 | Shim | 2 | ADD TO CART | |
Page 84 — DPU110rLem970 US Camshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026425 | Camshaft | 1 | ADD TO CART | |
| 3 | 5000215482 | Collar | 1 | ADD TO CART | |
| 4 | 5000215497 | Cam | 1 | ADD TO CART | |
| 5 | 5000160753 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000160753 · qty on machine: 1 | |||||
| 6 | 5000215540 | Screw | 1 | ADD TO CART | |
| 8 | 5000159246 | Push rod, valve lifter | 3 | ADD TO CART | |
Page 86 — DPU110rLem970 US Rocker arms - Valves
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159328 | Spring housing | 4 | ADD TO CART | |
| 3 | 5000160373 | Spring | 6 | ADD TO CART | |
| 4 | 5000159351 | Washer | 6 | ADD TO CART | |
| 6 | 5000160218 | Rocker arm shaft | 1 | ADD TO CART | |
| 6 | 5000155696 | Rocker arm complete | 1 | ADD TO CART | |
| 7 | 5000083011 | Nut | 4 | ADD TO CART | |
| 8 | 5000159350 | Washer | 4 | ADD TO CART | |
| 9 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000159482 | Screw | 1 | ADD TO CART | |
| 11 | 5000159447 | Shaft support | 4 | ADD TO CART | |
| 13 | 5000159248 | Rocker arm | 6 | PARTS REQUEST | |
|
COMING Rocker arm
5000159248 · qty on machine: 6 | |||||
| 14 | 5000159249 | Rocker arm injector | 3 | ADD TO CART | |
| 15 | 5000159275 | Nut | 1 | ADD TO CART | |
| 16 | 5000159483 | Threaded bolt | 1 | ADD TO CART | |
| 17 | 5000159443 | Pin | 1 | ADD TO CART | |
| 18 | 5000215529 | Plug | 2 | ADD TO CART | |
| 19 | 5000159333 | Threaded stud | 4 | ADD TO CART | |
| 21 | 5100008856 | Bush | 12 | PARTS REQUEST | |
|
COMING Bush
5100008856 · qty on machine: 12 | |||||
| 27 | 5000159297 | Gasket | 6 | ADD TO CART | |
| 28 | 5000160390 | Intake valve | 3 | ADD TO CART | |
| 29 | 5000160392 | Outlet valve | 3 | ADD TO CART | |
Page 88 — DPU110rLem970 US Timing belt
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159481 | Screw | 1 | ADD TO CART | |
| 2 | 5000159349 | Washer | 1 | ADD TO CART | |
| 3 | 5000083011 | Nut | 1 | ADD TO CART | |
| 4 | 5000159344 | Washer | 1 | ADD TO CART | |
| 5 | 5000159334 | Threaded stud | 1 | ADD TO CART | |
| 6 | 5000159284 | Tensioner pulley | 1 | ADD TO CART | |
| 7 | 5000155697 | Timing belt | 1 | ADD TO CART | |
| 8 | 5000159336 | Belt pulley | 1 | ADD TO CART | |
| 9 | 5000159338 | Belt pulley | 1 | ADD TO CART | |
Page 90 — Oil pump
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155735 | Oil pump complete | 1 | ADD TO CART | |
| 2 | 5000160326 | Rotor | 1 | ADD TO CART | |
| 4 | 5000159312 | Spring | 1 | ADD TO CART | |
| 5 | 5000159450 | Lock screw | 1 | ADD TO CART | |
| 6 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 7 | 5000159330 | Rod | 1 | ADD TO CART | |
| 8 | 5000160178 | O-ring | 1 | ADD TO CART | |
| 10 | 5000159478 | Screw | 3 | ADD TO CART | |
| 11 | 5000215709 | Gasket | 1 | ADD TO CART | |
| 14 | 5000155734 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000159484 | Screw | 2 | ADD TO CART | |
| 16 | 5000215479 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 17 | 5000084169 | Screw | 6 | ADD TO CART | |
Page 92 — Oil pan
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155738 | Oil pan | 1 | PARTS REQUEST | |
|
COMING Oil pan
5000155738 · qty on machine: 1 | |||||
| 2 | 5000159228 | Oil seal | 1 | ADD TO CART | |
| 3 | 5000159253 | Bolt | 19 | ADD TO CART | |
| 4 | 5000155737 | Hose | 1 | ADD TO CART | |
| 5 | 5000159235 | O-ring | 1 | ADD TO CART | |
| 6 | 5000159568 | Copper washer | 2 | ADD TO CART | |
| 11 | 5000211364 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5000211364 · qty on machine: 2 | |||||
| 12 | 5000159291 | Gasket | 2 | ADD TO CART | |
Page 94 — DPU110rLem970 US Speed governor
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 16 | 5000159467 | Screw | 3 | ADD TO CART | |
| 2 | 5000159321 | Pin | 1 | ADD TO CART | |
| 3 | 5000159229 | Oil seal | 1 | ADD TO CART | |
| 5 | 5000215480 | Collar | 1 | ADD TO CART | |
| 6 | 5100008864 | Spring | 1 | ADD TO CART | |
| 7 | 5000217813 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5000217813 · qty on machine: 1 | |||||
| 8 | 5000215520 | Washer | 2 | ADD TO CART | |
| 9 | 5000159477 | Screw | 4 | ADD TO CART | |
| 13 | 5000159315 | Spring | 1 | ADD TO CART | |
| 14 | 5000211941 | Screw | 3 | ADD TO CART | |
| 15 | 5000159245 | Linkage | 1 | ADD TO CART | |
| 17 | 5000159239 | O-ring | 1 | ADD TO CART | |
| 18 | 5000159324 | Check disc | 1 | ADD TO CART | |
| 19 | 5000159240 | Lip seal | 1 | PARTS REQUEST | |
|
COMING Lip seal
5000159240 · qty on machine: 1 | |||||
| 20 | 5000159267 | Bearing | 1 | ADD TO CART | |
| 21 | 5100008841 | Screw | 3 | ADD TO CART | |
| 22 | 5000159265 | Cover | 1 | ADD TO CART | |
| 23 | 5000159251 | Collar | 1 | ADD TO CART | |
| 24 | 5000215517 | Check disc | 1 | ADD TO CART | |
| 25 | 5000155698 | Speed control module | 1 | ADD TO CART | |
| 26 | 5000215506 | Collar | 1 | ADD TO CART | |
| 27 | 5000217805 | Bearing | 1 | PARTS REQUEST | |
|
COMING Bearing
5000217805 · qty on machine: 1 | |||||
Page 96 — Control box
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5100027675 | Speed control | 1 | ADD TO CART | ||
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 2 | 5000215543 | Screw | 1 | ADD TO CART | |
| 3 | 5000084131 | Screw | 2 | ADD TO CART | |
| 4 | 5000083995 | Washer | 2 | ADD TO CART | |
| 5 | 5000150038 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000150038 · qty on machine: 2 | |||||
| 6 | 5000217818 | Washer | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |
Page 98 — DPU110rLem970 US Fuel pump
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226239 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5000226239 · qty on machine: 1 | |||||
| 2 | 5000082266 | Stud | 2 | ADD TO CART | |
| 3 | 5000110759 | Seal | 1 | ADD TO CART | |
| 4 | 5000160757 | Rod | 1 | ADD TO CART | |
| 5 | 5000203358 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 2 | |||||
| 6 | 5000082285 | Washer | 2 | ADD TO CART | |
| 7 | 5000082183 | Copper washer | 4 | ADD TO CART | |
| 8 | 5000217802 | Banjo bolt | 2 | PARTS REQUEST | |
|
COMING Banjo bolt
5000217802 · qty on machine: 2 | |||||
Page 100 — DPU110rLem970 US Fuel lines
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000082155 | Clamp | 1 | ADD TO CART | |
| 2 | 5100026403 | Fuel hose | 1 | ADD TO CART | |
| 3 | 5000215704 | Clamp | 1 | ADD TO CART | |
| 4 | 5100026404 | Fuel hose | 1 | ADD TO CART | |
| 6 | 5000215486 | Collar | 3 | ADD TO CART | |
Page 102 — DPU110rLem970 US Thermostat
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000211378 | Gasket | 1 | ADD TO CART | |
| 3 | 5000159476 | Screw | 2 | ADD TO CART | |
| 4 | 5000084169 | Screw | 2 | ADD TO CART | |
| 5 | 5100030694 | Casing adaptor | 1 | ADD TO CART | |
| 6 | 5000159232 | O-ring | 1 | ADD TO CART | |
| 7 | 5000207002 | Valve thermostat | 1 | ADD TO CART | |
| 8 | 5000215489 | Thermostat housing | 1 | ADD TO CART | |
| 9 | 5000203712 | Cu-ring | 1 | PARTS REQUEST | |
|
COMING Cu-ring
5000203712 · qty on machine: 1 | |||||
| 10 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 12 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 13 | 5000159451 | Screw plug | 1 | ADD TO CART | |
Page 104 — DPU110rLem970 US Water pump
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209105 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 2 | 5100026407 | Water pump | 1 | ADD TO CART | |
| 3 | 5000217809 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217809 · qty on machine: 1 | |||||
| 4 | 5000209107 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000209107 · qty on machine: 2 | |||||
| 5 | 5000160362 | Screw | 2 | ADD TO CART | |
| 6 | 5000217808 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217808 · qty on machine: 1 | |||||
| 7 | 5100026405 | Flange | 1 | ADD TO CART | |
| 8 | 5000160201 | Clamp | 2 | ADD TO CART | |
| 9 | 5100026406 | Hose | 1 | ADD TO CART | |
Page 106 — Inlet bend
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217817 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000217817 · qty on machine: 1 | |||||
| 2 | 5000217801 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000217801 · qty on machine: 1 | |||||
| 3 | 5000203352 | Clamping piece | 1 | ADD TO CART | |
| 4 | 5000217810 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5000217810 · qty on machine: 1 | |||||
| 7 | 5100008860 | Shaft | 1 | ADD TO CART | |
| 8 | 5000159230 | Oil seal | 1 | PARTS REQUEST | |
|
COMING Oil seal
5000159230 · qty on machine: 1 | |||||
| 10 | 5000084170 | Screw | 1 | ADD TO CART | |
| 11 | 5000159476 | Screw | 3 | ADD TO CART | |
| 12 | 5000215504 | Lever | 1 | ADD TO CART | |
| 13 | 5000215481 | Collar | 1 | ADD TO CART | |
| 14 | 5000215508 | Spring | 1 | ADD TO CART | |
| 15 | 5000203346 | Screw | 4 | ADD TO CART | |
| 16 | 5000159272 | Nut | 2 | ADD TO CART | |
| 18 | 5100008861 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100008861 · qty on machine: 2 | |||||
| 20 | 5000159462 | Hose | 1 | ADD TO CART | |
| 22 | 5000084232 | Nut | 1 | ADD TO CART | |
| 23 | 5000215487 | Manifold inlet | 1 | ADD TO CART | |
| 24 | 5000160186 | Intake manifold gasket | 1 | ADD TO CART | |
| 38 | 5100026411 | Flange | 1 | ADD TO CART | |
| 39 | 5000084169 | Screw | 2 | ADD TO CART | |
| 40 | 5000082285 | Washer | 2 | ADD TO CART | |
| 41 | 5100026429 | Gasket | 1 | ADD TO CART | |
Page 108 — Exhaust manifold
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159290 | Gasket | 3 | ADD TO CART | |
| 2 | 5000159263 | Exhaust manifold | 1 | ADD TO CART | |
| 4 | 5000082267 | Stud | 6 | ADD TO CART | |
| 5 | 5000086331 | Nut | 6 | ADD TO CART | |
| 6 | 5000160228 | Threaded bolt | 2 | ADD TO CART | |
| 7 | 5000086331 | Nut | 4 | ADD TO CART | |
| 8 | 5000159295 | Gasket | 2 | ADD TO CART | |
| 13 | 5100005701 | Exhaust pipe | 1 | ADD TO CART | |
| 14 | 5000215479 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 15 | 5100005522 | Muffler | 1 | ADD TO CART | |
| 16 | 5100005702 | Exhaust-pipe end | 1 | ADD TO CART | |
Page 110 — DPU110rLem970 US Generator
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026414 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100026414 · qty on machine: 1 | |||||
| 2 | 5000159476 | Screw | 3 | ADD TO CART | |
| 3 | 5100026415 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100026415 · qty on machine: 1 | |||||
| 4 | 5100026416 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100026416 · qty on machine: 1 | |||||
| 5 | 5000083011 | Nut | 1 | ADD TO CART | |
| 24 | 5000208993 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000208993 · qty on machine: 1 | |||||
| 25 | 5000082293 | Washer | 1 | ADD TO CART | |
| 26 | 5100026417 | Clamp | 1 | ADD TO CART | |
| 49 | 5100026418 | Disc | 1 | ADD TO CART | |
Page 112 — DPU110rLem970 US Starter
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215493 | Hexagon nut | 1 | ADD TO CART | |
| 2 | 5000082288 | Washer | 1 | ADD TO CART | |
| 3 | 5000211380 | Starter | 1 | PARTS REQUEST | |
|
COMING Starter
5000211380 · qty on machine: 1 | |||||
| 4 | 5000206968 | Flange | 1 | ADD TO CART | |
| 9 | 5000083027 | Screw | 2 | ADD TO CART | |
Page 114 — Glow plug
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 2 | ADD TO CART | |
| 2 | 5000155748 | Glow plug | 3 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |
Page 116 — Covering
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159564 | Screw | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5100026420 | Belt guard | 1 | ADD TO CART | |
| 4 | 5000159268 | Plug | 1 | ADD TO CART | |
| 5 | 5000215499 | Gasket | 1 | ADD TO CART | |
| 6 | 5100026421 | Protective cover | 1 | ADD TO CART | |
Page 146 — Steering
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 3 | 5000084131 | Screw | 2 | ADD TO CART | |
| 4 | 5000083995 | Washer | 2 | ADD TO CART | |
| 7 | 5000215525 | Fuel valve | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000209012 | Hexagon nut | 1 | ADD TO CART | |
| 23 | 5100042199 | Stud | 1 | ADD TO CART | |
| 66 | 5000215519 | Rivet | 3 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |
| 77 | 5000159276 | Nut | 1 | ADD TO CART | |
Page 164 — Spark plug
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 2 | ADD TO CART | |
| 2 | 5100042312 | Glow plug | 3 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |
| 8 | 5100049823 | Nut | 3 | PARTS REQUEST | |
|
COMING Nut
5100049823 · qty on machine: 3 | |||||
| 9 | 5000209066 | Washer | 3 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson DPU110 vibratory plate.
L: Kohler Diesel Engine; e: Electric Start.
Available in 4 configurations.
List price: $37,365.00 – $55,635.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000051394
Angle cut piece
1000090406
O-ring
1000184310
Label
1000262373
View glass
1000267866
Screen
5000010369
Hexagon nut
$0.95
5000010370
Hexagon nut
$0.95
5000010372
Flat washer
$0.95
5000010374
Flat washer
$0.95
5000010616
Flat washer
$0.95
5000010621
Flat washer
$0.95
5000010622
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010625
Flat washer
$0.95
5000010628
Flat washer
$0.95
5000010742
Washer
5000010880
Hexagon nut
$0.95
5000010882
Hexagon nut
$0.95
5000010883
Hexagon nut
$0.95
5000011439
Hexagonal head cap screw
$0.95
5000011456
Hexagonal head cap screw
$0.95
5000011468
Hexagonal head cap screw
5000011527
Cheese head screw
$1.95
5000011535
Cheese head screw
$0.95
5000011541
Cheese head screw
5000011542
Cheese head screw
$0.95
5000011547
Cheese head screw
$0.95
5000011548
Cheese head screw
$0.95
5000011549
Cheese head screw
$0.95
5000011551
Cheese head screw
$0.95
5000011552
Cheese head screw
$0.95
5000011553
Cheese head screw
$0.95
5000011554
Cheese head screw
$0.95
5000011555
Cheese head screw
$0.95
5000011561
Cheese head screw
$0.95
5000011570
Cheese head screw
$0.95
5000012360
Hexagonal head cap screw
$0.95
5000012362
Hexagonal head cap screw
$0.95
5000012373
Cheese head screw
$0.95
5000012629
Cheese head screw
$0.95
5000013574
Cheese head screw
$0.95
5000013576
Cheese head screw
$0.95
5000014425
Cheese head screw
5000014996
Clamp
$1.95
5000016836
Clamp
5000017313
Hexagon nut
$0.95
5000018194
O-ring
$0.95
5000019156
Gasket
$0.95
5000032006
Gasket
$1.95
5000033356
Hexagon nut
$0.95
5000037071
Cheese head screw
$0.95
5000038489
Tie cable
5000043180
Retaining ring
$1.95
5000043307
Cheese head screw
$0.95
5000047388
Cable yarn
$0.95
5000058705
Cheese head screw
5000063695
O-ring
5000063739
Screwed socket
$9.95
5000064925
Decal-sound power level
$4.95
5000068222
Plug (threaded)
$5.95
5000068355
Protective cap
$1.95
5000068752
O-ring
$0.95
5000069225
Screwed socket
$10.95
5000069726
Long face pinion
$421.95
5000082140
Nut
$1.95
5000082155
Clamp
$4.95
5000082183
Copper washer
$1.95
5000082184
Ring seal
$1.95
5000082266
Stud
$2.95
5000082267
Stud
$4.95
5000082285
Washer
$1.95
5000082288
Washer
$1.95
5000082292
Washer
$1.95
5000082293
Washer
$1.95
5000082335
Plug (threaded)
$7.95
5000083011
Nut
$1.95
5000083027
Screw
$5.95
5000083995
Washer
$1.95
5000084123
Screw
$1.95
5000084131
Screw
$1.95
5000084156
Screw
$1.95
5000084164
Screw
$3.95
5000084169
Screw
$1.95
5000084170
Screw
$3.95
5000084171
Screw
$2.95
5000084175
Screw
$8.95
5000084232
Nut
$1.95
5000085437
Relay
$10.95
5000086331
Nut
$1.95
5000086527
Battery
$636.95
5000097656
Roll pin
$0.95
5000102140
Pressure relief valve
5000103469
Cylindrical roller bearing
$83.95
5000108370
Oval head screw
$0.95
5000108371
Oval head screw
$0.95
5000110759
Seal
$2.95
5000117184
Cap
$64.95
5000119695
Collar
5000124255
Shockmount
$5.95
5000124717
Washer
$0.95
5000125926
Spacer
$51.95
5000126187
Threaded pin
$0.95
5000126935
Bolt
$38.95
5000129420
Socket head cap screw
$1.95
5000150022
Cable
$6.95
5000150038
Nut
5000154402
Cable
$14.95
5000155486
Throttle actuator
$186.95
5000155487
Adaptor
$12.95
5000155689
Bearing
$39.95
5000155690
Bearing
$51.95
5000155691
Bearing
$41.95
5000155693
Gear crown
$259.95
5000155696
Rocker arm cpl.
$858.95
5000155697
Timing belt
$292.95
5000155698
Speed control module
$212.95
5000155700
Flange
$175.95
5000155701
Rotary shaft seal
5000155702
Bearing
$46.95
5000155703
Bearing
$62.95
5000155704
Bearing
$102.95
5000155707
Fuel cock
5000155710
Jet
$226.95
5000155734
Ring seal
$28.95
5000155735
Oil pump cpl.
$247.95
5000155737
Hose
$53.95
5000155738
Oil pan
5000155745
Pressure valve
$91.95
5000155748
Glow plug
$81.95
5000159228
Oil seal
$1.95
5000159229
Oil seal
$1.95
5000159230
Oil seal
5000159231
O-ring
$2.95
5000159232
O-ring
$3.95
5000159233
O-ring
$4.95
5000159234
Oil seal
$2.95
5000159235
O-ring
$2.95
5000159236
Ring
$3.95
5000159237
Ring
$4.95
5000159238
O-ring
$4.95
5000159239
O-ring
$4.95
5000159240
Lip seal
5000159242
Clamp
$1.95
5000159245
Linkage
$137.95
5000159246
Push rod (valve lifter)
$34.95
5000159248
Rocker arm
5000159249
Rocker arm injector
$212.95
5000159251
Collar
$30.95
5000159253
Bolt
$1.95
5000159254
Bolt
$1.95
5000159257
Sleeve
$4.95
5000159259
Cable
$16.95
5000159260
Woodruff key
$11.95
5000159261
Square key
$19.95
5000159263
Exhaust manifold
$440.95
5000159265
Cover
$256.95
5000159267
Bearing
$61.95
5000159268
Plug
$8.95
5000159272
Nut
$1.95
5000159275
Nut
$5.95
5000159276
Nut
$21.95
5000159278
Spacer
$143.95
5000159282
Flange
$19.95
5000159284
Tensioner pulley
$272.95
5000159285
Nut
$28.95
5000159288
Gasket
$4.95
5000159290
Gasket
$4.95
5000159291
Gasket
$70.95
5000159292
Gasket
$1.95
5000159294
Gasket
$3.95
5000159295
Gasket
$5.95
5000159297
Gasket
$10.95
5000159299
Copper washer
$1.95
5000159300
Washer
$1.95
5000159302
Gasket
$16.95
5000159303
Valve guide
$18.95
5000159304
Governor lever cpl.
$274.95
5000159305
Baffle
$243.95
5000159308
Connector
$14.95
5000159309
Shim
$371.95
5000159311
Bracket
$14.95
5000159312
Spring
$3.95
5000159315
Spring
$9.95
5000159317
Spring
$36.95
5000159318
Spark arrester
$4.95
5000159321
Pin
$14.95
5000159324
Check disc
$22.95
5000159326
Plate
$402.95
5000159328
Spring housing
$21.95
5000159330
Rod
$22.95
5000159333
Threaded stud
$11.95
5000159334
Threaded stud
$13.95
5000159336
Belt pulley
$124.95
5000159338
Belt pulley
$217.95
5000159341
Fitting-oil filter
$11.95
5000159344
Washer
$8.95
5000159349
Washer
$22.95
5000159350
Washer
$4.95
5000159351
Washer
$4.95
5000159357
Pin
$1.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
