Wacker Neuson DPU90 Vibratory Plate
Factory parts book · interactive
Wacker Neuson DPU90 Vibratory Plate
Pick your options below. We build the exact machine and start your quote.
The parts bench

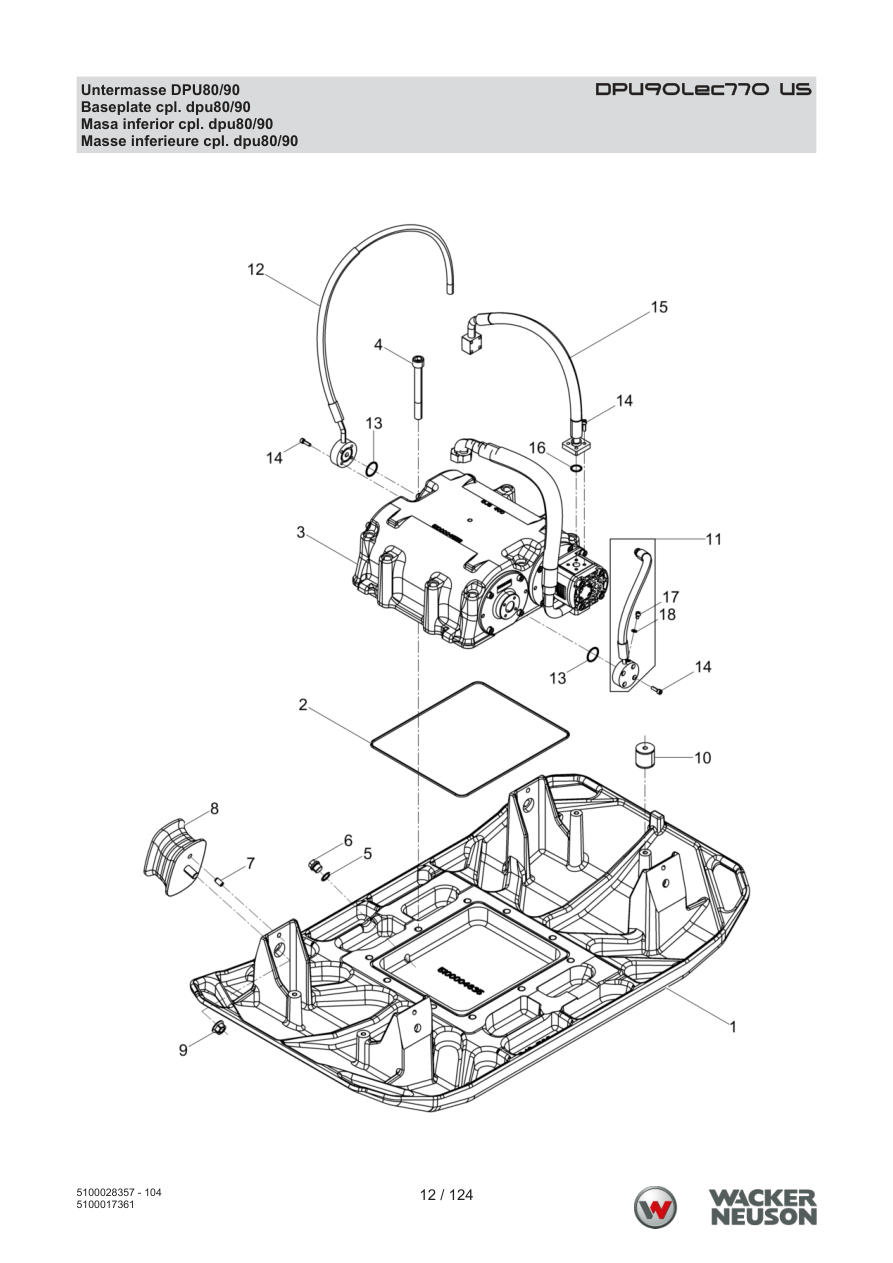

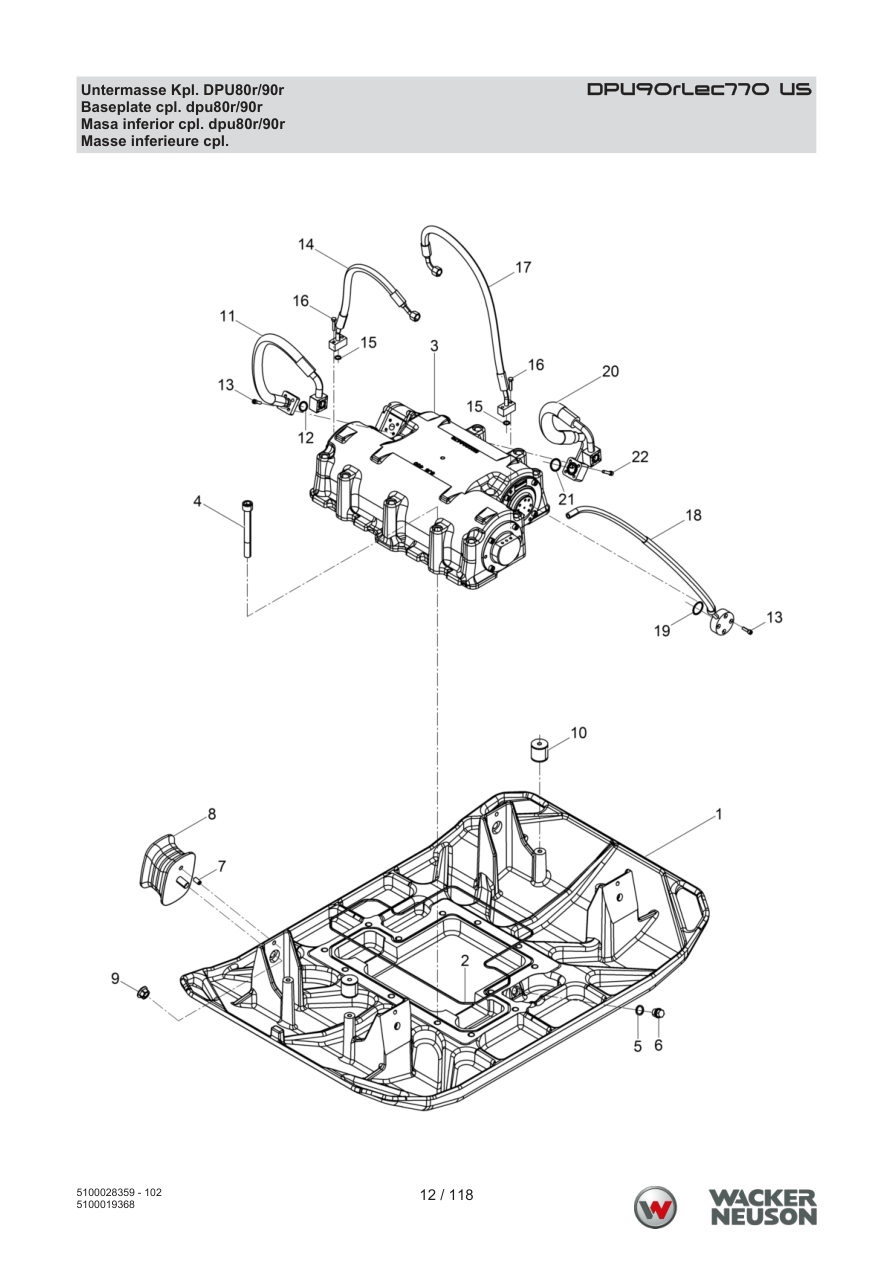

Need the PDF? ↓Page 12 — DPU90Lec770 US Underweight DPU80/90
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004546 | Baseplate 770 | 1 | ADD TO CART | |
| 1 | 5100004636 | Baseplate 670 | 1 | ADD TO CART | |
| 2 | 5100010363 | O-ring | 1 | ADD TO CART | |
| 3 | 5100004544 | Exciter cpl. (dpu80) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu80)
5100004544 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100025625 | Exciter cpl. (dpu90) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu90)
5100025625 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100009777 | Cheese head screw | 10 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5000068222 | Plug (threaded) | 1 | ADD TO CART | |
| 7 | 5000203227 | Roll pin | 4 | ADD TO CART | |
| 8 | 5000216648 | Silent block | 4 | ADD TO CART | |
| 9 | 5000212628 | Locknut | 4 | ADD TO CART | |
| 10 | 5000216644 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100010051 | Hose pipe | 1 | ADD TO CART | |
| 12 | 5100010160 | Breather tube | 1 | ADD TO CART | |
| 13 | 5100010115 | O-ring | 2 | ADD TO CART | |
| 14 | 5000012373 | Cheese head screw | 12 | 10Nm/7ft.lbs | ADD TO CART |
| 15 | 5100031076 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100031076 · qty on machine: 1 | |||||
| 16 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
| 17 | 5000014425 | Cheese head screw | 1 | 10Nm/7ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000014425 · qty on machine: 1 10Nm/7ft.lbs | |||||
| 18 | 5100022402 | Gasket | 1 | ADD TO CART | |

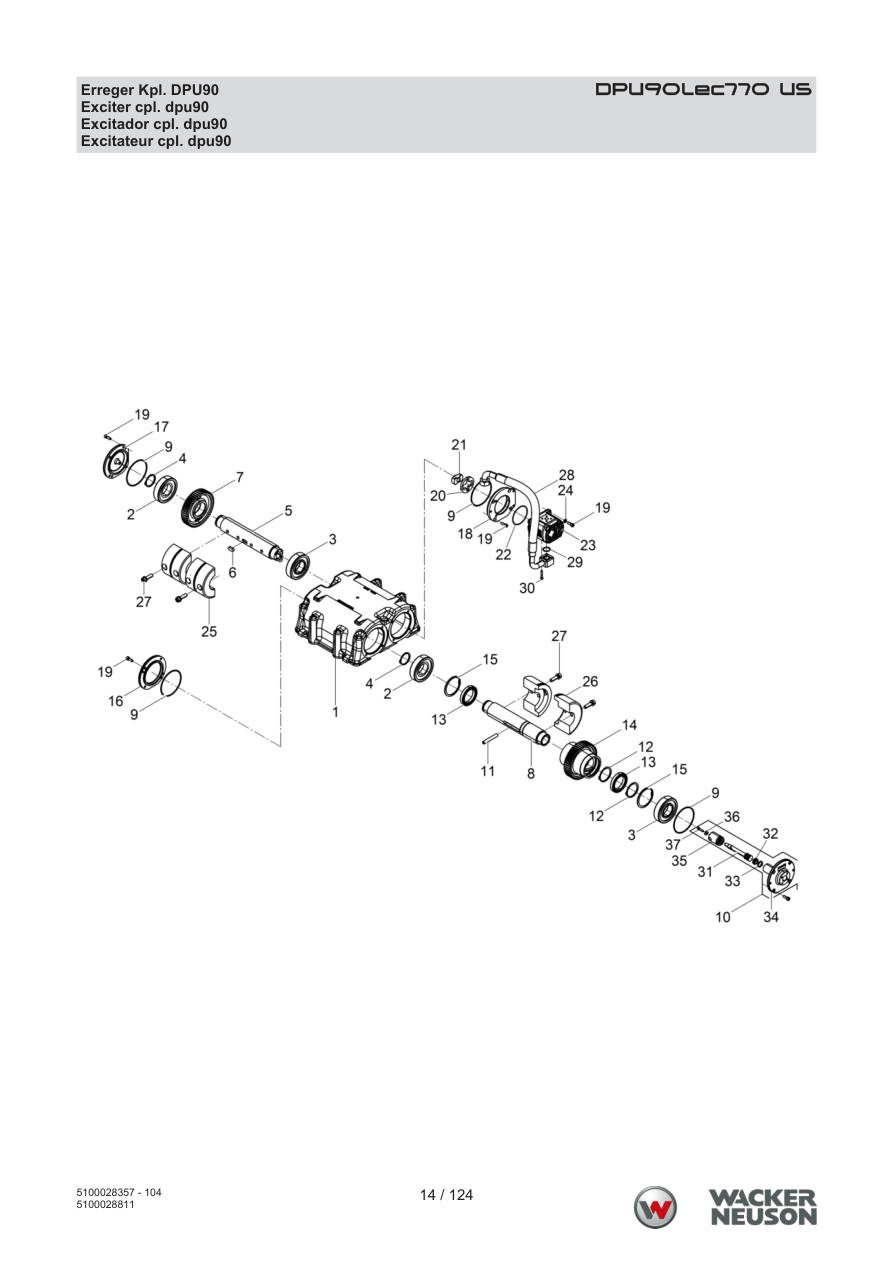

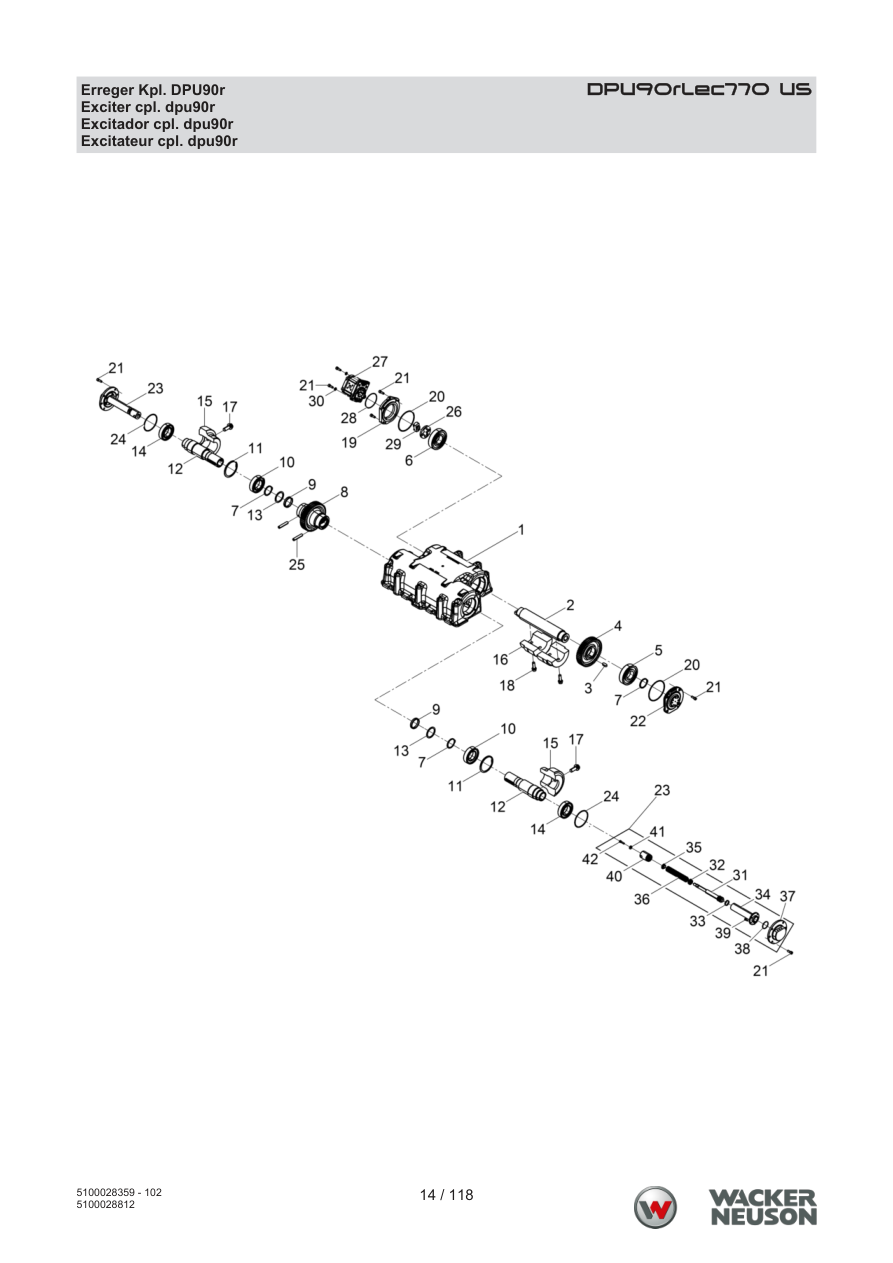

Page 14 — Exciter cpl. dpu90
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004557 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5100010479 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 3 | 5100015097 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 4 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 5 | 5100004298 | Driving shaft | 1 | ADD TO CART | |
| 6 | 5002006603 | Fitting key | 1 | ADD TO CART | |
| 7 | 5100004306 | Gear | 1 | ADD TO CART | |
| 8 | 5100004300 | Shaft | 1 | ADD TO CART | |
| 9 | 5100005660 | O-ring | 4 | ADD TO CART | |
| 10 | 5100004284 | Adjustment cylinder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5100005449 | Tripping pin | 1 | ADD TO CART | |
| 12 | 5000043180 | Retaining ring | 2 | ADD TO CART | |
| 13 | 5100005505 | Grooved ball bearing | 2 | ADD TO CART | |
| 14 | 5100004303 | Adjusting sleeve | 1 | ADD TO CART | |
| 15 | 5100005659 | Retaining ring | 2 | ADD TO CART | |
| 16 | 5100004295 | Cover | 1 | ADD TO CART | |
| 17 | 5100004294 | Vent cover | 1 | ADD TO CART | |
| 18 | 5100004409 | Flange | 1 | ADD TO CART | |
| 19 | 5000012629 | Cheese head screw | 20 | 25Nm/18ft.lbs | ADD TO CART |
| 20 | 5100003535 | Disc | 1 | ADD TO CART | |
| 21 | 5100003696 | Carrier | 1 | ADD TO CART | |
| 22 | 5100004118 | O-ring | 1 | ADD TO CART | |
| 23 | 5100005739 | Gear pump right | 1 | ADD TO CART | |
| 24 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 25 | 5100025089 | Eccentric weight | 2 | ADD TO CART | |
| 26 | 5100025091 | Eccentric weight | 2 | ADD TO CART | |
| 27 | 5100005604 | Corrugated-head screw | 8 | ADD TO CART | |
| 28 | 5100009783 | Hose pipe | 1 | ADD TO CART | |
| 29 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 30 | 5000011549 | Cheese head screw | 4 | 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 31 | 5100004283 | Piston | 1 | ADD TO CART | |
| 32 | 5100005657 | Ring | 1 | ADD TO CART | |
| 33 | 5100005658 | Ring | 1 | ADD TO CART | |
| 34 | 5100004281 | Cylinder | 1 | ADD TO CART | |
| 35 | 5100016693 | Piston cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5000124717 | Washer | 1 | ADD TO CART | |
| 37 | 5000220001 | Cheese head screw | 1 | ADD TO CART | |

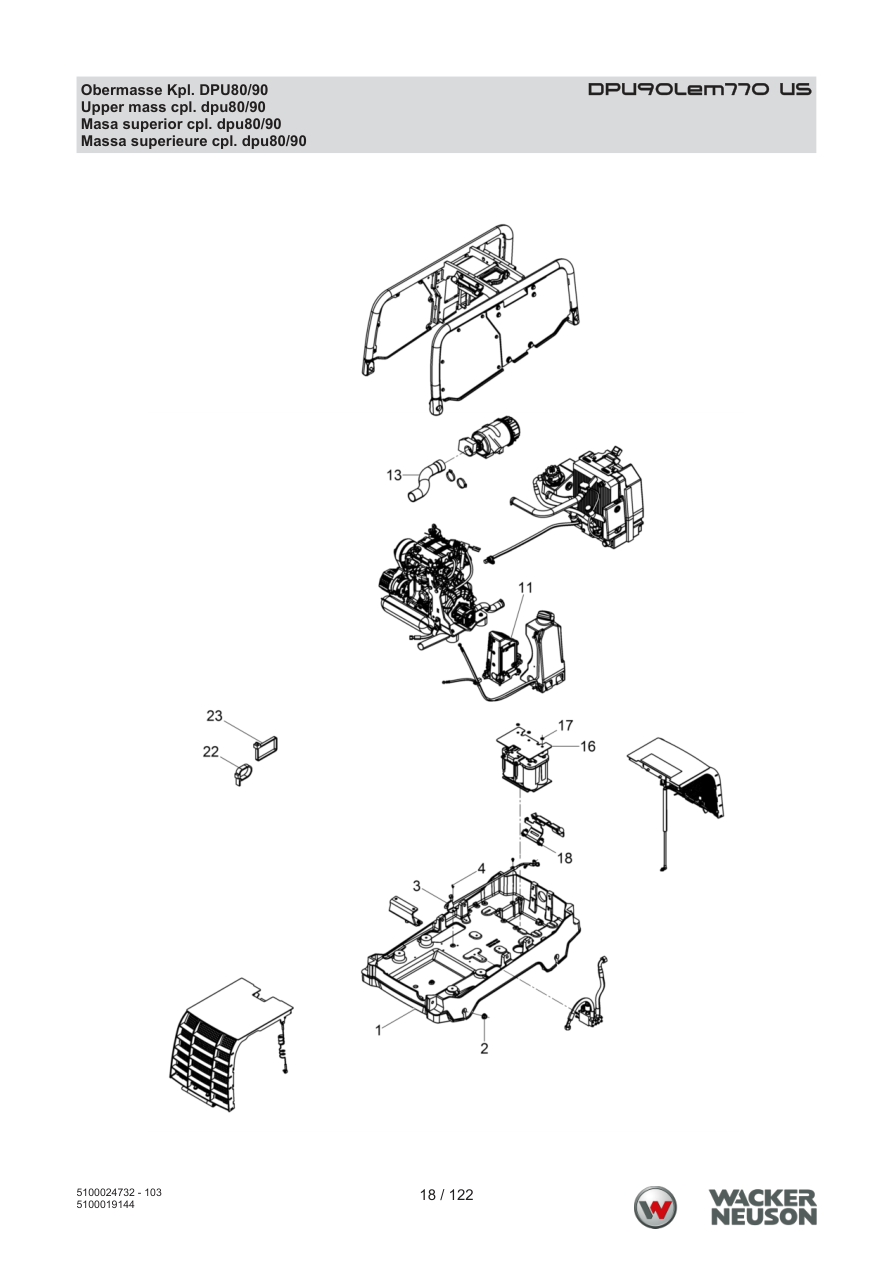

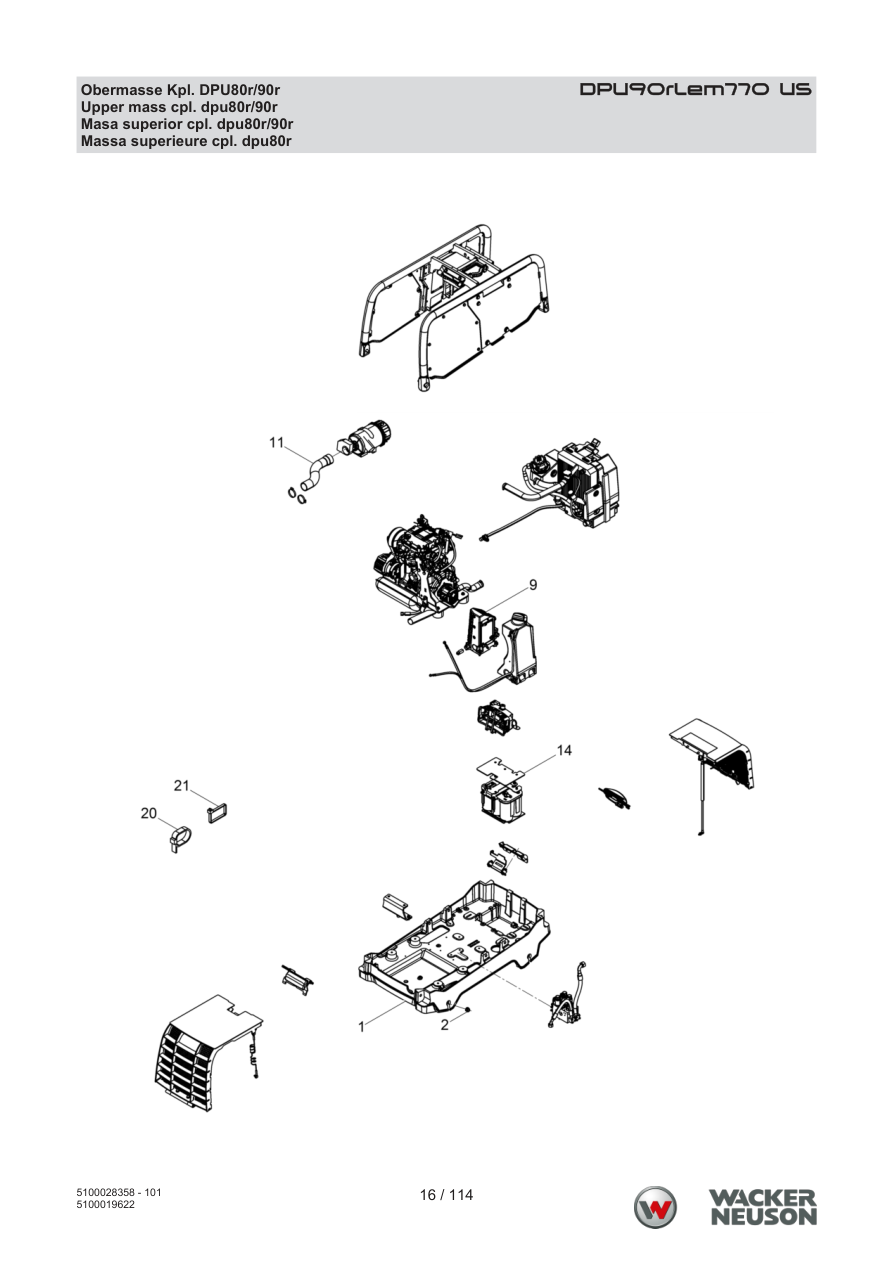

Page 18 — Upper mass cpl. dpu80/90
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004992 | Upper mass | 1 | ADD TO CART | |
| 2 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 3 | 5100010048 | Pipe | 1 | ADD TO CART | |
| 4 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |

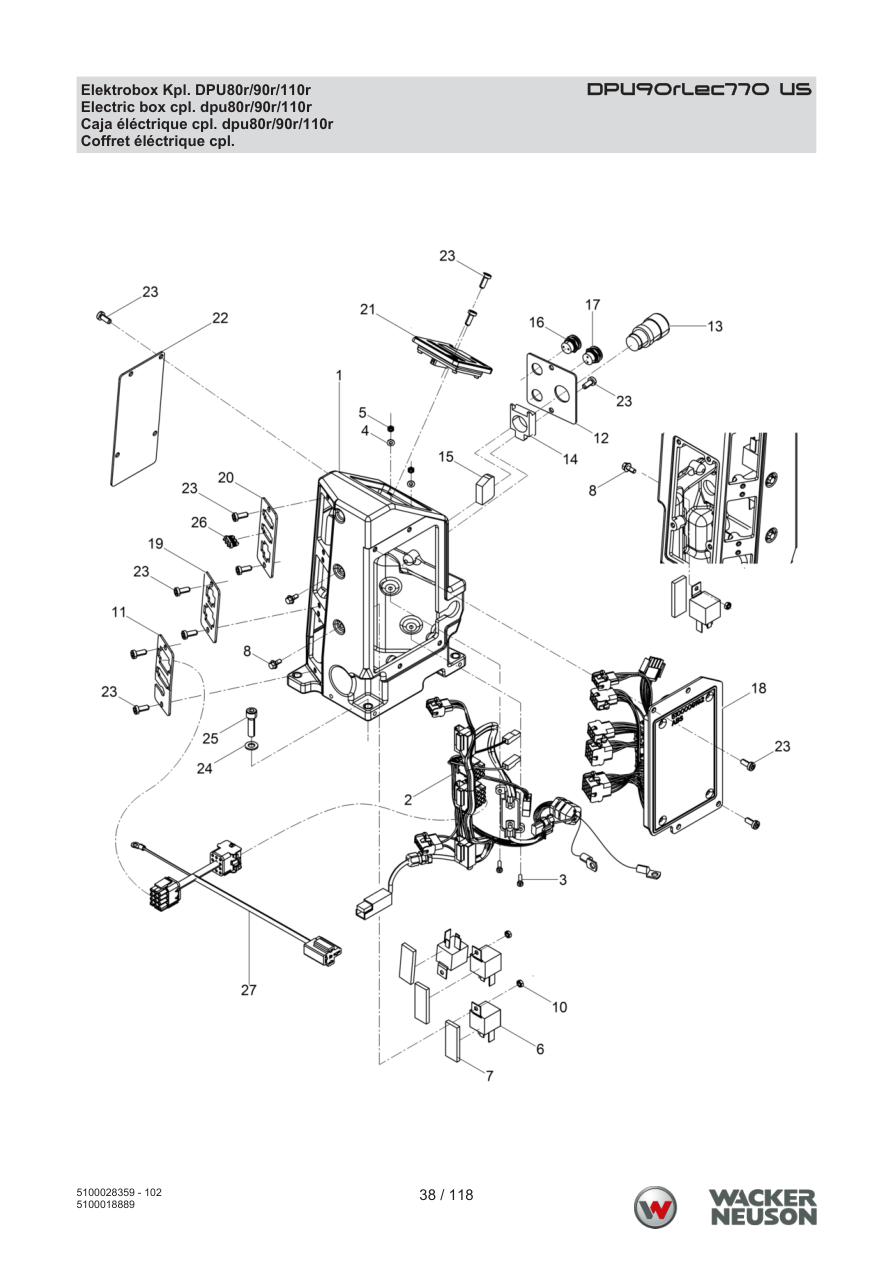

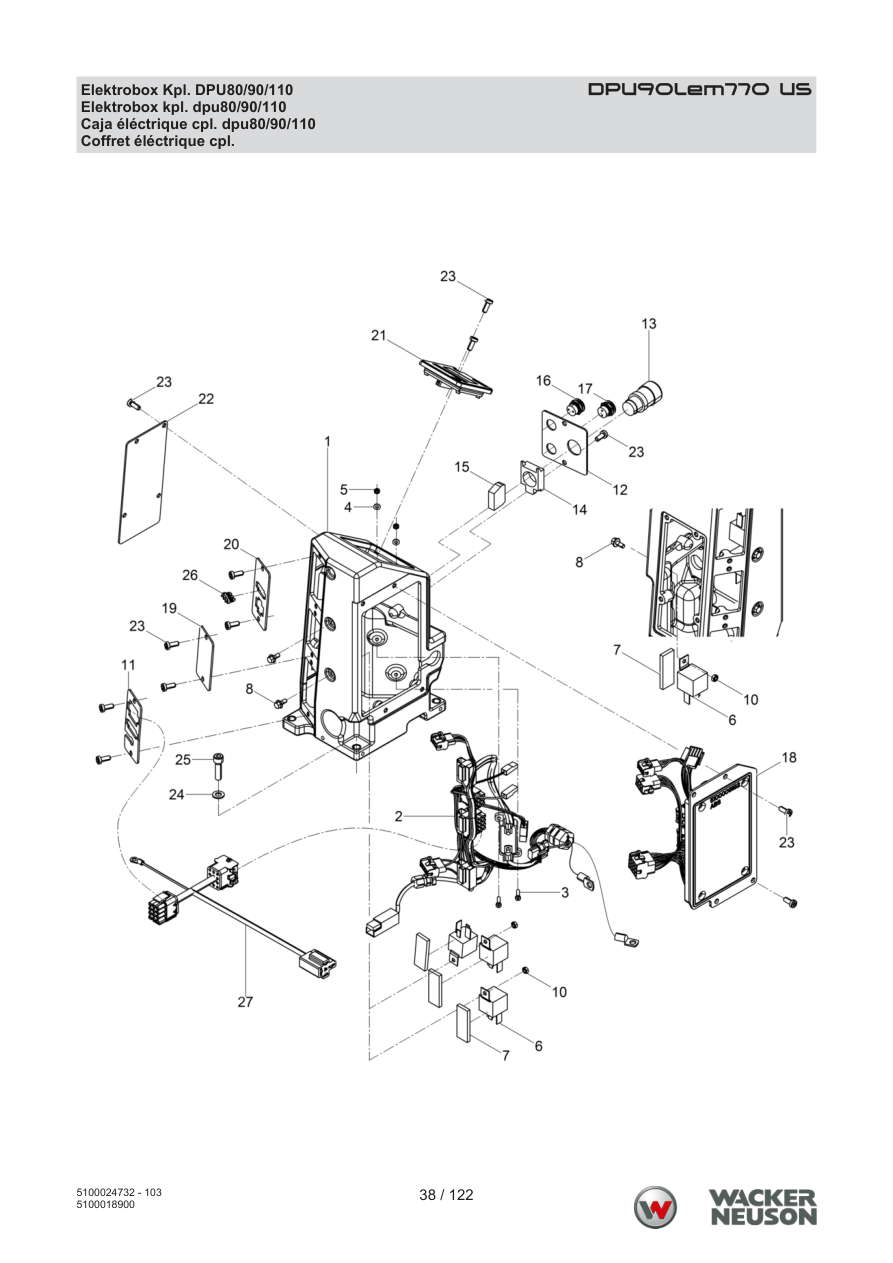

| 11 | 5100013830 | Electric box cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 13 | 5100010314 | Suction hose | 1 | ADD TO CART | |
| 16 | 5100005939 | Protective cloth | 1 | PARTS REQUEST | |
|
COMING Protective cloth
5100005939 · qty on machine: 1 | |||||
| 17 | 5100027359 | Disc | 3 | ADD TO CART | |
| 18 | 5100018109 | Locking lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5000047388 | Cable tie | 20 | ADD TO CART | |
| 23 | 5000038489 | Tie cable | 10 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 10 | |||||

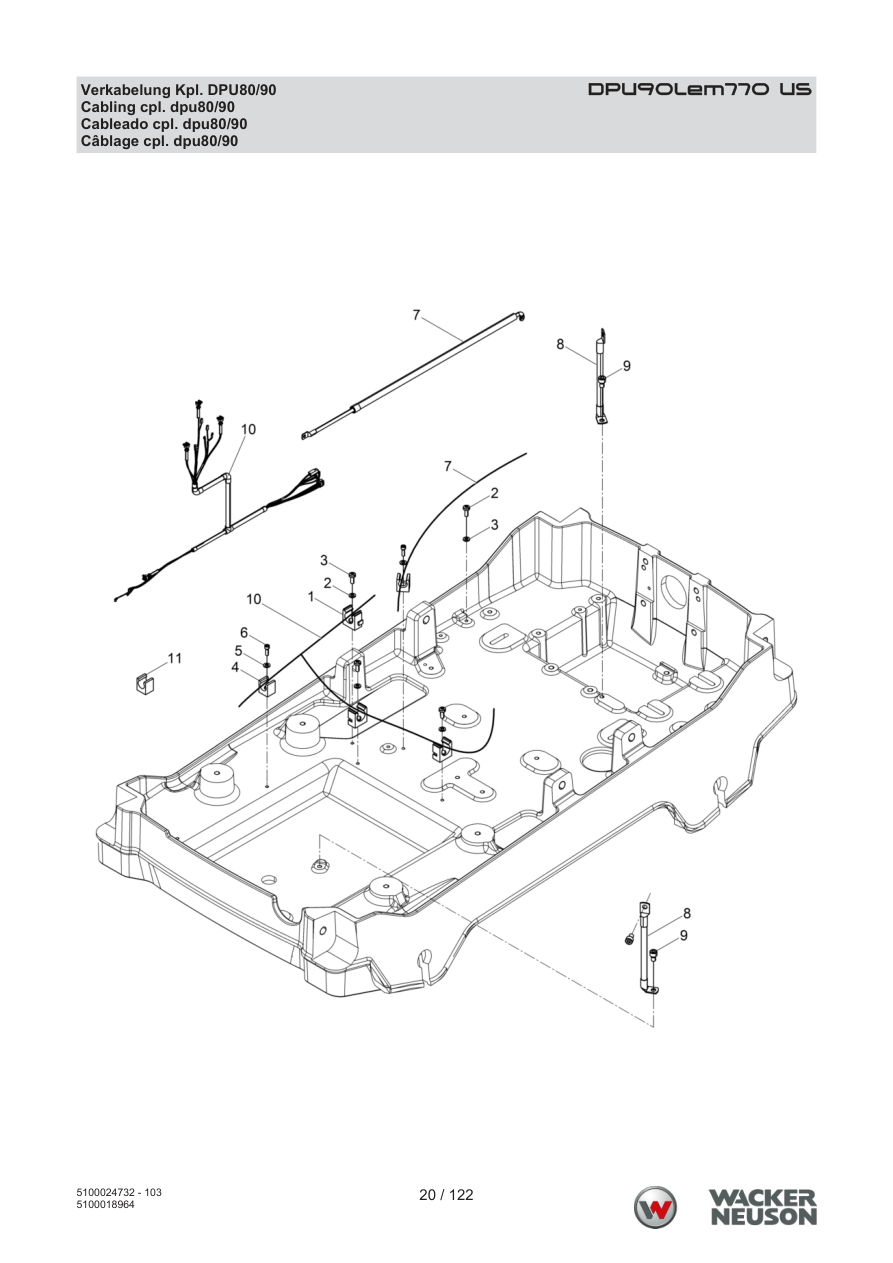

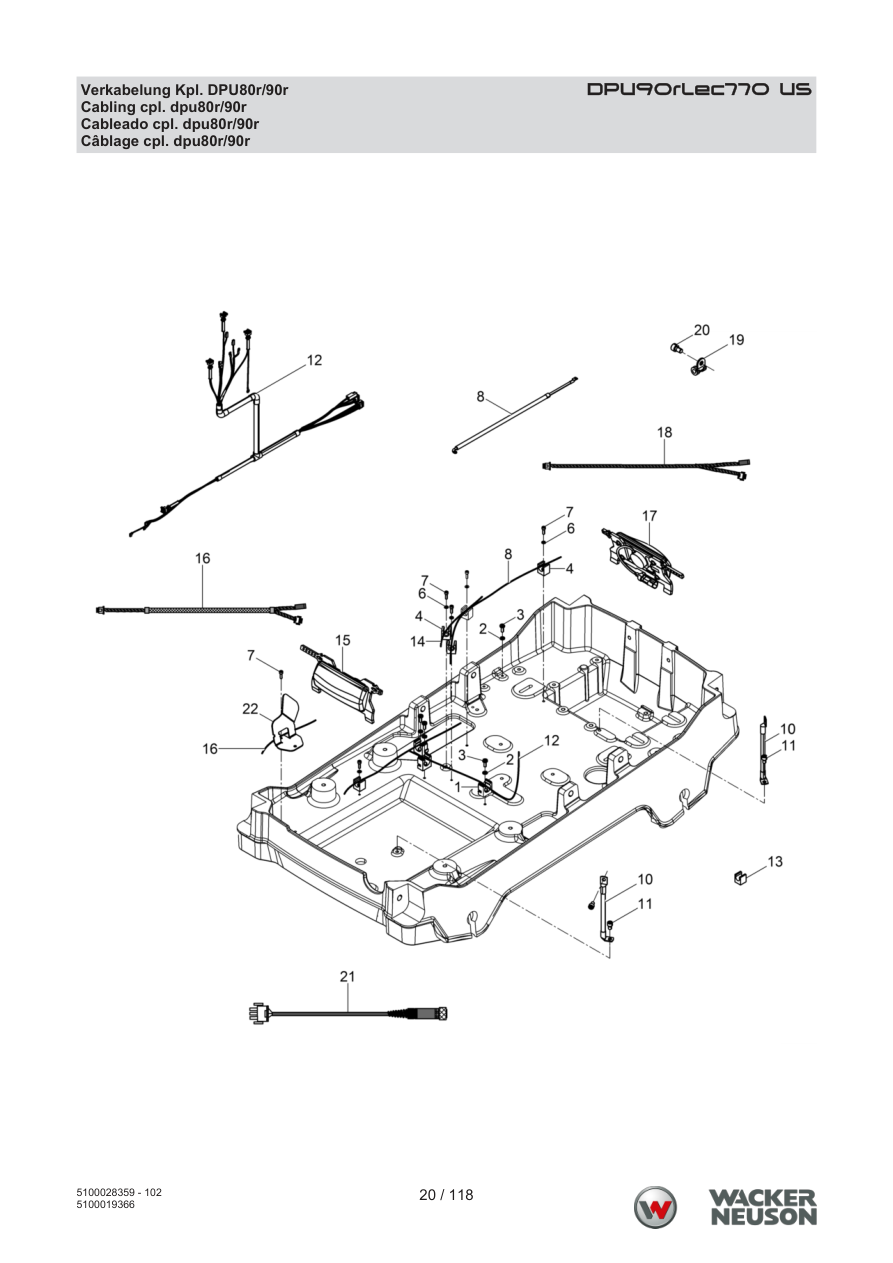

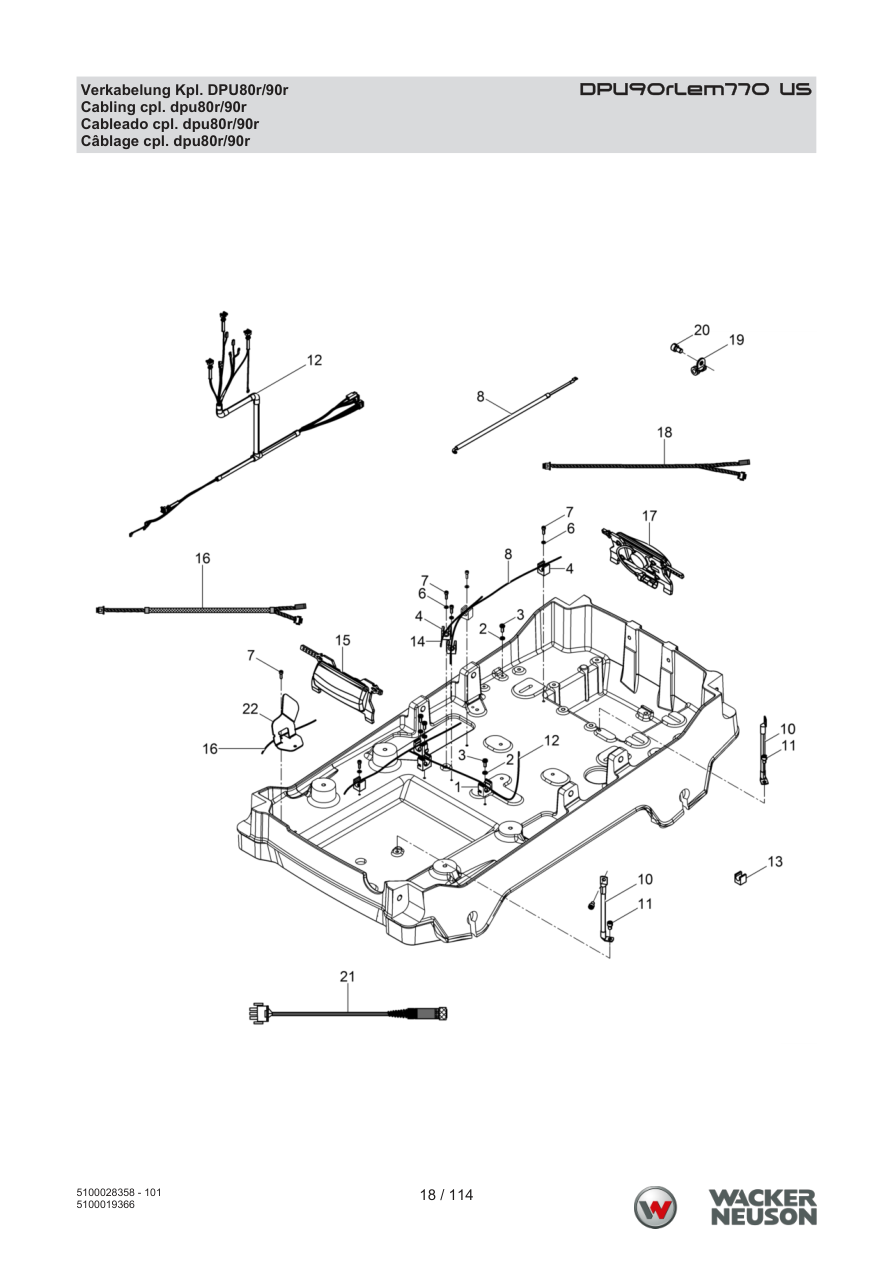

Page 20 — Cabling cpl. dpu80/90
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210107 | Clamp | 3 | ADD TO CART | |
| 2 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 3 | 5000211755 | Screw | 4 | ADD TO CART | |
| 4 | 5100010281 | Clamp | 2 | ADD TO CART | |
| 5 | 5000010625 | Flat washer | 2 | ADD TO CART | |
| 6 | 5000011561 | Cheese head screw | 2 | ADD TO CART | |
| 7 | 5100005670 | Positive cable | 1 | ADD TO CART | |
| 8 | 5100010152 | Negative pole strap | 2 | ADD TO CART | |
| 9 | 5000013574 | Cheese head screw | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 10 | 5100010130 | Cable harness engine | 1 | ADD TO CART | |
| 11 | 5100017849 | Clamp | 1 | ADD TO CART | |

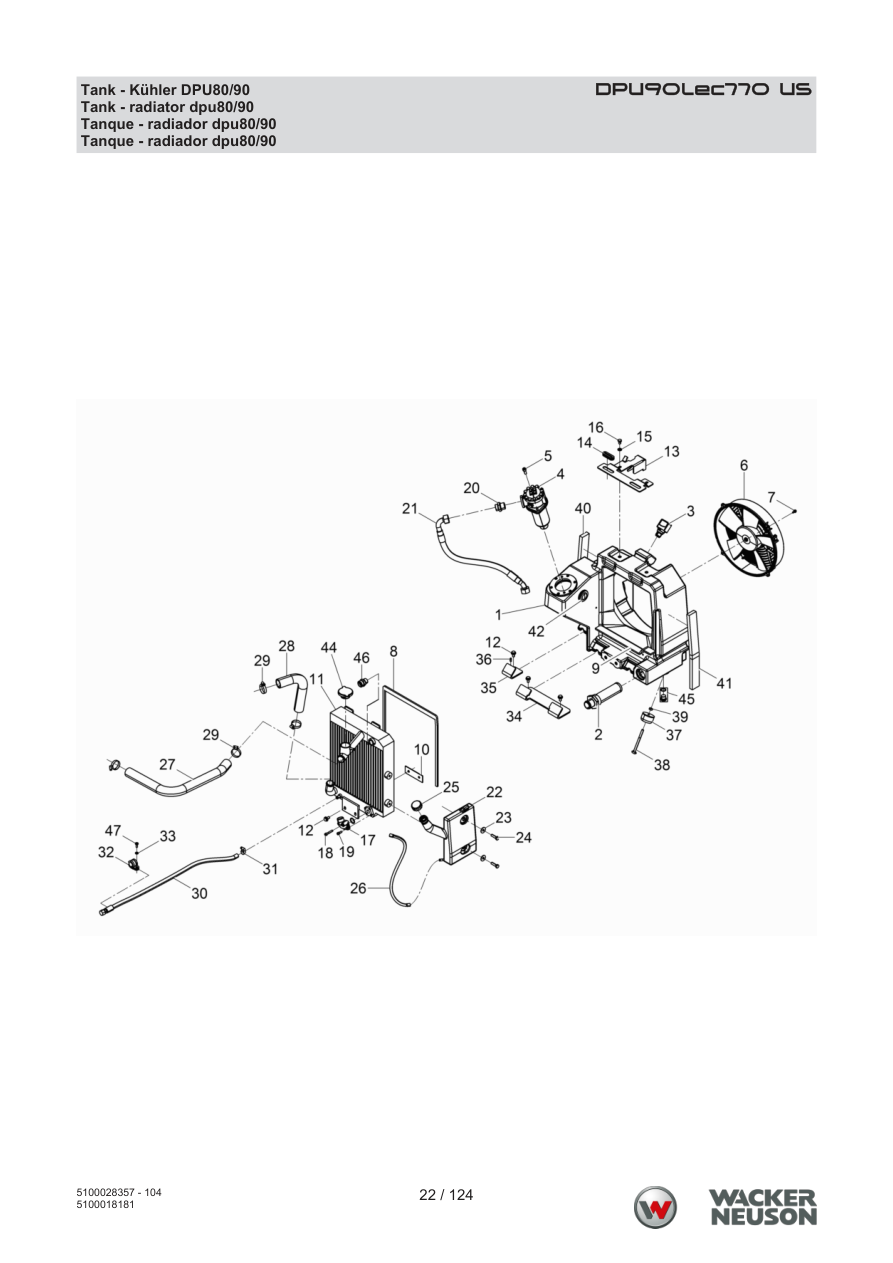

Page 22 — Tank - radiator dpu80/90
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005488 | Hydraulic tank | 1 | ADD TO CART | |
| 2 | 5100010301 | Filter element | 1 | ADD TO CART | |
| 3 | 5100010303 | Filter element | 1 | PARTS REQUEST | |
|
COMING Filter element
5100010303 · qty on machine: 1 | |||||
| 4 | 5100010302 | Return filter | 1 | ADD TO CART | |
| 5 | 5000012629 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010341 | Fan | 1 | ADD TO CART | |
| 7 | 5100015757 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 8 | 5100016476 | Gasket | 1 | ADD TO CART | |
| 9 | 5100016478 | Gasket | 1 | ADD TO CART | |
| 10 | 5100015887 | Plate | 1 | ADD TO CART | |
| 11 | 5100005489 | Radiator | 1 | ADD TO CART | |
| 12 | 5000211795 | Corrugated-head screw | 5 | ADD TO CART | |
| 13 | 5100014130 | Bracket | 1 | ADD TO CART | |
| 14 | 5100010830 | Cable passage | 2 | ADD TO CART | |
| 15 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 16 | 5000012360 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 17 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 18 | 5000011548 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 19 | 5000011553 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 20 | 5100011096 | Screwed socket | 1 | ADD TO CART | |
| 21 | 5100010252 | Hose pipe | 1 | ADD TO CART | |
| 22 | 5100009849 | Bottle-overflow | 1 | ADD TO CART | |
| 23 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 24 | 5000011456 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 25 | 5100015982 | Cover | 1 | ADD TO CART | |
| 26 | 5100015647 | Radiator hose | 1 | ADD TO CART | |
| 27 | 5100010313 | Water hose | 1 | ADD TO CART | |
| 28 | 5100006059 | Water hose | 1 | ADD TO CART | |
| 29 | 5002004724 | Worm drive house clip | 4 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 4 | |||||
| 30 | 5100010256 | Hose pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 32 | 5000206551 | Clamp | 1 | ADD TO CART | |
| 33 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 34 | 5100010567 | Bracket | 1 | ADD TO CART | |
| 35 | 5100010568 | Bracket | 1 | ADD TO CART | |
| 36 | 5000097656 | Roll pin | 1 | ADD TO CART | |
| 37 | 5100009991 | Shockmount | 2 | ADD TO CART | |
| 38 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 39 | 5000010882 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100016491 | Gasket | 1 | ADD TO CART | |
| 41 | 5100016492 | Gasket | 1 | ADD TO CART | |
| 42 | 1000262373 | View glass | 1 | PARTS REQUEST | |
|
COMING View glass
1000262373 · qty on machine: 1 | |||||
| 44 | 5100011421 | Cover (bayonet lock) | 1 | ADD TO CART | |
| 45 | 5100015762 | Plug (threaded) | 1 | ADD TO CART | |
| 46 | 5000063739 | Screwed socket | 1 | ADD TO CART | |
| 47 | 5000211755 | Screw | 1 | ADD TO CART | |

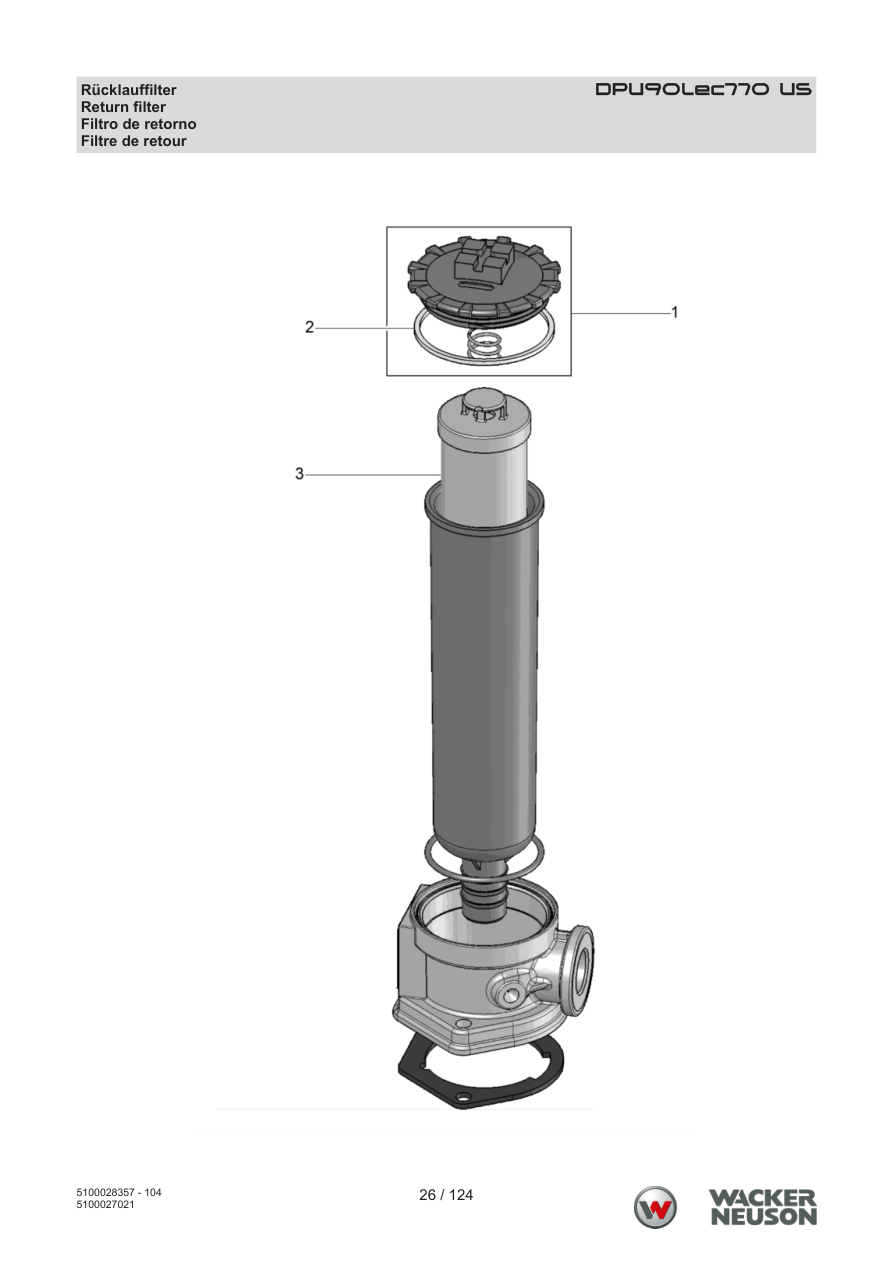

Page 26 — Return filter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220217 | Cover | 1 | ADD TO CART | |
| 2 | 5000220218 | Gasket | 1 | ADD TO CART | |
| 3 | 5100016998 | Filter element | 1 | ADD TO CART | |

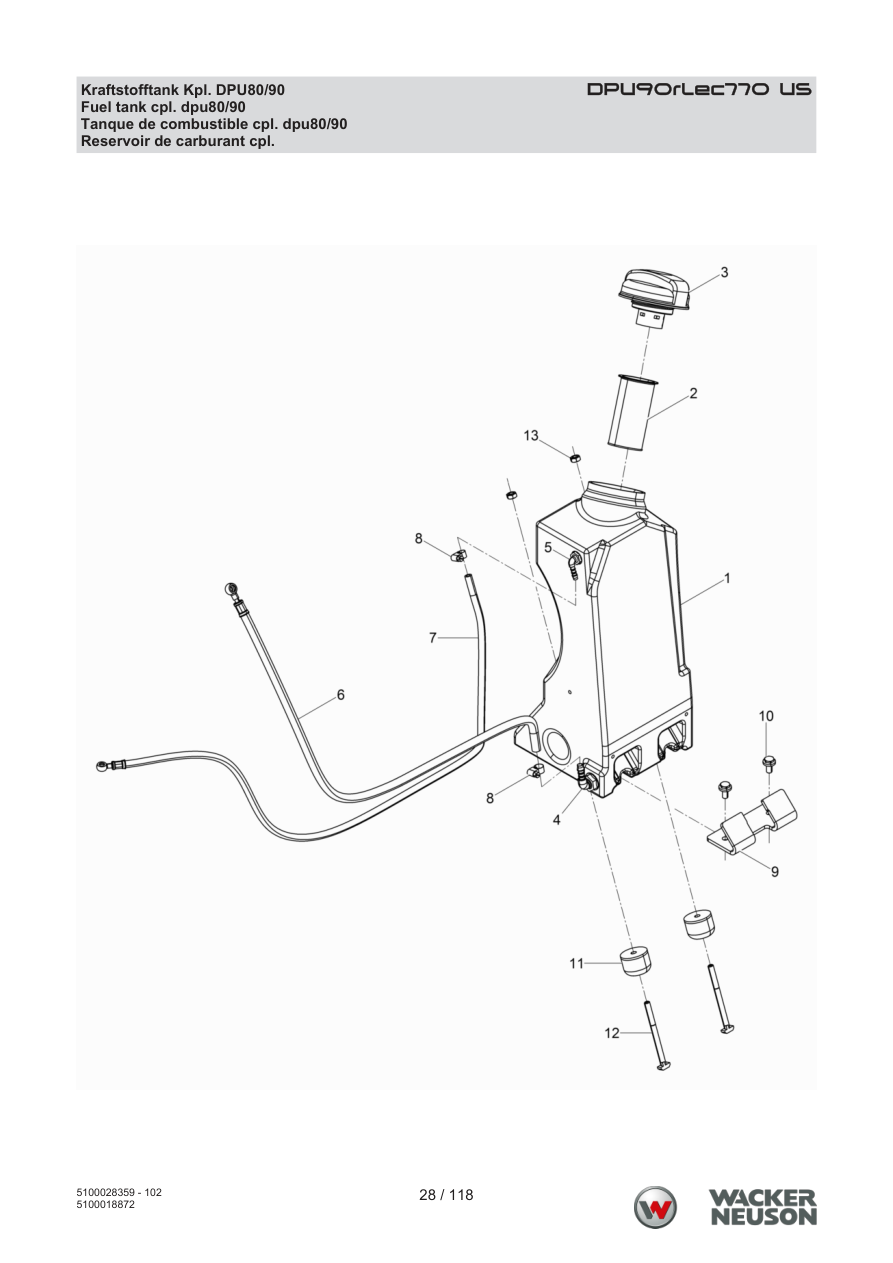

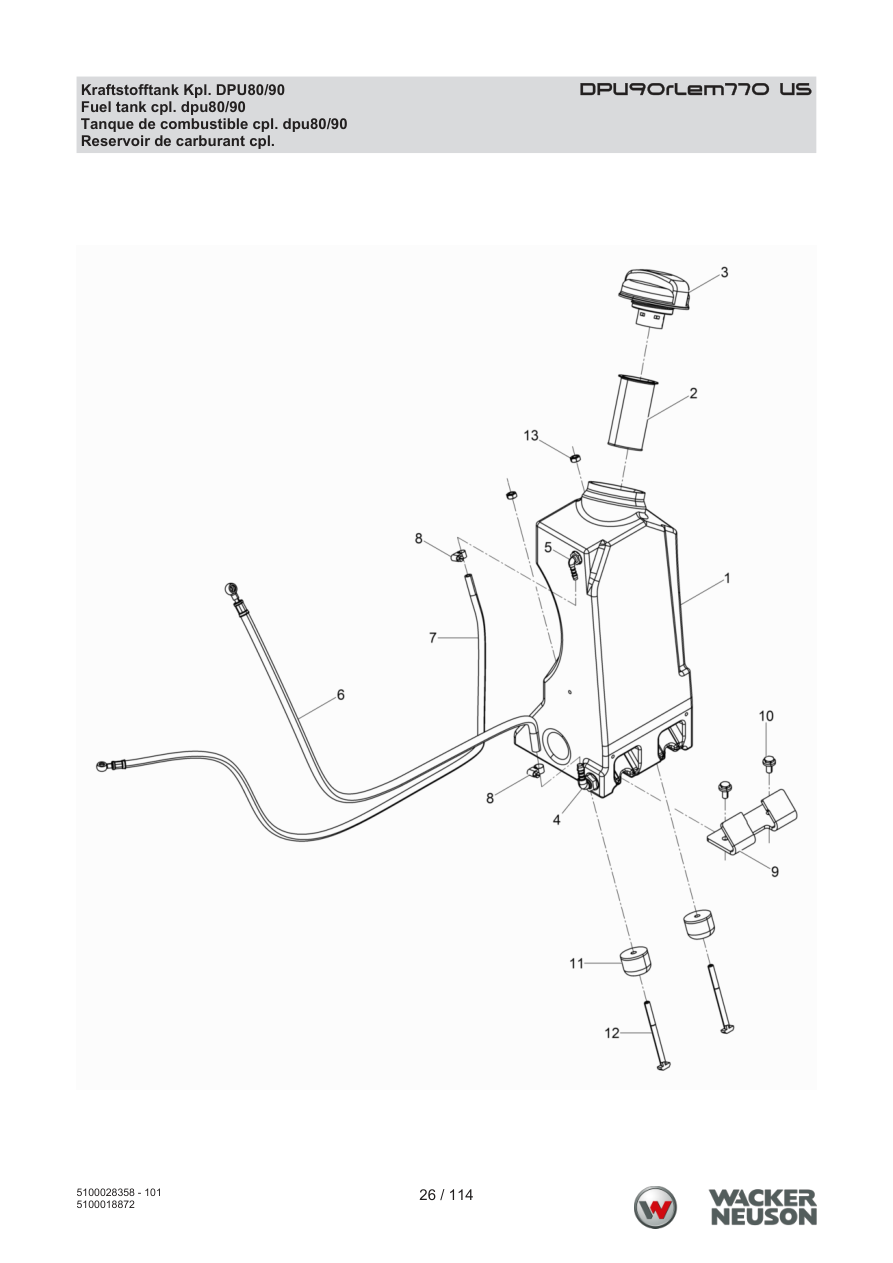

Page 28 — Fuel tank complete dpu80/90
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100010569 | Bracket | 1 | ADD TO CART | |
| 10 | 5000211795 | Corrugated-head screw | 2 | 35Nm/26ft.lbs | ADD TO CART |
| 11 | 5100009992 | Shockmount | 2 | ADD TO CART | |
| 1 | 5100038140 | Fuel tank | 1 | ADD TO CART | |
| 2 | 1000267866 | Screen | 1 | PARTS REQUEST | |
|
COMING Screen
1000267866 · qty on machine: 1 | |||||
| 3 | 5100010476 | Tank cover | 1 | 3Nm/2ft.lbs | ADD TO CART |
| 4 | 1000051394 | Angle cut piece | 1 | PARTS REQUEST | |
|
COMING Angle cut piece
1000051394 · qty on machine: 1 | |||||
| 5 | 5100010035 | Elbow fitting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100010244 | Fuel hose | 1 | ADD TO CART | |
| 7 | 5100010245 | Fuel hose | 1 | ADD TO CART | |
| 8 | 5000016836 | Clamp | 2 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 2 | |||||
| 12 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 13 | 5000010882 | Hexagon nut | 2 | 6Nm/4ft.lbs | ADD TO CART |

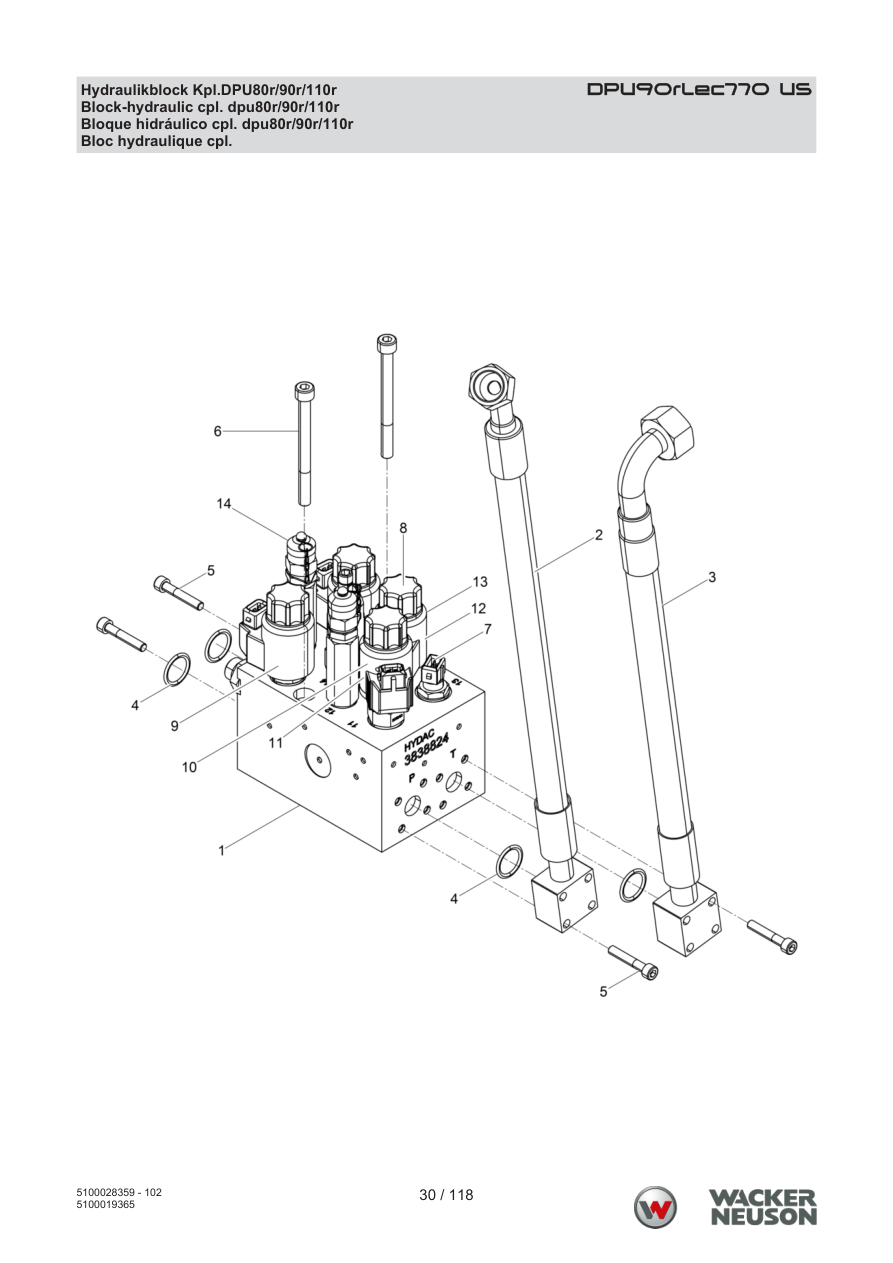

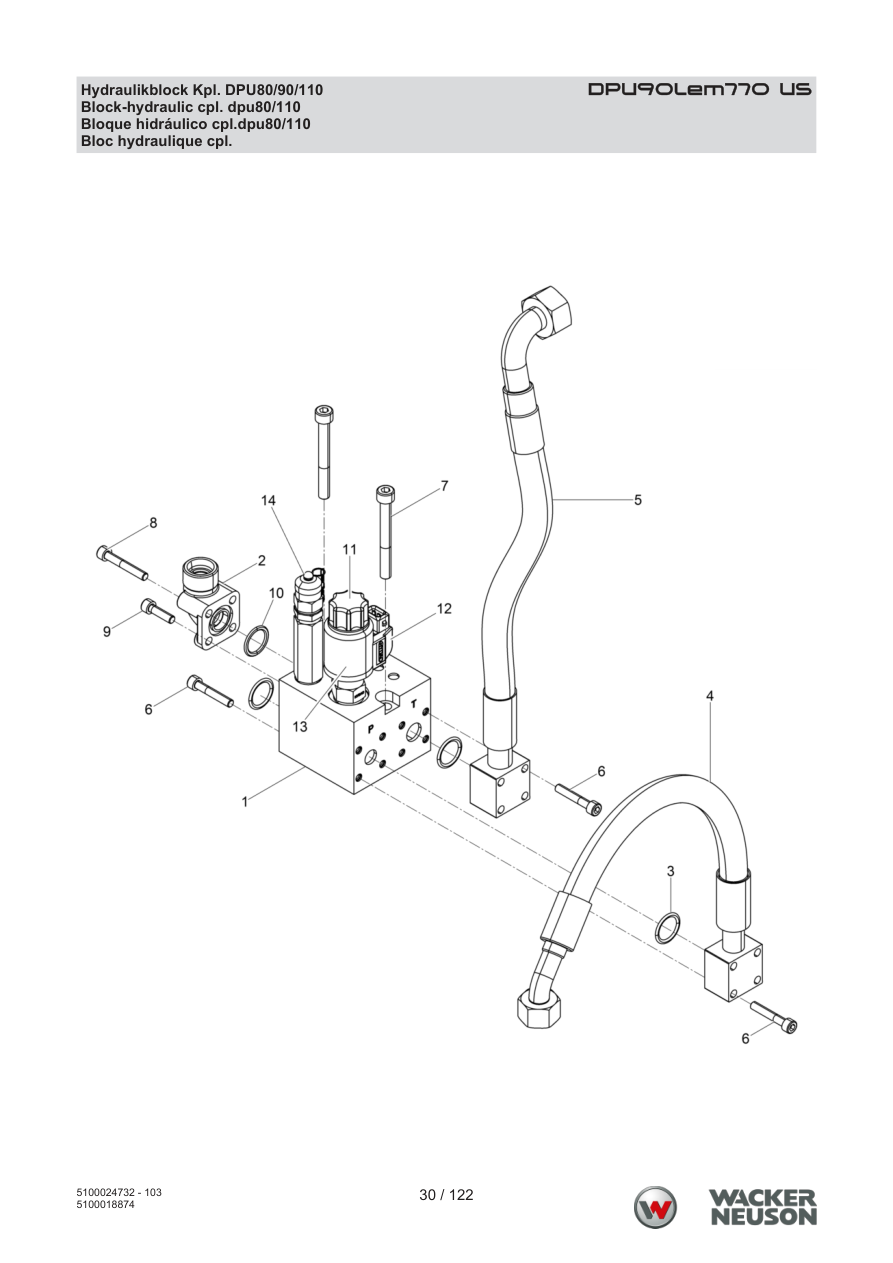

Page 30 — Block-hydraulic cpl. dpu80/110
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005479 | Block-hydraulic | 1 | ADD TO CART | |
| 2 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 3 | 5000210116 | O-ring | 3 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 3 | |||||
| 4 | 5100010247 | Hose pipe | 1 | ADD TO CART | |
| 5 | 5100010251 | Hose pipe | 1 | ADD TO CART | |
| 6 | 5000011548 | Cheese head screw | 12 | 10Nm/7ft.lbs | ADD TO CART |
| 7 | 5000013576 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5000011547 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 9 | 5000012373 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 1000090406 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000090406 · qty on machine: 1 | |||||
| 11 | 5000220194 | Valve cap | 1 | ADD TO CART | |
| 12 | 5100025061 | Valve | 1 | ADD TO CART | |
| 13 | 5100025062 | Solenoid | 1 | ADD TO CART | |
| 14 | 5000220198 | Test port | 1 | PARTS REQUEST | |
|
COMING Test port
5000220198 · qty on machine: 1 | |||||

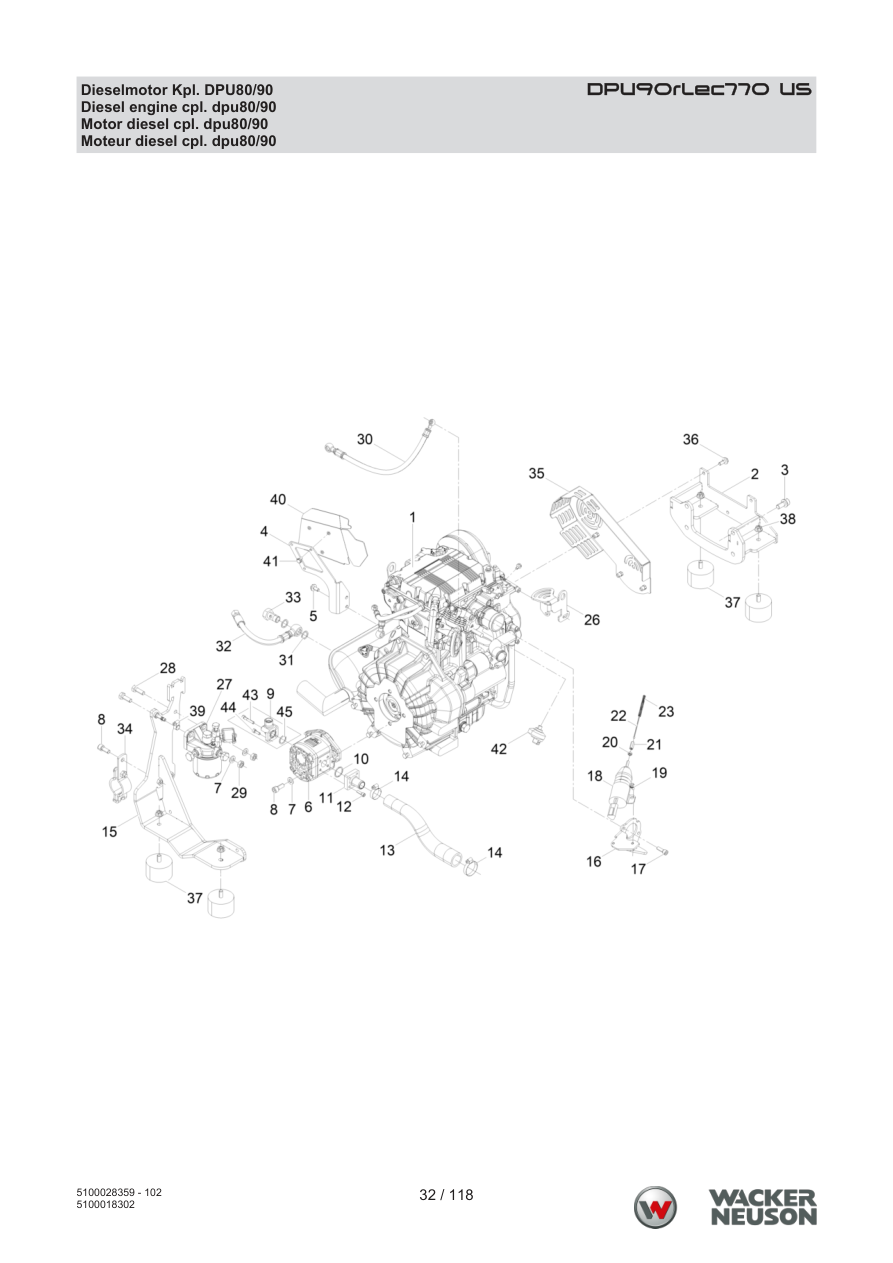

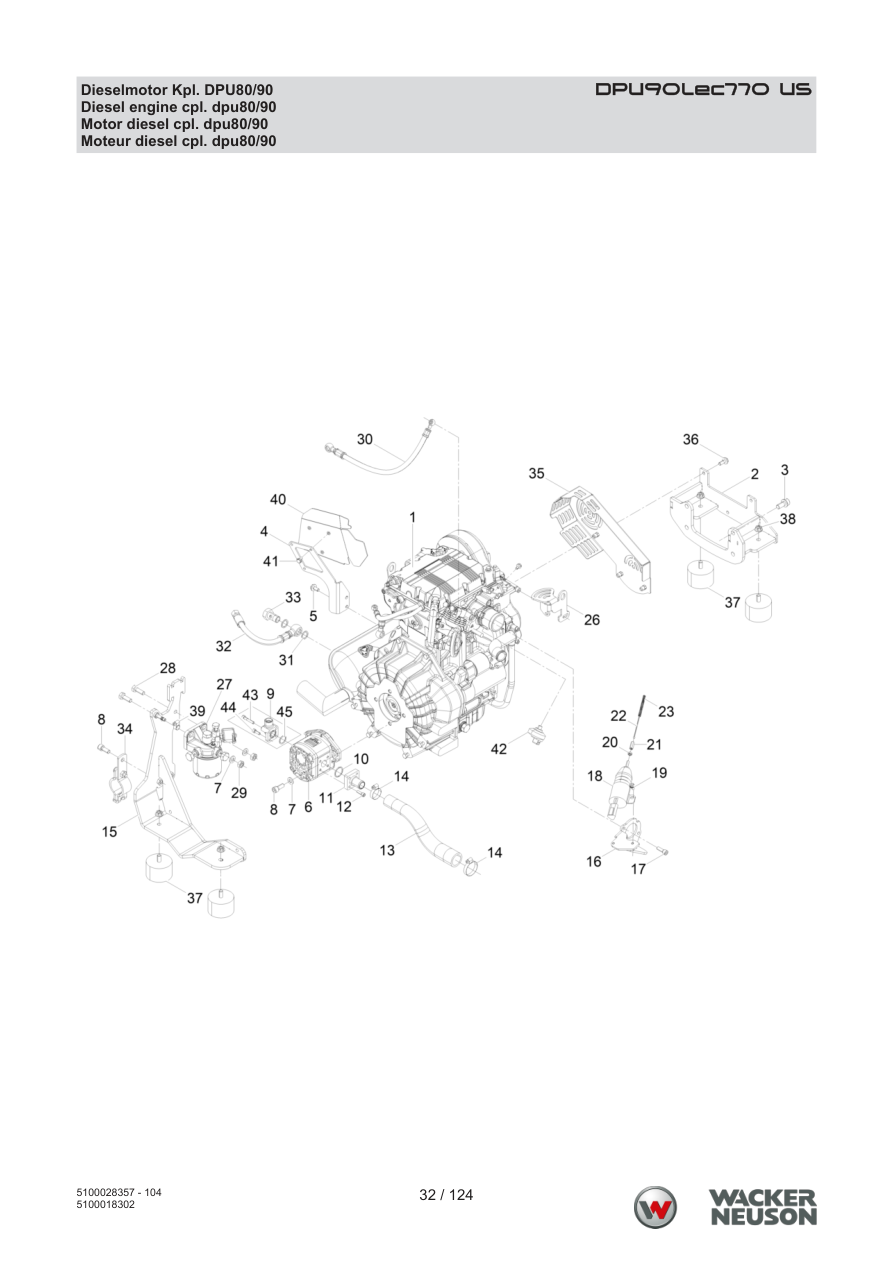

Page 32 — Diesel engine cpl. dpu80/90
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024723 | Diesel engine kdw 702 - 3350 us | 1 | PARTS REQUEST | |
|
COMING Diesel engine kdw 702 - 3350 us
5100024723 · qty on machine: 1 | |||||
| 1 | 5100049016 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049016 · qty on machine: 1 | |||||
| 1 | 5100049017 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049017 · qty on machine: 1 | |||||
| 2 | 5100005758 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000210165 | Corrugated-head screw | 4 | ADD TO CART | |
| 4 | 5100011317 | Bracket | 1 | ADD TO CART | |
| 5 | 5000211795 | Corrugated-head screw | 2 | ADD TO CART | |
| 6 | 5100005655 | Gear pump | 1 | ADD TO CART | |
| 7 | 5000010621 | Flat washer | 4 | ADD TO CART | |
| 8 | 5000011535 | Cheese head screw | 3 | 49Nm/36ft.lbs | ADD TO CART |
| 9 | 5100046101 | Bolted connection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 11 | 5100010059 | Hose connection | 1 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5100010056 | Suction hose | 1 | ADD TO CART | |
| 14 | 5002004724 | Worm drive house clip | 2 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 2 | |||||
| 15 | 5100005748 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 16 | 5100005769 | Plate | 1 | ADD TO CART | |
| 17 | 5000011542 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 18 | 5000155486 | Throttle actuator | 1 | ADD TO CART | |
| 19 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 20 | 5000010880 | Hexagon nut | 1 | ADD TO CART | |
| 21 | 5000155487 | Adaptor | 1 | ADD TO CART | |
| 22 | 5000150022 | Cable | 1 | ADD TO CART | |
| 23 | 5100010831 | Compression spring | 1 | ADD TO CART | |
| 26 | 5100010901 | Covering | 1 | ADD TO CART | |
| 27 | 5000210173 | Filter-fuel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 28 | 5000011439 | Hexagonal head cap screw | 2 | 49Nm/36ft.lbs | ADD TO CART |
| 29 | 5000010883 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100010246 | Fuel hose | 1 | ADD TO CART | |
| 31 | 5000019156 | Gasket | 2 | ADD TO CART | |
| 32 | 5100010257 | Hose pipe | 1 | ADD TO CART | |
| 33 | 5000207336 | Hollow screw | 1 | ADD TO CART | |
| 34 | 5100011327 | Pipe clamp | 1 | ADD TO CART | |
| 35 | 5100010740 | Belt guard cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5100018058 | Corrugated-head screw | 4 | ADD TO CART | |
| 37 | 5100000973 | Shockmount | 4 | ADD TO CART | |
| 38 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 39 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 40 | 5100024279 | Heat shield cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000210194 | Corrugated-head screw | 3 | ADD TO CART | |
| 42 | 5000206422 | Switch | 1 | ADD TO CART | |
| 43 | 5000011548 | Cheese head screw | 2 | ADD TO CART | |
| 44 | 5000011552 | Cheese head screw | 2 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 45 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||

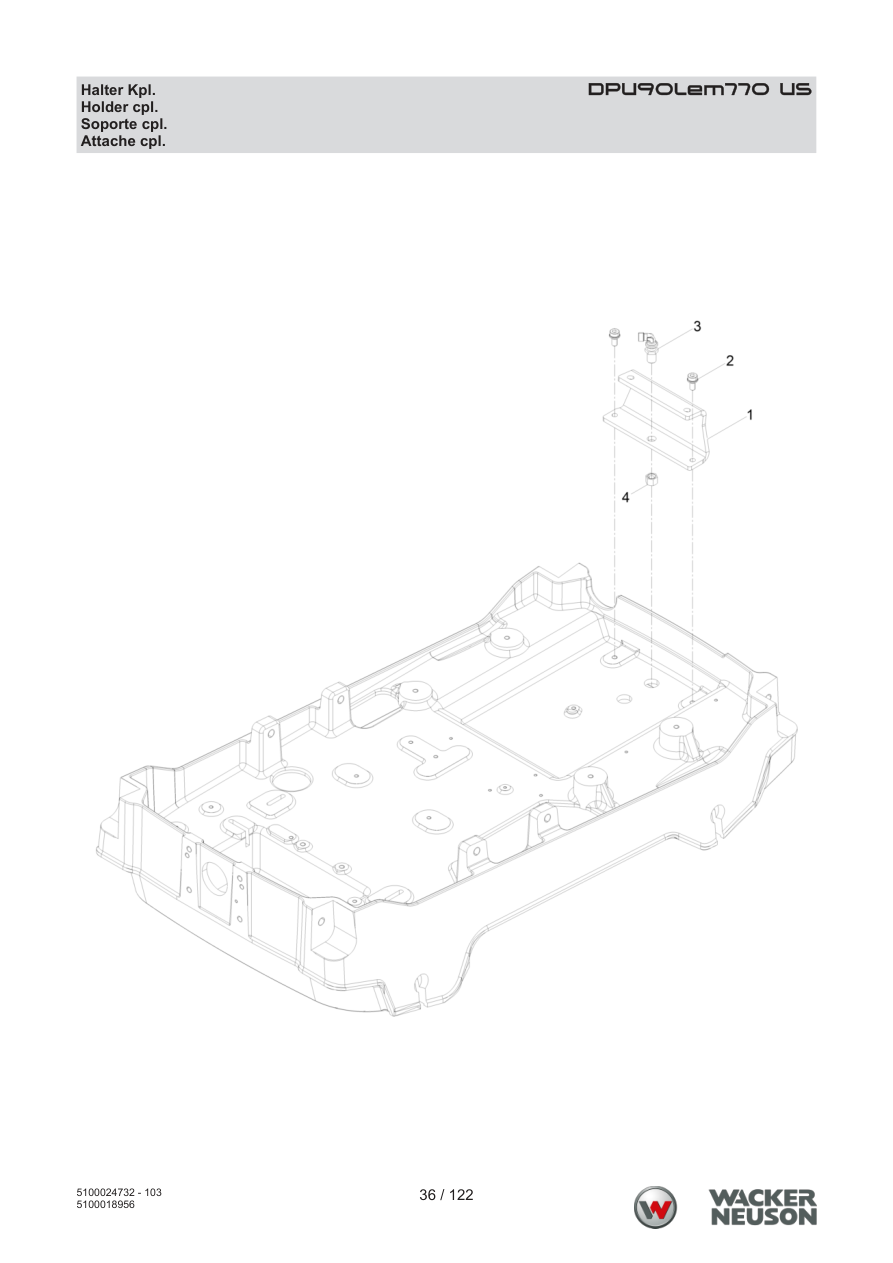

Page 36 — Holder cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010590 | Bracket | 1 | ADD TO CART | |
| 2 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 3 | 5000205238 | Screw connection | 1 | ADD TO CART | |
| 4 | 5000211773 | Nose cap | 1 | 40Nm/30ft.lbs | ADD TO CART |
Page 38 — DPU90Lec770 US Electrical Box Cpl. DPU80/90/110
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005376 | Electric components drawer | 1 | ADD TO CART | |
| 2 | 5100010129 | Cable harness e-box | 1 | ADD TO CART | |
| 3 | 5000011570 | Cheese head screw | 2 | 5Nm/4ft.lbs | ADD TO CART |
| 4 | 5000010628 | Flat washer | 2 | ADD TO CART | |
| 5 | 5000010370 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5000085437 | Relay | 4 | ADD TO CART | |
| 7 | 5100016686 | Gasket | 4 | ADD TO CART | |
| 8 | 5100015757 | Hexagonal head cap screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5000010369 | Hexagon nut | 3 | ADD TO CART | |
| 11 | 5100010300 | Connector plate bottom | 1 | ADD TO CART | |
| 12 | 5100010315 | Plate | 1 | ADD TO CART | |
| 13 | 5100010121 | Control | 1 | ADD TO CART | |
| 14 | 5100010109 | Flange | 1 | ADD TO CART | |
| 15 | 5100010110 | Switch | 1 | ADD TO CART | |
| 16 | 5100005715 | Botton switch | 1 | ADD TO CART | |
| 17 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 18 | 5100005762 | Decoder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5100010780 | Connector plate middle | 1 | ADD TO CART | |
| 20 | 5100010781 | Connector plate top | 1 | ADD TO CART | |
| 21 | 5100009818 | Display | 1 | ADD TO CART | |
| 22 | 5100005471 | Cover | 1 | ADD TO CART | |
| 23 | 5000108371 | Oval head screw | 18 | ADD TO CART | |
| 24 | 5000010622 | Flat washer | 3 | ADD TO CART | |
| 25 | 5000011541 | Cheese head screw | 3 | 25Nm/18ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000011541 · qty on machine: 3 25Nm/18ft.lbs | |||||
| 26 | 5100022411 | Blind plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5100061282 | Cable harness | 1 | ADD TO CART | |

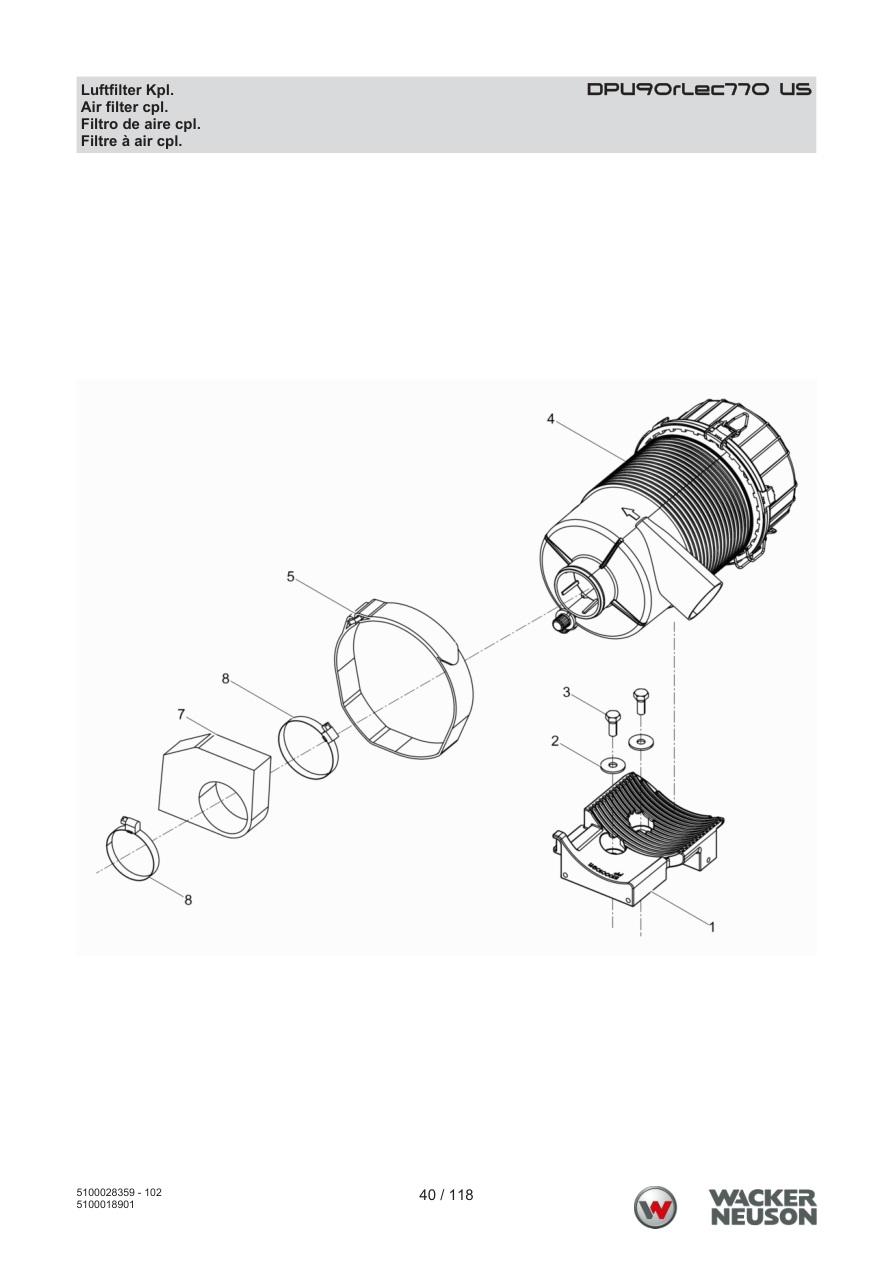

Page 40 — Air filter cpl.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010911 | Bracket | 1 | ADD TO CART | |
| 2 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 3 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 4 | 5100005726 | Air cleaner | 1 | ADD TO CART | |
| 4 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 4 | 5100024489 | Safety elements | 1 | ADD TO CART | |
| 4 | 5100024550 | Clamp | 3 | ADD TO CART | |
| 4 | 5100024551 | Dust discharge valve | 1 | ADD TO CART | |
| 5 | 5100010912 | Tightening strap | 1 | ADD TO CART | |
| 7 | 5100016655 | Gasket | 1 | ADD TO CART | |
| 8 | 5000014996 | Clamp | 2 | ADD TO CART | |

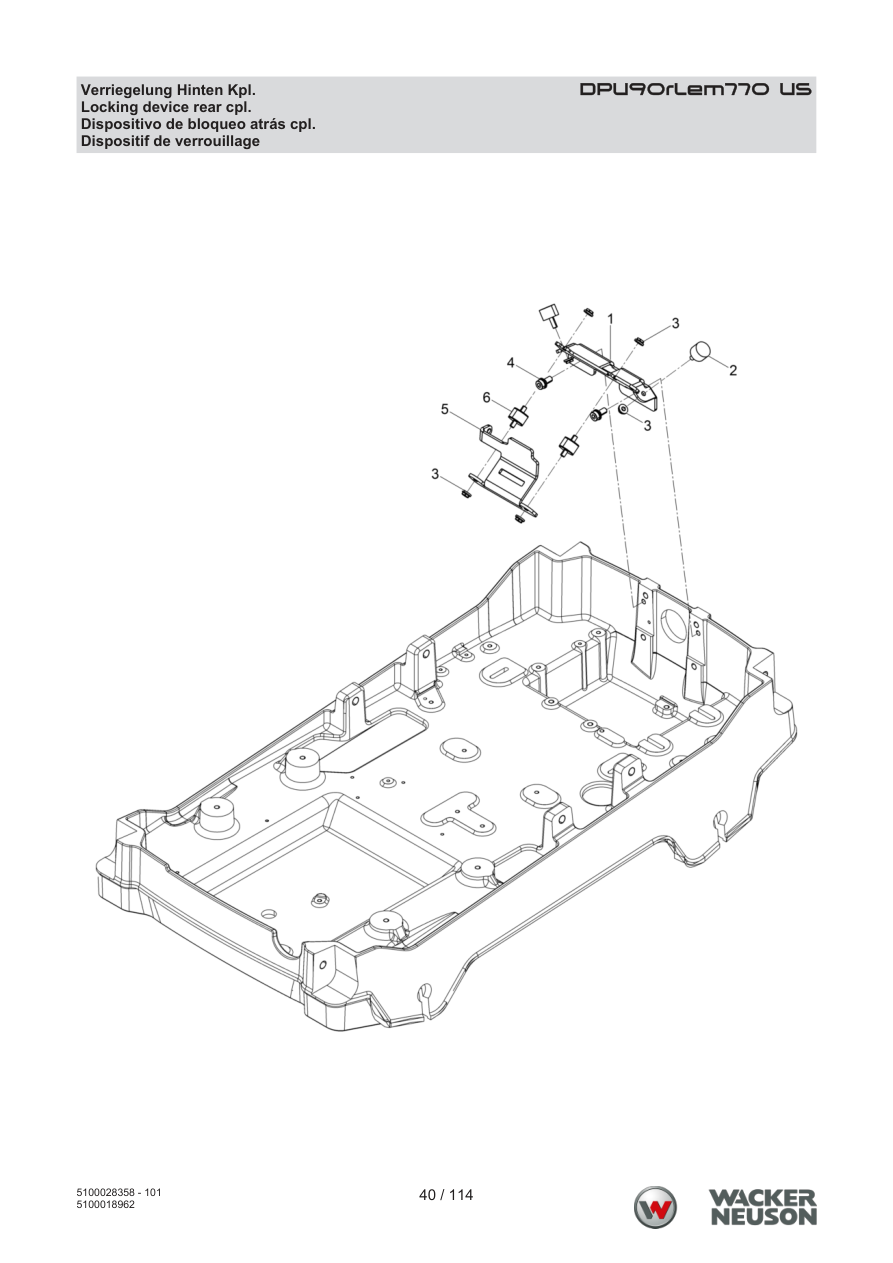

Page 42 — Locking device rear cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010584 | Bracket | 1 | ADD TO CART | |
| 2 | 5000204116 | Shockmount | 2 | ADD TO CART | |
| 3 | 5100017158 | Locknut | 6 | 30Nm/22ft.lbs | ADD TO CART |
| 4 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 5 | 5100010580 | Locking lever rear | 1 | ADD TO CART | |
| 6 | 5100010840 | Shockmount | 2 | ADD TO CART | |

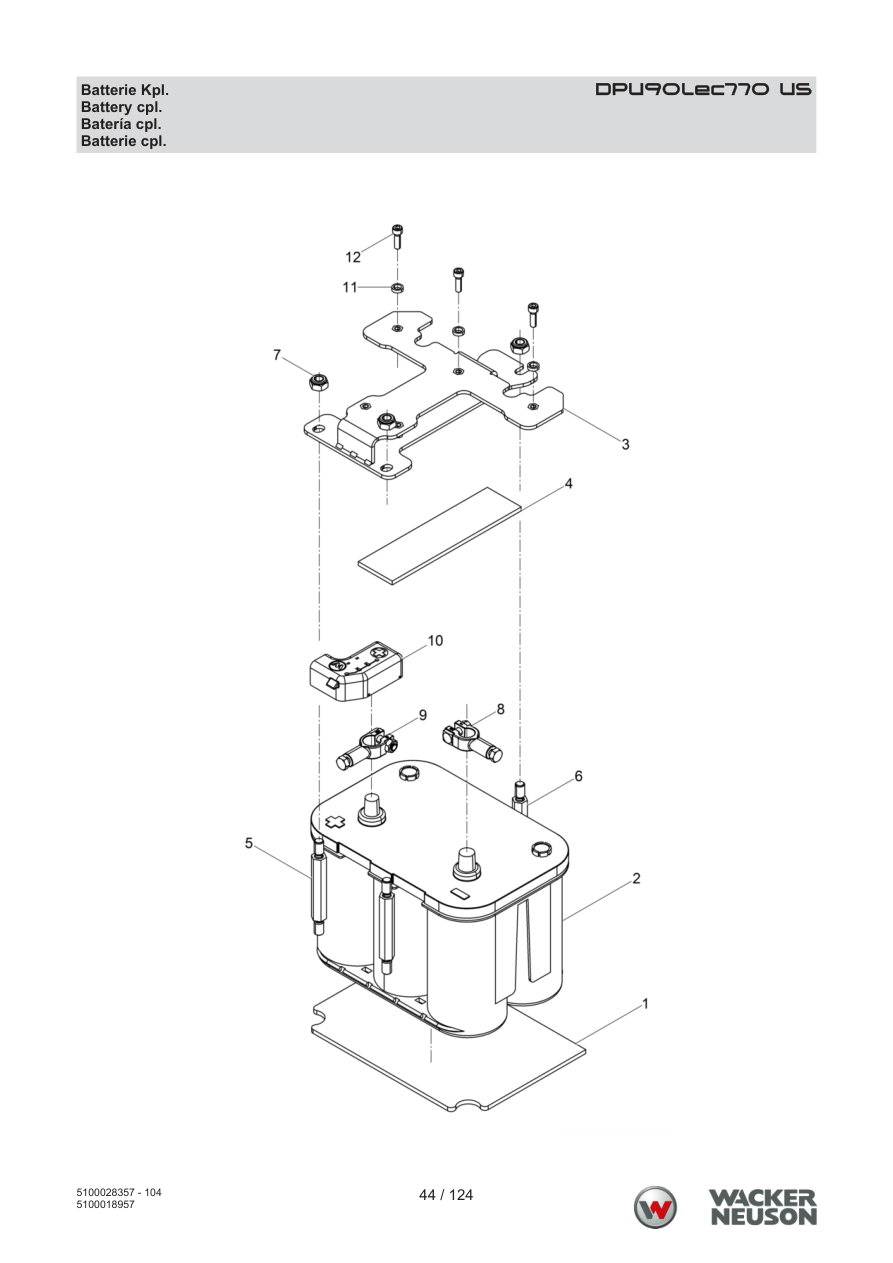

Page 44 — Battery cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209152 | Insulating cushion | 1 | ADD TO CART | |
| 2 | 5000086527 | Battery | 1 | ADD TO CART | |
| 3 | 5100005937 | Battery mounting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100017160 | Gasket | 1 | ADD TO CART | |
| 5 | 5100010891 | Threaded bolt | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010892 | Threaded bolt | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 7 | 5000017313 | Hexagon nut | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 9 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 10 | 5100014022 | Positive pol cover | 1 | ADD TO CART | |
| 11 | 5000212623 | Bushing | 3 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 3 | 10Nm/7ft.lbs | ADD TO CART |

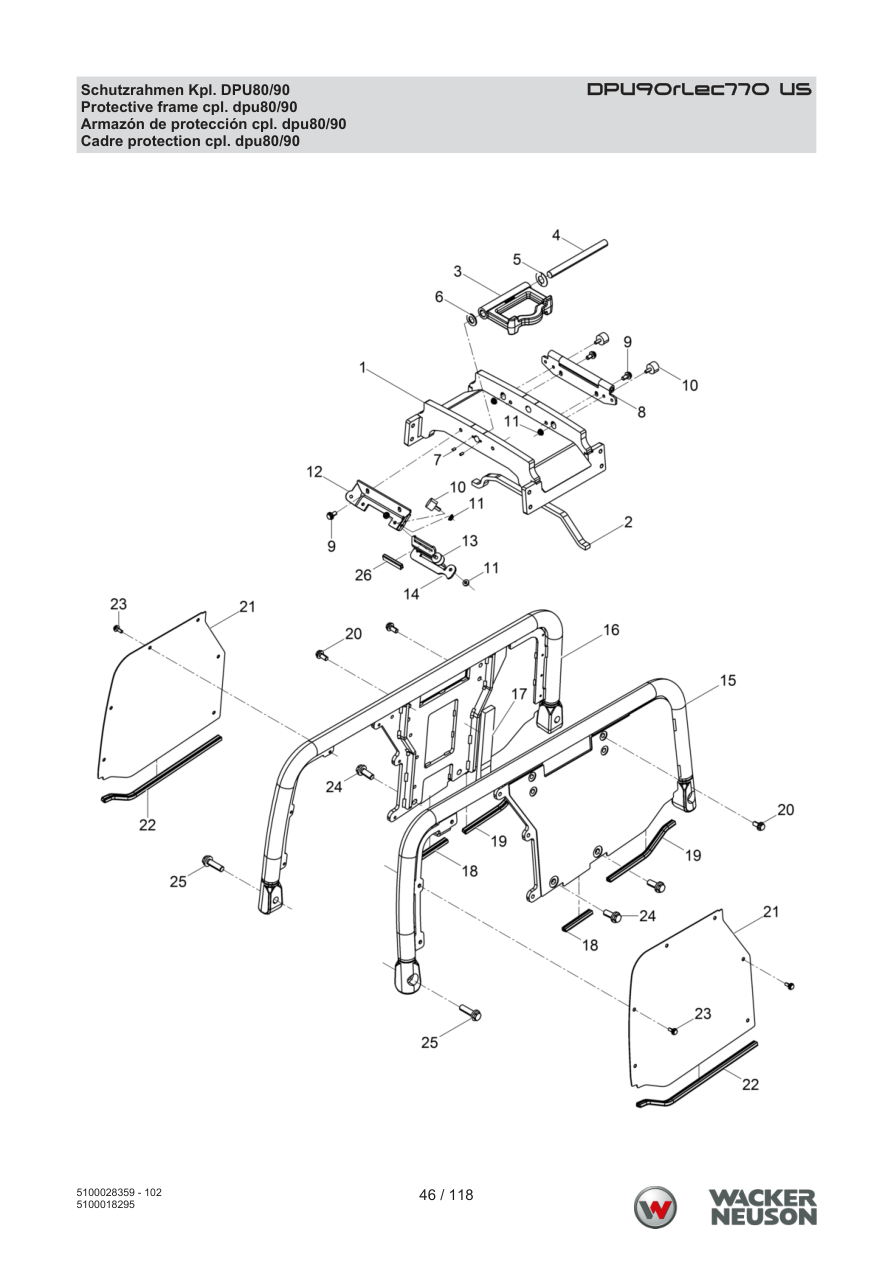

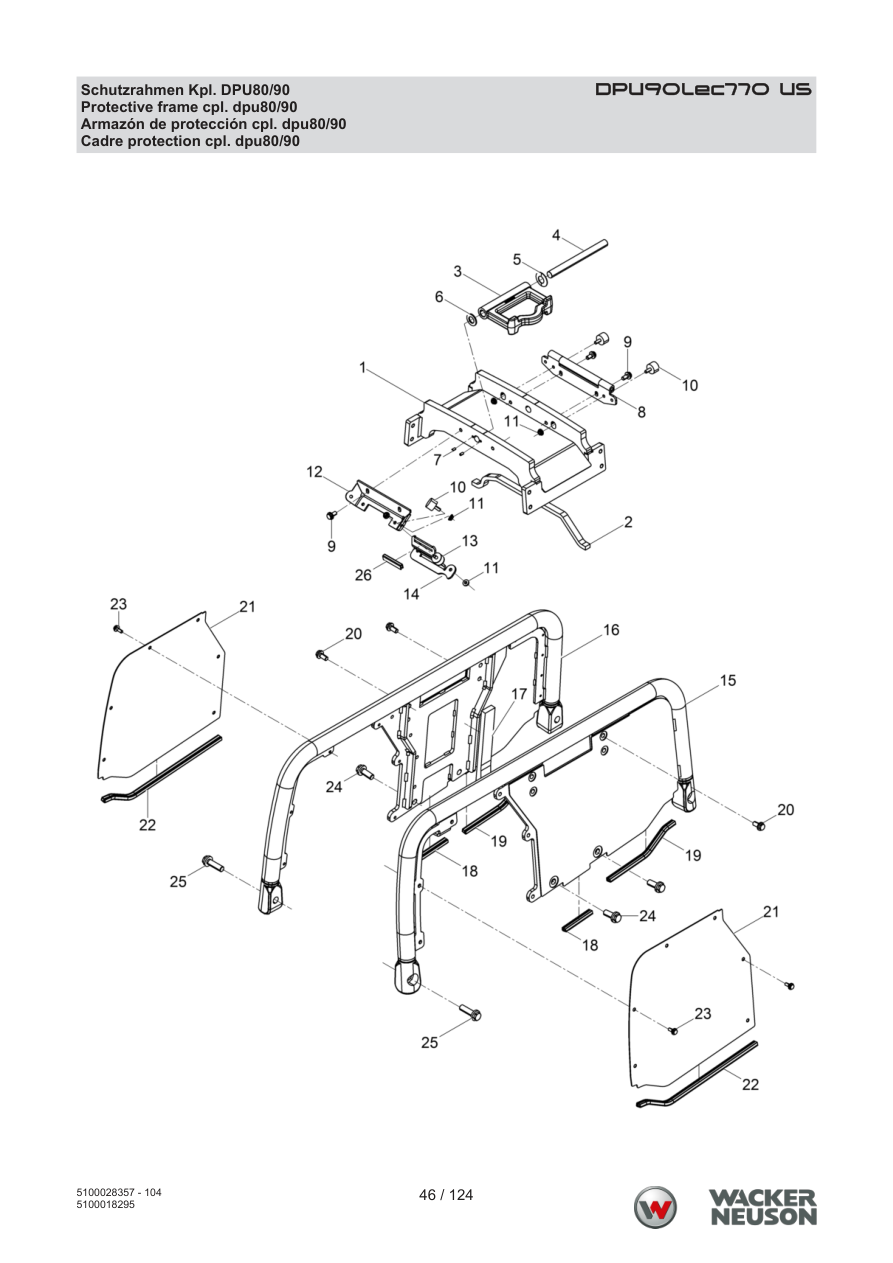

Page 46 — Protective frame cpl. dpu80/90
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100016518 | Gasket | 1 | ADD TO CART | |
| 1 | 5100010657 | Cross-beam | 1 | ADD TO CART | |
| 3 | 5100017413 | Jack ring | 1 | ADD TO CART | |
| 4 | 5100005732 | Axle | 1 | ADD TO CART | |
| 5 | 5000202829 | Cup spring | 1 | ADD TO CART | |
| 6 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 8 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 9 | 5000210112 | Corrugated-head screw | 4 | ADD TO CART | |
| 10 | 5000204116 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100017158 | Locknut | 8 | ADD TO CART | |
| 12 | 5100010583 | Bracket | 1 | ADD TO CART | |
| 13 | 5100010840 | Shockmount | 2 | ADD TO CART | |
| 14 | 5100064251 | Locking lever | 1 | ADD TO CART | |
| 15 | 5100010450 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010450 · qty on machine: 1 | |||||
| 16 | 5100010451 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010451 · qty on machine: 1 | |||||
| 17 | 5100016517 | Gasket | 2 | ADD TO CART | |
| 18 | 5100018100 | Edge protection | 2 | ADD TO CART | |
| 19 | 5100018101 | Edge protection | 2 | ADD TO CART | |
| 20 | 5100018059 | Corrugated-head screw | 8 | ADD TO CART | |
| 21 | 5100010459 | Covering | 2 | PARTS REQUEST | |
|
COMING Covering
5100010459 · qty on machine: 2 | |||||
| 22 | 5100018102 | Edge protection | 2 | ADD TO CART | |
| 23 | 5000211795 | Corrugated-head screw | 12 | ADD TO CART | |
| 24 | 5100011100 | Corrugated-head screw | 4 | ADD TO CART | |
| 25 | 5100011101 | Corrugated-head screw | 4 | PARTS REQUEST | |
|
COMING Corrugated-head screw
5100011101 · qty on machine: 4 | |||||
| 26 | 5100025691 | Handle profile | 1 | ADD TO CART | |

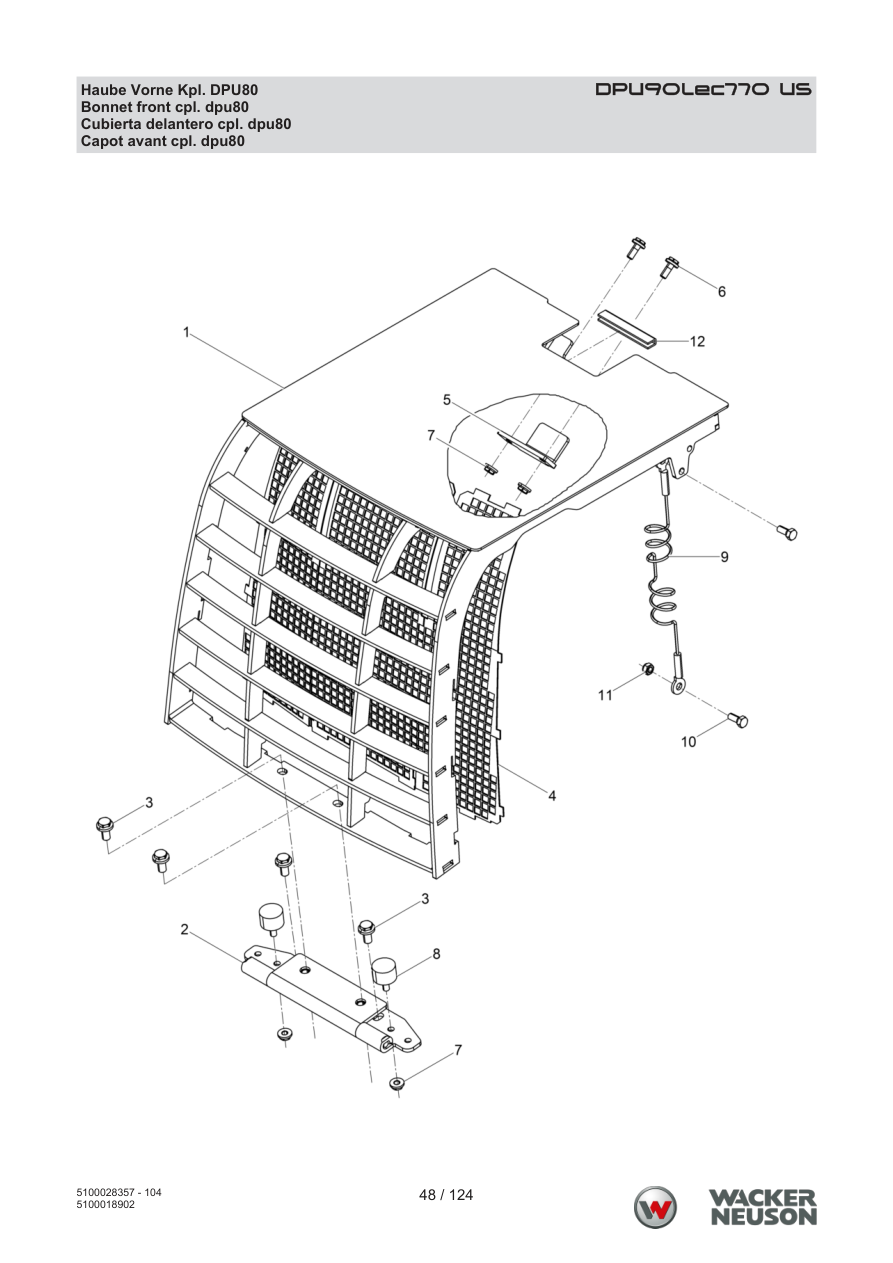

Page 48 — Bonnet front cpl. dpu80
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010439 | Bonnet | 1 | PARTS REQUEST | |
|
COMING Bonnet
5100010439 · qty on machine: 1 | |||||
| 2 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 3 | 5000210112 | Corrugated-head screw | 4 | 85Nm/63ft.lbs | ADD TO CART |
| 4 | 5100010931 | Screen grid rear (dpu80) | 1 | ADD TO CART | |
| 4 | 5100018930 | Screen grid front (dpu80r) | 1 | PARTS REQUEST | |
|
COMING Screen grid front (dpu80r)
5100018930 · qty on machine: 1 | |||||
| 5 | 5100010577 | Locking tab front | 1 | ADD TO CART | |
| 6 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 7 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 8 | 5100024474 | Shockmount | 2 | ADD TO CART | |
| 9 | 5000154402 | Cable | 1 | ADD TO CART | |
| 10 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 11 | 5000033356 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100024476 | Edge protection | 1 | 90Nm/66ft.lbs | ADD TO CART |

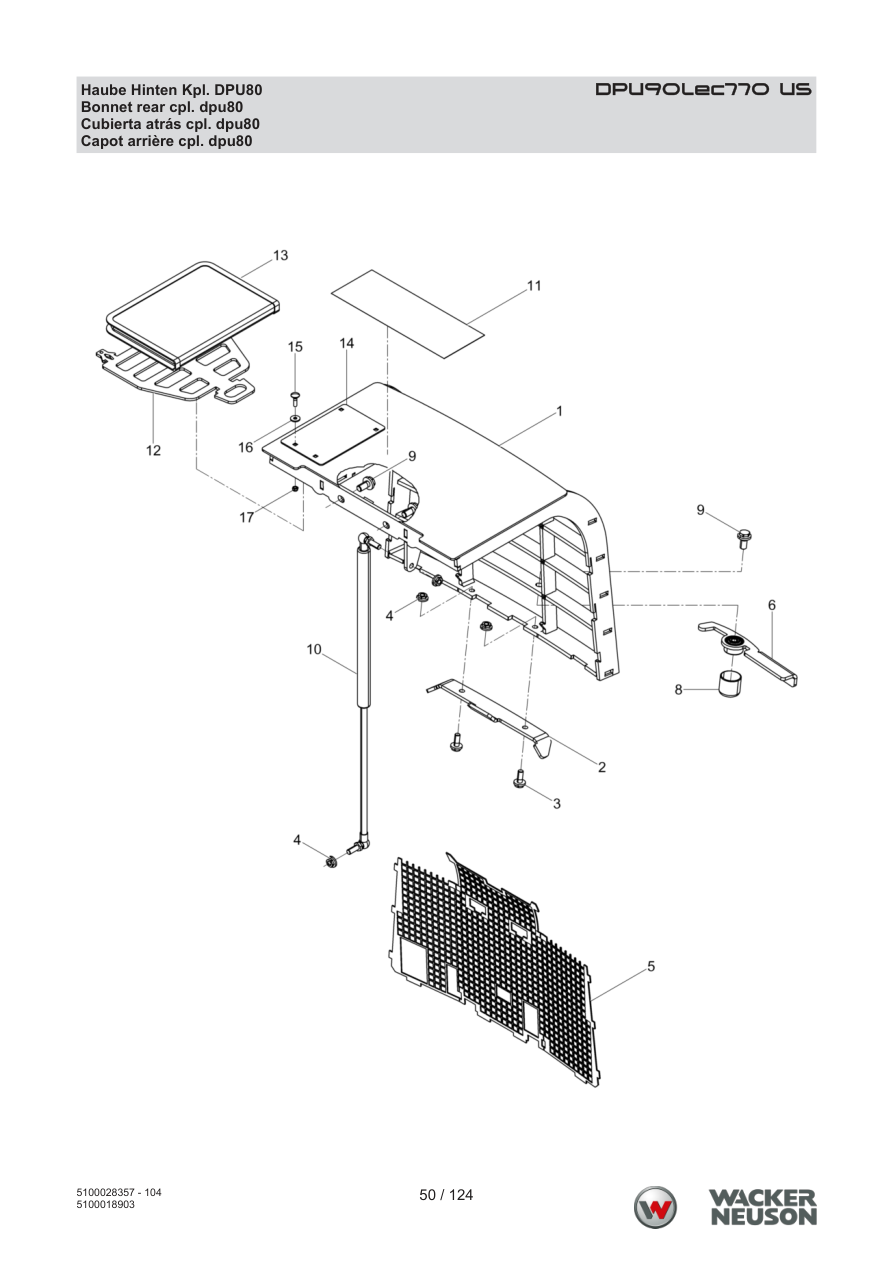

Page 50 — Bonnet rear cpl. dpu80
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010438 | Bonnet | 1 | PARTS REQUEST | |
|
COMING Bonnet
5100010438 · qty on machine: 1 | |||||
| 2 | 5100010578 | Locking tab rear | 1 | ADD TO CART | |
| 3 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 4 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 5 | 5100010933 | Screen grid rear (dpu80) | 1 | PARTS REQUEST | |
|
COMING Screen grid rear (dpu80)
5100010933 · qty on machine: 1 | |||||
| 5 | 5100018919 | Screen grid front (dpu80) | 1 | ADD TO CART | |
| 5 | 5100018920 | Screen grid front (dpu80r,c) | 1 | ADD TO CART | |
| 5 | 5100018924 | Screen grid front (dpu80r) | 1 | ADD TO CART | |
| 6 | 5100011262 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000068355 | Protective cap | 1 | ADD TO CART | |
| 9 | 5000210112 | Corrugated-head screw | 3 | 85Nm/63ft.lbs | ADD TO CART |
| 10 | 5100005810 | Compr. spring | 1 | ADD TO CART | |
| 11 | 5100017956 | Protection foil | 1 | ADD TO CART | |
| 12 | 5100024201 | Cloth | 1 | ADD TO CART | |
| 13 | 5100025231 | Portfolio | 1 | PARTS REQUEST | |
|
COMING Portfolio
5100025231 · qty on machine: 1 | |||||
| 14 | 5100057038 | Plate | 1 | ADD TO CART | |
| 15 | 5100048321 | Mushroom head bolt | 4 | ADD TO CART | |
| 16 | 5000010372 | Flat washer | 4 | ADD TO CART | |
| 17 | 5000010369 | Hexagon nut | 4 | ADD TO CART | |

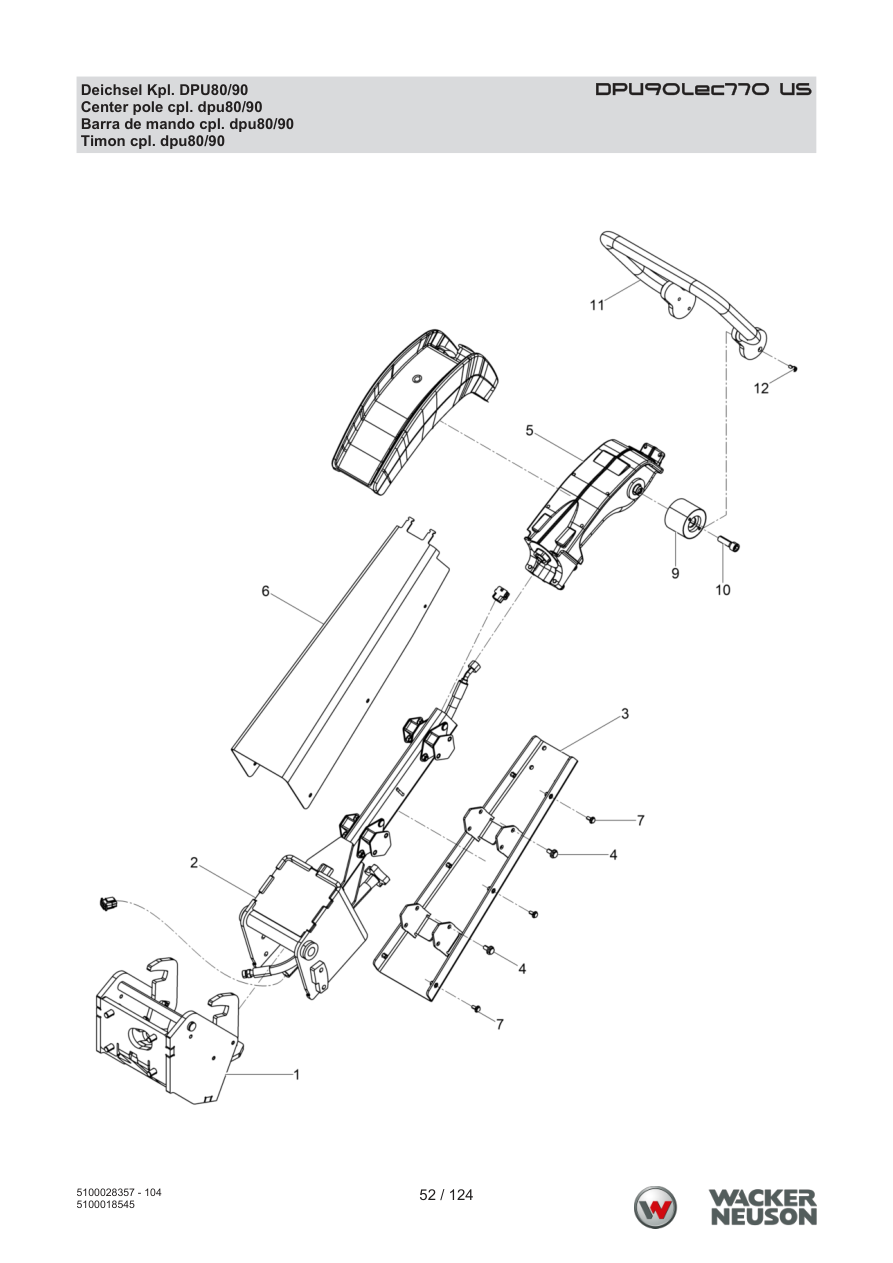

Page 52 — Center pole cpl. dpu80/90
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100018077 | Support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100018079 | Center pole lower part cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100009640 | Center pole base cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000211795 | Corrugated-head screw | 8 | 42Nm/31ft.lbs | ADD TO CART |
| 5 | 5100005882 | Center pole head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100005601 | Covering | 1 | ADD TO CART | |
| 7 | 5000210194 | Corrugated-head screw | 6 | 19Nm/14ft.lbs | ADD TO CART |
| 9 | 5000215035 | Shockmount | 2 | ADD TO CART | |
| 10 | 5000011527 | Cheese head screw | 2 | 86Nm/63ft.lbs | ADD TO CART |
| 11 | 5100005124 | Clamp | 1 | ADD TO CART | |
| 12 | 5000011554 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5000047388 | Cable tie | 1 | ADD TO CART | |
| 14 | 5000038489 | Tie cable | 5 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 5 | |||||

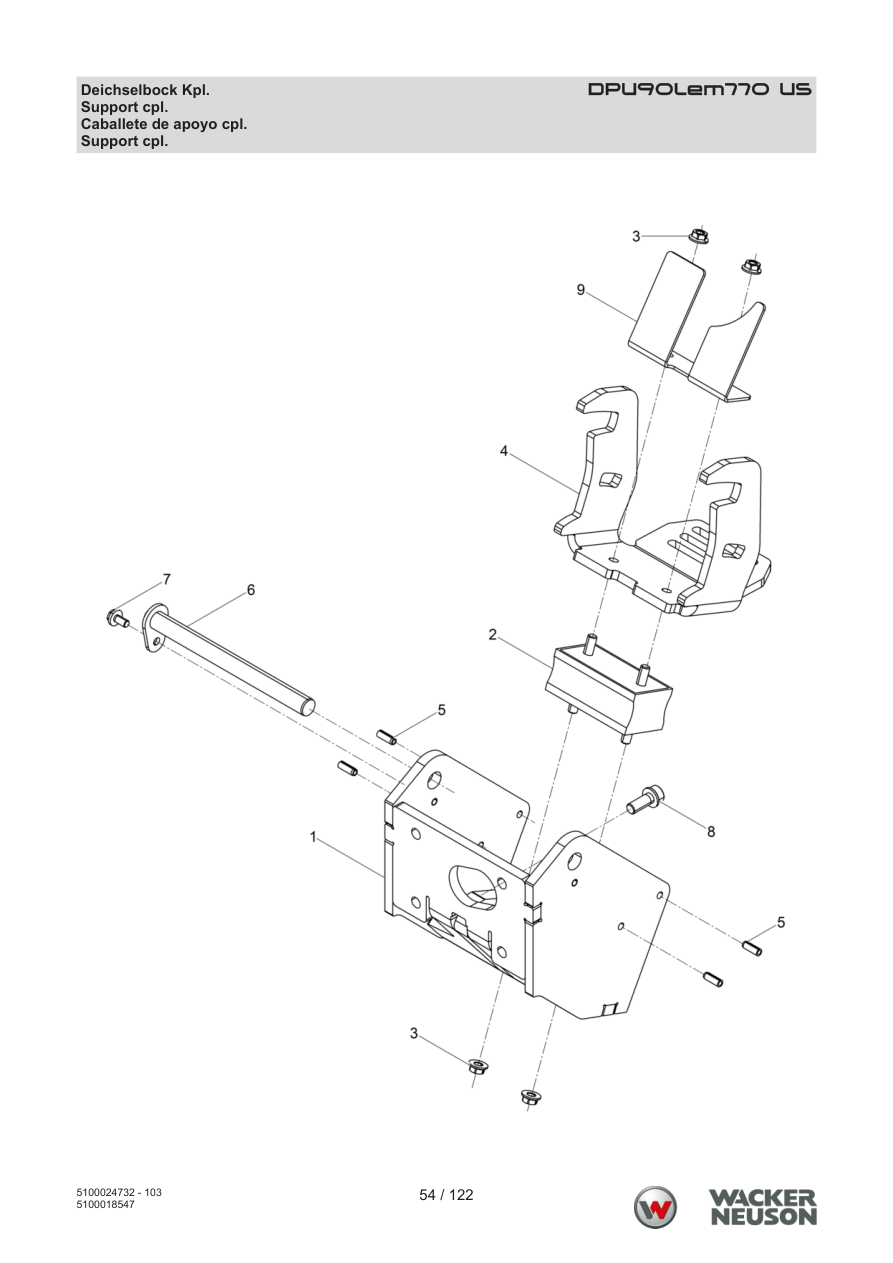

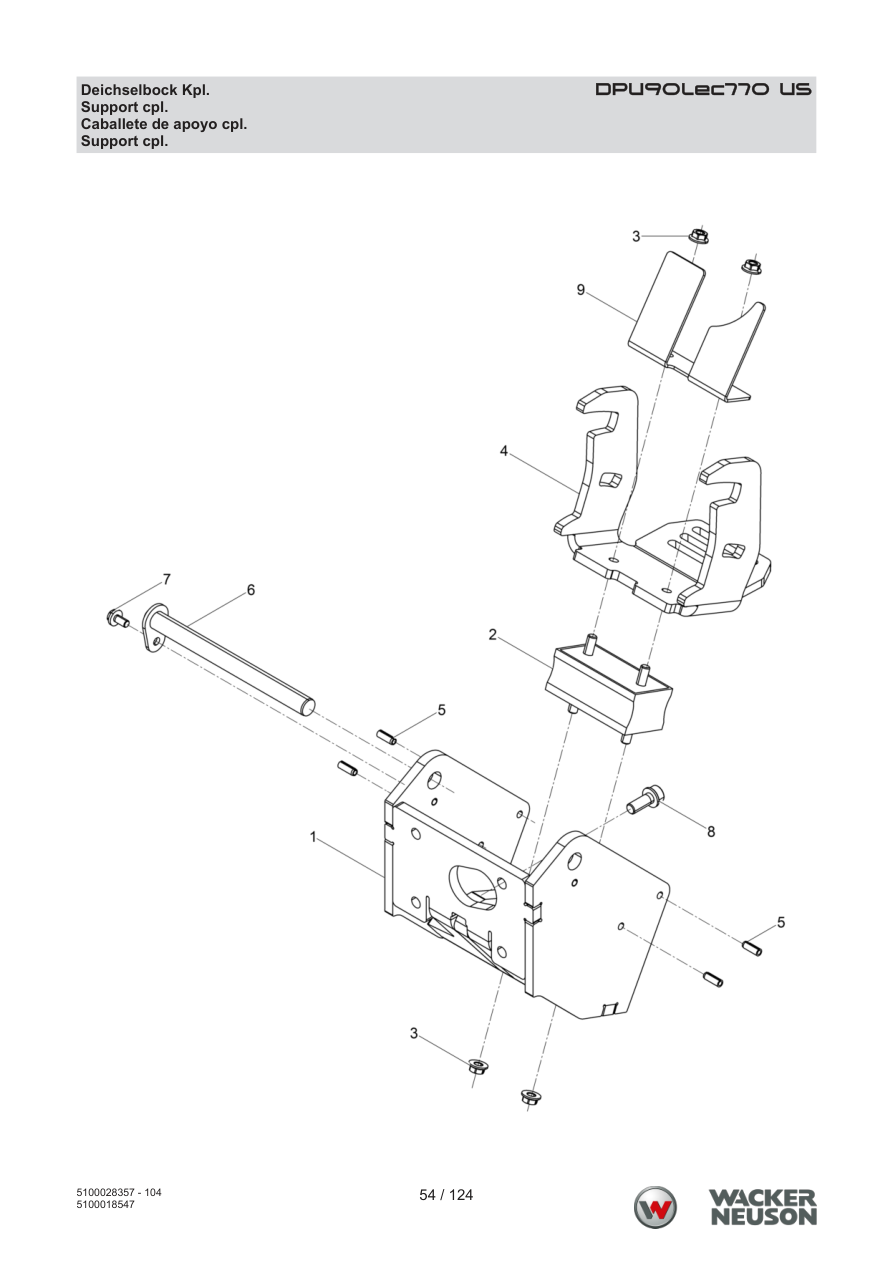

Page 54 — Support cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009748 | Tow bar fixing | 1 | ADD TO CART | |
| 2 | 5100009740 | Shockmount | 1 | ADD TO CART | |
| 3 | 5000216640 | Locknut | 4 | 60Nm/44ft.lbs | ADD TO CART |
| 4 | 5100005619 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100005619 · qty on machine: 1 | |||||
| 5 | 5100018086 | Roll pin | 4 | ADD TO CART | |
| 6 | 5100005617 | Bolt | 1 | ADD TO CART | |
| 7 | 5000211795 | Corrugated-head screw | 1 | 42Nm/31ft.lbs | ADD TO CART |
| 8 | 5100010273 | Corrugated-head screw | 4 | 150Nm/111ft.lbs | ADD TO CART |
| 9 | 5100022612 | Guard plate | 1 | ADD TO CART | |

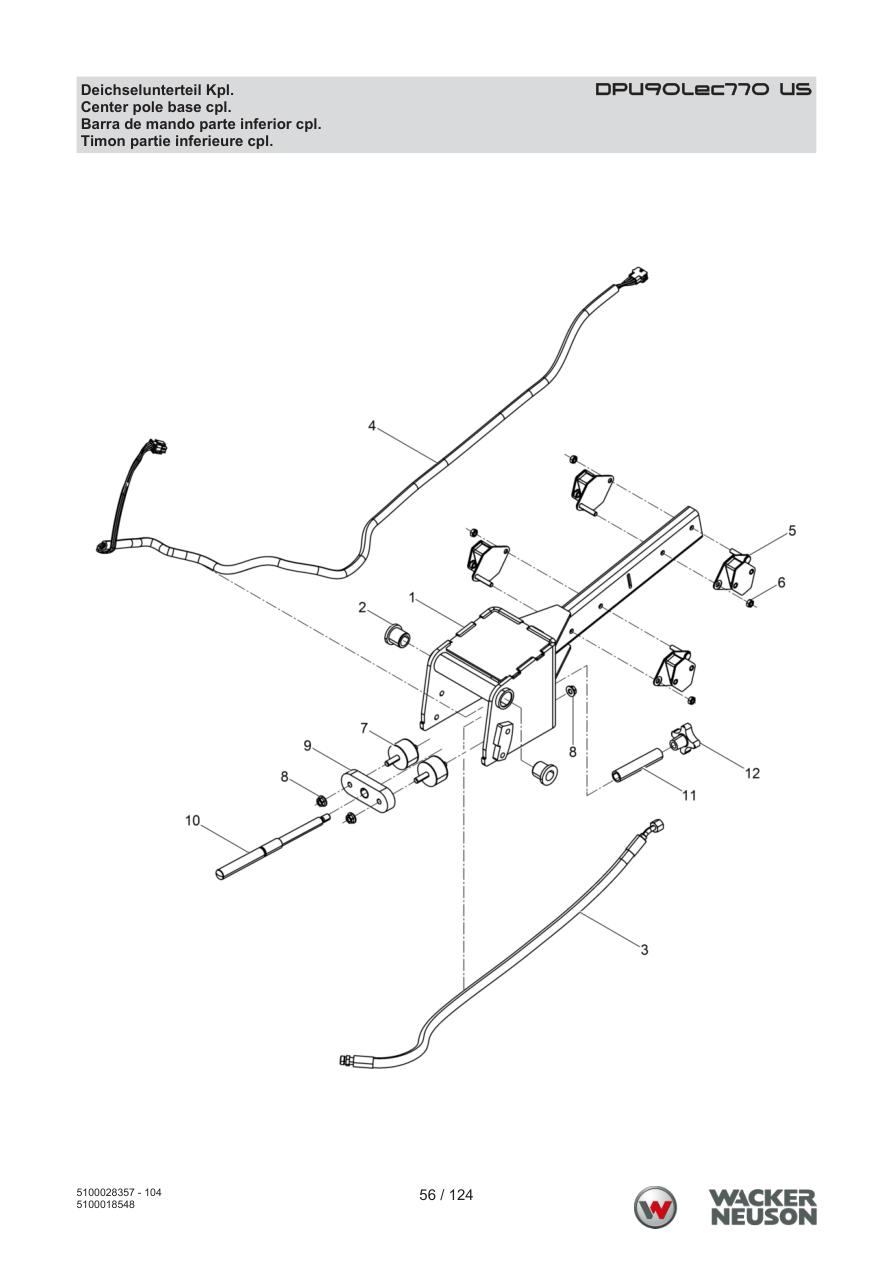

Page 56 — Center pole base cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005592 | Center pole base | 1 | ADD TO CART | |
| 2 | 5000220440 | Bush | 2 | ADD TO CART | |
| 3 | 5100010132 | Hydraulic hose | 1 | 15Nm/11ft.lbs | ADD TO CART |
| 4 | 5100005690 | Wire harness center pole | 1 | ADD TO CART | |
| 5 | 5100010497 | Shockmount | 4 | ADD TO CART | |
| 6 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |
| 7 | 5100017155 | Shockmount | 2 | ADD TO CART | |
| 8 | 5000216640 | Locknut | 4 | 60Nm/44ft.lbs | ADD TO CART |
| 9 | 5100005631 | Bumper support | 1 | ADD TO CART | |
| 10 | 5100005622 | Spindle | 1 | ADD TO CART | |
| 11 | 5100005623 | Pipe | 1 | ADD TO CART | |
| 12 | 5100005496 | Star-handle | 1 | ADD TO CART | |

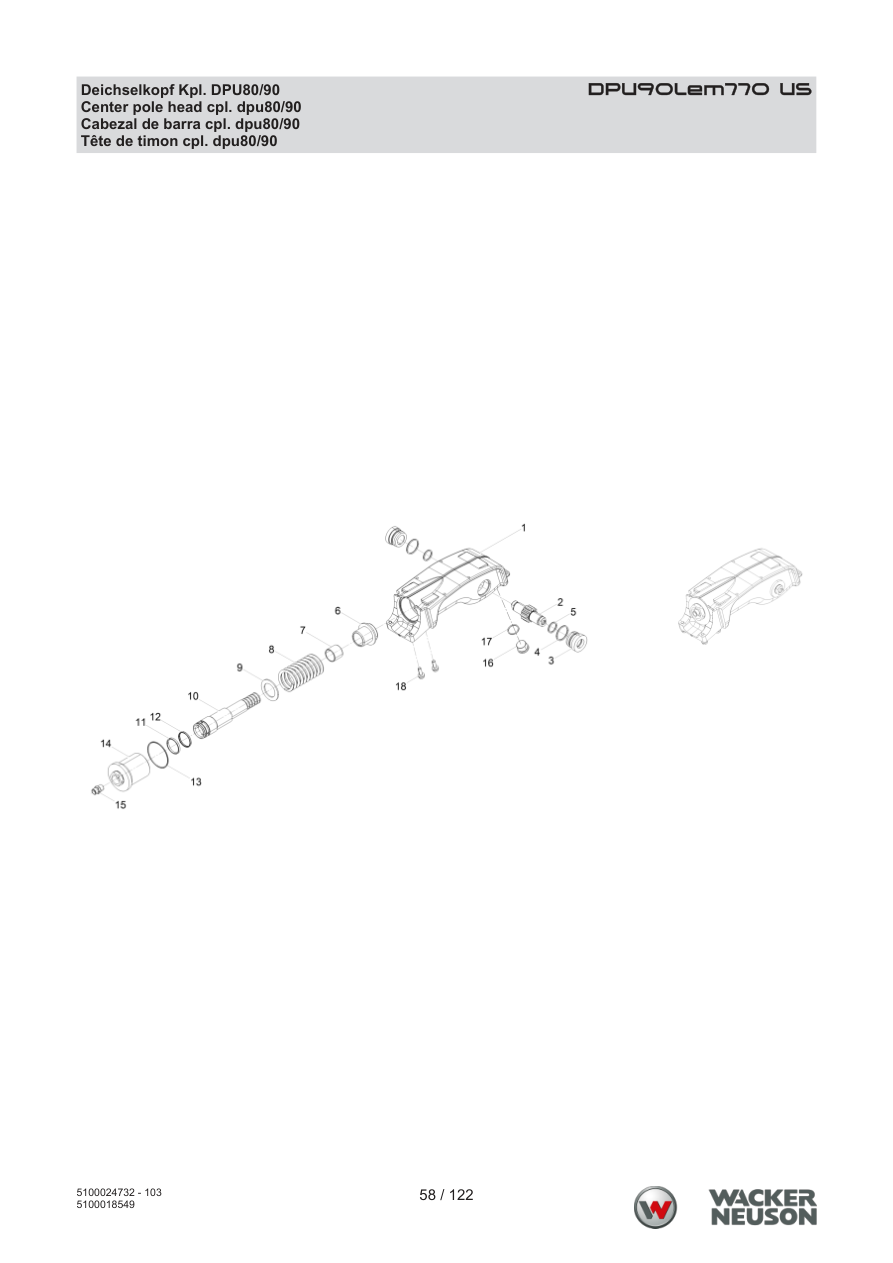

Page 58 — Center pole head cpl. dpu80/90
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005148 | Center pole head | 1 | ADD TO CART | |
| 2 | 5000069726 | Long face pinion | 1 | ADD TO CART | |
| 3 | 5000125926 | Spacer | 2 | ADD TO CART | |
| 4 | 5000068752 | O-ring | 2 | ADD TO CART | |
| 5 | 5000018194 | O-ring | 2 | ADD TO CART | |
| 6 | 5100005285 | Bearing flange | 1 | ADD TO CART | |
| 7 | 5100005685 | Slide bush | 1 | ADD TO CART | |
| 8 | 5100017017 | Compression spring | 1 | ADD TO CART | |
| 9 | 5100005564 | Disc | 1 | ADD TO CART | |
| 10 | 5100005287 | Piston rod | 1 | ADD TO CART | |
| 11 | 5100005683 | Ring | 1 | ADD TO CART | |
| 12 | 5100005688 | Gasket | 1 | ADD TO CART | |
| 13 | 5100005689 | O-ring | 1 | ADD TO CART | |
| 14 | 5100005284 | Hydraulic cylinder | 1 | 120Nm/89ft.lbs | ADD TO CART |
| 15 | 5000069225 | Screwed socket | 1 | 60Nm/44ft.lbs | ADD TO CART |
| 16 | 5100019617 | Oil plug | 1 | 50Nm/37ft.lbs | ADD TO CART |
| 17 | 5000032006 | Gasket | 1 | ADD TO CART | |
| 18 | 5000129420 | Socket head cap screw | 4 | 45Nm/33ft.lbs | ADD TO CART |

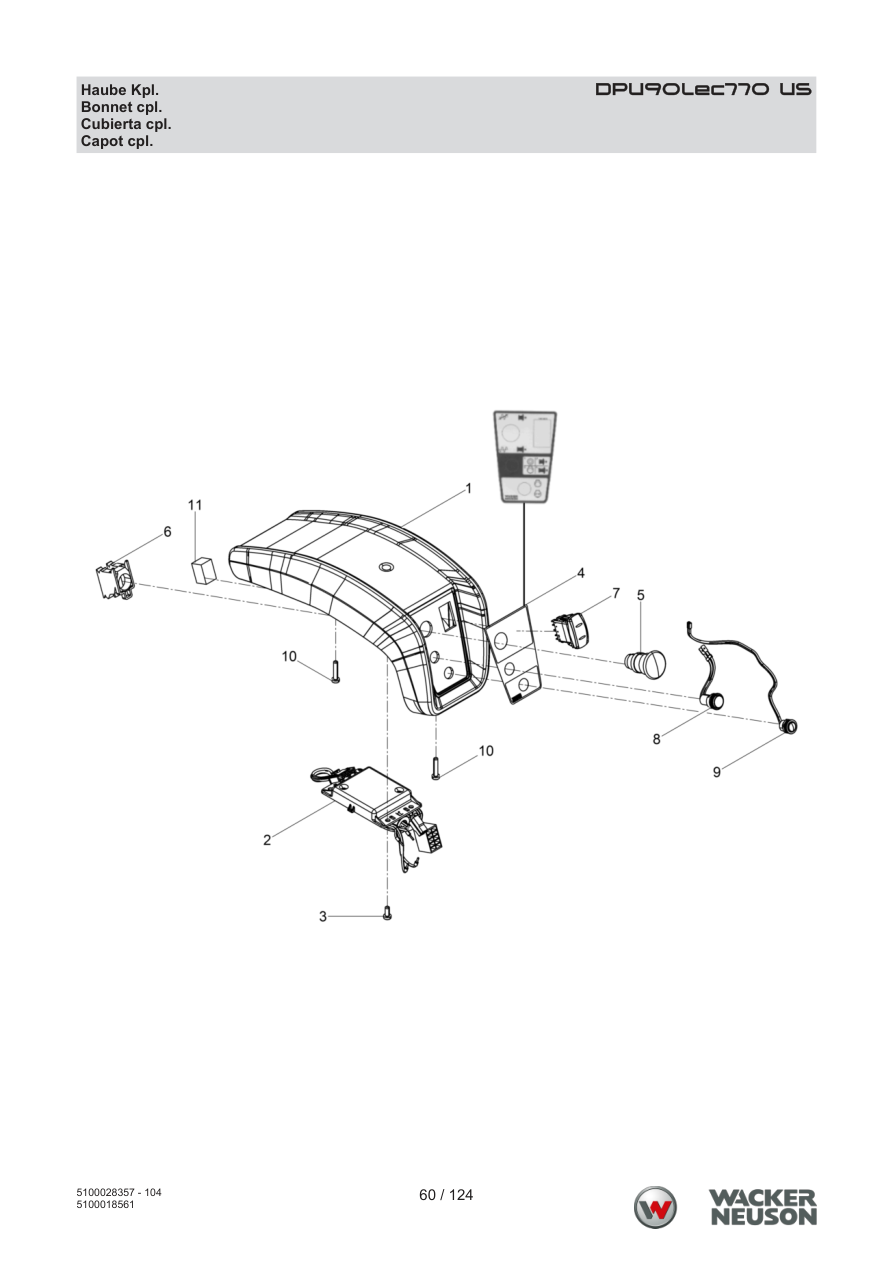

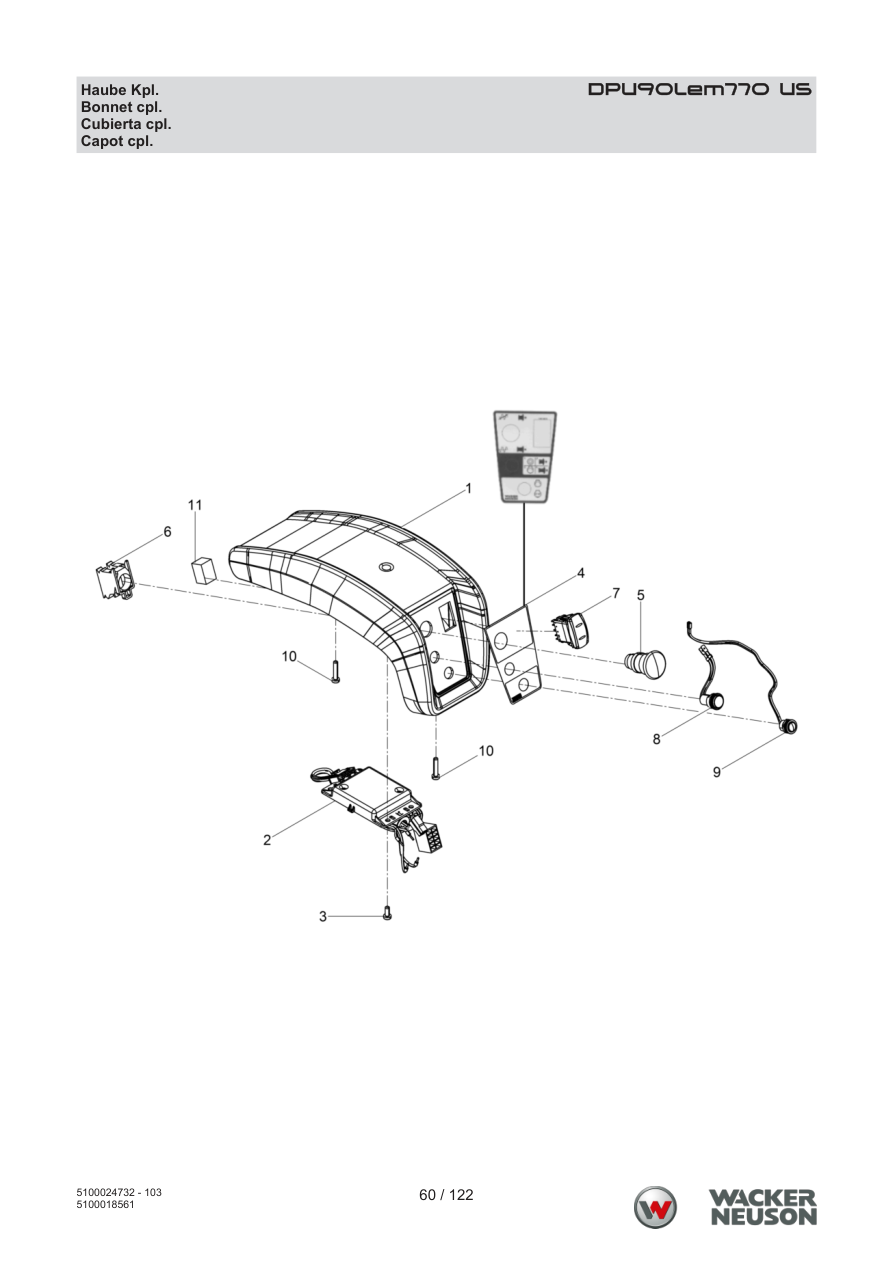

Page 60 — Bonnet cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009242 | Bonnet | 1 | ADD TO CART | |
| 1 | 5100024486 | Bonnet (gray) | 1 | ADD TO CART | |
| 2 | 5100034271 | Steering part | 1 | ADD TO CART | |
| 3 | 5000108371 | Oval head screw | 4 | ADD TO CART | |
| 4 | 5100010274 | Label | 1 | ADD TO CART | |
| 5 | 5100010113 | Button switch | 1 | ADD TO CART | |
| 6 | 5100016488 | Auxiliary owner block | 1 | ADD TO CART | |
| 7 | 5100034270 | Rockerswitch | 1 | ADD TO CART | |
| 8 | 5100010111 | Led | 1 | ADD TO CART | |
| 9 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 10 | 5000108370 | Oval head screw | 6 | ADD TO CART | |
| 11 | 5100034272 | Insulating cushion | 1 | ADD TO CART | |

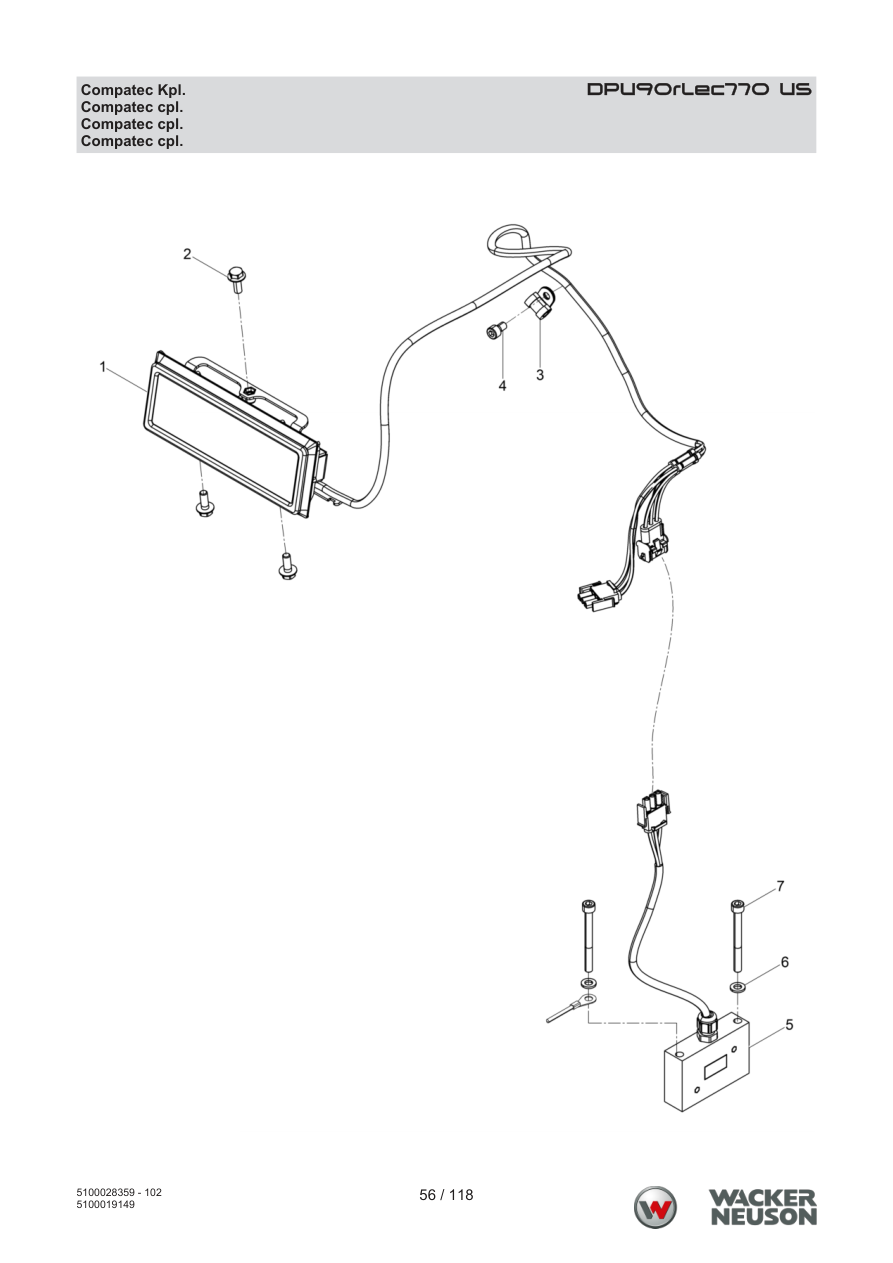

Page 62 — Compatec cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010020 | Display cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100016654 | Corrugated-head screw | 3 | M 6x 16 | ADD TO CART |
| 3 | 5000212143 | Clamp | 1 | ADD TO CART | |
| 4 | 5000011555 | Cheese head screw | 1 | M6 x 10 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 5 | 5100010005 | Sensor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000037071 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |

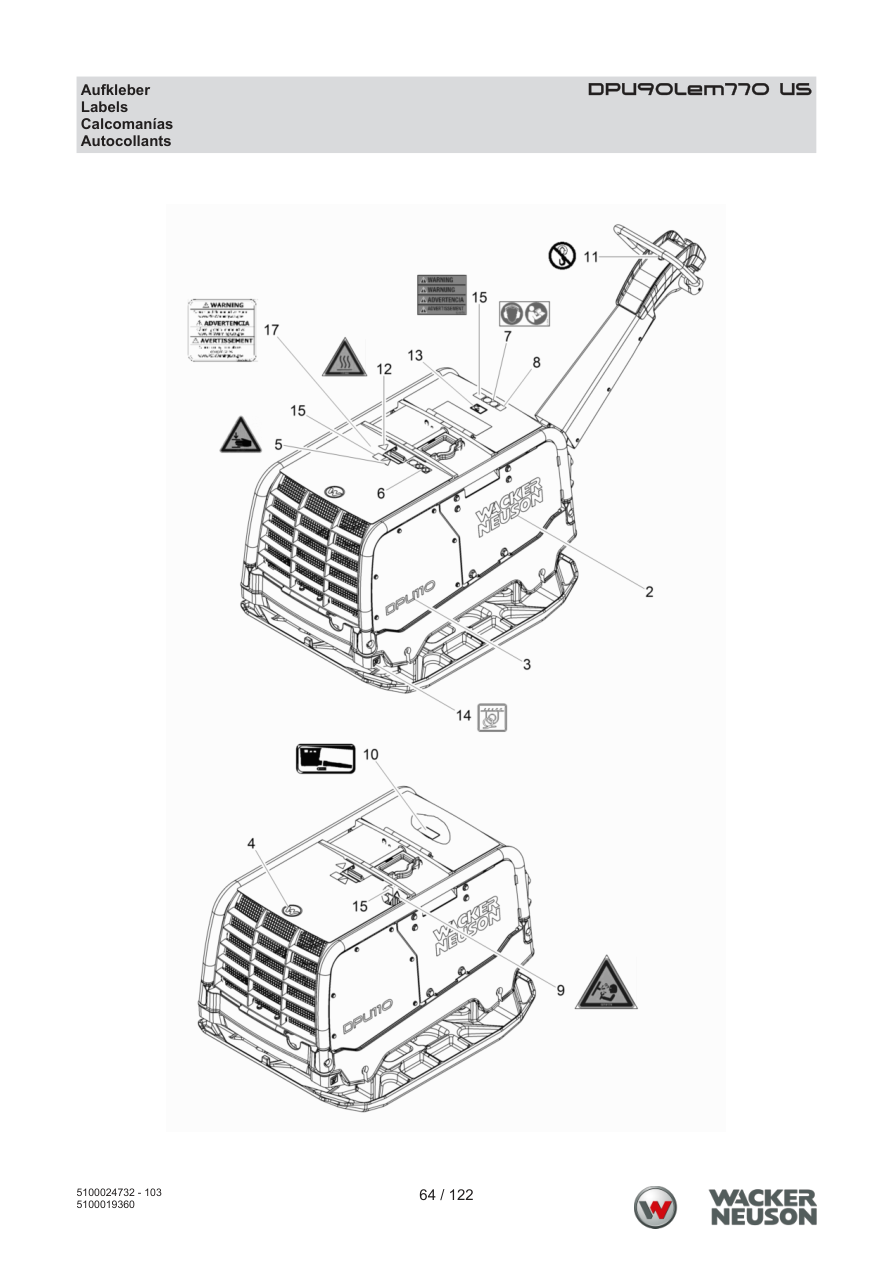

Page 64 — DPU90Lec770 US Sticker
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000222103 | Decal, logo | 2 | ADD TO CART | |
| 3 | 5100017952 | Type label dpu110 | 2 | ADD TO CART | |
| 3 | 5100017953 | Type label dpu110r | 2 | ADD TO CART | |
| 3 | 5100017954 | Type label dpu80 | 2 | ADD TO CART | |
| 3 | 5100017955 | Type label dpu80r | 2 | ADD TO CART | |
| 3 | 5100024540 | Type label dpu90 | 2 | PARTS REQUEST | |
|
COMING Type label dpu90
5100024540 · qty on machine: 2 | |||||
| 3 | 5100024541 | Type label dpu90r | 2 | ADD TO CART | |
| 4 | 5000222086 | Label symbol | 1 | ADD TO CART | |
| 5 | 5000207747 | Danger label | 1 | PARTS REQUEST | |
|
COMING Danger label
5000207747 · qty on machine: 1 | |||||
| 6 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 7 | 5000219175 | Labels | 1 | ADD TO CART | |
| 8 | 5000064925 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5000219179 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000219179 · qty on machine: 1 | |||||
| 10 | 5000216635 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000216635 · qty on machine: 1 | |||||
| 11 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 12 | 5000219080 | Labels | 1 | ADD TO CART | |
| 13 | 5100011227 | Label hav 24h | 1 | ADD TO CART | |
| 14 | 5100085618 | Label | 4 | PARTS REQUEST | |
|
COMING Label
5100085618 · qty on machine: 4 | |||||
| 15 | 5000219176 | Labels | 3 | ADD TO CART | |
| 17 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||

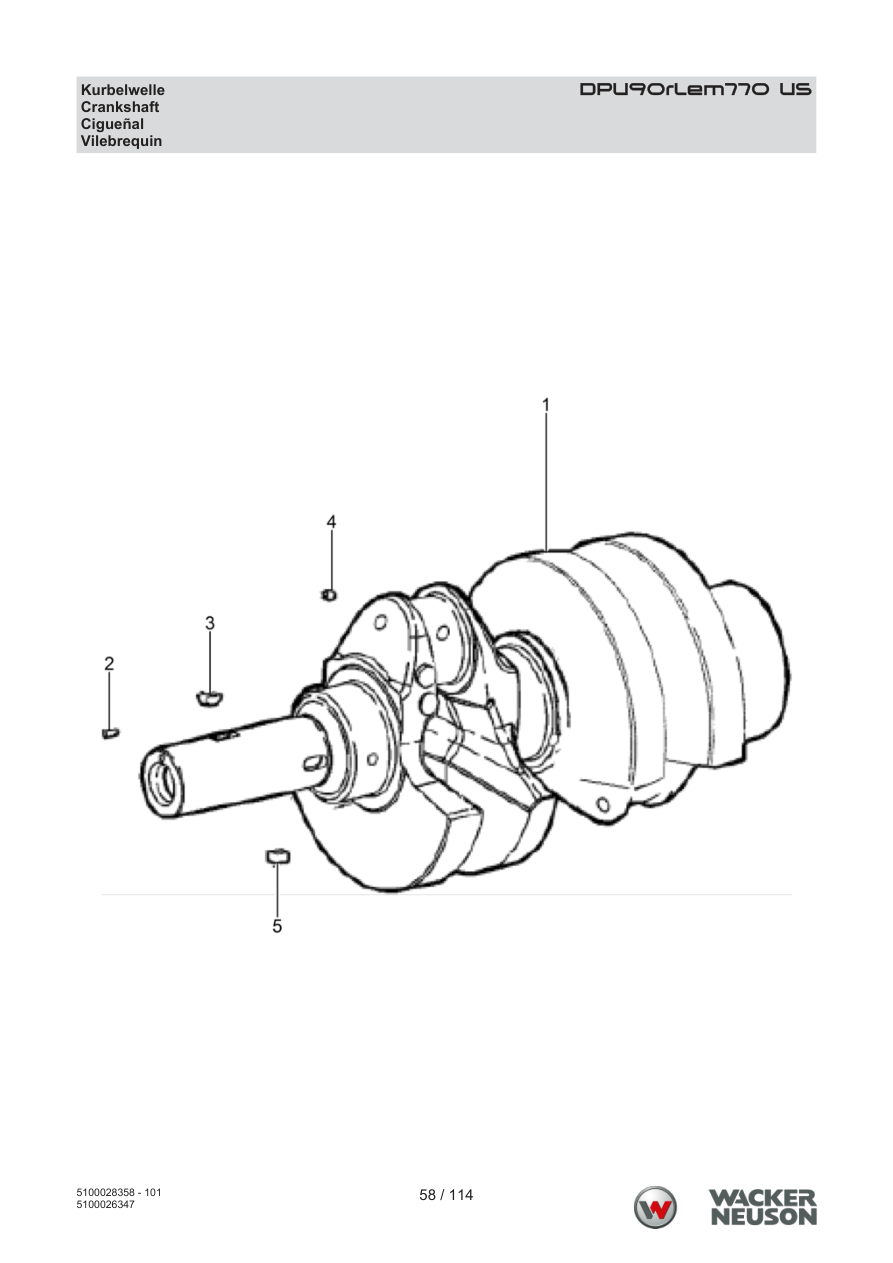

Page 66 — DPU90Lec770 US Crankshaft
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026266 | Crankshaft | 1 | PARTS REQUEST | |
|
COMING Crankshaft
5100026266 · qty on machine: 1 | |||||
| 2 | 5000159357 | Pin | 1 | ADD TO CART | |
| 3 | 5000159260 | Woodruff key | 1 | ADD TO CART | |
| 4 | 5000159454 | Plug, threaded | 2 | ADD TO CART | |
| 5 | 5000159261 | Square key | 1 | ADD TO CART | |

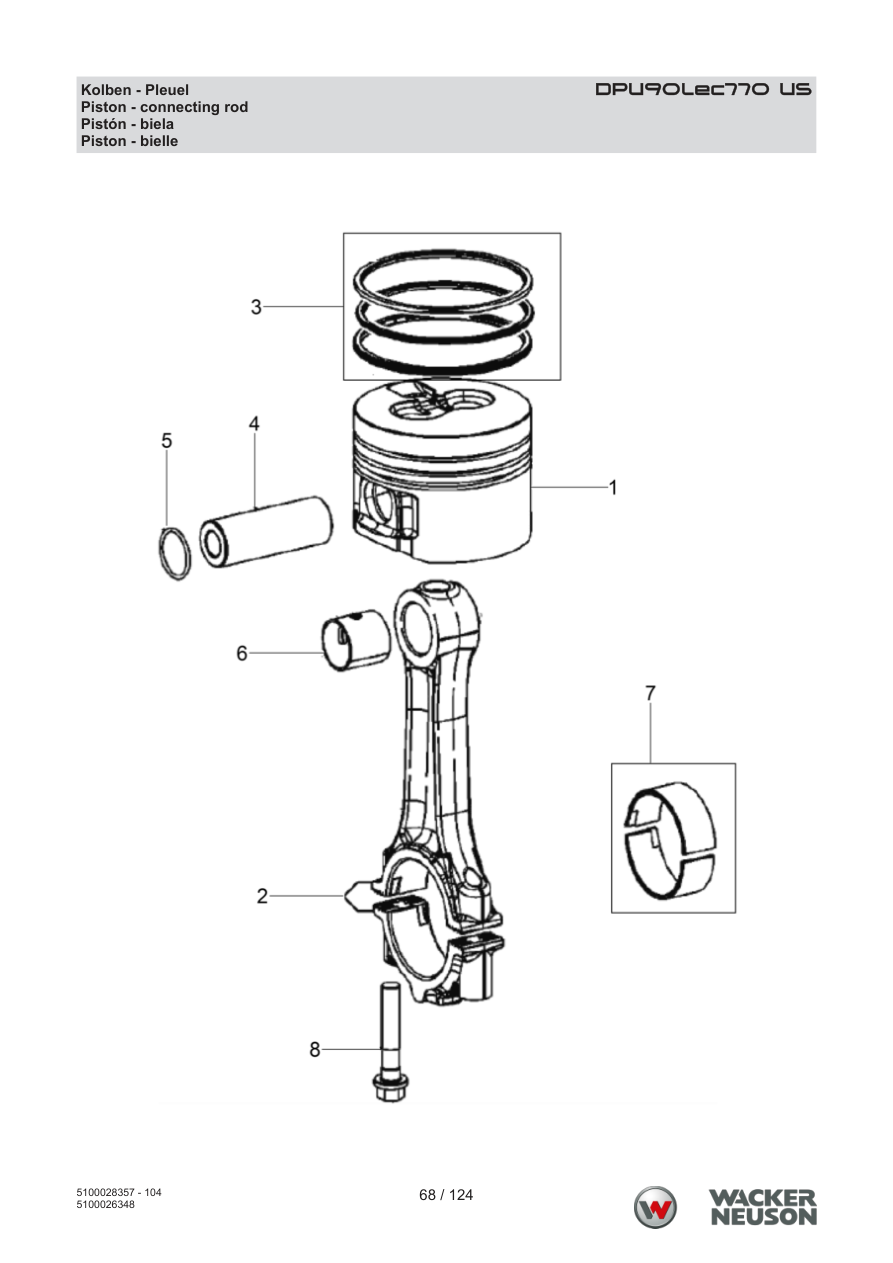

Page 68 — DPU90Lec770 US Piston - Connecting rod
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160377 | Piston set | 2 | ADD TO CART | |
| 1 | 5000160375 | Piston set | 2 | ADD TO CART | |
| 1 | 5000160376 | Piston set | 2 | ADD TO CART | |
| 2 | 5000160367 | Connecting rod | 2 | PARTS REQUEST | |
|
COMING Connecting rod
5000160367 · qty on machine: 2 | |||||
| 3 | 5000160383 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160384 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160385 | Piston ring set | 2 | ADD TO CART | |
| 4 | 5000215523 | Piston pin | 2 | ADD TO CART | |
| 5 | 5000215477 | Retaining ring | 4 | ADD TO CART | |
| 6 | 5000160368 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000160368 · qty on machine: 2 | |||||
| 7 | 5000155691 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155689 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155690 | Bearing | 2 | ADD TO CART | |
| 8 | 5000084175 | Screw | 4 | ADD TO CART | |

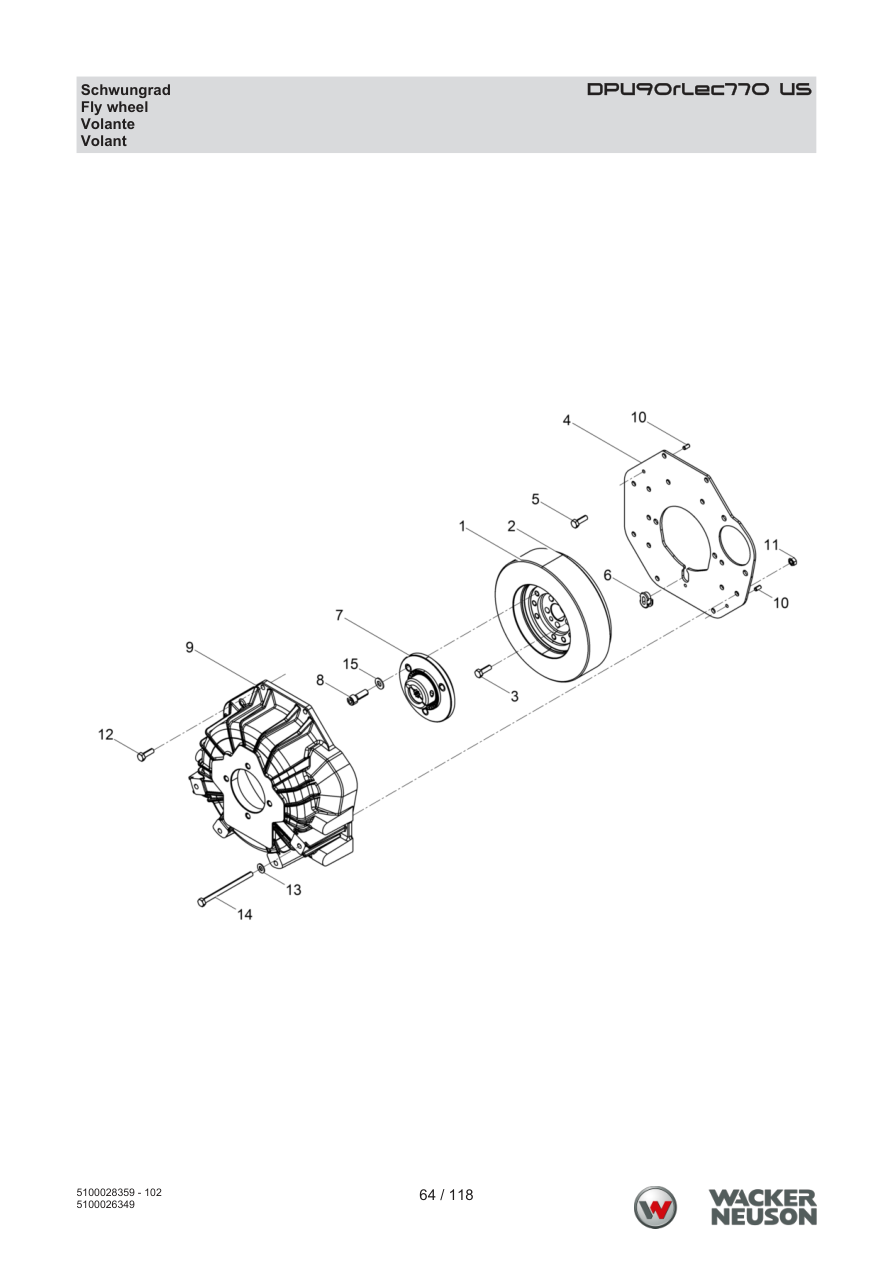

Page 70 — DPU90Lec770 US Flywheel
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215545 | Flywheel | 1 | ADD TO CART | |
| 2 | 5000155693 | Gear crown | 1 | ADD TO CART | |
| 3 | 5000160188 | Bolt | 5 | ADD TO CART | |
| 4 | 5000159326 | Plate | 1 | ADD TO CART | |
| 5 | 5000159254 | Bolt | 9 | ADD TO CART | |
| 6 | 5000215527 | Plug | 1 | ADD TO CART | |
| 7 | 5000211373 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000084164 | Screw | 3 | ADD TO CART | |
| 9 | 5000215567 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5000215567 · qty on machine: 1 | |||||
| 10 | 5000211370 | Pin | 2 | PARTS REQUEST | |
|
COMING Pin
5000211370 · qty on machine: 2 | |||||
| 11 | 5000082140 | Nut | 3 | ADD TO CART | |
| 12 | 5000084123 | Screw | 3 | ADD TO CART | |
| 13 | 5000211371 | Washer | 4 | ADD TO CART | |
| 14 | 5000211372 | Screw | 4 | ADD TO CART | |
| 15 | 5000160231 | Washer | 3 | ADD TO CART | |

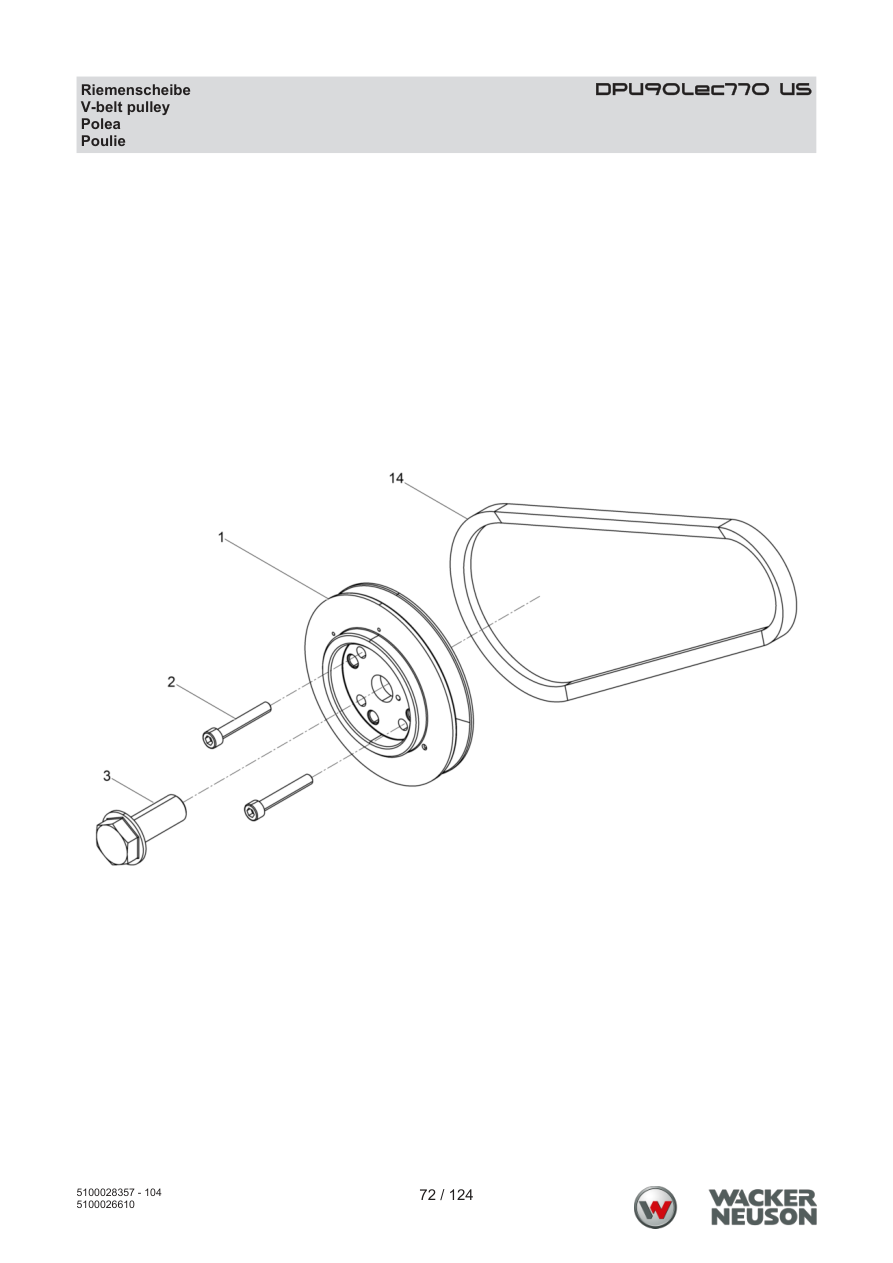

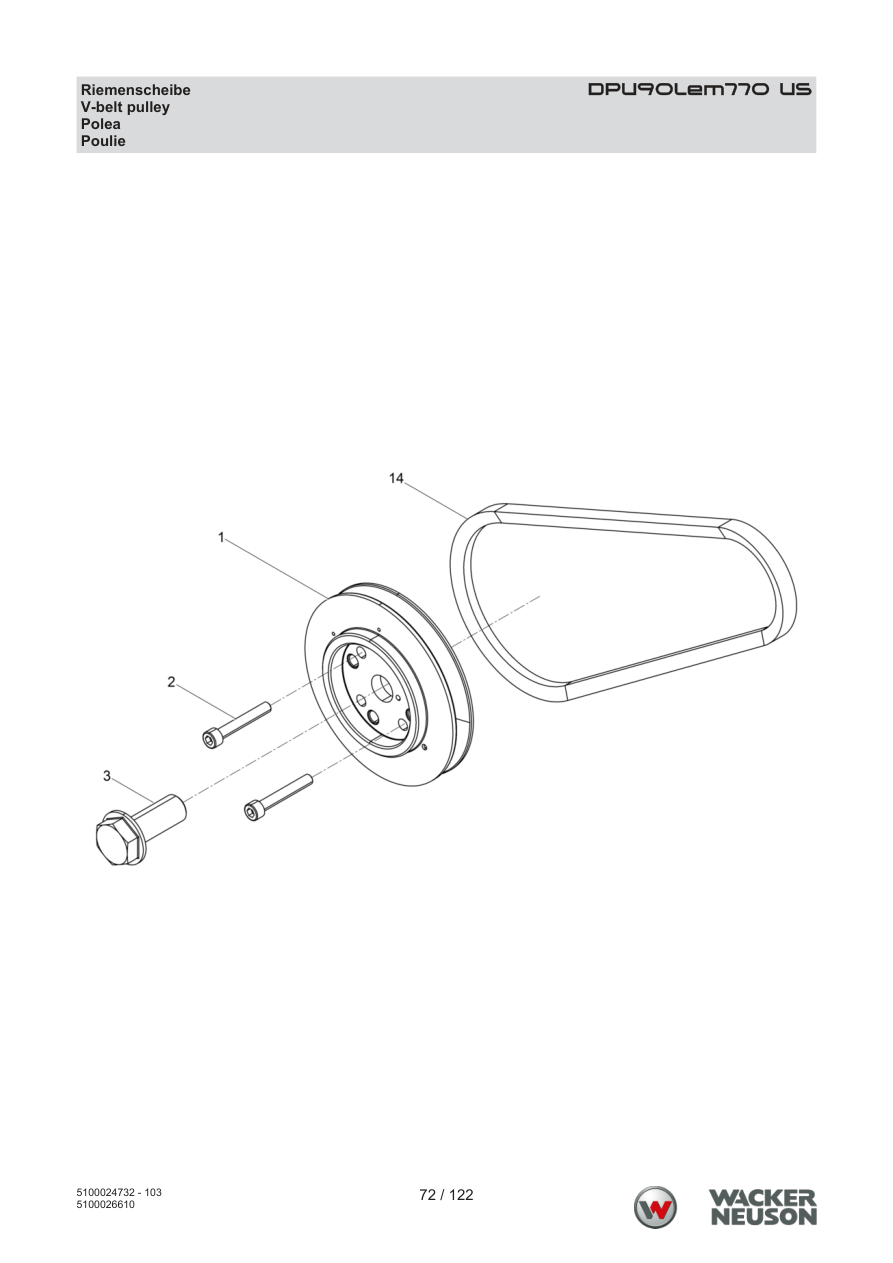

Page 72 — DPU90Lec770 US Belt Pulley
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026267 | V-belt pulley | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5000126935 | Bolt | 1 | ADD TO CART | |
| 14 | 5000215485 | Belt | 1 | ADD TO CART | |

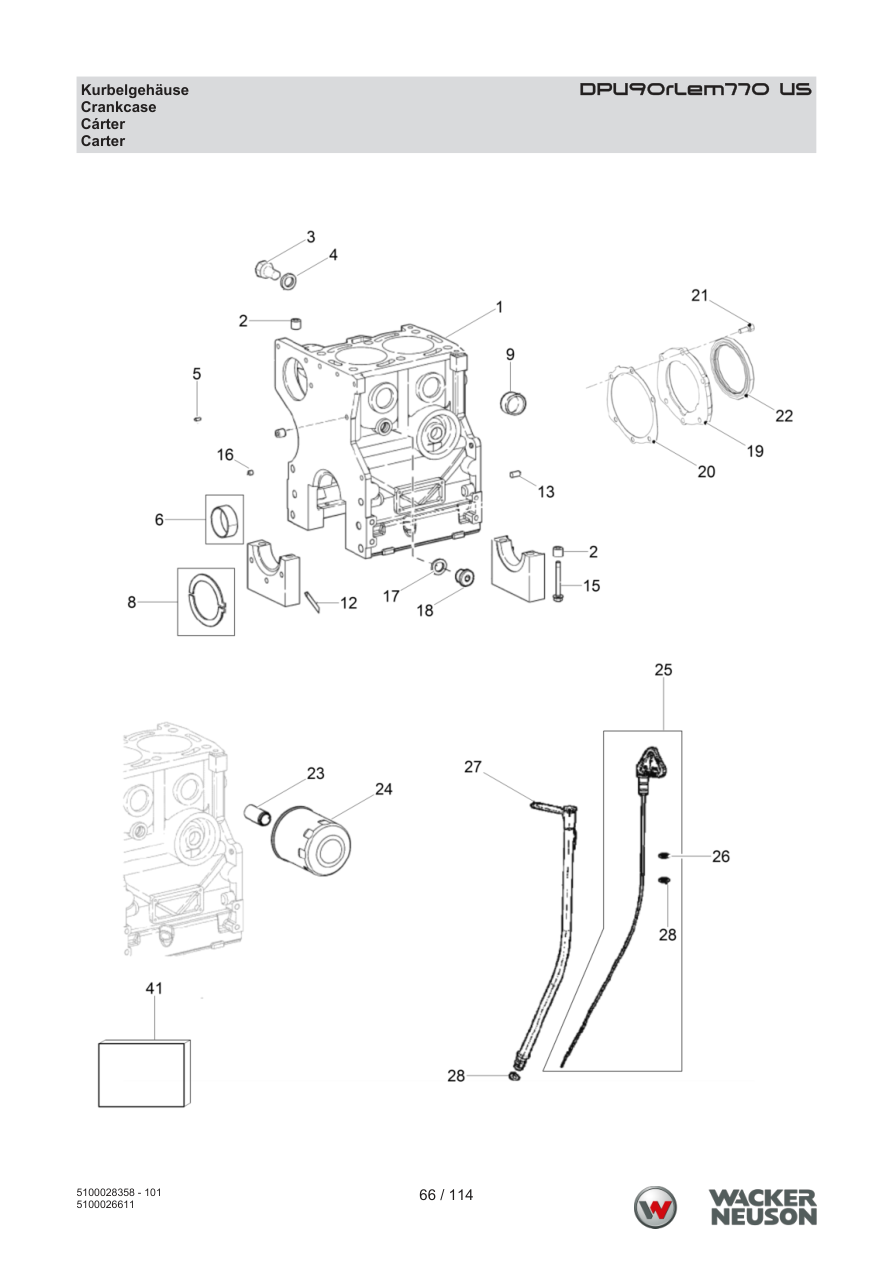

Page 74 — Crankcase
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 27 | 5100026401 | Pipe | 1 | ADD TO CART | |
| 21 | 5000159467 | Screw | 6 | ADD TO CART | |
| 1 | 5100026268 | Crankcase | 1 | PARTS REQUEST | |
|
COMING Crankcase
5100026268 · qty on machine: 1 | |||||
| 2 | 5000159257 | Sleeve | 2 | ADD TO CART | |
| 3 | 5000206229 | Screw | 1 | ADD TO CART | |
| 4 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000215522 | Pin | 1 | ADD TO CART | |
| 6 | 5000155704 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155702 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155703 | Bearing | 3 | ADD TO CART | |
| 8 | 5000159486 | Disc | 2 | ADD TO CART | |
| 8 | 5000159487 | Disc | 2 | ADD TO CART | |
| 8 | 5000159488 | Disc | 2 | ADD TO CART | |
| 9 | 5000082335 | Threaded plug | 2 | ADD TO CART | |
| 12 | 5000159288 | Gasket | 4 | ADD TO CART | |
| 13 | 5000159360 | Dowel pin | 2 | ADD TO CART | |
| 15 | 5000159480 | Screw | 6 | ADD TO CART | |
| 16 | 5000159456 | Plug | 1 | ADD TO CART | |
| 17 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 18 | 5000215530 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5000215530 · qty on machine: 1 | |||||
| 19 | 5000155700 | Flange | 1 | ADD TO CART | |
| 20 | 5000217807 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217807 · qty on machine: 1 | |||||
| 22 | 5000155701 | Rotary shaft seal | 1 | PARTS REQUEST | |
|
COMING Rotary shaft seal
5000155701 · qty on machine: 1 | |||||
| 23 | 5000159341 | Oil filter fitting | 1 | ADD TO CART | |
| 24 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 25 | 5100026399 | Dip stick | 1 | ADD TO CART | |
| 26 | 5100026400 | O-ring | 3 | ADD TO CART | |
| 28 | 5000063695 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5000063695 · qty on machine: 2 | |||||
| 41 | 5100026269 | Gasket set crankcase | 1 | ADD TO CART | |

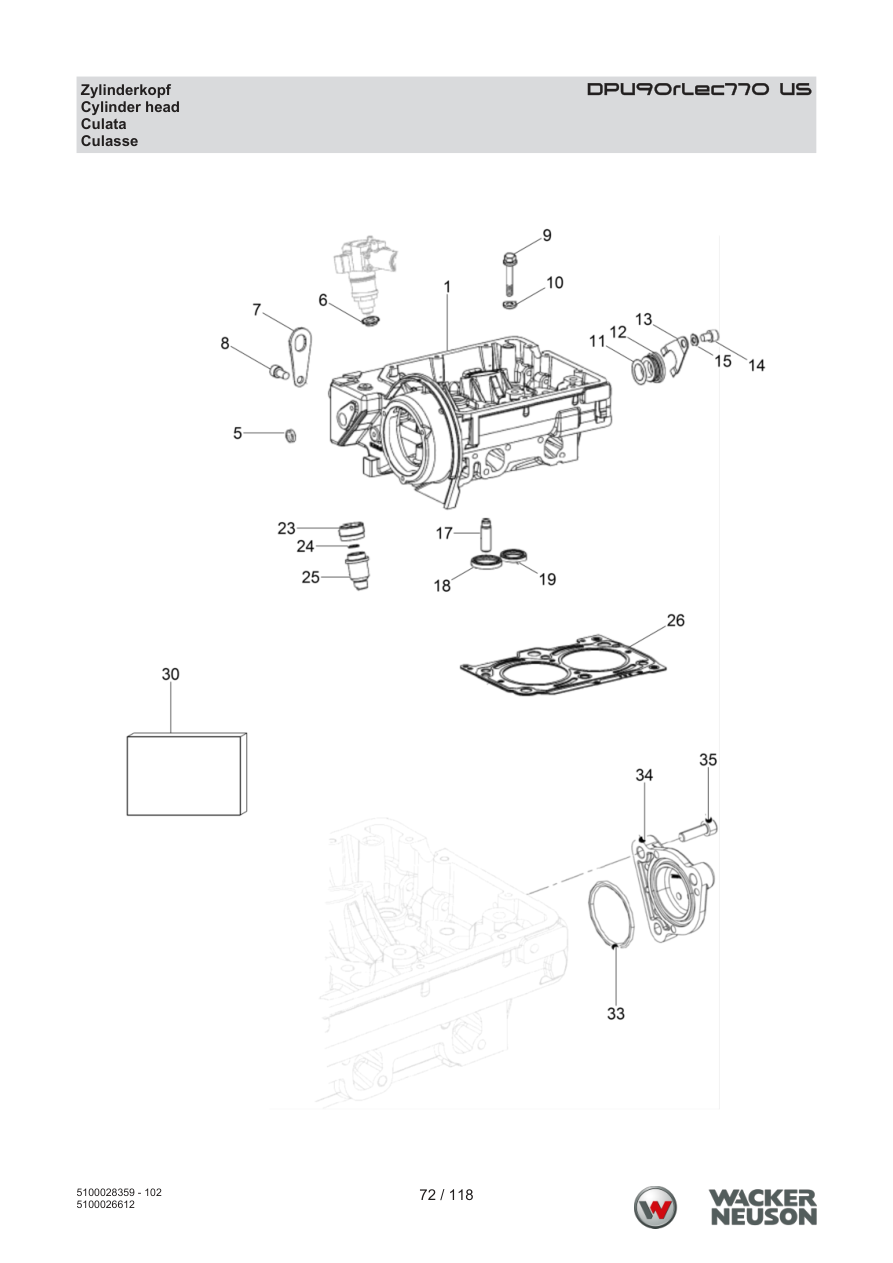

Page 78 — DPU90Lec770 US Cylinder head
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026381 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000159449 | Plug | 1 | ADD TO CART | |
| 6 | 5000159318 | Spark arrester | 2 | ADD TO CART | |
| 7 | 5000215524 | Lifting point | 2 | ADD TO CART | |
| 8 | 5000084156 | Screw | 1 | ADD TO CART | |
| 9 | 5000217828 | Flange screw | 6 | ADD TO CART | |
| 10 | 5000159350 | Washer | 6 | ADD TO CART | |
| 11 | 5000159231 | O-ring | 1 | ADD TO CART | |
| 12 | 5000159453 | Plug | 1 | ADD TO CART | |
| 13 | 5000159311 | Bracket | 1 | ADD TO CART | |
| 14 | 5000159254 | Bolt | 1 | ADD TO CART | |
| 15 | 5000082292 | Washer | 1 | ADD TO CART | |
| 17 | 5000159303 | Valve guide | 4 | ADD TO CART | |
| 18 | 5100026382 | Intake valve seat | 2 | ADD TO CART | |
| 19 | 5100026383 | Exhaust valve seat | 2 | ADD TO CART | |
| 23 | 5000159285 | Nut | 2 | ADD TO CART | |
| 24 | 5000215494 | Spacer | 6 | ADD TO CART | |
| 25 | 5000160380 | Precombustion chamber | 2 | ADD TO CART | |
| 26 | 5100026384 | Cylinder head gasket | 1 | ADD TO CART | |
| 30 | 5200015510 | Gasket set cylinder head | 1 | ADD TO CART | |
| 33 | 5000159234 | Oil seal | 1 | ADD TO CART | |
| 34 | 5000159282 | Flange | 1 | ADD TO CART | |
| 35 | 5000215541 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 3 | |||||

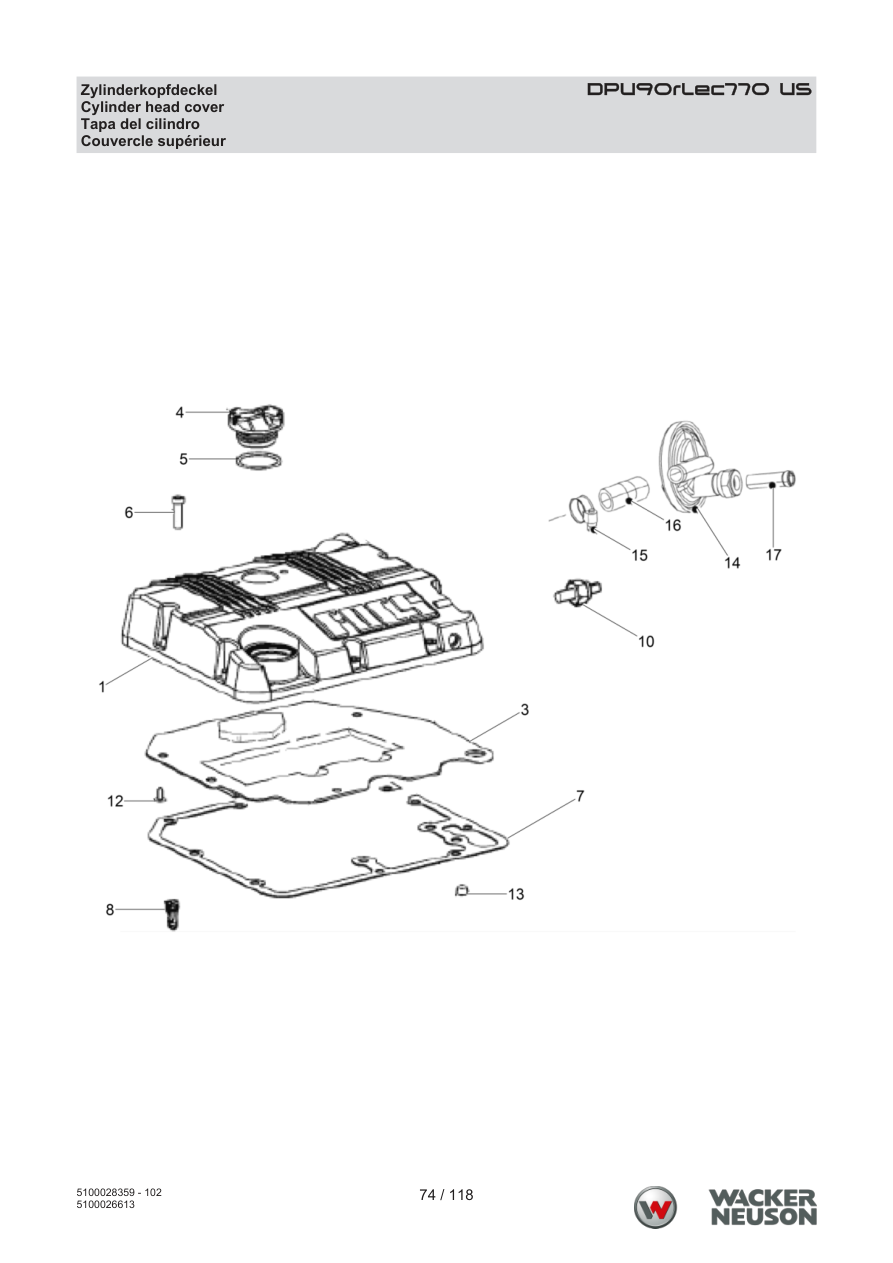

Page 80 — DPU90Lec770 US Cylinder head cover
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026386 | Cylinder head cover | 1 | ADD TO CART | |
| 3 | 5100026388 | Baffle plate | 1 | ADD TO CART | |
| 4 | 5000227761 | Cap | 1 | PARTS REQUEST | |
|
COMING Cap
5000227761 · qty on machine: 1 | |||||
| 5 | 5000206208 | O-ring | 1 | ADD TO CART | |
| 6 | 5000215541 | Screw | 10 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 10 | |||||
| 7 | 5100026389 | Gasket | 1 | ADD TO CART | |
| 8 | 5000159308 | Connector | 1 | ADD TO CART | |
| 10 | 5100026419 | Oil pressure switch | 1 | PARTS REQUEST | |
|
COMING Oil pressure switch
5100026419 · qty on machine: 1 | |||||
| 12 | 5100008855 | Rivet | 1 | PARTS REQUEST | |
|
COMING Rivet
5100008855 · qty on machine: 1 | |||||
| 13 | 5000159455 | Push-in plug | 1 | ADD TO CART | |
| 14 | 5000155745 | Pressure valve | 1 | ADD TO CART | |
| 15 | 5000160201 | Clamp | 4 | ADD TO CART | |
| 15 | 5000160199 | Clamp | 1 | ADD TO CART | |
| 16 | 5000215505 | Connecting tube | 1 | ADD TO CART | |
| 16 | 5000215535 | Connecting pipe | 1 | ADD TO CART | |
| 17 | 5000215536 | Valve tube | 1 | ADD TO CART | |

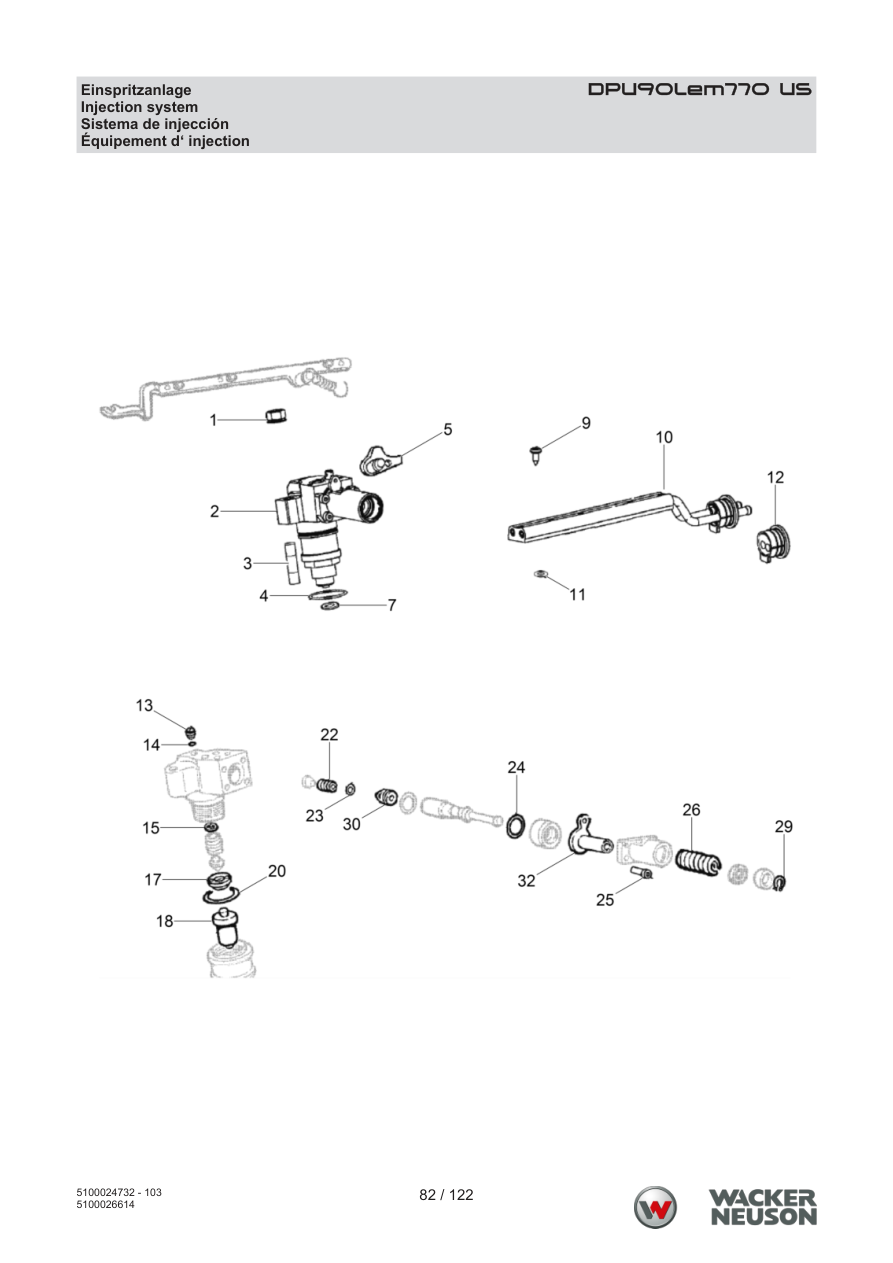

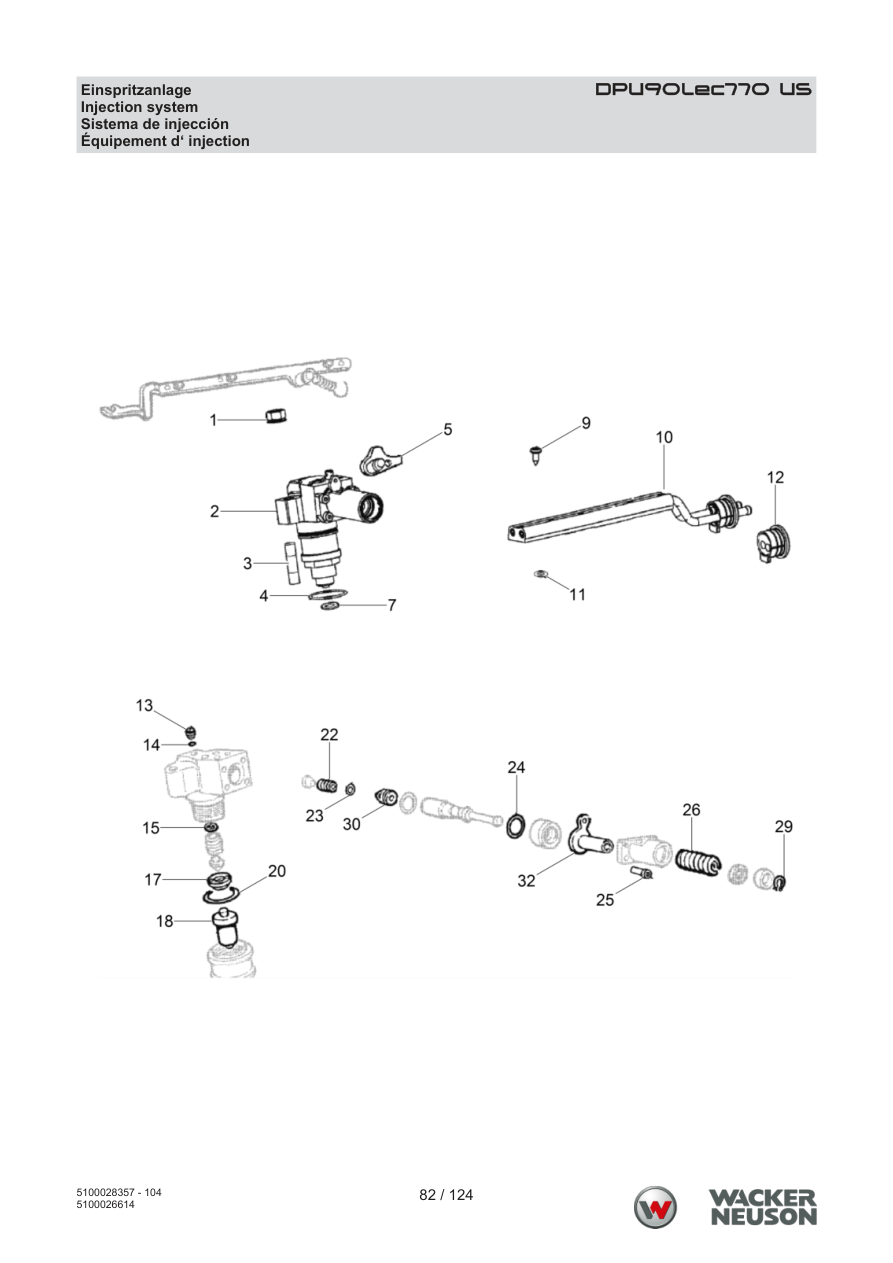

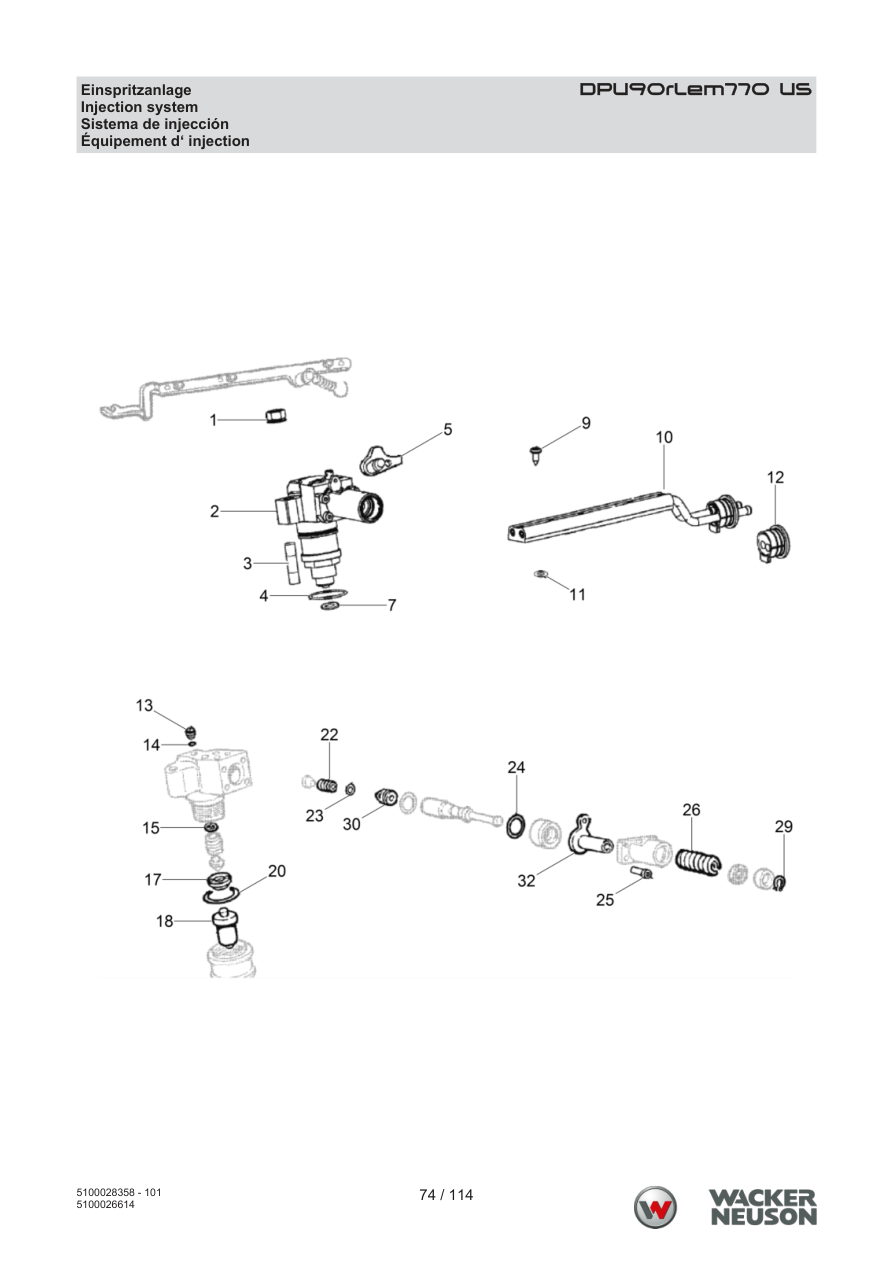

Page 82 — DPU90Lec770 US Injection system
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5200016512 | Flange nut | 4 | ADD TO CART | |
| 2 | 5000160379 | Injection pump | 2 | ADD TO CART | |
| 3 | 5200009479 | Stud | 4 | ADD TO CART | |
| 4 | 5000159233 | O-ring | 2 | ADD TO CART | |
| 5 | 5100026390 | Bracket | 1 | ADD TO CART | |
| 7 | 5000159300 | Washer | 2 | ADD TO CART | |
| 9 | 5000159473 | Screw | 4 | ADD TO CART | |
| 10 | 5100026391 | Fuel hose | 1 | ADD TO CART | |
| 11 | 5000159237 | O-ring | 2 | ADD TO CART | |
| 12 | 5000160209 | Gasket | 1 | ADD TO CART | |
| 13 | 5000160391 | Back pressure valve | 2 | ADD TO CART | |
| 14 | 5000159302 | Gasket | 2 | ADD TO CART | |
| 15 | 5000160332 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160332 · qty on machine: 1 | |||||
| 15 | 5000160342 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160342 · qty on machine: 1 | |||||
| 15 | 5000160341 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160341 · qty on machine: 1 | |||||
| 15 | 5000160340 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160340 · qty on machine: 1 | |||||
| 15 | 5000160339 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160339 · qty on machine: 1 | |||||
| 15 | 5000160338 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160338 · qty on machine: 1 | |||||
| 15 | 5000160337 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160337 · qty on machine: 1 | |||||
| 15 | 5000160336 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160336 · qty on machine: 1 | |||||
| 15 | 5000160335 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160335 · qty on machine: 1 | |||||
| 15 | 5000160334 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160334 · qty on machine: 1 | |||||
| 17 | 5000159278 | Spacer | 2 | ADD TO CART | |
| 18 | 5000155710 | Jet | 2 | ADD TO CART | |
| 20 | 5000159238 | O-ring | 2 | ADD TO CART | |
| 22 | 5000215509 | Spring | 2 | PARTS REQUEST | |
|
COMING Spring
5000215509 · qty on machine: 2 | |||||
| 23 | 5000203718 | Cu-ring | 2 | PARTS REQUEST | |
|
COMING Cu-ring
5000203718 · qty on machine: 2 | |||||
| 24 | 5000159236 | O-ring | 2 | ADD TO CART | |
| 25 | 5000159471 | Screw | 4 | ADD TO CART | |
| 26 | 5000159317 | Spring | 2 | ADD TO CART | |
| 29 | 5000159242 | Clamp | 2 | ADD TO CART | |
| 30 | 5200015520 | Pressure valve | 2 | ADD TO CART | |
| 32 | 5000159309 | Shim | 2 | ADD TO CART | |

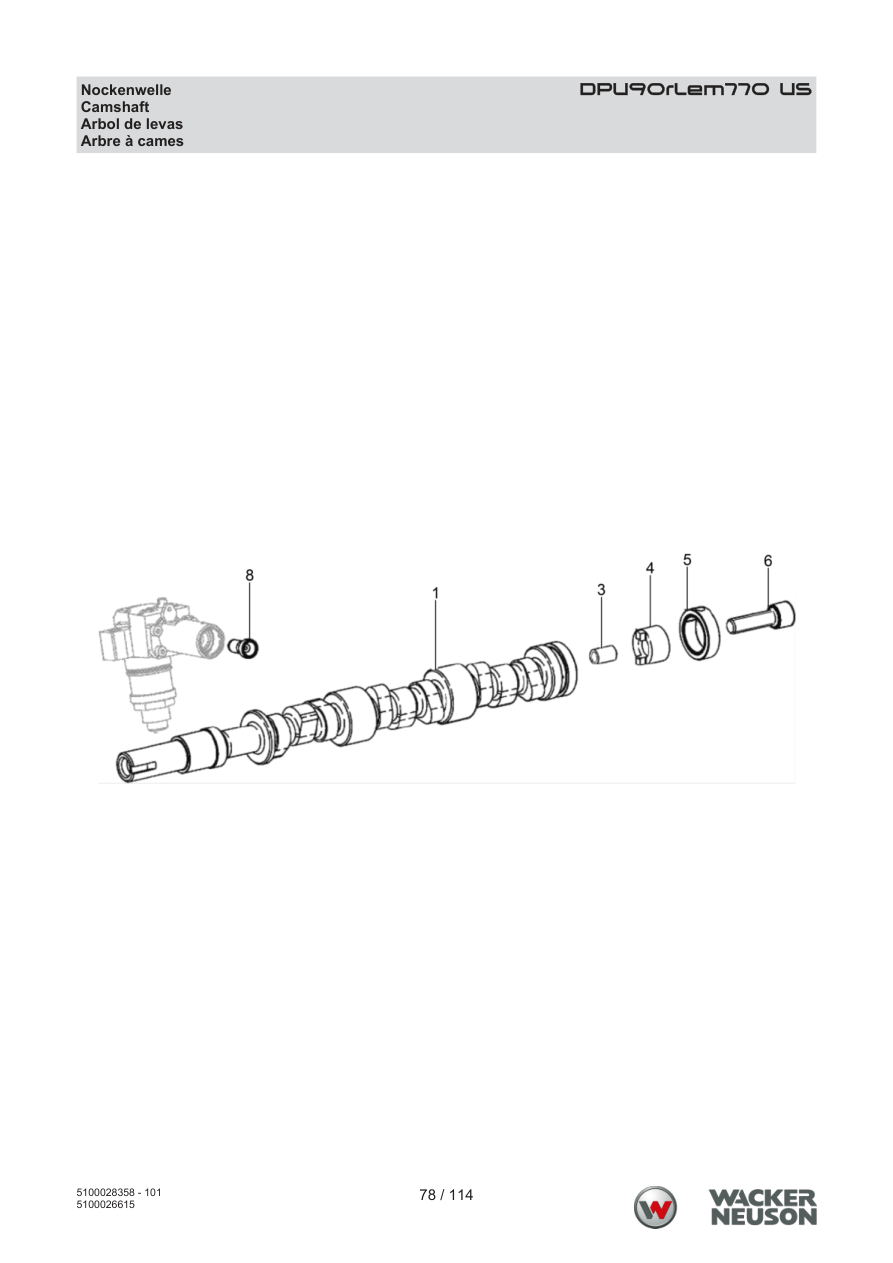

Page 86 — DPU90Lec770 US Camshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026392 | Camshaft | 1 | ADD TO CART | |
| 3 | 5000215482 | Collar | 1 | ADD TO CART | |
| 4 | 5000215497 | Cam | 1 | ADD TO CART | |
| 5 | 5000160753 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000160753 · qty on machine: 1 | |||||
| 6 | 5000215540 | Screw | 1 | ADD TO CART | |
| 8 | 5000159246 | Push rod, valve lifter | 2 | ADD TO CART | |

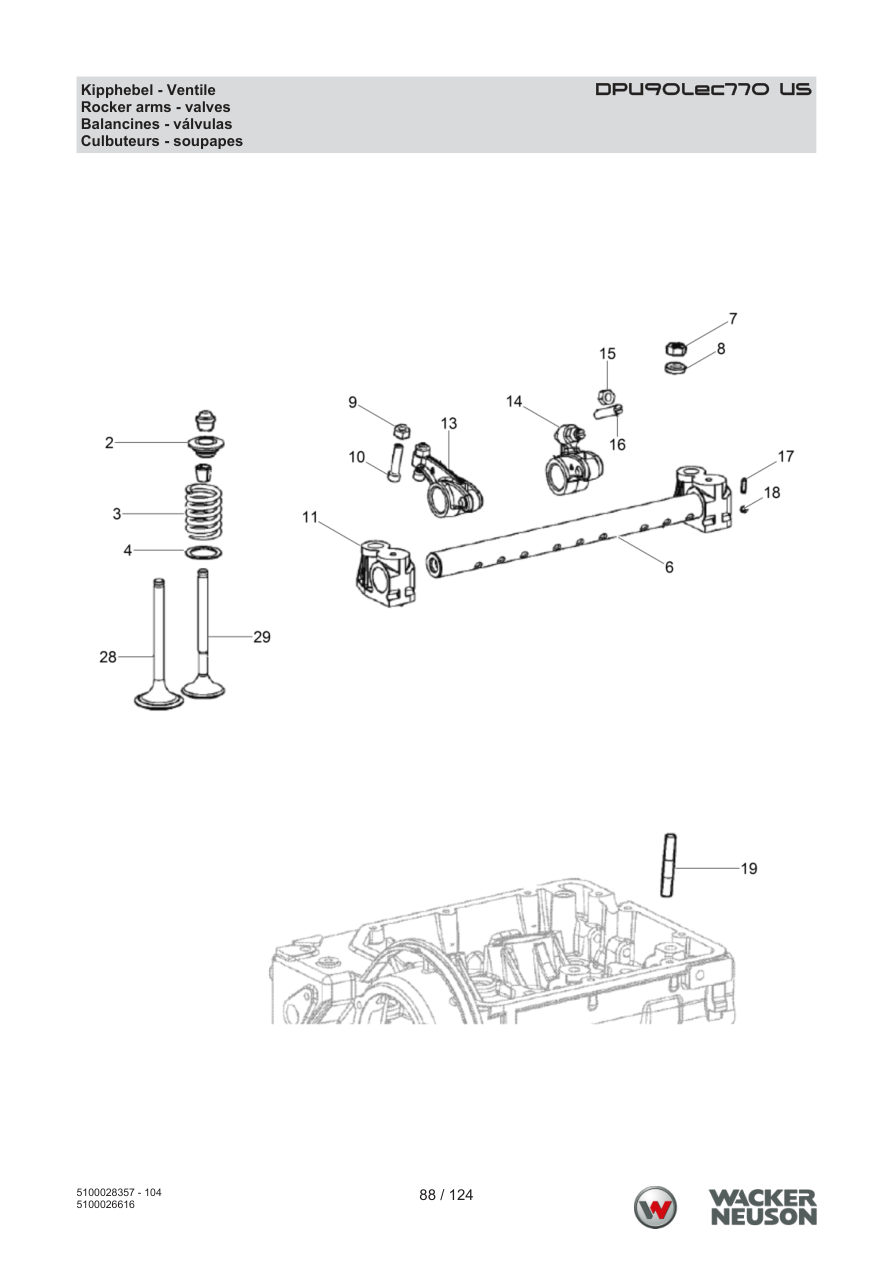

Page 88 — DPU90Lec770 US Rocker arms - Valves
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159328 | Spring housing | 4 | ADD TO CART | |
| 3 | 5000160373 | Spring | 4 | ADD TO CART | |
| 4 | 5000159351 | Washer | 4 | ADD TO CART | |
| 6 | 5100026394 | Rod | 1 | ADD TO CART | |
| 6 | 5100026393 | Rocker arm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5000083011 | Nut | 3 | ADD TO CART | |
| 8 | 5000159350 | Washer | 3 | ADD TO CART | |
| 9 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000159482 | Screw | 1 | ADD TO CART | |
| 11 | 5000159447 | Shaft support | 3 | ADD TO CART | |
| 13 | 5000159248 | Rocker arm | 4 | PARTS REQUEST | |
|
COMING Rocker arm
5000159248 · qty on machine: 4 | |||||
| 14 | 5000159249 | Rocker arm injector | 2 | ADD TO CART | |
| 15 | 5000159275 | Nut | 1 | ADD TO CART | |
| 16 | 5000159483 | Threaded bolt | 1 | ADD TO CART | |
| 17 | 5000159443 | Pin | 1 | ADD TO CART | |
| 18 | 5000215529 | Plug | 2 | ADD TO CART | |
| 19 | 5000159333 | Threaded stud | 3 | ADD TO CART | |
| 21 | 5100008856 | Bush | 8 | PARTS REQUEST | |
|
COMING Bush
5100008856 · qty on machine: 8 | |||||
| 27 | 5000159297 | Gasket | 4 | ADD TO CART | |
| 28 | 5000160390 | Intake valve | 2 | ADD TO CART | |
| 29 | 5000160392 | Outlet valve | 2 | ADD TO CART | |

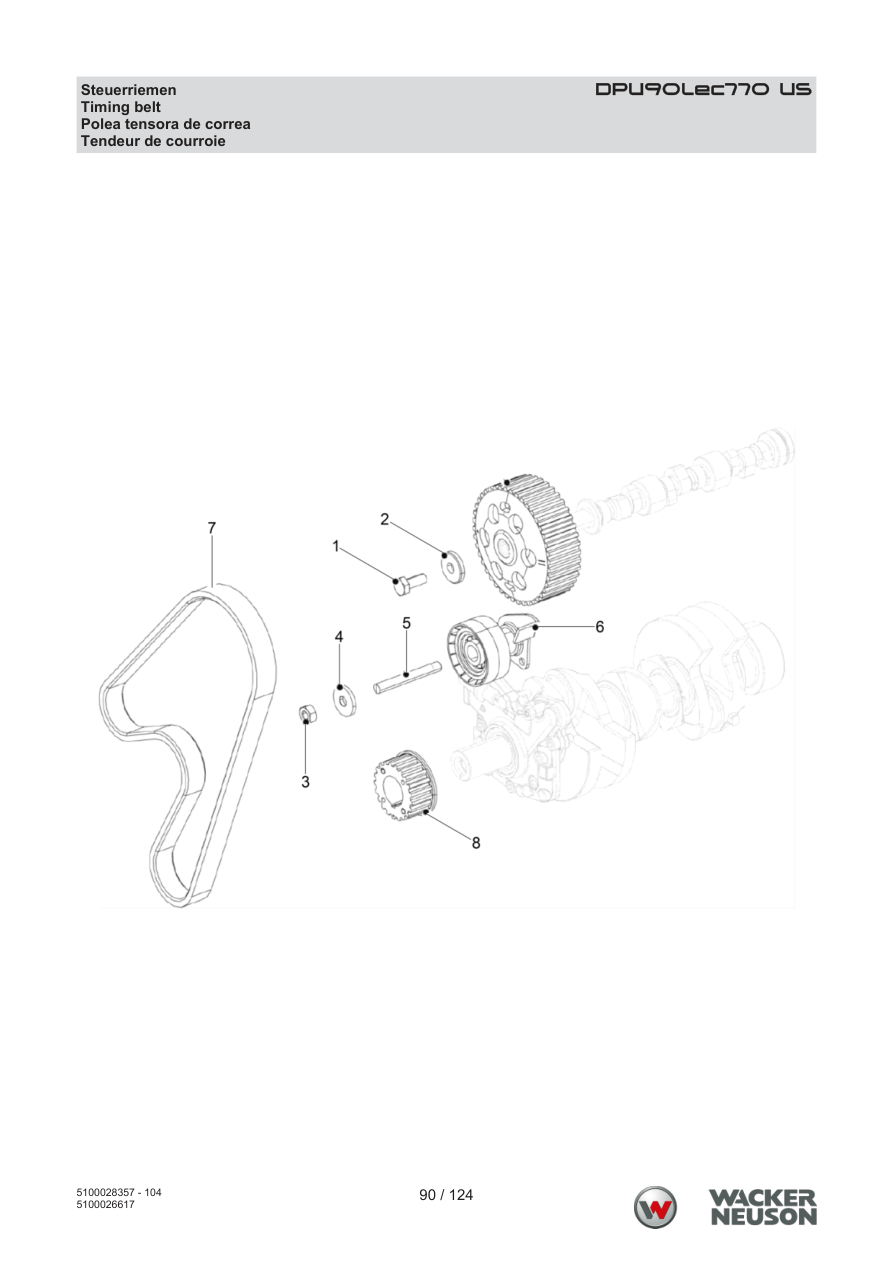

Page 90 — DPU90Lec770 US Timing belt
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159481 | Screw | 1 | ADD TO CART | |
| 2 | 5000159349 | Washer | 1 | ADD TO CART | |
| 3 | 5000083011 | Nut | 1 | ADD TO CART | |
| 4 | 5000159344 | Washer | 1 | ADD TO CART | |
| 5 | 5000159334 | Threaded stud | 1 | ADD TO CART | |
| 6 | 5000159284 | Tensioner pulley | 1 | ADD TO CART | |
| 7 | 5000155697 | Timing belt | 1 | ADD TO CART | |
| 8 | 5000159336 | Belt pulley | 1 | ADD TO CART | |
| 9 | 5000159338 | Belt pulley | 1 | ADD TO CART | |

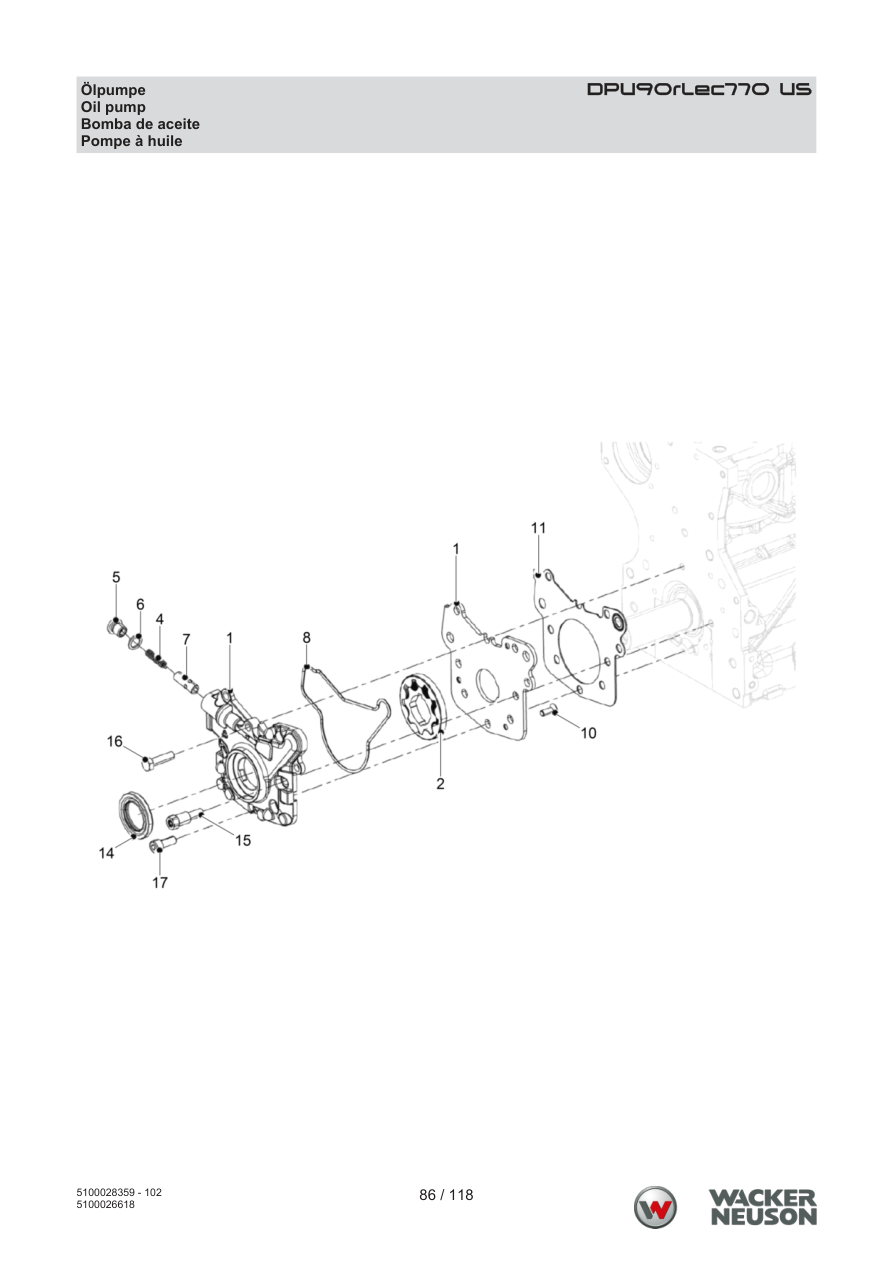

Page 92 — Oil pump
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155735 | Oil pump complete | 1 | ADD TO CART | |
| 2 | 5000160326 | Rotor | 1 | ADD TO CART | |
| 4 | 5000159312 | Spring | 1 | ADD TO CART | |
| 5 | 5000159450 | Lock screw | 1 | ADD TO CART | |
| 6 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 7 | 5000159330 | Rod | 1 | ADD TO CART | |
| 8 | 5000160178 | O-ring | 1 | ADD TO CART | |
| 10 | 5000159478 | Screw | 3 | ADD TO CART | |
| 11 | 5000215709 | Gasket | 1 | ADD TO CART | |
| 14 | 5000155734 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000159484 | Screw | 2 | ADD TO CART | |
| 16 | 5000215479 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 17 | 5000084169 | Screw | 6 | ADD TO CART | |

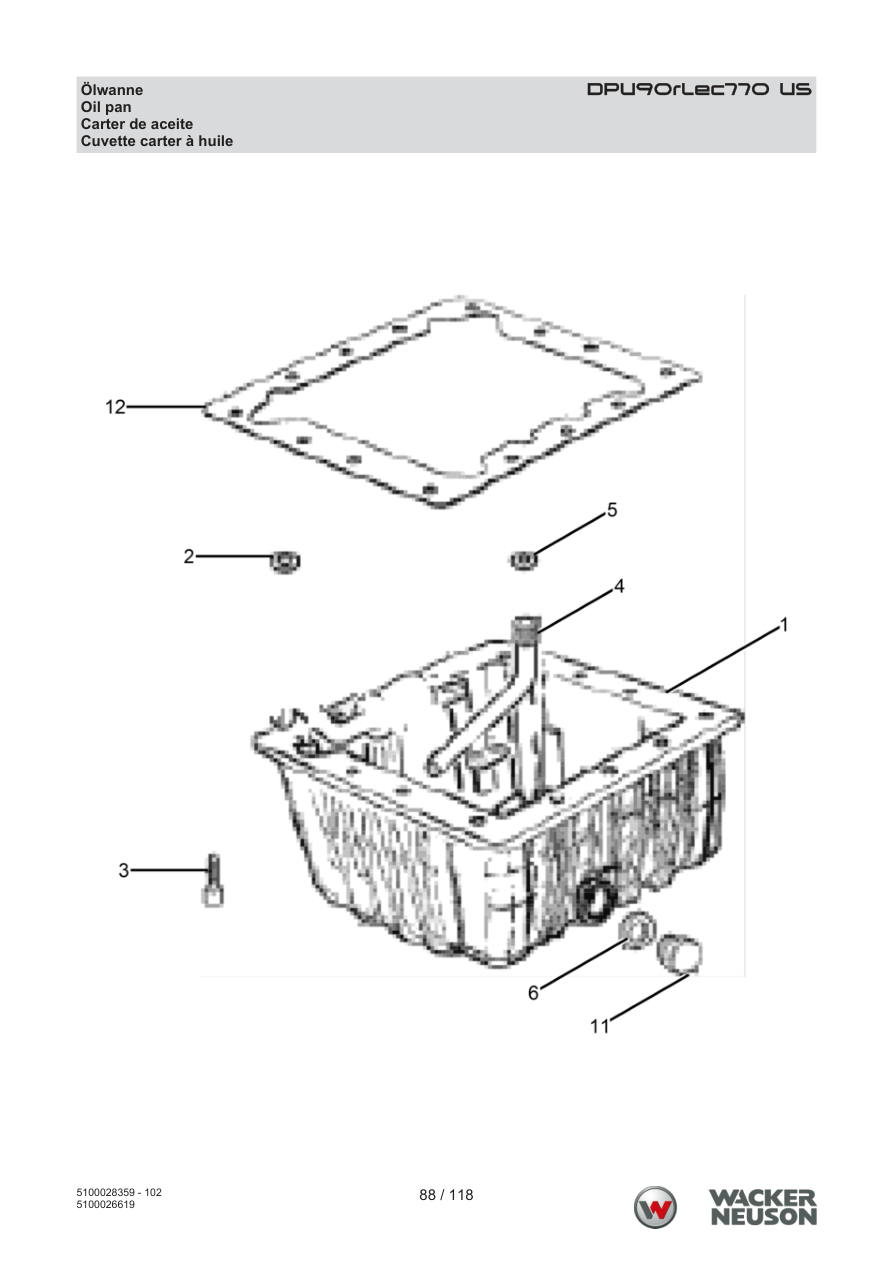

Page 94 — Oil pan
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026395 | Oil pan | 1 | ADD TO CART | |
| 2 | 5000159228 | Oil seal | 1 | ADD TO CART | |
| 3 | 5000159253 | Bolt | 15 | ADD TO CART | |
| 4 | 5100026396 | Oil-return pip | 1 | ADD TO CART | |
| 5 | 5000159235 | O-ring | 1 | ADD TO CART | |
| 6 | 5000159568 | Copper washer | 2 | ADD TO CART | |
| 11 | 5000211364 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5000211364 · qty on machine: 2 | |||||
| 12 | 5100026397 | Gasket | 1 | ADD TO CART | |

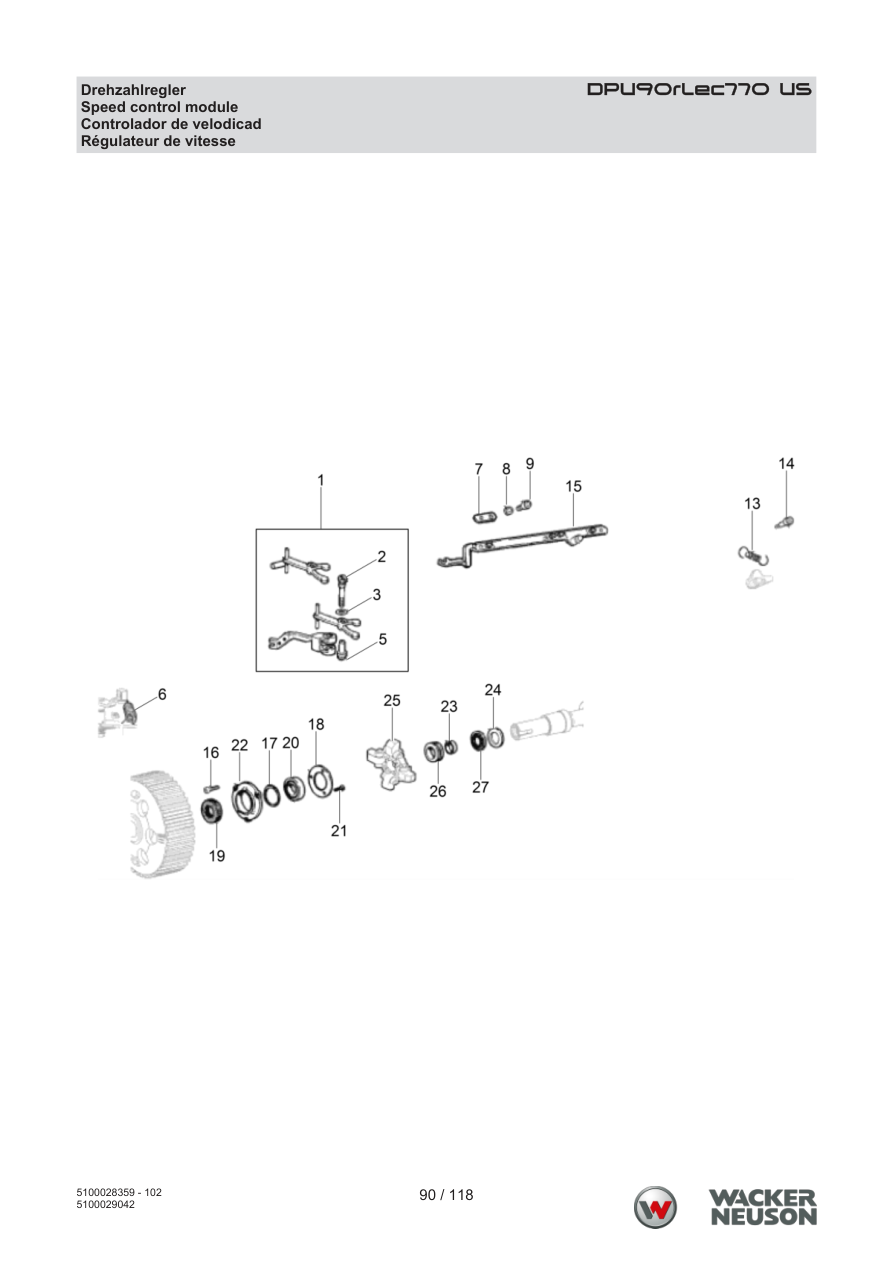

Page 96 — DPU90Lec770 US Speed governor
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159304 | Governor lever complete | 1 | ADD TO CART | |
| 2 | 5000159321 | Pin | 1 | ADD TO CART | |
| 3 | 5000159229 | Oil seal | 1 | ADD TO CART | |
| 5 | 5000215480 | Collar | 1 | ADD TO CART | |
| 6 | 5000215715 | Governor spring | 1 | ADD TO CART | |
| 7 | 5000217813 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5000217813 · qty on machine: 1 | |||||
| 8 | 5000215520 | Washer | 4 | ADD TO CART | |
| 9 | 5000159477 | Screw | 2 | ADD TO CART | |
| 13 | 5000159315 | Spring | 1 | ADD TO CART | |
| 14 | 5000211941 | Screw | 3 | ADD TO CART | |
| 15 | 5100026402 | Governor rod | 1 | ADD TO CART | |
| 16 | 5000159467 | Screw | 3 | ADD TO CART | |
| 17 | 5000159239 | O-ring | 1 | ADD TO CART | |
| 18 | 5000159324 | Check disc | 1 | ADD TO CART | |
| 19 | 5000159240 | Lip seal | 1 | PARTS REQUEST | |
|
COMING Lip seal
5000159240 · qty on machine: 1 | |||||
| 20 | 5000159267 | Bearing | 1 | ADD TO CART | |
| 21 | 5100008841 | Screw | 3 | ADD TO CART | |
| 22 | 5000159265 | Cover | 1 | ADD TO CART | |
| 23 | 5000159251 | Collar | 1 | ADD TO CART | |
| 24 | 5000215517 | Check disc | 1 | ADD TO CART | |
| 25 | 5000155698 | Speed control module | 1 | ADD TO CART | |
| 26 | 5000215506 | Collar | 1 | ADD TO CART | |
| 27 | 5000217805 | Bearing | 1 | PARTS REQUEST | |
|
COMING Bearing
5000217805 · qty on machine: 1 | |||||

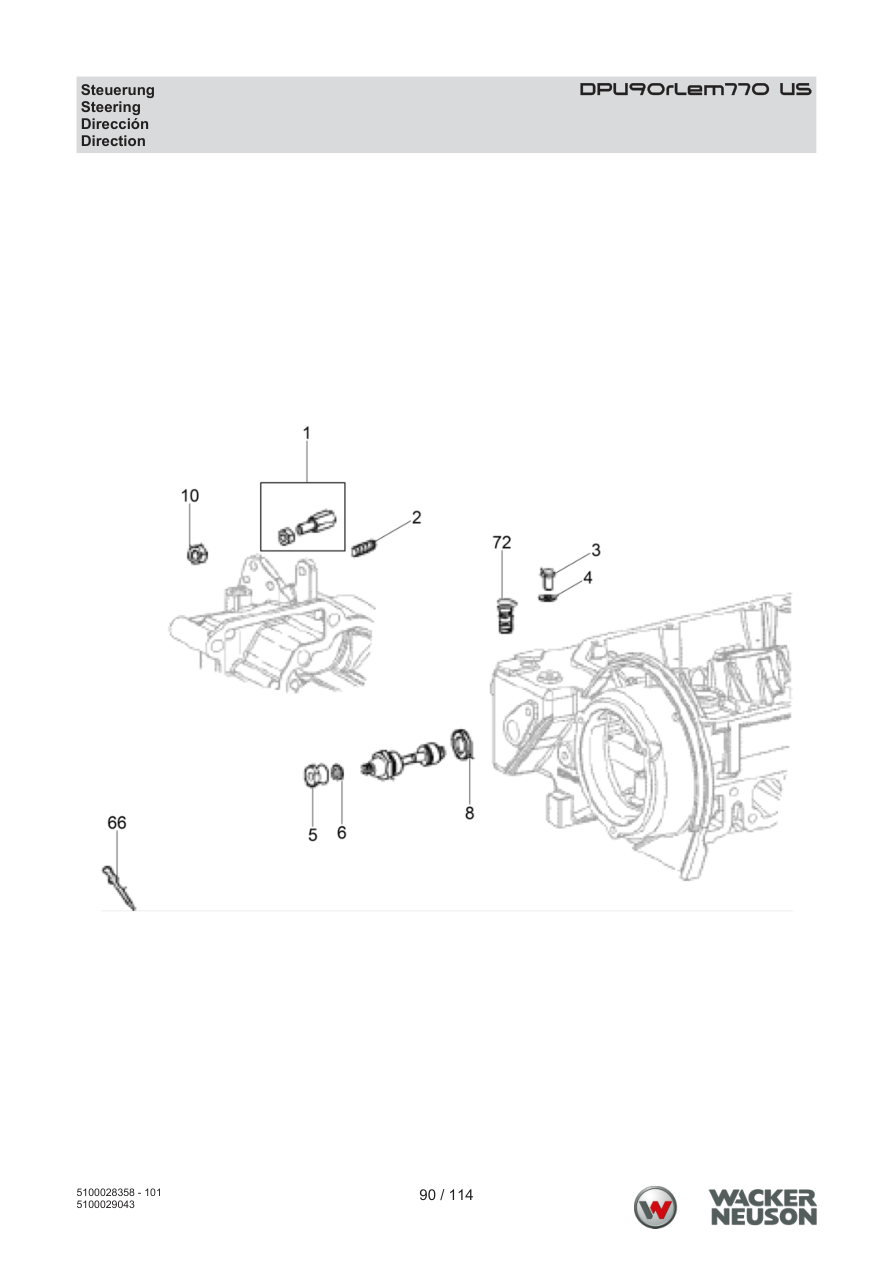

Page 98 — Steering
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 2 | 5000215543 | Screw | 1 | ADD TO CART | |
| 3 | 5000084131 | Screw | 1 | ADD TO CART | |
| 4 | 5000083995 | Washer | 1 | ADD TO CART | |
| 5 | 5000150038 | Nut | 1 | PARTS REQUEST | |
|
COMING Nut
5000150038 · qty on machine: 1 | |||||
| 6 | 5000217818 | Washer | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 66 | 5000215519 | Rivet | 3 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |

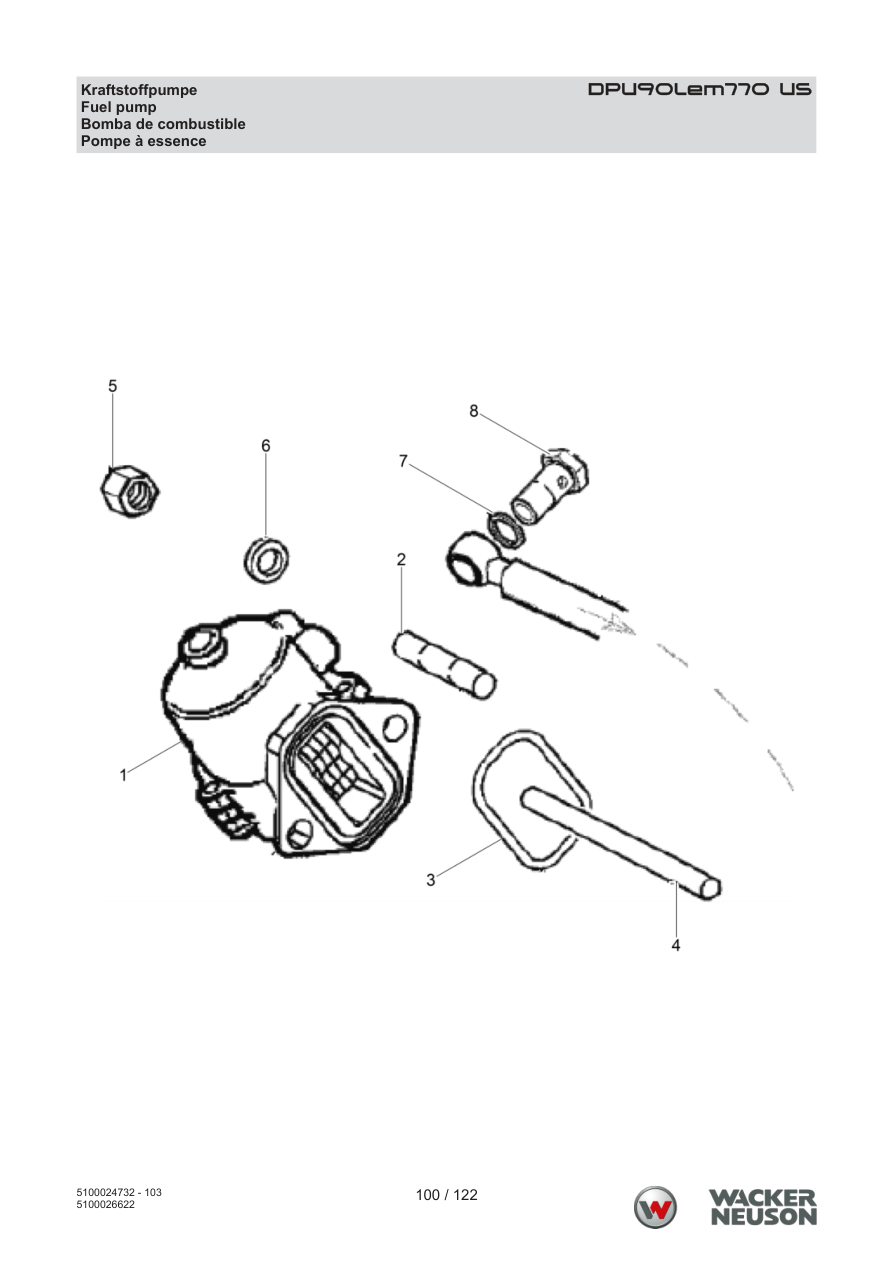

Page 100 — DPU90Lec770 US Fuel pump
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226239 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5000226239 · qty on machine: 1 | |||||
| 2 | 5000082266 | Stud | 2 | ADD TO CART | |
| 3 | 5000110759 | Seal | 1 | ADD TO CART | |
| 4 | 5000160757 | Rod | 1 | ADD TO CART | |
| 5 | 5000203358 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 2 | |||||
| 6 | 5000082285 | Washer | 2 | ADD TO CART | |
| 7 | 5000082183 | Copper washer | 4 | ADD TO CART | |
| 8 | 5000217802 | Banjo bolt | 2 | PARTS REQUEST | |
|
COMING Banjo bolt
5000217802 · qty on machine: 2 | |||||

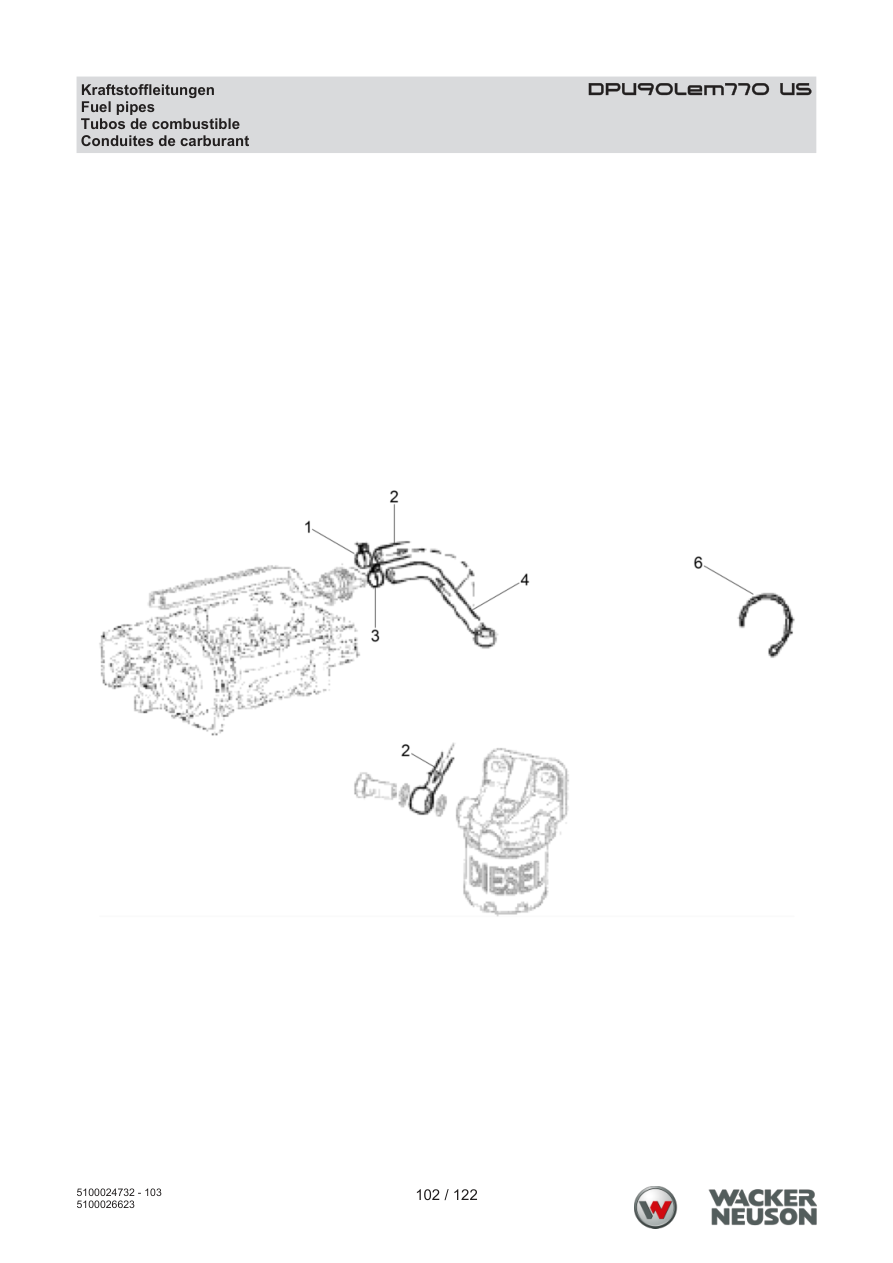

Page 102 — DPU90Lec770 US Fuel Lines
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000082155 | Clamp | 1 | ADD TO CART | |
| 2 | 5100026403 | Fuel hose | 1 | ADD TO CART | |
| 3 | 5000215704 | Clamp | 1 | ADD TO CART | |
| 4 | 5100026404 | Fuel hose | 1 | ADD TO CART | |
| 6 | 5000215486 | Collar | 3 | ADD TO CART | |

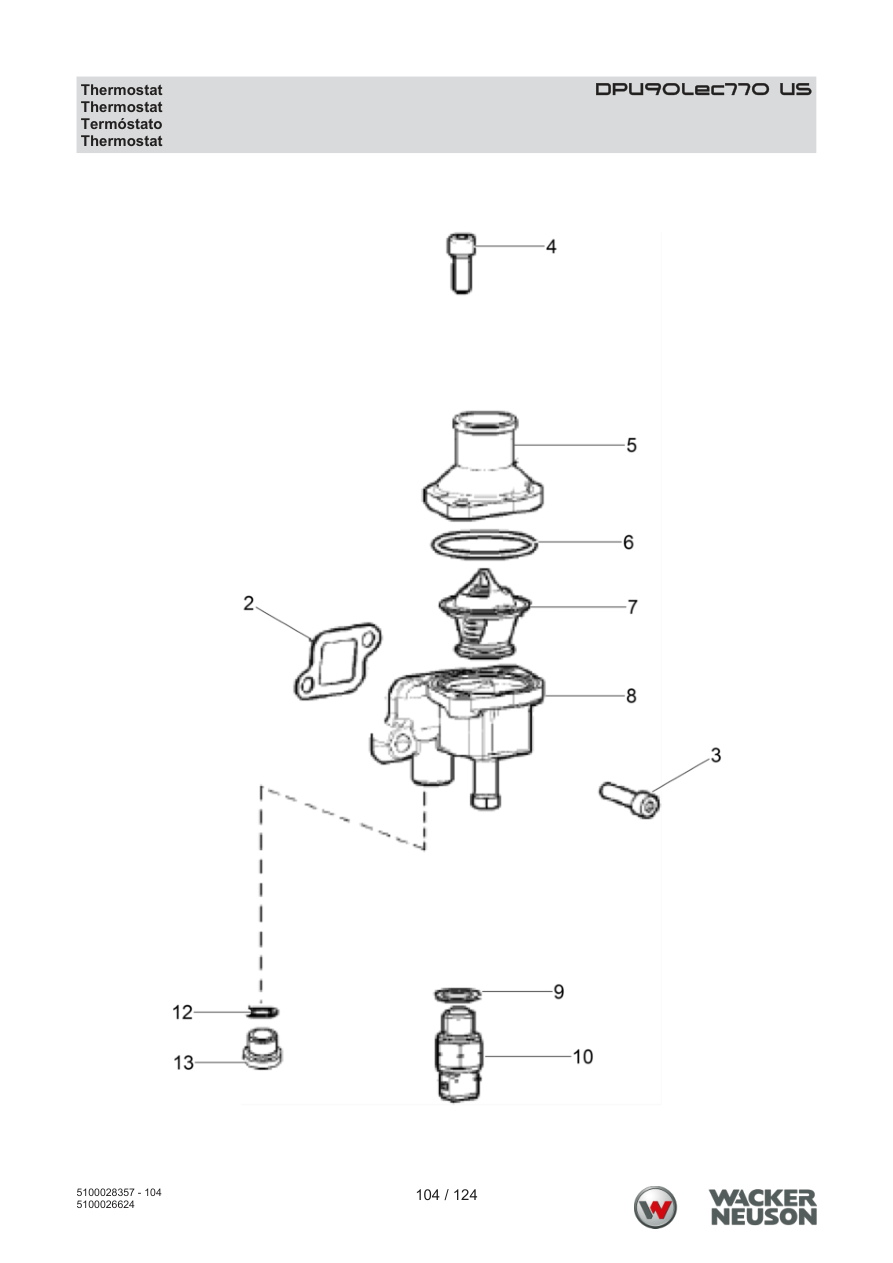

Page 104 — DPU90Lec770 US Thermostat
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000211378 | Gasket | 1 | ADD TO CART | |
| 3 | 5000159476 | Screw | 2 | ADD TO CART | |
| 4 | 5000084169 | Screw | 2 | ADD TO CART | |
| 5 | 5100030694 | Casing adaptor | 1 | ADD TO CART | |
| 6 | 5000159232 | O-ring | 1 | ADD TO CART | |
| 7 | 5000207002 | Valve thermostat | 1 | ADD TO CART | |
| 8 | 5000215489 | Thermostat housing | 1 | ADD TO CART | |
| 9 | 5000203712 | Cu-ring | 1 | PARTS REQUEST | |
|
COMING Cu-ring
5000203712 · qty on machine: 1 | |||||
| 10 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 12 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 13 | 5000159451 | Screw plug | 1 | ADD TO CART | |

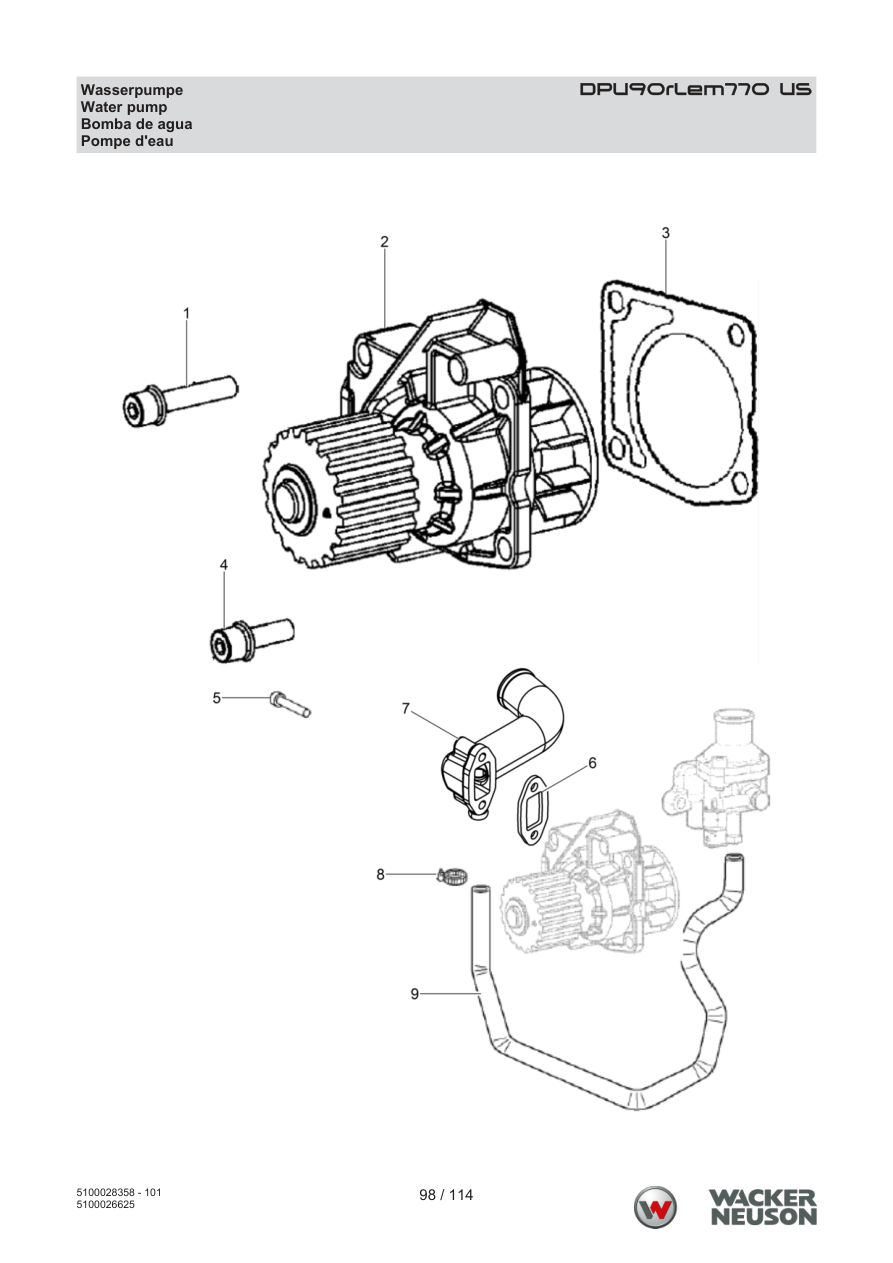

Page 106 — DPU90Lec770 US Water pump
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209105 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 2 | 5100026407 | Water pump | 1 | ADD TO CART | |
| 3 | 5000217809 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217809 · qty on machine: 1 | |||||
| 4 | 5000209107 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000209107 · qty on machine: 2 | |||||
| 5 | 5000160362 | Screw | 2 | ADD TO CART | |
| 6 | 5000217808 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217808 · qty on machine: 1 | |||||
| 7 | 5100026405 | Flange | 1 | ADD TO CART | |
| 8 | 5000160201 | Clamp | 2 | ADD TO CART | |
| 9 | 5100026406 | Hose | 1 | ADD TO CART | |

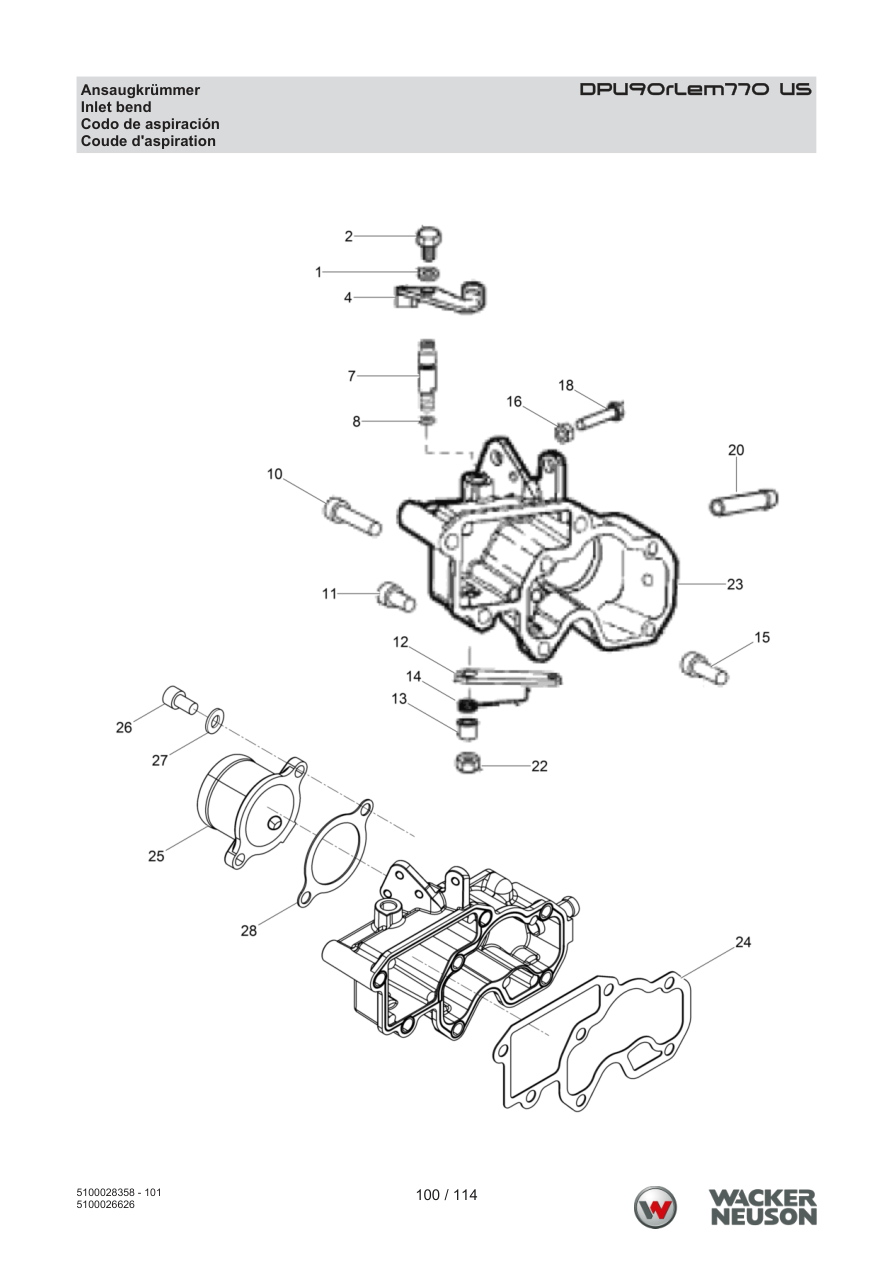

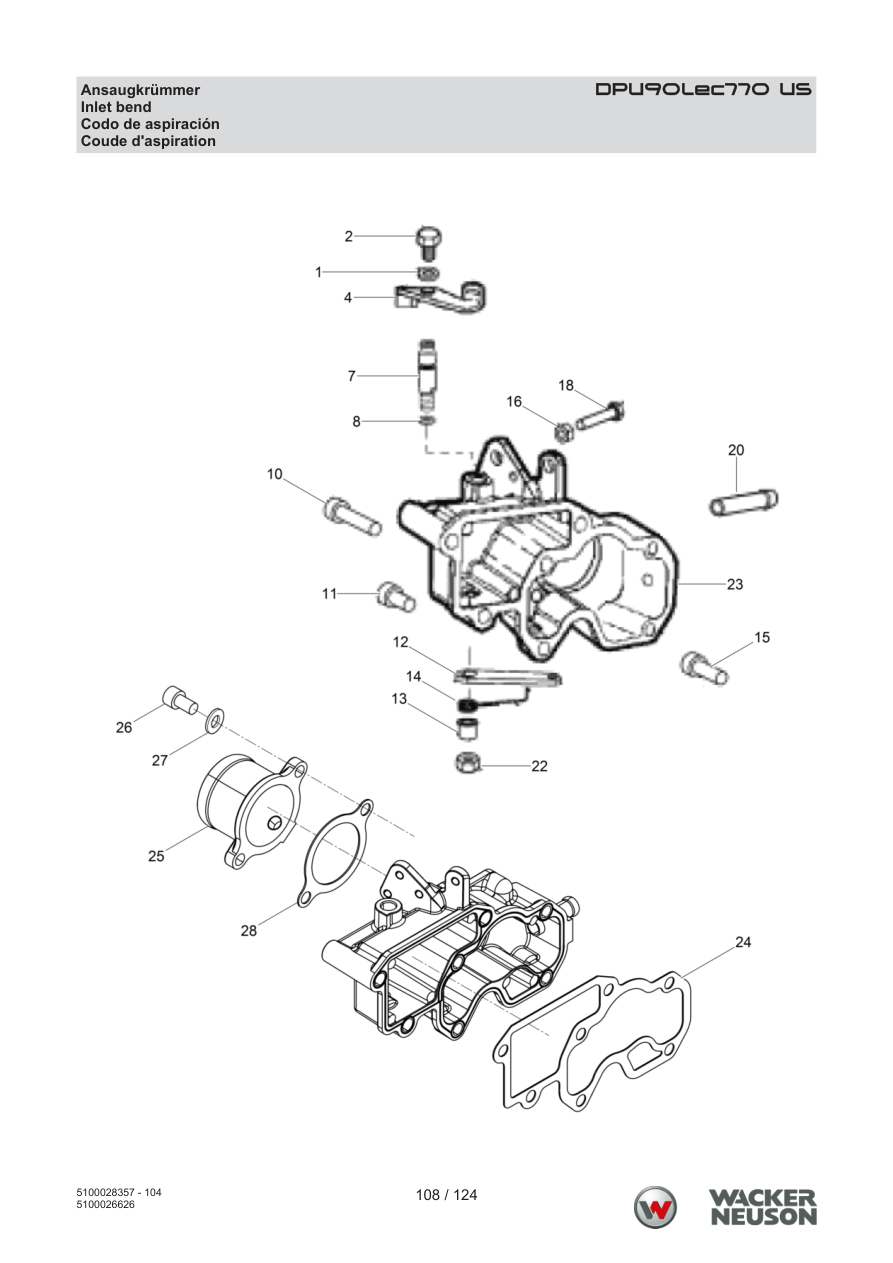

Page 108 — Inlet bend
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217817 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000217817 · qty on machine: 1 | |||||
| 2 | 5000217801 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000217801 · qty on machine: 1 | |||||
| 4 | 5100026408 | Lever | 1 | ADD TO CART | |
| 7 | 5100008860 | Shaft | 1 | ADD TO CART | |
| 8 | 5000159230 | Oil seal | 1 | PARTS REQUEST | |
|
COMING Oil seal
5000159230 · qty on machine: 1 | |||||
| 10 | 5000084170 | Screw | 1 | ADD TO CART | |
| 11 | 5000159476 | Screw | 2 | ADD TO CART | |
| 12 | 5000215504 | Lever | 1 | ADD TO CART | |
| 13 | 5000215481 | Collar | 1 | ADD TO CART | |
| 14 | 5000215508 | Spring | 1 | ADD TO CART | |
| 15 | 5000203346 | Screw | 3 | ADD TO CART | |
| 16 | 5000159272 | Nut | 2 | ADD TO CART | |
| 18 | 5100008861 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100008861 · qty on machine: 2 | |||||
| 20 | 5000159462 | Hose | 1 | ADD TO CART | |
| 22 | 5000084232 | Nut | 1 | ADD TO CART | |
| 23 | 5100026409 | Manifold | 1 | ADD TO CART | |
| 24 | 5100026410 | Gasket | 1 | ADD TO CART | |
| 25 | 5100026411 | Flange | 1 | ADD TO CART | |
| 26 | 5000084169 | Screw | 2 | ADD TO CART | |
| 27 | 5000082285 | Washer | 2 | ADD TO CART | |
| 28 | 5100026429 | Gasket | 1 | ADD TO CART | |

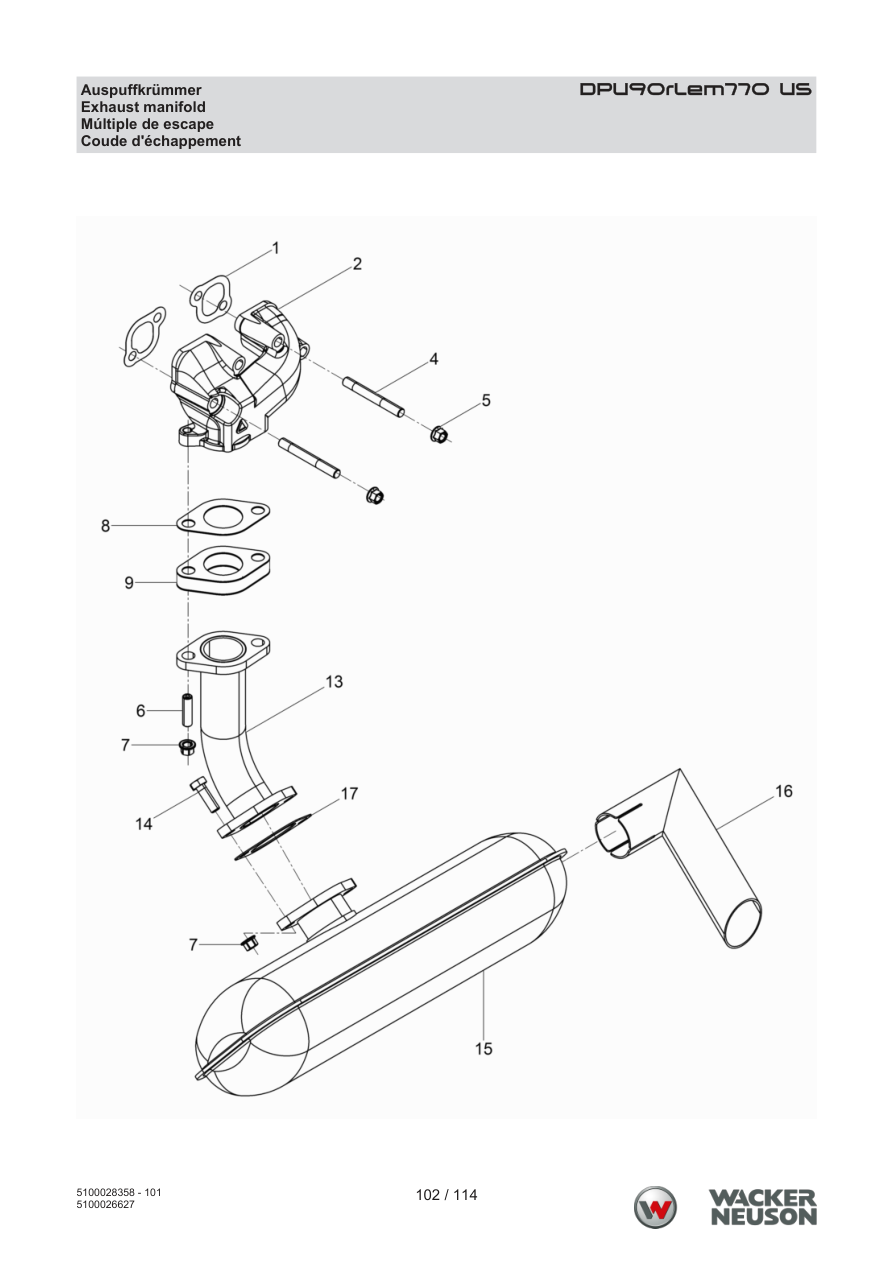

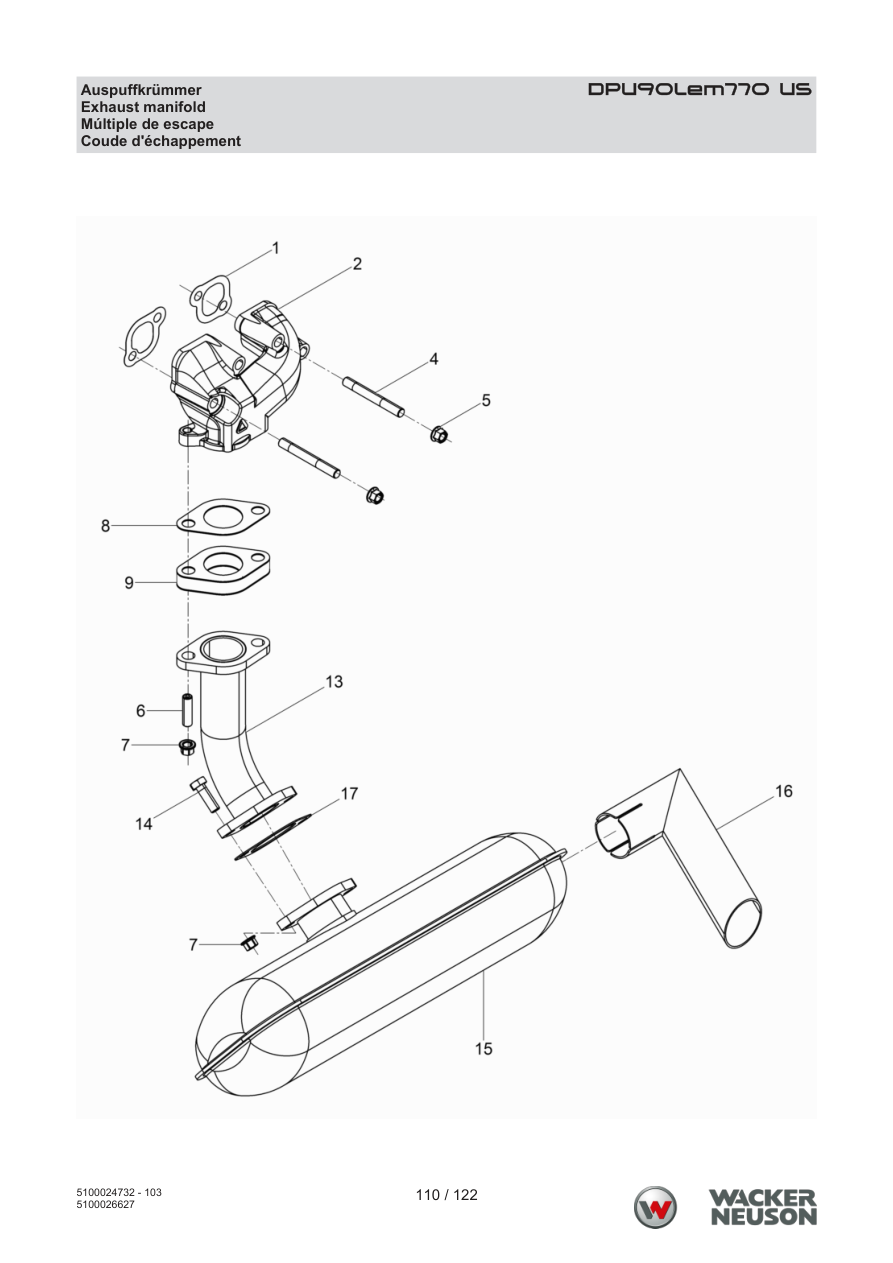

Page 110 — Exhaust manifold
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159290 | Gasket | 2 | ADD TO CART | |
| 2 | 5100026412 | Exhaust manifold | 1 | ADD TO CART | |
| 4 | 5000082267 | Stud | 4 | ADD TO CART | |
| 5 | 5000086331 | Nut | 4 | ADD TO CART | |
| 6 | 5000160228 | Threaded bolt | 2 | ADD TO CART | |
| 7 | 5000086331 | Nut | 4 | ADD TO CART | |
| 8 | 5000159295 | Gasket | 1 | ADD TO CART | |
| 9 | 5100026413 | Flange | 1 | ADD TO CART | |
| 13 | 5100005700 | Exhaust pipe | 1 | ADD TO CART | |
| 14 | 5000215479 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 15 | 5100005522 | Muffler | 1 | ADD TO CART | |
| 16 | 5100005702 | Exhaust-pipe end | 1 | ADD TO CART | |
| 17 | 5100041970 | Gasket | 1 | ADD TO CART | |

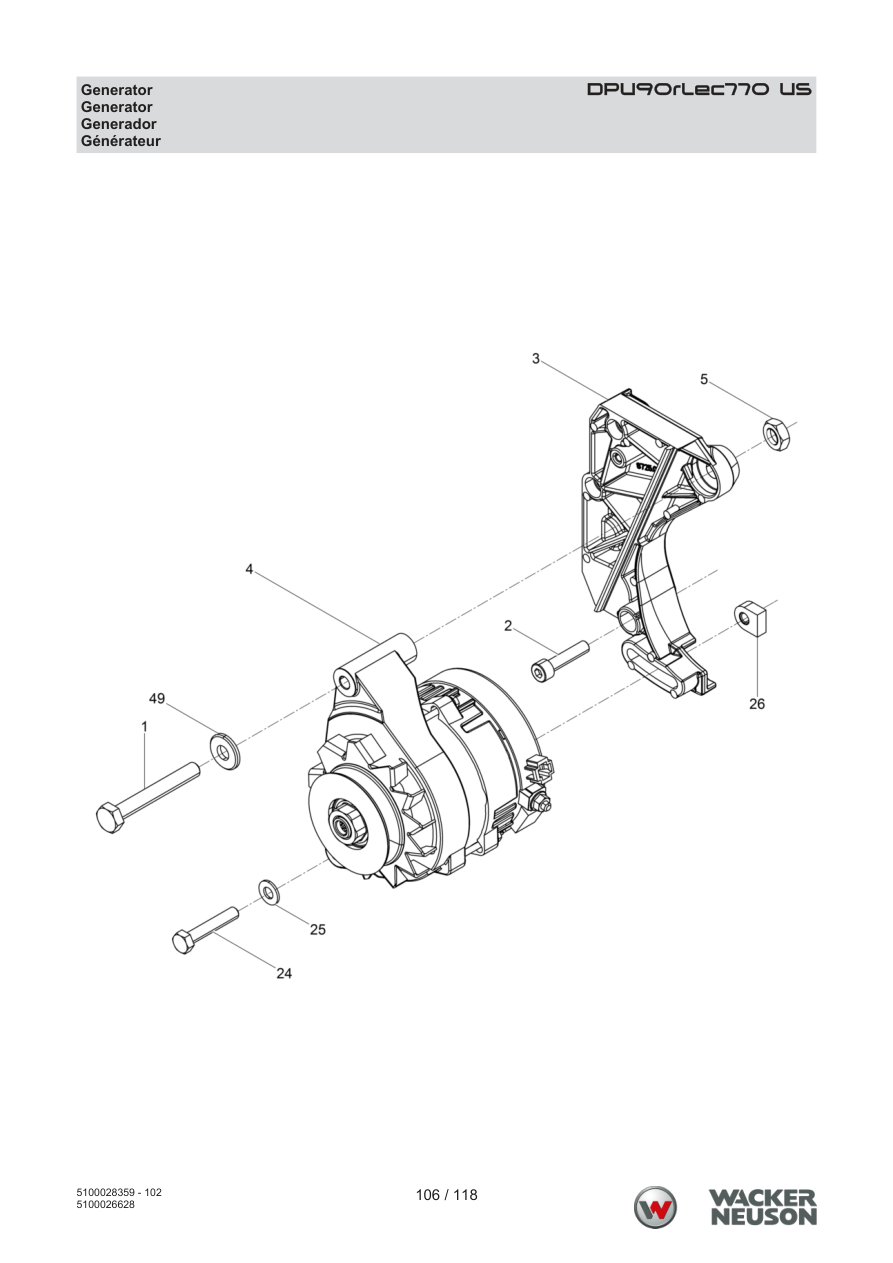

Page 112 — DPU90Lec770 US Generator
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026414 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100026414 · qty on machine: 1 | |||||
| 2 | 5000159476 | Screw | 3 | ADD TO CART | |
| 3 | 5100026415 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100026415 · qty on machine: 1 | |||||
| 4 | 5100026416 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100026416 · qty on machine: 1 | |||||
| 5 | 5000083011 | Nut | 1 | ADD TO CART | |
| 24 | 5000208993 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000208993 · qty on machine: 1 | |||||
| 25 | 5000082293 | Washer | 1 | ADD TO CART | |
| 26 | 5100026417 | Clamp | 1 | ADD TO CART | |
| 49 | 5100026418 | Disc | 1 | ADD TO CART | |

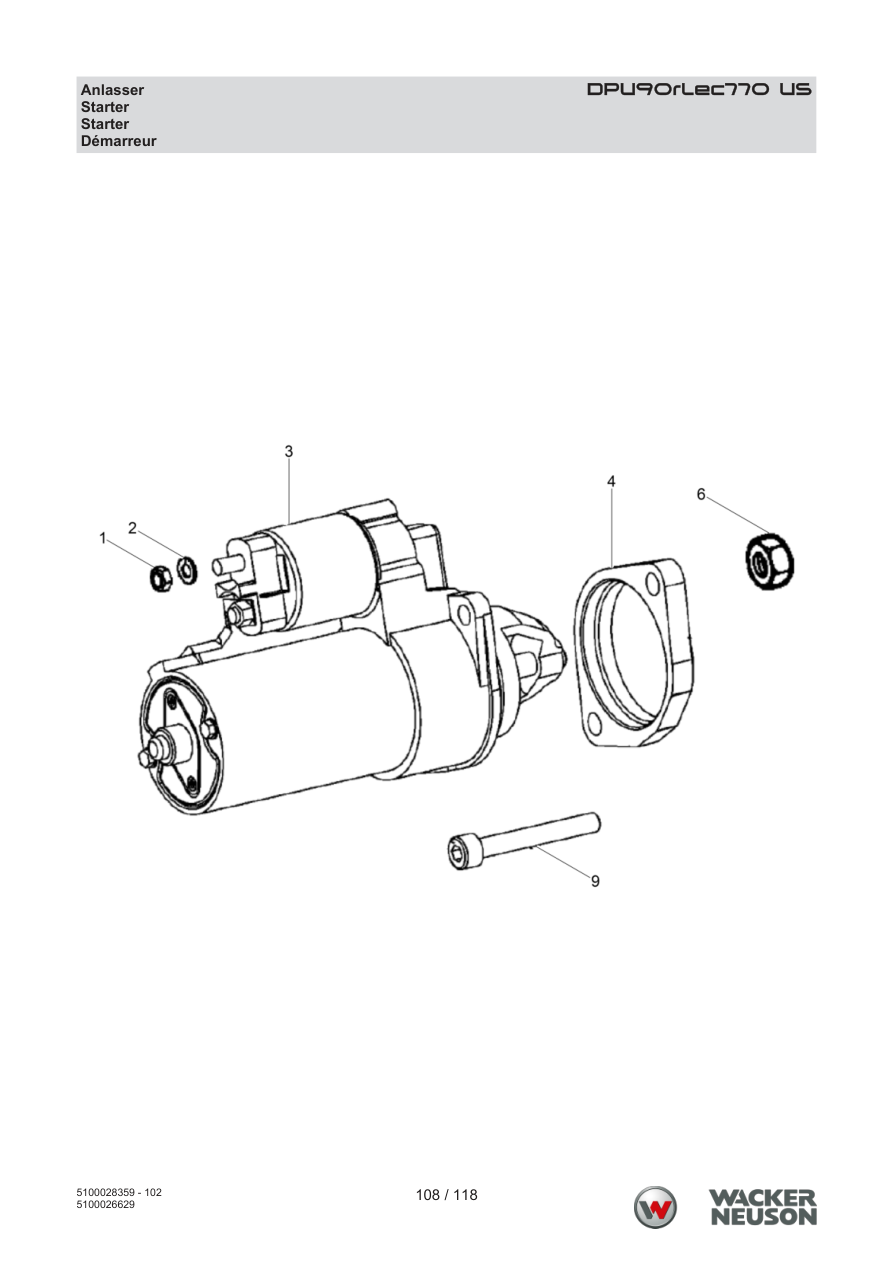

Page 114 — DPU90Lec770 US Starter
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215493 | Hexagon nut | 1 | ADD TO CART | |
| 2 | 5000082288 | Washer | 1 | ADD TO CART | |
| 3 | 5000211380 | Starter | 1 | PARTS REQUEST | |
|
COMING Starter
5000211380 · qty on machine: 1 | |||||
| 4 | 5000206968 | Flange | 1 | ADD TO CART | |
| 6 | 5000083011 | Nut | 2 | ADD TO CART | |
| 9 | 5000083027 | Screw | 2 | ADD TO CART | |

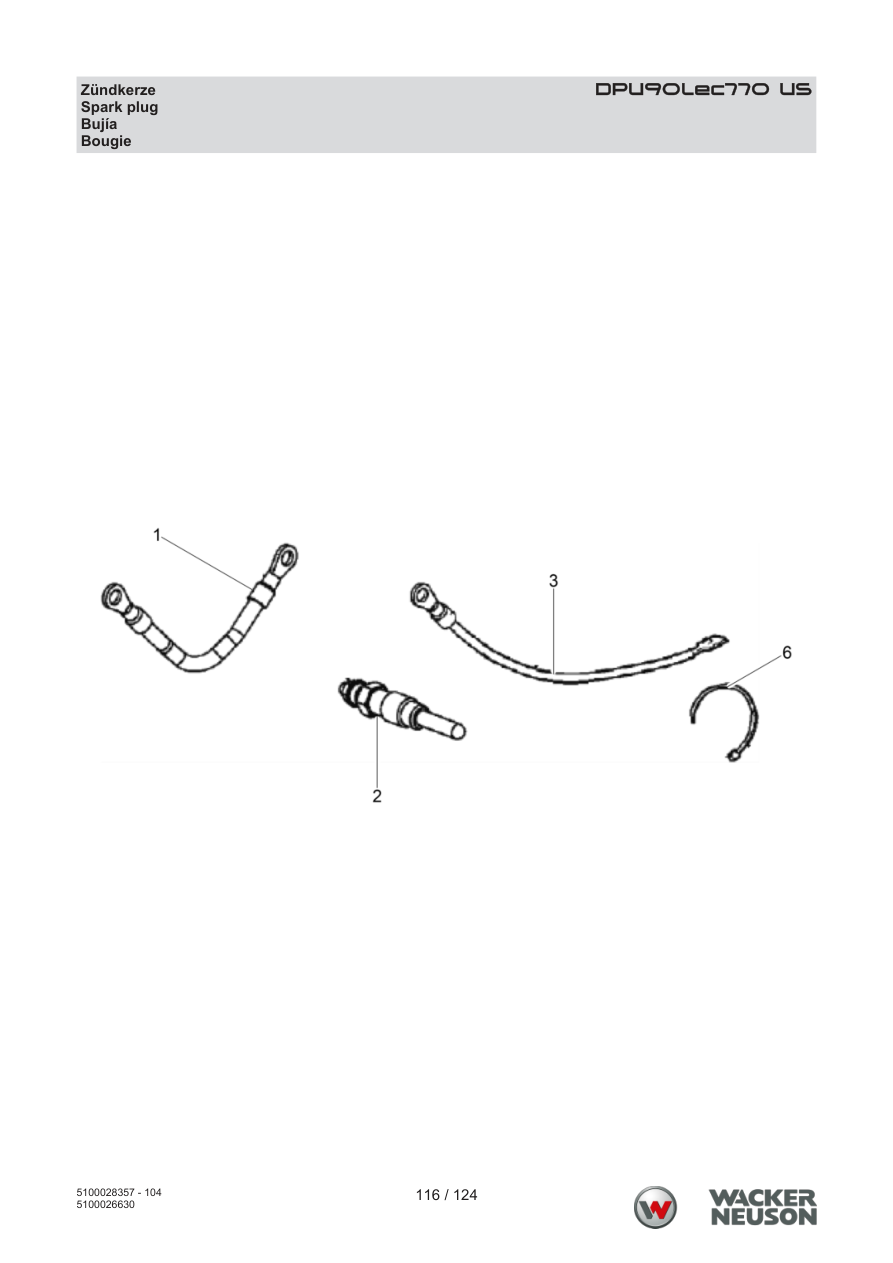

Page 116 — Spark plug
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 1 | ADD TO CART | |
| 2 | 5000155748 | Glow plug | 2 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |

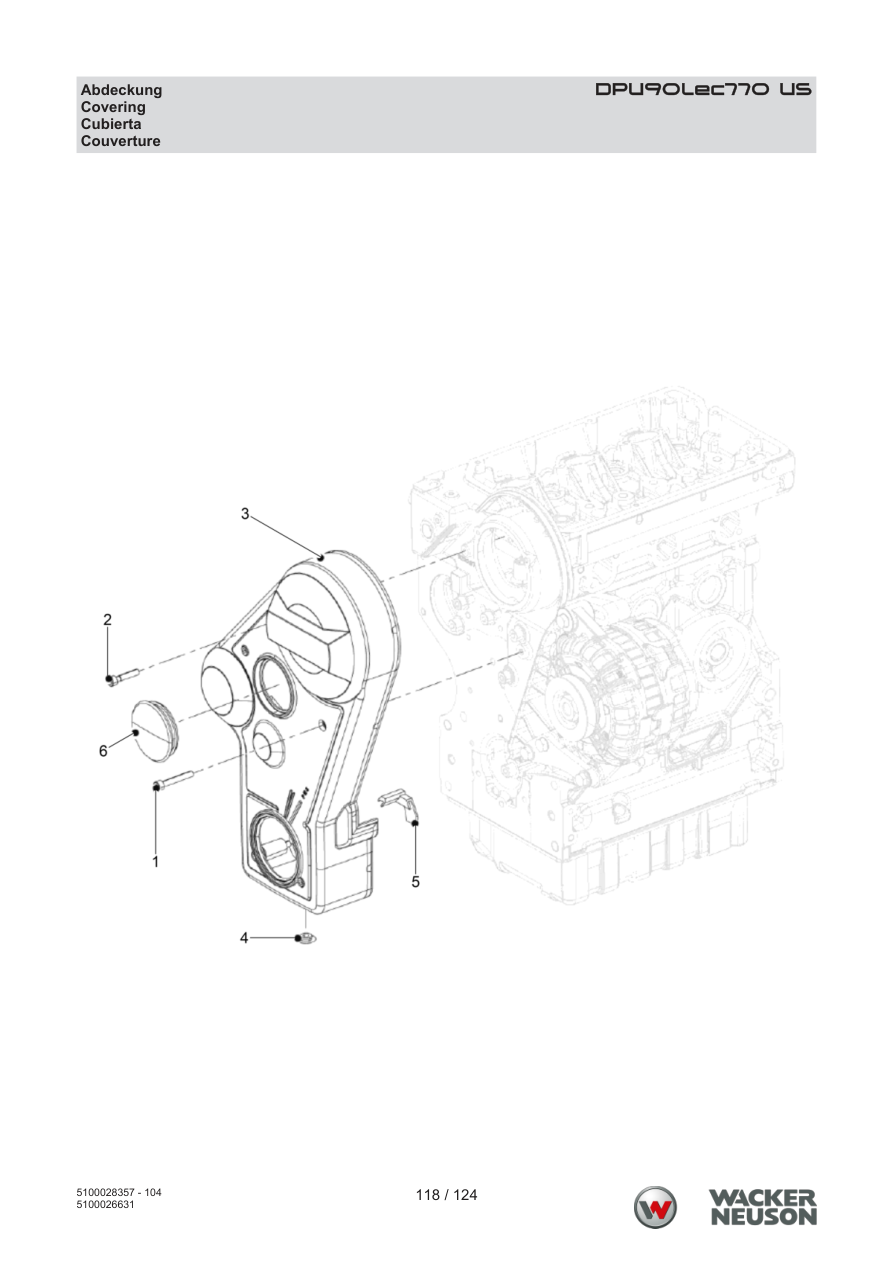

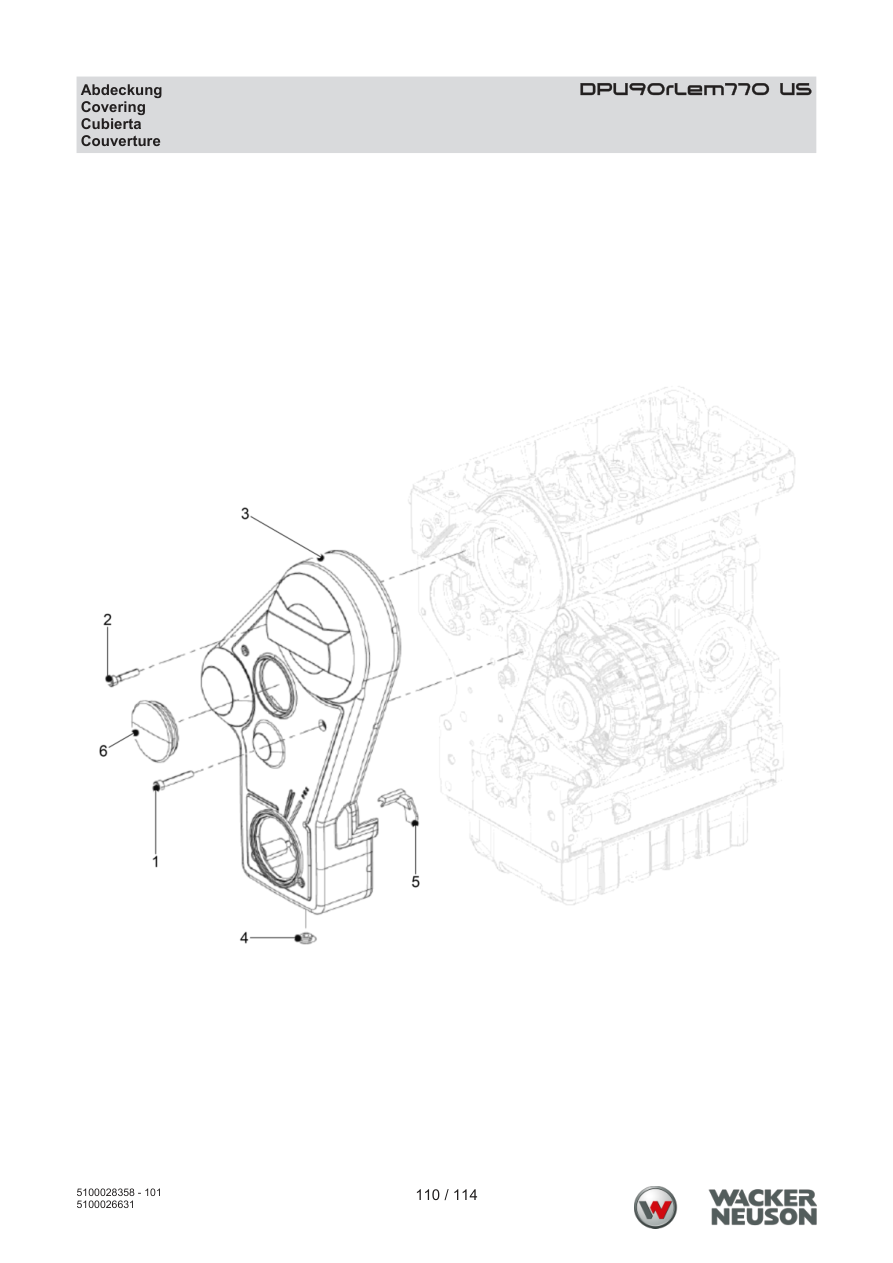

Page 118 — Covering
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159564 | Screw | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5100026420 | Belt guard | 1 | ADD TO CART | |
| 4 | 5000159268 | Plug | 1 | ADD TO CART | |
| 5 | 5000215499 | Gasket | 1 | ADD TO CART | |
| 6 | 5100026421 | Protective cover | 1 | ADD TO CART | |

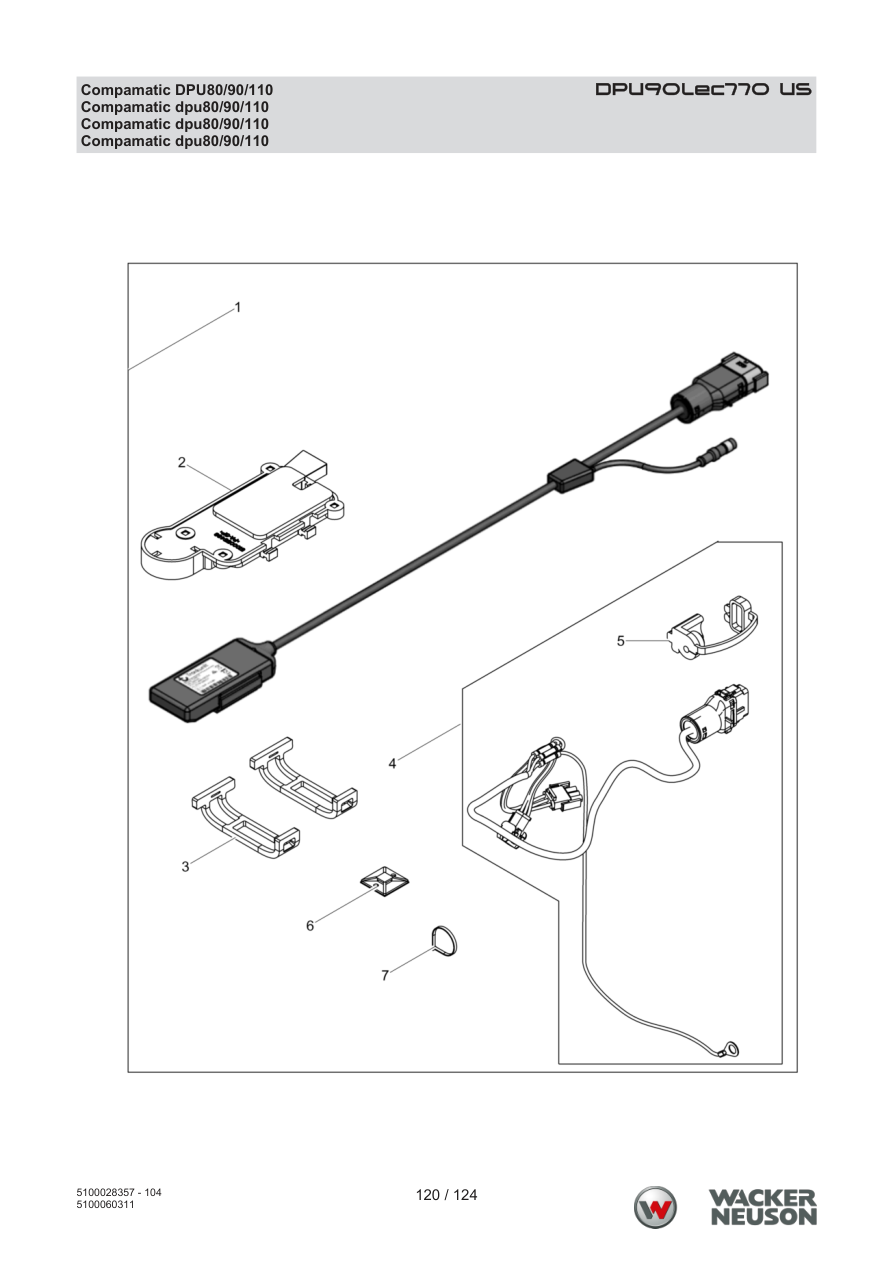

Page 120 — DPU90Lec770 US Compamatic DPU80/90/110
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100056654 | Compamatic cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Compamatic cpl.
5100056654 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100055488 | Bracket (telematic) | 1 | ADD TO CART | |
| 3 | 5100041922 | Tightening strap | 2 | ADD TO CART | |
| 4 | 5100044787 | Cable harness telematik | 1 | ADD TO CART | |
| 5 | 5100049259 | Plug cap | 1 | ADD TO CART | |
| 6 | 5100017849 | Clamp | 2 | ADD TO CART | |
| 7 | 5000038489 | Tie cable | 11 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 11 | |||||
Page 12 — DPU90Lem770 US Underweight DPU80/90
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004546 | Baseplate 770 | 1 | ADD TO CART | |
| 1 | 5100004636 | Baseplate 670 | 1 | ADD TO CART | |
| 2 | 5100010363 | O-ring | 1 | ADD TO CART | |
| 3 | 5100004544 | Exciter cpl. (dpu80) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu80)
5100004544 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100025625 | Exciter cpl. (dpu90) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu90)
5100025625 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100009777 | Cheese head screw | 10 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5000068222 | Plug (threaded) | 1 | ADD TO CART | |
| 7 | 5000203227 | Roll pin | 4 | ADD TO CART | |
| 8 | 5000216648 | Silent block | 4 | ADD TO CART | |
| 9 | 5000212628 | Locknut | 4 | ADD TO CART | |
| 10 | 5000216644 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100010051 | Hose pipe | 1 | ADD TO CART | |
| 12 | 5100010160 | Breather tube | 1 | ADD TO CART | |
| 13 | 5100010115 | O-ring | 2 | ADD TO CART | |
| 14 | 5000012373 | Cheese head screw | 12 | 10Nm/7ft.lbs | ADD TO CART |
| 15 | 5100031076 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
5100031076 · qty on machine: 1 | |||||
| 16 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
| 17 | 5000014425 | Cheese head screw | 1 | 10Nm/7ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000014425 · qty on machine: 1 10Nm/7ft.lbs | |||||
| 18 | 5100022402 | Gasket | 1 | ADD TO CART | |
Page 14 — Exciter cpl. dpu90
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004557 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5100010479 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 3 | 5100015097 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 4 | 5002006113 | Retaining ring | 2 | ADD TO CART | |
| 5 | 5100004298 | Driving shaft | 1 | ADD TO CART | |
| 6 | 5002006603 | Fitting key | 1 | ADD TO CART | |
| 7 | 5100004306 | Gear | 1 | ADD TO CART | |
| 8 | 5100004300 | Shaft | 1 | ADD TO CART | |
| 9 | 5100005660 | O-ring | 4 | ADD TO CART | |
| 10 | 5100004284 | Adjustment cylinder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 11 | 5100005449 | Tripping pin | 1 | ADD TO CART | |
| 12 | 5000043180 | Retaining ring | 2 | ADD TO CART | |
| 13 | 5100005505 | Grooved ball bearing | 2 | ADD TO CART | |
| 14 | 5100004303 | Adjusting sleeve | 1 | ADD TO CART | |
| 15 | 5100005659 | Retaining ring | 2 | ADD TO CART | |
| 16 | 5100004295 | Cover | 1 | ADD TO CART | |
| 17 | 5100004294 | Vent cover | 1 | ADD TO CART | |
| 18 | 5100004409 | Flange | 1 | ADD TO CART | |
| 19 | 5000012629 | Cheese head screw | 20 | 25Nm/18ft.lbs | ADD TO CART |
| 20 | 5100003535 | Disc | 1 | ADD TO CART | |
| 21 | 5100003696 | Carrier | 1 | ADD TO CART | |
| 22 | 5100004118 | O-ring | 1 | ADD TO CART | |
| 23 | 5100005739 | Gear pump right | 1 | ADD TO CART | |
| 24 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 25 | 5100025089 | Eccentric weight | 2 | ADD TO CART | |
| 26 | 5100025091 | Eccentric weight | 2 | ADD TO CART | |
| 27 | 5100005604 | Corrugated-head screw | 8 | ADD TO CART | |
| 28 | 5100009783 | Hose pipe | 1 | ADD TO CART | |
| 29 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 30 | 5000011549 | Cheese head screw | 4 | 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 31 | 5100004283 | Piston | 1 | ADD TO CART | |
| 32 | 5100005657 | Ring | 1 | ADD TO CART | |
| 33 | 5100005658 | Ring | 1 | ADD TO CART | |
| 34 | 5100004281 | Cylinder | 1 | ADD TO CART | |
| 35 | 5100016693 | Piston cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5000124717 | Washer | 1 | ADD TO CART | |
| 37 | 5000220001 | Cheese head screw | 1 | ADD TO CART | |
Page 18 — Upper mass cpl. dpu80/90
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004992 | Upper mass | 1 | ADD TO CART | |
| 2 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 3 | 5100010048 | Pipe | 1 | ADD TO CART | |
| 4 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 11 | 5100013830 | Electric box cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 13 | 5100010314 | Suction hose | 1 | ADD TO CART | |
| 16 | 5100005939 | Protective cloth | 1 | PARTS REQUEST | |
|
COMING Protective cloth
5100005939 · qty on machine: 1 | |||||
| 17 | 5100027359 | Disc | 3 | ADD TO CART | |
| 18 | 5100018109 | Locking lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5000047388 | Cable tie | 20 | ADD TO CART | |
| 23 | 5000038489 | Tie cable | 10 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 10 | |||||
Page 20 — Cabling cpl. dpu80/90
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210107 | Clamp | 3 | ADD TO CART | |
| 2 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 3 | 5000211755 | Screw | 4 | ADD TO CART | |
| 4 | 5100010281 | Clamp | 2 | ADD TO CART | |
| 5 | 5000010625 | Flat washer | 2 | ADD TO CART | |
| 6 | 5000011561 | Cheese head screw | 2 | ADD TO CART | |
| 7 | 5100005670 | Positive cable | 1 | ADD TO CART | |
| 8 | 5100010152 | Negative pole strap | 2 | ADD TO CART | |
| 9 | 5000013574 | Cheese head screw | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 10 | 5100010130 | Cable harness engine | 1 | ADD TO CART | |
| 11 | 5100017849 | Clamp | 1 | ADD TO CART | |
Page 22 — Tank - radiator dpu80/90
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005488 | Hydraulic tank | 1 | ADD TO CART | |
| 2 | 5100010301 | Filter element | 1 | ADD TO CART | |
| 3 | 5100010303 | Filter element | 1 | PARTS REQUEST | |
|
COMING Filter element
5100010303 · qty on machine: 1 | |||||
| 4 | 5100010302 | Return filter | 1 | ADD TO CART | |
| 5 | 5000012629 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010341 | Fan | 1 | ADD TO CART | |
| 7 | 5100015757 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 8 | 5100016476 | Gasket | 1 | ADD TO CART | |
| 9 | 5100016478 | Gasket | 1 | ADD TO CART | |
| 10 | 5100015887 | Plate | 1 | ADD TO CART | |
| 11 | 5100005489 | Radiator | 1 | ADD TO CART | |
| 12 | 5000211795 | Corrugated-head screw | 5 | ADD TO CART | |
| 13 | 5100014130 | Bracket | 1 | ADD TO CART | |
| 14 | 5100010830 | Cable passage | 2 | ADD TO CART | |
| 15 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 16 | 5000012360 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 17 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 18 | 5000011548 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 19 | 5000011553 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 20 | 5100011096 | Screwed socket | 1 | ADD TO CART | |
| 21 | 5100010252 | Hose pipe | 1 | ADD TO CART | |
| 22 | 5100009849 | Bottle-overflow | 1 | ADD TO CART | |
| 23 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 24 | 5000011456 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 25 | 5100015982 | Cover | 1 | ADD TO CART | |
| 26 | 5100015647 | Radiator hose | 1 | ADD TO CART | |
| 27 | 5100010313 | Water hose | 1 | ADD TO CART | |
| 28 | 5100006059 | Water hose | 1 | ADD TO CART | |
| 29 | 5002004724 | Worm drive house clip | 4 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 4 | |||||
| 30 | 5100010256 | Hose pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 32 | 5000206551 | Clamp | 1 | ADD TO CART | |
| 33 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 34 | 5100010567 | Bracket | 1 | ADD TO CART | |
| 35 | 5100010568 | Bracket | 1 | ADD TO CART | |
| 36 | 5000097656 | Roll pin | 1 | ADD TO CART | |
| 37 | 5100009991 | Shockmount | 2 | ADD TO CART | |
| 38 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 39 | 5000010882 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100016491 | Gasket | 1 | ADD TO CART | |
| 41 | 5100016492 | Gasket | 1 | ADD TO CART | |
| 42 | 1000262373 | View glass | 1 | PARTS REQUEST | |
|
COMING View glass
1000262373 · qty on machine: 1 | |||||
| 44 | 5100011421 | Cover (bayonet lock) | 1 | ADD TO CART | |
| 45 | 5100015762 | Plug (threaded) | 1 | ADD TO CART | |
| 46 | 5000063739 | Screwed socket | 1 | ADD TO CART | |
| 47 | 5000211755 | Screw | 1 | ADD TO CART | |
Page 26 — Return filter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220217 | Cover | 1 | ADD TO CART | |
| 2 | 5000220218 | Gasket | 1 | ADD TO CART | |
| 3 | 5100016998 | Filter element | 1 | ADD TO CART | |
Page 28 — Fuel tank complete dpu80/90
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000211795 | Corrugated-head screw | 2 | 35Nm/26ft.lbs | ADD TO CART |
| 11 | 5100009992 | Shockmount | 2 | ADD TO CART | |
| 12 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 13 | 5000010882 | Hexagon nut | 2 | 6Nm/4ft.lbs | ADD TO CART |
| 1 | 5100038140 | Fuel tank | 1 | ADD TO CART | |
| 2 | 1000267866 | Screen | 1 | PARTS REQUEST | |
|
COMING Screen
1000267866 · qty on machine: 1 | |||||
| 3 | 5100010476 | Tank cover | 1 | 3Nm/2ft.lbs | ADD TO CART |
| 4 | 1000051394 | Angle cut piece | 1 | PARTS REQUEST | |
|
COMING Angle cut piece
1000051394 · qty on machine: 1 | |||||
| 5 | 5100010035 | Elbow fitting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100010244 | Fuel hose | 1 | ADD TO CART | |
| 7 | 5100010245 | Fuel hose | 1 | ADD TO CART | |
| 8 | 5000016836 | Clamp | 2 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 2 | |||||
| 9 | 5100010569 | Bracket | 1 | ADD TO CART | |
Page 30 — Block-hydraulic cpl. dpu80/110
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005479 | Block-hydraulic | 1 | ADD TO CART | |
| 2 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 3 | 5000210116 | O-ring | 3 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 3 | |||||
| 4 | 5100010247 | Hose pipe | 1 | ADD TO CART | |
| 5 | 5100010251 | Hose pipe | 1 | ADD TO CART | |
| 6 | 5000011548 | Cheese head screw | 12 | 10Nm/7ft.lbs | ADD TO CART |
| 7 | 5000013576 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5000011547 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 9 | 5000012373 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 1000090406 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000090406 · qty on machine: 1 | |||||
| 11 | 5000220194 | Valve cap | 1 | ADD TO CART | |
| 12 | 5100025061 | Valve | 1 | ADD TO CART | |
| 13 | 5100025062 | Solenoid | 1 | ADD TO CART | |
| 14 | 5000220198 | Test port | 1 | PARTS REQUEST | |
|
COMING Test port
5000220198 · qty on machine: 1 | |||||
Page 32 — Diesel engine cpl. dpu80/90
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024723 | Diesel engine kdw 702 - 3350 us | 1 | PARTS REQUEST | |
|
COMING Diesel engine kdw 702 - 3350 us
5100024723 · qty on machine: 1 | |||||
| 1 | 5100049016 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049016 · qty on machine: 1 | |||||
| 1 | 5100049017 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049017 · qty on machine: 1 | |||||
| 2 | 5100005758 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000210165 | Corrugated-head screw | 4 | ADD TO CART | |
| 4 | 5100011317 | Bracket | 1 | ADD TO CART | |
| 5 | 5000211795 | Corrugated-head screw | 2 | ADD TO CART | |
| 6 | 5100005655 | Gear pump | 1 | ADD TO CART | |
| 7 | 5000010621 | Flat washer | 4 | ADD TO CART | |
| 8 | 5000011535 | Cheese head screw | 3 | 49Nm/36ft.lbs | ADD TO CART |
| 9 | 5100046101 | Bolted connection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 11 | 5100010059 | Hose connection | 1 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5100010056 | Suction hose | 1 | ADD TO CART | |
| 14 | 5002004724 | Worm drive house clip | 2 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 2 | |||||
| 15 | 5100005748 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 16 | 5100005769 | Plate | 1 | ADD TO CART | |
| 17 | 5000011542 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 18 | 5000155486 | Throttle actuator | 1 | ADD TO CART | |
| 19 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 20 | 5000010880 | Hexagon nut | 1 | ADD TO CART | |
| 21 | 5000155487 | Adaptor | 1 | ADD TO CART | |
| 22 | 5000150022 | Cable | 1 | ADD TO CART | |
| 23 | 5100010831 | Compression spring | 1 | ADD TO CART | |
| 26 | 5100010901 | Covering | 1 | ADD TO CART | |
| 27 | 5000210173 | Filter-fuel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 28 | 5000011439 | Hexagonal head cap screw | 2 | 49Nm/36ft.lbs | ADD TO CART |
| 29 | 5000010883 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100010246 | Fuel hose | 1 | ADD TO CART | |
| 31 | 5000019156 | Gasket | 2 | ADD TO CART | |
| 32 | 5100010257 | Hose pipe | 1 | ADD TO CART | |
| 33 | 5000207336 | Hollow screw | 1 | ADD TO CART | |
| 34 | 5100011327 | Pipe clamp | 1 | ADD TO CART | |
| 35 | 5100010740 | Belt guard cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5100018058 | Corrugated-head screw | 4 | ADD TO CART | |
| 37 | 5100000973 | Shockmount | 4 | ADD TO CART | |
| 38 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 39 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 40 | 5100024279 | Heat shield cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000210194 | Corrugated-head screw | 3 | ADD TO CART | |
| 42 | 5000206422 | Switch | 1 | ADD TO CART | |
| 43 | 5000011548 | Cheese head screw | 2 | ADD TO CART | |
| 44 | 5000011552 | Cheese head screw | 2 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 45 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
Page 36 — Holder cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010590 | Bracket | 1 | ADD TO CART | |
| 2 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 3 | 5000205238 | Screw connection | 1 | ADD TO CART | |
| 4 | 5000211773 | Nose cap | 1 | 40Nm/30ft.lbs | ADD TO CART |
Page 38 — DPU90Lem770 US Electrical Box Cpl. DPU80/90/110
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005376 | Electric components drawer | 1 | ADD TO CART | |
| 2 | 5100010129 | Cable harness e-box | 1 | ADD TO CART | |
| 3 | 5000011570 | Cheese head screw | 2 | 5Nm/4ft.lbs | ADD TO CART |
| 4 | 5000010628 | Flat washer | 2 | ADD TO CART | |
| 5 | 5000010370 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5000085437 | Relay | 4 | ADD TO CART | |
| 7 | 5100016686 | Gasket | 4 | ADD TO CART | |
| 8 | 5100015757 | Hexagonal head cap screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5000010369 | Hexagon nut | 3 | ADD TO CART | |
| 11 | 5100010300 | Connector plate bottom | 1 | ADD TO CART | |
| 12 | 5100010315 | Plate | 1 | ADD TO CART | |
| 13 | 5100010121 | Control | 1 | ADD TO CART | |
| 14 | 5100010109 | Flange | 1 | ADD TO CART | |
| 15 | 5100010110 | Switch | 1 | ADD TO CART | |
| 16 | 5100005715 | Botton switch | 1 | ADD TO CART | |
| 17 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 18 | 5100005762 | Decoder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5100010780 | Connector plate middle | 1 | ADD TO CART | |
| 20 | 5100010781 | Connector plate top | 1 | ADD TO CART | |
| 21 | 5100009818 | Display | 1 | ADD TO CART | |
| 22 | 5100005471 | Cover | 1 | ADD TO CART | |
| 23 | 5000108371 | Oval head screw | 18 | ADD TO CART | |
| 24 | 5000010622 | Flat washer | 3 | ADD TO CART | |
| 25 | 5000011541 | Cheese head screw | 3 | 25Nm/18ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000011541 · qty on machine: 3 25Nm/18ft.lbs | |||||
| 26 | 5100022411 | Blind plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5100061282 | Cable harness | 1 | ADD TO CART | |
Page 40 — Air filter cpl.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010911 | Bracket | 1 | ADD TO CART | |
| 2 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 3 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 4 | 5100005726 | Air cleaner | 1 | ADD TO CART | |
| 4 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 4 | 5100024489 | Safety elements | 1 | ADD TO CART | |
| 4 | 5100024550 | Clamp | 3 | ADD TO CART | |
| 4 | 5100024551 | Dust discharge valve | 1 | ADD TO CART | |
| 5 | 5100010912 | Tightening strap | 1 | ADD TO CART | |
| 7 | 5100016655 | Gasket | 1 | ADD TO CART | |
| 8 | 5000014996 | Clamp | 2 | ADD TO CART | |
Page 42 — Locking device rear cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010584 | Bracket | 1 | ADD TO CART | |
| 2 | 5000204116 | Shockmount | 2 | ADD TO CART | |
| 3 | 5100017158 | Locknut | 6 | 30Nm/22ft.lbs | ADD TO CART |
| 4 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 5 | 5100010580 | Locking lever rear | 1 | ADD TO CART | |
| 6 | 5100010840 | Shockmount | 2 | ADD TO CART | |
Page 44 — Battery cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209152 | Insulating cushion | 1 | ADD TO CART | |
| 2 | 5000086527 | Battery | 1 | ADD TO CART | |
| 3 | 5100005937 | Battery mounting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100017160 | Gasket | 1 | ADD TO CART | |
| 5 | 5100010891 | Threaded bolt | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010892 | Threaded bolt | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 7 | 5000017313 | Hexagon nut | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 9 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 10 | 5100014022 | Positive pol cover | 1 | ADD TO CART | |
| 11 | 5000212623 | Bushing | 3 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
Page 46 — Protective frame cpl. dpu80/90
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010657 | Cross-beam | 1 | ADD TO CART | |
| 2 | 5100016518 | Gasket | 1 | ADD TO CART | |
| 3 | 5100017413 | Jack ring | 1 | ADD TO CART | |
| 4 | 5100005732 | Axle | 1 | ADD TO CART | |
| 5 | 5000202829 | Cup spring | 1 | ADD TO CART | |
| 6 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 8 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 9 | 5000210112 | Corrugated-head screw | 4 | ADD TO CART | |
| 10 | 5000204116 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100017158 | Locknut | 8 | ADD TO CART | |
| 12 | 5100010583 | Bracket | 1 | ADD TO CART | |
| 13 | 5100010840 | Shockmount | 2 | ADD TO CART | |
| 14 | 5100064251 | Locking lever | 1 | ADD TO CART | |
| 15 | 5100010450 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010450 · qty on machine: 1 | |||||
| 16 | 5100010451 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010451 · qty on machine: 1 | |||||
| 17 | 5100016517 | Gasket | 2 | ADD TO CART | |
| 18 | 5100018100 | Edge protection | 2 | ADD TO CART | |
| 19 | 5100018101 | Edge protection | 2 | ADD TO CART | |
| 20 | 5100018059 | Corrugated-head screw | 8 | ADD TO CART | |
| 21 | 5100010459 | Covering | 2 | PARTS REQUEST | |
|
COMING Covering
5100010459 · qty on machine: 2 | |||||
| 22 | 5100018102 | Edge protection | 2 | ADD TO CART | |
| 23 | 5000211795 | Corrugated-head screw | 12 | ADD TO CART | |
| 24 | 5100011100 | Corrugated-head screw | 4 | ADD TO CART | |
| 25 | 5100011101 | Corrugated-head screw | 4 | PARTS REQUEST | |
|
COMING Corrugated-head screw
5100011101 · qty on machine: 4 | |||||
| 26 | 5100025691 | Handle profile | 1 | ADD TO CART | |
Page 48 — Bonnet front cpl. dpu80
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010439 | Bonnet | 1 | PARTS REQUEST | |
|
COMING Bonnet
5100010439 · qty on machine: 1 | |||||
| 2 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 3 | 5000210112 | Corrugated-head screw | 4 | 85Nm/63ft.lbs | ADD TO CART |
| 4 | 5100010931 | Screen grid rear (dpu80) | 1 | ADD TO CART | |
| 4 | 5100018930 | Screen grid front (dpu80r) | 1 | PARTS REQUEST | |
|
COMING Screen grid front (dpu80r)
5100018930 · qty on machine: 1 | |||||
| 5 | 5100010577 | Locking tab front | 1 | ADD TO CART | |
| 6 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 7 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 8 | 5100024474 | Shockmount | 2 | ADD TO CART | |
| 9 | 5000154402 | Cable | 1 | ADD TO CART | |
| 10 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 11 | 5000033356 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100024476 | Edge protection | 1 | 90Nm/66ft.lbs | ADD TO CART |
Page 50 — Bonnet rear cpl. dpu80
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010438 | Bonnet | 1 | PARTS REQUEST | |
|
COMING Bonnet
5100010438 · qty on machine: 1 | |||||
| 2 | 5100010578 | Locking tab rear | 1 | ADD TO CART | |
| 3 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 4 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 5 | 5100010933 | Screen grid rear (dpu80) | 1 | PARTS REQUEST | |
|
COMING Screen grid rear (dpu80)
5100010933 · qty on machine: 1 | |||||
| 5 | 5100018919 | Screen grid front (dpu80) | 1 | ADD TO CART | |
| 5 | 5100018920 | Screen grid front (dpu80r,c) | 1 | ADD TO CART | |
| 5 | 5100018924 | Screen grid front (dpu80r) | 1 | ADD TO CART | |
| 6 | 5100011262 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000068355 | Protective cap | 1 | ADD TO CART | |
| 9 | 5000210112 | Corrugated-head screw | 3 | 85Nm/63ft.lbs | ADD TO CART |
| 10 | 5100005810 | Compr. spring | 1 | ADD TO CART | |
| 11 | 5100017956 | Protection foil | 1 | ADD TO CART | |
| 12 | 5100024201 | Cloth | 1 | ADD TO CART | |
| 13 | 5100025231 | Portfolio | 1 | PARTS REQUEST | |
|
COMING Portfolio
5100025231 · qty on machine: 1 | |||||
| 14 | 5100057038 | Plate | 1 | ADD TO CART | |
| 15 | 5100048321 | Mushroom head bolt | 4 | ADD TO CART | |
| 16 | 5000010372 | Flat washer | 4 | ADD TO CART | |
| 17 | 5000010369 | Hexagon nut | 4 | ADD TO CART | |
Page 52 — Center pole cpl. dpu80/90
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100018077 | Support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100018079 | Center pole lower part cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5100009640 | Center pole base cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000211795 | Corrugated-head screw | 8 | 42Nm/31ft.lbs | ADD TO CART |
| 5 | 5100005882 | Center pole head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100005601 | Covering | 1 | ADD TO CART | |
| 7 | 5000210194 | Corrugated-head screw | 6 | 19Nm/14ft.lbs | ADD TO CART |
| 9 | 5000215035 | Shockmount | 2 | ADD TO CART | |
| 10 | 5000011527 | Cheese head screw | 2 | 86Nm/63ft.lbs | ADD TO CART |
| 11 | 5100005124 | Clamp | 1 | ADD TO CART | |
| 12 | 5000011554 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5000047388 | Cable tie | 1 | ADD TO CART | |
| 14 | 5000038489 | Tie cable | 5 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 5 | |||||
Page 54 — Support cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100005619 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5100005619 · qty on machine: 1 | |||||
| 1 | 5100009748 | Tow bar fixing | 1 | ADD TO CART | |
| 2 | 5100009740 | Shockmount | 1 | ADD TO CART | |
| 3 | 5000216640 | Locknut | 4 | 60Nm/44ft.lbs | ADD TO CART |
| 5 | 5100018086 | Roll pin | 4 | ADD TO CART | |
| 6 | 5100005617 | Bolt | 1 | ADD TO CART | |
| 7 | 5000211795 | Corrugated-head screw | 1 | 42Nm/31ft.lbs | ADD TO CART |
| 8 | 5100010273 | Corrugated-head screw | 4 | 150Nm/111ft.lbs | ADD TO CART |
| 9 | 5100022612 | Guard plate | 1 | ADD TO CART | |
Page 56 — Center pole base cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005592 | Center pole base | 1 | ADD TO CART | |
| 2 | 5000220440 | Bush | 2 | ADD TO CART | |
| 3 | 5100010132 | Hydraulic hose | 1 | 15Nm/11ft.lbs | ADD TO CART |
| 4 | 5100005690 | Wire harness center pole | 1 | ADD TO CART | |
| 5 | 5100010497 | Shockmount | 4 | ADD TO CART | |
| 6 | 5000010882 | Hexagon nut | 4 | ADD TO CART | |
| 7 | 5100017155 | Shockmount | 2 | ADD TO CART | |
| 8 | 5000216640 | Locknut | 4 | 60Nm/44ft.lbs | ADD TO CART |
| 9 | 5100005631 | Bumper support | 1 | ADD TO CART | |
| 10 | 5100005622 | Spindle | 1 | ADD TO CART | |
| 11 | 5100005623 | Pipe | 1 | ADD TO CART | |
| 12 | 5100005496 | Star-handle | 1 | ADD TO CART | |
Page 58 — Center pole head cpl. dpu80/90
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005148 | Center pole head | 1 | ADD TO CART | |
| 2 | 5000069726 | Long face pinion | 1 | ADD TO CART | |
| 3 | 5000125926 | Spacer | 2 | ADD TO CART | |
| 4 | 5000068752 | O-ring | 2 | ADD TO CART | |
| 5 | 5000018194 | O-ring | 2 | ADD TO CART | |
| 6 | 5100005285 | Bearing flange | 1 | ADD TO CART | |
| 7 | 5100005685 | Slide bush | 1 | ADD TO CART | |
| 8 | 5100017017 | Compression spring | 1 | ADD TO CART | |
| 9 | 5100005564 | Disc | 1 | ADD TO CART | |
| 10 | 5100005287 | Piston rod | 1 | ADD TO CART | |
| 11 | 5100005683 | Ring | 1 | ADD TO CART | |
| 12 | 5100005688 | Gasket | 1 | ADD TO CART | |
| 13 | 5100005689 | O-ring | 1 | ADD TO CART | |
| 14 | 5100005284 | Hydraulic cylinder | 1 | 120Nm/89ft.lbs | ADD TO CART |
| 15 | 5000069225 | Screwed socket | 1 | 60Nm/44ft.lbs | ADD TO CART |
| 16 | 5100019617 | Oil plug | 1 | 50Nm/37ft.lbs | ADD TO CART |
| 17 | 5000032006 | Gasket | 1 | ADD TO CART | |
| 18 | 5000129420 | Socket head cap screw | 4 | 45Nm/33ft.lbs | ADD TO CART |
Page 60 — Bonnet cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009242 | Bonnet | 1 | ADD TO CART | |
| 1 | 5100024486 | Bonnet (gray) | 1 | ADD TO CART | |
| 2 | 5100034271 | Steering part | 1 | ADD TO CART | |
| 3 | 5000108371 | Oval head screw | 4 | ADD TO CART | |
| 4 | 5100010274 | Label | 1 | ADD TO CART | |
| 5 | 5100010113 | Button switch | 1 | ADD TO CART | |
| 6 | 5100016488 | Auxiliary owner block | 1 | ADD TO CART | |
| 7 | 5100034270 | Rockerswitch | 1 | ADD TO CART | |
| 8 | 5100010111 | Led | 1 | ADD TO CART | |
| 9 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 10 | 5000108370 | Oval head screw | 6 | ADD TO CART | |
| 11 | 5100034272 | Insulating cushion | 1 | ADD TO CART | |

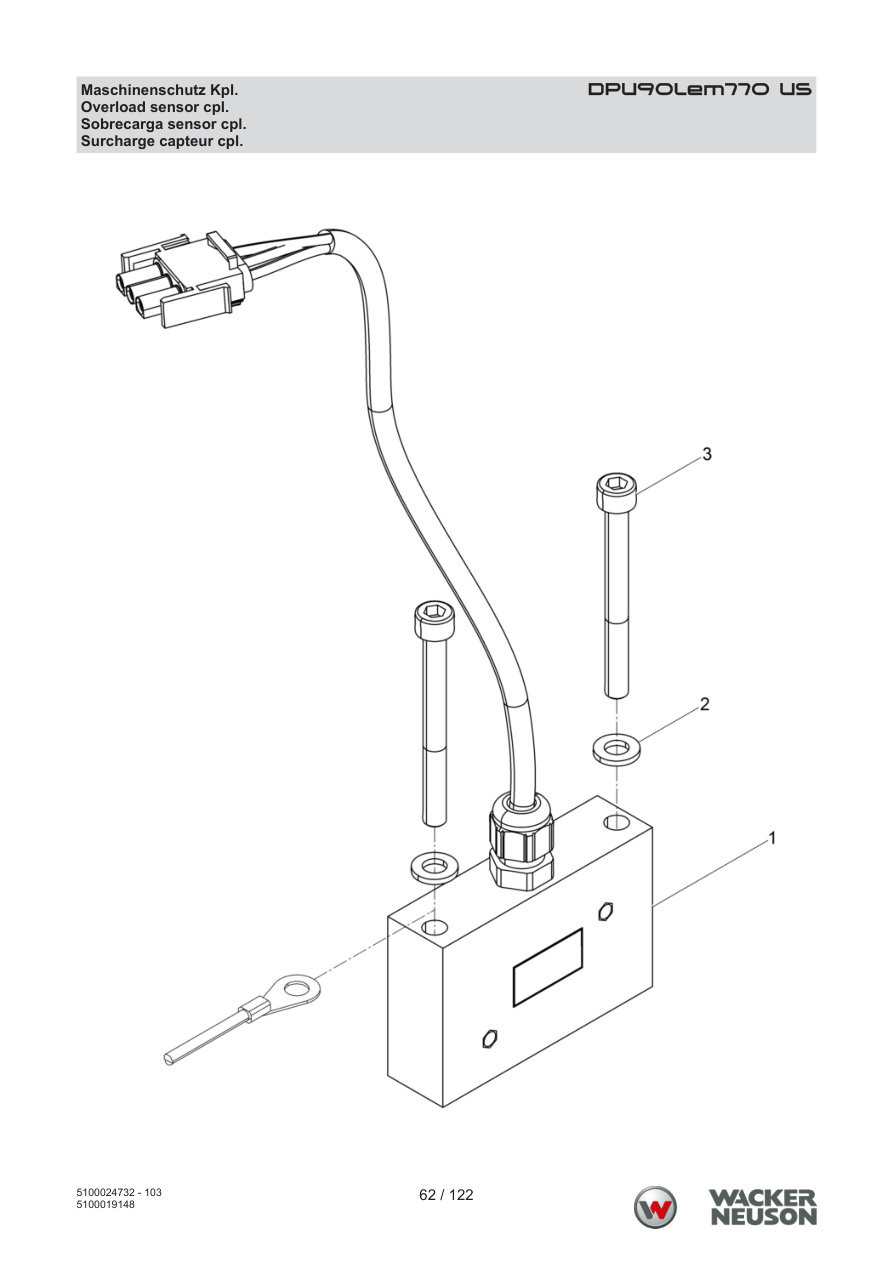

Page 62 — Overload sensor cpl.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010005 | Sensor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 3 | 5000037071 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
Page 64 — DPU90Lem770 US Sticker
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000222103 | Decal, logo | 2 | ADD TO CART | |
| 3 | 5100017952 | Type label dpu110 | 2 | ADD TO CART | |
| 3 | 5100017953 | Type label dpu110r | 2 | ADD TO CART | |
| 3 | 5100017954 | Type label dpu80 | 2 | ADD TO CART | |
| 3 | 5100017955 | Type label dpu80r | 2 | ADD TO CART | |
| 3 | 5100024540 | Type label dpu90 | 2 | PARTS REQUEST | |
|
COMING Type label dpu90
5100024540 · qty on machine: 2 | |||||
| 3 | 5100024541 | Type label dpu90r | 2 | ADD TO CART | |
| 4 | 5000222086 | Label symbol | 1 | ADD TO CART | |
| 5 | 5000207747 | Danger label | 1 | PARTS REQUEST | |
|
COMING Danger label
5000207747 · qty on machine: 1 | |||||
| 6 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 7 | 5000219175 | Labels | 1 | ADD TO CART | |
| 8 | 5000064925 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5000219179 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000219179 · qty on machine: 1 | |||||
| 10 | 5000216635 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000216635 · qty on machine: 1 | |||||
| 11 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 12 | 5000219080 | Labels | 1 | ADD TO CART | |
| 13 | 5100011227 | Label hav 24h | 1 | ADD TO CART | |
| 14 | 5100085618 | Label | 4 | PARTS REQUEST | |
|
COMING Label
5100085618 · qty on machine: 4 | |||||
| 15 | 5000219176 | Labels | 3 | ADD TO CART | |
| 17 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 66 — DPU90Lem770 US Crankshaft
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026266 | Crankshaft | 1 | PARTS REQUEST | |
|
COMING Crankshaft
5100026266 · qty on machine: 1 | |||||
| 2 | 5000159357 | Pin | 1 | ADD TO CART | |
| 3 | 5000159260 | Woodruff key | 1 | ADD TO CART | |
| 4 | 5000159454 | Plug, threaded | 2 | ADD TO CART | |
| 5 | 5000159261 | Square key | 1 | ADD TO CART | |
Page 68 — DPU90Lem770 US Piston - Connecting rod
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160377 | Piston set | 2 | ADD TO CART | |
| 1 | 5000160375 | Piston set | 2 | ADD TO CART | |
| 1 | 5000160376 | Piston set | 2 | ADD TO CART | |
| 2 | 5000160367 | Connecting rod | 2 | PARTS REQUEST | |
|
COMING Connecting rod
5000160367 · qty on machine: 2 | |||||
| 3 | 5000160383 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160384 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160385 | Piston ring set | 2 | ADD TO CART | |
| 4 | 5000215523 | Piston pin | 2 | ADD TO CART | |
| 5 | 5000215477 | Retaining ring | 4 | ADD TO CART | |
| 6 | 5000160368 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000160368 · qty on machine: 2 | |||||
| 7 | 5000155691 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155689 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155690 | Bearing | 2 | ADD TO CART | |
| 8 | 5000084175 | Screw | 4 | ADD TO CART | |
Page 70 — DPU90Lem770 US Flywheel
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215545 | Flywheel | 1 | ADD TO CART | |
| 2 | 5000155693 | Gear crown | 1 | ADD TO CART | |
| 3 | 5000160188 | Bolt | 5 | ADD TO CART | |
| 4 | 5000159326 | Plate | 1 | ADD TO CART | |
| 5 | 5000159254 | Bolt | 9 | ADD TO CART | |
| 6 | 5000215527 | Plug | 1 | ADD TO CART | |
| 7 | 5000211373 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000084164 | Screw | 3 | ADD TO CART | |
| 9 | 5000215567 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5000215567 · qty on machine: 1 | |||||
| 10 | 5000211370 | Pin | 2 | PARTS REQUEST | |
|
COMING Pin
5000211370 · qty on machine: 2 | |||||
| 11 | 5000082140 | Nut | 3 | ADD TO CART | |
| 12 | 5000084123 | Screw | 3 | ADD TO CART | |
| 13 | 5000211371 | Washer | 4 | ADD TO CART | |
| 14 | 5000211372 | Screw | 4 | ADD TO CART | |
| 15 | 5000160231 | Washer | 3 | ADD TO CART | |
Page 72 — DPU90Lem770 US Belt Pulley
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026267 | V-belt pulley | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5000126935 | Bolt | 1 | ADD TO CART | |
| 14 | 5000215485 | Belt | 1 | ADD TO CART | |
Page 74 — Crankcase
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026268 | Crankcase | 1 | PARTS REQUEST | |
|
COMING Crankcase
5100026268 · qty on machine: 1 | |||||
| 2 | 5000159257 | Sleeve | 2 | ADD TO CART | |
| 3 | 5000206229 | Screw | 1 | ADD TO CART | |
| 4 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000215522 | Pin | 1 | ADD TO CART | |
| 6 | 5000155704 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155702 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155703 | Bearing | 3 | ADD TO CART | |
| 8 | 5000159486 | Disc | 2 | ADD TO CART | |
| 8 | 5000159487 | Disc | 2 | ADD TO CART | |
| 8 | 5000159488 | Disc | 2 | ADD TO CART | |
| 9 | 5000082335 | Threaded plug | 2 | ADD TO CART | |
| 12 | 5000159288 | Gasket | 4 | ADD TO CART | |
| 13 | 5000159360 | Dowel pin | 2 | ADD TO CART | |
| 15 | 5000159480 | Screw | 6 | ADD TO CART | |
| 16 | 5000159456 | Plug | 1 | ADD TO CART | |
| 17 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 18 | 5000215530 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5000215530 · qty on machine: 1 | |||||
| 19 | 5000155700 | Flange | 1 | ADD TO CART | |
| 20 | 5000217807 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217807 · qty on machine: 1 | |||||
| 21 | 5000159467 | Screw | 6 | ADD TO CART | |
| 22 | 5000155701 | Rotary shaft seal | 1 | PARTS REQUEST | |
|
COMING Rotary shaft seal
5000155701 · qty on machine: 1 | |||||
| 23 | 5000159341 | Oil filter fitting | 1 | ADD TO CART | |
| 24 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 25 | 5100026399 | Dip stick | 1 | ADD TO CART | |
| 26 | 5100026400 | O-ring | 3 | ADD TO CART | |
| 27 | 5100026401 | Pipe | 1 | ADD TO CART | |
| 28 | 5000063695 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5000063695 · qty on machine: 2 | |||||
| 41 | 5100026269 | Gasket set crankcase | 1 | ADD TO CART | |
Page 78 — DPU90Lem770 US Cylinder head
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 12 | 5000159453 | Plug | 1 | ADD TO CART | |
| 1 | 5100026381 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000159449 | Plug | 1 | ADD TO CART | |
| 6 | 5000159318 | Spark arrester | 2 | ADD TO CART | |
| 7 | 5000215524 | Lifting point | 2 | ADD TO CART | |
| 8 | 5000084156 | Screw | 1 | ADD TO CART | |
| 9 | 5000217828 | Flange screw | 6 | ADD TO CART | |
| 10 | 5000159350 | Washer | 6 | ADD TO CART | |
| 11 | 5000159231 | O-ring | 1 | ADD TO CART | |
| 13 | 5000159311 | Bracket | 1 | ADD TO CART | |
| 14 | 5000159254 | Bolt | 1 | ADD TO CART | |
| 15 | 5000082292 | Washer | 1 | ADD TO CART | |
| 17 | 5000159303 | Valve guide | 4 | ADD TO CART | |
| 18 | 5100026382 | Intake valve seat | 2 | ADD TO CART | |
| 19 | 5100026383 | Exhaust valve seat | 2 | ADD TO CART | |
| 23 | 5000159285 | Nut | 2 | ADD TO CART | |
| 24 | 5000215494 | Spacer | 6 | ADD TO CART | |
| 25 | 5000160380 | Precombustion chamber | 2 | ADD TO CART | |
| 26 | 5100026384 | Cylinder head gasket | 1 | ADD TO CART | |
| 30 | 5200015510 | Gasket set cylinder head | 1 | ADD TO CART | |
| 33 | 5000159234 | Oil seal | 1 | ADD TO CART | |
| 34 | 5000159282 | Flange | 1 | ADD TO CART | |
| 35 | 5000215541 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 3 | |||||
Page 80 — DPU90Lem770 US Cylinder head cover
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026386 | Cylinder head cover | 1 | ADD TO CART | |
| 3 | 5100026388 | Baffle plate | 1 | ADD TO CART | |
| 4 | 5000227761 | Cap | 1 | PARTS REQUEST | |
|
COMING Cap
5000227761 · qty on machine: 1 | |||||
| 5 | 5000206208 | O-ring | 1 | ADD TO CART | |
| 6 | 5000215541 | Screw | 10 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 10 | |||||
| 7 | 5100026389 | Gasket | 1 | ADD TO CART | |
| 8 | 5000159308 | Connector | 1 | ADD TO CART | |
| 10 | 5100026419 | Oil pressure switch | 1 | PARTS REQUEST | |
|
COMING Oil pressure switch
5100026419 · qty on machine: 1 | |||||
| 12 | 5100008855 | Rivet | 1 | PARTS REQUEST | |
|
COMING Rivet
5100008855 · qty on machine: 1 | |||||
| 13 | 5000159455 | Push-in plug | 1 | ADD TO CART | |
| 14 | 5000155745 | Pressure valve | 1 | ADD TO CART | |
| 15 | 5000160201 | Clamp | 4 | ADD TO CART | |
| 15 | 5000160199 | Clamp | 1 | ADD TO CART | |
| 16 | 5000215505 | Connecting tube | 1 | ADD TO CART | |
| 16 | 5000215535 | Connecting pipe | 1 | ADD TO CART | |
| 17 | 5000215536 | Valve tube | 1 | ADD TO CART | |
Page 82 — DPU90Lem770 US Injection system
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5200016512 | Flange nut | 4 | ADD TO CART | |
| 2 | 5000160379 | Injection pump | 2 | ADD TO CART | |
| 3 | 5200009479 | Stud | 4 | ADD TO CART | |
| 4 | 5000159233 | O-ring | 2 | ADD TO CART | |
| 5 | 5100026390 | Bracket | 1 | ADD TO CART | |
| 7 | 5000159300 | Washer | 2 | ADD TO CART | |
| 9 | 5000159473 | Screw | 4 | ADD TO CART | |
| 10 | 5100026391 | Fuel hose | 1 | ADD TO CART | |
| 11 | 5000159237 | O-ring | 2 | ADD TO CART | |
| 12 | 5000160209 | Gasket | 1 | ADD TO CART | |
| 13 | 5000160391 | Back pressure valve | 2 | ADD TO CART | |
| 14 | 5000159302 | Gasket | 2 | ADD TO CART | |
| 15 | 5000160332 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160332 · qty on machine: 1 | |||||
| 15 | 5000160342 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160342 · qty on machine: 1 | |||||
| 15 | 5000160341 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160341 · qty on machine: 1 | |||||
| 15 | 5000160340 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160340 · qty on machine: 1 | |||||
| 15 | 5000160339 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160339 · qty on machine: 1 | |||||
| 15 | 5000160338 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160338 · qty on machine: 1 | |||||
| 15 | 5000160337 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160337 · qty on machine: 1 | |||||
| 15 | 5000160336 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160336 · qty on machine: 1 | |||||
| 15 | 5000160335 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160335 · qty on machine: 1 | |||||
| 15 | 5000160334 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160334 · qty on machine: 1 | |||||
| 17 | 5000159278 | Spacer | 2 | ADD TO CART | |
| 18 | 5000155710 | Jet | 2 | ADD TO CART | |
| 20 | 5000159238 | O-ring | 2 | ADD TO CART | |
| 22 | 5000215509 | Spring | 2 | PARTS REQUEST | |
|
COMING Spring
5000215509 · qty on machine: 2 | |||||
| 23 | 5000203718 | Cu-ring | 2 | PARTS REQUEST | |
|
COMING Cu-ring
5000203718 · qty on machine: 2 | |||||
| 24 | 5000159236 | O-ring | 2 | ADD TO CART | |
| 25 | 5000159471 | Screw | 4 | ADD TO CART | |
| 26 | 5000159317 | Spring | 2 | ADD TO CART | |
| 29 | 5000159242 | Clamp | 2 | ADD TO CART | |
| 30 | 5200015520 | Pressure valve | 2 | ADD TO CART | |
| 32 | 5000159309 | Shim | 2 | ADD TO CART | |
Page 86 — DPU90Lem770 US Camshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026392 | Camshaft | 1 | ADD TO CART | |
| 3 | 5000215482 | Collar | 1 | ADD TO CART | |
| 4 | 5000215497 | Cam | 1 | ADD TO CART | |
| 5 | 5000160753 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000160753 · qty on machine: 1 | |||||
| 6 | 5000215540 | Screw | 1 | ADD TO CART | |
| 8 | 5000159246 | Push rod, valve lifter | 2 | ADD TO CART | |
Page 88 — DPU90Lem770 US Rocker arms - Valves
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159328 | Spring housing | 4 | ADD TO CART | |
| 3 | 5000160373 | Spring | 4 | ADD TO CART | |
| 4 | 5000159351 | Washer | 4 | ADD TO CART | |
| 6 | 5100026394 | Rod | 1 | ADD TO CART | |
| 6 | 5100026393 | Rocker arm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5000083011 | Nut | 3 | ADD TO CART | |
| 8 | 5000159350 | Washer | 3 | ADD TO CART | |
| 9 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000159482 | Screw | 1 | ADD TO CART | |
| 11 | 5000159447 | Shaft support | 3 | ADD TO CART | |
| 13 | 5000159248 | Rocker arm | 4 | PARTS REQUEST | |
|
COMING Rocker arm
5000159248 · qty on machine: 4 | |||||
| 14 | 5000159249 | Rocker arm injector | 2 | ADD TO CART | |
| 15 | 5000159275 | Nut | 1 | ADD TO CART | |
| 16 | 5000159483 | Threaded bolt | 1 | ADD TO CART | |
| 17 | 5000159443 | Pin | 1 | ADD TO CART | |
| 18 | 5000215529 | Plug | 2 | ADD TO CART | |
| 19 | 5000159333 | Threaded stud | 3 | ADD TO CART | |
| 21 | 5100008856 | Bush | 8 | PARTS REQUEST | |
|
COMING Bush
5100008856 · qty on machine: 8 | |||||
| 27 | 5000159297 | Gasket | 4 | ADD TO CART | |
| 28 | 5000160390 | Intake valve | 2 | ADD TO CART | |
| 29 | 5000160392 | Outlet valve | 2 | ADD TO CART | |
Page 90 — DPU90Lem770 US Timing belt
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159481 | Screw | 1 | ADD TO CART | |
| 2 | 5000159349 | Washer | 1 | ADD TO CART | |
| 3 | 5000083011 | Nut | 1 | ADD TO CART | |
| 4 | 5000159344 | Washer | 1 | ADD TO CART | |
| 5 | 5000159334 | Threaded stud | 1 | ADD TO CART | |
| 6 | 5000159284 | Tensioner pulley | 1 | ADD TO CART | |
| 7 | 5000155697 | Timing belt | 1 | ADD TO CART | |
| 8 | 5000159336 | Belt pulley | 1 | ADD TO CART | |
| 9 | 5000159338 | Belt pulley | 1 | ADD TO CART | |
Page 92 — Oil pump
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155735 | Oil pump complete | 1 | ADD TO CART | |
| 2 | 5000160326 | Rotor | 1 | ADD TO CART | |
| 4 | 5000159312 | Spring | 1 | ADD TO CART | |
| 5 | 5000159450 | Lock screw | 1 | ADD TO CART | |
| 6 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 7 | 5000159330 | Rod | 1 | ADD TO CART | |
| 8 | 5000160178 | O-ring | 1 | ADD TO CART | |
| 10 | 5000159478 | Screw | 3 | ADD TO CART | |
| 11 | 5000215709 | Gasket | 1 | ADD TO CART | |
| 14 | 5000155734 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000159484 | Screw | 2 | ADD TO CART | |
| 16 | 5000215479 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 17 | 5000084169 | Screw | 6 | ADD TO CART | |
Page 94 — Oil pan
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026395 | Oil pan | 1 | ADD TO CART | |
| 2 | 5000159228 | Oil seal | 1 | ADD TO CART | |
| 3 | 5000159253 | Bolt | 15 | ADD TO CART | |
| 4 | 5100026396 | Oil-return pip | 1 | ADD TO CART | |
| 5 | 5000159235 | O-ring | 1 | ADD TO CART | |
| 6 | 5000159568 | Copper washer | 2 | ADD TO CART | |
| 11 | 5000211364 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5000211364 · qty on machine: 2 | |||||
| 12 | 5100026397 | Gasket | 1 | ADD TO CART | |
Page 96 — DPU90Lem770 US Speed governor
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159304 | Governor lever complete | 1 | ADD TO CART | |
| 2 | 5000159321 | Pin | 1 | ADD TO CART | |
| 3 | 5000159229 | Oil seal | 1 | ADD TO CART | |
| 5 | 5000215480 | Collar | 1 | ADD TO CART | |
| 6 | 5000215715 | Governor spring | 1 | ADD TO CART | |
| 7 | 5000217813 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5000217813 · qty on machine: 1 | |||||
| 8 | 5000215520 | Washer | 4 | ADD TO CART | |
| 9 | 5000159477 | Screw | 2 | ADD TO CART | |
| 13 | 5000159315 | Spring | 1 | ADD TO CART | |
| 14 | 5000211941 | Screw | 3 | ADD TO CART | |
| 15 | 5100026402 | Governor rod | 1 | ADD TO CART | |
| 16 | 5000159467 | Screw | 3 | ADD TO CART | |
| 17 | 5000159239 | O-ring | 1 | ADD TO CART | |
| 18 | 5000159324 | Check disc | 1 | ADD TO CART | |
| 19 | 5000159240 | Lip seal | 1 | PARTS REQUEST | |
|
COMING Lip seal
5000159240 · qty on machine: 1 | |||||
| 20 | 5000159267 | Bearing | 1 | ADD TO CART | |
| 21 | 5100008841 | Screw | 3 | ADD TO CART | |
| 22 | 5000159265 | Cover | 1 | ADD TO CART | |
| 23 | 5000159251 | Collar | 1 | ADD TO CART | |
| 24 | 5000215517 | Check disc | 1 | ADD TO CART | |
| 25 | 5000155698 | Speed control module | 1 | ADD TO CART | |
| 26 | 5000215506 | Collar | 1 | ADD TO CART | |
| 27 | 5000217805 | Bearing | 1 | PARTS REQUEST | |
|
COMING Bearing
5000217805 · qty on machine: 1 | |||||
Page 98 — Steering
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 2 | 5000215543 | Screw | 1 | ADD TO CART | |
| 3 | 5000084131 | Screw | 1 | ADD TO CART | |
| 4 | 5000083995 | Washer | 1 | ADD TO CART | |
| 5 | 5000150038 | Nut | 1 | PARTS REQUEST | |
|
COMING Nut
5000150038 · qty on machine: 1 | |||||
| 6 | 5000217818 | Washer | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 66 | 5000215519 | Rivet | 3 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |
Page 100 — DPU90Lem770 US Fuel pump
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226239 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5000226239 · qty on machine: 1 | |||||
| 2 | 5000082266 | Stud | 2 | ADD TO CART | |
| 3 | 5000110759 | Seal | 1 | ADD TO CART | |
| 4 | 5000160757 | Rod | 1 | ADD TO CART | |
| 5 | 5000203358 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 2 | |||||
| 6 | 5000082285 | Washer | 2 | ADD TO CART | |
| 7 | 5000082183 | Copper washer | 4 | ADD TO CART | |
| 8 | 5000217802 | Banjo bolt | 2 | PARTS REQUEST | |
|
COMING Banjo bolt
5000217802 · qty on machine: 2 | |||||
Page 102 — DPU90Lem770 US Fuel Lines
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000082155 | Clamp | 1 | ADD TO CART | |
| 2 | 5100026403 | Fuel hose | 1 | ADD TO CART | |
| 3 | 5000215704 | Clamp | 1 | ADD TO CART | |
| 4 | 5100026404 | Fuel hose | 1 | ADD TO CART | |
| 6 | 5000215486 | Collar | 3 | ADD TO CART | |
Page 104 — DPU90Lem770 US Thermostat
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000211378 | Gasket | 1 | ADD TO CART | |
| 3 | 5000159476 | Screw | 2 | ADD TO CART | |
| 4 | 5000084169 | Screw | 2 | ADD TO CART | |
| 5 | 5100030694 | Casing adaptor | 1 | ADD TO CART | |
| 6 | 5000159232 | O-ring | 1 | ADD TO CART | |
| 7 | 5000207002 | Valve thermostat | 1 | ADD TO CART | |
| 8 | 5000215489 | Thermostat housing | 1 | ADD TO CART | |
| 9 | 5000203712 | Cu-ring | 1 | PARTS REQUEST | |
|
COMING Cu-ring
5000203712 · qty on machine: 1 | |||||
| 10 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 12 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 13 | 5000159451 | Screw plug | 1 | ADD TO CART | |
Page 106 — DPU90Lem770 US Water pump
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209105 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 2 | 5100026407 | Water pump | 1 | ADD TO CART | |
| 3 | 5000217809 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217809 · qty on machine: 1 | |||||
| 4 | 5000209107 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000209107 · qty on machine: 2 | |||||
| 5 | 5000160362 | Screw | 2 | ADD TO CART | |
| 6 | 5000217808 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217808 · qty on machine: 1 | |||||
| 7 | 5100026405 | Flange | 1 | ADD TO CART | |
| 8 | 5000160201 | Clamp | 2 | ADD TO CART | |
| 9 | 5100026406 | Hose | 1 | ADD TO CART | |
Page 108 — Inlet bend
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217817 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000217817 · qty on machine: 1 | |||||
| 2 | 5000217801 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000217801 · qty on machine: 1 | |||||
| 4 | 5100026408 | Lever | 1 | ADD TO CART | |
| 7 | 5100008860 | Shaft | 1 | ADD TO CART | |
| 8 | 5000159230 | Oil seal | 1 | PARTS REQUEST | |
|
COMING Oil seal
5000159230 · qty on machine: 1 | |||||
| 10 | 5000084170 | Screw | 1 | ADD TO CART | |
| 11 | 5000159476 | Screw | 2 | ADD TO CART | |
| 12 | 5000215504 | Lever | 1 | ADD TO CART | |
| 13 | 5000215481 | Collar | 1 | ADD TO CART | |
| 14 | 5000215508 | Spring | 1 | ADD TO CART | |
| 15 | 5000203346 | Screw | 3 | ADD TO CART | |
| 16 | 5000159272 | Nut | 2 | ADD TO CART | |
| 18 | 5100008861 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100008861 · qty on machine: 2 | |||||
| 20 | 5000159462 | Hose | 1 | ADD TO CART | |
| 22 | 5000084232 | Nut | 1 | ADD TO CART | |
| 23 | 5100026409 | Manifold | 1 | ADD TO CART | |
| 24 | 5100026410 | Gasket | 1 | ADD TO CART | |
| 25 | 5100026411 | Flange | 1 | ADD TO CART | |
| 26 | 5000084169 | Screw | 2 | ADD TO CART | |
| 27 | 5000082285 | Washer | 2 | ADD TO CART | |
| 28 | 5100026429 | Gasket | 1 | ADD TO CART | |
Page 110 — Exhaust manifold
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159290 | Gasket | 2 | ADD TO CART | |
| 2 | 5100026412 | Exhaust manifold | 1 | ADD TO CART | |
| 4 | 5000082267 | Stud | 4 | ADD TO CART | |
| 5 | 5000086331 | Nut | 4 | ADD TO CART | |
| 6 | 5000160228 | Threaded bolt | 2 | ADD TO CART | |
| 7 | 5000086331 | Nut | 4 | ADD TO CART | |
| 8 | 5000159295 | Gasket | 1 | ADD TO CART | |
| 9 | 5100026413 | Flange | 1 | ADD TO CART | |
| 13 | 5100005700 | Exhaust pipe | 1 | ADD TO CART | |
| 14 | 5000215479 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 15 | 5100005522 | Muffler | 1 | ADD TO CART | |
| 16 | 5100005702 | Exhaust-pipe end | 1 | ADD TO CART | |
| 17 | 5100041970 | Gasket | 1 | ADD TO CART | |
Page 112 — DPU90Lem770 US Generator
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026414 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100026414 · qty on machine: 1 | |||||
| 2 | 5000159476 | Screw | 3 | ADD TO CART | |
| 3 | 5100026415 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100026415 · qty on machine: 1 | |||||
| 4 | 5100026416 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100026416 · qty on machine: 1 | |||||
| 5 | 5000083011 | Nut | 1 | ADD TO CART | |
| 24 | 5000208993 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000208993 · qty on machine: 1 | |||||
| 25 | 5000082293 | Washer | 1 | ADD TO CART | |
| 26 | 5100026417 | Clamp | 1 | ADD TO CART | |
| 49 | 5100026418 | Disc | 1 | ADD TO CART | |
Page 114 — DPU90Lem770 US Starter
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215493 | Hexagon nut | 1 | ADD TO CART | |
| 2 | 5000082288 | Washer | 1 | ADD TO CART | |
| 3 | 5000211380 | Starter | 1 | PARTS REQUEST | |
|
COMING Starter
5000211380 · qty on machine: 1 | |||||
| 4 | 5000206968 | Flange | 1 | ADD TO CART | |
| 6 | 5000083011 | Nut | 2 | ADD TO CART | |
| 9 | 5000083027 | Screw | 2 | ADD TO CART | |
Page 116 — Spark plug
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 1 | ADD TO CART | |
| 2 | 5000155748 | Glow plug | 2 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |
Page 118 — Covering
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159564 | Screw | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5100026420 | Belt guard | 1 | ADD TO CART | |
| 4 | 5000159268 | Plug | 1 | ADD TO CART | |
| 5 | 5000215499 | Gasket | 1 | ADD TO CART | |
| 6 | 5100026421 | Protective cover | 1 | ADD TO CART | |
Page 12 — Baseplate cpl. dpu80r/90r
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009890 | Baseplate 770 | 1 | ADD TO CART | |
| 1 | 5100009972 | Baseplate 670 | 1 | ADD TO CART | |
| 2 | 5100005661 | O-ring | 1 | ADD TO CART | |
| 3 | 5100004545 | Exciter cpl. (dpu80r) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu80r)
5100004545 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100025626 | Exciter cpl. (dpu90r) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu90r)
5100025626 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100009777 | Cheese head screw | 13 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5000068222 | Plug (threaded) | 1 | 100Nm/74ft.lbs | ADD TO CART |
| 7 | 5000203227 | Roll pin | 4 | ADD TO CART | |
| 8 | 5000216648 | Silent block | 4 | ADD TO CART | |
| 9 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 10 | 5000216644 | Shockmount | 4 | 49Nm/36ft.lbs | ADD TO CART |
| 11 | 5100010249 | Hose pipe | 1 | ADD TO CART | |
| 12 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
| 13 | 5000012373 | Cheese head screw | 8 | 10Nm/7ft.lbs | ADD TO CART |
| 14 | 5100010255 | Hose pipe | 1 | ADD TO CART | |
| 15 | 5100010591 | O-ring | 2 | ADD TO CART | |
| 16 | 5000011468 | Hexagonal head cap screw | 4 | M6 x 30 10Nm/7ft.lbs | ISO4017 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000011468 · qty on machine: 4 M6 x 30
10Nm/7ft.lbs | ISO4017 | |||||
| 17 | 5100009970 | Hose pipe | 1 | 40Nm/30ft.lbs | ADD TO CART |
| 18 | 5100010160 | Breather tube | 1 | ADD TO CART | |
| 19 | 5100010115 | O-ring | 1 | ADD TO CART | |
| 20 | 5100010881 | Hose pipe | 1 | ADD TO CART | |
| 21 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 22 | 5000011549 | Cheese head screw | 4 | 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
Page 14 — Exciter cpl. dpu90r
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004477 | Exciter housing | 1 | PARTS REQUEST | |
|
COMING Exciter housing
5100004477 · qty on machine: 1 | |||||
| 2 | 5100004298 | Driving shaft | 1 | ADD TO CART | |
| 3 | 5002006603 | Fitting key | 1 | ADD TO CART | |
| 4 | 5100004306 | Gear | 1 | ADD TO CART | |
| 5 | 5100010479 | Cylindrical roller bearing | 1 | ADD TO CART | |
| 6 | 5100015097 | Cylindrical roller bearing | 1 | ADD TO CART | |
| 7 | 5002006113 | Retaining ring | 3 | ADD TO CART | |
| 8 | 5100005260 | Adjusting sleeve | 1 | PARTS REQUEST | |
|
COMING Adjusting sleeve
5100005260 · qty on machine: 1 | |||||
| 9 | 5000206436 | Bearing bush | 2 | ADD TO CART | |
| 10 | 5100013880 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 11 | 5002007057 | Retaining ring | 2 | 90 x 3 | DIN472 | ADD TO CART |
| 12 | 5100004637 | Shaft | 2 | ADD TO CART | |
| 13 | 5100017940 | Shim ring | 2 | ADD TO CART | |
| 14 | 5000103469 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 15 | 5100025096 | Eccentric weight | 2 | ADD TO CART | |
| 16 | 5100025094 | Eccentric weight | 2 | ADD TO CART | |
| 17 | 5100005815 | Corrugated-head screw | 2 | M16x 40 330Nm/243ft.lbs | ADD TO CART |
| 18 | 5100005604 | Corrugated-head screw | 4 | 150Nm/111ft.lbs | ADD TO CART |
| 19 | 5100005814 | Flange | 1 | ADD TO CART | |
| 20 | 5100005660 | O-ring | 2 | ADD TO CART | |
| 21 | 5000012629 | Cheese head screw | 20 | 25Nm/18ft.lbs | ADD TO CART |
| 22 | 5100004294 | Vent cover | 1 | ADD TO CART | |
| 23 | 5100013846 | Adjustment cylinder cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 24 | 5100010516 | O-ring | 2 | ADD TO CART | |
| 25 | 5000204527 | Tripping pin | 2 | ADD TO CART | |
| 26 | 5100003535 | Disc | 1 | ADD TO CART | |
| 27 | 5100005740 | Gear pump left | 1 | ADD TO CART | |
| 28 | 5100004118 | O-ring | 1 | ADD TO CART | |
| 29 | 5100003696 | Carrier | 1 | ADD TO CART | |
| 30 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 31 | 5100005511 | Piston | 2 | PARTS REQUEST | |
|
COMING Piston
5100005511 · qty on machine: 2 | |||||
| 32 | 5100005971 | Grooved ring | 2 | ADD TO CART | |
| 33 | 5100005972 | Guide ring | 2 | ADD TO CART | |
| 34 | 5100005508 | Pipe | 2 | ADD TO CART | |
| 35 | 5100005840 | Stop disc | 2 | ADD TO CART | |
| 36 | 5100005921 | Compression spring | 2 | ADD TO CART | |
| 37 | 5100005507 | Cylinder cover | 2 | ADD TO CART | |
| 38 | 5100005970 | O-ring | 2 | 38,00x2,00 10Nm/7ft.lbs | ADD TO CART |
| 39 | 5000043307 | Cheese head screw | 10 | M5 x 12 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 40 | 5100016693 | Piston cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000124717 | Washer | 2 | 17.8Nm/13ft.lbs | ADD TO CART |
| 42 | 5000220001 | Cheese head screw | 2 | 17.8Nm/13ft.lbs | ADD TO CART |
Page 18 — Upper mass cpl. dpu80r/90r
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004991 | Upper mass | 1 | ADD TO CART | |
| 2 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 9 | 5100013831 | Electric box cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 14 | 5100005939 | Protective cloth | 1 | PARTS REQUEST | |
|
COMING Protective cloth
5100005939 · qty on machine: 1 | |||||
| 20 | 5000047388 | Cable tie | 20 | ADD TO CART | |
| 21 | 5000038489 | Tie cable | 10 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 10 | |||||
Page 20 — Cabling cpl. dpu80r/90r
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210107 | Clamp | 3 | ADD TO CART | |
| 2 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 3 | 5000211755 | Screw | 4 | ADD TO CART | |
| 4 | 5100010281 | Clamp | 5 | ADD TO CART | |
| 6 | 5000010625 | Flat washer | 5 | ADD TO CART | |
| 7 | 5000011561 | Cheese head screw | 6 | ADD TO CART | |
| 8 | 5100005670 | Positive cable | 1 | ADD TO CART | |
| 10 | 5100010152 | Negative pole strap | 2 | ADD TO CART | |
| 11 | 5000013574 | Cheese head screw | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 12 | 5100010130 | Cable harness engine | 1 | ADD TO CART | |
| 13 | 5100017849 | Clamp | 1 | ADD TO CART | |
| 14 | 5100005665 | Cable harness valve | 1 | ADD TO CART | |
| 15 | 5100011350 | Receiver unit front | 1 | ADD TO CART | |
| 16 | 5100005668 | Cable harness receiver unit front | 1 | ADD TO CART | |
| 17 | 5100011351 | Receiver unit rear | 1 | ADD TO CART | |
| 18 | 5100005667 | Cable harnessreceiver unit rear | 1 | ADD TO CART | |
| 19 | 5000212143 | Clamp | 1 | ADD TO CART | |
| 20 | 5000011555 | Cheese head screw | 1 | M6 x 10 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 21 | 5100010511 | Charging cable | 1 | ADD TO CART | |
| 22 | 5100027457 | Heat shield | 1 | ADD TO CART | |
Page 22 — Tank - radiator dpu80/90
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005488 | Hydraulic tank | 1 | ADD TO CART | |
| 2 | 5100010301 | Filter element | 1 | ADD TO CART | |
| 3 | 5100010303 | Filter element | 1 | PARTS REQUEST | |
|
COMING Filter element
5100010303 · qty on machine: 1 | |||||
| 4 | 5100010302 | Return filter | 1 | ADD TO CART | |
| 5 | 5000012629 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010341 | Fan | 1 | ADD TO CART | |
| 7 | 5100015757 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 8 | 5100016476 | Gasket | 1 | ADD TO CART | |
| 9 | 5100016478 | Gasket | 1 | ADD TO CART | |
| 10 | 5100015887 | Plate | 1 | ADD TO CART | |
| 11 | 5100005489 | Radiator | 1 | ADD TO CART | |
| 12 | 5000211795 | Corrugated-head screw | 5 | ADD TO CART | |
| 13 | 5100014130 | Bracket | 1 | ADD TO CART | |
| 14 | 5100010830 | Cable passage | 2 | ADD TO CART | |
| 15 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 16 | 5000012360 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 17 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 18 | 5000011548 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 19 | 5000011553 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 20 | 5100011096 | Screwed socket | 1 | ADD TO CART | |
| 21 | 5100010252 | Hose pipe | 1 | ADD TO CART | |
| 22 | 5100009849 | Bottle-overflow | 1 | ADD TO CART | |
| 23 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 24 | 5000011456 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 25 | 5100015982 | Cover | 1 | ADD TO CART | |
| 26 | 5100015647 | Radiator hose | 1 | ADD TO CART | |
| 27 | 5100010313 | Water hose | 1 | ADD TO CART | |
| 28 | 5100006059 | Water hose | 1 | ADD TO CART | |
| 29 | 5002004724 | Worm drive house clip | 4 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 4 | |||||
| 30 | 5100010256 | Hose pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 32 | 5000206551 | Clamp | 1 | ADD TO CART | |
| 33 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 34 | 5100010567 | Bracket | 1 | ADD TO CART | |
| 35 | 5100010568 | Bracket | 1 | ADD TO CART | |
| 36 | 5000097656 | Roll pin | 1 | ADD TO CART | |
| 37 | 5100009991 | Shockmount | 2 | ADD TO CART | |
| 38 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 39 | 5000010882 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100016491 | Gasket | 1 | ADD TO CART | |
| 41 | 5100016492 | Gasket | 1 | ADD TO CART | |
| 42 | 1000262373 | View glass | 1 | PARTS REQUEST | |
|
COMING View glass
1000262373 · qty on machine: 1 | |||||
| 44 | 5100011421 | Cover (bayonet lock) | 1 | ADD TO CART | |
| 45 | 5100015762 | Plug (threaded) | 1 | ADD TO CART | |
| 46 | 5000063739 | Screwed socket | 1 | ADD TO CART | |
| 47 | 5000211755 | Screw | 1 | ADD TO CART | |
Page 26 — Return filter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220217 | Cover | 1 | ADD TO CART | |
| 2 | 5000220218 | Gasket | 1 | ADD TO CART | |
| 3 | 5100016998 | Filter element | 1 | ADD TO CART | |
Page 28 — Fuel tank complete dpu80/90
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5100009992 | Shockmount | 2 | ADD TO CART | |
| 12 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 13 | 5000010882 | Hexagon nut | 2 | 6Nm/4ft.lbs | ADD TO CART |
| 1 | 5100038140 | Fuel tank | 1 | ADD TO CART | |
| 2 | 1000267866 | Screen | 1 | PARTS REQUEST | |
|
COMING Screen
1000267866 · qty on machine: 1 | |||||
| 3 | 5100010476 | Tank cover | 1 | 3Nm/2ft.lbs | ADD TO CART |
| 4 | 1000051394 | Angle cut piece | 1 | PARTS REQUEST | |
|
COMING Angle cut piece
1000051394 · qty on machine: 1 | |||||
| 5 | 5100010035 | Elbow fitting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100010244 | Fuel hose | 1 | ADD TO CART | |
| 7 | 5100010245 | Fuel hose | 1 | ADD TO CART | |
| 8 | 5000016836 | Clamp | 2 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 2 | |||||
| 9 | 5100010569 | Bracket | 1 | ADD TO CART | |
| 10 | 5000211795 | Corrugated-head screw | 2 | 35Nm/26ft.lbs | ADD TO CART |
Page 30 — Block-hydraulic cpl. dpu80r/90r/110r
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 5100025064 | Valve | 2 | ADD TO CART | |
| 1 | 5100005966 | Block-hydraulic | 1 | ADD TO CART | |
| 2 | 5100010247 | Hose pipe | 1 | ADD TO CART | |
| 3 | 5100010251 | Hose pipe | 1 | ADD TO CART | |
| 4 | 5000210116 | O-ring | 4 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 4 | |||||
| 5 | 5000011548 | Cheese head screw | 16 | 10Nm/7ft.lbs | ADD TO CART |
| 6 | 5000058705 | Cheese head screw | 2 | M8 x 90 25Nm/18ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000058705 · qty on machine: 2 M8 x 90
25Nm/18ft.lbs | ISO4762 | |||||
| 7 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 8 | 5000220194 | Valve cap | 4 | ADD TO CART | |
| 10 | 5100025061 | Valve | 1 | ADD TO CART | |
| 11 | 5100025062 | Solenoid | 1 | ADD TO CART | |
| 12 | 5100025063 | Valve | 1 | ADD TO CART | |
| 13 | 5000220193 | Solenoid | 3 | ADD TO CART | |
| 14 | 5000220198 | Test port | 2 | PARTS REQUEST | |
|
COMING Test port
5000220198 · qty on machine: 2 | |||||
Page 32 — Diesel engine cpl. dpu80/90
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024723 | Diesel engine kdw 702 - 3350 us | 1 | PARTS REQUEST | |
|
COMING Diesel engine kdw 702 - 3350 us
5100024723 · qty on machine: 1 | |||||
| 1 | 5100049016 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049016 · qty on machine: 1 | |||||
| 1 | 5100049017 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049017 · qty on machine: 1 | |||||
| 2 | 5100005758 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000210165 | Corrugated-head screw | 4 | ADD TO CART | |
| 4 | 5100011317 | Bracket | 1 | ADD TO CART | |
| 5 | 5000211795 | Corrugated-head screw | 2 | ADD TO CART | |
| 6 | 5100005655 | Gear pump | 1 | ADD TO CART | |
| 7 | 5000010621 | Flat washer | 4 | ADD TO CART | |
| 8 | 5000011535 | Cheese head screw | 3 | 49Nm/36ft.lbs | ADD TO CART |
| 9 | 5100046101 | Bolted connection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 11 | 5100010059 | Hose connection | 1 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5100010056 | Suction hose | 1 | ADD TO CART | |
| 14 | 5002004724 | Worm drive house clip | 2 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 2 | |||||
| 15 | 5100005748 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 16 | 5100005769 | Plate | 1 | ADD TO CART | |
| 17 | 5000011542 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 18 | 5000155486 | Throttle actuator | 1 | ADD TO CART | |
| 19 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 20 | 5000010880 | Hexagon nut | 1 | ADD TO CART | |
| 21 | 5000155487 | Adaptor | 1 | ADD TO CART | |
| 22 | 5000150022 | Cable | 1 | ADD TO CART | |
| 23 | 5100010831 | Compression spring | 1 | ADD TO CART | |
| 26 | 5100010901 | Covering | 1 | ADD TO CART | |
| 27 | 5000210173 | Filter-fuel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 28 | 5000011439 | Hexagonal head cap screw | 2 | 49Nm/36ft.lbs | ADD TO CART |
| 29 | 5000010883 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100010246 | Fuel hose | 1 | ADD TO CART | |
| 31 | 5000019156 | Gasket | 2 | ADD TO CART | |
| 32 | 5100010257 | Hose pipe | 1 | ADD TO CART | |
| 33 | 5000207336 | Hollow screw | 1 | ADD TO CART | |
| 34 | 5100011327 | Pipe clamp | 1 | ADD TO CART | |
| 35 | 5100010740 | Belt guard cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5100018058 | Corrugated-head screw | 4 | ADD TO CART | |
| 37 | 5100000973 | Shockmount | 4 | ADD TO CART | |
| 38 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 39 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 40 | 5100024279 | Heat shield cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000210194 | Corrugated-head screw | 3 | ADD TO CART | |
| 42 | 5000206422 | Switch | 1 | ADD TO CART | |
| 43 | 5000011548 | Cheese head screw | 2 | ADD TO CART | |
| 44 | 5000011552 | Cheese head screw | 2 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 45 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
Page 36 — Holder cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010590 | Bracket | 1 | ADD TO CART | |
| 2 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 3 | 5000205238 | Screw connection | 1 | ADD TO CART | |
| 4 | 5000211773 | Nose cap | 1 | 40Nm/30ft.lbs | ADD TO CART |
Page 38 — Electric box cpl. dpu80r/90r/110r
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005376 | Electric components drawer | 1 | ADD TO CART | |
| 2 | 5100010129 | Cable harness e-box | 1 | ADD TO CART | |
| 3 | 5000011570 | Cheese head screw | 2 | 5Nm/4ft.lbs | ADD TO CART |
| 4 | 5000010628 | Flat washer | 2 | ADD TO CART | |
| 5 | 5000010370 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5000085437 | Relay | 4 | ADD TO CART | |
| 7 | 5100016686 | Gasket | 4 | ADD TO CART | |
| 8 | 5100015757 | Hexagonal head cap screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5000010369 | Hexagon nut | 3 | ADD TO CART | |
| 11 | 5100010300 | Connector plate bottom | 1 | ADD TO CART | |
| 12 | 5100010315 | Plate | 1 | ADD TO CART | |
| 13 | 5100010121 | Control | 1 | ADD TO CART | |
| 14 | 5100010109 | Flange | 1 | ADD TO CART | |
| 15 | 5100010110 | Switch | 1 | ADD TO CART | |
| 16 | 5100005715 | Botton switch | 1 | ADD TO CART | |
| 17 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 18 | 5100005763 | Decoder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5100010311 | Connector plate middle | 1 | ADD TO CART | |
| 20 | 5100010312 | Connector plate top | 1 | ADD TO CART | |
| 21 | 5100009818 | Display | 1 | ADD TO CART | |
| 22 | 5100005471 | Cover | 1 | ADD TO CART | |
| 23 | 5000108371 | Oval head screw | 18 | ADD TO CART | |
| 24 | 5000010622 | Flat washer | 3 | ADD TO CART | |
| 25 | 5000011541 | Cheese head screw | 3 | 25Nm/18ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000011541 · qty on machine: 3 25Nm/18ft.lbs | |||||
| 26 | 5100022411 | Blind plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5100061282 | Cable harness | 1 | ADD TO CART | |
Page 40 — Air filter cpl.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010911 | Bracket | 1 | ADD TO CART | |
| 2 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 3 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 4 | 5100005726 | Air cleaner | 1 | ADD TO CART | |
| 4 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 4 | 5100024489 | Safety elements | 1 | ADD TO CART | |
| 4 | 5100024550 | Clamp | 3 | ADD TO CART | |
| 4 | 5100024551 | Dust discharge valve | 1 | ADD TO CART | |
| 5 | 5100010912 | Tightening strap | 1 | ADD TO CART | |
| 7 | 5100016655 | Gasket | 1 | ADD TO CART | |
| 8 | 5000014996 | Clamp | 2 | ADD TO CART | |
Page 42 — Locking device rear cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010584 | Bracket | 1 | ADD TO CART | |
| 2 | 5000204116 | Shockmount | 2 | ADD TO CART | |
| 3 | 5100017158 | Locknut | 6 | 30Nm/22ft.lbs | ADD TO CART |
| 4 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 5 | 5100010580 | Locking lever rear | 1 | ADD TO CART | |
| 6 | 5100010840 | Shockmount | 2 | ADD TO CART | |
Page 44 — Battery cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209152 | Insulating cushion | 1 | ADD TO CART | |
| 2 | 5000086527 | Battery | 1 | ADD TO CART | |
| 3 | 5100005937 | Battery mounting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100017160 | Gasket | 1 | ADD TO CART | |
| 5 | 5100010891 | Threaded bolt | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010892 | Threaded bolt | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 7 | 5000017313 | Hexagon nut | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 9 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 10 | 5100014022 | Positive pol cover | 1 | ADD TO CART | |
| 11 | 5000212623 | Bushing | 3 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
Page 46 — Protective frame cpl. dpu80/90
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010657 | Cross-beam | 1 | ADD TO CART | |
| 2 | 5100016518 | Gasket | 1 | ADD TO CART | |
| 3 | 5100017413 | Jack ring | 1 | ADD TO CART | |
| 4 | 5100005732 | Axle | 1 | ADD TO CART | |
| 5 | 5000202829 | Cup spring | 1 | ADD TO CART | |
| 6 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 8 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 9 | 5000210112 | Corrugated-head screw | 4 | ADD TO CART | |
| 10 | 5000204116 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100017158 | Locknut | 8 | ADD TO CART | |
| 12 | 5100010583 | Bracket | 1 | ADD TO CART | |
| 13 | 5100010840 | Shockmount | 2 | ADD TO CART | |
| 14 | 5100064251 | Locking lever | 1 | ADD TO CART | |
| 15 | 5100010450 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010450 · qty on machine: 1 | |||||
| 16 | 5100010451 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010451 · qty on machine: 1 | |||||
| 17 | 5100016517 | Gasket | 2 | ADD TO CART | |
| 18 | 5100018100 | Edge protection | 2 | ADD TO CART | |
| 19 | 5100018101 | Edge protection | 2 | ADD TO CART | |
| 20 | 5100018059 | Corrugated-head screw | 8 | ADD TO CART | |
| 21 | 5100010459 | Covering | 2 | PARTS REQUEST | |
|
COMING Covering
5100010459 · qty on machine: 2 | |||||
| 22 | 5100018102 | Edge protection | 2 | ADD TO CART | |
| 23 | 5000211795 | Corrugated-head screw | 12 | ADD TO CART | |
| 24 | 5100011100 | Corrugated-head screw | 4 | ADD TO CART | |
| 25 | 5100011101 | Corrugated-head screw | 4 | PARTS REQUEST | |
|
COMING Corrugated-head screw
5100011101 · qty on machine: 4 | |||||
| 26 | 5100025691 | Handle profile | 1 | ADD TO CART | |
Page 48 — Bonnet front cpl. dpu80
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010439 | Bonnet | 1 | PARTS REQUEST | |
|
COMING Bonnet
5100010439 · qty on machine: 1 | |||||
| 2 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 3 | 5000210112 | Corrugated-head screw | 4 | 85Nm/63ft.lbs | ADD TO CART |
| 4 | 5100010931 | Screen grid rear (dpu80) | 1 | ADD TO CART | |
| 4 | 5100018930 | Screen grid front (dpu80r) | 1 | PARTS REQUEST | |
|
COMING Screen grid front (dpu80r)
5100018930 · qty on machine: 1 | |||||
| 5 | 5100010577 | Locking tab front | 1 | ADD TO CART | |
| 6 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 7 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 8 | 5100024474 | Shockmount | 2 | ADD TO CART | |
| 9 | 5000154402 | Cable | 1 | ADD TO CART | |
| 10 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 11 | 5000033356 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100024476 | Edge protection | 1 | 90Nm/66ft.lbs | ADD TO CART |
Page 50 — Bonnet rear cpl. dpu80
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010438 | Bonnet | 1 | PARTS REQUEST | |
|
COMING Bonnet
5100010438 · qty on machine: 1 | |||||
| 2 | 5100010578 | Locking tab rear | 1 | ADD TO CART | |
| 3 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 4 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 5 | 5100010933 | Screen grid rear (dpu80) | 1 | PARTS REQUEST | |
|
COMING Screen grid rear (dpu80)
5100010933 · qty on machine: 1 | |||||
| 5 | 5100018919 | Screen grid front (dpu80) | 1 | ADD TO CART | |
| 5 | 5100018920 | Screen grid front (dpu80r,c) | 1 | ADD TO CART | |
| 5 | 5100018924 | Screen grid front (dpu80r) | 1 | ADD TO CART | |
| 6 | 5100011262 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000068355 | Protective cap | 1 | ADD TO CART | |
| 9 | 5000210112 | Corrugated-head screw | 3 | 85Nm/63ft.lbs | ADD TO CART |
| 10 | 5100005810 | Compr. spring | 1 | ADD TO CART | |
| 11 | 5100017956 | Protection foil | 1 | ADD TO CART | |
| 12 | 5100024201 | Cloth | 1 | ADD TO CART | |
| 13 | 5100025231 | Portfolio | 1 | PARTS REQUEST | |
|
COMING Portfolio
5100025231 · qty on machine: 1 | |||||
| 14 | 5100057038 | Plate | 1 | ADD TO CART | |
| 15 | 5100048321 | Mushroom head bolt | 4 | ADD TO CART | |
| 16 | 5000010372 | Flat washer | 4 | ADD TO CART | |
| 17 | 5000010369 | Hexagon nut | 4 | ADD TO CART | |

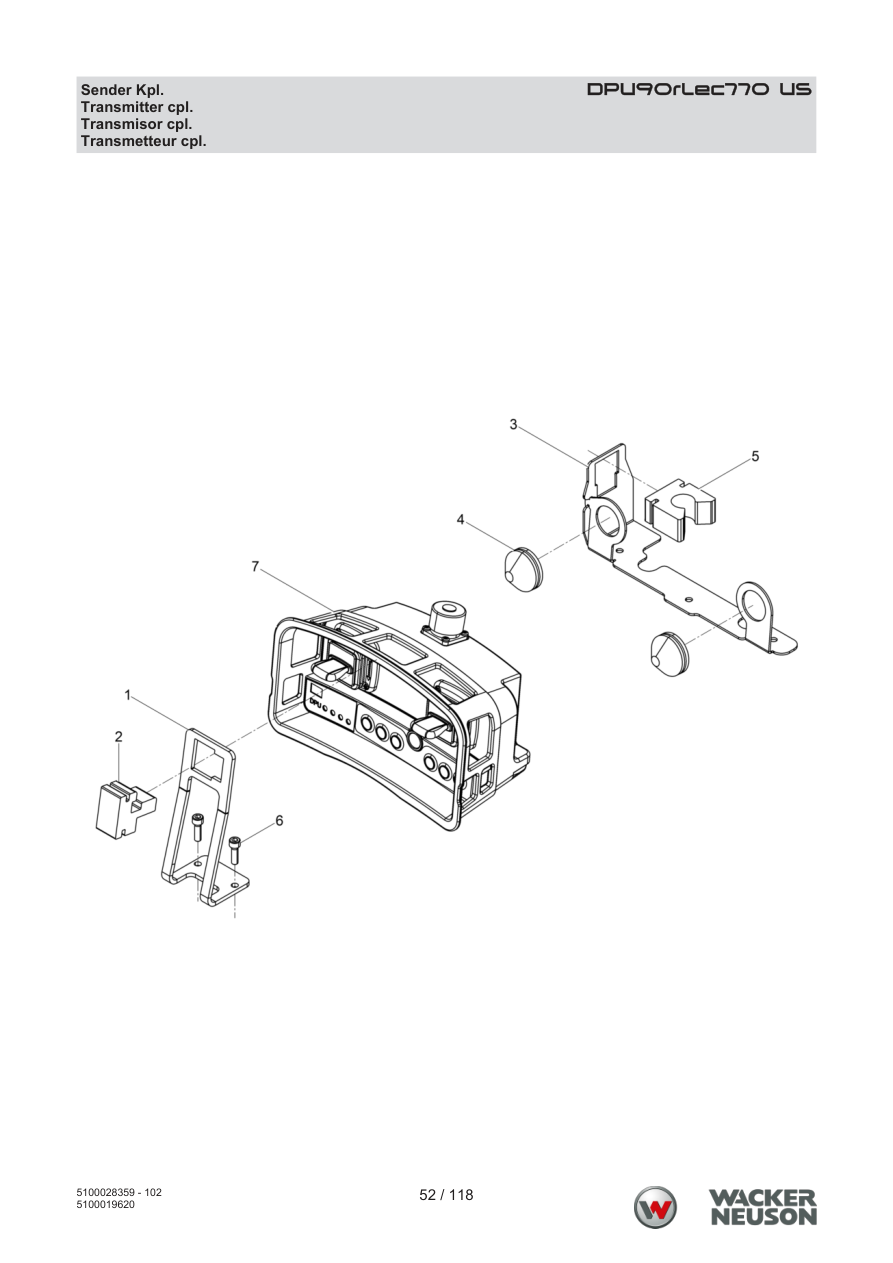

Page 52 — Transmitter cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005938 | Retainer | 1 | ADD TO CART | |
| 2 | 5000207753 | Bracket | 1 | ADD TO CART | |
| 3 | 5100005940 | Terminal strip | 1 | ADD TO CART | |
| 4 | 5000124255 | Shockmount | 2 | ADD TO CART | |
| 5 | 5000208255 | Bracket | 1 | ADD TO CART | |
| 6 | 5000011551 | Cheese head screw | 2 | 95Nm/70ft.lbs | ADD TO CART |
| 7 | 5100018542 | Transmitter | 1 | ADD TO CART | |

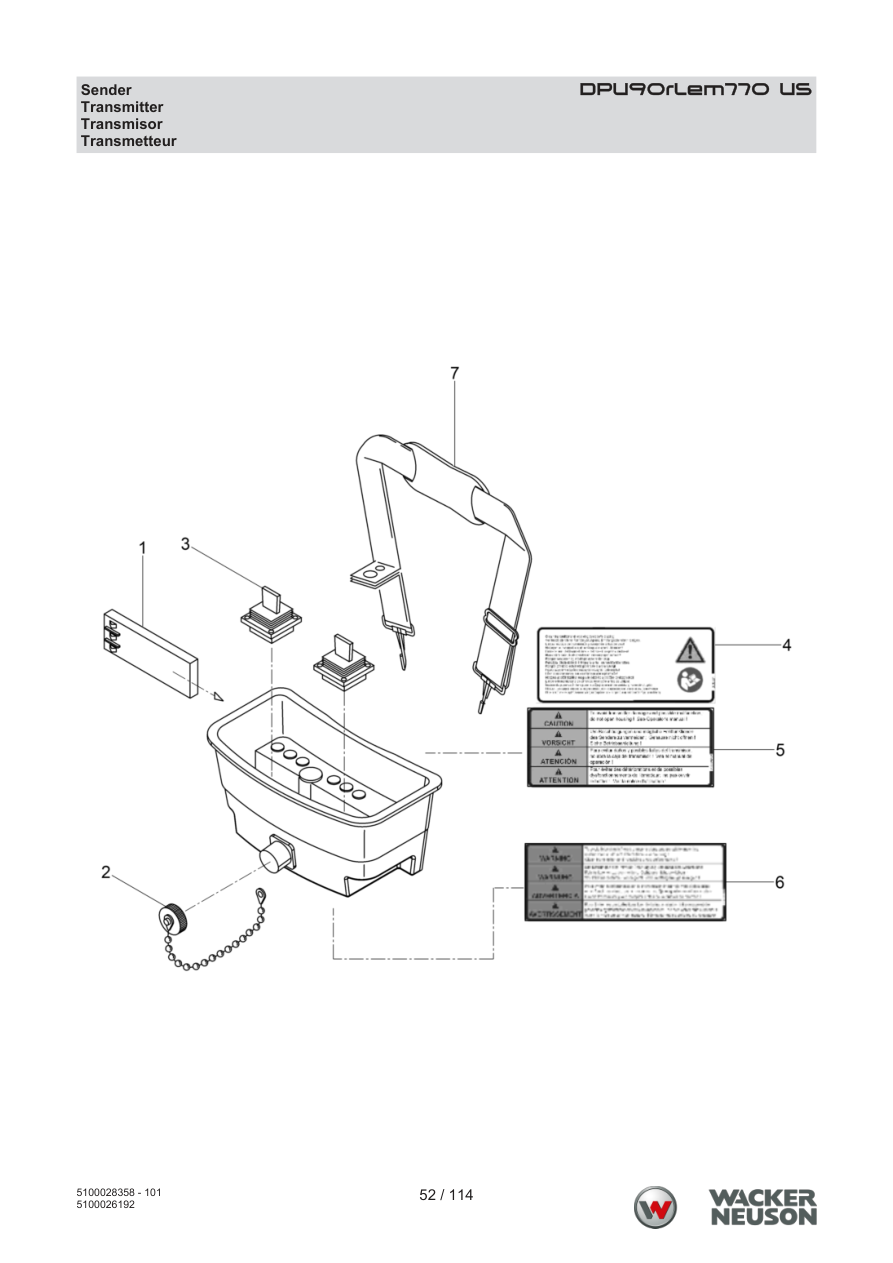

Page 54 — DPU90rLec770 US Sender
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210156 | Battery | 1 | ADD TO CART | |
| 2 | 5000117184 | Cap | 1 | ADD TO CART | |
| 3 | 5000177083 | Steering lever kit | 2 | ADD TO CART | |
| 4 | 5000226261 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5000226261 · qty on machine: 1 | |||||
| 5 | 5100024202 | Instruction label | 1 | ADD TO CART | |
| 6 | 5100024203 | Label-warning | 1 | ADD TO CART | |
| 7 | 5100024204 | Band | 1 | ADD TO CART | |
Page 56 — Compatec cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010020 | Display cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100016654 | Corrugated-head screw | 3 | M 6x 16 | ADD TO CART |
| 3 | 5000212143 | Clamp | 1 | ADD TO CART | |
| 4 | 5000011555 | Cheese head screw | 1 | M6 x 10 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 5 | 5100010005 | Sensor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000037071 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
Page 58 — DPU90rLec770 US Sticker
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000222103 | Decal, logo | 2 | ADD TO CART | |
| 3 | 5100017952 | Type label dpu110 | 2 | ADD TO CART | |
| 3 | 5100017953 | Type label dpu110r | 2 | ADD TO CART | |
| 3 | 5100017954 | Type label dpu80 | 2 | ADD TO CART | |
| 3 | 5100017955 | Type label dpu80r | 2 | ADD TO CART | |
| 3 | 5100024540 | Type label dpu90 | 2 | PARTS REQUEST | |
|
COMING Type label dpu90
5100024540 · qty on machine: 2 | |||||
| 3 | 5100024541 | Type label dpu90r | 2 | ADD TO CART | |
| 4 | 5000222086 | Label symbol | 1 | ADD TO CART | |
| 5 | 5000207747 | Danger label | 1 | PARTS REQUEST | |
|
COMING Danger label
5000207747 · qty on machine: 1 | |||||
| 6 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 7 | 5000219175 | Labels | 1 | ADD TO CART | |
| 8 | 5000064925 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5000219179 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000219179 · qty on machine: 1 | |||||
| 10 | 5000216635 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000216635 · qty on machine: 1 | |||||
| 11 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 12 | 5000219080 | Labels | 1 | ADD TO CART | |
| 13 | 5100011227 | Label hav 24h | 1 | ADD TO CART | |
| 14 | 5100085618 | Label | 4 | PARTS REQUEST | |
|
COMING Label
5100085618 · qty on machine: 4 | |||||
| 15 | 5000219176 | Labels | 3 | ADD TO CART | |
| 17 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 60 — DPU90rLec770 US Crankshaft
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026266 | Crankshaft | 1 | PARTS REQUEST | |
|
COMING Crankshaft
5100026266 · qty on machine: 1 | |||||
| 2 | 5000159357 | Pin | 1 | ADD TO CART | |
| 3 | 5000159260 | Woodruff key | 1 | ADD TO CART | |
| 4 | 5000159454 | Plug, threaded | 2 | ADD TO CART | |
| 5 | 5000159261 | Square key | 1 | ADD TO CART | |
Page 62 — DPU90rLec770 US Piston - Connecting rod
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160377 | Piston set | 2 | ADD TO CART | |
| 1 | 5000160375 | Piston set | 2 | ADD TO CART | |
| 1 | 5000160376 | Piston set | 2 | ADD TO CART | |
| 2 | 5000160367 | Connecting rod | 2 | PARTS REQUEST | |
|
COMING Connecting rod
5000160367 · qty on machine: 2 | |||||
| 3 | 5000160383 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160384 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160385 | Piston ring set | 2 | ADD TO CART | |
| 4 | 5000215523 | Piston pin | 2 | ADD TO CART | |
| 5 | 5000215477 | Retaining ring | 4 | ADD TO CART | |
| 6 | 5000160368 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000160368 · qty on machine: 2 | |||||
| 7 | 5000155691 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155689 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155690 | Bearing | 2 | ADD TO CART | |
| 8 | 5000084175 | Screw | 4 | ADD TO CART | |
Page 64 — DPU90rLec770 US Flywheel
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5000159326 | Plate | 1 | ADD TO CART | |
| 1 | 5000215545 | Flywheel | 1 | ADD TO CART | |
| 2 | 5000155693 | Gear crown | 1 | ADD TO CART | |
| 3 | 5000160188 | Bolt | 5 | ADD TO CART | |
| 5 | 5000159254 | Bolt | 9 | ADD TO CART | |
| 6 | 5000215527 | Plug | 1 | ADD TO CART | |
| 7 | 5000211373 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000084164 | Screw | 3 | ADD TO CART | |
| 9 | 5000215567 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5000215567 · qty on machine: 1 | |||||
| 10 | 5000211370 | Pin | 2 | PARTS REQUEST | |
|
COMING Pin
5000211370 · qty on machine: 2 | |||||
| 11 | 5000082140 | Nut | 3 | ADD TO CART | |
| 12 | 5000084123 | Screw | 3 | ADD TO CART | |
| 13 | 5000211371 | Washer | 4 | ADD TO CART | |
| 14 | 5000211372 | Screw | 4 | ADD TO CART | |
| 15 | 5000160231 | Washer | 3 | ADD TO CART | |
Page 66 — DPU90rLec770 US Belt Pulley
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026267 | V-belt pulley | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5000126935 | Bolt | 1 | ADD TO CART | |
| 14 | 5000215485 | Belt | 1 | ADD TO CART | |
Page 68 — Crankcase
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026268 | Crankcase | 1 | PARTS REQUEST | |
|
COMING Crankcase
5100026268 · qty on machine: 1 | |||||
| 2 | 5000159257 | Sleeve | 2 | ADD TO CART | |
| 3 | 5000206229 | Screw | 1 | ADD TO CART | |
| 4 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000215522 | Pin | 1 | ADD TO CART | |
| 6 | 5000155704 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155702 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155703 | Bearing | 3 | ADD TO CART | |
| 8 | 5000159486 | Disc | 2 | ADD TO CART | |
| 8 | 5000159487 | Disc | 2 | ADD TO CART | |
| 8 | 5000159488 | Disc | 2 | ADD TO CART | |
| 9 | 5000082335 | Threaded plug | 2 | ADD TO CART | |
| 12 | 5000159288 | Gasket | 4 | ADD TO CART | |
| 13 | 5000159360 | Dowel pin | 2 | ADD TO CART | |
| 15 | 5000159480 | Screw | 6 | ADD TO CART | |
| 16 | 5000159456 | Plug | 1 | ADD TO CART | |
| 17 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 18 | 5000215530 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5000215530 · qty on machine: 1 | |||||
| 19 | 5000155700 | Flange | 1 | ADD TO CART | |
| 20 | 5000217807 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217807 · qty on machine: 1 | |||||
| 21 | 5000159467 | Screw | 6 | ADD TO CART | |
| 22 | 5000155701 | Rotary shaft seal | 1 | PARTS REQUEST | |
|
COMING Rotary shaft seal
5000155701 · qty on machine: 1 | |||||
| 23 | 5000159341 | Oil filter fitting | 1 | ADD TO CART | |
| 24 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 25 | 5100026399 | Dip stick | 1 | ADD TO CART | |
| 26 | 5100026400 | O-ring | 3 | ADD TO CART | |
| 27 | 5100026401 | Pipe | 1 | ADD TO CART | |
| 28 | 5000063695 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5000063695 · qty on machine: 2 | |||||
| 41 | 5100026269 | Gasket set crankcase | 1 | ADD TO CART | |
Page 72 — DPU90rLec770 US Cylinder head
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026381 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000159449 | Plug | 1 | ADD TO CART | |
| 6 | 5000159318 | Spark arrester | 2 | ADD TO CART | |
| 7 | 5000215524 | Lifting point | 2 | ADD TO CART | |
| 8 | 5000084156 | Screw | 1 | ADD TO CART | |
| 9 | 5000217828 | Flange screw | 6 | ADD TO CART | |
| 10 | 5000159350 | Washer | 6 | ADD TO CART | |
| 11 | 5000159231 | O-ring | 1 | ADD TO CART | |
| 12 | 5000159453 | Plug | 1 | ADD TO CART | |
| 13 | 5000159311 | Bracket | 1 | ADD TO CART | |
| 14 | 5000159254 | Bolt | 1 | ADD TO CART | |
| 15 | 5000082292 | Washer | 1 | ADD TO CART | |
| 17 | 5000159303 | Valve guide | 4 | ADD TO CART | |
| 18 | 5100026382 | Intake valve seat | 2 | ADD TO CART | |
| 19 | 5100026383 | Exhaust valve seat | 2 | ADD TO CART | |
| 23 | 5000159285 | Nut | 2 | ADD TO CART | |
| 24 | 5000215494 | Spacer | 6 | ADD TO CART | |
| 25 | 5000160380 | Precombustion chamber | 2 | ADD TO CART | |
| 26 | 5100026384 | Cylinder head gasket | 1 | ADD TO CART | |
| 30 | 5200015510 | Gasket set cylinder head | 1 | ADD TO CART | |
| 33 | 5000159234 | Oil seal | 1 | ADD TO CART | |
| 34 | 5000159282 | Flange | 1 | ADD TO CART | |
| 35 | 5000215541 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 3 | |||||
Page 74 — DPU90rLec770 US Cylinder head cover
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026386 | Cylinder head cover | 1 | ADD TO CART | |
| 3 | 5100026388 | Baffle plate | 1 | ADD TO CART | |
| 4 | 5000227761 | Cap | 1 | PARTS REQUEST | |
|
COMING Cap
5000227761 · qty on machine: 1 | |||||
| 5 | 5000206208 | O-ring | 1 | ADD TO CART | |
| 6 | 5000215541 | Screw | 10 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 10 | |||||
| 7 | 5100026389 | Gasket | 1 | ADD TO CART | |
| 8 | 5000159308 | Connector | 1 | ADD TO CART | |
| 10 | 5100026419 | Oil pressure switch | 1 | PARTS REQUEST | |
|
COMING Oil pressure switch
5100026419 · qty on machine: 1 | |||||
| 12 | 5100008855 | Rivet | 1 | PARTS REQUEST | |
|
COMING Rivet
5100008855 · qty on machine: 1 | |||||
| 13 | 5000159455 | Push-in plug | 1 | ADD TO CART | |
| 14 | 5000155745 | Pressure valve | 1 | ADD TO CART | |
| 15 | 5000160201 | Clamp | 4 | ADD TO CART | |
| 15 | 5000160199 | Clamp | 1 | ADD TO CART | |
| 16 | 5000215505 | Connecting tube | 1 | ADD TO CART | |
| 16 | 5000215535 | Connecting pipe | 1 | ADD TO CART | |
| 17 | 5000215536 | Valve tube | 1 | ADD TO CART | |
Page 76 — DPU90rLec770 US Injection system
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5200016512 | Flange nut | 4 | ADD TO CART | |
| 2 | 5000160379 | Injection pump | 2 | ADD TO CART | |
| 3 | 5200009479 | Stud | 4 | ADD TO CART | |
| 4 | 5000159233 | O-ring | 2 | ADD TO CART | |
| 5 | 5100026390 | Bracket | 1 | ADD TO CART | |
| 7 | 5000159300 | Washer | 2 | ADD TO CART | |
| 9 | 5000159473 | Screw | 4 | ADD TO CART | |
| 10 | 5100026391 | Fuel hose | 1 | ADD TO CART | |
| 11 | 5000159237 | O-ring | 2 | ADD TO CART | |
| 12 | 5000160209 | Gasket | 1 | ADD TO CART | |
| 13 | 5000160391 | Back pressure valve | 2 | ADD TO CART | |
| 14 | 5000159302 | Gasket | 2 | ADD TO CART | |
| 15 | 5000160332 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160332 · qty on machine: 1 | |||||
| 15 | 5000160342 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160342 · qty on machine: 1 | |||||
| 15 | 5000160341 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160341 · qty on machine: 1 | |||||
| 15 | 5000160340 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160340 · qty on machine: 1 | |||||
| 15 | 5000160339 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160339 · qty on machine: 1 | |||||
| 15 | 5000160338 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160338 · qty on machine: 1 | |||||
| 15 | 5000160337 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160337 · qty on machine: 1 | |||||
| 15 | 5000160336 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160336 · qty on machine: 1 | |||||
| 15 | 5000160335 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160335 · qty on machine: 1 | |||||
| 15 | 5000160334 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160334 · qty on machine: 1 | |||||
| 17 | 5000159278 | Spacer | 2 | ADD TO CART | |
| 18 | 5000155710 | Jet | 2 | ADD TO CART | |
| 20 | 5000159238 | O-ring | 2 | ADD TO CART | |
| 22 | 5000215509 | Spring | 2 | PARTS REQUEST | |
|
COMING Spring
5000215509 · qty on machine: 2 | |||||
| 23 | 5000203718 | Cu-ring | 2 | PARTS REQUEST | |
|
COMING Cu-ring
5000203718 · qty on machine: 2 | |||||
| 24 | 5000159236 | O-ring | 2 | ADD TO CART | |
| 25 | 5000159471 | Screw | 4 | ADD TO CART | |
| 26 | 5000159317 | Spring | 2 | ADD TO CART | |
| 29 | 5000159242 | Clamp | 2 | ADD TO CART | |
| 30 | 5200015520 | Pressure valve | 2 | ADD TO CART | |
| 32 | 5000159309 | Shim | 2 | ADD TO CART | |
Page 80 — DPU90rLec770 US Camshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026392 | Camshaft | 1 | ADD TO CART | |
| 3 | 5000215482 | Collar | 1 | ADD TO CART | |
| 4 | 5000215497 | Cam | 1 | ADD TO CART | |
| 5 | 5000160753 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000160753 · qty on machine: 1 | |||||
| 6 | 5000215540 | Screw | 1 | ADD TO CART | |
| 8 | 5000159246 | Push rod, valve lifter | 2 | ADD TO CART | |
Page 82 — DPU90rLec770 US Rocker arms - Valves
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159328 | Spring housing | 4 | ADD TO CART | |
| 3 | 5000160373 | Spring | 4 | ADD TO CART | |
| 4 | 5000159351 | Washer | 4 | ADD TO CART | |
| 6 | 5100026394 | Rod | 1 | ADD TO CART | |
| 6 | 5100026393 | Rocker arm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5000083011 | Nut | 3 | ADD TO CART | |
| 8 | 5000159350 | Washer | 3 | ADD TO CART | |
| 9 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000159482 | Screw | 1 | ADD TO CART | |
| 11 | 5000159447 | Shaft support | 3 | ADD TO CART | |
| 13 | 5000159248 | Rocker arm | 4 | PARTS REQUEST | |
|
COMING Rocker arm
5000159248 · qty on machine: 4 | |||||
| 14 | 5000159249 | Rocker arm injector | 2 | ADD TO CART | |
| 15 | 5000159275 | Nut | 1 | ADD TO CART | |
| 16 | 5000159483 | Threaded bolt | 1 | ADD TO CART | |
| 17 | 5000159443 | Pin | 1 | ADD TO CART | |
| 18 | 5000215529 | Plug | 2 | ADD TO CART | |
| 19 | 5000159333 | Threaded stud | 3 | ADD TO CART | |
| 21 | 5100008856 | Bush | 8 | PARTS REQUEST | |
|
COMING Bush
5100008856 · qty on machine: 8 | |||||
| 27 | 5000159297 | Gasket | 4 | ADD TO CART | |
| 28 | 5000160390 | Intake valve | 2 | ADD TO CART | |
| 29 | 5000160392 | Outlet valve | 2 | ADD TO CART | |
Page 84 — DPU90rLec770 US Timing belt
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159481 | Screw | 1 | ADD TO CART | |
| 2 | 5000159349 | Washer | 1 | ADD TO CART | |
| 3 | 5000083011 | Nut | 1 | ADD TO CART | |
| 4 | 5000159344 | Washer | 1 | ADD TO CART | |
| 5 | 5000159334 | Threaded stud | 1 | ADD TO CART | |
| 6 | 5000159284 | Tensioner pulley | 1 | ADD TO CART | |
| 7 | 5000155697 | Timing belt | 1 | ADD TO CART | |
| 8 | 5000159336 | Belt pulley | 1 | ADD TO CART | |
| 9 | 5000159338 | Belt pulley | 1 | ADD TO CART | |
Page 86 — Oil pump
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155735 | Oil pump complete | 1 | ADD TO CART | |
| 2 | 5000160326 | Rotor | 1 | ADD TO CART | |
| 4 | 5000159312 | Spring | 1 | ADD TO CART | |
| 5 | 5000159450 | Lock screw | 1 | ADD TO CART | |
| 6 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 7 | 5000159330 | Rod | 1 | ADD TO CART | |
| 8 | 5000160178 | O-ring | 1 | ADD TO CART | |
| 10 | 5000159478 | Screw | 3 | ADD TO CART | |
| 11 | 5000215709 | Gasket | 1 | ADD TO CART | |
| 14 | 5000155734 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000159484 | Screw | 2 | ADD TO CART | |
| 16 | 5000215479 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 17 | 5000084169 | Screw | 6 | ADD TO CART | |
Page 88 — Oil pan
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026395 | Oil pan | 1 | ADD TO CART | |
| 2 | 5000159228 | Oil seal | 1 | ADD TO CART | |
| 3 | 5000159253 | Bolt | 15 | ADD TO CART | |
| 4 | 5100026396 | Oil-return pip | 1 | ADD TO CART | |
| 5 | 5000159235 | O-ring | 1 | ADD TO CART | |
| 6 | 5000159568 | Copper washer | 2 | ADD TO CART | |
| 11 | 5000211364 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5000211364 · qty on machine: 2 | |||||
| 12 | 5100026397 | Gasket | 1 | ADD TO CART | |
Page 90 — DPU90rLec770 US Speed governor
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159321 | Pin | 1 | ADD TO CART | |
| 1 | 5000159304 | Governor lever complete | 1 | ADD TO CART | |
| 3 | 5000159229 | Oil seal | 1 | ADD TO CART | |
| 5 | 5000215480 | Collar | 1 | ADD TO CART | |
| 6 | 5000215715 | Governor spring | 1 | ADD TO CART | |
| 7 | 5000217813 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5000217813 · qty on machine: 1 | |||||
| 8 | 5000215520 | Washer | 4 | ADD TO CART | |
| 9 | 5000159477 | Screw | 2 | ADD TO CART | |
| 13 | 5000159315 | Spring | 1 | ADD TO CART | |
| 14 | 5000211941 | Screw | 3 | ADD TO CART | |
| 15 | 5100026402 | Governor rod | 1 | ADD TO CART | |
| 16 | 5000159467 | Screw | 3 | ADD TO CART | |
| 17 | 5000159239 | O-ring | 1 | ADD TO CART | |
| 18 | 5000159324 | Check disc | 1 | ADD TO CART | |
| 19 | 5000159240 | Lip seal | 1 | PARTS REQUEST | |
|
COMING Lip seal
5000159240 · qty on machine: 1 | |||||
| 20 | 5000159267 | Bearing | 1 | ADD TO CART | |
| 21 | 5100008841 | Screw | 3 | ADD TO CART | |
| 22 | 5000159265 | Cover | 1 | ADD TO CART | |
| 23 | 5000159251 | Collar | 1 | ADD TO CART | |
| 24 | 5000215517 | Check disc | 1 | ADD TO CART | |
| 25 | 5000155698 | Speed control module | 1 | ADD TO CART | |
| 26 | 5000215506 | Collar | 1 | ADD TO CART | |
| 27 | 5000217805 | Bearing | 1 | PARTS REQUEST | |
|
COMING Bearing
5000217805 · qty on machine: 1 | |||||
Page 92 — Steering
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 2 | 5000215543 | Screw | 1 | ADD TO CART | |
| 3 | 5000084131 | Screw | 1 | ADD TO CART | |
| 4 | 5000083995 | Washer | 1 | ADD TO CART | |
| 5 | 5000150038 | Nut | 1 | PARTS REQUEST | |
|
COMING Nut
5000150038 · qty on machine: 1 | |||||
| 6 | 5000217818 | Washer | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 66 | 5000215519 | Rivet | 3 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |
Page 94 — DPU90rLec770 US Fuel pump
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226239 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5000226239 · qty on machine: 1 | |||||
| 2 | 5000082266 | Stud | 2 | ADD TO CART | |
| 3 | 5000110759 | Seal | 1 | ADD TO CART | |
| 4 | 5000160757 | Rod | 1 | ADD TO CART | |
| 5 | 5000203358 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 2 | |||||
| 6 | 5000082285 | Washer | 2 | ADD TO CART | |
| 7 | 5000082183 | Copper washer | 4 | ADD TO CART | |
| 8 | 5000217802 | Banjo bolt | 2 | PARTS REQUEST | |
|
COMING Banjo bolt
5000217802 · qty on machine: 2 | |||||
Page 96 — DPU90rLec770 US Fuel Lines
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000082155 | Clamp | 1 | ADD TO CART | |
| 2 | 5100026403 | Fuel hose | 1 | ADD TO CART | |
| 3 | 5000215704 | Clamp | 1 | ADD TO CART | |
| 4 | 5100026404 | Fuel hose | 1 | ADD TO CART | |
| 6 | 5000215486 | Collar | 3 | ADD TO CART | |
Page 98 — DPU90rLec770 US Thermostat
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000211378 | Gasket | 1 | ADD TO CART | |
| 3 | 5000159476 | Screw | 2 | ADD TO CART | |
| 4 | 5000084169 | Screw | 2 | ADD TO CART | |
| 5 | 5100030694 | Casing adaptor | 1 | ADD TO CART | |
| 6 | 5000159232 | O-ring | 1 | ADD TO CART | |
| 7 | 5000207002 | Valve thermostat | 1 | ADD TO CART | |
| 8 | 5000215489 | Thermostat housing | 1 | ADD TO CART | |
| 9 | 5000203712 | Cu-ring | 1 | PARTS REQUEST | |
|
COMING Cu-ring
5000203712 · qty on machine: 1 | |||||
| 10 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 12 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 13 | 5000159451 | Screw plug | 1 | ADD TO CART | |
Page 100 — DPU90rLec770 US Water pump
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209105 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 2 | 5100026407 | Water pump | 1 | ADD TO CART | |
| 3 | 5000217809 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217809 · qty on machine: 1 | |||||
| 4 | 5000209107 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000209107 · qty on machine: 2 | |||||
| 5 | 5000160362 | Screw | 2 | ADD TO CART | |
| 6 | 5000217808 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217808 · qty on machine: 1 | |||||
| 7 | 5100026405 | Flange | 1 | ADD TO CART | |
| 8 | 5000160201 | Clamp | 2 | ADD TO CART | |
| 9 | 5100026406 | Hose | 1 | ADD TO CART | |
Page 102 — Inlet bend
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217817 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000217817 · qty on machine: 1 | |||||
| 2 | 5000217801 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000217801 · qty on machine: 1 | |||||
| 4 | 5100026408 | Lever | 1 | ADD TO CART | |
| 7 | 5100008860 | Shaft | 1 | ADD TO CART | |
| 8 | 5000159230 | Oil seal | 1 | PARTS REQUEST | |
|
COMING Oil seal
5000159230 · qty on machine: 1 | |||||
| 10 | 5000084170 | Screw | 1 | ADD TO CART | |
| 11 | 5000159476 | Screw | 2 | ADD TO CART | |
| 12 | 5000215504 | Lever | 1 | ADD TO CART | |
| 13 | 5000215481 | Collar | 1 | ADD TO CART | |
| 14 | 5000215508 | Spring | 1 | ADD TO CART | |
| 15 | 5000203346 | Screw | 3 | ADD TO CART | |
| 16 | 5000159272 | Nut | 2 | ADD TO CART | |
| 18 | 5100008861 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100008861 · qty on machine: 2 | |||||
| 20 | 5000159462 | Hose | 1 | ADD TO CART | |
| 22 | 5000084232 | Nut | 1 | ADD TO CART | |
| 23 | 5100026409 | Manifold | 1 | ADD TO CART | |
| 24 | 5100026410 | Gasket | 1 | ADD TO CART | |
| 25 | 5100026411 | Flange | 1 | ADD TO CART | |
| 26 | 5000084169 | Screw | 2 | ADD TO CART | |
| 27 | 5000082285 | Washer | 2 | ADD TO CART | |
| 28 | 5100026429 | Gasket | 1 | ADD TO CART | |
Page 104 — Exhaust manifold
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159290 | Gasket | 2 | ADD TO CART | |
| 2 | 5100026412 | Exhaust manifold | 1 | ADD TO CART | |
| 4 | 5000082267 | Stud | 4 | ADD TO CART | |
| 5 | 5000086331 | Nut | 4 | ADD TO CART | |
| 6 | 5000160228 | Threaded bolt | 2 | ADD TO CART | |
| 7 | 5000086331 | Nut | 4 | ADD TO CART | |
| 8 | 5000159295 | Gasket | 1 | ADD TO CART | |
| 9 | 5100026413 | Flange | 1 | ADD TO CART | |
| 13 | 5100005700 | Exhaust pipe | 1 | ADD TO CART | |
| 14 | 5000215479 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 15 | 5100005522 | Muffler | 1 | ADD TO CART | |
| 16 | 5100005702 | Exhaust-pipe end | 1 | ADD TO CART | |
| 17 | 5100041970 | Gasket | 1 | ADD TO CART | |
Page 106 — DPU90rLec770 US Generator
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026414 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100026414 · qty on machine: 1 | |||||
| 2 | 5000159476 | Screw | 3 | ADD TO CART | |
| 3 | 5100026415 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100026415 · qty on machine: 1 | |||||
| 4 | 5100026416 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100026416 · qty on machine: 1 | |||||
| 5 | 5000083011 | Nut | 1 | ADD TO CART | |
| 24 | 5000208993 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000208993 · qty on machine: 1 | |||||
| 25 | 5000082293 | Washer | 1 | ADD TO CART | |
| 26 | 5100026417 | Clamp | 1 | ADD TO CART | |
| 49 | 5100026418 | Disc | 1 | ADD TO CART | |
Page 108 — DPU90rLec770 US Starter
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215493 | Hexagon nut | 1 | ADD TO CART | |
| 2 | 5000082288 | Washer | 1 | ADD TO CART | |
| 3 | 5000211380 | Starter | 1 | PARTS REQUEST | |
|
COMING Starter
5000211380 · qty on machine: 1 | |||||
| 4 | 5000206968 | Flange | 1 | ADD TO CART | |
| 6 | 5000083011 | Nut | 2 | ADD TO CART | |
| 9 | 5000083027 | Screw | 2 | ADD TO CART | |
Page 110 — Spark plug
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 1 | ADD TO CART | |
| 2 | 5000155748 | Glow plug | 2 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |
Page 112 — Covering
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159564 | Screw | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5100026420 | Belt guard | 1 | ADD TO CART | |
| 4 | 5000159268 | Plug | 1 | ADD TO CART | |
| 5 | 5000215499 | Gasket | 1 | ADD TO CART | |
| 6 | 5100026421 | Protective cover | 1 | ADD TO CART | |
Page 114 — DPU90rLec770 US Compamatic DPU80/90/110
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100056654 | Compamatic cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Compamatic cpl.
5100056654 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100055488 | Bracket (telematic) | 1 | ADD TO CART | |
| 3 | 5100041922 | Tightening strap | 2 | ADD TO CART | |
| 4 | 5100044787 | Cable harness telematik | 1 | ADD TO CART | |
| 5 | 5100049259 | Plug cap | 1 | ADD TO CART | |
| 6 | 5100017849 | Clamp | 2 | ADD TO CART | |
| 7 | 5000038489 | Tie cable | 11 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 11 | |||||
Page 10 — Baseplate cpl. dpu80r/90r
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100009890 | Baseplate 770 | 1 | ADD TO CART | |
| 1 | 5100009972 | Baseplate 670 | 1 | ADD TO CART | |
| 2 | 5100005661 | O-ring | 1 | ADD TO CART | |
| 3 | 5100004545 | Exciter cpl. (dpu80r) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu80r)
5100004545 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100025626 | Exciter cpl. (dpu90r) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. (dpu90r)
5100025626 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100009777 | Cheese head screw | 13 | ADD TO CART | |
| 5 | 5000019156 | Gasket | 1 | ADD TO CART | |
| 6 | 5000068222 | Plug (threaded) | 1 | 100Nm/74ft.lbs | ADD TO CART |
| 7 | 5000203227 | Roll pin | 4 | ADD TO CART | |
| 8 | 5000216648 | Silent block | 4 | ADD TO CART | |
| 9 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 10 | 5000216644 | Shockmount | 4 | 49Nm/36ft.lbs | ADD TO CART |
| 11 | 5100010249 | Hose pipe | 1 | ADD TO CART | |
| 12 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
| 13 | 5000012373 | Cheese head screw | 8 | 10Nm/7ft.lbs | ADD TO CART |
| 14 | 5100010255 | Hose pipe | 1 | ADD TO CART | |
| 15 | 5100010591 | O-ring | 2 | ADD TO CART | |
| 16 | 5000011468 | Hexagonal head cap screw | 4 | M6 x 30 10Nm/7ft.lbs | ISO4017 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000011468 · qty on machine: 4 M6 x 30
10Nm/7ft.lbs | ISO4017 | |||||
| 17 | 5100009970 | Hose pipe | 1 | 40Nm/30ft.lbs | ADD TO CART |
| 18 | 5100010160 | Breather tube | 1 | ADD TO CART | |
| 19 | 5100010115 | O-ring | 1 | ADD TO CART | |
| 20 | 5100010881 | Hose pipe | 1 | ADD TO CART | |
| 21 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 22 | 5000011549 | Cheese head screw | 4 | 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
Page 12 — Exciter cpl. dpu90r
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004477 | Exciter housing | 1 | PARTS REQUEST | |
|
COMING Exciter housing
5100004477 · qty on machine: 1 | |||||
| 2 | 5100004298 | Driving shaft | 1 | ADD TO CART | |
| 3 | 5002006603 | Fitting key | 1 | ADD TO CART | |
| 4 | 5100004306 | Gear | 1 | ADD TO CART | |
| 5 | 5100010479 | Cylindrical roller bearing | 1 | ADD TO CART | |
| 6 | 5100015097 | Cylindrical roller bearing | 1 | ADD TO CART | |
| 7 | 5002006113 | Retaining ring | 3 | ADD TO CART | |
| 8 | 5100005260 | Adjusting sleeve | 1 | PARTS REQUEST | |
|
COMING Adjusting sleeve
5100005260 · qty on machine: 1 | |||||
| 9 | 5000206436 | Bearing bush | 2 | ADD TO CART | |
| 10 | 5100013880 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 11 | 5002007057 | Retaining ring | 2 | 90 x 3 | DIN472 | ADD TO CART |
| 12 | 5100004637 | Shaft | 2 | ADD TO CART | |
| 13 | 5100017940 | Shim ring | 2 | ADD TO CART | |
| 14 | 5000103469 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 15 | 5100025096 | Eccentric weight | 2 | ADD TO CART | |
| 16 | 5100025094 | Eccentric weight | 2 | ADD TO CART | |
| 17 | 5100005815 | Corrugated-head screw | 2 | M16x 40 330Nm/243ft.lbs | ADD TO CART |
| 18 | 5100005604 | Corrugated-head screw | 4 | 150Nm/111ft.lbs | ADD TO CART |
| 19 | 5100005814 | Flange | 1 | ADD TO CART | |
| 20 | 5100005660 | O-ring | 2 | ADD TO CART | |
| 21 | 5000012629 | Cheese head screw | 20 | 25Nm/18ft.lbs | ADD TO CART |
| 22 | 5100004294 | Vent cover | 1 | ADD TO CART | |
| 23 | 5100013846 | Adjustment cylinder cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 24 | 5100010516 | O-ring | 2 | ADD TO CART | |
| 25 | 5000204527 | Tripping pin | 2 | ADD TO CART | |
| 26 | 5100003535 | Disc | 1 | ADD TO CART | |
| 27 | 5100005740 | Gear pump left | 1 | ADD TO CART | |
| 28 | 5100004118 | O-ring | 1 | ADD TO CART | |
| 29 | 5100003696 | Carrier | 1 | ADD TO CART | |
| 30 | 5000010742 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000010742 · qty on machine: 4 | |||||
| 31 | 5100005511 | Piston | 2 | PARTS REQUEST | |
|
COMING Piston
5100005511 · qty on machine: 2 | |||||
| 32 | 5100005971 | Grooved ring | 2 | ADD TO CART | |
| 33 | 5100005972 | Guide ring | 2 | ADD TO CART | |
| 34 | 5100005508 | Pipe | 2 | ADD TO CART | |
| 35 | 5100005840 | Stop disc | 2 | ADD TO CART | |
| 36 | 5100005921 | Compression spring | 2 | ADD TO CART | |
| 37 | 5100005507 | Cylinder cover | 2 | ADD TO CART | |
| 38 | 5100005970 | O-ring | 2 | 38,00x2,00 10Nm/7ft.lbs | ADD TO CART |
| 39 | 5000043307 | Cheese head screw | 10 | M5 x 12 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 40 | 5100016693 | Piston cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000124717 | Washer | 2 | 17.8Nm/13ft.lbs | ADD TO CART |
| 42 | 5000220001 | Cheese head screw | 2 | 17.8Nm/13ft.lbs | ADD TO CART |
Page 16 — Upper mass cpl. dpu80r/90r
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100004991 | Upper mass | 1 | ADD TO CART | |
| 2 | 5000212628 | Locknut | 4 | 210Nm/155ft.lbs | ADD TO CART |
| 9 | 5100013831 | Electric box cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 14 | 5100005939 | Protective cloth | 1 | PARTS REQUEST | |
|
COMING Protective cloth
5100005939 · qty on machine: 1 | |||||
| 20 | 5000047388 | Cable tie | 20 | ADD TO CART | |
| 21 | 5000038489 | Tie cable | 10 | PARTS REQUEST | |
|
COMING Tie cable
5000038489 · qty on machine: 10 | |||||
Page 18 — Cabling cpl. dpu80r/90r
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210107 | Clamp | 3 | ADD TO CART | |
| 2 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 3 | 5000211755 | Screw | 4 | ADD TO CART | |
| 4 | 5100010281 | Clamp | 5 | ADD TO CART | |
| 6 | 5000010625 | Flat washer | 5 | ADD TO CART | |
| 7 | 5000011561 | Cheese head screw | 6 | ADD TO CART | |
| 8 | 5100005670 | Positive cable | 1 | ADD TO CART | |
| 10 | 5100010152 | Negative pole strap | 2 | ADD TO CART | |
| 11 | 5000013574 | Cheese head screw | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 12 | 5100010130 | Cable harness engine | 1 | ADD TO CART | |
| 13 | 5100017849 | Clamp | 1 | ADD TO CART | |
| 14 | 5100005665 | Cable harness valve | 1 | ADD TO CART | |
| 15 | 5100011350 | Receiver unit front | 1 | ADD TO CART | |
| 16 | 5100005668 | Cable harness receiver unit front | 1 | ADD TO CART | |
| 17 | 5100011351 | Receiver unit rear | 1 | ADD TO CART | |
| 18 | 5100005667 | Cable harnessreceiver unit rear | 1 | ADD TO CART | |
| 19 | 5000212143 | Clamp | 1 | ADD TO CART | |
| 20 | 5000011555 | Cheese head screw | 1 | M6 x 10 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 21 | 5100010511 | Charging cable | 1 | ADD TO CART | |
| 22 | 5100027457 | Heat shield | 1 | ADD TO CART | |
Page 20 — Tank - radiator dpu80/90
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005488 | Hydraulic tank | 1 | ADD TO CART | |
| 2 | 5100010301 | Filter element | 1 | ADD TO CART | |
| 3 | 5100010303 | Filter element | 1 | PARTS REQUEST | |
|
COMING Filter element
5100010303 · qty on machine: 1 | |||||
| 4 | 5100010302 | Return filter | 1 | ADD TO CART | |
| 5 | 5000012629 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010341 | Fan | 1 | ADD TO CART | |
| 7 | 5100015757 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 8 | 5100016476 | Gasket | 1 | ADD TO CART | |
| 9 | 5100016478 | Gasket | 1 | ADD TO CART | |
| 10 | 5100015887 | Plate | 1 | ADD TO CART | |
| 11 | 5100005489 | Radiator | 1 | ADD TO CART | |
| 12 | 5000211795 | Corrugated-head screw | 5 | ADD TO CART | |
| 13 | 5100014130 | Bracket | 1 | ADD TO CART | |
| 14 | 5100010830 | Cable passage | 2 | ADD TO CART | |
| 15 | 5000010622 | Flat washer | 2 | ADD TO CART | |
| 16 | 5000012360 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 17 | 5100010161 | Bolted connection | 1 | ADD TO CART | |
| 18 | 5000011548 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 19 | 5000011553 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 20 | 5100011096 | Screwed socket | 1 | ADD TO CART | |
| 21 | 5100010252 | Hose pipe | 1 | ADD TO CART | |
| 22 | 5100009849 | Bottle-overflow | 1 | ADD TO CART | |
| 23 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 24 | 5000011456 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 25 | 5100015982 | Cover | 1 | ADD TO CART | |
| 26 | 5100015647 | Radiator hose | 1 | ADD TO CART | |
| 27 | 5100010313 | Water hose | 1 | ADD TO CART | |
| 28 | 5100006059 | Water hose | 1 | ADD TO CART | |
| 29 | 5002004724 | Worm drive house clip | 4 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 4 | |||||
| 30 | 5100010256 | Hose pipe cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 32 | 5000206551 | Clamp | 1 | ADD TO CART | |
| 33 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 34 | 5100010567 | Bracket | 1 | ADD TO CART | |
| 35 | 5100010568 | Bracket | 1 | ADD TO CART | |
| 36 | 5000097656 | Roll pin | 1 | ADD TO CART | |
| 37 | 5100009991 | Shockmount | 2 | ADD TO CART | |
| 38 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 39 | 5000010882 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100016491 | Gasket | 1 | ADD TO CART | |
| 41 | 5100016492 | Gasket | 1 | ADD TO CART | |
| 42 | 1000262373 | View glass | 1 | PARTS REQUEST | |
|
COMING View glass
1000262373 · qty on machine: 1 | |||||
| 44 | 5100011421 | Cover (bayonet lock) | 1 | ADD TO CART | |
| 45 | 5100015762 | Plug (threaded) | 1 | ADD TO CART | |
| 46 | 5000063739 | Screwed socket | 1 | ADD TO CART | |
| 47 | 5000211755 | Screw | 1 | ADD TO CART | |
Page 24 — Return filter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000220217 | Cover | 1 | ADD TO CART | |
| 2 | 5000220218 | Gasket | 1 | ADD TO CART | |
| 3 | 5100016998 | Filter element | 1 | ADD TO CART | |
Page 26 — Fuel tank complete dpu80/90
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 12 | 5100015096 | Hammer head bolt | 2 | ADD TO CART | |
| 13 | 5000010882 | Hexagon nut | 2 | 6Nm/4ft.lbs | ADD TO CART |
| 1 | 5100038140 | Fuel tank | 1 | ADD TO CART | |
| 2 | 1000267866 | Screen | 1 | PARTS REQUEST | |
|
COMING Screen
1000267866 · qty on machine: 1 | |||||
| 3 | 5100010476 | Tank cover | 1 | 3Nm/2ft.lbs | ADD TO CART |
| 4 | 1000051394 | Angle cut piece | 1 | PARTS REQUEST | |
|
COMING Angle cut piece
1000051394 · qty on machine: 1 | |||||
| 5 | 5100010035 | Elbow fitting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5100010244 | Fuel hose | 1 | ADD TO CART | |
| 7 | 5100010245 | Fuel hose | 1 | ADD TO CART | |
| 8 | 5000016836 | Clamp | 2 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 2 | |||||
| 9 | 5100010569 | Bracket | 1 | ADD TO CART | |
| 10 | 5000211795 | Corrugated-head screw | 2 | 35Nm/26ft.lbs | ADD TO CART |
| 11 | 5100009992 | Shockmount | 2 | ADD TO CART | |
Page 28 — Block-hydraulic cpl. dpu80r/90r/110r
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005966 | Block-hydraulic | 1 | ADD TO CART | |
| 2 | 5100010247 | Hose pipe | 1 | ADD TO CART | |
| 3 | 5100010251 | Hose pipe | 1 | ADD TO CART | |
| 4 | 5000210116 | O-ring | 4 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 4 | |||||
| 5 | 5000011548 | Cheese head screw | 16 | 10Nm/7ft.lbs | ADD TO CART |
| 6 | 5000058705 | Cheese head screw | 2 | M8 x 90 25Nm/18ft.lbs | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000058705 · qty on machine: 2 M8 x 90
25Nm/18ft.lbs | ISO4762 | |||||
| 7 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 8 | 5000220194 | Valve cap | 4 | ADD TO CART | |
| 9 | 5100025064 | Valve | 2 | ADD TO CART | |
| 10 | 5100025061 | Valve | 1 | ADD TO CART | |
| 11 | 5100025062 | Solenoid | 1 | ADD TO CART | |
| 12 | 5100025063 | Valve | 1 | ADD TO CART | |
| 13 | 5000220193 | Solenoid | 3 | ADD TO CART | |
| 14 | 5000220198 | Test port | 2 | PARTS REQUEST | |
|
COMING Test port
5000220198 · qty on machine: 2 | |||||
Page 30 — Diesel engine cpl. dpu80/90
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024723 | Diesel engine kdw 702 - 3350 us | 1 | PARTS REQUEST | |
|
COMING Diesel engine kdw 702 - 3350 us
5100024723 · qty on machine: 1 | |||||
| 1 | 5100049016 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049016 · qty on machine: 1 | |||||
| 1 | 5100049017 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100049017 · qty on machine: 1 | |||||
| 2 | 5100005758 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000210165 | Corrugated-head screw | 4 | ADD TO CART | |
| 4 | 5100011317 | Bracket | 1 | ADD TO CART | |
| 5 | 5000211795 | Corrugated-head screw | 2 | ADD TO CART | |
| 6 | 5100005655 | Gear pump | 1 | ADD TO CART | |
| 7 | 5000010621 | Flat washer | 4 | ADD TO CART | |
| 8 | 5000011535 | Cheese head screw | 3 | 49Nm/36ft.lbs | ADD TO CART |
| 9 | 5100046101 | Bolted connection cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000210115 | O-ring | 1 | ADD TO CART | |
| 11 | 5100010059 | Hose connection | 1 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 13 | 5100010056 | Suction hose | 1 | ADD TO CART | |
| 14 | 5002004724 | Worm drive house clip | 2 | PARTS REQUEST | |
|
COMING Worm drive house clip
5002004724 · qty on machine: 2 | |||||
| 15 | 5100005748 | Engine support cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 16 | 5100005769 | Plate | 1 | ADD TO CART | |
| 17 | 5000011542 | Cheese head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 18 | 5000155486 | Throttle actuator | 1 | ADD TO CART | |
| 19 | 5100010512 | Corrugated-head screw | 3 | ADD TO CART | |
| 20 | 5000010880 | Hexagon nut | 1 | ADD TO CART | |
| 21 | 5000155487 | Adaptor | 1 | ADD TO CART | |
| 22 | 5000150022 | Cable | 1 | ADD TO CART | |
| 23 | 5100010831 | Compression spring | 1 | ADD TO CART | |
| 26 | 5100010901 | Covering | 1 | ADD TO CART | |
| 27 | 5000210173 | Filter-fuel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5000215484 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000215484 · qty on machine: 1 | |||||
| 28 | 5000011439 | Hexagonal head cap screw | 2 | 49Nm/36ft.lbs | ADD TO CART |
| 29 | 5000010883 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100010246 | Fuel hose | 1 | ADD TO CART | |
| 31 | 5000019156 | Gasket | 2 | ADD TO CART | |
| 32 | 5100010257 | Hose pipe | 1 | ADD TO CART | |
| 33 | 5000207336 | Hollow screw | 1 | ADD TO CART | |
| 34 | 5100011327 | Pipe clamp | 1 | ADD TO CART | |
| 35 | 5100010740 | Belt guard cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 36 | 5100018058 | Corrugated-head screw | 4 | ADD TO CART | |
| 37 | 5100000973 | Shockmount | 4 | ADD TO CART | |
| 38 | 5000216640 | Locknut | 4 | ADD TO CART | |
| 39 | 5000016836 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000016836 · qty on machine: 1 | |||||
| 40 | 5100024279 | Heat shield cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 41 | 5000210194 | Corrugated-head screw | 3 | ADD TO CART | |
| 42 | 5000206422 | Switch | 1 | ADD TO CART | |
| 43 | 5000011548 | Cheese head screw | 2 | ADD TO CART | |
| 44 | 5000011552 | Cheese head screw | 2 | M6 x 18 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 45 | 5000210116 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000210116 · qty on machine: 1 | |||||
Page 34 — Holder cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010590 | Bracket | 1 | ADD TO CART | |
| 2 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 3 | 5000205238 | Screw connection | 1 | ADD TO CART | |
| 4 | 5000211773 | Nose cap | 1 | 40Nm/30ft.lbs | ADD TO CART |
Page 36 — Electric box cpl. dpu80r/90r/110r
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005376 | Electric components drawer | 1 | ADD TO CART | |
| 2 | 5100010129 | Cable harness e-box | 1 | ADD TO CART | |
| 3 | 5000011570 | Cheese head screw | 2 | 5Nm/4ft.lbs | ADD TO CART |
| 4 | 5000010628 | Flat washer | 2 | ADD TO CART | |
| 5 | 5000010370 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5000085437 | Relay | 4 | ADD TO CART | |
| 7 | 5100016686 | Gasket | 4 | ADD TO CART | |
| 8 | 5100015757 | Hexagonal head cap screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
| 10 | 5000010369 | Hexagon nut | 3 | ADD TO CART | |
| 11 | 5100010300 | Connector plate bottom | 1 | ADD TO CART | |
| 12 | 5100010315 | Plate | 1 | ADD TO CART | |
| 13 | 5100010121 | Control | 1 | ADD TO CART | |
| 14 | 5100010109 | Flange | 1 | ADD TO CART | |
| 15 | 5100010110 | Switch | 1 | ADD TO CART | |
| 16 | 5100005715 | Botton switch | 1 | ADD TO CART | |
| 17 | 5100010070 | Botton switch | 1 | ADD TO CART | |
| 18 | 5100005763 | Decoder cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5100010311 | Connector plate middle | 1 | ADD TO CART | |
| 20 | 5100010312 | Connector plate top | 1 | ADD TO CART | |
| 21 | 5100009818 | Display | 1 | ADD TO CART | |
| 22 | 5100005471 | Cover | 1 | ADD TO CART | |
| 23 | 5000108371 | Oval head screw | 18 | ADD TO CART | |
| 24 | 5000010622 | Flat washer | 3 | ADD TO CART | |
| 25 | 5000011541 | Cheese head screw | 3 | 25Nm/18ft.lbs | PARTS REQUEST |
|
COMING Cheese head screw
5000011541 · qty on machine: 3 25Nm/18ft.lbs | |||||
| 26 | 5100022411 | Blind plug cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5100061282 | Cable harness | 1 | ADD TO CART | |
Page 38 — Air filter cpl.
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010911 | Bracket | 1 | ADD TO CART | |
| 2 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 3 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 4 | 5100005726 | Air cleaner | 1 | ADD TO CART | |
| 4 | 5100024488 | Filter element | 1 | ADD TO CART | |
| 4 | 5100024489 | Safety elements | 1 | ADD TO CART | |
| 4 | 5100024550 | Clamp | 3 | ADD TO CART | |
| 4 | 5100024551 | Dust discharge valve | 1 | ADD TO CART | |
| 5 | 5100010912 | Tightening strap | 1 | ADD TO CART | |
| 7 | 5100016655 | Gasket | 1 | ADD TO CART | |
| 8 | 5000014996 | Clamp | 2 | ADD TO CART | |
Page 40 — Locking device rear cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010584 | Bracket | 1 | ADD TO CART | |
| 2 | 5000204116 | Shockmount | 2 | ADD TO CART | |
| 3 | 5100017158 | Locknut | 6 | 30Nm/22ft.lbs | ADD TO CART |
| 4 | 5000210111 | Corrugated-head screw | 2 | 90Nm/66ft.lbs | ADD TO CART |
| 5 | 5100010580 | Locking lever rear | 1 | ADD TO CART | |
| 6 | 5100010840 | Shockmount | 2 | ADD TO CART | |
Page 42 — Battery cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209152 | Insulating cushion | 1 | ADD TO CART | |
| 2 | 5000086527 | Battery | 1 | ADD TO CART | |
| 3 | 5100005937 | Battery mounting cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100017160 | Gasket | 1 | ADD TO CART | |
| 5 | 5100010891 | Threaded bolt | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 6 | 5100010892 | Threaded bolt | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 7 | 5000017313 | Hexagon nut | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5100015203 | Pole terminal negative | 1 | ADD TO CART | |
| 9 | 5100015202 | Pole terminal positive | 1 | ADD TO CART | |
| 10 | 5100014022 | Positive pol cover | 1 | ADD TO CART | |
| 11 | 5000212623 | Bushing | 3 | ADD TO CART | |
| 12 | 5000011551 | Cheese head screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
Page 44 — Protective frame cpl. dpu80/90
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010657 | Cross-beam | 1 | ADD TO CART | |
| 2 | 5100016518 | Gasket | 1 | ADD TO CART | |
| 3 | 5100017413 | Jack ring | 1 | ADD TO CART | |
| 4 | 5100005732 | Axle | 1 | ADD TO CART | |
| 5 | 5000202829 | Cup spring | 1 | ADD TO CART | |
| 6 | 5000010616 | Flat washer | 1 | ADD TO CART | |
| 7 | 5000126187 | Threaded pin | 2 | ADD TO CART | |
| 8 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 9 | 5000210112 | Corrugated-head screw | 4 | ADD TO CART | |
| 10 | 5000204116 | Shockmount | 4 | ADD TO CART | |
| 11 | 5100017158 | Locknut | 8 | ADD TO CART | |
| 12 | 5100010583 | Bracket | 1 | ADD TO CART | |
| 13 | 5100010840 | Shockmount | 2 | ADD TO CART | |
| 14 | 5100064251 | Locking lever | 1 | ADD TO CART | |
| 15 | 5100010450 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010450 · qty on machine: 1 | |||||
| 16 | 5100010451 | Side element | 1 | PARTS REQUEST | |
|
COMING Side element
5100010451 · qty on machine: 1 | |||||
| 17 | 5100016517 | Gasket | 2 | ADD TO CART | |
| 18 | 5100018100 | Edge protection | 2 | ADD TO CART | |
| 19 | 5100018101 | Edge protection | 2 | ADD TO CART | |
| 20 | 5100018059 | Corrugated-head screw | 8 | ADD TO CART | |
| 21 | 5100010459 | Covering | 2 | PARTS REQUEST | |
|
COMING Covering
5100010459 · qty on machine: 2 | |||||
| 22 | 5100018102 | Edge protection | 2 | ADD TO CART | |
| 23 | 5000211795 | Corrugated-head screw | 12 | ADD TO CART | |
| 24 | 5100011100 | Corrugated-head screw | 4 | ADD TO CART | |
| 25 | 5100011101 | Corrugated-head screw | 4 | PARTS REQUEST | |
|
COMING Corrugated-head screw
5100011101 · qty on machine: 4 | |||||
| 26 | 5100025691 | Handle profile | 1 | ADD TO CART | |
Page 46 — Bonnet front cpl. dpu80
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010439 | Bonnet | 1 | PARTS REQUEST | |
|
COMING Bonnet
5100010439 · qty on machine: 1 | |||||
| 2 | 5100016051 | Hinge | 1 | PARTS REQUEST | |
|
COMING Hinge
5100016051 · qty on machine: 1 | |||||
| 3 | 5000210112 | Corrugated-head screw | 4 | 85Nm/63ft.lbs | ADD TO CART |
| 4 | 5100010931 | Screen grid rear (dpu80) | 1 | ADD TO CART | |
| 4 | 5100018930 | Screen grid front (dpu80r) | 1 | PARTS REQUEST | |
|
COMING Screen grid front (dpu80r)
5100018930 · qty on machine: 1 | |||||
| 5 | 5100010577 | Locking tab front | 1 | ADD TO CART | |
| 6 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 7 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 8 | 5100024474 | Shockmount | 2 | ADD TO CART | |
| 9 | 5000154402 | Cable | 1 | ADD TO CART | |
| 10 | 5000012362 | Hexagonal head cap screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 11 | 5000033356 | Hexagon nut | 2 | ADD TO CART | |
| 12 | 5100024476 | Edge protection | 1 | 90Nm/66ft.lbs | ADD TO CART |
Page 48 — Bonnet rear cpl. dpu80
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010438 | Bonnet | 1 | PARTS REQUEST | |
|
COMING Bonnet
5100010438 · qty on machine: 1 | |||||
| 2 | 5100010578 | Locking tab rear | 1 | ADD TO CART | |
| 3 | 5100018058 | Corrugated-head screw | 2 | ADD TO CART | |
| 4 | 5100017158 | Locknut | 4 | 30Nm/22ft.lbs | ADD TO CART |
| 5 | 5100010933 | Screen grid rear (dpu80) | 1 | PARTS REQUEST | |
|
COMING Screen grid rear (dpu80)
5100010933 · qty on machine: 1 | |||||
| 5 | 5100018919 | Screen grid front (dpu80) | 1 | ADD TO CART | |
| 5 | 5100018920 | Screen grid front (dpu80r,c) | 1 | ADD TO CART | |
| 5 | 5100018924 | Screen grid front (dpu80r) | 1 | ADD TO CART | |
| 6 | 5100011262 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000068355 | Protective cap | 1 | ADD TO CART | |
| 9 | 5000210112 | Corrugated-head screw | 3 | 85Nm/63ft.lbs | ADD TO CART |
| 10 | 5100005810 | Compr. spring | 1 | ADD TO CART | |
| 11 | 5100017956 | Protection foil | 1 | ADD TO CART | |
| 12 | 5100024201 | Cloth | 1 | ADD TO CART | |
| 13 | 5100025231 | Portfolio | 1 | PARTS REQUEST | |
|
COMING Portfolio
5100025231 · qty on machine: 1 | |||||
| 14 | 5100057038 | Plate | 1 | ADD TO CART | |
| 15 | 5100048321 | Mushroom head bolt | 4 | ADD TO CART | |
| 16 | 5000010372 | Flat washer | 4 | ADD TO CART | |
| 17 | 5000010369 | Hexagon nut | 4 | ADD TO CART | |
Page 50 — Transmitter cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005938 | Retainer | 1 | ADD TO CART | |
| 2 | 5000207753 | Bracket | 1 | ADD TO CART | |
| 3 | 5100005940 | Terminal strip | 1 | ADD TO CART | |
| 4 | 5000124255 | Shockmount | 2 | ADD TO CART | |
| 5 | 5000208255 | Bracket | 1 | ADD TO CART | |
| 6 | 5000011551 | Cheese head screw | 2 | 95Nm/70ft.lbs | ADD TO CART |
| 7 | 5100018542 | Transmitter | 1 | ADD TO CART | |
Page 52 — DPU90rLem770 US Sender
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000210156 | Battery | 1 | ADD TO CART | |
| 2 | 5000117184 | Cap | 1 | ADD TO CART | |
| 3 | 5000177083 | Steering lever kit | 2 | ADD TO CART | |
| 4 | 5000226261 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5000226261 · qty on machine: 1 | |||||
| 5 | 5100024202 | Instruction label | 1 | ADD TO CART | |
| 6 | 5100024203 | Label-warning | 1 | ADD TO CART | |
| 7 | 5100024204 | Band | 1 | ADD TO CART | |
Page 54 — Overload sensor cpl.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010005 | Sensor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000010624 | Flat washer | 1 | ADD TO CART | |
| 3 | 5000037071 | Cheese head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
Page 56 — DPU90rLem770 US Sticker
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000222103 | Decal, logo | 2 | ADD TO CART | |
| 3 | 5100017952 | Type label dpu110 | 2 | ADD TO CART | |
| 3 | 5100017953 | Type label dpu110r | 2 | ADD TO CART | |
| 3 | 5100017954 | Type label dpu80 | 2 | ADD TO CART | |
| 3 | 5100017955 | Type label dpu80r | 2 | ADD TO CART | |
| 3 | 5100024540 | Type label dpu90 | 2 | PARTS REQUEST | |
|
COMING Type label dpu90
5100024540 · qty on machine: 2 | |||||
| 3 | 5100024541 | Type label dpu90r | 2 | ADD TO CART | |
| 4 | 5000222086 | Label symbol | 1 | ADD TO CART | |
| 5 | 5000207747 | Danger label | 1 | PARTS REQUEST | |
|
COMING Danger label
5000207747 · qty on machine: 1 | |||||
| 6 | 5000216633 | Instruction label | 1 | ADD TO CART | |
| 7 | 5000219175 | Labels | 1 | ADD TO CART | |
| 8 | 5000064925 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5000219179 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000219179 · qty on machine: 1 | |||||
| 10 | 5000216635 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000216635 · qty on machine: 1 | |||||
| 11 | 5000220000 | Instruction label | 1 | ADD TO CART | |
| 12 | 5000219080 | Labels | 1 | ADD TO CART | |
| 13 | 5100011227 | Label hav 24h | 1 | ADD TO CART | |
| 14 | 5100085618 | Label | 4 | PARTS REQUEST | |
|
COMING Label
5100085618 · qty on machine: 4 | |||||
| 15 | 5000219176 | Labels | 3 | ADD TO CART | |
| 17 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 58 — DPU90rLem770 US Crankshaft
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026266 | Crankshaft | 1 | PARTS REQUEST | |
|
COMING Crankshaft
5100026266 · qty on machine: 1 | |||||
| 2 | 5000159357 | Pin | 1 | ADD TO CART | |
| 3 | 5000159260 | Woodruff key | 1 | ADD TO CART | |
| 4 | 5000159454 | Plug, threaded | 2 | ADD TO CART | |
| 5 | 5000159261 | Square key | 1 | ADD TO CART | |
Page 60 — DPU90rLem770 US Piston - Connecting rod
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000160377 | Piston set | 2 | ADD TO CART | |
| 1 | 5000160375 | Piston set | 2 | ADD TO CART | |
| 1 | 5000160376 | Piston set | 2 | ADD TO CART | |
| 2 | 5000160367 | Connecting rod | 2 | PARTS REQUEST | |
|
COMING Connecting rod
5000160367 · qty on machine: 2 | |||||
| 3 | 5000160383 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160384 | Piston ring set | 2 | ADD TO CART | |
| 3 | 5000160385 | Piston ring set | 2 | ADD TO CART | |
| 4 | 5000215523 | Piston pin | 2 | ADD TO CART | |
| 5 | 5000215477 | Retaining ring | 4 | ADD TO CART | |
| 6 | 5000160368 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000160368 · qty on machine: 2 | |||||
| 7 | 5000155691 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155689 | Bearing | 2 | ADD TO CART | |
| 7 | 5000155690 | Bearing | 2 | ADD TO CART | |
| 8 | 5000084175 | Screw | 4 | ADD TO CART | |
Page 62 — DPU90rLem770 US Flywheel
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215545 | Flywheel | 1 | ADD TO CART | |
| 2 | 5000155693 | Gear crown | 1 | ADD TO CART | |
| 3 | 5000160188 | Bolt | 5 | ADD TO CART | |
| 4 | 5000159326 | Plate | 1 | ADD TO CART | |
| 5 | 5000159254 | Bolt | 9 | ADD TO CART | |
| 6 | 5000215527 | Plug | 1 | ADD TO CART | |
| 7 | 5000211373 | Coupling cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000084164 | Screw | 3 | ADD TO CART | |
| 9 | 5000215567 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5000215567 · qty on machine: 1 | |||||
| 10 | 5000211370 | Pin | 2 | PARTS REQUEST | |
|
COMING Pin
5000211370 · qty on machine: 2 | |||||
| 11 | 5000082140 | Nut | 3 | ADD TO CART | |
| 12 | 5000084123 | Screw | 3 | ADD TO CART | |
| 13 | 5000211371 | Washer | 4 | ADD TO CART | |
| 14 | 5000211372 | Screw | 4 | ADD TO CART | |
| 15 | 5000160231 | Washer | 3 | ADD TO CART | |
Page 64 — DPU90rLem770 US Belt Pulley
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026267 | V-belt pulley | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5000126935 | Bolt | 1 | ADD TO CART | |
| 14 | 5000215485 | Belt | 1 | ADD TO CART | |
Page 66 — Crankcase
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026268 | Crankcase | 1 | PARTS REQUEST | |
|
COMING Crankcase
5100026268 · qty on machine: 1 | |||||
| 2 | 5000159257 | Sleeve | 2 | ADD TO CART | |
| 3 | 5000206229 | Screw | 1 | ADD TO CART | |
| 4 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 5 | 5000215522 | Pin | 1 | ADD TO CART | |
| 6 | 5000155704 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155702 | Bearing | 3 | ADD TO CART | |
| 6 | 5000155703 | Bearing | 3 | ADD TO CART | |
| 8 | 5000159486 | Disc | 2 | ADD TO CART | |
| 8 | 5000159487 | Disc | 2 | ADD TO CART | |
| 8 | 5000159488 | Disc | 2 | ADD TO CART | |
| 9 | 5000082335 | Threaded plug | 2 | ADD TO CART | |
| 12 | 5000159288 | Gasket | 4 | ADD TO CART | |
| 13 | 5000159360 | Dowel pin | 2 | ADD TO CART | |
| 15 | 5000159480 | Screw | 6 | ADD TO CART | |
| 16 | 5000159456 | Plug | 1 | ADD TO CART | |
| 17 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 18 | 5000215530 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5000215530 · qty on machine: 1 | |||||
| 19 | 5000155700 | Flange | 1 | ADD TO CART | |
| 20 | 5000217807 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217807 · qty on machine: 1 | |||||
| 21 | 5000159467 | Screw | 6 | ADD TO CART | |
| 22 | 5000155701 | Rotary shaft seal | 1 | PARTS REQUEST | |
|
COMING Rotary shaft seal
5000155701 · qty on machine: 1 | |||||
| 23 | 5000159341 | Oil filter fitting | 1 | ADD TO CART | |
| 24 | 5100026398 | Oil filter | 1 | PARTS REQUEST | |
|
COMING Oil filter
5100026398 · qty on machine: 1 | |||||
| 25 | 5100026399 | Dip stick | 1 | ADD TO CART | |
| 26 | 5100026400 | O-ring | 3 | ADD TO CART | |
| 27 | 5100026401 | Pipe | 1 | ADD TO CART | |
| 28 | 5000063695 | O-ring | 2 | PARTS REQUEST | |
|
COMING O-ring
5000063695 · qty on machine: 2 | |||||
| 41 | 5100026269 | Gasket set crankcase | 1 | ADD TO CART | |
Page 70 — DPU90rLem770 US Cylinder head
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026381 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000159449 | Plug | 1 | ADD TO CART | |
| 6 | 5000159318 | Spark arrester | 2 | ADD TO CART | |
| 7 | 5000215524 | Lifting point | 2 | ADD TO CART | |
| 8 | 5000084156 | Screw | 1 | ADD TO CART | |
| 9 | 5000217828 | Flange screw | 6 | ADD TO CART | |
| 10 | 5000159350 | Washer | 6 | ADD TO CART | |
| 11 | 5000159231 | O-ring | 1 | ADD TO CART | |
| 12 | 5000159453 | Plug | 1 | ADD TO CART | |
| 13 | 5000159311 | Bracket | 1 | ADD TO CART | |
| 14 | 5000159254 | Bolt | 1 | ADD TO CART | |
| 15 | 5000082292 | Washer | 1 | ADD TO CART | |
| 17 | 5000159303 | Valve guide | 4 | ADD TO CART | |
| 18 | 5100026382 | Intake valve seat | 2 | ADD TO CART | |
| 19 | 5100026383 | Exhaust valve seat | 2 | ADD TO CART | |
| 23 | 5000159285 | Nut | 2 | ADD TO CART | |
| 24 | 5000215494 | Spacer | 6 | ADD TO CART | |
| 25 | 5000160380 | Precombustion chamber | 2 | ADD TO CART | |
| 26 | 5100026384 | Cylinder head gasket | 1 | ADD TO CART | |
| 30 | 5200015510 | Gasket set cylinder head | 1 | ADD TO CART | |
| 33 | 5000159234 | Oil seal | 1 | ADD TO CART | |
| 34 | 5000159282 | Flange | 1 | ADD TO CART | |
| 35 | 5000215541 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 3 | |||||
Page 72 — DPU90rLem770 US Cylinder head cover
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026386 | Cylinder head cover | 1 | ADD TO CART | |
| 3 | 5100026388 | Baffle plate | 1 | ADD TO CART | |
| 4 | 5000227761 | Cap | 1 | PARTS REQUEST | |
|
COMING Cap
5000227761 · qty on machine: 1 | |||||
| 5 | 5000206208 | O-ring | 1 | ADD TO CART | |
| 6 | 5000215541 | Screw | 10 | PARTS REQUEST | |
|
COMING Screw
5000215541 · qty on machine: 10 | |||||
| 7 | 5100026389 | Gasket | 1 | ADD TO CART | |
| 8 | 5000159308 | Connector | 1 | ADD TO CART | |
| 10 | 5100026419 | Oil pressure switch | 1 | PARTS REQUEST | |
|
COMING Oil pressure switch
5100026419 · qty on machine: 1 | |||||
| 12 | 5100008855 | Rivet | 1 | PARTS REQUEST | |
|
COMING Rivet
5100008855 · qty on machine: 1 | |||||
| 13 | 5000159455 | Push-in plug | 1 | ADD TO CART | |
| 14 | 5000155745 | Pressure valve | 1 | ADD TO CART | |
| 15 | 5000160201 | Clamp | 4 | ADD TO CART | |
| 15 | 5000160199 | Clamp | 1 | ADD TO CART | |
| 16 | 5000215505 | Connecting tube | 1 | ADD TO CART | |
| 16 | 5000215535 | Connecting pipe | 1 | ADD TO CART | |
| 17 | 5000215536 | Valve tube | 1 | ADD TO CART | |
Page 74 — DPU90rLem770 US Injection system
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5200016512 | Flange nut | 4 | ADD TO CART | |
| 2 | 5000160379 | Injection pump | 2 | ADD TO CART | |
| 3 | 5200009479 | Stud | 4 | ADD TO CART | |
| 4 | 5000159233 | O-ring | 2 | ADD TO CART | |
| 5 | 5100026390 | Bracket | 1 | ADD TO CART | |
| 7 | 5000159300 | Washer | 2 | ADD TO CART | |
| 9 | 5000159473 | Screw | 4 | ADD TO CART | |
| 10 | 5100026391 | Fuel hose | 1 | ADD TO CART | |
| 11 | 5000159237 | O-ring | 2 | ADD TO CART | |
| 12 | 5000160209 | Gasket | 1 | ADD TO CART | |
| 13 | 5000160391 | Back pressure valve | 2 | ADD TO CART | |
| 14 | 5000159302 | Gasket | 2 | ADD TO CART | |
| 15 | 5000160332 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160332 · qty on machine: 1 | |||||
| 15 | 5000160342 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160342 · qty on machine: 1 | |||||
| 15 | 5000160341 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160341 · qty on machine: 1 | |||||
| 15 | 5000160340 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160340 · qty on machine: 1 | |||||
| 15 | 5000160339 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160339 · qty on machine: 1 | |||||
| 15 | 5000160338 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160338 · qty on machine: 1 | |||||
| 15 | 5000160337 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160337 · qty on machine: 1 | |||||
| 15 | 5000160336 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160336 · qty on machine: 1 | |||||
| 15 | 5000160335 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160335 · qty on machine: 1 | |||||
| 15 | 5000160334 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5000160334 · qty on machine: 1 | |||||
| 17 | 5000159278 | Spacer | 2 | ADD TO CART | |
| 18 | 5000155710 | Jet | 2 | ADD TO CART | |
| 20 | 5000159238 | O-ring | 2 | ADD TO CART | |
| 22 | 5000215509 | Spring | 2 | PARTS REQUEST | |
|
COMING Spring
5000215509 · qty on machine: 2 | |||||
| 23 | 5000203718 | Cu-ring | 2 | PARTS REQUEST | |
|
COMING Cu-ring
5000203718 · qty on machine: 2 | |||||
| 24 | 5000159236 | O-ring | 2 | ADD TO CART | |
| 25 | 5000159471 | Screw | 4 | ADD TO CART | |
| 26 | 5000159317 | Spring | 2 | ADD TO CART | |
| 29 | 5000159242 | Clamp | 2 | ADD TO CART | |
| 30 | 5200015520 | Pressure valve | 2 | ADD TO CART | |
| 32 | 5000159309 | Shim | 2 | ADD TO CART | |
Page 78 — DPU90rLem770 US Camshaft
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026392 | Camshaft | 1 | ADD TO CART | |
| 3 | 5000215482 | Collar | 1 | ADD TO CART | |
| 4 | 5000215497 | Cam | 1 | ADD TO CART | |
| 5 | 5000160753 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000160753 · qty on machine: 1 | |||||
| 6 | 5000215540 | Screw | 1 | ADD TO CART | |
| 8 | 5000159246 | Push rod, valve lifter | 2 | ADD TO CART | |
Page 80 — DPU90rLem770 US Rocker arms - Valves
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000159328 | Spring housing | 4 | ADD TO CART | |
| 3 | 5000160373 | Spring | 4 | ADD TO CART | |
| 4 | 5000159351 | Washer | 4 | ADD TO CART | |
| 6 | 5100026394 | Rod | 1 | ADD TO CART | |
| 6 | 5100026393 | Rocker arm cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5000083011 | Nut | 3 | ADD TO CART | |
| 8 | 5000159350 | Washer | 3 | ADD TO CART | |
| 9 | 5000159272 | Nut | 1 | ADD TO CART | |
| 10 | 5000159482 | Screw | 1 | ADD TO CART | |
| 11 | 5000159447 | Shaft support | 3 | ADD TO CART | |
| 13 | 5000159248 | Rocker arm | 4 | PARTS REQUEST | |
|
COMING Rocker arm
5000159248 · qty on machine: 4 | |||||
| 14 | 5000159249 | Rocker arm injector | 2 | ADD TO CART | |
| 15 | 5000159275 | Nut | 1 | ADD TO CART | |
| 16 | 5000159483 | Threaded bolt | 1 | ADD TO CART | |
| 17 | 5000159443 | Pin | 1 | ADD TO CART | |
| 18 | 5000215529 | Plug | 2 | ADD TO CART | |
| 19 | 5000159333 | Threaded stud | 3 | ADD TO CART | |
| 21 | 5100008856 | Bush | 8 | PARTS REQUEST | |
|
COMING Bush
5100008856 · qty on machine: 8 | |||||
| 27 | 5000159297 | Gasket | 4 | ADD TO CART | |
| 28 | 5000160390 | Intake valve | 2 | ADD TO CART | |
| 29 | 5000160392 | Outlet valve | 2 | ADD TO CART | |
Page 82 — DPU90rLem770 US Timing belt
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159481 | Screw | 1 | ADD TO CART | |
| 2 | 5000159349 | Washer | 1 | ADD TO CART | |
| 3 | 5000083011 | Nut | 1 | ADD TO CART | |
| 4 | 5000159344 | Washer | 1 | ADD TO CART | |
| 5 | 5000159334 | Threaded stud | 1 | ADD TO CART | |
| 6 | 5000159284 | Tensioner pulley | 1 | ADD TO CART | |
| 7 | 5000155697 | Timing belt | 1 | ADD TO CART | |
| 8 | 5000159336 | Belt pulley | 1 | ADD TO CART | |
| 9 | 5000159338 | Belt pulley | 1 | ADD TO CART | |
Page 84 — Oil pump
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000155735 | Oil pump complete | 1 | ADD TO CART | |
| 2 | 5000160326 | Rotor | 1 | ADD TO CART | |
| 4 | 5000159312 | Spring | 1 | ADD TO CART | |
| 5 | 5000159450 | Lock screw | 1 | ADD TO CART | |
| 6 | 5000082184 | Copper washer | 1 | ADD TO CART | |
| 7 | 5000159330 | Rod | 1 | ADD TO CART | |
| 8 | 5000160178 | O-ring | 1 | ADD TO CART | |
| 10 | 5000159478 | Screw | 3 | ADD TO CART | |
| 11 | 5000215709 | Gasket | 1 | ADD TO CART | |
| 14 | 5000155734 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000159484 | Screw | 2 | ADD TO CART | |
| 16 | 5000215479 | Hexagonal head cap screw | 1 | ADD TO CART | |
| 17 | 5000084169 | Screw | 6 | ADD TO CART | |
Page 86 — Oil pan
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026395 | Oil pan | 1 | ADD TO CART | |
| 2 | 5000159228 | Oil seal | 1 | ADD TO CART | |
| 3 | 5000159253 | Bolt | 15 | ADD TO CART | |
| 4 | 5100026396 | Oil-return pip | 1 | ADD TO CART | |
| 5 | 5000159235 | O-ring | 1 | ADD TO CART | |
| 6 | 5000159568 | Copper washer | 2 | ADD TO CART | |
| 11 | 5000211364 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5000211364 · qty on machine: 2 | |||||
| 12 | 5100026397 | Gasket | 1 | ADD TO CART | |
Page 88 — DPU90rLem770 US Speed governor
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159304 | Governor lever complete | 1 | ADD TO CART | |
| 2 | 5000159321 | Pin | 1 | ADD TO CART | |
| 3 | 5000159229 | Oil seal | 1 | ADD TO CART | |
| 5 | 5000215480 | Collar | 1 | ADD TO CART | |
| 6 | 5000215715 | Governor spring | 1 | ADD TO CART | |
| 7 | 5000217813 | Plate | 1 | PARTS REQUEST | |
|
COMING Plate
5000217813 · qty on machine: 1 | |||||
| 8 | 5000215520 | Washer | 4 | ADD TO CART | |
| 9 | 5000159477 | Screw | 2 | ADD TO CART | |
| 13 | 5000159315 | Spring | 1 | ADD TO CART | |
| 14 | 5000211941 | Screw | 3 | ADD TO CART | |
| 15 | 5100026402 | Governor rod | 1 | ADD TO CART | |
| 16 | 5000159467 | Screw | 3 | ADD TO CART | |
| 17 | 5000159239 | O-ring | 1 | ADD TO CART | |
| 18 | 5000159324 | Check disc | 1 | ADD TO CART | |
| 19 | 5000159240 | Lip seal | 1 | PARTS REQUEST | |
|
COMING Lip seal
5000159240 · qty on machine: 1 | |||||
| 20 | 5000159267 | Bearing | 1 | ADD TO CART | |
| 21 | 5100008841 | Screw | 3 | ADD TO CART | |
| 22 | 5000159265 | Cover | 1 | ADD TO CART | |
| 23 | 5000159251 | Collar | 1 | ADD TO CART | |
| 24 | 5000215517 | Check disc | 1 | ADD TO CART | |
| 25 | 5000155698 | Speed control module | 1 | ADD TO CART | |
| 26 | 5000215506 | Collar | 1 | ADD TO CART | |
| 27 | 5000217805 | Bearing | 1 | PARTS REQUEST | |
|
COMING Bearing
5000217805 · qty on machine: 1 | |||||
Page 90 — Steering
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209040 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000209040 · qty on machine: 1 | |||||
| 2 | 5000215543 | Screw | 1 | ADD TO CART | |
| 3 | 5000084131 | Screw | 1 | ADD TO CART | |
| 4 | 5000083995 | Washer | 1 | ADD TO CART | |
| 5 | 5000150038 | Nut | 1 | PARTS REQUEST | |
|
COMING Nut
5000150038 · qty on machine: 1 | |||||
| 6 | 5000217818 | Washer | 1 | ADD TO CART | |
| 8 | 5000159292 | Gasket | 1 | ADD TO CART | |
| 10 | 5000159272 | Nut | 1 | ADD TO CART | |
| 66 | 5000215519 | Rivet | 3 | ADD TO CART | |
| 72 | 5000215528 | Plug | 1 | ADD TO CART | |
Page 92 — DPU90rLem770 US Fuel pump
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000226239 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
5000226239 · qty on machine: 1 | |||||
| 2 | 5000082266 | Stud | 2 | ADD TO CART | |
| 3 | 5000110759 | Seal | 1 | ADD TO CART | |
| 4 | 5000160757 | Rod | 1 | ADD TO CART | |
| 5 | 5000203358 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000203358 · qty on machine: 2 | |||||
| 6 | 5000082285 | Washer | 2 | ADD TO CART | |
| 7 | 5000082183 | Copper washer | 4 | ADD TO CART | |
| 8 | 5000217802 | Banjo bolt | 2 | PARTS REQUEST | |
|
COMING Banjo bolt
5000217802 · qty on machine: 2 | |||||
Page 94 — DPU90rLem770 US Fuel Lines
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000082155 | Clamp | 1 | ADD TO CART | |
| 2 | 5100026403 | Fuel hose | 1 | ADD TO CART | |
| 3 | 5000215704 | Clamp | 1 | ADD TO CART | |
| 4 | 5100026404 | Fuel hose | 1 | ADD TO CART | |
| 6 | 5000215486 | Collar | 3 | ADD TO CART | |
Page 96 — DPU90rLem770 US Thermostat
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000211378 | Gasket | 1 | ADD TO CART | |
| 3 | 5000159476 | Screw | 2 | ADD TO CART | |
| 4 | 5000084169 | Screw | 2 | ADD TO CART | |
| 5 | 5100030694 | Casing adaptor | 1 | ADD TO CART | |
| 6 | 5000159232 | O-ring | 1 | ADD TO CART | |
| 7 | 5000207002 | Valve thermostat | 1 | ADD TO CART | |
| 8 | 5000215489 | Thermostat housing | 1 | ADD TO CART | |
| 9 | 5000203712 | Cu-ring | 1 | PARTS REQUEST | |
|
COMING Cu-ring
5000203712 · qty on machine: 1 | |||||
| 10 | 5100005738 | Temperature sensor | 1 | ADD TO CART | |
| 12 | 5000159299 | Copper washer | 1 | ADD TO CART | |
| 13 | 5000159451 | Screw plug | 1 | ADD TO CART | |
Page 98 — DPU90rLem770 US Water pump
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000209105 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 2 | 5100026407 | Water pump | 1 | ADD TO CART | |
| 3 | 5000217809 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217809 · qty on machine: 1 | |||||
| 4 | 5000209107 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000209107 · qty on machine: 2 | |||||
| 5 | 5000160362 | Screw | 2 | ADD TO CART | |
| 6 | 5000217808 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217808 · qty on machine: 1 | |||||
| 7 | 5100026405 | Flange | 1 | ADD TO CART | |
| 8 | 5000160201 | Clamp | 2 | ADD TO CART | |
| 9 | 5100026406 | Hose | 1 | ADD TO CART | |
Page 100 — Inlet bend
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217817 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000217817 · qty on machine: 1 | |||||
| 2 | 5000217801 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000217801 · qty on machine: 1 | |||||
| 4 | 5100026408 | Lever | 1 | ADD TO CART | |
| 7 | 5100008860 | Shaft | 1 | ADD TO CART | |
| 8 | 5000159230 | Oil seal | 1 | PARTS REQUEST | |
|
COMING Oil seal
5000159230 · qty on machine: 1 | |||||
| 10 | 5000084170 | Screw | 1 | ADD TO CART | |
| 11 | 5000159476 | Screw | 2 | ADD TO CART | |
| 12 | 5000215504 | Lever | 1 | ADD TO CART | |
| 13 | 5000215481 | Collar | 1 | ADD TO CART | |
| 14 | 5000215508 | Spring | 1 | ADD TO CART | |
| 15 | 5000203346 | Screw | 3 | ADD TO CART | |
| 16 | 5000159272 | Nut | 2 | ADD TO CART | |
| 18 | 5100008861 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100008861 · qty on machine: 2 | |||||
| 20 | 5000159462 | Hose | 1 | ADD TO CART | |
| 22 | 5000084232 | Nut | 1 | ADD TO CART | |
| 23 | 5100026409 | Manifold | 1 | ADD TO CART | |
| 24 | 5100026410 | Gasket | 1 | ADD TO CART | |
| 25 | 5100026411 | Flange | 1 | ADD TO CART | |
| 26 | 5000084169 | Screw | 2 | ADD TO CART | |
| 27 | 5000082285 | Washer | 2 | ADD TO CART | |
| 28 | 5100026429 | Gasket | 1 | ADD TO CART | |
Page 102 — Exhaust manifold
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159290 | Gasket | 2 | ADD TO CART | |
| 2 | 5100026412 | Exhaust manifold | 1 | ADD TO CART | |
| 4 | 5000082267 | Stud | 4 | ADD TO CART | |
| 5 | 5000086331 | Nut | 4 | ADD TO CART | |
| 6 | 5000160228 | Threaded bolt | 2 | ADD TO CART | |
| 7 | 5000086331 | Nut | 4 | ADD TO CART | |
| 8 | 5000159295 | Gasket | 1 | ADD TO CART | |
| 9 | 5100026413 | Flange | 1 | ADD TO CART | |
| 13 | 5100005700 | Exhaust pipe | 1 | ADD TO CART | |
| 14 | 5000215479 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 15 | 5100005522 | Muffler | 1 | ADD TO CART | |
| 16 | 5100005702 | Exhaust-pipe end | 1 | ADD TO CART | |
| 17 | 5100041970 | Gasket | 1 | ADD TO CART | |
Page 104 — DPU90rLem770 US Generator
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100026414 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100026414 · qty on machine: 1 | |||||
| 2 | 5000159476 | Screw | 3 | ADD TO CART | |
| 3 | 5100026415 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100026415 · qty on machine: 1 | |||||
| 4 | 5100026416 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100026416 · qty on machine: 1 | |||||
| 5 | 5000083011 | Nut | 1 | ADD TO CART | |
| 24 | 5000208993 | Hexagonal head cap screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000208993 · qty on machine: 1 | |||||
| 25 | 5000082293 | Washer | 1 | ADD TO CART | |
| 26 | 5100026417 | Clamp | 1 | ADD TO CART | |
| 49 | 5100026418 | Disc | 1 | ADD TO CART | |
Page 106 — DPU90rLem770 US Starter
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215493 | Hexagon nut | 1 | ADD TO CART | |
| 2 | 5000082288 | Washer | 1 | ADD TO CART | |
| 3 | 5000211380 | Starter | 1 | PARTS REQUEST | |
|
COMING Starter
5000211380 · qty on machine: 1 | |||||
| 4 | 5000206968 | Flange | 1 | ADD TO CART | |
| 6 | 5000083011 | Nut | 2 | ADD TO CART | |
| 9 | 5000083027 | Screw | 2 | ADD TO CART | |
Page 108 — Spark plug
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000159259 | Cable | 1 | ADD TO CART | |
| 2 | 5000155748 | Glow plug | 2 | ADD TO CART | |
| 3 | 5100026470 | Wire, glow plug | 1 | PARTS REQUEST | |
|
COMING Wire, glow plug
5100026470 · qty on machine: 1 | |||||
| 6 | 5000209062 | Tie cable | 1 | ADD TO CART | |
Page 110 — Covering
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5000159268 | Plug | 1 | ADD TO CART | |
| 1 | 5000159564 | Screw | 1 | ADD TO CART | |
| 2 | 5000159475 | Screw | 4 | ADD TO CART | |
| 3 | 5100026420 | Belt guard | 1 | ADD TO CART | |
| 5 | 5000215499 | Gasket | 1 | ADD TO CART | |
| 6 | 5100026421 | Protective cover | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson DPU90 vibratory plate.
L: Kohler Diesel Engine; e: Electric Start.
Available in 4 configurations.
List price: $32,515.00 – $48,820.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000051394
Angle cut piece
1000090406
O-ring
1000184310
Label
1000262373
View glass
1000267866
Screen
5000010369
Hexagon nut
$0.95
5000010370
Hexagon nut
$0.95
5000010372
Flat washer
$0.95
5000010374
Flat washer
$0.95
5000010616
Flat washer
$0.95
5000010621
Flat washer
$0.95
5000010622
Flat washer
$0.95
5000010624
Flat washer
$0.95
5000010625
Flat washer
$0.95
5000010628
Flat washer
$0.95
5000010742
Washer
5000010880
Hexagon nut
$0.95
5000010882
Hexagon nut
$0.95
5000010883
Hexagon nut
$0.95
5000011439
Hexagonal head cap screw
$0.95
5000011456
Hexagonal head cap screw
$0.95
5000011468
Hexagonal head cap screw
5000011527
Cheese head screw
$1.95
5000011535
Cheese head screw
$0.95
5000011541
Cheese head screw
5000011542
Cheese head screw
$0.95
5000011547
Cheese head screw
$0.95
5000011548
Cheese head screw
$0.95
5000011549
Cheese head screw
$0.95
5000011551
Cheese head screw
$0.95
5000011552
Cheese head screw
$0.95
5000011553
Cheese head screw
$0.95
5000011554
Cheese head screw
$0.95
5000011555
Cheese head screw
$0.95
5000011561
Cheese head screw
$0.95
5000011570
Cheese head screw
$0.95
5000012360
Hexagonal head cap screw
$0.95
5000012362
Hexagonal head cap screw
$0.95
5000012373
Cheese head screw
$0.95
5000012629
Cheese head screw
$0.95
5000013574
Cheese head screw
$0.95
5000013576
Cheese head screw
$0.95
5000014425
Cheese head screw
5000014996
Clamp
$1.95
5000016836
Clamp
5000017313
Hexagon nut
$0.95
5000018194
O-ring
$0.95
5000019156
Gasket
$0.95
5000032006
Gasket
$1.95
5000033356
Hexagon nut
$0.95
5000037071
Cheese head screw
$0.95
5000038489
Tie cable
5000043180
Retaining ring
$1.95
5000043307
Cheese head screw
$0.95
5000047388
Cable yarn
$0.95
5000058705
Cheese head screw
5000063695
O-ring
5000063739
Screwed socket
$9.95
5000064925
Decal-sound power level
$4.95
5000068222
Plug (threaded)
$5.95
5000068355
Protective cap
$1.95
5000068752
O-ring
$0.95
5000069225
Screwed socket
$10.95
5000069726
Long face pinion
$421.95
5000082140
Nut
$1.95
5000082155
Clamp
$4.95
5000082183
Copper washer
$1.95
5000082184
Ring seal
$1.95
5000082266
Stud
$2.95
5000082267
Stud
$4.95
5000082285
Washer
$1.95
5000082288
Washer
$1.95
5000082292
Washer
$1.95
5000082293
Washer
$1.95
5000082335
Plug (threaded)
$7.95
5000083011
Nut
$1.95
5000083027
Screw
$5.95
5000083995
Washer
$1.95
5000084123
Screw
$1.95
5000084131
Screw
$1.95
5000084156
Screw
$1.95
5000084164
Screw
$3.95
5000084169
Screw
$1.95
5000084170
Screw
$3.95
5000084175
Screw
$8.95
5000084232
Nut
$1.95
5000085437
Relay
$10.95
5000086331
Nut
$1.95
5000086527
Battery
$636.95
5000097656
Roll pin
$0.95
5000103469
Cylindrical roller bearing
$83.95
5000108370
Oval head screw
$0.95
5000108371
Oval head screw
$0.95
5000110759
Seal
$2.95
5000117184
Cap
$64.95
5000124255
Shockmount
$5.95
5000124717
Washer
$0.95
5000125926
Spacer
$51.95
5000126187
Threaded pin
$0.95
5000126935
Bolt
$38.95
5000129420
Socket head cap screw
$1.95
5000150022
Cable
$6.95
5000150038
Nut
5000154402
Cable
$14.95
5000155486
Throttle actuator
$186.95
5000155487
Adaptor
$12.95
5000155689
Bearing
$39.95
5000155690
Bearing
$51.95
5000155691
Bearing
$41.95
5000155693
Gear crown
$259.95
5000155697
Timing belt
$292.95
5000155698
Speed control module
$212.95
5000155700
Flange
$175.95
5000155701
Rotary shaft seal
5000155702
Bearing
$46.95
5000155703
Bearing
$62.95
5000155704
Bearing
$102.95
5000155710
Jet
$226.95
5000155734
Ring seal
$28.95
5000155735
Oil pump cpl.
$247.95
5000155745
Pressure valve
$91.95
5000155748
Glow plug
$81.95
5000159228
Oil seal
$1.95
5000159229
Oil seal
$1.95
5000159230
Oil seal
5000159231
O-ring
$2.95
5000159232
O-ring
$3.95
5000159233
O-ring
$4.95
5000159234
Oil seal
$2.95
5000159235
O-ring
$2.95
5000159236
Ring
$3.95
5000159237
Ring
$4.95
5000159238
O-ring
$4.95
5000159239
O-ring
$4.95
5000159240
Lip seal
5000159242
Clamp
$1.95
5000159246
Push rod (valve lifter)
$34.95
5000159248
Rocker arm
5000159249
Rocker arm injector
$212.95
5000159251
Collar
$30.95
5000159253
Bolt
$1.95
5000159254
Bolt
$1.95
5000159257
Sleeve
$4.95
5000159259
Cable
$16.95
5000159260
Woodruff key
$11.95
5000159261
Square key
$19.95
5000159265
Cover
$256.95
5000159267
Bearing
$61.95
5000159268
Plug
$8.95
5000159272
Nut
$1.95
5000159275
Nut
$5.95
5000159278
Spacer
$143.95
5000159282
Flange
$19.95
5000159284
Tensioner pulley
$272.95
5000159285
Nut
$28.95
5000159288
Gasket
$4.95
5000159290
Gasket
$4.95
5000159292
Gasket
$1.95
5000159295
Gasket
$5.95
5000159297
Gasket
$10.95
5000159299
Copper washer
$1.95
5000159300
Washer
$1.95
5000159302
Gasket
$16.95
5000159303
Valve guide
$18.95
5000159304
Governor lever cpl.
$274.95
5000159308
Connector
$14.95
5000159309
Shim
$371.95
5000159311
Bracket
$14.95
5000159312
Spring
$3.95
5000159315
Spring
$9.95
5000159317
Spring
$36.95
5000159318
Spark arrester
$4.95
5000159321
Pin
$14.95
5000159324
Check disc
$22.95
5000159326
Plate
$402.95
5000159328
Spring housing
$21.95
5000159330
Rod
$22.95
5000159333
Threaded stud
$11.95
5000159334
Threaded stud
$13.95
5000159336
Belt pulley
$124.95
5000159338
Belt pulley
$217.95
5000159341
Fitting-oil filter
$11.95
5000159344
Washer
$8.95
5000159349
Washer
$22.95
5000159350
Washer
$4.95
5000159351
Washer
$4.95
5000159357
Pin
$1.95
5000159360
Dowel pin
$4.95
5000159443
Pin
$1.95
5000159447
Shaft support
$77.95
5000159449
Plug
$4.95
5000159450
Screw locking
$16.95
5000159451
Screw plug
$13.95
5000159453
Plug
$22.95
5000159454
Plug (threaded)
$10.95
5000159455
Push-in plug
$12.95
5000159456
Plug
$9.95
5000159462
Hose
$16.95
5000159467
Screw
$1.95
5000159471
Screw
$2.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
