Wacker Neuson FUflex4 Frequency Converter
Factory parts book · interactive
Wacker Neuson FUflex4 Frequency Converter
The parts bench

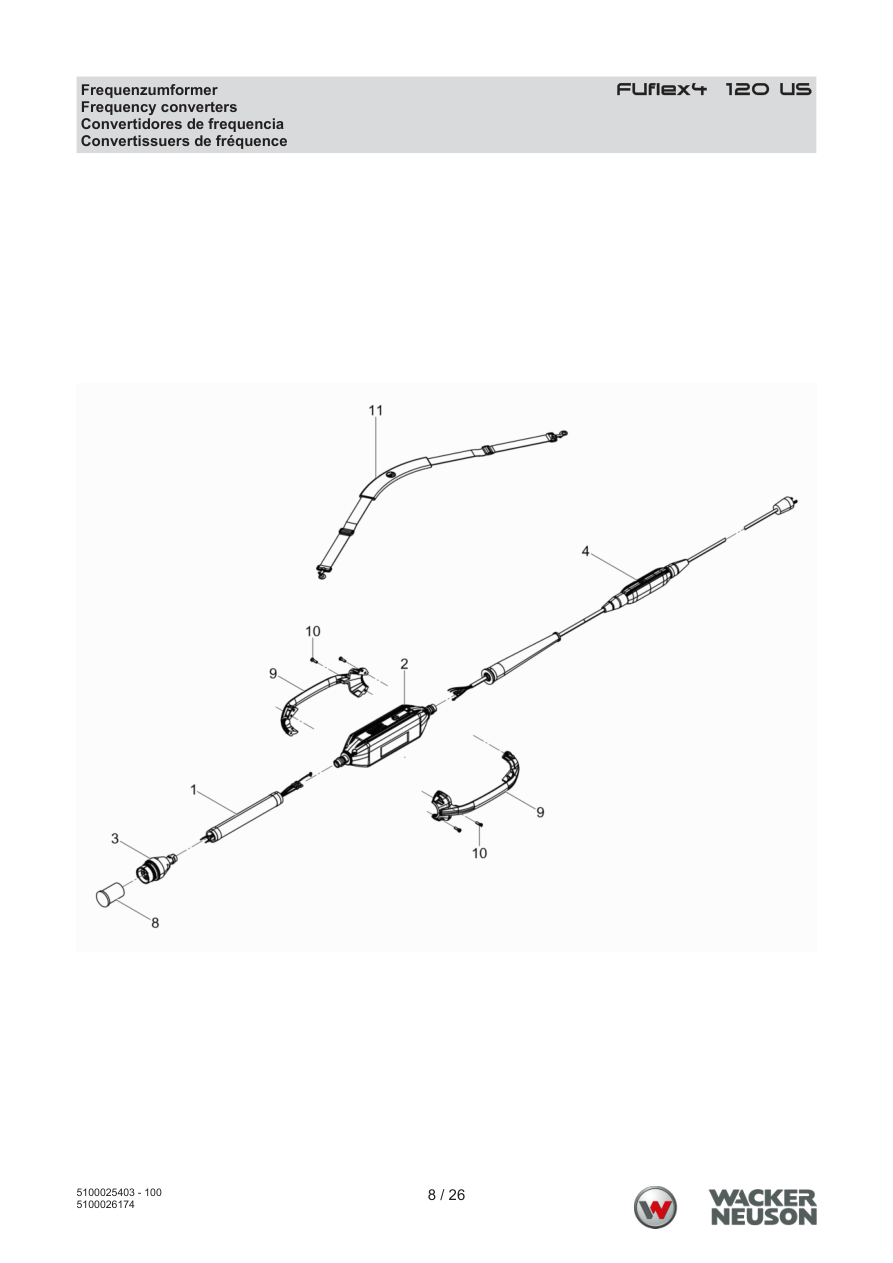

Need the PDF? ↓Page 8 — FUflex4_120 US Frequency Converter
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100047022 | Frequency converter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Frequency converter cpl.
5100047022 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 8 | 5100030510 | Nose cap bush | 1 | PARTS REQUEST | |
|
COMING Nose cap bush
5100030510 · qty on machine: 1 | |||||
| 9 | 5100021506 | Handle | 2 | PARTS REQUEST | |
|
COMING Handle
5100021506 · qty on machine: 2 | |||||
| 10 | 5000222605 | Oval head screw | 4 | M 6 x 20 | ADD TO CART |
| 11 | 5100010882 | Shoulder belt | 1 | PARTS REQUEST | |
|
COMING Shoulder belt
5100010882 · qty on machine: 1 | |||||
| 1 | 5100025562 | Protective hose cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Protective hose cpl.
5100025562 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100025559 | Frequency converter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Frequency converter cpl.
5100025559 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100021909 | Coupling bush side | 1 | PARTS REQUEST | |
|
COMING Coupling bush side
5100021909 · qty on machine: 1 | |||||

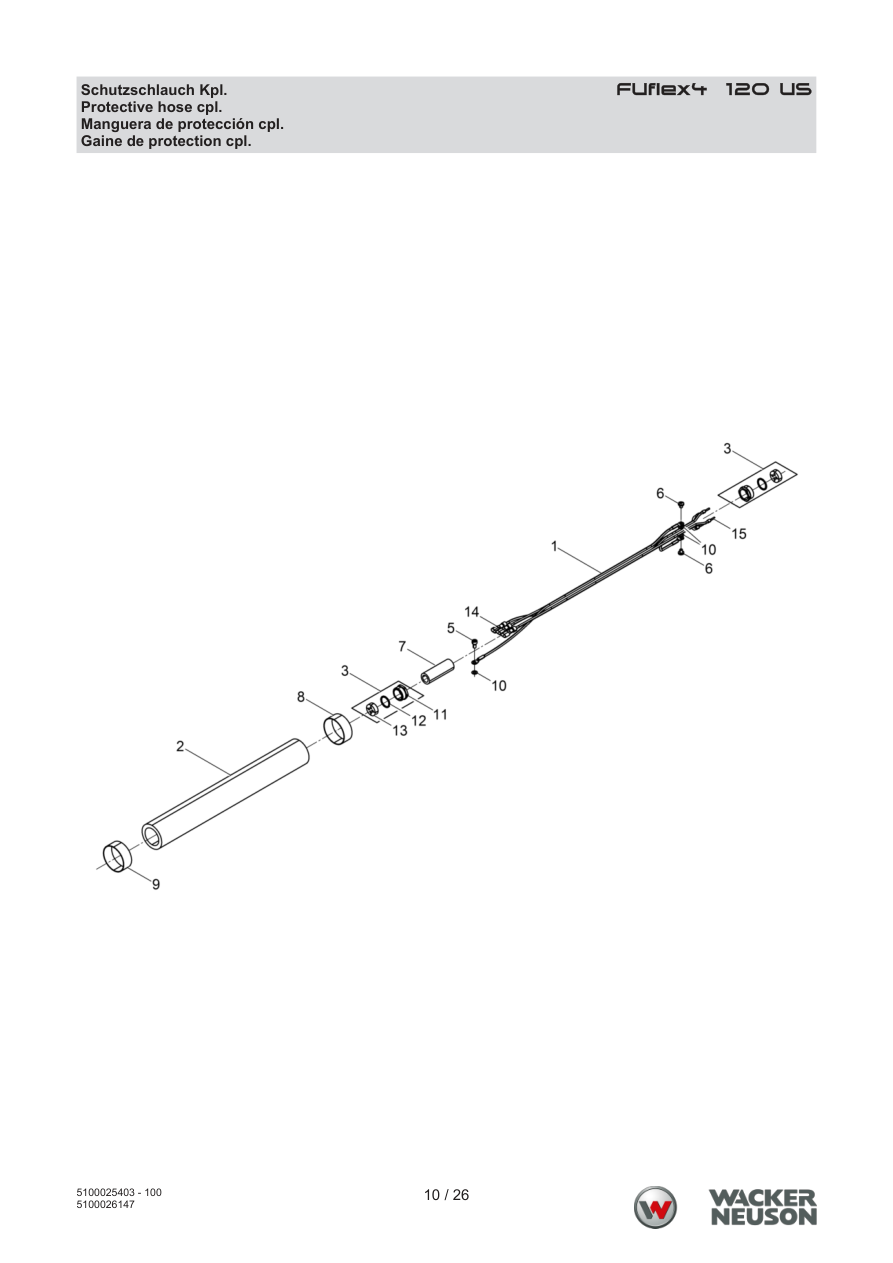

Page 10 — Protective hose cpl.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000200988 | Toothed lock washer | 3 | A4,3 | DIN6797 | PARTS REQUEST |
|
COMING Toothed lock washer
5000200988 · qty on machine: 3 A4,3 | DIN6797 | |||||
| 11 | 5000203576 | Pressure screw | 2 | PARTS REQUEST | |
|
COMING Pressure screw
5000203576 · qty on machine: 2 | |||||
| 12 | 5000203578 | Thrust ring | 2 | PARTS REQUEST | |
|
COMING Thrust ring
5000203578 · qty on machine: 2 | |||||
| 13 | 5000202915 | 4 hole plug | 2 | PARTS REQUEST | |
|
COMING 4 hole plug
5000202915 · qty on machine: 2 | |||||
| 14 | 5000066351 | End sleeve for strand | 3 | E 1,5- 8 | PARTS REQUEST |
|
COMING End sleeve for strand
5000066351 · qty on machine: 3 E 1,5- 8 | |||||
| 15 | 5000219135 | Flat socket | 3 | 1,5-2,5 (UL) | DIN46245 | PARTS REQUEST |
|
COMING Flat socket
5000219135 · qty on machine: 3 1,5-2,5 (UL) | DIN46245 | |||||
| 1 | 5100025314 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Supply line cpl.
5100025314 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100025561 | Protective hose | 1 | PARTS REQUEST | |
|
COMING Protective hose
5100025561 · qty on machine: 1 | |||||
| 3 | 5100025316 | Screw connection cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Screw connection cpl.
5100025316 · qty on machine: 2 COMPLETE ASSEMBLY (cpl.) | |||||
| 5 | 5000011573 | Cheese head screw | 1 | M4 x 8 5Nm/4ft.lbs | ISO4762 | ADD TO CART |
| 6 | 5000218500 | Pan head screw | 2 | M 4x 5 | ISO7045 | PARTS REQUEST |
|
COMING Pan head screw
5000218500 · qty on machine: 2 M 4x 5 | ISO7045 | |||||
| 7 | 5100005156 | Spacer | 1 | PARTS REQUEST | |
|
COMING Spacer
5100005156 · qty on machine: 1 | |||||
| 8 | 5002006823 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5002006823 · qty on machine: 1 | |||||
| 9 | 5002006823 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5002006823 · qty on machine: 1 | |||||

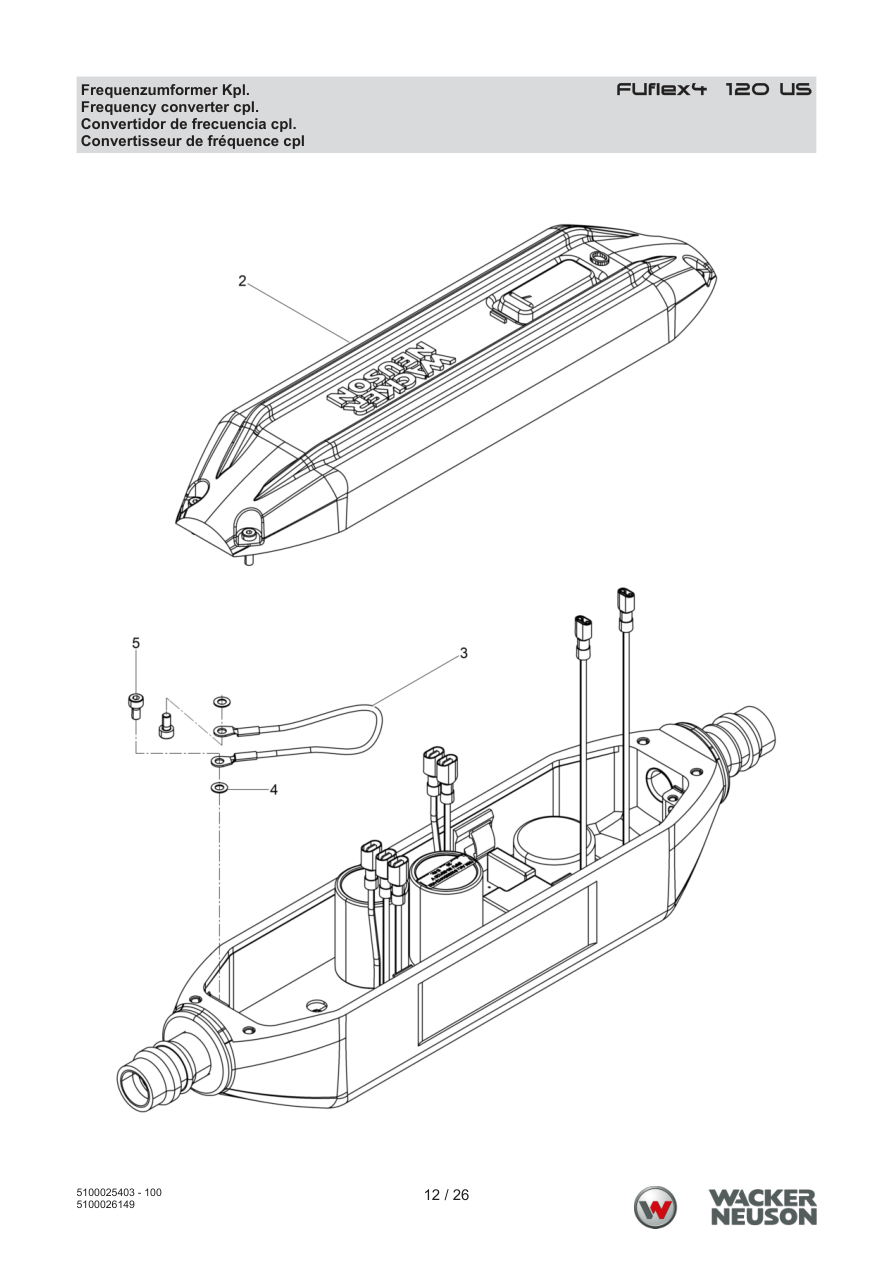

Page 12 — Frequency converter cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100025319 | Cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cover cpl.
5100025319 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000208643 | Ground wire | 1 | PARTS REQUEST | |
|
COMING Ground wire
5000208643 · qty on machine: 1 | |||||
| 4 | 5000200988 | Toothed lock washer | 2 | A4,3 | DIN6797 | PARTS REQUEST |
|
COMING Toothed lock washer
5000200988 · qty on machine: 2 A4,3 | DIN6797 | |||||
| 5 | 5000011573 | Cheese head screw | 2 | M4 x 8 5Nm/4ft.lbs | ISO4762 | ADD TO CART |

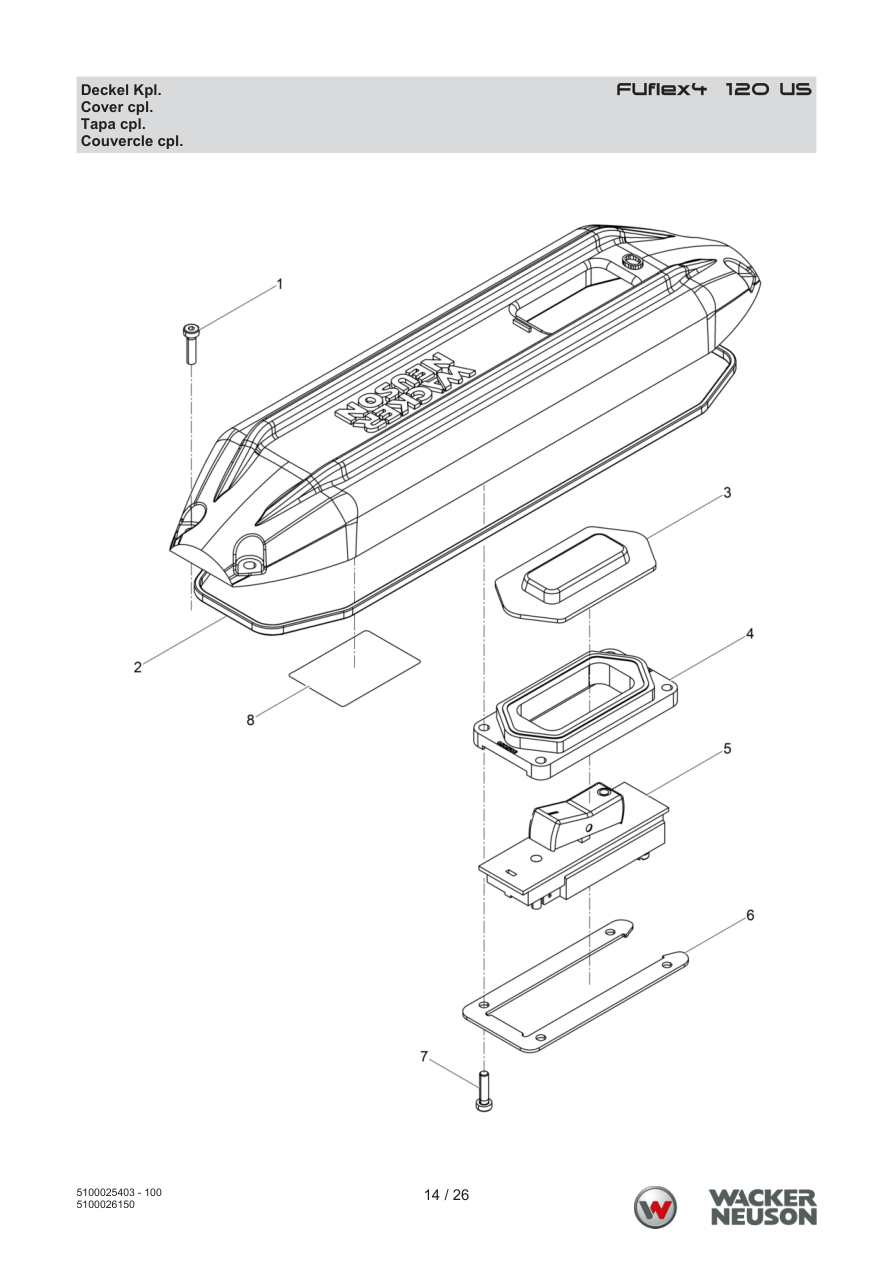

Page 14 — Cover cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000219339 | Cheese head screw | 4 | M 5x 14 | ADD TO CART |
| 2 | 5000202542 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000202542 · qty on machine: 1 | |||||
| 3 | 5000129569 | Diaphragm | 1 | PARTS REQUEST | |
|
COMING Diaphragm
5000129569 · qty on machine: 1 | |||||
| 4 | 5000202103 | Flange | 1 | PARTS REQUEST | |
|
COMING Flange
5000202103 · qty on machine: 1 | |||||
| 5 | 5000210371 | Actuator cpl. x-5000202101 | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Actuator cpl. x-5000202101
5000210371 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 6 | 5000203024 | Flange | 1 | PARTS REQUEST | |
|
COMING Flange
5000203024 · qty on machine: 1 | |||||
| 7 | 5000208645 | Cheese head screw | 4 | M 4x 16 | DIN7984 | PARTS REQUEST |
|
COMING Cheese head screw
5000208645 · qty on machine: 4 M 4x 16 | DIN7984 | |||||
| 8 | 5000218763 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000218763 · qty on machine: 1 | |||||

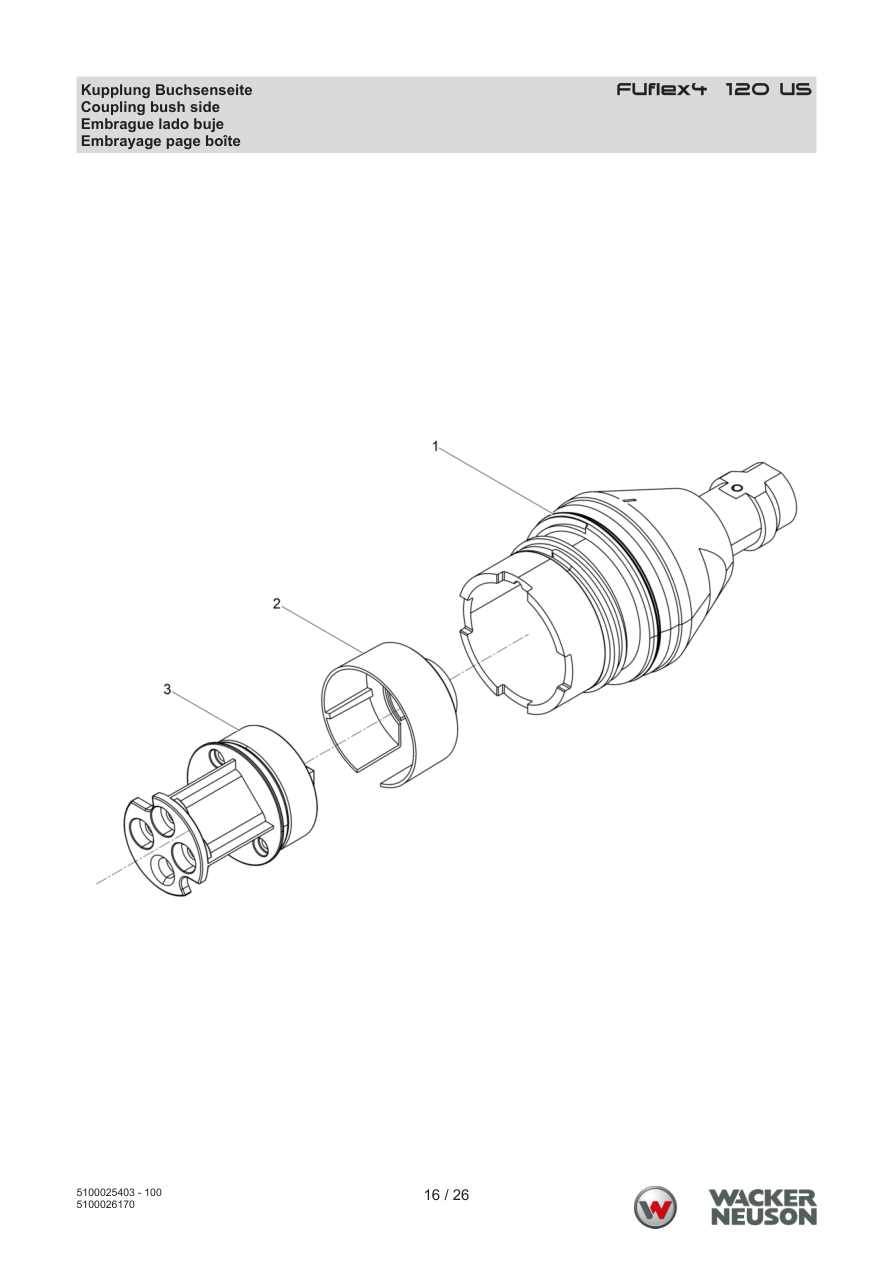

Page 16 — FUflex4_120 US Coupling Socket Side
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100018280 | Bush | 1 | PARTS REQUEST | |
|
COMING Bush
5100018280 · qty on machine: 1 | |||||
| 2 | 5100020487 | Bush | 1 | PARTS REQUEST | |
|
COMING Bush
5100020487 · qty on machine: 1 | |||||
| 3 | 5100017961 | Bush | 1 | PARTS REQUEST | |
|
COMING Bush
5100017961 · qty on machine: 1 | |||||

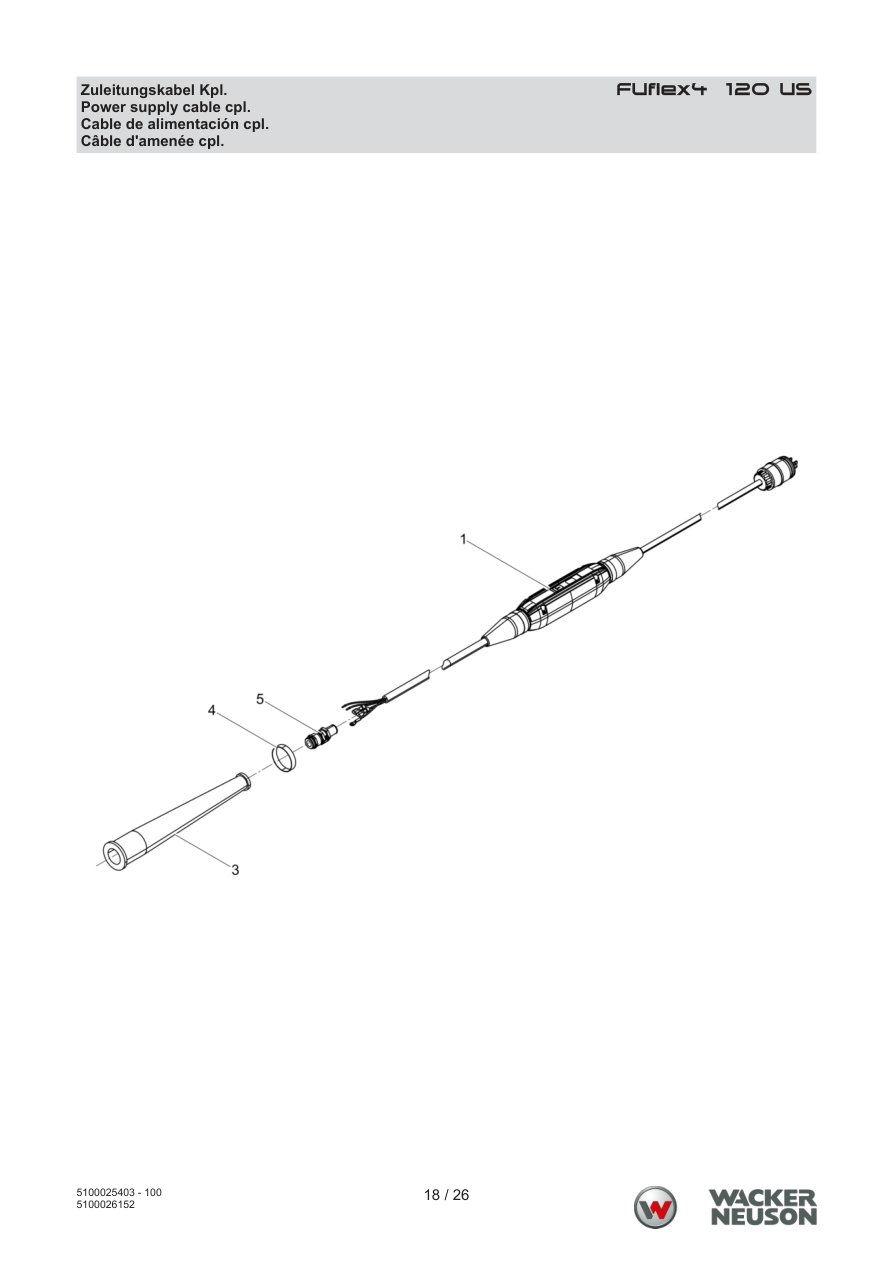

Page 18 — Power supply cable cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100046344 | Screw connection | 1 | PARTS REQUEST | |
|
COMING Screw connection
5100046344 · qty on machine: 1 | |||||
| 1 | 5100036785 | Retrofit kit bodyguard | 1 | PARTS REQUEST | |
|
COMING Retrofit kit bodyguard
5100036785 · qty on machine: 1 | |||||
| 3 | 5003008468 | Rubber funnel | 1 | PARTS REQUEST | |
|
COMING Rubber funnel
5003008468 · qty on machine: 1 | |||||
| 4 | 5002007121 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5002007121 · qty on machine: 1 | |||||

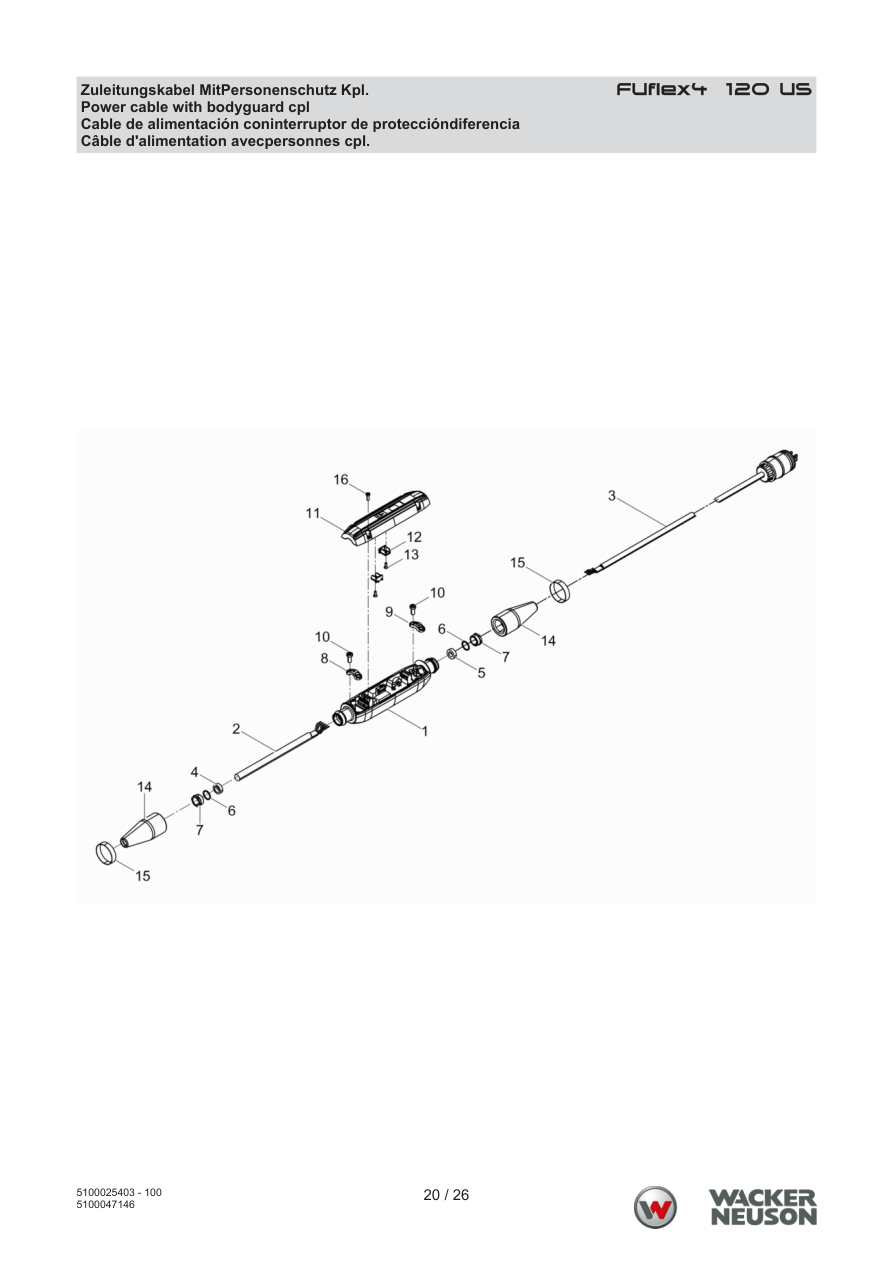

Page 20 — Power cable with bodyguard cpl
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5000203576 | Pressure screw | 2 | PARTS REQUEST | |
|
COMING Pressure screw
5000203576 · qty on machine: 2 | |||||
| 8 | 5100000179 | Clamp | 1 | ADD TO CART | |
| 9 | 5000106220 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000106220 · qty on machine: 1 | |||||
| 10 | 5000108371 | Oval head screw | 4 | ADD TO CART | |
| 11 | 5100021620 | Cover with led window | 1 | PARTS REQUEST | |
|
COMING Cover with led window
5100021620 · qty on machine: 1 | |||||
| 12 | 5100018223 | Bracket | 2 | PARTS REQUEST | |
|
COMING Bracket
5100018223 · qty on machine: 2 | |||||
| 13 | 5100019475 | Countersunk screw | 2 | 3,5 x 10 | PARTS REQUEST |
|
COMING Countersunk screw
5100019475 · qty on machine: 2 3,5 x 10 | |||||
| 14 | 5100046325 | Cable bushing | 2 | PARTS REQUEST | |
|
COMING Cable bushing
5100046325 · qty on machine: 2 | |||||
| 15 | 5002007121 | Clamp | 2 | PARTS REQUEST | |
|
COMING Clamp
5002007121 · qty on machine: 2 | |||||
| 16 | 5000213543 | Oval head screw | 4 | ADD TO CART | |
| 1 | 5100047689 | Housing with electronic | 1 | PARTS REQUEST | |
|
COMING Housing with electronic
5100047689 · qty on machine: 1 | |||||
| 2 | 5100044739 | Supply line | 1 | PARTS REQUEST | |
|
COMING Supply line
5100044739 · qty on machine: 1 | |||||
| 3 | 5100045060 | Power supply cable with plug | 1 | PARTS REQUEST | |
|
COMING Power supply cable with plug
5100045060 · qty on machine: 1 | |||||
| 4 | 5100077157 | Sealing plug | 1 | PARTS REQUEST | |
|
COMING Sealing plug
5100077157 · qty on machine: 1 | |||||
| 5 | 5100045070 | Sealing plug | 1 | PARTS REQUEST | |
|
COMING Sealing plug
5100045070 · qty on machine: 1 | |||||
| 6 | 5000203578 | Thrust ring | 2 | PARTS REQUEST | |
|
COMING Thrust ring
5000203578 · qty on machine: 2 | |||||

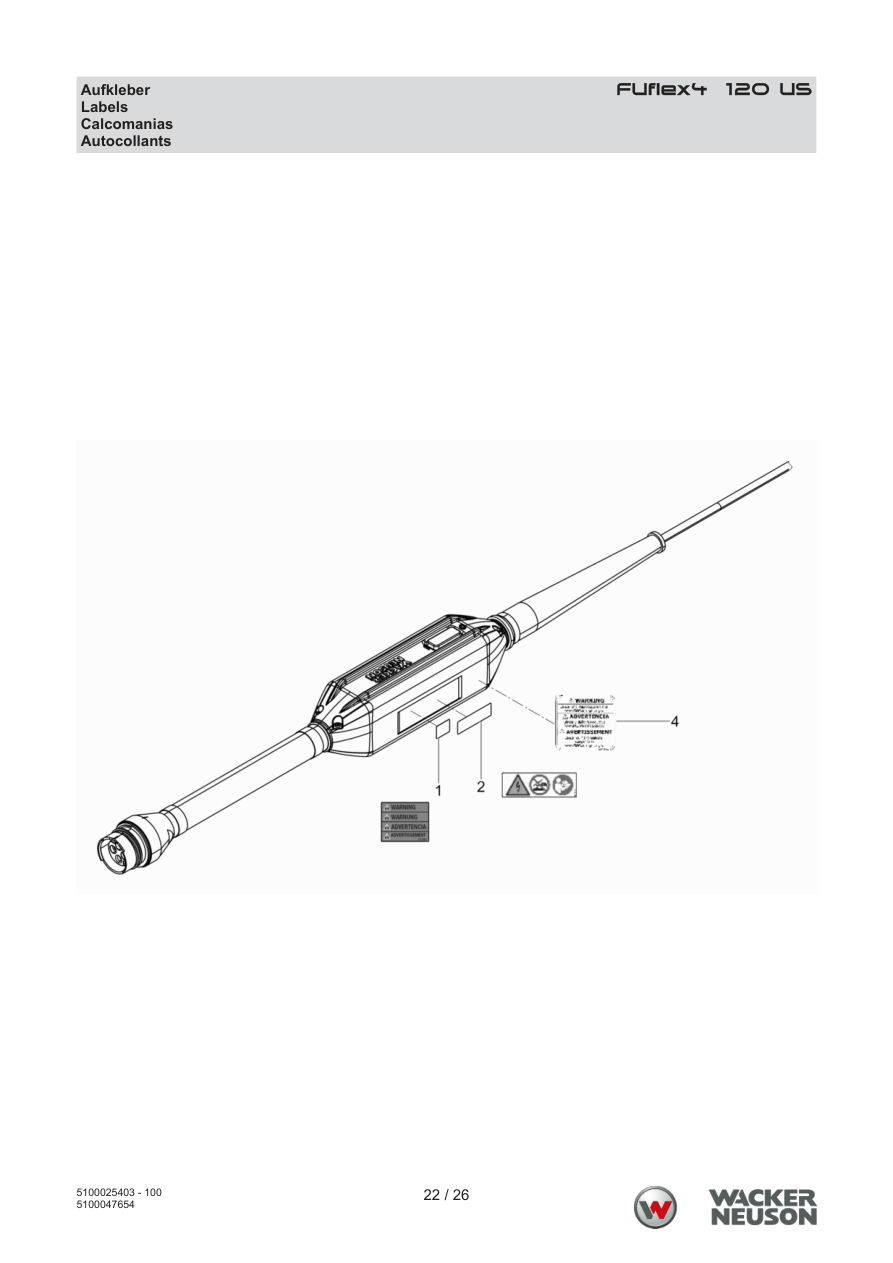

Page 22 — FUflex4_120 US Decals
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 1 | 5000219081 | Labels | 1 | ADD TO CART | |
| 2 | 5000219413 | Labels | 1 | PARTS REQUEST | |
|
COMING Labels
5000219413 · qty on machine: 1 | |||||
