Wacker Neuson H25 Internal Vibrator
Pick your options below. We build the exact machine and start your quote.
The parts bench

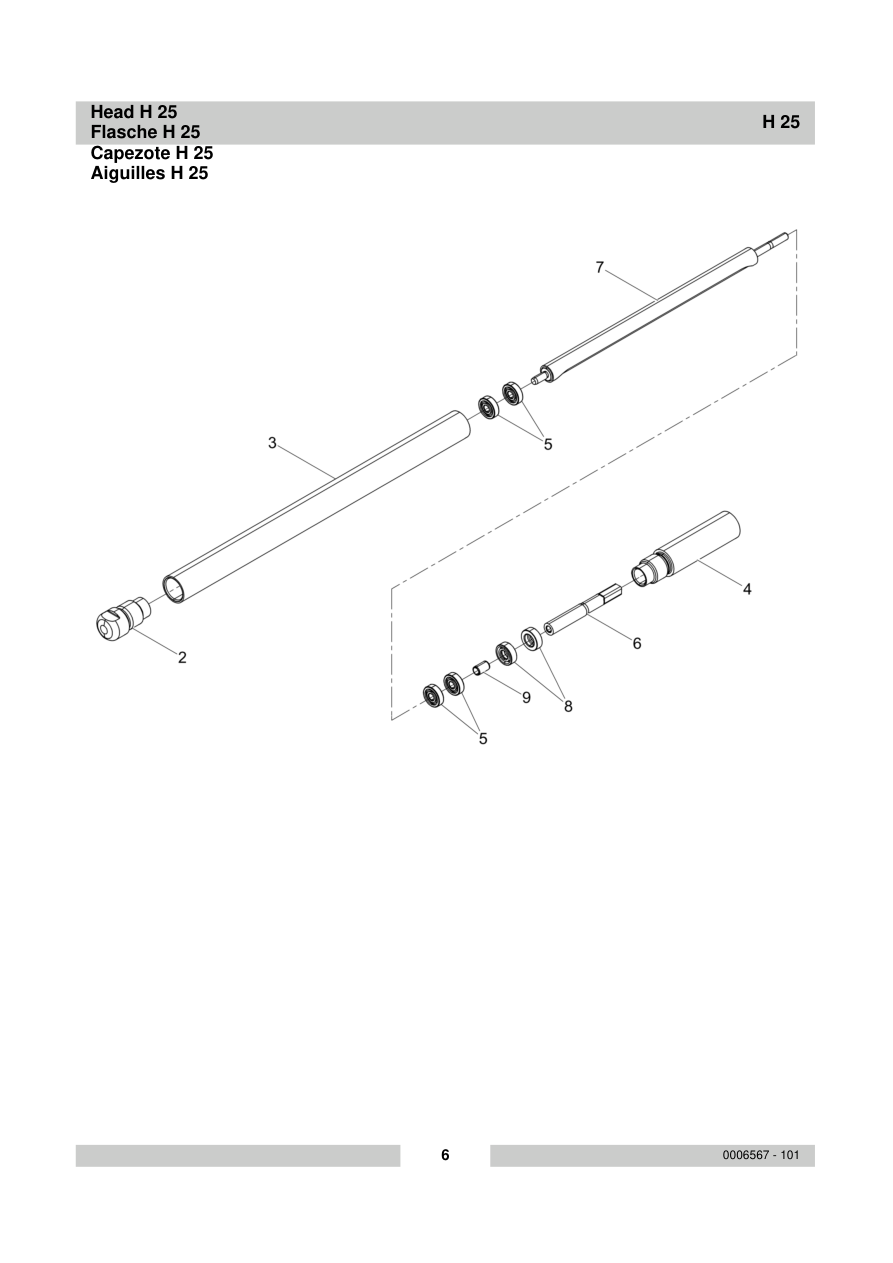

Need the PDF? ↓Page 6 — Head H 25
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000085448 | Nose cap | 1 | PARTS REQUEST | |
|
COMING Nose cap
5000085448 · qty on machine: 1 | |||||
| 3 | 5000029746 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000029746 · qty on machine: 1 | |||||
| 4 | 5000029747 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000029747 · qty on machine: 1 | |||||
| 5 | 5000078715 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000078715 · qty on machine: 4 | |||||
| 6 | 5000029748 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029748 · qty on machine: 1 | |||||
| 7 | 5000029745 | Eccentric weight | 1 | PARTS REQUEST | |
|
COMING Eccentric weight
5000029745 · qty on machine: 1 | |||||
| 8 | 5000029778 | Shaft seal | 2 | PARTS REQUEST | |
|
COMING Shaft seal
5000029778 · qty on machine: 2 | |||||
| 9 | 5000030715 | Distance sleeve | 1 | PARTS REQUEST | |
|
COMING Distance sleeve
5000030715 · qty on machine: 1 | |||||

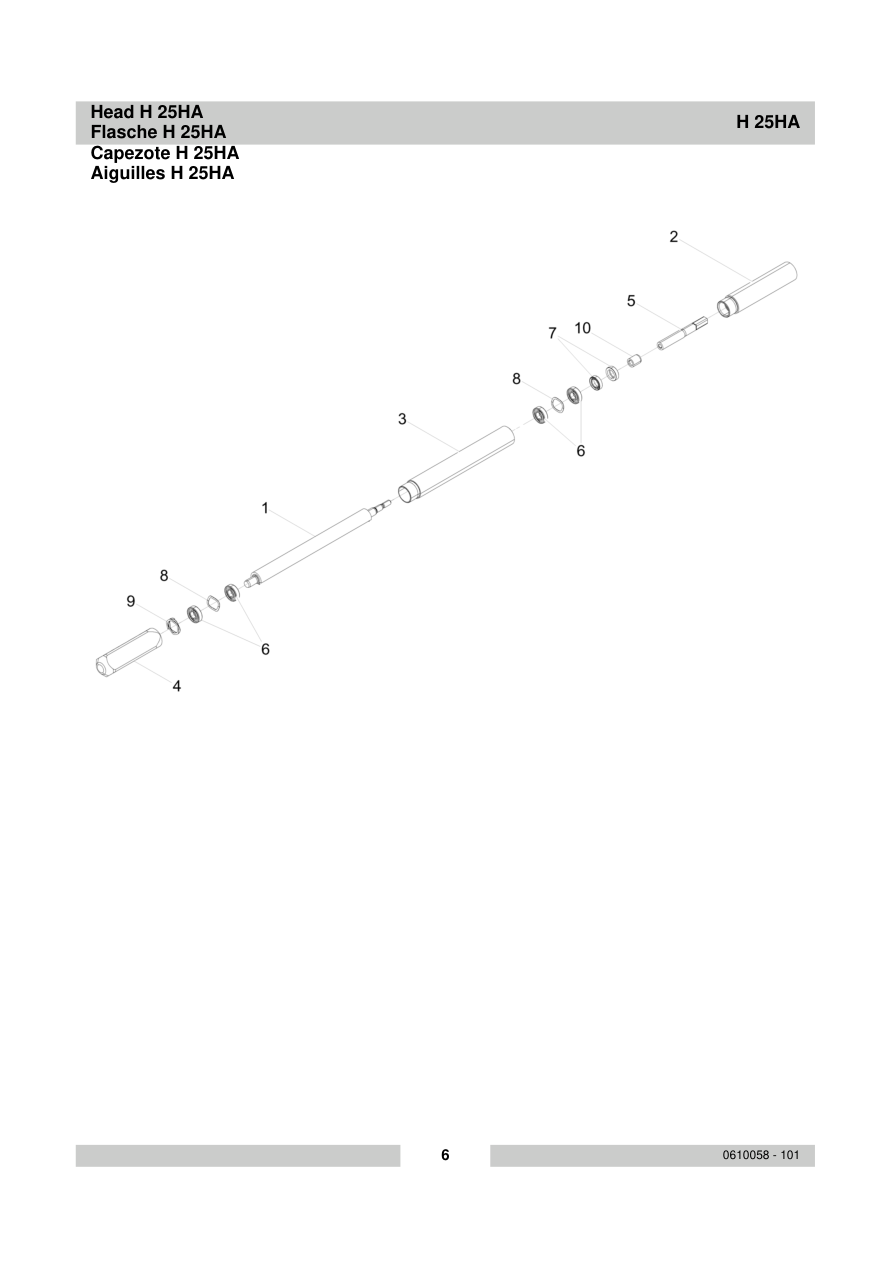

Page 6 — Head H 25HA
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000205961 | Eccentric shaft | 1 | PARTS REQUEST | |
|
COMING Eccentric shaft
5000205961 · qty on machine: 1 | |||||
| 2 | 5000205965 | Connector | 1 | PARTS REQUEST | |
|
COMING Connector
5000205965 · qty on machine: 1 | |||||
| 3 | 5000206369 | Vibrator head casing | 1 | PARTS REQUEST | |
|
COMING Vibrator head casing
5000206369 · qty on machine: 1 | |||||
| 4 | 5000212707 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000212707 · qty on machine: 1 | |||||
| 5 | 5000029748 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029748 · qty on machine: 1 | |||||
| 6 | 5000207215 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000207215 · qty on machine: 4 | |||||
| 7 | 5000205966 | Rotary shaft seal | 2 | PARTS REQUEST | |
|
COMING Rotary shaft seal
5000205966 · qty on machine: 2 | |||||
| 8 | 5000207216 | Lock washer | 2 | PARTS REQUEST | |
|
COMING Lock washer
5000207216 · qty on machine: 2 | |||||
| 9 | 5000207217 | Compression spring | 1 | PARTS REQUEST | |
|
COMING Compression spring
5000207217 · qty on machine: 1 | |||||
| 10 | 5000207936 | Bush | 1 | PARTS REQUEST | |
|
COMING Bush
5000207936 · qty on machine: 1 | |||||
The machine itself
Machine
Engine
Wacker Neuson H25 internal vibrator.
Available in 3 configurations.
List price: $290.00 – $360.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000029745
Eccentric weight
5000029746
Housing
5000029747
Adaptor
5000029748
Inner core adaptor
5000029778
Shaft seal
5000030715
Distance sleeve
5000077058
Eccentric weight
5000077059
Housing
5000078715
Grooved ball bearing
5000085448
Nose cap
5000205961
Eccentric shaft
5000205965
Connector
5000205966
Rotary shaft seal
5000206369
Vibrator head casing
5000206839
Housing
5000207215
Grooved ball bearing
5000207216
Lock washer
5000207217
Compression spring
5000207936
Bush
