Wacker Neuson H35 Internal Vibrator
Pick your options below. We build the exact machine and start your quote.
The parts bench

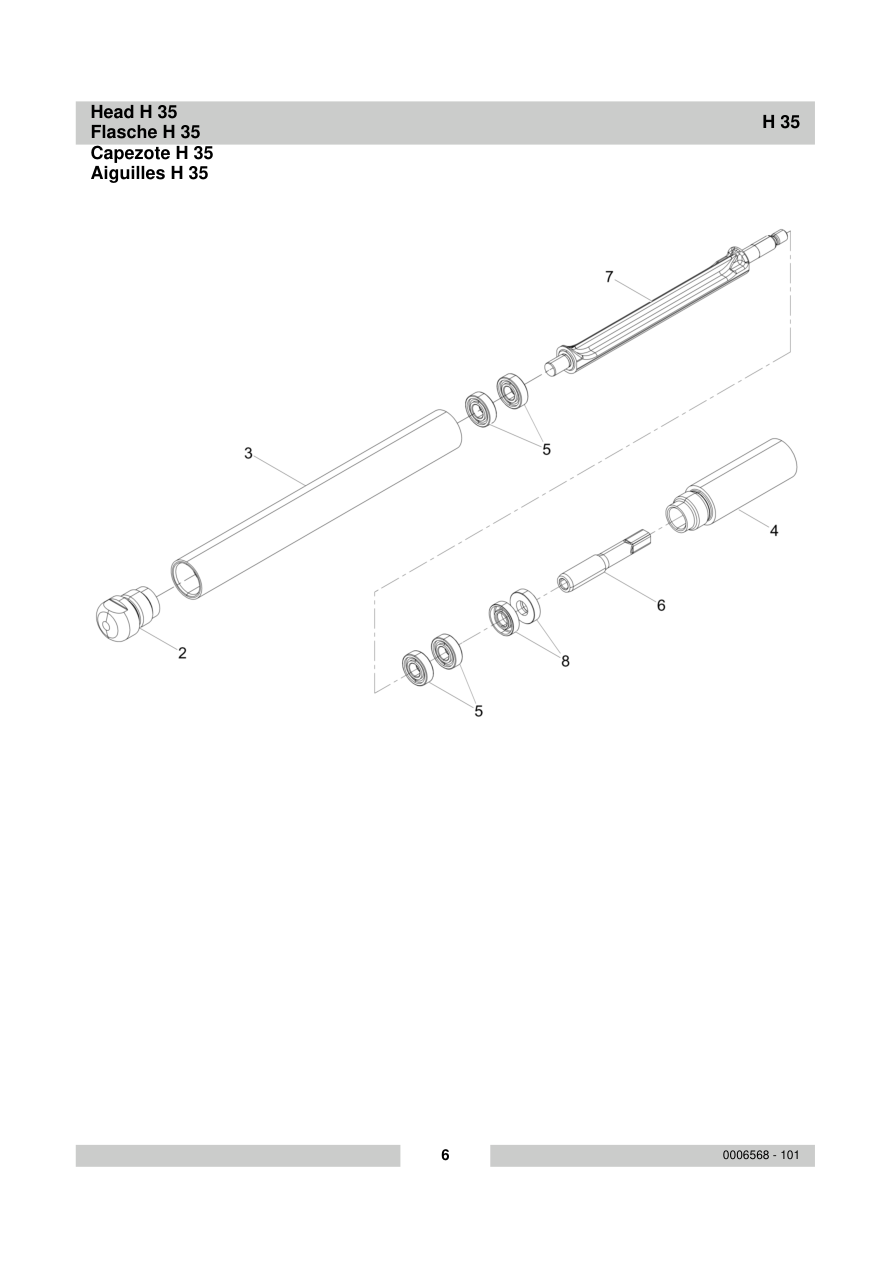

Need the PDF? ↓Page 6 — Head H 35
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000085449 | Nose cap | 1 | PARTS REQUEST | |
|
COMING Nose cap
5000085449 · qty on machine: 1 | |||||
| 3 | 5000029753 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000029753 · qty on machine: 1 | |||||
| 4 | 5000029754 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000029754 · qty on machine: 1 | |||||
| 5 | 5000078716 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000078716 · qty on machine: 4 | |||||
| 6 | 5000029755 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029755 · qty on machine: 1 | |||||
| 7 | 5000080716 | Eccentric weight | 1 | PARTS REQUEST | |
|
COMING Eccentric weight
5000080716 · qty on machine: 1 | |||||
| 8 | 5000029781 | Shaft seal | 2 | PARTS REQUEST | |
|
COMING Shaft seal
5000029781 · qty on machine: 2 | |||||

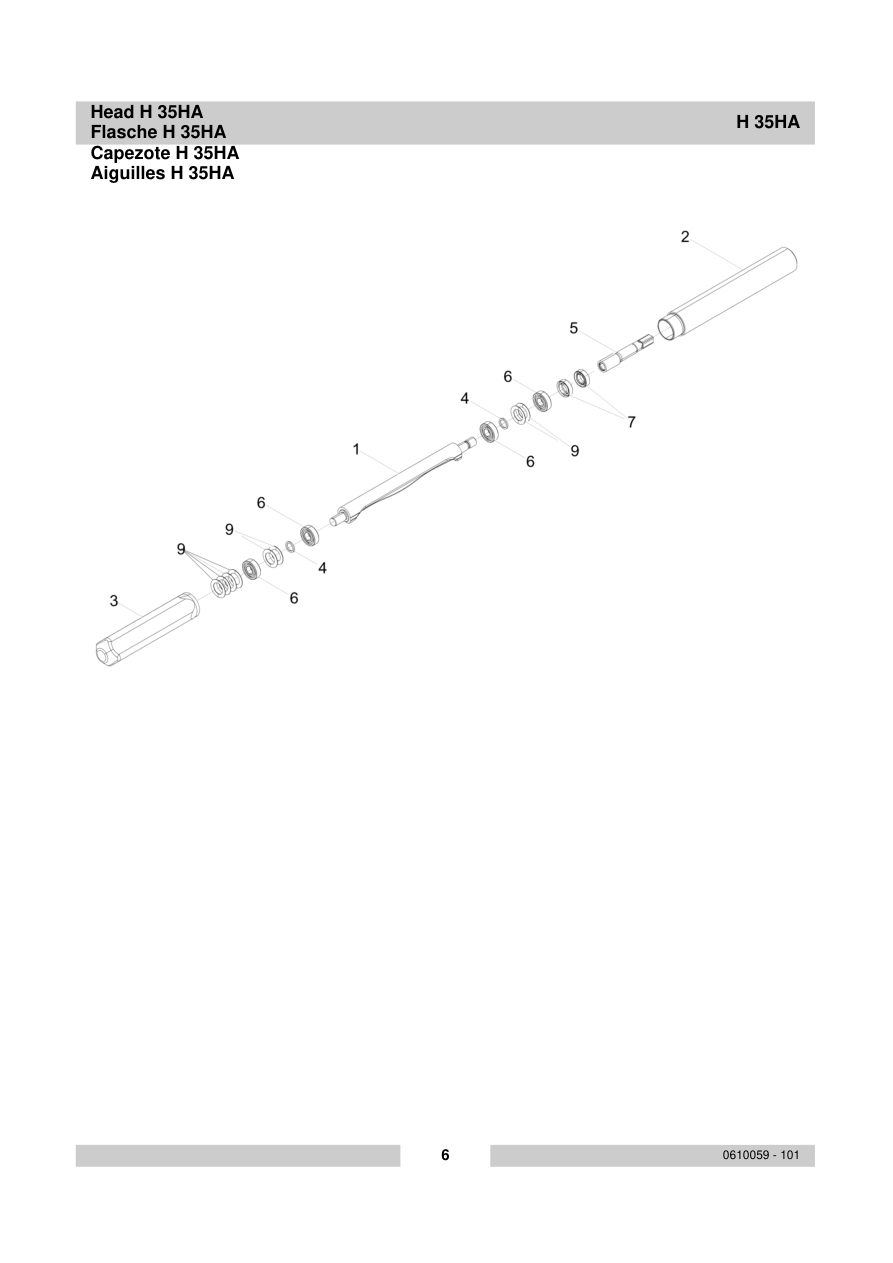

Page 6 — Head H 35HA
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000204087 | Eccentric shaft | 1 | PARTS REQUEST | |
|
COMING Eccentric shaft
5000204087 · qty on machine: 1 | |||||
| 2 | 5000205746 | Connector | 1 | PARTS REQUEST | |
|
COMING Connector
5000205746 · qty on machine: 1 | |||||
| 3 | 5000211887 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000211887 · qty on machine: 1 | |||||
| 4 | 5000205747 | Distance washer | 2 | PARTS REQUEST | |
|
COMING Distance washer
5000205747 · qty on machine: 2 | |||||
| 5 | 5000208490 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000208490 · qty on machine: 1 | |||||
| 6 | 5000205759 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000205759 · qty on machine: 4 | |||||
| 7 | 5000208723 | Oil seal | 2 | PARTS REQUEST | |
|
COMING Oil seal
5000208723 · qty on machine: 2 | |||||
| 9 | 5000205757 | Cup spring | 8 | PARTS REQUEST | |
|
COMING Cup spring
5000205757 · qty on machine: 8 | |||||
The machine itself
Machine
Engine
Wacker Neuson H35 internal vibrator.
Available in 3 configurations.
List price: $335.00 – $425.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000029753
Housing
5000029754
Adaptor
5000029755
Inner core adaptor
5000029781
Shaft seal
5000078716
Grooved ball bearing
5000080295
Housing
5000080296
Eccentric weight
5000080716
Eccentric weight
5000085449
Nose cap
5000204087
Eccentric shaft
5000205746
Connector
5000205747
Distance washer
5000205757
Cup spring
5000205759
Grooved ball bearing
5000206779
Housing
5000208490
Inner core adaptor
5000208723
Oil seal
