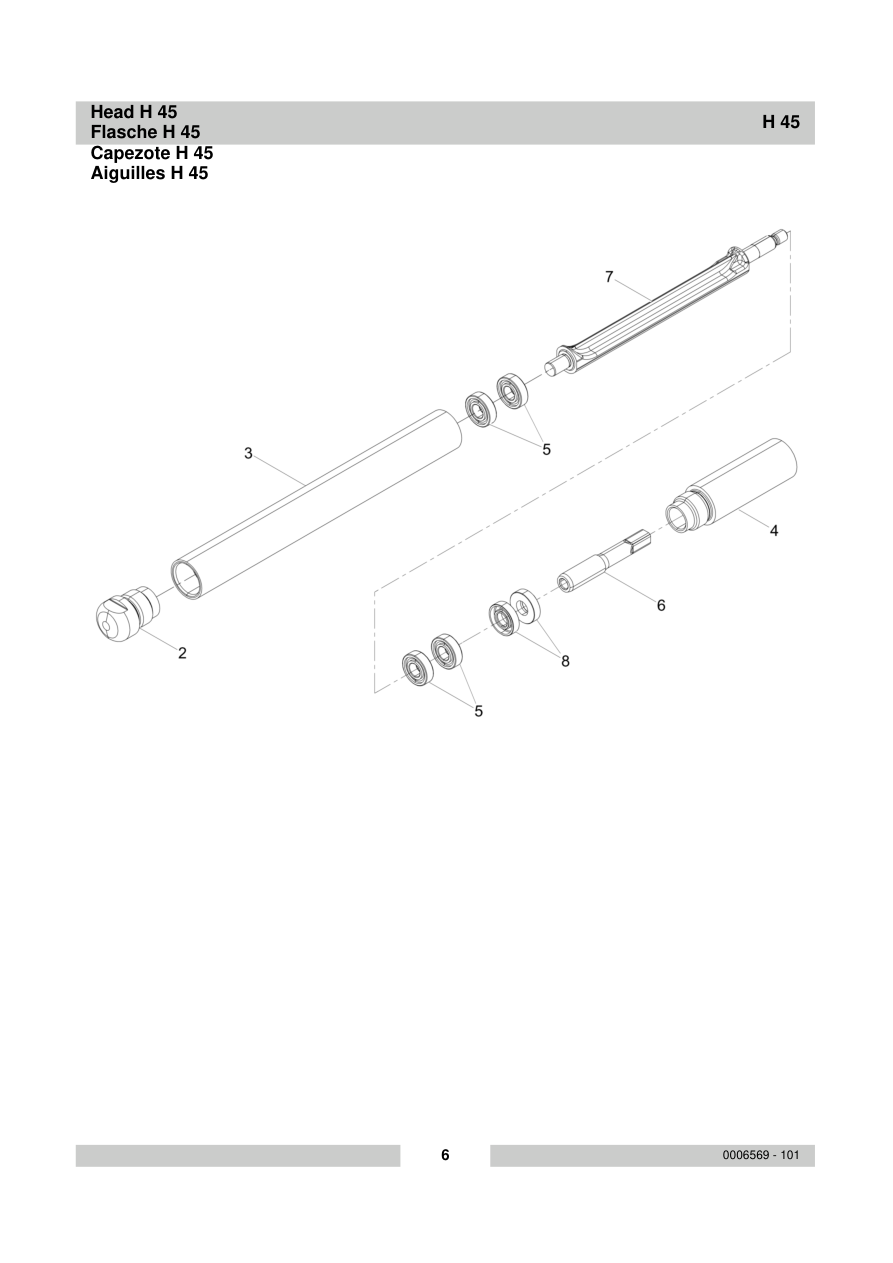

Need the PDF? ↓Page 6 — Head H 45
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000085450 | Nose cap | 1 | PARTS REQUEST | |
|
COMING Nose cap
5000085450 · qty on machine: 1 | |||||
| 3 | 5000029760 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000029760 · qty on machine: 1 | |||||
| 4 | 5000029761 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000029761 · qty on machine: 1 | |||||
| 5 | 5000078717 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000078717 · qty on machine: 4 | |||||
| 6 | 5000029755 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029755 · qty on machine: 1 | |||||
| 7 | 5000080717 | Eccentric weight | 1 | PARTS REQUEST | |
|
COMING Eccentric weight
5000080717 · qty on machine: 1 | |||||
| 8 | 5000029784 | Shaft seal | 2 | PARTS REQUEST | |
|
COMING Shaft seal
5000029784 · qty on machine: 2 | |||||

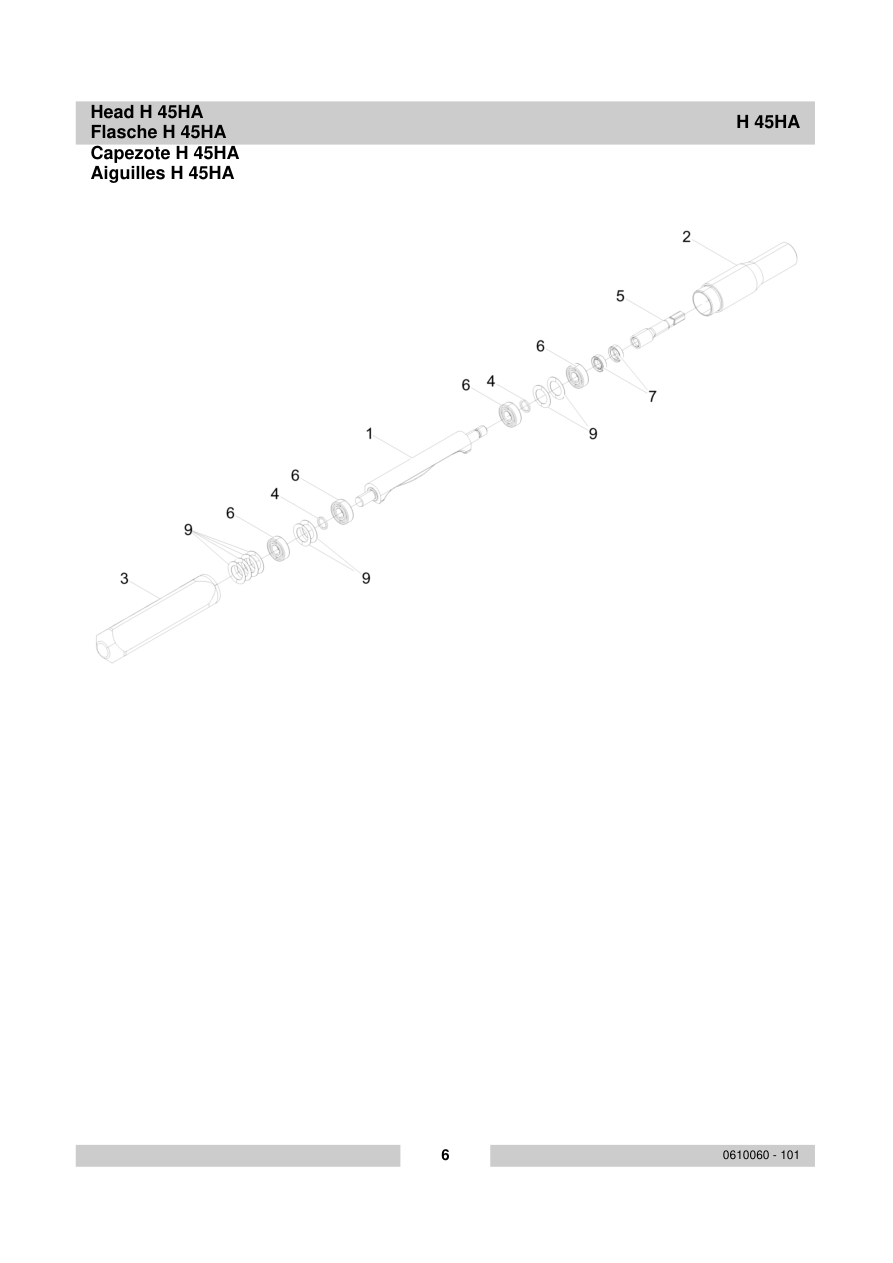

Page 6 — Head H 45HA
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000204086 | Eccentric shaft | 1 | PARTS REQUEST | |
|
COMING Eccentric shaft
5000204086 · qty on machine: 1 | |||||
| 2 | 5000204261 | Connector | 1 | PARTS REQUEST | |
|
COMING Connector
5000204261 · qty on machine: 1 | |||||
| 3 | 5000211888 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000211888 · qty on machine: 1 | |||||
| 4 | 5000204260 | Distance washer | 2 | PARTS REQUEST | |
|
COMING Distance washer
5000204260 · qty on machine: 2 | |||||
| 5 | 5000208491 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000208491 · qty on machine: 1 | |||||
| 6 | 5000205762 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000205762 · qty on machine: 4 | |||||
| 7 | 5000208723 | Oil seal | 2 | PARTS REQUEST | |
|
COMING Oil seal
5000208723 · qty on machine: 2 | |||||
| 9 | 5000105844 | Cup spring | 8 | PARTS REQUEST | |
|
COMING Cup spring
5000105844 · qty on machine: 8 | |||||
The machine itself
Machine
Engine
Wacker Neuson H45 internal vibrator.
Available in 3 configurations.
List price: $385.00 – $460.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000029755
Inner core adaptor
5000029760
Housing
5000029761
Adaptor
5000029784
Shaft seal
5000078717
Grooved ball bearing
5000080298
Housing
5000080299
Eccentric weight
5000080717
Eccentric weight
5000085450
Nose cap
5000105844
Cup spring
5000204086
Eccentric shaft
5000204260
Distance washer
5000204261
Connector
5000205762
Grooved ball bearing
5000206781
Housing
5000208491
Inner core adaptor
5000208723
Oil seal
