Need the PDF? ↓Page 8 — Internal vibrator cpl.
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100053877 | Internal vibrator cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Internal vibrator cpl.
5100053877 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100045462 | Decal | 1 | PARTS REQUEST | |
|
COMING Decal
5100045462 · qty on machine: 1 | |||||
Page 10 — Hose connection cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100010607 | 3 hole plug | 1 | PARTS REQUEST | |
|
COMING 3 hole plug
5100010607 · qty on machine: 1 | |||||
| 40 | 5000203579 | Thrust ring | 1 | PARTS REQUEST | |
|
COMING Thrust ring
5000203579 · qty on machine: 1 | |||||
| 50 | 5000203577 | Pressure screw | 1 | PARTS REQUEST | |
|
COMING Pressure screw
5000203577 · qty on machine: 1 | |||||
| 10 | 5100059001 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Supply line cpl.
5100059001 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 20 | 5100049643 | Protective hose | 1 | PARTS REQUEST | |
|
COMING Protective hose
5100049643 · qty on machine: 1 | |||||
| 60 | 5000128141 | Clamp | 2 | PARTS REQUEST | |
|
COMING Clamp
5000128141 · qty on machine: 2 | |||||
Page 12 — Switch box cpl.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059002 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5100059002 · qty on machine: 1 | |||||
| 20 | 5100050596 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100050596 · qty on machine: 1 | |||||
| 40 | 5100058845 | Oval head screw | 4 | ADD TO CART | |

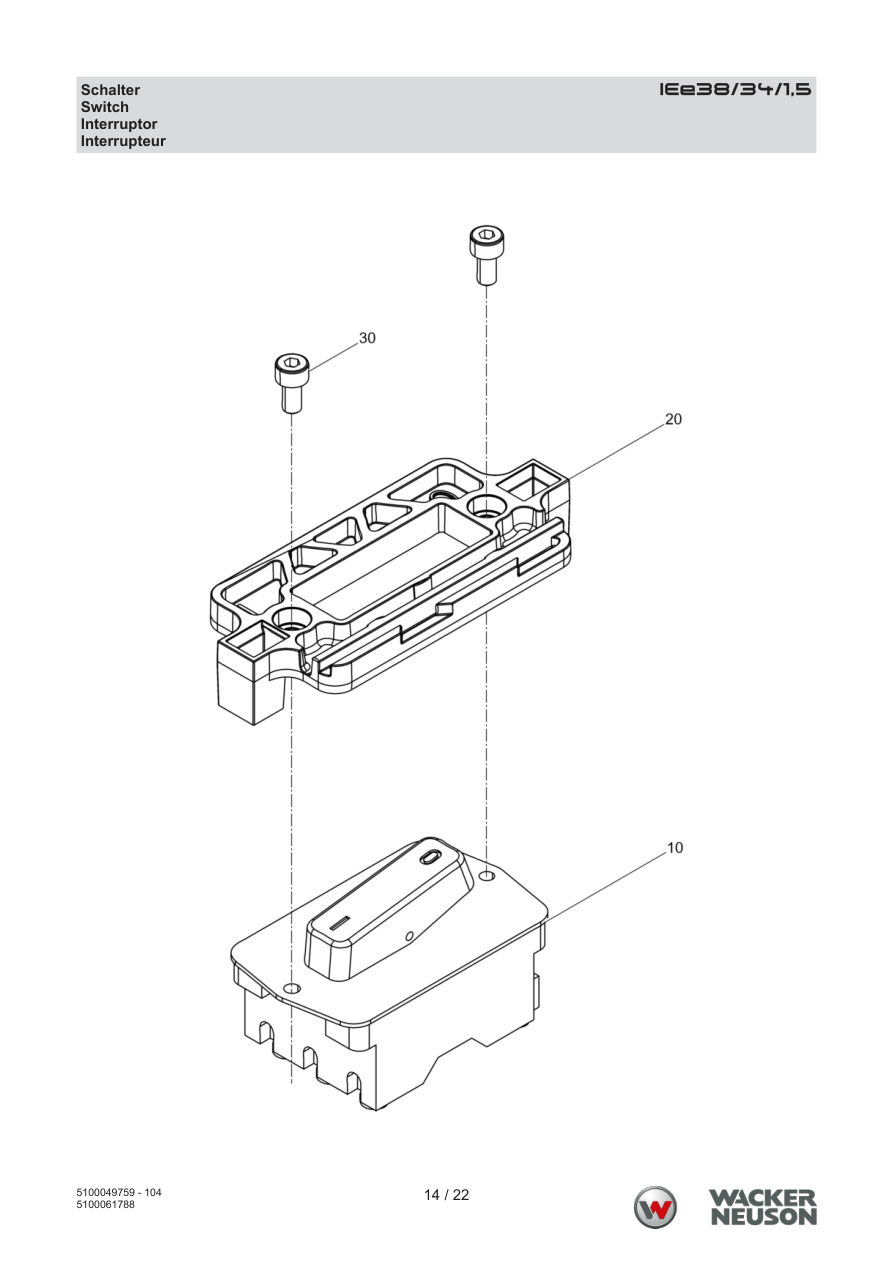

Page 14 — IEe38/34/1,5 Switch
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058758 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100058758 · qty on machine: 1 | |||||
| 20 | 5100059807 | Flange | 1 | PARTS REQUEST | |
|
COMING Flange
5100059807 · qty on machine: 1 | |||||
| 30 | 5000011573 | Cheese head screw | 2 | M4 x 8 5Nm/4ft.lbs | ISO4762 | ADD TO CART |
Page 16 — Power supply cable cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 60 | 5002007121 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5002007121 · qty on machine: 1 | |||||
| 70 | 5000106220 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000106220 · qty on machine: 1 | |||||
| 80 | 5100058845 | Oval head screw | 2 | ADD TO CART | |
| 90 | 5100050537 | Cable fastening cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cable fastening cpl.
5100050537 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 10 | 5100058997 | Power supply cable | 1 | PARTS REQUEST | |
|
COMING Power supply cable
5100058997 · qty on machine: 1 | |||||
| 20 | 5100010953 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100010953 · qty on machine: 1 | |||||
| 30 | 5000203578 | Thrust ring | 1 | PARTS REQUEST | |
|
COMING Thrust ring
5000203578 · qty on machine: 1 | |||||
| 40 | 5000203576 | Pressure screw | 1 | PARTS REQUEST | |
|
COMING Pressure screw
5000203576 · qty on machine: 1 | |||||
| 50 | 5100005463 | Grommet | 1 | PARTS REQUEST | |
|
COMING Grommet
5100005463 · qty on machine: 1 | |||||
Page 18 — Strain relief cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050536 | Cable fastening | 1 | PARTS REQUEST | |
|
COMING Cable fastening
5100050536 · qty on machine: 1 | |||||
| 2 | 5100000179 | Clamp | 2 | ADD TO CART | |
| 3 | 5100058845 | Oval head screw | 4 | ADD TO CART | |
| 4 | 5100002285 | Carabiner | 1 | PARTS REQUEST | |
|
COMING Carabiner
5100002285 · qty on machine: 1 | |||||
Page 8 — Internal vibrator cpl.
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100053877 | Internal vibrator cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Internal vibrator cpl.
5100053877 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100045462 | Decal | 1 | PARTS REQUEST | |
|
COMING Decal
5100045462 · qty on machine: 1 | |||||
Page 10 — Hose connection cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 40 | 5000203579 | Thrust ring | 1 | PARTS REQUEST | |
|
COMING Thrust ring
5000203579 · qty on machine: 1 | |||||
| 50 | 5000203577 | Pressure screw | 1 | PARTS REQUEST | |
|
COMING Pressure screw
5000203577 · qty on machine: 1 | |||||
| 10 | 5100059000 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Supply line cpl.
5100059000 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 20 | 5100036169 | Protective hose | 1 | PARTS REQUEST | |
|
COMING Protective hose
5100036169 · qty on machine: 1 | |||||
| 30 | 5100010607 | 3 hole plug | 1 | PARTS REQUEST | |
|
COMING 3 hole plug
5100010607 · qty on machine: 1 | |||||
| 60 | 5000128141 | Clamp | 2 | PARTS REQUEST | |
|
COMING Clamp
5000128141 · qty on machine: 2 | |||||
Page 12 — Switch box cpl.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059002 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5100059002 · qty on machine: 1 | |||||
| 20 | 5100050596 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100050596 · qty on machine: 1 | |||||
| 40 | 5100058845 | Oval head screw | 4 | ADD TO CART | |
Page 14 — IEe38/34/3 Switch
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058758 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100058758 · qty on machine: 1 | |||||
| 20 | 5100059807 | Flange | 1 | PARTS REQUEST | |
|
COMING Flange
5100059807 · qty on machine: 1 | |||||
| 30 | 5000011573 | Cheese head screw | 2 | M4 x 8 5Nm/4ft.lbs | ISO4762 | ADD TO CART |
Page 16 — Power supply cable cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100005463 | Grommet | 1 | PARTS REQUEST | |
|
COMING Grommet
5100005463 · qty on machine: 1 | |||||
| 60 | 5002007121 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5002007121 · qty on machine: 1 | |||||
| 70 | 5000106220 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000106220 · qty on machine: 1 | |||||
| 80 | 5100058845 | Oval head screw | 2 | ADD TO CART | |
| 90 | 5100050537 | Cable fastening cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cable fastening cpl.
5100050537 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 10 | 5100058997 | Power supply cable | 1 | PARTS REQUEST | |
|
COMING Power supply cable
5100058997 · qty on machine: 1 | |||||
| 20 | 5100010953 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100010953 · qty on machine: 1 | |||||
| 30 | 5000203578 | Thrust ring | 1 | PARTS REQUEST | |
|
COMING Thrust ring
5000203578 · qty on machine: 1 | |||||
| 40 | 5000203576 | Pressure screw | 1 | PARTS REQUEST | |
|
COMING Pressure screw
5000203576 · qty on machine: 1 | |||||
Page 18 — Strain relief cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050536 | Cable fastening | 1 | PARTS REQUEST | |
|
COMING Cable fastening
5100050536 · qty on machine: 1 | |||||
| 2 | 5100000179 | Clamp | 2 | ADD TO CART | |
| 3 | 5100058845 | Oval head screw | 4 | ADD TO CART | |
| 4 | 5100002285 | Carabiner | 1 | PARTS REQUEST | |
|
COMING Carabiner
5100002285 · qty on machine: 1 | |||||
Page 8 — Internal vibrator cpl.
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100053877 | Internal vibrator cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Internal vibrator cpl.
5100053877 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100045462 | Decal | 1 | PARTS REQUEST | |
|
COMING Decal
5100045462 · qty on machine: 1 | |||||
Page 10 — Hose connection cpl.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058999 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Supply line cpl.
5100058999 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 20 | 5000201911 | Protective hose | 1 | PARTS REQUEST | |
|
COMING Protective hose
5000201911 · qty on machine: 1 | |||||
| 30 | 5100010607 | 3 hole plug | 1 | PARTS REQUEST | |
|
COMING 3 hole plug
5100010607 · qty on machine: 1 | |||||
| 40 | 5000203579 | Thrust ring | 1 | PARTS REQUEST | |
|
COMING Thrust ring
5000203579 · qty on machine: 1 | |||||
| 50 | 5000203577 | Pressure screw | 1 | PARTS REQUEST | |
|
COMING Pressure screw
5000203577 · qty on machine: 1 | |||||
| 60 | 5000128141 | Clamp | 2 | PARTS REQUEST | |
|
COMING Clamp
5000128141 · qty on machine: 2 | |||||
Page 12 — Switch box cpl.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059002 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5100059002 · qty on machine: 1 | |||||
| 20 | 5100050596 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100050596 · qty on machine: 1 | |||||
| 40 | 5100058845 | Oval head screw | 4 | ADD TO CART | |
Page 14 — IEe38/34/5 Switch
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5000011573 | Cheese head screw | 2 | M4 x 8 5Nm/4ft.lbs | ISO4762 | ADD TO CART |
| 10 | 5100058758 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100058758 · qty on machine: 1 | |||||
| 20 | 5100059807 | Flange | 1 | PARTS REQUEST | |
|
COMING Flange
5100059807 · qty on machine: 1 | |||||
Page 16 — Power supply cable cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 70 | 5000106220 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5000106220 · qty on machine: 1 | |||||
| 80 | 5100058845 | Oval head screw | 2 | ADD TO CART | |
| 90 | 5100050537 | Cable fastening cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cable fastening cpl.
5100050537 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 10 | 5100058997 | Power supply cable | 1 | PARTS REQUEST | |
|
COMING Power supply cable
5100058997 · qty on machine: 1 | |||||
| 20 | 5100010953 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100010953 · qty on machine: 1 | |||||
| 30 | 5000203578 | Thrust ring | 1 | PARTS REQUEST | |
|
COMING Thrust ring
5000203578 · qty on machine: 1 | |||||
| 40 | 5000203576 | Pressure screw | 1 | PARTS REQUEST | |
|
COMING Pressure screw
5000203576 · qty on machine: 1 | |||||
| 50 | 5100005463 | Grommet | 1 | PARTS REQUEST | |
|
COMING Grommet
5100005463 · qty on machine: 1 | |||||
| 60 | 5002007121 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
5002007121 · qty on machine: 1 | |||||
Page 18 — Strain relief cpl.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100050536 | Cable fastening | 1 | PARTS REQUEST | |
|
COMING Cable fastening
5100050536 · qty on machine: 1 | |||||
| 2 | 5100000179 | Clamp | 2 | ADD TO CART | |
| 3 | 5100058845 | Oval head screw | 4 | ADD TO CART | |
| 4 | 5100002285 | Carabiner | 1 | PARTS REQUEST | |
|
COMING Carabiner
5100002285 · qty on machine: 1 | |||||
The machine itself
Machine
Engine
Wacker Neuson IEe38/34 internal vibrator.
Available in 3 configurations.
List price: $825.00 – $975.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000011573
Cheese head screw
$0.95
5000106220
pc
5000128141
pc
5000202101
pc
5000203576
pc
5000203577
pc
5000203578
pc
5000203579
pc
5002007010
pc
5002007121
pc
5100000179
pc
$2.95
5100002285
pc
5100005463
pc
5100010607
pc
5100010953
pc
5100011010
pc
5100036169
pc
5100045462
Label
5100049480
pc
5100049511
pc
5100049643
pc
5100049732
pc
5100050536
pc
5100050537
pc
5100051266
pc
5100053877
Internal vibrator cpl.
5100057823
pc
5100057825
pc
5100058758
Switch
5100058845
Oval head screw
$0.95
5100058997
Power supply cable
5100059001
Supply line cpl.
5100059807
Flange
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
