Wacker Neuson M1500 Internal Vibrator
Pick your options below. We build the exact machine and start your quote.
The parts bench

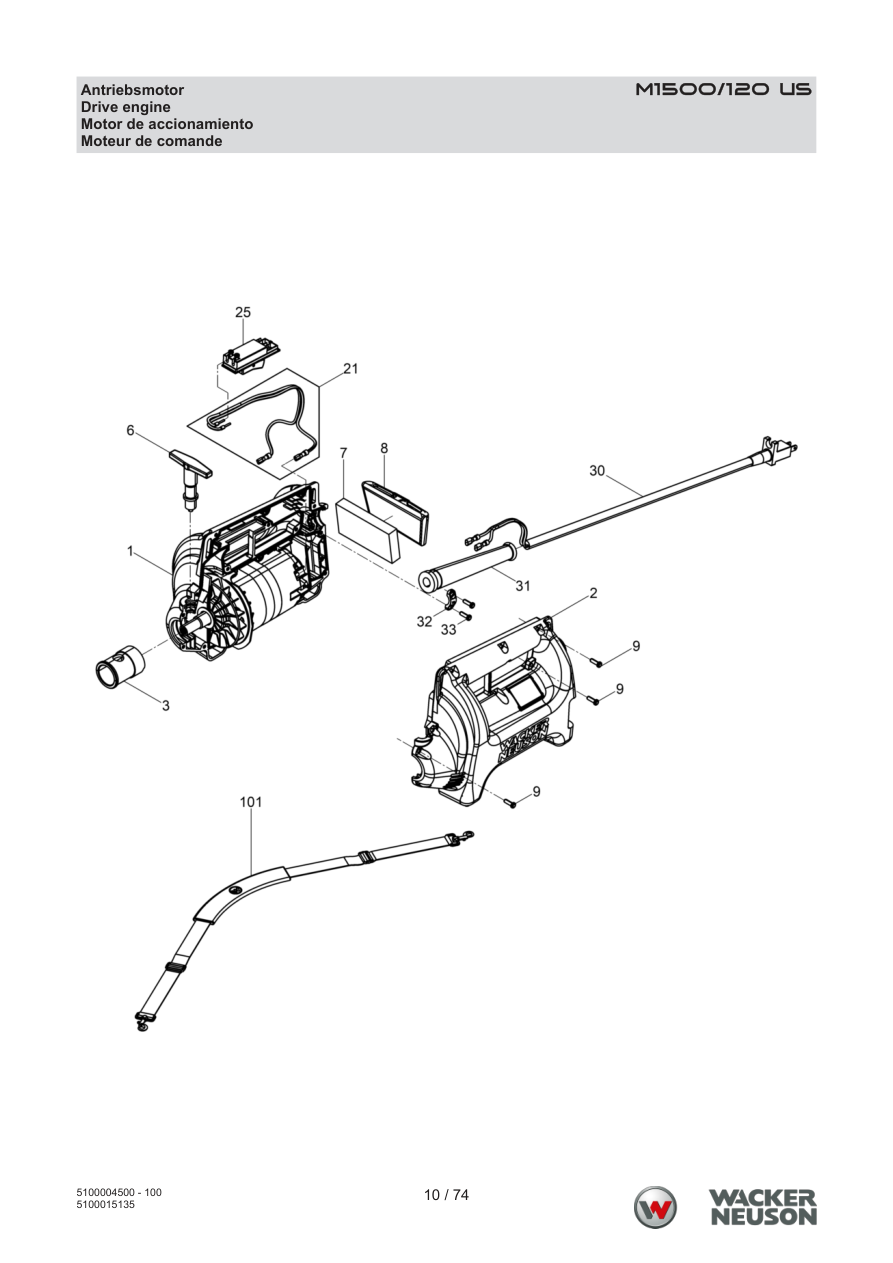

Need the PDF? ↓Page 10 — M1500/120 US Drive motor
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 21 | 5100015414 | Supply line cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Supply line cpl.
5100015414 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 25 | 5100010900 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100010900 · qty on machine: 1 | |||||
| 30 | 5100009456 | Power supply cable with plug | 1 | PARTS REQUEST | |
|
COMING Power supply cable with plug
5100009456 · qty on machine: 1 | |||||
| 31 | 5000064243 | Rubber funnel | 1 | PARTS REQUEST | |
|
COMING Rubber funnel
5000064243 · qty on machine: 1 | |||||
| 32 | 5100000179 | Clamp | 1 | ADD TO CART | |
| 33 | 5100010127 | Oval head screw | 2 | ADD TO CART | |

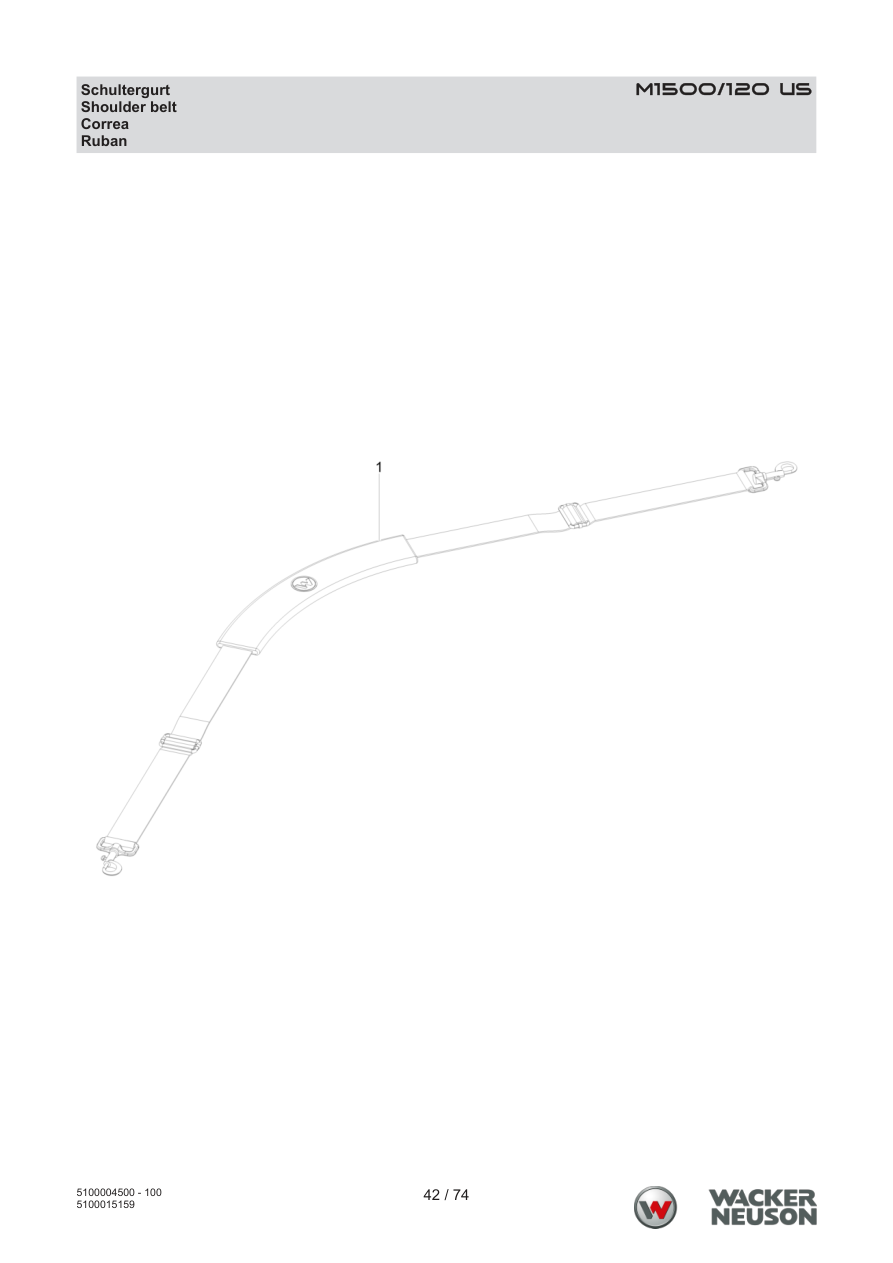

| 101 | 5100010882 | Shoulder belt | 1 | PARTS REQUEST | |
|
COMING Shoulder belt
5100010882 · qty on machine: 1 | |||||
| 1 | 5100010489 | Housing right | 1 | PARTS REQUEST | |
|
COMING Housing right
5100010489 · qty on machine: 1 | |||||
| 2 | 5100010488 | Housing left | 1 | PARTS REQUEST | |
|
COMING Housing left
5100010488 · qty on machine: 1 | |||||
| 3 | 5100068041 | Bush | 1 | PARTS REQUEST | |
|
COMING Bush
5100068041 · qty on machine: 1 | |||||
| 6 | 5100009577 | Detent pin | 1 | PARTS REQUEST | |
|
COMING Detent pin
5100009577 · qty on machine: 1 | |||||
| 7 | 5100010864 | Filter element | 1 | PARTS REQUEST | |
|
COMING Filter element
5100010864 · qty on machine: 1 | |||||
| 8 | 5100010490 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
5100010490 · qty on machine: 1 | |||||
| 9 | 5100010127 | Oval head screw | 19 | ADD TO CART | |

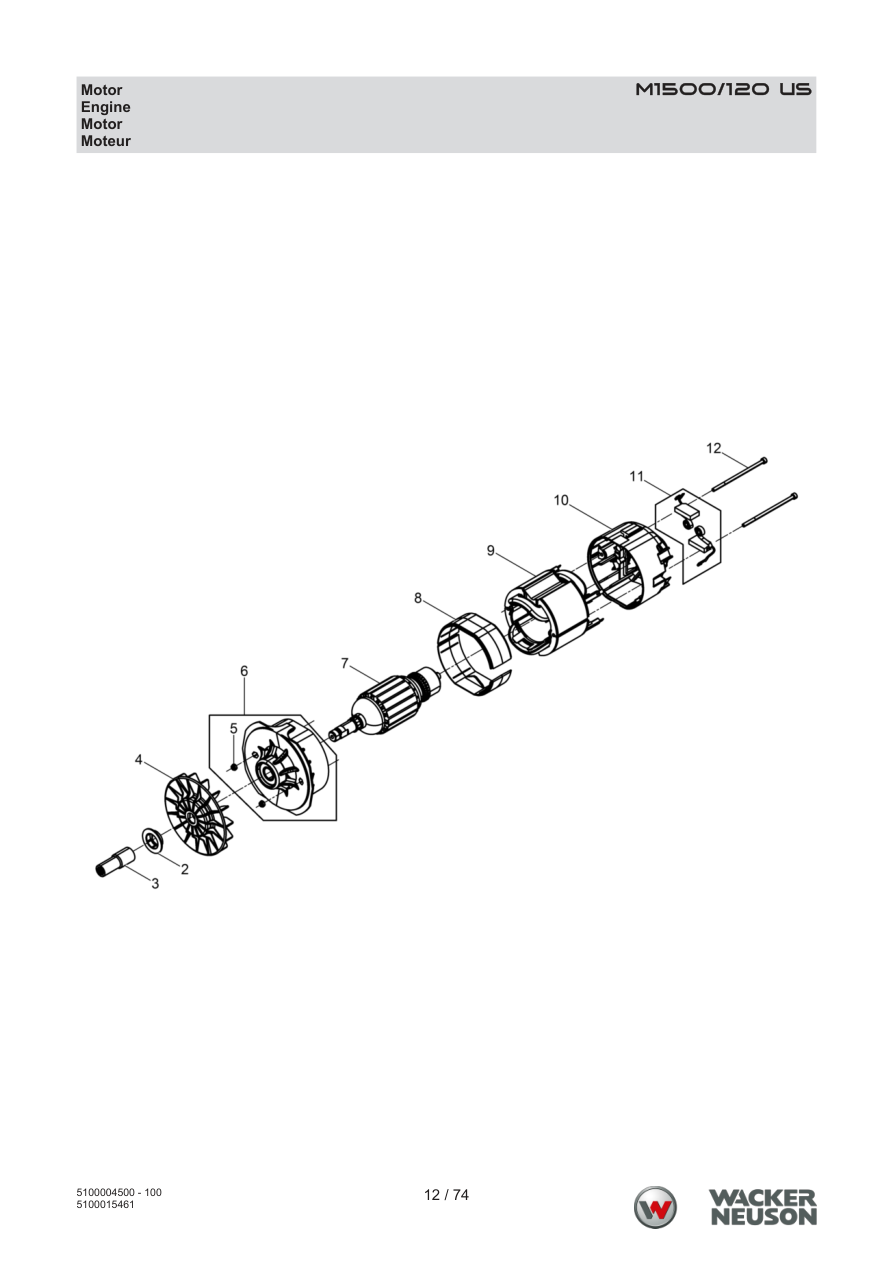

Page 12 — M1500/120 US Motor
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100010852 | Bearing bracket rear | 1 | PARTS REQUEST | |
|
COMING Bearing bracket rear
5100010852 · qty on machine: 1 | |||||
| 11 | 5100010862 | Carbon brush (set) | 1 | PARTS REQUEST | |
|
COMING Carbon brush (set)
5100010862 · qty on machine: 1 | |||||
| 12 | 5100010880 | Cheese head screw | 2 | M 4x 90 | PARTS REQUEST |
|
COMING Cheese head screw
5100010880 · qty on machine: 2 M 4x 90 | |||||
| 2 | 5100005447 | Labyrinth seal | 1 | PARTS REQUEST | |
|
COMING Labyrinth seal
5100005447 · qty on machine: 1 | |||||
| 3 | 5000053934 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000053934 · qty on machine: 1 | |||||
| 4 | 5100004469 | Fan wheel | 1 | PARTS REQUEST | |
|
COMING Fan wheel
5100004469 · qty on machine: 1 | |||||
| 5 | 5000105210 | Hexagon nut | 2 | VM4 | DIN980 | PARTS REQUEST |
|
COMING Hexagon nut
5000105210 · qty on machine: 2 VM4 | DIN980 | |||||
| 6 | 5100010853 | Bearing bracket front | 1 | PARTS REQUEST | |
|
COMING Bearing bracket front
5100010853 · qty on machine: 1 | |||||
| 7 | 5100001501 | Rotor 120v | 1 | PARTS REQUEST | |
|
COMING Rotor 120v
5100001501 · qty on machine: 1 | |||||
| 8 | 5100009988 | Spacer ring | 1 | PARTS REQUEST | |
|
COMING Spacer ring
5100009988 · qty on machine: 1 | |||||
| 9 | 5100001500 | Stator 120v | 1 | PARTS REQUEST | |
|
COMING Stator 120v
5100001500 · qty on machine: 1 | |||||

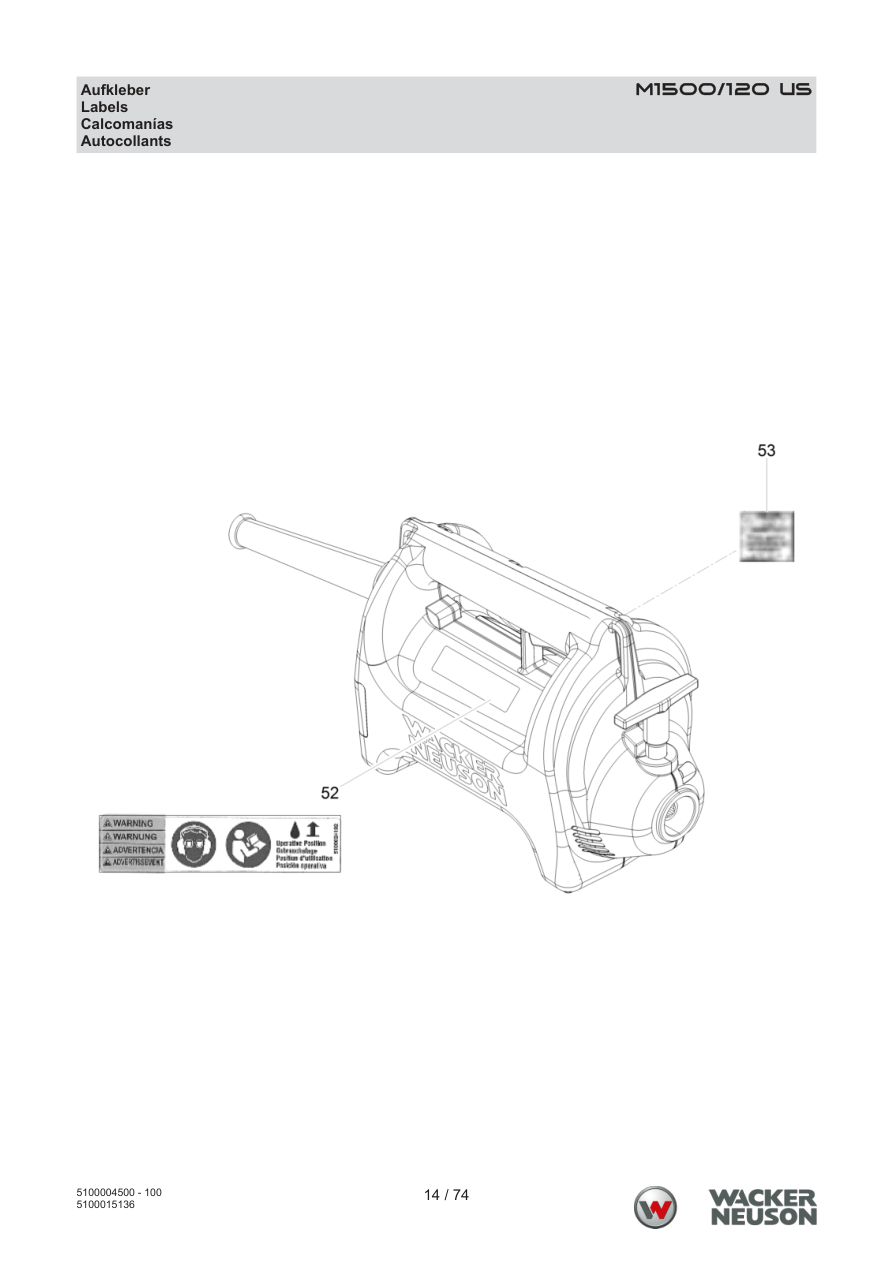

Page 14 — M1500/120 US Sticker
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 52 | 5100024192 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100024192 · qty on machine: 1 | |||||
| 53 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||

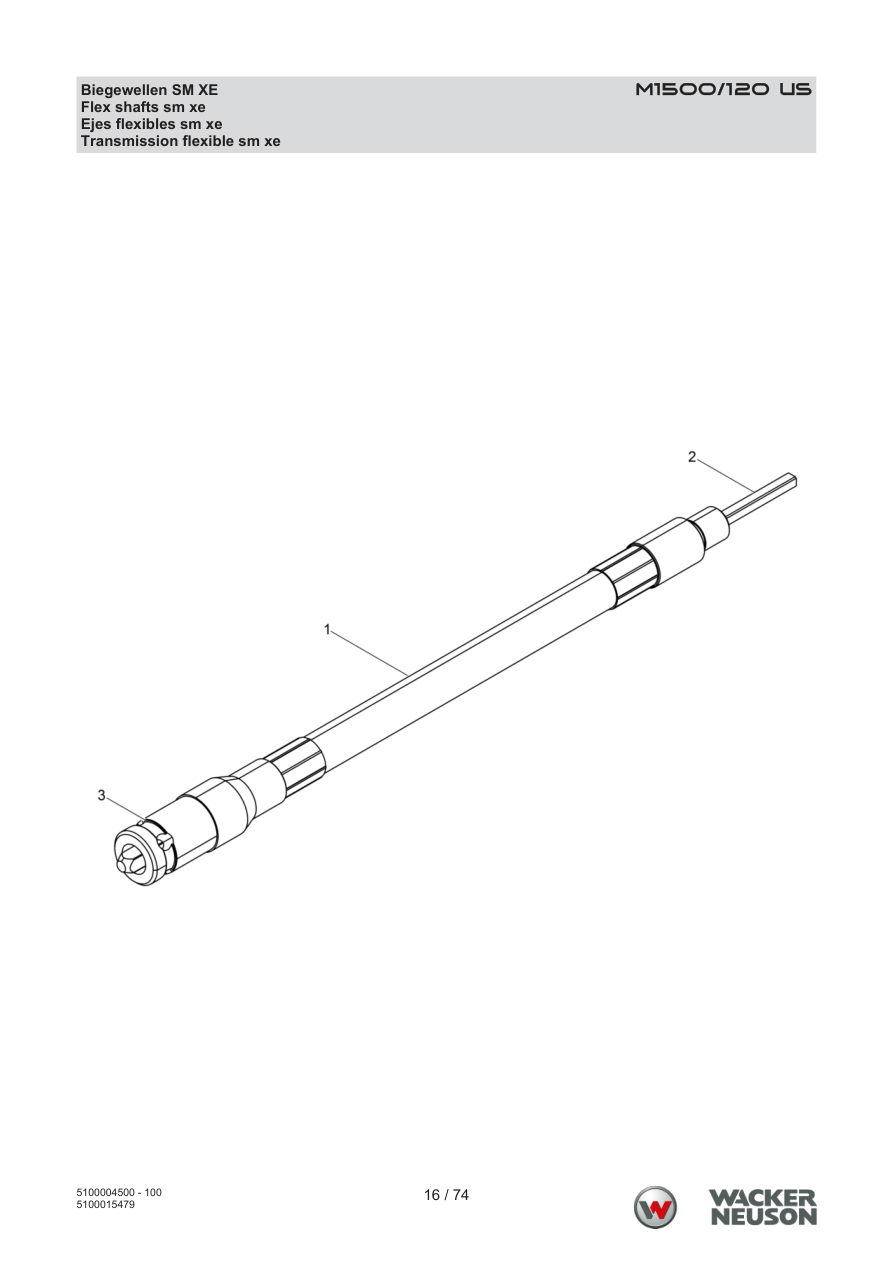

Page 16 — M1500/120 US Flexible shafts SM XE
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005703 | Flex shafts sm 1e | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 1e
5100005703 · qty on machine: 1 | |||||
| 1 | 5100005704 | Flex shafts sm 2e | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 2e
5100005704 · qty on machine: 1 | |||||
| 1 | 5100005705 | Flex shafts sm 4e | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 4e
5100005705 · qty on machine: 1 | |||||
| 1 | 5100028340 | Flex shaft sm 3e | 1 | PARTS REQUEST | |
|
COMING Flex shaft sm 3e
5100028340 · qty on machine: 1 | |||||
| 1 | 5100028341 | Flex shaft sm 5e | 1 | PARTS REQUEST | |
|
COMING Flex shaft sm 5e
5100028341 · qty on machine: 1 | |||||
| 1 | 5100028342 | Flex shaft sm 7e | 1 | PARTS REQUEST | |
|
COMING Flex shaft sm 7e
5100028342 · qty on machine: 1 | |||||
| 2 | 5100022727 | Shaft core sm1e | 1 | PARTS REQUEST | |
|
COMING Shaft core sm1e
5100022727 · qty on machine: 1 | |||||
| 2 | 5100022728 | Shaft core sm2e | 1 | PARTS REQUEST | |
|
COMING Shaft core sm2e
5100022728 · qty on machine: 1 | |||||
| 2 | 5100022729 | Shaft core sm4e | 1 | PARTS REQUEST | |
|
COMING Shaft core sm4e
5100022729 · qty on machine: 1 | |||||
| 2 | 5100031298 | Shaft core sm3e | 1 | PARTS REQUEST | |
|
COMING Shaft core sm3e
5100031298 · qty on machine: 1 | |||||
| 2 | 5100031299 | Shaft core sm5e | 1 | PARTS REQUEST | |
|
COMING Shaft core sm5e
5100031299 · qty on machine: 1 | |||||
| 2 | 5100031330 | Shaft core sm7e | 1 | PARTS REQUEST | |
|
COMING Shaft core sm7e
5100031330 · qty on machine: 1 | |||||
| 3 | 5000071584 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5000071584 · qty on machine: 1 | |||||

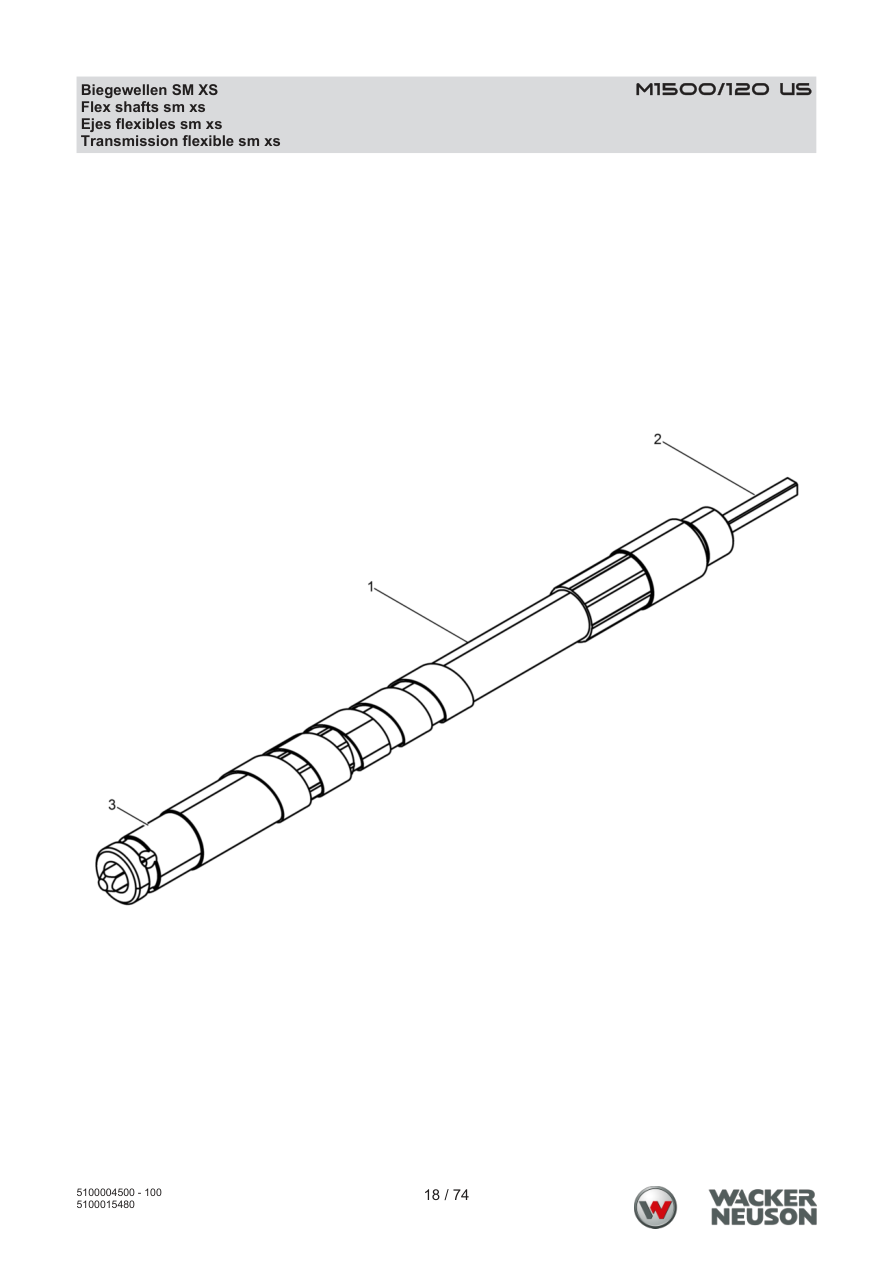

Page 18 — M1500/120 US Flexible shafts SM XS
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005706 | Flex shafts sm 0s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 0s
5100005706 · qty on machine: 1 | |||||
| 1 | 5100005707 | Flex shafts sm 1s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 1s
5100005707 · qty on machine: 1 | |||||
| 1 | 5100005708 | Flex shafts sm 2s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 2s
5100005708 · qty on machine: 1 | |||||
| 1 | 5100005709 | Flex shafts sm 3s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 3s
5100005709 · qty on machine: 1 | |||||
| 1 | 5100005710 | Flex shafts sm 4s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 4s
5100005710 · qty on machine: 1 | |||||
| 1 | 5100005711 | Flex shafts sm 5s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 5s
5100005711 · qty on machine: 1 | |||||
| 1 | 5100005712 | Flex shafts sm 7s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 7s
5100005712 · qty on machine: 1 | |||||
| 1 | 5100005713 | Flex shafts sm 9s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 9s
5100005713 · qty on machine: 1 | |||||
| 2 | 5100022651 | Shaft core sm0s | 1 | PARTS REQUEST | |
|
COMING Shaft core sm0s
5100022651 · qty on machine: 1 | |||||
| 2 | 5100022652 | Shaft core sm1s | 1 | PARTS REQUEST | |
|
COMING Shaft core sm1s
5100022652 · qty on machine: 1 | |||||
| 2 | 5100022653 | Shaft core sm2s | 1 | PARTS REQUEST | |
|
COMING Shaft core sm2s
5100022653 · qty on machine: 1 | |||||
| 2 | 5100022654 | Shaft core sm3s | 1 | PARTS REQUEST | |
|
COMING Shaft core sm3s
5100022654 · qty on machine: 1 | |||||
| 2 | 5100022655 | Shaft core sm4s | 1 | PARTS REQUEST | |
|
COMING Shaft core sm4s
5100022655 · qty on machine: 1 | |||||
| 2 | 5100022656 | Shaft core sm5s | 1 | PARTS REQUEST | |
|
COMING Shaft core sm5s
5100022656 · qty on machine: 1 | |||||
| 2 | 5100022657 | Shaft core sm7s | 1 | PARTS REQUEST | |
|
COMING Shaft core sm7s
5100022657 · qty on machine: 1 | |||||
| 2 | 5100022658 | Shaft core sm9s | 1 | PARTS REQUEST | |
|
COMING Shaft core sm9s
5100022658 · qty on machine: 1 | |||||
| 3 | 5000071584 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5000071584 · qty on machine: 1 | |||||

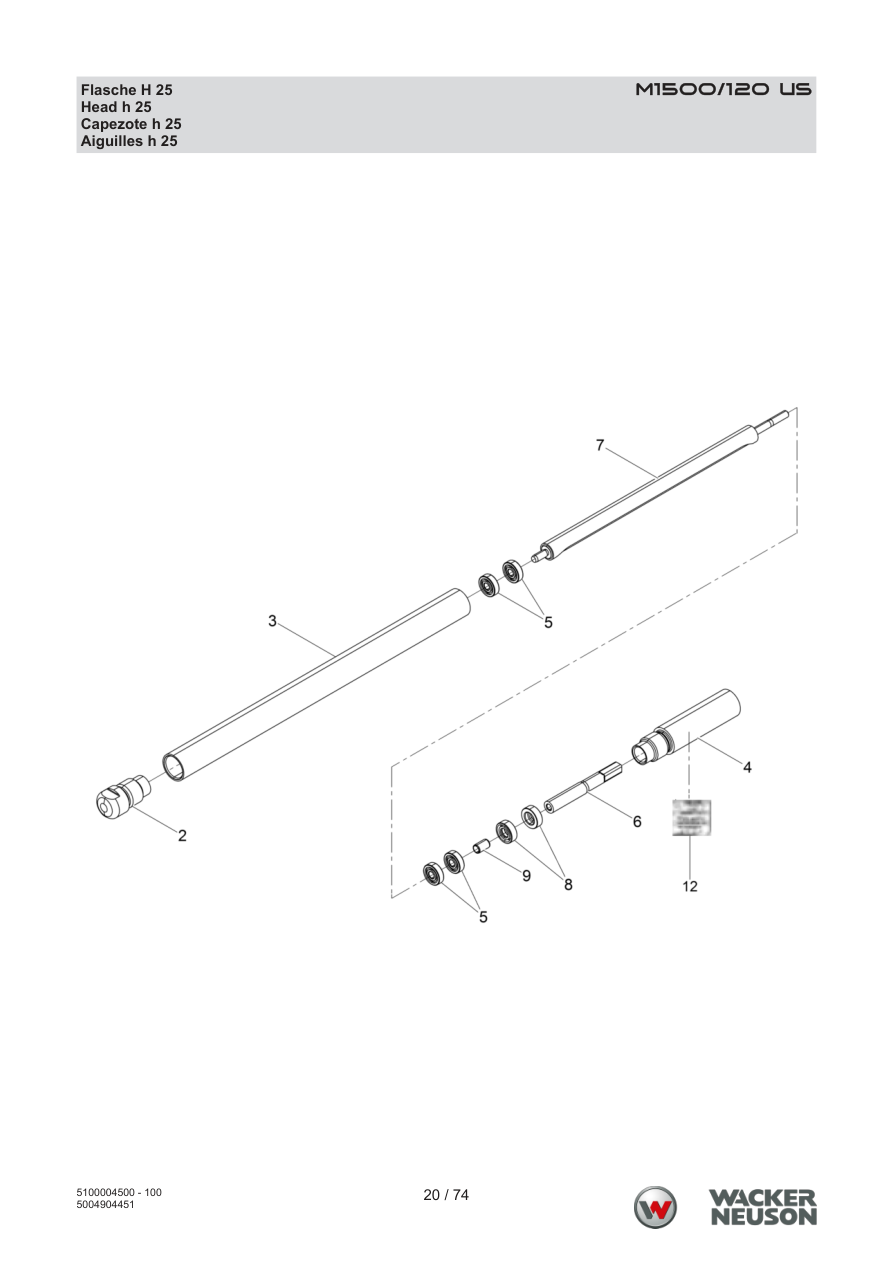

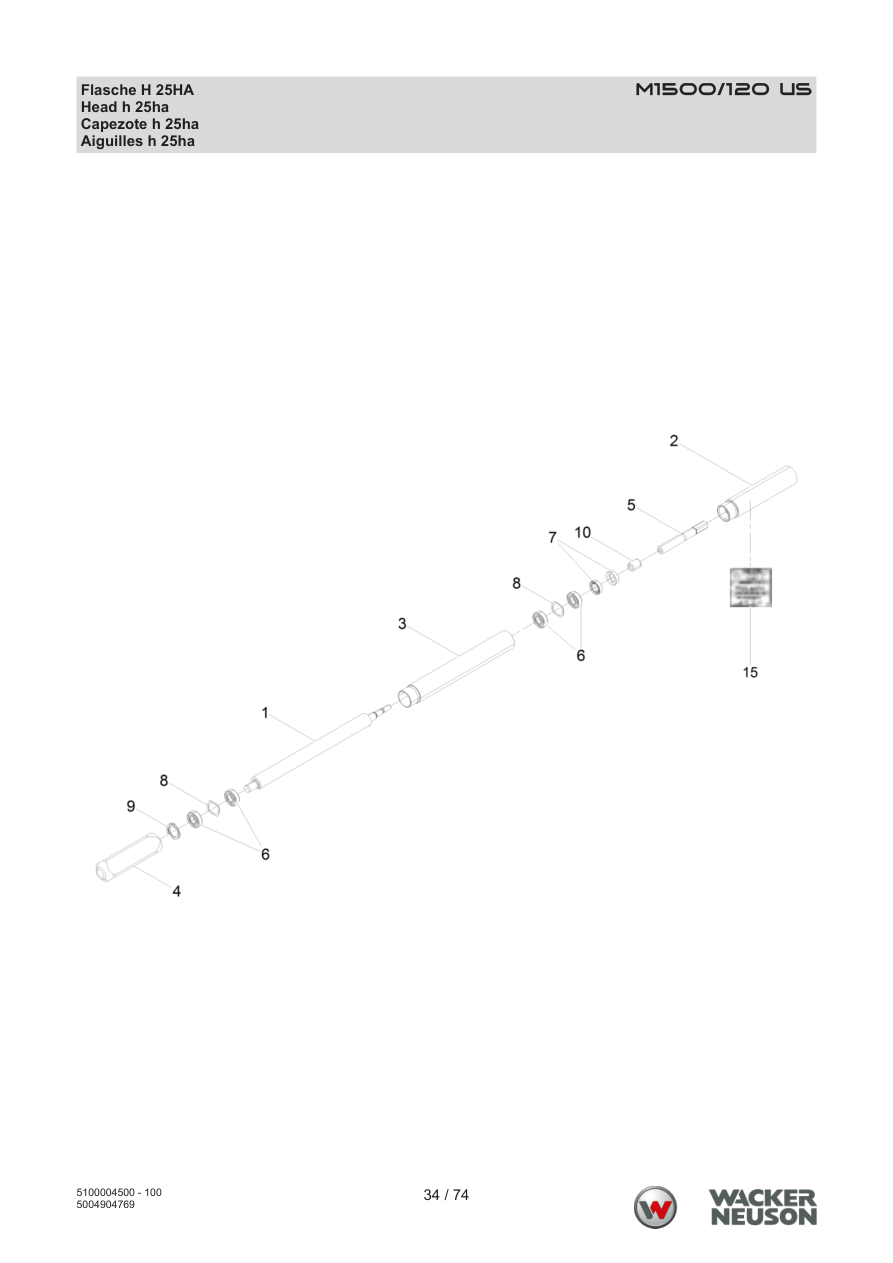

Page 20 — M1500/120 US Bottle H 25
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000085448 | Nose cap | 1 | PARTS REQUEST | |
|
COMING Nose cap
5000085448 · qty on machine: 1 | |||||
| 3 | 5000029746 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000029746 · qty on machine: 1 | |||||
| 4 | 5000029747 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000029747 · qty on machine: 1 | |||||
| 5 | 5000078715 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000078715 · qty on machine: 4 | |||||
| 6 | 5000029748 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029748 · qty on machine: 1 | |||||
| 7 | 5000029745 | Eccentric weight | 1 | PARTS REQUEST | |
|
COMING Eccentric weight
5000029745 · qty on machine: 1 | |||||
| 8 | 5000029778 | Shaft seal | 2 | PARTS REQUEST | |
|
COMING Shaft seal
5000029778 · qty on machine: 2 | |||||
| 9 | 5000030715 | Distance sleeve | 1 | PARTS REQUEST | |
|
COMING Distance sleeve
5000030715 · qty on machine: 1 | |||||
| 12 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||

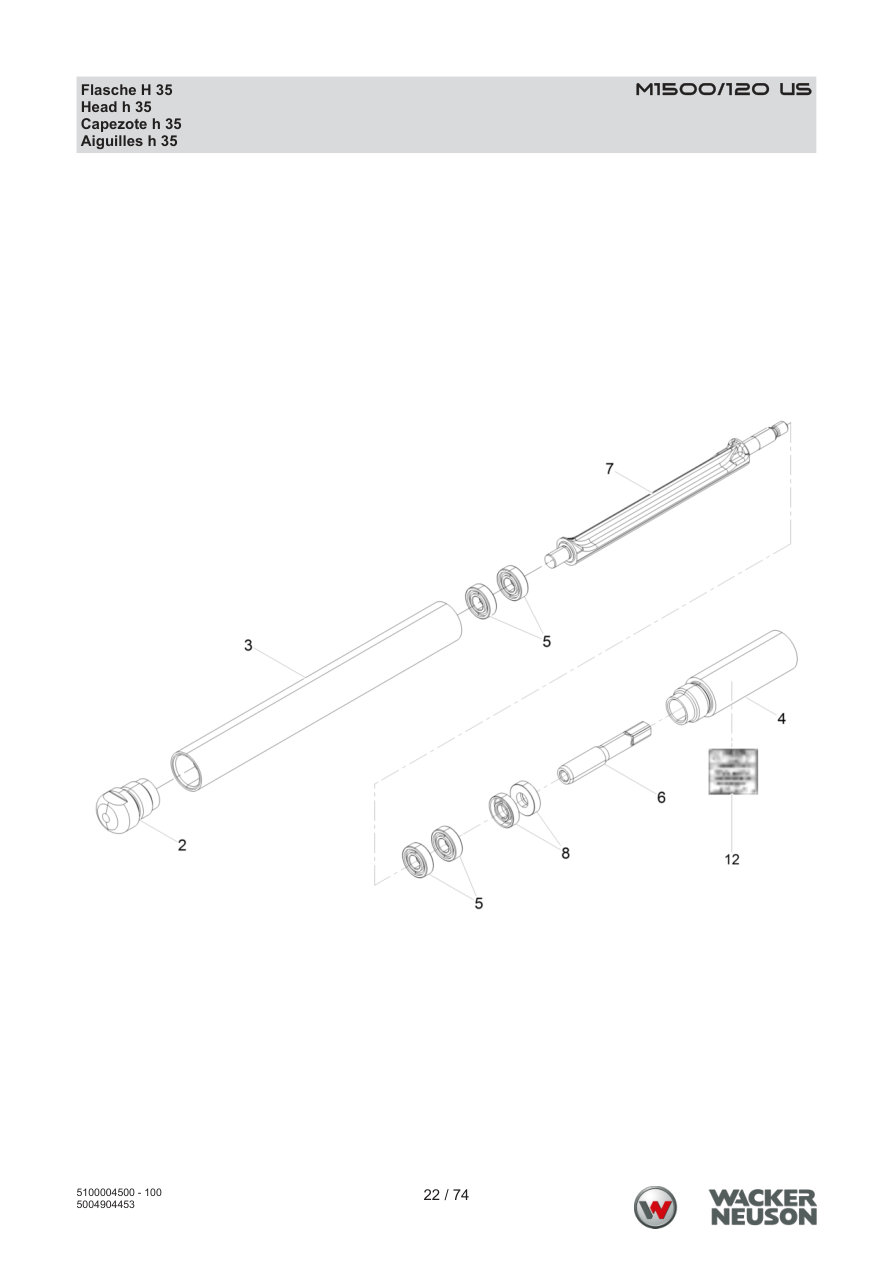

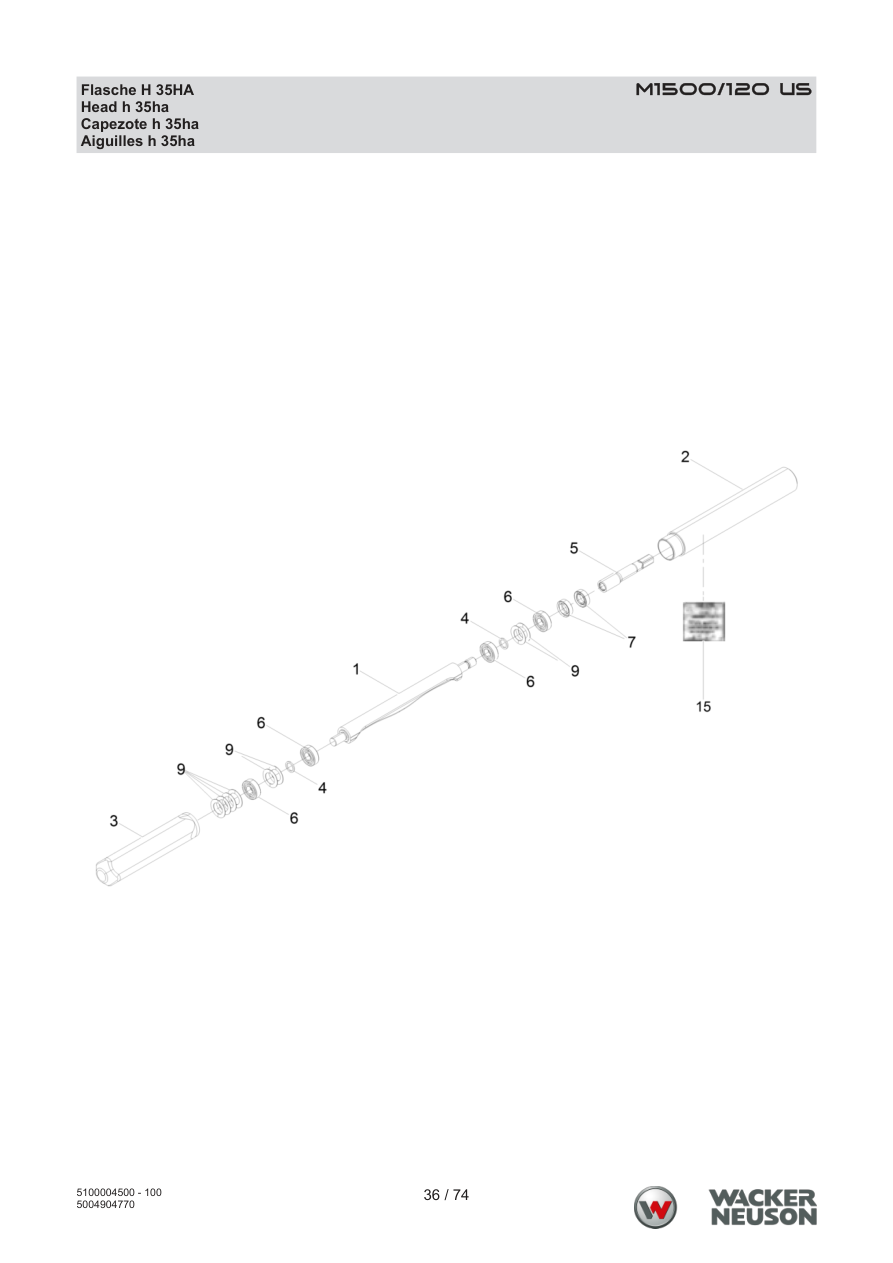

Page 22 — M1500/120 US Bottle H 35
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5000080716 | Eccentric weight | 1 | PARTS REQUEST | |
|
COMING Eccentric weight
5000080716 · qty on machine: 1 | |||||
| 8 | 5000029781 | Shaft seal | 2 | PARTS REQUEST | |
|
COMING Shaft seal
5000029781 · qty on machine: 2 | |||||
| 12 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 2 | 5000085449 | Nose cap | 1 | PARTS REQUEST | |
|
COMING Nose cap
5000085449 · qty on machine: 1 | |||||
| 3 | 5000029753 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000029753 · qty on machine: 1 | |||||
| 4 | 5000029754 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000029754 · qty on machine: 1 | |||||
| 5 | 5000078716 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000078716 · qty on machine: 4 | |||||
| 6 | 5000029755 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029755 · qty on machine: 1 | |||||
Page 24 — M1500/120 US Bottle H 45
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000085450 | Nose cap | 1 | PARTS REQUEST | |
|
COMING Nose cap
5000085450 · qty on machine: 1 | |||||
| 3 | 5000029760 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000029760 · qty on machine: 1 | |||||
| 4 | 5000029761 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000029761 · qty on machine: 1 | |||||
| 5 | 5000078717 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000078717 · qty on machine: 4 | |||||
| 6 | 5000029755 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029755 · qty on machine: 1 | |||||
| 7 | 5000080717 | Eccentric weight | 1 | PARTS REQUEST | |
|
COMING Eccentric weight
5000080717 · qty on machine: 1 | |||||
| 8 | 5000029784 | Shaft seal | 2 | PARTS REQUEST | |
|
COMING Shaft seal
5000029784 · qty on machine: 2 | |||||
| 12 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 26 — M1500/120 US Bottle H 55
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000085451 | Nose cap | 1 | PARTS REQUEST | |
|
COMING Nose cap
5000085451 · qty on machine: 1 | |||||
| 3 | 5000029766 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000029766 · qty on machine: 1 | |||||
| 4 | 5000029767 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000029767 · qty on machine: 1 | |||||
| 5 | 5000078718 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000078718 · qty on machine: 4 | |||||
| 6 | 5000029755 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029755 · qty on machine: 1 | |||||
| 7 | 5000029765 | Eccentric weight | 1 | PARTS REQUEST | |
|
COMING Eccentric weight
5000029765 · qty on machine: 1 | |||||
| 8 | 5000029787 | Shaft seal | 2 | PARTS REQUEST | |
|
COMING Shaft seal
5000029787 · qty on machine: 2 | |||||
| 12 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||

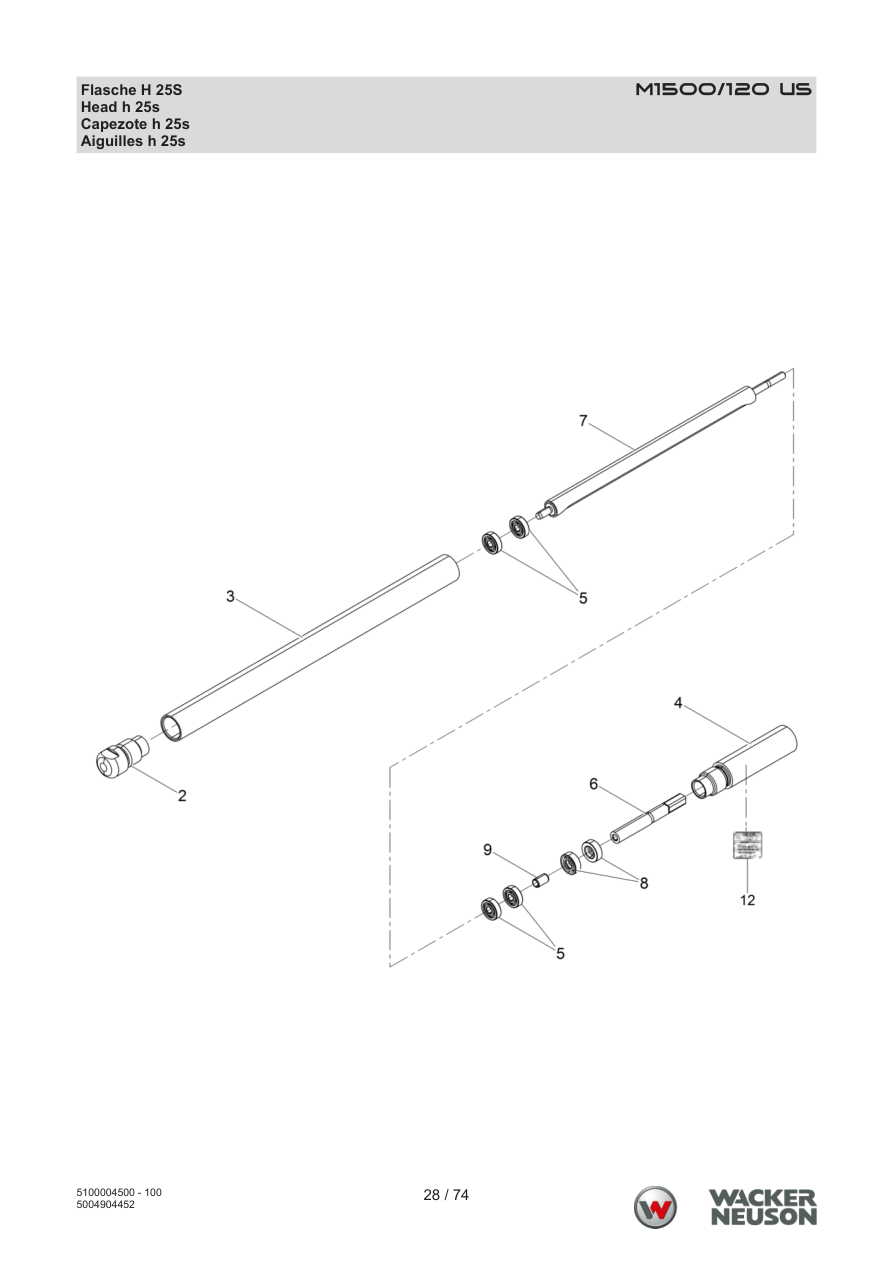

Page 28 — M1500/120 US Bottle H 25S
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000085448 | Nose cap | 1 | PARTS REQUEST | |
|
COMING Nose cap
5000085448 · qty on machine: 1 | |||||
| 3 | 5000077059 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000077059 · qty on machine: 1 | |||||
| 4 | 5000029747 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000029747 · qty on machine: 1 | |||||
| 5 | 5000078715 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000078715 · qty on machine: 4 | |||||
| 6 | 5000029748 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029748 · qty on machine: 1 | |||||
| 7 | 5000077058 | Eccentric weight | 1 | PARTS REQUEST | |
|
COMING Eccentric weight
5000077058 · qty on machine: 1 | |||||
| 8 | 5000029778 | Shaft seal | 2 | PARTS REQUEST | |
|
COMING Shaft seal
5000029778 · qty on machine: 2 | |||||
| 9 | 5000030715 | Distance sleeve | 1 | PARTS REQUEST | |
|
COMING Distance sleeve
5000030715 · qty on machine: 1 | |||||
| 12 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 30 — M1500/120 US Bottle H 35S
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000085449 | Nose cap | 1 | PARTS REQUEST | |
|
COMING Nose cap
5000085449 · qty on machine: 1 | |||||
| 3 | 5000080295 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000080295 · qty on machine: 1 | |||||
| 4 | 5000029754 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000029754 · qty on machine: 1 | |||||
| 5 | 5000078716 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000078716 · qty on machine: 4 | |||||
| 6 | 5000029755 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029755 · qty on machine: 1 | |||||
| 7 | 5000080296 | Eccentric weight | 1 | PARTS REQUEST | |
|
COMING Eccentric weight
5000080296 · qty on machine: 1 | |||||
| 8 | 5000029781 | Shaft seal | 2 | PARTS REQUEST | |
|
COMING Shaft seal
5000029781 · qty on machine: 2 | |||||
| 12 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 32 — M1500/120 US Bottle H 45S
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000085450 | Nose cap | 1 | PARTS REQUEST | |
|
COMING Nose cap
5000085450 · qty on machine: 1 | |||||
| 3 | 5000080298 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000080298 · qty on machine: 1 | |||||
| 4 | 5000029761 | Adaptor | 1 | PARTS REQUEST | |
|
COMING Adaptor
5000029761 · qty on machine: 1 | |||||
| 5 | 5000078717 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000078717 · qty on machine: 4 | |||||
| 6 | 5000029755 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029755 · qty on machine: 1 | |||||
| 7 | 5000080299 | Eccentric weight | 1 | PARTS REQUEST | |
|
COMING Eccentric weight
5000080299 · qty on machine: 1 | |||||
| 8 | 5000029784 | Shaft seal | 2 | PARTS REQUEST | |
|
COMING Shaft seal
5000029784 · qty on machine: 2 | |||||
| 12 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 34 — M1500/120 US Bottle H 25HA
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000205961 | Eccentric shaft | 1 | PARTS REQUEST | |
|
COMING Eccentric shaft
5000205961 · qty on machine: 1 | |||||
| 2 | 5000205965 | Connector | 1 | PARTS REQUEST | |
|
COMING Connector
5000205965 · qty on machine: 1 | |||||
| 3 | 5000206369 | Vibrator head casing | 1 | PARTS REQUEST | |
|
COMING Vibrator head casing
5000206369 · qty on machine: 1 | |||||
| 4 | 5000212707 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000212707 · qty on machine: 1 | |||||
| 5 | 5000029748 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000029748 · qty on machine: 1 | |||||
| 6 | 5000207215 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000207215 · qty on machine: 4 | |||||
| 7 | 5000205966 | Rotary shaft seal | 2 | PARTS REQUEST | |
|
COMING Rotary shaft seal
5000205966 · qty on machine: 2 | |||||
| 8 | 5000207216 | Lock washer | 2 | PARTS REQUEST | |
|
COMING Lock washer
5000207216 · qty on machine: 2 | |||||
| 9 | 5000207217 | Compression spring | 1 | PARTS REQUEST | |
|
COMING Compression spring
5000207217 · qty on machine: 1 | |||||
| 10 | 5000207936 | Bush | 1 | PARTS REQUEST | |
|
COMING Bush
5000207936 · qty on machine: 1 | |||||
| 15 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 36 — M1500/120 US Bottle H 35HA
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000204087 | Eccentric shaft | 1 | PARTS REQUEST | |
|
COMING Eccentric shaft
5000204087 · qty on machine: 1 | |||||
| 2 | 5000205746 | Connector | 1 | PARTS REQUEST | |
|
COMING Connector
5000205746 · qty on machine: 1 | |||||
| 3 | 5000211887 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000211887 · qty on machine: 1 | |||||
| 4 | 5000205747 | Distance washer | 2 | PARTS REQUEST | |
|
COMING Distance washer
5000205747 · qty on machine: 2 | |||||
| 5 | 5000208490 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000208490 · qty on machine: 1 | |||||
| 6 | 5000205759 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000205759 · qty on machine: 4 | |||||
| 7 | 5000208723 | Oil seal | 2 | PARTS REQUEST | |
|
COMING Oil seal
5000208723 · qty on machine: 2 | |||||
| 9 | 5000205757 | Cup spring | 8 | PARTS REQUEST | |
|
COMING Cup spring
5000205757 · qty on machine: 8 | |||||
| 15 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
Page 38 — M1500/120 US Bottle H 45HA
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000204086 | Eccentric shaft | 1 | PARTS REQUEST | |
|
COMING Eccentric shaft
5000204086 · qty on machine: 1 | |||||
| 2 | 5000204261 | Connector | 1 | PARTS REQUEST | |
|
COMING Connector
5000204261 · qty on machine: 1 | |||||
| 3 | 5000211888 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000211888 · qty on machine: 1 | |||||
| 4 | 5000204260 | Distance washer | 2 | PARTS REQUEST | |
|
COMING Distance washer
5000204260 · qty on machine: 2 | |||||
| 5 | 5000208491 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000208491 · qty on machine: 1 | |||||
| 6 | 5000205762 | Grooved ball bearing | 4 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000205762 · qty on machine: 4 | |||||
| 7 | 5000208723 | Oil seal | 2 | PARTS REQUEST | |
|
COMING Oil seal
5000208723 · qty on machine: 2 | |||||
| 9 | 5000105844 | Cup spring | 8 | PARTS REQUEST | |
|
COMING Cup spring
5000105844 · qty on machine: 8 | |||||
| 15 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||

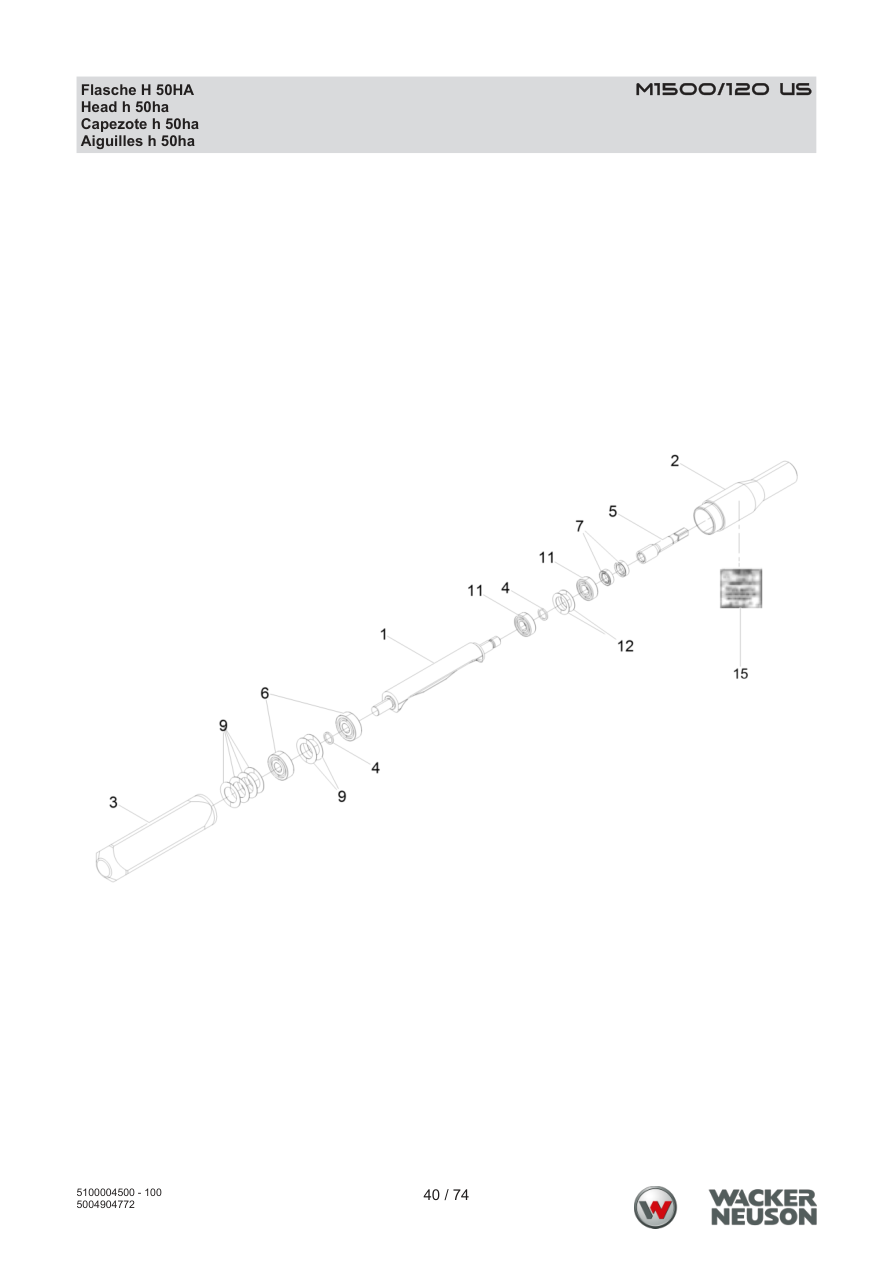

Page 40 — M1500/120 US Bottle H 50HA
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000212701 | Connector | 1 | PARTS REQUEST | |
|
COMING Connector
5000212701 · qty on machine: 1 | |||||
| 3 | 5000211889 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000211889 · qty on machine: 1 | |||||
| 4 | 5000204260 | Distance washer | 2 | PARTS REQUEST | |
|
COMING Distance washer
5000204260 · qty on machine: 2 | |||||
| 5 | 5000208491 | Inner core adaptor | 1 | PARTS REQUEST | |
|
COMING Inner core adaptor
5000208491 · qty on machine: 1 | |||||
| 6 | 5000205763 | Grooved ball bearing | 2 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000205763 · qty on machine: 2 | |||||
| 7 | 5000208723 | Oil seal | 2 | PARTS REQUEST | |
|
COMING Oil seal
5000208723 · qty on machine: 2 | |||||
| 9 | 5000206287 | Cup spring | 8 | PARTS REQUEST | |
|
COMING Cup spring
5000206287 · qty on machine: 8 | |||||
| 11 | 5000205762 | Grooved ball bearing | 2 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5000205762 · qty on machine: 2 | |||||
| 12 | 5000105844 | Cup spring | 2 | PARTS REQUEST | |
|
COMING Cup spring
5000105844 · qty on machine: 2 | |||||
| 15 | 5100045462 | Decal proposition 65 | 1 | PARTS REQUEST | |
|
COMING Decal proposition 65
5100045462 · qty on machine: 1 | |||||
| 1 | 5000204088 | Eccentric shaft | 1 | PARTS REQUEST | |
|
COMING Eccentric shaft
5000204088 · qty on machine: 1 | |||||
Page 42 — M1500/120 US Shoulder Strap
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100010882 | Shoulder belt | 1 | PARTS REQUEST | |
|
COMING Shoulder belt
5100010882 · qty on machine: 1 | |||||
Page 44 — M1500/120 US Flexible Shaft SM 1S
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069809 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069809 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 4 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 5 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 6 | 5100069807 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069807 · qty on machine: 1 | |||||
| 7 | 5100066410 | Flex shafts sm 1s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 1s
5100066410 · qty on machine: 1 | |||||
Page 46 — M1500/120 US Flexible shaft SM 2S
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069811 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069811 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5100069812 | Protective hose cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Protective hose cpl.
5100069812 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 4 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 5 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 6 | 5100069807 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069807 · qty on machine: 1 | |||||
| 7 | 5100066411 | Flex shafts sm 2s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 2s
5100066411 · qty on machine: 1 | |||||
Page 48 — M1500/120 US Flexible shaft SM 3S
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069813 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069813 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 4 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 5 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 6 | 5100069807 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069807 · qty on machine: 1 | |||||
| 7 | 5100066412 | Flex shafts sm 3s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 3s
5100066412 · qty on machine: 1 | |||||
Page 50 — M1500/120 US Flexible shaft SM 4S
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069815 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069815 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 4 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 5 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 6 | 5100069807 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069807 · qty on machine: 1 | |||||
| 7 | 5100066413 | Flex shafts sm 4s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 4s
5100066413 · qty on machine: 1 | |||||

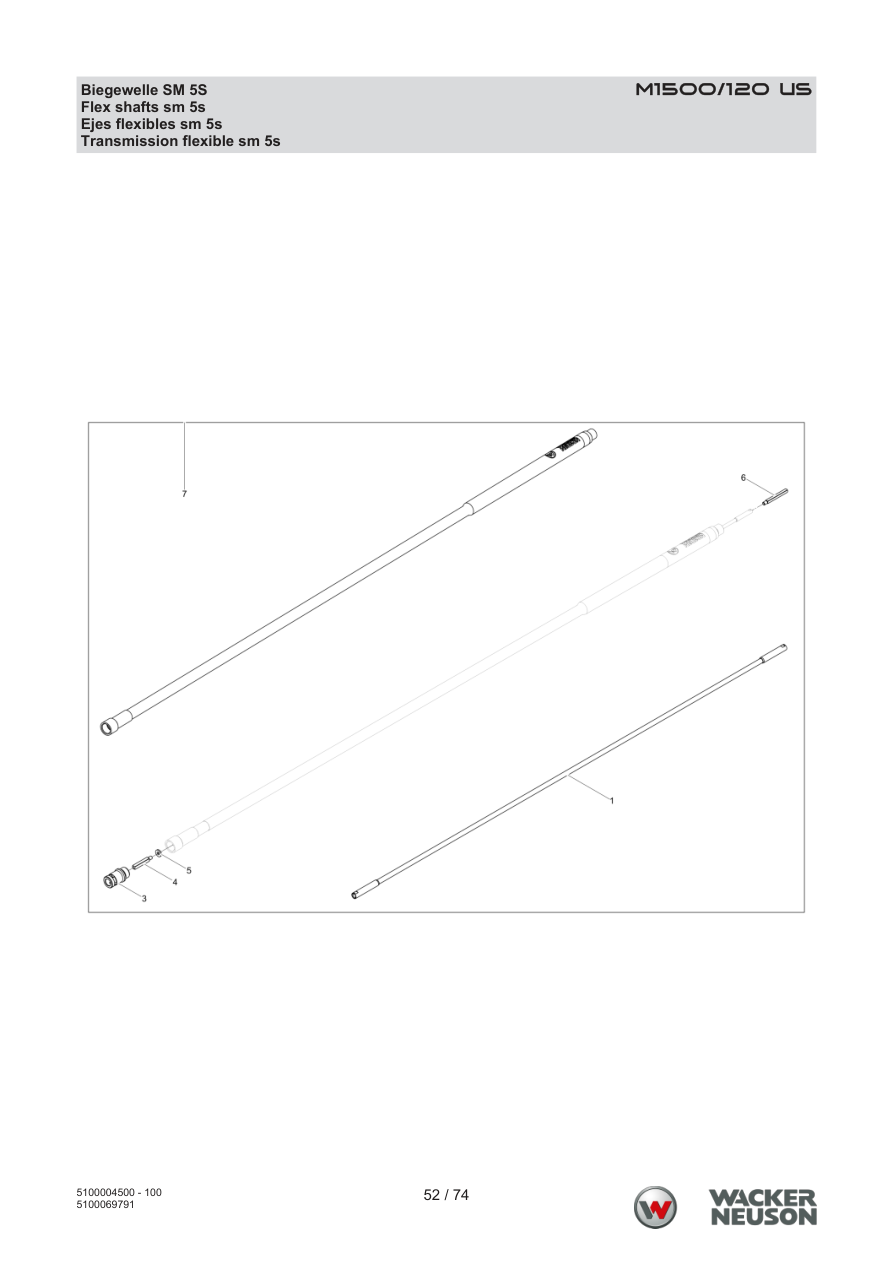

Page 52 — M1500/120 US Flexible shaft SM 5S
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069818 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069818 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 4 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 5 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 6 | 5100069807 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069807 · qty on machine: 1 | |||||
| 7 | 5100066414 | Flex shafts sm 5s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 5s
5100066414 · qty on machine: 1 | |||||
Page 54 — M1500/120 US Flexible shaft SM 7S
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069821 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069821 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 4 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 5 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 6 | 5100069807 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069807 · qty on machine: 1 | |||||
| 7 | 5100066415 | Flex shafts sm 7s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 7s
5100066415 · qty on machine: 1 | |||||
Page 56 — M1500/120 US Flexible shaft SM 9S
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069823 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069823 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 4 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 5 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 6 | 5100069807 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069807 · qty on machine: 1 | |||||
| 7 | 5100066416 | Flex shafts sm 9s | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 9s
5100066416 · qty on machine: 1 | |||||
Page 58 — M1500/120 US Flexible Shaft SM 0S
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069837 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069837 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 4 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 5 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 6 | 5100069807 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069807 · qty on machine: 1 | |||||
| 7 | 5100069202 | 1 | PARTS REQUEST | ||
|
COMING 5100069202 · qty on machine: 1 | |||||
Page 60 — M1500/120 US Flexible Shaft SM 1E
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069805 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069805 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069820 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069820 · qty on machine: 1 | |||||
| 4 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 5 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 6 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 7 | 5100069203 | Flex shafts sm 1e | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 1e
5100069203 · qty on machine: 1 | |||||
Page 62 — M1500/120 US Flexible Shaft SM 2E
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069829 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069829 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069820 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069820 · qty on machine: 1 | |||||
| 4 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 5 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 6 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 7 | 5100069204 | Flex shafts sm 2e | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 2e
5100069204 · qty on machine: 1 | |||||

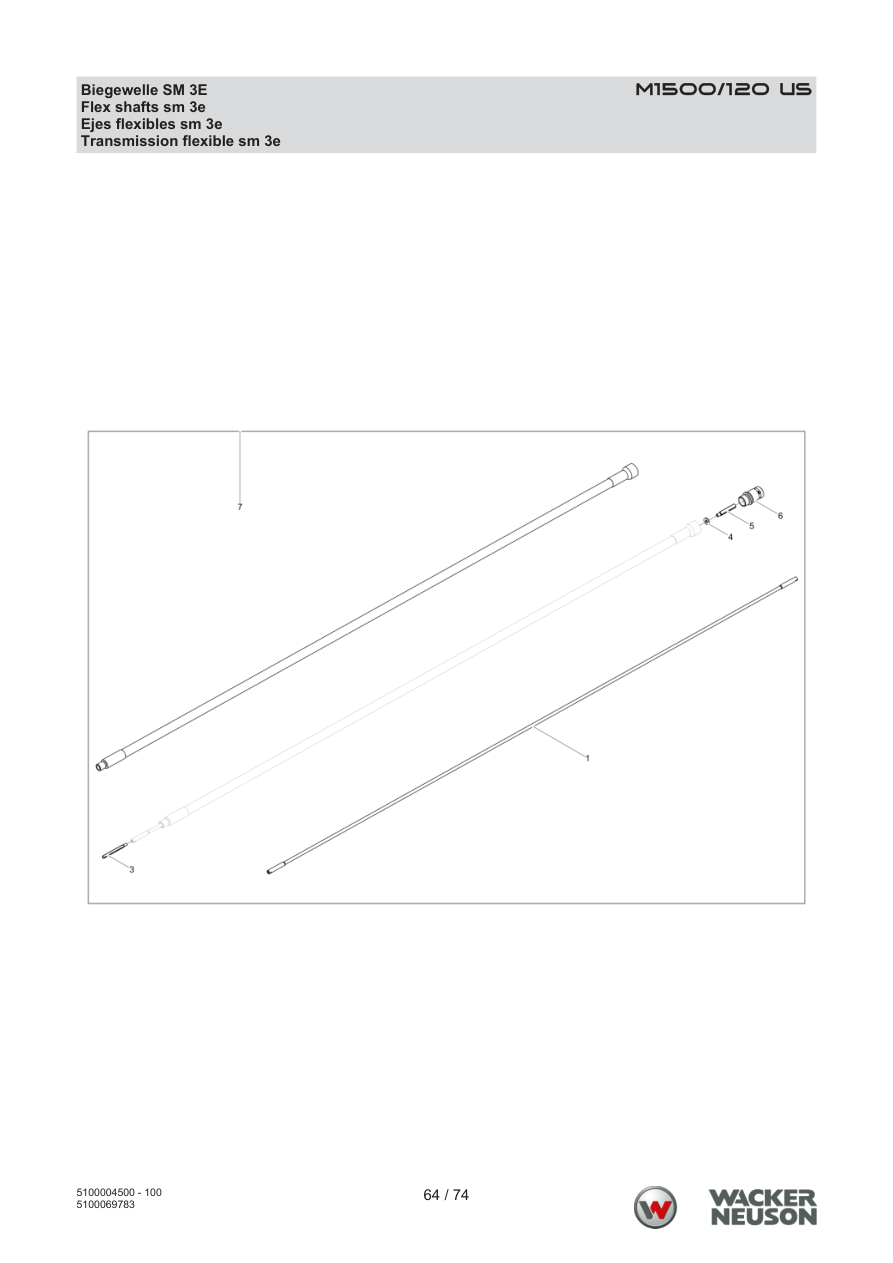

Page 64 — M1500/120 US Flexible shaft SM 3E
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069831 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069831 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069820 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069820 · qty on machine: 1 | |||||
| 4 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 5 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 6 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 7 | 5100069205 | Flex shafts sm 3e | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 3e
5100069205 · qty on machine: 1 | |||||
Page 66 — M1500/120 US Flexible shaft SM 4E
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069827 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069827 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069820 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069820 · qty on machine: 1 | |||||
| 4 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 5 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 6 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 7 | 5100069206 | Flex shafts sm 4e | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 4e
5100069206 · qty on machine: 1 | |||||
Page 68 — M1500/120 US Flexible shaft SM 5E
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069833 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069833 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069820 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069820 · qty on machine: 1 | |||||
| 4 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 5 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 6 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 7 | 5100069207 | Flex shafts sm 5e | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 5e
5100069207 · qty on machine: 1 | |||||
Page 70 — M1500/120 US Flexible shaft SM 7E
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100069835 | Inner core cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Inner core cpl.
5100069835 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100069820 | Connector head | 1 | PARTS REQUEST | |
|
COMING Connector head
5100069820 · qty on machine: 1 | |||||
| 4 | 5100069825 | Disc | 1 | PARTS REQUEST | |
|
COMING Disc
5100069825 · qty on machine: 1 | |||||
| 5 | 5100069826 | Connector engine | 1 | PARTS REQUEST | |
|
COMING Connector engine
5100069826 · qty on machine: 1 | |||||
| 6 | 5100069828 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5100069828 · qty on machine: 1 | |||||
| 7 | 5100069208 | Flex shafts sm 7e | 1 | PARTS REQUEST | |
|
COMING Flex shafts sm 7e
5100069208 · qty on machine: 1 | |||||
The machine itself
Machine
Engine
Wacker Neuson M1500 internal vibrator.
Available in 3 configurations.
List price: $635.00 – $1,470.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000029745
Eccentric weight
5000029746
Housing
5000029747
Adaptor
5000029748
Inner core adaptor
5000029753
Housing
5000029754
Adaptor
5000029755
Inner core adaptor
5000029760
Housing
5000029761
Adaptor
5000029765
Eccentric weight
5000029766
Housing
5000029767
Adaptor
5000029778
Shaft seal
5000029781
Shaft seal
5000029784
Shaft seal
5000029787
Shaft seal
5000030715
Distance sleeve
5000053934
Adaptor
5000064243
Rubber funnel
5000071584
Coupling
5000077058
Eccentric weight
5000077059
Housing
5000078715
Grooved ball bearing
5000078716
Grooved ball bearing
5000078717
Grooved ball bearing
5000078718
Grooved ball bearing
5000080295
Housing
5000080296
Eccentric weight
5000080298
Housing
5000080299
Eccentric weight
5000080716
Eccentric weight
5000080717
Eccentric weight
5000085448
Nose cap
5000085449
Nose cap
5000085450
Nose cap
5000085451
Nose cap
5000105210
Hexagon nut
5000105844
Cup spring
5000204086
Eccentric shaft
5000204087
Eccentric shaft
5000204088
Eccentric shaft
5000204260
Distance washer
5000204261
Connector
5000205746
Connector
5000205747
Distance washer
5000205757
Cup spring
5000205759
Grooved ball bearing
5000205762
Grooved ball bearing
5000205763
Grooved ball bearing
5000205961
Eccentric shaft
5000205965
Connector
5000205966
Rotary shaft seal
5000206287
Cup spring
5000206369
Vibrator head casing
5000207215
Grooved ball bearing
5000207216
Lock washer
5000207217
Compression spring
5000207936
Bush
5000208490
Inner core adaptor
5000208491
Inner core adaptor
5000208723
Oil seal
5000211887
Housing
5000211888
Housing
5000211889
Housing
5000212701
Connector
5000212707
Housing
5100000179
Clamp
$2.95
5100001500
Stator 120v
5100001501
Rotor 120v
5100004469
Fan wheel
5100005447
Labyrinth seal
5100005703
Flex shafts sm 1e
5100005704
Flex shafts sm 2e
5100005705
Flex shafts sm 4e
5100005706
Flex shafts sm 0s
5100005707
Flex shafts sm 1s
5100005708
Flex shafts sm 2s
5100005709
Flex shafts sm 3s
5100005710
Flex shafts sm 4s
5100005711
Flex shafts sm 5s
5100005712
Flex shafts sm 7s
5100005713
Flex shafts sm 9s
5100009456
Power supply cable with plug
5100009577
Detent pin
5100009988
Spacer ring
5100010127
Oval head screw
$0.95
5100010488
Housing left
5100010489
Housing right
5100010490
Filter housing
5100010852
Bearing bracket rear
5100010853
Bearing bracket front
5100010862
Carbon brush (set)
5100010864
Filter element
5100010880
Cheese head screw
5100010882
Shoulder belt
5100010900
Switch
5100015414
Supply line cpl.
5100022651
Shaft core sm0s
5100022652
Shaft core sm1s
5100022653
Shaft core sm2s
5100022654
Shaft core sm3s
5100022655
Shaft core sm4s
5100022656
Shaft core sm5s
5100022657
Shaft core sm7s
5100022658
Shaft core sm9s
5100022727
Shaft core sm1e
5100022728
Shaft core sm2e
5100022729
Shaft core sm4e
5100024192
Label
5100028340
Flex shaft sm 3e
5100028341
Flex shaft sm 5e
5100028342
Flex shaft sm 7e
5100031298
Shaft core sm3e
5100031299
Shaft core sm5e
5100031330
Shaft core sm7e
5100045462
Decal proposition 65
5100066410
Flex shafts sm 1s
5100066411
Flex shafts sm 2s
5100066412
Flex shafts sm 3s
5100066413
Flex shafts sm 4s
5100066414
Flex shafts sm 5s
5100066415
Flex shafts sm 7s
5100066416
Flex shafts sm 9s
5100068041
Bush
5100069202
5100069202
5100069203
Flex shafts sm 1e
5100069204
Flex shafts sm 2e
5100069205
Flex shafts sm 3e
5100069206
Flex shafts sm 4e
5100069207
Flex shafts sm 5e
5100069208
Flex shafts sm 7e
5100069805
Inner core cpl.
5100069807
Connector head
5100069809
Inner core cpl.
5100069811
Inner core cpl.
5100069812
Protective hose cpl.
5100069813
Inner core cpl.
5100069815
Inner core cpl.
5100069818
Inner core cpl.
5100069820
Connector head
5100069821
Inner core cpl.
5100069823
Inner core cpl.
5100069825
Disc
5100069826
Connector engine
5100069827
Inner core cpl.
5100069828
Coupling
5100069829
Inner core cpl.
5100069831
Inner core cpl.
5100069833
Inner core cpl.
5100069835
Inner core cpl.
5100069837
Inner core cpl.
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
