Wacker Neuson P35 Vibratory Screed
The parts bench

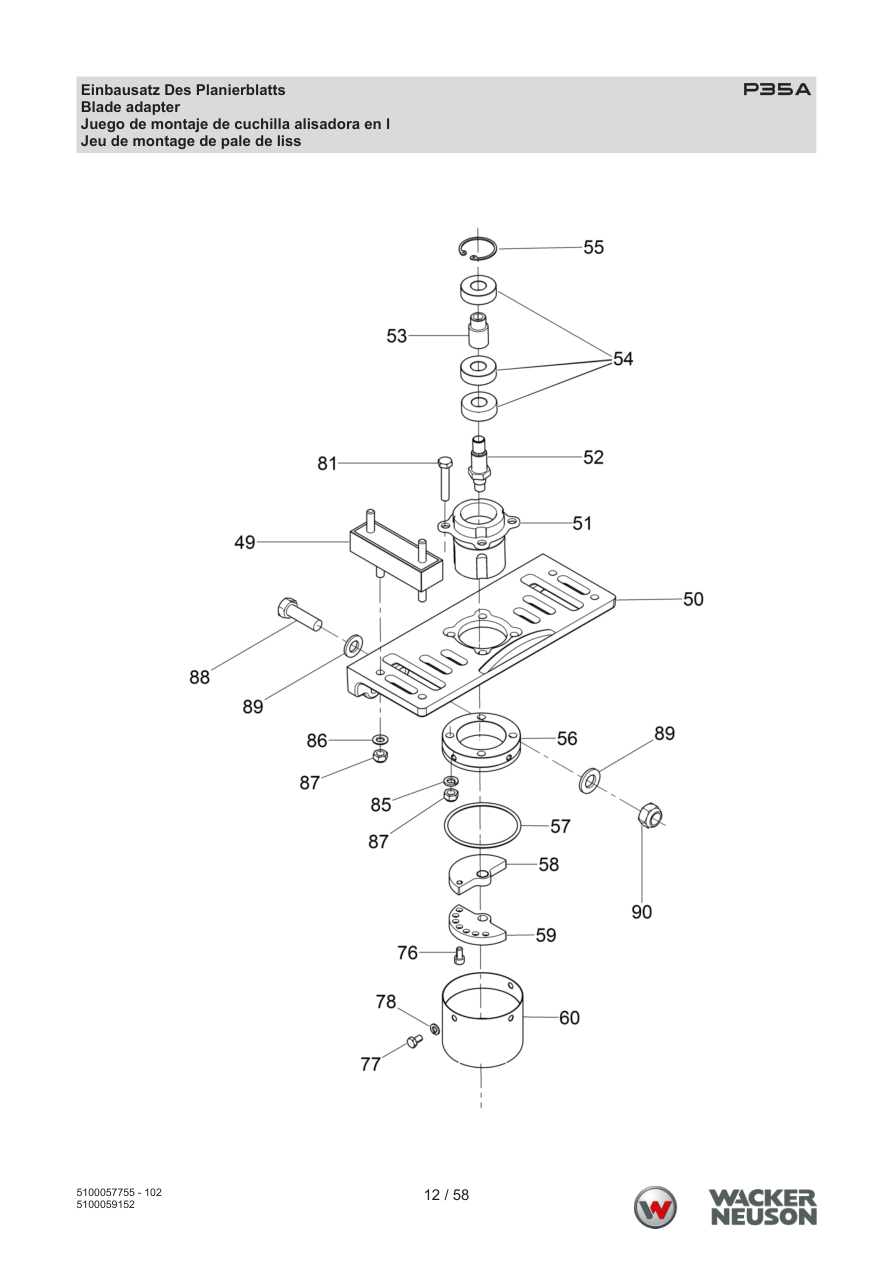

Need the PDF? ↓Page 12 — P35A Installation kit of the dozer blade
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 59 | 5000183836 | Exciter weight | 1 | PARTS REQUEST | |
|
COMING Exciter weight
5000183836 · qty on machine: 1 | |||||
| 60 | 5000184019 | Exciter cover | 1 | PARTS REQUEST | |
|
COMING Exciter cover
5000184019 · qty on machine: 1 | |||||
| 76 | 5000011554 | Cheese head screw | 1 | 10Nm/7ft.lbs | ADD TO CART |
| 77 | 5000012356 | Hexagonal head cap screw | 3 | M6 x 10 10Nm/7ft.lbs | DIN933 | ADD TO CART |
| 78 | 5000010649 | Lock washer | 3 | A6 | DIN128 | ADD TO CART |
| 81 | 5000011342 | Hexagonal head cap screw | 4 | M8 x 45 25Nm/18ft.lbs | DIN931 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000011342 · qty on machine: 4 M8 x 45
25Nm/18ft.lbs | DIN931 | |||||
| 85 | 5000012397 | Lock washer | 4 | A8 | DIN127 | ADD TO CART |
| 86 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 87 | 5000010367 | Hexagon nut | 8 | M8 25Nm/18ft.lbs | DIN985 | ADD TO CART |
| 88 | 5000220523 | Hexagonal head cap screw | 4 | M12x 50 86Nm/63ft.lbs | DIN933 | ADD TO CART |
| 89 | 5000119289 | Flat washer | 8 | ADD TO CART | |
| 90 | 5000010366 | Hexagon nut | 4 | M12X1.75 | DIN985 | ADD TO CART |
| 49 | 5100058404 | Shockmount | 2 | PARTS REQUEST | |
|
COMING Shockmount
5100058404 · qty on machine: 2 | |||||
| 50 | 5000183796 | Blade mount | 1 | PARTS REQUEST | |
|
COMING Blade mount
5000183796 · qty on machine: 1 | |||||
| 51 | 5000183138 | Bearing housing | 1 | PARTS REQUEST | |
|
COMING Bearing housing
5000183138 · qty on machine: 1 | |||||
| 52 | 5000183139 | Drive shaft | 1 | PARTS REQUEST | |
|
COMING Drive shaft
5000183139 · qty on machine: 1 | |||||
| 53 | 5000183140 | Drive connector | 1 | 35Nm/26ft.lbs | PARTS REQUEST |
|
COMING Drive connector
5000183140 · qty on machine: 1 35Nm/26ft.lbs | |||||
| 54 | 5000184560 | Ball bearing | 1 | PARTS REQUEST | |
|
COMING Ball bearing
5000184560 · qty on machine: 1 | |||||
| 55 | 5000054242 | Retaining ring | 1 | 1,375 x 0,051 in | PARTS REQUEST |
|
COMING Retaining ring
5000054242 · qty on machine: 1 1,375 x 0,051 in | |||||
| 56 | 5000183837 | Mount | 1 | PARTS REQUEST | |
|
COMING Mount
5000183837 · qty on machine: 1 | |||||
| 57 | 5000184537 | O-ring | 1 | 72.62 x 3.53-70SH | PARTS REQUEST |
|
COMING O-ring
5000184537 · qty on machine: 1 72.62 x
3.53-70SH | |||||
| 58 | 5000183835 | Exciter weight | 1 | PARTS REQUEST | |
|
COMING Exciter weight
5000183835 · qty on machine: 1 | |||||

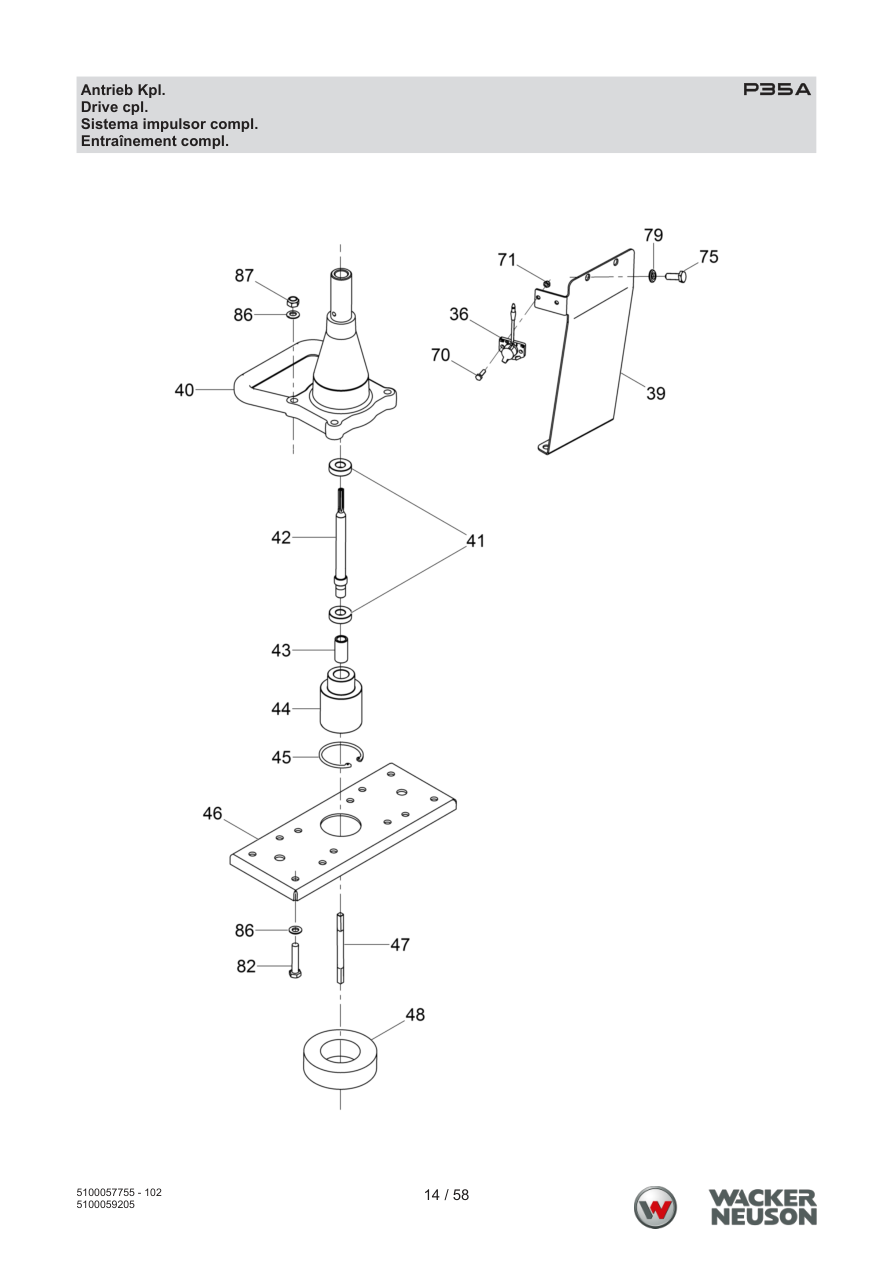

Page 14 — Drive cpl.
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 86 | 5000010622 | Flat washer | 8 | ADD TO CART | |
| 87 | 5000010367 | Hexagon nut | 4 | M8 | DIN985 | ADD TO CART |
| 36 | 5000187142 | On/off switch | 1 | PARTS REQUEST | |
|
COMING On/off switch
5000187142 · qty on machine: 1 | |||||
| 39 | 5000184040 | Engine bracket | 1 | PARTS REQUEST | |
|
COMING Engine bracket
5000184040 · qty on machine: 1 | |||||
| 40 | 5000183759 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000183759 · qty on machine: 1 | |||||
| 41 | 5000184559 | Ball bearing | 2 | PARTS REQUEST | |
|
COMING Ball bearing
5000184559 · qty on machine: 2 | |||||
| 42 | 5000184041 | Drive shaft | 1 | PARTS REQUEST | |
|
COMING Drive shaft
5000184041 · qty on machine: 1 | |||||
| 43 | 5000183831 | Drive connector | 1 | 35Nm/26ft.lbs | PARTS REQUEST |
|
COMING Drive connector
5000183831 · qty on machine: 1 35Nm/26ft.lbs | |||||
| 44 | 5000183964 | Bearing spacer | 1 | PARTS REQUEST | |
|
COMING Bearing spacer
5000183964 · qty on machine: 1 | |||||
| 45 | 5000184539 | Retaining ring | 1 | 2,062 x 0,078 | PARTS REQUEST |
|
COMING Retaining ring
5000184539 · qty on machine: 1 2,062 x 0,078 | |||||
| 46 | 5000184043 | Mounting plate | 1 | PARTS REQUEST | |
|
COMING Mounting plate
5000184043 · qty on machine: 1 | |||||
| 47 | 5000184038 | Drive shaft | 1 | PARTS REQUEST | |
|
COMING Drive shaft
5000184038 · qty on machine: 1 | |||||
| 48 | 5000184039 | Seal ring | 1 | PARTS REQUEST | |
|
COMING Seal ring
5000184039 · qty on machine: 1 | |||||
| 70 | 5000153421 | Hexagonal head cap screw | 2 | M4 x 14 | DIN933 | PARTS REQUEST |
|
COMING Hexagonal head cap screw
5000153421 · qty on machine: 2 M4 x 14 | DIN933 | |||||
| 71 | 5000010370 | Hexagon nut | 2 | ADD TO CART | |
| 75 | 5000012357 | Hexagonal head cap screw | 2 | M6 x 12 10Nm/7ft.lbs | DIN933 | ADD TO CART |
| 79 | 5000010624 | Flat washer | 4 | ADD TO CART | |
| 82 | 5000011454 | Hexagonal head cap screw | 4 | M8 x 40 25Nm/18ft.lbs | DIN933 | ADD TO CART |

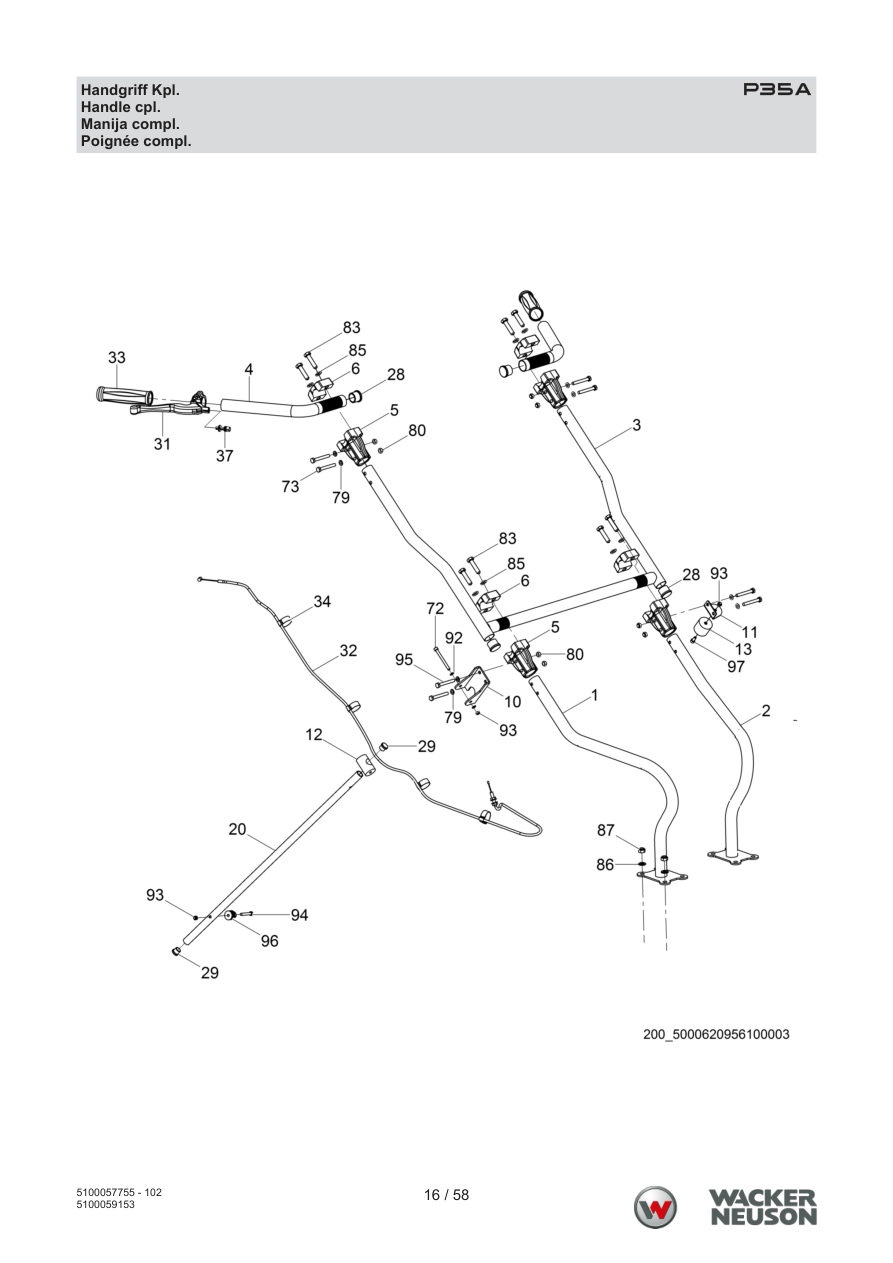

Page 16 — Handle cpl.
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5000184018 | Support stand | 1 | PARTS REQUEST | |
|
COMING Support stand
5000184018 · qty on machine: 1 | |||||
| 28 | 5002900102 | Plug | 4 | PARTS REQUEST | |
|
COMING Plug
5002900102 · qty on machine: 4 | |||||
| 29 | 5000183224 | Cap | 2 | PARTS REQUEST | |
|
COMING Cap
5000183224 · qty on machine: 2 | |||||
| 31 | 5000184037 | Throttle control lever | 1 | ADD TO CART | |
| 32 | 5000188493 | Throttle cable | 1 | PARTS REQUEST | |
|
COMING Throttle cable
5000188493 · qty on machine: 1 | |||||
| 33 | 5000184036 | Handle grip | 2 | PARTS REQUEST | |
|
COMING Handle grip
5000184036 · qty on machine: 2 | |||||
| 34 | 5100058914 | Clamp-cable | 4 | PARTS REQUEST | |
|
COMING Clamp-cable
5100058914 · qty on machine: 4 | |||||
| 37 | 5000189035 | Adjustment screw | 1 | PARTS REQUEST | |
|
COMING Adjustment screw
5000189035 · qty on machine: 1 | |||||
| 72 | 5000014955 | Cheese head screw | 5 | M5 x 55 10Nm/7ft.lbs | ISO4762 | ADD TO CART |
| 73 | 5000011465 | Hexagonal head cap screw | 4 | M6 x 45 10Nm/7ft.lbs | DIN933 | ADD TO CART |
| 79 | 5000010624 | Flat washer | 8 | ADD TO CART | |
| 80 | 5000010368 | Hexagon nut | 9 | M6 | DIN985 | PARTS REQUEST |
|
COMING Hexagon nut
5000010368 · qty on machine: 9 M6 | DIN985 | |||||
| 83 | 5000011340 | Hexagonal head cap screw | 8 | M8 x 35 25Nm/18ft.lbs | DIN931 | ADD TO CART |
| 85 | 5000012397 | Lock washer | 8 | A8 | DIN127 | ADD TO CART |
| 86 | 5000010622 | Flat washer | 8 | ADD TO CART | |
| 87 | 5000010367 | Hexagon nut | 8 | M8 | DIN985 | ADD TO CART |
| 92 | 5000010625 | Flat washer | 2 | ADD TO CART | |
| 93 | 5000010369 | Hexagon nut | 3 | ADD TO CART | |
| 94 | 5000011557 | Cheese head screw | 1 | M5 x 35 6Nm/4ft.lbs | ISO4762 | ADD TO CART |
| 95 | 1000085311 | Hex screw | 4 | PARTS REQUEST | |
|
COMING Hex screw
1000085311 · qty on machine: 4 | |||||
| 96 | 5100058383 | Latch male | 1 | PARTS REQUEST | |
|
COMING Latch male
5100058383 · qty on machine: 1 | |||||
| 97 | 5000043307 | Cheese head screw | 1 | M5 x 12 | ISO4762 | ADD TO CART |
| 1 | 5200000523 | Right handle mount | 1 | PARTS REQUEST | |
|
COMING Right handle mount
5200000523 · qty on machine: 1 | |||||
| 2 | 5200000522 | Left handle mount | 1 | PARTS REQUEST | |
|
COMING Left handle mount
5200000522 · qty on machine: 1 | |||||
| 3 | 5000184033 | Upper handle | 1 | PARTS REQUEST | |
|
COMING Upper handle
5000184033 · qty on machine: 1 | |||||
| 4 | 5000187586 | Handle | 2 | PARTS REQUEST | |
|
COMING Handle
5000187586 · qty on machine: 2 | |||||
| 5 | 5000183798 | Clamp | 4 | PARTS REQUEST | |
|
COMING Clamp
5000183798 · qty on machine: 4 | |||||
| 6 | 5000183797 | Schelle | 4 | PARTS REQUEST | |
|
COMING Schelle
5000183797 · qty on machine: 4 | |||||
| 10 | 5000187604 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5000187604 · qty on machine: 1 | |||||
| 11 | 5000187605 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5000187605 · qty on machine: 1 | |||||
| 12 | 5000187606 | Hinge spacer | 1 | PARTS REQUEST | |
|
COMING Hinge spacer
5000187606 · qty on machine: 1 | |||||
| 13 | 5100058382 | Latch female | 1 | PARTS REQUEST | |
|
COMING Latch female
5100058382 · qty on machine: 1 | |||||

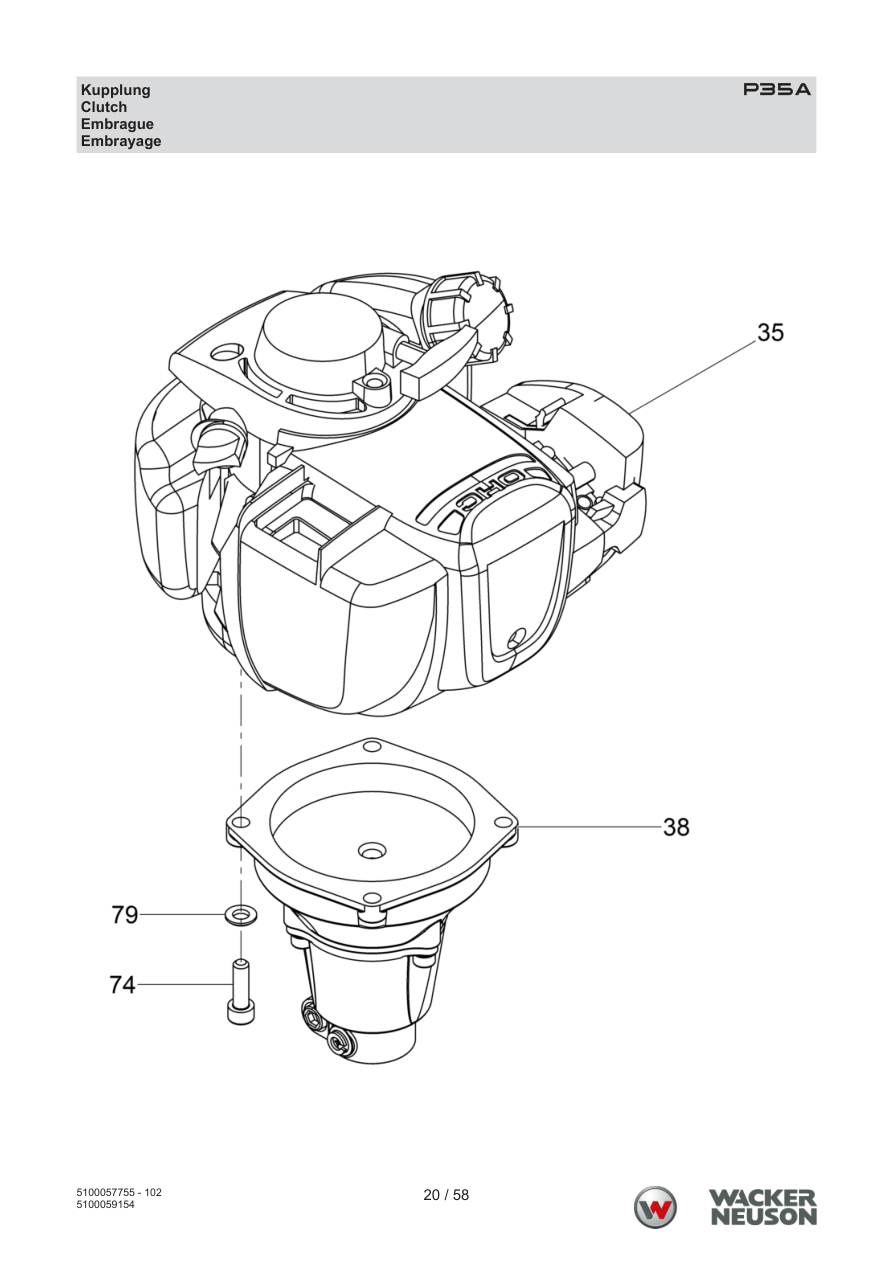

Page 20 — P35A Clutch
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 35 | 5100057757 | Engine honda gx35 ntt3 | 1 | PARTS REQUEST | |
|
COMING Engine honda gx35 ntt3
5100057757 · qty on machine: 1 | |||||
| 38 | 5000172851 | Clutch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Clutch cpl.
5000172851 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 74 | 5000011551 | Cheese head screw | 4 | 10Nm/7ft.lbs | ADD TO CART |
| 79 | 5000010624 | Flat washer | 4 | ADD TO CART | |

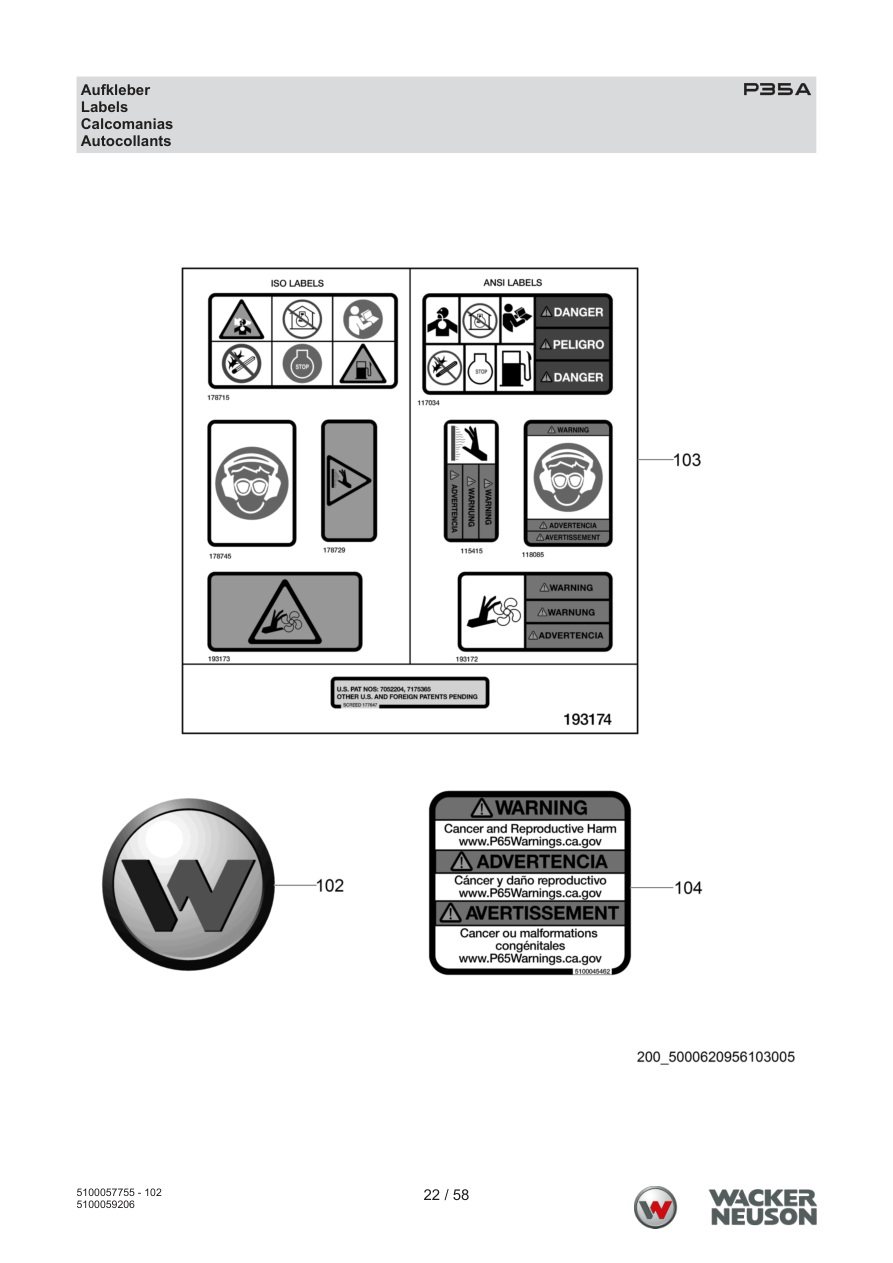

Page 22 — P35A Sticker
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 102 | 5000401561 | Label | 1 | ADD TO CART | |
| 103 | 5000193174 | Label-sheet | 1 | PARTS REQUEST | |
|
COMING Label-sheet
5000193174 · qty on machine: 1 | |||||
| 104 | 5100045462 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100045462 · qty on machine: 1 | |||||

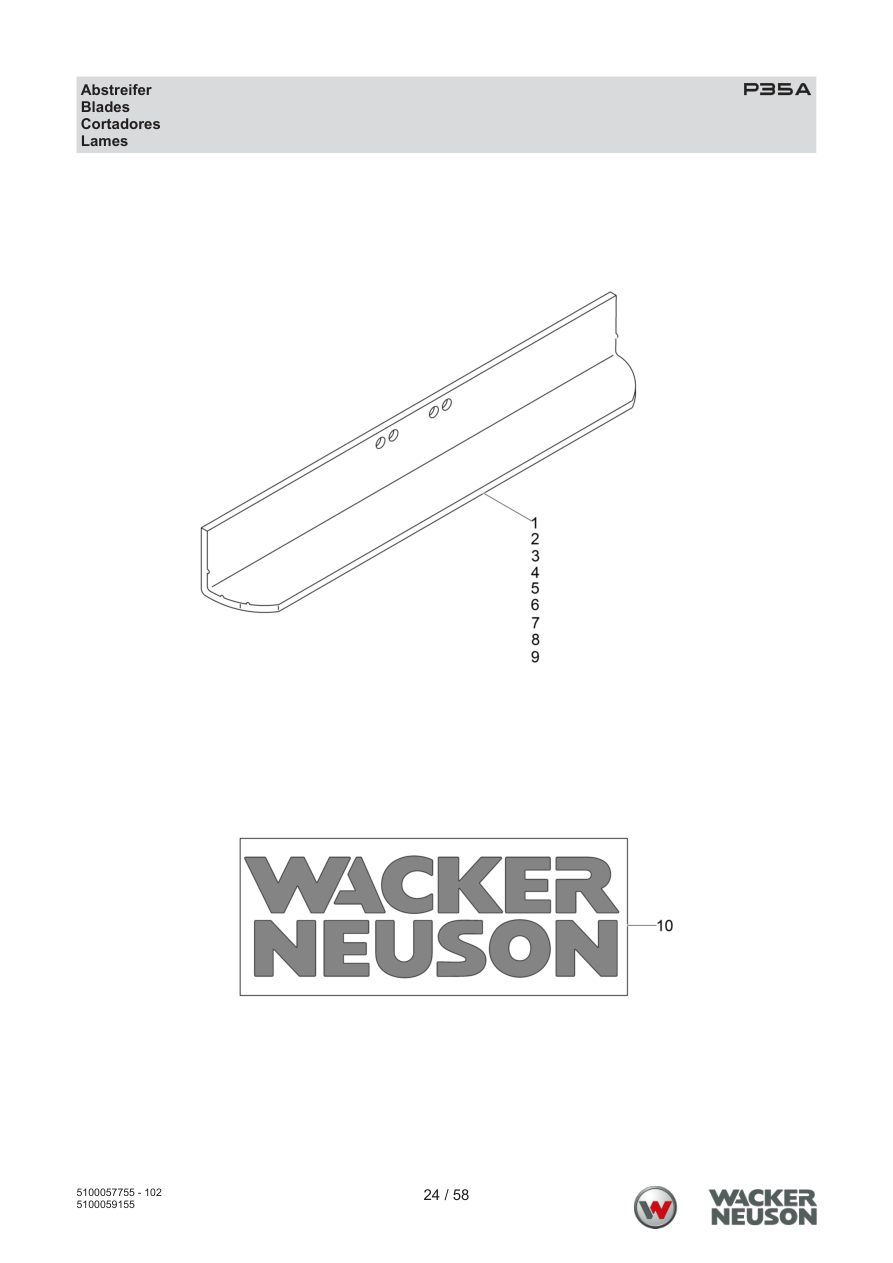

Page 24 — P35A Scraper
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100059925 | Screed blade - magnesium | 1 | PARTS REQUEST | |
|
COMING Screed blade - magnesium
5100059925 · qty on machine: 1 | |||||
| 3 | 5100059926 | Screed blade - magnesium | 1 | PARTS REQUEST | |
|
COMING Screed blade - magnesium
5100059926 · qty on machine: 1 | |||||
| 4 | 5100059927 | Screed blade - magnesium | 1 | PARTS REQUEST | |
|
COMING Screed blade - magnesium
5100059927 · qty on machine: 1 | |||||
| 5 | 5100059928 | Screed blade - magnesium | 1 | PARTS REQUEST | |
|
COMING Screed blade - magnesium
5100059928 · qty on machine: 1 | |||||
| 6 | 5100059929 | Screed blade - magnesium | 1 | PARTS REQUEST | |
|
COMING Screed blade - magnesium
5100059929 · qty on machine: 1 | |||||
| 7 | 5100059930 | Screed blade - magnesium | 1 | PARTS REQUEST | |
|
COMING Screed blade - magnesium
5100059930 · qty on machine: 1 | |||||
| 8 | 5100059931 | Screed blade - magnesium | 1 | PARTS REQUEST | |
|
COMING Screed blade - magnesium
5100059931 · qty on machine: 1 | |||||
| 1 | 5100059924 | Screed blade - magnesium | 1 | PARTS REQUEST | |
|
COMING Screed blade - magnesium
5100059924 · qty on machine: 1 | |||||
| 9 | 5100059932 | Screed blade - magnesium | 1 | PARTS REQUEST | |
|
COMING Screed blade - magnesium
5100059932 · qty on machine: 1 | |||||
| 10 | 5000213181 | Label logo | 2 | ADD TO CART | |

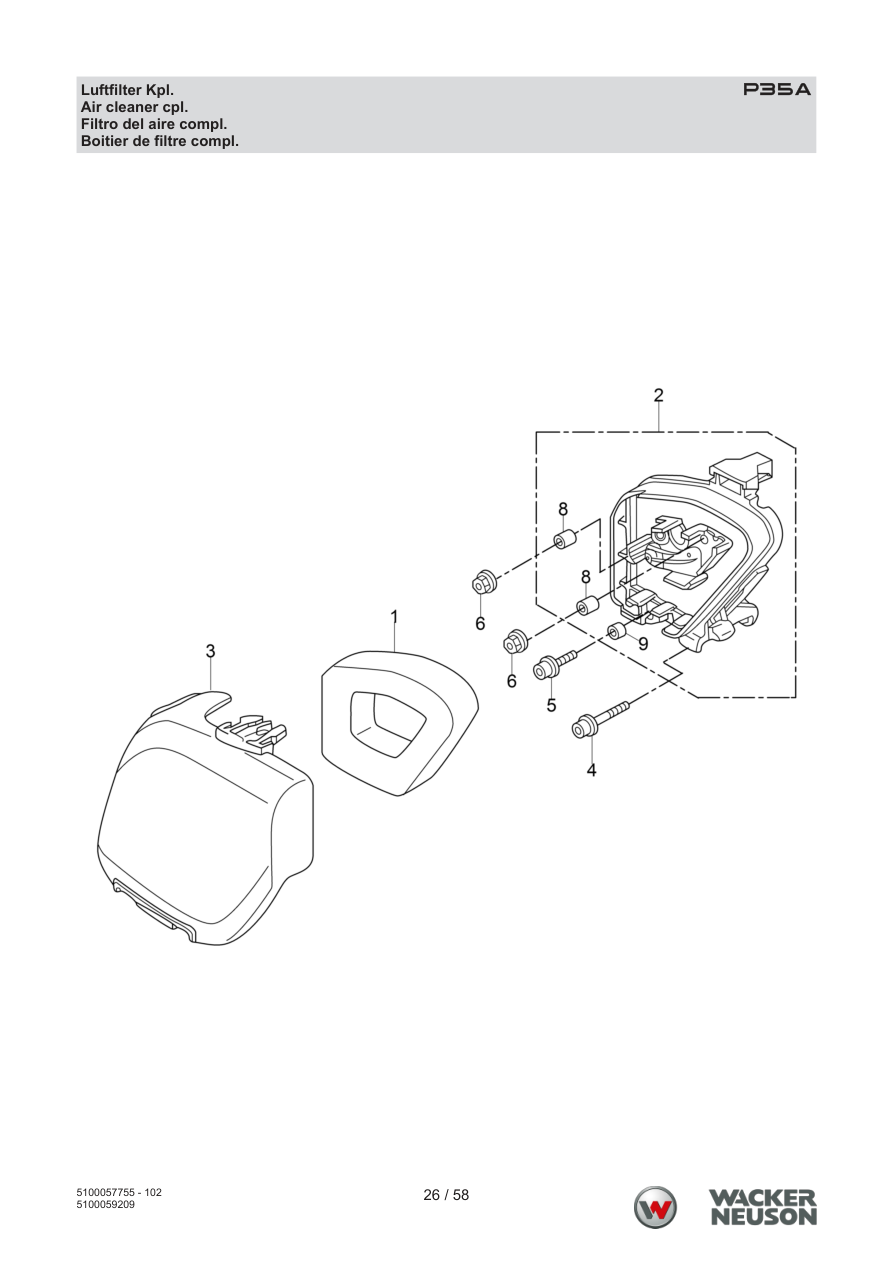

Page 26 — Air cleaner cpl.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000215462 | Air cleaner element | 1 | PARTS REQUEST | |
|
COMING Air cleaner element
5000215462 · qty on machine: 1 | |||||
| 2 | 5000217186 | Air cleaner housing | 1 | PARTS REQUEST | |
|
COMING Air cleaner housing
5000217186 · qty on machine: 1 | |||||
| 3 | 5000217191 | Air cleaner cover | 1 | PARTS REQUEST | |
|
COMING Air cleaner cover
5000217191 · qty on machine: 1 | |||||
| 4 | 5000217249 | Bolt | 1 | 5 x 25 | PARTS REQUEST |
|
COMING Bolt
5000217249 · qty on machine: 1 5 x 25 | |||||
| 5 | 5000217259 | Bolt | 1 | 5 x 16 | PARTS REQUEST |
|
COMING Bolt
5000217259 · qty on machine: 1 5 x 16 | |||||
| 6 | 5000156650 | Flange nut | 2 | ADD TO CART | |
| 8 | 5000157477 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000157477 · qty on machine: 2 | |||||
| 9 | 5000157553 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000157553 · qty on machine: 1 | |||||

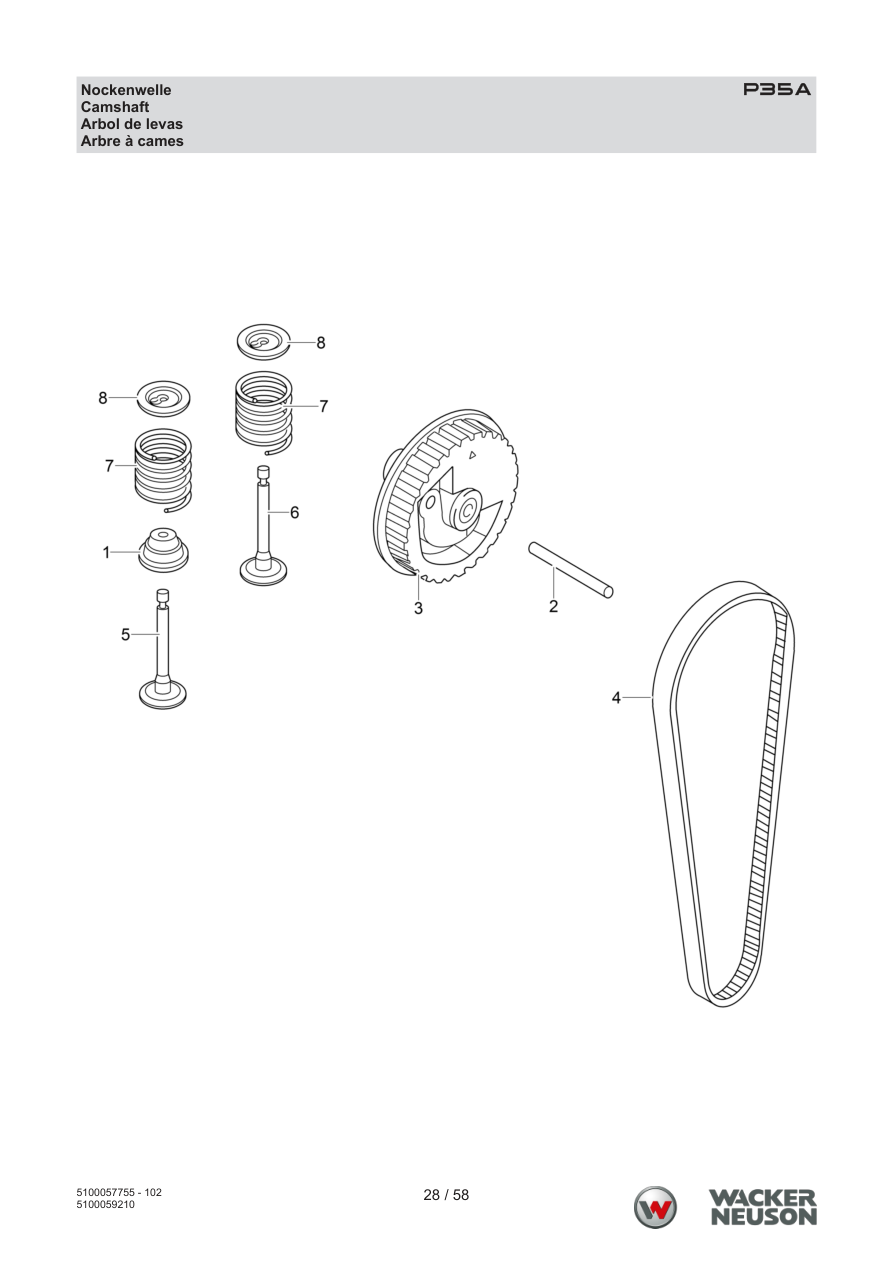

Page 28 — P35A Camshaft
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5000217141 | Pulley | 1 | PARTS REQUEST | |
|
COMING Pulley
5000217141 · qty on machine: 1 | |||||
| 4 | 5000215459 | Timing belt | 1 | PARTS REQUEST | |
|
COMING Timing belt
5000215459 · qty on machine: 1 | |||||
| 5 | 5000217148 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5000217148 · qty on machine: 1 | |||||
| 6 | 5000217150 | Exhaust valve | 1 | PARTS REQUEST | |
|
COMING Exhaust valve
5000217150 · qty on machine: 1 | |||||
| 7 | 5000217155 | Valve spring | 2 | PARTS REQUEST | |
|
COMING Valve spring
5000217155 · qty on machine: 2 | |||||
| 8 | 5000217158 | Retainer | 2 | PARTS REQUEST | |
|
COMING Retainer
5000217158 · qty on machine: 2 | |||||
| 1 | 5000217122 | Seal-valve stem | 1 | PARTS REQUEST | |
|
COMING Seal-valve stem
5000217122 · qty on machine: 1 | |||||
| 2 | 5000217140 | Roller | 1 | 4 x 31,8 | PARTS REQUEST |
|
COMING Roller
5000217140 · qty on machine: 1 4 x 31,8 | |||||

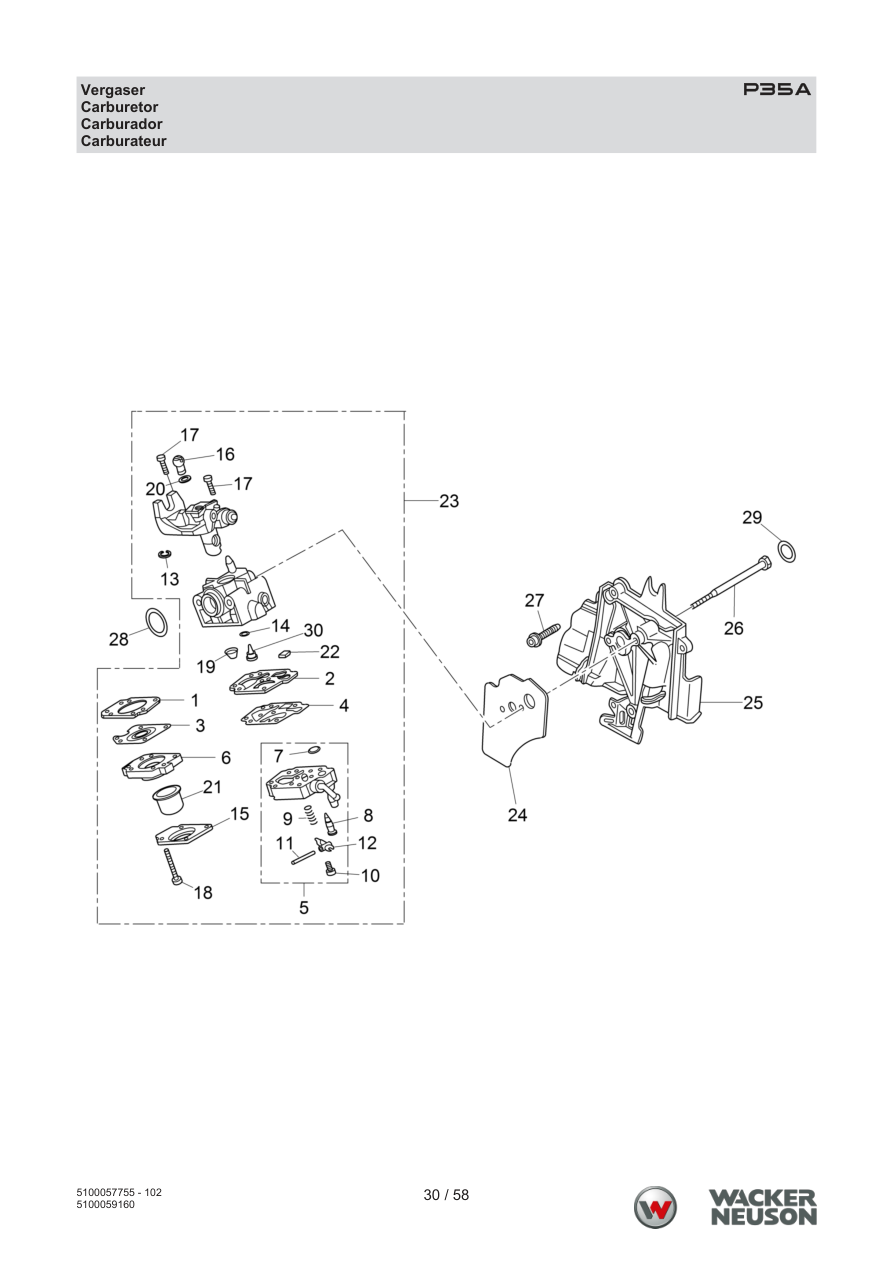

Page 30 — P35A Carburetor
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5000157495 | Body | 1 | PARTS REQUEST | |
|
COMING Body
5000157495 · qty on machine: 1 | |||||
| 7 | 5000157496 | Screen | 1 | PARTS REQUEST | |
|
COMING Screen
5000157496 · qty on machine: 1 | |||||
| 29 | 5000217277 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000217277 · qty on machine: 1 | |||||
| 30 | 5000157522 | Jet | 1 | PARTS REQUEST | |
|
COMING Jet
5000157522 · qty on machine: 1 | |||||
| 15 | 5000157504 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5000157504 · qty on machine: 1 | |||||
| 5 | 5100059158 | Body assembly-pump | 1 | PARTS REQUEST | |
|
COMING Body assembly-pump
5100059158 · qty on machine: 1 | |||||
| 8 | 5000157497 | Needle valve | 1 | ADD TO CART | |
| 9 | 5000157498 | Spring | 1 | ADD TO CART | |
| 10 | 5000157499 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5000157499 · qty on machine: 1 | |||||
| 11 | 5000217167 | Pin | 1 | ADD TO CART | |
| 12 | 5000157501 | Lever | 1 | PARTS REQUEST | |
|
COMING Lever
5000157501 · qty on machine: 1 | |||||
| 13 | 5000217168 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5000217168 · qty on machine: 1 | |||||
| 18 | 5000157507 | Screw | 4 | PARTS REQUEST | |
|
COMING Screw
5000157507 · qty on machine: 4 | |||||
| 20 | 5000157509 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000157509 · qty on machine: 1 | |||||
| 21 | 5000157510 | Primer | 1 | PARTS REQUEST | |
|
COMING Primer
5000157510 · qty on machine: 1 | |||||
| 22 | 5000157523 | Fuel filter strainer cup | 1 | PARTS REQUEST | |
|
COMING Fuel filter strainer cup
5000157523 · qty on machine: 1 | |||||
| 23 | 5100059157 | Carburetor assembly | 1 | PARTS REQUEST | |
|
COMING Carburetor assembly
5100059157 · qty on machine: 1 | |||||
| 24 | 5000217175 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217175 · qty on machine: 1 | |||||
| 25 | 5100059159 | Shroud | 1 | PARTS REQUEST | |
|
COMING Shroud
5100059159 · qty on machine: 1 | |||||
| 26 | 5000217256 | Bolt | 2 | 5 x 53 | PARTS REQUEST |
|
COMING Bolt
5000217256 · qty on machine: 2 5 x 53 | |||||
| 27 | 5000217259 | Bolt | 2 | 5 x 16 | PARTS REQUEST |
|
COMING Bolt
5000217259 · qty on machine: 2 5 x 16 | |||||
| 28 | 5000157518 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000157518 · qty on machine: 1 | |||||
| 16 | 5000157505 | Pin | 1 | PARTS REQUEST | |
|
COMING Pin
5000157505 · qty on machine: 1 | |||||
| 17 | 5000157506 | Screw-throttle stop | 2 | PARTS REQUEST | |
|
COMING Screw-throttle stop
5000157506 · qty on machine: 2 | |||||
| 19 | 5000157508 | Spring | 1 | ADD TO CART | |
| 14 | 5000157503 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000157503 · qty on machine: 1 | |||||
| 1 | 5000157490 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000157490 · qty on machine: 1 | |||||
| 2 | 5000217164 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000217164 · qty on machine: 1 | |||||
| 3 | 5000217165 | Diaphragm | 1 | PARTS REQUEST | |
|
COMING Diaphragm
5000217165 · qty on machine: 1 | |||||
| 4 | 5000157493 | Pump diaphragm | 1 | PARTS REQUEST | |
|
COMING Pump diaphragm
5000157493 · qty on machine: 1 | |||||

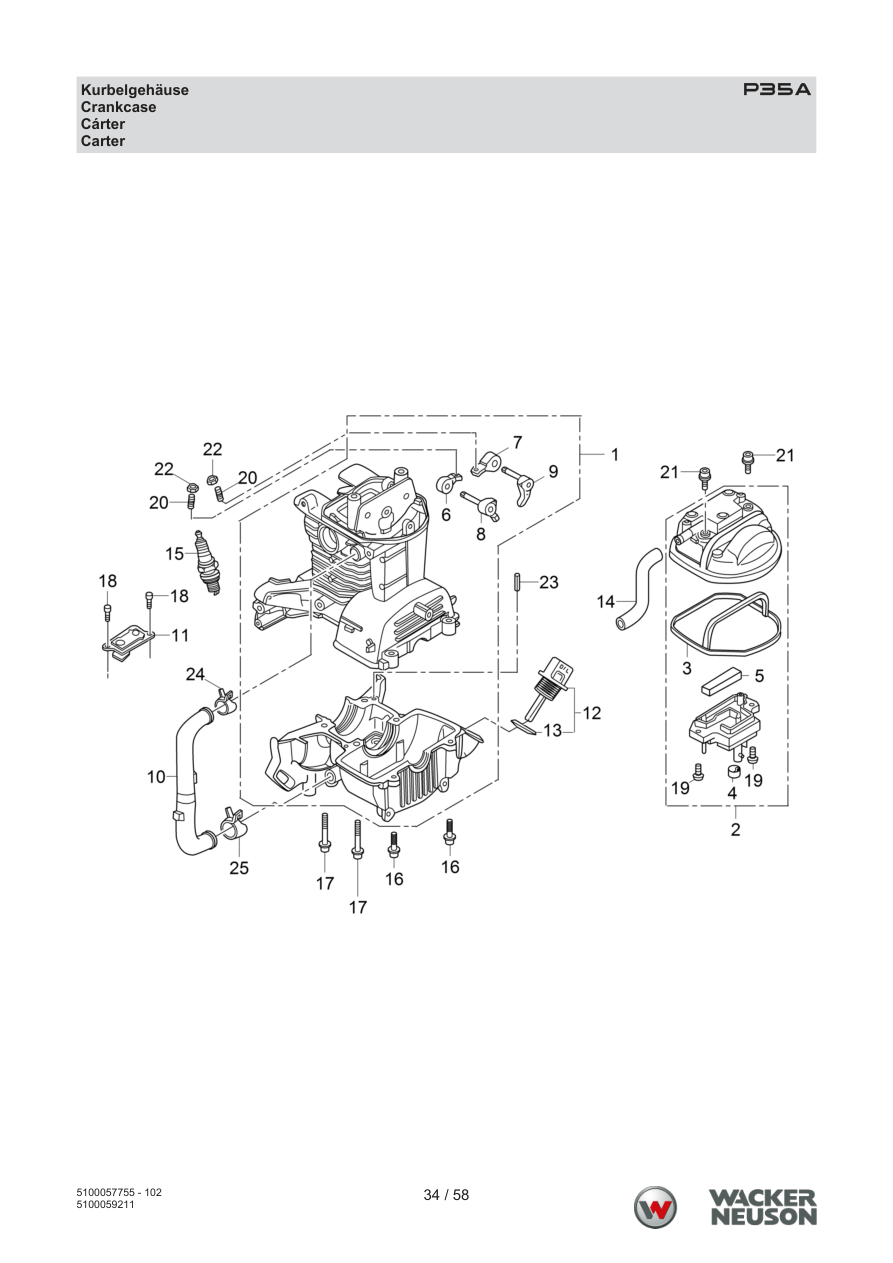

Page 34 — Crankcase
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 12 | 5000217161 | Oil filler cap | 1 | ADD TO CART | |
| 13 | 5000162647 | Gasket | 1 | ADD TO CART | |
| 14 | 5000217162 | Breather tube | 1 | PARTS REQUEST | |
|
COMING Breather tube
5000217162 · qty on machine: 1 | |||||
| 15 | 5000215461 | Spark plug | 1 | PARTS REQUEST | |
|
COMING Spark plug
5000215461 · qty on machine: 1 | |||||
| 16 | 5000217248 | Bolt | 2 | 5 x 20 | PARTS REQUEST |
|
COMING Bolt
5000217248 · qty on machine: 2 5 x 20 | |||||
| 17 | 5000217250 | Bolt | 4 | 5 x 32 | PARTS REQUEST |
|
COMING Bolt
5000217250 · qty on machine: 4 5 x 32 | |||||
| 18 | 5000217254 | Pan head screw | 2 | 4 x 8 | PARTS REQUEST |
|
COMING Pan head screw
5000217254 · qty on machine: 2 4 x 8 | |||||
| 19 | 5000217255 | Pan head screw | 2 | 4 x 8 | PARTS REQUEST |
|
COMING Pan head screw
5000217255 · qty on machine: 2 4 x 8 | |||||
| 20 | 5000217258 | Adjustment screw | 2 | PARTS REQUEST | |
|
COMING Adjustment screw
5000217258 · qty on machine: 2 | |||||
| 21 | 5000217260 | Bolt | 2 | 5 x 12 | PARTS REQUEST |
|
COMING Bolt
5000217260 · qty on machine: 2 5 x 12 | |||||
| 22 | 5000157489 | Nut | 2 | PARTS REQUEST | |
|
COMING Nut
5000157489 · qty on machine: 2 | |||||
| 23 | 5000217283 | Pin | 1 | 4 x 10 | PARTS REQUEST |
|
COMING Pin
5000217283 · qty on machine: 1 4 x 10 | |||||
| 24 | 5000217284 | Tube clip | 1 | PARTS REQUEST | |
|
COMING Tube clip
5000217284 · qty on machine: 1 | |||||
| 25 | 5000217285 | Tube clip | 1 | PARTS REQUEST | |
|
COMING Tube clip
5000217285 · qty on machine: 1 | |||||
| 1 | 5000217118 | Crankcase cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Crankcase cpl.
5000217118 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000217124 | Cylinder head cover | 1 | PARTS REQUEST | |
|
COMING Cylinder head cover
5000217124 · qty on machine: 1 | |||||
| 3 | 5000217126 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5000217126 · qty on machine: 1 | |||||
| 4 | 5000217127 | Grommet | 1 | PARTS REQUEST | |
|
COMING Grommet
5000217127 · qty on machine: 1 | |||||
| 5 | 5000217128 | Filter | 1 | PARTS REQUEST | |
|
COMING Filter
5000217128 · qty on machine: 1 | |||||
| 6 | 5000217143 | Rocker arm | 1 | PARTS REQUEST | |
|
COMING Rocker arm
5000217143 · qty on machine: 1 | |||||
| 7 | 5000217146 | Exhaust | 1 | PARTS REQUEST | |
|
COMING Exhaust
5000217146 · qty on machine: 1 | |||||
| 8 | 5000217152 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5000217152 · qty on machine: 1 | |||||
| 9 | 5000217154 | Exhaust valve | 1 | PARTS REQUEST | |
|
COMING Exhaust valve
5000217154 · qty on machine: 1 | |||||
| 10 | 5000217159 | Tube | 1 | PARTS REQUEST | |
|
COMING Tube
5000217159 · qty on machine: 1 | |||||
| 11 | 5000217160 | Valve | 1 | PARTS REQUEST | |
|
COMING Valve
5000217160 · qty on machine: 1 | |||||

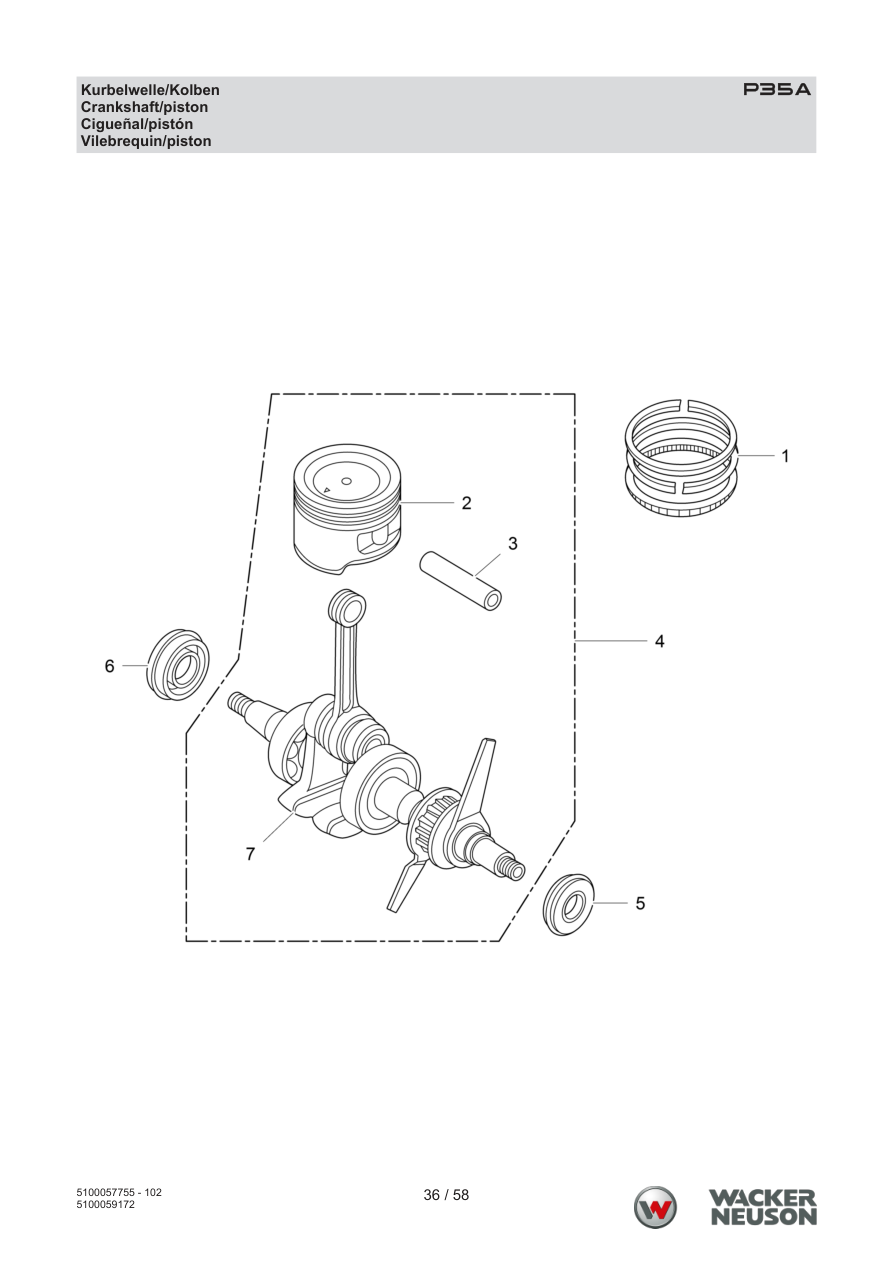

Page 36 — P35A Crankshaft/Piston
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5100059576 | Crankshaft | 1 | PARTS REQUEST | |
|
COMING Crankshaft
5100059576 · qty on machine: 1 | |||||
| 1 | 5000157591 | Piston ring set | 1 | PARTS REQUEST | |
|
COMING Piston ring set
5000157591 · qty on machine: 1 | |||||
| 2 | 5000217131 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5000217131 · qty on machine: 1 | |||||
| 3 | 5000157593 | Piston pin | 1 | PARTS REQUEST | |
|
COMING Piston pin
5000157593 · qty on machine: 1 | |||||
| 4 | 5100059171 | Crankshaft complate | 1 | PARTS REQUEST | |
|
COMING Crankshaft complate
5100059171 · qty on machine: 1 | |||||
| 5 | 5000217273 | Oil seal | 1 | 10 x 20 x 5 | PARTS REQUEST |
|
COMING Oil seal
5000217273 · qty on machine: 1 10 x 20 x 5 | |||||
| 6 | 5000217274 | Oil seal | 1 | 15 x 25 x 6 | PARTS REQUEST |
|
COMING Oil seal
5000217274 · qty on machine: 1 15 x 25 x 6 | |||||

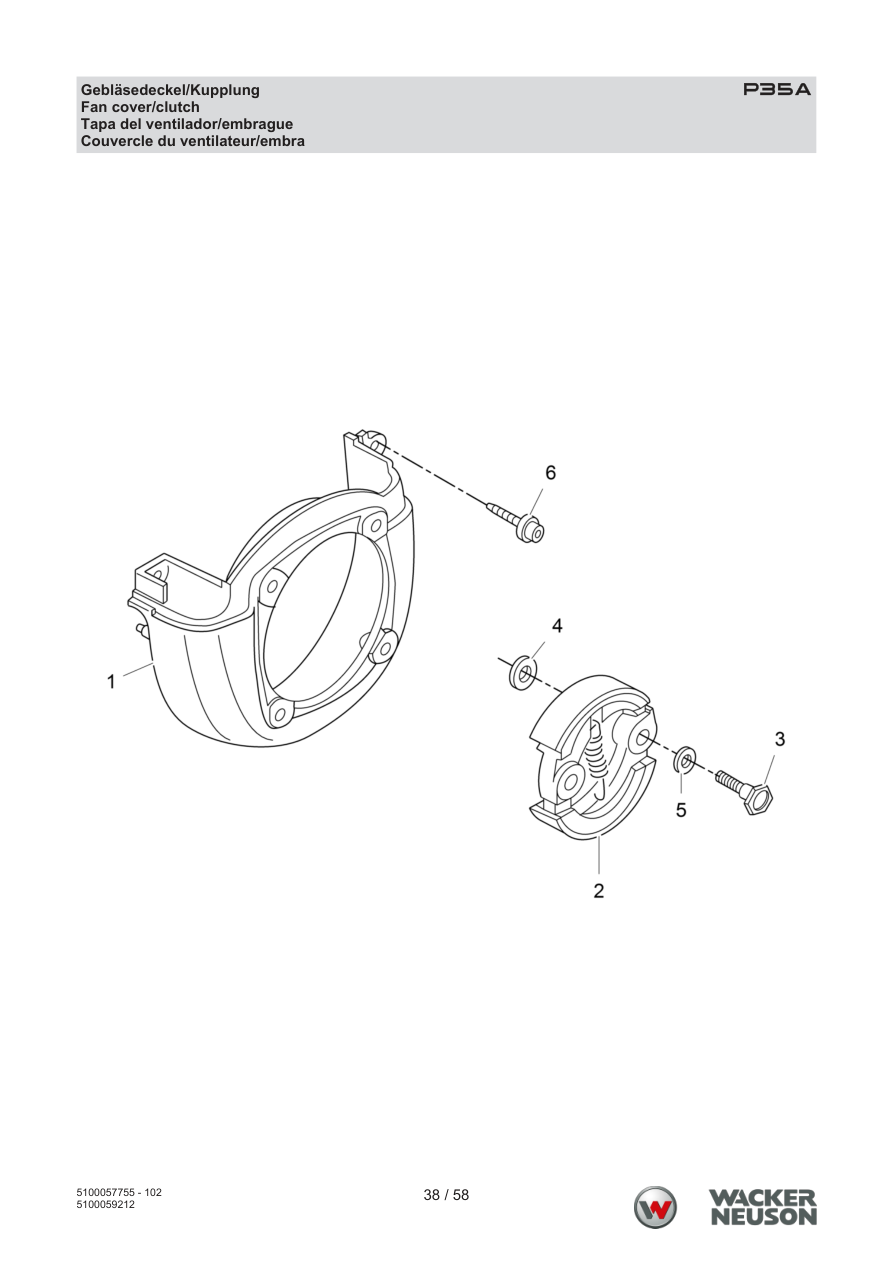

Page 38 — Fan cover/clutch
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217212 | Fan cover | 1 | PARTS REQUEST | |
|
COMING Fan cover
5000217212 · qty on machine: 1 | |||||
| 2 | 5000217216 | Clutch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Clutch cpl.
5000217216 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000217217 | Bolt | 2 | PARTS REQUEST | |
|
COMING Bolt
5000217217 · qty on machine: 2 | |||||
| 4 | 5000217218 | Washer | 2 | 8 x 17 | PARTS REQUEST |
|
COMING Washer
5000217218 · qty on machine: 2 8 x 17 | |||||
| 5 | 5000217219 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5000217219 · qty on machine: 2 | |||||
| 6 | 5000217248 | Bolt | 3 | 5 x 20 | PARTS REQUEST |
|
COMING Bolt
5000217248 · qty on machine: 3 5 x 20 | |||||

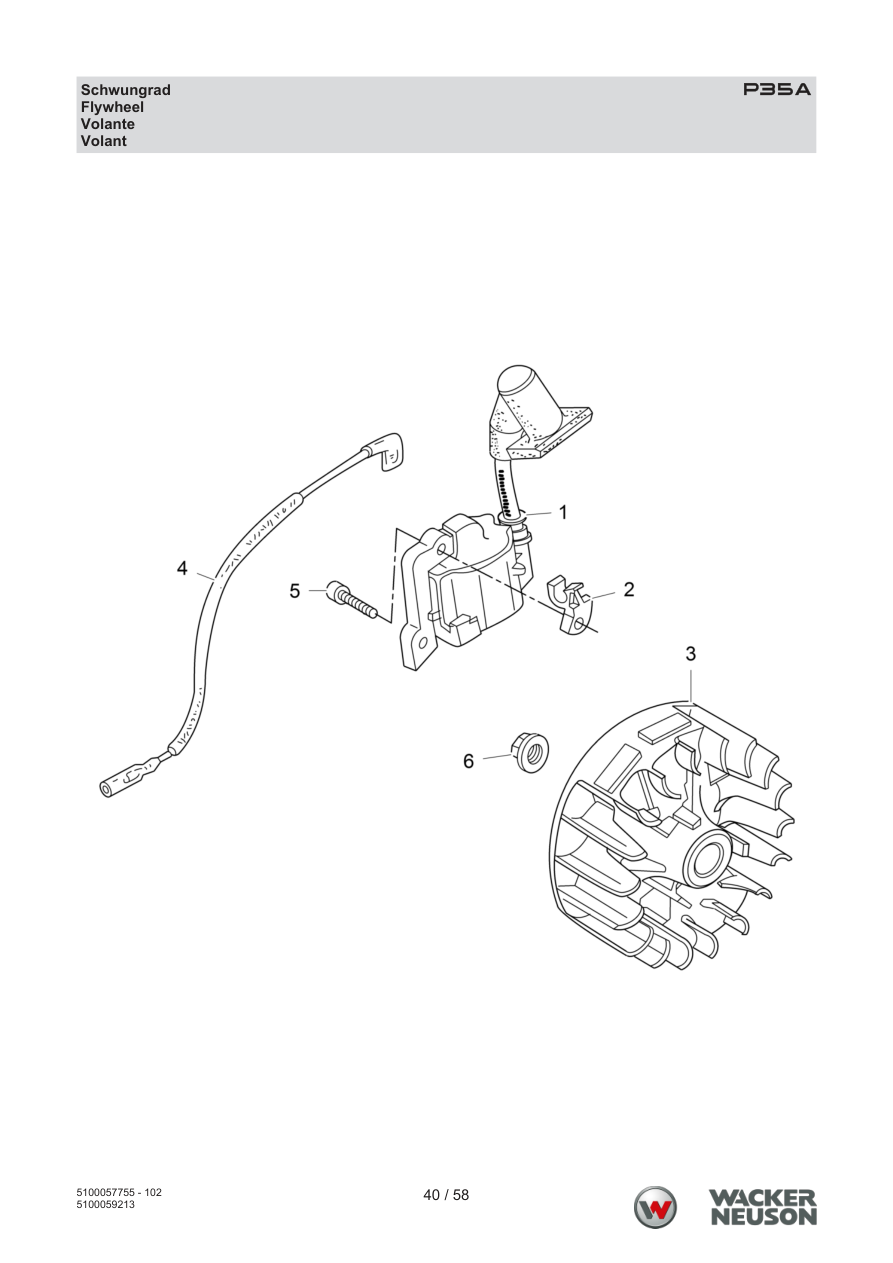

Page 40 — P35A Flywheel
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217233 | Ignition coil | 1 | PARTS REQUEST | |
|
COMING Ignition coil
5000217233 · qty on machine: 1 | |||||
| 2 | 5000217235 | Clip | 1 | PARTS REQUEST | |
|
COMING Clip
5000217235 · qty on machine: 1 | |||||
| 3 | 5000217236 | Flywheel | 1 | PARTS REQUEST | |
|
COMING Flywheel
5000217236 · qty on machine: 1 | |||||
| 4 | 5000217238 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5000217238 · qty on machine: 1 | |||||
| 5 | 5000217253 | Bolt | 2 | 4 x 14 | PARTS REQUEST |
|
COMING Bolt
5000217253 · qty on machine: 2 4 x 14 | |||||
| 6 | 5000074738 | Flange nut | 1 | ADD TO CART | |

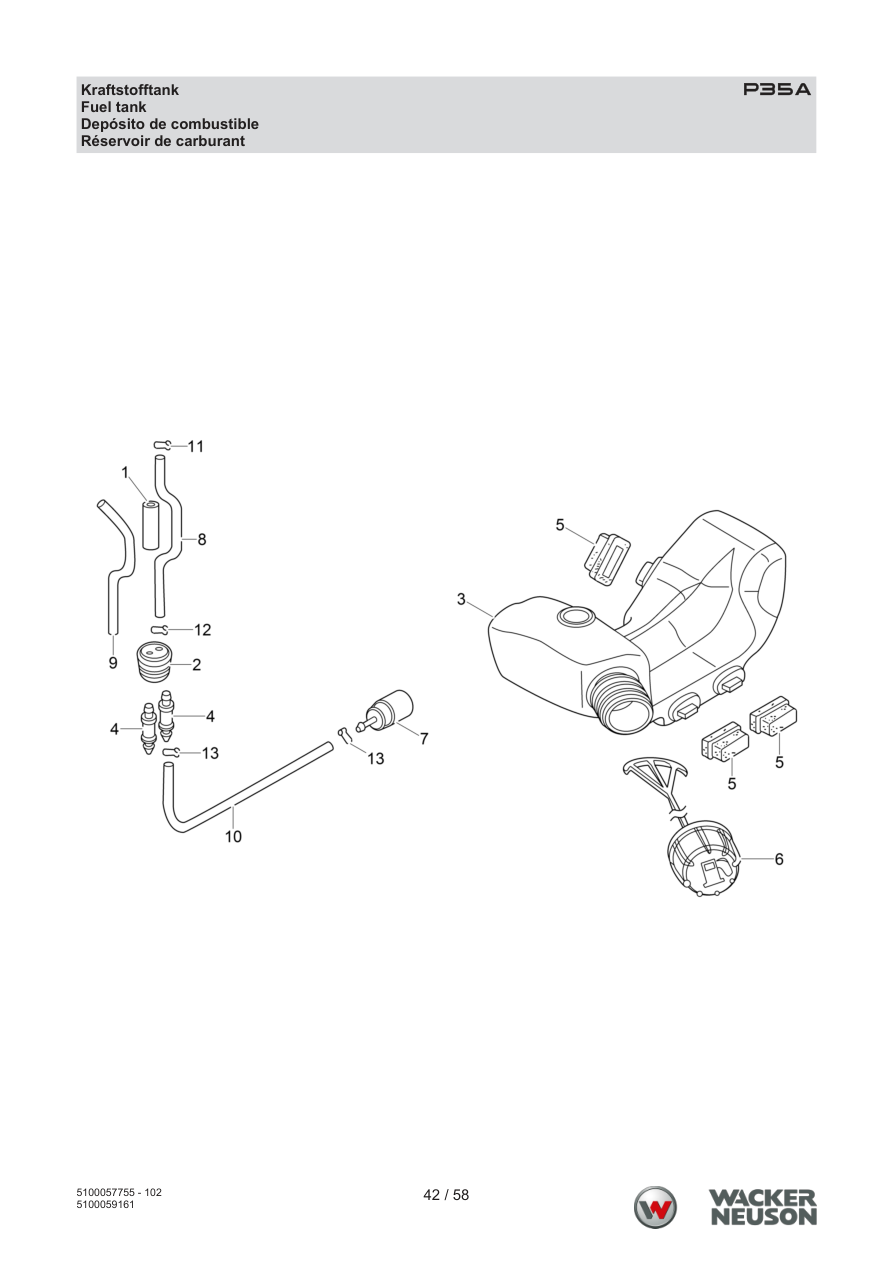

Page 42 — P35A Fuel tank
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059162 | Hose-protector | 1 | PARTS REQUEST | |
|
COMING Hose-protector
5100059162 · qty on machine: 1 | |||||
| 2 | 5000157566 | Grommet | 1 | PARTS REQUEST | |
|
COMING Grommet
5000157566 · qty on machine: 1 | |||||
| 3 | 5100059156 | Tank-fuel | 1 | PARTS REQUEST | |
|
COMING Tank-fuel
5100059156 · qty on machine: 1 | |||||
| 4 | 5100031582 | Joint | 2 | PARTS REQUEST | |
|
COMING Joint
5100031582 · qty on machine: 2 | |||||
| 5 | 5000217194 | Rubber | 4 | PARTS REQUEST | |
|
COMING Rubber
5000217194 · qty on machine: 4 | |||||
| 6 | 5100059163 | Cap assy-fuel tank | 1 | PARTS REQUEST | |
|
COMING Cap assy-fuel tank
5100059163 · qty on machine: 1 | |||||
| 7 | 5000157573 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5000157573 · qty on machine: 1 | |||||
| 8 | 5100059164 | Tube-fuel | 1 | PARTS REQUEST | |
|
COMING Tube-fuel
5100059164 · qty on machine: 1 | |||||
| 9 | 5100059165 | Tube-fuel return | 1 | PARTS REQUEST | |
|
COMING Tube-fuel return
5100059165 · qty on machine: 1 | |||||
| 10 | 5000217201 | Fuel tube | 1 | PARTS REQUEST | |
|
COMING Fuel tube
5000217201 · qty on machine: 1 | |||||
| 11 | 5100059173 | Clamp-tube | 1 | PARTS REQUEST | |
|
COMING Clamp-tube
5100059173 · qty on machine: 1 | |||||
| 12 | 5100059173 | Clamp-tube | 1 | PARTS REQUEST | |
|
COMING Clamp-tube
5100059173 · qty on machine: 1 | |||||
| 13 | 5100059174 | Clamp-tube | 2 | PARTS REQUEST | |
|
COMING Clamp-tube
5100059174 · qty on machine: 2 | |||||

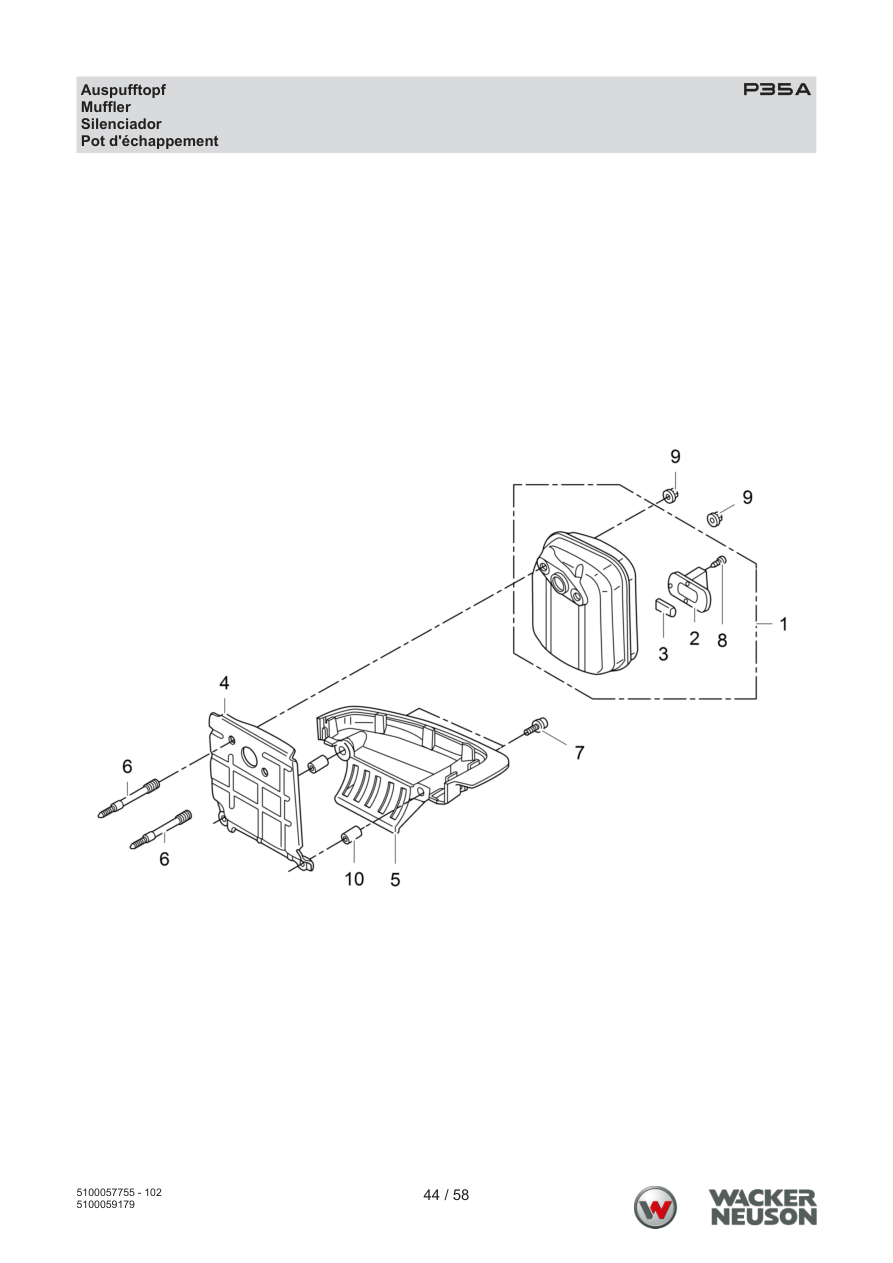

Page 44 — P35A Muffler
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059175 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5100059175 · qty on machine: 1 | |||||
| 2 | 5000217205 | Spark arrester | 1 | PARTS REQUEST | |
|
COMING Spark arrester
5000217205 · qty on machine: 1 | |||||
| 3 | 5000217207 | Filter | 1 | PARTS REQUEST | |
|
COMING Filter
5000217207 · qty on machine: 1 | |||||
| 4 | 5000217208 | Guide | 1 | PARTS REQUEST | |
|
COMING Guide
5000217208 · qty on machine: 1 | |||||
| 5 | 5000217210 | Guide | 1 | PARTS REQUEST | |
|
COMING Guide
5000217210 · qty on machine: 1 | |||||
| 6 | 5000217242 | Stud bolt | 2 | 5 x 45,5 | PARTS REQUEST |
|
COMING Stud bolt
5000217242 · qty on machine: 2 5 x 45,5 | |||||
| 7 | 5000217259 | Bolt | 2 | 5 x 16 | PARTS REQUEST |
|
COMING Bolt
5000217259 · qty on machine: 2 5 x 16 | |||||
| 8 | 5000150916 | Screw | 3 | ADD TO CART | |
| 9 | 5000217264 | Lock nut | 2 | PARTS REQUEST | |
|
COMING Lock nut
5000217264 · qty on machine: 2 | |||||
| 10 | 5000157553 | Bushing | 2 | PARTS REQUEST | |
|
COMING Bushing
5000157553 · qty on machine: 2 | |||||

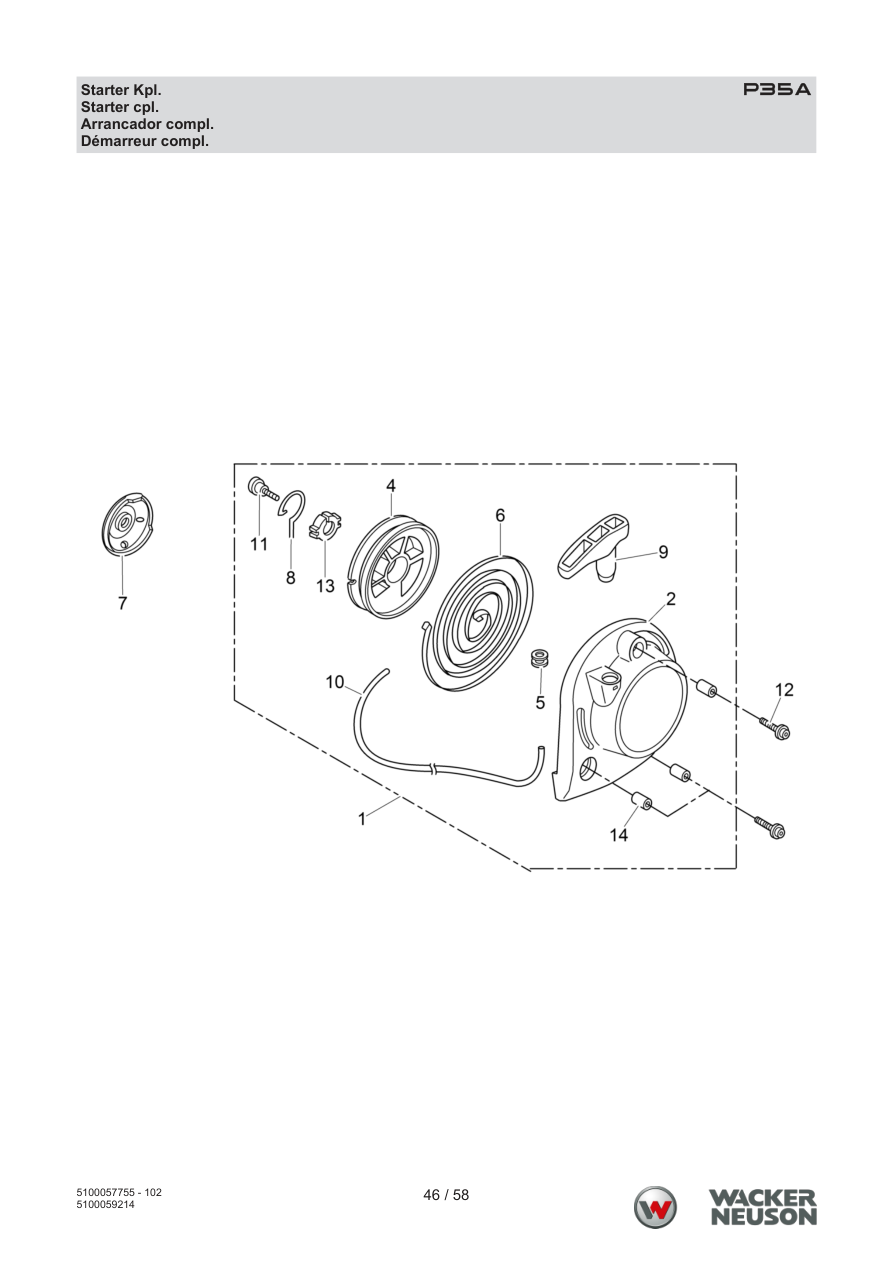

Page 46 — Starter cpl.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217220 | Recoil starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Recoil starter cpl.
5000217220 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000217223 | Casing | 1 | PARTS REQUEST | |
|
COMING Casing
5000217223 · qty on machine: 1 | |||||
| 4 | 5000157599 | Starter reel | 1 | PARTS REQUEST | |
|
COMING Starter reel
5000157599 · qty on machine: 1 | |||||
| 5 | 5000157600 | Guide | 1 | PARTS REQUEST | |
|
COMING Guide
5000157600 · qty on machine: 1 | |||||
| 6 | 5000217226 | Spring | 1 | PARTS REQUEST | |
|
COMING Spring
5000217226 · qty on machine: 1 | |||||
| 7 | 5000217228 | Pulley | 1 | PARTS REQUEST | |
|
COMING Pulley
5000217228 · qty on machine: 1 | |||||
| 8 | 5000217230 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
5000217230 · qty on machine: 1 | |||||
| 9 | 5000157605 | Starter rope handle | 1 | PARTS REQUEST | |
|
COMING Starter rope handle
5000157605 · qty on machine: 1 | |||||
| 10 | 5000157606 | Rope | 1 | PARTS REQUEST | |
|
COMING Rope
5000157606 · qty on machine: 1 | |||||
| 11 | 5000157608 | Setscrew | 1 | PARTS REQUEST | |
|
COMING Setscrew
5000157608 · qty on machine: 1 | |||||
| 12 | 5000217259 | Bolt | 3 | 5 x 16 | PARTS REQUEST |
|
COMING Bolt
5000217259 · qty on machine: 3 5 x 16 | |||||
| 13 | 5000157609 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000157609 · qty on machine: 1 | |||||
| 14 | 5000157553 | Bushing | 3 | PARTS REQUEST | |
|
COMING Bushing
5000157553 · qty on machine: 3 | |||||

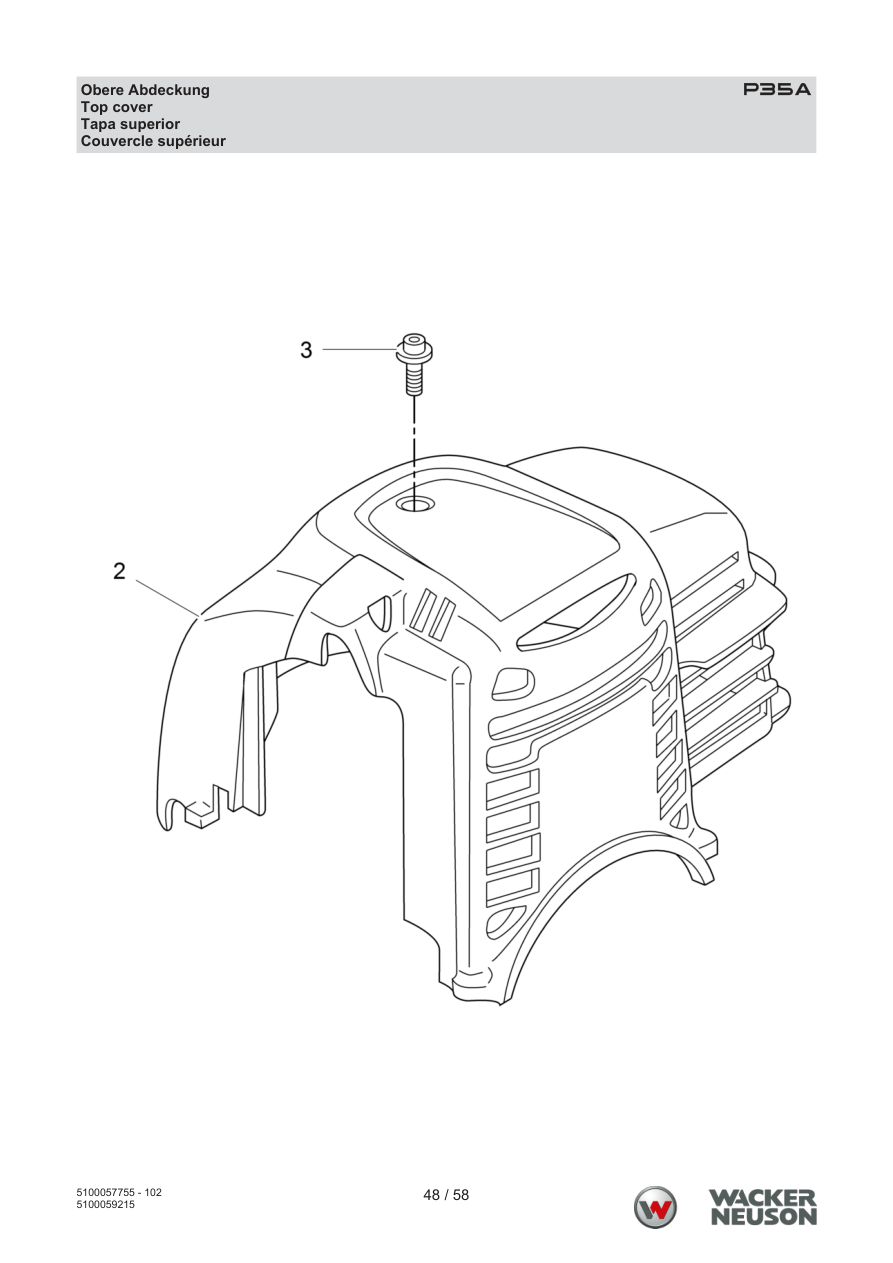

Page 48 — Top cover
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000217215 | Top cover | 1 | PARTS REQUEST | |
|
COMING Top cover
5000217215 · qty on machine: 1 | |||||
| 3 | 5000217257 | Bolt | 1 | PARTS REQUEST | |
|
COMING Bolt
5000217257 · qty on machine: 1 | |||||

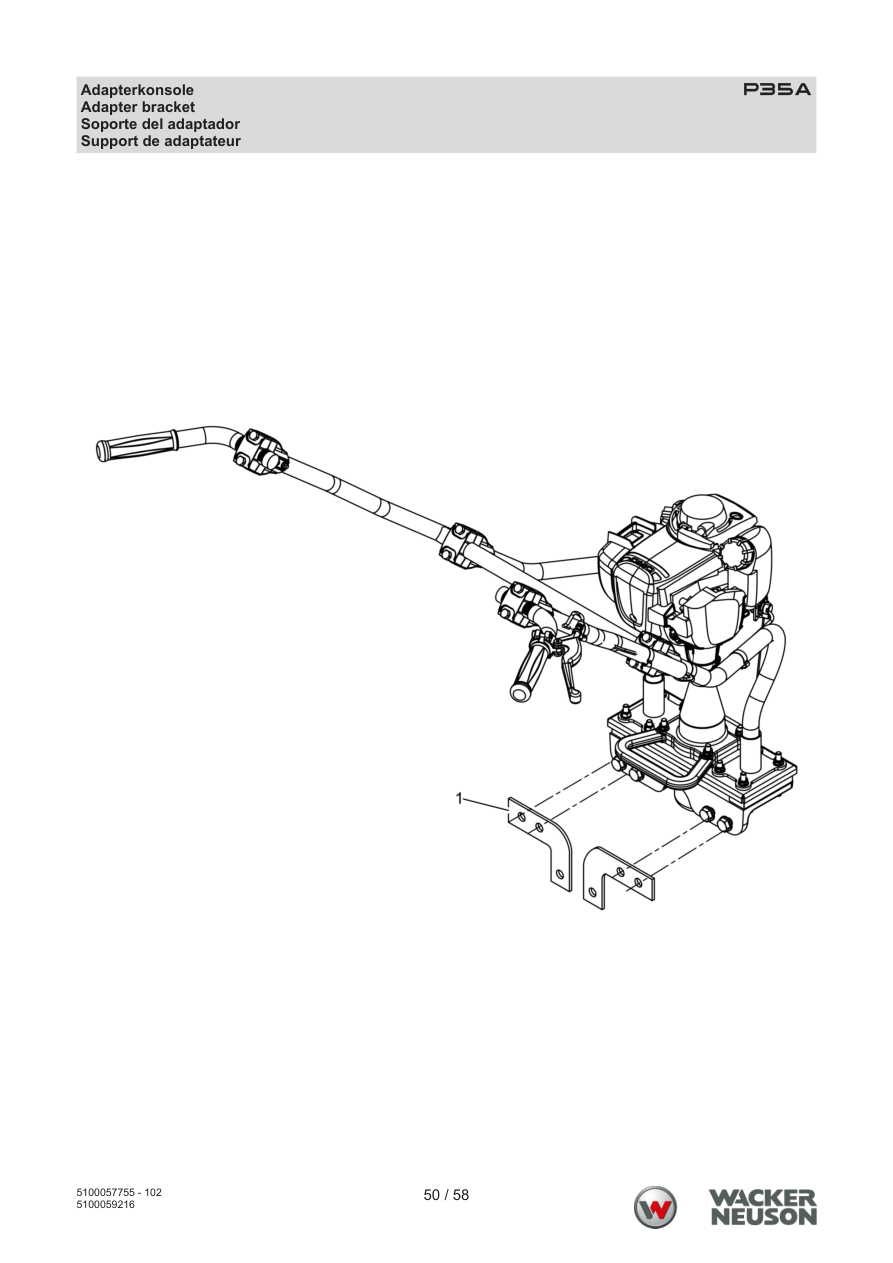

Page 50 — P35A Adapter bracket
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000176278 | Bracket | 2 | PARTS REQUEST | |
|
COMING Bracket
5000176278 · qty on machine: 2 | |||||

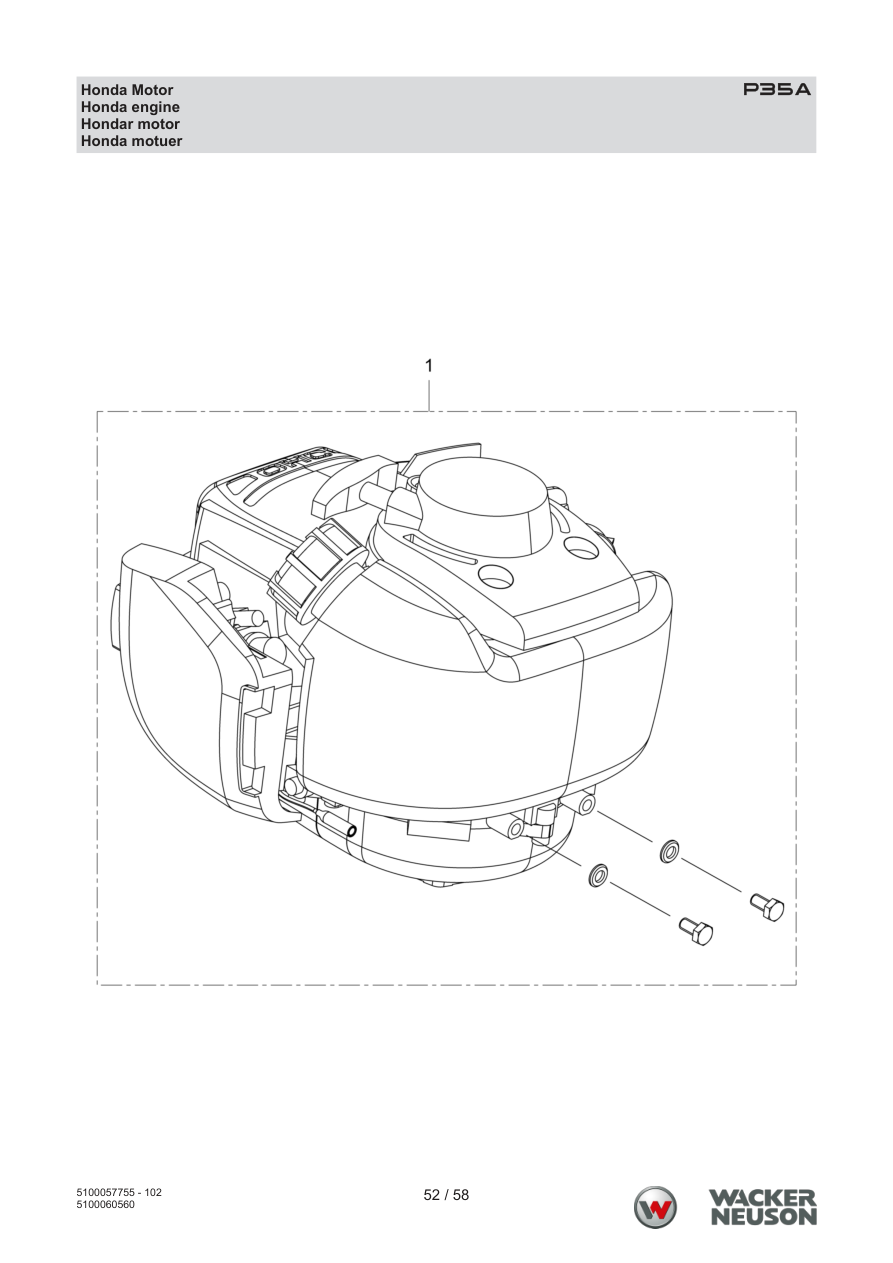

Page 52 — P35A Honda Engine
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100060419 | Engine-honda gx35 | 1 | PARTS REQUEST | |
|
COMING Engine-honda gx35
5100060419 · qty on machine: 1 | |||||
The machine itself
Machine
Engine
Wacker Neuson P35 vibratory screed.
List price: $3,100.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000085311
pc
5000010366
pc
$0.95
5000010367
pc
$0.95
5000010368
pc
5000010369
pc
$0.95
5000010370
pc
$0.95
5000010622
pc
$0.95
5000010624
pc
$0.95
5000010625
pc
$0.95
5000010649
pc
$0.95
5000011340
pc
$0.95
5000011342
pc
5000011454
pc
$0.95
5000011465
pc
$0.95
5000011551
pc
$0.95
5000011554
pc
$0.95
5000011557
pc
$0.95
5000012356
pc
$0.95
5000012357
pc
$0.95
5000012397
pc
$0.95
5000014955
pc
$0.95
5000043307
pc
$0.95
5000054242
pc
5000074738
Flange nut
$1.95
5000119289
pc
$0.95
5000150916
Screw
$1.95
5000153421
pc
5000156650
pc
$1.95
5000157477
pc
5000157489
Nut
5000157490
Gasket
5000157493
Pump diaphragm
5000157495
Body
5000157496
Screen
5000157497
Needle valve
$9.95
5000157498
Spring
$3.95
5000157499
Screw
5000157501
Lever
5000157503
O-ring
5000157504
Cover
5000157505
Pin
5000157506
Screw-throttle stop
5000157507
Screw
5000157508
Spring
$2.95
5000157509
Washer
5000157510
Primer
5000157518
O-ring
5000157522
Jet
5000157523
Fuel filter strainer cup
5000157553
Bushing
5000157566
Grommet
5000157573
Fuel filter
5000157591
Piston ring set
5000157593
Piston pin
5000157599
Starter reel
5000157600
Guide
5000157605
Starter rope handle
5000157606
Rope
5000157608
Setscrew
5000157609
Bushing
5000162647
Gasket
$5.95
5000172851
pc
5000176278
Bracket
5000183138
pc
5000183139
pc
5000183140
pc
5000183224
pc
5000183759
pc
5000183796
pc
5000183797
pc
5000183798
pc
5000183831
pc
5000183835
pc
5000183836
pc
5000183837
pc
5000183964
pc
5000184018
pc
5000184019
pc
5000184033
pc
5000184035
pc
5000184036
pc
5000184037
pc
$15.95
5000184038
pc
5000184039
pc
5000184040
pc
5000184041
pc
5000184043
pc
5000184537
pc
5000184539
pc
5000184559
pc
5000184560
pc
5000187142
pc
5000187586
pc
5000187604
pc
5000187605
pc
5000187606
pc
5000188493
pc
5000189035
pc
5000193174
pc
5000213181
pc
$31.95
5000215459
pc
5000215461
Spark plug
5000215462
pc
5000217118
Crankcase cpl.
5000217122
pc
5000217124
Cylinder head cover
5000217126
Seal
5000217127
Grommet
5000217128
Filter
5000217131
Piston
5000217140
pc
5000217141
pc
5000217143
Rocker arm
5000217146
Exhaust
5000217148
pc
5000217150
pc
5000217152
Intake valve
5000217154
Exhaust valve
5000217155
pc
5000217158
pc
5000217159
Tube
5000217160
Valve
5000217161
Oil filler cap
$11.95
5000217162
Breather tube
5000217164
Gasket
5000217165
Diaphragm
5000217167
Pin
$2.95
5000217168
Retaining ring
5000217175
Gasket
5000217186
pc
5000217191
pc
5000217194
Rubber
5000217201
Fuel tube
5000217205
Spark arrester
5000217207
Filter
5000217208
Guide
5000217210
Guide
5000217212
Fan cover
5000217215
Top cover
5000217216
Clutch cpl.
5000217217
Bolt
5000217218
Washer
5000217219
Washer
5000217220
Recoil starter cpl.
5000217223
Casing
5000217226
Spring
5000217228
Pulley
5000217230
Arm
5000217233
Ignition coil
5000217235
Clip
5000217236
Flywheel
5000217238
Wire
5000217242
Stud bolt
5000217248
Bolt
5000217249
pc
5000217250
Bolt
5000217253
Bolt
5000217254
Pan head screw
5000217255
Pan head screw
5000217256
Bolt
5000217257
Bolt
5000217258
Adjustment screw
5000217259
Bolt
5000217260
Bolt
5000217264
Lock nut
5000217273
Oil seal
5000217274
Oil seal
5000217277
O-ring
5000217283
Pin
5000217284
Tube clip
5000217285
Tube clip
5000220523
pc
$1.95
5000401561
pc
$9.95
5002900102
pc
5100031582
Joint
5100045462
pc
5100057757
pc
5100058382
pc
5100058383
pc
5100058914
pc
5100059156
Tank-fuel
5100059157
Carburetor assembly
5100059158
Body assembly-pump
5100059159
Shroud
5100059162
Hose-protector
5100059163
Cap assy-fuel tank
5100059164
Tube-fuel
5100059165
Tube-fuel return
5100059171
Crankshaft complate
5100059173
Clamp-tube
5100059174
Clamp-tube
5100059175
Muffler
5100059576
Crankshaft
5100060417
Blade adapter assy-complete
5100060419
Engine-honda gx35
5200000522
pc
5200000523
pc
5200010574
pc
5200010575
pc
5200010576
pc
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
