Wacker Neuson PDT2 Trash Pump
Factory parts book · interactive
Wacker Neuson PDT2 Trash Pump
The parts bench

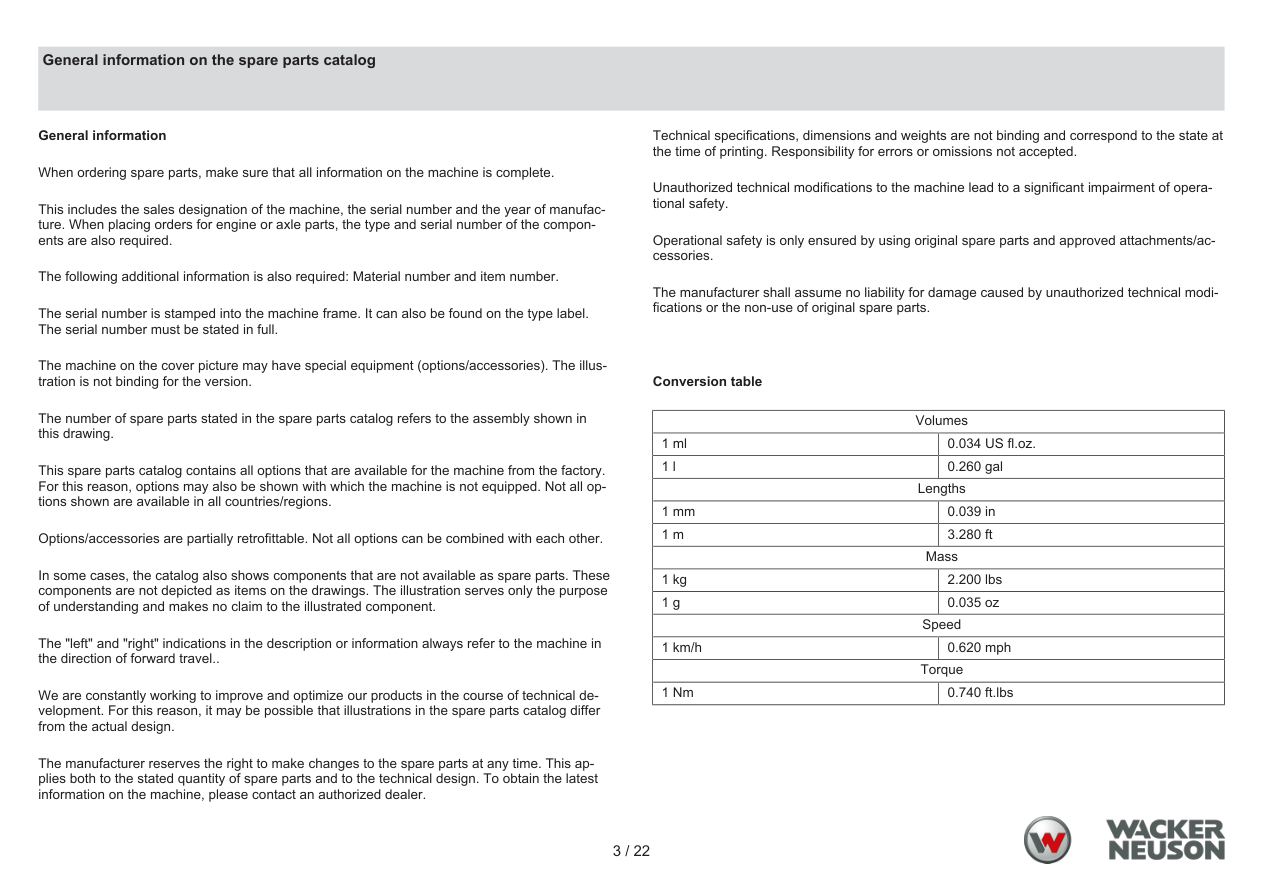

Need the PDF? ↓Page 3 — General information on the spare parts catalog
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | PARTS REQUEST | ||
|
COMING Fuel filter
1000386655 | |||||
| 2 | 1000389249 | Plug | PARTS REQUEST | ||
|
COMING Plug
1000389249 | |||||
| 3 | 1000389229 | Screw joint | PARTS REQUEST | ||
|
COMING Screw joint
1000389229 | |||||
| 4 | 1000386656 | Filter insert | PARTS REQUEST | ||
|
COMING Filter insert
1000386656 | |||||
| 5 | 1000433955 | Filter housing | PARTS REQUEST | ||
|
COMING Filter housing
1000433955 | |||||
| 6 | 1000139973 | Screw | PARTS REQUEST | ||
|
COMING Screw
1000139973 | |||||
| 7 | 1000389241 | Hose clamp | PARTS REQUEST | ||
|
COMING Hose clamp
1000389241 | |||||
| 8 | 1000389247 | Fuel line | PARTS REQUEST | ||
|
COMING Fuel line
1000389247 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | PARTS REQUEST | ||
|
COMING Pressure limit reliefvalve
1000434006 | |||||
| 10 | 1000389230 | Fuel line | PARTS REQUEST | ||
|
COMING Fuel line
1000389230 | |||||
| 11 | 1000139973 | Screw | PARTS REQUEST | ||
|
COMING Screw
1000139973 | |||||
| 12 | 1000088388 | Screw | PARTS REQUEST | ||
|
COMING Screw
1000088388 | |||||
| 13 | 1000433952 | Arm | PARTS REQUEST | ||
|
COMING Arm
1000433952 | |||||
| 14 | 1000328508 | Clamp | PARTS REQUEST | ||
|
COMING Clamp
1000328508 | |||||
| 15 | 1000433949 | Fuel filter | PARTS REQUEST | ||
|
COMING Fuel filter
1000433949 | |||||
| 16 | 1000433950 | Fuel filter | PARTS REQUEST | ||
|
COMING Fuel filter
1000433950 | |||||
| 17 | 1000389262 | Fuel pump | PARTS REQUEST | ||
|
COMING Fuel pump
1000389262 | |||||

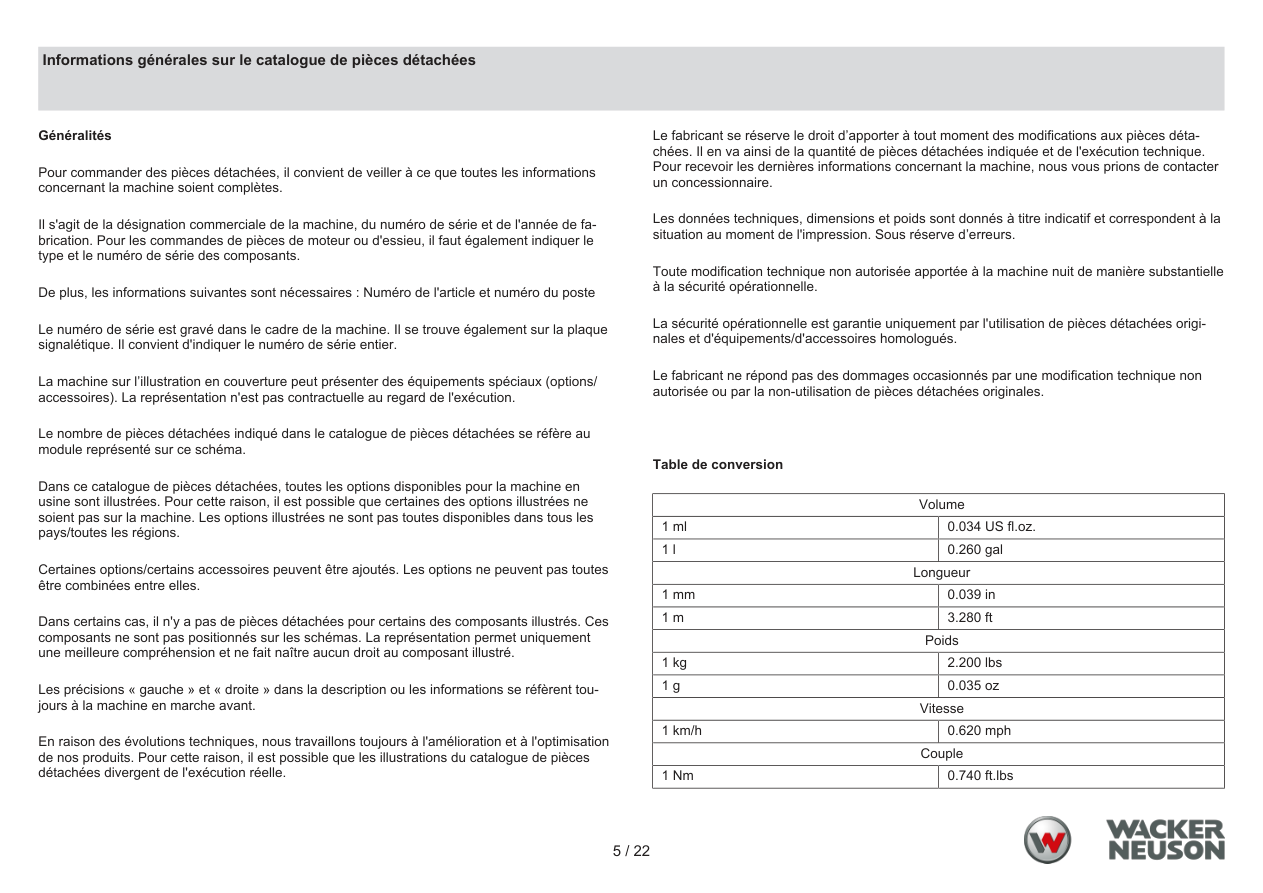

Page 5 — Informations générales sur le catalogue de pièces détachées
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | PARTS REQUEST | ||
|
COMING Fuel filter
1000386655 | |||||
| 2 | 1000389249 | Plug | PARTS REQUEST | ||
|
COMING Plug
1000389249 | |||||
| 3 | 1000389229 | Screw joint | PARTS REQUEST | ||
|
COMING Screw joint
1000389229 | |||||
| 4 | 1000386656 | Filter insert | PARTS REQUEST | ||
|
COMING Filter insert
1000386656 | |||||
| 5 | 1000433955 | Filter housing | PARTS REQUEST | ||
|
COMING Filter housing
1000433955 | |||||
| 6 | 1000139973 | Screw | PARTS REQUEST | ||
|
COMING Screw
1000139973 | |||||
| 7 | 1000389241 | Hose clamp | PARTS REQUEST | ||
|
COMING Hose clamp
1000389241 | |||||
| 8 | 1000389247 | Fuel line | PARTS REQUEST | ||
|
COMING Fuel line
1000389247 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | PARTS REQUEST | ||
|
COMING Pressure limit reliefvalve
1000434006 | |||||
| 10 | 1000389230 | Fuel line | PARTS REQUEST | ||
|
COMING Fuel line
1000389230 | |||||
| 11 | 1000139973 | Screw | PARTS REQUEST | ||
|
COMING Screw
1000139973 | |||||
| 12 | 1000088388 | Screw | PARTS REQUEST | ||
|
COMING Screw
1000088388 | |||||
| 13 | 1000433952 | Arm | PARTS REQUEST | ||
|
COMING Arm
1000433952 | |||||
| 14 | 1000328508 | Clamp | PARTS REQUEST | ||
|
COMING Clamp
1000328508 | |||||
| 15 | 1000433949 | Fuel filter | PARTS REQUEST | ||
|
COMING Fuel filter
1000433949 | |||||
| 16 | 1000433950 | Fuel filter | PARTS REQUEST | ||
|
COMING Fuel filter
1000433950 | |||||
| 17 | 1000389262 | Fuel pump | PARTS REQUEST | ||
|
COMING Fuel pump
1000389262 | |||||

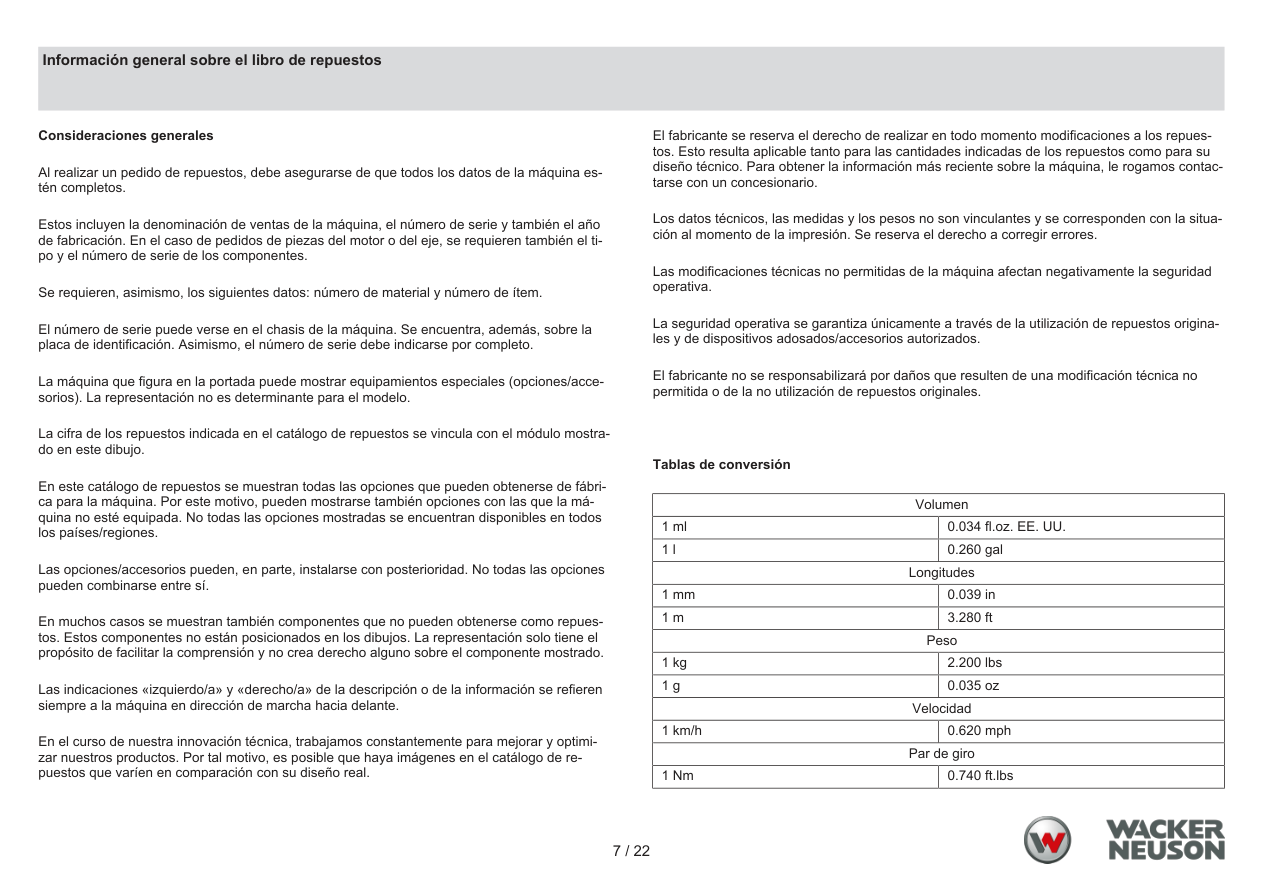

Page 7 — Información general sobre el libro de repuestos
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | PARTS REQUEST | ||
|
COMING Fuel filter
1000386655 | |||||
| 2 | 1000389249 | Plug | PARTS REQUEST | ||
|
COMING Plug
1000389249 | |||||
| 3 | 1000389229 | Screw joint | PARTS REQUEST | ||
|
COMING Screw joint
1000389229 | |||||
| 4 | 1000386656 | Filter insert | PARTS REQUEST | ||
|
COMING Filter insert
1000386656 | |||||
| 5 | 1000433955 | Filter housing | PARTS REQUEST | ||
|
COMING Filter housing
1000433955 | |||||
| 6 | 1000139973 | Screw | PARTS REQUEST | ||
|
COMING Screw
1000139973 | |||||
| 7 | 1000389241 | Hose clamp | PARTS REQUEST | ||
|
COMING Hose clamp
1000389241 | |||||
| 8 | 1000389247 | Fuel line | PARTS REQUEST | ||
|
COMING Fuel line
1000389247 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | PARTS REQUEST | ||
|
COMING Pressure limit reliefvalve
1000434006 | |||||
| 10 | 1000389230 | Fuel line | PARTS REQUEST | ||
|
COMING Fuel line
1000389230 | |||||
| 11 | 1000139973 | Screw | PARTS REQUEST | ||
|
COMING Screw
1000139973 | |||||
| 12 | 1000088388 | Screw | PARTS REQUEST | ||
|
COMING Screw
1000088388 | |||||
| 13 | 1000433952 | Arm | PARTS REQUEST | ||
|
COMING Arm
1000433952 | |||||
| 14 | 1000328508 | Clamp | PARTS REQUEST | ||
|
COMING Clamp
1000328508 | |||||
| 15 | 1000433949 | Fuel filter | PARTS REQUEST | ||
|
COMING Fuel filter
1000433949 | |||||
| 16 | 1000433950 | Fuel filter | PARTS REQUEST | ||
|
COMING Fuel filter
1000433950 | |||||
| 17 | 1000389262 | Fuel pump | PARTS REQUEST | ||
|
COMING Fuel pump
1000389262 | |||||

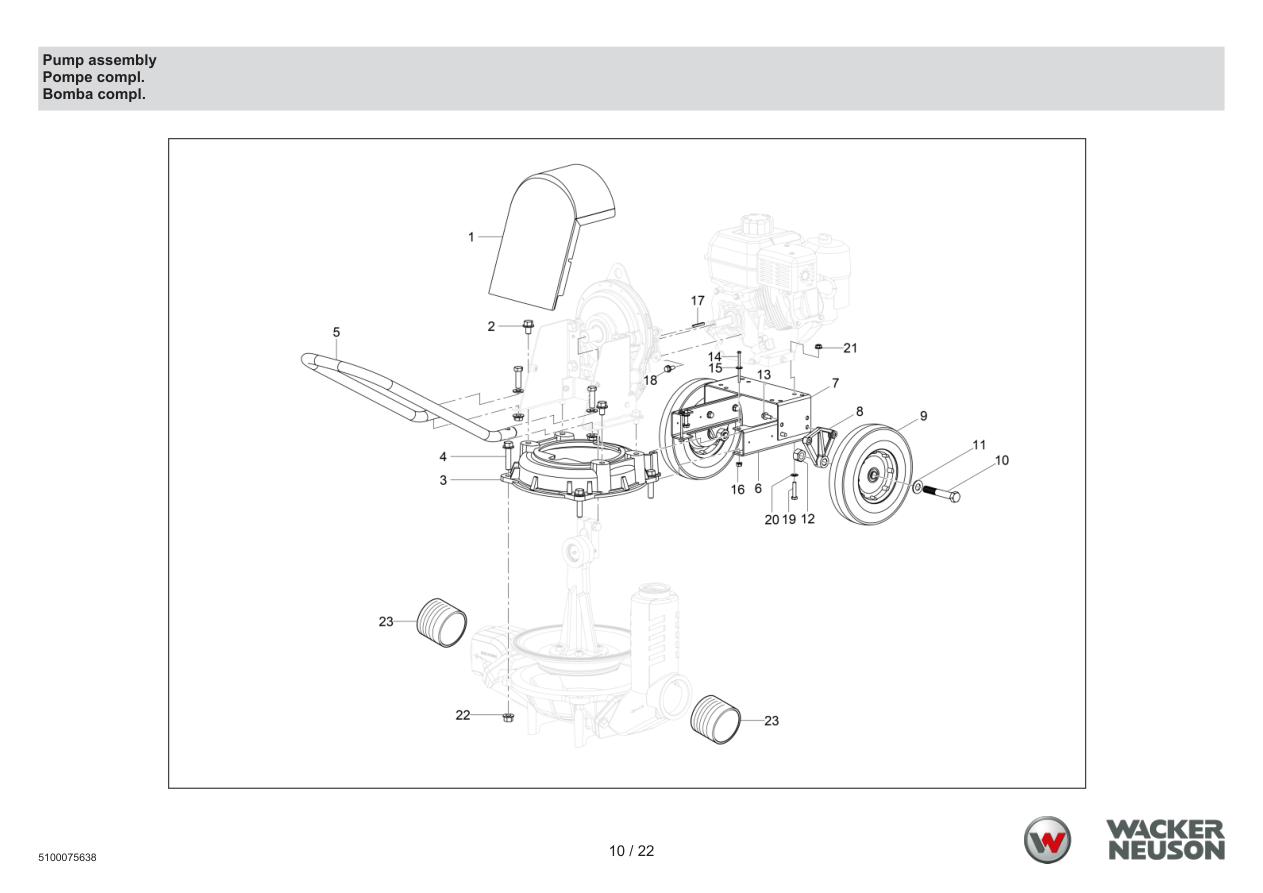

Page 10 — Pump assembly
Parts list — exactly as printed27 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100075488 | Protection | ADD TO CART | ||
| 2 | 5100075497 | Hexagonal flange head screw | ADD TO CART | ||
| 3 | 5000179863 | Console | ADD TO CART | ||
| 3 | 5000179864 | Console de pompe | ADD TO CART | ||
| 4 | 5100075498 | Hex head bolt | ADD TO CART | ||
| 5 | 5100082918 | Poignée | ADD TO CART | ||
| 6 | 5200005885 | Écrou hexagonal | ADD TO CART | ||
| 7 | 5000179857 | Support | ADD TO CART | ||
| 8 | 5000179859 | Support pour moteur | ADD TO CART | ||
| 9 | 5000179855 | Support | ADD TO CART | ||
| 10 | 5000179854 | Roue | ADD TO CART | ||
| 11 | 5000179852 | Boulon | ADD TO CART | ||
| 12 | 5000179853 | Rondelle | ADD TO CART | ||
| 13 | 5000179856 | Écrou | ADD TO CART | ||
| 14 | 5000179860 | Boulon à bride | ADD TO CART | ||
| 15 | 5000179862 | Boulon | ADD TO CART | ||
| 16 | 5000179861 | Rondelle | ADD TO CART | ||
| 17 | 5000179858 | Écrou hexagonal | ADD TO CART | ||
| 18 | 5000180294 | Clé | ADD TO CART | ||
| 19 | 5000182013 | Screw 5/16-24 x 1,hhcs | ADD TO CART | ||
| 20 | 5000182014 | Vis | ADD TO CART | ||
| 21 | 5000182015 | Rondelle | ADD TO CART | ||
| 22 | 5000182016 | Écrou hexagonal | ADD TO CART | ||
| 23 | 5000180248 | Raccord | PD3 / 3in NPT/NPT | ADD TO CART | |
| 23 | 5000180261 | Tamis | ADD TO CART | ||
| 23 | 5000180262 | Tamis | PD2 / 2in | ADD TO CART | |
| 23 | 5100075500 | Raccord | ADD TO CART | ||

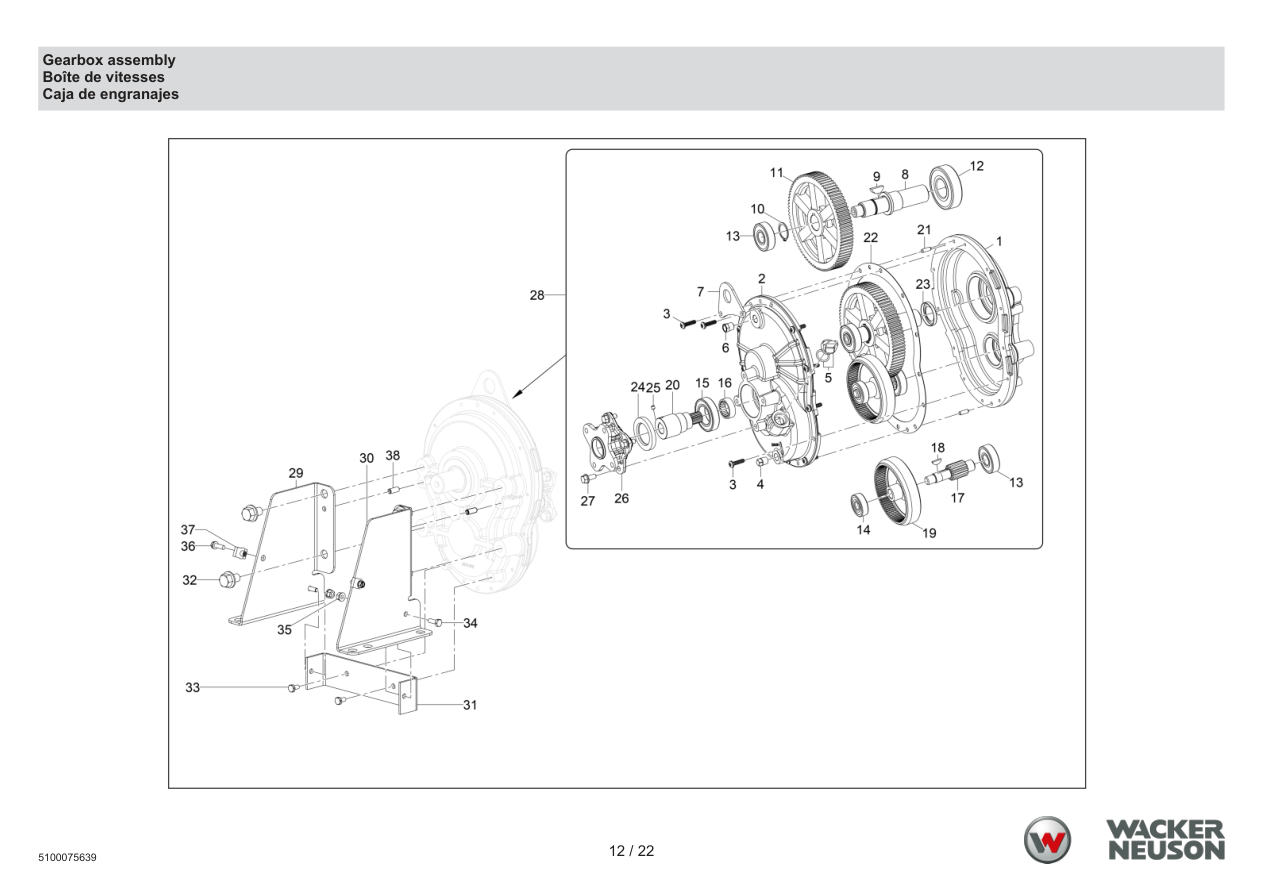

Page 12 — Gearbox assembly
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100075501 | Couvercle de la boîte de vitesses | ADD TO CART | ||
| 2 | 5100075502 | Couvercle de la boîte de vitesses | ADD TO CART | ||
| 3 | 5100075503 | Screw | ADD TO CART | ||
| 4 | 5000180280 | Bouchon | ADD TO CART | ||
| 5 | 5100075504 | Chapeau | ADD TO CART | ||
| 6 | 5100075512 | Bouchon | ADD TO CART | ||
| 7 | 5000180278 | Support de relèvement | ADD TO CART | ||
| 8 | 5000180269 | Arbre | ADD TO CART | ||
| 8 | 5100075513 | Arbre | ADD TO CART | ||
| 9 | 5000180271 | Clavette woodruff | ADD TO CART | ||
| 10 | 5000180273 | Bague d'arrêt | ADD TO CART | ||
| 11 | 5000180272 | Engrenage | ADD TO CART | ||
| 12 | 5000180267 | Roulement | ADD TO CART | ||
| 13 | 5000180274 | Roulement | ADD TO CART | ||
| 14 | 5000180281 | Roulement | ADD TO CART | ||
| 15 | 5000180285 | Roulement | ADD TO CART | ||
| 16 | 5100075514 | Roulement | ADD TO CART | ||
| 17 | 5000180284 | Arbre | ADD TO CART | ||
| 18 | 5000180283 | Clavette woodruff | ADD TO CART | ||
| 19 | 5000180282 | Roue intérieure | ADD TO CART | ||
| 20 | 5100075515 | Pignon | ADD TO CART | ||
| 21 | 5000180268 | Cheville | ADD TO CART | ||
| 22 | 5000180270 | Joint | ADD TO CART | ||
| 23 | 5000180265 | Joint d'huile | ADD TO CART | ||
| 24 | 5000180268 | Cheville | ADD TO CART | ||
| 25 | 5100075517 | Vis noyée | ADD TO CART | ||
| 26 | 5100075518 | Coupleur moteur | ADD TO CART | ||
| 27 | 5000179860 | Boulon à bride | ADD TO CART | ||
| 28 | 5100075520 | Carter d´engrenage | ADD TO CART | ||
| 28 | 5100075521 | Carter d´engrenage | ADD TO CART | ||
| 29 | 5100075522 | Socle de pompe gauche | ADD TO CART | ||
| 30 | 5100075524 | Socle de pompe droite | ADD TO CART | ||
| 31 | 5100075525 | Protection | PARTS REQUEST | ||
|
COMING Protection
5100075525 | |||||
| 32 | 5100075497 | Hexagonal flange head screw | ADD TO CART | ||
| 33 | 5000020557 | Vis à tête hexagonale | ADD TO CART | ||
| 34 | 5200025767 | Screw | PARTS REQUEST | ||
|
COMING Screw
5200025767 | |||||
| 35 | 5000179858 | Écrou hexagonal | ADD TO CART | ||
| 36 | 5100075619 | Hexagonal flange head screw | ADD TO CART | ||
| 37 | 5000170184 | Agrafe | PARTS REQUEST | ||
|
COMING Agrafe
5000170184 | |||||
| 38 | 5100075620 | Cheville | ADD TO CART | ||

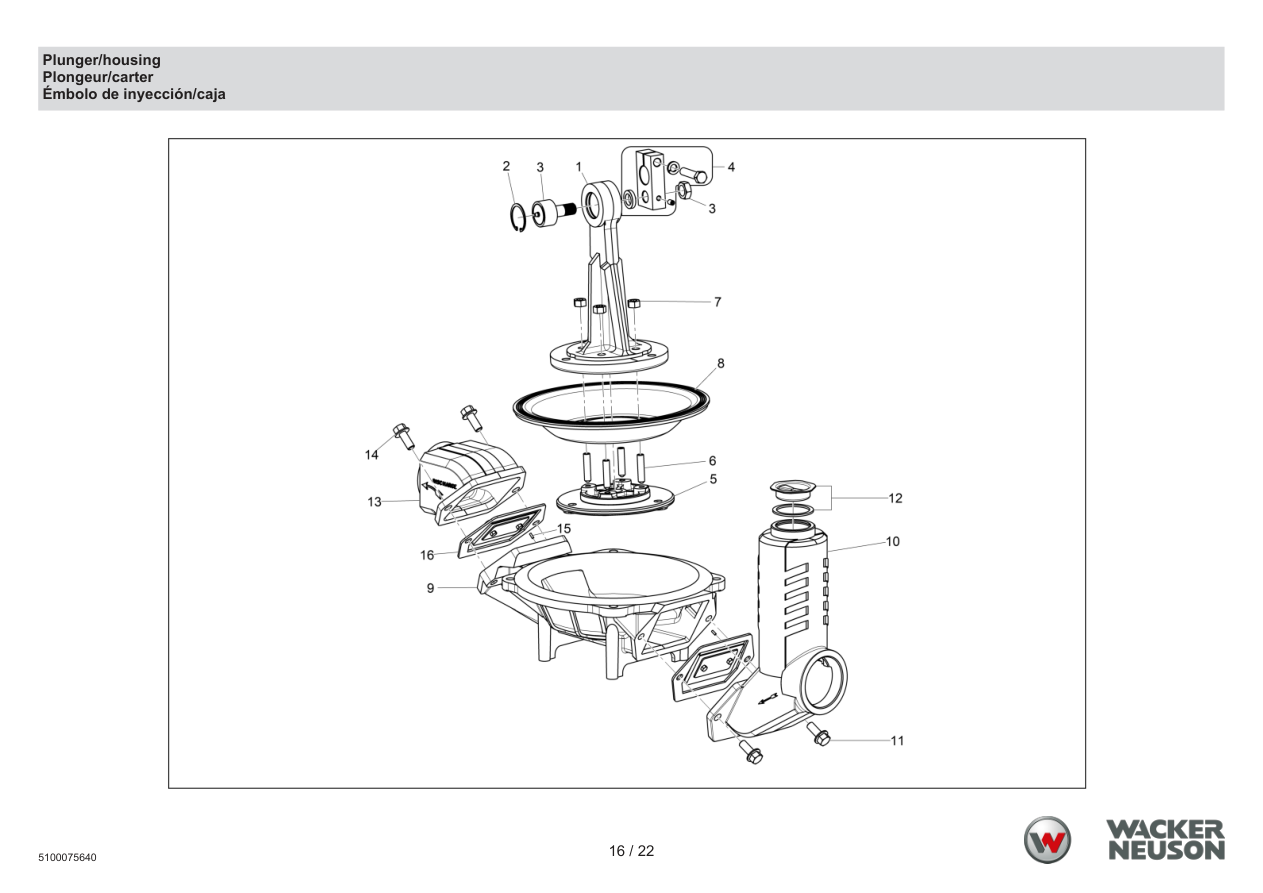

Page 16 — Plunger/housing
Parts list — exactly as printed30 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 16 | 5000180255 | Garniture | ADD TO CART | ||
| 1 | 5100075621 | Bras | ADD TO CART | ||
| 1 | 5100075622 | Bras | ADD TO CART | ||
| 2 | 5000179880 | Bague d'arrêt | PD3 / 1-3/4in | ADD TO CART | |
| 2 | 5000180231 | Bague d'arrêt | PD2 / 1-1/2in | ADD TO CART | |
| 3 | 5000179876 | Roulement | ADD TO CART | ||
| 3 | 5000179877 | Roulement | ADD TO CART | ||
| 4 | 5000186903 | Jeu de bras de manivelle | ADD TO CART | ||
| 4 | 5100075623 | Vilebrequin | ADD TO CART | ||
| 5 | 5100075626 | Arrêtoir | ADD TO CART | ||
| 5 | 5100075627 | Arrêtoir | ADD TO CART | ||
| 6 | 5100075624 | Stud | PARTS REQUEST | ||
|
COMING Stud
5100075624 | |||||
| 6 | 5100075625 | Stud | ADD TO CART | ||
| 7 | 5000180237 | Écrou | PD2 / 3/8in-16 | ADD TO CART | |
| 7 | 5100075628 | Nut | ADD TO CART | ||
| 8 | 5100075630 | Membrane | ADD TO CART | ||
| 8 | 5100075629 | Membrane | ADD TO CART | ||
| 9 | 5000180256 | Carter de pompe | ADD TO CART | ||
| 9 | 5000180257 | Carter de pompe | ADD TO CART | ||
| 10 | 5000180246 | Carter | ADD TO CART | ||
| 10 | 5000180247 | Carter | ADD TO CART | ||
| 11 | 5100075632 | Hexagonal flange head screw | ADD TO CART | ||
| 11 | 5100075633 | Hexagonal flange head screw | ADD TO CART | ||
| 12 | 5000180244 | Bouchon | ADD TO CART | ||
| 13 | 5000180259 | Plaque | ADD TO CART | ||
| 13 | 5200003904 | Plaque | ADD TO CART | ||
| 14 | 5100075632 | Hexagonal flange head screw | ADD TO CART | ||
| 14 | 5100075633 | Hexagonal flange head screw | ADD TO CART | ||
| 15 | 5000180258 | Goupille | ADD TO CART | ||
| 16 | 5000180254 | Garniture | ADD TO CART | ||

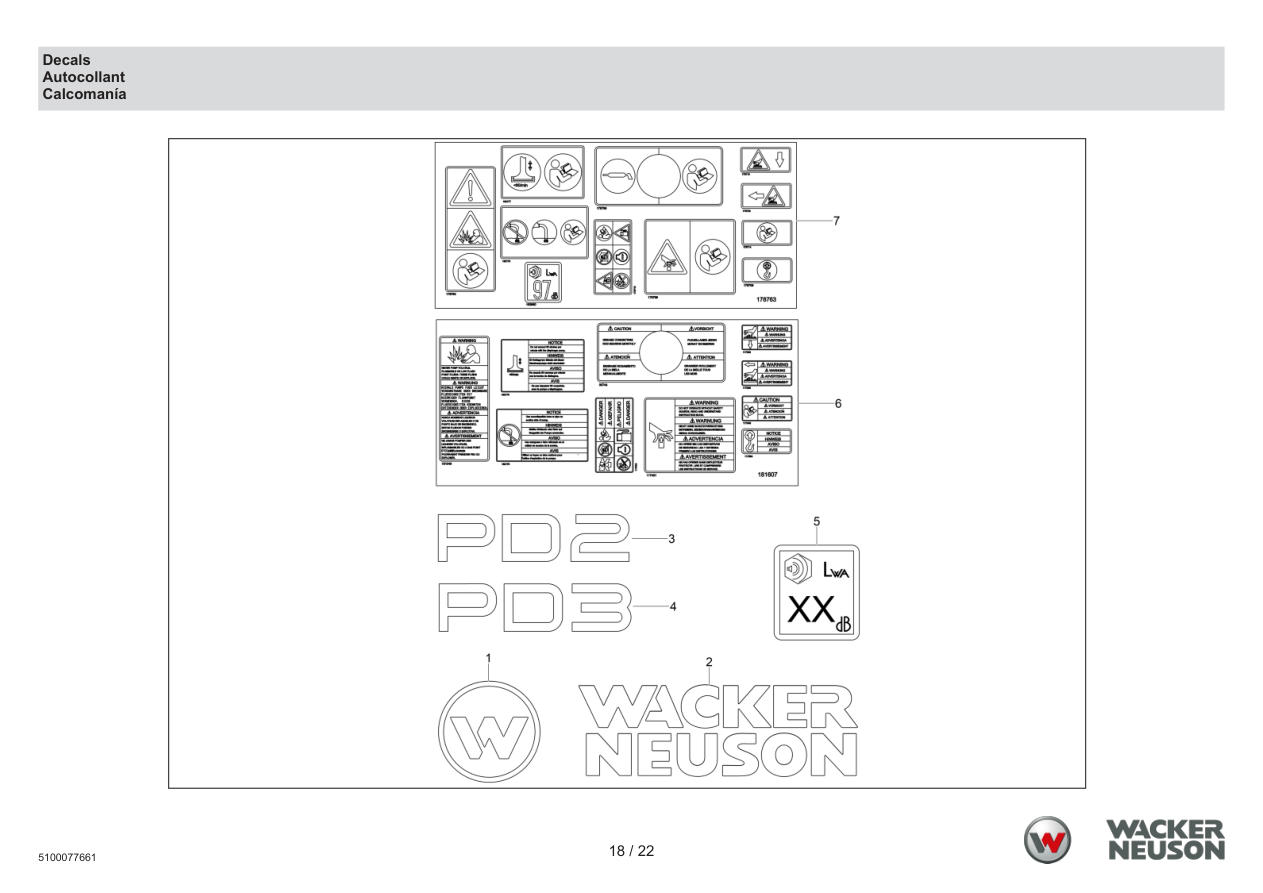

Page 18 — Decals
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000222086 | Autocollant symbole | ADD TO CART | ||
| 2 | 5000222100 | Autocollant-wacker neuson logo | ADD TO CART | ||
| 3 | 5000117541 | Autocollant | ADD TO CART | ||
| 4 | 5000117542 | Autocollant | ADD TO CART | ||
| 5 | 5000153960 | Autocollant | ADD TO CART | ||
| 6 | 5000181607 | Feuille d'autocollants | ADD TO CART | ||
| 7 | 5000178763 | Feuille d'autocollants-eu | ADD TO CART | ||
The machine itself
Machine
Engine
Wacker Neuson PDT2 trash pump.
List price: $3,125.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5000020557
Vis à tête hexagonale
$0.95
5000117541
Autocollant
$18.95
5000117542
Autocollant
$18.95
5000153960
Autocollant
$32.95
5000170184
Agrafe
5000178763
Feuille d'autocollants-eu
$43.95
5000179852
Boulon
$15.95
5000179853
Rondelle
$7.95
5000179854
Roue
$91.95
5000179855
Support
$46.95
5000179856
Écrou
$7.95
5000179857
Support
$38.95
5000179858
Écrou hexagonal
$7.95
5000179859
Support pour moteur
$40.95
5000179860
Boulon à bride
$8.95
5000179861
Rondelle
$7.95
5000179862
Boulon
$8.95
5000179863
Console
$626.95
5000179864
Console de pompe
$585.95
5000179876
Roulement
$192.95
5000179877
Roulement
$123.95
5000179880
Bague d'arrêt
$7.95
5000180231
Bague d'arrêt
$8.95
5000180237
Écrou
$7.95
5000180244
Bouchon
$10.95
5000180246
Carter
$500.95
5000180247
Carter
$367.95
5000180248
Raccord
$63.95
5000180254
Garniture
$58.95
5000180255
Garniture
$55.95
5000180256
Carter de pompe
$794.95
5000180257
Carter de pompe
$418.95
5000180258
Goupille
$7.95
5000180259
Plaque
$214.95
5000180261
Tamis
$50.95
5000180262
Tamis
$31.95
5000180265
Joint d'huile
$21.95
5000180267
Roulement
$37.95
5000180268
Cheville
$7.95
5000180269
Arbre
$170.95
5000180270
Joint
$10.95
5000180271
Clavette woodruff
$10.95
5000180272
Engrenage
$640.95
5000180273
Bague d'arrêt
$8.95
5000180274
Roulement
$33.95
5000180278
Support de relèvement
$19.95
5000180280
Bouchon
$8.95
5000180281
Roulement
$18.95
5000180282
Roue intérieure
$232.95
5000180283
Clavette woodruff
$7.95
5000180284
Arbre
$51.95
5000180285
Roulement
$48.95
5000180294
Clé
$7.95
5000181607
Feuille d'autocollants
$125.95
5000182013
Screw 5/16-24 x 1,hhcs
$0.95
5000182014
Vis
$7.95
5000182015
Rondelle
$7.95
5000182016
Écrou hexagonal
$7.95
5000186903
Jeu de bras de manivelle
$170.95
5000222086
Autocollant symbole
$31.95
5000222100
Autocollant-wacker neuson logo
$26.95
5100075488
Protection
$130.95
5100075497
Hexagonal flange head screw
$7.95
5100075498
Hex head bolt
$8.95
5100075500
Raccord
$56.95
5100075501
Couvercle de la boîte de vitesses
$307.95
5100075502
Couvercle de la boîte de vitesses
$256.95
5100075503
Screw
$7.95
5100075504
Chapeau
$15.95
5100075512
Bouchon
$37.95
5100075513
Arbre
$152.95
5100075514
Roulement
$33.95
5100075515
Pignon
$97.95
5100075517
Vis noyée
$7.95
5100075518
Coupleur moteur
$134.95
5100075520
Carter d´engrenage
$1,345.95
5100075521
Carter d´engrenage
$1,345.95
5100075522
Socle de pompe gauche
$111.95
5100075524
Socle de pompe droite
$111.95
5100075525
Protection
5100075619
Hexagonal flange head screw
$7.95
5100075620
Cheville
$7.95
5100075621
Bras
$309.95
5100075622
Bras
$266.95
5100075623
Vilebrequin
$157.95
5100075624
Stud
5100075625
Stud
$12.95
5100075626
Arrêtoir
$216.95
5100075627
Arrêtoir
$74.95
5100075628
Nut
$8.95
5100075629
Membrane
$126.95
5100075630
Membrane
$87.95
5100075632
Hexagonal flange head screw
$10.95
5100075633
Hexagonal flange head screw
$7.95
5100082918
Poignée
$126.95
5200003904
Plaque
$155.95
5200005885
Écrou hexagonal
$0.95
5200025767
Screw
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
