Wacker Neuson PS3-1500 Trash Pump
Factory parts book · interactive
Wacker Neuson PS3-1500 Trash Pump
Pick your options below. We build the exact machine and start your quote.
The parts bench

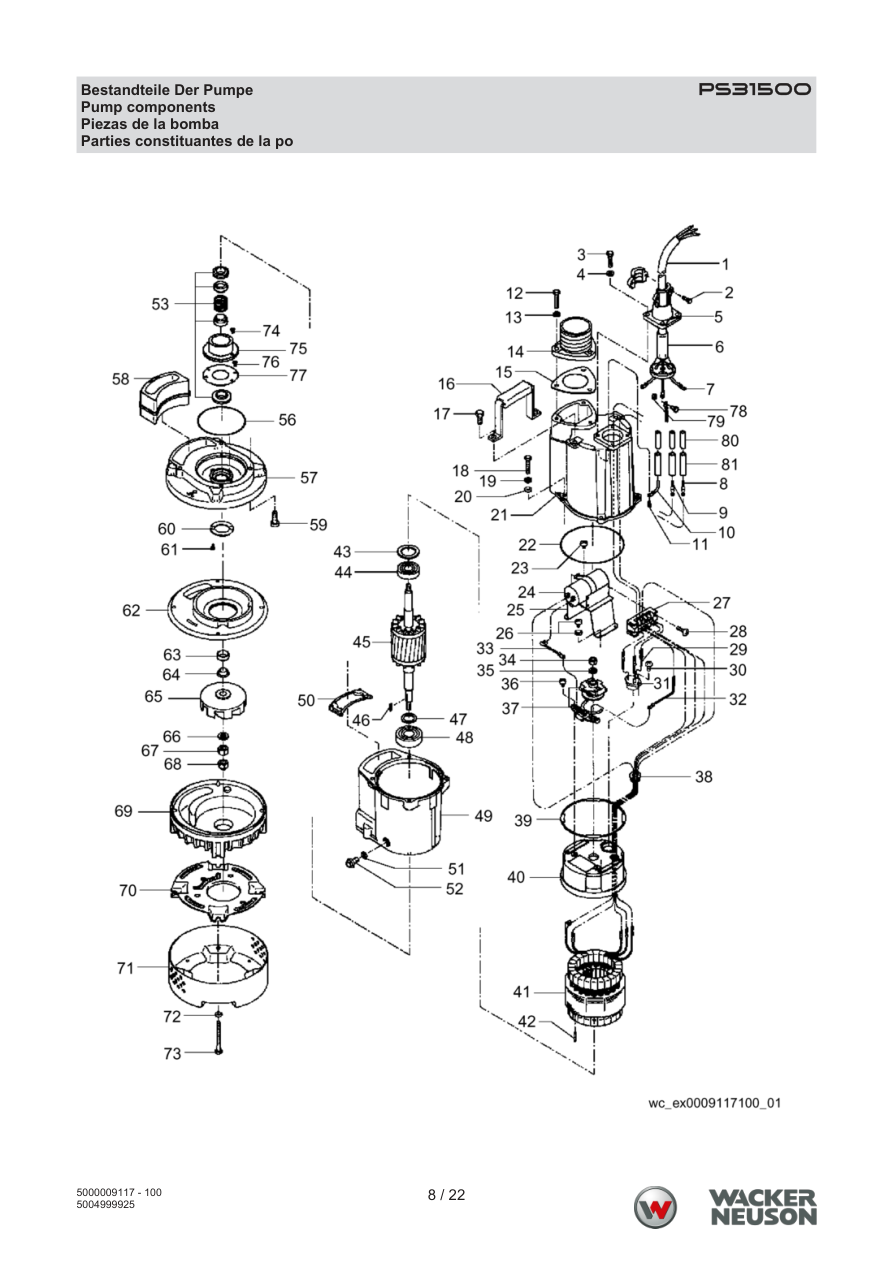

Need the PDF? ↓Page 8 — PS31500 Pump Components
Parts list — exactly as printed80 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5000150805 | Gasket & o-ring set | 1 | PARTS REQUEST | ||
|
COMING Gasket & o-ring set
5000150805 · qty on machine: 1 | |||||
| 1 | 5000150404 | Power cable | 1 | PARTS REQUEST | |
|
COMING Power cable
5000150404 · qty on machine: 1 | |||||
| 2 | 5000150716 | Bolt | 2 | M6 x 16 | ADD TO CART |
| 3 | 5000150739 | Bolt | 4 | M8 x 25 | PARTS REQUEST |
|
COMING Bolt
5000150739 · qty on machine: 4 M8 x 25 | |||||
| 4 | 5000150771 | Washer | 4 | PARTS REQUEST | |
|
COMING Washer
5000150771 · qty on machine: 4 | |||||
| 5 | 5000150419 | Casing | 1 | PARTS REQUEST | |
|
COMING Casing
5000150419 · qty on machine: 1 | |||||
| 6 | 5000150425 | Cover | 1 | ADD TO CART | |
| 7 | 5000150431 | Terminal post | 6 | PARTS REQUEST | |
|
COMING Terminal post
5000150431 · qty on machine: 6 | |||||
| 8 | 5000150438 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5000150438 · qty on machine: 1 | |||||
| 9 | 5000150437 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5000150437 · qty on machine: 1 | |||||
| 10 | 5000150435 | Ground wire | 1 | PARTS REQUEST | |
|
COMING Ground wire
5000150435 · qty on machine: 1 | |||||
| 11 | 5000150779 | Screw | 1 | M4 x 6 | PARTS REQUEST |
|
COMING Screw
5000150779 · qty on machine: 1 M4 x 6 | |||||
| 12 | 5000150720 | Bolt | 3 | M8 x 30 | PARTS REQUEST |
|
COMING Bolt
5000150720 · qty on machine: 3 M8 x 30 | |||||
| 13 | 5000150760 | Washer | 3 | ADD TO CART | |
| 14 | 5000150533 | Coupling | 1 | ADD TO CART | |
| 15 | 5000150681 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000150681 · qty on machine: 1 | |||||
| 16 | 5000150639 | Lifting handle | 1 | PARTS REQUEST | |
|
COMING Lifting handle
5000150639 · qty on machine: 1 | |||||
| 17 | 5000150726 | Bolt | 2 | M10 x 20 | PARTS REQUEST |
|
COMING Bolt
5000150726 · qty on machine: 2 M10 x 20 | |||||
| 18 | 5000150720 | Bolt | 4 | M8 x 30 | PARTS REQUEST |
|
COMING Bolt
5000150720 · qty on machine: 4 M8 x 30 | |||||
| 19 | 5000150763 | Lock washer | 4 | ADD TO CART | |
| 20 | 5000150759 | Washer | 4 | ADD TO CART | |
| 21 | 5000150553 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000150553 · qty on machine: 1 | |||||
| 22 | 5000150710 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000150710 · qty on machine: 1 | |||||
| 23 | 5000150779 | Screw | 1 | M4 x 6 | PARTS REQUEST |
|
COMING Screw
5000150779 · qty on machine: 1 M4 x 6 | |||||
| 24 | 5000150654 | Capacitor | 1 | ADD TO CART | |
| 25 | 5000150663 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5000150663 · qty on machine: 1 | |||||
| 26 | 5000150779 | Screw | 4 | M4 x 6 | PARTS REQUEST |
|
COMING Screw
5000150779 · qty on machine: 4 M4 x 6 | |||||
| 27 | 5000150424 | Box | 1 | PARTS REQUEST | |
|
COMING Box
5000150424 · qty on machine: 1 | |||||
| 28 | 5000150774 | Screw | 2 | ADD TO CART | |
| 29 | 5000150443 | Wire | 3 | PARTS REQUEST | |
|
COMING Wire
5000150443 · qty on machine: 3 | |||||
| 30 | 5000150784 | Screw | 2 | M4 x 10 | PARTS REQUEST |
|
COMING Screw
5000150784 · qty on machine: 2 M4 x 10 | |||||
| 31 | 5000150567 | Thermal switch | 1 | PARTS REQUEST | |
|
COMING Thermal switch
5000150567 · qty on machine: 1 | |||||
| 32 | 5000150442 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5000150442 · qty on machine: 1 | |||||
| 33 | 5000150440 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5000150440 · qty on machine: 1 | |||||
| 34 | 5000150757 | Nut | 1 | PARTS REQUEST | |
|
COMING Nut
5000150757 · qty on machine: 1 | |||||
| 35 | 5000150761 | Washer | 1 | ADD TO CART | |
| 36 | 5000150773 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5000150773 · qty on machine: 2 | |||||
| 37 | 5000150661 | Centrifugal switch | 1 | ADD TO CART | |
| 38 | 5000150460 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5000150460 · qty on machine: 1 | |||||
| 39 | 5000150684 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000150684 · qty on machine: 1 | |||||
| 40 | 5000150546 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000150546 · qty on machine: 1 | |||||
| 41 | 5000150593 | Stator | 1 | PARTS REQUEST | |
|
COMING Stator
5000150593 · qty on machine: 1 | |||||
| 42 | 5000150796 | Pin | 1 | ADD TO CART | |
| 43 | 5000150767 | Spring washer | 1 | ADD TO CART | |
| 44 | 5000150557 | Ball bearing | 1 | PARTS REQUEST | |
|
COMING Ball bearing
5000150557 · qty on machine: 1 | |||||
| 45 | 5000150584 | Rotor | 1 | PARTS REQUEST | |
|
COMING Rotor
5000150584 · qty on machine: 1 | |||||
| 46 | 5000150804 | Key | 1 | ADD TO CART | |
| 47 | 5000150621 | Ring | 1 | ADD TO CART | |
| 48 | 5000150559 | Ball bearing | 1 | ADD TO CART | |
| 49 | 5000150628 | Motor housing | 1 | PARTS REQUEST | |
|
COMING Motor housing
5000150628 · qty on machine: 1 | |||||
| 50 | 5000150683 | Gasket | 1 | ADD TO CART | |
| 51 | 5000150676 | Gasket | 1 | ADD TO CART | |
| 52 | 5000150536 | Oil plug | 1 | ADD TO CART | |
| 53 | 5000150502 | Mechanical seal | 1 | PARTS REQUEST | |
|
COMING Mechanical seal
5000150502 · qty on machine: 1 | |||||
| 56 | 5000150695 | O-ring | 1 | ADD TO CART | |
| 57 | 5000150513 | Housing | 1 | ADD TO CART | |
| 58 | 5000150680 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000150680 · qty on machine: 1 | |||||
| 59 | 5000150736 | Bolt | 4 | ADD TO CART | |
| 60 | 5000150615 | Wear plate | 1 | ADD TO CART | |
| 61 | 5000150785 | Self-tapping screw | 2 | ADD TO CART | |
| 62 | 5000150524 | Wear ring | 1 | ADD TO CART | |
| 63 | 5000150709 | Seal | 1 | ADD TO CART | |
| 64 | 5000150651 | Sleeve | 1 | ADD TO CART | |
| 65 | 5000150477 | Impeller | 1 | PARTS REQUEST | |
|
COMING Impeller
5000150477 · qty on machine: 1 | |||||
| 66 | 5000150762 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000150762 · qty on machine: 1 | |||||
| 67 | 5000150748 | Nut | 1 | ADD TO CART | |
| 68 | 5000150754 | Acorn nut | 1 | ADD TO CART | |
| 69 | 5000150468 | Volute | 1 | ADD TO CART | |
| 70 | 5000150712 | Retainer plate | 1 | ADD TO CART | |
| 71 | 5000150495 | Strainer | 1 | ADD TO CART | |
| 72 | 5000150760 | Washer | 4 | ADD TO CART | |
| 73 | 5000150724 | Bolt | 4 | M8 x 85 | PARTS REQUEST |
|
COMING Bolt
5000150724 · qty on machine: 4 M8 x 85 | |||||
| 74 | 5000150776 | Screw | 2 | M5 x 6 | ADD TO CART |
| 75 | 5000150518 | Oil lifter | 1 | ADD TO CART | |
| 76 | 5000150775 | Screw | 2 | ADD TO CART | |
| 77 | 5000150522 | Retaining plate | 1 | ADD TO CART | |
| 78 | 5000150775 | Screw | 3 | ADD TO CART | |
| 79 | 5000150743 | Nut | 3 | ADD TO CART | |
| 80 | 5000150411 | Heat shrink tube | 1 | PARTS REQUEST | |
|
COMING Heat shrink tube
5000150411 · qty on machine: 1 | |||||
| 81 | 5000150417 | Heat shrink tube | 1 | PARTS REQUEST | |
|
COMING Heat shrink tube
5000150417 · qty on machine: 1 | |||||

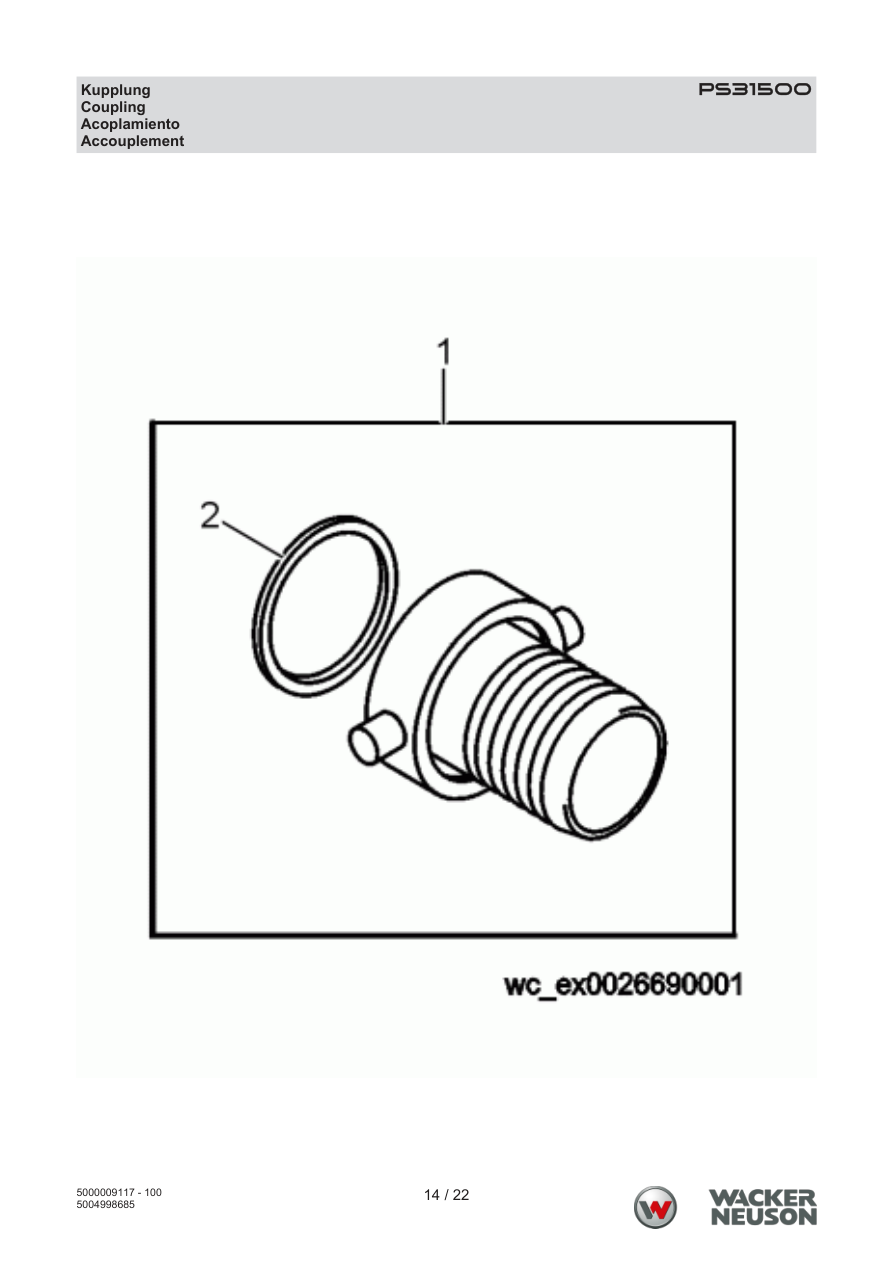

Page 14 — PS31500 Coupling
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000028072 | Coupling | 1 | ADD TO CART | |
| 2 | 5000028073 | Gasket | 1 | ADD TO CART | |
| 1 | 5000051453 | Quick disconnect coupling | 1 | PARTS REQUEST | |
|
COMING Quick disconnect coupling
5000051453 · qty on machine: 1 | |||||
| 2 | 5000053388 | Gasket | 1 | ADD TO CART | |

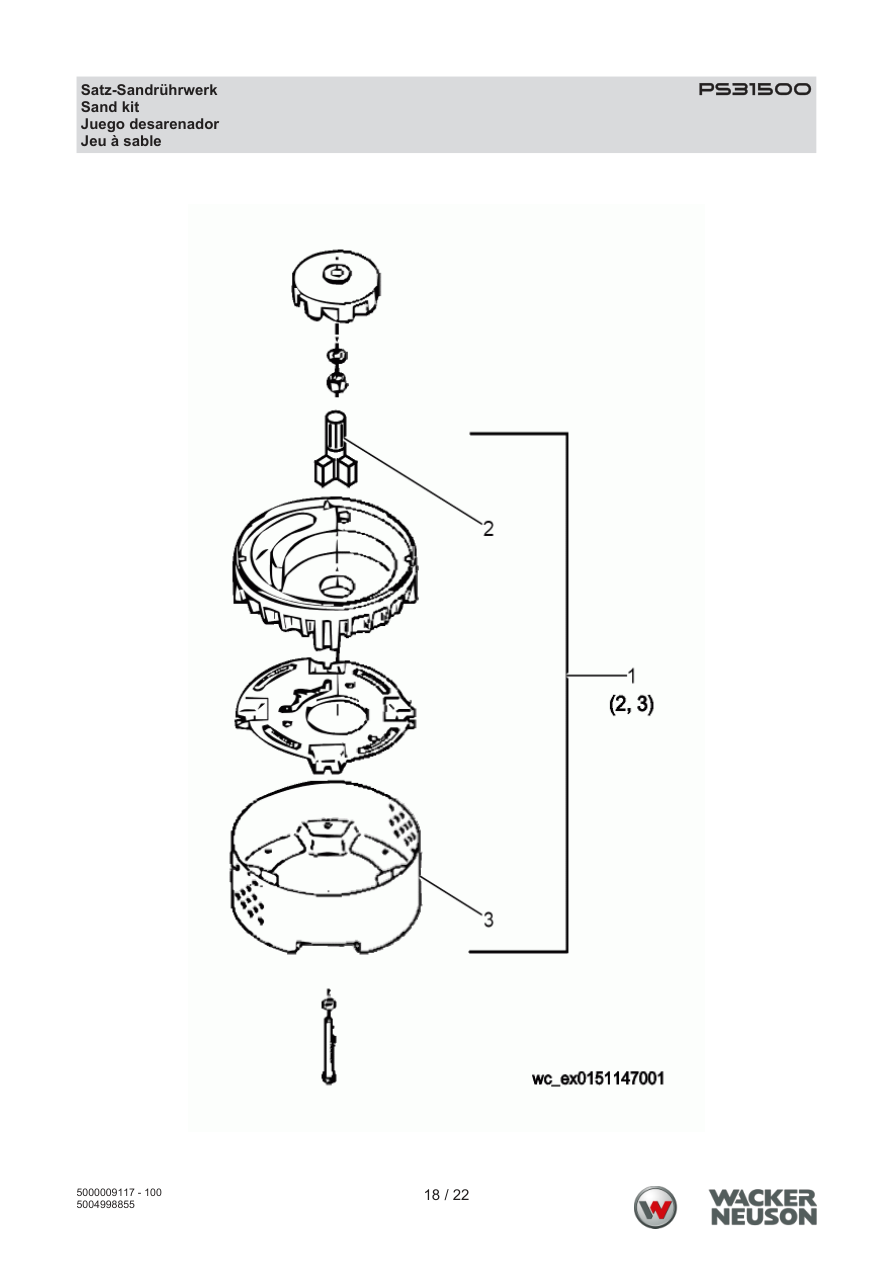

Page 18 — Sand kit
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000151147 | Sand kit | 1 | PARTS REQUEST | |
|
COMING Sand kit
5000151147 · qty on machine: 1 | |||||
| 2 | 5000151070 | Nut | 1 | ADD TO CART | |
| 3 | 5000151075 | Strainer | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson PS3-1500 trash pump.
Available in 2 configurations.
List price: $2,840.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000028072
Coupling
$60.95
5000028073
Gasket
$2.95
5000051453
Quick disconnect coupling
5000053388
Gasket
$3.95
5000150404
Power cable
5000150411
Heat shrink tube
5000150417
Heat shrink tube
5000150419
Casing
5000150424
Box
5000150425
Cover
$22.95
5000150431
Terminal post
5000150435
Ground wire
5000150437
Wire
5000150438
Wire
5000150440
Wire
5000150442
Wire
5000150443
Wire
5000150460
Bushing
5000150468
Volute
$178.95
5000150477
Impeller
5000150495
Strainer
$127.95
5000150502
Mechanical seal
5000150513
Housing
$232.95
5000150518
Oil lifter
$8.95
5000150522
Retaining plate
$16.95
5000150524
Wear ring
$102.95
5000150533
Coupling
$184.95
5000150536
Oil plug
$11.95
5000150546
Housing
5000150553
Housing
5000150557
Ball bearing
5000150559
Ball bearing
$38.95
5000150567
Thermal switch
5000150584
Rotor
5000150593
Stator
5000150615
Wear plate
$39.95
5000150621
Ring
$4.95
5000150628
Motor housing
5000150639
Lifting handle
5000150651
Sleeve
$61.95
5000150654
Capacitor
$336.95
5000150661
Centrifugal switch
$196.95
5000150663
Cover
5000150676
Gasket
$1.95
5000150680
Gasket
5000150681
Gasket
5000150683
Gasket
$13.95
5000150684
Gasket
5000150695
O-ring
$5.95
5000150709
Seal
$21.95
5000150710
O-ring
5000150712
Retainer plate
$48.95
5000150716
Bolt
$1.95
5000150720
Bolt
5000150724
Bolt
5000150726
Bolt
5000150736
Bolt
$5.95
5000150739
Bolt
5000150743
Nut
$0.95
5000150748
Nut
$3.95
5000150754
Acorn nut
$8.95
5000150757
Nut
5000150759
Washer
$0.95
5000150760
Washer
$0.95
5000150761
Washer
$0.95
5000150762
Washer
5000150763
Lock washer
$0.95
5000150767
Spring washer
$5.95
5000150771
Washer
5000150773
Screw
5000150774
Screw
$0.95
5000150775
Screw
$0.95
5000150776
Screw
$0.95
5000150779
Screw
5000150784
Screw
5000150785
Self-tapping screw
$0.95
5000150796
Pin
$12.95
5000150804
Key
$16.95
5000150805
Gasket & o-ring set
5000151070
Nut
$91.95
5000151075
Strainer
$501.95
5000151147
Sand kit
