Wacker Neuson PS3-2200 Trash Pump
The parts bench

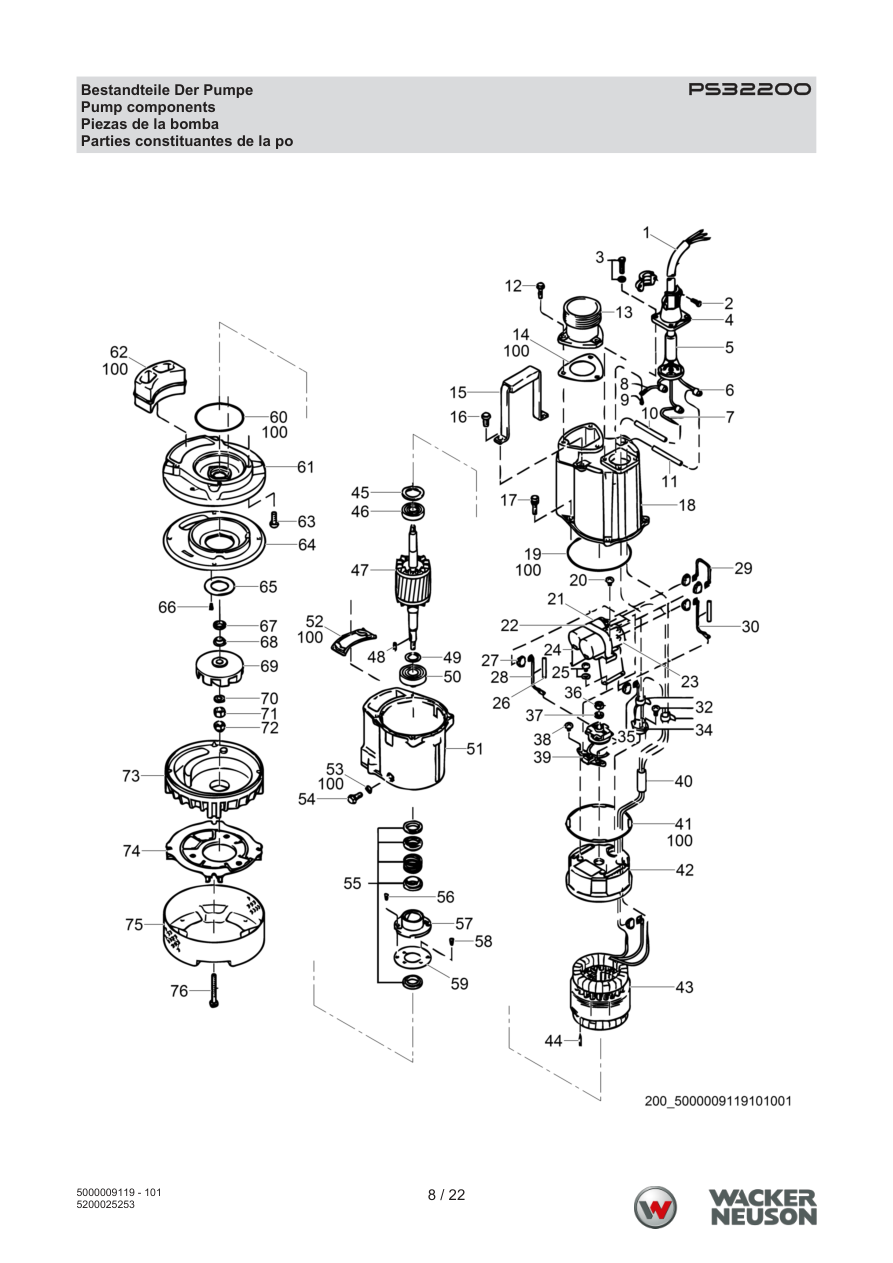

Need the PDF? ↓Page 8 — PS32200 Pump Components
Parts list — exactly as printed75 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000150403 | Power cable | 1 | ADD TO CART | |
| 2 | 5000150716 | Bolt | 2 | M6 x 16 | ADD TO CART |
| 3 | 5200025234 | Bolt w/washer | 4 | ADD TO CART | |
| 4 | 5000150419 | Casing | 1 | PARTS REQUEST | |
|
COMING Casing
5000150419 · qty on machine: 1 | |||||
| 5 | 5000150426 | Cover | 1 | ADD TO CART | |
| 6 | 5000150432 | Terminal post | 3 | PARTS REQUEST | |
|
COMING Terminal post
5000150432 · qty on machine: 3 | |||||
| 7 | 5000150444 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5000150444 · qty on machine: 1 | |||||
| 8 | 5000150436 | Wire-ground | 1 | PARTS REQUEST | |
|
COMING Wire-ground
5000150436 · qty on machine: 1 | |||||
| 9 | 5200025235 | Self-tapping screw | 1 | PARTS REQUEST | |
|
COMING Self-tapping screw
5200025235 · qty on machine: 1 | |||||
| 10 | 5200025236 | Heat shrink tube | 1 | PARTS REQUEST | |
|
COMING Heat shrink tube
5200025236 · qty on machine: 1 | |||||
| 11 | 5200025236 | Heat shrink tube | 1 | PARTS REQUEST | |
|
COMING Heat shrink tube
5200025236 · qty on machine: 1 | |||||
| 12 | 5000175106 | Bolt | 3 | ADD TO CART | |
| 13 | 5000150533 | Coupling | 1 | ADD TO CART | |
| 14 | 5000176835 | Gasket | 1 | ADD TO CART | |
| 15 | 5000150639 | Lifting handle | 1 | PARTS REQUEST | |
|
COMING Lifting handle
5000150639 · qty on machine: 1 | |||||
| 16 | 5000150726 | Bolt | 2 | M10 x 20 | PARTS REQUEST |
|
COMING Bolt
5000150726 · qty on machine: 2 M10 x 20 | |||||
| 17 | 5000176798 | Bolt w/washer | 4 | ADD TO CART | |
| 18 | 5000150553 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000150553 · qty on machine: 1 | |||||
| 19 | 5000150710 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000150710 · qty on machine: 1 | |||||
| 20 | 5000150779 | Screw | 2 | M4 x 6 | PARTS REQUEST |
|
COMING Screw
5000150779 · qty on machine: 2 M4 x 6 | |||||
| 21 | 5200025238 | Capacitor | 1 | PARTS REQUEST | |
|
COMING Capacitor
5200025238 · qty on machine: 1 | |||||
| 22 | 5200025239 | Retainer | 1 | PARTS REQUEST | |
|
COMING Retainer
5200025239 · qty on machine: 1 | |||||
| 23 | 5000150655 | Capacitor | 1 | ADD TO CART | |
| 24 | 5200025240 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5200025240 · qty on machine: 1 | |||||
| 25 | 5000150779 | Screw | 4 | M4 x 6 | PARTS REQUEST |
|
COMING Screw
5000150779 · qty on machine: 4 M4 x 6 | |||||
| 26 | 5200025241 | Tube | 2 | PARTS REQUEST | |
|
COMING Tube
5200025241 · qty on machine: 2 | |||||
| 27 | 5200025242 | Sleeve | 6 | PARTS REQUEST | |
|
COMING Sleeve
5200025242 · qty on machine: 6 | |||||
| 28 | 5200025243 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5200025243 · qty on machine: 1 | |||||
| 29 | 5200025244 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5200025244 · qty on machine: 1 | |||||
| 30 | 5200025243 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5200025243 · qty on machine: 1 | |||||
| 32 | 5000150784 | Screw | 2 | M4 x 10 | PARTS REQUEST |
|
COMING Screw
5000150784 · qty on machine: 2 M4 x 10 | |||||
| 34 | 5000150567 | Thermal switch | 1 | PARTS REQUEST | |
|
COMING Thermal switch
5000150567 · qty on machine: 1 | |||||
| 35 | 5200025246 | Wire | 1 | PARTS REQUEST | |
|
COMING Wire
5200025246 · qty on machine: 1 | |||||
| 36 | 5000150757 | Nut | 1 | PARTS REQUEST | |
|
COMING Nut
5000150757 · qty on machine: 1 | |||||
| 37 | 5000150761 | Washer | 1 | ADD TO CART | |
| 38 | 5000150773 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5000150773 · qty on machine: 2 | |||||
| 39 | 5000150661 | Centrifugal switch | 1 | ADD TO CART | |
| 40 | 5200025248 | Bushing | 1 | PARTS REQUEST | |
|
COMING Bushing
5200025248 · qty on machine: 1 | |||||
| 41 | 5000150684 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5000150684 · qty on machine: 1 | |||||
| 42 | 5000150546 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000150546 · qty on machine: 1 | |||||
| 43 | 5000150594 | Stator | 1 | PARTS REQUEST | |
|
COMING Stator
5000150594 · qty on machine: 1 | |||||
| 44 | 5000150796 | Pin | 1 | ADD TO CART | |
| 45 | 5000150767 | Spring washer | 1 | ADD TO CART | |
| 46 | 5000150557 | Ball bearing | 1 | PARTS REQUEST | |
|
COMING Ball bearing
5000150557 · qty on machine: 1 | |||||
| 47 | 5000150584 | Rotor | 1 | PARTS REQUEST | |
|
COMING Rotor
5000150584 · qty on machine: 1 | |||||
| 48 | 5000150804 | Key | 1 | ADD TO CART | |
| 49 | 5000150621 | Ring | 1 | ADD TO CART | |
| 50 | 5000150559 | Ball bearing | 1 | ADD TO CART | |
| 51 | 5200025250 | Motor housing | 1 | PARTS REQUEST | |
|
COMING Motor housing
5200025250 · qty on machine: 1 | |||||
| 52 | 5000150683 | Gasket | 1 | ADD TO CART | |
| 53 | 5000150676 | Gasket | 1 | ADD TO CART | |
| 54 | 5000150536 | Oil plug | 1 | ADD TO CART | |
| 55 | 5000150503 | Mechanical seal | 1 | ADD TO CART | |
| 56 | 5000150776 | Screw | 2 | M5 x 6 | ADD TO CART |
| 57 | 5000150518 | Oil lifter | 1 | ADD TO CART | |
| 58 | 5000150775 | Screw | 2 | ADD TO CART | |
| 59 | 5000150522 | Retaining plate | 1 | ADD TO CART | |
| 60 | 5000150695 | O-ring | 1 | ADD TO CART | |
| 61 | 5000150513 | Housing | 1 | ADD TO CART | |
| 62 | 5200025251 | Gasket | 1 | ADD TO CART | |
| 63 | 5000150736 | Bolt | 4 | ADD TO CART | |
| 64 | 5000150524 | Wear ring | 1 | ADD TO CART | |
| 65 | 5000150615 | Wear plate | 1 | ADD TO CART | |
| 66 | 5000150785 | Self-tapping screw | 2 | ADD TO CART | |
| 67 | 5000150709 | Seal | 1 | ADD TO CART | |
| 68 | 5000150651 | Sleeve | 1 | ADD TO CART | |
| 69 | 5000150478 | Impeller | 1 | ADD TO CART | |
| 70 | 5000150762 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
5000150762 · qty on machine: 1 | |||||
| 71 | 5000150748 | Nut | 1 | ADD TO CART | |
| 72 | 5000150754 | Acorn nut | 1 | ADD TO CART | |
| 73 | 5000150468 | Volute | 1 | ADD TO CART | |
| 74 | 5000150712 | Retainer plate | 1 | ADD TO CART | |
| 75 | 5000150495 | Strainer | 1 | ADD TO CART | |
| 76 | 5000176788 | Bolt | 4 | ADD TO CART | |
| 100 | 5000150805 | Gasket & o-ring set | 1 | PARTS REQUEST | |
|
COMING Gasket & o-ring set
5000150805 · qty on machine: 1 | |||||

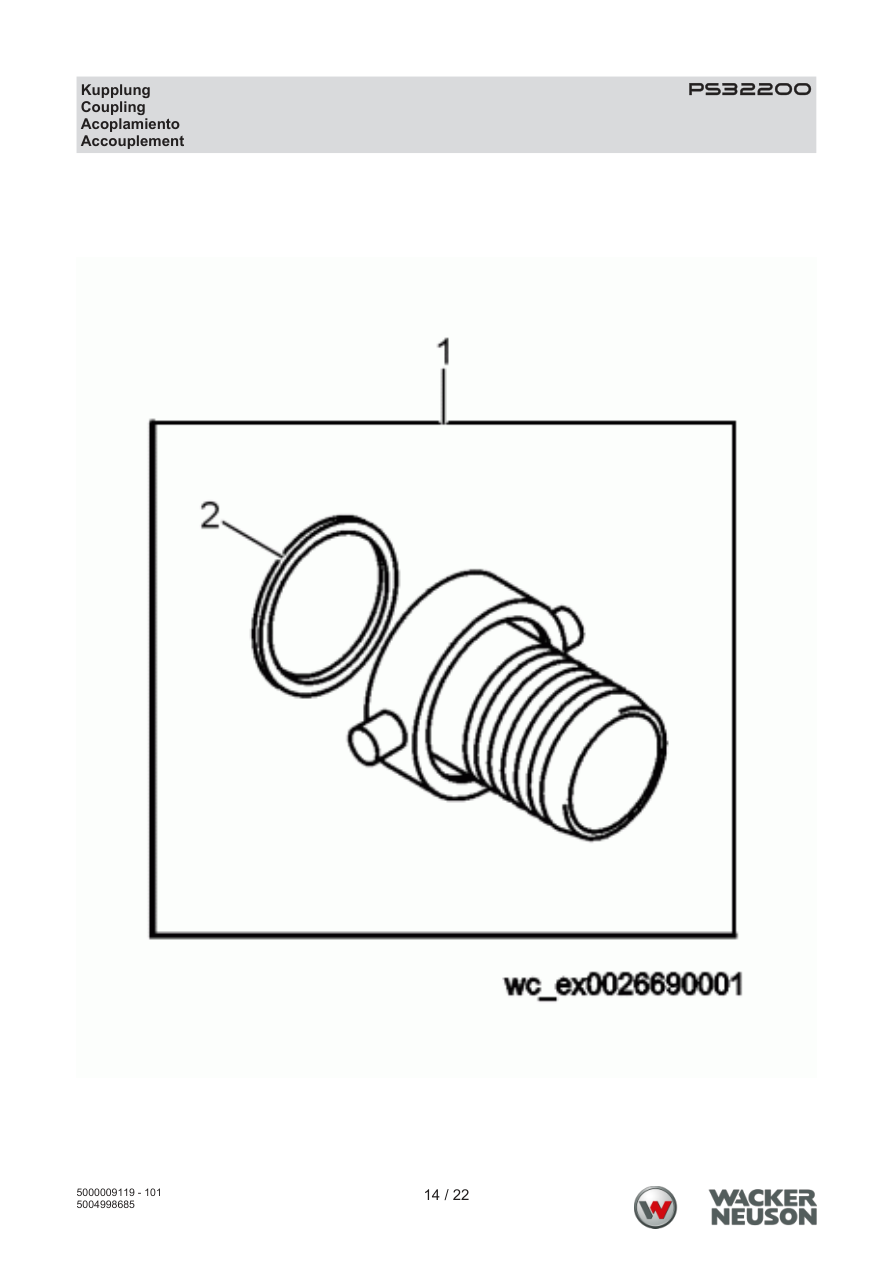

Page 14 — PS32200 Coupling
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000028072 | Coupling | 1 | ADD TO CART | |
| 2 | 5000028073 | Gasket | 1 | ADD TO CART | |
| 1 | 5000051453 | Quick disconnect coupling | 1 | PARTS REQUEST | |
|
COMING Quick disconnect coupling
5000051453 · qty on machine: 1 | |||||
| 2 | 5000053388 | Gasket | 1 | ADD TO CART | |

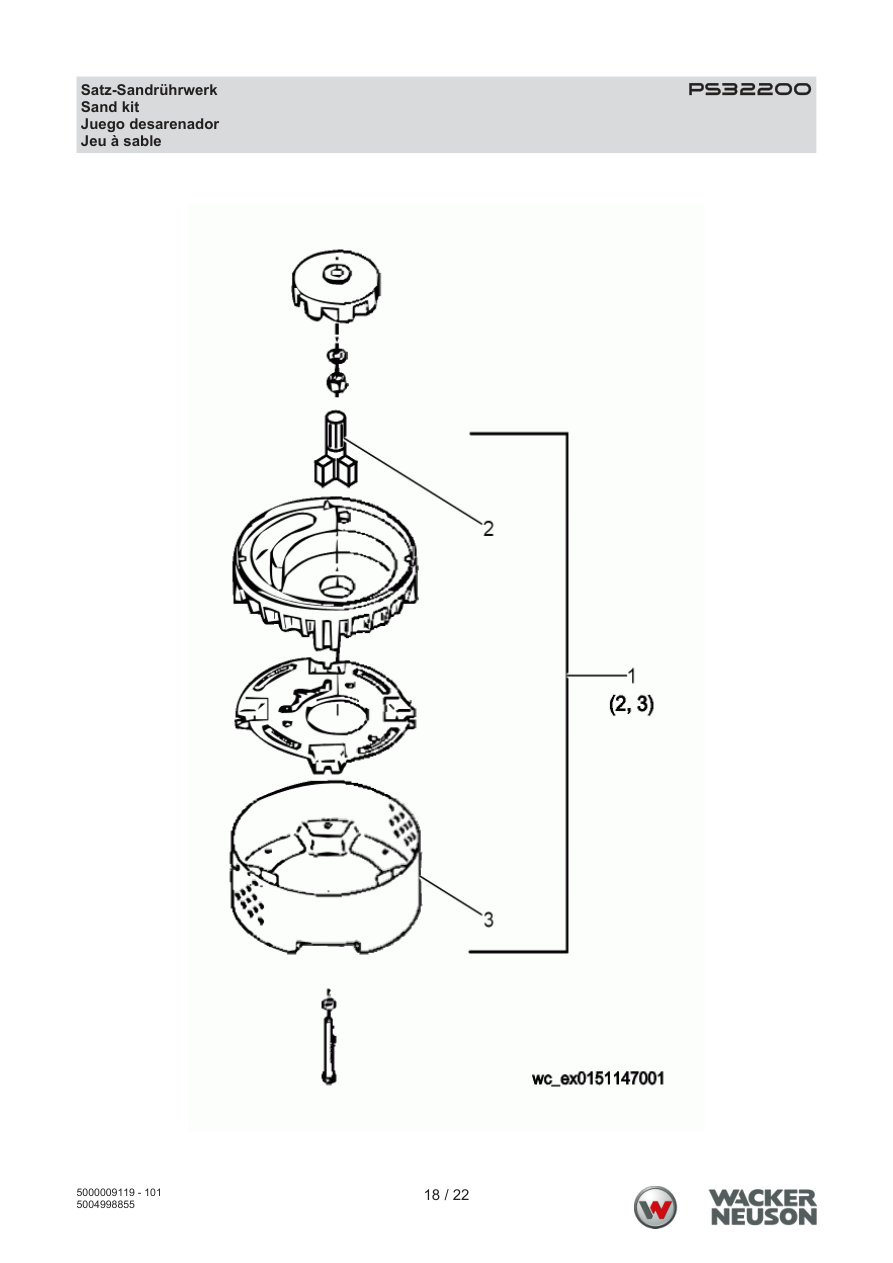

Page 18 — Sand kit
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000151147 | Sand kit | 1 | PARTS REQUEST | |
|
COMING Sand kit
5000151147 · qty on machine: 1 | |||||
| 2 | 5000151070 | Nut | 1 | ADD TO CART | |
| 3 | 5000151075 | Strainer | 1 | ADD TO CART | |
