Wacker Neuson PSA2-800 Trash Pump
The parts bench

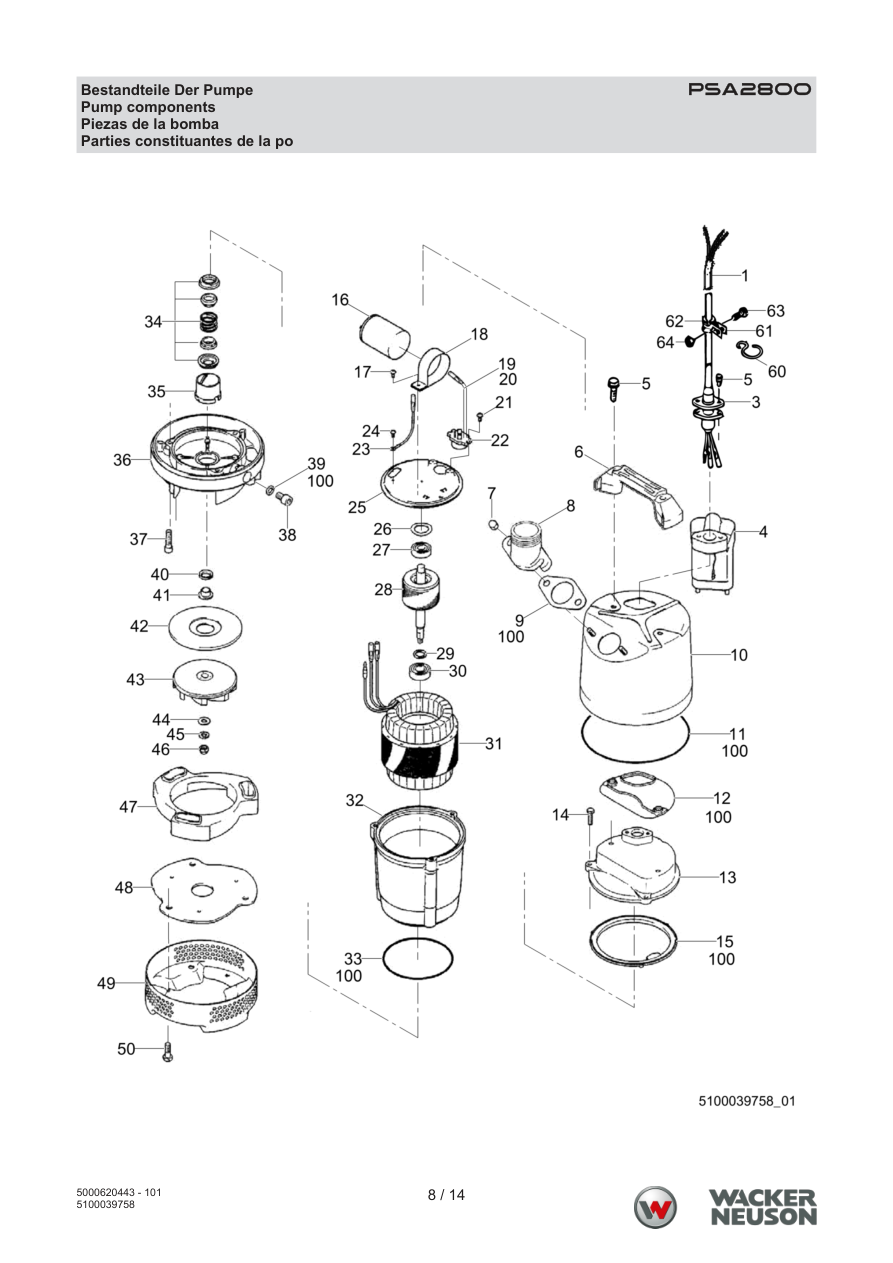

Need the PDF? ↓Page 8 — PSA2800 Pump Components
Parts list — exactly as printed56 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000177016 | Power cable | 1 | ADD TO CART | |
| 2 | 5000150992 | Bolt | 2 | M5 x 38 | ADD TO CART |
| 3 | 5000150418 | Cover | 1 | ADD TO CART | |
| 4 | 5000152589 | Relay | 1 | ADD TO CART | |
| 5 | 5000157371 | Bolt w/washer | 2 | ADD TO CART | |
| 6 | 5200009263 | Handle | 1 | PARTS REQUEST | |
|
COMING Handle
5200009263 · qty on machine: 1 | |||||
| 7 | 5000150753 | Acorn nut | 2 | ADD TO CART | |
| 8 | 5000176871 | Barbed hose coupling | 1 | ADD TO CART | |
| 9 | 5000175097 | Gasket | 1 | ADD TO CART | |
| 10 | 5000176998 | Cover | 1 | ADD TO CART | |
| 11 | 5000150711 | O-ring | 1 | ADD TO CART | |
| 12 | 5000150679 | Gasket | 1 | ADD TO CART | |
| 13 | 5200021916 | Housing | 1 | ADD TO CART | |
| 14 | 5000157363 | Bolt w/washer | 3 | ADD TO CART | |
| 15 | 5000150691 | Gasket | 1 | ADD TO CART | |
| 16 | 5200021918 | Capacitor | 1 | ADD TO CART | |
| 17 | 5000177006 | Screw | 1 | M4 x 8 | ADD TO CART |
| 18 | 5200012414 | Retainer | 1 | PARTS REQUEST | |
|
COMING Retainer
5200012414 · qty on machine: 1 | |||||
| 19 | 5200012387 | Wire-red | 1 | PARTS REQUEST | |
|
COMING Wire-red
5200012387 · qty on machine: 1 | |||||
| 20 | 5200012386 | Wire-blue | 1 | PARTS REQUEST | |
|
COMING Wire-blue
5200012386 · qty on machine: 1 | |||||
| 21 | 5200012384 | Screw | 2 | M4 x 8 | ADD TO CART |
| 22 | 5200023632 | Motor protection switch | 1 | ADD TO CART | |
| 23 | 5200012390 | Ground wire | 1 | PARTS REQUEST | |
|
COMING Ground wire
5200012390 · qty on machine: 1 | |||||
| 24 | 5000150777 | Screw | 1 | M4 x 4 | ADD TO CART |
| 25 | 5200021931 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5200021931 · qty on machine: 1 | |||||
| 26 | 5000150766 | Spring washer | 1 | ADD TO CART | |
| 27 | 5000150555 | Ball bearing | 1 | ADD TO CART | |
| 28 | 5200021933 | Rotor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 29 | 5000150623 | Ring | 1 | ADD TO CART | |
| 30 | 5000150563 | Ball bearing | 1 | ADD TO CART | |
| 31 | 5200021936 | Stator cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 32 | 5200021938 | Motor housing | 1 | ADD TO CART | |
| 33 | 5000150694 | O-ring | 1 | ADD TO CART | |
| 34 | 5000150505 | Mechanical seal | 1 | ADD TO CART | |
| 35 | 5000157378 | Oil lifter | 1 | ADD TO CART | |
| 36 | 5000176977 | Oil casing | 1 | ADD TO CART | |
| 37 | 5000157380 | Screw-socket head | 3 | ADD TO CART | |
| 38 | 5000150535 | Oil plug | 1 | ADD TO CART | |
| 39 | 5000150676 | Gasket | 1 | ADD TO CART | |
| 40 | 5000150708 | Seal | 1 | ADD TO CART | |
| 41 | 5000150650 | Sleeve | 1 | ADD TO CART | |
| 42 | 5000175099 | Wear ring | 1 | ADD TO CART | |
| 43 | 5000176890 | Impeller | 1 | PARTS REQUEST | |
|
COMING Impeller
5000176890 · qty on machine: 1 | |||||
| 44 | 5000150759 | Washer | 1 | ADD TO CART | |
| 45 | 5000150763 | Lock washer | 1 | ADD TO CART | |
| 46 | 5000150753 | Acorn nut | 1 | ADD TO CART | |
| 47 | 5000177023 | Volute | 1 | ADD TO CART | |
| 48 | 5000175100 | Suction cover | 1 | ADD TO CART | |
| 49 | 5000157372 | Strainer-suction | 1 | ADD TO CART | |
| 50 | 5000159227 | Bolt w/washer | 3 | M8 x 20 | ADD TO CART |
| 60 | 5000150457 | Hook | 1 | ADD TO CART | |
| 61 | 5000150449 | Clip | 1 | ADD TO CART | |
| 62 | 5200012711 | Rubber pipe | 1 | ADD TO CART | |
| 63 | 5200012709 | Bolt | 1 | M5 x 10 | ADD TO CART |
| 64 | 5000150743 | Nut | 1 | ADD TO CART | |
| 100 | 5000175110 | Gasket & o-ring set | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson PSA2-800 trash pump.
List price: $1,160.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000150418
Cover
$17.95
5000150449
Clip
$4.95
5000150457
Hook
$2.95
5000150505
Mechanical seal
$96.95
5000150535
Oil plug
$6.95
5000150555
Ball bearing
$12.95
5000150563
Ball bearing
$21.95
5000150623
Ring
$16.95
5000150650
Sleeve
$9.95
5000150676
Gasket
$1.95
5000150679
Gasket
$5.95
5000150691
Gasket
$18.95
5000150694
O-ring
$5.95
5000150708
Seal
$11.95
5000150711
O-ring
$14.95
5000150743
Nut
$0.95
5000150753
Acorn nut
$4.95
5000150759
Washer
$0.95
5000150763
Lock washer
$0.95
5000150766
Spring washer
$5.95
5000150777
Screw
$0.95
5000150992
Bolt
$1.95
5000152589
Relay
$397.95
5000157363
Bolt w/washer
$1.95
5000157371
Bolt w/washer
$2.95
5000157372
Strainer-suction
$42.95
5000157378
Oil lifter
$4.95
5000157380
Screw-socket head
$3.95
5000159227
Bolt w/washer
$2.95
5000175097
Gasket
$2.95
5000175099
Wear ring
$24.95
5000175100
Suction cover
$62.95
5000175110
Gasket & o-ring set
$36.95
5000176871
Barbed hose coupling
$31.95
5000176890
Impeller
5000176977
Oil casing
$202.95
5000176998
Cover
$181.95
5000177006
Screw
$0.95
5000177016
Power cable
$323.95
5000177023
Volute
$355.95
5200009263
Handle
5200012384
Screw
$0.95
5200012386
Wire-blue
5200012387
Wire-red
5200012390
Ground wire
5200012414
Retainer
5200012709
Bolt
$0.95
5200012711
Rubber pipe
$3.95
5200021916
Housing
$333.95
5200021918
Capacitor
$151.95
5200021931
Bracket
5200021933
Rotor cpl.
$594.95
5200021936
Stator cpl.
$403.95
5200021938
Motor housing
$292.95
5200023632
Motor protection switch
$91.95
