Wacker Neuson PSG2 Trash Pump
Factory parts book · interactive
Wacker Neuson PSG2 Trash Pump
The parts bench

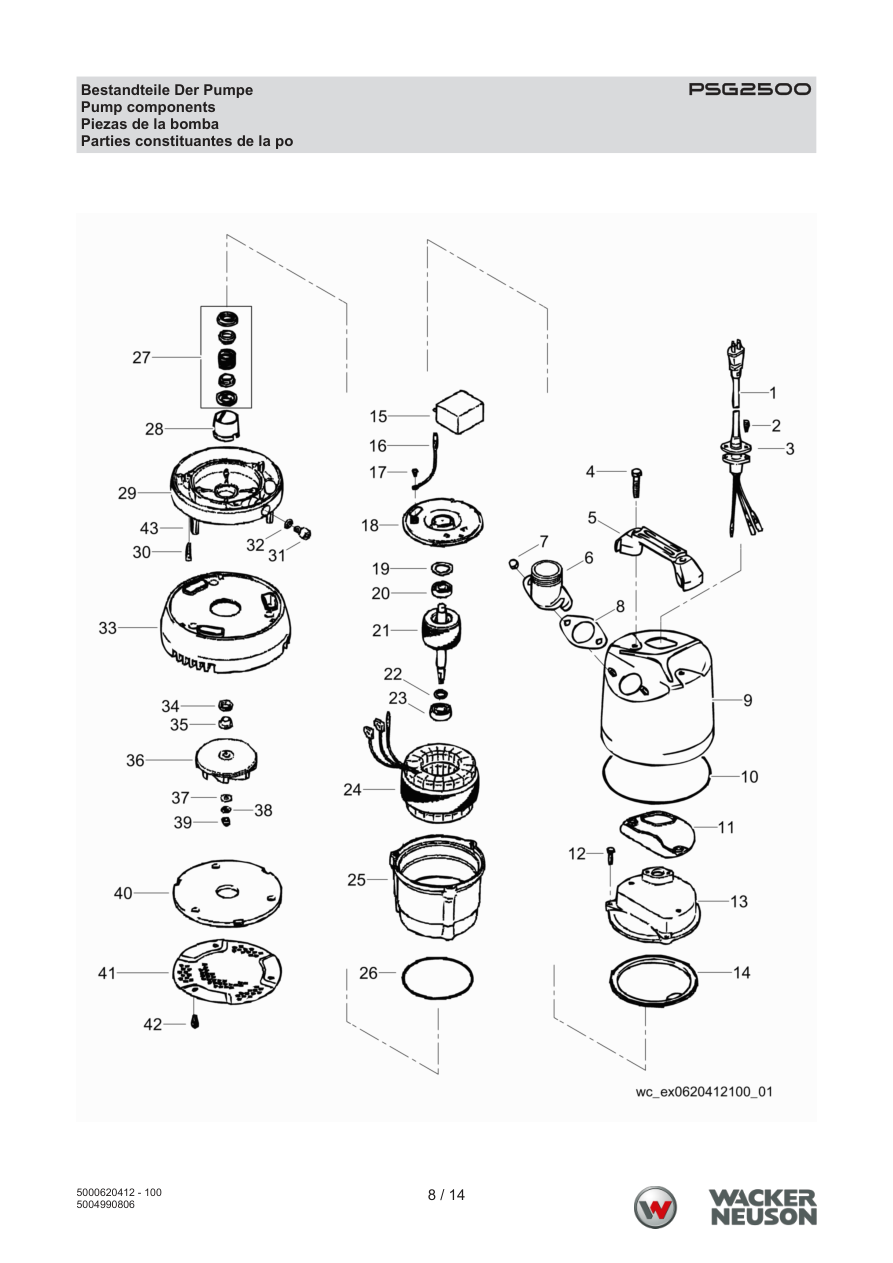

Need the PDF? ↓Page 8 — PSG2500 Pump components
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5000175094 | Handle | 1 | ADD TO CART | |
| 5000175110 | Gasket & o-ring set | 1 | ADD TO CART | ||
| 1 | 5000150399 | Power cable | 1 | PARTS REQUEST | |
|
COMING Power cable
5000150399 · qty on machine: 1 | |||||
| 2 | 5000150741 | Bolt | 2 | M5 x 15 | ADD TO CART |
| 3 | 5000150418 | Cover | 1 | ADD TO CART | |
| 4 | 5000175113 | Bolt | 2 | ADD TO CART | |
| 6 | 5000174983 | Male coupling | 1 | PARTS REQUEST | |
|
COMING Male coupling
5000174983 · qty on machine: 1 | |||||
| 7 | 5000175097 | Gasket | 1 | ADD TO CART | |
| 8 | 5000175095 | Acorn nut | 2 | PARTS REQUEST | |
|
COMING Acorn nut
5000175095 · qty on machine: 2 | |||||
| 9 | 5000175092 | Cover | 1 | ADD TO CART | |
| 12 | 5000175225 | Bolt | 3 | PARTS REQUEST | |
|
COMING Bolt
5000175225 · qty on machine: 3 | |||||
| 13 | 5000157373 | Housing cover | 1 | ADD TO CART | |
| 14 | 5000150691 | Gasket | 1 | ADD TO CART | |
| 15 | 5000157364 | Capacitor | 1 | ADD TO CART | |
| 16 | 5000157376 | Wire-ground | 1 | ADD TO CART | |
| 17 | 5000150777 | Screw | 1 | M4 x 4 | ADD TO CART |
| 18 | 5000150551 | Housing | 1 | ADD TO CART | |
| 19 | 5000150766 | Spring washer | 1 | ADD TO CART | |
| 20 | 5000150555 | Ball bearing | 1 | ADD TO CART | |
| 21 | 5000157367 | Rotor | 1 | PARTS REQUEST | |
|
COMING Rotor
5000157367 · qty on machine: 1 | |||||
| 22 | 5000157368 | Bearing collar | 1 | PARTS REQUEST | |
|
COMING Bearing collar
5000157368 · qty on machine: 1 | |||||
| 23 | 5000150556 | Ball bearing | 1 | ADD TO CART | |
| 24 | 5000157369 | Stator | 1 | ADD TO CART | |
| 25 | 5000150633 | Motor housing | 1 | ADD TO CART | |
| 26 | 5000150694 | O-ring | 1 | ADD TO CART | |
| 27 | 5000150505 | Mechanical seal | 1 | ADD TO CART | |
| 28 | 5000157378 | Oil lifter | 1 | ADD TO CART | |
| 29 | 5000175122 | Oil casing | 1 | ADD TO CART | |
| 30 | 5000150732 | Bolt | 3 | ADD TO CART | |
| 31 | 5000150535 | Oil plug | 1 | ADD TO CART | |
| 32 | 5000150676 | Gasket | 1 | ADD TO CART | |
| 33 | 5000175123 | Pump case housing | 1 | ADD TO CART | |
| 34 | 5000150708 | Seal | 1 | ADD TO CART | |
| 35 | 5000150650 | Sleeve | 1 | ADD TO CART | |
| 36 | 5000150484 | Impeller | 1 | ADD TO CART | |
| 37 | 5000150759 | Washer | 1 | ADD TO CART | |
| 38 | 5000150763 | Lock washer | 1 | ADD TO CART | |
| 39 | 5000150753 | Acorn nut | 1 | ADD TO CART | |
| 40 | 5000175125 | Suction cover | 1 | ADD TO CART | |
| 41 | 5000175126 | Suction strainer | 1 | ADD TO CART | |
| 42 | 5000150740 | Bolt | 3 | M6 x 15 | ADD TO CART |
| 43 | 5000150791 | Stud bolt | 3 | M8 x 54 | ADD TO CART |
The machine itself
