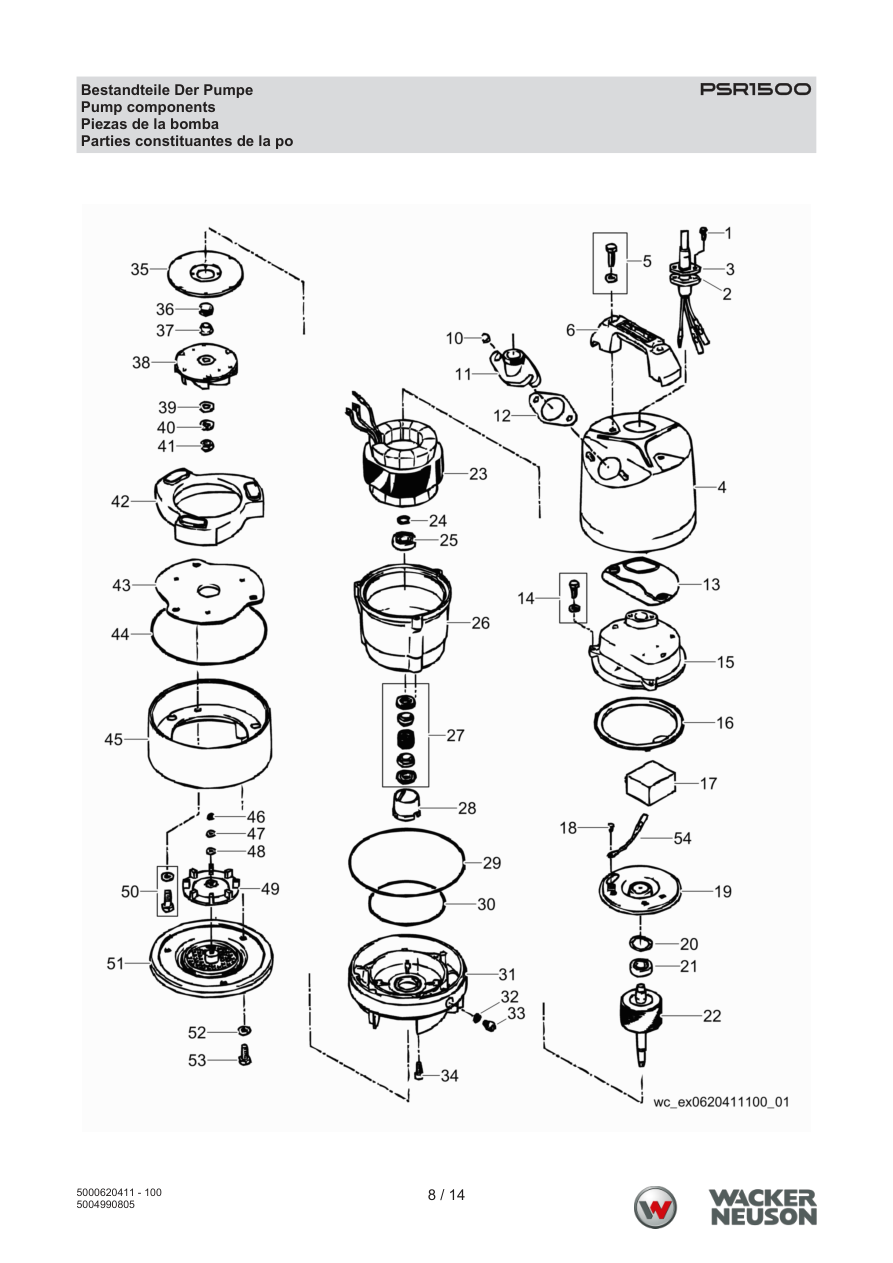

Need the PDF? ↓Page 8 — PSR1500 Pump Components
Parts list — exactly as printed51 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5000175112 | Gasket & o-ring set | 1 | ADD TO CART | ||
| 1 | 5000150741 | Bolt | 2 | M5 x 15 | ADD TO CART |
| 2 | 5000150406 | Power cable | 1 | ADD TO CART | |
| 3 | 5000150418 | Cover | 1 | ADD TO CART | |
| 4 | 5000175092 | Cover | 1 | ADD TO CART | |
| 5 | 5000175093 | Bolt | 2 | ADD TO CART | |
| 6 | 5000175094 | Handle | 1 | ADD TO CART | |
| 10 | 5000175095 | Acorn nut | 2 | PARTS REQUEST | |
|
COMING Acorn nut
5000175095 · qty on machine: 2 | |||||
| 11 | 5000175096 | Coupling | 1 | ADD TO CART | |
| 12 | 5000175097 | Gasket | 1 | ADD TO CART | |
| 13 | 5000150679 | Gasket | 1 | ADD TO CART | |
| 14 | 5000175225 | Bolt | 3 | PARTS REQUEST | |
|
COMING Bolt
5000175225 · qty on machine: 3 | |||||
| 15 | 5000157373 | Housing cover | 1 | ADD TO CART | |
| 16 | 5000150691 | Gasket | 1 | ADD TO CART | |
| 17 | 5000157364 | Capacitor | 1 | ADD TO CART | |
| 18 | 5000150777 | Screw | 1 | M4 x 4 | ADD TO CART |
| 20 | 5000150766 | Spring washer | 1 | ADD TO CART | |
| 21 | 5000150555 | Ball bearing | 1 | ADD TO CART | |
| 22 | 5000157367 | Rotor | 1 | PARTS REQUEST | |
|
COMING Rotor
5000157367 · qty on machine: 1 | |||||
| 23 | 5000157369 | Stator | 1 | ADD TO CART | |
| 24 | 5000157368 | Bearing collar | 1 | PARTS REQUEST | |
|
COMING Bearing collar
5000157368 · qty on machine: 1 | |||||
| 25 | 5000150556 | Ball bearing | 1 | ADD TO CART | |
| 26 | 5000150633 | Motor housing | 1 | ADD TO CART | |
| 27 | 5000150505 | Mechanical seal | 1 | ADD TO CART | |
| 28 | 5000157378 | Oil lifter | 1 | ADD TO CART | |
| 29 | 5000150711 | O-ring | 1 | ADD TO CART | |
| 30 | 5000150694 | O-ring | 1 | ADD TO CART | |
| 31 | 5000157379 | Oil casing | 1 | ADD TO CART | |
| 32 | 5000150676 | Gasket | 1 | ADD TO CART | |
| 33 | 5000150535 | Oil plug | 1 | ADD TO CART | |
| 34 | 5000157380 | Screw-socket head | 3 | ADD TO CART | |
| 35 | 5000175099 | Wear ring | 1 | ADD TO CART | |
| 36 | 5000150708 | Seal | 1 | ADD TO CART | |
| 37 | 5000150650 | Sleeve | 1 | ADD TO CART | |
| 38 | 5000150484 | Impeller | 1 | ADD TO CART | |
| 39 | 5000150759 | Washer | 1 | ADD TO CART | |
| 40 | 5000150763 | Lock washer | 1 | ADD TO CART | |
| 41 | 5000150753 | Acorn nut | 1 | ADD TO CART | |
| 42 | 5000157382 | Volute | 1 | ADD TO CART | |
| 43 | 5000175100 | Suction cover | 1 | ADD TO CART | |
| 44 | 5000150711 | O-ring | 1 | ADD TO CART | |
| 45 | 5000175101 | Stand | 1 | ADD TO CART | |
| 46 | 5000175102 | Nut | 1 | ADD TO CART | |
| 47 | 5000175103 | Washer | 1 | ADD TO CART | |
| 48 | 5000175104 | Gasket | 1 | ADD TO CART | |
| 49 | 5000175105 | Check valve | 1 | ADD TO CART | |
| 50 | 5000175106 | Bolt | 3 | ADD TO CART | |
| 51 | 5000175107 | Bottom plate | 1 | ADD TO CART | |
| 52 | 5000175108 | Sealing washer | 2 | ADD TO CART | |
| 53 | 5000175109 | Bolt | 3 | ADD TO CART | |
| 54 | 5000157376 | Wire-ground | 1 | ADD TO CART | |
