Wacker Neuson PST2 Trash Pump
The parts bench

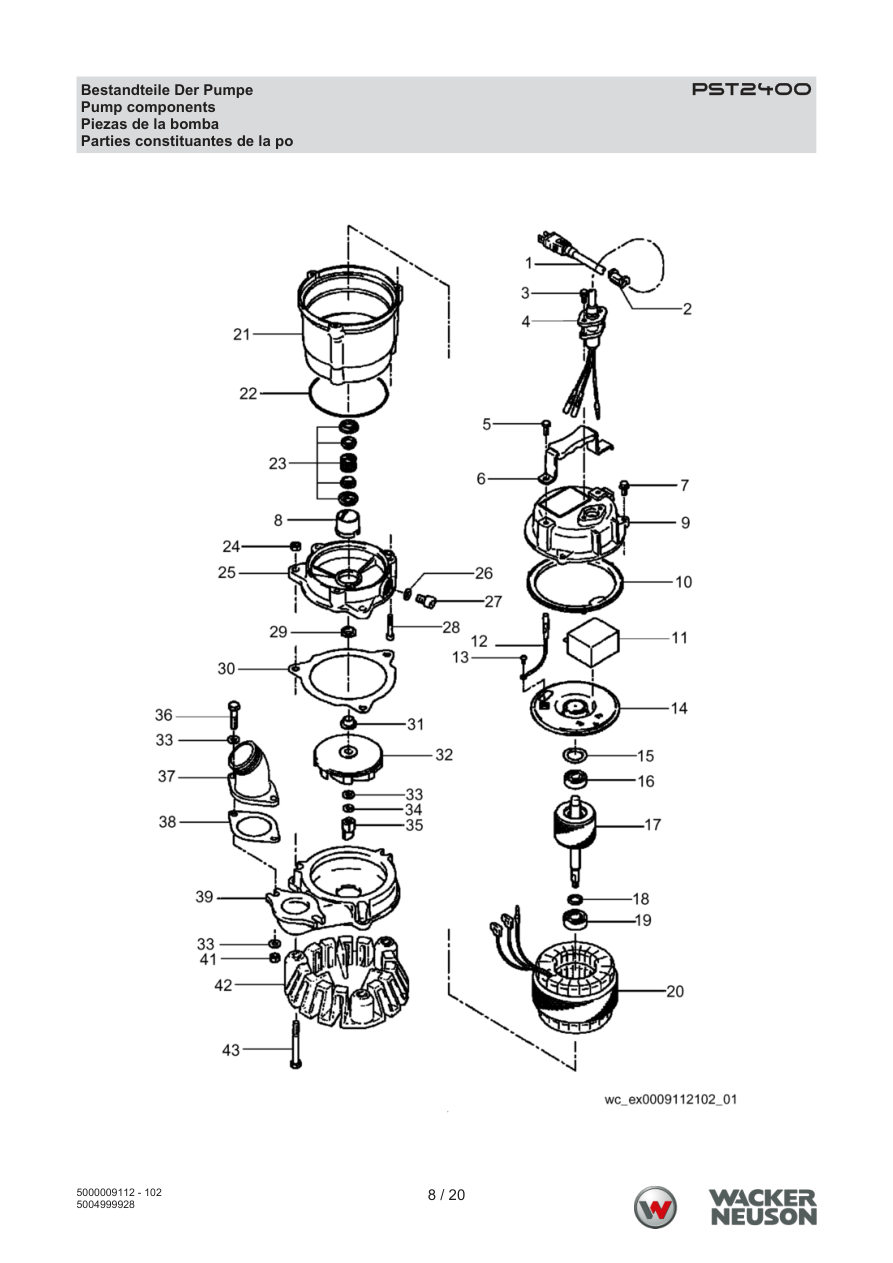

Need the PDF? ↓Page 8 — PST2400 Pump Components
Parts list — exactly as printed44 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 24 | 5000150745 | Nut | 3 | ADD TO CART | |
| 5000150811 | Gasket & o-ring set | 1 | ADD TO CART | ||
| 5000151035 | Warning label | 1 | ADD TO CART | ||
| 1 | 5000150406 | Power cable | 1 | ADD TO CART | |
| 2 | 5000150455 | Sleeve | 1 | PARTS REQUEST | |
|
COMING Sleeve
5000150455 · qty on machine: 1 | |||||
| 3 | 5000150741 | Bolt | 2 | M5 x 15 | ADD TO CART |
| 4 | 5000150418 | Cover | 1 | ADD TO CART | |
| 5 | 5000150715 | Bolt | 2 | M6 x 15 | ADD TO CART |
| 6 | 5000150638 | Lifting handle | 1 | ADD TO CART | |
| 7 | 5000157363 | Bolt w/washer | 3 | ADD TO CART | |
| 8 | 5000157378 | Oil lifter | 1 | ADD TO CART | |
| 9 | 5000151021 | Housing | 1 | ADD TO CART | |
| 10 | 5000150691 | Gasket | 1 | ADD TO CART | |
| 11 | 5000157364 | Capacitor | 1 | ADD TO CART | |
| 12 | 5000157365 | Ground wire | 1 | ADD TO CART | |
| 13 | 5000150777 | Screw | 1 | M4 x 4 | ADD TO CART |
| 14 | 5000150551 | Housing | 1 | ADD TO CART | |
| 15 | 5000150766 | Spring washer | 1 | ADD TO CART | |
| 16 | 5000150555 | Ball bearing | 1 | ADD TO CART | |
| 17 | 5000157367 | Rotor | 1 | PARTS REQUEST | |
|
COMING Rotor
5000157367 · qty on machine: 1 | |||||
| 18 | 5000157368 | Bearing collar | 1 | PARTS REQUEST | |
|
COMING Bearing collar
5000157368 · qty on machine: 1 | |||||
| 19 | 5000150556 | Ball bearing | 1 | ADD TO CART | |
| 20 | 5000157369 | Stator | 1 | ADD TO CART | |
| 21 | 5000150634 | Motor housing | 1 | PARTS REQUEST | |
|
COMING Motor housing
5000150634 · qty on machine: 1 | |||||
| 22 | 5000150694 | O-ring | 1 | ADD TO CART | |
| 23 | 5000150505 | Mechanical seal | 1 | ADD TO CART | |
| 25 | 5000159225 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000159225 · qty on machine: 1 | |||||
| 26 | 5000150676 | Gasket | 1 | ADD TO CART | |
| 27 | 5000150535 | Oil plug | 1 | ADD TO CART | |
| 28 | 5000150733 | Socket head bolt | 3 | ADD TO CART | |
| 29 | 5000150708 | Seal | 1 | ADD TO CART | |
| 30 | 5000150685 | Gasket | 1 | ADD TO CART | |
| 31 | 5000150650 | Sleeve | 1 | ADD TO CART | |
| 32 | 5000150484 | Impeller | 1 | ADD TO CART | |
| 33 | 5000150759 | Washer | 5 | ADD TO CART | |
| 34 | 5000151114 | Lock washer | 1 | PARTS REQUEST | |
|
COMING Lock washer
5000151114 · qty on machine: 1 | |||||
| 35 | 5000150501 | Nut | 1 | ADD TO CART | |
| 36 | 5000157370 | Bolt | 2 | ADD TO CART | |
| 37 | 5000150532 | Coupling | 1 | ADD TO CART | |
| 38 | 5000150672 | Gasket | 1 | ADD TO CART | |
| 39 | 5000150463 | Volute | 1 | ADD TO CART | |
| 41 | 5000150745 | Nut | 2 | ADD TO CART | |
| 42 | 5000150496 | Strainer | 1 | ADD TO CART | |
| 43 | 5000150723 | Bolt | 3 | M8 x 70 | ADD TO CART |

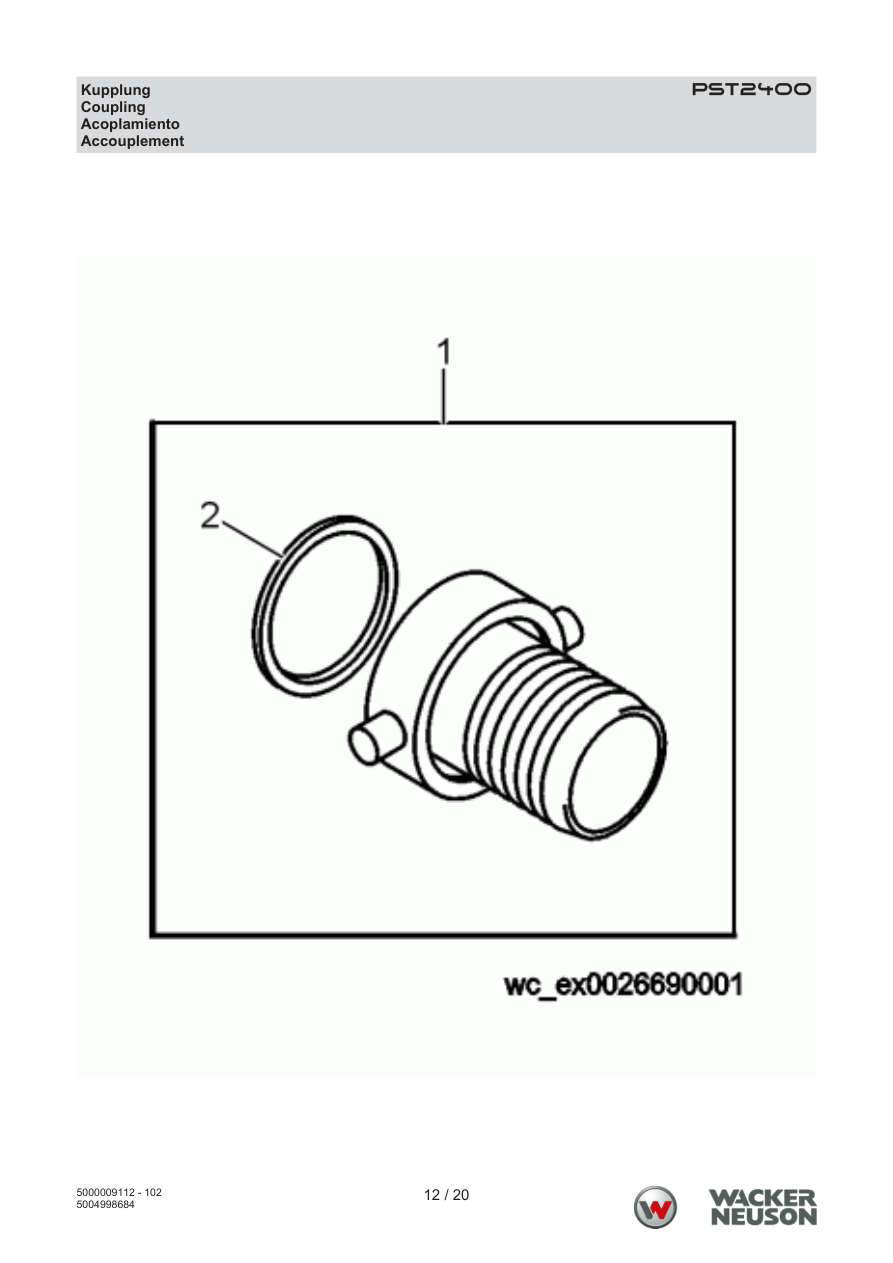

Page 12 — PST2400 coupling
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000026690 | Coupling | 1 | PARTS REQUEST | |
|
COMING Coupling
5000026690 · qty on machine: 1 | |||||
| 2 | 5000026919 | Gasket | 1 | ADD TO CART | |
| 1 | 5000051452 | Quick disconnect coupling | 1 | PARTS REQUEST | |
|
COMING Quick disconnect coupling
5000051452 · qty on machine: 1 | |||||
| 2 | 5000053387 | Gasket | 1 | ADD TO CART | |

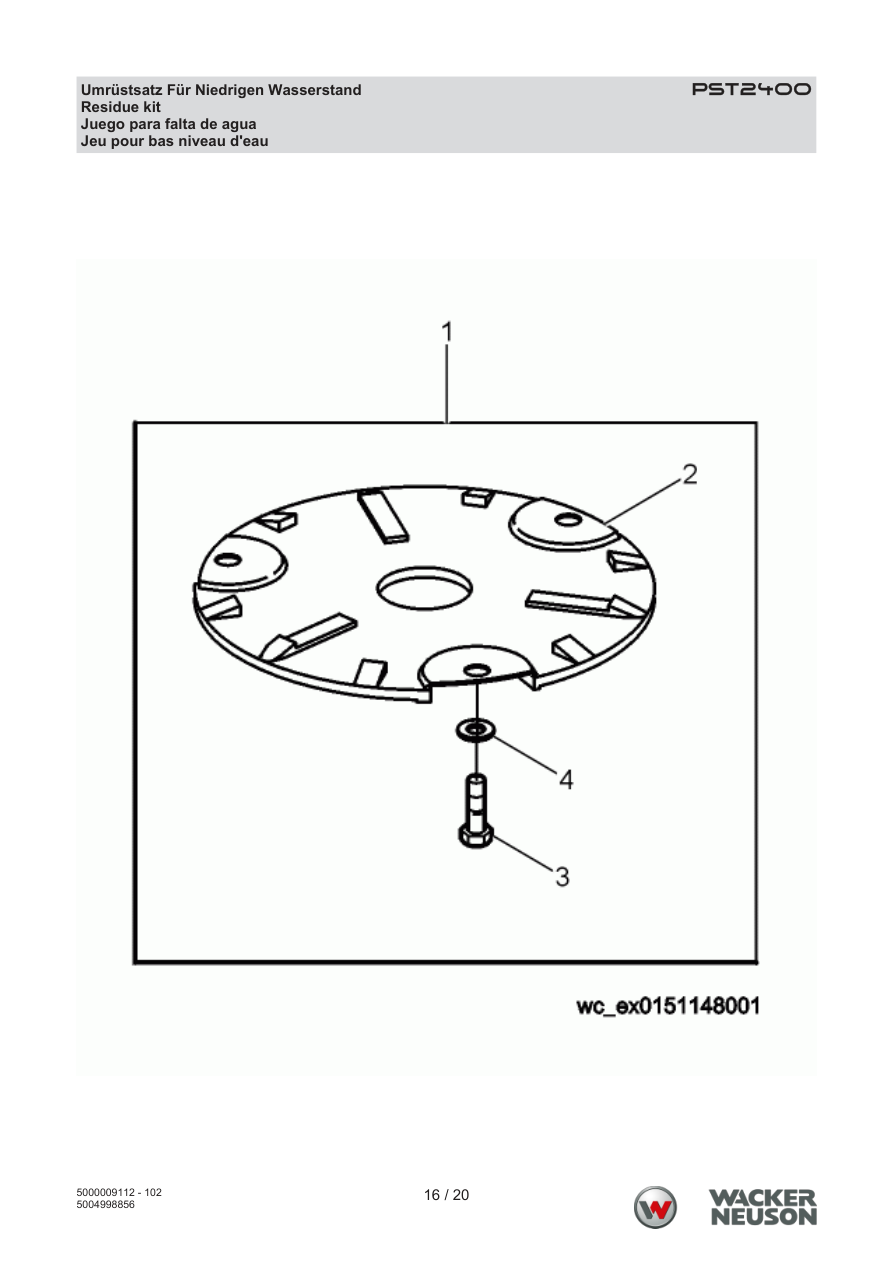

Page 16 — Residue kit
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000151148 | Residue kit | 1 | PARTS REQUEST | |
|
COMING Residue kit
5000151148 · qty on machine: 1 | |||||
| 2 | 5000151076 | Strainer | 1 | ADD TO CART | |
| 3 | 5000151077 | Bolt | 3 | M8 x 60 | PARTS REQUEST |
|
COMING Bolt
5000151077 · qty on machine: 3 M8 x 60 | |||||
| 4 | 5000151078 | Washer | 3 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson PST2 trash pump.
List price: $470.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000026690
Coupling
5000026919
Gasket
$1.95
5000051452
Quick disconnect coupling
5000053387
Gasket
$2.95
5000150406
Power cable
$175.95
5000150418
Cover
$17.95
5000150455
Sleeve
5000150463
Volute
$98.95
5000150484
Impeller
$79.95
5000150496
Strainer
$90.95
5000150501
Nut
$14.95
5000150505
Mechanical seal
$96.95
5000150532
Coupling
$95.95
5000150535
Oil plug
$6.95
5000150551
Housing
$64.95
5000150555
Ball bearing
$12.95
5000150556
Ball bearing
$18.95
5000150634
Motor housing
5000150638
Lifting handle
$40.95
5000150650
Sleeve
$9.95
5000150672
Gasket
$3.95
5000150676
Gasket
$1.95
5000150685
Gasket
$27.95
5000150691
Gasket
$18.95
5000150694
O-ring
$5.95
5000150708
Seal
$11.95
5000150715
Bolt
$0.95
5000150723
Bolt
$7.95
5000150733
Socket head bolt
$2.95
5000150741
Bolt
$1.95
5000150745
Nut
$0.95
5000150759
Washer
$0.95
5000150766
Spring washer
$5.95
5000150777
Screw
$0.95
5000150811
Gasket & o-ring set
$30.95
5000151021
Housing
$199.95
5000151035
Warning label
$5.95
5000151076
Strainer
$188.95
5000151077
Bolt
5000151078
Washer
$0.95
5000151114
Lock washer
5000151148
Residue kit
5000157363
Bolt w/washer
$1.95
5000157364
Capacitor
$150.95
5000157365
Ground wire
$9.95
5000157367
Rotor
5000157368
Bearing collar
5000157369
Stator
$454.95
5000157370
Bolt
$3.95
5000157378
Oil lifter
$4.95
5000159225
Housing
