Wacker Neuson PSTF3 Trash Pump
The parts bench

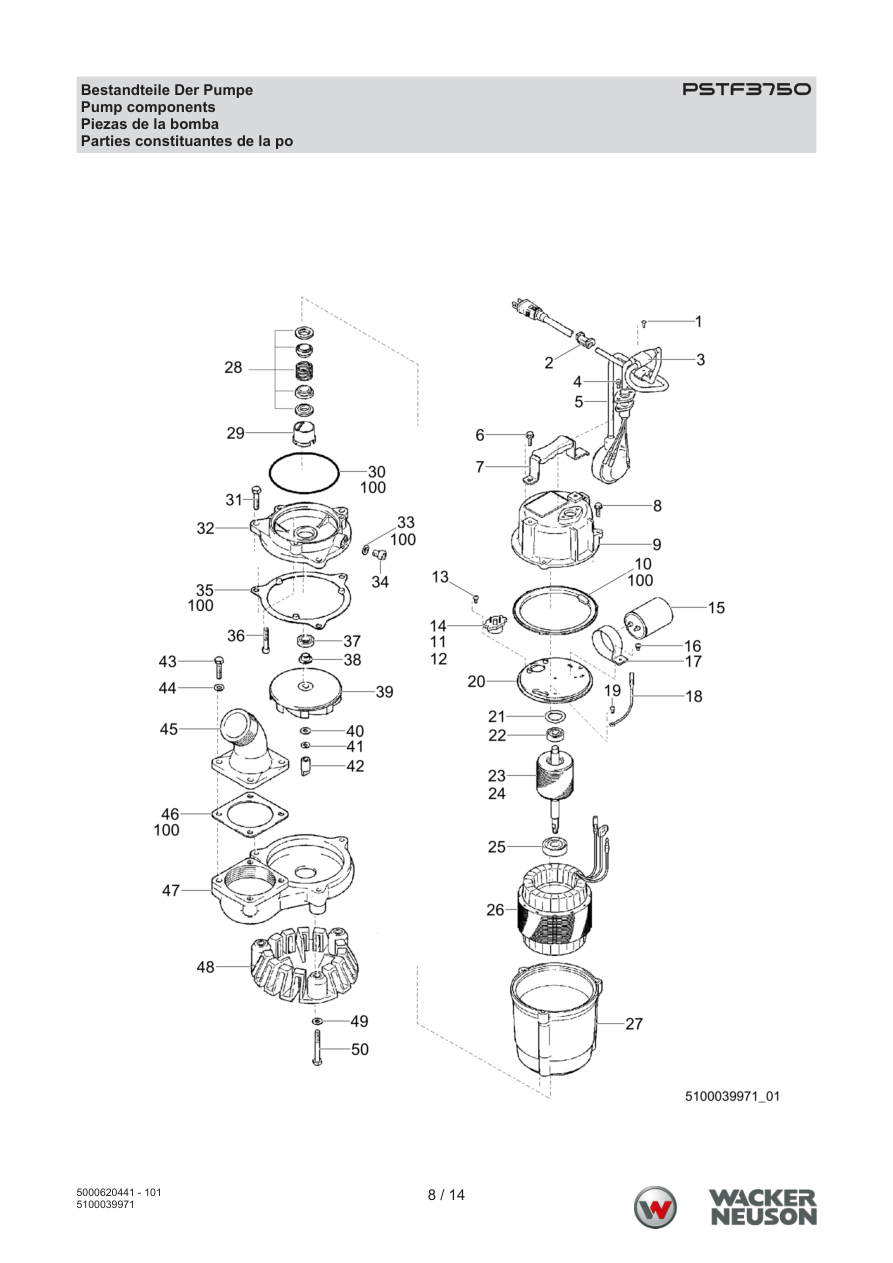

Need the PDF? ↓Page 8 — PSTF3750 Pump Components
Parts list — exactly as printed52 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000178374 | Self-tapping screw | 1 | ADD TO CART | |
| 2 | 5000150455 | Sleeve | 1 | PARTS REQUEST | |
|
COMING Sleeve
5000150455 · qty on machine: 1 | |||||
| 3 | 5000176826 | Support | 1 | ADD TO CART | |
| 4 | 5000150741 | Bolt | 2 | M5 x 15 | ADD TO CART |
| 5 | 5000177020 | Power cable | 1 | ADD TO CART | |
| 6 | 5000150715 | Bolt | 2 | M6 x 15 | ADD TO CART |
| 7 | 5000150638 | Lifting handle | 1 | ADD TO CART | |
| 8 | 5000157363 | Bolt w/washer | 3 | ADD TO CART | |
| 9 | 5200012382 | Housing | 1 | ADD TO CART | |
| 10 | 5200012383 | Gasket | 1 | ADD TO CART | |
| 11 | 5200012387 | Wire-red | 1 | PARTS REQUEST | |
|
COMING Wire-red
5200012387 · qty on machine: 1 | |||||
| 12 | 5200012386 | Wire-blue | 1 | PARTS REQUEST | |
|
COMING Wire-blue
5200012386 · qty on machine: 1 | |||||
| 13 | 5200012384 | Screw | 2 | M4 x 8 | ADD TO CART |
| 14 | 5000176951 | Motor protection switch | 1 | ADD TO CART | |
| 15 | 5200012399 | Capacitor | 1 | ADD TO CART | |
| 16 | 5000177066 | Socket head screw | 1 | ADD TO CART | |
| 17 | 5200012389 | Retainer | 1 | PARTS REQUEST | |
|
COMING Retainer
5200012389 · qty on machine: 1 | |||||
| 18 | 5200012390 | Ground wire | 1 | PARTS REQUEST | |
|
COMING Ground wire
5200012390 · qty on machine: 1 | |||||
| 19 | 5000150777 | Screw | 1 | M4 x 4 | ADD TO CART |
| 20 | 5200012391 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5200012391 · qty on machine: 1 | |||||
| 21 | 5000150766 | Spring washer | 1 | ADD TO CART | |
| 22 | 5000150555 | Ball bearing | 1 | ADD TO CART | |
| 23 | 5200012392 | Rotor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 24 | 5000150623 | Ring | 1 | ADD TO CART | |
| 25 | 5000150563 | Ball bearing | 1 | ADD TO CART | |
| 26 | 5200012410 | Stator cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 27 | 5200012395 | Motor housing | 1 | ADD TO CART | |
| 28 | 5000150505 | Mechanical seal | 1 | ADD TO CART | |
| 29 | 5000157378 | Oil lifter | 1 | ADD TO CART | |
| 30 | 5000150694 | O-ring | 1 | ADD TO CART | |
| 31 | 5000176791 | Bolt | 3 | ADD TO CART | |
| 32 | 5000176978 | Oil casing | 1 | ADD TO CART | |
| 33 | 5000150676 | Gasket | 1 | ADD TO CART | |
| 34 | 5000153535 | Lift ring, left | 1 | ADD TO CART | |
| 35 | 5000176838 | Gasket | 1 | ADD TO CART | |
| 36 | 5000150733 | Socket head bolt | 3 | ADD TO CART | |
| 37 | 5000150708 | Seal | 1 | ADD TO CART | |
| 38 | 5000150650 | Sleeve | 1 | ADD TO CART | |
| 39 | 5000176889 | Impeller | 1 | ADD TO CART | |
| 40 | 5000150759 | Washer | 1 | ADD TO CART | |
| 41 | 5000150763 | Lock washer | 1 | ADD TO CART | |
| 42 | 5000150501 | Nut | 1 | ADD TO CART | |
| 43 | 5000176794 | Bolt | 4 | PARTS REQUEST | |
|
COMING Bolt
5000176794 · qty on machine: 4 | |||||
| 44 | 5000150761 | Washer | 4 | ADD TO CART | |
| 45 | 5000054343 | Quick disconnect coupling | 1 | PARTS REQUEST | |
|
COMING Quick disconnect coupling
5000054343 · qty on machine: 1 | |||||
| 45 | 5000176881 | Hose coupling | 1 | ADD TO CART | |
| 46 | 5000150674 | Gasket | 1 | ADD TO CART | |
| 47 | 5000177026 | Volute | 1 | ADD TO CART | |
| 48 | 5000178357 | Strainer | 1 | ADD TO CART | |
| 49 | 5000150760 | Washer | 3 | ADD TO CART | |
| 50 | 5000150721 | Bolt | 3 | M8 x 35 | ADD TO CART |
| 100 | 5200021968 | Gasket & o-ring set | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson PSTF3 trash pump.
List price: $835.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000054343
Quick disconnect coupling
5000150455
Sleeve
5000150501
Nut
$14.95
5000150505
Mechanical seal
$96.95
5000150555
Ball bearing
$12.95
5000150563
Ball bearing
$21.95
5000150623
Ring
$16.95
5000150638
Lifting handle
$40.95
5000150650
Sleeve
$9.95
5000150674
Gasket
$7.95
5000150676
Gasket
$1.95
5000150694
O-ring
$5.95
5000150708
Seal
$11.95
5000150715
Bolt
$0.95
5000150721
Bolt
$1.95
5000150733
Socket head bolt
$2.95
5000150741
Bolt
$1.95
5000150759
Washer
$0.95
5000150760
Washer
$0.95
5000150761
Washer
$0.95
5000150763
Lock washer
$0.95
5000150766
Spring washer
$5.95
5000150777
Screw
$0.95
5000153535
Lift ring, left
$242.95
5000157363
Bolt w/washer
$1.95
5000157378
Oil lifter
$4.95
5000176791
Bolt
$1.95
5000176794
Bolt
5000176826
Support
$6.95
5000176838
Gasket
$4.95
5000176881
Hose coupling
$98.95
5000176889
Impeller
$120.95
5000176951
Motor protection switch
$60.95
5000176978
Oil casing
$217.95
5000177020
Power cable
$250.95
5000177026
Volute
$254.95
5000177066
Socket head screw
$4.95
5000178357
Strainer
$106.95
5000178374
Self-tapping screw
$0.95
5200012382
Housing
$297.95
5200012383
Gasket
$39.95
5200012384
Screw
$0.95
5200012386
Wire-blue
5200012387
Wire-red
5200012389
Retainer
5200012390
Ground wire
5200012391
Bracket
5200012392
Rotor cpl.
$471.95
5200012395
Motor housing
$292.95
5200012399
Capacitor
$171.95
5200012410
Stator cpl.
$632.95
5200021968
Gasket & o-ring set
$43.95
