Wacker Neuson PSW3 Trash Pump
The parts bench

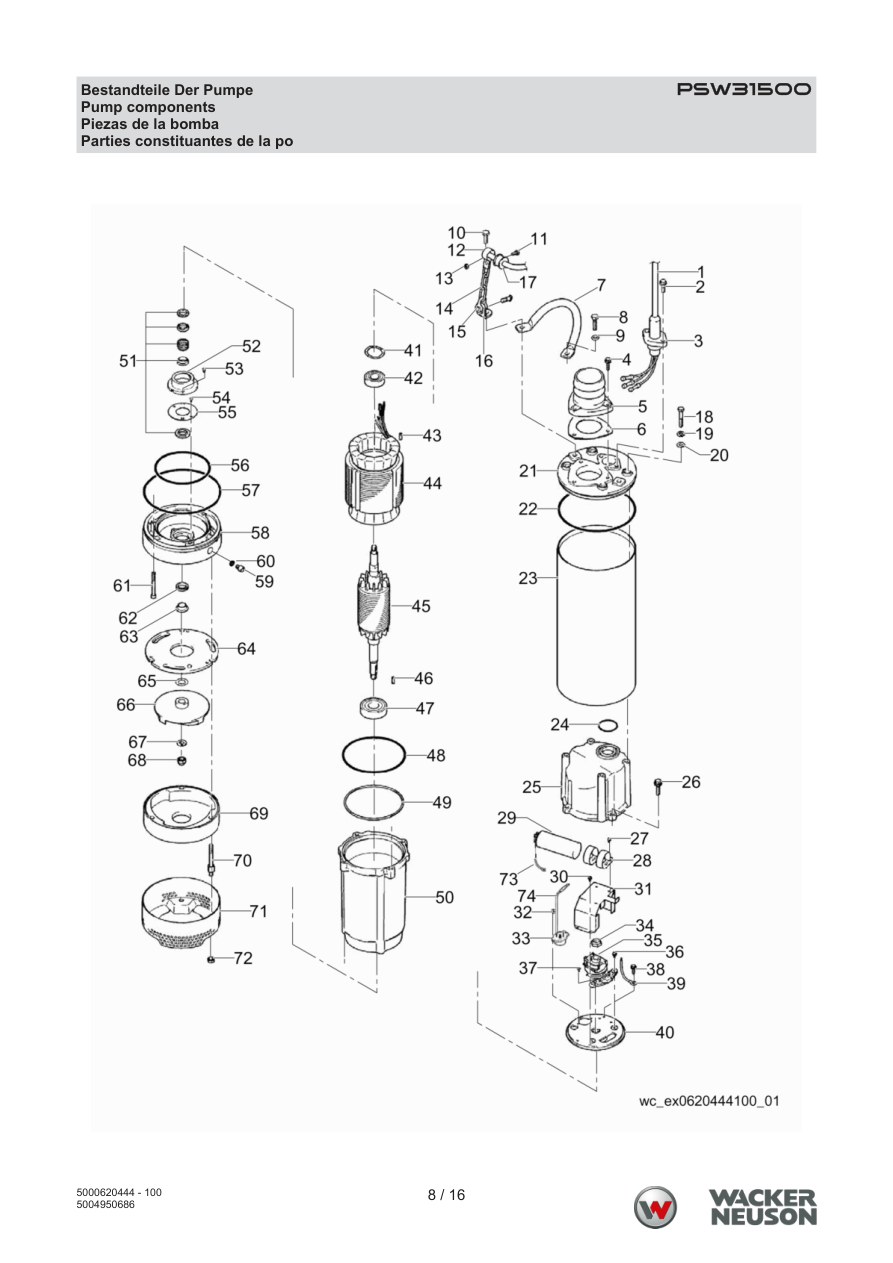

Need the PDF? ↓Page 8 — PSW31500 Pump Components
Parts list — exactly as printed75 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5000176848 | Gasket & o-ring set | 1 | ADD TO CART | ||
| 1 | 5000177015 | Power cable | 1 | PARTS REQUEST | |
|
COMING Power cable
5000177015 · qty on machine: 1 | |||||
| 2 | 5000175106 | Bolt | 2 | ADD TO CART | |
| 3 | 5000176856 | Cover | 1 | ADD TO CART | |
| 4 | 5000175106 | Bolt | 3 | ADD TO CART | |
| 5 | 5000150533 | Coupling | 1 | ADD TO CART | |
| 6 | 5000176835 | Gasket | 1 | ADD TO CART | |
| 7 | 5000176868 | Handle | 1 | ADD TO CART | |
| 8 | 5000150727 | Bolt | 1 | M10 x 25 | ADD TO CART |
| 9 | 5000150761 | Washer | 1 | ADD TO CART | |
| 10 | 5000150727 | Bolt | 1 | M10 x 25 | ADD TO CART |
| 11 | 5000150715 | Bolt | 1 | M6 x 15 | ADD TO CART |
| 12 | 5000150450 | Clip | 1 | ADD TO CART | |
| 13 | 5000150744 | Nut | 1 | ADD TO CART | |
| 14 | 5000150665 | Chain | 1 | PARTS REQUEST | |
|
COMING Chain
5000150665 · qty on machine: 1 | |||||
| 15 | 5000150458 | Hook | 1 | ADD TO CART | |
| 16 | 5000150645 | Bracket | 1 | ADD TO CART | |
| 17 | 5000150453 | Sleeve | 1 | ADD TO CART | |
| 18 | 5000150722 | Bolt | 4 | M8 x 50 | ADD TO CART |
| 19 | 5000150763 | Lock washer | 4 | ADD TO CART | |
| 20 | 5000177059 | Washer | 4 | ADD TO CART | |
| 21 | 5000177032 | Housing cover | 1 | ADD TO CART | |
| 22 | 5000176995 | O-ring | 1 | ADD TO CART | |
| 23 | 5000176999 | Cover | 1 | ADD TO CART | |
| 24 | 5000176996 | O-ring | 1 | ADD TO CART | |
| 25 | 5000176948 | Housing | 1 | ADD TO CART | |
| 26 | 5000176798 | Bolt w/washer | 4 | ADD TO CART | |
| 27 | 5000177004 | Screw | 2 | M4 x 6 | ADD TO CART |
| 28 | 5000177037 | Retainer | 2 | ADD TO CART | |
| 29 | 5000176812 | Capacitor | 1 | PARTS REQUEST | |
|
COMING Capacitor
5000176812 · qty on machine: 1 | |||||
| 30 | 5000177006 | Screw | 4 | M4 x 8 | ADD TO CART |
| 31 | 5000178372 | Cover | 1 | ADD TO CART | |
| 32 | 5000177007 | Screw | 2 | M4 x 10 | ADD TO CART |
| 33 | 5000176952 | Motor protection switch | 1 | ADD TO CART | |
| 34 | 5000176967 | Nut | 1 | ADD TO CART | |
| 35 | 5000150661 | Centrifugal switch | 1 | ADD TO CART | |
| 36 | 5000177009 | Screw | 2 | M4 x 10 | ADD TO CART |
| 37 | 5000177001 | Screw | 2 | M3 x 5 | ADD TO CART |
| 38 | 5000176787 | Bolt w/washer | 1 | ADD TO CART | |
| 39 | 5000176866 | Ground wire | 1 | ADD TO CART | |
| 40 | 5000176932 | Bracket | 1 | ADD TO CART | |
| 41 | 5000150767 | Spring washer | 2 | ADD TO CART | |
| 42 | 5000176772 | Ball bearing | 1 | ADD TO CART | |
| 43 | 5000176904 | Key | 1 | ADD TO CART | |
| 44 | 5000177074 | Stator cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 45 | 5000177049 | Rotor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 46 | 5000150801 | Key | 1 | ADD TO CART | |
| 47 | 5000150559 | Ball bearing | 1 | ADD TO CART | |
| 48 | 5000150697 | O-ring | 1 | ADD TO CART | |
| 49 | 5000176836 | Gasket | 1 | ADD TO CART | |
| 50 | 5000176942 | Motor housing | 1 | ADD TO CART | |
| 51 | 5000150503 | Mechanical seal | 1 | ADD TO CART | |
| 52 | 5000150518 | Oil lifter | 1 | ADD TO CART | |
| 53 | 5000150776 | Screw | 2 | M5 x 6 | ADD TO CART |
| 54 | 5000150775 | Screw | 2 | ADD TO CART | |
| 55 | 5000150522 | Retaining plate | 1 | ADD TO CART | |
| 56 | 5000150696 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000150696 · qty on machine: 1 | |||||
| 57 | 5000176995 | O-ring | 1 | ADD TO CART | |
| 58 | 5000176976 | Oil casing | 1 | ADD TO CART | |
| 59 | 5000150535 | Oil plug | 1 | ADD TO CART | |
| 60 | 5000150676 | Gasket | 1 | ADD TO CART | |
| 61 | 5000177065 | Socket head bolt | 3 | ADD TO CART | |
| 62 | 5000150709 | Seal | 1 | ADD TO CART | |
| 63 | 5000150651 | Sleeve | 1 | ADD TO CART | |
| 64 | 5000178387 | Wear ring | 1 | ADD TO CART | |
| 65 | 5000176897 | Shim | 1 | ADD TO CART | |
| 66 | 5000176886 | Impeller | 1 | ADD TO CART | |
| 67 | 5000150852 | Lock washer | 1 | PARTS REQUEST | |
|
COMING Lock washer
5000150852 · qty on machine: 1 | |||||
| 68 | 5000150754 | Acorn nut | 1 | ADD TO CART | |
| 69 | 5000177027 | Volute | 1 | ADD TO CART | |
| 70 | 5000178362 | Stud bolt | 3 | ADD TO CART | |
| 71 | 5000178370 | Suction strainer | 1 | ADD TO CART | |
| 72 | 5000176968 | Nut | 3 | ADD TO CART | |
| 73 | 5000176907 | Wire | 1 | ADD TO CART | |
| 74 | 5000176911 | Wire | 1 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson PSW3 trash pump.
List price: $2,680.00
Keep-it-running spares
All listed parts →Every part that fits this machine
5000150450
Clip
$8.95
5000150453
Sleeve
$2.95
5000150458
Hook
$5.95
5000150503
Mechanical seal
$491.95
5000150518
Oil lifter
$8.95
5000150522
Retaining plate
$16.95
5000150533
Coupling
$184.95
5000150535
Oil plug
$6.95
5000150559
Ball bearing
$38.95
5000150645
Bracket
$13.95
5000150651
Sleeve
$61.95
5000150661
Centrifugal switch
$196.95
5000150665
Chain
5000150676
Gasket
$1.95
5000150696
O-ring
5000150697
O-ring
$5.95
5000150709
Seal
$21.95
5000150715
Bolt
$0.95
5000150722
Bolt
$3.95
5000150727
Bolt
$3.95
5000150744
Nut
$0.95
5000150754
Acorn nut
$8.95
5000150761
Washer
$0.95
5000150763
Lock washer
$0.95
5000150767
Spring washer
$5.95
5000150775
Screw
$0.95
5000150776
Screw
$0.95
5000150801
Key
$14.95
5000150852
Lock washer
5000175106
Bolt
$2.95
5000176772
Ball bearing
$32.95
5000176787
Bolt w/washer
$0.95
5000176798
Bolt w/washer
$2.95
5000176812
Capacitor
5000176835
Gasket
$10.95
5000176836
Gasket
$18.95
5000176848
Gasket & o-ring set
$140.95
5000176856
Cover
$31.95
5000176866
Ground wire
$6.95
5000176868
Handle
$19.95
5000176886
Impeller
$728.95
5000176897
Shim
$5.95
5000176904
Key
$8.95
5000176907
Wire
$10.95
5000176911
Wire
$10.95
5000176932
Bracket
$706.95
5000176942
Motor housing
$756.95
5000176948
Housing
$1,362.95
5000176952
Motor protection switch
$249.95
5000176967
Nut
$3.95
5000176968
Nut
$1.95
5000176976
Oil casing
$313.95
5000176995
O-ring
$19.95
5000176996
O-ring
$1.95
5000176999
Cover
$360.95
5000177001
Screw
$0.95
5000177004
Screw
$0.95
5000177006
Screw
$0.95
5000177007
Screw
$0.95
5000177009
Screw
$0.95
5000177015
Power cable
5000177027
Volute
$120.95
5000177032
Housing cover
$1,109.95
5000177037
Retainer
$78.95
5000177049
Rotor cpl.
$857.95
5000177059
Washer
$10.95
5000177065
Socket head bolt
$3.95
5000177074
Stator cpl.
$2,366.95
5000178362
Stud bolt
$18.95
5000178370
Suction strainer
$73.95
5000178372
Cover
$353.95
5000178387
Wear ring
$176.95
