Wacker Neuson PT6 Trash Pump
Factory parts book · interactive
Wacker Neuson PT6 Trash Pump
The parts bench

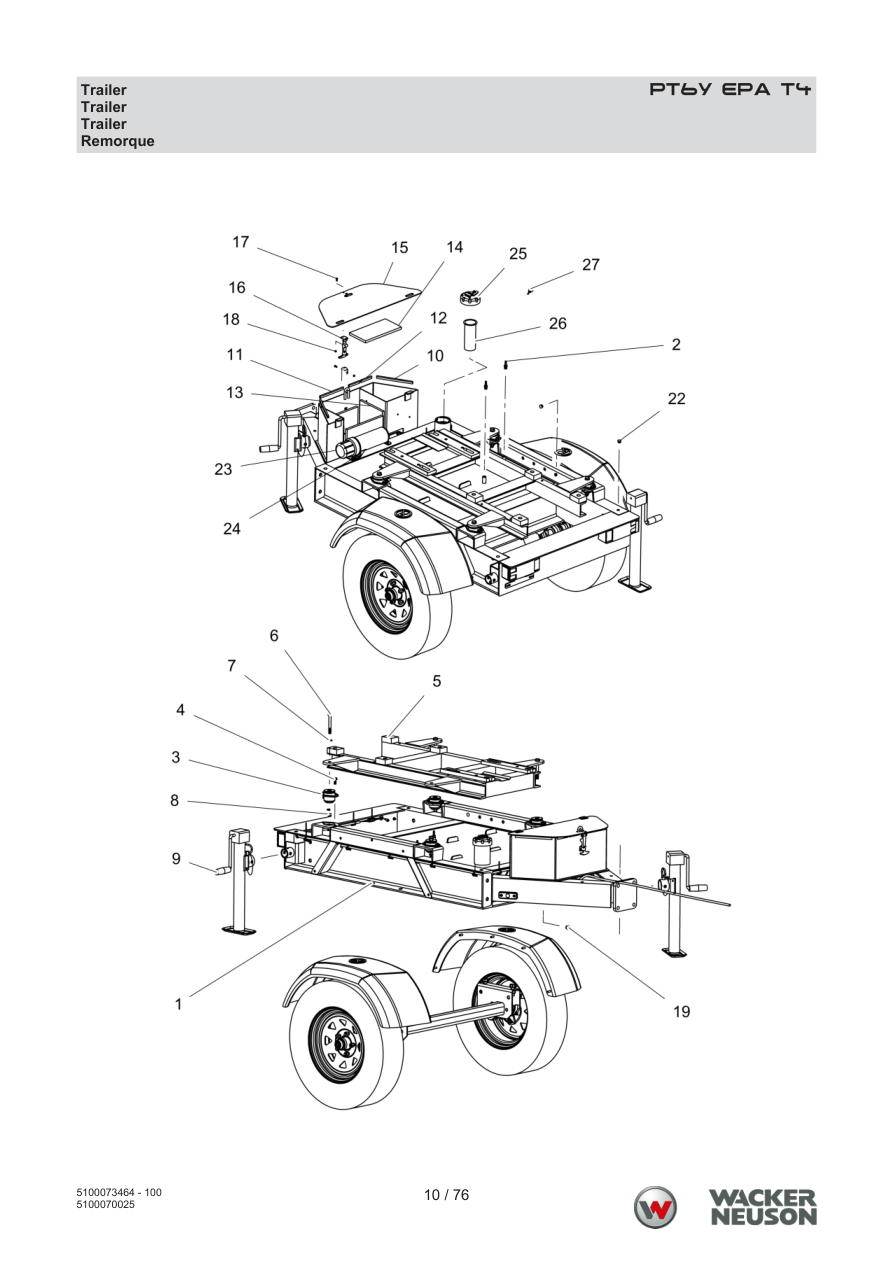

Need the PDF? ↓Page 10 — PT6Y EPA T4 Trailer
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100064422 | Trailer-weldment,pt6y | 1 | ADD TO CART | |
| 2 | 5000028759 | Fitting | 2 | ADD TO CART | |
| 3 | 1000403199 | Hydro.bearing | 4 | PARTS REQUEST | |
|
COMING Hydro.bearing
1000403199 · qty on machine: 4 | |||||
| 4 | 5100064420 | Screw | 8 | ADD TO CART | |
| 5 | 5100064416 | Pump and engine base | 1 | ADD TO CART | |
| 6 | 5100064414 | Screw m12x100 | 4 | ADD TO CART | |
| 7 | 5000010620 | Flat washer | 8 | ADD TO CART | |
| 8 | 5000010366 | Hexagon nut | 4 | ADD TO CART | |
| 9 | 5200018901 | Swivel jack | 3 | ADD TO CART | |
| 10 | 5100057717 | Rubber molding, 200mm | 2 | ADD TO CART | |
| 11 | 5100057719 | Rubber molding, 165mm | 1 | ADD TO CART | |
| 12 | 5100057721 | Rubber molding, 75mm | 2 | ADD TO CART | |
| 13 | 5200014976 | Pad | 2 | ADD TO CART | |
| 14 | 5200014975 | Pad | 4 | ADD TO CART | |
| 15 | 5200014974 | Battery cover | 1 | ADD TO CART | |
| 16 | 5000079309 | Flexible latch | 1 | ADD TO CART | |
| 17 | 5000011477 | Hexagonal head cap screw | 4 | 6Nm/4ft.lbs | DIN933 | ADD TO CART |
| 18 | 5000010369 | Hexagon nut | 4 | ADD TO CART | |
| 19 | 1000020797 | Screw joint | 1 | ADD TO CART | |
| 22 | 1000279891 | Plug | 6 | PARTS REQUEST | |
|
COMING Plug
1000279891 · qty on machine: 6 | |||||
| 23 | 5100069199 | Operator manual storage tube | 1 | ADD TO CART | |
| 24 | 5000028404 | Hexagonal flange head screw | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 25 | 5100062515 | Fuel tank cap kb-2167 | 1 | ADD TO CART | |
| 26 | 5100063004 | Filter element kb-4010 | 1 | ADD TO CART | |
| 27 | 5100063005 | Key of fuel tank cap kb-2167-r | 1 | ADD TO CART | |

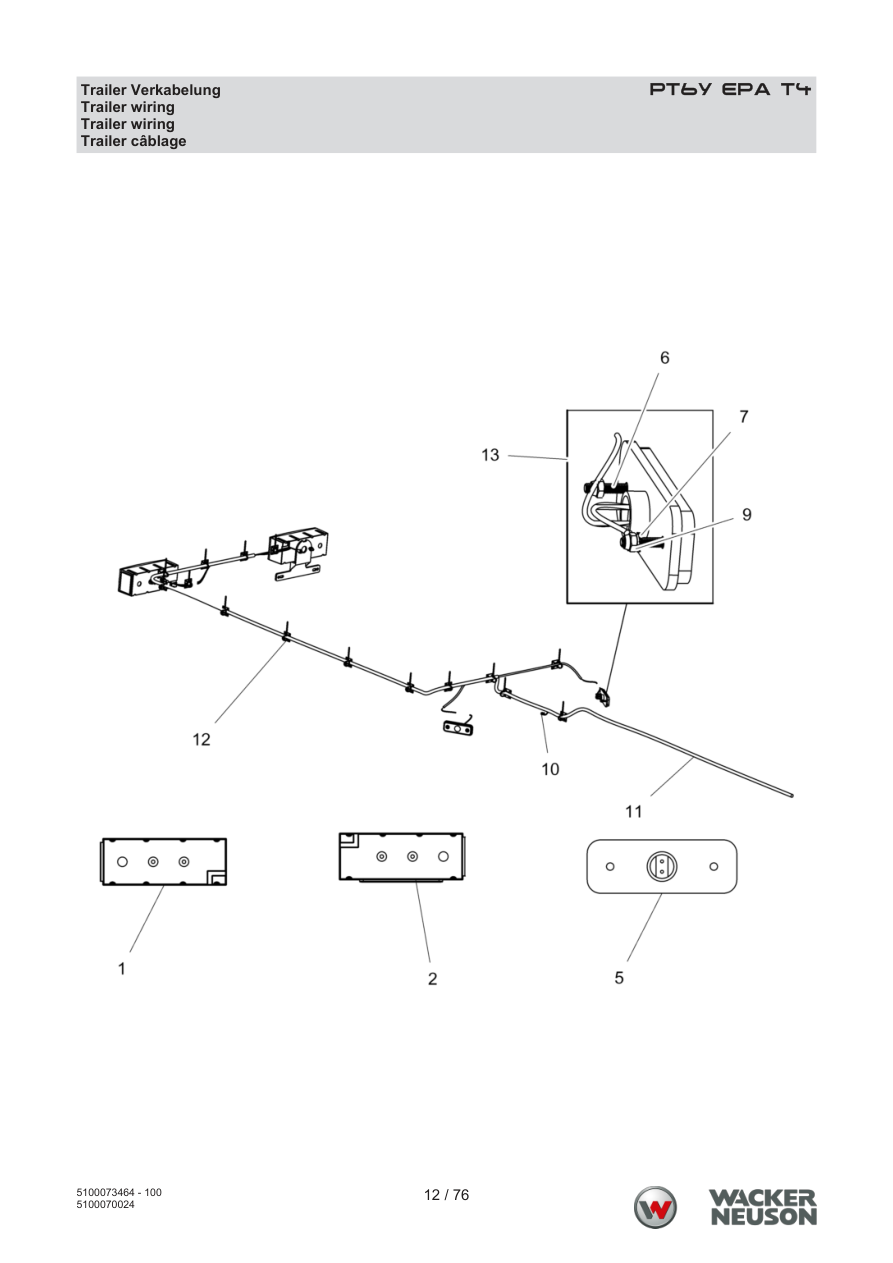

Page 12 — PT6Y EPA T4 Trailer wiring
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100058810 | Trailer light led-rh | 1 | ADD TO CART | |
| 2 | 5100058811 | Trailer light led-lh | 1 | ADD TO CART | |
| 5 | 5100058774 | Side light- led | 2 | ADD TO CART | |
| 6 | 5000403851 | Pan head screw | 4 | ADD TO CART | |
| 7 | 5100058776 | Washer a4.3 a2c | 3 | ADD TO CART | |
| 9 | 1000082547 | Hexagon nut | 4 | PARTS REQUEST | |
|
COMING Hexagon nut
1000082547 · qty on machine: 4 | |||||
| 10 | 5000404307 | Pan head screw | 1 | ADD TO CART | |
| 11 | 5100064485 | Trailer wiring harness | 1 | ADD TO CART | |
| 12 | 5100064417 | Cable tie | 15 | ADD TO CART | |
| 13 | 5100070469 | Side light | 2 | ADD TO CART | |

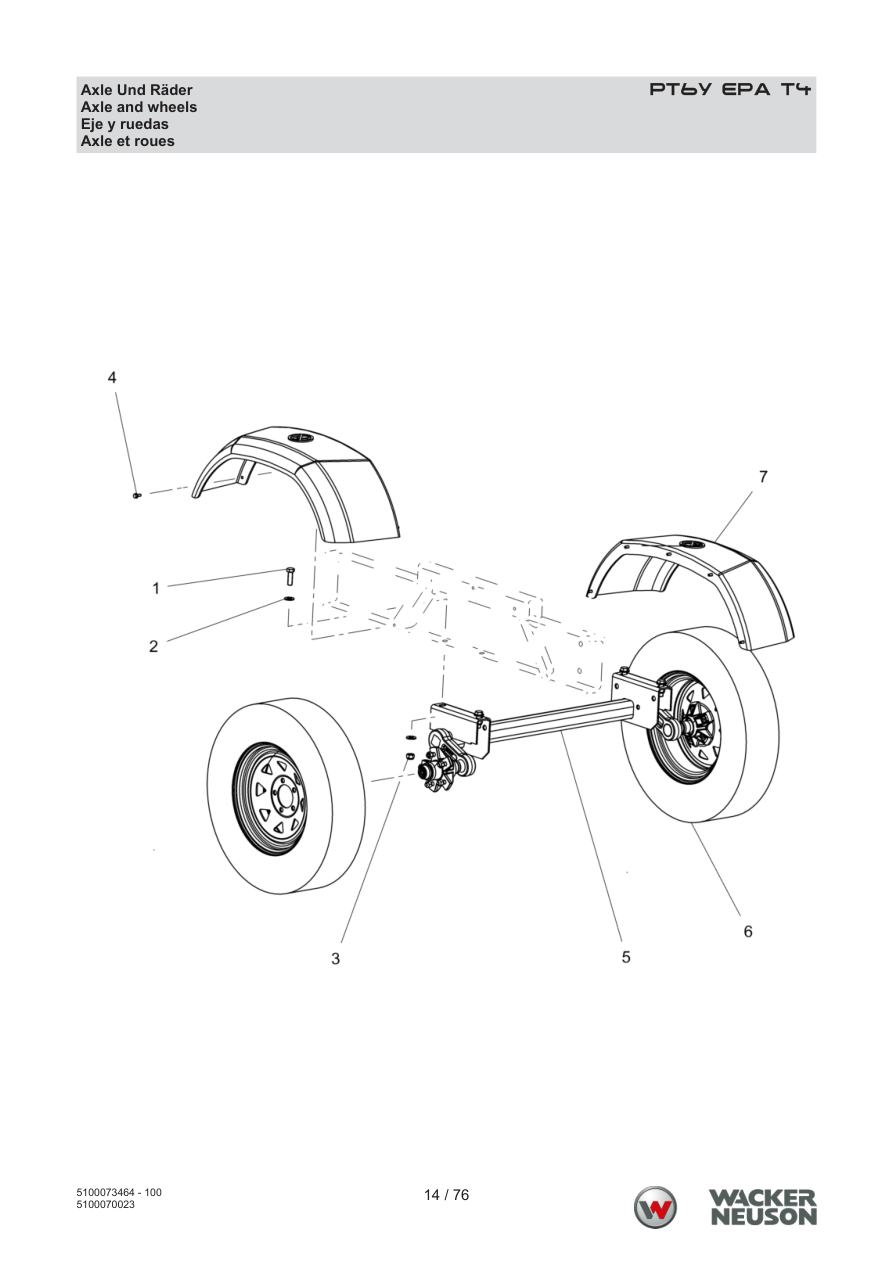

Page 14 — Axle and wheels
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000085430 | Hex screw | 4 | PARTS REQUEST | |
|
COMING Hex screw
1000085430 · qty on machine: 4 | |||||
| 2 | 1000082679 | Washer | 8 | PARTS REQUEST | |
|
COMING Washer
1000082679 · qty on machine: 8 | |||||
| 3 | 5000013496 | Hexagon nut | 4 | ADD TO CART | |
| 4 | 5000028404 | Hexagonal flange head screw | 10 | 25Nm/18ft.lbs | ADD TO CART |
| 5 | 5100058280 | Axle | 1 | PARTS REQUEST | |
|
COMING Axle
5100058280 · qty on machine: 1 | |||||
| 6 | 5200012197 | Wheel | 2 | ADD TO CART | |
| 7 | 5100056613 | Trailer fender | 2 | ADD TO CART | |

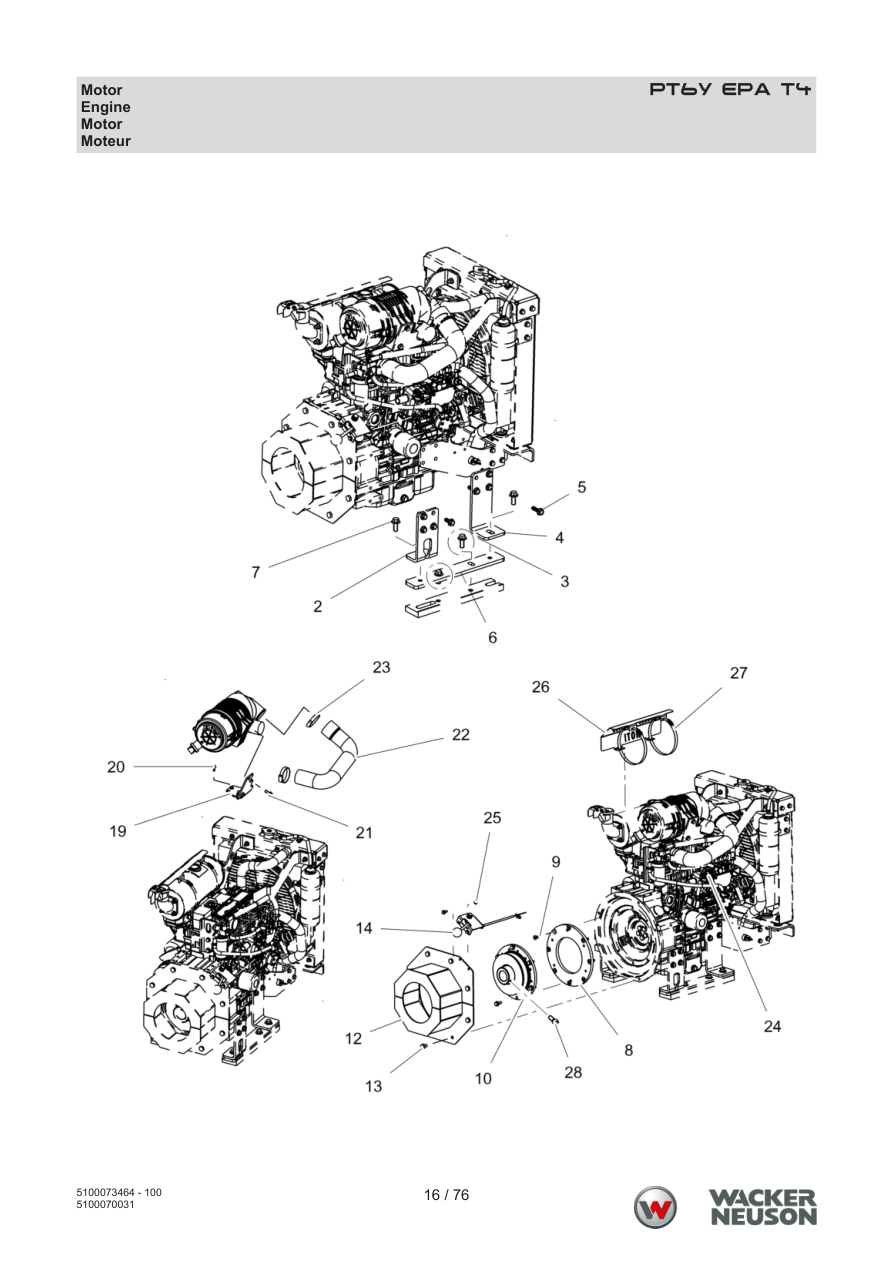

Page 16 — PT6Y EPA T4 Engine
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100064411 | Engine mount | 2 | ADD TO CART | |
| 3 | 5100064420 | Screw | 8 | ADD TO CART | |
| 4 | 5100064410 | Engine mount | 2 | ADD TO CART | |
| 5 | 5100064419 | Screw m10x35 | 8 | ADD TO CART | |
| 6 | 5100067742 | Plate | 2 | ADD TO CART | |
| 7 | 5100066111 | Screw m12x30 | 8 | PARTS REQUEST | |
|
COMING Screw m12x30
5100066111 · qty on machine: 8 | |||||
| 8 | 5100064241 | Flywheel adapter | 1 | ADD TO CART | |
| 9 | 5100064409 | Screw m8x25 | 8 | ADD TO CART | |
| 10 | 5100059185 | Coupling pt6 | 1 | ADD TO CART | |
| 11 | 5000028404 | Hexagonal flange head screw | 6 | 25Nm/18ft.lbs | ADD TO CART |
| 12 | 5100064408 | Guard | 2 | ADD TO CART | |
| 13 | 1000013009 | Hex screw | 8 | PARTS REQUEST | |
|
COMING Hex screw
1000013009 · qty on machine: 8 | |||||
| 14 | 5100064407 | Throttle lever | 1 | ADD TO CART | |
| 15 | 5000028949 | Hexagonal flange head screw | 2 | 10Nm/7ft.lbs | ADD TO CART |
| 16 | 5000155519 | Flange nut | 2 | ADD TO CART | |
| 19 | 5100067759 | Air filter bracket | 1 | ADD TO CART | |
| 20 | 5000028949 | Hexagonal flange head screw | 3 | 10Nm/7ft.lbs | ADD TO CART |
| 21 | 5000028404 | Hexagonal flange head screw | 2 | 25Nm/18ft.lbs | ADD TO CART |
| 22 | 5100067760 | Air suction hose | 1 | ADD TO CART | |
| 23 | 1000096844 | Hose clamp | 2 | PARTS REQUEST | |
|
COMING Hose clamp
1000096844 · qty on machine: 2 | |||||
| 24 | 5000011469 | Hexagonal head cap screw | 1 | M6 x 25 10Nm/7ft.lbs | DIN933 | ADD TO CART |
| 25 | 5000155519 | Flange nut | 1 | ADD TO CART | |
| 26 | 5100068495 | Heatshield-muffler pt6y | 1 | ADD TO CART | |
| 27 | 1000083328 | Hose clamp | 2 | PARTS REQUEST | |
|
COMING Hose clamp
1000083328 · qty on machine: 2 | |||||
| 28 | 5000011530 | Cheese head screw | 1 | M12 x 25 | ISO4762 | PARTS REQUEST |
|
COMING Cheese head screw
5000011530 · qty on machine: 1 M12 x 25 | ISO4762 | |||||

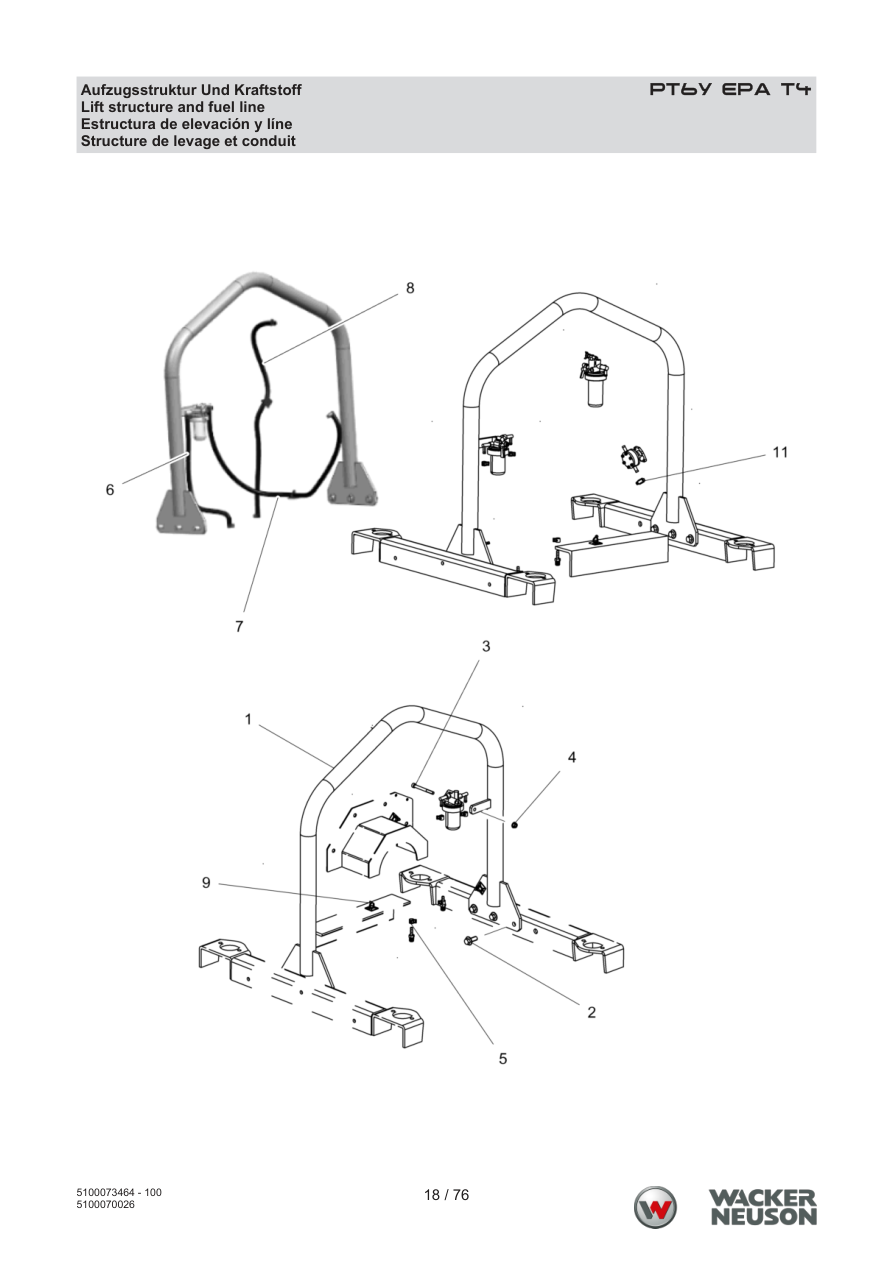

Page 18 — PT6Y EPA T4 Lifting structure and fuel
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100066092 | Lift structure | 1 | ADD TO CART | |
| 2 | 5100066111 | Screw m12x30 | 6 | PARTS REQUEST | |
|
COMING Screw m12x30
5100066111 · qty on machine: 6 | |||||
| 3 | 5000119979 | Socket head cap screw | 1 | M8 x 80 | ADD TO CART |
| 4 | 5000030066 | Locknut | 1 | ADD TO CART | |
| 5 | 5100063027 | Clamp hose | 5 | ADD TO CART | |
| 6 | 5100064423 | Fuel house | 1 | ADD TO CART | |
| 7 | 5100064415 | Fuel house | 1 | ADD TO CART | |
| 8 | 5100064421 | Fuel house | 1 | ADD TO CART | |
| 9 | 5100064417 | Cable tie | 3 | ADD TO CART | |
| 11 | 5000402180 | Hose clamp | 1 | ADD TO CART | |

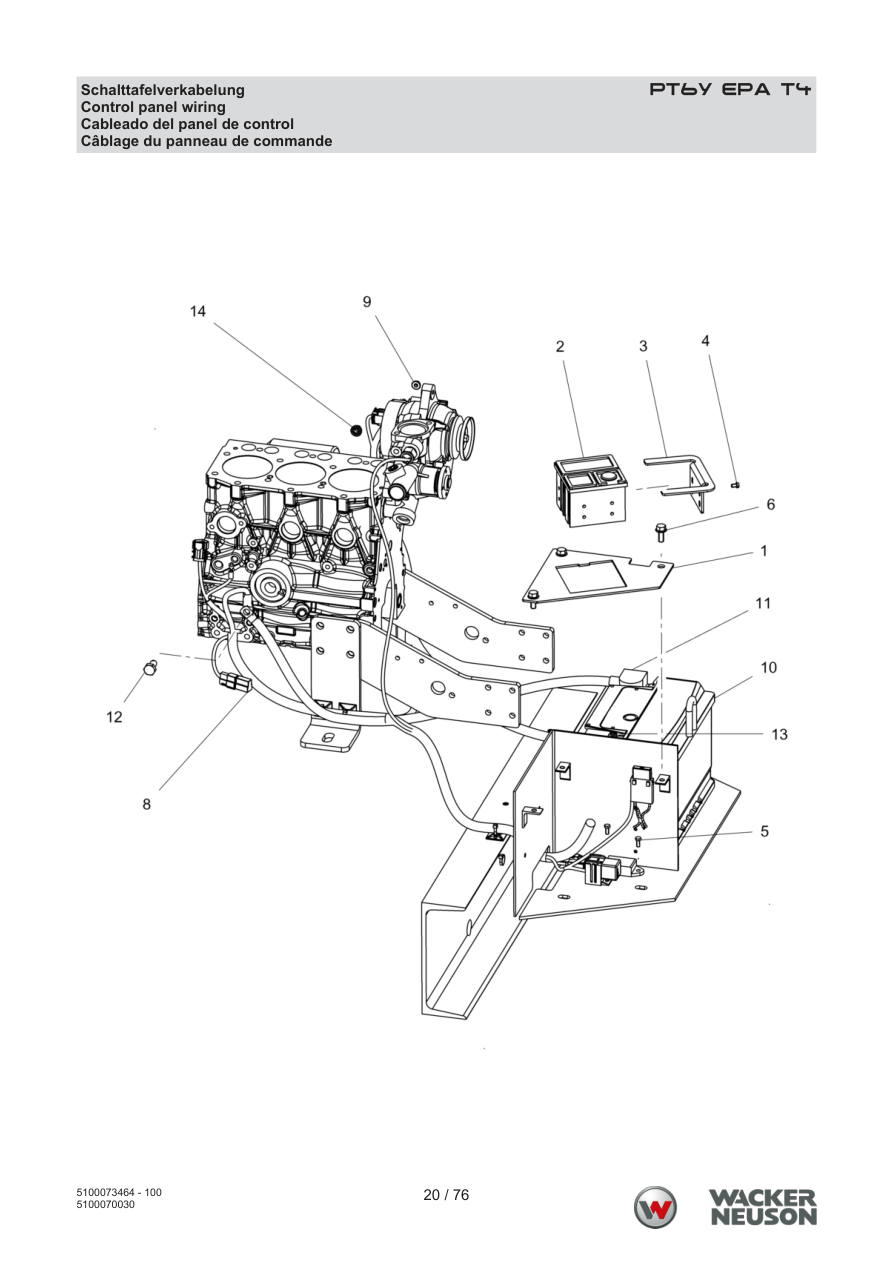

Page 20 — PT6Y EPA T4 Control panel wiring
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100064404 | Control box plate | 1 | ADD TO CART | |
| 2 | 5100062924 | Panel | 1 | ADD TO CART | |
| 3 | 5000163576 | Bracket | 1 | ADD TO CART | |
| 4 | 5000011716 | Cheese head screw | 3 | M5 x 8 | ISO1207 | ADD TO CART |
| 5 | 5000011477 | Hexagonal head cap screw | 2 | 6Nm/4ft.lbs | DIN933 | ADD TO CART |
| 6 | 5000028404 | Hexagonal flange head screw | 3 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5100064221 | Main wiring harness | 1 | ADD TO CART | |
| 9 | 5000155519 | Flange nut | 1 | ADD TO CART | |
| 10 | 5100058769 | Battery, 12v 74ah | 1 | ADD TO CART | |
| 11 | 5100064220 | Battery cable negative | 1 | ADD TO CART | |
| 12 | 5000012364 | Hexagonal head cap screw | 1 | 49Nm/36ft.lbs | DIN 933 | ADD TO CART |
| 13 | 5100064219 | Battery cable positive | 1 | ADD TO CART | |
| 14 | 5000030066 | Locknut | 1 | ADD TO CART | |

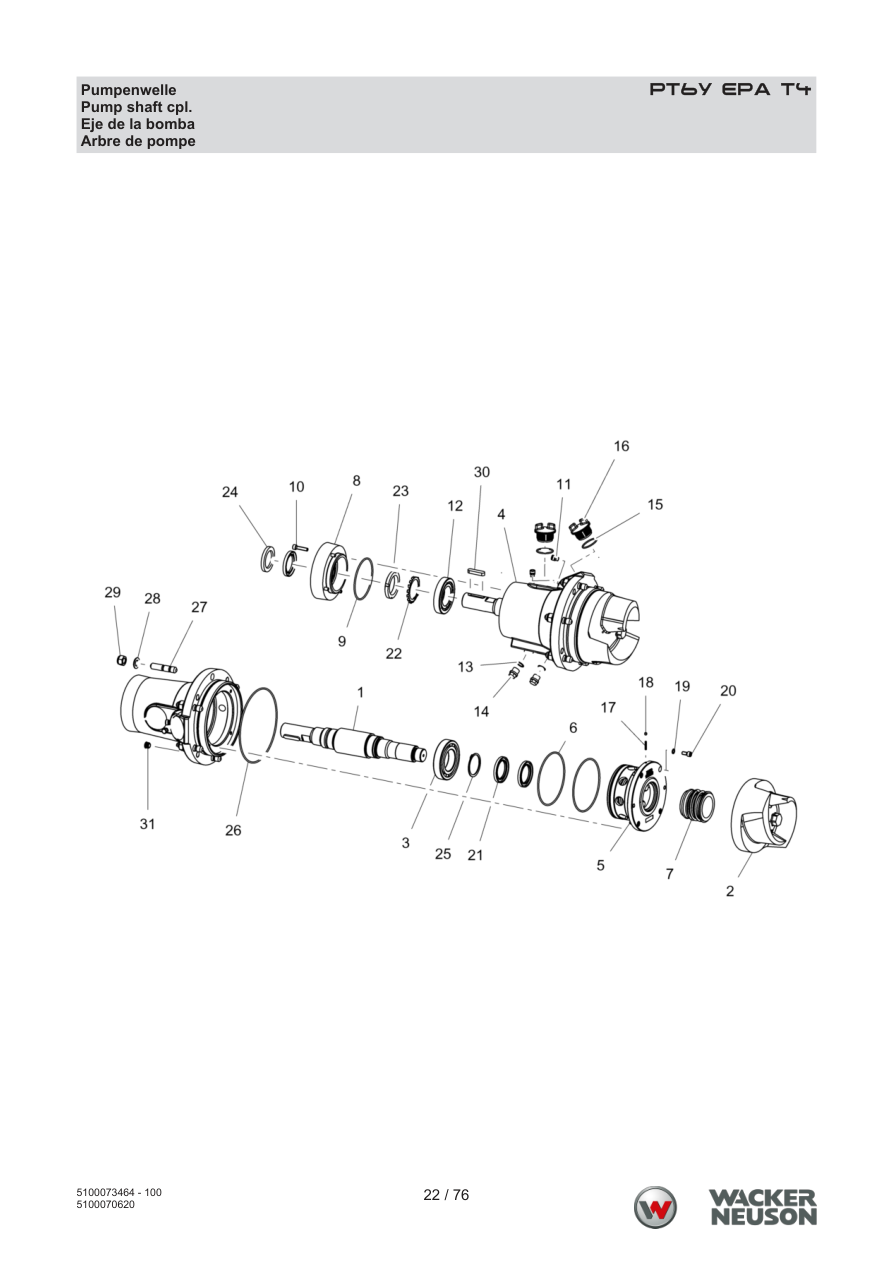

Page 22 — PT6Y EPA T4 Pump shaft
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000088496 | Shaft | 1 | ADD TO CART | |
| 2 | 5000071465 | Impeller | 1 | ADD TO CART | |
| 3 | 5000072856 | Roller bearing | 1 | PARTS REQUEST | |
|
COMING Roller bearing
5000072856 · qty on machine: 1 | |||||
| 4 | 5000115080 | Housing | 1 | PARTS REQUEST | |
|
COMING Housing
5000115080 · qty on machine: 1 | |||||
| 5 | 5000115081 | Housing | 1 | ADD TO CART | |
| 6 | 5000072854 | O-ring | 2 | 142,47 x 3,53 | ADD TO CART |
| 7 | 5000080082 | Mech.seal-sc/sc sp-0082960 | 1 | ADD TO CART | |
| 8 | 5000071837 | Bearing cover | 1 | ADD TO CART | |
| 9 | 5000072853 | O-ring | 1 | 110,72 x 3,53 | ADD TO CART |
| 10 | 5000011540 | Cheese head screw | 4 | 25Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 11 | 5000073929 | Atmospheric vent screw | 2 | ADD TO CART | |
| 12 | 5000072857 | Roller bearing | 1 | ADD TO CART | |
| 13 | 5000012083 | Gasket | 2 | A20 x 24 | DIN7603 | ADD TO CART |
| 14 | 5000011035 | Plug (threaded) | 2 | M20 x 1,5 | DIN910 | ADD TO CART |
| 15 | 5000119412 | O-ring | 2 | 43 x 3 | ADD TO CART |
| 16 | 5000119626 | Cap | 2 | ADD TO CART | |
| 17 | 5000059248 | Spring pin | 1 | 4 x 24 | DIN1481 | PARTS REQUEST |
|
COMING Spring pin
5000059248 · qty on machine: 1 4 x 24 | DIN1481 | |||||
| 18 | 5000078789 | Setscrew | 1 | M6 x 6 | ADD TO CART |
| 19 | 5000075173 | Ring seal | 4 | ADD TO CART | |
| 20 | 5000011545 | Cheese head screw | 4 | M8 x 18 25Nm/18ft.lbs | ISO4762 | ADD TO CART |
| 21 | 5000076015 | Shaft seal | 2 | 50 x 72 x 7 | ADD TO CART |
| 22 | 5000072861 | Lock washer | 1 | ADD TO CART | |
| 23 | 5000072860 | Lock nut | 1 | M55 x 2 | ADD TO CART |
| 24 | 5000072858 | Shaft seal | 2 | 48 x 70 x 8 | ADD TO CART |
| 25 | 5000043180 | Retaining ring | 1 | ADD TO CART | |
| 26 | 5000072855 | O-ring | 1 | 202,79 x 3,53 | ADD TO CART |
| 27 | 5000077926 | Stud | 6 | M16 x 60 | ADD TO CART |
| 28 | 5000010618 | Flat washer | 6 | ADD TO CART | |
| 29 | 5000013496 | Hexagon nut | 6 | ADD TO CART | |
| 30 | 5100076962 | Special key a12 x 8 x 50 | 1 | ADD TO CART | |
| 31 | 1000279891 | Plug | 4 | PARTS REQUEST | |
|
COMING Plug
1000279891 · qty on machine: 4 | |||||

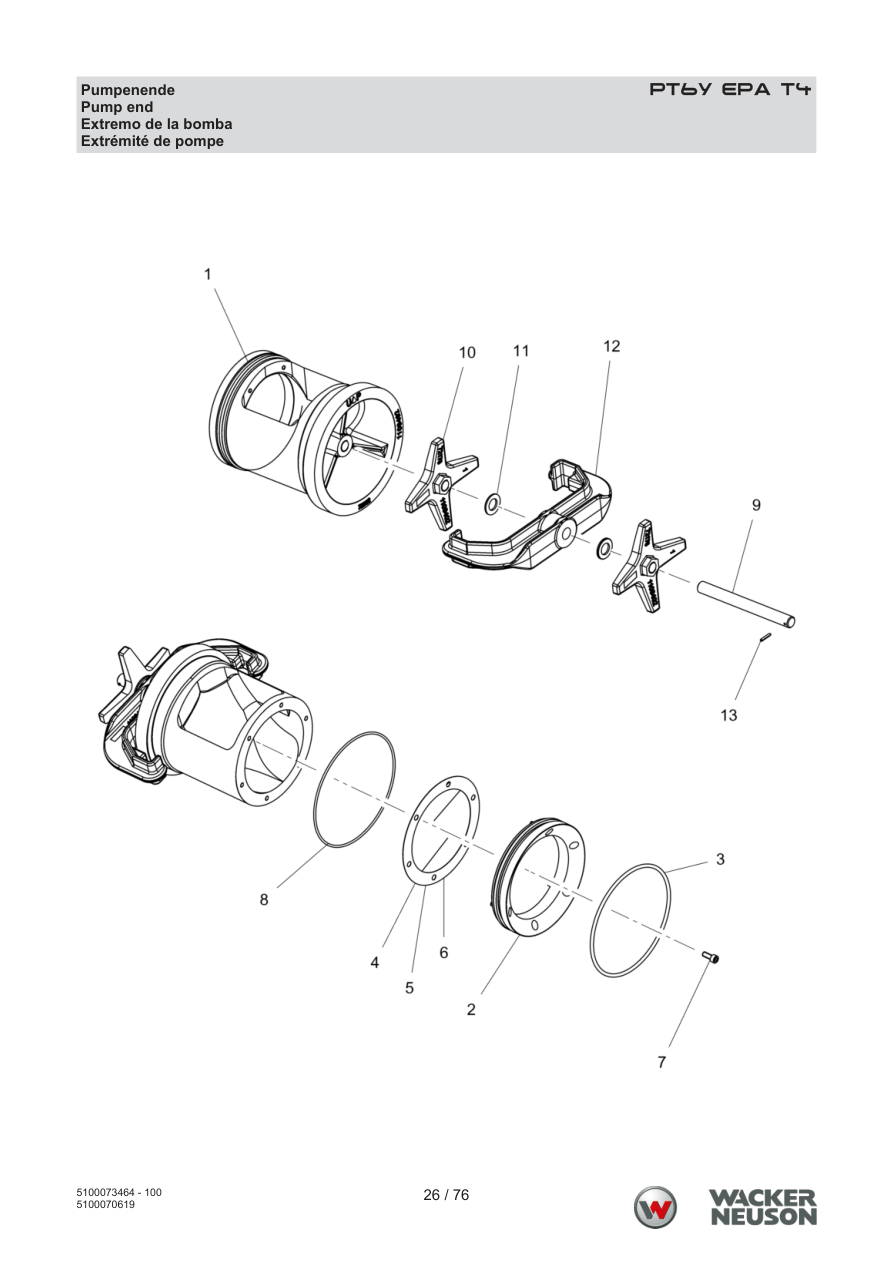

Page 26 — PT6Y EPA T4 Pump end
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000072302 | Cover | 1 | ADD TO CART | |
| 2 | 5000072349 | Volute insert | 1 | ADD TO CART | |
| 3 | 5000072852 | O-ring | 1 | 194,2 x 5,7 | ADD TO CART |
| 4 | 5000073016 | Shim | 4 | ADD TO CART | |
| 5 | 5000079758 | Shim | 2 | ADD TO CART | |
| 6 | 5000079759 | Shim | 1 | ADD TO CART | |
| 7 | 5000051542 | Socket head cap screw | 6 | M8 x 20 41Nm/30ft.lbs | ADD TO CART |
| 8 | 5000072855 | O-ring | 1 | 202,79 x 3,53 | ADD TO CART |
| 9 | 5000076512 | Bolt | 1 | M20 x 2,5 | ADD TO CART |
| 10 | 5000072176 | Steering wheel | 2 | ADD TO CART | |
| 11 | 5000077873 | Flat washer | 2 | ADD TO CART | |
| 12 | 5000072174 | Clamp | 1 | ADD TO CART | |
| 13 | 5000059248 | Spring pin | 1 | 4 x 24 | DIN1481 | PARTS REQUEST |
|
COMING Spring pin
5000059248 · qty on machine: 1 4 x 24 | DIN1481 | |||||

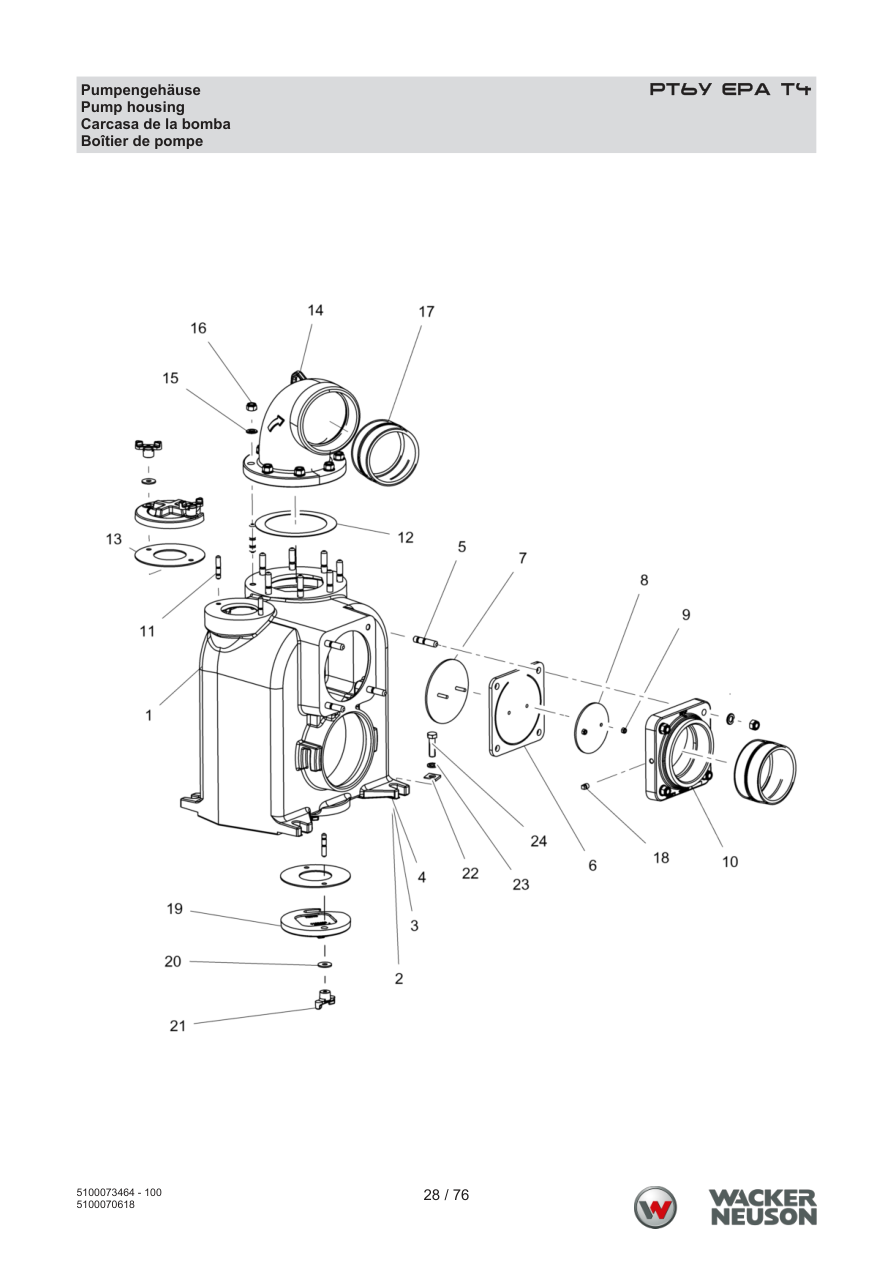

Page 28 — Pump housing
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 8 | 5000079291 | Bracket | 1 | ADD TO CART | |
| 1 | 5000072083 | Pump case housing | 1 | ADD TO CART | |
| 2 | 5000084929 | Shim | 4 | PARTS REQUEST | |
|
COMING Shim
5000084929 · qty on machine: 4 | |||||
| 3 | 5000084930 | Shim | 4 | ADD TO CART | |
| 4 | 5000084931 | Shim | 4 | PARTS REQUEST | |
|
COMING Shim
5000084931 · qty on machine: 4 | |||||
| 5 | 5000077926 | Stud | 12 | M16 x 60 | ADD TO CART |
| 6 | 5000186614 | Valve-inlt gskt,pt6 sp=0072351 | 1 | PARTS REQUEST | |
|
COMING Valve-inlt gskt,pt6 sp=0072351
5000186614 · qty on machine: 1 | |||||
| 7 | 5000077941 | Plate | 1 | ADD TO CART | |
| 9 | 5000010367 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5000077821 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5000077821 · qty on machine: 1 | |||||
| 11 | 5000030286 | Stud | 4 | M12 x 50 | ADD TO CART |
| 12 | 5000073129 | Gasket | 1 | ADD TO CART | |
| 13 | 5000073015 | Seal | 2 | 1/8 x 7,5in | ADD TO CART |
| 14 | 5000165035 | Elbow fitting | 1 | ADD TO CART | |
| 15 | 5000010618 | Flat washer | 12 | ADD TO CART | |
| 16 | 5000013496 | Hexagon nut | 12 | ADD TO CART | |
| 17 | 5100065753 | Pipe nipple 6 npt | 2 | ADD TO CART | |
| 18 | 5000025605 | Threaded plug | 1 | ADD TO CART | |
| 19 | 5000072347 | Cover | 2 | ADD TO CART | |
| 20 | 5000114766 | Flat washer | 4 | 0,531 x 1,625 x 0,12 | ADD TO CART |
| 21 | 5100059874 | Knob m12 | 4 | ADD TO CART | |
| 22 | 5000010783 | Washer | 4 | 22 | DIN 434 | ADD TO CART |
| 23 | 5000012652 | Lock washer | 4 | B20 | DIN128 | ADD TO CART |
| 24 | 5000077828 | Hexagonal head cap screw | 4 | M20 x 70 410Nm/302ft.lbs | ADD TO CART |

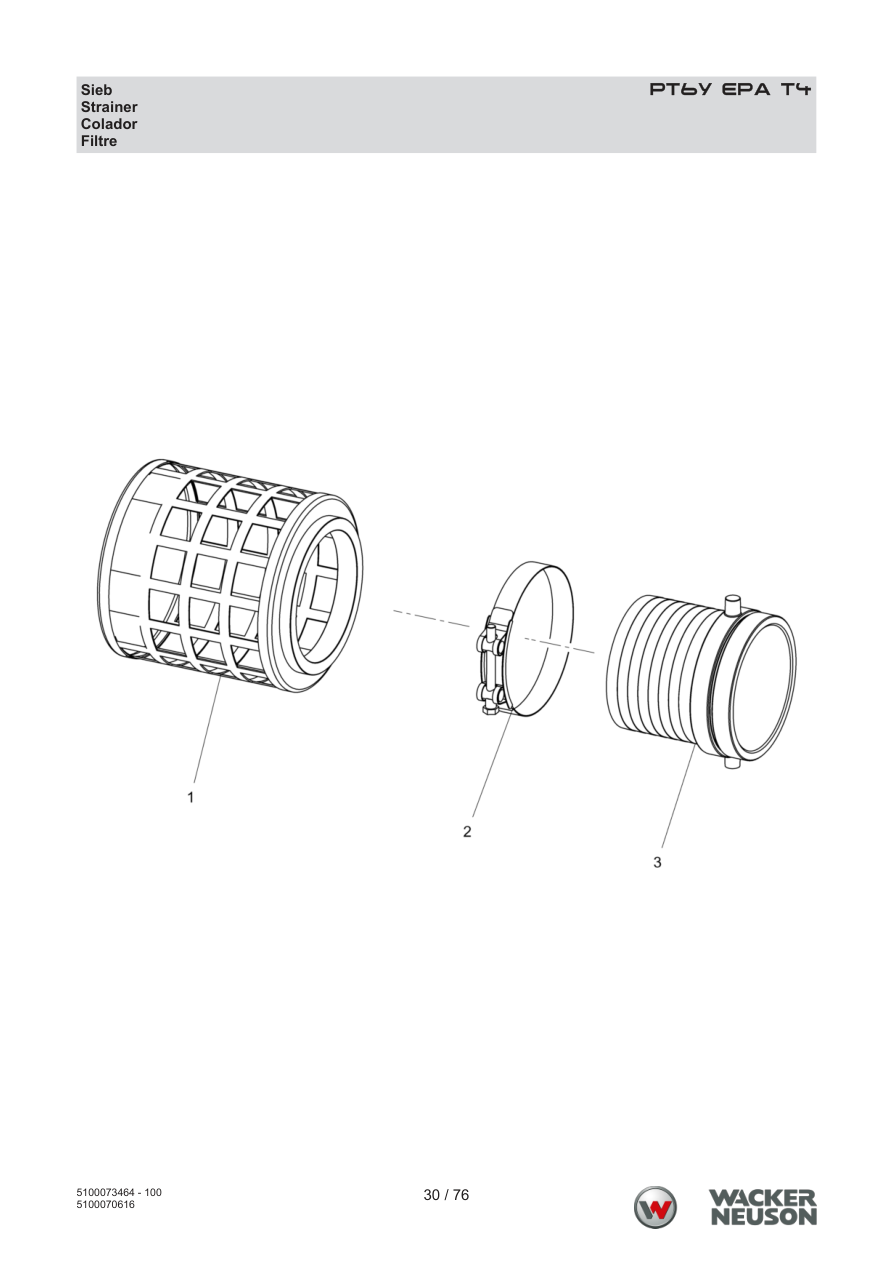

Page 30 — PT6Y EPA T4 Strainer
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061622 | Strainer 6 ,female thd. | 1 | PARTS REQUEST | |
|
COMING Strainer 6 ,female thd.
5100061622 · qty on machine: 1 | |||||
| 2 | 5100061626 | Clamp 162mm - 174mm,t-bolt | 1 | ADD TO CART | |
| 3 | 5100061629 | Coupling 6 ,hose shank,ext.thd | 1 | PARTS REQUEST | |
|
COMING Coupling 6 ,hose shank,ext.thd
5100061629 · qty on machine: 1 | |||||

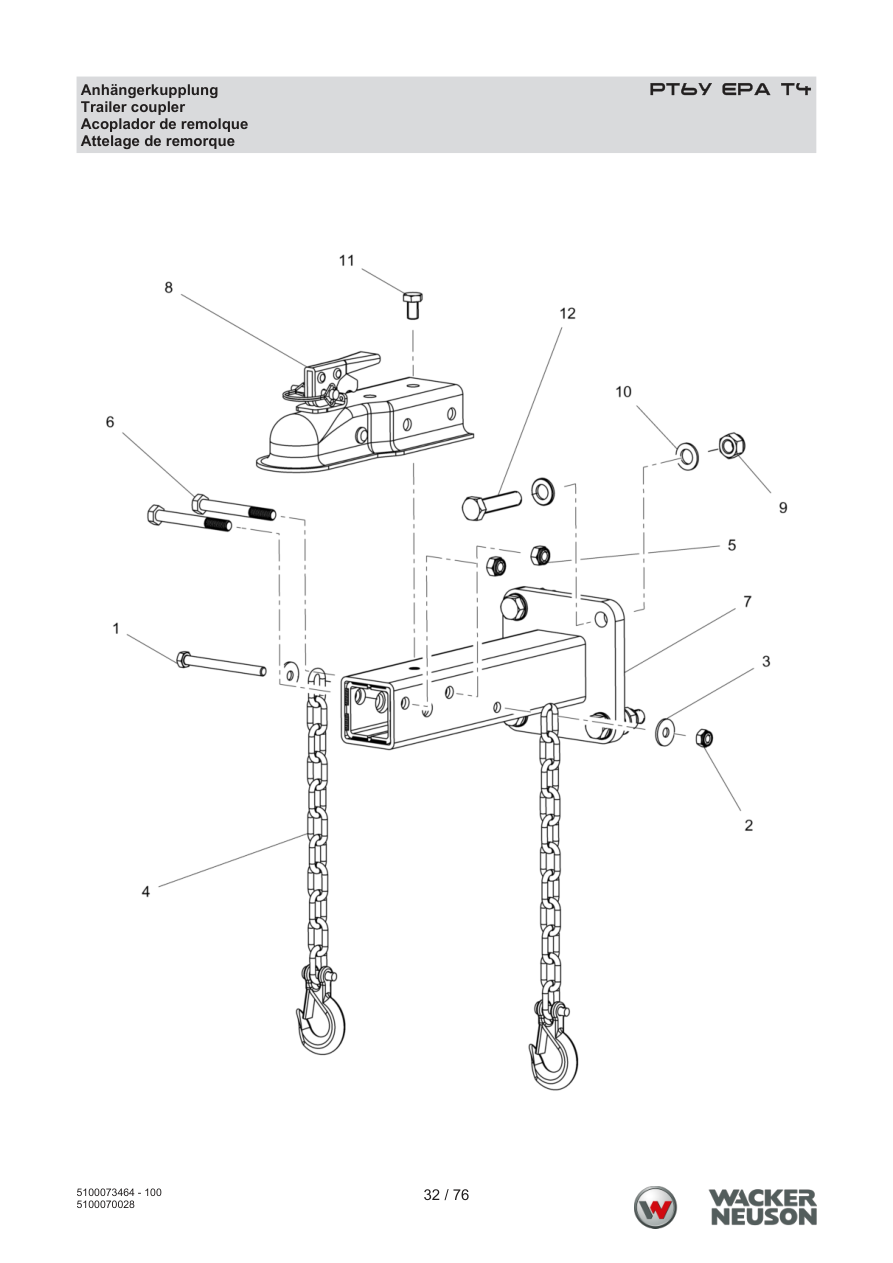

Page 32 — Trailer coupler
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065090 | Screw m10x110-8.8 | 1 | ADD TO CART | |
| 2 | 5000010365 | Locknut | 1 | 25Nm/18ft.lbs | DIN 980 V | ADD TO CART |
| 3 | 5000010375 | Flat washer | 2 | ADD TO CART | |
| 4 | 5200003078 | Safety chain | 2 | ADD TO CART | |
| 5 | 5000010366 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5100064414 | Screw m12x100 | 2 | ADD TO CART | |
| 7 | 5100065089 | Hook-plntle weldment | 1 | 25Nm/18ft.lbs | ADD TO CART |
| 8 | 5100065091 | Trailer coupler | 1 | ADD TO CART | |
| 9 | 5000013496 | Hexagon nut | 4 | 86Nm/63ft.lbs | DIN985 | ADD TO CART |
| 10 | 5000010618 | Flat washer | 8 | ADD TO CART | |
| 11 | 5000012368 | Hexagonal head cap screw | 1 | 86Nm/63ft.lbs | DIN933 | ADD TO CART |
| 12 | 1000401340 | Hex screw | 4 | PARTS REQUEST | |
|
COMING Hex screw
1000401340 · qty on machine: 4 | |||||

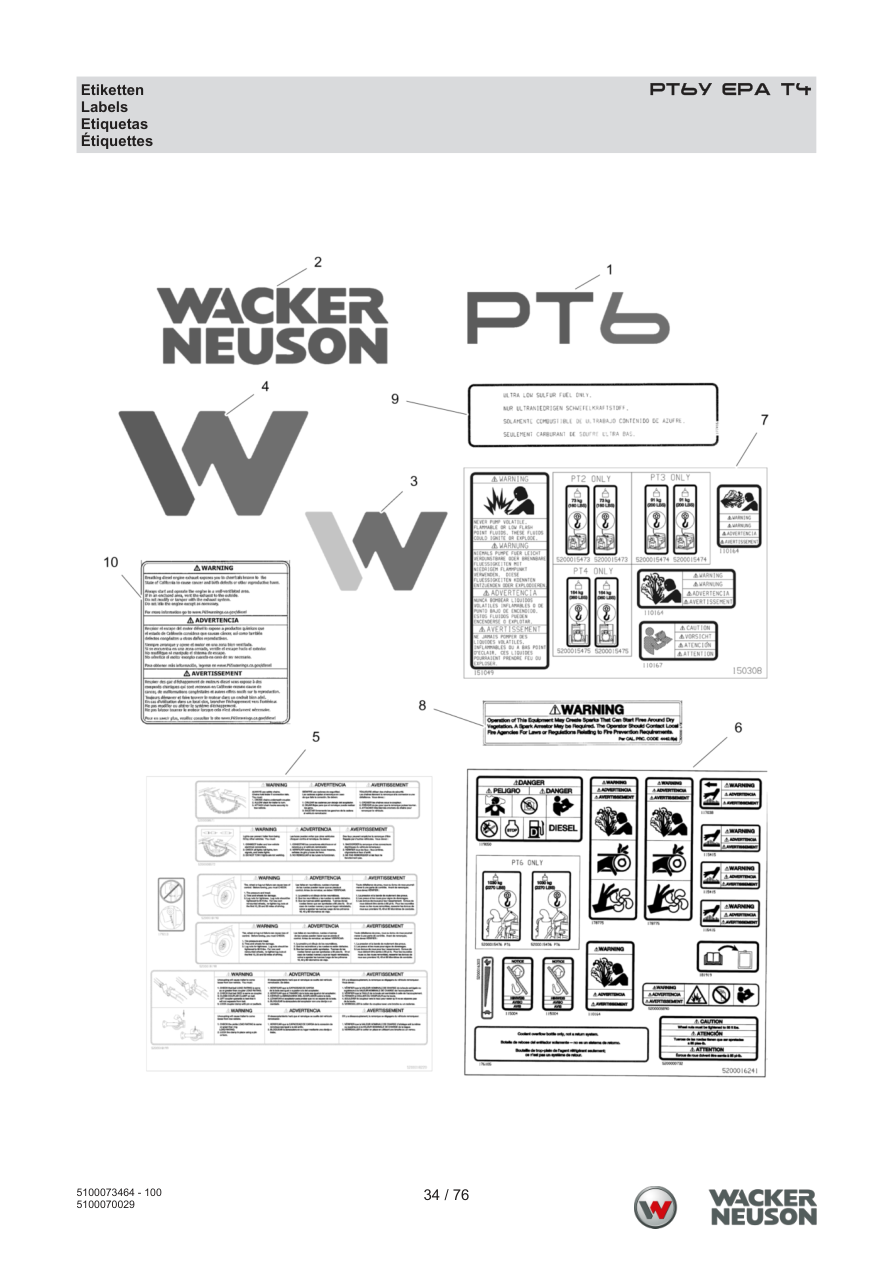

Page 34 — PT6Y EPA T4 Labels
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000117543 | Label | 2 | ADD TO CART | |
| 2 | 5000222109 | Label-wacker neuson logo | 1 | PARTS REQUEST | |
|
COMING Label-wacker neuson logo
5000222109 · qty on machine: 1 | |||||
| 3 | 5000408372 | Wns65 | 1 | ADD TO CART | |
| 4 | 5100064403 | Label wns | 2 | ADD TO CART | |
| 5 | 5200018220 | Label-warning | 1 | ADD TO CART | |
| 6 | 5200016241 | Label sheet | 1 | PARTS REQUEST | |
|
COMING Label sheet
5200016241 · qty on machine: 1 | |||||
| 7 | 5000150308 | Label | 1 | ADD TO CART | |
| 8 | 5200001673 | Decal | 1 | ADD TO CART | |
| 9 | 5000177416 | Label-diesel fuel | 1 | ADD TO CART | |
| 10 | 5100045463 | Label | 1 | ADD TO CART | |

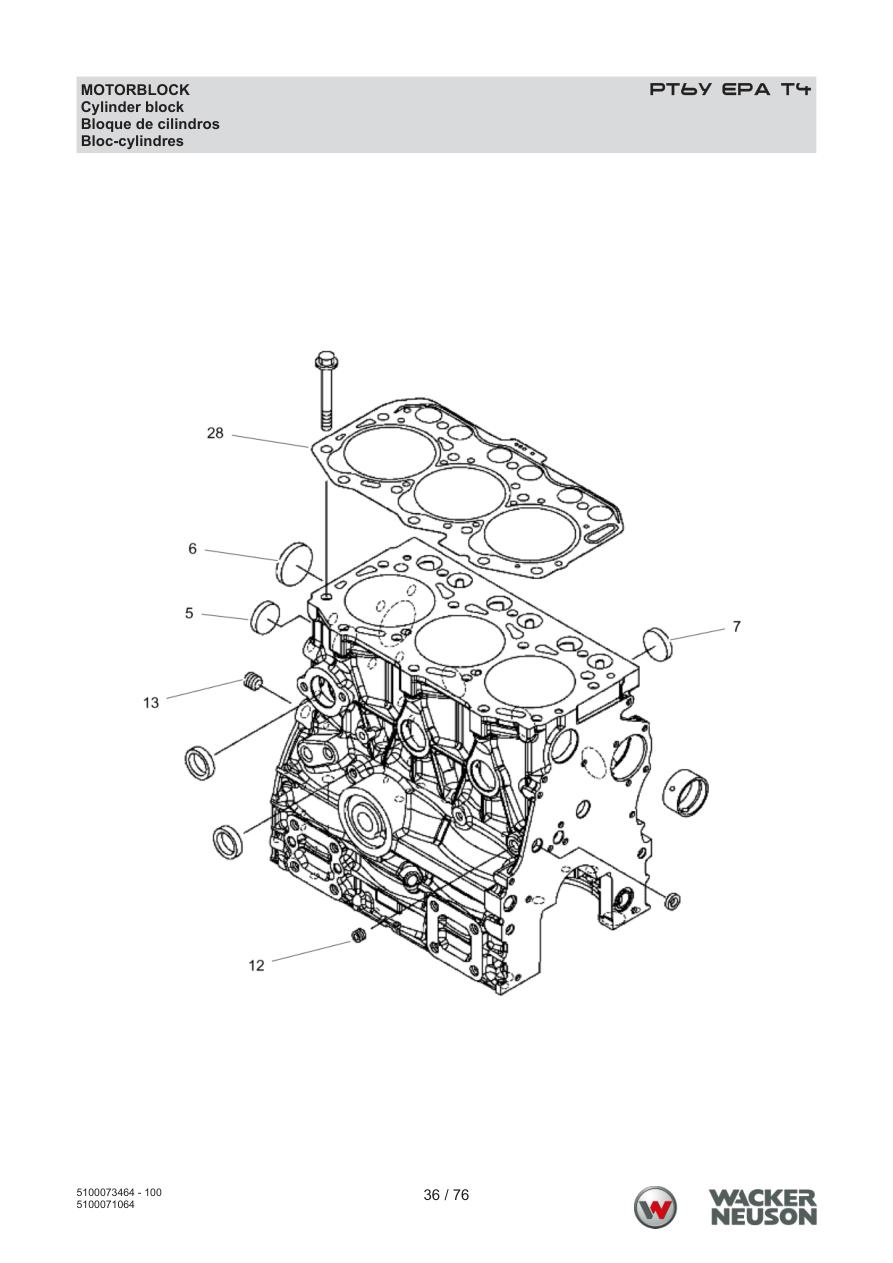

Page 36 — PT6Y EPA T4 ENGINE BLOCK
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 1000148772 | Plug | 4 | PARTS REQUEST | |
|
COMING Plug
1000148772 · qty on machine: 4 | |||||
| 6 | 1000109433 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000109433 · qty on machine: 1 | |||||
| 7 | 1000148773 | Plug | 3 | PARTS REQUEST | |
|
COMING Plug
1000148773 · qty on machine: 3 | |||||
| 12 | 1000107496 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000107496 · qty on machine: 1 | |||||
| 13 | 1000107498 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000107498 · qty on machine: 1 | |||||
| 28 | 1000293677 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
1000293677 · qty on machine: 1 | |||||

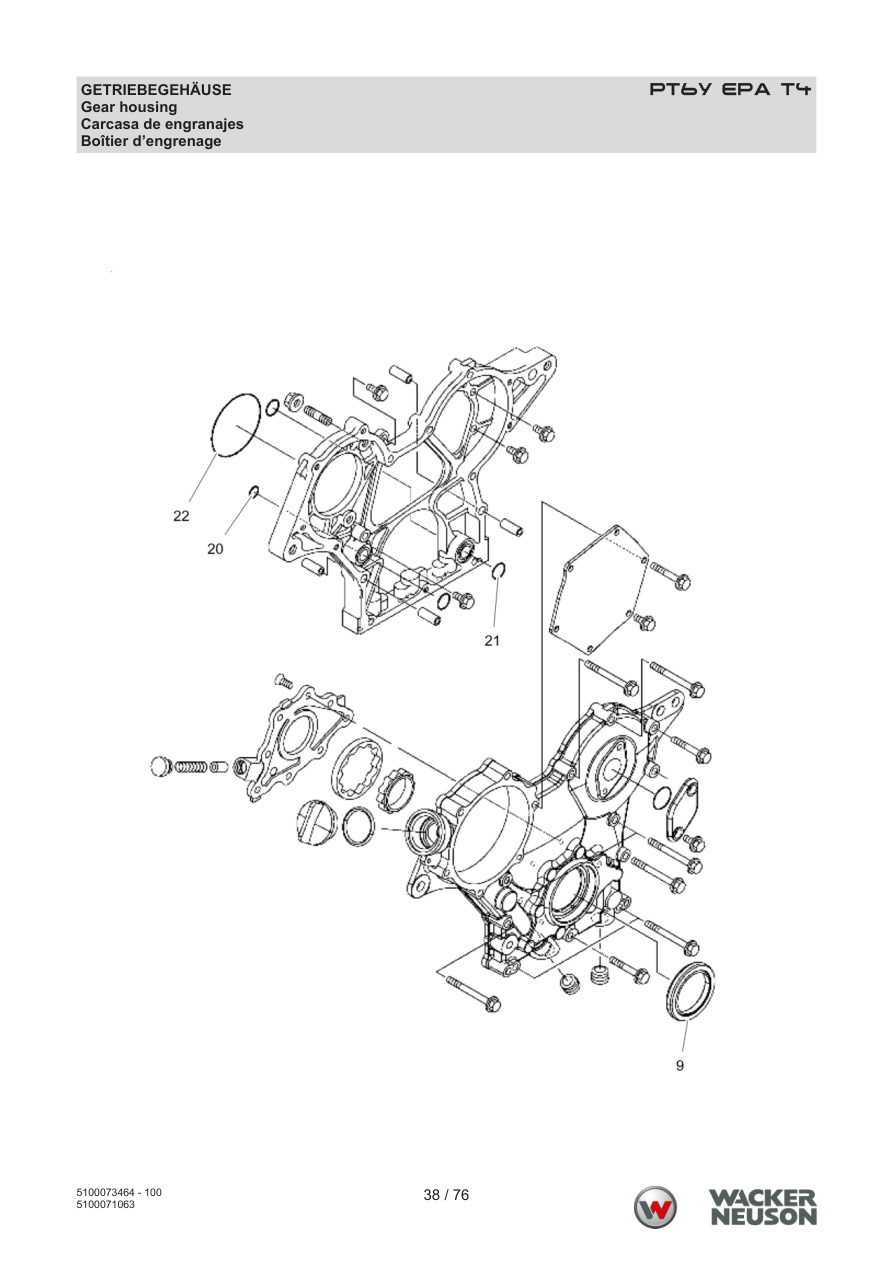

Page 38 — Gear housing
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 9 | 1000273615 | Rotary shaft seal | 1 | PARTS REQUEST | |
|
COMING Rotary shaft seal
1000273615 · qty on machine: 1 | |||||
| 20 | 1000107571 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000107571 · qty on machine: 1 | |||||
| 21 | 1000148784 | O-ring | 3 | PARTS REQUEST | |
|
COMING O-ring
1000148784 · qty on machine: 3 | |||||
| 22 | 1000085182 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000085182 · qty on machine: 1 | |||||

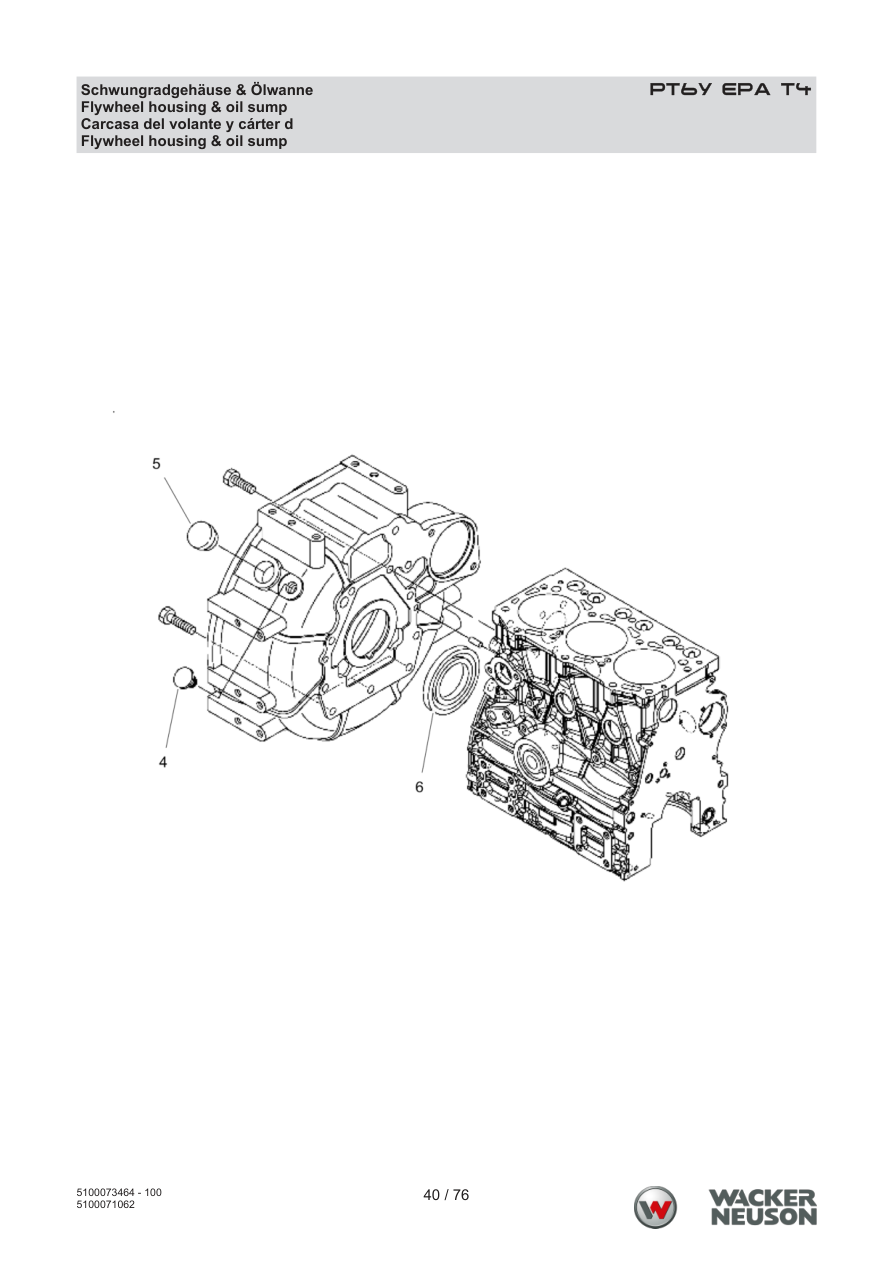

Page 40 — Flywheel housing & oil sump
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100071027 | Plug | 1 | ADD TO CART | |
| 5 | 1000064550 | Rubber plug | 1 | PARTS REQUEST | |
|
COMING Rubber plug
1000064550 · qty on machine: 1 | |||||
| 6 | 1000463825 | Shaft seal | 1 | PARTS REQUEST | |
|
COMING Shaft seal
1000463825 · qty on machine: 1 | |||||

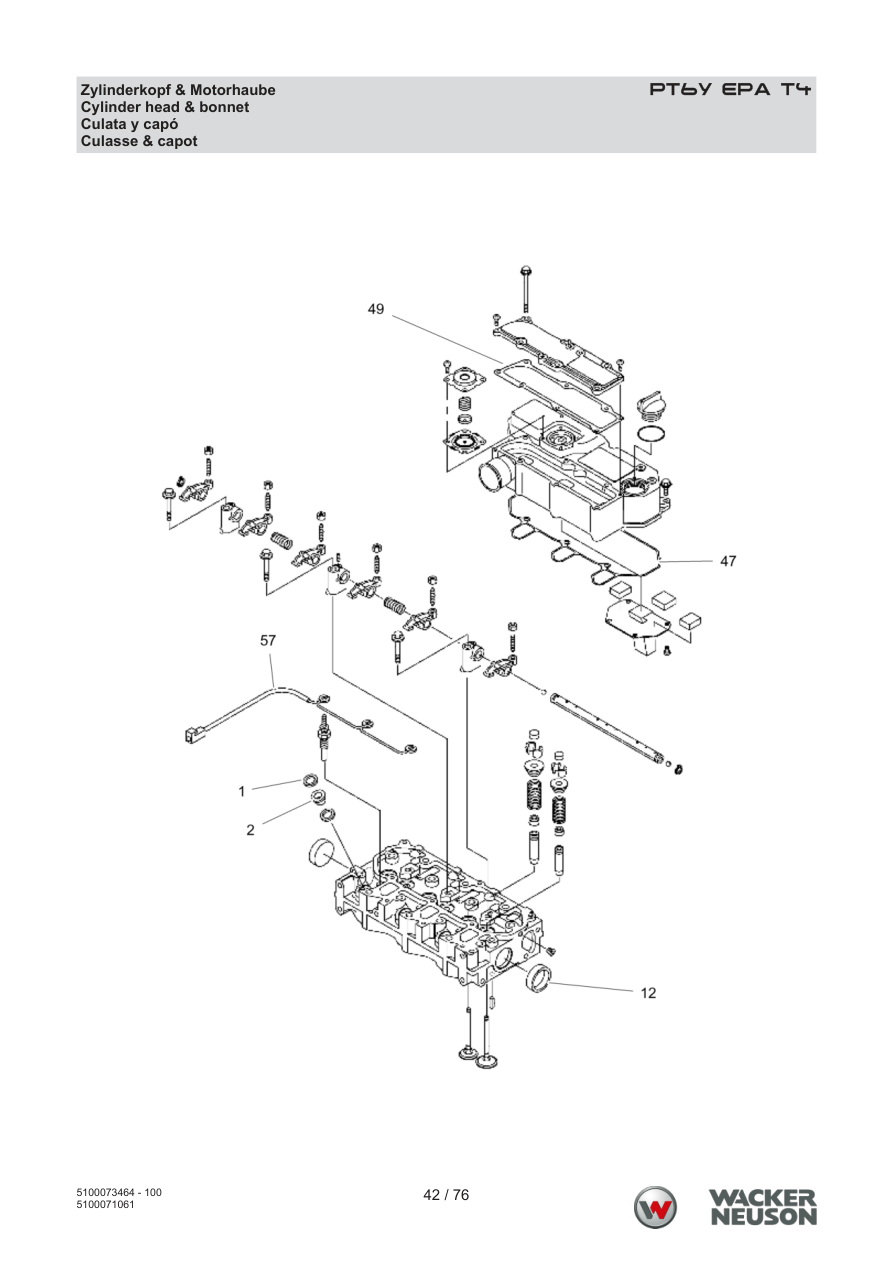

Page 42 — PT6Y EPA T4 Cylinder head & engine cover
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000148750 | Protection | 3 | PARTS REQUEST | |
|
COMING Protection
1000148750 · qty on machine: 3 | |||||
| 2 | 1000002938 | Seal ring | 6 | PARTS REQUEST | |
|
COMING Seal ring
1000002938 · qty on machine: 6 | |||||
| 12 | 1000148764 | Plug | 2 | PARTS REQUEST | |
|
COMING Plug
1000148764 · qty on machine: 2 | |||||
| 47 | 1000148554 | Valve cover seal | 1 | PARTS REQUEST | |
|
COMING Valve cover seal
1000148554 · qty on machine: 1 | |||||
| 49 | 1000148851 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
1000148851 · qty on machine: 1 | |||||
| 57 | 5100071026 | Connector,glow plug | 1 | ADD TO CART | |

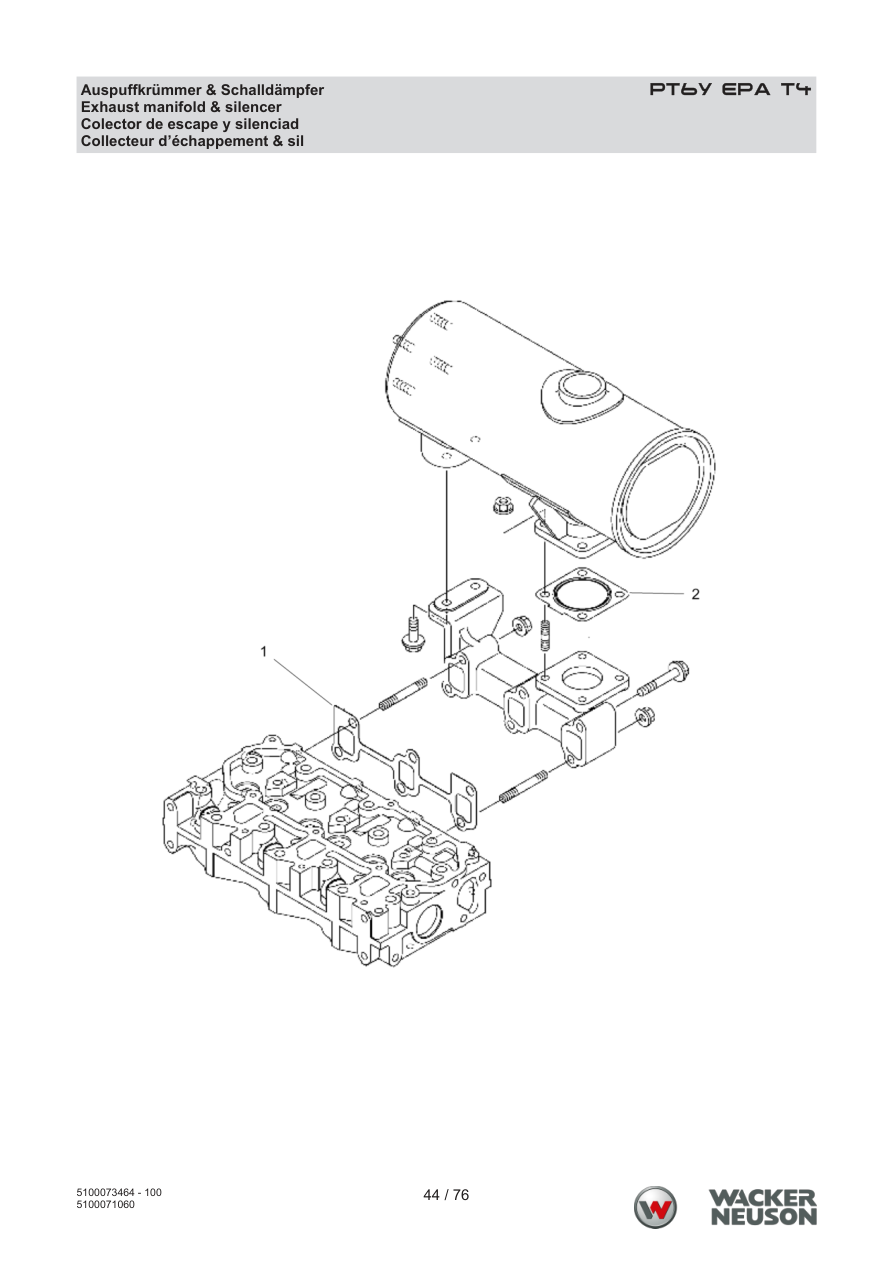

Page 44 — Exhaust manifold & silencer
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 1000148924 | Manifold gasket | 1 | PARTS REQUEST | |
|
COMING Manifold gasket
1000148924 · qty on machine: 1 | |||||
| 7 | 1000107718 | Exh.manifold gasket | 1 | PARTS REQUEST | |
|
COMING Exh.manifold gasket
1000107718 · qty on machine: 1 | |||||

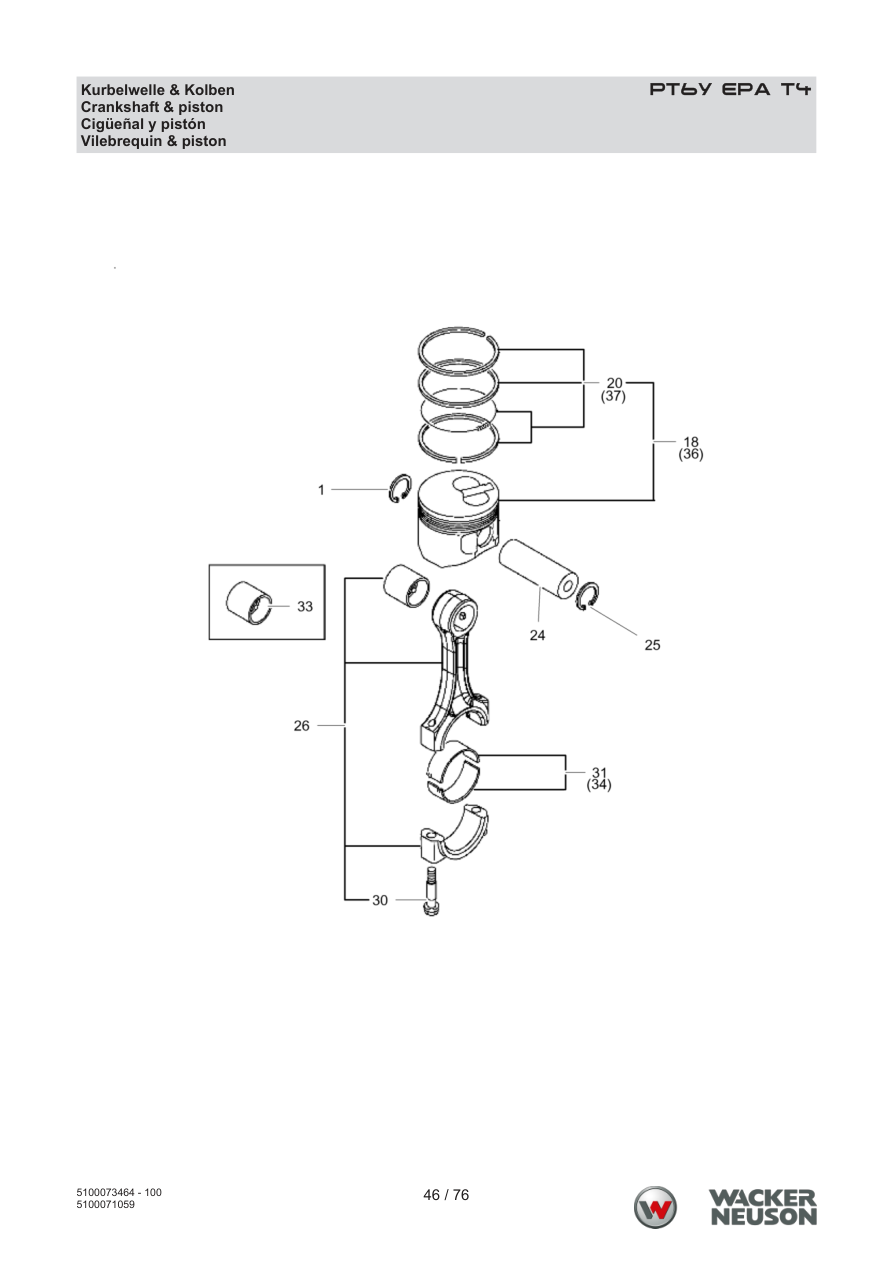

Page 46 — PT6Y EPA T4 Crankshaft & Piston
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 18 | 1000293744 | Piston | 3 | PARTS REQUEST | |
|
COMING Piston
1000293744 · qty on machine: 3 | |||||
| 20 | 1000293746 | Set of backup rings | 3 | PARTS REQUEST | |
|
COMING Set of backup rings
1000293746 · qty on machine: 3 | |||||
| 24 | 1000293715 | Wrist pin | 3 | PARTS REQUEST | |
|
COMING Wrist pin
1000293715 · qty on machine: 3 | |||||
| 25 | 1000148801 | Lock ring | 6 | PARTS REQUEST | |
|
COMING Lock ring
1000148801 · qty on machine: 6 | |||||
| 26 | 1000293743 | Connecting rod | 3 | PARTS REQUEST | |
|
COMING Connecting rod
1000293743 · qty on machine: 3 | |||||
| 30 | 1000148804 | Conn rod screw | 6 | PARTS REQUEST | |
|
COMING Conn rod screw
1000148804 · qty on machine: 6 | |||||
| 31 | 1000148805 | Conn rod bearing | 3 | PARTS REQUEST | |
|
COMING Conn rod bearing
1000148805 · qty on machine: 3 | |||||
| 33 | 1000148803 | Bushing | 3 | ADD TO CART | |
| 34 | 1000148808 | Conn rod bearing | 3 | PARTS REQUEST | |
|
COMING Conn rod bearing
1000148808 · qty on machine: 3 | |||||
| 36 | 1000293745 | Piston | 3 | PARTS REQUEST | |
|
COMING Piston
1000293745 · qty on machine: 3 | |||||
| 37 | 1000293747 | Set of backup rings | 3 | ADD TO CART | |

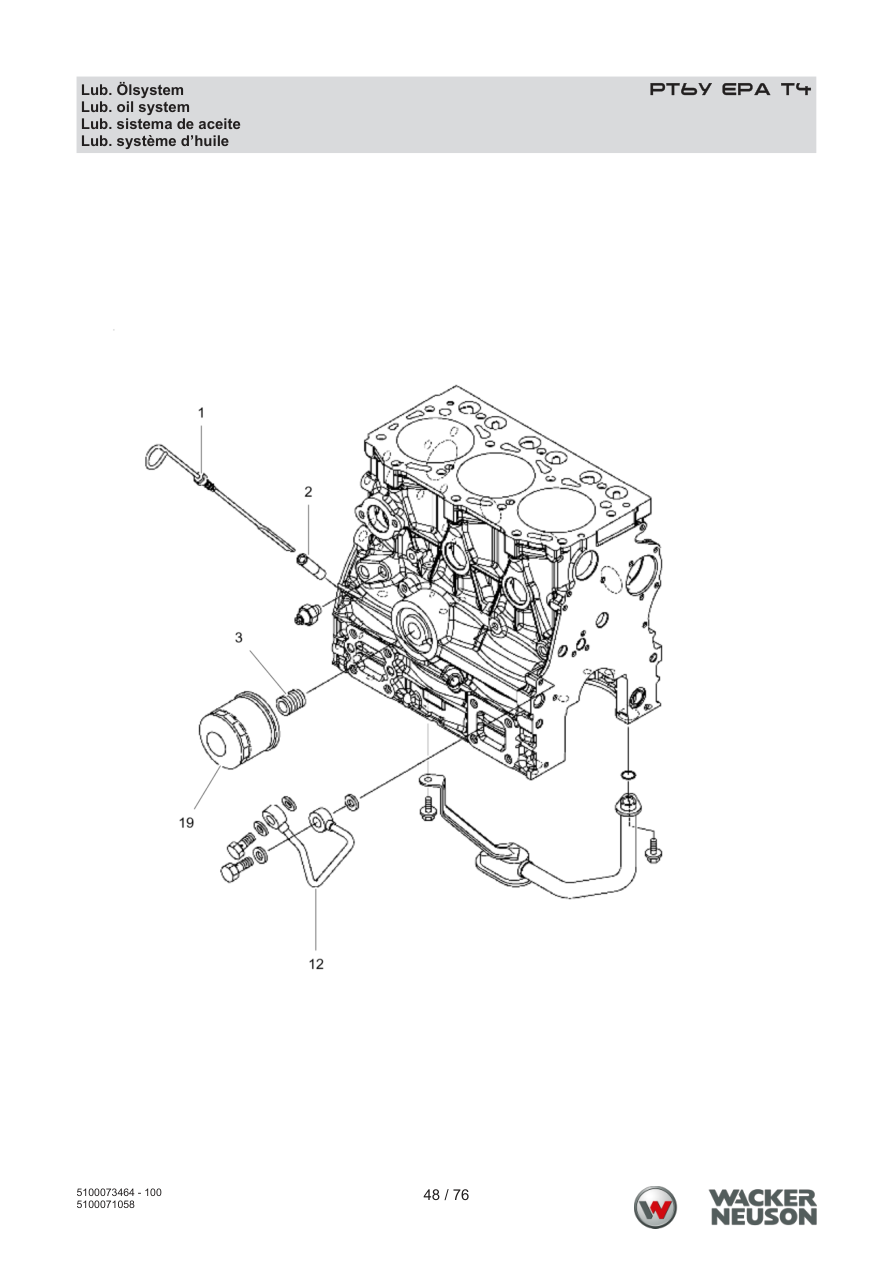

Page 48 — Lub. oil system
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000148809 | Measure stick | 1 | ADD TO CART | |
| 2 | 1000063347 | Guide tube | 1 | PARTS REQUEST | |
|
COMING Guide tube
1000063347 · qty on machine: 1 | |||||
| 3 | 5100071025 | Stud,lo filter | 1 | ADD TO CART | |
| 12 | 1000148812 | Pipe line | 1 | PARTS REQUEST | |
|
COMING Pipe line
1000148812 · qty on machine: 1 | |||||
| 19 | 1000003052 | Engine oil filter | 1 | PARTS REQUEST | |
|
COMING Engine oil filter
1000003052 · qty on machine: 1 | |||||

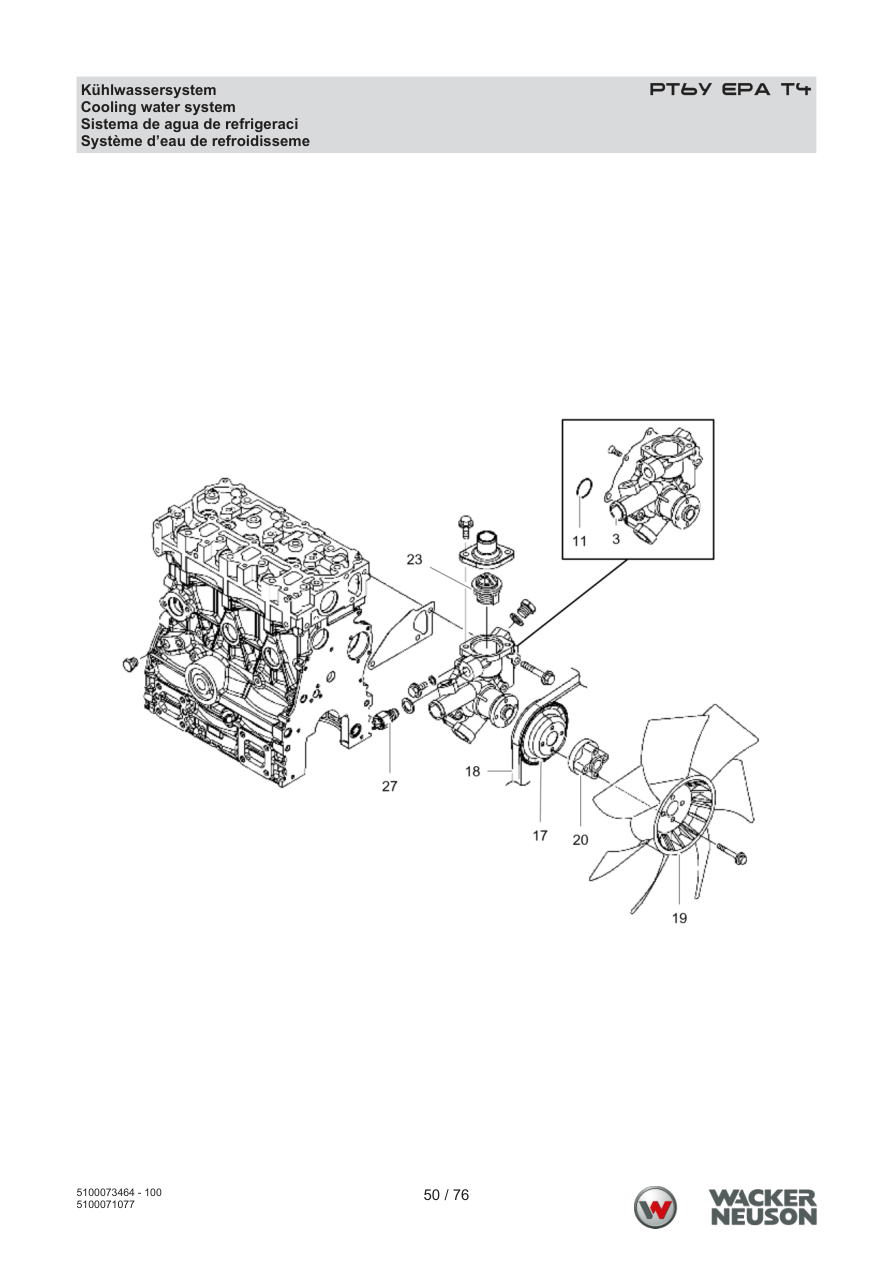

Page 50 — Cooling water system
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 1000148814 | Engine gasket | 1 | PARTS REQUEST | |
|
COMING Engine gasket
1000148814 · qty on machine: 1 | |||||
| 11 | 1000293674 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000293674 · qty on machine: 1 | |||||
| 17 | 1000294760 | Belt pulley | 1 | PARTS REQUEST | |
|
COMING Belt pulley
1000294760 · qty on machine: 1 | |||||
| 18 | 5100071024 | V-belt | 1 | ADD TO CART | |
| 19 | 5100071023 | Fan,cooling | 1 | ADD TO CART | |
| 20 | 1000179573 | Distance piece | 1 | PARTS REQUEST | |
|
COMING Distance piece
1000179573 · qty on machine: 1 | |||||
| 23 | 1000148389 | Thermostat | 1 | PARTS REQUEST | |
|
COMING Thermostat
1000148389 · qty on machine: 1 | |||||
| 27 | 1000003892 | Temperature switch | 1 | ADD TO CART | |

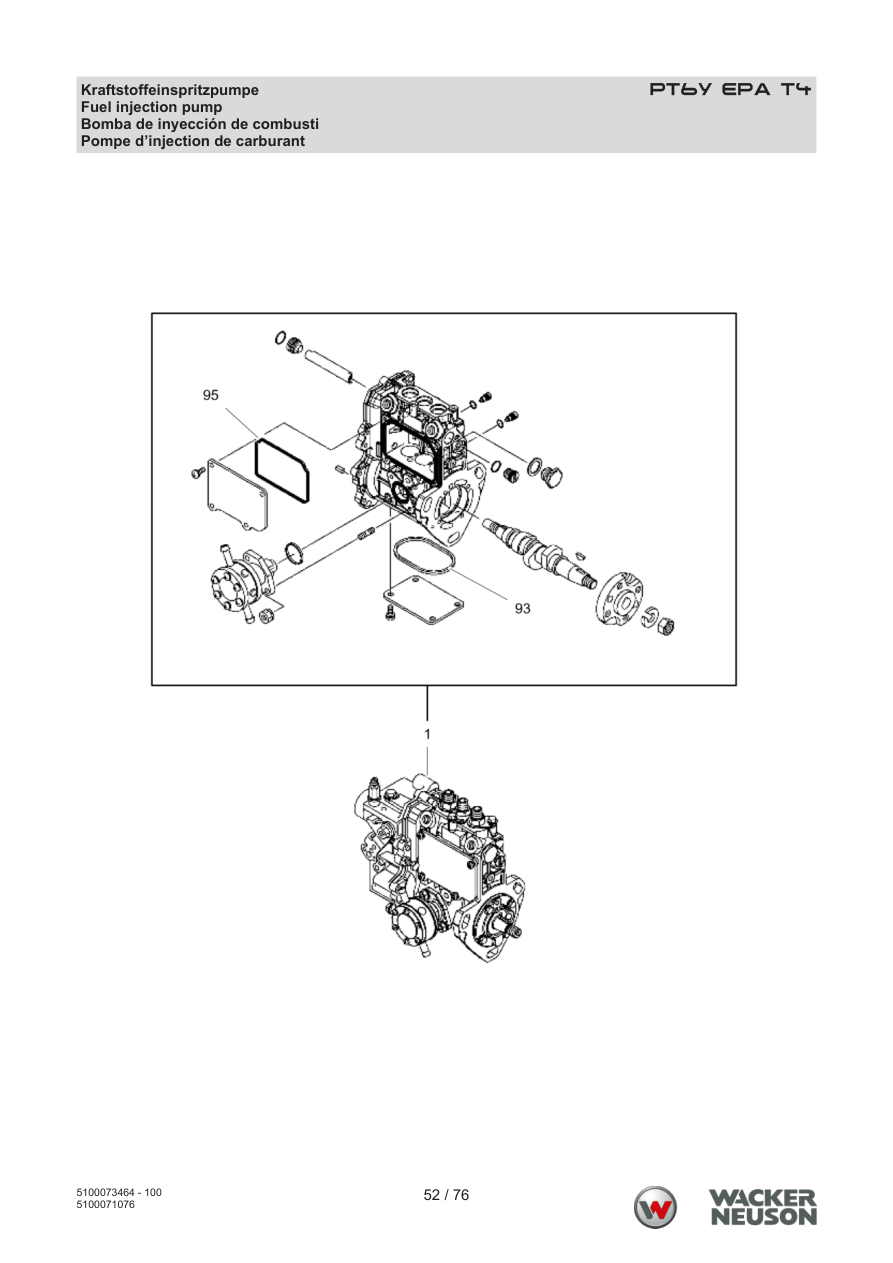

Page 52 — PT6Y EPA T4 Fuel Injection Pump
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071022 | Fie assy | 1 | ADD TO CART | |
| 93 | 5100071021 | Gasket | 1 | ADD TO CART | |
| 95 | 5100071020 | Gasket,pump cover | 1 | ADD TO CART | |

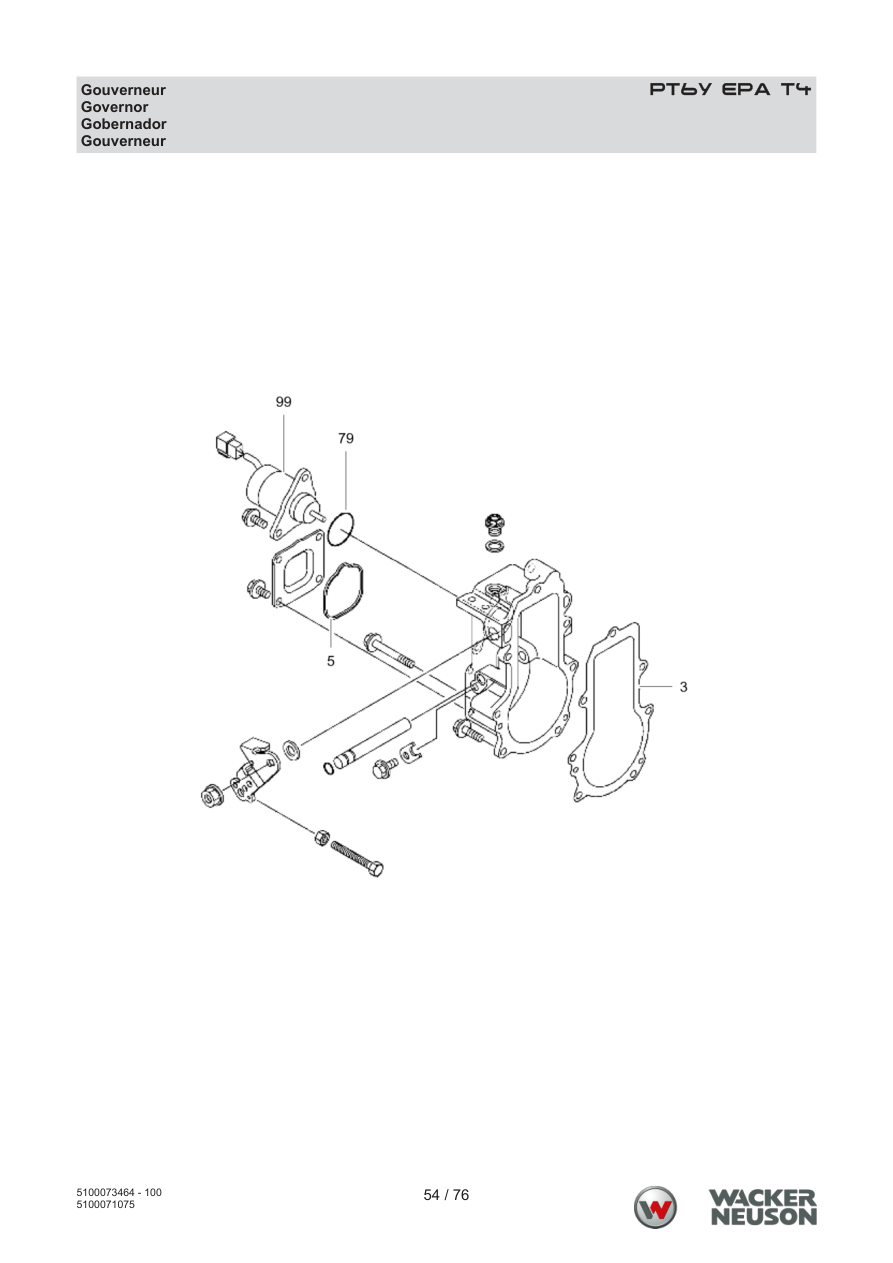

Page 54 — PT6Y EPA T4 Governor
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 1000464341 | Seal water pump | 1 | PARTS REQUEST | |
|
COMING Seal water pump
1000464341 · qty on machine: 1 | |||||
| 5 | 5100071019 | Gasket,cover | 1 | ADD TO CART | |
| 79 | 5100071018 | O-ring | 1 | ADD TO CART | |
| 99 | 1000393621 | Shut off solenoid | 1 | PARTS REQUEST | |
|
COMING Shut off solenoid
1000393621 · qty on machine: 1 | |||||

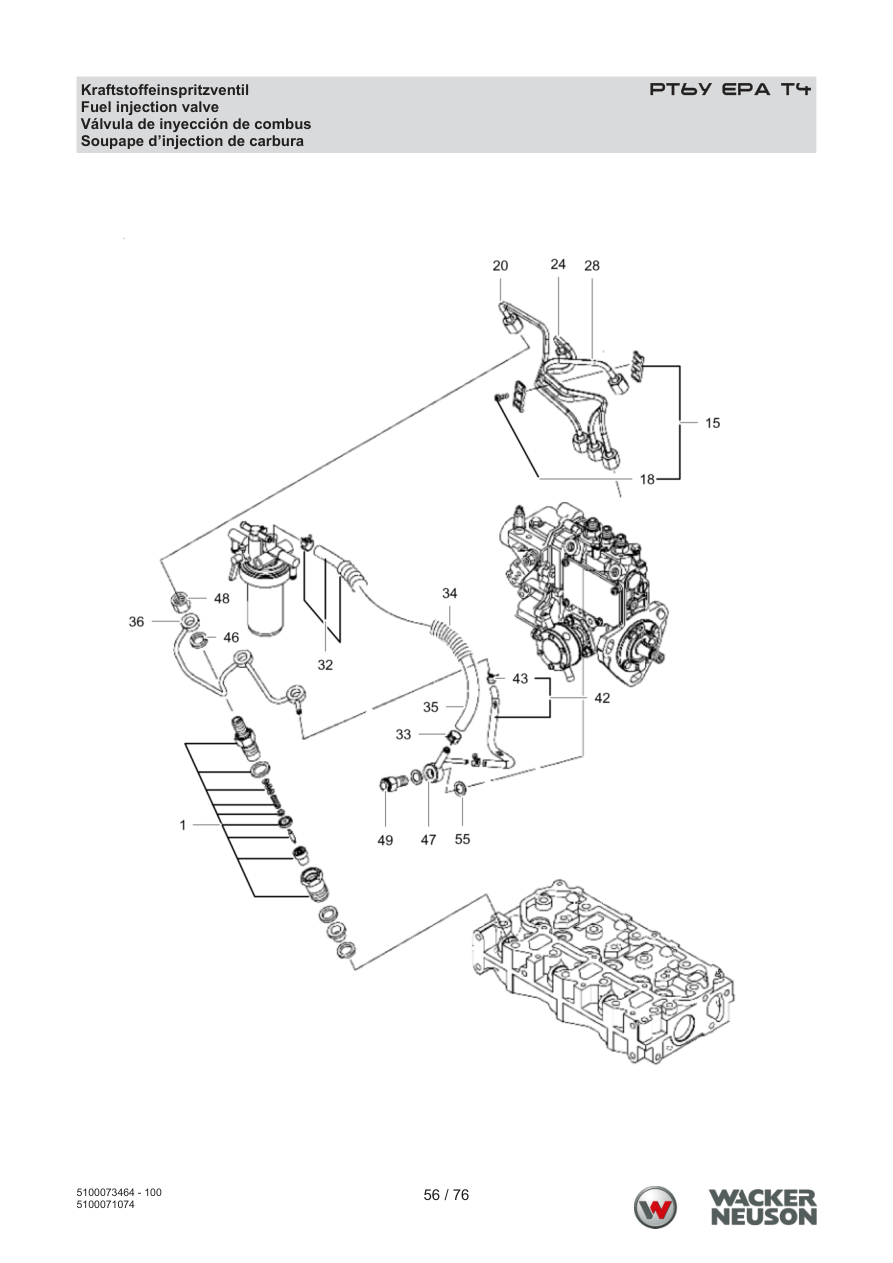

Page 56 — PT6Y EPA T4 Fuel injection valve
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000293718 | Injection nozzle | 3 | PARTS REQUEST | |
|
COMING Injection nozzle
1000293718 · qty on machine: 3 | |||||
| 15 | 1000130266 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000130266 · qty on machine: 1 | |||||
| 18 | 1000107862 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
1000107862 · qty on machine: 2 | |||||
| 20 | 1000293720 | Injection line | 1 | ADD TO CART | |
| 24 | 1000293771 | Injection line | 1 | ADD TO CART | |
| 28 | 1000293772 | Injection line | 1 | ADD TO CART | |
| 32 | 1000179033 | Hose pipe | 1 | PARTS REQUEST | |
|
COMING Hose pipe
1000179033 · qty on machine: 1 | |||||
| 33 | 1000085217 | Hose clamp | 2 | PARTS REQUEST | |
|
COMING Hose clamp
1000085217 · qty on machine: 2 | |||||
| 34 | 1000334962 | Fuel line | 1 | ADD TO CART | |
| 35 | 5100071037 | Hose, fuel | 1 | ADD TO CART | |
| 36 | 1000148825 | Pipe line | 1 | ADD TO CART | |
| 42 | 1000312541 | Pipe line | 1 | PARTS REQUEST | |
|
COMING Pipe line
1000312541 · qty on machine: 1 | |||||
| 43 | 1000085212 | Hose clamp | 2 | ADD TO CART | |
| 46 | 1000148827 | Seal ring | 3 | PARTS REQUEST | |
|
COMING Seal ring
1000148827 · qty on machine: 3 | |||||
| 47 | 1000464344 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000464344 · qty on machine: 1 | |||||
| 48 | 1000064579 | Hex screw | 3 | PARTS REQUEST | |
|
COMING Hex screw
1000064579 · qty on machine: 3 | |||||
| 49 | 1000012555 | Non return valve | 1 | ADD TO CART | |
| 55 | 1000098627 | Seal ring | 2 | PARTS REQUEST | |
|
COMING Seal ring
1000098627 · qty on machine: 2 | |||||

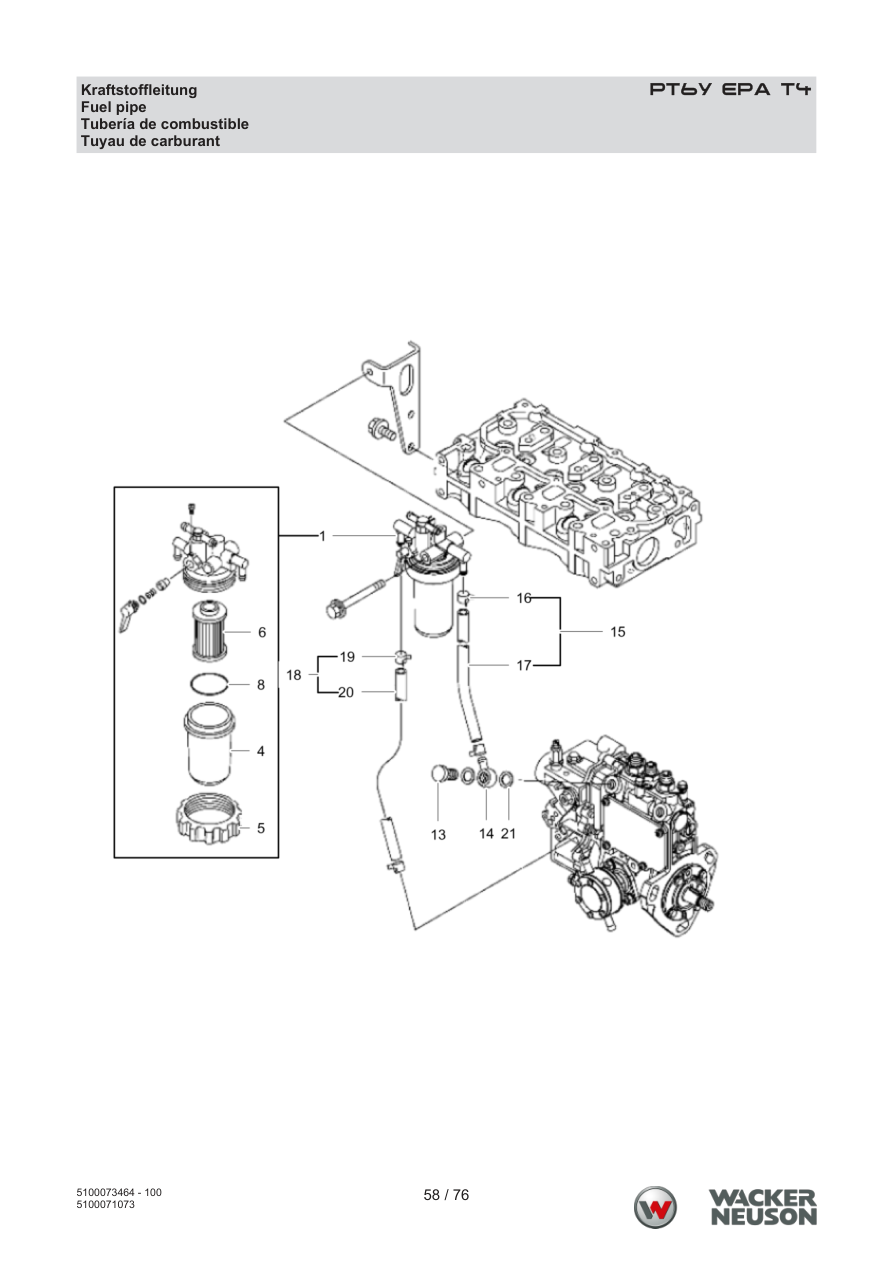

Page 58 — PT6Y EPA T4 Fuel line
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100070475 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100070475 · qty on machine: 1 | |||||
| 4 | 1000034992 | Filter glass | 1 | PARTS REQUEST | |
|
COMING Filter glass
1000034992 · qty on machine: 1 | |||||
| 5 | 5100071036 | Ring, cup retaining | 1 | PARTS REQUEST | |
|
COMING Ring, cup retaining
5100071036 · qty on machine: 1 | |||||
| 6 | 5100070476 | Fuel filter element | 1 | ADD TO CART | |
| 8 | 5100071035 | O-ring | 1 | ADD TO CART | |
| 13 | 1000085214 | Banjo bolt | 1 | PARTS REQUEST | |
|
COMING Banjo bolt
1000085214 · qty on machine: 1 | |||||
| 14 | 1000073612 | Ring piece | 1 | PARTS REQUEST | |
|
COMING Ring piece
1000073612 · qty on machine: 1 | |||||
| 15 | 1000425521 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
1000425521 · qty on machine: 1 | |||||
| 16 | 1000085217 | Hose clamp | 2 | PARTS REQUEST | |
|
COMING Hose clamp
1000085217 · qty on machine: 2 | |||||
| 17 | 5100071034 | Hose | 1 | ADD TO CART | |
| 18 | 1000237716 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000237716 · qty on machine: 1 | |||||
| 19 | 1000085217 | Hose clamp | 2 | PARTS REQUEST | |
|
COMING Hose clamp
1000085217 · qty on machine: 2 | |||||
| 20 | 5100071037 | Hose, fuel | 1 | ADD TO CART | |
| 21 | 1000098627 | Seal ring | 2 | PARTS REQUEST | |
|
COMING Seal ring
1000098627 · qty on machine: 2 | |||||

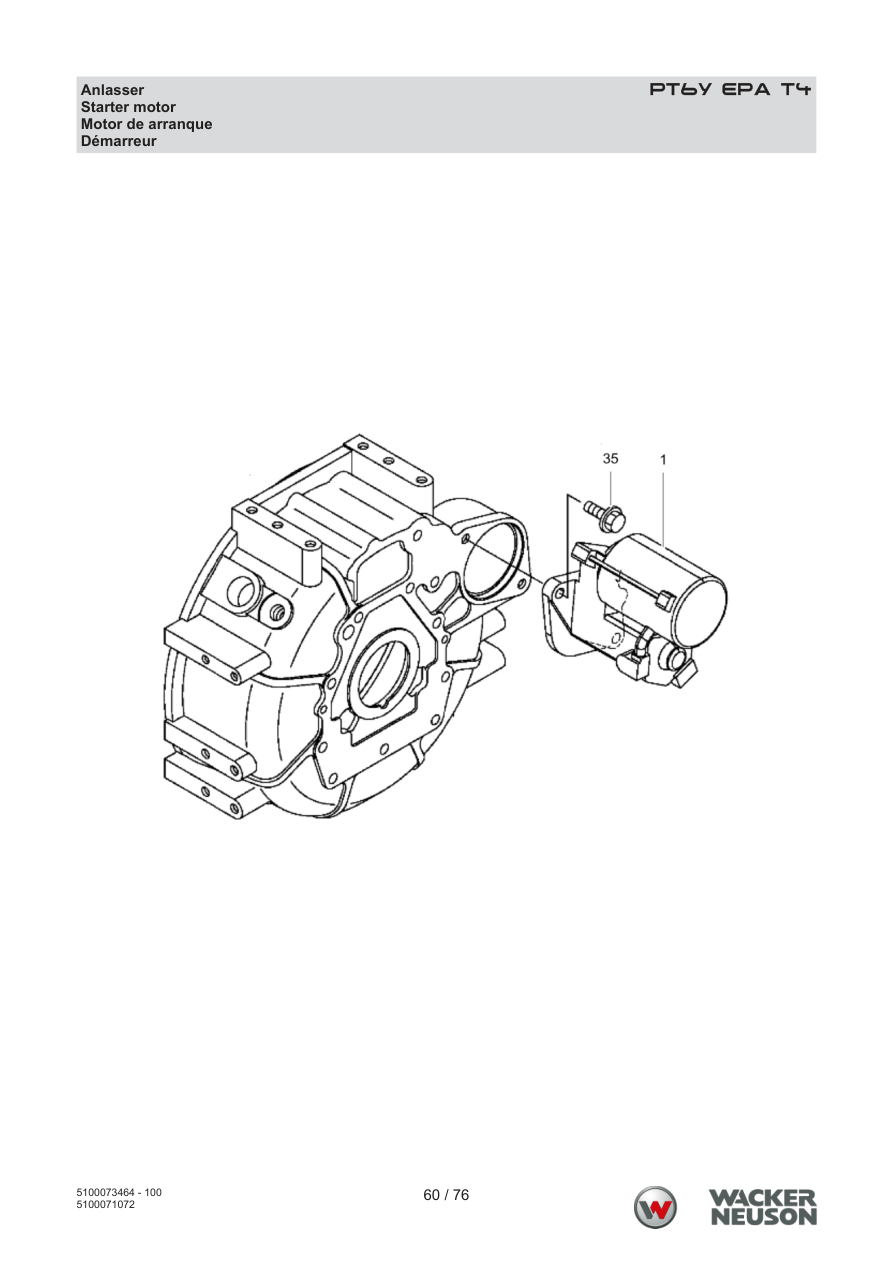

Page 60 — PT6Y EPA T4 Starter
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000304022 | Starter motor | 1 | PARTS REQUEST | |
|
COMING Starter motor
1000304022 · qty on machine: 1 | |||||
| 35 | 1000063383 | Hex screw | 2 | ADD TO CART | |

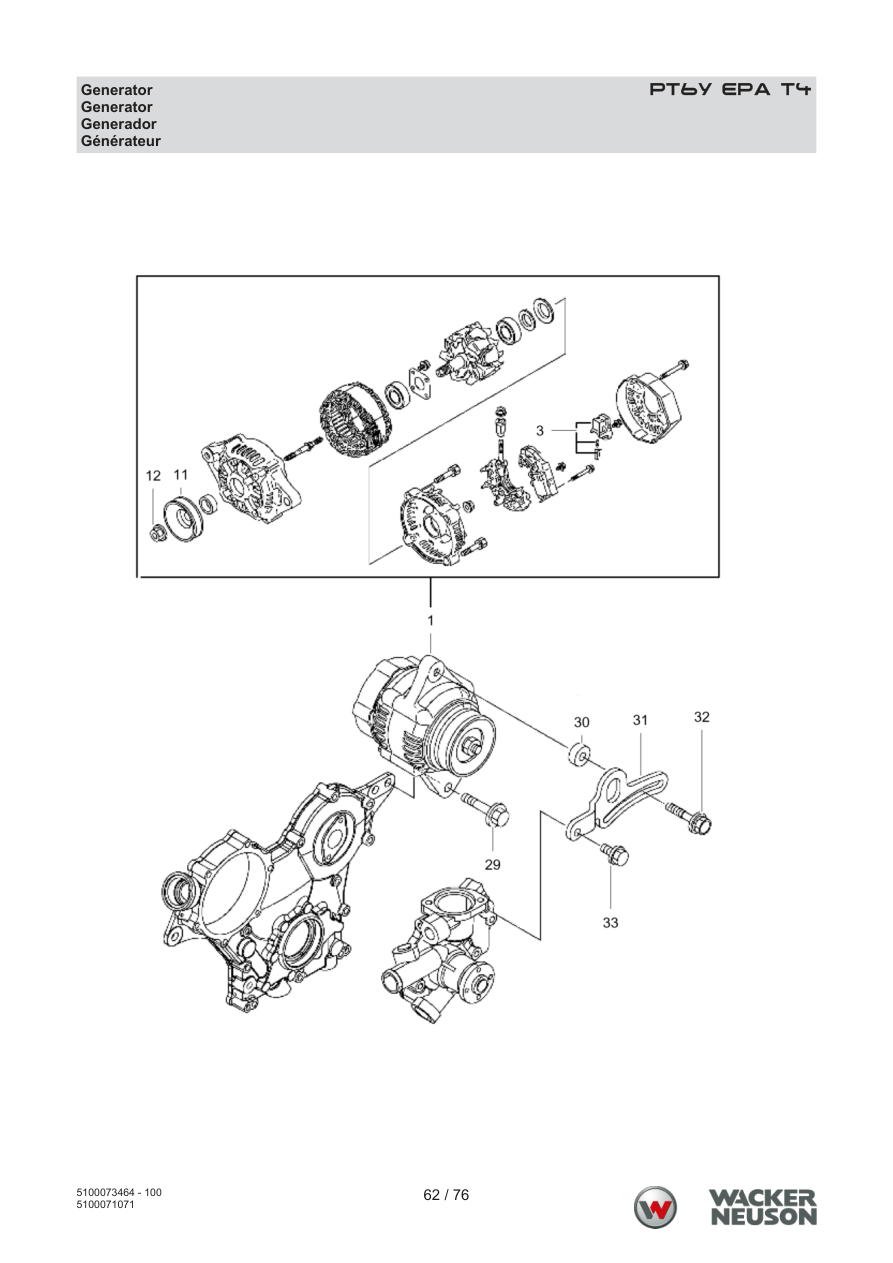

Page 62 — PT6Y EPA T4 Generator
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071033 | Alternator | 1 | ADD TO CART | |
| 11 | 5100071032 | Pulley, generator | 1 | ADD TO CART | |
| 12 | 5100071031 | Nut | 1 | ADD TO CART | |
| 16 | 5100071141 | Holder assy, brush | 1 | ADD TO CART | |
| 29 | 1000148171 | Hexagonal flange head screw | 1 | PARTS REQUEST | |
|
COMING Hexagonal flange head screw
1000148171 · qty on machine: 1 | |||||
| 30 | 1000130301 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
1000130301 · qty on machine: 1 | |||||
| 31 | 5100071030 | Adjuster,belt | 1 | ADD TO CART | |
| 32 | 1000148173 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000148173 · qty on machine: 1 | |||||
| 33 | 5000153980 | Bolt | 1 | M8 x 20 | ADD TO CART |

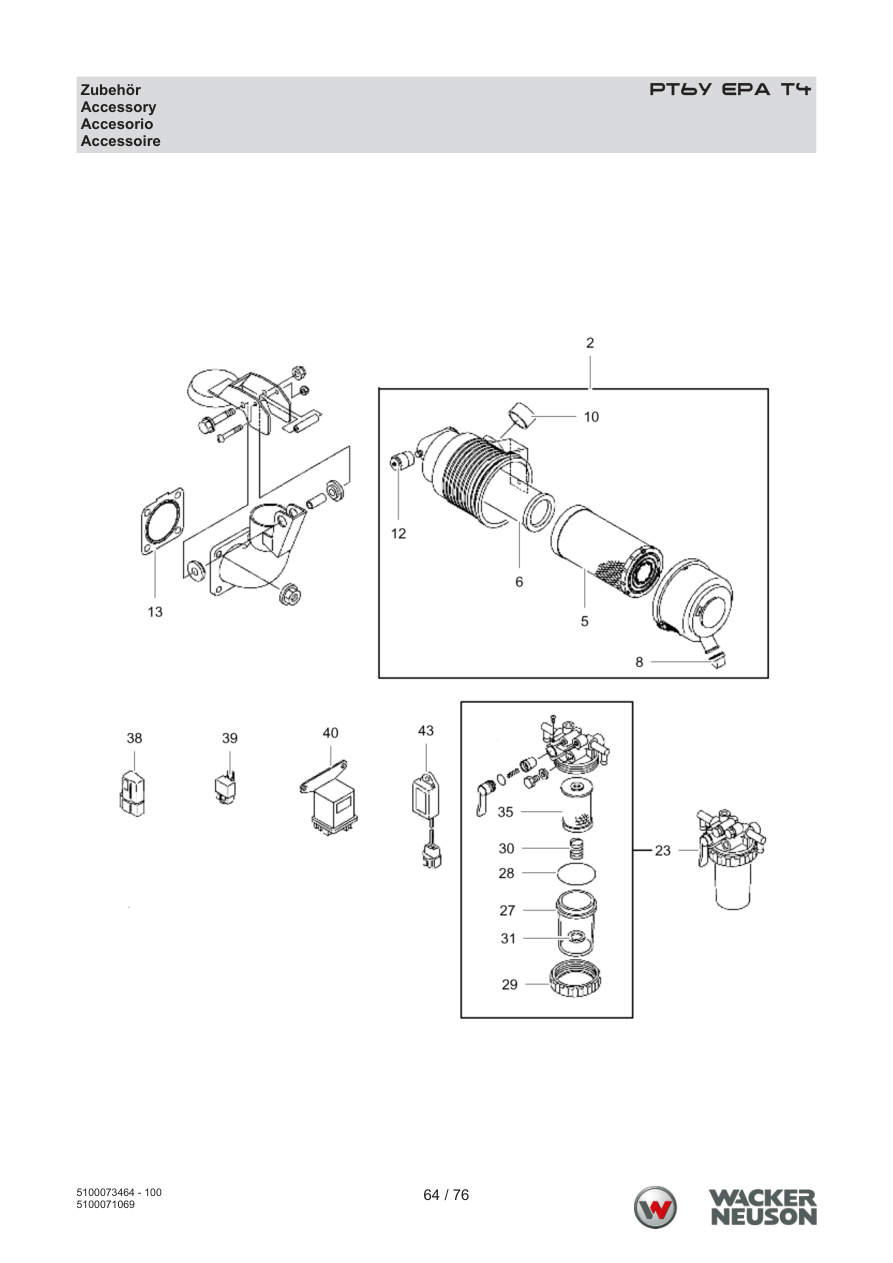

Page 64 — Accessory
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100071046 | Spring, element | 1 | ADD TO CART | |
| 2 | 5100070472 | Air cleaner | 1 | ADD TO CART | |
| 5 | 5100070473 | Air cleaner element | 1 | ADD TO CART | |
| 6 | 5100070474 | Air cleaner element(small) | 1 | ADD TO CART | |
| 8 | 1000161534 | Dustexhaust valve | 1 | PARTS REQUEST | |
|
COMING Dustexhaust valve
1000161534 · qty on machine: 1 | |||||
| 10 | 5100071029 | Ring,air cleaner | 1 | ADD TO CART | |
| 12 | 5100071028 | Indicator | 1 | ADD TO CART | |
| 13 | 1000107718 | Exh.manifold gasket | 1 | PARTS REQUEST | |
|
COMING Exh.manifold gasket
1000107718 · qty on machine: 1 | |||||
| 23 | 1000159923 | Water seperator | 1 | PARTS REQUEST | |
|
COMING Water seperator
1000159923 · qty on machine: 1 | |||||
| 27 | 1000397461 | Water seperator element | 1 | PARTS REQUEST | |
|
COMING Water seperator element
1000397461 · qty on machine: 1 | |||||
| 28 | 5100071047 | O-ring,filter | 1 | PARTS REQUEST | |
|
COMING O-ring,filter
5100071047 · qty on machine: 1 | |||||
| 29 | 5100071036 | Ring, cup retaining | 1 | PARTS REQUEST | |
|
COMING Ring, cup retaining
5100071036 · qty on machine: 1 | |||||
| 31 | 5100071045 | Float | 1 | ADD TO CART | |
| 35 | 1000466935 | Fuel and water seperator element | 1 | ADD TO CART | |
| 38 | 1000012912 | Diode | 1 | ADD TO CART | |
| 39 | 1000012333 | Start relay | 1 | ADD TO CART | |
| 40 | 1000012332 | Relay cutoff solenoid | 1 | ADD TO CART | |
| 43 | 1000005108 | Time relay | 1 | PARTS REQUEST | |
|
COMING Time relay
1000005108 · qty on machine: 1 | |||||

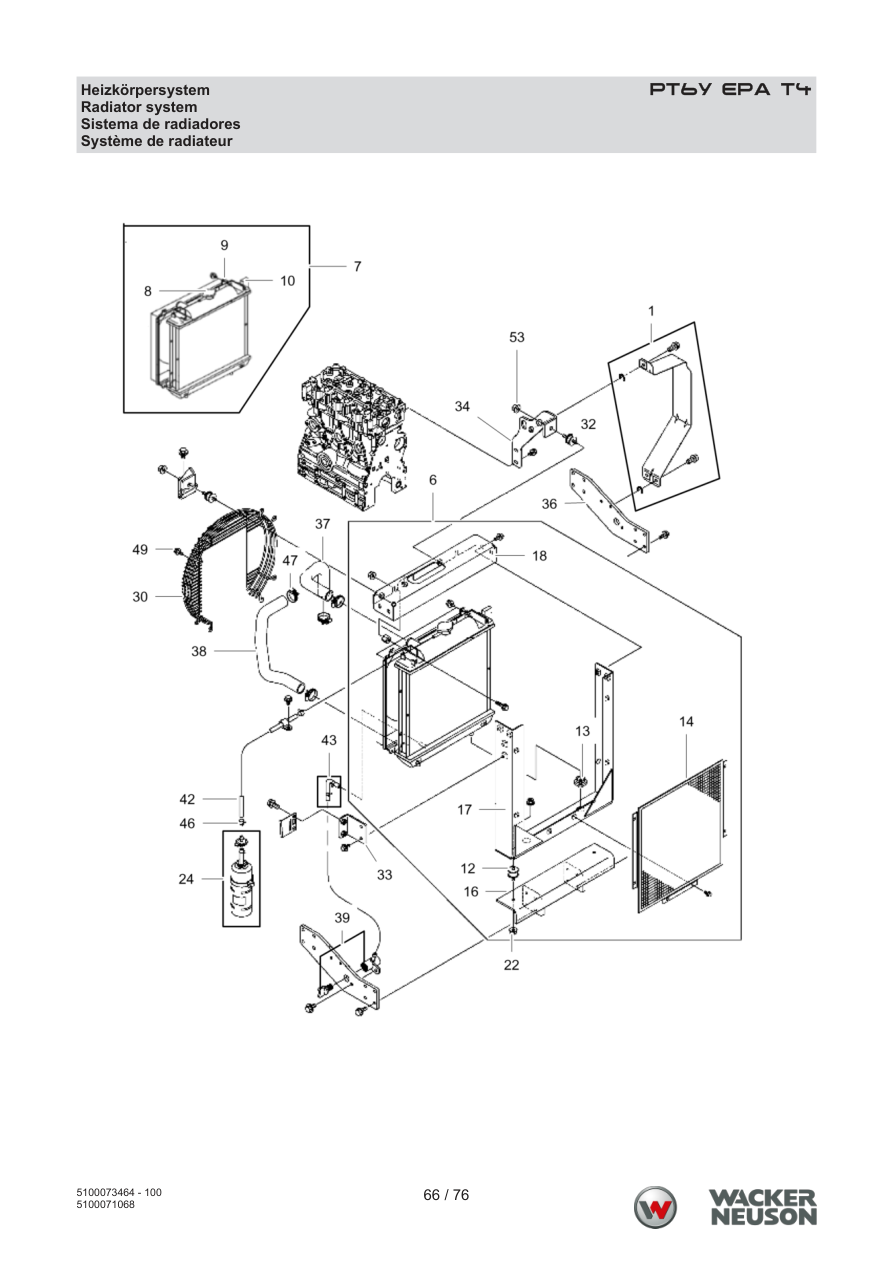

Page 66 — Radiator system
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071044 | Cover assy, v-belt | 1 | ADD TO CART | |
| 6 | 5100071043 | Radiator assy | 1 | ADD TO CART | |
| 7 | 5100071042 | Radiator assy | 1 | ADD TO CART | |
| 8 | 1000124450 | Cooler cap | 1 | PARTS REQUEST | |
|
COMING Cooler cap
1000124450 · qty on machine: 1 | |||||
| 9 | 5100071041 | Shroud,fan | 1 | ADD TO CART | |
| 10 | 5100071040 | Gasket | 2 | ADD TO CART | |
| 12 | 5100071039 | Rubber, radiator | 2 | ADD TO CART | |
| 13 | 1000103821 | Rubber buffer | 2 | PARTS REQUEST | |
|
COMING Rubber buffer
1000103821 · qty on machine: 2 | |||||
| 14 | 5100071038 | Screen, radiator | 1 | ADD TO CART | |
| 16 | 5100071057 | Bracket, radiator b | 1 | ADD TO CART | |
| 17 | 5100071056 | Bracket, radiator c | 1 | ADD TO CART | |
| 18 | 5100071055 | Bracket, radiator d | 1 | ADD TO CART | |
| 22 | 5000073665 | Nut | 4 | ADD TO CART | |
| 24 | 1000176084 | Overflow container | 1 | PARTS REQUEST | |
|
COMING Overflow container
1000176084 · qty on machine: 1 | |||||
| 30 | 5100071054 | Guard,fan | 1 | ADD TO CART | |
| 32 | 5100071039 | Rubber, radiator | 2 | ADD TO CART | |
| 33 | 5100071053 | Bracket,sub tank | 1 | ADD TO CART | |
| 34 | 5100071052 | Stay,radiator a | 1 | ADD TO CART | |
| 36 | 5100071051 | Bracket, radiator a | 2 | ADD TO CART | |
| 37 | 1000133255 | Cooler water hose | 1 | ADD TO CART | |
| 38 | 5100071050 | Pipe,water b | 1 | PARTS REQUEST | |
|
COMING Pipe,water b
5100071050 · qty on machine: 1 | |||||
| 39 | 5100071049 | Cock assy | 1 | ADD TO CART | |
| 42 | 5100071048 | Pipe,water,drain | 1 | PARTS REQUEST | |
|
COMING Pipe,water,drain
5100071048 · qty on machine: 1 | |||||
| 43 | 5100071067 | Pipe,water,drain | 1 | ADD TO CART | |
| 46 | 1000085217 | Hose clamp | 2 | PARTS REQUEST | |
|
COMING Hose clamp
1000085217 · qty on machine: 2 | |||||
| 47 | 5100071066 | Clamp | 4 | ADD TO CART | |
| 49 | 5000073659 | Screw | 8 | M6 x 16 10Nm/7ft.lbs | ADD TO CART |
| 53 | 5000153995 | Nut | 2 | ADD TO CART | |

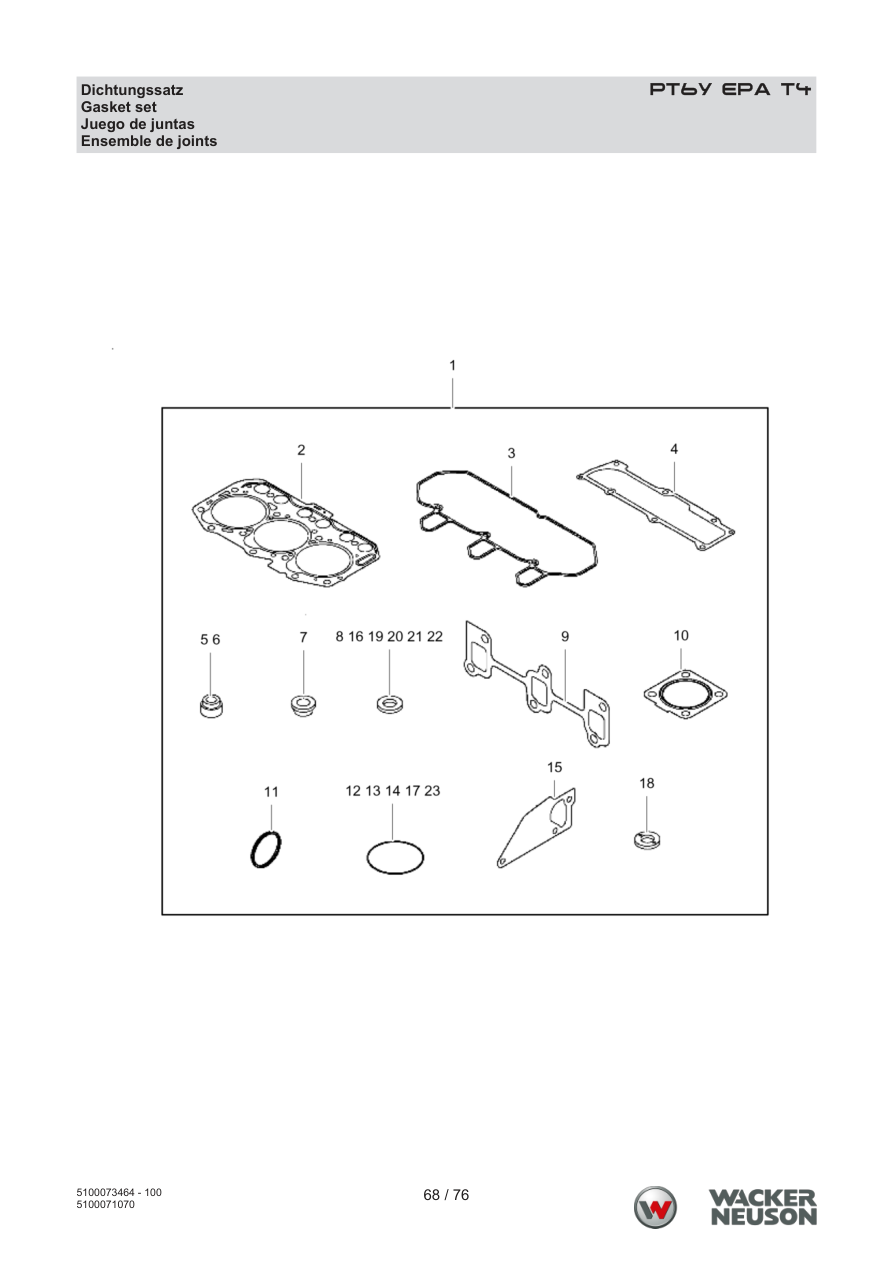

Page 68 — PT6Y EPA T4 Gasket set
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100071065 | Gasket set | 1 | ADD TO CART | |
| 2 | 1000293677 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
1000293677 · qty on machine: 1 | |||||
| 3 | 1000148554 | Valve cover seal | 1 | PARTS REQUEST | |
|
COMING Valve cover seal
1000148554 · qty on machine: 1 | |||||
| 4 | 1000148851 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
1000148851 · qty on machine: 1 | |||||
| 5 | 1000143729 | Seal | 3 | PARTS REQUEST | |
|
COMING Seal
1000143729 · qty on machine: 3 | |||||
| 6 | 1000143731 | Seal | 3 | PARTS REQUEST | |
|
COMING Seal
1000143731 · qty on machine: 3 | |||||
| 7 | 1000148750 | Protection | 3 | PARTS REQUEST | |
|
COMING Protection
1000148750 · qty on machine: 3 | |||||
| 8 | 1000002938 | Seal ring | 6 | PARTS REQUEST | |
|
COMING Seal ring
1000002938 · qty on machine: 6 | |||||
| 9 | 1000148924 | Manifold gasket | 1 | PARTS REQUEST | |
|
COMING Manifold gasket
1000148924 · qty on machine: 1 | |||||
| 10 | 1000107718 | Exh.manifold gasket | 1 | PARTS REQUEST | |
|
COMING Exh.manifold gasket
1000107718 · qty on machine: 1 | |||||
| 11 | 1000293750 | Washer | 1 | PARTS REQUEST | |
|
COMING Washer
1000293750 · qty on machine: 1 | |||||
| 12 | 1000107571 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000107571 · qty on machine: 1 | |||||
| 13 | 1000148784 | O-ring | 3 | PARTS REQUEST | |
|
COMING O-ring
1000148784 · qty on machine: 3 | |||||
| 14 | 1000148810 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000148810 · qty on machine: 1 | |||||
| 15 | 1000148818 | Seal water pump | 1 | PARTS REQUEST | |
|
COMING Seal water pump
1000148818 · qty on machine: 1 | |||||
| 16 | 1000002929 | Seal ring | 2 | PARTS REQUEST | |
|
COMING Seal ring
1000002929 · qty on machine: 2 | |||||
| 17 | 1000085182 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
1000085182 · qty on machine: 1 | |||||
| 18 | 1000148827 | Seal ring | 3 | PARTS REQUEST | |
|
COMING Seal ring
1000148827 · qty on machine: 3 | |||||
| 19 | 1000098626 | Seal ring | 4 | PARTS REQUEST | |
|
COMING Seal ring
1000098626 · qty on machine: 4 | |||||
| 20 | 1000098627 | Seal ring | 4 | PARTS REQUEST | |
|
COMING Seal ring
1000098627 · qty on machine: 4 | |||||
| 21 | 5000073608 | Washer | 1 | ADD TO CART | |
| 22 | 5000119882 | Gasket | 1 | ADD TO CART | |
| 23 | 1000035757 | Seal ring | 2 | PARTS REQUEST | |
|
COMING Seal ring
1000035757 · qty on machine: 2 | |||||

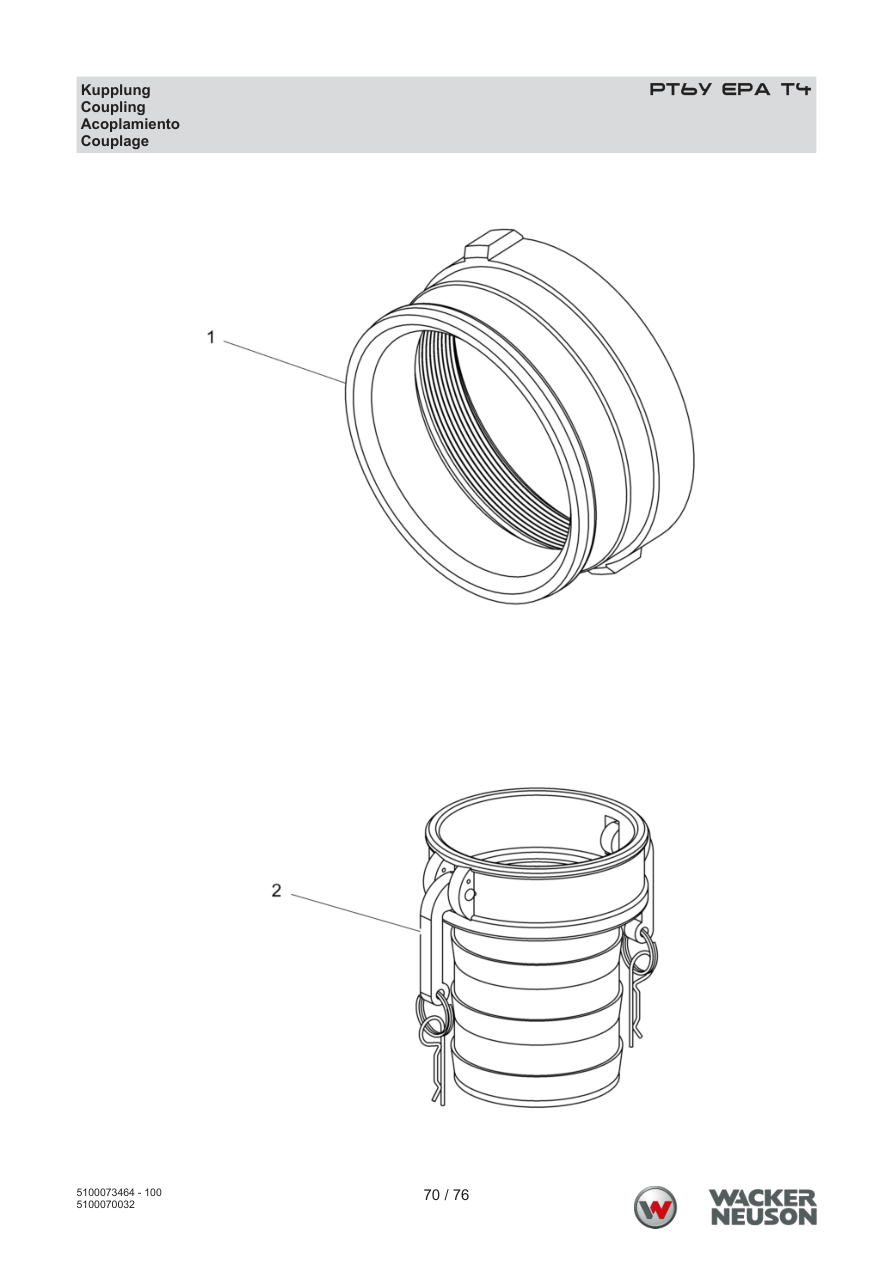

Page 70 — PT6Y EPA T4 Clutch
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062397 | Quick diconnect coupling | 1 | PARTS REQUEST | |
|
COMING Quick diconnect coupling
5100062397 · qty on machine: 1 | |||||
| 2 | 5100062401 | Quick diconnect coupling | 1 | PARTS REQUEST | |
|
COMING Quick diconnect coupling
5100062401 · qty on machine: 1 | |||||

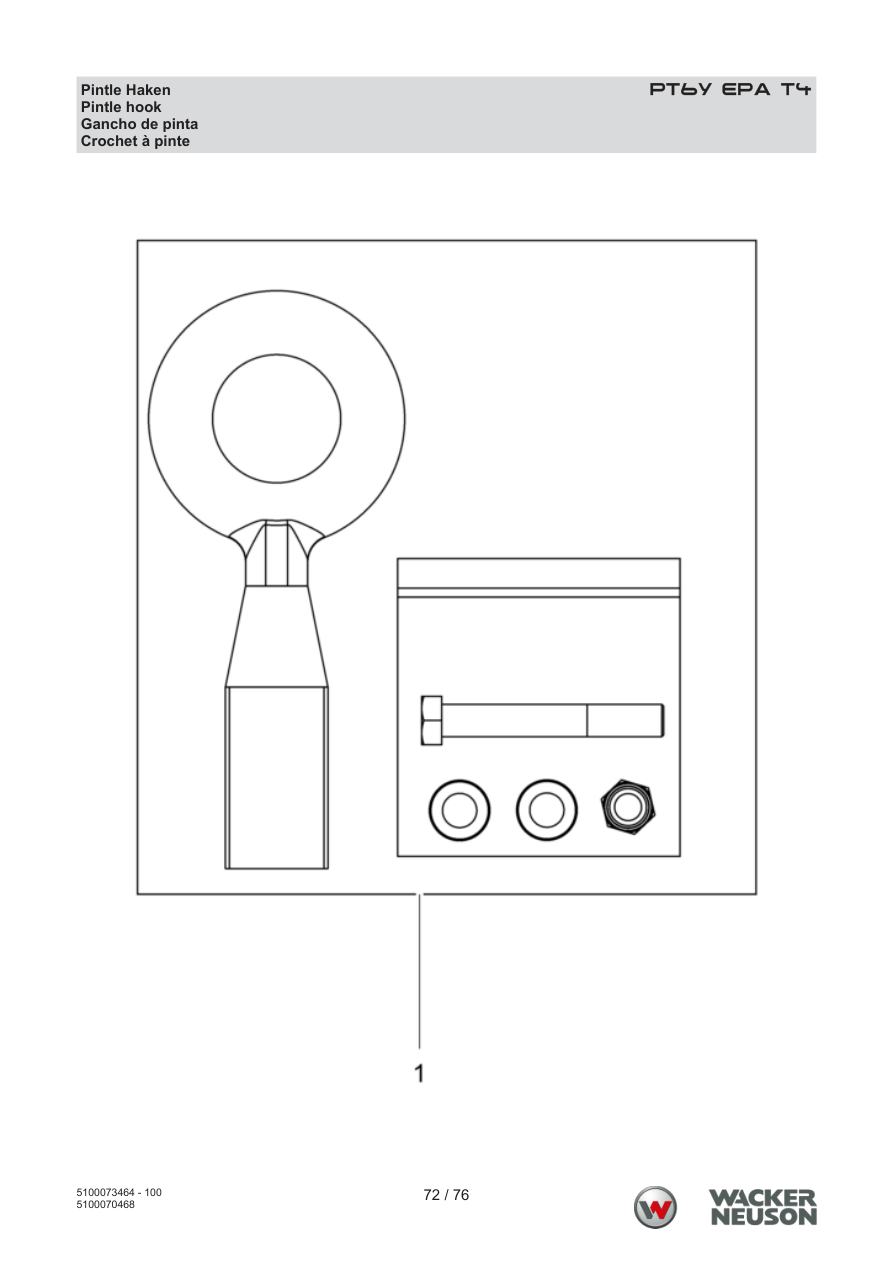

Page 72 — PT6Y EPA T4 Pintle hook
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100064368 | Pintle hook cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Pintle hook cpl.
5100064368 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
Wacker Neuson PT6 trash pump.
List price: $28,745.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000002929
Seal ring
1000002938
Seal ring
1000003052
Engine oil filter
1000003892
Temperature switch
$90.95
1000005108
Time relay
1000012332
Relay cutoff solenoid
$107.95
1000012333
Start relay
$88.95
1000012555
Non return valve
$68.95
1000012912
Diode
$15.95
1000013009
Hex screw
1000020797
Screw joint
$6.95
1000034992
Filter glass
1000035757
Seal ring
1000063347
Guide tube
1000063383
Hex screw
$1.95
1000064550
Rubber plug
1000064579
Hex screw
1000073612
Ring piece
1000082547
Hexagon nut
1000082679
Washer
1000083328
Hose clamp
1000085182
O-ring
1000085212
Hose clamp
$5.95
1000085214
Banjo bolt
1000085217
Hose clamp
1000085430
Hex screw
1000096844
Hose clamp
1000098626
Seal ring
1000098627
Seal ring
1000103821
Rubber buffer
1000107496
Plug
1000107498
Plug
1000107571
O-ring
1000107718
Exh.manifold gasket
1000107862
Screw
1000109433
Plug
1000124450
Cooler cap
1000130266
Clamp
1000130301
Washer
1000133255
Cooler water hose
$56.95
1000143729
Seal
1000143731
Seal
1000148171
Hexagonal flange head screw
1000148173
Screw
1000148389
Thermostat
1000148554
Valve cover seal
1000148750
Protection
1000148764
Plug
1000148772
Plug
1000148773
Plug
1000148784
O-ring
1000148801
Lock ring
1000148803
Bushing
$18.95
1000148804
Conn rod screw
1000148805
Conn rod bearing
1000148808
Conn rod bearing
1000148809
Measure stick
$246.95
1000148810
O-ring
1000148812
Pipe line
1000148814
Engine gasket
1000148818
Seal water pump
1000148825
Pipe line
$144.95
1000148827
Seal ring
1000148851
Seal
1000148924
Manifold gasket
1000159923
Water seperator
1000161534
Dustexhaust valve
1000176084
Overflow container
1000179033
Hose pipe
1000179573
Distance piece
1000237716
Fuel line
1000273615
Rotary shaft seal
1000279891
Plug
1000293674
O-ring
1000293677
Cylinder head gasket
1000293715
Wrist pin
1000293718
Injection nozzle
1000293720
Injection line
$148.95
1000293743
Connecting rod
1000293744
Piston
1000293745
Piston
1000293746
Set of backup rings
1000293747
Set of backup rings
$162.95
1000293750
Washer
1000293771
Injection line
$148.95
1000293772
Injection line
$148.95
1000294760
Belt pulley
1000304022
Starter motor
1000312541
Pipe line
1000334962
Fuel line
$42.95
1000393621
Shut off solenoid
1000397461
Water seperator element
1000401340
Hex screw
1000403199
Hydro.bearing
1000425521
Hose
1000463825
Shaft seal
1000464341
Seal water pump
1000464344
Fuel line
1000466935
Fuel and water seperator element
$132.95
5000010365
Locknut
$0.95
5000010366
Hexagon nut
$0.95
5000010367
Hexagon nut
$0.95
5000010369
Hexagon nut
$0.95
5000010375
Flat washer
$0.95
5000010618
Flat washer
$0.95
5000010620
Flat washer
$0.95
5000010783
Washer
$2.95
5000011035
Plug (threaded)
$3.95
5000011469
Hexagonal head cap screw
$0.95
5000011477
Hexagonal head cap screw
$0.95
5000011530
Cheese head screw
5000011540
Cheese head screw
$0.95
5000011545
Cheese head screw
$0.95
5000011716
Cheese head screw
$0.95
5000012083
Gasket
$0.95
5000012364
Hexagonal head cap screw
$0.95
5000012368
Hexagonal head cap screw
$0.95
5000012652
Lock washer
$1.95
5000013496
Hexagon nut
$0.95
5000025605
Threaded plug
$1.95
5000028404
Hexagonal flange head screw
$0.95
5000028759
Fitting
$7.95
5000028949
Hexagonal flange head screw
$0.95
5000030066
Locknut
$0.95
5000030286
Stud
$1.95
5000043180
Retaining ring
$1.95
5000051542
Socket head cap screw
$0.95
5000059248
Spring pin
5000071465
Impeller
$845.95
5000071837
Bearing cover
$115.95
5000072083
Pump case housing
$2,711.95
5000072174
Clamp
$139.95
5000072176
Steering wheel
$142.95
5000072302
Cover
$704.95
5000072347
Cover
$277.95
5000072349
Volute insert
$503.95
5000072852
O-ring
$3.95
5000072853
O-ring
$2.95
5000072854
O-ring
$5.95
5000072855
O-ring
$1.95
5000072856
Roller bearing
5000072857
Roller bearing
$137.95
5000072858
Shaft seal
$11.95
5000072860
Lock nut
$33.95
5000072861
Lock washer
$10.95
5000073015
Seal
$10.95
5000073016
Shim
$15.95
5000073129
Gasket
$11.95
5000073608
Washer
$3.95
5000073659
Screw
$1.95
5000073665
Nut
$1.95
5000073929
Atmospheric vent screw
$2.95
5000075173
Ring seal
$5.95
5000076015
Shaft seal
$17.95
5000076512
Bolt
$34.95
5000077821
Bracket
5000077828
Hexagonal head cap screw
$2.95
5000077873
Flat washer
$8.95
5000077926
Stud
$4.95
5000077941
Plate
$133.95
5000078789
Setscrew
$0.95
5000079291
Bracket
$127.95
5000079309
Flexible latch
$39.95
5000079758
Shim
$10.95
5000079759
Shim
$29.95
5000080082
Mech.seal-sc/sc sp-0082960
$605.95
5000084929
Shim
5000084930
Shim
$6.95
5000084931
Shim
5000088496
Shaft
$812.95
5000114766
Flat washer
$5.95
5000115080
Housing
5000115081
Housing
$351.95
5000117543
Label
$10.95
5000119412
O-ring
$0.95
5000119626
Cap
$10.95
5000119882
Gasket
$1.95
5000119979
Socket head cap screw
$1.95
5000150308
Label
$36.95
5000153980
Bolt
$1.95
5000153995
Nut
$1.95
5000155519
Flange nut
$0.95
5000163576
Bracket
$26.95
5000165035
Elbow fitting
$699.95
5000177416
Label-diesel fuel
$14.95
5000186614
Valve-inlt gskt,pt6 sp=0072351
5000222109
Label-wacker neuson logo
5000402180
Hose clamp
$16.95
5000403851
Pan head screw
$2.95
5000404307
Pan head screw
$0.95
5000408372
Wns65
$1.95
5100045463
Label
$14.95
5100056613
Trailer fender
$74.95
5100057717
Rubber molding, 200mm
$20.95
5100057719
Rubber molding, 165mm
$20.95
5100057721
Rubber molding, 75mm
$20.95
5100058280
Axle
5100058769
Battery, 12v 74ah
$425.95
5100058774
Side light- led
$24.95
5100058776
Washer a4.3 a2c
$0.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
