Wacker Neuson PTS4 Trash Pump
Factory parts book · interactive
Wacker Neuson PTS4 Trash Pump
The parts bench

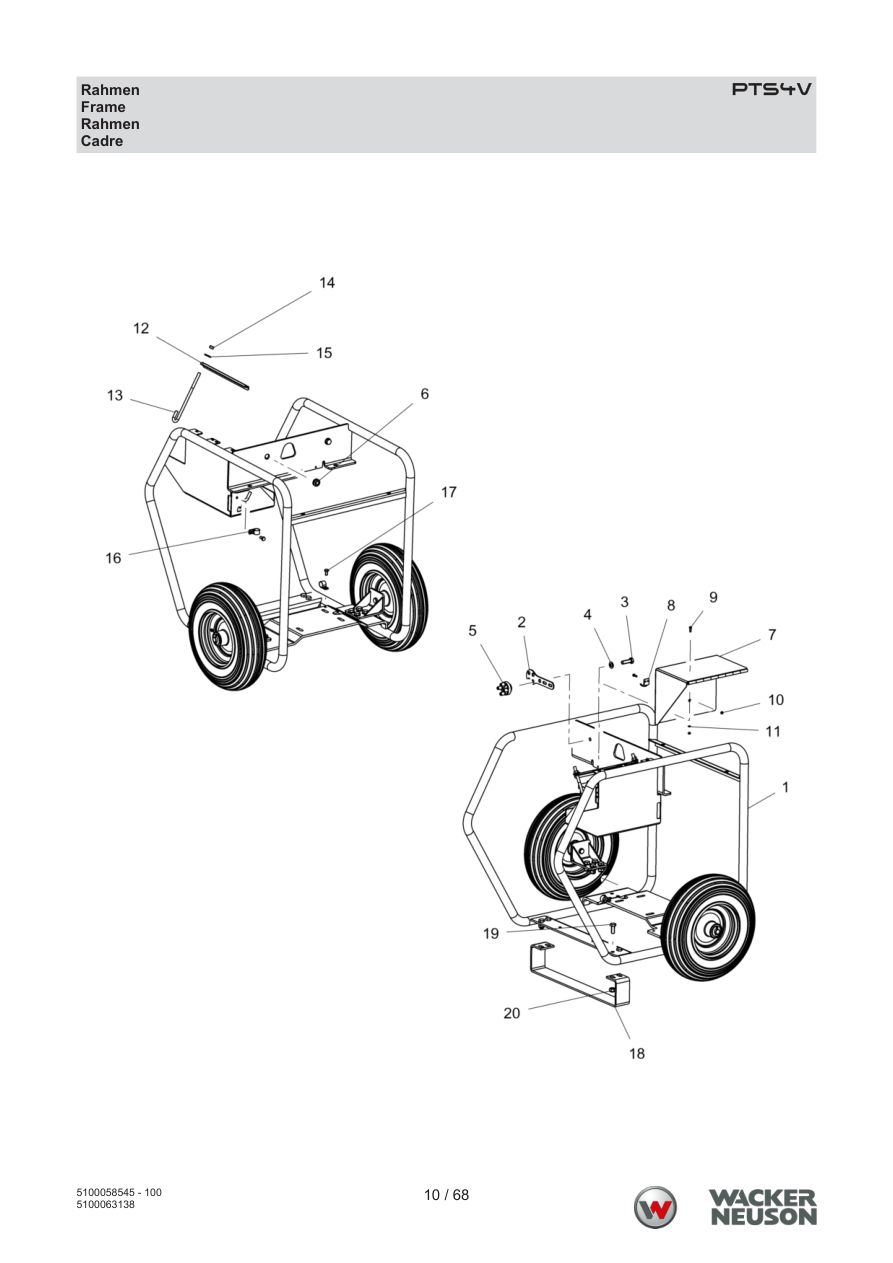

Need the PDF? ↓Page 10 — PTS4V Rahmen
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000183743 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000183743 · qty on machine: 1 | |||||
| 2 | 5100060510 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100060510 · qty on machine: 1 | |||||
| 3 | 5000011421 | pc | 1 | Hexagonal head cap screw | PARTS REQUEST |
|
COMING pc
5000011421 · qty on machine: 1 Hexagonal head cap screw | |||||
| 4 | 5000010620 | pc | 5 | ADD TO CART | |
| 5 | 5000030146 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000030146 · qty on machine: 1 | |||||
| 6 | 5000183178 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000183178 · qty on machine: 1 | |||||
| 7 | 5000110538 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110538 · qty on machine: 1 | |||||
| 8 | 5000079309 | pc | 1 | ADD TO CART | |
| 9 | 5000011476 | pc | 8 | Hexagonal head cap screw | ADD TO CART |
| 10 | 5000010369 | pc | 8 | ADD TO CART | |
| 11 | 5000010625 | pc | 4 | ADD TO CART | |
| 12 | 5000110541 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110541 · qty on machine: 1 | |||||
| 13 | 5000088177 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000088177 · qty on machine: 2 | |||||
| 14 | 5000025617 | pc | 2 | ADD TO CART | |
| 15 | 5000025637 | pc | 2 | Flat steel washer | ADD TO CART |
| 16 | 5000110458 | pc | 2 | ADD TO CART | |
| 17 | 5000012361 | pc | 2 | Hexagonal head cap screw | PARTS REQUEST |
|
COMING pc
5000012361 · qty on machine: 2 Hexagonal head cap screw | |||||
| 18 | 5000070290 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000070290 · qty on machine: 1 | |||||
| 19 | 5000011423 | pc | 4 | Hexagonal head cap screw | ADD TO CART |
| 20 | 5000010366 | pc | 4 | ADD TO CART | |

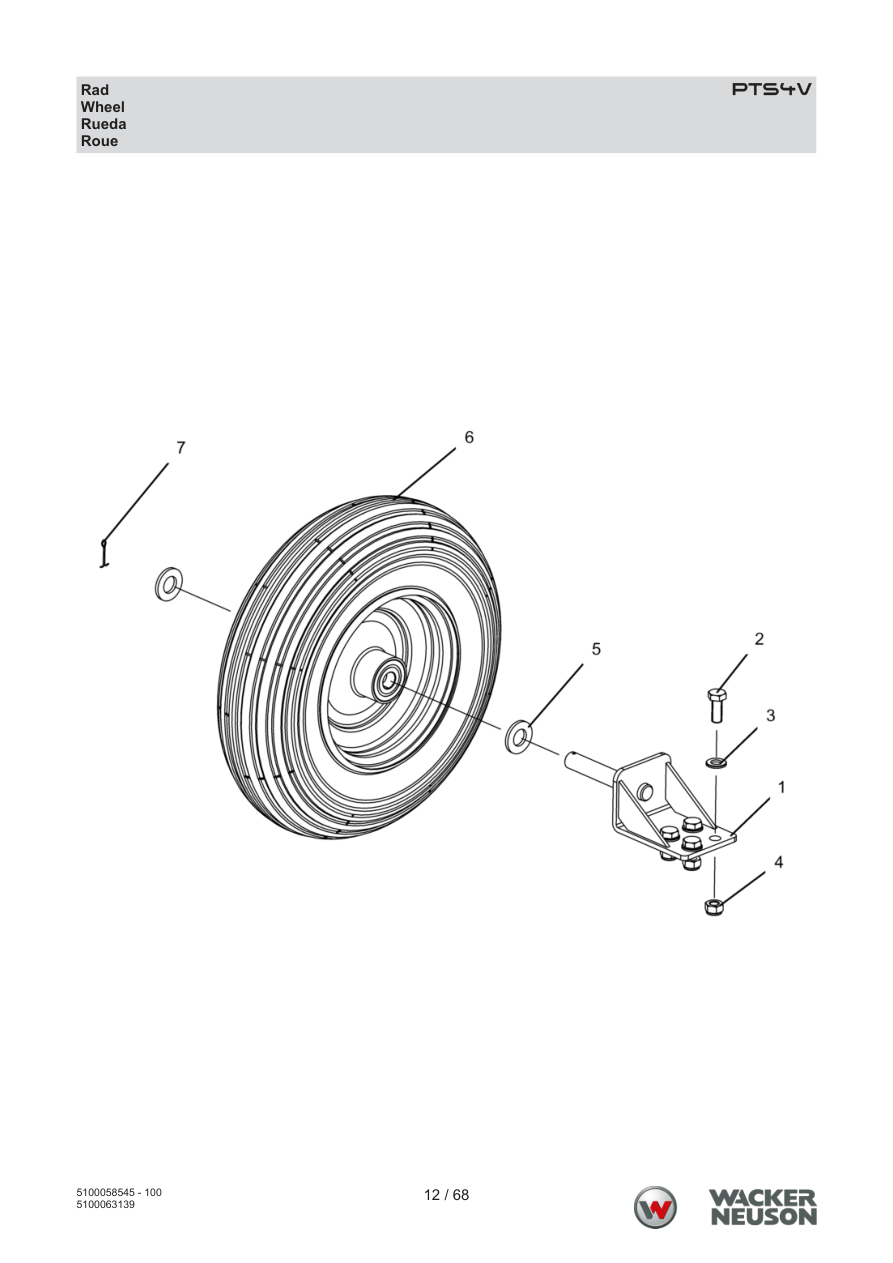

Page 12 — PTS4V Rad
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100060385 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100060385 · qty on machine: 2 | |||||
| 2 | 5000011423 | pc | 8 | Hexagonal head cap screw | ADD TO CART |
| 3 | 5000010620 | pc | 8 | ADD TO CART | |
| 4 | 5000010366 | pc | 8 | ADD TO CART | |
| 5 | 1000282641 | pc | 4 | PARTS REQUEST | |
|
COMING pc
1000282641 · qty on machine: 4 | |||||
| 6 | 5100060249 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100060249 · qty on machine: 2 | |||||
| 7 | 5000077256 | pc | 2 | ADD TO CART | |

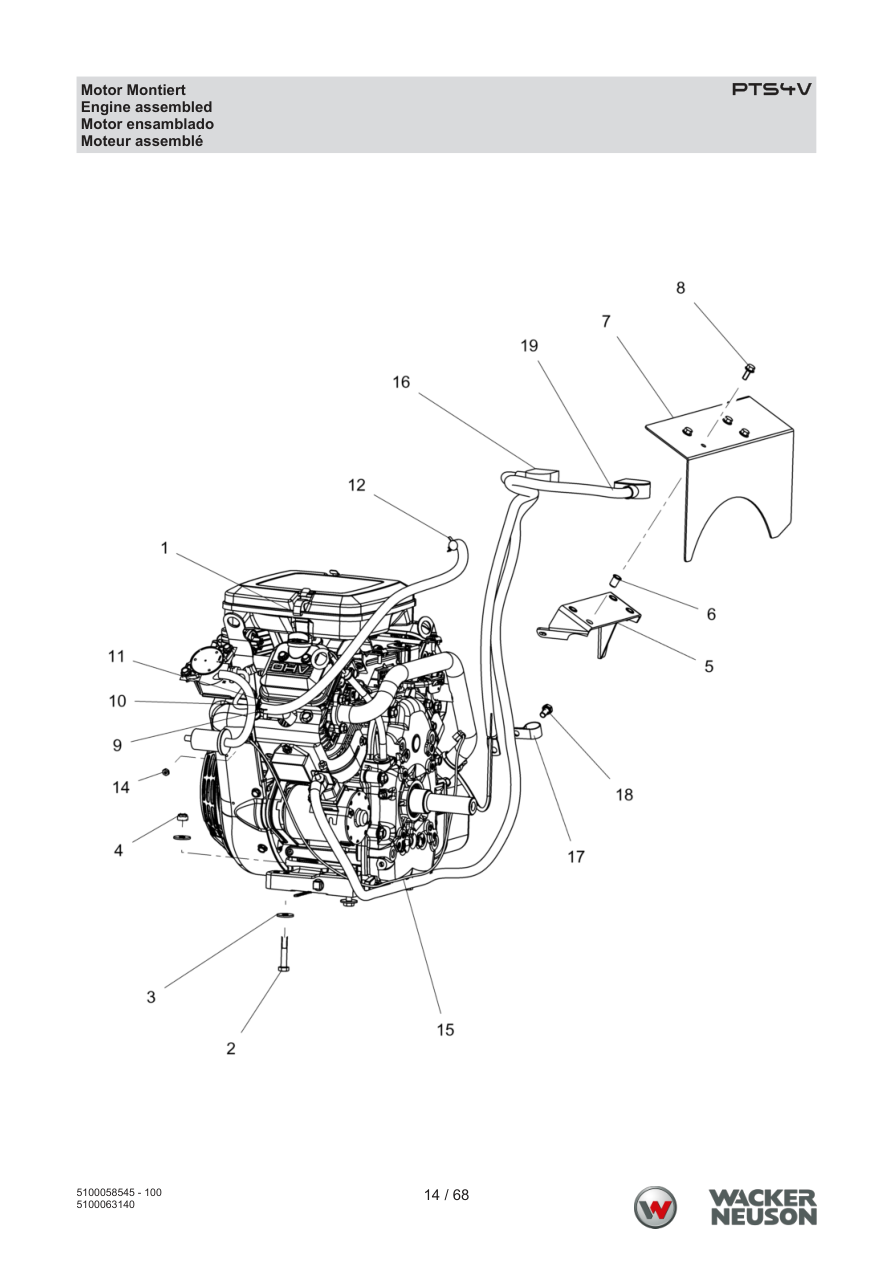

Page 14 — PTS4V Motor Montiert
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100058547 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100058547 · qty on machine: 1 | |||||
| 2 | 5000011343 | pc | 4 | Hexagonal head cap screw | ADD TO CART |
| 3 | 5000010374 | pc | 8 | ADD TO CART | |
| 4 | 5000010367 | pc | 4 | ADD TO CART | |
| 5 | 5000110964 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110964 · qty on machine: 1 | |||||
| 6 | 5000156343 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5000156343 · qty on machine: 4 | |||||
| 7 | 5000110965 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110965 · qty on machine: 1 | |||||
| 8 | 5000028949 | pc | 4 | Hexagonal flange head screw | ADD TO CART |
| 9 | 5000183171 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000183171 · qty on machine: 1 | |||||
| 10 | 5000183023 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000183023 · qty on machine: 1 | |||||
| 11 | 5100069638 | pc | 1 | Clamp hose 8.0 | PARTS REQUEST |
|
COMING pc
5100069638 · qty on machine: 1 Clamp hose 8.0 | |||||
| 12 | 5100063027 | pc | 2 | ADD TO CART | |
| 14 | 5000030965 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000030965 · qty on machine: 1 | |||||
| 15 | 5100060922 | pc | 1 | Wire-ground low oil shutdowm | PARTS REQUEST |
|
COMING pc
5100060922 · qty on machine: 1 Wire-ground low oil shutdowm | |||||
| 16 | 5100060923 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100060923 · qty on machine: 1 | |||||
| 17 | 5000110458 | pc | 2 | ADD TO CART | |
| 18 | 5000012361 | pc | 1 | Hexagonal head cap screw | PARTS REQUEST |
|
COMING pc
5000012361 · qty on machine: 1 Hexagonal head cap screw | |||||
| 19 | 5100060921 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100060921 · qty on machine: 1 | |||||

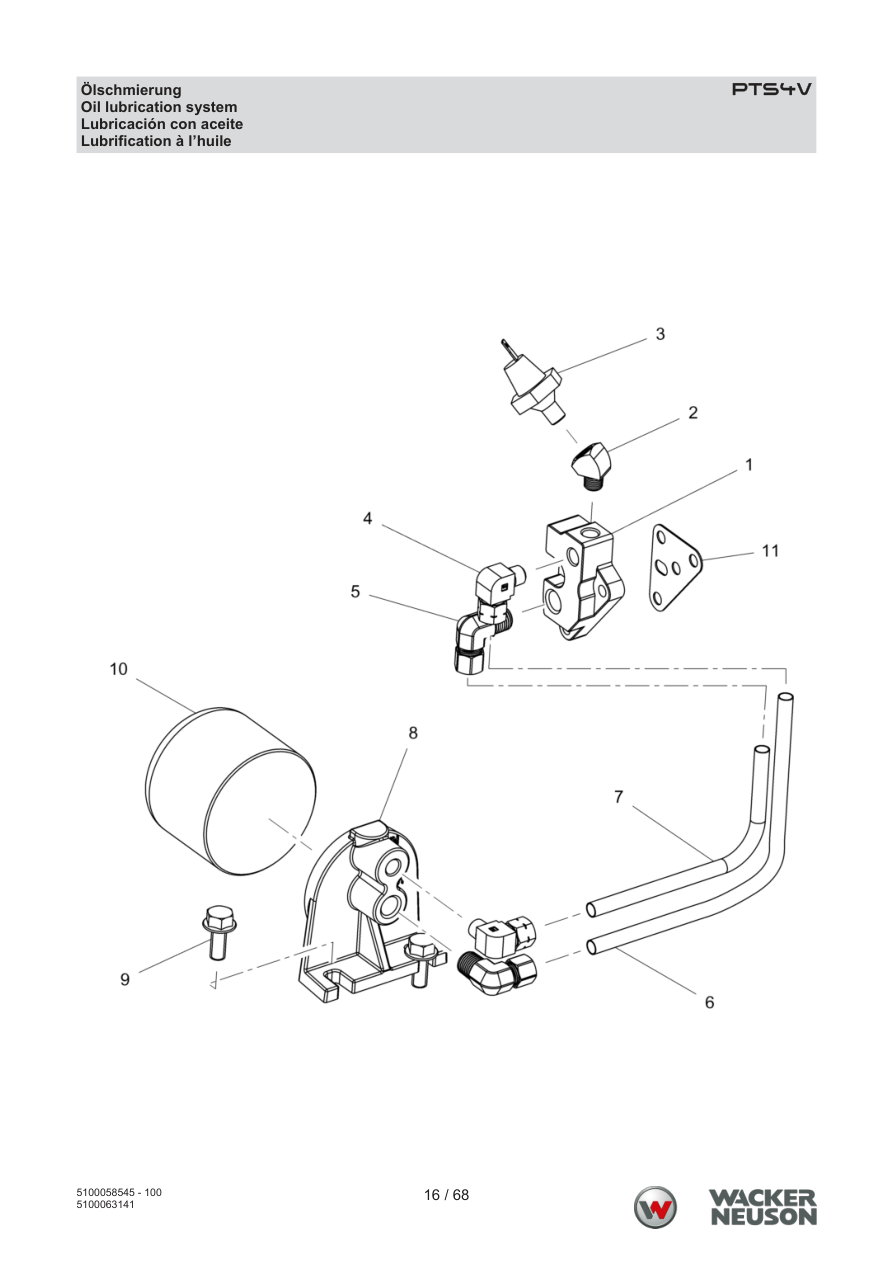

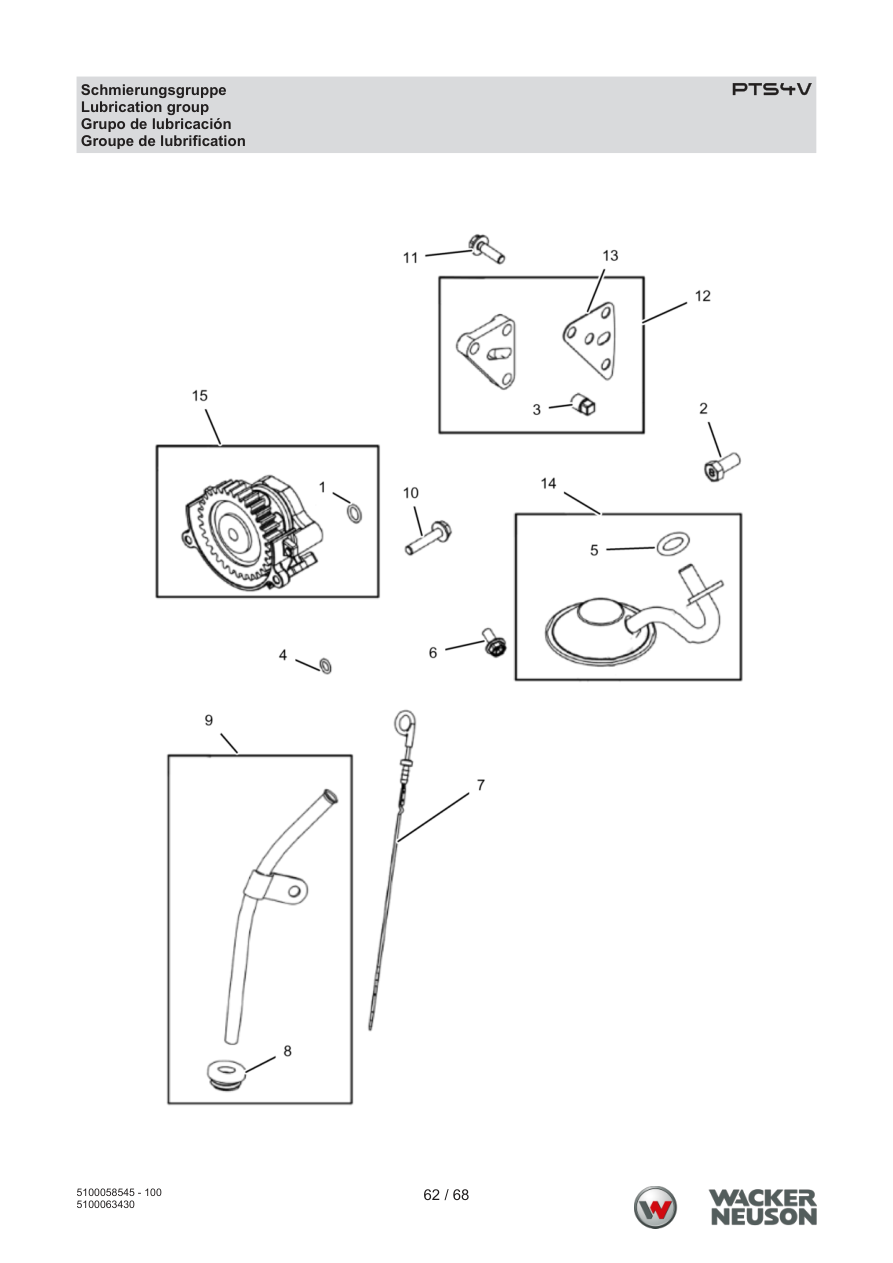

Page 16 — PTS4V Ölschmierung
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100062789 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100062789 · qty on machine: 1 | |||||
| 2 | 5100037231 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100037231 · qty on machine: 1 | |||||
| 3 | 5000110706 | pc | 1 | Oil pressure switch | PARTS REQUEST |
|
COMING pc
5000110706 · qty on machine: 1 Oil pressure switch | |||||
| 4 | 5000110462 | pc | 2 | Hydraulic elbow fitting | PARTS REQUEST |
|
COMING pc
5000110462 · qty on machine: 2 Hydraulic elbow fitting | |||||
| 5 | 5000110463 | pc | 2 | Hydraulic elbow fitting | PARTS REQUEST |
|
COMING pc
5000110463 · qty on machine: 2 Hydraulic elbow fitting | |||||
| 6 | 5000110460 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110460 · qty on machine: 1 | |||||
| 7 | 5000110461 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110461 · qty on machine: 1 | |||||
| 8 | 5100062790 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100062790 · qty on machine: 1 | |||||
| 9 | 5000028404 | pc | 2 | Hexagonal flange head screw | ADD TO CART |
| 10 | 5000110075 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000110075 · qty on machine: 2 | |||||
| 11 | 5100062788 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100062788 · qty on machine: 1 | |||||

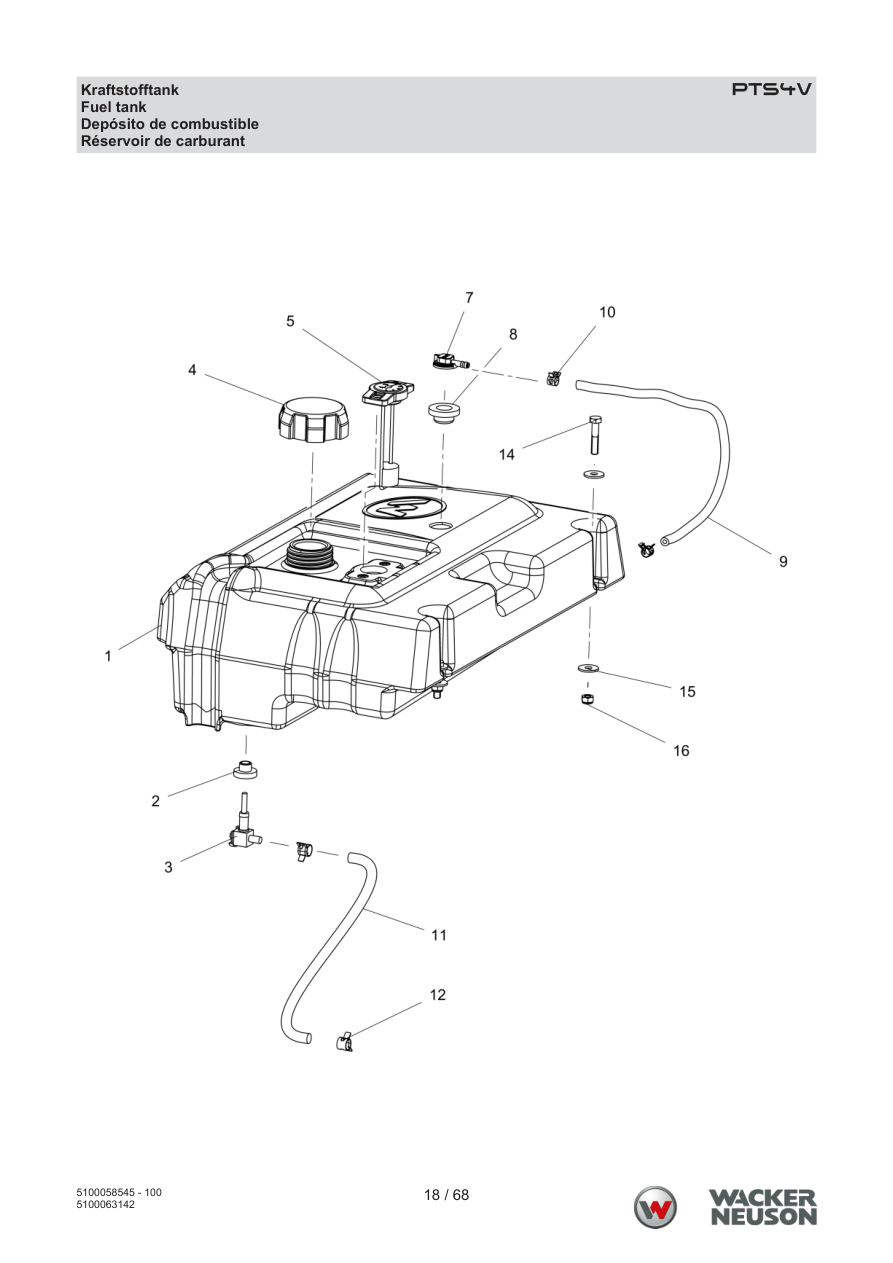

Page 18 — PTS4V Kraftstofftank
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100060848 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100060848 · qty on machine: 1 | |||||
| 2 | 5000053577 | pc | 1 | Tank valve bushing | PARTS REQUEST |
|
COMING pc
5000053577 · qty on machine: 1 Tank valve bushing | |||||
| 3 | 5000053576 | pc | 1 | ADD TO CART | |
| 4 | 5000186626 | pc | 1 | ADD TO CART | |
| 5 | 5000115957 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000115957 · qty on machine: 1 | |||||
| 6 | 5000088166 | pc | 1 | ADD TO CART | |
| 7 | 5000193330 | pc | 1 | Fuel return fitting | PARTS REQUEST |
|
COMING pc
5000193330 · qty on machine: 1 Fuel return fitting | |||||
| 8 | 5000186628 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000186628 · qty on machine: 1 | |||||
| 9 | 5100059231 | pc | 2 | Fuel hose 3/16 i.d. -400mm | PARTS REQUEST |
|
COMING pc
5100059231 · qty on machine: 2 Fuel hose 3/16 i.d. -400mm | |||||
| 10 | 5000114201 | pc | 2 | ADD TO CART | |
| 11 | 5100059232 | pc | 2 | Fuel house 1/4 i.d. -180mm | PARTS REQUEST |
|
COMING pc
5100059232 · qty on machine: 2 Fuel house 1/4 i.d. -180mm | |||||
| 12 | 5000114073 | pc | 4 | ADD TO CART | |
| 14 | 5000011341 | pc | 4 | Hexagonal head cap screw | ADD TO CART |
| 15 | 5000010374 | pc | 8 | ADD TO CART | |
| 16 | 5000010367 | pc | 4 | ADD TO CART | |

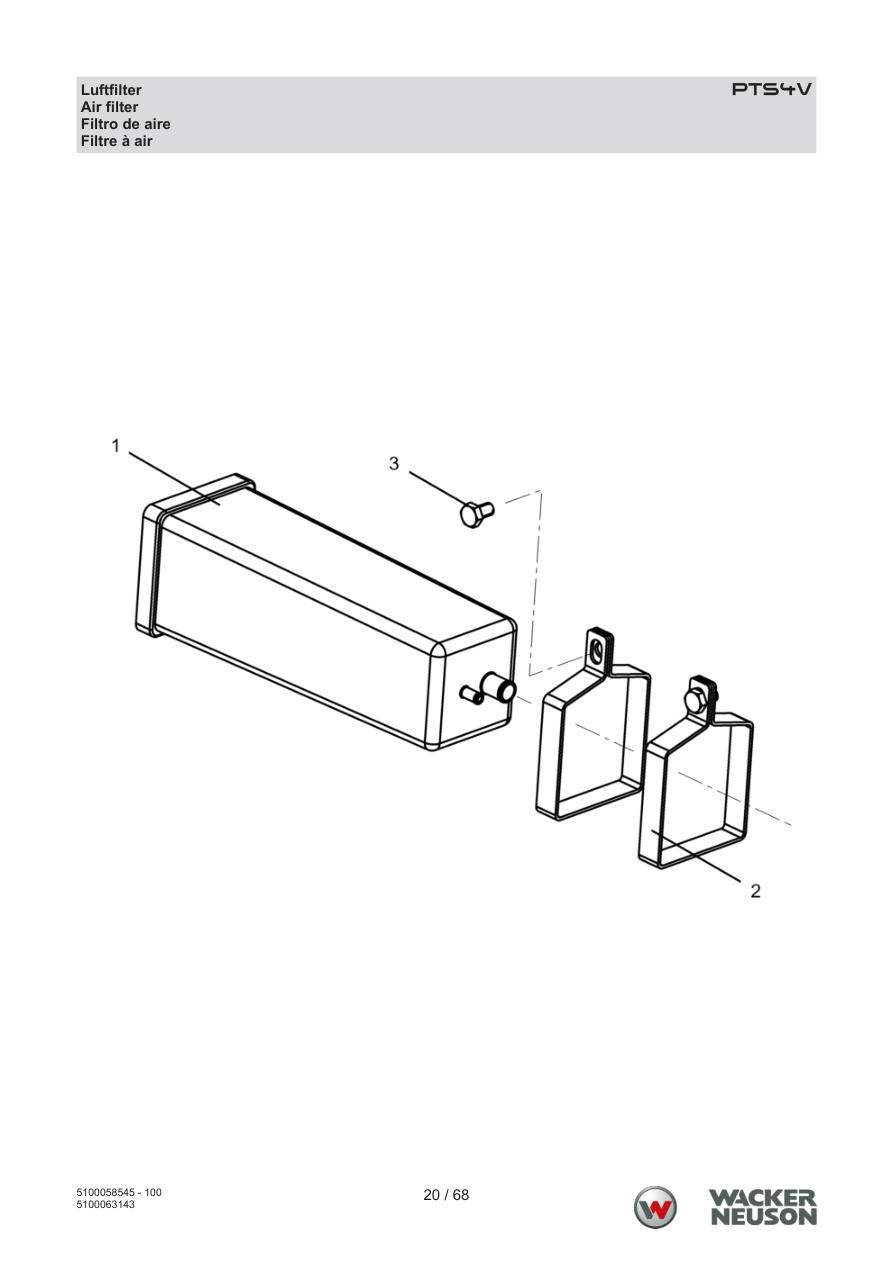

Page 20 — PTS4V Luftfilter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000183167 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000183167 · qty on machine: 1 | |||||
| 2 | 5000183043 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000183043 · qty on machine: 2 | |||||
| 3 | 5000012357 | pc | 2 | Hexagonal head cap screw | ADD TO CART |

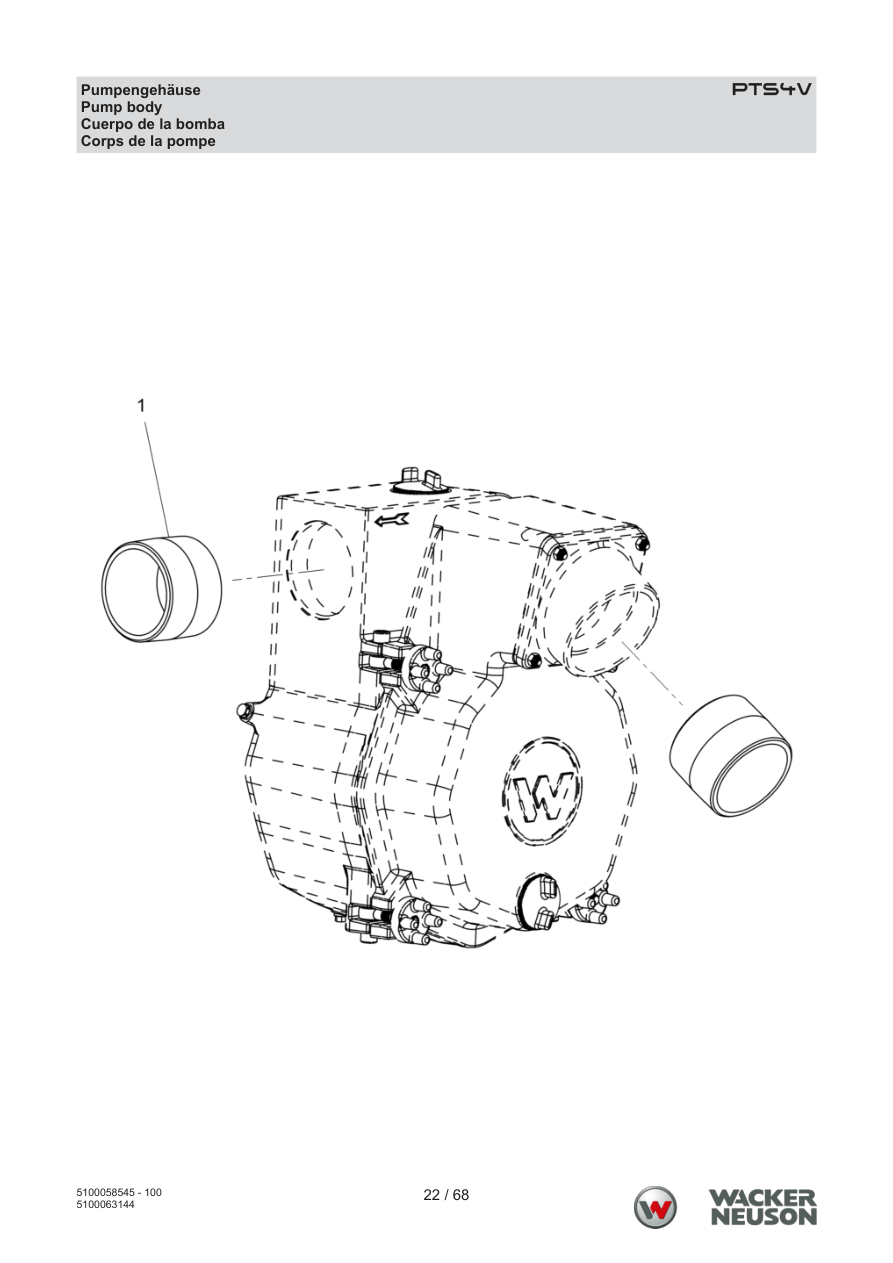

Page 22 — PTS4V Pumpengehäuse
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100065755 | pc | 2 | Pipe nipple 4 npt/bspt | PARTS REQUEST |
|
COMING pc
5100065755 · qty on machine: 2 Pipe nipple 4 npt/bspt | |||||

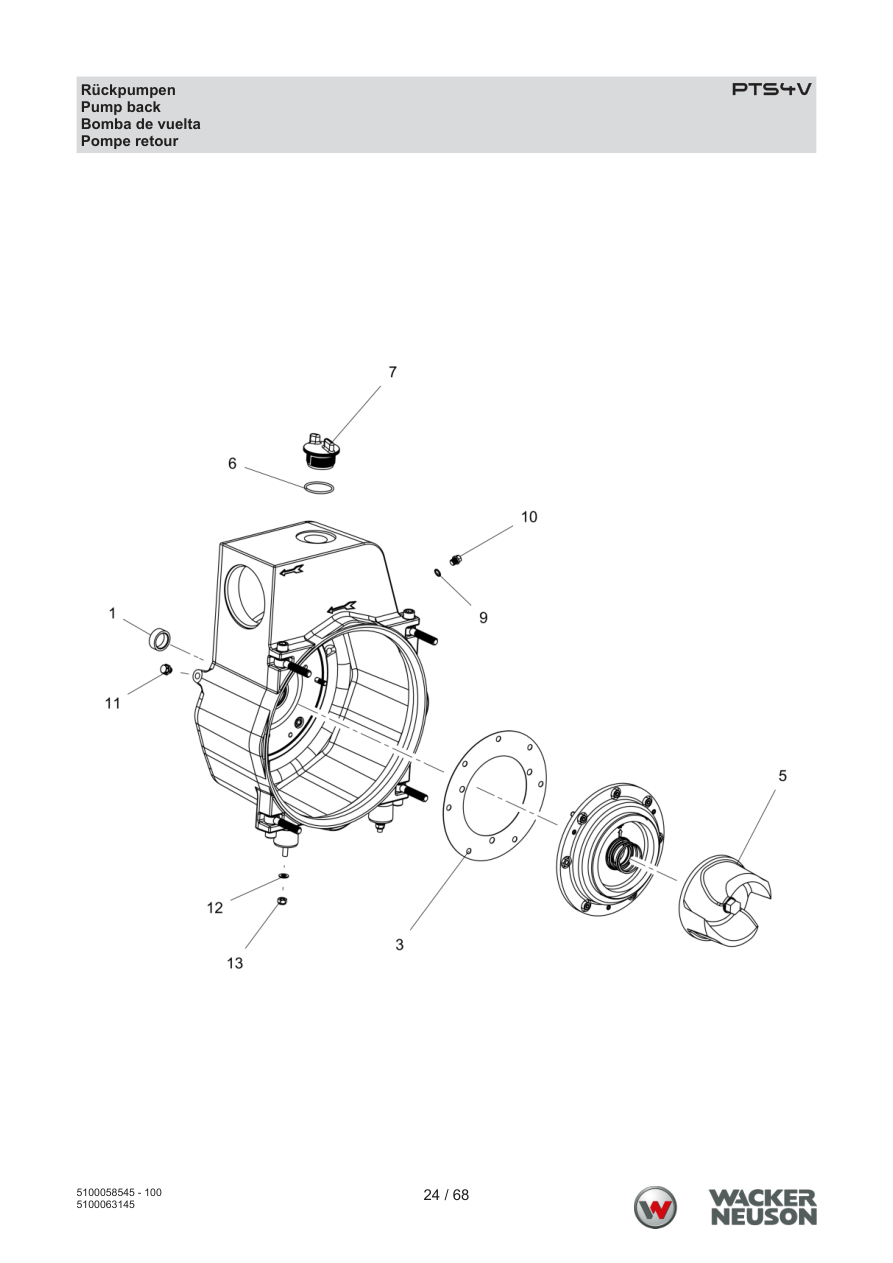

Page 24 — PTS4V Rückpumpen
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000111225 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000111225 · qty on machine: 1 | |||||
| 3 | 5000030627 | pc | 1 | Oil pump gasket | PARTS REQUEST |
|
COMING pc
5000030627 · qty on machine: 1 Oil pump gasket | |||||
| 5 | 5000110442 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110442 · qty on machine: 1 | |||||
| 6 | 5000119412 | pc | 1 | ADD TO CART | |
| 7 | 5000119626 | pc | 1 | ADD TO CART | |
| 9 | 5000012086 | pc | 1 | ADD TO CART | |
| 10 | 5000052044 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000052044 · qty on machine: 1 | |||||
| 11 | 5100063026 | pc | 1 | Atmospheric vent m10x1.5 | PARTS REQUEST |
|
COMING pc
5100063026 · qty on machine: 1 Atmospheric vent m10x1.5 | |||||
| 12 | 5000010622 | pc | 2 | ADD TO CART | |
| 13 | 5000010367 | pc | 2 | ADD TO CART | |

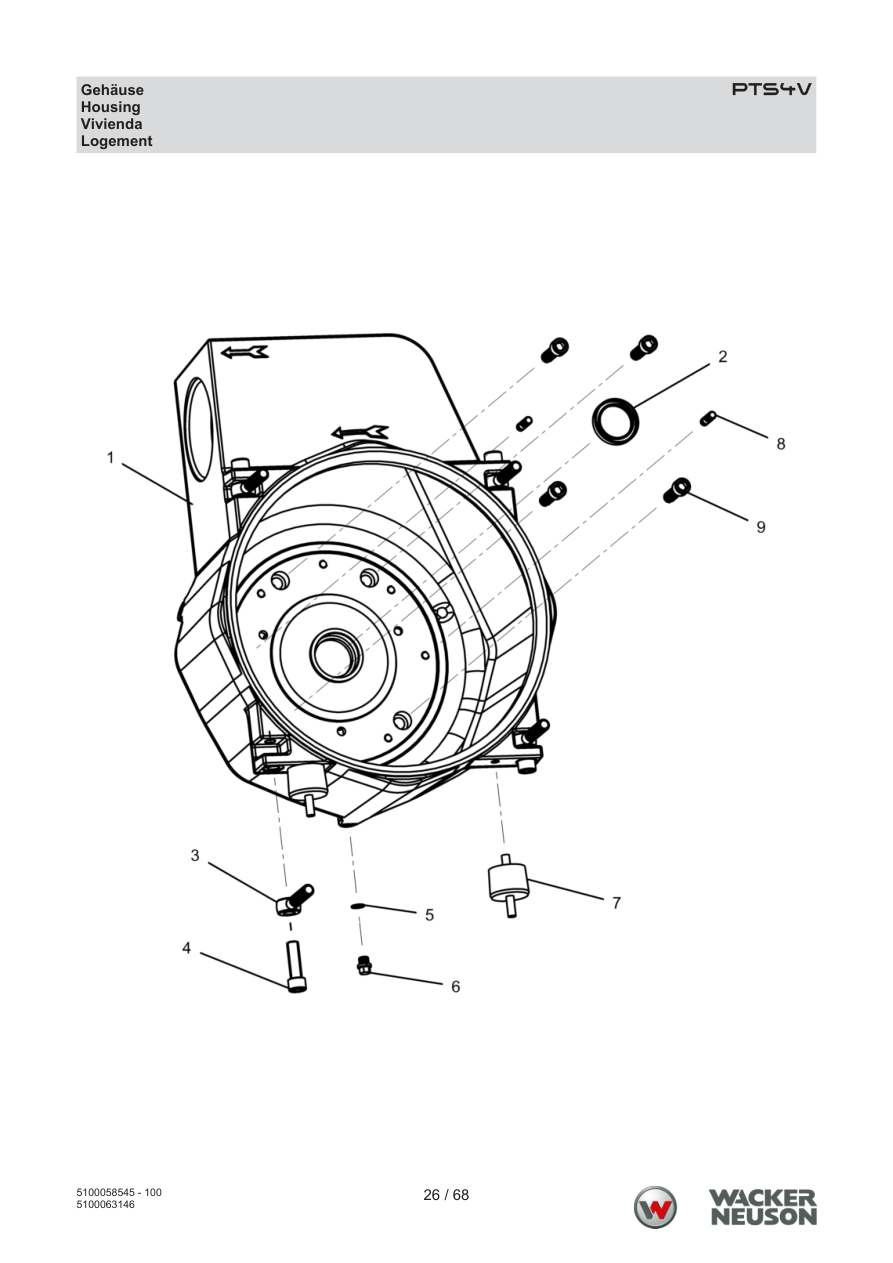

Page 26 — PTS4V Gehäuse
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000110441 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110441 · qty on machine: 1 | |||||
| 2 | 5000110444 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110444 · qty on machine: 1 | |||||
| 3 | 5000029804 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5000029804 · qty on machine: 4 | |||||
| 4 | 5000011527 | pc | 4 | Cheese head screw | ADD TO CART |
| 5 | 5000012086 | pc | 1 | ADD TO CART | |
| 6 | 5000052044 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000052044 · qty on machine: 1 | |||||
| 7 | 5100064433 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100064433 · qty on machine: 2 | |||||
| 8 | 5000051537 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000051537 · qty on machine: 2 | |||||
| 9 | 5100040900 | pc | 4 | Socket head screw | PARTS REQUEST |
|
COMING pc
5100040900 · qty on machine: 4 Socket head screw | |||||

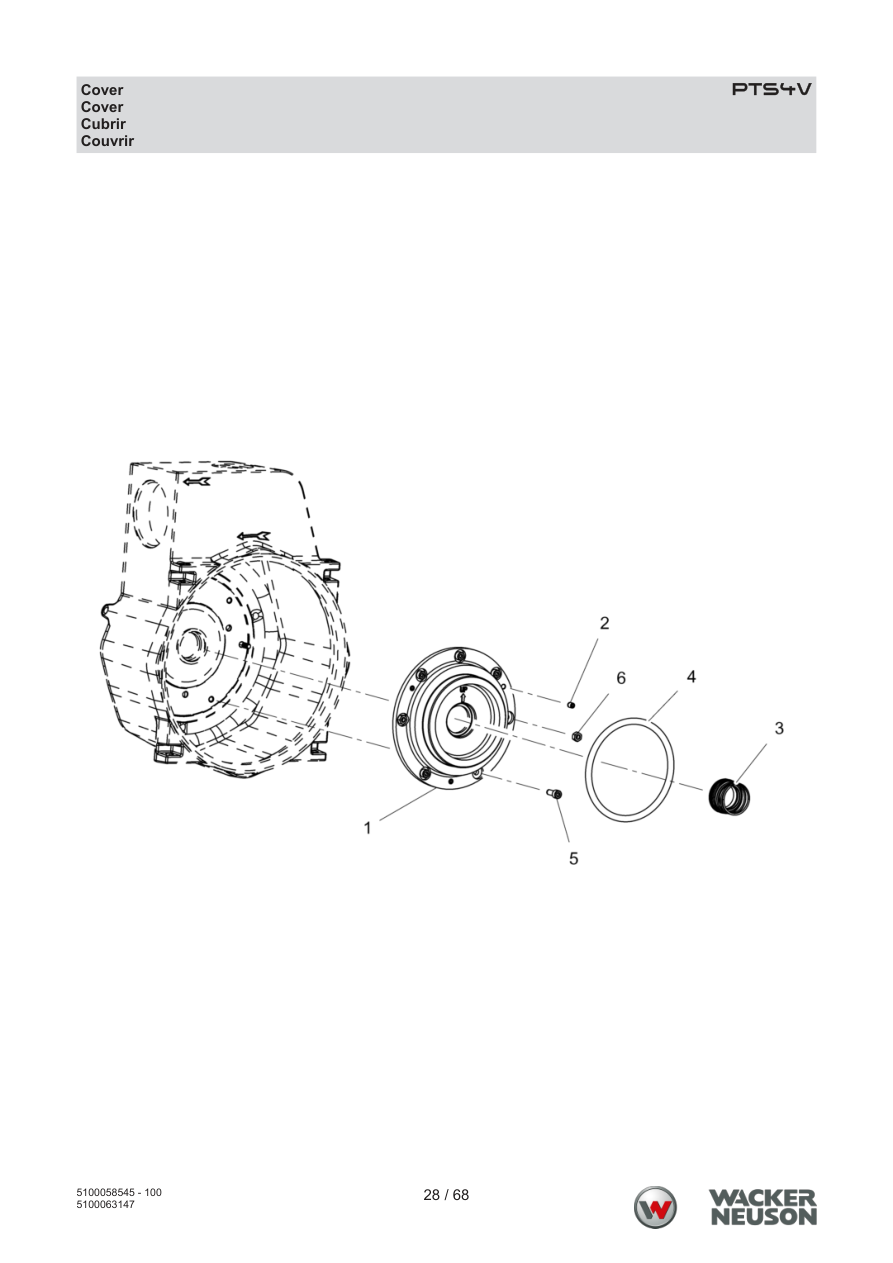

Page 28 — PTS4V Cover
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000110445 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110445 · qty on machine: 1 | |||||
| 2 | 5000012038 | pc | 3 | ADD TO CART | |
| 3 | 5000110443 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110443 · qty on machine: 1 | |||||
| 4 | 5000030607 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000030607 · qty on machine: 1 | |||||
| 5 | 5000051542 | pc | 5 | Socket head cap screw | ADD TO CART |
| 6 | 5000051535 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000051535 · qty on machine: 2 | |||||

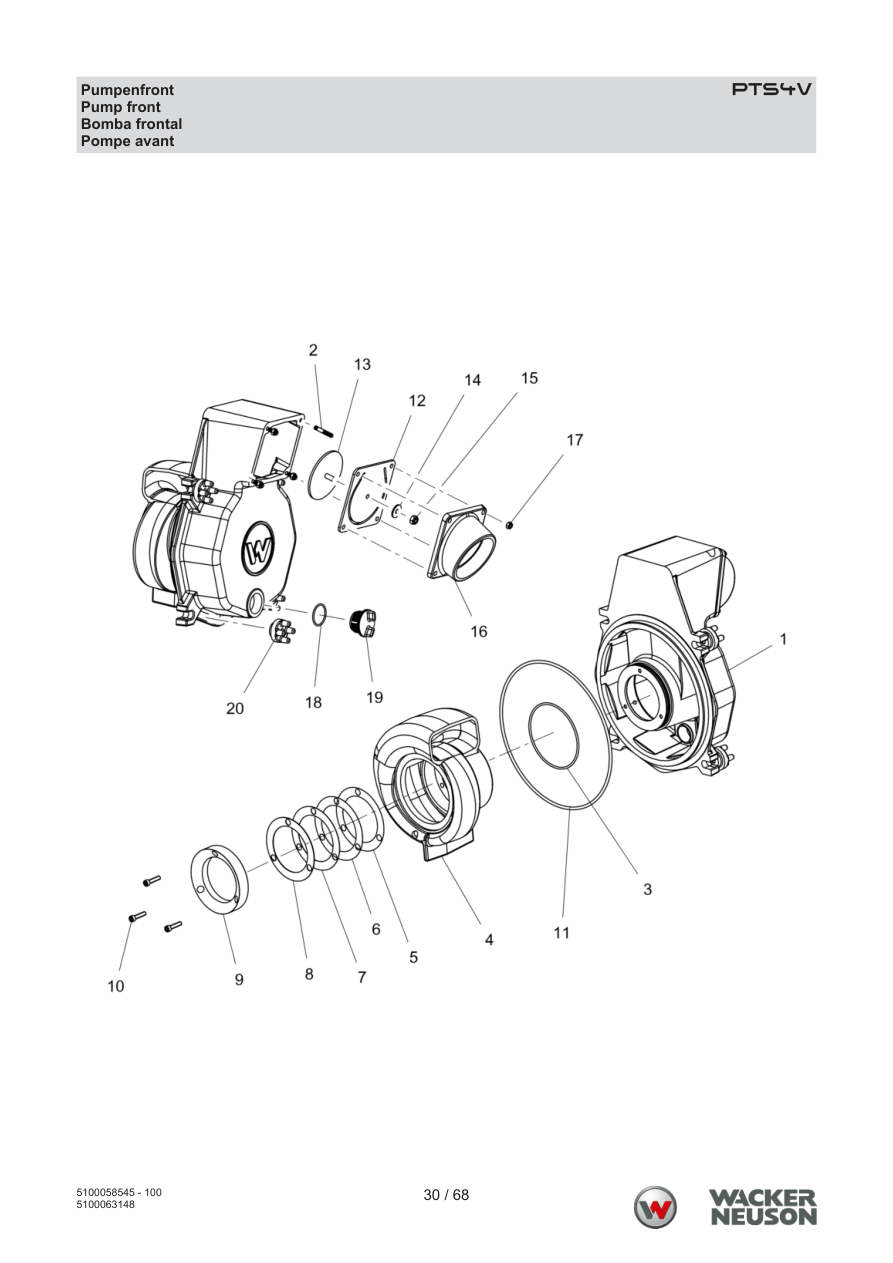

Page 30 — PTS4V Pumpenfront
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000085704 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000085704 · qty on machine: 1 | |||||
| 2 | 5000010928 | pc | 4 | ADD TO CART | |
| 3 | 5000030592 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000030592 · qty on machine: 1 | |||||
| 4 | 5000030584 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000030584 · qty on machine: 1 | |||||
| 5 | 5000110067 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110067 · qty on machine: 1 | |||||
| 6 | 5000110068 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110068 · qty on machine: 1 | |||||
| 7 | 5000110069 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110069 · qty on machine: 1 | |||||
| 8 | 5000110070 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000110070 · qty on machine: 1 | |||||
| 9 | 5000076819 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000076819 · qty on machine: 1 | |||||
| 10 | 5000051562 | pc | 3 | Cheese head screw | PARTS REQUEST |
|
COMING pc
5000051562 · qty on machine: 3 Cheese head screw | |||||
| 11 | 5000030591 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000030591 · qty on machine: 1 | |||||
| 12 | 5000030611 | pc | 1 | Flapper valve gasket | PARTS REQUEST |
|
COMING pc
5000030611 · qty on machine: 1 Flapper valve gasket | |||||
| 13 | 5000077936 | pc | 1 | Stud-flapper,weldment, 4 1/2"" | PARTS REQUEST |
|
COMING pc
5000077936 · qty on machine: 1 Stud-flapper,weldment, 4 1/2"" | |||||
| 14 | 5000010375 | pc | 1 | ADD TO CART | |
| 15 | 5000010365 | pc | 1 | ADD TO CART | |
| 16 | 5000070525 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000070525 · qty on machine: 1 | |||||
| 17 | 5000010367 | pc | 4 | ADD TO CART | |
| 18 | 5000119412 | pc | 1 | ADD TO CART | |
| 19 | 5000119626 | pc | 1 | ADD TO CART | |
| 20 | 5000030146 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5000030146 · qty on machine: 4 | |||||

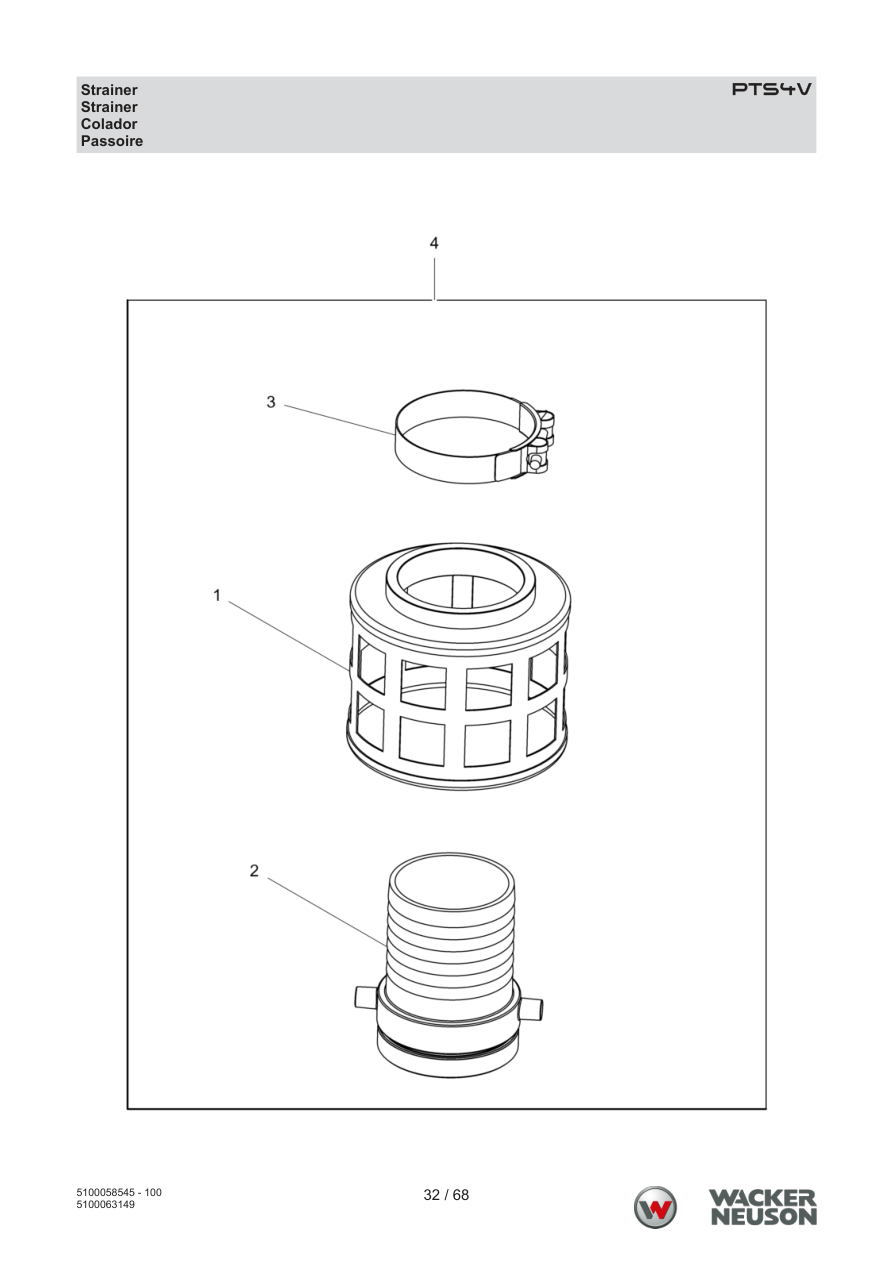

Page 32 — PTS4V Strainer
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061621 | pc | 1 | Strainer 4 ,female thd. | PARTS REQUEST |
|
COMING pc
5100061621 · qty on machine: 1 Strainer 4 ,female thd. | |||||
| 2 | 5100061628 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100061628 · qty on machine: 1 | |||||
| 3 | 5100061625 | pc | 1 | Clamp 104mm - 112mm,t-bolt | PARTS REQUEST |
|
COMING pc
5100061625 · qty on machine: 1 Clamp 104mm - 112mm,t-bolt | |||||
| 4 | 5100063157 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063157 · qty on machine: 1 | |||||

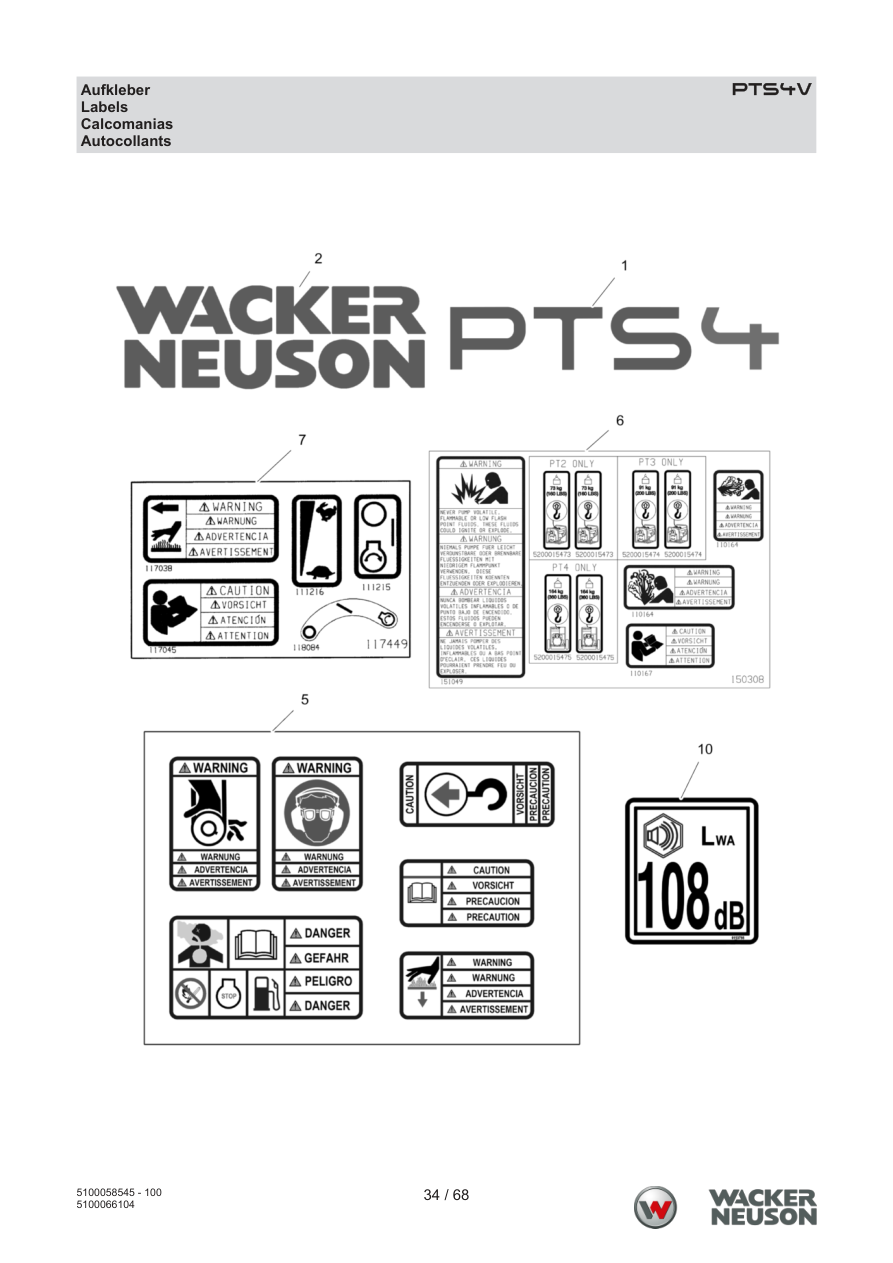

Page 34 — PTS4V Aufkleber
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000110978 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5000110978 · qty on machine: 2 | |||||
| 2 | 1000182436 | pc | 2 | PARTS REQUEST | |
|
COMING pc
1000182436 · qty on machine: 2 | |||||
| 5 | 5000116940 | pc | 1 | ADD TO CART | |
| 6 | 5000150308 | pc | 1 | ADD TO CART | |
| 7 | 5000117449 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5000117449 · qty on machine: 1 | |||||
| 10 | 5000153798 | pc | 1 | ADD TO CART | |

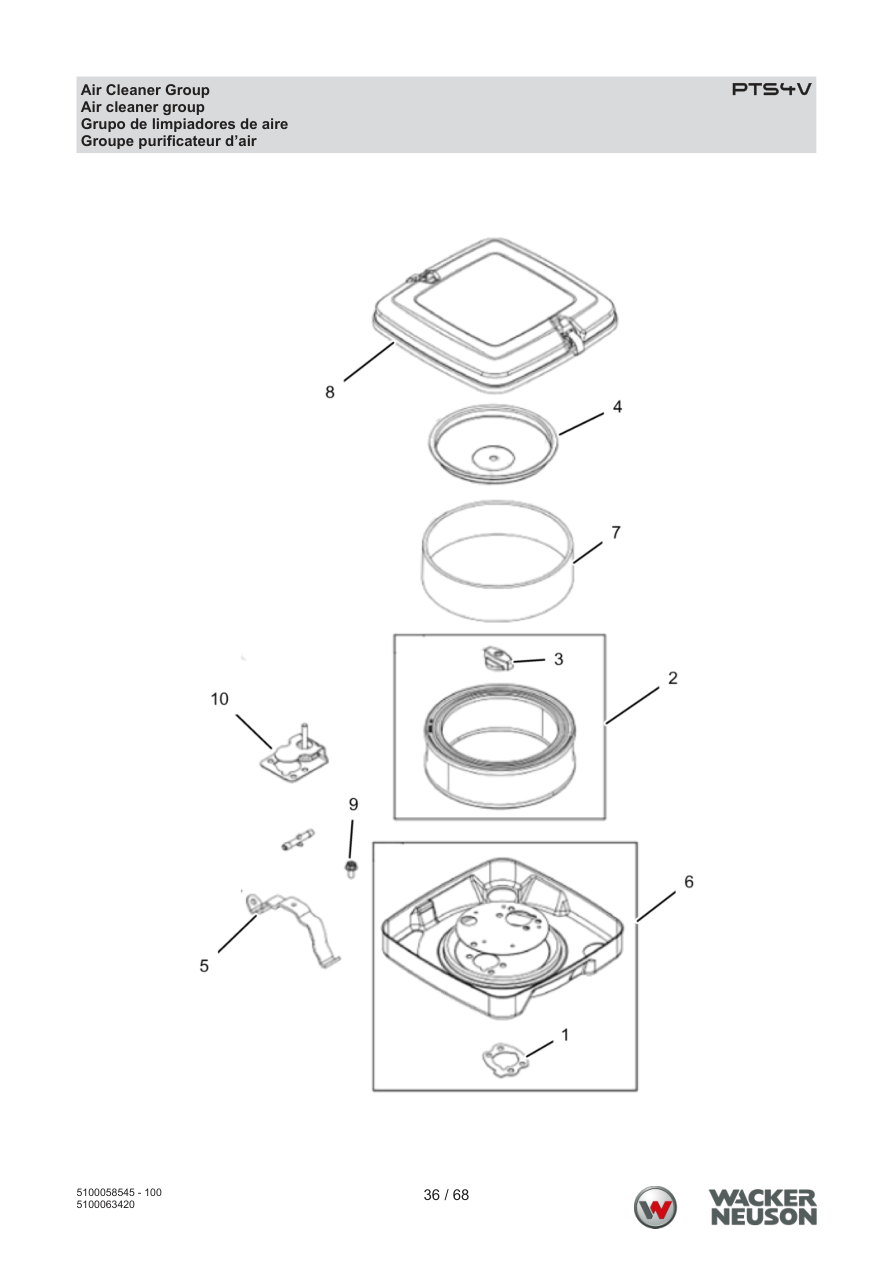

Page 36 — PTS4V Air Cleaner Group
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063197 | pc | 1 | Gasket, air cleaner | PARTS REQUEST |
|
COMING pc
5100063197 · qty on machine: 1 Gasket, air cleaner | |||||
| 2 | 5100063198 | pc | 1 | Filter, a/c cartridge | PARTS REQUEST |
|
COMING pc
5100063198 · qty on machine: 1 Filter, a/c cartridge | |||||
| 3 | 5100063199 | pc | 1 | Knob, air cleaner cover | PARTS REQUEST |
|
COMING pc
5100063199 · qty on machine: 1 Knob, air cleaner cover | |||||
| 4 | 5100063200 | pc | 1 | Retainer, air filter | PARTS REQUEST |
|
COMING pc
5100063200 · qty on machine: 1 Retainer, air filter | |||||
| 5 | 5100063201 | pc | 1 | Bracket, air cleaner | PARTS REQUEST |
|
COMING pc
5100063201 · qty on machine: 1 Bracket, air cleaner | |||||
| 6 | 5100063202 | pc | 1 | Base, air cleaner | PARTS REQUEST |
|
COMING pc
5100063202 · qty on machine: 1 Base, air cleaner | |||||
| 7 | 5100063203 | pc | 1 | Filter, pre cleaner | PARTS REQUEST |
|
COMING pc
5100063203 · qty on machine: 1 Filter, pre cleaner | |||||
| 8 | 5100063204 | pc | 1 | Cover, air cleaner | PARTS REQUEST |
|
COMING pc
5100063204 · qty on machine: 1 Cover, air cleaner | |||||
| 9 | 5100063205 | pc | 5 | PARTS REQUEST | |
|
COMING pc
5100063205 · qty on machine: 5 | |||||
| 10 | 5100063206 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063206 · qty on machine: 1 | |||||

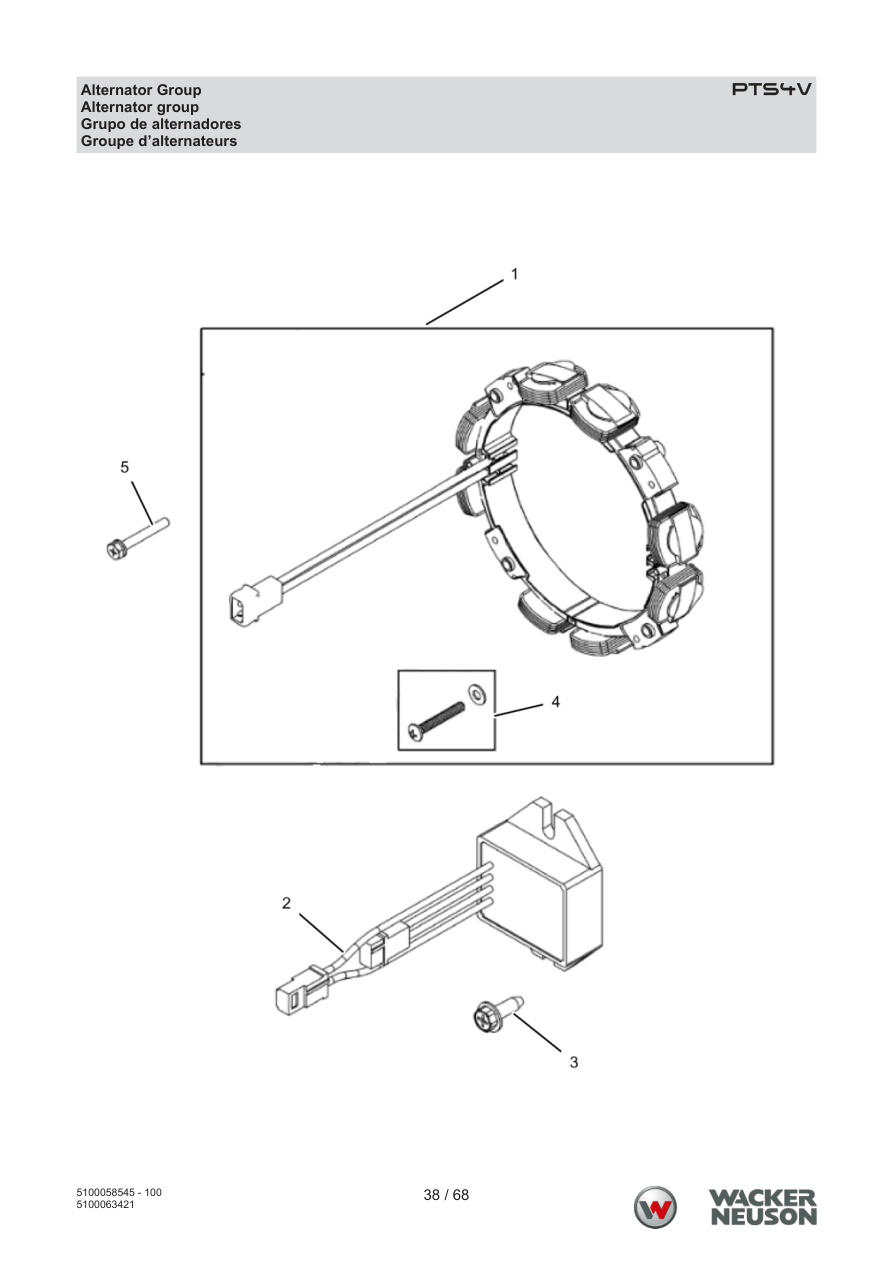

Page 38 — PTS4V Alternator Group
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063207 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063207 · qty on machine: 1 | |||||
| 2 | 5100063208 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063208 · qty on machine: 1 | |||||
| 3 | 5100063209 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063209 · qty on machine: 2 | |||||
| 4 | 5100063210 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063210 · qty on machine: 4 | |||||
| 5 | 5100063211 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063211 · qty on machine: 4 | |||||

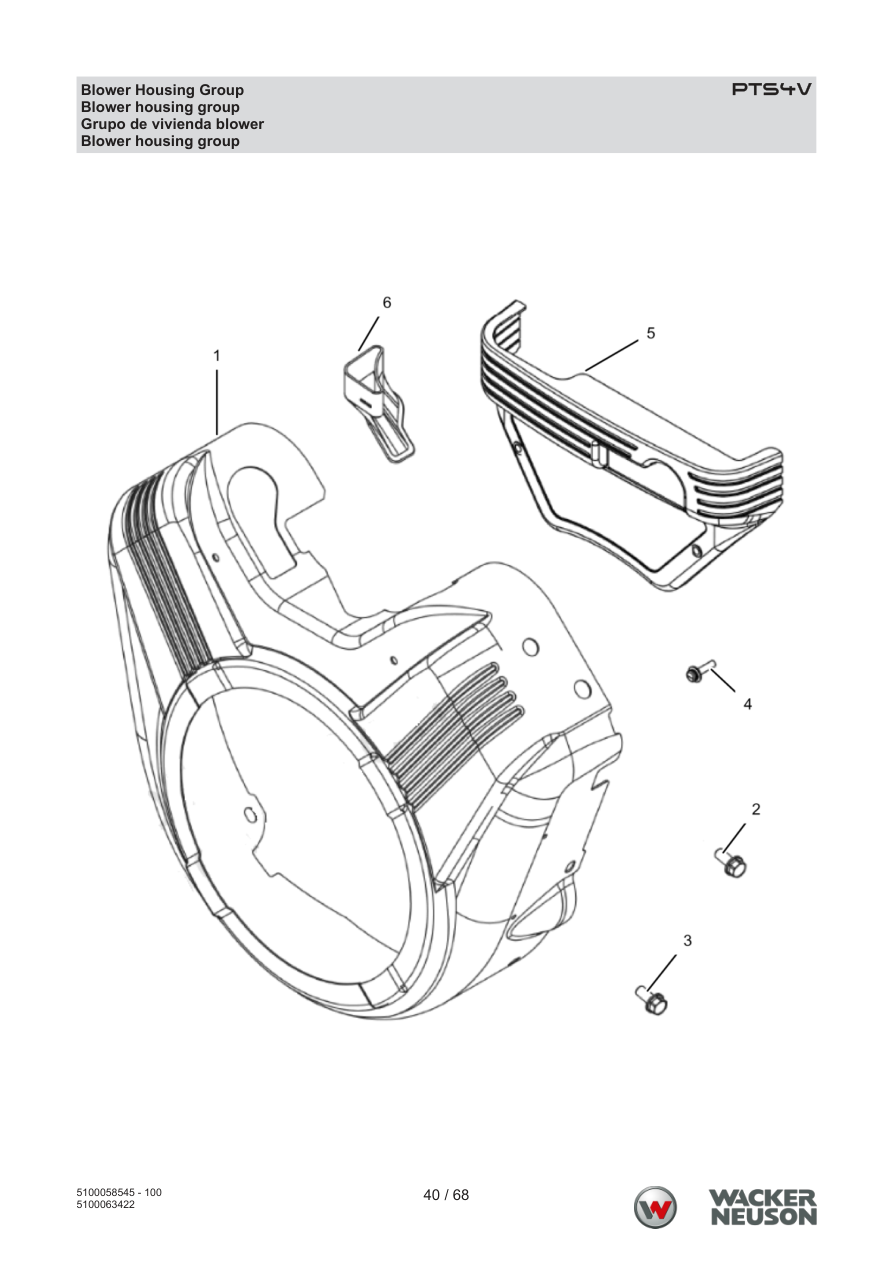

Page 40 — PTS4V Blower Housing Group
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063212 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063212 · qty on machine: 1 | |||||
| 2 | 5100063213 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063213 · qty on machine: 4 | |||||
| 3 | 5100063214 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063214 · qty on machine: 4 | |||||
| 4 | 5100063215 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063215 · qty on machine: 2 | |||||
| 5 | 5100063216 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063216 · qty on machine: 1 | |||||
| 6 | 5100063217 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063217 · qty on machine: 1 | |||||

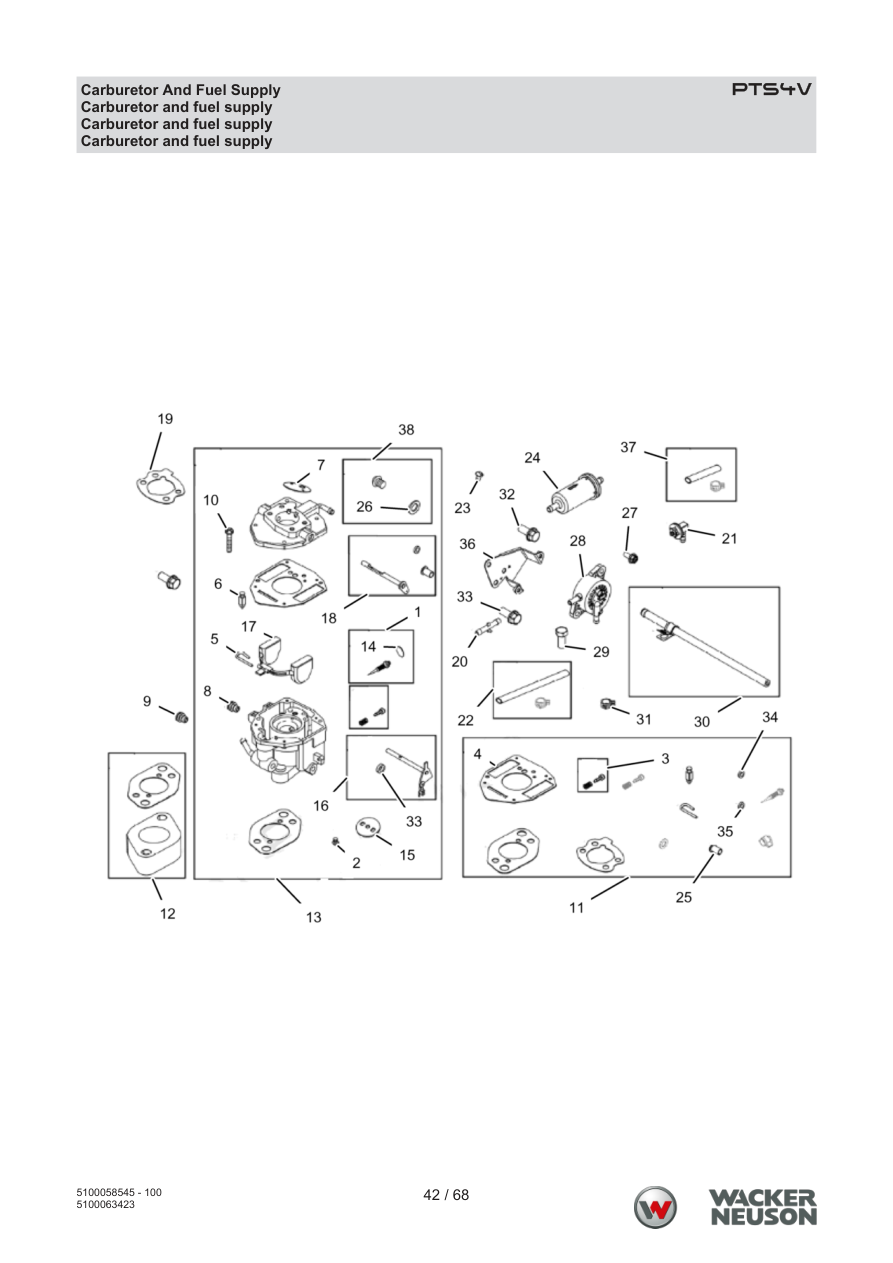

Page 42 — PTS4V Carburetor And Fuel Supply
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063218 | pc | 1 | Kit, idle mixture | PARTS REQUEST |
|
COMING pc
5100063218 · qty on machine: 1 Kit, idle mixture | |||||
| 2 | 5100063219 | pc | 3 | PARTS REQUEST | |
|
COMING pc
5100063219 · qty on machine: 3 | |||||
| 3 | 5100063220 | pc | 1 | Kit, idle speed | PARTS REQUEST |
|
COMING pc
5100063220 · qty on machine: 1 Kit, idle speed | |||||
| 4 | 5100063221 | pc | 1 | Gasket, carburetor body | PARTS REQUEST |
|
COMING pc
5100063221 · qty on machine: 1 Gasket, carburetor body | |||||
| 5 | 5100063222 | pc | 1 | Pin, float hinge | PARTS REQUEST |
|
COMING pc
5100063222 · qty on machine: 1 Pin, float hinge | |||||
| 6 | 5100063223 | pc | 1 | Valve, float needle | PARTS REQUEST |
|
COMING pc
5100063223 · qty on machine: 1 Valve, float needle | |||||
| 7 | 5100063224 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063224 · qty on machine: 1 | |||||
| 8 | 5100063225 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063225 · qty on machine: 1 | |||||
| 9 | 5100063226 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063226 · qty on machine: 1 | |||||
| 10 | 5100063227 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063227 · qty on machine: 4 | |||||
| 11 | 5100063228 | pc | 1 | Kit, carburetor overhaul | PARTS REQUEST |
|
COMING pc
5100063228 · qty on machine: 1 Kit, carburetor overhaul | |||||
| 12 | 5100063229 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063229 · qty on machine: 1 | |||||
| 13 | 5100063230 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063230 · qty on machine: 1 | |||||
| 14 | 5100063231 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063231 · qty on machine: 1 | |||||
| 15 | 5100063232 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063232 · qty on machine: 1 | |||||
| 16 | 5100063233 | pc | 1 | Kit, throttle shaft | PARTS REQUEST |
|
COMING pc
5100063233 · qty on machine: 1 Kit, throttle shaft | |||||
| 17 | 5100063234 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063234 · qty on machine: 1 | |||||
| 18 | 5100063235 | pc | 1 | Kit, choke shaft | PARTS REQUEST |
|
COMING pc
5100063235 · qty on machine: 1 Kit, choke shaft | |||||
| 19 | 5100063236 | pc | 1 | Gasket, air cleaner | PARTS REQUEST |
|
COMING pc
5100063236 · qty on machine: 1 Gasket, air cleaner | |||||
| 20 | 5100063237 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063237 · qty on machine: 1 | |||||
| 21 | 5100063238 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063238 · qty on machine: 1 | |||||
| 22 | 5100063239 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063239 · qty on machine: 2 | |||||
| 23 | 5100063240 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063240 · qty on machine: 2 | |||||
| 24 | 5100063241 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063241 · qty on machine: 1 | |||||
| 25 | 5100063242 | pc | 1 | Bushing, choke shaft | PARTS REQUEST |
|
COMING pc
5100063242 · qty on machine: 1 Bushing, choke shaft | |||||
| 26 | 5100063243 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063243 · qty on machine: 1 | |||||
| 27 | 5100063244 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063244 · qty on machine: 2 | |||||
| 28 | 5100063245 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063245 · qty on machine: 1 | |||||
| 29 | 5100063246 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063246 · qty on machine: 1 | |||||
| 30 | 5100063247 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063247 · qty on machine: 1 | |||||
| 31 | 5100063248 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063248 · qty on machine: 2 | |||||
| 32 | 5100063249 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063249 · qty on machine: 1 | |||||
| 33 | 5100063250 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063250 · qty on machine: 1 | |||||
| 34 | 5100063251 | pc | 1 | Seal, choke/throttle shaft | PARTS REQUEST |
|
COMING pc
5100063251 · qty on machine: 1 Seal, choke/throttle shaft | |||||
| 35 | 5100063252 | pc | 1 | Seal, choke/throttle shaft | PARTS REQUEST |
|
COMING pc
5100063252 · qty on machine: 1 Seal, choke/throttle shaft | |||||
| 36 | 5100063253 | pc | 1 | Bracket, fuel pump | PARTS REQUEST |
|
COMING pc
5100063253 · qty on machine: 1 Bracket, fuel pump | |||||
| 37 | 5100063254 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063254 · qty on machine: 1 | |||||
| 38 | 5100063255 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063255 · qty on machine: 1 | |||||

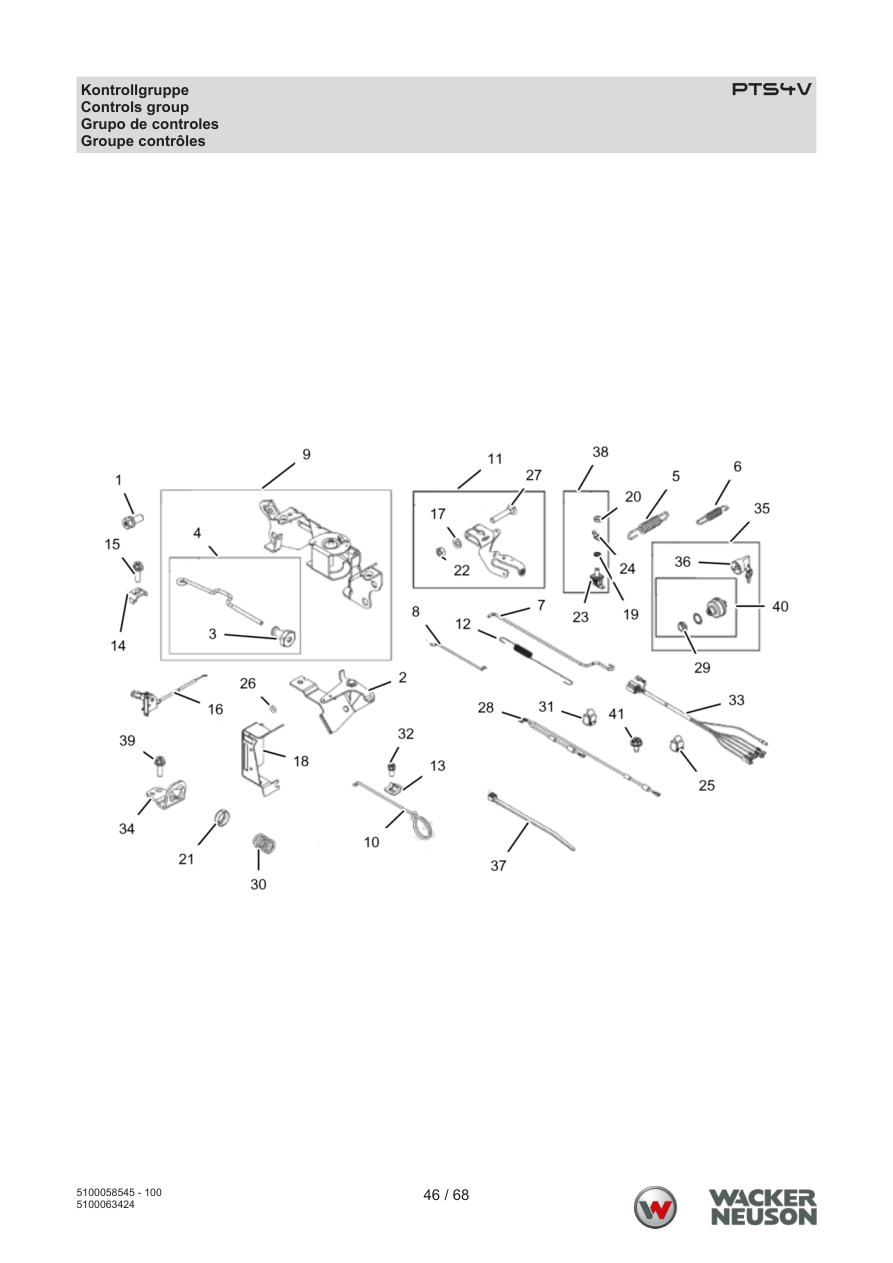

Page 46 — PTS4V Kontrollgruppe
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063256 | pc | 3 | PARTS REQUEST | |
|
COMING pc
5100063256 · qty on machine: 3 | |||||
| 2 | 5100063257 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063257 · qty on machine: 1 | |||||
| 3 | 5100063258 | pc | 1 | Nut, governor adjusting | PARTS REQUEST |
|
COMING pc
5100063258 · qty on machine: 1 Nut, governor adjusting | |||||
| 4 | 5100063259 | pc | 1 | Rod, governor control | PARTS REQUEST |
|
COMING pc
5100063259 · qty on machine: 1 Rod, governor control | |||||
| 5 | 5100063260 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063260 · qty on machine: 1 | |||||
| 6 | 5100063261 | pc | 1 | Spring, governed idle | PARTS REQUEST |
|
COMING pc
5100063261 · qty on machine: 1 Spring, governed idle | |||||
| 7 | 5100063262 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063262 · qty on machine: 1 | |||||
| 8 | 5100063263 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063263 · qty on machine: 1 | |||||
| 9 | 5100063264 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063264 · qty on machine: 1 | |||||
| 10 | 5100063265 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063265 · qty on machine: 1 | |||||
| 11 | 5100063266 | pc | 1 | Lever, governor control | PARTS REQUEST |
|
COMING pc
5100063266 · qty on machine: 1 Lever, governor control | |||||
| 12 | 5100063267 | pc | 1 | Spring, governor link | PARTS REQUEST |
|
COMING pc
5100063267 · qty on machine: 1 Spring, governor link | |||||
| 13 | 5100063268 | pc | 1 | Clip, control rod | PARTS REQUEST |
|
COMING pc
5100063268 · qty on machine: 1 Clip, control rod | |||||
| 14 | 5100063269 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063269 · qty on machine: 1 | |||||
| 15 | 5100063270 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063270 · qty on machine: 1 | |||||
| 16 | 5100063271 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063271 · qty on machine: 1 | |||||
| 17 | 5100063272 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063272 · qty on machine: 1 | |||||
| 18 | 5100063273 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063273 · qty on machine: 1 | |||||
| 19 | 5100063274 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063274 · qty on machine: 1 | |||||
| 20 | 5100063275 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063275 · qty on machine: 1 | |||||
| 21 | 5100063276 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063276 · qty on machine: 1 | |||||
| 22 | 5100063277 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063277 · qty on machine: 1 | |||||
| 23 | 5100063278 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063278 · qty on machine: 1 | |||||
| 24 | 5100063279 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063279 · qty on machine: 1 | |||||
| 25 | 5100063280 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063280 · qty on machine: 1 | |||||
| 26 | 5100063281 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063281 · qty on machine: 1 | |||||
| 27 | 5100063282 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063282 · qty on machine: 1 | |||||
| 28 | 5100063283 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063283 · qty on machine: 1 | |||||
| 29 | 5100063284 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063284 · qty on machine: 1 | |||||
| 30 | 5100063285 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063285 · qty on machine: 1 | |||||
| 31 | 5100063286 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063286 · qty on machine: 1 | |||||
| 32 | 5100063287 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063287 · qty on machine: 1 | |||||
| 33 | 5100063288 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063288 · qty on machine: 1 | |||||
| 34 | 5100063289 | pc | 1 | Bracket, fixed speed | PARTS REQUEST |
|
COMING pc
5100063289 · qty on machine: 1 Bracket, fixed speed | |||||
| 35 | 5100063290 | pc | 1 | Ignition switch kit | PARTS REQUEST |
|
COMING pc
5100063290 · qty on machine: 1 Ignition switch kit | |||||
| 36 | 5100063291 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063291 · qty on machine: 1 | |||||
| 37 | 5100063292 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063292 · qty on machine: 2 | |||||
| 38 | 5100063293 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063293 · qty on machine: 1 | |||||
| 39 | 5100063294 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063294 · qty on machine: 2 | |||||
| 40 | 5100063295 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063295 · qty on machine: 1 | |||||
| 41 | 5100063296 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063296 · qty on machine: 1 | |||||

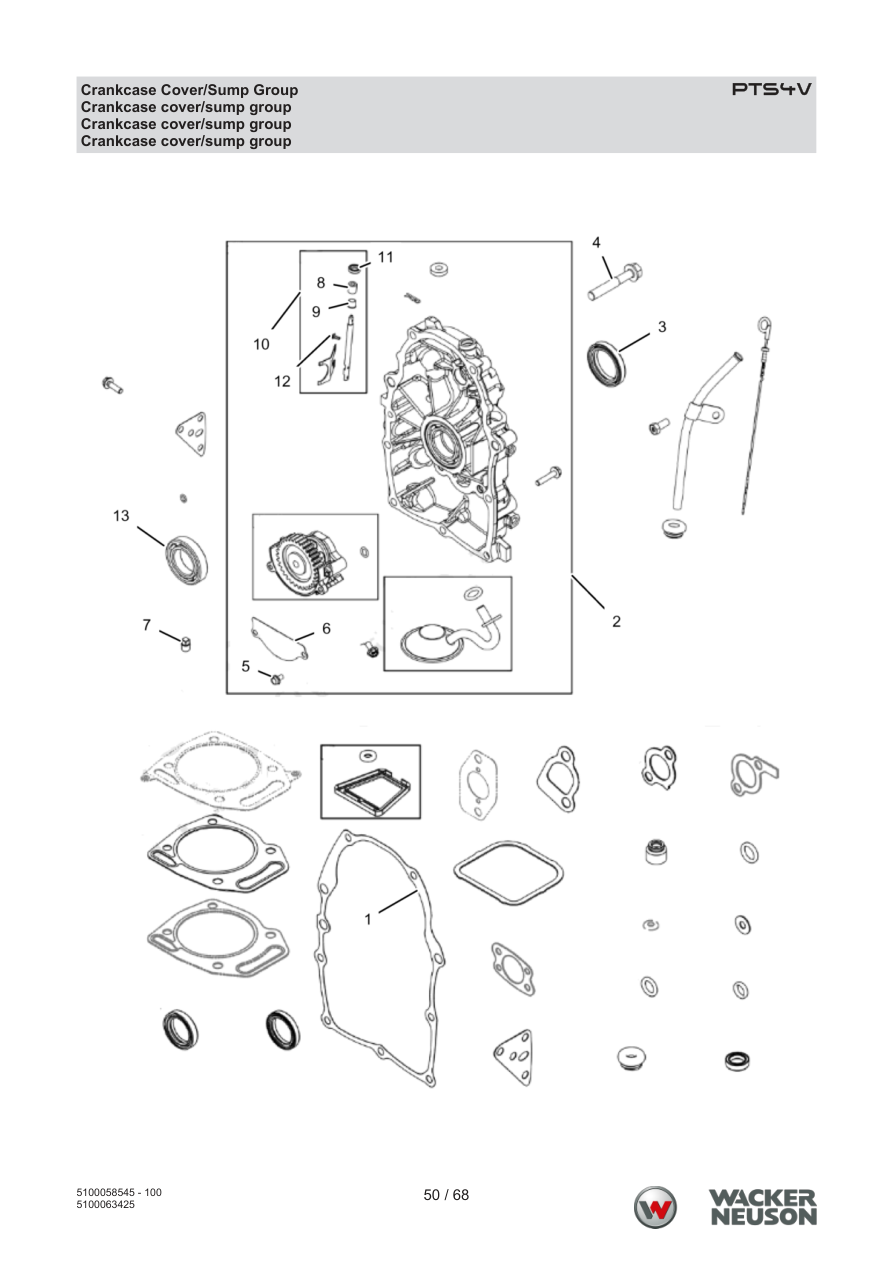

Page 50 — PTS4V Crankcase Cover/Sump Group
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063297 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063297 · qty on machine: 1 | |||||
| 2 | 5100063298 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063298 · qty on machine: 1 | |||||
| 3 | 5100063299 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063299 · qty on machine: 1 | |||||
| 4 | 5100063300 | pc | 9 | PARTS REQUEST | |
|
COMING pc
5100063300 · qty on machine: 9 | |||||
| 5 | 5100063301 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063301 · qty on machine: 2 | |||||
| 6 | 5100063302 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063302 · qty on machine: 1 | |||||
| 7 | 5100063303 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063303 · qty on machine: 1 | |||||
| 8 | 5100063304 | pc | 1 | Bushing, governor crank | PARTS REQUEST |
|
COMING pc
5100063304 · qty on machine: 1 Bushing, governor crank | |||||
| 9 | 5100063305 | pc | 1 | Bushing, governor crank | PARTS REQUEST |
|
COMING pc
5100063305 · qty on machine: 1 Bushing, governor crank | |||||
| 10 | 5100063306 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063306 · qty on machine: 1 | |||||
| 11 | 5100063307 | pc | 1 | Seal, governor shaft | PARTS REQUEST |
|
COMING pc
5100063307 · qty on machine: 1 Seal, governor shaft | |||||
| 12 | 5100063308 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063308 · qty on machine: 2 | |||||
| 13 | 5100063309 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063309 · qty on machine: 2 | |||||

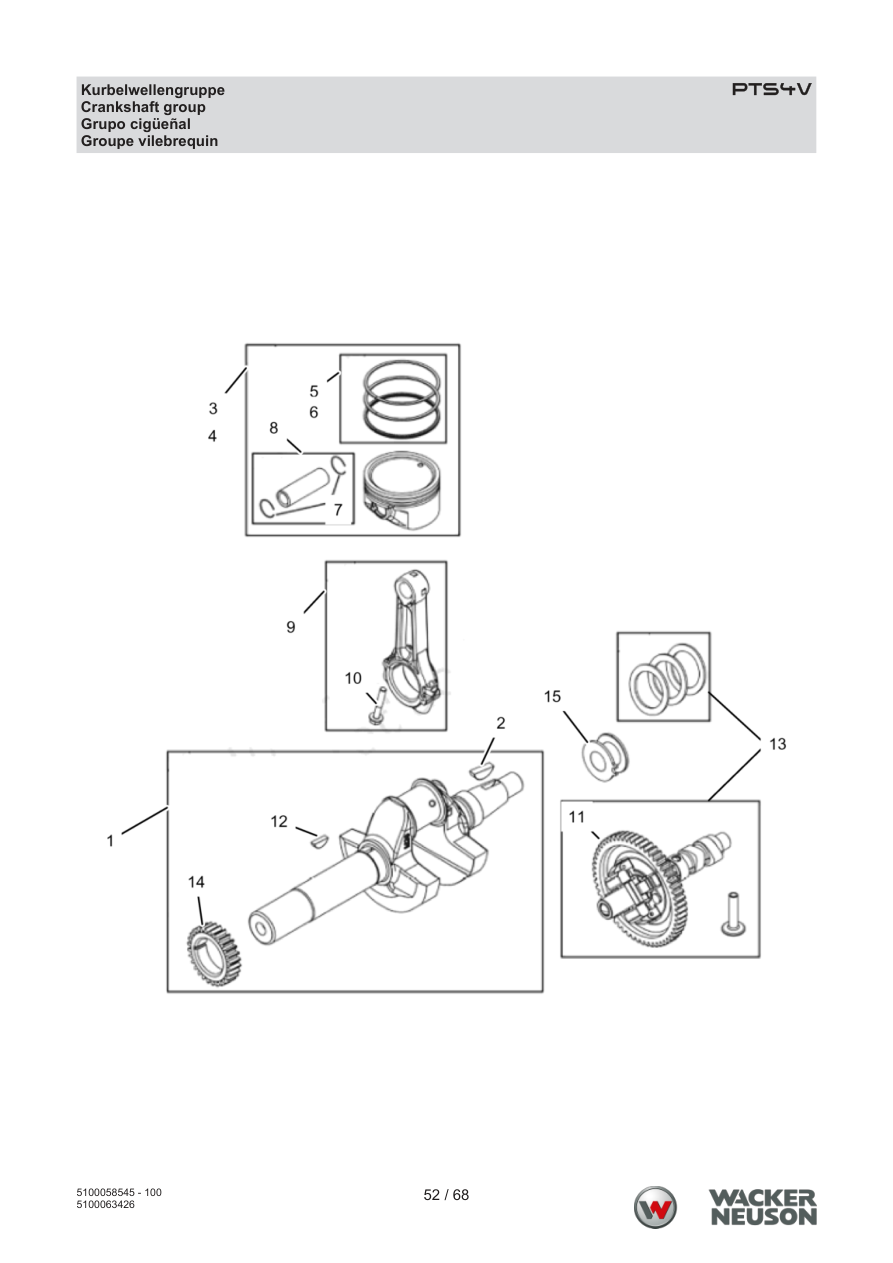

Page 52 — PTS4V Kurbelwellengruppe
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063310 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063310 · qty on machine: 1 | |||||
| 2 | 5100063311 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063311 · qty on machine: 1 | |||||
| 3 | 5100063312 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063312 · qty on machine: 1 | |||||
| 4 | 5100063313 | pc | 1 | Piston assembly (oversize) | PARTS REQUEST |
|
COMING pc
5100063313 · qty on machine: 1 Piston assembly (oversize) | |||||
| 5 | 5100063314 | pc | 1 | Set, ring (oversize) | PARTS REQUEST |
|
COMING pc
5100063314 · qty on machine: 1 Set, ring (oversize) | |||||
| 6 | 5100063315 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063315 · qty on machine: 1 | |||||
| 7 | 5100063316 | pc | 4 | Lock, piston pin | PARTS REQUEST |
|
COMING pc
5100063316 · qty on machine: 4 Lock, piston pin | |||||
| 8 | 5100063317 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063317 · qty on machine: 2 | |||||
| 9 | 5100063318 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063318 · qty on machine: 2 | |||||
| 10 | 5100063319 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063319 · qty on machine: 2 | |||||
| 11 | 5100063320 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063320 · qty on machine: 1 | |||||
| 12 | 5100063321 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063321 · qty on machine: 1 | |||||
| 13 | 5100063322 | pc | 1 | Shim, end play | PARTS REQUEST |
|
COMING pc
5100063322 · qty on machine: 1 Shim, end play | |||||
| 14 | 5100063323 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063323 · qty on machine: 1 | |||||
| 15 | 5100063324 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063324 · qty on machine: 1 | |||||

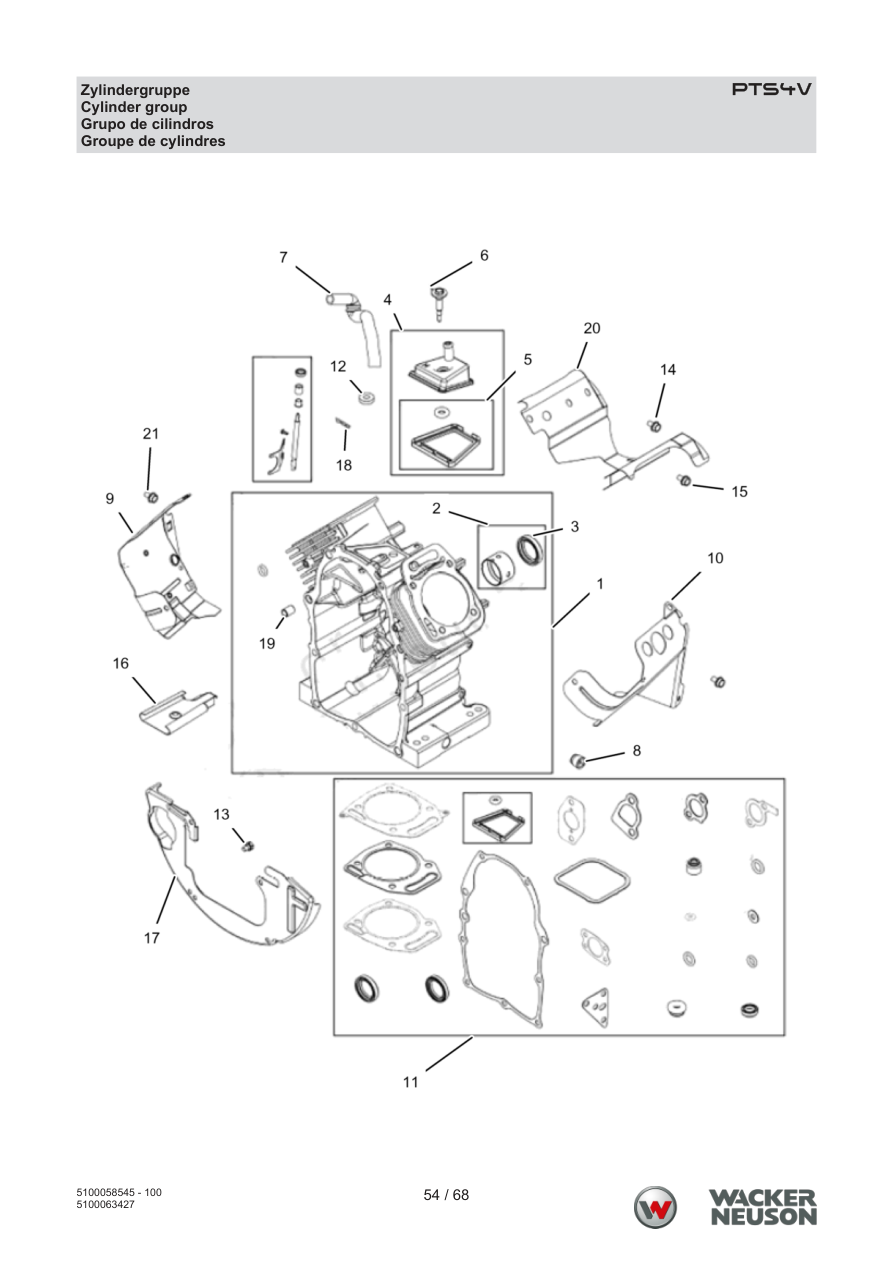

Page 54 — PTS4V Zylindergruppe
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063325 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063325 · qty on machine: 1 | |||||
| 2 | 5100063326 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063326 · qty on machine: 1 | |||||
| 3 | 5100063327 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063327 · qty on machine: 1 | |||||
| 4 | 5100063328 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063328 · qty on machine: 1 | |||||
| 5 | 5100063329 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063329 · qty on machine: 1 | |||||
| 6 | 5100063330 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063330 · qty on machine: 1 | |||||
| 7 | 5100063331 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063331 · qty on machine: 1 | |||||
| 8 | 5100063332 | pc | 2 | Plug, oil drain | PARTS REQUEST |
|
COMING pc
5100063332 · qty on machine: 2 Plug, oil drain | |||||
| 9 | 5100063333 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063333 · qty on machine: 1 | |||||
| 10 | 5100063334 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063334 · qty on machine: 1 | |||||
| 11 | 5100063335 | pc | 1 | Gasket set, engine | PARTS REQUEST |
|
COMING pc
5100063335 · qty on machine: 1 Gasket set, engine | |||||
| 12 | 5100063336 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063336 · qty on machine: 1 | |||||
| 13 | 5100063337 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063337 · qty on machine: 4 | |||||
| 14 | 5100063338 | pc | 3 | PARTS REQUEST | |
|
COMING pc
5100063338 · qty on machine: 3 | |||||
| 15 | 5100063339 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063339 · qty on machine: 1 | |||||
| 16 | 5100063340 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063340 · qty on machine: 1 | |||||
| 17 | 5100063341 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063341 · qty on machine: 1 | |||||
| 18 | 5100063342 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063342 · qty on machine: 1 | |||||
| 19 | 5100063343 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063343 · qty on machine: 2 | |||||
| 20 | 5100063344 | pc | 1 | Cover, air guide | PARTS REQUEST |
|
COMING pc
5100063344 · qty on machine: 1 Cover, air guide | |||||
| 21 | 5100063345 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063345 · qty on machine: 1 | |||||

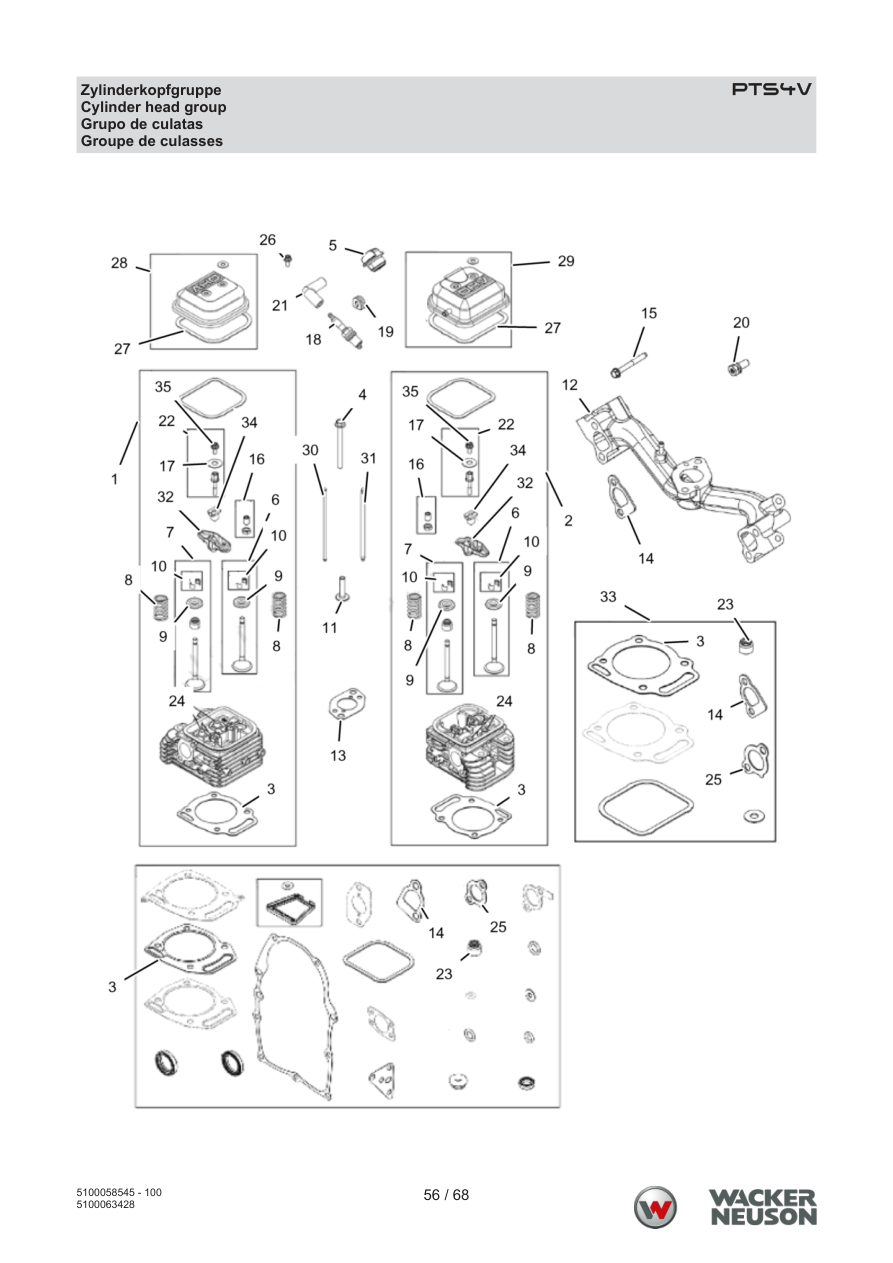

Page 56 — PTS4V Zylinderkopfgruppe
Parts list — exactly as printed35 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063346 | pc | 1 | Head, cylinder 1 | PARTS REQUEST |
|
COMING pc
5100063346 · qty on machine: 1 Head, cylinder 1 | |||||
| 2 | 5100063347 | pc | 1 | Head, cylinder 2 | PARTS REQUEST |
|
COMING pc
5100063347 · qty on machine: 1 Head, cylinder 2 | |||||
| 3 | 5100063348 | pc | 2 | Gasket, cylinder head | PARTS REQUEST |
|
COMING pc
5100063348 · qty on machine: 2 Gasket, cylinder head | |||||
| 4 | 5100063349 | pc | 8 | PARTS REQUEST | |
|
COMING pc
5100063349 · qty on machine: 8 | |||||
| 5 | 5100063350 | pc | 1 | Cap, oil fill | PARTS REQUEST |
|
COMING pc
5100063350 · qty on machine: 1 Cap, oil fill | |||||
| 6 | 5100063351 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063351 · qty on machine: 2 | |||||
| 7 | 5100063352 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063352 · qty on machine: 2 | |||||
| 8 | 5100063353 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063353 · qty on machine: 4 | |||||
| 9 | 5100063354 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063354 · qty on machine: 4 | |||||
| 10 | 5100063355 | pc | 8 | PARTS REQUEST | |
|
COMING pc
5100063355 · qty on machine: 8 | |||||
| 11 | 5100063356 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063356 · qty on machine: 4 | |||||
| 12 | 5100063357 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063357 · qty on machine: 1 | |||||
| 13 | 5100063358 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063358 · qty on machine: 2 | |||||
| 14 | 5100063359 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063359 · qty on machine: 2 | |||||
| 15 | 5100063360 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063360 · qty on machine: 4 | |||||
| 16 | 5100063361 | pc | 1 | Adjuster. rocker arm | PARTS REQUEST |
|
COMING pc
5100063361 · qty on machine: 1 Adjuster. rocker arm | |||||
| 17 | 5100063362 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063362 · qty on machine: 4 | |||||
| 18 | 5100063363 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063363 · qty on machine: 2 | |||||
| 19 | 5100063364 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063364 · qty on machine: 2 | |||||
| 20 | 5100063365 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063365 · qty on machine: 4 | |||||
| 21 | 5100063366 | pc | 1 | Boot, spark plug | PARTS REQUEST |
|
COMING pc
5100063366 · qty on machine: 1 Boot, spark plug | |||||
| 22 | 5100063367 | pc | 4 | Stud, rocker arm | PARTS REQUEST |
|
COMING pc
5100063367 · qty on machine: 4 Stud, rocker arm | |||||
| 23 | 5100063368 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063368 · qty on machine: 2 | |||||
| 24 | 5100063369 | pc | 4 | Bushing, valve guide | PARTS REQUEST |
|
COMING pc
5100063369 · qty on machine: 4 Bushing, valve guide | |||||
| 25 | 5100063370 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063370 · qty on machine: 2 | |||||
| 26 | 5100063371 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063371 · qty on machine: 4 | |||||
| 27 | 5100063372 | pc | 2 | Gasket, rocker cover | PARTS REQUEST |
|
COMING pc
5100063372 · qty on machine: 2 Gasket, rocker cover | |||||
| 28 | 5100063373 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063373 · qty on machine: 1 | |||||
| 29 | 5100063374 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063374 · qty on machine: 1 | |||||
| 30 | 5100063375 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063375 · qty on machine: 2 | |||||
| 31 | 5100063376 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063376 · qty on machine: 2 | |||||
| 32 | 5100063377 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063377 · qty on machine: 1 | |||||
| 33 | 5100063378 | pc | 1 | Gasket set, valve | PARTS REQUEST |
|
COMING pc
5100063378 · qty on machine: 1 Gasket set, valve | |||||
| 34 | 5100063379 | pc | 4 | Pivot, rocker arm | PARTS REQUEST |
|
COMING pc
5100063379 · qty on machine: 4 Pivot, rocker arm | |||||
| 35 | 5100063380 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063380 · qty on machine: 4 | |||||

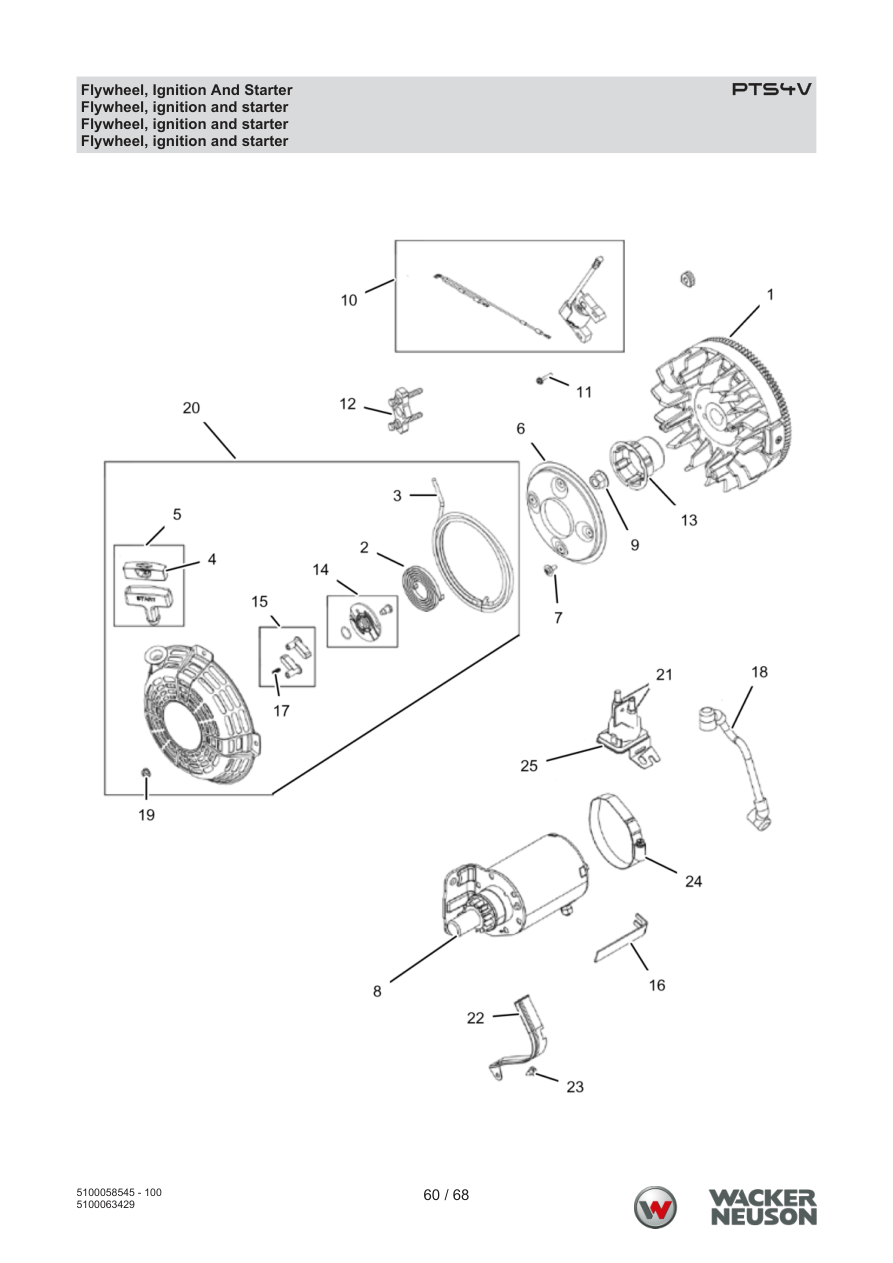

Page 60 — PTS4V Flywheel, Ignition And Starter
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063381 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063381 · qty on machine: 1 | |||||
| 2 | 5100063382 | pc | 1 | Spring, rewind starter | PARTS REQUEST |
|
COMING pc
5100063382 · qty on machine: 1 Spring, rewind starter | |||||
| 3 | 5100063383 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063383 · qty on machine: 1 | |||||
| 4 | 5100063384 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063384 · qty on machine: 1 | |||||
| 5 | 5100063385 | pc | 1 | Grip, starter rope | PARTS REQUEST |
|
COMING pc
5100063385 · qty on machine: 1 Grip, starter rope | |||||
| 6 | 5100063386 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063386 · qty on machine: 1 | |||||
| 7 | 5100063387 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063387 · qty on machine: 4 | |||||
| 8 | 5100063388 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063388 · qty on machine: 1 | |||||
| 9 | 5100063389 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063389 · qty on machine: 1 | |||||
| 10 | 5100063390 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063390 · qty on machine: 2 | |||||
| 11 | 5100063391 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063391 · qty on machine: 4 | |||||
| 12 | 5100063392 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063392 · qty on machine: 1 | |||||
| 13 | 5100063393 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063393 · qty on machine: 1 | |||||
| 14 | 5100063394 | pc | 1 | Plate, pawl friction | PARTS REQUEST |
|
COMING pc
5100063394 · qty on machine: 1 Plate, pawl friction | |||||
| 15 | 5100063395 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063395 · qty on machine: 1 | |||||
| 16 | 5100063437 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063437 · qty on machine: 1 | |||||
| 17 | 5100063396 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063396 · qty on machine: 2 | |||||
| 18 | 5100063397 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063397 · qty on machine: 1 | |||||
| 19 | 5100063398 | pc | 4 | PARTS REQUEST | |
|
COMING pc
5100063398 · qty on machine: 4 | |||||
| 20 | 5100063399 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063399 · qty on machine: 1 | |||||
| 21 | 5100063400 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063400 · qty on machine: 2 | |||||
| 22 | 5100063401 | pc | 1 | Cover, starter drive | PARTS REQUEST |
|
COMING pc
5100063401 · qty on machine: 1 Cover, starter drive | |||||
| 23 | 5100063402 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063402 · qty on machine: 1 | |||||
| 24 | 5100063403 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063403 · qty on machine: 1 | |||||
| 25 | 5100063404 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063404 · qty on machine: 1 | |||||
Page 62 — PTS4V Schmierungsgruppe
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100063405 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063405 · qty on machine: 2 | |||||
| 2 | 5100063406 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063406 · qty on machine: 1 | |||||
| 3 | 5100063407 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063407 · qty on machine: 1 | |||||
| 4 | 5100063408 | pc | 1 | O-ring, oil gallery | PARTS REQUEST |
|
COMING pc
5100063408 · qty on machine: 1 O-ring, oil gallery | |||||
| 5 | 5100063409 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063409 · qty on machine: 1 | |||||
| 6 | 5100063410 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063410 · qty on machine: 1 | |||||
| 7 | 5100063411 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063411 · qty on machine: 1 | |||||
| 8 | 5100063412 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063412 · qty on machine: 1 | |||||
| 9 | 5100063413 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063413 · qty on machine: 1 | |||||
| 10 | 5100063414 | pc | 2 | PARTS REQUEST | |
|
COMING pc
5100063414 · qty on machine: 2 | |||||
| 11 | 5100063415 | pc | 3 | PARTS REQUEST | |
|
COMING pc
5100063415 · qty on machine: 3 | |||||
| 12 | 5100063416 | pc | 1 | Cover, oil filter | PARTS REQUEST |
|
COMING pc
5100063416 · qty on machine: 1 Cover, oil filter | |||||
| 13 | 5100063417 | pc | 1 | Gasket, oil adapter | PARTS REQUEST |
|
COMING pc
5100063417 · qty on machine: 1 Gasket, oil adapter | |||||
| 14 | 5100063418 | pc | 1 | Screen, oil pump | PARTS REQUEST |
|
COMING pc
5100063418 · qty on machine: 1 Screen, oil pump | |||||
| 15 | 5100063419 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100063419 · qty on machine: 1 | |||||

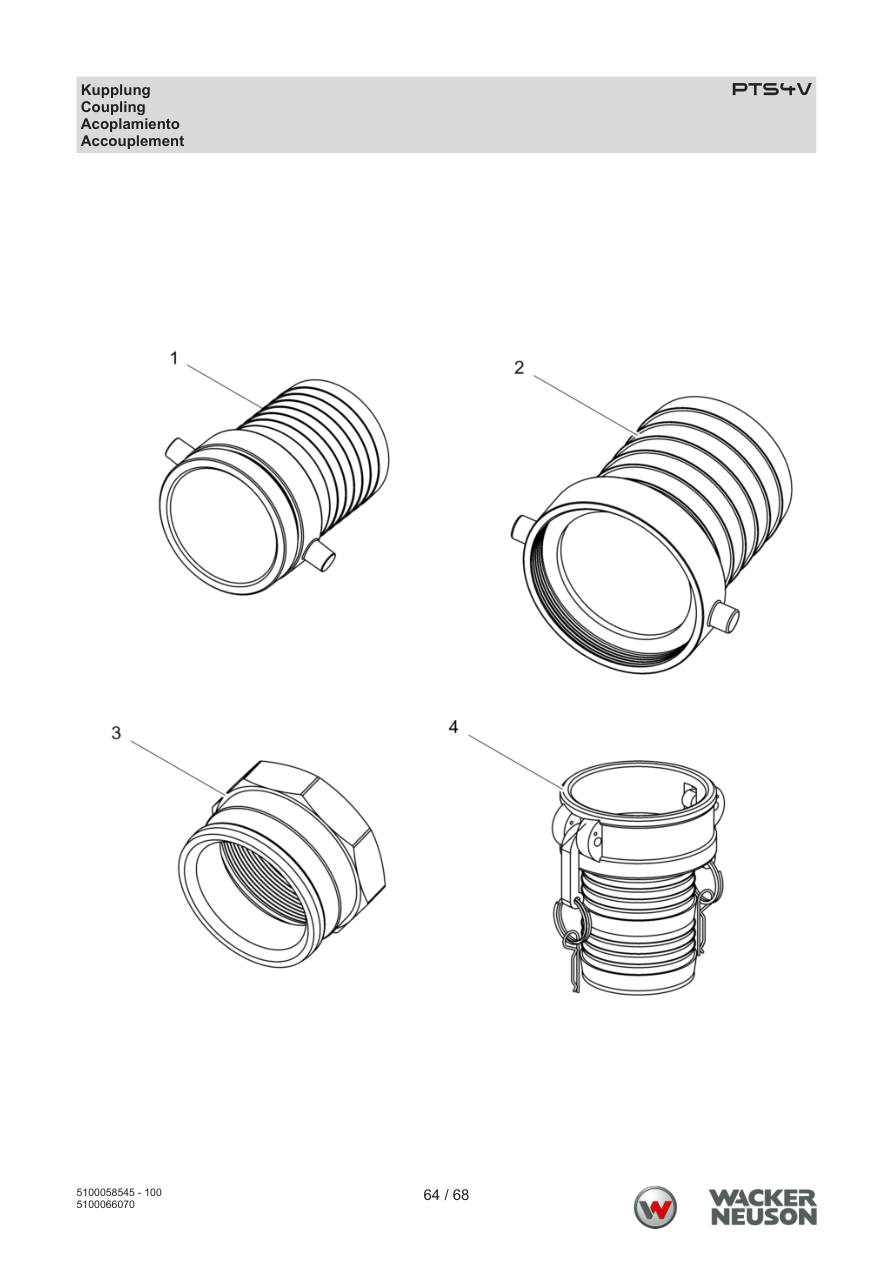

Page 64 — PTS4V Kupplung
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100061628 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100061628 · qty on machine: 1 | |||||
| 2 | 5100062393 | pc | 1 | PARTS REQUEST | |
|
COMING pc
5100062393 · qty on machine: 1 | |||||
| 3 | 5100062396 | pc | 1 | Quick diconnect coupling | PARTS REQUEST |
|
COMING pc
5100062396 · qty on machine: 1 Quick diconnect coupling | |||||
| 4 | 5100062400 | pc | 1 | Quick diconnect coupling | PARTS REQUEST |
|
COMING pc
5100062400 · qty on machine: 1 Quick diconnect coupling | |||||
The machine itself
Machine
Engine
Wacker Neuson PTS4 trash pump.
List price: $6,295.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000182436
pc
1000282641
pc
5000010365
pc
$0.95
5000010366
pc
$0.95
5000010367
pc
$0.95
5000010369
pc
$0.95
5000010374
pc
$0.95
5000010375
pc
$0.95
5000010620
pc
$0.95
5000010622
pc
$0.95
5000010625
pc
$0.95
5000010928
pc
$1.95
5000011341
pc
$0.95
5000011343
pc
$0.95
5000011421
pc
5000011423
pc
$0.95
5000011476
pc
$0.95
5000011527
pc
$1.95
5000012038
pc
$1.95
5000012086
pc
$0.95
5000012357
pc
$0.95
5000012361
pc
5000025617
pc
$0.95
5000025637
pc
$0.95
5000028404
pc
$0.95
5000028949
pc
$0.95
5000029804
pc
5000030146
pc
5000030584
pc
5000030591
pc
5000030592
pc
5000030607
pc
5000030611
pc
5000030627
pc
5000030965
pc
5000051535
pc
5000051537
pc
5000051542
pc
$0.95
5000051562
pc
5000052044
pc
5000053576
pc
$30.95
5000053577
pc
5000070290
pc
5000070525
pc
5000076819
pc
5000077256
pc
$0.95
5000077936
pc
5000079309
pc
$39.95
5000085704
pc
5000088166
pc
$2.95
5000088177
pc
5000110067
pc
5000110068
pc
5000110069
pc
5000110070
pc
5000110075
pc
5000110441
pc
5000110442
pc
5000110443
pc
5000110444
pc
5000110445
pc
5000110458
pc
$0.95
5000110460
pc
5000110461
pc
5000110462
pc
5000110463
pc
5000110538
pc
5000110541
pc
5000110706
pc
5000110964
pc
5000110965
pc
5000110978
pc
5000111225
pc
5000114073
pc
$0.95
5000114201
pc
$0.95
5000115957
pc
5000116940
pc
$21.95
5000117449
pc
5000119412
pc
$0.95
5000119626
pc
$10.95
5000150308
pc
$36.95
5000153798
pc
$3.95
5000156343
pc
5000183023
pc
5000183043
pc
5000183167
pc
5000183171
pc
5000183178
pc
5000183743
pc
5000186626
pc
$23.95
5000186628
pc
5000193330
pc
5100037231
pc
5100040900
pc
5100058547
pc
5100059231
pc
5100059232
pc
5100060249
pc
5100060385
pc
5100060510
pc
5100060848
pc
5100060921
pc
5100060922
pc
5100060923
pc
5100061621
pc
5100061625
pc
5100061628
pc
5100062393
pc
5100062396
pc
5100062400
pc
5100062788
pc
5100062789
pc
5100062790
pc
5100063026
pc
5100063027
pc
$2.95
5100063157
pc
5100063197
pc
5100063198
pc
5100063199
pc
5100063200
pc
5100063201
pc
5100063202
pc
5100063203
pc
5100063204
pc
5100063205
pc
5100063206
pc
5100063207
pc
5100063208
pc
5100063209
pc
5100063210
pc
5100063211
pc
5100063212
pc
5100063213
pc
5100063214
pc
5100063215
pc
5100063216
pc
5100063217
pc
5100063218
pc
5100063219
pc
5100063220
pc
5100063221
pc
5100063222
pc
5100063223
pc
5100063224
pc
5100063225
pc
5100063226
pc
5100063227
pc
5100063228
pc
5100063229
pc
5100063230
pc
5100063231
pc
5100063232
pc
5100063233
pc
5100063234
pc
5100063235
pc
5100063236
pc
5100063237
pc
5100063238
pc
5100063239
pc
5100063240
pc
5100063241
pc
5100063242
pc
5100063243
pc
5100063244
pc
5100063245
pc
5100063246
pc
5100063247
pc
5100063248
pc
5100063249
pc
5100063250
pc
5100063251
pc
5100063252
pc
5100063253
pc
5100063254
pc
5100063255
pc
5100063256
pc
5100063257
pc
5100063258
pc
5100063259
pc
5100063260
pc
5100063261
pc
5100063262
pc
5100063263
pc
5100063264
pc
5100063265
pc
5100063266
pc
5100063267
pc
5100063268
pc
5100063269
pc
5100063270
pc
5100063271
pc
5100063272
pc
5100063273
pc
5100063274
pc
5100063275
pc
5100063276
pc
5100063277
pc
5100063278
pc
5100063279
pc
5100063280
pc
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
