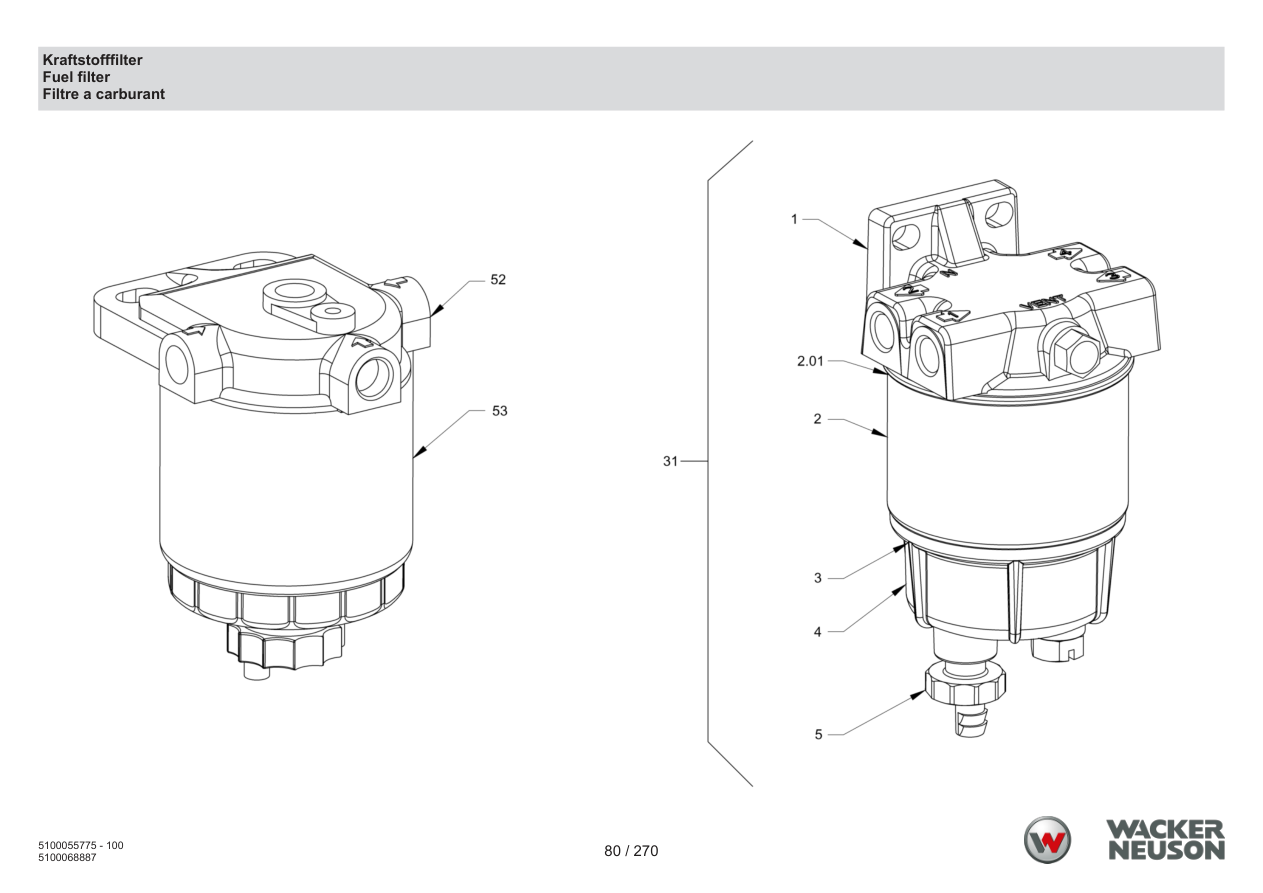

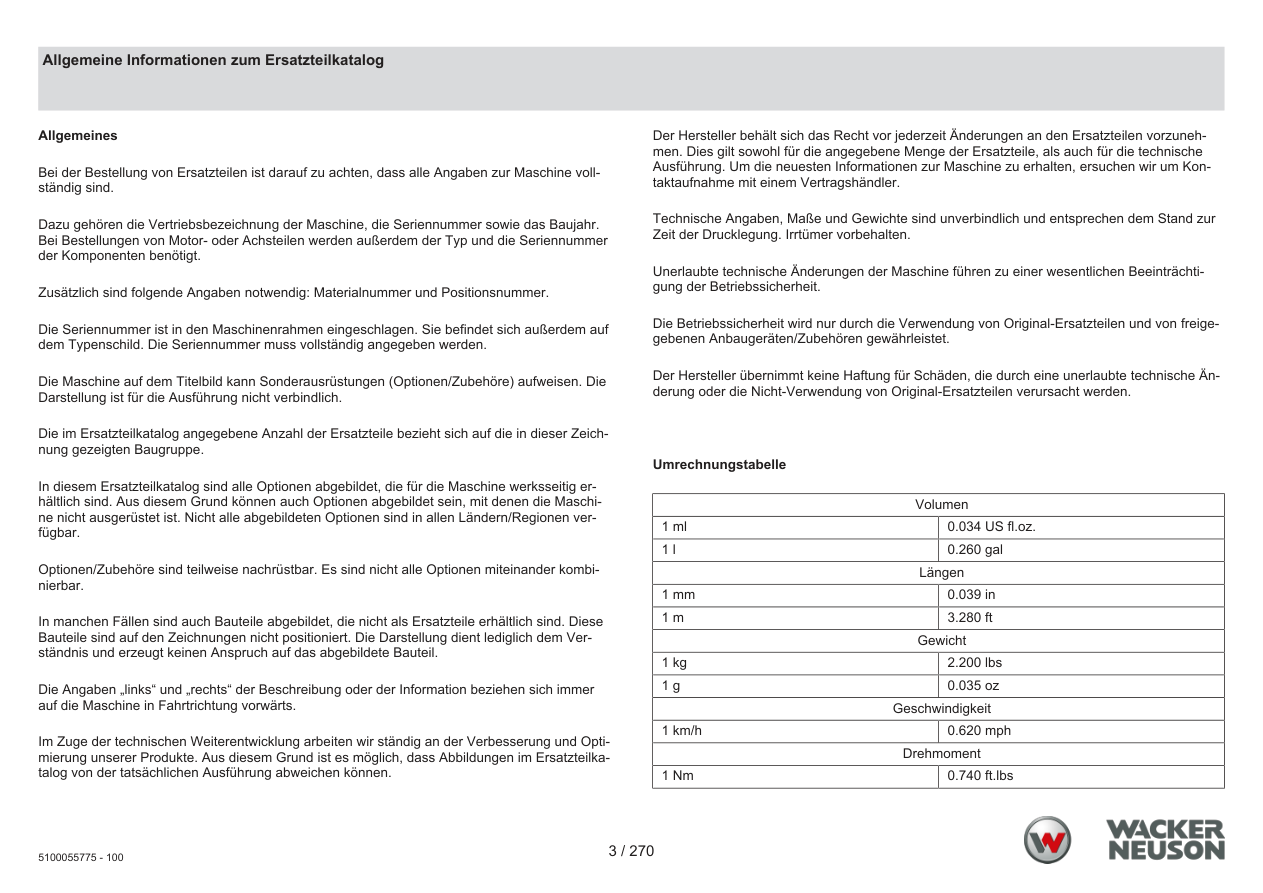

Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||

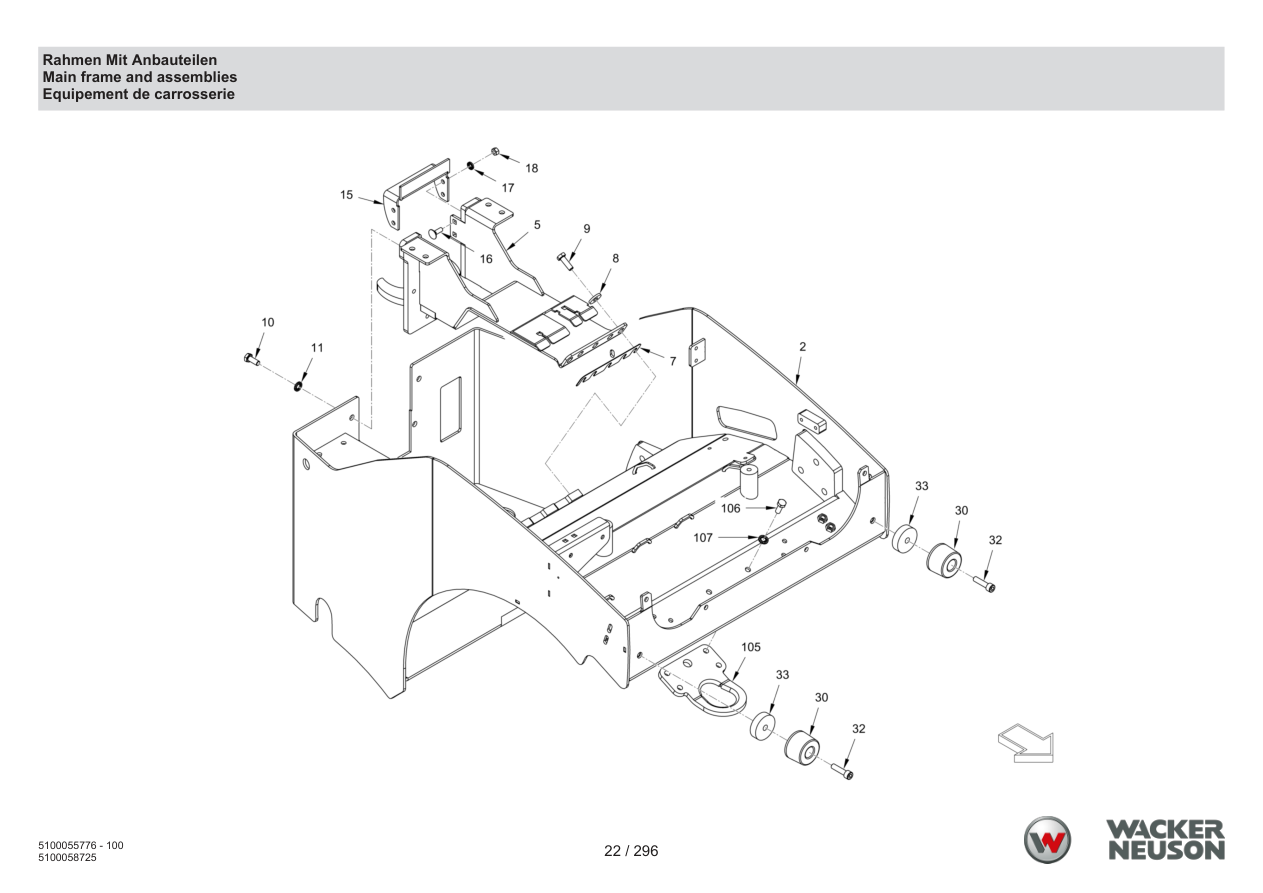

Page 20 — Main frame and assemblies
Parts list — exactly as printed82 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012171 | Front frame part | 1 | PARTS REQUEST | |
|
COMING Front frame part
5100012171 · qty on machine: 1 | |||||
| 5 | 5100011882 | Console | 1 | Serialno. 160-176 | PARTS REQUEST |
|
COMING Console
5100011882 · qty on machine: 1 Serialno. 160-176 | |||||
| 5 | 5100068724 | Console | 1 | Serialno. 177-457 | ADD TO CART |
| 5 | 5100082551 | Console | 1 | Serialno. >458 | PARTS REQUEST |
|
COMING Console
5100082551 · qty on machine: 1 Serialno. >458 | |||||
| 7 | 5100011818 | Spacer plate | 1 | ADD TO CART | |
| 8 | 5100013128 | Washer | 5 | ADD TO CART | |
| 9 | 5100012617 | Hexagon screw | 5 | ADD TO CART | |
| 10 | 5100011479 | Hexagon screw | 6 | ADD TO CART | |
| 11 | 5100012967 | Locking washer | 6 | ADD TO CART | |
| 15 | 5100058742 | Metal plate | 1 | ADD TO CART | |
| 16 | 5100012780 | Mushroom head screw | 4 | ADD TO CART | |
| 17 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 18 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 30 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 32 | 5100012783 | Cheese-head screw | 2 | ADD TO CART | |
| 33 | 5100012006 | Spacer block | 2 | ADD TO CART | |
| 105 | 5100013076 | Towing loop | 1 | ADD TO CART | |
| 106 | 5100012617 | Hexagon screw | 4 | ADD TO CART | |
| 107 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 108 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 21 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 23 | 5100012678 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012678 · qty on machine: 1 | |||||
| 24 | 5100013124 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100013124 · qty on machine: 1 | |||||
| 25 | 5100012733 | Bow | 1 | ADD TO CART | |
| 26 | 5100012967 | Locking washer | 6 | ADD TO CART | |
| 27 | 5100013416 | Hexagon screw | 6 | ADD TO CART | |
| 31 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 34 | 5100012683 | Box | 1 | ADD TO CART | |
| 40 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 41 | 5100029587 | Washer | 1 | ADD TO CART | |
| 42 | 5100012711 | Pipe | 1 | ADD TO CART | |
| 43 | 5100011734 | Rubber metal buffer | 2 | ADD TO CART | |
| 44 | 5100012520 | Hexagon screw | 2 | ADD TO CART | |
| 45 | 5100013128 | Washer | 2 | ADD TO CART | |
| 49 | 5100016727 | Cover | 2 | ADD TO CART | |
| 50 | 5100012854 | Handle | 2 | ADD TO CART | |
| 51 | 5100016503 | Bushing | 8 | ADD TO CART | |
| 52 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 53 | 5100048693 | Stud screw | 8 | PARTS REQUEST | |
|
COMING Stud screw
5100048693 · qty on machine: 8 | |||||
| 54 | 5100012529 | Filler cap | 4 | ADD TO CART | |
| 55 | 5100012546 | Hexagon nut | 8 | ADD TO CART | |
| 57 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 58 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 60 | 5100016728 | Bottom plate | 1 | ADD TO CART | |
| 61 | 5100012517 | Hexagon screw | 6 | ADD TO CART | |
| 62 | 5100013094 | Washer | 6 | ADD TO CART | |
| 65 | 5100012712 | Rubber metal buffer | 2 | ADD TO CART | |
| 66 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 67 | 5100013128 | Washer | 2 | ADD TO CART | |
| 69 | 5100012640 | Steering console | 1 | ADD TO CART | |
| 69 | 5100016289 | Steering console | 1 | PARTS REQUEST | |
|
COMING Steering console
5100016289 · qty on machine: 1 | |||||
| 71 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 72 | 5100013094 | Washer | 4 | ADD TO CART | |
| 73 | 5100013644 | Rubber profile | 0.25 | ADD TO CART | |
| 74 | 5100052877 | Protective cap | 2 | ADD TO CART | |
| 75 | 5100012652 | Spacer plate | 1 | ADD TO CART | |
| 77 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100013094 | Washer | 2 | ADD TO CART | |
| 80 | 5100012653 | Retaining plate | 1 | ADD TO CART | |
| 81 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 90 | 5100029593 | Footstep | 1 | ADD TO CART | |
| 91 | 5100012613 | Hexagon screw | 4 | ADD TO CART | |
| 92 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 93 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 2 | 5100029592 | Footstep | 2 | ADD TO CART | |
| 3 | 5100029564 | Spring-type holder | 1 | ADD TO CART | |
| 4 | 5100029537 | Cheese-head screw | 1 | ADD TO CART | |
| 5 | 5100013438 | Washer | 1 | ADD TO CART | |
| 6 | 5100022855 | Hexagonal nut | 1 | ADD TO CART | |
| 8 | 5100029552 | Cheese-head screw | 1 | ADD TO CART | |
| 12 | 5100029591 | Holder | 1 | ADD TO CART | |
| 13 | 5100035308 | Hexagon screw | 2 | ADD TO CART | |
| 14 | 5100012938 | Washer | 2 | ADD TO CART | |
| 15 | 5100029539 | Washer | 2 | ADD TO CART | |
| 16 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 17 | 5100011657 | Washer | 2 | ADD TO CART | |
| 18 | 5100013421 | Washer | 2 | ADD TO CART | |
| 19 | 5100011476 | Safety nut | 2 | ADD TO CART | |
| 20 | 5100013537 | Hexagon nut | 2 | ADD TO CART | |
| 100 | 5100029593 | Footstep | 1 | ADD TO CART | |

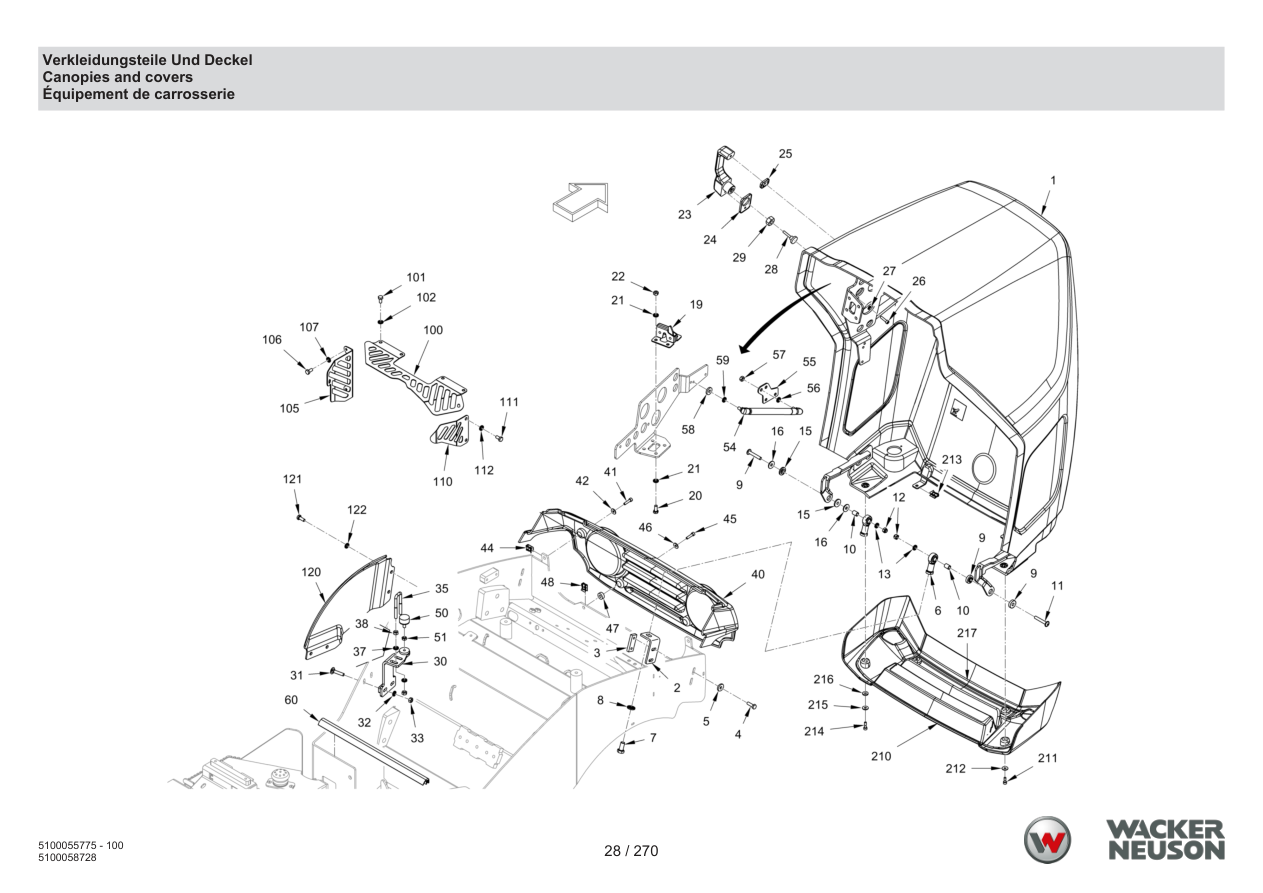

Page 28 — Canopies and covers
Parts list — exactly as printed103 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012716 | Engine hood | 1 | PARTS REQUEST | |
|
COMING Engine hood
5100012716 · qty on machine: 1 | |||||
| 2 | 5100011945 | Bracket | 2 | ADD TO CART | |
| 3 | 5100011946 | Metal plate | 2 | ADD TO CART | |
| 4 | 5100012613 | Hexagon screw | 4 | ADD TO CART | |
| 5 | 5100013094 | Washer | 4 | ADD TO CART | |
| 6 | 5100011575 | Joint | 2 | ADD TO CART | |
| 7 | 5100011611 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 9 | 5100011498 | Silentbloc | 2 | ADD TO CART | |
| 10 | 5100011508 | Bushing | 2 | ADD TO CART | |
| 11 | 5100011894 | Fillister head screw | 2 | ADD TO CART | |
| 12 | 5100053004 | Safety nut | 2 | ADD TO CART | |
| 13 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100058743 | Bushing | 2 | ADD TO CART | |
| 16 | 5100013421 | Washer | 2 | ADD TO CART | |
| 19 | 5100012696 | Lock | 1 | ADD TO CART | |
| 20 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 23 | 5100013588 | Lock outside handle | 1 | ADD TO CART | |
| 24 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 25 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 26 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 27 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 28 | 5100012827 | Knurled head screw | 1 | ADD TO CART | |
| 29 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100058744 | Holder | 1 | ADD TO CART | |
| 31 | 5100011578 | Mushroom head screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100050644 | Wire clip | 1 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 38 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 40 | 5100012835 | Covering part | 1 | ADD TO CART | |
| 41 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 42 | 5100013523 | Washer | 2 | ADD TO CART | |
| 44 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 45 | 5100011481 | Cheese-head screw | 2 | ADD TO CART | |
| 46 | 5100013523 | Washer | 2 | ADD TO CART | |
| 47 | 5100013029 | Bushing | 2 | ADD TO CART | |
| 48 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 50 | 5100013525 | Rubber buffer | 1 | ADD TO CART | |
| 51 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 54 | 5100011919 | Gas spring | 1 | ADD TO CART | |
| 55 | 5100029582 | Holder | 1 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 57 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 58 | 5100013094 | Washer | 1 | ADD TO CART | |
| 59 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 60 | 5100011871 | Sealing profile | 2.5 | ADD TO CART | |
| 100 | 5100082554 | Protective device | 1 | PARTS REQUEST | |
|
COMING Protective device
5100082554 · qty on machine: 1 | |||||
| 101 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 102 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 105 | 5100082561 | Protective device | 1 | PARTS REQUEST | |
|
COMING Protective device
5100082561 · qty on machine: 1 | |||||
| 106 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 107 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 110 | 5100082563 | Protective device | 1 | PARTS REQUEST | |
|
COMING Protective device
5100082563 · qty on machine: 1 | |||||
| 111 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 112 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 120 | 5100058745 | Cover sheet | 2 | ADD TO CART | |
| 121 | 5100012517 | Hexagon screw | 8 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 210 | 5100016729 | Covering part | 1 | ADD TO CART | |
| 211 | 5100016199 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 | |||||
| 212 | 5100013523 | Washer | 2 | ADD TO CART | |
| 213 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 214 | 5100016820 | Cheese-head screw | 2 | ADD TO CART | |
| 215 | 5100013523 | Washer | 2 | ADD TO CART | |
| 216 | 5100011636 | Washer | 2 | ADD TO CART | |
| 217 | 5100013644 | Rubber profile | 0.4 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 79 | 5100011580 | Blind cover | 3 | ADD TO CART | |
| 80 | 5100012647 | Covering part | 1 | ADD TO CART | |
| 81 | 5100011854 | Bracket | 1 | ADD TO CART | |
| 82 | 5100012607 | Hexagon screw | 1 | ADD TO CART | |
| 85 | 5100012648 | Covering part | 1 | ADD TO CART | |
| 86 | 5100011581 | Fillister head screw | 6 | ADD TO CART | |

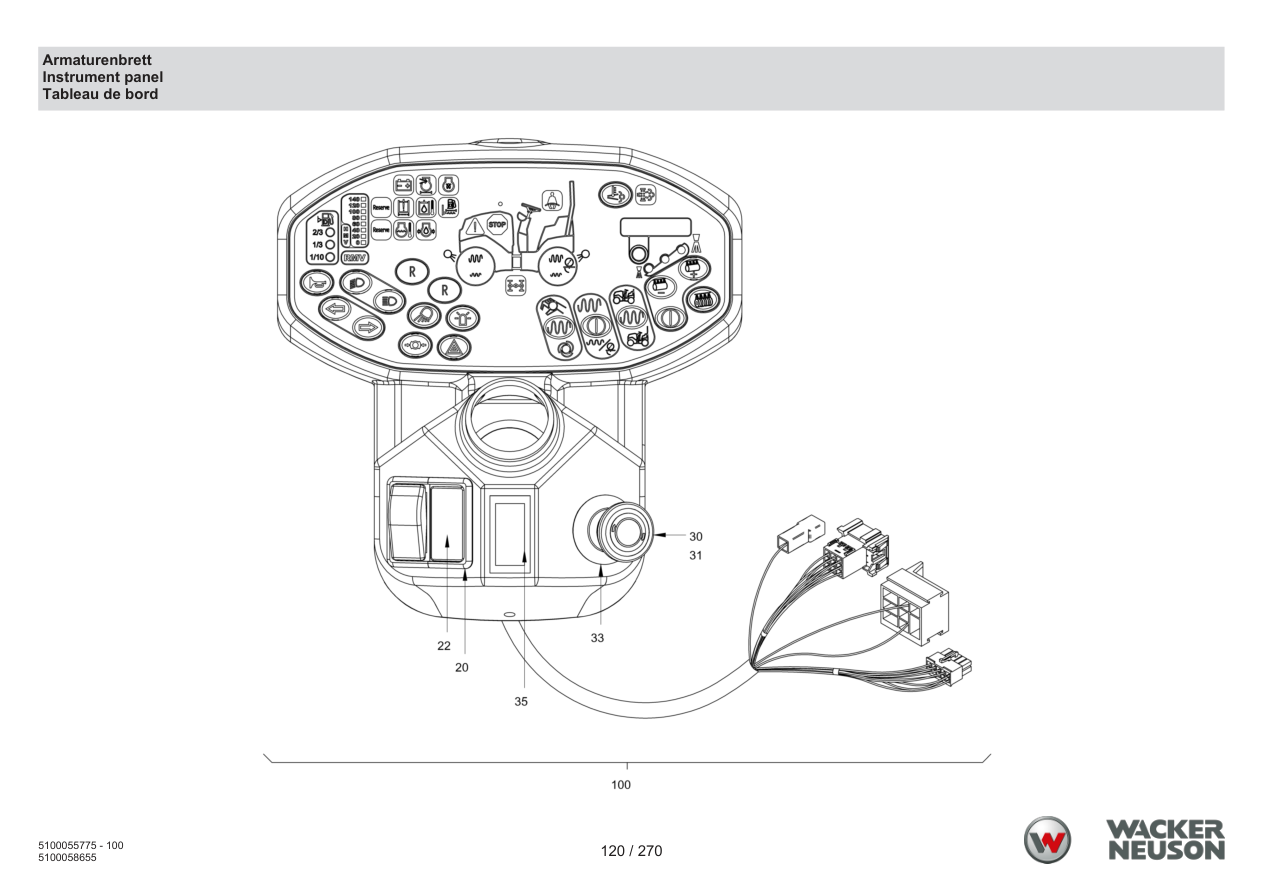

| 90 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
| 91 | 5100013596 | Built-in lock | 1 | PARTS REQUEST | |
|
COMING Built-in lock
5100013596 · qty on machine: 1 | |||||
| 92 | 5100011698 | Spacer block | 1 | ADD TO CART | |
| 93 | 5100011860 | Rubber sleeve | 1 | ADD TO CART | |
| 94 | 5100011581 | Fillister head screw | 7 | ADD TO CART | |
| 100 | 5100025100 | Covering part | 1 | ADD TO CART | |
| 101 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 102 | 5100011853 | Fillister head screw | 2 | ADD TO CART | |
| 104 | 5100013537 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100012649 | Splash protection | 1 | ADD TO CART | |
| 111 | 5100012920 | Edge protection | 0.6 | ADD TO CART | |
| 115 | 5100011656 | Filler cap | 6 | ADD TO CART | |
| 130 | 5100012650 | Cover | 2 | ADD TO CART | |
| 132 | 5100012651 | Sealing profile | 2 | ADD TO CART | |
| 133 | 5100012592 | Hexagon screw | 8 | ADD TO CART | |
| 134 | 5100012936 | Washer | 8 | ADD TO CART | |
| 150 | 5100012881 | Cover plate | 2 | ADD TO CART | |
| 151 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
| 199 | 5100011550 | Plug | 2 | ADD TO CART | |
| 70 | 5100011816 | Cover | 1 | ADD TO CART | |
| 71 | 5100013591 | Built-in lock | 1 | ADD TO CART | |
| 72 | 5100013647 | Sealing profile | 0.7 | ADD TO CART | |
| 190 | 5100012659 | Cover | 1 | ADD TO CART | |
| 191 | 5100012572 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 3 | |||||
| 192 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 204 | 5100058746 | Filler cap | 2 | ADD TO CART | |

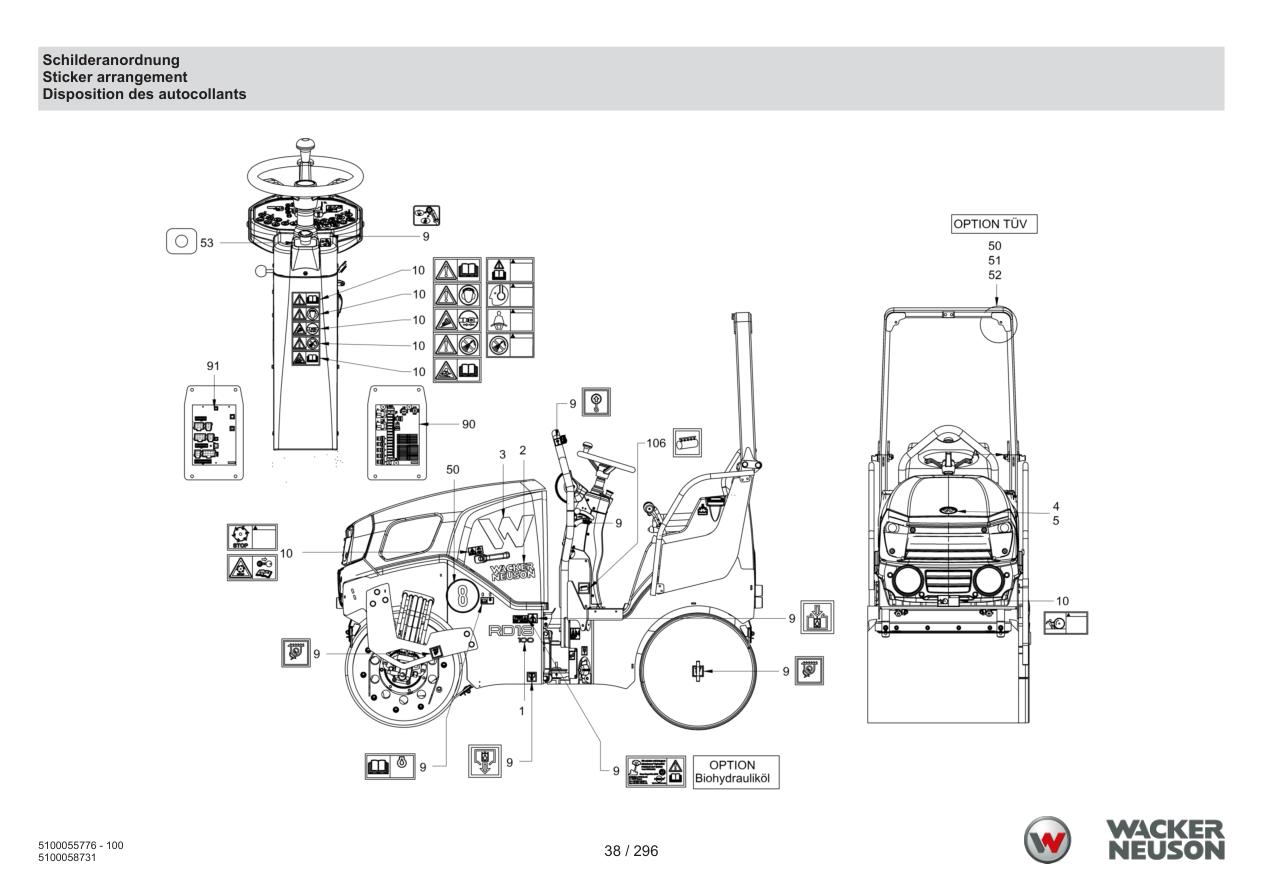

Page 36 — Label arrangement
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011886 | Type plate rd18-80 | 2 | ADD TO CART | |
| 1 | 5100012054 | Type plate rd18-100 c | 2 | ADD TO CART | |
| 1 | 5100016822 | Type plate rd18-100 | 2 | ADD TO CART | |
| 2 | 5100029588 | Label | 2 | ADD TO CART | |
| 3 | 5100029589 | Label | 2 | ADD TO CART | |
| 4 | 5100016256 | Sticker | 1 | ADD TO CART | |
| 5 | 5100016257 | Adhesive tape | 1 | ADD TO CART | |
| 9 | 5100013209 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013207 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013208 | Decal kit | 1 | ADD TO CART | |
| 50 | 5100013420 | Sticker | 3 | ADD TO CART | |
| 51 | 5100011684 | Metal plate | 1 | ADD TO CART | |
| 52 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 53 | 5100023527 | Label | 1 | ADD TO CART | |
| 90 | 5100012698 | Sticker | 1 | ADD TO CART | |
| 90 | 5100016500 | Sticker | 1 | ADD TO CART | |
| 91 | 5100012699 | Sticker | 1 | ADD TO CART | |
| 106 | 5100016258 | Decal kit | 1 | ADD TO CART | |
| 105 | 5100011703 | Sticker | 1 | ADD TO CART | |
| 105 | 5100080385 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080385 · qty on machine: 1 | |||||

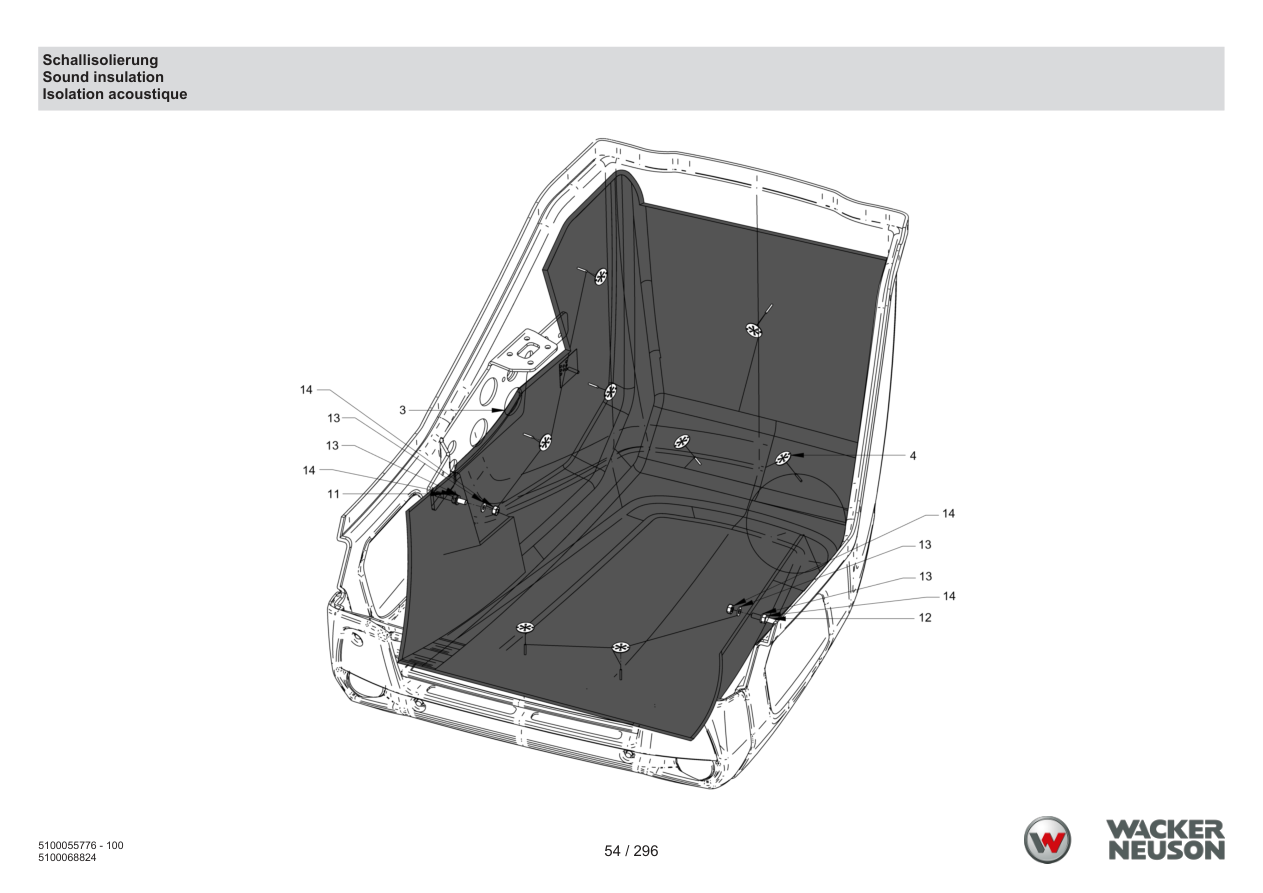

Page 52 — Sound insulation
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100029580 | Insulation | 1 | ADD TO CART | |
| 4 | 5100011922 | Locking washer | 11 | ADD TO CART | |
| 11 | 5100012946 | Stud bolt | 1 | ADD TO CART | |
| 12 | 5100012977 | Stud bolt | 1 | ADD TO CART | |
| 13 | 5100013421 | Washer | 4 | ADD TO CART | |
| 14 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |

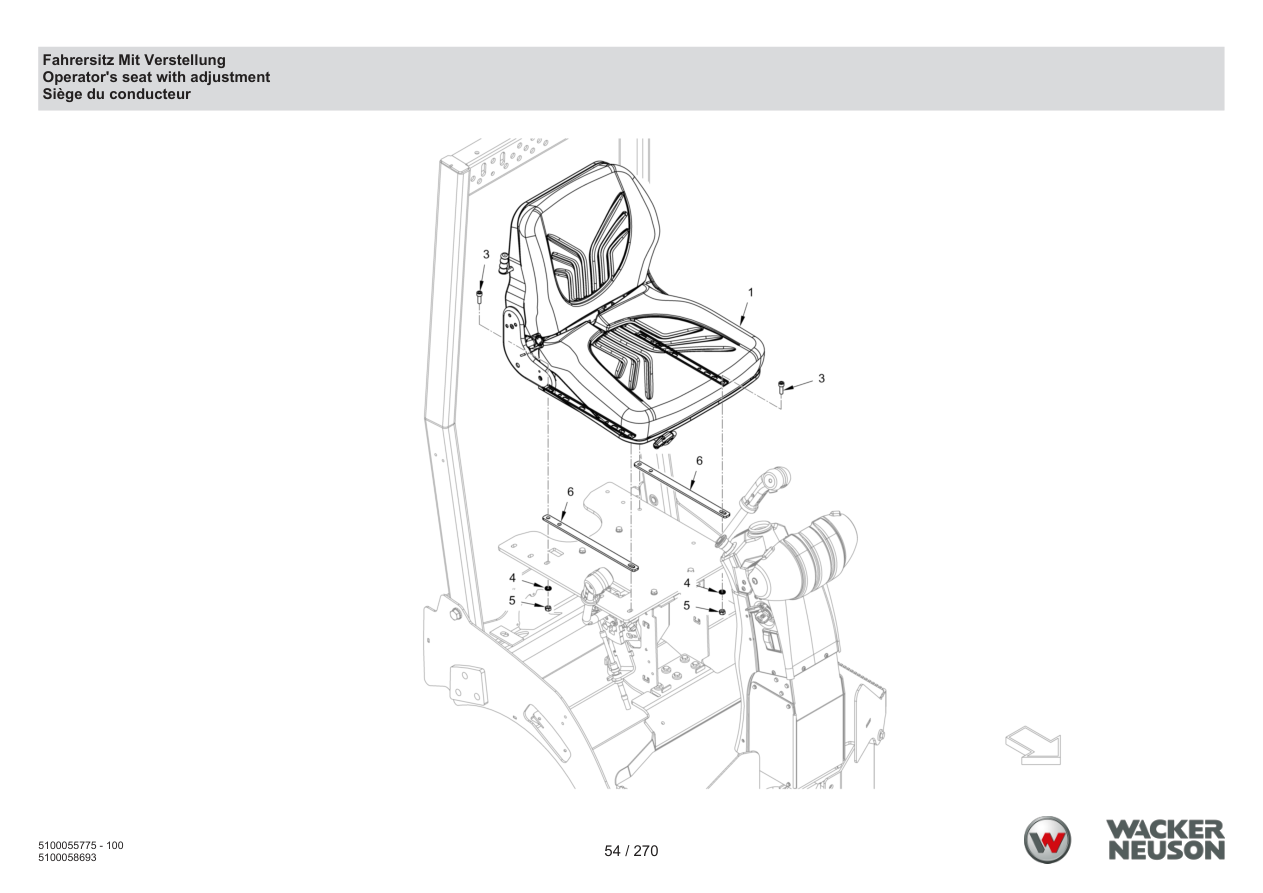

Page 54 — Driver seat with adjustment
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033194 | Driver's seat | 1 | ADD TO CART | |
| 3 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 5 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 6 | 5100012014 | Metal plate | 2 | ADD TO CART | |
| 1 | 5100033195 | Seat contact switch | 1 | ADD TO CART | |
| 1 | 5100033196 | Seat cushion | 1 | ADD TO CART | |
| 1 | 5100033197 | Seat cushion | 1 | ADD TO CART | |
| 1 | 5100033198 | Set of adjustment bars | 1 | ADD TO CART | |
| 1 | 5100033199 | Lap belt | 1 | ADD TO CART | |
| 1 | 5100033200 | Maintenance kit wear parts | 1 | ADD TO CART | |
| 1 | 5100033201 | Adjustment | 1 | ADD TO CART | |
| 1 | 5100029584 | Driver's seat | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
| 2 | 5100011518 | Seat cushion | 1 | ADD TO CART | |
| 2 | 5100011519 | Backrest cushion | 1 | ADD TO CART | |
| 2 | 5100011615 | Handle | 1 | ADD TO CART | |
| 2 | 5100012964 | Seat contact switch | 1 | ADD TO CART | |
| 2 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100029584 | Driver's seat | 1 | ADD TO CART | |
| 2 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 1 | 5100011615 | Handle | 1 | ADD TO CART | |
| 1 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100024343 | Cushion set | 1 | ADD TO CART | |
| 1 | 5100024920 | Seat contact switch | 1 | ADD TO CART | |
| 1 | 5100029596 | Driver's seat | 1 | ADD TO CART | |
| 1 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 13 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 15 | 5100011579 | Switch | 1 | ADD TO CART | |
| 16 | 5100011938 | Bogie, seat heating | 1 | ADD TO CART | |

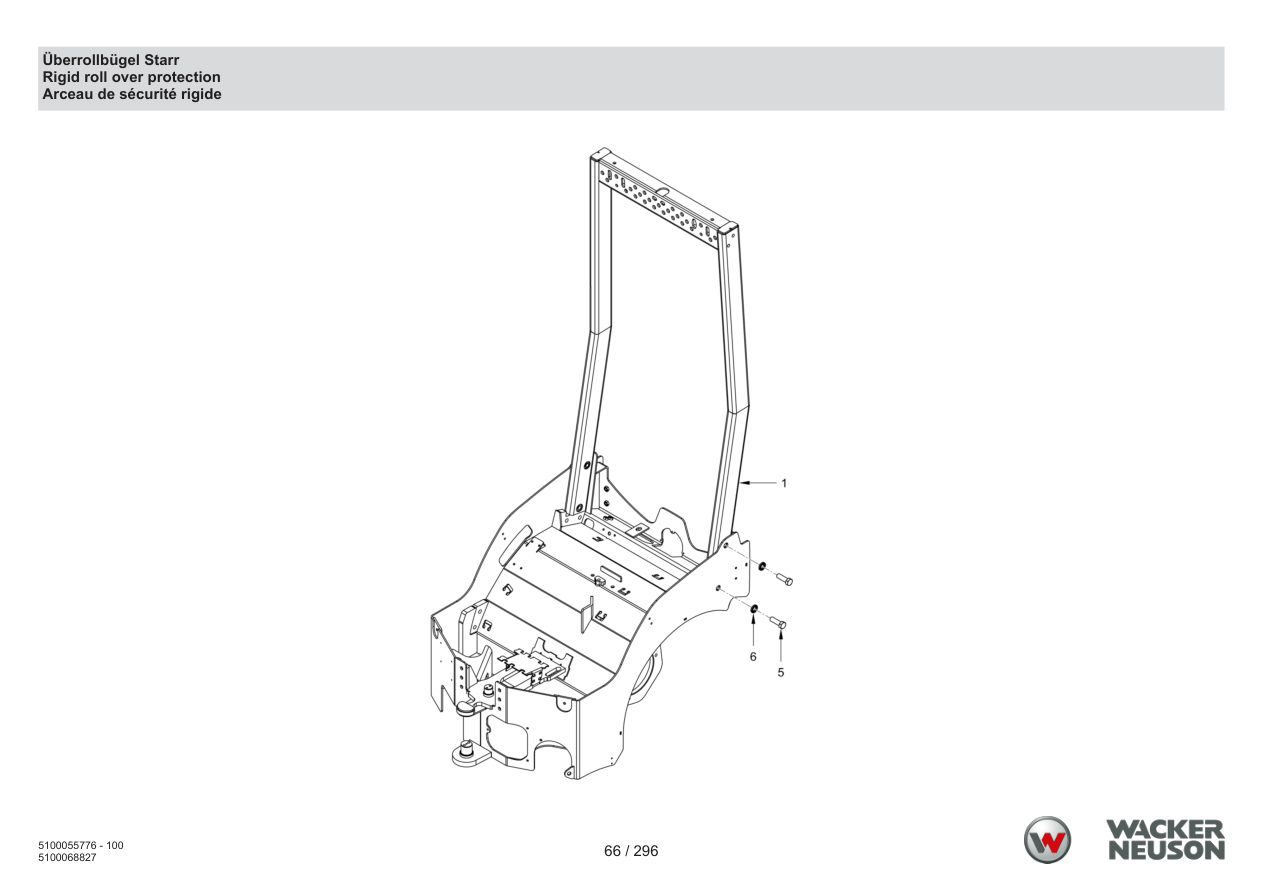

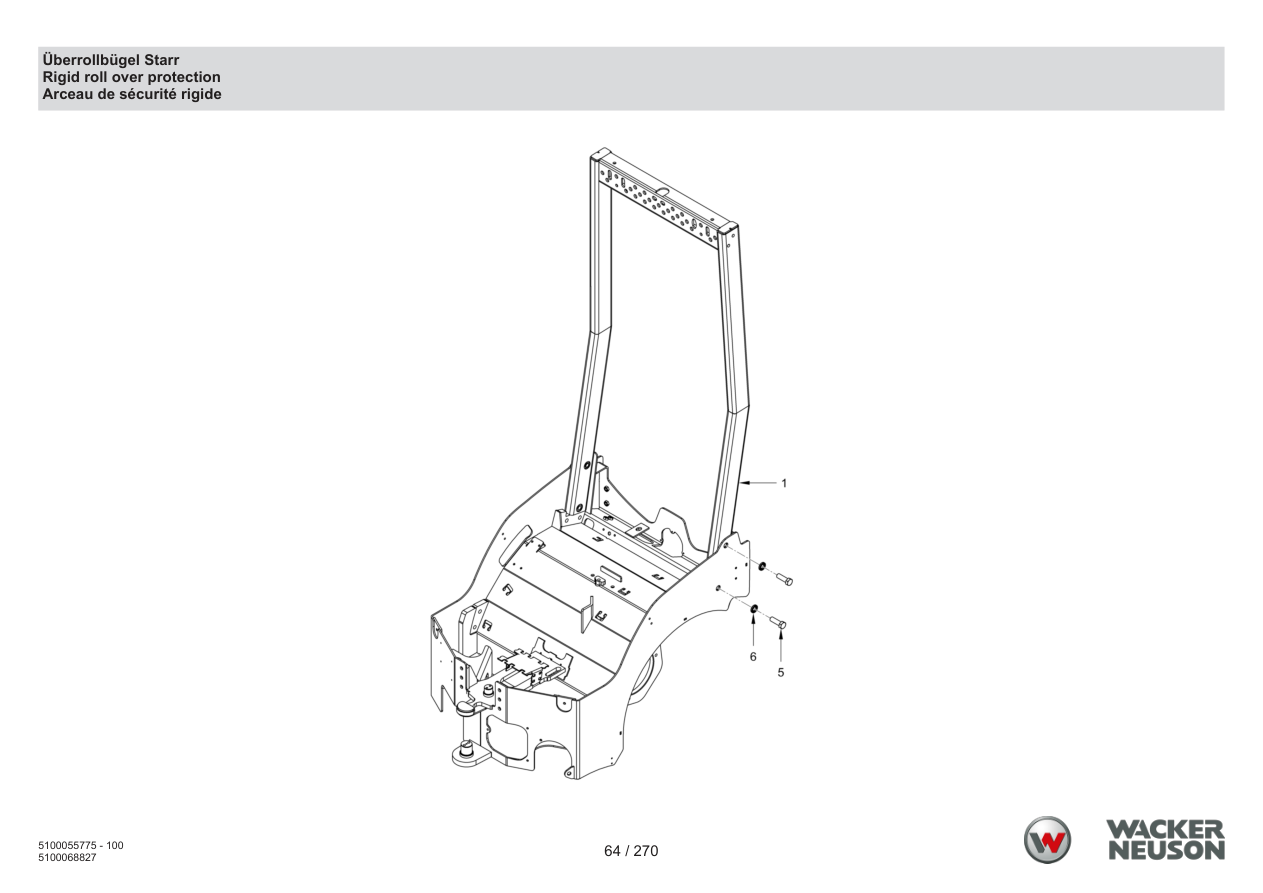

Page 64 — Rigid roll over protection
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068737 | Roll over protection | 1 | ADD TO CART | |
| 5 | 5100013426 | Hexagon screw | 3 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 3 | ADD TO CART | |

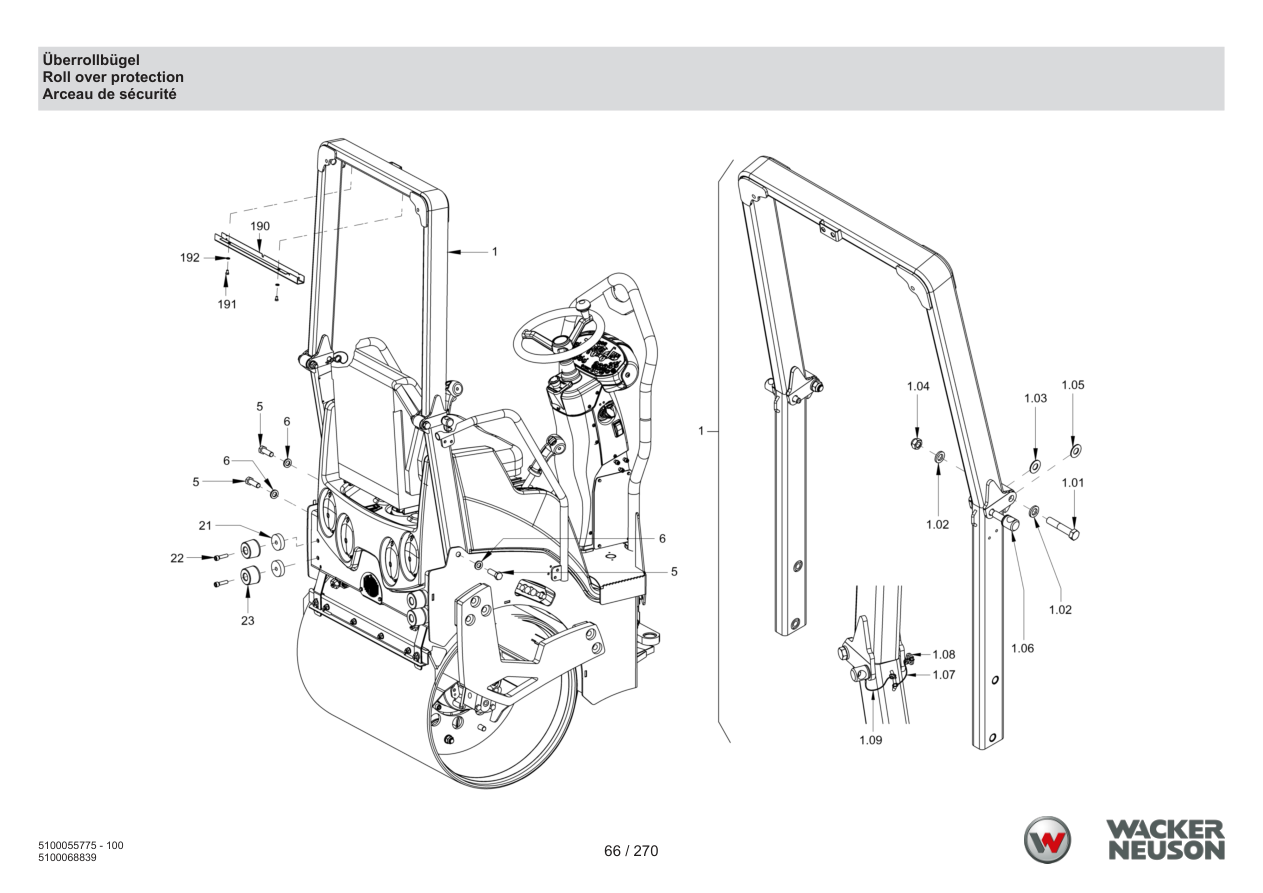

Page 66 — Roll over protection
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012194 | Washer | 2 | ADD TO CART | |
| 1 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 1 | 5100012687 | Rops foldable | 1 | ADD TO CART | |
| 1 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 1 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 1 | 5100012987 | W-clip | 2 | ADD TO CART | |
| 1 | 5100012988 | Threaded bolt | 2 | ADD TO CART | |
| 1 | 5100013232 | Hexagon screw | 2 | ADD TO CART | |
| 1 | 5100024289 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100024289 · qty on machine: 2 | |||||
| 5 | 5100013426 | Hexagon screw | 3 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 3 | ADD TO CART | |
| 21 | 5100012006 | Spacer block | 4 | ADD TO CART | |
| 22 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 23 | 5100011814 | Rubber buffer | 4 | ADD TO CART | |
| 190 | 5100016823 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |

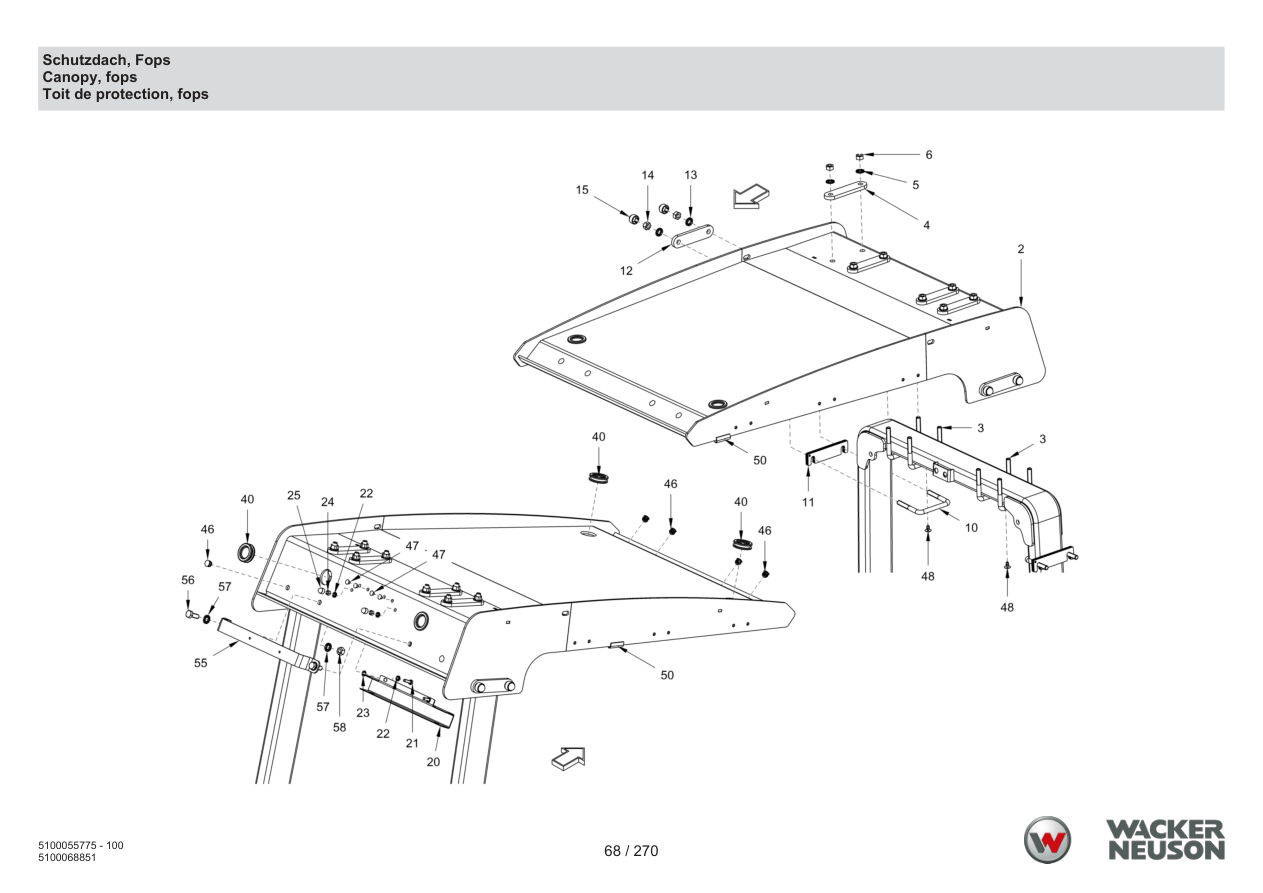

Page 68 — Canopy, fops
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100068749 | Roof | 1 | ADD TO CART | |
| 3 | 5100068761 | Strap bolt | 4 | ADD TO CART | |
| 4 | 5100068773 | Plate | 4 | ADD TO CART | |
| 5 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 6 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 10 | 5100068761 | Strap bolt | 2 | ADD TO CART | |
| 11 | 5100068785 | Distance sheet | 8 | ADD TO CART | |
| 12 | 5100068773 | Plate | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 15 | 5100035325 | Protective cap | 4 | ADD TO CART | |
| 20 | 5100068797 | Rail | 1 | ADD TO CART | |
| 21 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100016825 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 40 | 5100034805 | Cable support sleeve | 4 | ADD TO CART | |
| 46 | 5100050646 | Filler cap | 6 | ADD TO CART | |
| 47 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 48 | 5100011550 | Plug | 2 | ADD TO CART | |
| 50 | 5100013412 | Edge protection | 1.5 | ADD TO CART | |
| 55 | 5100068809 | Metal plate | 1 | ADD TO CART | |
| 56 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 58 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |

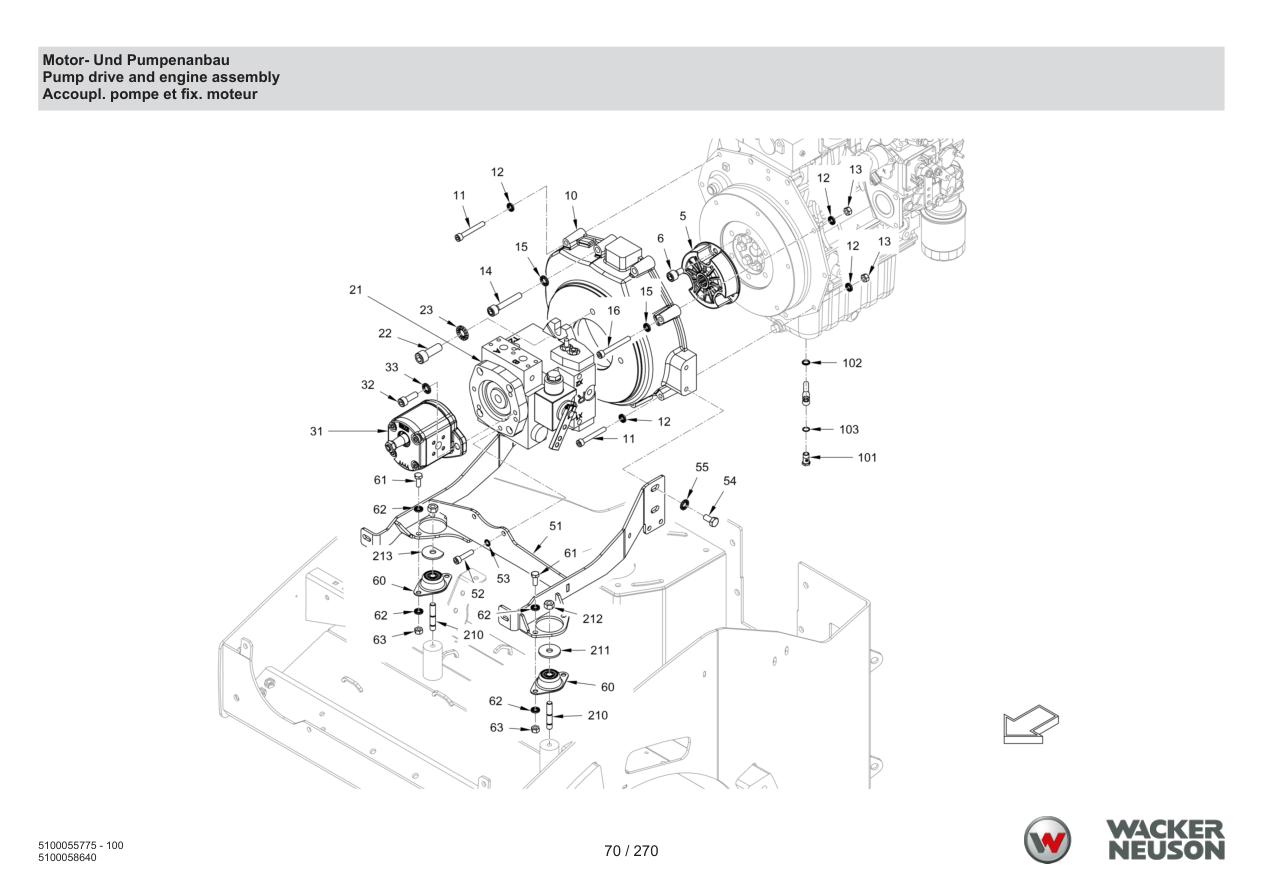

Page 70 — Engine and pump assembly
Parts list — exactly as printed79 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100058747 | Coupling | 1 | ADD TO CART | |
| 6 | 5100058748 | Cheese-head screw | 3 | ADD TO CART | |
| 10 | 5100012668 | Flange | 1 | ADD TO CART | |
| 11 | 5100013512 | Cheese-head screw | 7 | ADD TO CART | |
| 12 | 5100012966 | Locking washer | 10 | ADD TO CART | |
| 13 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 14 | 5100012672 | Cheese-head screw | 2 | ADD TO CART | |
| 15 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 16 | 5100011480 | Cheese-head screw | 1 | ADD TO CART | |
| 21 | 5100011769 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100011769 · qty on machine: 1 | |||||
| 22 | 5100013425 | Cheese-head screw | 2 | ADD TO CART | |
| 23 | 5100012972 | Locking washer | 2 | ADD TO CART | |
| 31 | 5100011678 | Gear pump | 1 | ADD TO CART | |
| 32 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 33 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 51 | 5100012313 | Engine suspension | 1 | ADD TO CART | |
| 52 | 5100013511 | Cheese-head screw | 2 | ADD TO CART | |
| 53 | 5100013441 | Locking washer | 2 | ADD TO CART | |
| 54 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 60 | 5100012181 | Rubber metal buffer | 2 | ADD TO CART | |
| 61 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 62 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 63 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 101 | 5100013210 | Hollow-core screw | 1 | ADD TO CART | |
| 102 | 5100011468 | Sealing ring | 1 | ADD TO CART | |
| 103 | 5100013004 | Sealing ring | 1 | ADD TO CART | |
| 210 | 5100048692 | Stud screw | 2 | ADD TO CART | |
| 211 | 5100011824 | Washer | 1 | ADD TO CART | |
| 212 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 213 | 5100012347 | Washer | 1 | ADD TO CART | |
| 3 | 5100058629 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100058629 · qty on machine: 1 | |||||
| 71 | 5100012338 | Bracket | 1 | ADD TO CART | |
| 73 | 5100012553 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 104 | 5100012816 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012816 · qty on machine: 1 | |||||
| 150 | 5100016824 | Protective housing | 1 | ADD TO CART | |
| 151 | 5100012533 | Hexagon screw | 2 | ADD TO CART | |
| 152 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 153 | 5100012517 | Hexagon screw | 1 | ADD TO CART | |
| 154 | 5100013094 | Washer | 2 | ADD TO CART | |
| 155 | 5100013230 | Locking washer | 1 | ADD TO CART | |
| 158 | 5100016825 | Locking washer | 2 | ADD TO CART | |
| 230 | 5100012339 | Bracket | 1 | ADD TO CART | |
| 231 | 5100012617 | Hexagon screw | 4 | ADD TO CART | |
| 232 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 233 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 235 | 5100012235 | Cap nut | 1 | ADD TO CART | |
| 236 | 5100013555 | Filler cap | 1 | ADD TO CART | |
| 237 | 5100013486 | Bulkhead elbow | 1 | ADD TO CART | |
| 238 | 5100013191 | Washer | 1 | ADD TO CART | |
| 239 | 5100013488 | Hexagon nut | 1 | ADD TO CART | |
| 241 | 5100012209 | Silentbloc | 1 | ADD TO CART | |
| 242 | 5100012513 | Hexagon screw | 1 | ADD TO CART | |
| 243 | 5100012968 | Locking washer | 1 | ADD TO CART | |
| 244 | 5100012548 | Hexagon nut | 1 | ADD TO CART | |
| 245 | 5100012212 | Washer | 1 | ADD TO CART | |
| 246 | 5100012617 | Hexagon screw | 2 | ADD TO CART | |
| 247 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 248 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 1 | 5100012689 | Starter | 1 | ADD TO CART | |
| 2 | 5100012701 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100012701 · qty on machine: 1 | |||||
| 3 | 5100012807 | Engine oil pressure switch | 1 | ADD TO CART | |
| 4 | 5100013444 | V-belt | 1 | ADD TO CART | |
| 5 | 5100012892 | Filter cartridge, lubric. oil | 1 | ADD TO CART | |
| 6 | 5100012861 | Temperature switch, engine oil | 1 | ADD TO CART | |
| 7 | 5100029560 | Seal, valve cover | 1 | ADD TO CART | |
| 8 | 5100012857 | Oil dipstick | 1 | ADD TO CART | |
| 9 | 5100012856 | Cover | 2 | ADD TO CART | |
| 10 | 5100013396 | O-ring seal | 2 | ADD TO CART | |
| 11 | 5100012858 | Solenoid coil | 1 | ADD TO CART | |
| 12 | 5100058630 | Water pump | 1 | ADD TO CART | |
| 13 | 5100012859 | Seal | 1 | ADD TO CART | |
| 14 | 5100012862 | Thermostat | 1 | ADD TO CART | |
| 15 | 5100012863 | Seal | 1 | ADD TO CART | |
| 17 | 5100013395 | Screw plug | 1 | ADD TO CART | |
| 18 | 5100013394 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100013394 · qty on machine: 1 | |||||
| 19 | 5100013398 | Seal | 1 | ADD TO CART | |
| 100 | 5100058629 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100058629 · qty on machine: 1 | |||||

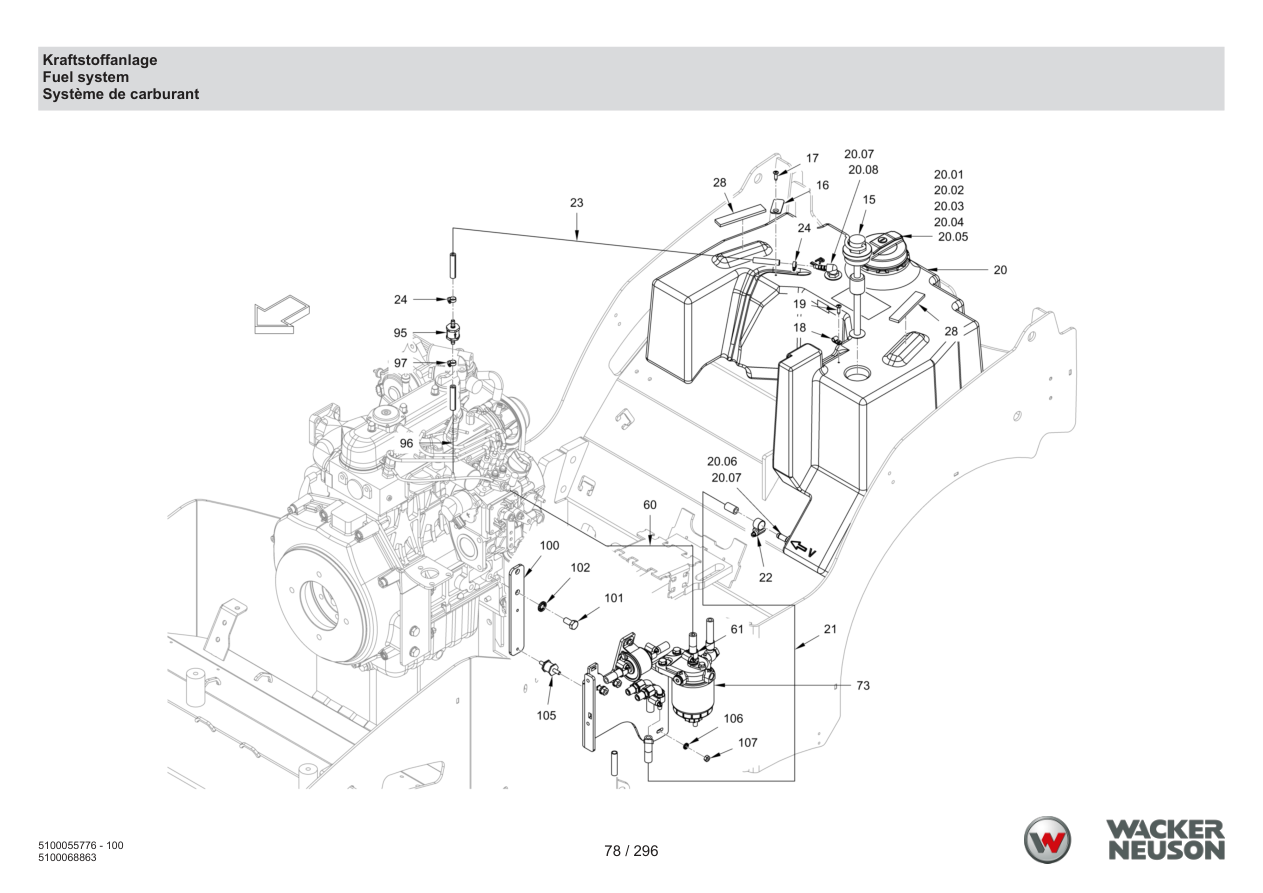

Page 76 — Fuel system
Parts list — exactly as printed62 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100013557 | Key | 1 | ADD TO CART | |
| 15 | 5100012846 | Fuel gauge | 1 | ADD TO CART | |
| 16 | 5100011728 | Metal plate | 1 | ADD TO CART | |
| 17 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 18 | 5100013491 | Mounting clip | 1 | ADD TO CART | |
| 19 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 20 | 5100011829 | Tank cap, with lock | 1 | 20.01 Serialno. 160-413 | ADD TO CART |
| 20 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 20 | 5100012034 | Threaded insert | 1 | PARTS REQUEST | |
|
COMING Threaded insert
5100012034 · qty on machine: 1 | |||||
| 20 | 5100012049 | Straight screwed socket | 1 | ADD TO CART | |
| 20 | 5100012050 | Angle screwed socket | 1 | ADD TO CART | |
| 20 | 5100012099 | O-ring seal | 2 | ADD TO CART | |
| 20 | 5100012504 | O-ring seal | 1 | ADD TO CART | |
| 20 | 5100012697 | Fuel tank | 1 | ADD TO CART | |
| 20 | 5100082564 | Tank cap, with lock | 1 | 20.01 Serialno. >414 | PARTS REQUEST |
|
COMING Tank cap, with lock
5100082564 · qty on machine: 1 20.01 Serialno. >414 | |||||
| 21 | 5100013216 | Flexible tubing | 1.5 | ADD TO CART | |
| 22 | 5100013640 | Flexible tubing | 2.25 | Serialno. >634 | ADD TO CART |
| 22 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 23 | 5100013640 | Flexible tubing | 2.35 | Serialno. 160-633 | ADD TO CART |
| 24 | 5100013540 | Pipe clip | 2 | ADD TO CART | |
| 28 | 5100013644 | Rubber profile | 1.5 | ADD TO CART | |
| 60 | 5100013216 | Flexible tubing | 0.24 | ADD TO CART | |
| 61 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 73 | 5100068821 | Fuel filter | 1 | ADD TO CART | |
| 95 | 5100082397 | Non-return valve | 1 | Serialno. >634 | PARTS REQUEST |
|
COMING Non-return valve
5100082397 · qty on machine: 1 Serialno. >634 | |||||
| 96 | 5100013640 | Flexible tubing | 0.08 | Serialno. >634 | ADD TO CART |
| 97 | 5100013540 | Pipe clip | 2 | Serialno. >634 | ADD TO CART |
| 100 | 5100068736 | Holder | 1 | ADD TO CART | |
| 101 | 5100012551 | Hexagon screw | 2 | ADD TO CART | |
| 102 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 105 | 5100012919 | Silentbloc | 2 | ADD TO CART | |
| 106 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 107 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100068727 | Holder | 1 | ADD TO CART | |
| 31 | 5100012925 | Fuel filter | 1 | ADD TO CART | |
| 32 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 33 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 34 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100011461 | Straight screwed socket | 2 | ADD TO CART | |
| 36 | 5100011664 | Hose fitting | 2 | ADD TO CART | |
| 37 | 5100013216 | Flexible tubing | 0.5 | ADD TO CART | |
| 38 | 5100013179 | Hose clip | 4 | ADD TO CART | |
| 45 | 5100023485 | Fuel pump | 1 | ADD TO CART | |
| 46 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 47 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 48 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 49 | 5100012623 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012623 · qty on machine: 1 | |||||
| 50 | 5100012227 | Hollow-core screw | 1 | ADD TO CART | |
| 51 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
| 52 | 5100012460 | Filter head | 1 | ADD TO CART | |
| 53 | 5100029554 | Fuel filter | 1 | ADD TO CART | |
| 54 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 55 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 58 | 5100012457 | Hose nozzle | 1 | ADD TO CART | |
| 59 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 62 | 5100013405 | Screw plug | 1 | ADD TO CART | |
| 63 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 65 | 5100012571 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013502 | Sealing ring | 1 | ADD TO CART | |
| 70 | 5100012593 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012593 · qty on machine: 1 | |||||
| 80 | 5100013520 | Wire fastener | 2 | ADD TO CART | |
| 100 | 5100068821 | Fuel filter | 1 | ADD TO CART | |
Page 80 — Fuel Filter
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012926 | Filter head | 1 | PARTS REQUEST | |
|
COMING Filter head
5100012926 · qty on machine: 1 | |||||
| 2 | 5100012927 | Sealing washer | 1 | ADD TO CART | |
| 2 | 5100029562 | Filter cartridge | 1 | ADD TO CART | |
| 3 | 5100012929 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012930 | Filter housing | 1 | ADD TO CART | |
| 5 | 5100012244 | Discharge valve | 1 | ADD TO CART | |
| 31 | 5100012925 | Fuel filter | 1 | ADD TO CART | |
| 52 | 5100012460 | Filter head | 1 | ADD TO CART | |
| 53 | 5100029554 | Fuel filter | 1 | ADD TO CART | |

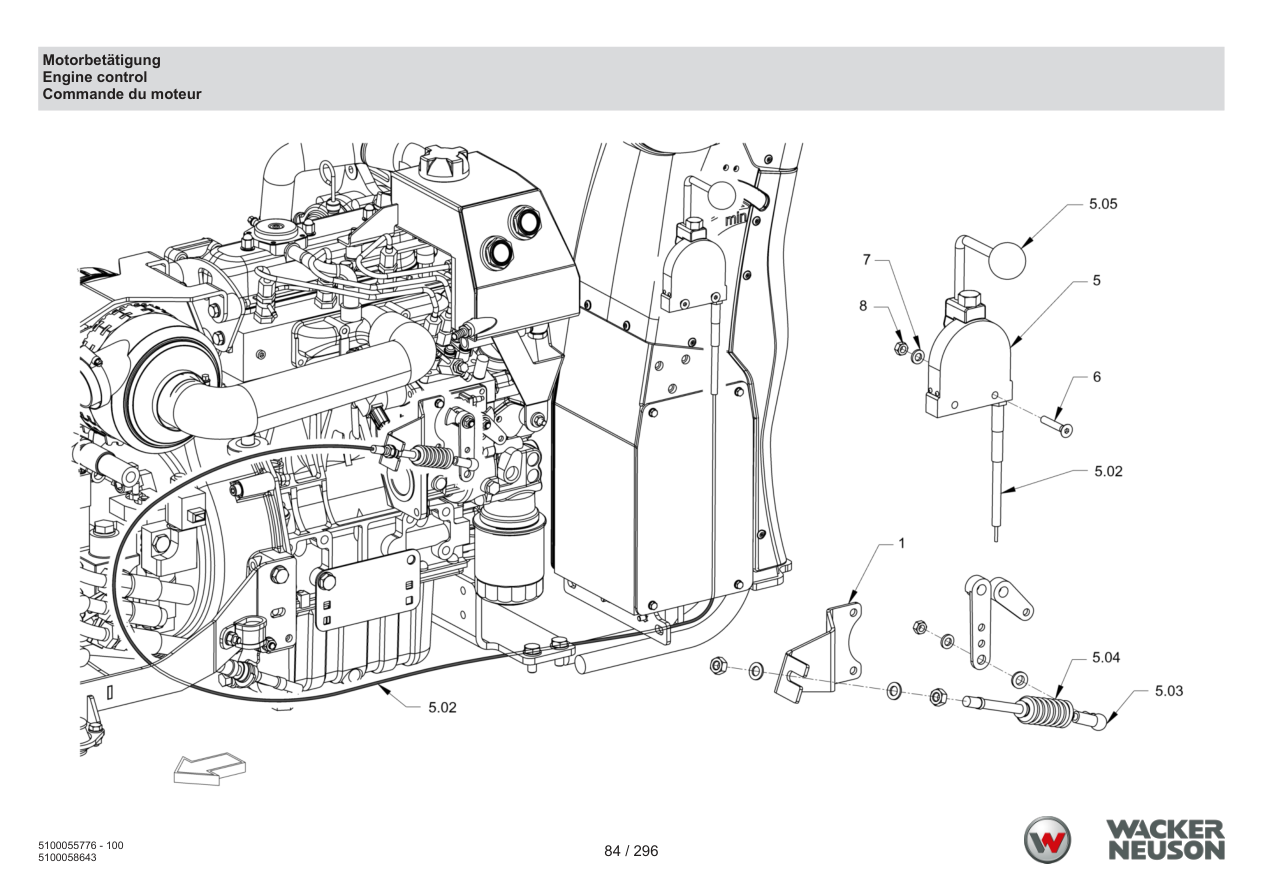

Page 82 — Engine control
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012322 | Bracket | 1 | ADD TO CART | |
| 5 | 5100011733 | Angle joint | 1 | 5.03 Serialno. <240 | ADD TO CART |
| 5 | 5100011950 | Bellows | 1 | ADD TO CART | |
| 5 | 5100012588 | Ball handle | 1 | 5.05 Serialno. <240 | ADD TO CART |
| 5 | 5100012820 | Actuating cable | 1 | PARTS REQUEST | |
|
COMING Actuating cable
5100012820 · qty on machine: 1 | |||||
| 5 | 5100058611 | Actuating cable | 1 | Serialno. <240 | PARTS REQUEST |
|
COMING Actuating cable
5100058611 · qty on machine: 1 Serialno. <240 | |||||
| 5 | 5100068728 | Actuating cable | 1 | Serialno. >241 | ADD TO CART |
| 5 | 5100068729 | Angle joint | 1 | 5.03 Serialno. >241 | ADD TO CART |
| 5 | 5100068730 | Ball handle | 1 | 5.05 Serialno. >241 | ADD TO CART |
| 6 | 5100013561 | Countersunk screw | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |

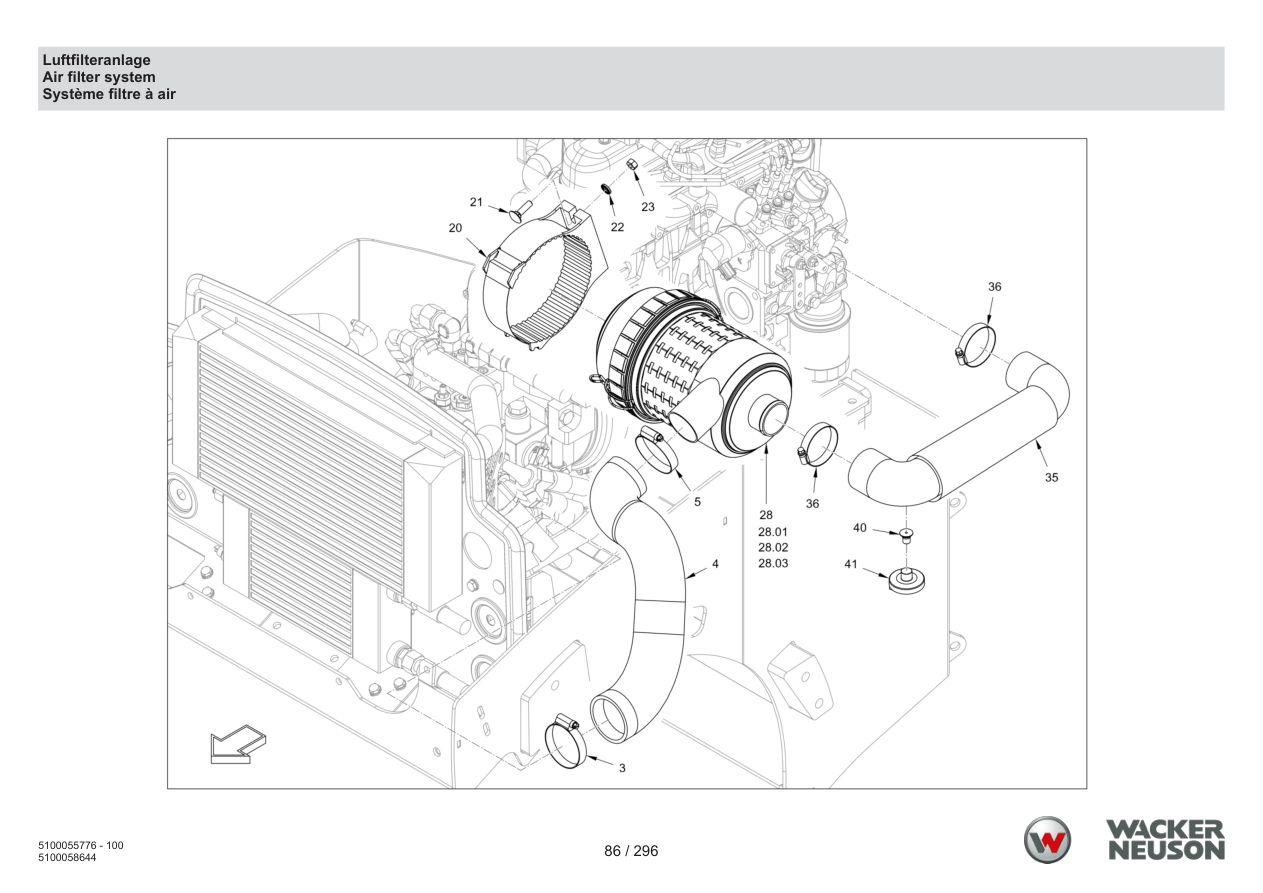

Page 84 — Air filter system
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100024336 | Hose clamp | 1 | ADD TO CART | |
| 4 | 5100058622 | Intake hose | 1 | ADD TO CART | |
| 5 | 5100013403 | Hose clip | 1 | ADD TO CART | |
| 20 | 5100012560 | Bracket | 1 | ADD TO CART | |
| 21 | 5100012249 | Mushroom head screw | 2 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 28 | 5100011561 | Dust discharge valve | 1 | ADD TO CART | |
| 28 | 5100012557 | Air filter | 1 | ADD TO CART | |
| 28 | 5100012558 | Filter cartridge | 1 | ADD TO CART | |
| 28 | 5100012559 | Safety filter cartridge | 1 | ADD TO CART | |
| 35 | 5100012320 | Intake hose | 1 | ADD TO CART | |
| 36 | 5100012907 | Hose clip | 2 | ADD TO CART | |
| 40 | 5100011464 | Threaded bolt | 1 | ADD TO CART | |
| 41 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||

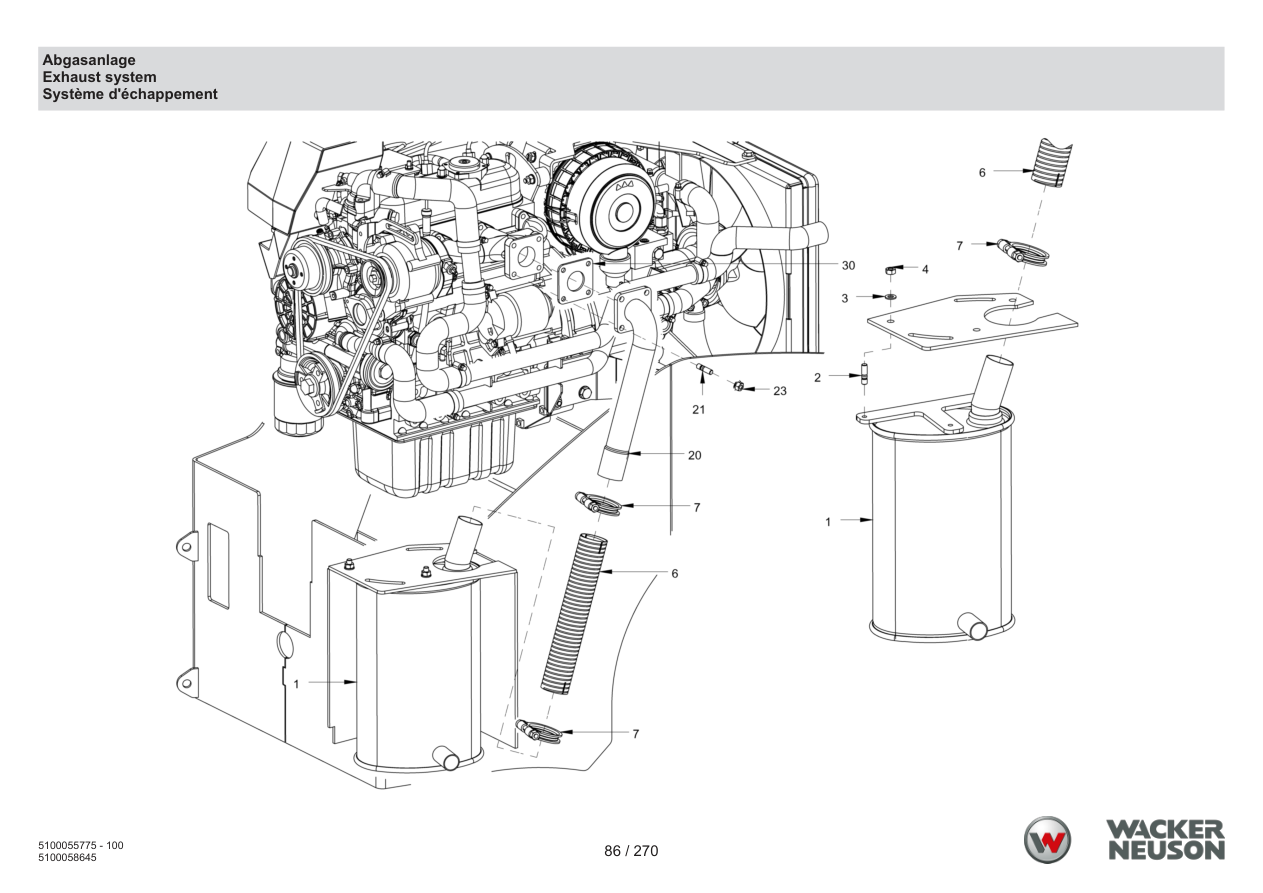

Page 86 — Exhaust system
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011785 | Silencer | 1 | ADD TO CART | |
| 2 | 5100011471 | Stud bolt | 3 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 4 | 5100012546 | Hexagon nut | 3 | ADD TO CART | |
| 6 | 5100011932 | Exhaust gas hose | 1 | ADD TO CART | |
| 7 | 5100011668 | Pipe clip | 2 | ADD TO CART | |
| 20 | 5100012319 | Tail pipe | 1 | ADD TO CART | |
| 21 | 5100011471 | Stud bolt | 4 | ADD TO CART | |
| 23 | 5100024980 | Hexagonal nut | 4 | ADD TO CART | |
| 30 | 5100012860 | Seal | 1 | ADD TO CART | |

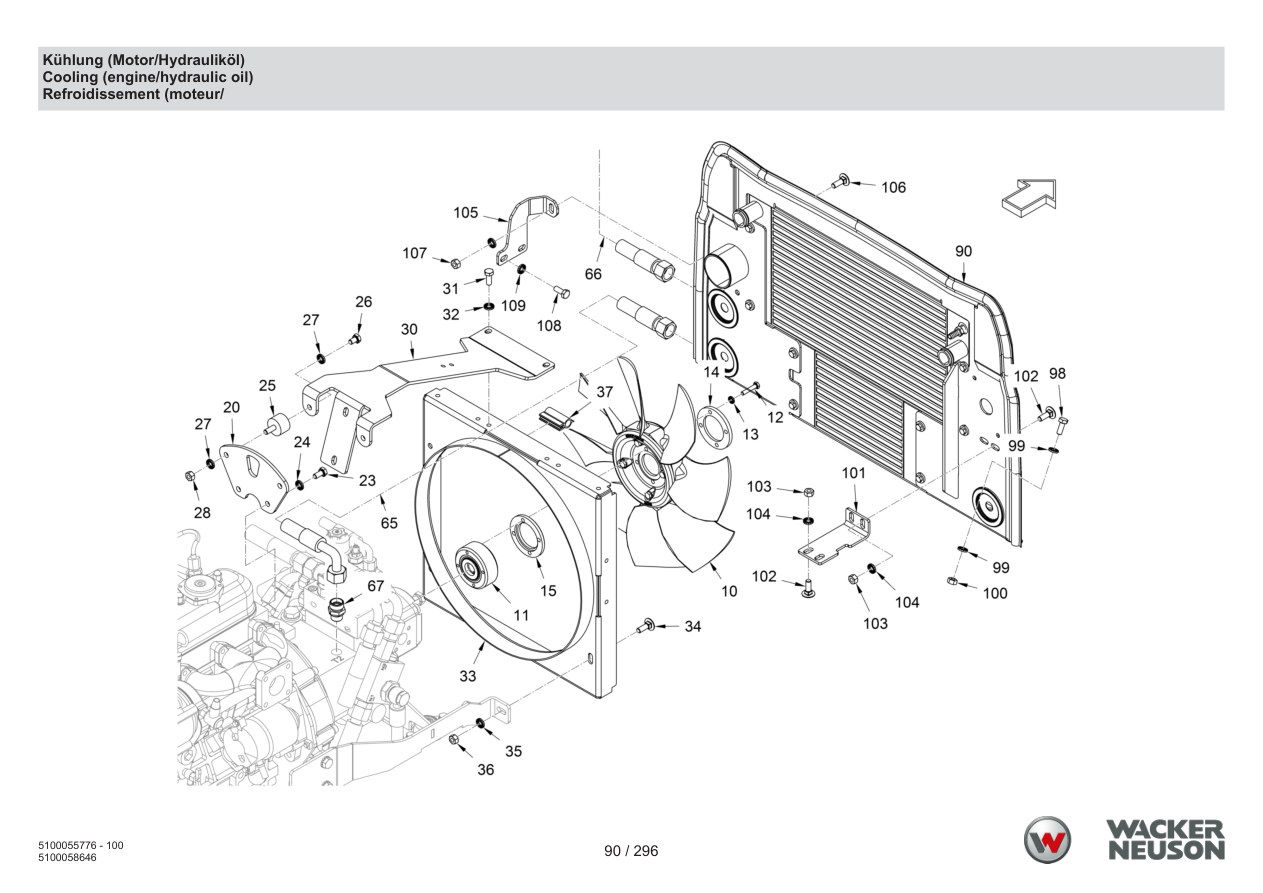

Page 88 — Cooling (engine/hydraulic oil)
Parts list — exactly as printed106 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100012312 | Fan | 1 | ADD TO CART | |
| 11 | 5100011920 | Fan free-wheeling | 1 | ADD TO CART | |
| 12 | 5100012614 | Hexagon screw | 4 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100016826 | Supporting ring | 1 | ADD TO CART | |
| 15 | 5100012169 | Spacer ring | 1 | ADD TO CART | |
| 20 | 5100012238 | Bracket | 1 | ADD TO CART | |
| 23 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 24 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100013550 | Rubber buffer | 2 | ADD TO CART | |
| 26 | 5100035056 | Hexagon screw | 2 | ADD TO CART | |
| 27 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100012239 | Bracket | 1 | ADD TO CART | |
| 31 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100012243 | Cover | 1 | ADD TO CART | |
| 34 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 35 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 36 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 37 | 5100013642 | Sealing profile | 1.53 | ADD TO CART | |
| 65 | 5100058631 | Hose | 1 | ADD TO CART | |
| 66 | 5100058632 | Hose | 1 | ADD TO CART | |
| 67 | 5100013473 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013473 · qty on machine: 1 | |||||
| 90 | 5100058633 | Oil-water cooler | 1 | ADD TO CART | |
| 98 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 99 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 100 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 101 | 5100012361 | Metal plate | 1 | ADD TO CART | |
| 102 | 5100012780 | Mushroom head screw | 4 | ADD TO CART | |
| 103 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 104 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 105 | 5100011944 | Metal plate | 1 | ADD TO CART | |
| 106 | 5100012780 | Mushroom head screw | 1 | ADD TO CART | |
| 107 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 108 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 109 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 39 | 5100012630 | Tank cap | 1 | ADD TO CART | |
| 40 | 5100012710 | Compensator tank | 1 | ADD TO CART | |
| 41 | 5100012564 | Silentbloc | 2 | ADD TO CART | |
| 42 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 43 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 44 | 5100012373 | Bracket | 1 | Serialno. 160-656 | ADD TO CART |
| 44 | 5100082565 | Holder | 1 | Serialno. >657 | PARTS REQUEST |
|
COMING Holder
5100082565 · qty on machine: 1 Serialno. >657 | |||||
| 45 | 5100011791 | Distance bush | 4 | Serialno. 160-656 | ADD TO CART |
| 46 | 5100035308 | Hexagon screw | 2 | ADD TO CART | |
| 47 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 48 | 5100013367 | Hose clip | 2 | ADD TO CART | |
| 49 | 5100011673 | Cooling-water hose | 0.75 | ADD TO CART | |
| 50 | 5100013388 | Inspection glass | 2 | ADD TO CART | |
| 51 | 5100011749 | Hose nozzle | 1 | ADD TO CART | |
| 52 | 5100011973 | Rubber metal buffer | 1 | ADD TO CART | |
| 53 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 54 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 60 | 5100012474 | Hose shank banjo | 1 | ADD TO CART | |
| 61 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
| 62 | 5100012227 | Hollow-core screw | 1 | ADD TO CART | |
| 70 | 5100013513 | Hose shank banjo | 1 | ADD TO CART | |
| 71 | 5100012999 | Sealing ring | 1 | ADD TO CART | |
| 72 | 5100013380 | Hollow-core screw | 1 | ADD TO CART | |
| 73 | 5100013345 | Sealing ring | 1 | ADD TO CART | |
| 75 | 5100013640 | Flexible tubing | 0.13 | ADD TO CART | |
| 76 | 5100013540 | Pipe clip | 2 | ADD TO CART | |
| 77 | 5100016827 | Hose nozzle | 1 | ADD TO CART | |
| 83 | 5100013217 | Cooling-water hose | 1.1 | ADD TO CART | |
| 84 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 1 | 5100012252 | Pipe | 1 | ADD TO CART | |
| 2 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 4 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5100012354 | Cooling-water hose | 1 | ADD TO CART | |
| 7 | 5100012355 | Cooling-water hose | 1 | ADD TO CART | |
| 8 | 5100012360 | Pipe | 1 | ADD TO CART | |
| 9 | 5100012359 | Cooling-water hose | 1 | ADD TO CART | |
| 16 | 5100011637 | Hose clip | 1 | ADD TO CART | |
| 17 | 5100013452 | Hose clip | 5 | ADD TO CART | |
| 130 | 5100012352 | Cooling-water hose | 1 | ADD TO CART | |
| 135 | 5100012349 | Cooling-water hose | 1 | ADD TO CART | |
| 136 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 137 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 138 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 140 | 5100012351 | Cooling-water hose | 1 | ADD TO CART | |
| 145 | 5100012353 | Cooling-water hose | 1 | ADD TO CART | |
| 146 | 5100013452 | Hose clip | 6 | ADD TO CART | |
| 58 | 5100012492 | Sealing ring | 1 | ADD TO CART | |
| 59 | 5100013516 | Screw plug | 1 | ADD TO CART | |
| 64 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 86 | 5100012311 | Water cooler | 1 | ADD TO CART | |
| 87 | 5100012600 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 | |||||
| 88 | 5100011636 | Washer | 4 | ADD TO CART | |
| 89 | 5100011866 | Sealing tape | 0.4 | ADD TO CART | |
| 91 | 5100012310 | Oil cooler | 1 | ADD TO CART | |
| 92 | 5100012600 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 | |||||
| 93 | 5100011636 | Washer | 4 | ADD TO CART | |
| 94 | 5100011866 | Sealing tape | 0.3 | ADD TO CART | |
| 95 | 5100012248 | Console | 1 | ADD TO CART | |
| 96 | 5100013642 | Sealing profile | 1.36 | ADD TO CART | |
| 97 | 5100012788 | Hose nozzle | 1 | ADD TO CART | |
| 102 | 5100013385 | Thermosensor | 1 | ADD TO CART | |
| 110 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 111 | 5100013405 | Screw plug | 1 | ADD TO CART | |
| 114 | 5100011592 | Grommet | 2 | ADD TO CART | |
| 115 | 5100011592 | Grommet | 1 | ADD TO CART | |
| 118 | 5100012444 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5100012444 · qty on machine: 2 | |||||
| 119 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
| 200 | 5100058633 | Oil-water cooler | 1 | ADD TO CART | |

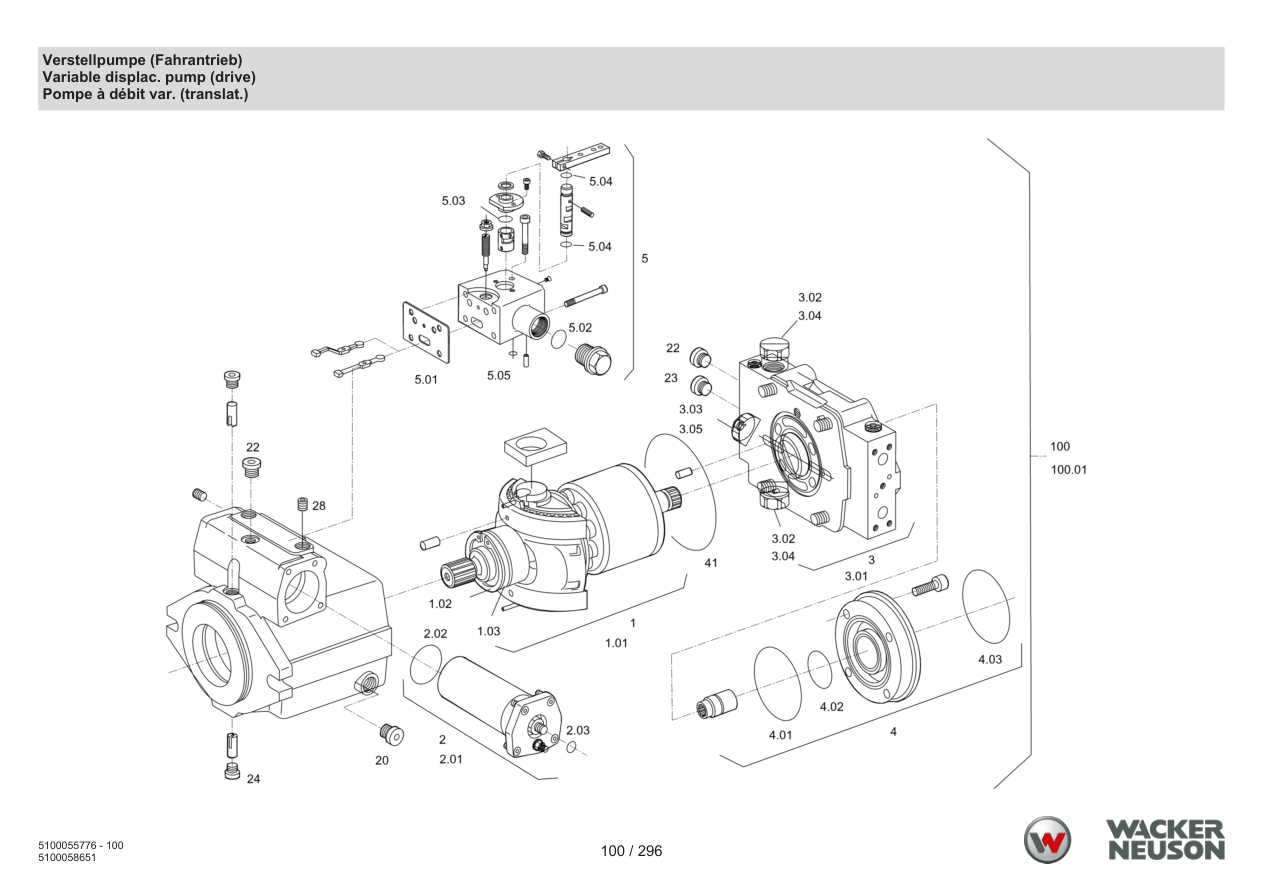

Page 98 — Variable displac. pump (drive)
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011624 | Locking ring | 2 | ADD TO CART | |
| 1 | 5100011628 | Shaft seal | 1 | ADD TO CART | |
| 1 | 5100011957 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100011961 | Driving gear | 1 | PARTS REQUEST | |
|
COMING Driving gear
5100011961 · qty on machine: 1 | |||||
| 2 | 5100011623 | Hydraulic regulation | 1 | ADD TO CART | |
| 2 | 5100011625 | O-ring seal | 1 | ADD TO CART | |
| 2 | 5100011958 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100013562 | O-ring seal | 1 | PARTS REQUEST | |
|
COMING O-ring seal
5100013562 · qty on machine: 1 | |||||
| 3 | 5100011626 | Pressure-relief valve | 2 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100011626 · qty on machine: 2 | |||||
| 3 | 5100011627 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100011959 | Set of seals | 1 | ADD TO CART | |
| 3 | 5100011963 | Connection plate | 1 | PARTS REQUEST | |
|
COMING Connection plate
5100011963 · qty on machine: 1 | |||||
| 3 | 5100011966 | Pressure-relief valve | 1 | ADD TO CART | |
| 3 | 5100013546 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100082566 | Connection flange | 1 | PARTS REQUEST | |
|
COMING Connection flange
5100082566 · qty on machine: 1 | |||||
| 4 | 5100048102 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100013548 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100011852 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100011440 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011448 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011449 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011450 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011622 | Seal | 1 | ADD TO CART | |
| 5 | 5100011965 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100011965 · qty on machine: 1 | |||||
| 5 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 20 | 5100011658 | Screw plug | 1 | PARTS REQUEST | |
|
COMING Screw plug
5100011658 · qty on machine: 1 | |||||
| 22 | 5100013543 | Screw plug | 4 | ADD TO CART | |
| 23 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 24 | 5100011454 | Screw plug | 1 | ADD TO CART | |
| 28 | 5100011451 | Valve | 1 | ADD TO CART | |
| 41 | 5100013601 | O-ring seal | 1 | ADD TO CART | |
| 100 | 5100011769 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100011769 · qty on machine: 1 | |||||
| 100 | 5100011960 | Set of seals | 1 | ADD TO CART | |

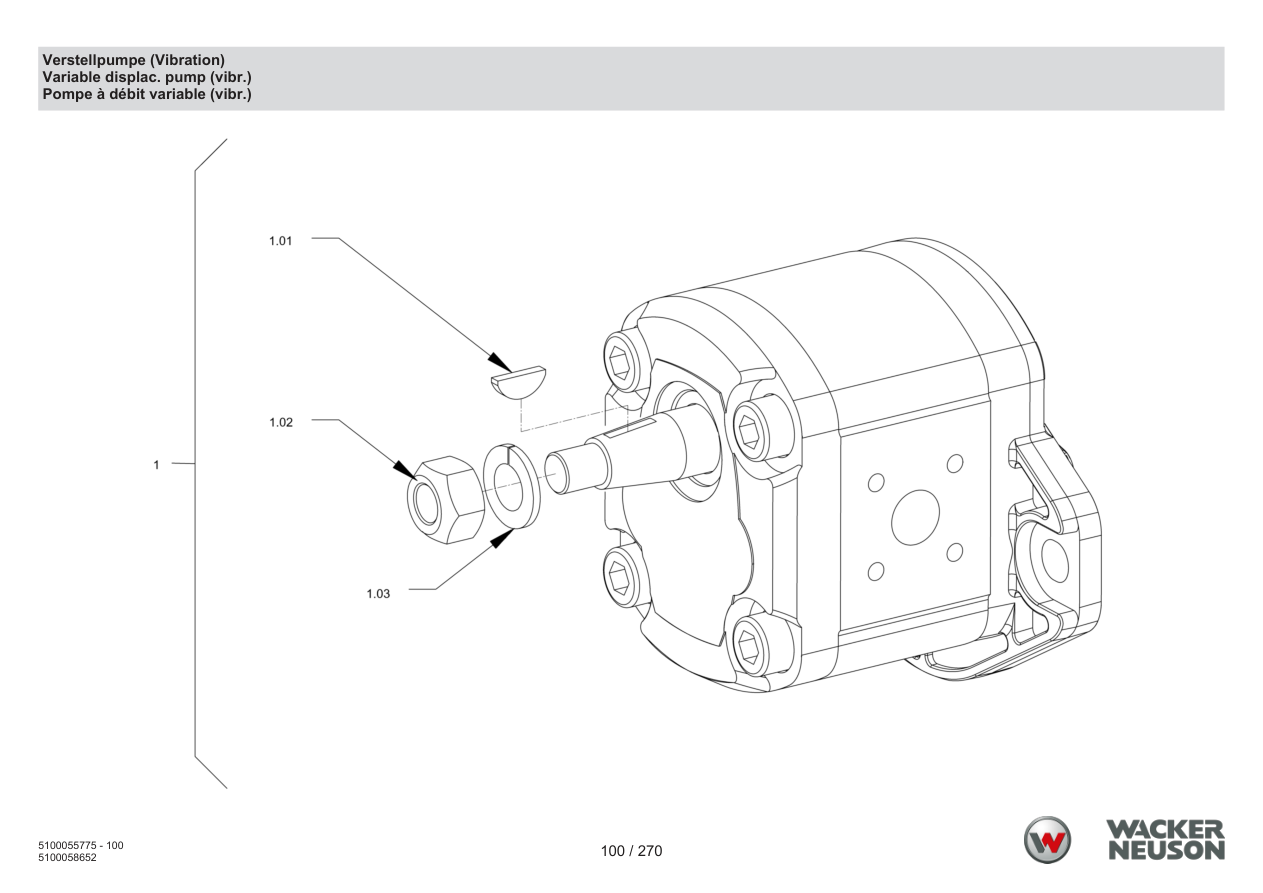

Page 100 — Variable displacement pump (vibration)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011678 | Gear pump | 1 | ADD TO CART | |
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100013445 | Hexagon nut | 1 | ADD TO CART | |
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||

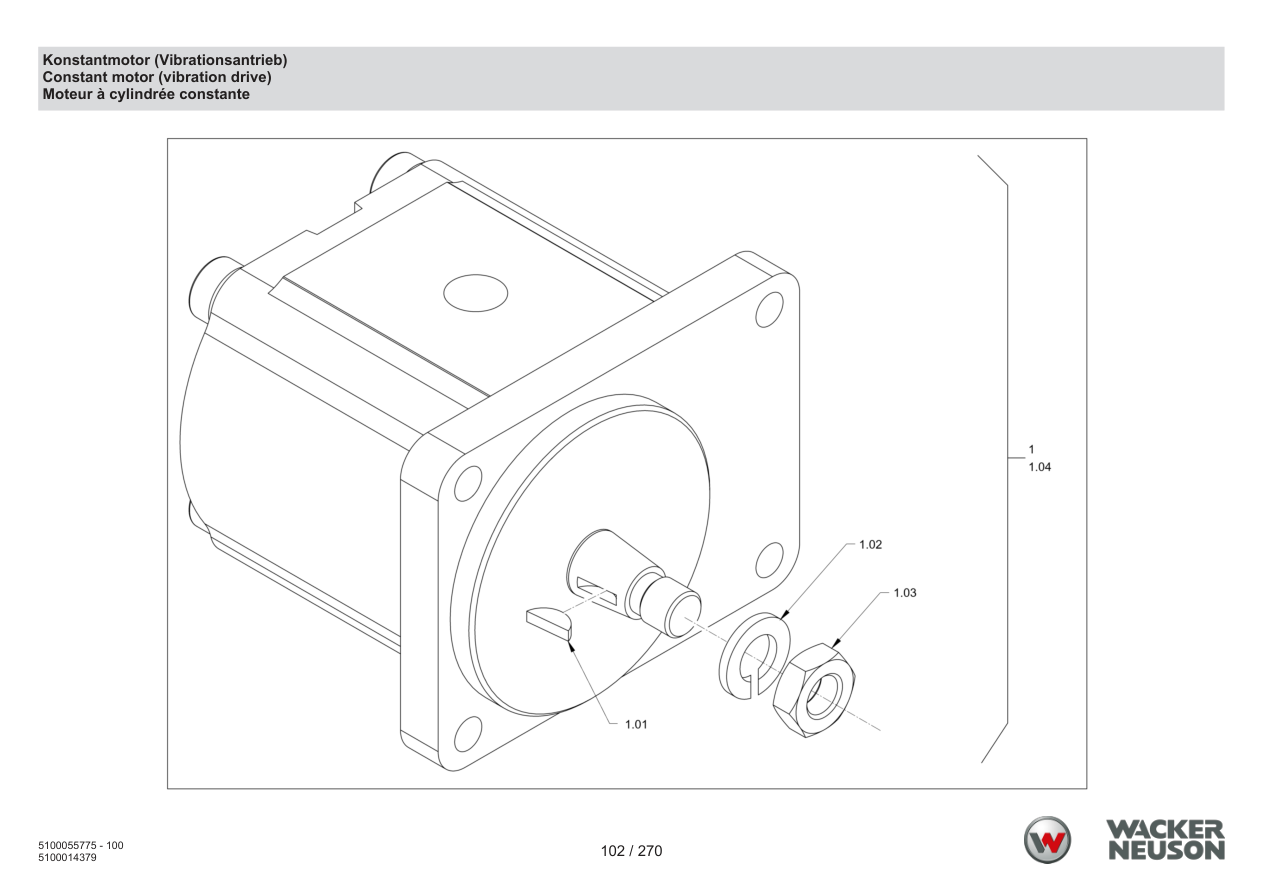

Page 102 — Constant motor (vibration drive)
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011795 | Gear motor | 1 | ADD TO CART | |
| 1 | 5100065348 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100012549 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012549 · qty on machine: 1 | |||||
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||

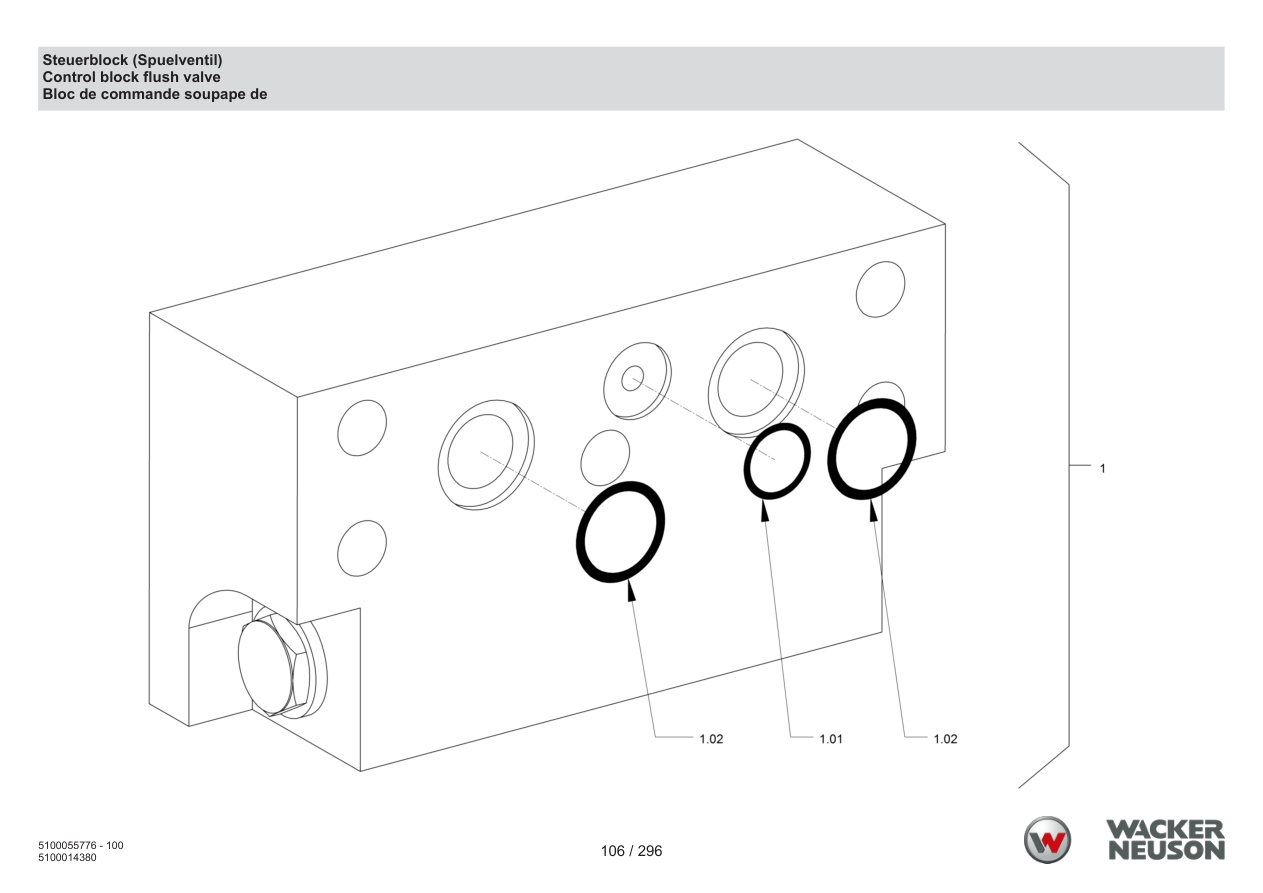

Page 104 — Control block (flush valve)
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012426 | Valve block | 1 | ADD TO CART | |
| 1 | 5100011515 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100011838 | O-ring seal | 2 | ADD TO CART | |

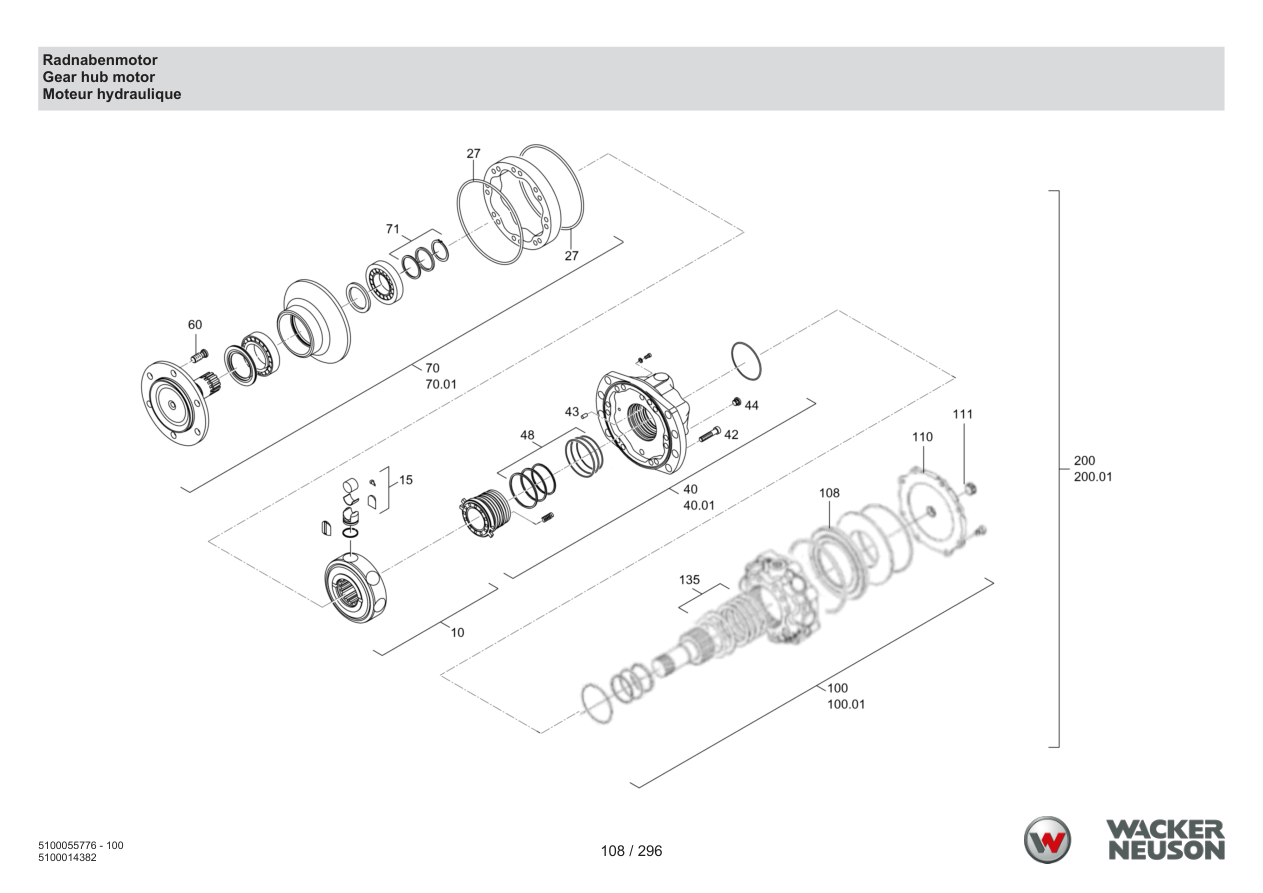

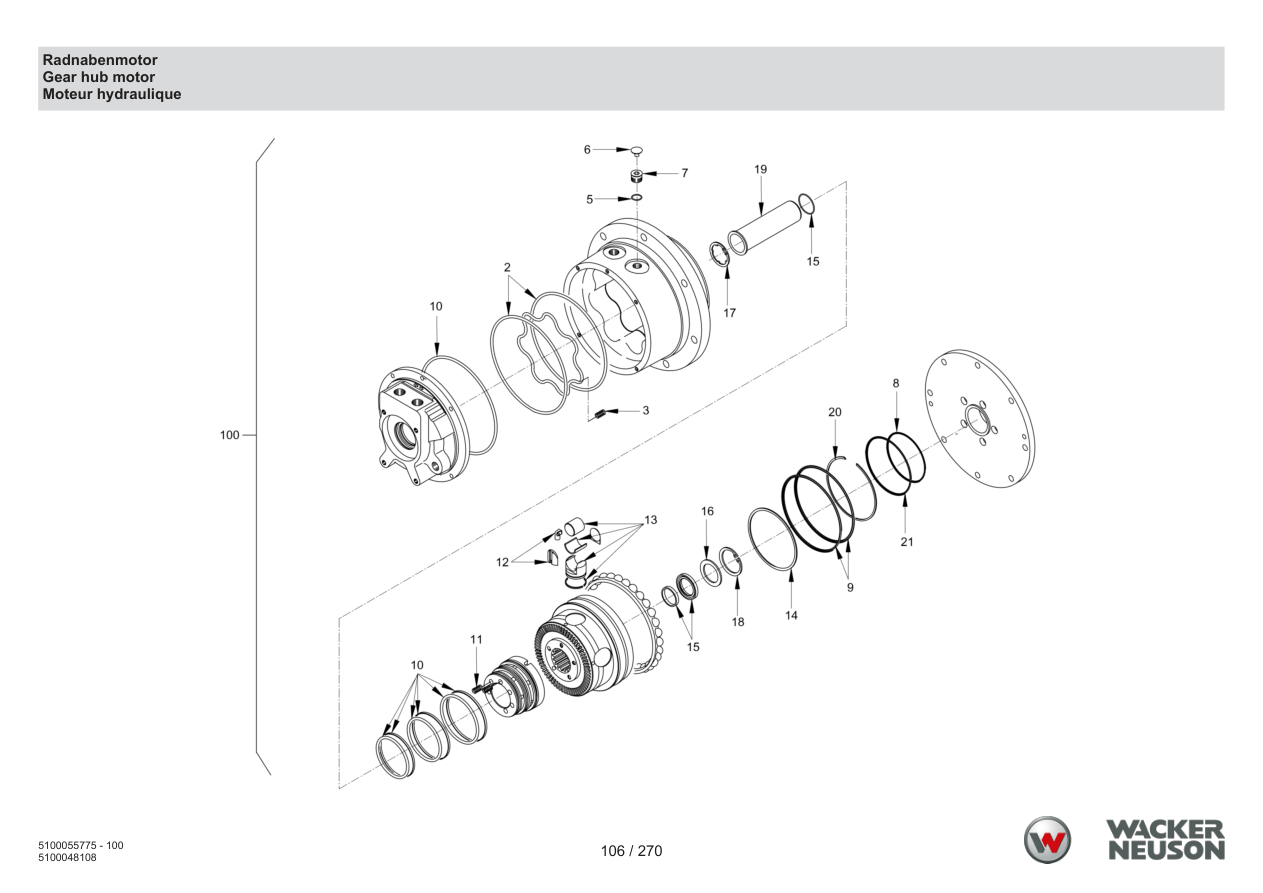

Page 106 — Wheel hub motor
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011954 | Set of seals | 1 | Serialno. >637 | ADD TO CART |
| 3 | 5100016263 | Set of seals | 1 | Serialno. >637 | ADD TO CART |
| 5 | 5100016264 | Seal | 1 | Serialno. >637 | ADD TO CART |
| 6 | 5100016265 | Cap | 1 | Serialno. >637 | ADD TO CART |
| 7 | 5100016266 | Plug | 1 | Serialno. >637 | ADD TO CART |
| 8 | 5100048103 | O-ring seal | 1 | Serialno. >637 | ADD TO CART |
| 9 | 5100011619 | Sealing ring | 2 | Serialno. >637 | ADD TO CART |
| 10 | 5100016269 | Set of seals | 1 | Serialno. >637 | ADD TO CART |
| 11 | 5100012799 | Spring | 1 | Serialno. >637 | ADD TO CART |
| 12 | 5100012796 | Set of seals | 1 | Serialno. >637 | ADD TO CART |
| 13 | 5100016270 | Piston | 5 | Serialno. >637 | ADD TO CART |
| 14 | 5100016267 | Ring | 1 | Serialno. >637 | ADD TO CART |
| 15 | 5100012797 | Set of seals | 1 | Serialno. >637 | ADD TO CART |
| 16 | 5100029590 | Thrust washer | 1 | Serialno. >637 | ADD TO CART |
| 17 | 5100012421 | Locking ring | 1 | Serialno. >637 | ADD TO CART |
| 18 | 5100017993 | Circlip | 1 | Serialno. >637 | ADD TO CART |
| 19 | 5100017994 | Shaft | 1 | Serialno. >637 | ADD TO CART |
| 20 | 5100016268 | Ring | 1 | Serialno. >637 | ADD TO CART |
| 21 | 5100011554 | Sealing ring | 1 | Serialno. >637 | PARTS REQUEST |
|
COMING Sealing ring
5100011554 · qty on machine: 1 Serialno. >637 | |||||
| 100 | 5100048104 | Gear hub motor | 1 | Serialno. >637 | ADD TO CART |

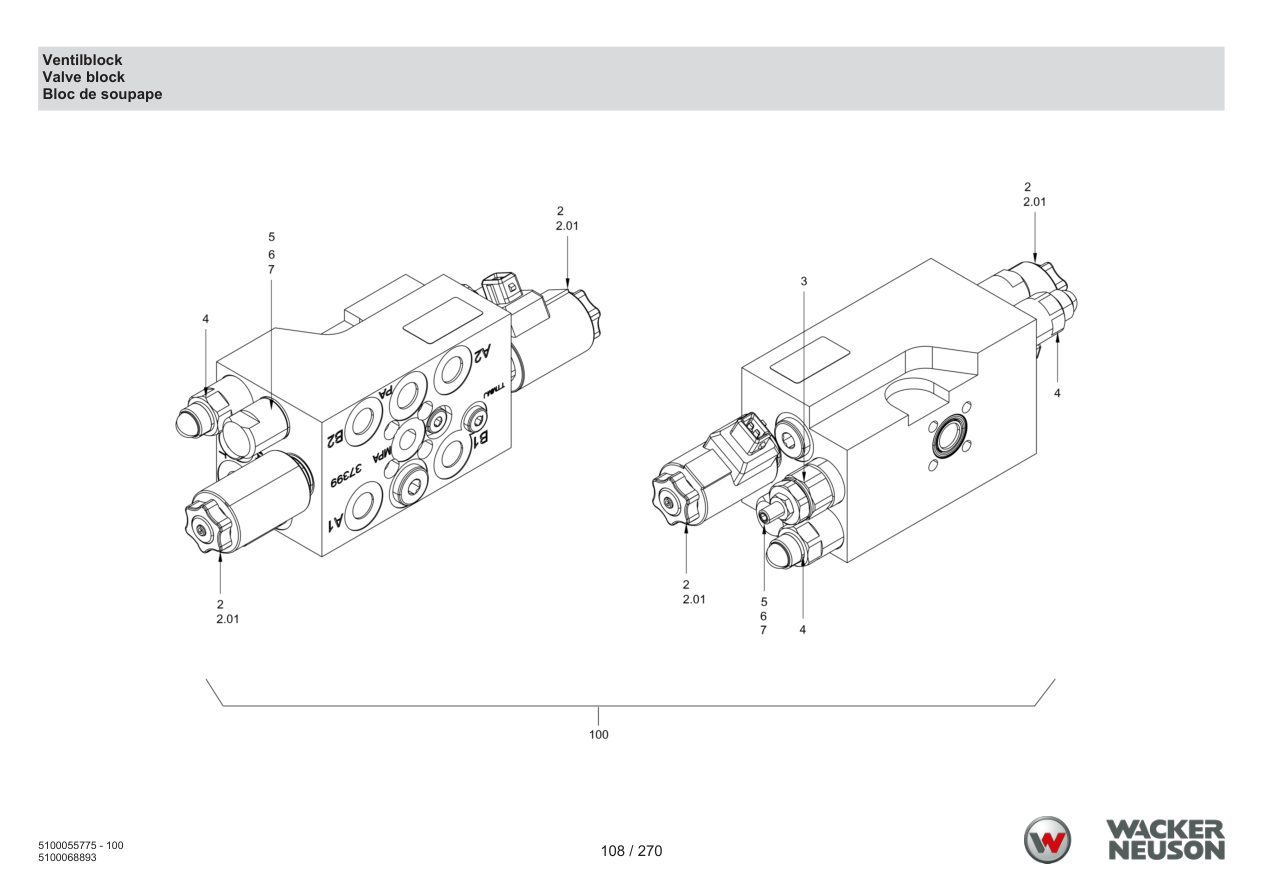

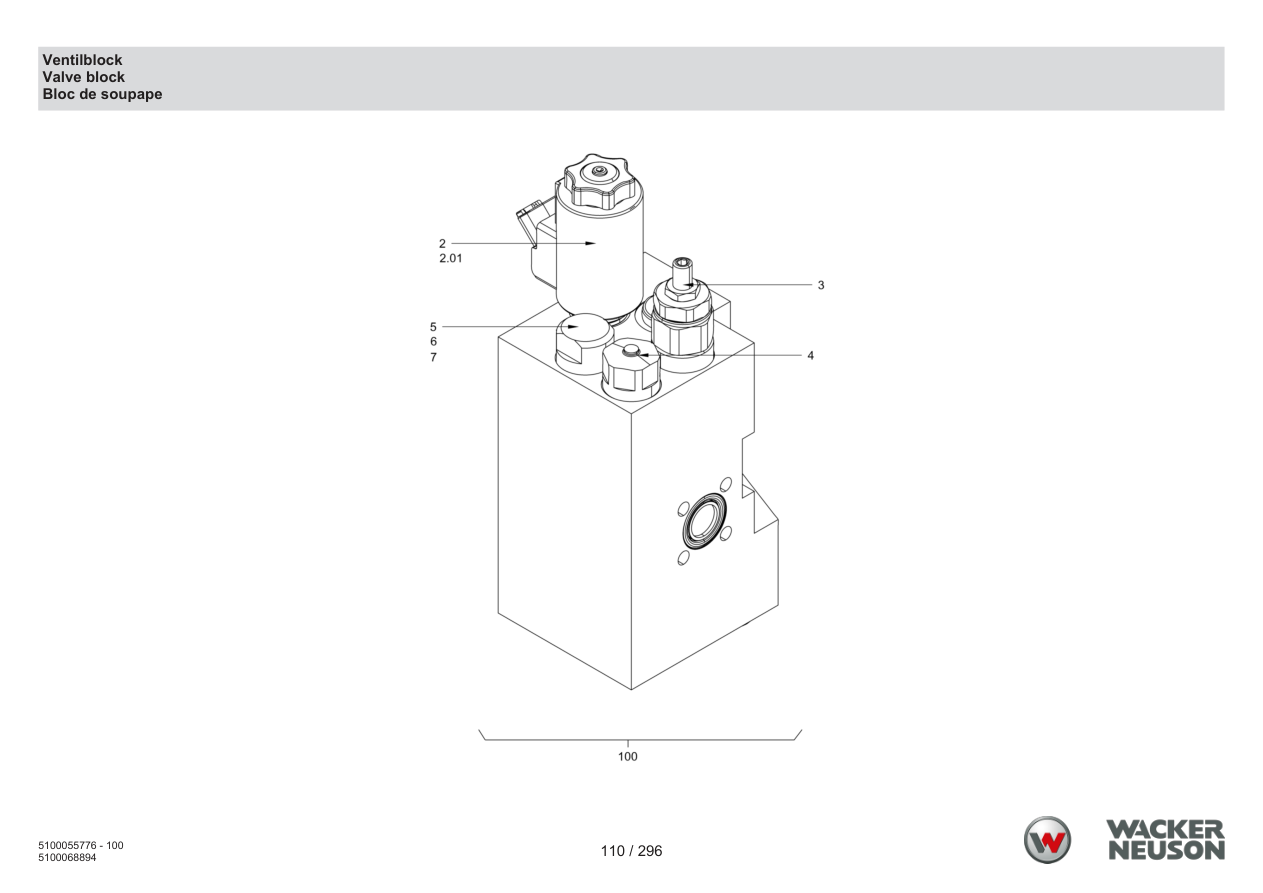

Page 108 — Valve block
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100068731 | Directional control valve | 2 | ADD TO CART | |
| 2 | 5100068732 | Magnet | 2 | ADD TO CART | |
| 3 | 5100068733 | Pressure-relief valve | 1 | ADD TO CART | |
| 4 | 5100083273 | Pressure-relief valve | 2 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100083273 · qty on machine: 2 | |||||
| 5 | 5100083275 | O-ring seal | 2 | PARTS REQUEST | |
|
COMING O-ring seal
5100083275 · qty on machine: 2 | |||||
| 6 | 5100083276 | O-ring seal | 2 | PARTS REQUEST | |
|
COMING O-ring seal
5100083276 · qty on machine: 2 | |||||
| 7 | 5100053422 | Spring cap | 2 | ADD TO CART | |
| 100 | 5100068215 | Valve | 1 | ADD TO CART | |

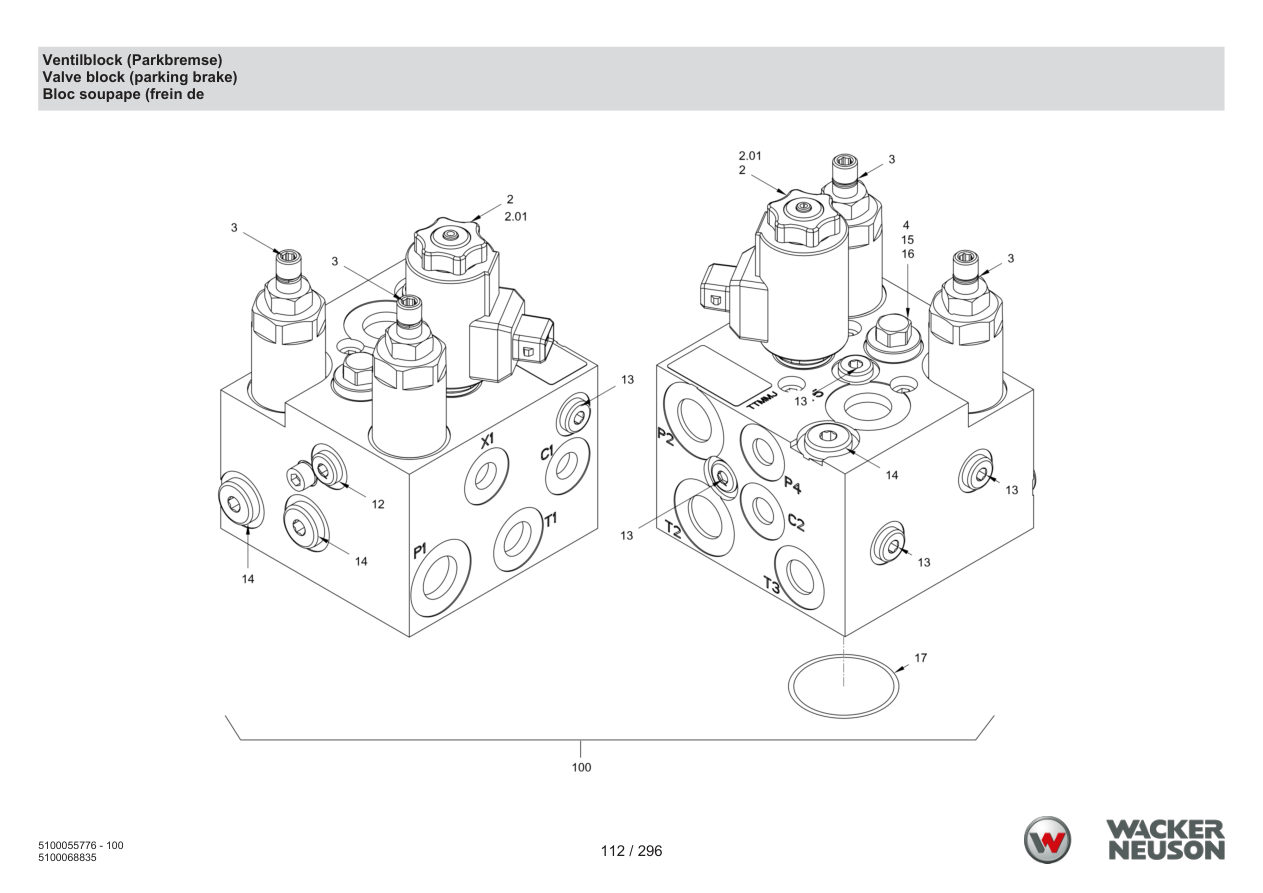

Page 110 — Valve block (parking brake)
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011986 | Directional valve | 1 | ADD TO CART | |
| 2 | 5100012409 | Magnet | 1 | ADD TO CART | |
| 4 | 5100068740 | Spindle | 2 | PARTS REQUEST | |
|
COMING Spindle
5100068740 · qty on machine: 2 | |||||
| 12 | 5100011671 | Screw plug | 1 | ADD TO CART | |
| 13 | 5100011564 | Screw plug | 1 | ADD TO CART | |
| 14 | 5100011538 | Screw plug | 5 | ADD TO CART | |
| 15 | 5100011985 | O-ring seal | 3 | ADD TO CART | |
| 16 | 5100011838 | O-ring seal | 1 | ADD TO CART | |
| 17 | 5100011419 | O-ring seal | 1 | ADD TO CART | |
| 23 | 5100076202 | Pressure-relief valve | 1 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100076202 · qty on machine: 1 | |||||
| 24 | 5100083274 | Pressure-relief valve | 1 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100083274 · qty on machine: 1 | |||||
| 100 | 5100058635 | Valve block | 1 | ADD TO CART | |

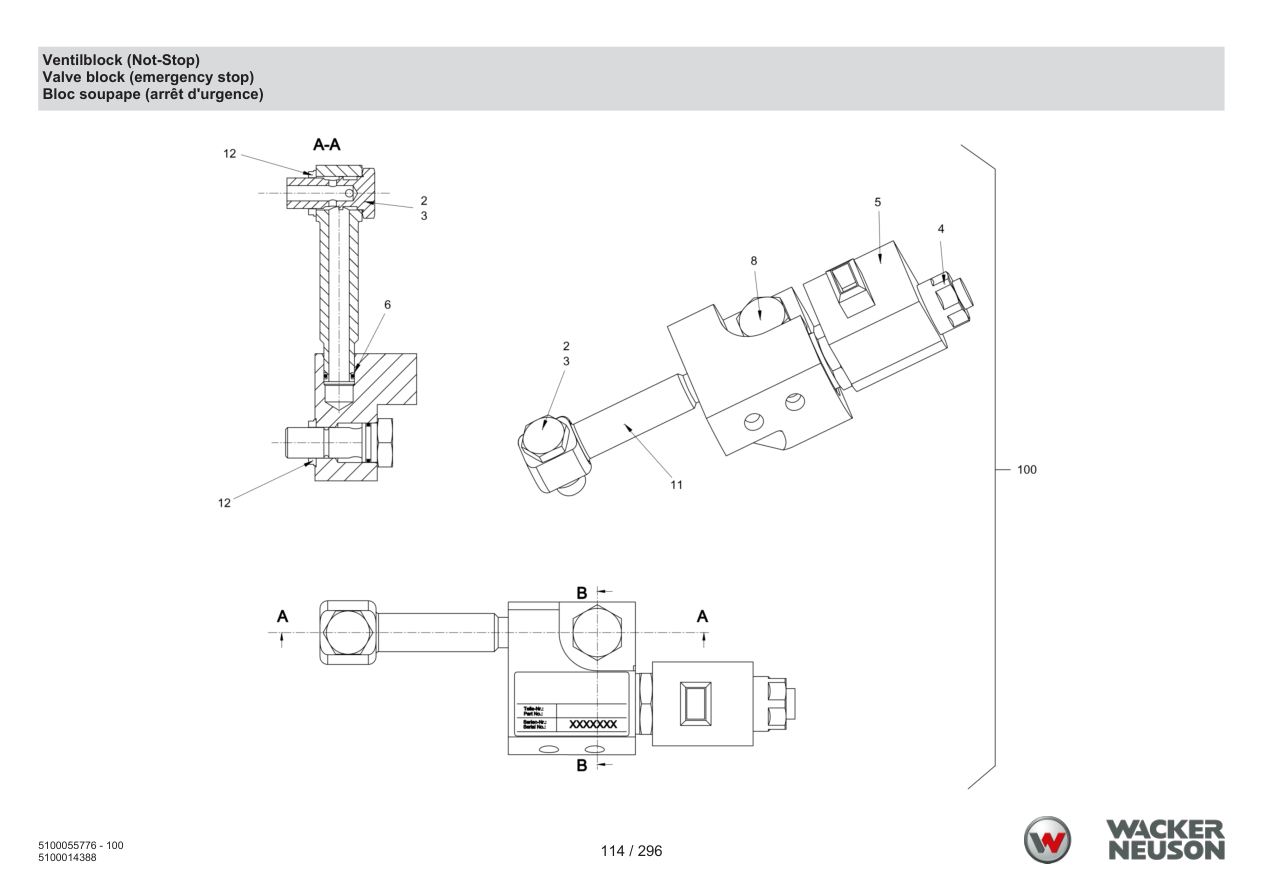

Page 112 — Valve block (emergency stop)
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066870 | Sealing ring | 1 | ADD TO CART | |
| 3 | 5100012095 | Hollow-core screw | 1 | ADD TO CART | |
| 4 | 5100012196 | Directional valve | 1 | PARTS REQUEST | |
|
COMING Directional valve
5100012196 · qty on machine: 1 | |||||
| 5 | 5100012197 | Solenoid coil | 1 | ADD TO CART | |
| 6 | 5100013406 | O-ring seal | 1 | ADD TO CART | |
| 8 | 5100012199 | Hollow-core screw | 1 | ADD TO CART | |
| 11 | 5100012096 | Pipe | 1 | ADD TO CART | |
| 12 | 5100012198 | Sealing ring | 2 | ADD TO CART | |
| 100 | 5100012429 | Valve block | 1 | ADD TO CART | |

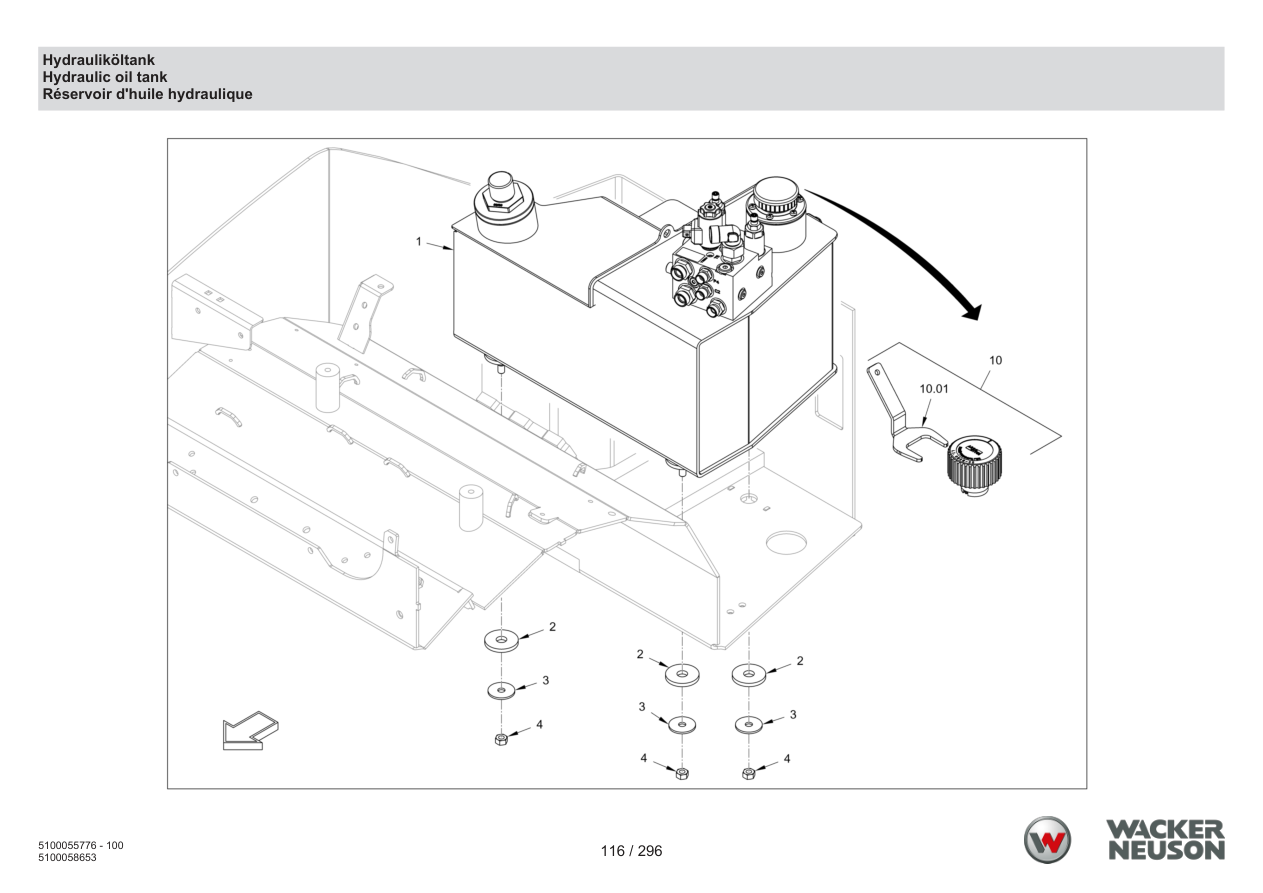

Page 114 — Hydraulic oil tank
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100058634 | Oil tank | 1 | PARTS REQUEST | |
|
COMING Oil tank
5100058634 · qty on machine: 1 | |||||
| 2 | 5100011731 | Rubber washer | 3 | ADD TO CART | |
| 3 | 5100011824 | Washer | 3 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 3 | ADD TO CART | |
| 10 | 5100012419 | Filter | 1 | ADD TO CART | |
| 10 | 5100016828 | Vent filter | 1 | ADD TO CART | |
| 10 | 5100024927 | Special wrench | 1 | ADD TO CART | |
| 2 | 5100058635 | Valve block | 1 | ADD TO CART | |
| 3 | 5100013527 | Cheese-head screw | 3 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013474 | Straight screwed socket | 2 | ADD TO CART | |
| 10 | 5100013454 | Straight screwed socket | 1 | Serialno. >213 | ADD TO CART |
| 10 | 5100013474 | Straight screwed socket | 1 | Serialno. 160-212 | ADD TO CART |
| 16 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 20 | 5100011731 | Rubber washer | 3 | ADD TO CART | |
| 37 | 5100013475 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 | |||||
| 38 | 5100013475 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 | |||||
| 49 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 49 | 5100012866 | Fillister head screw | 6 | ADD TO CART | |
| 49 | 5100012419 | Filter | 1 | ADD TO CART | |
| 49 | 5100012234 | Hydraulic oil tank | 1 | ADD TO CART | |
| 49 | 5100011857 | Suction filter | 1 | ADD TO CART | |
| 50 | 5100013557 | Key | 1 | ADD TO CART | |
| 50 | 5100016828 | Vent filter | 1 | ADD TO CART | |
| 51 | 5100011730 | Spacer pin | 3 | ADD TO CART | |
| 53 | 5100012625 | Oil level indicator | 1 | ADD TO CART | |
| 57 | 5100013474 | Straight screwed socket | 1 | Serialno. 160-166 | ADD TO CART |
| 57 | 5100013616 | Straight screwed socket | 1 | Serialno. >167 | ADD TO CART |
| 68 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 81 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 87 | 5100022890 | Elbow adjustable | 1 | ADD TO CART | |
| 88 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 100 | 5100058634 | Oil tank | 1 | PARTS REQUEST | |
|
COMING Oil tank
5100058634 · qty on machine: 1 | |||||

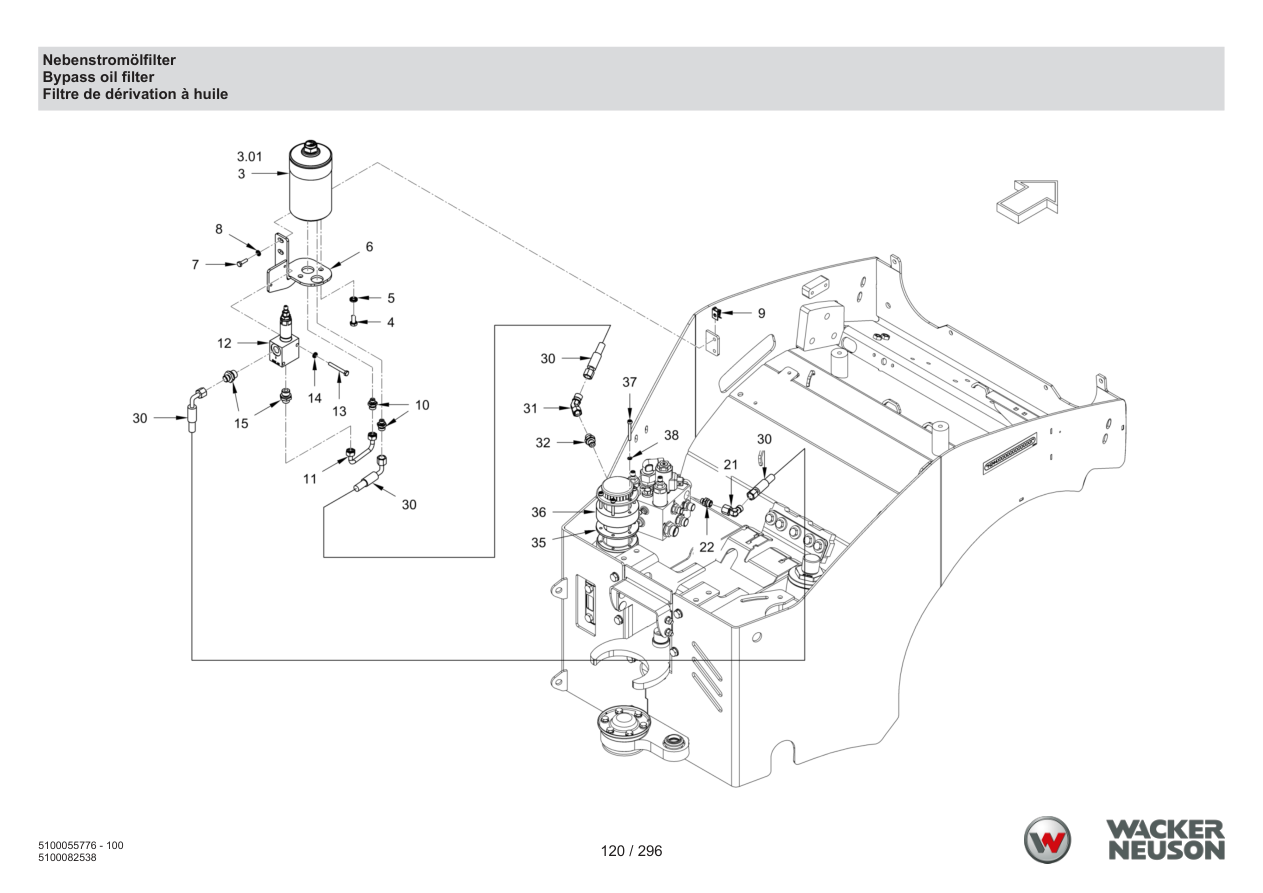

Page 118 — Bypass oil filter
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100082567 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100082567 · qty on machine: 1 | |||||
| 3 | 5100065307 | Filter | 1 | ADD TO CART | |
| 3 | 5100066879 | Filter insert | 1 | ADD TO CART | |
| 4 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 9 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 10 | 5100029551 | Straight screwed socket | 2 | ADD TO CART | |
| 11 | 5100065322 | Pipe bend | 1 | PARTS REQUEST | |
|
COMING Pipe bend
5100065322 · qty on machine: 1 | |||||
| 12 | 5100065308 | Pressure reducing valve | 1 | ADD TO CART | |
| 13 | 5100034772 | Hexagon screw | 2 | ADD TO CART | |
| 14 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100048634 | Straight screwed socket | 2 | ADD TO CART | |
| 21 | 5100029538 | Elbow adjustable | 1 | ADD TO CART | |
| 22 | 5100029551 | Straight screwed socket | 1 | ADD TO CART | |
| 30 | 5100065323 | Hose | 2 | PARTS REQUEST | |
|
COMING Hose
5100065323 · qty on machine: 2 | |||||
| 31 | 5100065302 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100065302 · qty on machine: 1 | |||||
| 32 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 35 | 5100065310 | Sealing | 1 | ADD TO CART | |
| 36 | 5100065311 | Distance ring | 1 | PARTS REQUEST | |
|
COMING Distance ring
5100065311 · qty on machine: 1 | |||||
| 37 | 5100012090 | Cheese-head screw | 6 | ADD TO CART | |
| 38 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
Page 120 — Dashboard
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100011595 | Frame | 2 | ADD TO CART | |
| 22 | 5100011580 | Blind cover | 1 | ADD TO CART | |
| 30 | 5100023242 | Fixation | 1 | ADD TO CART | |
| 31 | 5100023241 | Push button | 1 | ADD TO CART | |
| 33 | 5100023527 | Label | 1 | ADD TO CART | |
| 35 | 5100023008 | Lid | 1 | ADD TO CART | |
| 100 | 5100025103 | Instrument panel | 1 | ADD TO CART | |

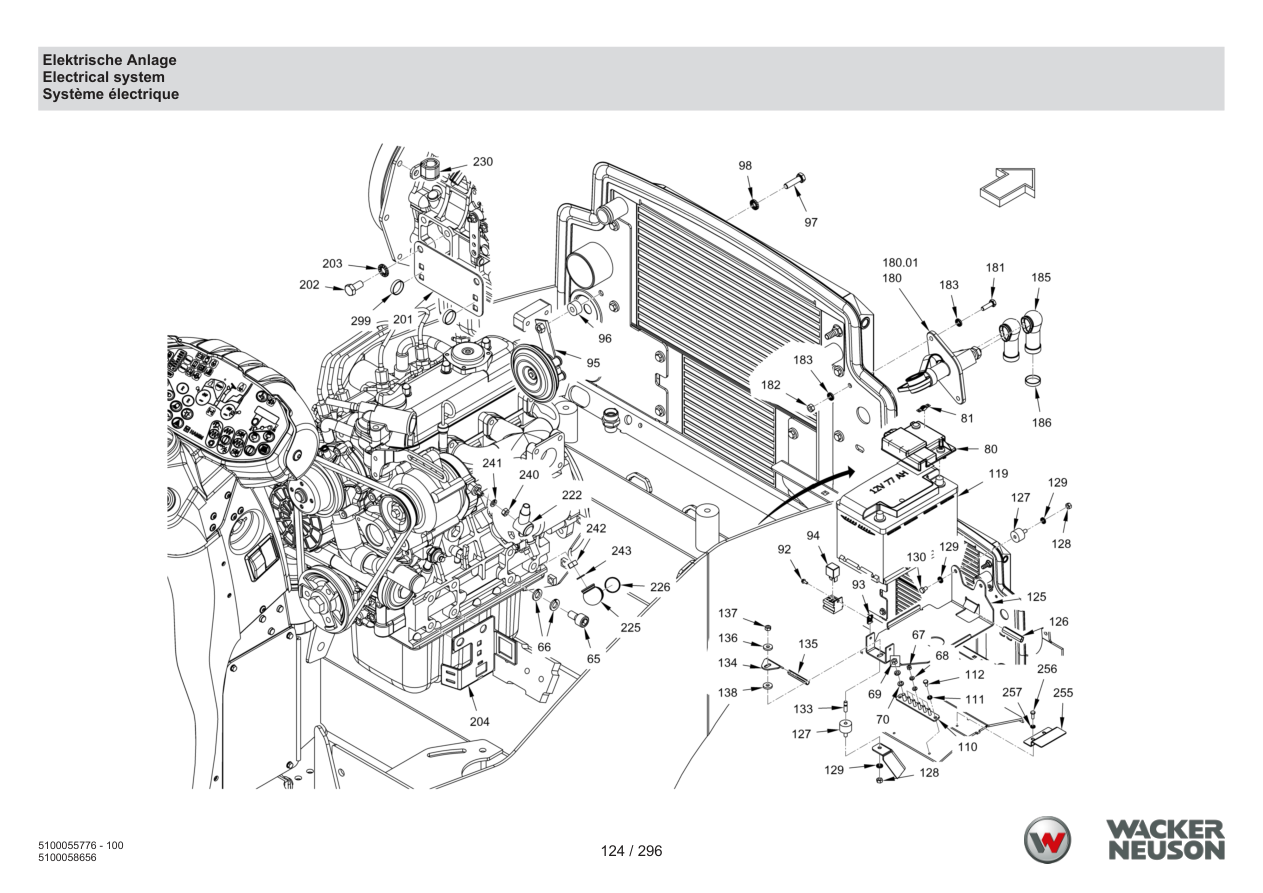

Page 122 — Electrical system
Parts list — exactly as printed151 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 65 | 5100058636 | Hexagon screw | 1 | Serialno. <334 | ADD TO CART |
| 66 | 5100011918 | Serrated lock washer | 2 | Serialno. <334 | ADD TO CART |
| 67 | 5100011914 | Hexagon nut | 5 | Serialno. <334 | ADD TO CART |
| 68 | 5100023629 | Spring ring | 10 | Serialno. <334 | ADD TO CART |
| 69 | 5100011915 | Hexagon nut | 1 | Serialno. <334 | ADD TO CART |
| 70 | 5100011917 | Serrated lock washer | 2 | Serialno. <334 | ADD TO CART |
| 80 | 5100012670 | Fuse holder | 1 | Serialno. <334 | ADD TO CART |
| 81 | 5100011640 | Blade fuse | 1 | Serialno. <334 | ADD TO CART |
| 92 | 5100012587 | Safety screw | 1 | Serialno. <334 | ADD TO CART |
| 93 | 5100013599 | Clip nut | 1 | Serialno. <334 | ADD TO CART |
| 94 | 5100011859 | Relay | 1 | Serialno. <334 | ADD TO CART |
| 95 | 5100012321 | Signal horn | 1 | Serialno. <334 | ADD TO CART |
| 96 | 5100011791 | Distance bush | 1 | Serialno. <334 | ADD TO CART |
| 97 | 5100013510 | Hexagon screw | 1 | Serialno. <334 | ADD TO CART |
| 98 | 5100012966 | Locking washer | 1 | Serialno. <334 | ADD TO CART |
| 110 | 5100011974 | Ground terminal | 2 | Serialno. <334 | ADD TO CART |
| 111 | 5100012965 | Locking washer | 4 | Serialno. <334 | ADD TO CART |
| 112 | 5100012572 | Hexagon screw | 4 | Serialno. <334 | PARTS REQUEST |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 Serialno. <334 | |||||
| 119 | 5100012544 | Battery | 1 | Serialno. <334 | ADD TO CART |
| 125 | 5100012335 | Metal plate | 1 | Serialno. <334 | ADD TO CART |
| 126 | 5100013412 | Edge protection | 0.04 | Serialno. <334 | ADD TO CART |
| 127 | 5100013550 | Rubber buffer | 3 | Serialno. <334 | ADD TO CART |
| 128 | 5100012546 | Hexagon nut | 3 | Serialno. <334 | ADD TO CART |
| 129 | 5100012966 | Locking washer | 5 | Serialno. <334 | ADD TO CART |
| 130 | 5100035056 | Hexagon screw | 2 | Serialno. <334 | ADD TO CART |
| 133 | 5100011471 | Stud bolt | 1 | Serialno. <334 | ADD TO CART |
| 134 | 5100011696 | Metal plate | 1 | Serialno. <334 | ADD TO CART |
| 135 | 5100013412 | Edge protection | 0.04 | Serialno. <334 | ADD TO CART |
| 136 | 5100013094 | Washer | 1 | Serialno. <334 | ADD TO CART |
| 137 | 5100012546 | Hexagon nut | 1 | Serialno. <334 | ADD TO CART |
| 138 | 5100013094 | Washer | 1 | Serialno. <334 | ADD TO CART |
| 180 | 5100011455 | Key | 1 | 180.01 Serialno. <334 | ADD TO CART |
| 180 | 5100013608 | Battery isolating switch | 1 | Serialno. <334 | ADD TO CART |
| 181 | 5100012608 | Hexagon screw | 2 | Serialno. <334 | ADD TO CART |
| 182 | 5100012545 | Hexagon nut | 2 | Serialno. <334 | ADD TO CART |
| 183 | 5100012965 | Locking washer | 4 | Serialno. <334 | ADD TO CART |
| 185 | 5100013184 | Protecting cap | 2 | Serialno. <334 | PARTS REQUEST |
|
COMING Protecting cap
5100013184 · qty on machine: 2 Serialno. <334 | |||||
| 186 | 5100013573 | Wire fastener | 1 | Serialno. <334 | ADD TO CART |
| 201 | 5100012242 | Bracket | 1 | Serialno. <334 | ADD TO CART |
| 202 | 5100012551 | Hexagon screw | 2 | Serialno. <334 | ADD TO CART |
| 203 | 5100012967 | Locking washer | 2 | Serialno. <334 | ADD TO CART |
| 204 | 5100012341 | Bracket | 1 | Serialno. <334 | ADD TO CART |
| 222 | 5100012829 | Protecting cap | 1 | Serialno. <334 | ADD TO CART |
| 225 | 5100013184 | Protecting cap | 1 | Serialno. <334 | PARTS REQUEST |
|
COMING Protecting cap
5100013184 · qty on machine: 1 Serialno. <334 | |||||
| 226 | 5100013573 | Wire fastener | 1 | Serialno. <334 | ADD TO CART |
| 230 | 5100011465 | Pipe clip | 1 | Serialno. <334 | ADD TO CART |
| 240 | 5100011914 | Hexagon nut | 1 | Serialno. <334 | ADD TO CART |
| 241 | 5100023629 | Spring ring | 1 | Serialno. <334 | ADD TO CART |
| 242 | 5100011915 | Hexagon nut | 1 | Serialno. <334 | ADD TO CART |
| 243 | 5100013441 | Locking washer | 1 | Serialno. <334 | ADD TO CART |
| 255 | 5100012337 | Bracket | 1 | Serialno. <334 | ADD TO CART |
| 256 | 5100012600 | Hexagon screw | 2 | Serialno. <334 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 Serialno. <334 | |||||
| 257 | 5100012965 | Locking washer | 2 | Serialno. <334 | ADD TO CART |
| 299 | 5100013573 | Wire fastener | 10 | Serialno. <334 | ADD TO CART |
| 119 | 5100064718 | Battery | 1 | Serialno. >335 | PARTS REQUEST |
|
COMING Battery
5100064718 · qty on machine: 1 Serialno. >335 | |||||
| 125 | 5100068741 | Metal plate | 1 | Serialno. >335 | ADD TO CART |
| 104 | 5100012804 | Circuit board | 1 | ADD TO CART | |
| 133 | 5100035056 | Hexagon screw | 1 | Serialno. >335 | ADD TO CART |
| 136 | 5100012966 | Locking washer | 1 | Serialno. >335 | ADD TO CART |
| 140 | 5100033222 | Distance ring | 1 | Serialno. >335 | ADD TO CART |
| 141 | 5100013421 | Washer | 1 | Serialno. >335 | ADD TO CART |
| 142 | 5100011696 | Metal plate | 1 | Serialno. >335 | ADD TO CART |
| 143 | 5100013412 | Edge protection | 0.04 | Serialno. >335 | ADD TO CART |
| 144 | 5100034727 | Stud screw | 1 | Serialno. >335 | ADD TO CART |
| 145 | 5100012966 | Locking washer | 1 | Serialno. >335 | ADD TO CART |
| 146 | 5100012546 | Hexagon nut | 1 | Serialno. >335 | ADD TO CART |
| 5 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
| 35 | 5100059507 | Proximity switch | 1 | ADD TO CART | |
| 71 | 5100011914 | Hexagon nut | 5 | ADD TO CART | |
| 72 | 5100023629 | Spring ring | 9 | ADD TO CART | |
| 105 | 5100013606 | Cheese-head screw | 2 | ADD TO CART | |
| 170 | 5100011849 | Built-in socket | 1 | ADD TO CART | |
| 171 | 5100012093 | Metal plate | 1 | ADD TO CART | |
| 172 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 173 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 174 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 250 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 251 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 260 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 261 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 283 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 284 | 5100052960 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100052960 · qty on machine: 1 | |||||
| 298 | 5100011748 | Rear reflector | 2 | ADD TO CART | |
| 1 | 5100013570 | Ignition switch | 1 | ADD TO CART | |
| 2 | 5100013506 | Lid | 1 | ADD TO CART | |
| 10 | 5100011784 | Signal transmitter | 1 | ADD TO CART | |
| 12 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 13 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 14 | 5100011586 | Hexagon nut | 1 | ADD TO CART | |
| 21 | 5100013557 | Key | 2 | ADD TO CART | |
| 40 | 5100012575 | Wire harness | 1 | ADD TO CART | |
| 42 | 5100052958 | Cheese-head screw | 1 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 47 | 5100012584 | Relay | 1 | PARTS REQUEST | |
|
COMING Relay
5100012584 · qty on machine: 1 | |||||
| 48 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 50 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 84 | 5100011616 | Relay | 1 | ADD TO CART | |
| 85 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 150 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 151 | 5100013594 | Safety screw | 3 | ADD TO CART | |
| 152 | 5100013536 | Serrated lock washer | 3 | ADD TO CART | |
| 153 | 5100011669 | Rubber metal buffer | 3 | ADD TO CART | |
| 154 | 5100011753 | Washer | 3 | ADD TO CART | |
| 155 | 5100012898 | Hexagon nut | 3 | ADD TO CART | |
| 157 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 158 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 159 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 160 | 5100012326 | Cover plate | 1 | ADD TO CART | |
| 161 | 5100012586 | Stud bolt | 2 | ADD TO CART | |
| 162 | 5100013373 | Half-clip | 2 | ADD TO CART | |
| 163 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 164 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 165 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 287 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 288 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 1 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 5 | 5100013586 | Blade fuse | 2 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 2 | |||||
| 10 | 5100013579 | Blade fuse | 2 | ADD TO CART | |
| 15 | 5100013580 | Blade fuse | 11 | ADD TO CART | |
| 25 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 40 | 5100011859 | Relay | 2 | ADD TO CART | |
| 41 | 5100011616 | Relay | 2 | ADD TO CART | |
| 42 | 5100011583 | Relay | 7 | ADD TO CART | |
| 49 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 50 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 71 | 5100012698 | Sticker | 1 | ADD TO CART | |
| 71 | 5100016500 | Sticker | 1 | ADD TO CART | |
| 1 | 5100012707 | Drive lever | 1 | ADD TO CART | |
| 2 | 5100011705 | Handle | 1 | ADD TO CART | |
| 3 | 5100011706 | Handle | 1 | ADD TO CART | |
| 4 | 5100011710 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100011710 · qty on machine: 1 | |||||
| 5 | 5100011711 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100011711 · qty on machine: 1 | |||||
| 6 | 5100011707 | Operating lever | 1 | ADD TO CART | |
| 7 | 5100012024 | Clamping sleeve | 1 | ADD TO CART | |
| 8 | 5100011708 | Cover | 1 | ADD TO CART | |
| 11 | 5100013607 | Raised countersunk head screw | 4 | ADD TO CART | |
| 12 | 5100011738 | Raised countersunk head screw | 1 | ADD TO CART | |
| 30 | 5100012677 | Wire harness | 1 | ADD TO CART | |
| 31 | 5100011709 | Circuit board | 1 | ADD TO CART | |
| 32 | 5100013600 | Sensor | 1 | ADD TO CART | |
| 33 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 34 | 5100011524 | Shrinkdown plastic tubing | 0.03 | ADD TO CART | |
| 35 | 5100011458 | Shrinkdown plastic tubing | 0.07 | ADD TO CART | |
| 40 | 5100013641 | Round cable | 0.4 | PARTS REQUEST | |
|
COMING Round cable
5100013641 · qty on machine: 0.4 | |||||
| 1 | 5100012838 | Pipe | 1 | ADD TO CART | |
| 1 | 5100013654 | Flange | 1 | ADD TO CART | |
| 2 | 5100013571 | Push-button | 1 | ADD TO CART | |
| 3 | 5100013636 | Protecting cap | 1 | ADD TO CART | |
| 4 | 5100013191 | Washer | 1 | ADD TO CART | |
| 5 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |

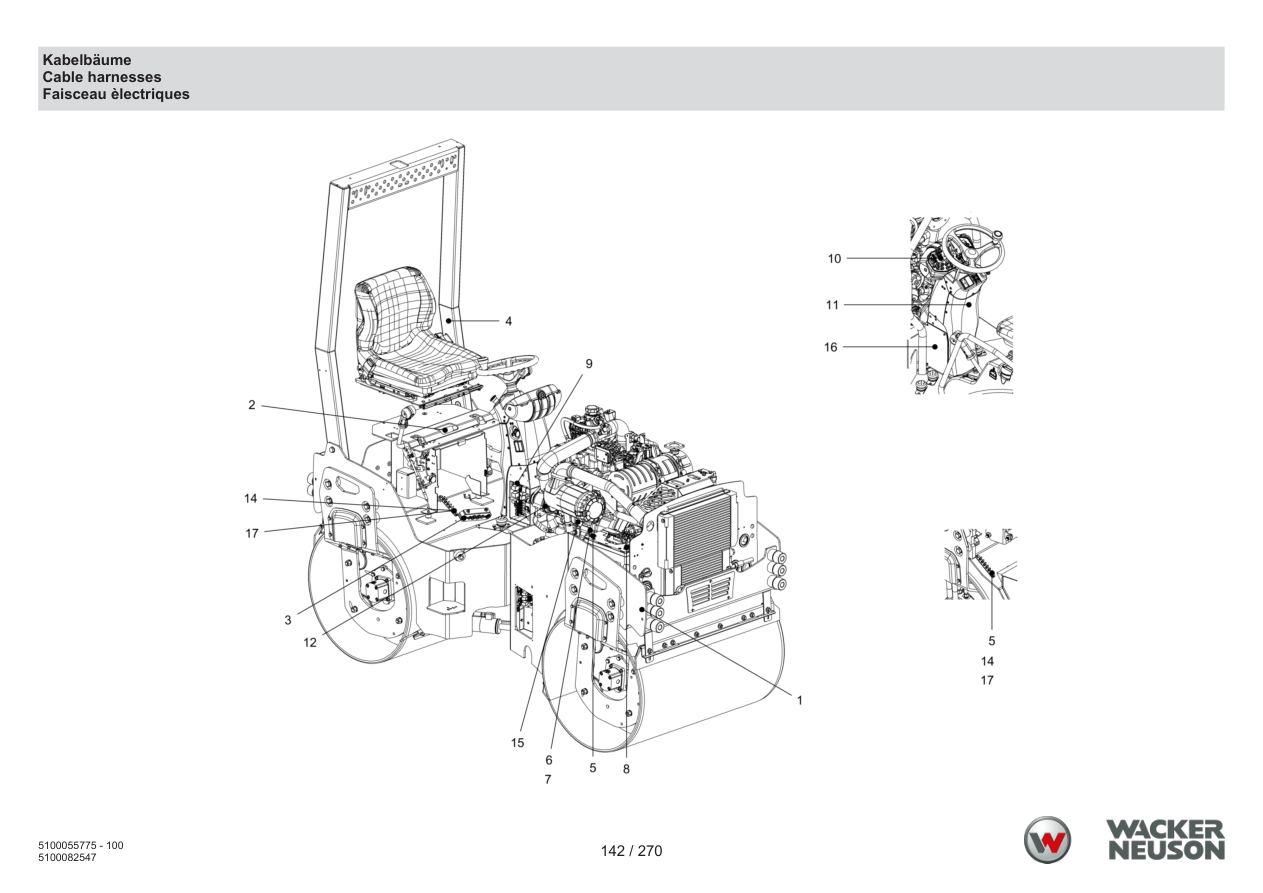

Page 142 — Cable harnesses
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100058637 | Wire harness front frame | 1 | ADD TO CART | |
| 2 | 5100029583 | Cable harness | 1 | ADD TO CART | |
| 3 | 5100012758 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 4 | 5100012803 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100012764 | Wire harness | 1 | ADD TO CART | |
| 6 | 5100012761 | Wire harness | 1 | ADD TO CART | |
| 7 | 5100012760 | Wire harness | 1 | ADD TO CART | |
| 8 | 5100012763 | Wire harness | 1 | ADD TO CART | |
| 9 | 5100012574 | Wire harness | 1 | ADD TO CART | |
| 10 | 5100052977 | Wire harness instrument panel addition | 1 | PARTS REQUEST | |
|
COMING Wire harness instrument panel addition
5100052977 · qty on machine: 1 | |||||
| 11 | 5100066914 | Wire harness instrument panel | 1 | ADD TO CART | |
| 12 | 5100012756 | Wire harness | 1 | ADD TO CART | |
| 14 | 5100012762 | Wire harness | 1 | ADD TO CART | |
| 15 | 5100012759 | Wire harness | 1 | ADD TO CART | |
| 16 | 5100082461 | Ground cable operator's platform | 1 | PARTS REQUEST | |
|
COMING Ground cable operator's platform
5100082461 · qty on machine: 1 | |||||
| 17 | 5100052981 | Ground cable steering column | 1 | PARTS REQUEST | |
|
COMING Ground cable steering column
5100052981 · qty on machine: 1 | |||||

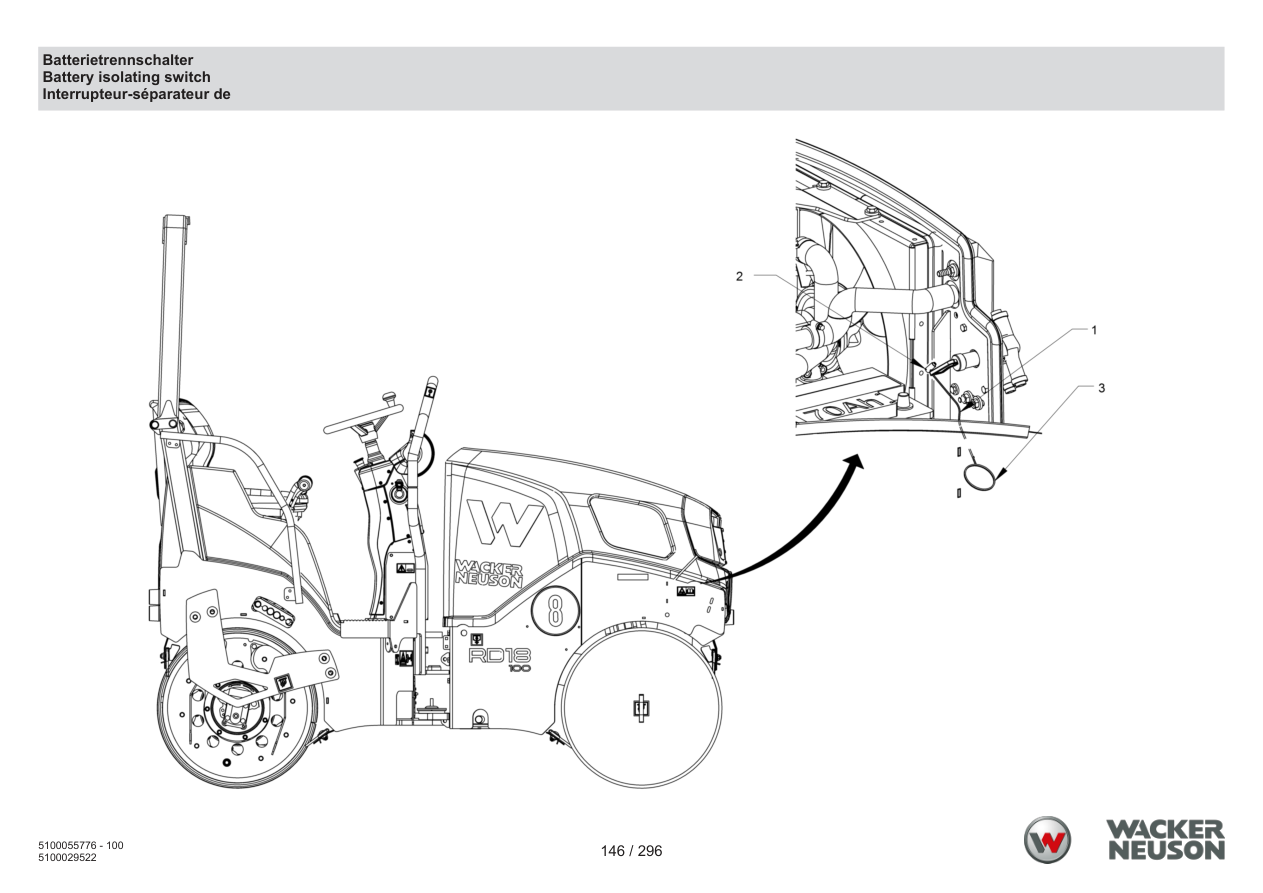

Page 144 — Battery isolating switch
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100029600 | Actuating cable | 1 | ADD TO CART | |
| 2 | 5100029567 | Screw fitting | 1 | ADD TO CART | |
| 3 | 5100029565 | Ring | 1 | ADD TO CART | |

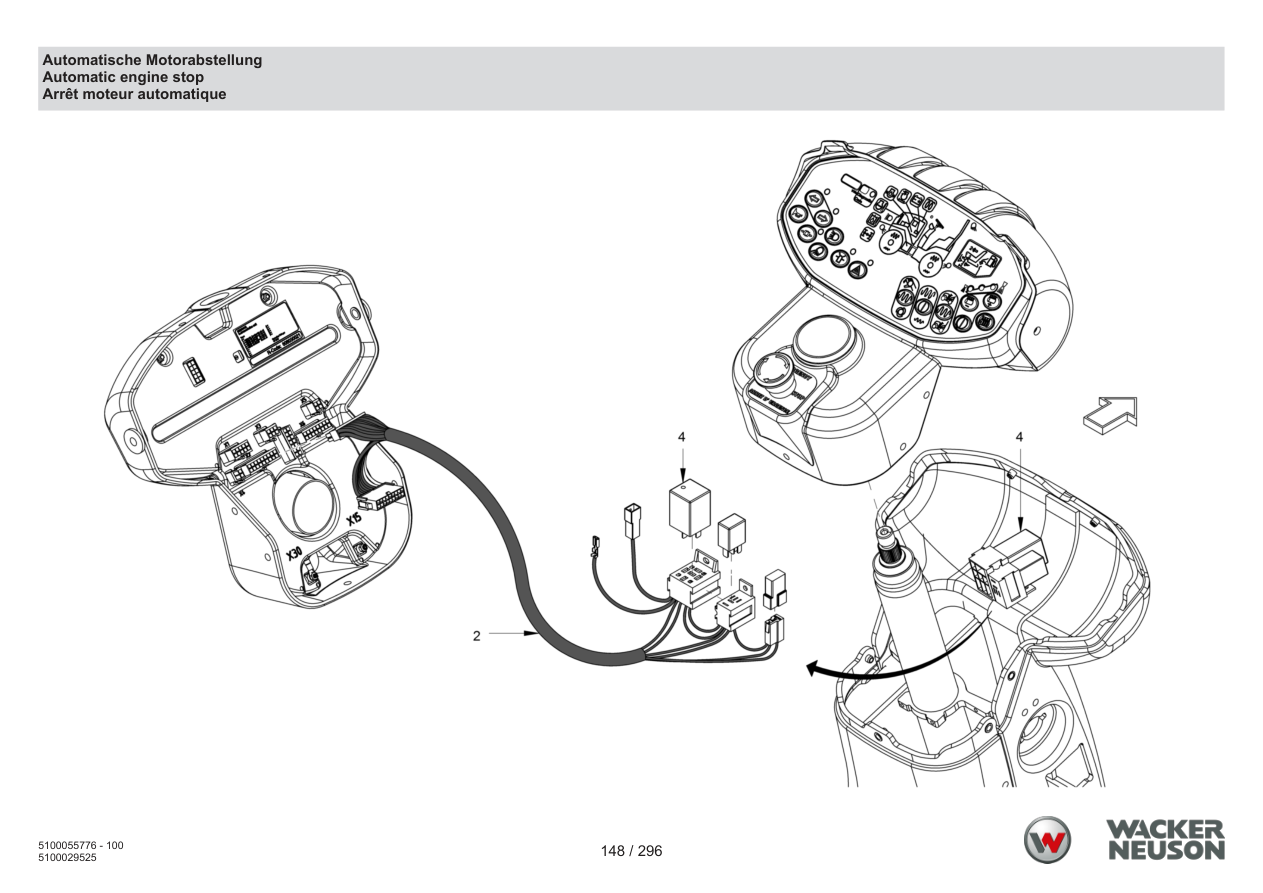

Page 146 — Automatic engine shutdown
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100029573 | Cable harness | 1 | ADD TO CART | |
| 4 | 5100029566 | Slow-release relay | 1 | ADD TO CART | |

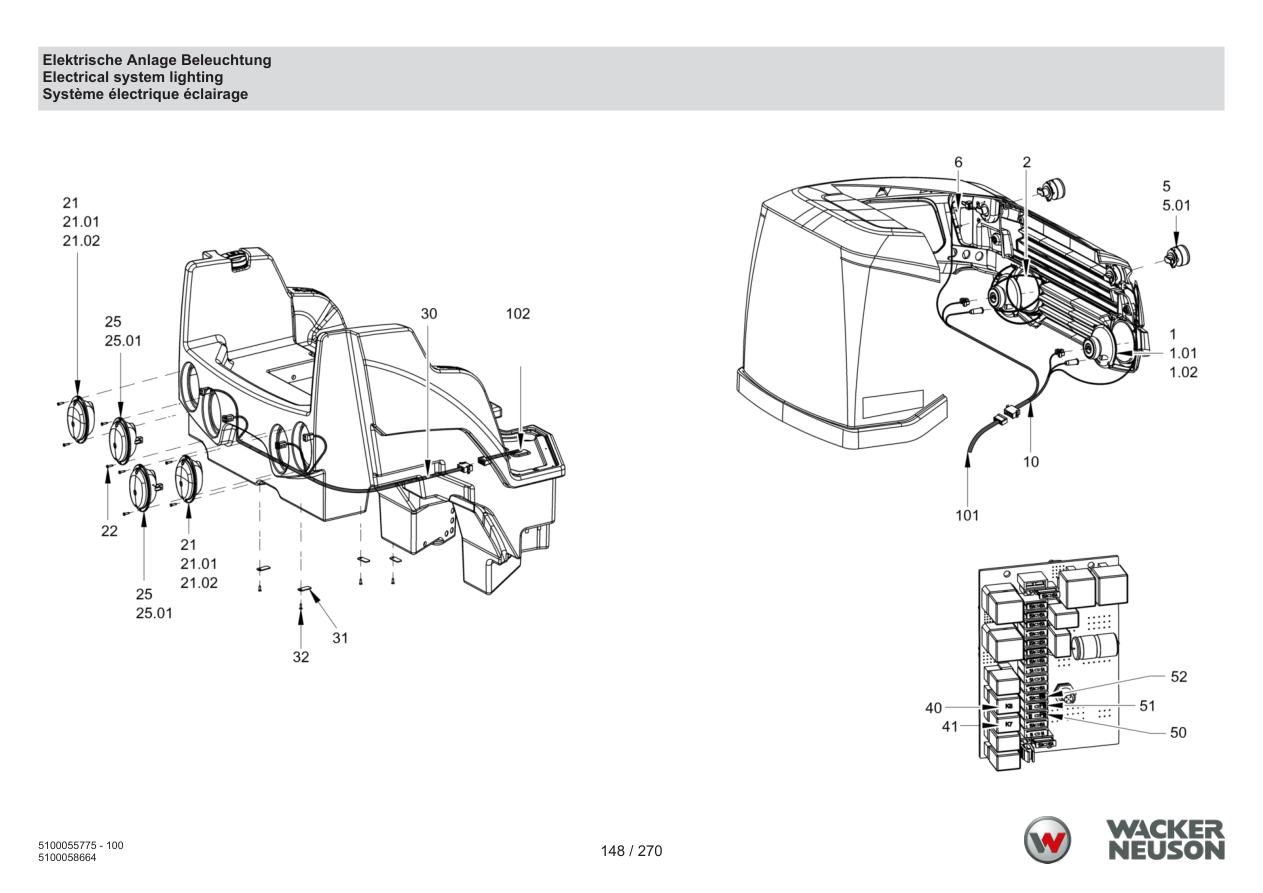

Page 148 — Electrical system Lighting
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011799 | Working light | 2 | Serialno. >213 | ADD TO CART |
| 1 | 5100012468 | Lamp | 2 | 1.02 Serialno. <212 | ADD TO CART |
| 1 | 5100013522 | Lamp | 2 | ADD TO CART | |
| 1 | 5100065328 | Headlight | 2 | Serialno. >213 | ADD TO CART |
| 1 | 5100065330 | Lamp | 1 | ADD TO CART | |
| 2 | 5100011991 | O-ring seal | 4 | ADD TO CART | |
| 5 | 5100011800 | Direction indicator | 2 | ADD TO CART | |
| 5 | 5100012074 | Lamp | 2 | ADD TO CART | |
| 6 | 5100013582 | Sheet metal screw | 4 | ADD TO CART | |
| 10 | 5100011883 | Wire harness (lighting) | 1 | ADD TO CART | |
| 21 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 21 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 21 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 22 | 5100011607 | Sheet metal screw | 8 | ADD TO CART | |
| 25 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 25 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 30 | 5100011884 | Wire harness | 1 | ADD TO CART | |
| 31 | 5100011728 | Metal plate | 7 | ADD TO CART | |
| 32 | 5100011902 | Sheet metal screw | 7 | ADD TO CART | |
| 40 | 5100011583 | Relay | 1 | ADD TO CART | |
| 41 | 5100011583 | Relay | 1 | ADD TO CART | |
| 50 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 51 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 52 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 101 | 5100058637 | Wire harness front frame | 1 | ADD TO CART | |
| 102 | 5100012758 | Wire harness (rear frame) | 1 | ADD TO CART | |

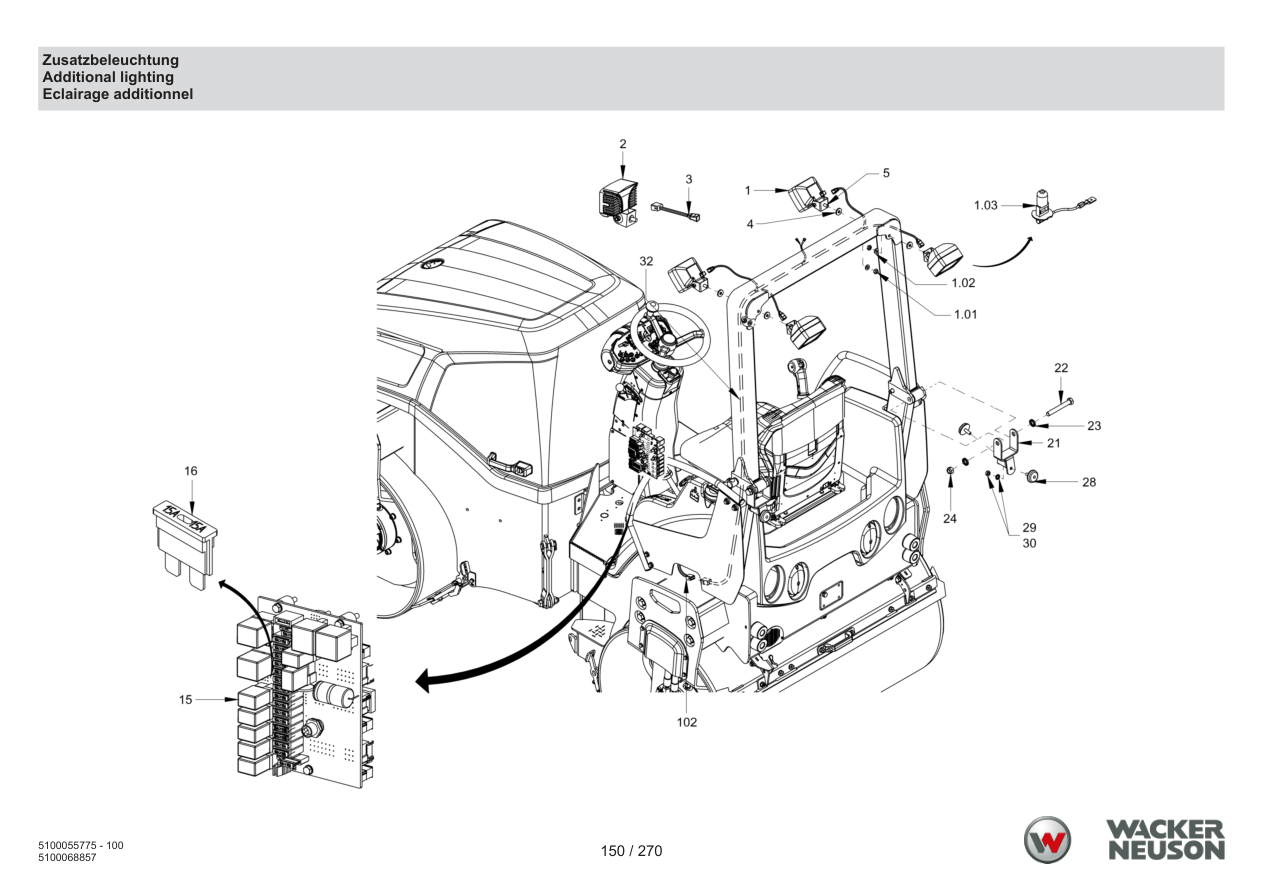

Page 150 — Additional lighting
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011606 | Working light | 4 | ADD TO CART | |
| 1 | 5100012182 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012182 · qty on machine: 1 | |||||
| 1 | 5100012939 | Washer | 1 | ADD TO CART | |
| 1 | 5100013554 | Lamp | 1 | ADD TO CART | |
| 2 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 3 | 5100024918 | Cable harness | 4 | ADD TO CART | |
| 4 | 5100013128 | Washer | 4 | ADD TO CART | |
| 5 | 5100023419 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 21 | 5100016849 | Stop | 2 | ADD TO CART | |
| 22 | 5100013379 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 32 | 5100012803 | Wire harness | 1 | ADD TO CART | |
| 102 | 5100012758 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 1 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 2 | 5100052987 | Wire harness working light | 2 | ADD TO CART | |

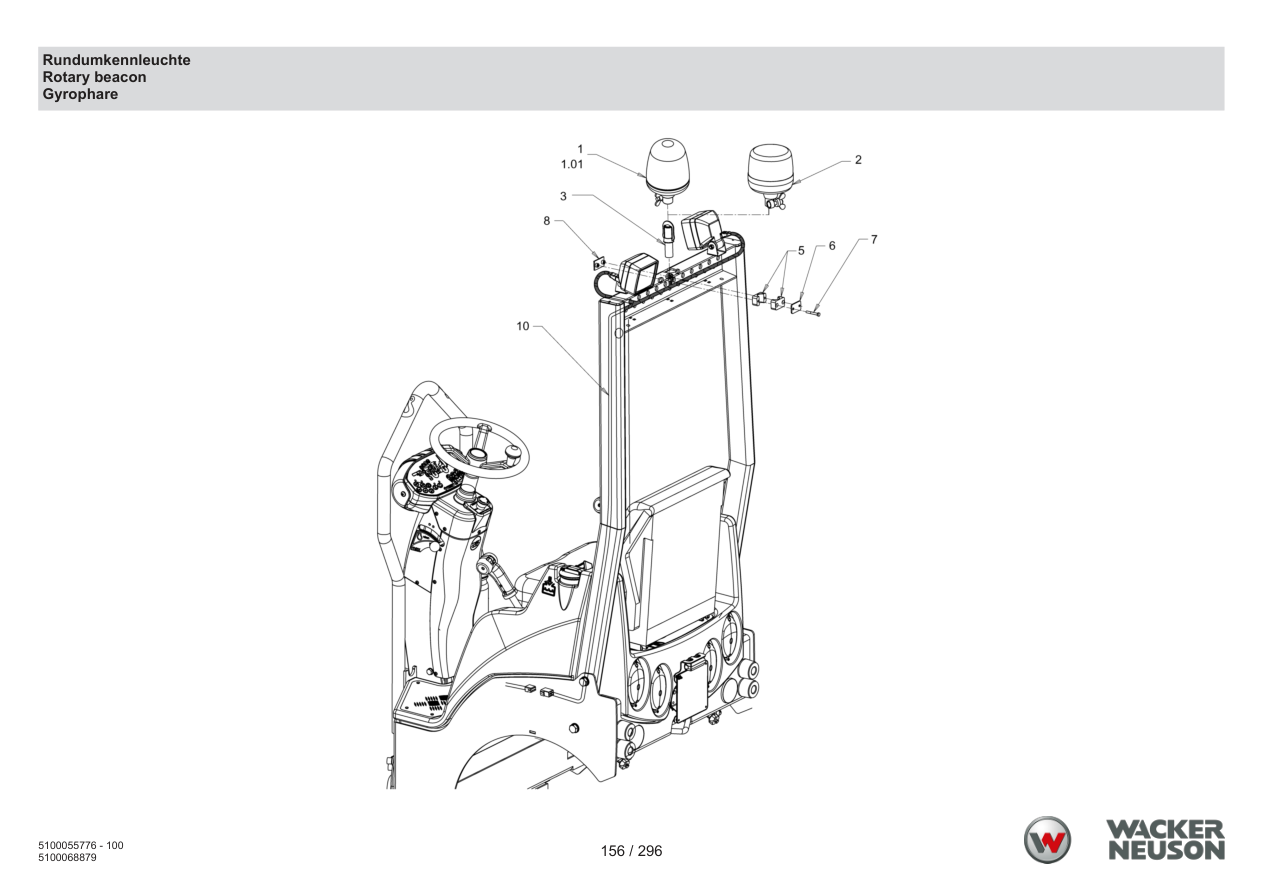

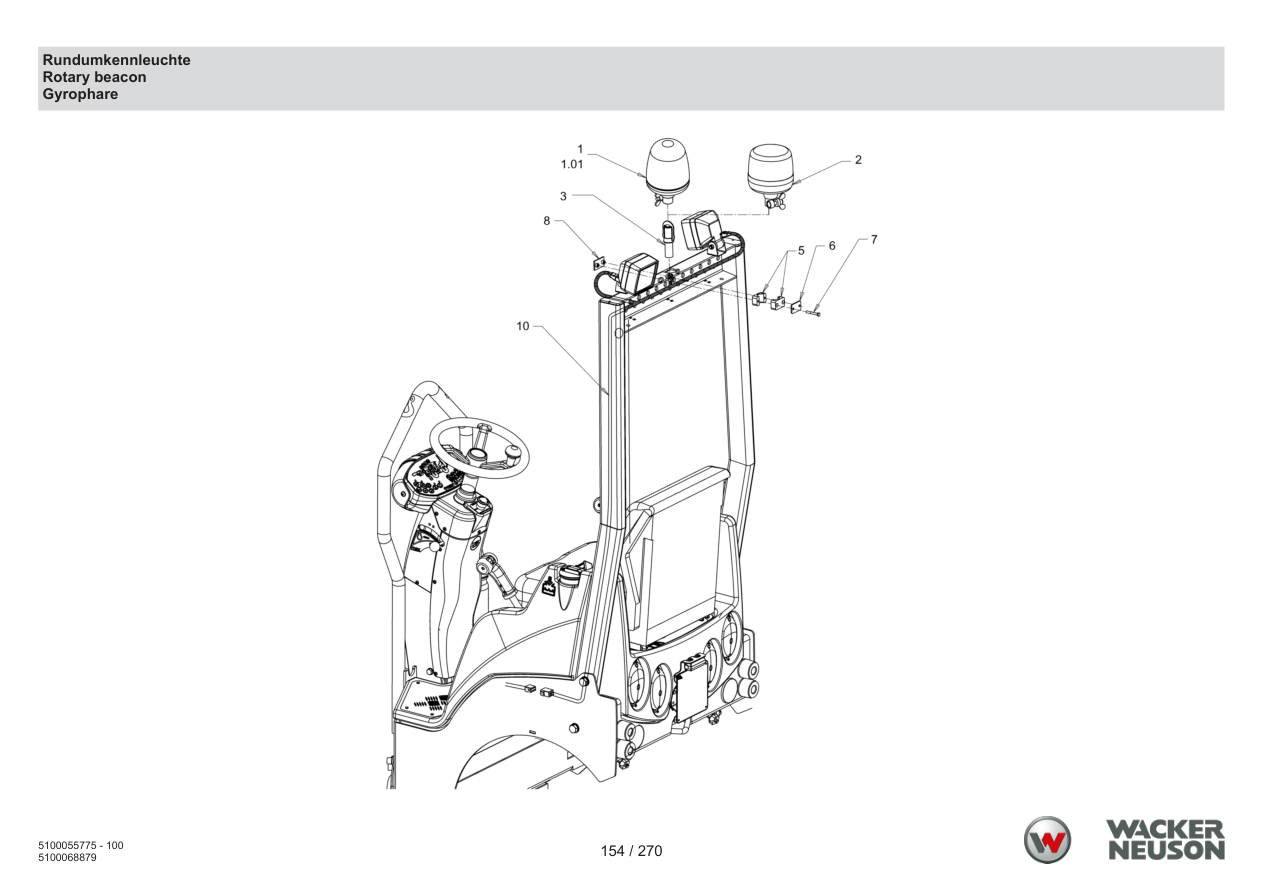

Page 154 — Rotating beacon light
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011941 | Rotary beacon | 1 | ADD TO CART | |
| 1 | 5100013538 | Lamp | 1 | ADD TO CART | |
| 2 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 3 | 5100013517 | Pipe | 1 | ADD TO CART | |
| 5 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 6 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 7 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100011868 | Weld-on plate | 1 | ADD TO CART | |
| 10 | 5100012803 | Wire harness | 1 | ADD TO CART | |
| 1 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 2 | 5100023984 | Holder | 1 | ADD TO CART | |
| 4 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100052988 | Wire harness rotating beacon | 1 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |

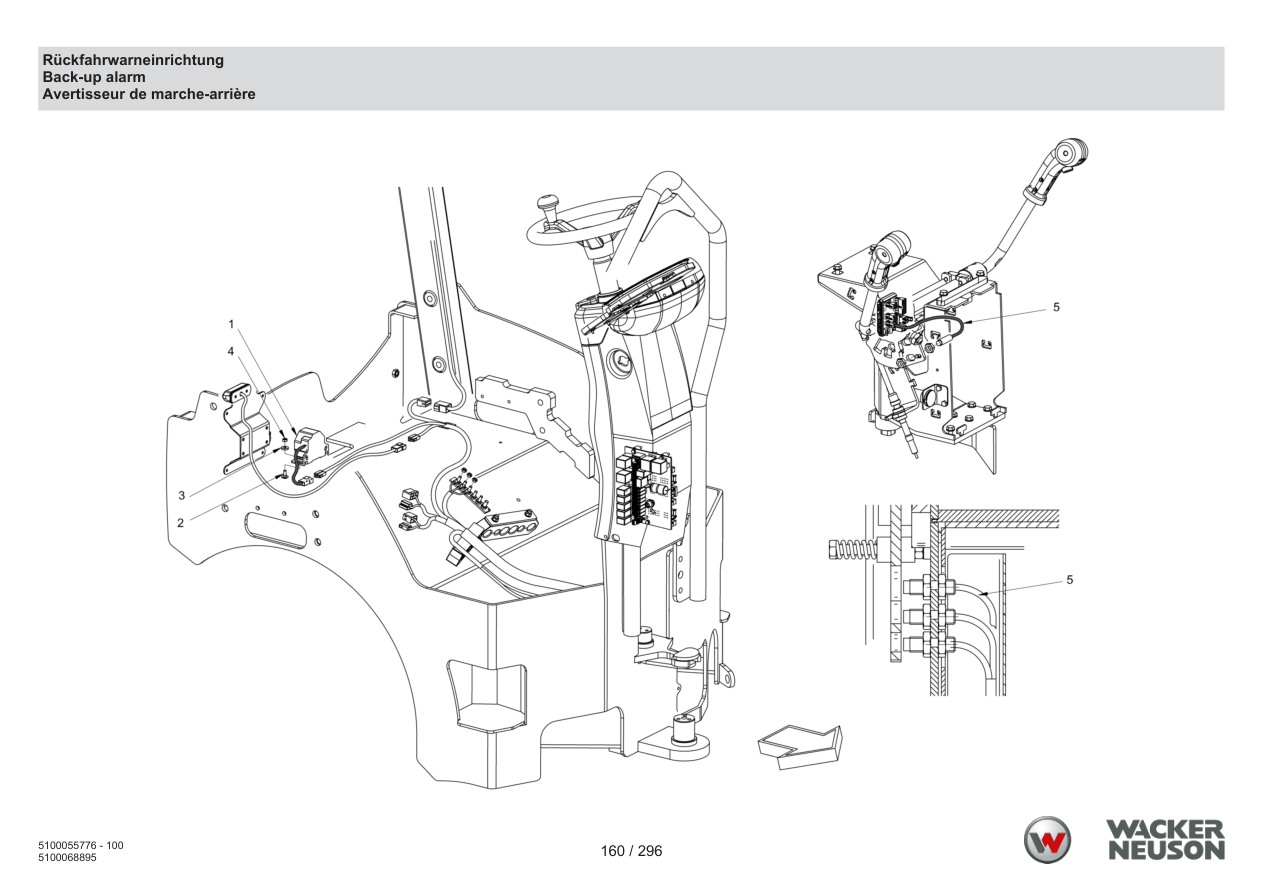

Page 158 — Back-up alarm
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012887 | Reversing alarm 12v-24v dc | 1 | ADD TO CART | |
| 2 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 3 | 5100011636 | Washer | 2 | ADD TO CART | |
| 4 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100059504 | Proximity switch | 1 | ADD TO CART | |

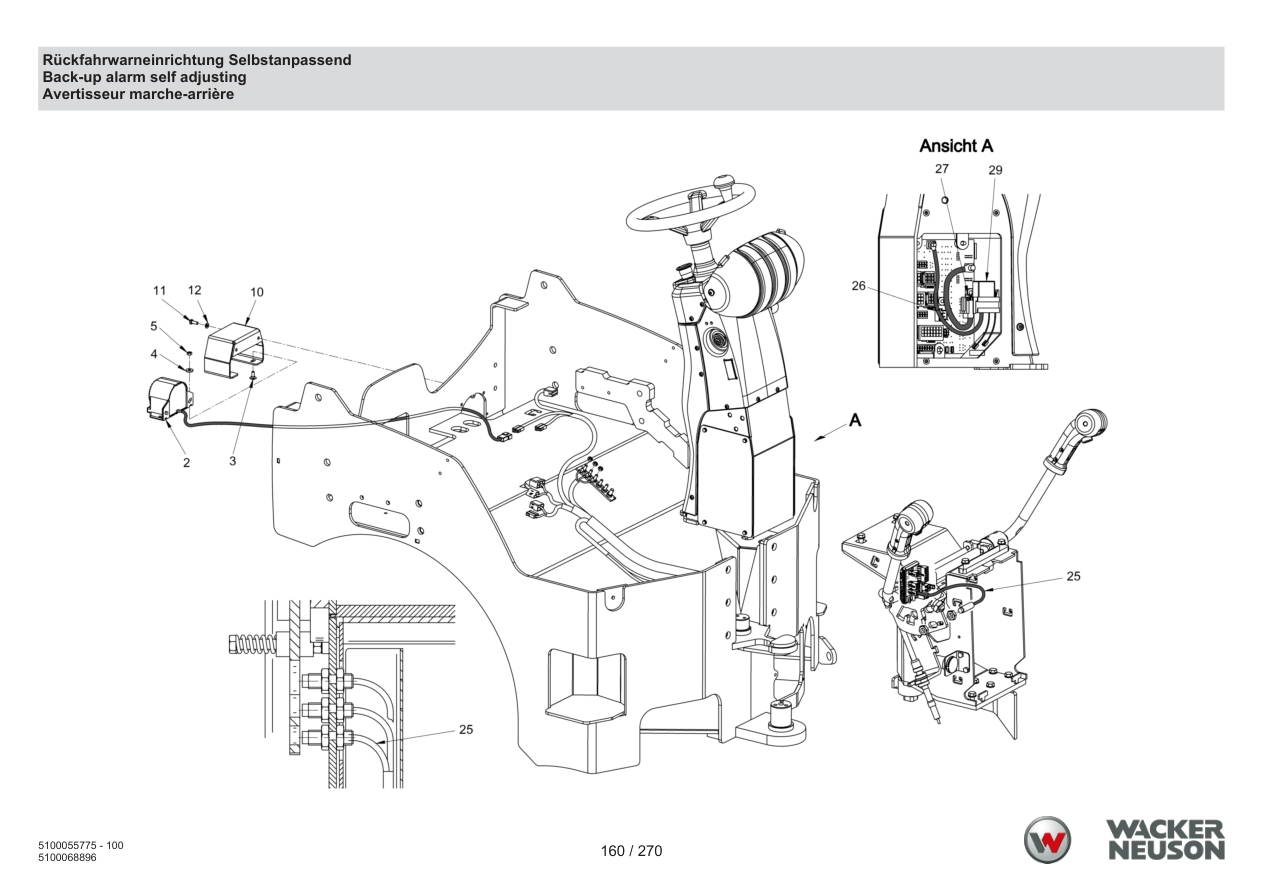

Page 160 — Back-up alarm self adjusting
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100029555 | Back-up alarm | 1 | ADD TO CART | |
| 3 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100011636 | Washer | 2 | ADD TO CART | |
| 5 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 10 | 5100029553 | Holder | 1 | ADD TO CART | |
| 11 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
| 26 | 5100029559 | Cable harness | 1 | ADD TO CART | |
| 27 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 29 | 5100052959 | Relay | 1 | ADD TO CART | |

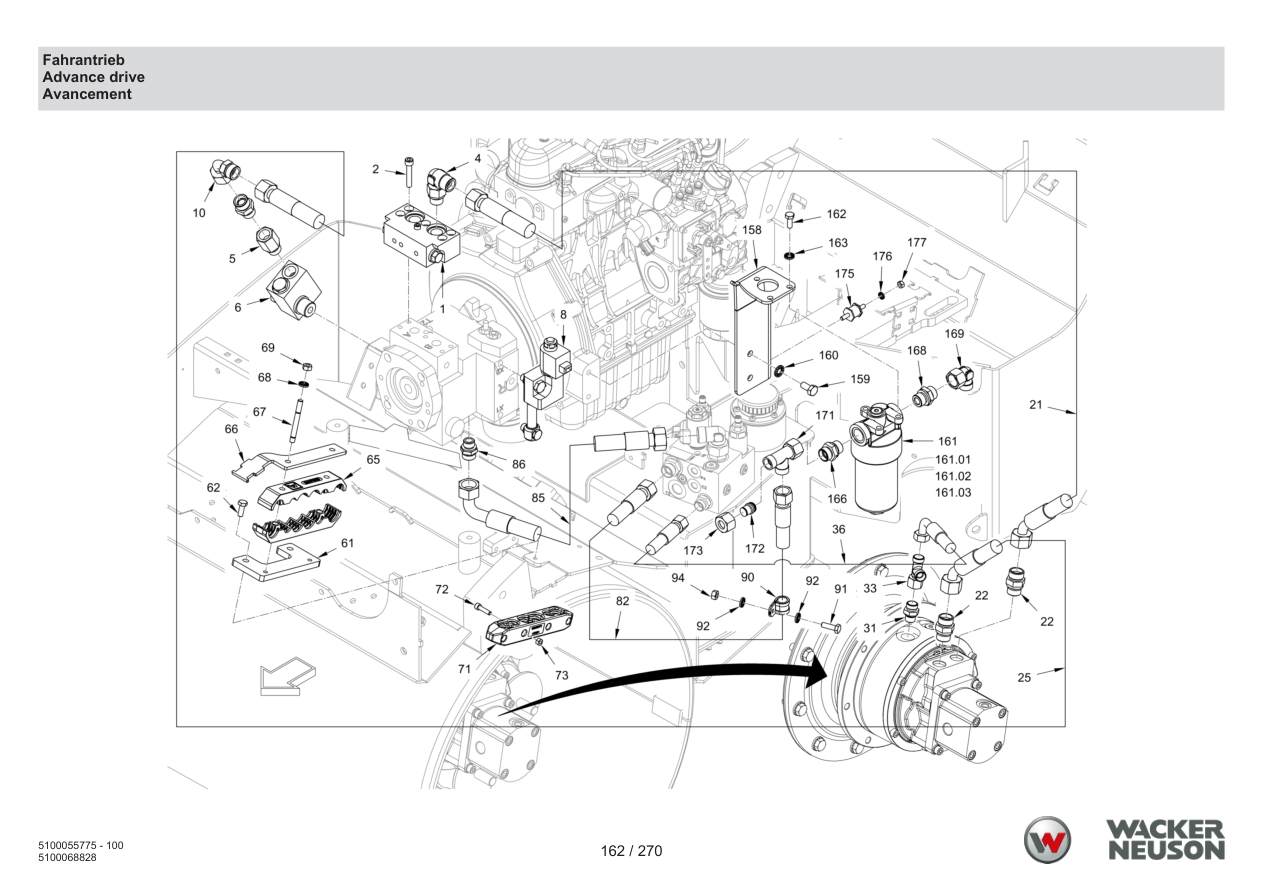

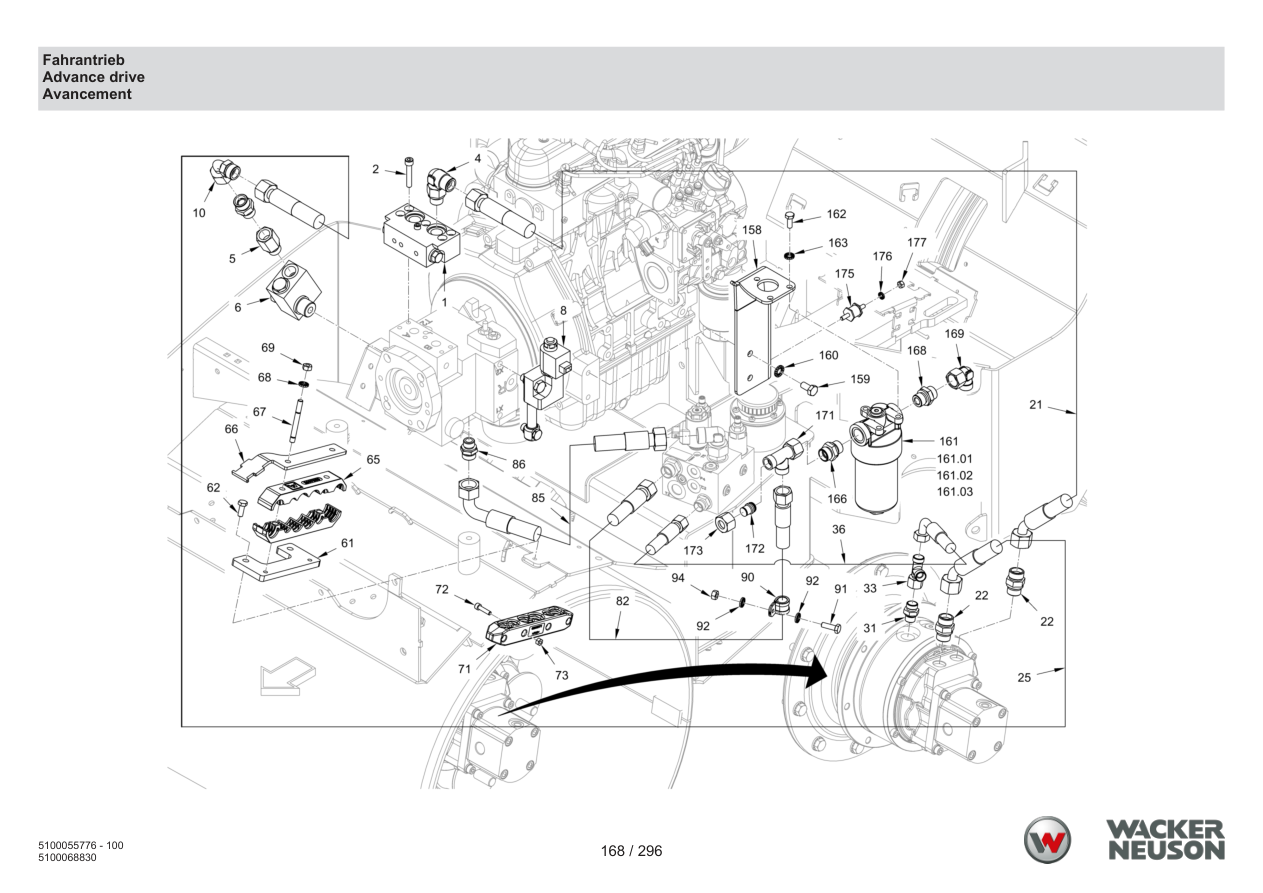

Page 162 — Advance drive
Parts list — exactly as printed72 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012426 | Valve block | 1 | ADD TO CART | |
| 2 | 5100011659 | Cheese-head screw | 5 | ADD TO CART | |
| 4 | 5100012721 | Elbow adjustable | 2 | ADD TO CART | |
| 5 | 5100012720 | Reducing piece | 1 | PARTS REQUEST | |
|
COMING Reducing piece
5100012720 · qty on machine: 1 | |||||
| 6 | 5100012427 | Valve block | 1 | ADD TO CART | |
| 8 | 5100012429 | Valve block | 1 | ADD TO CART | |
| 10 | 5100011416 | Intermediate piece | 1 | ADD TO CART | |
| 21 | 5100012742 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100012743 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100012752 | Flexible tubing | 1 | FITS RD18-80 (not RD18-100) | ADD TO CART |
| 22 | 5100013489 | Straight screwed socket | 2 | ADD TO CART | |
| 25 | 5100012752 | Flexible tubing | 1 | ADD TO CART | |
| 25 | 5100012743 | Flexible tubing | 1 | ADD TO CART | |
| 25 | 5100011890 | Flexible tubing | 1 | FITS RD18-80 (not RD18-100) | ADD TO CART |
| 31 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 33 | 5100013613 | Elbow adjustable | 2 | ADD TO CART | |
| 36 | 5100011588 | Flexible tubing | 1 | ADD TO CART | |
| 36 | 5100011821 | Flexible tubing | 1 | FITS RD18-80 (not RD18-100) | ADD TO CART |
| 36 | 5100068748 | Hose | 1 | ADD TO CART | |
| 61 | 5100011881 | Metal plate | 1 | ADD TO CART | |
| 62 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 65 | 5100011879 | Half-clip | 2 | ADD TO CART | |
| 66 | 5100068750 | Metal plate | 1 | ADD TO CART | |
| 67 | 5100012977 | Stud bolt | 2 | ADD TO CART | |
| 68 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 69 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 71 | 5100011887 | Hose clip | 4 | ADD TO CART | |
| 72 | 5100013404 | Cheese-head screw | 8 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 8 | |||||
| 73 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 82 | 5100068751 | Hose | 1 | Serialno. >296 | ADD TO CART |
| 82 | 5100082562 | Hose | 1 | Serialno. 227-295 | PARTS REQUEST |
|
COMING Hose
5100082562 · qty on machine: 1 Serialno. 227-295 | |||||
| 82 | 5100082568 | Hose | 1 | Serialno. 160-226 | PARTS REQUEST |
|
COMING Hose
5100082568 · qty on machine: 1 Serialno. 160-226 | |||||
| 85 | 5100068752 | Hose | 1 | ADD TO CART | |
| 86 | 5100013473 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013473 · qty on machine: 1 | |||||
| 90 | 5100034910 | Pipe clip | 1 | ADD TO CART | |
| 91 | 5100012613 | Hexagon screw | 1 | ADD TO CART | |
| 92 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 94 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 158 | 5100068753 | Holder | 1 | ADD TO CART | |
| 159 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 160 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 161 | 5100029595 | Set of seals | 1 | ADD TO CART | |
| 161 | 5100024324 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
5100024324 · qty on machine: 1 | |||||
| 161 | 5100013387 | O-ring seal | 1 | ADD TO CART | |
| 161 | 5100013361 | Filter | 1 | ADD TO CART | |
| 162 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 163 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 166 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 168 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 169 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 171 | 5100013524 | Elbow adjustable | 1 | Serialno. >296 | ADD TO CART |
| 172 | 5100013555 | Filler cap | 1 | Serialno. >296 | ADD TO CART |
| 173 | 5100012235 | Cap nut | 1 | Serialno. >296 | ADD TO CART |
| 175 | 5100012919 | Silentbloc | 2 | ADD TO CART | |
| 176 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 177 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 7 | 5100013539 | Straight screwed socket | 2 | ADD TO CART | |
| 11 | 5100012737 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012737 · qty on machine: 1 | |||||
| 11 | 5100012738 | Flexible tubing | 1 | ADD TO CART | |
| 11 | 5100012747 | Flexible tubing | 1 | FITS RD18-80 (not RD18-100) | ADD TO CART |
| 15 | 5100012737 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012737 · qty on machine: 1 | |||||
| 15 | 5100012746 | Flexible tubing | 1 | FITS RD18-80 (not RD18-100) | ADD TO CART |
| 15 | 5100012747 | Flexible tubing | 1 | ADD TO CART | |
| 18 | 5100011416 | Intermediate piece | 1 | ADD TO CART | |
| 35 | 5100068754 | Hose | 1 | FITS RD18-80 (not RD18-100) | ADD TO CART |
| 35 | 5100068755 | Hose | 1 | ADD TO CART | |
| 35 | 5100068756 | Hose | 1 | ADD TO CART | |
| 51 | 5100011879 | Half-clip | 2 | ADD TO CART | |
| 52 | 5100011880 | Metal plate | 1 | ADD TO CART | |
| 53 | 5100012977 | Stud bolt | 2 | ADD TO CART | |
| 54 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 55 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |

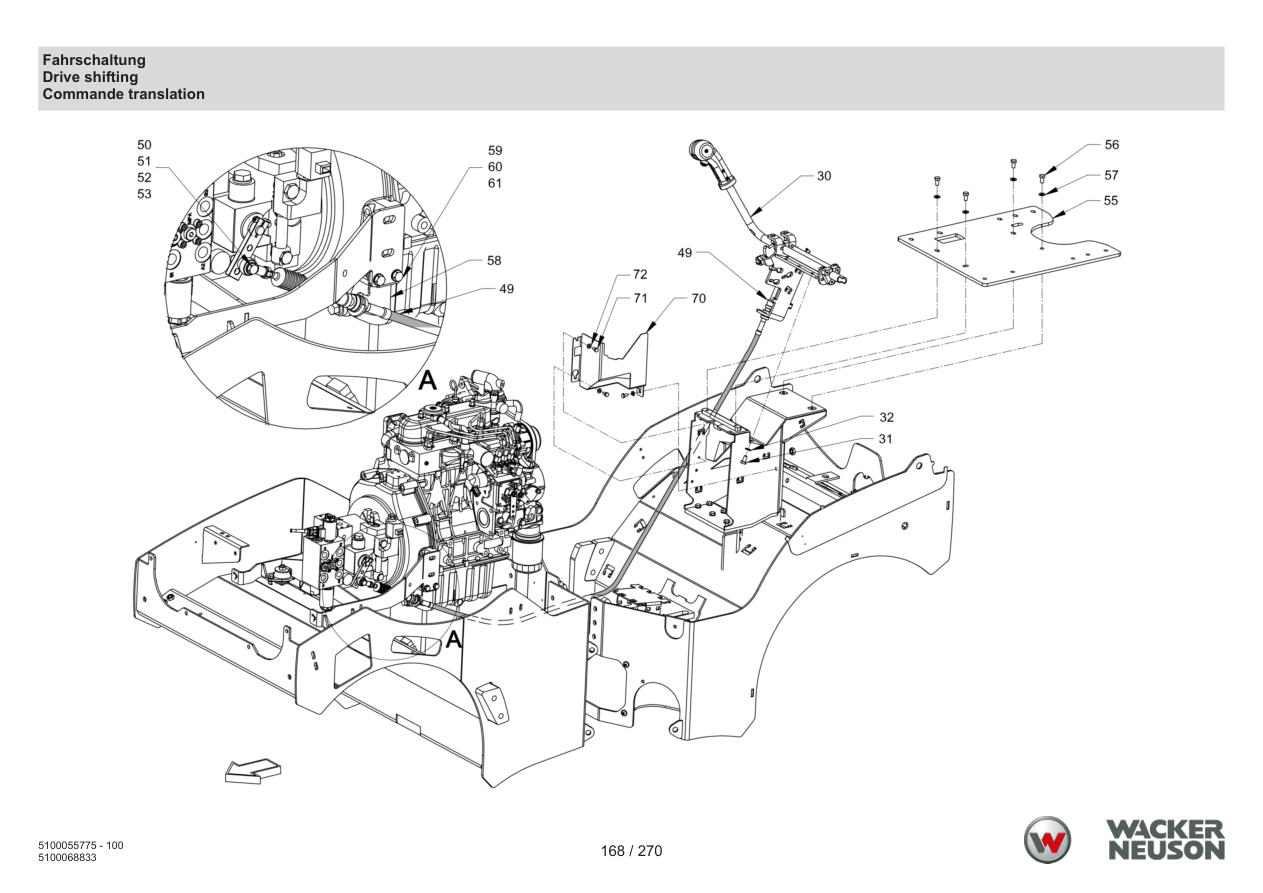

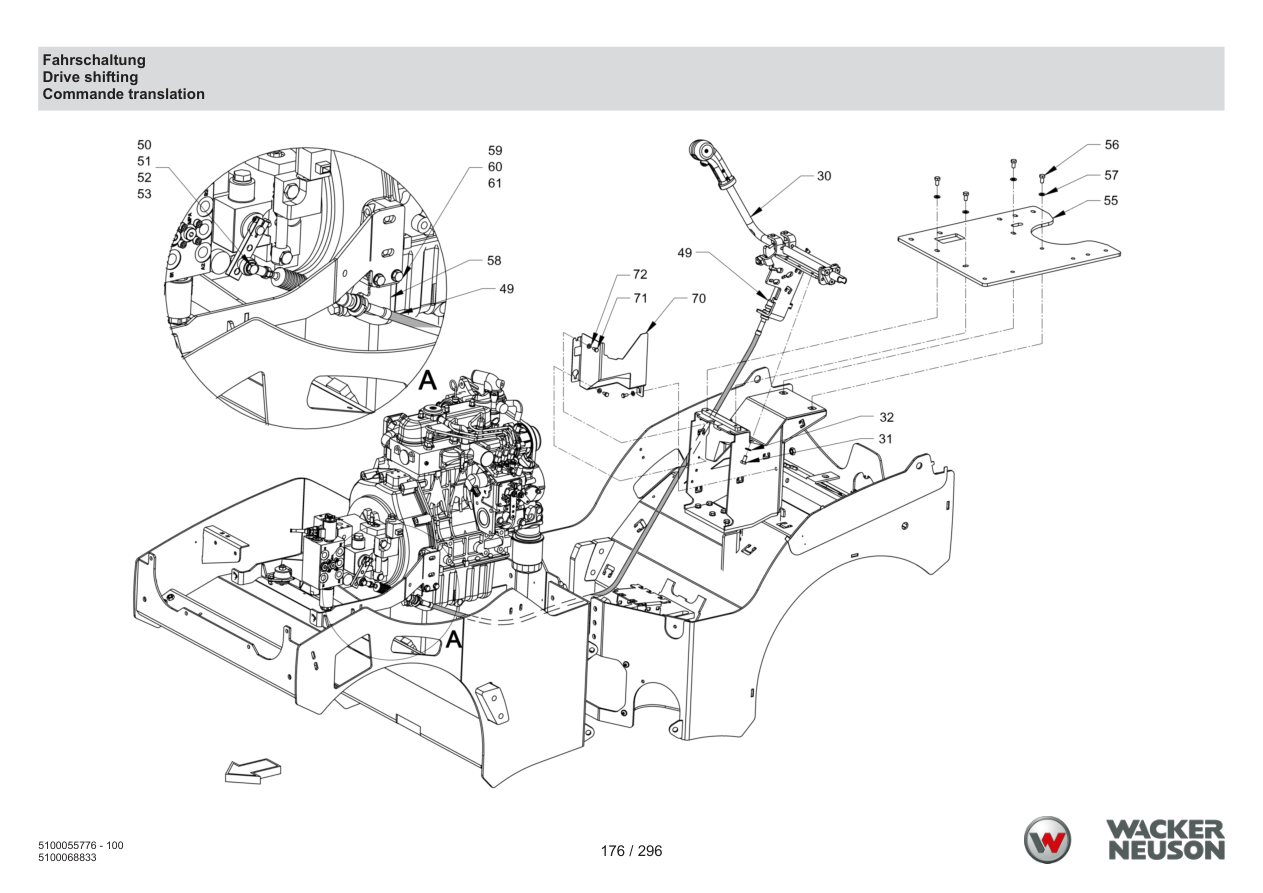

Page 168 — Drive shifting
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100012331 | Drive shifting | 1 | ADD TO CART | |
| 31 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 49 | 5100012693 | Actuating cable | 1 | ADD TO CART | |
| 50 | 5100011870 | Distance bush | 1 | ADD TO CART | |
| 51 | 5100053249 | Hexagon screw | 1 | ADD TO CART | |
| 52 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 53 | 5100053004 | Safety nut | 1 | ADD TO CART | |
| 55 | 5100012734 | Metal plate | 1 | ADD TO CART | |
| 56 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 57 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 58 | 5100012240 | Bracket | 1 | ADD TO CART | |
| 59 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 60 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 61 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 70 | 5100012817 | Cover | 1 | ADD TO CART | |
| 71 | 5100012572 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 3 | |||||
| 72 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 1 | 5100012706 | Bracket | 1 | ADD TO CART | |
| 2 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 3 | 5100048707 | Countersunk screw | 6 | ADD TO CART | |
| 5 | 5100012708 | Drive lever | 1 | PARTS REQUEST | |
|
COMING Drive lever
5100012708 · qty on machine: 1 | |||||
| 6 | 5100012877 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100012877 · qty on machine: 1 | |||||
| 7 | 5100023046 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 9 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100059529 | Hexagon screw | 1 | ADD TO CART | |
| 11 | 5100011819 | Compression spring | 1 | ADD TO CART | |
| 12 | 5100011791 | Distance bush | 2 | ADD TO CART | |
| 13 | 5100013094 | Washer | 1 | ADD TO CART | |
| 14 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 15 | 5100013166 | Spring-thrust piece | 1 | ADD TO CART | |
| 16 | 5100013400 | Hexagon nut | 1 | ADD TO CART | |
| 20 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 21 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100082569 | Set collar | 1 | Serialno. >436 | PARTS REQUEST |
|
COMING Set collar
5100082569 · qty on machine: 1 Serialno. >436 | |||||
| 48 | 5100013369 | Locking plate | 1 | ADD TO CART | |
| 1 | 5100012839 | Drive lever | 1 | ADD TO CART | |
| 10 | 5100011970 | Clamping piece | 1 | ADD TO CART | |
| 11 | 5100011443 | Cheese-head screw | 2 | ADD TO CART | |

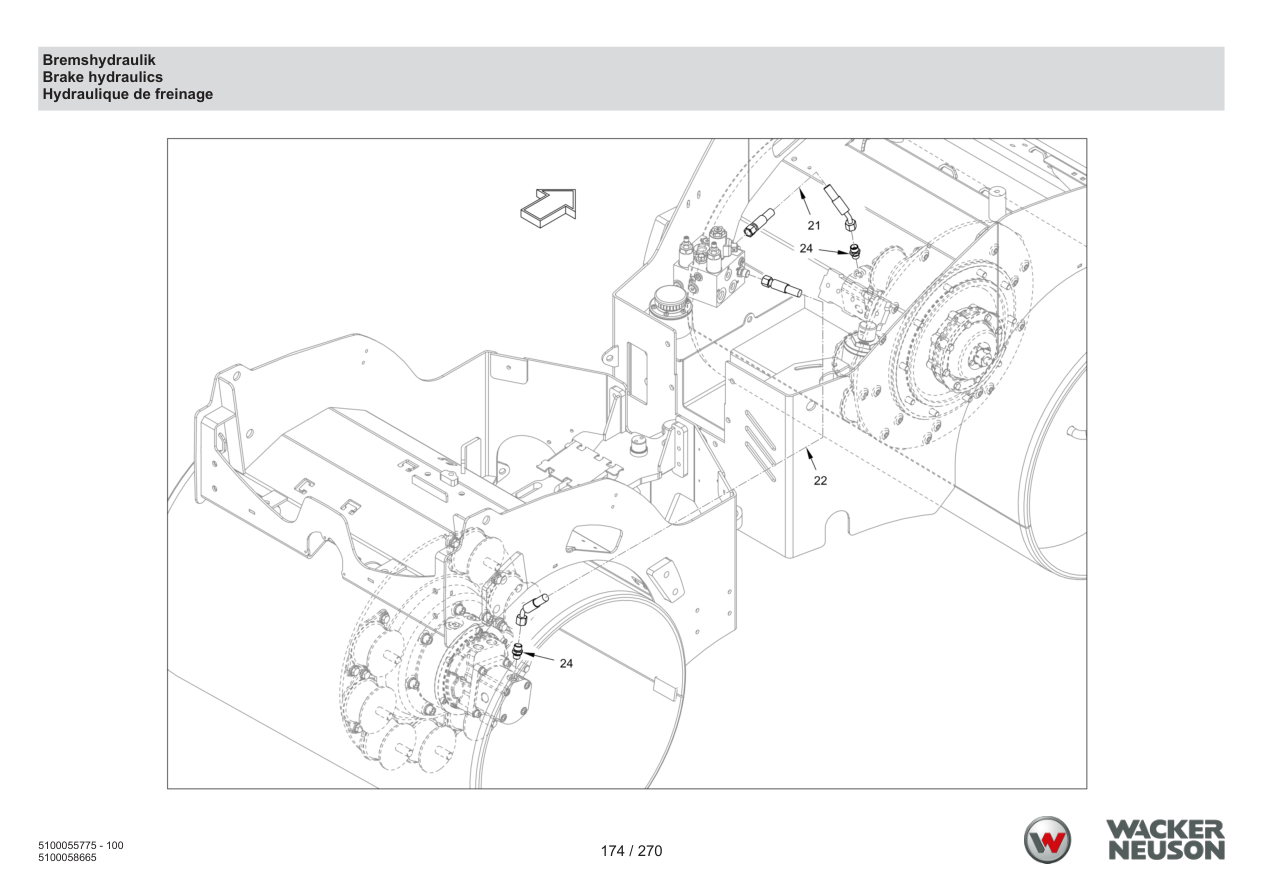

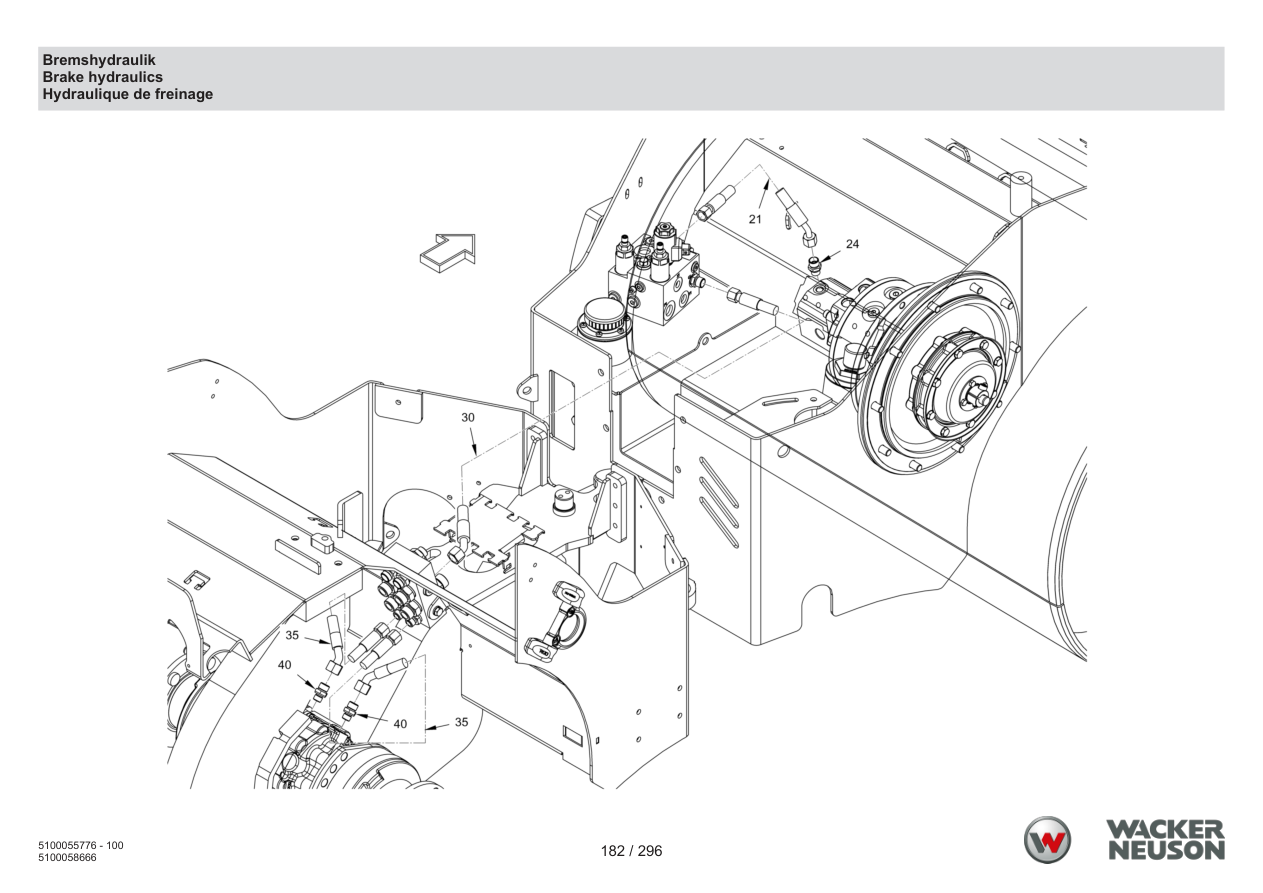

Page 174 — Brake hydraulics
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 21 | 5100012744 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100012753 | Flexible tubing | 1 | FITS RD18-80 (not RD18-100) | ADD TO CART |
| 21 | 5100068760 | Hose | 1 | ADD TO CART | |
| 22 | 5100012739 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100012748 | Flexible tubing | 1 | FITS RD18-80 (not RD18-100) | ADD TO CART |
| 22 | 5100068762 | Hose | 1 | ADD TO CART | |
| 24 | 5100013492 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 | |||||

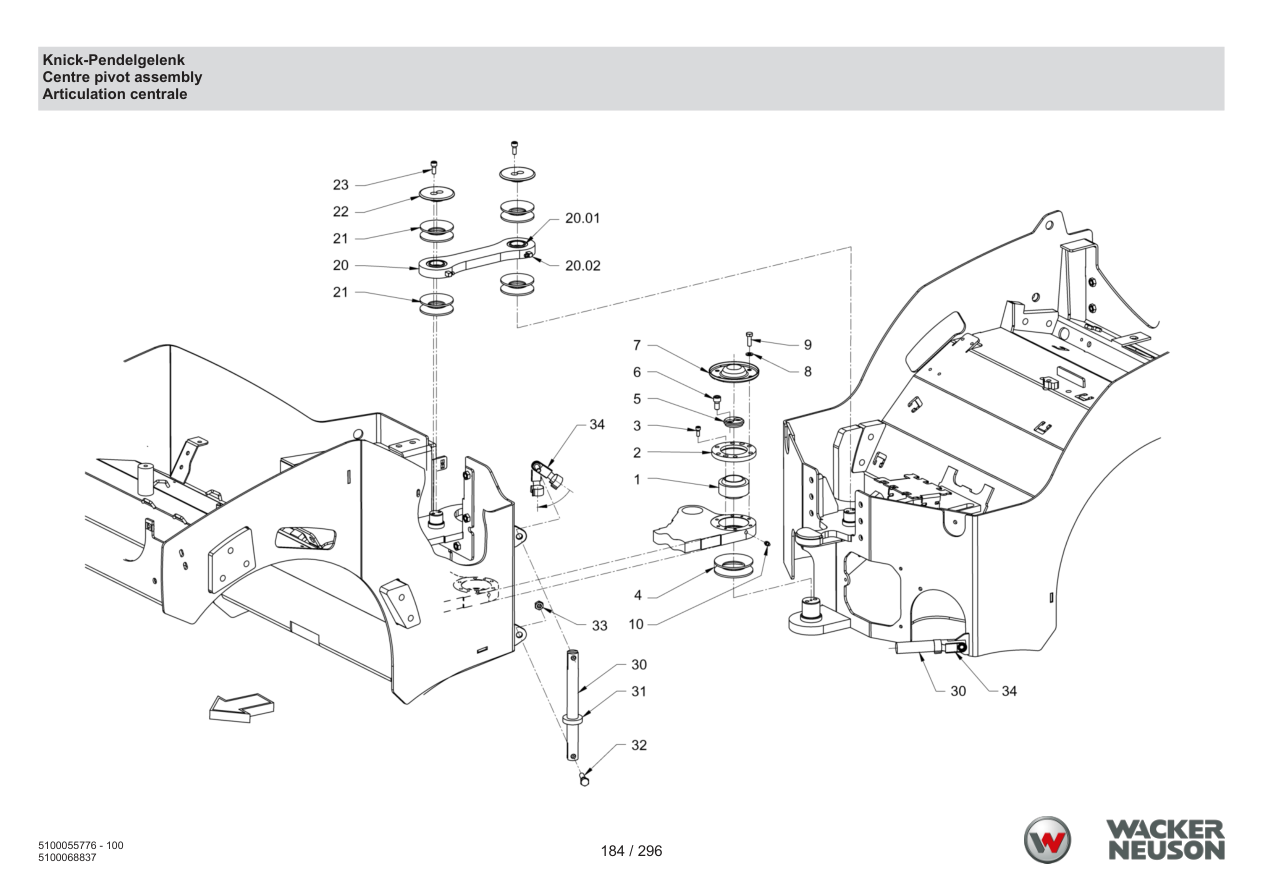

Page 176 — Articulated pendulum joint
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 8 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 1 | 5100011760 | Radial rod end bearing | 1 | ADD TO CART | |
| 2 | 5100011758 | Ring | 1 | ADD TO CART | |
| 3 | 5100011443 | Cheese-head screw | 2 | ADD TO CART | |
| 4 | 5100011761 | Sealing ring | 1 | PARTS REQUEST | |
|
COMING Sealing ring
5100011761 · qty on machine: 1 | |||||
| 5 | 5100011759 | Clamping piece | 1 | ADD TO CART | |
| 6 | 5100012725 | Cheese-head screw | 2 | ADD TO CART | |
| 7 | 5100011757 | Cover | 1 | ADD TO CART | |
| 9 | 5100012613 | Hexagon screw | 6 | ADD TO CART | |
| 10 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 20 | 5100011563 | Radial rod end bearing | 2 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 2 | |||||
| 20 | 5100011856 | Pendulum joint | 1 | ADD TO CART | |
| 20 | 5100011988 | Greasing nipple | 2 | ADD TO CART | |
| 21 | 5100011729 | Seal | 4 | ADD TO CART | |
| 22 | 5100011762 | Clamping piece | 2 | ADD TO CART | |
| 23 | 5100012724 | Cheese-head screw | 4 | ADD TO CART | |
| 30 | 5100011876 | Rod steel | 1 | ADD TO CART | |
| 31 | 5100011911 | Rubber ring | 1 | ADD TO CART | |
| 32 | 5100012523 | Hexagon screw | 1 | ADD TO CART | |
| 33 | 5100063880 | Safety nut | 1 | ADD TO CART | |
| 34 | 5100011934 | Bolt | 1 | ADD TO CART | |

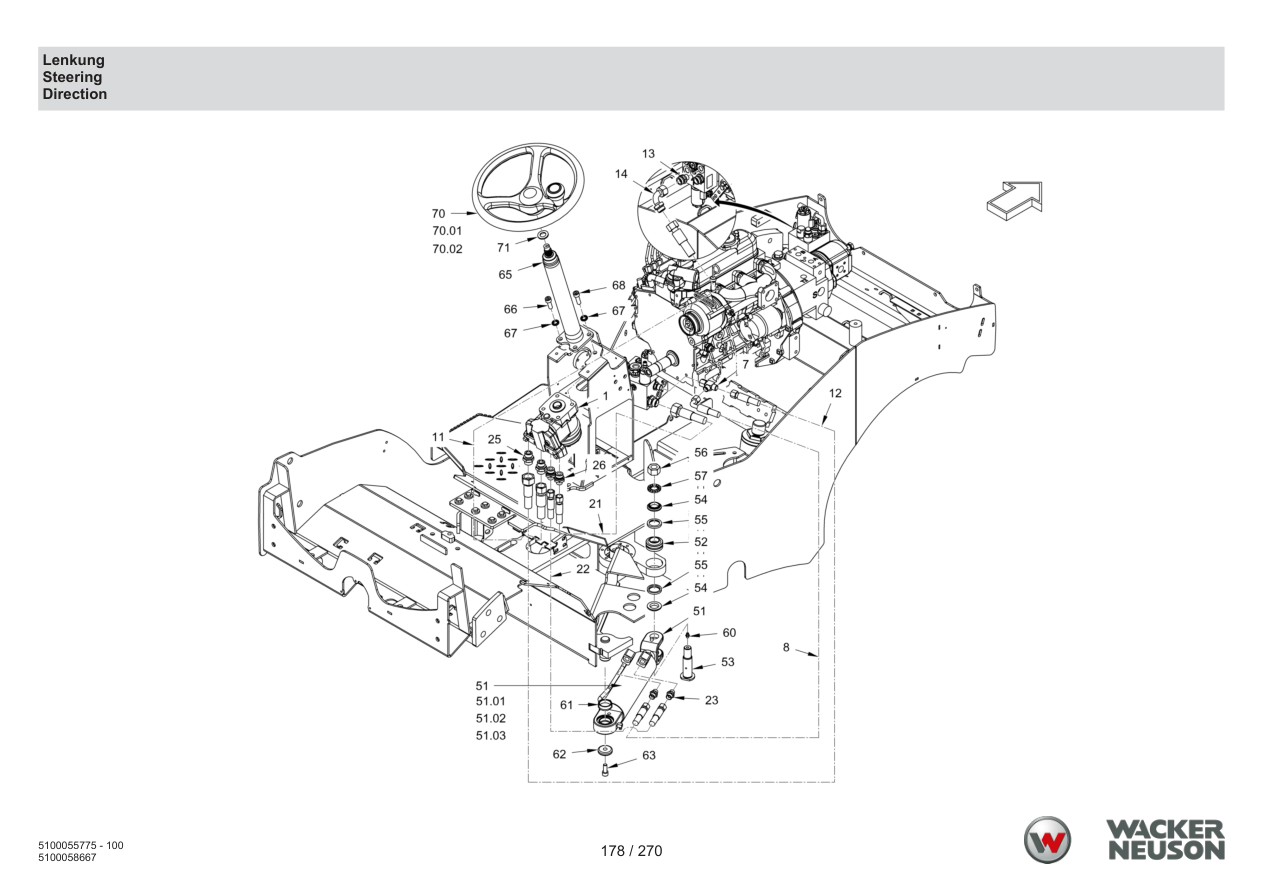

Page 178 — Steering
Parts list — exactly as printed44 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012656 | Steering unit + connect. plate | 1 | Serialno. <212 | ADD TO CART |
| 7 | 5100013532 | Elbow adjustable | 1 | Serialno. <212 | ADD TO CART |
| 8 | 5100058613 | Hose | 1 | Serialno. <212 | ADD TO CART |
| 11 | 5100058614 | Hose | 1 | Serialno. <212 | ADD TO CART |
| 12 | 5100012778 | Flexible tubing | 1 | Serialno. <212 | ADD TO CART |
| 13 | 5100013603 | Straight screwed socket | 1 | Serialno. <212 | ADD TO CART |
| 14 | 5100013329 | Intermediate piece | 1 | Serialno. <212 | ADD TO CART |
| 21 | 5100012801 | Flexible tubing | 1 | Serialno. <212 | ADD TO CART |
| 22 | 5100012825 | Flexible tubing | 1 | Serialno. <212 | ADD TO CART |
| 23 | 5100013492 | Straight screwed socket | 2 | Serialno. <212 | PARTS REQUEST |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 Serialno. <212 | |||||
| 25 | 5100013476 | Straight screwed socket | 2 | Serialno. <212 | ADD TO CART |
| 26 | 5100013499 | Straight screwed socket | 2 | Serialno. <212 | ADD TO CART |
| 51 | 5100011563 | Radial rod end bearing | 1 | 51.02 Serialno. <212 | PARTS REQUEST |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 51.02 Serialno. <212 | |||||
| 51 | 5100011685 | Set of seals | 1 | 51.01 Serialno. <212 | ADD TO CART |
| 51 | 5100011770 | Hydraulic cylinder | 1 | Serialno. <212 | ADD TO CART |
| 51 | 5100012481 | Greasing nipple | 1 | 51.03 Serialno. <212 | ADD TO CART |
| 52 | 5100011777 | Radial rod end bearing | 1 | Serialno. <212 | ADD TO CART |
| 53 | 5100011776 | Bolt | 1 | Serialno. <212 | ADD TO CART |
| 54 | 5100011680 | Spacer ring | 2 | Serialno. <212 | ADD TO CART |
| 55 | 5100013560 | Seal | 2 | Serialno. <212 | ADD TO CART |
| 56 | 5100012550 | Hexagon nut | 1 | Serialno. <212 | ADD TO CART |
| 57 | 5100012955 | Locking washer | 1 | Serialno. <212 | ADD TO CART |
| 60 | 5100012479 | Greasing nipple | 1 | Serialno. <212 | ADD TO CART |
| 61 | 5100011820 | Spacer ring | 1 | Serialno. <212 | ADD TO CART |
| 62 | 5100011695 | U-washer | 1 | Serialno. <212 | ADD TO CART |
| 63 | 5100013463 | Cheese-head screw | 1 | Serialno. <212 | ADD TO CART |
| 65 | 5100012644 | Steering column | 1 | Serialno. <212 | ADD TO CART |
| 66 | 5100013450 | Cheese-head screw | 2 | Serialno. <212 | ADD TO CART |
| 67 | 5100012967 | Locking washer | 4 | Serialno. <212 | ADD TO CART |
| 68 | 5100012783 | Cheese-head screw | 2 | Serialno. <212 | ADD TO CART |
| 70 | 5100011912 | Steering wheel | 1 | Serialno. <212 | ADD TO CART |
| 70 | 5100012392 | Turning handle | 1 | 70.01 Serialno. <212 | ADD TO CART |
| 70 | 5100065336 | Lid | 1 | 70.02 Serialno. <212 | ADD TO CART |
| 71 | 5100013413 | Washer | 1 | ADD TO CART | |
| 1 | 5100011736 | O-ring seal | 4 | 1.03 Serialno. >213 | ADD TO CART |
| 1 | 5100012655 | Connection plate | 1 | 1.01 Serialno. >213 | ADD TO CART |
| 1 | 5100013528 | Cheese-head screw | 2 | 1.02 Serialno. >213 | ADD TO CART |
| 8 | 5100068764 | Hose | 1 | Serialno. >213 | ADD TO CART |
| 12 | 5100068765 | Hose | 1 | Serialno. >213 | ADD TO CART |
| 21 | 5100068766 | Hose | 1 | Serialno. >213 | ADD TO CART |
| 47 | 5100053007 | Connecting block | 1 | Serialno. >213 | ADD TO CART |
| 48 | 5100013454 | Straight screwed socket | 1 | Serialno. >213 | ADD TO CART |
| 49 | 5100013474 | Straight screwed socket | 1 | Serialno. >213 | ADD TO CART |
| 50 | 5100053008 | Straight screwed socket | 1 | Serialno. >213 | ADD TO CART |

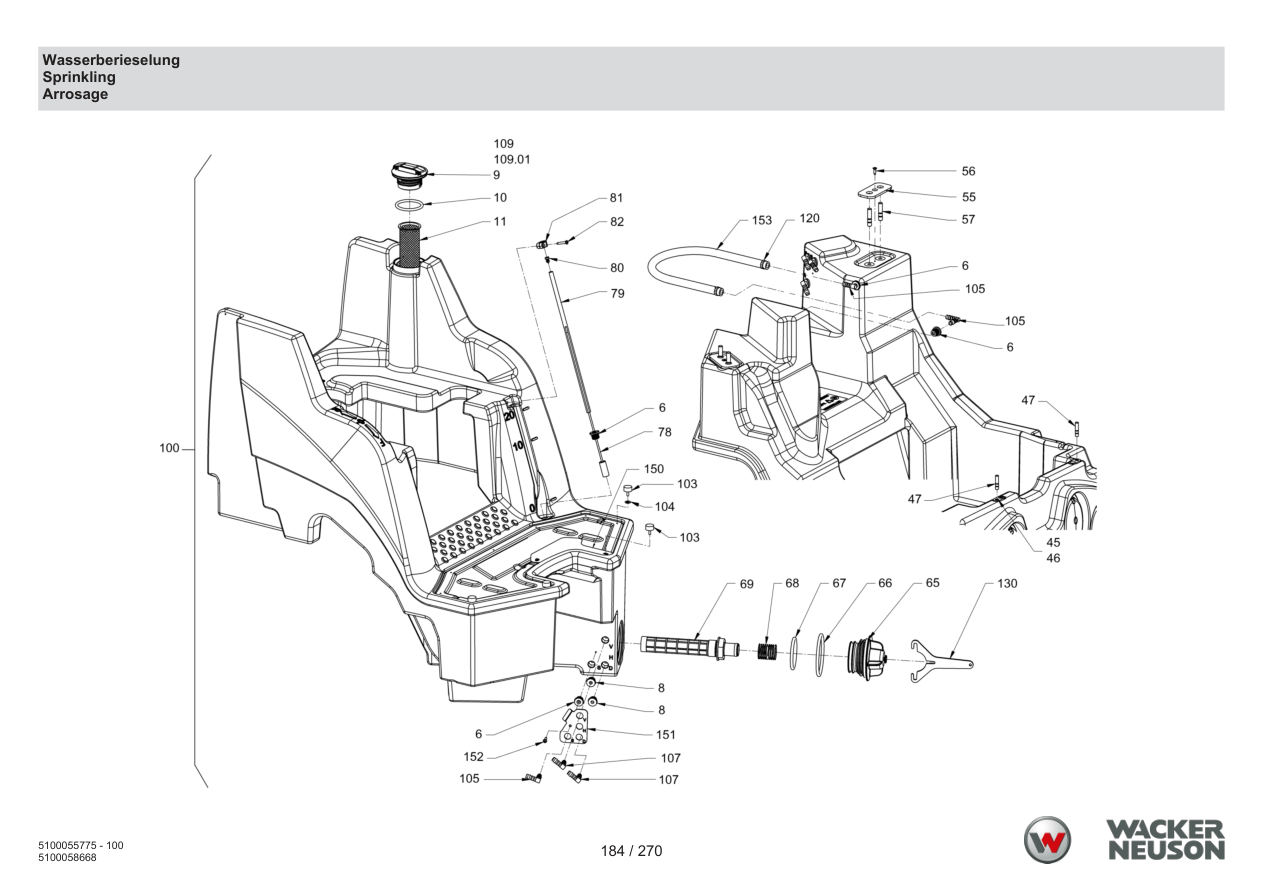

Page 184 — Water sprinkler
Parts list — exactly as printed95 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100011851 | Rubber sleeve | 4 | ADD TO CART | |
| 8 | 5100011850 | Rubber sleeve | 2 | ADD TO CART | |
| 9 | 5100011815 | Tank cap | 1 | ADD TO CART | |
| 10 | 5100011931 | O-ring seal | 1 | ADD TO CART | |
| 11 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 45 | 5100012884 | Spacer plate | 2 | ADD TO CART | |
| 46 | 5100011902 | Sheet metal screw | 2 | ADD TO CART | |
| 47 | 5100013462 | Stud bolt | 2 | ADD TO CART | |
| 55 | 5100011718 | Metal plate | 2 | ADD TO CART | |
| 56 | 5100011902 | Sheet metal screw | 2 | ADD TO CART | |
| 57 | 5100012978 | Stud bolt | 4 | ADD TO CART | |
| 65 | 5100011812 | Drain plug | 1 | ADD TO CART | |
| 66 | 5100011865 | O-ring seal | 1 | ADD TO CART | |
| 67 | 5100011864 | O-ring seal | 1 | ADD TO CART | |
| 68 | 5100011862 | Compression spring | 1 | ADD TO CART | |
| 69 | 5100011830 | Strainer | 1 | ADD TO CART | |
| 78 | 5100011925 | Float | 1 | ADD TO CART | |
| 79 | 5100011872 | Inspection glass | 1 | ADD TO CART | |
| 80 | 5100011656 | Filler cap | 1 | ADD TO CART | |
| 81 | 5100011873 | Pipe clip | 1 | ADD TO CART | |
| 82 | 5100012000 | Sheet metal screw | 1 | ADD TO CART | |
| 100 | 5100058615 | Water tank | 1 | PARTS REQUEST | |
|
COMING Water tank
5100058615 · qty on machine: 1 | |||||
| 103 | 5100012713 | Rubber metal buffer | 4 | ADD TO CART | |
| 104 | 5100013523 | Washer | 3 | ADD TO CART | |
| 105 | 5100011526 | Elbow | 3 | ADD TO CART | |
| 107 | 5100011444 | Elbow | 2 | ADD TO CART | |
| 109 | 5100013557 | Key | 1 | ADD TO CART | |
| 109 | 5100059525 | Tank cap, with lock | 1 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 35 | ADD TO CART | |
| 130 | 5100012140 | Key | 1 | ADD TO CART | |
| 150 | 5100012881 | Cover plate | 2 | ADD TO CART | |
| 151 | 5100011906 | Metal plate | 1 | ADD TO CART | |
| 152 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 153 | 5100013646 | Flexible tubing | 0.43 | ADD TO CART | |
| 48 | 5100013094 | Washer | 2 | ADD TO CART | |
| 49 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100058615 | Water tank | 1 | PARTS REQUEST | |
|
COMING Water tank
5100058615 · qty on machine: 1 | |||||
| 60 | 5100011719 | Metal plate | 2 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 62 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 75 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 85 | 5100013374 | Water pump | 1 | ADD TO CART | |
| 86 | 5100012919 | Silentbloc | 4 | ADD TO CART | |
| 87 | 5100013523 | Washer | 4 | ADD TO CART | |
| 88 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 91 | 5100012498 | Safety screw | 3 | ADD TO CART | |
| 92 | 5100011527 | Angle screwed socket | 1 | ADD TO CART | |
| 93 | 5100013646 | Flexible tubing | 0.5 | ADD TO CART | |
| 94 | 5100011666 | Angle screwed socket | 1 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 96 | 5100011845 | Mounting device | 1 | ADD TO CART | |
| 97 | 5100023166 | Filler cap | 1 | ADD TO CART | |
| 100 | 5100011670 | Flexible tubing | 0.45 | ADD TO CART | |
| 101 | 5100011863 | T-reducing socket | 1 | ADD TO CART | |
| 102 | 5100013639 | Flexible tubing | 1.5 | ADD TO CART | |
| 103 | 5100013639 | Flexible tubing | 1.14 | ADD TO CART | |
| 105 | 5100012314 | Sprinkler pipe | 2 | ADD TO CART | |
| 105 | 5100068767 | Sprinkler pipe | 2 | ADD TO CART | |
| 106 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 106 | 5100013401 | Cheese-head screw | 4 | ADD TO CART | |
| 107 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 108 | 5100013367 | Hose clip | 3 | ADD TO CART | |
| 135 | 5100013501 | Elbow | 1 | ADD TO CART | |
| 136 | 5100013639 | Flexible tubing | 0.05 | ADD TO CART | |
| 104 | 5100012237 | Metal plate | 1 | ADD TO CART | |
| 110 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 110 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 110 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 110 | 5100011898 | Nozzle holder | 1 | ADD TO CART | |
| 110 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 111 | 5100013639 | Flexible tubing | 0.4 | ADD TO CART | |
| 113 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 113 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 113 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 113 | 5100011867 | Nozzle holder | 1 | ADD TO CART | |
| 113 | 5100011978 | Membrane | 1 | ADD TO CART | |
| 115 | 5100011529 | Sprinkler nozzle | 2 | ADD TO CART | |
| 116 | 5100011488 | Nut | 2 | ADD TO CART | |
| 117 | 5100011489 | Filtering screen | 2 | ADD TO CART | |
| 130 | 5100012090 | Cheese-head screw | 4 | ADD TO CART | |
| 131 | 5100013536 | Serrated lock washer | 4 | ADD TO CART | |
| 132 | 5100012898 | Hexagon nut | 4 | ADD TO CART | |
| 200 | 5100012314 | Sprinkler pipe | 1 | ADD TO CART | |
| 170 | 5100068768 | Sprinkler pipe | 1 | Serialno. >396 | PARTS REQUEST |
|
COMING Sprinkler pipe
5100068768 · qty on machine: 1 Serialno. >396 | |||||
| 171 | 5100011513 | Sealing ring | 2 | Serialno. >396 | ADD TO CART |
| 173 | 5100011514 | Cap | 2 | Serialno. >396 | ADD TO CART |
| 175 | 5100011530 | Nozzle holder | 4 | Serialno. >396 | ADD TO CART |
| 176 | 5100066888 | Nut | 4 | Serialno. >396 | ADD TO CART |
| 177 | 5100011489 | Filtering screen | 4 | Serialno. >396 | ADD TO CART |
| 178 | 5100011529 | Sprinkler nozzle | 4 | Serialno. >396 | ADD TO CART |
| 190 | 5100013469 | Half-clip | 6 | Serialno. >396 | ADD TO CART |
| 191 | 5100013465 | Cover plate | 2 | Serialno. >396 | ADD TO CART |
| 192 | 5100012052 | Cheese-head screw | 4 | Serialno. >396 | ADD TO CART |
| 193 | 5100013168 | Bracket | 2 | Serialno. >396 | PARTS REQUEST |
|
COMING Bracket
5100013168 · qty on machine: 2 Serialno. >396 | |||||
| 200 | 5100068767 | Sprinkler pipe | 1 | Serialno. >396 | ADD TO CART |

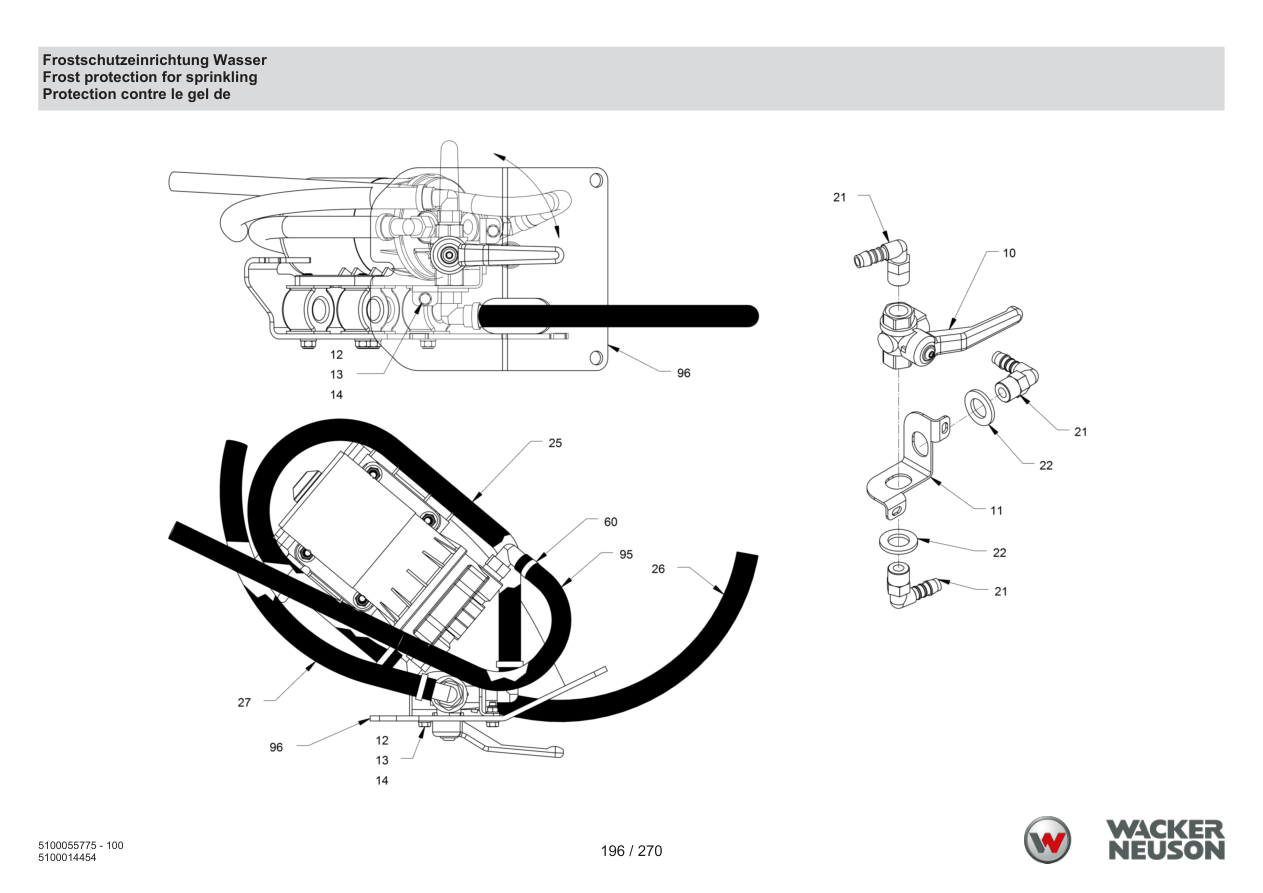

Page 196 — Frost protection for sprinkling
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100011943 | Ball-closure cock | 1 | ADD TO CART | |
| 11 | 5100011942 | Adapter | 1 | ADD TO CART | |
| 12 | 5100012598 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 2 | |||||
| 13 | 5100012936 | Washer | 4 | ADD TO CART | |
| 14 | 5100011599 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100011527 | Angle screwed socket | 3 | ADD TO CART | |
| 22 | 5100013413 | Washer | 2 | ADD TO CART | |
| 25 | 5100013646 | Flexible tubing | 0.59 | ADD TO CART | |
| 26 | 5100013646 | Flexible tubing | 0.86 | ADD TO CART | |
| 27 | 5100013646 | Flexible tubing | 0.59 | ADD TO CART | |
| 60 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 96 | 5100011845 | Mounting device | 1 | ADD TO CART | |

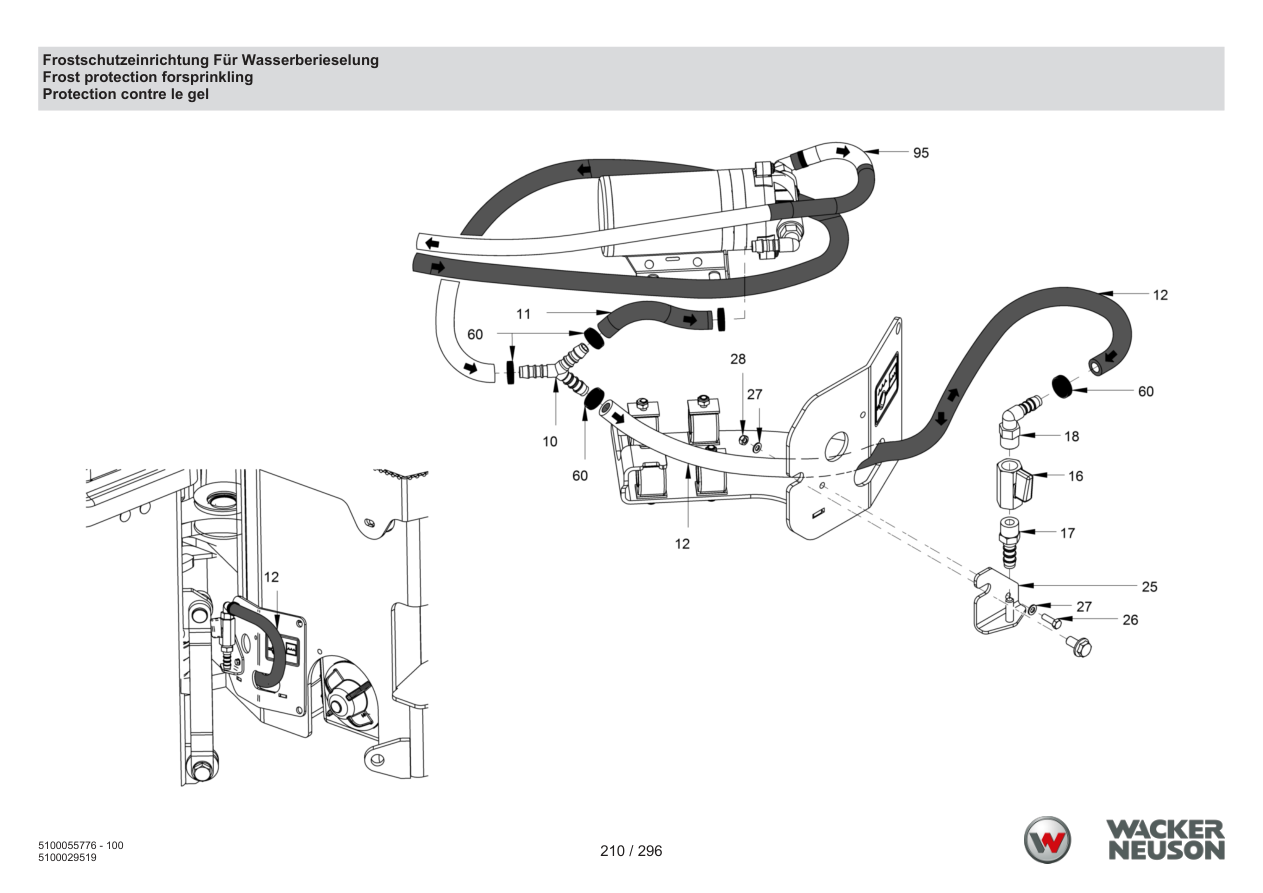

Page 198 — Frost protection forsprinkling
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100029536 | Union | 1 | ADD TO CART | |
| 11 | 5100013646 | Flexible tubing | 0.06 | ADD TO CART | |
| 12 | 5100013646 | Flexible tubing | 0.65 | ADD TO CART | |
| 16 | 5100011472 | Ball-closure cock | 1 | ADD TO CART | |
| 17 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 18 | 5100011527 | Angle screwed socket | 1 | ADD TO CART | |
| 25 | 5100029568 | Holder | 1 | ADD TO CART | |
| 26 | 5100012598 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 1 | |||||
| 27 | 5100012936 | Washer | 2 | ADD TO CART | |
| 28 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 60 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |

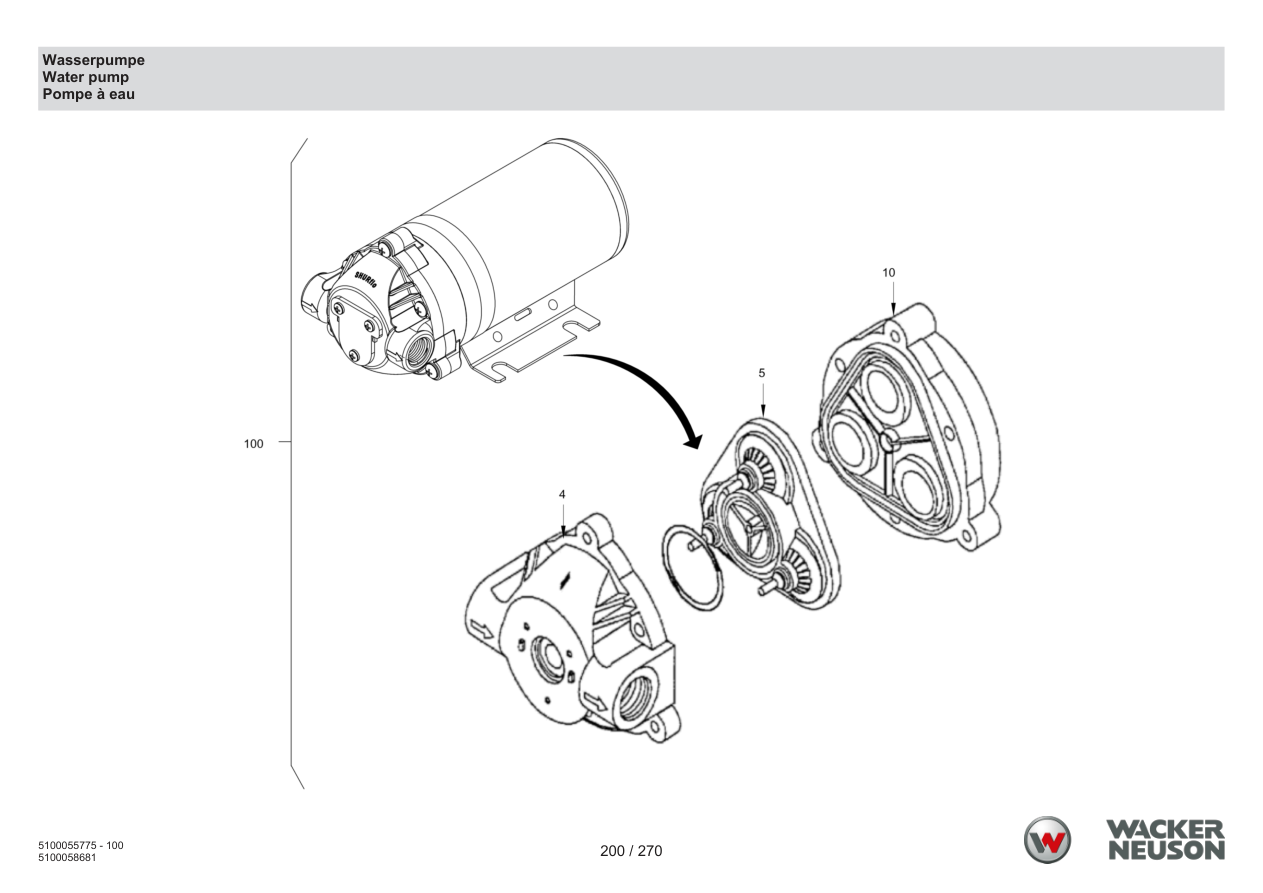

Page 200 — Water pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100013389 | Pump housing | 1 | ADD TO CART | |
| 5 | 5100013391 | Valve insert | 1 | ADD TO CART | |
| 10 | 5100013390 | Pump housing | 1 | ADD TO CART | |
| 100 | 5100013374 | Water pump | 1 | ADD TO CART | |

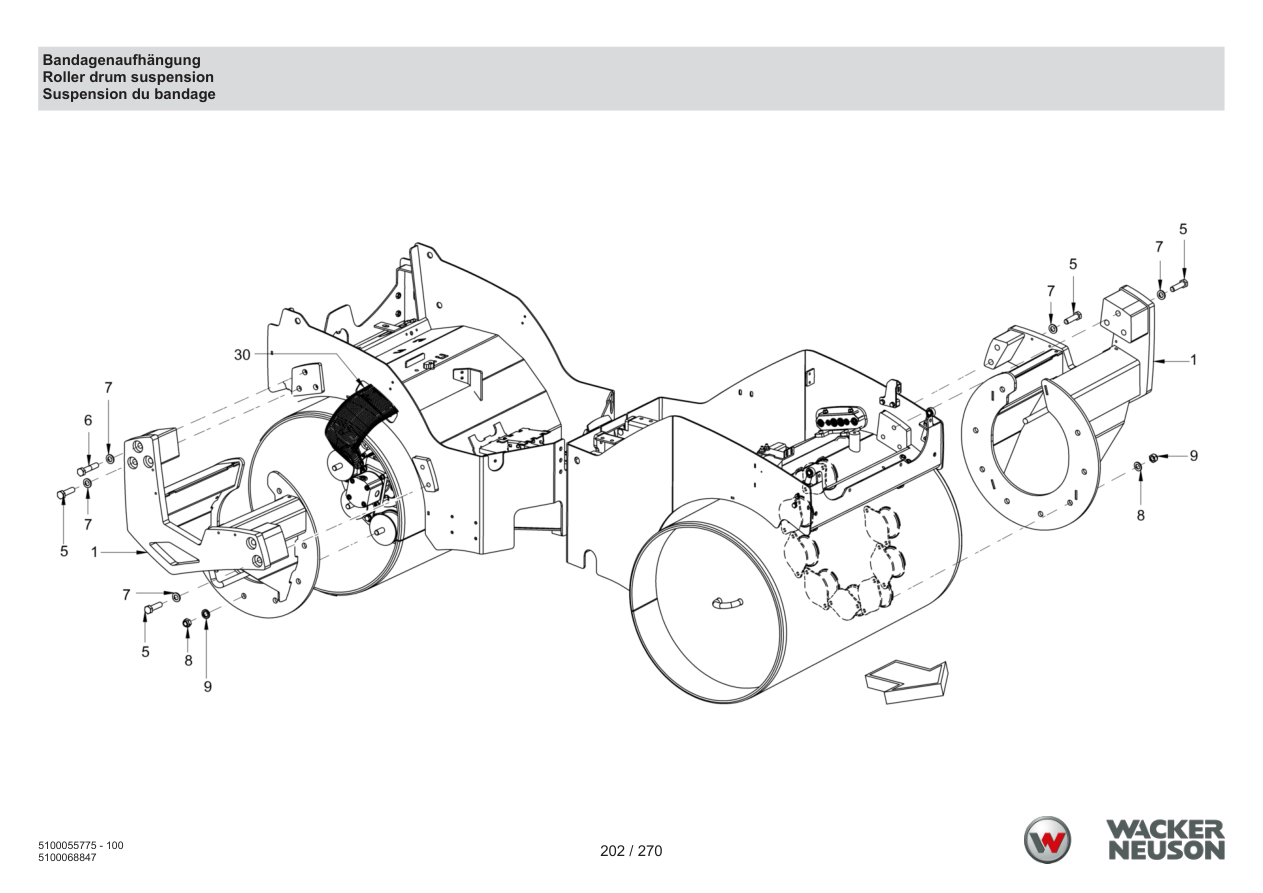

Page 202 — Roller drum suspension
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068786 | Bow plate | 2 | ADD TO CART | |
| 5 | 5100012514 | Hexagon screw | 9 | ADD TO CART | |
| 6 | 5100013233 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100013233 · qty on machine: 1 | |||||
| 7 | 5100012969 | Locking washer | 10 | ADD TO CART | |
| 8 | 5100012969 | Locking washer | 16 | ADD TO CART | |
| 9 | 5100012405 | Hexagon nut | 16 | ADD TO CART | |
| 30 | 5100012899 | Wire protecting sleeve | 1 | ADD TO CART | |

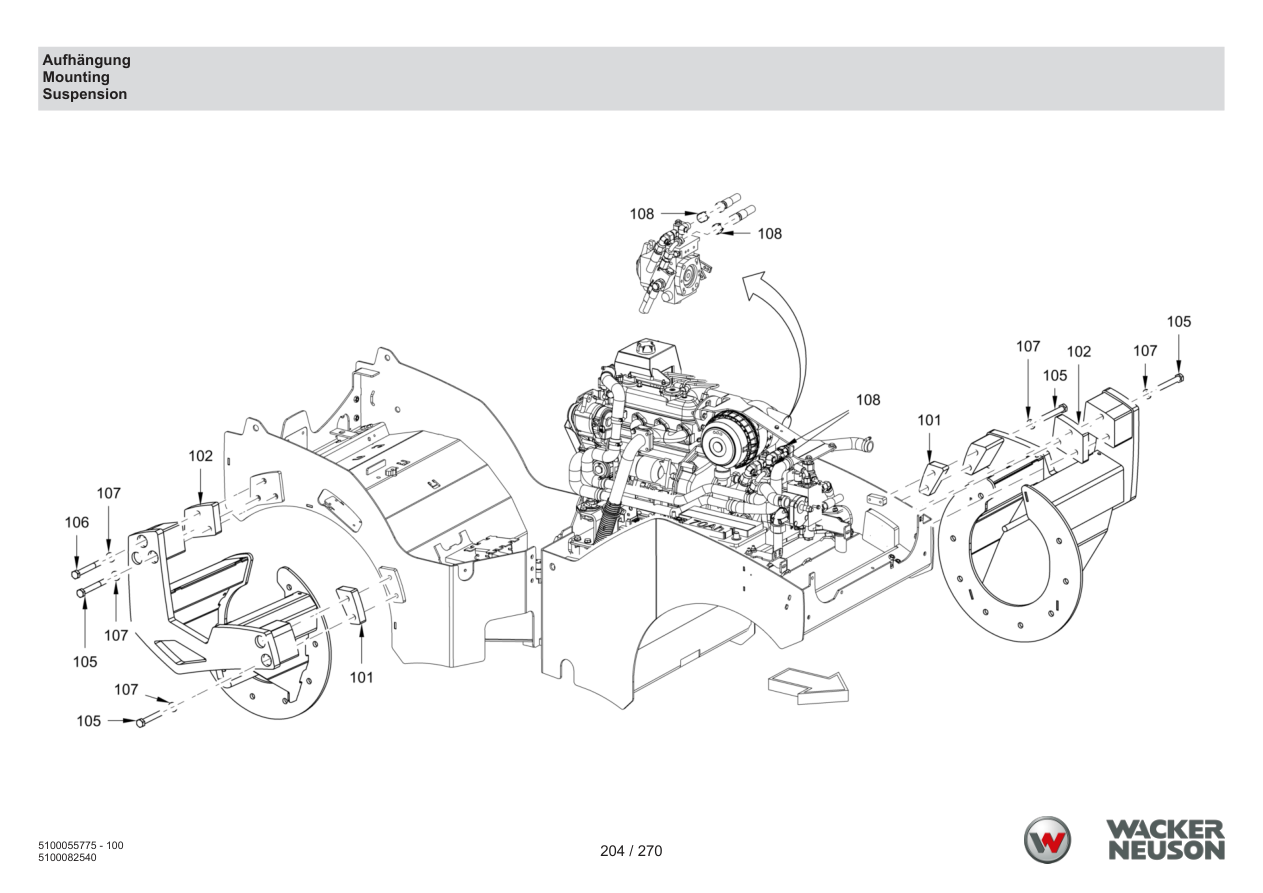

Page 204 — Mounting
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 101 | 5100081848 | Plate | 2 | PARTS REQUEST | |
|
COMING Plate
5100081848 · qty on machine: 2 | |||||
| 102 | 5100081849 | Plate | 2 | PARTS REQUEST | |
|
COMING Plate
5100081849 · qty on machine: 2 | |||||
| 105 | 5100012958 | Hexagon screw | 9 | ADD TO CART | |
| 106 | 5100013235 | Hexagon screw | 1 | ADD TO CART | |
| 107 | 5100012969 | Locking washer | 10 | ADD TO CART | |
| 108 | 5100012948 | Connection piece | 2 | ADD TO CART | |

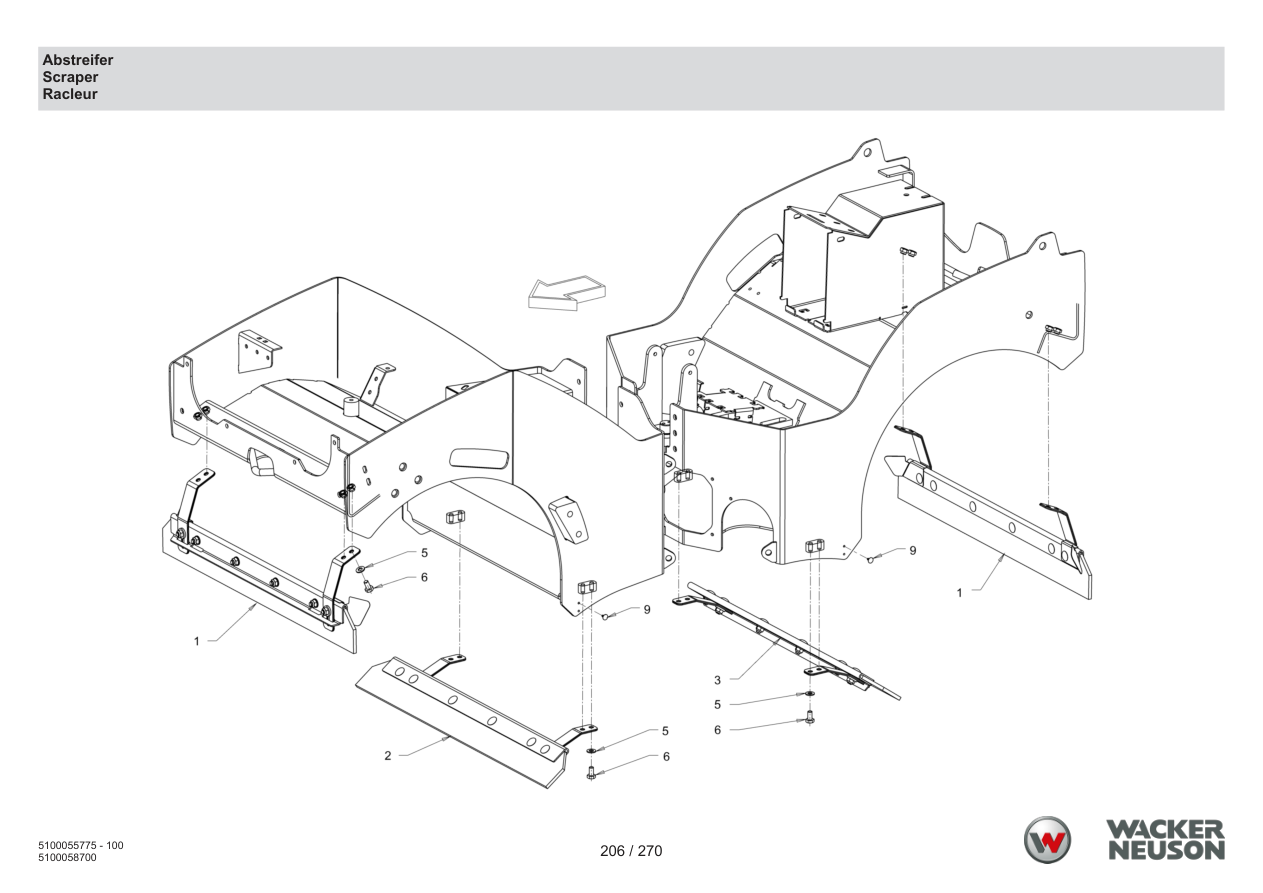

Page 206 — Scraper
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100016847 | Spring | 4 | ADD TO CART | |
| 3 | 5100016846 | Scraper | 1 | ADD TO CART | |
| 3 | 5100058620 | Spring | 4 | ADD TO CART | |
| 1 | 5100016844 | Scraper | 2 | ADD TO CART | |
| 2 | 5100016845 | Scraper | 1 | ADD TO CART | |
| 5 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 6 | 5100012520 | Hexagon screw | 16 | ADD TO CART | |
| 9 | 5100011550 | Plug | 4 | ADD TO CART | |
| 1 | 5100011805 | Plastic scraper | 1 | ADD TO CART | |
| 2 | 5100012045 | Metal plate | 1 | ADD TO CART | |
| 4 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 5 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 6 | 5100012085 | Mushroom head screw | 6 | ADD TO CART | |
| 7 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 9 | 5100013521 | Washer | 2 | ADD TO CART | |
| 10 | 5100013521 | Washer | 6 | ADD TO CART | |
| 100 | 5100016844 | Scraper | 1 | ADD TO CART | |
| 3 | 5100016848 | Spring | 4 | ADD TO CART | |
| 100 | 5100016845 | Scraper | 1 | ADD TO CART | |
| 100 | 5100016846 | Scraper | 1 | ADD TO CART | |
| 1 | 5100058626 | Scraper | 2 | ADD TO CART | |
| 2 | 5100058627 | Scraper | 1 | ADD TO CART | |
| 3 | 5100058628 | Scraper | 1 | ADD TO CART | |
| 100 | 5100058626 | Scraper | 2 | ADD TO CART | |
| 3 | 5100058621 | Spring | 4 | ADD TO CART | |
| 100 | 5100058627 | Scraper | 1 | ADD TO CART | |
| 100 | 5100058628 | Scraper | 1 | ADD TO CART | |

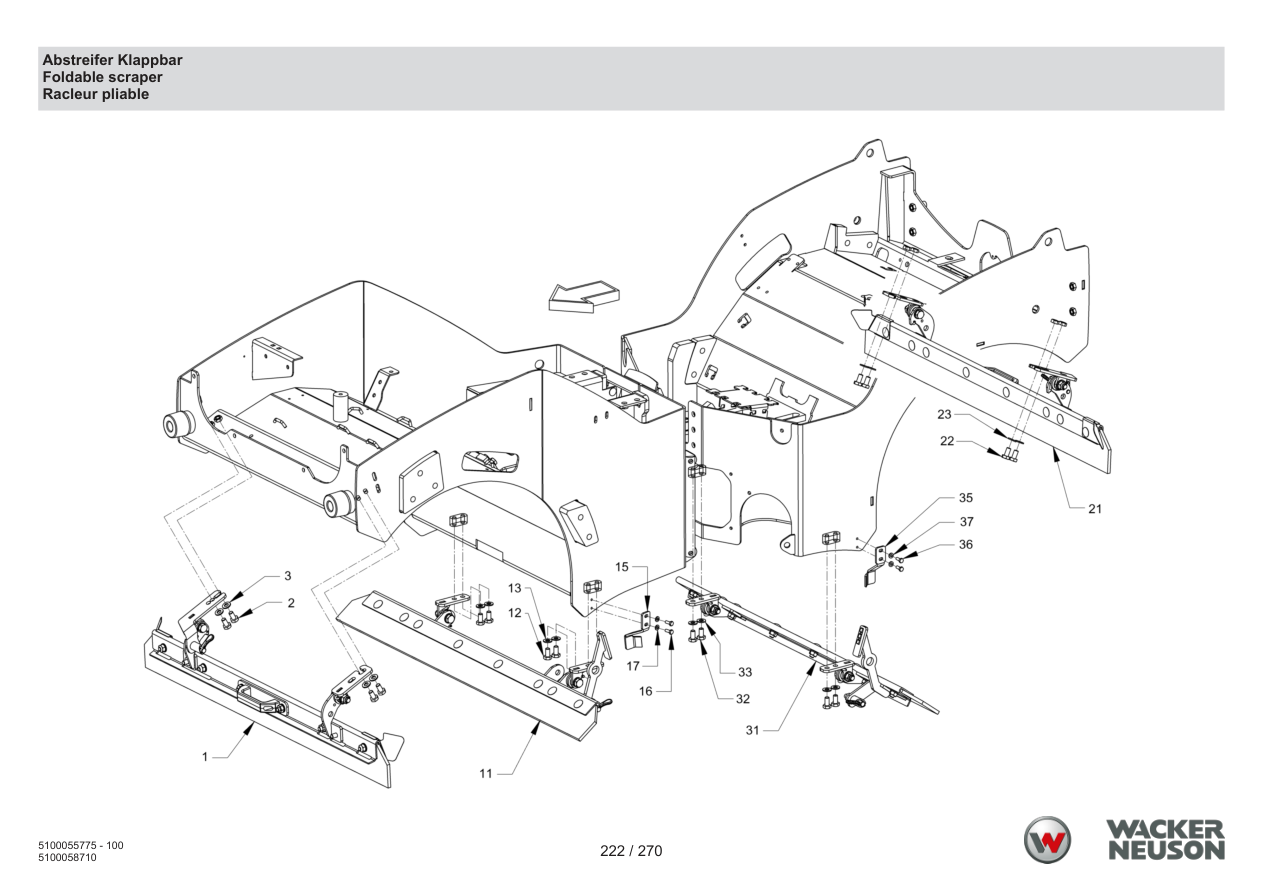

Page 222 — Scraper foldable
Parts list — exactly as printed78 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013089 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 11 | 5100013090 | Scraper | 1 | ADD TO CART | |
| 12 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 15 | 5100013058 | Holder-up | 1 | ADD TO CART | |
| 16 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 17 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 21 | 5100013089 | Scraper | 1 | ADD TO CART | |
| 22 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 31 | 5100013091 | Scraper | 1 | ADD TO CART | |
| 32 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 33 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 35 | 5100013064 | Holder-up | 1 | ADD TO CART | |
| 36 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 37 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100011805 | Plastic scraper | 1 | ADD TO CART | |
| 12 | 5100012045 | Metal plate | 1 | ADD TO CART | |
| 13 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 14 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 15 | 5100012085 | Mushroom head screw | 4 | ADD TO CART | |
| 16 | 5100011584 | Mushroom head screw | 4 | ADD TO CART | |
| 17 | 5100013521 | Washer | 8 | ADD TO CART | |
| 19 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 20 | 5100013040 | Bracket | 1 | ADD TO CART | |
| 21 | 5100012932 | Handle | 1 | ADD TO CART | |
| 22 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 23 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 26 | 5100013577 | Washer | 2 | ADD TO CART | |
| 27 | 5100013045 | Bracket | 1 | ADD TO CART | |
| 28 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 29 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 30 | 5100013068 | Bracket | 1 | ADD TO CART | |
| 31 | 5100035091 | Safety nut | 1 | ADD TO CART | |
| 35 | 5100013574 | Toggle with bolt | 1 | ADD TO CART | |
| 36 | 5100013575 | Compression spring | 1 | ADD TO CART | |
| 37 | 5100013576 | Grooved pin | 1 | ADD TO CART | |
| 40 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 41 | 5100013577 | Washer | 2 | ADD TO CART | |
| 42 | 5100013046 | Bracket | 1 | ADD TO CART | |
| 43 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 44 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 45 | 5100013069 | Bracket | 1 | ADD TO CART | |
| 46 | 5100035091 | Safety nut | 1 | ADD TO CART | |
| 100 | 5100013089 | Scraper | 2 | ADD TO CART | |
| 27 | 5100013060 | Foot lever | 1 | ADD TO CART | |
| 30 | 5100013056 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013034 | Bracket | 1 | ADD TO CART | |
| 45 | 5100013056 | Bracket | 1 | ADD TO CART | |
| 100 | 5100013090 | Scraper | 1 | ADD TO CART | |
| 27 | 5100013061 | Foot lever | 1 | PARTS REQUEST | |
|
COMING Foot lever
5100013061 · qty on machine: 1 | |||||
| 29 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 100 | 5100013091 | Scraper | 1 | ADD TO CART | |
| 11 | 5100013089 | Scraper | 1 | ADD TO CART | |
| 12 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100013090 | Scraper | 1 | ADD TO CART | |
| 22 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 25 | 5100013058 | Holder-up | 1 | ADD TO CART | |
| 26 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 27 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 31 | 5100013089 | Scraper | 1 | ADD TO CART | |
| 32 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 41 | 5100013091 | Scraper | 1 | ADD TO CART | |
| 42 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 43 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 45 | 5100013064 | Holder-up | 1 | ADD TO CART | |
| 46 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 47 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 111 | 5100058623 | Metal plate | 7 | ADD TO CART | |
| 112 | 5100058624 | Metal plate | 1 | ADD TO CART | |
| 113 | 5100058625 | Countersunk screw | 16 | ADD TO CART | |
| 120 | 5100013062 | Spacer block | 1 | ADD TO CART | |
| 121 | 5100013561 | Countersunk screw | 2 | ADD TO CART | |
| 125 | 5100013063 | Spacer block | 1 | ADD TO CART | |
| 126 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |

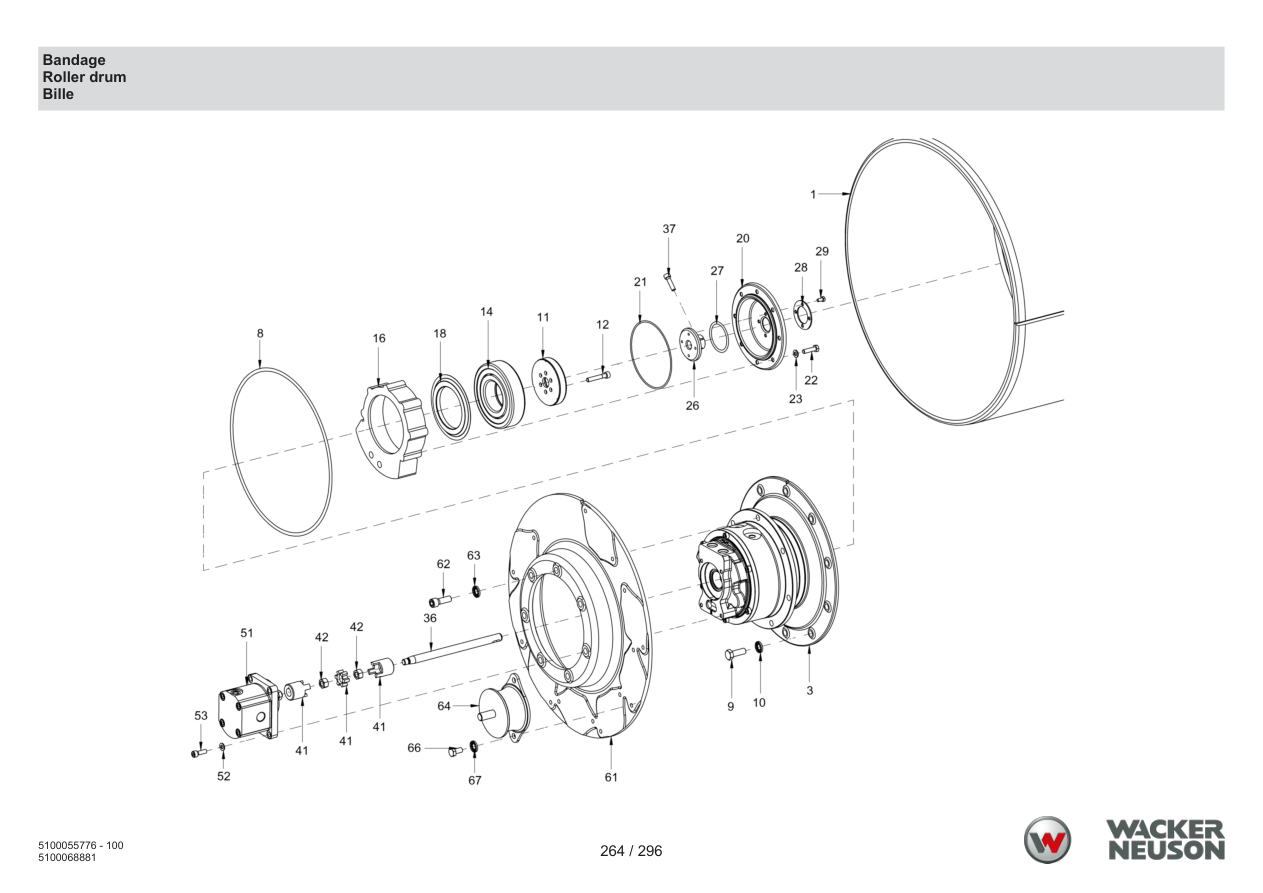

Page 238 — Bandage
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012494 | Roller drum | 1 | PARTS REQUEST | |
|
COMING Roller drum
5100012494 · qty on machine: 1 | |||||
| 3 | 5100048104 | Gear hub motor | 1 | ADD TO CART | |
| 8 | 5100011676 | O-ring seal | 1 | ADD TO CART | |
| 9 | 5100023184 | Hexagon screw | 10 | ADD TO CART | |
| 10 | 5100012968 | Locking washer | 10 | ADD TO CART | |
| 11 | 5100068718 | Thrust washer | 1 | ADD TO CART | |
| 12 | 5100012509 | Cheese-head screw | 6 | ADD TO CART | |
| 14 | 5100011674 | Cylindrical roller bearing | 1 | PARTS REQUEST | |
|
COMING Cylindrical roller bearing
5100011674 · qty on machine: 1 | |||||
| 16 | 5100068719 | Unbalance | 1 | ADD TO CART | |
| 18 | 5100011937 | Nilos ring | 1 | ADD TO CART | |
| 20 | 5100011712 | Cover | 1 | ADD TO CART | |
| 21 | 5100011610 | O-ring seal | 1 | ADD TO CART | |
| 22 | 5100012528 | Hexagon screw | 8 | ADD TO CART | |
| 23 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 26 | 5100011714 | Flange | 1 | ADD TO CART | |
| 27 | 5100011740 | O-ring seal | 1 | ADD TO CART | |
| 28 | 5100011715 | Washer | 1 | ADD TO CART | |
| 29 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 36 | 5100011794 | Shaft | 1 | ADD TO CART | |
| 37 | 5100012754 | Cheese-head screw | 1 | ADD TO CART | |
| 41 | 5100011677 | Coupling | 1 | ADD TO CART | |
| 42 | 5100011646 | Hexagon nut | 2 | ADD TO CART | |
| 51 | 5100011795 | Gear motor | 1 | ADD TO CART | |
| 51 | 5100013043 | Gear motor | 1 | PARTS REQUEST | |
|
COMING Gear motor
5100013043 · qty on machine: 1 | |||||
| 52 | 5100012754 | Cheese-head screw | 4 | ADD TO CART | |
| 53 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 61 | 5100048106 | Driver | 1 | ADD TO CART | |
| 62 | 5100048107 | Cheese-head screw | 7 | ADD TO CART | |
| 63 | 5100012968 | Locking washer | 7 | ADD TO CART | |
| 64 | 5100011787 | Rubber metal buffer | 8 | ADD TO CART | |
| 66 | 5100012521 | Hexagon screw | 16 | ADD TO CART | |
| 67 | 5100012967 | Locking washer | 16 | ADD TO CART | |

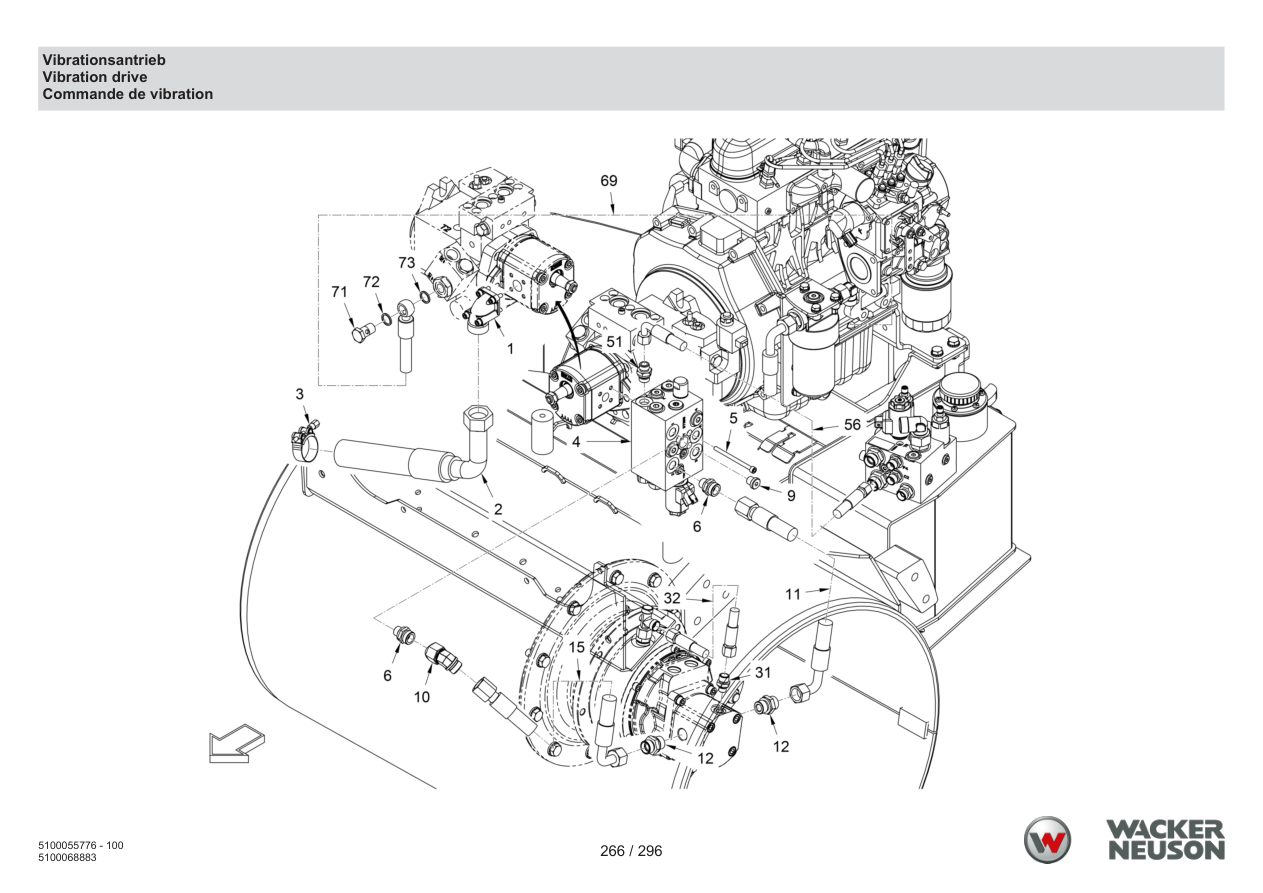

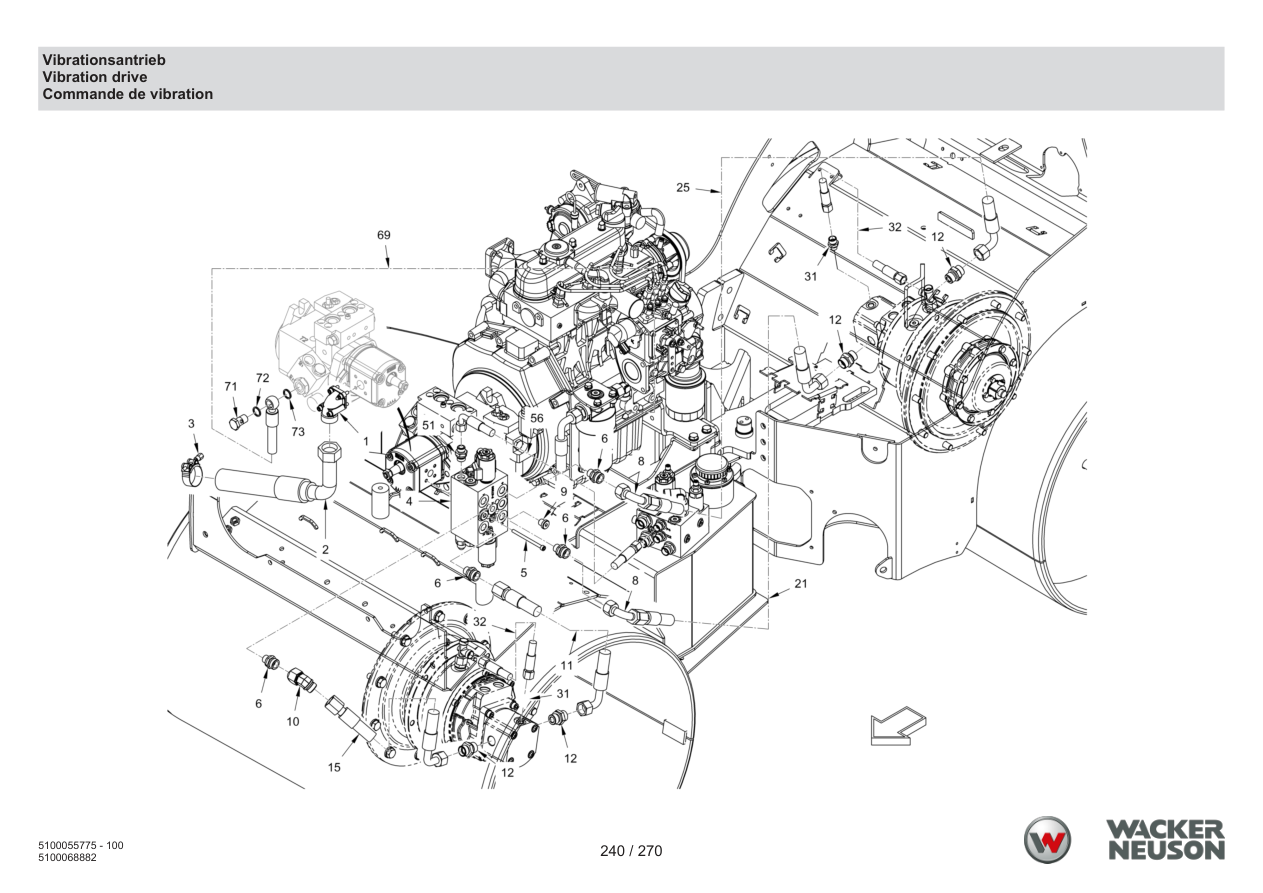

Page 240 — Vibration drive
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013218 | Angle flange screwing | 1 | ADD TO CART | |
| 2 | 5100012719 | Flexible tubing | 1 | ADD TO CART | |
| 3 | 5100011896 | Hose clip | 1 | ADD TO CART | |
| 4 | 5100068215 | Valve | 1 | ADD TO CART | |
| 5 | 5100012815 | Cheese-head screw | 4 | ADD TO CART | |
| 6 | 5100013603 | Straight screwed socket | 4 | ADD TO CART | |
| 8 | 5100013329 | Intermediate piece | 2 | ADD TO CART | |
| 9 | 5100011608 | Screw plug | 1 | ADD TO CART | |
| 10 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 11 | 5100068721 | Hose | 1 | ADD TO CART | |
| 11 | 5100013592 | Flexible tubing | 1 | FITS RD18-100c (not RD18-100) | ADD TO CART |
| 12 | 5100013476 | Straight screwed socket | 4 | ADD TO CART | |
| 15 | 5100011893 | Flexible tubing | 1 | FITS RD18-100c (not RD18-100) | ADD TO CART |
| 15 | 5100068722 | Hose | 1 | ADD TO CART | |
| 31 | 5100013447 | Straight screwed socket | 2 | ADD TO CART | |
| 32 | 5100016850 | Flexible tubing | 2 | ADD TO CART | |
| 51 | 5100013475 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 | |||||
| 56 | 5100068758 | Hose | 1 | ADD TO CART | |
| 69 | 5100012891 | Flexible tubing | 1 | ADD TO CART | |
| 71 | 5100082570 | Hollow-core screw | 1 | PARTS REQUEST | |
|
COMING Hollow-core screw
5100082570 · qty on machine: 1 | |||||
| 72 | 5100013001 | Sealing ring | 1 | ADD TO CART | |
| 73 | 5100013001 | Sealing ring | 1 | ADD TO CART | |

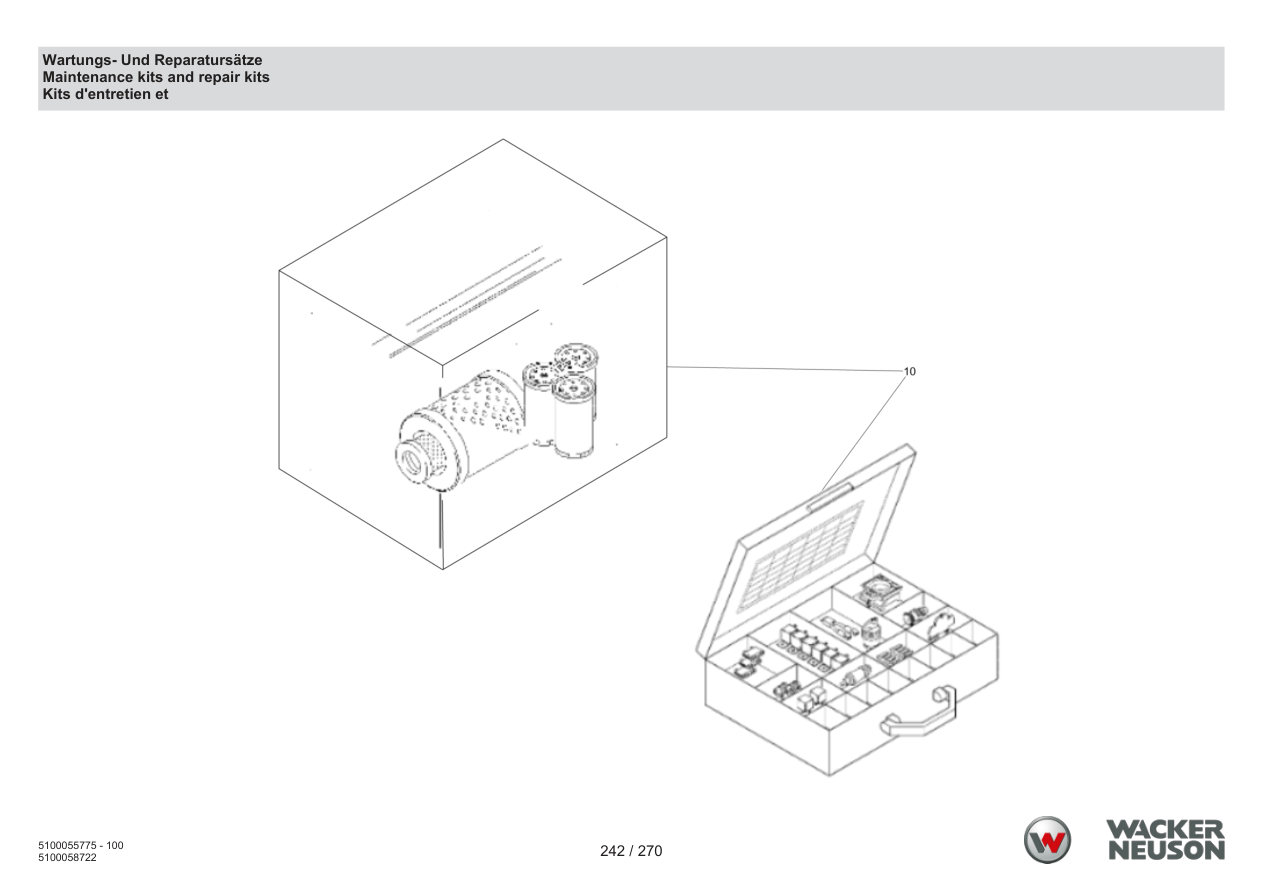

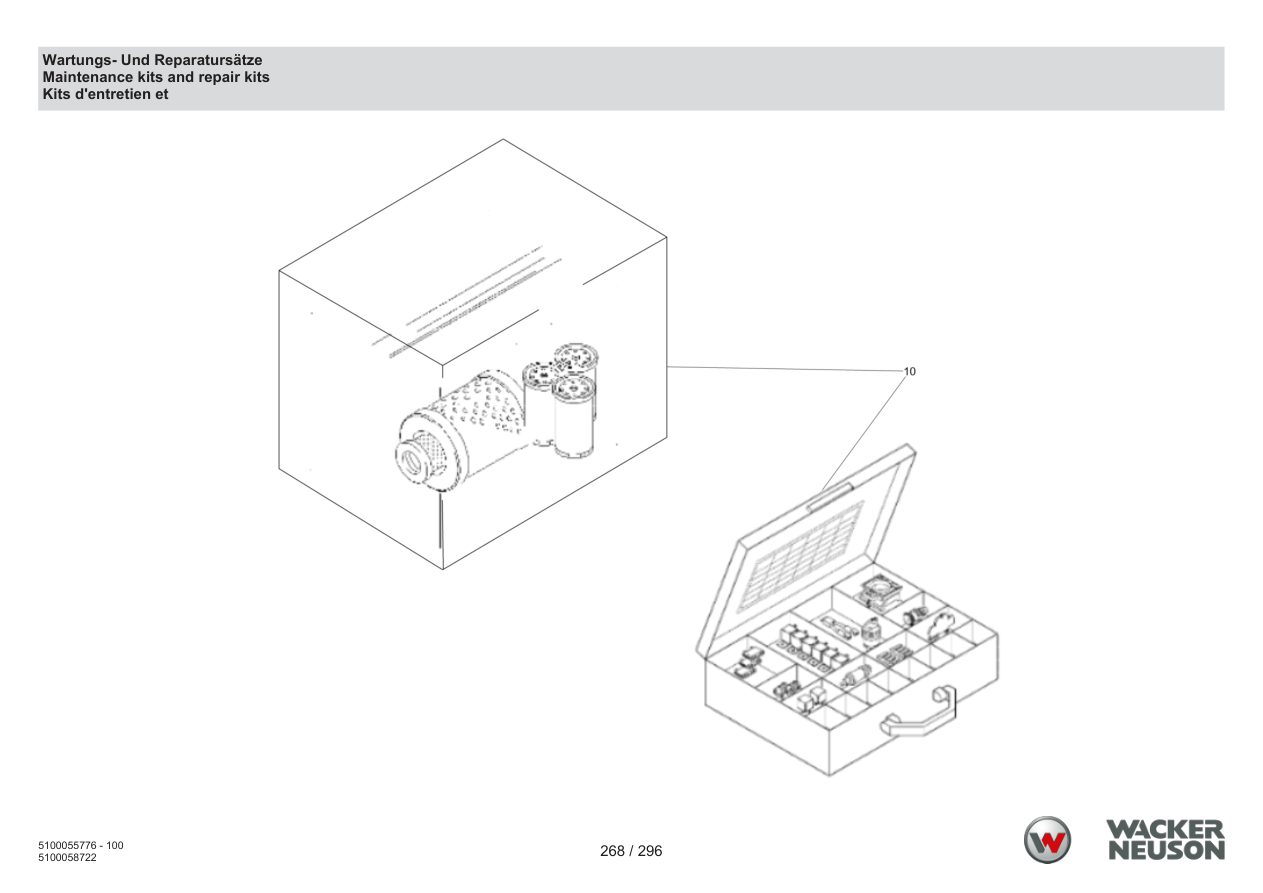

Page 242 — Maintenance kits and repair kits
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100057494 | Service kit at 50 hours | 1 | ADD TO CART | |
| 10 | 5100057495 | Service kit every 500 hours | 1 | ADD TO CART | |
| 10 | 5100057496 | Service kit every 1000 hours | 1 | ADD TO CART | |

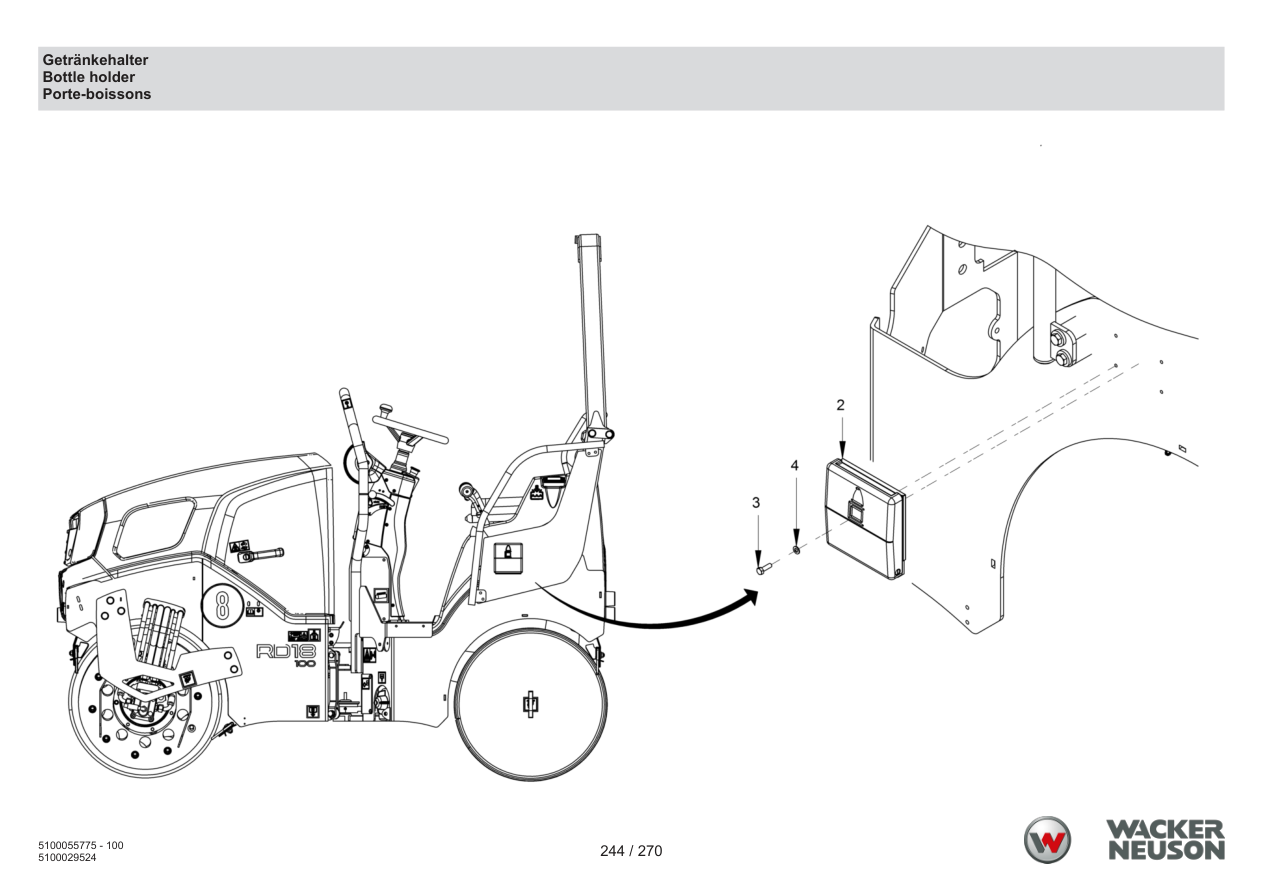

Page 244 — Bottle holder
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100023580 | Bottle-support | 1 | Serialno. 160-677 | ADD TO CART |
| 3 | 5100012598 | Hexagon screw | 4 | Serialno. 160-677 | PARTS REQUEST |
|
COMING Hexagon screw
5100012598 · qty on machine: 4 Serialno. 160-677 | |||||
| 4 | 5100012936 | Washer | 4 | Serialno. 160-677 | ADD TO CART |
| 7 | 5100082571 | Holder | 1 | Serialno. >678 | PARTS REQUEST |
|
COMING Holder
5100082571 · qty on machine: 1 Serialno. >678 | |||||
| 8 | 5100011701 | Distance bush | 2 | Serialno. >678 | ADD TO CART |
| 12 | 5100082572 | Distance bush | 2 | Serialno. >678 | PARTS REQUEST |
|
COMING Distance bush
5100082572 · qty on machine: 2 Serialno. >678 | |||||

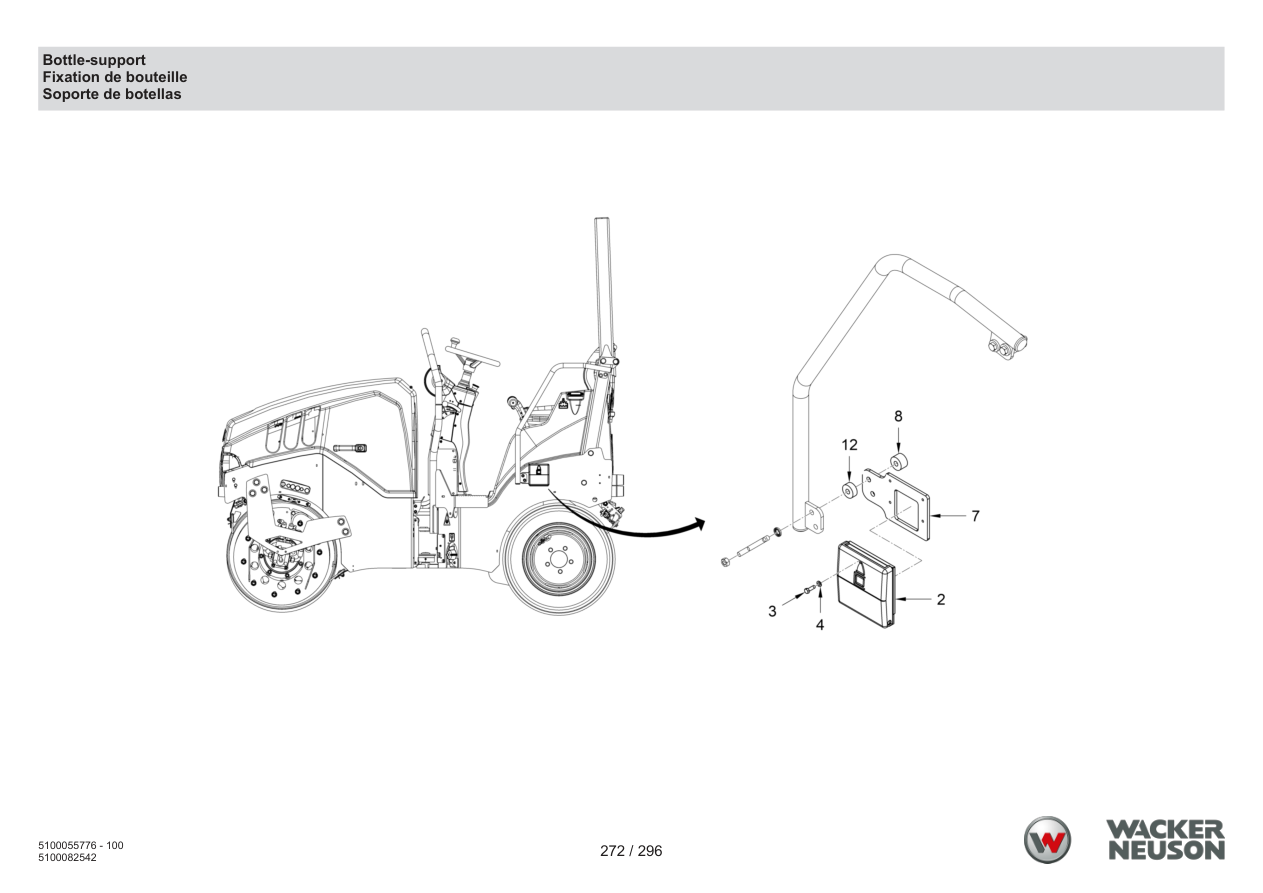

Page 246 — Bottle-support
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100012598 | Hexagon screw | 4 | Serialno. >678 | PARTS REQUEST |
|
COMING Hexagon screw
5100012598 · qty on machine: 4 Serialno. >678 | |||||
| 4 | 5100012936 | Washer | 4 | Serialno. >678 | ADD TO CART |
| 7 | 5100082571 | Holder | 1 | Serialno. >678 | PARTS REQUEST |
|
COMING Holder
5100082571 · qty on machine: 1 Serialno. >678 | |||||
| 8 | 5100011701 | Distance bush | 2 | Serialno. >678 | ADD TO CART |
| 12 | 5100082572 | Distance bush | 2 | Serialno. >678 | PARTS REQUEST |
|
COMING Distance bush
5100082572 · qty on machine: 2 Serialno. >678 | |||||
| 2 | 5100023580 | Bottle-support | 1 | Serialno. >678 | ADD TO CART |

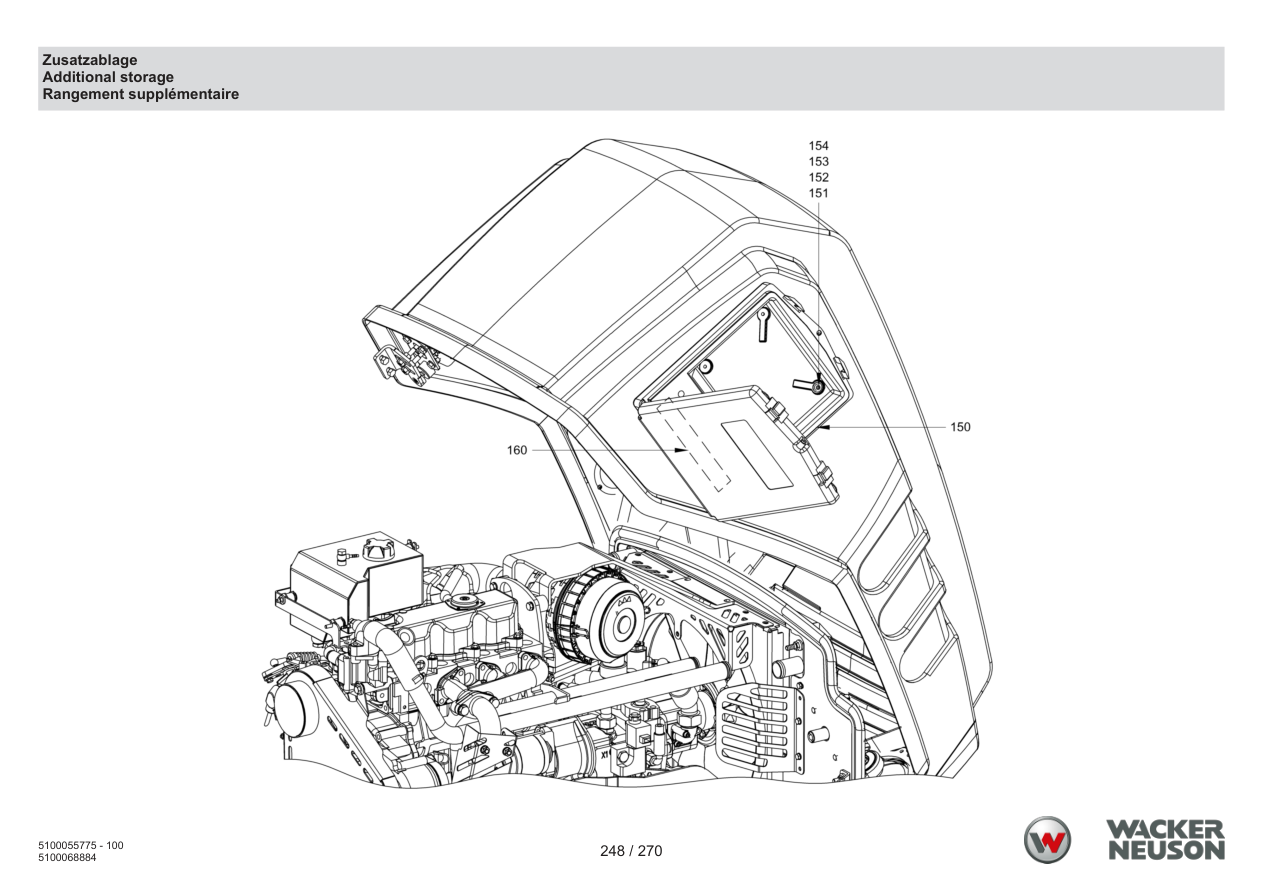

Page 248 — Additional storage tray
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 150 | 5100029563 | Bag | 1 | ADD TO CART | |
| 151 | 5100023198 | Fillister head screw | 4 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 4 | |||||
| 152 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 153 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 154 | 5100013523 | Washer | 4 | ADD TO CART | |
| 160 | 5100011866 | Sealing tape | 0.06 | ADD TO CART | |

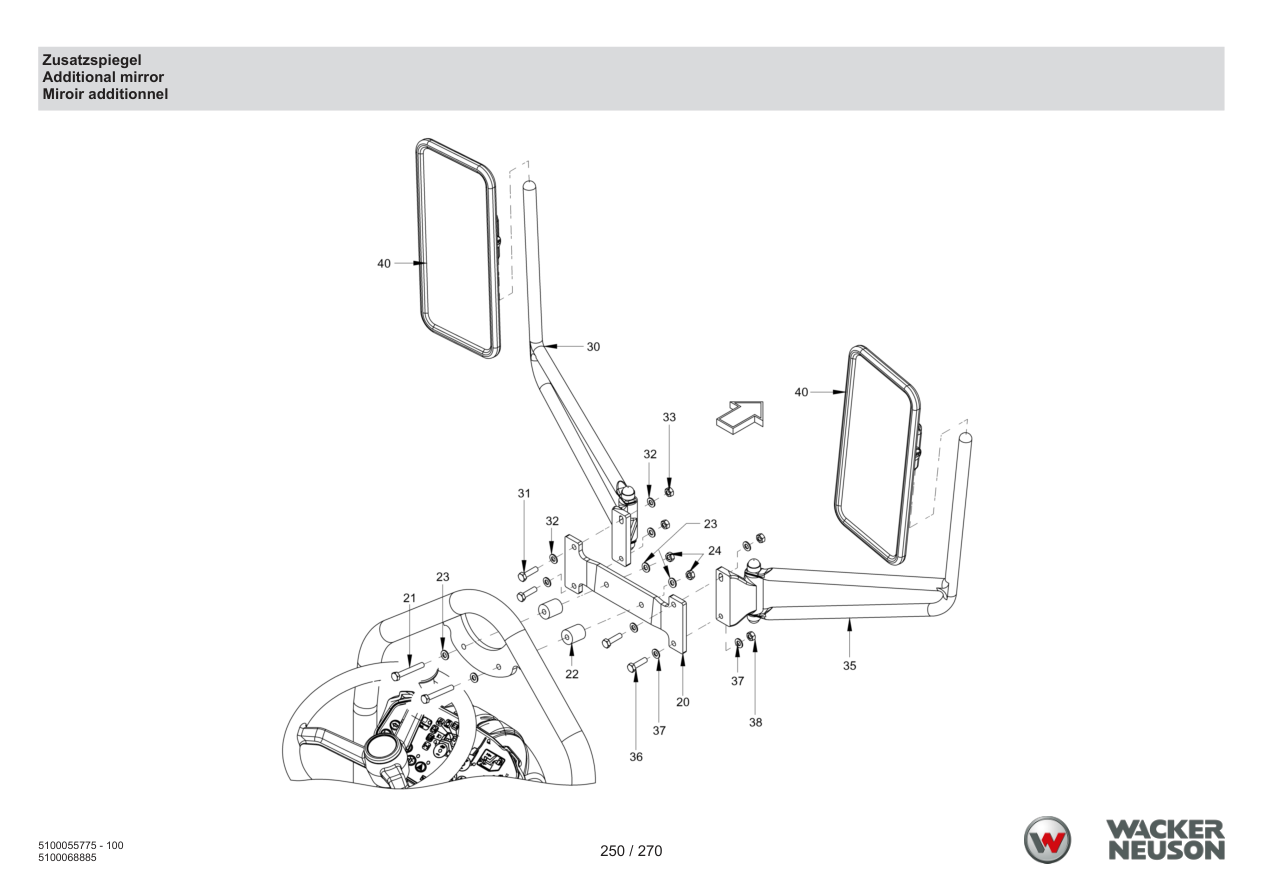

Page 250 — Additional mirror
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100012902 | Mirror-retainer | 1 | Serialno. 160-411 | ADD TO CART |
| 21 | 5100066911 | Hexagon screw | 2 | Serialno. 160-411 | ADD TO CART |
| 22 | 5100066912 | Distance piece | 2 | Serialno. 160-411 | ADD TO CART |
| 23 | 5100012966 | Locking washer | 4 | Serialno. 160-411 | ADD TO CART |
| 24 | 5100012546 | Hexagon nut | 2 | Serialno. 160-411 | ADD TO CART |
| 30 | 5100067838 | Stay bar | 1 | Serialno. 160-411 | ADD TO CART |
| 31 | 5100013510 | Hexagon screw | 2 | Serialno. 160-411 | ADD TO CART |
| 32 | 5100012966 | Locking washer | 4 | Serialno. 160-411 | ADD TO CART |
| 33 | 5100012546 | Hexagon nut | 2 | Serialno. 160-411 | ADD TO CART |
| 35 | 5100067837 | Stay bar | 1 | Serialno. 160-411 | PARTS REQUEST |
|
COMING Stay bar
5100067837 · qty on machine: 1 Serialno. 160-411 | |||||
| 36 | 5100013510 | Hexagon screw | 2 | Serialno. 160-411 | ADD TO CART |
| 37 | 5100012966 | Locking washer | 4 | Serialno. 160-411 | ADD TO CART |
| 38 | 5100012546 | Hexagon nut | 2 | Serialno. 160-411 | ADD TO CART |
| 40 | 5100067839 | Mirror | 2 | Serialno. 160-411 | ADD TO CART |
| 20 | 5100082573 | Mirror-retainer | 1 | Serialno. >412 | PARTS REQUEST |
|
COMING Mirror-retainer
5100082573 · qty on machine: 1 Serialno. >412 | |||||
| 30 | 5100077762 | Stay bar | 1 | Serialno. >412 | PARTS REQUEST |
|
COMING Stay bar
5100077762 · qty on machine: 1 Serialno. >412 | |||||
| 31 | 5100012613 | Hexagon screw | 2 | Serialno. >412 | ADD TO CART |
| 35 | 5100077763 | Stay bar | 1 | Serialno. >412 | PARTS REQUEST |
|
COMING Stay bar
5100077763 · qty on machine: 1 Serialno. >412 | |||||
| 36 | 5100012613 | Hexagon screw | 2 | Serialno. >412 | ADD TO CART |

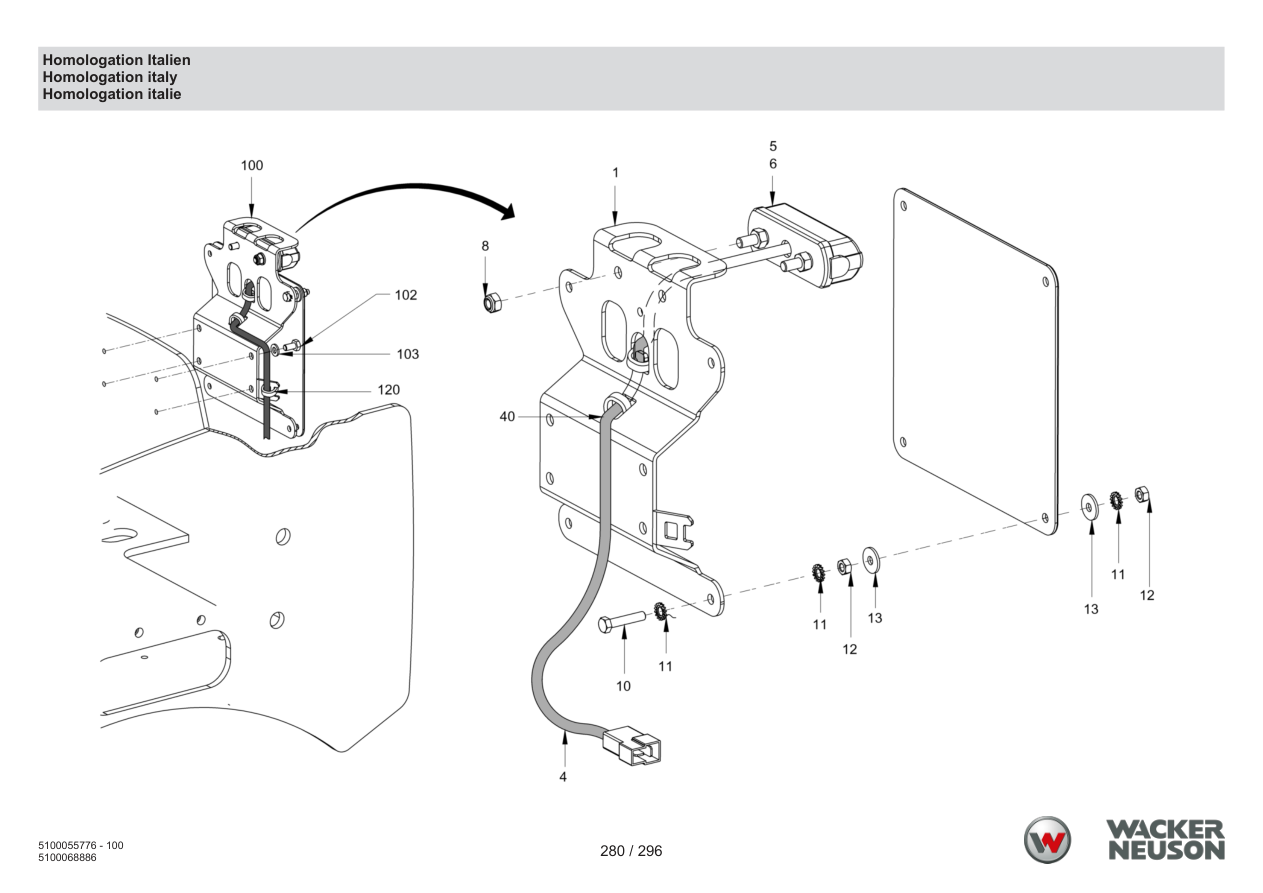

Page 254 — Homologation Italy
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012007 | Metal plate | 1 | ADD TO CART | |
| 4 | 5100012001 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 1 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 8 | 5100017998 | Hexagonal nut | 2 | ADD TO CART | |
| 10 | 5100012607 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100013536 | Serrated lock washer | 12 | ADD TO CART | |
| 12 | 5100012898 | Hexagon nut | 8 | ADD TO CART | |
| 13 | 5100013453 | Washer | 8 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 100 | 5100012143 | Bracket | 1 | ADD TO CART | |
| 102 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 103 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 5 | ADD TO CART | |

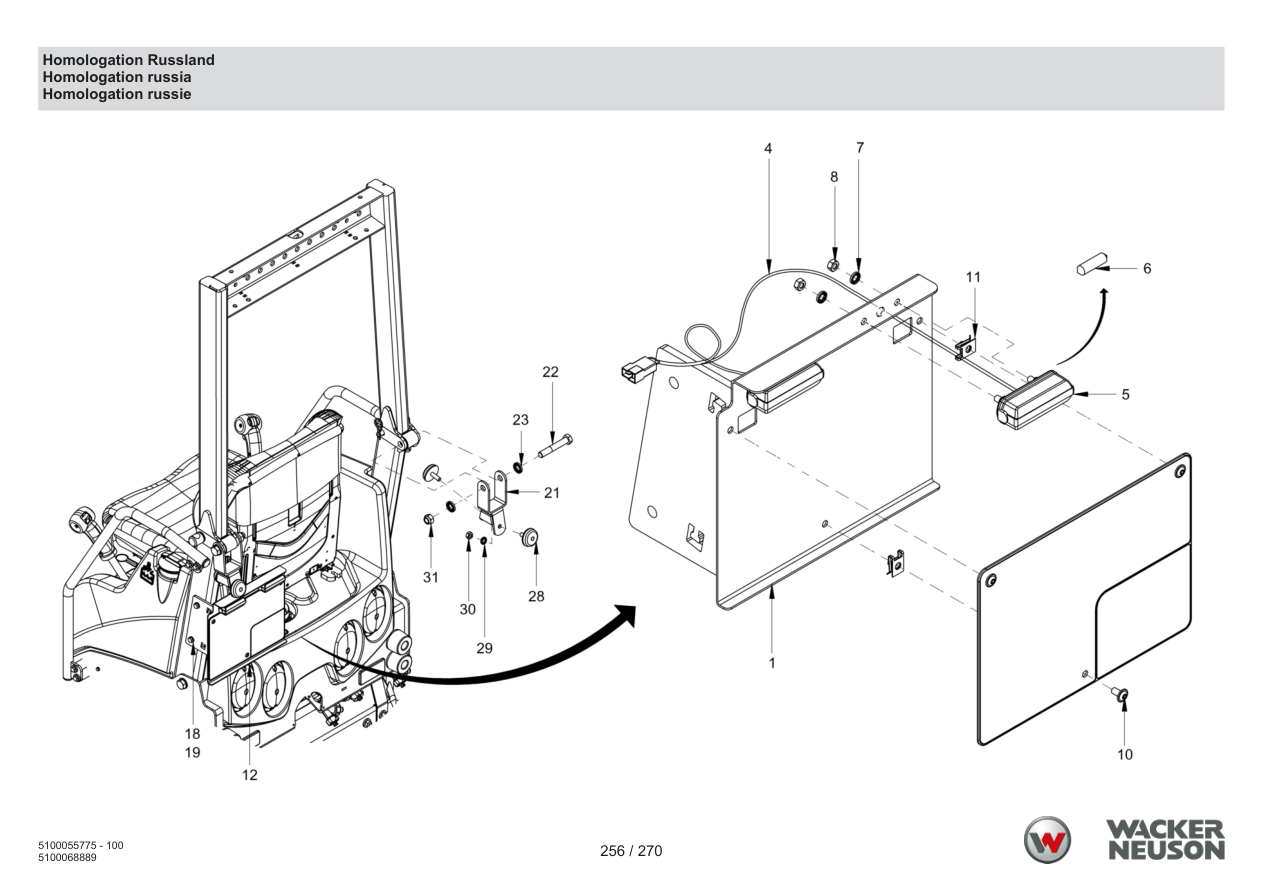

Page 256 — Homologation Russia
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068769 | Holder | 1 | ADD TO CART | |
| 4 | 5100025910 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 2 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100025881 | Fillister head screw | 3 | ADD TO CART | |
| 11 | 5100013599 | Clip nut | 3 | ADD TO CART | |
| 12 | 5100068780 | Number plate | 1 | ADD TO CART | |
| 18 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 19 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 21 | 5100068791 | Stop | 2 | ADD TO CART | |
| 22 | 5100013379 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 31 | 5100012603 | Safety nut | 2 | ADD TO CART | |

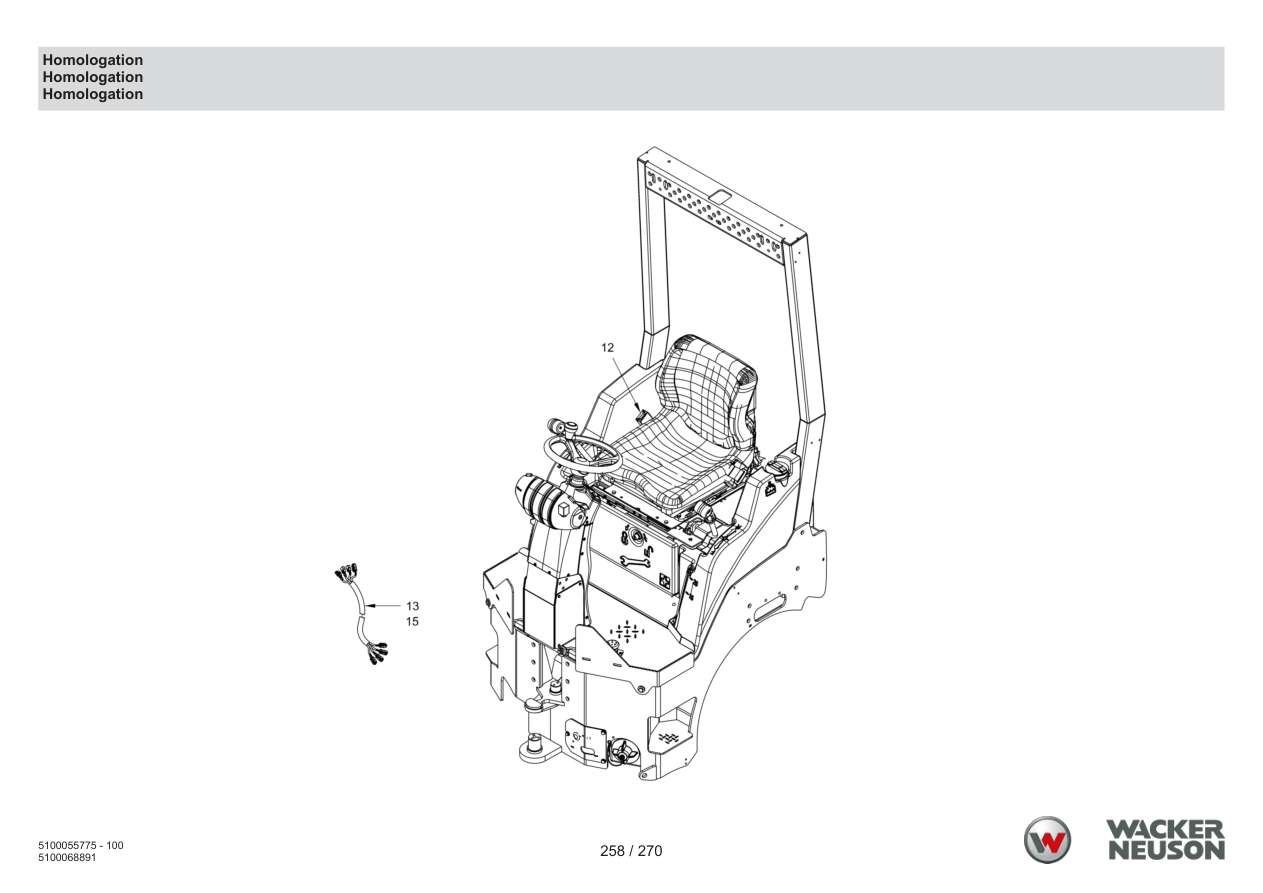

Page 258 — Homologation
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 12 | 5100025888 | Lap belt | 1 | ADD TO CART | |
| 13 | 5100068802 | Cable harness | 1 | ADD TO CART | |
| 15 | 5100066933 | Cable harness | 1 | ADD TO CART | |

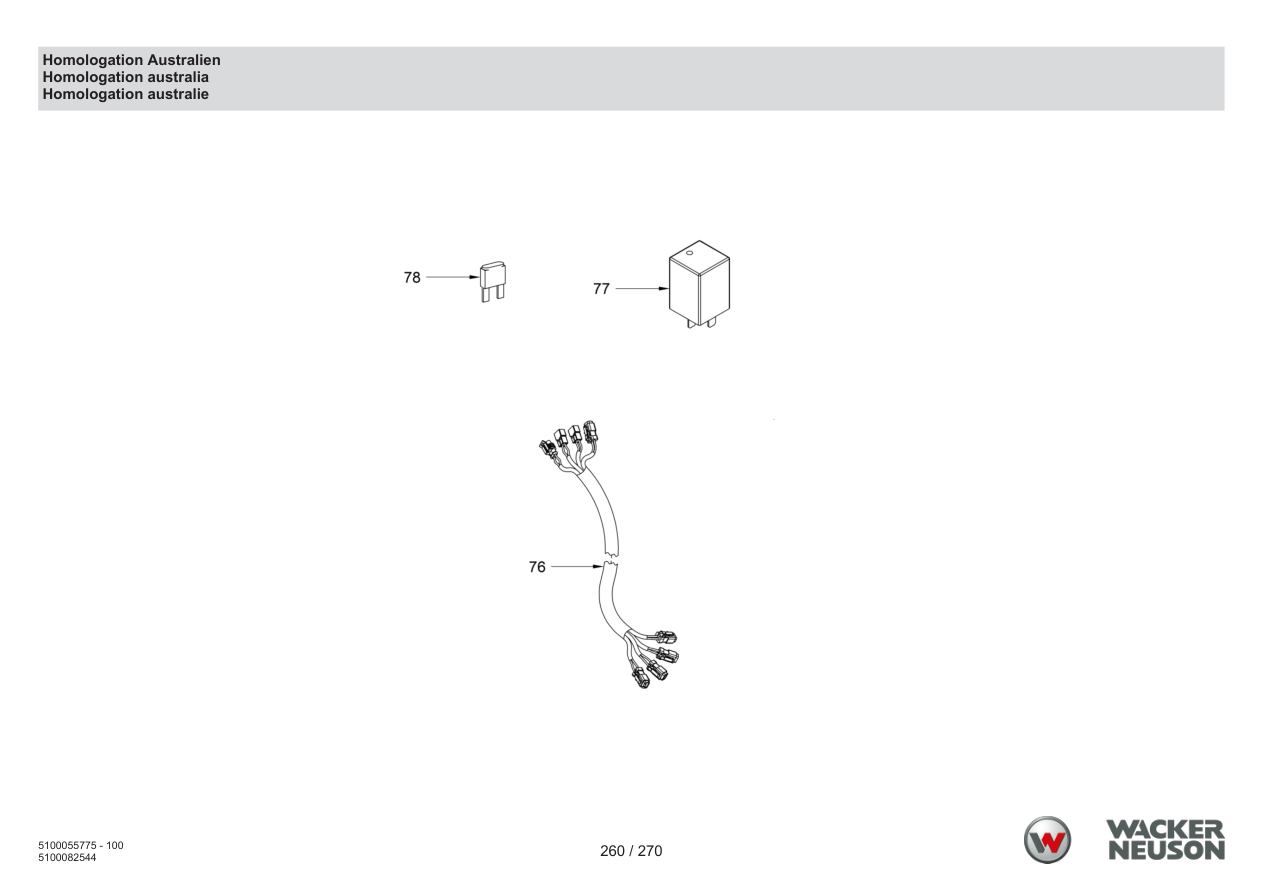

Page 260 — Homologation Australia
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 76 | 5100066915 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100066915 · qty on machine: 1 | |||||
| 77 | 5100066916 | Control device | 1 | ADD TO CART | |
| 78 | 5100013579 | Blade fuse | 1 | ADD TO CART | |

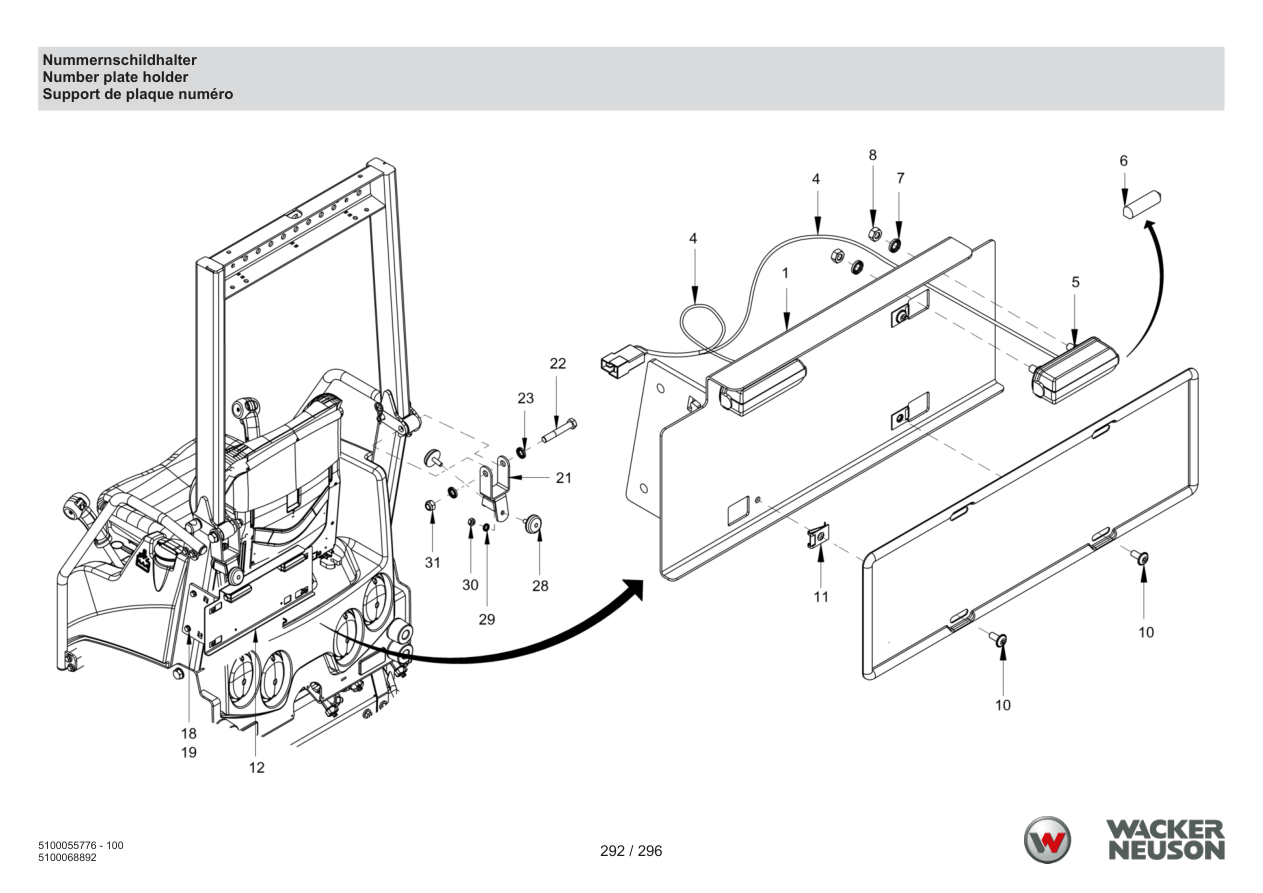

Page 266 — License plate holder
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068813 | Holder | 1 | ADD TO CART | |
| 4 | 5100025910 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 2 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100025881 | Fillister head screw | 4 | ADD TO CART | |
| 11 | 5100013599 | Clip nut | 4 | ADD TO CART | |
| 12 | 5100068725 | Number plate | 1 | ADD TO CART | |
| 18 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 19 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 21 | 5100016849 | Stop | 2 | ADD TO CART | |
| 22 | 5100013379 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 31 | 5100012603 | Safety nut | 2 | ADD TO CART | |
Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 22 — Main frame and assemblies
Parts list — exactly as printed82 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100082551 | Console | 1 | Serialno. >458 | PARTS REQUEST |
|
COMING Console
5100082551 · qty on machine: 1 Serialno. >458 | |||||
| 2 | 5100012171 | Front frame part | 1 | PARTS REQUEST | |
|
COMING Front frame part
5100012171 · qty on machine: 1 | |||||
| 5 | 5100011882 | Console | 1 | Serialno. 160-176 | PARTS REQUEST |
|
COMING Console
5100011882 · qty on machine: 1 Serialno. 160-176 | |||||
| 5 | 5100068724 | Console | 1 | Serialno. 177-457 | ADD TO CART |
| 7 | 5100011818 | Spacer plate | 1 | ADD TO CART | |
| 8 | 5100013128 | Washer | 5 | ADD TO CART | |
| 9 | 5100012617 | Hexagon screw | 5 | ADD TO CART | |
| 10 | 5100011479 | Hexagon screw | 6 | ADD TO CART | |
| 11 | 5100012967 | Locking washer | 6 | ADD TO CART | |
| 15 | 5100058742 | Metal plate | 1 | ADD TO CART | |
| 16 | 5100012780 | Mushroom head screw | 4 | ADD TO CART | |
| 17 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 18 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 30 | 5100011814 | Rubber buffer | 6 | ADD TO CART | |
| 32 | 5100012783 | Cheese-head screw | 2 | ADD TO CART | |
| 33 | 5100012006 | Spacer block | 2 | ADD TO CART | |
| 105 | 5100013076 | Towing loop | 1 | ADD TO CART | |
| 106 | 5100012617 | Hexagon screw | 4 | ADD TO CART | |
| 107 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 108 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 21 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 23 | 5100012678 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012678 · qty on machine: 1 | |||||
| 24 | 5100013124 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100013124 · qty on machine: 1 | |||||
| 25 | 5100012733 | Bow | 1 | ADD TO CART | |
| 26 | 5100012967 | Locking washer | 6 | ADD TO CART | |
| 27 | 5100013416 | Hexagon screw | 6 | ADD TO CART | |
| 31 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 34 | 5100012683 | Box | 1 | ADD TO CART | |
| 40 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 41 | 5100029587 | Washer | 1 | ADD TO CART | |
| 42 | 5100012711 | Pipe | 1 | ADD TO CART | |
| 43 | 5100011734 | Rubber metal buffer | 2 | ADD TO CART | |
| 44 | 5100012520 | Hexagon screw | 2 | ADD TO CART | |
| 45 | 5100013128 | Washer | 2 | ADD TO CART | |
| 49 | 5100016727 | Cover | 2 | ADD TO CART | |
| 50 | 5100012854 | Handle | 2 | ADD TO CART | |
| 51 | 5100016503 | Bushing | 8 | ADD TO CART | |
| 52 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 53 | 5100048693 | Stud screw | 8 | PARTS REQUEST | |
|
COMING Stud screw
5100048693 · qty on machine: 8 | |||||
| 54 | 5100012529 | Filler cap | 4 | ADD TO CART | |
| 55 | 5100012546 | Hexagon nut | 8 | ADD TO CART | |
| 57 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 58 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 60 | 5100016728 | Bottom plate | 1 | ADD TO CART | |
| 61 | 5100012517 | Hexagon screw | 6 | ADD TO CART | |
| 62 | 5100013094 | Washer | 6 | ADD TO CART | |
| 65 | 5100012712 | Rubber metal buffer | 2 | ADD TO CART | |
| 66 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 67 | 5100013128 | Washer | 2 | ADD TO CART | |
| 69 | 5100012640 | Steering console | 1 | ADD TO CART | |
| 69 | 5100016289 | Steering console | 1 | PARTS REQUEST | |
|
COMING Steering console
5100016289 · qty on machine: 1 | |||||
| 71 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 72 | 5100013094 | Washer | 4 | ADD TO CART | |
| 73 | 5100013644 | Rubber profile | 0.25 | ADD TO CART | |
| 74 | 5100052877 | Protective cap | 2 | ADD TO CART | |
| 75 | 5100012652 | Spacer plate | 1 | ADD TO CART | |
| 77 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100013094 | Washer | 2 | ADD TO CART | |
| 80 | 5100012653 | Retaining plate | 1 | ADD TO CART | |
| 81 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 90 | 5100029593 | Footstep | 1 | ADD TO CART | |
| 91 | 5100012613 | Hexagon screw | 4 | ADD TO CART | |
| 92 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 93 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 2 | 5100029592 | Footstep | 2 | ADD TO CART | |
| 3 | 5100029564 | Spring-type holder | 1 | ADD TO CART | |
| 4 | 5100029537 | Cheese-head screw | 1 | ADD TO CART | |
| 5 | 5100013438 | Washer | 1 | ADD TO CART | |
| 6 | 5100022855 | Hexagonal nut | 1 | ADD TO CART | |
| 8 | 5100029552 | Cheese-head screw | 1 | ADD TO CART | |
| 12 | 5100029591 | Holder | 1 | ADD TO CART | |
| 13 | 5100035308 | Hexagon screw | 2 | ADD TO CART | |
| 14 | 5100012938 | Washer | 2 | ADD TO CART | |
| 15 | 5100029539 | Washer | 2 | ADD TO CART | |
| 16 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 17 | 5100011657 | Washer | 2 | ADD TO CART | |
| 18 | 5100013421 | Washer | 2 | ADD TO CART | |
| 19 | 5100011476 | Safety nut | 2 | ADD TO CART | |
| 20 | 5100013537 | Hexagon nut | 2 | ADD TO CART | |
| 100 | 5100029593 | Footstep | 1 | ADD TO CART | |
Page 30 — Canopies and covers
Parts list — exactly as printed103 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 101 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 42 | 5100013523 | Washer | 2 | ADD TO CART | |
| 1 | 5100012716 | Engine hood | 1 | PARTS REQUEST | |
|
COMING Engine hood
5100012716 · qty on machine: 1 | |||||
| 2 | 5100011945 | Bracket | 2 | ADD TO CART | |
| 3 | 5100011946 | Metal plate | 2 | ADD TO CART | |
| 4 | 5100012613 | Hexagon screw | 4 | ADD TO CART | |
| 5 | 5100013094 | Washer | 4 | ADD TO CART | |
| 6 | 5100011575 | Joint | 2 | ADD TO CART | |
| 7 | 5100011611 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 9 | 5100011498 | Silentbloc | 2 | ADD TO CART | |
| 10 | 5100011508 | Bushing | 2 | ADD TO CART | |
| 11 | 5100011894 | Fillister head screw | 2 | ADD TO CART | |
| 12 | 5100053004 | Safety nut | 2 | ADD TO CART | |
| 13 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100058743 | Bushing | 2 | ADD TO CART | |
| 16 | 5100013421 | Washer | 2 | ADD TO CART | |
| 19 | 5100012696 | Lock | 1 | ADD TO CART | |
| 20 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 23 | 5100013588 | Lock outside handle | 1 | ADD TO CART | |
| 24 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 25 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 26 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 27 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 28 | 5100012827 | Knurled head screw | 1 | ADD TO CART | |
| 29 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100058744 | Holder | 1 | ADD TO CART | |
| 31 | 5100011578 | Mushroom head screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100050644 | Wire clip | 1 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 38 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 40 | 5100012835 | Covering part | 1 | ADD TO CART | |
| 41 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 44 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 45 | 5100011481 | Cheese-head screw | 2 | ADD TO CART | |
| 46 | 5100013523 | Washer | 2 | ADD TO CART | |
| 47 | 5100013029 | Bushing | 2 | ADD TO CART | |
| 48 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 50 | 5100013525 | Rubber buffer | 1 | ADD TO CART | |
| 51 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 54 | 5100011919 | Gas spring | 1 | ADD TO CART | |
| 55 | 5100029582 | Holder | 1 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 57 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 58 | 5100013094 | Washer | 1 | ADD TO CART | |
| 59 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 60 | 5100011871 | Sealing profile | 2.5 | ADD TO CART | |
| 100 | 5100082554 | Protective device | 1 | PARTS REQUEST | |
|
COMING Protective device
5100082554 · qty on machine: 1 | |||||
| 101 | 5100012515 | Hexagon screw | 4 | ADD TO CART | |
| 102 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 105 | 5100082561 | Protective device | 1 | PARTS REQUEST | |
|
COMING Protective device
5100082561 · qty on machine: 1 | |||||
| 106 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 107 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 110 | 5100082563 | Protective device | 1 | PARTS REQUEST | |
|
COMING Protective device
5100082563 · qty on machine: 1 | |||||
| 111 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 112 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 120 | 5100058745 | Cover sheet | 2 | ADD TO CART | |
| 121 | 5100012517 | Hexagon screw | 8 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 210 | 5100016729 | Covering part | 1 | ADD TO CART | |
| 211 | 5100016199 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 | |||||
| 212 | 5100013523 | Washer | 2 | ADD TO CART | |
| 213 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 214 | 5100016820 | Cheese-head screw | 2 | ADD TO CART | |
| 215 | 5100013523 | Washer | 2 | ADD TO CART | |
| 216 | 5100011636 | Washer | 2 | ADD TO CART | |
| 217 | 5100013644 | Rubber profile | 0.4 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 79 | 5100011580 | Blind cover | 3 | ADD TO CART | |
| 80 | 5100012647 | Covering part | 1 | ADD TO CART | |
| 81 | 5100011854 | Bracket | 1 | ADD TO CART | |
| 82 | 5100012607 | Hexagon screw | 1 | ADD TO CART | |
| 85 | 5100012648 | Covering part | 1 | ADD TO CART | |
| 86 | 5100011581 | Fillister head screw | 6 | ADD TO CART | |
| 90 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
| 91 | 5100013596 | Built-in lock | 1 | PARTS REQUEST | |
|
COMING Built-in lock
5100013596 · qty on machine: 1 | |||||
| 92 | 5100011698 | Spacer block | 1 | ADD TO CART | |
| 93 | 5100011860 | Rubber sleeve | 1 | ADD TO CART | |
| 94 | 5100011581 | Fillister head screw | 7 | ADD TO CART | |
| 100 | 5100025100 | Covering part | 1 | ADD TO CART | |
| 102 | 5100011853 | Fillister head screw | 2 | ADD TO CART | |
| 104 | 5100013537 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100012649 | Splash protection | 1 | ADD TO CART | |
| 111 | 5100012920 | Edge protection | 0.6 | ADD TO CART | |
| 115 | 5100011656 | Filler cap | 6 | ADD TO CART | |
| 130 | 5100012650 | Cover | 2 | ADD TO CART | |
| 132 | 5100012651 | Sealing profile | 2 | ADD TO CART | |
| 133 | 5100012592 | Hexagon screw | 8 | ADD TO CART | |
| 134 | 5100012936 | Washer | 8 | ADD TO CART | |
| 150 | 5100012881 | Cover plate | 2 | ADD TO CART | |
| 151 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
| 199 | 5100011550 | Plug | 2 | ADD TO CART | |
| 70 | 5100011816 | Cover | 1 | ADD TO CART | |
| 71 | 5100013591 | Built-in lock | 1 | ADD TO CART | |
| 72 | 5100013647 | Sealing profile | 0.7 | ADD TO CART | |
| 190 | 5100012659 | Cover | 1 | ADD TO CART | |
| 191 | 5100012572 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 3 | |||||
| 192 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 204 | 5100058746 | Filler cap | 2 | ADD TO CART | |
Page 38 — Label arrangement
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100029589 | Label | 2 | ADD TO CART | |
| 1 | 5100011886 | Type plate rd18-80 | 2 | ADD TO CART | |
| 1 | 5100012054 | Type plate rd18-100 c | 2 | ADD TO CART | |
| 1 | 5100016822 | Type plate rd18-100 | 2 | ADD TO CART | |
| 2 | 5100029588 | Label | 2 | ADD TO CART | |
| 4 | 5100016256 | Sticker | 1 | ADD TO CART | |
| 5 | 5100016257 | Adhesive tape | 1 | ADD TO CART | |
| 9 | 5100013209 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013207 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013208 | Decal kit | 1 | ADD TO CART | |
| 50 | 5100013420 | Sticker | 3 | ADD TO CART | |
| 51 | 5100011684 | Metal plate | 1 | ADD TO CART | |
| 52 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 53 | 5100023527 | Label | 1 | ADD TO CART | |
| 90 | 5100012698 | Sticker | 1 | ADD TO CART | |
| 90 | 5100016500 | Sticker | 1 | ADD TO CART | |
| 91 | 5100012699 | Sticker | 1 | ADD TO CART | |
| 106 | 5100016258 | Decal kit | 1 | ADD TO CART | |
| 105 | 5100011703 | Sticker | 1 | ADD TO CART | |
| 105 | 5100080385 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100080385 · qty on machine: 1 | |||||
Page 54 — Sound insulation
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100029580 | Insulation | 1 | ADD TO CART | |
| 4 | 5100011922 | Locking washer | 11 | ADD TO CART | |
| 11 | 5100012946 | Stud bolt | 1 | ADD TO CART | |
| 12 | 5100012977 | Stud bolt | 1 | ADD TO CART | |
| 13 | 5100013421 | Washer | 4 | ADD TO CART | |
| 14 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
Page 56 — Driver seat with adjustment
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033194 | Driver's seat | 1 | ADD TO CART | |
| 3 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 5 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 6 | 5100012014 | Metal plate | 2 | ADD TO CART | |
| 1 | 5100033195 | Seat contact switch | 1 | ADD TO CART | |
| 1 | 5100033196 | Seat cushion | 1 | ADD TO CART | |
| 1 | 5100033197 | Seat cushion | 1 | ADD TO CART | |
| 1 | 5100033198 | Set of adjustment bars | 1 | ADD TO CART | |
| 1 | 5100033199 | Lap belt | 1 | ADD TO CART | |
| 1 | 5100033200 | Maintenance kit wear parts | 1 | ADD TO CART | |
| 1 | 5100033201 | Adjustment | 1 | ADD TO CART | |
| 1 | 5100029584 | Driver's seat | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
| 2 | 5100011518 | Seat cushion | 1 | ADD TO CART | |
| 2 | 5100011519 | Backrest cushion | 1 | ADD TO CART | |
| 2 | 5100011615 | Handle | 1 | ADD TO CART | |
| 2 | 5100012964 | Seat contact switch | 1 | ADD TO CART | |
| 2 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100029584 | Driver's seat | 1 | ADD TO CART | |
| 2 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 1 | 5100011615 | Handle | 1 | ADD TO CART | |
| 1 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100024343 | Cushion set | 1 | ADD TO CART | |
| 1 | 5100024920 | Seat contact switch | 1 | ADD TO CART | |
| 1 | 5100029596 | Driver's seat | 1 | ADD TO CART | |
| 1 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 13 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 15 | 5100011579 | Switch | 1 | ADD TO CART | |
| 16 | 5100011938 | Bogie, seat heating | 1 | ADD TO CART | |
Page 66 — Rigid roll over protection
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068737 | Roll over protection | 1 | ADD TO CART | |
| 5 | 5100013426 | Hexagon screw | 3 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 3 | ADD TO CART | |
Page 68 — Roll over protection
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012194 | Washer | 2 | ADD TO CART | |
| 1 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 1 | 5100012687 | Rops foldable | 1 | ADD TO CART | |
| 1 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 1 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 1 | 5100012987 | W-clip | 2 | ADD TO CART | |
| 1 | 5100012988 | Threaded bolt | 2 | ADD TO CART | |
| 1 | 5100013232 | Hexagon screw | 2 | ADD TO CART | |
| 1 | 5100024289 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100024289 · qty on machine: 2 | |||||
| 5 | 5100013426 | Hexagon screw | 3 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 3 | ADD TO CART | |
| 21 | 5100012006 | Spacer block | 4 | ADD TO CART | |
| 22 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 23 | 5100011814 | Rubber buffer | 4 | ADD TO CART | |
| 190 | 5100016823 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
Page 70 — Canopy, fops
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100068749 | Roof | 1 | ADD TO CART | |
| 3 | 5100068761 | Strap bolt | 4 | ADD TO CART | |
| 4 | 5100068773 | Plate | 4 | ADD TO CART | |
| 5 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 6 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 10 | 5100068761 | Strap bolt | 2 | ADD TO CART | |
| 11 | 5100068785 | Distance sheet | 8 | ADD TO CART | |
| 12 | 5100068773 | Plate | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 15 | 5100035325 | Protective cap | 4 | ADD TO CART | |
| 20 | 5100068797 | Rail | 1 | ADD TO CART | |
| 21 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100016825 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 40 | 5100034805 | Cable support sleeve | 4 | ADD TO CART | |
| 46 | 5100050646 | Filler cap | 6 | ADD TO CART | |
| 47 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 48 | 5100011550 | Plug | 2 | ADD TO CART | |
| 50 | 5100013412 | Edge protection | 1.5 | ADD TO CART | |
| 55 | 5100068809 | Metal plate | 1 | ADD TO CART | |
| 56 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 58 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
Page 72 — Engine and pump assembly
Parts list — exactly as printed79 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100058747 | Coupling | 1 | ADD TO CART | |
| 6 | 5100058748 | Cheese-head screw | 3 | ADD TO CART | |
| 10 | 5100012668 | Flange | 1 | ADD TO CART | |
| 11 | 5100013512 | Cheese-head screw | 7 | ADD TO CART | |
| 12 | 5100012966 | Locking washer | 10 | ADD TO CART | |
| 13 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 14 | 5100012672 | Cheese-head screw | 2 | ADD TO CART | |
| 15 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 16 | 5100011480 | Cheese-head screw | 1 | ADD TO CART | |
| 21 | 5100011769 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100011769 · qty on machine: 1 | |||||
| 22 | 5100013425 | Cheese-head screw | 2 | ADD TO CART | |
| 23 | 5100012972 | Locking washer | 2 | ADD TO CART | |
| 31 | 5100011678 | Gear pump | 1 | ADD TO CART | |
| 32 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 33 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 51 | 5100012313 | Engine suspension | 1 | ADD TO CART | |
| 52 | 5100013511 | Cheese-head screw | 2 | ADD TO CART | |
| 53 | 5100013441 | Locking washer | 2 | ADD TO CART | |
| 54 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 60 | 5100012181 | Rubber metal buffer | 2 | ADD TO CART | |
| 61 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 62 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 63 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 101 | 5100013210 | Hollow-core screw | 1 | ADD TO CART | |
| 102 | 5100011468 | Sealing ring | 1 | ADD TO CART | |
| 103 | 5100013004 | Sealing ring | 1 | ADD TO CART | |
| 210 | 5100048692 | Stud screw | 2 | ADD TO CART | |
| 211 | 5100011824 | Washer | 1 | ADD TO CART | |
| 212 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 213 | 5100012347 | Washer | 1 | ADD TO CART | |
| 3 | 5100058629 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100058629 · qty on machine: 1 | |||||
| 71 | 5100012338 | Bracket | 1 | ADD TO CART | |
| 73 | 5100012553 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 104 | 5100012816 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012816 · qty on machine: 1 | |||||
| 150 | 5100016824 | Protective housing | 1 | ADD TO CART | |
| 151 | 5100012533 | Hexagon screw | 2 | ADD TO CART | |
| 152 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 153 | 5100012517 | Hexagon screw | 1 | ADD TO CART | |
| 154 | 5100013094 | Washer | 2 | ADD TO CART | |
| 155 | 5100013230 | Locking washer | 1 | ADD TO CART | |
| 158 | 5100016825 | Locking washer | 2 | ADD TO CART | |
| 230 | 5100012339 | Bracket | 1 | ADD TO CART | |
| 231 | 5100012617 | Hexagon screw | 4 | ADD TO CART | |
| 232 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 233 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 235 | 5100012235 | Cap nut | 1 | ADD TO CART | |
| 236 | 5100013555 | Filler cap | 1 | ADD TO CART | |
| 237 | 5100013486 | Bulkhead elbow | 1 | ADD TO CART | |
| 238 | 5100013191 | Washer | 1 | ADD TO CART | |
| 239 | 5100013488 | Hexagon nut | 1 | ADD TO CART | |
| 241 | 5100012209 | Silentbloc | 1 | ADD TO CART | |
| 242 | 5100012513 | Hexagon screw | 1 | ADD TO CART | |
| 243 | 5100012968 | Locking washer | 1 | ADD TO CART | |
| 244 | 5100012548 | Hexagon nut | 1 | ADD TO CART | |
| 245 | 5100012212 | Washer | 1 | ADD TO CART | |
| 246 | 5100012617 | Hexagon screw | 2 | ADD TO CART | |
| 247 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 248 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 1 | 5100012689 | Starter | 1 | ADD TO CART | |
| 2 | 5100012701 | Alternator | 1 | PARTS REQUEST | |
|
COMING Alternator
5100012701 · qty on machine: 1 | |||||
| 3 | 5100012807 | Engine oil pressure switch | 1 | ADD TO CART | |
| 4 | 5100013444 | V-belt | 1 | ADD TO CART | |
| 5 | 5100012892 | Filter cartridge, lubric. oil | 1 | ADD TO CART | |
| 6 | 5100012861 | Temperature switch, engine oil | 1 | ADD TO CART | |
| 7 | 5100029560 | Seal, valve cover | 1 | ADD TO CART | |
| 8 | 5100012857 | Oil dipstick | 1 | ADD TO CART | |
| 9 | 5100012856 | Cover | 2 | ADD TO CART | |
| 10 | 5100013396 | O-ring seal | 2 | ADD TO CART | |
| 11 | 5100012858 | Solenoid coil | 1 | ADD TO CART | |
| 12 | 5100058630 | Water pump | 1 | ADD TO CART | |
| 13 | 5100012859 | Seal | 1 | ADD TO CART | |
| 14 | 5100012862 | Thermostat | 1 | ADD TO CART | |
| 15 | 5100012863 | Seal | 1 | ADD TO CART | |
| 17 | 5100013395 | Screw plug | 1 | ADD TO CART | |
| 18 | 5100013394 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100013394 · qty on machine: 1 | |||||
| 19 | 5100013398 | Seal | 1 | ADD TO CART | |
| 100 | 5100058629 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100058629 · qty on machine: 1 | |||||
Page 78 — Fuel system
Parts list — exactly as printed62 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 15 | 5100012846 | Fuel gauge | 1 | ADD TO CART | |
| 16 | 5100011728 | Metal plate | 1 | ADD TO CART | |
| 17 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 18 | 5100013491 | Mounting clip | 1 | ADD TO CART | |
| 19 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 20 | 5100011829 | Tank cap, with lock | 1 | 20.01 Serialno. 160-413 | ADD TO CART |
| 20 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 20 | 5100012034 | Threaded insert | 1 | PARTS REQUEST | |
|
COMING Threaded insert
5100012034 · qty on machine: 1 | |||||
| 20 | 5100012049 | Straight screwed socket | 1 | ADD TO CART | |
| 20 | 5100012050 | Angle screwed socket | 1 | ADD TO CART | |
| 20 | 5100012099 | O-ring seal | 2 | ADD TO CART | |
| 20 | 5100012504 | O-ring seal | 1 | ADD TO CART | |
| 20 | 5100012697 | Fuel tank | 1 | ADD TO CART | |
| 20 | 5100013557 | Key | 1 | ADD TO CART | |
| 20 | 5100082564 | Tank cap, with lock | 1 | 20.01 Serialno. >414 | PARTS REQUEST |
|
COMING Tank cap, with lock
5100082564 · qty on machine: 1 20.01 Serialno. >414 | |||||
| 21 | 5100013216 | Flexible tubing | 1.5 | ADD TO CART | |
| 22 | 5100013640 | Flexible tubing | 2.25 | Serialno. >634 | ADD TO CART |
| 22 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 23 | 5100013640 | Flexible tubing | 2.35 | Serialno. 160-633 | ADD TO CART |
| 24 | 5100013540 | Pipe clip | 2 | ADD TO CART | |
| 28 | 5100013644 | Rubber profile | 1.5 | ADD TO CART | |
| 60 | 5100013216 | Flexible tubing | 0.24 | ADD TO CART | |
| 61 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 73 | 5100068821 | Fuel filter | 1 | ADD TO CART | |
| 95 | 5100082397 | Non-return valve | 1 | Serialno. >634 | PARTS REQUEST |
|
COMING Non-return valve
5100082397 · qty on machine: 1 Serialno. >634 | |||||
| 96 | 5100013640 | Flexible tubing | 0.08 | Serialno. >634 | ADD TO CART |
| 97 | 5100013540 | Pipe clip | 2 | Serialno. >634 | ADD TO CART |
| 100 | 5100068736 | Holder | 1 | ADD TO CART | |
| 101 | 5100012551 | Hexagon screw | 2 | ADD TO CART | |
| 102 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 105 | 5100012919 | Silentbloc | 2 | ADD TO CART | |
| 106 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 107 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100068727 | Holder | 1 | ADD TO CART | |
| 31 | 5100012925 | Fuel filter | 1 | ADD TO CART | |
| 32 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 33 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 34 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100011461 | Straight screwed socket | 2 | ADD TO CART | |
| 36 | 5100011664 | Hose fitting | 2 | ADD TO CART | |
| 37 | 5100013216 | Flexible tubing | 0.5 | ADD TO CART | |
| 38 | 5100013179 | Hose clip | 4 | ADD TO CART | |
| 45 | 5100023485 | Fuel pump | 1 | ADD TO CART | |
| 46 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 47 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 48 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 49 | 5100012623 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012623 · qty on machine: 1 | |||||
| 50 | 5100012227 | Hollow-core screw | 1 | ADD TO CART | |
| 51 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
| 52 | 5100012460 | Filter head | 1 | ADD TO CART | |
| 53 | 5100029554 | Fuel filter | 1 | ADD TO CART | |
| 54 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 55 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 58 | 5100012457 | Hose nozzle | 1 | ADD TO CART | |
| 59 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 62 | 5100013405 | Screw plug | 1 | ADD TO CART | |
| 63 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 65 | 5100012571 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013502 | Sealing ring | 1 | ADD TO CART | |
| 70 | 5100012593 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012593 · qty on machine: 1 | |||||
| 80 | 5100013520 | Wire fastener | 2 | ADD TO CART | |
| 100 | 5100068821 | Fuel filter | 1 | ADD TO CART | |
Page 82 — Fuel Filter
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012926 | Filter head | 1 | PARTS REQUEST | |
|
COMING Filter head
5100012926 · qty on machine: 1 | |||||
| 2 | 5100012927 | Sealing washer | 1 | ADD TO CART | |
| 2 | 5100029562 | Filter cartridge | 1 | ADD TO CART | |
| 3 | 5100012929 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012930 | Filter housing | 1 | ADD TO CART | |
| 5 | 5100012244 | Discharge valve | 1 | ADD TO CART | |
| 31 | 5100012925 | Fuel filter | 1 | ADD TO CART | |
| 52 | 5100012460 | Filter head | 1 | ADD TO CART | |
| 53 | 5100029554 | Fuel filter | 1 | ADD TO CART | |
Page 84 — Engine control
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012322 | Bracket | 1 | ADD TO CART | |
| 5 | 5100011733 | Angle joint | 1 | 5.03 Serialno. <240 | ADD TO CART |
| 5 | 5100011950 | Bellows | 1 | ADD TO CART | |
| 5 | 5100012588 | Ball handle | 1 | 5.05 Serialno. <240 | ADD TO CART |
| 5 | 5100012820 | Actuating cable | 1 | PARTS REQUEST | |
|
COMING Actuating cable
5100012820 · qty on machine: 1 | |||||
| 5 | 5100058611 | Actuating cable | 1 | Serialno. <240 | PARTS REQUEST |
|
COMING Actuating cable
5100058611 · qty on machine: 1 Serialno. <240 | |||||
| 5 | 5100068728 | Actuating cable | 1 | Serialno. >241 | ADD TO CART |
| 5 | 5100068729 | Angle joint | 1 | 5.03 Serialno. >241 | ADD TO CART |
| 5 | 5100068730 | Ball handle | 1 | 5.05 Serialno. >241 | ADD TO CART |
| 6 | 5100013561 | Countersunk screw | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
Page 86 — Air filter system
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100024336 | Hose clamp | 1 | ADD TO CART | |
| 4 | 5100058622 | Intake hose | 1 | ADD TO CART | |
| 5 | 5100013403 | Hose clip | 1 | ADD TO CART | |
| 20 | 5100012560 | Bracket | 1 | ADD TO CART | |
| 21 | 5100012249 | Mushroom head screw | 2 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 28 | 5100011561 | Dust discharge valve | 1 | ADD TO CART | |
| 28 | 5100012557 | Air filter | 1 | ADD TO CART | |
| 28 | 5100012558 | Filter cartridge | 1 | ADD TO CART | |
| 28 | 5100012559 | Safety filter cartridge | 1 | ADD TO CART | |
| 35 | 5100012320 | Intake hose | 1 | ADD TO CART | |
| 36 | 5100012907 | Hose clip | 2 | ADD TO CART | |
| 40 | 5100011464 | Threaded bolt | 1 | ADD TO CART | |
| 41 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||
Page 88 — Exhaust system
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011785 | Silencer | 1 | ADD TO CART | |
| 2 | 5100011471 | Stud bolt | 3 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 4 | 5100012546 | Hexagon nut | 3 | ADD TO CART | |
| 6 | 5100011932 | Exhaust gas hose | 1 | ADD TO CART | |
| 7 | 5100011668 | Pipe clip | 2 | ADD TO CART | |
| 20 | 5100012319 | Tail pipe | 1 | ADD TO CART | |
| 21 | 5100011471 | Stud bolt | 4 | ADD TO CART | |
| 23 | 5100024980 | Hexagonal nut | 4 | ADD TO CART | |
| 30 | 5100012860 | Seal | 1 | ADD TO CART | |
Page 90 — Cooling (engine/hydraulic oil)
Parts list — exactly as printed106 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100012312 | Fan | 1 | ADD TO CART | |
| 11 | 5100011920 | Fan free-wheeling | 1 | ADD TO CART | |
| 12 | 5100012614 | Hexagon screw | 4 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100016826 | Supporting ring | 1 | ADD TO CART | |
| 15 | 5100012169 | Spacer ring | 1 | ADD TO CART | |
| 20 | 5100012238 | Bracket | 1 | ADD TO CART | |
| 23 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 24 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100013550 | Rubber buffer | 2 | ADD TO CART | |
| 26 | 5100035056 | Hexagon screw | 2 | ADD TO CART | |
| 27 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 30 | 5100012239 | Bracket | 1 | ADD TO CART | |
| 31 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100012243 | Cover | 1 | ADD TO CART | |
| 34 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 35 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 36 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 37 | 5100013642 | Sealing profile | 1.53 | ADD TO CART | |
| 65 | 5100058631 | Hose | 1 | ADD TO CART | |
| 66 | 5100058632 | Hose | 1 | ADD TO CART | |
| 67 | 5100013473 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013473 · qty on machine: 1 | |||||
| 90 | 5100058633 | Oil-water cooler | 1 | ADD TO CART | |
| 98 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 99 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 100 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 101 | 5100012361 | Metal plate | 1 | ADD TO CART | |
| 102 | 5100012780 | Mushroom head screw | 4 | ADD TO CART | |
| 103 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 104 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 105 | 5100011944 | Metal plate | 1 | ADD TO CART | |
| 106 | 5100012780 | Mushroom head screw | 1 | ADD TO CART | |
| 107 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 108 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 109 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 39 | 5100012630 | Tank cap | 1 | ADD TO CART | |
| 40 | 5100012710 | Compensator tank | 1 | ADD TO CART | |
| 41 | 5100012564 | Silentbloc | 2 | ADD TO CART | |
| 42 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 43 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 44 | 5100012373 | Bracket | 1 | Serialno. 160-656 | ADD TO CART |
| 44 | 5100082565 | Holder | 1 | Serialno. >657 | PARTS REQUEST |
|
COMING Holder
5100082565 · qty on machine: 1 Serialno. >657 | |||||
| 45 | 5100011791 | Distance bush | 4 | Serialno. 160-656 | ADD TO CART |
| 46 | 5100035308 | Hexagon screw | 2 | ADD TO CART | |
| 47 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 48 | 5100013367 | Hose clip | 2 | ADD TO CART | |
| 49 | 5100011673 | Cooling-water hose | 0.75 | ADD TO CART | |
| 50 | 5100013388 | Inspection glass | 2 | ADD TO CART | |
| 51 | 5100011749 | Hose nozzle | 1 | ADD TO CART | |
| 52 | 5100011973 | Rubber metal buffer | 1 | ADD TO CART | |
| 53 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 54 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 60 | 5100012474 | Hose shank banjo | 1 | ADD TO CART | |
| 61 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
| 62 | 5100012227 | Hollow-core screw | 1 | ADD TO CART | |
| 70 | 5100013513 | Hose shank banjo | 1 | ADD TO CART | |
| 71 | 5100012999 | Sealing ring | 1 | ADD TO CART | |
| 72 | 5100013380 | Hollow-core screw | 1 | ADD TO CART | |
| 73 | 5100013345 | Sealing ring | 1 | ADD TO CART | |
| 75 | 5100013640 | Flexible tubing | 0.13 | ADD TO CART | |
| 76 | 5100013540 | Pipe clip | 2 | ADD TO CART | |
| 77 | 5100016827 | Hose nozzle | 1 | ADD TO CART | |
| 83 | 5100013217 | Cooling-water hose | 1.1 | ADD TO CART | |
| 84 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 1 | 5100012252 | Pipe | 1 | ADD TO CART | |
| 2 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 4 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 6 | 5100012354 | Cooling-water hose | 1 | ADD TO CART | |
| 7 | 5100012355 | Cooling-water hose | 1 | ADD TO CART | |
| 8 | 5100012360 | Pipe | 1 | ADD TO CART | |
| 9 | 5100012359 | Cooling-water hose | 1 | ADD TO CART | |
| 16 | 5100011637 | Hose clip | 1 | ADD TO CART | |
| 17 | 5100013452 | Hose clip | 5 | ADD TO CART | |
| 130 | 5100012352 | Cooling-water hose | 1 | ADD TO CART | |
| 135 | 5100012349 | Cooling-water hose | 1 | ADD TO CART | |
| 136 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 137 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 138 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 140 | 5100012351 | Cooling-water hose | 1 | ADD TO CART | |
| 145 | 5100012353 | Cooling-water hose | 1 | ADD TO CART | |
| 146 | 5100013452 | Hose clip | 6 | ADD TO CART | |
| 58 | 5100012492 | Sealing ring | 1 | ADD TO CART | |
| 59 | 5100013516 | Screw plug | 1 | ADD TO CART | |
| 64 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 86 | 5100012311 | Water cooler | 1 | ADD TO CART | |
| 87 | 5100012600 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 | |||||
| 88 | 5100011636 | Washer | 4 | ADD TO CART | |
| 89 | 5100011866 | Sealing tape | 0.4 | ADD TO CART | |
| 91 | 5100012310 | Oil cooler | 1 | ADD TO CART | |
| 92 | 5100012600 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 | |||||
| 93 | 5100011636 | Washer | 4 | ADD TO CART | |
| 94 | 5100011866 | Sealing tape | 0.3 | ADD TO CART | |
| 95 | 5100012248 | Console | 1 | ADD TO CART | |
| 96 | 5100013642 | Sealing profile | 1.36 | ADD TO CART | |
| 97 | 5100012788 | Hose nozzle | 1 | ADD TO CART | |
| 102 | 5100013385 | Thermosensor | 1 | ADD TO CART | |
| 110 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 111 | 5100013405 | Screw plug | 1 | ADD TO CART | |
| 114 | 5100011592 | Grommet | 2 | ADD TO CART | |
| 115 | 5100011592 | Grommet | 1 | ADD TO CART | |
| 118 | 5100012444 | Screw plug | 2 | PARTS REQUEST | |
|
COMING Screw plug
5100012444 · qty on machine: 2 | |||||
| 119 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
| 200 | 5100058633 | Oil-water cooler | 1 | ADD TO CART | |
Page 100 — Variable displac. pump (drive)
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011624 | Locking ring | 2 | ADD TO CART | |
| 1 | 5100011628 | Shaft seal | 1 | ADD TO CART | |
| 1 | 5100011957 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100011961 | Driving gear | 1 | PARTS REQUEST | |
|
COMING Driving gear
5100011961 · qty on machine: 1 | |||||
| 2 | 5100011623 | Hydraulic regulation | 1 | ADD TO CART | |
| 2 | 5100011625 | O-ring seal | 1 | ADD TO CART | |
| 2 | 5100011958 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100013562 | O-ring seal | 1 | PARTS REQUEST | |
|
COMING O-ring seal
5100013562 · qty on machine: 1 | |||||
| 3 | 5100011626 | Pressure-relief valve | 2 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100011626 · qty on machine: 2 | |||||
| 3 | 5100011627 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100011959 | Set of seals | 1 | ADD TO CART | |
| 3 | 5100011963 | Connection plate | 1 | PARTS REQUEST | |
|
COMING Connection plate
5100011963 · qty on machine: 1 | |||||
| 3 | 5100011966 | Pressure-relief valve | 1 | ADD TO CART | |
| 3 | 5100013546 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100082566 | Connection flange | 1 | PARTS REQUEST | |
|
COMING Connection flange
5100082566 · qty on machine: 1 | |||||
| 4 | 5100048102 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100013548 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100011852 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100011440 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011448 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011449 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011450 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011622 | Seal | 1 | ADD TO CART | |
| 5 | 5100011965 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100011965 · qty on machine: 1 | |||||
| 5 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 20 | 5100011658 | Screw plug | 1 | PARTS REQUEST | |
|
COMING Screw plug
5100011658 · qty on machine: 1 | |||||
| 22 | 5100013543 | Screw plug | 4 | ADD TO CART | |
| 23 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 24 | 5100011454 | Screw plug | 1 | ADD TO CART | |
| 28 | 5100011451 | Valve | 1 | ADD TO CART | |
| 41 | 5100013601 | O-ring seal | 1 | ADD TO CART | |
| 100 | 5100011769 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100011769 · qty on machine: 1 | |||||
| 100 | 5100011960 | Set of seals | 1 | ADD TO CART | |
Page 102 — Variable displacement pump (vibration)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011678 | Gear pump | 1 | ADD TO CART | |
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100013445 | Hexagon nut | 1 | ADD TO CART | |
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
Page 104 — Constant motor (vibration drive)
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011795 | Gear motor | 1 | ADD TO CART | |
| 1 | 5100065348 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100012549 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012549 · qty on machine: 1 | |||||
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
Page 106 — Control block (flush valve)
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012426 | Valve block | 1 | ADD TO CART | |
| 1 | 5100011515 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100011838 | O-ring seal | 2 | ADD TO CART | |
Page 108 — Wheel hub motor
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100013332 | Cylinder block | 1 | PARTS REQUEST | |
|
COMING Cylinder block
5100013332 · qty on machine: 1 | |||||
| 15 | 5100013333 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100013333 · qty on machine: 1 | |||||
| 27 | 5100013338 | Set of seals | 1 | ADD TO CART | |
| 40 | 5100013333 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100013333 · qty on machine: 1 | |||||
| 40 | 5100024322 | Repair set | 1 | ADD TO CART | |
| 42 | 5100011485 | Cheese-head screw | 12 | ADD TO CART | |
| 43 | 5100013339 | Straight pin | 1 | PARTS REQUEST | |
|
COMING Straight pin
5100013339 · qty on machine: 1 | |||||
| 44 | 5100012125 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100012125 · qty on machine: 1 | |||||
| 48 | 5100012124 | Set of seals | 1 | ADD TO CART | |
| 60 | 5100048105 | Bolt kit | 1 | ADD TO CART | |
| 70 | 5100013331 | Set of seals | 1 | ADD TO CART | |
| 70 | 5100013330 | Bearing piece | 1 | PARTS REQUEST | |
|
COMING Bearing piece
5100013330 · qty on machine: 1 | |||||
| 71 | 5100024323 | Repair set | 1 | ADD TO CART | |
| 100 | 5100013343 | Set of seals | 1 | ADD TO CART | |
| 100 | 5100013335 | Brake | 1 | ADD TO CART | |
| 108 | 5100013341 | Brake piston | 1 | PARTS REQUEST | |
|
COMING Brake piston
5100013341 · qty on machine: 1 | |||||
| 110 | 5100013340 | Cover plate | 1 | PARTS REQUEST | |
|
COMING Cover plate
5100013340 · qty on machine: 1 | |||||
| 111 | 5100013342 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100013342 · qty on machine: 1 | |||||
| 135 | 5100013336 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100013336 · qty on machine: 1 | |||||
| 200 | 5100013337 | Set of seals | 1 | ADD TO CART | |
| 200 | 5100013145 | Gear hub motor | 1 | ADD TO CART | |
Page 110 — Valve block
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 100 | 5100068216 | Valve | 1 | ADD TO CART | |
| 2 | 5100068731 | Directional control valve | 1 | ADD TO CART | |
| 2 | 5100068732 | Magnet | 1 | ADD TO CART | |
| 3 | 5100068733 | Pressure-relief valve | 1 | ADD TO CART | |
| 4 | 5100083273 | Pressure-relief valve | 1 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100083273 · qty on machine: 1 | |||||
| 5 | 5100083275 | O-ring seal | 1 | PARTS REQUEST | |
|
COMING O-ring seal
5100083275 · qty on machine: 1 | |||||
| 6 | 5100083276 | O-ring seal | 1 | PARTS REQUEST | |
|
COMING O-ring seal
5100083276 · qty on machine: 1 | |||||
| 7 | 5100053422 | Spring cap | 2 | ADD TO CART | |
Page 112 — Valve block (parking brake)
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011986 | Directional valve | 1 | ADD TO CART | |
| 2 | 5100012409 | Magnet | 1 | ADD TO CART | |
| 4 | 5100068740 | Spindle | 2 | PARTS REQUEST | |
|
COMING Spindle
5100068740 · qty on machine: 2 | |||||
| 12 | 5100011671 | Screw plug | 1 | ADD TO CART | |
| 13 | 5100011564 | Screw plug | 1 | ADD TO CART | |
| 14 | 5100011538 | Screw plug | 5 | ADD TO CART | |
| 15 | 5100011985 | O-ring seal | 3 | ADD TO CART | |
| 16 | 5100011838 | O-ring seal | 1 | ADD TO CART | |
| 17 | 5100011419 | O-ring seal | 1 | ADD TO CART | |
| 23 | 5100076202 | Pressure-relief valve | 1 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100076202 · qty on machine: 1 | |||||
| 24 | 5100083274 | Pressure-relief valve | 1 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100083274 · qty on machine: 1 | |||||
| 100 | 5100058635 | Valve block | 1 | ADD TO CART | |
Page 114 — Valve block (emergency stop)
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066870 | Sealing ring | 1 | ADD TO CART | |
| 3 | 5100012095 | Hollow-core screw | 1 | ADD TO CART | |
| 4 | 5100012196 | Directional valve | 1 | PARTS REQUEST | |
|
COMING Directional valve
5100012196 · qty on machine: 1 | |||||
| 5 | 5100012197 | Solenoid coil | 1 | ADD TO CART | |
| 6 | 5100013406 | O-ring seal | 1 | ADD TO CART | |
| 8 | 5100012199 | Hollow-core screw | 1 | ADD TO CART | |
| 11 | 5100012096 | Pipe | 1 | ADD TO CART | |
| 12 | 5100012198 | Sealing ring | 2 | ADD TO CART | |
| 100 | 5100012429 | Valve block | 1 | ADD TO CART | |
Page 116 — Hydraulic oil tank
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100058634 | Oil tank | 1 | PARTS REQUEST | |
|
COMING Oil tank
5100058634 · qty on machine: 1 | |||||
| 2 | 5100011731 | Rubber washer | 3 | ADD TO CART | |
| 3 | 5100011824 | Washer | 3 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 3 | ADD TO CART | |
| 10 | 5100012419 | Filter | 1 | ADD TO CART | |
| 10 | 5100016828 | Vent filter | 1 | ADD TO CART | |
| 10 | 5100024927 | Special wrench | 1 | ADD TO CART | |
| 2 | 5100058635 | Valve block | 1 | ADD TO CART | |
| 3 | 5100013527 | Cheese-head screw | 3 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013474 | Straight screwed socket | 2 | ADD TO CART | |
| 10 | 5100013454 | Straight screwed socket | 1 | Serialno. >213 | ADD TO CART |
| 10 | 5100013474 | Straight screwed socket | 1 | Serialno. 160-212 | ADD TO CART |
| 16 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 20 | 5100011731 | Rubber washer | 3 | ADD TO CART | |
| 37 | 5100013475 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 | |||||
| 38 | 5100013475 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 | |||||
| 49 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 49 | 5100012866 | Fillister head screw | 6 | ADD TO CART | |
| 49 | 5100012419 | Filter | 1 | ADD TO CART | |
| 49 | 5100012234 | Hydraulic oil tank | 1 | ADD TO CART | |
| 49 | 5100011857 | Suction filter | 1 | ADD TO CART | |
| 50 | 5100013557 | Key | 1 | ADD TO CART | |
| 50 | 5100016828 | Vent filter | 1 | ADD TO CART | |
| 51 | 5100011730 | Spacer pin | 3 | ADD TO CART | |
| 53 | 5100012625 | Oil level indicator | 1 | ADD TO CART | |
| 57 | 5100013474 | Straight screwed socket | 1 | Serialno. 160-166 | ADD TO CART |
| 57 | 5100013616 | Straight screwed socket | 1 | Serialno. >167 | ADD TO CART |
| 68 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 81 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 87 | 5100022890 | Elbow adjustable | 1 | ADD TO CART | |
| 88 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 100 | 5100058634 | Oil tank | 1 | PARTS REQUEST | |
|
COMING Oil tank
5100058634 · qty on machine: 1 | |||||
Page 120 — Bypass oil filter
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100065307 | Filter | 1 | ADD TO CART | |
| 3 | 5100066879 | Filter insert | 1 | ADD TO CART | |
| 4 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100082567 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100082567 · qty on machine: 1 | |||||
| 7 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 9 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 10 | 5100029551 | Straight screwed socket | 2 | ADD TO CART | |
| 11 | 5100065322 | Pipe bend | 1 | PARTS REQUEST | |
|
COMING Pipe bend
5100065322 · qty on machine: 1 | |||||
| 12 | 5100065308 | Pressure reducing valve | 1 | ADD TO CART | |
| 13 | 5100034772 | Hexagon screw | 2 | ADD TO CART | |
| 14 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100048634 | Straight screwed socket | 2 | ADD TO CART | |
| 21 | 5100029538 | Elbow adjustable | 1 | ADD TO CART | |
| 22 | 5100029551 | Straight screwed socket | 1 | ADD TO CART | |
| 30 | 5100065323 | Hose | 2 | PARTS REQUEST | |
|
COMING Hose
5100065323 · qty on machine: 2 | |||||
| 31 | 5100065302 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100065302 · qty on machine: 1 | |||||
| 32 | 5100013454 | Straight screwed socket | 1 | ADD TO CART | |
| 35 | 5100065310 | Sealing | 1 | ADD TO CART | |
| 36 | 5100065311 | Distance ring | 1 | PARTS REQUEST | |
|
COMING Distance ring
5100065311 · qty on machine: 1 | |||||
| 37 | 5100012090 | Cheese-head screw | 6 | ADD TO CART | |
| 38 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
Page 122 — Dashboard
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100011595 | Frame | 2 | ADD TO CART | |
| 22 | 5100011580 | Blind cover | 1 | ADD TO CART | |
| 30 | 5100023242 | Fixation | 1 | ADD TO CART | |
| 31 | 5100023241 | Push button | 1 | ADD TO CART | |
| 33 | 5100023527 | Label | 1 | ADD TO CART | |
| 35 | 5100023008 | Lid | 1 | ADD TO CART | |
| 100 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
Page 124 — Electrical system
Parts list — exactly as printed151 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 154 | 5100011753 | Washer | 3 | ADD TO CART | |
| 47 | 5100012584 | Relay | 1 | PARTS REQUEST | |
|
COMING Relay
5100012584 · qty on machine: 1 | |||||
| 65 | 5100058636 | Hexagon screw | 1 | Serialno. <334 | ADD TO CART |
| 66 | 5100011918 | Serrated lock washer | 2 | Serialno. <334 | ADD TO CART |
| 67 | 5100011914 | Hexagon nut | 5 | Serialno. <334 | ADD TO CART |
| 68 | 5100023629 | Spring ring | 10 | Serialno. <334 | ADD TO CART |
| 69 | 5100011915 | Hexagon nut | 1 | Serialno. <334 | ADD TO CART |
| 70 | 5100011917 | Serrated lock washer | 2 | Serialno. <334 | ADD TO CART |
| 80 | 5100012670 | Fuse holder | 1 | Serialno. <334 | ADD TO CART |
| 81 | 5100011640 | Blade fuse | 1 | Serialno. <334 | ADD TO CART |
| 92 | 5100012587 | Safety screw | 1 | Serialno. <334 | ADD TO CART |
| 93 | 5100013599 | Clip nut | 1 | Serialno. <334 | ADD TO CART |
| 94 | 5100011859 | Relay | 1 | Serialno. <334 | ADD TO CART |
| 95 | 5100012321 | Signal horn | 1 | Serialno. <334 | ADD TO CART |
| 96 | 5100011791 | Distance bush | 1 | Serialno. <334 | ADD TO CART |
| 97 | 5100013510 | Hexagon screw | 1 | Serialno. <334 | ADD TO CART |
| 98 | 5100012966 | Locking washer | 1 | Serialno. <334 | ADD TO CART |
| 110 | 5100011974 | Ground terminal | 2 | Serialno. <334 | ADD TO CART |
| 111 | 5100012965 | Locking washer | 4 | Serialno. <334 | ADD TO CART |
| 112 | 5100012572 | Hexagon screw | 4 | Serialno. <334 | PARTS REQUEST |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 Serialno. <334 | |||||
| 119 | 5100012544 | Battery | 1 | Serialno. <334 | ADD TO CART |
| 125 | 5100012335 | Metal plate | 1 | Serialno. <334 | ADD TO CART |
| 126 | 5100013412 | Edge protection | 0.04 | Serialno. <334 | ADD TO CART |
| 127 | 5100013550 | Rubber buffer | 3 | Serialno. <334 | ADD TO CART |
| 128 | 5100012546 | Hexagon nut | 3 | Serialno. <334 | ADD TO CART |
| 129 | 5100012966 | Locking washer | 5 | Serialno. <334 | ADD TO CART |
| 130 | 5100035056 | Hexagon screw | 2 | Serialno. <334 | ADD TO CART |
| 133 | 5100011471 | Stud bolt | 1 | Serialno. <334 | ADD TO CART |
| 134 | 5100011696 | Metal plate | 1 | Serialno. <334 | ADD TO CART |
| 135 | 5100013412 | Edge protection | 0.04 | Serialno. <334 | ADD TO CART |
| 136 | 5100013094 | Washer | 1 | Serialno. <334 | ADD TO CART |
| 137 | 5100012546 | Hexagon nut | 1 | Serialno. <334 | ADD TO CART |
| 138 | 5100013094 | Washer | 1 | Serialno. <334 | ADD TO CART |
| 180 | 5100011455 | Key | 1 | 180.01 Serialno. <334 | ADD TO CART |
| 180 | 5100013608 | Battery isolating switch | 1 | Serialno. <334 | ADD TO CART |
| 181 | 5100012608 | Hexagon screw | 2 | Serialno. <334 | ADD TO CART |
| 182 | 5100012545 | Hexagon nut | 2 | Serialno. <334 | ADD TO CART |
| 183 | 5100012965 | Locking washer | 4 | Serialno. <334 | ADD TO CART |
| 185 | 5100013184 | Protecting cap | 2 | Serialno. <334 | PARTS REQUEST |
|
COMING Protecting cap
5100013184 · qty on machine: 2 Serialno. <334 | |||||
| 186 | 5100013573 | Wire fastener | 1 | Serialno. <334 | ADD TO CART |
| 201 | 5100012242 | Bracket | 1 | Serialno. <334 | ADD TO CART |
| 202 | 5100012551 | Hexagon screw | 2 | Serialno. <334 | ADD TO CART |
| 203 | 5100012967 | Locking washer | 2 | Serialno. <334 | ADD TO CART |
| 204 | 5100012341 | Bracket | 1 | Serialno. <334 | ADD TO CART |
| 222 | 5100012829 | Protecting cap | 1 | Serialno. <334 | ADD TO CART |
| 225 | 5100013184 | Protecting cap | 1 | Serialno. <334 | PARTS REQUEST |
|
COMING Protecting cap
5100013184 · qty on machine: 1 Serialno. <334 | |||||
| 226 | 5100013573 | Wire fastener | 1 | Serialno. <334 | ADD TO CART |
| 230 | 5100011465 | Pipe clip | 1 | Serialno. <334 | ADD TO CART |
| 240 | 5100011914 | Hexagon nut | 1 | Serialno. <334 | ADD TO CART |
| 241 | 5100023629 | Spring ring | 1 | Serialno. <334 | ADD TO CART |
| 242 | 5100011915 | Hexagon nut | 1 | Serialno. <334 | ADD TO CART |
| 243 | 5100013441 | Locking washer | 1 | Serialno. <334 | ADD TO CART |
| 255 | 5100012337 | Bracket | 1 | Serialno. <334 | ADD TO CART |
| 256 | 5100012600 | Hexagon screw | 2 | Serialno. <334 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 Serialno. <334 | |||||
| 257 | 5100012965 | Locking washer | 2 | Serialno. <334 | ADD TO CART |
| 299 | 5100013573 | Wire fastener | 10 | Serialno. <334 | ADD TO CART |
| 119 | 5100064718 | Battery | 1 | Serialno. >335 | PARTS REQUEST |
|
COMING Battery
5100064718 · qty on machine: 1 Serialno. >335 | |||||
| 125 | 5100068741 | Metal plate | 1 | Serialno. >335 | ADD TO CART |
| 133 | 5100035056 | Hexagon screw | 1 | Serialno. >335 | ADD TO CART |
| 136 | 5100012966 | Locking washer | 1 | Serialno. >335 | ADD TO CART |
| 140 | 5100033222 | Distance ring | 1 | Serialno. >335 | ADD TO CART |
| 141 | 5100013421 | Washer | 1 | Serialno. >335 | ADD TO CART |
| 142 | 5100011696 | Metal plate | 1 | Serialno. >335 | ADD TO CART |
| 143 | 5100013412 | Edge protection | 0.04 | Serialno. >335 | ADD TO CART |
| 144 | 5100034727 | Stud screw | 1 | Serialno. >335 | ADD TO CART |
| 145 | 5100012966 | Locking washer | 1 | Serialno. >335 | ADD TO CART |
| 146 | 5100012546 | Hexagon nut | 1 | Serialno. >335 | ADD TO CART |
| 5 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
| 35 | 5100059507 | Proximity switch | 1 | ADD TO CART | |
| 71 | 5100011914 | Hexagon nut | 5 | ADD TO CART | |
| 72 | 5100023629 | Spring ring | 9 | ADD TO CART | |
| 104 | 5100012804 | Circuit board | 1 | ADD TO CART | |
| 105 | 5100013606 | Cheese-head screw | 2 | ADD TO CART | |
| 170 | 5100011849 | Built-in socket | 1 | ADD TO CART | |
| 171 | 5100012093 | Metal plate | 1 | ADD TO CART | |
| 172 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 173 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 174 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 250 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 251 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 260 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 261 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 283 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 284 | 5100052960 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100052960 · qty on machine: 1 | |||||
| 298 | 5100011748 | Rear reflector | 2 | ADD TO CART | |
| 1 | 5100013570 | Ignition switch | 1 | ADD TO CART | |
| 2 | 5100013506 | Lid | 1 | ADD TO CART | |
| 10 | 5100011784 | Signal transmitter | 1 | ADD TO CART | |
| 12 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 13 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 14 | 5100011586 | Hexagon nut | 1 | ADD TO CART | |
| 21 | 5100013557 | Key | 2 | ADD TO CART | |
| 40 | 5100012575 | Wire harness | 1 | ADD TO CART | |
| 42 | 5100052958 | Cheese-head screw | 1 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 48 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 50 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 84 | 5100011616 | Relay | 1 | ADD TO CART | |
| 85 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 150 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 151 | 5100013594 | Safety screw | 3 | ADD TO CART | |
| 152 | 5100013536 | Serrated lock washer | 3 | ADD TO CART | |
| 153 | 5100011669 | Rubber metal buffer | 3 | ADD TO CART | |
| 155 | 5100012898 | Hexagon nut | 3 | ADD TO CART | |
| 157 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 158 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 159 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 160 | 5100012326 | Cover plate | 1 | ADD TO CART | |
| 161 | 5100012586 | Stud bolt | 2 | ADD TO CART | |
| 162 | 5100013373 | Half-clip | 2 | ADD TO CART | |
| 163 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 164 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 165 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 287 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 288 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 1 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 5 | 5100013586 | Blade fuse | 2 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 2 | |||||
| 10 | 5100013579 | Blade fuse | 2 | ADD TO CART | |
| 15 | 5100013580 | Blade fuse | 11 | ADD TO CART | |
| 25 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 40 | 5100011859 | Relay | 2 | ADD TO CART | |
| 41 | 5100011616 | Relay | 2 | ADD TO CART | |
| 42 | 5100011583 | Relay | 7 | ADD TO CART | |
| 49 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 50 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 71 | 5100012698 | Sticker | 1 | ADD TO CART | |
| 71 | 5100016500 | Sticker | 1 | ADD TO CART | |
| 1 | 5100012707 | Drive lever | 1 | ADD TO CART | |
| 2 | 5100011705 | Handle | 1 | ADD TO CART | |
| 3 | 5100011706 | Handle | 1 | ADD TO CART | |
| 4 | 5100011710 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100011710 · qty on machine: 1 | |||||
| 5 | 5100011711 | Cover | 1 | PARTS REQUEST | |
|
COMING Cover
5100011711 · qty on machine: 1 | |||||
| 6 | 5100011707 | Operating lever | 1 | ADD TO CART | |
| 7 | 5100012024 | Clamping sleeve | 1 | ADD TO CART | |
| 8 | 5100011708 | Cover | 1 | ADD TO CART | |
| 11 | 5100013607 | Raised countersunk head screw | 4 | ADD TO CART | |
| 12 | 5100011738 | Raised countersunk head screw | 1 | ADD TO CART | |
| 30 | 5100012677 | Wire harness | 1 | ADD TO CART | |
| 31 | 5100011709 | Circuit board | 1 | ADD TO CART | |
| 32 | 5100013600 | Sensor | 1 | ADD TO CART | |
| 33 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 34 | 5100011524 | Shrinkdown plastic tubing | 0.03 | ADD TO CART | |
| 35 | 5100011458 | Shrinkdown plastic tubing | 0.07 | ADD TO CART | |
| 40 | 5100013641 | Round cable | 0.4 | PARTS REQUEST | |
|
COMING Round cable
5100013641 · qty on machine: 0.4 | |||||
| 1 | 5100012838 | Pipe | 1 | ADD TO CART | |
| 1 | 5100013654 | Flange | 1 | ADD TO CART | |
| 2 | 5100013571 | Push-button | 1 | ADD TO CART | |
| 3 | 5100013636 | Protecting cap | 1 | ADD TO CART | |
| 4 | 5100013191 | Washer | 1 | ADD TO CART | |
| 5 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
Page 144 — Cable harnesses
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100058637 | Wire harness front frame | 1 | ADD TO CART | |
| 2 | 5100029583 | Cable harness | 1 | ADD TO CART | |
| 3 | 5100012758 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 4 | 5100012803 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100012764 | Wire harness | 1 | ADD TO CART | |
| 6 | 5100012761 | Wire harness | 1 | ADD TO CART | |
| 7 | 5100012760 | Wire harness | 1 | ADD TO CART | |
| 8 | 5100012763 | Wire harness | 1 | ADD TO CART | |
| 9 | 5100012574 | Wire harness | 1 | ADD TO CART | |
| 10 | 5100052977 | Wire harness instrument panel addition | 1 | PARTS REQUEST | |
|
COMING Wire harness instrument panel addition
5100052977 · qty on machine: 1 | |||||
| 11 | 5100066914 | Wire harness instrument panel | 1 | ADD TO CART | |
| 12 | 5100012756 | Wire harness | 1 | ADD TO CART | |
| 14 | 5100012762 | Wire harness | 1 | ADD TO CART | |
| 15 | 5100012759 | Wire harness | 1 | ADD TO CART | |
| 16 | 5100082461 | Ground cable operator's platform | 1 | PARTS REQUEST | |
|
COMING Ground cable operator's platform
5100082461 · qty on machine: 1 | |||||
| 17 | 5100052981 | Ground cable steering column | 1 | PARTS REQUEST | |
|
COMING Ground cable steering column
5100052981 · qty on machine: 1 | |||||
Page 146 — Battery isolating switch
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100029600 | Actuating cable | 1 | ADD TO CART | |
| 2 | 5100029567 | Screw fitting | 1 | ADD TO CART | |
| 3 | 5100029565 | Ring | 1 | ADD TO CART | |
Page 148 — Automatic engine shutdown
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100029573 | Cable harness | 1 | ADD TO CART | |
| 4 | 5100029566 | Slow-release relay | 1 | ADD TO CART | |
Page 150 — Electrical system Lighting
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011799 | Working light | 2 | Serialno. >213 | ADD TO CART |
| 1 | 5100012468 | Lamp | 2 | 1.02 Serialno. <212 | ADD TO CART |
| 1 | 5100013522 | Lamp | 2 | ADD TO CART | |
| 1 | 5100065328 | Headlight | 2 | Serialno. >213 | ADD TO CART |
| 1 | 5100065330 | Lamp | 1 | ADD TO CART | |
| 2 | 5100011991 | O-ring seal | 4 | ADD TO CART | |
| 5 | 5100011800 | Direction indicator | 2 | ADD TO CART | |
| 5 | 5100012074 | Lamp | 2 | ADD TO CART | |
| 6 | 5100013582 | Sheet metal screw | 4 | ADD TO CART | |
| 10 | 5100011883 | Wire harness (lighting) | 1 | ADD TO CART | |
| 21 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 21 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 21 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 22 | 5100011607 | Sheet metal screw | 8 | ADD TO CART | |
| 25 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 25 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 30 | 5100011884 | Wire harness | 1 | ADD TO CART | |
| 31 | 5100011728 | Metal plate | 7 | ADD TO CART | |
| 32 | 5100011902 | Sheet metal screw | 7 | ADD TO CART | |
| 40 | 5100011583 | Relay | 1 | ADD TO CART | |
| 41 | 5100011583 | Relay | 1 | ADD TO CART | |
| 50 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 51 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 52 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 101 | 5100058637 | Wire harness front frame | 1 | ADD TO CART | |
| 102 | 5100012758 | Wire harness (rear frame) | 1 | ADD TO CART | |
Page 152 — Additional lighting
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011606 | Working light | 4 | ADD TO CART | |
| 1 | 5100012182 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012182 · qty on machine: 1 | |||||
| 1 | 5100012939 | Washer | 1 | ADD TO CART | |
| 1 | 5100013554 | Lamp | 1 | ADD TO CART | |
| 2 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 3 | 5100024918 | Cable harness | 4 | ADD TO CART | |
| 4 | 5100013128 | Washer | 4 | ADD TO CART | |
| 5 | 5100023419 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 21 | 5100016849 | Stop | 2 | ADD TO CART | |
| 22 | 5100013379 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 32 | 5100012803 | Wire harness | 1 | ADD TO CART | |
| 102 | 5100012758 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 1 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 2 | 5100052987 | Wire harness working light | 2 | ADD TO CART | |
Page 156 — Rotating beacon light
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011941 | Rotary beacon | 1 | ADD TO CART | |
| 1 | 5100013538 | Lamp | 1 | ADD TO CART | |
| 2 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 3 | 5100013517 | Pipe | 1 | ADD TO CART | |
| 5 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 6 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 7 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100011868 | Weld-on plate | 1 | ADD TO CART | |
| 10 | 5100012803 | Wire harness | 1 | ADD TO CART | |
| 1 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 2 | 5100023984 | Holder | 1 | ADD TO CART | |
| 4 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100052988 | Wire harness rotating beacon | 1 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
Page 160 — Back-up alarm
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012887 | Reversing alarm 12v-24v dc | 1 | ADD TO CART | |
| 2 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 3 | 5100011636 | Washer | 2 | ADD TO CART | |
| 4 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
Page 162 — Back-up alarm self adjusting
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100029555 | Back-up alarm | 1 | ADD TO CART | |
| 3 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100011636 | Washer | 2 | ADD TO CART | |
| 5 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 10 | 5100029553 | Holder | 1 | ADD TO CART | |
| 11 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100059504 | Proximity switch | 1 | ADD TO CART | |
| 26 | 5100029559 | Cable harness | 1 | ADD TO CART | |
| 27 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 29 | 5100052959 | Relay | 1 | ADD TO CART | |

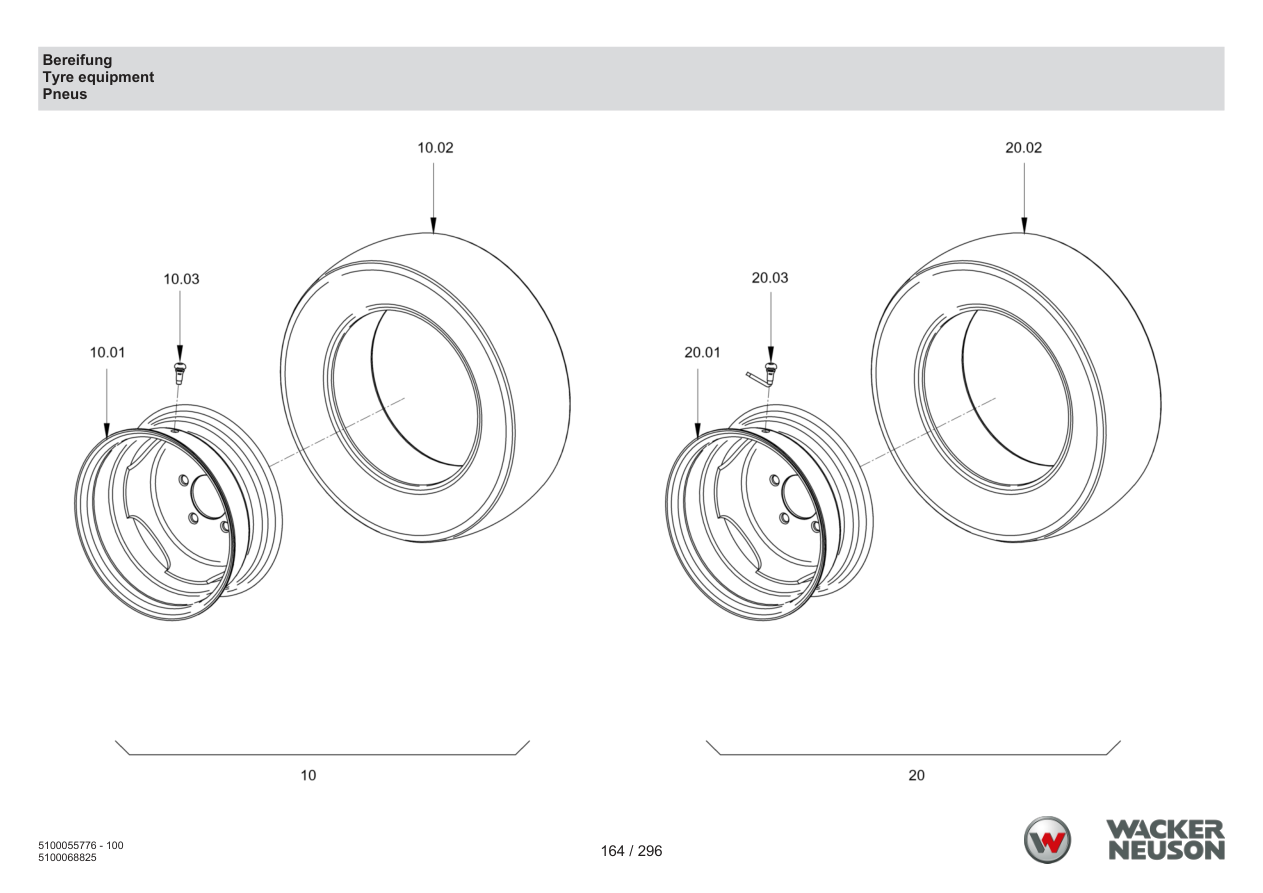

Page 164 — Tires
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100013007 | Tyre valve | 1 | 10.03 Serialno. >260 | ADD TO CART |
| 10 | 5100068742 | Smooth tire | 1 | 10.02 Serialno. >260 | PARTS REQUEST |
|
COMING Smooth tire
5100068742 · qty on machine: 1 10.02 Serialno. >260 | |||||
| 10 | 5100068743 | Disc wheel | 1 | 10.01 Serialno. >260 | PARTS REQUEST |
|
COMING Disc wheel
5100068743 · qty on machine: 1 10.01 Serialno. >260 | |||||
| 10 | 5100068744 | Tyre | 2 | Serialno. >260 | PARTS REQUEST |
|
COMING Tyre
5100068744 · qty on machine: 2 Serialno. >260 | |||||
| 20 | 5100068742 | Smooth tire | 1 | PARTS REQUEST | |
|
COMING Smooth tire
5100068742 · qty on machine: 1 | |||||
| 20 | 5100068743 | Disc wheel | 1 | PARTS REQUEST | |
|
COMING Disc wheel
5100068743 · qty on machine: 1 | |||||
| 20 | 5100068744 | Tyre | 4 | Serialno. <259 | PARTS REQUEST |
|
COMING Tyre
5100068744 · qty on machine: 4 Serialno. <259 | |||||
| 20 | 5100068745 | Tyre | 2 | Serialno. >260 | PARTS REQUEST |
|
COMING Tyre
5100068745 · qty on machine: 2 Serialno. >260 | |||||
| 20 | 5100068746 | Tyre valve | 1 | ADD TO CART | |
| 1 | 5100052989 | Rim | 1 | PARTS REQUEST | |
|
COMING Rim
5100052989 · qty on machine: 1 | |||||
| 2 | 5100011600 | Tyre | 1 | Serialno. 367-412 | ADD TO CART |
| 2 | 5100052990 | Smooth tire | 1 | Serialno. 160-366 | ADD TO CART |
| 4 | 5100013007 | Tyre valve | 1 | ADD TO CART | |
| 10 | 5100052991 | Tyre | 4 | Serialno. 367-412 | ADD TO CART |
| 10 | 5100066871 | Tyre | 4 | Serialno. >413 | ADD TO CART |
Page 168 — Advance drive
Parts list — exactly as printed78 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012426 | Valve block | 1 | ADD TO CART | |
| 2 | 5100011659 | Cheese-head screw | 5 | ADD TO CART | |
| 4 | 5100012721 | Elbow adjustable | 2 | ADD TO CART | |
| 5 | 5100012720 | Reducing piece | 1 | PARTS REQUEST | |
|
COMING Reducing piece
5100012720 · qty on machine: 1 | |||||
| 6 | 5100013194 | Valve block | 1 | ADD TO CART | |
| 8 | 5100012429 | Valve block | 1 | ADD TO CART | |
| 10 | 5100011416 | Intermediate piece | 1 | ADD TO CART | |
| 21 | 5100012742 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100012743 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100013489 | Straight screwed socket | 2 | ADD TO CART | |
| 25 | 5100012743 | Flexible tubing | 1 | ADD TO CART | |
| 25 | 5100012752 | Flexible tubing | 1 | ADD TO CART | |
| 31 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 33 | 5100013613 | Elbow adjustable | 1 | ADD TO CART | |
| 36 | 5100011588 | Flexible tubing | 1 | ADD TO CART | |
| 36 | 5100068748 | Hose | 1 | ADD TO CART | |
| 61 | 5100011881 | Metal plate | 1 | ADD TO CART | |
| 62 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 65 | 5100011879 | Half-clip | 2 | ADD TO CART | |
| 66 | 5100068750 | Metal plate | 1 | ADD TO CART | |
| 67 | 5100012977 | Stud bolt | 2 | ADD TO CART | |
| 68 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 69 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 71 | 5100011887 | Hose clip | 2 | ADD TO CART | |
| 72 | 5100013404 | Cheese-head screw | 4 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 4 | |||||
| 73 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 82 | 5100082568 | Hose | 1 | Serialno. 160-226 | PARTS REQUEST |
|
COMING Hose
5100082568 · qty on machine: 1 Serialno. 160-226 | |||||
| 82 | 5100082562 | Hose | 1 | Serialno. 227-295 | PARTS REQUEST |
|
COMING Hose
5100082562 · qty on machine: 1 Serialno. 227-295 | |||||
| 82 | 5100068751 | Hose | 1 | Serialno. >296 | ADD TO CART |
| 85 | 5100068752 | Hose | 1 | ADD TO CART | |
| 86 | 5100013473 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013473 · qty on machine: 1 | |||||
| 90 | 5100034910 | Pipe clip | 1 | ADD TO CART | |
| 91 | 5100012613 | Hexagon screw | 1 | ADD TO CART | |
| 92 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 94 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 158 | 5100068753 | Holder | 1 | ADD TO CART | |
| 159 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 160 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 161 | 5100029595 | Set of seals | 1 | ADD TO CART | |
| 161 | 5100024324 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
5100024324 · qty on machine: 1 | |||||
| 161 | 5100013387 | O-ring seal | 1 | ADD TO CART | |
| 161 | 5100013361 | Filter | 1 | ADD TO CART | |
| 162 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 163 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 166 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 168 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 169 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 171 | 5100013524 | Elbow adjustable | 1 | Serialno. >296 | ADD TO CART |
| 172 | 5100013555 | Filler cap | 1 | Serialno. >296 | ADD TO CART |
| 173 | 5100012235 | Cap nut | 1 | Serialno. >296 | ADD TO CART |
| 175 | 5100012919 | Silentbloc | 2 | ADD TO CART | |
| 176 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 177 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 7 | 5100013539 | Straight screwed socket | 2 | ADD TO CART | |
| 18 | 5100011416 | Intermediate piece | 1 | ADD TO CART | |
| 102 | 5100013147 | Connecting block | 1 | ADD TO CART | |
| 118 | 5100035056 | Hexagon screw | 2 | ADD TO CART | |
| 119 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 130 | 5100013160 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100013160 · qty on machine: 1 | |||||
| 131 | 5100068757 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100068757 · qty on machine: 1 | |||||
| 132 | 5100068759 | Hose | 1 | PARTS REQUEST | |
|
COMING Hose
5100068759 · qty on machine: 1 | |||||
| 150 | 5100013162 | Flexible tubing | 2 | ADD TO CART | |
| 152 | 5100013164 | Flexible tubing | 2 | ADD TO CART | |
| 154 | 5100013165 | Flexible tubing | 2 | ADD TO CART | |
| 301 | 5100011994 | Straight screwed socket | 4 | ADD TO CART | |
| 320 | 5100013475 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 2 | |||||
| 31 | 5100013499 | Straight screwed socket | 1 | ADD TO CART | |
| 32 | 5100013553 | Straight screwed socket | 2 | ADD TO CART | |
| 110 | 5100013146 | Connecting block | 1 | ADD TO CART | |
| 111 | 5100012790 | Metal plate | 2 | ADD TO CART | |
| 112 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 114 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 120 | 5100013433 | Straight screwed socket | 1 | ADD TO CART | |
| 122 | 5100011855 | Screw plug | 2 | ADD TO CART | |
| 125 | 5100013539 | Straight screwed socket | 2 | ADD TO CART | |
| 135 | 5100013475 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 2 | |||||
| 140 | 5100011994 | Straight screwed socket | 4 | ADD TO CART | |
| 200 | 5100013147 | Connecting block | 1 | ADD TO CART | |
Page 176 — Drive shifting
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100012331 | Drive shifting | 1 | ADD TO CART | |
| 31 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 49 | 5100012693 | Actuating cable | 1 | ADD TO CART | |
| 50 | 5100011870 | Distance bush | 1 | ADD TO CART | |
| 51 | 5100053249 | Hexagon screw | 1 | ADD TO CART | |
| 52 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 53 | 5100053004 | Safety nut | 1 | ADD TO CART | |
| 55 | 5100012734 | Metal plate | 1 | ADD TO CART | |
| 56 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 57 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 58 | 5100012240 | Bracket | 1 | ADD TO CART | |
| 59 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 60 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 61 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 70 | 5100012817 | Cover | 1 | ADD TO CART | |
| 71 | 5100012572 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 3 | |||||
| 72 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 1 | 5100012706 | Bracket | 1 | ADD TO CART | |
| 2 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 3 | 5100048707 | Countersunk screw | 6 | ADD TO CART | |
| 5 | 5100012708 | Drive lever | 1 | PARTS REQUEST | |
|
COMING Drive lever
5100012708 · qty on machine: 1 | |||||
| 6 | 5100012877 | Metal plate | 1 | PARTS REQUEST | |
|
COMING Metal plate
5100012877 · qty on machine: 1 | |||||
| 7 | 5100023046 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 9 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100059529 | Hexagon screw | 1 | ADD TO CART | |
| 11 | 5100011819 | Compression spring | 1 | ADD TO CART | |
| 12 | 5100011791 | Distance bush | 2 | ADD TO CART | |
| 13 | 5100013094 | Washer | 1 | ADD TO CART | |
| 14 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 15 | 5100013166 | Spring-thrust piece | 1 | ADD TO CART | |
| 16 | 5100013400 | Hexagon nut | 1 | ADD TO CART | |
| 20 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 21 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100082569 | Set collar | 1 | Serialno. >436 | PARTS REQUEST |
|
COMING Set collar
5100082569 · qty on machine: 1 Serialno. >436 | |||||
| 48 | 5100013369 | Locking plate | 1 | ADD TO CART | |
| 1 | 5100012839 | Drive lever | 1 | ADD TO CART | |
| 10 | 5100011970 | Clamping piece | 1 | ADD TO CART | |
| 11 | 5100011443 | Cheese-head screw | 2 | ADD TO CART | |
Page 182 — Brake hydraulics
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 21 | 5100012744 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100068760 | Hose | 1 | ADD TO CART | |
| 24 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 30 | 5100058612 | Hose | 1 | Serialno. <295 | PARTS REQUEST |
|
COMING Hose
5100058612 · qty on machine: 1 Serialno. <295 | |||||
| 30 | 5100068763 | Hose | 1 | Serialno. >296 | PARTS REQUEST |
|
COMING Hose
5100068763 · qty on machine: 1 Serialno. >296 | |||||
| 35 | 5100013163 | Flexible tubing | 2 | ADD TO CART | |
| 40 | 5100013474 | Straight screwed socket | 2 | ADD TO CART | |
Page 184 — Articulated pendulum joint
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011760 | Radial rod end bearing | 1 | ADD TO CART | |
| 2 | 5100011758 | Ring | 1 | ADD TO CART | |
| 3 | 5100011443 | Cheese-head screw | 2 | ADD TO CART | |
| 4 | 5100011761 | Sealing ring | 1 | PARTS REQUEST | |
|
COMING Sealing ring
5100011761 · qty on machine: 1 | |||||
| 5 | 5100011759 | Clamping piece | 1 | ADD TO CART | |
| 6 | 5100012725 | Cheese-head screw | 2 | ADD TO CART | |
| 7 | 5100011757 | Cover | 1 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 9 | 5100012613 | Hexagon screw | 6 | ADD TO CART | |
| 10 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 20 | 5100011563 | Radial rod end bearing | 2 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 2 | |||||
| 20 | 5100011856 | Pendulum joint | 1 | ADD TO CART | |
| 20 | 5100011988 | Greasing nipple | 2 | ADD TO CART | |
| 21 | 5100011729 | Seal | 4 | ADD TO CART | |
| 22 | 5100011762 | Clamping piece | 2 | ADD TO CART | |
| 23 | 5100012724 | Cheese-head screw | 4 | ADD TO CART | |
| 30 | 5100011876 | Rod steel | 1 | ADD TO CART | |
| 31 | 5100011911 | Rubber ring | 1 | ADD TO CART | |
| 32 | 5100012523 | Hexagon screw | 1 | ADD TO CART | |
| 33 | 5100063880 | Safety nut | 1 | ADD TO CART | |
| 34 | 5100011934 | Bolt | 1 | ADD TO CART | |
Page 186 — Steering
Parts list — exactly as printed44 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 71 | 5100013413 | Washer | 1 | ADD TO CART | |
| 1 | 5100012656 | Steering unit + connect. plate | 1 | Serialno. <212 | ADD TO CART |
| 7 | 5100013532 | Elbow adjustable | 1 | Serialno. <212 | ADD TO CART |
| 8 | 5100058613 | Hose | 1 | Serialno. <212 | ADD TO CART |
| 11 | 5100058614 | Hose | 1 | Serialno. <212 | ADD TO CART |
| 12 | 5100012778 | Flexible tubing | 1 | Serialno. <212 | ADD TO CART |
| 13 | 5100013603 | Straight screwed socket | 1 | Serialno. <212 | ADD TO CART |
| 14 | 5100013329 | Intermediate piece | 1 | Serialno. <212 | ADD TO CART |
| 21 | 5100012801 | Flexible tubing | 1 | Serialno. <212 | ADD TO CART |
| 22 | 5100012825 | Flexible tubing | 1 | Serialno. <212 | ADD TO CART |
| 23 | 5100013492 | Straight screwed socket | 2 | Serialno. <212 | PARTS REQUEST |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 Serialno. <212 | |||||
| 25 | 5100013476 | Straight screwed socket | 2 | Serialno. <212 | ADD TO CART |
| 26 | 5100013499 | Straight screwed socket | 2 | Serialno. <212 | ADD TO CART |
| 51 | 5100011563 | Radial rod end bearing | 1 | 51.02 Serialno. <212 | PARTS REQUEST |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 51.02 Serialno. <212 | |||||
| 51 | 5100011685 | Set of seals | 1 | 51.01 Serialno. <212 | ADD TO CART |
| 51 | 5100011770 | Hydraulic cylinder | 1 | Serialno. <212 | ADD TO CART |
| 51 | 5100012481 | Greasing nipple | 1 | 51.03 Serialno. <212 | ADD TO CART |
| 52 | 5100011777 | Radial rod end bearing | 1 | Serialno. <212 | ADD TO CART |
| 53 | 5100011776 | Bolt | 1 | Serialno. <212 | ADD TO CART |
| 54 | 5100011680 | Spacer ring | 2 | Serialno. <212 | ADD TO CART |
| 55 | 5100013560 | Seal | 2 | Serialno. <212 | ADD TO CART |
| 56 | 5100012550 | Hexagon nut | 1 | Serialno. <212 | ADD TO CART |
| 57 | 5100012955 | Locking washer | 1 | Serialno. <212 | ADD TO CART |
| 60 | 5100012479 | Greasing nipple | 1 | Serialno. <212 | ADD TO CART |
| 61 | 5100011820 | Spacer ring | 1 | Serialno. <212 | ADD TO CART |
| 62 | 5100011695 | U-washer | 1 | Serialno. <212 | ADD TO CART |
| 63 | 5100013463 | Cheese-head screw | 1 | Serialno. <212 | ADD TO CART |
| 65 | 5100012644 | Steering column | 1 | Serialno. <212 | ADD TO CART |
| 66 | 5100013450 | Cheese-head screw | 2 | Serialno. <212 | ADD TO CART |
| 67 | 5100012967 | Locking washer | 4 | Serialno. <212 | ADD TO CART |
| 68 | 5100012783 | Cheese-head screw | 2 | Serialno. <212 | ADD TO CART |
| 70 | 5100011912 | Steering wheel | 1 | Serialno. <212 | ADD TO CART |
| 70 | 5100012392 | Turning handle | 1 | 70.01 Serialno. <212 | ADD TO CART |
| 70 | 5100065336 | Lid | 1 | 70.02 Serialno. <212 | ADD TO CART |
| 1 | 5100011736 | O-ring seal | 4 | 1.03 Serialno. >213 | ADD TO CART |
| 1 | 5100012655 | Connection plate | 1 | 1.01 Serialno. >213 | ADD TO CART |
| 1 | 5100013528 | Cheese-head screw | 2 | 1.02 Serialno. >213 | ADD TO CART |
| 8 | 5100068764 | Hose | 1 | Serialno. >213 | ADD TO CART |
| 12 | 5100068765 | Hose | 1 | Serialno. >213 | ADD TO CART |
| 21 | 5100068766 | Hose | 1 | Serialno. >213 | ADD TO CART |
| 47 | 5100053007 | Connecting block | 1 | Serialno. >213 | ADD TO CART |
| 48 | 5100013454 | Straight screwed socket | 1 | Serialno. >213 | ADD TO CART |
| 49 | 5100013474 | Straight screwed socket | 1 | Serialno. >213 | ADD TO CART |
| 50 | 5100053008 | Straight screwed socket | 1 | Serialno. >213 | ADD TO CART |
Page 192 — Water sprinkler
Parts list — exactly as printed81 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100011851 | Rubber sleeve | 4 | ADD TO CART | |
| 8 | 5100011850 | Rubber sleeve | 1 | ADD TO CART | |
| 9 | 5100011815 | Tank cap | 1 | ADD TO CART | |
| 10 | 5100011931 | O-ring seal | 1 | ADD TO CART | |
| 11 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 45 | 5100012884 | Spacer plate | 2 | ADD TO CART | |
| 46 | 5100011902 | Sheet metal screw | 2 | ADD TO CART | |
| 47 | 5100013462 | Stud bolt | 2 | ADD TO CART | |
| 55 | 5100011718 | Metal plate | 2 | ADD TO CART | |
| 56 | 5100011902 | Sheet metal screw | 2 | ADD TO CART | |
| 57 | 5100012978 | Stud bolt | 4 | ADD TO CART | |
| 65 | 5100011812 | Drain plug | 1 | ADD TO CART | |
| 66 | 5100011865 | O-ring seal | 1 | ADD TO CART | |
| 67 | 5100011864 | O-ring seal | 1 | ADD TO CART | |
| 68 | 5100011862 | Compression spring | 1 | ADD TO CART | |
| 69 | 5100011830 | Strainer | 1 | ADD TO CART | |
| 78 | 5100011925 | Float | 1 | ADD TO CART | |
| 79 | 5100011872 | Inspection glass | 1 | ADD TO CART | |
| 80 | 5100011656 | Filler cap | 1 | ADD TO CART | |
| 81 | 5100011873 | Pipe clip | 1 | ADD TO CART | |
| 82 | 5100012000 | Sheet metal screw | 1 | ADD TO CART | |
| 100 | 5100058615 | Water tank | 1 | PARTS REQUEST | |
|
COMING Water tank
5100058615 · qty on machine: 1 | |||||
| 103 | 5100012713 | Rubber metal buffer | 4 | ADD TO CART | |
| 104 | 5100013523 | Washer | 3 | ADD TO CART | |
| 105 | 5100011526 | Elbow | 4 | ADD TO CART | |
| 107 | 5100011444 | Elbow | 1 | ADD TO CART | |
| 109 | 5100013557 | Key | 1 | ADD TO CART | |
| 109 | 5100059525 | Tank cap, with lock | 1 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 35 | ADD TO CART | |
| 130 | 5100012140 | Key | 2 | ADD TO CART | |
| 150 | 5100012881 | Cover plate | 2 | ADD TO CART | |
| 151 | 5100011906 | Metal plate | 1 | ADD TO CART | |
| 152 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 153 | 5100013646 | Flexible tubing | 0.43 | ADD TO CART | |
| 48 | 5100013094 | Washer | 2 | ADD TO CART | |
| 49 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100058615 | Water tank | 1 | PARTS REQUEST | |
|
COMING Water tank
5100058615 · qty on machine: 1 | |||||
| 60 | 5100011719 | Metal plate | 2 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 62 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 75 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 85 | 5100013374 | Water pump | 1 | ADD TO CART | |
| 86 | 5100012919 | Silentbloc | 4 | ADD TO CART | |
| 87 | 5100013523 | Washer | 4 | ADD TO CART | |
| 88 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 91 | 5100012498 | Safety screw | 3 | ADD TO CART | |
| 92 | 5100011527 | Angle screwed socket | 1 | ADD TO CART | |
| 93 | 5100013646 | Flexible tubing | 0.5 | ADD TO CART | |
| 94 | 5100011666 | Angle screwed socket | 1 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 96 | 5100011845 | Mounting device | 1 | ADD TO CART | |
| 97 | 5100023166 | Filler cap | 1 | ADD TO CART | |
| 155 | 5100013646 | Flexible tubing | 0.45 | ADD TO CART | |
| 156 | 5100011648 | Reducing piece | 1 | ADD TO CART | |
| 160 | 5100013639 | Flexible tubing | 1.5 | ADD TO CART | |
| 159 | 5100013367 | Hose clip | 2 | ADD TO CART | |
| 163 | 5100013169 | Sprinkler pipe | 1 | ADD TO CART | |
| 163 | 5100068767 | Sprinkler pipe | 1 | ADD TO CART | |
| 164 | 5100012727 | Cheese-head screw | 2 | ADD TO CART | |
| 165 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 157 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 170 | 5100013167 | Sprinkler pipe | 1 | ADD TO CART | |
| 171 | 5100011513 | Sealing ring | 2 | ADD TO CART | |
| 173 | 5100011514 | Cap | 2 | ADD TO CART | |
| 175 | 5100011530 | Nozzle holder | 4 | ADD TO CART | |
| 175 | 5100011535 | Cap nut | 4 | ADD TO CART | |
| 175 | 5100011607 | Sheet metal screw | 4 | ADD TO CART | |
| 175 | 5100011651 | Membrane holder | 4 | ADD TO CART | |
| 175 | 5100011752 | Sealing ring | 4 | ADD TO CART | |
| 175 | 5100011978 | Membrane | 4 | ADD TO CART | |
| 176 | 5100011488 | Nut | 4 | ADD TO CART | |
| 177 | 5100011489 | Filtering screen | 4 | ADD TO CART | |
| 178 | 5100011529 | Sprinkler nozzle | 4 | ADD TO CART | |
| 190 | 5100013469 | Half-clip | 6 | ADD TO CART | |
| 191 | 5100013465 | Cover plate | 2 | ADD TO CART | |
| 192 | 5100012052 | Cheese-head screw | 4 | ADD TO CART | |
| 193 | 5100013168 | Bracket | 2 | PARTS REQUEST | |
|
COMING Bracket
5100013168 · qty on machine: 2 | |||||
| 200 | 5100013169 | Sprinkler pipe | 1 | ADD TO CART | |
| 170 | 5100068768 | Sprinkler pipe | 1 | Serialno. >396 | PARTS REQUEST |
|
COMING Sprinkler pipe
5100068768 · qty on machine: 1 Serialno. >396 | |||||
| 176 | 5100066888 | Nut | 4 | Serialno. >396 | ADD TO CART |
| 200 | 5100068767 | Sprinkler pipe | 1 | Serialno. >396 | ADD TO CART |

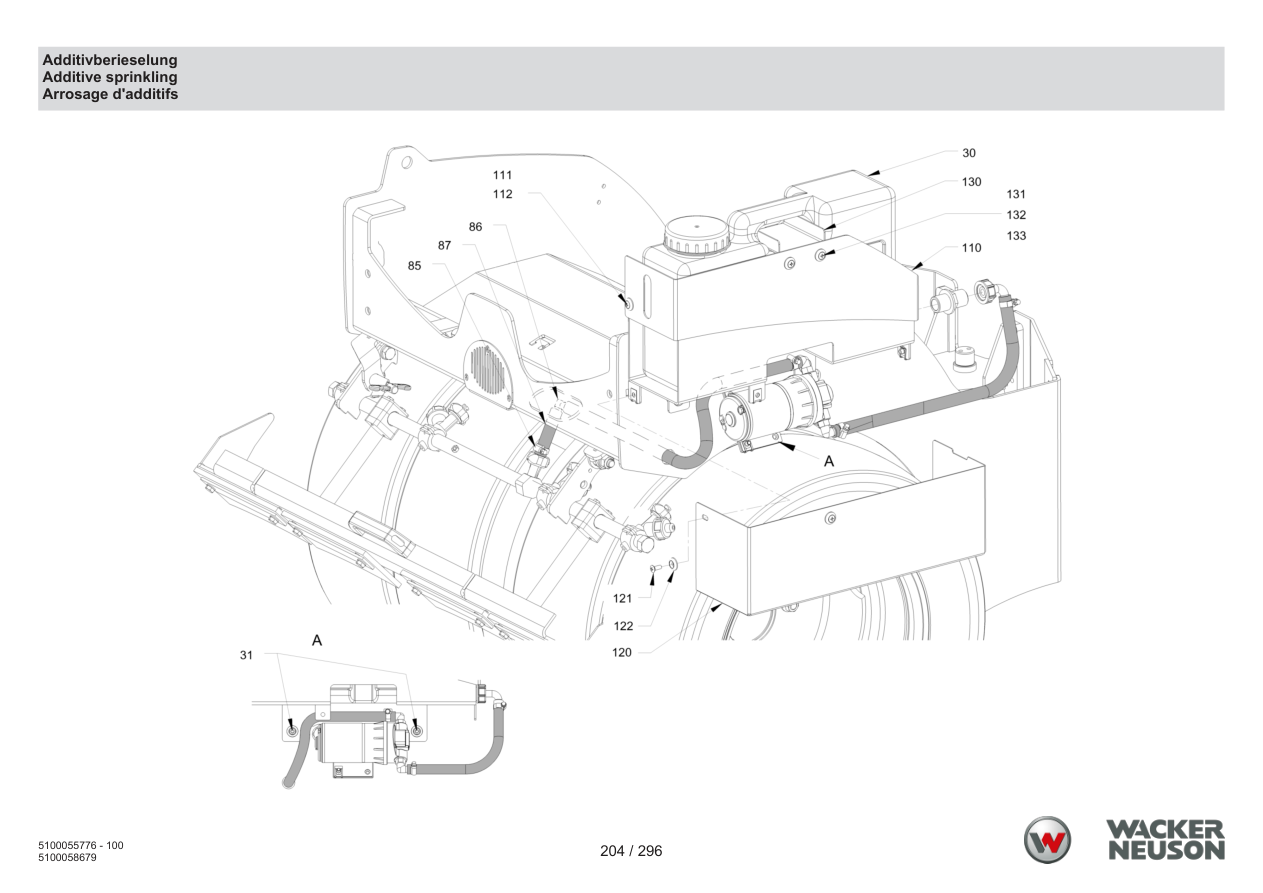

Page 204 — Additive sprinkling
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100058616 | Additive tank | 1 | ADD TO CART | |
| 31 | 5100012705 | Cheese-head screw | 4 | ADD TO CART | |
| 85 | 5100013367 | Hose clip | 3 | ADD TO CART | |
| 86 | 5100013501 | Elbow | 1 | ADD TO CART | |
| 87 | 5100013223 | Flexible tubing | 0.05 | ADD TO CART | |
| 110 | 5100013148 | Cover | 1 | ADD TO CART | |
| 111 | 5100013363 | Raised countersunk head screw | 3 | ADD TO CART | |
| 112 | 5100011543 | Washer | 3 | ADD TO CART | |
| 120 | 5100013149 | Cover | 1 | ADD TO CART | |
| 121 | 5100013363 | Raised countersunk head screw | 3 | ADD TO CART | |
| 122 | 5100011543 | Washer | 3 | ADD TO CART | |
| 130 | 5100013170 | Bracket | 1 | ADD TO CART | |
| 131 | 5100013363 | Raised countersunk head screw | 2 | ADD TO CART | |
| 132 | 5100011543 | Washer | 2 | ADD TO CART | |
| 133 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 33 | 5100013132 | Bracket | 1 | ADD TO CART | |
| 34 | 5100013374 | Water pump | 1 | ADD TO CART | |
| 35 | 5100012600 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 | |||||
| 36 | 5100013523 | Washer | 4 | ADD TO CART | |
| 37 | 5100011544 | Clip nut | 4 | ADD TO CART | |
| 40 | 5100013437 | Angle screwed socket | 2 | PARTS REQUEST | |
|
COMING Angle screwed socket
5100013437 · qty on machine: 2 | |||||
| 42 | 5100013223 | Flexible tubing | 0.31 | ADD TO CART | |
| 43 | 5100016829 | Grommet | 1 | ADD TO CART | |
| 46 | 5100013367 | Hose clip | 3 | ADD TO CART | |
| 50 | 5100012367 | Angle screwed socket | 1 | ADD TO CART | |
| 51 | 5100012369 | O-ring seal | 1 | ADD TO CART | |
| 52 | 5100012368 | Cap nut | 1 | ADD TO CART | |
| 53 | 5100013157 | Twin nipple | 1 | ADD TO CART | |
| 54 | 5100012885 | O-ring seal | 1 | ADD TO CART | |
| 60 | 5100013150 | Can | 1 | ADD TO CART | |
| 60 | 5100013229 | Tank cap | 1 | PARTS REQUEST | |
|
COMING Tank cap
5100013229 · qty on machine: 1 | |||||
| 71 | 5100013645 | Rubber profile | 0.3 | ADD TO CART | |
| 80 | 5100013223 | Flexible tubing | 0.55 | ADD TO CART | |
| 91 | 5100013432 | Rubber buffer | 2 | ADD TO CART | |
| 92 | 5100011460 | Countersunk screw | 2 | ADD TO CART | |
| 93 | 5100013438 | Washer | 2 | ADD TO CART | |
| 94 | 5100011586 | Hexagon nut | 2 | ADD TO CART | |
| 113 | 5100011544 | Clip nut | 3 | ADD TO CART | |
| 123 | 5100011544 | Clip nut | 3 | ADD TO CART | |
Page 208 — Frost protection for sprinkling
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100011943 | Ball-closure cock | 1 | ADD TO CART | |
| 11 | 5100011942 | Adapter | 1 | ADD TO CART | |
| 12 | 5100012598 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 2 | |||||
| 13 | 5100012936 | Washer | 4 | ADD TO CART | |
| 14 | 5100011599 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100011527 | Angle screwed socket | 3 | ADD TO CART | |
| 22 | 5100013413 | Washer | 2 | ADD TO CART | |
| 25 | 5100013646 | Flexible tubing | 0.59 | ADD TO CART | |
| 26 | 5100013646 | Flexible tubing | 0.86 | ADD TO CART | |
| 27 | 5100013646 | Flexible tubing | 0.59 | ADD TO CART | |
| 60 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 96 | 5100011845 | Mounting device | 1 | ADD TO CART | |
Page 210 — Frost protection forsprinkling
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100029536 | Union | 1 | ADD TO CART | |
| 11 | 5100013646 | Flexible tubing | 0.06 | ADD TO CART | |
| 12 | 5100013646 | Flexible tubing | 0.65 | ADD TO CART | |
| 16 | 5100011472 | Ball-closure cock | 1 | ADD TO CART | |
| 17 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 18 | 5100011527 | Angle screwed socket | 1 | ADD TO CART | |
| 25 | 5100029568 | Holder | 1 | ADD TO CART | |
| 26 | 5100012598 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 1 | |||||
| 27 | 5100012936 | Washer | 2 | ADD TO CART | |
| 28 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 60 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
Page 212 — Water pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100013389 | Pump housing | 1 | ADD TO CART | |
| 5 | 5100013391 | Valve insert | 1 | ADD TO CART | |
| 10 | 5100013390 | Pump housing | 1 | ADD TO CART | |
| 100 | 5100013374 | Water pump | 1 | ADD TO CART | |
Page 214 — Roller drum suspension
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068786 | Bow plate | 2 | ADD TO CART | |
| 5 | 5100012514 | Hexagon screw | 9 | ADD TO CART | |
| 6 | 5100013233 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100013233 · qty on machine: 1 | |||||
| 7 | 5100012969 | Locking washer | 10 | ADD TO CART | |
| 8 | 5100012969 | Locking washer | 16 | ADD TO CART | |
| 9 | 5100012405 | Hexagon nut | 16 | ADD TO CART | |
| 30 | 5100012899 | Wire protecting sleeve | 1 | ADD TO CART | |
Page 216 — Wheel suspension
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013145 | Gear hub motor | 2 | ADD TO CART | |
| 2 | 5100012784 | Cheese-head screw | 20 | ADD TO CART | |
| 3 | 5100012968 | Locking washer | 20 | ADD TO CART | |
| 10 | 5100052991 | Tyre | 4 | Serialno. 367-412 | ADD TO CART |
| 10 | 5100066871 | Tyre | 4 | Serialno. >413 | ADD TO CART |
| 12 | 5100029586 | Centering ring | 10 | PARTS REQUEST | |
|
COMING Centering ring
5100029586 · qty on machine: 10 | |||||
| 15 | 5100012377 | Spring ring | 10 | ADD TO CART | |
| 16 | 5100012376 | Flat collar nut | 10 | ADD TO CART | |
| 20 | 5100012401 | Valve extension | 2 | ADD TO CART | |
| 21 | 5100011968 | Bracket | 2 | ADD TO CART | |
Page 218 — Scraper
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100058620 | Spring | 4 | ADD TO CART | |
| 4 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 5 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 1 | 5100016844 | Scraper | 2 | ADD TO CART | |
| 2 | 5100016845 | Scraper | 1 | ADD TO CART | |
| 3 | 5100016846 | Scraper | 1 | ADD TO CART | |
| 5 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 6 | 5100012520 | Hexagon screw | 16 | ADD TO CART | |
| 9 | 5100011550 | Plug | 4 | ADD TO CART | |
| 1 | 5100011805 | Plastic scraper | 1 | ADD TO CART | |
| 2 | 5100012045 | Metal plate | 1 | ADD TO CART | |
| 3 | 5100016847 | Spring | 4 | ADD TO CART | |
| 6 | 5100012085 | Mushroom head screw | 6 | ADD TO CART | |
| 7 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 9 | 5100013521 | Washer | 2 | ADD TO CART | |
| 10 | 5100013521 | Washer | 6 | ADD TO CART | |
| 100 | 5100016844 | Scraper | 1 | ADD TO CART | |
| 3 | 5100016848 | Spring | 4 | ADD TO CART | |
| 100 | 5100016845 | Scraper | 1 | ADD TO CART | |
| 100 | 5100016846 | Scraper | 1 | ADD TO CART | |
| 1 | 5100058626 | Scraper | 2 | ADD TO CART | |
| 2 | 5100058627 | Scraper | 1 | ADD TO CART | |
| 3 | 5100058628 | Scraper | 1 | ADD TO CART | |
| 100 | 5100058626 | Scraper | 2 | ADD TO CART | |
| 3 | 5100058621 | Spring | 4 | ADD TO CART | |
| 100 | 5100058627 | Scraper | 1 | ADD TO CART | |
| 100 | 5100058628 | Scraper | 1 | ADD TO CART | |
Page 234 — Scraper foldable
Parts list — exactly as printed78 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 21 | 5100012932 | Handle | 1 | ADD TO CART | |
| 1 | 5100013089 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 11 | 5100013090 | Scraper | 1 | ADD TO CART | |
| 12 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 15 | 5100013058 | Holder-up | 1 | ADD TO CART | |
| 16 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 17 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 21 | 5100013089 | Scraper | 1 | ADD TO CART | |
| 22 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 31 | 5100013091 | Scraper | 1 | ADD TO CART | |
| 32 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 33 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 35 | 5100013064 | Holder-up | 1 | ADD TO CART | |
| 36 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 37 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100011805 | Plastic scraper | 1 | ADD TO CART | |
| 12 | 5100012045 | Metal plate | 1 | ADD TO CART | |
| 13 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 14 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 15 | 5100012085 | Mushroom head screw | 4 | ADD TO CART | |
| 16 | 5100011584 | Mushroom head screw | 4 | ADD TO CART | |
| 17 | 5100013521 | Washer | 8 | ADD TO CART | |
| 19 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 20 | 5100013040 | Bracket | 1 | ADD TO CART | |
| 22 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 23 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 26 | 5100013577 | Washer | 2 | ADD TO CART | |
| 27 | 5100013045 | Bracket | 1 | ADD TO CART | |
| 28 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 29 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 30 | 5100013068 | Bracket | 1 | ADD TO CART | |
| 31 | 5100035091 | Safety nut | 1 | ADD TO CART | |
| 35 | 5100013574 | Toggle with bolt | 1 | ADD TO CART | |
| 36 | 5100013575 | Compression spring | 1 | ADD TO CART | |
| 37 | 5100013576 | Grooved pin | 1 | ADD TO CART | |
| 40 | 5100029558 | Hexagon screw | 1 | ADD TO CART | |
| 41 | 5100013577 | Washer | 2 | ADD TO CART | |
| 42 | 5100013046 | Bracket | 1 | ADD TO CART | |
| 43 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 44 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 45 | 5100013069 | Bracket | 1 | ADD TO CART | |
| 46 | 5100035091 | Safety nut | 1 | ADD TO CART | |
| 100 | 5100013089 | Scraper | 2 | ADD TO CART | |
| 27 | 5100013060 | Foot lever | 1 | ADD TO CART | |
| 30 | 5100013056 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013034 | Bracket | 1 | ADD TO CART | |
| 45 | 5100013056 | Bracket | 1 | ADD TO CART | |
| 100 | 5100013090 | Scraper | 1 | ADD TO CART | |
| 27 | 5100013061 | Foot lever | 1 | PARTS REQUEST | |
|
COMING Foot lever
5100013061 · qty on machine: 1 | |||||
| 29 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 100 | 5100013091 | Scraper | 1 | ADD TO CART | |
| 11 | 5100013089 | Scraper | 1 | ADD TO CART | |
| 12 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100013090 | Scraper | 1 | ADD TO CART | |
| 22 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 25 | 5100013058 | Holder-up | 1 | ADD TO CART | |
| 26 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 27 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 31 | 5100013089 | Scraper | 1 | ADD TO CART | |
| 32 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 41 | 5100013091 | Scraper | 1 | ADD TO CART | |
| 42 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 43 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 45 | 5100013064 | Holder-up | 1 | ADD TO CART | |
| 46 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 47 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 111 | 5100058623 | Metal plate | 7 | ADD TO CART | |
| 112 | 5100058624 | Metal plate | 1 | ADD TO CART | |
| 113 | 5100058625 | Countersunk screw | 16 | ADD TO CART | |
| 120 | 5100013062 | Spacer block | 1 | ADD TO CART | |
| 121 | 5100013561 | Countersunk screw | 2 | ADD TO CART | |
| 125 | 5100013063 | Spacer block | 1 | ADD TO CART | |
| 126 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
Page 264 — Bandage
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012494 | Roller drum | 1 | PARTS REQUEST | |
|
COMING Roller drum
5100012494 · qty on machine: 1 | |||||
| 3 | 5100048104 | Gear hub motor | 1 | ADD TO CART | |
| 8 | 5100011676 | O-ring seal | 1 | ADD TO CART | |
| 9 | 5100023184 | Hexagon screw | 10 | ADD TO CART | |
| 10 | 5100012968 | Locking washer | 10 | ADD TO CART | |
| 11 | 5100068718 | Thrust washer | 1 | ADD TO CART | |
| 12 | 5100012509 | Cheese-head screw | 6 | ADD TO CART | |
| 14 | 5100011674 | Cylindrical roller bearing | 1 | PARTS REQUEST | |
|
COMING Cylindrical roller bearing
5100011674 · qty on machine: 1 | |||||
| 16 | 5100068719 | Unbalance | 1 | ADD TO CART | |
| 18 | 5100011937 | Nilos ring | 1 | ADD TO CART | |
| 20 | 5100011712 | Cover | 1 | ADD TO CART | |
| 21 | 5100011610 | O-ring seal | 1 | ADD TO CART | |
| 22 | 5100012528 | Hexagon screw | 8 | ADD TO CART | |
| 23 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 26 | 5100011714 | Flange | 1 | ADD TO CART | |
| 27 | 5100011740 | O-ring seal | 1 | ADD TO CART | |
| 28 | 5100011715 | Washer | 1 | ADD TO CART | |
| 29 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 36 | 5100011794 | Shaft | 1 | ADD TO CART | |
| 37 | 5100012754 | Cheese-head screw | 1 | ADD TO CART | |
| 41 | 5100011677 | Coupling | 1 | ADD TO CART | |
| 42 | 5100011646 | Hexagon nut | 2 | ADD TO CART | |
| 51 | 5100011795 | Gear motor | 1 | ADD TO CART | |
| 51 | 5100013043 | Gear motor | 1 | PARTS REQUEST | |
|
COMING Gear motor
5100013043 · qty on machine: 1 | |||||
| 52 | 5100012754 | Cheese-head screw | 4 | ADD TO CART | |
| 53 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 61 | 5100048106 | Driver | 1 | ADD TO CART | |
| 62 | 5100048107 | Cheese-head screw | 7 | ADD TO CART | |
| 63 | 5100012968 | Locking washer | 7 | ADD TO CART | |
| 64 | 5100011787 | Rubber metal buffer | 8 | ADD TO CART | |
| 66 | 5100012521 | Hexagon screw | 16 | ADD TO CART | |
| 67 | 5100012967 | Locking washer | 16 | ADD TO CART | |
Page 266 — Vibration drive
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013218 | Angle flange screwing | 1 | ADD TO CART | |
| 2 | 5100012719 | Flexible tubing | 1 | ADD TO CART | |
| 3 | 5100011896 | Hose clip | 1 | ADD TO CART | |
| 4 | 5100068216 | Valve | 1 | ADD TO CART | |
| 5 | 5100012815 | Cheese-head screw | 4 | ADD TO CART | |
| 6 | 5100013603 | Straight screwed socket | 2 | ADD TO CART | |
| 9 | 5100011608 | Screw plug | 1 | ADD TO CART | |
| 10 | 5100012391 | Elbow adjustable | 1 | ADD TO CART | |
| 11 | 5100068721 | Hose | 1 | ADD TO CART | |
| 12 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 15 | 5100068722 | Hose | 1 | ADD TO CART | |
| 31 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 32 | 5100016850 | Flexible tubing | 1 | ADD TO CART | |
| 51 | 5100013475 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 | |||||
| 56 | 5100068758 | Hose | 1 | ADD TO CART | |
| 69 | 5100012891 | Flexible tubing | 1 | ADD TO CART | |
| 71 | 5100012729 | Hollow-core screw | 1 | ADD TO CART | |
| 72 | 5100013001 | Sealing ring | 1 | ADD TO CART | |
| 73 | 5100013001 | Sealing ring | 1 | ADD TO CART | |
Page 268 — Maintenance kits and repair kits
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100057494 | Service kit at 50 hours | 1 | ADD TO CART | |
| 10 | 5100057495 | Service kit every 500 hours | 1 | ADD TO CART | |
| 10 | 5100057496 | Service kit every 1000 hours | 1 | ADD TO CART | |
Page 270 — Bottle holder
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100023580 | Bottle-support | 1 | Serialno. 160-677 | ADD TO CART |
| 3 | 5100012598 | Hexagon screw | 4 | Serialno. 160-677 | PARTS REQUEST |
|
COMING Hexagon screw
5100012598 · qty on machine: 4 Serialno. 160-677 | |||||
| 4 | 5100012936 | Washer | 4 | Serialno. 160-677 | ADD TO CART |
| 7 | 5100082571 | Holder | 1 | Serialno. >678 | PARTS REQUEST |
|
COMING Holder
5100082571 · qty on machine: 1 Serialno. >678 | |||||
| 8 | 5100011701 | Distance bush | 2 | Serialno. >678 | ADD TO CART |
| 12 | 5100082572 | Distance bush | 2 | Serialno. >678 | PARTS REQUEST |
|
COMING Distance bush
5100082572 · qty on machine: 2 Serialno. >678 | |||||
Page 272 — Bottle-support
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100023580 | Bottle-support | 1 | Serialno. >678 | ADD TO CART |
| 3 | 5100012598 | Hexagon screw | 4 | Serialno. >678 | PARTS REQUEST |
|
COMING Hexagon screw
5100012598 · qty on machine: 4 Serialno. >678 | |||||
| 4 | 5100012936 | Washer | 4 | Serialno. >678 | ADD TO CART |
| 7 | 5100082571 | Holder | 1 | Serialno. >678 | PARTS REQUEST |
|
COMING Holder
5100082571 · qty on machine: 1 Serialno. >678 | |||||
| 8 | 5100011701 | Distance bush | 2 | Serialno. >678 | ADD TO CART |
| 12 | 5100082572 | Distance bush | 2 | Serialno. >678 | PARTS REQUEST |
|
COMING Distance bush
5100082572 · qty on machine: 2 Serialno. >678 | |||||
Page 274 — Additional storage tray
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 150 | 5100029563 | Bag | 1 | ADD TO CART | |
| 151 | 5100023198 | Fillister head screw | 4 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 4 | |||||
| 152 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 153 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 154 | 5100013523 | Washer | 4 | ADD TO CART | |
| 160 | 5100011866 | Sealing tape | 0.06 | ADD TO CART | |
Page 276 — Additional mirror
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100012902 | Mirror-retainer | 1 | Serialno. 160-411 | ADD TO CART |
| 21 | 5100066911 | Hexagon screw | 2 | Serialno. 160-411 | ADD TO CART |
| 22 | 5100066912 | Distance piece | 2 | Serialno. 160-411 | ADD TO CART |
| 23 | 5100012966 | Locking washer | 4 | Serialno. 160-411 | ADD TO CART |
| 24 | 5100012546 | Hexagon nut | 2 | Serialno. 160-411 | ADD TO CART |
| 30 | 5100067838 | Stay bar | 1 | Serialno. 160-411 | ADD TO CART |
| 31 | 5100013510 | Hexagon screw | 2 | Serialno. 160-411 | ADD TO CART |
| 32 | 5100012966 | Locking washer | 4 | Serialno. 160-411 | ADD TO CART |
| 33 | 5100012546 | Hexagon nut | 2 | Serialno. 160-411 | ADD TO CART |
| 35 | 5100067837 | Stay bar | 1 | Serialno. 160-411 | PARTS REQUEST |
|
COMING Stay bar
5100067837 · qty on machine: 1 Serialno. 160-411 | |||||
| 36 | 5100013510 | Hexagon screw | 2 | Serialno. 160-411 | ADD TO CART |
| 37 | 5100012966 | Locking washer | 4 | Serialno. 160-411 | ADD TO CART |
| 38 | 5100012546 | Hexagon nut | 2 | Serialno. 160-411 | ADD TO CART |
| 40 | 5100067839 | Mirror | 2 | Serialno. 160-411 | ADD TO CART |
| 20 | 5100082573 | Mirror-retainer | 1 | Serialno. >412 | PARTS REQUEST |
|
COMING Mirror-retainer
5100082573 · qty on machine: 1 Serialno. >412 | |||||
| 30 | 5100077762 | Stay bar | 1 | Serialno. >412 | PARTS REQUEST |
|
COMING Stay bar
5100077762 · qty on machine: 1 Serialno. >412 | |||||
| 31 | 5100012613 | Hexagon screw | 2 | Serialno. >412 | ADD TO CART |
| 35 | 5100077763 | Stay bar | 1 | Serialno. >412 | PARTS REQUEST |
|
COMING Stay bar
5100077763 · qty on machine: 1 Serialno. >412 | |||||
| 36 | 5100012613 | Hexagon screw | 2 | Serialno. >412 | ADD TO CART |
Page 280 — Homologation Italy
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012007 | Metal plate | 1 | ADD TO CART | |
| 4 | 5100012001 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 1 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 8 | 5100017998 | Hexagonal nut | 2 | ADD TO CART | |
| 10 | 5100012607 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100013536 | Serrated lock washer | 12 | ADD TO CART | |
| 12 | 5100012898 | Hexagon nut | 8 | ADD TO CART | |
| 13 | 5100013453 | Washer | 8 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 100 | 5100012143 | Bracket | 1 | ADD TO CART | |
| 102 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 103 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
Page 282 — Homologation Russia
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068769 | Holder | 1 | ADD TO CART | |
| 4 | 5100025910 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 2 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100025881 | Fillister head screw | 3 | ADD TO CART | |
| 11 | 5100013599 | Clip nut | 3 | ADD TO CART | |
| 12 | 5100068780 | Number plate | 1 | ADD TO CART | |
| 18 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 19 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 21 | 5100068791 | Stop | 2 | ADD TO CART | |
| 22 | 5100013379 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 31 | 5100012603 | Safety nut | 2 | ADD TO CART | |
Page 284 — Homologation
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 12 | 5100025888 | Lap belt | 1 | ADD TO CART | |
| 13 | 5100068802 | Cable harness | 1 | ADD TO CART | |
| 15 | 5100066933 | Cable harness | 1 | ADD TO CART | |
Page 286 — Homologation Australia
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 76 | 5100066915 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100066915 · qty on machine: 1 | |||||
| 77 | 5100066916 | Control device | 1 | ADD TO CART | |
| 78 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
Page 292 — License plate holder
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100068813 | Holder | 1 | ADD TO CART | |
| 4 | 5100025910 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 2 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100025881 | Fillister head screw | 4 | ADD TO CART | |
| 11 | 5100013599 | Clip nut | 4 | ADD TO CART | |
| 12 | 5100068725 | Number plate | 1 | ADD TO CART | |
| 18 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 19 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 21 | 5100016849 | Stop | 2 | ADD TO CART | |
| 22 | 5100013379 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 31 | 5100012603 | Safety nut | 2 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson RD18-100 roller.
Available in 2 configurations.
List price: $72,500.00 – $79,000.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5100011416
Intermediate piece
$82.95
5100011419
O-ring seal
$1.95
5100011440
O-ring seal
$7.95
5100011443
Cheese-head screw
$1.95
5100011444
Elbow
$5.95
5100011448
O-ring seal
$7.95
5100011449
O-ring seal
$3.95
5100011450
O-ring seal
$6.95
5100011451
Valve
$123.95
5100011453
Screw plug
$115.95
5100011454
Screw plug
$21.95
5100011455
Key
$44.95
5100011458
Shrinkdown plastic tubing
$6.95
5100011460
Countersunk screw
$1.95
5100011461
Straight screwed socket
$3.95
5100011464
Threaded bolt
$16.95
5100011465
Pipe clip
$4.95
5100011468
Sealing ring
$10.95
5100011471
Stud bolt
$4.95
5100011472
Ball-closure cock
$102.95
5100011476
Safety nut
$1.95
5100011479
Hexagon screw
$1.95
5100011480
Cheese-head screw
$2.95
5100011481
Cheese-head screw
$1.95
5100011485
Cheese-head screw
$2.95
5100011487
Pipe clip
$20.95
5100011488
Nut
$3.95
5100011489
Filtering screen
$4.95
5100011498
Silentbloc
$18.95
5100011508
Bushing
$98.95
5100011513
Sealing ring
$1.95
5100011514
Cap
$10.95
5100011515
O-ring seal
$1.95
5100011518
Seat cushion
$817.95
5100011519
Backrest cushion
$609.95
5100011524
Shrinkdown plastic tubing
$39.95
5100011526
Elbow
$7.95
5100011527
Angle screwed socket
$12.95
5100011529
Sprinkler nozzle
$11.95
5100011530
Nozzle holder
$39.95
5100011535
Cap nut
$12.95
5100011537
Filler cap
$1.95
5100011538
Screw plug
$9.95
5100011543
Washer
$1.95
5100011544
Clip nut
$6.95
5100011549
License plate light
$107.95
5100011550
Plug
$1.95
5100011553
Hose nozzle
$17.95
5100011554
Sealing ring
5100011561
Dust discharge valve
$34.95
5100011563
Radial rod end bearing
5100011564
Screw plug
$14.95
5100011575
Joint
$134.95
5100011577
Protecting cap
$2.95
5100011578
Mushroom head screw
$1.95
5100011579
Switch
$93.95
5100011580
Blind cover
$10.95
5100011581
Fillister head screw
$1.95
5100011582
Blade fuse
$1.95
5100011583
Relay
$41.95
5100011584
Mushroom head screw
$2.95
5100011586
Hexagon nut
$1.95
5100011588
Flexible tubing
$164.95
5100011590
Safety cord
$9.95
5100011592
Grommet
$21.95
5100011595
Frame
$20.95
5100011599
Hexagon nut
$2.95
5100011600
Tyre
$932.95
5100011606
Working light
$450.95
5100011607
Sheet metal screw
$1.95
5100011608
Screw plug
$5.95
5100011610
O-ring seal
$7.95
5100011611
Hexagon screw
$1.95
5100011615
Handle
$41.95
5100011616
Relay
$61.95
5100011619
Sealing ring
$245.95
5100011622
Seal
$33.95
5100011623
Hydraulic regulation
$2,672.95
5100011624
Locking ring
$9.95
5100011625
O-ring seal
$4.95
5100011626
Pressure-relief valve
5100011627
O-ring seal
$2.95
5100011628
Shaft seal
$520.95
5100011632
Extractor for blade fuses
$136.95
5100011634
Sheet metal screw
$1.95
5100011636
Washer
$1.95
5100011637
Hose clip
$4.95
5100011640
Blade fuse
$16.95
5100011646
Hexagon nut
$4.95
5100011648
Reducing piece
$4.95
5100011651
Membrane holder
$18.95
5100011653
Mounting
$2.95
5100011656
Filler cap
$1.95
5100011657
Washer
$1.95
5100011658
Screw plug
5100011659
Cheese-head screw
$2.95
5100011664
Hose fitting
$19.95
5100011666
Angle screwed socket
$6.95
5100011668
Pipe clip
$15.95
5100011669
Rubber metal buffer
$17.95
5100011670
Flexible tubing
$22.95
5100011671
Screw plug
$4.95
5100011673
Cooling-water hose
$45.95
5100011674
Cylindrical roller bearing
5100011676
O-ring seal
$17.95
5100011677
Coupling
$284.95
5100011678
Gear pump
$836.95
5100011680
Spacer ring
$17.95
5100011682
Bushing
$6.95
5100011684
Metal plate
$48.95
5100011685
Set of seals
$604.95
5100011695
U-washer
$15.95
5100011696
Metal plate
$15.95
5100011698
Spacer block
$16.95
5100011701
Distance bush
$17.95
5100011703
Sticker
$15.95
5100011705
Handle
$49.95
5100011706
Handle
$49.95
5100011707
Operating lever
$42.95
5100011708
Cover
$10.95
5100011709
Circuit board
$21.95
5100011710
Cover
5100011711
Cover
5100011712
Cover
$93.95
5100011714
Flange
$153.95
5100011715
Washer
$8.95
5100011718
Metal plate
$23.95
5100011719
Metal plate
$30.95
5100011728
Metal plate
$9.95
5100011729
Seal
$34.95
5100011730
Spacer pin
$37.95
5100011731
Rubber washer
$2.95
5100011733
Angle joint
$14.95
5100011734
Rubber metal buffer
$41.95
5100011736
O-ring seal
$4.95
5100011738
Raised countersunk head screw
$1.95
5100011740
O-ring seal
$1.95
5100011748
Rear reflector
$16.95
5100011749
Hose nozzle
$8.95
5100011752
Sealing ring
$1.95
5100011753
Washer
$1.95
5100011757
Cover
$27.95
5100011758
Ring
$53.95
5100011759
Clamping piece
$119.95
5100011760
Radial rod end bearing
$70.95
5100011761
Sealing ring
5100011762
Clamping piece
$64.95
5100011769
Variable displac. pump (drive)
5100011770
Hydraulic cylinder
$2,329.95
5100011776
Bolt
$69.95
5100011777
Radial rod end bearing
$131.95
5100011784
Signal transmitter
$118.95
5100011785
Silencer
$875.95
5100011787
Rubber metal buffer
$77.95
5100011791
Distance bush
$1.95
5100011792
Slide block
$6.95
5100011794
Shaft
$46.95
5100011795
Gear motor
$1,111.95
5100011799
Working light
$229.95
5100011800
Direction indicator
$125.95
5100011801
Reversing light
$99.95
5100011802
Tail light
$105.95
5100011805
Plastic scraper
$141.95
5100011812
Drain plug
$35.95
5100011814
Rubber buffer
$34.95
5100011815
Tank cap
$43.95
5100011816
Cover
$131.95
5100011818
Spacer plate
$6.95
5100011819
Compression spring
$29.95
5100011820
Spacer ring
$30.95
5100011821
Flexible tubing
$108.95
5100011824
Washer
$1.95
5100011829
Tank cap, with lock
$218.95
5100011830
Strainer
$30.95
5100011838
O-ring seal
$4.95
5100011845
Mounting device
$156.95
5100011849
Built-in socket
$46.95
5100011850
Rubber sleeve
$17.95
5100011851
Rubber sleeve
$15.95
5100011852
O-ring seal
$4.95
5100011853
Fillister head screw
$1.95
5100011854
Bracket
$165.95
5100011855
Screw plug
$5.95
5100011856
Pendulum joint
$710.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
