Wacker Neuson RD18-80 Roller

Name: Wacker Neuson RD18-80 Roller
Brand: Wacker Neuson
SKU: 5100055774
Price: 69000.0 USD
Availability: OutOfStock

The parts bench

Need the PDF? ↓

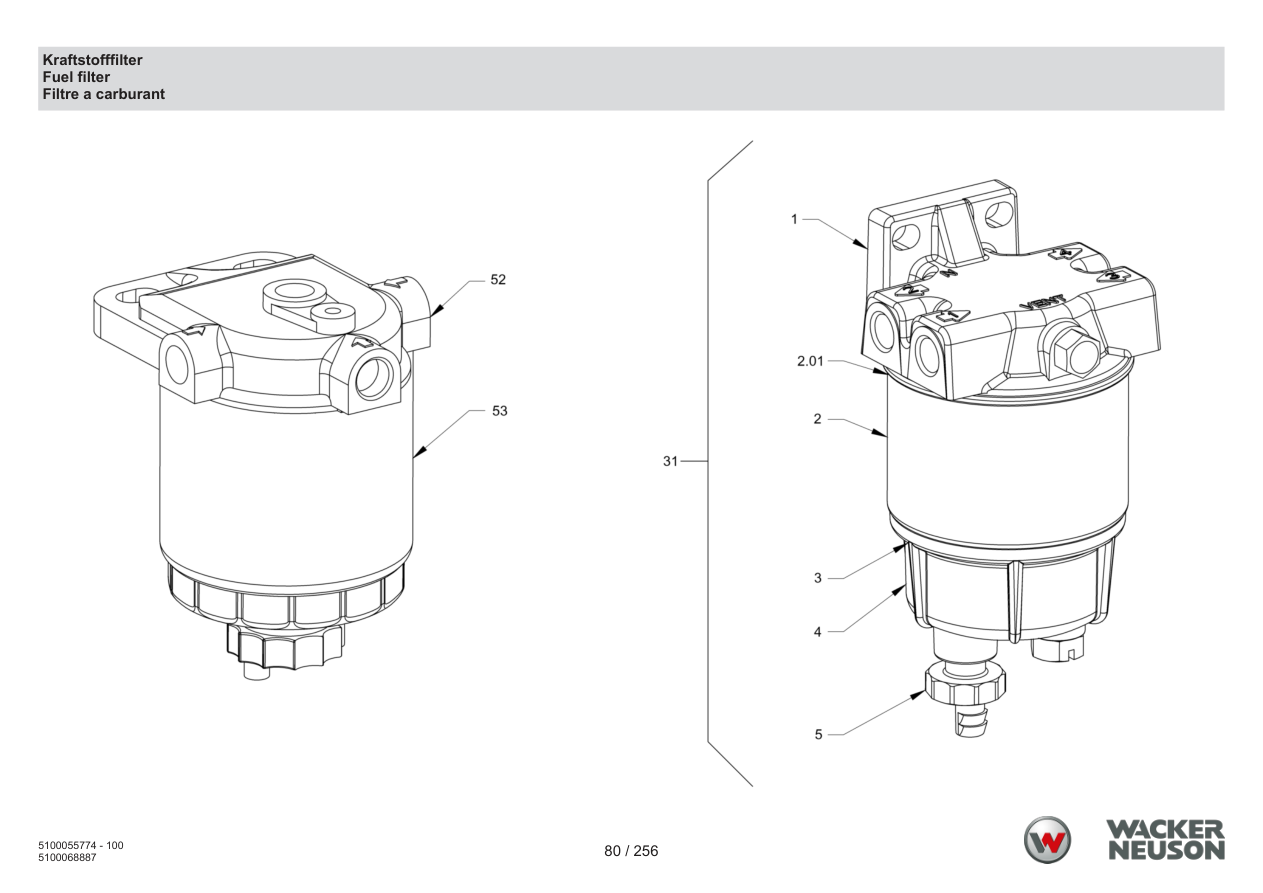

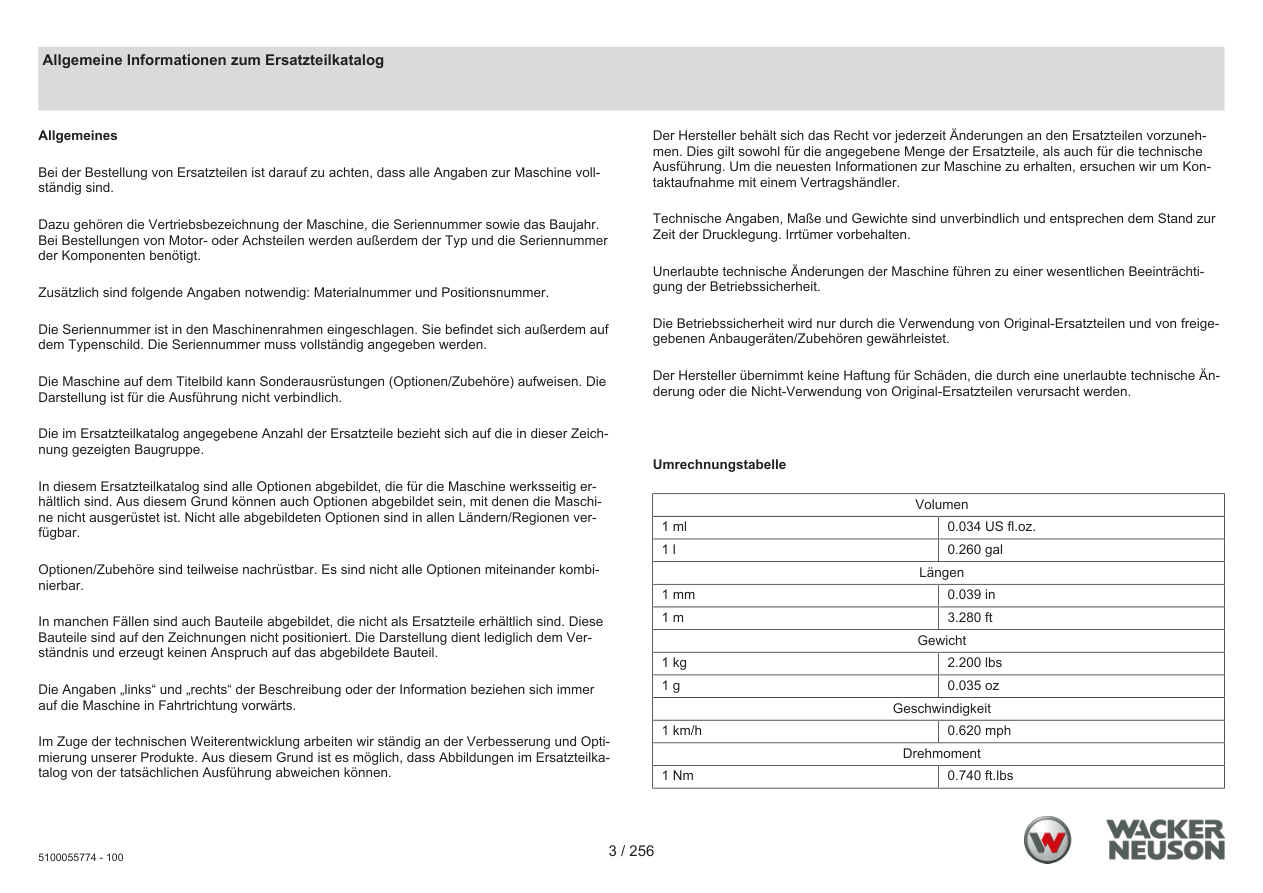

Page 3 — Fuel filter (Option) SP

Wacker Neuson RD18-80 Roller Fuel filter (Option) SP parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty
1	1000386655	Fuel filter	1	PARTS REQUEST
PHOTO COMING Fuel filter 1000386655 · qty on machine: 1 PARTS REQUEST
2	1000389249	Plug	1	PARTS REQUEST
PHOTO COMING Plug 1000389249 · qty on machine: 1 PARTS REQUEST
3	1000389229	Screw joint	2	PARTS REQUEST
PHOTO COMING Screw joint 1000389229 · qty on machine: 2 PARTS REQUEST
4	1000386656	Filter insert	1	PARTS REQUEST
PHOTO COMING Filter insert 1000386656 · qty on machine: 1 PARTS REQUEST
5	1000433955	Filter housing	1	PARTS REQUEST
PHOTO COMING Filter housing 1000433955 · qty on machine: 1 PARTS REQUEST
6	1000139973	Screw	1	PARTS REQUEST
PHOTO COMING Screw 1000139973 · qty on machine: 1 PARTS REQUEST
7	1000389241	Hose clamp	4	PARTS REQUEST
PHOTO COMING Hose clamp 1000389241 · qty on machine: 4 PARTS REQUEST
8	1000389247	Fuel line	1	PARTS REQUEST
PHOTO COMING Fuel line 1000389247 · qty on machine: 1 PARTS REQUEST
9	1000434006	Pressure limit reliefvalve	1	PARTS REQUEST
PHOTO COMING Pressure limit reliefvalve 1000434006 · qty on machine: 1 PARTS REQUEST
10	1000389230	Fuel line	1	PARTS REQUEST
PHOTO COMING Fuel line 1000389230 · qty on machine: 1 PARTS REQUEST
11	1000139973	Screw	1	PARTS REQUEST
PHOTO COMING Screw 1000139973 · qty on machine: 1 PARTS REQUEST
12	1000088388	Screw	3	PARTS REQUEST
PHOTO COMING Screw 1000088388 · qty on machine: 3 PARTS REQUEST
13	1000433952	Arm	1	PARTS REQUEST
PHOTO COMING Arm 1000433952 · qty on machine: 1 PARTS REQUEST
14	1000328508	Clamp	1	PARTS REQUEST
PHOTO COMING Clamp 1000328508 · qty on machine: 1 PARTS REQUEST
15	1000433949	Fuel filter	1	PARTS REQUEST
PHOTO COMING Fuel filter 1000433949 · qty on machine: 1 PARTS REQUEST
16	1000433950	Fuel filter	1	PARTS REQUEST
PHOTO COMING Fuel filter 1000433950 · qty on machine: 1 PARTS REQUEST
17	1000389262	Fuel pump	1	PARTS REQUEST
PHOTO COMING Fuel pump 1000389262 · qty on machine: 1 PARTS REQUEST

Page 20 — Main frame and assemblies

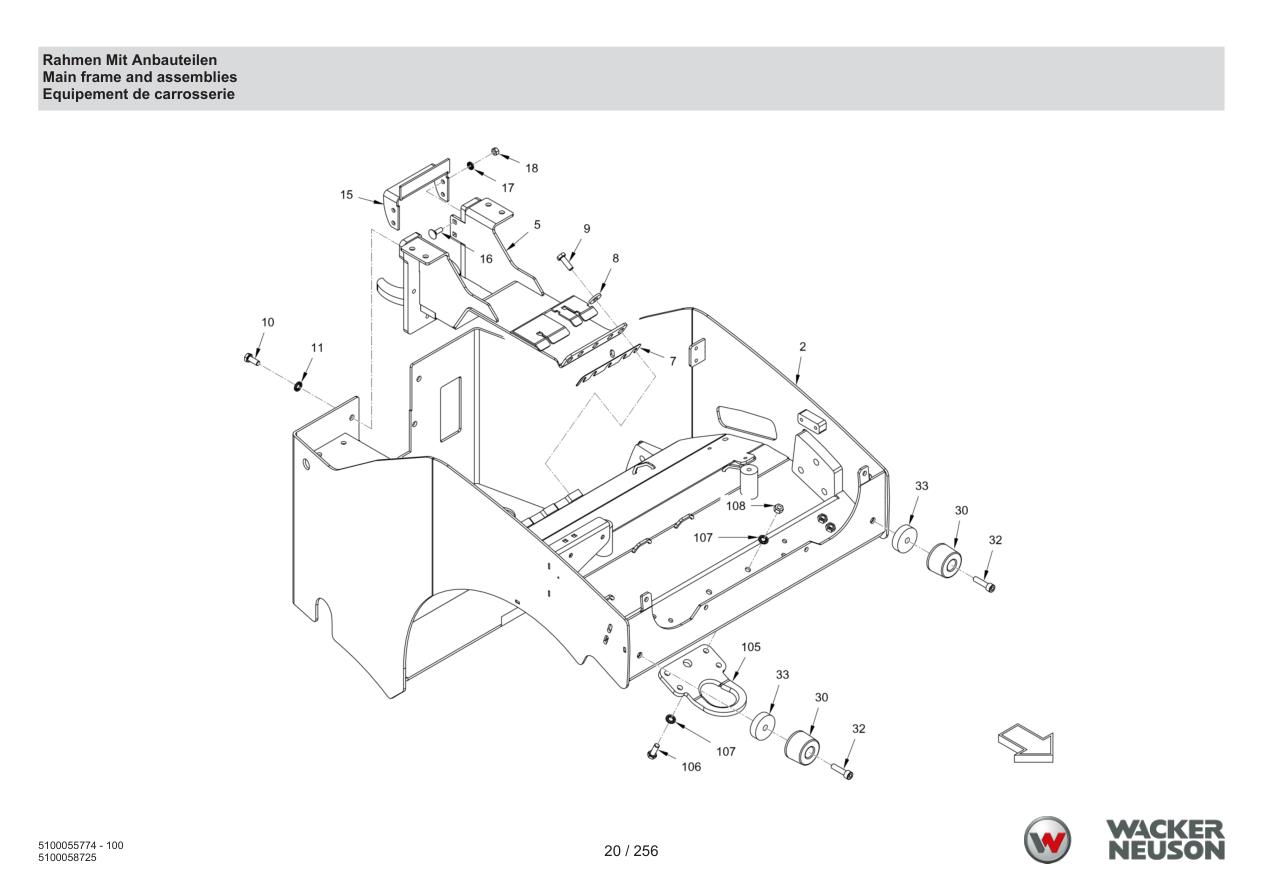

Wacker Neuson RD18-80 Roller Main frame and assemblies parts diagram

Parts list — exactly as printed79 rows

No.	Part No.	Part Name	Qty	Remarks
67	5100013128	Washer	2		ADD TO CART
Washer 5100013128 · qty on machine: 2 view full part page → $1.95
2	5100012171	Front frame part	1		PARTS REQUEST
PHOTO COMING Front frame part 5100012171 · qty on machine: 1 PARTS REQUEST
5	5100011882	Console	1	Serialno. <176	PARTS REQUEST
PHOTO COMING Console 5100011882 · qty on machine: 1 Serialno. <176 PARTS REQUEST
5	5100068724	Console	1	Serialno. >177	ADD TO CART
Console 5100068724 · qty on machine: 1 Serialno. >177 view full part page → $1115.95
7	5100011818	Spacer plate	1		ADD TO CART
Spacer plate 5100011818 · qty on machine: 1 view full part page → $6.95
8	5100013128	Washer	5		ADD TO CART
Washer 5100013128 · qty on machine: 5 view full part page → $1.95
9	5100012617	Hexagon screw	5		ADD TO CART
Hexagon screw 5100012617 · qty on machine: 5 view full part page → $2.95
10	5100011479	Hexagon screw	6		ADD TO CART
Hexagon screw 5100011479 · qty on machine: 6 view full part page → $1.95
11	5100012967	Locking washer	6		ADD TO CART
Locking washer 5100012967 · qty on machine: 6 view full part page → $1.95
15	5100058742	Metal plate	1		ADD TO CART
Metal plate 5100058742 · qty on machine: 1 view full part page → $24.95
16	5100012780	Mushroom head screw	4		ADD TO CART
Mushroom head screw 5100012780 · qty on machine: 4 view full part page → $1.95
17	5100012966	Locking washer	4		ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
18	5100012546	Hexagon nut	4		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 4 view full part page → $1.95
30	5100011814	Rubber buffer	6		ADD TO CART
Rubber buffer 5100011814 · qty on machine: 6 view full part page → $34.95
32	5100012783	Cheese-head screw	2		ADD TO CART
Cheese-head screw 5100012783 · qty on machine: 2 view full part page → $1.95
33	5100012006	Spacer block	2		ADD TO CART
Spacer block 5100012006 · qty on machine: 2 view full part page → $53.95
105	5100013076	Towing loop	1		ADD TO CART
Towing loop 5100013076 · qty on machine: 1 view full part page → $350.95
106	5100012617	Hexagon screw	4		ADD TO CART
Hexagon screw 5100012617 · qty on machine: 4 view full part page → $2.95
107	5100012967	Locking washer	8		ADD TO CART
Locking washer 5100012967 · qty on machine: 8 view full part page → $1.95
108	5100012547	Hexagon nut	4		ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
21	5100012350	Spacer block	4		ADD TO CART
Spacer block 5100012350 · qty on machine: 4 view full part page → $71.95
23	5100012678	Rear frame part	1		PARTS REQUEST
PHOTO COMING Rear frame part 5100012678 · qty on machine: 1 PARTS REQUEST
24	5100013124	Rear frame part	1		PARTS REQUEST
PHOTO COMING Rear frame part 5100013124 · qty on machine: 1 PARTS REQUEST
25	5100012733	Bow	1		ADD TO CART
Bow 5100012733 · qty on machine: 1 view full part page → $1154.95
26	5100012967	Locking washer	6		ADD TO CART
Locking washer 5100012967 · qty on machine: 6 view full part page → $1.95
27	5100013416	Hexagon screw	6		ADD TO CART
Hexagon screw 5100013416 · qty on machine: 6 view full part page → $1.95
31	5100011485	Cheese-head screw	4		ADD TO CART
Cheese-head screw 5100011485 · qty on machine: 4 view full part page → $2.95
34	5100012683	Box	1		ADD TO CART
Box 5100012683 · qty on machine: 1 view full part page → $513.95
40	5100029558	Hexagon screw	1		ADD TO CART
Hexagon screw 5100029558 · qty on machine: 1 view full part page → $3.95
41	5100029587	Washer	1		ADD TO CART
Washer 5100029587 · qty on machine: 1 view full part page → $9.95
42	5100012711	Pipe	1		ADD TO CART
Pipe 5100012711 · qty on machine: 1 view full part page → $10.95
43	5100011734	Rubber metal buffer	2		ADD TO CART
Rubber metal buffer 5100011734 · qty on machine: 2 view full part page → $41.95
44	5100012520	Hexagon screw	2		ADD TO CART
Hexagon screw 5100012520 · qty on machine: 2 view full part page → $1.95
45	5100013128	Washer	2		ADD TO CART
Washer 5100013128 · qty on machine: 2 view full part page → $1.95
49	5100016727	Cover	2		ADD TO CART
Cover 5100016727 · qty on machine: 2 view full part page → $307.95
50	5100012854	Handle	2		ADD TO CART
Handle 5100012854 · qty on machine: 2 view full part page → $205.95
51	5100016503	Bushing	8		ADD TO CART
Bushing 5100016503 · qty on machine: 8 view full part page → $15.95
52	5100012966	Locking washer	8		ADD TO CART
Locking washer 5100012966 · qty on machine: 8 view full part page → $1.95
53	5100048693	Stud screw	8		PARTS REQUEST
PHOTO COMING Stud screw 5100048693 · qty on machine: 8 PARTS REQUEST
54	5100012529	Filler cap	4		ADD TO CART
Filler cap 5100012529 · qty on machine: 4 view full part page → $1.95
55	5100012546	Hexagon nut	8		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 8 view full part page → $1.95
57	5100012613	Hexagon screw	2		ADD TO CART
Hexagon screw 5100012613 · qty on machine: 2 view full part page → $1.95
58	5100012966	Locking washer	4		ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
59	5100012546	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
60	5100016728	Bottom plate	1		ADD TO CART
Bottom plate 5100016728 · qty on machine: 1 view full part page → $1150.95
61	5100012517	Hexagon screw	6		ADD TO CART
Hexagon screw 5100012517 · qty on machine: 6 view full part page → $1.95
62	5100013094	Washer	6		ADD TO CART
Washer 5100013094 · qty on machine: 6 view full part page → $1.95
65	5100012712	Rubber metal buffer	2		ADD TO CART
Rubber metal buffer 5100012712 · qty on machine: 2 view full part page → $58.95
66	5100035014	Hexagon screw	2		ADD TO CART
Hexagon screw 5100035014 · qty on machine: 2 view full part page → $1.95
69	5100012640	Steering console	1		ADD TO CART
Steering console 5100012640 · qty on machine: 1 view full part page → $1130.95
69	5100016289	Steering console	1		PARTS REQUEST
PHOTO COMING Steering console 5100016289 · qty on machine: 1 PARTS REQUEST
71	5100012517	Hexagon screw	4		ADD TO CART
Hexagon screw 5100012517 · qty on machine: 4 view full part page → $1.95
72	5100013094	Washer	4		ADD TO CART
Washer 5100013094 · qty on machine: 4 view full part page → $1.95
73	5100013644	Rubber profile	0.25		ADD TO CART
Rubber profile 5100013644 · qty on machine: 0.25 view full part page → $8.95
74	5100052877	Protective cap	2		ADD TO CART
Protective cap 5100052877 · qty on machine: 2 view full part page → $1.95
75	5100012652	Spacer plate	1		ADD TO CART
Spacer plate 5100012652 · qty on machine: 1 view full part page → $18.95
80	5100012653	Retaining plate	1		ADD TO CART
Retaining plate 5100012653 · qty on machine: 1 view full part page → $23.95
81	5100012515	Hexagon screw	2		ADD TO CART
Hexagon screw 5100012515 · qty on machine: 2 view full part page → $1.95
82	5100012966	Locking washer	2		ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
90	5100029593	Footstep	1		ADD TO CART
Footstep 5100029593 · qty on machine: 1 view full part page → $481.95
91	5100012613	Hexagon screw	4		ADD TO CART
Hexagon screw 5100012613 · qty on machine: 4 view full part page → $1.95
92	5100012966	Locking washer	8		ADD TO CART
Locking washer 5100012966 · qty on machine: 8 view full part page → $1.95
93	5100012546	Hexagon nut	4		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 4 view full part page → $1.95
2	5100029592	Footstep	2		ADD TO CART
Footstep 5100029592 · qty on machine: 2 view full part page → $241.95
3	5100029564	Spring-type holder	1		ADD TO CART
Spring-type holder 5100029564 · qty on machine: 1 view full part page → $23.95
4	5100029537	Cheese-head screw	1		ADD TO CART
Cheese-head screw 5100029537 · qty on machine: 1 view full part page → $1.95
5	5100013438	Washer	1		ADD TO CART
Washer 5100013438 · qty on machine: 1 view full part page → $1.95
6	5100022855	Hexagonal nut	1		ADD TO CART
Hexagonal nut 5100022855 · qty on machine: 1 view full part page → $2.95
8	5100029552	Cheese-head screw	1		ADD TO CART
Cheese-head screw 5100029552 · qty on machine: 1 view full part page → $1.95
12	5100029591	Holder	1		ADD TO CART
Holder 5100029591 · qty on machine: 1 view full part page → $211.95
13	5100035308	Hexagon screw	2		ADD TO CART
Hexagon screw 5100035308 · qty on machine: 2 view full part page → $1.95
14	5100012938	Washer	2		ADD TO CART
Washer 5100012938 · qty on machine: 2 view full part page → $1.95
15	5100029539	Washer	2		ADD TO CART
Washer 5100029539 · qty on machine: 2 view full part page → $1.95
16	5100012456	Bushing	2		ADD TO CART
Bushing 5100012456 · qty on machine: 2 view full part page → $3.95
17	5100011657	Washer	2		ADD TO CART
Washer 5100011657 · qty on machine: 2 view full part page → $1.95
18	5100013421	Washer	2		ADD TO CART
Washer 5100013421 · qty on machine: 2 view full part page → $1.95
19	5100011476	Safety nut	2		ADD TO CART
Safety nut 5100011476 · qty on machine: 2 view full part page → $1.95
20	5100013537	Hexagon nut	2		ADD TO CART
Hexagon nut 5100013537 · qty on machine: 2 view full part page → $1.95
100	5100029593	Footstep	1		ADD TO CART
Footstep 5100029593 · qty on machine: 1 view full part page → $481.95

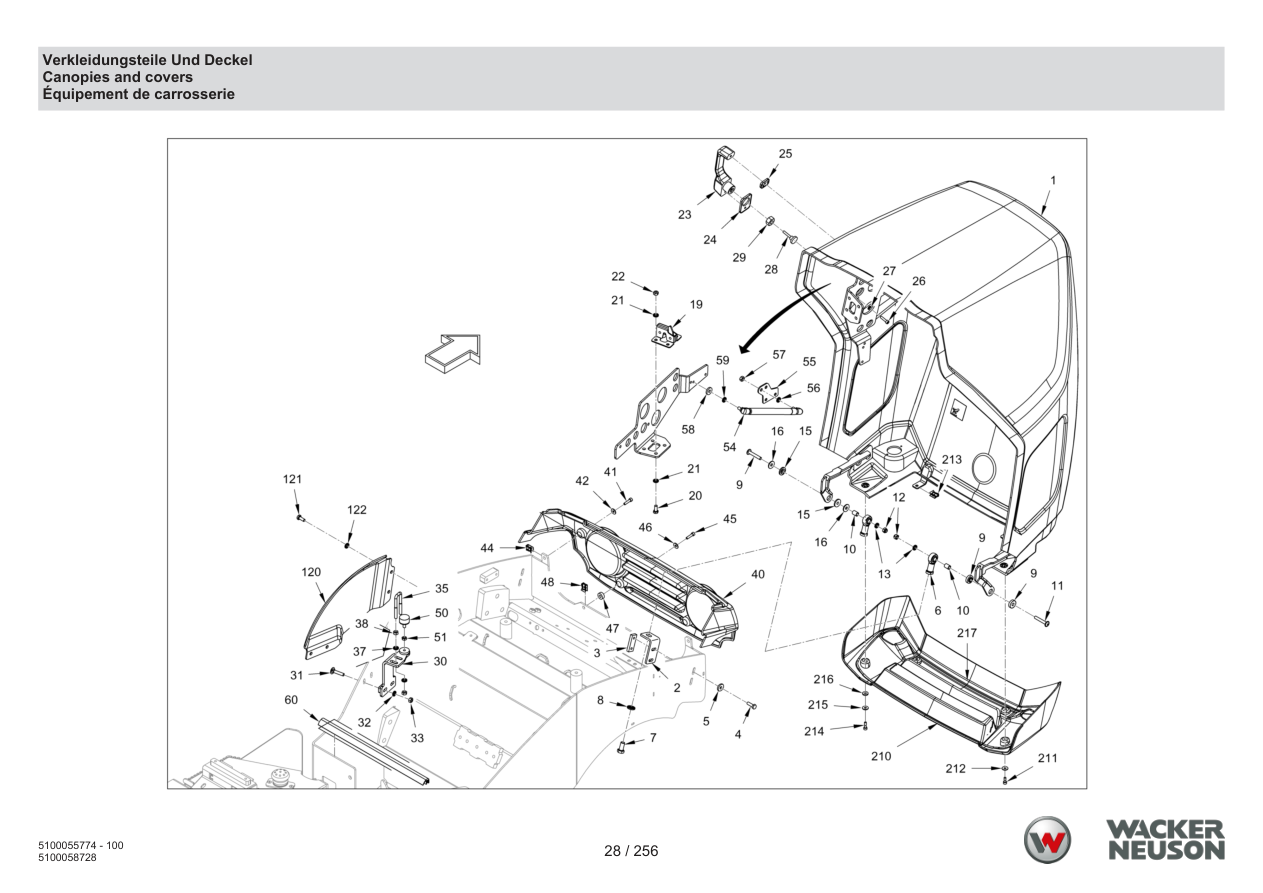

Page 28 — Canopies and covers

Wacker Neuson RD18-80 Roller Canopies and covers parts diagram

Parts list — exactly as printed94 rows

No.	Part No.	Part Name	Qty
1	5100012716	Engine hood	1	PARTS REQUEST
PHOTO COMING Engine hood 5100012716 · qty on machine: 1 PARTS REQUEST
2	5100011945	Bracket	2	ADD TO CART
Bracket 5100011945 · qty on machine: 2 view full part page → $31.95
3	5100011946	Metal plate	2	ADD TO CART
Metal plate 5100011946 · qty on machine: 2 view full part page → $44.95
4	5100012613	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012613 · qty on machine: 4 view full part page → $1.95
5	5100013094	Washer	4	ADD TO CART
Washer 5100013094 · qty on machine: 4 view full part page → $1.95
6	5100011575	Joint	2	ADD TO CART
Joint 5100011575 · qty on machine: 2 view full part page → $134.95
7	5100011611	Hexagon screw	2	ADD TO CART
Hexagon screw 5100011611 · qty on machine: 2 view full part page → $1.95
8	5100012968	Locking washer	2	ADD TO CART
Locking washer 5100012968 · qty on machine: 2 view full part page → $1.95
9	5100011498	Silentbloc	2	ADD TO CART
Silentbloc 5100011498 · qty on machine: 2 view full part page → $18.95
10	5100011508	Bushing	2	ADD TO CART
Bushing 5100011508 · qty on machine: 2 view full part page → $98.95
11	5100011894	Fillister head screw	2	ADD TO CART
Fillister head screw 5100011894 · qty on machine: 2 view full part page → $4.95
12	5100053004	Safety nut	2	ADD TO CART
Safety nut 5100053004 · qty on machine: 2 view full part page → $1.95
13	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
15	5100058743	Bushing	2	ADD TO CART
Bushing 5100058743 · qty on machine: 2 view full part page → $8.95
16	5100013421	Washer	2	ADD TO CART
Washer 5100013421 · qty on machine: 2 view full part page → $1.95
19	5100012696	Lock	1	ADD TO CART
Lock 5100012696 · qty on machine: 1 view full part page → $97.95
20	5100012517	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012517 · qty on machine: 4 view full part page → $1.95
21	5100012966	Locking washer	8	ADD TO CART
Locking washer 5100012966 · qty on machine: 8 view full part page → $1.95
22	5100012546	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 4 view full part page → $1.95
23	5100013588	Lock outside handle	1	ADD TO CART
Lock outside handle 5100013588 · qty on machine: 1 view full part page → $237.95
24	5100013590	Supporting plate	1	ADD TO CART
Supporting plate 5100013590 · qty on machine: 1 view full part page → $5.95
25	5100013589	Supporting plate	1	ADD TO CART
Supporting plate 5100013589 · qty on machine: 1 view full part page → $4.95
26	5100013404	Cheese-head screw	2	PARTS REQUEST
PHOTO COMING Cheese-head screw 5100013404 · qty on machine: 2 PARTS REQUEST
27	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
28	5100012827	Knurled head screw	1	ADD TO CART
Knurled head screw 5100012827 · qty on machine: 1 view full part page → $37.95
29	5100012545	Hexagon nut	1	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 1 view full part page → $1.95
30	5100058744	Holder	1	ADD TO CART
Holder 5100058744 · qty on machine: 1 view full part page → $105.95
31	5100011578	Mushroom head screw	2	ADD TO CART
Mushroom head screw 5100011578 · qty on machine: 2 view full part page → $1.95
32	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
33	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
35	5100050644	Wire clip	1	ADD TO CART
Wire clip 5100050644 · qty on machine: 1 view full part page → $59.95
37	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
38	5100012546	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 4 view full part page → $1.95
40	5100012835	Covering part	1	ADD TO CART
Covering part 5100012835 · qty on machine: 1 view full part page → $1160.95
41	5100013404	Cheese-head screw	2	PARTS REQUEST
PHOTO COMING Cheese-head screw 5100013404 · qty on machine: 2 PARTS REQUEST
42	5100013523	Washer	2	ADD TO CART
Washer 5100013523 · qty on machine: 2 view full part page → $1.95
44	5100013585	Clip nut	2	ADD TO CART
Clip nut 5100013585 · qty on machine: 2 view full part page → $10.95
45	5100011481	Cheese-head screw	2	ADD TO CART
Cheese-head screw 5100011481 · qty on machine: 2 view full part page → $1.95
46	5100013523	Washer	2	ADD TO CART
Washer 5100013523 · qty on machine: 2 view full part page → $1.95
47	5100013029	Bushing	2	ADD TO CART
Bushing 5100013029 · qty on machine: 2 view full part page → $127.95
48	5100013585	Clip nut	2	ADD TO CART
Clip nut 5100013585 · qty on machine: 2 view full part page → $10.95
50	5100013525	Rubber buffer	1	ADD TO CART
Rubber buffer 5100013525 · qty on machine: 1 view full part page → $33.95
51	5100013537	Hexagon nut	1	ADD TO CART
Hexagon nut 5100013537 · qty on machine: 1 view full part page → $1.95
54	5100011919	Gas spring	1	ADD TO CART
Gas spring 5100011919 · qty on machine: 1 view full part page → $315.95
55	5100029582	Holder	1	ADD TO CART
Holder 5100029582 · qty on machine: 1 view full part page → $15.95
56	5100012966	Locking washer	1	ADD TO CART
Locking washer 5100012966 · qty on machine: 1 view full part page → $1.95
57	5100012546	Hexagon nut	1	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 1 view full part page → $1.95
58	5100013094	Washer	1	ADD TO CART
Washer 5100013094 · qty on machine: 1 view full part page → $1.95
59	5100012966	Locking washer	1	ADD TO CART
Locking washer 5100012966 · qty on machine: 1 view full part page → $1.95
60	5100011871	Sealing profile	2.5	ADD TO CART
Sealing profile 5100011871 · qty on machine: 2.5 view full part page → $46.95
120	5100058745	Cover sheet	2	ADD TO CART
Cover sheet 5100058745 · qty on machine: 2 view full part page → $174.95
121	5100012517	Hexagon screw	8	ADD TO CART
Hexagon screw 5100012517 · qty on machine: 8 view full part page → $1.95
122	5100012966	Locking washer	8	ADD TO CART
Locking washer 5100012966 · qty on machine: 8 view full part page → $1.95
210	5100016729	Covering part	1	ADD TO CART
Covering part 5100016729 · qty on machine: 1 view full part page → $490.95
211	5100016199	Cheese-head screw	2	PARTS REQUEST
PHOTO COMING Cheese-head screw 5100016199 · qty on machine: 2 PARTS REQUEST
212	5100013523	Washer	2	ADD TO CART
Washer 5100013523 · qty on machine: 2 view full part page → $1.95
213	5100011544	Clip nut	2	ADD TO CART
Clip nut 5100011544 · qty on machine: 2 view full part page → $6.95
214	5100016820	Cheese-head screw	2	ADD TO CART
Cheese-head screw 5100016820 · qty on machine: 2 view full part page → $18.95
215	5100013523	Washer	2	ADD TO CART
Washer 5100013523 · qty on machine: 2 view full part page → $1.95
216	5100011636	Washer	2	ADD TO CART
Washer 5100011636 · qty on machine: 2 view full part page → $1.95
217	5100013644	Rubber profile	0.4	ADD TO CART
Rubber profile 5100013644 · qty on machine: 0.4 view full part page → $8.95
78	5100011595	Frame	2	ADD TO CART
Frame 5100011595 · qty on machine: 2 view full part page → $20.95
79	5100011580	Blind cover	3	ADD TO CART
Blind cover 5100011580 · qty on machine: 3 view full part page → $10.95
80	5100012647	Covering part	1	ADD TO CART
Covering part 5100012647 · qty on machine: 1 view full part page → $469.95
81	5100011854	Bracket	1	ADD TO CART
Bracket 5100011854 · qty on machine: 1 view full part page → $165.95
82	5100012607	Hexagon screw	1	ADD TO CART
Hexagon screw 5100012607 · qty on machine: 1 view full part page → $1.95
85	5100012648	Covering part	1	ADD TO CART
Covering part 5100012648 · qty on machine: 1 view full part page → $179.95
86	5100011581	Fillister head screw	6	ADD TO CART
Fillister head screw 5100011581 · qty on machine: 6 view full part page → $1.95
90	5100025103	Instrument panel	1	ADD TO CART
Instrument panel 5100025103 · qty on machine: 1 view full part page → $4850.95
91	5100013596	Built-in lock	1	PARTS REQUEST
PHOTO COMING Built-in lock 5100013596 · qty on machine: 1 PARTS REQUEST
92	5100011698	Spacer block	1	ADD TO CART
Spacer block 5100011698 · qty on machine: 1 view full part page → $16.95
93	5100011860	Rubber sleeve	1	ADD TO CART
Rubber sleeve 5100011860 · qty on machine: 1 view full part page → $21.95
94	5100011581	Fillister head screw	7	ADD TO CART
Fillister head screw 5100011581 · qty on machine: 7 view full part page → $1.95
100	5100025100	Covering part	1	ADD TO CART
Covering part 5100025100 · qty on machine: 1 view full part page → $369.95
101	5100012456	Bushing	2	ADD TO CART
Bushing 5100012456 · qty on machine: 2 view full part page → $3.95
102	5100011853	Fillister head screw	2	ADD TO CART
Fillister head screw 5100011853 · qty on machine: 2 view full part page → $1.95
104	5100013537	Hexagon nut	4	ADD TO CART
Hexagon nut 5100013537 · qty on machine: 4 view full part page → $1.95
110	5100012649	Splash protection	1	ADD TO CART
Splash protection 5100012649 · qty on machine: 1 view full part page → $99.95
111	5100012920	Edge protection	0.6	ADD TO CART
Edge protection 5100012920 · qty on machine: 0.6 view full part page → $17.95
115	5100011656	Filler cap	6	ADD TO CART
Filler cap 5100011656 · qty on machine: 6 view full part page → $1.95
130	5100012650	Cover	2	ADD TO CART
Cover 5100012650 · qty on machine: 2 view full part page → $61.95
132	5100012651	Sealing profile	2	ADD TO CART
Sealing profile 5100012651 · qty on machine: 2 view full part page → $9.95
133	5100012592	Hexagon screw	8	ADD TO CART
Hexagon screw 5100012592 · qty on machine: 8 view full part page → $10.95
134	5100012936	Washer	8	ADD TO CART
Washer 5100012936 · qty on machine: 8 view full part page → $2.95
150	5100012881	Cover plate	2	ADD TO CART
Cover plate 5100012881 · qty on machine: 2 view full part page → $34.95
151	5100011634	Sheet metal screw	2	ADD TO CART
Sheet metal screw 5100011634 · qty on machine: 2 view full part page → $1.95
199	5100011550	Plug	2	ADD TO CART
Plug 5100011550 · qty on machine: 2 view full part page → $1.95
70	5100011816	Cover	1	ADD TO CART
Cover 5100011816 · qty on machine: 1 view full part page → $131.95
71	5100013591	Built-in lock	1	ADD TO CART
Built-in lock 5100013591 · qty on machine: 1 view full part page → $255.95
72	5100013647	Sealing profile	0.7	ADD TO CART
Sealing profile 5100013647 · qty on machine: 0.7 view full part page → $24.95
190	5100012659	Cover	1	ADD TO CART
Cover 5100012659 · qty on machine: 1 view full part page → $74.95
191	5100012572	Hexagon screw	3	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 3 PARTS REQUEST
192	5100012965	Locking washer	3	ADD TO CART
Locking washer 5100012965 · qty on machine: 3 view full part page → $2.95
204	5100058746	Filler cap	2	ADD TO CART
Filler cap 5100058746 · qty on machine: 2 view full part page → $1.95

Page 36 — Label arrangement

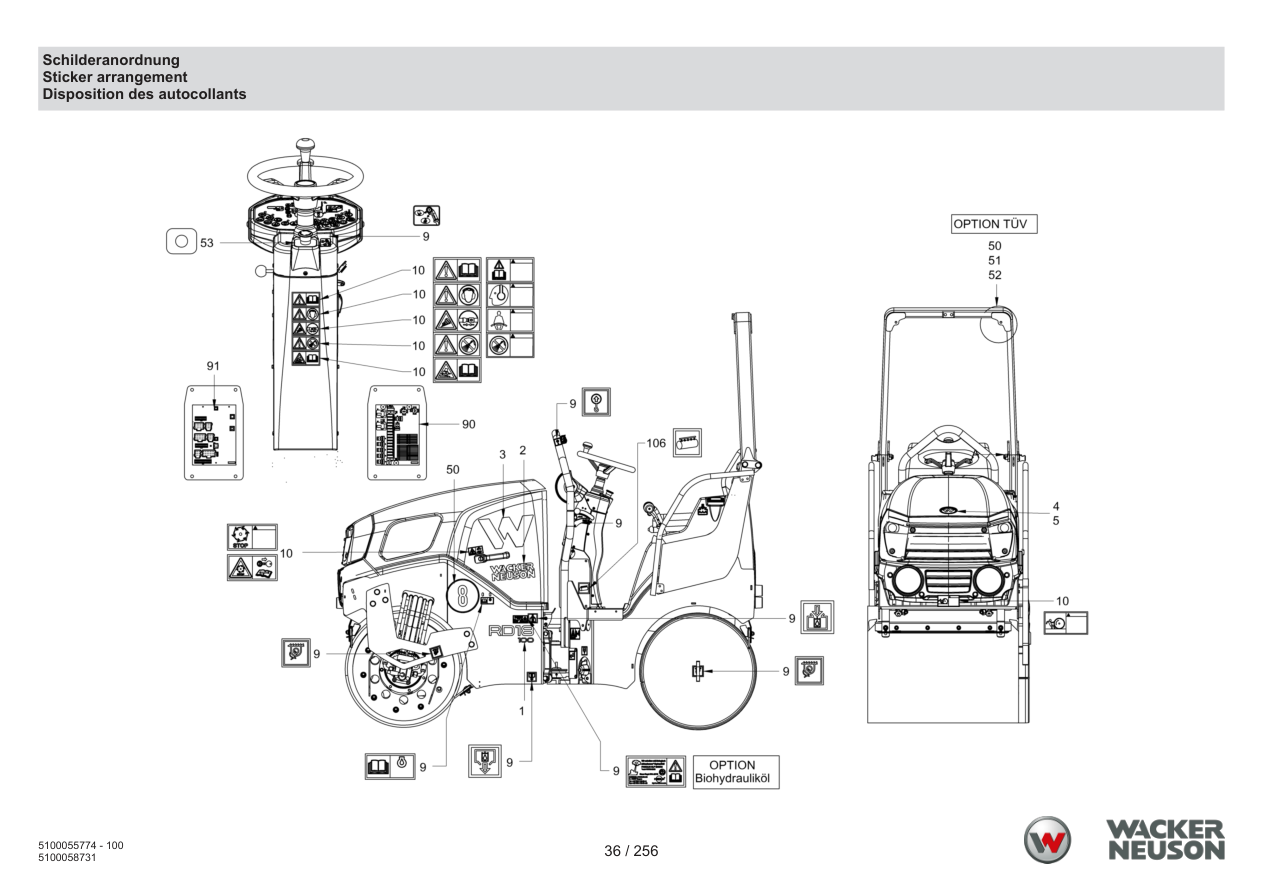

Wacker Neuson RD18-80 Roller Label arrangement parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty
1	5100011886	Type plate rd18-80	2	ADD TO CART
Type plate rd18-80 5100011886 · qty on machine: 2 view full part page → $30.95
1	5100012054	Type plate rd18-100 c	2	ADD TO CART
Type plate rd18-100 c 5100012054 · qty on machine: 2 view full part page → $55.95
1	5100016822	Type plate rd18-100	2	ADD TO CART
Type plate rd18-100 5100016822 · qty on machine: 2 view full part page → $31.95
2	5100029588	Label	2	ADD TO CART
Label 5100029588 · qty on machine: 2 view full part page → $16.95
3	5100029589	Label	2	ADD TO CART
Label 5100029589 · qty on machine: 2 view full part page → $27.95
4	5100016256	Sticker	1	ADD TO CART
Sticker 5100016256 · qty on machine: 1 view full part page → $24.95
5	5100016257	Adhesive tape	1	ADD TO CART
Adhesive tape 5100016257 · qty on machine: 1 view full part page → $12.95
9	5100013209	Decal kit	1	ADD TO CART
Decal kit 5100013209 · qty on machine: 1 view full part page → $95.95
10	5100013207	Decal kit	1	ADD TO CART
Decal kit 5100013207 · qty on machine: 1 view full part page → $48.95
10	5100013208	Decal kit	1	ADD TO CART
Decal kit 5100013208 · qty on machine: 1 view full part page → $52.95
50	5100013420	Sticker	3	ADD TO CART
Sticker 5100013420 · qty on machine: 3 view full part page → $25.95
51	5100011684	Metal plate	1	ADD TO CART
Metal plate 5100011684 · qty on machine: 1 view full part page → $48.95
52	5100013409	Countersunk screw	2	ADD TO CART
Countersunk screw 5100013409 · qty on machine: 2 view full part page → $1.95
53	5100023527	Label	1	ADD TO CART
Label 5100023527 · qty on machine: 1 view full part page → $19.95
90	5100012698	Sticker	1	ADD TO CART
Sticker 5100012698 · qty on machine: 1 view full part page → $14.95
90	5100016500	Sticker	1	ADD TO CART
Sticker 5100016500 · qty on machine: 1 view full part page → $19.95
91	5100012699	Sticker	1	ADD TO CART
Sticker 5100012699 · qty on machine: 1 view full part page → $12.95
106	5100016258	Decal kit	1	ADD TO CART
Decal kit 5100016258 · qty on machine: 1 view full part page → $26.95
105	5100011703	Sticker	1	ADD TO CART
Sticker 5100011703 · qty on machine: 1 view full part page → $15.95

Page 52 — Sound insulation

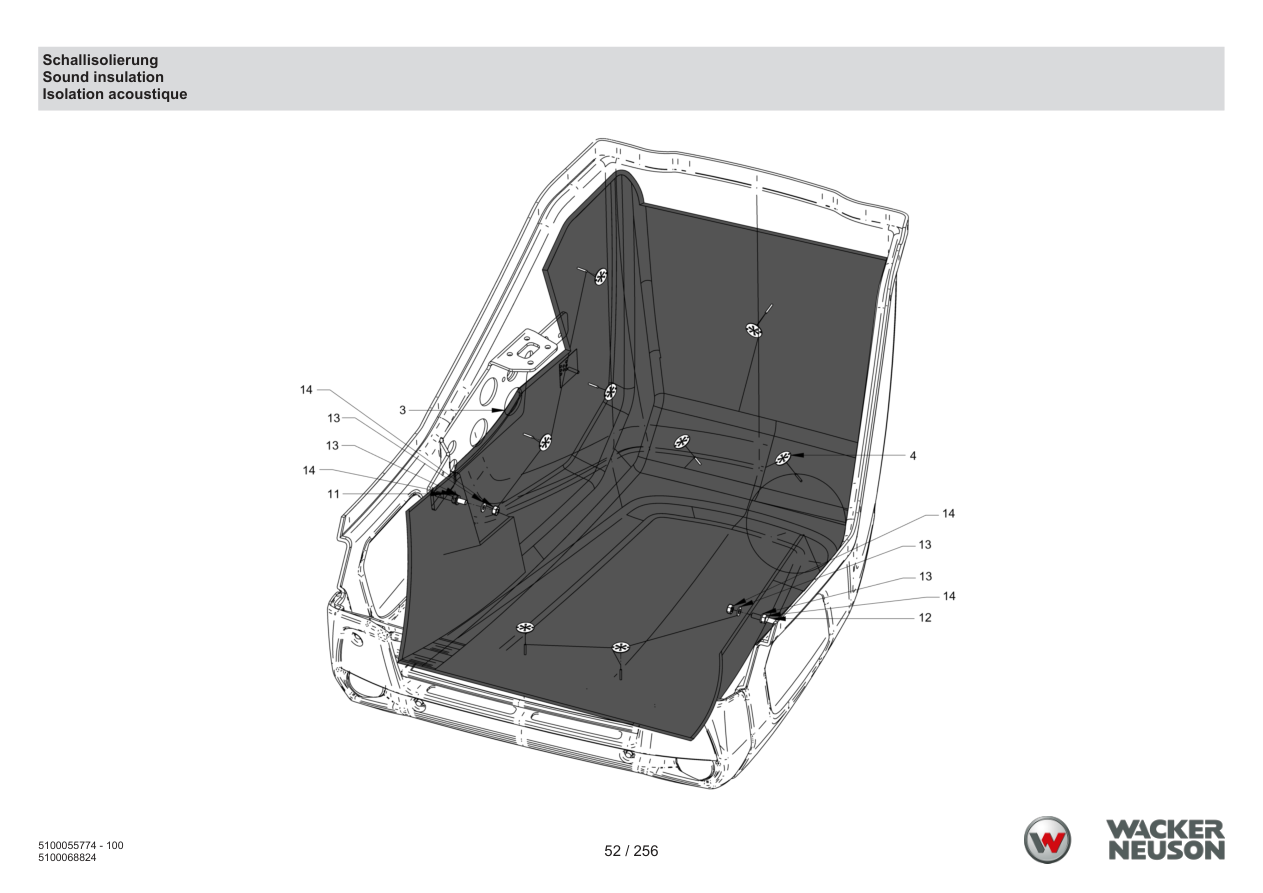

Wacker Neuson RD18-80 Roller Sound insulation parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty
3	5100029580	Insulation	1	ADD TO CART
Insulation 5100029580 · qty on machine: 1 view full part page → $1268.95
4	5100011922	Locking washer	11	ADD TO CART
Locking washer 5100011922 · qty on machine: 11 view full part page → $2.95
11	5100012946	Stud bolt	1	ADD TO CART
Stud bolt 5100012946 · qty on machine: 1 view full part page → $2.95
12	5100012977	Stud bolt	1	ADD TO CART
Stud bolt 5100012977 · qty on machine: 1 view full part page → $3.95
13	5100013421	Washer	4	ADD TO CART
Washer 5100013421 · qty on machine: 4 view full part page → $1.95
14	5100012546	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 4 view full part page → $1.95

Page 54 — Driver seat with adjustment

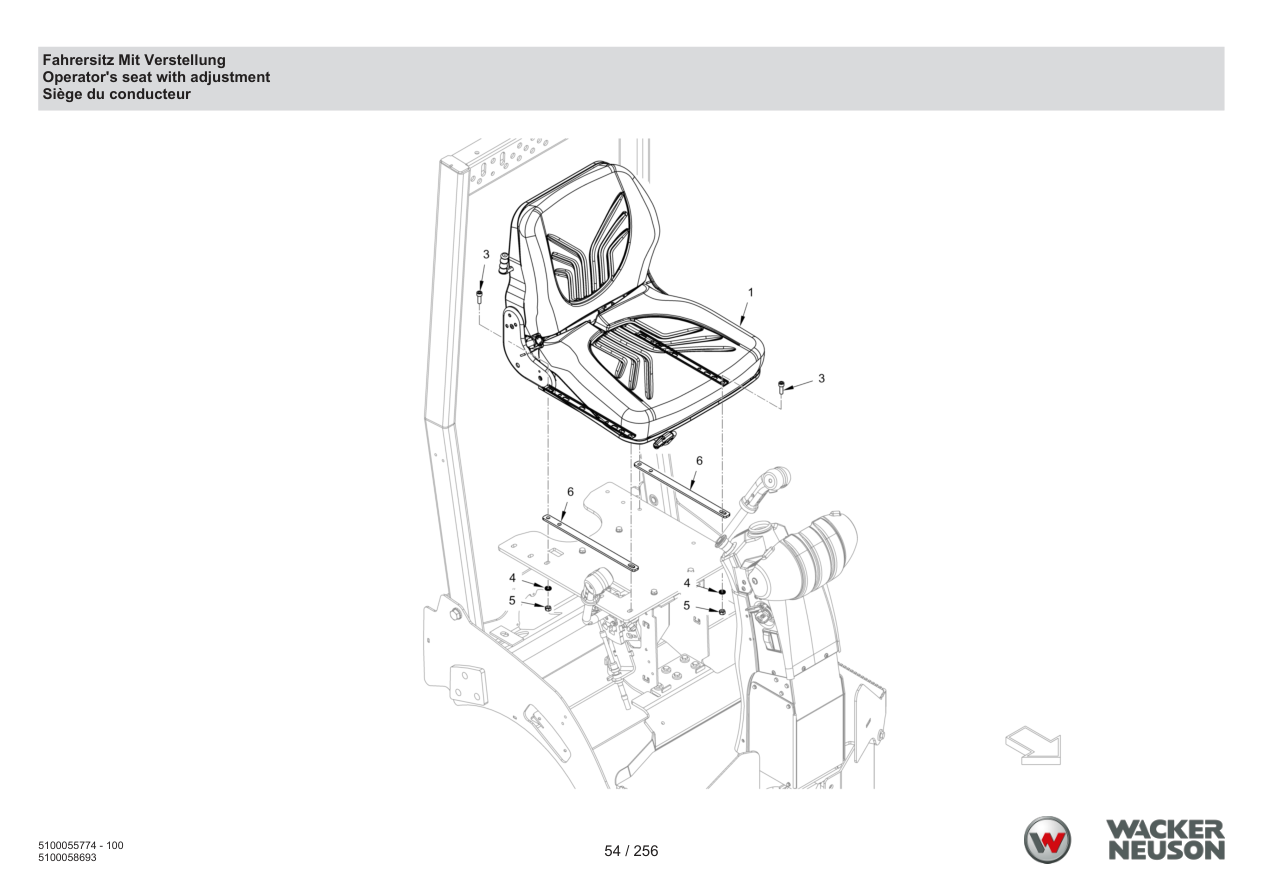

Wacker Neuson RD18-80 Roller Driver seat with adjustment parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty
1	5100033194	Driver's seat	1	ADD TO CART
Driver's seat 5100033194 · qty on machine: 1 view full part page → $1646.95
3	5100012727	Cheese-head screw	4	ADD TO CART
Cheese-head screw 5100012727 · qty on machine: 4 view full part page → $1.95
4	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
5	5100012546	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 4 view full part page → $1.95
6	5100012014	Metal plate	2	ADD TO CART
Metal plate 5100012014 · qty on machine: 2 view full part page → $34.95
1	5100033195	Seat contact switch	1	ADD TO CART
Seat contact switch 5100033195 · qty on machine: 1 view full part page → $856.95
1	5100033196	Seat cushion	1	ADD TO CART
Seat cushion 5100033196 · qty on machine: 1 view full part page → $458.95
1	5100033197	Seat cushion	1	ADD TO CART
Seat cushion 5100033197 · qty on machine: 1 view full part page → $590.95
1	5100033198	Set of adjustment bars	1	ADD TO CART
Set of adjustment bars 5100033198 · qty on machine: 1 view full part page → $444.95
1	5100033199	Lap belt	1	ADD TO CART
Lap belt 5100033199 · qty on machine: 1 view full part page → $432.95
1	5100033200	Maintenance kit wear parts	1	ADD TO CART
Maintenance kit wear parts 5100033200 · qty on machine: 1 view full part page → $91.95
1	5100033201	Adjustment	1	ADD TO CART
Adjustment 5100033201 · qty on machine: 1 view full part page → $634.95
1	5100029584	Driver's seat	1	ADD TO CART
Driver's seat 5100029584 · qty on machine: 1 view full part page → $1854.95
110	5100012306	Protecting plate	1	ADD TO CART
Protecting plate 5100012306 · qty on machine: 1 view full part page → $45.95
111	5100011634	Sheet metal screw	2	ADD TO CART
Sheet metal screw 5100011634 · qty on machine: 2 view full part page → $1.95
2	5100011518	Seat cushion	1	ADD TO CART
Seat cushion 5100011518 · qty on machine: 1 view full part page → $817.95
2	5100011519	Backrest cushion	1	ADD TO CART
Backrest cushion 5100011519 · qty on machine: 1 view full part page → $609.95
2	5100011615	Handle	1	ADD TO CART
Handle 5100011615 · qty on machine: 1 view full part page → $41.95
2	5100012964	Seat contact switch	1	ADD TO CART
Seat contact switch 5100012964 · qty on machine: 1 view full part page → $558.95
2	5100013067	Adjustment bar	1	ADD TO CART
Adjustment bar 5100013067 · qty on machine: 1 view full part page → $688.95
2	5100013083	Adjustment bar	1	ADD TO CART
Adjustment bar 5100013083 · qty on machine: 1 view full part page → $595.95
2	5100029584	Driver's seat	1	ADD TO CART
Driver's seat 5100029584 · qty on machine: 1 view full part page → $1854.95
2	5100033202	Lap belt	1	ADD TO CART
Lap belt 5100033202 · qty on machine: 1 view full part page → $289.95
1	5100011615	Handle	1	ADD TO CART
Handle 5100011615 · qty on machine: 1 view full part page → $41.95
1	5100013067	Adjustment bar	1	ADD TO CART
Adjustment bar 5100013067 · qty on machine: 1 view full part page → $688.95
1	5100013083	Adjustment bar	1	ADD TO CART
Adjustment bar 5100013083 · qty on machine: 1 view full part page → $595.95
1	5100024343	Cushion set	1	ADD TO CART
Cushion set 5100024343 · qty on machine: 1 view full part page → $1664.95
1	5100024920	Seat contact switch	1	ADD TO CART
Seat contact switch 5100024920 · qty on machine: 1 view full part page → $553.95
1	5100029596	Driver's seat	1	ADD TO CART
Driver's seat 5100029596 · qty on machine: 1 view full part page → $4441.95
1	5100033202	Lap belt	1	ADD TO CART
Lap belt 5100033202 · qty on machine: 1 view full part page → $289.95
13	5100013580	Blade fuse	1	ADD TO CART
Blade fuse 5100013580 · qty on machine: 1 view full part page → $1.95
15	5100011579	Switch	1	ADD TO CART
Switch 5100011579 · qty on machine: 1 view full part page → $93.95
16	5100011938	Bogie, seat heating	1	ADD TO CART
Bogie, seat heating 5100011938 · qty on machine: 1 view full part page → $21.95

Page 64 — Rigid roll over protection

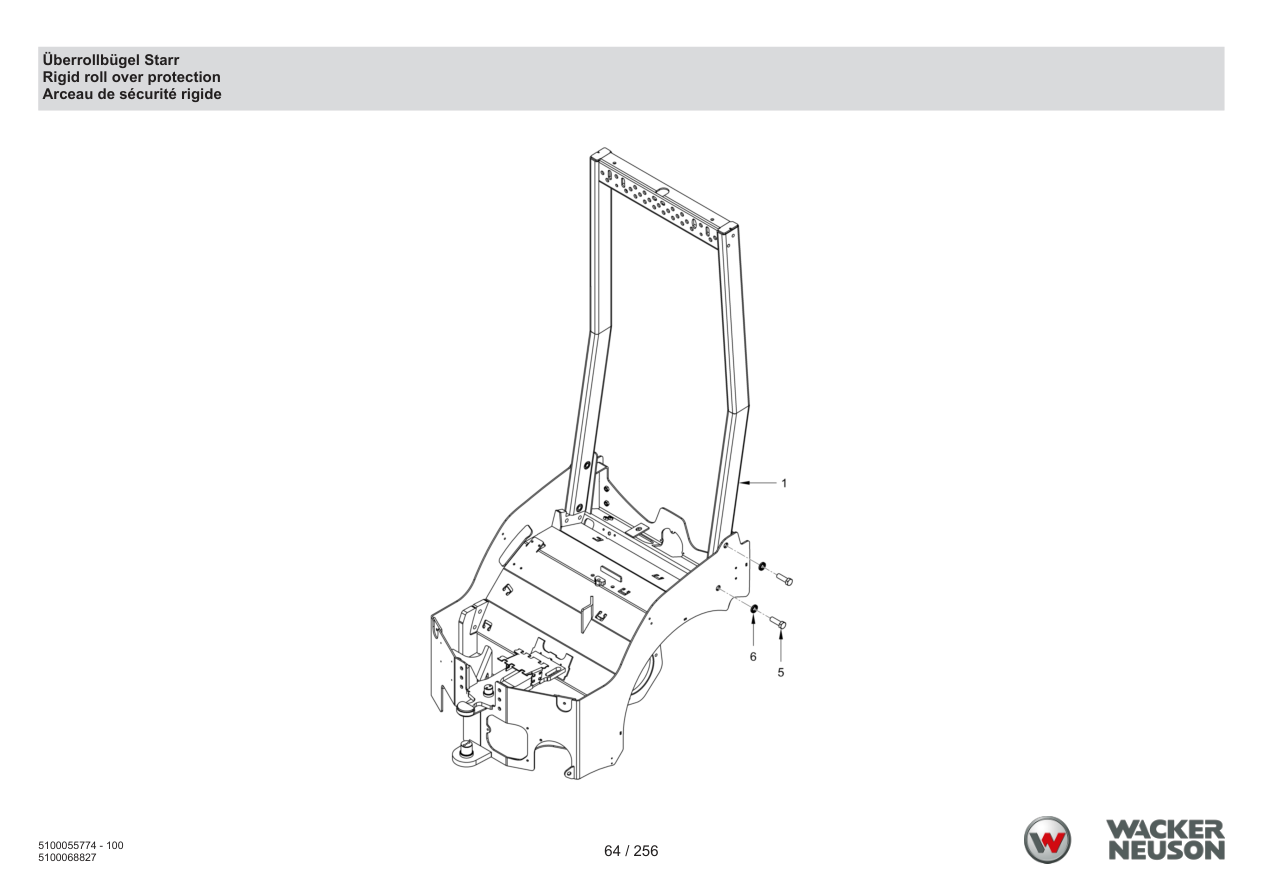

Wacker Neuson RD18-80 Roller Rigid roll over protection parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
1	5100068737	Roll over protection	1	ADD TO CART
Roll over protection 5100068737 · qty on machine: 1 view full part page → $2668.95
5	5100013426	Hexagon screw	3	ADD TO CART
Hexagon screw 5100013426 · qty on machine: 3 view full part page → $4.95
6	5100012969	Locking washer	3	ADD TO CART
Locking washer 5100012969 · qty on machine: 3 view full part page → $2.95

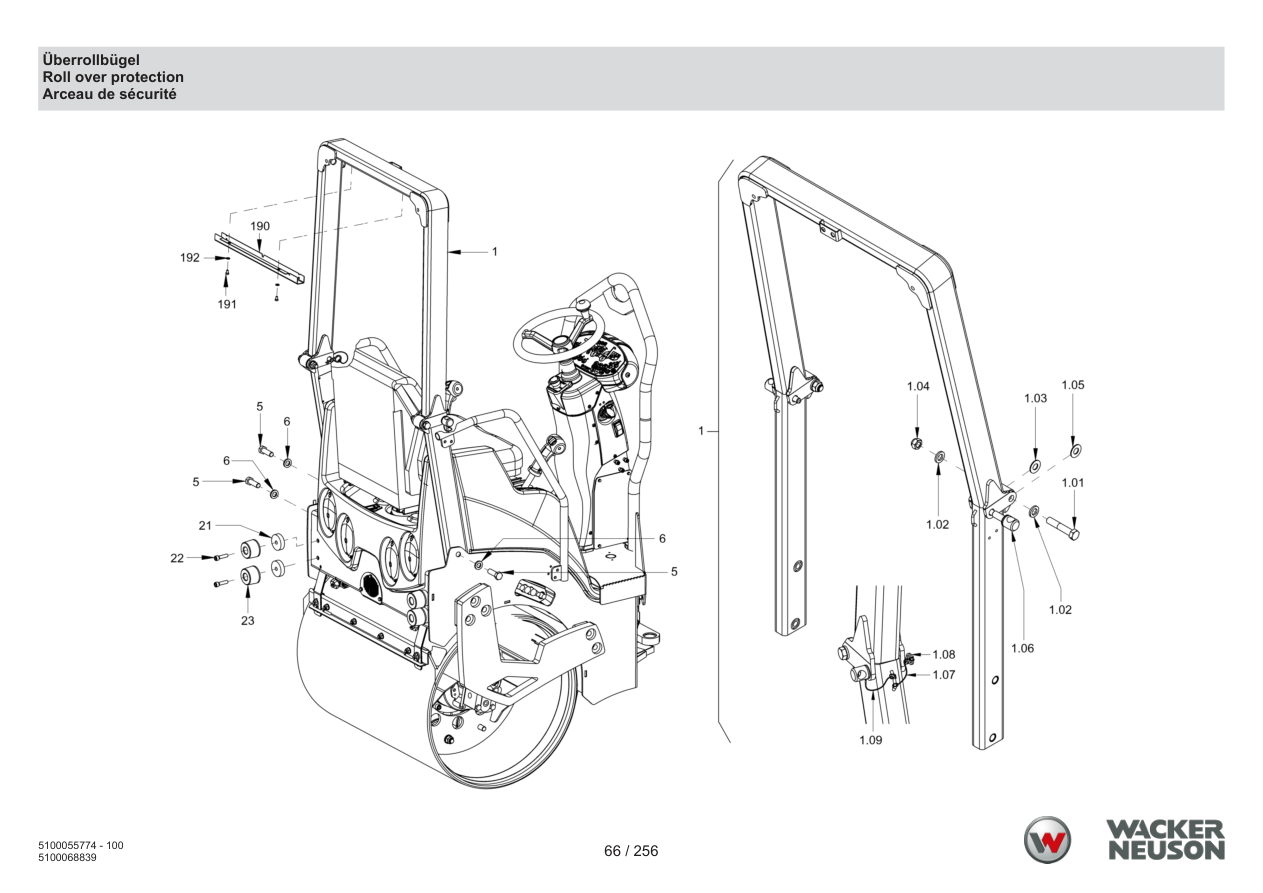

Page 66 — Roll over protection

Wacker Neuson RD18-80 Roller Roll over protection parts diagram

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty
1	5100012194	Washer	2	ADD TO CART
Washer 5100012194 · qty on machine: 2 view full part page → $7.95
1	5100012603	Safety nut	2	ADD TO CART
Safety nut 5100012603 · qty on machine: 2 view full part page → $2.95
1	5100012687	Rops foldable	1	ADD TO CART
Rops foldable 5100012687 · qty on machine: 1 view full part page → $3505.95
1	5100012921	Safety cord	2	PARTS REQUEST
PHOTO COMING Safety cord 5100012921 · qty on machine: 2 PARTS REQUEST
1	5100012969	Locking washer	4	ADD TO CART
Locking washer 5100012969 · qty on machine: 4 view full part page → $2.95
1	5100012987	W-clip	2	ADD TO CART
W-clip 5100012987 · qty on machine: 2 view full part page → $1.95
1	5100012988	Threaded bolt	2	ADD TO CART
Threaded bolt 5100012988 · qty on machine: 2 view full part page → $94.95
1	5100013232	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013232 · qty on machine: 2 view full part page → $7.95
1	5100024289	Washer	2	PARTS REQUEST
PHOTO COMING Washer 5100024289 · qty on machine: 2 PARTS REQUEST
5	5100013426	Hexagon screw	3	ADD TO CART
Hexagon screw 5100013426 · qty on machine: 3 view full part page → $4.95
6	5100012969	Locking washer	3	ADD TO CART
Locking washer 5100012969 · qty on machine: 3 view full part page → $2.95
21	5100012006	Spacer block	4	ADD TO CART
Spacer block 5100012006 · qty on machine: 4 view full part page → $53.95
22	5100011485	Cheese-head screw	4	ADD TO CART
Cheese-head screw 5100011485 · qty on machine: 4 view full part page → $2.95
23	5100011814	Rubber buffer	4	ADD TO CART
Rubber buffer 5100011814 · qty on machine: 4 view full part page → $34.95
190	5100016823	Rail	1	ADD TO CART
Rail 5100016823 · qty on machine: 1 view full part page → $52.95
191	5100012571	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012571 · qty on machine: 2 view full part page → $1.95
192	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95

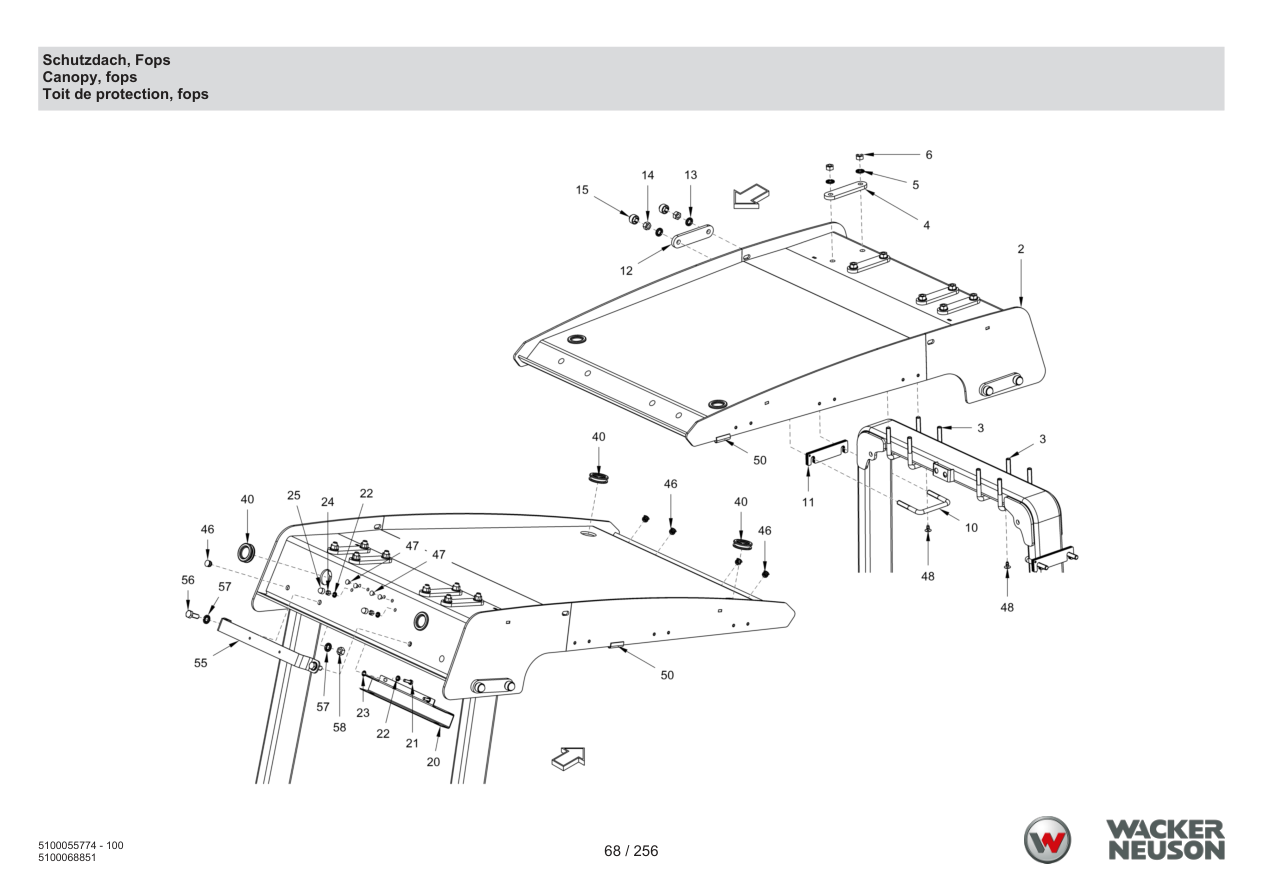

Page 68 — Canopy, fops

Wacker Neuson RD18-80 Roller Canopy, fops parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty
2	5100068749	Roof	1	ADD TO CART
Roof 5100068749 · qty on machine: 1 view full part page → $2635.95
3	5100068761	Strap bolt	4	ADD TO CART
Strap bolt 5100068761 · qty on machine: 4 view full part page → $227.95
4	5100068773	Plate	4	ADD TO CART
Plate 5100068773 · qty on machine: 4 view full part page → $39.95
5	5100012967	Locking washer	8	ADD TO CART
Locking washer 5100012967 · qty on machine: 8 view full part page → $1.95
6	5100012547	Hexagon nut	8	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 8 view full part page → $1.95
10	5100068761	Strap bolt	2	ADD TO CART
Strap bolt 5100068761 · qty on machine: 2 view full part page → $227.95
11	5100068785	Distance sheet	8	ADD TO CART
Distance sheet 5100068785 · qty on machine: 8 view full part page → $19.95
12	5100068773	Plate	2	ADD TO CART
Plate 5100068773 · qty on machine: 2 view full part page → $39.95
13	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
14	5100012547	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
15	5100035325	Protective cap	4	ADD TO CART
Protective cap 5100035325 · qty on machine: 4 view full part page → $1.95
20	5100068797	Rail	1	ADD TO CART
Rail 5100068797 · qty on machine: 1 view full part page → $41.95
21	5100012608	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012608 · qty on machine: 2 view full part page → $1.95
22	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
23	5100016825	Locking washer	2	ADD TO CART
Locking washer 5100016825 · qty on machine: 2 view full part page → $1.95
24	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
25	5100011577	Protecting cap	2	ADD TO CART
Protecting cap 5100011577 · qty on machine: 2 view full part page → $2.95
40	5100034805	Cable support sleeve	4	ADD TO CART
Cable support sleeve 5100034805 · qty on machine: 4 view full part page → $13.95
46	5100050646	Filler cap	6	ADD TO CART
Filler cap 5100050646 · qty on machine: 6 view full part page → $1.95
47	5100013530	Filler cap	4	ADD TO CART
Filler cap 5100013530 · qty on machine: 4 view full part page → $1.95
48	5100011550	Plug	2	ADD TO CART
Plug 5100011550 · qty on machine: 2 view full part page → $1.95
50	5100013412	Edge protection	1.5	ADD TO CART
Edge protection 5100013412 · qty on machine: 1.5 view full part page → $20.95
55	5100068809	Metal plate	1	ADD TO CART
Metal plate 5100068809 · qty on machine: 1 view full part page → $64.95
56	5100011479	Hexagon screw	2	ADD TO CART
Hexagon screw 5100011479 · qty on machine: 2 view full part page → $1.95
57	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
58	5100012547	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 2 view full part page → $1.95

Page 70 — Engine and pump assembly

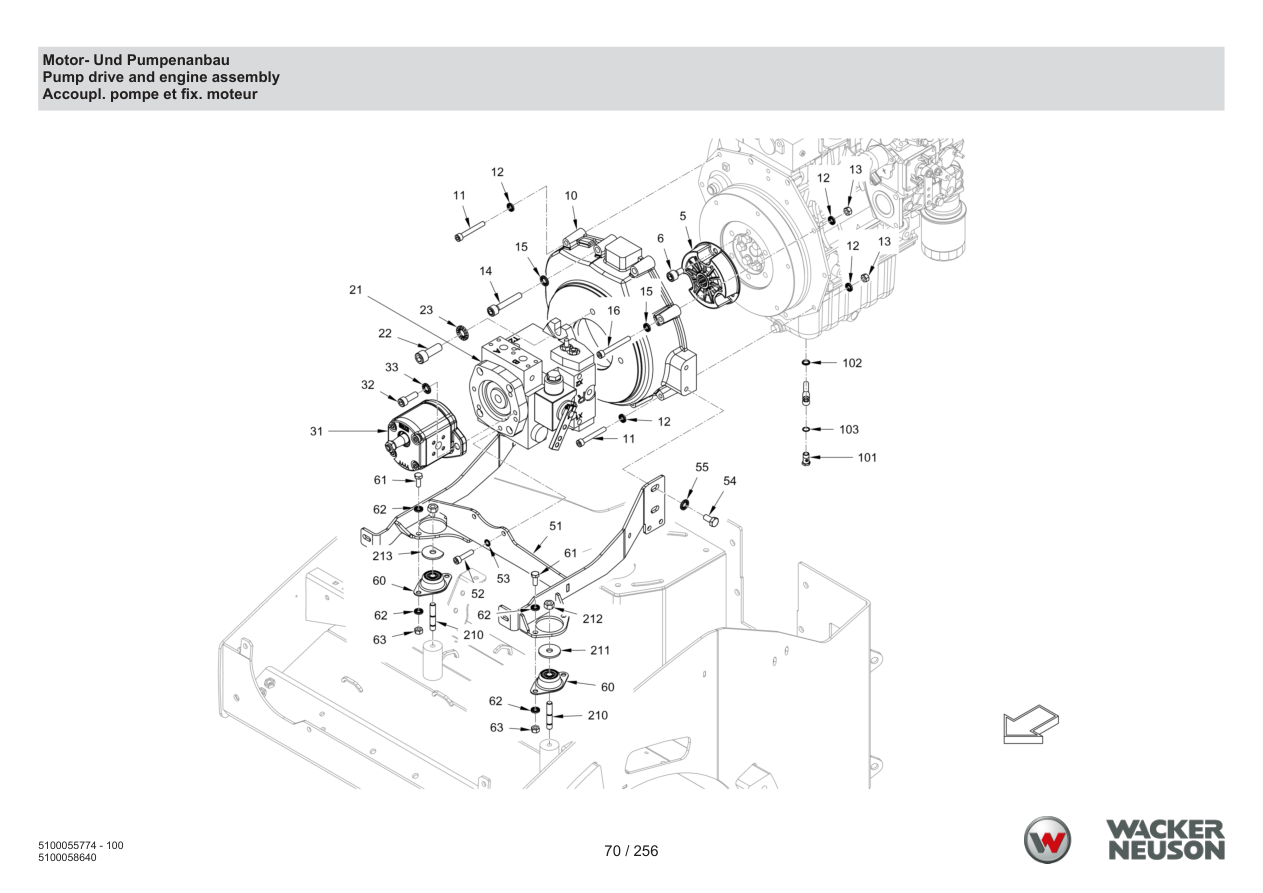

Wacker Neuson RD18-80 Roller Engine and pump assembly parts diagram

Parts list — exactly as printed79 rows

No.	Part No.	Part Name	Qty
5	5100058747	Coupling	1	ADD TO CART
Coupling 5100058747 · qty on machine: 1 view full part page → $270.95
6	5100058748	Cheese-head screw	3	ADD TO CART
Cheese-head screw 5100058748 · qty on machine: 3 view full part page → $9.95
10	5100012668	Flange	1	ADD TO CART
Flange 5100012668 · qty on machine: 1 view full part page → $898.95
11	5100013512	Cheese-head screw	7	ADD TO CART
Cheese-head screw 5100013512 · qty on machine: 7 view full part page → $1.95
12	5100012966	Locking washer	10	ADD TO CART
Locking washer 5100012966 · qty on machine: 10 view full part page → $1.95
13	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
14	5100012672	Cheese-head screw	2	ADD TO CART
Cheese-head screw 5100012672 · qty on machine: 2 view full part page → $3.95
15	5100012967	Locking washer	2	ADD TO CART
Locking washer 5100012967 · qty on machine: 2 view full part page → $1.95
16	5100011480	Cheese-head screw	1	ADD TO CART
Cheese-head screw 5100011480 · qty on machine: 1 view full part page → $2.95

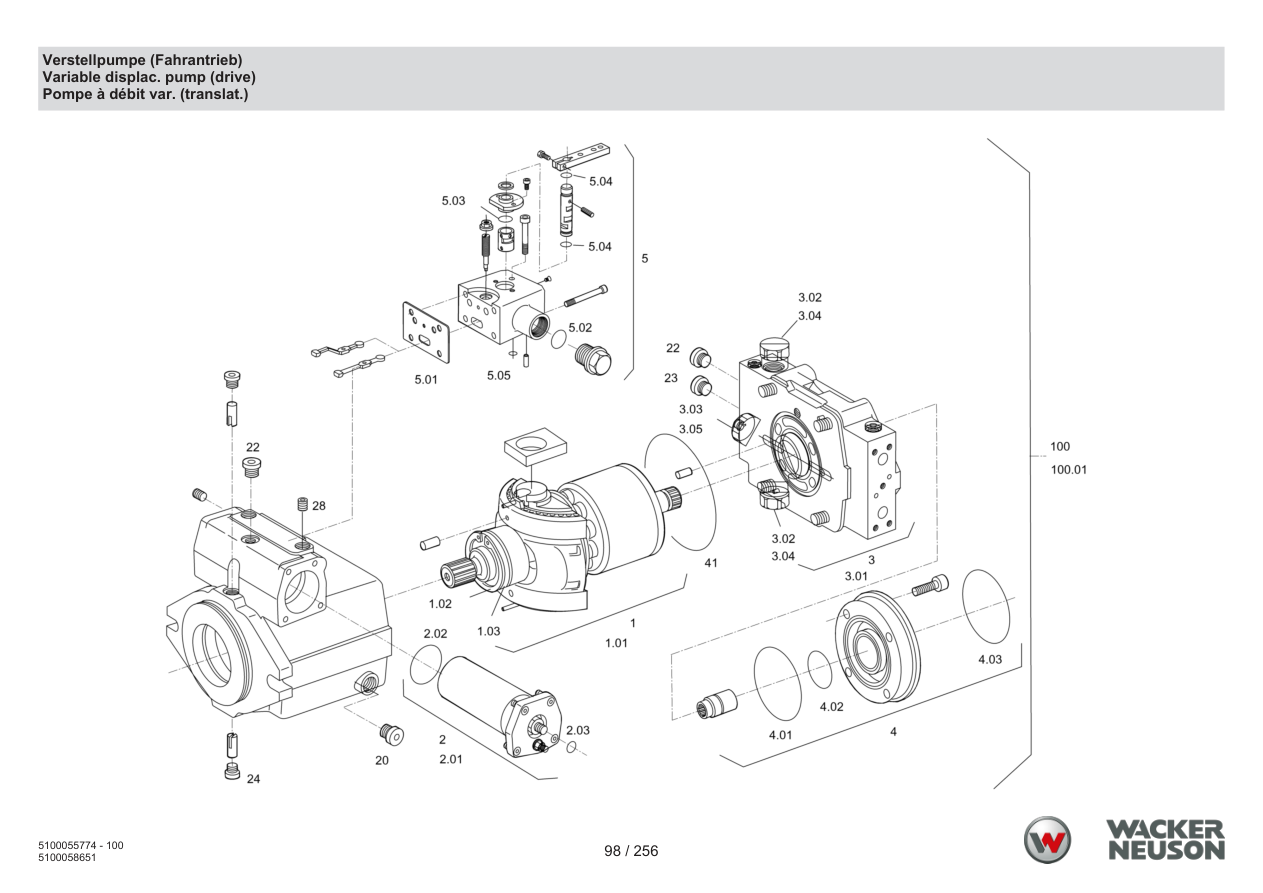

21	5100011769	Variable displac. pump (drive)	1	PARTS REQUEST
PHOTO COMING Variable displac. pump (drive) 5100011769 · qty on machine: 1 PARTS REQUEST
22	5100013425	Cheese-head screw	2	ADD TO CART
Cheese-head screw 5100013425 · qty on machine: 2 view full part page → $6.95
23	5100012972	Locking washer	2	ADD TO CART
Locking washer 5100012972 · qty on machine: 2 view full part page → $1.95
31	5100011678	Gear pump	1	ADD TO CART
Gear pump 5100011678 · qty on machine: 1 view full part page → $836.95
32	5100013450	Cheese-head screw	2	ADD TO CART
Cheese-head screw 5100013450 · qty on machine: 2 view full part page → $1.95
33	5100012967	Locking washer	2	ADD TO CART
Locking washer 5100012967 · qty on machine: 2 view full part page → $1.95
51	5100012313	Engine suspension	1	ADD TO CART
Engine suspension 5100012313 · qty on machine: 1 view full part page → $442.95
52	5100013511	Cheese-head screw	2	ADD TO CART
Cheese-head screw 5100013511 · qty on machine: 2 view full part page → $1.95
53	5100013441	Locking washer	2	ADD TO CART
Locking washer 5100013441 · qty on machine: 2 view full part page → $1.95
54	5100012520	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 4 view full part page → $1.95
55	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
60	5100012181	Rubber metal buffer	2	ADD TO CART
Rubber metal buffer 5100012181 · qty on machine: 2 view full part page → $76.95
61	5100012517	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012517 · qty on machine: 4 view full part page → $1.95
62	5100012966	Locking washer	8	ADD TO CART
Locking washer 5100012966 · qty on machine: 8 view full part page → $1.95
63	5100012546	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 4 view full part page → $1.95
101	5100013210	Hollow-core screw	1	ADD TO CART
Hollow-core screw 5100013210 · qty on machine: 1 view full part page → $12.95
102	5100011468	Sealing ring	1	ADD TO CART
Sealing ring 5100011468 · qty on machine: 1 view full part page → $10.95
103	5100013004	Sealing ring	1	ADD TO CART
Sealing ring 5100013004 · qty on machine: 1 view full part page → $2.95
210	5100048692	Stud screw	2	ADD TO CART
Stud screw 5100048692 · qty on machine: 2 view full part page → $4.95
211	5100011824	Washer	1	ADD TO CART
Washer 5100011824 · qty on machine: 1 view full part page → $1.95
212	5100012547	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 2 view full part page → $1.95
213	5100012347	Washer	1	ADD TO CART
Washer 5100012347 · qty on machine: 1 view full part page → $5.95
3	5100058629	Diesel engine	1	PARTS REQUEST
PHOTO COMING Diesel engine 5100058629 · qty on machine: 1 PARTS REQUEST
71	5100012338	Bracket	1	ADD TO CART
Bracket 5100012338 · qty on machine: 1 view full part page → $80.95
73	5100012553	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012553 · qty on machine: 4 view full part page → $4.95
74	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
104	5100012816	Flexible tubing	1	PARTS REQUEST
PHOTO COMING Flexible tubing 5100012816 · qty on machine: 1 PARTS REQUEST
150	5100016824	Protective housing	1	ADD TO CART
Protective housing 5100016824 · qty on machine: 1 view full part page → $398.95
151	5100012533	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012533 · qty on machine: 2 view full part page → $1.95
152	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
153	5100012517	Hexagon screw	1	ADD TO CART
Hexagon screw 5100012517 · qty on machine: 1 view full part page → $1.95
154	5100013094	Washer	2	ADD TO CART
Washer 5100013094 · qty on machine: 2 view full part page → $1.95
155	5100013230	Locking washer	1	ADD TO CART
Locking washer 5100013230 · qty on machine: 1 view full part page → $1.95
158	5100016825	Locking washer	2	ADD TO CART
Locking washer 5100016825 · qty on machine: 2 view full part page → $1.95
230	5100012339	Bracket	1	ADD TO CART
Bracket 5100012339 · qty on machine: 1 view full part page → $112.95
231	5100012617	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012617 · qty on machine: 4 view full part page → $2.95
232	5100012967	Locking washer	8	ADD TO CART
Locking washer 5100012967 · qty on machine: 8 view full part page → $1.95
233	5100012547	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
235	5100012235	Cap nut	1	ADD TO CART
Cap nut 5100012235 · qty on machine: 1 view full part page → $2.95
236	5100013555	Filler cap	1	ADD TO CART
Filler cap 5100013555 · qty on machine: 1 view full part page → $3.95
237	5100013486	Bulkhead elbow	1	ADD TO CART
Bulkhead elbow 5100013486 · qty on machine: 1 view full part page → $40.95
238	5100013191	Washer	1	ADD TO CART
Washer 5100013191 · qty on machine: 1 view full part page → $1.95
239	5100013488	Hexagon nut	1	ADD TO CART
Hexagon nut 5100013488 · qty on machine: 1 view full part page → $4.95
241	5100012209	Silentbloc	1	ADD TO CART
Silentbloc 5100012209 · qty on machine: 1 view full part page → $160.95
242	5100012513	Hexagon screw	1	ADD TO CART
Hexagon screw 5100012513 · qty on machine: 1 view full part page → $3.95
243	5100012968	Locking washer	1	ADD TO CART
Locking washer 5100012968 · qty on machine: 1 view full part page → $1.95
244	5100012548	Hexagon nut	1	ADD TO CART
Hexagon nut 5100012548 · qty on machine: 1 view full part page → $4.95
245	5100012212	Washer	1	ADD TO CART
Washer 5100012212 · qty on machine: 1 view full part page → $3.95
246	5100012617	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012617 · qty on machine: 2 view full part page → $2.95
247	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
248	5100012547	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 2 view full part page → $1.95
1	5100012689	Starter	1	ADD TO CART
Starter 5100012689 · qty on machine: 1 view full part page → $1936.95
2	5100012701	Alternator	1	PARTS REQUEST
PHOTO COMING Alternator 5100012701 · qty on machine: 1 PARTS REQUEST
3	5100012807	Engine oil pressure switch	1	ADD TO CART
Engine oil pressure switch 5100012807 · qty on machine: 1 view full part page → $315.95
4	5100013444	V-belt	1	ADD TO CART
V-belt 5100013444 · qty on machine: 1 view full part page → $49.95
5	5100012892	Filter cartridge, lubric. oil	1	ADD TO CART
Filter cartridge, lubric. oil 5100012892 · qty on machine: 1 view full part page → $52.95
6	5100012861	Temperature switch, engine oil	1	ADD TO CART
Temperature switch, engine oil 5100012861 · qty on machine: 1 view full part page → $863.95
7	5100029560	Seal, valve cover	1	ADD TO CART
Seal, valve cover 5100029560 · qty on machine: 1 view full part page → $84.95
8	5100012857	Oil dipstick	1	ADD TO CART
Oil dipstick 5100012857 · qty on machine: 1 view full part page → $215.95
9	5100012856	Cover	2	ADD TO CART
Cover 5100012856 · qty on machine: 2 view full part page → $36.95
10	5100013396	O-ring seal	2	ADD TO CART
O-ring seal 5100013396 · qty on machine: 2 view full part page → $21.95
11	5100012858	Solenoid coil	1	ADD TO CART
Solenoid coil 5100012858 · qty on machine: 1 view full part page → $1623.95
12	5100058630	Water pump	1	ADD TO CART
Water pump 5100058630 · qty on machine: 1 view full part page → $706.95
13	5100012859	Seal	1	ADD TO CART
Seal 5100012859 · qty on machine: 1 view full part page → $83.95
14	5100012862	Thermostat	1	ADD TO CART
Thermostat 5100012862 · qty on machine: 1 view full part page → $361.95
15	5100012863	Seal	1	ADD TO CART
Seal 5100012863 · qty on machine: 1 view full part page → $22.95
17	5100013395	Screw plug	1	ADD TO CART
Screw plug 5100013395 · qty on machine: 1 view full part page → $12.95
18	5100013394	Seal	1	PARTS REQUEST
PHOTO COMING Seal 5100013394 · qty on machine: 1 PARTS REQUEST
19	5100013398	Seal	1	ADD TO CART
Seal 5100013398 · qty on machine: 1 view full part page → $61.95
100	5100058629	Diesel engine	1	PARTS REQUEST
PHOTO COMING Diesel engine 5100058629 · qty on machine: 1 PARTS REQUEST

Page 76 — Fuel system

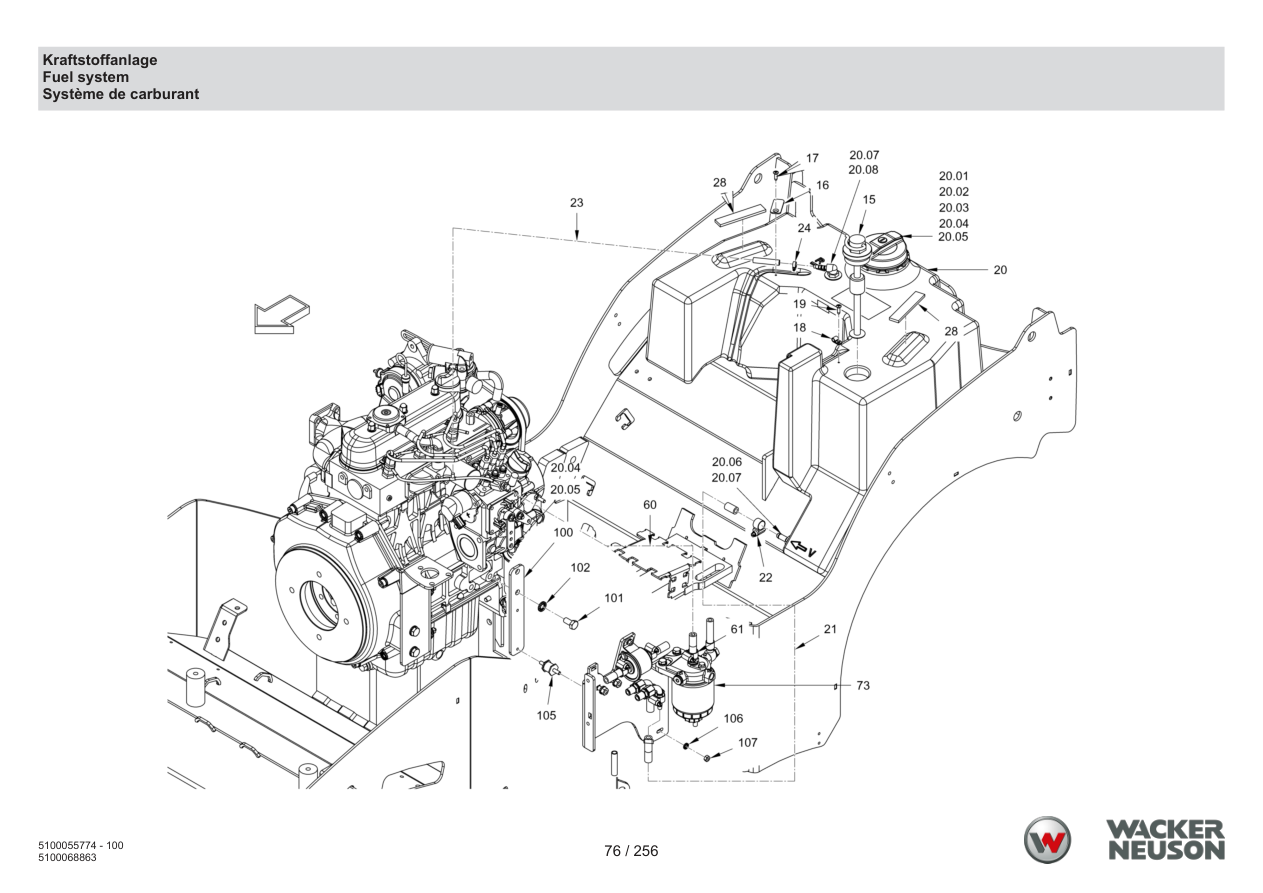

Wacker Neuson RD18-80 Roller Fuel system parts diagram

Parts list — exactly as printed57 rows

No.	Part No.	Part Name	Qty
15	5100012846	Fuel gauge	1	ADD TO CART
Fuel gauge 5100012846 · qty on machine: 1 view full part page → $496.95
16	5100011728	Metal plate	1	ADD TO CART
Metal plate 5100011728 · qty on machine: 1 view full part page → $9.95
17	5100011902	Sheet metal screw	1	ADD TO CART
Sheet metal screw 5100011902 · qty on machine: 1 view full part page → $1.95
18	5100013491	Mounting clip	1	ADD TO CART
Mounting clip 5100013491 · qty on machine: 1 view full part page → $1.95
19	5100011902	Sheet metal screw	1	ADD TO CART
Sheet metal screw 5100011902 · qty on machine: 1 view full part page → $1.95
20	5100013557	Key	1	ADD TO CART
Key 5100013557 · qty on machine: 1 view full part page → $18.95
20	5100012697	Fuel tank	1	ADD TO CART
Fuel tank 5100012697 · qty on machine: 1 view full part page → $610.95
20	5100012504	O-ring seal	1	ADD TO CART
O-ring seal 5100012504 · qty on machine: 1 view full part page → $45.95
20	5100012099	O-ring seal	2	ADD TO CART
O-ring seal 5100012099 · qty on machine: 2 view full part page → $8.95
20	5100012050	Angle screwed socket	1	ADD TO CART
Angle screwed socket 5100012050 · qty on machine: 1 view full part page → $20.95
20	5100012049	Straight screwed socket	1	ADD TO CART
Straight screwed socket 5100012049 · qty on machine: 1 view full part page → $37.95
20	5100012034	Threaded insert	1	PARTS REQUEST
PHOTO COMING Threaded insert 5100012034 · qty on machine: 1 PARTS REQUEST
20	5100011990	Strainer	1	ADD TO CART
Strainer 5100011990 · qty on machine: 1 view full part page → $36.95
20	5100011829	Tank cap, with lock	1	ADD TO CART
Tank cap, with lock 5100011829 · qty on machine: 1 view full part page → $218.95
21	5100013216	Flexible tubing	1.5	ADD TO CART
Flexible tubing 5100013216 · qty on machine: 1.5 view full part page → $25.95
22	5100013179	Hose clip	2	ADD TO CART
Hose clip 5100013179 · qty on machine: 2 view full part page → $5.95
23	5100013640	Flexible tubing	2.35	ADD TO CART
Flexible tubing 5100013640 · qty on machine: 2.35 view full part page → $90.95
24	5100013540	Pipe clip	2	ADD TO CART
Pipe clip 5100013540 · qty on machine: 2 view full part page → $4.95
28	5100013644	Rubber profile	1.5	ADD TO CART
Rubber profile 5100013644 · qty on machine: 1.5 view full part page → $8.95
60	5100013216	Flexible tubing	0.24	ADD TO CART
Flexible tubing 5100013216 · qty on machine: 0.24 view full part page → $25.95
61	5100013179	Hose clip	2	ADD TO CART
Hose clip 5100013179 · qty on machine: 2 view full part page → $5.95
73	5100068821	Fuel filter	1	ADD TO CART
Fuel filter 5100068821 · qty on machine: 1 view full part page → $1212.95
100	5100068736	Holder	1	ADD TO CART
Holder 5100068736 · qty on machine: 1 view full part page → $53.95
101	5100012551	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012551 · qty on machine: 2 view full part page → $5.95
102	5100012967	Locking washer	2	ADD TO CART
Locking washer 5100012967 · qty on machine: 2 view full part page → $1.95
105	5100012919	Silentbloc	2	ADD TO CART
Silentbloc 5100012919 · qty on machine: 2 view full part page → $16.95
106	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
107	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
30	5100068727	Holder	1	ADD TO CART
Holder 5100068727 · qty on machine: 1 view full part page → $152.95
31	5100012925	Fuel filter	1	ADD TO CART
Fuel filter 5100012925 · qty on machine: 1 view full part page → $243.95
32	5100012780	Mushroom head screw	2	ADD TO CART
Mushroom head screw 5100012780 · qty on machine: 2 view full part page → $1.95
33	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
34	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
35	5100011461	Straight screwed socket	2	ADD TO CART
Straight screwed socket 5100011461 · qty on machine: 2 view full part page → $3.95
36	5100011664	Hose fitting	2	ADD TO CART
Hose fitting 5100011664 · qty on machine: 2 view full part page → $19.95
37	5100013216	Flexible tubing	0.5	ADD TO CART
Flexible tubing 5100013216 · qty on machine: 0.5 view full part page → $25.95
38	5100013179	Hose clip	4	ADD TO CART
Hose clip 5100013179 · qty on machine: 4 view full part page → $5.95
45	5100023485	Fuel pump	1	ADD TO CART
Fuel pump 5100023485 · qty on machine: 1 view full part page → $829.95
46	5100012931	Mushroom head screw	2	ADD TO CART
Mushroom head screw 5100012931 · qty on machine: 2 view full part page → $1.95
47	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
48	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
49	5100012623	Flexible tubing	1	PARTS REQUEST
PHOTO COMING Flexible tubing 5100012623 · qty on machine: 1 PARTS REQUEST
50	5100012227	Hollow-core screw	1	ADD TO CART
Hollow-core screw 5100012227 · qty on machine: 1 view full part page → $7.95
51	5100013000	Sealing ring	2	ADD TO CART
Sealing ring 5100013000 · qty on machine: 2 view full part page → $1.95
52	5100012460	Filter head	1	ADD TO CART
Filter head 5100012460 · qty on machine: 1 view full part page → $300.95
53	5100029554	Fuel filter	1	ADD TO CART
Fuel filter 5100029554 · qty on machine: 1 view full part page → $53.95
54	5100012613	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012613 · qty on machine: 2 view full part page → $1.95
55	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
58	5100012457	Hose nozzle	1	ADD TO CART
Hose nozzle 5100012457 · qty on machine: 1 view full part page → $28.95
59	5100013000	Sealing ring	1	ADD TO CART
Sealing ring 5100013000 · qty on machine: 1 view full part page → $1.95
62	5100013405	Screw plug	1	ADD TO CART
Screw plug 5100013405 · qty on machine: 1 view full part page → $2.95
63	5100013000	Sealing ring	1	ADD TO CART
Sealing ring 5100013000 · qty on machine: 1 view full part page → $1.95
65	5100012571	Hexagon screw	1	ADD TO CART
Hexagon screw 5100012571 · qty on machine: 1 view full part page → $1.95
66	5100013502	Sealing ring	1	ADD TO CART
Sealing ring 5100013502 · qty on machine: 1 view full part page → $1.95
70	5100012593	Flexible tubing	1	PARTS REQUEST
PHOTO COMING Flexible tubing 5100012593 · qty on machine: 1 PARTS REQUEST
80	5100013520	Wire fastener	2	ADD TO CART
Wire fastener 5100013520 · qty on machine: 2 view full part page → $2.95
100	5100068821	Fuel filter	1	ADD TO CART
Fuel filter 5100068821 · qty on machine: 1 view full part page → $1212.95

Page 80 — Fuel Filter

Wacker Neuson RD18-80 Roller Fuel Filter parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty
1	5100012926	Filter head	1	PARTS REQUEST
PHOTO COMING Filter head 5100012926 · qty on machine: 1 PARTS REQUEST
2	5100012927	Sealing washer	1	ADD TO CART
Sealing washer 5100012927 · qty on machine: 1 view full part page → $62.95
2	5100029562	Filter cartridge	1	ADD TO CART
Filter cartridge 5100029562 · qty on machine: 1 view full part page → $83.95
3	5100012929	O-ring seal	1	ADD TO CART
O-ring seal 5100012929 · qty on machine: 1 view full part page → $82.95
4	5100012930	Filter housing	1	ADD TO CART
Filter housing 5100012930 · qty on machine: 1 view full part page → $329.95
5	5100012244	Discharge valve	1	ADD TO CART
Discharge valve 5100012244 · qty on machine: 1 view full part page → $199.95
31	5100012925	Fuel filter	1	ADD TO CART
Fuel filter 5100012925 · qty on machine: 1 view full part page → $243.95
52	5100012460	Filter head	1	ADD TO CART
Filter head 5100012460 · qty on machine: 1 view full part page → $300.95
53	5100029554	Fuel filter	1	ADD TO CART
Fuel filter 5100029554 · qty on machine: 1 view full part page → $53.95

Page 82 — Engine control

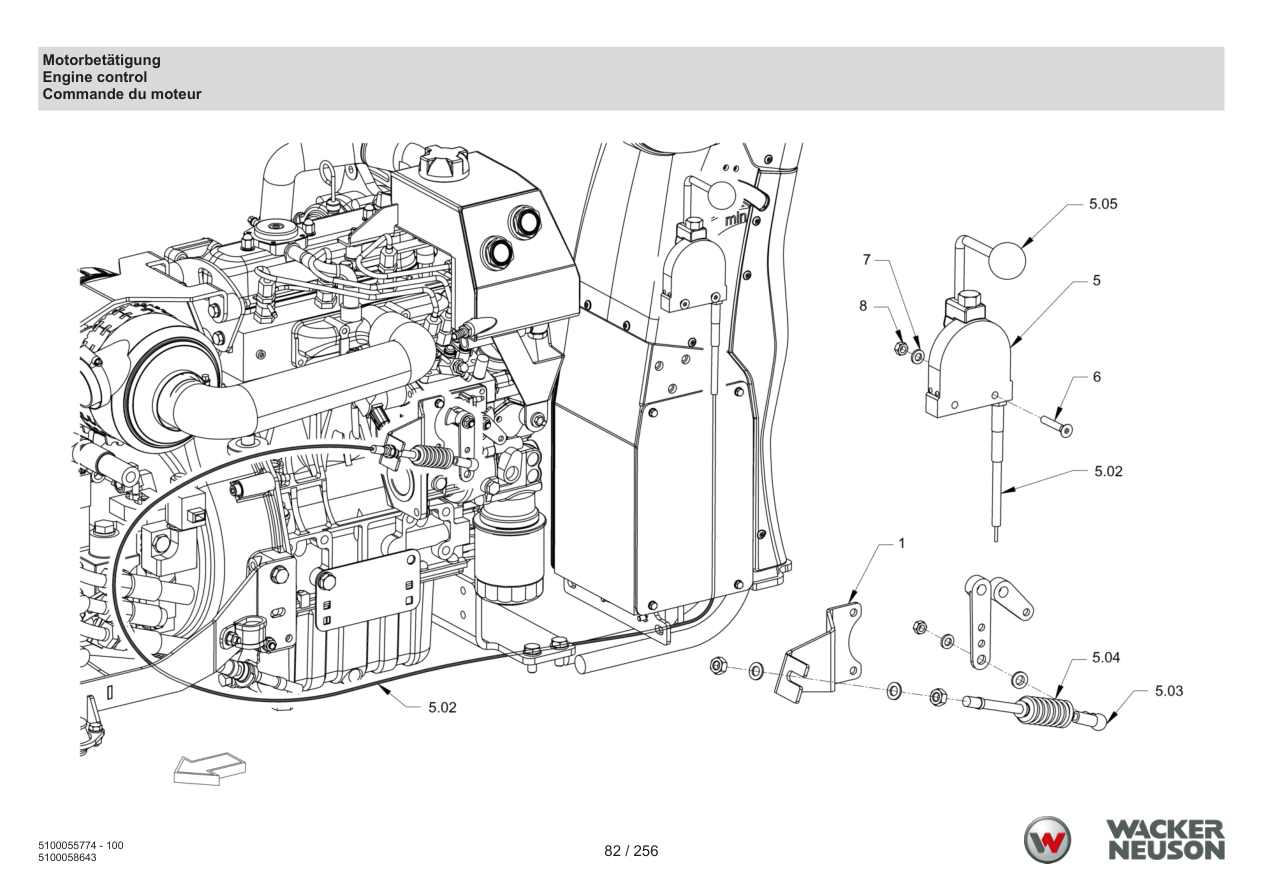

Wacker Neuson RD18-80 Roller Engine control parts diagram

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty	Remarks
1	5100012322	Bracket	1		ADD TO CART
Bracket 5100012322 · qty on machine: 1 view full part page → $21.95
5	5100011733	Angle joint	1	5.03 Serialno. <240	ADD TO CART
Angle joint 5100011733 · qty on machine: 1 5.03 Serialno. <240 view full part page → $14.95
5	5100011950	Bellows	1		ADD TO CART
Bellows 5100011950 · qty on machine: 1 view full part page → $10.95
5	5100012588	Ball handle	1	5.05 Serialno. <240	ADD TO CART
Ball handle 5100012588 · qty on machine: 1 5.05 Serialno. <240 view full part page → $30.95
5	5100012820	Actuating cable	1		PARTS REQUEST
PHOTO COMING Actuating cable 5100012820 · qty on machine: 1 PARTS REQUEST
5	5100058611	Actuating cable	1	Serialno. <240	PARTS REQUEST
PHOTO COMING Actuating cable 5100058611 · qty on machine: 1 Serialno. <240 PARTS REQUEST
5	5100068728	Actuating cable	1	Serialno. >241	ADD TO CART
Actuating cable 5100068728 · qty on machine: 1 Serialno. >241 view full part page → $618.95
5	5100068729	Angle joint	1	5.03 Serialno. >241	ADD TO CART
Angle joint 5100068729 · qty on machine: 1 5.03 Serialno. >241 view full part page → $23.95
5	5100068730	Ball handle	1	5.05 Serialno. >241	ADD TO CART
Ball handle 5100068730 · qty on machine: 1 5.05 Serialno. >241 view full part page → $10.95
6	5100013561	Countersunk screw	2		ADD TO CART
Countersunk screw 5100013561 · qty on machine: 2 view full part page → $1.95
7	5100012965	Locking washer	2		ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
8	5100012545	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95

Page 84 — Air filter system

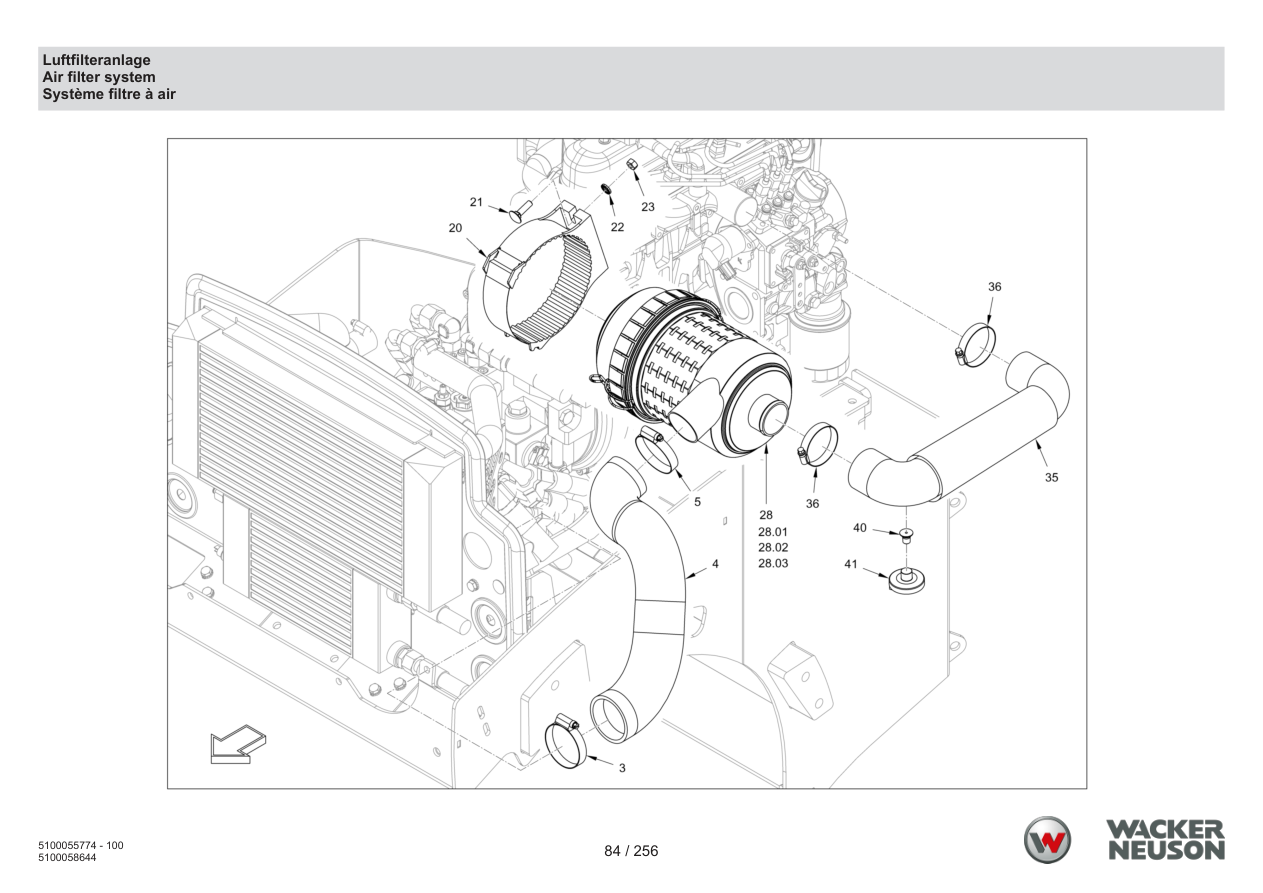

Wacker Neuson RD18-80 Roller Air filter system parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
3	5100024336	Hose clamp	1	ADD TO CART
Hose clamp 5100024336 · qty on machine: 1 view full part page → $7.95
4	5100058622	Intake hose	1	ADD TO CART
Intake hose 5100058622 · qty on machine: 1 view full part page → $137.95
5	5100013403	Hose clip	1	ADD TO CART
Hose clip 5100013403 · qty on machine: 1 view full part page → $8.95
20	5100012560	Bracket	1	ADD TO CART
Bracket 5100012560 · qty on machine: 1 view full part page → $147.95
21	5100012249	Mushroom head screw	2	ADD TO CART
Mushroom head screw 5100012249 · qty on machine: 2 view full part page → $1.95
22	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
23	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
28	5100011561	Dust discharge valve	1	ADD TO CART
Dust discharge valve 5100011561 · qty on machine: 1 view full part page → $34.95
28	5100012557	Air filter	1	ADD TO CART
Air filter 5100012557 · qty on machine: 1 view full part page → $192.95
28	5100012558	Filter cartridge	1	ADD TO CART
Filter cartridge 5100012558 · qty on machine: 1 view full part page → $222.95
28	5100012559	Safety filter cartridge	1	ADD TO CART
Safety filter cartridge 5100012559 · qty on machine: 1 view full part page → $158.95
35	5100012320	Intake hose	1	ADD TO CART
Intake hose 5100012320 · qty on machine: 1 view full part page → $140.95
36	5100012907	Hose clip	2	ADD TO CART
Hose clip 5100012907 · qty on machine: 2 view full part page → $10.95
40	5100011464	Threaded bolt	1	ADD TO CART
Threaded bolt 5100011464 · qty on machine: 1 view full part page → $16.95
41	5100013370	Pressure switch, air filter	1	PARTS REQUEST
PHOTO COMING Pressure switch, air filter 5100013370 · qty on machine: 1 PARTS REQUEST

Page 86 — Exhaust system

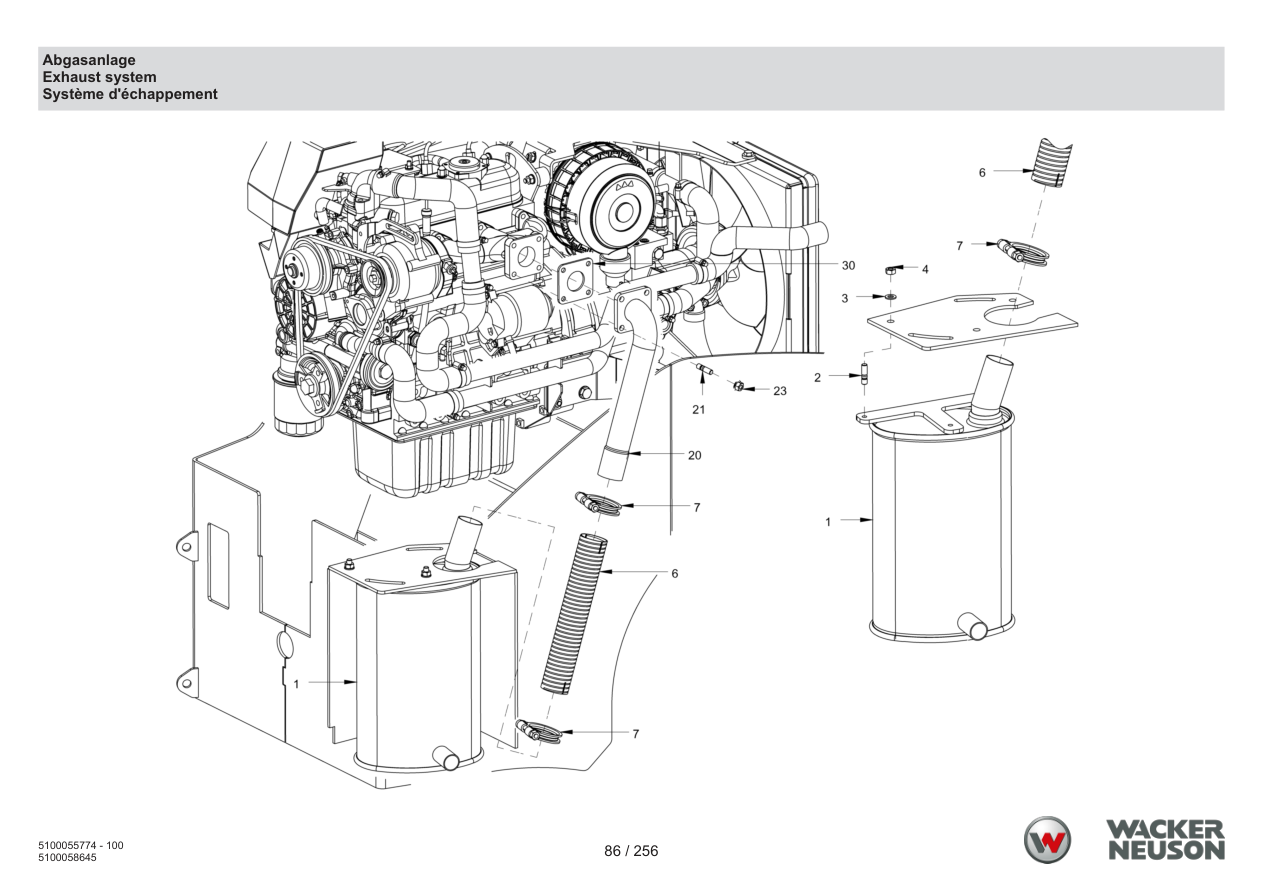

Wacker Neuson RD18-80 Roller Exhaust system parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty
1	5100011785	Silencer	1	ADD TO CART
Silencer 5100011785 · qty on machine: 1 view full part page → $875.95
2	5100011471	Stud bolt	3	ADD TO CART
Stud bolt 5100011471 · qty on machine: 3 view full part page → $4.95
3	5100012966	Locking washer	3	ADD TO CART
Locking washer 5100012966 · qty on machine: 3 view full part page → $1.95
4	5100012546	Hexagon nut	3	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 3 view full part page → $1.95
6	5100011932	Exhaust gas hose	1	ADD TO CART
Exhaust gas hose 5100011932 · qty on machine: 1 view full part page → $264.95
7	5100011668	Pipe clip	2	ADD TO CART
Pipe clip 5100011668 · qty on machine: 2 view full part page → $15.95
20	5100012319	Tail pipe	1	ADD TO CART
Tail pipe 5100012319 · qty on machine: 1 view full part page → $297.95
21	5100011471	Stud bolt	4	ADD TO CART
Stud bolt 5100011471 · qty on machine: 4 view full part page → $4.95
23	5100024980	Hexagonal nut	4	ADD TO CART
Hexagonal nut 5100024980 · qty on machine: 4 view full part page → $1.95
30	5100012860	Seal	1	ADD TO CART
Seal 5100012860 · qty on machine: 1 view full part page → $38.95

Page 88 — Cooling (engine/hydraulic oil)

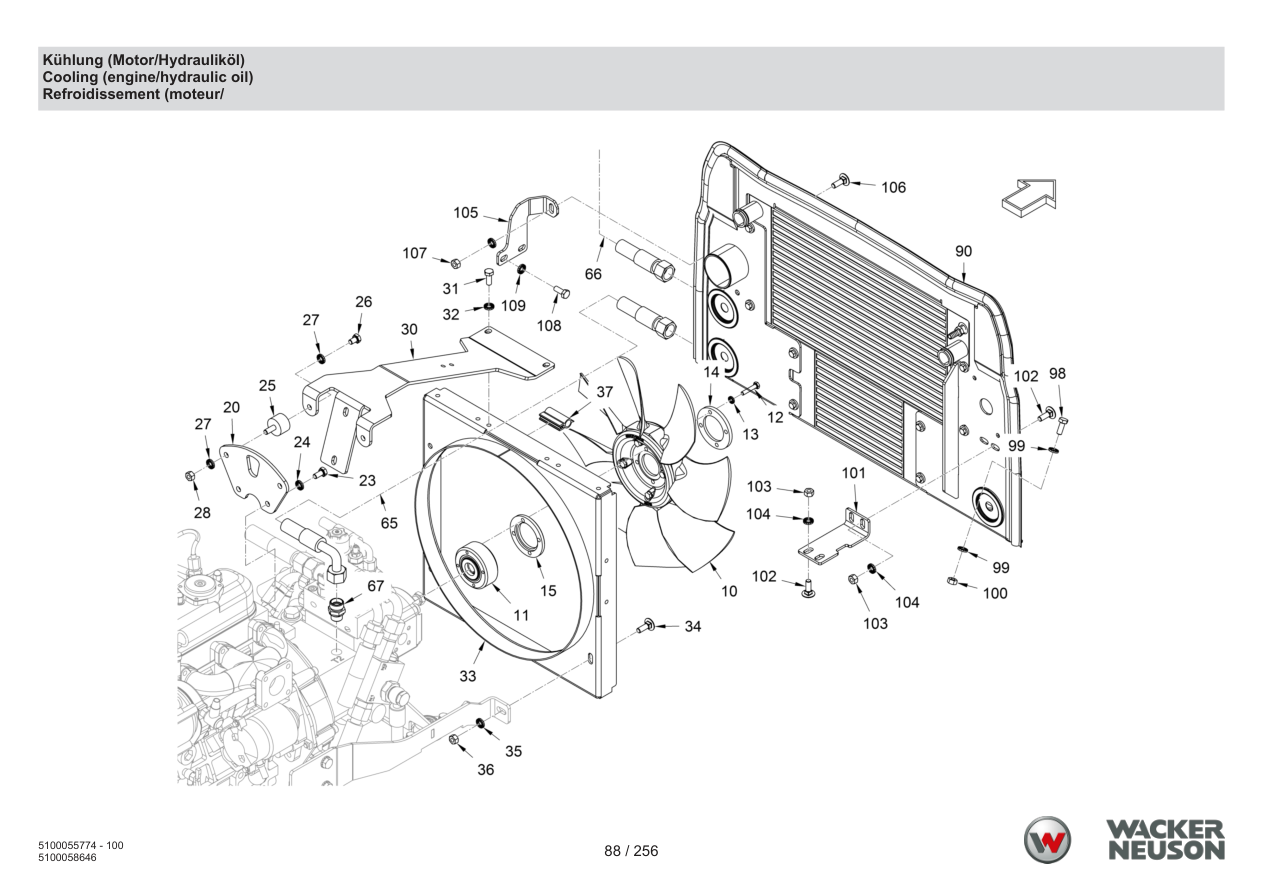

Wacker Neuson RD18-80 Roller Cooling (engine/hydraulic oil) parts diagram

Parts list — exactly as printed105 rows

No.	Part No.	Part Name	Qty
10	5100012312	Fan	1	ADD TO CART
Fan 5100012312 · qty on machine: 1 view full part page → $618.95
11	5100011920	Fan free-wheeling	1	ADD TO CART
Fan free-wheeling 5100011920 · qty on machine: 1 view full part page → $520.95
12	5100012614	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012614 · qty on machine: 4 view full part page → $1.95
13	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
14	5100016826	Supporting ring	1	ADD TO CART
Supporting ring 5100016826 · qty on machine: 1 view full part page → $45.95
15	5100012169	Spacer ring	1	ADD TO CART
Spacer ring 5100012169 · qty on machine: 1 view full part page → $37.95
20	5100012238	Bracket	1	ADD TO CART
Bracket 5100012238 · qty on machine: 1 view full part page → $28.95
23	5100012515	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012515 · qty on machine: 2 view full part page → $1.95
24	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
25	5100013550	Rubber buffer	2	ADD TO CART
Rubber buffer 5100013550 · qty on machine: 2 view full part page → $63.95
26	5100035056	Hexagon screw	2	ADD TO CART
Hexagon screw 5100035056 · qty on machine: 2 view full part page → $1.95
27	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
28	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
30	5100012239	Bracket	1	ADD TO CART
Bracket 5100012239 · qty on machine: 1 view full part page → $117.95
31	5100012517	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012517 · qty on machine: 2 view full part page → $1.95
32	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
33	5100012243	Cover	1	ADD TO CART
Cover 5100012243 · qty on machine: 1 view full part page → $238.95
34	5100012780	Mushroom head screw	2	ADD TO CART
Mushroom head screw 5100012780 · qty on machine: 2 view full part page → $1.95
35	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
36	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
37	5100013642	Sealing profile	1.53	ADD TO CART
Sealing profile 5100013642 · qty on machine: 1.53 view full part page → $30.95
65	5100058631	Hose	1	ADD TO CART
Hose 5100058631 · qty on machine: 1 view full part page → $60.95
66	5100058632	Hose	1	ADD TO CART
Hose 5100058632 · qty on machine: 1 view full part page → $79.95
67	5100013473	Straight screwed socket	1	PARTS REQUEST
PHOTO COMING Straight screwed socket 5100013473 · qty on machine: 1 PARTS REQUEST
90	5100058633	Oil-water cooler	1	ADD TO CART
Oil-water cooler 5100058633 · qty on machine: 1 view full part page → $3144.95
98	5100012517	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012517 · qty on machine: 4 view full part page → $1.95
99	5100012966	Locking washer	8	ADD TO CART
Locking washer 5100012966 · qty on machine: 8 view full part page → $1.95
100	5100012546	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 4 view full part page → $1.95
101	5100012361	Metal plate	1	ADD TO CART
Metal plate 5100012361 · qty on machine: 1 view full part page → $66.95
102	5100012780	Mushroom head screw	4	ADD TO CART
Mushroom head screw 5100012780 · qty on machine: 4 view full part page → $1.95
103	5100012546	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 4 view full part page → $1.95
104	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
105	5100011944	Metal plate	1	ADD TO CART
Metal plate 5100011944 · qty on machine: 1 view full part page → $21.95
106	5100012780	Mushroom head screw	1	ADD TO CART
Mushroom head screw 5100012780 · qty on machine: 1 view full part page → $1.95
107	5100012546	Hexagon nut	1	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 1 view full part page → $1.95
108	5100012517	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012517 · qty on machine: 2 view full part page → $1.95
109	5100012966	Locking washer	3	ADD TO CART
Locking washer 5100012966 · qty on machine: 3 view full part page → $1.95
39	5100012630	Tank cap	1	ADD TO CART
Tank cap 5100012630 · qty on machine: 1 view full part page → $39.95
40	5100012710	Compensator tank	1	ADD TO CART
Compensator tank 5100012710 · qty on machine: 1 view full part page → $448.95
41	5100012564	Silentbloc	2	ADD TO CART
Silentbloc 5100012564 · qty on machine: 2 view full part page → $48.95
42	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
43	5100012545	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 4 view full part page → $1.95
44	5100012373	Bracket	1	ADD TO CART
Bracket 5100012373 · qty on machine: 1 view full part page → $93.95
45	5100011791	Distance bush	4	ADD TO CART
Distance bush 5100011791 · qty on machine: 4 view full part page → $1.95
46	5100035308	Hexagon screw	2	ADD TO CART
Hexagon screw 5100035308 · qty on machine: 2 view full part page → $1.95
47	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
48	5100013367	Hose clip	2	ADD TO CART
Hose clip 5100013367 · qty on machine: 2 view full part page → $3.95
49	5100011673	Cooling-water hose	0.75	ADD TO CART
Cooling-water hose 5100011673 · qty on machine: 0.75 view full part page → $45.95
50	5100013388	Inspection glass	2	ADD TO CART
Inspection glass 5100013388 · qty on machine: 2 view full part page → $36.95
51	5100011749	Hose nozzle	1	ADD TO CART
Hose nozzle 5100011749 · qty on machine: 1 view full part page → $8.95
52	5100011973	Rubber metal buffer	1	ADD TO CART
Rubber metal buffer 5100011973 · qty on machine: 1 view full part page → $11.95
53	5100012965	Locking washer	1	ADD TO CART
Locking washer 5100012965 · qty on machine: 1 view full part page → $2.95
54	5100012545	Hexagon nut	1	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 1 view full part page → $1.95
60	5100012474	Hose shank banjo	1	ADD TO CART
Hose shank banjo 5100012474 · qty on machine: 1 view full part page → $57.95
61	5100013000	Sealing ring	2	ADD TO CART
Sealing ring 5100013000 · qty on machine: 2 view full part page → $1.95
62	5100012227	Hollow-core screw	1	ADD TO CART
Hollow-core screw 5100012227 · qty on machine: 1 view full part page → $7.95
70	5100013513	Hose shank banjo	1	ADD TO CART
Hose shank banjo 5100013513 · qty on machine: 1 view full part page → $16.95
71	5100012999	Sealing ring	1	ADD TO CART
Sealing ring 5100012999 · qty on machine: 1 view full part page → $1.95
72	5100013380	Hollow-core screw	1	ADD TO CART
Hollow-core screw 5100013380 · qty on machine: 1 view full part page → $17.95
73	5100013345	Sealing ring	1	ADD TO CART
Sealing ring 5100013345 · qty on machine: 1 view full part page → $11.95
75	5100013640	Flexible tubing	0.13	ADD TO CART
Flexible tubing 5100013640 · qty on machine: 0.13 view full part page → $90.95
76	5100013540	Pipe clip	2	ADD TO CART
Pipe clip 5100013540 · qty on machine: 2 view full part page → $4.95
77	5100016827	Hose nozzle	1	ADD TO CART
Hose nozzle 5100016827 · qty on machine: 1 view full part page → $4.95
83	5100013217	Cooling-water hose	1.1	ADD TO CART
Cooling-water hose 5100013217 · qty on machine: 1.1 view full part page → $25.95
84	5100013179	Hose clip	1	ADD TO CART
Hose clip 5100013179 · qty on machine: 1 view full part page → $5.95
1	5100012252	Pipe	1	ADD TO CART
Pipe 5100012252 · qty on machine: 1 view full part page → $382.95
2	5100012613	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012613 · qty on machine: 2 view full part page → $1.95
3	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
4	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
6	5100012354	Cooling-water hose	1	ADD TO CART
Cooling-water hose 5100012354 · qty on machine: 1 view full part page → $69.95
7	5100012355	Cooling-water hose	1	ADD TO CART
Cooling-water hose 5100012355 · qty on machine: 1 view full part page → $77.95
8	5100012360	Pipe	1	ADD TO CART
Pipe 5100012360 · qty on machine: 1 view full part page → $61.95
9	5100012359	Cooling-water hose	1	ADD TO CART
Cooling-water hose 5100012359 · qty on machine: 1 view full part page → $66.95
16	5100011637	Hose clip	1	ADD TO CART
Hose clip 5100011637 · qty on machine: 1 view full part page → $4.95
17	5100013452	Hose clip	5	ADD TO CART
Hose clip 5100013452 · qty on machine: 5 view full part page → $7.95
130	5100012352	Cooling-water hose	1	ADD TO CART
Cooling-water hose 5100012352 · qty on machine: 1 view full part page → $87.95
135	5100012349	Cooling-water hose	1	ADD TO CART
Cooling-water hose 5100012349 · qty on machine: 1 view full part page → $232.95
136	5100012608	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012608 · qty on machine: 2 view full part page → $1.95
137	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
138	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
140	5100012351	Cooling-water hose	1	ADD TO CART
Cooling-water hose 5100012351 · qty on machine: 1 view full part page → $52.95
145	5100012353	Cooling-water hose	1	ADD TO CART
Cooling-water hose 5100012353 · qty on machine: 1 view full part page → $72.95
146	5100013452	Hose clip	6	ADD TO CART
Hose clip 5100013452 · qty on machine: 6 view full part page → $7.95
58	5100012492	Sealing ring	1	ADD TO CART
Sealing ring 5100012492 · qty on machine: 1 view full part page → $7.95
59	5100013516	Screw plug	1	ADD TO CART
Screw plug 5100013516 · qty on machine: 1 view full part page → $3.95
64	5100013476	Straight screwed socket	2	ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 2 view full part page → $11.95
86	5100012311	Water cooler	1	ADD TO CART
Water cooler 5100012311 · qty on machine: 1 view full part page → $1565.95
87	5100012600	Hexagon screw	4	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012600 · qty on machine: 4 PARTS REQUEST
88	5100011636	Washer	4	ADD TO CART
Washer 5100011636 · qty on machine: 4 view full part page → $1.95
89	5100011866	Sealing tape	0.4	ADD TO CART
Sealing tape 5100011866 · qty on machine: 0.4 view full part page → $17.95
91	5100012310	Oil cooler	1	ADD TO CART
Oil cooler 5100012310 · qty on machine: 1 view full part page → $1392.95
92	5100012600	Hexagon screw	4	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012600 · qty on machine: 4 PARTS REQUEST
93	5100011636	Washer	4	ADD TO CART
Washer 5100011636 · qty on machine: 4 view full part page → $1.95
94	5100011866	Sealing tape	0.3	ADD TO CART
Sealing tape 5100011866 · qty on machine: 0.3 view full part page → $17.95
95	5100012248	Console	1	ADD TO CART
Console 5100012248 · qty on machine: 1 view full part page → $352.95
96	5100013642	Sealing profile	1.36	ADD TO CART
Sealing profile 5100013642 · qty on machine: 1.36 view full part page → $30.95
97	5100012788	Hose nozzle	1	ADD TO CART
Hose nozzle 5100012788 · qty on machine: 1 view full part page → $30.95
102	5100013385	Thermosensor	1	ADD TO CART
Thermosensor 5100013385 · qty on machine: 1 view full part page → $121.95
110	5100013000	Sealing ring	1	ADD TO CART
Sealing ring 5100013000 · qty on machine: 1 view full part page → $1.95
111	5100013405	Screw plug	1	ADD TO CART
Screw plug 5100013405 · qty on machine: 1 view full part page → $2.95
114	5100011592	Grommet	2	ADD TO CART
Grommet 5100011592 · qty on machine: 2 view full part page → $21.95
115	5100011592	Grommet	1	ADD TO CART
Grommet 5100011592 · qty on machine: 1 view full part page → $21.95
118	5100012444	Screw plug	2	PARTS REQUEST
PHOTO COMING Screw plug 5100012444 · qty on machine: 2 PARTS REQUEST
119	5100013000	Sealing ring	2	ADD TO CART
Sealing ring 5100013000 · qty on machine: 2 view full part page → $1.95
200	5100058633	Oil-water cooler	1	ADD TO CART
Oil-water cooler 5100058633 · qty on machine: 1 view full part page → $3144.95

Page 98 — Variable displac. pump (drive)

Wacker Neuson RD18-80 Roller Variable displac. pump (drive) parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty
1	5100011624	Locking ring	2	ADD TO CART
Locking ring 5100011624 · qty on machine: 2 view full part page → $9.95
1	5100011628	Shaft seal	1	ADD TO CART
Shaft seal 5100011628 · qty on machine: 1 view full part page → $520.95
1	5100011957	Set of seals	1	ADD TO CART
Set of seals 5100011957 · qty on machine: 1 view full part page → $423.95
1	5100011961	Driving gear	1	PARTS REQUEST
PHOTO COMING Driving gear 5100011961 · qty on machine: 1 PARTS REQUEST
2	5100011623	Hydraulic regulation	1	ADD TO CART
Hydraulic regulation 5100011623 · qty on machine: 1 view full part page → $2672.95
2	5100011625	O-ring seal	1	ADD TO CART
O-ring seal 5100011625 · qty on machine: 1 view full part page → $4.95
2	5100011958	Set of seals	1	ADD TO CART
Set of seals 5100011958 · qty on machine: 1 view full part page → $585.95
2	5100013562	O-ring seal	1	PARTS REQUEST
PHOTO COMING O-ring seal 5100013562 · qty on machine: 1 PARTS REQUEST
3	5100011626	Pressure-relief valve	2	PARTS REQUEST
PHOTO COMING Pressure-relief valve 5100011626 · qty on machine: 2 PARTS REQUEST
3	5100011627	O-ring seal	2	ADD TO CART
O-ring seal 5100011627 · qty on machine: 2 view full part page → $2.95
3	5100011959	Set of seals	1	ADD TO CART
Set of seals 5100011959 · qty on machine: 1 view full part page → $517.95
3	5100011963	Connection plate	1	PARTS REQUEST
PHOTO COMING Connection plate 5100011963 · qty on machine: 1 PARTS REQUEST
3	5100011966	Pressure-relief valve	1	ADD TO CART
Pressure-relief valve 5100011966 · qty on machine: 1 view full part page → $430.95
3	5100013546	O-ring seal	1	ADD TO CART
O-ring seal 5100013546 · qty on machine: 1 view full part page → $16.95
4	5100048102	O-ring seal	1	ADD TO CART
O-ring seal 5100048102 · qty on machine: 1 view full part page → $106.95
4	5100013548	O-ring seal	1	ADD TO CART
O-ring seal 5100013548 · qty on machine: 1 view full part page → $36.95
4	5100011964	Connection flange	1	PARTS REQUEST
PHOTO COMING Connection flange 5100011964 · qty on machine: 1 PARTS REQUEST
4	5100011852	O-ring seal	1	ADD TO CART
O-ring seal 5100011852 · qty on machine: 1 view full part page → $4.95
4	5100011440	O-ring seal	1	ADD TO CART
O-ring seal 5100011440 · qty on machine: 1 view full part page → $7.95
5	5100011448	O-ring seal	1	ADD TO CART
O-ring seal 5100011448 · qty on machine: 1 view full part page → $7.95
5	5100011449	O-ring seal	1	ADD TO CART
O-ring seal 5100011449 · qty on machine: 1 view full part page → $3.95
5	5100011450	O-ring seal	1	ADD TO CART
O-ring seal 5100011450 · qty on machine: 1 view full part page → $6.95
5	5100011622	Seal	1	ADD TO CART
Seal 5100011622 · qty on machine: 1 view full part page → $33.95
5	5100011965	Control device	1	PARTS REQUEST
PHOTO COMING Control device 5100011965 · qty on machine: 1 PARTS REQUEST
5	5100013544	O-ring seal	2	ADD TO CART
O-ring seal 5100013544 · qty on machine: 2 view full part page → $19.95
20	5100011658	Screw plug	1	PARTS REQUEST
PHOTO COMING Screw plug 5100011658 · qty on machine: 1 PARTS REQUEST
22	5100013543	Screw plug	4	ADD TO CART
Screw plug 5100013543 · qty on machine: 4 view full part page → $18.95
23	5100011453	Screw plug	1	ADD TO CART
Screw plug 5100011453 · qty on machine: 1 view full part page → $115.95
24	5100011454	Screw plug	1	ADD TO CART
Screw plug 5100011454 · qty on machine: 1 view full part page → $21.95
28	5100011451	Valve	1	ADD TO CART
Valve 5100011451 · qty on machine: 1 view full part page → $123.95
41	5100013601	O-ring seal	1	ADD TO CART
O-ring seal 5100013601 · qty on machine: 1 view full part page → $13.95
100	5100011769	Variable displac. pump (drive)	1	PARTS REQUEST
PHOTO COMING Variable displac. pump (drive) 5100011769 · qty on machine: 1 PARTS REQUEST
100	5100011960	Set of seals	1	ADD TO CART
Set of seals 5100011960 · qty on machine: 1 view full part page → $1517.95

Page 100 — Variable displacement pump (vibration)

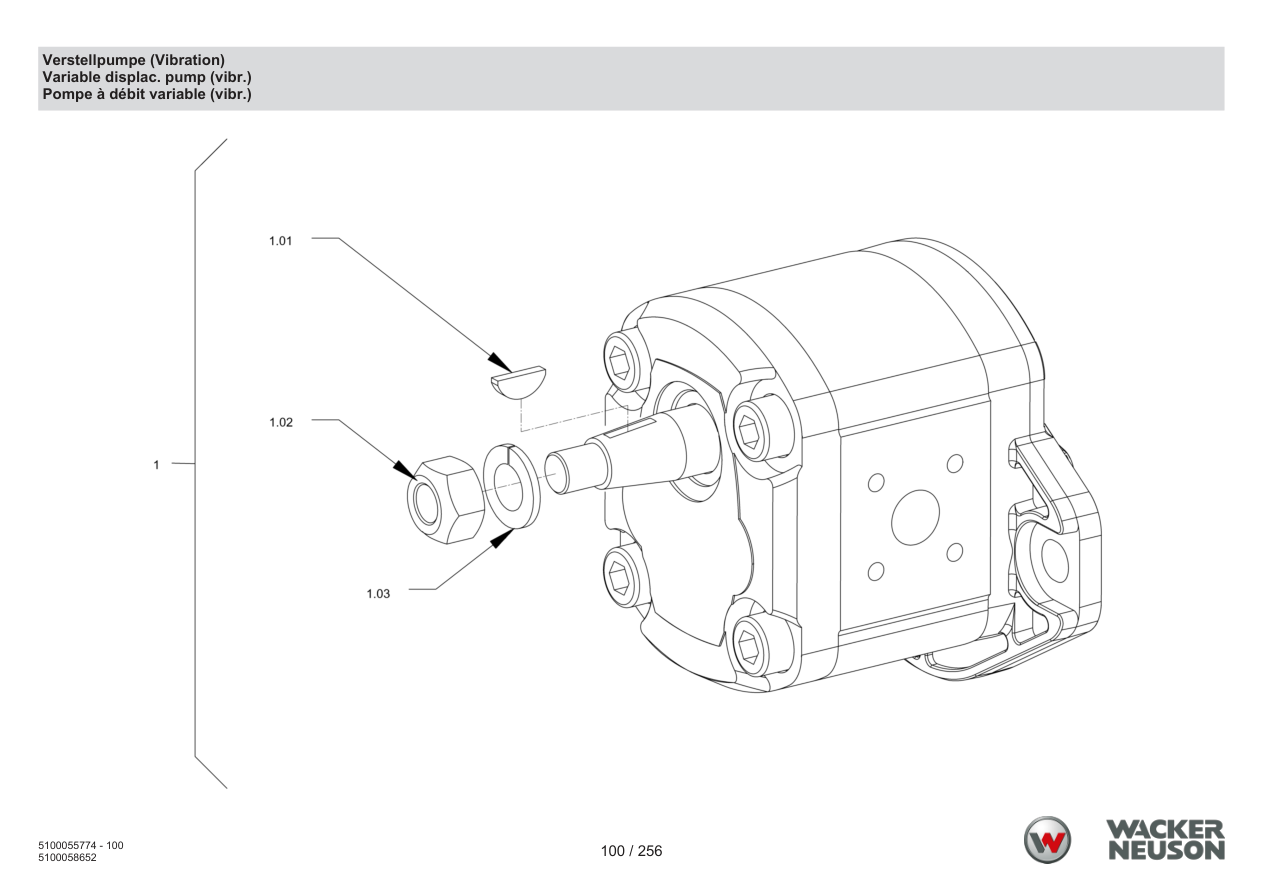

Wacker Neuson RD18-80 Roller Variable displacement pump (vibration) parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty
1	5100011678	Gear pump	1	ADD TO CART
Gear pump 5100011678 · qty on machine: 1 view full part page → $836.95
1	5100012944	Spring ring	1	PARTS REQUEST
PHOTO COMING Spring ring 5100012944 · qty on machine: 1 PARTS REQUEST
1	5100013445	Hexagon nut	1	ADD TO CART
Hexagon nut 5100013445 · qty on machine: 1 view full part page → $2.95
1	5100013446	Disk spring	1	PARTS REQUEST
PHOTO COMING Disk spring 5100013446 · qty on machine: 1 PARTS REQUEST

Page 102 — Constant motor (vibration drive)

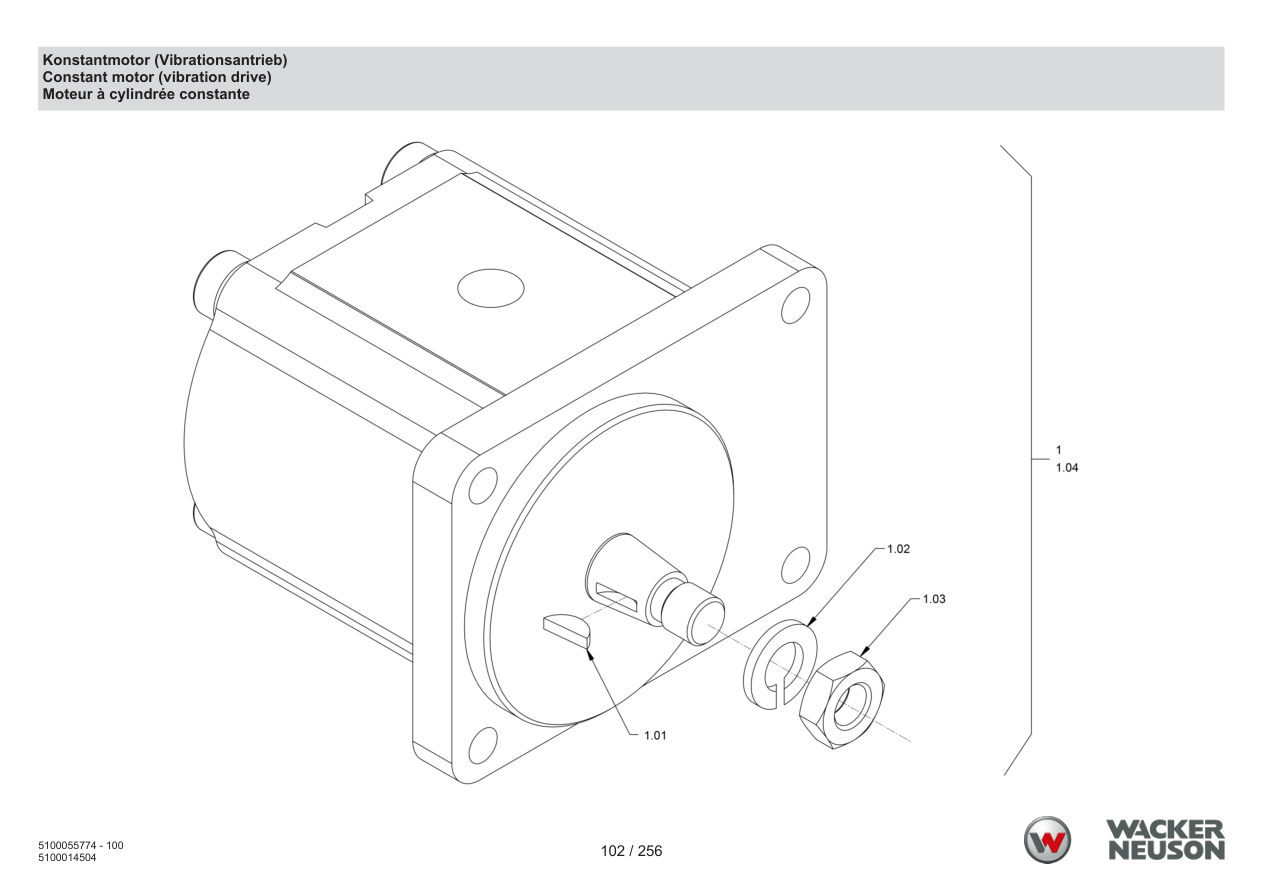

Wacker Neuson RD18-80 Roller Constant motor (vibration drive) parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty
1	5100012549	Hexagon nut	1	PARTS REQUEST
PHOTO COMING Hexagon nut 5100012549 · qty on machine: 1 PARTS REQUEST
1	5100013043	Gear motor	1	PARTS REQUEST
PHOTO COMING Gear motor 5100013043 · qty on machine: 1 PARTS REQUEST
1	5100065348	Set of seals	1	ADD TO CART
Set of seals 5100065348 · qty on machine: 1 view full part page → $205.95
1	5100011795	Gear motor	1	ADD TO CART
Gear motor 5100011795 · qty on machine: 1 view full part page → $1111.95
1	5100012944	Spring ring	1	PARTS REQUEST
PHOTO COMING Spring ring 5100012944 · qty on machine: 1 PARTS REQUEST
1	5100013446	Disk spring	1	PARTS REQUEST
PHOTO COMING Disk spring 5100013446 · qty on machine: 1 PARTS REQUEST

Page 104 — Control block (flush valve)

Wacker Neuson RD18-80 Roller Control block (flush valve) parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
1	5100012426	Valve block	1	ADD TO CART
Valve block 5100012426 · qty on machine: 1 view full part page → $795.95
1	5100011515	O-ring seal	1	ADD TO CART
O-ring seal 5100011515 · qty on machine: 1 view full part page → $1.95
1	5100011838	O-ring seal	2	ADD TO CART
O-ring seal 5100011838 · qty on machine: 2 view full part page → $4.95

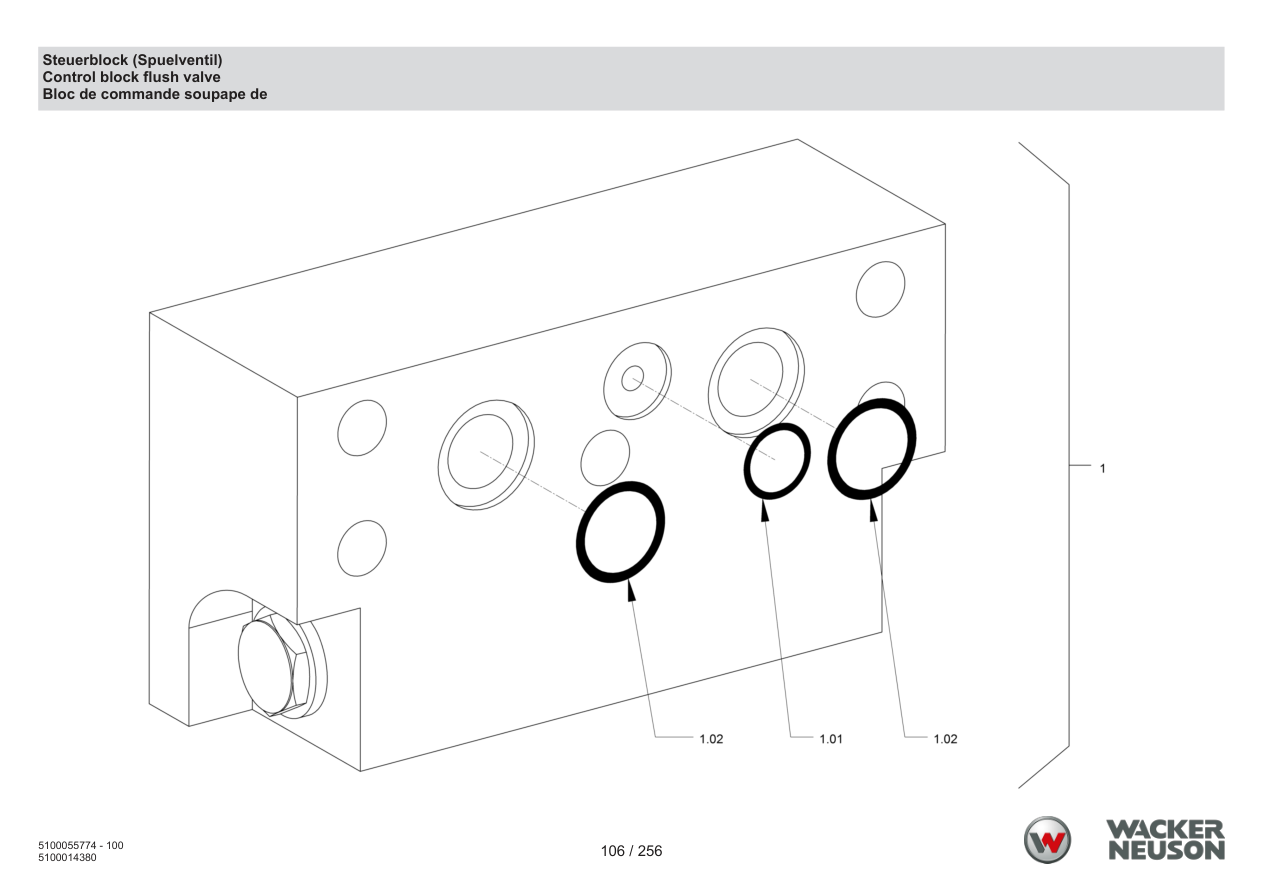

Page 106 — Control block (flush valve)

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
1	5100012426	Valve block	1	ADD TO CART
Valve block 5100012426 · qty on machine: 1 view full part page → $795.95
1	5100011515	O-ring seal	1	ADD TO CART
O-ring seal 5100011515 · qty on machine: 1 view full part page → $1.95
1	5100011838	O-ring seal	2	ADD TO CART
O-ring seal 5100011838 · qty on machine: 2 view full part page → $4.95

Page 108 — Wheel hub motor

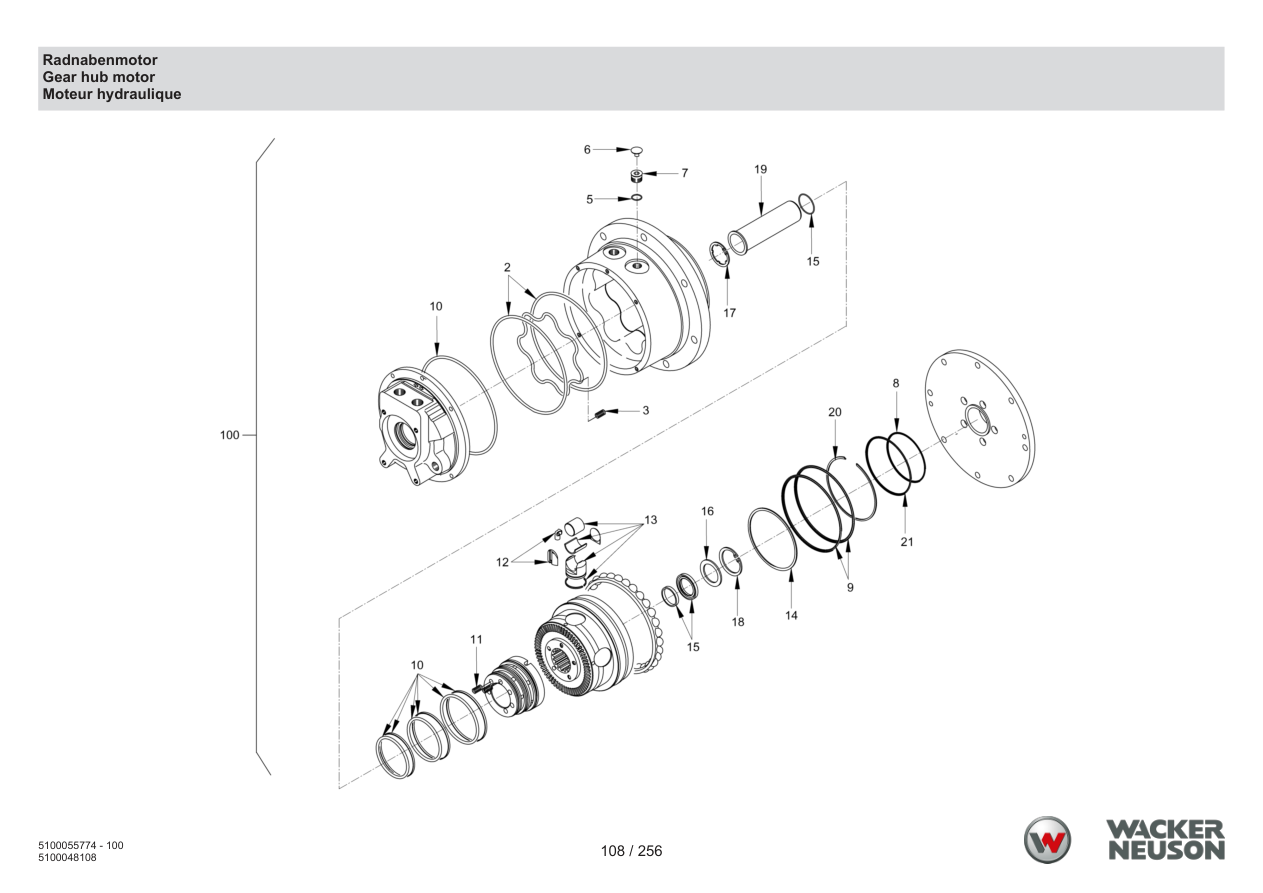

Wacker Neuson RD18-80 Roller Wheel hub motor parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty
2	5100011954	Set of seals	1	ADD TO CART
Set of seals 5100011954 · qty on machine: 1 view full part page → $584.95
3	5100016263	Set of seals	1	ADD TO CART
Set of seals 5100016263 · qty on machine: 1 view full part page → $586.95
5	5100016264	Seal	1	ADD TO CART
Seal 5100016264 · qty on machine: 1 view full part page → $4.95
6	5100016265	Cap	1	ADD TO CART
Cap 5100016265 · qty on machine: 1 view full part page → $1.95
7	5100016266	Plug	1	ADD TO CART
Plug 5100016266 · qty on machine: 1 view full part page → $85.95
8	5100048103	O-ring seal	1	ADD TO CART
O-ring seal 5100048103 · qty on machine: 1 view full part page → $41.95
9	5100011619	Sealing ring	2	ADD TO CART
Sealing ring 5100011619 · qty on machine: 2 view full part page → $245.95
10	5100016269	Set of seals	1	ADD TO CART
Set of seals 5100016269 · qty on machine: 1 view full part page → $366.95
11	5100012799	Spring	1	ADD TO CART
Spring 5100012799 · qty on machine: 1 view full part page → $192.95
12	5100012796	Set of seals	1	ADD TO CART
Set of seals 5100012796 · qty on machine: 1 view full part page → $144.95
13	5100016270	Piston	5	ADD TO CART
Piston 5100016270 · qty on machine: 5 view full part page → $402.95
14	5100016267	Ring	1	ADD TO CART
Ring 5100016267 · qty on machine: 1 view full part page → $80.95
15	5100012797	Set of seals	1	ADD TO CART
Set of seals 5100012797 · qty on machine: 1 view full part page → $602.95
16	5100029590	Thrust washer	1	ADD TO CART
Thrust washer 5100029590 · qty on machine: 1 view full part page → $40.95
17	5100012421	Locking ring	1	ADD TO CART
Locking ring 5100012421 · qty on machine: 1 view full part page → $22.95
18	5100017993	Circlip	1	ADD TO CART
Circlip 5100017993 · qty on machine: 1 view full part page → $16.95
19	5100017994	Shaft	1	ADD TO CART
Shaft 5100017994 · qty on machine: 1 view full part page → $826.95
20	5100016268	Ring	1	ADD TO CART
Ring 5100016268 · qty on machine: 1 view full part page → $83.95
21	5100011554	Sealing ring	1	PARTS REQUEST
PHOTO COMING Sealing ring 5100011554 · qty on machine: 1 PARTS REQUEST
100	5100048104	Gear hub motor	1	ADD TO CART
Gear hub motor 5100048104 · qty on machine: 1 view full part page → $4988.95

Page 110 — Valve block

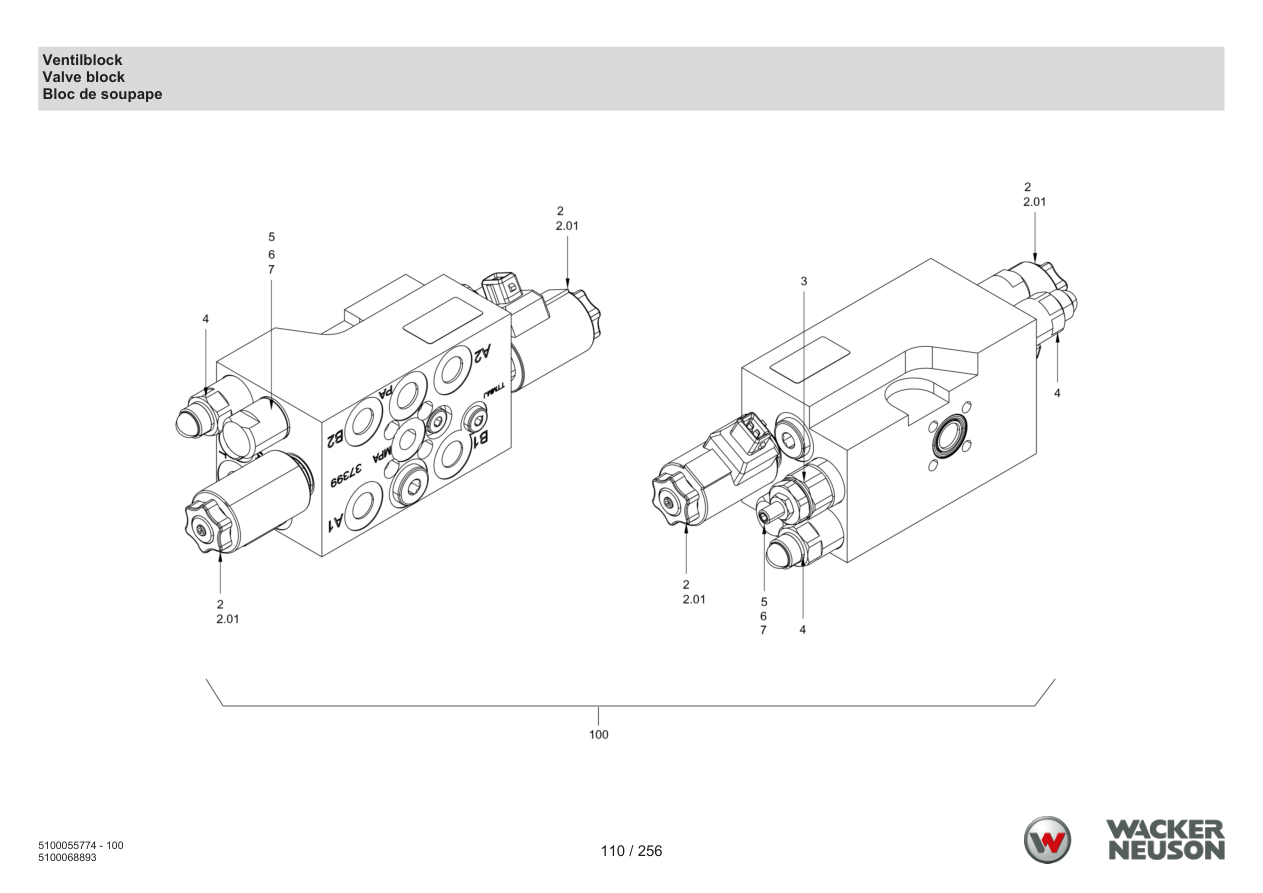

Wacker Neuson RD18-80 Roller Valve block parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
2	5100068731	Directional control valve	2	ADD TO CART
Directional control valve 5100068731 · qty on machine: 2 view full part page → $1077.95
2	5100068732	Magnet	2	ADD TO CART
Magnet 5100068732 · qty on machine: 2 view full part page → $297.95
3	5100068733	Pressure-relief valve	1	ADD TO CART
Pressure-relief valve 5100068733 · qty on machine: 1 view full part page → $310.95
4	5100068734	Pressure-relief valve	2	ADD TO CART
Pressure-relief valve 5100068734 · qty on machine: 2 view full part page → $711.95
5	5100068735	Sleeve	2	PARTS REQUEST
PHOTO COMING Sleeve 5100068735 · qty on machine: 2 PARTS REQUEST
6	5100068738	Piston	2	PARTS REQUEST
PHOTO COMING Piston 5100068738 · qty on machine: 2 PARTS REQUEST
7	5100053422	Spring cap	2	ADD TO CART
Spring cap 5100053422 · qty on machine: 2 view full part page → $257.95
100	5100068215	Valve	1	ADD TO CART
Valve 5100068215 · qty on machine: 1 view full part page → $3174.95

Page 112 — Valve block (parking brake)

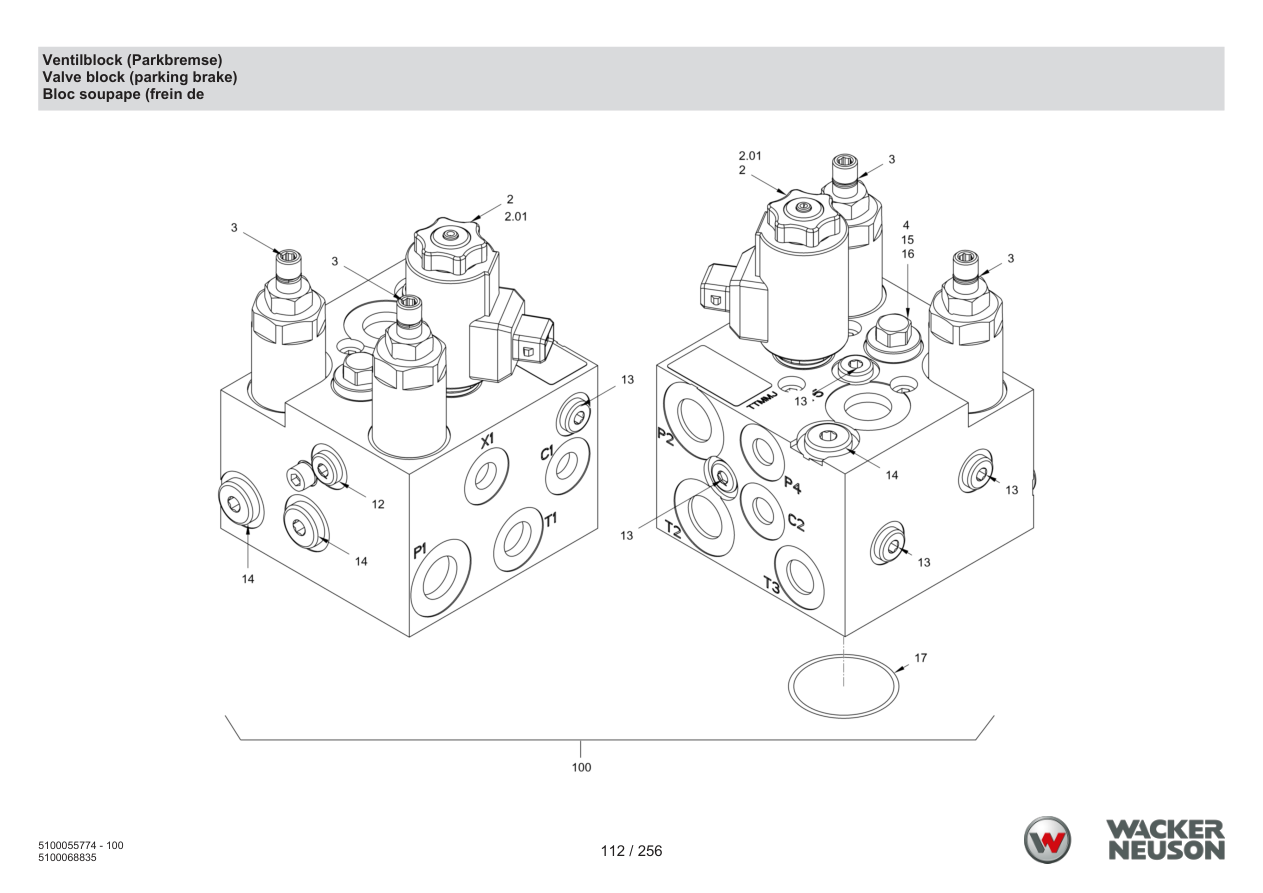

Wacker Neuson RD18-80 Roller Valve block (parking brake) parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty
2	5100011986	Directional valve	1	ADD TO CART
Directional valve 5100011986 · qty on machine: 1 view full part page → $1007.95
2	5100012409	Magnet	1	ADD TO CART
Magnet 5100012409 · qty on machine: 1 view full part page → $211.95
3	5100068739	Pressure-relief valve	2	ADD TO CART
Pressure-relief valve 5100068739 · qty on machine: 2 view full part page → $918.95
4	5100068740	Spindle	1	PARTS REQUEST
PHOTO COMING Spindle 5100068740 · qty on machine: 1 PARTS REQUEST
12	5100011671	Screw plug	1	ADD TO CART
Screw plug 5100011671 · qty on machine: 1 view full part page → $4.95
13	5100011564	Screw plug	5	ADD TO CART
Screw plug 5100011564 · qty on machine: 5 view full part page → $14.95
14	5100011538	Screw plug	3	ADD TO CART
Screw plug 5100011538 · qty on machine: 3 view full part page → $9.95
15	5100011985	O-ring seal	1	ADD TO CART
O-ring seal 5100011985 · qty on machine: 1 view full part page → $12.95
16	5100011838	O-ring seal	1	ADD TO CART
O-ring seal 5100011838 · qty on machine: 1 view full part page → $4.95
17	5100011419	O-ring seal	1	ADD TO CART
O-ring seal 5100011419 · qty on machine: 1 view full part page → $1.95
100	5100058635	Valve block	1	ADD TO CART
Valve block 5100058635 · qty on machine: 1 view full part page → $2034.95

Page 114 — Valve block (emergency stop)

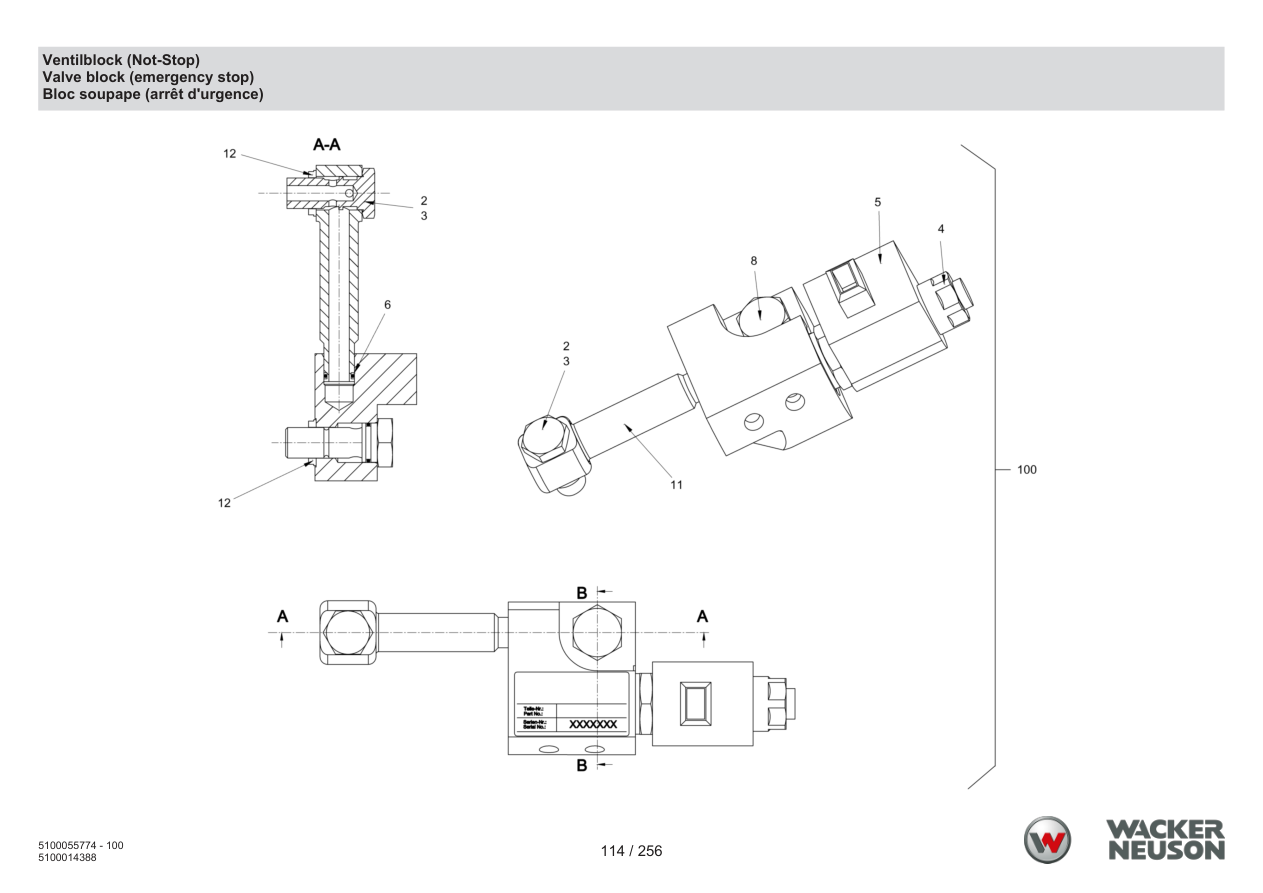

Wacker Neuson RD18-80 Roller Valve block (emergency stop) parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty
2	5100066870	Sealing ring	1	ADD TO CART
Sealing ring 5100066870 · qty on machine: 1 view full part page → $44.95
3	5100012095	Hollow-core screw	1	ADD TO CART
Hollow-core screw 5100012095 · qty on machine: 1 view full part page → $51.95
4	5100012196	Directional valve	1	PARTS REQUEST
PHOTO COMING Directional valve 5100012196 · qty on machine: 1 PARTS REQUEST
5	5100012197	Solenoid coil	1	ADD TO CART
Solenoid coil 5100012197 · qty on machine: 1 view full part page → $157.95
6	5100013406	O-ring seal	1	ADD TO CART
O-ring seal 5100013406 · qty on machine: 1 view full part page → $10.95
8	5100012199	Hollow-core screw	1	ADD TO CART
Hollow-core screw 5100012199 · qty on machine: 1 view full part page → $220.95
11	5100012096	Pipe	1	ADD TO CART
Pipe 5100012096 · qty on machine: 1 view full part page → $109.95
12	5100012198	Sealing ring	2	ADD TO CART
Sealing ring 5100012198 · qty on machine: 2 view full part page → $83.95
100	5100012429	Valve block	1	ADD TO CART
Valve block 5100012429 · qty on machine: 1 view full part page → $980.95

Page 116 — Hydraulic oil tank

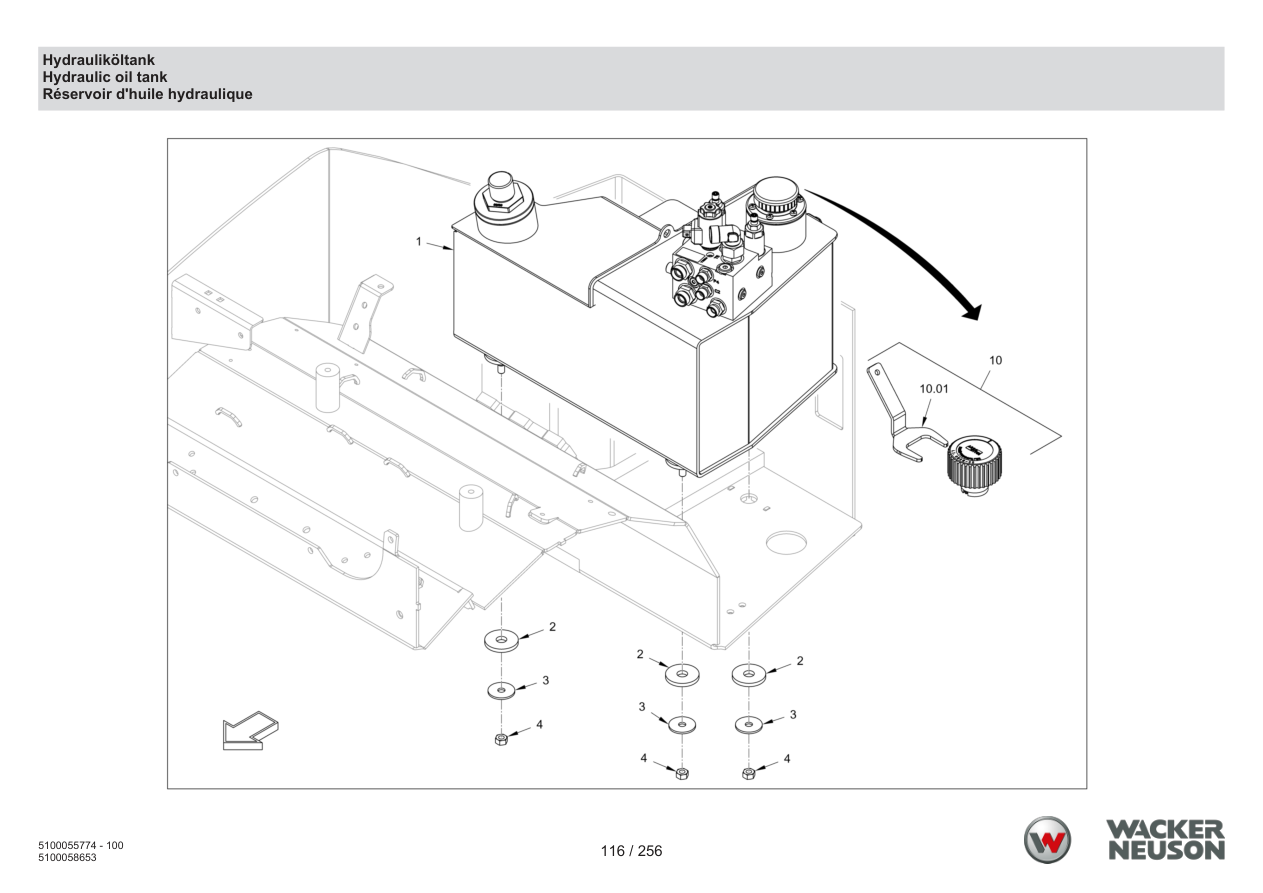

Wacker Neuson RD18-80 Roller Hydraulic oil tank parts diagram

Parts list — exactly as printed33 rows

No.	Part No.	Part Name	Qty	Remarks
1	5100058634	Oil tank	1		PARTS REQUEST
PHOTO COMING Oil tank 5100058634 · qty on machine: 1 PARTS REQUEST
2	5100011731	Rubber washer	3		ADD TO CART
Rubber washer 5100011731 · qty on machine: 3 view full part page → $2.95
3	5100011824	Washer	3		ADD TO CART
Washer 5100011824 · qty on machine: 3 view full part page → $1.95
4	5100012547	Hexagon nut	3		ADD TO CART
Hexagon nut 5100012547 · qty on machine: 3 view full part page → $1.95
10	5100012419	Filter	1		ADD TO CART
Filter 5100012419 · qty on machine: 1 view full part page → $54.95
10	5100016828	Vent filter	1		ADD TO CART
Vent filter 5100016828 · qty on machine: 1 view full part page → $141.95
10	5100024927	Special wrench	1		ADD TO CART
Special wrench 5100024927 · qty on machine: 1 view full part page → $60.95
2	5100058635	Valve block	1		ADD TO CART
Valve block 5100058635 · qty on machine: 1 view full part page → $2034.95
3	5100013527	Cheese-head screw	3		ADD TO CART
Cheese-head screw 5100013527 · qty on machine: 3 view full part page → $1.95
5	5100011874	Pipe	1		ADD TO CART
Pipe 5100011874 · qty on machine: 1 view full part page → $51.95
6	5100013474	Straight screwed socket	2		ADD TO CART
Straight screwed socket 5100013474 · qty on machine: 2 view full part page → $6.95
10	5100013454	Straight screwed socket	1	Serialno. >213	ADD TO CART
Straight screwed socket 5100013454 · qty on machine: 1 Serialno. >213 view full part page → $5.95
10	5100013474	Straight screwed socket	1	Serialno. <212	ADD TO CART
Straight screwed socket 5100013474 · qty on machine: 1 Serialno. <212 view full part page → $6.95
16	5100013476	Straight screwed socket	1		ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 1 view full part page → $11.95
20	5100011731	Rubber washer	3		ADD TO CART
Rubber washer 5100011731 · qty on machine: 3 view full part page → $2.95
37	5100013475	Straight screwed socket	1		PARTS REQUEST
PHOTO COMING Straight screwed socket 5100013475 · qty on machine: 1 PARTS REQUEST
38	5100013475	Straight screwed socket	1		PARTS REQUEST
PHOTO COMING Straight screwed socket 5100013475 · qty on machine: 1 PARTS REQUEST
49	5100013558	Sealing ring	6		ADD TO CART
Sealing ring 5100013558 · qty on machine: 6 view full part page → $1.95
49	5100012866	Fillister head screw	6		ADD TO CART
Fillister head screw 5100012866 · qty on machine: 6 view full part page → $1.95
49	5100012419	Filter	1		ADD TO CART
Filter 5100012419 · qty on machine: 1 view full part page → $54.95
49	5100012234	Hydraulic oil tank	1		ADD TO CART
Hydraulic oil tank 5100012234 · qty on machine: 1 view full part page → $3846.95
49	5100011857	Suction filter	1		ADD TO CART
Suction filter 5100011857 · qty on machine: 1 view full part page → $97.95
50	5100013557	Key	1		ADD TO CART
Key 5100013557 · qty on machine: 1 view full part page → $18.95
50	5100016828	Vent filter	1		ADD TO CART
Vent filter 5100016828 · qty on machine: 1 view full part page → $141.95
51	5100011730	Spacer pin	3		ADD TO CART
Spacer pin 5100011730 · qty on machine: 3 view full part page → $37.95
53	5100012625	Oil level indicator	1		ADD TO CART
Oil level indicator 5100012625 · qty on machine: 1 view full part page → $249.95
57	5100013474	Straight screwed socket	1	Serialno. <166	ADD TO CART
Straight screwed socket 5100013474 · qty on machine: 1 Serialno. <166 view full part page → $6.95
57	5100013616	Straight screwed socket	1	Serialno. >167	ADD TO CART
Straight screwed socket 5100013616 · qty on machine: 1 Serialno. >167 view full part page → $7.95
68	5100013476	Straight screwed socket	1		ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 1 view full part page → $11.95
81	5100013476	Straight screwed socket	1		ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 1 view full part page → $11.95
87	5100022890	Elbow adjustable	1		ADD TO CART
Elbow adjustable 5100022890 · qty on machine: 1 view full part page → $55.95
88	5100013477	Straight screwed socket	1		ADD TO CART
Straight screwed socket 5100013477 · qty on machine: 1 view full part page → $12.95
100	5100058634	Oil tank	1		PARTS REQUEST
PHOTO COMING Oil tank 5100058634 · qty on machine: 1 PARTS REQUEST

Page 118 — Bypass oil filter

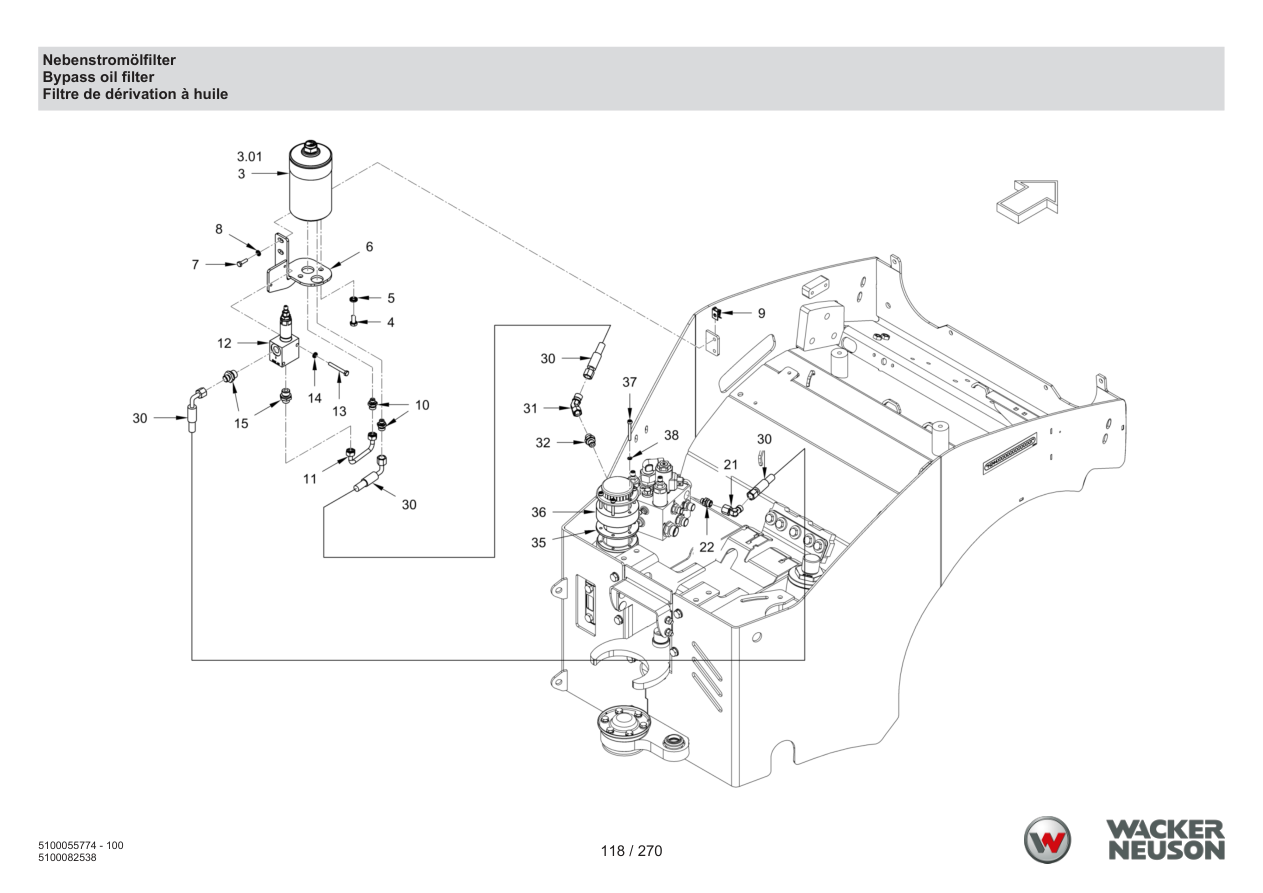

Wacker Neuson RD18-80 Roller Bypass oil filter parts diagram

Parts list — exactly as printed23 rows

No.	Part No.	Part Name	Qty
12	5100065308	Pressure reducing valve	1	ADD TO CART
Pressure reducing valve 5100065308 · qty on machine: 1 view full part page → $1869.95
13	5100034772	Hexagon screw	2	ADD TO CART
Hexagon screw 5100034772 · qty on machine: 2 view full part page → $1.95
14	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
15	5100048634	Straight screwed socket	2	ADD TO CART
Straight screwed socket 5100048634 · qty on machine: 2 view full part page → $20.95
21	5100029538	Elbow adjustable	1	ADD TO CART
Elbow adjustable 5100029538 · qty on machine: 1 view full part page → $20.95
22	5100029551	Straight screwed socket	1	ADD TO CART
Straight screwed socket 5100029551 · qty on machine: 1 view full part page → $13.95
30	5100065323	Hose	2	PARTS REQUEST
PHOTO COMING Hose 5100065323 · qty on machine: 2 PARTS REQUEST
31	5100065302	Elbow adjustable	1	PARTS REQUEST
PHOTO COMING Elbow adjustable 5100065302 · qty on machine: 1 PARTS REQUEST
32	5100013454	Straight screwed socket	1	ADD TO CART
Straight screwed socket 5100013454 · qty on machine: 1 view full part page → $5.95
35	5100065310	Sealing	1	ADD TO CART
Sealing 5100065310 · qty on machine: 1 view full part page → $8.95
36	5100065311	Distance ring	1	PARTS REQUEST
PHOTO COMING Distance ring 5100065311 · qty on machine: 1 PARTS REQUEST
37	5100012090	Cheese-head screw	6	ADD TO CART
Cheese-head screw 5100012090 · qty on machine: 6 view full part page → $1.95
38	5100013558	Sealing ring	6	ADD TO CART
Sealing ring 5100013558 · qty on machine: 6 view full part page → $1.95
3	5100065307	Filter	1	ADD TO CART
Filter 5100065307 · qty on machine: 1 view full part page → $1955.95
3	5100066879	Filter insert	1	ADD TO CART
Filter insert 5100066879 · qty on machine: 1 view full part page → $88.95
4	5100012515	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012515 · qty on machine: 2 view full part page → $1.95
5	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
6	5100082567	Holder	1	PARTS REQUEST
PHOTO COMING Holder 5100082567 · qty on machine: 1 PARTS REQUEST
7	5100012608	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012608 · qty on machine: 2 view full part page → $1.95
8	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
9	5100013585	Clip nut	2	ADD TO CART
Clip nut 5100013585 · qty on machine: 2 view full part page → $10.95
10	5100029551	Straight screwed socket	2	ADD TO CART
Straight screwed socket 5100029551 · qty on machine: 2 view full part page → $13.95
11	5100065322	Pipe bend	1	PARTS REQUEST
PHOTO COMING Pipe bend 5100065322 · qty on machine: 1 PARTS REQUEST

Page 120 — Dashboard

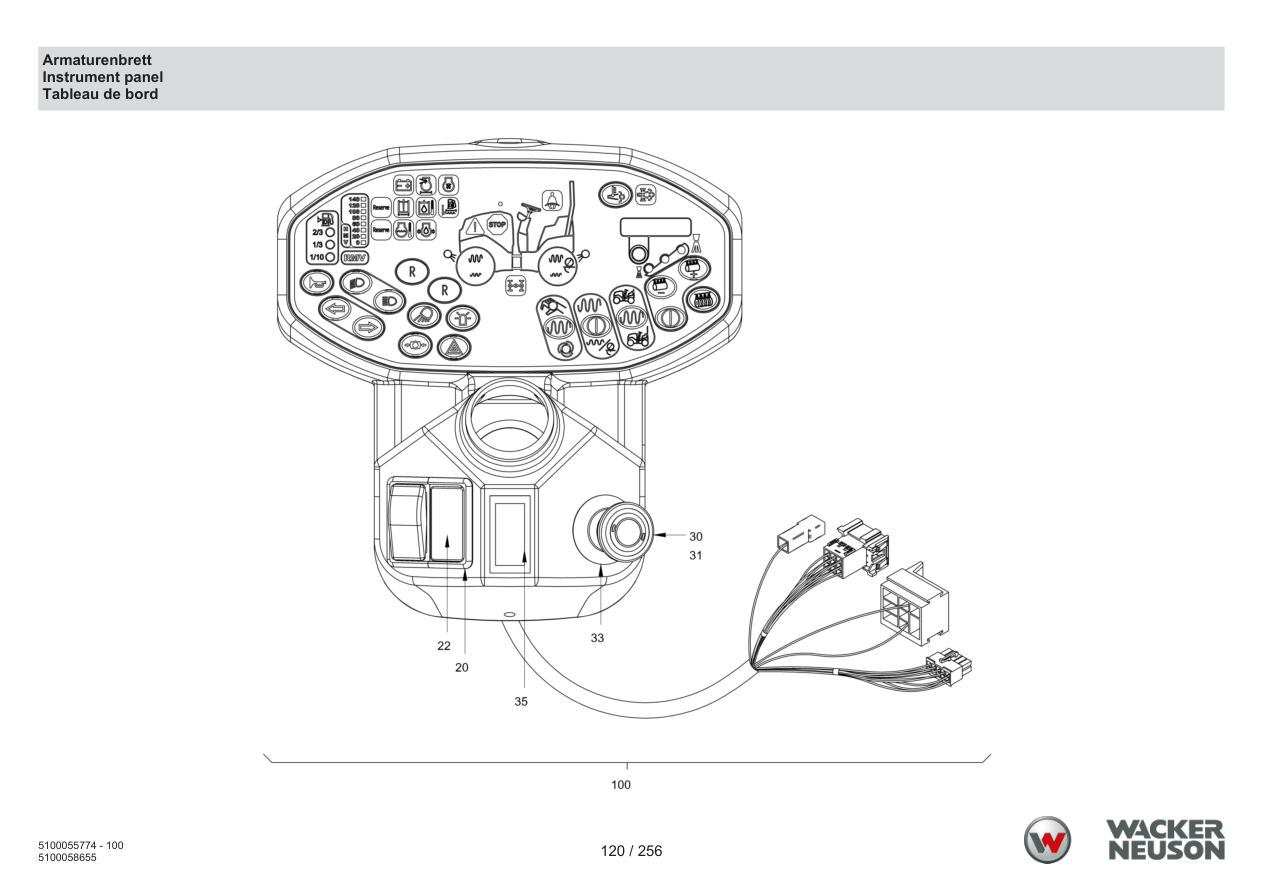

Wacker Neuson RD18-80 Roller Dashboard parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty
20	5100011595	Frame	2	ADD TO CART
Frame 5100011595 · qty on machine: 2 view full part page → $20.95
22	5100011580	Blind cover	1	ADD TO CART
Blind cover 5100011580 · qty on machine: 1 view full part page → $10.95
30	5100023242	Fixation	1	ADD TO CART
Fixation 5100023242 · qty on machine: 1 view full part page → $42.95
31	5100023241	Push button	1	ADD TO CART
Push button 5100023241 · qty on machine: 1 view full part page → $100.95
33	5100023527	Label	1	ADD TO CART
Label 5100023527 · qty on machine: 1 view full part page → $19.95
35	5100023008	Lid	1	ADD TO CART
Lid 5100023008 · qty on machine: 1 view full part page → $18.95
100	5100025103	Instrument panel	1	ADD TO CART
Instrument panel 5100025103 · qty on machine: 1 view full part page → $4850.95

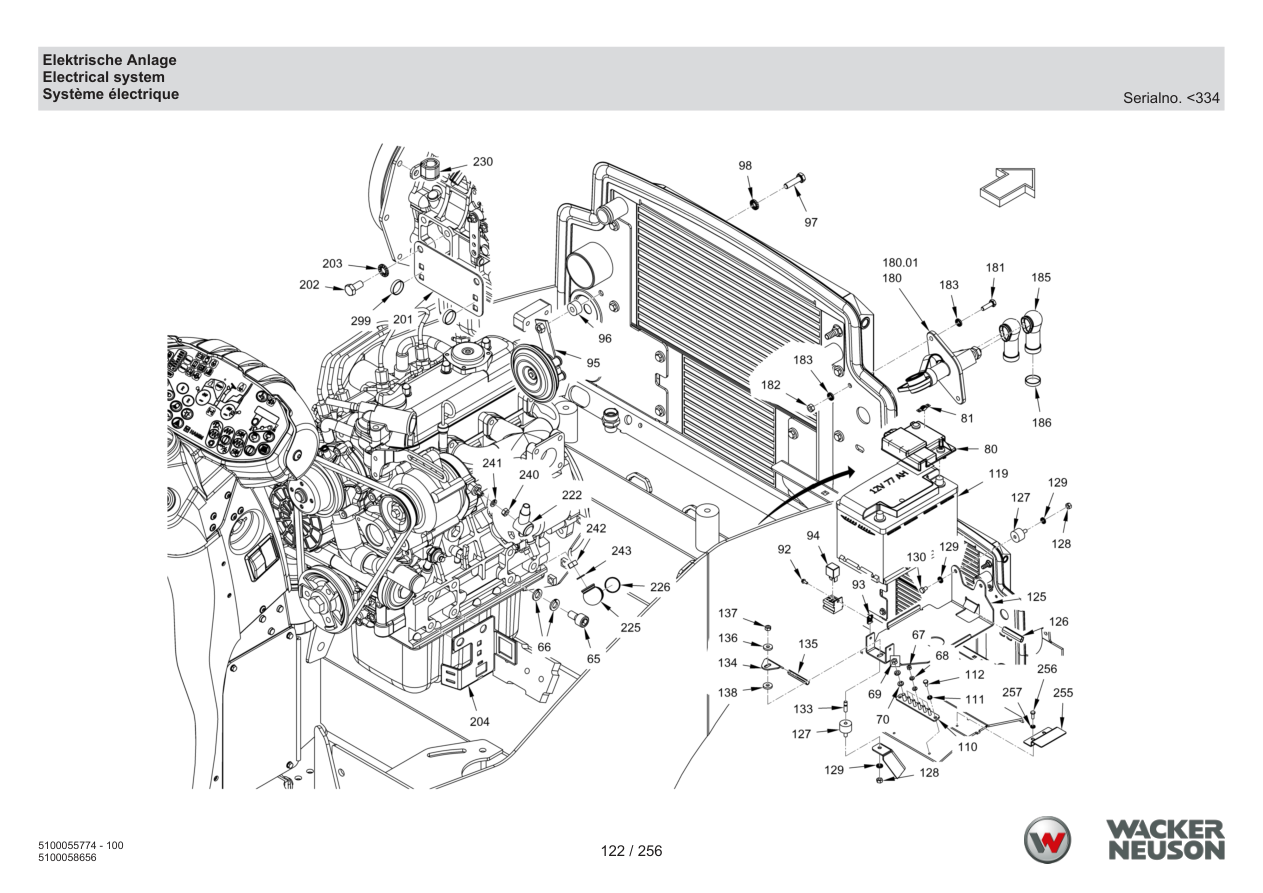

Page 122 — Electrical system

Wacker Neuson RD18-80 Roller Electrical system parts diagram

Parts list — exactly as printed149 rows

No.	Part No.	Part Name	Qty	Remarks
65	5100058636	Hexagon screw	1	Serialno. <334	ADD TO CART
Hexagon screw 5100058636 · qty on machine: 1 Serialno. <334 view full part page → $12.95
66	5100011918	Serrated lock washer	2	Serialno. <334	ADD TO CART
Serrated lock washer 5100011918 · qty on machine: 2 Serialno. <334 view full part page → $1.95
67	5100011914	Hexagon nut	5	Serialno. <334	ADD TO CART
Hexagon nut 5100011914 · qty on machine: 5 Serialno. <334 view full part page → $1.95
68	5100023629	Spring ring	10	Serialno. <334	ADD TO CART
Spring ring 5100023629 · qty on machine: 10 Serialno. <334 view full part page → $1.95
69	5100011915	Hexagon nut	1	Serialno. <334	ADD TO CART
Hexagon nut 5100011915 · qty on machine: 1 Serialno. <334 view full part page → $1.95
70	5100011917	Serrated lock washer	2	Serialno. <334	ADD TO CART
Serrated lock washer 5100011917 · qty on machine: 2 Serialno. <334 view full part page → $1.95
80	5100012670	Fuse holder	1	Serialno. <334	ADD TO CART
Fuse holder 5100012670 · qty on machine: 1 Serialno. <334 view full part page → $329.95
81	5100011640	Blade fuse	1	Serialno. <334	ADD TO CART
Blade fuse 5100011640 · qty on machine: 1 Serialno. <334 view full part page → $16.95
92	5100012587	Safety screw	1	Serialno. <334	ADD TO CART
Safety screw 5100012587 · qty on machine: 1 Serialno. <334 view full part page → $1.95
93	5100013599	Clip nut	1	Serialno. <334	ADD TO CART
Clip nut 5100013599 · qty on machine: 1 Serialno. <334 view full part page → $3.95
94	5100011859	Relay	1	Serialno. <334	ADD TO CART
Relay 5100011859 · qty on machine: 1 Serialno. <334 view full part page → $88.95
95	5100012321	Signal horn	1	Serialno. <334	ADD TO CART
Signal horn 5100012321 · qty on machine: 1 Serialno. <334 view full part page → $128.95
96	5100011791	Distance bush	1	Serialno. <334	ADD TO CART
Distance bush 5100011791 · qty on machine: 1 Serialno. <334 view full part page → $1.95
97	5100013510	Hexagon screw	1	Serialno. <334	ADD TO CART
Hexagon screw 5100013510 · qty on machine: 1 Serialno. <334 view full part page → $1.95
98	5100012966	Locking washer	1	Serialno. <334	ADD TO CART
Locking washer 5100012966 · qty on machine: 1 Serialno. <334 view full part page → $1.95
110	5100011974	Ground terminal	2	Serialno. <334	ADD TO CART
Ground terminal 5100011974 · qty on machine: 2 Serialno. <334 view full part page → $50.95
111	5100012965	Locking washer	4	Serialno. <334	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 Serialno. <334 view full part page → $2.95
112	5100012572	Hexagon screw	4	Serialno. <334	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 4 Serialno. <334 PARTS REQUEST
119	5100012544	Battery	1	Serialno. <334	ADD TO CART
Battery 5100012544 · qty on machine: 1 Serialno. <334 view full part page → $212.95
125	5100012335	Metal plate	1	Serialno. <334	ADD TO CART
Metal plate 5100012335 · qty on machine: 1 Serialno. <334 view full part page → $206.95
126	5100013412	Edge protection	0.04	Serialno. <334	ADD TO CART
Edge protection 5100013412 · qty on machine: 0.04 Serialno. <334 view full part page → $20.95
127	5100013550	Rubber buffer	3	Serialno. <334	ADD TO CART
Rubber buffer 5100013550 · qty on machine: 3 Serialno. <334 view full part page → $63.95
128	5100012546	Hexagon nut	3	Serialno. <334	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 3 Serialno. <334 view full part page → $1.95
129	5100012966	Locking washer	5	Serialno. <334	ADD TO CART
Locking washer 5100012966 · qty on machine: 5 Serialno. <334 view full part page → $1.95
130	5100035056	Hexagon screw	2	Serialno. <334	ADD TO CART
Hexagon screw 5100035056 · qty on machine: 2 Serialno. <334 view full part page → $1.95
133	5100011471	Stud bolt	1	Serialno. <334	ADD TO CART
Stud bolt 5100011471 · qty on machine: 1 Serialno. <334 view full part page → $4.95
134	5100011696	Metal plate	1	Serialno. <334	ADD TO CART
Metal plate 5100011696 · qty on machine: 1 Serialno. <334 view full part page → $15.95
135	5100013412	Edge protection	0.04	Serialno. <334	ADD TO CART
Edge protection 5100013412 · qty on machine: 0.04 Serialno. <334 view full part page → $20.95
136	5100013094	Washer	1	Serialno. <334	ADD TO CART
Washer 5100013094 · qty on machine: 1 Serialno. <334 view full part page → $1.95
137	5100012546	Hexagon nut	1	Serialno. <334	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 1 Serialno. <334 view full part page → $1.95
138	5100013094	Washer	1	Serialno. <334	ADD TO CART
Washer 5100013094 · qty on machine: 1 Serialno. <334 view full part page → $1.95
180	5100011455	Key	1	180.01 Serialno. <334	ADD TO CART
Key 5100011455 · qty on machine: 1 180.01 Serialno. <334 view full part page → $44.95
180	5100013608	Battery isolating switch	1	Serialno. <334	ADD TO CART
Battery isolating switch 5100013608 · qty on machine: 1 Serialno. <334 view full part page → $293.95
181	5100012608	Hexagon screw	2	Serialno. <334	ADD TO CART
Hexagon screw 5100012608 · qty on machine: 2 Serialno. <334 view full part page → $1.95
182	5100012545	Hexagon nut	2	Serialno. <334	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 Serialno. <334 view full part page → $1.95
183	5100012965	Locking washer	4	Serialno. <334	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 Serialno. <334 view full part page → $2.95
185	5100013184	Protecting cap	2	Serialno. <334	PARTS REQUEST
PHOTO COMING Protecting cap 5100013184 · qty on machine: 2 Serialno. <334 PARTS REQUEST
186	5100013573	Wire fastener	1	Serialno. <334	ADD TO CART
Wire fastener 5100013573 · qty on machine: 1 Serialno. <334 view full part page → $1.95
201	5100012242	Bracket	1	Serialno. <334	ADD TO CART
Bracket 5100012242 · qty on machine: 1 Serialno. <334 view full part page → $17.95
202	5100012551	Hexagon screw	2	Serialno. <334	ADD TO CART
Hexagon screw 5100012551 · qty on machine: 2 Serialno. <334 view full part page → $5.95
203	5100012967	Locking washer	2	Serialno. <334	ADD TO CART
Locking washer 5100012967 · qty on machine: 2 Serialno. <334 view full part page → $1.95
204	5100012341	Bracket	1	Serialno. <334	ADD TO CART
Bracket 5100012341 · qty on machine: 1 Serialno. <334 view full part page → $31.95
222	5100012829	Protecting cap	1	Serialno. <334	ADD TO CART
Protecting cap 5100012829 · qty on machine: 1 Serialno. <334 view full part page → $25.95
225	5100013184	Protecting cap	1	Serialno. <334	PARTS REQUEST
PHOTO COMING Protecting cap 5100013184 · qty on machine: 1 Serialno. <334 PARTS REQUEST
226	5100013573	Wire fastener	1	Serialno. <334	ADD TO CART
Wire fastener 5100013573 · qty on machine: 1 Serialno. <334 view full part page → $1.95
230	5100011465	Pipe clip	1	Serialno. <334	ADD TO CART
Pipe clip 5100011465 · qty on machine: 1 Serialno. <334 view full part page → $4.95
240	5100011914	Hexagon nut	1	Serialno. <334	ADD TO CART
Hexagon nut 5100011914 · qty on machine: 1 Serialno. <334 view full part page → $1.95
241	5100023629	Spring ring	1	Serialno. <334	ADD TO CART
Spring ring 5100023629 · qty on machine: 1 Serialno. <334 view full part page → $1.95
242	5100011915	Hexagon nut	1	Serialno. <334	ADD TO CART
Hexagon nut 5100011915 · qty on machine: 1 Serialno. <334 view full part page → $1.95
243	5100013441	Locking washer	1	Serialno. <334	ADD TO CART
Locking washer 5100013441 · qty on machine: 1 Serialno. <334 view full part page → $1.95
255	5100012337	Bracket	1	Serialno. <334	ADD TO CART
Bracket 5100012337 · qty on machine: 1 Serialno. <334 view full part page → $12.95
256	5100012600	Hexagon screw	2	Serialno. <334	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012600 · qty on machine: 2 Serialno. <334 PARTS REQUEST
257	5100012965	Locking washer	2	Serialno. <334	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 Serialno. <334 view full part page → $2.95
299	5100013573	Wire fastener	10	Serialno. <334	ADD TO CART
Wire fastener 5100013573 · qty on machine: 10 Serialno. <334 view full part page → $1.95
119	5100064718	Battery	1	Serialno. >335	PARTS REQUEST
PHOTO COMING Battery 5100064718 · qty on machine: 1 Serialno. >335 PARTS REQUEST
125	5100068741	Metal plate	1	Serialno. >335	ADD TO CART
Metal plate 5100068741 · qty on machine: 1 Serialno. >335 view full part page → $120.95
133	5100035056	Hexagon screw	1	Serialno. >335	ADD TO CART
Hexagon screw 5100035056 · qty on machine: 1 Serialno. >335 view full part page → $1.95
136	5100012966	Locking washer	1	Serialno. >335	ADD TO CART
Locking washer 5100012966 · qty on machine: 1 Serialno. >335 view full part page → $1.95
140	5100033222	Distance ring	1	Serialno. >335	ADD TO CART
Distance ring 5100033222 · qty on machine: 1 Serialno. >335 view full part page → $10.95
141	5100013421	Washer	1	Serialno. >335	ADD TO CART
Washer 5100013421 · qty on machine: 1 Serialno. >335 view full part page → $1.95
142	5100011696	Metal plate	1	Serialno. >335	ADD TO CART
Metal plate 5100011696 · qty on machine: 1 Serialno. >335 view full part page → $15.95
143	5100013412	Edge protection	0.04	Serialno. >335	ADD TO CART
Edge protection 5100013412 · qty on machine: 0.04 Serialno. >335 view full part page → $20.95
144	5100034727	Stud screw	1	Serialno. >335	ADD TO CART
Stud screw 5100034727 · qty on machine: 1 Serialno. >335 view full part page → $2.95
145	5100012966	Locking washer	1	Serialno. >335	ADD TO CART
Locking washer 5100012966 · qty on machine: 1 Serialno. >335 view full part page → $1.95
146	5100012546	Hexagon nut	1	Serialno. >335	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 1 Serialno. >335 view full part page → $1.95
71	5100011914	Hexagon nut	5		ADD TO CART
Hexagon nut 5100011914 · qty on machine: 5 view full part page → $1.95
72	5100023629	Spring ring	9		ADD TO CART
Spring ring 5100023629 · qty on machine: 9 view full part page → $1.95
104	5100012804	Circuit board	1		ADD TO CART
Circuit board 5100012804 · qty on machine: 1 view full part page → $852.95
105	5100013606	Cheese-head screw	2		ADD TO CART
Cheese-head screw 5100013606 · qty on machine: 2 view full part page → $1.95
170	5100011849	Built-in socket	1		ADD TO CART
Built-in socket 5100011849 · qty on machine: 1 view full part page → $46.95
171	5100012093	Metal plate	1		ADD TO CART
Metal plate 5100012093 · qty on machine: 1 view full part page → $25.95
172	5100012600	Hexagon screw	2		PARTS REQUEST
PHOTO COMING Hexagon screw 5100012600 · qty on machine: 2 PARTS REQUEST
173	5100012965	Locking washer	4		ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
174	5100012545	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
250	5100013650	Foot switch	1		ADD TO CART
Foot switch 5100013650 · qty on machine: 1 view full part page → $339.95
251	5100012890	Countersunk screw	2		ADD TO CART
Countersunk screw 5100012890 · qty on machine: 2 view full part page → $1.95
260	5100013650	Foot switch	1		ADD TO CART
Foot switch 5100013650 · qty on machine: 1 view full part page → $339.95
261	5100012890	Countersunk screw	2		ADD TO CART
Countersunk screw 5100012890 · qty on machine: 2 view full part page → $1.95
283	5100023629	Spring ring	1		ADD TO CART
Spring ring 5100023629 · qty on machine: 1 view full part page → $1.95
284	5100052960	Hexagon screw	1		PARTS REQUEST
PHOTO COMING Hexagon screw 5100052960 · qty on machine: 1 PARTS REQUEST
298	5100011748	Rear reflector	2		ADD TO CART
Rear reflector 5100011748 · qty on machine: 2 view full part page → $16.95
1	5100013570	Ignition switch	1		ADD TO CART
Ignition switch 5100013570 · qty on machine: 1 view full part page → $421.95
2	5100013506	Lid	1		ADD TO CART
Lid 5100013506 · qty on machine: 1 view full part page → $44.95
10	5100011784	Signal transmitter	1		ADD TO CART
Signal transmitter 5100011784 · qty on machine: 1 view full part page → $118.95
12	5100013594	Safety screw	1		ADD TO CART
Safety screw 5100013594 · qty on machine: 1 view full part page → $3.95
13	5100011599	Hexagon nut	1		ADD TO CART
Hexagon nut 5100011599 · qty on machine: 1 view full part page → $2.95
14	5100011586	Hexagon nut	1		ADD TO CART
Hexagon nut 5100011586 · qty on machine: 1 view full part page → $1.95
21	5100013557	Key	2		ADD TO CART
Key 5100013557 · qty on machine: 2 view full part page → $18.95
40	5100012575	Wire harness	1		ADD TO CART
Wire harness 5100012575 · qty on machine: 1 view full part page → $17.95
42	5100052958	Cheese-head screw	1		ADD TO CART
Cheese-head screw 5100052958 · qty on machine: 1 view full part page → $1.95
43	5100012965	Locking washer	1		ADD TO CART
Locking washer 5100012965 · qty on machine: 1 view full part page → $2.95
47	5100012584	Relay	1		PARTS REQUEST
PHOTO COMING Relay 5100012584 · qty on machine: 1 PARTS REQUEST
48	5100013594	Safety screw	1		ADD TO CART
Safety screw 5100013594 · qty on machine: 1 view full part page → $3.95
50	5100013594	Safety screw	2		ADD TO CART
Safety screw 5100013594 · qty on machine: 2 view full part page → $3.95
84	5100011616	Relay	1		ADD TO CART
Relay 5100011616 · qty on machine: 1 view full part page → $61.95
85	5100013580	Blade fuse	1		ADD TO CART
Blade fuse 5100013580 · qty on machine: 1 view full part page → $1.95
150	5100012579	Circuit board	1		ADD TO CART
Circuit board 5100012579 · qty on machine: 1 view full part page → $1509.95
151	5100013594	Safety screw	3		ADD TO CART
Safety screw 5100013594 · qty on machine: 3 view full part page → $3.95
152	5100013536	Serrated lock washer	3		ADD TO CART
Serrated lock washer 5100013536 · qty on machine: 3 view full part page → $2.95
153	5100011669	Rubber metal buffer	3		ADD TO CART
Rubber metal buffer 5100011669 · qty on machine: 3 view full part page → $17.95
154	5100011753	Washer	3		ADD TO CART
Washer 5100011753 · qty on machine: 3 view full part page → $1.95
155	5100012898	Hexagon nut	3		ADD TO CART
Hexagon nut 5100012898 · qty on machine: 3 view full part page → $2.95
157	5100011653	Mounting	1		ADD TO CART
Mounting 5100011653 · qty on machine: 1 view full part page → $2.95
158	5100011590	Safety cord	1		ADD TO CART
Safety cord 5100011590 · qty on machine: 1 view full part page → $9.95
159	5100011632	Extractor for blade fuses	1		ADD TO CART
Extractor for blade fuses 5100011632 · qty on machine: 1 view full part page → $136.95
160	5100012326	Cover plate	1		ADD TO CART
Cover plate 5100012326 · qty on machine: 1 view full part page → $32.95
161	5100012586	Stud bolt	2		ADD TO CART
Stud bolt 5100012586 · qty on machine: 2 view full part page → $2.95
162	5100013373	Half-clip	2		ADD TO CART
Half-clip 5100013373 · qty on machine: 2 view full part page → $4.95
163	5100012965	Locking washer	2		ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
164	5100012545	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
165	5100011537	Filler cap	1		ADD TO CART
Filler cap 5100011537 · qty on machine: 1 view full part page → $1.95
287	5100023629	Spring ring	1		ADD TO CART
Spring ring 5100023629 · qty on machine: 1 view full part page → $1.95
288	5100011914	Hexagon nut	1		ADD TO CART
Hexagon nut 5100011914 · qty on machine: 1 view full part page → $1.95
1	5100011582	Blade fuse	1		ADD TO CART
Blade fuse 5100011582 · qty on machine: 1 view full part page → $1.95
5	5100013586	Blade fuse	2		PARTS REQUEST
PHOTO COMING Blade fuse 5100013586 · qty on machine: 2 PARTS REQUEST
10	5100013579	Blade fuse	2		ADD TO CART
Blade fuse 5100013579 · qty on machine: 2 view full part page → $1.95
15	5100013580	Blade fuse	11		ADD TO CART
Blade fuse 5100013580 · qty on machine: 11 view full part page → $1.95
25	5100013581	Blade fuse	1		ADD TO CART
Blade fuse 5100013581 · qty on machine: 1 view full part page → $1.95
40	5100011859	Relay	2		ADD TO CART
Relay 5100011859 · qty on machine: 2 view full part page → $88.95
41	5100011616	Relay	2		ADD TO CART
Relay 5100011616 · qty on machine: 2 view full part page → $61.95
42	5100011583	Relay	7		ADD TO CART
Relay 5100011583 · qty on machine: 7 view full part page → $41.95
49	5100011632	Extractor for blade fuses	1		ADD TO CART
Extractor for blade fuses 5100011632 · qty on machine: 1 view full part page → $136.95
50	5100012579	Circuit board	1		ADD TO CART
Circuit board 5100012579 · qty on machine: 1 view full part page → $1509.95
71	5100012698	Sticker	1		ADD TO CART
Sticker 5100012698 · qty on machine: 1 view full part page → $14.95
71	5100016500	Sticker	1		ADD TO CART
Sticker 5100016500 · qty on machine: 1 view full part page → $19.95
1	5100012707	Drive lever	1		ADD TO CART
Drive lever 5100012707 · qty on machine: 1 view full part page → $591.95
2	5100011705	Handle	1		ADD TO CART
Handle 5100011705 · qty on machine: 1 view full part page → $49.95
3	5100011706	Handle	1		ADD TO CART
Handle 5100011706 · qty on machine: 1 view full part page → $49.95
4	5100011710	Cover	1		PARTS REQUEST
PHOTO COMING Cover 5100011710 · qty on machine: 1 PARTS REQUEST
5	5100011711	Cover	1		PARTS REQUEST
PHOTO COMING Cover 5100011711 · qty on machine: 1 PARTS REQUEST
6	5100011707	Operating lever	1		ADD TO CART
Operating lever 5100011707 · qty on machine: 1 view full part page → $42.95
7	5100012024	Clamping sleeve	1		ADD TO CART
Clamping sleeve 5100012024 · qty on machine: 1 view full part page → $2.95
8	5100011708	Cover	1		ADD TO CART
Cover 5100011708 · qty on machine: 1 view full part page → $10.95
11	5100013607	Raised countersunk head screw	4		ADD TO CART
Raised countersunk head screw 5100013607 · qty on machine: 4 view full part page → $1.95
12	5100011738	Raised countersunk head screw	1		ADD TO CART
Raised countersunk head screw 5100011738 · qty on machine: 1 view full part page → $1.95
30	5100012677	Wire harness	1		ADD TO CART
Wire harness 5100012677 · qty on machine: 1 view full part page → $152.95
31	5100011709	Circuit board	1		ADD TO CART
Circuit board 5100011709 · qty on machine: 1 view full part page → $21.95
32	5100013600	Sensor	1		ADD TO CART
Sensor 5100013600 · qty on machine: 1 view full part page → $34.95
33	5100013573	Wire fastener	1		ADD TO CART
Wire fastener 5100013573 · qty on machine: 1 view full part page → $1.95
34	5100011524	Shrinkdown plastic tubing	0.03		ADD TO CART
Shrinkdown plastic tubing 5100011524 · qty on machine: 0.03 view full part page → $39.95
35	5100011458	Shrinkdown plastic tubing	0.07		ADD TO CART
Shrinkdown plastic tubing 5100011458 · qty on machine: 0.07 view full part page → $6.95
40	5100013641	Round cable	0.4		PARTS REQUEST
PHOTO COMING Round cable 5100013641 · qty on machine: 0.4 PARTS REQUEST
1	5100012838	Pipe	1		ADD TO CART
Pipe 5100012838 · qty on machine: 1 view full part page → $241.95
1	5100013654	Flange	1		ADD TO CART
Flange 5100013654 · qty on machine: 1 view full part page → $562.95
2	5100013571	Push-button	1		ADD TO CART
Push-button 5100013571 · qty on machine: 1 view full part page → $33.95
3	5100013636	Protecting cap	1		ADD TO CART
Protecting cap 5100013636 · qty on machine: 1 view full part page → $41.95
4	5100013191	Washer	1		ADD TO CART
Washer 5100013191 · qty on machine: 1 view full part page → $1.95
5	5100013573	Wire fastener	1		ADD TO CART
Wire fastener 5100013573 · qty on machine: 1 view full part page → $1.95
10	5100013650	Foot switch	1		ADD TO CART
Foot switch 5100013650 · qty on machine: 1 view full part page → $339.95

Page 142 — Battery isolating switch

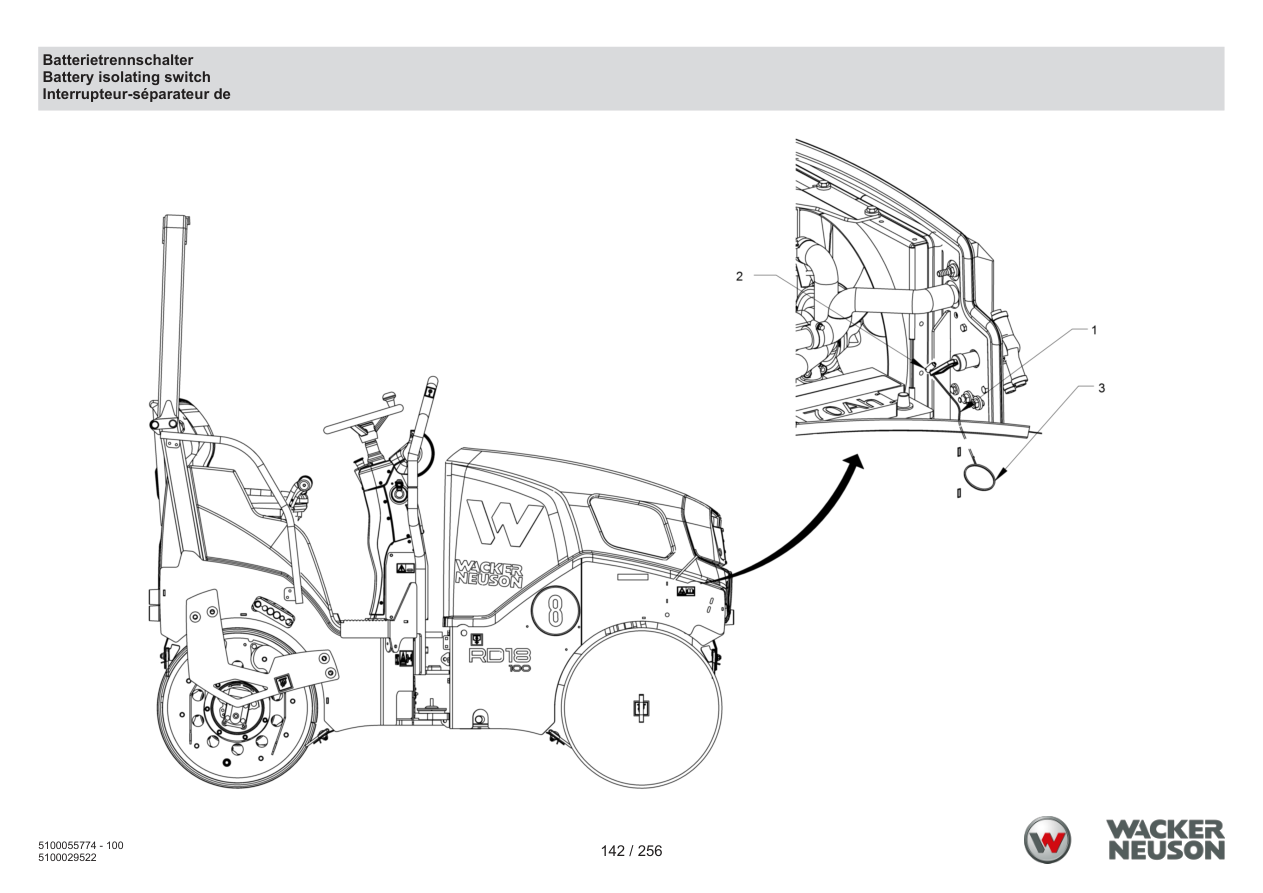

Wacker Neuson RD18-80 Roller Battery isolating switch parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
1	5100029600	Actuating cable	1	ADD TO CART
Actuating cable 5100029600 · qty on machine: 1 view full part page → $75.95
2	5100029567	Screw fitting	1	ADD TO CART
Screw fitting 5100029567 · qty on machine: 1 view full part page → $10.95
3	5100029565	Ring	1	ADD TO CART
Ring 5100029565 · qty on machine: 1 view full part page → $3.95

Page 144 — Automatic engine shutdown

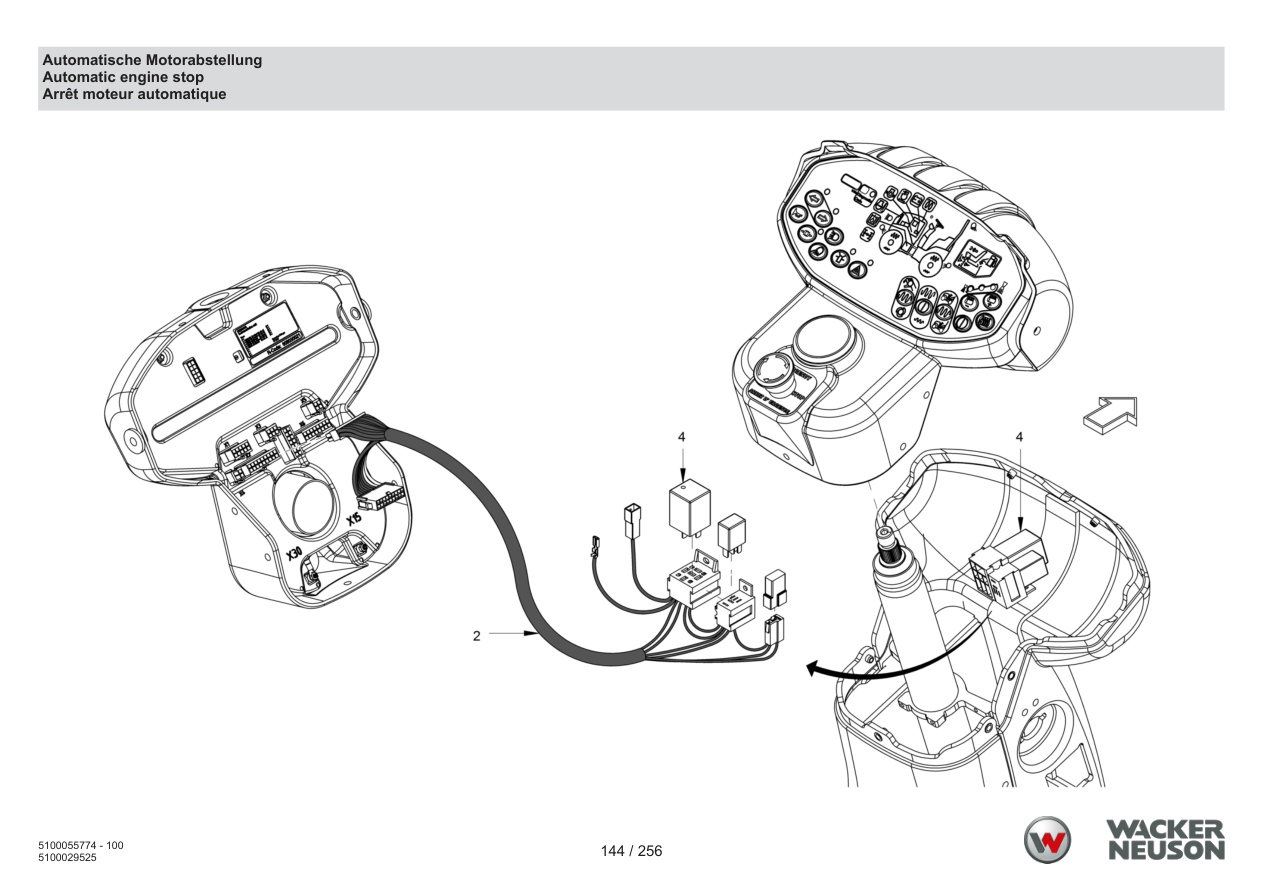

Wacker Neuson RD18-80 Roller Automatic engine shutdown parts diagram

Parts list — exactly as printed2 rows

No.	Part No.	Part Name	Qty
2	5100029573	Cable harness	1	ADD TO CART
Cable harness 5100029573 · qty on machine: 1 view full part page → $1437.95
4	5100029566	Slow-release relay	1	ADD TO CART
Slow-release relay 5100029566 · qty on machine: 1 view full part page → $719.95

Page 146 — Electrical system Lighting

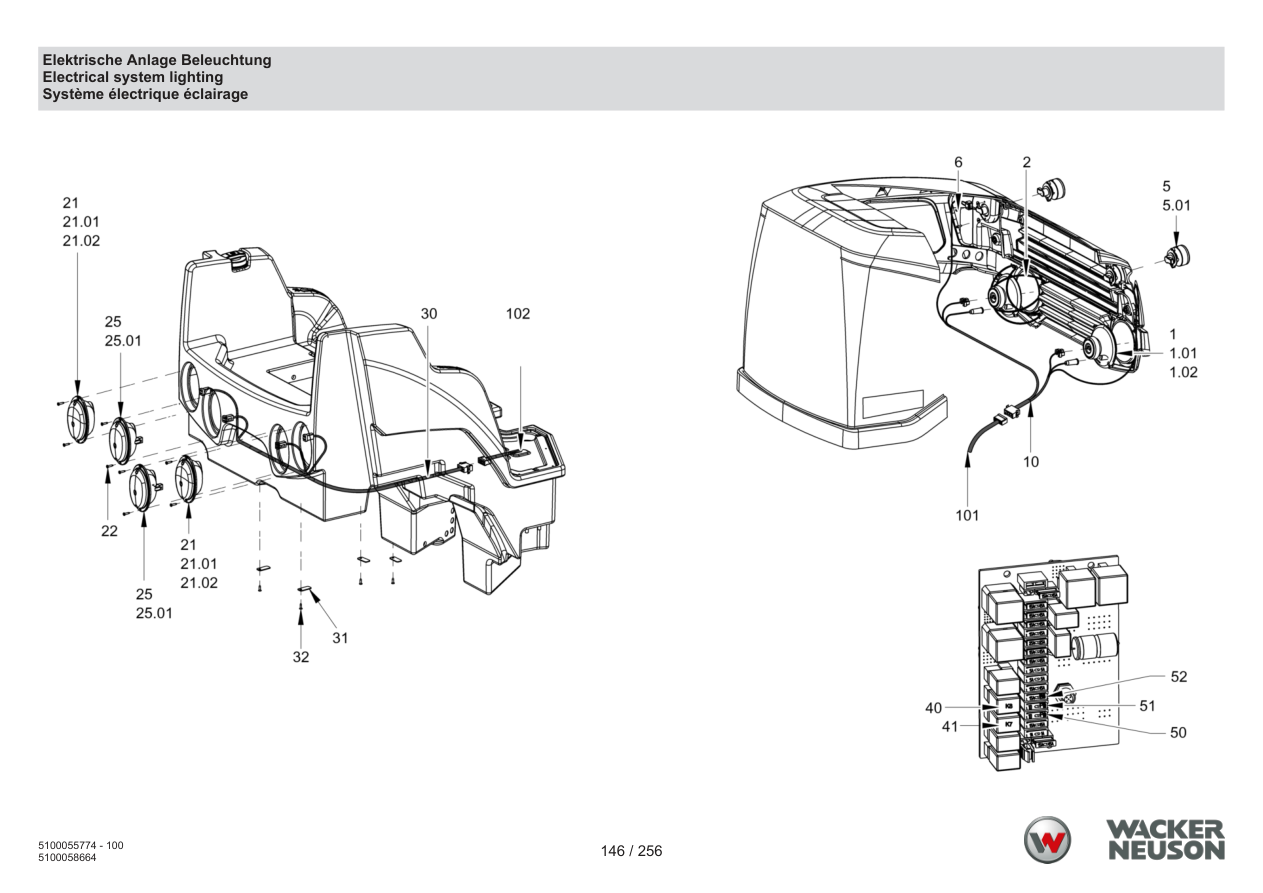

Wacker Neuson RD18-80 Roller Electrical system Lighting parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
31	5100011728	Metal plate	7		ADD TO CART
Metal plate 5100011728 · qty on machine: 7 view full part page → $9.95
1	5100011799	Working light	2	Serialno. >213	ADD TO CART
Working light 5100011799 · qty on machine: 2 Serialno. >213 view full part page → $229.95
1	5100012468	Lamp	2	1.02 Serialno. <212	ADD TO CART
Lamp 5100012468 · qty on machine: 2 1.02 Serialno. <212 view full part page → $4.95
1	5100013522	Lamp	2		ADD TO CART
Lamp 5100013522 · qty on machine: 2 view full part page → $31.95
1	5100065328	Headlight	2	Serialno. >213	ADD TO CART
Headlight 5100065328 · qty on machine: 2 Serialno. >213 view full part page → $116.95
1	5100065330	Lamp	1		ADD TO CART
Lamp 5100065330 · qty on machine: 1 view full part page → $35.95
2	5100011991	O-ring seal	4		ADD TO CART
O-ring seal 5100011991 · qty on machine: 4 view full part page → $6.95
5	5100011800	Direction indicator	2		ADD TO CART
Direction indicator 5100011800 · qty on machine: 2 view full part page → $125.95
5	5100012074	Lamp	2		ADD TO CART
Lamp 5100012074 · qty on machine: 2 view full part page → $29.95
6	5100013582	Sheet metal screw	4		ADD TO CART
Sheet metal screw 5100013582 · qty on machine: 4 view full part page → $3.95
10	5100011883	Wire harness (lighting)	1		ADD TO CART
Wire harness (lighting) 5100011883 · qty on machine: 1 view full part page → $376.95
21	5100013448	Lamp	2		ADD TO CART
Lamp 5100013448 · qty on machine: 2 view full part page → $7.95
21	5100012213	Lamp	2		ADD TO CART
Lamp 5100012213 · qty on machine: 2 view full part page → $36.95
21	5100011802	Tail light	2		ADD TO CART
Tail light 5100011802 · qty on machine: 2 view full part page → $105.95
22	5100011607	Sheet metal screw	8		ADD TO CART
Sheet metal screw 5100011607 · qty on machine: 8 view full part page → $1.95
25	5100011801	Reversing light	2		ADD TO CART
Reversing light 5100011801 · qty on machine: 2 view full part page → $99.95
25	5100013448	Lamp	2		ADD TO CART
Lamp 5100013448 · qty on machine: 2 view full part page → $7.95
30	5100011884	Wire harness	1		ADD TO CART
Wire harness 5100011884 · qty on machine: 1 view full part page → $346.95
32	5100011902	Sheet metal screw	7		ADD TO CART
Sheet metal screw 5100011902 · qty on machine: 7 view full part page → $1.95
40	5100011583	Relay	1		ADD TO CART
Relay 5100011583 · qty on machine: 1 view full part page → $41.95
41	5100011583	Relay	1		ADD TO CART
Relay 5100011583 · qty on machine: 1 view full part page → $41.95
50	5100013579	Blade fuse	1		ADD TO CART
Blade fuse 5100013579 · qty on machine: 1 view full part page → $1.95
51	5100013579	Blade fuse	1		ADD TO CART
Blade fuse 5100013579 · qty on machine: 1 view full part page → $1.95
52	5100013580	Blade fuse	1		ADD TO CART
Blade fuse 5100013580 · qty on machine: 1 view full part page → $1.95
101	5100058637	Wire harness front frame	1		ADD TO CART
Wire harness front frame 5100058637 · qty on machine: 1 view full part page → $853.95
102	5100012758	Wire harness (rear frame)	1		ADD TO CART
Wire harness (rear frame) 5100012758 · qty on machine: 1 view full part page → $1193.95

Page 148 — Additional lighting

Wacker Neuson RD18-80 Roller Additional lighting parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty
1	5100011606	Working light	4	ADD TO CART
Working light 5100011606 · qty on machine: 4 view full part page → $450.95
1	5100012182	Hexagon nut	1	PARTS REQUEST
PHOTO COMING Hexagon nut 5100012182 · qty on machine: 1 PARTS REQUEST
1	5100012939	Washer	1	ADD TO CART
Washer 5100012939 · qty on machine: 1 view full part page → $1.95
1	5100013554	Lamp	1	ADD TO CART
Lamp 5100013554 · qty on machine: 1 view full part page → $40.95
2	5100024915	Working light	4	PARTS REQUEST
PHOTO COMING Working light 5100024915 · qty on machine: 4 PARTS REQUEST
3	5100024918	Cable harness	4	ADD TO CART
Cable harness 5100024918 · qty on machine: 4 view full part page → $34.95
4	5100013128	Washer	4	ADD TO CART
Washer 5100013128 · qty on machine: 4 view full part page → $1.95
5	5100023419	Hexagon screw	4	ADD TO CART
Hexagon screw 5100023419 · qty on machine: 4 view full part page → $3.95
15	5100011583	Relay	1	ADD TO CART
Relay 5100011583 · qty on machine: 1 view full part page → $41.95
16	5100013580	Blade fuse	1	ADD TO CART
Blade fuse 5100013580 · qty on machine: 1 view full part page → $1.95
21	5100016849	Stop	2	ADD TO CART
Stop 5100016849 · qty on machine: 2 view full part page → $117.95
22	5100013379	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013379 · qty on machine: 2 view full part page → $10.95
23	5100012969	Locking washer	4	ADD TO CART
Locking washer 5100012969 · qty on machine: 4 view full part page → $2.95
24	5100012603	Safety nut	2	ADD TO CART
Safety nut 5100012603 · qty on machine: 2 view full part page → $2.95
28	5100013377	Rubber buffer	4	ADD TO CART
Rubber buffer 5100013377 · qty on machine: 4 view full part page → $64.95
29	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
30	5100012547	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
32	5100012803	Wire harness	1	ADD TO CART
Wire harness 5100012803 · qty on machine: 1 view full part page → $162.95
102	5100012758	Wire harness (rear frame)	1	ADD TO CART
Wire harness (rear frame) 5100012758 · qty on machine: 1 view full part page → $1193.95
1	5100024915	Working light	4	PARTS REQUEST
PHOTO COMING Working light 5100024915 · qty on machine: 4 PARTS REQUEST
2	5100052987	Wire harness working light	2	ADD TO CART
Wire harness working light 5100052987 · qty on machine: 2 view full part page → $200.95

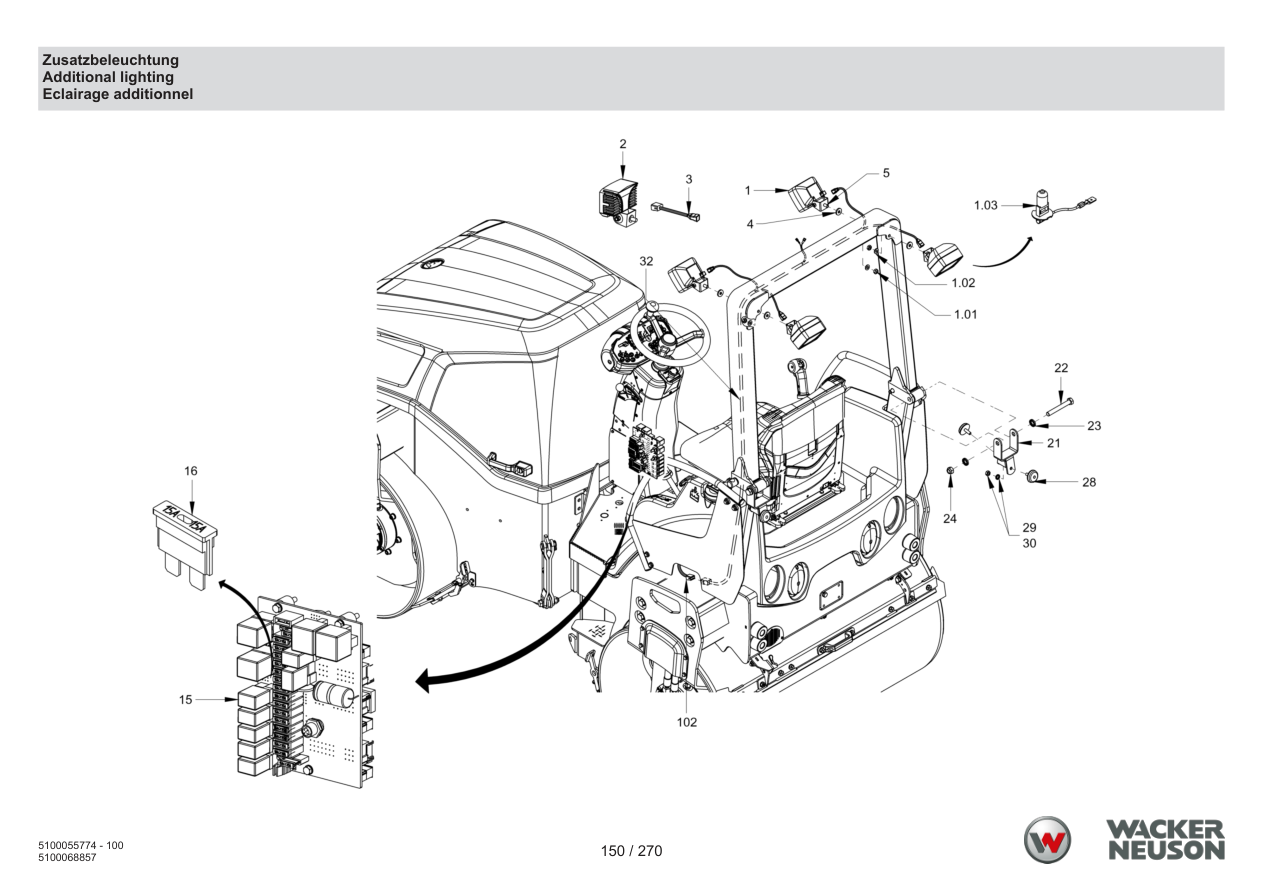

Page 150 — Additional lighting

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty
1	5100011606	Working light	4	ADD TO CART
Working light 5100011606 · qty on machine: 4 view full part page → $450.95
1	5100012182	Hexagon nut	1	PARTS REQUEST
PHOTO COMING Hexagon nut 5100012182 · qty on machine: 1 PARTS REQUEST
1	5100012939	Washer	1	ADD TO CART
Washer 5100012939 · qty on machine: 1 view full part page → $1.95
1	5100013554	Lamp	1	ADD TO CART
Lamp 5100013554 · qty on machine: 1 view full part page → $40.95
2	5100024915	Working light	4	PARTS REQUEST
PHOTO COMING Working light 5100024915 · qty on machine: 4 PARTS REQUEST
3	5100024918	Cable harness	4	ADD TO CART
Cable harness 5100024918 · qty on machine: 4 view full part page → $34.95
4	5100013128	Washer	4	ADD TO CART
Washer 5100013128 · qty on machine: 4 view full part page → $1.95
5	5100023419	Hexagon screw	4	ADD TO CART
Hexagon screw 5100023419 · qty on machine: 4 view full part page → $3.95
15	5100011583	Relay	1	ADD TO CART
Relay 5100011583 · qty on machine: 1 view full part page → $41.95
16	5100013580	Blade fuse	1	ADD TO CART
Blade fuse 5100013580 · qty on machine: 1 view full part page → $1.95
21	5100016849	Stop	2	ADD TO CART
Stop 5100016849 · qty on machine: 2 view full part page → $117.95
22	5100013379	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013379 · qty on machine: 2 view full part page → $10.95
23	5100012969	Locking washer	4	ADD TO CART
Locking washer 5100012969 · qty on machine: 4 view full part page → $2.95
24	5100012603	Safety nut	2	ADD TO CART
Safety nut 5100012603 · qty on machine: 2 view full part page → $2.95
28	5100013377	Rubber buffer	4	ADD TO CART
Rubber buffer 5100013377 · qty on machine: 4 view full part page → $64.95
29	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
30	5100012547	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
32	5100012803	Wire harness	1	ADD TO CART
Wire harness 5100012803 · qty on machine: 1 view full part page → $162.95
102	5100012758	Wire harness (rear frame)	1	ADD TO CART
Wire harness (rear frame) 5100012758 · qty on machine: 1 view full part page → $1193.95
1	5100024915	Working light	4	PARTS REQUEST
PHOTO COMING Working light 5100024915 · qty on machine: 4 PARTS REQUEST
2	5100052987	Wire harness working light	2	ADD TO CART
Wire harness working light 5100052987 · qty on machine: 2 view full part page → $200.95

Page 152 — Rotating beacon light

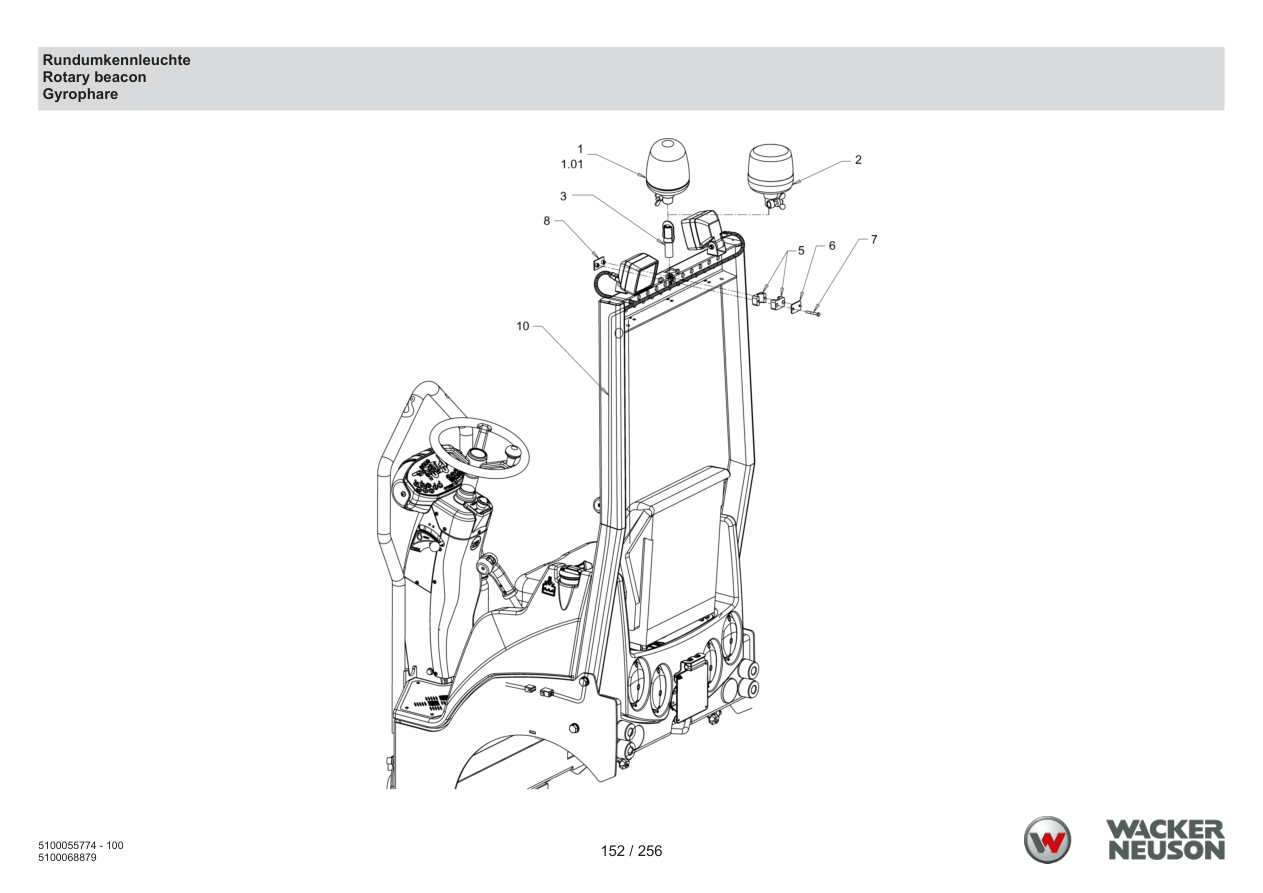

Wacker Neuson RD18-80 Roller Rotating beacon light parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty
1	5100011941	Rotary beacon	1	ADD TO CART
Rotary beacon 5100011941 · qty on machine: 1 view full part page → $423.95
1	5100013538	Lamp	1	ADD TO CART
Lamp 5100013538 · qty on machine: 1 view full part page → $39.95
2	5100029569	Rotary beacon	1	ADD TO CART
Rotary beacon 5100029569 · qty on machine: 1 view full part page → $687.95
3	5100013517	Pipe	1	ADD TO CART
Pipe 5100013517 · qty on machine: 1 view full part page → $233.95
5	5100050711	Half-clip	2	PARTS REQUEST
PHOTO COMING Half-clip 5100050711 · qty on machine: 2 PARTS REQUEST
6	5100013465	Cover plate	1	ADD TO CART
Cover plate 5100013465 · qty on machine: 1 view full part page → $1.95
7	5100013467	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013467 · qty on machine: 2 view full part page → $1.95
8	5100011868	Weld-on plate	1	ADD TO CART
Weld-on plate 5100011868 · qty on machine: 1 view full part page → $4.95
10	5100012803	Wire harness	1	ADD TO CART
Wire harness 5100012803 · qty on machine: 1 view full part page → $162.95
1	5100029569	Rotary beacon	1	ADD TO CART
Rotary beacon 5100029569 · qty on machine: 1 view full part page → $687.95
2	5100023984	Holder	1	ADD TO CART
Holder 5100023984 · qty on machine: 1 view full part page → $983.95
5	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
7	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
10	5100052988	Wire harness rotating beacon	1	ADD TO CART
Wire harness rotating beacon 5100052988 · qty on machine: 1 view full part page → $99.95
15	5100011583	Relay	1	ADD TO CART
Relay 5100011583 · qty on machine: 1 view full part page → $41.95
16	5100013580	Blade fuse	1	ADD TO CART
Blade fuse 5100013580 · qty on machine: 1 view full part page → $1.95

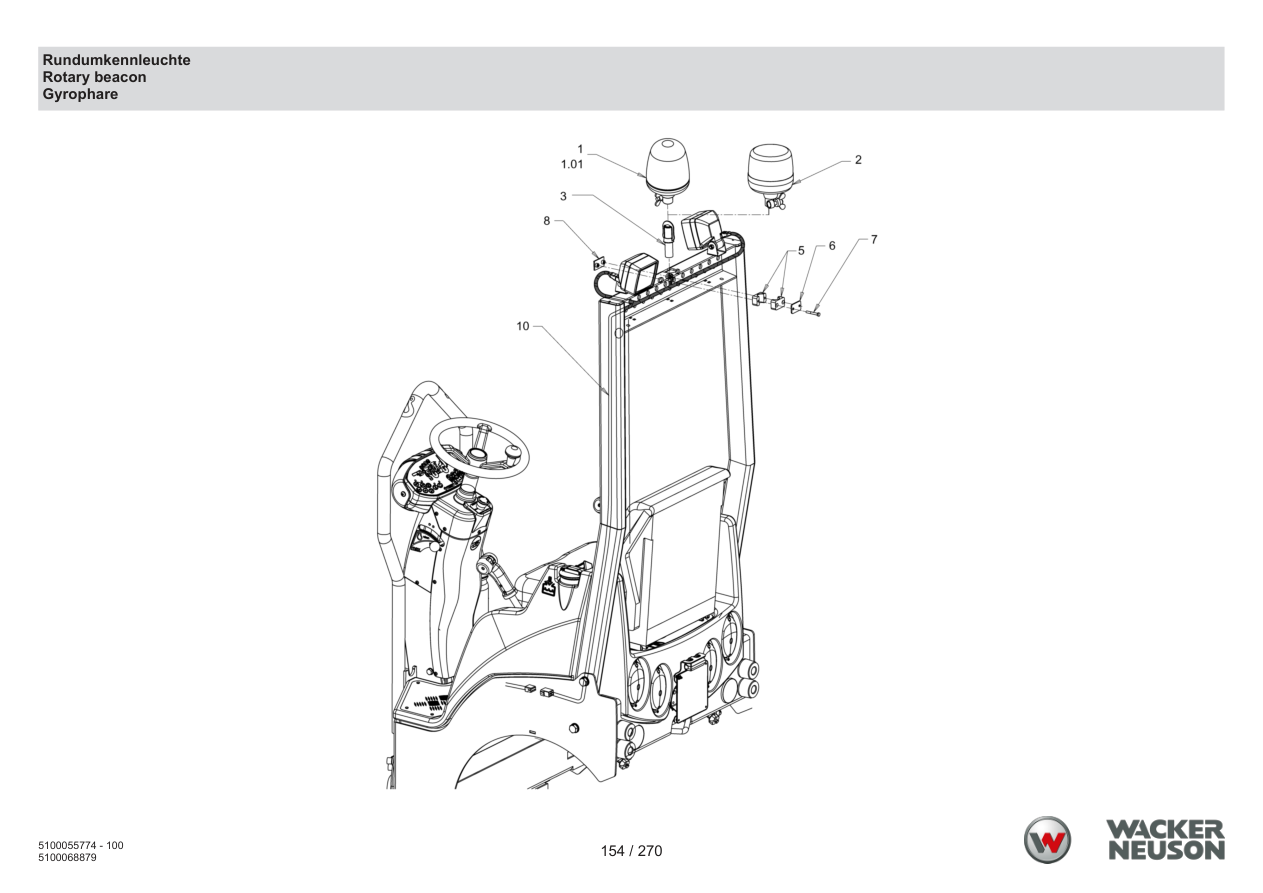

Page 154 — Rotating beacon light

Parts list — exactly as printed17 rows

No.	Part No.	Part Name	Qty
2	5100029569	Rotary beacon	1	ADD TO CART
Rotary beacon 5100029569 · qty on machine: 1 view full part page → $687.95
3	5100013517	Pipe	1	ADD TO CART
Pipe 5100013517 · qty on machine: 1 view full part page → $233.95
5	5100050711	Half-clip	2	PARTS REQUEST
PHOTO COMING Half-clip 5100050711 · qty on machine: 2 PARTS REQUEST
6	5100013465	Cover plate	1	ADD TO CART
Cover plate 5100013465 · qty on machine: 1 view full part page → $1.95
7	5100013467	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013467 · qty on machine: 2 view full part page → $1.95
8	5100011868	Weld-on plate	1	ADD TO CART
Weld-on plate 5100011868 · qty on machine: 1 view full part page → $4.95
10	5100012803	Wire harness	1	ADD TO CART
Wire harness 5100012803 · qty on machine: 1 view full part page → $162.95
1	5100029569	Rotary beacon	1	ADD TO CART
Rotary beacon 5100029569 · qty on machine: 1 view full part page → $687.95
2	5100023984	Holder	1	ADD TO CART
Holder 5100023984 · qty on machine: 1 view full part page → $983.95
4	5100013397	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013397 · qty on machine: 2 view full part page → $1.95
5	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
7	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
10	5100052988	Wire harness rotating beacon	1	ADD TO CART
Wire harness rotating beacon 5100052988 · qty on machine: 1 view full part page → $99.95
16	5100013580	Blade fuse	1	ADD TO CART
Blade fuse 5100013580 · qty on machine: 1 view full part page → $1.95
15	5100011583	Relay	1	ADD TO CART
Relay 5100011583 · qty on machine: 1 view full part page → $41.95
1	5100011941	Rotary beacon	1	ADD TO CART
Rotary beacon 5100011941 · qty on machine: 1 view full part page → $423.95
1	5100013538	Lamp	1	ADD TO CART
Lamp 5100013538 · qty on machine: 1 view full part page → $39.95

Page 156 — Back-up alarm

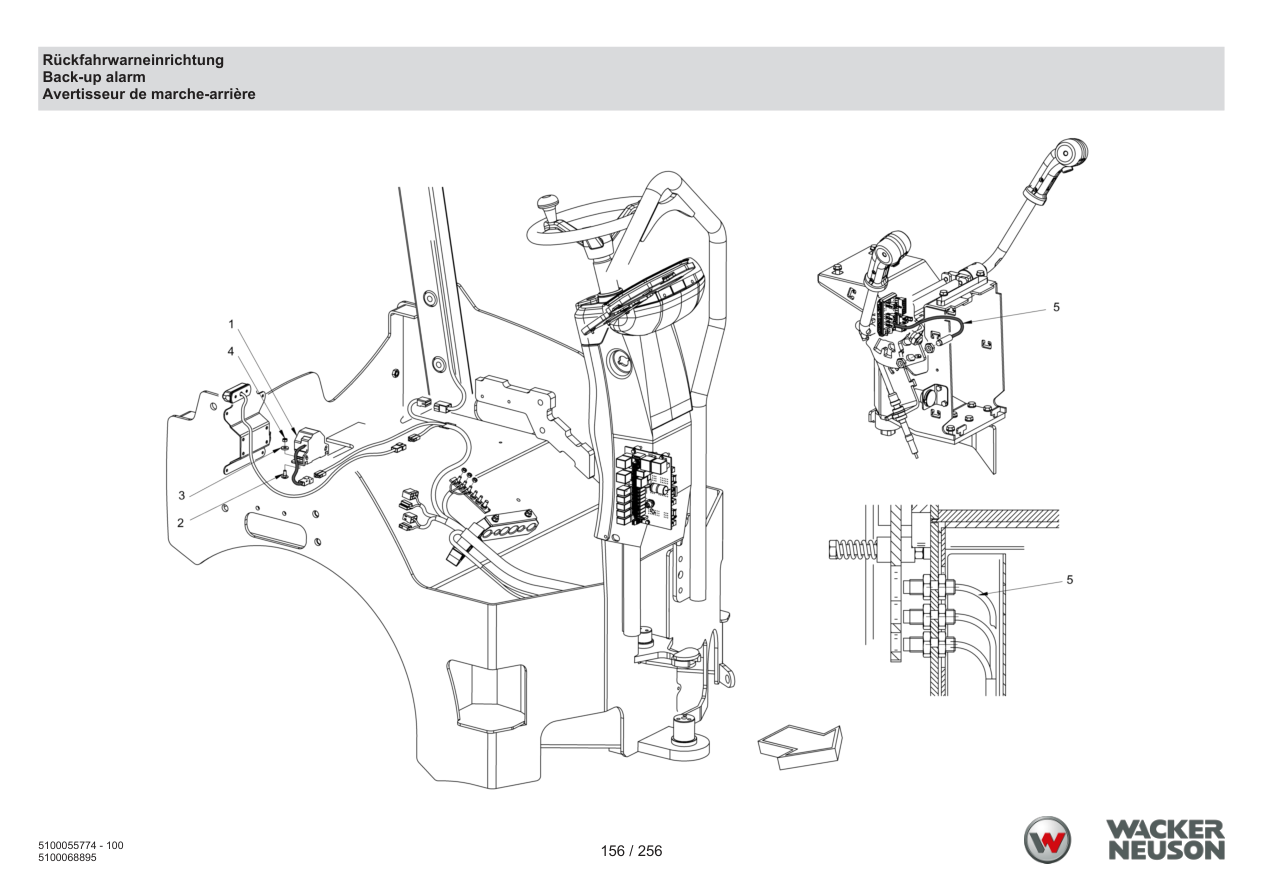

Wacker Neuson RD18-80 Roller Back-up alarm parts diagram

Parts list — exactly as printed5 rows

No.	Part No.	Part Name	Qty
1	5100012887	Reversing alarm 12v-24v dc	1	ADD TO CART
Reversing alarm 12v-24v dc 5100012887 · qty on machine: 1 view full part page → $447.95
2	5100012931	Mushroom head screw	2	ADD TO CART
Mushroom head screw 5100012931 · qty on machine: 2 view full part page → $1.95
3	5100011636	Washer	2	ADD TO CART
Washer 5100011636 · qty on machine: 2 view full part page → $1.95
4	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
5	5100059504	Proximity switch	1	ADD TO CART
Proximity switch 5100059504 · qty on machine: 1 view full part page → $336.95

Page 158 — Back-up alarm self adjusting

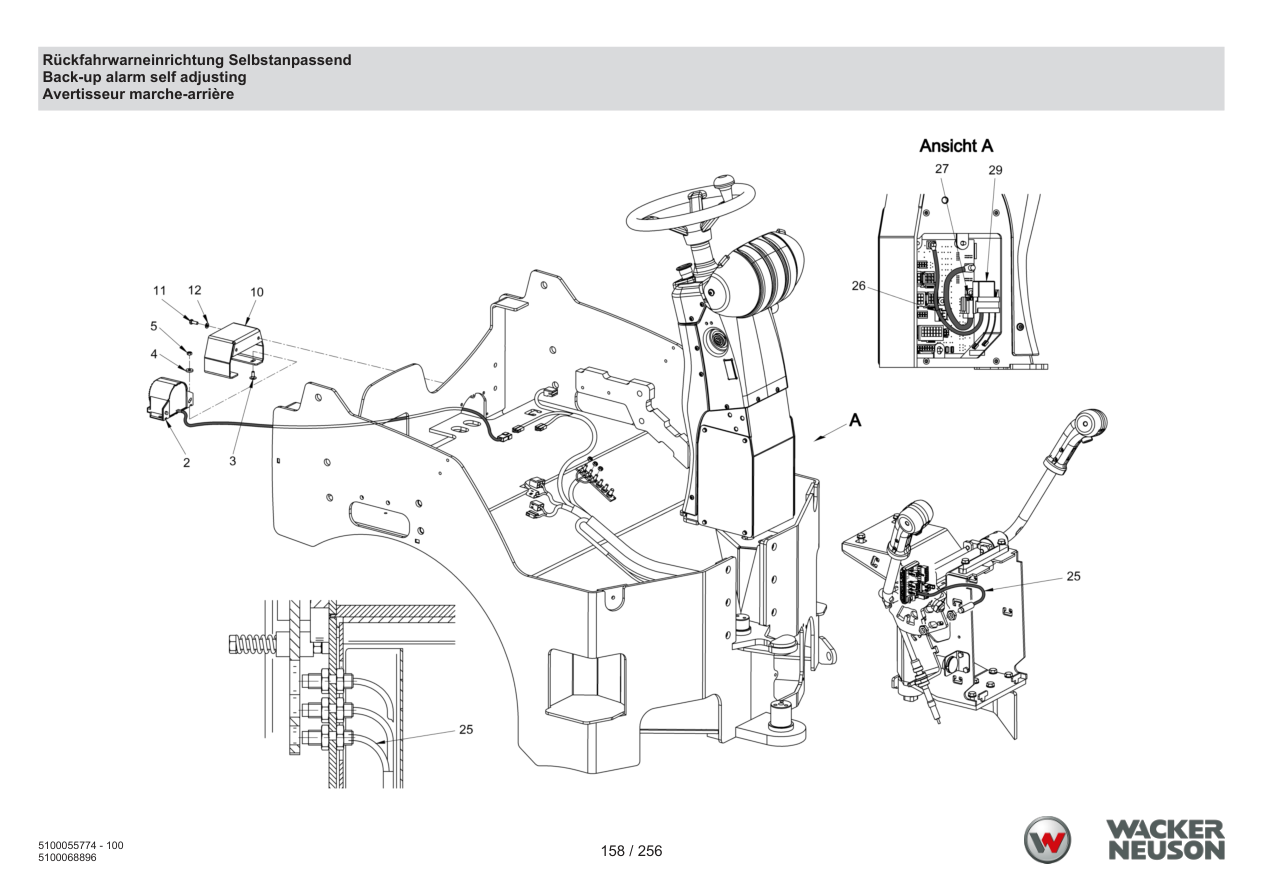

Wacker Neuson RD18-80 Roller Back-up alarm self adjusting parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty
2	5100029555	Back-up alarm	1	ADD TO CART
Back-up alarm 5100029555 · qty on machine: 1 view full part page → $1622.95
3	5100012608	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012608 · qty on machine: 2 view full part page → $1.95
4	5100011636	Washer	2	ADD TO CART
Washer 5100011636 · qty on machine: 2 view full part page → $1.95
5	5100013585	Clip nut	2	ADD TO CART
Clip nut 5100013585 · qty on machine: 2 view full part page → $10.95
10	5100029553	Holder	1	ADD TO CART
Holder 5100029553 · qty on machine: 1 view full part page → $75.95
11	5100012600	Hexagon screw	2	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012600 · qty on machine: 2 PARTS REQUEST
12	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
25	5100059504	Proximity switch	1	ADD TO CART
Proximity switch 5100059504 · qty on machine: 1 view full part page → $336.95
26	5100029559	Cable harness	1	ADD TO CART
Cable harness 5100029559 · qty on machine: 1 view full part page → $110.95
27	5100013580	Blade fuse	1	ADD TO CART
Blade fuse 5100013580 · qty on machine: 1 view full part page → $1.95
29	5100052959	Relay	1	ADD TO CART
Relay 5100052959 · qty on machine: 1 view full part page → $40.95

Page 160 — Advance drive

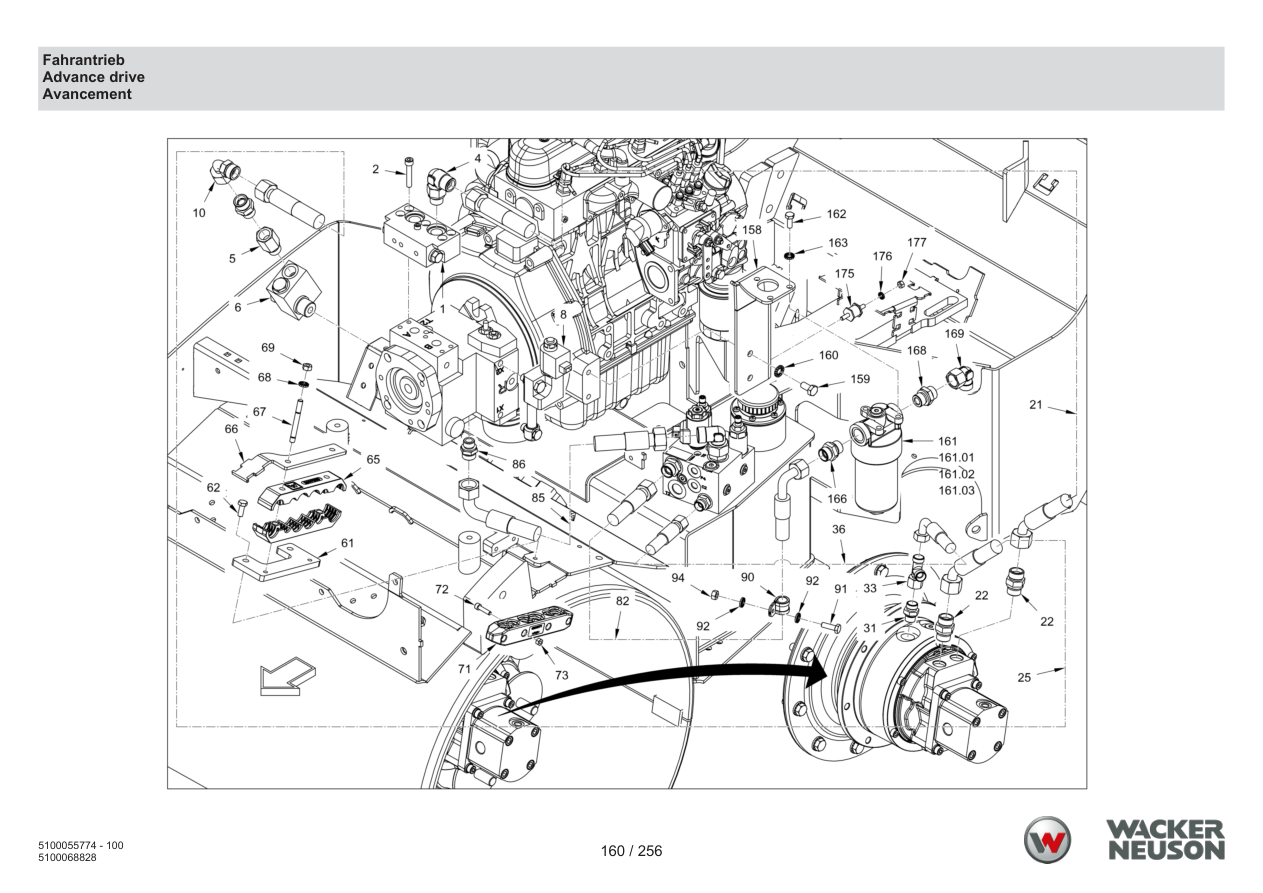

Wacker Neuson RD18-80 Roller Advance drive parts diagram

Parts list — exactly as printed67 rows

No.	Part No.	Part Name	Qty	Remarks
61	5100011881	Metal plate	1		ADD TO CART
Metal plate 5100011881 · qty on machine: 1 view full part page → $63.95
62	5100012517	Hexagon screw	2		ADD TO CART
Hexagon screw 5100012517 · qty on machine: 2 view full part page → $1.95
1	5100012426	Valve block	1		ADD TO CART
Valve block 5100012426 · qty on machine: 1 view full part page → $795.95
2	5100011659	Cheese-head screw	5		ADD TO CART
Cheese-head screw 5100011659 · qty on machine: 5 view full part page → $2.95
4	5100012721	Elbow adjustable	2		ADD TO CART
Elbow adjustable 5100012721 · qty on machine: 2 view full part page → $88.95
5	5100012720	Reducing piece	1		PARTS REQUEST
PHOTO COMING Reducing piece 5100012720 · qty on machine: 1 PARTS REQUEST
6	5100012427	Valve block	1		ADD TO CART
Valve block 5100012427 · qty on machine: 1 view full part page → $437.95
8	5100012429	Valve block	1		ADD TO CART
Valve block 5100012429 · qty on machine: 1 view full part page → $980.95
10	5100011416	Intermediate piece	1		ADD TO CART
Intermediate piece 5100011416 · qty on machine: 1 view full part page → $82.95
21	5100012742	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100012742 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $217.95
21	5100012743	Flexible tubing	1		ADD TO CART
Flexible tubing 5100012743 · qty on machine: 1 view full part page → $225.95
21	5100012752	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012752 · qty on machine: 1 RD18-80 view full part page → $210.95
22	5100013489	Straight screwed socket	2		ADD TO CART
Straight screwed socket 5100013489 · qty on machine: 2 view full part page → $12.95
25	5100012752	Flexible tubing	1		ADD TO CART
Flexible tubing 5100012752 · qty on machine: 1 view full part page → $210.95
25	5100012743	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100012743 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $225.95
25	5100011890	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100011890 · qty on machine: 1 RD18-80 view full part page → $203.95
31	5100013472	Straight screwed socket	1		ADD TO CART
Straight screwed socket 5100013472 · qty on machine: 1 view full part page → $8.95
33	5100013613	Elbow adjustable	2		ADD TO CART
Elbow adjustable 5100013613 · qty on machine: 2 view full part page → $33.95
36	5100011588	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100011588 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $164.95
36	5100011821	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100011821 · qty on machine: 1 RD18-80 view full part page → $108.95
36	5100068748	Hose	1		ADD TO CART
Hose 5100068748 · qty on machine: 1 view full part page → $105.95
65	5100011879	Half-clip	2		ADD TO CART
Half-clip 5100011879 · qty on machine: 2 view full part page → $21.95
66	5100068750	Metal plate	1		ADD TO CART
Metal plate 5100068750 · qty on machine: 1 view full part page → $15.95
67	5100012977	Stud bolt	2		ADD TO CART
Stud bolt 5100012977 · qty on machine: 2 view full part page → $3.95
68	5100012966	Locking washer	2		ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
69	5100012546	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
71	5100011887	Hose clip	4		ADD TO CART
Hose clip 5100011887 · qty on machine: 4 view full part page → $7.95
72	5100013404	Cheese-head screw	8		PARTS REQUEST
PHOTO COMING Cheese-head screw 5100013404 · qty on machine: 8 PARTS REQUEST
73	5100012545	Hexagon nut	8		ADD TO CART
Hexagon nut 5100012545 · qty on machine: 8 view full part page → $1.95
82	5100068751	Hose	1		ADD TO CART
Hose 5100068751 · qty on machine: 1 view full part page → $45.95
85	5100068752	Hose	1		ADD TO CART
Hose 5100068752 · qty on machine: 1 view full part page → $155.95
86	5100013473	Straight screwed socket	1		PARTS REQUEST
PHOTO COMING Straight screwed socket 5100013473 · qty on machine: 1 PARTS REQUEST
90	5100034910	Pipe clip	1		ADD TO CART
Pipe clip 5100034910 · qty on machine: 1 view full part page → $11.95
91	5100012613	Hexagon screw	1		ADD TO CART
Hexagon screw 5100012613 · qty on machine: 1 view full part page → $1.95
92	5100012966	Locking washer	2		ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
94	5100012546	Hexagon nut	1		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 1 view full part page → $1.95
158	5100068753	Holder	1		ADD TO CART
Holder 5100068753 · qty on machine: 1 view full part page → $128.95
159	5100011479	Hexagon screw	2		ADD TO CART
Hexagon screw 5100011479 · qty on machine: 2 view full part page → $1.95
160	5100012967	Locking washer	2		ADD TO CART
Locking washer 5100012967 · qty on machine: 2 view full part page → $1.95
161	5100013361	Filter	1		ADD TO CART
Filter 5100013361 · qty on machine: 1 view full part page → $130.95
161	5100013387	O-ring seal	1		ADD TO CART
O-ring seal 5100013387 · qty on machine: 1 view full part page → $1.95
161	5100024324	Filter insert	1		PARTS REQUEST
PHOTO COMING Filter insert 5100024324 · qty on machine: 1 PARTS REQUEST
161	5100029595	Set of seals	1		ADD TO CART
Set of seals 5100029595 · qty on machine: 1 view full part page → $52.95
162	5100012517	Hexagon screw	3		ADD TO CART
Hexagon screw 5100012517 · qty on machine: 3 view full part page → $1.95
163	5100012966	Locking washer	3		ADD TO CART
Locking washer 5100012966 · qty on machine: 3 view full part page → $1.95
166	5100013476	Straight screwed socket	1		ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 1 view full part page → $11.95
168	5100013476	Straight screwed socket	1		ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 1 view full part page → $11.95
169	5100013483	Elbow adjustable	1		ADD TO CART
Elbow adjustable 5100013483 · qty on machine: 1 view full part page → $39.95
175	5100012919	Silentbloc	2		ADD TO CART
Silentbloc 5100012919 · qty on machine: 2 view full part page → $16.95
176	5100012965	Locking washer	2		ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
177	5100012545	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
7	5100013539	Straight screwed socket	2		ADD TO CART
Straight screwed socket 5100013539 · qty on machine: 2 view full part page → $13.95
11	5100012737	Flexible tubing	1		PARTS REQUEST
PHOTO COMING Flexible tubing 5100012737 · qty on machine: 1 PARTS REQUEST
11	5100012738	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100012738 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $385.95
11	5100012747	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012747 · qty on machine: 1 RD18-80 view full part page → $331.95
15	5100012737	Flexible tubing	1	FITS RD18-100 (not RD18-80)	PARTS REQUEST
PHOTO COMING Flexible tubing 5100012737 · qty on machine: 1 FITS RD18-100 (not RD18-80) PARTS REQUEST
15	5100012746	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012746 · qty on machine: 1 RD18-80 view full part page → $355.95
15	5100012747	Flexible tubing	1		ADD TO CART
Flexible tubing 5100012747 · qty on machine: 1 view full part page → $331.95
18	5100011416	Intermediate piece	1		ADD TO CART
Intermediate piece 5100011416 · qty on machine: 1 view full part page → $82.95
35	5100068754	Hose	1	RD18-80	ADD TO CART
Hose 5100068754 · qty on machine: 1 RD18-80 view full part page → $69.95
35	5100068755	Hose	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Hose 5100068755 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $83.95
35	5100068756	Hose	1		ADD TO CART
Hose 5100068756 · qty on machine: 1 view full part page → $70.95
51	5100011879	Half-clip	2		ADD TO CART
Half-clip 5100011879 · qty on machine: 2 view full part page → $21.95
52	5100011880	Metal plate	1		ADD TO CART
Metal plate 5100011880 · qty on machine: 1 view full part page → $17.95
53	5100012977	Stud bolt	2		ADD TO CART
Stud bolt 5100012977 · qty on machine: 2 view full part page → $3.95
54	5100012966	Locking washer	2		ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
55	5100012546	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95

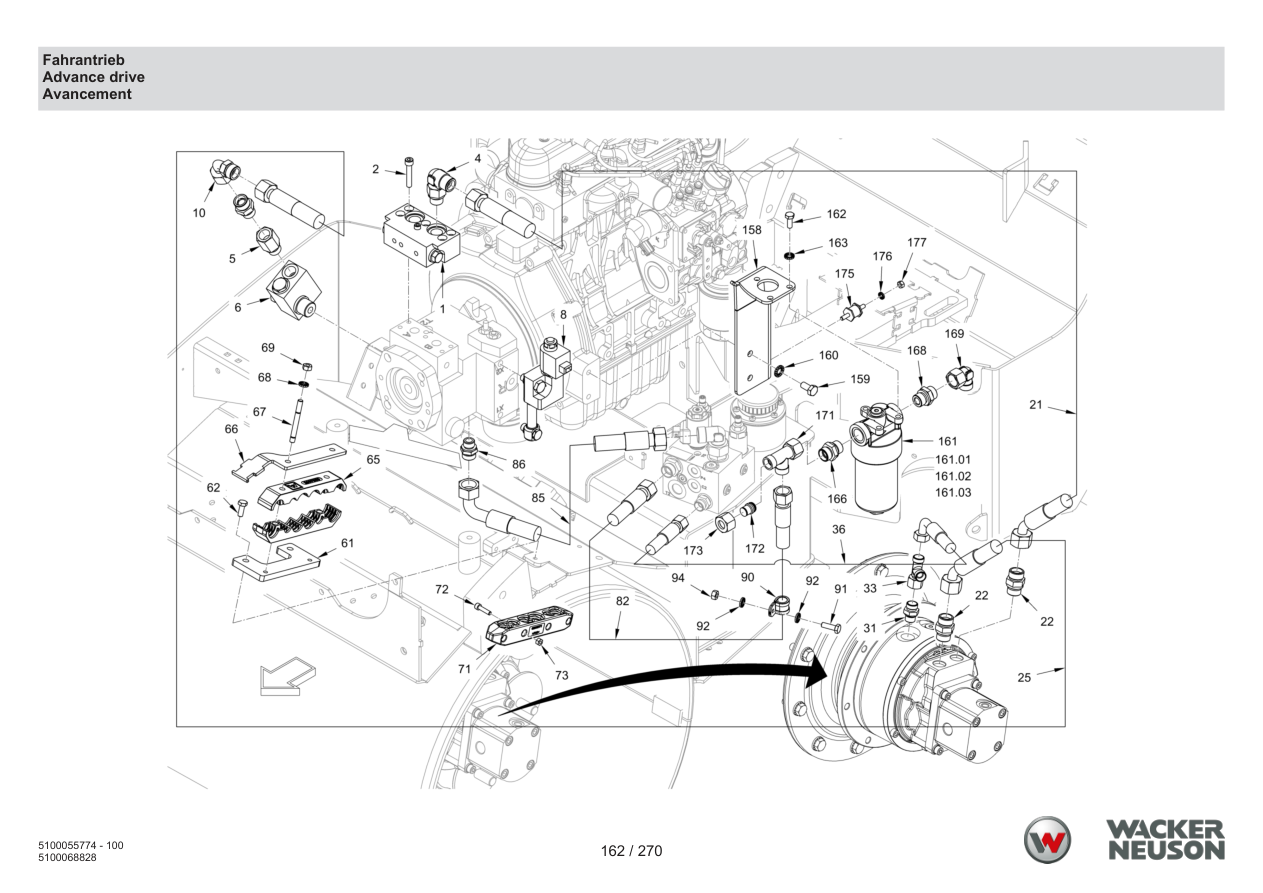

Page 162 — Advance drive

Parts list — exactly as printed72 rows

No.	Part No.	Part Name	Qty	Remarks
1	5100012426	Valve block	1		ADD TO CART
Valve block 5100012426 · qty on machine: 1 view full part page → $795.95
2	5100011659	Cheese-head screw	5		ADD TO CART
Cheese-head screw 5100011659 · qty on machine: 5 view full part page → $2.95
4	5100012721	Elbow adjustable	2		ADD TO CART
Elbow adjustable 5100012721 · qty on machine: 2 view full part page → $88.95
5	5100012720	Reducing piece	1		PARTS REQUEST
PHOTO COMING Reducing piece 5100012720 · qty on machine: 1 PARTS REQUEST
6	5100012427	Valve block	1		ADD TO CART
Valve block 5100012427 · qty on machine: 1 view full part page → $437.95
8	5100012429	Valve block	1		ADD TO CART
Valve block 5100012429 · qty on machine: 1 view full part page → $980.95
10	5100011416	Intermediate piece	1		ADD TO CART
Intermediate piece 5100011416 · qty on machine: 1 view full part page → $82.95
21	5100012742	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100012742 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $217.95
21	5100012743	Flexible tubing	1		ADD TO CART
Flexible tubing 5100012743 · qty on machine: 1 view full part page → $225.95
21	5100012752	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012752 · qty on machine: 1 RD18-80 view full part page → $210.95
22	5100013489	Straight screwed socket	2		ADD TO CART
Straight screwed socket 5100013489 · qty on machine: 2 view full part page → $12.95
25	5100012752	Flexible tubing	1		ADD TO CART
Flexible tubing 5100012752 · qty on machine: 1 view full part page → $210.95
25	5100012743	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100012743 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $225.95
25	5100011890	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100011890 · qty on machine: 1 RD18-80 view full part page → $203.95
31	5100013472	Straight screwed socket	1		ADD TO CART
Straight screwed socket 5100013472 · qty on machine: 1 view full part page → $8.95
33	5100013613	Elbow adjustable	2		ADD TO CART
Elbow adjustable 5100013613 · qty on machine: 2 view full part page → $33.95
36	5100011588	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100011588 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $164.95
36	5100011821	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100011821 · qty on machine: 1 RD18-80 view full part page → $108.95
36	5100068748	Hose	1		ADD TO CART
Hose 5100068748 · qty on machine: 1 view full part page → $105.95
61	5100011881	Metal plate	1		ADD TO CART
Metal plate 5100011881 · qty on machine: 1 view full part page → $63.95
62	5100012517	Hexagon screw	2		ADD TO CART
Hexagon screw 5100012517 · qty on machine: 2 view full part page → $1.95
65	5100011879	Half-clip	2		ADD TO CART
Half-clip 5100011879 · qty on machine: 2 view full part page → $21.95
66	5100068750	Metal plate	1		ADD TO CART
Metal plate 5100068750 · qty on machine: 1 view full part page → $15.95
67	5100012977	Stud bolt	2		ADD TO CART
Stud bolt 5100012977 · qty on machine: 2 view full part page → $3.95
68	5100012966	Locking washer	2		ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
69	5100012546	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
71	5100011887	Hose clip	4		ADD TO CART
Hose clip 5100011887 · qty on machine: 4 view full part page → $7.95
72	5100013404	Cheese-head screw	8		PARTS REQUEST
PHOTO COMING Cheese-head screw 5100013404 · qty on machine: 8 PARTS REQUEST
73	5100012545	Hexagon nut	8		ADD TO CART
Hexagon nut 5100012545 · qty on machine: 8 view full part page → $1.95
82	5100068751	Hose	1	Serialno. >296	ADD TO CART
Hose 5100068751 · qty on machine: 1 Serialno. >296 view full part page → $45.95
82	5100082562	Hose	1	Serialno. 227-295	PARTS REQUEST
PHOTO COMING Hose 5100082562 · qty on machine: 1 Serialno. 227-295 PARTS REQUEST
82	5100082568	Hose	1	Serialno. 160-226	PARTS REQUEST
PHOTO COMING Hose 5100082568 · qty on machine: 1 Serialno. 160-226 PARTS REQUEST
85	5100068752	Hose	1		ADD TO CART
Hose 5100068752 · qty on machine: 1 view full part page → $155.95
86	5100013473	Straight screwed socket	1		PARTS REQUEST
PHOTO COMING Straight screwed socket 5100013473 · qty on machine: 1 PARTS REQUEST
90	5100034910	Pipe clip	1		ADD TO CART
Pipe clip 5100034910 · qty on machine: 1 view full part page → $11.95
91	5100012613	Hexagon screw	1		ADD TO CART
Hexagon screw 5100012613 · qty on machine: 1 view full part page → $1.95
92	5100012966	Locking washer	2		ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
94	5100012546	Hexagon nut	1		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 1 view full part page → $1.95
158	5100068753	Holder	1		ADD TO CART
Holder 5100068753 · qty on machine: 1 view full part page → $128.95
159	5100011479	Hexagon screw	2		ADD TO CART
Hexagon screw 5100011479 · qty on machine: 2 view full part page → $1.95
160	5100012967	Locking washer	2		ADD TO CART
Locking washer 5100012967 · qty on machine: 2 view full part page → $1.95
161	5100029595	Set of seals	1		ADD TO CART
Set of seals 5100029595 · qty on machine: 1 view full part page → $52.95
161	5100024324	Filter insert	1		PARTS REQUEST
PHOTO COMING Filter insert 5100024324 · qty on machine: 1 PARTS REQUEST
161	5100013387	O-ring seal	1		ADD TO CART
O-ring seal 5100013387 · qty on machine: 1 view full part page → $1.95
161	5100013361	Filter	1		ADD TO CART
Filter 5100013361 · qty on machine: 1 view full part page → $130.95
162	5100012517	Hexagon screw	3		ADD TO CART
Hexagon screw 5100012517 · qty on machine: 3 view full part page → $1.95
163	5100012966	Locking washer	3		ADD TO CART
Locking washer 5100012966 · qty on machine: 3 view full part page → $1.95
166	5100013476	Straight screwed socket	1		ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 1 view full part page → $11.95
168	5100013476	Straight screwed socket	1		ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 1 view full part page → $11.95
169	5100013483	Elbow adjustable	1		ADD TO CART
Elbow adjustable 5100013483 · qty on machine: 1 view full part page → $39.95
171	5100013524	Elbow adjustable	1	Serialno. >296	ADD TO CART
Elbow adjustable 5100013524 · qty on machine: 1 Serialno. >296 view full part page → $53.95
172	5100013555	Filler cap	1	Serialno. >296	ADD TO CART
Filler cap 5100013555 · qty on machine: 1 Serialno. >296 view full part page → $3.95
173	5100012235	Cap nut	1	Serialno. >296	ADD TO CART
Cap nut 5100012235 · qty on machine: 1 Serialno. >296 view full part page → $2.95
175	5100012919	Silentbloc	2		ADD TO CART
Silentbloc 5100012919 · qty on machine: 2 view full part page → $16.95
176	5100012965	Locking washer	2		ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
177	5100012545	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
7	5100013539	Straight screwed socket	2		ADD TO CART
Straight screwed socket 5100013539 · qty on machine: 2 view full part page → $13.95
11	5100012737	Flexible tubing	1		PARTS REQUEST
PHOTO COMING Flexible tubing 5100012737 · qty on machine: 1 PARTS REQUEST
11	5100012738	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100012738 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $385.95
11	5100012747	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012747 · qty on machine: 1 RD18-80 view full part page → $331.95
15	5100012737	Flexible tubing	1	FITS RD18-100 (not RD18-80)	PARTS REQUEST
PHOTO COMING Flexible tubing 5100012737 · qty on machine: 1 FITS RD18-100 (not RD18-80) PARTS REQUEST
15	5100012746	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012746 · qty on machine: 1 RD18-80 view full part page → $355.95
15	5100012747	Flexible tubing	1		ADD TO CART
Flexible tubing 5100012747 · qty on machine: 1 view full part page → $331.95
18	5100011416	Intermediate piece	1		ADD TO CART
Intermediate piece 5100011416 · qty on machine: 1 view full part page → $82.95
35	5100068754	Hose	1	RD18-80	ADD TO CART
Hose 5100068754 · qty on machine: 1 RD18-80 view full part page → $69.95
35	5100068755	Hose	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Hose 5100068755 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $83.95
35	5100068756	Hose	1		ADD TO CART
Hose 5100068756 · qty on machine: 1 view full part page → $70.95
51	5100011879	Half-clip	2		ADD TO CART
Half-clip 5100011879 · qty on machine: 2 view full part page → $21.95
52	5100011880	Metal plate	1		ADD TO CART
Metal plate 5100011880 · qty on machine: 1 view full part page → $17.95
53	5100012977	Stud bolt	2		ADD TO CART
Stud bolt 5100012977 · qty on machine: 2 view full part page → $3.95
54	5100012966	Locking washer	2		ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
55	5100012546	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95

Page 166 — Drive shifting

Wacker Neuson RD18-80 Roller Drive shifting parts diagram

Parts list — exactly as printed39 rows

No.	Part No.	Part Name	Qty
30	5100012331	Drive shifting	1	ADD TO CART
Drive shifting 5100012331 · qty on machine: 1 view full part page → $1637.95
31	5100012515	Hexagon screw	3	ADD TO CART
Hexagon screw 5100012515 · qty on machine: 3 view full part page → $1.95
32	5100012966	Locking washer	3	ADD TO CART
Locking washer 5100012966 · qty on machine: 3 view full part page → $1.95
49	5100012693	Actuating cable	1	ADD TO CART
Actuating cable 5100012693 · qty on machine: 1 view full part page → $526.95
50	5100011870	Distance bush	1	ADD TO CART
Distance bush 5100011870 · qty on machine: 1 view full part page → $3.95
51	5100053249	Hexagon screw	1	ADD TO CART
Hexagon screw 5100053249 · qty on machine: 1 view full part page → $1.95
52	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
53	5100053004	Safety nut	1	ADD TO CART
Safety nut 5100053004 · qty on machine: 1 view full part page → $1.95
55	5100012734	Metal plate	1	ADD TO CART
Metal plate 5100012734 · qty on machine: 1 view full part page → $397.95
56	5100012517	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012517 · qty on machine: 4 view full part page → $1.95
57	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
58	5100012240	Bracket	1	ADD TO CART
Bracket 5100012240 · qty on machine: 1 view full part page → $17.95
59	5100012517	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012517 · qty on machine: 2 view full part page → $1.95
60	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
61	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
70	5100012817	Cover	1	ADD TO CART
Cover 5100012817 · qty on machine: 1 view full part page → $75.95
71	5100012572	Hexagon screw	3	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 3 PARTS REQUEST
72	5100012965	Locking washer	3	ADD TO CART
Locking washer 5100012965 · qty on machine: 3 view full part page → $2.95
1	5100012706	Bracket	1	ADD TO CART
Bracket 5100012706 · qty on machine: 1 view full part page → $415.95
2	5100011792	Slide block	2	ADD TO CART
Slide block 5100011792 · qty on machine: 2 view full part page → $6.95
3	5100048707	Countersunk screw	6	ADD TO CART
Countersunk screw 5100048707 · qty on machine: 6 view full part page → $1.95
5	5100012708	Drive lever	1	PARTS REQUEST
PHOTO COMING Drive lever 5100012708 · qty on machine: 1 PARTS REQUEST
6	5100012877	Metal plate	1	PARTS REQUEST
PHOTO COMING Metal plate 5100012877 · qty on machine: 1 PARTS REQUEST
7	5100023046	Hexagon screw	2	ADD TO CART
Hexagon screw 5100023046 · qty on machine: 2 view full part page → $2.95
8	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
9	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
10	5100059529	Hexagon screw	1	ADD TO CART
Hexagon screw 5100059529 · qty on machine: 1 view full part page → $2.95
11	5100011819	Compression spring	1	ADD TO CART
Compression spring 5100011819 · qty on machine: 1 view full part page → $29.95
12	5100011791	Distance bush	2	ADD TO CART
Distance bush 5100011791 · qty on machine: 2 view full part page → $1.95
13	5100013094	Washer	1	ADD TO CART
Washer 5100013094 · qty on machine: 1 view full part page → $1.95
14	5100012546	Hexagon nut	1	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 1 view full part page → $1.95
15	5100013166	Spring-thrust piece	1	ADD TO CART
Spring-thrust piece 5100013166 · qty on machine: 1 view full part page → $89.95
16	5100013400	Hexagon nut	1	ADD TO CART
Hexagon nut 5100013400 · qty on machine: 1 view full part page → $1.95
20	5100013397	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013397 · qty on machine: 2 view full part page → $1.95
21	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
48	5100013369	Locking plate	1	ADD TO CART
Locking plate 5100013369 · qty on machine: 1 view full part page → $7.95
1	5100012839	Drive lever	1	ADD TO CART
Drive lever 5100012839 · qty on machine: 1 view full part page → $782.95
10	5100011970	Clamping piece	1	ADD TO CART
Clamping piece 5100011970 · qty on machine: 1 view full part page → $260.95
11	5100011443	Cheese-head screw	2	ADD TO CART
Cheese-head screw 5100011443 · qty on machine: 2 view full part page → $1.95

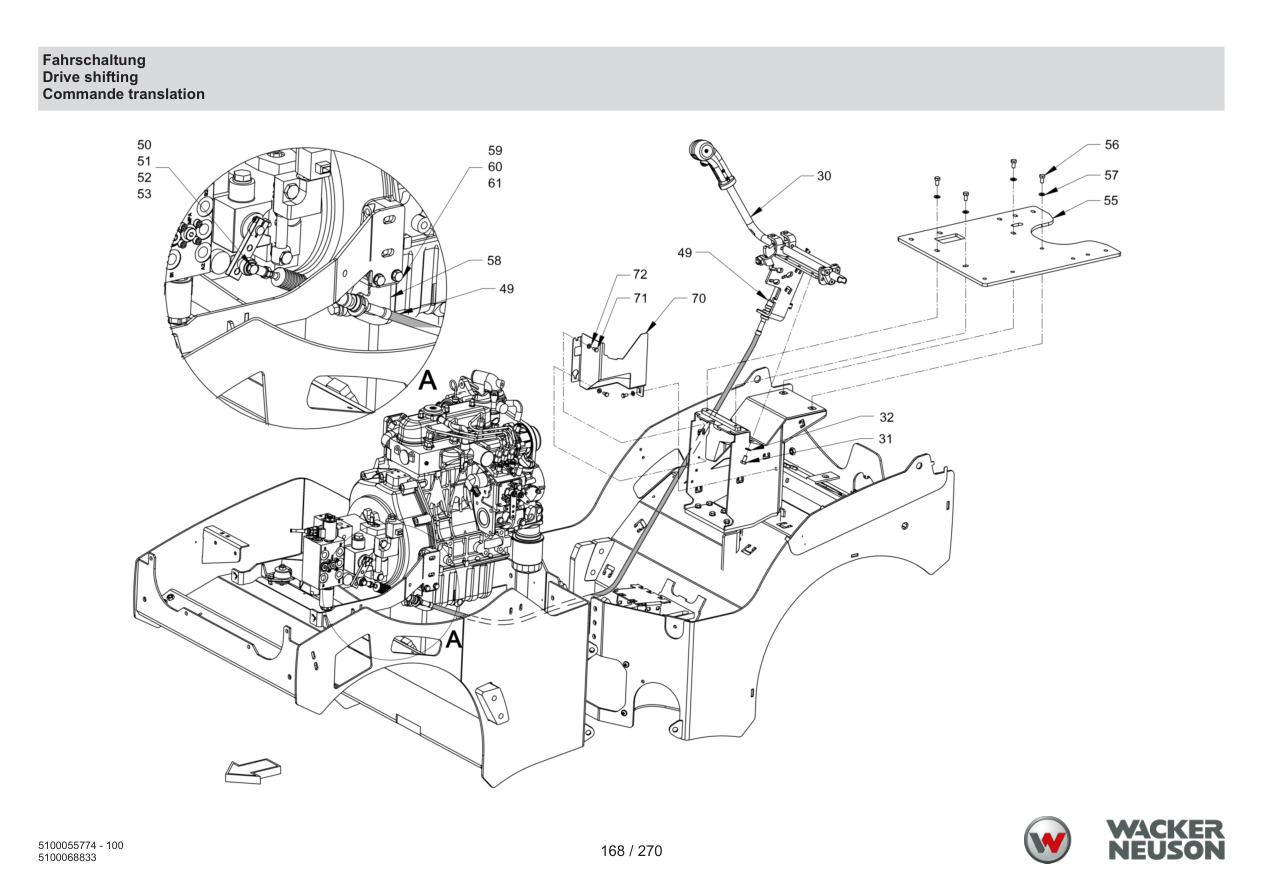

Page 168 — Drive shifting

Parts list — exactly as printed40 rows

No.	Part No.	Part Name	Qty	Remarks
30	5100012331	Drive shifting	1		ADD TO CART
Drive shifting 5100012331 · qty on machine: 1 view full part page → $1637.95
31	5100012515	Hexagon screw	3		ADD TO CART
Hexagon screw 5100012515 · qty on machine: 3 view full part page → $1.95
32	5100012966	Locking washer	3		ADD TO CART
Locking washer 5100012966 · qty on machine: 3 view full part page → $1.95
49	5100012693	Actuating cable	1		ADD TO CART
Actuating cable 5100012693 · qty on machine: 1 view full part page → $526.95
50	5100011870	Distance bush	1		ADD TO CART
Distance bush 5100011870 · qty on machine: 1 view full part page → $3.95
51	5100053249	Hexagon screw	1		ADD TO CART
Hexagon screw 5100053249 · qty on machine: 1 view full part page → $1.95
52	5100012966	Locking washer	2		ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
53	5100053004	Safety nut	1		ADD TO CART
Safety nut 5100053004 · qty on machine: 1 view full part page → $1.95
55	5100012734	Metal plate	1		ADD TO CART
Metal plate 5100012734 · qty on machine: 1 view full part page → $397.95
56	5100012517	Hexagon screw	4		ADD TO CART
Hexagon screw 5100012517 · qty on machine: 4 view full part page → $1.95
59	5100012517	Hexagon screw	2		ADD TO CART
Hexagon screw 5100012517 · qty on machine: 2 view full part page → $1.95
60	5100012966	Locking washer	4		ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
61	5100012546	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
70	5100012817	Cover	1		ADD TO CART
Cover 5100012817 · qty on machine: 1 view full part page → $75.95
71	5100012572	Hexagon screw	3		PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 3 PARTS REQUEST
72	5100012965	Locking washer	3		ADD TO CART
Locking washer 5100012965 · qty on machine: 3 view full part page → $2.95
1	5100012706	Bracket	1		ADD TO CART
Bracket 5100012706 · qty on machine: 1 view full part page → $415.95
2	5100011792	Slide block	2		ADD TO CART
Slide block 5100011792 · qty on machine: 2 view full part page → $6.95
3	5100048707	Countersunk screw	6		ADD TO CART
Countersunk screw 5100048707 · qty on machine: 6 view full part page → $1.95
5	5100012708	Drive lever	1		PARTS REQUEST
PHOTO COMING Drive lever 5100012708 · qty on machine: 1 PARTS REQUEST
6	5100012877	Metal plate	1		PARTS REQUEST
PHOTO COMING Metal plate 5100012877 · qty on machine: 1 PARTS REQUEST
7	5100023046	Hexagon screw	2		ADD TO CART
Hexagon screw 5100023046 · qty on machine: 2 view full part page → $2.95
8	5100012965	Locking washer	4		ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
9	5100012545	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
10	5100059529	Hexagon screw	1		ADD TO CART
Hexagon screw 5100059529 · qty on machine: 1 view full part page → $2.95
11	5100011819	Compression spring	1		ADD TO CART
Compression spring 5100011819 · qty on machine: 1 view full part page → $29.95
12	5100011791	Distance bush	2		ADD TO CART
Distance bush 5100011791 · qty on machine: 2 view full part page → $1.95
13	5100013094	Washer	1		ADD TO CART
Washer 5100013094 · qty on machine: 1 view full part page → $1.95
14	5100012546	Hexagon nut	1		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 1 view full part page → $1.95
15	5100013166	Spring-thrust piece	1		ADD TO CART
Spring-thrust piece 5100013166 · qty on machine: 1 view full part page → $89.95
16	5100013400	Hexagon nut	1		ADD TO CART
Hexagon nut 5100013400 · qty on machine: 1 view full part page → $1.95
20	5100013397	Hexagon screw	2		ADD TO CART
Hexagon screw 5100013397 · qty on machine: 2 view full part page → $1.95
21	5100012545	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
25	5100082569	Set collar	1	Serialno. >436	PARTS REQUEST
PHOTO COMING Set collar 5100082569 · qty on machine: 1 Serialno. >436 PARTS REQUEST
48	5100013369	Locking plate	1		ADD TO CART
Locking plate 5100013369 · qty on machine: 1 view full part page → $7.95
1	5100012839	Drive lever	1		ADD TO CART
Drive lever 5100012839 · qty on machine: 1 view full part page → $782.95
10	5100011970	Clamping piece	1		ADD TO CART
Clamping piece 5100011970 · qty on machine: 1 view full part page → $260.95
11	5100011443	Cheese-head screw	2		ADD TO CART
Cheese-head screw 5100011443 · qty on machine: 2 view full part page → $1.95
57	5100012966	Locking washer	4		ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
58	5100012240	Bracket	1		ADD TO CART
Bracket 5100012240 · qty on machine: 1 view full part page → $17.95

Page 172 — Brake hydraulics

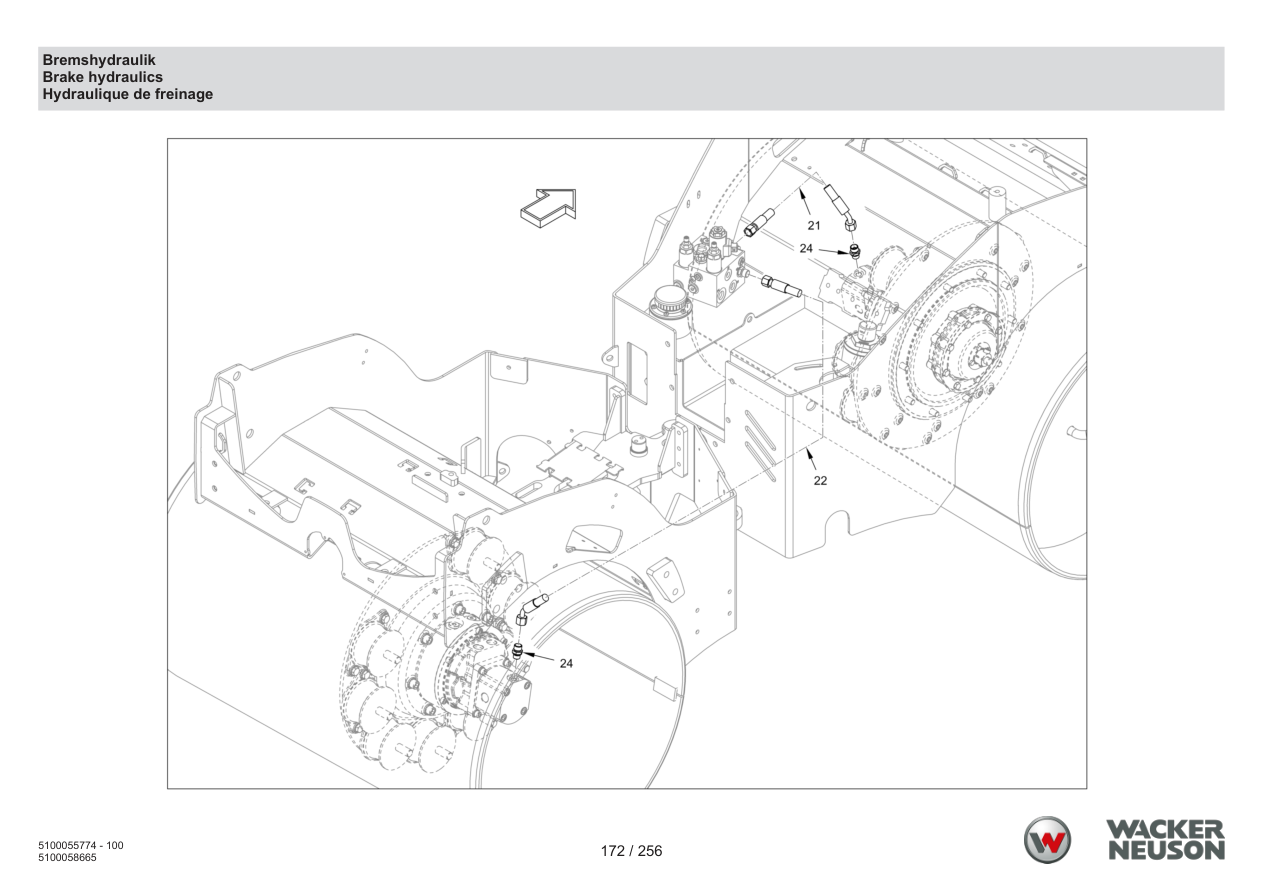

Wacker Neuson RD18-80 Roller Brake hydraulics parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty	Remarks
21	5100012744	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100012744 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $67.95
21	5100012753	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012753 · qty on machine: 1 RD18-80 view full part page → $61.95
21	5100068760	Hose	1		ADD TO CART
Hose 5100068760 · qty on machine: 1 view full part page → $43.95
22	5100012739	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100012739 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $122.95
22	5100012748	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012748 · qty on machine: 1 RD18-80 view full part page → $115.95
22	5100068762	Hose	1		ADD TO CART
Hose 5100068762 · qty on machine: 1 view full part page → $95.95
24	5100013492	Straight screwed socket	2		PARTS REQUEST
PHOTO COMING Straight screwed socket 5100013492 · qty on machine: 2 PARTS REQUEST

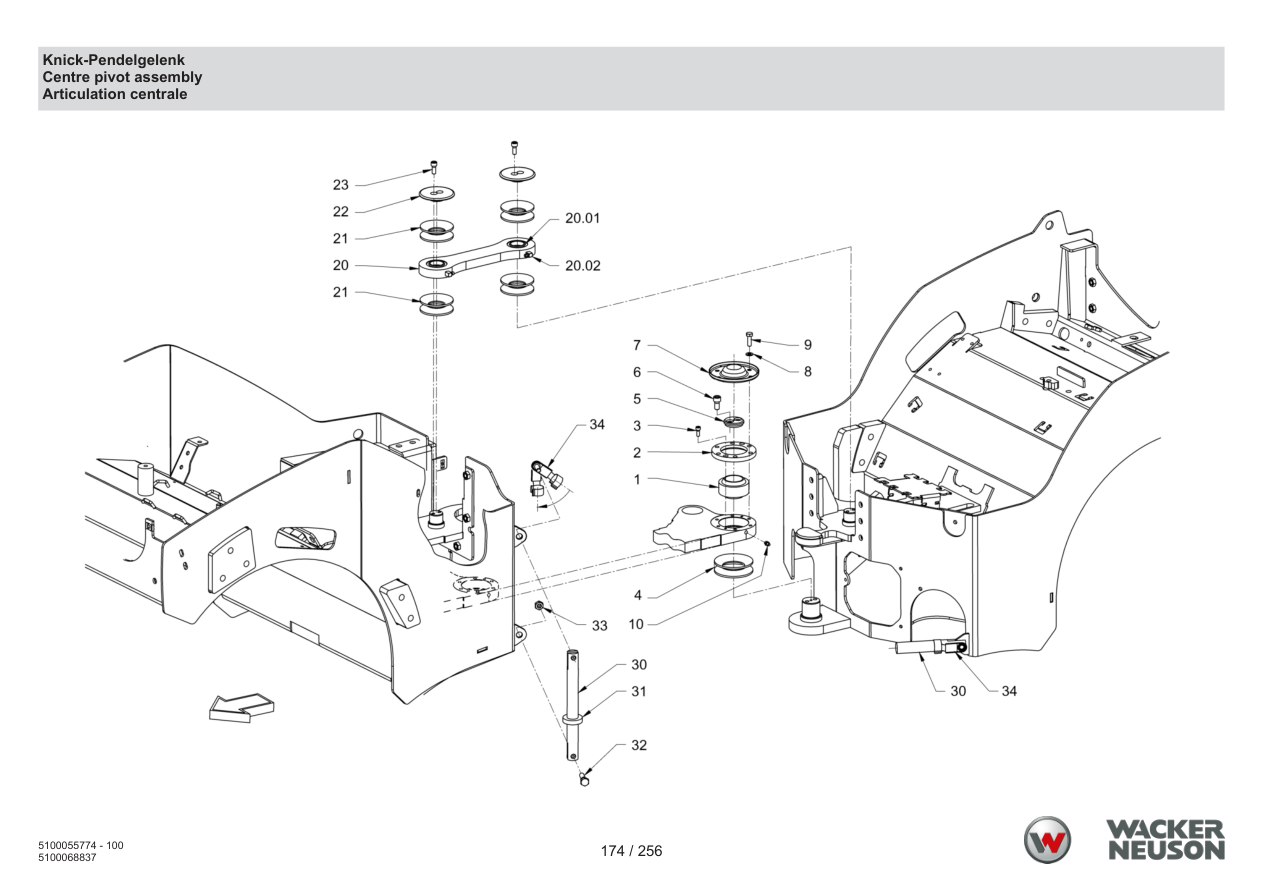

Page 174 — Articulated pendulum joint

Wacker Neuson RD18-80 Roller Articulated pendulum joint parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty
1	5100011760	Radial rod end bearing	1	ADD TO CART
Radial rod end bearing 5100011760 · qty on machine: 1 view full part page → $70.95
2	5100011758	Ring	1	ADD TO CART
Ring 5100011758 · qty on machine: 1 view full part page → $53.95
3	5100011443	Cheese-head screw	2	ADD TO CART
Cheese-head screw 5100011443 · qty on machine: 2 view full part page → $1.95
4	5100011761	Sealing ring	1	PARTS REQUEST
PHOTO COMING Sealing ring 5100011761 · qty on machine: 1 PARTS REQUEST
5	5100011759	Clamping piece	1	ADD TO CART
Clamping piece 5100011759 · qty on machine: 1 view full part page → $119.95
6	5100012725	Cheese-head screw	2	ADD TO CART
Cheese-head screw 5100012725 · qty on machine: 2 view full part page → $1.95
7	5100011757	Cover	1	ADD TO CART
Cover 5100011757 · qty on machine: 1 view full part page → $27.95
8	5100012966	Locking washer	6	ADD TO CART
Locking washer 5100012966 · qty on machine: 6 view full part page → $1.95
9	5100012613	Hexagon screw	6	ADD TO CART
Hexagon screw 5100012613 · qty on machine: 6 view full part page → $1.95
10	5100012479	Greasing nipple	1	ADD TO CART
Greasing nipple 5100012479 · qty on machine: 1 view full part page → $1.95
20	5100011563	Radial rod end bearing	2	PARTS REQUEST
PHOTO COMING Radial rod end bearing 5100011563 · qty on machine: 2 PARTS REQUEST
20	5100011856	Pendulum joint	1	ADD TO CART
Pendulum joint 5100011856 · qty on machine: 1 view full part page → $710.95
20	5100011988	Greasing nipple	2	ADD TO CART
Greasing nipple 5100011988 · qty on machine: 2 view full part page → $7.95
21	5100011729	Seal	4	ADD TO CART
Seal 5100011729 · qty on machine: 4 view full part page → $34.95
22	5100011762	Clamping piece	2	ADD TO CART
Clamping piece 5100011762 · qty on machine: 2 view full part page → $64.95
23	5100012724	Cheese-head screw	4	ADD TO CART
Cheese-head screw 5100012724 · qty on machine: 4 view full part page → $1.95
30	5100011876	Rod steel	1	ADD TO CART
Rod steel 5100011876 · qty on machine: 1 view full part page → $176.95
31	5100011911	Rubber ring	1	ADD TO CART
Rubber ring 5100011911 · qty on machine: 1 view full part page → $6.95
32	5100012523	Hexagon screw	1	ADD TO CART
Hexagon screw 5100012523 · qty on machine: 1 view full part page → $1.95
33	5100063880	Safety nut	1	ADD TO CART
Safety nut 5100063880 · qty on machine: 1 view full part page → $1.95
34	5100011934	Bolt	1	ADD TO CART
Bolt 5100011934 · qty on machine: 1 view full part page → $19.95

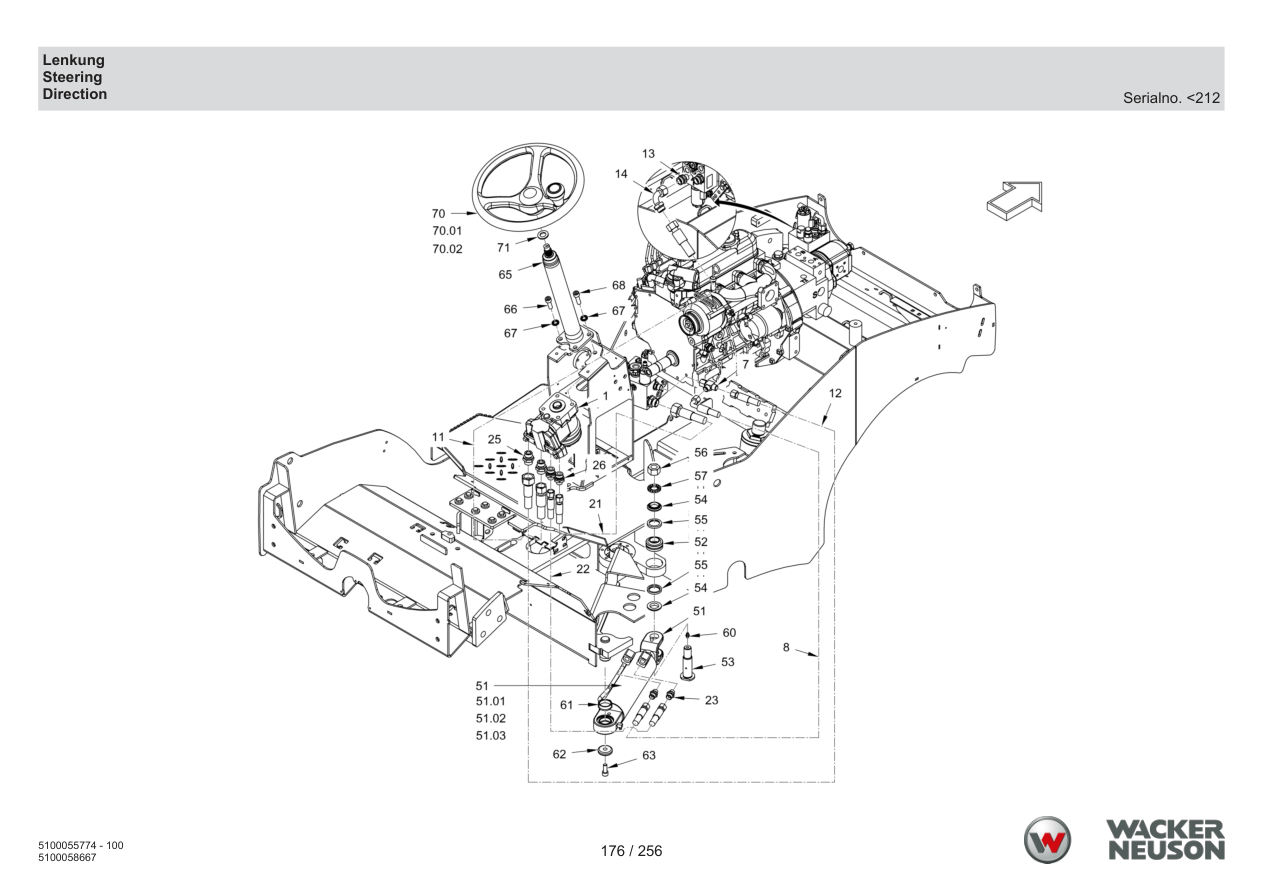

Page 176 — Steering

Wacker Neuson RD18-80 Roller Steering parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
71	5100013413	Washer	1		ADD TO CART
Washer 5100013413 · qty on machine: 1 view full part page → $1.95
1	5100012656	Steering unit + connect. plate	1	Serialno. <212	ADD TO CART
Steering unit + connect. plate 5100012656 · qty on machine: 1 Serialno. <212 view full part page → $2380.95
7	5100013532	Elbow adjustable	1	Serialno. <212	ADD TO CART
Elbow adjustable 5100013532 · qty on machine: 1 Serialno. <212 view full part page → $45.95
8	5100058613	Hose	1	Serialno. <212	ADD TO CART
Hose 5100058613 · qty on machine: 1 Serialno. <212 view full part page → $67.95
11	5100058614	Hose	1	Serialno. <212	ADD TO CART
Hose 5100058614 · qty on machine: 1 Serialno. <212 view full part page → $104.95
12	5100012778	Flexible tubing	1	Serialno. <212	ADD TO CART
Flexible tubing 5100012778 · qty on machine: 1 Serialno. <212 view full part page → $65.95
13	5100013603	Straight screwed socket	1	Serialno. <212	ADD TO CART
Straight screwed socket 5100013603 · qty on machine: 1 Serialno. <212 view full part page → $10.95
14	5100013329	Intermediate piece	1	Serialno. <212	ADD TO CART
Intermediate piece 5100013329 · qty on machine: 1 Serialno. <212 view full part page → $118.95
21	5100012801	Flexible tubing	1	Serialno. <212	ADD TO CART
Flexible tubing 5100012801 · qty on machine: 1 Serialno. <212 view full part page → $99.95
22	5100012825	Flexible tubing	1	Serialno. <212	ADD TO CART
Flexible tubing 5100012825 · qty on machine: 1 Serialno. <212 view full part page → $70.95
23	5100013492	Straight screwed socket	2	Serialno. <212	PARTS REQUEST
PHOTO COMING Straight screwed socket 5100013492 · qty on machine: 2 Serialno. <212 PARTS REQUEST
25	5100013476	Straight screwed socket	2	Serialno. <212	ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 2 Serialno. <212 view full part page → $11.95
26	5100013499	Straight screwed socket	2	Serialno. <212	ADD TO CART
Straight screwed socket 5100013499 · qty on machine: 2 Serialno. <212 view full part page → $14.95
51	5100011563	Radial rod end bearing	1	51.02 Serialno. <212	PARTS REQUEST
PHOTO COMING Radial rod end bearing 5100011563 · qty on machine: 1 51.02 Serialno. <212 PARTS REQUEST
51	5100011685	Set of seals	1	51.01 Serialno. <212	ADD TO CART
Set of seals 5100011685 · qty on machine: 1 51.01 Serialno. <212 view full part page → $604.95
51	5100011770	Hydraulic cylinder	1	Serialno. <212	ADD TO CART
Hydraulic cylinder 5100011770 · qty on machine: 1 Serialno. <212 view full part page → $2329.95
51	5100012481	Greasing nipple	1	51.03 Serialno. <212	ADD TO CART
Greasing nipple 5100012481 · qty on machine: 1 51.03 Serialno. <212 view full part page → $3.95
52	5100011777	Radial rod end bearing	1	Serialno. <212	ADD TO CART
Radial rod end bearing 5100011777 · qty on machine: 1 Serialno. <212 view full part page → $131.95
53	5100011776	Bolt	1	Serialno. <212	ADD TO CART
Bolt 5100011776 · qty on machine: 1 Serialno. <212 view full part page → $69.95
54	5100011680	Spacer ring	2	Serialno. <212	ADD TO CART
Spacer ring 5100011680 · qty on machine: 2 Serialno. <212 view full part page → $17.95
55	5100013560	Seal	2	Serialno. <212	ADD TO CART
Seal 5100013560 · qty on machine: 2 Serialno. <212 view full part page → $13.95
56	5100012550	Hexagon nut	1	Serialno. <212	ADD TO CART
Hexagon nut 5100012550 · qty on machine: 1 Serialno. <212 view full part page → $2.95
57	5100012955	Locking washer	1	Serialno. <212	ADD TO CART
Locking washer 5100012955 · qty on machine: 1 Serialno. <212 view full part page → $7.95
60	5100012479	Greasing nipple	1	Serialno. <212	ADD TO CART
Greasing nipple 5100012479 · qty on machine: 1 Serialno. <212 view full part page → $1.95
61	5100011820	Spacer ring	1	Serialno. <212	ADD TO CART
Spacer ring 5100011820 · qty on machine: 1 Serialno. <212 view full part page → $30.95
62	5100011695	U-washer	1	Serialno. <212	ADD TO CART
U-washer 5100011695 · qty on machine: 1 Serialno. <212 view full part page → $15.95
63	5100013463	Cheese-head screw	1	Serialno. <212	ADD TO CART
Cheese-head screw 5100013463 · qty on machine: 1 Serialno. <212 view full part page → $1.95
65	5100012644	Steering column	1	Serialno. <212	ADD TO CART
Steering column 5100012644 · qty on machine: 1 Serialno. <212 view full part page → $285.95
66	5100013450	Cheese-head screw	2	Serialno. <212	ADD TO CART
Cheese-head screw 5100013450 · qty on machine: 2 Serialno. <212 view full part page → $1.95
67	5100012967	Locking washer	4	Serialno. <212	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 Serialno. <212 view full part page → $1.95
68	5100012783	Cheese-head screw	2	Serialno. <212	ADD TO CART
Cheese-head screw 5100012783 · qty on machine: 2 Serialno. <212 view full part page → $1.95
70	5100011912	Steering wheel	1	Serialno. <212	ADD TO CART
Steering wheel 5100011912 · qty on machine: 1 Serialno. <212 view full part page → $200.95
70	5100012392	Turning handle	1	70.01 Serialno. <212	ADD TO CART
Turning handle 5100012392 · qty on machine: 1 70.01 Serialno. <212 view full part page → $49.95
70	5100065336	Lid	1	70.02 Serialno. <212	ADD TO CART
Lid 5100065336 · qty on machine: 1 70.02 Serialno. <212 view full part page → $27.95
1	5100011736	O-ring seal	4	1.03 Serialno. >213	ADD TO CART
O-ring seal 5100011736 · qty on machine: 4 1.03 Serialno. >213 view full part page → $4.95
1	5100012655	Connection plate	1	1.01 Serialno. >213	ADD TO CART
Connection plate 5100012655 · qty on machine: 1 1.01 Serialno. >213 view full part page → $1217.95
1	5100013528	Cheese-head screw	2	1.02 Serialno. >213	ADD TO CART
Cheese-head screw 5100013528 · qty on machine: 2 1.02 Serialno. >213 view full part page → $20.95
8	5100068764	Hose	1	Serialno. >213	ADD TO CART
Hose 5100068764 · qty on machine: 1 Serialno. >213 view full part page → $57.95
12	5100068765	Hose	1	Serialno. >213	ADD TO CART
Hose 5100068765 · qty on machine: 1 Serialno. >213 view full part page → $54.95
21	5100068766	Hose	1	Serialno. >213	ADD TO CART
Hose 5100068766 · qty on machine: 1 Serialno. >213 view full part page → $40.95
47	5100053007	Connecting block	1	Serialno. >213	ADD TO CART
Connecting block 5100053007 · qty on machine: 1 Serialno. >213 view full part page → $310.95
48	5100013454	Straight screwed socket	1	Serialno. >213	ADD TO CART
Straight screwed socket 5100013454 · qty on machine: 1 Serialno. >213 view full part page → $5.95
49	5100013474	Straight screwed socket	1	Serialno. >213	ADD TO CART
Straight screwed socket 5100013474 · qty on machine: 1 Serialno. >213 view full part page → $6.95
50	5100053008	Straight screwed socket	1	Serialno. >213	ADD TO CART
Straight screwed socket 5100053008 · qty on machine: 1 Serialno. >213 view full part page → $11.95

Page 178 — Steering

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
53	5100011776	Bolt	1	Serialno. <212	ADD TO CART
Bolt 5100011776 · qty on machine: 1 Serialno. <212 view full part page → $69.95
54	5100011680	Spacer ring	2	Serialno. <212	ADD TO CART
Spacer ring 5100011680 · qty on machine: 2 Serialno. <212 view full part page → $17.95
55	5100013560	Seal	2	Serialno. <212	ADD TO CART
Seal 5100013560 · qty on machine: 2 Serialno. <212 view full part page → $13.95
56	5100012550	Hexagon nut	1	Serialno. <212	ADD TO CART
Hexagon nut 5100012550 · qty on machine: 1 Serialno. <212 view full part page → $2.95
57	5100012955	Locking washer	1	Serialno. <212	ADD TO CART
Locking washer 5100012955 · qty on machine: 1 Serialno. <212 view full part page → $7.95
60	5100012479	Greasing nipple	1	Serialno. <212	ADD TO CART
Greasing nipple 5100012479 · qty on machine: 1 Serialno. <212 view full part page → $1.95
61	5100011820	Spacer ring	1	Serialno. <212	ADD TO CART
Spacer ring 5100011820 · qty on machine: 1 Serialno. <212 view full part page → $30.95
62	5100011695	U-washer	1	Serialno. <212	ADD TO CART
U-washer 5100011695 · qty on machine: 1 Serialno. <212 view full part page → $15.95
63	5100013463	Cheese-head screw	1	Serialno. <212	ADD TO CART
Cheese-head screw 5100013463 · qty on machine: 1 Serialno. <212 view full part page → $1.95
65	5100012644	Steering column	1	Serialno. <212	ADD TO CART
Steering column 5100012644 · qty on machine: 1 Serialno. <212 view full part page → $285.95
66	5100013450	Cheese-head screw	2	Serialno. <212	ADD TO CART
Cheese-head screw 5100013450 · qty on machine: 2 Serialno. <212 view full part page → $1.95
67	5100012967	Locking washer	4	Serialno. <212	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 Serialno. <212 view full part page → $1.95
68	5100012783	Cheese-head screw	2	Serialno. <212	ADD TO CART
Cheese-head screw 5100012783 · qty on machine: 2 Serialno. <212 view full part page → $1.95
70	5100011912	Steering wheel	1	Serialno. <212	ADD TO CART
Steering wheel 5100011912 · qty on machine: 1 Serialno. <212 view full part page → $200.95
70	5100012392	Turning handle	1	70.01 Serialno. <212	ADD TO CART
Turning handle 5100012392 · qty on machine: 1 70.01 Serialno. <212 view full part page → $49.95
70	5100065336	Lid	1	70.02 Serialno. <212	ADD TO CART
Lid 5100065336 · qty on machine: 1 70.02 Serialno. <212 view full part page → $27.95
71	5100013413	Washer	1		ADD TO CART
Washer 5100013413 · qty on machine: 1 view full part page → $1.95
1	5100011736	O-ring seal	4	1.03 Serialno. >213	ADD TO CART
O-ring seal 5100011736 · qty on machine: 4 1.03 Serialno. >213 view full part page → $4.95
1	5100012655	Connection plate	1	1.01 Serialno. >213	ADD TO CART
Connection plate 5100012655 · qty on machine: 1 1.01 Serialno. >213 view full part page → $1217.95
1	5100012656	Steering unit + connect. plate	1	Serialno. >213	ADD TO CART
Steering unit + connect. plate 5100012656 · qty on machine: 1 Serialno. >213 view full part page → $2380.95
1	5100013528	Cheese-head screw	2	1.02 Serialno. >213	ADD TO CART
Cheese-head screw 5100013528 · qty on machine: 2 1.02 Serialno. >213 view full part page → $20.95
8	5100068764	Hose	1	Serialno. >213	ADD TO CART
Hose 5100068764 · qty on machine: 1 Serialno. >213 view full part page → $57.95
11	5100058614	Hose	1	Serialno. >213	ADD TO CART
Hose 5100058614 · qty on machine: 1 Serialno. >213 view full part page → $104.95
12	5100068765	Hose	1	Serialno. >213	ADD TO CART
Hose 5100068765 · qty on machine: 1 Serialno. >213 view full part page → $54.95
13	5100013603	Straight screwed socket	1	Serialno. >213	ADD TO CART
Straight screwed socket 5100013603 · qty on machine: 1 Serialno. >213 view full part page → $10.95
14	5100013329	Intermediate piece	1	Serialno. >213	ADD TO CART
Intermediate piece 5100013329 · qty on machine: 1 Serialno. >213 view full part page → $118.95
21	5100068766	Hose	1	Serialno. >213	ADD TO CART
Hose 5100068766 · qty on machine: 1 Serialno. >213 view full part page → $40.95
22	5100012825	Flexible tubing	1	Serialno. >213	ADD TO CART
Flexible tubing 5100012825 · qty on machine: 1 Serialno. >213 view full part page → $70.95
23	5100013492	Straight screwed socket	2	Serialno. >213	PARTS REQUEST
PHOTO COMING Straight screwed socket 5100013492 · qty on machine: 2 Serialno. >213 PARTS REQUEST
25	5100013476	Straight screwed socket	2	Serialno. >213	ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 2 Serialno. >213 view full part page → $11.95
26	5100013499	Straight screwed socket	2	Serialno. >213	ADD TO CART
Straight screwed socket 5100013499 · qty on machine: 2 Serialno. >213 view full part page → $14.95
47	5100053007	Connecting block	1	Serialno. >213	ADD TO CART
Connecting block 5100053007 · qty on machine: 1 Serialno. >213 view full part page → $310.95
48	5100013454	Straight screwed socket	1	Serialno. >213	ADD TO CART
Straight screwed socket 5100013454 · qty on machine: 1 Serialno. >213 view full part page → $5.95
49	5100013474	Straight screwed socket	1	Serialno. >213	ADD TO CART
Straight screwed socket 5100013474 · qty on machine: 1 Serialno. >213 view full part page → $6.95
50	5100053008	Straight screwed socket	1	Serialno. >213	ADD TO CART
Straight screwed socket 5100053008 · qty on machine: 1 Serialno. >213 view full part page → $11.95
51	5100012481	Greasing nipple	1	51.03 Serialno. >213	ADD TO CART
Greasing nipple 5100012481 · qty on machine: 1 51.03 Serialno. >213 view full part page → $3.95
51	5100011770	Hydraulic cylinder	1	Serialno. >213	ADD TO CART
Hydraulic cylinder 5100011770 · qty on machine: 1 Serialno. >213 view full part page → $2329.95
7	5100013532	Elbow adjustable	1	Serialno. <212	ADD TO CART
Elbow adjustable 5100013532 · qty on machine: 1 Serialno. <212 view full part page → $45.95
8	5100058613	Hose	1	Serialno. <212	ADD TO CART
Hose 5100058613 · qty on machine: 1 Serialno. <212 view full part page → $67.95
12	5100012778	Flexible tubing	1	Serialno. <212	ADD TO CART
Flexible tubing 5100012778 · qty on machine: 1 Serialno. <212 view full part page → $65.95
21	5100012801	Flexible tubing	1	Serialno. <212	ADD TO CART
Flexible tubing 5100012801 · qty on machine: 1 Serialno. <212 view full part page → $99.95
51	5100011563	Radial rod end bearing	1	51.02 Serialno. <212	PARTS REQUEST
PHOTO COMING Radial rod end bearing 5100011563 · qty on machine: 1 51.02 Serialno. <212 PARTS REQUEST
51	5100011685	Set of seals	1	51.01 Serialno. <212	ADD TO CART
Set of seals 5100011685 · qty on machine: 1 51.01 Serialno. <212 view full part page → $604.95
52	5100011777	Radial rod end bearing	1	Serialno. <212	ADD TO CART
Radial rod end bearing 5100011777 · qty on machine: 1 Serialno. <212 view full part page → $131.95

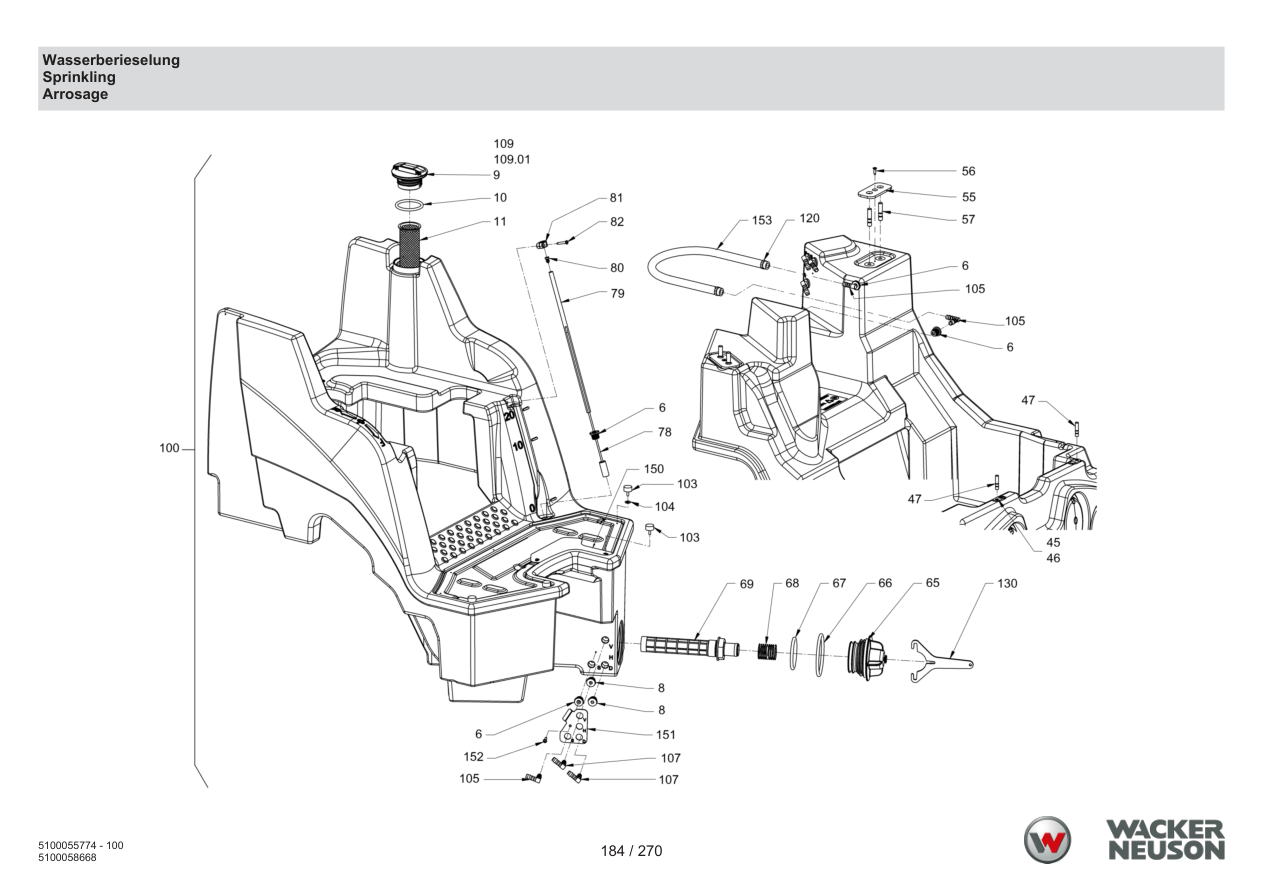

Page 182 — Water sprinkler

Wacker Neuson RD18-80 Roller Water sprinkler parts diagram

Parts list — exactly as printed83 rows

No.	Part No.	Part Name	Qty
6	5100011851	Rubber sleeve	4	ADD TO CART
Rubber sleeve 5100011851 · qty on machine: 4 view full part page → $15.95
8	5100011850	Rubber sleeve	2	ADD TO CART
Rubber sleeve 5100011850 · qty on machine: 2 view full part page → $17.95
9	5100011815	Tank cap	1	ADD TO CART
Tank cap 5100011815 · qty on machine: 1 view full part page → $43.95
10	5100011931	O-ring seal	1	ADD TO CART
O-ring seal 5100011931 · qty on machine: 1 view full part page → $13.95
11	5100011990	Strainer	1	ADD TO CART
Strainer 5100011990 · qty on machine: 1 view full part page → $36.95
45	5100012884	Spacer plate	2	ADD TO CART
Spacer plate 5100012884 · qty on machine: 2 view full part page → $10.95
46	5100011902	Sheet metal screw	2	ADD TO CART
Sheet metal screw 5100011902 · qty on machine: 2 view full part page → $1.95
47	5100013462	Stud bolt	2	ADD TO CART
Stud bolt 5100013462 · qty on machine: 2 view full part page → $7.95
55	5100011718	Metal plate	2	ADD TO CART
Metal plate 5100011718 · qty on machine: 2 view full part page → $23.95
56	5100011902	Sheet metal screw	2	ADD TO CART
Sheet metal screw 5100011902 · qty on machine: 2 view full part page → $1.95
57	5100012978	Stud bolt	4	ADD TO CART
Stud bolt 5100012978 · qty on machine: 4 view full part page → $4.95
65	5100011812	Drain plug	1	ADD TO CART
Drain plug 5100011812 · qty on machine: 1 view full part page → $35.95
66	5100011865	O-ring seal	1	ADD TO CART
O-ring seal 5100011865 · qty on machine: 1 view full part page → $21.95
67	5100011864	O-ring seal	1	ADD TO CART
O-ring seal 5100011864 · qty on machine: 1 view full part page → $19.95
68	5100011862	Compression spring	1	ADD TO CART
Compression spring 5100011862 · qty on machine: 1 view full part page → $28.95
69	5100011830	Strainer	1	ADD TO CART
Strainer 5100011830 · qty on machine: 1 view full part page → $30.95
78	5100011925	Float	1	ADD TO CART
Float 5100011925 · qty on machine: 1 view full part page → $88.95
79	5100011872	Inspection glass	1	ADD TO CART
Inspection glass 5100011872 · qty on machine: 1 view full part page → $15.95
80	5100011656	Filler cap	1	ADD TO CART
Filler cap 5100011656 · qty on machine: 1 view full part page → $1.95
81	5100011873	Pipe clip	1	ADD TO CART
Pipe clip 5100011873 · qty on machine: 1 view full part page → $1.95
82	5100012000	Sheet metal screw	1	ADD TO CART
Sheet metal screw 5100012000 · qty on machine: 1 view full part page → $1.95
100	5100058615	Water tank	1	PARTS REQUEST
PHOTO COMING Water tank 5100058615 · qty on machine: 1 PARTS REQUEST
103	5100012713	Rubber metal buffer	4	ADD TO CART
Rubber metal buffer 5100012713 · qty on machine: 4 view full part page → $83.95
104	5100013523	Washer	3	ADD TO CART
Washer 5100013523 · qty on machine: 3 view full part page → $1.95
105	5100011526	Elbow	3	ADD TO CART
Elbow 5100011526 · qty on machine: 3 view full part page → $7.95
107	5100011444	Elbow	2	ADD TO CART
Elbow 5100011444 · qty on machine: 2 view full part page → $5.95
109	5100013557	Key	1	ADD TO CART
Key 5100013557 · qty on machine: 1 view full part page → $18.95
109	5100059525	Tank cap, with lock	1	ADD TO CART
Tank cap, with lock 5100059525 · qty on machine: 1 view full part page → $309.95
120	5100013573	Wire fastener	35	ADD TO CART
Wire fastener 5100013573 · qty on machine: 35 view full part page → $1.95
130	5100012140	Key	1	ADD TO CART
Key 5100012140 · qty on machine: 1 view full part page → $24.95
150	5100012881	Cover plate	2	ADD TO CART
Cover plate 5100012881 · qty on machine: 2 view full part page → $34.95
151	5100011906	Metal plate	1	ADD TO CART
Metal plate 5100011906 · qty on machine: 1 view full part page → $33.95
152	5100011902	Sheet metal screw	1	ADD TO CART
Sheet metal screw 5100011902 · qty on machine: 1 view full part page → $1.95
153	5100013646	Flexible tubing	0.43	ADD TO CART
Flexible tubing 5100013646 · qty on machine: 0.43 view full part page → $40.95
48	5100013094	Washer	2	ADD TO CART
Washer 5100013094 · qty on machine: 2 view full part page → $1.95
49	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
50	5100058615	Water tank	1	PARTS REQUEST
PHOTO COMING Water tank 5100058615 · qty on machine: 1 PARTS REQUEST
60	5100011719	Metal plate	2	ADD TO CART
Metal plate 5100011719 · qty on machine: 2 view full part page → $30.95
61	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
62	5100012547	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
75	5100011590	Safety cord	1	ADD TO CART
Safety cord 5100011590 · qty on machine: 1 view full part page → $9.95
85	5100013374	Water pump	1	ADD TO CART
Water pump 5100013374 · qty on machine: 1 view full part page → $577.95
86	5100012919	Silentbloc	4	ADD TO CART
Silentbloc 5100012919 · qty on machine: 4 view full part page → $16.95
87	5100013523	Washer	4	ADD TO CART
Washer 5100013523 · qty on machine: 4 view full part page → $1.95
88	5100012545	Hexagon nut	8	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 8 view full part page → $1.95
91	5100012498	Safety screw	3	ADD TO CART
Safety screw 5100012498 · qty on machine: 3 view full part page → $2.95
92	5100011527	Angle screwed socket	1	ADD TO CART
Angle screwed socket 5100011527 · qty on machine: 1 view full part page → $12.95
93	5100013646	Flexible tubing	0.5	ADD TO CART
Flexible tubing 5100013646 · qty on machine: 0.5 view full part page → $40.95
94	5100011666	Angle screwed socket	1	ADD TO CART
Angle screwed socket 5100011666 · qty on machine: 1 view full part page → $6.95
95	5100011670	Flexible tubing	0.8	ADD TO CART
Flexible tubing 5100011670 · qty on machine: 0.8 view full part page → $22.95
96	5100011845	Mounting device	1	ADD TO CART
Mounting device 5100011845 · qty on machine: 1 view full part page → $156.95
97	5100023166	Filler cap	1	ADD TO CART
Filler cap 5100023166 · qty on machine: 1 view full part page → $1.95
100	5100011670	Flexible tubing	0.45	ADD TO CART
Flexible tubing 5100011670 · qty on machine: 0.45 view full part page → $22.95
101	5100011863	T-reducing socket	1	ADD TO CART
T-reducing socket 5100011863 · qty on machine: 1 view full part page → $7.95
102	5100013639	Flexible tubing	1.5	ADD TO CART
Flexible tubing 5100013639 · qty on machine: 1.5 view full part page → $37.95
103	5100013639	Flexible tubing	1.14	ADD TO CART
Flexible tubing 5100013639 · qty on machine: 1.14 view full part page → $37.95
105	5100012314	Sprinkler pipe	2	ADD TO CART
Sprinkler pipe 5100012314 · qty on machine: 2 view full part page → $984.95
105	5100068767	Sprinkler pipe	2	ADD TO CART
Sprinkler pipe 5100068767 · qty on machine: 2 view full part page → $1294.95
106	5100012727	Cheese-head screw	4	ADD TO CART
Cheese-head screw 5100012727 · qty on machine: 4 view full part page → $1.95
106	5100013401	Cheese-head screw	4	ADD TO CART
Cheese-head screw 5100013401 · qty on machine: 4 view full part page → $4.95
107	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
108	5100013367	Hose clip	3	ADD TO CART
Hose clip 5100013367 · qty on machine: 3 view full part page → $3.95
135	5100013501	Elbow	1	ADD TO CART
Elbow 5100013501 · qty on machine: 1 view full part page → $8.95
136	5100013639	Flexible tubing	0.05	ADD TO CART
Flexible tubing 5100013639 · qty on machine: 0.05 view full part page → $37.95
104	5100012237	Metal plate	1	ADD TO CART
Metal plate 5100012237 · qty on machine: 1 view full part page → $45.95
110	5100011535	Cap nut	1	ADD TO CART
Cap nut 5100011535 · qty on machine: 1 view full part page → $12.95
110	5100011651	Membrane holder	1	ADD TO CART
Membrane holder 5100011651 · qty on machine: 1 view full part page → $18.95
110	5100011752	Sealing ring	1	ADD TO CART
Sealing ring 5100011752 · qty on machine: 1 view full part page → $1.95
110	5100011898	Nozzle holder	1	ADD TO CART
Nozzle holder 5100011898 · qty on machine: 1 view full part page → $52.95
110	5100011978	Membrane	1	ADD TO CART
Membrane 5100011978 · qty on machine: 1 view full part page → $7.95
111	5100013639	Flexible tubing	0.4	ADD TO CART
Flexible tubing 5100013639 · qty on machine: 0.4 view full part page → $37.95
113	5100011535	Cap nut	1	ADD TO CART
Cap nut 5100011535 · qty on machine: 1 view full part page → $12.95
113	5100011651	Membrane holder	1	ADD TO CART
Membrane holder 5100011651 · qty on machine: 1 view full part page → $18.95
113	5100011752	Sealing ring	1	ADD TO CART
Sealing ring 5100011752 · qty on machine: 1 view full part page → $1.95
113	5100011867	Nozzle holder	1	ADD TO CART
Nozzle holder 5100011867 · qty on machine: 1 view full part page → $52.95
113	5100011978	Membrane	1	ADD TO CART
Membrane 5100011978 · qty on machine: 1 view full part page → $7.95
115	5100011529	Sprinkler nozzle	2	ADD TO CART
Sprinkler nozzle 5100011529 · qty on machine: 2 view full part page → $11.95
116	5100011488	Nut	2	ADD TO CART
Nut 5100011488 · qty on machine: 2 view full part page → $3.95
117	5100011489	Filtering screen	2	ADD TO CART
Filtering screen 5100011489 · qty on machine: 2 view full part page → $4.95
130	5100012090	Cheese-head screw	4	ADD TO CART
Cheese-head screw 5100012090 · qty on machine: 4 view full part page → $1.95
131	5100013536	Serrated lock washer	4	ADD TO CART
Serrated lock washer 5100013536 · qty on machine: 4 view full part page → $2.95
132	5100012898	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012898 · qty on machine: 4 view full part page → $2.95
200	5100012314	Sprinkler pipe	1	ADD TO CART
Sprinkler pipe 5100012314 · qty on machine: 1 view full part page → $984.95

Page 184 — Water sprinkler

Parts list — exactly as printed95 rows

No.	Part No.	Part Name	Qty	Remarks
11	5100011990	Strainer	1		ADD TO CART
Strainer 5100011990 · qty on machine: 1 view full part page → $36.95
45	5100012884	Spacer plate	2		ADD TO CART
Spacer plate 5100012884 · qty on machine: 2 view full part page → $10.95
46	5100011902	Sheet metal screw	2		ADD TO CART
Sheet metal screw 5100011902 · qty on machine: 2 view full part page → $1.95
47	5100013462	Stud bolt	2		ADD TO CART
Stud bolt 5100013462 · qty on machine: 2 view full part page → $7.95
55	5100011718	Metal plate	2		ADD TO CART
Metal plate 5100011718 · qty on machine: 2 view full part page → $23.95
56	5100011902	Sheet metal screw	2		ADD TO CART
Sheet metal screw 5100011902 · qty on machine: 2 view full part page → $1.95
57	5100012978	Stud bolt	4		ADD TO CART
Stud bolt 5100012978 · qty on machine: 4 view full part page → $4.95
65	5100011812	Drain plug	1		ADD TO CART
Drain plug 5100011812 · qty on machine: 1 view full part page → $35.95
66	5100011865	O-ring seal	1		ADD TO CART
O-ring seal 5100011865 · qty on machine: 1 view full part page → $21.95
67	5100011864	O-ring seal	1		ADD TO CART
O-ring seal 5100011864 · qty on machine: 1 view full part page → $19.95
68	5100011862	Compression spring	1		ADD TO CART
Compression spring 5100011862 · qty on machine: 1 view full part page → $28.95
69	5100011830	Strainer	1		ADD TO CART
Strainer 5100011830 · qty on machine: 1 view full part page → $30.95
78	5100011925	Float	1		ADD TO CART
Float 5100011925 · qty on machine: 1 view full part page → $88.95
79	5100011872	Inspection glass	1		ADD TO CART
Inspection glass 5100011872 · qty on machine: 1 view full part page → $15.95
80	5100011656	Filler cap	1		ADD TO CART
Filler cap 5100011656 · qty on machine: 1 view full part page → $1.95
81	5100011873	Pipe clip	1		ADD TO CART
Pipe clip 5100011873 · qty on machine: 1 view full part page → $1.95
82	5100012000	Sheet metal screw	1		ADD TO CART
Sheet metal screw 5100012000 · qty on machine: 1 view full part page → $1.95
100	5100058615	Water tank	1		PARTS REQUEST
PHOTO COMING Water tank 5100058615 · qty on machine: 1 PARTS REQUEST
103	5100012713	Rubber metal buffer	4		ADD TO CART
Rubber metal buffer 5100012713 · qty on machine: 4 view full part page → $83.95
104	5100013523	Washer	3		ADD TO CART
Washer 5100013523 · qty on machine: 3 view full part page → $1.95
105	5100011526	Elbow	3		ADD TO CART
Elbow 5100011526 · qty on machine: 3 view full part page → $7.95
107	5100011444	Elbow	2		ADD TO CART
Elbow 5100011444 · qty on machine: 2 view full part page → $5.95
109	5100013557	Key	1		ADD TO CART
Key 5100013557 · qty on machine: 1 view full part page → $18.95
109	5100059525	Tank cap, with lock	1		ADD TO CART
Tank cap, with lock 5100059525 · qty on machine: 1 view full part page → $309.95
120	5100013573	Wire fastener	35		ADD TO CART
Wire fastener 5100013573 · qty on machine: 35 view full part page → $1.95
130	5100012140	Key	1		ADD TO CART
Key 5100012140 · qty on machine: 1 view full part page → $24.95
150	5100012881	Cover plate	2		ADD TO CART
Cover plate 5100012881 · qty on machine: 2 view full part page → $34.95
151	5100011906	Metal plate	1		ADD TO CART
Metal plate 5100011906 · qty on machine: 1 view full part page → $33.95
152	5100011902	Sheet metal screw	1		ADD TO CART
Sheet metal screw 5100011902 · qty on machine: 1 view full part page → $1.95
153	5100013646	Flexible tubing	0.43		ADD TO CART
Flexible tubing 5100013646 · qty on machine: 0.43 view full part page → $40.95
48	5100013094	Washer	2		ADD TO CART
Washer 5100013094 · qty on machine: 2 view full part page → $1.95
49	5100012546	Hexagon nut	2		ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
50	5100058615	Water tank	1		PARTS REQUEST
PHOTO COMING Water tank 5100058615 · qty on machine: 1 PARTS REQUEST
60	5100011719	Metal plate	2		ADD TO CART
Metal plate 5100011719 · qty on machine: 2 view full part page → $30.95
61	5100012967	Locking washer	4		ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
62	5100012547	Hexagon nut	4		ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
75	5100011590	Safety cord	1		ADD TO CART
Safety cord 5100011590 · qty on machine: 1 view full part page → $9.95
85	5100013374	Water pump	1		ADD TO CART
Water pump 5100013374 · qty on machine: 1 view full part page → $577.95
86	5100012919	Silentbloc	4		ADD TO CART
Silentbloc 5100012919 · qty on machine: 4 view full part page → $16.95
87	5100013523	Washer	4		ADD TO CART
Washer 5100013523 · qty on machine: 4 view full part page → $1.95
88	5100012545	Hexagon nut	8		ADD TO CART
Hexagon nut 5100012545 · qty on machine: 8 view full part page → $1.95
91	5100012498	Safety screw	3		ADD TO CART
Safety screw 5100012498 · qty on machine: 3 view full part page → $2.95
92	5100011527	Angle screwed socket	1		ADD TO CART
Angle screwed socket 5100011527 · qty on machine: 1 view full part page → $12.95
93	5100013646	Flexible tubing	0.5		ADD TO CART
Flexible tubing 5100013646 · qty on machine: 0.5 view full part page → $40.95
94	5100011666	Angle screwed socket	1		ADD TO CART
Angle screwed socket 5100011666 · qty on machine: 1 view full part page → $6.95
95	5100011670	Flexible tubing	0.8		ADD TO CART
Flexible tubing 5100011670 · qty on machine: 0.8 view full part page → $22.95
96	5100011845	Mounting device	1		ADD TO CART
Mounting device 5100011845 · qty on machine: 1 view full part page → $156.95
97	5100023166	Filler cap	1		ADD TO CART
Filler cap 5100023166 · qty on machine: 1 view full part page → $1.95
100	5100011670	Flexible tubing	0.45		ADD TO CART
Flexible tubing 5100011670 · qty on machine: 0.45 view full part page → $22.95
101	5100011863	T-reducing socket	1		ADD TO CART
T-reducing socket 5100011863 · qty on machine: 1 view full part page → $7.95
102	5100013639	Flexible tubing	1.5		ADD TO CART
Flexible tubing 5100013639 · qty on machine: 1.5 view full part page → $37.95
103	5100013639	Flexible tubing	1.14		ADD TO CART
Flexible tubing 5100013639 · qty on machine: 1.14 view full part page → $37.95
105	5100012314	Sprinkler pipe	2		ADD TO CART
Sprinkler pipe 5100012314 · qty on machine: 2 view full part page → $984.95
105	5100068767	Sprinkler pipe	2		ADD TO CART
Sprinkler pipe 5100068767 · qty on machine: 2 view full part page → $1294.95
106	5100012727	Cheese-head screw	4		ADD TO CART
Cheese-head screw 5100012727 · qty on machine: 4 view full part page → $1.95
106	5100013401	Cheese-head screw	4		ADD TO CART
Cheese-head screw 5100013401 · qty on machine: 4 view full part page → $4.95
107	5100012966	Locking washer	4		ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
108	5100013367	Hose clip	3		ADD TO CART
Hose clip 5100013367 · qty on machine: 3 view full part page → $3.95
135	5100013501	Elbow	1		ADD TO CART
Elbow 5100013501 · qty on machine: 1 view full part page → $8.95
136	5100013639	Flexible tubing	0.05		ADD TO CART
Flexible tubing 5100013639 · qty on machine: 0.05 view full part page → $37.95
104	5100012237	Metal plate	1		ADD TO CART
Metal plate 5100012237 · qty on machine: 1 view full part page → $45.95
110	5100011535	Cap nut	1		ADD TO CART
Cap nut 5100011535 · qty on machine: 1 view full part page → $12.95
110	5100011651	Membrane holder	1		ADD TO CART
Membrane holder 5100011651 · qty on machine: 1 view full part page → $18.95
110	5100011752	Sealing ring	1		ADD TO CART
Sealing ring 5100011752 · qty on machine: 1 view full part page → $1.95
110	5100011898	Nozzle holder	1		ADD TO CART
Nozzle holder 5100011898 · qty on machine: 1 view full part page → $52.95
110	5100011978	Membrane	1		ADD TO CART
Membrane 5100011978 · qty on machine: 1 view full part page → $7.95
111	5100013639	Flexible tubing	0.4		ADD TO CART
Flexible tubing 5100013639 · qty on machine: 0.4 view full part page → $37.95
113	5100011535	Cap nut	1		ADD TO CART
Cap nut 5100011535 · qty on machine: 1 view full part page → $12.95
113	5100011651	Membrane holder	1		ADD TO CART
Membrane holder 5100011651 · qty on machine: 1 view full part page → $18.95
113	5100011752	Sealing ring	1		ADD TO CART
Sealing ring 5100011752 · qty on machine: 1 view full part page → $1.95
113	5100011867	Nozzle holder	1		ADD TO CART
Nozzle holder 5100011867 · qty on machine: 1 view full part page → $52.95
113	5100011978	Membrane	1		ADD TO CART
Membrane 5100011978 · qty on machine: 1 view full part page → $7.95
115	5100011529	Sprinkler nozzle	2		ADD TO CART
Sprinkler nozzle 5100011529 · qty on machine: 2 view full part page → $11.95
116	5100011488	Nut	2		ADD TO CART
Nut 5100011488 · qty on machine: 2 view full part page → $3.95
117	5100011489	Filtering screen	2		ADD TO CART
Filtering screen 5100011489 · qty on machine: 2 view full part page → $4.95
130	5100012090	Cheese-head screw	4		ADD TO CART
Cheese-head screw 5100012090 · qty on machine: 4 view full part page → $1.95
131	5100013536	Serrated lock washer	4		ADD TO CART
Serrated lock washer 5100013536 · qty on machine: 4 view full part page → $2.95
132	5100012898	Hexagon nut	4		ADD TO CART
Hexagon nut 5100012898 · qty on machine: 4 view full part page → $2.95
200	5100012314	Sprinkler pipe	1		ADD TO CART
Sprinkler pipe 5100012314 · qty on machine: 1 view full part page → $984.95
170	5100068768	Sprinkler pipe	1	Serialno. >396	PARTS REQUEST
PHOTO COMING Sprinkler pipe 5100068768 · qty on machine: 1 Serialno. >396 PARTS REQUEST
171	5100011513	Sealing ring	2	Serialno. >396	ADD TO CART
Sealing ring 5100011513 · qty on machine: 2 Serialno. >396 view full part page → $1.95
173	5100011514	Cap	2	Serialno. >396	ADD TO CART
Cap 5100011514 · qty on machine: 2 Serialno. >396 view full part page → $10.95
175	5100011530	Nozzle holder	4	Serialno. >396	ADD TO CART
Nozzle holder 5100011530 · qty on machine: 4 Serialno. >396 view full part page → $39.95
176	5100066888	Nut	4	Serialno. >396	ADD TO CART
Nut 5100066888 · qty on machine: 4 Serialno. >396 view full part page → $3.95
177	5100011489	Filtering screen	4	Serialno. >396	ADD TO CART
Filtering screen 5100011489 · qty on machine: 4 Serialno. >396 view full part page → $4.95
178	5100011529	Sprinkler nozzle	4	Serialno. >396	ADD TO CART
Sprinkler nozzle 5100011529 · qty on machine: 4 Serialno. >396 view full part page → $11.95
190	5100013469	Half-clip	6	Serialno. >396	ADD TO CART
Half-clip 5100013469 · qty on machine: 6 Serialno. >396 view full part page → $1.95
191	5100013465	Cover plate	2	Serialno. >396	ADD TO CART
Cover plate 5100013465 · qty on machine: 2 Serialno. >396 view full part page → $1.95
192	5100012052	Cheese-head screw	4	Serialno. >396	ADD TO CART
Cheese-head screw 5100012052 · qty on machine: 4 Serialno. >396 view full part page → $1.95
193	5100013168	Bracket	2	Serialno. >396	PARTS REQUEST
PHOTO COMING Bracket 5100013168 · qty on machine: 2 Serialno. >396 PARTS REQUEST
200	5100068767	Sprinkler pipe	1	Serialno. >396	ADD TO CART
Sprinkler pipe 5100068767 · qty on machine: 1 Serialno. >396 view full part page → $1294.95
6	5100011851	Rubber sleeve	4		ADD TO CART
Rubber sleeve 5100011851 · qty on machine: 4 view full part page → $15.95
8	5100011850	Rubber sleeve	2		ADD TO CART
Rubber sleeve 5100011850 · qty on machine: 2 view full part page → $17.95
9	5100011815	Tank cap	1		ADD TO CART
Tank cap 5100011815 · qty on machine: 1 view full part page → $43.95
10	5100011931	O-ring seal	1		ADD TO CART
O-ring seal 5100011931 · qty on machine: 1 view full part page → $13.95

Page 192 — Frost protection for sprinkling

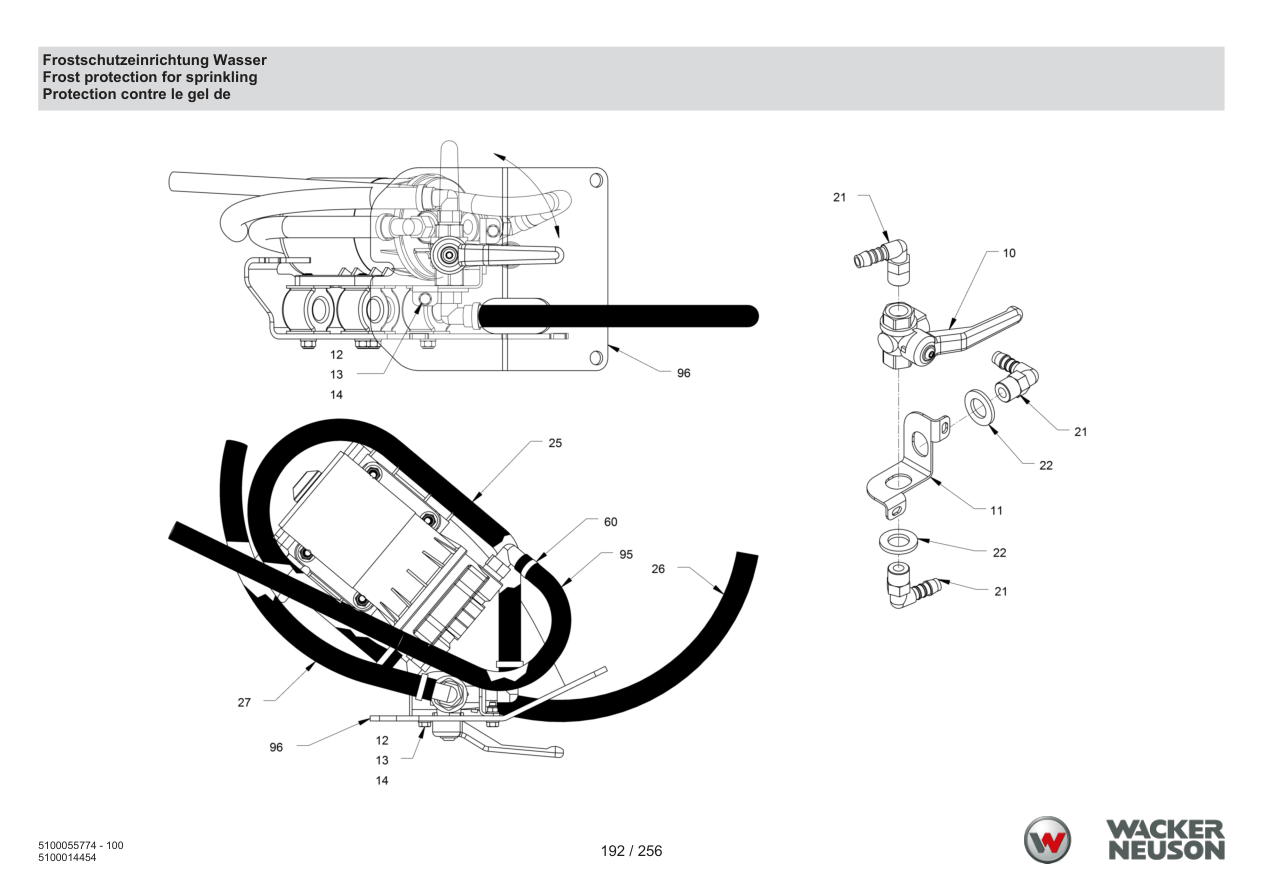

Wacker Neuson RD18-80 Roller Frost protection for sprinkling parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty
10	5100011943	Ball-closure cock	1	ADD TO CART
Ball-closure cock 5100011943 · qty on machine: 1 view full part page → $171.95
11	5100011942	Adapter	1	ADD TO CART
Adapter 5100011942 · qty on machine: 1 view full part page → $28.95
12	5100012598	Hexagon screw	2	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012598 · qty on machine: 2 PARTS REQUEST
13	5100012936	Washer	4	ADD TO CART
Washer 5100012936 · qty on machine: 4 view full part page → $2.95
14	5100011599	Hexagon nut	2	ADD TO CART
Hexagon nut 5100011599 · qty on machine: 2 view full part page → $2.95
21	5100011527	Angle screwed socket	3	ADD TO CART
Angle screwed socket 5100011527 · qty on machine: 3 view full part page → $12.95
22	5100013413	Washer	2	ADD TO CART
Washer 5100013413 · qty on machine: 2 view full part page → $1.95
25	5100013646	Flexible tubing	0.59	ADD TO CART
Flexible tubing 5100013646 · qty on machine: 0.59 view full part page → $40.95
26	5100013646	Flexible tubing	0.86	ADD TO CART
Flexible tubing 5100013646 · qty on machine: 0.86 view full part page → $40.95
27	5100013646	Flexible tubing	0.59	ADD TO CART
Flexible tubing 5100013646 · qty on machine: 0.59 view full part page → $40.95
60	5100013573	Wire fastener	10	ADD TO CART
Wire fastener 5100013573 · qty on machine: 10 view full part page → $1.95
95	5100011670	Flexible tubing	0.8	ADD TO CART
Flexible tubing 5100011670 · qty on machine: 0.8 view full part page → $22.95
96	5100011845	Mounting device	1	ADD TO CART
Mounting device 5100011845 · qty on machine: 1 view full part page → $156.95

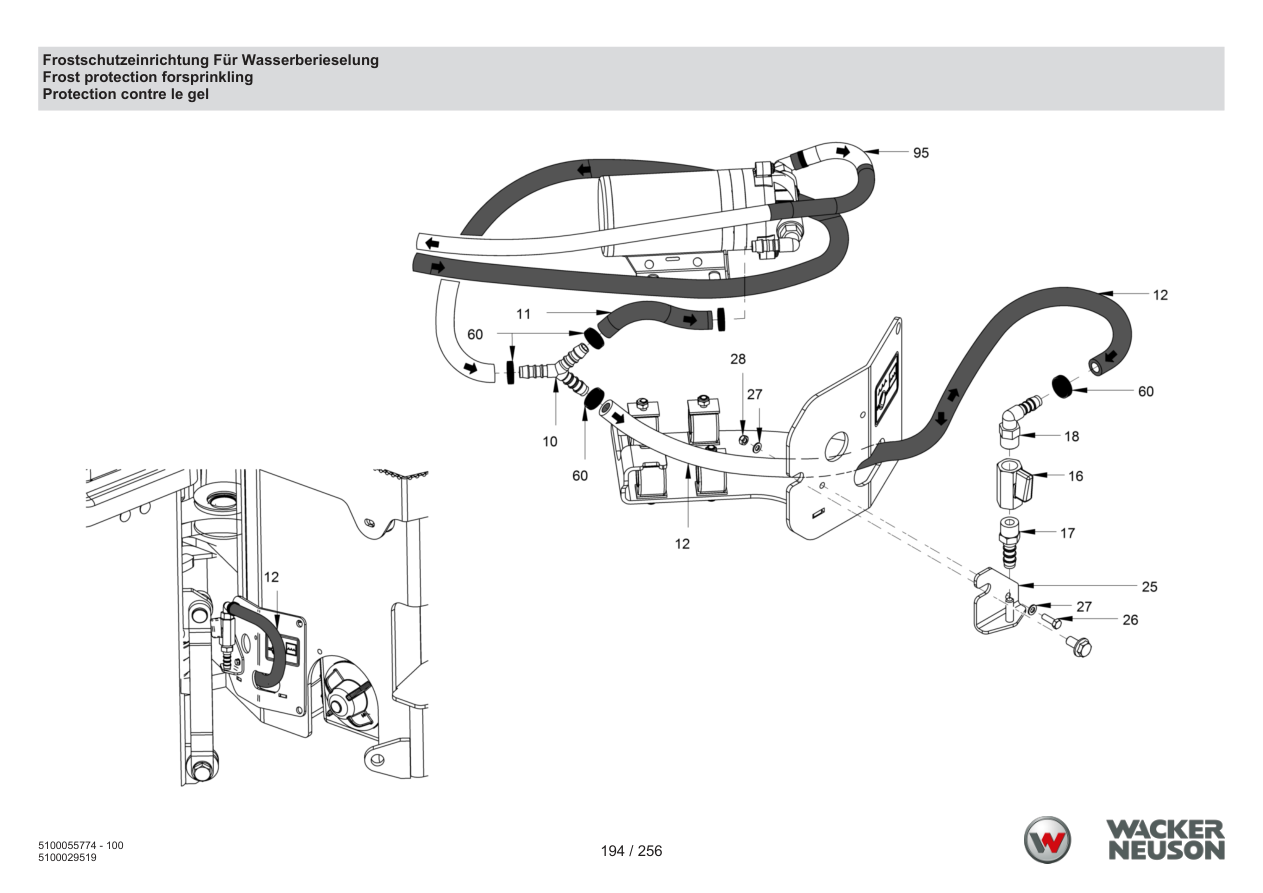

Page 194 — Frost protection forsprinkling

Parts list — exactly as printed12 rows

No.	Part No.	Part Name	Qty
10	5100029536	Union	1	ADD TO CART
Union 5100029536 · qty on machine: 1 view full part page → $11.95
11	5100013646	Flexible tubing	0.06	ADD TO CART
Flexible tubing 5100013646 · qty on machine: 0.06 view full part page → $40.95
12	5100013646	Flexible tubing	0.65	ADD TO CART
Flexible tubing 5100013646 · qty on machine: 0.65 view full part page → $40.95
16	5100011472	Ball-closure cock	1	ADD TO CART
Ball-closure cock 5100011472 · qty on machine: 1 view full part page → $102.95
17	5100029535	Straight screwed socket	1	ADD TO CART
Straight screwed socket 5100029535 · qty on machine: 1 view full part page → $9.95
18	5100011527	Angle screwed socket	1	ADD TO CART
Angle screwed socket 5100011527 · qty on machine: 1 view full part page → $12.95
25	5100029568	Holder	1	ADD TO CART
Holder 5100029568 · qty on machine: 1 view full part page → $47.95
26	5100012598	Hexagon screw	1	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012598 · qty on machine: 1 PARTS REQUEST
27	5100012936	Washer	2	ADD TO CART
Washer 5100012936 · qty on machine: 2 view full part page → $2.95
28	5100011599	Hexagon nut	1	ADD TO CART
Hexagon nut 5100011599 · qty on machine: 1 view full part page → $2.95
60	5100013573	Wire fastener	10	ADD TO CART
Wire fastener 5100013573 · qty on machine: 10 view full part page → $1.95
95	5100011670	Flexible tubing	0.8	ADD TO CART
Flexible tubing 5100011670 · qty on machine: 0.8 view full part page → $22.95

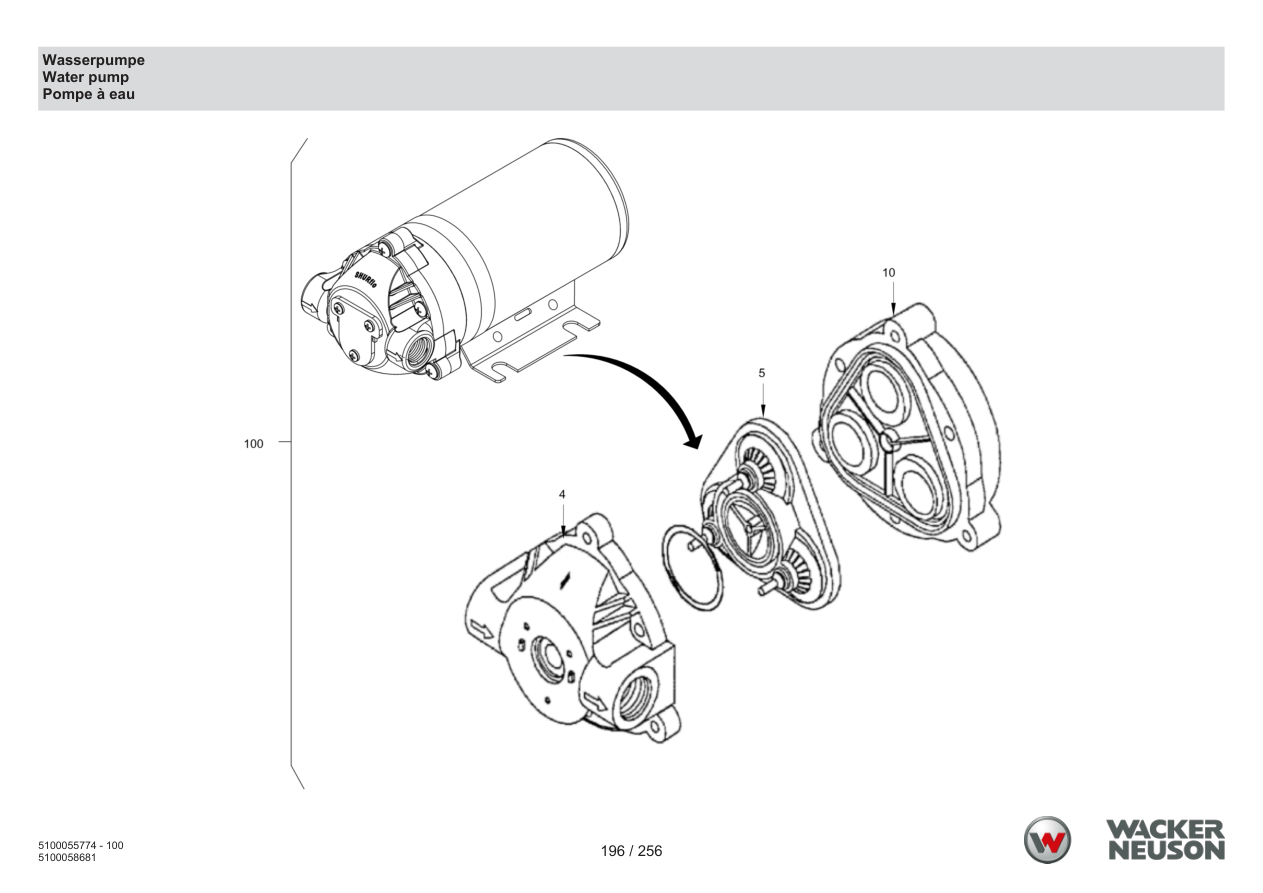

Page 196 — Water pump

Wacker Neuson RD18-80 Roller Water pump parts diagram

Parts list — exactly as printed4 rows

No.	Part No.	Part Name	Qty
4	5100013389	Pump housing	1	ADD TO CART
Pump housing 5100013389 · qty on machine: 1 view full part page → $129.95
5	5100013391	Valve insert	1	ADD TO CART
Valve insert 5100013391 · qty on machine: 1 view full part page → $102.95
10	5100013390	Pump housing	1	ADD TO CART
Pump housing 5100013390 · qty on machine: 1 view full part page → $220.95
100	5100013374	Water pump	1	ADD TO CART
Water pump 5100013374 · qty on machine: 1 view full part page → $577.95

Page 198 — Roller drum suspension

Wacker Neuson RD18-80 Roller Roller drum suspension parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty
1	5100068783	Bow plate	2	PARTS REQUEST
PHOTO COMING Bow plate 5100068783 · qty on machine: 2 PARTS REQUEST
5	5100012526	Hexagon screw	9	ADD TO CART
Hexagon screw 5100012526 · qty on machine: 9 view full part page → $4.95
6	5100013565	Hexagon screw	1	ADD TO CART
Hexagon screw 5100013565 · qty on machine: 1 view full part page → $5.95
7	5100012969	Locking washer	10	ADD TO CART
Locking washer 5100012969 · qty on machine: 10 view full part page → $2.95
8	5100012969	Locking washer	16	ADD TO CART
Locking washer 5100012969 · qty on machine: 16 view full part page → $2.95
9	5100012405	Hexagon nut	16	ADD TO CART
Hexagon nut 5100012405 · qty on machine: 16 view full part page → $3.95
30	5100012896	Wire protecting sleeve	1	ADD TO CART
Wire protecting sleeve 5100012896 · qty on machine: 1 view full part page → $26.95

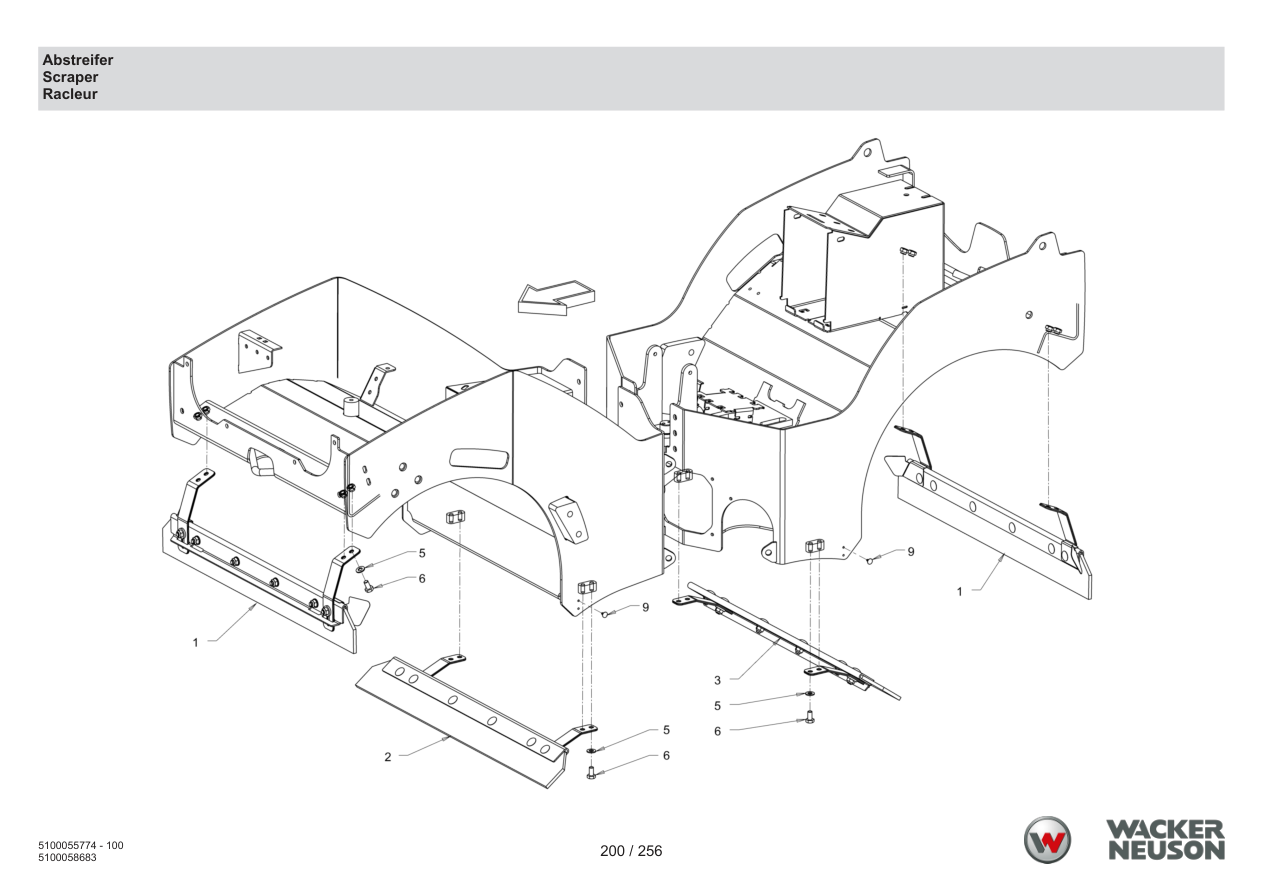

Page 200 — Scraper

Wacker Neuson RD18-80 Roller Scraper parts diagram

Parts list — exactly as printed28 rows

No.	Part No.	Part Name	Qty
1	5100058617	Scraper	2	PARTS REQUEST
PHOTO COMING Scraper 5100058617 · qty on machine: 2 PARTS REQUEST
2	5100058618	Scraper	1	PARTS REQUEST
PHOTO COMING Scraper 5100058618 · qty on machine: 1 PARTS REQUEST
3	5100058619	Scraper	1	PARTS REQUEST
PHOTO COMING Scraper 5100058619 · qty on machine: 1 PARTS REQUEST
1	5100016841	Scraper	2	ADD TO CART
Scraper 5100016841 · qty on machine: 2 view full part page → $591.95
2	5100016842	Scraper	1	ADD TO CART
Scraper 5100016842 · qty on machine: 1 view full part page → $595.95
3	5100016843	Scraper	1	ADD TO CART
Scraper 5100016843 · qty on machine: 1 view full part page → $590.95
5	5100012967	Locking washer	16	ADD TO CART
Locking washer 5100012967 · qty on machine: 16 view full part page → $1.95
6	5100012520	Hexagon screw	16	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 16 view full part page → $1.95
9	5100011550	Plug	4	ADD TO CART
Plug 5100011550 · qty on machine: 4 view full part page → $1.95
1	5100011825	Plastic scraper	1	ADD TO CART
Plastic scraper 5100011825 · qty on machine: 1 view full part page → $119.95
2	5100012044	Metal plate	1	ADD TO CART
Metal plate 5100012044 · qty on machine: 1 view full part page → $722.95
3	5100016847	Spring	4	ADD TO CART
Spring 5100016847 · qty on machine: 4 view full part page → $88.95
4	5100011939	Metal plate	1	ADD TO CART
Metal plate 5100011939 · qty on machine: 1 view full part page → $38.95
5	5100011940	Metal plate	1	ADD TO CART
Metal plate 5100011940 · qty on machine: 1 view full part page → $29.95
6	5100012085	Mushroom head screw	4	ADD TO CART
Mushroom head screw 5100012085 · qty on machine: 4 view full part page → $2.95
7	5100011584	Mushroom head screw	2	ADD TO CART
Mushroom head screw 5100011584 · qty on machine: 2 view full part page → $2.95
8	5100012547	Hexagon nut	6	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 6 view full part page → $1.95
9	5100013521	Washer	2	ADD TO CART
Washer 5100013521 · qty on machine: 2 view full part page → $1.95
10	5100013521	Washer	4	ADD TO CART
Washer 5100013521 · qty on machine: 4 view full part page → $1.95
100	5100016841	Scraper	2	ADD TO CART
Scraper 5100016841 · qty on machine: 2 view full part page → $591.95
3	5100016848	Spring	4	ADD TO CART
Spring 5100016848 · qty on machine: 4 view full part page → $71.95
100	5100016842	Scraper	1	ADD TO CART
Scraper 5100016842 · qty on machine: 1 view full part page → $595.95
100	5100016843	Scraper	1	ADD TO CART
Scraper 5100016843 · qty on machine: 1 view full part page → $590.95
3	5100058620	Spring	4	ADD TO CART
Spring 5100058620 · qty on machine: 4 view full part page → $88.95
100	5100058617	Scraper	2	PARTS REQUEST
PHOTO COMING Scraper 5100058617 · qty on machine: 2 PARTS REQUEST
3	5100058621	Spring	4	ADD TO CART
Spring 5100058621 · qty on machine: 4 view full part page → $74.95
100	5100058618	Scraper	1	PARTS REQUEST
PHOTO COMING Scraper 5100058618 · qty on machine: 1 PARTS REQUEST
100	5100058619	Scraper	1	PARTS REQUEST
PHOTO COMING Scraper 5100058619 · qty on machine: 1 PARTS REQUEST

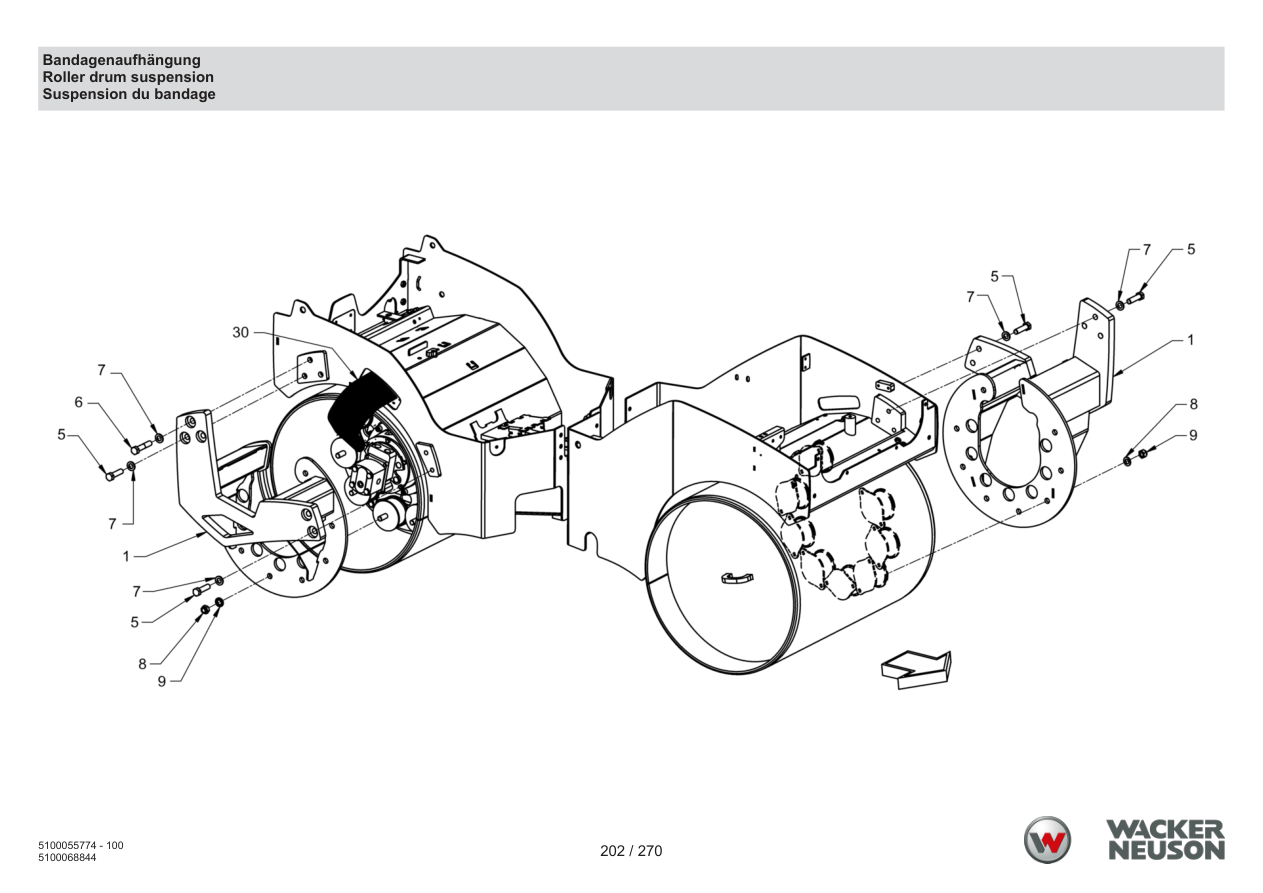

Page 202 — Roller drum suspension

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty
1	5100068783	Bow plate	2	PARTS REQUEST
PHOTO COMING Bow plate 5100068783 · qty on machine: 2 PARTS REQUEST
5	5100012526	Hexagon screw	9	ADD TO CART
Hexagon screw 5100012526 · qty on machine: 9 view full part page → $4.95
6	5100013565	Hexagon screw	1	ADD TO CART
Hexagon screw 5100013565 · qty on machine: 1 view full part page → $5.95
7	5100012969	Locking washer	10	ADD TO CART
Locking washer 5100012969 · qty on machine: 10 view full part page → $2.95
8	5100012969	Locking washer	16	ADD TO CART
Locking washer 5100012969 · qty on machine: 16 view full part page → $2.95
9	5100012405	Hexagon nut	16	ADD TO CART
Hexagon nut 5100012405 · qty on machine: 16 view full part page → $3.95
30	5100012896	Wire protecting sleeve	1	ADD TO CART
Wire protecting sleeve 5100012896 · qty on machine: 1 view full part page → $26.95

Page 204 — Mounting

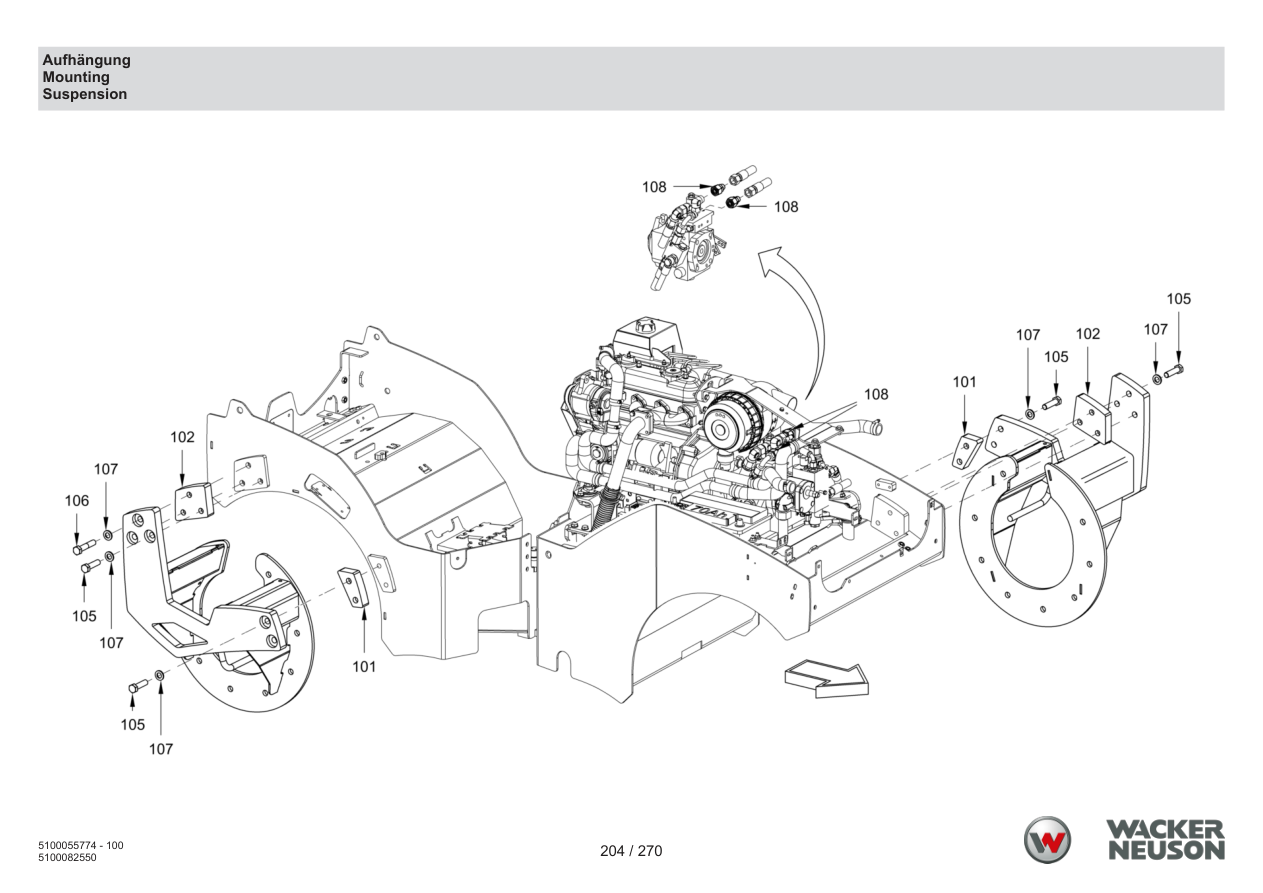

Wacker Neuson RD18-80 Roller Mounting parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty
106	5100012502	Hexagon screw	1	ADD TO CART
Hexagon screw 5100012502 · qty on machine: 1 view full part page → $27.95
107	5100012969	Locking washer	10	ADD TO CART
Locking washer 5100012969 · qty on machine: 10 view full part page → $2.95
108	5100012948	Connection piece	2	ADD TO CART
Connection piece 5100012948 · qty on machine: 2 view full part page → $91.95
101	5100081848	Plate	2	PARTS REQUEST
PHOTO COMING Plate 5100081848 · qty on machine: 2 PARTS REQUEST
102	5100081849	Plate	2	PARTS REQUEST
PHOTO COMING Plate 5100081849 · qty on machine: 2 PARTS REQUEST
105	5100040278	Hexagon screw	9	PARTS REQUEST
PHOTO COMING Hexagon screw 5100040278 · qty on machine: 9 PARTS REQUEST

Page 206 — Scraper

Parts list — exactly as printed28 rows

No.	Part No.	Part Name	Qty
1	5100016841	Scraper	2	ADD TO CART
Scraper 5100016841 · qty on machine: 2 view full part page → $591.95
2	5100016842	Scraper	1	ADD TO CART
Scraper 5100016842 · qty on machine: 1 view full part page → $595.95
3	5100016843	Scraper	1	ADD TO CART
Scraper 5100016843 · qty on machine: 1 view full part page → $590.95
5	5100012967	Locking washer	16	ADD TO CART
Locking washer 5100012967 · qty on machine: 16 view full part page → $1.95
6	5100012520	Hexagon screw	16	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 16 view full part page → $1.95
9	5100011550	Plug	4	ADD TO CART
Plug 5100011550 · qty on machine: 4 view full part page → $1.95
1	5100011825	Plastic scraper	1	ADD TO CART
Plastic scraper 5100011825 · qty on machine: 1 view full part page → $119.95
2	5100012044	Metal plate	1	ADD TO CART
Metal plate 5100012044 · qty on machine: 1 view full part page → $722.95
3	5100016847	Spring	4	ADD TO CART
Spring 5100016847 · qty on machine: 4 view full part page → $88.95
4	5100011939	Metal plate	1	ADD TO CART
Metal plate 5100011939 · qty on machine: 1 view full part page → $38.95
5	5100011940	Metal plate	1	ADD TO CART
Metal plate 5100011940 · qty on machine: 1 view full part page → $29.95
6	5100012085	Mushroom head screw	4	ADD TO CART
Mushroom head screw 5100012085 · qty on machine: 4 view full part page → $2.95
7	5100011584	Mushroom head screw	2	ADD TO CART
Mushroom head screw 5100011584 · qty on machine: 2 view full part page → $2.95
8	5100012547	Hexagon nut	6	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 6 view full part page → $1.95
9	5100013521	Washer	2	ADD TO CART
Washer 5100013521 · qty on machine: 2 view full part page → $1.95
3	5100016848	Spring	4	ADD TO CART
Spring 5100016848 · qty on machine: 4 view full part page → $71.95
10	5100013521	Washer	4	ADD TO CART
Washer 5100013521 · qty on machine: 4 view full part page → $1.95
100	5100016842	Scraper	1	ADD TO CART
Scraper 5100016842 · qty on machine: 1 view full part page → $595.95
100	5100016843	Scraper	1	ADD TO CART
Scraper 5100016843 · qty on machine: 1 view full part page → $590.95
1	5100058617	Scraper	2	PARTS REQUEST
PHOTO COMING Scraper 5100058617 · qty on machine: 2 PARTS REQUEST
2	5100058618	Scraper	1	PARTS REQUEST
PHOTO COMING Scraper 5100058618 · qty on machine: 1 PARTS REQUEST
3	5100058619	Scraper	1	PARTS REQUEST
PHOTO COMING Scraper 5100058619 · qty on machine: 1 PARTS REQUEST
3	5100058620	Spring	4	ADD TO CART
Spring 5100058620 · qty on machine: 4 view full part page → $88.95
100	5100058617	Scraper	2	PARTS REQUEST
PHOTO COMING Scraper 5100058617 · qty on machine: 2 PARTS REQUEST
3	5100058621	Spring	4	ADD TO CART
Spring 5100058621 · qty on machine: 4 view full part page → $74.95
100	5100058618	Scraper	1	PARTS REQUEST
PHOTO COMING Scraper 5100058618 · qty on machine: 1 PARTS REQUEST
100	5100058619	Scraper	1	PARTS REQUEST
PHOTO COMING Scraper 5100058619 · qty on machine: 1 PARTS REQUEST
100	5100016841	Scraper	2	ADD TO CART
Scraper 5100016841 · qty on machine: 2 view full part page → $591.95

Page 216 — Scraper foldable

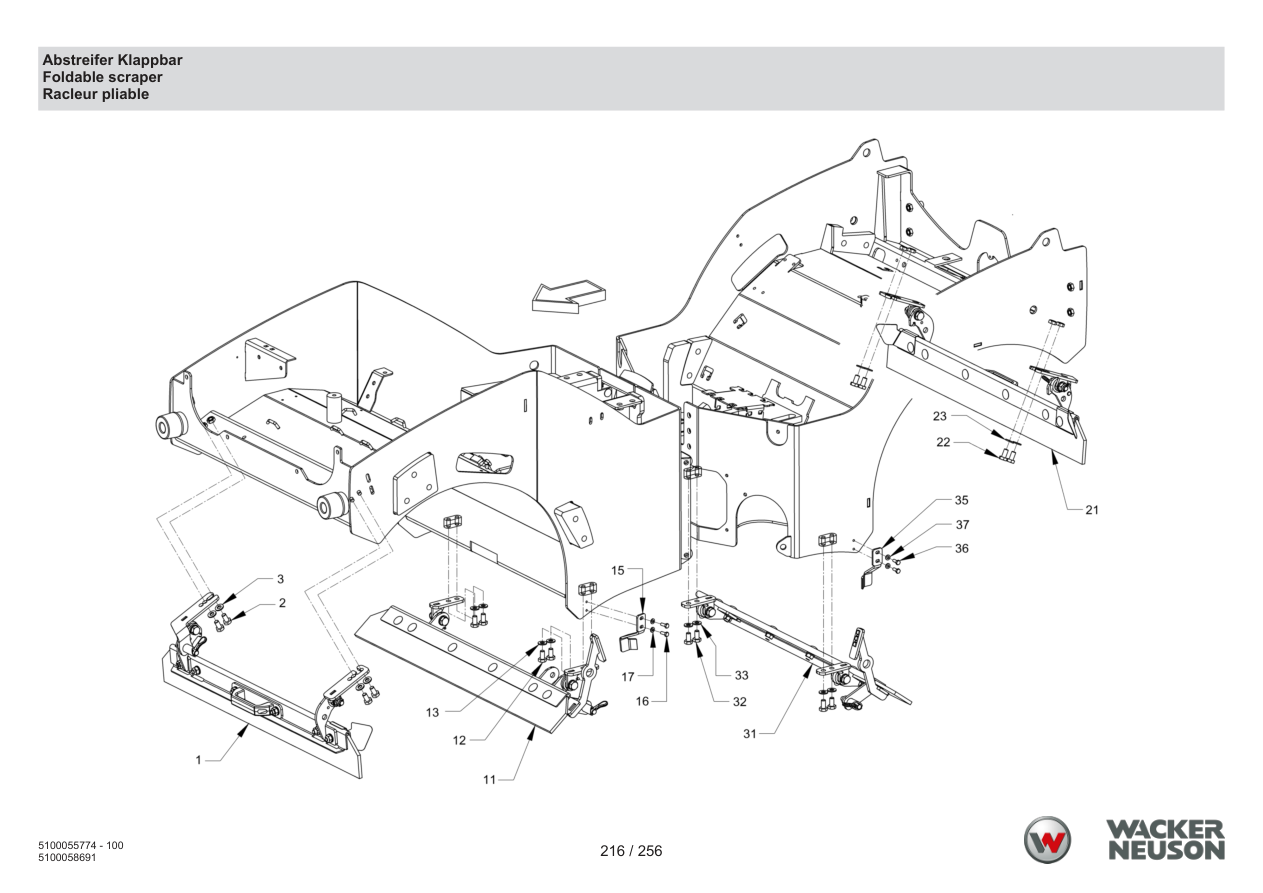

Wacker Neuson RD18-80 Roller Scraper foldable parts diagram

Parts list — exactly as printed78 rows

No.	Part No.	Part Name	Qty
20	5100013040	Bracket	1	ADD TO CART
Bracket 5100013040 · qty on machine: 1 view full part page → $51.95
1	5100013086	Scraper	1	ADD TO CART
Scraper 5100013086 · qty on machine: 1 view full part page → $845.95
2	5100012520	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 4 view full part page → $1.95
3	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
11	5100013087	Scraper	1	ADD TO CART
Scraper 5100013087 · qty on machine: 1 view full part page → $793.95
12	5100012520	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 4 view full part page → $1.95
13	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
15	5100013058	Holder-up	1	ADD TO CART
Holder-up 5100013058 · qty on machine: 1 view full part page → $63.95
16	5100012572	Hexagon screw	2	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 2 PARTS REQUEST
17	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
21	5100013086	Scraper	1	ADD TO CART
Scraper 5100013086 · qty on machine: 1 view full part page → $845.95
22	5100012520	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 4 view full part page → $1.95
23	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
31	5100013088	Scraper	1	ADD TO CART
Scraper 5100013088 · qty on machine: 1 view full part page → $787.95
32	5100012520	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 4 view full part page → $1.95
33	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
35	5100013064	Holder-up	1	ADD TO CART
Holder-up 5100013064 · qty on machine: 1 view full part page → $65.95
36	5100012572	Hexagon screw	2	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 2 PARTS REQUEST
37	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
11	5100011825	Plastic scraper	1	ADD TO CART
Plastic scraper 5100011825 · qty on machine: 1 view full part page → $119.95
12	5100012044	Metal plate	1	ADD TO CART
Metal plate 5100012044 · qty on machine: 1 view full part page → $722.95
13	5100011939	Metal plate	1	ADD TO CART
Metal plate 5100011939 · qty on machine: 1 view full part page → $38.95
14	5100011940	Metal plate	1	ADD TO CART
Metal plate 5100011940 · qty on machine: 1 view full part page → $29.95
15	5100012085	Mushroom head screw	2	ADD TO CART
Mushroom head screw 5100012085 · qty on machine: 2 view full part page → $2.95
16	5100011584	Mushroom head screw	4	ADD TO CART
Mushroom head screw 5100011584 · qty on machine: 4 view full part page → $2.95
17	5100013521	Washer	6	ADD TO CART
Washer 5100013521 · qty on machine: 6 view full part page → $1.95
19	5100012547	Hexagon nut	6	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 6 view full part page → $1.95
21	5100012932	Handle	1	ADD TO CART
Handle 5100012932 · qty on machine: 1 view full part page → $40.95
22	5100012665	Countersunk screw	2	ADD TO CART
Countersunk screw 5100012665 · qty on machine: 2 view full part page → $1.95
23	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
25	5100029558	Hexagon screw	1	ADD TO CART
Hexagon screw 5100029558 · qty on machine: 1 view full part page → $3.95
26	5100013577	Washer	2	ADD TO CART
Washer 5100013577 · qty on machine: 2 view full part page → $1.95
27	5100013045	Bracket	1	ADD TO CART
Bracket 5100013045 · qty on machine: 1 view full part page → $58.95
28	5100011682	Bushing	1	ADD TO CART
Bushing 5100011682 · qty on machine: 1 view full part page → $6.95
29	5100013629	Yoke spring	1	ADD TO CART
Yoke spring 5100013629 · qty on machine: 1 view full part page → $44.95
30	5100013068	Bracket	1	ADD TO CART
Bracket 5100013068 · qty on machine: 1 view full part page → $186.95
31	5100035091	Safety nut	1	ADD TO CART
Safety nut 5100035091 · qty on machine: 1 view full part page → $2.95
35	5100013574	Toggle with bolt	1	ADD TO CART
Toggle with bolt 5100013574 · qty on machine: 1 view full part page → $28.95
36	5100013575	Compression spring	1	ADD TO CART
Compression spring 5100013575 · qty on machine: 1 view full part page → $4.95
37	5100013576	Grooved pin	1	ADD TO CART
Grooved pin 5100013576 · qty on machine: 1 view full part page → $4.95
40	5100029558	Hexagon screw	1	ADD TO CART
Hexagon screw 5100029558 · qty on machine: 1 view full part page → $3.95
41	5100013577	Washer	2	ADD TO CART
Washer 5100013577 · qty on machine: 2 view full part page → $1.95
42	5100013046	Bracket	1	ADD TO CART
Bracket 5100013046 · qty on machine: 1 view full part page → $53.95
43	5100011682	Bushing	1	ADD TO CART
Bushing 5100011682 · qty on machine: 1 view full part page → $6.95
44	5100013630	Yoke spring	1	ADD TO CART
Yoke spring 5100013630 · qty on machine: 1 view full part page → $52.95
45	5100013069	Bracket	1	ADD TO CART
Bracket 5100013069 · qty on machine: 1 view full part page → $78.95
46	5100035091	Safety nut	1	ADD TO CART
Safety nut 5100035091 · qty on machine: 1 view full part page → $2.95
100	5100013086	Scraper	2	ADD TO CART
Scraper 5100013086 · qty on machine: 2 view full part page → $845.95
27	5100013060	Foot lever	1	ADD TO CART
Foot lever 5100013060 · qty on machine: 1 view full part page → $292.95
30	5100013056	Bracket	1	ADD TO CART
Bracket 5100013056 · qty on machine: 1 view full part page → $85.95
42	5100013034	Bracket	1	ADD TO CART
Bracket 5100013034 · qty on machine: 1 view full part page → $63.95
45	5100013056	Bracket	1	ADD TO CART
Bracket 5100013056 · qty on machine: 1 view full part page → $85.95
100	5100013087	Scraper	1	ADD TO CART
Scraper 5100013087 · qty on machine: 1 view full part page → $793.95
27	5100013061	Foot lever	1	PARTS REQUEST
PHOTO COMING Foot lever 5100013061 · qty on machine: 1 PARTS REQUEST
29	5100013630	Yoke spring	1	ADD TO CART
Yoke spring 5100013630 · qty on machine: 1 view full part page → $52.95
100	5100013088	Scraper	1	ADD TO CART
Scraper 5100013088 · qty on machine: 1 view full part page → $787.95
11	5100013086	Scraper	1	ADD TO CART
Scraper 5100013086 · qty on machine: 1 view full part page → $845.95
12	5100035014	Hexagon screw	4	ADD TO CART
Hexagon screw 5100035014 · qty on machine: 4 view full part page → $1.95
21	5100013087	Scraper	1	ADD TO CART
Scraper 5100013087 · qty on machine: 1 view full part page → $793.95
22	5100035014	Hexagon screw	4	ADD TO CART
Hexagon screw 5100035014 · qty on machine: 4 view full part page → $1.95
25	5100013058	Holder-up	1	ADD TO CART
Holder-up 5100013058 · qty on machine: 1 view full part page → $63.95
26	5100012572	Hexagon screw	2	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 2 PARTS REQUEST
27	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
31	5100013086	Scraper	1	ADD TO CART
Scraper 5100013086 · qty on machine: 1 view full part page → $845.95
32	5100035014	Hexagon screw	4	ADD TO CART
Hexagon screw 5100035014 · qty on machine: 4 view full part page → $1.95
41	5100013088	Scraper	1	ADD TO CART
Scraper 5100013088 · qty on machine: 1 view full part page → $787.95
42	5100035014	Hexagon screw	4	ADD TO CART
Hexagon screw 5100035014 · qty on machine: 4 view full part page → $1.95
43	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
45	5100013064	Holder-up	1	ADD TO CART
Holder-up 5100013064 · qty on machine: 1 view full part page → $65.95
46	5100012572	Hexagon screw	2	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 2 PARTS REQUEST
47	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
111	5100058623	Metal plate	7	ADD TO CART
Metal plate 5100058623 · qty on machine: 7 view full part page → $130.95
112	5100058624	Metal plate	1	ADD TO CART
Metal plate 5100058624 · qty on machine: 1 view full part page → $130.95
113	5100058625	Countersunk screw	16	ADD TO CART
Countersunk screw 5100058625 · qty on machine: 16 view full part page → $1.95
120	5100013062	Spacer block	1	ADD TO CART
Spacer block 5100013062 · qty on machine: 1 view full part page → $150.95
121	5100013561	Countersunk screw	2	ADD TO CART
Countersunk screw 5100013561 · qty on machine: 2 view full part page → $1.95
125	5100013063	Spacer block	1	ADD TO CART
Spacer block 5100013063 · qty on machine: 1 view full part page → $147.95
126	5100012665	Countersunk screw	1	ADD TO CART
Countersunk screw 5100012665 · qty on machine: 1 view full part page → $1.95

Page 222 — Scraper foldable

Parts list — exactly as printed78 rows

No.	Part No.	Part Name	Qty
1	5100013086	Scraper	1	ADD TO CART
Scraper 5100013086 · qty on machine: 1 view full part page → $845.95
2	5100012520	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 4 view full part page → $1.95
3	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
11	5100013087	Scraper	1	ADD TO CART
Scraper 5100013087 · qty on machine: 1 view full part page → $793.95
12	5100012520	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 4 view full part page → $1.95
13	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
15	5100013058	Holder-up	1	ADD TO CART
Holder-up 5100013058 · qty on machine: 1 view full part page → $63.95
16	5100012572	Hexagon screw	2	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 2 PARTS REQUEST
17	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
21	5100013086	Scraper	1	ADD TO CART
Scraper 5100013086 · qty on machine: 1 view full part page → $845.95
22	5100012520	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 4 view full part page → $1.95
23	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
31	5100013088	Scraper	1	ADD TO CART
Scraper 5100013088 · qty on machine: 1 view full part page → $787.95
32	5100012520	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012520 · qty on machine: 4 view full part page → $1.95
33	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
35	5100013064	Holder-up	1	ADD TO CART
Holder-up 5100013064 · qty on machine: 1 view full part page → $65.95
36	5100012572	Hexagon screw	2	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 2 PARTS REQUEST
37	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
11	5100011825	Plastic scraper	1	ADD TO CART
Plastic scraper 5100011825 · qty on machine: 1 view full part page → $119.95
12	5100012044	Metal plate	1	ADD TO CART
Metal plate 5100012044 · qty on machine: 1 view full part page → $722.95
13	5100011939	Metal plate	1	ADD TO CART
Metal plate 5100011939 · qty on machine: 1 view full part page → $38.95
14	5100011940	Metal plate	1	ADD TO CART
Metal plate 5100011940 · qty on machine: 1 view full part page → $29.95
15	5100012085	Mushroom head screw	2	ADD TO CART
Mushroom head screw 5100012085 · qty on machine: 2 view full part page → $2.95
16	5100011584	Mushroom head screw	4	ADD TO CART
Mushroom head screw 5100011584 · qty on machine: 4 view full part page → $2.95
17	5100013521	Washer	6	ADD TO CART
Washer 5100013521 · qty on machine: 6 view full part page → $1.95
19	5100012547	Hexagon nut	6	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 6 view full part page → $1.95
20	5100013040	Bracket	1	ADD TO CART
Bracket 5100013040 · qty on machine: 1 view full part page → $51.95
21	5100012932	Handle	1	ADD TO CART
Handle 5100012932 · qty on machine: 1 view full part page → $40.95
22	5100012665	Countersunk screw	2	ADD TO CART
Countersunk screw 5100012665 · qty on machine: 2 view full part page → $1.95
23	5100012545	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 2 view full part page → $1.95
25	5100029558	Hexagon screw	1	ADD TO CART
Hexagon screw 5100029558 · qty on machine: 1 view full part page → $3.95
26	5100013577	Washer	2	ADD TO CART
Washer 5100013577 · qty on machine: 2 view full part page → $1.95
27	5100013045	Bracket	1	ADD TO CART
Bracket 5100013045 · qty on machine: 1 view full part page → $58.95
28	5100011682	Bushing	1	ADD TO CART
Bushing 5100011682 · qty on machine: 1 view full part page → $6.95
29	5100013629	Yoke spring	1	ADD TO CART
Yoke spring 5100013629 · qty on machine: 1 view full part page → $44.95
30	5100013068	Bracket	1	ADD TO CART
Bracket 5100013068 · qty on machine: 1 view full part page → $186.95
31	5100035091	Safety nut	1	ADD TO CART
Safety nut 5100035091 · qty on machine: 1 view full part page → $2.95
35	5100013574	Toggle with bolt	1	ADD TO CART
Toggle with bolt 5100013574 · qty on machine: 1 view full part page → $28.95
36	5100013575	Compression spring	1	ADD TO CART
Compression spring 5100013575 · qty on machine: 1 view full part page → $4.95
37	5100013576	Grooved pin	1	ADD TO CART
Grooved pin 5100013576 · qty on machine: 1 view full part page → $4.95
40	5100029558	Hexagon screw	1	ADD TO CART
Hexagon screw 5100029558 · qty on machine: 1 view full part page → $3.95
41	5100013577	Washer	2	ADD TO CART
Washer 5100013577 · qty on machine: 2 view full part page → $1.95
42	5100013046	Bracket	1	ADD TO CART
Bracket 5100013046 · qty on machine: 1 view full part page → $53.95
43	5100011682	Bushing	1	ADD TO CART
Bushing 5100011682 · qty on machine: 1 view full part page → $6.95
44	5100013630	Yoke spring	1	ADD TO CART
Yoke spring 5100013630 · qty on machine: 1 view full part page → $52.95
45	5100013069	Bracket	1	ADD TO CART
Bracket 5100013069 · qty on machine: 1 view full part page → $78.95
46	5100035091	Safety nut	1	ADD TO CART
Safety nut 5100035091 · qty on machine: 1 view full part page → $2.95
100	5100013086	Scraper	2	ADD TO CART
Scraper 5100013086 · qty on machine: 2 view full part page → $845.95
27	5100013060	Foot lever	1	ADD TO CART
Foot lever 5100013060 · qty on machine: 1 view full part page → $292.95
30	5100013056	Bracket	1	ADD TO CART
Bracket 5100013056 · qty on machine: 1 view full part page → $85.95
42	5100013034	Bracket	1	ADD TO CART
Bracket 5100013034 · qty on machine: 1 view full part page → $63.95
45	5100013056	Bracket	1	ADD TO CART
Bracket 5100013056 · qty on machine: 1 view full part page → $85.95
100	5100013087	Scraper	1	ADD TO CART
Scraper 5100013087 · qty on machine: 1 view full part page → $793.95
27	5100013061	Foot lever	1	PARTS REQUEST
PHOTO COMING Foot lever 5100013061 · qty on machine: 1 PARTS REQUEST
29	5100013630	Yoke spring	1	ADD TO CART
Yoke spring 5100013630 · qty on machine: 1 view full part page → $52.95
100	5100013088	Scraper	1	ADD TO CART
Scraper 5100013088 · qty on machine: 1 view full part page → $787.95
11	5100013086	Scraper	1	ADD TO CART
Scraper 5100013086 · qty on machine: 1 view full part page → $845.95
12	5100035014	Hexagon screw	4	ADD TO CART
Hexagon screw 5100035014 · qty on machine: 4 view full part page → $1.95
21	5100013087	Scraper	1	ADD TO CART
Scraper 5100013087 · qty on machine: 1 view full part page → $793.95
22	5100035014	Hexagon screw	4	ADD TO CART
Hexagon screw 5100035014 · qty on machine: 4 view full part page → $1.95
25	5100013058	Holder-up	1	ADD TO CART
Holder-up 5100013058 · qty on machine: 1 view full part page → $63.95
26	5100012572	Hexagon screw	2	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 2 PARTS REQUEST
27	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
31	5100013086	Scraper	1	ADD TO CART
Scraper 5100013086 · qty on machine: 1 view full part page → $845.95
32	5100035014	Hexagon screw	4	ADD TO CART
Hexagon screw 5100035014 · qty on machine: 4 view full part page → $1.95
41	5100013088	Scraper	1	ADD TO CART
Scraper 5100013088 · qty on machine: 1 view full part page → $787.95
42	5100035014	Hexagon screw	4	ADD TO CART
Hexagon screw 5100035014 · qty on machine: 4 view full part page → $1.95
43	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
45	5100013064	Holder-up	1	ADD TO CART
Holder-up 5100013064 · qty on machine: 1 view full part page → $65.95
46	5100012572	Hexagon screw	2	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 2 PARTS REQUEST
47	5100012965	Locking washer	2	ADD TO CART
Locking washer 5100012965 · qty on machine: 2 view full part page → $2.95
111	5100058623	Metal plate	7	ADD TO CART
Metal plate 5100058623 · qty on machine: 7 view full part page → $130.95
112	5100058624	Metal plate	1	ADD TO CART
Metal plate 5100058624 · qty on machine: 1 view full part page → $130.95
113	5100058625	Countersunk screw	16	ADD TO CART
Countersunk screw 5100058625 · qty on machine: 16 view full part page → $1.95
120	5100013062	Spacer block	1	ADD TO CART
Spacer block 5100013062 · qty on machine: 1 view full part page → $150.95
121	5100013561	Countersunk screw	2	ADD TO CART
Countersunk screw 5100013561 · qty on machine: 2 view full part page → $1.95
125	5100013063	Spacer block	1	ADD TO CART
Spacer block 5100013063 · qty on machine: 1 view full part page → $147.95
126	5100012665	Countersunk screw	1	ADD TO CART
Countersunk screw 5100012665 · qty on machine: 1 view full part page → $1.95

Page 232 — Bandage

Wacker Neuson RD18-80 Roller Bandage parts diagram

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty
1	5100012497	Roller drum	1	PARTS REQUEST
PHOTO COMING Roller drum 5100012497 · qty on machine: 1 PARTS REQUEST
3	5100048104	Gear hub motor	1	ADD TO CART
Gear hub motor 5100048104 · qty on machine: 1 view full part page → $4988.95
8	5100011676	O-ring seal	1	ADD TO CART
O-ring seal 5100011676 · qty on machine: 1 view full part page → $17.95
9	5100023184	Hexagon screw	10	ADD TO CART
Hexagon screw 5100023184 · qty on machine: 10 view full part page → $2.95
10	5100012968	Locking washer	10	ADD TO CART
Locking washer 5100012968 · qty on machine: 10 view full part page → $1.95
11	5100068718	Thrust washer	1	ADD TO CART
Thrust washer 5100068718 · qty on machine: 1 view full part page → $25.95
12	5100012509	Cheese-head screw	6	ADD TO CART
Cheese-head screw 5100012509 · qty on machine: 6 view full part page → $1.95
14	5100011674	Cylindrical roller bearing	1	PARTS REQUEST
PHOTO COMING Cylindrical roller bearing 5100011674 · qty on machine: 1 PARTS REQUEST
16	5100068719	Unbalance	1	ADD TO CART
Unbalance 5100068719 · qty on machine: 1 view full part page → $825.95
18	5100011937	Nilos ring	1	ADD TO CART
Nilos ring 5100011937 · qty on machine: 1 view full part page → $62.95
20	5100011712	Cover	1	ADD TO CART
Cover 5100011712 · qty on machine: 1 view full part page → $93.95
21	5100011610	O-ring seal	1	ADD TO CART
O-ring seal 5100011610 · qty on machine: 1 view full part page → $7.95
22	5100012528	Hexagon screw	8	ADD TO CART
Hexagon screw 5100012528 · qty on machine: 8 view full part page → $1.95
23	5100012966	Locking washer	8	ADD TO CART
Locking washer 5100012966 · qty on machine: 8 view full part page → $1.95
26	5100011714	Flange	1	ADD TO CART
Flange 5100011714 · qty on machine: 1 view full part page → $153.95
27	5100011740	O-ring seal	1	ADD TO CART
O-ring seal 5100011740 · qty on machine: 1 view full part page → $1.95
28	5100011715	Washer	1	ADD TO CART
Washer 5100011715 · qty on machine: 1 view full part page → $8.95
29	5100012572	Hexagon screw	4	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 4 PARTS REQUEST
36	5100011794	Shaft	1	ADD TO CART
Shaft 5100011794 · qty on machine: 1 view full part page → $46.95
37	5100012754	Cheese-head screw	1	ADD TO CART
Cheese-head screw 5100012754 · qty on machine: 1 view full part page → $1.95
41	5100011677	Coupling	1	ADD TO CART
Coupling 5100011677 · qty on machine: 1 view full part page → $284.95
42	5100011646	Hexagon nut	2	ADD TO CART
Hexagon nut 5100011646 · qty on machine: 2 view full part page → $4.95
51	5100011795	Gear motor	1	ADD TO CART
Gear motor 5100011795 · qty on machine: 1 view full part page → $1111.95
51	5100013043	Gear motor	1	PARTS REQUEST
PHOTO COMING Gear motor 5100013043 · qty on machine: 1 PARTS REQUEST
52	5100012754	Cheese-head screw	4	ADD TO CART
Cheese-head screw 5100012754 · qty on machine: 4 view full part page → $1.95
53	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
61	5100048106	Driver	1	ADD TO CART
Driver 5100048106 · qty on machine: 1 view full part page → $770.95
62	5100048107	Cheese-head screw	7	ADD TO CART
Cheese-head screw 5100048107 · qty on machine: 7 view full part page → $2.95
63	5100012968	Locking washer	7	ADD TO CART
Locking washer 5100012968 · qty on machine: 7 view full part page → $1.95
64	5100011787	Rubber metal buffer	8	ADD TO CART
Rubber metal buffer 5100011787 · qty on machine: 8 view full part page → $77.95
66	5100012521	Hexagon screw	16	ADD TO CART
Hexagon screw 5100012521 · qty on machine: 16 view full part page → $1.95
67	5100012967	Locking washer	16	ADD TO CART
Locking washer 5100012967 · qty on machine: 16 view full part page → $1.95

Page 234 — Vibration drive

Wacker Neuson RD18-80 Roller Vibration drive parts diagram

Parts list — exactly as printed30 rows

No.	Part No.	Part Name	Qty	Remarks
1	5100013218	Angle flange screwing	1		ADD TO CART
Angle flange screwing 5100013218 · qty on machine: 1 view full part page → $134.95
2	5100012719	Flexible tubing	1		ADD TO CART
Flexible tubing 5100012719 · qty on machine: 1 view full part page → $449.95
3	5100011896	Hose clip	1		ADD TO CART
Hose clip 5100011896 · qty on machine: 1 view full part page → $16.95
4	5100068215	Valve	1		ADD TO CART
Valve 5100068215 · qty on machine: 1 view full part page → $3174.95
5	5100012815	Cheese-head screw	4		ADD TO CART
Cheese-head screw 5100012815 · qty on machine: 4 view full part page → $1.95
6	5100013603	Straight screwed socket	4		ADD TO CART
Straight screwed socket 5100013603 · qty on machine: 4 view full part page → $10.95
8	5100013329	Intermediate piece	2		ADD TO CART
Intermediate piece 5100013329 · qty on machine: 2 view full part page → $118.95
9	5100011608	Screw plug	1		ADD TO CART
Screw plug 5100011608 · qty on machine: 1 view full part page → $5.95
10	5100012391	Elbow adjustable	1		ADD TO CART
Elbow adjustable 5100012391 · qty on machine: 1 view full part page → $90.95
11	5100011893	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100011893 · qty on machine: 1 RD18-80 view full part page → $116.95
11	5100013592	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100013592 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $169.95
11	5100068721	Hose	1		ADD TO CART
Hose 5100068721 · qty on machine: 1 view full part page → $75.95
12	5100013476	Straight screwed socket	4		ADD TO CART
Straight screwed socket 5100013476 · qty on machine: 4 view full part page → $11.95
15	5100068722	Hose	1		ADD TO CART
Hose 5100068722 · qty on machine: 1 view full part page → $59.95
15	5100012750	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012750 · qty on machine: 1 RD18-80 view full part page → $105.95
15	5100011893	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100011893 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $116.95
21	5100012740	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100012740 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $208.95
21	5100012749	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012749 · qty on machine: 1 RD18-80 view full part page → $176.95
21	5100068723	Hose	1		ADD TO CART
Hose 5100068723 · qty on machine: 1 view full part page → $102.95
25	5100012735	Flexible tubing	1	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100012735 · qty on machine: 1 FITS RD18-100 (not RD18-80) view full part page → $170.95
25	5100012745	Flexible tubing	1	RD18-80	ADD TO CART
Flexible tubing 5100012745 · qty on machine: 1 RD18-80 view full part page → $277.95
25	5100068747	Hose	1		ADD TO CART
Hose 5100068747 · qty on machine: 1 view full part page → $121.95
31	5100013447	Straight screwed socket	2		ADD TO CART
Straight screwed socket 5100013447 · qty on machine: 2 view full part page → $85.95
32	5100016850	Flexible tubing	2	FITS RD18-100 (not RD18-80)	ADD TO CART
Flexible tubing 5100016850 · qty on machine: 2 FITS RD18-100 (not RD18-80) view full part page → $37.95
51	5100013475	Straight screwed socket	1		PARTS REQUEST
PHOTO COMING Straight screwed socket 5100013475 · qty on machine: 1 PARTS REQUEST
56	5100068758	Hose	1		ADD TO CART
Hose 5100068758 · qty on machine: 1 view full part page → $202.95
69	5100012891	Flexible tubing	1		ADD TO CART
Flexible tubing 5100012891 · qty on machine: 1 view full part page → $126.95
71	5100012729	Hollow-core screw	1		ADD TO CART
Hollow-core screw 5100012729 · qty on machine: 1 view full part page → $20.95
72	5100013001	Sealing ring	1		ADD TO CART
Sealing ring 5100013001 · qty on machine: 1 view full part page → $9.95
73	5100013001	Sealing ring	1		ADD TO CART
Sealing ring 5100013001 · qty on machine: 1 view full part page → $9.95

Page 236 — Maintenance kits and repair kits

Wacker Neuson RD18-80 Roller Maintenance kits and repair kits parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
10	5100057494	Service kit at 50 hours	1	ADD TO CART
Service kit at 50 hours 5100057494 · qty on machine: 1 view full part page → $289.95
10	5100057495	Service kit every 500 hours	1	ADD TO CART
Service kit every 500 hours 5100057495 · qty on machine: 1 view full part page → $403.95
10	5100057496	Service kit every 1000 hours	1	ADD TO CART
Service kit every 1000 hours 5100057496 · qty on machine: 1 view full part page → $450.95

Page 238 — Bottle holder

Wacker Neuson RD18-80 Roller Bottle holder parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
2	5100023580	Bottle-support	1	ADD TO CART
Bottle-support 5100023580 · qty on machine: 1 view full part page → $186.95
3	5100012598	Hexagon screw	4	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012598 · qty on machine: 4 PARTS REQUEST
4	5100012936	Washer	4	ADD TO CART
Washer 5100012936 · qty on machine: 4 view full part page → $2.95

Page 240 — Additional storage tray

Wacker Neuson RD18-80 Roller Additional storage tray parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty
150	5100029563	Bag	1	ADD TO CART
Bag 5100029563 · qty on machine: 1 view full part page → $138.95
151	5100023198	Fillister head screw	4	PARTS REQUEST
PHOTO COMING Fillister head screw 5100023198 · qty on machine: 4 PARTS REQUEST
152	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
153	5100012545	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 4 view full part page → $1.95
154	5100013523	Washer	4	ADD TO CART
Washer 5100013523 · qty on machine: 4 view full part page → $1.95
160	5100011866	Sealing tape	0.06	ADD TO CART
Sealing tape 5100011866 · qty on machine: 0.06 view full part page → $17.95

Page 242 — Additional mirror

Wacker Neuson RD18-80 Roller Additional mirror parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty
20	5100012902	Mirror-retainer	1	ADD TO CART
Mirror-retainer 5100012902 · qty on machine: 1 view full part page → $107.95
21	5100066911	Hexagon screw	2	ADD TO CART
Hexagon screw 5100066911 · qty on machine: 2 view full part page → $3.95
22	5100066912	Distance piece	2	ADD TO CART
Distance piece 5100066912 · qty on machine: 2 view full part page → $34.95
23	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
24	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
30	5100067838	Stay bar	1	ADD TO CART
Stay bar 5100067838 · qty on machine: 1 view full part page → $476.95
31	5100013510	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013510 · qty on machine: 2 view full part page → $1.95
32	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
33	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
35	5100067837	Stay bar	1	PARTS REQUEST
PHOTO COMING Stay bar 5100067837 · qty on machine: 1 PARTS REQUEST
36	5100013510	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013510 · qty on machine: 2 view full part page → $1.95
37	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
38	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
40	5100067839	Mirror	2	ADD TO CART
Mirror 5100067839 · qty on machine: 2 view full part page → $241.95

Page 244 — Homologation Italy

Wacker Neuson RD18-80 Roller Homologation Italy parts diagram

Parts list — exactly as printed24 rows

No.	Part No.	Part Name	Qty
120	5100013573	Wire fastener	5	ADD TO CART
Wire fastener 5100013573 · qty on machine: 5 view full part page → $1.95
1	5100012007	Metal plate	1	ADD TO CART
Metal plate 5100012007 · qty on machine: 1 view full part page → $224.95
4	5100012001	Wire harness	1	ADD TO CART
Wire harness 5100012001 · qty on machine: 1 view full part page → $47.95
5	5100011549	License plate light	1	ADD TO CART
License plate light 5100011549 · qty on machine: 1 view full part page → $107.95
6	5100012467	Lamp	1	ADD TO CART
Lamp 5100012467 · qty on machine: 1 view full part page → $4.95
8	5100017998	Hexagonal nut	2	ADD TO CART
Hexagonal nut 5100017998 · qty on machine: 2 view full part page → $1.95
10	5100012607	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012607 · qty on machine: 4 view full part page → $1.95
11	5100013536	Serrated lock washer	12	ADD TO CART
Serrated lock washer 5100013536 · qty on machine: 12 view full part page → $2.95
12	5100012898	Hexagon nut	8	ADD TO CART
Hexagon nut 5100012898 · qty on machine: 8 view full part page → $2.95
13	5100013453	Washer	8	ADD TO CART
Washer 5100013453 · qty on machine: 8 view full part page → $1.95
40	5100013573	Wire fastener	2	ADD TO CART
Wire fastener 5100013573 · qty on machine: 2 view full part page → $1.95
100	5100012143	Bracket	1	ADD TO CART
Bracket 5100012143 · qty on machine: 1 view full part page → $474.95
102	5100012572	Hexagon screw	4	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 4 PARTS REQUEST
103	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
20	5100012902	Mirror-retainer	1	ADD TO CART
Mirror-retainer 5100012902 · qty on machine: 1 view full part page → $107.95
21	5100066911	Hexagon screw	2	ADD TO CART
Hexagon screw 5100066911 · qty on machine: 2 view full part page → $3.95
22	5100066912	Distance piece	2	ADD TO CART
Distance piece 5100066912 · qty on machine: 2 view full part page → $34.95
23	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
24	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
30	5100067837	Stay bar	1	PARTS REQUEST
PHOTO COMING Stay bar 5100067837 · qty on machine: 1 PARTS REQUEST
31	5100013510	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013510 · qty on machine: 2 view full part page → $1.95
32	5100012966	Locking washer	4	ADD TO CART
Locking washer 5100012966 · qty on machine: 4 view full part page → $1.95
33	5100012546	Hexagon nut	2	ADD TO CART
Hexagon nut 5100012546 · qty on machine: 2 view full part page → $1.95
40	5100067839	Mirror	1	ADD TO CART
Mirror 5100067839 · qty on machine: 1 view full part page → $241.95

Page 246 — Bottle-support

Wacker Neuson RD18-80 Roller Bottle-support parts diagram

Parts list — exactly as printed6 rows

No.	Part No.	Part Name	Qty	Remarks
7	5100082571	Holder	1	Serialno. >678	PARTS REQUEST
PHOTO COMING Holder 5100082571 · qty on machine: 1 Serialno. >678 PARTS REQUEST
8	5100011701	Distance bush	2	Serialno. >678	ADD TO CART
Distance bush 5100011701 · qty on machine: 2 Serialno. >678 view full part page → $17.95
12	5100082572	Distance bush	2	Serialno. >678	PARTS REQUEST
PHOTO COMING Distance bush 5100082572 · qty on machine: 2 Serialno. >678 PARTS REQUEST
2	5100023580	Bottle-support	1	Serialno. >678	ADD TO CART
Bottle-support 5100023580 · qty on machine: 1 Serialno. >678 view full part page → $186.95
3	5100012598	Hexagon screw	4	Serialno. >678	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012598 · qty on machine: 4 Serialno. >678 PARTS REQUEST
4	5100012936	Washer	4	Serialno. >678	ADD TO CART
Washer 5100012936 · qty on machine: 4 Serialno. >678 view full part page → $2.95

Page 248 — Homologation Russia

Wacker Neuson RD18-80 Roller Homologation Russia parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty
1	5100068769	Holder	1	ADD TO CART
Holder 5100068769 · qty on machine: 1 view full part page → $972.95
4	5100025910	Cable harness	1	ADD TO CART
Cable harness 5100025910 · qty on machine: 1 view full part page → $90.95
5	5100011549	License plate light	2	ADD TO CART
License plate light 5100011549 · qty on machine: 2 view full part page → $107.95
6	5100012467	Lamp	2	ADD TO CART
Lamp 5100012467 · qty on machine: 2 view full part page → $4.95
7	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
8	5100012545	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 4 view full part page → $1.95
10	5100025881	Fillister head screw	3	ADD TO CART
Fillister head screw 5100025881 · qty on machine: 3 view full part page → $1.95
11	5100013599	Clip nut	3	ADD TO CART
Clip nut 5100013599 · qty on machine: 3 view full part page → $3.95
12	5100068780	Number plate	1	ADD TO CART
Number plate 5100068780 · qty on machine: 1 view full part page → $1243.95
18	5100012515	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012515 · qty on machine: 2 view full part page → $1.95
19	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
21	5100068791	Stop	2	ADD TO CART
Stop 5100068791 · qty on machine: 2 view full part page → $142.95
22	5100013379	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013379 · qty on machine: 2 view full part page → $10.95
23	5100012969	Locking washer	4	ADD TO CART
Locking washer 5100012969 · qty on machine: 4 view full part page → $2.95
28	5100013377	Rubber buffer	4	ADD TO CART
Rubber buffer 5100013377 · qty on machine: 4 view full part page → $64.95
29	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
30	5100012547	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
31	5100012603	Safety nut	2	ADD TO CART
Safety nut 5100012603 · qty on machine: 2 view full part page → $2.95

Page 250 — Homologation

Wacker Neuson RD18-80 Roller Homologation parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
12	5100025888	Lap belt	1	ADD TO CART
Lap belt 5100025888 · qty on machine: 1 view full part page → $781.95
13	5100068802	Cable harness	1	ADD TO CART
Cable harness 5100068802 · qty on machine: 1 view full part page → $170.95
15	5100066933	Cable harness	1	ADD TO CART
Cable harness 5100066933 · qty on machine: 1 view full part page → $253.95

Page 252 — License plate holder

Wacker Neuson RD18-80 Roller License plate holder parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty
1	5100068813	Holder	1	ADD TO CART
Holder 5100068813 · qty on machine: 1 view full part page → $470.95
4	5100025910	Cable harness	1	ADD TO CART
Cable harness 5100025910 · qty on machine: 1 view full part page → $90.95
5	5100011549	License plate light	2	ADD TO CART
License plate light 5100011549 · qty on machine: 2 view full part page → $107.95
6	5100012467	Lamp	2	ADD TO CART
Lamp 5100012467 · qty on machine: 2 view full part page → $4.95
7	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
8	5100012545	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 4 view full part page → $1.95
10	5100025881	Fillister head screw	4	ADD TO CART
Fillister head screw 5100025881 · qty on machine: 4 view full part page → $1.95
11	5100013599	Clip nut	4	ADD TO CART
Clip nut 5100013599 · qty on machine: 4 view full part page → $3.95
12	5100068725	Number plate	1	ADD TO CART
Number plate 5100068725 · qty on machine: 1 view full part page → $940.95
18	5100012515	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012515 · qty on machine: 2 view full part page → $1.95
19	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
21	5100016849	Stop	2	ADD TO CART
Stop 5100016849 · qty on machine: 2 view full part page → $117.95
22	5100013379	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013379 · qty on machine: 2 view full part page → $10.95
23	5100012969	Locking washer	4	ADD TO CART
Locking washer 5100012969 · qty on machine: 4 view full part page → $2.95
28	5100013377	Rubber buffer	4	ADD TO CART
Rubber buffer 5100013377 · qty on machine: 4 view full part page → $64.95
29	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
30	5100012547	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
31	5100012603	Safety nut	2	ADD TO CART
Safety nut 5100012603 · qty on machine: 2 view full part page → $2.95

Page 254 — Homologation Italy

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty
1	5100012007	Metal plate	1	ADD TO CART
Metal plate 5100012007 · qty on machine: 1 view full part page → $224.95
4	5100012001	Wire harness	1	ADD TO CART
Wire harness 5100012001 · qty on machine: 1 view full part page → $47.95
5	5100011549	License plate light	1	ADD TO CART
License plate light 5100011549 · qty on machine: 1 view full part page → $107.95
6	5100012467	Lamp	1	ADD TO CART
Lamp 5100012467 · qty on machine: 1 view full part page → $4.95
8	5100017998	Hexagonal nut	2	ADD TO CART
Hexagonal nut 5100017998 · qty on machine: 2 view full part page → $1.95
10	5100012607	Hexagon screw	4	ADD TO CART
Hexagon screw 5100012607 · qty on machine: 4 view full part page → $1.95
11	5100013536	Serrated lock washer	12	ADD TO CART
Serrated lock washer 5100013536 · qty on machine: 12 view full part page → $2.95
12	5100012898	Hexagon nut	8	ADD TO CART
Hexagon nut 5100012898 · qty on machine: 8 view full part page → $2.95
13	5100013453	Washer	8	ADD TO CART
Washer 5100013453 · qty on machine: 8 view full part page → $1.95
40	5100013573	Wire fastener	2	ADD TO CART
Wire fastener 5100013573 · qty on machine: 2 view full part page → $1.95
100	5100012143	Bracket	1	ADD TO CART
Bracket 5100012143 · qty on machine: 1 view full part page → $474.95
102	5100012572	Hexagon screw	4	PARTS REQUEST
PHOTO COMING Hexagon screw 5100012572 · qty on machine: 4 PARTS REQUEST
103	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
120	5100013573	Wire fastener	5	ADD TO CART
Wire fastener 5100013573 · qty on machine: 5 view full part page → $1.95

Page 256 — Homologation Russia

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty
1	5100068769	Holder	1	ADD TO CART
Holder 5100068769 · qty on machine: 1 view full part page → $972.95
4	5100025910	Cable harness	1	ADD TO CART
Cable harness 5100025910 · qty on machine: 1 view full part page → $90.95
5	5100011549	License plate light	2	ADD TO CART
License plate light 5100011549 · qty on machine: 2 view full part page → $107.95
6	5100012467	Lamp	2	ADD TO CART
Lamp 5100012467 · qty on machine: 2 view full part page → $4.95
7	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
8	5100012545	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 4 view full part page → $1.95
10	5100025881	Fillister head screw	3	ADD TO CART
Fillister head screw 5100025881 · qty on machine: 3 view full part page → $1.95
11	5100013599	Clip nut	3	ADD TO CART
Clip nut 5100013599 · qty on machine: 3 view full part page → $3.95
12	5100068780	Number plate	1	ADD TO CART
Number plate 5100068780 · qty on machine: 1 view full part page → $1243.95
18	5100012515	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012515 · qty on machine: 2 view full part page → $1.95
19	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
21	5100068791	Stop	2	ADD TO CART
Stop 5100068791 · qty on machine: 2 view full part page → $142.95
22	5100013379	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013379 · qty on machine: 2 view full part page → $10.95
23	5100012969	Locking washer	4	ADD TO CART
Locking washer 5100012969 · qty on machine: 4 view full part page → $2.95
28	5100013377	Rubber buffer	4	ADD TO CART
Rubber buffer 5100013377 · qty on machine: 4 view full part page → $64.95
29	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
30	5100012547	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
31	5100012603	Safety nut	2	ADD TO CART
Safety nut 5100012603 · qty on machine: 2 view full part page → $2.95

Page 258 — Homologation

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
12	5100025888	Lap belt	1	ADD TO CART
Lap belt 5100025888 · qty on machine: 1 view full part page → $781.95
13	5100068802	Cable harness	1	ADD TO CART
Cable harness 5100068802 · qty on machine: 1 view full part page → $170.95
15	5100066933	Cable harness	1	ADD TO CART
Cable harness 5100066933 · qty on machine: 1 view full part page → $253.95

Page 260 — Homologation Australia

Wacker Neuson RD18-80 Roller Homologation Australia parts diagram

Parts list — exactly as printed3 rows

No.	Part No.	Part Name	Qty
76	5100066915	Cable harness	1	PARTS REQUEST
PHOTO COMING Cable harness 5100066915 · qty on machine: 1 PARTS REQUEST
77	5100066916	Control device	1	ADD TO CART
Control device 5100066916 · qty on machine: 1 view full part page → $990.95
78	5100013579	Blade fuse	1	ADD TO CART
Blade fuse 5100013579 · qty on machine: 1 view full part page → $1.95

Page 266 — License plate holder

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty
1	5100068813	Holder	1	ADD TO CART
Holder 5100068813 · qty on machine: 1 view full part page → $470.95
4	5100025910	Cable harness	1	ADD TO CART
Cable harness 5100025910 · qty on machine: 1 view full part page → $90.95
5	5100011549	License plate light	2	ADD TO CART
License plate light 5100011549 · qty on machine: 2 view full part page → $107.95
6	5100012467	Lamp	2	ADD TO CART
Lamp 5100012467 · qty on machine: 2 view full part page → $4.95
7	5100012965	Locking washer	4	ADD TO CART
Locking washer 5100012965 · qty on machine: 4 view full part page → $2.95
8	5100012545	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012545 · qty on machine: 4 view full part page → $1.95
10	5100025881	Fillister head screw	4	ADD TO CART
Fillister head screw 5100025881 · qty on machine: 4 view full part page → $1.95
11	5100013599	Clip nut	4	ADD TO CART
Clip nut 5100013599 · qty on machine: 4 view full part page → $3.95
12	5100068725	Number plate	1	ADD TO CART
Number plate 5100068725 · qty on machine: 1 view full part page → $940.95
18	5100012515	Hexagon screw	2	ADD TO CART
Hexagon screw 5100012515 · qty on machine: 2 view full part page → $1.95
19	5100012966	Locking washer	2	ADD TO CART
Locking washer 5100012966 · qty on machine: 2 view full part page → $1.95
21	5100016849	Stop	2	ADD TO CART
Stop 5100016849 · qty on machine: 2 view full part page → $117.95
22	5100013379	Hexagon screw	2	ADD TO CART
Hexagon screw 5100013379 · qty on machine: 2 view full part page → $10.95
23	5100012969	Locking washer	4	ADD TO CART
Locking washer 5100012969 · qty on machine: 4 view full part page → $2.95
28	5100013377	Rubber buffer	4	ADD TO CART
Rubber buffer 5100013377 · qty on machine: 4 view full part page → $64.95
29	5100012967	Locking washer	4	ADD TO CART
Locking washer 5100012967 · qty on machine: 4 view full part page → $1.95
30	5100012547	Hexagon nut	4	ADD TO CART
Hexagon nut 5100012547 · qty on machine: 4 view full part page → $1.95
31	5100012603	Safety nut	2	ADD TO CART
Safety nut 5100012603 · qty on machine: 2 view full part page → $2.95

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

Wacker Neuson RD18-80 roller.

List price: $69,000.00

Keep-it-running spares

All listed parts →

Every part that fits this machine

1000088388 Screw

1000139973 Screw

1000328508 Clamp

1000386655 Fuel filter

1000386656 Filter insert

1000389229 Screw joint

1000389230 Fuel line

1000389241 Hose clamp

1000389247 Fuel line

1000389249 Plug

1000389262 Fuel pump

1000433949 Fuel filter

1000433950 Fuel filter

1000433952 Arm

1000433955 Filter housing

1000434006 Pressure limit reliefvalve

5100011416 Intermediate piece $82.95

5100011419 O-ring seal $1.95

5100011440 O-ring seal $7.95

5100011443 Cheese-head screw $1.95

5100011444 Elbow $5.95

5100011448 O-ring seal $7.95

5100011449 O-ring seal $3.95

5100011450 O-ring seal $6.95

5100011451 Valve $123.95

5100011453 Screw plug $115.95

5100011454 Screw plug $21.95

5100011455 Key $44.95

5100011458 Shrinkdown plastic tubing $6.95

5100011461 Straight screwed socket $3.95

5100011464 Threaded bolt $16.95

5100011465 Pipe clip $4.95

5100011468 Sealing ring $10.95

5100011471 Stud bolt $4.95

5100011472 Ball-closure cock $102.95

5100011476 Safety nut $1.95

5100011479 Hexagon screw $1.95

5100011480 Cheese-head screw $2.95

5100011481 Cheese-head screw $1.95

5100011485 Cheese-head screw $2.95

5100011488 Nut $3.95

5100011489 Filtering screen $4.95

5100011498 Silentbloc $18.95

5100011508 Bushing $98.95

5100011513 Sealing ring $1.95

5100011514 Cap $10.95

5100011515 O-ring seal $1.95

5100011518 Seat cushion $817.95

5100011519 Backrest cushion $609.95

5100011524 Shrinkdown plastic tubing $39.95

5100011526 Elbow $7.95

5100011527 Angle screwed socket $12.95

5100011529 Sprinkler nozzle $11.95

5100011530 Nozzle holder $39.95

5100011535 Cap nut $12.95

5100011537 Filler cap $1.95

5100011538 Screw plug $9.95

5100011544 Clip nut $6.95

5100011549 License plate light $107.95

5100011550 Plug $1.95

5100011554 Sealing ring

5100011561 Dust discharge valve $34.95

5100011563 Radial rod end bearing

5100011564 Screw plug $14.95

5100011575 Joint $134.95

5100011577 Protecting cap $2.95

5100011578 Mushroom head screw $1.95

5100011579 Switch $93.95

5100011580 Blind cover $10.95

5100011581 Fillister head screw $1.95

5100011582 Blade fuse $1.95

5100011583 Relay $41.95

5100011584 Mushroom head screw $2.95

5100011586 Hexagon nut $1.95

5100011588 Flexible tubing $164.95

5100011590 Safety cord $9.95

5100011592 Grommet $21.95

5100011595 Frame $20.95

5100011599 Hexagon nut $2.95

5100011606 Working light $450.95

5100011607 Sheet metal screw $1.95

5100011608 Screw plug $5.95

5100011610 O-ring seal $7.95

5100011611 Hexagon screw $1.95

5100011615 Handle $41.95

5100011616 Relay $61.95

5100011619 Sealing ring $245.95

5100011622 Seal $33.95

5100011623 Hydraulic regulation $2,672.95

5100011624 Locking ring $9.95

5100011625 O-ring seal $4.95

5100011626 Pressure-relief valve

5100011627 O-ring seal $2.95

5100011628 Shaft seal $520.95

5100011632 Extractor for blade fuses $136.95

5100011634 Sheet metal screw $1.95

5100011636 Washer $1.95

5100011637 Hose clip $4.95

5100011640 Blade fuse $16.95

5100011646 Hexagon nut $4.95

5100011651 Membrane holder $18.95

5100011653 Mounting $2.95

5100011656 Filler cap $1.95

5100011657 Washer $1.95

5100011658 Screw plug

5100011659 Cheese-head screw $2.95

5100011664 Hose fitting $19.95

5100011666 Angle screwed socket $6.95

5100011668 Pipe clip $15.95

5100011669 Rubber metal buffer $17.95

5100011670 Flexible tubing $22.95

5100011671 Screw plug $4.95

5100011673 Cooling-water hose $45.95

5100011674 Cylindrical roller bearing

5100011676 O-ring seal $17.95

5100011677 Coupling $284.95

5100011678 Gear pump $836.95

5100011680 Spacer ring $17.95

5100011682 Bushing $6.95

5100011684 Metal plate $48.95

5100011685 Set of seals $604.95

5100011695 U-washer $15.95

5100011696 Metal plate $15.95

5100011698 Spacer block $16.95

5100011701 Distance bush $17.95

5100011703 Sticker $15.95

5100011705 Handle $49.95

5100011706 Handle $49.95

5100011707 Operating lever $42.95

5100011708 Cover $10.95

5100011709 Circuit board $21.95

5100011710 Cover

5100011711 Cover

5100011712 Cover $93.95

5100011714 Flange $153.95

5100011715 Washer $8.95

5100011718 Metal plate $23.95

5100011719 Metal plate $30.95

5100011728 Metal plate $9.95

5100011729 Seal $34.95

5100011730 Spacer pin $37.95

5100011731 Rubber washer $2.95

5100011733 Angle joint $14.95

5100011734 Rubber metal buffer $41.95

5100011736 O-ring seal $4.95

5100011738 Raised countersunk head screw $1.95

5100011740 O-ring seal $1.95

5100011748 Rear reflector $16.95

5100011749 Hose nozzle $8.95

5100011752 Sealing ring $1.95

5100011753 Washer $1.95

5100011757 Cover $27.95

5100011758 Ring $53.95

5100011759 Clamping piece $119.95

5100011760 Radial rod end bearing $70.95

5100011761 Sealing ring

5100011762 Clamping piece $64.95

5100011769 Variable displac. pump (drive)

5100011770 Hydraulic cylinder $2,329.95

5100011776 Bolt $69.95

5100011777 Radial rod end bearing $131.95

5100011784 Signal transmitter $118.95

5100011785 Silencer $875.95

5100011787 Rubber metal buffer $77.95

5100011791 Distance bush $1.95

5100011792 Slide block $6.95

5100011794 Shaft $46.95

5100011795 Gear motor $1,111.95

5100011799 Working light $229.95

5100011800 Direction indicator $125.95

5100011801 Reversing light $99.95

5100011802 Tail light $105.95

5100011812 Drain plug $35.95

5100011814 Rubber buffer $34.95

5100011815 Tank cap $43.95

5100011816 Cover $131.95

5100011818 Spacer plate $6.95

5100011819 Compression spring $29.95

5100011820 Spacer ring $30.95

5100011821 Flexible tubing $108.95

5100011824 Washer $1.95

5100011825 Plastic scraper $119.95

5100011829 Tank cap, with lock $218.95

5100011830 Strainer $30.95

5100011838 O-ring seal $4.95

5100011845 Mounting device $156.95

5100011849 Built-in socket $46.95

5100011850 Rubber sleeve $17.95

5100011851 Rubber sleeve $15.95

5100011852 O-ring seal $4.95

5100011853 Fillister head screw $1.95

5100011854 Bracket $165.95

5100011856 Pendulum joint $710.95

5100011857 Suction filter $97.95

5100011859 Relay $88.95

5100011860 Rubber sleeve $21.95

5100011862 Compression spring $28.95

5100011863 T-reducing socket $7.95

5100011864 O-ring seal $19.95

5100011865 O-ring seal $21.95

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Wacker Neuson RD18-80 Roller

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
