Wacker Neuson RD28-120 Roller
Factory parts book · interactive
Wacker Neuson RD28-120 Roller
Pick your options below. We build the exact machine and start your quote.
The parts bench
Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||

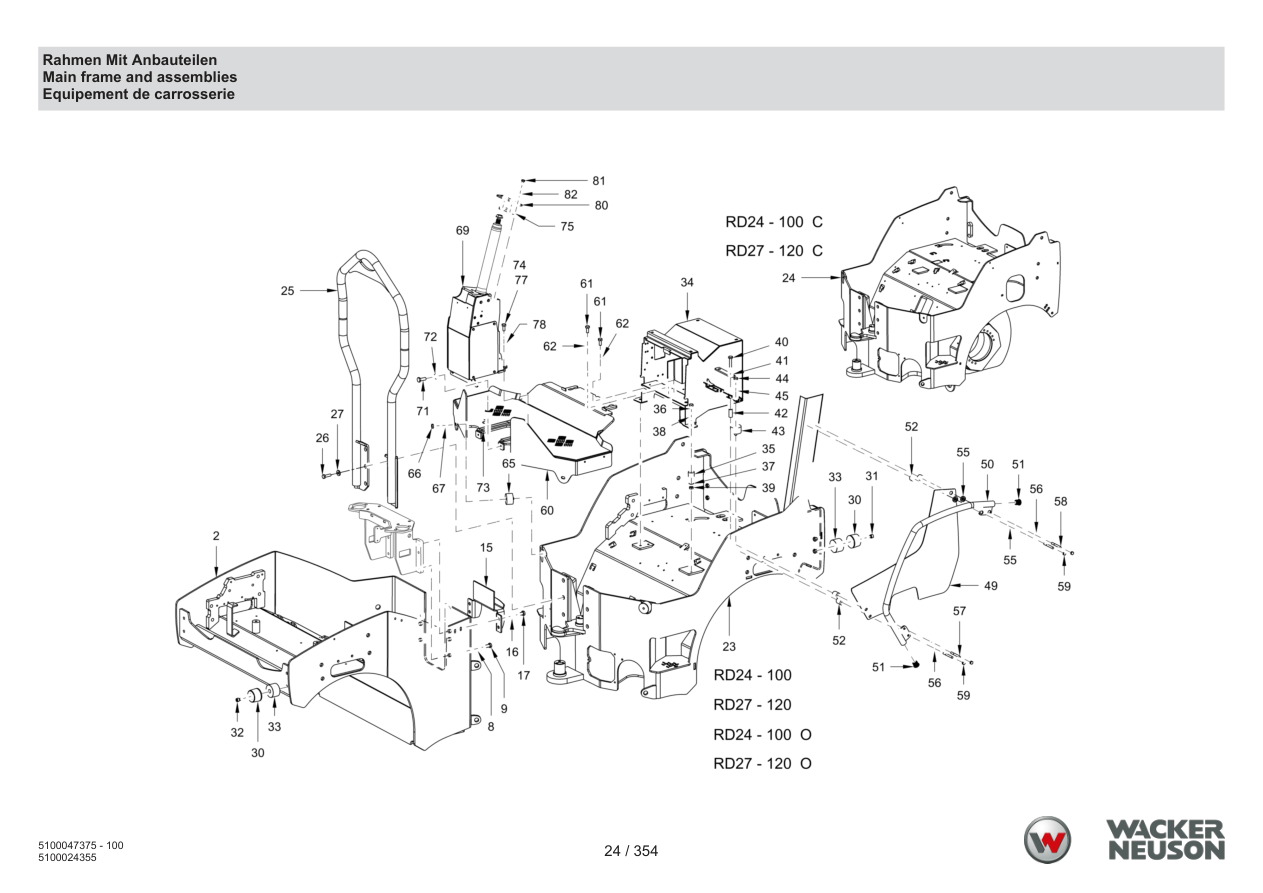

Page 24 — Main frame and assemblies
Parts list — exactly as printed65 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012170 | Front frame part | 1 | PARTS REQUEST | |
|
COMING Front frame part
5100012170 · qty on machine: 1 | |||||
| 8 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 9 | 5100012626 | Hexagon screw | 2 | ADD TO CART | |
| 15 | 5100012046 | Metal plate | 1 | ADD TO CART | |
| 16 | 5100012626 | Hexagon screw | 4 | ADD TO CART | |
| 17 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100012207 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012207 · qty on machine: 1 | |||||
| 24 | 5100012329 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012329 · qty on machine: 1 | |||||
| 25 | 5100012786 | Bow | 1 | ADD TO CART | |
| 26 | 5100011473 | Hexagon screw | 6 | ADD TO CART | |
| 27 | 5100012969 | Locking washer | 6 | ADD TO CART | |
| 30 | 5100011814 | Rubber buffer | 8 | ADD TO CART | |
| 31 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 32 | 5100011585 | Cheese-head screw | 4 | ADD TO CART | |
| 33 | 5100012350 | Spacer block | 8 | ADD TO CART | |
| 34 | 5100012674 | Seat pedestal | 1 | ADD TO CART | |
| 35 | 5100012357 | Silentbloc | 2 | ADD TO CART | |
| 36 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 37 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 38 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 39 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 40 | 5100033190 | Hexagon screw | 2 | ADD TO CART | |
| 41 | 5100033191 | Metal plate | 1 | ADD TO CART | |
| 42 | 5100012202 | Bushing | 2 | ADD TO CART | |
| 43 | 5100011734 | Rubber metal buffer | 2 | ADD TO CART | |
| 44 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 45 | 5100013128 | Washer | 2 | ADD TO CART | |
| 49 | 5100016196 | Cover | 2 | ADD TO CART | |
| 50 | 5100012853 | Handle | 2 | ADD TO CART | |
| 51 | 5100012529 | Filler cap | 4 | ADD TO CART | |
| 52 | 5100016503 | Bushing | 8 | ADD TO CART | |
| 55 | 5100011498 | Silentbloc | 8 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 57 | 5100012946 | Stud bolt | 4 | ADD TO CART | |
| 58 | 5100012977 | Stud bolt | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 8 | ADD TO CART | |
| 60 | 5100016288 | Bottom plate | 1 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 62 | 5100013128 | Washer | 6 | ADD TO CART | |
| 65 | 5100012712 | Rubber metal buffer | 2 | ADD TO CART | |
| 66 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 67 | 5100013128 | Washer | 2 | ADD TO CART | |
| 69 | 5100012640 | Steering console | 1 | ADD TO CART | |
| 69 | 5100016289 | Steering console | 1 | PARTS REQUEST | |
|
COMING Steering console
5100016289 · qty on machine: 1 | |||||
| 71 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 72 | 5100013094 | Washer | 4 | ADD TO CART | |
| 73 | 5100013644 | Rubber profile | 0.25 | ADD TO CART | |
| 74 | 5100052877 | Protective cap | 2 | ADD TO CART | |
| 75 | 5100012652 | Spacer plate | 1 | ADD TO CART | |
| 77 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 80 | 5100012653 | Retaining plate | 1 | ADD TO CART | |
| 81 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 3 | 5100052880 | Loading loop | 4 | ADD TO CART | |
| 4 | 5100011612 | Hexagon screw | 12 | ADD TO CART | |
| 5 | 5100029558 | Hexagon screw | 3 | ADD TO CART | |
| 6 | 5100012968 | Locking washer | 24 | ADD TO CART | |
| 7 | 5100035091 | Safety nut | 12 | ADD TO CART | |
| 5 | 5100052881 | Chock | 2 | PARTS REQUEST | |
|
COMING Chock
5100052881 · qty on machine: 2 | |||||
| 9 | 5100052882 | Foot mat | 1 | PARTS REQUEST | |
|
COMING Foot mat
5100052882 · qty on machine: 1 | |||||
| 10 | 5100013309 | Bracket | 2 | ADD TO CART | |
| 11 | 5100052883 | Countersunk screw | 4 | ADD TO CART | |
| 12 | 5100040616 | Blind rivet nut | 4 | ADD TO CART | |
| 14 | 5100052884 | Lashing strap | 1 | PARTS REQUEST | |
|
COMING Lashing strap
5100052884 · qty on machine: 1 | |||||
| 15 | 5100052885 | Rubber plate | 1 | PARTS REQUEST | |
|
COMING Rubber plate
5100052885 · qty on machine: 1 | |||||

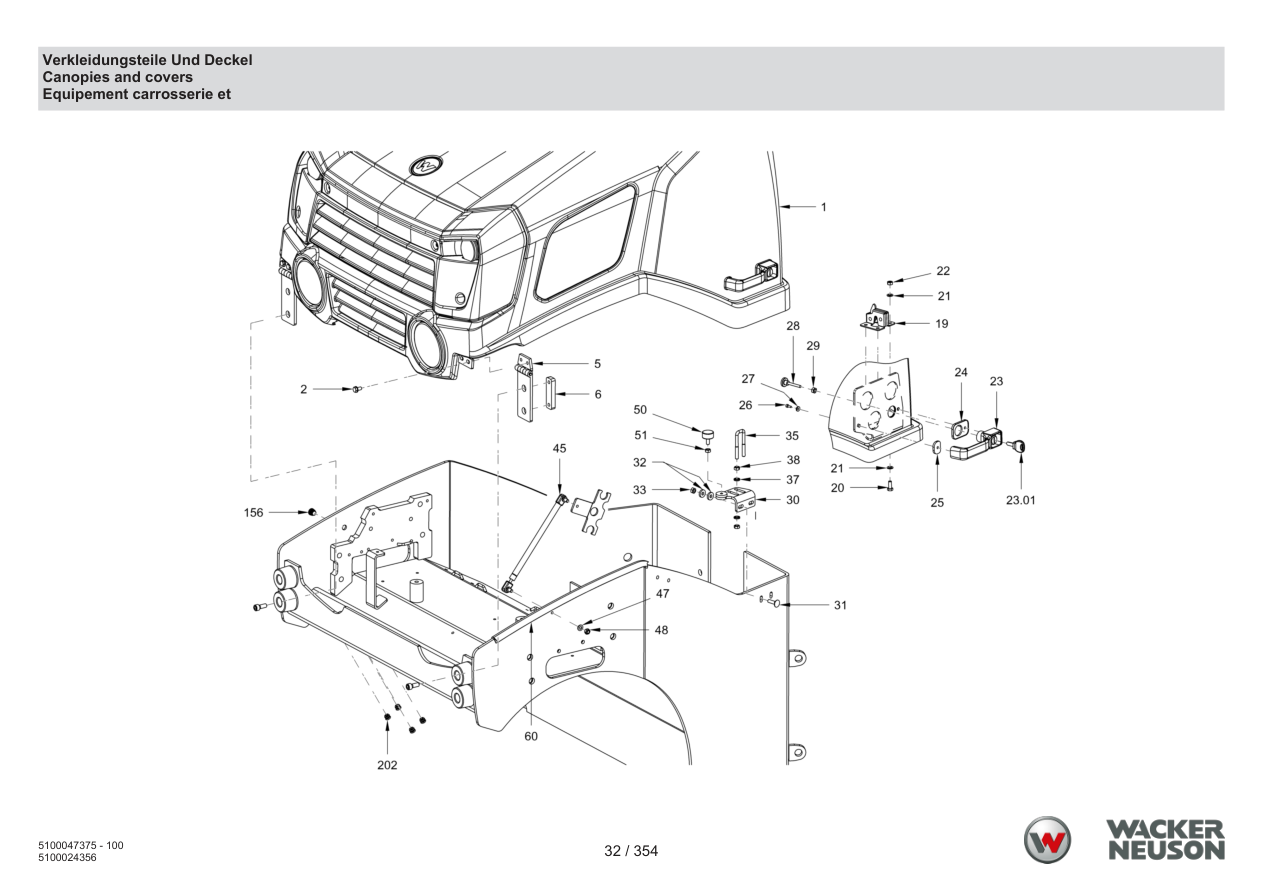

Page 32 — Canopies and covers
Parts list — exactly as printed85 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100016197 | Engine hood | 1 | PARTS REQUEST | |
|
COMING Engine hood
5100016197 · qty on machine: 1 | |||||
| 2 | 5100012498 | Safety screw | 4 | ADD TO CART | |
| 5 | 5100012193 | Hinge | 2 | ADD TO CART | |
| 6 | 5100012214 | Metal plate | 2 | ADD TO CART | |
| 19 | 5100012696 | Lock | 1 | ADD TO CART | |
| 20 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 23 | 5100013588 | Lock outside handle | 1 | ADD TO CART | |
| 23 | 5100013557 | Key | 1 | ADD TO CART | |
| 24 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 25 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 26 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 27 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 28 | 5100050643 | Knurled head screw | 1 | PARTS REQUEST | |
|
COMING Knurled head screw
5100050643 · qty on machine: 1 | |||||
| 29 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100013372 | Bracket | 1 | ADD TO CART | |
| 31 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100050644 | Wire clip | 1 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 38 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 45 | 5100011919 | Gas spring | 1 | ADD TO CART | |
| 47 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 48 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 50 | 5100013525 | Rubber buffer | 1 | ADD TO CART | |
| 51 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 60 | 5100012029 | Sealing profile | 2.8 | ADD TO CART | |
| 156 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 202 | 5100050646 | Filler cap | 4 | ADD TO CART | |
| 70 | 5100012033 | Cover | 1 | ADD TO CART | |
| 71 | 5100013591 | Built-in lock | 1 | ADD TO CART | |
| 71 | 5100013557 | Key | 1 | ADD TO CART | |
| 72 | 5100013647 | Sealing profile | 0.8 | ADD TO CART | |
| 120 | 5100012464 | Cover | 4 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 16 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 150 | 5100012880 | Cover plate | 2 | ADD TO CART | |
| 151 | 5100011634 | Sheet metal screw | 4 | ADD TO CART | |
| 158 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 159 | 5100013530 | Filler cap | 2 | ADD TO CART | |
| 190 | 5100012659 | Cover | 1 | ADD TO CART | |
| 191 | 5100012572 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 3 | |||||
| 192 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 197 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 198 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 199 | 5100011550 | Plug | 4 | ADD TO CART | |
| 201 | 5100017982 | Cap | 2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 79 | 5100011580 | Blind cover | 2 | ADD TO CART | |
| 80 | 5100012647 | Covering part | 1 | ADD TO CART | |
| 81 | 5100011854 | Bracket | 1 | ADD TO CART | |
| 82 | 5100012607 | Hexagon screw | 1 | ADD TO CART | |
| 85 | 5100012648 | Covering part | 1 | ADD TO CART | |
| 86 | 5100011581 | Fillister head screw | 14 | ADD TO CART | |

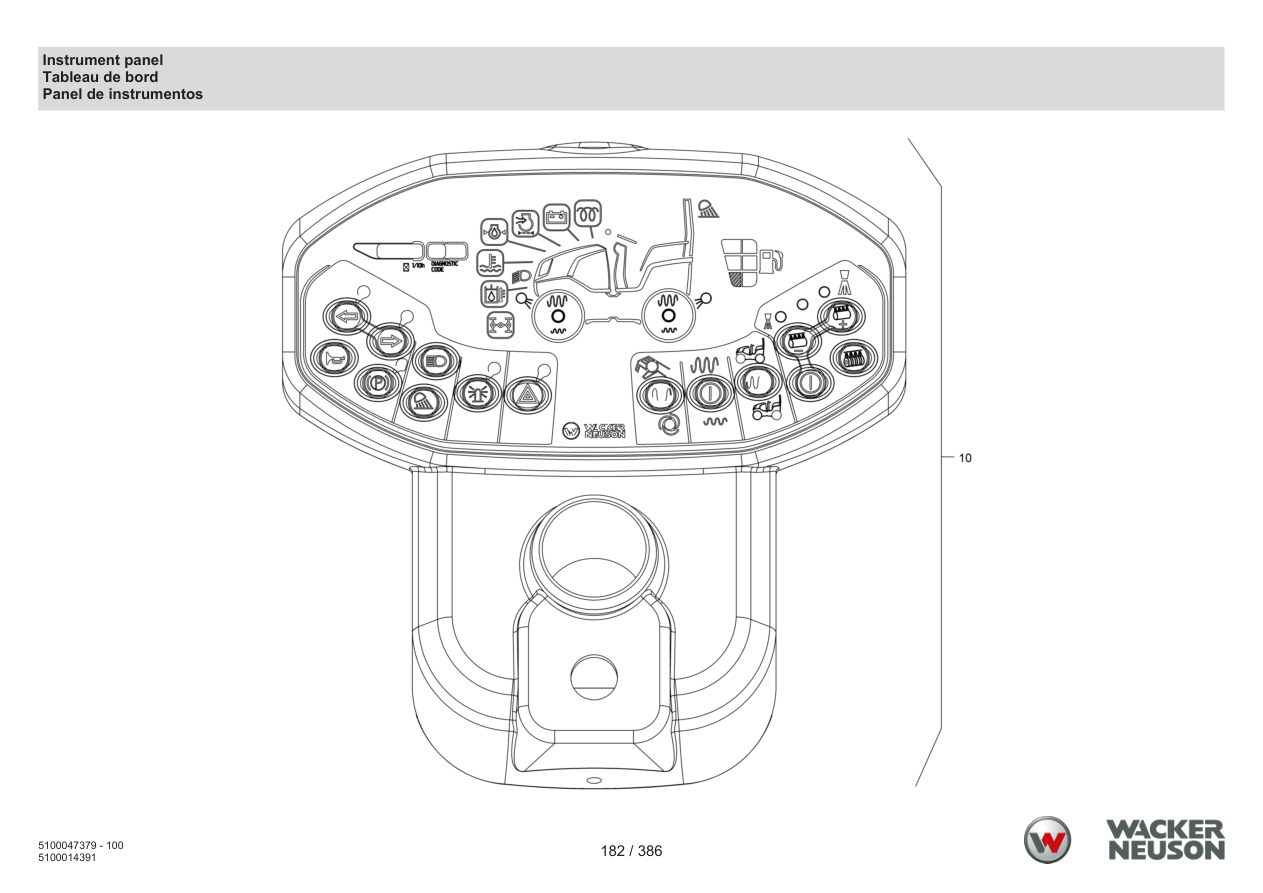

| 90 | 5100013323 | Instrument panel | 1 | Serialno. <613 | ADD TO CART |
| 90 | 5100025103 | Instrument panel | 1 | Serialno. >614 | ADD TO CART |
| 91 | 5100013596 | Built-in lock | 1 | PARTS REQUEST | |
|
COMING Built-in lock
5100013596 · qty on machine: 1 | |||||
| 91 | 5100013357 | Bracket | 1 | ADD TO CART | |
| 92 | 5100011698 | Spacer block | 1 | ADD TO CART | |
| 93 | 5100011860 | Rubber sleeve | 4 | ADD TO CART | |
| 94 | 5100011581 | Fillister head screw | 7 | ADD TO CART | |
| 100 | 5100012478 | Covering part | 1 | Serialno. <613 | ADD TO CART |
| 100 | 5100025100 | Covering part | 1 | Serialno. >614 | ADD TO CART |
| 101 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 102 | 5100011853 | Fillister head screw | 2 | ADD TO CART | |
| 104 | 5100013537 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100012649 | Splash protection | 1 | ADD TO CART | |
| 111 | 5100012920 | Edge protection | 0.6 | ADD TO CART | |
| 115 | 5100011656 | Filler cap | 6 | ADD TO CART | |
| 130 | 5100012650 | Cover | 2 | ADD TO CART | |
| 132 | 5100012651 | Sealing profile | 2 | ADD TO CART | |
| 133 | 5100012592 | Hexagon screw | 8 | ADD TO CART | |
| 134 | 5100012936 | Washer | 8 | ADD TO CART | |
| 8 | 5100011652 | Bushing | 2 | Serialno. >531 | ADD TO CART |
| 10 | 5100016198 | Covering part | 1 | Serialno. <530 | PARTS REQUEST |
|
COMING Covering part
5100016198 · qty on machine: 1 Serialno. <530 | |||||
| 10 | 5100066862 | Covering part | 1 | Serialno. >531 | ADD TO CART |
| 11 | 5100016199 | Cheese-head screw | 2 | Serialno. <530 | PARTS REQUEST |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 Serialno. <530 | |||||
| 11 | 5100066865 | Cheese-head screw | 2 | Serialno. >531 | PARTS REQUEST |
|
COMING Cheese-head screw
5100066865 · qty on machine: 2 Serialno. >531 | |||||
| 12 | 5100013523 | Washer | 2 | ADD TO CART | |
| 13 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 14 | 5100016199 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 | |||||
| 15 | 5100013523 | Washer | 2 | ADD TO CART | |
| 16 | 5100013644 | Rubber profile | 0.5 | ADD TO CART | |

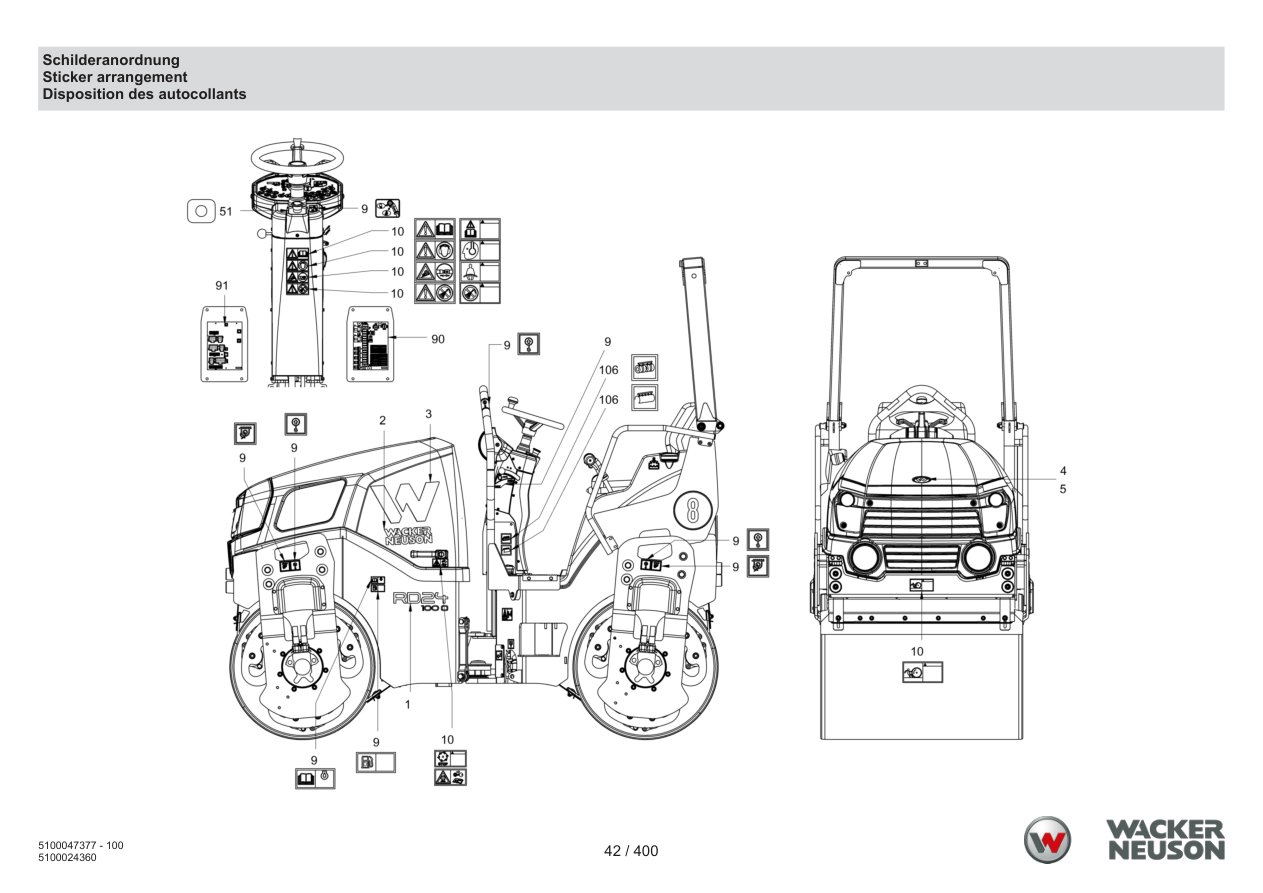

Page 40 — Label arrangement
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100016250 | Type plate rd 24-100 | 2 | PARTS REQUEST | |
|
COMING Type plate rd 24-100
5100016250 · qty on machine: 2 | |||||
| 1 | 5100016251 | Type plate rd 24-100 c | 2 | PARTS REQUEST | |
|
COMING Type plate rd 24-100 c
5100016251 · qty on machine: 2 | |||||
| 1 | 5100016252 | Type plate rd 24-100 o | 2 | PARTS REQUEST | |
|
COMING Type plate rd 24-100 o
5100016252 · qty on machine: 2 | |||||
| 1 | 5100024327 | Type plate rd28-120 | 2 | ADD TO CART | |
| 1 | 5100024328 | Type plate rd28-120c | 2 | PARTS REQUEST | |
|
COMING Type plate rd28-120c
5100024328 · qty on machine: 2 | |||||
| 1 | 5100024329 | Type plate rd28-120o | 2 | PARTS REQUEST | |
|
COMING Type plate rd28-120o
5100024329 · qty on machine: 2 | |||||
| 2 | 5100029588 | Label | 2 | ADD TO CART | |
| 3 | 5100033192 | Label | 2 | PARTS REQUEST | |
|
COMING Label
5100033192 · qty on machine: 2 | |||||
| 4 | 5100016256 | Sticker | 1 | ADD TO CART | |
| 5 | 5100016257 | Adhesive tape | 1 | ADD TO CART | |
| 9 | 5100013209 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013207 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013208 | Decal kit | 1 | ADD TO CART | |
| 51 | 5100011692 | Sticker | 1 | ADD TO CART | |
| 90 | 5100012698 | Sticker | 1 | ADD TO CART | |
| 90 | 5100016500 | Sticker | 1 | ADD TO CART | |
| 91 | 5100012699 | Sticker | 1 | ADD TO CART | |
| 106 | 5100016258 | Decal kit | 1 | ADD TO CART | |
| 50 | 5100013420 | Sticker | 3 | ADD TO CART | |
| 51 | 5100011684 | Metal plate | 1 | ADD TO CART | |
| 52 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 18 | 5100033193 | Label | 1 | ADD TO CART | |
| 80 | 5100012976 | Sticker | 1 | ADD TO CART | |
| 101 | 5100012465 | Sticker | 1 | ADD TO CART | |
| 105 | 5100011702 | Sticker | 1 | ADD TO CART | |

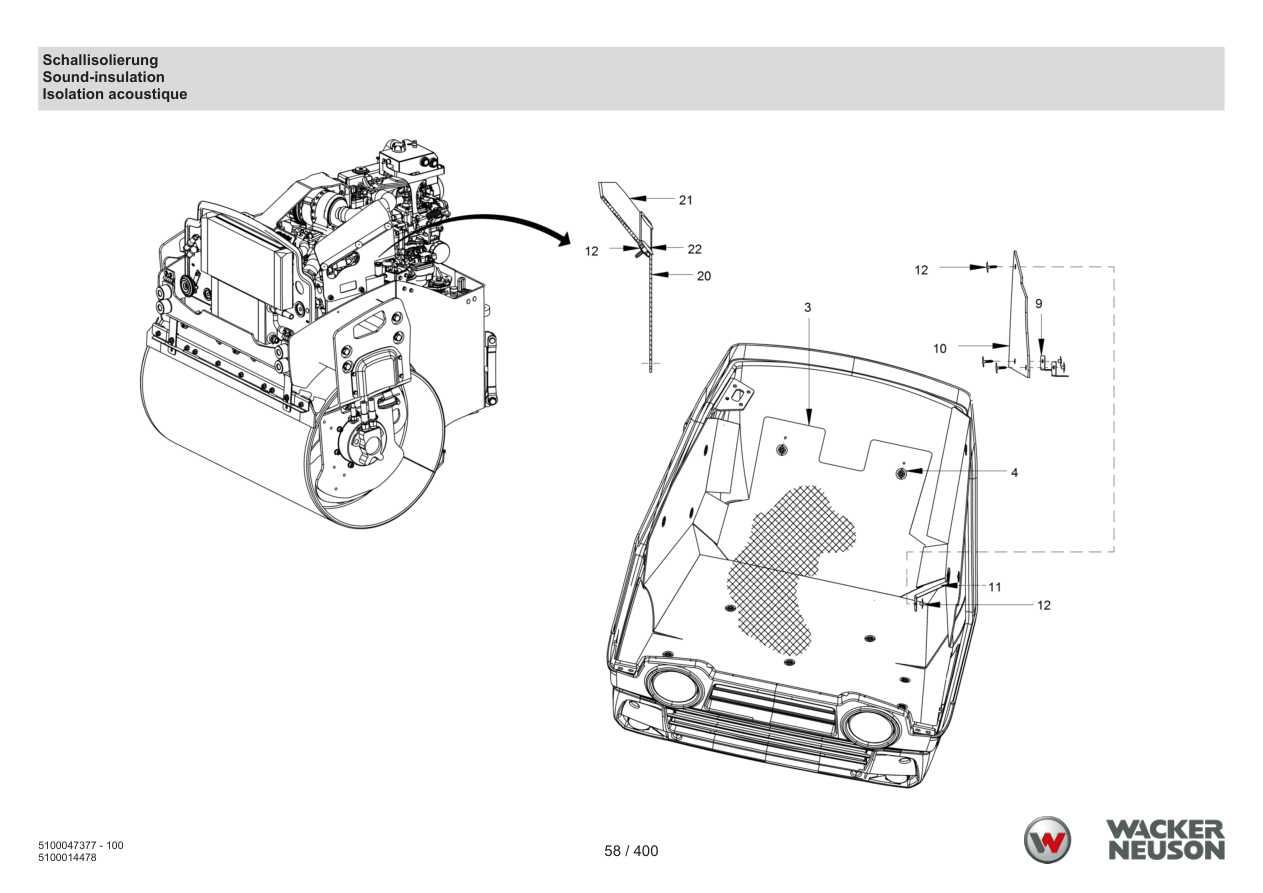

Page 56 — Sound insulation
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100012848 | Sound insulation | 1 | ADD TO CART | |
| 4 | 5100011922 | Locking washer | 14 | ADD TO CART | |
| 9 | 5100016259 | Bracket | 2 | PARTS REQUEST | |
|
COMING Bracket
5100016259 · qty on machine: 2 | |||||
| 10 | 5100012869 | Insulation | 1 | ADD TO CART | |
| 11 | 5100012886 | Bracket | 1 | ADD TO CART | |
| 12 | 5100011953 | Push-button | 3 | ADD TO CART | |
| 20 | 5100012870 | Metal plate | 1 | ADD TO CART | |
| 21 | 5100016260 | Sound insulation | 1 | ADD TO CART | |
| 22 | 5100011953 | Push-button | 3 | ADD TO CART | |
Page 58 — Driver seat with adjustment
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033194 | Driver's seat | 1 | Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033195 | Seat contact switch | 1 | 1.04 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033196 | Seat cushion | 1 | 1.01 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033197 | Seat cushion | 1 | 1.02 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033198 | Set of adjustment bars | 1 | 1.05 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033199 | Lap belt | 1 | 1.03 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033200 | Maintenance kit wear parts | 1 | 1.07 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033201 | Adjustment | 1 | 1.06 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100082818 | Operator's seat | 1 | Serialno. < 1243 | PARTS REQUEST |
|
COMING Operator's seat
5100082818 · qty on machine: 1 Serialno. < 1243 | |||||
| 2 | 5100011518 | Seat cushion | 1 | ADD TO CART | |
| 2 | 5100011519 | Backrest cushion | 1 | ADD TO CART | |
| 2 | 5100011615 | Handle | 1 | ADD TO CART | |
| 2 | 5100012964 | Seat contact switch | 1 | ADD TO CART | |
| 2 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100029584 | Driver's seat | 1 | ADD TO CART | |
| 2 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 1 | 5100083260 | Cover | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cover
5100083260 · qty on machine: 1 Serialno. >1243 | |||||
| 2 | 5100083261 | Cover | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cover
5100083261 · qty on machine: 1 Serialno. >1243 | |||||
| 3 | 5100013084 | Set of adjustment bars | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Set of adjustment bars
5100013084 · qty on machine: 1 Serialno. >1243 | |||||
| 4 | 5100083262 | Lap belt | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Lap belt
5100083262 · qty on machine: 1 Serialno. >1243 | |||||
| 5 | 5100083263 | Adjustment | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Adjustment
5100083263 · qty on machine: 1 Serialno. >1243 | |||||
| 6 | 5100083264 | Cable harness | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cable harness
5100083264 · qty on machine: 1 Serialno. >1243 | |||||
| 7 | 5100083265 | Backrest cushion, imi. leather | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Backrest cushion, imi. leather
5100083265 · qty on machine: 1 Serialno. >1243 | |||||
| 8 | 5100083266 | Seat cushion | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Seat cushion
5100083266 · qty on machine: 1 Serialno. >1243 | |||||
| 9 | 5100012691 | Seat contact switch | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Seat contact switch
5100012691 · qty on machine: 1 Serialno. >1243 | |||||
| 10 | 5100082818 | Operator's seat | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Operator's seat
5100082818 · qty on machine: 1 Serialno. >1243 | |||||
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100013441 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 103 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 104 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 105 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 106 | 5100012014 | Metal plate | 2 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
Page 60 — Operator's seat with adjustmen
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100083260 | Cover | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cover
5100083260 · qty on machine: 1 Serialno. >1243 | |||||
| 2 | 5100083261 | Cover | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cover
5100083261 · qty on machine: 1 Serialno. >1243 | |||||
| 3 | 5100013084 | Set of adjustment bars | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Set of adjustment bars
5100013084 · qty on machine: 1 Serialno. >1243 | |||||
| 4 | 5100083262 | Lap belt | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Lap belt
5100083262 · qty on machine: 1 Serialno. >1243 | |||||
| 5 | 5100083263 | Adjustment | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Adjustment
5100083263 · qty on machine: 1 Serialno. >1243 | |||||
| 6 | 5100083264 | Cable harness | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cable harness
5100083264 · qty on machine: 1 Serialno. >1243 | |||||
| 7 | 5100083265 | Backrest cushion, imi. leather | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Backrest cushion, imi. leather
5100083265 · qty on machine: 1 Serialno. >1243 | |||||
| 8 | 5100083266 | Seat cushion | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Seat cushion
5100083266 · qty on machine: 1 Serialno. >1243 | |||||
| 9 | 5100012691 | Seat contact switch | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Seat contact switch
5100012691 · qty on machine: 1 Serialno. >1243 | |||||
| 10 | 5100082818 | Operator's seat | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Operator's seat
5100082818 · qty on machine: 1 Serialno. >1243 | |||||
Page 64 — Driver seat
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011615 | Handle | 1 | ADD TO CART | |
| 1 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100024343 | Cushion set | 1 | ADD TO CART | |
| 1 | 5100024920 | Seat contact switch | 1 | ADD TO CART | |
| 1 | 5100029585 | Backrest cushion, imi. leather | 1 | ADD TO CART | |
| 1 | 5100029596 | Driver's seat | 1 | ADD TO CART | |
| 1 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 13 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 15 | 5100011947 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100011947 · qty on machine: 1 | |||||
| 16 | 5100011938 | Bogie, seat heating | 1 | ADD TO CART | |
| 60 | 5100024344 | Central plug | 1 | ADD TO CART | |
| 70 | 5100029597 | Flat plug sleeve | 2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 80 | 5100024345 | Connection plug, 1-pole | 1 | ADD TO CART | |
| 90 | 5100029598 | Flat plug sleeve | 1 | ADD TO CART | |
| 100 | 5100033203 | Connector housing | 1 | ADD TO CART | |
| 101 | 5100025825 | Flat-pin plug | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |

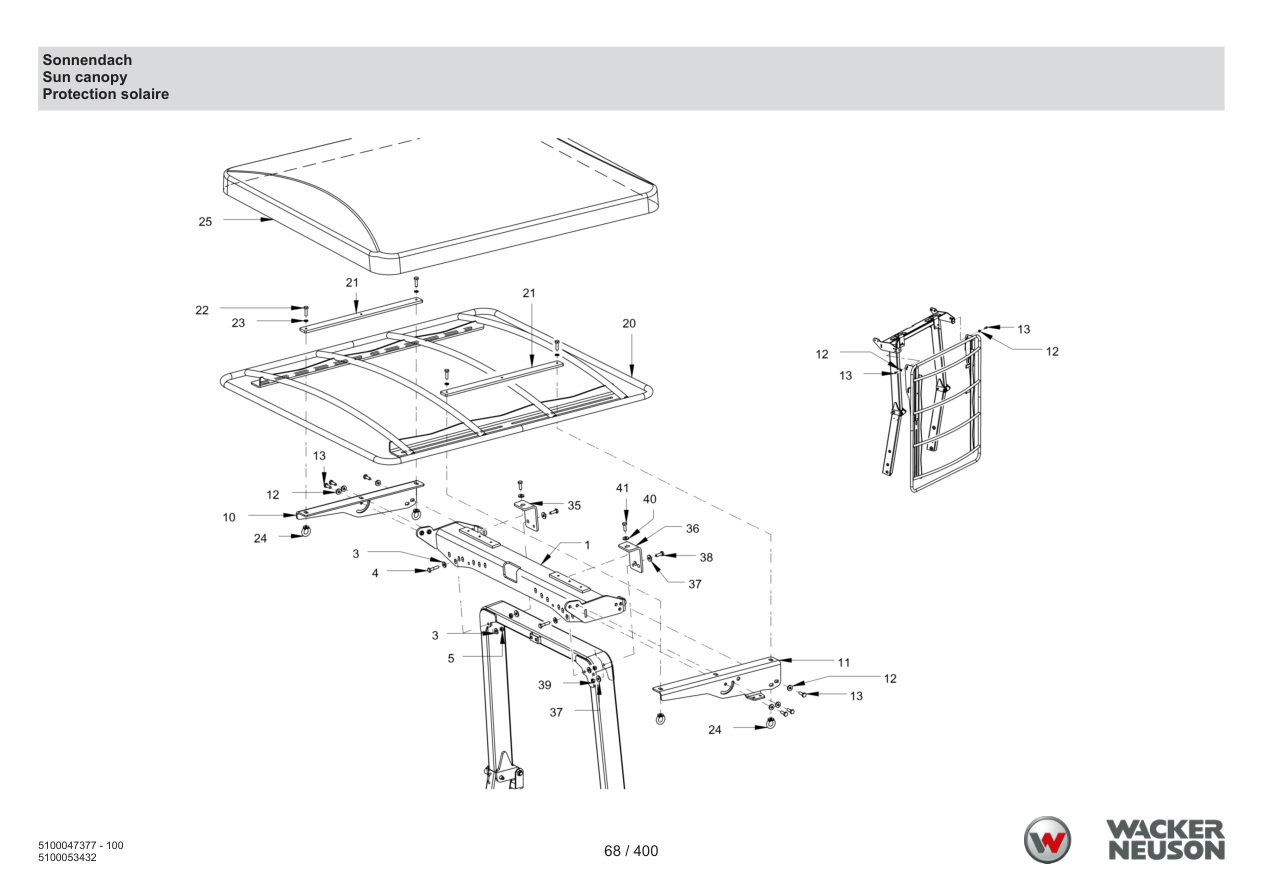

Page 66 — Sun roof
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033204 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033204 · qty on machine: 1 | |||||
| 3 | 5100013128 | Washer | 4 | ADD TO CART | |
| 4 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100033205 | Angle bracket | 1 | ADD TO CART | |
| 11 | 5100033206 | Angle bracket | 1 | ADD TO CART | |
| 12 | 5100013128 | Washer | 6 | ADD TO CART | |
| 13 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 20 | 5100033207 | Frame | 1 | ADD TO CART | |
| 21 | 5100033208 | Metal plate | 2 | ADD TO CART | |
| 22 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100024352 | Ring nut | 4 | ADD TO CART | |
| 25 | 5100024341 | Roof tarpaulin | 1 | ADD TO CART | |
| 35 | 5100033209 | Metal plate | 1 | ADD TO CART | |
| 36 | 5100033210 | Metal plate | 1 | ADD TO CART | |
| 37 | 5100013128 | Washer | 4 | ADD TO CART | |
| 38 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 39 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100013128 | Washer | 2 | ADD TO CART | |
| 41 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |

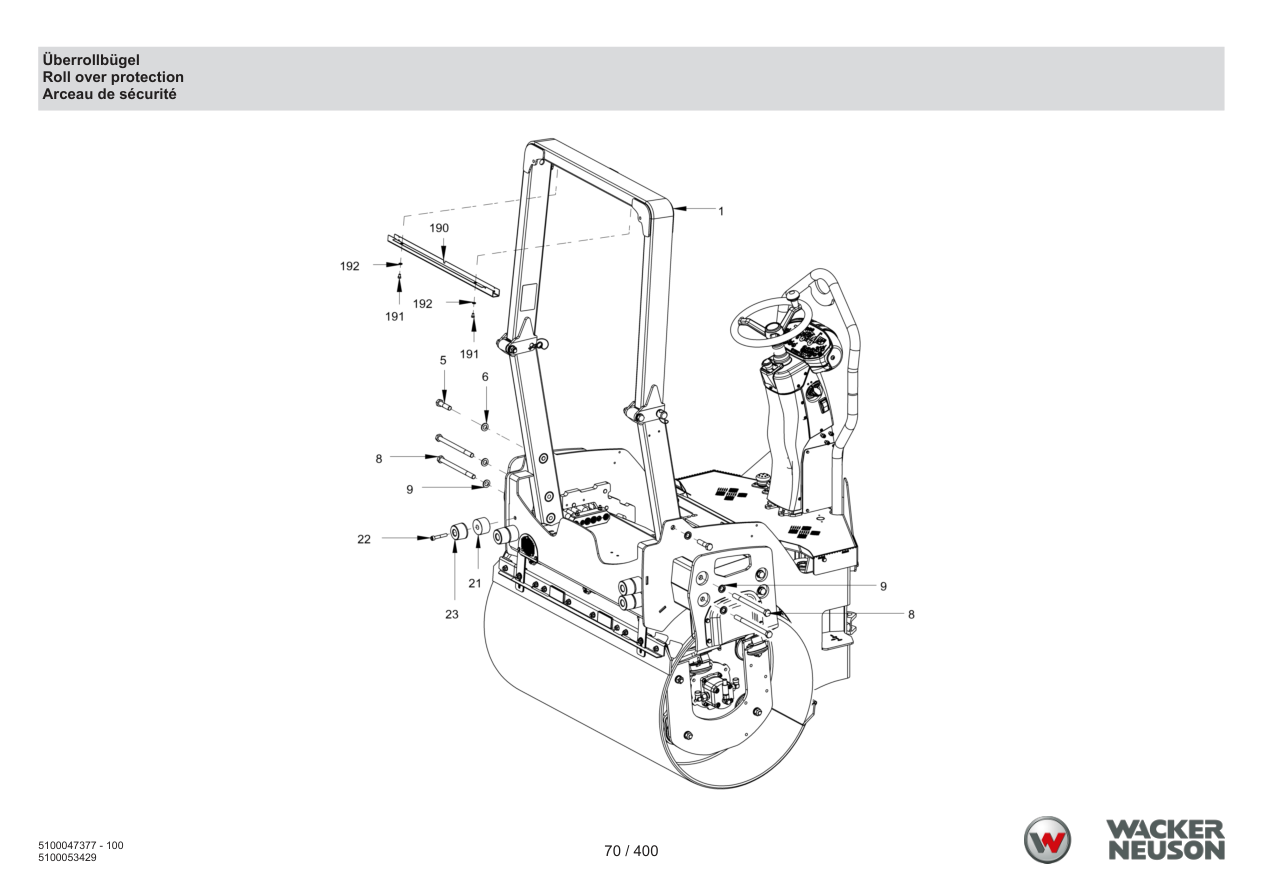

Page 68 — Roll over protection
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012208 | Roll over protection | 1 | ADD TO CART | |
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012502 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 21 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 22 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 23 | 5100011814 | Rubber buffer | 4 | ADD TO CART | |
| 190 | 5100016261 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100013379 | Hexagon screw | 2 | ADD TO CART | |
| 16 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012194 | Washer | 2 | ADD TO CART | |
| 18 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 19 | 5100024289 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100024289 · qty on machine: 2 | |||||
| 20 | 5100012985 | Threaded bolt | 2 | ADD TO CART | |
| 25 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 26 | 5100012987 | W-clip | 2 | ADD TO CART | |
| 27 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 100 | 5100012208 | Roll over protection | 1 | ADD TO CART | |

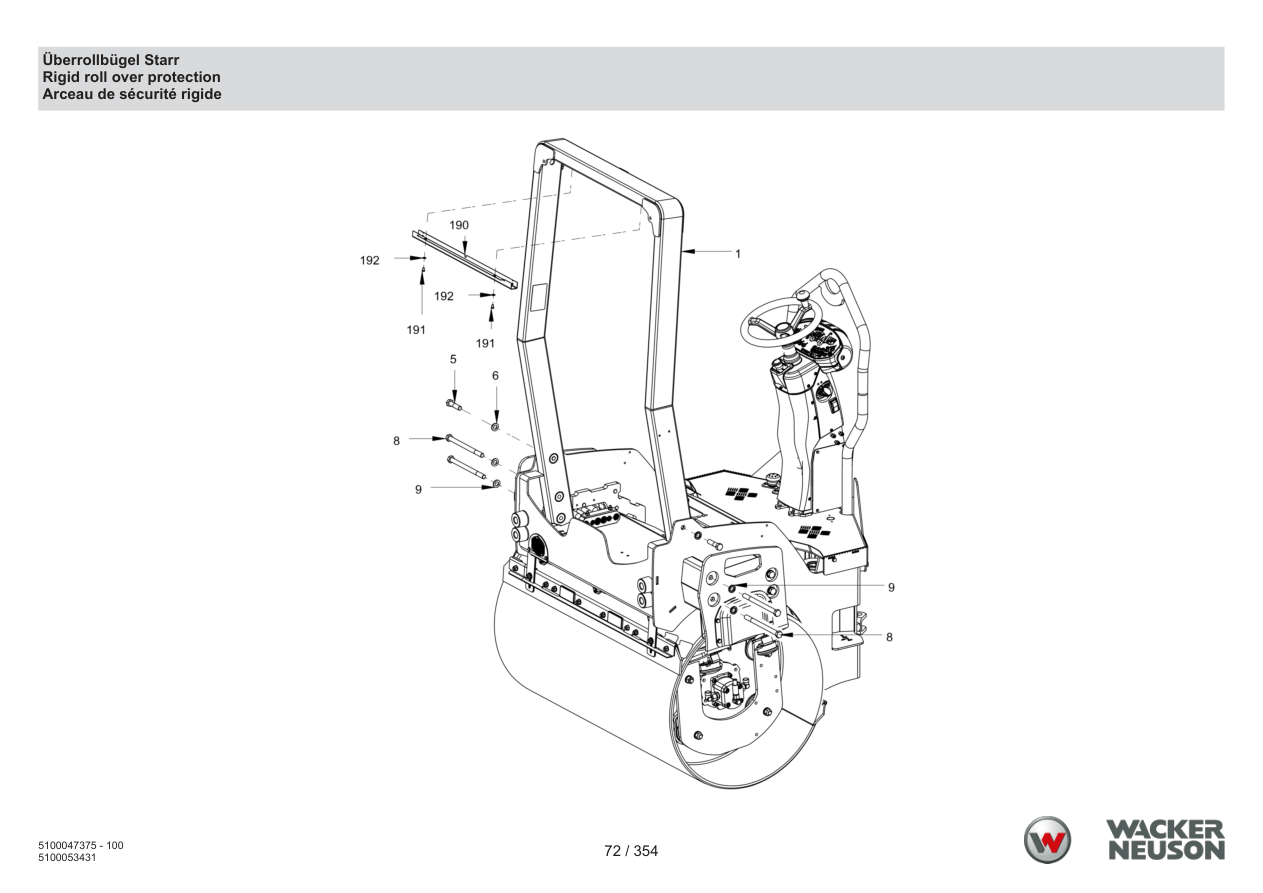

Page 72 — Rigid roll over protection
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033211 | Roll over protection | 1 | ADD TO CART | |
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012502 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 190 | 5100016261 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |

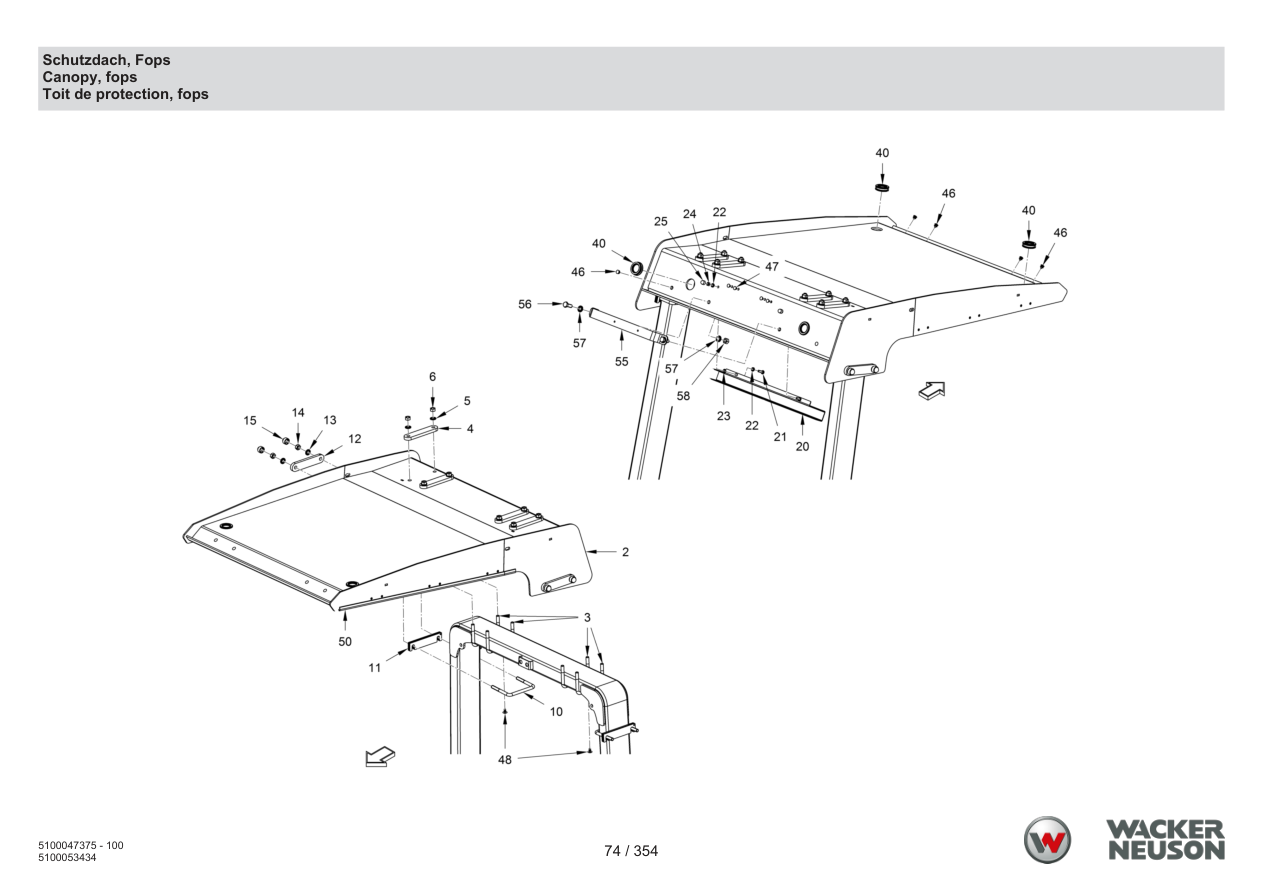

Page 74 — Canopy, fops
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100052891 | Roof | 1 | ADD TO CART | |
| 3 | 5100052892 | Bracket | 4 | ADD TO CART | |
| 4 | 5100052893 | Plate | 4 | ADD TO CART | |
| 5 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 6 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 10 | 5100052894 | Strap bolt | 2 | ADD TO CART | |
| 11 | 5100052895 | Distance sheet | 8 | ADD TO CART | |
| 12 | 5100052893 | Plate | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 15 | 5100035325 | Protective cap | 4 | ADD TO CART | |
| 20 | 5100016823 | Rail | 1 | ADD TO CART | |
| 21 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100016825 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 40 | 5100034805 | Cable support sleeve | 4 | ADD TO CART | |
| 46 | 5100050647 | Filler cap | 8 | ADD TO CART | |
| 47 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 48 | 5100011550 | Plug | 2 | ADD TO CART | |
| 50 | 5100013412 | Edge protection | 1.56 | ADD TO CART | |
| 55 | 5100068809 | Metal plate | 1 | ADD TO CART | |
| 56 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 58 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |

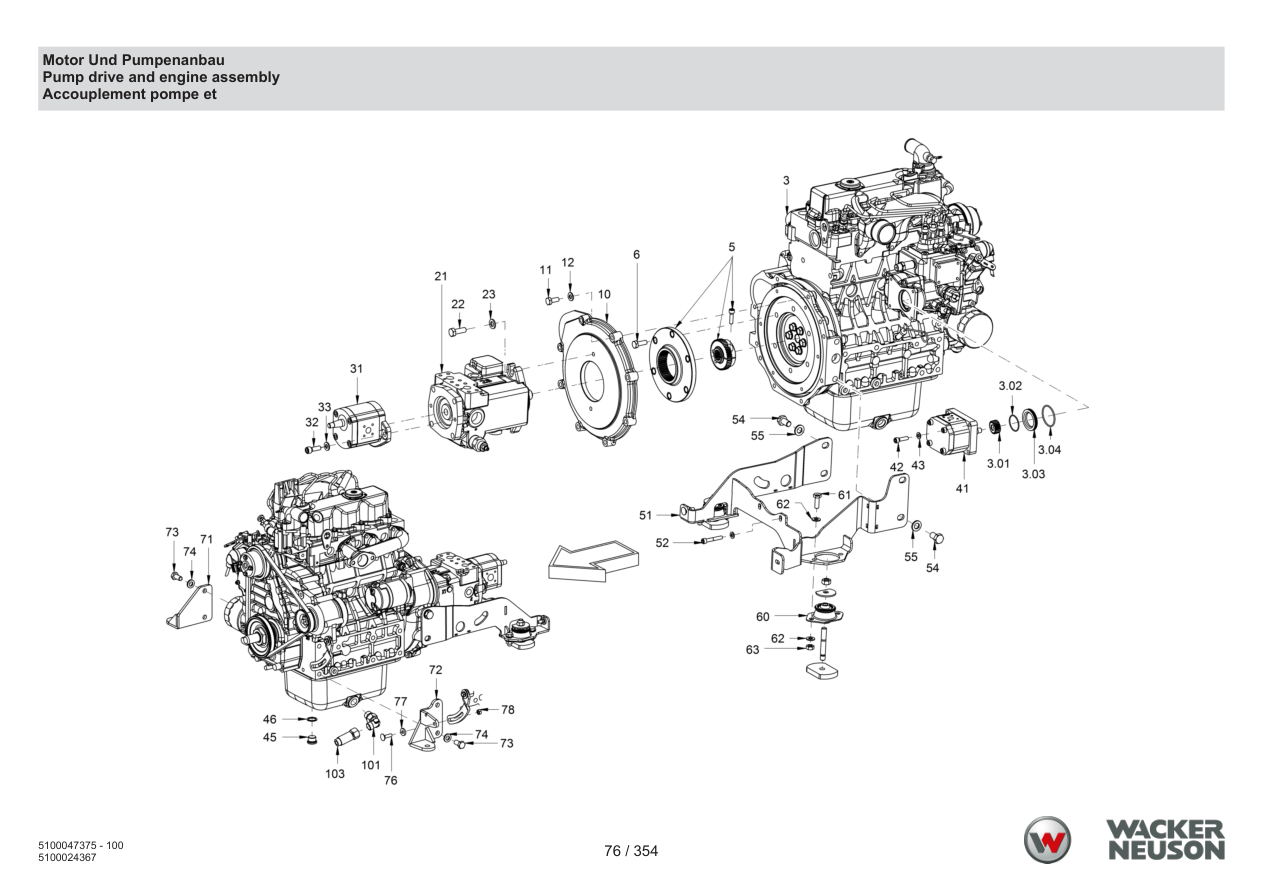

Page 76 — Engine and pump assembly
Parts list — exactly as printed77 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100024300 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100024300 · qty on machine: 1 | |||||
| 3 | 5100012811 | Spacer ring | 1 | ADD TO CART | |
| 3 | 5100012812 | Gearwheel | 1 | ADD TO CART | |
| 3 | 5100012813 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100012814 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100012561 | Coupling | 1 | ADD TO CART | |
| 6 | 5100012626 | Hexagon screw | 6 | ADD TO CART | |
| 10 | 5100012562 | Flange | 1 | ADD TO CART | |
| 11 | 5100012552 | Hexagon screw | 8 | ADD TO CART | |
| 12 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 21 | 5100024301 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100024301 · qty on machine: 1 | |||||
| 22 | 5100012626 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 31 | 5100024302 | Gear pump | 1 | ADD TO CART | |
| 32 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 33 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 41 | 5100052898 | Gear pump | 1 | ADD TO CART | |
| 42 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 43 | 5100013441 | Locking washer | 4 | ADD TO CART | |
| 45 | 5100013418 | Screw plug | 1 | ADD TO CART | |
| 46 | 5100013005 | Sealing ring | 1 | ADD TO CART | |
| 51 | 5100012153 | Suspension | 1 | ADD TO CART | |
| 52 | 5100011587 | Safety screw | 2 | ADD TO CART | |
| 54 | 5100012555 | Hexagon screw | 4 | ADD TO CART | |
| 55 | 5100012972 | Locking washer | 4 | ADD TO CART | |
| 60 | 5100024303 | Rubber buffer | 2 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 4 | ADD TO CART | |
| 62 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 63 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 71 | 5100012702 | Mounting device | 1 | ADD TO CART | |
| 72 | 5100012703 | Mounting device | 1 | ADD TO CART | |
| 73 | 5100012554 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 76 | 5100012780 | Mushroom head screw | 1 | ADD TO CART | |
| 77 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 78 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 101 | 5100012539 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100012539 · qty on machine: 1 | |||||
| 103 | 5100012943 | Flexible tubing | 1 | ADD TO CART | |
| 1 | 5100024304 | Oil dipstick | 1 | ADD TO CART | |
| 2 | 5100013414 | Filter cartridge, lubric. oil | 1 | ADD TO CART | |
| 3 | 5100012805 | Magnet, remote shut-down eng. | 1 | ADD TO CART | |
| 4 | 5100024305 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100012875 | Cooling pump | 1 | ADD TO CART | |
| 6 | 5100012873 | Seal | 1 | ADD TO CART | |
| 7 | 5100025028 | V-belt | 1 | ADD TO CART | |
| 8 | 5100012685 | Alternator | 1 | ADD TO CART | |
| 9 | 5100024306 | Thermostat | 1 | ADD TO CART | |
| 10 | 5100012809 | Cover, oil filler, above | 1 | ADD TO CART | |
| 11 | 5100023507 | O-ring seal | 1 | ADD TO CART | |
| 12 | 5100012690 | Starter | 1 | ADD TO CART | |
| 13 | 5100024307 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100024307 · qty on machine: 1 | |||||
| 14 | 5100024308 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100024308 · qty on machine: 1 | |||||
| 15 | 5100012807 | Engine oil pressure switch | 1 | ADD TO CART | |
| 16 | 5100024309 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100024309 · qty on machine: 1 | |||||
| 17 | 5100024310 | Sealing | 1 | ADD TO CART | |
| 18 | 5100012808 | Temperature switch | 1 | ADD TO CART | |
| 19 | 5100024311 | Heater plug | 3 | PARTS REQUEST | |
|
COMING Heater plug
5100024311 · qty on machine: 3 | |||||
| 100 | 5100024300 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100024300 · qty on machine: 1 | |||||
| 10 | 5100012912 | Stud bolt | 2 | ADD TO CART | |
| 11 | 5100012212 | Washer | 4 | ADD TO CART | |
| 12 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5100012626 | Hexagon screw | 2 | ADD TO CART | |
| 21 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 35 | 5100012235 | Cap nut | 1 | ADD TO CART | |
| 36 | 5100013555 | Filler cap | 1 | ADD TO CART | |
| 37 | 5100013486 | Bulkhead elbow | 1 | ADD TO CART | |
| 38 | 5100013191 | Washer | 1 | ADD TO CART | |
| 39 | 5100013488 | Hexagon nut | 1 | ADD TO CART | |
| 80 | 5100012704 | Engine suspension | 1 | ADD TO CART | |
| 84 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 85 | 5100012513 | Hexagon screw | 2 | ADD TO CART | |
| 86 | 5100012212 | Washer | 2 | ADD TO CART | |
| 87 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100016262 | V-belt protection | 1 | ADD TO CART | |
| 51 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 52 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 53 | 5100013230 | Locking washer | 3 | ADD TO CART | |

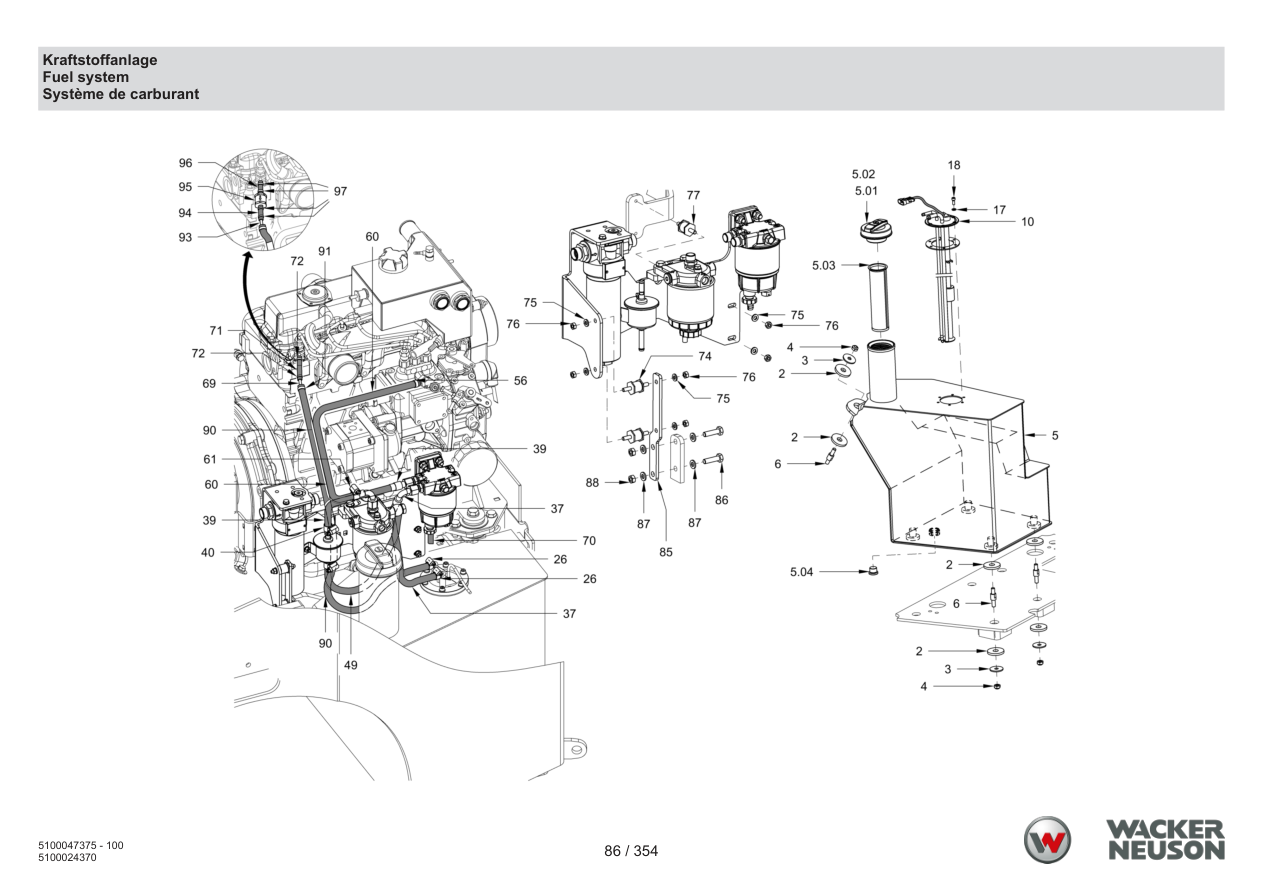

Page 86 — Fuel system
Parts list — exactly as printed69 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011731 | Rubber washer | 10 | ADD TO CART | |
| 3 | 5100011824 | Washer | 5 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 5 | ADD TO CART | |
| 5 | 5100013215 | Fuel tank | 1 | Serialno. 160-584 | ADD TO CART |
| 5 | 5100066877 | Fuel tank | 1 | Serialno. < 585 | PARTS REQUEST |
|
COMING Fuel tank
5100066877 · qty on machine: 1 Serialno. < 585 | |||||
| 5 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 5 | 5100011829 | Tank cap, with lock | 1 | ADD TO CART | |
| 5 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 5 | 5100013557 | Key | 1 | ADD TO CART | |
| 6 | 5100011730 | Spacer pin | 5 | ADD TO CART | |
| 10 | 5100012475 | Fuel gauge | 1 | ADD TO CART | |
| 17 | 5100013502 | Sealing ring | 6 | ADD TO CART | |
| 18 | 5100011443 | Cheese-head screw | 6 | ADD TO CART | |
| 26 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 37 | 5100013186 | Flexible tubing | 1 | ADD TO CART | |
| 39 | 5100012933 | Flexible tubing | 1 | ADD TO CART | |
| 40 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 49 | 5100012622 | Flexible tubing | 1 | ADD TO CART | |
| 56 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 60 | 5100013216 | Flexible tubing | 0.5 | ADD TO CART | |
| 61 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 69 | 5100013567 | Reducing piece | 1 | Serialno. 160-1209 | ADD TO CART |
| 70 | 5100012593 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012593 · qty on machine: 1 | |||||
| 71 | 5100013640 | Flexible tubing | 0.2 | Serialno. 160-1209 | ADD TO CART |
| 72 | 5100013540 | Pipe clip | 2 | Serialno. 160-1209 | ADD TO CART |
| 74 | 5100012564 | Silentbloc | 2 | ADD TO CART | |
| 75 | 5100012965 | Locking washer | 6 | ADD TO CART | |
| 76 | 5100012545 | Hexagon nut | 6 | ADD TO CART | |
| 77 | 5100012919 | Silentbloc | 2 | ADD TO CART | |
| 85 | 5100012455 | Bracket | 1 | ADD TO CART | |
| 86 | 5100013510 | Hexagon screw | 2 | ADD TO CART | |
| 87 | 5100013094 | Washer | 4 | ADD TO CART | |
| 88 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 90 | 5100013216 | Flexible tubing | 0.61 | ADD TO CART | |
| 91 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 93 | 5100013567 | Reducing piece | 1 | Serialno. < 1210 | ADD TO CART |
| 94 | 5100013640 | Flexible tubing | 0.08 | Serialno. < 1210 | ADD TO CART |
| 95 | 5100082397 | Non-return valve | 1 | Serialno. < 1210 | PARTS REQUEST |
|
COMING Non-return valve
5100082397 · qty on machine: 1 Serialno. < 1210 | |||||
| 96 | 5100013640 | Flexible tubing | 0.08 | Serialno. < 1210 | ADD TO CART |
| 97 | 5100013540 | Pipe clip | 4 | Serialno. < 1210 | ADD TO CART |
| 30 | 5100013365 | Mounting device | 1 | ADD TO CART | |
| 31 | 5100012925 | Fuel filter | 1 | ADD TO CART | |
| 32 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 33 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 34 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 38 | 5100011461 | Straight screwed socket | 2 | ADD TO CART | |
| 45 | 5100023485 | Fuel pump | 1 | ADD TO CART | |
| 46 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 47 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 48 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100012227 | Hollow-core screw | 1 | ADD TO CART | |
| 51 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
| 52 | 5100012460 | Filter head | 1 | ADD TO CART | |
| 53 | 5100029554 | Fuel filter | 1 | ADD TO CART | |
| 54 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 55 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 57 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 58 | 5100013632 | Straight screwed socket | 1 | ADD TO CART | |
| 59 | 5100011664 | Hose fitting | 1 | ADD TO CART | |
| 62 | 5100013405 | Screw plug | 1 | ADD TO CART | |
| 63 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 65 | 5100012571 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013502 | Sealing ring | 1 | ADD TO CART | |
| 80 | 5100013520 | Wire fastener | 1 | ADD TO CART | |
| 183 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 184 | 5100013361 | Filter | 1 | ADD TO CART | |
| 185 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 186 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 192 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
Page 92 — Fuel Filter
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012926 | Filter head | 1 | PARTS REQUEST | |
|
COMING Filter head
5100012926 · qty on machine: 1 | |||||
| 2 | 5100012928 | Filter cartridge | 1 | ADD TO CART | |
| 2 | 5100012927 | Sealing washer | 1 | ADD TO CART | |
| 3 | 5100012929 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012930 | Filter housing | 1 | ADD TO CART | |
| 5 | 5100012244 | Discharge valve | 1 | ADD TO CART | |
| 31 | 5100012925 | Fuel filter | 1 | ADD TO CART | |
| 52 | 5100012460 | Filter head | 1 | ADD TO CART | |
| 53 | 5100012462 | Fuel filter | 1 | ADD TO CART | |
Page 94 — Engine control
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012163 | Bracket | 1 | ADD TO CART | |
| 2 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 3 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 4 | 5100024312 | Lever | 1 | ADD TO CART | |
| 5 | 5100012694 | Actuating cable | 1 | Serialno. <291 | ADD TO CART |
| 5 | 5100012818 | Hand lever | 1 | 5.01 Serialno. >614 | PARTS REQUEST |
|
COMING Hand lever
5100012818 · qty on machine: 1 5.01 Serialno. >614 | |||||
| 5 | 5100066889 | Actuating cable | 1 | Serialno. 292 - 613 | ADD TO CART |
| 5 | 5100066901 | Hand lever | 1 | 5.01 Serialno. 292 - 613 | ADD TO CART |
| 5 | 5100069225 | Bowden cable without notch | 1 | Serialno. >614 | ADD TO CART |
| 5 | 5100011733 | Angle joint | 1 | ADD TO CART | |
| 5 | 5100011950 | Bellows | 1 | ADD TO CART | |
| 5 | 5100012588 | Ball handle | 1 | ADD TO CART | |
| 5 | 5100012821 | Actuating cable | 1 | ADD TO CART | |
| 6 | 5100013561 | Countersunk screw | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 13 | 5100012600 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 1 | |||||
| 14 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 15 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 16 | 5100012965 | Locking washer | 1 | ADD TO CART | |

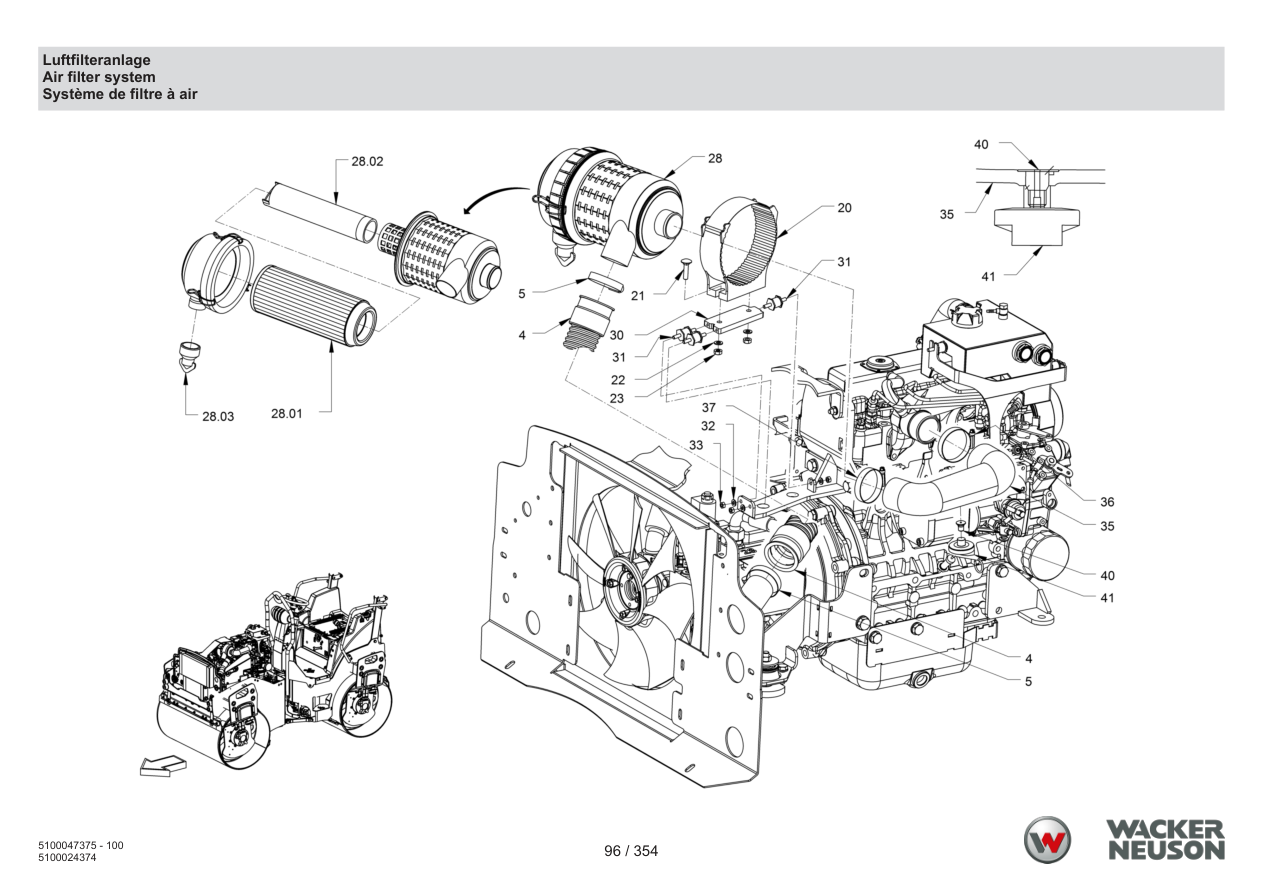

Page 96 — Air filter system
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100012166 | Air hose | 1 | ADD TO CART | |
| 5 | 5100013403 | Hose clip | 2 | ADD TO CART | |
| 20 | 5100012560 | Bracket | 1 | ADD TO CART | |
| 21 | 5100011578 | Mushroom head screw | 2 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 28 | 5100012557 | Air filter | 1 | ADD TO CART | |
| 28 | 5100011561 | Dust discharge valve | 1 | ADD TO CART | |
| 28 | 5100012558 | Filter cartridge | 1 | ADD TO CART | |
| 28 | 5100012559 | Safety filter cartridge | 1 | ADD TO CART | |
| 30 | 5100012776 | Metal plate | 1 | ADD TO CART | |
| 31 | 5100012564 | Silentbloc | 3 | ADD TO CART | |
| 32 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 33 | 5100012545 | Hexagon nut | 3 | ADD TO CART | |
| 35 | 5100012165 | Intake hose | 1 | ADD TO CART | |
| 36 | 5100013403 | Hose clip | 1 | ADD TO CART | |
| 37 | 5100012907 | Hose clip | 1 | ADD TO CART | |
| 40 | 5100011464 | Threaded bolt | 1 | ADD TO CART | |
| 41 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||

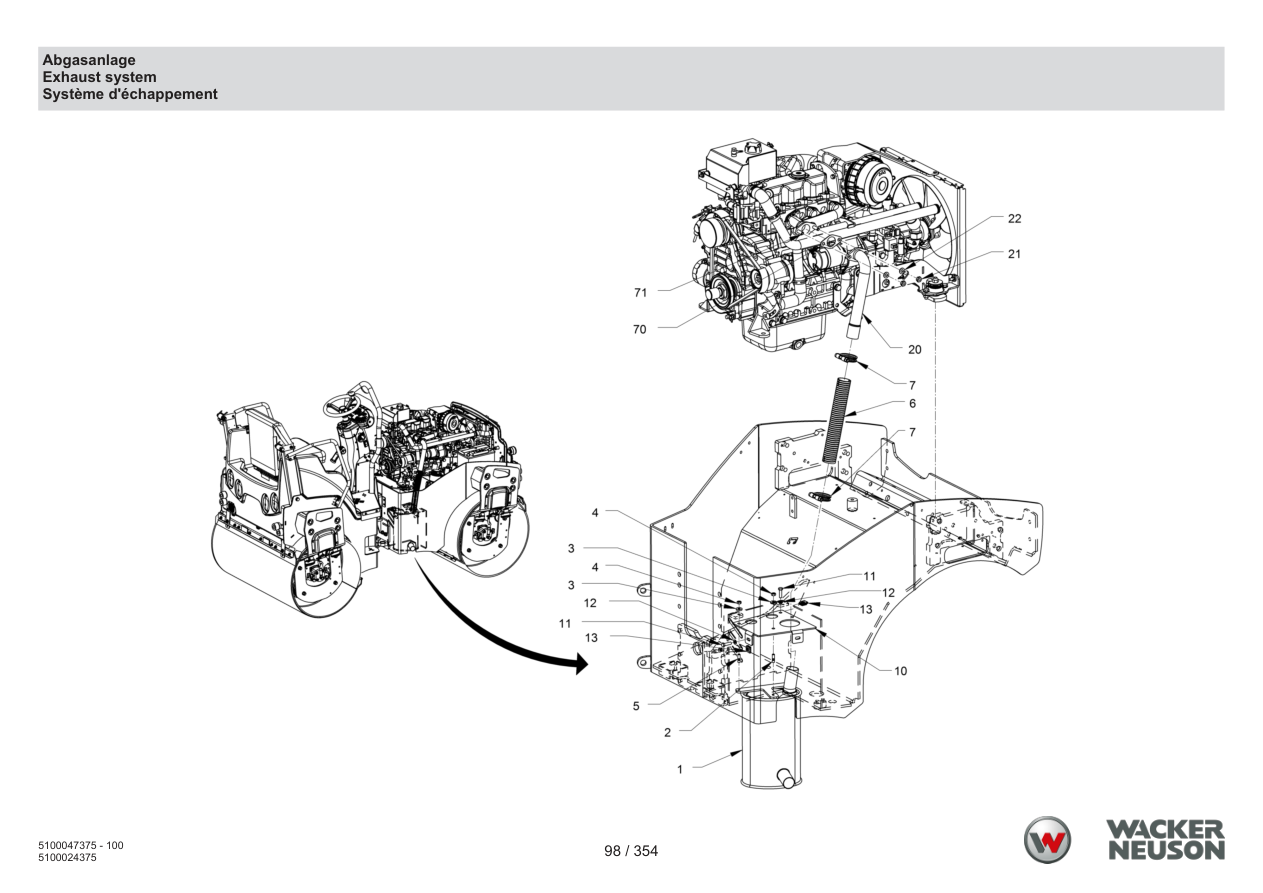

Page 98 — Exhaust system
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012172 | Silencer | 1 | ADD TO CART | |
| 2 | 5100011471 | Stud bolt | 2 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 4 | 5100012546 | Hexagon nut | 3 | ADD TO CART | |
| 5 | 5100011635 | Stud bolt | 1 | ADD TO CART | |
| 6 | 5100012269 | Exhaust gas hose | 1 | ADD TO CART | |
| 7 | 5100011668 | Pipe clip | 2 | ADD TO CART | |
| 10 | 5100012389 | Cover | 1 | ADD TO CART | |
| 11 | 5100013510 | Hexagon screw | 3 | ADD TO CART | |
| 12 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 13 | 5100013584 | Clip nut | 3 | ADD TO CART | |
| 20 | 5100012156 | Tail pipe | 1 | ADD TO CART | |
| 21 | 5100012893 | Safety nut | 2 | ADD TO CART | |
| 22 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 70 | 5100012787 | Seal | 1 | ADD TO CART | |
| 71 | 5100012894 | Stud bolt | 2 | ADD TO CART | |

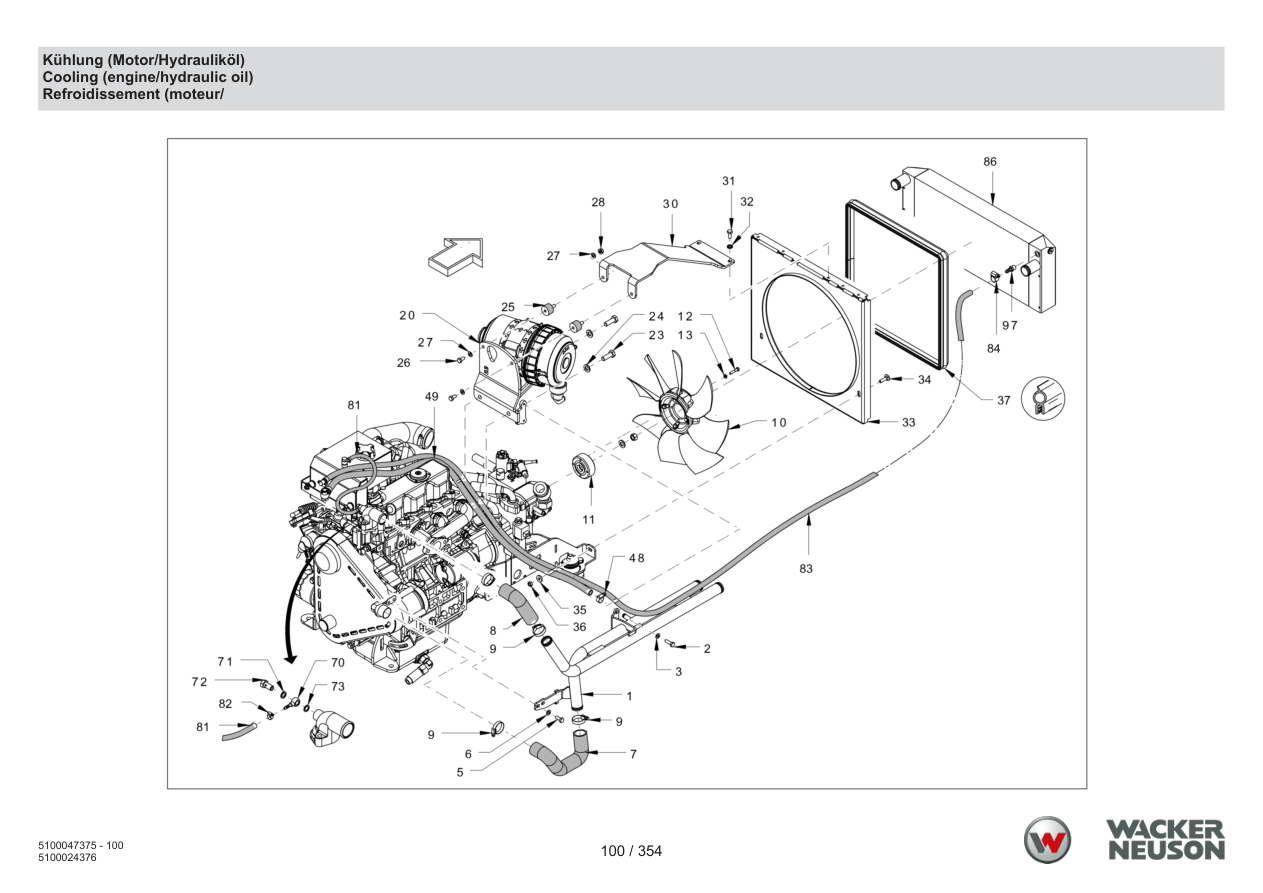

Page 100 — Cooling (engine/hydraulic oil)
Parts list — exactly as printed128 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012155 | Pipe | 1 | Serialno. <443 | ADD TO CART |
| 2 | 5100012517 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 3 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 5 | 5100012517 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 6 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 7 | 5100012158 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 8 | 5100012159 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 9 | 5100011637 | Hose clip | 4 | Serialno. <443 | ADD TO CART |
| 10 | 5100012162 | Fan | 1 | Serialno. <443 | ADD TO CART |
| 11 | 5100011920 | Fan free-wheeling | 1 | Serialno. <443 | ADD TO CART |
| 12 | 5100013397 | Hexagon screw | 4 | Serialno. <443 | ADD TO CART |
| 13 | 5100012965 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 20 | 5100012157 | Bracket | 1 | Serialno. <443 | ADD TO CART |
| 23 | 5100012554 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 24 | 5100012968 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 25 | 5100013550 | Rubber buffer | 2 | Serialno. <443 | ADD TO CART |
| 26 | 5100012515 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 27 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 28 | 5100012546 | Hexagon nut | 2 | Serialno. <443 | ADD TO CART |
| 30 | 5100012777 | Metal plate | 1 | Serialno. <443 | ADD TO CART |
| 31 | 5100012517 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 32 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 33 | 5100024313 | Cover | 1 | Serialno. <443 | ADD TO CART |
| 34 | 5100012780 | Mushroom head screw | 2 | Serialno. <443 | ADD TO CART |
| 35 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 36 | 5100012546 | Hexagon nut | 2 | Serialno. <443 | ADD TO CART |
| 37 | 5100013642 | Sealing profile | 1.85 | Serialno. <443 | ADD TO CART |
| 48 | 5100013367 | Hose clip | 2 | Serialno. <443 | ADD TO CART |
| 49 | 5100011673 | Cooling-water hose | 0.75 | Serialno. <443 | ADD TO CART |
| 70 | 5100013513 | Hose shank banjo | 2 | Serialno. <443 | ADD TO CART |
| 71 | 5100012999 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 72 | 5100013380 | Hollow-core screw | 2 | Serialno. <443 | ADD TO CART |
| 73 | 5100013345 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 81 | 5100013640 | Flexible tubing | 0.2 | Serialno. <443 | ADD TO CART |
| 82 | 5100013540 | Pipe clip | 2 | Serialno. <443 | ADD TO CART |
| 83 | 5100013217 | Cooling-water hose | 1.1 | Serialno. <443 | ADD TO CART |
| 84 | 5100013179 | Hose clip | 1 | Serialno. <443 | ADD TO CART |
| 86 | 5100024314 | Radiator, engine cooling | 1 | Serialno. <443 | ADD TO CART |
| 97 | 5100012788 | Hose nozzle | 1 | Serialno. <443 | ADD TO CART |
| 1 | 5100066913 | Pipe | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Pipe
5100066913 · qty on machine: 1 Serialno. >444 | |||||
| 14 | 5100016826 | Supporting ring | 1 | Serialno. >444 | ADD TO CART |
| 48 | 5100052945 | Hose | 0.4 | Serialno. >444 | ADD TO CART |
| 66 | 5100024977 | Hose nozzle | 1 | Serialno. >444 | ADD TO CART |
| 69 | 5100013179 | Hose clip | 2 | Serialno. >444 | ADD TO CART |
| 72 | 5100013179 | Hose clip | 1 | Serialno. >444 | ADD TO CART |
| 97 | 5100065338 | Hose nozzle | 1 | Serialno. >444 | ADD TO CART |
| 58 | 5100012492 | Sealing ring | 1 | Serialno. <443 | ADD TO CART |
| 59 | 5100013516 | Screw plug | 1 | Serialno. <443 | ADD TO CART |
| 65 | 5100012174 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 66 | 5100012167 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 67 | 5100011637 | Hose clip | 4 | Serialno. <443 | ADD TO CART |
| 74 | 5100013477 | Straight screwed socket | 1 | Serialno. <443 | ADD TO CART |
| 76 | 5100012915 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 77 | 5100012446 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 78 | 5100013003 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 79 | 5100012918 | Hollow-core screw | 1 | Serialno. <443 | ADD TO CART |
| 87 | 5100011636 | Washer | 5 | Serialno. <443 | ADD TO CART |
| 88 | 5100012600 | Hexagon screw | 5 | Serialno. <443 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 5 Serialno. <443 | |||||
| 89 | 5100011866 | Sealing tape | 0.5 | Serialno. <443 | ADD TO CART |
| 91 | 5100024315 | Oil cooler | 1 | Serialno. <443 | ADD TO CART |
| 92 | 5100011636 | Washer | 2 | Serialno. <443 | ADD TO CART |
| 93 | 5100012600 | Hexagon screw | 2 | Serialno. <443 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 Serialno. <443 | |||||
| 94 | 5100011866 | Sealing tape | 0.4 | Serialno. <443 | ADD TO CART |
| 95 | 5100024316 | Console | 1 | Serialno. <443 | ADD TO CART |
| 96 | 5100013642 | Sealing profile | 1.75 | Serialno. <443 | ADD TO CART |
| 98 | 5100011479 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 99 | 5100012967 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 100 | 5100012547 | Hexagon nut | 2 | Serialno. <443 | ADD TO CART |
| 101 | 5100012048 | Metal plate | 1 | Serialno. <443 | ADD TO CART |
| 102 | 5100012047 | Metal plate | 1 | Serialno. <443 | ADD TO CART |
| 105 | 5100012780 | Mushroom head screw | 4 | Serialno. <443 | ADD TO CART |
| 106 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 107 | 5100012546 | Hexagon nut | 4 | Serialno. <443 | ADD TO CART |
| 110 | 5100012515 | Hexagon screw | 4 | Serialno. <443 | ADD TO CART |
| 111 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 114 | 5100011592 | Grommet | 2 | Serialno. <443 | ADD TO CART |
| 115 | 5100011592 | Grommet | 1 | Serialno. <443 | ADD TO CART |
| 116 | 5100011866 | Sealing tape | 0.4 | Serialno. <443 | ADD TO CART |
| 118 | 5100012444 | Screw plug | 2 | Serialno. <443 | PARTS REQUEST |
|
COMING Screw plug
5100012444 · qty on machine: 2 Serialno. <443 | |||||
| 119 | 5100013000 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 120 | 5100024317 | Fillister head screw | 2 | Serialno. <443 | ADD TO CART |
| 126 | 5100012845 | Guard | 1 | Serialno. <443 | ADD TO CART |
| 127 | 5100012515 | Hexagon screw | 4 | Serialno. <443 | ADD TO CART |
| 128 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 135 | 5100011532 | Pipe clip | 1 | Serialno. <443 | ADD TO CART |
| 136 | 5100012517 | Hexagon screw | 1 | Serialno. <443 | ADD TO CART |
| 137 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 138 | 5100012546 | Hexagon nut | 1 | Serialno. <443 | ADD TO CART |
| 61 | 5100052945 | Hose | 0.4 | Serialno. >444 | ADD TO CART |
| 70 | 5100052945 | Hose | 0.8 | Serialno. >444 | ADD TO CART |
| 73 | 5100013573 | Wire fastener | 4 | Serialno. >444 | ADD TO CART |
| 150 | 5100077462 | Protective device | 1 | Serialno. >444 | ADD TO CART |
| 39 | 5100012630 | Tank cap | 1 | Serialno. <182 | ADD TO CART |
| 40 | 5100024318 | Compensator tank | 1 | Serialno. <182 | ADD TO CART |
| 41 | 5100012919 | Silentbloc | 3 | Serialno. <182 | ADD TO CART |
| 42 | 5100012965 | Locking washer | 3 | Serialno. <182 | ADD TO CART |
| 43 | 5100012545 | Hexagon nut | 3 | Serialno. <182 | ADD TO CART |
| 44 | 5100024319 | Holder | 1 | Serialno. <182 | ADD TO CART |
| 45 | 5100012515 | Hexagon screw | 4 | Serialno. <182 | ADD TO CART |
| 46 | 5100012966 | Locking washer | 4 | Serialno. <182 | ADD TO CART |
| 50 | 5100013388 | Inspection glass | 1 | Serialno. <182 | ADD TO CART |
| 51 | 5100011749 | Hose nozzle | 1 | Serialno. <182 | ADD TO CART |
| 52 | 5100012608 | Hexagon screw | 3 | Serialno. <182 | ADD TO CART |
| 53 | 5100012965 | Locking washer | 3 | Serialno. <182 | ADD TO CART |
| 60 | 5100012474 | Hose shank banjo | 1 | Serialno. <182 | ADD TO CART |
| 61 | 5100013000 | Sealing ring | 2 | Serialno. <182 | ADD TO CART |
| 62 | 5100012227 | Hollow-core screw | 1 | Serialno. <182 | ADD TO CART |
| 40 | 5100053248 | Compensator tank | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Compensator tank
5100053248 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 44 | 5100053246 | Holder | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Holder
5100053246 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 47 | 5100053247 | Holder | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Holder
5100053247 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 52 | 5100012600 | Hexagon screw | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 54 | 5100012545 | Hexagon nut | 1 | Serialno. 183 - 443 | ADD TO CART |
| 40 | 5100066925 | Holder | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Holder
5100066925 · qty on machine: 1 Serialno. >444 | |||||
| 41 | 5100012608 | Hexagon screw | 2 | Serialno. >444 | ADD TO CART |
| 43 | 5100013585 | Clip nut | 2 | Serialno. >444 | ADD TO CART |
| 44 | 5100059556 | Threaded insert | 4 | Serialno. >444 | ADD TO CART |
| 45 | 5100012919 | Silentbloc | 4 | Serialno. >444 | ADD TO CART |
| 46 | 5100012965 | Locking washer | 4 | Serialno. >444 | ADD TO CART |
| 47 | 5100012545 | Hexagon nut | 4 | Serialno. >444 | ADD TO CART |
| 50 | 5100052932 | Level indicator | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Level indicator
5100052932 · qty on machine: 1 Serialno. >444 | |||||
| 51 | 5100012515 | Hexagon screw | 1 | Serialno. >444 | ADD TO CART |
| 52 | 5100012966 | Locking washer | 1 | Serialno. >444 | ADD TO CART |
| 54 | 5100066934 | Eyelet | 1 | Serialno. >444 | ADD TO CART |
| 55 | 5100012600 | Hexagon screw | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 1 Serialno. >444 | |||||
| 56 | 5100012965 | Locking washer | 1 | Serialno. >444 | ADD TO CART |
| 60 | 5100023482 | Tank cap | 1 | 60.01 Serialno. >444 | ADD TO CART |
| 60 | 5100052930 | Compensator tank | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Compensator tank
5100052930 · qty on machine: 1 Serialno. >444 | |||||
| 62 | 5100013179 | Hose clip | 2 | Serialno. >444 | ADD TO CART |
Page 120 — Driving gear (var. displ. pump-drive)
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011877 | Driving gear | 1 | PARTS REQUEST | |
|
COMING Driving gear
5100011877 · qty on machine: 1 | |||||
| 1 | 5100011617 | Locking ring | 2 | ADD TO CART | |
| 1 | 5100011878 | Shaft seal | 1 | ADD TO CART | |
| 1 | 5100012250 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100011568 | Hydraulic regulation | 1 | ADD TO CART | |
| 2 | 5100011447 | O-ring seal | 1 | ADD TO CART | |
| 2 | 5100011572 | Piston ring | 2 | ADD TO CART | |
| 2 | 5100011573 | Set of seals | 2 | ADD TO CART | |
| 2 | 5100012189 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100013545 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100011569 | Connection plate | 1 | PARTS REQUEST | |
|
COMING Connection plate
5100011569 · qty on machine: 1 | |||||
| 3 | 5100023228 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100023189 | Supporting ring | 1 | ADD TO CART | |
| 3 | 5100013546 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100013543 | Screw plug | 2 | ADD TO CART | |
| 3 | 5100012188 | Set of seals | 1 | ADD TO CART | |
| 3 | 5100011614 | Feeding pressure valve | 1 | PARTS REQUEST | |
|
COMING Feeding pressure valve
5100011614 · qty on machine: 1 | |||||
| 3 | 5100011571 | Pressure-relief valve | 2 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100011571 · qty on machine: 2 | |||||
| 3 | 5100011511 | Seal nut | 1 | ADD TO CART | |
| 3 | 5100011454 | Screw plug | 1 | ADD TO CART | |
| 3 | 5100011446 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012394 | Connection flange | 1 | ADD TO CART | |
| 4 | 5100011745 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100024320 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100024321 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011570 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100011570 · qty on machine: 1 | |||||
| 5 | 5100023500 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100023499 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100013547 | Seal nut | 1 | ADD TO CART | |
| 5 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 5 | 5100012541 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100012541 · qty on machine: 1 | |||||
| 5 | 5100011448 | O-ring seal | 1 | ADD TO CART | |
| 13 | 5100023206 | Pin | 1 | ADD TO CART | |
| 20 | 5100011452 | Screw plug | 1 | ADD TO CART | |
| 21 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 22 | 5100013543 | Screw plug | 3 | ADD TO CART | |
| 23 | 5100011743 | Screw plug | 1 | ADD TO CART | |
| 24 | 5100011454 | Screw plug | 3 | ADD TO CART | |
| 28 | 5100011521 | Valve | 2 | ADD TO CART | |
| 41 | 5100013515 | O-ring seal | 1 | ADD TO CART | |
| 100 | 5100024301 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100024301 · qty on machine: 1 | |||||
| 100 | 5100012395 | Set of seals | 1 | ADD TO CART | |
Page 124 — Pump (Vibration Drive)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
| 1 | 5100024302 | Gear pump | 1 | ADD TO CART | |
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100013445 | Hexagon nut | 1 | ADD TO CART | |
Page 126 — Constant motor (vibration drive)
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011795 | Gear motor | 1 | ADD TO CART | |
| 1 | 5100065348 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100012549 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012549 · qty on machine: 1 | |||||
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
Page 130 — Control block (brake)
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011986 | Directional valve | 1 | ADD TO CART | |
| 2 | 5100012409 | Magnet | 1 | ADD TO CART | |
| 3 | 5100011972 | Pressure-relief valve | 1 | ADD TO CART | |
| 7 | 5100013006 | Pressure-relief valve | 1 | ADD TO CART | |
| 12 | 5100011671 | Screw plug | 1 | ADD TO CART | |
| 13 | 5100011564 | Screw plug | 3 | ADD TO CART | |
| 14 | 5100011538 | Screw plug | 4 | ADD TO CART | |
| 15 | 5100011985 | O-ring seal | 1 | ADD TO CART | |
| 16 | 5100011838 | O-ring seal | 1 | ADD TO CART | |
| 17 | 5100011419 | O-ring seal | 1 | ADD TO CART | |
| 21 | 5100011855 | Screw plug | 1 | ADD TO CART | |
| 100 | 5100012963 | Valve block | 1 | ADD TO CART | |
Page 132 — Wheel hub motor
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012538 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 2 | 5100011954 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 3 | 5100016263 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 5 | 5100016264 | Seal | 1 | Serialno. <182 | ADD TO CART |
| 6 | 5100016265 | Cap | 1 | Serialno. <182 | ADD TO CART |
| 7 | 5100016266 | Plug | 1 | Serialno. <182 | ADD TO CART |
| 8 | 5100016267 | Ring | 1 | Serialno. <182 | ADD TO CART |
| 9 | 5100016268 | Ring | 1 | Serialno. <182 | ADD TO CART |
| 10 | 5100016269 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 11 | 5100012799 | Spring | 1 | Serialno. <182 | ADD TO CART |
| 12 | 5100012796 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 13 | 5100016270 | Piston | 1 | Serialno. <182 | ADD TO CART |
| 14 | 5100011574 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 100 | 5100011552 | Gear hub motor | 1 | Serialno. <182 | ADD TO CART |
| 14 | 5100033216 | Set of seals | 1 | Serialno. 183 - 303 | PARTS REQUEST |
|
COMING Set of seals
5100033216 · qty on machine: 1 Serialno. 183 - 303 | |||||
| 100 | 5100030749 | Gear hub motor | 1 | Serialno. 183 - 303 | ADD TO CART |
| 1 | 5100011954 | Set of seals | 1 | 1.01 Serialno. >304 | ADD TO CART |
| 1 | 5100012796 | Set of seals | 1 | 1.05 Serialno. >304 | ADD TO CART |
| 1 | 5100012798 | Set of seals | 1 | 1.02 Serialno. >304 | ADD TO CART |
| 1 | 5100012799 | Spring | 1 | 1.04 Serialno. >304 | ADD TO CART |
| 1 | 5100016269 | Set of seals | 1 | 1.03 Serialno. >304 | ADD TO CART |
| 1 | 5100052949 | Gear hub motor | 1 | Serialno. >304 | ADD TO CART |
Page 138 — Valve block (all-wheel lock)
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100012115 | Directional valve | 1 | Serialno. 160-586 | ADD TO CART |
| 4 | 5100012112 | Solenoid coil | 1 | Serialno. 160-586 | ADD TO CART |
| 5 | 5100012114 | Pressure-relief valve | 2 | Serialno. 160-586 | ADD TO CART |
| 7 | 5100012113 | Nozzle | 1 | Serialno. 160-586 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. 160-586 | |||||
| 9 | 5100011564 | Screw plug | 2 | Serialno. 160-586 | ADD TO CART |
| 10 | 5100011538 | Screw plug | 1 | Serialno. 160-586 | ADD TO CART |
| 11 | 5100011743 | Screw plug | 2 | Serialno. 160-586 | ADD TO CART |
| 12 | 5100012113 | Nozzle | 1 | Serialno. 160-586 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. 160-586 | |||||
| 13 | 5100011742 | O-ring seal | 1 | Serialno. 160-586 | ADD TO CART |
| 14 | 5100011741 | O-ring seal | 2 | Serialno. 160-586 | PARTS REQUEST |
|
COMING O-ring seal
5100011741 · qty on machine: 2 Serialno. 160-586 | |||||
| 15 | 5100013544 | O-ring seal | 2 | Serialno. 160-586 | ADD TO CART |
| 100 | 5100012425 | Flow divider | 1 | Serialno. 160-586 | ADD TO CART |
Page 140 — Valve block
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066935 | Piston valve | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Piston valve
5100066935 · qty on machine: 1 Serialno. >587 | |||||
| 3 | 5100066873 | Directional control valve | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Directional control valve
5100066873 · qty on machine: 1 Serialno. >587 | |||||
| 4 | 5100066884 | Solenoid coil | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Solenoid coil
5100066884 · qty on machine: 1 Serialno. >587 | |||||
| 5 | 5100012114 | Pressure-relief valve | 2 | Serialno. >587 | ADD TO CART |
| 6 | 5100066895 | Flow divider | 1 | Serialno. >587 | ADD TO CART |
| 7 | 5100012113 | Nozzle | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. >587 | |||||
| 8 | 5100066906 | Compression spring | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Compression spring
5100066906 · qty on machine: 1 Serialno. >587 | |||||
| 9 | 5100011564 | Screw plug | 2 | Serialno. >587 | ADD TO CART |
| 10 | 5100011538 | Screw plug | 1 | Serialno. >587 | ADD TO CART |
| 11 | 5100011743 | Screw plug | 2 | Serialno. >587 | ADD TO CART |
| 12 | 5100012113 | Nozzle | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. >587 | |||||
| 13 | 5100011742 | O-ring seal | 1 | Serialno. >587 | ADD TO CART |
| 14 | 5100011741 | O-ring seal | 2 | Serialno. >587 | PARTS REQUEST |
|
COMING O-ring seal
5100011741 · qty on machine: 2 Serialno. >587 | |||||
| 15 | 5100013544 | O-ring seal | 2 | Serialno. >587 | ADD TO CART |
| 100 | 5100066917 | Flow divider | 1 | Serialno. >587 | ADD TO CART |
Page 142 — Valve block (changeover vibration)
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100053421 | Piston | 2 | Serialno. 160-198 | PARTS REQUEST |
|
COMING Piston
5100053421 · qty on machine: 2 Serialno. 160-198 | |||||
| 3 | 5100053422 | Spring cap | 2 | Serialno. 160-198 | ADD TO CART |
| 4 | 5100053423 | Washer | 2 | Serialno. 160-198 | PARTS REQUEST |
|
COMING Washer
5100053423 · qty on machine: 2 Serialno. 160-198 | |||||
| 8 | 5100011987 | Directional valve | 2 | Serialno. 160-198 | ADD TO CART |
| 8 | 5100012409 | Magnet | 2 | 8.01 Serialno. 160-198 | ADD TO CART |
| 13 | 5100053424 | Spring | 2 | Serialno. 160-198 | PARTS REQUEST |
|
COMING Spring
5100053424 · qty on machine: 2 Serialno. 160-198 | |||||
| 17 | 5100011743 | Screw plug | 2 | Serialno. 160-198 | ADD TO CART |
| 18 | 5100011538 | Screw plug | 1 | Serialno. 160-198 | ADD TO CART |
| 19 | 5100011564 | Screw plug | 1 | Serialno. 160-198 | ADD TO CART |
| 20 | 5100011750 | Screw plug | 1 | Serialno. 160-198 | ADD TO CART |
| 22 | 5100013436 | O-ring seal | 1 | Serialno. 160-198 | ADD TO CART |
| 23 | 5100011501 | O-ring seal | 2 | Serialno. 160-198 | ADD TO CART |
| 100 | 5100011909 | Valve block | 1 | Serialno. 160-198 | ADD TO CART |
Page 148 — Filter (hydraulic oil)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013361 | Filter | 1 | ADD TO CART | |
| 1 | 5100013387 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100024324 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
5100024324 · qty on machine: 1 | |||||
| 1 | 5100029595 | Set of seals | 1 | ADD TO CART | |
Page 150 — Pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100016271 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100016271 · qty on machine: 1 | |||||
| 1 | 5100016272 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100016272 · qty on machine: 1 | |||||
| 1 | 5100052898 | Gear pump | 1 | ADD TO CART | |
Page 152 — Collecting block (hydraulic oil)
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012257 | Valve block | 1 | Serialno. 160-752 | PARTS REQUEST |
|
COMING Valve block
5100012257 · qty on machine: 1 Serialno. 160-752 | |||||
| 2 | 5100011642 | Scavenge valve | 1 | Serialno. 160-752 | ADD TO CART |
| 3 | 5100012111 | Nozzle | 1 | Serialno. 160-752 | PARTS REQUEST |
|
COMING Nozzle
5100012111 · qty on machine: 1 Serialno. 160-752 | |||||
| 5 | 5100012110 | O-ring seal | 1 | Serialno. 160-752 | ADD TO CART |
| 6 | 5100011516 | O-ring seal | 2 | Serialno. 160-752 | ADD TO CART |
| 7 | 5100013563 | Cheese-head screw | 4 | Serialno. 160-752 | ADD TO CART |
| 8 | 5100011538 | Screw plug | 1 | Serialno. 160-752 | ADD TO CART |
Page 154 — Manifold block
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066937 | Scavenge valve | 1 | Serialno. >753 | ADD TO CART |
| 5 | 5100012110 | O-ring seal | 1 | Serialno. >753 | ADD TO CART |
| 6 | 5100011516 | O-ring seal | 2 | Serialno. >753 | ADD TO CART |
| 7 | 5100013563 | Cheese-head screw | 4 | Serialno. >753 | ADD TO CART |
| 10 | 5100012111 | Nozzle | 1 | Serialno. >753 | PARTS REQUEST |
|
COMING Nozzle
5100012111 · qty on machine: 1 Serialno. >753 | |||||
| 12 | 5100066863 | Locking screw | 3 | Serialno. >753 | ADD TO CART |
| 13 | 5100066864 | Locking screw | 1 | Serialno. >753 | PARTS REQUEST |
|
COMING Locking screw
5100066864 · qty on machine: 1 Serialno. >753 | |||||
| 100 | 5100066866 | Valve block | 1 | Serialno. >753 | ADD TO CART |
Page 158 — Valve block (emergency stop)
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066870 | Sealing ring | 1 | ADD TO CART | |
| 3 | 5100012095 | Hollow-core screw | 1 | ADD TO CART | |
| 4 | 5100012196 | Directional valve | 1 | PARTS REQUEST | |
|
COMING Directional valve
5100012196 · qty on machine: 1 | |||||
| 5 | 5100077463 | Solenoid coil | 1 | ADD TO CART | |
| 6 | 5100013406 | O-ring seal | 1 | ADD TO CART | |
| 8 | 5100077464 | Hollow-core screw | 1 | PARTS REQUEST | |
|
COMING Hollow-core screw
5100077464 · qty on machine: 1 | |||||
| 11 | 5100012096 | Pipe | 1 | ADD TO CART | |
| 12 | 5100012198 | Sealing ring | 2 | ADD TO CART | |
| 100 | 5100012429 | Valve block | 1 | ADD TO CART | |
Page 160 — Oil tank
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 3 | 5100011824 | Washer | 2 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100011730 | Spacer pin | 2 | ADD TO CART | |
| 11 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 12 | 5100011824 | Washer | 2 | ADD TO CART | |
| 13 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 1 | 5100046360 | Hydraulic oil tank | 1 | ADD TO CART | |
| 2 | 5100012963 | Valve block | 1 | ADD TO CART | |
| 3 | 5100013527 | Cheese-head screw | 3 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 7 | 5100013505 | Banjo | 1 | PARTS REQUEST | |
|
COMING Banjo
5100013505 · qty on machine: 1 | |||||
| 12 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 13 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 16 | 5100011857 | Suction filter | 1 | ADD TO CART | |
| 16 | 5100013415 | O-ring seal | 1 | ADD TO CART | |
| 18 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 20 | 5100012419 | Filter | 1 | ADD TO CART | |
| 20 | 5100039052 | Vent filter | 1 | ADD TO CART | |
| 21 | 5100012866 | Fillister head screw | 6 | ADD TO CART | |
| 22 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 31 | 5100013475 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 | |||||
| 33 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 45 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 50 | 5100013435 | Oil level indicator | 1 | ADD TO CART | |
| 51 | 5100011730 | Spacer pin | 2 | ADD TO CART | |
| 54 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 63 | 5100013499 | Straight screwed socket | 1 | ADD TO CART | |
| 65 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 100 | 5100016828 | Vent filter | 1 | ADD TO CART | |
| 100 | 5100024927 | Special wrench | 1 | ADD TO CART | |
Page 164 — Dashboard
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100013323 | Instrument panel | 1 | ADD TO CART | |
| 20 | 5100011595 | Frame | 2 | Serialno. >614 | ADD TO CART |
| 21 | 5100011597 | Push-button | 1 | Serialno. >614 | ADD TO CART |
| 22 | 5100011580 | Blind cover | 1 | Serialno. >614 | ADD TO CART |
| 23 | 5100023546 | Rocker, preselection | 1 | Serialno. >614 | ADD TO CART |
| 30 | 5100023242 | Fixation | 1 | Serialno. >614 | ADD TO CART |
| 31 | 5100023241 | Push button | 1 | Serialno. >614 | ADD TO CART |
| 33 | 5100023527 | Label | 1 | Serialno. >614 | ADD TO CART |
| 35 | 5100023008 | Lid | 1 | Serialno. >614 | ADD TO CART |
| 100 | 5100025103 | Instrument panel | 1 | Serialno. >614 | ADD TO CART |
Page 170 — Electrical system
Parts list — exactly as printed168 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100011710 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011710 · qty on machine: 2 | |||||
| 1 | 5100013570 | Ignition switch | 1 | ADD TO CART | |
| 1 | 5100013557 | Key | 1 | ADD TO CART | |
| 2 | 5100013506 | Lid | 1 | ADD TO CART | |
| 6 | 5100012486 | Push button switch | 1 | Serialno. <183 | PARTS REQUEST |
|
COMING Push button switch
5100012486 · qty on machine: 1 Serialno. <183 | |||||
| 6 | 5100023241 | Push button | 1 | Serialno. >184 | ADD TO CART |
| 7 | 5100023242 | Fixation | 1 | Serialno. >184 | ADD TO CART |
| 10 | 5100011784 | Signal transmitter | 1 | ADD TO CART | |
| 11 | 5100012576 | Wire harness | 1 | Serialno. <183 | ADD TO CART |
| 11 | 5100039066 | Cable harness | 1 | Serialno. 184-613 | ADD TO CART |
| 12 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 13 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 14 | 5100011586 | Hexagon nut | 1 | ADD TO CART | |
| 33 | 5100012770 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100012770 · qty on machine: 1 | |||||
| 41 | 5100066914 | Wire harness instrument panel | 1 | Serialno. >614 | ADD TO CART |
| 41 | 5100012573 | Wire harness | 1 | Serialno. 160-613 | ADD TO CART |
| 58 | 5100012774 | Wire harness | 1 | ADD TO CART | |
| 59 | 5100012772 | Wire harness | 1 | ADD TO CART | |
| 61 | 5100012771 | Wire harness | 1 | ADD TO CART | |
| 65 | 5100024975 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013384 | Serrated lock washer | 2 | ADD TO CART | |
| 67 | 5100011914 | Hexagon nut | 5 | ADD TO CART | |
| 68 | 5100023629 | Spring ring | 10 | ADD TO CART | |
| 69 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 70 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 75 | 5100052961 | Washer | 1 | ADD TO CART | |
| 76 | 5100012403 | Bracket | 1 | ADD TO CART | |
| 77 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100013094 | Washer | 2 | ADD TO CART | |
| 92 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 94 | 5100011589 | Flexible tubing | 1 | ADD TO CART | |
| 146 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 147 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 148 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 149 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 150 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 151 | 5100013594 | Safety screw | 3 | ADD TO CART | |
| 152 | 5100013536 | Serrated lock washer | 3 | ADD TO CART | |
| 153 | 5100011669 | Rubber metal buffer | 3 | ADD TO CART | |
| 154 | 5100011753 | Washer | 3 | ADD TO CART | |
| 155 | 5100012898 | Hexagon nut | 3 | ADD TO CART | |
| 160 | 5100012326 | Cover plate | 1 | ADD TO CART | |
| 161 | 5100012586 | Stud bolt | 2 | ADD TO CART | |
| 162 | 5100013373 | Half-clip | 2 | ADD TO CART | |
| 163 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 164 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 165 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 210 | 5100012341 | Bracket | 1 | ADD TO CART | |
| 211 | 5100012554 | Hexagon screw | 1 | ADD TO CART | |
| 212 | 5100012968 | Locking washer | 1 | ADD TO CART | |
| 213 | 5100012453 | Spacer | 1 | ADD TO CART | |
| 220 | 5100012765 | Wire harness | 1 | ADD TO CART | |
| 222 | 5100012829 | Protecting cap | 1 | ADD TO CART | |
| 225 | 5100013184 | Protecting cap | 1 | PARTS REQUEST | |
|
COMING Protecting cap
5100013184 · qty on machine: 1 | |||||
| 226 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 240 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 241 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 242 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 243 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 298 | 5100011748 | Rear reflector | 2 | ADD TO CART | |
| 5 | 5100012833 | Wire harness | 1 | ADD TO CART | |
| 30 | 5100012766 | Wire harness (front frame) | 1 | Serialno. <198 | ADD TO CART |
| 30 | 5100053420 | Wire harness front frame | 1 | Serialno. >199 | ADD TO CART |
| 31 | 5100012767 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 32 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 34 | 5100012769 | Wire harness | 1 | ADD TO CART | |
| 35 | 5100012832 | Wire harness | 1 | ADD TO CART | |
| 71 | 5100011914 | Hexagon nut | 3 | ADD TO CART | |
| 72 | 5100023629 | Spring ring | 6 | ADD TO CART | |
| 80 | 5100012670 | Fuse holder | 1 | ADD TO CART | |
| 81 | 5100011640 | Blade fuse | 1 | ADD TO CART | |
| 95 | 5100012321 | Signal horn | 1 | ADD TO CART | |
| 97 | 5100013510 | Hexagon screw | 1 | ADD TO CART | |
| 98 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 99 | 5100011470 | Pipe clip | 1 | ADD TO CART | |
| 102 | 5100013385 | Thermosensor | 1 | ADD TO CART | |
| 104 | 5100012804 | Circuit board | 1 | ADD TO CART | |
| 105 | 5100013606 | Cheese-head screw | 2 | ADD TO CART | |
| 125 | 5100013412 | Edge protection | 0.12 | ADD TO CART | |
| 157 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 158 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 159 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 170 | 5100011849 | Built-in socket | 1 | ADD TO CART | |
| 171 | 5100012093 | Metal plate | 1 | ADD TO CART | |
| 172 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 173 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 174 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 180 | 5100013608 | Battery isolating switch | 1 | ADD TO CART | |
| 181 | 5100013466 | Hexagon screw | 2 | ADD TO CART | |
| 182 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 183 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 184 | 5100011652 | Bushing | 2 | ADD TO CART | |
| 185 | 5100013184 | Protecting cap | 2 | PARTS REQUEST | |
|
COMING Protecting cap
5100013184 · qty on machine: 2 | |||||
| 186 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 282 | 5100052976 | Ground cable operator's platform | 1 | Serialno. >295 | PARTS REQUEST |
|
COMING Ground cable operator's platform
5100052976 · qty on machine: 1 Serialno. >295 | |||||
| 286 | 5100052981 | Ground cable steering column | 1 | Serialno. >295 | PARTS REQUEST |
|
COMING Ground cable steering column
5100052981 · qty on machine: 1 Serialno. >295 | |||||
| 40 | 5100012575 | Wire harness | 1 | ADD TO CART | |
| 42 | 5100052958 | Cheese-head screw | 1 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 46 | 5100012574 | Wire harness | 1 | ADD TO CART | |
| 47 | 5100012584 | Relay | 1 | PARTS REQUEST | |
|
COMING Relay
5100012584 · qty on machine: 1 | |||||
| 48 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 50 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 60 | 5100012773 | Wire harness | 1 | ADD TO CART | |
| 73 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 74 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 94 | 5100011859 | Relay | 1 | ADD TO CART | |
| 110 | 5100011974 | Ground terminal | 2 | ADD TO CART | |
| 111 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 112 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 119 | 5100012544 | Battery | 1 | ADD TO CART | |
| 120 | 5100012173 | Metal plate | 1 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 123 | 5100013412 | Edge protection | 0.04 | ADD TO CART | |
| 134 | 5100011696 | Metal plate | 1 | ADD TO CART | |
| 135 | 5100013412 | Edge protection | 0.04 | ADD TO CART | |
| 136 | 5100013510 | Hexagon screw | 1 | ADD TO CART | |
| 137 | 5100013421 | Washer | 1 | ADD TO CART | |
| 138 | 5100013094 | Washer | 1 | ADD TO CART | |
| 139 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 140 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 201 | 5100012417 | Metal plate | 1 | ADD TO CART | |
| 202 | 5100012554 | Hexagon screw | 2 | ADD TO CART | |
| 203 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 204 | 5100012453 | Spacer | 2 | ADD TO CART | |
| 230 | 5100011465 | Pipe clip | 1 | ADD TO CART | |
| 231 | 5100012608 | Hexagon screw | 1 | ADD TO CART | |
| 232 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 251 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 1 | 5100012036 | Drive lever | 1 | ADD TO CART | |
| 2 | 5100011705 | Handle | 2 | ADD TO CART | |
| 3 | 5100011706 | Handle | 2 | ADD TO CART | |
| 5 | 5100011711 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011711 · qty on machine: 2 | |||||
| 6 | 5100011707 | Operating lever | 2 | ADD TO CART | |
| 7 | 5100012024 | Clamping sleeve | 2 | ADD TO CART | |
| 8 | 5100011708 | Cover | 2 | ADD TO CART | |
| 11 | 5100013607 | Raised countersunk head screw | 8 | ADD TO CART | |
| 12 | 5100011738 | Raised countersunk head screw | 2 | ADD TO CART | |
| 30 | 5100033217 | Cable harness | 1 | ADD TO CART | |
| 31 | 5100011709 | Circuit board | 2 | ADD TO CART | |
| 32 | 5100013600 | Sensor | 2 | ADD TO CART | |
| 34 | 5100011524 | Shrinkdown plastic tubing | 0.03 | ADD TO CART | |
| 35 | 5100011458 | Shrinkdown plastic tubing | 0.07 | ADD TO CART | |
| 36 | 5100013520 | Wire fastener | 2 | ADD TO CART | |
| 40 | 5100013641 | Round cable | 0.8 | PARTS REQUEST | |
|
COMING Round cable
5100013641 · qty on machine: 0.8 | |||||
| 1 | 5100013654 | Flange | 1 | ADD TO CART | |
| 2 | 5100013571 | Push-button | 1 | ADD TO CART | |
| 3 | 5100013636 | Protecting cap | 1 | ADD TO CART | |
| 4 | 5100013191 | Washer | 1 | ADD TO CART | |
| 5 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 1 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 5 | 5100013586 | Blade fuse | 2 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 2 | |||||
| 10 | 5100013579 | Blade fuse | 2 | ADD TO CART | |
| 15 | 5100013580 | Blade fuse | 11 | ADD TO CART | |
| 25 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 30 | 5100016273 | Serrated lock washer | 2 | ADD TO CART | |
| 31 | 5100016274 | Hexagon nut | 2 | ADD TO CART | |
| 32 | 5100011916 | Serrated lock washer | 1 | ADD TO CART | |
| 33 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 34 | 5100011917 | Serrated lock washer | 1 | ADD TO CART | |
| 35 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 40 | 5100011859 | Relay | 2 | ADD TO CART | |
| 41 | 5100011616 | Relay | 2 | ADD TO CART | |
| 42 | 5100011583 | Relay | 7 | ADD TO CART | |
| 49 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 50 | 5100012579 | Circuit board | 1 | ADD TO CART | |
Page 188 — Battery isolating switch
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100029600 | Actuating cable | 1 | ADD TO CART | |
| 2 | 5100029567 | Screw fitting | 1 | ADD TO CART | |
| 3 | 5100029565 | Ring | 1 | ADD TO CART | |
Page 190 — Electrical system (with lighting)
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5100013453 | Washer | 4 | ADD TO CART | |
| 10 | 5100017997 | Wire harness (lighting) | 1 | ADD TO CART | |
| 21 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 21 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 21 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 22 | 5100011607 | Sheet metal screw | 8 | ADD TO CART | |
| 25 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 25 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 30 | 5100012032 | Wire harness (lighting) | 1 | ADD TO CART | |
| 31 | 5100011728 | Metal plate | 4 | ADD TO CART | |
| 32 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 40 | 5100011583 | Relay | 1 | ADD TO CART | |
| 41 | 5100011583 | Relay | 1 | ADD TO CART | |
| 50 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 51 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 52 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 101 | 5100012766 | Wire harness (front frame) | 1 | Serialno. 160-198 | ADD TO CART |
| 101 | 5100053420 | Wire harness front frame | 1 | Serialno. >199 | ADD TO CART |
| 102 | 5100012767 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 1 | 5100011799 | Working light | 2 | Serialno. 160-583 | ADD TO CART |
| 1 | 5100012468 | Lamp | 2 | 1.02 Serialno. 160-583 | ADD TO CART |
| 1 | 5100013522 | Lamp | 2 | ADD TO CART | |
| 1 | 5100065328 | Headlight | 2 | Serialno. >584 | ADD TO CART |
| 1 | 5100065330 | Lamp | 1 | 1.02 Serialno. >584 | ADD TO CART |
| 2 | 5100011991 | O-ring seal | 4 | ADD TO CART | |
| 5 | 5100011800 | Direction indicator | 2 | ADD TO CART | |
| 5 | 5100012074 | Lamp | 2 | ADD TO CART | |
| 6 | 5100011739 | Fillister head screw | 4 | ADD TO CART | |
Page 192 — Additional lighting
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011606 | Working light | 4 | ADD TO CART | |
| 1 | 5100012182 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012182 · qty on machine: 1 | |||||
| 1 | 5100012939 | Washer | 1 | ADD TO CART | |
| 1 | 5100013554 | Lamp | 1 | ADD TO CART | |
| 2 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 3 | 5100024918 | Cable harness | 4 | ADD TO CART | |
| 4 | 5100013128 | Washer | 4 | ADD TO CART | |
| 5 | 5100023419 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 21 | 5100016277 | Stop | 2 | ADD TO CART | |
| 22 | 5100011504 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 25 | 5100011482 | Washer | 4 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 32 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 102 | 5100012767 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 1 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 2 | 5100052987 | Wire harness working light | 2 | ADD TO CART | |
| 5 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
Page 196 — Drum lighting
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100011583 | Relay | 1 | Serialno. <583 | ADD TO CART |
| 31 | 5100013580 | Blade fuse | 1 | Serialno. <583 | ADD TO CART |
| 35 | 5100033247 | Holder | 4 | Serialno. <583 | ADD TO CART |
| 36 | 5100035087 | Hexagon screw | 2 | Serialno. <583 | ADD TO CART |
| 37 | 5100012517 | Hexagon screw | 2 | Serialno. <583 | ADD TO CART |
| 38 | 5100012966 | Locking washer | 4 | Serialno. <583 | ADD TO CART |
| 40 | 5100024898 | Working light | 4 | Serialno. <583 | PARTS REQUEST |
|
COMING Working light
5100024898 · qty on machine: 4 Serialno. <583 | |||||
| 42 | 5100033248 | Cable harness | 2 | Serialno. <583 | ADD TO CART |
| 35 | 5100066907 | Holder | 4 | Serialno. >584 | ADD TO CART |
| 40 | 5100066908 | Working light | 4 | Serialno. >584 | ADD TO CART |
| 41 | 5100011578 | Mushroom head screw | 4 | Serialno. >584 | ADD TO CART |
| 42 | 5100053004 | Safety nut | 4 | Serialno. >584 | ADD TO CART |
| 45 | 5100066909 | Bushing | 4 | Serialno. >584 | ADD TO CART |
| 62 | 5100077465 | Cable harness | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Cable harness
5100077465 · qty on machine: 1 Serialno. >584 | |||||
Page 200 — Rotating beacon light
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011941 | Rotary beacon | 1 | ADD TO CART | |
| 1 | 5100013538 | Lamp | 1 | ADD TO CART | |
| 2 | 5100013517 | Pipe | 1 | ADD TO CART | |
| 5 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 6 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 7 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100011868 | Weld-on plate | 1 | ADD TO CART | |
| 10 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 11 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 3 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 4 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 5 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100024896 | Holder | 1 | ADD TO CART | |
| 7 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 11 | 5100013429 | Wire fastener | 4 | ADD TO CART | |
| 12 | 5100024897 | Cable harness | 1 | ADD TO CART | |
| 21 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 42 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 1 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 2 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 2 | 5100023984 | Holder | 1 | ADD TO CART | |
| 5 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100052988 | Wire harness rotating beacon | 1 | ADD TO CART | |
Page 206 — Back-up alarm
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012887 | Reversing alarm 12v-24v dc | 1 | ADD TO CART | |
| 2 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 3 | 5100011636 | Washer | 2 | ADD TO CART | |
| 4 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100012833 | Wire harness | 1 | ADD TO CART | |
| 2 | 5100029555 | Back-up alarm | 1 | ADD TO CART | |
| 3 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100011636 | Washer | 2 | ADD TO CART | |
| 5 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 10 | 5100029553 | Holder | 1 | ADD TO CART | |
| 11 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100012833 | Wire harness | 1 | ADD TO CART | |
| 26 | 5100029559 | Cable harness | 1 | ADD TO CART | |
| 27 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 29 | 5100029599 | Relay | 1 | ADD TO CART | |
Page 210 — Advance drive
Parts list — exactly as printed69 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 181 | 5100077466 | Hose | 1 | ADD TO CART | |
| 182 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 183 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 184 | 5100013361 | Filter | 1 | ADD TO CART | |
| 185 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 186 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 190 | 5100013595 | Flexible tubing | 1 | ADD TO CART | |
| 192 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 193 | 5100013480 | T-piece adjustable | 1 | ADD TO CART | |
| 194 | 5100011645 | Flexible tubing | 1 | ADD TO CART | |
| 195 | 5100012091 | Reducing piece | 1 | ADD TO CART | |
| 196 | 5100012190 | Straight screwed socket | 1 | ADD TO CART | |
| 197 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 198 | 5100013603 | Straight screwed socket | 1 | ADD TO CART | |
| 1 | 5100013430 | Sae-flange half | 4 | ADD TO CART | |
| 2 | 5100013431 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100011587 | Safety screw | 8 | ADD TO CART | |
| 5 | 5100012281 | Flexible tubing | 1 | ADD TO CART | |
| 6 | 5100012282 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100013212 | Straight screwed socket | 2 | ADD TO CART | |
| 8 | 5100013484 | Elbow adjustable | 2 | ADD TO CART | |
| 10 | 5100012257 | Valve block | 1 | Serialno. <752 | PARTS REQUEST |
|
COMING Valve block
5100012257 · qty on machine: 1 Serialno. <752 | |||||
| 10 | 5100012390 | Valve block | 1 | Serialno. <755 | ADD TO CART |
| 10 | 5100066866 | Valve block | 1 | Serialno. >753 | ADD TO CART |
| 10 | 5100066869 | Valve block | 1 | Serialno. >756 | ADD TO CART |
| 11 | 5100012284 | Plate | 1 | ADD TO CART | |
| 13 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 14 | 5100012513 | Hexagon screw | 2 | ADD TO CART | |
| 16 | 5100012908 | Stud bolt | 2 | ADD TO CART | |
| 17 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 18 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 63 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 64 | 5100011662 | Flexible tubing | 1 | ADD TO CART | |
| 65 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 66 | 5100012283 | Flexible tubing | 1 | ADD TO CART | |
| 67 | 5100012418 | Nonreturn valve | 1 | ADD TO CART | |
| 68 | 5100013481 | T-piece adjustable | 1 | ADD TO CART | |
| 69 | 5100013471 | Straight screwed socket | 1 | ADD TO CART | |
| 70 | 5100013578 | Straight screwed socket | 1 | ADD TO CART | |
| 71 | 5100011456 | Flexible tubing | 1 | ADD TO CART | |
| 72 | 5100013505 | Banjo | 1 | PARTS REQUEST | |
|
COMING Banjo
5100013505 · qty on machine: 1 | |||||
| 171 | 5100012429 | Valve block | 1 | ADD TO CART | |
| 201 | 5100011532 | Pipe clip | 1 | ADD TO CART | |
| 202 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 203 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 21 | 5100013539 | Straight screwed socket | 4 | ADD TO CART | |
| 22 | 5100012275 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100012293 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100012276 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100012294 | Flexible tubing | 1 | ADD TO CART | |
| 27 | 5100011416 | Intermediate piece | 2 | ADD TO CART | |
| 28 | 5100012274 | Flexible tubing | 1 | ADD TO CART | |
| 28 | 5100012292 | Flexible tubing | 1 | ADD TO CART | |
| 29 | 5100012273 | Flexible tubing | 1 | ADD TO CART | |
| 29 | 5100012291 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100013489 | Straight screwed socket | 4 | ADD TO CART | |
| 41 | 5100013475 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 2 | |||||
| 43 | 5100012279 | Flexible tubing | 1 | ADD TO CART | |
| 43 | 5100012295 | Flexible tubing | 1 | ADD TO CART | |
| 52 | 5100013619 | Elbow adjustable | 1 | ADD TO CART | |
| 53 | 5100012280 | Flexible tubing | 1 | ADD TO CART | |
| 53 | 5100012296 | Flexible tubing | 1 | ADD TO CART | |
| 54 | 5100013472 | Straight screwed socket | 2 | ADD TO CART | |
| 101 | 5100011879 | Half-clip | 6 | ADD TO CART | |
| 102 | 5100012977 | Stud bolt | 6 | ADD TO CART | |
| 103 | 5100011880 | Metal plate | 3 | ADD TO CART | |
| 104 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 105 | 5100012546 | Hexagon nut | 6 | ADD TO CART | |
| 210 | 5100013429 | Wire fastener | 10 | ADD TO CART | |
Page 216 — Drive shifting
Parts list — exactly as printed50 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 70 | 5100012192 | Metal plate | 1 | ADD TO CART | |
| 1 | 5100012035 | Mounting device | 1 | ADD TO CART | |
| 2 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 5 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 6 | 5100012671 | Countersunk screw | 6 | ADD TO CART | |
| 10 | 5100012037 | Drive lever | 1 | ADD TO CART | |
| 11 | 5100023200 | Hexagon screw | 1 | ADD TO CART | |
| 12 | 5100011819 | Compression spring | 1 | ADD TO CART | |
| 13 | 5100011791 | Distance bush | 2 | ADD TO CART | |
| 14 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 15 | 5100013166 | Spring-thrust piece | 1 | ADD TO CART | |
| 16 | 5100013400 | Hexagon nut | 1 | ADD TO CART | |
| 18 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 19 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 44 | 5100013468 | Hexagon screw | 1 | ADD TO CART | |
| 45 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 46 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 47 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 48 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 49 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 50 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 52 | 5100012191 | Metal plate | 1 | ADD TO CART | |
| 53 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 54 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 55 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 57 | 5100011443 | Cheese-head screw | 2 | ADD TO CART | |
| 61 | 5100012195 | Set of adjustment bars | 1 | ADD TO CART | |
| 65 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 66 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 67 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 68 | 5100011869 | Fillister head screw | 2 | ADD TO CART | |
| 71 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 72 | 5100013094 | Washer | 3 | ADD TO CART | |
| 73 | 5100013421 | Washer | 1 | ADD TO CART | |
| 74 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 75 | 5100012717 | Metal plate | 1 | ADD TO CART | |
| 76 | 5100012600 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 3 | |||||
| 77 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 79 | 5100013412 | Edge protection | 0.2 | ADD TO CART | |
| 90 | 5100012154 | Bracket | 1 | ADD TO CART | |
| 91 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 92 | 5100012554 | Hexagon screw | 2 | ADD TO CART | |
| 93 | 5100012241 | Actuating cable | 1 | ADD TO CART | |
| 93 | 5100011949 | Bellows | 1 | ADD TO CART | |
| 93 | 5100011951 | Joint-head | 1 | ADD TO CART | |
| 93 | 5100012333 | Angle joint | 1 | ADD TO CART | |
| 94 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 95 | 5100035308 | Hexagon screw | 1 | ADD TO CART | |
| 96 | 5100053004 | Safety nut | 1 | ADD TO CART | |
Page 220 — Parking brake
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012963 | Valve block | 1 | ADD TO CART | |
| 3 | 5100013527 | Cheese-head screw | 3 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 7 | 5100013505 | Banjo | 1 | PARTS REQUEST | |
|
COMING Banjo
5100013505 · qty on machine: 1 | |||||
| 8 | 5100013482 | Elbow adjustable | 1 | ADD TO CART | |
| 12 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 13 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 21 | 5100011566 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100011754 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100011609 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100012840 | Flexible tubing | 1 | ADD TO CART | |
| 24 | 5100013492 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 | |||||
| 50 | 5100011417 | Pipe clip | 1 | ADD TO CART | |
| 51 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 52 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 53 | 5100013572 | Protecting cap | 1 | ADD TO CART | |
Page 222 — All-wheel lock
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012425 | Flow divider | 1 | Serialno. <586 | ADD TO CART |
| 1 | 5100066917 | Flow divider | 1 | Serialno. >587 | ADD TO CART |
| 2 | 5100011497 | Cheese-head screw | 4 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 11 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 22 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 23 | 5100012834 | Wire harness | 1 | Serialno. 160 - 586 | ADD TO CART |
| 27 | 5100012499 | Sticker | 1 | PARTS REQUEST | |
|
COMING Sticker
5100012499 · qty on machine: 1 | |||||
| 30 | 5100012766 | Wire harness (front frame) | 1 | Serialno. <198 | ADD TO CART |
| 30 | 5100053420 | Wire harness front frame | 1 | Serialno. >199 | ADD TO CART |
Page 224 — Articulated pendulum joint
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012018 | Pendulum joint | 1 | ADD TO CART | |
| 3 | 5100012911 | Stud bolt | 6 | ADD TO CART | |
| 4 | 5100016501 | Washer | 6 | ADD TO CART | |
| 5 | 5100012548 | Hexagon nut | 6 | ADD TO CART | |
| 10 | 5100011782 | Sealing ring | 1 | ADD TO CART | |
| 11 | 5100013610 | Rod end ball joint | 1 | ADD TO CART | |
| 12 | 5100011779 | Clamping piece | 1 | ADD TO CART | |
| 13 | 5100011481 | Cheese-head screw | 2 | ADD TO CART | |
| 14 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 15 | 5100011778 | Clamping piece | 1 | ADD TO CART | |
| 16 | 5100012725 | Cheese-head screw | 3 | ADD TO CART | |
| 17 | 5100012084 | Cover | 1 | ADD TO CART | |
| 18 | 5100035087 | Hexagon screw | 6 | ADD TO CART | |
| 19 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 20 | 5100011780 | Pendulum suspension | 1 | ADD TO CART | |
| 20 | 5100011644 | Radial rod end bearing | 2 | ADD TO CART | |
| 20 | 5100012479 | Greasing nipple | 2 | ADD TO CART | |
| 21 | 5100011761 | Sealing ring | 4 | PARTS REQUEST | |
|
COMING Sealing ring
5100011761 · qty on machine: 4 | |||||
| 22 | 5100011781 | Clamping piece | 2 | ADD TO CART | |
| 23 | 5100012724 | Cheese-head screw | 4 | ADD TO CART | |
| 30 | 5100012245 | Safety strut | 1 | ADD TO CART | |
| 31 | 5100013432 | Rubber buffer | 1 | ADD TO CART | |
| 32 | 5100013607 | Raised countersunk head screw | 1 | ADD TO CART | |
| 33 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 34 | 5100011731 | Rubber washer | 2 | ADD TO CART | |
| 35 | 5100011493 | Hexagon screw | 1 | ADD TO CART | |
| 36 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 37 | 5100035686 | Safety nut | 1 | ADD TO CART | |
| 40 | 5100012009 | Bolt | 1 | ADD TO CART | |
| 41 | 5100011803 | W-clip | 1 | ADD TO CART | |
| 42 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 52 | 5100011777 | Radial rod end bearing | 1 | ADD TO CART | |
Page 226 — Steering
Parts list — exactly as printed61 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012220 | Straight flange joint | 1 | Serialno. 160 - 726 | ADD TO CART |
| 1 | 5100012723 | Cheese-head screw | 4 | 1.02 Serialno. 160 - 726 | ADD TO CART |
| 1 | 5100012942 | Spring ring | 4 | 1.03 Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Spring ring
5100012942 · qty on machine: 4 1.03 Serialno. 160 - 726 | |||||
| 1 | 5100013612 | O-ring seal | 1 | 1.01 Serialno. 160 - 726 | ADD TO CART |
| 8 | 5100012841 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100012215 | Angle flange screwing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100012723 | Cheese-head screw | 2 | 10.03 Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100012942 | Spring ring | 4 | 10.04 Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Spring ring
5100012942 · qty on machine: 4 10.04 Serialno. 160 - 726 | |||||
| 10 | 5100013189 | Cheese-head screw | 2 | 10.02 Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100013612 | O-ring seal | 1 | 10.01 Serialno. 160 - 726 | ADD TO CART |
| 11 | 5100012543 | Elbow adjustable | 1 | Serialno. 160 - 726 | ADD TO CART |
| 15 | 5100012842 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 17 | 5100013447 | Straight screwed socket | 1 | Serialno. 160 - 726 | ADD TO CART |
| 18 | 5100012072 | Elbow adjustable | 1 | Serialno. 160 - 726 | ADD TO CART |
| 19 | 5100012278 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 20 | 5100013553 | Straight screwed socket | 1 | Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100012657 | Steering unit + connect. plate | 1 | Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Steering unit + connect. plate
5100012657 · qty on machine: 1 Serialno. 160 - 726 | |||||
| 21 | 5100011593 | Steering unit | 1 | 21.01 Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100011736 | O-ring seal | 4 | 21.04 Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100012655 | Connection plate | 1 | 21.02 Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100013528 | Cheese-head screw | 2 | 21.03 Serialno. 160 - 726 | ADD TO CART |
| 25 | 5100013433 | Straight screwed socket | 2 | Serialno. 160 - 726 | ADD TO CART |
| 26 | 5100013499 | Straight screwed socket | 2 | Serialno. 160 - 726 | ADD TO CART |
| 31 | 5100013475 | Straight screwed socket | 1 | Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 Serialno. 160 - 726 | |||||
| 32 | 5100012800 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 41 | 5100012801 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 42 | 5100012989 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 43 | 5100013492 | Straight screwed socket | 2 | Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 Serialno. 160 - 726 | |||||
| 45 | 5100013474 | Straight screwed socket | 1 | Serialno. 160 - 726 | ADD TO CART |
| 46 | 5100012831 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 47 | 5100013485 | Bulkhead elbow | 1 | Serialno. 160 - 726 | ADD TO CART |
| 48 | 5100012969 | Locking washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 49 | 5100013487 | Hexagon nut | 1 | Serialno. 160 - 726 | ADD TO CART |
| 50 | 5100013532 | Elbow adjustable | 1 | Serialno. 160 - 726 | ADD TO CART |
| 51 | 5100012028 | Hydraulic cylinder | 1 | Serialno. 160 - 726 | ADD TO CART |
| 51 | 5100011563 | Radial rod end bearing | 1 | 51.02 Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 51.02 Serialno. 160 - 726 | |||||
| 51 | 5100011685 | Set of seals | 1 | 51.01 Serialno. 160 - 726 | ADD TO CART |
| 51 | 5100012481 | Greasing nipple | 1 | 51.03 Serialno. 160 - 726 | ADD TO CART |
| 52 | 5100011777 | Radial rod end bearing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 53 | 5100011776 | Bolt | 1 | Serialno. 160 - 726 | ADD TO CART |
| 54 | 5100011680 | Spacer ring | 2 | Serialno. 160 - 726 | ADD TO CART |
| 55 | 5100013560 | Seal | 2 | Serialno. 160 - 726 | ADD TO CART |
| 56 | 5100012550 | Hexagon nut | 1 | Serialno. 160 - 726 | ADD TO CART |
| 57 | 5100012955 | Locking washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 60 | 5100012479 | Greasing nipple | 1 | Serialno. 160 - 726 | ADD TO CART |
| 61 | 5100011820 | Spacer ring | 1 | Serialno. 160 - 726 | ADD TO CART |
| 62 | 5100011695 | U-washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 63 | 5100013463 | Cheese-head screw | 1 | Serialno. 160 - 726 | ADD TO CART |
| 65 | 5100012644 | Steering column | 1 | Serialno. 160 - 726 | ADD TO CART |
| 66 | 5100013450 | Cheese-head screw | 2 | Serialno. 160 - 726 | ADD TO CART |
| 67 | 5100012967 | Locking washer | 4 | Serialno. 160 - 726 | ADD TO CART |
| 68 | 5100012783 | Cheese-head screw | 2 | Serialno. 160 - 726 | ADD TO CART |
| 70 | 5100011912 | Steering wheel | 1 | Serialno. 160 - 726 | ADD TO CART |
| 70 | 5100012392 | Turning handle | 1 | 70.01 Serialno. 160 - 726 | ADD TO CART |
| 70 | 5100012393 | Cover | 1 | 70.02 Serialno. 160 - 726 | ADD TO CART |
| 71 | 5100013413 | Washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 72 | 5100013400 | Hexagon nut | 1 | Serialno. 160 - 726 | ADD TO CART |
| 80 | 5100013429 | Wire fastener | 10 | Serialno. 160 - 726 | ADD TO CART |
| 19 | 5100077468 | Hose | 1 | Serialno. >727 | PARTS REQUEST |
|
COMING Hose
5100077468 · qty on machine: 1 Serialno. >727 | |||||
| 22 | 5100013499 | Straight screwed socket | 1 | Serialno. >727 | ADD TO CART |
| 70 | 5100065336 | Lid | 70 | 70.02 Serialno. >727 | ADD TO CART |
Page 234 — Water sprinkler
Parts list — exactly as printed78 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100011851 | Rubber sleeve | 4 | ADD TO CART | |
| 8 | 5100011850 | Rubber sleeve | 3 | ADD TO CART | |
| 9 | 5100011815 | Tank cap | 1 | ADD TO CART | |
| 10 | 5100011931 | O-ring seal | 1 | ADD TO CART | |
| 11 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 21 | 5100073199 | Holder | 4 | ADD TO CART | |
| 55 | 5100011718 | Metal plate | 4 | ADD TO CART | |
| 56 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 57 | 5100012978 | Stud bolt | 8 | ADD TO CART | |
| 65 | 5100011812 | Drain plug | 1 | ADD TO CART | |
| 66 | 5100011865 | O-ring seal | 1 | ADD TO CART | |
| 67 | 5100011864 | O-ring seal | 1 | ADD TO CART | |
| 68 | 5100011862 | Compression spring | 1 | ADD TO CART | |
| 69 | 5100011830 | Strainer | 1 | ADD TO CART | |
| 78 | 5100012259 | Float | 1 | ADD TO CART | |
| 79 | 5100012258 | Inspection glass | 1 | ADD TO CART | |
| 80 | 5100011656 | Filler cap | 1 | ADD TO CART | |
| 81 | 5100011873 | Pipe clip | 1 | ADD TO CART | |
| 82 | 5100012000 | Sheet metal screw | 1 | ADD TO CART | |
| 100 | 5100052635 | Water tank | 1 | ADD TO CART | |
| 103 | 5100012713 | Rubber metal buffer | 4 | ADD TO CART | |
| 104 | 5100013523 | Washer | 2 | ADD TO CART | |
| 105 | 5100011526 | Elbow | 3 | ADD TO CART | |
| 107 | 5100011444 | Elbow | 3 | ADD TO CART | |
| 109 | 5100013557 | Key | 1 | ADD TO CART | |
| 109 | 5100059525 | Tank cap, with lock | 1 | ADD TO CART | |
| 151 | 5100011906 | Metal plate | 1 | ADD TO CART | |
| 152 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 153 | 5100013646 | Flexible tubing | 0.65 | ADD TO CART | |
| 175 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 250 | 5100012140 | Key | 1 | ADD TO CART | |
| 251 | 5100012880 | Cover plate | 2 | ADD TO CART | |
| 60 | 5100011719 | Metal plate | 4 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 62 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 75 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 91 | 5100012498 | Safety screw | 3 | ADD TO CART | |
| 93 | 5100013646 | Flexible tubing | 0.5 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 101 | 5100011670 | Flexible tubing | 1.6 | ADD TO CART | |
| 102 | 5100011670 | Flexible tubing | 2.1 | ADD TO CART | |
| 106 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 107 | 5100012705 | Cheese-head screw | 6 | ADD TO CART | |
| 108 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 106 | 5100012705 | Cheese-head screw | 6 | ADD TO CART | |
| 107 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 30 | ADD TO CART | |
| 100 | 5100011863 | T-reducing socket | 1 | ADD TO CART | |
| 103 | 5100012218 | Angle | 1 | ADD TO CART | |
| 104 | 5100013639 | Flexible tubing | 0.29 | ADD TO CART | |
| 108 | 5100013367 | Hose clip | 6 | ADD TO CART | |
| 109 | 5100013639 | Flexible tubing | 0.18 | ADD TO CART | |
| 110 | 5100011898 | Nozzle holder | 1 | ADD TO CART | |
| 110 | 5100011534 | Membrane | 1 | ADD TO CART | |
| 110 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 110 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 110 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 113 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 113 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 113 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 113 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 113 | 5100011534 | Membrane | 1 | ADD TO CART | |
| 115 | 5100011529 | Sprinkler nozzle | 3 | ADD TO CART | |
| 116 | 5100011488 | Nut | 3 | ADD TO CART | |
| 117 | 5100011489 | Filtering screen | 3 | ADD TO CART | |
| 121 | 5100013639 | Flexible tubing | 0.125 | ADD TO CART | |
| 130 | 5100012090 | Cheese-head screw | 6 | ADD TO CART | |
| 131 | 5100013536 | Serrated lock washer | 6 | ADD TO CART | |
| 132 | 5100012898 | Hexagon nut | 6 | ADD TO CART | |
| 300 | 5100012219 | Sprinkling | 2 | ADD TO CART | |
| 85 | 5100013374 | Water pump | 1 | ADD TO CART | |
| 86 | 5100011528 | Rubber piece | 4 | ADD TO CART | |
| 87 | 5100013523 | Washer | 4 | ADD TO CART | |
| 88 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 92 | 5100011527 | Angle screwed socket | 1 | ADD TO CART | |
| 94 | 5100011666 | Angle screwed socket | 1 | ADD TO CART | |
| 96 | 5100011845 | Mounting device | 1 | ADD TO CART | |
| 97 | 5100013531 | Filler cap | 1 | ADD TO CART | |
Page 246 — Water pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100013389 | Pump housing | 1 | ADD TO CART | |
| 5 | 5100013391 | Valve insert | 1 | ADD TO CART | |
| 10 | 5100013390 | Pump housing | 1 | ADD TO CART | |
| 100 | 5100013374 | Water pump | 1 | ADD TO CART | |
Page 248 — Antifreezing device
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100011943 | Ball-closure cock | 1 | ADD TO CART | |
| 11 | 5100011942 | Adapter | 1 | ADD TO CART | |
| 12 | 5100012598 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 2 | |||||
| 13 | 5100012936 | Washer | 4 | ADD TO CART | |
| 14 | 5100011599 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100011527 | Angle screwed socket | 3 | ADD TO CART | |
| 22 | 5100013413 | Washer | 2 | ADD TO CART | |
| 25 | 5100013646 | Flexible tubing | 0.59 | ADD TO CART | |
| 26 | 5100013646 | Flexible tubing | 0.86 | ADD TO CART | |
| 27 | 5100013646 | Flexible tubing | 0.59 | ADD TO CART | |
| 60 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 10 | 5100029536 | Union | 1 | ADD TO CART | |
| 11 | 5100013646 | Flexible tubing | 0.06 | ADD TO CART | |
| 12 | 5100013646 | Flexible tubing | 0.65 | ADD TO CART | |
| 13 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 16 | 5100011472 | Ball-closure cock | 1 | ADD TO CART | |
| 17 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 25 | 5100029568 | Holder | 1 | ADD TO CART | |
| 26 | 5100012598 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 1 | |||||
| 27 | 5100012936 | Washer | 2 | ADD TO CART | |
| 28 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 61 | 5100013429 | Wire fastener | 1 | ADD TO CART | |
Page 254 — Bypass oil filter
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100029576 | Pressure filter | 1 | Serialno. 160 - 583 | ADD TO CART |
| 2 | 5100033220 | Filter insert | 1 | ADD TO CART | |
| 3 | 5100012515 | Hexagon screw | 2 | Serialno. 160 - 583 | ADD TO CART |
| 4 | 5100012966 | Locking washer | 2 | Serialno. 160 - 583 | ADD TO CART |
| 8 | 5100033221 | Holder | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Holder
5100033221 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 9 | 5100053249 | Hexagon screw | 2 | Serialno. 160 - 583 | ADD TO CART |
| 10 | 5100012966 | Locking washer | 4 | Serialno. 160 - 583 | ADD TO CART |
| 11 | 5100033222 | Distance ring | 2 | Serialno. 160 - 583 | ADD TO CART |
| 12 | 5100012546 | Hexagon nut | 2 | Serialno. 160 - 583 | ADD TO CART |
| 20 | 5100013434 | Straight screwed socket | 1 | Serialno. 160 - 583 | ADD TO CART |
| 21 | 5100029538 | Elbow adjustable | 1 | Serialno. 160 - 583 | ADD TO CART |
| 23 | 5100033223 | Hose | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Hose
5100033223 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 24 | 5100029575 | Straight screwed socket | 1 | Serialno. 160 - 583 | ADD TO CART |
| 29 | 5100029581 | Screwed socket | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Screwed socket
5100029581 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 30 | 5100029538 | Elbow adjustable | 1 | Serialno. 160 - 583 | ADD TO CART |
| 31 | 5100033224 | Hose | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Hose
5100033224 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 32 | 5100013532 | Elbow adjustable | 1 | Serialno. 160 - 583 | ADD TO CART |
| 3 | 5100065307 | Filter | 1 | Serialno. >584 | ADD TO CART |
| 3 | 5100066879 | Filter insert | 1 | 3.01 Serialno. >584 | ADD TO CART |
| 4 | 5100012515 | Hexagon screw | 2 | Serialno. >584 | ADD TO CART |
| 5 | 5100012966 | Locking washer | 2 | Serialno. >584 | ADD TO CART |
| 6 | 5100066880 | Holder | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Holder
5100066880 · qty on machine: 1 Serialno. >584 | |||||
| 7 | 5100012613 | Hexagon screw | 2 | Serialno. >584 | ADD TO CART |
| 8 | 5100012966 | Locking washer | 2 | Serialno. >584 | ADD TO CART |
| 10 | 5100029551 | Straight screwed socket | 2 | Serialno. >584 | ADD TO CART |
| 11 | 5100065322 | Pipe bend | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Pipe bend
5100065322 · qty on machine: 1 Serialno. >584 | |||||
| 12 | 5100065308 | Pressure reducing valve | 1 | Serialno. >584 | ADD TO CART |
| 13 | 5100034772 | Hexagon screw | 2 | Serialno. >584 | ADD TO CART |
| 14 | 5100012965 | Locking washer | 2 | Serialno. >584 | ADD TO CART |
| 15 | 5100048634 | Straight screwed socket | 2 | Serialno. >584 | ADD TO CART |
| 20 | 5100029538 | Elbow adjustable | 1 | Serialno. >584 | ADD TO CART |
| 21 | 5100066881 | Hose | 1 | Serialno. >584 | ADD TO CART |
| 22 | 5100013454 | Straight screwed socket | 1 | Serialno. >584 | ADD TO CART |
| 25 | 5100011546 | Pipe clip | 1 | Serialno. >584 | ADD TO CART |
| 30 | 5100066882 | Hose | 1 | Serialno. >584 | ADD TO CART |
| 31 | 5100029538 | Elbow adjustable | 1 | Serialno. >584 | ADD TO CART |
| 32 | 5100013454 | Straight screwed socket | 1 | Serialno. >584 | ADD TO CART |
| 35 | 5100065310 | Sealing | 1 | Serialno. >584 | ADD TO CART |
| 36 | 5100065311 | Distance ring | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Distance ring
5100065311 · qty on machine: 1 Serialno. >584 | |||||
| 37 | 5100012090 | Cheese-head screw | 6 | Serialno. >584 | ADD TO CART |
| 38 | 5100013558 | Sealing ring | 6 | Serialno. >584 | ADD TO CART |
| 50 | 5100046875 | Sealing tape | 0.09 | Serialno. >584 | ADD TO CART |
Page 258 — Suspension (roller drum)
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012342 | Spacer block | 2 | Serialno. <303 | ADD TO CART |
| 2 | 5100053012 | Hexagon screw | 4 | Serialno. <303 | ADD TO CART |
| 3 | 5100011933 | Cup spring | 8 | Serialno. <303 | ADD TO CART |
| 5 | 5100012026 | Bow plate | 2 | Serialno. <303 | ADD TO CART |
| 6 | 5100012027 | Metal plate | 4 | Serialno. <303 | ADD TO CART |
| 7 | 5100012958 | Hexagon screw | 6 | Serialno. <303 | ADD TO CART |
| 8 | 5100013235 | Hexagon screw | 2 | Serialno. <303 | ADD TO CART |
| 9 | 5100012969 | Locking washer | 8 | Serialno. <303 | ADD TO CART |
| 21 | 5100011704 | Carrier star | 2 | Serialno. <303 | ADD TO CART |
| 22 | 5100012405 | Hexagon nut | 12 | Serialno. <303 | ADD TO CART |
| 23 | 5100012969 | Locking washer | 12 | Serialno. <303 | ADD TO CART |
| 25 | 5100011552 | Gear hub motor | 2 | Serialno. <182 | ADD TO CART |
| 25 | 5100030749 | Gear hub motor | 1 | Serialno. 183 - 303 | ADD TO CART |
| 26 | 5100012511 | Cheese-head screw | 10 | Serialno. <303 | ADD TO CART |
| 27 | 5100012969 | Locking washer | 10 | Serialno. <303 | ADD TO CART |
| 30 | 5100012789 | Cheese-head screw | 14 | Serialno. <303 | ADD TO CART |
| 31 | 5100012968 | Locking washer | 28 | Serialno. <303 | ADD TO CART |
| 32 | 5100012548 | Hexagon nut | 14 | Serialno. <303 | ADD TO CART |
Page 260 — Mounting
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012342 | Spacer block | 2 | Serialno. >304 | ADD TO CART |
| 2 | 5100053012 | Hexagon screw | 4 | Serialno. >304 | ADD TO CART |
| 3 | 5100011933 | Cup spring | 8 | Serialno. >304 | ADD TO CART |
| 5 | 5100012026 | Bow plate | 2 | Serialno. >304 | ADD TO CART |
| 6 | 5100012027 | Metal plate | 4 | Serialno. >304 | ADD TO CART |
| 7 | 5100012958 | Hexagon screw | 6 | Serialno. >304 | ADD TO CART |
| 8 | 5100013235 | Hexagon screw | 2 | Serialno. >304 | ADD TO CART |
| 9 | 5100012969 | Locking washer | 8 | Serialno. >304 | ADD TO CART |
| 21 | 5100053011 | Driver | 2 | Serialno. >304 | ADD TO CART |
| 22 | 5100012969 | Locking washer | 12 | Serialno. >304 | ADD TO CART |
| 23 | 5100012405 | Hexagon nut | 12 | Serialno. >304 | ADD TO CART |
| 25 | 5100052949 | Gear hub motor | 2 | Serialno. >304 | ADD TO CART |
| 26 | 5100048107 | Cheese-head screw | 16 | Serialno. >304 | ADD TO CART |
| 27 | 5100012968 | Locking washer | 16 | Serialno. >304 | ADD TO CART |
| 30 | 5100048107 | Cheese-head screw | 14 | Serialno. >304 | ADD TO CART |
| 31 | 5100012968 | Locking washer | 14 | Serialno. >304 | ADD TO CART |
Page 264 — Scraper
Parts list — exactly as printed56 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 17 | 5100013521 | Washer | 9 | ADD TO CART | |
| 1 | 5100013080 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 5 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 6 | 5100011585 | Cheese-head screw | 4 | ADD TO CART | |
| 51 | 5100013081 | Scraper | 1 | ADD TO CART | |
| 52 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 53 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 55 | 5100013047 | Holder-up | 1 | PARTS REQUEST | |
|
COMING Holder-up
5100013047 · qty on machine: 1 | |||||
| 56 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 101 | 5100013080 | Scraper | 1 | ADD TO CART | |
| 102 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 103 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 105 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 106 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 151 | 5100013082 | Scraper | 1 | ADD TO CART | |
| 152 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 153 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 155 | 5100013065 | Holder-up | 1 | ADD TO CART | |
| 158 | 5100034697 | Countersunk screw | 2 | ADD TO CART | |
| 11 | 5100012261 | Plastic scraper | 1 | ADD TO CART | |
| 12 | 5100012260 | Metal plate | 1 | ADD TO CART | |
| 13 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 14 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 15 | 5100012085 | Mushroom head screw | 5 | ADD TO CART | |
| 16 | 5100011584 | Mushroom head screw | 4 | ADD TO CART | |
| 19 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 20 | 5100013040 | Bracket | 1 | ADD TO CART | |
| 21 | 5100012932 | Handle | 1 | ADD TO CART | |
| 22 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 23 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011483 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100011483 · qty on machine: 1 | |||||
| 26 | 5100013577 | Washer | 2 | ADD TO CART | |
| 27 | 5100013045 | Bracket | 1 | ADD TO CART | |
| 28 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 29 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 30 | 5100013068 | Bracket | 1 | ADD TO CART | |
| 31 | 5100012602 | Safety nut | 1 | ADD TO CART | |
| 35 | 5100013574 | Toggle with bolt | 1 | ADD TO CART | |
| 36 | 5100013575 | Compression spring | 1 | ADD TO CART | |
| 37 | 5100013576 | Grooved pin | 1 | ADD TO CART | |
| 40 | 5100011483 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100011483 · qty on machine: 1 | |||||
| 41 | 5100013577 | Washer | 2 | ADD TO CART | |
| 42 | 5100013046 | Bracket | 1 | ADD TO CART | |
| 43 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 44 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 45 | 5100013069 | Bracket | 1 | ADD TO CART | |
| 46 | 5100012602 | Safety nut | 1 | ADD TO CART | |
| 27 | 5100013055 | Foot lever | 1 | ADD TO CART | |
| 30 | 5100013056 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013034 | Bracket | 1 | ADD TO CART | |
| 45 | 5100013056 | Bracket | 1 | ADD TO CART | |
| 27 | 5100013192 | Bracket | 1 | ADD TO CART | |
| 29 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
Page 272 — Scraper rigid
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100013521 | Washer | 2 | ADD TO CART | |
| 7 | 5100013521 | Washer | 7 | ADD TO CART | |
| 51 | 5100016514 | Scraper | 2 | ADD TO CART | |
| 52 | 5100016515 | Scraper | 1 | ADD TO CART | |
| 53 | 5100016516 | Scraper | 1 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 56 | 5100012520 | Hexagon screw | 16 | ADD TO CART | |
| 59 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 1 | 5100012261 | Plastic scraper | 1 | ADD TO CART | |
| 2 | 5100012260 | Metal plate | 1 | ADD TO CART | |
| 3 | 5100016512 | Bracket | 4 | ADD TO CART | |
| 4 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 5 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 6 | 5100012085 | Mushroom head screw | 7 | ADD TO CART | |
| 7 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 9 | 5100013521 | Washer | 2 | ADD TO CART | |
| 10 | 5100013521 | Washer | 7 | ADD TO CART | |
| 100 | 5100016514 | Scraper | 1 | ADD TO CART | |
| 3 | 5100016513 | Bracket | 4 | ADD TO CART | |
| 4 | 5100012085 | Mushroom head screw | 7 | ADD TO CART | |
| 5 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 100 | 5100016515 | Scraper | 1 | ADD TO CART | |
| 100 | 5100016516 | Scraper | 1 | ADD TO CART | |
Page 280 — Smooth drum with vibrator
Parts list — exactly as printed34 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011993 | Roller drum | 1 | PARTS REQUEST | |
|
COMING Roller drum
5100011993 · qty on machine: 1 | |||||
| 2 | 5100012002 | Flange | 1 | ADD TO CART | |
| 3 | 5100012522 | Hexagon screw | 12 | ADD TO CART | |
| 4 | 5100012967 | Locking washer | 12 | ADD TO CART | |
| 5 | 5100012315 | Flange | 1 | ADD TO CART | |
| 6 | 5100012522 | Hexagon screw | 12 | ADD TO CART | |
| 7 | 5100012967 | Locking washer | 12 | ADD TO CART | |
| 8 | 5100012226 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 9 | 5100012003 | Cover | 2 | ADD TO CART | |
| 10 | 5100012516 | Hexagon screw | 12 | ADD TO CART | |
| 11 | 5100012966 | Locking washer | 12 | ADD TO CART | |
| 12 | 5100053015 | Unbalance shaft | 1 | ADD TO CART | |
| 13 | 5100012088 | Coupling | 1 | ADD TO CART | |
| 14 | 5100013511 | Cheese-head screw | 3 | ADD TO CART | |
| 15 | 5100011646 | Hexagon nut | 1 | ADD TO CART | |
| 16 | 5100012423 | Grooved ball bearing | 1 | ADD TO CART | |
| 17 | 5100012318 | Cover | 1 | ADD TO CART | |
| 18 | 5100012516 | Hexagon screw | 8 | ADD TO CART | |
| 20 | 5100012004 | Flange | 1 | ADD TO CART | |
| 21 | 5100012246 | Nilos ring | 1 | ADD TO CART | |
| 22 | 5100012247 | Sealing ring | 1 | ADD TO CART | |
| 23 | 5100011675 | O-ring seal | 1 | ADD TO CART | |
| 24 | 5100012005 | Driver | 1 | ADD TO CART | |
| 25 | 5100012524 | Hexagon screw | 5 | ADD TO CART | |
| 26 | 5100012967 | Locking washer | 5 | ADD TO CART | |
| 27 | 5100013043 | Gear motor | 1 | PARTS REQUEST | |
|
COMING Gear motor
5100013043 · qty on machine: 1 | |||||
| 28 | 5100012754 | Cheese-head screw | 4 | ADD TO CART | |
| 29 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100011787 | Rubber metal buffer | 6 | ADD TO CART | |
| 31 | 5100012521 | Hexagon screw | 12 | ADD TO CART | |
| 32 | 5100012967 | Locking washer | 12 | ADD TO CART | |
| 35 | 5100011787 | Rubber metal buffer | 4 | ADD TO CART | |
| 36 | 5100012521 | Hexagon screw | 8 | ADD TO CART | |
| 37 | 5100012967 | Locking washer | 8 | ADD TO CART | |
Page 282 — Vibration drive
Parts list — exactly as printed62 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013218 | Angle flange screwing | 1 | ADD TO CART | |
| 1 | 5100011500 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 1 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 1 | 5100013497 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012570 | Flexible tubing | 1 | ADD TO CART | |
| 6 | 5100011896 | Hose clip | 1 | ADD TO CART | |
| 10 | 5100011909 | Valve block | 1 | Serialno. <198 | ADD TO CART |
| 10 | 5100052954 | Control block | 1 | Serialno. 199-600 | ADD TO CART |
| 10 | 5100063127 | Valve block | 1 | Serialno. >601 | ADD TO CART |
| 11 | 5100012815 | Cheese-head screw | 4 | ADD TO CART | |
| 12 | 5100013603 | Straight screwed socket | 4 | ADD TO CART | |
| 13 | 5100013329 | Intermediate piece | 2 | ADD TO CART | |
| 15 | 5100012285 | Flexible tubing | 1 | ADD TO CART | |
| 15 | 5100011509 | Flexible tubing | 1 | ADD TO CART | |
| 16 | 5100012062 | Flexible tubing | 1 | ADD TO CART | |
| 16 | 5100012286 | Flexible tubing | 1 | ADD TO CART | |
| 17 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 18 | 5100013483 | Elbow adjustable | 2 | ADD TO CART | |
| 21 | 5100012271 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100012288 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100012272 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100012287 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 24 | 5100013483 | Elbow adjustable | 2 | ADD TO CART | |
| 26 | 5100012216 | Angle flange screwing | 2 | ADD TO CART | |
| 26 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 26 | 5100012937 | Washer | 4 | ADD TO CART | |
| 26 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 26 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 27 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 31 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 32 | 5100013496 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100012289 | Flexible tubing | 1 | ADD TO CART | |
| 33 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 35 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 36 | 5100012277 | Flexible tubing | 1 | ADD TO CART | |
| 36 | 5100012290 | Flexible tubing | 1 | ADD TO CART | |
| 37 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 38 | 5100013482 | Elbow adjustable | 1 | ADD TO CART | |
| 51 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 53 | 5100011456 | Flexible tubing | 1 | ADD TO CART | |
| 54 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 61 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 62 | 5100012305 | Flexible tubing | 1 | ADD TO CART | |
| 63 | 5100013499 | Straight screwed socket | 1 | ADD TO CART | |
| 70 | 5100012270 | Half-clip | 6 | ADD TO CART | |
| 71 | 5100012946 | Stud bolt | 6 | ADD TO CART | |
| 72 | 5100012298 | Cover plate | 2 | ADD TO CART | |
| 73 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 74 | 5100012546 | Hexagon nut | 6 | ADD TO CART | |
| 75 | 5100012051 | Metal plate | 1 | ADD TO CART | |
| 80 | 5100012256 | Clamp support | 2 | ADD TO CART | |
| 81 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 81 | 5100035087 | Hexagon screw | 4 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 83 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 85 | 5100012270 | Half-clip | 4 | ADD TO CART | |
| 86 | 5100012946 | Stud bolt | 4 | ADD TO CART | |
| 87 | 5100012298 | Cover plate | 2 | ADD TO CART | |
| 88 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 89 | 5100011525 | Cap nut | 4 | ADD TO CART | |
Page 286 — Edge pressing and cuttingdevice
Parts list — exactly as printed47 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012408 | Console | 1 | ADD TO CART | |
| 3 | 5100012413 | Lever | 1 | ADD TO CART | |
| 4 | 5100011474 | Taper roller bearing | 4 | ADD TO CART | |
| 5 | 5100011475 | Nilos ring | 3 | ADD TO CART | |
| 6 | 5100012399 | Axle | 1 | ADD TO CART | |
| 7 | 5100013518 | Spacer shim | 1 | ADD TO CART | |
| 8 | 5100013519 | Spacer shim | 1 | ADD TO CART | |
| 9 | 5100012979 | Spacer shim | 1 | ADD TO CART | |
| 10 | 5100011683 | Cover | 2 | ADD TO CART | |
| 11 | 5100012724 | Cheese-head screw | 6 | ADD TO CART | |
| 12 | 5100011716 | Cover | 1 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 15 | 5100011767 | Flange | 1 | ADD TO CART | |
| 16 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 17 | 5100013450 | Cheese-head screw | 8 | ADD TO CART | |
| 20 | 5100057815 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5100057815 · qty on machine: 1 | |||||
| 20 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 20 | 5100012400 | Cylinder | 1 | ADD TO CART | |
| 20 | 5100011686 | Set of seals | 1 | ADD TO CART | |
| 20 | 5100011563 | Radial rod end bearing | 1 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 | |||||
| 22 | 5100011482 | Washer | 1 | ADD TO CART | |
| 23 | 5100035215 | Hexagon screw | 1 | ADD TO CART | |
| 24 | 5100012482 | Greasing nipple | 1 | ADD TO CART | |
| 25 | 5100011681 | Bolt | 1 | ADD TO CART | |
| 26 | 5100013609 | Radial rod end bearing | 1 | ADD TO CART | |
| 27 | 5100011680 | Spacer ring | 2 | ADD TO CART | |
| 28 | 5100012955 | Locking washer | 1 | ADD TO CART | |
| 29 | 5100012550 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 31 | 5100012480 | Greasing nipple | 1 | ADD TO CART | |
| 32 | 5100013560 | Seal | 2 | ADD TO CART | |
| 47 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 48 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 51 | 5100053016 | Stud screw | 4 | ADD TO CART | |
| 52 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 53 | 5100012548 | Hexagon nut | 4 | ADD TO CART | |
| 2 | 5100012483 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100012483 · qty on machine: 1 | |||||
| 15 | 5100012485 | Flange | 1 | ADD TO CART | |
| 17 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 25 | 5100012484 | Bolt | 1 | ADD TO CART | |
| 28 | 5100013521 | Washer | 1 | ADD TO CART | |
| 29 | 5100013408 | Cheese-head screw | 1 | ADD TO CART | |
| 33 | 5100012414 | Ring | 2 | ADD TO CART | |
| 33 | 5100012754 | Cheese-head screw | 2 | ADD TO CART | |
| 60 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 8 | ADD TO CART | |
Page 294 — Attachments
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100027277 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027277 · qty on machine: 1 | |||||
| 2 | 5100015230 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015230 · qty on machine: 1 | |||||
| 5 | 5100015199 | Cutting disc | 1 | PARTS REQUEST | |
|
COMING Cutting disc
5100015199 · qty on machine: 1 | |||||
| 6 | 5100027279 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027279 · qty on machine: 1 | |||||
| 8 | 5100015232 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015232 · qty on machine: 1 | |||||
| 9 | 5100027278 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027278 · qty on machine: 1 | |||||
| 10 | 5100033238 | Holder | 1 | ADD TO CART | |
| 20 | 5100012520 | Hexagon screw | 2 | ADD TO CART | |
| 30 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011789 | Pipe | 1 | ADD TO CART | |
| 50 | 5100011788 | Bracket | 1 | ADD TO CART | |
| 60 | 5100011790 | Bolt | 1 | ADD TO CART | |
| 70 | 5100013638 | Indicator | 1 | ADD TO CART | |
| 70 | 5100020851 | Indicator | 1 | ADD TO CART | |
| 80 | 5100013509 | Washer | 1 | ADD TO CART | |
| 90 | 5100011783 | Hand lever | 3 | ADD TO CART | |
| 1 | 5100053017 | Holder system | 1 | ADD TO CART | |
| 2 | 5100035238 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100013628 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013128 | Washer | 1 | ADD TO CART | |
| 7 | 5100013455 | Cheese-head screw | 1 | ADD TO CART | |
| 11 | 5100011767 | Flange | 1 | ADD TO CART | |
| 12 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 14 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 1 | 5100011977 | Mounting device | 1 | ADD TO CART | |
| 2 | 5100012726 | Cheese-head screw | 2 | ADD TO CART | |
Page 300 — Hydraulic system
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012385 | Valve block | 1 | ADD TO CART | |
| 2 | 5100012332 | Cheese-head screw | 3 | ADD TO CART | |
| 3 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 4 | 5100033239 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100033239 · qty on machine: 1 | |||||
| 4 | 5100033240 | Straight screwed socket | 1 | ADD TO CART | |
| 6 | 5100011975 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100011976 | Flexible tubing | 1 | ADD TO CART | |
| 8 | 5100013482 | Elbow adjustable | 1 | ADD TO CART | |
| 9 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 10 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 25 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 26 | 5100011855 | Screw plug | 1 | ADD TO CART | |
| 31 | 5100013429 | Wire fastener | 10 | ADD TO CART | |
| 32 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 13 | 5100013474 | Straight screwed socket | 2 | ADD TO CART | |
| 14 | 5100033239 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100033239 · qty on machine: 1 | |||||
| 14 | 5100033240 | Straight screwed socket | 1 | ADD TO CART | |
| 16 | 5100012980 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012980 · qty on machine: 1 | |||||
| 17 | 5100012982 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012982 · qty on machine: 1 | |||||
| 18 | 5100013171 | Banjo | 1 | ADD TO CART | |
| 19 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 40 | 5100012387 | Solenoid valve | 1 | ADD TO CART | |
Page 322 — Maintenance kits andrepair kits
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100042994 | Maintenance set | 1 | ADD TO CART | |
| 1 | 5100042998 | Service kit rd24/28-250h wncr0601/0901 | 1 | ADD TO CART | |
| 1 | 5100042999 | Maintena.set rd24/28-500h wncr0601/0901 | 1 | ADD TO CART | |
| 1 | 5100043000 | Mainten. set rd24/28-2000hwncr0601/0901 | 1 | ADD TO CART | |
Page 324 — Thermal aprons
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100053018 | Holder system | 1 | ADD TO CART | |
| 2 | 5100053019 | Holder system | 1 | ADD TO CART | |
| 3 | 5100053020 | Holder system | 1 | ADD TO CART | |
| 3 | 5100053021 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100053021 · qty on machine: 1 | |||||
| 4 | 5100012515 | Hexagon screw | 12 | ADD TO CART | |
| 5 | 5100013094 | Washer | 12 | ADD TO CART | |
| 15 | 5100053022 | Holder system | 1 | ADD TO CART | |
| 15 | 5100053023 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100053023 · qty on machine: 1 | |||||
| 16 | 5100034968 | Hexagon screw | 2 | ADD TO CART | |
| 17 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 18 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100053024 | Metal plate | 1 | ADD TO CART | |
| 41 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 42 | 5100013094 | Washer | 3 | ADD TO CART | |
| 51 | 5100053025 | Filler cap | 2 | ADD TO CART | |
| 52 | 5100050647 | Filler cap | 12 | ADD TO CART | |
| 53 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 54 | 5100022986 | Hexagon screw | 4 | ADD TO CART | |
| 20 | 5100053026 | Thermal aprons | 1 | ADD TO CART | |
| 21 | 5100053027 | Thermal aprons | 1 | ADD TO CART | |
| 22 | 5100053028 | Thermal aprons | 1 | ADD TO CART | |
| 22 | 5100053029 | Thermal aprons | 1 | ADD TO CART | |
| 24 | 5100053030 | Bolt rivet | 40 | ADD TO CART | |
| 25 | 5100053031 | Rotary lock | 20 | ADD TO CART | |
| 30 | 5100053032 | Flat steel | 2 | PARTS REQUEST | |
|
COMING Flat steel
5100053032 · qty on machine: 2 | |||||
| 31 | 5100053033 | Flat steel | 1 | PARTS REQUEST | |
|
COMING Flat steel
5100053033 · qty on machine: 1 | |||||
| 32 | 5100053034 | Mushroom head screw | 6 | ADD TO CART | |
| 33 | 5100013094 | Washer | 6 | ADD TO CART | |
| 34 | 5100012546 | Hexagon nut | 6 | ADD TO CART | |
| 43 | 5100053035 | Thermal aprons | 1 | ADD TO CART | |
| 43 | 5100053036 | Thermal aprons | 1 | PARTS REQUEST | |
|
COMING Thermal aprons
5100053036 · qty on machine: 1 | |||||
Page 328 — Bottle holder
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100023580 | Bottle-support | 1 | ADD TO CART | |
| 3 | 5100012598 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 4 | |||||
| 4 | 5100012936 | Washer | 4 | ADD TO CART | |
| 7 | 5100033246 | Holder | 1 | ADD TO CART | |
| 8 | 5100011701 | Distance bush | 4 | ADD TO CART | |
| 9 | 5100012946 | Stud bolt | 2 | ADD TO CART | |
| 10 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
Page 330 — Additional storage tray
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 150 | 5100029563 | Bag | 1 | ADD TO CART | |
| 151 | 5100023198 | Fillister head screw | 4 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 4 | |||||
| 152 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 153 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 154 | 5100013523 | Washer | 4 | ADD TO CART | |
| 160 | 5100011866 | Sealing tape | 0.06 | ADD TO CART | |
Page 332 — Trailer coupling
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100013076 | Towing loop | 1 | ADD TO CART | |
| 6 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 7 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
Page 334 — Additional mirror
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100012901 | Mirror-retainer | 1 | Serialno. >767 | ADD TO CART |
| 21 | 5100012714 | Hexagon screw | 2 | Serialno. >767 | ADD TO CART |
| 22 | 5100011691 | Bushing | 2 | Serialno. >767 | ADD TO CART |
| 23 | 5100012966 | Locking washer | 4 | Serialno. >767 | ADD TO CART |
| 24 | 5100012546 | Hexagon nut | 2 | Serialno. >767 | ADD TO CART |
| 30 | 5100011540 | Stay bar | 1 | Serialno. >767 | ADD TO CART |
| 31 | 5100013510 | Hexagon screw | 2 | Serialno. >767 | ADD TO CART |
| 32 | 5100012966 | Locking washer | 4 | Serialno. >767 | ADD TO CART |
| 33 | 5100012546 | Hexagon nut | 2 | Serialno. >767 | ADD TO CART |
| 35 | 5100011539 | Stay bar | 1 | Serialno. >767 | ADD TO CART |
| 36 | 5100013510 | Hexagon screw | 2 | Serialno. >767 | ADD TO CART |
| 37 | 5100012966 | Locking washer | 4 | Serialno. >767 | ADD TO CART |
| 38 | 5100012546 | Hexagon nut | 2 | Serialno. >767 | ADD TO CART |
| 40 | 5100011541 | Mirror | 2 | Serialno. >767 | ADD TO CART |
| 20 | 5100066910 | Mirror-retainer | 1 | Serialno. >768 | ADD TO CART |
| 21 | 5100066911 | Hexagon screw | 2 | Serialno. >768 | ADD TO CART |
| 22 | 5100066912 | Distance piece | 2 | Serialno. >768 | ADD TO CART |
| 30 | 5100067838 | Stay bar | 1 | Serialno. >768 | ADD TO CART |
| 31 | 5100012613 | Hexagon screw | 2 | Serialno. >768 | ADD TO CART |
| 35 | 5100067837 | Stay bar | 1 | Serialno. >768 | PARTS REQUEST |
|
COMING Stay bar
5100067837 · qty on machine: 1 Serialno. >768 | |||||
| 36 | 5100012613 | Hexagon screw | 2 | Serialno. >768 | ADD TO CART |
| 40 | 5100067839 | Mirror | 2 | Serialno. >768 | ADD TO CART |
Page 338 — Compaction meter
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100033251 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033251 · qty on machine: 1 | |||||
| 4 | 5100012718 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012936 | Washer | 2 | ADD TO CART | |
| 6 | 5100033252 | Bushing | 2 | ADD TO CART | |
| 10 | 5100033253 | Calculator | 1 | PARTS REQUEST | |
|
COMING Calculator
5100033253 · qty on machine: 1 | |||||
| 11 | 5100033254 | Cheese-head screw | 2 | ADD TO CART | |
| 12 | 5100013453 | Washer | 2 | ADD TO CART | |
| 13 | 5100012936 | Washer | 2 | ADD TO CART | |
| 14 | 5100012898 | Hexagon nut | 2 | ADD TO CART | |
| 16 | 5100033255 | Blade-type fuse | 2 | PARTS REQUEST | |
|
COMING Blade-type fuse
5100033255 · qty on machine: 2 | |||||
| 16 | 5100033256 | Cable harness | 1 | Serialno. <613 | PARTS REQUEST |
|
COMING Cable harness
5100033256 · qty on machine: 1 Serialno. <613 | |||||
| 18 | 5100033257 | Splash protection | 1 | PARTS REQUEST | |
|
COMING Splash protection
5100033257 · qty on machine: 1 | |||||
| 20 | 5100033258 | Acceleration sensor | 1 | ADD TO CART | |
| 41 | 5100033259 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100033259 · qty on machine: 1 | |||||
| 50 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
| 51 | 5100025100 | Covering part | 1 | ADD TO CART | |
| 52 | 5100011580 | Blind cover | 1 | ADD TO CART | |
| 21 | 5100033260 | Cheese-head screw | 2 | Serialno. 160-1242 | ADD TO CART |
| 25 | 5100033261 | Holder | 1 | Serialno. 160-1242 | PARTS REQUEST |
|
COMING Holder
5100033261 · qty on machine: 1 Serialno. 160-1242 | |||||
| 26 | 5100013597 | Hexagon screw | 3 | Serialno. 160-1242 | ADD TO CART |
| 27 | 5100012967 | Locking washer | 3 | Serialno. 160-1242 | ADD TO CART |
| 30 | 5100033262 | Housing | 1 | Serialno. 160-1242 | ADD TO CART |
| 31 | 5100012572 | Hexagon screw | 1 | Serialno. 160-1242 | PARTS REQUEST |
|
COMING Hexagon screw
5100012572 · qty on machine: 1 Serialno. 160-1242 | |||||
| 32 | 5100012965 | Locking washer | 3 | Serialno. 160-1242 | ADD TO CART |
| 33 | 5100023046 | Hexagon screw | 1 | Serialno. 160-1242 | ADD TO CART |
| 34 | 5100033263 | Pipe clip | 1 | Serialno. 160-1242 | ADD TO CART |
| 35 | 5100012545 | Hexagon nut | 1 | Serialno. 160-1242 | ADD TO CART |
| 36 | 5100033264 | Half-clip | 2 | Serialno. 160-1242 | ADD TO CART |
| 37 | 5100033265 | Weld-on plate | 1 | Serialno. 160-1242 | ADD TO CART |
| 38 | 5100012965 | Locking washer | 2 | Serialno. 160-1242 | ADD TO CART |
| 39 | 5100013466 | Hexagon screw | 2 | Serialno. 160-1242 | ADD TO CART |
| 40 | 5100033266 | Temperature probe | 1 | Serialno. 160-1242 | ADD TO CART |
| 42 | 5100033267 | Lid | 1 | Serialno. 160-1242 | ADD TO CART |
| 43 | 5100033235 | Fillister head screw | 2 | Serialno. 160-1242 | ADD TO CART |
| 5 | 5100073267 | Distance bush | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Distance bush
5100073267 · qty on machine: 1 Serialno. >1243 | |||||
| 6 | 5100012608 | Hexagon screw | 2 | Serialno. >1243 | ADD TO CART |
| 8 | 5100012965 | Locking washer | 2 | Serialno. >1243 | ADD TO CART |
| 30 | 5100073268 | Flange | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Flange
5100073268 · qty on machine: 1 Serialno. >1243 | |||||
| 31 | 5100073269 | Knurled head screw | 2 | Serialno. >1243 | PARTS REQUEST |
|
COMING Knurled head screw
5100073269 · qty on machine: 2 Serialno. >1243 | |||||
| 33 | 5100035597 | O-ring seal | 1 | Serialno. >1243 | ADD TO CART |
| 41 | 5100082841 | Wire harness sensor | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Wire harness sensor
5100082841 · qty on machine: 1 Serialno. >1243 | |||||
Page 344 — Automatic engine shutdown
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011583 | Relay | 1 | ADD TO CART | |
| 2 | 5100029573 | Cable harness | 1 | ADD TO CART | |
| 2 | 5100033268 | Diode | 1 | ADD TO CART | |
| 4 | 5100029566 | Slow-release relay | 1 | ADD TO CART | |
Page 346 — Fire extinguisher
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100033269 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100033269 · qty on machine: 1 | |||||
| 3 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 4 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100012420 | Blind rivet nut | 2 | ADD TO CART | |
| 10 | 5100022903 | Fire extinguisher | 1 | ADD TO CART | |
| 11 | 5100033270 | Countersunk screw | 2 | ADD TO CART | |
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 13 | 5100013599 | Clip nut | 2 | ADD TO CART | |
| 20 | 5100022903 | Fire extinguisher | 1 | ADD TO CART | |
| 21 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012936 | Washer | 2 | ADD TO CART | |
| 24 | 5100012898 | Hexagon nut | 2 | ADD TO CART | |
Page 348 — Homologation Italy
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012007 | Metal plate | 1 | ADD TO CART | |
| 4 | 5100012001 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 1 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 8 | 5100017998 | Hexagonal nut | 2 | ADD TO CART | |
| 10 | 5100012607 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100013536 | Serrated lock washer | 12 | ADD TO CART | |
| 12 | 5100012898 | Hexagon nut | 8 | ADD TO CART | |
| 13 | 5100013453 | Washer | 8 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 100 | 5100012143 | Bracket | 1 | ADD TO CART | |
| 102 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 103 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
Page 350 — Homologation Brazil
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025909 | Holder | 1 | ADD TO CART | |
| 4 | 5100025910 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 2 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100025881 | Fillister head screw | 4 | ADD TO CART | |
| 11 | 5100013599 | Clip nut | 4 | ADD TO CART | |
| 18 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 19 | 5100012967 | Locking washer | 4 | ADD TO CART | |
Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 26 — Main frame and assemblies
Parts list — exactly as printed65 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012170 | Front frame part | 1 | PARTS REQUEST | |
|
COMING Front frame part
5100012170 · qty on machine: 1 | |||||
| 8 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 9 | 5100012626 | Hexagon screw | 2 | ADD TO CART | |
| 15 | 5100012046 | Metal plate | 1 | ADD TO CART | |
| 16 | 5100012626 | Hexagon screw | 4 | ADD TO CART | |
| 17 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100012207 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012207 · qty on machine: 1 | |||||
| 24 | 5100012329 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012329 · qty on machine: 1 | |||||
| 25 | 5100012786 | Bow | 1 | ADD TO CART | |
| 26 | 5100011473 | Hexagon screw | 6 | ADD TO CART | |
| 27 | 5100012969 | Locking washer | 6 | ADD TO CART | |
| 30 | 5100011814 | Rubber buffer | 8 | ADD TO CART | |
| 31 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 32 | 5100011585 | Cheese-head screw | 4 | ADD TO CART | |
| 33 | 5100012350 | Spacer block | 8 | ADD TO CART | |
| 34 | 5100012674 | Seat pedestal | 1 | ADD TO CART | |
| 35 | 5100012357 | Silentbloc | 2 | ADD TO CART | |
| 36 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 37 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 38 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 39 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 40 | 5100033190 | Hexagon screw | 2 | ADD TO CART | |
| 41 | 5100033191 | Metal plate | 1 | ADD TO CART | |
| 42 | 5100012202 | Bushing | 2 | ADD TO CART | |
| 43 | 5100011734 | Rubber metal buffer | 2 | ADD TO CART | |
| 44 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 45 | 5100013128 | Washer | 2 | ADD TO CART | |
| 49 | 5100016196 | Cover | 2 | ADD TO CART | |
| 50 | 5100012853 | Handle | 2 | ADD TO CART | |
| 51 | 5100012529 | Filler cap | 4 | ADD TO CART | |
| 52 | 5100016503 | Bushing | 8 | ADD TO CART | |
| 55 | 5100011498 | Silentbloc | 8 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 57 | 5100012946 | Stud bolt | 4 | ADD TO CART | |
| 58 | 5100012977 | Stud bolt | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 8 | ADD TO CART | |
| 60 | 5100016288 | Bottom plate | 1 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 62 | 5100013128 | Washer | 6 | ADD TO CART | |
| 65 | 5100012712 | Rubber metal buffer | 2 | ADD TO CART | |
| 66 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 67 | 5100013128 | Washer | 2 | ADD TO CART | |
| 69 | 5100012640 | Steering console | 1 | ADD TO CART | |
| 69 | 5100016289 | Steering console | 1 | PARTS REQUEST | |
|
COMING Steering console
5100016289 · qty on machine: 1 | |||||
| 71 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 72 | 5100013094 | Washer | 4 | ADD TO CART | |
| 73 | 5100013644 | Rubber profile | 0.25 | ADD TO CART | |
| 74 | 5100052877 | Protective cap | 2 | ADD TO CART | |
| 75 | 5100012652 | Spacer plate | 1 | ADD TO CART | |
| 77 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 80 | 5100012653 | Retaining plate | 1 | ADD TO CART | |
| 81 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 3 | 5100052880 | Loading loop | 4 | ADD TO CART | |
| 4 | 5100011612 | Hexagon screw | 12 | ADD TO CART | |
| 5 | 5100029558 | Hexagon screw | 3 | ADD TO CART | |
| 6 | 5100012968 | Locking washer | 24 | ADD TO CART | |
| 7 | 5100035091 | Safety nut | 12 | ADD TO CART | |
| 5 | 5100052881 | Chock | 2 | PARTS REQUEST | |
|
COMING Chock
5100052881 · qty on machine: 2 | |||||
| 9 | 5100052882 | Foot mat | 1 | PARTS REQUEST | |
|
COMING Foot mat
5100052882 · qty on machine: 1 | |||||
| 10 | 5100013309 | Bracket | 2 | ADD TO CART | |
| 11 | 5100052883 | Countersunk screw | 4 | ADD TO CART | |
| 12 | 5100040616 | Blind rivet nut | 4 | ADD TO CART | |
| 14 | 5100052884 | Lashing strap | 1 | PARTS REQUEST | |
|
COMING Lashing strap
5100052884 · qty on machine: 1 | |||||
| 15 | 5100052885 | Rubber plate | 1 | PARTS REQUEST | |
|
COMING Rubber plate
5100052885 · qty on machine: 1 | |||||
Page 34 — Canopies and covers
Parts list — exactly as printed85 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100016197 | Engine hood | 1 | PARTS REQUEST | |
|
COMING Engine hood
5100016197 · qty on machine: 1 | |||||
| 2 | 5100012498 | Safety screw | 4 | ADD TO CART | |
| 5 | 5100012193 | Hinge | 2 | ADD TO CART | |
| 6 | 5100012214 | Metal plate | 2 | ADD TO CART | |
| 19 | 5100012696 | Lock | 1 | ADD TO CART | |
| 20 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 23 | 5100013588 | Lock outside handle | 1 | ADD TO CART | |
| 23 | 5100013557 | Key | 1 | ADD TO CART | |
| 24 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 25 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 26 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 27 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 28 | 5100050643 | Knurled head screw | 1 | PARTS REQUEST | |
|
COMING Knurled head screw
5100050643 · qty on machine: 1 | |||||
| 29 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100013372 | Bracket | 1 | ADD TO CART | |
| 31 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100050644 | Wire clip | 1 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 38 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 45 | 5100011919 | Gas spring | 1 | ADD TO CART | |
| 47 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 48 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 50 | 5100013525 | Rubber buffer | 1 | ADD TO CART | |
| 51 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 60 | 5100012029 | Sealing profile | 2.8 | ADD TO CART | |
| 156 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 202 | 5100050646 | Filler cap | 4 | ADD TO CART | |
| 70 | 5100012033 | Cover | 1 | ADD TO CART | |
| 71 | 5100013591 | Built-in lock | 1 | ADD TO CART | |
| 71 | 5100013557 | Key | 1 | ADD TO CART | |
| 72 | 5100013647 | Sealing profile | 0.8 | ADD TO CART | |
| 120 | 5100012464 | Cover | 4 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 16 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 150 | 5100012880 | Cover plate | 2 | ADD TO CART | |
| 151 | 5100011634 | Sheet metal screw | 4 | ADD TO CART | |
| 158 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 159 | 5100013530 | Filler cap | 2 | ADD TO CART | |
| 190 | 5100012659 | Cover | 1 | ADD TO CART | |
| 191 | 5100012572 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 3 | |||||
| 192 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 197 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 198 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 199 | 5100011550 | Plug | 4 | ADD TO CART | |
| 201 | 5100017982 | Cap | 2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 79 | 5100011580 | Blind cover | 2 | ADD TO CART | |
| 80 | 5100012647 | Covering part | 1 | ADD TO CART | |
| 81 | 5100011854 | Bracket | 1 | ADD TO CART | |
| 82 | 5100012607 | Hexagon screw | 1 | ADD TO CART | |
| 85 | 5100012648 | Covering part | 1 | ADD TO CART | |
| 86 | 5100011581 | Fillister head screw | 14 | ADD TO CART | |
| 90 | 5100013323 | Instrument panel | 1 | Serialno. <613 | ADD TO CART |
| 90 | 5100025103 | Instrument panel | 1 | Serialno. >614 | ADD TO CART |
| 91 | 5100013596 | Built-in lock | 1 | PARTS REQUEST | |
|
COMING Built-in lock
5100013596 · qty on machine: 1 | |||||
| 91 | 5100013357 | Bracket | 1 | ADD TO CART | |
| 92 | 5100011698 | Spacer block | 1 | ADD TO CART | |
| 93 | 5100011860 | Rubber sleeve | 4 | ADD TO CART | |
| 94 | 5100011581 | Fillister head screw | 7 | ADD TO CART | |
| 100 | 5100012478 | Covering part | 1 | Serialno. <613 | ADD TO CART |
| 100 | 5100025100 | Covering part | 1 | Serialno. >614 | ADD TO CART |
| 101 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 102 | 5100011853 | Fillister head screw | 2 | ADD TO CART | |
| 104 | 5100013537 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100012649 | Splash protection | 1 | ADD TO CART | |
| 111 | 5100012920 | Edge protection | 0.6 | ADD TO CART | |
| 115 | 5100011656 | Filler cap | 6 | ADD TO CART | |
| 130 | 5100012650 | Cover | 2 | ADD TO CART | |
| 132 | 5100012651 | Sealing profile | 2 | ADD TO CART | |
| 133 | 5100012592 | Hexagon screw | 8 | ADD TO CART | |
| 134 | 5100012936 | Washer | 8 | ADD TO CART | |
| 8 | 5100011652 | Bushing | 2 | Serialno. >531 | ADD TO CART |
| 10 | 5100016198 | Covering part | 1 | Serialno. <530 | PARTS REQUEST |
|
COMING Covering part
5100016198 · qty on machine: 1 Serialno. <530 | |||||
| 10 | 5100066862 | Covering part | 1 | Serialno. >531 | ADD TO CART |
| 11 | 5100016199 | Cheese-head screw | 2 | Serialno. <530 | PARTS REQUEST |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 Serialno. <530 | |||||
| 11 | 5100066865 | Cheese-head screw | 2 | Serialno. >531 | PARTS REQUEST |
|
COMING Cheese-head screw
5100066865 · qty on machine: 2 Serialno. >531 | |||||
| 12 | 5100013523 | Washer | 2 | ADD TO CART | |
| 13 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 14 | 5100016199 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 | |||||
| 15 | 5100013523 | Washer | 2 | ADD TO CART | |
| 16 | 5100013644 | Rubber profile | 0.5 | ADD TO CART | |
Page 42 — Label arrangement
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100016250 | Type plate rd 24-100 | 2 | PARTS REQUEST | |
|
COMING Type plate rd 24-100
5100016250 · qty on machine: 2 | |||||
| 1 | 5100016251 | Type plate rd 24-100 c | 2 | PARTS REQUEST | |
|
COMING Type plate rd 24-100 c
5100016251 · qty on machine: 2 | |||||
| 1 | 5100016252 | Type plate rd 24-100 o | 2 | PARTS REQUEST | |
|
COMING Type plate rd 24-100 o
5100016252 · qty on machine: 2 | |||||
| 1 | 5100024327 | Type plate rd28-120 | 2 | ADD TO CART | |
| 1 | 5100024328 | Type plate rd28-120c | 2 | PARTS REQUEST | |
|
COMING Type plate rd28-120c
5100024328 · qty on machine: 2 | |||||
| 1 | 5100024329 | Type plate rd28-120o | 2 | PARTS REQUEST | |
|
COMING Type plate rd28-120o
5100024329 · qty on machine: 2 | |||||
| 2 | 5100029588 | Label | 2 | ADD TO CART | |
| 3 | 5100033192 | Label | 2 | PARTS REQUEST | |
|
COMING Label
5100033192 · qty on machine: 2 | |||||
| 4 | 5100016256 | Sticker | 1 | ADD TO CART | |
| 5 | 5100016257 | Adhesive tape | 1 | ADD TO CART | |
| 9 | 5100013209 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013207 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013208 | Decal kit | 1 | ADD TO CART | |
| 51 | 5100011692 | Sticker | 1 | ADD TO CART | |
| 90 | 5100012698 | Sticker | 1 | ADD TO CART | |
| 90 | 5100016500 | Sticker | 1 | ADD TO CART | |
| 91 | 5100012699 | Sticker | 1 | ADD TO CART | |
| 106 | 5100016258 | Decal kit | 1 | ADD TO CART | |
| 50 | 5100013420 | Sticker | 3 | ADD TO CART | |
| 51 | 5100011684 | Metal plate | 1 | ADD TO CART | |
| 52 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 18 | 5100033193 | Label | 1 | ADD TO CART | |
| 80 | 5100012976 | Sticker | 1 | ADD TO CART | |
| 101 | 5100012465 | Sticker | 1 | ADD TO CART | |
| 105 | 5100011702 | Sticker | 1 | ADD TO CART | |
Page 58 — Sound insulation
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100012848 | Sound insulation | 1 | ADD TO CART | |
| 4 | 5100011922 | Locking washer | 14 | ADD TO CART | |
| 9 | 5100016259 | Bracket | 2 | PARTS REQUEST | |
|
COMING Bracket
5100016259 · qty on machine: 2 | |||||
| 10 | 5100012869 | Insulation | 1 | ADD TO CART | |
| 11 | 5100012886 | Bracket | 1 | ADD TO CART | |
| 12 | 5100011953 | Push-button | 3 | ADD TO CART | |
| 20 | 5100012870 | Metal plate | 1 | ADD TO CART | |
| 21 | 5100016260 | Sound insulation | 1 | ADD TO CART | |
| 22 | 5100011953 | Push-button | 3 | ADD TO CART | |
Page 60 — Driver seat with adjustment
Parts list — exactly as printed39 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033194 | Driver's seat | 1 | Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033195 | Seat contact switch | 1 | 1.04 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033196 | Seat cushion | 1 | 1.01 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033197 | Seat cushion | 1 | 1.02 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033198 | Set of adjustment bars | 1 | 1.05 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033199 | Lap belt | 1 | 1.03 Serialno. 160-1242 | ADD TO CART |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
| 1 | 5100033200 | Maintenance kit wear parts | 1 | 1.07 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033201 | Adjustment | 1 | 1.06 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100082818 | Operator's seat | 1 | Serialno. < 1243 | PARTS REQUEST |
|
COMING Operator's seat
5100082818 · qty on machine: 1 Serialno. < 1243 | |||||
| 2 | 5100011518 | Seat cushion | 1 | ADD TO CART | |
| 2 | 5100011519 | Backrest cushion | 1 | ADD TO CART | |
| 2 | 5100011615 | Handle | 1 | ADD TO CART | |
| 2 | 5100012964 | Seat contact switch | 1 | ADD TO CART | |
| 2 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100029584 | Driver's seat | 1 | ADD TO CART | |
| 2 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 1 | 5100083260 | Cover | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cover
5100083260 · qty on machine: 1 Serialno. >1243 | |||||
| 2 | 5100083261 | Cover | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cover
5100083261 · qty on machine: 1 Serialno. >1243 | |||||
| 3 | 5100013084 | Set of adjustment bars | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Set of adjustment bars
5100013084 · qty on machine: 1 Serialno. >1243 | |||||
| 4 | 5100083262 | Lap belt | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Lap belt
5100083262 · qty on machine: 1 Serialno. >1243 | |||||
| 5 | 5100083263 | Adjustment | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Adjustment
5100083263 · qty on machine: 1 Serialno. >1243 | |||||
| 6 | 5100083264 | Cable harness | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cable harness
5100083264 · qty on machine: 1 Serialno. >1243 | |||||
| 7 | 5100083265 | Backrest cushion, imi. leather | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Backrest cushion, imi. leather
5100083265 · qty on machine: 1 Serialno. >1243 | |||||
| 8 | 5100083266 | Seat cushion | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Seat cushion
5100083266 · qty on machine: 1 Serialno. >1243 | |||||
| 9 | 5100012691 | Seat contact switch | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Seat contact switch
5100012691 · qty on machine: 1 Serialno. >1243 | |||||
| 10 | 5100082818 | Operator's seat | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Operator's seat
5100082818 · qty on machine: 1 Serialno. >1243 | |||||
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100013441 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 103 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 104 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 105 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 106 | 5100012014 | Metal plate | 2 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
Page 62 — Operator's seat with adjustmen
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100083260 | Cover | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cover
5100083260 · qty on machine: 1 Serialno. >1243 | |||||
| 2 | 5100083261 | Cover | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cover
5100083261 · qty on machine: 1 Serialno. >1243 | |||||
| 3 | 5100013084 | Set of adjustment bars | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Set of adjustment bars
5100013084 · qty on machine: 1 Serialno. >1243 | |||||
| 4 | 5100083262 | Lap belt | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Lap belt
5100083262 · qty on machine: 1 Serialno. >1243 | |||||
| 5 | 5100083263 | Adjustment | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Adjustment
5100083263 · qty on machine: 1 Serialno. >1243 | |||||
| 6 | 5100083264 | Cable harness | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cable harness
5100083264 · qty on machine: 1 Serialno. >1243 | |||||
| 7 | 5100083265 | Backrest cushion, imi. leather | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Backrest cushion, imi. leather
5100083265 · qty on machine: 1 Serialno. >1243 | |||||
| 8 | 5100083266 | Seat cushion | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Seat cushion
5100083266 · qty on machine: 1 Serialno. >1243 | |||||
| 9 | 5100012691 | Seat contact switch | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Seat contact switch
5100012691 · qty on machine: 1 Serialno. >1243 | |||||
| 10 | 5100082818 | Operator's seat | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Operator's seat
5100082818 · qty on machine: 1 Serialno. >1243 | |||||
Page 66 — Driver seat
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011615 | Handle | 1 | ADD TO CART | |
| 1 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100024343 | Cushion set | 1 | ADD TO CART | |
| 1 | 5100024920 | Seat contact switch | 1 | ADD TO CART | |
| 1 | 5100029585 | Backrest cushion, imi. leather | 1 | ADD TO CART | |
| 1 | 5100029596 | Driver's seat | 1 | ADD TO CART | |
| 1 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 13 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 15 | 5100011947 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100011947 · qty on machine: 1 | |||||
| 16 | 5100011938 | Bogie, seat heating | 1 | ADD TO CART | |
| 60 | 5100024344 | Central plug | 1 | ADD TO CART | |
| 70 | 5100029597 | Flat plug sleeve | 2 | ADD TO CART | |
| 80 | 5100024345 | Connection plug, 1-pole | 1 | ADD TO CART | |
| 90 | 5100029598 | Flat plug sleeve | 1 | ADD TO CART | |
| 100 | 5100033203 | Connector housing | 1 | ADD TO CART | |
| 101 | 5100025825 | Flat-pin plug | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
Page 68 — Sun roof
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033204 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033204 · qty on machine: 1 | |||||
| 3 | 5100013128 | Washer | 4 | ADD TO CART | |
| 4 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100033205 | Angle bracket | 1 | ADD TO CART | |
| 11 | 5100033206 | Angle bracket | 1 | ADD TO CART | |
| 12 | 5100013128 | Washer | 6 | ADD TO CART | |
| 13 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 20 | 5100033207 | Frame | 1 | ADD TO CART | |
| 21 | 5100033208 | Metal plate | 2 | ADD TO CART | |
| 22 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100024352 | Ring nut | 4 | ADD TO CART | |
| 25 | 5100024341 | Roof tarpaulin | 1 | ADD TO CART | |
| 35 | 5100033209 | Metal plate | 1 | ADD TO CART | |
| 36 | 5100033210 | Metal plate | 1 | ADD TO CART | |
| 37 | 5100013128 | Washer | 4 | ADD TO CART | |
| 38 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 39 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100013128 | Washer | 2 | ADD TO CART | |
| 41 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
Page 70 — Roll over protection
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012208 | Roll over protection | 1 | ADD TO CART | |
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012502 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 21 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 22 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 23 | 5100011814 | Rubber buffer | 4 | ADD TO CART | |
| 190 | 5100016261 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100013379 | Hexagon screw | 2 | ADD TO CART | |
| 16 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012194 | Washer | 2 | ADD TO CART | |
| 18 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 19 | 5100024289 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100024289 · qty on machine: 2 | |||||
| 20 | 5100012985 | Threaded bolt | 2 | ADD TO CART | |
| 25 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 26 | 5100012987 | W-clip | 2 | ADD TO CART | |
| 27 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 100 | 5100012208 | Roll over protection | 1 | ADD TO CART | |
Page 74 — Rigid roll over protection
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033211 | Roll over protection | 1 | ADD TO CART | |
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012502 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 190 | 5100016261 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
Page 76 — Canopy, fops
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100052891 | Roof | 1 | ADD TO CART | |
| 3 | 5100052892 | Bracket | 4 | ADD TO CART | |
| 4 | 5100052893 | Plate | 4 | ADD TO CART | |
| 5 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 6 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 10 | 5100052894 | Strap bolt | 2 | ADD TO CART | |
| 11 | 5100052895 | Distance sheet | 8 | ADD TO CART | |
| 12 | 5100052893 | Plate | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 15 | 5100035325 | Protective cap | 4 | ADD TO CART | |
| 20 | 5100016823 | Rail | 1 | ADD TO CART | |
| 21 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100016825 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 40 | 5100034805 | Cable support sleeve | 4 | ADD TO CART | |
| 46 | 5100050647 | Filler cap | 8 | ADD TO CART | |
| 47 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 48 | 5100011550 | Plug | 2 | ADD TO CART | |
| 50 | 5100013412 | Edge protection | 1.56 | ADD TO CART | |
| 55 | 5100068809 | Metal plate | 1 | ADD TO CART | |
| 56 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 58 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
Page 78 — Engine and pump assembly
Parts list — exactly as printed77 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100024300 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100024300 · qty on machine: 1 | |||||
| 3 | 5100012811 | Spacer ring | 1 | ADD TO CART | |
| 3 | 5100012812 | Gearwheel | 1 | ADD TO CART | |
| 3 | 5100012813 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100012814 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100012561 | Coupling | 1 | ADD TO CART | |
| 6 | 5100012626 | Hexagon screw | 6 | ADD TO CART | |
| 10 | 5100012562 | Flange | 1 | ADD TO CART | |
| 11 | 5100012552 | Hexagon screw | 8 | ADD TO CART | |
| 12 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 21 | 5100024301 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100024301 · qty on machine: 1 | |||||
| 22 | 5100012626 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 31 | 5100024302 | Gear pump | 1 | ADD TO CART | |
| 32 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 33 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 41 | 5100052898 | Gear pump | 1 | ADD TO CART | |
| 42 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 43 | 5100013441 | Locking washer | 4 | ADD TO CART | |
| 45 | 5100013418 | Screw plug | 1 | ADD TO CART | |
| 46 | 5100013005 | Sealing ring | 1 | ADD TO CART | |
| 51 | 5100012153 | Suspension | 1 | ADD TO CART | |
| 52 | 5100011587 | Safety screw | 2 | ADD TO CART | |
| 54 | 5100012555 | Hexagon screw | 4 | ADD TO CART | |
| 55 | 5100012972 | Locking washer | 4 | ADD TO CART | |
| 60 | 5100024303 | Rubber buffer | 2 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 4 | ADD TO CART | |
| 62 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 63 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 71 | 5100012702 | Mounting device | 1 | ADD TO CART | |
| 72 | 5100012703 | Mounting device | 1 | ADD TO CART | |
| 73 | 5100012554 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 76 | 5100012780 | Mushroom head screw | 1 | ADD TO CART | |
| 77 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 78 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 101 | 5100012539 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100012539 · qty on machine: 1 | |||||
| 103 | 5100012943 | Flexible tubing | 1 | ADD TO CART | |
| 1 | 5100024304 | Oil dipstick | 1 | ADD TO CART | |
| 2 | 5100013414 | Filter cartridge, lubric. oil | 1 | ADD TO CART | |
| 3 | 5100012805 | Magnet, remote shut-down eng. | 1 | ADD TO CART | |
| 4 | 5100024305 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100012875 | Cooling pump | 1 | ADD TO CART | |
| 6 | 5100012873 | Seal | 1 | ADD TO CART | |
| 7 | 5100025028 | V-belt | 1 | ADD TO CART | |
| 8 | 5100012685 | Alternator | 1 | ADD TO CART | |
| 9 | 5100024306 | Thermostat | 1 | ADD TO CART | |
| 10 | 5100012809 | Cover, oil filler, above | 1 | ADD TO CART | |
| 11 | 5100023507 | O-ring seal | 1 | ADD TO CART | |
| 12 | 5100012690 | Starter | 1 | ADD TO CART | |
| 13 | 5100024307 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100024307 · qty on machine: 1 | |||||
| 14 | 5100024308 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100024308 · qty on machine: 1 | |||||
| 15 | 5100012807 | Engine oil pressure switch | 1 | ADD TO CART | |
| 16 | 5100024309 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100024309 · qty on machine: 1 | |||||
| 17 | 5100024310 | Sealing | 1 | ADD TO CART | |
| 18 | 5100012808 | Temperature switch | 1 | ADD TO CART | |
| 19 | 5100024311 | Heater plug | 3 | PARTS REQUEST | |
|
COMING Heater plug
5100024311 · qty on machine: 3 | |||||
| 100 | 5100024300 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100024300 · qty on machine: 1 | |||||
| 10 | 5100012912 | Stud bolt | 2 | ADD TO CART | |
| 11 | 5100012212 | Washer | 4 | ADD TO CART | |
| 12 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5100012626 | Hexagon screw | 2 | ADD TO CART | |
| 21 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 35 | 5100012235 | Cap nut | 1 | ADD TO CART | |
| 36 | 5100013555 | Filler cap | 1 | ADD TO CART | |
| 37 | 5100013486 | Bulkhead elbow | 1 | ADD TO CART | |
| 38 | 5100013191 | Washer | 1 | ADD TO CART | |
| 39 | 5100013488 | Hexagon nut | 1 | ADD TO CART | |
| 80 | 5100012704 | Engine suspension | 1 | ADD TO CART | |
| 84 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 85 | 5100012513 | Hexagon screw | 2 | ADD TO CART | |
| 86 | 5100012212 | Washer | 2 | ADD TO CART | |
| 87 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100016262 | V-belt protection | 1 | ADD TO CART | |
| 51 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 52 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 53 | 5100013230 | Locking washer | 3 | ADD TO CART | |
Page 88 — Fuel system
Parts list — exactly as printed69 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011731 | Rubber washer | 10 | ADD TO CART | |
| 3 | 5100011824 | Washer | 5 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 5 | ADD TO CART | |
| 5 | 5100013215 | Fuel tank | 1 | Serialno. 160-584 | ADD TO CART |
| 5 | 5100066877 | Fuel tank | 1 | Serialno. < 585 | PARTS REQUEST |
|
COMING Fuel tank
5100066877 · qty on machine: 1 Serialno. < 585 | |||||
| 5 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 5 | 5100011829 | Tank cap, with lock | 1 | ADD TO CART | |
| 5 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 5 | 5100013557 | Key | 1 | ADD TO CART | |
| 6 | 5100011730 | Spacer pin | 5 | ADD TO CART | |
| 10 | 5100012475 | Fuel gauge | 1 | ADD TO CART | |
| 17 | 5100013502 | Sealing ring | 6 | ADD TO CART | |
| 18 | 5100011443 | Cheese-head screw | 6 | ADD TO CART | |
| 26 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 37 | 5100013186 | Flexible tubing | 1 | ADD TO CART | |
| 39 | 5100012933 | Flexible tubing | 1 | ADD TO CART | |
| 40 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 49 | 5100012622 | Flexible tubing | 1 | ADD TO CART | |
| 56 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 60 | 5100013216 | Flexible tubing | 0.5 | ADD TO CART | |
| 61 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 69 | 5100013567 | Reducing piece | 1 | Serialno. 160-1209 | ADD TO CART |
| 70 | 5100012593 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012593 · qty on machine: 1 | |||||
| 71 | 5100013640 | Flexible tubing | 0.2 | Serialno. 160-1209 | ADD TO CART |
| 72 | 5100013540 | Pipe clip | 2 | Serialno. 160-1209 | ADD TO CART |
| 74 | 5100012564 | Silentbloc | 2 | ADD TO CART | |
| 75 | 5100012965 | Locking washer | 6 | ADD TO CART | |
| 76 | 5100012545 | Hexagon nut | 6 | ADD TO CART | |
| 77 | 5100012919 | Silentbloc | 2 | ADD TO CART | |
| 85 | 5100012455 | Bracket | 1 | ADD TO CART | |
| 86 | 5100013510 | Hexagon screw | 2 | ADD TO CART | |
| 87 | 5100013094 | Washer | 4 | ADD TO CART | |
| 88 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 90 | 5100013216 | Flexible tubing | 0.61 | ADD TO CART | |
| 91 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 93 | 5100013567 | Reducing piece | 1 | Serialno. < 1210 | ADD TO CART |
| 94 | 5100013640 | Flexible tubing | 0.08 | Serialno. < 1210 | ADD TO CART |
| 95 | 5100082397 | Non-return valve | 1 | Serialno. < 1210 | PARTS REQUEST |
|
COMING Non-return valve
5100082397 · qty on machine: 1 Serialno. < 1210 | |||||
| 96 | 5100013640 | Flexible tubing | 0.08 | Serialno. < 1210 | ADD TO CART |
| 97 | 5100013540 | Pipe clip | 4 | Serialno. < 1210 | ADD TO CART |
| 30 | 5100013365 | Mounting device | 1 | ADD TO CART | |
| 31 | 5100012925 | Fuel filter | 1 | ADD TO CART | |
| 32 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 33 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 34 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 38 | 5100011461 | Straight screwed socket | 2 | ADD TO CART | |
| 45 | 5100023485 | Fuel pump | 1 | ADD TO CART | |
| 46 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 47 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 48 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100012227 | Hollow-core screw | 1 | ADD TO CART | |
| 51 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
| 52 | 5100012460 | Filter head | 1 | ADD TO CART | |
| 53 | 5100029554 | Fuel filter | 1 | ADD TO CART | |
| 54 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 55 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 57 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 58 | 5100013632 | Straight screwed socket | 1 | ADD TO CART | |
| 59 | 5100011664 | Hose fitting | 1 | ADD TO CART | |
| 62 | 5100013405 | Screw plug | 1 | ADD TO CART | |
| 63 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 65 | 5100012571 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013502 | Sealing ring | 1 | ADD TO CART | |
| 80 | 5100013520 | Wire fastener | 1 | ADD TO CART | |
| 183 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 184 | 5100013361 | Filter | 1 | ADD TO CART | |
| 185 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 186 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 192 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
Page 94 — Fuel Filter
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012926 | Filter head | 1 | PARTS REQUEST | |
|
COMING Filter head
5100012926 · qty on machine: 1 | |||||
| 2 | 5100012928 | Filter cartridge | 1 | ADD TO CART | |
| 2 | 5100012927 | Sealing washer | 1 | ADD TO CART | |
| 3 | 5100012929 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012930 | Filter housing | 1 | ADD TO CART | |
| 5 | 5100012244 | Discharge valve | 1 | ADD TO CART | |
| 31 | 5100012925 | Fuel filter | 1 | ADD TO CART | |
| 52 | 5100012460 | Filter head | 1 | ADD TO CART | |
| 53 | 5100012462 | Fuel filter | 1 | ADD TO CART | |
Page 96 — Engine control
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012163 | Bracket | 1 | ADD TO CART | |
| 2 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 3 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 4 | 5100024312 | Lever | 1 | ADD TO CART | |
| 5 | 5100012694 | Actuating cable | 1 | Serialno. <291 | ADD TO CART |
| 5 | 5100012818 | Hand lever | 1 | 5.01 Serialno. >614 | PARTS REQUEST |
|
COMING Hand lever
5100012818 · qty on machine: 1 5.01 Serialno. >614 | |||||
| 5 | 5100066889 | Actuating cable | 1 | Serialno. 292 - 613 | ADD TO CART |
| 5 | 5100066901 | Hand lever | 1 | 5.01 Serialno. 292 - 613 | ADD TO CART |
| 5 | 5100069225 | Bowden cable without notch | 1 | Serialno. >614 | ADD TO CART |
| 5 | 5100011733 | Angle joint | 1 | ADD TO CART | |
| 5 | 5100011950 | Bellows | 1 | ADD TO CART | |
| 5 | 5100012588 | Ball handle | 1 | ADD TO CART | |
| 5 | 5100012821 | Actuating cable | 1 | ADD TO CART | |
| 6 | 5100013561 | Countersunk screw | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 13 | 5100012600 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 1 | |||||
| 14 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 15 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 16 | 5100012965 | Locking washer | 1 | ADD TO CART | |
Page 98 — Air filter system
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100012166 | Air hose | 1 | ADD TO CART | |
| 5 | 5100013403 | Hose clip | 2 | ADD TO CART | |
| 20 | 5100012560 | Bracket | 1 | ADD TO CART | |
| 21 | 5100011578 | Mushroom head screw | 2 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 28 | 5100012557 | Air filter | 1 | ADD TO CART | |
| 28 | 5100011561 | Dust discharge valve | 1 | ADD TO CART | |
| 28 | 5100012558 | Filter cartridge | 1 | ADD TO CART | |
| 28 | 5100012559 | Safety filter cartridge | 1 | ADD TO CART | |
| 30 | 5100012776 | Metal plate | 1 | ADD TO CART | |
| 31 | 5100012564 | Silentbloc | 3 | ADD TO CART | |
| 32 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 33 | 5100012545 | Hexagon nut | 3 | ADD TO CART | |
| 35 | 5100012165 | Intake hose | 1 | ADD TO CART | |
| 36 | 5100013403 | Hose clip | 1 | ADD TO CART | |
| 37 | 5100012907 | Hose clip | 1 | ADD TO CART | |
| 40 | 5100011464 | Threaded bolt | 1 | ADD TO CART | |
| 41 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||
Page 100 — Exhaust system
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012172 | Silencer | 1 | ADD TO CART | |
| 2 | 5100011471 | Stud bolt | 2 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 4 | 5100012546 | Hexagon nut | 3 | ADD TO CART | |
| 5 | 5100011635 | Stud bolt | 1 | ADD TO CART | |
| 6 | 5100012269 | Exhaust gas hose | 1 | ADD TO CART | |
| 7 | 5100011668 | Pipe clip | 2 | ADD TO CART | |
| 10 | 5100012389 | Cover | 1 | ADD TO CART | |
| 11 | 5100013510 | Hexagon screw | 3 | ADD TO CART | |
| 12 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 13 | 5100013584 | Clip nut | 3 | ADD TO CART | |
| 20 | 5100012156 | Tail pipe | 1 | ADD TO CART | |
| 21 | 5100012893 | Safety nut | 2 | ADD TO CART | |
| 22 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 70 | 5100012787 | Seal | 1 | ADD TO CART | |
| 71 | 5100012894 | Stud bolt | 2 | ADD TO CART | |
Page 102 — Cooling (engine/hydraulic oil)
Parts list — exactly as printed128 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012155 | Pipe | 1 | Serialno. <443 | ADD TO CART |
| 2 | 5100012517 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 3 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 5 | 5100012517 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 6 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 7 | 5100012158 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 8 | 5100012159 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 9 | 5100011637 | Hose clip | 4 | Serialno. <443 | ADD TO CART |
| 10 | 5100012162 | Fan | 1 | Serialno. <443 | ADD TO CART |
| 11 | 5100011920 | Fan free-wheeling | 1 | Serialno. <443 | ADD TO CART |
| 12 | 5100013397 | Hexagon screw | 4 | Serialno. <443 | ADD TO CART |
| 13 | 5100012965 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 20 | 5100012157 | Bracket | 1 | Serialno. <443 | ADD TO CART |
| 23 | 5100012554 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 24 | 5100012968 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 25 | 5100013550 | Rubber buffer | 2 | Serialno. <443 | ADD TO CART |
| 26 | 5100012515 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 27 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 28 | 5100012546 | Hexagon nut | 2 | Serialno. <443 | ADD TO CART |
| 30 | 5100012777 | Metal plate | 1 | Serialno. <443 | ADD TO CART |
| 31 | 5100012517 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 32 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 33 | 5100024313 | Cover | 1 | Serialno. <443 | ADD TO CART |
| 34 | 5100012780 | Mushroom head screw | 2 | Serialno. <443 | ADD TO CART |
| 35 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 36 | 5100012546 | Hexagon nut | 2 | Serialno. <443 | ADD TO CART |
| 37 | 5100013642 | Sealing profile | 1.85 | Serialno. <443 | ADD TO CART |
| 48 | 5100013367 | Hose clip | 2 | Serialno. <443 | ADD TO CART |
| 49 | 5100011673 | Cooling-water hose | 0.75 | Serialno. <443 | ADD TO CART |
| 70 | 5100013513 | Hose shank banjo | 2 | Serialno. <443 | ADD TO CART |
| 71 | 5100012999 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 72 | 5100013380 | Hollow-core screw | 2 | Serialno. <443 | ADD TO CART |
| 73 | 5100013345 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 81 | 5100013640 | Flexible tubing | 0.2 | Serialno. <443 | ADD TO CART |
| 82 | 5100013540 | Pipe clip | 2 | Serialno. <443 | ADD TO CART |
| 83 | 5100013217 | Cooling-water hose | 1.1 | Serialno. <443 | ADD TO CART |
| 84 | 5100013179 | Hose clip | 1 | Serialno. <443 | ADD TO CART |
| 86 | 5100024314 | Radiator, engine cooling | 1 | Serialno. <443 | ADD TO CART |
| 97 | 5100012788 | Hose nozzle | 1 | Serialno. <443 | ADD TO CART |
| 1 | 5100066913 | Pipe | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Pipe
5100066913 · qty on machine: 1 Serialno. >444 | |||||
| 14 | 5100016826 | Supporting ring | 1 | Serialno. >444 | ADD TO CART |
| 48 | 5100052945 | Hose | 0.4 | Serialno. >444 | ADD TO CART |
| 66 | 5100024977 | Hose nozzle | 1 | Serialno. >444 | ADD TO CART |
| 69 | 5100013179 | Hose clip | 2 | Serialno. >444 | ADD TO CART |
| 72 | 5100013179 | Hose clip | 1 | Serialno. >444 | ADD TO CART |
| 97 | 5100065338 | Hose nozzle | 1 | Serialno. >444 | ADD TO CART |
| 58 | 5100012492 | Sealing ring | 1 | Serialno. <443 | ADD TO CART |
| 59 | 5100013516 | Screw plug | 1 | Serialno. <443 | ADD TO CART |
| 65 | 5100012174 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 66 | 5100012167 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 67 | 5100011637 | Hose clip | 4 | Serialno. <443 | ADD TO CART |
| 74 | 5100013477 | Straight screwed socket | 1 | Serialno. <443 | ADD TO CART |
| 76 | 5100012915 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 77 | 5100012446 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 78 | 5100013003 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 79 | 5100012918 | Hollow-core screw | 1 | Serialno. <443 | ADD TO CART |
| 87 | 5100011636 | Washer | 5 | Serialno. <443 | ADD TO CART |
| 88 | 5100012600 | Hexagon screw | 5 | Serialno. <443 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 5 Serialno. <443 | |||||
| 89 | 5100011866 | Sealing tape | 0.5 | Serialno. <443 | ADD TO CART |
| 91 | 5100024315 | Oil cooler | 1 | Serialno. <443 | ADD TO CART |
| 92 | 5100011636 | Washer | 2 | Serialno. <443 | ADD TO CART |
| 93 | 5100012600 | Hexagon screw | 2 | Serialno. <443 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 Serialno. <443 | |||||
| 94 | 5100011866 | Sealing tape | 0.4 | Serialno. <443 | ADD TO CART |
| 95 | 5100024316 | Console | 1 | Serialno. <443 | ADD TO CART |
| 96 | 5100013642 | Sealing profile | 1.75 | Serialno. <443 | ADD TO CART |
| 98 | 5100011479 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 99 | 5100012967 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 100 | 5100012547 | Hexagon nut | 2 | Serialno. <443 | ADD TO CART |
| 101 | 5100012048 | Metal plate | 1 | Serialno. <443 | ADD TO CART |
| 102 | 5100012047 | Metal plate | 1 | Serialno. <443 | ADD TO CART |
| 105 | 5100012780 | Mushroom head screw | 4 | Serialno. <443 | ADD TO CART |
| 106 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 107 | 5100012546 | Hexagon nut | 4 | Serialno. <443 | ADD TO CART |
| 110 | 5100012515 | Hexagon screw | 4 | Serialno. <443 | ADD TO CART |
| 111 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 114 | 5100011592 | Grommet | 2 | Serialno. <443 | ADD TO CART |
| 115 | 5100011592 | Grommet | 1 | Serialno. <443 | ADD TO CART |
| 116 | 5100011866 | Sealing tape | 0.4 | Serialno. <443 | ADD TO CART |
| 118 | 5100012444 | Screw plug | 2 | Serialno. <443 | PARTS REQUEST |
|
COMING Screw plug
5100012444 · qty on machine: 2 Serialno. <443 | |||||
| 119 | 5100013000 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 120 | 5100024317 | Fillister head screw | 2 | Serialno. <443 | ADD TO CART |
| 126 | 5100012845 | Guard | 1 | Serialno. <443 | ADD TO CART |
| 127 | 5100012515 | Hexagon screw | 4 | Serialno. <443 | ADD TO CART |
| 128 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 135 | 5100011532 | Pipe clip | 1 | Serialno. <443 | ADD TO CART |
| 136 | 5100012517 | Hexagon screw | 1 | Serialno. <443 | ADD TO CART |
| 137 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 138 | 5100012546 | Hexagon nut | 1 | Serialno. <443 | ADD TO CART |
| 61 | 5100052945 | Hose | 0.4 | Serialno. >444 | ADD TO CART |
| 70 | 5100052945 | Hose | 0.8 | Serialno. >444 | ADD TO CART |
| 73 | 5100013573 | Wire fastener | 4 | Serialno. >444 | ADD TO CART |
| 150 | 5100077462 | Protective device | 1 | Serialno. >444 | ADD TO CART |
| 39 | 5100012630 | Tank cap | 1 | Serialno. <182 | ADD TO CART |
| 40 | 5100024318 | Compensator tank | 1 | Serialno. <182 | ADD TO CART |
| 41 | 5100012919 | Silentbloc | 3 | Serialno. <182 | ADD TO CART |
| 42 | 5100012965 | Locking washer | 3 | Serialno. <182 | ADD TO CART |
| 43 | 5100012545 | Hexagon nut | 3 | Serialno. <182 | ADD TO CART |
| 44 | 5100024319 | Holder | 1 | Serialno. <182 | ADD TO CART |
| 45 | 5100012515 | Hexagon screw | 4 | Serialno. <182 | ADD TO CART |
| 46 | 5100012966 | Locking washer | 4 | Serialno. <182 | ADD TO CART |
| 50 | 5100013388 | Inspection glass | 1 | Serialno. <182 | ADD TO CART |
| 51 | 5100011749 | Hose nozzle | 1 | Serialno. <182 | ADD TO CART |
| 52 | 5100012608 | Hexagon screw | 3 | Serialno. <182 | ADD TO CART |
| 53 | 5100012965 | Locking washer | 3 | Serialno. <182 | ADD TO CART |
| 60 | 5100012474 | Hose shank banjo | 1 | Serialno. <182 | ADD TO CART |
| 61 | 5100013000 | Sealing ring | 2 | Serialno. <182 | ADD TO CART |
| 62 | 5100012227 | Hollow-core screw | 1 | Serialno. <182 | ADD TO CART |
| 40 | 5100053248 | Compensator tank | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Compensator tank
5100053248 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 44 | 5100053246 | Holder | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Holder
5100053246 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 47 | 5100053247 | Holder | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Holder
5100053247 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 52 | 5100012600 | Hexagon screw | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 54 | 5100012545 | Hexagon nut | 1 | Serialno. 183 - 443 | ADD TO CART |
| 40 | 5100066925 | Holder | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Holder
5100066925 · qty on machine: 1 Serialno. >444 | |||||
| 41 | 5100012608 | Hexagon screw | 2 | Serialno. >444 | ADD TO CART |
| 43 | 5100013585 | Clip nut | 2 | Serialno. >444 | ADD TO CART |
| 44 | 5100059556 | Threaded insert | 4 | Serialno. >444 | ADD TO CART |
| 45 | 5100012919 | Silentbloc | 4 | Serialno. >444 | ADD TO CART |
| 46 | 5100012965 | Locking washer | 4 | Serialno. >444 | ADD TO CART |
| 47 | 5100012545 | Hexagon nut | 4 | Serialno. >444 | ADD TO CART |
| 50 | 5100052932 | Level indicator | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Level indicator
5100052932 · qty on machine: 1 Serialno. >444 | |||||
| 51 | 5100012515 | Hexagon screw | 1 | Serialno. >444 | ADD TO CART |
| 52 | 5100012966 | Locking washer | 1 | Serialno. >444 | ADD TO CART |
| 54 | 5100066934 | Eyelet | 1 | Serialno. >444 | ADD TO CART |
| 55 | 5100012600 | Hexagon screw | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 1 Serialno. >444 | |||||
| 56 | 5100012965 | Locking washer | 1 | Serialno. >444 | ADD TO CART |
| 60 | 5100023482 | Tank cap | 1 | 60.01 Serialno. >444 | ADD TO CART |
| 60 | 5100052930 | Compensator tank | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Compensator tank
5100052930 · qty on machine: 1 Serialno. >444 | |||||
| 62 | 5100013179 | Hose clip | 2 | Serialno. >444 | ADD TO CART |
Page 122 — Driving gear (var. displ. pump-drive)
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011877 | Driving gear | 1 | PARTS REQUEST | |
|
COMING Driving gear
5100011877 · qty on machine: 1 | |||||
| 1 | 5100011617 | Locking ring | 2 | ADD TO CART | |
| 1 | 5100011878 | Shaft seal | 1 | ADD TO CART | |
| 1 | 5100012250 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100011568 | Hydraulic regulation | 1 | ADD TO CART | |
| 2 | 5100011447 | O-ring seal | 1 | ADD TO CART | |
| 2 | 5100011572 | Piston ring | 2 | ADD TO CART | |
| 2 | 5100011573 | Set of seals | 2 | ADD TO CART | |
| 2 | 5100012189 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100013545 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100011569 | Connection plate | 1 | PARTS REQUEST | |
|
COMING Connection plate
5100011569 · qty on machine: 1 | |||||
| 3 | 5100023228 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100023189 | Supporting ring | 1 | ADD TO CART | |
| 3 | 5100013546 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100013543 | Screw plug | 2 | ADD TO CART | |
| 3 | 5100012188 | Set of seals | 1 | ADD TO CART | |
| 3 | 5100011614 | Feeding pressure valve | 1 | PARTS REQUEST | |
|
COMING Feeding pressure valve
5100011614 · qty on machine: 1 | |||||
| 3 | 5100011571 | Pressure-relief valve | 2 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100011571 · qty on machine: 2 | |||||
| 3 | 5100011511 | Seal nut | 1 | ADD TO CART | |
| 3 | 5100011454 | Screw plug | 1 | ADD TO CART | |
| 3 | 5100011446 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012394 | Connection flange | 1 | ADD TO CART | |
| 4 | 5100011745 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100024320 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100024321 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011570 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100011570 · qty on machine: 1 | |||||
| 5 | 5100023500 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100023499 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100013547 | Seal nut | 1 | ADD TO CART | |
| 5 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 5 | 5100012541 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100012541 · qty on machine: 1 | |||||
| 5 | 5100011448 | O-ring seal | 1 | ADD TO CART | |
| 13 | 5100023206 | Pin | 1 | ADD TO CART | |
| 20 | 5100011452 | Screw plug | 1 | ADD TO CART | |
| 21 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 22 | 5100013543 | Screw plug | 3 | ADD TO CART | |
| 23 | 5100011743 | Screw plug | 1 | ADD TO CART | |
| 24 | 5100011454 | Screw plug | 3 | ADD TO CART | |
| 28 | 5100011521 | Valve | 2 | ADD TO CART | |
| 41 | 5100013515 | O-ring seal | 1 | ADD TO CART | |
| 100 | 5100024301 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100024301 · qty on machine: 1 | |||||
| 100 | 5100012395 | Set of seals | 1 | ADD TO CART | |
Page 126 — Pump (Vibration Drive)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024302 | Gear pump | 1 | ADD TO CART | |
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100013445 | Hexagon nut | 1 | ADD TO CART | |
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
Page 128 — Constant motor (vibration drive)
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011795 | Gear motor | 1 | ADD TO CART | |
| 1 | 5100065348 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100012549 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012549 · qty on machine: 1 | |||||
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
Page 132 — Control block (brake)
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011986 | Directional valve | 1 | ADD TO CART | |
| 2 | 5100012409 | Magnet | 1 | ADD TO CART | |
| 3 | 5100011972 | Pressure-relief valve | 1 | ADD TO CART | |
| 7 | 5100013006 | Pressure-relief valve | 1 | ADD TO CART | |
| 12 | 5100011671 | Screw plug | 1 | ADD TO CART | |
| 13 | 5100011564 | Screw plug | 3 | ADD TO CART | |
| 14 | 5100011538 | Screw plug | 4 | ADD TO CART | |
| 15 | 5100011985 | O-ring seal | 1 | ADD TO CART | |
| 16 | 5100011838 | O-ring seal | 1 | ADD TO CART | |
| 17 | 5100011419 | O-ring seal | 1 | ADD TO CART | |
| 21 | 5100011855 | Screw plug | 1 | ADD TO CART | |
| 100 | 5100012963 | Valve block | 1 | ADD TO CART | |
Page 134 — Wheel hub motor
Parts list — exactly as printed43 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 111 | 5100013342 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100013342 · qty on machine: 1 | |||||
| 1 | 5100012538 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 2 | 5100011954 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 3 | 5100016263 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 5 | 5100016264 | Seal | 1 | Serialno. <182 | ADD TO CART |
| 6 | 5100016265 | Cap | 1 | Serialno. <182 | ADD TO CART |
| 7 | 5100016266 | Plug | 1 | Serialno. <182 | ADD TO CART |
| 8 | 5100016267 | Ring | 1 | Serialno. <182 | ADD TO CART |
| 9 | 5100016268 | Ring | 1 | Serialno. <182 | ADD TO CART |
| 10 | 5100016269 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 11 | 5100012799 | Spring | 1 | Serialno. <182 | ADD TO CART |
| 12 | 5100012796 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 13 | 5100016270 | Piston | 1 | Serialno. <182 | ADD TO CART |
| 14 | 5100011574 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 100 | 5100011552 | Gear hub motor | 1 | Serialno. <182 | ADD TO CART |
| 14 | 5100033216 | Set of seals | 1 | Serialno. 183 - 303 | PARTS REQUEST |
|
COMING Set of seals
5100033216 · qty on machine: 1 Serialno. 183 - 303 | |||||
| 100 | 5100030749 | Gear hub motor | 1 | Serialno. 183 - 303 | ADD TO CART |
| 1 | 5100011954 | Set of seals | 1 | 1.01 Serialno. >304 | ADD TO CART |
| 1 | 5100012796 | Set of seals | 1 | 1.05 Serialno. >304 | ADD TO CART |
| 1 | 5100012798 | Set of seals | 1 | 1.02 Serialno. >304 | ADD TO CART |
| 1 | 5100012799 | Spring | 1 | 1.04 Serialno. >304 | ADD TO CART |
| 1 | 5100016269 | Set of seals | 1 | 1.03 Serialno. >304 | ADD TO CART |
| 1 | 5100052949 | Gear hub motor | 1 | Serialno. >304 | ADD TO CART |
| 10 | 5100013332 | Cylinder block | 1 | PARTS REQUEST | |
|
COMING Cylinder block
5100013332 · qty on machine: 1 | |||||
| 15 | 5100013333 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100013333 · qty on machine: 1 | |||||
| 27 | 5100013338 | Set of seals | 1 | ADD TO CART | |
| 40 | 5100013334 | Distributor | 1 | PARTS REQUEST | |
|
COMING Distributor
5100013334 · qty on machine: 1 | |||||
| 40 | 5100024322 | Repair set | 1 | ADD TO CART | |
| 42 | 5100011485 | Cheese-head screw | 12 | ADD TO CART | |
| 43 | 5100013339 | Straight pin | 1 | PARTS REQUEST | |
|
COMING Straight pin
5100013339 · qty on machine: 1 | |||||
| 44 | 5100012125 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100012125 · qty on machine: 1 | |||||
| 48 | 5100012124 | Set of seals | 1 | ADD TO CART | |
| 60 | 5100048105 | Bolt kit | 1 | ADD TO CART | |
| 70 | 5100013330 | Bearing piece | 1 | PARTS REQUEST | |
|
COMING Bearing piece
5100013330 · qty on machine: 1 | |||||
| 70 | 5100013331 | Set of seals | 1 | ADD TO CART | |
| 71 | 5100024323 | Repair set | 1 | ADD TO CART | |
| 100 | 5100013335 | Brake | 1 | ADD TO CART | |
| 100 | 5100013343 | Set of seals | 1 | ADD TO CART | |
| 108 | 5100013341 | Brake piston | 1 | PARTS REQUEST | |
|
COMING Brake piston
5100013341 · qty on machine: 1 | |||||
| 110 | 5100013340 | Cover plate | 1 | PARTS REQUEST | |
|
COMING Cover plate
5100013340 · qty on machine: 1 | |||||
| 135 | 5100013336 | Set of seals | 1 | PARTS REQUEST | |
|
COMING Set of seals
5100013336 · qty on machine: 1 | |||||
| 200 | 5100012957 | Gear hub motor | 1 | PARTS REQUEST | |
|
COMING Gear hub motor
5100012957 · qty on machine: 1 | |||||
| 200 | 5100013337 | Set of seals | 1 | ADD TO CART | |
Page 142 — Valve block (all-wheel lock)
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100012115 | Directional valve | 1 | Serialno. 160-586 | ADD TO CART |
| 4 | 5100012112 | Solenoid coil | 1 | Serialno. 160-586 | ADD TO CART |
| 5 | 5100012114 | Pressure-relief valve | 2 | Serialno. 160-586 | ADD TO CART |
| 7 | 5100012113 | Nozzle | 1 | Serialno. 160-586 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. 160-586 | |||||
| 9 | 5100011564 | Screw plug | 2 | Serialno. 160-586 | ADD TO CART |
| 10 | 5100011538 | Screw plug | 1 | Serialno. 160-586 | ADD TO CART |
| 11 | 5100011743 | Screw plug | 2 | Serialno. 160-586 | ADD TO CART |
| 12 | 5100012113 | Nozzle | 1 | Serialno. 160-586 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. 160-586 | |||||
| 13 | 5100011742 | O-ring seal | 1 | Serialno. 160-586 | ADD TO CART |
| 14 | 5100011741 | O-ring seal | 2 | Serialno. 160-586 | PARTS REQUEST |
|
COMING O-ring seal
5100011741 · qty on machine: 2 Serialno. 160-586 | |||||
| 15 | 5100013544 | O-ring seal | 2 | Serialno. 160-586 | ADD TO CART |
| 100 | 5100012425 | Flow divider | 1 | Serialno. 160-586 | ADD TO CART |
Page 144 — Valve block
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066935 | Piston valve | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Piston valve
5100066935 · qty on machine: 1 Serialno. >587 | |||||
| 3 | 5100066873 | Directional control valve | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Directional control valve
5100066873 · qty on machine: 1 Serialno. >587 | |||||
| 4 | 5100066884 | Solenoid coil | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Solenoid coil
5100066884 · qty on machine: 1 Serialno. >587 | |||||
| 5 | 5100012114 | Pressure-relief valve | 2 | Serialno. >587 | ADD TO CART |
| 6 | 5100066895 | Flow divider | 1 | Serialno. >587 | ADD TO CART |
| 7 | 5100012113 | Nozzle | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. >587 | |||||
| 8 | 5100066906 | Compression spring | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Compression spring
5100066906 · qty on machine: 1 Serialno. >587 | |||||
| 9 | 5100011564 | Screw plug | 2 | Serialno. >587 | ADD TO CART |
| 10 | 5100011538 | Screw plug | 1 | Serialno. >587 | ADD TO CART |
| 11 | 5100011743 | Screw plug | 2 | Serialno. >587 | ADD TO CART |
| 12 | 5100012113 | Nozzle | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. >587 | |||||
| 13 | 5100011742 | O-ring seal | 1 | Serialno. >587 | ADD TO CART |
| 14 | 5100011741 | O-ring seal | 2 | Serialno. >587 | PARTS REQUEST |
|
COMING O-ring seal
5100011741 · qty on machine: 2 Serialno. >587 | |||||
| 15 | 5100013544 | O-ring seal | 2 | Serialno. >587 | ADD TO CART |
| 100 | 5100066917 | Flow divider | 1 | Serialno. >587 | ADD TO CART |
Page 146 — Valve block (changeover vibration)
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 8 | 5100011987 | Directional valve | 1 | Serialno. 160-198 | ADD TO CART |
| 8 | 5100012409 | Magnet | 1 | 8.01 Serialno. 160-198 | ADD TO CART |
| 17 | 5100011743 | Screw plug | 2 | Serialno. 160-198 | ADD TO CART |
| 18 | 5100011538 | Screw plug | 1 | Serialno. 160-198 | ADD TO CART |
| 19 | 5100011564 | Screw plug | 1 | Serialno. 160-198 | ADD TO CART |
| 20 | 5100011750 | Screw plug | 1 | Serialno. 160-198 | ADD TO CART |
| 22 | 5100013436 | O-ring seal | 1 | Serialno. 160-198 | ADD TO CART |
| 23 | 5100011501 | O-ring seal | 3 | Serialno. 160-198 | ADD TO CART |
| 100 | 5100012383 | Valve block | 1 | Serialno. 160-198 | ADD TO CART |
Page 152 — Filter (hydraulic oil)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013361 | Filter | 1 | ADD TO CART | |
| 1 | 5100013387 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100024324 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
5100024324 · qty on machine: 1 | |||||
| 1 | 5100029595 | Set of seals | 1 | ADD TO CART | |
Page 154 — Pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100016271 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100016271 · qty on machine: 1 | |||||
| 1 | 5100016272 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100016272 · qty on machine: 1 | |||||
| 1 | 5100052898 | Gear pump | 1 | ADD TO CART | |
Page 156 — Collecting block (hydraulic oil)
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012257 | Valve block | 1 | Serialno. 160-752 | PARTS REQUEST |
|
COMING Valve block
5100012257 · qty on machine: 1 Serialno. 160-752 | |||||
| 2 | 5100011642 | Scavenge valve | 1 | Serialno. 160-752 | ADD TO CART |
| 3 | 5100012111 | Nozzle | 1 | Serialno. 160-752 | PARTS REQUEST |
|
COMING Nozzle
5100012111 · qty on machine: 1 Serialno. 160-752 | |||||
| 5 | 5100012110 | O-ring seal | 1 | Serialno. 160-752 | ADD TO CART |
| 6 | 5100011516 | O-ring seal | 2 | Serialno. 160-752 | ADD TO CART |
| 7 | 5100013563 | Cheese-head screw | 4 | Serialno. 160-752 | ADD TO CART |
| 8 | 5100011538 | Screw plug | 1 | Serialno. 160-752 | ADD TO CART |
| 1 | 5100012390 | Valve block | 1 | Serialno. 160-755 | ADD TO CART |
Page 160 — Manifold block
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066937 | Scavenge valve | 1 | Serialno. >756 | ADD TO CART |
| 3 | 5100012111 | Nozzle | 1 | Serialno. >756 | PARTS REQUEST |
|
COMING Nozzle
5100012111 · qty on machine: 1 Serialno. >756 | |||||
| 5 | 5100012110 | O-ring seal | 1 | Serialno. >756 | ADD TO CART |
| 6 | 5100066867 | O-ring seal | 2 | Serialno. >756 | PARTS REQUEST |
|
COMING O-ring seal
5100066867 · qty on machine: 2 Serialno. >756 | |||||
| 7 | 5100013563 | Cheese-head screw | 4 | Serialno. >756 | ADD TO CART |
| 8 | 5100066868 | Locking screw | 3 | Serialno. >756 | ADD TO CART |
| 9 | 5100066864 | Locking screw | 1 | Serialno. >756 | PARTS REQUEST |
|
COMING Locking screw
5100066864 · qty on machine: 1 Serialno. >756 | |||||
| 100 | 5100066869 | Valve block | 1 | Serialno. >756 | ADD TO CART |
Page 162 — Valve block (emergency stop)
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066870 | Sealing ring | 1 | ADD TO CART | |
| 3 | 5100012095 | Hollow-core screw | 1 | ADD TO CART | |
| 4 | 5100012196 | Directional valve | 1 | PARTS REQUEST | |
|
COMING Directional valve
5100012196 · qty on machine: 1 | |||||
| 5 | 5100077463 | Solenoid coil | 1 | ADD TO CART | |
| 6 | 5100013406 | O-ring seal | 1 | ADD TO CART | |
| 8 | 5100077464 | Hollow-core screw | 1 | PARTS REQUEST | |
|
COMING Hollow-core screw
5100077464 · qty on machine: 1 | |||||
| 11 | 5100012096 | Pipe | 1 | ADD TO CART | |
| 12 | 5100012198 | Sealing ring | 2 | ADD TO CART | |
| 100 | 5100012429 | Valve block | 1 | ADD TO CART | |
Page 164 — Oil tank
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100011824 | Washer | 2 | ADD TO CART | |
| 2 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100011730 | Spacer pin | 2 | ADD TO CART | |
| 11 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 12 | 5100011824 | Washer | 2 | ADD TO CART | |
| 13 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 1 | 5100046360 | Hydraulic oil tank | 1 | ADD TO CART | |
| 2 | 5100012963 | Valve block | 1 | ADD TO CART | |
| 3 | 5100013527 | Cheese-head screw | 3 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 7 | 5100013505 | Banjo | 1 | PARTS REQUEST | |
|
COMING Banjo
5100013505 · qty on machine: 1 | |||||
| 12 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 13 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 16 | 5100011857 | Suction filter | 1 | ADD TO CART | |
| 16 | 5100013415 | O-ring seal | 1 | ADD TO CART | |
| 18 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 20 | 5100012419 | Filter | 1 | ADD TO CART | |
| 20 | 5100039052 | Vent filter | 1 | ADD TO CART | |
| 21 | 5100012866 | Fillister head screw | 6 | ADD TO CART | |
| 22 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 31 | 5100013475 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 | |||||
| 33 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 45 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 50 | 5100013435 | Oil level indicator | 1 | ADD TO CART | |
| 51 | 5100011730 | Spacer pin | 2 | ADD TO CART | |
| 54 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 63 | 5100013499 | Straight screwed socket | 1 | ADD TO CART | |
| 65 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 100 | 5100016828 | Vent filter | 1 | ADD TO CART | |
| 100 | 5100024927 | Special wrench | 1 | ADD TO CART | |
Page 168 — Dashboard
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100013323 | Instrument panel | 1 | ADD TO CART | |
| 20 | 5100011595 | Frame | 2 | Serialno. >614 | ADD TO CART |
| 21 | 5100011597 | Push-button | 1 | Serialno. >614 | ADD TO CART |
| 22 | 5100011580 | Blind cover | 1 | Serialno. >614 | ADD TO CART |
| 23 | 5100023546 | Rocker, preselection | 1 | Serialno. >614 | ADD TO CART |
| 30 | 5100023242 | Fixation | 1 | Serialno. >614 | ADD TO CART |
| 31 | 5100023241 | Push button | 1 | Serialno. >614 | ADD TO CART |
| 33 | 5100023527 | Label | 1 | Serialno. >614 | ADD TO CART |
| 35 | 5100023008 | Lid | 1 | Serialno. >614 | ADD TO CART |
| 100 | 5100025103 | Instrument panel | 1 | Serialno. >614 | ADD TO CART |
Page 174 — Electrical system
Parts list — exactly as printed171 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013557 | Key | 1 | ADD TO CART | |
| 1 | 5100013570 | Ignition switch | 1 | ADD TO CART | |
| 2 | 5100013506 | Lid | 1 | ADD TO CART | |
| 6 | 5100012486 | Push button switch | 1 | Serialno. <183 | PARTS REQUEST |
|
COMING Push button switch
5100012486 · qty on machine: 1 Serialno. <183 | |||||
| 6 | 5100023241 | Push button | 1 | Serialno. >184 | ADD TO CART |
| 7 | 5100023242 | Fixation | 1 | Serialno. >184 | ADD TO CART |
| 10 | 5100011784 | Signal transmitter | 1 | ADD TO CART | |
| 11 | 5100012576 | Wire harness | 1 | Serialno. <183 | ADD TO CART |
| 11 | 5100039066 | Cable harness | 1 | Serialno. 184-613 | ADD TO CART |
| 12 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 13 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 14 | 5100011586 | Hexagon nut | 1 | ADD TO CART | |
| 33 | 5100012770 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100012770 · qty on machine: 1 | |||||
| 41 | 5100066914 | Wire harness instrument panel | 1 | Serialno. >614 | ADD TO CART |
| 41 | 5100012573 | Wire harness | 1 | Serialno. 160-613 | ADD TO CART |
| 58 | 5100012774 | Wire harness | 1 | ADD TO CART | |
| 59 | 5100012772 | Wire harness | 1 | ADD TO CART | |
| 61 | 5100012771 | Wire harness | 1 | ADD TO CART | |
| 65 | 5100024975 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013384 | Serrated lock washer | 2 | ADD TO CART | |
| 67 | 5100011914 | Hexagon nut | 5 | ADD TO CART | |
| 68 | 5100023629 | Spring ring | 10 | ADD TO CART | |
| 69 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 70 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 75 | 5100052961 | Washer | 1 | ADD TO CART | |
| 76 | 5100012403 | Bracket | 1 | ADD TO CART | |
| 77 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100013094 | Washer | 2 | ADD TO CART | |
| 92 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 94 | 5100011589 | Flexible tubing | 1 | ADD TO CART | |
| 146 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 147 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 148 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 149 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 150 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 151 | 5100013594 | Safety screw | 3 | ADD TO CART | |
| 152 | 5100013536 | Serrated lock washer | 3 | ADD TO CART | |
| 153 | 5100011669 | Rubber metal buffer | 3 | ADD TO CART | |
| 154 | 5100011753 | Washer | 3 | ADD TO CART | |
| 155 | 5100012898 | Hexagon nut | 3 | ADD TO CART | |
| 160 | 5100012326 | Cover plate | 1 | ADD TO CART | |
| 161 | 5100012586 | Stud bolt | 2 | ADD TO CART | |
| 162 | 5100013373 | Half-clip | 2 | ADD TO CART | |
| 163 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 164 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 165 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 210 | 5100012341 | Bracket | 1 | ADD TO CART | |
| 211 | 5100012554 | Hexagon screw | 1 | ADD TO CART | |
| 212 | 5100012968 | Locking washer | 1 | ADD TO CART | |
| 213 | 5100012453 | Spacer | 1 | ADD TO CART | |
| 220 | 5100012765 | Wire harness | 1 | ADD TO CART | |
| 222 | 5100012829 | Protecting cap | 1 | ADD TO CART | |
| 225 | 5100013184 | Protecting cap | 1 | PARTS REQUEST | |
|
COMING Protecting cap
5100013184 · qty on machine: 1 | |||||
| 226 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 240 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 241 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 242 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 243 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 298 | 5100011748 | Rear reflector | 2 | ADD TO CART | |
| 5 | 5100012833 | Wire harness | 1 | ADD TO CART | |
| 30 | 5100012766 | Wire harness (front frame) | 1 | Serialno. <198 | ADD TO CART |
| 30 | 5100053420 | Wire harness front frame | 1 | Serialno. >199 | ADD TO CART |
| 31 | 5100012767 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 32 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 34 | 5100012769 | Wire harness | 1 | ADD TO CART | |
| 35 | 5100012832 | Wire harness | 1 | ADD TO CART | |
| 71 | 5100011914 | Hexagon nut | 3 | ADD TO CART | |
| 72 | 5100023629 | Spring ring | 6 | ADD TO CART | |
| 80 | 5100012670 | Fuse holder | 1 | ADD TO CART | |
| 81 | 5100011640 | Blade fuse | 1 | ADD TO CART | |
| 95 | 5100012321 | Signal horn | 1 | ADD TO CART | |
| 97 | 5100013510 | Hexagon screw | 1 | ADD TO CART | |
| 98 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 99 | 5100011470 | Pipe clip | 1 | ADD TO CART | |
| 102 | 5100013385 | Thermosensor | 1 | ADD TO CART | |
| 104 | 5100012804 | Circuit board | 1 | ADD TO CART | |
| 105 | 5100013606 | Cheese-head screw | 2 | ADD TO CART | |
| 125 | 5100013412 | Edge protection | 0.12 | ADD TO CART | |
| 157 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 158 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 159 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 170 | 5100011849 | Built-in socket | 1 | ADD TO CART | |
| 171 | 5100012093 | Metal plate | 1 | ADD TO CART | |
| 172 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 173 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 174 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 180 | 5100013608 | Battery isolating switch | 1 | ADD TO CART | |
| 181 | 5100013466 | Hexagon screw | 2 | ADD TO CART | |
| 182 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 183 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 184 | 5100011652 | Bushing | 2 | ADD TO CART | |
| 185 | 5100013184 | Protecting cap | 2 | PARTS REQUEST | |
|
COMING Protecting cap
5100013184 · qty on machine: 2 | |||||
| 186 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 282 | 5100052976 | Ground cable operator's platform | 1 | Serialno. >295 | PARTS REQUEST |
|
COMING Ground cable operator's platform
5100052976 · qty on machine: 1 Serialno. >295 | |||||
| 286 | 5100052981 | Ground cable steering column | 1 | Serialno. >295 | PARTS REQUEST |
|
COMING Ground cable steering column
5100052981 · qty on machine: 1 Serialno. >295 | |||||
| 40 | 5100012575 | Wire harness | 1 | ADD TO CART | |
| 42 | 5100052958 | Cheese-head screw | 1 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 46 | 5100012574 | Wire harness | 1 | ADD TO CART | |
| 47 | 5100012584 | Relay | 1 | PARTS REQUEST | |
|
COMING Relay
5100012584 · qty on machine: 1 | |||||
| 48 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 50 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 60 | 5100012773 | Wire harness | 1 | ADD TO CART | |
| 73 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 74 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 94 | 5100011859 | Relay | 1 | ADD TO CART | |
| 110 | 5100011974 | Ground terminal | 2 | ADD TO CART | |
| 111 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 112 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 119 | 5100012544 | Battery | 1 | ADD TO CART | |
| 120 | 5100012173 | Metal plate | 1 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 123 | 5100013412 | Edge protection | 0.04 | ADD TO CART | |
| 134 | 5100011696 | Metal plate | 1 | ADD TO CART | |
| 135 | 5100013412 | Edge protection | 0.04 | ADD TO CART | |
| 136 | 5100013510 | Hexagon screw | 1 | ADD TO CART | |
| 137 | 5100013421 | Washer | 1 | ADD TO CART | |
| 138 | 5100013094 | Washer | 1 | ADD TO CART | |
| 139 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 140 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 201 | 5100012417 | Metal plate | 1 | ADD TO CART | |
| 202 | 5100012554 | Hexagon screw | 2 | ADD TO CART | |
| 203 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 204 | 5100012453 | Spacer | 2 | ADD TO CART | |
| 230 | 5100011465 | Pipe clip | 1 | ADD TO CART | |
| 231 | 5100012608 | Hexagon screw | 1 | ADD TO CART | |
| 232 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 251 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 84 | 5100011616 | Relay | 1 | ADD TO CART | |
| 85 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 261 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 1 | 5100012036 | Drive lever | 1 | ADD TO CART | |
| 2 | 5100011705 | Handle | 2 | ADD TO CART | |
| 3 | 5100011706 | Handle | 2 | ADD TO CART | |
| 4 | 5100011710 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011710 · qty on machine: 2 | |||||
| 5 | 5100011711 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011711 · qty on machine: 2 | |||||
| 6 | 5100011707 | Operating lever | 2 | ADD TO CART | |
| 7 | 5100012024 | Clamping sleeve | 2 | ADD TO CART | |
| 8 | 5100011708 | Cover | 2 | ADD TO CART | |
| 11 | 5100013607 | Raised countersunk head screw | 8 | ADD TO CART | |
| 12 | 5100011738 | Raised countersunk head screw | 2 | ADD TO CART | |
| 30 | 5100033217 | Cable harness | 1 | ADD TO CART | |
| 31 | 5100011709 | Circuit board | 2 | ADD TO CART | |
| 32 | 5100013600 | Sensor | 2 | ADD TO CART | |
| 34 | 5100011524 | Shrinkdown plastic tubing | 0.03 | ADD TO CART | |
| 35 | 5100011458 | Shrinkdown plastic tubing | 0.07 | ADD TO CART | |
| 36 | 5100013520 | Wire fastener | 2 | ADD TO CART | |
| 40 | 5100013641 | Round cable | 0.8 | PARTS REQUEST | |
|
COMING Round cable
5100013641 · qty on machine: 0.8 | |||||
| 1 | 5100013654 | Flange | 1 | ADD TO CART | |
| 2 | 5100013571 | Push-button | 1 | ADD TO CART | |
| 3 | 5100013636 | Protecting cap | 1 | ADD TO CART | |
| 4 | 5100013191 | Washer | 1 | ADD TO CART | |
| 5 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 1 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 5 | 5100013586 | Blade fuse | 2 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 2 | |||||
| 10 | 5100013579 | Blade fuse | 2 | ADD TO CART | |
| 15 | 5100013580 | Blade fuse | 11 | ADD TO CART | |
| 25 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 30 | 5100016273 | Serrated lock washer | 2 | ADD TO CART | |
| 31 | 5100016274 | Hexagon nut | 2 | ADD TO CART | |
| 32 | 5100011916 | Serrated lock washer | 1 | ADD TO CART | |
| 33 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 34 | 5100011917 | Serrated lock washer | 1 | ADD TO CART | |
| 35 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 40 | 5100011859 | Relay | 2 | ADD TO CART | |
| 41 | 5100011616 | Relay | 2 | ADD TO CART | |
| 42 | 5100011583 | Relay | 7 | ADD TO CART | |
| 49 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 50 | 5100012579 | Circuit board | 1 | ADD TO CART | |
Page 194 — Battery isolating switch
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100029600 | Actuating cable | 1 | ADD TO CART | |
| 2 | 5100029567 | Screw fitting | 1 | ADD TO CART | |
| 3 | 5100029565 | Ring | 1 | ADD TO CART | |
Page 196 — Electrical system (with lighting)
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100017997 | Wire harness (lighting) | 1 | ADD TO CART | |
| 21 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 21 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 21 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 22 | 5100011607 | Sheet metal screw | 8 | ADD TO CART | |
| 25 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 25 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 30 | 5100012032 | Wire harness (lighting) | 1 | ADD TO CART | |
| 31 | 5100011728 | Metal plate | 4 | ADD TO CART | |
| 32 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 40 | 5100011583 | Relay | 1 | ADD TO CART | |
| 41 | 5100011583 | Relay | 1 | ADD TO CART | |
| 50 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 51 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 52 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 101 | 5100012766 | Wire harness (front frame) | 1 | Serialno. 160-198 | ADD TO CART |
| 101 | 5100053420 | Wire harness front frame | 1 | Serialno. >199 | ADD TO CART |
| 102 | 5100012767 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 1 | 5100011799 | Working light | 2 | Serialno. 160-583 | ADD TO CART |
| 1 | 5100012468 | Lamp | 2 | 1.02 Serialno. 160-583 | ADD TO CART |
| 1 | 5100013522 | Lamp | 2 | ADD TO CART | |
| 1 | 5100065328 | Headlight | 2 | Serialno. >584 | ADD TO CART |
| 1 | 5100065330 | Lamp | 1 | 1.02 Serialno. >584 | ADD TO CART |
| 2 | 5100011991 | O-ring seal | 4 | ADD TO CART | |
| 5 | 5100011800 | Direction indicator | 2 | ADD TO CART | |
| 5 | 5100012074 | Lamp | 2 | ADD TO CART | |
| 6 | 5100011739 | Fillister head screw | 4 | ADD TO CART | |
| 7 | 5100013453 | Washer | 4 | ADD TO CART | |
Page 198 — Additional lighting
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 21 | 5100016277 | Stop | 2 | ADD TO CART | |
| 1 | 5100011606 | Working light | 4 | ADD TO CART | |
| 1 | 5100012182 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012182 · qty on machine: 1 | |||||
| 1 | 5100012939 | Washer | 1 | ADD TO CART | |
| 1 | 5100013554 | Lamp | 1 | ADD TO CART | |
| 2 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 3 | 5100024918 | Cable harness | 4 | ADD TO CART | |
| 4 | 5100013128 | Washer | 4 | ADD TO CART | |
| 5 | 5100023419 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 22 | 5100011504 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 25 | 5100011482 | Washer | 4 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 32 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 102 | 5100012767 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 1 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 2 | 5100052987 | Wire harness working light | 2 | ADD TO CART | |
| 5 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
Page 202 — Drum lighting
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100011583 | Relay | 1 | Serialno. <583 | ADD TO CART |
| 31 | 5100013580 | Blade fuse | 1 | Serialno. <583 | ADD TO CART |
| 35 | 5100033247 | Holder | 4 | Serialno. <583 | ADD TO CART |
| 36 | 5100035087 | Hexagon screw | 2 | Serialno. <583 | ADD TO CART |
| 37 | 5100012517 | Hexagon screw | 2 | Serialno. <583 | ADD TO CART |
| 38 | 5100012966 | Locking washer | 4 | Serialno. <583 | ADD TO CART |
| 40 | 5100024898 | Working light | 4 | Serialno. <583 | PARTS REQUEST |
|
COMING Working light
5100024898 · qty on machine: 4 Serialno. <583 | |||||
| 42 | 5100033248 | Cable harness | 2 | Serialno. <583 | ADD TO CART |
| 35 | 5100066907 | Holder | 4 | Serialno. >584 | ADD TO CART |
| 40 | 5100066908 | Working light | 4 | Serialno. >584 | ADD TO CART |
| 41 | 5100011578 | Mushroom head screw | 4 | Serialno. >584 | ADD TO CART |
| 42 | 5100053004 | Safety nut | 4 | Serialno. >584 | ADD TO CART |
| 45 | 5100066909 | Bushing | 4 | Serialno. >584 | ADD TO CART |
| 62 | 5100077465 | Cable harness | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Cable harness
5100077465 · qty on machine: 1 Serialno. >584 | |||||
Page 206 — Rotating beacon light
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011941 | Rotary beacon | 1 | ADD TO CART | |
| 1 | 5100013538 | Lamp | 1 | ADD TO CART | |
| 2 | 5100013517 | Pipe | 1 | ADD TO CART | |
| 5 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 6 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 7 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100011868 | Weld-on plate | 1 | ADD TO CART | |
| 10 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 11 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 3 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 4 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 5 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100024896 | Holder | 1 | ADD TO CART | |
| 7 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 11 | 5100013429 | Wire fastener | 4 | ADD TO CART | |
| 12 | 5100024897 | Cable harness | 1 | ADD TO CART | |
| 21 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 42 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 1 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 2 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 2 | 5100023984 | Holder | 1 | ADD TO CART | |
| 5 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100052988 | Wire harness rotating beacon | 1 | ADD TO CART | |
Page 212 — Back-up alarm
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012887 | Reversing alarm 12v-24v dc | 1 | ADD TO CART | |
| 2 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 3 | 5100011636 | Washer | 2 | ADD TO CART | |
| 4 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100012833 | Wire harness | 1 | ADD TO CART | |
| 2 | 5100029555 | Back-up alarm | 1 | ADD TO CART | |
| 3 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100011636 | Washer | 2 | ADD TO CART | |
| 5 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 10 | 5100029553 | Holder | 1 | ADD TO CART | |
| 11 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100012833 | Wire harness | 1 | ADD TO CART | |
| 26 | 5100029559 | Cable harness | 1 | ADD TO CART | |
| 27 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 29 | 5100029599 | Relay | 1 | ADD TO CART | |
Page 216 — Tires
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100052993 | Smooth tire | 1 | Serialno. 160 - 504 | ADD TO CART |
| 2 | 5100066872 | Smooth tire | 1 | Serialno. 727 - 796 | PARTS REQUEST |
|
COMING Smooth tire
5100066872 · qty on machine: 1 Serialno. 727 - 796 | |||||
| 4 | 5100013007 | Tyre valve | 1 | ADD TO CART | |
| 10 | 5100052994 | Tyre | 1 | Serialno. 160 - 504 | PARTS REQUEST |
|
COMING Tyre
5100052994 · qty on machine: 1 Serialno. 160 - 504 | |||||
| 10 | 5100066874 | Tyre | 1 | Serialno. 505 - 726 | PARTS REQUEST |
|
COMING Tyre
5100066874 · qty on machine: 1 Serialno. 505 - 726 | |||||
| 10 | 5100066875 | Wheel | 1 | Serialno. 727 - 796 | PARTS REQUEST |
|
COMING Wheel
5100066875 · qty on machine: 1 Serialno. 727 - 796 | |||||
| 1 | 5100052992 | Rim | 1 | PARTS REQUEST | |
|
COMING Rim
5100052992 · qty on machine: 1 | |||||
Page 218 — Advance drive
Parts list — exactly as printed76 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 181 | 5100077466 | Hose | 1 | ADD TO CART | |
| 182 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 183 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 184 | 5100013361 | Filter | 1 | ADD TO CART | |
| 185 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 186 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 190 | 5100013595 | Flexible tubing | 1 | ADD TO CART | |
| 192 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 193 | 5100013480 | T-piece adjustable | 1 | ADD TO CART | |
| 194 | 5100011645 | Flexible tubing | 1 | ADD TO CART | |
| 195 | 5100012091 | Reducing piece | 1 | ADD TO CART | |
| 196 | 5100012190 | Straight screwed socket | 1 | ADD TO CART | |
| 197 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 198 | 5100013603 | Straight screwed socket | 1 | ADD TO CART | |
| 1 | 5100013430 | Sae-flange half | 4 | ADD TO CART | |
| 2 | 5100013431 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100011587 | Safety screw | 8 | ADD TO CART | |
| 5 | 5100012281 | Flexible tubing | 1 | ADD TO CART | |
| 6 | 5100012282 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100013212 | Straight screwed socket | 2 | ADD TO CART | |
| 8 | 5100013484 | Elbow adjustable | 2 | ADD TO CART | |
| 10 | 5100012257 | Valve block | 1 | Serialno. <752 | PARTS REQUEST |
|
COMING Valve block
5100012257 · qty on machine: 1 Serialno. <752 | |||||
| 10 | 5100012390 | Valve block | 1 | Serialno. <755 | ADD TO CART |
| 10 | 5100066866 | Valve block | 1 | Serialno. >753 | ADD TO CART |
| 10 | 5100066869 | Valve block | 1 | Serialno. >756 | ADD TO CART |
| 11 | 5100012284 | Plate | 1 | ADD TO CART | |
| 13 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 14 | 5100012513 | Hexagon screw | 2 | ADD TO CART | |
| 16 | 5100012908 | Stud bolt | 2 | ADD TO CART | |
| 17 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 18 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 63 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 64 | 5100011662 | Flexible tubing | 1 | ADD TO CART | |
| 65 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 66 | 5100012283 | Flexible tubing | 1 | ADD TO CART | |
| 67 | 5100012418 | Nonreturn valve | 1 | ADD TO CART | |
| 68 | 5100013481 | T-piece adjustable | 1 | ADD TO CART | |
| 69 | 5100013471 | Straight screwed socket | 1 | ADD TO CART | |
| 70 | 5100013578 | Straight screwed socket | 1 | ADD TO CART | |
| 71 | 5100011456 | Flexible tubing | 1 | ADD TO CART | |
| 72 | 5100013505 | Banjo | 1 | PARTS REQUEST | |
|
COMING Banjo
5100013505 · qty on machine: 1 | |||||
| 171 | 5100012429 | Valve block | 1 | ADD TO CART | |
| 201 | 5100011532 | Pipe clip | 1 | ADD TO CART | |
| 202 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 203 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 21 | 5100013539 | Straight screwed socket | 2 | ADD TO CART | |
| 22 | 5100012275 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100012293 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100012276 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100012294 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100013489 | Straight screwed socket | 2 | ADD TO CART | |
| 41 | 5100013475 | Straight screwed socket | 3 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 3 | |||||
| 43 | 5100012279 | Flexible tubing | 1 | ADD TO CART | |
| 43 | 5100012295 | Flexible tubing | 1 | ADD TO CART | |
| 54 | 5100013472 | Straight screwed socket | 1 | ADD TO CART | |
| 101 | 5100011879 | Half-clip | 2 | ADD TO CART | |
| 102 | 5100012977 | Stud bolt | 2 | ADD TO CART | |
| 103 | 5100011880 | Metal plate | 1 | ADD TO CART | |
| 104 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 105 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 301 | 5100011994 | Straight screwed socket | 4 | ADD TO CART | |
| 303 | 5100012102 | Flexible tubing | 1 | ADD TO CART | |
| 304 | 5100011984 | Flexible tubing | 1 | ADD TO CART | |
| 305 | 5100012101 | Flexible tubing | 1 | ADD TO CART | |
| 306 | 5100012101 | Flexible tubing | 1 | ADD TO CART | |
| 310 | 5100012071 | Straight screwed socket | 4 | ADD TO CART | |
| 311 | 5100011995 | Elbow adjustable | 2 | ADD TO CART | |
| 312 | 5100011995 | Elbow adjustable | 2 | ADD TO CART | |
| 320 | 5100013475 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 2 | |||||
| 321 | 5100012487 | Flexible tubing | 1 | ADD TO CART | |
| 322 | 5100012487 | Flexible tubing | 1 | ADD TO CART | |
| 326 | 5100013619 | Elbow adjustable | 2 | ADD TO CART | |
| 327 | 5100077467 | Metal plate | 2 | PARTS REQUEST | |
|
COMING Metal plate
5100077467 · qty on machine: 2 | |||||
| 328 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 329 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 330 | 5100013429 | Wire fastener | 30 | ADD TO CART | |
Page 226 — Drive shifting
Parts list — exactly as printed50 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 19 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 1 | 5100012035 | Mounting device | 1 | ADD TO CART | |
| 2 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 5 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 6 | 5100012671 | Countersunk screw | 6 | ADD TO CART | |
| 10 | 5100012037 | Drive lever | 1 | ADD TO CART | |
| 11 | 5100023200 | Hexagon screw | 1 | ADD TO CART | |
| 12 | 5100011819 | Compression spring | 1 | ADD TO CART | |
| 13 | 5100011791 | Distance bush | 2 | ADD TO CART | |
| 14 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 15 | 5100013166 | Spring-thrust piece | 1 | ADD TO CART | |
| 16 | 5100013400 | Hexagon nut | 1 | ADD TO CART | |
| 18 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 44 | 5100013468 | Hexagon screw | 1 | ADD TO CART | |
| 45 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 46 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 47 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 48 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 49 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 50 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 52 | 5100012191 | Metal plate | 1 | ADD TO CART | |
| 53 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 54 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 55 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 57 | 5100011443 | Cheese-head screw | 2 | ADD TO CART | |
| 61 | 5100012195 | Set of adjustment bars | 1 | ADD TO CART | |
| 65 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 66 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 67 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 68 | 5100011869 | Fillister head screw | 2 | ADD TO CART | |
| 70 | 5100012192 | Metal plate | 1 | ADD TO CART | |
| 71 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 72 | 5100013094 | Washer | 3 | ADD TO CART | |
| 73 | 5100013421 | Washer | 1 | ADD TO CART | |
| 74 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 75 | 5100012717 | Metal plate | 1 | ADD TO CART | |
| 76 | 5100012600 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 3 | |||||
| 77 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 79 | 5100013412 | Edge protection | 0.2 | ADD TO CART | |
| 90 | 5100012154 | Bracket | 1 | ADD TO CART | |
| 91 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 92 | 5100012554 | Hexagon screw | 2 | ADD TO CART | |
| 93 | 5100012241 | Actuating cable | 1 | ADD TO CART | |
| 93 | 5100011949 | Bellows | 1 | ADD TO CART | |
| 93 | 5100011951 | Joint-head | 1 | ADD TO CART | |
| 93 | 5100012333 | Angle joint | 1 | ADD TO CART | |
| 94 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 95 | 5100035308 | Hexagon screw | 1 | ADD TO CART | |
| 96 | 5100053004 | Safety nut | 1 | ADD TO CART | |
Page 230 — Parking brake
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012963 | Valve block | 1 | ADD TO CART | |
| 3 | 5100013527 | Cheese-head screw | 3 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 7 | 5100013505 | Banjo | 1 | PARTS REQUEST | |
|
COMING Banjo
5100013505 · qty on machine: 1 | |||||
| 8 | 5100013482 | Elbow adjustable | 1 | ADD TO CART | |
| 12 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 13 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 21 | 5100011566 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100011754 | Flexible tubing | 1 | ADD TO CART | |
| 24 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 30 | 5100013474 | Straight screwed socket | 2 | ADD TO CART | |
| 32 | 5100011891 | Flexible tubing | 1 | ADD TO CART | |
| 33 | 5100011891 | Flexible tubing | 1 | ADD TO CART | |
| 41 | 5100013482 | Elbow adjustable | 1 | ADD TO CART | |
| 42 | 5100013532 | Elbow adjustable | 1 | ADD TO CART | |
| 50 | 5100011417 | Pipe clip | 1 | ADD TO CART | |
| 51 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 52 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 53 | 5100013572 | Protecting cap | 1 | ADD TO CART | |
Page 232 — All-wheel lock
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012425 | Flow divider | 1 | Serialno. <586 | ADD TO CART |
| 1 | 5100066917 | Flow divider | 1 | Serialno. >587 | ADD TO CART |
| 2 | 5100011497 | Cheese-head screw | 4 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 11 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 22 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 23 | 5100012834 | Wire harness | 1 | Serialno. 160 - 586 | ADD TO CART |
| 27 | 5100012499 | Sticker | 1 | PARTS REQUEST | |
|
COMING Sticker
5100012499 · qty on machine: 1 | |||||
| 30 | 5100012766 | Wire harness (front frame) | 1 | Serialno. <198 | ADD TO CART |
| 30 | 5100053420 | Wire harness front frame | 1 | Serialno. >199 | ADD TO CART |
Page 234 — Articulated pendulum joint
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012018 | Pendulum joint | 1 | ADD TO CART | |
| 3 | 5100012911 | Stud bolt | 6 | ADD TO CART | |
| 4 | 5100016501 | Washer | 6 | ADD TO CART | |
| 5 | 5100012548 | Hexagon nut | 6 | ADD TO CART | |
| 10 | 5100011782 | Sealing ring | 1 | ADD TO CART | |
| 11 | 5100013610 | Rod end ball joint | 1 | ADD TO CART | |
| 12 | 5100011779 | Clamping piece | 1 | ADD TO CART | |
| 13 | 5100011481 | Cheese-head screw | 2 | ADD TO CART | |
| 14 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 15 | 5100011778 | Clamping piece | 1 | ADD TO CART | |
| 16 | 5100012725 | Cheese-head screw | 3 | ADD TO CART | |
| 17 | 5100012084 | Cover | 1 | ADD TO CART | |
| 18 | 5100035087 | Hexagon screw | 6 | ADD TO CART | |
| 19 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 20 | 5100011780 | Pendulum suspension | 1 | ADD TO CART | |
| 20 | 5100011644 | Radial rod end bearing | 2 | ADD TO CART | |
| 20 | 5100012479 | Greasing nipple | 2 | ADD TO CART | |
| 21 | 5100011761 | Sealing ring | 4 | PARTS REQUEST | |
|
COMING Sealing ring
5100011761 · qty on machine: 4 | |||||
| 22 | 5100011781 | Clamping piece | 2 | ADD TO CART | |
| 23 | 5100012724 | Cheese-head screw | 4 | ADD TO CART | |
| 30 | 5100012245 | Safety strut | 1 | ADD TO CART | |
| 31 | 5100013432 | Rubber buffer | 1 | ADD TO CART | |
| 32 | 5100013607 | Raised countersunk head screw | 1 | ADD TO CART | |
| 33 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 34 | 5100011731 | Rubber washer | 2 | ADD TO CART | |
| 35 | 5100011493 | Hexagon screw | 1 | ADD TO CART | |
| 36 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 37 | 5100035686 | Safety nut | 1 | ADD TO CART | |
| 40 | 5100012009 | Bolt | 1 | ADD TO CART | |
| 41 | 5100011803 | W-clip | 1 | ADD TO CART | |
| 42 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 52 | 5100011777 | Radial rod end bearing | 1 | ADD TO CART | |
Page 236 — Steering
Parts list — exactly as printed61 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012220 | Straight flange joint | 1 | Serialno. 160 - 726 | ADD TO CART |
| 1 | 5100012723 | Cheese-head screw | 4 | 1.02 Serialno. 160 - 726 | ADD TO CART |
| 1 | 5100012942 | Spring ring | 4 | 1.03 Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Spring ring
5100012942 · qty on machine: 4 1.03 Serialno. 160 - 726 | |||||
| 1 | 5100013612 | O-ring seal | 1 | 1.01 Serialno. 160 - 726 | ADD TO CART |
| 8 | 5100012841 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100012215 | Angle flange screwing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100012723 | Cheese-head screw | 2 | 10.03 Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100012942 | Spring ring | 4 | 10.04 Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Spring ring
5100012942 · qty on machine: 4 10.04 Serialno. 160 - 726 | |||||
| 10 | 5100013189 | Cheese-head screw | 2 | 10.02 Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100013612 | O-ring seal | 1 | 10.01 Serialno. 160 - 726 | ADD TO CART |
| 11 | 5100012543 | Elbow adjustable | 1 | Serialno. 160 - 726 | ADD TO CART |
| 15 | 5100012842 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 17 | 5100013447 | Straight screwed socket | 1 | Serialno. 160 - 726 | ADD TO CART |
| 18 | 5100012072 | Elbow adjustable | 1 | Serialno. 160 - 726 | ADD TO CART |
| 19 | 5100012278 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 20 | 5100013553 | Straight screwed socket | 1 | Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100012657 | Steering unit + connect. plate | 1 | Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Steering unit + connect. plate
5100012657 · qty on machine: 1 Serialno. 160 - 726 | |||||
| 21 | 5100011593 | Steering unit | 1 | 21.01 Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100011736 | O-ring seal | 4 | 21.04 Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100012655 | Connection plate | 1 | 21.02 Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100013528 | Cheese-head screw | 2 | 21.03 Serialno. 160 - 726 | ADD TO CART |
| 25 | 5100013433 | Straight screwed socket | 2 | Serialno. 160 - 726 | ADD TO CART |
| 26 | 5100013499 | Straight screwed socket | 2 | Serialno. 160 - 726 | ADD TO CART |
| 31 | 5100013475 | Straight screwed socket | 1 | Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 Serialno. 160 - 726 | |||||
| 32 | 5100012800 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 41 | 5100012801 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 42 | 5100012989 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 43 | 5100013492 | Straight screwed socket | 2 | Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 Serialno. 160 - 726 | |||||
| 45 | 5100013474 | Straight screwed socket | 1 | Serialno. 160 - 726 | ADD TO CART |
| 46 | 5100012831 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 47 | 5100013485 | Bulkhead elbow | 1 | Serialno. 160 - 726 | ADD TO CART |
| 48 | 5100012969 | Locking washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 49 | 5100013487 | Hexagon nut | 1 | Serialno. 160 - 726 | ADD TO CART |
| 50 | 5100013532 | Elbow adjustable | 1 | Serialno. 160 - 726 | ADD TO CART |
| 51 | 5100012028 | Hydraulic cylinder | 1 | Serialno. 160 - 726 | ADD TO CART |
| 51 | 5100011563 | Radial rod end bearing | 1 | 51.02 Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 51.02 Serialno. 160 - 726 | |||||
| 51 | 5100011685 | Set of seals | 1 | 51.01 Serialno. 160 - 726 | ADD TO CART |
| 51 | 5100012481 | Greasing nipple | 1 | 51.03 Serialno. 160 - 726 | ADD TO CART |
| 52 | 5100011777 | Radial rod end bearing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 53 | 5100011776 | Bolt | 1 | Serialno. 160 - 726 | ADD TO CART |
| 54 | 5100011680 | Spacer ring | 2 | Serialno. 160 - 726 | ADD TO CART |
| 55 | 5100013560 | Seal | 2 | Serialno. 160 - 726 | ADD TO CART |
| 56 | 5100012550 | Hexagon nut | 1 | Serialno. 160 - 726 | ADD TO CART |
| 57 | 5100012955 | Locking washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 60 | 5100012479 | Greasing nipple | 1 | Serialno. 160 - 726 | ADD TO CART |
| 61 | 5100011820 | Spacer ring | 1 | Serialno. 160 - 726 | ADD TO CART |
| 62 | 5100011695 | U-washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 63 | 5100013463 | Cheese-head screw | 1 | Serialno. 160 - 726 | ADD TO CART |
| 65 | 5100012644 | Steering column | 1 | Serialno. 160 - 726 | ADD TO CART |
| 66 | 5100013450 | Cheese-head screw | 2 | Serialno. 160 - 726 | ADD TO CART |
| 67 | 5100012967 | Locking washer | 4 | Serialno. 160 - 726 | ADD TO CART |
| 68 | 5100012783 | Cheese-head screw | 2 | Serialno. 160 - 726 | ADD TO CART |
| 70 | 5100011912 | Steering wheel | 1 | Serialno. 160 - 726 | ADD TO CART |
| 70 | 5100012392 | Turning handle | 1 | 70.01 Serialno. 160 - 726 | ADD TO CART |
| 70 | 5100012393 | Cover | 1 | 70.02 Serialno. 160 - 726 | ADD TO CART |
| 71 | 5100013413 | Washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 72 | 5100013400 | Hexagon nut | 1 | Serialno. 160 - 726 | ADD TO CART |
| 80 | 5100013429 | Wire fastener | 10 | Serialno. 160 - 726 | ADD TO CART |
| 19 | 5100077468 | Hose | 1 | Serialno. >727 | PARTS REQUEST |
|
COMING Hose
5100077468 · qty on machine: 1 Serialno. >727 | |||||
| 22 | 5100013499 | Straight screwed socket | 1 | Serialno. >727 | ADD TO CART |
| 70 | 5100065336 | Lid | 70 | 70.02 Serialno. >727 | ADD TO CART |
Page 244 — Water sprinkler
Parts list — exactly as printed80 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 87 | 5100013523 | Washer | 4 | ADD TO CART | |
| 6 | 5100011851 | Rubber sleeve | 4 | ADD TO CART | |
| 8 | 5100011850 | Rubber sleeve | 3 | ADD TO CART | |
| 9 | 5100011815 | Tank cap | 1 | ADD TO CART | |
| 10 | 5100011931 | O-ring seal | 1 | ADD TO CART | |
| 11 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 21 | 5100073199 | Holder | 4 | ADD TO CART | |
| 55 | 5100011718 | Metal plate | 4 | ADD TO CART | |
| 56 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 57 | 5100012978 | Stud bolt | 8 | ADD TO CART | |
| 65 | 5100011812 | Drain plug | 1 | ADD TO CART | |
| 66 | 5100011865 | O-ring seal | 1 | ADD TO CART | |
| 67 | 5100011864 | O-ring seal | 1 | ADD TO CART | |
| 68 | 5100011862 | Compression spring | 1 | ADD TO CART | |
| 69 | 5100011830 | Strainer | 1 | ADD TO CART | |
| 78 | 5100012259 | Float | 1 | ADD TO CART | |
| 79 | 5100012258 | Inspection glass | 1 | ADD TO CART | |
| 80 | 5100011656 | Filler cap | 1 | ADD TO CART | |
| 81 | 5100011873 | Pipe clip | 1 | ADD TO CART | |
| 82 | 5100012000 | Sheet metal screw | 1 | ADD TO CART | |
| 100 | 5100052635 | Water tank | 1 | ADD TO CART | |
| 103 | 5100012713 | Rubber metal buffer | 4 | ADD TO CART | |
| 104 | 5100013523 | Washer | 2 | ADD TO CART | |
| 105 | 5100011526 | Elbow | 3 | ADD TO CART | |
| 107 | 5100011444 | Elbow | 3 | ADD TO CART | |
| 109 | 5100013557 | Key | 1 | ADD TO CART | |
| 109 | 5100059525 | Tank cap, with lock | 1 | ADD TO CART | |
| 151 | 5100011906 | Metal plate | 1 | ADD TO CART | |
| 152 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 153 | 5100013646 | Flexible tubing | 0.65 | ADD TO CART | |
| 175 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 250 | 5100012140 | Key | 1 | ADD TO CART | |
| 251 | 5100012880 | Cover plate | 2 | ADD TO CART | |
| 60 | 5100011719 | Metal plate | 4 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 62 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 75 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 91 | 5100012498 | Safety screw | 3 | ADD TO CART | |
| 93 | 5100013646 | Flexible tubing | 0.5 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 101 | 5100011670 | Flexible tubing | 1.6 | ADD TO CART | |
| 102 | 5100011670 | Flexible tubing | 2.1 | ADD TO CART | |
| 106 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 107 | 5100012705 | Cheese-head screw | 6 | ADD TO CART | |
| 108 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 106 | 5100012705 | Cheese-head screw | 6 | ADD TO CART | |
| 107 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 30 | ADD TO CART | |
| 100 | 5100011863 | T-reducing socket | 1 | ADD TO CART | |
| 103 | 5100012218 | Angle | 1 | ADD TO CART | |
| 104 | 5100013639 | Flexible tubing | 0.29 | ADD TO CART | |
| 108 | 5100013367 | Hose clip | 6 | ADD TO CART | |
| 109 | 5100013639 | Flexible tubing | 0.18 | ADD TO CART | |
| 110 | 5100011898 | Nozzle holder | 1 | ADD TO CART | |
| 110 | 5100011534 | Membrane | 1 | ADD TO CART | |
| 110 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 110 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 110 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 113 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 113 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 113 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 113 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 113 | 5100011534 | Membrane | 1 | ADD TO CART | |
| 115 | 5100011529 | Sprinkler nozzle | 3 | ADD TO CART | |
| 116 | 5100011488 | Nut | 3 | ADD TO CART | |
| 117 | 5100011489 | Filtering screen | 3 | ADD TO CART | |
| 121 | 5100013639 | Flexible tubing | 0.125 | ADD TO CART | |
| 130 | 5100012090 | Cheese-head screw | 6 | ADD TO CART | |
| 131 | 5100013536 | Serrated lock washer | 6 | ADD TO CART | |
| 132 | 5100012898 | Hexagon nut | 6 | ADD TO CART | |
| 300 | 5100012219 | Sprinkling | 2 | ADD TO CART | |
| 85 | 5100013374 | Water pump | 1 | ADD TO CART | |
| 86 | 5100011528 | Rubber piece | 4 | ADD TO CART | |
| 88 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 92 | 5100011527 | Angle screwed socket | 1 | ADD TO CART | |
| 94 | 5100011666 | Angle screwed socket | 1 | ADD TO CART | |
| 96 | 5100011845 | Mounting device | 1 | ADD TO CART | |
| 97 | 5100013531 | Filler cap | 1 | ADD TO CART | |
| 54 | 5100012410 | Blind rivet nut | 1 | ADD TO CART | |
| 110 | 5100011531 | Flexible tubing | 1 | ADD TO CART | |
Page 268 — Additive sprinkling
Parts list — exactly as printed77 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100012144 | Additive tank | 1 | Serialno. 160 - 603 | PARTS REQUEST |
|
COMING Additive tank
5100012144 · qty on machine: 1 Serialno. 160 - 603 | |||||
| 30 | 5100066876 | Additive tank | 1 | Serialno. >604 | ADD TO CART |
| 31 | 5100011479 | Hexagon screw | 2 | Serialno. 160 - 603 | ADD TO CART |
| 31 | 5100035553 | Hexagon screw | 2 | Serialno. >604 | ADD TO CART |
| 32 | 5100013128 | Washer | 2 | ADD TO CART | |
| 33 | 5100011717 | Spacer block | 2 | Serialno. >604 | ADD TO CART |
| 34 | 5100013440 | Locking washer | 2 | Serialno. >604 | ADD TO CART |
| 49 | 5100013644 | Rubber profile | 0.2 | ADD TO CART | |
| 63 | 5100013367 | Hose clip | 1 | ADD TO CART | |
| 2 | 5100013176 | Bracket | 1 | ADD TO CART | |
| 3 | 5100012434 | Scraper | 4 | ADD TO CART | |
| 5 | 5100013633 | Flat steel | 4 | ADD TO CART | |
| 6 | 5100012613 | Hexagon screw | 8 | ADD TO CART | |
| 7 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 19 | 5100011898 | Nozzle holder | 2 | ADD TO CART | |
| 20 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 20 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 20 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 20 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 21 | 5100011529 | Sprinkler nozzle | 4 | ADD TO CART | |
| 22 | 5100011488 | Nut | 4 | ADD TO CART | |
| 23 | 5100011489 | Filtering screen | 4 | ADD TO CART | |
| 24 | 5100011978 | Membrane | 4 | ADD TO CART | |
| 28 | 5100012090 | Cheese-head screw | 8 | ADD TO CART | |
| 29 | 5100013536 | Serrated lock washer | 8 | ADD TO CART | |
| 34 | 5100013223 | Flexible tubing | 0.05 | ADD TO CART | |
| 35 | 5100013223 | Flexible tubing | 0.22 | ADD TO CART | |
| 36 | 5100012097 | T-hose connector | 1 | ADD TO CART | |
| 37 | 5100013367 | Hose clip | 8 | ADD TO CART | |
| 38 | 5100013223 | Flexible tubing | 0.16 | ADD TO CART | |
| 39 | 5100013223 | Flexible tubing | 0.16 | ADD TO CART | |
| 50 | 5100012438 | Silentbloc | 1 | ADD TO CART | |
| 51 | 5100011744 | Fillister head screw | 1 | ADD TO CART | |
| 52 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 53 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 57 | 5100013200 | Metal plate | 1 | ADD TO CART | |
| 58 | 5100012932 | Handle | 1 | ADD TO CART | |
| 59 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 61 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 34 | 5100013374 | Water pump | 1 | Serialno. >604 | ADD TO CART |
| 62 | 5100013177 | Splash protection | 1 | Serialno. 160 - 665 | ADD TO CART |
| 62 | 5100066893 | Protecting sheet | 1 | Serialno. >666 | ADD TO CART |
| 65 | 5100013204 | Jack latch | 1 | ADD TO CART | |
| 66 | 5100034679 | Washer | 2 | ADD TO CART | |
| 67 | 5100011747 | Hexagon nut | 2 | ADD TO CART | |
| 75 | 5100013178 | Splash protection | 1 | Serialno. 160 - 665 | ADD TO CART |
| 75 | 5100066894 | Protecting sheet | 1 | Serialno. >666 | ADD TO CART |
| 76 | 5100012626 | Hexagon screw | 1 | ADD TO CART | |
| 77 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 78 | 5100011751 | Distance bush | 1 | ADD TO CART | |
| 79 | 5100012548 | Hexagon nut | 1 | ADD TO CART | |
| 99 | 5100033218 | Holder | 1 | ADD TO CART | |
| 100 | 5100013175 | Scraper | 1 | ADD TO CART | |
| 108 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 109 | 5100033218 | Holder | 1 | ADD TO CART | |
| 33 | 5100012364 | Additive tank | 1 | Serialno. 160 - 603 | ADD TO CART |
| 33 | 5100011931 | O-ring seal | 1 | 33.03 Serialno. 160 - 603 | ADD TO CART |
| 33 | 5100012365 | Tank cap, without lock | 1 | 33.02 Serialno. 160 - 603 | PARTS REQUEST |
|
COMING Tank cap, without lock
5100012365 · qty on machine: 1 33.02 Serialno. 160 - 603 | |||||
| 35 | 5100012600 | Hexagon screw | 4 | Serialno. 160 - 603 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 4 Serialno. 160 - 603 | |||||
| 36 | 5100011636 | Washer | 4 | Serialno. 160 - 603 | ADD TO CART |
| 37 | 5100011544 | Clip nut | 4 | Serialno. 160 - 603 | ADD TO CART |
| 40 | 5100013437 | Angle screwed socket | 3 | Serialno. 160 - 603 | PARTS REQUEST |
|
COMING Angle screwed socket
5100013437 · qty on machine: 3 Serialno. 160 - 603 | |||||
| 42 | 5100013223 | Flexible tubing | 0.2 | Serialno. 160 - 603 | ADD TO CART |
| 46 | 5100013367 | Hose clip | 3 | Serialno. 160 - 603 | ADD TO CART |
| 60 | 5100013223 | Flexible tubing | 0.7 | Serialno. 160 - 603 | ADD TO CART |
| 70 | 5100013437 | Angle screwed socket | 1 | Serialno. 160 - 603 | PARTS REQUEST |
|
COMING Angle screwed socket
5100013437 · qty on machine: 1 Serialno. 160 - 603 | |||||
| 71 | 5100013223 | Flexible tubing | 0.55 | Serialno. 160 - 603 | ADD TO CART |
| 72 | 5100033219 | Straight screwed socket | 1 | Serialno. 160 - 603 | ADD TO CART |
| 73 | 5100011472 | Ball-closure cock | 1 | Serialno. 160 - 603 | ADD TO CART |
| 74 | 5100029535 | Straight screwed socket | 1 | Serialno. 160 - 603 | ADD TO CART |
| 75 | 5100013367 | Hose clip | 2 | Serialno. 160 - 603 | ADD TO CART |
| 100 | 5100012144 | Additive tank | 1 | Serialno. 160 - 603 | PARTS REQUEST |
|
COMING Additive tank
5100012144 · qty on machine: 1 Serialno. 160 - 603 | |||||
| 33 | 5100059525 | Tank cap, with lock | 1 | 33.01 Serialno. >604 | ADD TO CART |
| 33 | 5100059531 | Additive tank | 1 | Serialno. >604 | ADD TO CART |
| 35 | 5100012571 | Hexagon screw | 4 | Serialno. >604 | ADD TO CART |
| 100 | 5100066876 | Additive tank | 1 | Serialno. >604 | ADD TO CART |
| 110 | 5100066878 | Strainer | 1 | Serialno. >604 | ADD TO CART |
Page 278 — Water pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100013389 | Pump housing | 1 | ADD TO CART | |
| 5 | 5100013391 | Valve insert | 1 | ADD TO CART | |
| 10 | 5100013390 | Pump housing | 1 | ADD TO CART | |
| 100 | 5100013374 | Water pump | 1 | ADD TO CART | |
Page 280 — Antifreezing device
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100011943 | Ball-closure cock | 1 | ADD TO CART | |
| 11 | 5100011942 | Adapter | 1 | ADD TO CART | |
| 12 | 5100012598 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 2 | |||||
| 13 | 5100012936 | Washer | 4 | ADD TO CART | |
| 14 | 5100011599 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100011527 | Angle screwed socket | 3 | ADD TO CART | |
| 22 | 5100013413 | Washer | 2 | ADD TO CART | |
| 25 | 5100013646 | Flexible tubing | 0.59 | ADD TO CART | |
| 26 | 5100013646 | Flexible tubing | 0.86 | ADD TO CART | |
| 27 | 5100013646 | Flexible tubing | 0.59 | ADD TO CART | |
| 60 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 10 | 5100029536 | Union | 1 | ADD TO CART | |
| 11 | 5100013646 | Flexible tubing | 0.06 | ADD TO CART | |
| 12 | 5100013646 | Flexible tubing | 0.65 | ADD TO CART | |
| 13 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 16 | 5100011472 | Ball-closure cock | 1 | ADD TO CART | |
| 17 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 25 | 5100029568 | Holder | 1 | ADD TO CART | |
| 26 | 5100012598 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 1 | |||||
| 27 | 5100012936 | Washer | 2 | ADD TO CART | |
| 28 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 61 | 5100013429 | Wire fastener | 1 | ADD TO CART | |
Page 286 — Bypass oil filter
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100029576 | Pressure filter | 1 | Serialno. 160 - 583 | ADD TO CART |
| 2 | 5100033220 | Filter insert | 1 | ADD TO CART | |
| 3 | 5100012515 | Hexagon screw | 2 | Serialno. 160 - 583 | ADD TO CART |
| 4 | 5100012966 | Locking washer | 2 | Serialno. 160 - 583 | ADD TO CART |
| 8 | 5100033221 | Holder | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Holder
5100033221 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 9 | 5100053249 | Hexagon screw | 2 | Serialno. 160 - 583 | ADD TO CART |
| 10 | 5100012966 | Locking washer | 4 | Serialno. 160 - 583 | ADD TO CART |
| 11 | 5100033222 | Distance ring | 2 | Serialno. 160 - 583 | ADD TO CART |
| 12 | 5100012546 | Hexagon nut | 2 | Serialno. 160 - 583 | ADD TO CART |
| 20 | 5100013434 | Straight screwed socket | 1 | Serialno. 160 - 583 | ADD TO CART |
| 21 | 5100029538 | Elbow adjustable | 1 | Serialno. 160 - 583 | ADD TO CART |
| 23 | 5100033223 | Hose | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Hose
5100033223 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 24 | 5100029575 | Straight screwed socket | 1 | Serialno. 160 - 583 | ADD TO CART |
| 29 | 5100029581 | Screwed socket | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Screwed socket
5100029581 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 30 | 5100029538 | Elbow adjustable | 1 | Serialno. 160 - 583 | ADD TO CART |
| 31 | 5100033224 | Hose | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Hose
5100033224 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 32 | 5100013532 | Elbow adjustable | 1 | Serialno. 160 - 583 | ADD TO CART |
| 3 | 5100065307 | Filter | 1 | Serialno. >584 | ADD TO CART |
| 3 | 5100066879 | Filter insert | 1 | 3.01 Serialno. >584 | ADD TO CART |
| 4 | 5100012515 | Hexagon screw | 2 | Serialno. >584 | ADD TO CART |
| 5 | 5100012966 | Locking washer | 2 | Serialno. >584 | ADD TO CART |
| 6 | 5100066880 | Holder | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Holder
5100066880 · qty on machine: 1 Serialno. >584 | |||||
| 7 | 5100012613 | Hexagon screw | 2 | Serialno. >584 | ADD TO CART |
| 8 | 5100012966 | Locking washer | 2 | Serialno. >584 | ADD TO CART |
| 10 | 5100029551 | Straight screwed socket | 2 | Serialno. >584 | ADD TO CART |
| 11 | 5100065322 | Pipe bend | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Pipe bend
5100065322 · qty on machine: 1 Serialno. >584 | |||||
| 12 | 5100065308 | Pressure reducing valve | 1 | Serialno. >584 | ADD TO CART |
| 13 | 5100034772 | Hexagon screw | 2 | Serialno. >584 | ADD TO CART |
| 14 | 5100012965 | Locking washer | 2 | Serialno. >584 | ADD TO CART |
| 15 | 5100048634 | Straight screwed socket | 2 | Serialno. >584 | ADD TO CART |
| 20 | 5100029538 | Elbow adjustable | 1 | Serialno. >584 | ADD TO CART |
| 21 | 5100066881 | Hose | 1 | Serialno. >584 | ADD TO CART |
| 22 | 5100013454 | Straight screwed socket | 1 | Serialno. >584 | ADD TO CART |
| 25 | 5100011546 | Pipe clip | 1 | Serialno. >584 | ADD TO CART |
| 30 | 5100066882 | Hose | 1 | Serialno. >584 | ADD TO CART |
| 31 | 5100029538 | Elbow adjustable | 1 | Serialno. >584 | ADD TO CART |
| 32 | 5100013454 | Straight screwed socket | 1 | Serialno. >584 | ADD TO CART |
| 35 | 5100065310 | Sealing | 1 | Serialno. >584 | ADD TO CART |
| 36 | 5100065311 | Distance ring | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Distance ring
5100065311 · qty on machine: 1 Serialno. >584 | |||||
| 37 | 5100012090 | Cheese-head screw | 6 | Serialno. >584 | ADD TO CART |
| 38 | 5100013558 | Sealing ring | 6 | Serialno. >584 | ADD TO CART |
| 50 | 5100046875 | Sealing tape | 0.09 | Serialno. >584 | ADD TO CART |
Page 290 — Suspension (roller drum)
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012342 | Spacer block | 2 | Serialno. <303 | ADD TO CART |
| 2 | 5100053012 | Hexagon screw | 4 | Serialno. <303 | ADD TO CART |
| 3 | 5100011933 | Cup spring | 8 | Serialno. <303 | ADD TO CART |
| 5 | 5100012026 | Bow plate | 2 | Serialno. <303 | ADD TO CART |
| 6 | 5100012027 | Metal plate | 4 | Serialno. <303 | ADD TO CART |
| 7 | 5100012958 | Hexagon screw | 6 | Serialno. <303 | ADD TO CART |
| 8 | 5100013235 | Hexagon screw | 2 | Serialno. <303 | ADD TO CART |
| 9 | 5100012969 | Locking washer | 8 | Serialno. <303 | ADD TO CART |
| 21 | 5100011704 | Carrier star | 2 | Serialno. <303 | ADD TO CART |
| 22 | 5100012405 | Hexagon nut | 12 | Serialno. <303 | ADD TO CART |
| 23 | 5100012969 | Locking washer | 12 | Serialno. <303 | ADD TO CART |
| 25 | 5100011552 | Gear hub motor | 2 | Serialno. <182 | ADD TO CART |
| 25 | 5100030749 | Gear hub motor | 1 | Serialno. 183 - 303 | ADD TO CART |
| 26 | 5100012511 | Cheese-head screw | 10 | Serialno. <303 | ADD TO CART |
| 27 | 5100012969 | Locking washer | 10 | Serialno. <303 | ADD TO CART |
| 30 | 5100012789 | Cheese-head screw | 14 | Serialno. <303 | ADD TO CART |
| 31 | 5100012968 | Locking washer | 28 | Serialno. <303 | ADD TO CART |
| 32 | 5100012548 | Hexagon nut | 14 | Serialno. <303 | ADD TO CART |
Page 292 — Mounting
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012342 | Spacer block | 2 | Serialno. >304 | ADD TO CART |
| 2 | 5100053012 | Hexagon screw | 4 | Serialno. >304 | ADD TO CART |
| 3 | 5100011933 | Cup spring | 8 | Serialno. >304 | ADD TO CART |
| 5 | 5100012026 | Bow plate | 2 | Serialno. >304 | ADD TO CART |
| 6 | 5100012027 | Metal plate | 4 | Serialno. >304 | ADD TO CART |
| 7 | 5100012958 | Hexagon screw | 6 | Serialno. >304 | ADD TO CART |
| 8 | 5100013235 | Hexagon screw | 2 | Serialno. >304 | ADD TO CART |
| 9 | 5100012969 | Locking washer | 8 | Serialno. >304 | ADD TO CART |
| 21 | 5100053011 | Driver | 2 | Serialno. >304 | ADD TO CART |
| 22 | 5100012969 | Locking washer | 12 | Serialno. >304 | ADD TO CART |
| 23 | 5100012405 | Hexagon nut | 12 | Serialno. >304 | ADD TO CART |
| 25 | 5100052949 | Gear hub motor | 2 | Serialno. >304 | ADD TO CART |
| 26 | 5100048107 | Cheese-head screw | 16 | Serialno. >304 | ADD TO CART |
| 27 | 5100012968 | Locking washer | 16 | Serialno. >304 | ADD TO CART |
| 30 | 5100048107 | Cheese-head screw | 14 | Serialno. >304 | ADD TO CART |
| 31 | 5100012968 | Locking washer | 14 | Serialno. >304 | ADD TO CART |
Page 296 — Suspension (tires)
Parts list — exactly as printed37 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012342 | Spacer block | 1 | Serialno. <303 | ADD TO CART |
| 2 | 5100053012 | Hexagon screw | 2 | Serialno. <303 | ADD TO CART |
| 3 | 5100011933 | Cup spring | 4 | Serialno. <303 | ADD TO CART |
| 5 | 5100012026 | Bow plate | 1 | Serialno. <303 | ADD TO CART |
| 6 | 5100012027 | Metal plate | 3 | Serialno. <303 | ADD TO CART |
| 7 | 5100012958 | Hexagon screw | 4 | Serialno. <303 | ADD TO CART |
| 9 | 5100012969 | Locking washer | 4 | Serialno. <303 | ADD TO CART |
| 21 | 5100011704 | Carrier star | 1 | Serialno. <303 | ADD TO CART |
| 22 | 5100012405 | Hexagon nut | 6 | Serialno. <303 | ADD TO CART |
| 23 | 5100012969 | Locking washer | 6 | Serialno. <303 | ADD TO CART |
| 25 | 5100011552 | Gear hub motor | 1 | Serialno. <182 | ADD TO CART |
| 25 | 5100030749 | Gear hub motor | 1 | Serialno. 183 - 303 | ADD TO CART |
| 26 | 5100012511 | Cheese-head screw | 5 | Serialno. <303 | ADD TO CART |
| 27 | 5100012969 | Locking washer | 5 | Serialno. <303 | ADD TO CART |
| 30 | 5100012789 | Cheese-head screw | 7 | Serialno. <303 | ADD TO CART |
| 31 | 5100012968 | Locking washer | 14 | Serialno. <303 | ADD TO CART |
| 32 | 5100012548 | Hexagon nut | 7 | Serialno. <303 | ADD TO CART |
| 40 | 5100012350 | Spacer block | 2 | Serialno. <303 | ADD TO CART |
| 41 | 5100012447 | Towing loop | 1 | Serialno. <303 | ADD TO CART |
| 42 | 5100012502 | Hexagon screw | 2 | Serialno. <303 | ADD TO CART |
| 43 | 5100012969 | Locking washer | 2 | Serialno. <303 | ADD TO CART |
| 4 | 5100012025 | Bow plate | 1 | ADD TO CART | |
| 1 | 5100012957 | Gear hub motor | 2 | PARTS REQUEST | |
|
COMING Gear hub motor
5100012957 · qty on machine: 2 | |||||
| 2 | 5100012784 | Cheese-head screw | 20 | ADD TO CART | |
| 3 | 5100012968 | Locking washer | 20 | ADD TO CART | |
| 10 | 5100052994 | Tyre | 4 | Serialno. 160 - 504 | PARTS REQUEST |
|
COMING Tyre
5100052994 · qty on machine: 4 Serialno. 160 - 504 | |||||
| 10 | 5100066874 | Tyre | 4 | Serialno. 505 - 726 | PARTS REQUEST |
|
COMING Tyre
5100066874 · qty on machine: 4 Serialno. 505 - 726 | |||||
| 10 | 5100066875 | Wheel | 4 | Serialno. 727 - 796 | PARTS REQUEST |
|
COMING Wheel
5100066875 · qty on machine: 4 Serialno. 727 - 796 | |||||
| 12 | 5100029586 | Centering ring | 10 | PARTS REQUEST | |
|
COMING Centering ring
5100029586 · qty on machine: 10 | |||||
| 13 | 5100012376 | Flat collar nut | 10 | ADD TO CART | |
| 14 | 5100012370 | Flange | 2 | ADD TO CART | |
| 15 | 5100012377 | Spring ring | 10 | ADD TO CART | |
| 16 | 5100012376 | Flat collar nut | 10 | ADD TO CART | |
| 17 | 5100012379 | Stud bolt | 10 | ADD TO CART | |
| 18 | 5100029586 | Centering ring | 10 | PARTS REQUEST | |
|
COMING Centering ring
5100029586 · qty on machine: 10 | |||||
| 20 | 5100012401 | Valve extension | 2 | ADD TO CART | |
| 21 | 5100011968 | Bracket | 2 | ADD TO CART | |
Page 304 — Scraper
Parts list — exactly as printed56 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013080 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 5 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 6 | 5100011585 | Cheese-head screw | 4 | ADD TO CART | |
| 51 | 5100013081 | Scraper | 1 | ADD TO CART | |
| 52 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 53 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 55 | 5100013047 | Holder-up | 1 | PARTS REQUEST | |
|
COMING Holder-up
5100013047 · qty on machine: 1 | |||||
| 56 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 101 | 5100013080 | Scraper | 1 | ADD TO CART | |
| 102 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 103 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 105 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 106 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 151 | 5100013082 | Scraper | 1 | ADD TO CART | |
| 152 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 153 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 155 | 5100013065 | Holder-up | 1 | ADD TO CART | |
| 158 | 5100034697 | Countersunk screw | 2 | ADD TO CART | |
| 11 | 5100012261 | Plastic scraper | 1 | ADD TO CART | |
| 12 | 5100012260 | Metal plate | 1 | ADD TO CART | |
| 13 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 14 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 15 | 5100012085 | Mushroom head screw | 5 | ADD TO CART | |
| 16 | 5100011584 | Mushroom head screw | 4 | ADD TO CART | |
| 17 | 5100013521 | Washer | 9 | ADD TO CART | |
| 19 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 20 | 5100013040 | Bracket | 1 | ADD TO CART | |
| 21 | 5100012932 | Handle | 1 | ADD TO CART | |
| 22 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 23 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011483 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100011483 · qty on machine: 1 | |||||
| 26 | 5100013577 | Washer | 2 | ADD TO CART | |
| 27 | 5100013045 | Bracket | 1 | ADD TO CART | |
| 28 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 29 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 30 | 5100013068 | Bracket | 1 | ADD TO CART | |
| 31 | 5100012602 | Safety nut | 1 | ADD TO CART | |
| 35 | 5100013574 | Toggle with bolt | 1 | ADD TO CART | |
| 36 | 5100013575 | Compression spring | 1 | ADD TO CART | |
| 37 | 5100013576 | Grooved pin | 1 | ADD TO CART | |
| 40 | 5100011483 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100011483 · qty on machine: 1 | |||||
| 41 | 5100013577 | Washer | 2 | ADD TO CART | |
| 42 | 5100013046 | Bracket | 1 | ADD TO CART | |
| 43 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 44 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 45 | 5100013069 | Bracket | 1 | ADD TO CART | |
| 46 | 5100012602 | Safety nut | 1 | ADD TO CART | |
| 27 | 5100013055 | Foot lever | 1 | ADD TO CART | |
| 30 | 5100013056 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013034 | Bracket | 1 | ADD TO CART | |
| 45 | 5100013056 | Bracket | 1 | ADD TO CART | |
| 27 | 5100013192 | Bracket | 1 | ADD TO CART | |
| 29 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
Page 312 — Scraper (Tyre)
Parts list — exactly as printed70 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013175 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012984 | Cover | 1 | ADD TO CART | |
| 3 | 5100013402 | Countersunk screw | 4 | ADD TO CART | |
| 4 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 5 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 6 | 5100011630 | Hinge | 2 | ADD TO CART | |
| 7 | 5100012890 | Countersunk screw | 4 | ADD TO CART | |
| 10 | 5100012439 | Rubber piece | 1 | ADD TO CART | |
| 11 | 5100012610 | Hexagon screw | 1 | ADD TO CART | |
| 12 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 13 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 15 | 5100012932 | Handle | 1 | ADD TO CART | |
| 16 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 17 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 18 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 19 | 5100034807 | Hexagon screw | 2 | ADD TO CART | |
| 21 | 5100013577 | Washer | 4 | ADD TO CART | |
| 22 | 5100011682 | Bushing | 2 | ADD TO CART | |
| 23 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 25 | 5100035091 | Safety nut | 2 | ADD TO CART | |
| 30 | 5100066891 | Protecting sheet | 1 | Serialno. >666 | PARTS REQUEST |
|
COMING Protecting sheet
5100066891 · qty on machine: 1 Serialno. >666 | |||||
| 31 | 5100012572 | Hexagon screw | 2 | Serialno. >666 | PARTS REQUEST |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 Serialno. >666 | |||||
| 32 | 5100012965 | Locking washer | 2 | Serialno. >666 | ADD TO CART |
| 35 | 5100066892 | Protecting sheet | 1 | Serialno. >666 | PARTS REQUEST |
|
COMING Protecting sheet
5100066892 · qty on machine: 1 Serialno. >666 | |||||
| 36 | 5100012572 | Hexagon screw | 2 | Serialno. >666 | PARTS REQUEST |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 Serialno. >666 | |||||
| 37 | 5100012965 | Locking washer | 2 | Serialno. >666 | ADD TO CART |
| 2 | 5100013176 | Bracket | 1 | ADD TO CART | |
| 3 | 5100012434 | Scraper | 4 | ADD TO CART | |
| 5 | 5100013633 | Flat steel | 4 | ADD TO CART | |
| 6 | 5100012613 | Hexagon screw | 8 | ADD TO CART | |
| 7 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 19 | 5100011898 | Nozzle holder | 2 | ADD TO CART | |
| 20 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 20 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 20 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 20 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 21 | 5100011529 | Sprinkler nozzle | 4 | ADD TO CART | |
| 22 | 5100011488 | Nut | 4 | ADD TO CART | |
| 23 | 5100011489 | Filtering screen | 4 | ADD TO CART | |
| 24 | 5100011978 | Membrane | 4 | ADD TO CART | |
| 28 | 5100012090 | Cheese-head screw | 8 | ADD TO CART | |
| 29 | 5100013536 | Serrated lock washer | 8 | ADD TO CART | |
| 34 | 5100013223 | Flexible tubing | 0.05 | ADD TO CART | |
| 35 | 5100013223 | Flexible tubing | 0.22 | ADD TO CART | |
| 36 | 5100012097 | T-hose connector | 1 | ADD TO CART | |
| 37 | 5100013367 | Hose clip | 8 | ADD TO CART | |
| 38 | 5100013223 | Flexible tubing | 0.16 | ADD TO CART | |
| 39 | 5100013223 | Flexible tubing | 0.16 | ADD TO CART | |
| 50 | 5100012438 | Silentbloc | 1 | ADD TO CART | |
| 51 | 5100011744 | Fillister head screw | 1 | ADD TO CART | |
| 52 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 53 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 57 | 5100013200 | Metal plate | 1 | ADD TO CART | |
| 58 | 5100012932 | Handle | 1 | ADD TO CART | |
| 59 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 61 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 62 | 5100013177 | Splash protection | 1 | Serialno. 160 - 665 | ADD TO CART |
| 62 | 5100066893 | Protecting sheet | 1 | Serialno. >666 | ADD TO CART |
| 65 | 5100013204 | Jack latch | 1 | ADD TO CART | |
| 66 | 5100034679 | Washer | 2 | ADD TO CART | |
| 67 | 5100011747 | Hexagon nut | 2 | ADD TO CART | |
| 75 | 5100013178 | Splash protection | 1 | Serialno. 160 - 665 | ADD TO CART |
| 75 | 5100066894 | Protecting sheet | 1 | Serialno. >666 | ADD TO CART |
| 76 | 5100012626 | Hexagon screw | 1 | ADD TO CART | |
| 77 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 78 | 5100011751 | Distance bush | 1 | ADD TO CART | |
| 79 | 5100012548 | Hexagon nut | 1 | ADD TO CART | |
| 100 | 5100013175 | Scraper | 1 | ADD TO CART | |
| 108 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 109 | 5100033218 | Holder | 1 | ADD TO CART | |
Page 318 — Scraper rigid
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 51 | 5100016514 | Scraper | 2 | ADD TO CART | |
| 52 | 5100016515 | Scraper | 1 | ADD TO CART | |
| 53 | 5100016516 | Scraper | 1 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 56 | 5100012520 | Hexagon screw | 16 | ADD TO CART | |
| 59 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 1 | 5100012261 | Plastic scraper | 1 | ADD TO CART | |
| 2 | 5100012260 | Metal plate | 1 | ADD TO CART | |
| 3 | 5100016512 | Bracket | 4 | ADD TO CART | |
| 4 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 5 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 6 | 5100012085 | Mushroom head screw | 7 | ADD TO CART | |
| 7 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 9 | 5100013521 | Washer | 2 | ADD TO CART | |
| 10 | 5100013521 | Washer | 7 | ADD TO CART | |
| 100 | 5100016514 | Scraper | 1 | ADD TO CART | |
| 3 | 5100016513 | Bracket | 4 | ADD TO CART | |
| 4 | 5100012085 | Mushroom head screw | 7 | ADD TO CART | |
| 5 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 6 | 5100013521 | Washer | 2 | ADD TO CART | |
| 7 | 5100013521 | Washer | 7 | ADD TO CART | |
| 100 | 5100016515 | Scraper | 1 | ADD TO CART | |
| 100 | 5100016516 | Scraper | 1 | ADD TO CART | |
Page 326 — Smooth drum with vibrator
Parts list — exactly as printed34 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011993 | Roller drum | 1 | PARTS REQUEST | |
|
COMING Roller drum
5100011993 · qty on machine: 1 | |||||
| 2 | 5100012002 | Flange | 1 | ADD TO CART | |
| 3 | 5100012522 | Hexagon screw | 12 | ADD TO CART | |
| 4 | 5100012967 | Locking washer | 12 | ADD TO CART | |
| 5 | 5100012315 | Flange | 1 | ADD TO CART | |
| 6 | 5100012522 | Hexagon screw | 12 | ADD TO CART | |
| 7 | 5100012967 | Locking washer | 12 | ADD TO CART | |
| 8 | 5100012226 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 9 | 5100012003 | Cover | 2 | ADD TO CART | |
| 10 | 5100012516 | Hexagon screw | 12 | ADD TO CART | |
| 11 | 5100012966 | Locking washer | 12 | ADD TO CART | |
| 12 | 5100053015 | Unbalance shaft | 1 | ADD TO CART | |
| 13 | 5100012088 | Coupling | 1 | ADD TO CART | |
| 14 | 5100013511 | Cheese-head screw | 3 | ADD TO CART | |
| 15 | 5100011646 | Hexagon nut | 1 | ADD TO CART | |
| 16 | 5100012423 | Grooved ball bearing | 1 | ADD TO CART | |
| 17 | 5100012318 | Cover | 1 | ADD TO CART | |
| 18 | 5100012516 | Hexagon screw | 8 | ADD TO CART | |
| 20 | 5100012004 | Flange | 1 | ADD TO CART | |
| 21 | 5100012246 | Nilos ring | 1 | ADD TO CART | |
| 22 | 5100012247 | Sealing ring | 1 | ADD TO CART | |
| 23 | 5100011675 | O-ring seal | 1 | ADD TO CART | |
| 24 | 5100012005 | Driver | 1 | ADD TO CART | |
| 25 | 5100012524 | Hexagon screw | 5 | ADD TO CART | |
| 26 | 5100012967 | Locking washer | 5 | ADD TO CART | |
| 27 | 5100013043 | Gear motor | 1 | PARTS REQUEST | |
|
COMING Gear motor
5100013043 · qty on machine: 1 | |||||
| 28 | 5100012754 | Cheese-head screw | 4 | ADD TO CART | |
| 29 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100011787 | Rubber metal buffer | 6 | ADD TO CART | |
| 31 | 5100012521 | Hexagon screw | 12 | ADD TO CART | |
| 32 | 5100012967 | Locking washer | 12 | ADD TO CART | |
| 35 | 5100011787 | Rubber metal buffer | 4 | ADD TO CART | |
| 36 | 5100012521 | Hexagon screw | 8 | ADD TO CART | |
| 37 | 5100012967 | Locking washer | 8 | ADD TO CART | |
Page 328 — Vibration drive
Parts list — exactly as printed44 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013218 | Angle flange screwing | 1 | ADD TO CART | |
| 1 | 5100011500 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 1 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 1 | 5100013497 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012750 | Flexible tubing | 1 | ADD TO CART | |
| 6 | 5100011896 | Hose clip | 1 | ADD TO CART | |
| 10 | 5100012383 | Valve block | 1 | Serialno. <198 | ADD TO CART |
| 10 | 5100052956 | Control block | 1 | Serialno. 199-617 | ADD TO CART |
| 10 | 5100063128 | Valve block | 1 | Serialno. >618 | ADD TO CART |
| 11 | 5100012815 | Cheese-head screw | 4 | ADD TO CART | |
| 12 | 5100013603 | Straight screwed socket | 2 | ADD TO CART | |
| 14 | 5100011855 | Screw plug | 2 | ADD TO CART | |
| 15 | 5100011509 | Flexible tubing | 1 | ADD TO CART | |
| 15 | 5100012285 | Flexible tubing | 1 | ADD TO CART | |
| 16 | 5100012062 | Flexible tubing | 1 | ADD TO CART | |
| 16 | 5100012286 | Flexible tubing | 1 | ADD TO CART | |
| 17 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 18 | 5100013483 | Elbow adjustable | 2 | ADD TO CART | |
| 31 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 32 | 5100013496 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100012289 | Flexible tubing | 1 | ADD TO CART | |
| 33 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 51 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 53 | 5100011456 | Flexible tubing | 1 | ADD TO CART | |
| 54 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 61 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 62 | 5100012305 | Flexible tubing | 1 | ADD TO CART | |
| 63 | 5100013499 | Straight screwed socket | 1 | ADD TO CART | |
| 70 | 5100012270 | Half-clip | 4 | ADD TO CART | |
| 71 | 5100012946 | Stud bolt | 4 | ADD TO CART | |
| 72 | 5100012298 | Cover plate | 2 | ADD TO CART | |
| 73 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 74 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 75 | 5100012051 | Metal plate | 2 | ADD TO CART | |
| 80 | 5100012256 | Clamp support | 1 | ADD TO CART | |
| 81 | 5100013510 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 83 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 85 | 5100012270 | Half-clip | 2 | ADD TO CART | |
| 86 | 5100012946 | Stud bolt | 2 | ADD TO CART | |
| 87 | 5100012298 | Cover plate | 1 | ADD TO CART | |
| 88 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 89 | 5100011525 | Cap nut | 2 | ADD TO CART | |
Page 332 — Edge pressing and cuttingdevice
Parts list — exactly as printed47 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012408 | Console | 1 | ADD TO CART | |
| 3 | 5100012413 | Lever | 1 | ADD TO CART | |
| 4 | 5100011474 | Taper roller bearing | 4 | ADD TO CART | |
| 5 | 5100011475 | Nilos ring | 3 | ADD TO CART | |
| 6 | 5100012399 | Axle | 1 | ADD TO CART | |
| 7 | 5100013518 | Spacer shim | 1 | ADD TO CART | |
| 8 | 5100013519 | Spacer shim | 1 | ADD TO CART | |
| 9 | 5100012979 | Spacer shim | 1 | ADD TO CART | |
| 10 | 5100011683 | Cover | 2 | ADD TO CART | |
| 11 | 5100012724 | Cheese-head screw | 6 | ADD TO CART | |
| 12 | 5100011716 | Cover | 1 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 15 | 5100011767 | Flange | 1 | ADD TO CART | |
| 16 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 17 | 5100013450 | Cheese-head screw | 8 | ADD TO CART | |
| 20 | 5100057815 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5100057815 · qty on machine: 1 | |||||
| 20 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 20 | 5100012400 | Cylinder | 1 | ADD TO CART | |
| 20 | 5100011686 | Set of seals | 1 | ADD TO CART | |
| 20 | 5100011563 | Radial rod end bearing | 1 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 | |||||
| 22 | 5100011482 | Washer | 1 | ADD TO CART | |
| 23 | 5100035215 | Hexagon screw | 1 | ADD TO CART | |
| 24 | 5100012482 | Greasing nipple | 1 | ADD TO CART | |
| 25 | 5100011681 | Bolt | 1 | ADD TO CART | |
| 26 | 5100013609 | Radial rod end bearing | 1 | ADD TO CART | |
| 27 | 5100011680 | Spacer ring | 2 | ADD TO CART | |
| 28 | 5100012955 | Locking washer | 1 | ADD TO CART | |
| 29 | 5100012550 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 31 | 5100012480 | Greasing nipple | 1 | ADD TO CART | |
| 32 | 5100013560 | Seal | 2 | ADD TO CART | |
| 47 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 48 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 51 | 5100053016 | Stud screw | 4 | ADD TO CART | |
| 52 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 53 | 5100012548 | Hexagon nut | 4 | ADD TO CART | |
| 2 | 5100012483 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100012483 · qty on machine: 1 | |||||
| 15 | 5100012485 | Flange | 1 | ADD TO CART | |
| 17 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 25 | 5100012484 | Bolt | 1 | ADD TO CART | |
| 28 | 5100013521 | Washer | 1 | ADD TO CART | |
| 29 | 5100013408 | Cheese-head screw | 1 | ADD TO CART | |
| 33 | 5100012414 | Ring | 2 | ADD TO CART | |
| 33 | 5100012754 | Cheese-head screw | 2 | ADD TO CART | |
| 60 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 8 | ADD TO CART | |
Page 340 — Attachments
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100013628 | Pipe | 1 | ADD TO CART | |
| 1 | 5100027277 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027277 · qty on machine: 1 | |||||
| 2 | 5100015230 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015230 · qty on machine: 1 | |||||
| 5 | 5100015199 | Cutting disc | 1 | PARTS REQUEST | |
|
COMING Cutting disc
5100015199 · qty on machine: 1 | |||||
| 6 | 5100027279 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027279 · qty on machine: 1 | |||||
| 8 | 5100015232 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015232 · qty on machine: 1 | |||||
| 9 | 5100027278 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027278 · qty on machine: 1 | |||||
| 10 | 5100033238 | Holder | 1 | ADD TO CART | |
| 20 | 5100012520 | Hexagon screw | 2 | ADD TO CART | |
| 30 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011789 | Pipe | 1 | ADD TO CART | |
| 50 | 5100011788 | Bracket | 1 | ADD TO CART | |
| 60 | 5100011790 | Bolt | 1 | ADD TO CART | |
| 70 | 5100013638 | Indicator | 1 | ADD TO CART | |
| 70 | 5100020851 | Indicator | 1 | ADD TO CART | |
| 80 | 5100013509 | Washer | 1 | ADD TO CART | |
| 90 | 5100011783 | Hand lever | 3 | ADD TO CART | |
| 1 | 5100053017 | Holder system | 1 | ADD TO CART | |
| 2 | 5100035238 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100013128 | Washer | 1 | ADD TO CART | |
| 7 | 5100013455 | Cheese-head screw | 1 | ADD TO CART | |
| 11 | 5100011767 | Flange | 1 | ADD TO CART | |
| 12 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 14 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 1 | 5100011977 | Mounting device | 1 | ADD TO CART | |
| 2 | 5100012726 | Cheese-head screw | 2 | ADD TO CART | |
Page 346 — Hydraulic system
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012385 | Valve block | 1 | ADD TO CART | |
| 2 | 5100012332 | Cheese-head screw | 3 | ADD TO CART | |
| 3 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 4 | 5100033239 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100033239 · qty on machine: 1 | |||||
| 4 | 5100033240 | Straight screwed socket | 1 | ADD TO CART | |
| 6 | 5100011975 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100011976 | Flexible tubing | 1 | ADD TO CART | |
| 8 | 5100013482 | Elbow adjustable | 1 | ADD TO CART | |
| 9 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 10 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 25 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 26 | 5100011855 | Screw plug | 1 | ADD TO CART | |
| 31 | 5100013429 | Wire fastener | 10 | ADD TO CART | |
| 32 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 13 | 5100013474 | Straight screwed socket | 2 | ADD TO CART | |
| 14 | 5100033239 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100033239 · qty on machine: 1 | |||||
| 14 | 5100033240 | Straight screwed socket | 1 | ADD TO CART | |
| 16 | 5100012980 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012980 · qty on machine: 1 | |||||
| 17 | 5100012982 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012982 · qty on machine: 1 | |||||
| 18 | 5100013171 | Banjo | 1 | ADD TO CART | |
| 19 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 40 | 5100012387 | Solenoid valve | 1 | ADD TO CART | |
Page 368 — Maintenance kits andrepair kits
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100042994 | Maintenance set | 1 | ADD TO CART | |
| 1 | 5100042998 | Service kit rd24/28-250h wncr0601/0901 | 1 | ADD TO CART | |
| 1 | 5100042999 | Maintena.set rd24/28-500h wncr0601/0901 | 1 | ADD TO CART | |
| 1 | 5100043000 | Mainten. set rd24/28-2000hwncr0601/0901 | 1 | ADD TO CART | |
Page 370 — Thermal aprons
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100053018 | Holder system | 1 | ADD TO CART | |
| 2 | 5100053019 | Holder system | 1 | ADD TO CART | |
| 3 | 5100053020 | Holder system | 1 | ADD TO CART | |
| 3 | 5100053021 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100053021 · qty on machine: 1 | |||||
| 4 | 5100012515 | Hexagon screw | 12 | ADD TO CART | |
| 5 | 5100013094 | Washer | 12 | ADD TO CART | |
| 15 | 5100053022 | Holder system | 1 | ADD TO CART | |
| 15 | 5100053023 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100053023 · qty on machine: 1 | |||||
| 16 | 5100034968 | Hexagon screw | 2 | ADD TO CART | |
| 17 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 18 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100053024 | Metal plate | 1 | ADD TO CART | |
| 41 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 42 | 5100013094 | Washer | 3 | ADD TO CART | |
| 51 | 5100053025 | Filler cap | 2 | ADD TO CART | |
| 52 | 5100050647 | Filler cap | 12 | ADD TO CART | |
| 53 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 54 | 5100022986 | Hexagon screw | 4 | ADD TO CART | |
| 20 | 5100053026 | Thermal aprons | 1 | ADD TO CART | |
| 21 | 5100053027 | Thermal aprons | 1 | ADD TO CART | |
| 22 | 5100053028 | Thermal aprons | 1 | ADD TO CART | |
| 22 | 5100053029 | Thermal aprons | 1 | ADD TO CART | |
| 24 | 5100053030 | Bolt rivet | 40 | ADD TO CART | |
| 25 | 5100053031 | Rotary lock | 20 | ADD TO CART | |
| 30 | 5100053032 | Flat steel | 2 | PARTS REQUEST | |
|
COMING Flat steel
5100053032 · qty on machine: 2 | |||||
| 31 | 5100053033 | Flat steel | 1 | PARTS REQUEST | |
|
COMING Flat steel
5100053033 · qty on machine: 1 | |||||
| 32 | 5100053034 | Mushroom head screw | 6 | ADD TO CART | |
| 33 | 5100013094 | Washer | 6 | ADD TO CART | |
| 34 | 5100012546 | Hexagon nut | 6 | ADD TO CART | |
| 43 | 5100053035 | Thermal aprons | 1 | ADD TO CART | |
| 43 | 5100053036 | Thermal aprons | 1 | PARTS REQUEST | |
|
COMING Thermal aprons
5100053036 · qty on machine: 1 | |||||
Page 374 — Bottle holder
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100023580 | Bottle-support | 1 | ADD TO CART | |
| 3 | 5100012598 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 4 | |||||
| 4 | 5100012936 | Washer | 4 | ADD TO CART | |
| 7 | 5100033246 | Holder | 1 | ADD TO CART | |
| 8 | 5100011701 | Distance bush | 4 | ADD TO CART | |
| 9 | 5100012946 | Stud bolt | 2 | ADD TO CART | |
| 10 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
Page 376 — Additional storage tray
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 150 | 5100029563 | Bag | 1 | ADD TO CART | |
| 151 | 5100023198 | Fillister head screw | 4 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 4 | |||||
| 152 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 153 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 154 | 5100013523 | Washer | 4 | ADD TO CART | |
| 160 | 5100011866 | Sealing tape | 0.06 | ADD TO CART | |
Page 378 — Trailer coupling
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100013076 | Towing loop | 1 | ADD TO CART | |
| 6 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 7 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
Page 380 — Additional mirror
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100012901 | Mirror-retainer | 1 | Serialno. >767 | ADD TO CART |
| 21 | 5100012714 | Hexagon screw | 2 | Serialno. >767 | ADD TO CART |
| 22 | 5100011691 | Bushing | 2 | Serialno. >767 | ADD TO CART |
| 23 | 5100012966 | Locking washer | 4 | Serialno. >767 | ADD TO CART |
| 24 | 5100012546 | Hexagon nut | 2 | Serialno. >767 | ADD TO CART |
| 30 | 5100011540 | Stay bar | 1 | Serialno. >767 | ADD TO CART |
| 31 | 5100013510 | Hexagon screw | 2 | Serialno. >767 | ADD TO CART |
| 32 | 5100012966 | Locking washer | 4 | Serialno. >767 | ADD TO CART |
| 33 | 5100012546 | Hexagon nut | 2 | Serialno. >767 | ADD TO CART |
| 35 | 5100011539 | Stay bar | 1 | Serialno. >767 | ADD TO CART |
| 36 | 5100013510 | Hexagon screw | 2 | Serialno. >767 | ADD TO CART |
| 37 | 5100012966 | Locking washer | 4 | Serialno. >767 | ADD TO CART |
| 38 | 5100012546 | Hexagon nut | 2 | Serialno. >767 | ADD TO CART |
| 40 | 5100011541 | Mirror | 2 | Serialno. >767 | ADD TO CART |
| 20 | 5100066910 | Mirror-retainer | 1 | Serialno. >768 | ADD TO CART |
| 21 | 5100066911 | Hexagon screw | 2 | Serialno. >768 | ADD TO CART |
| 22 | 5100066912 | Distance piece | 2 | Serialno. >768 | ADD TO CART |
| 30 | 5100067838 | Stay bar | 1 | Serialno. >768 | ADD TO CART |
| 31 | 5100012613 | Hexagon screw | 2 | Serialno. >768 | ADD TO CART |
| 35 | 5100067837 | Stay bar | 1 | Serialno. >768 | PARTS REQUEST |
|
COMING Stay bar
5100067837 · qty on machine: 1 Serialno. >768 | |||||
| 36 | 5100012613 | Hexagon screw | 2 | Serialno. >768 | ADD TO CART |
| 40 | 5100067839 | Mirror | 2 | Serialno. >768 | ADD TO CART |
Page 384 — Compaction meter
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100033251 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033251 · qty on machine: 1 | |||||
| 4 | 5100012718 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012936 | Washer | 2 | ADD TO CART | |
| 6 | 5100033252 | Bushing | 2 | ADD TO CART | |
| 10 | 5100033253 | Calculator | 1 | PARTS REQUEST | |
|
COMING Calculator
5100033253 · qty on machine: 1 | |||||
| 11 | 5100033254 | Cheese-head screw | 2 | ADD TO CART | |
| 12 | 5100013453 | Washer | 2 | ADD TO CART | |
| 13 | 5100012936 | Washer | 2 | ADD TO CART | |
| 14 | 5100012898 | Hexagon nut | 2 | ADD TO CART | |
| 16 | 5100033255 | Blade-type fuse | 2 | PARTS REQUEST | |
|
COMING Blade-type fuse
5100033255 · qty on machine: 2 | |||||
| 16 | 5100033256 | Cable harness | 1 | Serialno. <613 | PARTS REQUEST |
|
COMING Cable harness
5100033256 · qty on machine: 1 Serialno. <613 | |||||
| 18 | 5100033257 | Splash protection | 1 | PARTS REQUEST | |
|
COMING Splash protection
5100033257 · qty on machine: 1 | |||||
| 20 | 5100033258 | Acceleration sensor | 1 | ADD TO CART | |
| 41 | 5100033259 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100033259 · qty on machine: 1 | |||||
| 50 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
| 51 | 5100025100 | Covering part | 1 | ADD TO CART | |
| 52 | 5100011580 | Blind cover | 1 | ADD TO CART | |
| 21 | 5100033260 | Cheese-head screw | 2 | Serialno. 160-1242 | ADD TO CART |
| 25 | 5100033261 | Holder | 1 | Serialno. 160-1242 | PARTS REQUEST |
|
COMING Holder
5100033261 · qty on machine: 1 Serialno. 160-1242 | |||||
| 26 | 5100013597 | Hexagon screw | 3 | Serialno. 160-1242 | ADD TO CART |
| 27 | 5100012967 | Locking washer | 3 | Serialno. 160-1242 | ADD TO CART |
| 30 | 5100033262 | Housing | 1 | Serialno. 160-1242 | ADD TO CART |
| 31 | 5100012572 | Hexagon screw | 1 | Serialno. 160-1242 | PARTS REQUEST |
|
COMING Hexagon screw
5100012572 · qty on machine: 1 Serialno. 160-1242 | |||||
| 32 | 5100012965 | Locking washer | 3 | Serialno. 160-1242 | ADD TO CART |
| 33 | 5100023046 | Hexagon screw | 1 | Serialno. 160-1242 | ADD TO CART |
| 34 | 5100033263 | Pipe clip | 1 | Serialno. 160-1242 | ADD TO CART |
| 35 | 5100012545 | Hexagon nut | 1 | Serialno. 160-1242 | ADD TO CART |
| 36 | 5100033264 | Half-clip | 2 | Serialno. 160-1242 | ADD TO CART |
| 37 | 5100033265 | Weld-on plate | 1 | Serialno. 160-1242 | ADD TO CART |
| 38 | 5100012965 | Locking washer | 2 | Serialno. 160-1242 | ADD TO CART |
| 39 | 5100013466 | Hexagon screw | 2 | Serialno. 160-1242 | ADD TO CART |
| 40 | 5100033266 | Temperature probe | 1 | Serialno. 160-1242 | ADD TO CART |
| 42 | 5100033267 | Lid | 1 | Serialno. 160-1242 | ADD TO CART |
| 43 | 5100033235 | Fillister head screw | 2 | Serialno. 160-1242 | ADD TO CART |
| 5 | 5100073267 | Distance bush | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Distance bush
5100073267 · qty on machine: 1 Serialno. >1243 | |||||
| 6 | 5100012608 | Hexagon screw | 2 | Serialno. >1243 | ADD TO CART |
| 8 | 5100012965 | Locking washer | 2 | Serialno. >1243 | ADD TO CART |
| 30 | 5100073268 | Flange | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Flange
5100073268 · qty on machine: 1 Serialno. >1243 | |||||
| 31 | 5100073269 | Knurled head screw | 2 | Serialno. >1243 | PARTS REQUEST |
|
COMING Knurled head screw
5100073269 · qty on machine: 2 Serialno. >1243 | |||||
| 33 | 5100035597 | O-ring seal | 1 | Serialno. >1243 | ADD TO CART |
| 41 | 5100082841 | Wire harness sensor | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Wire harness sensor
5100082841 · qty on machine: 1 Serialno. >1243 | |||||
Page 390 — Automatic engine shutdown
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011583 | Relay | 1 | ADD TO CART | |
| 2 | 5100029573 | Cable harness | 1 | ADD TO CART | |
| 2 | 5100033268 | Diode | 1 | ADD TO CART | |
| 4 | 5100029566 | Slow-release relay | 1 | ADD TO CART | |
Page 392 — Fire extinguisher
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100033269 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100033269 · qty on machine: 1 | |||||
| 3 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 4 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100012420 | Blind rivet nut | 2 | ADD TO CART | |
| 10 | 5100022903 | Fire extinguisher | 1 | ADD TO CART | |
| 11 | 5100033270 | Countersunk screw | 2 | ADD TO CART | |
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 13 | 5100013599 | Clip nut | 2 | ADD TO CART | |
| 20 | 5100022903 | Fire extinguisher | 1 | ADD TO CART | |
| 21 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012936 | Washer | 2 | ADD TO CART | |
| 24 | 5100012898 | Hexagon nut | 2 | ADD TO CART | |
Page 394 — Homologation Italy
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012007 | Metal plate | 1 | ADD TO CART | |
| 4 | 5100012001 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 1 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 8 | 5100017998 | Hexagonal nut | 2 | ADD TO CART | |
| 10 | 5100012607 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100013536 | Serrated lock washer | 12 | ADD TO CART | |
| 12 | 5100012898 | Hexagon nut | 8 | ADD TO CART | |
| 13 | 5100013453 | Washer | 8 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 100 | 5100012143 | Bracket | 1 | ADD TO CART | |
| 102 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 103 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
Page 396 — Homologation Brazil
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025909 | Holder | 1 | ADD TO CART | |
| 4 | 5100025910 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 2 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100025881 | Fillister head screw | 4 | ADD TO CART | |
| 11 | 5100013599 | Clip nut | 4 | ADD TO CART | |
| 18 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 19 | 5100012967 | Locking washer | 4 | ADD TO CART | |
Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 24 — Main frame and assemblies
Parts list — exactly as printed65 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012170 | Front frame part | 1 | PARTS REQUEST | |
|
COMING Front frame part
5100012170 · qty on machine: 1 | |||||
| 8 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 9 | 5100012626 | Hexagon screw | 2 | ADD TO CART | |
| 15 | 5100012046 | Metal plate | 1 | ADD TO CART | |
| 16 | 5100012626 | Hexagon screw | 4 | ADD TO CART | |
| 17 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100012207 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012207 · qty on machine: 1 | |||||
| 24 | 5100012329 | Rear frame part | 1 | PARTS REQUEST | |
|
COMING Rear frame part
5100012329 · qty on machine: 1 | |||||
| 25 | 5100012786 | Bow | 1 | ADD TO CART | |
| 26 | 5100011473 | Hexagon screw | 6 | ADD TO CART | |
| 27 | 5100012969 | Locking washer | 6 | ADD TO CART | |
| 30 | 5100011814 | Rubber buffer | 8 | ADD TO CART | |
| 31 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 32 | 5100011585 | Cheese-head screw | 4 | ADD TO CART | |
| 33 | 5100012350 | Spacer block | 8 | ADD TO CART | |
| 34 | 5100012674 | Seat pedestal | 1 | ADD TO CART | |
| 35 | 5100012357 | Silentbloc | 2 | ADD TO CART | |
| 36 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 37 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 38 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 39 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 40 | 5100033190 | Hexagon screw | 2 | ADD TO CART | |
| 41 | 5100033191 | Metal plate | 1 | ADD TO CART | |
| 42 | 5100012202 | Bushing | 2 | ADD TO CART | |
| 43 | 5100011734 | Rubber metal buffer | 2 | ADD TO CART | |
| 44 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 45 | 5100013128 | Washer | 2 | ADD TO CART | |
| 49 | 5100016196 | Cover | 2 | ADD TO CART | |
| 50 | 5100012853 | Handle | 2 | ADD TO CART | |
| 51 | 5100012529 | Filler cap | 4 | ADD TO CART | |
| 52 | 5100016503 | Bushing | 8 | ADD TO CART | |
| 55 | 5100011498 | Silentbloc | 8 | ADD TO CART | |
| 56 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 57 | 5100012946 | Stud bolt | 4 | ADD TO CART | |
| 58 | 5100012977 | Stud bolt | 4 | ADD TO CART | |
| 59 | 5100012546 | Hexagon nut | 8 | ADD TO CART | |
| 60 | 5100016288 | Bottom plate | 1 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 62 | 5100013128 | Washer | 6 | ADD TO CART | |
| 65 | 5100012712 | Rubber metal buffer | 2 | ADD TO CART | |
| 66 | 5100035014 | Hexagon screw | 2 | ADD TO CART | |
| 67 | 5100013128 | Washer | 2 | ADD TO CART | |
| 69 | 5100012640 | Steering console | 1 | ADD TO CART | |
| 69 | 5100016289 | Steering console | 1 | PARTS REQUEST | |
|
COMING Steering console
5100016289 · qty on machine: 1 | |||||
| 71 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 72 | 5100013094 | Washer | 4 | ADD TO CART | |
| 73 | 5100013644 | Rubber profile | 0.25 | ADD TO CART | |
| 74 | 5100052877 | Protective cap | 2 | ADD TO CART | |
| 75 | 5100012652 | Spacer plate | 1 | ADD TO CART | |
| 77 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 80 | 5100012653 | Retaining plate | 1 | ADD TO CART | |
| 81 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 3 | 5100052880 | Loading loop | 4 | ADD TO CART | |
| 4 | 5100011612 | Hexagon screw | 12 | ADD TO CART | |
| 5 | 5100029558 | Hexagon screw | 3 | ADD TO CART | |
| 6 | 5100012968 | Locking washer | 24 | ADD TO CART | |
| 7 | 5100035091 | Safety nut | 12 | ADD TO CART | |
| 5 | 5100052881 | Chock | 2 | PARTS REQUEST | |
|
COMING Chock
5100052881 · qty on machine: 2 | |||||
| 9 | 5100052882 | Foot mat | 1 | PARTS REQUEST | |
|
COMING Foot mat
5100052882 · qty on machine: 1 | |||||
| 10 | 5100013309 | Bracket | 2 | ADD TO CART | |
| 11 | 5100052883 | Countersunk screw | 4 | ADD TO CART | |
| 12 | 5100040616 | Blind rivet nut | 4 | ADD TO CART | |
| 14 | 5100052884 | Lashing strap | 1 | PARTS REQUEST | |
|
COMING Lashing strap
5100052884 · qty on machine: 1 | |||||
| 15 | 5100052885 | Rubber plate | 1 | PARTS REQUEST | |
|
COMING Rubber plate
5100052885 · qty on machine: 1 | |||||
Page 32 — Canopies and covers
Parts list — exactly as printed85 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100016197 | Engine hood | 1 | PARTS REQUEST | |
|
COMING Engine hood
5100016197 · qty on machine: 1 | |||||
| 2 | 5100012498 | Safety screw | 4 | ADD TO CART | |
| 5 | 5100012193 | Hinge | 2 | ADD TO CART | |
| 6 | 5100012214 | Metal plate | 2 | ADD TO CART | |
| 19 | 5100012696 | Lock | 1 | ADD TO CART | |
| 20 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 21 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 22 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 23 | 5100013588 | Lock outside handle | 1 | ADD TO CART | |
| 23 | 5100013557 | Key | 1 | ADD TO CART | |
| 24 | 5100013590 | Supporting plate | 1 | ADD TO CART | |
| 25 | 5100013589 | Supporting plate | 1 | ADD TO CART | |
| 26 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 27 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 28 | 5100050643 | Knurled head screw | 1 | PARTS REQUEST | |
|
COMING Knurled head screw
5100050643 · qty on machine: 1 | |||||
| 29 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100013372 | Bracket | 1 | ADD TO CART | |
| 31 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 32 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 33 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 35 | 5100050644 | Wire clip | 1 | ADD TO CART | |
| 37 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 38 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 45 | 5100011919 | Gas spring | 1 | ADD TO CART | |
| 47 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 48 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 50 | 5100013525 | Rubber buffer | 1 | ADD TO CART | |
| 51 | 5100013537 | Hexagon nut | 1 | ADD TO CART | |
| 60 | 5100012029 | Sealing profile | 2.8 | ADD TO CART | |
| 156 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 202 | 5100050646 | Filler cap | 4 | ADD TO CART | |
| 70 | 5100012033 | Cover | 1 | ADD TO CART | |
| 71 | 5100013591 | Built-in lock | 1 | ADD TO CART | |
| 71 | 5100013557 | Key | 1 | ADD TO CART | |
| 72 | 5100013647 | Sealing profile | 0.8 | ADD TO CART | |
| 120 | 5100012464 | Cover | 4 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 16 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 150 | 5100012880 | Cover plate | 2 | ADD TO CART | |
| 151 | 5100011634 | Sheet metal screw | 4 | ADD TO CART | |
| 158 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 159 | 5100013530 | Filler cap | 2 | ADD TO CART | |
| 190 | 5100012659 | Cover | 1 | ADD TO CART | |
| 191 | 5100012572 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 3 | |||||
| 192 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 197 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 198 | 5100050647 | Filler cap | 4 | ADD TO CART | |
| 199 | 5100011550 | Plug | 4 | ADD TO CART | |
| 201 | 5100017982 | Cap | 2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 79 | 5100011580 | Blind cover | 2 | ADD TO CART | |
| 80 | 5100012647 | Covering part | 1 | ADD TO CART | |
| 81 | 5100011854 | Bracket | 1 | ADD TO CART | |
| 82 | 5100012607 | Hexagon screw | 1 | ADD TO CART | |
| 85 | 5100012648 | Covering part | 1 | ADD TO CART | |
| 86 | 5100011581 | Fillister head screw | 14 | ADD TO CART | |
| 90 | 5100013323 | Instrument panel | 1 | Serialno. <613 | ADD TO CART |
| 90 | 5100025103 | Instrument panel | 1 | Serialno. >614 | ADD TO CART |
| 91 | 5100013596 | Built-in lock | 1 | PARTS REQUEST | |
|
COMING Built-in lock
5100013596 · qty on machine: 1 | |||||
| 91 | 5100013357 | Bracket | 1 | ADD TO CART | |
| 92 | 5100011698 | Spacer block | 1 | ADD TO CART | |
| 93 | 5100011860 | Rubber sleeve | 4 | ADD TO CART | |
| 94 | 5100011581 | Fillister head screw | 7 | ADD TO CART | |
| 100 | 5100012478 | Covering part | 1 | Serialno. <613 | ADD TO CART |
| 100 | 5100025100 | Covering part | 1 | Serialno. >614 | ADD TO CART |
| 101 | 5100012456 | Bushing | 2 | ADD TO CART | |
| 102 | 5100011853 | Fillister head screw | 2 | ADD TO CART | |
| 104 | 5100013537 | Hexagon nut | 4 | ADD TO CART | |
| 110 | 5100012649 | Splash protection | 1 | ADD TO CART | |
| 111 | 5100012920 | Edge protection | 0.6 | ADD TO CART | |
| 115 | 5100011656 | Filler cap | 6 | ADD TO CART | |
| 130 | 5100012650 | Cover | 2 | ADD TO CART | |
| 132 | 5100012651 | Sealing profile | 2 | ADD TO CART | |
| 133 | 5100012592 | Hexagon screw | 8 | ADD TO CART | |
| 134 | 5100012936 | Washer | 8 | ADD TO CART | |
| 8 | 5100011652 | Bushing | 2 | Serialno. >531 | ADD TO CART |
| 10 | 5100016198 | Covering part | 1 | Serialno. <530 | PARTS REQUEST |
|
COMING Covering part
5100016198 · qty on machine: 1 Serialno. <530 | |||||
| 10 | 5100066862 | Covering part | 1 | Serialno. >531 | ADD TO CART |
| 11 | 5100016199 | Cheese-head screw | 2 | Serialno. <530 | PARTS REQUEST |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 Serialno. <530 | |||||
| 11 | 5100066865 | Cheese-head screw | 2 | Serialno. >531 | PARTS REQUEST |
|
COMING Cheese-head screw
5100066865 · qty on machine: 2 Serialno. >531 | |||||
| 12 | 5100013523 | Washer | 2 | ADD TO CART | |
| 13 | 5100011544 | Clip nut | 2 | ADD TO CART | |
| 14 | 5100016199 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100016199 · qty on machine: 2 | |||||
| 15 | 5100013523 | Washer | 2 | ADD TO CART | |
| 16 | 5100013644 | Rubber profile | 0.5 | ADD TO CART | |
Page 40 — Sticker arrangement
Parts list — exactly as printed25 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100016250 | Type plate rd 24-100 | 2 | PARTS REQUEST | |
|
COMING Type plate rd 24-100
5100016250 · qty on machine: 2 | |||||
| 1 | 5100016251 | Type plate rd 24-100 c | 2 | PARTS REQUEST | |
|
COMING Type plate rd 24-100 c
5100016251 · qty on machine: 2 | |||||
| 1 | 5100016252 | Type plate rd 24-100 o | 2 | PARTS REQUEST | |
|
COMING Type plate rd 24-100 o
5100016252 · qty on machine: 2 | |||||
| 1 | 5100024327 | Type plate rd28-120 | 2 | ADD TO CART | |
| 1 | 5100024328 | Type plate rd28-120c | 2 | PARTS REQUEST | |
|
COMING Type plate rd28-120c
5100024328 · qty on machine: 2 | |||||
| 1 | 5100024329 | Type plate rd28-120o | 2 | PARTS REQUEST | |
|
COMING Type plate rd28-120o
5100024329 · qty on machine: 2 | |||||
| 2 | 5100029588 | Label | 2 | ADD TO CART | |
| 3 | 5100033192 | Label | 2 | PARTS REQUEST | |
|
COMING Label
5100033192 · qty on machine: 2 | |||||
| 4 | 5100016256 | Sticker | 1 | ADD TO CART | |
| 5 | 5100016257 | Adhesive tape | 1 | ADD TO CART | |
| 9 | 5100013209 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013207 | Decal kit | 1 | ADD TO CART | |
| 10 | 5100013208 | Decal kit | 1 | ADD TO CART | |
| 51 | 5100011692 | Sticker | 1 | ADD TO CART | |
| 90 | 5100012698 | Sticker | 1 | ADD TO CART | |
| 90 | 5100016500 | Sticker | 1 | ADD TO CART | |
| 91 | 5100012699 | Sticker | 1 | ADD TO CART | |
| 106 | 5100016258 | Decal kit | 1 | ADD TO CART | |
| 50 | 5100013420 | Sticker | 3 | ADD TO CART | |
| 51 | 5100011684 | Metal plate | 1 | ADD TO CART | |
| 52 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 18 | 5100033193 | Label | 1 | ADD TO CART | |
| 80 | 5100012976 | Sticker | 1 | ADD TO CART | |
| 101 | 5100012465 | Sticker | 1 | ADD TO CART | |
| 105 | 5100011702 | Sticker | 1 | ADD TO CART | |
Page 56 — Sound-insulation
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100012848 | Sound insulation | 1 | ADD TO CART | |
| 4 | 5100011922 | Locking washer | 14 | ADD TO CART | |
| 9 | 5100016259 | Bracket | 2 | PARTS REQUEST | |
|
COMING Bracket
5100016259 · qty on machine: 2 | |||||
| 10 | 5100012869 | Insulation | 1 | ADD TO CART | |
| 11 | 5100012886 | Bracket | 1 | ADD TO CART | |
| 12 | 5100011953 | Push-button | 3 | ADD TO CART | |
| 20 | 5100012870 | Metal plate | 1 | ADD TO CART | |
| 21 | 5100016260 | Sound insulation | 1 | ADD TO CART | |
| 22 | 5100011953 | Push-button | 3 | ADD TO CART | |
Page 58 — Operator's seat withadjustment
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033194 | Driver's seat | 1 | Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033195 | Seat contact switch | 1 | 1.04 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033196 | Seat cushion | 1 | 1.01 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033197 | Seat cushion | 1 | 1.02 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033198 | Set of adjustment bars | 1 | 1.05 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033199 | Lap belt | 1 | 1.03 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033200 | Maintenance kit wear parts | 1 | 1.07 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100033201 | Adjustment | 1 | 1.06 Serialno. 160-1242 | ADD TO CART |
| 1 | 5100082818 | Operator's seat | 1 | Serialno. < 1243 | PARTS REQUEST |
|
COMING Operator's seat
5100082818 · qty on machine: 1 Serialno. < 1243 | |||||
| 2 | 5100011518 | Seat cushion | 1 | ADD TO CART | |
| 2 | 5100011519 | Backrest cushion | 1 | ADD TO CART | |
| 2 | 5100011615 | Handle | 1 | ADD TO CART | |
| 2 | 5100012964 | Seat contact switch | 1 | ADD TO CART | |
| 2 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 2 | 5100029584 | Driver's seat | 1 | ADD TO CART | |
| 2 | 5100033202 | Lap belt | 1 | ADD TO CART | |
Page 60 — Operator's seat with adjustmen
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100083260 | Cover | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cover
5100083260 · qty on machine: 1 Serialno. >1243 | |||||
| 2 | 5100083261 | Cover | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cover
5100083261 · qty on machine: 1 Serialno. >1243 | |||||
| 3 | 5100013084 | Set of adjustment bars | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Set of adjustment bars
5100013084 · qty on machine: 1 Serialno. >1243 | |||||
| 4 | 5100083262 | Lap belt | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Lap belt
5100083262 · qty on machine: 1 Serialno. >1243 | |||||
| 5 | 5100083263 | Adjustment | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Adjustment
5100083263 · qty on machine: 1 Serialno. >1243 | |||||
| 6 | 5100083264 | Cable harness | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Cable harness
5100083264 · qty on machine: 1 Serialno. >1243 | |||||
| 7 | 5100083265 | Backrest cushion, imi. leather | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Backrest cushion, imi. leather
5100083265 · qty on machine: 1 Serialno. >1243 | |||||
| 8 | 5100083266 | Seat cushion | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Seat cushion
5100083266 · qty on machine: 1 Serialno. >1243 | |||||
| 9 | 5100012691 | Seat contact switch | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Seat contact switch
5100012691 · qty on machine: 1 Serialno. >1243 | |||||
| 10 | 5100082818 | Operator's seat | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Operator's seat
5100082818 · qty on machine: 1 Serialno. >1243 | |||||
Page 64 — Driver's seat
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011615 | Handle | 1 | ADD TO CART | |
| 1 | 5100013067 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100013083 | Adjustment bar | 1 | ADD TO CART | |
| 1 | 5100024343 | Cushion set | 1 | ADD TO CART | |
| 1 | 5100024920 | Seat contact switch | 1 | ADD TO CART | |
| 1 | 5100029585 | Backrest cushion, imi. leather | 1 | ADD TO CART | |
| 1 | 5100029596 | Driver's seat | 1 | ADD TO CART | |
| 1 | 5100033202 | Lap belt | 1 | ADD TO CART | |
| 3 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 6 | 5100012015 | Metal plate | 2 | ADD TO CART | |
| 7 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 13 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 15 | 5100011947 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100011947 · qty on machine: 1 | |||||
| 16 | 5100011938 | Bogie, seat heating | 1 | ADD TO CART | |
| 60 | 5100024344 | Central plug | 1 | ADD TO CART | |
| 70 | 5100029597 | Flat plug sleeve | 2 | ADD TO CART | |
| 78 | 5100011595 | Frame | 2 | ADD TO CART | |
| 80 | 5100024345 | Connection plug, 1-pole | 1 | ADD TO CART | |
| 90 | 5100029598 | Flat plug sleeve | 1 | ADD TO CART | |
| 100 | 5100033203 | Connector housing | 1 | ADD TO CART | |
| 101 | 5100025825 | Flat-pin plug | 1 | ADD TO CART | |
| 110 | 5100012306 | Protecting plate | 1 | ADD TO CART | |
| 111 | 5100011634 | Sheet metal screw | 2 | ADD TO CART | |
Page 66 — Sun canopy
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033204 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033204 · qty on machine: 1 | |||||
| 3 | 5100013128 | Washer | 4 | ADD TO CART | |
| 4 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 5 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100033205 | Angle bracket | 1 | ADD TO CART | |
| 11 | 5100033206 | Angle bracket | 1 | ADD TO CART | |
| 12 | 5100013128 | Washer | 6 | ADD TO CART | |
| 13 | 5100012617 | Hexagon screw | 6 | ADD TO CART | |
| 20 | 5100033207 | Frame | 1 | ADD TO CART | |
| 21 | 5100033208 | Metal plate | 2 | ADD TO CART | |
| 22 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 23 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100024352 | Ring nut | 4 | ADD TO CART | |
| 25 | 5100024341 | Roof tarpaulin | 1 | ADD TO CART | |
| 35 | 5100033209 | Metal plate | 1 | ADD TO CART | |
| 36 | 5100033210 | Metal plate | 1 | ADD TO CART | |
| 37 | 5100013128 | Washer | 4 | ADD TO CART | |
| 38 | 5100013416 | Hexagon screw | 2 | ADD TO CART | |
| 39 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100013128 | Washer | 2 | ADD TO CART | |
| 41 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
Page 68 — Roll over protection
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012208 | Roll over protection | 1 | ADD TO CART | |
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012502 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 21 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 22 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 23 | 5100011814 | Rubber buffer | 4 | ADD TO CART | |
| 190 | 5100016261 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 15 | 5100013379 | Hexagon screw | 2 | ADD TO CART | |
| 16 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 17 | 5100012194 | Washer | 2 | ADD TO CART | |
| 18 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 19 | 5100024289 | Washer | 2 | PARTS REQUEST | |
|
COMING Washer
5100024289 · qty on machine: 2 | |||||
| 20 | 5100012985 | Threaded bolt | 2 | ADD TO CART | |
| 25 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 26 | 5100012987 | W-clip | 2 | ADD TO CART | |
| 27 | 5100012921 | Safety cord | 2 | PARTS REQUEST | |
|
COMING Safety cord
5100012921 · qty on machine: 2 | |||||
| 100 | 5100012208 | Roll over protection | 1 | ADD TO CART | |
Page 72 — Rigid roll over protection
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100033211 | Roll over protection | 1 | ADD TO CART | |
| 5 | 5100012526 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012502 | Hexagon screw | 4 | ADD TO CART | |
| 8 | 5100013235 | Hexagon screw | 4 | ADD TO CART | |
| 9 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 190 | 5100016261 | Rail | 1 | ADD TO CART | |
| 191 | 5100012571 | Hexagon screw | 2 | ADD TO CART | |
| 192 | 5100012965 | Locking washer | 2 | ADD TO CART | |
Page 74 — Canopy, fops
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100052891 | Roof | 1 | ADD TO CART | |
| 3 | 5100052892 | Bracket | 4 | ADD TO CART | |
| 4 | 5100052893 | Plate | 4 | ADD TO CART | |
| 5 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 6 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 10 | 5100052894 | Strap bolt | 2 | ADD TO CART | |
| 11 | 5100052895 | Distance sheet | 8 | ADD TO CART | |
| 12 | 5100052893 | Plate | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 15 | 5100035325 | Protective cap | 4 | ADD TO CART | |
| 20 | 5100016823 | Rail | 1 | ADD TO CART | |
| 21 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 23 | 5100016825 | Locking washer | 2 | ADD TO CART | |
| 24 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011577 | Protecting cap | 2 | ADD TO CART | |
| 40 | 5100034805 | Cable support sleeve | 4 | ADD TO CART | |
| 46 | 5100050647 | Filler cap | 8 | ADD TO CART | |
| 47 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 48 | 5100011550 | Plug | 2 | ADD TO CART | |
| 50 | 5100013412 | Edge protection | 1.56 | ADD TO CART | |
| 55 | 5100068809 | Metal plate | 1 | ADD TO CART | |
| 56 | 5100011479 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 58 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
Page 76 — Pump drive and engine assembly
Parts list — exactly as printed77 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100024300 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100024300 · qty on machine: 1 | |||||
| 3 | 5100012811 | Spacer ring | 1 | ADD TO CART | |
| 3 | 5100012812 | Gearwheel | 1 | ADD TO CART | |
| 3 | 5100012813 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100012814 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100012561 | Coupling | 1 | ADD TO CART | |
| 6 | 5100012626 | Hexagon screw | 6 | ADD TO CART | |
| 10 | 5100012562 | Flange | 1 | ADD TO CART | |
| 11 | 5100012552 | Hexagon screw | 8 | ADD TO CART | |
| 12 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 21 | 5100024301 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100024301 · qty on machine: 1 | |||||
| 22 | 5100012626 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 31 | 5100024302 | Gear pump | 1 | ADD TO CART | |
| 32 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 33 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 41 | 5100052898 | Gear pump | 1 | ADD TO CART | |
| 42 | 5100012727 | Cheese-head screw | 4 | ADD TO CART | |
| 43 | 5100013441 | Locking washer | 4 | ADD TO CART | |
| 45 | 5100013418 | Screw plug | 1 | ADD TO CART | |
| 46 | 5100013005 | Sealing ring | 1 | ADD TO CART | |
| 51 | 5100012153 | Suspension | 1 | ADD TO CART | |
| 52 | 5100011587 | Safety screw | 2 | ADD TO CART | |
| 54 | 5100012555 | Hexagon screw | 4 | ADD TO CART | |
| 55 | 5100012972 | Locking washer | 4 | ADD TO CART | |
| 60 | 5100024303 | Rubber buffer | 2 | ADD TO CART | |
| 61 | 5100012617 | Hexagon screw | 4 | ADD TO CART | |
| 62 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 63 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 71 | 5100012702 | Mounting device | 1 | ADD TO CART | |
| 72 | 5100012703 | Mounting device | 1 | ADD TO CART | |
| 73 | 5100012554 | Hexagon screw | 4 | ADD TO CART | |
| 74 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 76 | 5100012780 | Mushroom head screw | 1 | ADD TO CART | |
| 77 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 78 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 101 | 5100012539 | Elbow adjustable | 1 | PARTS REQUEST | |
|
COMING Elbow adjustable
5100012539 · qty on machine: 1 | |||||
| 103 | 5100012943 | Flexible tubing | 1 | ADD TO CART | |
| 1 | 5100024304 | Oil dipstick | 1 | ADD TO CART | |
| 2 | 5100013414 | Filter cartridge, lubric. oil | 1 | ADD TO CART | |
| 3 | 5100012805 | Magnet, remote shut-down eng. | 1 | ADD TO CART | |
| 4 | 5100024305 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100012875 | Cooling pump | 1 | ADD TO CART | |
| 6 | 5100012873 | Seal | 1 | ADD TO CART | |
| 7 | 5100025028 | V-belt | 1 | ADD TO CART | |
| 8 | 5100012685 | Alternator | 1 | ADD TO CART | |
| 9 | 5100024306 | Thermostat | 1 | ADD TO CART | |
| 10 | 5100012809 | Cover, oil filler, above | 1 | ADD TO CART | |
| 11 | 5100023507 | O-ring seal | 1 | ADD TO CART | |
| 12 | 5100012690 | Starter | 1 | ADD TO CART | |
| 13 | 5100024307 | Locking screw | 1 | PARTS REQUEST | |
|
COMING Locking screw
5100024307 · qty on machine: 1 | |||||
| 14 | 5100024308 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100024308 · qty on machine: 1 | |||||
| 15 | 5100012807 | Engine oil pressure switch | 1 | ADD TO CART | |
| 16 | 5100024309 | Sealing | 1 | PARTS REQUEST | |
|
COMING Sealing
5100024309 · qty on machine: 1 | |||||
| 17 | 5100024310 | Sealing | 1 | ADD TO CART | |
| 18 | 5100012808 | Temperature switch | 1 | ADD TO CART | |
| 19 | 5100024311 | Heater plug | 3 | PARTS REQUEST | |
|
COMING Heater plug
5100024311 · qty on machine: 3 | |||||
| 100 | 5100024300 | Diesel engine | 1 | PARTS REQUEST | |
|
COMING Diesel engine
5100024300 · qty on machine: 1 | |||||
| 10 | 5100012912 | Stud bolt | 2 | ADD TO CART | |
| 11 | 5100012212 | Washer | 4 | ADD TO CART | |
| 12 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 20 | 5100012626 | Hexagon screw | 2 | ADD TO CART | |
| 21 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 35 | 5100012235 | Cap nut | 1 | ADD TO CART | |
| 36 | 5100013555 | Filler cap | 1 | ADD TO CART | |
| 37 | 5100013486 | Bulkhead elbow | 1 | ADD TO CART | |
| 38 | 5100013191 | Washer | 1 | ADD TO CART | |
| 39 | 5100013488 | Hexagon nut | 1 | ADD TO CART | |
| 80 | 5100012704 | Engine suspension | 1 | ADD TO CART | |
| 84 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 85 | 5100012513 | Hexagon screw | 2 | ADD TO CART | |
| 86 | 5100012212 | Washer | 2 | ADD TO CART | |
| 87 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100016262 | V-belt protection | 1 | ADD TO CART | |
| 51 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 52 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 53 | 5100013230 | Locking washer | 3 | ADD TO CART | |
Page 86 — Fuel system
Parts list — exactly as printed69 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100013365 | Mounting device | 1 | ADD TO CART | |
| 2 | 5100011731 | Rubber washer | 10 | ADD TO CART | |
| 3 | 5100011824 | Washer | 5 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 5 | ADD TO CART | |
| 5 | 5100013215 | Fuel tank | 1 | Serialno. 160-584 | ADD TO CART |
| 5 | 5100066877 | Fuel tank | 1 | Serialno. < 585 | PARTS REQUEST |
|
COMING Fuel tank
5100066877 · qty on machine: 1 Serialno. < 585 | |||||
| 5 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 5 | 5100011829 | Tank cap, with lock | 1 | ADD TO CART | |
| 5 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 5 | 5100013557 | Key | 1 | ADD TO CART | |
| 6 | 5100011730 | Spacer pin | 5 | ADD TO CART | |
| 10 | 5100012475 | Fuel gauge | 1 | ADD TO CART | |
| 17 | 5100013502 | Sealing ring | 6 | ADD TO CART | |
| 18 | 5100011443 | Cheese-head screw | 6 | ADD TO CART | |
| 26 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 37 | 5100013186 | Flexible tubing | 1 | ADD TO CART | |
| 39 | 5100012933 | Flexible tubing | 1 | ADD TO CART | |
| 40 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 49 | 5100012622 | Flexible tubing | 1 | ADD TO CART | |
| 56 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 60 | 5100013216 | Flexible tubing | 0.5 | ADD TO CART | |
| 61 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 69 | 5100013567 | Reducing piece | 1 | Serialno. 160-1209 | ADD TO CART |
| 70 | 5100012593 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012593 · qty on machine: 1 | |||||
| 71 | 5100013640 | Flexible tubing | 0.2 | Serialno. 160-1209 | ADD TO CART |
| 72 | 5100013540 | Pipe clip | 2 | Serialno. 160-1209 | ADD TO CART |
| 74 | 5100012564 | Silentbloc | 2 | ADD TO CART | |
| 75 | 5100012965 | Locking washer | 6 | ADD TO CART | |
| 76 | 5100012545 | Hexagon nut | 6 | ADD TO CART | |
| 77 | 5100012919 | Silentbloc | 2 | ADD TO CART | |
| 85 | 5100012455 | Bracket | 1 | ADD TO CART | |
| 86 | 5100013510 | Hexagon screw | 2 | ADD TO CART | |
| 87 | 5100013094 | Washer | 4 | ADD TO CART | |
| 88 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 90 | 5100013216 | Flexible tubing | 0.61 | ADD TO CART | |
| 91 | 5100013179 | Hose clip | 1 | ADD TO CART | |
| 93 | 5100013567 | Reducing piece | 1 | Serialno. < 1210 | ADD TO CART |
| 94 | 5100013640 | Flexible tubing | 0.08 | Serialno. < 1210 | ADD TO CART |
| 95 | 5100082397 | Non-return valve | 1 | Serialno. < 1210 | PARTS REQUEST |
|
COMING Non-return valve
5100082397 · qty on machine: 1 Serialno. < 1210 | |||||
| 96 | 5100013640 | Flexible tubing | 0.08 | Serialno. < 1210 | ADD TO CART |
| 97 | 5100013540 | Pipe clip | 4 | Serialno. < 1210 | ADD TO CART |
| 31 | 5100012925 | Fuel filter | 1 | ADD TO CART | |
| 32 | 5100012780 | Mushroom head screw | 2 | ADD TO CART | |
| 33 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 34 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 38 | 5100011461 | Straight screwed socket | 2 | ADD TO CART | |
| 45 | 5100023485 | Fuel pump | 1 | ADD TO CART | |
| 46 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 47 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 48 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 50 | 5100012227 | Hollow-core screw | 1 | ADD TO CART | |
| 51 | 5100013000 | Sealing ring | 2 | ADD TO CART | |
| 52 | 5100012460 | Filter head | 1 | ADD TO CART | |
| 53 | 5100029554 | Fuel filter | 1 | ADD TO CART | |
| 54 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 55 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 57 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 58 | 5100013632 | Straight screwed socket | 1 | ADD TO CART | |
| 59 | 5100011664 | Hose fitting | 1 | ADD TO CART | |
| 62 | 5100013405 | Screw plug | 1 | ADD TO CART | |
| 63 | 5100013000 | Sealing ring | 1 | ADD TO CART | |
| 65 | 5100012571 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013502 | Sealing ring | 1 | ADD TO CART | |
| 80 | 5100013520 | Wire fastener | 1 | ADD TO CART | |
| 183 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 184 | 5100013361 | Filter | 1 | ADD TO CART | |
| 185 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 186 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 192 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
Page 92 — Fuel filter
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012926 | Filter head | 1 | PARTS REQUEST | |
|
COMING Filter head
5100012926 · qty on machine: 1 | |||||
| 2 | 5100012928 | Filter cartridge | 1 | ADD TO CART | |
| 2 | 5100012927 | Sealing washer | 1 | ADD TO CART | |
| 3 | 5100012929 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012930 | Filter housing | 1 | ADD TO CART | |
| 5 | 5100012244 | Discharge valve | 1 | ADD TO CART | |
| 31 | 5100012925 | Fuel filter | 1 | ADD TO CART | |
| 52 | 5100012460 | Filter head | 1 | ADD TO CART | |
| 53 | 5100012462 | Fuel filter | 1 | ADD TO CART | |
Page 94 — Engine control
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012163 | Bracket | 1 | ADD TO CART | |
| 2 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 3 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 4 | 5100024312 | Lever | 1 | ADD TO CART | |
| 5 | 5100012694 | Actuating cable | 1 | Serialno. <291 | ADD TO CART |
| 5 | 5100012818 | Hand lever | 1 | 5.01 Serialno. >614 | PARTS REQUEST |
|
COMING Hand lever
5100012818 · qty on machine: 1 5.01 Serialno. >614 | |||||
| 5 | 5100066889 | Actuating cable | 1 | Serialno. 292 - 613 | ADD TO CART |
| 5 | 5100066901 | Hand lever | 1 | 5.01 Serialno. 292 - 613 | ADD TO CART |
| 5 | 5100069225 | Bowden cable without notch | 1 | Serialno. >614 | ADD TO CART |
| 5 | 5100011733 | Angle joint | 1 | ADD TO CART | |
| 5 | 5100011950 | Bellows | 1 | ADD TO CART | |
| 5 | 5100012588 | Ball handle | 1 | ADD TO CART | |
| 5 | 5100012821 | Actuating cable | 1 | ADD TO CART | |
| 6 | 5100013561 | Countersunk screw | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 13 | 5100012600 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 1 | |||||
| 14 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 15 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 16 | 5100012965 | Locking washer | 1 | ADD TO CART | |
Page 96 — Air filter system
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100012166 | Air hose | 1 | ADD TO CART | |
| 5 | 5100013403 | Hose clip | 2 | ADD TO CART | |
| 20 | 5100012560 | Bracket | 1 | ADD TO CART | |
| 21 | 5100011578 | Mushroom head screw | 2 | ADD TO CART | |
| 22 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 28 | 5100012557 | Air filter | 1 | ADD TO CART | |
| 28 | 5100011561 | Dust discharge valve | 1 | ADD TO CART | |
| 28 | 5100012558 | Filter cartridge | 1 | ADD TO CART | |
| 28 | 5100012559 | Safety filter cartridge | 1 | ADD TO CART | |
| 30 | 5100012776 | Metal plate | 1 | ADD TO CART | |
| 31 | 5100012564 | Silentbloc | 3 | ADD TO CART | |
| 32 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 33 | 5100012545 | Hexagon nut | 3 | ADD TO CART | |
| 35 | 5100012165 | Intake hose | 1 | ADD TO CART | |
| 36 | 5100013403 | Hose clip | 1 | ADD TO CART | |
| 37 | 5100012907 | Hose clip | 1 | ADD TO CART | |
| 40 | 5100011464 | Threaded bolt | 1 | ADD TO CART | |
| 41 | 5100013370 | Pressure switch, air filter | 1 | PARTS REQUEST | |
|
COMING Pressure switch, air filter
5100013370 · qty on machine: 1 | |||||
Page 98 — Exhaust system
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012172 | Silencer | 1 | ADD TO CART | |
| 2 | 5100011471 | Stud bolt | 2 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 4 | 5100012546 | Hexagon nut | 3 | ADD TO CART | |
| 5 | 5100011635 | Stud bolt | 1 | ADD TO CART | |
| 6 | 5100012269 | Exhaust gas hose | 1 | ADD TO CART | |
| 7 | 5100011668 | Pipe clip | 2 | ADD TO CART | |
| 10 | 5100012389 | Cover | 1 | ADD TO CART | |
| 11 | 5100013510 | Hexagon screw | 3 | ADD TO CART | |
| 12 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 13 | 5100013584 | Clip nut | 3 | ADD TO CART | |
| 20 | 5100012156 | Tail pipe | 1 | ADD TO CART | |
| 21 | 5100012893 | Safety nut | 2 | ADD TO CART | |
| 22 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 70 | 5100012787 | Seal | 1 | ADD TO CART | |
| 71 | 5100012894 | Stud bolt | 2 | ADD TO CART | |
Page 100 — Cooling (engine/hydraulic oil)
Parts list — exactly as printed128 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012155 | Pipe | 1 | Serialno. <443 | ADD TO CART |
| 2 | 5100012517 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 3 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 5 | 5100012517 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 6 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 7 | 5100012158 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 8 | 5100012159 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 9 | 5100011637 | Hose clip | 4 | Serialno. <443 | ADD TO CART |
| 10 | 5100012162 | Fan | 1 | Serialno. <443 | ADD TO CART |
| 11 | 5100011920 | Fan free-wheeling | 1 | Serialno. <443 | ADD TO CART |
| 12 | 5100013397 | Hexagon screw | 4 | Serialno. <443 | ADD TO CART |
| 61 | 5100052945 | Hose | 0.4 | Serialno. >444 | ADD TO CART |
| 13 | 5100012965 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 20 | 5100012157 | Bracket | 1 | Serialno. <443 | ADD TO CART |
| 23 | 5100012554 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 24 | 5100012968 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 25 | 5100013550 | Rubber buffer | 2 | Serialno. <443 | ADD TO CART |
| 26 | 5100012515 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 27 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 28 | 5100012546 | Hexagon nut | 2 | Serialno. <443 | ADD TO CART |
| 30 | 5100012777 | Metal plate | 1 | Serialno. <443 | ADD TO CART |
| 31 | 5100012517 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 32 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 33 | 5100024313 | Cover | 1 | Serialno. <443 | ADD TO CART |
| 34 | 5100012780 | Mushroom head screw | 2 | Serialno. <443 | ADD TO CART |
| 35 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 36 | 5100012546 | Hexagon nut | 2 | Serialno. <443 | ADD TO CART |
| 37 | 5100013642 | Sealing profile | 1.85 | Serialno. <443 | ADD TO CART |
| 48 | 5100013367 | Hose clip | 2 | Serialno. <443 | ADD TO CART |
| 49 | 5100011673 | Cooling-water hose | 0.75 | Serialno. <443 | ADD TO CART |
| 70 | 5100013513 | Hose shank banjo | 2 | Serialno. <443 | ADD TO CART |
| 71 | 5100012999 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 72 | 5100013380 | Hollow-core screw | 2 | Serialno. <443 | ADD TO CART |
| 73 | 5100013345 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 81 | 5100013640 | Flexible tubing | 0.2 | Serialno. <443 | ADD TO CART |
| 82 | 5100013540 | Pipe clip | 2 | Serialno. <443 | ADD TO CART |
| 83 | 5100013217 | Cooling-water hose | 1.1 | Serialno. <443 | ADD TO CART |
| 84 | 5100013179 | Hose clip | 1 | Serialno. <443 | ADD TO CART |
| 86 | 5100024314 | Radiator, engine cooling | 1 | Serialno. <443 | ADD TO CART |
| 97 | 5100012788 | Hose nozzle | 1 | Serialno. <443 | ADD TO CART |
| 1 | 5100066913 | Pipe | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Pipe
5100066913 · qty on machine: 1 Serialno. >444 | |||||
| 14 | 5100016826 | Supporting ring | 1 | Serialno. >444 | ADD TO CART |
| 48 | 5100052945 | Hose | 0.4 | Serialno. >444 | ADD TO CART |
| 66 | 5100024977 | Hose nozzle | 1 | Serialno. >444 | ADD TO CART |
| 69 | 5100013179 | Hose clip | 2 | Serialno. >444 | ADD TO CART |
| 72 | 5100013179 | Hose clip | 1 | Serialno. >444 | ADD TO CART |
| 97 | 5100065338 | Hose nozzle | 1 | Serialno. >444 | ADD TO CART |
| 58 | 5100012492 | Sealing ring | 1 | Serialno. <443 | ADD TO CART |
| 59 | 5100013516 | Screw plug | 1 | Serialno. <443 | ADD TO CART |
| 65 | 5100012174 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 66 | 5100012167 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 67 | 5100011637 | Hose clip | 4 | Serialno. <443 | ADD TO CART |
| 74 | 5100013477 | Straight screwed socket | 1 | Serialno. <443 | ADD TO CART |
| 76 | 5100012915 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 77 | 5100012446 | Flexible tubing | 1 | Serialno. <443 | ADD TO CART |
| 78 | 5100013003 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 79 | 5100012918 | Hollow-core screw | 1 | Serialno. <443 | ADD TO CART |
| 87 | 5100011636 | Washer | 5 | Serialno. <443 | ADD TO CART |
| 88 | 5100012600 | Hexagon screw | 5 | Serialno. <443 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 5 Serialno. <443 | |||||
| 89 | 5100011866 | Sealing tape | 0.5 | Serialno. <443 | ADD TO CART |
| 91 | 5100024315 | Oil cooler | 1 | Serialno. <443 | ADD TO CART |
| 92 | 5100011636 | Washer | 2 | Serialno. <443 | ADD TO CART |
| 93 | 5100012600 | Hexagon screw | 2 | Serialno. <443 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 Serialno. <443 | |||||
| 94 | 5100011866 | Sealing tape | 0.4 | Serialno. <443 | ADD TO CART |
| 95 | 5100024316 | Console | 1 | Serialno. <443 | ADD TO CART |
| 96 | 5100013642 | Sealing profile | 1.75 | Serialno. <443 | ADD TO CART |
| 98 | 5100011479 | Hexagon screw | 2 | Serialno. <443 | ADD TO CART |
| 99 | 5100012967 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 100 | 5100012547 | Hexagon nut | 2 | Serialno. <443 | ADD TO CART |
| 101 | 5100012048 | Metal plate | 1 | Serialno. <443 | ADD TO CART |
| 102 | 5100012047 | Metal plate | 1 | Serialno. <443 | ADD TO CART |
| 105 | 5100012780 | Mushroom head screw | 4 | Serialno. <443 | ADD TO CART |
| 106 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 107 | 5100012546 | Hexagon nut | 4 | Serialno. <443 | ADD TO CART |
| 110 | 5100012515 | Hexagon screw | 4 | Serialno. <443 | ADD TO CART |
| 111 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 114 | 5100011592 | Grommet | 2 | Serialno. <443 | ADD TO CART |
| 115 | 5100011592 | Grommet | 1 | Serialno. <443 | ADD TO CART |
| 116 | 5100011866 | Sealing tape | 0.4 | Serialno. <443 | ADD TO CART |
| 118 | 5100012444 | Screw plug | 2 | Serialno. <443 | PARTS REQUEST |
|
COMING Screw plug
5100012444 · qty on machine: 2 Serialno. <443 | |||||
| 119 | 5100013000 | Sealing ring | 2 | Serialno. <443 | ADD TO CART |
| 120 | 5100024317 | Fillister head screw | 2 | Serialno. <443 | ADD TO CART |
| 126 | 5100012845 | Guard | 1 | Serialno. <443 | ADD TO CART |
| 127 | 5100012515 | Hexagon screw | 4 | Serialno. <443 | ADD TO CART |
| 128 | 5100012966 | Locking washer | 4 | Serialno. <443 | ADD TO CART |
| 135 | 5100011532 | Pipe clip | 1 | Serialno. <443 | ADD TO CART |
| 136 | 5100012517 | Hexagon screw | 1 | Serialno. <443 | ADD TO CART |
| 137 | 5100012966 | Locking washer | 2 | Serialno. <443 | ADD TO CART |
| 138 | 5100012546 | Hexagon nut | 1 | Serialno. <443 | ADD TO CART |
| 70 | 5100052945 | Hose | 0.8 | Serialno. >444 | ADD TO CART |
| 73 | 5100013573 | Wire fastener | 4 | Serialno. >444 | ADD TO CART |
| 150 | 5100077462 | Protective device | 1 | Serialno. >444 | ADD TO CART |
| 39 | 5100012630 | Tank cap | 1 | Serialno. <182 | ADD TO CART |
| 40 | 5100024318 | Compensator tank | 1 | Serialno. <182 | ADD TO CART |
| 41 | 5100012919 | Silentbloc | 3 | Serialno. <182 | ADD TO CART |
| 42 | 5100012965 | Locking washer | 3 | Serialno. <182 | ADD TO CART |
| 43 | 5100012545 | Hexagon nut | 3 | Serialno. <182 | ADD TO CART |
| 44 | 5100024319 | Holder | 1 | Serialno. <182 | ADD TO CART |
| 45 | 5100012515 | Hexagon screw | 4 | Serialno. <182 | ADD TO CART |
| 46 | 5100012966 | Locking washer | 4 | Serialno. <182 | ADD TO CART |
| 50 | 5100013388 | Inspection glass | 1 | Serialno. <182 | ADD TO CART |
| 51 | 5100011749 | Hose nozzle | 1 | Serialno. <182 | ADD TO CART |
| 52 | 5100012608 | Hexagon screw | 3 | Serialno. <182 | ADD TO CART |
| 53 | 5100012965 | Locking washer | 3 | Serialno. <182 | ADD TO CART |
| 60 | 5100012474 | Hose shank banjo | 1 | Serialno. <182 | ADD TO CART |
| 61 | 5100013000 | Sealing ring | 2 | Serialno. <182 | ADD TO CART |
| 62 | 5100012227 | Hollow-core screw | 1 | Serialno. <182 | ADD TO CART |
| 40 | 5100053248 | Compensator tank | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Compensator tank
5100053248 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 44 | 5100053246 | Holder | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Holder
5100053246 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 47 | 5100053247 | Holder | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Holder
5100053247 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 52 | 5100012600 | Hexagon screw | 1 | Serialno. 183 - 443 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 1 Serialno. 183 - 443 | |||||
| 54 | 5100012545 | Hexagon nut | 1 | Serialno. 183 - 443 | ADD TO CART |
| 40 | 5100066925 | Holder | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Holder
5100066925 · qty on machine: 1 Serialno. >444 | |||||
| 41 | 5100012608 | Hexagon screw | 2 | Serialno. >444 | ADD TO CART |
| 43 | 5100013585 | Clip nut | 2 | Serialno. >444 | ADD TO CART |
| 44 | 5100059556 | Threaded insert | 4 | Serialno. >444 | ADD TO CART |
| 45 | 5100012919 | Silentbloc | 4 | Serialno. >444 | ADD TO CART |
| 46 | 5100012965 | Locking washer | 4 | Serialno. >444 | ADD TO CART |
| 47 | 5100012545 | Hexagon nut | 4 | Serialno. >444 | ADD TO CART |
| 50 | 5100052932 | Level indicator | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Level indicator
5100052932 · qty on machine: 1 Serialno. >444 | |||||
| 51 | 5100012515 | Hexagon screw | 1 | Serialno. >444 | ADD TO CART |
| 52 | 5100012966 | Locking washer | 1 | Serialno. >444 | ADD TO CART |
| 54 | 5100066934 | Eyelet | 1 | Serialno. >444 | ADD TO CART |
| 55 | 5100012600 | Hexagon screw | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Hexagon screw
5100012600 · qty on machine: 1 Serialno. >444 | |||||
| 56 | 5100012965 | Locking washer | 1 | Serialno. >444 | ADD TO CART |
| 60 | 5100023482 | Tank cap | 1 | 60.01 Serialno. >444 | ADD TO CART |
| 60 | 5100052930 | Compensator tank | 1 | Serialno. >444 | PARTS REQUEST |
|
COMING Compensator tank
5100052930 · qty on machine: 1 Serialno. >444 | |||||
| 62 | 5100013179 | Hose clip | 2 | Serialno. >444 | ADD TO CART |
Page 138 — Driving gear (var. displ. pump-drive)
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011877 | Driving gear | 1 | PARTS REQUEST | |
|
COMING Driving gear
5100011877 · qty on machine: 1 | |||||
| 1 | 5100011617 | Locking ring | 2 | ADD TO CART | |
| 1 | 5100011878 | Shaft seal | 1 | ADD TO CART | |
| 1 | 5100012250 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100011568 | Hydraulic regulation | 1 | ADD TO CART | |
| 2 | 5100011447 | O-ring seal | 1 | ADD TO CART | |
| 2 | 5100011572 | Piston ring | 2 | ADD TO CART | |
| 2 | 5100011573 | Set of seals | 2 | ADD TO CART | |
| 2 | 5100012189 | Set of seals | 1 | ADD TO CART | |
| 2 | 5100013545 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100011569 | Connection plate | 1 | PARTS REQUEST | |
|
COMING Connection plate
5100011569 · qty on machine: 1 | |||||
| 3 | 5100023228 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100023189 | Supporting ring | 1 | ADD TO CART | |
| 3 | 5100013546 | O-ring seal | 1 | ADD TO CART | |
| 3 | 5100013543 | Screw plug | 2 | ADD TO CART | |
| 3 | 5100012188 | Set of seals | 1 | ADD TO CART | |
| 3 | 5100011614 | Feeding pressure valve | 1 | PARTS REQUEST | |
|
COMING Feeding pressure valve
5100011614 · qty on machine: 1 | |||||
| 3 | 5100011571 | Pressure-relief valve | 2 | PARTS REQUEST | |
|
COMING Pressure-relief valve
5100011571 · qty on machine: 2 | |||||
| 3 | 5100011511 | Seal nut | 1 | ADD TO CART | |
| 3 | 5100011454 | Screw plug | 1 | ADD TO CART | |
| 3 | 5100011446 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100012394 | Connection flange | 1 | ADD TO CART | |
| 4 | 5100011745 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100024320 | O-ring seal | 1 | ADD TO CART | |
| 4 | 5100024321 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100011570 | Control device | 1 | PARTS REQUEST | |
|
COMING Control device
5100011570 · qty on machine: 1 | |||||
| 5 | 5100023500 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100023499 | O-ring seal | 1 | ADD TO CART | |
| 5 | 5100013547 | Seal nut | 1 | ADD TO CART | |
| 5 | 5100013544 | O-ring seal | 2 | ADD TO CART | |
| 5 | 5100012541 | Seal | 1 | PARTS REQUEST | |
|
COMING Seal
5100012541 · qty on machine: 1 | |||||
| 5 | 5100011448 | O-ring seal | 1 | ADD TO CART | |
| 13 | 5100023206 | Pin | 1 | ADD TO CART | |
| 20 | 5100011452 | Screw plug | 1 | ADD TO CART | |
| 21 | 5100011453 | Screw plug | 1 | ADD TO CART | |
| 22 | 5100013543 | Screw plug | 3 | ADD TO CART | |
| 23 | 5100011743 | Screw plug | 1 | ADD TO CART | |
| 24 | 5100011454 | Screw plug | 3 | ADD TO CART | |
| 28 | 5100011521 | Valve | 2 | ADD TO CART | |
| 41 | 5100013515 | O-ring seal | 1 | ADD TO CART | |
| 100 | 5100024301 | Variable displac. pump (drive) | 1 | PARTS REQUEST | |
|
COMING Variable displac. pump (drive)
5100024301 · qty on machine: 1 | |||||
| 100 | 5100012395 | Set of seals | 1 | ADD TO CART | |
Page 142 — Pump (vibration drive)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100024302 | Gear pump | 1 | ADD TO CART | |
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100013445 | Hexagon nut | 1 | ADD TO CART | |
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
Page 144 — Constant motor (vibration drive)
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011795 | Gear motor | 1 | ADD TO CART | |
| 1 | 5100065348 | Set of seals | 1 | ADD TO CART | |
| 1 | 5100012549 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012549 · qty on machine: 1 | |||||
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100013446 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100013446 · qty on machine: 1 | |||||
Page 148 — Constant motor (oscillation drive)
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100012944 | Spring ring | 1 | 1.02 Serialnr. 160-545 | PARTS REQUEST |
|
COMING Spring ring
5100012944 · qty on machine: 1 1.02 Serialnr. 160-545 | |||||
| 20 | 5100013446 | Disk spring | 1 | 1.01 Serialnr. 160-545 | PARTS REQUEST |
|
COMING Disk spring
5100013446 · qty on machine: 1 1.01 Serialnr. 160-545 | |||||
| 30 | 5100013376 | Gear motor | 1 | ADD TO CART | |
| 40 | 5100016272 | Hexagon nut | 1 | 1.03 Serialnr. 160-545 | PARTS REQUEST |
|
COMING Hexagon nut
5100016272 · qty on machine: 1 1.03 Serialnr. 160-545 | |||||
| 50 | 5100065348 | Set of seals | 1 | 1.04 Serialnr. 160-545 | ADD TO CART |
Page 150 — Constant motor
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012944 | Spring ring | 1 | 1.02 Serialno. >546 | PARTS REQUEST |
|
COMING Spring ring
5100012944 · qty on machine: 1 1.02 Serialno. >546 | |||||
| 1 | 5100013445 | Hexagon nut | 1 | 1.03 Serialno. >546 | ADD TO CART |
| 1 | 5100013446 | Disk spring | 1 | 1.01 Serialno. >546 | PARTS REQUEST |
|
COMING Disk spring
5100013446 · qty on machine: 1 1.01 Serialno. >546 | |||||
| 1 | 5100060188 | Gear motor | 1 | Serialno. >546 | ADD TO CART |
| 1 | 5100065348 | Set of seals | 1 | 1.04 Serialno. >546 | ADD TO CART |
Page 152 — Control block
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011986 | Directional valve | 1 | ADD TO CART | |
| 2 | 5100012409 | Magnet | 1 | ADD TO CART | |
| 3 | 5100011972 | Pressure-relief valve | 1 | ADD TO CART | |
| 7 | 5100013006 | Pressure-relief valve | 1 | ADD TO CART | |
| 12 | 5100011671 | Screw plug | 1 | ADD TO CART | |
| 13 | 5100011564 | Screw plug | 3 | ADD TO CART | |
| 14 | 5100011538 | Screw plug | 4 | ADD TO CART | |
| 15 | 5100011985 | O-ring seal | 1 | ADD TO CART | |
| 16 | 5100011838 | O-ring seal | 1 | ADD TO CART | |
| 17 | 5100011419 | O-ring seal | 1 | ADD TO CART | |
| 21 | 5100011855 | Screw plug | 1 | ADD TO CART | |
| 100 | 5100012963 | Valve block | 1 | ADD TO CART | |
Page 154 — Gear hub motor
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012538 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 2 | 5100011954 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 3 | 5100016263 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 5 | 5100016264 | Seal | 1 | Serialno. <182 | ADD TO CART |
| 6 | 5100016265 | Cap | 1 | Serialno. <182 | ADD TO CART |
| 7 | 5100016266 | Plug | 1 | Serialno. <182 | ADD TO CART |
| 8 | 5100016267 | Ring | 1 | Serialno. <182 | ADD TO CART |
| 9 | 5100016268 | Ring | 1 | Serialno. <182 | ADD TO CART |
| 10 | 5100016269 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 11 | 5100012799 | Spring | 1 | Serialno. <182 | ADD TO CART |
| 12 | 5100012796 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 13 | 5100016270 | Piston | 1 | Serialno. <182 | ADD TO CART |
| 14 | 5100011574 | Set of seals | 1 | Serialno. <182 | ADD TO CART |
| 100 | 5100011552 | Gear hub motor | 1 | Serialno. <182 | ADD TO CART |
| 14 | 5100033216 | Set of seals | 1 | Serialno. 183 - 303 | PARTS REQUEST |
|
COMING Set of seals
5100033216 · qty on machine: 1 Serialno. 183 - 303 | |||||
| 100 | 5100030749 | Gear hub motor | 1 | Serialno. 183 - 303 | ADD TO CART |
| 1 | 5100011954 | Set of seals | 1 | 1.01 Serialno. >304 | ADD TO CART |
| 1 | 5100012796 | Set of seals | 1 | 1.05 Serialno. >304 | ADD TO CART |
| 1 | 5100012798 | Set of seals | 1 | 1.02 Serialno. >304 | ADD TO CART |
| 1 | 5100012799 | Spring | 1 | 1.04 Serialno. >304 | ADD TO CART |
| 1 | 5100016269 | Set of seals | 1 | 1.03 Serialno. >304 | ADD TO CART |
| 1 | 5100052949 | Gear hub motor | 1 | Serialno. >304 | ADD TO CART |
Page 160 — Valve block (all-wheel lock)
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100012115 | Directional valve | 1 | Serialno. 160-586 | ADD TO CART |
| 4 | 5100012112 | Solenoid coil | 1 | Serialno. 160-586 | ADD TO CART |
| 5 | 5100012114 | Pressure-relief valve | 2 | Serialno. 160-586 | ADD TO CART |
| 7 | 5100012113 | Nozzle | 1 | Serialno. 160-586 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. 160-586 | |||||
| 9 | 5100011564 | Screw plug | 2 | Serialno. 160-586 | ADD TO CART |
| 10 | 5100011538 | Screw plug | 1 | Serialno. 160-586 | ADD TO CART |
| 11 | 5100011743 | Screw plug | 2 | Serialno. 160-586 | ADD TO CART |
| 12 | 5100012113 | Nozzle | 1 | Serialno. 160-586 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. 160-586 | |||||
| 13 | 5100011742 | O-ring seal | 1 | Serialno. 160-586 | ADD TO CART |
| 14 | 5100011741 | O-ring seal | 2 | Serialno. 160-586 | PARTS REQUEST |
|
COMING O-ring seal
5100011741 · qty on machine: 2 Serialno. 160-586 | |||||
| 15 | 5100013544 | O-ring seal | 2 | Serialno. 160-586 | ADD TO CART |
| 100 | 5100012425 | Flow divider | 1 | Serialno. 160-586 | ADD TO CART |
Page 162 — Valve block
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066935 | Piston valve | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Piston valve
5100066935 · qty on machine: 1 Serialno. >587 | |||||
| 3 | 5100066873 | Directional control valve | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Directional control valve
5100066873 · qty on machine: 1 Serialno. >587 | |||||
| 4 | 5100066884 | Solenoid coil | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Solenoid coil
5100066884 · qty on machine: 1 Serialno. >587 | |||||
| 5 | 5100012114 | Pressure-relief valve | 2 | Serialno. >587 | ADD TO CART |
| 6 | 5100066895 | Flow divider | 1 | Serialno. >587 | ADD TO CART |
| 7 | 5100012113 | Nozzle | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. >587 | |||||
| 8 | 5100066906 | Compression spring | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Compression spring
5100066906 · qty on machine: 1 Serialno. >587 | |||||
| 9 | 5100011564 | Screw plug | 2 | Serialno. >587 | ADD TO CART |
| 10 | 5100011538 | Screw plug | 1 | Serialno. >587 | ADD TO CART |
| 11 | 5100011743 | Screw plug | 2 | Serialno. >587 | ADD TO CART |
| 12 | 5100012113 | Nozzle | 1 | Serialno. >587 | PARTS REQUEST |
|
COMING Nozzle
5100012113 · qty on machine: 1 Serialno. >587 | |||||
| 13 | 5100011742 | O-ring seal | 1 | Serialno. >587 | ADD TO CART |
| 14 | 5100011741 | O-ring seal | 2 | Serialno. >587 | PARTS REQUEST |
|
COMING O-ring seal
5100011741 · qty on machine: 2 Serialno. >587 | |||||
| 15 | 5100013544 | O-ring seal | 2 | Serialno. >587 | ADD TO CART |
| 100 | 5100066917 | Flow divider | 1 | Serialno. >587 | ADD TO CART |
Page 164 — Valve block (changingover of vibration)
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100053421 | Piston | 2 | Serialno. 160-198 | PARTS REQUEST |
|
COMING Piston
5100053421 · qty on machine: 2 Serialno. 160-198 | |||||
| 3 | 5100053422 | Spring cap | 2 | Serialno. 160-198 | ADD TO CART |
| 4 | 5100053423 | Washer | 2 | Serialno. 160-198 | PARTS REQUEST |
|
COMING Washer
5100053423 · qty on machine: 2 Serialno. 160-198 | |||||
| 8 | 5100011987 | Directional valve | 2 | Serialno. 160-198 | ADD TO CART |
| 8 | 5100012409 | Magnet | 2 | 8.01 Serialno. 160-198 | ADD TO CART |
| 13 | 5100053424 | Spring | 2 | Serialno. 160-198 | PARTS REQUEST |
|
COMING Spring
5100053424 · qty on machine: 2 Serialno. 160-198 | |||||
| 17 | 5100011743 | Screw plug | 2 | Serialno. 160-198 | ADD TO CART |
| 18 | 5100011538 | Screw plug | 1 | Serialno. 160-198 | ADD TO CART |
| 19 | 5100011564 | Screw plug | 1 | Serialno. 160-198 | ADD TO CART |
| 20 | 5100011750 | Screw plug | 1 | Serialno. 160-198 | ADD TO CART |
| 22 | 5100013436 | O-ring seal | 1 | Serialno. 160-198 | ADD TO CART |
| 23 | 5100011501 | O-ring seal | 2 | Serialno. 160-198 | ADD TO CART |
| 100 | 5100011909 | Valve block | 1 | Serialno. 160-198 | ADD TO CART |
Page 168 — Filter (hydraulic oil)
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013361 | Filter | 1 | ADD TO CART | |
| 1 | 5100013387 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100024324 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
5100024324 · qty on machine: 1 | |||||
| 1 | 5100029595 | Set of seals | 1 | ADD TO CART | |
Page 170 — Pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012944 | Spring ring | 1 | PARTS REQUEST | |
|
COMING Spring ring
5100012944 · qty on machine: 1 | |||||
| 1 | 5100016271 | Disk spring | 1 | PARTS REQUEST | |
|
COMING Disk spring
5100016271 · qty on machine: 1 | |||||
| 1 | 5100016272 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100016272 · qty on machine: 1 | |||||
| 1 | 5100052898 | Gear pump | 1 | ADD TO CART | |
Page 172 — Collecting block (hydraulic oil)
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012257 | Valve block | 1 | Serialno. 160-752 | PARTS REQUEST |
|
COMING Valve block
5100012257 · qty on machine: 1 Serialno. 160-752 | |||||
| 2 | 5100011642 | Scavenge valve | 1 | Serialno. 160-752 | ADD TO CART |
| 3 | 5100012111 | Nozzle | 1 | Serialno. 160-752 | PARTS REQUEST |
|
COMING Nozzle
5100012111 · qty on machine: 1 Serialno. 160-752 | |||||
| 5 | 5100012110 | O-ring seal | 1 | Serialno. 160-752 | ADD TO CART |
| 6 | 5100011516 | O-ring seal | 2 | Serialno. 160-752 | ADD TO CART |
| 7 | 5100013563 | Cheese-head screw | 4 | Serialno. 160-752 | ADD TO CART |
| 8 | 5100011538 | Screw plug | 1 | Serialno. 160-752 | ADD TO CART |
| 1 | 5100012390 | Valve block | 1 | Serialno. 160-755 | ADD TO CART |
Page 176 — Valve block (emergency stop)
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100066870 | Sealing ring | 1 | ADD TO CART | |
| 3 | 5100012095 | Hollow-core screw | 1 | ADD TO CART | |
| 4 | 5100012196 | Directional valve | 1 | PARTS REQUEST | |
|
COMING Directional valve
5100012196 · qty on machine: 1 | |||||
| 5 | 5100077463 | Solenoid coil | 1 | ADD TO CART | |
| 6 | 5100013406 | O-ring seal | 1 | ADD TO CART | |
| 8 | 5100077464 | Hollow-core screw | 1 | PARTS REQUEST | |
|
COMING Hollow-core screw
5100077464 · qty on machine: 1 | |||||
| 11 | 5100012096 | Pipe | 1 | ADD TO CART | |
| 12 | 5100012198 | Sealing ring | 2 | ADD TO CART | |
| 100 | 5100012429 | Valve block | 1 | ADD TO CART | |
Page 178 — Oil tank
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100011824 | Washer | 2 | ADD TO CART | |
| 2 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 4 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100011730 | Spacer pin | 2 | ADD TO CART | |
| 11 | 5100011731 | Rubber washer | 4 | ADD TO CART | |
| 12 | 5100011824 | Washer | 2 | ADD TO CART | |
| 13 | 5100012547 | Hexagon nut | 2 | ADD TO CART | |
| 1 | 5100046360 | Hydraulic oil tank | 1 | ADD TO CART | |
| 2 | 5100012963 | Valve block | 1 | ADD TO CART | |
| 3 | 5100013527 | Cheese-head screw | 3 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 7 | 5100013505 | Banjo | 1 | PARTS REQUEST | |
|
COMING Banjo
5100013505 · qty on machine: 1 | |||||
| 12 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 13 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 16 | 5100011857 | Suction filter | 1 | ADD TO CART | |
| 16 | 5100013415 | O-ring seal | 1 | ADD TO CART | |
| 18 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 20 | 5100012419 | Filter | 1 | ADD TO CART | |
| 20 | 5100039052 | Vent filter | 1 | ADD TO CART | |
| 21 | 5100012866 | Fillister head screw | 6 | ADD TO CART | |
| 22 | 5100013558 | Sealing ring | 6 | ADD TO CART | |
| 31 | 5100013475 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 | |||||
| 33 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 45 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 50 | 5100013435 | Oil level indicator | 1 | ADD TO CART | |
| 51 | 5100011730 | Spacer pin | 2 | ADD TO CART | |
| 54 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 63 | 5100013499 | Straight screwed socket | 1 | ADD TO CART | |
| 65 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 100 | 5100016828 | Vent filter | 1 | ADD TO CART | |
| 100 | 5100024927 | Special wrench | 1 | ADD TO CART | |
Page 182 — Instrument panel
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100013323 | Instrument panel | 1 | ADD TO CART | |
| 20 | 5100011595 | Frame | 2 | Serialno. >614 | ADD TO CART |
| 21 | 5100011597 | Push-button | 1 | Serialno. >614 | ADD TO CART |
| 22 | 5100011580 | Blind cover | 1 | Serialno. >614 | ADD TO CART |
| 23 | 5100023546 | Rocker, preselection | 1 | Serialno. >614 | ADD TO CART |
| 30 | 5100023242 | Fixation | 1 | Serialno. >614 | ADD TO CART |
| 31 | 5100023241 | Push button | 1 | Serialno. >614 | ADD TO CART |
| 33 | 5100023527 | Label | 1 | Serialno. >614 | ADD TO CART |
| 35 | 5100023008 | Lid | 1 | Serialno. >614 | ADD TO CART |
| 100 | 5100025103 | Instrument panel | 1 | Serialno. >614 | ADD TO CART |
Page 188 — Electrical system
Parts list — exactly as printed168 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100011710 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011710 · qty on machine: 2 | |||||
| 5 | 5100011711 | Cover | 2 | PARTS REQUEST | |
|
COMING Cover
5100011711 · qty on machine: 2 | |||||
| 1 | 5100013570 | Ignition switch | 1 | ADD TO CART | |
| 1 | 5100013557 | Key | 1 | ADD TO CART | |
| 2 | 5100013506 | Lid | 1 | ADD TO CART | |
| 6 | 5100012486 | Push button switch | 1 | Serialno. <183 | PARTS REQUEST |
|
COMING Push button switch
5100012486 · qty on machine: 1 Serialno. <183 | |||||
| 6 | 5100023241 | Push button | 1 | Serialno. >184 | ADD TO CART |
| 7 | 5100023242 | Fixation | 1 | Serialno. >184 | ADD TO CART |
| 10 | 5100011784 | Signal transmitter | 1 | ADD TO CART | |
| 11 | 5100012576 | Wire harness | 1 | Serialno. <183 | ADD TO CART |
| 11 | 5100039066 | Cable harness | 1 | Serialno. 184-613 | ADD TO CART |
| 12 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 13 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 14 | 5100011586 | Hexagon nut | 1 | ADD TO CART | |
| 33 | 5100012770 | Wire harness | 1 | PARTS REQUEST | |
|
COMING Wire harness
5100012770 · qty on machine: 1 | |||||
| 41 | 5100066914 | Wire harness instrument panel | 1 | Serialno. >614 | ADD TO CART |
| 41 | 5100012573 | Wire harness | 1 | Serialno. 160-613 | ADD TO CART |
| 58 | 5100012774 | Wire harness | 1 | ADD TO CART | |
| 59 | 5100012772 | Wire harness | 1 | ADD TO CART | |
| 61 | 5100012771 | Wire harness | 1 | ADD TO CART | |
| 65 | 5100024975 | Hexagon screw | 1 | ADD TO CART | |
| 66 | 5100013384 | Serrated lock washer | 2 | ADD TO CART | |
| 67 | 5100011914 | Hexagon nut | 5 | ADD TO CART | |
| 68 | 5100023629 | Spring ring | 10 | ADD TO CART | |
| 69 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 70 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 75 | 5100052961 | Washer | 1 | ADD TO CART | |
| 76 | 5100012403 | Bracket | 1 | ADD TO CART | |
| 77 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 78 | 5100013094 | Washer | 2 | ADD TO CART | |
| 92 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 94 | 5100011589 | Flexible tubing | 1 | ADD TO CART | |
| 146 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 147 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 148 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 149 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 150 | 5100012579 | Circuit board | 1 | ADD TO CART | |
| 151 | 5100013594 | Safety screw | 3 | ADD TO CART | |
| 152 | 5100013536 | Serrated lock washer | 3 | ADD TO CART | |
| 153 | 5100011669 | Rubber metal buffer | 3 | ADD TO CART | |
| 154 | 5100011753 | Washer | 3 | ADD TO CART | |
| 155 | 5100012898 | Hexagon nut | 3 | ADD TO CART | |
| 160 | 5100012326 | Cover plate | 1 | ADD TO CART | |
| 161 | 5100012586 | Stud bolt | 2 | ADD TO CART | |
| 162 | 5100013373 | Half-clip | 2 | ADD TO CART | |
| 163 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 164 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 165 | 5100011537 | Filler cap | 1 | ADD TO CART | |
| 210 | 5100012341 | Bracket | 1 | ADD TO CART | |
| 211 | 5100012554 | Hexagon screw | 1 | ADD TO CART | |
| 212 | 5100012968 | Locking washer | 1 | ADD TO CART | |
| 213 | 5100012453 | Spacer | 1 | ADD TO CART | |
| 220 | 5100012765 | Wire harness | 1 | ADD TO CART | |
| 222 | 5100012829 | Protecting cap | 1 | ADD TO CART | |
| 225 | 5100013184 | Protecting cap | 1 | PARTS REQUEST | |
|
COMING Protecting cap
5100013184 · qty on machine: 1 | |||||
| 226 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 240 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 241 | 5100023629 | Spring ring | 1 | ADD TO CART | |
| 242 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 243 | 5100013441 | Locking washer | 1 | ADD TO CART | |
| 298 | 5100011748 | Rear reflector | 2 | ADD TO CART | |
| 5 | 5100012833 | Wire harness | 1 | ADD TO CART | |
| 30 | 5100012766 | Wire harness (front frame) | 1 | Serialno. <198 | ADD TO CART |
| 30 | 5100053420 | Wire harness front frame | 1 | Serialno. >199 | ADD TO CART |
| 31 | 5100012767 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 32 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 34 | 5100012769 | Wire harness | 1 | ADD TO CART | |
| 35 | 5100012832 | Wire harness | 1 | ADD TO CART | |
| 71 | 5100011914 | Hexagon nut | 3 | ADD TO CART | |
| 72 | 5100023629 | Spring ring | 6 | ADD TO CART | |
| 80 | 5100012670 | Fuse holder | 1 | ADD TO CART | |
| 81 | 5100011640 | Blade fuse | 1 | ADD TO CART | |
| 95 | 5100012321 | Signal horn | 1 | ADD TO CART | |
| 97 | 5100013510 | Hexagon screw | 1 | ADD TO CART | |
| 98 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 99 | 5100011470 | Pipe clip | 1 | ADD TO CART | |
| 102 | 5100013385 | Thermosensor | 1 | ADD TO CART | |
| 104 | 5100012804 | Circuit board | 1 | ADD TO CART | |
| 105 | 5100013606 | Cheese-head screw | 2 | ADD TO CART | |
| 125 | 5100013412 | Edge protection | 0.12 | ADD TO CART | |
| 157 | 5100011653 | Mounting | 1 | ADD TO CART | |
| 158 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 159 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 170 | 5100011849 | Built-in socket | 1 | ADD TO CART | |
| 171 | 5100012093 | Metal plate | 1 | ADD TO CART | |
| 172 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 173 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 174 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 180 | 5100013608 | Battery isolating switch | 1 | ADD TO CART | |
| 181 | 5100013466 | Hexagon screw | 2 | ADD TO CART | |
| 182 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 183 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 184 | 5100011652 | Bushing | 2 | ADD TO CART | |
| 185 | 5100013184 | Protecting cap | 2 | PARTS REQUEST | |
|
COMING Protecting cap
5100013184 · qty on machine: 2 | |||||
| 186 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 282 | 5100052976 | Ground cable operator's platform | 1 | Serialno. >295 | PARTS REQUEST |
|
COMING Ground cable operator's platform
5100052976 · qty on machine: 1 Serialno. >295 | |||||
| 286 | 5100052981 | Ground cable steering column | 1 | Serialno. >295 | PARTS REQUEST |
|
COMING Ground cable steering column
5100052981 · qty on machine: 1 Serialno. >295 | |||||
| 40 | 5100012575 | Wire harness | 1 | ADD TO CART | |
| 42 | 5100052958 | Cheese-head screw | 1 | ADD TO CART | |
| 43 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 46 | 5100012574 | Wire harness | 1 | ADD TO CART | |
| 47 | 5100012584 | Relay | 1 | PARTS REQUEST | |
|
COMING Relay
5100012584 · qty on machine: 1 | |||||
| 48 | 5100013594 | Safety screw | 1 | ADD TO CART | |
| 50 | 5100013594 | Safety screw | 2 | ADD TO CART | |
| 60 | 5100012773 | Wire harness | 1 | ADD TO CART | |
| 73 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 74 | 5100011917 | Serrated lock washer | 2 | ADD TO CART | |
| 94 | 5100011859 | Relay | 1 | ADD TO CART | |
| 110 | 5100011974 | Ground terminal | 2 | ADD TO CART | |
| 111 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 112 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 119 | 5100012544 | Battery | 1 | ADD TO CART | |
| 120 | 5100012173 | Metal plate | 1 | ADD TO CART | |
| 121 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 122 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 123 | 5100013412 | Edge protection | 0.04 | ADD TO CART | |
| 134 | 5100011696 | Metal plate | 1 | ADD TO CART | |
| 135 | 5100013412 | Edge protection | 0.04 | ADD TO CART | |
| 136 | 5100013510 | Hexagon screw | 1 | ADD TO CART | |
| 137 | 5100013421 | Washer | 1 | ADD TO CART | |
| 138 | 5100013094 | Washer | 1 | ADD TO CART | |
| 139 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 140 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 201 | 5100012417 | Metal plate | 1 | ADD TO CART | |
| 202 | 5100012554 | Hexagon screw | 2 | ADD TO CART | |
| 203 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 204 | 5100012453 | Spacer | 2 | ADD TO CART | |
| 230 | 5100011465 | Pipe clip | 1 | ADD TO CART | |
| 231 | 5100012608 | Hexagon screw | 1 | ADD TO CART | |
| 232 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 251 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 1 | 5100012036 | Drive lever | 1 | ADD TO CART | |
| 2 | 5100011705 | Handle | 2 | ADD TO CART | |
| 3 | 5100011706 | Handle | 2 | ADD TO CART | |
| 6 | 5100011707 | Operating lever | 2 | ADD TO CART | |
| 7 | 5100012024 | Clamping sleeve | 2 | ADD TO CART | |
| 8 | 5100011708 | Cover | 2 | ADD TO CART | |
| 11 | 5100013607 | Raised countersunk head screw | 8 | ADD TO CART | |
| 12 | 5100011738 | Raised countersunk head screw | 2 | ADD TO CART | |
| 30 | 5100033217 | Cable harness | 1 | ADD TO CART | |
| 31 | 5100011709 | Circuit board | 2 | ADD TO CART | |
| 32 | 5100013600 | Sensor | 2 | ADD TO CART | |
| 34 | 5100011524 | Shrinkdown plastic tubing | 0.03 | ADD TO CART | |
| 35 | 5100011458 | Shrinkdown plastic tubing | 0.07 | ADD TO CART | |
| 36 | 5100013520 | Wire fastener | 2 | ADD TO CART | |
| 40 | 5100013641 | Round cable | 0.8 | PARTS REQUEST | |
|
COMING Round cable
5100013641 · qty on machine: 0.8 | |||||
| 1 | 5100013654 | Flange | 1 | ADD TO CART | |
| 2 | 5100013571 | Push-button | 1 | ADD TO CART | |
| 3 | 5100013636 | Protecting cap | 1 | ADD TO CART | |
| 4 | 5100013191 | Washer | 1 | ADD TO CART | |
| 5 | 5100013573 | Wire fastener | 1 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 1 | 5100011582 | Blade fuse | 1 | ADD TO CART | |
| 5 | 5100013586 | Blade fuse | 2 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 2 | |||||
| 10 | 5100013579 | Blade fuse | 2 | ADD TO CART | |
| 15 | 5100013580 | Blade fuse | 11 | ADD TO CART | |
| 25 | 5100013581 | Blade fuse | 1 | ADD TO CART | |
| 30 | 5100016273 | Serrated lock washer | 2 | ADD TO CART | |
| 31 | 5100016274 | Hexagon nut | 2 | ADD TO CART | |
| 32 | 5100011916 | Serrated lock washer | 1 | ADD TO CART | |
| 33 | 5100011914 | Hexagon nut | 1 | ADD TO CART | |
| 34 | 5100011917 | Serrated lock washer | 1 | ADD TO CART | |
| 35 | 5100011915 | Hexagon nut | 1 | ADD TO CART | |
| 40 | 5100011859 | Relay | 2 | ADD TO CART | |
| 41 | 5100011616 | Relay | 2 | ADD TO CART | |
| 42 | 5100011583 | Relay | 7 | ADD TO CART | |
| 49 | 5100011632 | Extractor for blade fuses | 1 | ADD TO CART | |
| 50 | 5100012579 | Circuit board | 1 | ADD TO CART | |
Page 206 — Battery isolating switch
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100029600 | Actuating cable | 1 | ADD TO CART | |
| 2 | 5100029567 | Screw fitting | 1 | ADD TO CART | |
| 3 | 5100029565 | Ring | 1 | ADD TO CART | |
Page 208 — Electrical system (with lighting)
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011799 | Working light | 2 | Serialno. 160-583 | ADD TO CART |
| 1 | 5100012468 | Lamp | 2 | 1.02 Serialno. 160-583 | ADD TO CART |
| 1 | 5100013522 | Lamp | 2 | ADD TO CART | |
| 1 | 5100065328 | Headlight | 2 | Serialno. >584 | ADD TO CART |
| 1 | 5100065330 | Lamp | 1 | 1.02 Serialno. >584 | ADD TO CART |
| 2 | 5100011991 | O-ring seal | 4 | ADD TO CART | |
| 5 | 5100011800 | Direction indicator | 2 | ADD TO CART | |
| 5 | 5100012074 | Lamp | 2 | ADD TO CART | |
| 6 | 5100011739 | Fillister head screw | 4 | ADD TO CART | |
| 7 | 5100013453 | Washer | 4 | ADD TO CART | |
| 10 | 5100017997 | Wire harness (lighting) | 1 | ADD TO CART | |
| 21 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 21 | 5100012213 | Lamp | 2 | ADD TO CART | |
| 21 | 5100011802 | Tail light | 2 | ADD TO CART | |
| 22 | 5100011607 | Sheet metal screw | 8 | ADD TO CART | |
| 25 | 5100011801 | Reversing light | 2 | ADD TO CART | |
| 25 | 5100013448 | Lamp | 2 | ADD TO CART | |
| 30 | 5100012032 | Wire harness (lighting) | 1 | ADD TO CART | |
| 31 | 5100011728 | Metal plate | 4 | ADD TO CART | |
| 32 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 40 | 5100011583 | Relay | 1 | ADD TO CART | |
| 41 | 5100011583 | Relay | 1 | ADD TO CART | |
| 50 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 51 | 5100013579 | Blade fuse | 1 | ADD TO CART | |
| 52 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 101 | 5100012766 | Wire harness (front frame) | 1 | Serialno. 160-198 | ADD TO CART |
| 101 | 5100053420 | Wire harness front frame | 1 | Serialno. >199 | ADD TO CART |
| 102 | 5100012767 | Wire harness (rear frame) | 1 | ADD TO CART | |
Page 210 — Additional lighting
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011606 | Working light | 4 | ADD TO CART | |
| 1 | 5100012182 | Hexagon nut | 1 | PARTS REQUEST | |
|
COMING Hexagon nut
5100012182 · qty on machine: 1 | |||||
| 1 | 5100012939 | Washer | 1 | ADD TO CART | |
| 1 | 5100013554 | Lamp | 1 | ADD TO CART | |
| 2 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 3 | 5100024918 | Cable harness | 4 | ADD TO CART | |
| 4 | 5100013128 | Washer | 4 | ADD TO CART | |
| 5 | 5100023419 | Hexagon screw | 4 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 21 | 5100016277 | Stop | 2 | ADD TO CART | |
| 22 | 5100011504 | Hexagon screw | 2 | ADD TO CART | |
| 23 | 5100012969 | Locking washer | 4 | ADD TO CART | |
| 24 | 5100012603 | Safety nut | 2 | ADD TO CART | |
| 25 | 5100011482 | Washer | 4 | ADD TO CART | |
| 28 | 5100013377 | Rubber buffer | 4 | ADD TO CART | |
| 29 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
| 32 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 102 | 5100012767 | Wire harness (rear frame) | 1 | ADD TO CART | |
| 1 | 5100024915 | Working light | 4 | PARTS REQUEST | |
|
COMING Working light
5100024915 · qty on machine: 4 | |||||
| 2 | 5100052987 | Wire harness working light | 2 | ADD TO CART | |
| 5 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
Page 214 — Roller drum lighting
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100011583 | Relay | 1 | Serialno. <583 | ADD TO CART |
| 31 | 5100013580 | Blade fuse | 1 | Serialno. <583 | ADD TO CART |
| 35 | 5100033247 | Holder | 4 | Serialno. <583 | ADD TO CART |
| 36 | 5100035087 | Hexagon screw | 2 | Serialno. <583 | ADD TO CART |
| 37 | 5100012517 | Hexagon screw | 2 | Serialno. <583 | ADD TO CART |
| 38 | 5100012966 | Locking washer | 4 | Serialno. <583 | ADD TO CART |
| 40 | 5100024898 | Working light | 4 | Serialno. <583 | PARTS REQUEST |
|
COMING Working light
5100024898 · qty on machine: 4 Serialno. <583 | |||||
| 42 | 5100033248 | Cable harness | 2 | Serialno. <583 | ADD TO CART |
| 35 | 5100066907 | Holder | 4 | Serialno. >584 | ADD TO CART |
| 40 | 5100066908 | Working light | 4 | Serialno. >584 | ADD TO CART |
| 41 | 5100011578 | Mushroom head screw | 4 | Serialno. >584 | ADD TO CART |
| 42 | 5100053004 | Safety nut | 4 | Serialno. >584 | ADD TO CART |
| 45 | 5100066909 | Bushing | 4 | Serialno. >584 | ADD TO CART |
| 62 | 5100077465 | Cable harness | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Cable harness
5100077465 · qty on machine: 1 Serialno. >584 | |||||
Page 218 — Rotary beacon
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011941 | Rotary beacon | 1 | ADD TO CART | |
| 1 | 5100013538 | Lamp | 1 | ADD TO CART | |
| 2 | 5100013517 | Pipe | 1 | ADD TO CART | |
| 5 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 6 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 7 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 8 | 5100011868 | Weld-on plate | 1 | ADD TO CART | |
| 10 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 11 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 15 | 5100011583 | Relay | 1 | ADD TO CART | |
| 16 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 3 | 5100050711 | Half-clip | 2 | PARTS REQUEST | |
|
COMING Half-clip
5100050711 · qty on machine: 2 | |||||
| 4 | 5100013465 | Cover plate | 1 | ADD TO CART | |
| 5 | 5100013467 | Hexagon screw | 2 | ADD TO CART | |
| 6 | 5100024896 | Holder | 1 | ADD TO CART | |
| 7 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012613 | Hexagon screw | 2 | ADD TO CART | |
| 9 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 11 | 5100013429 | Wire fastener | 4 | ADD TO CART | |
| 12 | 5100024897 | Cable harness | 1 | ADD TO CART | |
| 21 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 42 | 5100012802 | Wire harness (lighting) | 1 | ADD TO CART | |
| 1 | 5100029569 | Rotary beacon | 1 | ADD TO CART | |
| 2 | 5100013397 | Hexagon screw | 2 | ADD TO CART | |
| 2 | 5100023984 | Holder | 1 | ADD TO CART | |
| 5 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 7 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100052988 | Wire harness rotating beacon | 1 | ADD TO CART | |
Page 224 — Back-up alarm
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012887 | Reversing alarm 12v-24v dc | 1 | ADD TO CART | |
| 2 | 5100012931 | Mushroom head screw | 2 | ADD TO CART | |
| 3 | 5100011636 | Washer | 2 | ADD TO CART | |
| 4 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 5 | 5100012833 | Wire harness | 1 | ADD TO CART | |
| 2 | 5100029555 | Back-up alarm | 1 | ADD TO CART | |
| 3 | 5100012608 | Hexagon screw | 2 | ADD TO CART | |
| 4 | 5100011636 | Washer | 2 | ADD TO CART | |
| 5 | 5100013585 | Clip nut | 2 | ADD TO CART | |
| 10 | 5100029553 | Holder | 1 | ADD TO CART | |
| 11 | 5100012600 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 2 | |||||
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 25 | 5100012833 | Wire harness | 1 | ADD TO CART | |
| 26 | 5100029559 | Cable harness | 1 | ADD TO CART | |
| 27 | 5100013580 | Blade fuse | 1 | ADD TO CART | |
| 29 | 5100029599 | Relay | 1 | ADD TO CART | |
Page 228 — Advance drive
Parts list — exactly as printed69 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 181 | 5100077466 | Hose | 1 | ADD TO CART | |
| 182 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 183 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 184 | 5100013361 | Filter | 1 | ADD TO CART | |
| 185 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 186 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 190 | 5100013595 | Flexible tubing | 1 | ADD TO CART | |
| 192 | 5100013476 | Straight screwed socket | 1 | ADD TO CART | |
| 193 | 5100013480 | T-piece adjustable | 1 | ADD TO CART | |
| 194 | 5100011645 | Flexible tubing | 1 | ADD TO CART | |
| 195 | 5100012091 | Reducing piece | 1 | ADD TO CART | |
| 196 | 5100012190 | Straight screwed socket | 1 | ADD TO CART | |
| 197 | 5100013483 | Elbow adjustable | 1 | ADD TO CART | |
| 198 | 5100013603 | Straight screwed socket | 1 | ADD TO CART | |
| 1 | 5100013430 | Sae-flange half | 4 | ADD TO CART | |
| 2 | 5100013431 | O-ring seal | 2 | ADD TO CART | |
| 3 | 5100011587 | Safety screw | 8 | ADD TO CART | |
| 5 | 5100012281 | Flexible tubing | 1 | ADD TO CART | |
| 6 | 5100012282 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100013212 | Straight screwed socket | 2 | ADD TO CART | |
| 8 | 5100013484 | Elbow adjustable | 2 | ADD TO CART | |
| 10 | 5100012257 | Valve block | 1 | Serialno. <752 | PARTS REQUEST |
|
COMING Valve block
5100012257 · qty on machine: 1 Serialno. <752 | |||||
| 10 | 5100012390 | Valve block | 1 | Serialno. <755 | ADD TO CART |
| 10 | 5100066866 | Valve block | 1 | Serialno. >753 | ADD TO CART |
| 10 | 5100066869 | Valve block | 1 | Serialno. >756 | ADD TO CART |
| 11 | 5100012284 | Plate | 1 | ADD TO CART | |
| 13 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 14 | 5100012513 | Hexagon screw | 2 | ADD TO CART | |
| 16 | 5100012908 | Stud bolt | 2 | ADD TO CART | |
| 17 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 18 | 5100012548 | Hexagon nut | 2 | ADD TO CART | |
| 63 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 64 | 5100011662 | Flexible tubing | 1 | ADD TO CART | |
| 65 | 5100013477 | Straight screwed socket | 1 | ADD TO CART | |
| 66 | 5100012283 | Flexible tubing | 1 | ADD TO CART | |
| 67 | 5100012418 | Nonreturn valve | 1 | ADD TO CART | |
| 68 | 5100013481 | T-piece adjustable | 1 | ADD TO CART | |
| 69 | 5100013471 | Straight screwed socket | 1 | ADD TO CART | |
| 70 | 5100013578 | Straight screwed socket | 1 | ADD TO CART | |
| 71 | 5100011456 | Flexible tubing | 1 | ADD TO CART | |
| 72 | 5100013505 | Banjo | 1 | PARTS REQUEST | |
|
COMING Banjo
5100013505 · qty on machine: 1 | |||||
| 171 | 5100012429 | Valve block | 1 | ADD TO CART | |
| 201 | 5100011532 | Pipe clip | 1 | ADD TO CART | |
| 202 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 203 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 21 | 5100013539 | Straight screwed socket | 4 | ADD TO CART | |
| 22 | 5100012275 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100012293 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100012276 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100012294 | Flexible tubing | 1 | ADD TO CART | |
| 27 | 5100011416 | Intermediate piece | 2 | ADD TO CART | |
| 28 | 5100012274 | Flexible tubing | 1 | ADD TO CART | |
| 28 | 5100012292 | Flexible tubing | 1 | ADD TO CART | |
| 29 | 5100012273 | Flexible tubing | 1 | ADD TO CART | |
| 29 | 5100012291 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100013489 | Straight screwed socket | 4 | ADD TO CART | |
| 41 | 5100013475 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013475 · qty on machine: 2 | |||||
| 43 | 5100012279 | Flexible tubing | 1 | ADD TO CART | |
| 43 | 5100012295 | Flexible tubing | 1 | ADD TO CART | |
| 52 | 5100013619 | Elbow adjustable | 1 | ADD TO CART | |
| 53 | 5100012280 | Flexible tubing | 1 | ADD TO CART | |
| 53 | 5100012296 | Flexible tubing | 1 | ADD TO CART | |
| 54 | 5100013472 | Straight screwed socket | 2 | ADD TO CART | |
| 101 | 5100011879 | Half-clip | 6 | ADD TO CART | |
| 102 | 5100012977 | Stud bolt | 6 | ADD TO CART | |
| 103 | 5100011880 | Metal plate | 3 | ADD TO CART | |
| 104 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 105 | 5100012546 | Hexagon nut | 6 | ADD TO CART | |
| 210 | 5100013429 | Wire fastener | 10 | ADD TO CART | |
Page 234 — Drive shifting
Parts list — exactly as printed50 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012035 | Mounting device | 1 | ADD TO CART | |
| 2 | 5100012515 | Hexagon screw | 3 | ADD TO CART | |
| 3 | 5100012966 | Locking washer | 3 | ADD TO CART | |
| 5 | 5100011792 | Slide block | 2 | ADD TO CART | |
| 6 | 5100012671 | Countersunk screw | 6 | ADD TO CART | |
| 10 | 5100012037 | Drive lever | 1 | ADD TO CART | |
| 11 | 5100023200 | Hexagon screw | 1 | ADD TO CART | |
| 12 | 5100011819 | Compression spring | 1 | ADD TO CART | |
| 13 | 5100011791 | Distance bush | 2 | ADD TO CART | |
| 14 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 15 | 5100013166 | Spring-thrust piece | 1 | ADD TO CART | |
| 16 | 5100013400 | Hexagon nut | 1 | ADD TO CART | |
| 18 | 5100012966 | Locking washer | 1 | ADD TO CART | |
| 19 | 5100012546 | Hexagon nut | 1 | ADD TO CART | |
| 44 | 5100013468 | Hexagon screw | 1 | ADD TO CART | |
| 45 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 46 | 5100012545 | Hexagon nut | 1 | ADD TO CART | |
| 47 | 5100012517 | Hexagon screw | 2 | ADD TO CART | |
| 48 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 49 | 5100013404 | Cheese-head screw | 2 | PARTS REQUEST | |
|
COMING Cheese-head screw
5100013404 · qty on machine: 2 | |||||
| 50 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 52 | 5100012191 | Metal plate | 1 | ADD TO CART | |
| 53 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 54 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 55 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 57 | 5100011443 | Cheese-head screw | 2 | ADD TO CART | |
| 61 | 5100012195 | Set of adjustment bars | 1 | ADD TO CART | |
| 65 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 66 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 67 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 68 | 5100011869 | Fillister head screw | 2 | ADD TO CART | |
| 70 | 5100012192 | Metal plate | 1 | ADD TO CART | |
| 71 | 5100012517 | Hexagon screw | 4 | ADD TO CART | |
| 72 | 5100013094 | Washer | 3 | ADD TO CART | |
| 73 | 5100013421 | Washer | 1 | ADD TO CART | |
| 74 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 75 | 5100012717 | Metal plate | 1 | ADD TO CART | |
| 76 | 5100012600 | Hexagon screw | 3 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012600 · qty on machine: 3 | |||||
| 77 | 5100012965 | Locking washer | 3 | ADD TO CART | |
| 79 | 5100013412 | Edge protection | 0.2 | ADD TO CART | |
| 90 | 5100012154 | Bracket | 1 | ADD TO CART | |
| 91 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 92 | 5100012554 | Hexagon screw | 2 | ADD TO CART | |
| 93 | 5100012241 | Actuating cable | 1 | ADD TO CART | |
| 93 | 5100011949 | Bellows | 1 | ADD TO CART | |
| 93 | 5100011951 | Joint-head | 1 | ADD TO CART | |
| 93 | 5100012333 | Angle joint | 1 | ADD TO CART | |
| 94 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 95 | 5100035308 | Hexagon screw | 1 | ADD TO CART | |
| 96 | 5100053004 | Safety nut | 1 | ADD TO CART | |
Page 238 — Parking brake
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012963 | Valve block | 1 | ADD TO CART | |
| 3 | 5100013527 | Cheese-head screw | 3 | ADD TO CART | |
| 5 | 5100011874 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 7 | 5100013505 | Banjo | 1 | PARTS REQUEST | |
|
COMING Banjo
5100013505 · qty on machine: 1 | |||||
| 8 | 5100013482 | Elbow adjustable | 1 | ADD TO CART | |
| 12 | 5100011608 | Screw plug | 2 | ADD TO CART | |
| 13 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 21 | 5100011566 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100011754 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100011609 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100012840 | Flexible tubing | 1 | ADD TO CART | |
| 24 | 5100013492 | Straight screwed socket | 2 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 | |||||
| 50 | 5100011417 | Pipe clip | 1 | ADD TO CART | |
| 51 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 52 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 53 | 5100013572 | Protecting cap | 1 | ADD TO CART | |
Page 240 — All-wheel lock
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012425 | Flow divider | 1 | Serialno. <586 | ADD TO CART |
| 1 | 5100066917 | Flow divider | 1 | Serialno. >587 | ADD TO CART |
| 2 | 5100011497 | Cheese-head screw | 4 | ADD TO CART | |
| 10 | 5100013650 | Foot switch | 1 | ADD TO CART | |
| 11 | 5100012890 | Countersunk screw | 2 | ADD TO CART | |
| 22 | 5100013586 | Blade fuse | 1 | PARTS REQUEST | |
|
COMING Blade fuse
5100013586 · qty on machine: 1 | |||||
| 23 | 5100012834 | Wire harness | 1 | Serialno. 160 - 586 | ADD TO CART |
| 27 | 5100012499 | Sticker | 1 | PARTS REQUEST | |
|
COMING Sticker
5100012499 · qty on machine: 1 | |||||
| 30 | 5100012766 | Wire harness (front frame) | 1 | Serialno. <198 | ADD TO CART |
| 30 | 5100053420 | Wire harness front frame | 1 | Serialno. >199 | ADD TO CART |
Page 242 — Centre pivot assembly
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012018 | Pendulum joint | 1 | ADD TO CART | |
| 3 | 5100012911 | Stud bolt | 6 | ADD TO CART | |
| 4 | 5100016501 | Washer | 6 | ADD TO CART | |
| 5 | 5100012548 | Hexagon nut | 6 | ADD TO CART | |
| 10 | 5100011782 | Sealing ring | 1 | ADD TO CART | |
| 11 | 5100013610 | Rod end ball joint | 1 | ADD TO CART | |
| 12 | 5100011779 | Clamping piece | 1 | ADD TO CART | |
| 13 | 5100011481 | Cheese-head screw | 2 | ADD TO CART | |
| 14 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 15 | 5100011778 | Clamping piece | 1 | ADD TO CART | |
| 16 | 5100012725 | Cheese-head screw | 3 | ADD TO CART | |
| 17 | 5100012084 | Cover | 1 | ADD TO CART | |
| 18 | 5100035087 | Hexagon screw | 6 | ADD TO CART | |
| 19 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 20 | 5100011780 | Pendulum suspension | 1 | ADD TO CART | |
| 20 | 5100011644 | Radial rod end bearing | 2 | ADD TO CART | |
| 20 | 5100012479 | Greasing nipple | 2 | ADD TO CART | |
| 21 | 5100011761 | Sealing ring | 4 | PARTS REQUEST | |
|
COMING Sealing ring
5100011761 · qty on machine: 4 | |||||
| 22 | 5100011781 | Clamping piece | 2 | ADD TO CART | |
| 23 | 5100012724 | Cheese-head screw | 4 | ADD TO CART | |
| 30 | 5100012245 | Safety strut | 1 | ADD TO CART | |
| 31 | 5100013432 | Rubber buffer | 1 | ADD TO CART | |
| 32 | 5100013607 | Raised countersunk head screw | 1 | ADD TO CART | |
| 33 | 5100012965 | Locking washer | 1 | ADD TO CART | |
| 34 | 5100011731 | Rubber washer | 2 | ADD TO CART | |
| 35 | 5100011493 | Hexagon screw | 1 | ADD TO CART | |
| 36 | 5100012969 | Locking washer | 2 | ADD TO CART | |
| 37 | 5100035686 | Safety nut | 1 | ADD TO CART | |
| 40 | 5100012009 | Bolt | 1 | ADD TO CART | |
| 41 | 5100011803 | W-clip | 1 | ADD TO CART | |
| 42 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 52 | 5100011777 | Radial rod end bearing | 1 | ADD TO CART | |
Page 244 — Steering
Parts list — exactly as printed61 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012220 | Straight flange joint | 1 | Serialno. 160 - 726 | ADD TO CART |
| 1 | 5100012723 | Cheese-head screw | 4 | 1.02 Serialno. 160 - 726 | ADD TO CART |
| 1 | 5100012942 | Spring ring | 4 | 1.03 Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Spring ring
5100012942 · qty on machine: 4 1.03 Serialno. 160 - 726 | |||||
| 1 | 5100013612 | O-ring seal | 1 | 1.01 Serialno. 160 - 726 | ADD TO CART |
| 8 | 5100012841 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100012215 | Angle flange screwing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100012723 | Cheese-head screw | 2 | 10.03 Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100012942 | Spring ring | 4 | 10.04 Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Spring ring
5100012942 · qty on machine: 4 10.04 Serialno. 160 - 726 | |||||
| 10 | 5100013189 | Cheese-head screw | 2 | 10.02 Serialno. 160 - 726 | ADD TO CART |
| 10 | 5100013612 | O-ring seal | 1 | 10.01 Serialno. 160 - 726 | ADD TO CART |
| 11 | 5100012543 | Elbow adjustable | 1 | Serialno. 160 - 726 | ADD TO CART |
| 15 | 5100012842 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 17 | 5100013447 | Straight screwed socket | 1 | Serialno. 160 - 726 | ADD TO CART |
| 18 | 5100012072 | Elbow adjustable | 1 | Serialno. 160 - 726 | ADD TO CART |
| 19 | 5100012278 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 20 | 5100013553 | Straight screwed socket | 1 | Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100012657 | Steering unit + connect. plate | 1 | Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Steering unit + connect. plate
5100012657 · qty on machine: 1 Serialno. 160 - 726 | |||||
| 21 | 5100011593 | Steering unit | 1 | 21.01 Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100011736 | O-ring seal | 4 | 21.04 Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100012655 | Connection plate | 1 | 21.02 Serialno. 160 - 726 | ADD TO CART |
| 21 | 5100013528 | Cheese-head screw | 2 | 21.03 Serialno. 160 - 726 | ADD TO CART |
| 25 | 5100013433 | Straight screwed socket | 2 | Serialno. 160 - 726 | ADD TO CART |
| 26 | 5100013499 | Straight screwed socket | 2 | Serialno. 160 - 726 | ADD TO CART |
| 31 | 5100013475 | Straight screwed socket | 1 | Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Straight screwed socket
5100013475 · qty on machine: 1 Serialno. 160 - 726 | |||||
| 32 | 5100012800 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 41 | 5100012801 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 42 | 5100012989 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 43 | 5100013492 | Straight screwed socket | 2 | Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Straight screwed socket
5100013492 · qty on machine: 2 Serialno. 160 - 726 | |||||
| 45 | 5100013474 | Straight screwed socket | 1 | Serialno. 160 - 726 | ADD TO CART |
| 46 | 5100012831 | Flexible tubing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 47 | 5100013485 | Bulkhead elbow | 1 | Serialno. 160 - 726 | ADD TO CART |
| 48 | 5100012969 | Locking washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 49 | 5100013487 | Hexagon nut | 1 | Serialno. 160 - 726 | ADD TO CART |
| 50 | 5100013532 | Elbow adjustable | 1 | Serialno. 160 - 726 | ADD TO CART |
| 51 | 5100012028 | Hydraulic cylinder | 1 | Serialno. 160 - 726 | ADD TO CART |
| 51 | 5100011563 | Radial rod end bearing | 1 | 51.02 Serialno. 160 - 726 | PARTS REQUEST |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 51.02 Serialno. 160 - 726 | |||||
| 51 | 5100011685 | Set of seals | 1 | 51.01 Serialno. 160 - 726 | ADD TO CART |
| 51 | 5100012481 | Greasing nipple | 1 | 51.03 Serialno. 160 - 726 | ADD TO CART |
| 52 | 5100011777 | Radial rod end bearing | 1 | Serialno. 160 - 726 | ADD TO CART |
| 53 | 5100011776 | Bolt | 1 | Serialno. 160 - 726 | ADD TO CART |
| 54 | 5100011680 | Spacer ring | 2 | Serialno. 160 - 726 | ADD TO CART |
| 55 | 5100013560 | Seal | 2 | Serialno. 160 - 726 | ADD TO CART |
| 56 | 5100012550 | Hexagon nut | 1 | Serialno. 160 - 726 | ADD TO CART |
| 57 | 5100012955 | Locking washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 60 | 5100012479 | Greasing nipple | 1 | Serialno. 160 - 726 | ADD TO CART |
| 61 | 5100011820 | Spacer ring | 1 | Serialno. 160 - 726 | ADD TO CART |
| 62 | 5100011695 | U-washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 63 | 5100013463 | Cheese-head screw | 1 | Serialno. 160 - 726 | ADD TO CART |
| 65 | 5100012644 | Steering column | 1 | Serialno. 160 - 726 | ADD TO CART |
| 66 | 5100013450 | Cheese-head screw | 2 | Serialno. 160 - 726 | ADD TO CART |
| 67 | 5100012967 | Locking washer | 4 | Serialno. 160 - 726 | ADD TO CART |
| 68 | 5100012783 | Cheese-head screw | 2 | Serialno. 160 - 726 | ADD TO CART |
| 70 | 5100011912 | Steering wheel | 1 | Serialno. 160 - 726 | ADD TO CART |
| 70 | 5100012392 | Turning handle | 1 | 70.01 Serialno. 160 - 726 | ADD TO CART |
| 70 | 5100012393 | Cover | 1 | 70.02 Serialno. 160 - 726 | ADD TO CART |
| 71 | 5100013413 | Washer | 1 | Serialno. 160 - 726 | ADD TO CART |
| 72 | 5100013400 | Hexagon nut | 1 | Serialno. 160 - 726 | ADD TO CART |
| 80 | 5100013429 | Wire fastener | 10 | Serialno. 160 - 726 | ADD TO CART |
| 19 | 5100077468 | Hose | 1 | Serialno. >727 | PARTS REQUEST |
|
COMING Hose
5100077468 · qty on machine: 1 Serialno. >727 | |||||
| 22 | 5100013499 | Straight screwed socket | 1 | Serialno. >727 | ADD TO CART |
| 70 | 5100065336 | Lid | 70 | 70.02 Serialno. >727 | ADD TO CART |
Page 252 — Sprinkling
Parts list — exactly as printed78 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 6 | 5100011851 | Rubber sleeve | 4 | ADD TO CART | |
| 8 | 5100011850 | Rubber sleeve | 3 | ADD TO CART | |
| 9 | 5100011815 | Tank cap | 1 | ADD TO CART | |
| 10 | 5100011931 | O-ring seal | 1 | ADD TO CART | |
| 11 | 5100011990 | Strainer | 1 | ADD TO CART | |
| 21 | 5100073199 | Holder | 4 | ADD TO CART | |
| 55 | 5100011718 | Metal plate | 4 | ADD TO CART | |
| 56 | 5100011902 | Sheet metal screw | 4 | ADD TO CART | |
| 57 | 5100012978 | Stud bolt | 8 | ADD TO CART | |
| 65 | 5100011812 | Drain plug | 1 | ADD TO CART | |
| 66 | 5100011865 | O-ring seal | 1 | ADD TO CART | |
| 67 | 5100011864 | O-ring seal | 1 | ADD TO CART | |
| 68 | 5100011862 | Compression spring | 1 | ADD TO CART | |
| 69 | 5100011830 | Strainer | 1 | ADD TO CART | |
| 78 | 5100012259 | Float | 1 | ADD TO CART | |
| 79 | 5100012258 | Inspection glass | 1 | ADD TO CART | |
| 80 | 5100011656 | Filler cap | 1 | ADD TO CART | |
| 81 | 5100011873 | Pipe clip | 1 | ADD TO CART | |
| 82 | 5100012000 | Sheet metal screw | 1 | ADD TO CART | |
| 100 | 5100052635 | Water tank | 1 | ADD TO CART | |
| 103 | 5100012713 | Rubber metal buffer | 4 | ADD TO CART | |
| 104 | 5100013523 | Washer | 2 | ADD TO CART | |
| 105 | 5100011526 | Elbow | 3 | ADD TO CART | |
| 107 | 5100011444 | Elbow | 3 | ADD TO CART | |
| 109 | 5100013557 | Key | 1 | ADD TO CART | |
| 109 | 5100059525 | Tank cap, with lock | 1 | ADD TO CART | |
| 151 | 5100011906 | Metal plate | 1 | ADD TO CART | |
| 152 | 5100011902 | Sheet metal screw | 1 | ADD TO CART | |
| 153 | 5100013646 | Flexible tubing | 0.65 | ADD TO CART | |
| 175 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 250 | 5100012140 | Key | 1 | ADD TO CART | |
| 251 | 5100012880 | Cover plate | 2 | ADD TO CART | |
| 60 | 5100011719 | Metal plate | 4 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 62 | 5100012547 | Hexagon nut | 8 | ADD TO CART | |
| 75 | 5100011590 | Safety cord | 1 | ADD TO CART | |
| 91 | 5100012498 | Safety screw | 3 | ADD TO CART | |
| 93 | 5100013646 | Flexible tubing | 0.5 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 101 | 5100011670 | Flexible tubing | 1.6 | ADD TO CART | |
| 102 | 5100011670 | Flexible tubing | 2.1 | ADD TO CART | |
| 106 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 107 | 5100012705 | Cheese-head screw | 6 | ADD TO CART | |
| 108 | 5100013179 | Hose clip | 2 | ADD TO CART | |
| 106 | 5100012705 | Cheese-head screw | 6 | ADD TO CART | |
| 107 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 30 | ADD TO CART | |
| 100 | 5100011863 | T-reducing socket | 1 | ADD TO CART | |
| 103 | 5100012218 | Angle | 1 | ADD TO CART | |
| 104 | 5100013639 | Flexible tubing | 0.29 | ADD TO CART | |
| 108 | 5100013367 | Hose clip | 6 | ADD TO CART | |
| 109 | 5100013639 | Flexible tubing | 0.18 | ADD TO CART | |
| 110 | 5100011898 | Nozzle holder | 1 | ADD TO CART | |
| 110 | 5100011534 | Membrane | 1 | ADD TO CART | |
| 110 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 110 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 110 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 113 | 5100011867 | Nozzle holder | 2 | ADD TO CART | |
| 113 | 5100011752 | Sealing ring | 1 | ADD TO CART | |
| 113 | 5100011651 | Membrane holder | 1 | ADD TO CART | |
| 113 | 5100011535 | Cap nut | 1 | ADD TO CART | |
| 113 | 5100011534 | Membrane | 1 | ADD TO CART | |
| 115 | 5100011529 | Sprinkler nozzle | 3 | ADD TO CART | |
| 116 | 5100011488 | Nut | 3 | ADD TO CART | |
| 117 | 5100011489 | Filtering screen | 3 | ADD TO CART | |
| 121 | 5100013639 | Flexible tubing | 0.125 | ADD TO CART | |
| 130 | 5100012090 | Cheese-head screw | 6 | ADD TO CART | |
| 131 | 5100013536 | Serrated lock washer | 6 | ADD TO CART | |
| 132 | 5100012898 | Hexagon nut | 6 | ADD TO CART | |
| 300 | 5100012219 | Sprinkling | 2 | ADD TO CART | |
| 85 | 5100013374 | Water pump | 1 | ADD TO CART | |
| 86 | 5100011528 | Rubber piece | 4 | ADD TO CART | |
| 87 | 5100013523 | Washer | 4 | ADD TO CART | |
| 88 | 5100012545 | Hexagon nut | 8 | ADD TO CART | |
| 92 | 5100011527 | Angle screwed socket | 1 | ADD TO CART | |
| 94 | 5100011666 | Angle screwed socket | 1 | ADD TO CART | |
| 96 | 5100011845 | Mounting device | 1 | ADD TO CART | |
| 97 | 5100013531 | Filler cap | 1 | ADD TO CART | |
Page 264 — Water pump
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100013389 | Pump housing | 1 | ADD TO CART | |
| 5 | 5100013391 | Valve insert | 1 | ADD TO CART | |
| 10 | 5100013390 | Pump housing | 1 | ADD TO CART | |
| 100 | 5100013374 | Water pump | 1 | ADD TO CART | |
Page 266 — Antifreezing device
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100011943 | Ball-closure cock | 1 | ADD TO CART | |
| 11 | 5100011942 | Adapter | 1 | ADD TO CART | |
| 12 | 5100012598 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 2 | |||||
| 13 | 5100012936 | Washer | 4 | ADD TO CART | |
| 14 | 5100011599 | Hexagon nut | 2 | ADD TO CART | |
| 21 | 5100011527 | Angle screwed socket | 3 | ADD TO CART | |
| 22 | 5100013413 | Washer | 2 | ADD TO CART | |
| 25 | 5100013646 | Flexible tubing | 0.59 | ADD TO CART | |
| 26 | 5100013646 | Flexible tubing | 0.86 | ADD TO CART | |
| 27 | 5100013646 | Flexible tubing | 0.59 | ADD TO CART | |
| 60 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 95 | 5100011670 | Flexible tubing | 0.8 | ADD TO CART | |
| 10 | 5100029536 | Union | 1 | ADD TO CART | |
| 11 | 5100013646 | Flexible tubing | 0.06 | ADD TO CART | |
| 12 | 5100013646 | Flexible tubing | 0.65 | ADD TO CART | |
| 13 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 16 | 5100011472 | Ball-closure cock | 1 | ADD TO CART | |
| 17 | 5100029535 | Straight screwed socket | 1 | ADD TO CART | |
| 25 | 5100029568 | Holder | 1 | ADD TO CART | |
| 26 | 5100012598 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 1 | |||||
| 27 | 5100012936 | Washer | 2 | ADD TO CART | |
| 28 | 5100011599 | Hexagon nut | 1 | ADD TO CART | |
| 61 | 5100013429 | Wire fastener | 1 | ADD TO CART | |
Page 272 — Bypass oil filter
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100029576 | Pressure filter | 1 | Serialno. 160 - 583 | ADD TO CART |
| 2 | 5100033220 | Filter insert | 1 | ADD TO CART | |
| 3 | 5100012515 | Hexagon screw | 2 | Serialno. 160 - 583 | ADD TO CART |
| 4 | 5100012966 | Locking washer | 2 | Serialno. 160 - 583 | ADD TO CART |
| 8 | 5100033221 | Holder | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Holder
5100033221 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 9 | 5100053249 | Hexagon screw | 2 | Serialno. 160 - 583 | ADD TO CART |
| 10 | 5100012966 | Locking washer | 4 | Serialno. 160 - 583 | ADD TO CART |
| 11 | 5100033222 | Distance ring | 2 | Serialno. 160 - 583 | ADD TO CART |
| 12 | 5100012546 | Hexagon nut | 2 | Serialno. 160 - 583 | ADD TO CART |
| 20 | 5100013434 | Straight screwed socket | 1 | Serialno. 160 - 583 | ADD TO CART |
| 21 | 5100029538 | Elbow adjustable | 1 | Serialno. 160 - 583 | ADD TO CART |
| 23 | 5100033223 | Hose | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Hose
5100033223 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 24 | 5100029575 | Straight screwed socket | 1 | Serialno. 160 - 583 | ADD TO CART |
| 29 | 5100029581 | Screwed socket | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Screwed socket
5100029581 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 30 | 5100029538 | Elbow adjustable | 1 | Serialno. 160 - 583 | ADD TO CART |
| 31 | 5100033224 | Hose | 1 | Serialno. 160 - 583 | PARTS REQUEST |
|
COMING Hose
5100033224 · qty on machine: 1 Serialno. 160 - 583 | |||||
| 32 | 5100013532 | Elbow adjustable | 1 | Serialno. 160 - 583 | ADD TO CART |
| 3 | 5100065307 | Filter | 1 | Serialno. >584 | ADD TO CART |
| 3 | 5100066879 | Filter insert | 1 | 3.01 Serialno. >584 | ADD TO CART |
| 4 | 5100012515 | Hexagon screw | 2 | Serialno. >584 | ADD TO CART |
| 5 | 5100012966 | Locking washer | 2 | Serialno. >584 | ADD TO CART |
| 6 | 5100066880 | Holder | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Holder
5100066880 · qty on machine: 1 Serialno. >584 | |||||
| 7 | 5100012613 | Hexagon screw | 2 | Serialno. >584 | ADD TO CART |
| 8 | 5100012966 | Locking washer | 2 | Serialno. >584 | ADD TO CART |
| 10 | 5100029551 | Straight screwed socket | 2 | Serialno. >584 | ADD TO CART |
| 11 | 5100065322 | Pipe bend | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Pipe bend
5100065322 · qty on machine: 1 Serialno. >584 | |||||
| 12 | 5100065308 | Pressure reducing valve | 1 | Serialno. >584 | ADD TO CART |
| 13 | 5100034772 | Hexagon screw | 2 | Serialno. >584 | ADD TO CART |
| 14 | 5100012965 | Locking washer | 2 | Serialno. >584 | ADD TO CART |
| 15 | 5100048634 | Straight screwed socket | 2 | Serialno. >584 | ADD TO CART |
| 20 | 5100029538 | Elbow adjustable | 1 | Serialno. >584 | ADD TO CART |
| 21 | 5100066881 | Hose | 1 | Serialno. >584 | ADD TO CART |
| 22 | 5100013454 | Straight screwed socket | 1 | Serialno. >584 | ADD TO CART |
| 25 | 5100011546 | Pipe clip | 1 | Serialno. >584 | ADD TO CART |
| 30 | 5100066882 | Hose | 1 | Serialno. >584 | ADD TO CART |
| 31 | 5100029538 | Elbow adjustable | 1 | Serialno. >584 | ADD TO CART |
| 32 | 5100013454 | Straight screwed socket | 1 | Serialno. >584 | ADD TO CART |
| 35 | 5100065310 | Sealing | 1 | Serialno. >584 | ADD TO CART |
| 36 | 5100065311 | Distance ring | 1 | Serialno. >584 | PARTS REQUEST |
|
COMING Distance ring
5100065311 · qty on machine: 1 Serialno. >584 | |||||
| 37 | 5100012090 | Cheese-head screw | 6 | Serialno. >584 | ADD TO CART |
| 38 | 5100013558 | Sealing ring | 6 | Serialno. >584 | ADD TO CART |
| 50 | 5100046875 | Sealing tape | 0.09 | Serialno. >584 | ADD TO CART |
Page 276 — Suspension (roller drum)
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012342 | Spacer block | 2 | Serialno. <303 | ADD TO CART |
| 2 | 5100053012 | Hexagon screw | 4 | Serialno. <303 | ADD TO CART |
| 3 | 5100011933 | Cup spring | 8 | Serialno. <303 | ADD TO CART |
| 5 | 5100012026 | Bow plate | 2 | Serialno. <303 | ADD TO CART |
| 6 | 5100012027 | Metal plate | 4 | Serialno. <303 | ADD TO CART |
| 7 | 5100012958 | Hexagon screw | 6 | Serialno. <303 | ADD TO CART |
| 8 | 5100013235 | Hexagon screw | 2 | Serialno. <303 | ADD TO CART |
| 9 | 5100012969 | Locking washer | 8 | Serialno. <303 | ADD TO CART |
| 21 | 5100011704 | Carrier star | 2 | Serialno. <303 | ADD TO CART |
| 22 | 5100012405 | Hexagon nut | 12 | Serialno. <303 | ADD TO CART |
| 23 | 5100012969 | Locking washer | 12 | Serialno. <303 | ADD TO CART |
| 25 | 5100011552 | Gear hub motor | 2 | Serialno. <182 | ADD TO CART |
| 25 | 5100030749 | Gear hub motor | 1 | Serialno. 183 - 303 | ADD TO CART |
| 26 | 5100012511 | Cheese-head screw | 10 | Serialno. <303 | ADD TO CART |
| 27 | 5100012969 | Locking washer | 10 | Serialno. <303 | ADD TO CART |
| 30 | 5100012789 | Cheese-head screw | 14 | Serialno. <303 | ADD TO CART |
| 31 | 5100012968 | Locking washer | 28 | Serialno. <303 | ADD TO CART |
| 32 | 5100012548 | Hexagon nut | 14 | Serialno. <303 | ADD TO CART |
Page 278 — Mounting
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012342 | Spacer block | 2 | Serialno. >304 | ADD TO CART |
| 2 | 5100053012 | Hexagon screw | 4 | Serialno. >304 | ADD TO CART |
| 3 | 5100011933 | Cup spring | 8 | Serialno. >304 | ADD TO CART |
| 5 | 5100012026 | Bow plate | 2 | Serialno. >304 | ADD TO CART |
| 6 | 5100012027 | Metal plate | 4 | Serialno. >304 | ADD TO CART |
| 7 | 5100012958 | Hexagon screw | 6 | Serialno. >304 | ADD TO CART |
| 8 | 5100013235 | Hexagon screw | 2 | Serialno. >304 | ADD TO CART |
| 9 | 5100012969 | Locking washer | 8 | Serialno. >304 | ADD TO CART |
| 21 | 5100053011 | Driver | 2 | Serialno. >304 | ADD TO CART |
| 22 | 5100012969 | Locking washer | 12 | Serialno. >304 | ADD TO CART |
| 23 | 5100012405 | Hexagon nut | 12 | Serialno. >304 | ADD TO CART |
| 25 | 5100052949 | Gear hub motor | 2 | Serialno. >304 | ADD TO CART |
| 26 | 5100048107 | Cheese-head screw | 16 | Serialno. >304 | ADD TO CART |
| 27 | 5100012968 | Locking washer | 16 | Serialno. >304 | ADD TO CART |
| 30 | 5100048107 | Cheese-head screw | 14 | Serialno. >304 | ADD TO CART |
| 31 | 5100012968 | Locking washer | 14 | Serialno. >304 | ADD TO CART |
| 5 | 5100013211 | Bow plate | 1 | Serialno. >304 | ADD TO CART |
| 21 | 5100053013 | Driver | 1 | Serialno. >304 | PARTS REQUEST |
|
COMING Driver
5100053013 · qty on machine: 1 Serialno. >304 | |||||
| 105 | 5100012026 | Bow plate | 1 | Serialno. >304 | ADD TO CART |
| 121 | 5100053011 | Driver | 1 | Serialno. >304 | ADD TO CART |
Page 288 — Scraper
Parts list — exactly as printed56 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013080 | Scraper | 1 | ADD TO CART | |
| 2 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 3 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 5 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 6 | 5100011585 | Cheese-head screw | 4 | ADD TO CART | |
| 51 | 5100013081 | Scraper | 1 | ADD TO CART | |
| 52 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 53 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 55 | 5100013047 | Holder-up | 1 | PARTS REQUEST | |
|
COMING Holder-up
5100013047 · qty on machine: 1 | |||||
| 56 | 5100012515 | Hexagon screw | 2 | ADD TO CART | |
| 57 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 101 | 5100013080 | Scraper | 1 | ADD TO CART | |
| 102 | 5100012520 | Hexagon screw | 4 | ADD TO CART | |
| 103 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 105 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 106 | 5100011485 | Cheese-head screw | 4 | ADD TO CART | |
| 151 | 5100013082 | Scraper | 1 | ADD TO CART | |
| 152 | 5100011479 | Hexagon screw | 4 | ADD TO CART | |
| 153 | 5100012967 | Locking washer | 4 | ADD TO CART | |
| 155 | 5100013065 | Holder-up | 1 | ADD TO CART | |
| 158 | 5100034697 | Countersunk screw | 2 | ADD TO CART | |
| 11 | 5100012261 | Plastic scraper | 1 | ADD TO CART | |
| 12 | 5100012260 | Metal plate | 1 | ADD TO CART | |
| 13 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 14 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 15 | 5100012085 | Mushroom head screw | 5 | ADD TO CART | |
| 16 | 5100011584 | Mushroom head screw | 4 | ADD TO CART | |
| 17 | 5100013521 | Washer | 9 | ADD TO CART | |
| 19 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 20 | 5100013040 | Bracket | 1 | ADD TO CART | |
| 21 | 5100012932 | Handle | 1 | ADD TO CART | |
| 22 | 5100012665 | Countersunk screw | 2 | ADD TO CART | |
| 23 | 5100012545 | Hexagon nut | 2 | ADD TO CART | |
| 25 | 5100011483 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100011483 · qty on machine: 1 | |||||
| 26 | 5100013577 | Washer | 2 | ADD TO CART | |
| 27 | 5100013045 | Bracket | 1 | ADD TO CART | |
| 28 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 29 | 5100013629 | Yoke spring | 1 | ADD TO CART | |
| 30 | 5100013068 | Bracket | 1 | ADD TO CART | |
| 31 | 5100012602 | Safety nut | 1 | ADD TO CART | |
| 35 | 5100013574 | Toggle with bolt | 1 | ADD TO CART | |
| 36 | 5100013575 | Compression spring | 1 | ADD TO CART | |
| 37 | 5100013576 | Grooved pin | 1 | ADD TO CART | |
| 40 | 5100011483 | Hexagon screw | 1 | PARTS REQUEST | |
|
COMING Hexagon screw
5100011483 · qty on machine: 1 | |||||
| 41 | 5100013577 | Washer | 2 | ADD TO CART | |
| 42 | 5100013046 | Bracket | 1 | ADD TO CART | |
| 43 | 5100011682 | Bushing | 1 | ADD TO CART | |
| 44 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
| 45 | 5100013069 | Bracket | 1 | ADD TO CART | |
| 46 | 5100012602 | Safety nut | 1 | ADD TO CART | |
| 27 | 5100013055 | Foot lever | 1 | ADD TO CART | |
| 30 | 5100013056 | Bracket | 1 | ADD TO CART | |
| 42 | 5100013034 | Bracket | 1 | ADD TO CART | |
| 45 | 5100013056 | Bracket | 1 | ADD TO CART | |
| 27 | 5100013192 | Bracket | 1 | ADD TO CART | |
| 29 | 5100013630 | Yoke spring | 1 | ADD TO CART | |
Page 296 — Rigid scraper
Parts list — exactly as printed24 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 51 | 5100016514 | Scraper | 2 | ADD TO CART | |
| 52 | 5100016515 | Scraper | 1 | ADD TO CART | |
| 53 | 5100016516 | Scraper | 1 | ADD TO CART | |
| 55 | 5100012967 | Locking washer | 16 | ADD TO CART | |
| 56 | 5100012520 | Hexagon screw | 16 | ADD TO CART | |
| 59 | 5100013530 | Filler cap | 4 | ADD TO CART | |
| 1 | 5100012261 | Plastic scraper | 1 | ADD TO CART | |
| 2 | 5100012260 | Metal plate | 1 | ADD TO CART | |
| 3 | 5100016512 | Bracket | 4 | ADD TO CART | |
| 4 | 5100011939 | Metal plate | 1 | ADD TO CART | |
| 5 | 5100011940 | Metal plate | 1 | ADD TO CART | |
| 6 | 5100012085 | Mushroom head screw | 7 | ADD TO CART | |
| 7 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 9 | ADD TO CART | |
| 9 | 5100013521 | Washer | 2 | ADD TO CART | |
| 10 | 5100013521 | Washer | 7 | ADD TO CART | |
| 100 | 5100016514 | Scraper | 1 | ADD TO CART | |
| 3 | 5100016513 | Bracket | 4 | ADD TO CART | |
| 4 | 5100012085 | Mushroom head screw | 7 | ADD TO CART | |
| 5 | 5100011584 | Mushroom head screw | 2 | ADD TO CART | |
| 6 | 5100013521 | Washer | 2 | ADD TO CART | |
| 7 | 5100013521 | Washer | 7 | ADD TO CART | |
| 100 | 5100016515 | Scraper | 1 | ADD TO CART | |
| 100 | 5100016516 | Scraper | 1 | ADD TO CART | |
Page 304 — Smooth roller drum with vibrator
Parts list — exactly as printed34 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100011993 | Roller drum | 1 | PARTS REQUEST | |
|
COMING Roller drum
5100011993 · qty on machine: 1 | |||||
| 2 | 5100012002 | Flange | 1 | ADD TO CART | |
| 3 | 5100012522 | Hexagon screw | 12 | ADD TO CART | |
| 4 | 5100012967 | Locking washer | 12 | ADD TO CART | |
| 5 | 5100012315 | Flange | 1 | ADD TO CART | |
| 6 | 5100012522 | Hexagon screw | 12 | ADD TO CART | |
| 7 | 5100012967 | Locking washer | 12 | ADD TO CART | |
| 8 | 5100012226 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 9 | 5100012003 | Cover | 2 | ADD TO CART | |
| 10 | 5100012516 | Hexagon screw | 12 | ADD TO CART | |
| 11 | 5100012966 | Locking washer | 12 | ADD TO CART | |
| 12 | 5100053015 | Unbalance shaft | 1 | ADD TO CART | |
| 13 | 5100012088 | Coupling | 1 | ADD TO CART | |
| 14 | 5100013511 | Cheese-head screw | 3 | ADD TO CART | |
| 15 | 5100011646 | Hexagon nut | 1 | ADD TO CART | |
| 16 | 5100012423 | Grooved ball bearing | 1 | ADD TO CART | |
| 17 | 5100012318 | Cover | 1 | ADD TO CART | |
| 18 | 5100012516 | Hexagon screw | 8 | ADD TO CART | |
| 20 | 5100012004 | Flange | 1 | ADD TO CART | |
| 21 | 5100012246 | Nilos ring | 1 | ADD TO CART | |
| 22 | 5100012247 | Sealing ring | 1 | ADD TO CART | |
| 23 | 5100011675 | O-ring seal | 1 | ADD TO CART | |
| 24 | 5100012005 | Driver | 1 | ADD TO CART | |
| 25 | 5100012524 | Hexagon screw | 5 | ADD TO CART | |
| 26 | 5100012967 | Locking washer | 5 | ADD TO CART | |
| 27 | 5100013043 | Gear motor | 1 | PARTS REQUEST | |
|
COMING Gear motor
5100013043 · qty on machine: 1 | |||||
| 28 | 5100012754 | Cheese-head screw | 4 | ADD TO CART | |
| 29 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 30 | 5100011787 | Rubber metal buffer | 6 | ADD TO CART | |
| 31 | 5100012521 | Hexagon screw | 12 | ADD TO CART | |
| 32 | 5100012967 | Locking washer | 12 | ADD TO CART | |
| 35 | 5100011787 | Rubber metal buffer | 4 | ADD TO CART | |
| 36 | 5100012521 | Hexagon screw | 8 | ADD TO CART | |
| 37 | 5100012967 | Locking washer | 8 | ADD TO CART | |
Page 306 — Smooth roller drum with oscillator
Parts list — exactly as printed62 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013244 | Roller drum | 1 | Serialno. <545 | PARTS REQUEST |
|
COMING Roller drum
5100013244 · qty on machine: 1 Serialno. <545 | |||||
| 59 | 5100013378 | Flanged bearing | 1 | Serialno. <545 | ADD TO CART |
| 61 | 5100012524 | Hexagon screw | 12 | Serialno. <545 | ADD TO CART |
| 62 | 5100012967 | Locking washer | 12 | Serialno. <545 | ADD TO CART |
| 71 | 5100012423 | Grooved ball bearing | 1 | Serialno. <545 | ADD TO CART |
| 72 | 5100012318 | Cover | 1 | Serialno. <545 | ADD TO CART |
| 73 | 5100012516 | Hexagon screw | 8 | Serialno. <545 | ADD TO CART |
| 74 | 5100012004 | Flange | 1 | Serialno. <545 | ADD TO CART |
| 75 | 5100012246 | Nilos ring | 1 | Serialno. <545 | ADD TO CART |
| 76 | 5100012247 | Sealing ring | 1 | Serialno. <545 | ADD TO CART |
| 77 | 5100011675 | O-ring seal | 1 | Serialno. <545 | ADD TO CART |
| 79 | 5100012005 | Driver | 1 | Serialno. <545 | ADD TO CART |
| 80 | 5100012524 | Hexagon screw | 1 | Serialno. <545 | ADD TO CART |
| 81 | 5100012967 | Locking washer | 1 | Serialno. <545 | ADD TO CART |
| 85 | 5100011787 | Rubber metal buffer | 4 | Serialno. <545 | ADD TO CART |
| 86 | 5100012521 | Hexagon screw | 8 | Serialno. <545 | ADD TO CART |
| 87 | 5100012967 | Locking washer | 8 | Serialno. <545 | ADD TO CART |
| 88 | 5100011787 | Rubber metal buffer | 6 | Serialno. <545 | ADD TO CART |
| 89 | 5100012522 | Hexagon screw | 12 | Serialno. <545 | ADD TO CART |
| 90 | 5100012967 | Locking washer | 12 | Serialno. <545 | ADD TO CART |
| 94 | 5100024325 | Lid | 1 | Serialno. <545 | ADD TO CART |
| 95 | 5100012520 | Hexagon screw | 10 | Serialno. <545 | ADD TO CART |
| 96 | 5100024326 | Lid | 2 | Serialno. <545 | ADD TO CART |
| 97 | 5100012520 | Hexagon screw | 16 | Serialno. <545 | ADD TO CART |
| 100 | 5100013376 | Gear motor | 1 | Serialno. <545 | ADD TO CART |
| 101 | 5100012754 | Cheese-head screw | 4 | Serialno. <545 | ADD TO CART |
| 102 | 5100012966 | Locking washer | 4 | Serialno. <545 | ADD TO CART |
| 2 | 5100013238 | Flange | 4 | Serialno. <545 | ADD TO CART |
| 3 | 5100012525 | Hexagon screw | 40 | Serialno. <545 | ADD TO CART |
| 4 | 5100012968 | Locking washer | 40 | Serialno. <545 | ADD TO CART |
| 5 | 5100012003 | Cover | 4 | Serialno. <545 | ADD TO CART |
| 6 | 5100012516 | Hexagon screw | 24 | Serialno. <545 | ADD TO CART |
| 7 | 5100012966 | Locking washer | 24 | Serialno. <545 | ADD TO CART |
| 8 | 5100012226 | Cylindrical roller bearing | 4 | Serialno. <545 | ADD TO CART |
| 9 | 5100011663 | Cap | 2 | Serialno. <545 | ADD TO CART |
| 20 | 5100013239 | Shaft | 2 | Serialno. <545 | ADD TO CART |
| 21 | 5100013242 | Unbalance | 2 | Serialno. <545 | PARTS REQUEST |
|
COMING Unbalance
5100013242 · qty on machine: 2 Serialno. <545 | |||||
| 22 | 5100012785 | Cheese-head screw | 6 | Serialno. <545 | ADD TO CART |
| 25 | 5100011689 | Toothed belt pulley | 2 | Serialno. <545 | ADD TO CART |
| 26 | 5100011690 | Toothed belt pulley | 1 | Serialno. <250 | ADD TO CART |
| 26 | 5100033236 | Toothed belt pulley | 1 | Serialno. 251-545 | ADD TO CART |
| 27 | 5100011688 | Locking washer | 3 | Serialno. <545 | ADD TO CART |
| 28 | 5100012724 | Cheese-head screw | 9 | Serialno. <545 | ADD TO CART |
| 30 | 5100033237 | Toothed belt | 2 | Serialno. 251-545 | ADD TO CART |
| 30 | 5100013190 | Toothed belt | 1 | Serialno. <250 | ADD TO CART |
| 31 | 5100012975 | Flange | 1 | Serialno. <545 | ADD TO CART |
| 32 | 5100012522 | Hexagon screw | 8 | Serialno. <545 | ADD TO CART |
| 33 | 5100012967 | Locking washer | 8 | Serialno. <545 | ADD TO CART |
| 34 | 5100012949 | Locking ring | 2 | Serialno. <545 | ADD TO CART |
| 35 | 5100011631 | Grooved ball bearing | 2 | Serialno. <545 | ADD TO CART |
| 36 | 5100012974 | Ring | 1 | Serialno. <545 | ADD TO CART |
| 37 | 5100012971 | Locking ring | 1 | Serialno. <545 | ADD TO CART |
| 40 | 5100011687 | Stop ring | 1 | Serialno. <545 | ADD TO CART |
| 41 | 5100013247 | Shaft | 1 | Serialno. <545 | ADD TO CART |
| 43 | 5100012088 | Coupling | 1 | Serialno. <545 | ADD TO CART |
| 44 | 5100013511 | Cheese-head screw | 3 | Serialno. <545 | ADD TO CART |
| 50 | 5100013381 | Shaft | 2 | Serialno. <545 | ADD TO CART |
| 51 | 5100013185 | Ring | 2 | Serialno. <250 | ADD TO CART |
| 51 | 5100023212 | Ring | 2 | Serialno. 251-545 | ADD TO CART |
| 52 | 5100012952 | Grooved ball bearing | 4 | Serialno. <545 | ADD TO CART |
| 53 | 5100012823 | Cheese-head screw | 2 | Serialno. <545 | ADD TO CART |
| 55 | 5100012950 | Locking ring | 2 | Serialno. <545 | ADD TO CART |
Page 310 — Roller drum with oscillator
Parts list — exactly as printed57 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013244 | Roller drum | 1 | Serialno. >546 | PARTS REQUEST |
|
COMING Roller drum
5100013244 · qty on machine: 1 Serialno. >546 | |||||
| 2 | 5100013238 | Flange | 4 | Serialno. >546 | ADD TO CART |
| 3 | 5100012525 | Hexagon screw | 40 | Serialno. >546 | ADD TO CART |
| 4 | 5100012968 | Locking washer | 40 | Serialno. >546 | ADD TO CART |
| 5 | 5100012003 | Cover | 4 | Serialno. >546 | ADD TO CART |
| 6 | 5100012516 | Hexagon screw | 24 | Serialno. >546 | ADD TO CART |
| 7 | 5100012966 | Locking washer | 24 | Serialno. >546 | ADD TO CART |
| 8 | 5100012226 | Cylindrical roller bearing | 4 | Serialno. >546 | ADD TO CART |
| 9 | 5100011663 | Cap | 2 | Serialno. >546 | ADD TO CART |
| 20 | 5100066896 | Unbalance shaft | 2 | Serialno. >546 | PARTS REQUEST |
|
COMING Unbalance shaft
5100066896 · qty on machine: 2 Serialno. >546 | |||||
| 23 | 5100059495 | Distance ring | 2 | Serialno. >546 | ADD TO CART |
| 24 | 5100048638 | Annular spring | 3 | Serialno. >546 | ADD TO CART |
| 25 | 5100059496 | Toothed lock washer | 2 | Serialno. >546 | PARTS REQUEST |
|
COMING Toothed lock washer
5100059496 · qty on machine: 2 Serialno. >546 | |||||
| 26 | 5100059498 | Toothed lock washer | 1 | Serialno. >546 | PARTS REQUEST |
|
COMING Toothed lock washer
5100059498 · qty on machine: 1 Serialno. >546 | |||||
| 30 | 5100066897 | Toothed belt | 2 | Serialno. >546 | ADD TO CART |
| 31 | 5100012975 | Flange | 1 | Serialno. >546 | ADD TO CART |
| 32 | 5100012522 | Hexagon screw | 8 | Serialno. >546 | ADD TO CART |
| 33 | 5100012967 | Locking washer | 8 | Serialno. >546 | ADD TO CART |
| 34 | 5100012949 | Locking ring | 1 | Serialno. >546 | ADD TO CART |
| 35 | 5100011631 | Grooved ball bearing | 2 | Serialno. >546 | ADD TO CART |
| 36 | 5100012974 | Ring | 1 | Serialno. >546 | ADD TO CART |
| 37 | 5100012971 | Locking ring | 1 | Serialno. >546 | ADD TO CART |
| 41 | 5100066902 | Drive shaft | 1 | Serialno. >546 | PARTS REQUEST |
|
COMING Drive shaft
5100066902 · qty on machine: 1 Serialno. >546 | |||||
| 43 | 5100012088 | Coupling | 1 | Serialno. >546 | ADD TO CART |
| 44 | 5100013511 | Cheese-head screw | 3 | Serialno. >546 | ADD TO CART |
| 60 | 5100013378 | Flanged bearing | 1 | Serialno. >546 | ADD TO CART |
| 61 | 5100012524 | Hexagon screw | 12 | Serialno. >546 | ADD TO CART |
| 62 | 5100012967 | Locking washer | 12 | Serialno. >546 | ADD TO CART |
| 45 | 5100011646 | Hexagon nut | 1 | Serialno. >546 | ADD TO CART |
| 50 | 5100066899 | Shaft | 2 | Serialno. >546 | ADD TO CART |
| 51 | 5100013185 | Ring | 2 | Serialno. >546 | ADD TO CART |
| 52 | 5100012952 | Grooved ball bearing | 4 | Serialno. >546 | ADD TO CART |
| 53 | 5100066900 | Cheese-head screw | 2 | Serialno. >546 | ADD TO CART |
| 55 | 5100012950 | Locking ring | 2 | Serialno. >546 | ADD TO CART |
| 71 | 5100012423 | Grooved ball bearing | 1 | Serialno. >546 | ADD TO CART |
| 72 | 5100012318 | Cover | 1 | Serialno. >546 | ADD TO CART |
| 73 | 5100012516 | Hexagon screw | 8 | Serialno. >546 | ADD TO CART |
| 74 | 5100012004 | Flange | 1 | Serialno. >546 | ADD TO CART |
| 75 | 5100012246 | Nilos ring | 1 | Serialno. >546 | ADD TO CART |
| 76 | 5100012247 | Sealing ring | 1 | Serialno. >546 | ADD TO CART |
| 77 | 5100011675 | O-ring seal | 1 | Serialno. >546 | ADD TO CART |
| 79 | 5100012005 | Driver | 1 | Serialno. >546 | ADD TO CART |
| 80 | 5100012524 | Hexagon screw | 5 | Serialno. >546 | ADD TO CART |
| 81 | 5100012967 | Locking washer | 5 | Serialno. >546 | ADD TO CART |
| 85 | 5100011787 | Rubber metal buffer | 4 | Serialno. >546 | ADD TO CART |
| 86 | 5100012521 | Hexagon screw | 8 | Serialno. >546 | ADD TO CART |
| 87 | 5100012967 | Locking washer | 8 | Serialno. >546 | ADD TO CART |
| 88 | 5100011787 | Rubber metal buffer | 6 | Serialno. >546 | ADD TO CART |
| 89 | 5100012522 | Hexagon screw | 12 | Serialno. >546 | ADD TO CART |
| 90 | 5100012967 | Locking washer | 12 | Serialno. >546 | ADD TO CART |
| 94 | 5100024325 | Lid | 1 | Serialno. >546 | ADD TO CART |
| 95 | 5100012520 | Hexagon screw | 10 | Serialno. >546 | ADD TO CART |
| 96 | 5100024326 | Lid | 2 | Serialno. >546 | ADD TO CART |
| 97 | 5100012520 | Hexagon screw | 16 | Serialno. >546 | ADD TO CART |
| 100 | 5100060188 | Gear motor | 1 | Serialno. >546 | ADD TO CART |
| 101 | 5100012754 | Cheese-head screw | 4 | Serialno. >546 | ADD TO CART |
| 102 | 5100012966 | Locking washer | 4 | Serialno. >546 | ADD TO CART |
Page 314 — Vibration drive
Parts list — exactly as printed62 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100013218 | Angle flange screwing | 1 | ADD TO CART | |
| 1 | 5100011500 | O-ring seal | 1 | ADD TO CART | |
| 1 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 1 | 5100012942 | Spring ring | 4 | PARTS REQUEST | |
|
COMING Spring ring
5100012942 · qty on machine: 4 | |||||
| 1 | 5100013497 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012570 | Flexible tubing | 1 | ADD TO CART | |
| 6 | 5100011896 | Hose clip | 1 | ADD TO CART | |
| 10 | 5100011909 | Valve block | 1 | Serialno. <198 | ADD TO CART |
| 10 | 5100052954 | Control block | 1 | Serialno. 199-600 | ADD TO CART |
| 10 | 5100063127 | Valve block | 1 | Serialno. >601 | ADD TO CART |
| 11 | 5100012815 | Cheese-head screw | 4 | ADD TO CART | |
| 12 | 5100013603 | Straight screwed socket | 4 | ADD TO CART | |
| 13 | 5100013329 | Intermediate piece | 2 | ADD TO CART | |
| 15 | 5100012285 | Flexible tubing | 1 | ADD TO CART | |
| 15 | 5100011509 | Flexible tubing | 1 | ADD TO CART | |
| 16 | 5100012062 | Flexible tubing | 1 | ADD TO CART | |
| 16 | 5100012286 | Flexible tubing | 1 | ADD TO CART | |
| 17 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 18 | 5100013483 | Elbow adjustable | 2 | ADD TO CART | |
| 21 | 5100012271 | Flexible tubing | 1 | ADD TO CART | |
| 21 | 5100012288 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100012272 | Flexible tubing | 1 | ADD TO CART | |
| 22 | 5100012287 | Flexible tubing | 1 | ADD TO CART | |
| 23 | 5100013476 | Straight screwed socket | 2 | ADD TO CART | |
| 24 | 5100013483 | Elbow adjustable | 2 | ADD TO CART | |
| 26 | 5100012216 | Angle flange screwing | 2 | ADD TO CART | |
| 26 | 5100012723 | Cheese-head screw | 2 | ADD TO CART | |
| 26 | 5100012937 | Washer | 4 | ADD TO CART | |
| 26 | 5100013189 | Cheese-head screw | 2 | ADD TO CART | |
| 26 | 5100013612 | O-ring seal | 1 | ADD TO CART | |
| 27 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 31 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 32 | 5100013496 | Flexible tubing | 1 | ADD TO CART | |
| 32 | 5100012289 | Flexible tubing | 1 | ADD TO CART | |
| 33 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 35 | 5100013447 | Straight screwed socket | 1 | ADD TO CART | |
| 36 | 5100012277 | Flexible tubing | 1 | ADD TO CART | |
| 36 | 5100012290 | Flexible tubing | 1 | ADD TO CART | |
| 37 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 38 | 5100013482 | Elbow adjustable | 1 | ADD TO CART | |
| 51 | 5100013553 | Straight screwed socket | 1 | ADD TO CART | |
| 53 | 5100011456 | Flexible tubing | 1 | ADD TO CART | |
| 54 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 61 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 62 | 5100012305 | Flexible tubing | 1 | ADD TO CART | |
| 63 | 5100013499 | Straight screwed socket | 1 | ADD TO CART | |
| 70 | 5100012270 | Half-clip | 6 | ADD TO CART | |
| 71 | 5100012946 | Stud bolt | 6 | ADD TO CART | |
| 72 | 5100012298 | Cover plate | 2 | ADD TO CART | |
| 73 | 5100012966 | Locking washer | 6 | ADD TO CART | |
| 74 | 5100012546 | Hexagon nut | 6 | ADD TO CART | |
| 75 | 5100012051 | Metal plate | 1 | ADD TO CART | |
| 80 | 5100012256 | Clamp support | 2 | ADD TO CART | |
| 81 | 5100013510 | Hexagon screw | 4 | ADD TO CART | |
| 81 | 5100035087 | Hexagon screw | 4 | ADD TO CART | |
| 82 | 5100012966 | Locking washer | 8 | ADD TO CART | |
| 83 | 5100012546 | Hexagon nut | 4 | ADD TO CART | |
| 85 | 5100012270 | Half-clip | 4 | ADD TO CART | |
| 86 | 5100012946 | Stud bolt | 4 | ADD TO CART | |
| 87 | 5100012298 | Cover plate | 2 | ADD TO CART | |
| 88 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 89 | 5100011525 | Cap nut | 4 | ADD TO CART | |
Page 318 — Edge pressing and cuttingdevice
Parts list — exactly as printed47 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100012408 | Console | 1 | ADD TO CART | |
| 3 | 5100012413 | Lever | 1 | ADD TO CART | |
| 4 | 5100011474 | Taper roller bearing | 4 | ADD TO CART | |
| 5 | 5100011475 | Nilos ring | 3 | ADD TO CART | |
| 6 | 5100012399 | Axle | 1 | ADD TO CART | |
| 7 | 5100013518 | Spacer shim | 1 | ADD TO CART | |
| 8 | 5100013519 | Spacer shim | 1 | ADD TO CART | |
| 9 | 5100012979 | Spacer shim | 1 | ADD TO CART | |
| 10 | 5100011683 | Cover | 2 | ADD TO CART | |
| 11 | 5100012724 | Cheese-head screw | 6 | ADD TO CART | |
| 12 | 5100011716 | Cover | 1 | ADD TO CART | |
| 13 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 14 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 15 | 5100011767 | Flange | 1 | ADD TO CART | |
| 16 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 17 | 5100013450 | Cheese-head screw | 8 | ADD TO CART | |
| 20 | 5100057815 | Retaining ring | 1 | PARTS REQUEST | |
|
COMING Retaining ring
5100057815 · qty on machine: 1 | |||||
| 20 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 20 | 5100012400 | Cylinder | 1 | ADD TO CART | |
| 20 | 5100011686 | Set of seals | 1 | ADD TO CART | |
| 20 | 5100011563 | Radial rod end bearing | 1 | PARTS REQUEST | |
|
COMING Radial rod end bearing
5100011563 · qty on machine: 1 | |||||
| 22 | 5100011482 | Washer | 1 | ADD TO CART | |
| 23 | 5100035215 | Hexagon screw | 1 | ADD TO CART | |
| 24 | 5100012482 | Greasing nipple | 1 | ADD TO CART | |
| 25 | 5100011681 | Bolt | 1 | ADD TO CART | |
| 26 | 5100013609 | Radial rod end bearing | 1 | ADD TO CART | |
| 27 | 5100011680 | Spacer ring | 2 | ADD TO CART | |
| 28 | 5100012955 | Locking washer | 1 | ADD TO CART | |
| 29 | 5100012550 | Hexagon nut | 1 | ADD TO CART | |
| 30 | 5100012479 | Greasing nipple | 1 | ADD TO CART | |
| 31 | 5100012480 | Greasing nipple | 1 | ADD TO CART | |
| 32 | 5100013560 | Seal | 2 | ADD TO CART | |
| 47 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 48 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 51 | 5100053016 | Stud screw | 4 | ADD TO CART | |
| 52 | 5100012968 | Locking washer | 4 | ADD TO CART | |
| 53 | 5100012548 | Hexagon nut | 4 | ADD TO CART | |
| 2 | 5100012483 | Console | 1 | PARTS REQUEST | |
|
COMING Console
5100012483 · qty on machine: 1 | |||||
| 15 | 5100012485 | Flange | 1 | ADD TO CART | |
| 17 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 25 | 5100012484 | Bolt | 1 | ADD TO CART | |
| 28 | 5100013521 | Washer | 1 | ADD TO CART | |
| 29 | 5100013408 | Cheese-head screw | 1 | ADD TO CART | |
| 33 | 5100012414 | Ring | 2 | ADD TO CART | |
| 33 | 5100012754 | Cheese-head screw | 2 | ADD TO CART | |
| 60 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 61 | 5100012967 | Locking washer | 8 | ADD TO CART | |
Page 326 — Ancillary parts
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100027277 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027277 · qty on machine: 1 | |||||
| 2 | 5100015230 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015230 · qty on machine: 1 | |||||
| 5 | 5100015199 | Cutting disc | 1 | PARTS REQUEST | |
|
COMING Cutting disc
5100015199 · qty on machine: 1 | |||||
| 6 | 5100027279 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027279 · qty on machine: 1 | |||||
| 8 | 5100015232 | Roller | 1 | PARTS REQUEST | |
|
COMING Roller
5100015232 · qty on machine: 1 | |||||
| 9 | 5100027278 | Prssure roller | 1 | PARTS REQUEST | |
|
COMING Prssure roller
5100027278 · qty on machine: 1 | |||||
| 10 | 5100033238 | Holder | 1 | ADD TO CART | |
| 20 | 5100012520 | Hexagon screw | 2 | ADD TO CART | |
| 30 | 5100012967 | Locking washer | 2 | ADD TO CART | |
| 40 | 5100011789 | Pipe | 1 | ADD TO CART | |
| 50 | 5100011788 | Bracket | 1 | ADD TO CART | |
| 60 | 5100011790 | Bolt | 1 | ADD TO CART | |
| 70 | 5100013638 | Indicator | 1 | ADD TO CART | |
| 70 | 5100020851 | Indicator | 1 | ADD TO CART | |
| 80 | 5100013509 | Washer | 1 | ADD TO CART | |
| 90 | 5100011783 | Hand lever | 3 | ADD TO CART | |
| 1 | 5100053017 | Holder system | 1 | ADD TO CART | |
| 2 | 5100035238 | Cheese-head screw | 2 | ADD TO CART | |
| 3 | 5100012968 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100013628 | Pipe | 1 | ADD TO CART | |
| 6 | 5100013128 | Washer | 1 | ADD TO CART | |
| 7 | 5100013455 | Cheese-head screw | 1 | ADD TO CART | |
| 11 | 5100011767 | Flange | 1 | ADD TO CART | |
| 12 | 5100013450 | Cheese-head screw | 2 | ADD TO CART | |
| 13 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 14 | 5100012617 | Hexagon screw | 8 | ADD TO CART | |
| 1 | 5100011977 | Mounting device | 1 | ADD TO CART | |
| 2 | 5100012726 | Cheese-head screw | 2 | ADD TO CART | |
Page 332 — Hydraulic equipment
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012385 | Valve block | 1 | ADD TO CART | |
| 2 | 5100012332 | Cheese-head screw | 3 | ADD TO CART | |
| 3 | 5100013474 | Straight screwed socket | 1 | ADD TO CART | |
| 4 | 5100033239 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100033239 · qty on machine: 1 | |||||
| 4 | 5100033240 | Straight screwed socket | 1 | ADD TO CART | |
| 6 | 5100011975 | Flexible tubing | 1 | ADD TO CART | |
| 7 | 5100011976 | Flexible tubing | 1 | ADD TO CART | |
| 8 | 5100013482 | Elbow adjustable | 1 | ADD TO CART | |
| 9 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 10 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 25 | 5100011665 | Screw plug | 1 | ADD TO CART | |
| 26 | 5100011855 | Screw plug | 1 | ADD TO CART | |
| 31 | 5100013429 | Wire fastener | 10 | ADD TO CART | |
| 32 | 5100013573 | Wire fastener | 10 | ADD TO CART | |
| 13 | 5100013474 | Straight screwed socket | 2 | ADD TO CART | |
| 14 | 5100033239 | Nozzle | 1 | PARTS REQUEST | |
|
COMING Nozzle
5100033239 · qty on machine: 1 | |||||
| 14 | 5100033240 | Straight screwed socket | 1 | ADD TO CART | |
| 16 | 5100012980 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012980 · qty on machine: 1 | |||||
| 17 | 5100012982 | Flexible tubing | 1 | PARTS REQUEST | |
|
COMING Flexible tubing
5100012982 · qty on machine: 1 | |||||
| 18 | 5100013171 | Banjo | 1 | ADD TO CART | |
| 19 | 5100013492 | Straight screwed socket | 1 | PARTS REQUEST | |
|
COMING Straight screwed socket
5100013492 · qty on machine: 1 | |||||
| 40 | 5100012387 | Solenoid valve | 1 | ADD TO CART | |
Page 354 — Maintenance kits andrepair kits
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100042994 | Maintenance set | 1 | ADD TO CART | |
| 1 | 5100042998 | Service kit rd24/28-250h wncr0601/0901 | 1 | ADD TO CART | |
| 1 | 5100042999 | Maintena.set rd24/28-500h wncr0601/0901 | 1 | ADD TO CART | |
| 1 | 5100043000 | Mainten. set rd24/28-2000hwncr0601/0901 | 1 | ADD TO CART | |
Page 356 — Thermal aprons
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 15 | 5100053022 | Holder system | 1 | ADD TO CART | |
| 2 | 5100053018 | Holder system | 1 | ADD TO CART | |
| 2 | 5100053019 | Holder system | 1 | ADD TO CART | |
| 3 | 5100053020 | Holder system | 1 | ADD TO CART | |
| 3 | 5100053021 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100053021 · qty on machine: 1 | |||||
| 4 | 5100012515 | Hexagon screw | 12 | ADD TO CART | |
| 5 | 5100013094 | Washer | 12 | ADD TO CART | |
| 15 | 5100053023 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100053023 · qty on machine: 1 | |||||
| 16 | 5100034968 | Hexagon screw | 2 | ADD TO CART | |
| 17 | 5100012966 | Locking washer | 4 | ADD TO CART | |
| 18 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100053024 | Metal plate | 1 | ADD TO CART | |
| 41 | 5100012517 | Hexagon screw | 3 | ADD TO CART | |
| 42 | 5100013094 | Washer | 3 | ADD TO CART | |
| 51 | 5100053025 | Filler cap | 2 | ADD TO CART | |
| 52 | 5100050647 | Filler cap | 12 | ADD TO CART | |
| 53 | 5100012350 | Spacer block | 4 | ADD TO CART | |
| 54 | 5100022986 | Hexagon screw | 4 | ADD TO CART | |
| 20 | 5100053026 | Thermal aprons | 1 | ADD TO CART | |
| 21 | 5100053027 | Thermal aprons | 1 | ADD TO CART | |
| 22 | 5100053028 | Thermal aprons | 1 | ADD TO CART | |
| 22 | 5100053029 | Thermal aprons | 1 | ADD TO CART | |
| 24 | 5100053030 | Bolt rivet | 40 | ADD TO CART | |
| 25 | 5100053031 | Rotary lock | 20 | ADD TO CART | |
| 30 | 5100053032 | Flat steel | 2 | PARTS REQUEST | |
|
COMING Flat steel
5100053032 · qty on machine: 2 | |||||
| 31 | 5100053033 | Flat steel | 1 | PARTS REQUEST | |
|
COMING Flat steel
5100053033 · qty on machine: 1 | |||||
| 32 | 5100053034 | Mushroom head screw | 6 | ADD TO CART | |
| 33 | 5100013094 | Washer | 6 | ADD TO CART | |
| 34 | 5100012546 | Hexagon nut | 6 | ADD TO CART | |
| 43 | 5100053035 | Thermal aprons | 1 | ADD TO CART | |
| 43 | 5100053036 | Thermal aprons | 1 | PARTS REQUEST | |
|
COMING Thermal aprons
5100053036 · qty on machine: 1 | |||||
Page 360 — Bottle-support
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100023580 | Bottle-support | 1 | ADD TO CART | |
| 3 | 5100012598 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012598 · qty on machine: 4 | |||||
| 4 | 5100012936 | Washer | 4 | ADD TO CART | |
| 7 | 5100033246 | Holder | 1 | ADD TO CART | |
| 8 | 5100011701 | Distance bush | 4 | ADD TO CART | |
| 9 | 5100012946 | Stud bolt | 2 | ADD TO CART | |
| 10 | 5100012966 | Locking washer | 2 | ADD TO CART | |
| 11 | 5100012546 | Hexagon nut | 2 | ADD TO CART | |
Page 362 — Additional storage
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 150 | 5100029563 | Bag | 1 | ADD TO CART | |
| 151 | 5100023198 | Fillister head screw | 4 | PARTS REQUEST | |
|
COMING Fillister head screw
5100023198 · qty on machine: 4 | |||||
| 152 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 153 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 154 | 5100013523 | Washer | 4 | ADD TO CART | |
| 160 | 5100011866 | Sealing tape | 0.06 | ADD TO CART | |
Page 364 — Trailer coupling
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100013076 | Towing loop | 1 | ADD TO CART | |
| 6 | 5100013416 | Hexagon screw | 4 | ADD TO CART | |
| 7 | 5100012967 | Locking washer | 8 | ADD TO CART | |
| 8 | 5100012547 | Hexagon nut | 4 | ADD TO CART | |
Page 366 — Additional mirror
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 5100012901 | Mirror-retainer | 1 | Serialno. >767 | ADD TO CART |
| 21 | 5100012714 | Hexagon screw | 2 | Serialno. >767 | ADD TO CART |
| 22 | 5100011691 | Bushing | 2 | Serialno. >767 | ADD TO CART |
| 23 | 5100012966 | Locking washer | 4 | Serialno. >767 | ADD TO CART |
| 24 | 5100012546 | Hexagon nut | 2 | Serialno. >767 | ADD TO CART |
| 30 | 5100011540 | Stay bar | 1 | Serialno. >767 | ADD TO CART |
| 31 | 5100013510 | Hexagon screw | 2 | Serialno. >767 | ADD TO CART |
| 32 | 5100012966 | Locking washer | 4 | Serialno. >767 | ADD TO CART |
| 33 | 5100012546 | Hexagon nut | 2 | Serialno. >767 | ADD TO CART |
| 35 | 5100011539 | Stay bar | 1 | Serialno. >767 | ADD TO CART |
| 36 | 5100013510 | Hexagon screw | 2 | Serialno. >767 | ADD TO CART |
| 37 | 5100012966 | Locking washer | 4 | Serialno. >767 | ADD TO CART |
| 38 | 5100012546 | Hexagon nut | 2 | Serialno. >767 | ADD TO CART |
| 40 | 5100011541 | Mirror | 2 | Serialno. >767 | ADD TO CART |
| 20 | 5100066910 | Mirror-retainer | 1 | Serialno. >768 | ADD TO CART |
| 21 | 5100066911 | Hexagon screw | 2 | Serialno. >768 | ADD TO CART |
| 22 | 5100066912 | Distance piece | 2 | Serialno. >768 | ADD TO CART |
| 30 | 5100067838 | Stay bar | 1 | Serialno. >768 | ADD TO CART |
| 31 | 5100012613 | Hexagon screw | 2 | Serialno. >768 | ADD TO CART |
| 35 | 5100067837 | Stay bar | 1 | Serialno. >768 | PARTS REQUEST |
|
COMING Stay bar
5100067837 · qty on machine: 1 Serialno. >768 | |||||
| 36 | 5100012613 | Hexagon screw | 2 | Serialno. >768 | ADD TO CART |
| 40 | 5100067839 | Mirror | 2 | Serialno. >768 | ADD TO CART |
Page 370 — Compactometer
Parts list — exactly as printed41 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100033251 | Holder system | 1 | PARTS REQUEST | |
|
COMING Holder system
5100033251 · qty on machine: 1 | |||||
| 4 | 5100012718 | Cheese-head screw | 2 | ADD TO CART | |
| 5 | 5100012936 | Washer | 2 | ADD TO CART | |
| 6 | 5100033252 | Bushing | 2 | ADD TO CART | |
| 10 | 5100033253 | Calculator | 1 | PARTS REQUEST | |
|
COMING Calculator
5100033253 · qty on machine: 1 | |||||
| 11 | 5100033254 | Cheese-head screw | 2 | ADD TO CART | |
| 12 | 5100013453 | Washer | 2 | ADD TO CART | |
| 13 | 5100012936 | Washer | 2 | ADD TO CART | |
| 14 | 5100012898 | Hexagon nut | 2 | ADD TO CART | |
| 16 | 5100033255 | Blade-type fuse | 2 | PARTS REQUEST | |
|
COMING Blade-type fuse
5100033255 · qty on machine: 2 | |||||
| 16 | 5100033256 | Cable harness | 1 | Serialno. <613 | PARTS REQUEST |
|
COMING Cable harness
5100033256 · qty on machine: 1 Serialno. <613 | |||||
| 18 | 5100033257 | Splash protection | 1 | PARTS REQUEST | |
|
COMING Splash protection
5100033257 · qty on machine: 1 | |||||
| 20 | 5100033258 | Acceleration sensor | 1 | ADD TO CART | |
| 41 | 5100033259 | Cable harness | 1 | PARTS REQUEST | |
|
COMING Cable harness
5100033259 · qty on machine: 1 | |||||
| 50 | 5100025103 | Instrument panel | 1 | ADD TO CART | |
| 51 | 5100025100 | Covering part | 1 | ADD TO CART | |
| 52 | 5100011580 | Blind cover | 1 | ADD TO CART | |
| 21 | 5100033260 | Cheese-head screw | 2 | Serialno. 160-1242 | ADD TO CART |
| 25 | 5100033261 | Holder | 1 | Serialno. 160-1242 | PARTS REQUEST |
|
COMING Holder
5100033261 · qty on machine: 1 Serialno. 160-1242 | |||||
| 26 | 5100013597 | Hexagon screw | 3 | Serialno. 160-1242 | ADD TO CART |
| 27 | 5100012967 | Locking washer | 3 | Serialno. 160-1242 | ADD TO CART |
| 30 | 5100033262 | Housing | 1 | Serialno. 160-1242 | ADD TO CART |
| 31 | 5100012572 | Hexagon screw | 1 | Serialno. 160-1242 | PARTS REQUEST |
|
COMING Hexagon screw
5100012572 · qty on machine: 1 Serialno. 160-1242 | |||||
| 32 | 5100012965 | Locking washer | 3 | Serialno. 160-1242 | ADD TO CART |
| 33 | 5100023046 | Hexagon screw | 1 | Serialno. 160-1242 | ADD TO CART |
| 34 | 5100033263 | Pipe clip | 1 | Serialno. 160-1242 | ADD TO CART |
| 35 | 5100012545 | Hexagon nut | 1 | Serialno. 160-1242 | ADD TO CART |
| 36 | 5100033264 | Half-clip | 2 | Serialno. 160-1242 | ADD TO CART |
| 37 | 5100033265 | Weld-on plate | 1 | Serialno. 160-1242 | ADD TO CART |
| 38 | 5100012965 | Locking washer | 2 | Serialno. 160-1242 | ADD TO CART |
| 39 | 5100013466 | Hexagon screw | 2 | Serialno. 160-1242 | ADD TO CART |
| 40 | 5100033266 | Temperature probe | 1 | Serialno. 160-1242 | ADD TO CART |
| 42 | 5100033267 | Lid | 1 | Serialno. 160-1242 | ADD TO CART |
| 43 | 5100033235 | Fillister head screw | 2 | Serialno. 160-1242 | ADD TO CART |
| 5 | 5100073267 | Distance bush | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Distance bush
5100073267 · qty on machine: 1 Serialno. >1243 | |||||
| 6 | 5100012608 | Hexagon screw | 2 | Serialno. >1243 | ADD TO CART |
| 8 | 5100012965 | Locking washer | 2 | Serialno. >1243 | ADD TO CART |
| 30 | 5100073268 | Flange | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Flange
5100073268 · qty on machine: 1 Serialno. >1243 | |||||
| 31 | 5100073269 | Knurled head screw | 2 | Serialno. >1243 | PARTS REQUEST |
|
COMING Knurled head screw
5100073269 · qty on machine: 2 Serialno. >1243 | |||||
| 33 | 5100035597 | O-ring seal | 1 | Serialno. >1243 | ADD TO CART |
| 41 | 5100082841 | Wire harness sensor | 1 | Serialno. >1243 | PARTS REQUEST |
|
COMING Wire harness sensor
5100082841 · qty on machine: 1 Serialno. >1243 | |||||
Page 376 — Automatic engine stop
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100011583 | Relay | 1 | ADD TO CART | |
| 2 | 5100029573 | Cable harness | 1 | ADD TO CART | |
| 2 | 5100033268 | Diode | 1 | ADD TO CART | |
| 4 | 5100029566 | Slow-release relay | 1 | ADD TO CART | |
Page 378 — Fire extinguisher
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100033269 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100033269 · qty on machine: 1 | |||||
| 3 | 5100012572 | Hexagon screw | 2 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 2 | |||||
| 4 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 5 | 5100012420 | Blind rivet nut | 2 | ADD TO CART | |
| 10 | 5100022903 | Fire extinguisher | 1 | ADD TO CART | |
| 11 | 5100033270 | Countersunk screw | 2 | ADD TO CART | |
| 12 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 13 | 5100013599 | Clip nut | 2 | ADD TO CART | |
| 20 | 5100022903 | Fire extinguisher | 1 | ADD TO CART | |
| 21 | 5100013409 | Countersunk screw | 2 | ADD TO CART | |
| 22 | 5100012965 | Locking washer | 2 | ADD TO CART | |
| 23 | 5100012936 | Washer | 2 | ADD TO CART | |
| 24 | 5100012898 | Hexagon nut | 2 | ADD TO CART | |
Page 380 — Homologation italy
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100012007 | Metal plate | 1 | ADD TO CART | |
| 4 | 5100012001 | Wire harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 1 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 1 | ADD TO CART | |
| 8 | 5100017998 | Hexagonal nut | 2 | ADD TO CART | |
| 10 | 5100012607 | Hexagon screw | 4 | ADD TO CART | |
| 11 | 5100013536 | Serrated lock washer | 12 | ADD TO CART | |
| 12 | 5100012898 | Hexagon nut | 8 | ADD TO CART | |
| 13 | 5100013453 | Washer | 8 | ADD TO CART | |
| 40 | 5100013573 | Wire fastener | 2 | ADD TO CART | |
| 100 | 5100012143 | Bracket | 1 | ADD TO CART | |
| 102 | 5100012572 | Hexagon screw | 4 | PARTS REQUEST | |
|
COMING Hexagon screw
5100012572 · qty on machine: 4 | |||||
| 103 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 120 | 5100013573 | Wire fastener | 5 | ADD TO CART | |
Page 382 — Homologation brazil
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100025909 | Holder | 1 | ADD TO CART | |
| 4 | 5100025910 | Cable harness | 1 | ADD TO CART | |
| 5 | 5100011549 | License plate light | 2 | ADD TO CART | |
| 6 | 5100012467 | Lamp | 2 | ADD TO CART | |
| 7 | 5100012965 | Locking washer | 4 | ADD TO CART | |
| 8 | 5100012545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100025881 | Fillister head screw | 4 | ADD TO CART | |
| 11 | 5100013599 | Clip nut | 4 | ADD TO CART | |
| 18 | 5100035014 | Hexagon screw | 4 | ADD TO CART | |
| 19 | 5100012967 | Locking washer | 4 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson RD28-120 roller.
Available in 3 configurations.
List price: $87,000.00 – $103,500.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5100011416
Intermediate piece
$82.95
5100011417
Pipe clip
$20.95
5100011419
O-ring seal
$1.95
5100011443
Cheese-head screw
$1.95
5100011444
Elbow
$5.95
5100011446
O-ring seal
$10.95
5100011447
O-ring seal
$36.95
5100011448
O-ring seal
$7.95
5100011452
Screw plug
$20.95
5100011453
Screw plug
$115.95
5100011454
Screw plug
$21.95
5100011456
Flexible tubing
$66.95
5100011458
Shrinkdown plastic tubing
$6.95
5100011461
Straight screwed socket
$3.95
5100011464
Threaded bolt
$16.95
5100011465
Pipe clip
$4.95
5100011470
Pipe clip
$18.95
5100011471
Stud bolt
$4.95
5100011472
Ball-closure cock
$102.95
5100011473
Hexagon screw
$4.95
5100011474
Taper roller bearing
$286.95
5100011475
Nilos ring
$76.95
5100011479
Hexagon screw
$1.95
5100011481
Cheese-head screw
$1.95
5100011482
Washer
$2.95
5100011483
Hexagon screw
5100011485
Cheese-head screw
$2.95
5100011488
Nut
$3.95
5100011489
Filtering screen
$4.95
5100011493
Hexagon screw
$10.95
5100011497
Cheese-head screw
$4.95
5100011498
Silentbloc
$18.95
5100011500
O-ring seal
$3.95
5100011501
O-ring seal
$8.95
5100011504
Hexagon screw
$9.95
5100011509
Flexible tubing
$182.95
5100011511
Seal nut
$8.95
5100011516
O-ring seal
$4.95
5100011518
Seat cushion
$817.95
5100011519
Backrest cushion
$609.95
5100011521
Valve
$457.95
5100011524
Shrinkdown plastic tubing
$39.95
5100011525
Cap nut
$2.95
5100011526
Elbow
$7.95
5100011527
Angle screwed socket
$12.95
5100011528
Rubber piece
$127.95
5100011529
Sprinkler nozzle
$11.95
5100011531
Flexible tubing
$158.95
5100011532
Pipe clip
$5.95
5100011534
Membrane
$2.95
5100011535
Cap nut
$12.95
5100011537
Filler cap
$1.95
5100011538
Screw plug
$9.95
5100011539
Stay bar
$553.95
5100011540
Stay bar
$536.95
5100011541
Mirror
$241.95
5100011544
Clip nut
$6.95
5100011546
Pipe clip
$15.95
5100011549
License plate light
$107.95
5100011550
Plug
$1.95
5100011552
Gear hub motor
$4,113.95
5100011561
Dust discharge valve
$34.95
5100011563
Radial rod end bearing
5100011564
Screw plug
$14.95
5100011566
Flexible tubing
$104.95
5100011568
Hydraulic regulation
$3,800.95
5100011569
Connection plate
5100011570
Control device
5100011571
Pressure-relief valve
5100011572
Piston ring
$133.95
5100011573
Set of seals
$239.95
5100011574
Set of seals
$523.95
5100011577
Protecting cap
$2.95
5100011578
Mushroom head screw
$1.95
5100011580
Blind cover
$10.95
5100011581
Fillister head screw
$1.95
5100011582
Blade fuse
$1.95
5100011583
Relay
$41.95
5100011584
Mushroom head screw
$2.95
5100011585
Cheese-head screw
$3.95
5100011586
Hexagon nut
$1.95
5100011587
Safety screw
$3.95
5100011589
Flexible tubing
$105.95
5100011590
Safety cord
$9.95
5100011592
Grommet
$21.95
5100011593
Steering unit
$2,690.95
5100011595
Frame
$20.95
5100011597
Push-button
$182.95
5100011599
Hexagon nut
$2.95
5100011606
Working light
$450.95
5100011607
Sheet metal screw
$1.95
5100011608
Screw plug
$5.95
5100011609
Flexible tubing
$167.95
5100011612
Hexagon screw
$2.95
5100011614
Feeding pressure valve
5100011615
Handle
$41.95
5100011616
Relay
$61.95
5100011617
Locking ring
$20.95
5100011630
Hinge
$39.95
5100011631
Grooved ball bearing
$123.95
5100011632
Extractor for blade fuses
$136.95
5100011634
Sheet metal screw
$1.95
5100011635
Stud bolt
$8.95
5100011636
Washer
$1.95
5100011637
Hose clip
$4.95
5100011640
Blade fuse
$16.95
5100011642
Scavenge valve
$790.95
5100011644
Radial rod end bearing
$300.95
5100011645
Flexible tubing
$80.95
5100011646
Hexagon nut
$4.95
5100011651
Membrane holder
$18.95
5100011652
Bushing
$5.95
5100011653
Mounting
$2.95
5100011656
Filler cap
$1.95
5100011662
Flexible tubing
$176.95
5100011663
Cap
$42.95
5100011664
Hose fitting
$19.95
5100011665
Screw plug
$7.95
5100011666
Angle screwed socket
$6.95
5100011668
Pipe clip
$15.95
5100011669
Rubber metal buffer
$17.95
5100011670
Flexible tubing
$22.95
5100011671
Screw plug
$4.95
5100011673
Cooling-water hose
$45.95
5100011675
O-ring seal
$2.95
5100011680
Spacer ring
$17.95
5100011681
Bolt
$95.95
5100011682
Bushing
$6.95
5100011683
Cover
$90.95
5100011684
Metal plate
$48.95
5100011685
Set of seals
$604.95
5100011686
Set of seals
$541.95
5100011687
Stop ring
$40.95
5100011688
Locking washer
$77.95
5100011689
Toothed belt pulley
$823.95
5100011690
Toothed belt pulley
$1,269.95
5100011691
Bushing
$11.95
5100011692
Sticker
$8.95
5100011695
U-washer
$15.95
5100011696
Metal plate
$15.95
5100011698
Spacer block
$16.95
5100011701
Distance bush
$17.95
5100011702
Sticker
$16.95
5100011704
Carrier star
$1,384.95
5100011705
Handle
$49.95
5100011706
Handle
$49.95
5100011707
Operating lever
$42.95
5100011708
Cover
$10.95
5100011709
Circuit board
$21.95
5100011710
Cover
5100011711
Cover
5100011716
Cover
$36.95
5100011717
Spacer block
$24.95
5100011718
Metal plate
$23.95
5100011719
Metal plate
$30.95
5100011728
Metal plate
$9.95
5100011730
Spacer pin
$37.95
5100011731
Rubber washer
$2.95
5100011733
Angle joint
$14.95
5100011734
Rubber metal buffer
$41.95
5100011736
O-ring seal
$4.95
5100011738
Raised countersunk head screw
$1.95
5100011739
Fillister head screw
$1.95
5100011741
O-ring seal
5100011742
O-ring seal
$10.95
5100011743
Screw plug
$10.95
5100011744
Fillister head screw
$2.95
5100011745
O-ring seal
$26.95
5100011747
Hexagon nut
$14.95
5100011748
Rear reflector
$16.95
5100011749
Hose nozzle
$8.95
5100011750
Screw plug
$71.95
5100011751
Distance bush
$136.95
5100011752
Sealing ring
$1.95
5100011753
Washer
$1.95
5100011754
Flexible tubing
$103.95
5100011761
Sealing ring
5100011763
Straight screwed socket
$7.95
5100011764
Filter
$9.95
5100011765
Nozzle holder
$51.95
5100011766
Cap nut
$6.95
5100011767
Flange
$737.95
5100011772
Sprinkler nozzle
$17.95
5100011776
Bolt
$69.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
