Wacker Neuson RD7 Roller
The parts bench

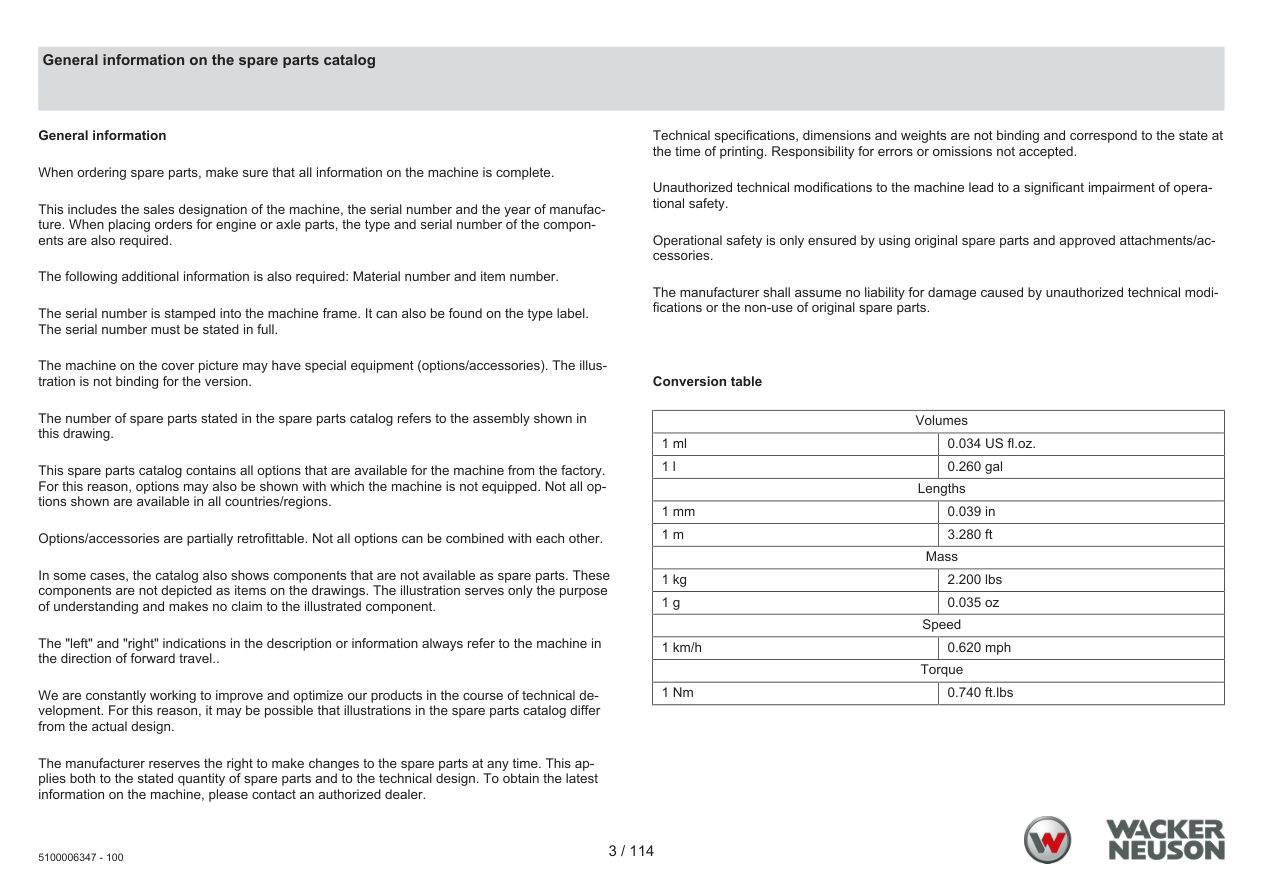

Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 14 — Drum cpl. (front)
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006584 | Drum | 1 | ADD TO CART | |
| 2 | 5100006932 | Flange | 1 | ADD TO CART | |
| 3 | 5100006600 | Centering ring | 1 | ADD TO CART | |
| 4 | 5100006581 | Holder | 1 | ADD TO CART | |
| 5 | 5100006468 | Hydraulic motor | 1 | ADD TO CART | |
| 5 | 5100006902 | Gasket set | 1 | ADD TO CART | |
| 5 | 5100007604 | Gasket set | 1 | PARTS REQUEST | |
|
COMING Gasket set
5100007604 · qty on machine: 1 | |||||
| 7 | 5100006570 | Male stud connector | 1 | ADD TO CART | |
| 8 | 5100006615 | Hexagon head screw | 7 | ADD TO CART | |
| 9 | 5100006538 | Washer | 7 | ADD TO CART | |
| 10 | 5100006552 | Washer | 5 | ADD TO CART | |
| 11 | 5100006625 | Lock washer | 7 | ADD TO CART | |
| 12 | 5100006675 | Hexagon head screw | 5 | ADD TO CART | |
| 13 | 5100006569 | Male stud connector | 2 | ADD TO CART | |
| 14 | 5100006538 | Washer | 14 | ADD TO CART | |
| 15 | 5100006616 | Hexagon head screw | 8 | ADD TO CART | |
| 16 | 5100006557 | Hexagon head screw | 6 | ADD TO CART | |
| 17 | 5100006602 | Spacing ring | 1 | ADD TO CART | |
| 18 | 5100006608 | Covering | 1 | ADD TO CART | |
| 19 | 5100006633 | V-ring | 1 | ADD TO CART | |
| 20 | 5100006582 | Bearing pin | 1 | ADD TO CART | |
| 21 | 5100006601 | Sealing ring | 1 | ADD TO CART | |
| 22 | 5100006585 | Bearing house | 1 | ADD TO CART | |
| 23 | 5100006594 | Rotary shaft seal | 1 | ADD TO CART | |
| 24 | 5100006593 | Cylindrical roller bearing | 1 | ADD TO CART | |
| 25 | 5100006628 | Plug | 2 | ADD TO CART | |
| 26 | 5100006529 | Hexagon head screw | 2 | ADD TO CART | |
| 27 | 5100006546 | Washer | 3 | ADD TO CART | |
| 28 | 5100006634 | Retaining ring | 1 | ADD TO CART | |
| 29 | 5100006549 | O-ring | 1 | ADD TO CART | |
| 30 | 5100006626 | Cheese head screw | 1 | ADD TO CART | |

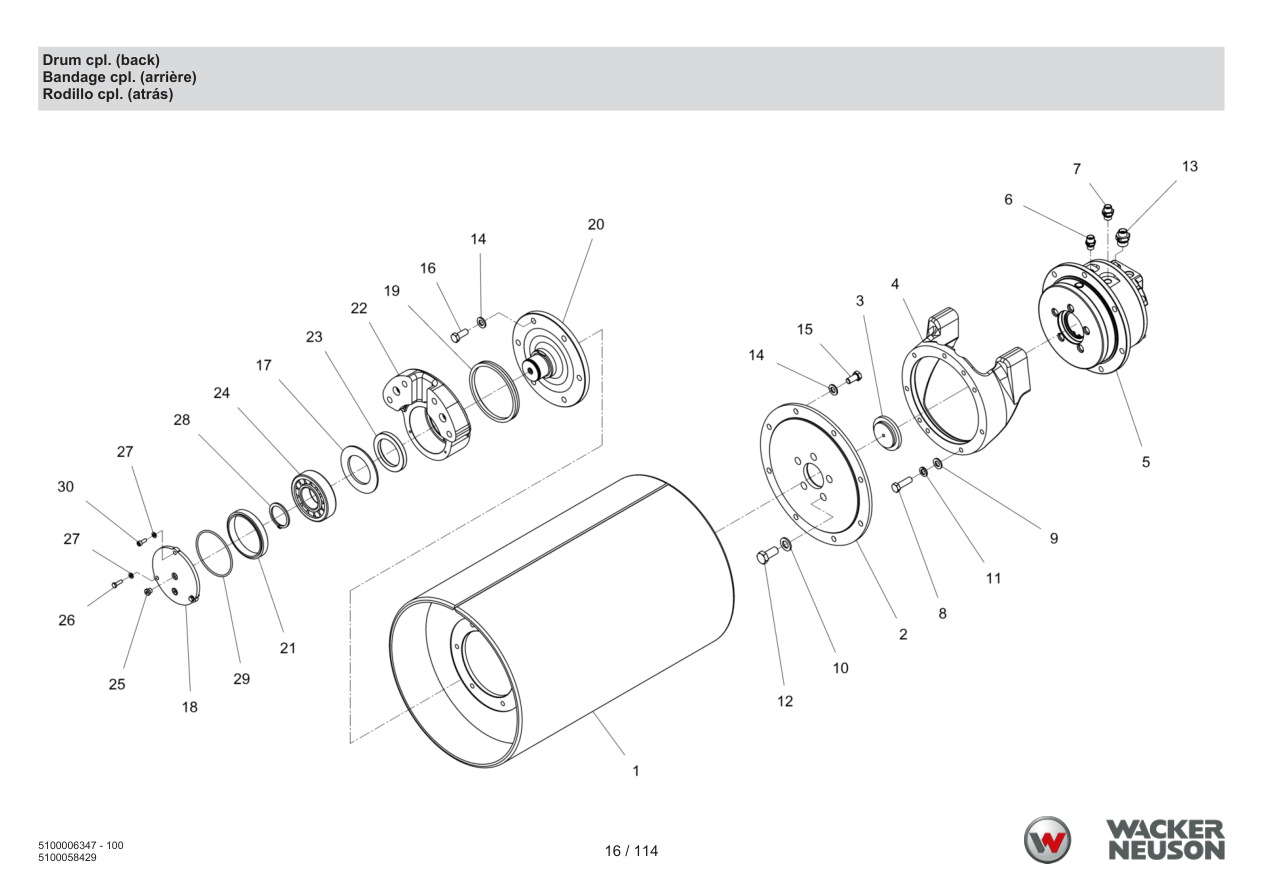

Page 16 — Drum cpl. (back)
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006584 | Drum | 1 | ADD TO CART | |
| 2 | 5100006932 | Flange | 1 | ADD TO CART | |
| 3 | 5100006600 | Centering ring | 1 | ADD TO CART | |
| 4 | 5100006581 | Holder | 1 | ADD TO CART | |
| 5 | 5100006469 | Hydraulic motor | 1 | ADD TO CART | |
| 5 | 5100007604 | Gasket set | 1 | PARTS REQUEST | |
|
COMING Gasket set
5100007604 · qty on machine: 1 | |||||
| 6 | 5100006568 | Male stud connector | 1 | ADD TO CART | |
| 7 | 5100006570 | Male stud connector | 1 | ADD TO CART | |
| 8 | 5100006615 | Hexagon head screw | 7 | ADD TO CART | |
| 9 | 5100006538 | Washer | 7 | ADD TO CART | |
| 10 | 5100006552 | Washer | 5 | ADD TO CART | |
| 11 | 5100006625 | Lock washer | 7 | ADD TO CART | |
| 12 | 5100006675 | Hexagon head screw | 5 | ADD TO CART | |
| 13 | 5100006569 | Male stud connector | 2 | ADD TO CART | |
| 14 | 5100006538 | Washer | 14 | ADD TO CART | |
| 15 | 5100006616 | Hexagon head screw | 8 | ADD TO CART | |
| 16 | 5100006557 | Hexagon head screw | 6 | ADD TO CART | |
| 17 | 5100006602 | Spacing ring | 1 | ADD TO CART | |
| 18 | 5100006608 | Covering | 1 | ADD TO CART | |
| 19 | 5100006633 | V-ring | 1 | ADD TO CART | |
| 20 | 5100006582 | Bearing pin | 1 | ADD TO CART | |
| 21 | 5100006601 | Sealing ring | 1 | ADD TO CART | |
| 22 | 5100006585 | Bearing house | 1 | ADD TO CART | |
| 23 | 5100006594 | Rotary shaft seal | 1 | ADD TO CART | |
| 24 | 5100006593 | Cylindrical roller bearing | 1 | ADD TO CART | |
| 25 | 5100006628 | Plug | 2 | ADD TO CART | |
| 26 | 5100006529 | Hexagon head screw | 2 | ADD TO CART | |
| 27 | 5100006546 | Washer | 3 | ADD TO CART | |
| 28 | 5100006634 | Retaining ring | 1 | ADD TO CART | |
| 29 | 5100006549 | O-ring | 1 | ADD TO CART | |
| 30 | 5100006626 | Cheese head screw | 1 | ADD TO CART | |

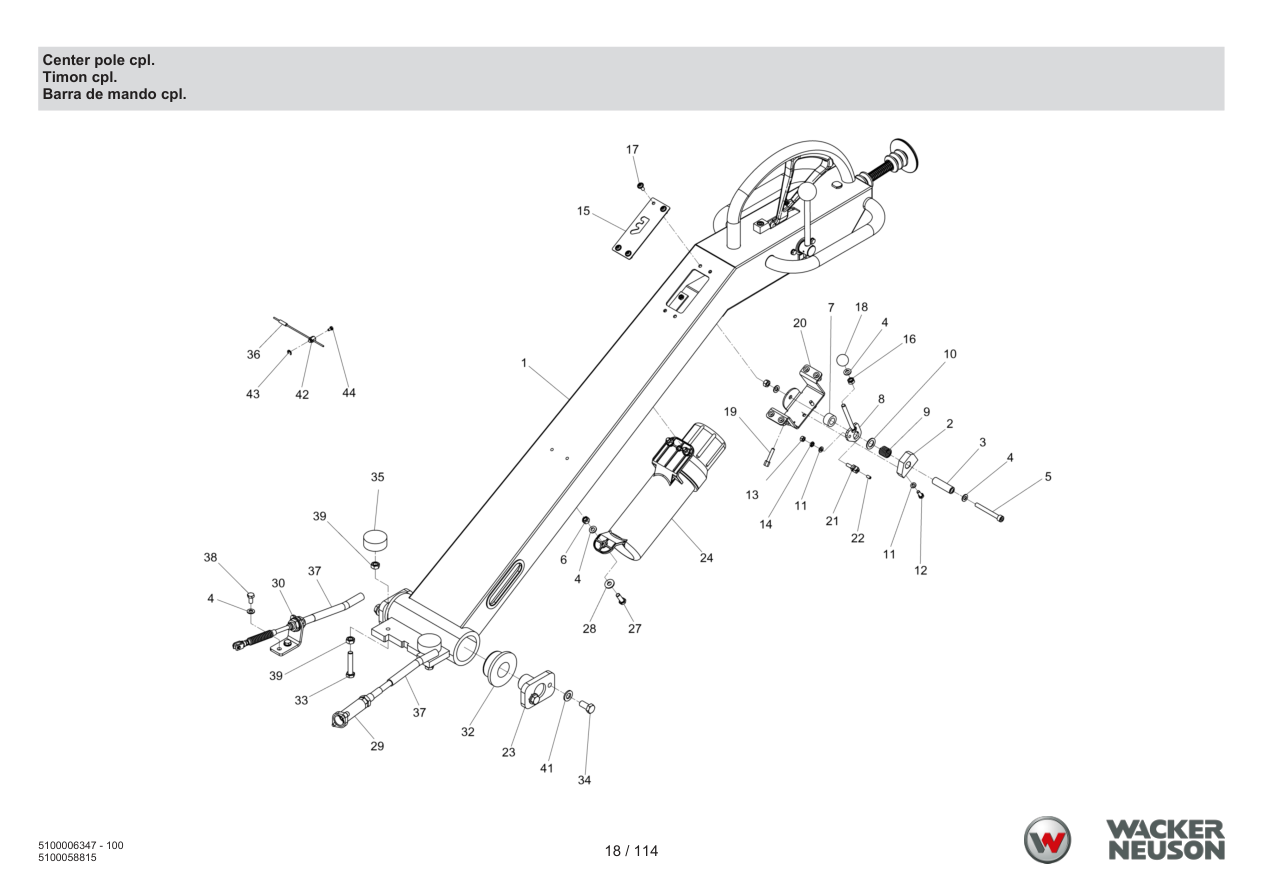

Page 18 — Center pole cpl.
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006841 | Center pole | 1 | ADD TO CART | |
| 2 | 5100006705 | Plate | 1 | ADD TO CART | |
| 3 | 5100006880 | Collar | 1 | ADD TO CART | |
| 4 | 5100006553 | Washer | 8 | ADD TO CART | |
| 5 | 5100006881 | Cheese head scre | 1 | ADD TO CART | |
| 6 | 5100006543 | Hexagon nut | 4 | ADD TO CART | |
| 7 | 5100006882 | Spacer ring | 1 | ADD TO CART | |
| 8 | 5100006883 | Lever | 1 | ADD TO CART | |
| 9 | 5100006708 | Spring | 1 | ADD TO CART | |
| 10 | 5100006709 | Washer | 1 | ADD TO CART | |
| 11 | 5100006546 | Washer | 3 | ADD TO CART | |
| 12 | 5100006539 | Hexagon head screw | 2 | ADD TO CART | |
| 13 | 5100006542 | Hexagon nut | 1 | ADD TO CART | |
| 14 | 5100006740 | Hexagon nut | 1 | ADD TO CART | |
| 15 | 5100006834 | Cover | 1 | ADD TO CART | |
| 16 | 5100006562 | Hexagon nut | 1 | ADD TO CART | |
| 17 | 5100006661 | Screw | 4 | ADD TO CART | |
| 18 | 5100006739 | Handle ball | 1 | ADD TO CART | |
| 19 | 5100006779 | Adjustment screw | 1 | ADD TO CART | |
| 20 | 5100006884 | Bracket | 1 | ADD TO CART | |
| 21 | 5100006831 | Pivot | 1 | ADD TO CART | |
| 22 | 5100006866 | Threaded pin | 1 | ADD TO CART | |
| 23 | 5100006636 | Drawbar holder | 2 | ADD TO CART | |
| 24 | 5100006780 | Document box | 1 | ADD TO CART | |
| 27 | 5100006537 | Hexagon head screw | 3 | ADD TO CART | |
| 28 | 5100006547 | Washer | 3 | ADD TO CART | |
| 29 | 5100006610 | Valve cover | 1 | ADD TO CART | |
| 30 | 5100006599 | Holder | 1 | ADD TO CART | |
| 32 | 5100006583 | Drawbar busch | 2 | ADD TO CART | |
| 33 | 5100006652 | Hexagon head screw | 2 | ADD TO CART | |
| 34 | 5100006616 | Hexagon head screw | 4 | ADD TO CART | |
| 35 | 5100006623 | Drawbar buffer | 2 | ADD TO CART | |
| 36 | 5100007405 | Bowden cable | 1 | PARTS REQUEST | |
|
COMING Bowden cable
5100007405 · qty on machine: 1 | |||||
| 37 | 5100006524 | Protective sleeve | 0.3 | ADD TO CART | |
| 38 | 5100006558 | Hexagon head screw | 2 | ADD TO CART | |
| 39 | 5100006563 | Hexagon nut | 4 | ADD TO CART | |
| 41 | 5100006538 | Washer | 4 | ADD TO CART | |
| 42 | 5100006930 | Clamping part | 1 | ADD TO CART | |
| 43 | 5100006928 | Retaining ring 5 | 1 | ADD TO CART | |
| 44 | 5100006929 | Hexagonal head cap screw m4x8 | 1 | ADD TO CART | |

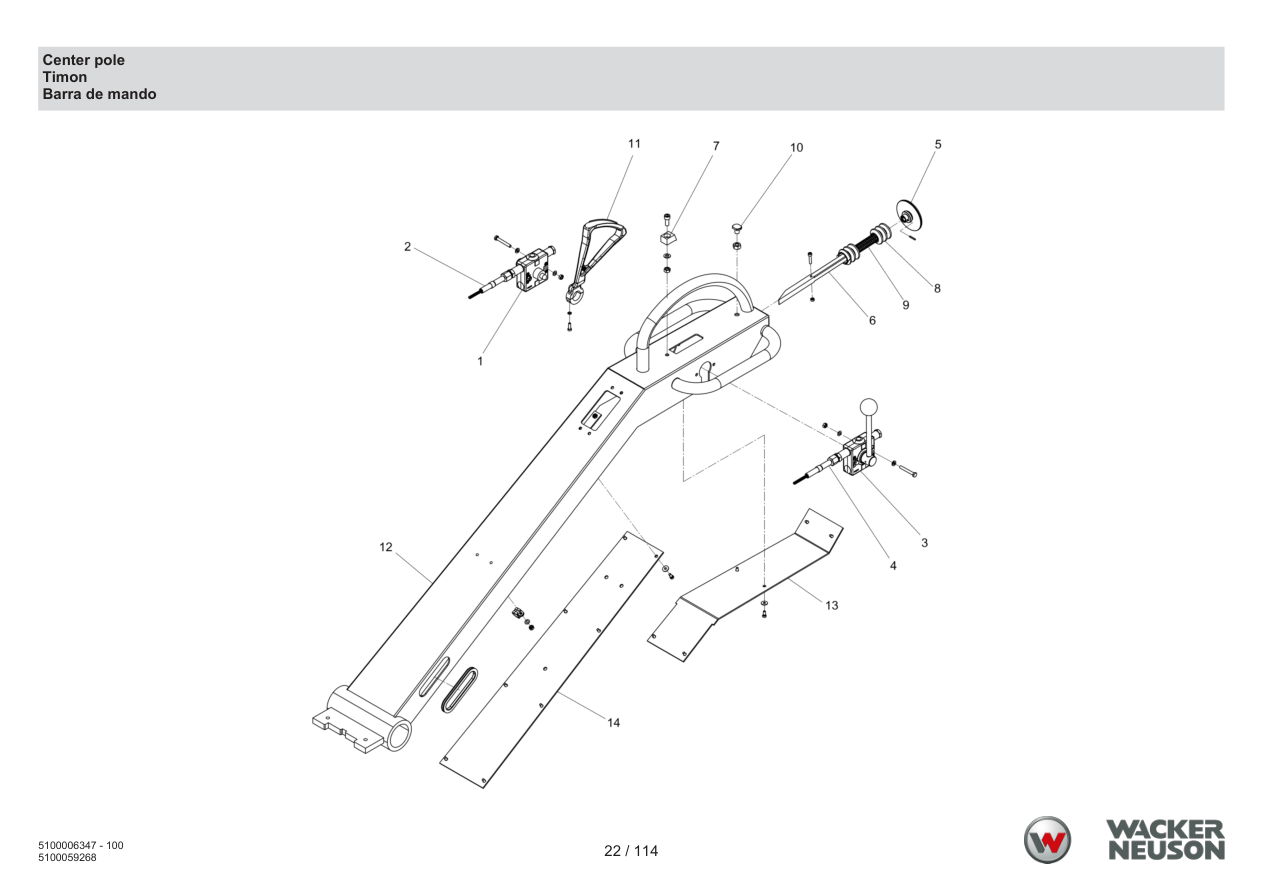

Page 22 — Center pole
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006886 | Operating lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100006887 | Bowden cable | 1 | ADD TO CART | |
| 3 | 5100006888 | Governor lever | 1 | ADD TO CART | |
| 4 | 5100006889 | Bowden cable | 1 | ADD TO CART | |
| 5 | 5100006890 | Off-switch | 1 | ADD TO CART | |
| 6 | 5100007603 | Bolt | 1 | PARTS REQUEST | |
|
COMING Bolt
5100007603 · qty on machine: 1 | |||||
| 7 | 5100006892 | Leaver stop | 1 | ADD TO CART | |
| 8 | 5100006893 | Bellows | 1 | ADD TO CART | |
| 9 | 5100006894 | Compression spring | 1 | ADD TO CART | |
| 10 | 5100006895 | Screw | 1 | ADD TO CART | |
| 11 | 5100006896 | Drive lever | 1 | ADD TO CART | |
| 12 | 5100006897 | Center pole | 1 | ADD TO CART | |
| 13 | 5100006898 | Covering | 1 | ADD TO CART | |
| 14 | 5100006899 | Covering | 1 | ADD TO CART | |

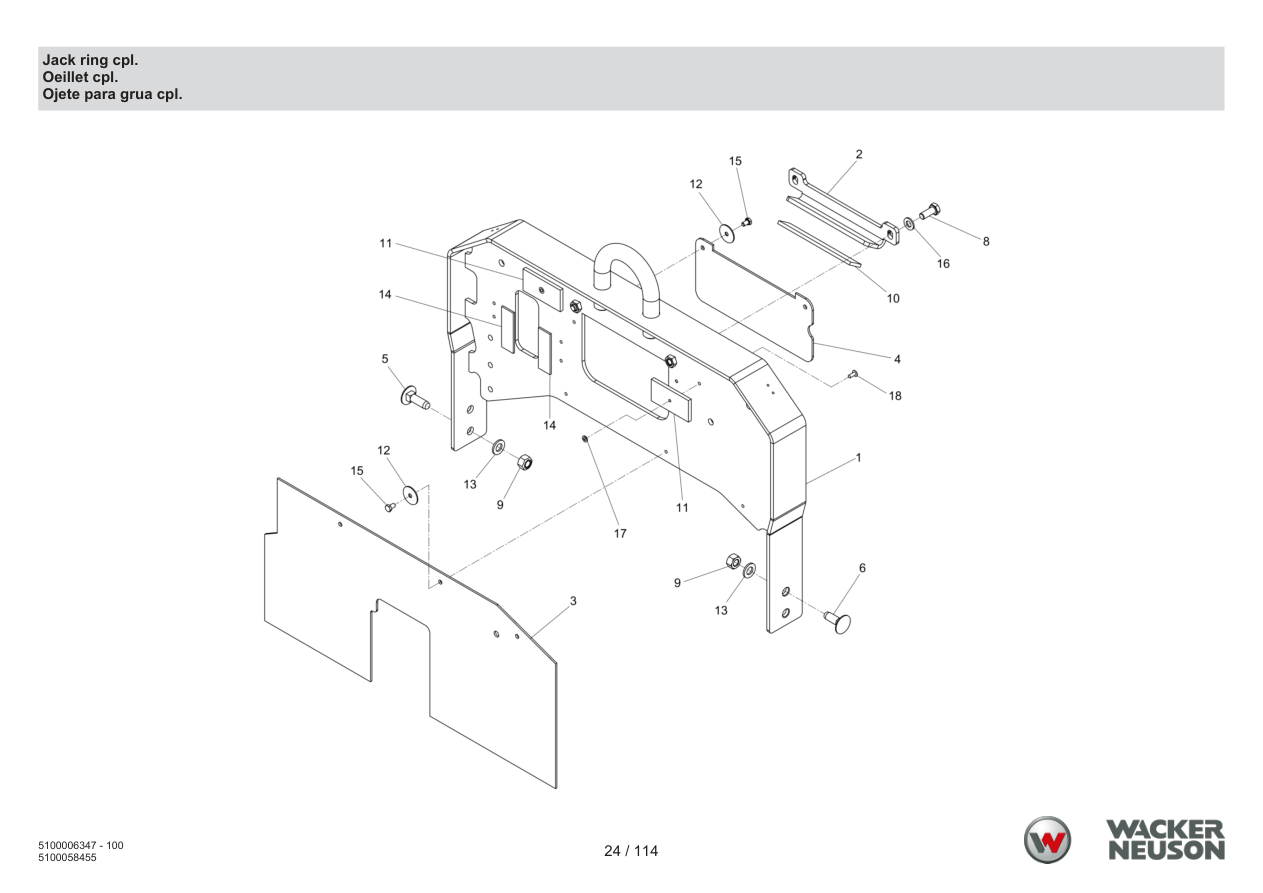

Page 24 — Jack ring cpl.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006644 | Lifting bail | 1 | ADD TO CART | |
| 2 | 5100006645 | Retaining plate | 1 | ADD TO CART | |
| 3 | 5100006838 | Covering | 1 | ADD TO CART | |
| 4 | 5100006839 | Covering | 1 | ADD TO CART | |
| 5 | 5100006657 | Screw | 2 | ADD TO CART | |
| 6 | 5100006828 | Screw | 2 | ADD TO CART | |
| 8 | 5100006556 | Hexagon head screw | 2 | ADD TO CART | |
| 9 | 5100006545 | Hexagon nut | 4 | ADD TO CART | |
| 10 | 5100006682 | Rubber insert | 1 | ADD TO CART | |
| 11 | 5100006684 | Rubber insert | 2 | ADD TO CART | |
| 12 | 5100006534 | Distance washer | 5 | ADD TO CART | |
| 13 | 5100006538 | Washer | 4 | ADD TO CART | |
| 14 | 5100006840 | Rubber insert | 2 | ADD TO CART | |
| 15 | 5100006528 | Hexagon head screw | 5 | ADD TO CART | |
| 16 | 5100006551 | Washer | 2 | ADD TO CART | |
| 17 | 5100006914 | Disc | 2 | ADD TO CART | |
| 18 | 5100006915 | Rivet | 2 | ADD TO CART | |

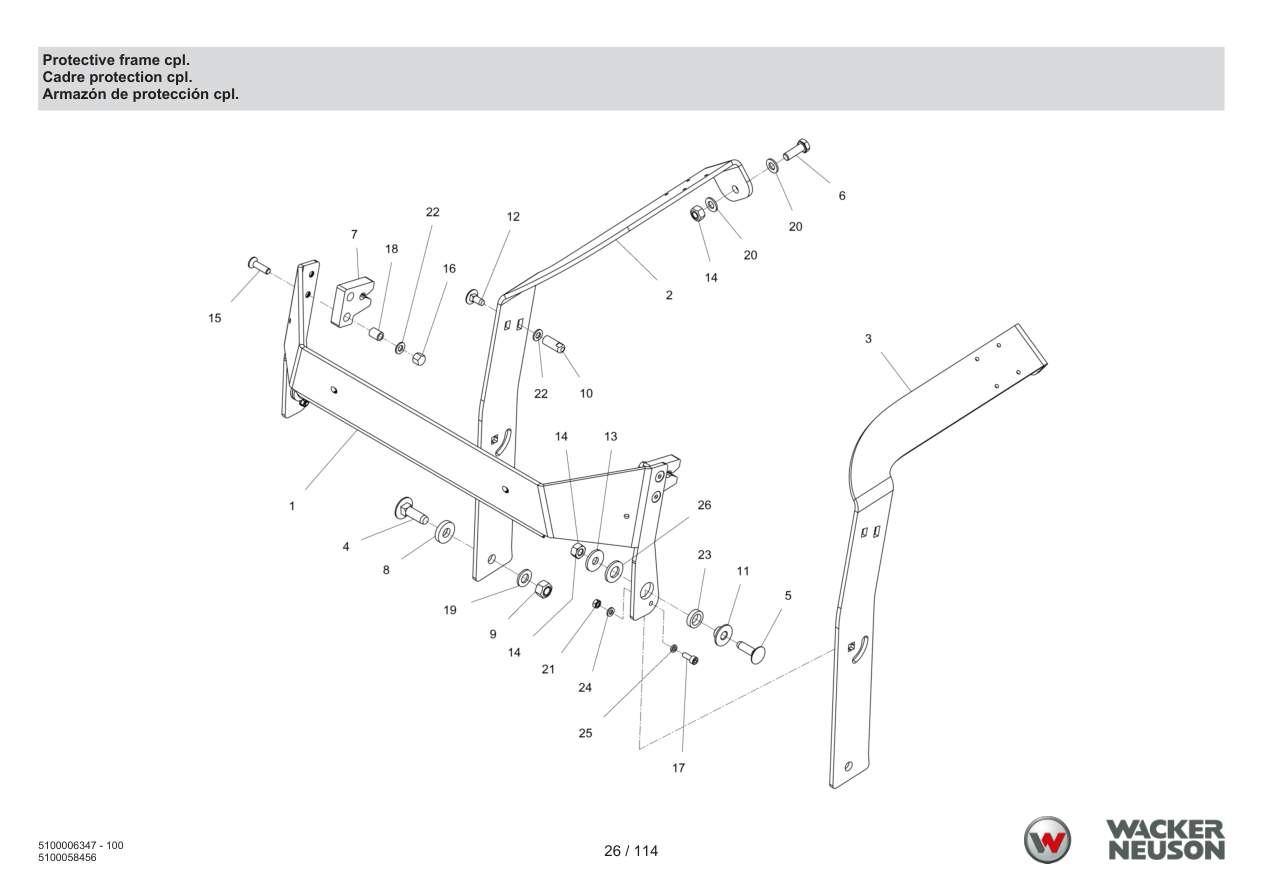

Page 26 — Protective frame cpl.
Parts list — exactly as printed26 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006737 | Front plate | 1 | ADD TO CART | |
| 2 | 5100006736 | Right plate | 1 | ADD TO CART | |
| 3 | 5100006735 | Left plate | 1 | ADD TO CART | |
| 4 | 5100006657 | Screw | 2 | ADD TO CART | |
| 5 | 5100006656 | Screw | 2 | ADD TO CART | |
| 6 | 5100006540 | Hexagon head screw | 2 | ADD TO CART | |
| 7 | 5100006673 | Bonnet holder | 2 | ADD TO CART | |
| 8 | 5100006667 | Washer | 2 | ADD TO CART | |
| 9 | 5100006545 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100006668 | Pin | 2 | ADD TO CART | |
| 11 | 5100006663 | Bush | 2 | ADD TO CART | |
| 12 | 5100006676 | Screw | 2 | ADD TO CART | |
| 13 | 5100006869 | Plate | 2 | ADD TO CART | |
| 14 | 5100006544 | Hexagon nut | 4 | ADD TO CART | |
| 15 | 5100006658 | Countersunk screw | 4 | ADD TO CART | |
| 16 | 5100006659 | Hexagon cap nut | 4 | ADD TO CART | |
| 17 | 5100006626 | Cheese head screw | 2 | ADD TO CART | |
| 18 | 5100006669 | Collar | 4 | ADD TO CART | |
| 19 | 5100006538 | Washer | 2 | ADD TO CART | |
| 20 | 5100006551 | Washer | 4 | ADD TO CART | |
| 21 | 5100006560 | Hexagon nut | 2 | ADD TO CART | |
| 22 | 5100006553 | Washer | 6 | ADD TO CART | |
| 23 | 5100006848 | Bush | 2 | ADD TO CART | |
| 24 | 5100006546 | Washer | 2 | ADD TO CART | |
| 25 | 5100006666 | Spacer ring | 2 | ADD TO CART | |
| 26 | 5100006664 | Ring | 2 | ADD TO CART | |

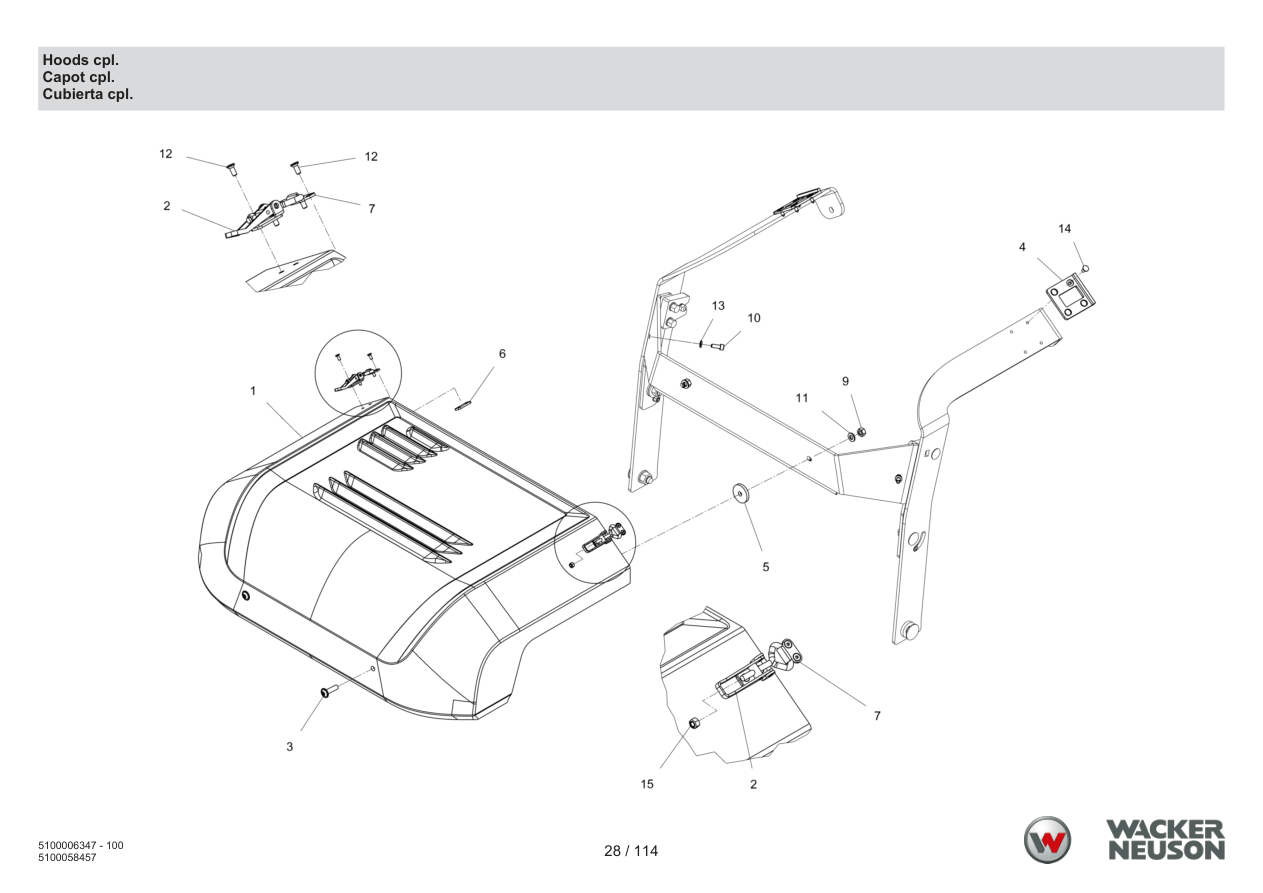

Page 28 — Hoods cpl.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5100006553 | Washer | 2 | ADD TO CART | |
| 1 | 5100006734 | Bonnet | 1 | ADD TO CART | |
| 2 | 5100006854 | Clip | 2 | ADD TO CART | |
| 3 | 5100006855 | Screw | 2 | ADD TO CART | |
| 4 | 5100006850 | Plate | 2 | ADD TO CART | |
| 5 | 5100006738 | Washer | 2 | ADD TO CART | |
| 6 | 5100006851 | Plate | 2 | ADD TO CART | |
| 7 | 5100006849 | Holder | 2 | ADD TO CART | |
| 8 | 5100006852 | Plate | 2 | ADD TO CART | |
| 9 | 5100006543 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100006626 | Cheese head screw | 2 | ADD TO CART | |
| 12 | 5100006853 | Countersunk screw | 8 | ADD TO CART | |
| 13 | 5100006546 | Washer | 2 | ADD TO CART | |
| 14 | 5100006548 | Plug | 8 | ADD TO CART | |
| 15 | 5100006878 | Hexagon nut | 2 | ADD TO CART | |

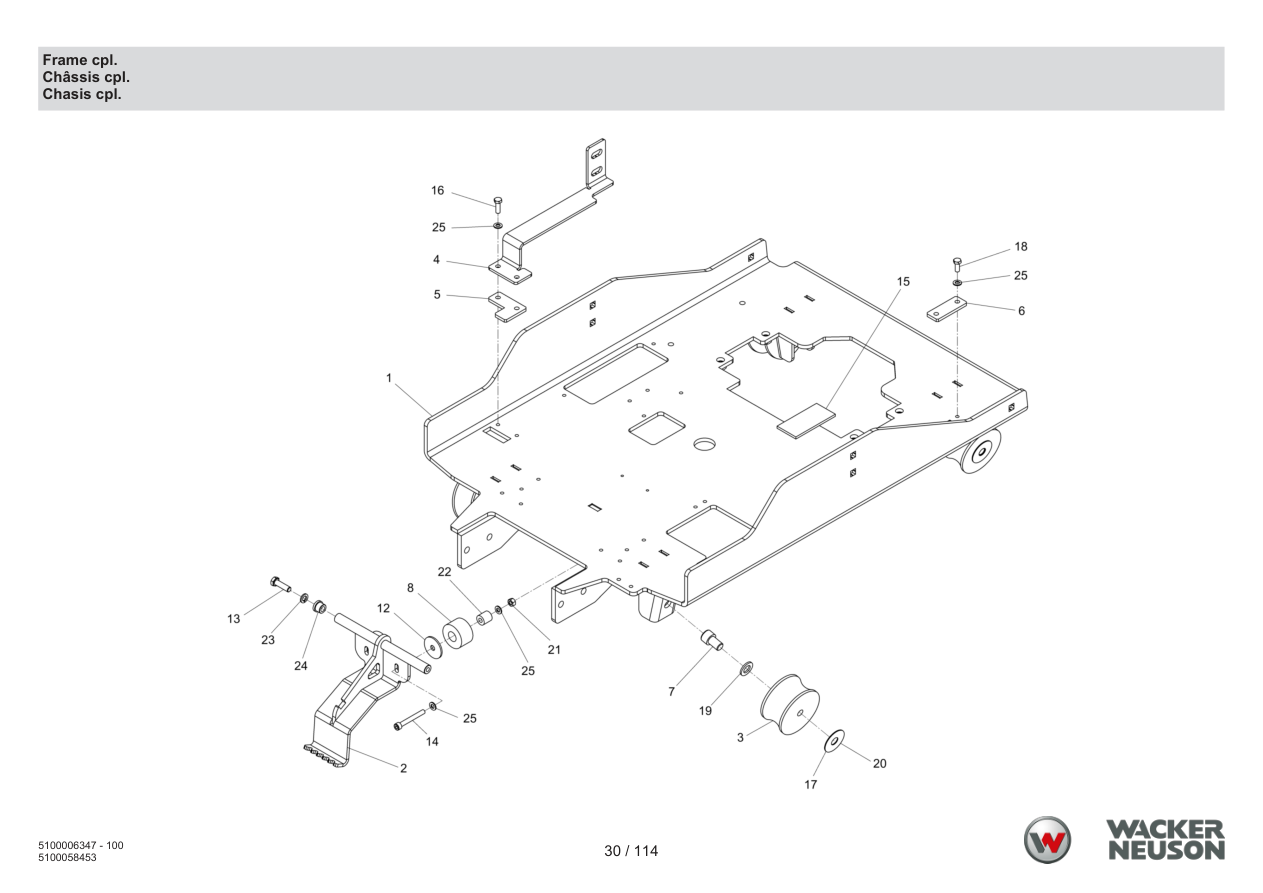

Page 30 — Frame cpl.
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006877 | Base plate | 1 | ADD TO CART | |
| 2 | 5100006596 | Center pole lock | 1 | ADD TO CART | |
| 3 | 5100006595 | Shockmount | 4 | ADD TO CART | |
| 4 | 5100006674 | Supporting plate | 1 | ADD TO CART | |
| 5 | 5100006637 | Stop plate | 1 | ADD TO CART | |
| 6 | 5100006598 | Stop element | 1 | ADD TO CART | |
| 7 | 5100006620 | Cheese head screw | 4 | ADD TO CART | |
| 8 | 5100006627 | Locking spring | 2 | ADD TO CART | |
| 12 | 5100006530 | Washer | 2 | ADD TO CART | |
| 13 | 5100006561 | Hexagon head screw | 2 | ADD TO CART | |
| 14 | 5100006632 | Cheese head screw | 2 | ADD TO CART | |
| 15 | 5100006680 | Rubber insert | 1 | ADD TO CART | |
| 16 | 5100006537 | Hexagon head screw | 2 | ADD TO CART | |
| 17 | 5100006833 | Distance washer | 4 | ADD TO CART | |
| 18 | 5100006559 | Hexagon head screw | 2 | ADD TO CART | |
| 19 | 5100006552 | Washer | 4 | ADD TO CART | |
| 20 | 5100006832 | Distance washer | 4 | ADD TO CART | |
| 21 | 5100006543 | Hexagon nut | 2 | ADD TO CART | |
| 22 | 5100006655 | Buffer housing | 2 | ADD TO CART | |
| 23 | 5100006629 | Lock washer | 2 | ADD TO CART | |
| 24 | 5100006597 | Bush | 2 | ADD TO CART | |
| 25 | 5100006553 | Washer | 8 | ADD TO CART | |

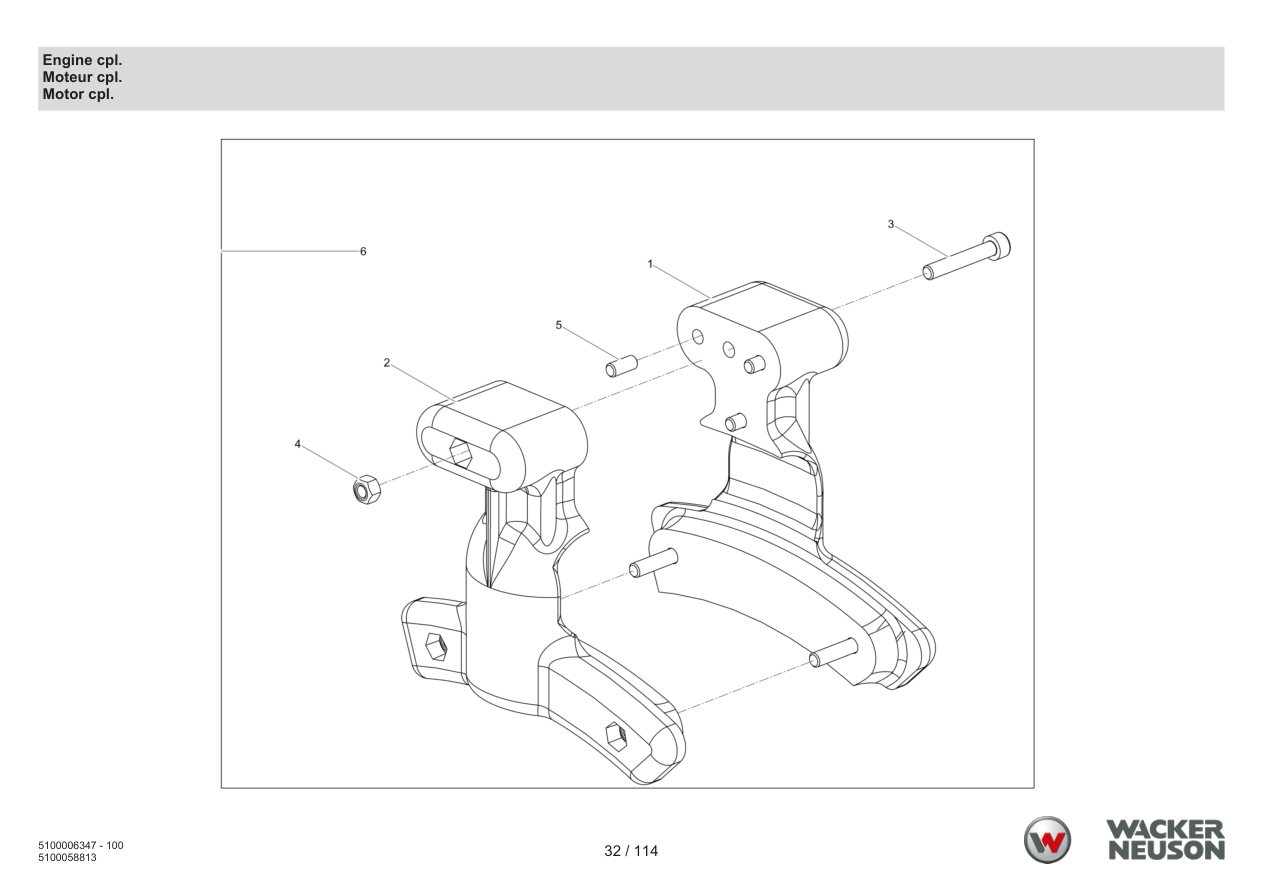

Page 32 — Engine complete
Parts list — exactly as printed43 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006348 | Gas engine | 1 | ADD TO CART | |
| 2 | 5100006586 | Axial pump | 1 | ADD TO CART | |
| 2 | 5100006906 | Gasket set | 1 | ADD TO CART | |
| 3 | 5100006587 | Gear pump | 1 | ADD TO CART | |
| 3 | 5100006905 | Gasket set | 1 | ADD TO CART | |
| 4 | 5100006650 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100006650 · qty on machine: 1 | |||||
| 5 | 5100007599 | Fan wheel | 1 | PARTS REQUEST | |
|
COMING Fan wheel
5100007599 · qty on machine: 1 | |||||
| 6 | 5100006612 | Engine clutch | 1 | ADD TO CART | |
| 7 | 5100006580 | Angular connection | 1 | ADD TO CART | |
| 8 | 5100006754 | Holder | 1 | ADD TO CART | |
| 9 | 5100006566 | Screw connection | 1 | ADD TO CART | |
| 10 | 5100006760 | Test port | 1 | ADD TO CART | |
| 11 | 5100006742 | Male stud connector | 2 | ADD TO CART | |
| 12 | 5100006571 | Male stud connector | 1 | ADD TO CART | |
| 13 | 5100006577 | Male stud connector | 1 | ADD TO CART | |
| 14 | 5100006578 | Male stud connector | 1 | ADD TO CART | |
| 15 | 5100006588 | Screw connection | 1 | ADD TO CART | |
| 16 | 5100006730 | Cheese head screw | 2 | ADD TO CART | |
| 17 | 5100006567 | Tube end reducer | 1 | ADD TO CART | |
| 18 | 5100006557 | Hexagon head screw | 4 | ADD TO CART | |
| 19 | 5100006741 | Hexagonal head cap screw | 4 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5100006741 · qty on machine: 4 | |||||
| 20 | 5100006940 | Spacer | 2 | ADD TO CART | |
| 21 | 5100006941 | Lever | 1 | ADD TO CART | |
| 22 | 5100006761 | Locking plug | 1 | ADD TO CART | |
| 23 | 5100006564 | Screw | 2 | ADD TO CART | |
| 24 | 5100006575 | Male stud connector | 1 | ADD TO CART | |
| 25 | 5100006555 | Hexagon head screw | 2 | ADD TO CART | |
| 26 | 5100006631 | Cheese head screw | 4 | ADD TO CART | |
| 27 | 5100006544 | Hexagon nut | 4 | ADD TO CART | |
| 28 | 5100006942 | Hexhead screw | 4 | ADD TO CART | |
| 29 | 5100006769 | Oil drain plug | 1 | PARTS REQUEST | |
|
COMING Oil drain plug
5100006769 · qty on machine: 1 | |||||
| 30 | 5100006543 | Hexagon nut | 2 | ADD TO CART | |
| 32 | 5100007163 | Hexagonal head cap screw | 2 | ADD TO CART | |
| 33 | 5100006538 | Washer | 4 | ADD TO CART | |
| 34 | 5100006551 | Washer | 8 | ADD TO CART | |
| 35 | 5100006629 | Lock washer | 4 | ADD TO CART | |
| 36 | 5100006688 | Threaded pin | 1 | ADD TO CART | |
| 37 | 5100006553 | Washer | 10 | ADD TO CART | |
| 38 | 5100006546 | Washer | 4 | ADD TO CART | |
| 40 | 5100006872 | Ring | 1 | ADD TO CART | |
| 41 | 5100006912 | O-ring 47x2,5 | 1 | ADD TO CART | |
| 42 | 5100006944 | Fitting key | 1 | ADD TO CART | |
| 43 | 5100006542 | Hexagon nut | 2 | ADD TO CART | |

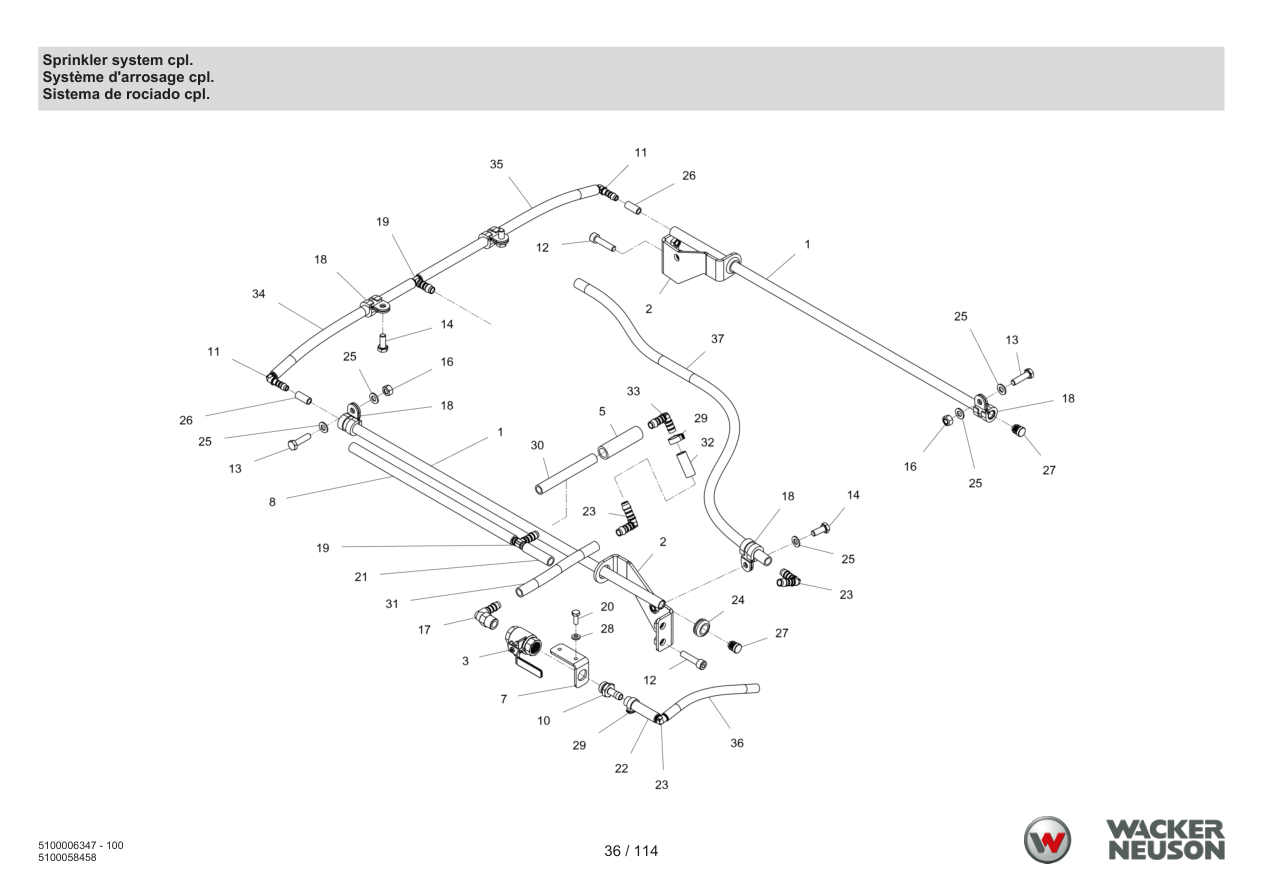

Page 36 — Sprinkler system cpl.
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 5100006531 | Elbow | 2 | ADD TO CART | |
| 1 | 5100006607 | Sprinkling pipe | 2 | ADD TO CART | |
| 2 | 5100006693 | Holder | 2 | ADD TO CART | |
| 3 | 5100006756 | Ball valve | 1 | ADD TO CART | |
| 5 | 5100006535 | Protective hose | 0.07 | ADD TO CART | |
| 7 | 5100006700 | Holder | 1 | ADD TO CART | |
| 8 | 5100006791 | Hose | 1 | ADD TO CART | |
| 10 | 5100006533 | Adapter | 1 | ADD TO CART | |
| 12 | 5100006677 | Cheese head screw | 4 | ADD TO CART | |
| 13 | 5100006541 | Hexagon head screw | 2 | ADD TO CART | |
| 14 | 5100006559 | Hexagon head screw | 3 | ADD TO CART | |
| 16 | 5100006543 | Hexagon nut | 2 | ADD TO CART | |
| 17 | 5100006757 | Nozzle | 1 | ADD TO CART | |
| 18 | 5100006694 | Clamps | 5 | ADD TO CART | |
| 19 | 5100006648 | T connector | 2 | ADD TO CART | |
| 20 | 5100006539 | Hexagon head screw | 2 | ADD TO CART | |
| 21 | 5100006792 | Hose | 1 | ADD TO CART | |
| 22 | 5100006794 | Hose | 1 | ADD TO CART | |
| 23 | 5100006647 | L connector | 3 | ADD TO CART | |
| 24 | 5100006653 | Rubber grommet | 2 | ADD TO CART | |
| 25 | 5100006553 | Washer | 7 | ADD TO CART | |
| 26 | 5100006758 | Hose | 3 | ADD TO CART | |
| 27 | 5100006654 | Plug | 2 | ADD TO CART | |
| 28 | 5100006546 | Washer | 2 | ADD TO CART | |
| 29 | 5100006879 | Clamp | 2 | ADD TO CART | |
| 30 | 5100006916 | Hose | 1 | ADD TO CART | |
| 31 | 5100006917 | Hose | 1 | ADD TO CART | |
| 32 | 5100006918 | Hose | 1 | ADD TO CART | |
| 33 | 5100006919 | Elbow connector | 1 | PARTS REQUEST | |
|
COMING Elbow connector
5100006919 · qty on machine: 1 | |||||
| 34 | 5100006924 | Hose 10x14x290 | 1 | ADD TO CART | |
| 35 | 5100006925 | Hose 10x14x340 | 1 | ADD TO CART | |
| 36 | 5100006926 | Hose 10x14x180 | 1 | ADD TO CART | |
| 37 | 5100006927 | Hose 10x14x730 | 1 | ADD TO CART | |

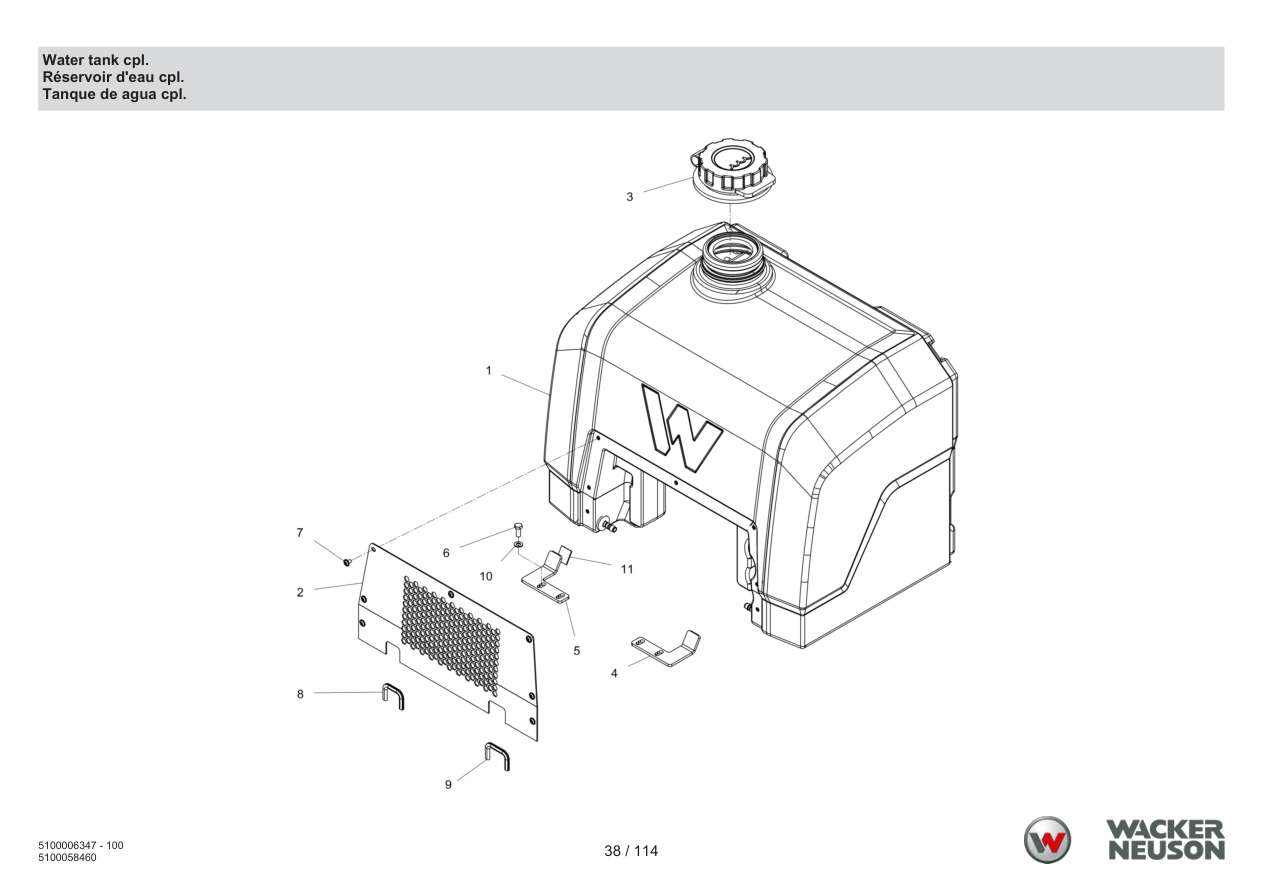

Page 38 — Water tank cpl.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006724 | Water tank | 1 | ADD TO CART | |
| 2 | 5100006782 | Grid | 1 | ADD TO CART | |
| 3 | 5100006589 | Tank cover | 1 | ADD TO CART | |
| 4 | 5100006640 | Retaining plate | 1 | ADD TO CART | |
| 5 | 5100006639 | Retaining plate | 1 | ADD TO CART | |
| 6 | 5100006559 | Hexagon head screw | 4 | ADD TO CART | |
| 7 | 5100006660 | Screw | 7 | ADD TO CART | |
| 8 | 5100006862 | Edge protection | 1 | ADD TO CART | |
| 9 | 5100006863 | Edge protection | 1 | ADD TO CART | |
| 10 | 5100006553 | Washer | 4 | ADD TO CART | |
| 11 | 5100006685 | Rubber insert | 2 | ADD TO CART | |
| 12 | 5100007601 | Hose connection | 2 | PARTS REQUEST | |
|
COMING Hose connection
5100007601 · qty on machine: 2 | |||||
| 13 | 5100007602 | Plug | 2 | PARTS REQUEST | |
|
COMING Plug
5100007602 · qty on machine: 2 | |||||

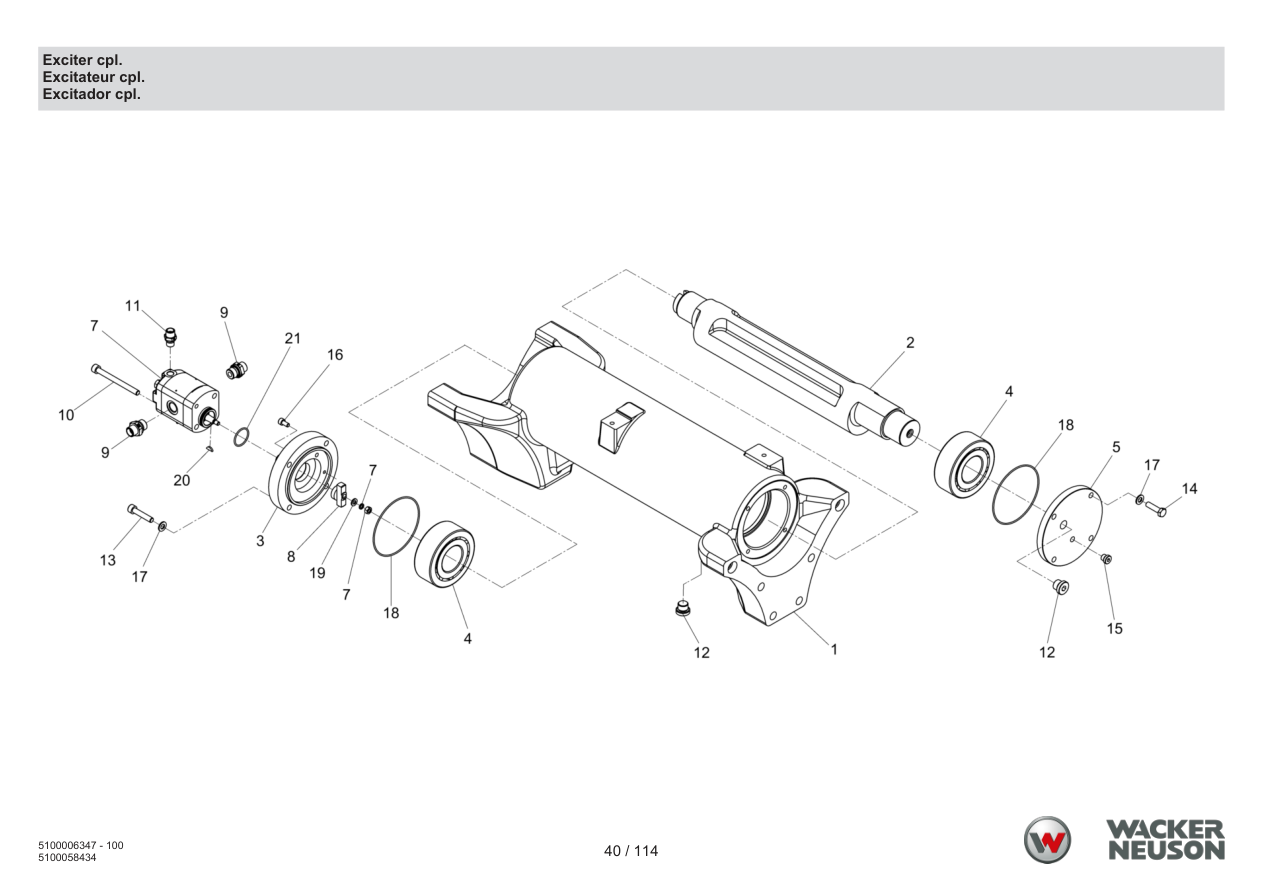

Page 40 — Exciter cpl.
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006781 | Exciter housing | 1 | ADD TO CART | |
| 2 | 5100006785 | Shaft | 1 | ADD TO CART | |
| 3 | 5100006788 | Flange | 1 | ADD TO CART | |
| 4 | 5100007626 | Spherical roller bearing | 2 | PARTS REQUEST | |
|
COMING Spherical roller bearing
5100007626 · qty on machine: 2 | |||||
| 5 | 5100006787 | Cover | 1 | ADD TO CART | |
| 7 | 5100006797 | Hydraulic motor | 1 | ADD TO CART | |
| 7 | 5100006904 | Gasket set | 1 | ADD TO CART | |
| 8 | 5100006783 | Clutch | 1 | ADD TO CART | |
| 9 | 5100006572 | Male stud connector | 2 | ADD TO CART | |
| 10 | 5100006614 | Cheese head screw | 2 | ADD TO CART | |
| 11 | 5100006845 | Male stud connector | 1 | ADD TO CART | |
| 12 | 5100006662 | Plug | 2 | ADD TO CART | |
| 13 | 5100006617 | Cheese head screw | 4 | ADD TO CART | |
| 14 | 5100006541 | Hexagon head screw | 4 | ADD TO CART | |
| 15 | 5100006628 | Plug | 1 | ADD TO CART | |
| 16 | 5100006723 | Cheese head screw | 2 | ADD TO CART | |
| 17 | 5100006553 | Washer | 8 | ADD TO CART | |
| 18 | 5100006786 | O-ring | 2 | ADD TO CART | |
| 19 | 5100006546 | Washer | 1 | ADD TO CART | |
| 20 | 5100007627 | Fitting key | 1 | PARTS REQUEST | |
|
COMING Fitting key
5100007627 · qty on machine: 1 | |||||
| 21 | 5100007628 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5100007628 · qty on machine: 1 | |||||

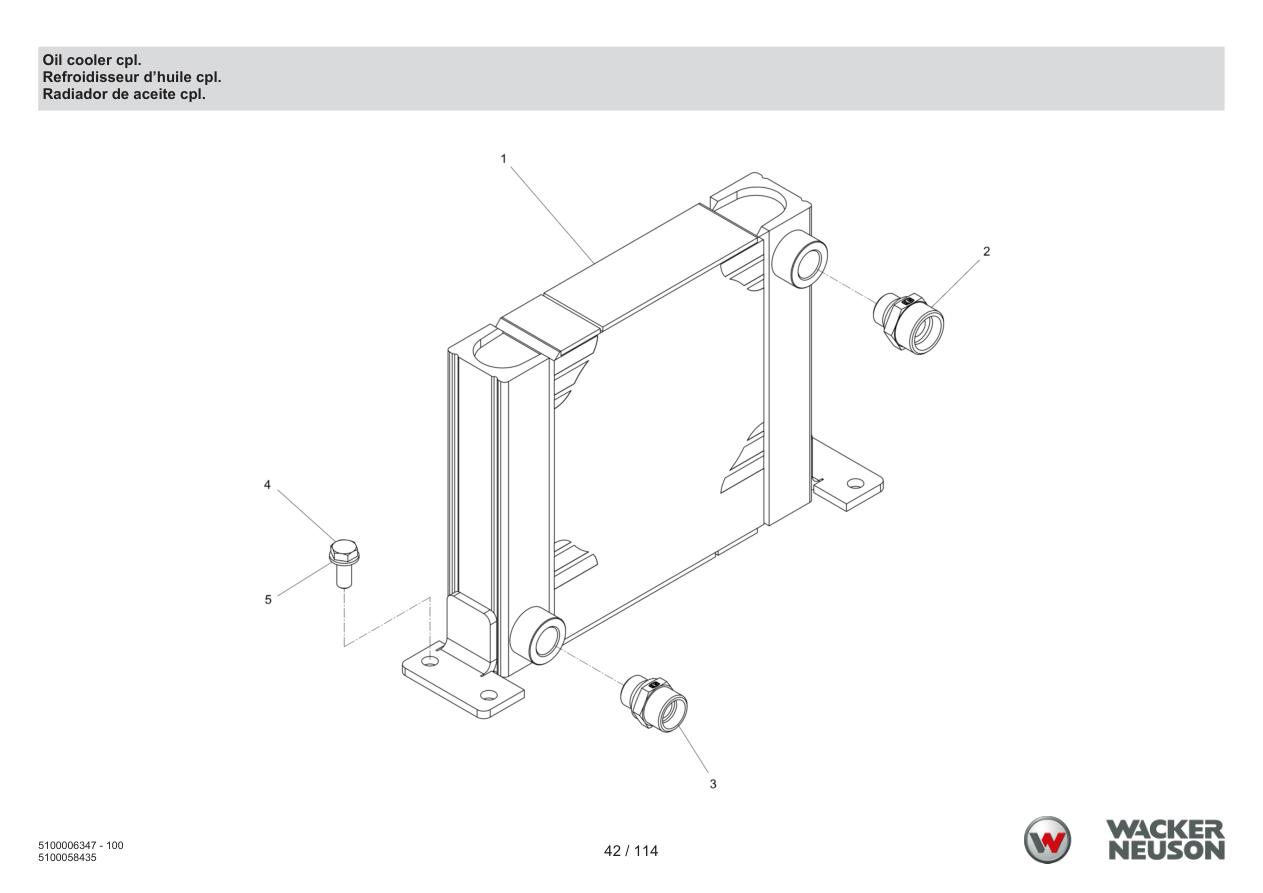

Page 42 — Oil cooler cpl.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006710 | Oil cooler | 1 | ADD TO CART | |
| 2 | 5100006579 | Male stud connector | 1 | ADD TO CART | |
| 3 | 5100006576 | Male stud connector | 1 | ADD TO CART | |
| 4 | 5100006559 | Hexagon head screw | 4 | ADD TO CART | |
| 5 | 5100006553 | Washer | 4 | ADD TO CART | |

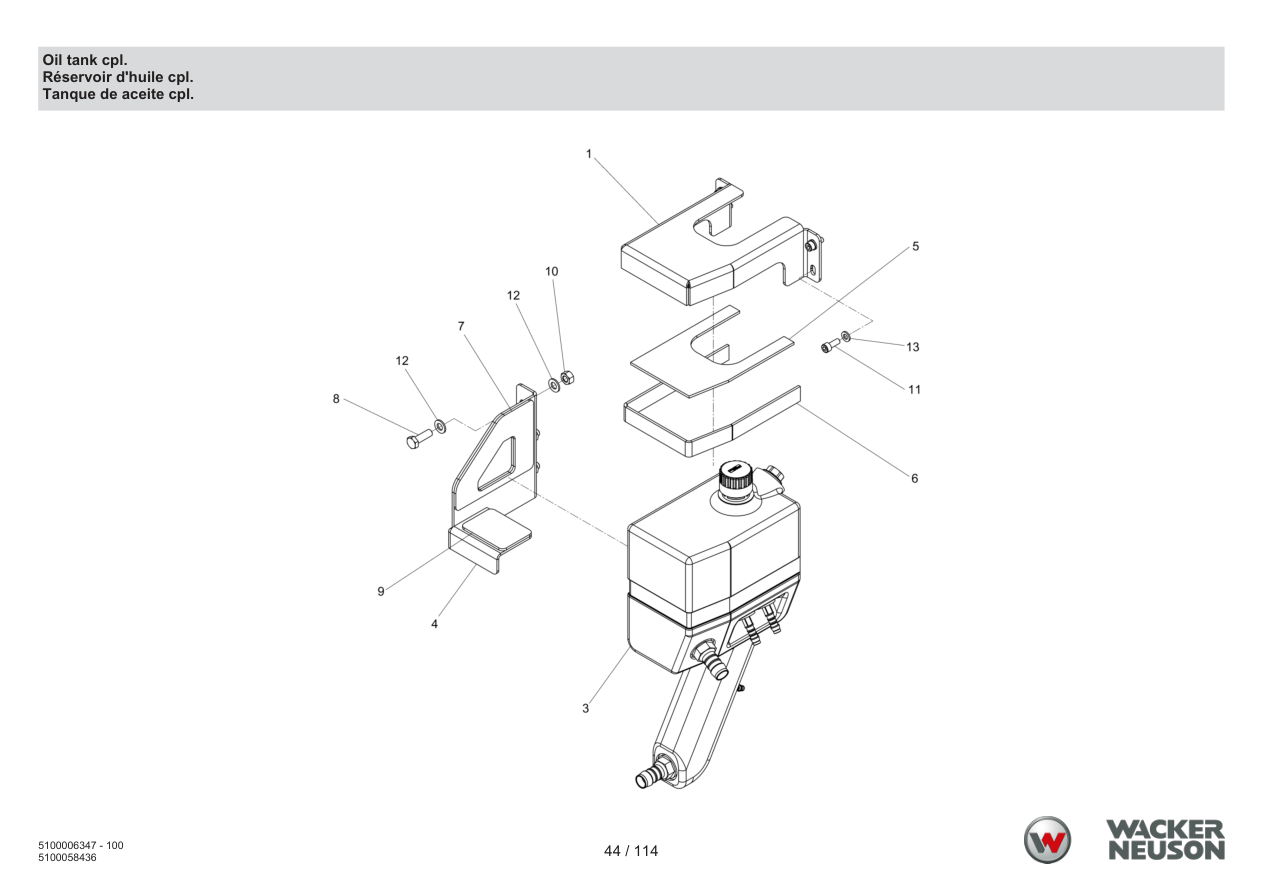

Page 44 — Oil tank cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006701 | Holder | 1 | ADD TO CART | |
| 3 | 5100006704 | Oil tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100006646 | Holder | 1 | ADD TO CART | |
| 5 | 5100006702 | Rubber insert | 1 | ADD TO CART | |
| 6 | 5100006703 | Rubber insert | 1 | PARTS REQUEST | |
|
COMING Rubber insert
5100006703 · qty on machine: 1 | |||||
| 7 | 5100006829 | Rubber insert | 1 | ADD TO CART | |
| 8 | 5100006537 | Hexagon head screw | 3 | ADD TO CART | |
| 9 | 5100006830 | Rubber insert | 1 | ADD TO CART | |
| 10 | 5100006543 | Hexagon nut | 3 | ADD TO CART | |
| 11 | 5100006626 | Cheese head screw | 4 | ADD TO CART | |
| 12 | 5100006553 | Washer | 6 | ADD TO CART | |
| 13 | 5100006546 | Washer | 4 | ADD TO CART | |

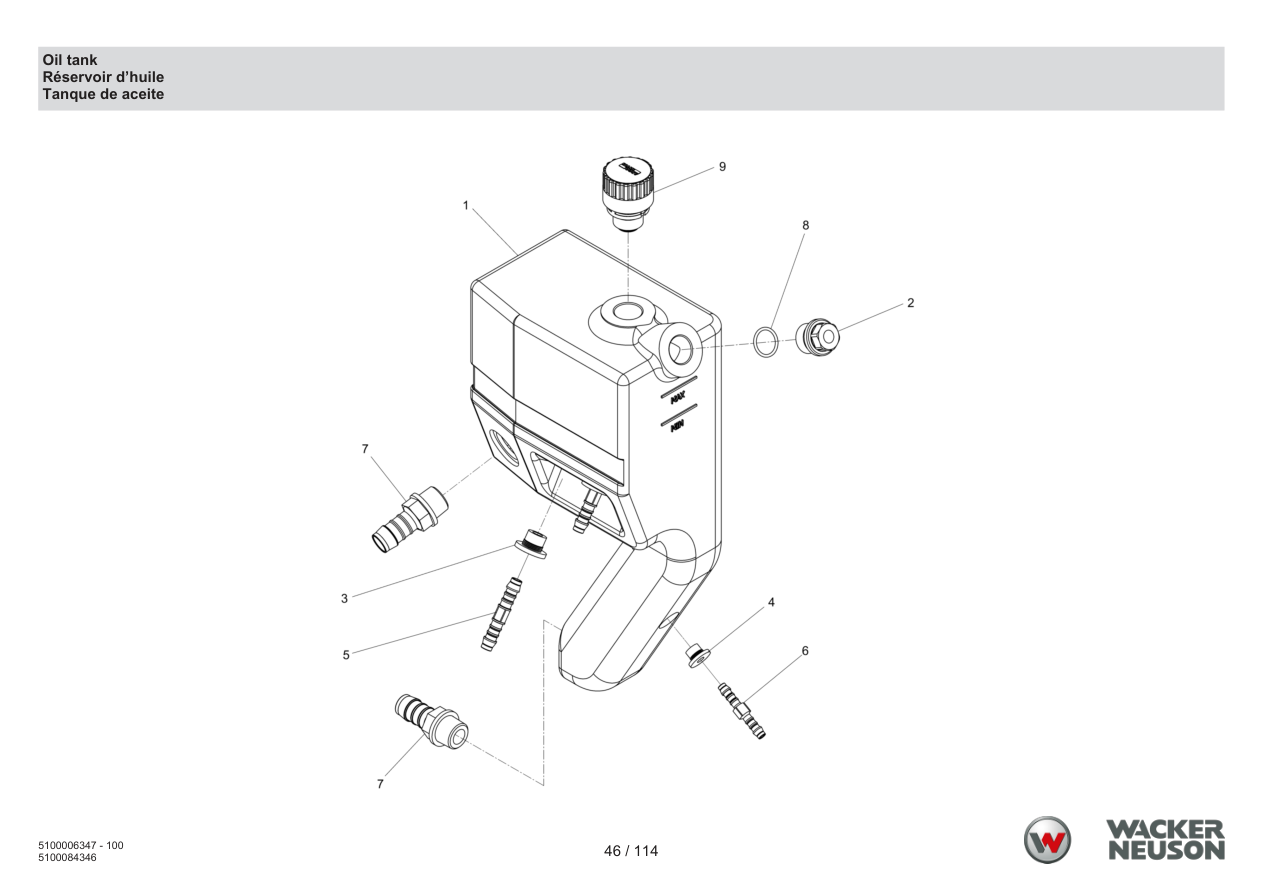

Page 46 — Oil tank
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100007614 | Oil tank | 1 | ADD TO CART | |
| 2 | 5100007615 | Screw plug | 1 | PARTS REQUEST | |
|
COMING Screw plug
5100007615 · qty on machine: 1 | |||||
| 3 | 5100007616 | Plug | 2 | PARTS REQUEST | |
|
COMING Plug
5100007616 · qty on machine: 2 | |||||
| 4 | 5100007617 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
5100007617 · qty on machine: 1 | |||||
| 5 | 5100007618 | Hose connection | 2 | PARTS REQUEST | |
|
COMING Hose connection
5100007618 · qty on machine: 2 | |||||
| 6 | 5100007619 | Hose connection | 1 | ADD TO CART | |
| 7 | 5100007620 | Screw connection | 2 | PARTS REQUEST | |
|
COMING Screw connection
5100007620 · qty on machine: 2 | |||||
| 8 | 5100007621 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5100007621 · qty on machine: 1 | |||||
| 9 | 5100007622 | Air filter | 1 | PARTS REQUEST | |
|
COMING Air filter
5100007622 · qty on machine: 1 | |||||

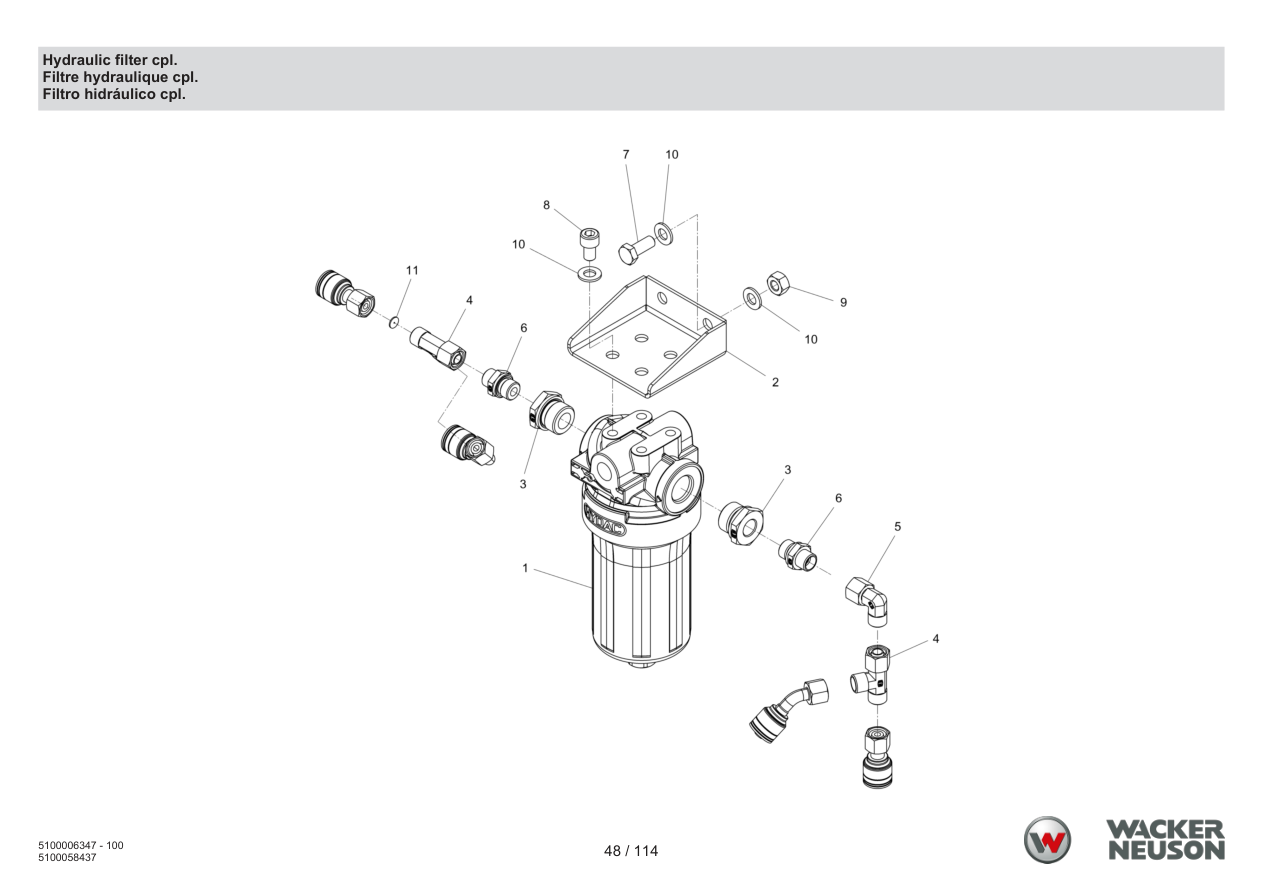

Page 48 — Hydraulic filter cpl.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006764 | Hydraulic filter | 1 | ADD TO CART | |
| 1 | 5100006900 | Filter element | 1 | ADD TO CART | |
| 2 | 5100006763 | Holder | 1 | ADD TO CART | |
| 3 | 5100006765 | Reduction adapter | 2 | ADD TO CART | |
| 4 | 5100006588 | Screw connection | 2 | ADD TO CART | |
| 5 | 5100006565 | Angular connection | 1 | ADD TO CART | |
| 6 | 5100006572 | Male stud connector | 2 | ADD TO CART | |
| 7 | 5100006556 | Hexagon head screw | 2 | ADD TO CART | |
| 8 | 5100006624 | Cheese head screw | 4 | ADD TO CART | |
| 9 | 5100006544 | Hexagon nut | 2 | ADD TO CART | |
| 10 | 5100006551 | Washer | 8 | ADD TO CART | |
| 11 | 5100006762 | Aperture | 1 | ADD TO CART | |

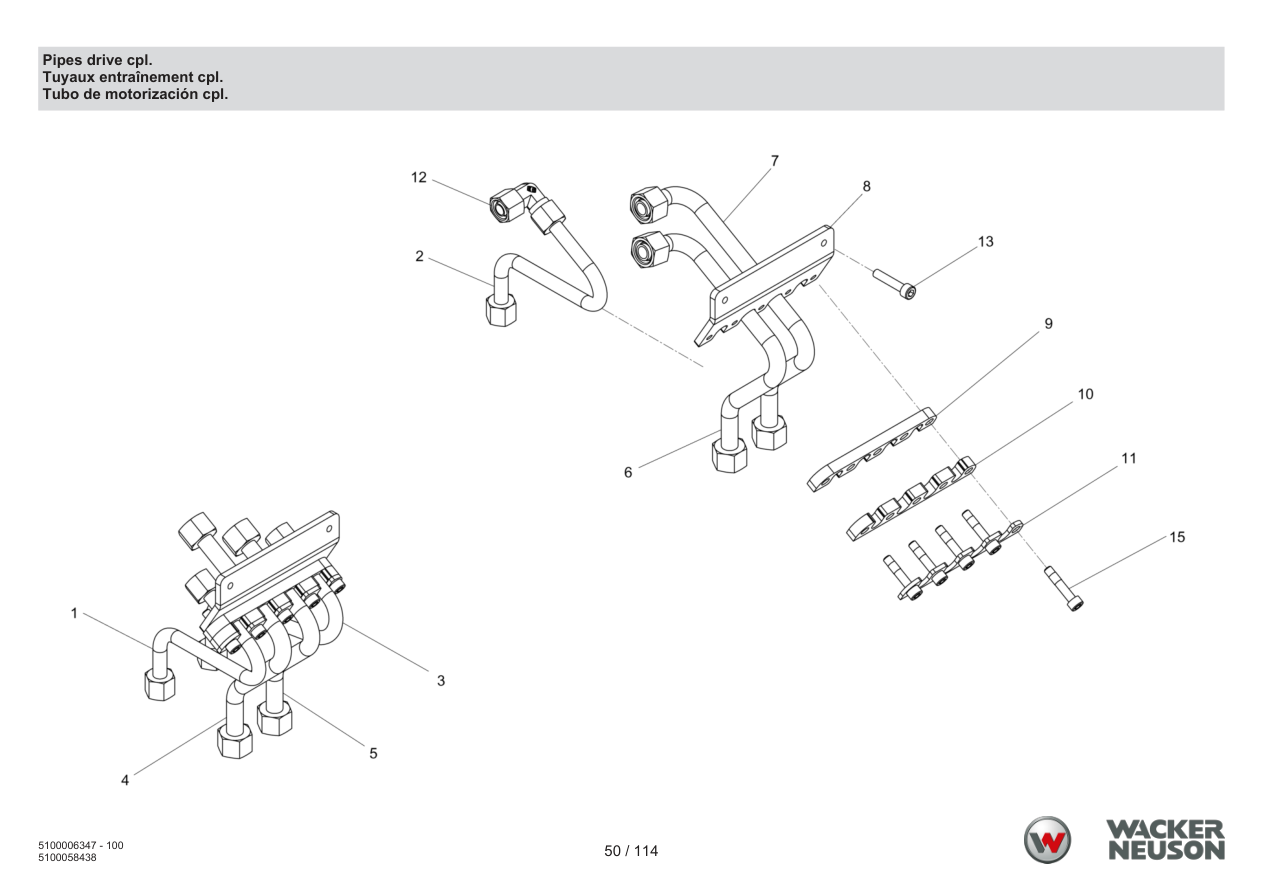

Page 50 — Pipes drive cpl.
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006696 | Hydraulic line | 1 | ADD TO CART | |
| 2 | 5100006690 | Hydraulic line | 1 | ADD TO CART | |
| 3 | 5100006697 | Hydraulic line | 1 | ADD TO CART | |
| 4 | 5100006714 | Hydraulic line | 1 | ADD TO CART | |
| 5 | 5100006713 | Hydraulic line | 1 | ADD TO CART | |
| 6 | 5100006712 | Hydraulic line | 1 | ADD TO CART | |
| 7 | 5100006711 | Hydraulic line | 1 | ADD TO CART | |
| 8 | 5100006718 | Holder lower | 2 | ADD TO CART | |
| 9 | 5100006715 | Holder lower | 2 | ADD TO CART | |
| 10 | 5100006716 | Holder upper | 2 | ADD TO CART | |
| 11 | 5100006717 | Holder upper | 2 | ADD TO CART | |
| 12 | 5100006565 | Angular connection | 1 | ADD TO CART | |
| 13 | 5100006630 | Cheese head screw | 4 | ADD TO CART | |
| 15 | 5100006913 | Cheese head screw | 10 | ADD TO CART | |

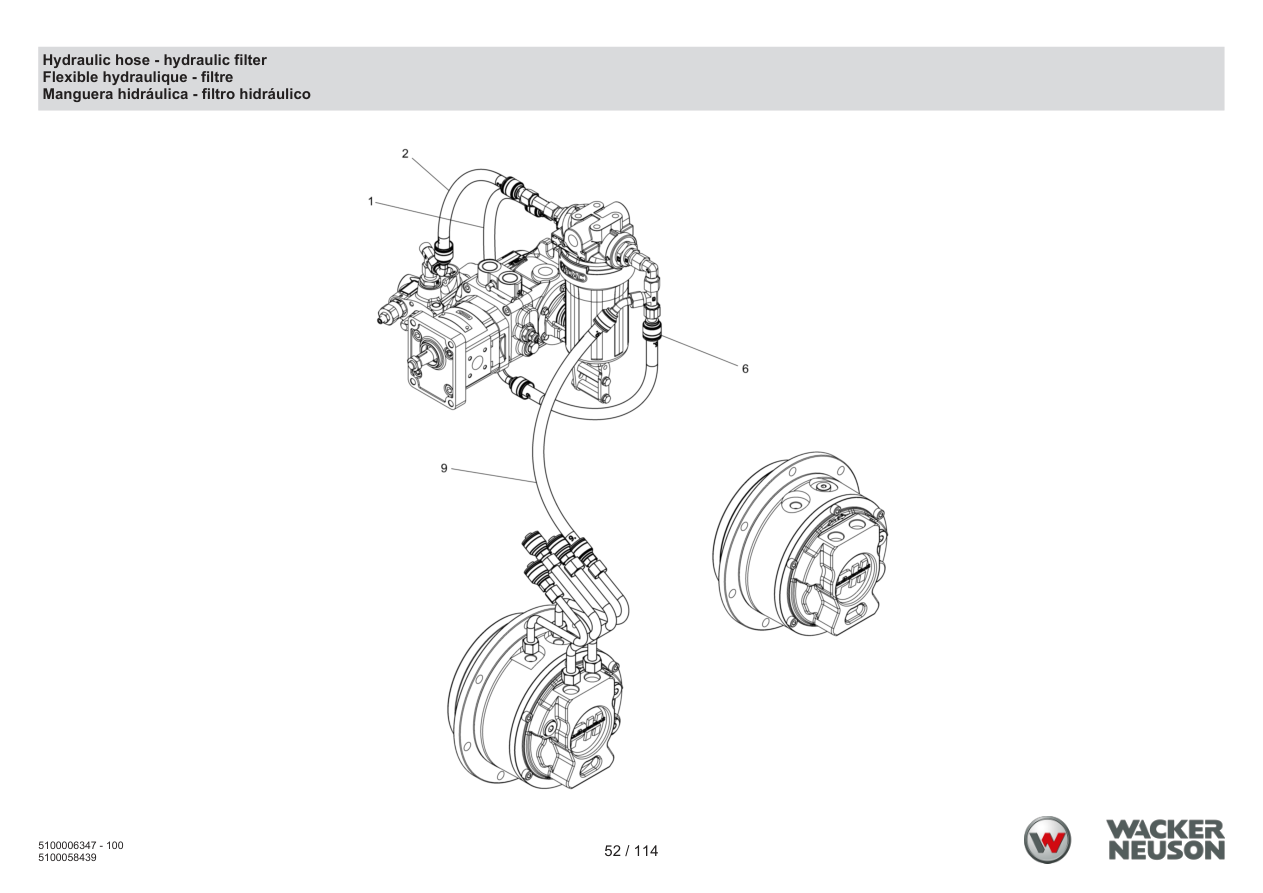

Page 52 — Hydraulic hose - hydraulic filter
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006743 | Hydraulic hose | 1 | ADD TO CART | |
| 2 | 5100006744 | Hydraulic hose | 1 | ADD TO CART | |
| 6 | 5100006746 | Hydraulic hose | 1 | ADD TO CART | |
| 9 | 5100006747 | Hydraulic hose | 1 | ADD TO CART | |

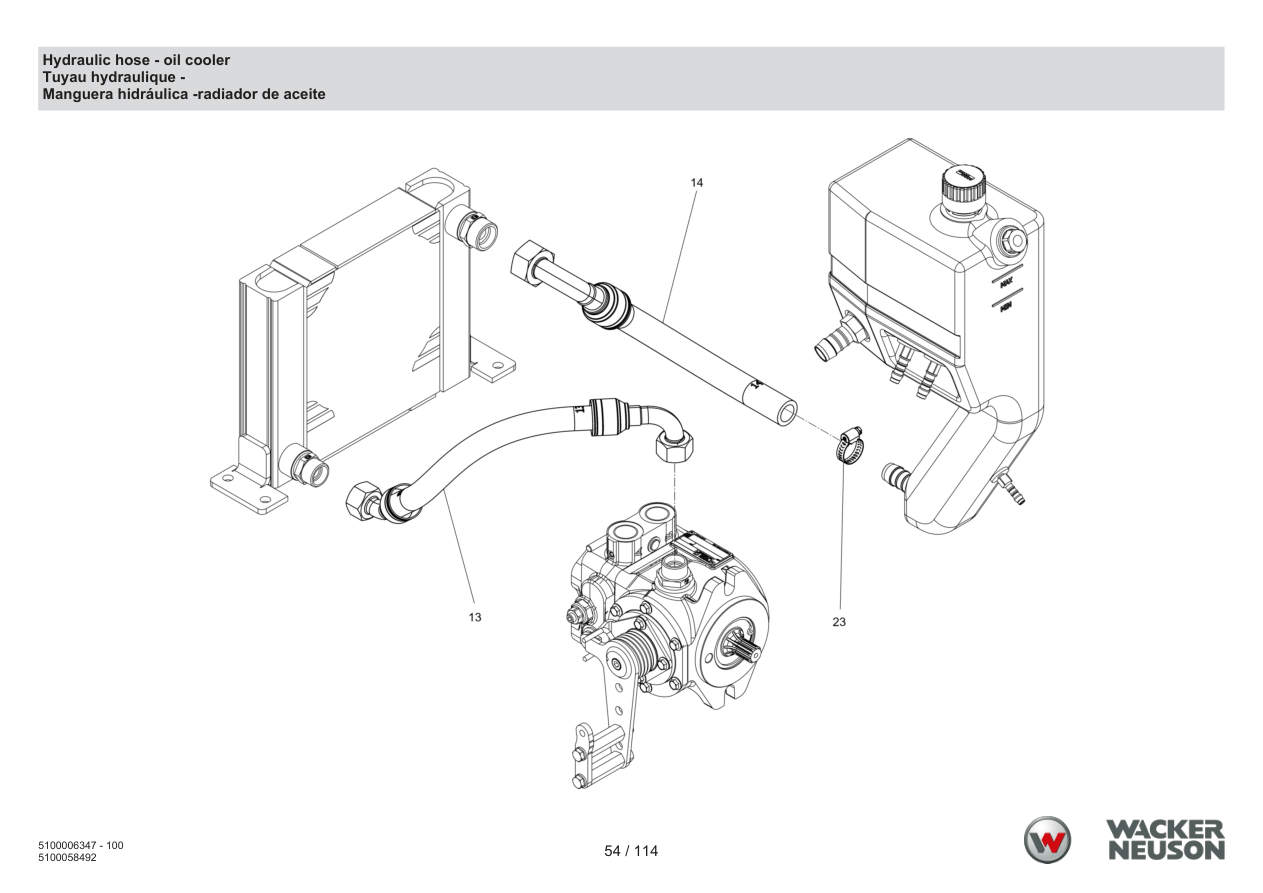

Page 54 — Hydraulic hose - oil cooler
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 13 | 5100006750 | Hydraulic hose | 1 | ADD TO CART | |
| 14 | 5100006751 | Hydraulic hose | 1 | ADD TO CART | |
| 23 | 5100006550 | Worm drive hose clip | 1 | ADD TO CART | |

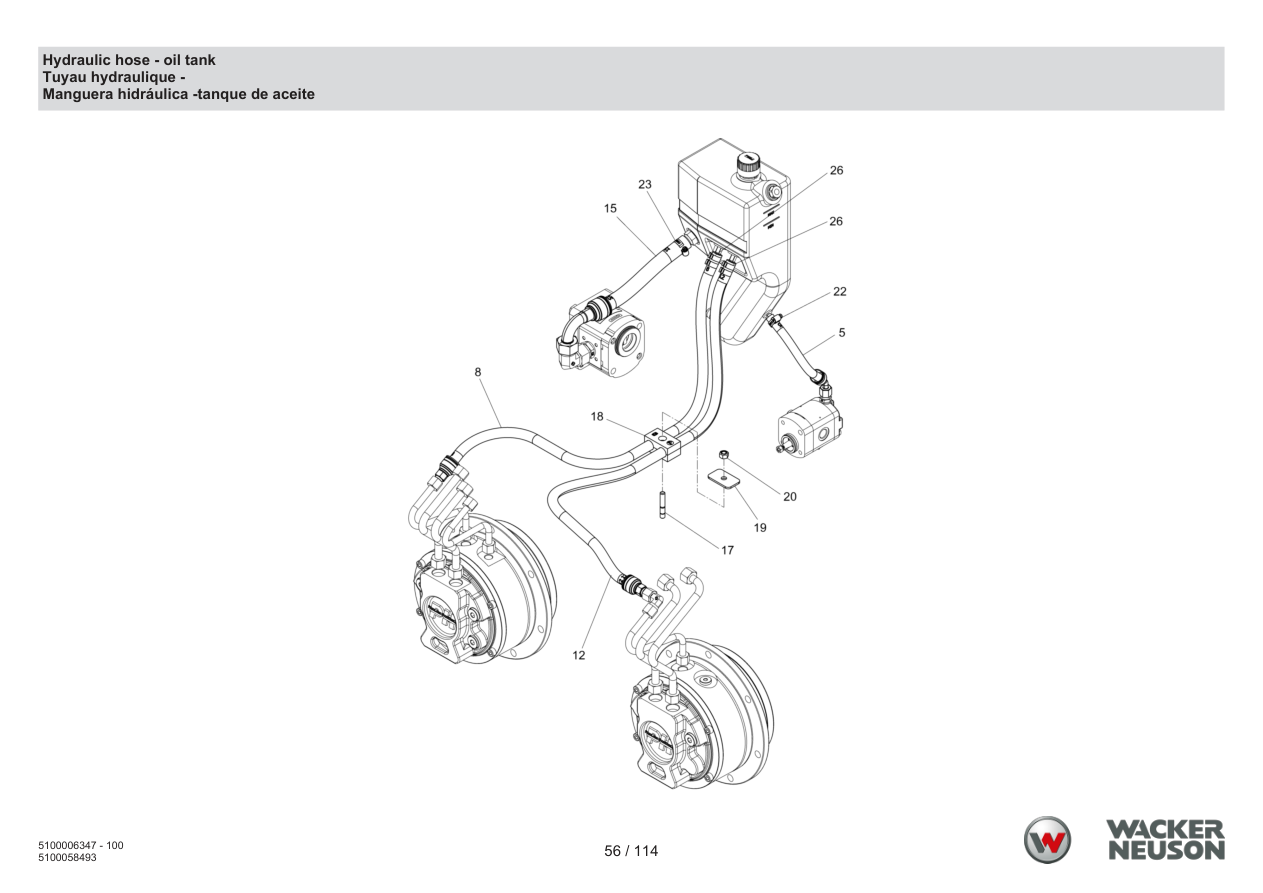

Page 56 — Hydraulic hose - oil tank
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5100006842 | Hose | 1 | ADD TO CART | |
| 8 | 5100006843 | Hose | 1 | ADD TO CART | |
| 12 | 5100006844 | Hose | 1 | ADD TO CART | |
| 15 | 5100006752 | Hydraulic hose | 1 | ADD TO CART | |
| 17 | 5100007404 | Threaded pin | 1 | PARTS REQUEST | |
|
COMING Threaded pin
5100007404 · qty on machine: 1 | |||||
| 18 | 5100006719 | Clamp | 2 | ADD TO CART | |
| 19 | 5100006874 | Plate | 1 | ADD TO CART | |
| 20 | 5100006543 | Hexagon nut | 1 | ADD TO CART | |
| 22 | 5100006527 | Worm drive hose clip | 1 | ADD TO CART | |
| 23 | 5100006550 | Worm drive hose clip | 1 | ADD TO CART | |
| 26 | 5100006962 | Clamp | 4 | ADD TO CART | |

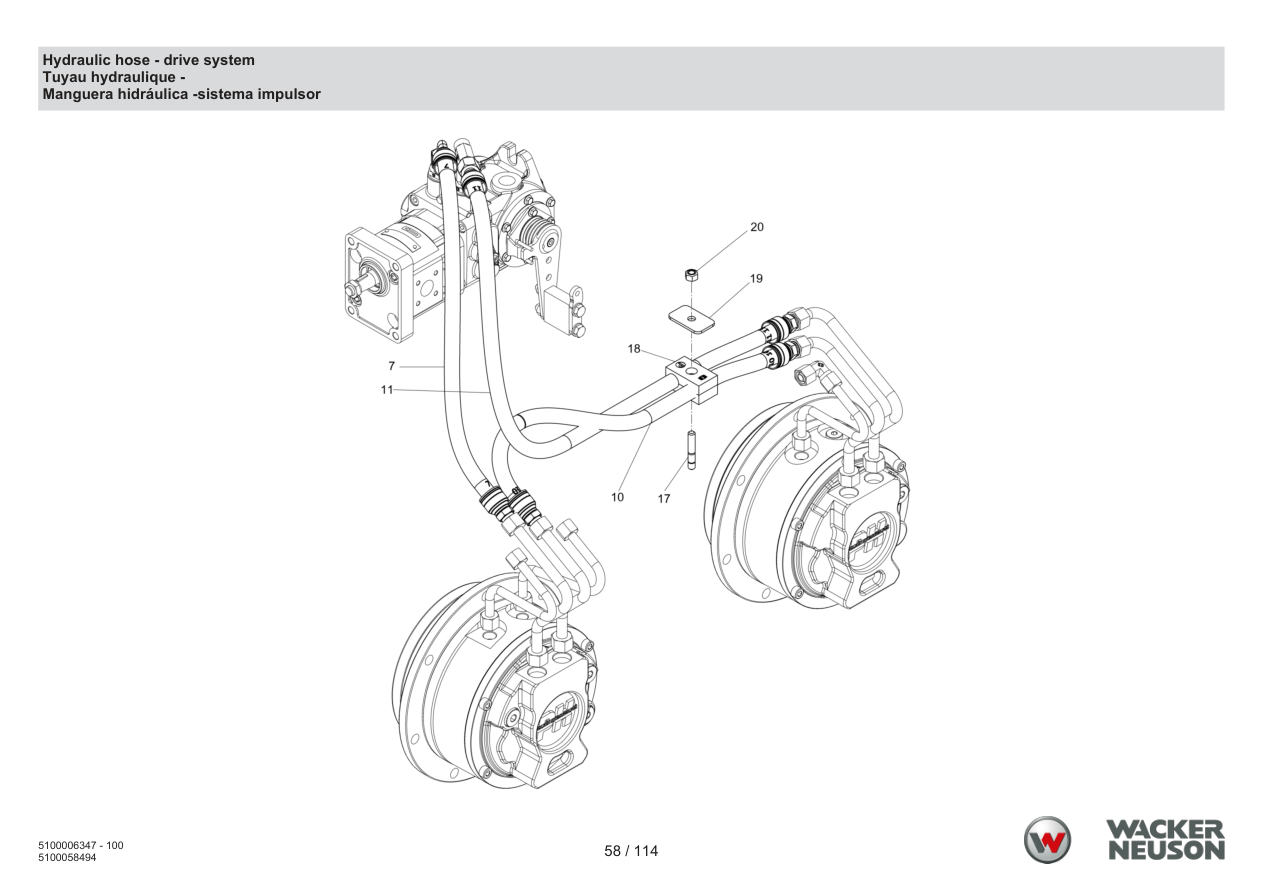

Page 58 — Hydraulic hose - drive system
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 5100006857 | Hose | 1 | ADD TO CART | |
| 10 | 5100006748 | Hydraulic hose | 1 | ADD TO CART | |
| 11 | 5100006749 | Hydraulic hose | 1 | ADD TO CART | |
| 17 | 5100007404 | Threaded pin | 1 | PARTS REQUEST | |
|
COMING Threaded pin
5100007404 · qty on machine: 1 | |||||
| 18 | 5100006719 | Clamp | 2 | ADD TO CART | |
| 19 | 5100006874 | Plate | 1 | ADD TO CART | |
| 20 | 5100006543 | Hexagon nut | 1 | ADD TO CART | |

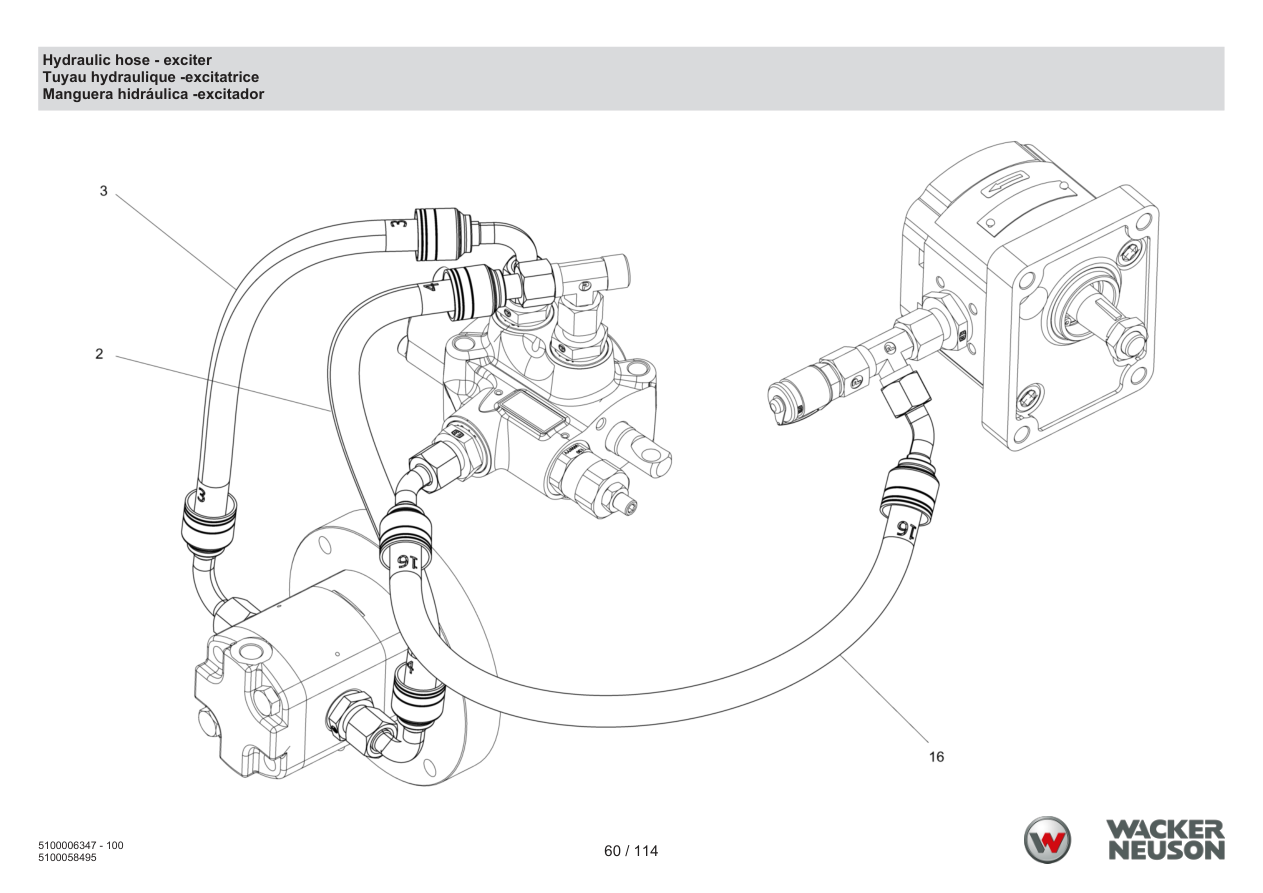

Page 60 — Hydraulic hose - exciter
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100006744 | Hydraulic hose | 1 | ADD TO CART | |
| 3 | 5100006745 | Hydraulic hose | 1 | ADD TO CART | |
| 16 | 5100006753 | Hydraulic hose | 1 | ADD TO CART | |

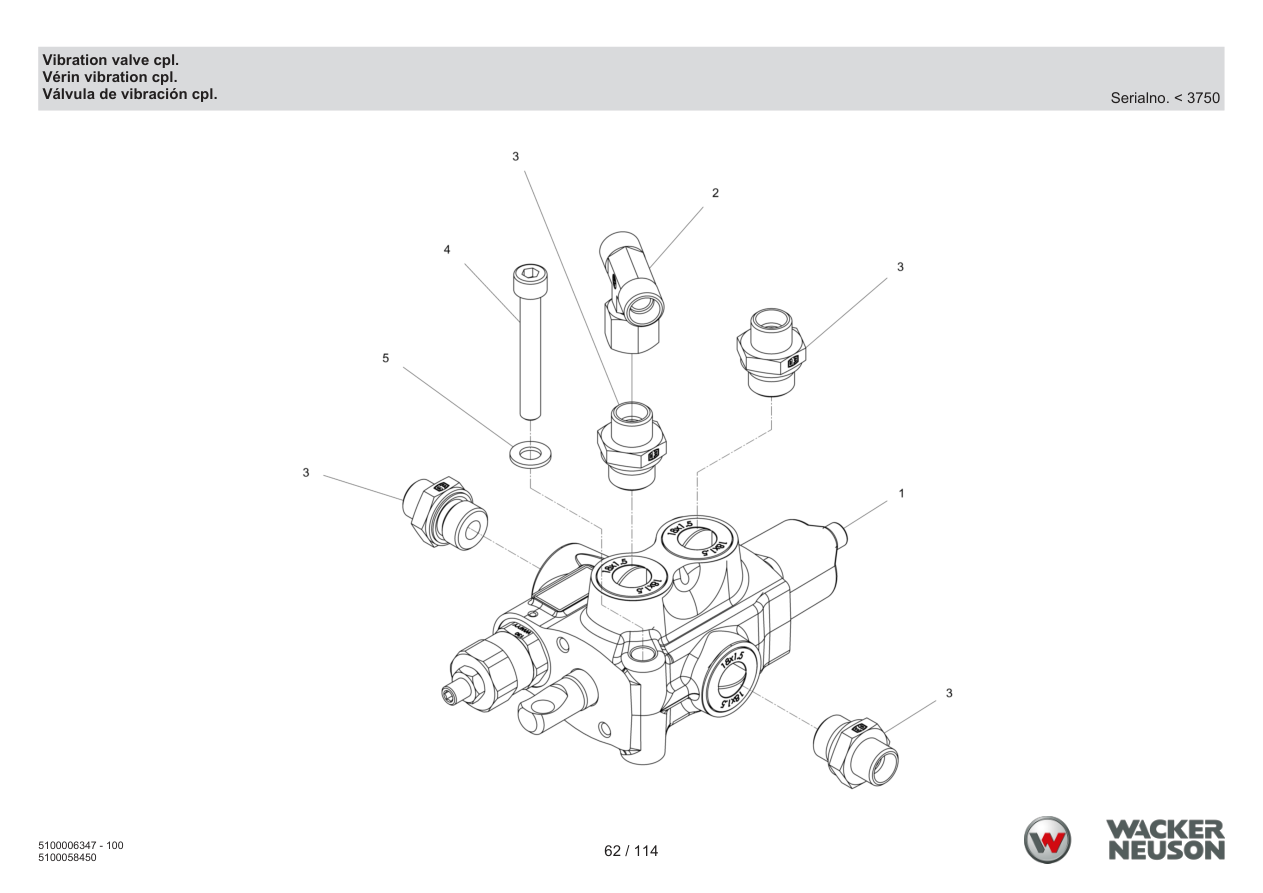

Page 62 — Vibration valve cpl.
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006590 | Hydraulic valve | 1 | Serialno. < 3750 | ADD TO CART |
| 2 | 5100006574 | Screw connection | 1 | Serialno. < 3750 | ADD TO CART |
| 3 | 5100006573 | Male stud connector | 4 | Serialno. < 3750 | ADD TO CART |
| 4 | 5100006622 | Cheese head screw | 2 | Serialno. < 3750 | ADD TO CART |
| 5 | 5100006553 | Washer | 2 | Serialno. < 3750 | ADD TO CART |
| 1 | 5100007605 | Hydraulic valve | 1 | PARTS REQUEST | |
|
COMING Hydraulic valve
5100007605 · qty on machine: 1 | |||||
| 2 | 5100006571 | Male stud connector | 4 | ADD TO CART | |
| 3 | 5100006574 | Screw connection | 1 | ADD TO CART | |
| 4 | 5100007606 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5100007606 · qty on machine: 2 | |||||

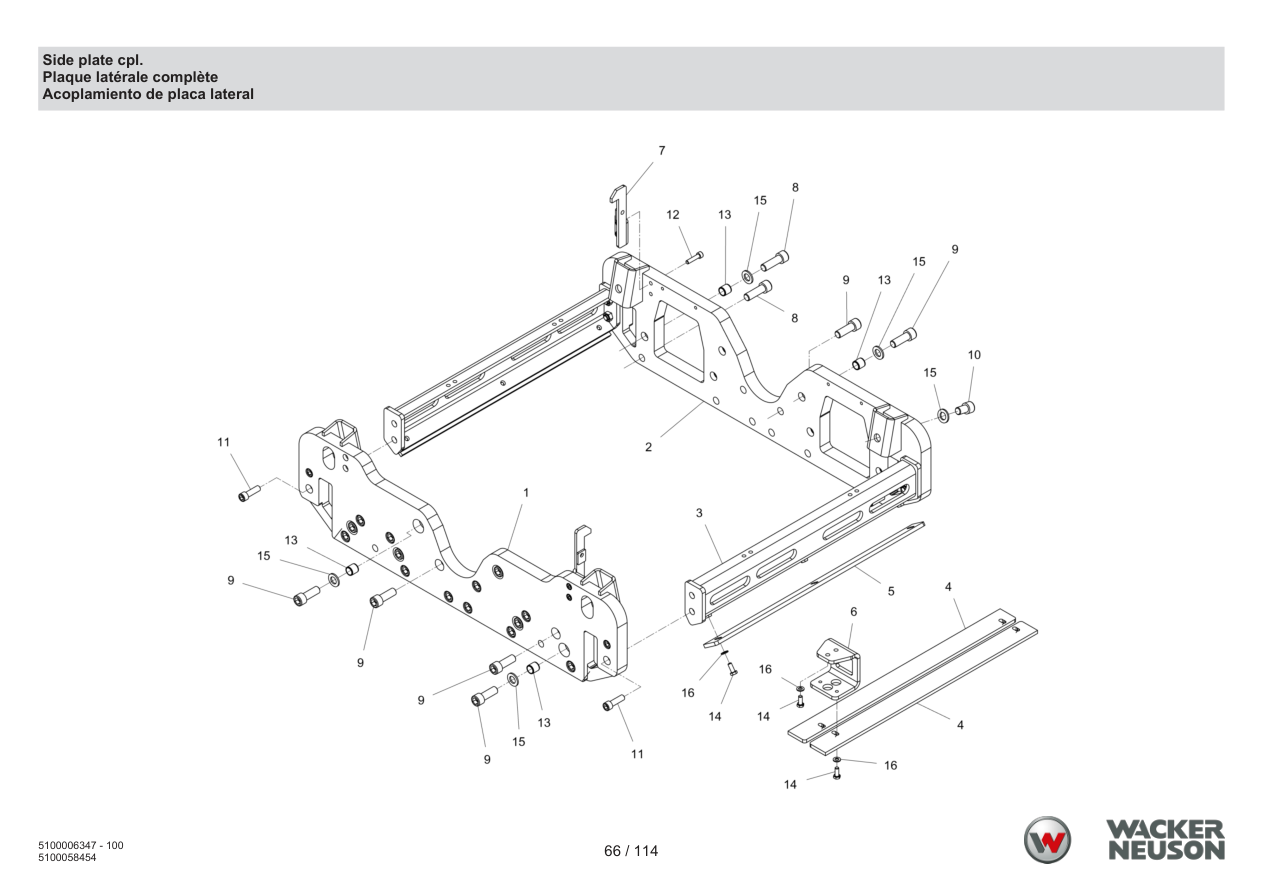

Page 66 — Side plate cpl.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006591 | Side plate left | 1 | ADD TO CART | |
| 2 | 5100006592 | Side plate right | 1 | ADD TO CART | |
| 3 | 5100006638 | Holder outer | 2 | ADD TO CART | |
| 4 | 5100006606 | Inner scraper | 2 | ADD TO CART | |
| 5 | 5100006605 | Outer scraper | 2 | ADD TO CART | |
| 6 | 5100006635 | Holder inner | 2 | ADD TO CART | |
| 7 | 5100006609 | Lift limiter | 2 | ADD TO CART | |
| 8 | 5100006618 | Cheese head screw | 8 | ADD TO CART | |
| 9 | 5100006619 | Cheese head screw | 24 | ADD TO CART | |
| 10 | 5100006620 | Cheese head screw | 4 | ADD TO CART | |
| 11 | 5100006621 | Cheese head screw | 8 | ADD TO CART | |
| 12 | 5100006677 | Cheese head screw | 4 | ADD TO CART | |
| 13 | 5100006603 | Busch | 12 | ADD TO CART | |
| 14 | 5100006559 | Hexagon head screw | 14 | ADD TO CART | |
| 15 | 5100006552 | Washer | 16 | ADD TO CART | |
| 16 | 5100006553 | Washer | 14 | ADD TO CART | |

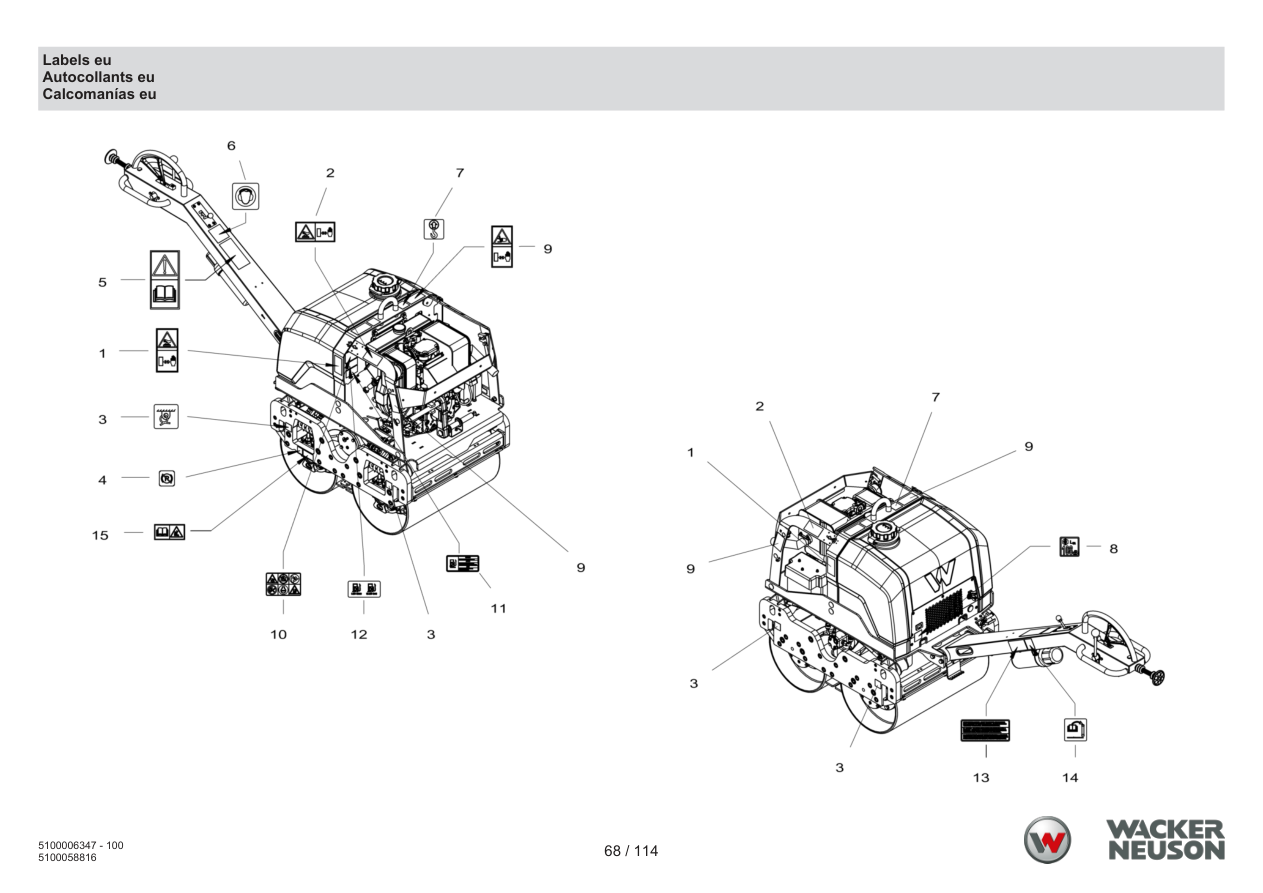

Page 68 — Labels eu
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006799 | Label | 2 | ADD TO CART | |
| 2 | 5100006800 | Label | 2 | ADD TO CART | |
| 3 | 5100006801 | Label | 4 | ADD TO CART | |
| 4 | 5100006803 | Label | 1 | ADD TO CART | |
| 5 | 5100006805 | Label | 1 | ADD TO CART | |
| 6 | 5100006807 | Label | 1 | ADD TO CART | |
| 7 | 5100006811 | Label | 2 | ADD TO CART | |
| 8 | 5100006813 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5100006814 | Label | 4 | ADD TO CART | |
| 10 | 5100006815 | Label | 1 | ADD TO CART | |
| 11 | 5100006816 | Label | 1 | ADD TO CART | |
| 12 | 5100006817 | Label | 1 | ADD TO CART | |
| 13 | 5100006818 | Label-manual-operator's | 1 | ADD TO CART | |
| 14 | 5100006819 | Label-manual-operator's | 1 | ADD TO CART | |
| 15 | 5100006860 | Label | 1 | ADD TO CART | |

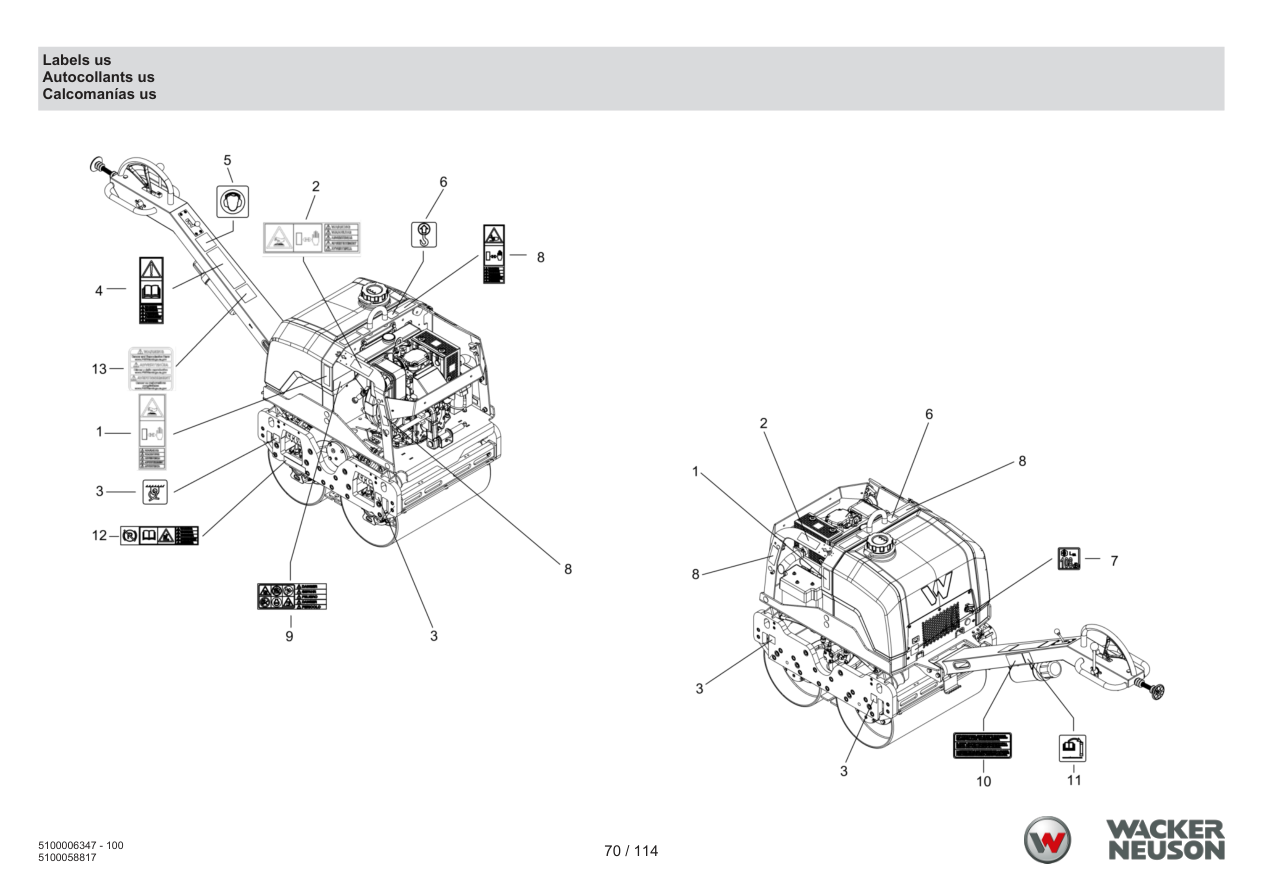

Page 70 — Labels us
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 8 | 5100007610 | Label | 4 | PARTS REQUEST | |
|
COMING Label
5100007610 · qty on machine: 4 | |||||
| 1 | 5100007607 | Label | 2 | PARTS REQUEST | |
|
COMING Label
5100007607 · qty on machine: 2 | |||||
| 2 | 5100007608 | Label | 2 | PARTS REQUEST | |
|
COMING Label
5100007608 · qty on machine: 2 | |||||
| 3 | 5100006801 | Label | 4 | ADD TO CART | |
| 4 | 5100007609 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100007609 · qty on machine: 1 | |||||
| 5 | 5100006807 | Label | 1 | ADD TO CART | |
| 6 | 5100006811 | Label | 2 | ADD TO CART | |
| 7 | 5100006813 | Decal-sound power level | 1 | ADD TO CART | |
| 9 | 5100007611 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100007611 · qty on machine: 1 | |||||
| 10 | 5100006818 | Label-manual-operator's | 1 | ADD TO CART | |
| 11 | 5100006819 | Label-manual-operator's | 1 | ADD TO CART | |
| 12 | 5100007612 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100007612 · qty on machine: 1 | |||||
| 13 | 5100007613 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100007613 · qty on machine: 1 | |||||

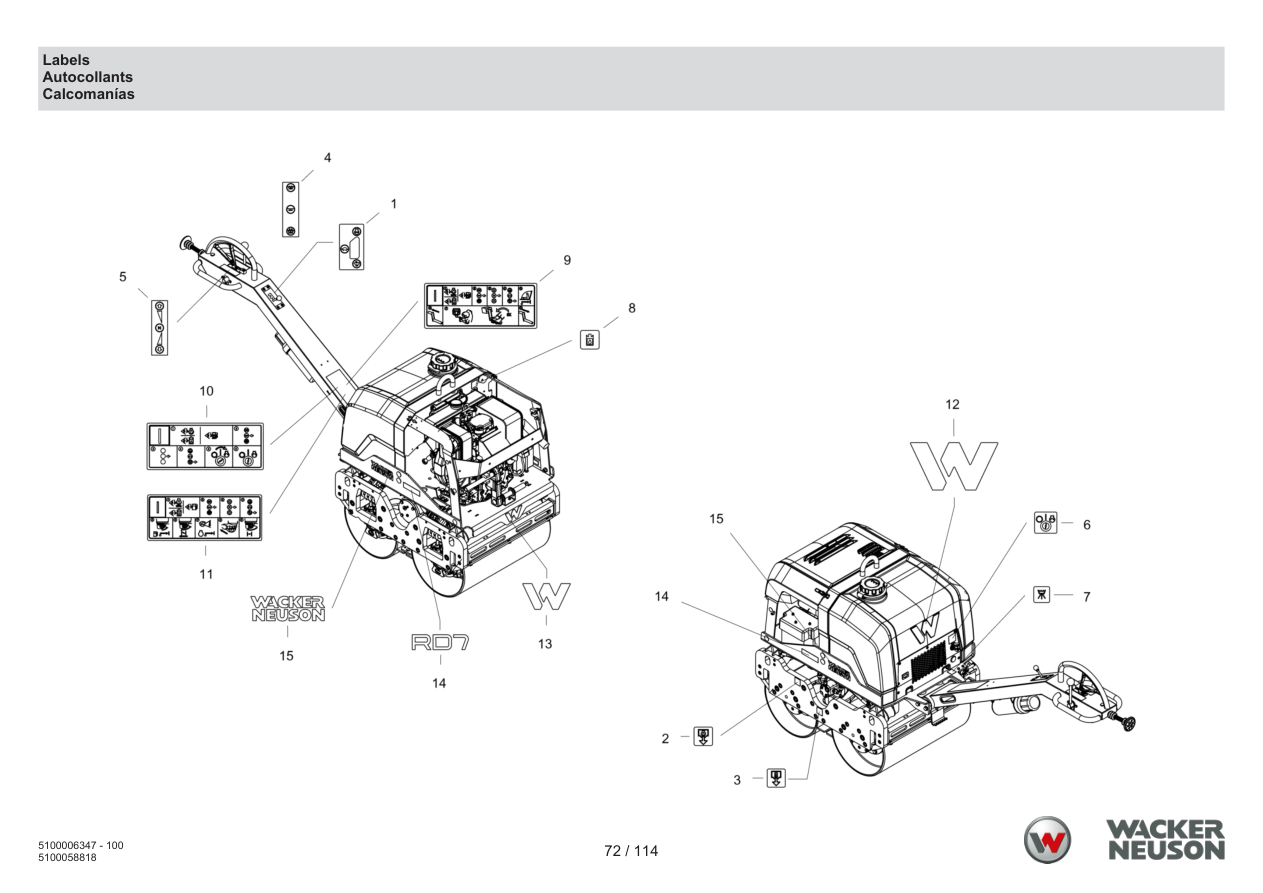

Page 72 — Labels
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006798 | Label | 1 | ADD TO CART | |
| 2 | 5100006802 | Label | 1 | ADD TO CART | |
| 3 | 5100006804 | Label | 1 | ADD TO CART | |
| 4 | 5100006806 | Label | 1 | ADD TO CART | |
| 5 | 5100006808 | Label | 1 | ADD TO CART | |
| 6 | 5100006809 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100006809 · qty on machine: 1 | |||||
| 7 | 5100006810 | Label | 1 | ADD TO CART | |
| 8 | 5100006812 | Label | 1 | ADD TO CART | |
| 9 | 5100006820 | Label | 1 | ADD TO CART | |
| 10 | 5100006821 | Label | 1 | ADD TO CART | |
| 11 | 5100006822 | Label | 1 | ADD TO CART | |
| 12 | 5100006823 | Label logo | 1 | ADD TO CART | |
| 13 | 5100006824 | Label logo | 1 | ADD TO CART | |
| 14 | 5100006825 | Type label | 2 | ADD TO CART | |
| 15 | 5100006826 | Label logo | 2 | ADD TO CART | |
| 16 | 5100006922 | Label | 1 | ADD TO CART | |

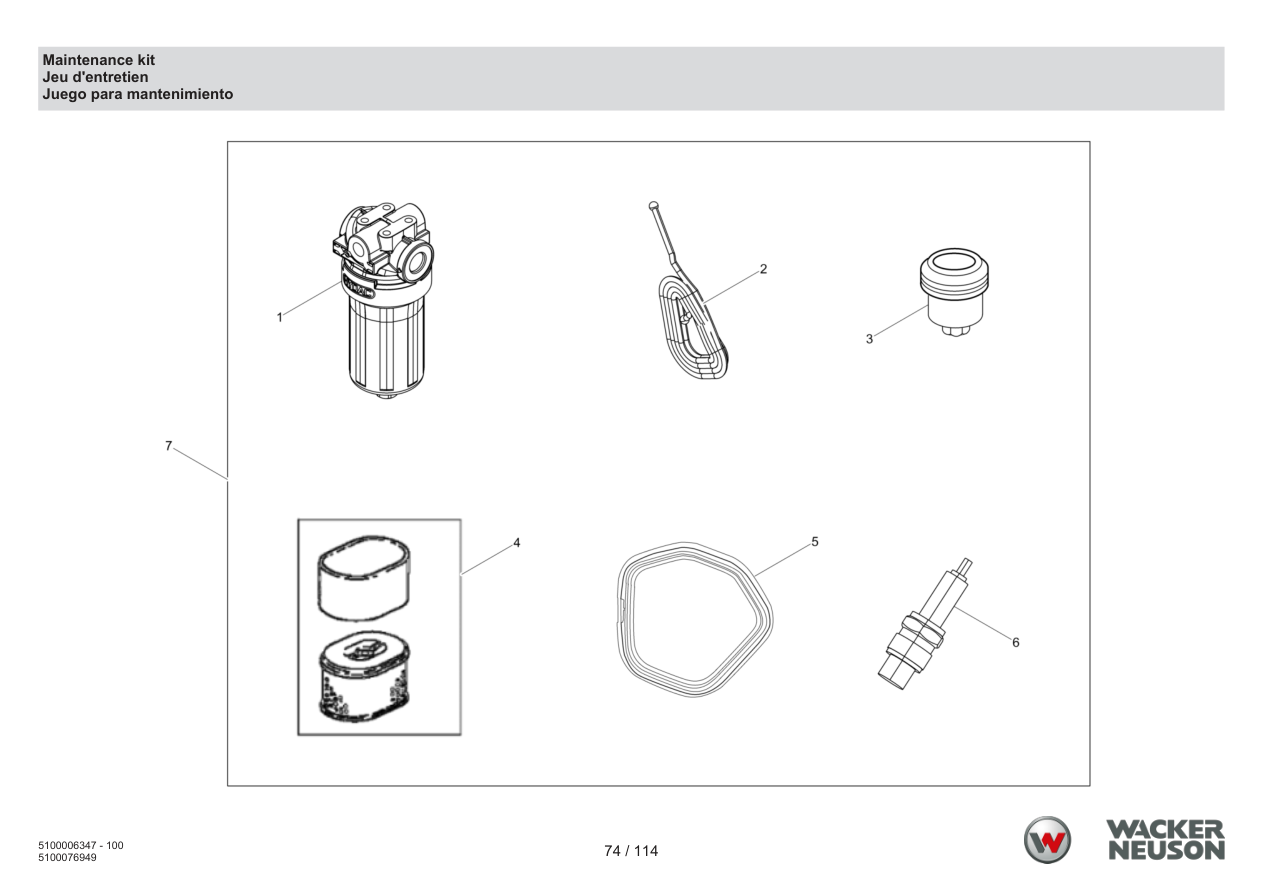

Page 74 — Maintenance kit
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100006900 | Filter element | 1 | ADD TO CART | |
| 2 | 5000082842 | Rope | 1 | PARTS REQUEST | |
|
COMING Rope
5000082842 · qty on machine: 1 | |||||
| 3 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 4 | 5000075847 | Air cleaner element | 1 | ADD TO CART | |
| 5 | 5000074645 | Cylinder head gasket | 1 | ADD TO CART | |
| 6 | 5000158498 | Spark plug | 1 | ADD TO CART | |
| 7 | 5100062986 | Maintenance kit | 1 | ADD TO CART | |

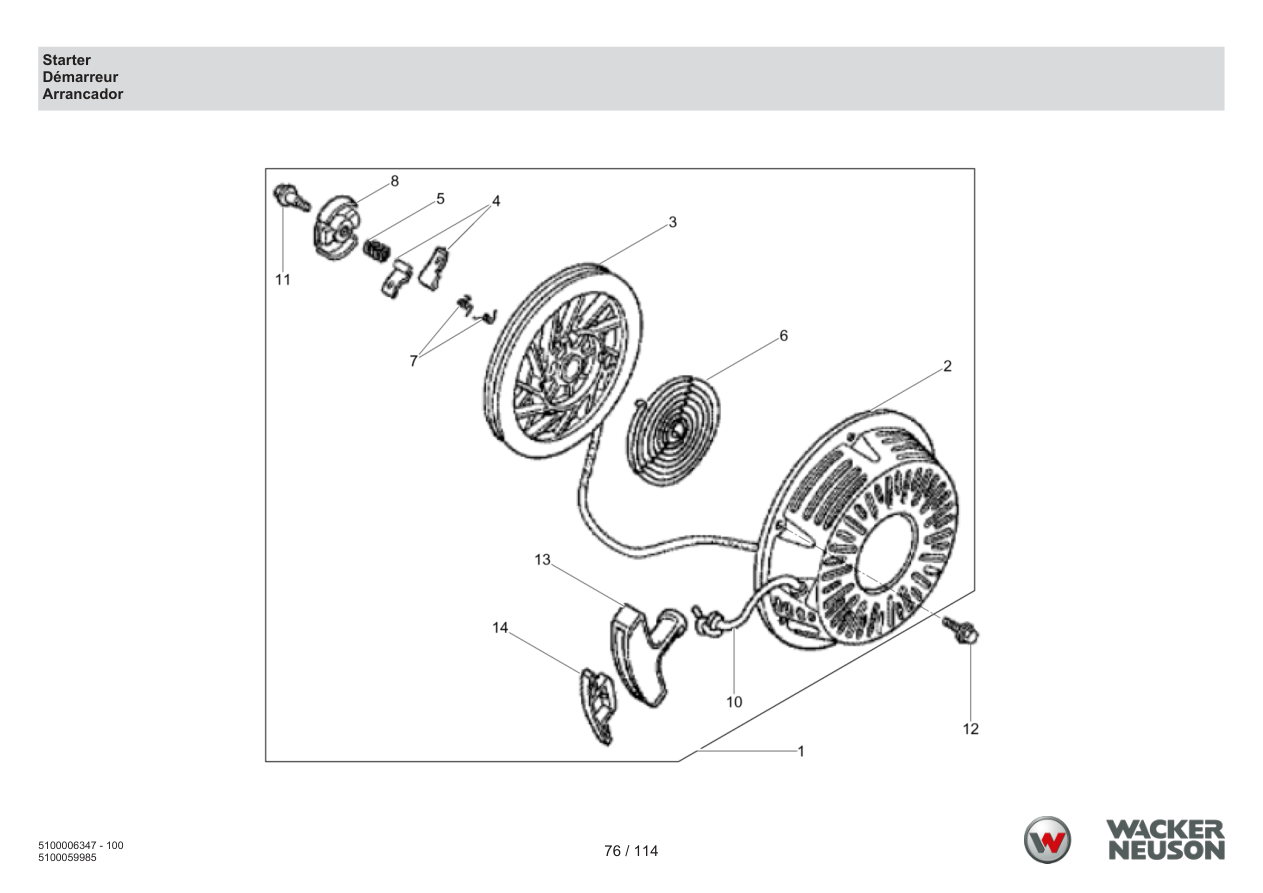

Page 76 — Starter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100003448 | Recoil starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Recoil starter cpl.
5100003448 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000082839 | Starter housing | 1 | ADD TO CART | |
| 3 | 5000082840 | Starter pulley | 1 | ADD TO CART | |
| 4 | 5000081645 | Ratchet | 2 | ADD TO CART | |
| 5 | 5000081646 | Spring | 1 | ADD TO CART | |
| 6 | 5000081647 | Spring | 1 | ADD TO CART | |
| 7 | 5000081648 | Spring | 2 | ADD TO CART | |
| 8 | 5000081649 | Spring housing | 1 | ADD TO CART | |
| 10 | 5000082842 | Rope | 1 | PARTS REQUEST | |
|
COMING Rope
5000082842 · qty on machine: 1 | |||||
| 11 | 5000081658 | Screw | 1 | ADD TO CART | |
| 12 | 5000071053 | Screw | 3 | ADD TO CART | |
| 13 | 5100000428 | Handle | 1 | PARTS REQUEST | |
|
COMING Handle
5100000428 · qty on machine: 1 | |||||
| 14 | 5100000429 | Handle | 1 | ADD TO CART | |

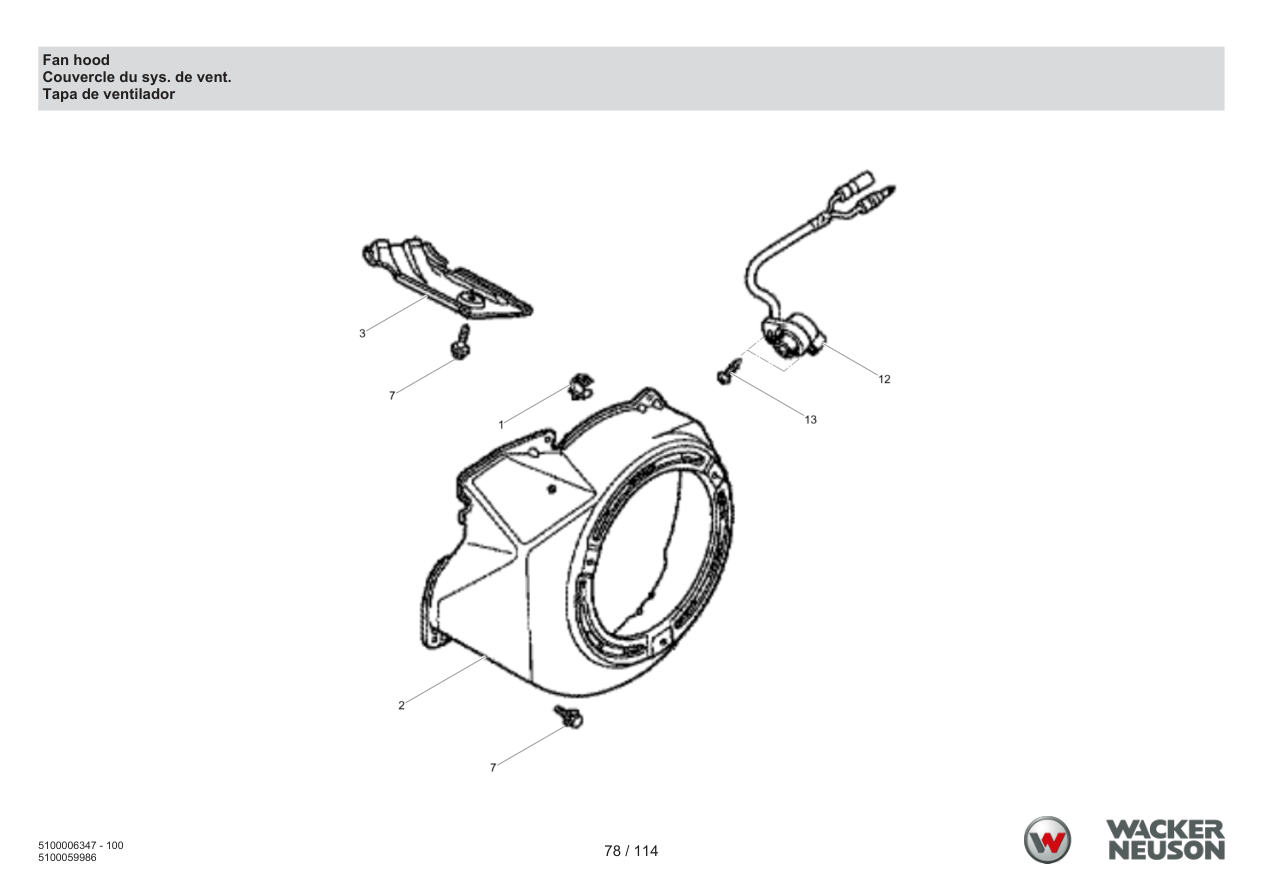

Page 78 — Fan hood
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000074689 | Clip | 1 | ADD TO CART | |
| 2 | 5100000418 | Cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cover cpl.
5100000418 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100000422 | Cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 7 | 5000053990 | Screw | 6 | ADD TO CART | |
| 12 | 5100000436 | Engine stop cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 13 | 5100000448 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100000448 · qty on machine: 2 | |||||

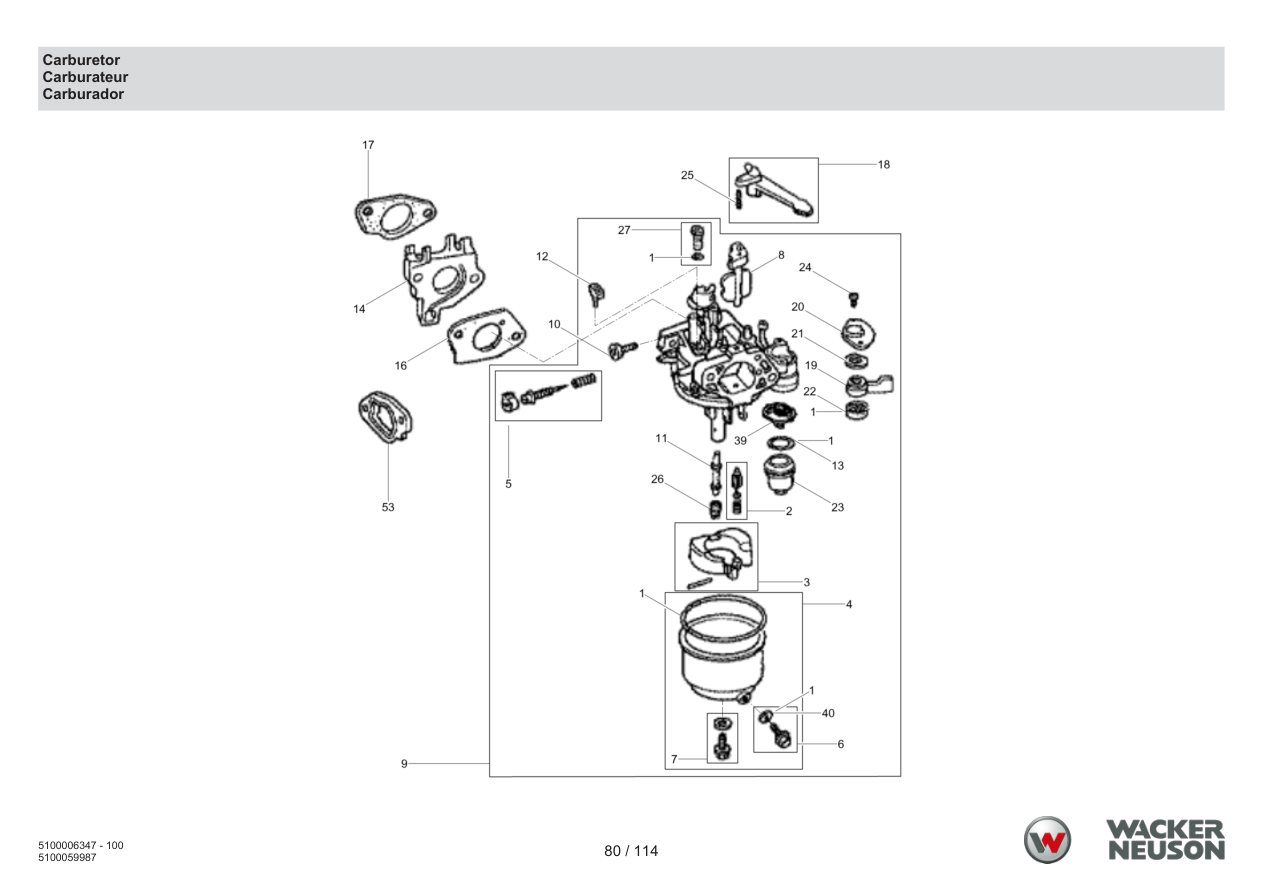

Page 80 — Carburetor
Parts list — exactly as printed31 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100039005 | Gasket set | 1 | PARTS REQUEST | |
|
COMING Gasket set
5100039005 · qty on machine: 1 | |||||
| 2 | 5000074759 | Float needle | 1 | ADD TO CART | |
| 3 | 5000217483 | Set-carburetor float | 1 | ADD TO CART | |
| 4 | 5200000429 | Carburetor float set | 1 | ADD TO CART | |
| 5 | 5100051883 | Screw-set | 1 | ADD TO CART | |
| 6 | 5200000430 | Screw w/washer | 1 | ADD TO CART | |
| 7 | 5200000431 | Screw w/washer | 1 | ADD TO CART | |
| 8 | 5200000432 | Choke shaft set | 1 | ADD TO CART | |
| 9 | 5100059878 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 11 | 5100059879 | Main jet | 1 | ADD TO CART | |
| 12 | 5000089281 | Set-collar | 1 | ADD TO CART | |
| 13 | 5000125839 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000125839 · qty on machine: 1 | |||||
| 14 | 5200000436 | Insulator | 1 | ADD TO CART | |
| 16 | 5200000437 | Gasket | 1 | ADD TO CART | |
| 17 | 5200000438 | Gasket | 1 | ADD TO CART | |
| 18 | 5100051236 | Lever cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 19 | 5000150266 | Fuel valve lever | 1 | ADD TO CART | |
| 20 | 5000073269 | Plate | 1 | ADD TO CART | |
| 21 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 22 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 23 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 24 | 5100005317 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005317 · qty on machine: 2 | |||||
| 25 | 5000071014 | Pin | 1 | ADD TO CART | |
| 26 | 5000162706 | Main jet | 1 | ADD TO CART | |
| 26 | 5100000456 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100000456 · qty on machine: 1 | |||||
| 26 | 5100000457 | Main jet | 1 | ADD TO CART | |
| 27 | 5000084654 | Set-pilot jet | 1 | ADD TO CART | |
| 39 | 5100000396 | Filter | 1 | ADD TO CART | |
| 40 | 5100036241 | Disc | 1 | ADD TO CART | |
| 53 | 5000074761 | Carburetor mount spacer | 1 | ADD TO CART | |

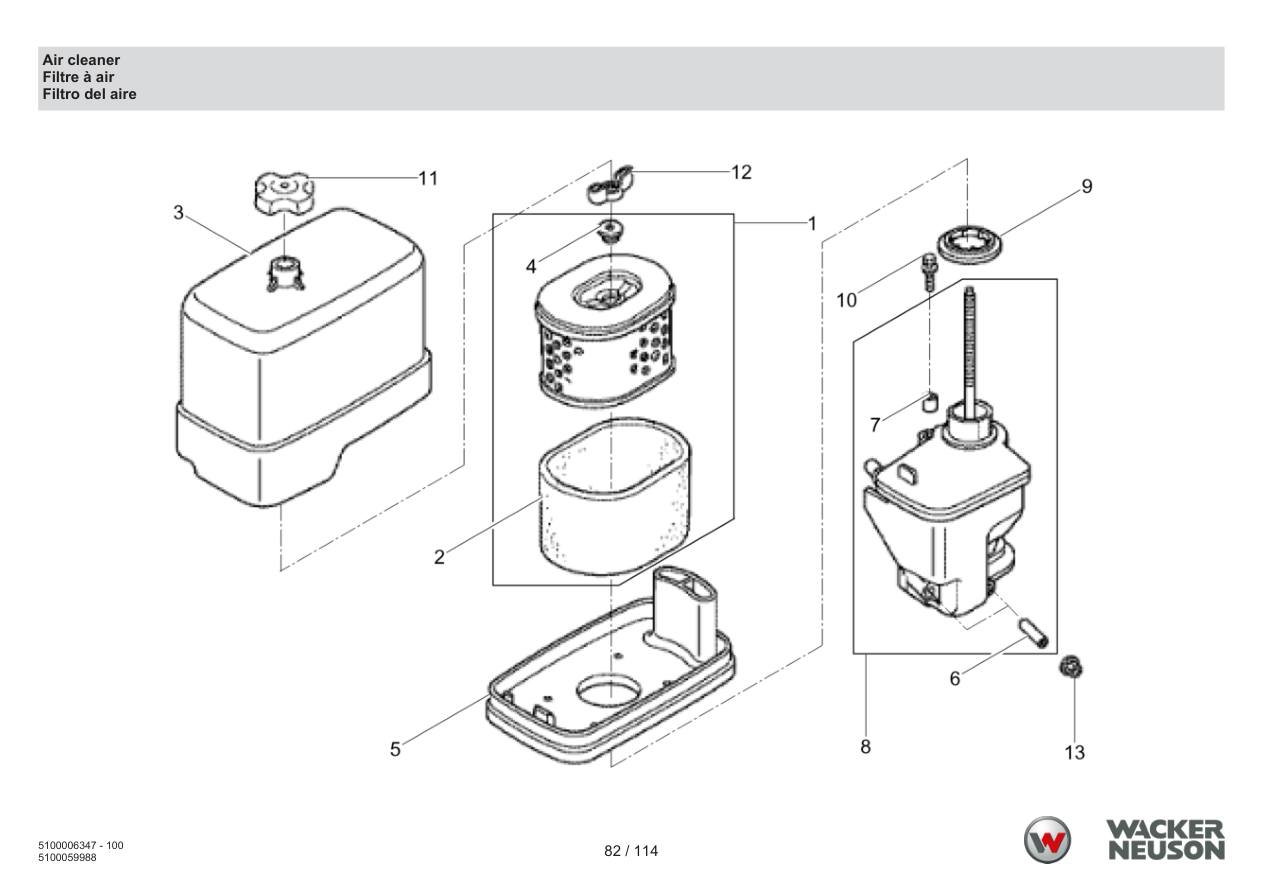

Page 82 — Air cleaner
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049530 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Air filter insert cpl.
5100049530 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5000078887 | Prefilter element | 1 | ADD TO CART | |
| 3 | 5200000441 | Air cleaner cover | 1 | ADD TO CART | |
| 4 | 5000072343 | Grommet | 1 | ADD TO CART | |
| 5 | 5100001091 | Bracket | 1 | ADD TO CART | |
| 6 | 5000076372 | Collar | 2 | ADD TO CART | |
| 7 | 5000071035 | Sleeve | 1 | ADD TO CART | |
| 8 | 5100049531 | Air cleaner mount | 1 | ADD TO CART | |
| 9 | 5200000440 | Air cleaner gasket | 1 | ADD TO CART | |
| 10 | 5000217494 | Screw w/washer | 1 | ADD TO CART | |
| 11 | 5100000590 | Wing nut | 1 | PARTS REQUEST | |
|
COMING Wing nut
5100000590 · qty on machine: 1 | |||||
| 12 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 14 | 5000071056 | Nut | 2 | ADD TO CART | |

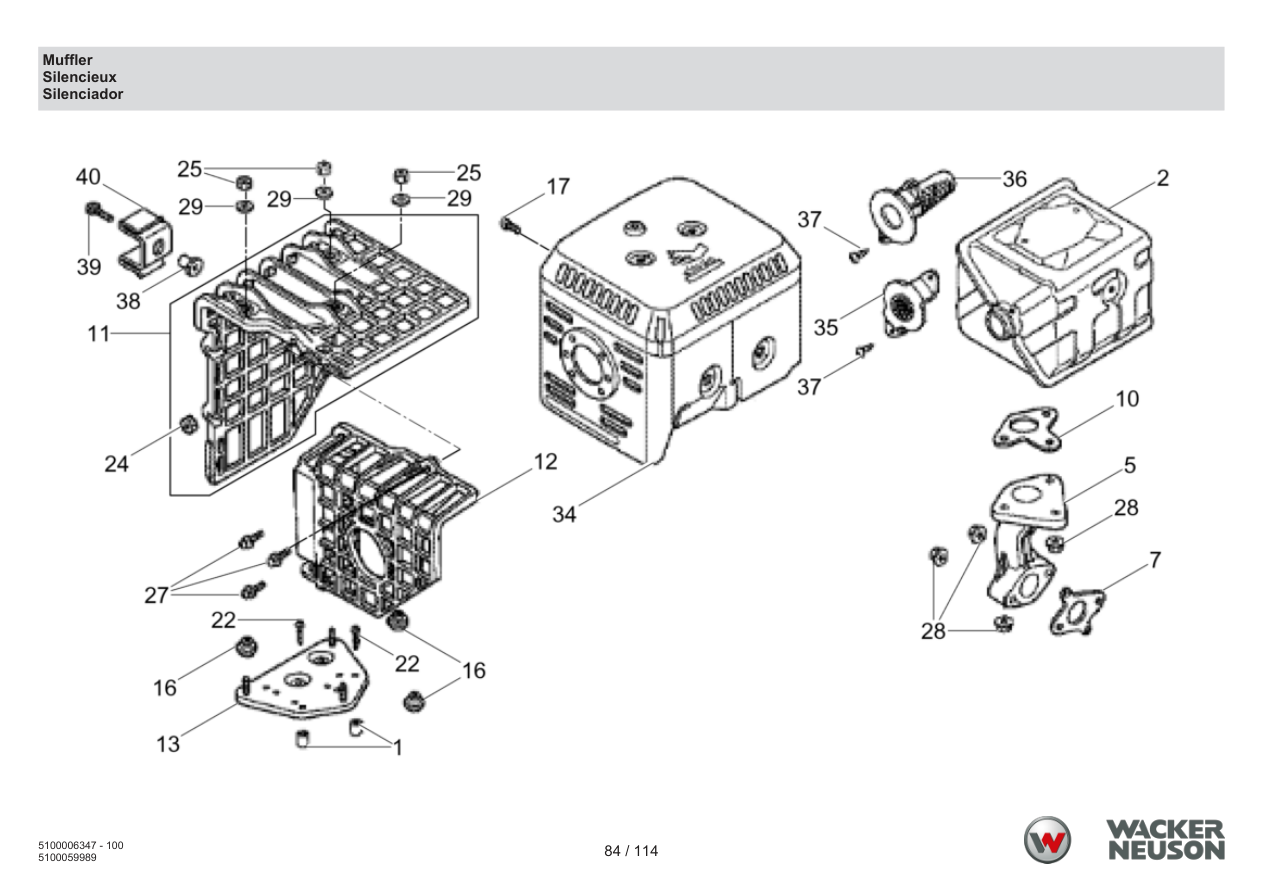

Page 84 — Muffler
Parts list — exactly as printed23 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000207655 | Spacer sleeve | 2 | ADD TO CART | |
| 2 | 5100039136 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Muffler cpl.
5100039136 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 5 | 5200000448 | Exhaust pipe | 1 | ADD TO CART | |
| 7 | 5000162672 | Exhaust seal | 1 | ADD TO CART | |
| 10 | 5100000411 | Exhaust gasket | 1 | ADD TO CART | |
| 11 | 5100000412 | Covering | 1 | ADD TO CART | |
| 12 | 5100000413 | Cover | 1 | ADD TO CART | |
| 13 | 5100029236 | Bracket | 1 | ADD TO CART | |
| 16 | 5000207659 | Spacer | 3 | ADD TO CART | |
| 17 | 5000089284 | Screw | 1 | ADD TO CART | |
| 22 | 5000207666 | Screw | 2 | ADD TO CART | |
| 24 | 5100000452 | Nut | 3 | ADD TO CART | |
| 25 | 5000207667 | Nut | 3 | ADD TO CART | |
| 27 | 5000207668 | Screw w/washer | 3 | ADD TO CART | |
| 28 | 5000074738 | Flange nut | 5 | ADD TO CART | |
| 29 | 5000207669 | Washer | 3 | ADD TO CART | |
| 34 | 5100000406 | Housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 35 | 5000075854 | O-ring | 1 | ADD TO CART | |
| 36 | 5200000449 | Spark arrester | 1 | ADD TO CART | |
| 37 | 5000071070 | Screw | 2 | ADD TO CART | |
| 38 | 5100000420 | Collar | 1 | ADD TO CART | |
| 39 | 5100000449 | Screw | 1 | ADD TO CART | |
| 40 | 5100000415 | Brace | 1 | ADD TO CART | |

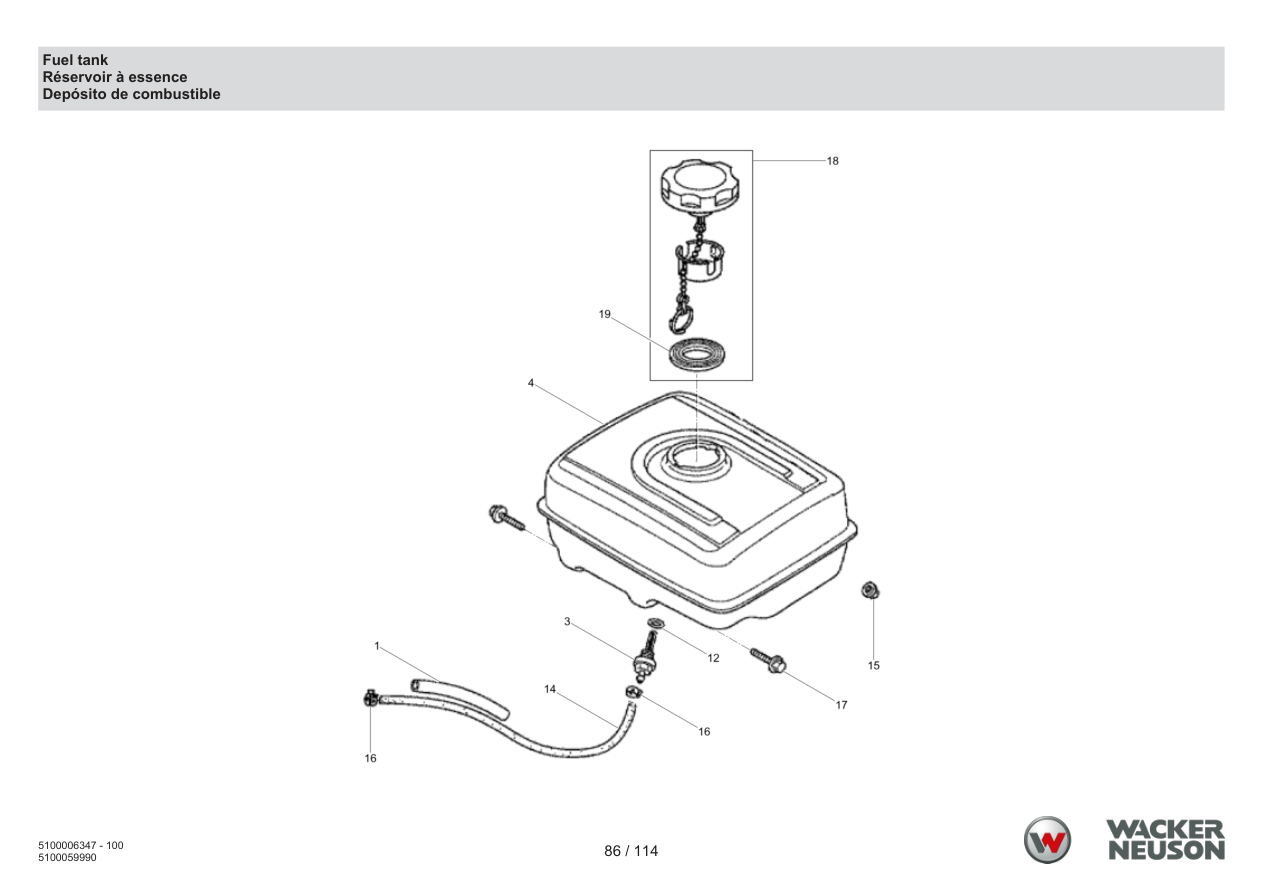

Page 86 — Fuel tank
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 3 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 4 | 5100039042 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 12 | 5100051238 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5100051238 · qty on machine: 1 | |||||
| 14 | 5100000455 | Fuel hose | 1 | ADD TO CART | |
| 15 | 5000074738 | Flange nut | 2 | ADD TO CART | |
| 16 | 5000208617 | Clamp | 2 | ADD TO CART | |
| 17 | 5000074751 | Screw | 2 | ADD TO CART | |
| 18 | 5000217460 | Cap-fuel fill | 1 | ADD TO CART | |
| 19 | 5000209770 | Gasket | 1 | ADD TO CART | |
| 19 | 5100059880 | Gasket | 1 | ADD TO CART | |

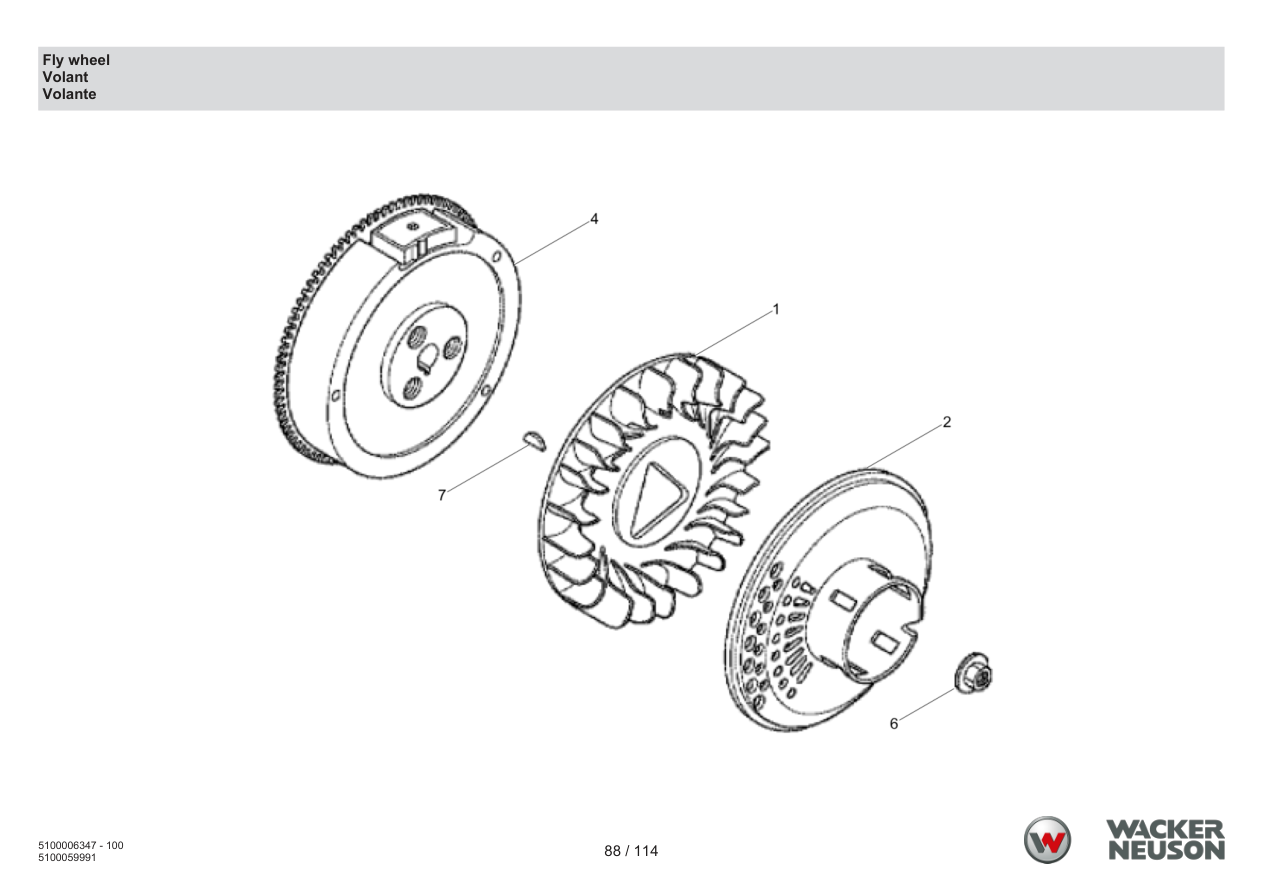

Page 88 — Fly wheel
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000075813 | Fan | 1 | ADD TO CART | |
| 2 | 5000082841 | Puller | 1 | ADD TO CART | |
| 4 | 5100000433 | Fly wheel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 6 | 5000116736 | Nut | 1 | ADD TO CART | |
| 7 | 5000074672 | Woodruff key | 1 | ADD TO CART | |

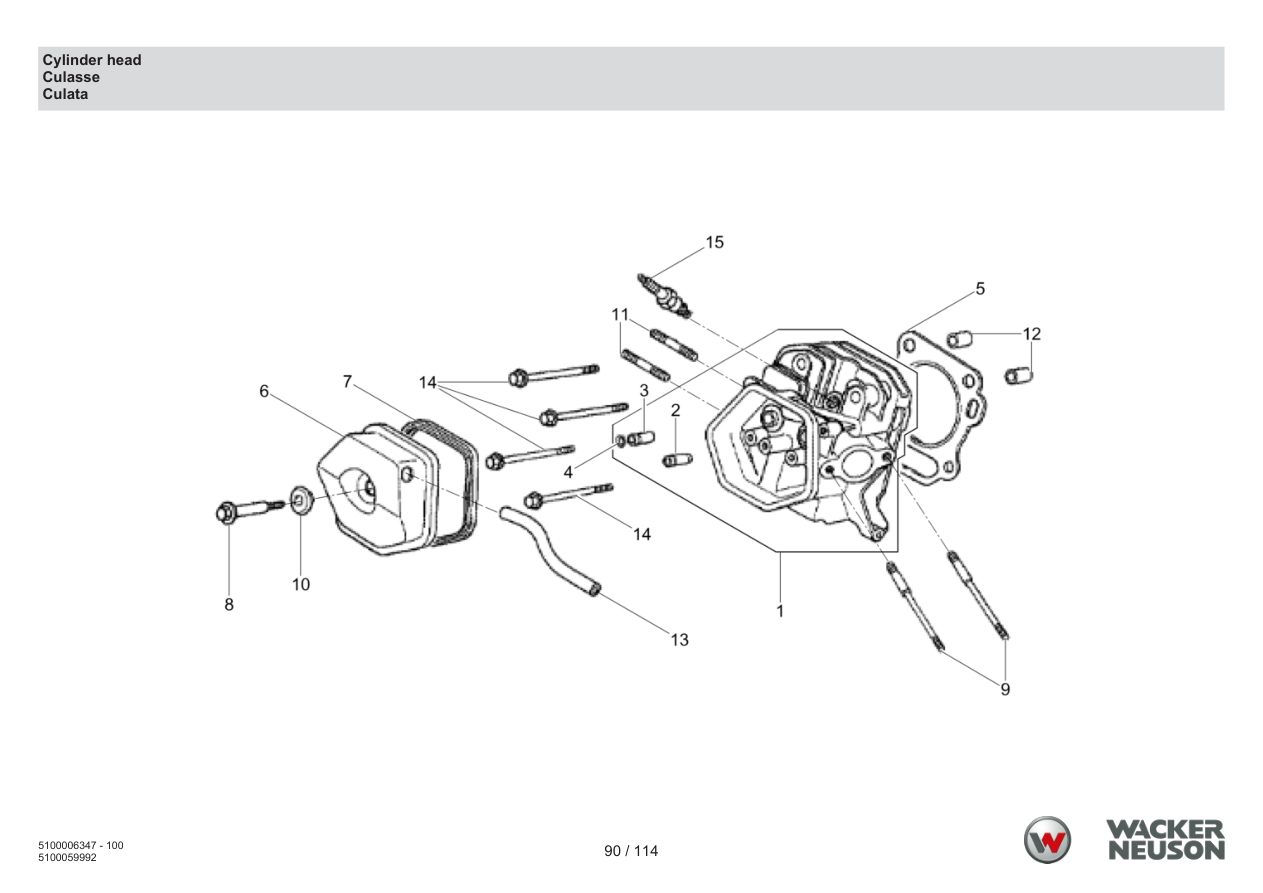

Page 90 — Cylinder head
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100038229 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5000110602 | Valve guide | 1 | ADD TO CART | |
| 3 | 5000074648 | Valve guide | 1 | ADD TO CART | |
| 4 | 5000074660 | Retaining ring | 1 | ADD TO CART | |
| 5 | 5100000356 | Cylinder head gasket | 1 | ADD TO CART | |
| 6 | 5000089273 | Valve hood | 1 | ADD TO CART | |
| 7 | 5000074645 | Cylinder head gasket | 1 | ADD TO CART | |
| 8 | 5100000450 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100000450 · qty on machine: 1 | |||||
| 9 | 5000075798 | Stud | 2 | ADD TO CART | |
| 10 | 5000074657 | Washer | 1 | ADD TO CART | |
| 11 | 5000125833 | Stud bolt | 2 | ADD TO CART | |
| 11 | 5000217497 | Stud bolt | 2 | PARTS REQUEST | |
|
COMING Stud bolt
5000217497 · qty on machine: 2 | |||||
| 12 | 5000074652 | Dowel pin | 2 | ADD TO CART | |
| 13 | 5200000467 | Breather tube | 1 | ADD TO CART | |
| 14 | 5100003507 | Flange screw | 4 | PARTS REQUEST | |
|
COMING Flange screw
5100003507 · qty on machine: 4 | |||||
| 15 | 5000158498 | Spark plug | 1 | ADD TO CART | |

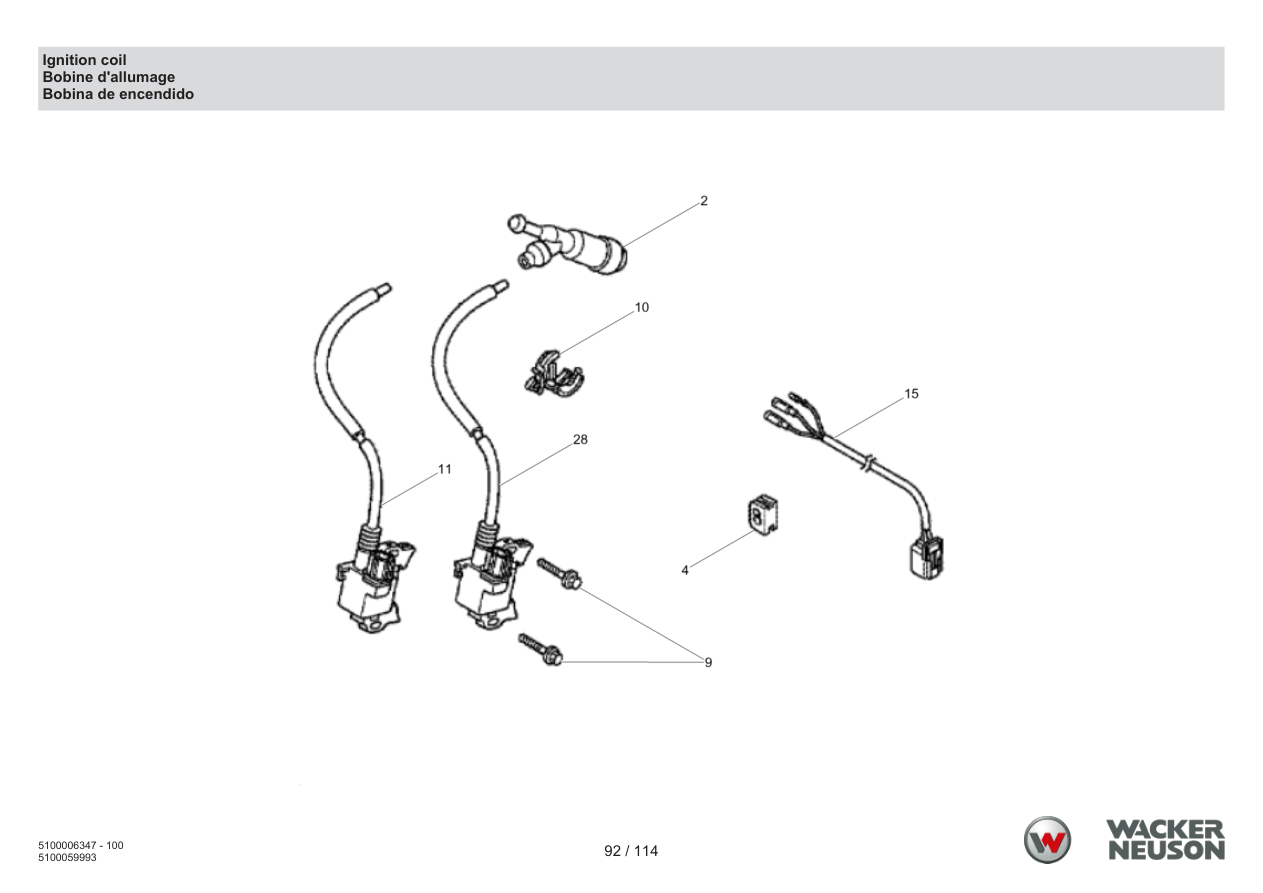

Page 92 — Ignition coil
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000217491 | Spark plug terminal cap | 1 | ADD TO CART | |
| 4 | 5000081611 | Grommet | 1 | ADD TO CART | |
| 9 | 5000070966 | Screw | 2 | ADD TO CART | |
| 10 | 5000076375 | Clip | 1 | PARTS REQUEST | |
|
COMING Clip
5000076375 · qty on machine: 1 | |||||
| 11 | 5100059881 | Ignition coil cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 15 | 5100000434 | Wire harnes cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 28 | 5200000453 | Ignition coil | 1 | ADD TO CART | |

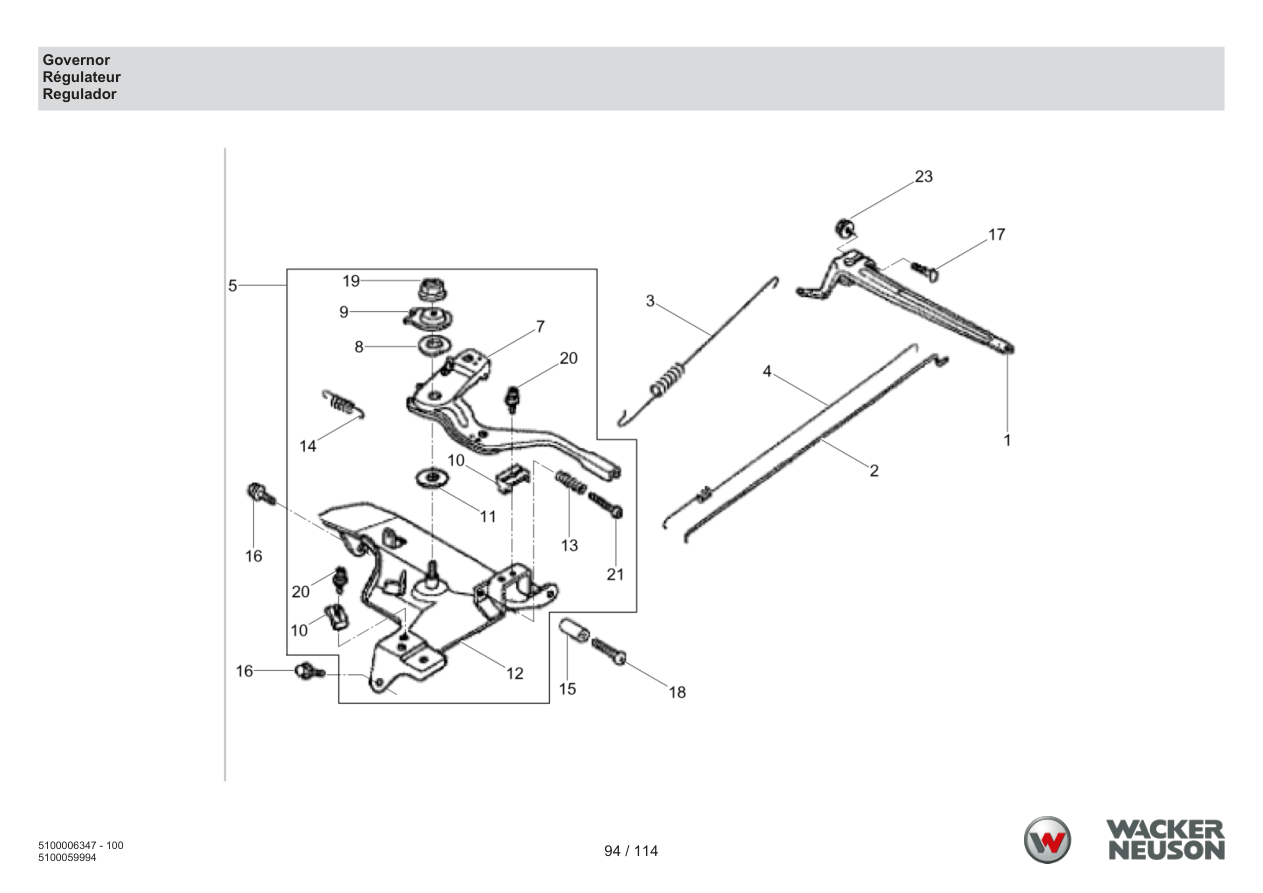

Page 94 — Governor
Parts list — exactly as printed21 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000075845 | Governor lever | 1 | ADD TO CART | |
| 2 | 5000075844 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5000075844 · qty on machine: 1 | |||||
| 3 | 5000075842 | Governor spring | 1 | ADD TO CART | |
| 4 | 5000075843 | Spring | 1 | ADD TO CART | |
| 5 | 5200001609 | Control cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control cpl.
5200001609 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 7 | 5000082831 | Lever | 1 | ADD TO CART | |
| 8 | 5000071058 | Spring | 1 | ADD TO CART | |
| 9 | 5000081633 | Washer | 1 | ADD TO CART | |
| 10 | 5000071062 | Cable holder | 1 | ADD TO CART | |
| 11 | 5000071064 | Spacer | 1 | ADD TO CART | |
| 12 | 5100000394 | Regulating plate | 1 | ADD TO CART | |
| 13 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 14 | 5000074730 | Spring | 1 | ADD TO CART | |
| 15 | 5000156684 | Spacer | 1 | ADD TO CART | |
| 16 | 5000053990 | Screw | 2 | ADD TO CART | |
| 17 | 5100000451 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100000451 · qty on machine: 1 | |||||
| 18 | 5000156685 | Screw | 1 | ADD TO CART | |
| 19 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 20 | 5000110112 | Screw | 1 | ADD TO CART | |
| 21 | 5000011791 | Pan head screw | 1 | ADD TO CART | |
| 23 | 5000071056 | Nut | 1 | ADD TO CART | |

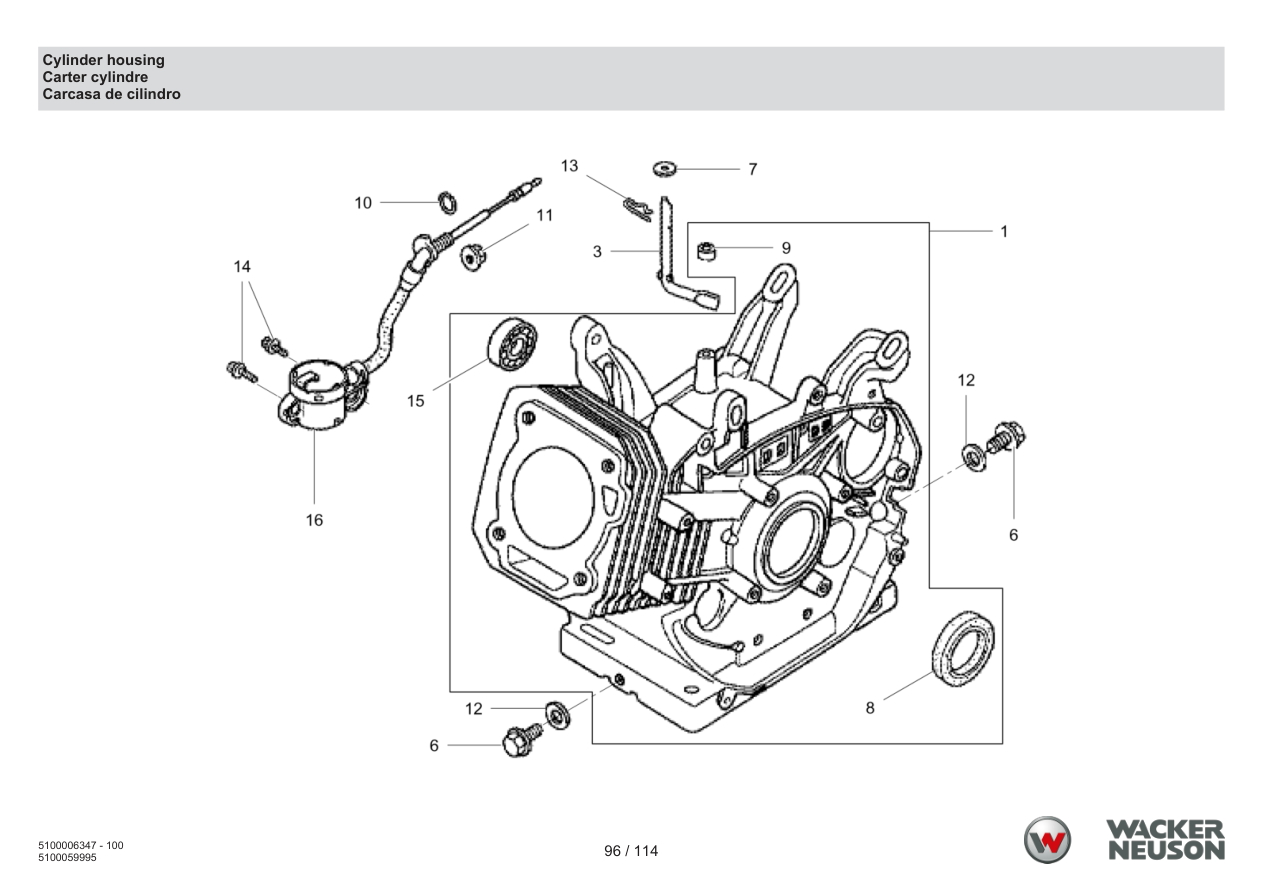

Page 96 — Cylinder housing
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100000352 | Cylinder housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 3 | 5000110114 | Governor shaft | 1 | ADD TO CART | |
| 6 | 5100038225 | Drain screw | 2 | ADD TO CART | |
| 7 | 5000074656 | Washer | 1 | ADD TO CART | |
| 8 | 5100059882 | Rotary shaft seal | 1 | ADD TO CART | |
| 9 | 5100059883 | Rotary shaft seal | 1 | ADD TO CART | |
| 10 | 5100051238 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5100051238 · qty on machine: 1 | |||||
| 11 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 12 | 5000053994 | Ring seal | 2 | ADD TO CART | |
| 13 | 5000110110 | Cotter pin | 1 | ADD TO CART | |
| 14 | 5100003498 | Flange screw | 2 | PARTS REQUEST | |
|
COMING Flange screw
5100003498 · qty on machine: 2 | |||||
| 15 | 5100003509 | Grooved ball bearing | 1 | ADD TO CART | |
| 16 | 5000217492 | Switch assembly | 1 | ADD TO CART | |

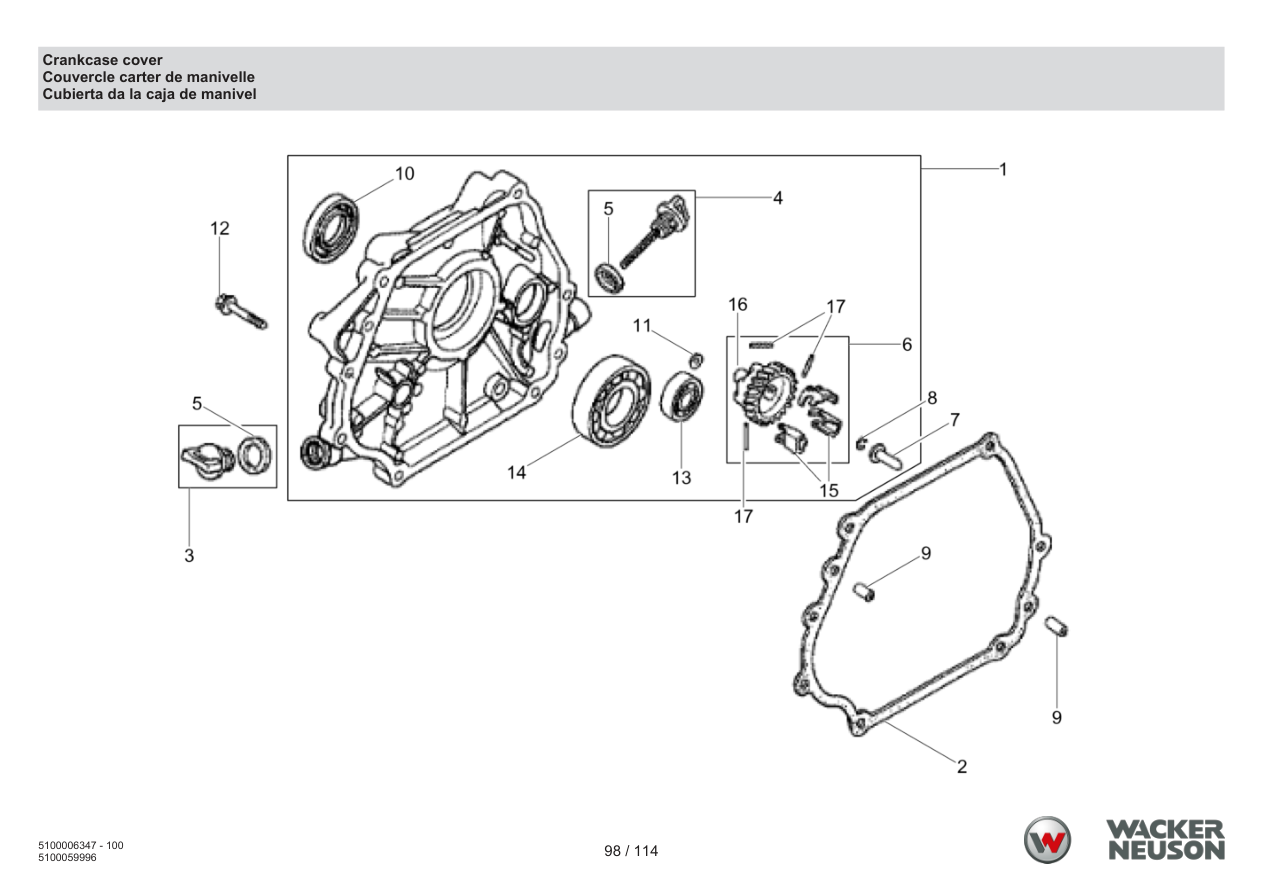

Page 98 — Crankcase cover
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000106942 | Housing cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5100000350 | Gasket | 1 | ADD TO CART | |
| 3 | 5100031607 | Oil filler cap | 1 | ADD TO CART | |
| 4 | 5000217482 | Oil dip stick cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5100051314 | Seal | 2 | PARTS REQUEST | |
|
COMING Seal
5100051314 · qty on machine: 2 | |||||
| 6 | 5000082828 | Kit-governor | 1 | ADD TO CART | |
| 7 | 5000074632 | Slider | 1 | ADD TO CART | |
| 8 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 9 | 5000081617 | Dowel pin | 2 | ADD TO CART | |
| 10 | 5100000453 | Sealing ring | 1 | ADD TO CART | |
| 11 | 5000071639 | Washer | 1 | ADD TO CART | |
| 12 | 5000116734 | Bolt | 7 | ADD TO CART | |
| 13 | 5100003509 | Grooved ball bearing | 1 | ADD TO CART | |
| 14 | 5100003512 | Grooved ball bearing | 1 | ADD TO CART | |
| 15 | 5000075788 | Weight | 3 | ADD TO CART | |
| 16 | 5000082829 | Holder | 1 | ADD TO CART | |
| 17 | 5000074634 | Pin | 3 | ADD TO CART | |

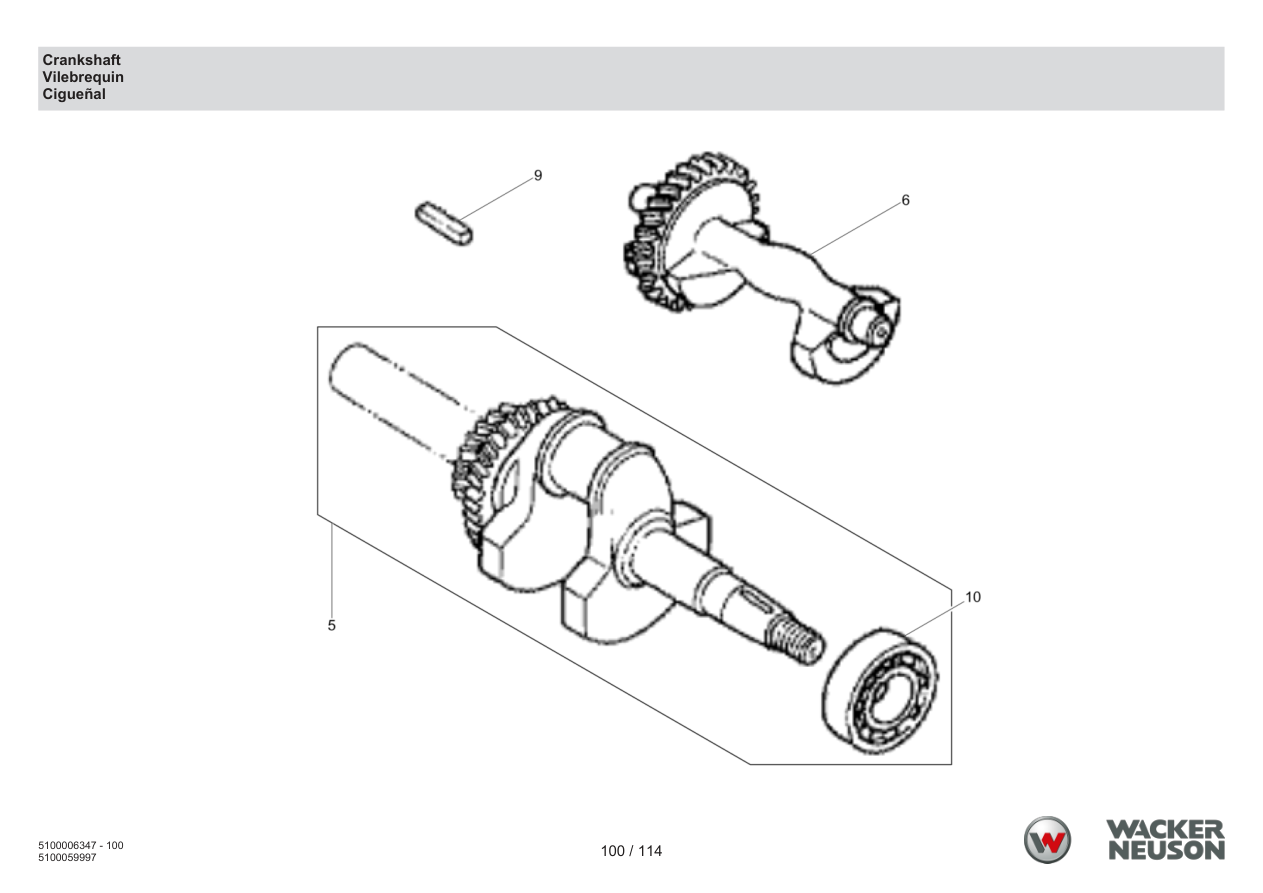

Page 100 — Crankshaft
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 5 | 5000106944 | Crankshaft | 1 | ADD TO CART | |
| 6 | 5100038231 | Weight | 1 | PARTS REQUEST | |
|
COMING Weight
5100038231 · qty on machine: 1 | |||||
| 9 | 5100059884 | Fitting key | 1 | ADD TO CART | |
| 10 | 5100003486 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003486 · qty on machine: 1 | |||||

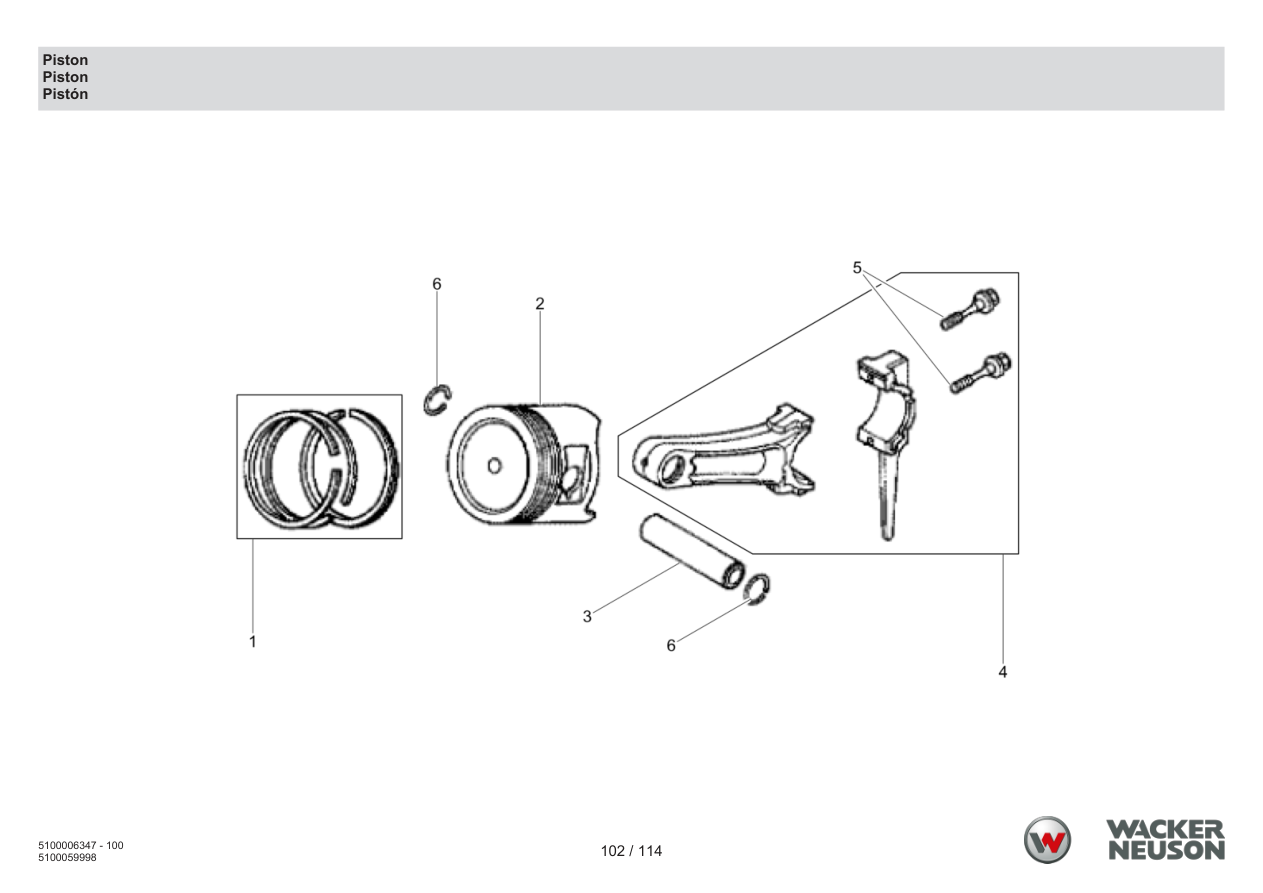

Page 102 — Piston
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217425 | Set-piston rings | 1 | ADD TO CART | |
| 1 | 5000217428 | Set-piston rings | 1 | ADD TO CART | |
| 1 | 5000217431 | Set-piston rings | 1 | ADD TO CART | |
| 1 | 5000217434 | Set-piston rings | 1 | PARTS REQUEST | |
|
COMING Set-piston rings
5000217434 · qty on machine: 1 | |||||
| 2 | 5100000372 | Piston | 1 | ADD TO CART | |
| 2 | 5100038232 | Piston | 1 | ADD TO CART | |
| 3 | 5100000374 | Piston pin | 1 | ADD TO CART | |
| 4 | 5100000375 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Connecting rod cpl.
5100000375 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100000376 | Connecting rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 5 | 5000075807 | Screw | 2 | ADD TO CART | |
| 6 | 5000075804 | Retaining ring | 2 | ADD TO CART | |

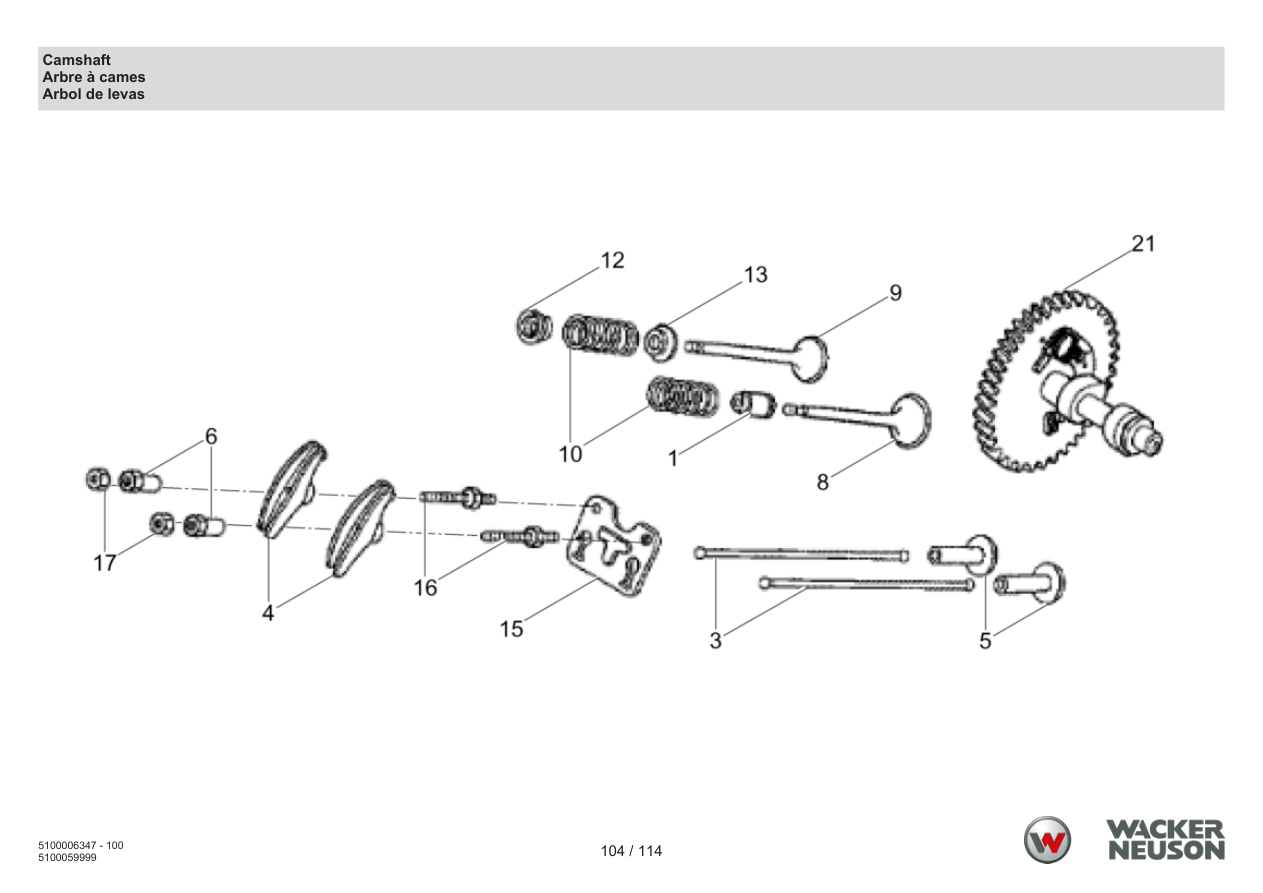

Page 104 — Camshaft
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000151750 | Gasket | 1 | ADD TO CART | |
| 3 | 5200000542 | Push rod | 2 | ADD TO CART | |
| 4 | 5000074675 | Rocker arm | 2 | ADD TO CART | |
| 5 | 5000074678 | Valve tappet | 2 | ADD TO CART | |
| 6 | 5100031338 | Pin | 2 | ADD TO CART | |
| 8 | 5100000382 | Intake valve | 1 | ADD TO CART | |
| 9 | 5100000384 | Valve | 1 | ADD TO CART | |
| 10 | 5000217481 | Spring | 2 | ADD TO CART | |
| 12 | 5100000385 | Spring holder | 1 | PARTS REQUEST | |
|
COMING Spring holder
5100000385 · qty on machine: 1 | |||||
| 13 | 5000074659 | Spring | 1 | ADD TO CART | |
| 15 | 5100000386 | Guide | 1 | ADD TO CART | |
| 16 | 5000072778 | Stud | 2 | ADD TO CART | |
| 17 | 5000070984 | Locknut | 2 | ADD TO CART | |
| 21 | 5200000541 | Camshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

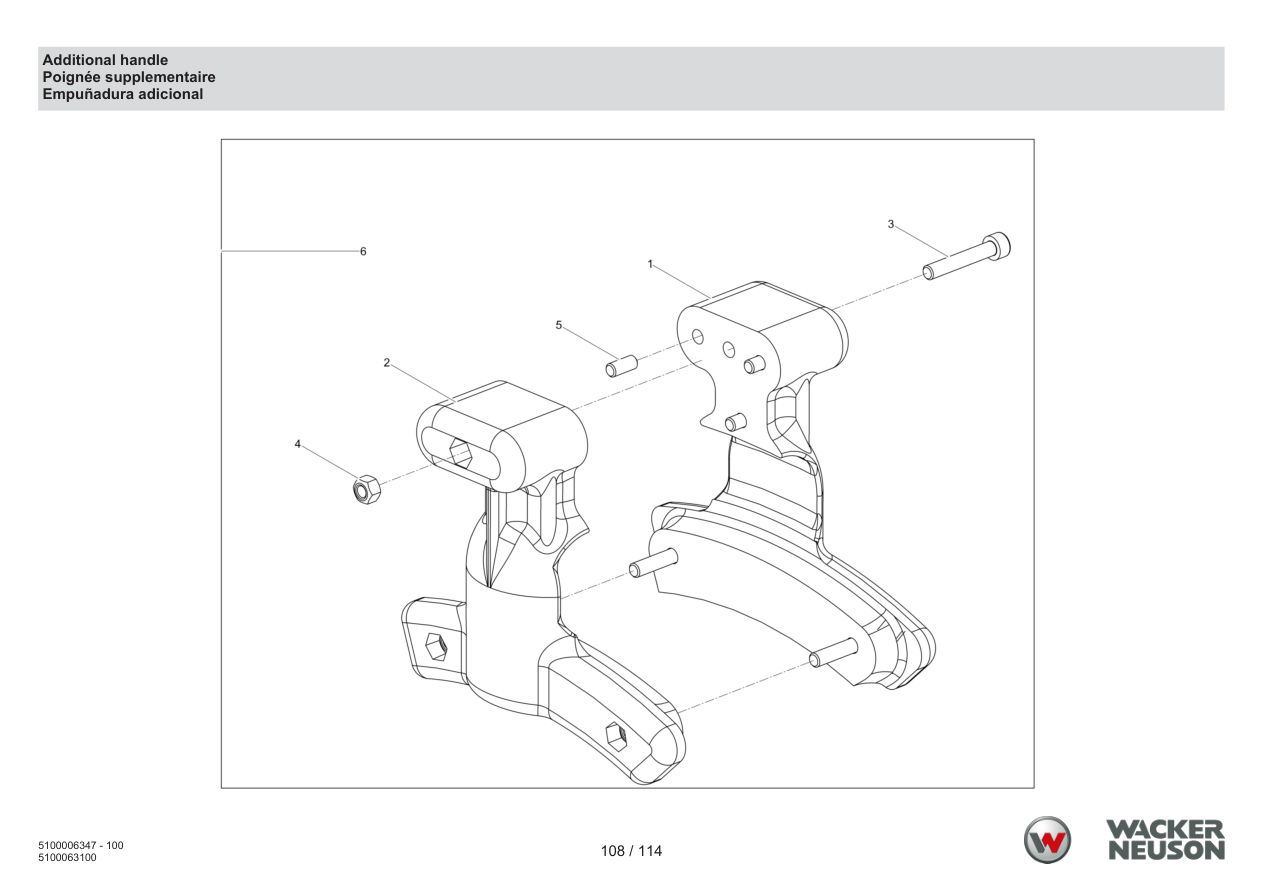

Page 108 — Additional handle
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100007411 | Handle right | 1 | PARTS REQUEST | |
|
COMING Handle right
5100007411 · qty on machine: 1 | |||||
| 2 | 5100007412 | Handle left | 1 | PARTS REQUEST | |
|
COMING Handle left
5100007412 · qty on machine: 1 | |||||
| 3 | 5100006911 | Cheese head screw | 3 | PARTS REQUEST | |
|
COMING Cheese head screw
5100006911 · qty on machine: 3 | |||||
| 4 | 5100006878 | Hexagon nut | 3 | ADD TO CART | |
| 5 | 5100007406 | Pin | 3 | PARTS REQUEST | |
|
COMING Pin
5100007406 · qty on machine: 3 | |||||
| 6 | 5100006908 | Additional handle | 1 | PARTS REQUEST | |
|
COMING Additional handle
5100006908 · qty on machine: 1 | |||||

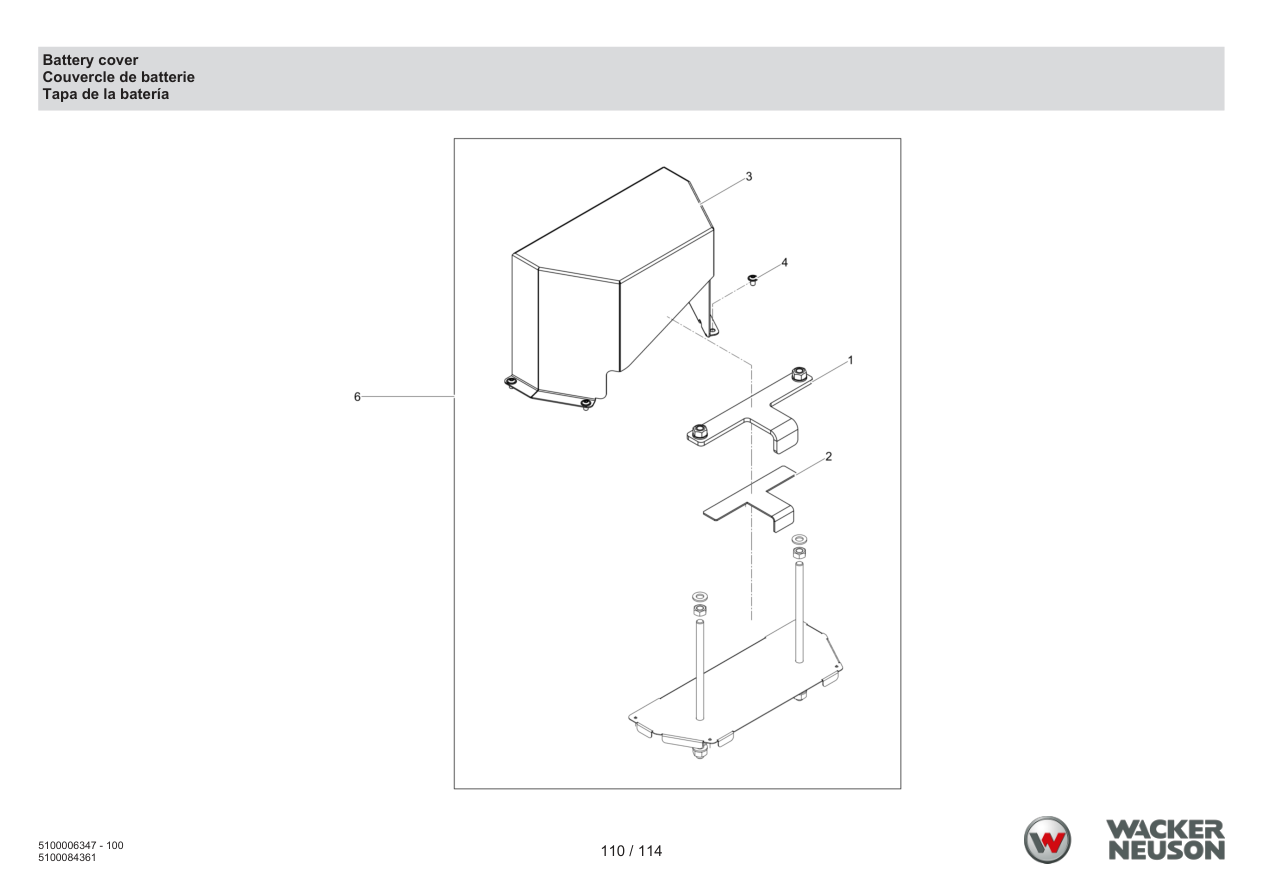

Page 110 — Battery cover
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100007623 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100007623 · qty on machine: 1 | |||||
| 2 | 5100006732 | Rubber insert | 1 | ADD TO CART | |
| 3 | 5100007624 | Battery cover | 1 | PARTS REQUEST | |
|
COMING Battery cover
5100007624 · qty on machine: 1 | |||||
| 4 | 5100006660 | Screw | 4 | ADD TO CART | |
| 6 | 5100082063 | Battery cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Battery cover cpl.
5100082063 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
Wacker Neuson RD7 roller.
List price: $23,100.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5000011791
Pan head screw
$1.95
5000053990
Screw
$2.95
5000053994
Ring seal
$1.95
5000054088
Adjusting spring
$8.95
5000070966
Screw
$6.95
5000070984
Locknut
$7.95
5000071014
Pin
$2.95
5000071018
Throttle stop screw
$20.95
5000071023
Fuel filter
$24.95
5000071035
Sleeve
$7.95
5000071053
Screw
$1.95
5000071056
Nut
$0.95
5000071058
Spring
$4.95
5000071062
Cable holder
$8.95
5000071064
Spacer
$9.95
5000071070
Screw
$2.95
5000071621
Wing nut
$9.95
5000071639
Washer
$0.95
5000072332
Flange nut
5000072343
Grommet
$9.95
5000072778
Stud
$14.95
5000072782
Locknut
$6.95
5000073269
Plate
$7.95
5000073270
Spring washer
$4.95
5000073272
Gasket
$4.95
5000074632
Slider
$6.95
5000074634
Pin
$2.95
5000074645
Cylinder head gasket
$13.95
5000074648
Valve guide
$37.95
5000074652
Dowel pin
$5.95
5000074656
Washer
$2.95
5000074657
Washer
$10.95
5000074659
Spring
$6.95
5000074660
Retaining ring
$4.95
5000074672
Woodruff key
$6.95
5000074675
Rocker arm
$15.95
5000074678
Valve tappet
$28.95
5000074689
Clip
$5.95
5000074730
Spring
$5.95
5000074738
Flange nut
$1.95
5000074751
Screw
$2.95
5000074759
Float needle
$75.95
5000074761
Carburetor mount spacer
$13.95
5000075788
Weight
$12.95
5000075798
Stud
$15.95
5000075804
Retaining ring
$3.95
5000075807
Screw
$7.95
5000075813
Fan
$58.95
5000075842
Governor spring
$9.95
5000075843
Spring
$8.95
5000075844
Governor rod
5000075845
Governor lever
$30.95
5000075847
Air cleaner element
$20.95
5000075854
O-ring
$14.95
5000076372
Collar
$7.95
5000076375
Clip
5000078887
Prefilter element
$14.95
5000081611
Grommet
$6.95
5000081615
Retaining ring
$1.95
5000081617
Dowel pin
$4.95
5000081633
Washer
$9.95
5000081645
Ratchet
$12.95
5000081646
Spring
$10.95
5000081647
Spring
$31.95
5000081648
Spring
$8.95
5000081649
Spring housing
$24.95
5000081658
Screw
$6.95
5000081764
Protective hose
$8.95
5000082828
Kit-governor
$54.95
5000082829
Holder
$32.95
5000082831
Lever
$24.95
5000082839
Starter housing
$223.95
5000082840
Starter pulley
$76.95
5000082841
Puller
$73.95
5000082842
Rope
5000084654
Set-pilot jet
$39.95
5000089273
Valve hood
$109.95
5000089281
Set-collar
$11.95
5000089284
Screw
$2.95
5000106942
Housing cover cpl.
$745.95
5000106944
Crankshaft
$571.95
5000110110
Cotter pin
$1.95
5000110112
Screw
$1.95
5000110114
Governor shaft
$26.95
5000110602
Valve guide
$41.95
5000116734
Bolt
$1.95
5000116736
Nut
$16.95
5000125833
Stud bolt
$4.95
5000125839
O-ring
5000150266
Fuel valve lever
$17.95
5000151750
Gasket
$9.95
5000156684
Spacer
$6.95
5000156685
Screw
$2.95
5000158498
Spark plug
$5.95
5000162672
Exhaust seal
$3.95
5000162706
Main jet
$12.95
5000207655
Spacer sleeve
$10.95
5000207659
Spacer
$25.95
5000207666
Screw
$4.95
5000207667
Nut
$7.95
5000207668
Screw w/washer
$2.95
5000207669
Washer
$1.95
5000208617
Clamp
$3.95
5000208623
Labels
$5.95
5000209770
Gasket
$0.95
5000217425
Set-piston rings
$94.95
5000217428
Set-piston rings
$225.95
5000217431
Set-piston rings
$224.95
5000217434
Set-piston rings
5000217460
Cap-fuel fill
$165.95
5000217481
Spring
$6.95
5000217482
Oil dip stick cpl.
$12.95
5000217483
Set-carburetor float
$89.95
5000217491
Spark plug terminal cap
$10.95
5000217492
Switch assembly
$115.95
5000217494
Screw w/washer
$2.95
5000217497
Stud bolt
5100000350
Gasket
$19.95
5100000352
Cylinder housing cpl.
$2,671.95
5100000356
Cylinder head gasket
$29.95
5100000372
Piston
$133.95
5100000374
Piston pin
$44.95
5100000375
Connecting rod cpl.
5100000376
Connecting rod cpl.
$509.95
5100000382
Intake valve
$78.95
5100000384
Valve
$136.95
5100000385
Spring holder
5100000386
Guide
$11.95
5100000394
Regulating plate
$10.95
5100000395
Fuel filter
5100000396
Filter
$8.95
5100000406
Housing cpl.
$385.95
5100000411
Exhaust gasket
$30.95
5100000412
Covering
$287.95
5100000413
Cover
$238.95
5100000415
Brace
$129.95
5100000418
Cover cpl.
5100000420
Collar
$2.95
5100000422
Cover cpl.
$64.95
5100000428
Handle
5100000429
Handle
$25.95
5100000433
Fly wheel cpl.
$684.95
5100000434
Wire harnes cpl.
$33.95
5100000436
Engine stop cpl.
$105.95
5100000437
Warning label
5100000438
Warning label
5100000439
Warning label
5100000441
Type label
$35.95
5100000445
Warning label
$25.95
5100000446
Warning label
$27.95
5100000448
Screw
5100000449
Screw
$11.95
5100000450
Screw
5100000451
Screw
5100000452
Nut
$6.95
5100000453
Sealing ring
$37.95
5100000455
Fuel hose
$77.95
5100000456
Main jet
5100000457
Main jet
$29.95
5100000590
Wing nut
5100001091
Bracket
$41.95
5100003448
Recoil starter cpl.
5100003486
Grooved ball bearing
5100003498
Flange screw
5100003507
Flange screw
5100003509
Grooved ball bearing
$30.95
5100003512
Grooved ball bearing
$75.95
5100005317
Screw
5100006348
Gas engine
$1,996.95
5100006468
Hydraulic motor
$3,478.95
5100006469
Hydraulic motor
$3,478.95
5100006524
Protective sleeve
$14.95
5100006527
Worm drive hose clip
$8.95
5100006528
Hexagon head screw
$1.95
5100006529
Hexagon head screw
$1.95
5100006530
Washer
$12.95
5100006531
Elbow
$38.95
5100006533
Adapter
$56.95
5100006534
Distance washer
$3.95
5100006535
Protective hose
$101.95
5100006537
Hexagon head screw
$3.95
5100006538
Washer
$1.95
5100006539
Hexagon head screw
$1.95
5100006540
Hexagon head screw
$7.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
