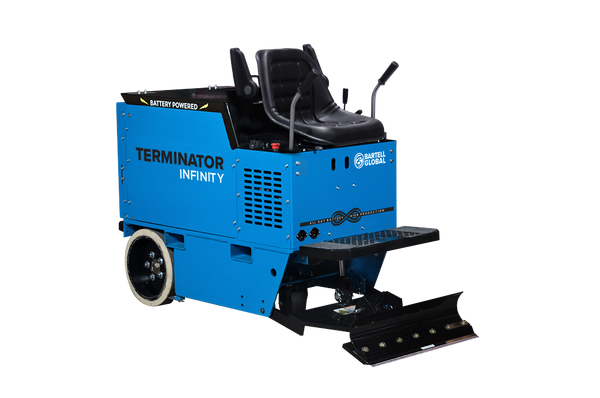

Bartell Terminator Infinity Floor Scraper

Name: Bartell Terminator Infinity Floor Scraper
Brand: Bartell

The parts bench

Need the PDF? ↓

Page 19 — Front Panels & Seat Breakdown

Bartell Terminator Infinity Floor Scraper Front Panels & Seat Breakdown parts diagram

Parts list — exactly as printed9 rows

No.	Part No.	Part Name	Qty
101	12-0018-06	LOCK WASHER, M6	4	PARTS REQUEST
PHOTO COMING LOCK WASHER, M6 12-0018-06 · qty on machine: 4 PARTS REQUEST
102	12-0026	STEEL HEX CAP SCREW, M6-1 X 12mm	4	PARTS REQUEST
PHOTO COMING STEEL HEX CAP SCREW, M6-1 X 12mm 12-0026 · qty on machine: 4 PARTS REQUEST
103	12-0043-16	SERRATED FLANGE CAP SCREW, M6-1.0 X 16mm	23	PARTS REQUEST
PHOTO COMING SERRATED FLANGE CAP SCREW, M6-1.0 X 16mm 12-0043-16 · qty on machine: 23 PARTS REQUEST
104	13-0258	SEAT FOLD DOWN BACK W/SWITCH	1	PARTS REQUEST
PHOTO COMING SEAT FOLD DOWN BACK W/SWITCH 13-0258 · qty on machine: 1 PARTS REQUEST
105	53-0363	TERMINATOR UNI-FRAME	1	PARTS REQUEST
PHOTO COMING TERMINATOR UNI-FRAME 53-0363 · qty on machine: 1 PARTS REQUEST
106	53-0370	FRONT SIDE PANEL	2	ADD TO CART
FRONT SIDE PANEL 53-0370 · qty on machine: 2 view full part page → $170.56
107	53-0397	SEAT MOUNTING BRACKET	2	PARTS REQUEST
PHOTO COMING SEAT MOUNTING BRACKET 53-0397 · qty on machine: 2 PARTS REQUEST
108	96-0398	INFINITY PANEL ASSY	1	PARTS REQUEST
PHOTO COMING INFINITY PANEL ASSY 96-0398 · qty on machine: 1 PARTS REQUEST
109	96-0389	INFINITY SEAT PLATFORM ASSY	1	PARTS REQUEST
PHOTO COMING INFINITY SEAT PLATFORM ASSY 96-0389 · qty on machine: 1 PARTS REQUEST

Page 20 — Front Panel Breakdown

Bartell Terminator Infinity Floor Scraper Front Panel Breakdown parts diagram

Parts list — exactly as printed7 rows

No.	Part No.	Part Name	Qty
150	23-0155	INFINITY FLANGED INLET RECEPTACLE	2	ADD TO CART
INFINITY FLANGED INLET RECEPTACLE 23-0155 · qty on machine: 2 view full part page → $85.95
151	52-0214	INFINTY FRONT PANEL	1	PARTS REQUEST
PHOTO COMING INFINTY FRONT PANEL 52-0214 · qty on machine: 1 PARTS REQUEST
152	11-0085	PAN HEAD PHILLIPS SCREW, #6-32 X 1/2"	4	PARTS REQUEST
PHOTO COMING PAN HEAD PHILLIPS SCREW, #6-32 X 1/2" 11-0085 · qty on machine: 4 PARTS REQUEST
153	24-0247	LOW VOLTAGE INTERUPT	1	PARTS REQUEST
PHOTO COMING LOW VOLTAGE INTERUPT 24-0247 · qty on machine: 1 PARTS REQUEST
154	11-0049	8-32 X .75 MACHINE SCREW	2	PARTS REQUEST
PHOTO COMING 8-32 X .75 MACHINE SCREW 11-0049 · qty on machine: 2 PARTS REQUEST
155	11-0031	SAE FLAT WASHER, #8	2	PARTS REQUEST
PHOTO COMING SAE FLAT WASHER, #8 11-0031 · qty on machine: 2 PARTS REQUEST
156	11-0022	LOCK NUT, #8-32	2	PARTS REQUEST
PHOTO COMING LOCK NUT, #8-32 11-0022 · qty on machine: 2 PARTS REQUEST

Page 21 — Front Exterior Breakdown

Bartell Terminator Infinity Floor Scraper Front Exterior Breakdown parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty
201	11-0035	Flat Washer, 3/8”	8	PARTS REQUEST
PHOTO COMING Flat Washer, 3/8” 11-0035 · qty on machine: 8 PARTS REQUEST
202	11-0045	Adjustable Clevis Pin, 5/8” x 3” L	2	ADD TO CART
Adjustable Clevis Pin, 5/8” x 3” L 11-0045 · qty on machine: 2 view full part page → $38.21
203	11-0052	Hitch Pin	8	PARTS REQUEST
PHOTO COMING Hitch Pin 11-0052 · qty on machine: 8 PARTS REQUEST
204	11-0236	Clevis Pin, 1/2” x 3” L	2	ADD TO CART
Clevis Pin, 1/2” x 3” L 11-0236 · qty on machine: 2 view full part page → $39.31
205	12-0021-10	Nyloc Nut, M10-1.5	4	PARTS REQUEST
PHOTO COMING Nyloc Nut, M10-1.5 12-0021-10 · qty on machine: 4 PARTS REQUEST
206	12-0034-40	Hex Head Cap Screw, M10-1.5 x 40mm	4	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M10-1.5 x 40mm 12-0034-40 · qty on machine: 4 PARTS REQUEST
207	13-0393	Caster Wheel Replacement	1	PARTS REQUEST
PHOTO COMING Caster Wheel Replacement 13-0393 · qty on machine: 1 PARTS REQUEST
208	31-0043	Hydraulic Fitting, 90 deg 4 JIC – 8 SAE	2	ADD TO CART
Hydraulic Fitting, 90 deg 4 JIC – 8 SAE 31-0043 · qty on machine: 2 view full part page → $86.34
209	34-0015	Hydraulic Ram (90 deg)	1	ADD TO CART
Hydraulic Ram (90 deg) 34-0015 · qty on machine: 1 view full part page → $593.6
210	53-0117	Foot Rest, 1-piece	1	ADD TO CART
Foot Rest, 1-piece 53-0117 · qty on machine: 1 view full part page → $625.15
211	96-0386	Pivoting Jaw Assembly	1	ADD TO CART
Pivoting Jaw Assembly 96-0386 · qty on machine: 1 view full part page → $2534.28

Page 22 — Front Interior Breakdown

Bartell Terminator Infinity Floor Scraper Front Interior Breakdown parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty
301	12-0018-06	LOCK WASHER, M6	2	PARTS REQUEST
PHOTO COMING LOCK WASHER, M6 12-0018-06 · qty on machine: 2 PARTS REQUEST
302	12-0018-08	SPLIT LOCK WASHER, M8	8	PARTS REQUEST
PHOTO COMING SPLIT LOCK WASHER, M8 12-0018-08 · qty on machine: 8 PARTS REQUEST
303	12-0026	STEEL HEX CAP SCREW, M6-1 X 12mm	4	PARTS REQUEST
PHOTO COMING STEEL HEX CAP SCREW, M6-1 X 12mm 12-0026 · qty on machine: 4 PARTS REQUEST
304	12-0032-25	HEX HEAD CAP SCREW, M8-1.25 X 25mm	6	PARTS REQUEST
PHOTO COMING HEX HEAD CAP SCREW, M8-1.25 X 25mm 12-0032-25 · qty on machine: 6 PARTS REQUEST
305	12-0032-30	HEX HEAD CAP SCREW, M8-1.25 X 30mm	2	PARTS REQUEST
PHOTO COMING HEX HEAD CAP SCREW, M8-1.25 X 30mm 12-0032-30 · qty on machine: 2 PARTS REQUEST
306	12-0035-06	FLAT WASHER, M6	2	PARTS REQUEST
PHOTO COMING FLAT WASHER, M6 12-0035-06 · qty on machine: 2 PARTS REQUEST
307	12-0035-08	FLAT WASHER, M8	4	PARTS REQUEST
PHOTO COMING FLAT WASHER, M8 12-0035-08 · qty on machine: 4 PARTS REQUEST
308	12-0043-16	SERRATED FLANGE CAP SCREW, M6-1.0 X 16mm	6	PARTS REQUEST
PHOTO COMING SERRATED FLANGE CAP SCREW, M6-1.0 X 16mm 12-0043-16 · qty on machine: 6 PARTS REQUEST
309	12-0051	SOCKET HEAD CAP SCREW, M5-0.8 X 12mm	2	PARTS REQUEST
PHOTO COMING SOCKET HEAD CAP SCREW, M5-0.8 X 12mm 12-0051 · qty on machine: 2 PARTS REQUEST
310	12-0027-08	HEX NUT M8	1	PARTS REQUEST
PHOTO COMING HEX NUT M8 12-0027-08 · qty on machine: 1 PARTS REQUEST
311	12-0032-16	HEX HEAD CAP SCREW, M8-1.25 X 16mm	2	PARTS REQUEST
PHOTO COMING HEX HEAD CAP SCREW, M8-1.25 X 16mm 12-0032-16 · qty on machine: 2 PARTS REQUEST
312	53-0610	INFINITY HANDLE WELD M45	2	PARTS REQUEST
PHOTO COMING INFINITY HANDLE WELD M45 53-0610 · qty on machine: 2 PARTS REQUEST
313	13-0420	INFINITY DRIVE GRIP M45	2	PARTS REQUEST
PHOTO COMING INFINITY DRIVE GRIP M45 13-0420 · qty on machine: 2 PARTS REQUEST
314	51-1303	INFINITY 3RD HANDLE ROD M45	1	PARTS REQUEST
PHOTO COMING INFINITY 3RD HANDLE ROD M45 51-1303 · qty on machine: 1 PARTS REQUEST
315	13-0421	INFINITY 3RD HANDLE KNOB M45	1	PARTS REQUEST
PHOTO COMING INFINITY 3RD HANDLE KNOB M45 13-0421 · qty on machine: 1 PARTS REQUEST
316	23-0163	CIRCUIT BREAKER, 100A 48V	1	PARTS REQUEST
PHOTO COMING CIRCUIT BREAKER, 100A 48V 23-0163 · qty on machine: 1 PARTS REQUEST
317	24-0231	JUNCTION STUD	1	ADD TO CART
JUNCTION STUD 24-0231 · qty on machine: 1 view full part page → $45.78
318	53-0429	INFINITY CHARGER BRACKET	2	PARTS REQUEST
PHOTO COMING INFINITY CHARGER BRACKET 53-0429 · qty on machine: 2 PARTS REQUEST
319	53-0430	INFINITY CHARGER MOUNT	1	PARTS REQUEST
PHOTO COMING INFINITY CHARGER MOUNT 53-0430 · qty on machine: 1 PARTS REQUEST
320	81-0671	INFINITY PRIMARY ON-BOARD CHARGER	1	ADD TO CART
INFINITY PRIMARY ON-BOARD CHARGER 81-0671 · qty on machine: 1 view full part page → $1130.92
321	96-0430	INFINITY CONTROLS ASSEMBLY (L)	1	PARTS REQUEST
PHOTO COMING INFINITY CONTROLS ASSEMBLY (L) 96-0430 · qty on machine: 1 PARTS REQUEST
322	96-0431	INFINITY CONTROLS ASSEMBLY (R)	1	PARTS REQUEST
PHOTO COMING INFINITY CONTROLS ASSEMBLY (R) 96-0431 · qty on machine: 1 PARTS REQUEST

Page 23 — Battery Area Breakdown

Bartell Terminator Infinity Floor Scraper Battery Area Breakdown parts diagram

Parts list — exactly as printed14 rows

No.	Part No.	Part Name	Qty
401	11-0069	Lock Washer, 1/4”	2	PARTS REQUEST
PHOTO COMING Lock Washer, 1/4” 11-0069 · qty on machine: 2 PARTS REQUEST
402	11-0092	Hex Head Cap Screw, 1/4"-20 x 1/2"	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, 1/4"-20 x 1/2" 11-0092 · qty on machine: 2 PARTS REQUEST
403	12-0043-16	Serrated Flange Cap Screw, M6-1.0 x 16mm	6	PARTS REQUEST
PHOTO COMING Serrated Flange Cap Screw, M6-1.0 x 16mm 12-0043-16 · qty on machine: 6 PARTS REQUEST
404	12-0045-20	Flat Head Phillips Screw, M6-1.0 x 20mm	4	PARTS REQUEST
PHOTO COMING Flat Head Phillips Screw, M6-1.0 x 20mm 12-0045-20 · qty on machine: 4 PARTS REQUEST
405	31-0051	Hydraulic Fitting, 90 deg 12 JIC – 12 SAE	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 90 deg 12 JIC – 12 SAE 31-0051 · qty on machine: 1 PARTS REQUEST
406	31-0282	Hydraulic Fitting, Straight 6 JIC – 12 SAE	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, Straight 6 JIC – 12 SAE 31-0282 · qty on machine: 1 PARTS REQUEST
407	31-0283	Hydraulic Fitting, Branch Tee 6 JIC – 12 SAE	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, Branch Tee 6 JIC – 12 SAE 31-0283 · qty on machine: 1 PARTS REQUEST
408	31-0284	Hydraulic Fitting, 90 deg 6 JIC – 6 JIC	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 90 deg 6 JIC – 6 JIC 31-0284 · qty on machine: 1 PARTS REQUEST
409	35-0060	Hydraulic Oil Filter Replacement	1	ADD TO CART
Hydraulic Oil Filter Replacement 35-0060 · qty on machine: 1 view full part page → $296.98
410	51-1050	Uni-Frame Battery Guide, Front	2	PARTS REQUEST
PHOTO COMING Uni-Frame Battery Guide, Front 51-1050 · qty on machine: 2 PARTS REQUEST
411	53-0398	Uni-Frame Filter Bracket	1	PARTS REQUEST
PHOTO COMING Uni-Frame Filter Bracket 53-0398 · qty on machine: 1 PARTS REQUEST
412	53-0399	Uni-Frame Battery Stop	2	PARTS REQUEST
PHOTO COMING Uni-Frame Battery Stop 53-0399 · qty on machine: 2 PARTS REQUEST
413	53-0405	Uni-Frame Battery Guide Spacer, Front	1	PARTS REQUEST
PHOTO COMING Uni-Frame Battery Guide Spacer, Front 53-0405 · qty on machine: 1 PARTS REQUEST
414	71-0033	Infinity 2.0 Battery Pack, AGM 48 VDC	1	PARTS REQUEST
PHOTO COMING Infinity 2.0 Battery Pack, AGM 48 VDC 71-0033 · qty on machine: 1 PARTS REQUEST

Page 24 — Motor & Pump Breakdown

Bartell Terminator Infinity Floor Scraper Motor & Pump Breakdown parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
501	12-0018-10	Lock Washer, M10	2	PARTS REQUEST
PHOTO COMING Lock Washer, M10 12-0018-10 · qty on machine: 2 PARTS REQUEST
502	12-0021-08	Nyloc Nut, M8	1	ADD TO CART
Nyloc Nut, M8 12-0021-08 · qty on machine: 1 view full part page → $46.94
503	12-0021-10	Nyloc Nut, M10	2	PARTS REQUEST
PHOTO COMING Nyloc Nut, M10 12-0021-10 · qty on machine: 2 PARTS REQUEST
504	12-0024	Hex Head Cap Screw, M10-1.5 x 30mm	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M10-1.5 x 30mm 12-0024 · qty on machine: 2 PARTS REQUEST
505	12-0032-16	Hex Head Cap Screw, M8-1.25 x 16mm	3	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M8-1.25 x 16mm 12-0032-16 · qty on machine: 3 PARTS REQUEST
506	12-0032-45	Hex Head Cap Screw, M8-1.25 x 40mm	1	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M8-1.25 x 40mm 12-0032-45 · qty on machine: 1 PARTS REQUEST
507	12-0034-40	Hex Head Cap Screw, M10-1.5 x 40mm	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M10-1.5 x 40mm 12-0034-40 · qty on machine: 2 PARTS REQUEST
508	12-0035-08	Flat Washer, M8	5	PARTS REQUEST
PHOTO COMING Flat Washer, M8 12-0035-08 · qty on machine: 5 PARTS REQUEST
509	12-0035-10	Flat Washer, M10	6	PARTS REQUEST
PHOTO COMING Flat Washer, M10 12-0035-10 · qty on machine: 6 PARTS REQUEST
510	24-0160	Infinity 2.0 Motor, 5.5HP	1	ADD TO CART
Infinity 2.0 Motor, 5.5HP 24-0160 · qty on machine: 1 view full part page → $2300.6
511	31-0281	Hydraulic Fitting, 90 deg 12 JIC – 10 SAE	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 90 deg 12 JIC – 10 SAE 31-0281 · qty on machine: 1 PARTS REQUEST
512	31-0172	Hydraulic Fitting, 90 deg 6 JIC – 10 SAE	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 90 deg 6 JIC – 10 SAE 31-0172 · qty on machine: 1 PARTS REQUEST
513	31-0286	Hydraulic Fitting, Straight 6 JIC – 10 SAE	1	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, Straight 6 JIC – 10 SAE 31-0286 · qty on machine: 1 PARTS REQUEST
514	31-0290	Infinity 2.0 Gear Pump, 6CC	1	ADD TO CART
Infinity 2.0 Gear Pump, 6CC 31-0290 · qty on machine: 1 view full part page → $1273.28
515	53-0435	Infinity 2.0 Motor Mount	1	ADD TO CART
Infinity 2.0 Motor Mount 53-0435 · qty on machine: 1 view full part page → $319.9

Page 25 — Tank Fittings Breakdown

Bartell Terminator Infinity Floor Scraper Tank Fittings Breakdown parts diagram

Parts list — exactly as printed8 rows

No.	Part No.	Part Name	Qty
601	31-0124	Threaded Tank Fitting, 2” Male, 1” x 1” Female	2	PARTS REQUEST
PHOTO COMING Threaded Tank Fitting, 2” Male, 1” x 1” Female 31-0124 · qty on machine: 2 PARTS REQUEST
602	31-0128	Hydraulic Fitting, 90 deg 12 JIC – 1” NPTF Male	2	PARTS REQUEST
PHOTO COMING Hydraulic Fitting, 90 deg 12 JIC – 1” NPTF Male 31-0128 · qty on machine: 2 PARTS REQUEST
603	31-0252	Hex Head Pipe Plug, 2” NPT	1	PARTS REQUEST
PHOTO COMING Hex Head Pipe Plug, 2” NPT 31-0252 · qty on machine: 1 PARTS REQUEST
604	35-0004	Pipe Nipple, 1” NPT x 6” L	1	PARTS REQUEST
PHOTO COMING Pipe Nipple, 1” NPT x 6” L 35-0004 · qty on machine: 1 PARTS REQUEST
605	35-0047	Pipe Nipple, 1” NPT x 2” L	1	PARTS REQUEST
PHOTO COMING Pipe Nipple, 1” NPT x 2” L 35-0047 · qty on machine: 1 PARTS REQUEST
606	35-0051	Drain Plug, M14-1.5	1	PARTS REQUEST
PHOTO COMING Drain Plug, M14-1.5 35-0051 · qty on machine: 1 PARTS REQUEST
607	35-0052	Hydraulic Breather Cap	1	ADD TO CART
Hydraulic Breather Cap 35-0052 · qty on machine: 1 view full part page → $80.15
608	53-0277	XME Dip Stick Unit	1	PARTS REQUEST
PHOTO COMING XME Dip Stick Unit 53-0277 · qty on machine: 1 PARTS REQUEST

Page 26 — Hood Arm Breakdown

Bartell Terminator Infinity Floor Scraper Hood Arm Breakdown parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
701	11-0030	Flat Washer, #10	4	PARTS REQUEST
PHOTO COMING Flat Washer, #10 11-0030 · qty on machine: 4 PARTS REQUEST
702	11-0034	Flat Washer, 5/16”	2	PARTS REQUEST
PHOTO COMING Flat Washer, 5/16” 11-0034 · qty on machine: 2 PARTS REQUEST
703	12-0021-05	Nyloc Nut, M5-0.8	1	PARTS REQUEST
PHOTO COMING Nyloc Nut, M5-0.8 12-0021-05 · qty on machine: 1 PARTS REQUEST
704	12-0021-08	Nyloc Nut, M8-1.25	4	ADD TO CART
Nyloc Nut, M8-1.25 12-0021-08 · qty on machine: 4 view full part page → $46.94
705	12-0032-16	Hex Head Cap Screw, M8-1.25 x 16mm	5	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M8-1.25 x 16mm 12-0032-16 · qty on machine: 5 PARTS REQUEST
706	12-0041-12	Hex Head Cap Screw, M5-0.8 x 12mm	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M5-0.8 x 12mm 12-0041-12 · qty on machine: 2 PARTS REQUEST
707	12-0044-20	Serrated Flange Cap Screw, M8-1.25	8	PARTS REQUEST
PHOTO COMING Serrated Flange Cap Screw, M8-1.25 12-0044-20 · qty on machine: 8 PARTS REQUEST
708	12-0050-16	Low Socket Cap Screw, M8-1.25 x 16mm	4	PARTS REQUEST
PHOTO COMING Low Socket Cap Screw, M8-1.25 x 16mm 12-0050-16 · qty on machine: 4 PARTS REQUEST
709	13-0387	12” Lanyard	1	ADD TO CART
12” Lanyard 13-0387 · qty on machine: 1 view full part page → $68.18
710	53-0391	Uni-Frame Rear Side Support	2	ADD TO CART
Uni-Frame Rear Side Support 53-0391 · qty on machine: 2 view full part page → $319.97
711	53-0392	Uni-Frame Rear Cross Support	1	PARTS REQUEST
PHOTO COMING Uni-Frame Rear Cross Support 53-0392 · qty on machine: 1 PARTS REQUEST
712	53-0393	Uni-Frame Hood Support	1	ADD TO CART
Uni-Frame Hood Support 53-0393 · qty on machine: 1 view full part page → $289.04
713	53-0394	Top Cover Mounting Bracket	1	ADD TO CART
Top Cover Mounting Bracket 53-0394 · qty on machine: 1 view full part page → $101.46
714	53-0395	Uni-Frame Rear Support Bracket	2	PARTS REQUEST
PHOTO COMING Uni-Frame Rear Support Bracket 53-0395 · qty on machine: 2 PARTS REQUEST
715	96-0380	Infinity Top Cover Assembly	1	ADD TO CART
Infinity Top Cover Assembly 96-0380 · qty on machine: 1 view full part page → $1050.3

Page 27 — Rear Panels & Support Breakdown

Bartell Terminator Infinity Floor Scraper Rear Panels & Support Breakdown parts diagram

Parts list — exactly as printed11 rows

No.	Part No.	Part Name	Qty
801	12-0043-16	Serrated Flange Cap Screw, M6-1.0 x 16mm	19	PARTS REQUEST
PHOTO COMING Serrated Flange Cap Screw, M6-1.0 x 16mm 12-0043-16 · qty on machine: 19 PARTS REQUEST
802	12-0044-20	Serrated Flange Cap Screw, M8-1.25 x 20mm	4	PARTS REQUEST
PHOTO COMING Serrated Flange Cap Screw, M8-1.25 x 20mm 12-0044-20 · qty on machine: 4 PARTS REQUEST
803	12-0045-20	Flat Head Phillips Screw, M6-1.0 x 20mm	4	PARTS REQUEST
PHOTO COMING Flat Head Phillips Screw, M6-1.0 x 20mm 12-0045-20 · qty on machine: 4 PARTS REQUEST
804	51-1048	Uni-Frame Battery Guide, Rear	2	PARTS REQUEST
PHOTO COMING Uni-Frame Battery Guide, Rear 51-1048 · qty on machine: 2 PARTS REQUEST
805	53-0373	Uni-Frame Back Panel	1	ADD TO CART
Uni-Frame Back Panel 53-0373 · qty on machine: 1 view full part page → $400.48
806	53-0391	Uni-Frame Rear Side Support	2	ADD TO CART
Uni-Frame Rear Side Support 53-0391 · qty on machine: 2 view full part page → $319.97
807	53-0392	Uni-Frame Rear Cross Support	1	PARTS REQUEST
PHOTO COMING Uni-Frame Rear Cross Support 53-0392 · qty on machine: 1 PARTS REQUEST
808	53-0394	Top Cover Mounting Bracket	1	ADD TO CART
Top Cover Mounting Bracket 53-0394 · qty on machine: 1 view full part page → $101.46
809	53-0395	Uni-Frame Rear Support Bracket	4	PARTS REQUEST
PHOTO COMING Uni-Frame Rear Support Bracket 53-0395 · qty on machine: 4 PARTS REQUEST
810	53-0406	Uni-Frame Battery Guide Spacer, Rear	2	PARTS REQUEST
PHOTO COMING Uni-Frame Battery Guide Spacer, Rear 53-0406 · qty on machine: 2 PARTS REQUEST
811	53-0415	Uni-Frame Side Panel	2	ADD TO CART
Uni-Frame Side Panel 53-0415 · qty on machine: 2 view full part page → $251.41

Page 28 — Rear Wheels Breakdown

Bartell Terminator Infinity Floor Scraper Rear Wheels Breakdown parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty
901	12-0034-40	Hex Head Cap Screw, M10-1.5*40mm	4	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M10-1.5*40mm 12-0034-40 · qty on machine: 4 PARTS REQUEST
902	11-0025	Nyloc Nut, 5/16”-18	2	PARTS REQUEST
PHOTO COMING Nyloc Nut, 5/16”-18 11-0025 · qty on machine: 2 PARTS REQUEST
903	11-0035	Flat Washer, 3/8”	4	PARTS REQUEST
PHOTO COMING Flat Washer, 3/8” 11-0035 · qty on machine: 4 PARTS REQUEST
904	12-0018-10	Lock Washer, M10”	12	PARTS REQUEST
PHOTO COMING Lock Washer, M10” 12-0018-10 · qty on machine: 12 PARTS REQUEST
905	12-0048-16	Hex Head Bolt, M10-1.5*16	8	PARTS REQUEST
PHOTO COMING Hex Head Bolt, M10-1.5*16 12-0048-16 · qty on machine: 8 PARTS REQUEST
906	11-0279-88	Hex Head Cap Screw, 1/4”-20 x 5 1/2”	2	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, 1/4”-20 x 5 1/2” 11-0279-88 · qty on machine: 2 PARTS REQUEST
907	11-0287	Socket Head Shoulder Screw, 3/8” x 3/8”, 5/16”-18	2	PARTS REQUEST
PHOTO COMING Socket Head Shoulder Screw, 3/8” x 3/8”, 5/16”-18 11-0287 · qty on machine: 2 PARTS REQUEST
908	11-0353	Set Screw, #10-32 x 3/8”	1	PARTS REQUEST
PHOTO COMING Set Screw, #10-32 x 3/8” 11-0353 · qty on machine: 1 PARTS REQUEST
909	13-0384	Rear Bumper	2	PARTS REQUEST
PHOTO COMING Rear Bumper 13-0384 · qty on machine: 2 PARTS REQUEST
910	51-0513	Cable Clamp	1	PARTS REQUEST
PHOTO COMING Cable Clamp 51-0513 · qty on machine: 1 PARTS REQUEST
911	53-0134	Brake Actuator	1	PARTS REQUEST
PHOTO COMING Brake Actuator 53-0134 · qty on machine: 1 PARTS REQUEST
912	81-0091	Wheel Scraper Blade, 7.5” x 4.5”	2	ADD TO CART
Wheel Scraper Blade, 7.5” x 4.5” 81-0091 · qty on machine: 2 view full part page → $106.53
913	96-0381	Infinity Left Wheel Assembly	1	PARTS REQUEST
PHOTO COMING Infinity Left Wheel Assembly 96-0381 · qty on machine: 1 PARTS REQUEST
914	96-0382	Infinity Right Wheel Assembly	1	PARTS REQUEST
PHOTO COMING Infinity Right Wheel Assembly 96-0382 · qty on machine: 1 PARTS REQUEST
915	12-0024	Hex Head Cap Screw, M10-1.5*30mm	4	PARTS REQUEST
PHOTO COMING Hex Head Cap Screw, M10-1.5*30mm 12-0024 · qty on machine: 4 PARTS REQUEST

Page 32 — Infinity Controls Bracket (L) - Part # 96-0430

Bartell Terminator Infinity Floor Scraper Infinity Controls Bracket (L) - Part # 96-0430 parts diagram

Parts list — exactly as printed1 rows

No.	Part No.	Part Name	Qty	Remarks
4	JIC	-	8	SAE O-RING	PARTS REQUEST
PHOTO COMING - JIC · qty on machine: 8 SAE O-RING PARTS REQUEST

The machine itself

Bartell Terminator Infinity Floor Scraper

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

Strips tile, carpet, glue and coatings off floors without hand labor. Quote-only through CCE Industries: tell us where the machine is headed and we will spec it with freight. Factory documentation backs every listing.
