Page 6 — GENERATOR ASSY.

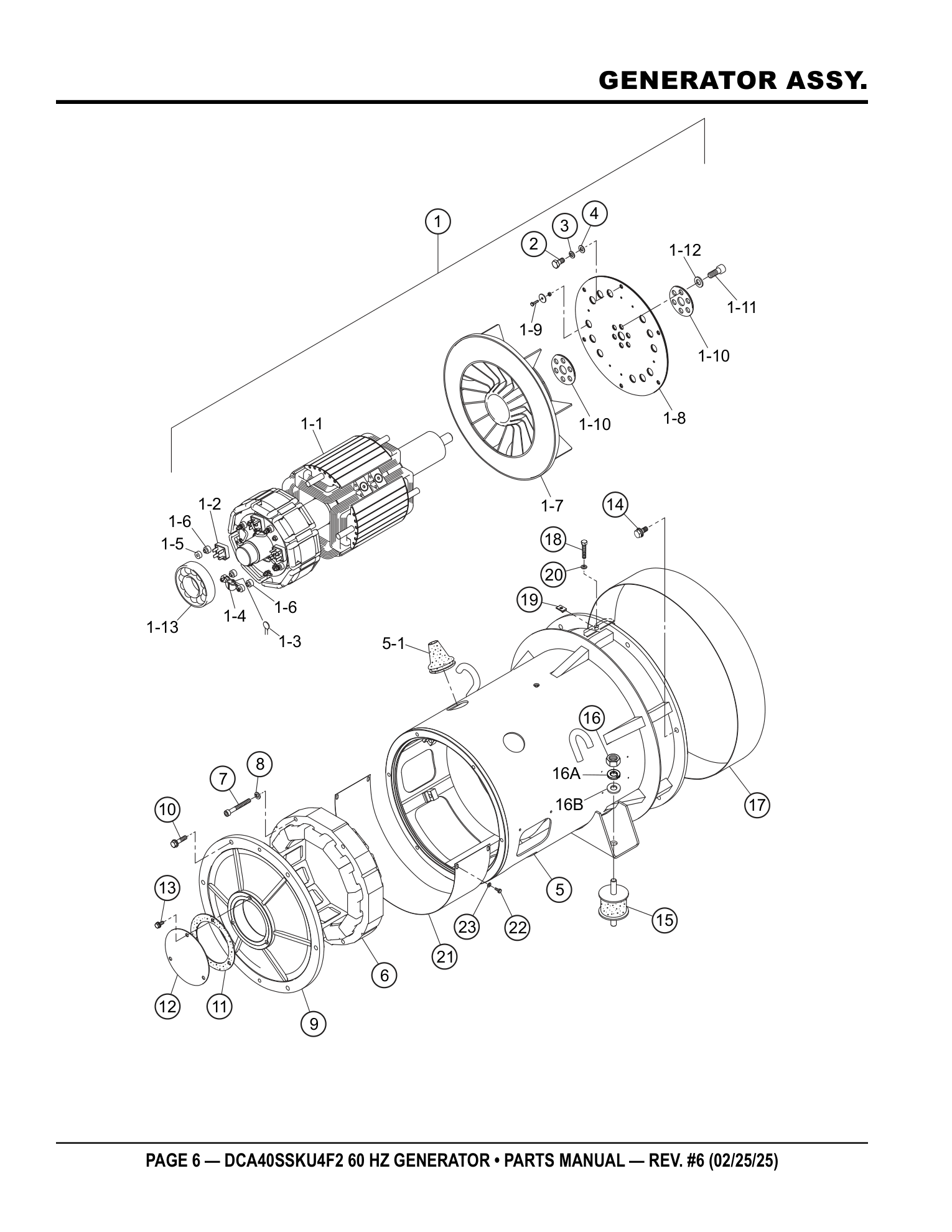

Multiquip DCA40SSKU4F2 Generator GENERATOR ASSY. parts diagram

Parts list — exactly as printed41 rows

No.	Part No.	Part Name	Qty	Remarks
1	B3110100802	ROTOR ASSEMBLY	1	INCLUDES ITEMS W/#	PARTS REQUEST
PHOTO COMING ROTOR ASSEMBLY B3110100802 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5#, 1-6#, 1-7#, 1-8#, 1-9#, 1-9A#, 1-9B#, 1-10#, 1-11#, 1-12#, 1-13# PARTS REQUEST
1-1#		FIELD ASSEMBLY	1		INCLUDED IN KIT
PHOTO COMING FIELD ASSEMBLY · qty on machine: 1 Included in kit 1 - ROTOR ASSEMBLY (B3110100802) INCLUDED IN KIT
1-2#	0601820083	RECTIFIER	3		ADD TO CART
RECTIFIER 0601820083 · qty on machine: 3 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $33.95 IN A KIT + SOLD SOLO
1-3#	0601822664	ZNR , SURGE ABSORBER	1		ADD TO CART
ZNR , SURGE ABSORBER 0601822664 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $18.95 IN A KIT + SOLD SOLO
1-4#	B3120100804	HOLDER, ZNR	1		ADD TO CART
HOLDER, ZNR B3120100804 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $140.95 IN A KIT + SOLD SOLO
1-5#	B3120100604	INSULATOR WASHER	3		ADD TO CART
INSULATOR WASHER B3120100604 · qty on machine: 3 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $1.95 IN A KIT + SOLD SOLO
1-6#	B3120100704	INSULATOR WASHER	5		ADD TO CART
INSULATOR WASHER B3120100704 · qty on machine: 5 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $1.95 IN A KIT + SOLD SOLO
1-7#	B3111100603	FAN	1		ADD TO CART
FAN B3111100603 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $232.95 IN A KIT + SOLD SOLO
1-8#	B3163100204	COUPLING DISK	3	PURCHASE 1-9 AT SAME TIME	ADD TO CART
COUPLING DISK B3163100204 · qty on machine: 3 PURCHASE 1-9 AT SAME TIME Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $89.95 IN A KIT + SOLD SOLO
1-9#	Y0019104016	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT Y0019104016 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $0.62 IN A KIT + SOLD SOLO
1-9A#	B4163700004	BALANCING WEIGHT	1		ADD TO CART
BALANCING WEIGHT B4163700004 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $3.99 IN A KIT + SOLD SOLO
1-9B#	Y0204104000	U-NUT	1		ADD TO CART
U-NUT Y0204104000 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $2.59 IN A KIT + SOLD SOLO
1-10#	B3163200104	COUPLING WASHER	2		ADD TO CART
COUPLING WASHER B3163200104 · qty on machine: 2 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $112.95 IN A KIT + SOLD SOLO
1-11#	0342612030	HEX. SOCKET HEAD CAP SCREW	6		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0342612030 · qty on machine: 6 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $2.82 IN A KIT + SOLD SOLO
1-12#	0046512000	WASHER, FLAT	6		ADD TO CART
WASHER, FLAT 0046512000 · qty on machine: 6 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $3.95 IN A KIT + SOLD SOLO
1-13#	0071906309	BEARING	1		ADD TO CART
BEARING 0071906309 · qty on machine: 1 Also included in kit 1 - ROTOR ASSEMBLY (B3110100802) view full part page → $160.95 IN A KIT + SOLD SOLO
2	014208020	HEX. HEAD BOLT	6	REPLACES P/N 0010308020	ADD TO CART
HEX. HEAD BOLT 014208020 · qty on machine: 6 REPLACES P/N 0010308020 view full part page → $0.77
3	0040008000	WASHER, LOCK	6		ADD TO CART
WASHER, LOCK 0040008000 · qty on machine: 6 view full part page → $0.63
4	0401450080	WASHER, FLAT	6	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 6 REPLACES P/N 0041208000 view full part page → $0.56
5	B3130101003	STATOR ASSEMBLY	1		ADD TO CART
STATOR ASSEMBLY B3130101003 · qty on machine: 1 view full part page → $8554.95
5-1	0845041904	GROMMET	2		ADD TO CART
GROMMET 0845041904 · qty on machine: 2 view full part page → $11.95
6	B3137000803	FIELD ASSEMBLY, EXCITER	1		ADD TO CART
FIELD ASSEMBLY, EXCITER B3137000803 · qty on machine: 1 view full part page → $1882.95
7	0016008060	HEX. SOCKET HEAD CAP SCREW	4		ADD TO CART
HEX. SOCKET HEAD CAP SCREW 0016008060 · qty on machine: 4 view full part page → $2.95
8	0042508000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0042508000 · qty on machine: 4 view full part page → $0.62
9	B3153000513	END BRACKET	1		ADD TO CART
END BRACKET B3153000513 · qty on machine: 1 view full part page → $636.95
10	0017108035	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0017108035 · qty on machine: 6 view full part page → $1.95
11	B3153400504	PACKING	1		ADD TO CART
PACKING B3153400504 · qty on machine: 1 view full part page → $25.95
12	B3153400404	COVER, BEARING	1		ADD TO CART
COVER, BEARING B3153400404 · qty on machine: 1 view full part page → $40.95
13	0017106016	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0017106016 · qty on machine: 3 view full part page → $1.51
14	0012410025	HEX. HEAD BOLT	6		ADD TO CART
HEX. HEAD BOLT 0012410025 · qty on machine: 6 view full part page → $1.95
15	Y0605000461	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000461 · qty on machine: 2 view full part page → $55.95
16	0030012000	HEX. NUT	2		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 2 view full part page → $0.5
16A	0040012000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0040012000 · qty on machine: 2 view full part page → $0.95
16B	031112230	WASHER, FLAT	2	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 2 REPLACES P/N 0041212000 view full part page → $0.95
17	B5131300004	COVER. END BRACKET	1		ADD TO CART
COVER. END BRACKET B5131300004 · qty on machine: 1 view full part page → $63.95
18	0340406040	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0340406040 · qty on machine: 1 view full part page → $2.68
19	020106050	U-NUT	1	REPLACES P/N 0600815000	ADD TO CART
U-NUT 020106050 · qty on machine: 1 REPLACES P/N 0600815000 view full part page → $0.12
20	952404470	WASHER, FLAT	1	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 1 REPLACES P/N 0041206000 view full part page → $0.19
21	B3131300804	COVER, END BRACKET	1		ADD TO CART
COVER, END BRACKET B3131300804 · qty on machine: 1 view full part page → $60.95
22	0029205012	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0029205012 · qty on machine: 4 view full part page → $1.45
23	0401450050	WASHER, FLAT	4	REPLACES P/N 0041205000	ADD TO CART
WASHER, FLAT 0401450050 · qty on machine: 4 REPLACES P/N 0041205000 Factory replaced this part - current number 58151 view full part page → $0.41 IN A KIT + SOLD SOLO

Page 8 — CONTROL PANEL ASSY.

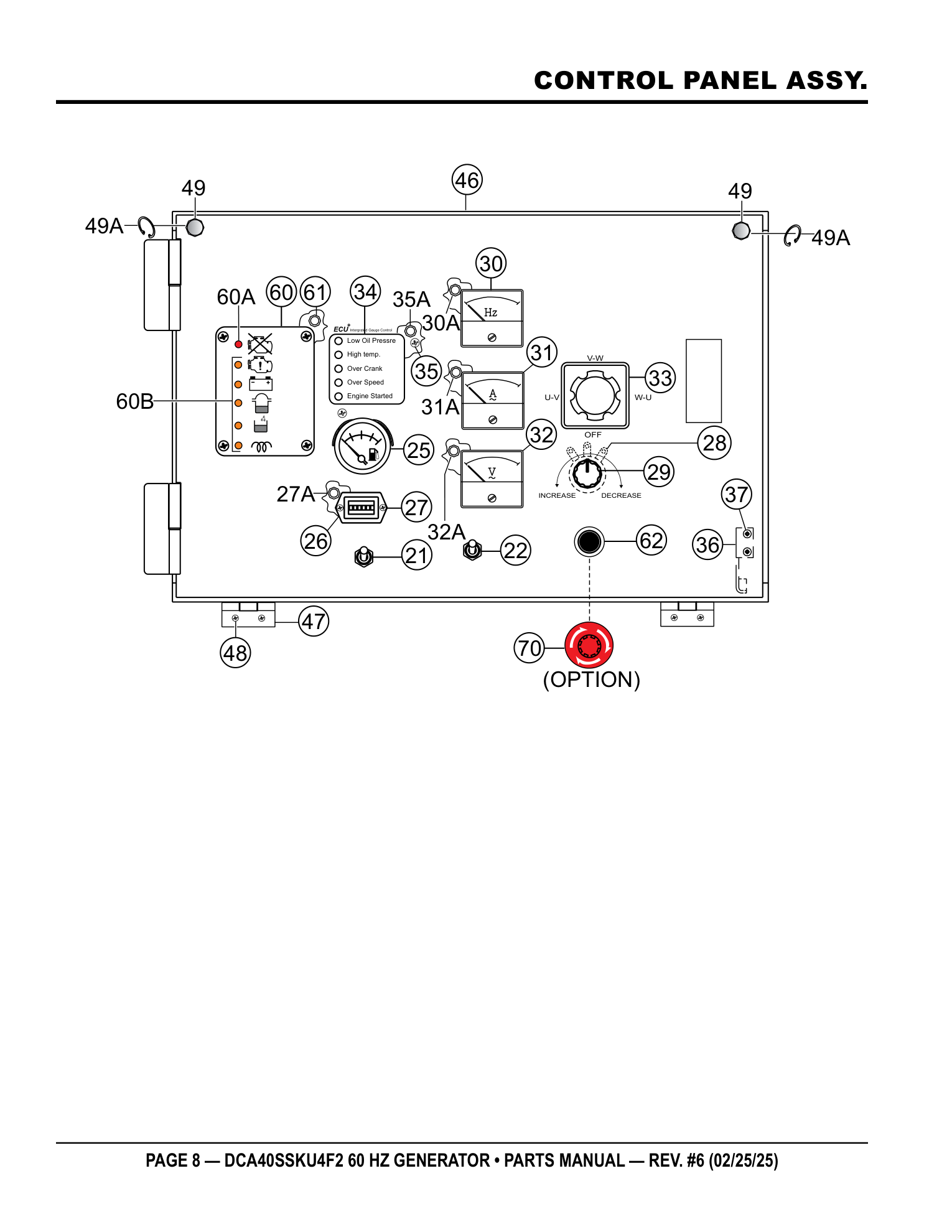

Multiquip DCA40SSKU4F2 Generator CONTROL PANEL ASSY. parts diagram

Parts list — exactly as printed38 rows

No.	Part No.	Part Name	Qty	Remarks
21	82608	AUTO START/STOP SWITCH	1	REPLACES P/N 0601831340 S/N 9251407 AND BELOW	ADD TO CART
AUTO START/STOP SWITCH 82608 · qty on machine: 1 REPLACES P/N 0601831340 S/N 9251407 AND BELOW view full part page → $34.95
21	Y0601831345	AUTO START/STOP SWITCH	1	S/N 9251408 AND ABOVE	ADD TO CART
AUTO START/STOP SWITCH Y0601831345 · qty on machine: 1 S/N 9251408 AND ABOVE view full part page → $49.95
22	0601831395	ENGINE SPEED SWITCH	1		ADD TO CART
ENGINE SPEED SWITCH 0601831395 · qty on machine: 1 view full part page → $53.95
25	0602125090	FUEL GAUGE	1		ADD TO CART
FUEL GAUGE 0602125090 · qty on machine: 1 view full part page → $77.95
26	0601800682	HOUR METER	82014	1 S/N 9250828 AND BELOW	ADD TO CART
HOUR METER 0601800682 · qty on machine: 82014 1 S/N 9250828 AND BELOW view full part page → $116.95
26	Y0601800674	HOUR METER LD12F1RS-B	1	S/N 9250829 AND ABOVE	ADD TO CART
HOUR METER LD12F1RS-B Y0601800674 · qty on machine: 1 S/N 9250829 AND ABOVE view full part page → $87.95
27	0027103015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027103015 · qty on machine: 2 view full part page → $0.64
27A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
28	0601840073	RHEOSTAT VOLT. REGULATOR 2W 1K Ω	1		ADD TO CART
RHEOSTAT VOLT. REGULATOR 2W 1K Ω 0601840073 · qty on machine: 1 view full part page → $90.95
29	0601840100	KNOB	1	REPLACES P/N 0601840121	ADD TO CART
KNOB 0601840100 · qty on machine: 1 REPLACES P/N 0601840121 view full part page → $30.95
30	0601807631	FREQUENCY METER, 45~65HZ 240V	1	S/N 9250411 AND BELOW	ADD TO CART
FREQUENCY METER, 45~65HZ 240V 0601807631 · qty on machine: 1 S/N 9250411 AND BELOW view full part page → $157.32
30	0601807641	FREQUENCY METER, 45~65HZ 240V	1	REPLACES P/N Y0601807631 S/N 9250412 AND ABOVE	ADD TO CART
FREQUENCY METER, 45~65HZ 240V 0601807641 · qty on machine: 1 REPLACES P/N Y0601807631 S/N 9250412 AND ABOVE view full part page → $591.95
30A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
31	Y0601817033	AC AMMETER, 0~75A. 0~150A/5A	1	S/N 9250411 AND BELOW	ADD TO CART
AC AMMETER, 0~75A. 0~150A/5A Y0601817033 · qty on machine: 1 S/N 9250411 AND BELOW view full part page → $88.95
31	0601808986	AC AMMETER, 0~75A. 0~150A/5A	1	S/N 9250412 AND ABOVE	ADD TO CART
AC AMMETER, 0~75A. 0~150A/5A 0601808986 · qty on machine: 1 S/N 9250412 AND ABOVE view full part page → $262.95
31A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
32	0601806947	AC VOLTMETER, 0~600V	1	S/N 9250411 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING AC VOLTMETER, 0~600V 0601806947 · qty on machine: 1 S/N 9250411 AND BELOW NO LONGER AVAILABLE
32	0601806859	AC VOLTMETER, 0~600V	1	S/N 9250412 AND ABOVE	ADD TO CART
AC VOLTMETER, 0~600V 0601806859 · qty on machine: 1 S/N 9250412 AND ABOVE view full part page → $368.95
32A	0207003000	SELF-LOCKING NUT	2		ADD TO CART
SELF-LOCKING NUT 0207003000 · qty on machine: 2 view full part page → $0.21
33	0601801040	CHANGE-OVER SWITCH, AMMETER	1		ADD TO CART
CHANGE-OVER SWITCH, AMMETER 0601801040 · qty on machine: 1 view full part page → $95.95
34	Y0602203000	CONTROLLER	1		ADD TO CART
CONTROLLER Y0602203000 · qty on machine: 1 view full part page → $882.95
35	0021004040	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0021004040 · qty on machine: 2 view full part page → $0.64
35A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
36	M1224100104	STOPPER	1		ADD TO CART
STOPPER M1224100104 · qty on machine: 1 view full part page → $13.95
37	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
46	M1224000303	CONTROL PANEL	1		PARTS REQUEST
PHOTO COMING CONTROL PANEL M1224000303 · qty on machine: 1 PARTS REQUEST
47	M9110100404	HINGE	2		ADD TO CART
HINGE M9110100404 · qty on machine: 2 view full part page → $18.95
48	0027105010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105010 · qty on machine: 4 view full part page → $0.56
49	M9220100004	SET SCREW	2		ADD TO CART
SET SCREW M9220100004 · qty on machine: 2 view full part page → $12.95
49A	0080200007	E-SNAP RING	2		ADD TO CART
E-SNAP RING 0080200007 · qty on machine: 2 view full part page → $1.39
60	M1224200104	MOUNTING PLATE INDICATOR	1		PARTS REQUEST
PHOTO COMING MOUNTING PLATE INDICATOR M1224200104 · qty on machine: 1 PARTS REQUEST
60A	Y0601814114	LED	1	S/N 9250812 AND BELOW	PARTS REQUEST
PHOTO COMING LED Y0601814114 · qty on machine: 1 S/N 9250812 AND BELOW PARTS REQUEST
60A	Y0601816708	LED	1	S/N 9250813 AND ABOVE	PARTS REQUEST
PHOTO COMING LED Y0601816708 · qty on machine: 1 S/N 9250813 AND ABOVE PARTS REQUEST
60B	Y0601814116	LED	5	S/N 9250822 AND BELOW	PARTS REQUEST
PHOTO COMING LED Y0601814116 · qty on machine: 5 S/N 9250822 AND BELOW PARTS REQUEST
60B	Y0601816707	LED	5	S/N 9250823 AND ABOVE	PARTS REQUEST
PHOTO COMING LED Y0601816707 · qty on machine: 5 S/N 9250823 AND ABOVE PARTS REQUEST
61	Y0207006000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT Y0207006000 · qty on machine: 4 view full part page → $0.23
62	Y0601850263	GROMMET	1		PARTS REQUEST
PHOTO COMING GROMMET Y0601850263 · qty on machine: 1 PARTS REQUEST
70	EE55989	E-STOP SWITCH	1	OPTION	ADD TO CART
E-STOP SWITCH EE55989 · qty on machine: 1 OPTION view full part page → $82.95

Page 10 — CONTROL BOX ASSY.

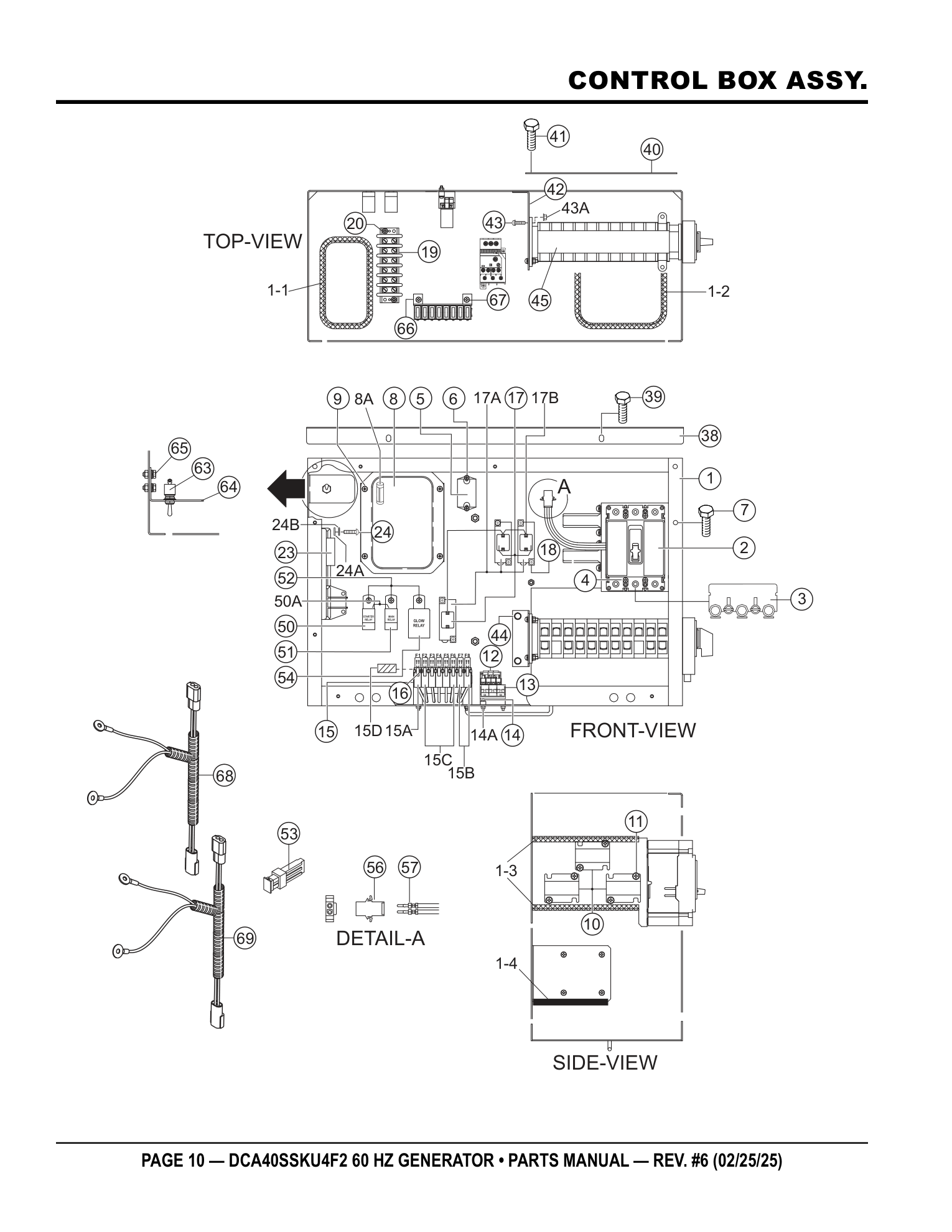

Multiquip DCA40SSKU4F2 Generator CONTROL BOX ASSY. parts diagram

Parts list — exactly as printed42 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1214000912	CONTROL BOX	1		PARTS REQUEST
PHOTO COMING CONTROL BOX M1214000912 · qty on machine: 1 PARTS REQUEST
1-1	Y0411100425	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100425 · qty on machine: 1 PARTS REQUEST
1-2	Y0411100555	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100555 · qty on machine: 1 PARTS REQUEST
1-3	Y0411100190	EDGE TRIM	2		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100190 · qty on machine: 2 PARTS REQUEST
1-4	Y0411100160	EDGE TRIM	1		PARTS REQUEST
PHOTO COMING EDGE TRIM Y0411100160 · qty on machine: 1 PARTS REQUEST
2	0601870431	CIRCUIT BREAKER, 3P 110A 12VDC	1		ADD TO CART
CIRCUIT BREAKER, 3P 110A 12VDC 0601870431 · qty on machine: 1 view full part page → $898.95
3	0601870490	END CAP KIT	2		ADD TO CART
END CAP KIT 0601870490 · qty on machine: 2 view full part page → $26.95
4	0021004040	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021004040 · qty on machine: 4 view full part page → $0.64
5	0601823863	RELAY UNIT	1		ADD TO CART
RELAY UNIT 0601823863 · qty on machine: 1 view full part page → $159.95
6	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
7	0016906015	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 10 view full part page → $0.95
8	0601820608	AUTOMATIC VOLTAGE REGULATOR	1	INCLUDES ITEMS W/#	ADD TO CART
AUTOMATIC VOLTAGE REGULATOR 0601820608 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 8A# view full part page → $1591.95 IN A KIT + SOLD SOLO
8A#	Y0601806683	FUSE, 250V 8A	1		NO LONGER AVAILABLE
PHOTO COMING FUSE, 250V 8A Y0601806683 · qty on machine: 1 Also included in kit 8 - AUTOMATIC VOLTAGE REGULATO (0601820608) NO LONGER AVAILABLE
9	0027105015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 4 view full part page → $0.2
10	Y0601809693	CURRENT TRANSFORMER, 150:5A	3		ADD TO CART
CURRENT TRANSFORMER, 150:5A Y0601809693 · qty on machine: 3 view full part page → $63.95
11	011808015	MACHINE SCREW	6	REPLACES P/N 0027106015	ADD TO CART
MACHINE SCREW 011808015 · qty on machine: 6 REPLACES P/N 0027106015 view full part page → $6.95
12	Y0601820839	OVER CURRENT RELAY	1		ADD TO CART
OVER CURRENT RELAY Y0601820839 · qty on machine: 1 view full part page → $120.95
13	Y0601820844	OVER CURRENT RELAY BASE	1		ADD TO CART
OVER CURRENT RELAY BASE Y0601820844 · qty on machine: 1 view full part page → $24.95
14	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
14A	OEMAA8	SELF-LOCKING NUT	2	REPLACES P/N 0207004000	ADD TO CART
SELF-LOCKING NUT OEMAA8 · qty on machine: 2 REPLACES P/N 0207004000 view full part page → $0.4
15	M1214600404	FUSE BOX	1	INCLUDES ITEMS W/%	PARTS REQUEST
PHOTO COMING FUSE BOX M1214600404 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 15A%, 15B%, 15C%, 15D% PARTS REQUEST
15A%	Y0601806647	FUSE, 25A	1		ADD TO CART
FUSE, 25A Y0601806647 · qty on machine: 1 Also included in kit 15 - FUSE BOX (M1214600404) view full part page → $1.95 IN A KIT + SOLD SOLO
15B%	0601806645	FUSE,10A	2		ADD TO CART
FUSE,10A 0601806645 · qty on machine: 2 Also included in kit 15 - FUSE BOX (M1214600404) view full part page → $2.9 IN A KIT + SOLD SOLO
15C%	0601806642	FUSE, 5A	5		ADD TO CART
FUSE, 5A 0601806642 · qty on machine: 5 Also included in kit 15 - FUSE BOX (M1214600404) view full part page → $2.77 IN A KIT + SOLD SOLO
15D%	M9501400704	DECAL; FUSE HOLDER	1		PARTS REQUEST
PHOTO COMING DECAL; FUSE HOLDER M9501400704 · qty on machine: 1 Also included in kit 15 - FUSE BOX (M1214600404) PARTS REQUEST
16	Y0027203035	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW Y0027203035 · qty on machine: 2 view full part page → $0.37
17	LY2DUS12VDC	RELAY, LY-2D DC12V	3	REPLACES P/N 0601827656	ADD TO CART
RELAY, LY-2D DC12V LY2DUS12VDC · qty on machine: 3 REPLACES P/N 0601827656 view full part page → $46.95
17A	PTF08A	BASE, PTF08A-E	3	REPLACES P/N 0601823109	ADD TO CART
BASE, PTF08A-E PTF08A · qty on machine: 3 REPLACES P/N 0601823109 view full part page → $47.95
17B	PYCA1	CLIP, PYC-A1	6	REPLACES P/N 0601824400	ADD TO CART
CLIP, PYC-A1 PYCA1 · qty on machine: 6 REPLACES P/N 0601824400 view full part page → $1.71
18	0027104020	MACHINE SCREW	6		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 6 view full part page → $0.4
19	Y0601816411	TERMINAL BLOCK (603-GP-06)	1	S/N 9251085 AND BELOW	PARTS REQUEST
PHOTO COMING TERMINAL BLOCK (603-GP-06) Y0601816411 · qty on machine: 1 S/N 9251085 AND BELOW PARTS REQUEST
19	Y0601816557	TERMINAL BLOCK (TB400-06)	1	S/N 9251086 AND ABOVE	PARTS REQUEST
PHOTO COMING TERMINAL BLOCK (TB400-06) Y0601816557 · qty on machine: 1 S/N 9251086 AND ABOVE PARTS REQUEST
20	0027104020	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104020 · qty on machine: 2 view full part page → $0.4
23	1H12860301	ECU	1		PARTS REQUEST
PHOTO COMING ECU 1H12860301 · qty on machine: 1 PARTS REQUEST
24	0027208025	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 4 view full part page → $0.76
24A	0401450080	WASHER, FLAT	4	REPLACES P/N 0041208000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 4 REPLACES P/N 0041208000 view full part page → $0.56
24B	0040508000	TOOTHED WASHER	4	S/N 9251056 AND ABOVE	ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 4 S/N 9251056 AND ABOVE view full part page → $0.35
38	M1213501004	CONTROL BOX COVER	1		PARTS REQUEST
PHOTO COMING CONTROL BOX COVER M1213501004 · qty on machine: 1 PARTS REQUEST
39	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
40	M1213400014	CONTROL BOX COVER	1		PARTS REQUEST
PHOTO COMING CONTROL BOX COVER M1213400014 · qty on machine: 1 PARTS REQUEST
41	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
42	M1214601104	SWITCH BRACKET	1		PARTS REQUEST
PHOTO COMING SWITCH BRACKET M1214601104 · qty on machine: 1 PARTS REQUEST

Page 12 — CONTROL BOX ASSY. (CONT'D.)

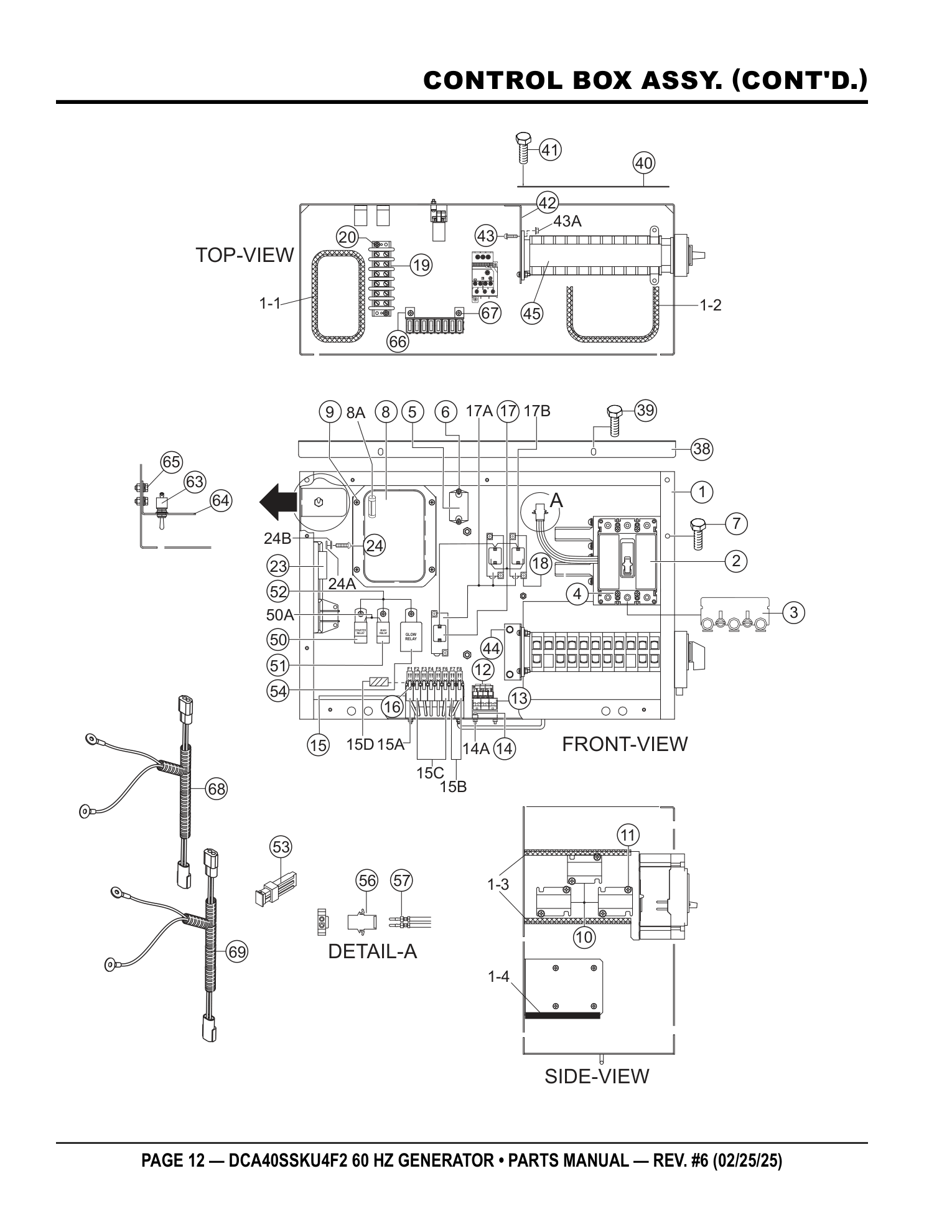

Multiquip DCA40SSKU4F2 Generator CONTROL BOX ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed20 rows

No.	Part No.	Part Name	Qty	Remarks
43	0027105020	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027105020 · qty on machine: 4 view full part page → $0.62
43A	0030005000	SELF-LOCKING NUT	4	REPLACES P/N 0207005000	ADD TO CART
SELF-LOCKING NUT 0030005000 · qty on machine: 4 REPLACES P/N 0207005000 view full part page → $0.29
44	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
45	M1270100604	SELECTOR SWITCH	1		ADD TO CART
SELECTOR SWITCH M1270100604 · qty on machine: 1 view full part page → $717.95
50	1J42360232	STARTER RELAY	1		PARTS REQUEST
PHOTO COMING STARTER RELAY 1J42360232 · qty on machine: 1 PARTS REQUEST
50A	1J30265301	BRACKET, RELAY	2		PARTS REQUEST
PHOTO COMING BRACKET, RELAY 1J30265301 · qty on machine: 2 PARTS REQUEST
51	1J42360232	MAIN RELAY	1		PARTS REQUEST
PHOTO COMING MAIN RELAY 1J42360232 · qty on machine: 1 PARTS REQUEST
51A	1J30265301	BRACKET, RELAY	1		PARTS REQUEST
PHOTO COMING BRACKET, RELAY 1J30265301 · qty on machine: 1 PARTS REQUEST
52	0027104010	MACHINE SCREW	3		ADD TO CART
MACHINE SCREW 0027104010 · qty on machine: 3 view full part page → $0.33
53	Y0601872530	FUSE, 45A	1		ADD TO CART
FUSE, 45A Y0601872530 · qty on machine: 1 view full part page → $18.95
54	RP42153730	GLOW RELAY	1	REPLACES P/N RP42153731	ADD TO CART
GLOW RELAY RP42153730 · qty on machine: 1 REPLACES P/N RP42153731 view full part page → $281.95
56	0601812626	PLUG	1		ADD TO CART
PLUG 0601812626 · qty on machine: 1 view full part page → $1.88
57	0601812711	PINS (MALE)	2		ADD TO CART
PINS (MALE) 0601812711 · qty on machine: 2 view full part page → $0.56
63	0601830710	DIAGNOSTIC SWITCH	1		ADD TO CART
DIAGNOSTIC SWITCH 0601830710 · qty on machine: 1 view full part page → $29.95
64	M1261600004	SWITCH BRACKET	1		PARTS REQUEST
PHOTO COMING SWITCH BRACKET M1261600004 · qty on machine: 1 PARTS REQUEST
65	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
66	M1214600504	BRACKET, FUSE BOX	1		PARTS REQUEST
PHOTO COMING BRACKET, FUSE BOX M1214600504 · qty on machine: 1 Factory replaced this part - current number BOX PARTS REQUEST
67	0027105015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027105015 · qty on machine: 2 view full part page → $0.2
68	M1247702214	WIRE HARNESS, GENERATOR	1		ADD TO CART
WIRE HARNESS, GENERATOR M1247702214 · qty on machine: 1 view full part page → $1396.95
69	M1358200502	WIRE HARNESS, ENGINE	1		ADD TO CART
WIRE HARNESS, ENGINE M1358200502 · qty on machine: 1 view full part page → $2500.95

Page 14 — ENGINE AND RADIATOR ASSY.

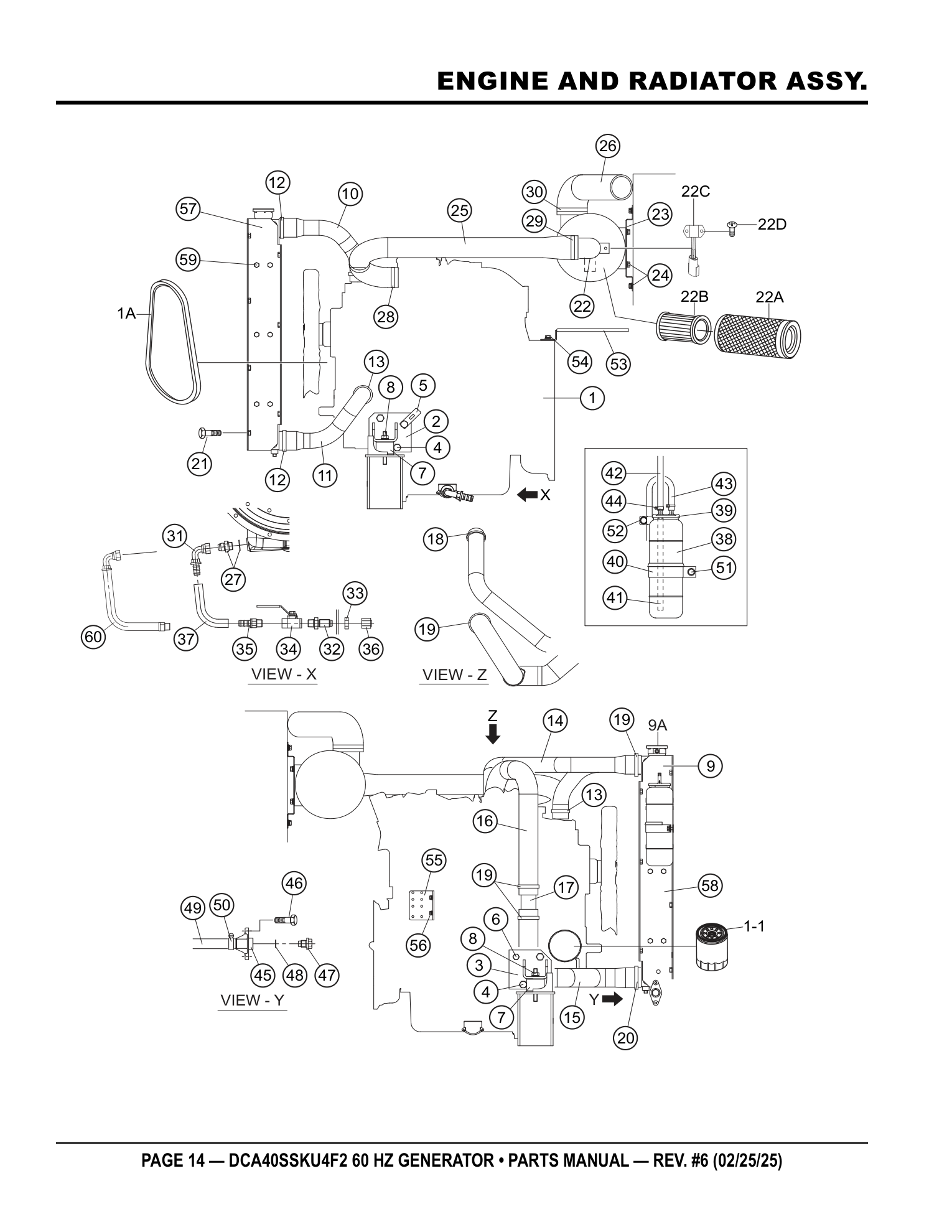

Multiquip DCA40SSKU4F2 Generator ENGINE AND RADIATOR ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1924200194	ENGINE, KUBOTA V2403CRTIE4BG	1	INCLUDES ITEMS W/#	ADD TO CART
ENGINE, KUBOTA V2403CRTIE4BG M1924200194 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1A#, 1-1# view full part page → $16968.95 IN A KIT + SOLD SOLO
1A#	1711297012	FAN BELT	1		ADD TO CART
FAN BELT 1711297012 · qty on machine: 1 Also included in kit 1 - ENGINE, KUBOTA V2403CRTIE4 (M1924200194) view full part page → $49.95 IN A KIT + SOLD SOLO
1-1#	7000032091	CARTRIDGE, OIL FILTER	1	REPLACES P/N 0602041173	ADD TO CART
CARTRIDGE, OIL FILTER 7000032091 · qty on machine: 1 REPLACES P/N 0602041173 Also included in kit 1 - ENGINE, KUBOTA V2403CRTIE4 (M1924200194) view full part page → $37.95 IN A KIT + SOLD SOLO
2	M1304200204	ENGINE FOOT	1		PARTS REQUEST
PHOTO COMING ENGINE FOOT M1304200204 · qty on machine: 1 PARTS REQUEST
3	M1304200304	ENGINE FOOT	1		PARTS REQUEST
PHOTO COMING ENGINE FOOT M1304200304 · qty on machine: 1 PARTS REQUEST
4	012212025	HEX. HEAD BOLT	7	REPLACES P/N 0012412025	ADD TO CART
HEX. HEAD BOLT 012212025 · qty on machine: 7 REPLACES P/N 0012412025 view full part page → $1.95
5	M3483600104	COATING CLAMPER	1		ADD TO CART
COATING CLAMPER M3483600104 · qty on machine: 1 view full part page → $4.95
6	0012410025	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0012410025 · qty on machine: 1 view full part page → $1.95
7	Y0605000409	RUBBER SUSPENSION	2		ADD TO CART
RUBBER SUSPENSION Y0605000409 · qty on machine: 2 view full part page → $19.95
8	021112140	SELF-LOCKING NUT	2	REPLACES P/N 0207010000	ADD TO CART
SELF-LOCKING NUT 021112140 · qty on machine: 2 REPLACES P/N 0207010000 view full part page → $0.46
9	Y0602012921	RADIATOR AND INTER COOLER	1	INCLUDES ITEMS W/% S/N 9251279 AND BELOW S/N 9251330 AND ABOVE	ADD TO CART
RADIATOR AND INTER COOLER Y0602012921 · qty on machine: 1 INCLUDES ITEMS W/% S/N 9251279 AND BELOW S/N 9251330 AND ABOVE Kit includes: 9A% view full part page → $1834.95 IN A KIT + SOLD SOLO
9	Y0602012965	RADIATOR AND INTER COOLER	1	INCLUDES ITEMS W/@ S/N 9251280 ~ 9251329	PARTS REQUEST
PHOTO COMING RADIATOR AND INTER COOLER Y0602012965 · qty on machine: 1 INCLUDES ITEMS W/@ S/N 9251280 ~ 9251329 Kit includes: 9A% PARTS REQUEST
9A%	Y0602015730	CAP, RADIATOR	1		ADD TO CART
CAP, RADIATOR Y0602015730 · qty on machine: 1 Also included in kit 9 - RADIATOR AND INTER COOLER (Y0602012921) view full part page → $79.95 IN A KIT + SOLD SOLO
10	M1311501803	RADIATOR HOSE (UPPER)	1		ADD TO CART
RADIATOR HOSE (UPPER) M1311501803 · qty on machine: 1 view full part page → $33.95
11	M1311501403	RADIATOR HOSE (LOWER)	1		ADD TO CART
RADIATOR HOSE (LOWER) M1311501403 · qty on machine: 1 view full part page → $35.95
12	0605515147	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 2 view full part page → $3.95
13	0605515149	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515149 · qty on machine: 2 view full part page → $1.95
14	M1311501503	INTER COOLER HOSE	1		ADD TO CART
INTER COOLER HOSE M1311501503 · qty on machine: 1 view full part page → $723.95
15	M1311501603	INTER COOLER HOSE	1		ADD TO CART
INTER COOLER HOSE M1311501603 · qty on machine: 1 view full part page → $723.95
16	M1311501703	INTER COOLER HOSE	1		ADD TO CART
INTER COOLER HOSE M1311501703 · qty on machine: 1 view full part page → $723.95
17	M1311400104	INTER COOLER PIPE	1		PARTS REQUEST
PHOTO COMING INTER COOLER PIPE M1311400104 · qty on machine: 1 PARTS REQUEST
18	Y0605515291	HOSE BAND	1		PARTS REQUEST
PHOTO COMING HOSE BAND Y0605515291 · qty on machine: 1 PARTS REQUEST
19	0605515237	HOSE BAND	4		ADD TO CART
HOSE BAND 0605515237 · qty on machine: 4 view full part page → $12.95
20	Y0605515296	HOSE BAND	1		PARTS REQUEST
PHOTO COMING HOSE BAND Y0605515296 · qty on machine: 1 PARTS REQUEST
21	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
22	1J33411011	AIR CLEANER	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING AIR CLEANER 1J33411011 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 22A$, 22B$, 22C$, 22D$ PARTS REQUEST
22A$	3A11119130	ELEMENT, AIR CLEANER (OUTER)	1	REPLACES P/N 3A11119131	ADD TO CART
ELEMENT, AIR CLEANER (OUTER) 3A11119130 · qty on machine: 1 REPLACES P/N 3A11119131 Also included in kit 22 - AIR CLEANER (1J33411011) view full part page → $77.95 IN A KIT + SOLD SOLO
22B$	5980026110	ELEMENT, AIR CLEANER (INNER)	1	REPLACES P/N 5980026111	ADD TO CART
ELEMENT, AIR CLEANER (INNER) 5980026110 · qty on machine: 1 REPLACES P/N 5980026111 Also included in kit 22 - AIR CLEANER (1J33411011) view full part page → $50.95 IN A KIT + SOLD SOLO
22C$	1J52010701	AIR FLOW SENSOR	1		PARTS REQUEST
PHOTO COMING AIR FLOW SENSOR 1J52010701 · qty on machine: 1 Also included in kit 22 - AIR CLEANER (1J33411011) PARTS REQUEST
22D$	0305450412	MACHINE SCREW	2		PARTS REQUEST
PHOTO COMING MACHINE SCREW 0305450412 · qty on machine: 2 Also included in kit 22 - AIR CLEANER (1J33411011) PARTS REQUEST
23	M1374200304	BRACKET, AIR CLEANER	1		PARTS REQUEST
PHOTO COMING BRACKET, AIR CLEANER M1374200304 · qty on machine: 1 PARTS REQUEST
24	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
25	M1374101003	AIR CLEANER HOSE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER HOSE M1374101003 · qty on machine: 1 PARTS REQUEST
26	M1374101103	AIR CLEANER HOSE	1		PARTS REQUEST
PHOTO COMING AIR CLEANER HOSE M1374101103 · qty on machine: 1 PARTS REQUEST
27	0602022568	ADAPTER 10M 22 X 1.5	1		PARTS REQUEST
PHOTO COMING ADAPTER 10M 22 X 1.5 0602022568 · qty on machine: 1 PARTS REQUEST
28	0605515147	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515147 · qty on machine: 1 view full part page → $3.95
29	9500202080	HOSE BAND	1	REPLACES P/N 0605515178	ADD TO CART
HOSE BAND 9500202080 · qty on machine: 1 REPLACES P/N 0605515178 view full part page → $3.95
30	0605515146	HOSE BAND	1		ADD TO CART
HOSE BAND 0605515146 · qty on machine: 1 view full part page → $10.95
31	0602022561	90º ELBOW	1	S/N 9250641 AND BELOW	ADD TO CART
90º ELBOW 0602022561 · qty on machine: 1 S/N 9250641 AND BELOW view full part page → $76.95
32	0603306590	CONNECTOR	1		ADD TO CART
CONNECTOR 0603306590 · qty on machine: 1 view full part page → $86.95
33	0603300285	LOCKNUT	1		ADD TO CART
LOCKNUT 0603300285 · qty on machine: 1 view full part page → $4.95
34	0605511395	VALVE	1		ADD TO CART
VALVE 0605511395 · qty on machine: 1 view full part page → $46.95
35	0603306395	HOSE JOINT	1	S/N 9250641 AND BELOW	ADD TO CART
HOSE JOINT 0603306395 · qty on machine: 1 S/N 9250641 AND BELOW view full part page → $16.95

Page 16 — ENGINE AND RADIATOR ASSY. (CONT'D.)

Multiquip DCA40SSKU4F2 Generator ENGINE AND RADIATOR ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed26 rows

No.	Part No.	Part Name	Qty	Remarks
36	0602021070	CAP	1		ADD TO CART
CAP 0602021070 · qty on machine: 1 view full part page → $11.95
37	0269200700	DRAIN HOSE	1	S/N 9250641 AND BELOW	ADD TO CART
DRAIN HOSE 0269200700 · qty on machine: 1 S/N 9250641 AND BELOW view full part page → $16.95
38	0802081403D	RESERVE TANK	1	REPLACES P/N M9300000003	ADD TO CART
RESERVE TANK 0802081403D · qty on machine: 1 REPLACES P/N M9300000003 Factory replaced this part - current number 0802081403 view full part page → $29.95 IN A KIT + SOLD SOLO
39	0802081104	CAP, RESERVE TANK	1	REPLACES P/N M9300100003	ADD TO CART
CAP, RESERVE TANK 0802081104 · qty on machine: 1 REPLACES P/N M9300100003 view full part page → $5.95
40	M1317100004	BRACKET, RESERVE TANK	1		ADD TO CART
BRACKET, RESERVE TANK M1317100004 · qty on machine: 1 view full part page → $13.95
41	0199100215	HOSE	1		ADD TO CART
HOSE 0199100215 · qty on machine: 1 view full part page → $3.95
42	0199900600	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE 0199900600 · qty on machine: 1 view full part page → $15.95
43	0193601200	OVER FLOW HOSE	1		ADD TO CART
OVER FLOW HOSE 0193601200 · qty on machine: 1 view full part page → $49.95
44	0605515189	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 2 view full part page → $1.85
45	1502025103C	DRAIN JOINT	1	REPLACES P/N M9200000003	ADD TO CART
DRAIN JOINT 1502025103C · qty on machine: 1 REPLACES P/N M9200000003 view full part page → $29.95
46	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
47	0802011104	DRAIN BOLT	1	REPLACES P/N M9200200004	ADD TO CART
DRAIN BOLT 0802011104 · qty on machine: 1 REPLACES P/N M9200200004 view full part page → $10.95
48	0150000018	O-RING, P-18	1		ADD TO CART
O-RING, P-18 0150000018 · qty on machine: 1 view full part page → $1.87
49	Y0269200680	PUSH-LOCK HOSE	1		PARTS REQUEST
PHOTO COMING PUSH-LOCK HOSE Y0269200680 · qty on machine: 1 PARTS REQUEST
49	Y0269300680	HEATER HOSE	1	S/N 9250412 AND ABOVE	PARTS REQUEST
PHOTO COMING HEATER HOSE Y0269300680 · qty on machine: 1 S/N 9250412 AND ABOVE PARTS REQUEST
50	0605515198	HOSE BAND	2		ADD TO CART
HOSE BAND 0605515198 · qty on machine: 2 view full part page → $1.71
51	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
52	0602220911	CLAMP	2		ADD TO CART
CLAMP 0602220911 · qty on machine: 2 view full part page → $1.85
53	M1484600204	CLAMP	1		PARTS REQUEST
PHOTO COMING CLAMP M1484600204 · qty on machine: 1 PARTS REQUEST
54	0012410025	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0012410025 · qty on machine: 2 view full part page → $1.95
55	M1484500404	BRACKET, CONNECTOR	1		PARTS REQUEST
PHOTO COMING BRACKET, CONNECTOR M1484500404 · qty on machine: 1 PARTS REQUEST
56	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
57	M1311200904	BRACKET, RADIATOR	1		PARTS REQUEST
PHOTO COMING BRACKET, RADIATOR M1311200904 · qty on machine: 1 PARTS REQUEST
58	M1311201004	BRACKET, RADIATOR	1		PARTS REQUEST
PHOTO COMING BRACKET, RADIATOR M1311201004 · qty on machine: 1 PARTS REQUEST
59	Y0016908015	HEX. HEAD BOLT	12		ADD TO CART
HEX. HEAD BOLT Y0016908015 · qty on machine: 12 view full part page → $1.95
60	M1321100204	OIL DRAIN HOSE	1	S/N 9250642 AND ABOVE	PARTS REQUEST
PHOTO COMING OIL DRAIN HOSE M1321100204 · qty on machine: 1 S/N 9250642 AND ABOVE PARTS REQUEST

Page 18 — OUTPUT TERMINAL ASSY.

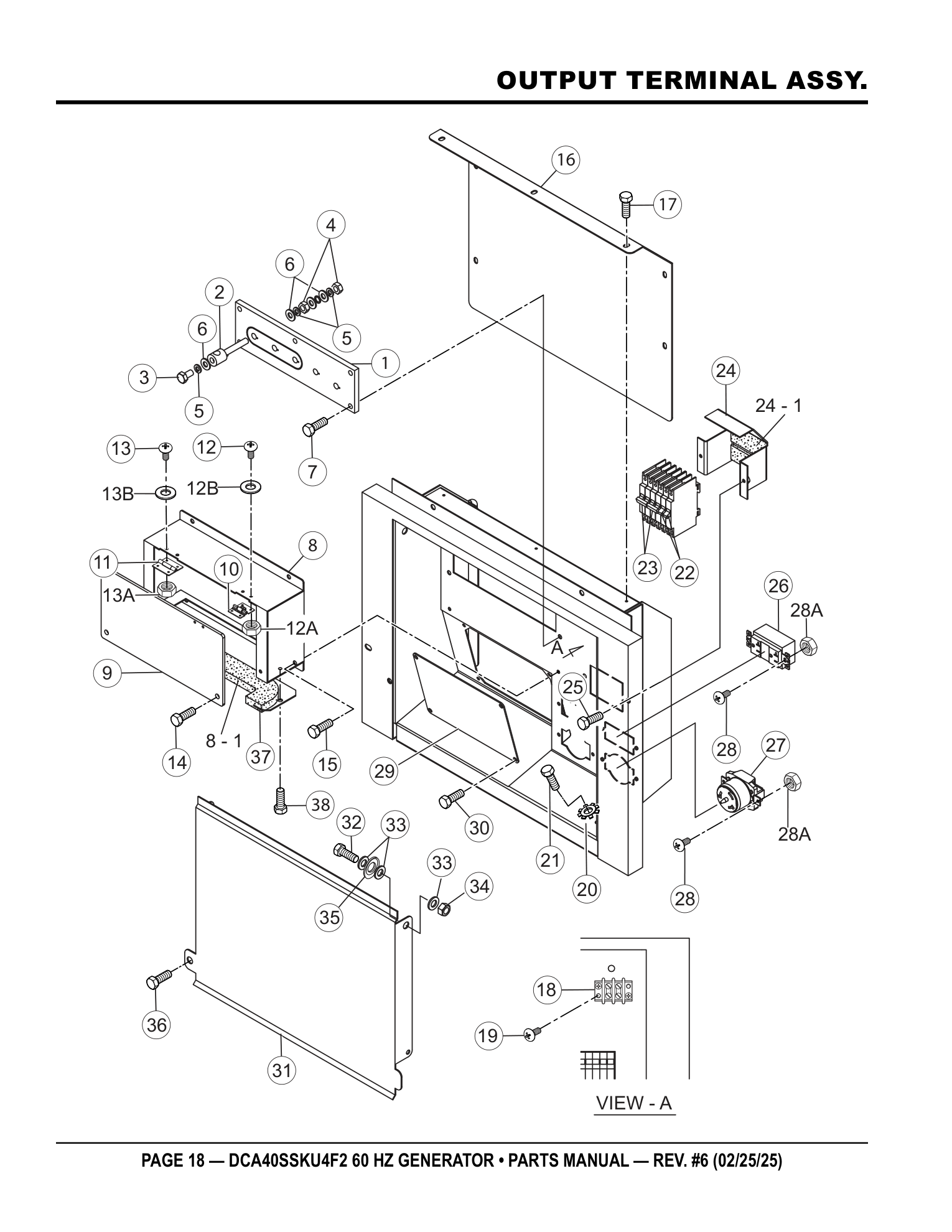

Multiquip DCA40SSKU4F2 Generator OUTPUT TERMINAL ASSY. parts diagram

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
1	8111860303	TERMINAL PANEL	1	REPLACES P/N M1230700103	ADD TO CART
TERMINAL PANEL 8111860303 · qty on machine: 1 REPLACES P/N M1230700103 view full part page → $157.95
2	0801831704A	OUTPUT TERMINAL BOLT	5	REPLACES P/N M9220100204	ADD TO CART
OUTPUT TERMINAL BOLT 0801831704A · qty on machine: 5 REPLACES P/N M9220100204 view full part page → $183.95
3	012210020	TIE BOLT	5	REPLACES P/N M9220100104	ADD TO CART
TIE BOLT 012210020 · qty on machine: 5 REPLACES P/N M9220100104 view full part page → $0.95
4	0039310000	HEX. NUT	10		ADD TO CART
HEX. NUT 0039310000 · qty on machine: 10 view full part page → $3.95
5	0040010000	WASHER, LOCK	15		ADD TO CART
WASHER, LOCK 0040010000 · qty on machine: 15 view full part page → $0.39
6	0041410000	WASHER, FLAT	20		ADD TO CART
WASHER, FLAT 0041410000 · qty on machine: 20 view full part page → $0.89
7	011208025	HEX. HEAD BOLT	5	REPLACES P/N 0016908025	ADD TO CART
HEX. HEAD BOLT 011208025 · qty on machine: 5 REPLACES P/N 0016908025 view full part page → $0.41
8	M1237100703	3-PHASE OUTPUT TERMINAL COVER	1		PARTS REQUEST
PHOTO COMING 3-PHASE OUTPUT TERMINAL COVER M1237100703 · qty on machine: 1 PARTS REQUEST
8-1	Y0317700280	CUSHION RUBBER	1		PARTS REQUEST
PHOTO COMING CUSHION RUBBER Y0317700280 · qty on machine: 1 PARTS REQUEST
9	M1236102124	OUTPUT WINDOW	1		ADD TO CART
OUTPUT WINDOW M1236102124 · qty on machine: 1 view full part page → $43.95
10	Y0605012028	HINGE	1		ADD TO CART
HINGE Y0605012028 · qty on machine: 1 view full part page → $62.95
11	0605010040	HINGE	1		ADD TO CART
HINGE 0605010040 · qty on machine: 1 view full part page → $4.95
12	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
12A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
12B	0041203000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 2 view full part page → $0.12
13	0027103010	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0027103010 · qty on machine: 4 view full part page → $0.44
13A	0207003000	HEX. NUT	4	REPLACES P/N 0030003000	ADD TO CART
HEX. NUT 0207003000 · qty on machine: 4 REPLACES P/N 0030003000 view full part page → $0.21
13B	0041203000	WASHER, FLAT	2		ADD TO CART
WASHER, FLAT 0041203000 · qty on machine: 2 view full part page → $0.12
14	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
15	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
16	M1236101814	TERMINAL COVER	1		PARTS REQUEST
PHOTO COMING TERMINAL COVER M1236101814 · qty on machine: 1 PARTS REQUEST
17	0016906015	HEX. HEAD BOLT	7		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 7 view full part page → $0.95
18	0601815194	TERMINAL BLOCK 601-GP-02	1	S/N 9250960 AND BELOW	NO LONGER AVAILABLE
PHOTO COMING TERMINAL BLOCK 601-GP-02 0601815194 · qty on machine: 1 S/N 9250960 AND BELOW NO LONGER AVAILABLE
18	Y0601816539	TERMINAL BLOCK TB200-02	1	S/N 9250961 ~ 9250985 S/N 9251056 ~ 9251170	ADD TO CART
TERMINAL BLOCK TB200-02 Y0601816539 · qty on machine: 1 S/N 9250961 ~ 9250985 S/N 9251056 ~ 9251170 view full part page → $15.95
18	Y0601815870	TERMINAL BLOCK KT-20-2P	1	S/N 9250986 ~ 9251055 S/N 9251171 AND ABOVE	ADD TO CART
TERMINAL BLOCK KT-20-2P Y0601815870 · qty on machine: 1 S/N 9250986 ~ 9251055 S/N 9251171 AND ABOVE view full part page → $52.95
19	0027104015	MACHINE SCREW	2		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 2 view full part page → $0.53
20	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35
21	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
22	0601870440	CIRCUIT BREAKER, 1P 20A	2		ADD TO CART
CIRCUIT BREAKER, 1P 20A 0601870440 · qty on machine: 2 view full part page → $34.95
23	0601870441	CIRCUIT BREAKER, 2P 50A	2		ADD TO CART
CIRCUIT BREAKER, 2P 50A 0601870441 · qty on machine: 2 view full part page → $77.95
24	M1260700404	BREAKER FITTING COVER	1		ADD TO CART
BREAKER FITTING COVER M1260700404 · qty on machine: 1 view full part page → $58.95
24-1	0222100080	CUSHION RUBBER	2		ADD TO CART
CUSHION RUBBER 0222100080 · qty on machine: 2 view full part page → $2.78
25	011206020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011206020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $0.95
26	0601814024	RECEPTACLE, 125V 20A	2	S/N 9250567 AND BELOW	ADD TO CART
RECEPTACLE, 125V 20A 0601814024 · qty on machine: 2 S/N 9250567 AND BELOW view full part page → $78.95
26	Y0601814034	RECEPTACLE, 125V 20A	2	S/N 9250568 AND ABOVE	ADD TO CART
RECEPTACLE, 125V 20A Y0601814034 · qty on machine: 2 S/N 9250568 AND ABOVE view full part page → $91.95
ADD	THEFOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART THEFOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 20 — OUTPUT TERMINAL ASSY. (CONT'D.)

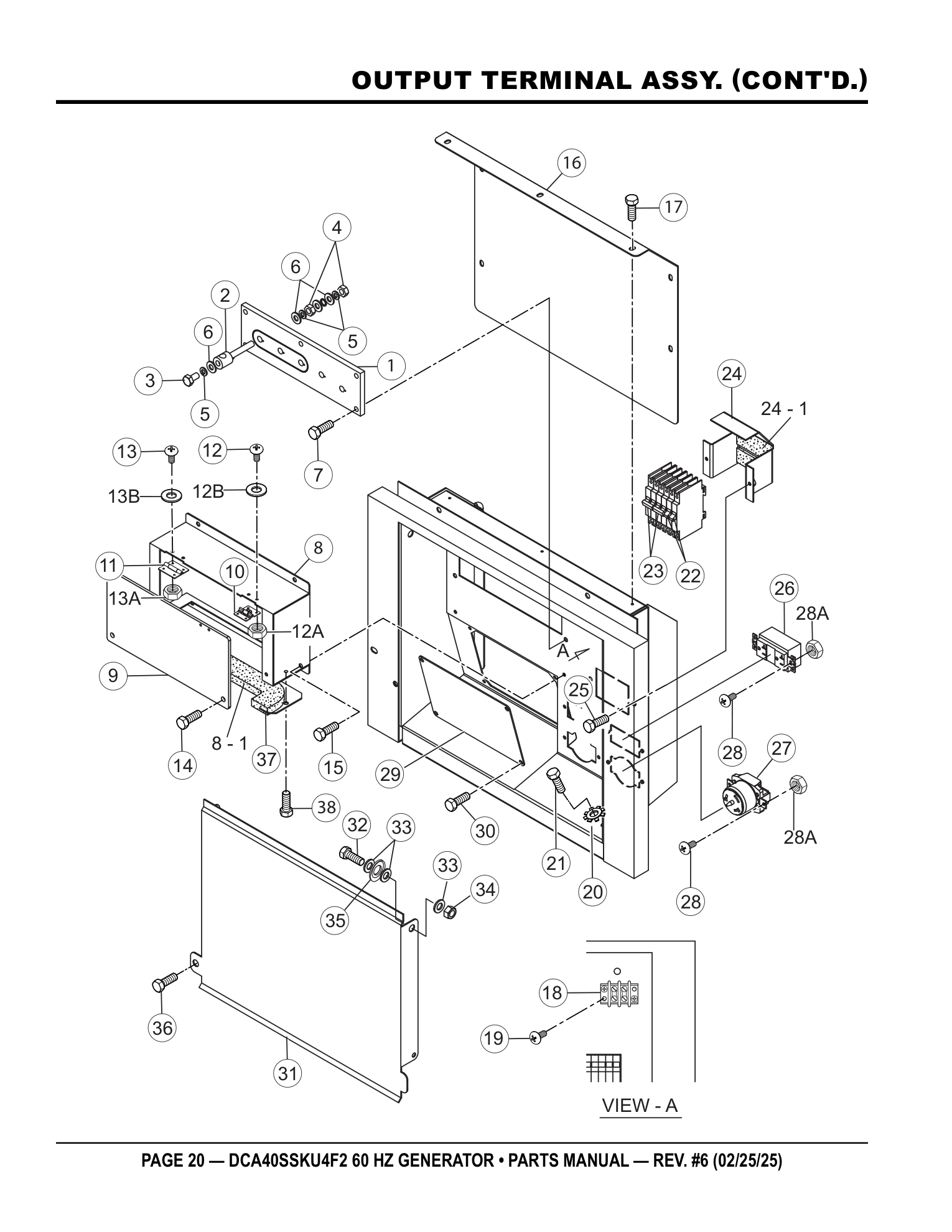

Multiquip DCA40SSKU4F2 Generator OUTPUT TERMINAL ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed22 rows

No.	Part No.	Part Name	Qty	Remarks
27	0601814014	RECEPTACLE, 250V 50A	2		ADD TO CART
RECEPTACLE, 250V 50A 0601814014 · qty on machine: 2 view full part page → $90.95
28	0027104015	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027104015 · qty on machine: 8 view full part page → $0.53
28A	OEMAA8	HEX. NUT	8	REPLACES P/N 0207004000	ADD TO CART
HEX. NUT OEMAA8 · qty on machine: 8 REPLACES P/N 0207004000 view full part page → $0.4
29	M1236400104	COVER	1		ADD TO CART
COVER M1236400104 · qty on machine: 1 view full part page → $16.95
30	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
31	M1236101904	TERMINAL COVER	1		ADD TO CART
TERMINAL COVER M1236101904 · qty on machine: 1 view full part page → $94.95
32	012212045	HEX. HEAD BOLT	2	REPLACES P/N 0010112045	ADD TO CART
HEX. HEAD BOLT 012212045 · qty on machine: 2 REPLACES P/N 0010112045 view full part page → $2.95
33	031112230	WASHER, FLAT	6	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 6 REPLACES P/N 0041212000 view full part page → $0.95
34	0030012000	HEX. NUT, DOUBLE NUT	2		ADD TO CART
HEX. NUT, DOUBLE NUT 0030012000 · qty on machine: 2 view full part page → $0.5
35	0605050060	CONICAL WASHER, LOCK	2		ADD TO CART
CONICAL WASHER, LOCK 0605050060 · qty on machine: 2 view full part page → $5.95
36	0019208020	HEX. HEAD BOLT	1		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 1 view full part page → $3.95
37	M1237400004	TERMINAL COVER UNDER	1		PARTS REQUEST
PHOTO COMING TERMINAL COVER UNDER M1237400004 · qty on machine: 1 PARTS REQUEST
38	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 22 — BATTERY ASSY.

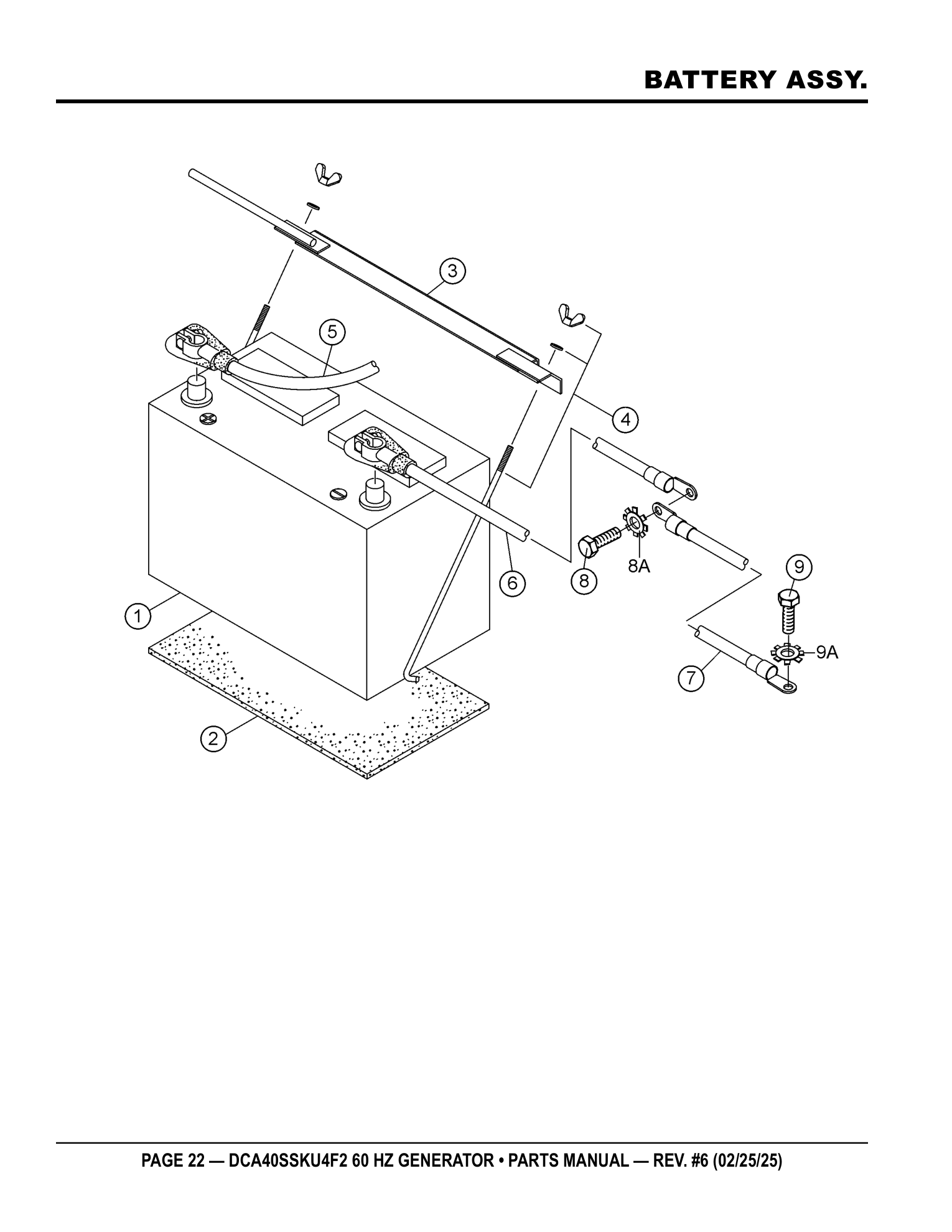

Multiquip DCA40SSKU4F2 Generator BATTERY ASSY. parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
1	0602220199	BATTERY	1	S/N 9250793 AND BELOW	ADD TO CART
BATTERY 0602220199 · qty on machine: 1 S/N 9250793 AND BELOW view full part page → $288.95
1	Y0602221291	BATTERY	1	S/N 9250794 - 9250884	PARTS REQUEST
PHOTO COMING BATTERY Y0602221291 · qty on machine: 1 S/N 9250794 - 9250884 PARTS REQUEST
1	0602220199	BATTERY	1	S/N 9250885 AND ABOVE	ADD TO CART
BATTERY 0602220199 · qty on machine: 1 S/N 9250885 AND ABOVE view full part page → $288.95
2	M9310500014	BATTERY SHEET	1		ADD TO CART
BATTERY SHEET M9310500014 · qty on machine: 1 view full part page → $5.95
3	M9104000104	BATTERY BAND	1		PARTS REQUEST
PHOTO COMING BATTERY BAND M9104000104 · qty on machine: 1 PARTS REQUEST
4	0602220920	BATTERY BOLT SET 1/4-L10"	2		ADD TO CART
BATTERY BOLT SET 1/4-L10" 0602220920 · qty on machine: 2 view full part page → $5.95
5	M1347200304	BATTERY CABLE	1		PARTS REQUEST
PHOTO COMING BATTERY CABLE M1347200304 · qty on machine: 1 PARTS REQUEST
6	M1347200404	BATTERY CABLE	1		PARTS REQUEST
PHOTO COMING BATTERY CABLE M1347200404 · qty on machine: 1 PARTS REQUEST
7		CABLE	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING CABLE · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
8	012212025	HEX. HEAD BOLT	1	REPLACES P/N 0012412025	ADD TO CART
HEX. HEAD BOLT 012212025 · qty on machine: 1 REPLACES P/N 0012412025 view full part page → $1.95
8A	0040512000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040512000 · qty on machine: 1 view full part page → $0.77
9	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68
9A	0040508000	TOOTHED WASHER	1		ADD TO CART
TOOTHED WASHER 0040508000 · qty on machine: 1 view full part page → $0.35

Page 24 — MUFFLER ASSY.

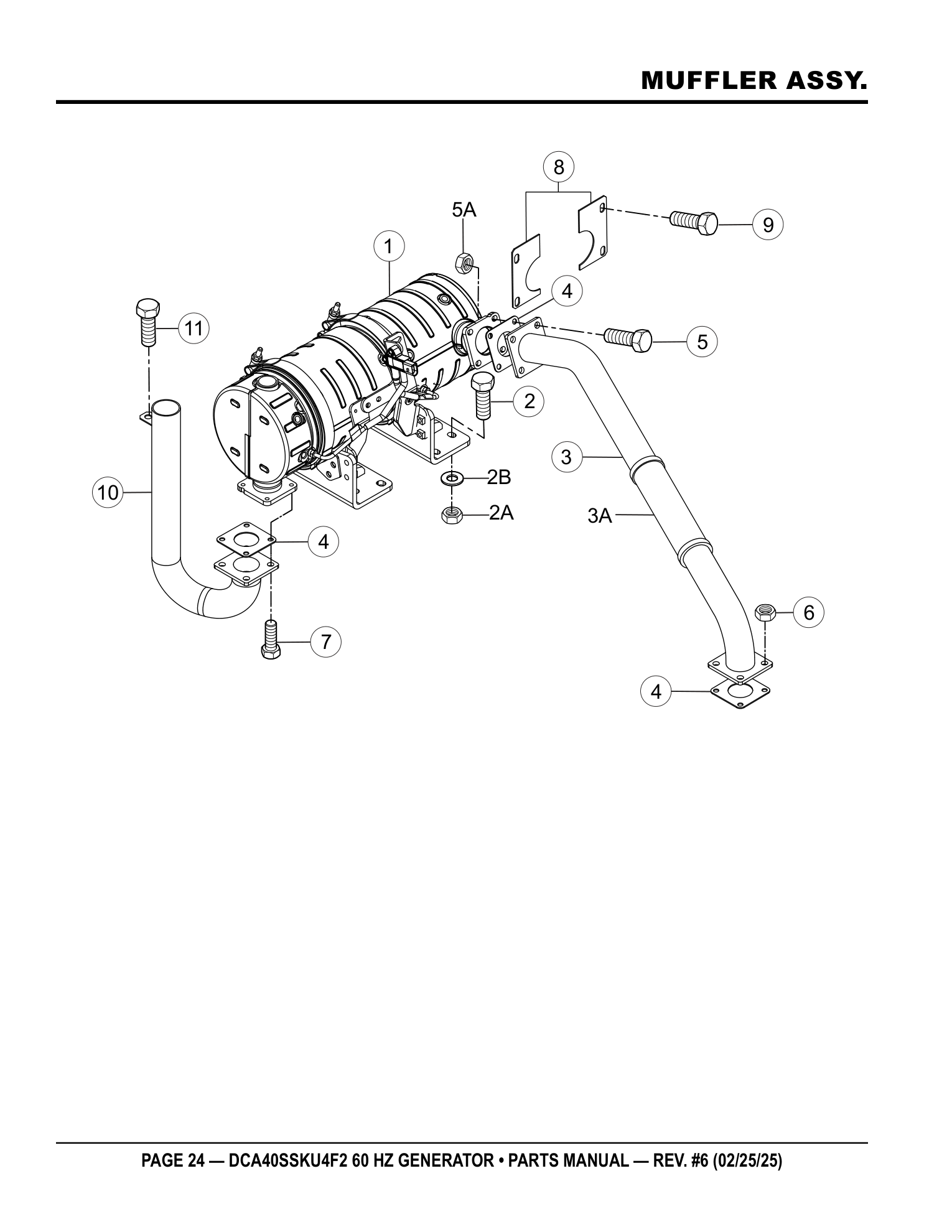

Multiquip DCA40SSKU4F2 Generator MUFFLER ASSY. parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
1	1K81818131	DOC	1		PARTS REQUEST
PHOTO COMING DOC 1K81818131 · qty on machine: 1 PARTS REQUEST
2	012212030	HEX. HEAD BOLT	4	REPLACES P/N 0017112030	ADD TO CART
HEX. HEAD BOLT 012212030 · qty on machine: 4 REPLACES P/N 0017112030 view full part page → $2.95
2A	0030012000	HEX. NUT	4		ADD TO CART
HEX. NUT 0030012000 · qty on machine: 4 view full part page → $0.5
2B	031112230	WASHER, FLAT	4	REPLACES P/N 0041212000	ADD TO CART
WASHER, FLAT 031112230 · qty on machine: 4 REPLACES P/N 0041212000 view full part page → $0.95
3	M1334000903	EXHAUST PIPE	1		ADD TO CART
EXHAUST PIPE M1334000903 · qty on machine: 1 view full part page → $649.95
3A	Y0602311142	EXHAUST INSULATING MAT	1		PARTS REQUEST
PHOTO COMING EXHAUST INSULATING MAT Y0602311142 · qty on machine: 1 PARTS REQUEST
4	1732612231	GASKET	3		ADD TO CART
GASKET 1732612231 · qty on machine: 3 view full part page → $6.95
5	011208030	HEX. HEAD BOLT	4	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 4 REPLACES P/N 0016908030 view full part page → $1.3
5A	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
6	0207108000	SELF-LOCKING NUT	4		ADD TO CART
SELF-LOCKING NUT 0207108000 · qty on machine: 4 view full part page → $3.95
7	011208030	HEX. HEAD BOLT	4	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 4 REPLACES P/N 0016908030 view full part page → $1.3
8	M1484300004	PIPE COVER	2		PARTS REQUEST
PHOTO COMING PIPE COVER M1484300004 · qty on machine: 2 PARTS REQUEST
9	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
10	M1334100203	TAIL PIPE	1		PARTS REQUEST
PHOTO COMING TAIL PIPE M1334100203 · qty on machine: 1 PARTS REQUEST
11	011008020	HEX. HEAD BOLT	1	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 1 REPLACES P/N 0016908020 view full part page → $2.68

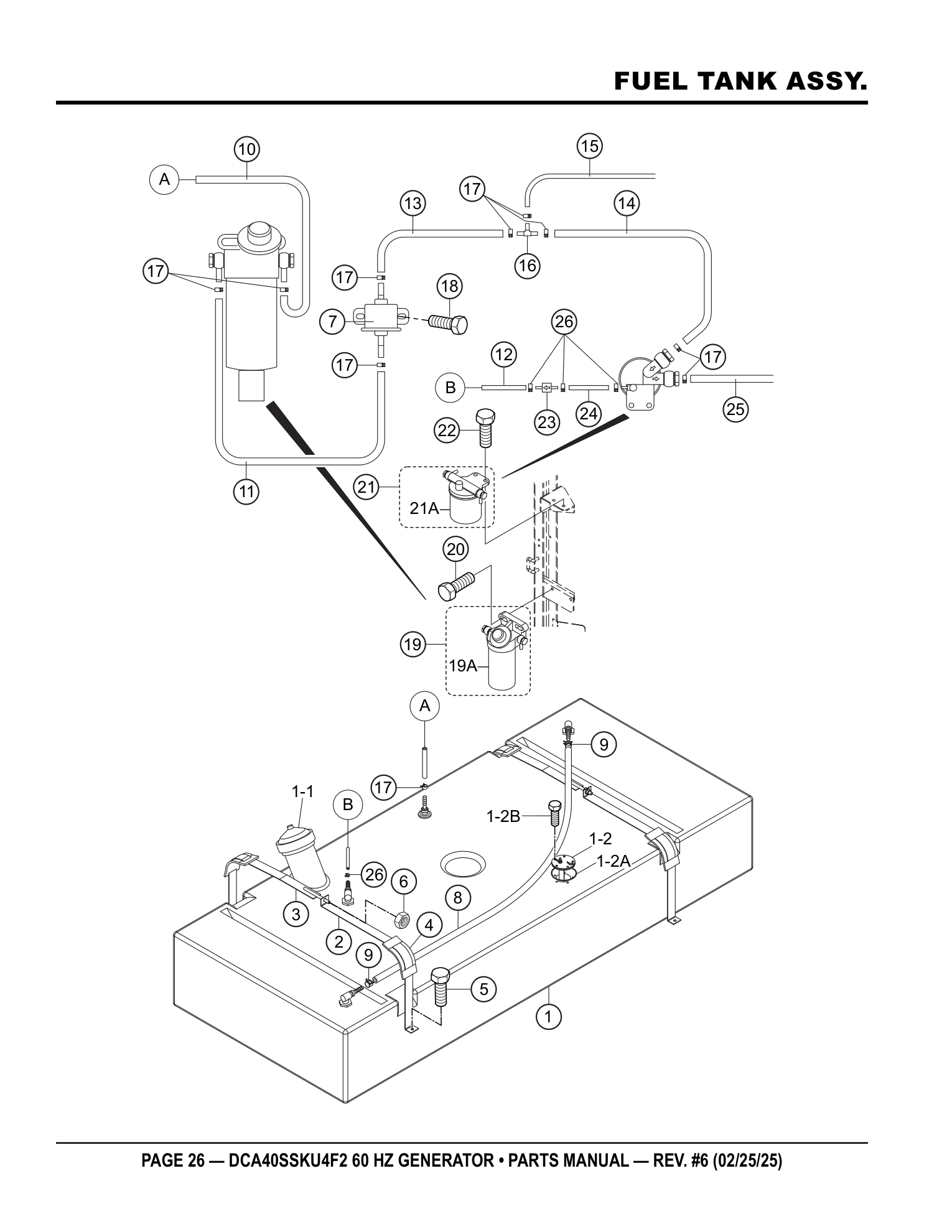

Page 26 — FUEL TANK ASSY.

Multiquip DCA40SSKU4F2 Generator FUEL TANK ASSY. parts diagram

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1364000412	FUEL TANK	1	INCLUDES ITEMS W/#	ADD TO CART
FUEL TANK M1364000412 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-2#, 1-2# view full part page → $907.95 IN A KIT + SOLD SOLO
1-1#	0605505070	FUEL TANK CAP	1		ADD TO CART
FUEL TANK CAP 0605505070 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M1364000412) view full part page → $50.95 IN A KIT + SOLD SOLO
1-2#	Y0605501056	FUEL SENDER UNIT	1		ADD TO CART
FUEL SENDER UNIT Y0605501056 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M1364000412) view full part page → $165.95 IN A KIT + SOLD SOLO
1-2#	0605516090	GASKET	1		NO LONGER AVAILABLE
PHOTO COMING GASKET 0605516090 · qty on machine: 1 Also included in kit 1 - FUEL TANK (M1364000412) NO LONGER AVAILABLE
1-2#	Y0605053020	HEX. HEAD BOLT	5		ADD TO CART
HEX. HEAD BOLT Y0605053020 · qty on machine: 5 Also included in kit 1 - FUEL TANK (M1364000412) view full part page → $1.87 IN A KIT + SOLD SOLO
2	M1364200004	TANK BAND	2		ADD TO CART
TANK BAND M1364200004 · qty on machine: 2 view full part page → $38.95
3	M1363200404	TANK BAND	2		ADD TO CART
TANK BAND M1363200404 · qty on machine: 2 view full part page → $108.95
4	M9310500104	SUPPORTER SHEET	4		ADD TO CART
SUPPORTER SHEET M9310500104 · qty on machine: 4 view full part page → $5.95
5	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
6	020108060	SELF-LOCKING NUT	4	REPLACES P/N 0207008000	ADD TO CART
SELF-LOCKING NUT 020108060 · qty on machine: 4 REPLACES P/N 0207008000 view full part page → $0.28
7	R140151353	FUEL PUMP	1		ADD TO CART
FUEL PUMP R140151353 · qty on machine: 1 Factory replaced this part - current number 1G37752030 view full part page → $260.95 IN A KIT + SOLD SOLO
8	Y0191301500	HOSE	1		ADD TO CART
HOSE Y0191301500 · qty on machine: 1 view full part page → $17.95
9	Y0605515340	HOSE BAND	2		ADD TO CART
HOSE BAND Y0605515340 · qty on machine: 2 view full part page → $2.95
10	Y0191200370	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191200370 · qty on machine: 1 view full part page → $6.95
11	Y0191200450	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191200450 · qty on machine: 1 view full part page → $7.95
12	Y0191001000	RETURN HOSE	1		ADD TO CART
RETURN HOSE Y0191001000 · qty on machine: 1 view full part page → $13.95
13	0191200300	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191200300 · qty on machine: 1 view full part page → $2.95
14	Y0191200230	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191200230 · qty on machine: 1 view full part page → $4.95
15	Y0191200320	RETURN HOSE	1		ADD TO CART
RETURN HOSE Y0191200320 · qty on machine: 1 view full part page → $6.95
16	3N60042171	T-JOINT	1		ADD TO CART
T-JOINT 3N60042171 · qty on machine: 1 Factory replaced this part - current number 3N60042170 view full part page → $58.34 IN A KIT + SOLD SOLO
17	0605515189	HOSE BAND	12		ADD TO CART
HOSE BAND 0605515189 · qty on machine: 12 view full part page → $1.85
18	0016906015	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 2 view full part page → $0.95
19	1J43043351	WATER SEPARATOR	1	INCLUDES ITEMS W/$	ADD TO CART
WATER SEPARATOR 1J43043351 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 19A$ view full part page → $744.95 IN A KIT + SOLD SOLO
19A$	1J43043061	CARTRIDGE, WATER SEPARATOR	1		ADD TO CART
CARTRIDGE, WATER SEPARATOR 1J43043061 · qty on machine: 1 Also included in kit 19 - WATER SEPARATOR (1J43043351) view full part page → $71.95 IN A KIT + SOLD SOLO
20	011208030	HEX. HEAD BOLT	2	REPLACES P/N 0016908030	ADD TO CART
HEX. HEAD BOLT 011208030 · qty on machine: 2 REPLACES P/N 0016908030 view full part page → $1.3
21	1J33143011	FUEL FILTER	1	INCLUDES ITEMS W/%	ADD TO CART
FUEL FILTER 1J33143011 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 21A% view full part page → $367.79 IN A KIT + SOLD SOLO
21A%	1J52143171	CARTRIDGE, FUEL FILTER	1		ADD TO CART
CARTRIDGE, FUEL FILTER 1J52143171 · qty on machine: 1 Also included in kit 21 - FUEL FILTER (1J33143011) view full part page → $67.53 IN A KIT + SOLD SOLO
22	0012108035	HEX. HEAD BOLT	2	REPLACES P/N 0016908035	ADD TO CART
HEX. HEAD BOLT 0012108035 · qty on machine: 2 REPLACES P/N 0016908035 view full part page → $1.95
23	1C01042460	CHECK VALVE	1		ADD TO CART
CHECK VALVE 1C01042460 · qty on machine: 1 view full part page → $51.95
24	Y0191000500	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE Y0191000500 · qty on machine: 1 view full part page → $7.95
25	0191200800	SUCTION HOSE	1		ADD TO CART
SUCTION HOSE 0191200800 · qty on machine: 1 view full part page → $17.95
26	Y0605515104	HOSE BAND	4		ADD TO CART
HOSE BAND Y0605515104 · qty on machine: 4 view full part page → $0.94

Page 28 — ENCLOSURE ASSY.

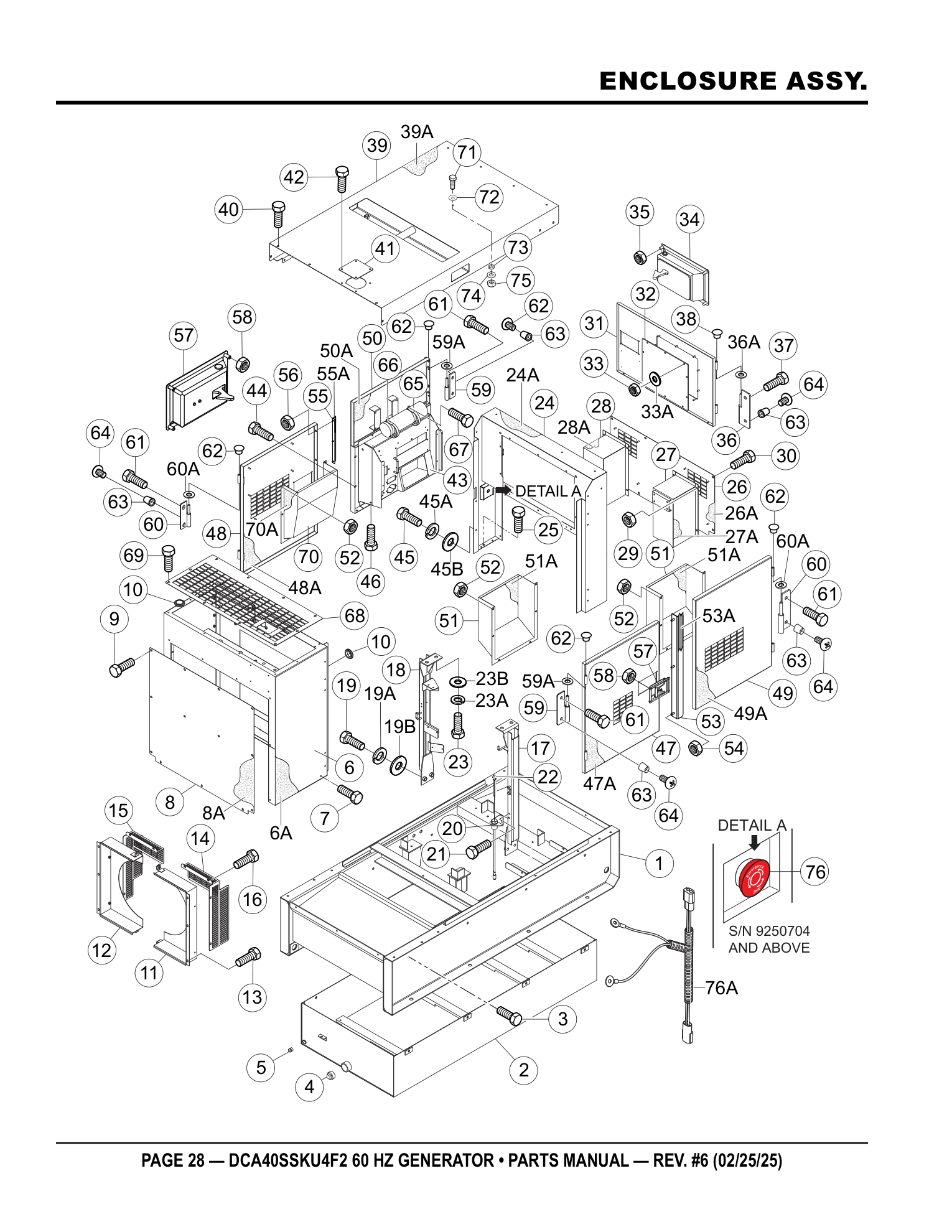

Multiquip DCA40SSKU4F2 Generator ENCLOSURE ASSY. parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
1	M1414001202	BASE	1		ADD TO CART
BASE M1414001202 · qty on machine: 1 view full part page → $3750.87
2	M1364300003	ENVIRONMENTAL TANK	1		PARTS REQUEST
PHOTO COMING ENVIRONMENTAL TANK M1364300003 · qty on machine: 1 PARTS REQUEST
3	0016910030	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0016910030 · qty on machine: 8 view full part page → $2.95
4	0603306797	SQUARE HEAD PIPE PLUG, 1-1/2"	1		ADD TO CART
SQUARE HEAD PIPE PLUG, 1-1/2" 0603306797 · qty on machine: 1 view full part page → $12.95
5	Y0603306793	SQUARE HEAD PIPE PLUG, 1/2"	1	S/N 9250549 AND BELOW	ADD TO CART
SQUARE HEAD PIPE PLUG, 1/2" Y0603306793 · qty on machine: 1 S/N 9250549 AND BELOW view full part page → $2.95
6	M1424000202	FRONT FRAME	1		ADD TO CART
FRONT FRAME M1424000202 · qty on machine: 1 view full part page → $2364.56
6A	M1494106703	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494106703 · qty on machine: 1 view full part page → $201.95
7	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
8	M1424201104	COVER, FRONT FRAME	1		PARTS REQUEST
PHOTO COMING COVER, FRONT FRAME M1424201104 · qty on machine: 1 PARTS REQUEST
8A	M1494105904	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494105904 · qty on machine: 1 view full part page → $221.95
9	0019208020	HEX. HEAD BOLT	13		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 13 view full part page → $3.95
10	Y0601851774	GROMMET	2		ADD TO CART
GROMMET Y0601851774 · qty on machine: 2 view full part page → $15.76
11	M1311301703	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M1311301703 · qty on machine: 1 PARTS REQUEST
12	M1311301803	FAN SHROUD	1		PARTS REQUEST
PHOTO COMING FAN SHROUD M1311301803 · qty on machine: 1 PARTS REQUEST
13	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
14	M1311301903	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD M1311301903 · qty on machine: 1 PARTS REQUEST
15	M1311302003	FAN GUARD	1		PARTS REQUEST
PHOTO COMING FAN GUARD M1311302003 · qty on machine: 1 PARTS REQUEST
16	011008020	HEX. HEAD BOLT	8	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 8 REPLACES P/N 0016908020 view full part page → $2.68
17	M1434300703	CENTER FRAME	1		PARTS REQUEST
PHOTO COMING CENTER FRAME M1434300703 · qty on machine: 1 PARTS REQUEST
18	M1434300803	CENTER FRAME	1		PARTS REQUEST
PHOTO COMING CENTER FRAME M1434300803 · qty on machine: 1 PARTS REQUEST
19	0013616035	HEX. HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0013616035 · qty on machine: 4 PARTS REQUEST
19A	0040016000	WASHER, LOCK	4		ADD TO CART
WASHER, LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
19B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
20	M1484500104	FUEL LEAK SWITCH BRACKET	1		ADD TO CART
FUEL LEAK SWITCH BRACKET M1484500104 · qty on machine: 1 view full part page → $59.95
21	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016906020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016906020 view full part page → $2.68
22	0605503062	FUEL LEAK DETECTED SWITCH	1		ADD TO CART
FUEL LEAK DETECTED SWITCH 0605503062 · qty on machine: 1 view full part page → $213.95
23	0013616035	HEX. HEAD BOLT	4		PARTS REQUEST
PHOTO COMING HEX. HEAD BOLT 0013616035 · qty on machine: 4 PARTS REQUEST
23A	0040016000	WASHER. LOCK	4		ADD TO CART
WASHER. LOCK 0040016000 · qty on machine: 4 view full part page → $4.95
23B	0041216000	WASHER, FLAT	4		ADD TO CART
WASHER, FLAT 0041216000 · qty on machine: 4 view full part page → $1.95
24	M1444000402	REAR FRAME	1	S/N 9250703 AND BELOW	PARTS REQUEST
PHOTO COMING REAR FRAME M1444000402 · qty on machine: 1 S/N 9250703 AND BELOW PARTS REQUEST
24	M1444000412	REAR FRAME	1	S/N 9250704 AND ABOVE	PARTS REQUEST
PHOTO COMING REAR FRAME M1444000412 · qty on machine: 1 S/N 9250704 AND ABOVE PARTS REQUEST
24A	M1494303404	ACOUSTIC SHEET	1	S/N 9250703 AND BELOW	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494303404 · qty on machine: 1 S/N 9250703 AND BELOW PARTS REQUEST
24A	M1494303414	ACOUSTIC SHEET	1	S/N 9250704 AND ABOVE	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494303414 · qty on machine: 1 S/N 9250704 AND ABOVE PARTS REQUEST
25	011008020	HEX. HEAD BOLT	4	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 4 REPLACES P/N 0016908020 view full part page → $2.68
26	M1444300703	REAR COVER	1		PARTS REQUEST
PHOTO COMING REAR COVER M1444300703 · qty on machine: 1 PARTS REQUEST
26A	M1494303604	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494303604 · qty on machine: 1 PARTS REQUEST
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 30 — ENCLOSURE ASSY. (CONT'D.)

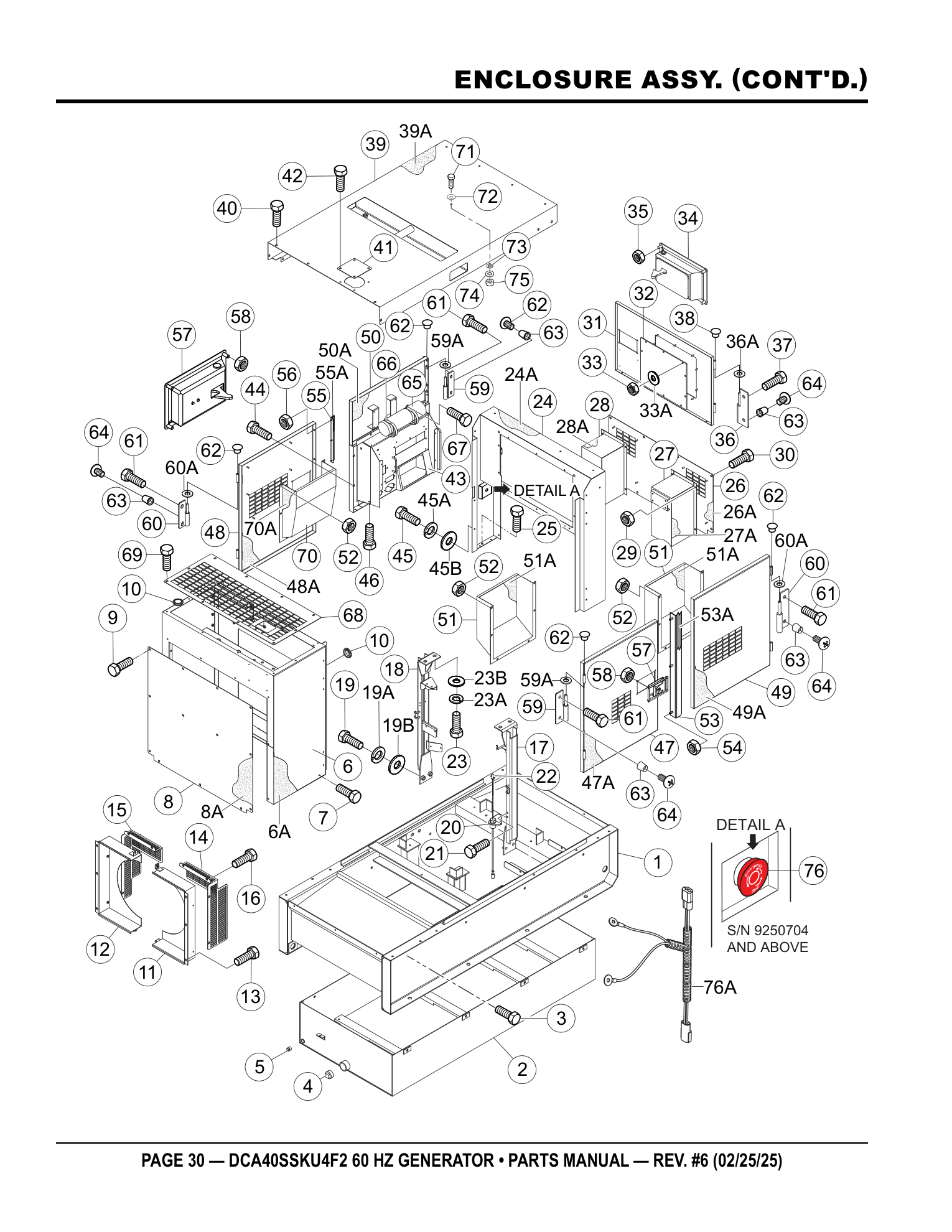

Multiquip DCA40SSKU4F2 Generator ENCLOSURE ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed45 rows

No.	Part No.	Part Name	Qty	Remarks
27	M1444300803	DUCT, REAR COVER	1		PARTS REQUEST
PHOTO COMING DUCT, REAR COVER M1444300803 · qty on machine: 1 PARTS REQUEST
27A	M1494303504	ACOUSTIC SHEET	1	S/N 9250703 AND BELOW	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494303504 · qty on machine: 1 S/N 9250703 AND BELOW PARTS REQUEST
27A	M1494304904	ACOUSTIC SHEET	1	S/N 9250704 AND ABOVE	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494304904 · qty on machine: 1 S/N 9250704 AND ABOVE PARTS REQUEST
28	M1444300903	DUCT, REAR COVER	1		PARTS REQUEST
PHOTO COMING DUCT, REAR COVER M1444300903 · qty on machine: 1 PARTS REQUEST
28A	M1494303504	ACOUSTIC SHEET	1	S/N 9250703 AND BELOW	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494303504 · qty on machine: 1 S/N 9250703 AND BELOW PARTS REQUEST
28A	M1494305004	ACOUSTIC SHEET	1	S/N 9250704 AND ABOVE	PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494305004 · qty on machine: 1 S/N 9250704 AND ABOVE PARTS REQUEST
29	0176060030	SELF-LOCKING NUT	8	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 8 REPLACES P/N 0207006000 view full part page → $2.95
30	0019208020	HEX. HEAD BOLT	8		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 8 view full part page → $3.95
31	M1444200503	REAR DOOR	1		PARTS REQUEST
PHOTO COMING REAR DOOR M1444200503 · qty on machine: 1 PARTS REQUEST
32	M1445600204	WINDOW PLATE	1		ADD TO CART
WINDOW PLATE M1445600204 · qty on machine: 1 view full part page → $57.95
33	020106050	LOCK NUT	10	REPLACES P/N 0037906000	ADD TO CART
LOCK NUT 020106050 · qty on machine: 10 REPLACES P/N 0037906000 view full part page → $0.12
33A	952404470	WASHER, FLAT	10	REPLACES P/N 0041206000	ADD TO CART
WASHER, FLAT 952404470 · qty on machine: 10 REPLACES P/N 0041206000 view full part page → $0.19
34	Y0605012309	DOOR HANDLE ASSEMBLY	1		ADD TO CART
DOOR HANDLE ASSEMBLY Y0605012309 · qty on machine: 1 view full part page → $49.95
35	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
36	M9110100204	HINGE	2		ADD TO CART
HINGE M9110100204 · qty on machine: 2 view full part page → $23.95
36A	M9116100004	WASHER	2		ADD TO CART
WASHER M9116100004 · qty on machine: 2 view full part page → $1.93
37	0019208020	HEX. HEAD BOLT	3		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 3 view full part page → $3.95
38	0845031504	BLIND PLUG	2	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 2 REPLACES P/N M9310000004 view full part page → $2.95
39	M1464000702	ROOF PANEL	1		PARTS REQUEST
PHOTO COMING ROOF PANEL M1464000702 · qty on machine: 1 PARTS REQUEST
39A	M1494504303	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494504303 · qty on machine: 1 view full part page → $300.07
40	0019208020	HEX. HEAD BOLT	13		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 13 view full part page → $3.95
41	M3310600004	COVER	1		ADD TO CART
COVER M3310600004 · qty on machine: 1 view full part page → $17.95
42	0019208020	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 4 view full part page → $3.95
43	M1454200812	SPLASHER PANEL	1	S/N 9251170 AND BELOW	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M1454200812 · qty on machine: 1 S/N 9251170 AND BELOW PARTS REQUEST
43	M1454202102	SPLASHER PANEL	1	S/N 9251171 AND ABOVE	PARTS REQUEST
PHOTO COMING SPLASHER PANEL M1454202102 · qty on machine: 1 S/N 9251171 AND ABOVE PARTS REQUEST
44	0019208020	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 2 view full part page → $3.95
45	0019108055	HEX. HEAD BOLT	2		ADD TO CART
HEX. HEAD BOLT 0019108055 · qty on machine: 2 view full part page → $3.95
45A	0042308000	WASHER, LOCK	2		ADD TO CART
WASHER, LOCK 0042308000 · qty on machine: 2 view full part page → $0.83
45B	0401450080	WASHER, FLAT	2	REPLACES P/N 0042408000	ADD TO CART
WASHER, FLAT 0401450080 · qty on machine: 2 REPLACES P/N 0042408000 view full part page → $0.56
46	011008020	HEX. HEAD BOLT	2	REPLACES P/N 0016908020	ADD TO CART
HEX. HEAD BOLT 011008020 · qty on machine: 2 REPLACES P/N 0016908020 view full part page → $2.68
47	M1454002203	SIDE DOOR	1		ADD TO CART
SIDE DOOR M1454002203 · qty on machine: 1 view full part page → $289.95
47A	M1494407504	ACOUSTIC SHEET	1		ADD TO CART
ACOUSTIC SHEET M1494407504 · qty on machine: 1 view full part page → $112.95
48	M1454002303	SIDE DOOR	1		ADD TO CART
SIDE DOOR M1454002303 · qty on machine: 1 view full part page → $289.95
48A	M1494407804	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494407804 · qty on machine: 1 PARTS REQUEST
49	M1454002403	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454002403 · qty on machine: 1 PARTS REQUEST
49A	M1494408004	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494408004 · qty on machine: 1 PARTS REQUEST
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 32 — ENCLOSURE ASSY. (CONT'D.)

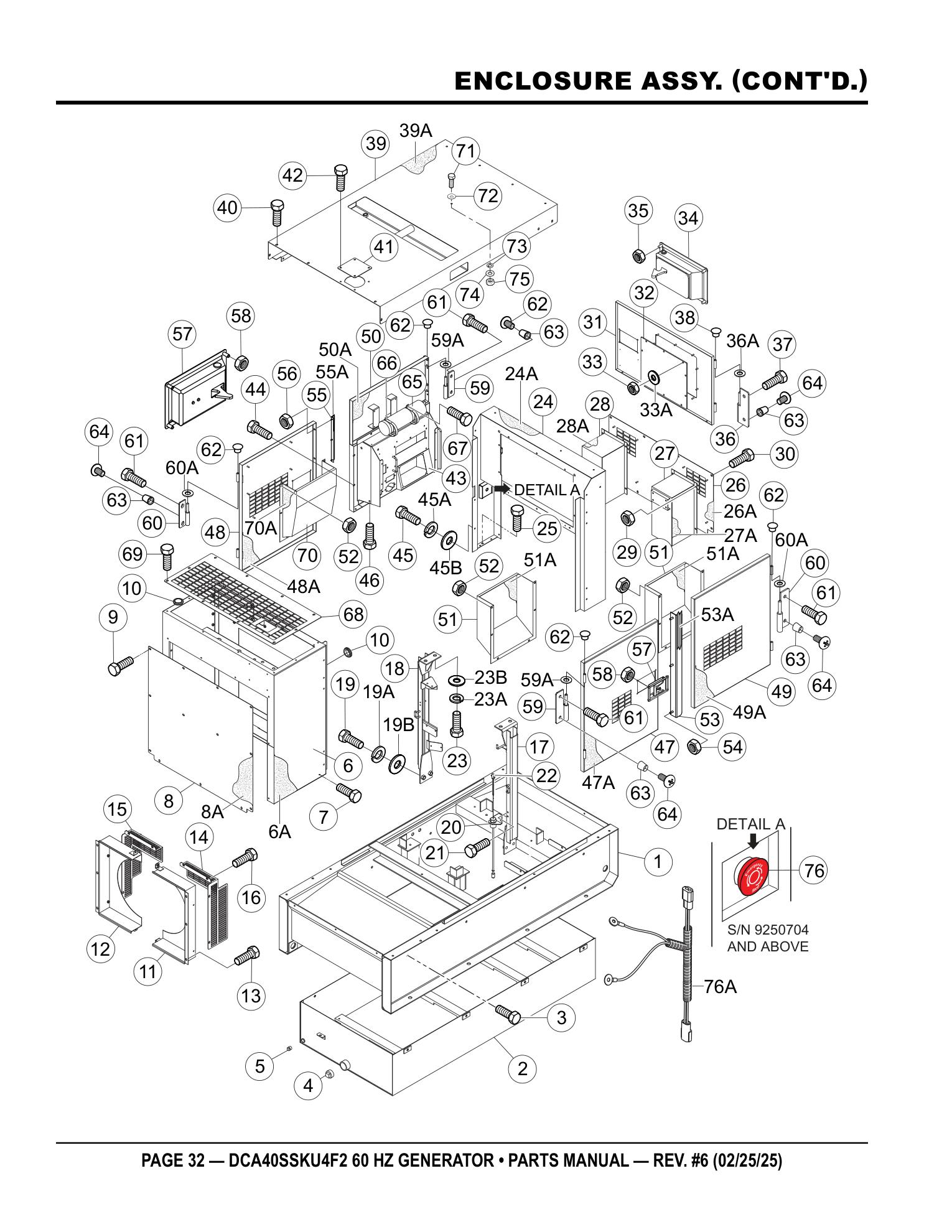

Parts list — exactly as printed44 rows

No.	Part No.	Part Name	Qty	Remarks
50	M1454002103	SIDE DOOR	1		PARTS REQUEST
PHOTO COMING SIDE DOOR M1454002103 · qty on machine: 1 PARTS REQUEST
50A	M1494405804	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494405804 · qty on machine: 1 PARTS REQUEST
51	M1454301004	DUCT	2		PARTS REQUEST
PHOTO COMING DUCT M1454301004 · qty on machine: 2 PARTS REQUEST
51A	M1494408104	ACOUSTIC SHEET	2		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494408104 · qty on machine: 2 PARTS REQUEST
52	0176060030	SELF-LOCKING NUT	18	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 18 REPLACES P/N 0207006000 view full part page → $2.95
53	M1454700204	DOOR SUPPORTER	1		PARTS REQUEST
PHOTO COMING DOOR SUPPORTER M1454700204 · qty on machine: 1 PARTS REQUEST
53A	0229200775	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL 0229200775 · qty on machine: 1 PARTS REQUEST
54	0176060030	SELF-LOCKING NUT	4	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 4 REPLACES P/N 0207006000 view full part page → $2.95
55	M1454700404	DOOR SUPPORTER	1		PARTS REQUEST
PHOTO COMING DOOR SUPPORTER M1454700404 · qty on machine: 1 PARTS REQUEST
55A	0229200295	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL 0229200295 · qty on machine: 1 PARTS REQUEST
56	0176060030	SELF-LOCKING NUT	2	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 2 REPLACES P/N 0207006000 view full part page → $2.95
57	Y0605012309	DOOR HANDLE ASSEMBLY	2		ADD TO CART
DOOR HANDLE ASSEMBLY Y0605012309 · qty on machine: 2 view full part page → $49.95
58	0176060030	SELF-LOCKING NUT	8	REPLACES P/N 0207006000	ADD TO CART
SELF-LOCKING NUT 0176060030 · qty on machine: 8 REPLACES P/N 0207006000 view full part page → $2.95
59	M9110100204	HINGE	4		ADD TO CART
HINGE M9110100204 · qty on machine: 4 view full part page → $23.95
59A	M9116100004	WASHER	4		ADD TO CART
WASHER M9116100004 · qty on machine: 4 view full part page → $1.93
60	M9110100304	HINGE	4		ADD TO CART
HINGE M9110100304 · qty on machine: 4 view full part page → $19.95
60A	M9116100004	WASHER	4		ADD TO CART
WASHER M9116100004 · qty on machine: 4 view full part page → $1.93
61	0019208020	HEX. HEAD BOLT	9		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 9 view full part page → $3.95
62	0845031504	BLIND PLUG	8	REPLACES P/N M9310000004	ADD TO CART
BLIND PLUG 0845031504 · qty on machine: 8 REPLACES P/N M9310000004 view full part page → $2.95
63	0601850097	DOOR STOPPER	8		ADD TO CART
DOOR STOPPER 0601850097 · qty on machine: 8 view full part page → $2.95
64	0027208025	MACHINE SCREW	8		ADD TO CART
MACHINE SCREW 0027208025 · qty on machine: 8 view full part page → $0.76
65	0600800321	MANUAL PAK	1		ADD TO CART
MANUAL PAK 0600800321 · qty on machine: 1 view full part page → $33.95
66	M1483600804	CLAMPER	2		ADD TO CART
CLAMPER M1483600804 · qty on machine: 2 view full part page → $15.95
67	0016906015	HEX. HEAD BOLT	4		ADD TO CART
HEX. HEAD BOLT 0016906015 · qty on machine: 4 view full part page → $0.95
68	M1424201204	FRONT FRAME OVER COVER	1		PARTS REQUEST
PHOTO COMING FRONT FRAME OVER COVER M1424201204 · qty on machine: 1 PARTS REQUEST
69	0019208020	HEX. HEAD BOLT	10		ADD TO CART
HEX. HEAD BOLT 0019208020 · qty on machine: 10 view full part page → $3.95
70	M1454300904	DUCT	1		PARTS REQUEST
PHOTO COMING DUCT M1454300904 · qty on machine: 1 PARTS REQUEST
70A	M1494408604	ACOUSTIC SHEET	1		PARTS REQUEST
PHOTO COMING ACOUSTIC SHEET M1494408604 · qty on machine: 1 PARTS REQUEST
71	0019112030	HEX. HEAD BOLT	1	S/N 9250654 AND ABOVE	ADD TO CART
HEX. HEAD BOLT 0019112030 · qty on machine: 1 S/N 9250654 AND ABOVE view full part page → $5.95
72	Y0605050040	SEALING WASHER	1	S/N 9250654 AND ABOVE	ADD TO CART
SEALING WASHER Y0605050040 · qty on machine: 1 S/N 9250654 AND ABOVE view full part page → $1.95
73	0042312000	WASHER, LOCK	1	S/N 9250654 AND ABOVE	ADD TO CART
WASHER, LOCK 0042312000 · qty on machine: 1 S/N 9250654 AND ABOVE view full part page → $0.94
74	0042412000	WASHER, FLAT	1	S/N 9250654 AND ABOVE	ADD TO CART
WASHER, FLAT 0042412000 · qty on machine: 1 S/N 9250654 AND ABOVE view full part page → $1.63
75	0030012000	HEX. NUT	1	S/N 9250654 AND ABOVE	ADD TO CART
HEX. NUT 0030012000 · qty on machine: 1 S/N 9250654 AND ABOVE view full part page → $0.5
76	Y0601831953	EMERGENCY STOP BUTTON	1	S/N 9250704 AND ABOVE	ADD TO CART
EMERGENCY STOP BUTTON Y0601831953 · qty on machine: 1 S/N 9250704 AND ABOVE view full part page → $152.95
76A	M1358203204	E-STOP WIRE HARNESS	1	S/N 9250704 AND ABOVE	PARTS REQUEST
PHOTO COMING E-STOP WIRE HARNESS M1358203204 · qty on machine: 1 S/N 9250704 AND ABOVE PARTS REQUEST
ADDTHE	FOLLOWINGDIGITS	AFTER THE PART			PARTS REQUEST
PHOTO COMING AFTER THE PART FOLLOWINGDIGITS PARTS REQUEST
NUMBER	WHENORDERING	ANY PAINTED PANEL TO			PARTS REQUEST
PHOTO COMING ANY PAINTED PANEL TO WHENORDERING PARTS REQUEST
INDICATE	COLOROFUNIT:				PARTS REQUEST
PHOTO COMING COLOROFUNIT: PARTS REQUEST
1-ORANGE		6-CATERPILLAR YELLOW			SEE REMARKS
PHOTO COMING 6-CATERPILLAR YELLOW SEE REMARKS
2-WHITE		7-CATO GOLD			SEE REMARKS
PHOTO COMING 7-CATO GOLD SEE REMARKS
3-SPECTRUM	GREY	8-RED			PARTS REQUEST
PHOTO COMING 8-RED GREY PARTS REQUEST
4-SUNBELT	GREEN	9-DESERT TAN			PARTS REQUEST
PHOTO COMING 9-DESERT TAN GREEN PARTS REQUEST
5-BLACK					SEE REMARKS
PHOTO COMING SEE REMARKS
THESERIAL	NUMBERMAY	BE REQUIRED.			PARTS REQUEST
PHOTO COMING BE REQUIRED. NUMBERMAY PARTS REQUEST

Page 34 — RUBBER SEALS ASSY.

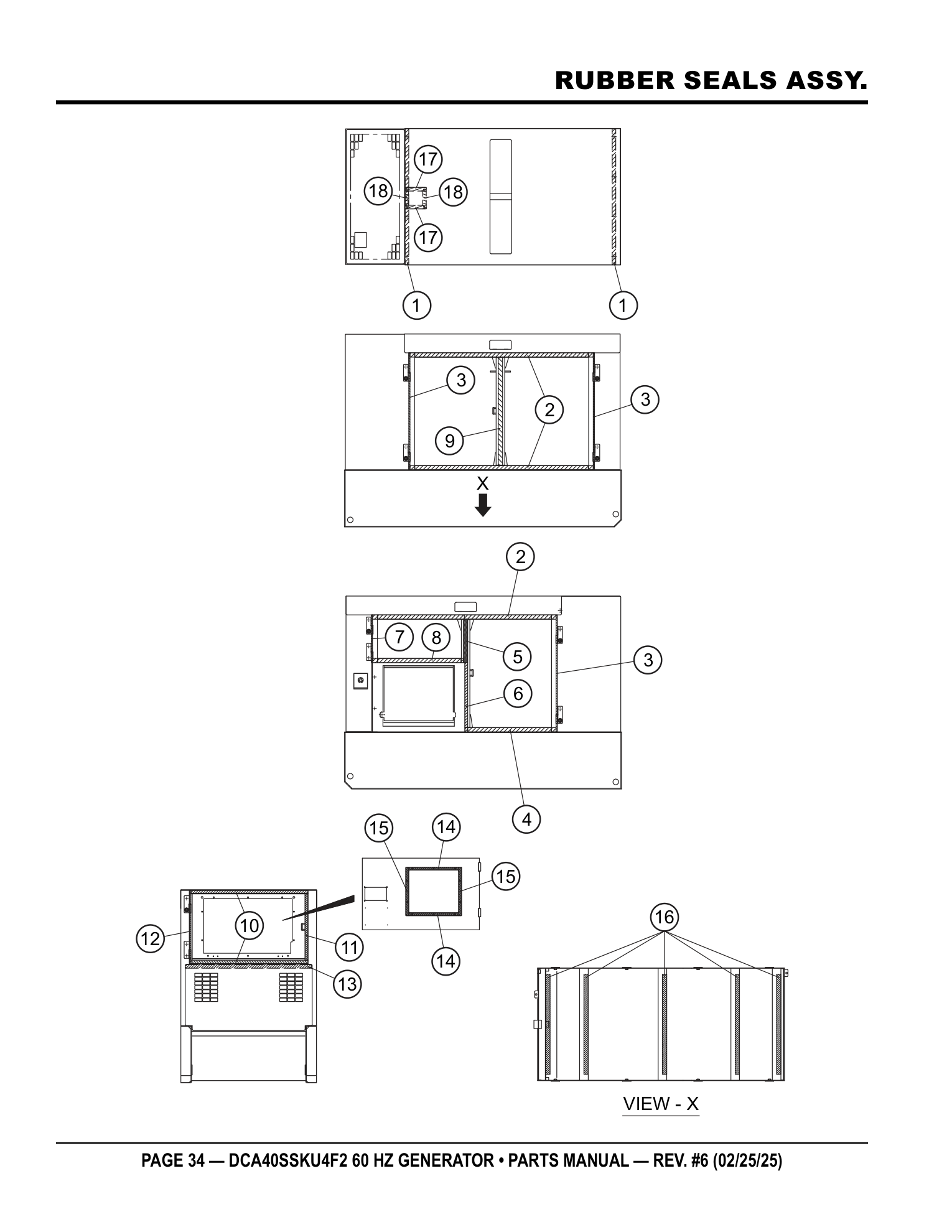

Multiquip DCA40SSKU4F2 Generator RUBBER SEALS ASSY. parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
1	0229200950	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0229200950 · qty on machine: 2 view full part page → $9.95
2	Y0228901285	RUBBER SEAL	3		ADD TO CART
RUBBER SEAL Y0228901285 · qty on machine: 3 view full part page → $20.95
3	Y0229400820	RUBBER SEAL	3		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0229400820 · qty on machine: 3 PARTS REQUEST
4	0228900640	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228900640 · qty on machine: 1 view full part page → $15.95
5	Y0228900305	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0228900305 · qty on machine: 1 PARTS REQUEST
6	Y0228800460	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0228800460 · qty on machine: 1 PARTS REQUEST
7	Y0229400335	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0229400335 · qty on machine: 1 PARTS REQUEST
8	Y0228900635	RUBBER SEAL	1		PARTS REQUEST
PHOTO COMING RUBBER SEAL Y0228900635 · qty on machine: 1 PARTS REQUEST
9	0228900760	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228900760 · qty on machine: 1 view full part page → $22.95
10	Y0228800820	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0228800820 · qty on machine: 2 view full part page → $22.95
11	0228800470	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228800470 · qty on machine: 1 view full part page → $8.95
12	0228800510	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0228800510 · qty on machine: 1 view full part page → $8.95
13	0229200880	RUBBER SEAL	1		ADD TO CART
RUBBER SEAL 0229200880 · qty on machine: 1 view full part page → $5.95
14	0228100340	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL 0228100340 · qty on machine: 2 view full part page → $1.95
15	70NS2016	RUBBER SEAL	2	REPLACES P/N 0228100350	ADD TO CART
RUBBER SEAL 70NS2016 · qty on machine: 2 REPLACES P/N 0228100350 view full part page → $2.95
16	0222100700	RUBBER SEAL	5		ADD TO CART
RUBBER SEAL 0222100700 · qty on machine: 5 view full part page → $22.95
17	Y0229200145	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0229200145 · qty on machine: 2 view full part page → $0.65
18	Y0229200100	RUBBER SEAL	2		ADD TO CART
RUBBER SEAL Y0229200100 · qty on machine: 2 view full part page → $0.67

Page 36 — BATTERY CHARGER ASSY. (OPTION)

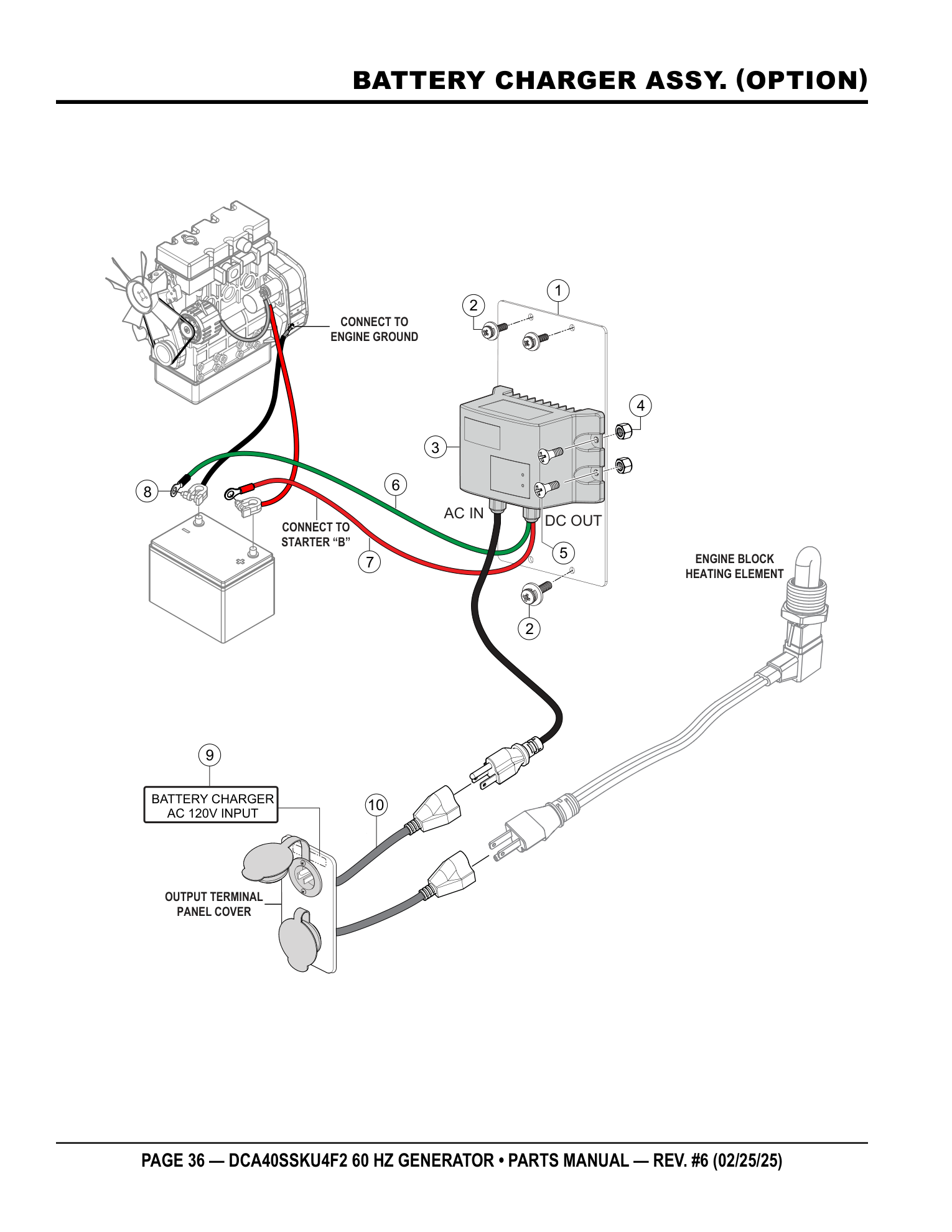

Multiquip DCA40SSKU4F2 Generator BATTERY CHARGER ASSY. (OPTION) parts diagram

Parts list — exactly as printed10 rows

No.	Part No.	Part Name	Qty	Remarks
1	EE62021	MOUNTING PLATE, BATTERY CHARGER	1		ADD TO CART
MOUNTING PLATE, BATTERY CHARGER EE62021 · qty on machine: 1 view full part page → $30.95
2		M4X12MM PAN HD. SC. W/FLAT WASHER	14	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING M4X12MM PAN HD. SC. W/FLAT WASHER · qty on machine: 14 OBTAIN LOCALLY SEE REMARKS
3	EE62075	BATTERY CHARGER, 6A 12V	1		ADD TO CART
BATTERY CHARGER, 6A 12V EE62075 · qty on machine: 1 view full part page → $361.95
4		HEX. NUT, 10-32	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING HEX. NUT, 10-32 · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
5		SCREW, FLAT HEAD, 10-32X1/2"	4	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING SCREW, FLAT HEAD, 10-32X1/2" · qty on machine: 4 OBTAIN LOCALLY SEE REMARKS
6		WIRE, 16 AWG, GREEN (9 FT.)	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16 AWG, GREEN (9 FT.) · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
7		WIRE, 16 AWG, RED (9 FT.)	1	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING WIRE, 16 AWG, RED (9 FT.) · qty on machine: 1 OBTAIN LOCALLY SEE REMARKS
8		1/2" RING TERMINAL, 14-16 AWG	2	OBTAIN LOCALLY	SEE REMARKS
PHOTO COMING 1/2" RING TERMINAL, 14-16 AWG · qty on machine: 2 OBTAIN LOCALLY SEE REMARKS
9	M1940011014Q	DECAL, BATTERY CHARGER, 120V INPUT	1		ADD TO CART
DECAL, BATTERY CHARGER, 120V INPUT M1940011014Q · qty on machine: 1 view full part page → $1.36
10	EE62076	RECPT. W/CORD, NEMA 5-15P 15A 125V	1		ADD TO CART
RECPT. W/CORD, NEMA 5-15P 15A 125V EE62076 · qty on machine: 1 view full part page → $66.95

Page 40 — NAMEPLATE AND DECALS ASSY.

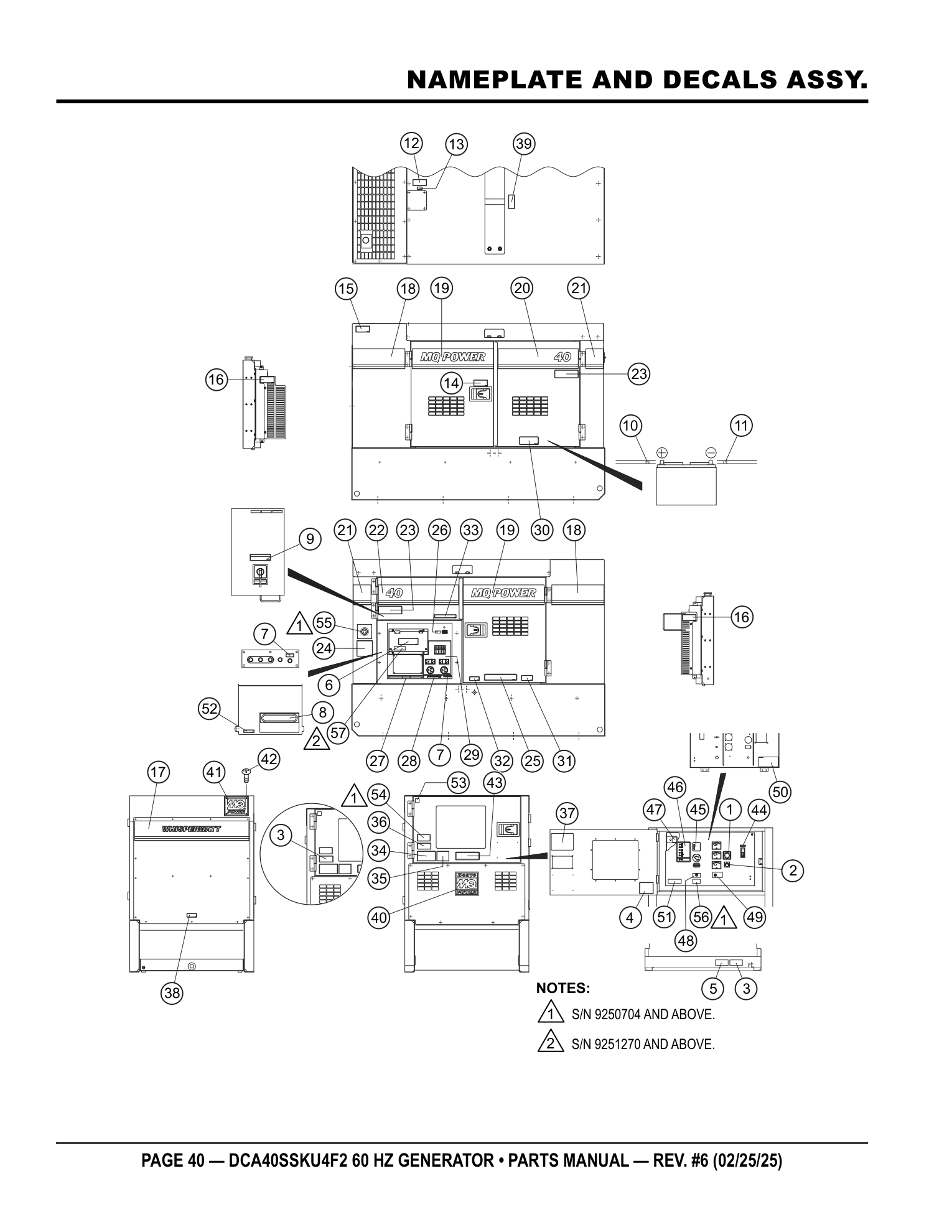

Multiquip DCA40SSKU4F2 Generator NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed43 rows

No.	Part No.	Part Name	Qty	Remarks
1	M9520000104	DECAL; AMMETER CHANGE-OVER SW	1	M92000010	ADD TO CART
DECAL; AMMETER CHANGE-OVER SW M9520000104 · qty on machine: 1 M92000010 view full part page → $11.95
2	M9522000604	DECAL; VOLTAGE REGULATOR	1	M92200060	ADD TO CART
DECAL; VOLTAGE REGULATOR M9522000604 · qty on machine: 1 M92200060 view full part page → $18.95
3	M9520100704	DECAL; WARNING ARC FLASH	1	M92010070	ADD TO CART
DECAL; WARNING ARC FLASH M9520100704 · qty on machine: 1 M92010070 view full part page → $4.95
4	M9520100304	DECAL; GENERAL CAUTIONS	1	M92010030	ADD TO CART
DECAL; GENERAL CAUTIONS M9520100304 · qty on machine: 1 M92010030 view full part page → $3.95
5	M9520100004	DECAL; WARNING ELECTRICAL SHOCK	1	M92010000	ADD TO CART
DECAL; WARNING ELECTRICAL SHOCK M9520100004 · qty on machine: 1 M92010000 view full part page → $5.95
6	M9520200003	DECAL; CONNECTION OF OUTPUT CABLE	1	M92020000	ADD TO CART
DECAL; CONNECTION OF OUTPUT CABLE M9520200003 · qty on machine: 1 M92020000 view full part page → $7.95
7	M9520000004	DECAL; GROUNDING	2	M92000000	ADD TO CART
DECAL; GROUNDING M9520000004 · qty on machine: 2 M92000000 view full part page → $1.95
8	M9520100404	DECAL: DANGER HIGH VOLTAGE	1	M92010040	ADD TO CART
DECAL: DANGER HIGH VOLTAGE M9520100404 · qty on machine: 1 M92010040 view full part page → $37.95
9	M9520100204	DECAL; CAUTION CHANGE-OVER SW	1	M92010020A	ADD TO CART
DECAL; CAUTION CHANGE-OVER SW M9520100204 · qty on machine: 1 M92010020A view full part page → $3.95
10	M9500300104	DECAL; +	1	M90030010	ADD TO CART
DECAL; + M9500300104 · qty on machine: 1 M90030010 view full part page → $1.95
11	M9500300004	DECAL; -	1	M90030000	ADD TO CART
DECAL; - M9500300004 · qty on machine: 1 M90030000 view full part page → $1.95
12	M9503100004	DECAL; WARNING RADIATOR CAP	1	M90310000	ADD TO CART
DECAL; WARNING RADIATOR CAP M9503100004 · qty on machine: 1 M90310000 view full part page → $4.95
13	M9500100004	DECAL; WATER	1	M90010000	ADD TO CART
DECAL; WATER M9500100004 · qty on machine: 1 M90010000 view full part page → $1.95
14	M9510100004	DECAL; CAUTION HIGH TEMP	1	M91010000	ADD TO CART
DECAL; CAUTION HIGH TEMP M9510100004 · qty on machine: 1 M91010000 view full part page → $68.95
15	M9503200004	DECAL; WARNING EXHAUST GAS	1	M90320000	ADD TO CART
DECAL; WARNING EXHAUST GAS M9503200004 · qty on machine: 1 M90320000 view full part page → $14.95
16	M9503000004	DECAL; WARNING ROTATING PART	2	M90300000	ADD TO CART
DECAL; WARNING ROTATING PART M9503000004 · qty on machine: 2 M90300000 view full part page → $1.95
17	M1560100603	STRIPE	1		ADD TO CART
STRIPE M1560100603 · qty on machine: 1 view full part page → $25.95
18	M1561102404	STRIPE	2		ADD TO CART
STRIPE M1561102404 · qty on machine: 2 view full part page → $20.95
19	M1561102503	STRIPE	2		ADD TO CART
STRIPE M1561102503 · qty on machine: 2 view full part page → $20.95
20	M1561102603	STRIPE	1		ADD TO CART
STRIPE M1561102603 · qty on machine: 1 view full part page → $25.95
21	M1561101504	STRIPE	2		ADD TO CART
STRIPE M1561101504 · qty on machine: 2 view full part page → $3.95
22	M1561102703	STRIPE	1		ADD TO CART
STRIPE M1561102703 · qty on machine: 1 view full part page → $25.95
23	M9520100603	DECAL; WARNING AUTO START	2	M92010060	ADD TO CART
DECAL; WARNING AUTO START M9520100603 · qty on machine: 2 M92010060 view full part page → $8.95
24	M1551001204	DECAL; NOTICE LOAD SHARING	1	M15100120	PARTS REQUEST
PHOTO COMING DECAL; NOTICE LOAD SHARING M1551001204 · qty on machine: 1 M15100120 PARTS REQUEST
25	M9503000103	DECAL; DAILY CHECK WATER AND OIL	1	M90300010	ADD TO CART
DECAL; DAILY CHECK WATER AND OIL M9503000103 · qty on machine: 1 M90300010 view full part page → $7.95
26	M9520000504	DECAL; START CONTACT	1	M92000050	ADD TO CART
DECAL; START CONTACT M9520000504 · qty on machine: 1 M92000050 view full part page → $67.95
27	M9520100503	DECAL; WARNING	1	M92010050	ADD TO CART
DECAL; WARNING M9520100503 · qty on machine: 1 M92010050 view full part page → $1.95
28	M9511100104	DECAL; NOTICE RECEPTACLE	1	M91110010	ADD TO CART
DECAL; NOTICE RECEPTACLE M9511100104 · qty on machine: 1 M91110010 view full part page → $3.95
29	M1550001803	DECAL; AUXILIARY OUTPUTS	1	M15000180	ADD TO CART
DECAL; AUXILIARY OUTPUTS M1550001803 · qty on machine: 1 M15000180 view full part page → $25.95
30	M9510100403	DECAL; WARNING BATTERY CONNECT	1	M91010040A	ADD TO CART
DECAL; WARNING BATTERY CONNECT M9510100403 · qty on machine: 1 M91010040A view full part page → $16.95
31	M9501500004	DECAL; DIESEL FUEL	1	M90150000	ADD TO CART
DECAL; DIESEL FUEL M9501500004 · qty on machine: 1 M90150000 view full part page → $3.95
32	M9500000004	DECAL; OIL DRAIN	1	M90000000	ADD TO CART
DECAL; OIL DRAIN M9500000004 · qty on machine: 1 M90000000 view full part page → $2.95
33	M9510000104	DECAL; DOCUMENT BOX LOCATED	1	M91000010	ADD TO CART
DECAL; DOCUMENT BOX LOCATED M9510000104 · qty on machine: 1 M91000010 view full part page → $4.95
34	M9511100004	DECAL; WARNING ENVIRONMENTAL	1	M91110000	ADD TO CART
DECAL; WARNING ENVIRONMENTAL M9511100004 · qty on machine: 1 M91110000 view full part page → $6.95
35	M9503200104	DECAL; DANGER EX. GAS (INDOOR)	1	M90320010	ADD TO CART
DECAL; DANGER EX. GAS (INDOOR) M9503200104 · qty on machine: 1 M90320010 view full part page → $4.95
36	M9504200004	DECAL; WARNING START FIRES	1	M90420000	ADD TO CART
DECAL; WARNING START FIRES M9504200004 · qty on machine: 1 M90420000 view full part page → $3.95
37	M2550002303	DECAL; OPERATING PROCEDURES	1	M25000230 S/N 9250703 AND BELOW	ADD TO CART
DECAL; OPERATING PROCEDURES M2550002303 · qty on machine: 1 M25000230 S/N 9250703 AND BELOW view full part page → $11.95
37	M1551001503	DECAL; OPERATING PROCEDURES	1	S/N 9250704 AND ABOVE	ADD TO CART
DECAL; OPERATING PROCEDURES M1551001503 · qty on machine: 1 S/N 9250704 AND ABOVE view full part page → $9.95
38	M9510000004	DECAL; FLUID DRAIN	1	M91000000 S/N 9250703 AND BELOW	ADD TO CART
DECAL; FLUID DRAIN M9510000004 · qty on machine: 1 M91000000 S/N 9250703 AND BELOW view full part page → $26.95
39	M1550001504	DECAL; CAUTION LIFTING CAPACITY	1	M15000150 S/N 9250704 AND ABOVE	ADD TO CART
DECAL; CAUTION LIFTING CAPACITY M1550001504 · qty on machine: 1 M15000150 S/N 9250704 AND ABOVE view full part page → $35.95
40	M9511200204	STICKER, MQ	1	M91120020	ADD TO CART
STICKER, MQ M9511200204 · qty on machine: 1 M91120020 view full part page → $5.95
41	0600500092	EMBLEM	1		ADD TO CART
EMBLEM 0600500092 · qty on machine: 1 view full part page → $21.95
42	0021106015	MACHINE SCREW	4		ADD TO CART
MACHINE SCREW 0021106015 · qty on machine: 4 view full part page → $0.17

Page 42 — NAMEPLATE AND DECALS ASSY. (CONT'D.)

Multiquip DCA40SSKU4F2 Generator NAMEPLATE AND DECALS ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed15 rows

No.	Part No.	Part Name	Qty	Remarks
43	M9511200103	TIER 4F	1	M91120010	ADD TO CART
TIER 4F M9511200103 · qty on machine: 1 M91120010 view full part page → $17.95
44	M9522000504	DECAL; CIRCUIT BREAKER	1	M92200050	ADD TO CART
DECAL; CIRCUIT BREAKER M9522000504 · qty on machine: 1 M92200050 view full part page → $25.95
45	M9521000704	DECAL; CAN7X	1	M92100070	PARTS REQUEST
PHOTO COMING DECAL; CAN7X M9521000704 · qty on machine: 1 M92100070 PARTS REQUEST
46	M9521001404	DECAL; WARNING LAMP PANEL	1	M92100140	PARTS REQUEST
PHOTO COMING DECAL; WARNING LAMP PANEL M9521001404 · qty on machine: 1 M92100140 PARTS REQUEST
47	M9520000904	DECAL; DIAGNOSTIC SWITCH	1	M92000090	ADD TO CART
DECAL; DIAGNOSTIC SWITCH M9520000904 · qty on machine: 1 M92000090 view full part page → $4.95
48	M9504400104	DECAL; AUTO-MANUAL SWITCH	1	M90440010	PARTS REQUEST
PHOTO COMING DECAL; AUTO-MANUAL SWITCH M9504400104 · qty on machine: 1 M90440010 PARTS REQUEST
49	M9521000804	DECAL; ENGINE SPEED SWITCH	1	M92100080	PARTS REQUEST
PHOTO COMING DECAL; ENGINE SPEED SWITCH M9521000804 · qty on machine: 1 M92100080 PARTS REQUEST
50	M9521100004	DECAL; ECU TERMINAL HIGH VOLTAGE	1	M92110000	PARTS REQUEST
PHOTO COMING DECAL; ECU TERMINAL HIGH VOLTAGE M9521100004 · qty on machine: 1 M92110000 PARTS REQUEST
51	M1561000104	STICKER; 36KVA	1	M16100010	PARTS REQUEST
PHOTO COMING STICKER; 36KVA M1561000104 · qty on machine: 1 M16100010 PARTS REQUEST
52	M9521200604	DECAL; BONDED NEUTRAL	1	M92120060	ADD TO CART
DECAL; BONDED NEUTRAL M9521200604 · qty on machine: 1 M92120060 view full part page → $11.95
53	Y0600500094	DECAL; E-COAT STICKER	1		ADD TO CART
DECAL; E-COAT STICKER Y0600500094 · qty on machine: 1 view full part page → $1.36
54	M9504200104	DECAL; WARNING PROPOSITION	65	1 M90420010 S/N 9250479 AND ABOVE	ADD TO CART
DECAL; WARNING PROPOSITION M9504200104 · qty on machine: 65 1 M90420010 S/N 9250479 AND ABOVE view full part page → $4.95
55	M9521002804	DECAL; E-STOP BUTTON	1	S/N 9250704 AND ABOVE	ADD TO CART
DECAL; E-STOP BUTTON M9521002804 · qty on machine: 1 S/N 9250704 AND ABOVE view full part page → $3.95
56	M1551001604	DECAL; E-STOP RELEASED	1	S/N 9250704 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL; E-STOP RELEASED M1551001604 · qty on machine: 1 S/N 9250704 AND ABOVE PARTS REQUEST
57	M1551002204	DECAL; OUTPUT TERM. BOLT TORQUE	1	S/N 9251270 AND ABOVE	PARTS REQUEST
PHOTO COMING DECAL; OUTPUT TERM. BOLT TORQUE M1551002204 · qty on machine: 1 S/N 9251270 AND ABOVE PARTS REQUEST

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip DCA40SSKU4F2 is a generator built for portable jobsite power for tools, lighting, and equipment. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

0071906309 Multiquip 0071906309 Bearing DENYO - OEM Replacement Part for Super Silent Generators $160.95

0193601200 Multiquip 0193601200 48" Hose DENYO - OEM Replacement Part for Super Silent Generators $49.95

0600800321 Multiquip 0600800321 PAK DENYO Manual - OEM Replacement Part $33.95

0601800682 Multiquip 0601800682 Hour Meter Denyo - OEM Replacement Part $116.95

0601801040 Multiquip 0601801040 Switch C/Over Ammeter 25,40,85,125,150 - OEM Replacement Part $95.95

0601807641 Multiquip 0601807641 Frequency Meter Denyo - OEM Replacement Part $591.95

0601814014 Multiquip 0601814014 GFCI Receptacle - OEM Replacement Part $90.95

0601820083 Multiquip 0601820083 Rectifier with Instruction 8.8 - OEM Replacement Part for Super Silent Generators $33.95

0601820608 Multiquip 0601820608 Autovoltage Regulator Denyo - OEM Replacement Part $1,591.95

0601823863 Multiquip 0601823863 Relay Unit 12V DENYO - OEM Replacement Part $159.95

0601840073 Multiquip 0601840073 Rheostat Voltage Regulator for 150SSK and DCA Series Generators - OEM Replacement Part $90.95

0601870431 Multiquip 0601870431 Circuit Breaker DENYO - OEM Replacement Part $898.95

0601870440 Multiquip 0601870440 Circuit Breaker DENYO - OEM Replacement Part $34.95

0601870441 Multiquip 0601870441 Circuit Breaker DENYO - OEM Replacement Part $77.95

0602022561 Multiquip 0602022561 90 Degree Elbow DENYO - OEM Replacement Part for Generator Systems $76.95

0602125090 Multiquip 0602125090 Fuel Gauge 100176 Denyo - OEM Replacement Part $77.95

0602220199 Multiquip 0602220199 Battery (Wet) DENYO - OEM Replacement Part $288.95

3A11119130 Multiquip 3A11119130 Air Filter Safety Element - OEM Replacement Part $77.95

7000032091 Multiquip 7000032091 Oil Filter Assembly - OEM Replacement Part for Super Silent Generators $37.95

8111860303 Multiquip 8111860303 Panel Output Terminal - OEM Replacement Part $157.95

82608 Multiquip 82608 Toggle Switch Denyo Mods - OEM Replacement Part for Super Silent Generators $34.95

B3111100603 Multiquip B3111100603 Fan DCA-45USI2 - OEM Replacement Part for Super Silent Generators $232.95

B3120100804 Multiquip B3120100804 Holder ZNR - OEM Replacement Part for Super Silent Generators $140.95

B3131300804 Multiquip B3131300804 End Bracket Cover for DCA Generator - OEM Replacement Part $60.95

B3137000803 Multiquip B3137000803 Exciter Field Assembly - OEM Generator Replacement Part $1,882.95

B3153000513 Multiquip B3153000513 End Bracket for DCA Series Generators - OEM Replacement Part $636.95

B3153400404 Multiquip B3153400404 Bearing Cover for DCA Series Generators - OEM Replacement Part $40.95

B3163100204 Multiquip B3163100204 Coupling Disc (JP) - OEM Replacement Part for Super Silent Generators $89.95

B3163200104 Multiquip B3163200104 Washer Coupler - OEM Replacement Part for Super Silent Generators $112.95

EE55989 Multiquip EE55989 Emergency Stop Switch 22mm 1NO 1NC - OEM Replacement Part $82.95

EE62075 Multiquip EE62075 Battery Charger MicroGenius LE 6 Amp 12V - OEM Replacement Part $361.95

EE62076 Multiquip EE62076 Inlet Receptacle & Cord NEMA 5-15P 15A 125V - OEM Replacement Part $66.95

LY2DUS12VDC Multiquip LY2DUS12VDC Relay with Diode - OEM Replacement Part for DCA Generators $46.95

M1236101904 Multiquip M1236101904 Terminal Cover (White) - OEM Replacement Part for Denyo Generators $94.95

M1236102124 Multiquip M1236102124 Output Window - OEM Replacement Part for WhisperWatt Generators $43.95

M1247702214 Multiquip M1247702214 Wire Harness Generator (KY) - OEM Replacement Part $1,396.95

M1260700404 Multiquip M1260700404 Cover Breaker Fitting (E-Coat) - OEM Replacement Part for Denyo Generators $58.95

M1270100604 Multiquip M1270100604 Switch Selector Denyo - OEM Replacement Part for WhisperWatt Generators $717.95

M1311501403 Multiquip M1311501403 Radiator Hose (Lower) DENYO - OEM Replacement Part $35.95

M1311501503 Multiquip M1311501503 Inter Cooler Hose (JP) - OEM Replacement Part $723.95

M1311501603 Multiquip M1311501603 Inter Cooler Hose (JP) - OEM Replacement Part $723.95

M1311501703 Multiquip M1311501703 Inter Cooler Hose (JP) - OEM Replacement Part $723.95

M1311501803 Multiquip M1311501803 Radiator Hose (Upper) DENYO - OEM Replacement Part $33.95

M1358200502 Multiquip M1358200502 Wire Harness Engine (KY) - OEM Replacement Part $2,500.95

M1363200404 Multiquip M1363200404 Bank Tank E-Coat DENYO - OEM Replacement Part $108.95

M1364000412 Multiquip M1364000412 Fuel Tank Denyo - OEM Replacement Part for WhisperWatt Generators $907.95

M1364200004 Multiquip M1364200004 Tank Band E-Coat - OEM Replacement Part for Super Silent Generators $38.95

M1445600204 Multiquip M1445600204 Window Plate Denyo - OEM Replacement Part for Super Silent Generators $57.95

M1454002203 Multiquip M1454002203 Front Side Door Left - OEM Replacement Part for Super Silent Generators $289.95

M1454002303 Multiquip M1454002303 Front Right Side Door Assembly - OEM Replacement Part $289.95

M1484500104 Multiquip M1484500104 Fuel Leak Switch Bracket - OEM Replacement Part $59.95

M1494105904 Multiquip M1494105904 Front Cover Assembly - OEM Replacement Part $221.95

M1494106703 Multiquip M1494106703 Front Frame Assembly (9 Pieces) - OEM Replacement Part $201.95

M1494407504 Multiquip M1494407504 Front Side Door Assembly Left - OEM Replacement Part $112.95

M1550001504 Multiquip M1550001504 Decal Caution Denyo - OEM Replacement Part $35.95

M1924200194 Multiquip M1924200194 ENGINE DENYO Kubota - OEM Replacement Part $16,968.95

RP42153730 Multiquip RP42153730 Relay Assembly (JP) - OEM Replacement Part $281.95

Y0601809693 Multiquip Y0601809693 Current Transformer Denyo - OEM Replacement Part $63.95

Y0601814034 Multiquip Y0601814034 GFCI Receptacle 5-20R (KY) - OEM Replacement Part $91.95

Y0601815870 Multiquip Y0601815870 Terminal Block DENYO - OEM Replacement Part $52.95

Y0601817033 Multiquip Y0601817033 AC Ammeter 0-75A - OEM Replacement Part $88.95

Y0601831345 Multiquip Y0601831345 3-Pole Switch - OEM Replacement Part $49.95

Y0602015730 Multiquip Y0602015730 Radiator Cap DENYO - OEM Replacement Part $79.95

Y0602203000 Multiquip Y0602203000 Controller Denyo - OEM Replacement Part for Super Silent Generators $882.95

Y0605000461 Multiquip Y0605000461 Rubber Suspension - OEM Replacement Part $55.95

Y0605012028 Multiquip Y0605012028 Hinge (JP) - OEM Replacement Part for Super Silent Generators $62.95

Y0605012309 Multiquip Y0605012309 Door Handle with Bolts - OEM Replacement Part $49.95

Y0605501056 Multiquip Y0605501056 Fuel Sender - OEM Replacement Part for Super Silent Generators $165.95

0012108035 HEX. HEAD BOLT $1.95

0012410025 HEX. HEAD BOLT $1.95

0013616035 HEX. HEAD BOLT

0016008060 HEX. SOCKET HEAD CAP SCREW $2.95

0016906015 HEX. HEAD BOLT $0.95

0016910030 HEX. HEAD BOLT $2.95

0017106016 HEX. HEAD BOLT $1.51

0017108035 HEX. HEAD BOLT $1.95

0019108055 HEX. HEAD BOLT $3.95

0019112030 HEX. HEAD BOLT $5.95

0019208020 HEX. HEAD BOLT $3.95

0021004040 MACHINE SCREW $0.64

0027103010 MACHINE SCREW $0.44

0027103015 MACHINE SCREW $0.64

0027104010 MACHINE SCREW $0.33

0027104015 MACHINE SCREW $0.53

0027104020 MACHINE SCREW $0.40

0027105010 MACHINE SCREW $0.56

0027105015 MACHINE SCREW $0.20

0027105020 MACHINE SCREW $0.62

0027208025 MACHINE SCREW $0.76

0029205012 MACHINE SCREW $1.45

0030005000 SELF-LOCKING NUT $0.29

0030012000 HEX. NUT $0.50

0040010000 WASHER, LOCK $0.39

0040012000 WASHER, LOCK $0.95

0040016000 WASHER, LOCK $4.95

0040508000 TOOTHED WASHER $0.35

0041216000 WASHER, FLAT $1.95

0041410000 WASHER, FLAT $0.89

0042308000 WASHER, LOCK $0.83

0042312000 WASHER, LOCK $0.94

0042508000 WASHER, LOCK $0.62

0046512000 WASHER, FLAT $3.95

0080200007 E-SNAP RING $1.39

011008020 HEX. HEAD BOLT $2.68

011206020 HEX. HEAD BOLT $0.95

011208025 HEX. HEAD BOLT $0.41

011208030 HEX. HEAD BOLT $1.30

011808015 MACHINE SCREW $6.95

012210020 TIE BOLT $0.95

012212025 HEX. HEAD BOLT $1.95

012212030 HEX. HEAD BOLT $2.95

012212045 HEX. HEAD BOLT $2.95

014208020 HEX. HEAD BOLT $0.77

0176060030 SELF-LOCKING NUT $2.95

0191200300 SUCTION HOSE $2.95

0191200800 SUCTION HOSE $17.95

0199100215 HOSE $3.95

0199900600 OVER FLOW HOSE $15.95

020106050 U-NUT $0.12

0207003000 SELF-LOCKING NUT $0.21

0207108000 SELF-LOCKING NUT $3.95

021112140 SELF-LOCKING NUT $0.46

0222100080 CUSHION RUBBER $2.78

0228100340 RUBBER SEAL $1.95

0228800470 RUBBER SEAL $8.95

0228800510 RUBBER SEAL $8.95

0228900640 RUBBER SEAL $15.95

0228900760 RUBBER SEAL $22.95

0229200295 RUBBER SEAL

0229200775 RUBBER SEAL

0229200880 RUBBER SEAL $5.95

0229200950 RUBBER SEAL $9.95

0269200700 DRAIN HOSE $16.95

0305450412 MACHINE SCREW

031112230 WASHER, FLAT $0.95

0340406040 HEX. HEAD BOLT $2.68

0342612030 HEX. SOCKET HEAD CAP SCREW $2.82

0401450050 WASHER, FLAT

0401450080 WASHER, FLAT $0.56

0601806642 FUSE, 5A $2.77

0601806645 FUSE,10A $2.90

0601806947 AC VOLTMETER, 0~600V

0601815194 TERMINAL BLOCK 601-GP-02

0601822664 ZNR , SURGE ABSORBER $18.95

0601830710 DIAGNOSTIC SWITCH $29.95

0601840100 KNOB $30.95

0601870490 END CAP KIT $26.95

0602021070 CAP $11.95

0602022568 ADAPTER 10M 22 X 1.5

0602220920 BATTERY BOLT SET 1/4-L10" $5.95

0603306797 SQUARE HEAD PIPE PLUG, 1-1/2" $12.95

0605010040 HINGE $4.95

0605050060 CONICAL WASHER, LOCK $5.95

0605515147 HOSE BAND $3.95

0605515149 HOSE BAND $1.95

0605515189 HOSE BAND $1.85

0605515237 HOSE BAND $12.95

0605516090 GASKET

0802011104 DRAIN BOLT $10.95

0802081104 CAP, RESERVE TANK $5.95

0845031504 BLIND PLUG $2.95

0845041904 GROMMET $11.95

1502025103C DRAIN JOINT $29.95

1732612231 GASKET $6.95

1H12860301 ECU

1J30265301 BRACKET, RELAY

1J42360232 STARTER RELAY

1J43043351 WATER SEPARATOR

1J52010701 AIR FLOW SENSOR

1J52143171 CARTRIDGE, FUEL FILTER

1K81818131 DOC

3N60042171 T-JOINT

70NS2016 RUBBER SEAL $2.95

9500202080 HOSE BAND $3.95

B3110100802 ROTOR ASSEMBLY

B3120100604 INSULATOR WASHER $1.95

B3120100704 INSULATOR WASHER $1.95

B3153400504 PACKING $25.95

B4163700004 BALANCING WEIGHT $3.99

CLAMP 2

CONNECTOR 1

EE62021 MOUNTING PLATE, BATTERY CHARGER $30.95

EMBLEM 1

LOCKNUT 1

M1213400014 CONTROL BOX COVER

M1213501004 CONTROL BOX COVER

M1214000912 CONTROL BOX

M1214600504 BRACKET, FUSE BOX

M1214601104 SWITCH BRACKET

M1224000303 CONTROL PANEL

M1224200104 MOUNTING PLATE INDICATOR

M1236101814 TERMINAL COVER

M1237400004 TERMINAL COVER UNDER

M1261600004 SWITCH BRACKET

M1304200304 ENGINE FOOT

M1311201004 BRACKET, RADIATOR

M1311301703 FAN SHROUD

M1311301803 FAN SHROUD

M1311302003 FAN GUARD

M1311400104 INTER COOLER PIPE

From the guides desk

Guide · 2026-08-04

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip DCA40SSKU4F2 Generator

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip DCA Generator Fault Shutdown and Controller Reset Guide

Multiquip Generator No-Start and No-Power Fixes

Multiquip DCA Generator Fault Codes and Diagnostics Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
