Multiquip DIS100SSK4F Air Compressor
The parts bench

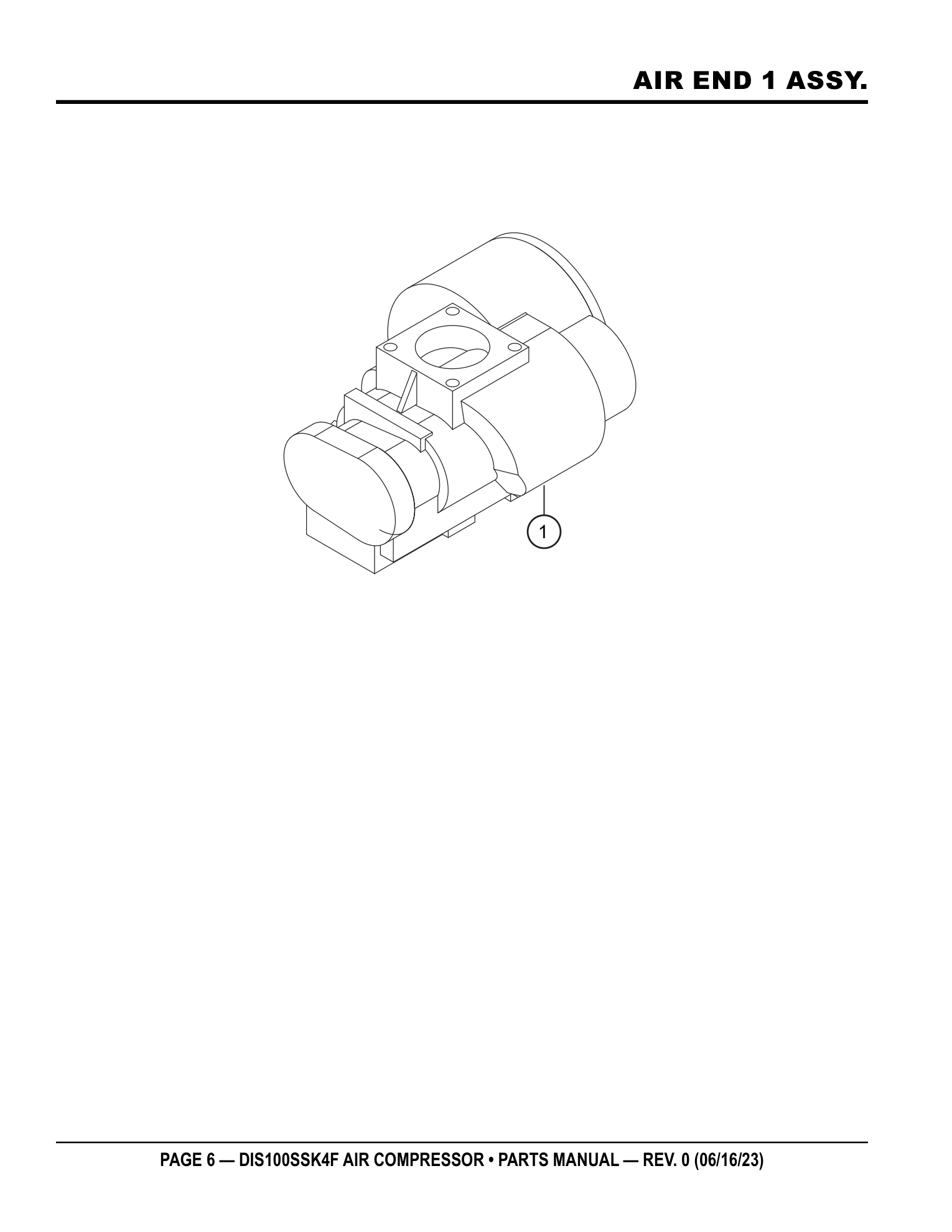

Need the PDF? ↓Page 6 — AIR END 1 ASSY.
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2924000434 | AIR END ASSY. | 1 | PARTS REQUEST | |
|
COMING AIR END ASSY.
E2924000434 · qty on machine: 1 | |||||

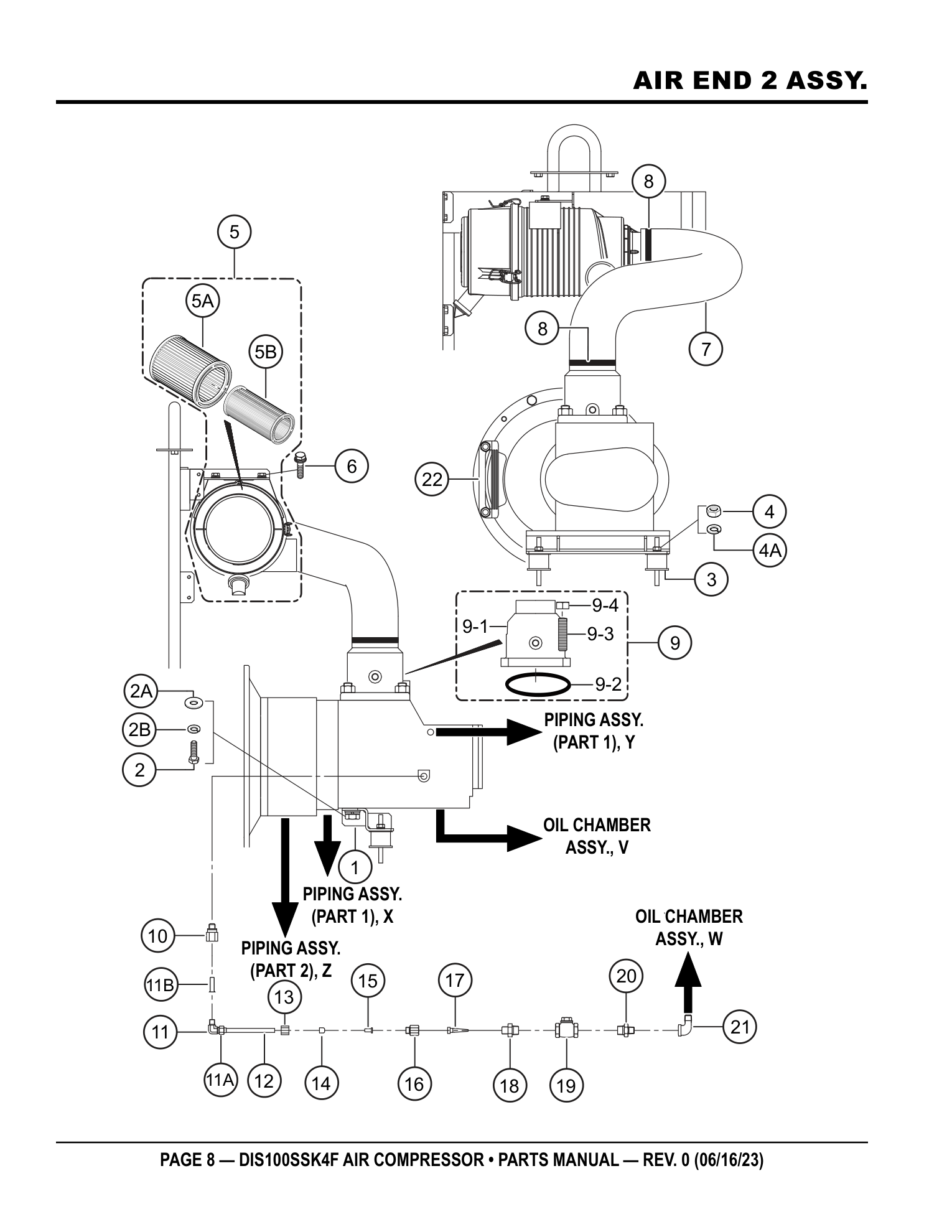

Page 8 — AIR END 2 ASSY.
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2151100804 | AIR END FOOT | 1 | PARTS REQUEST | |
|
COMING AIR END FOOT
E2151100804 · qty on machine: 1 | |||||
| 2 | Y0013616035 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 2A | 0041216000 | WASHER | 2 | ADD TO CART | |
| 2B | 0040016000 | LOCK WASHER | 2 | ADD TO CART | |
| 3 | Y0605000046 | RUBBER SUSPENSION | 2 | PARTS REQUEST | |
|
COMING RUBBER SUSPENSION
Y0605000046 · qty on machine: 2 | |||||
| 4 | 020108060 | HEX. HEAD NUT | 2 | REPLACES P/N 0030008000 | ADD TO CART |
| 4A | 0040008000 | LOCK WASHER | 2 | ADD TO CART | |
| 5 | Y0602046545 | AIR CLEANER | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING AIR CLEANER
Y0602046545 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 5A#, 5B# | |||||
| 5A# | PMAF25436 | PRIMARY ELEMENT | 1 | REPLACES P/N P822768 | ADD TO CART |
| 5B# | P822769 | SAFETY ELEMENT | 1 | REPLACES P/N Y0602046633 | ADD TO CART |
| 6 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 7 | E2141502203 | COMPRESSOR INTAKE HOSE | 1 | PARTS REQUEST | |
|
COMING COMPRESSOR INTAKE HOSE
E2141502203 · qty on machine: 1 | |||||
| 8 | 0605515146 | HOSE BAND | 2 | ADD TO CART | |
| 9 | E2924000074 | INLET VALVE KIT | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING INLET VALVE KIT
E2924000074 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 9-1%, 9-2%, 9-3%, 9-4% | |||||
| 9-1% | Y0603043250 | INLET VALVE | 1 | PARTS REQUEST | |
|
COMING INLET VALVE
Y0603043250 · qty on machine: 1 Also included in kit 9 - INLET VALVE KIT (E2924000074) | |||||
| 9-2% | Y0603355011 | O-RING | 1 | PARTS REQUEST | |
|
COMING O-RING
Y0603355011 · qty on machine: 1 Also included in kit 9 - INLET VALVE KIT (E2924000074) | |||||
| 9-3% | Y0603043260 | STUD BOLT | 4 | PARTS REQUEST | |
|
COMING STUD BOLT
Y0603043260 · qty on machine: 4 Also included in kit 9 - INLET VALVE KIT (E2924000074) | |||||
| 9-4% | Y0603043261 | HEX. HEAD NUT | 4 | PARTS REQUEST | |
|
COMING HEX. HEAD NUT
Y0603043261 · qty on machine: 4 Also included in kit 9 - INLET VALVE KIT (E2924000074) | |||||
| 10 | E2924000514 | ADAPTOR | 1 | PARTS REQUEST | |
|
COMING ADAPTOR
E2924000514 · qty on machine: 1 | |||||
| 11 | Y0603301038 | ELBOW UNION | 1 | ADD TO CART | |
| 11A | 0603303021 | NUT | 1 | ADD TO CART | |
| 11B | 0603302021 | SLEEVE | 1 | ADD TO CART | |
| 12 | Y0190400550 | NYLON TUBE | 1 | PARTS REQUEST | |
|
COMING NYLON TUBE
Y0190400550 · qty on machine: 1 | |||||
| 13 | 0603303010 | NUT | 1 | REPLACES P/N 0603303001 | ADD TO CART |
| 14 | 0603302001 | SLEEVE | 1 | ADD TO CART | |
| 15 | 0603304000 | INSERT | 1 | ADD TO CART | |
| 16 | W6013217004 | SOCKET NIPPLE | 1 | ADD TO CART | |
| 17 | W6143216004 | FILTER | 1 | ADD TO CART | |
| 18 | W6013215004 | NIPPLE | 1 | ADD TO CART | |
| 19 | 0126004005 | CHECK VALVE | 1 | REPLACES P/N 0120304005 | ADD TO CART |
| 20 | Y0131604020 | REDUCING NIPPLE, 3/8"X1/4" | 1 | PARTS REQUEST | |
|
COMING REDUCING NIPPLE, 3/8"X1/4"
Y0131604020 · qty on machine: 1 | |||||
| 21 | 0130202000 | STREET ELBOW, 1/4" | 1 | ADD TO CART | |
| 22 | E2154800704 | COUPLING COVER | 3 | PARTS REQUEST | |
|
COMING COUPLING COVER
E2154800704 · qty on machine: 3 | |||||

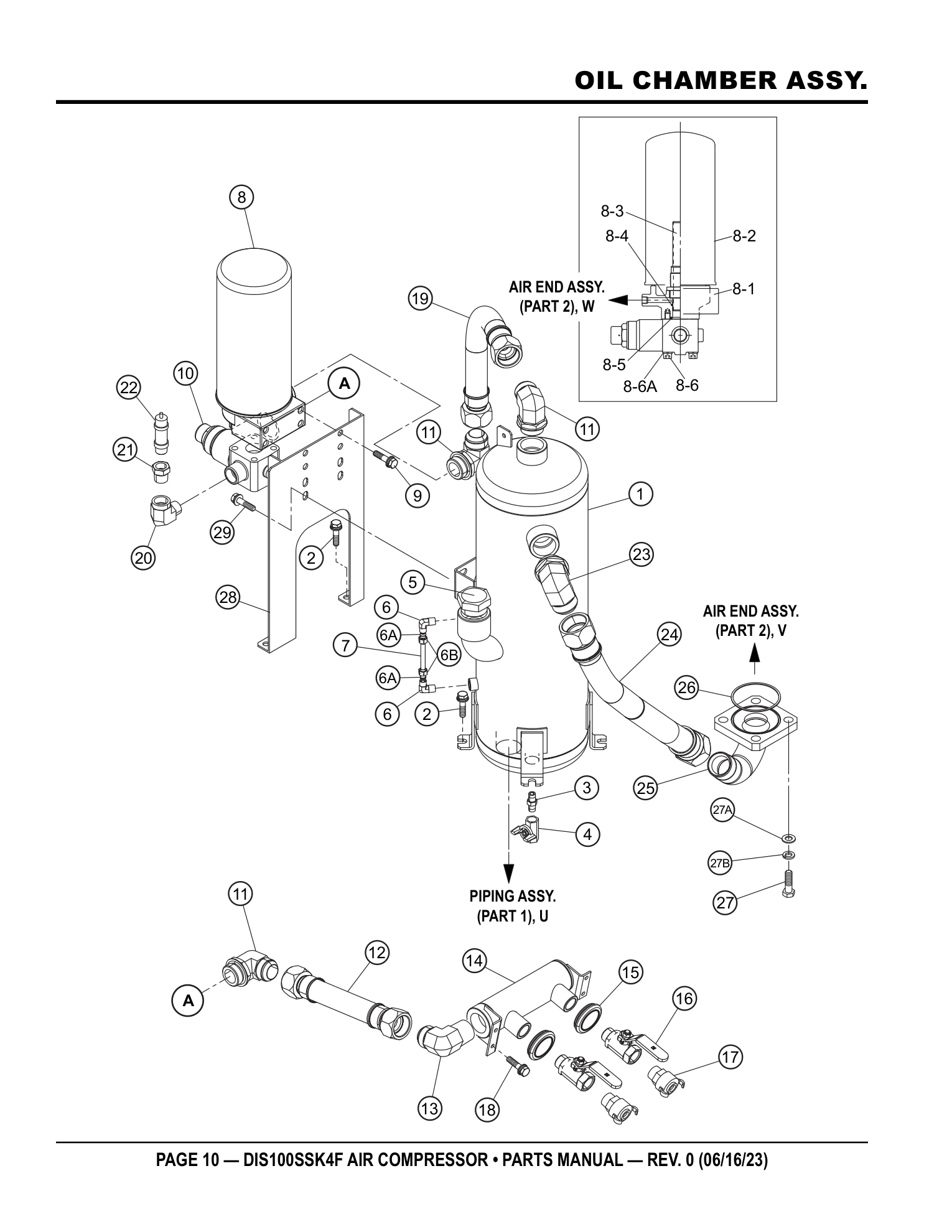

Page 10 — OIL CHAMBER ASSY.
Parts list — exactly as printed40 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2624001902 | AIR RECEIVER | 1 | PARTS REQUEST | |
|
COMING AIR RECEIVER
E2624001902 · qty on machine: 1 | |||||
| 2 | 012010030 | HEX HEAD BOLT | 6 | REPLACES P/N 0017110030 | ADD TO CART |
| 3 | 0603306384 | PIPE NIPPLE | 1 | ADD TO CART | |
| 4 | 0603325037 | MINI BALL VALVE | 1 | REPLACES P/N Y0603325037 | ADD TO CART |
| 5 | Y0603306761 | O-RING PLUG | 1 | ADD TO CART | |
| 6 | Y0603301039 | ELBOW UNION | 2 | ADD TO CART | |
| 6A | 0603302021 | SLEEVE | 2 | ADD TO CART | |
| 6B | 0603303021 | NUT | 2 | ADD TO CART | |
| 7 | Y0190400130 | NYLON TUBE | 1 | ADD TO CART | |
| 8 | E2621001403 | AIR SEPARATOR ASSY. | 1 | PARTS REQUEST | |
|
COMING AIR SEPARATOR ASSY.
E2621001403 · qty on machine: 1 | |||||
| 8-1 | E2624200202 | ELEMENT BASE | 1 | ADD TO CART | |
| 8-2 | E2924000214 | AIR OIL SEPARATOR BOX | 1 | ADD TO CART | |
| 8-3 | E2924000224 | NIPPLE VST | 1 | ADD TO CART | |
| 8-4 | Y0155500123 | O-RING | 1 | ADD TO CART | |
| 8-5 | Y0155500218 | O-RING | 1 | ADD TO CART | |
| 8-6 | Y0018210080 | HEX. SOCKET HEAD CAP SCREW | 4 | ADD TO CART | |
| 8-6A | 0040010000 | LOCK WASHER | 4 | ADD TO CART | |
| 9 | 0016910025 | HEX. HEAD BOLT | 4 | ADD TO CART | |
| 10 | E2631002203 | MINIMUM PRESSURE VALVE ASSY. | 1 | PARTS REQUEST | |
|
COMING MINIMUM PRESSURE VALVE ASSY.
E2631002203 · qty on machine: 1 | |||||
| 11 | Y0603306462 | STRAIGHT THREAD ELBOW | 3 | PARTS REQUEST | |
|
COMING STRAIGHT THREAD ELBOW
Y0603306462 · qty on machine: 3 | |||||
| 12 | E2604205004 | AIR HOSE | 1 | PARTS REQUEST | |
|
COMING AIR HOSE
E2604205004 · qty on machine: 1 | |||||
| 13 | Y0603306478 | MALE ELBOW | 1 | PARTS REQUEST | |
|
COMING MALE ELBOW
Y0603306478 · qty on machine: 1 | |||||
| 14 | E2607104803 | AIR MANIFOLD | 1 | PARTS REQUEST | |
|
COMING AIR MANIFOLD
E2607104803 · qty on machine: 1 | |||||
| 15 | Y0601851774 | GROMMET | 2 | ADD TO CART | |
| 16 | Y0603325034 | BALL VALVE | 2 | ADD TO CART | |
| 17 | Y0603314110 | UNIVERSAL FITTING | 2 | ADD TO CART | |
| 18 | 0019208020 | HEX HEAD BOLT | 4 | ADD TO CART | |
| 19 | E2604203204 | AIR HOSE | 1 | ADD TO CART | |
| 20 | Y0603306236 | STREET ELBOW, 3/4" | 1 | ADD TO CART | |
| 21 | Y0603306888 | PIPE THREAD REDUCER, 3/4"×1/2" | 1 | PARTS REQUEST | |
|
COMING PIPE THREAD REDUCER, 3/4"×1/2"
Y0603306888 · qty on machine: 1 | |||||
| 22 | E2924000534 | SAFETY AND RELIEF VALVE | 1 | PARTS REQUEST | |
|
COMING SAFETY AND RELIEF VALVE
E2924000534 · qty on machine: 1 | |||||
| 23 | Y0603006463 | STRAIGHT THREAD ELBOW | 1 | PARTS REQUEST | |
|
COMING STRAIGHT THREAD ELBOW
Y0603006463 · qty on machine: 1 | |||||
| 24 | E2604204904 | DISCHARGE HOSE | 1 | PARTS REQUEST | |
|
COMING DISCHARGE HOSE
E2604204904 · qty on machine: 1 | |||||
| 25 | E2607201403 | DISCHARGE PIPE | 1 | PARTS REQUEST | |
|
COMING DISCHARGE PIPE
E2607201403 · qty on machine: 1 | |||||
| 26 | Y0155500236 | O-RING | 1 | PARTS REQUEST | |
|
COMING O-RING
Y0155500236 · qty on machine: 1 | |||||
| 27 | 0013616040 | HEX HEAD BOLT | 4 | ADD TO CART | |
| 27A | 0040016000 | WASHER | 4 | ADD TO CART | |
| 27B | 0041216000 | LOCK WASHER | 4 | ADD TO CART | |
| 28 | E2484001104 | SUPPORT LEG | 1 | PARTS REQUEST | |
|
COMING SUPPORT LEG
E2484001104 · qty on machine: 1 | |||||
| 29 | 0016910025 | HEX HEAD BOLT | 4 | ADD TO CART | |

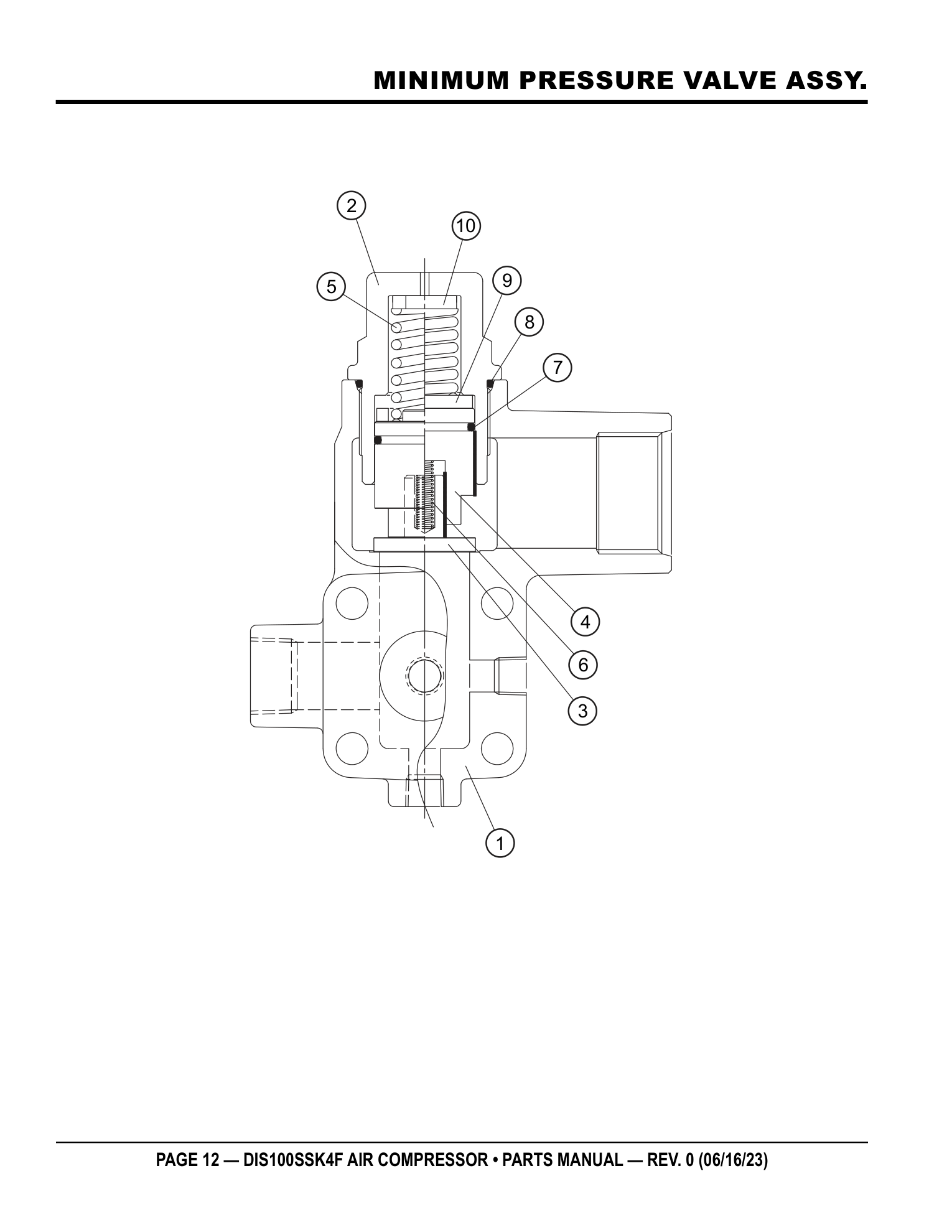

Page 12 — MINIMUM PRESSURE VALVE ASSY.
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2624200302 | MINIMUM PRESSURE VALVE BODY | 1 | ADD TO CART | |
| 2 | E2631002104 | COVER | 1 | PARTS REQUEST | |
|
COMING COVER
E2631002104 · qty on machine: 1 | |||||
| 3 | E2631001204 | VALVE | 1 | ADD TO CART | |
| 4 | E2631001104 | PISTON | 1 | ADD TO CART | |
| 5 | E9201300004 | SPRING | 1 | PARTS REQUEST | |
|
COMING SPRING
E9201300004 · qty on machine: 1 | |||||
| 6 | E9201300104 | SPRING | 1 | PARTS REQUEST | |
|
COMING SPRING
E9201300104 · qty on machine: 1 | |||||
| 7 | 0155600123 | O-RING | 1 | ADD TO CART | |
| 8 | Y0155500132 | O-RING | 1 | ADD TO CART | |
| 9 | E2614804604 | SPACER | 1 | PARTS REQUEST | |
|
COMING SPACER
E2614804604 · qty on machine: 1 | |||||
| 10 | E2614804704 | SPACER | 1 | PARTS REQUEST | |
|
COMING SPACER
E2614804704 · qty on machine: 1 | |||||

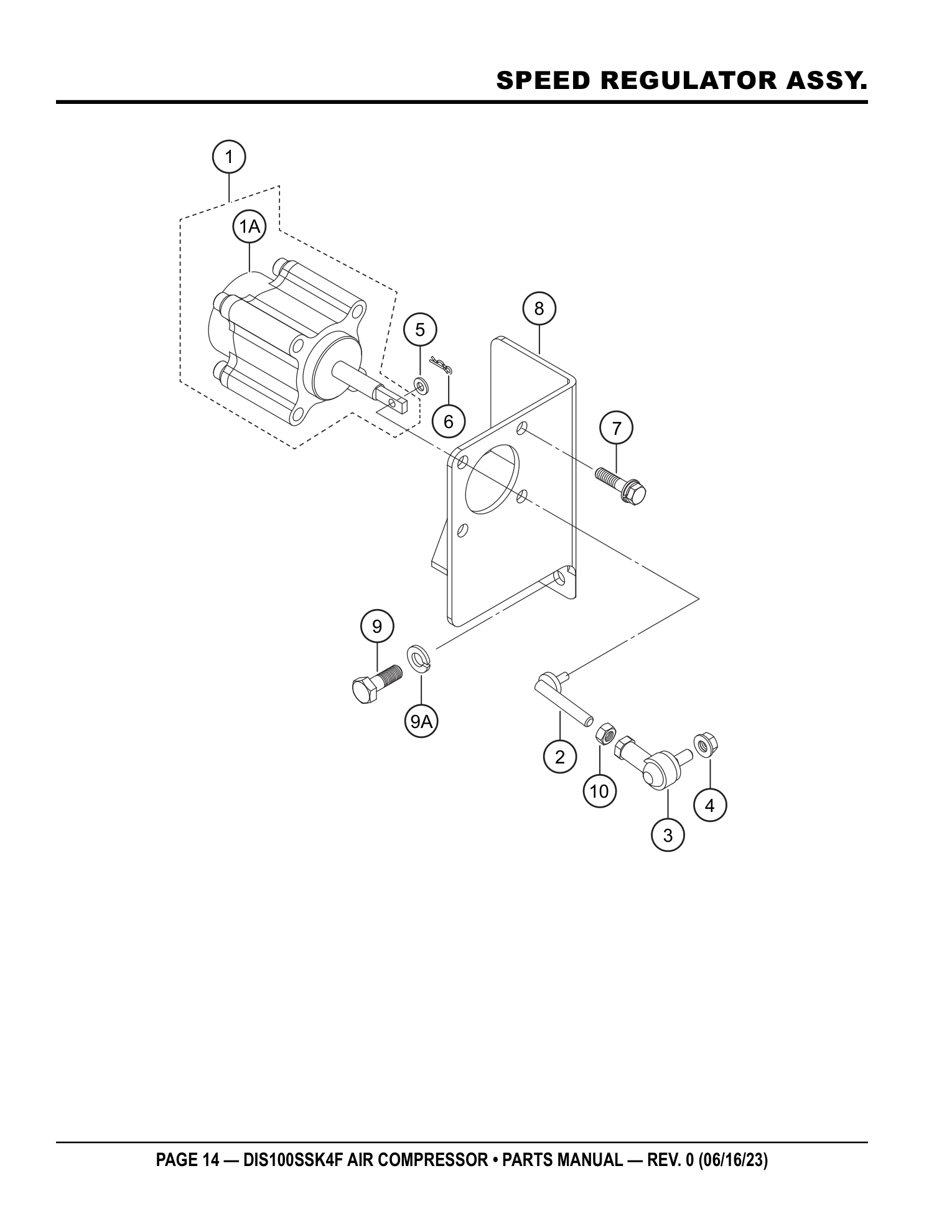

Page 14 — SPEED REGULATOR ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2924100504 | SPEED REGULATOR | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING SPEED REGULATOR
E2924100504 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1A# | |||||
| 1A# | 0603400004 | BELLOFRAM | 1 | ADD TO CART | |
| 2 | E2211300604 | GOVERNOR ROD | 1 | PARTS REQUEST | |
|
COMING GOVERNOR ROD
E2211300604 · qty on machine: 1 | |||||
| 3 | 0602180106 | BALL JOINT | 1 | ADD TO CART | |
| 4 | 0176060030 | FLANGE HEX. NUT | 1 | REPLACES P/N 0207006000 | ADD TO CART |
| 5 | 952404470 | FLAT WASHER | 1 | REPLACES P/N 0041206000 | ADD TO CART |
| 6 | 505015300 | SNAP PIN | 1 | REPLACES P/N 0605010502 | ADD TO CART |
| 7 | 011208025 | HEX. HEAD BOLT | 4 | REPLACES P/N 0016908025 | ADD TO CART |
| 8 | E2211100604 | BRACKET | 1 | PARTS REQUEST | |
|
COMING BRACKET
E2211100604 · qty on machine: 1 | |||||
| 9 | 012210020 | HEX. HEAD BOLT | 4 | REPLACES P/N 0010710020 | ADD TO CART |
| 9A | 0040010000 | LOCK WASHER | 4 | ADD TO CART | |
| 10 | 020108060 | HEX. NUT | 1 | REPLACES P/N 0030008000 | ADD TO CART |

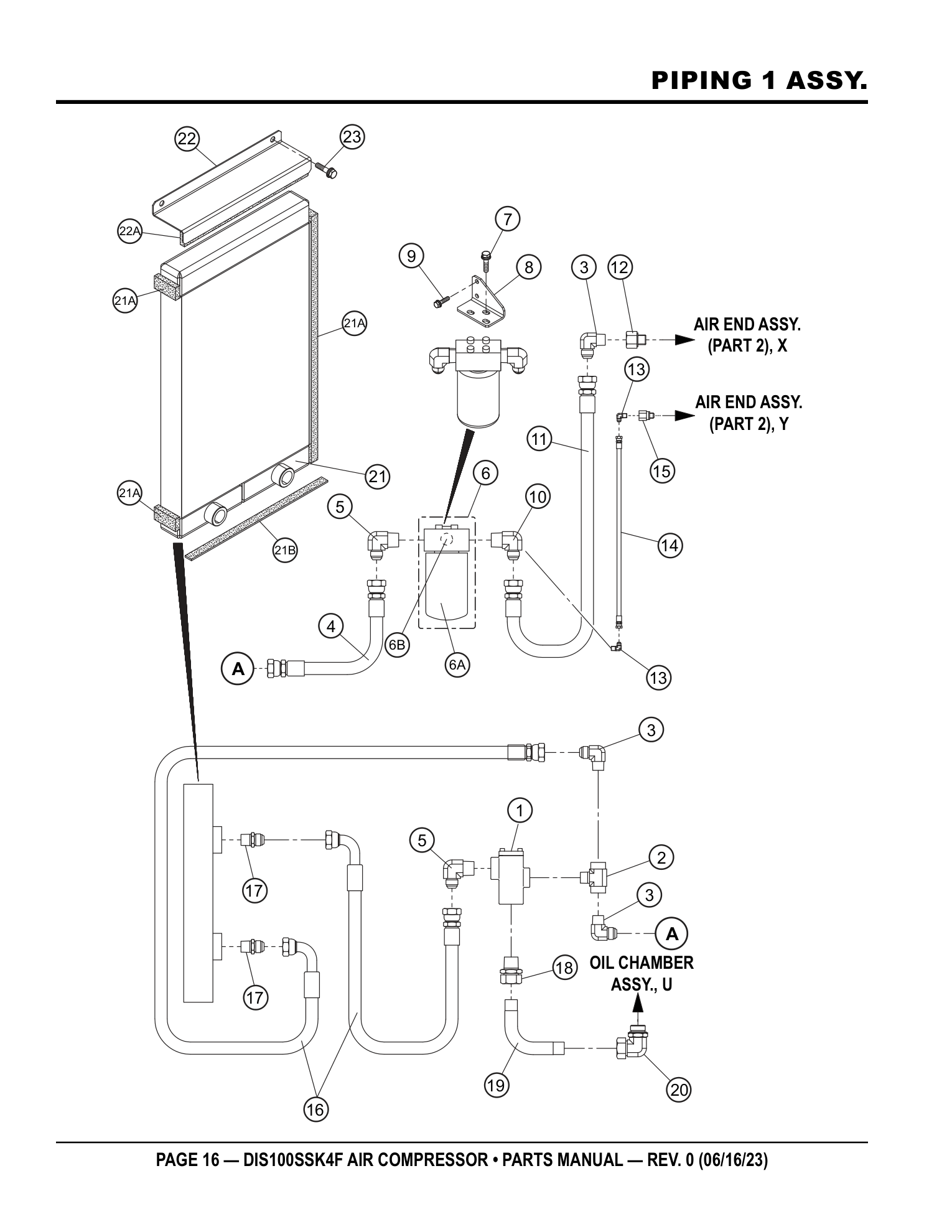

Page 16 — PIPING 1 ASSY.
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2624800603 | BYPASS THERMO VALVE ASSY. | 1 | ADD TO CART | |
| 2 | Y0603306689 | MALE BRANCH TEE, 3/4" MMS | 1 | PARTS REQUEST | |
|
COMING MALE BRANCH TEE, 3/4" MMS
Y0603306689 · qty on machine: 1 | |||||
| 3 | Y0603306464 | MALE ELBOW | 3 | PARTS REQUEST | |
|
COMING MALE ELBOW
Y0603306464 · qty on machine: 3 | |||||
| 4 | E2604203604 | OIL HOSE | 1 | ADD TO CART | |
| 5 | Y0603306465 | MALE ELBOW | 2 | PARTS REQUEST | |
|
COMING MALE ELBOW
Y0603306465 · qty on machine: 2 | |||||
| 6 | E2924000344 | OIL FILTER | 1 | INCLUDES ITEMS W/# | NO LONGER AVAILABLE |
|
COMING OIL FILTER
E2924000344 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 6A#, 6B# NO LONGER AVAILABLE
| |||||
| 6A# | E2924000354 | OIL FILTER ELEMENT, P576166 | 1 | ADD TO CART | |
| 6B# | Y0603310240 | INDICATOR, P162400 | 1 | PARTS REQUEST | |
|
COMING INDICATOR, P162400
Y0603310240 · qty on machine: 1 Also included in kit 6 - OIL FILTER (E2924000344) | |||||
| 7 | 0016910020 | HEX. HEAD BOLT | 3 | REPLACES P/N 0017110020 | ADD TO CART |
| 8 | E2614804304 | BRACKET, OIL FILTER | 1 | PARTS REQUEST | |
|
COMING BRACKET, OIL FILTER
E2614804304 · qty on machine: 1 | |||||
| 9 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 10 | E2614804404 | MALE ELBOW | 1 | PARTS REQUEST | |
|
COMING MALE ELBOW
E2614804404 · qty on machine: 1 | |||||
| 11 | E2604204704 | OIL HOSE | 1 | PARTS REQUEST | |
|
COMING OIL HOSE
E2604204704 · qty on machine: 1 | |||||
| 12 | E2924000504 | ADAPTER | 1 | PARTS REQUEST | |
|
COMING ADAPTER
E2924000504 · qty on machine: 1 | |||||
| 13 | Y0603306477 | MALE ELBOW | 2 | PARTS REQUEST | |
|
COMING MALE ELBOW
Y0603306477 · qty on machine: 2 | |||||
| 14 | E2604204804 | OIL HOSE | 1 | PARTS REQUEST | |
|
COMING OIL HOSE
E2604204804 · qty on machine: 1 | |||||
| 15 | E2924000514 | ADAPTER | 1 | PARTS REQUEST | |
|
COMING ADAPTER
E2924000514 · qty on machine: 1 | |||||
| 16 | E2604204404 | OIL HOSE | 2 | PARTS REQUEST | |
|
COMING OIL HOSE
E2604204404 · qty on machine: 2 | |||||
| 17 | Y0603306382 | MALE CONNECTOR | 2 | PARTS REQUEST | |
|
COMING MALE CONNECTOR
Y0603306382 · qty on machine: 2 | |||||
| 18 | Y0603320048 | MALE CONNECTOR | 1 | ADD TO CART | |
| 19 | E2604203804 | OIL PIPE | 1 | ADD TO CART | |
| 20 | Y0603320059 | ADJUSTABLE LOCKNUT ELBOW | 1 | ADD TO CART | |
| 21 | E2924200444 | OIL COOLER | 1 | PARTS REQUEST | |
|
COMING OIL COOLER
E2924200444 · qty on machine: 1 | |||||
| 21A | E2494206504 | ACOUSTIC SHEET | 1 | PARTS REQUEST | |
|
COMING ACOUSTIC SHEET
E2494206504 · qty on machine: 1 | |||||
| 21B | Y0314900320 | RUBBER SEAL | 1 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0314900320 · qty on machine: 1 | |||||
| 22 | E2314101604 | OIL COOLER BRACKET | 1 | PARTS REQUEST | |
|
COMING OIL COOLER BRACKET
E2314101604 · qty on machine: 1 | |||||
| 22A | Y0222100290 | SEAL RUBBER | 1 | PARTS REQUEST | |
|
COMING SEAL RUBBER
Y0222100290 · qty on machine: 1 | |||||
| 23 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |

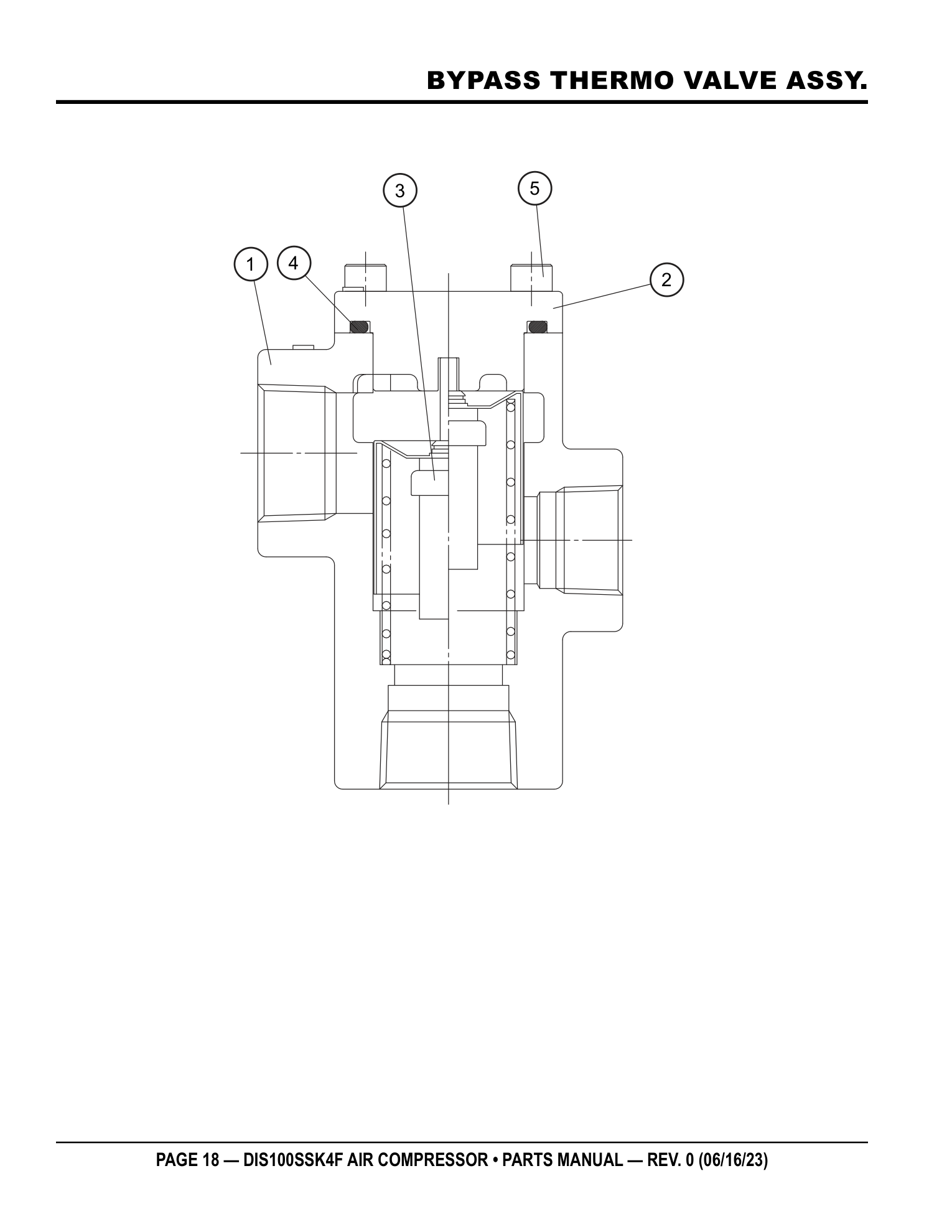

Page 18 — BYPASS THERMO VALVE ASSY.
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2624800403 | BYPASS THERMO VALVE BODY | 1 | ADD TO CART | |
| 2 | E2624800504 | COVER | 1 | PARTS REQUEST | |
|
COMING COVER
E2624800504 · qty on machine: 1 | |||||
| 3 | E2924100384 | COMPRESSOR OIL THERMOSTAT | 1 | ADD TO CART | |
| 4 | Y0155500223 | O-RING | 1 | PARTS REQUEST | |
|
COMING O-RING
Y0155500223 · qty on machine: 1 | |||||
| 5 | Y0018206020 | HEX. SOCKET HEAD CAP SCREW | 4 | ADD TO CART | |

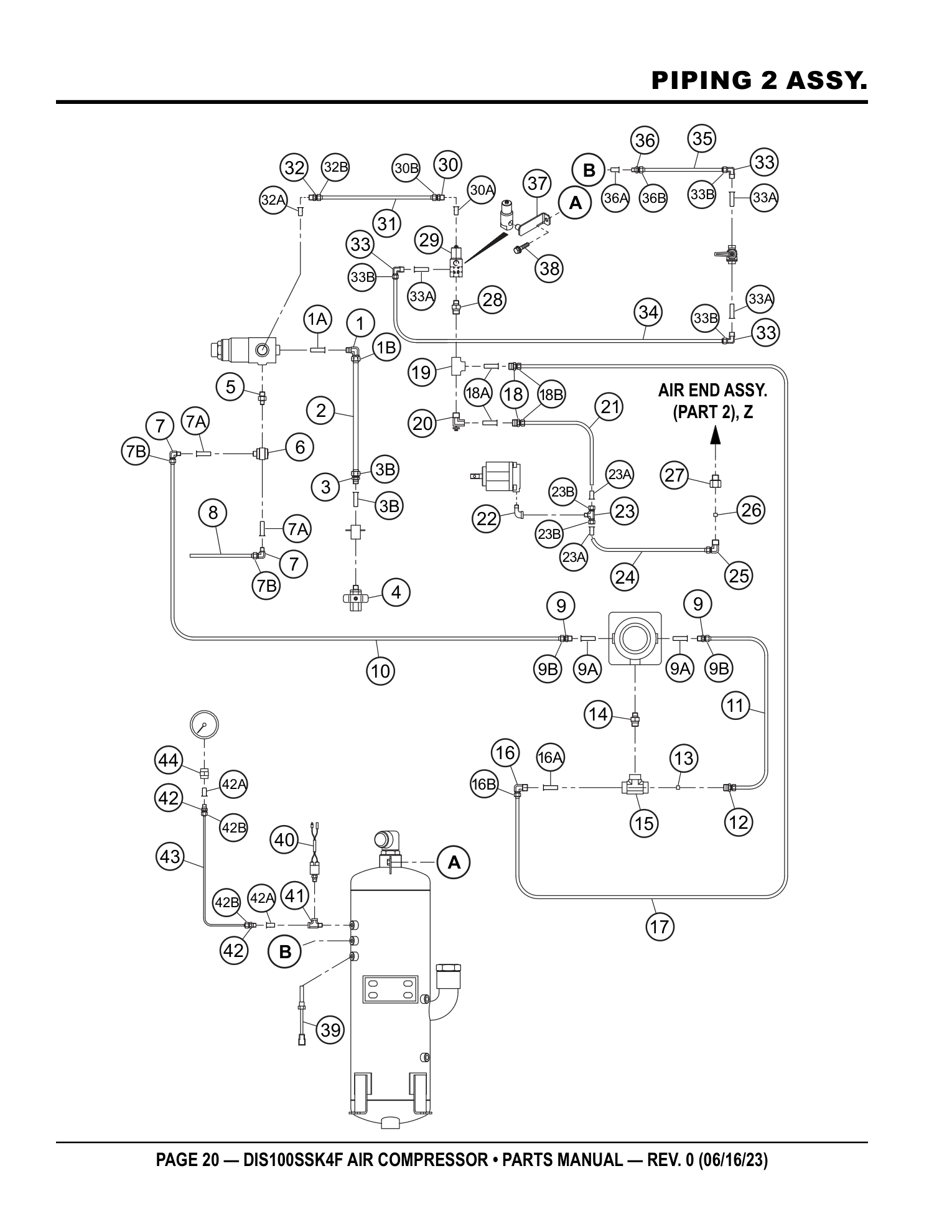

Page 20 — PIPING 2 ASSY.
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0603301044 | ELBOW UNION | 1 | ADD TO CART | |
| 1A | Y0603302022 | SLEEVE | 1 | ADD TO CART | |
| 1B | Y0603303022 | NUT | 1 | PARTS REQUEST | |
|
COMING NUT
Y0603303022 · qty on machine: 1 | |||||
| 2 | Y0190800760 | NYLON TUBE | 1 | PARTS REQUEST | |
|
COMING NYLON TUBE
Y0190800760 · qty on machine: 1 | |||||
| 3 | Y0603300093 | HALF UNION | 1 | PARTS REQUEST | |
|
COMING HALF UNION
Y0603300093 · qty on machine: 1 | |||||
| 3A | Y0603302022 | SLEEVE | 1 | ADD TO CART | |
| 3B | Y0603303022 | NUT | 1 | PARTS REQUEST | |
|
COMING NUT
Y0603303022 · qty on machine: 1 | |||||
| 4 | Y0603325131 | BALL VALVE, 1/4" | 1 | PARTS REQUEST | |
|
COMING BALL VALVE, 1/4"
Y0603325131 · qty on machine: 1 | |||||
| 5 | Y0131602000 | REDUCING NIPPLE | 1 | PARTS REQUEST | |
|
COMING REDUCING NIPPLE
Y0131602000 · qty on machine: 1 | |||||
| 6 | 0603324283 | PILOT VALVE | 1 | ADD TO CART | |
| 7 | Y0603301031 | ELBOW UNION | 2 | PARTS REQUEST | |
|
COMING ELBOW UNION
Y0603301031 · qty on machine: 2 | |||||
| 7A | 0603302021 | SLEEVE | 2 | ADD TO CART | |
| 7B | 0603303021 | NUT | 2 | ADD TO CART | |
| 8 | Y0190700700 | NYLON TUBE | 1 | PARTS REQUEST | |
|
COMING NYLON TUBE
Y0190700700 · qty on machine: 1 | |||||
| 9 | Y0603300049 | HALF UNION | 2 | ADD TO CART | |
| 9A | 0603302021 | SLEEVE | 2 | ADD TO CART | |
| 9B | 0603303021 | NUT | 2 | ADD TO CART | |
| 10 | Y0190700400 | NYLON TUBE | 1 | ADD TO CART | |
| 11 | Y0190700260 | NYLON TUBE | 1 | PARTS REQUEST | |
|
COMING NYLON TUBE
Y0190700260 · qty on machine: 1 | |||||
| 12 | E2614804804 | MOD. CONNECTOR | 1 | PARTS REQUEST | |
|
COMING MOD. CONNECTOR
E2614804804 · qty on machine: 1 | |||||
| 13 | E2610000104 | ORIFICE PLUG | 1 | PARTS REQUEST | |
|
COMING ORIFICE PLUG
E2610000104 · qty on machine: 1 | |||||
| 14 | Y0603306377 | REDUCING NIPPLE | 1 | PARTS REQUEST | |
|
COMING REDUCING NIPPLE
Y0603306377 · qty on machine: 1 | |||||
| 15 | Y0603306685 | TEE, 3/8" | 1 | PARTS REQUEST | |
|
COMING TEE, 3/8"
Y0603306685 · qty on machine: 1 | |||||
| 16 | Y0603301061 | ELBOW UNION | 1 | PARTS REQUEST | |
|
COMING ELBOW UNION
Y0603301061 · qty on machine: 1 | |||||
| 16A | 0603302021 | SLEEVE | 1 | ADD TO CART | |
| 16B | 0603303021 | NUT | 1 | ADD TO CART | |
| 17 | Y0261100530 | NYLON TUBE | 1 | PARTS REQUEST | |
|
COMING NYLON TUBE
Y0261100530 · qty on machine: 1 | |||||
| 18 | Y0603300043 | HALF UNION | 2 | PARTS REQUEST | |
|
COMING HALF UNION
Y0603300043 · qty on machine: 2 | |||||
| 18A | 0603302021 | SLEEVE | 2 | ADD TO CART | |
| 18B | 0603303021 | NUT | 2 | ADD TO CART | |
| 19 | 0130404000 | TEE, 3/8" | 1 | ADD TO CART | |
| 20 | Y0603324157 | SPEED CONTROL VALVE | 1 | PARTS REQUEST | |
|
COMING SPEED CONTROL VALVE
Y0603324157 · qty on machine: 1 | |||||
| 21 | Y0261100870 | NYLON TUBE | 1 | PARTS REQUEST | |
|
COMING NYLON TUBE
Y0261100870 · qty on machine: 1 | |||||
| 22 | 0130200000 | STREET ELBOW, 1/8" | 1 | ADD TO CART | |
| 23 | Y0603306650 | T-UNION | 1 | ADD TO CART | |
| 23A | 0603302021 | SLEEVE | 2 | ADD TO CART | |
| 23B | 0603303021 | NUT | 2 | ADD TO CART | |
| 24 | Y0261100400 | NYLON TUBE | 1 | PARTS REQUEST | |
|
COMING NYLON TUBE
Y0261100400 · qty on machine: 1 | |||||
| 25 | E2614803504 | MOD. ELBOW CONNECTOR | 1 | ADD TO CART | |
| 26 | E2610000204 | ORIFICE PLUG | 1 | PARTS REQUEST | |
|
COMING ORIFICE PLUG
E2610000204 · qty on machine: 1 | |||||
| 27 | E2924000524 | ADAPTER | 1 | PARTS REQUEST | |
|
COMING ADAPTER
E2924000524 · qty on machine: 1 | |||||
| 28 | Y0131604020 | REDUCING NIPPLE, 3/8"×1/4" | 1 | PARTS REQUEST | |
|
COMING REDUCING NIPPLE, 3/8"×1/4"
Y0131604020 · qty on machine: 1 | |||||
| 29 | Y0603324155 | PRESSURE REGULATOR VALVE | 1 | ADD TO CART | |
| 30 | 0603300042 | HALF UNION | 1 | ADD TO CART | |
| 30A | 0603302021 | SLEEVE | 1 | ADD TO CART | |
| 30B | 0603303021 | NUT | 1 | ADD TO CART | |

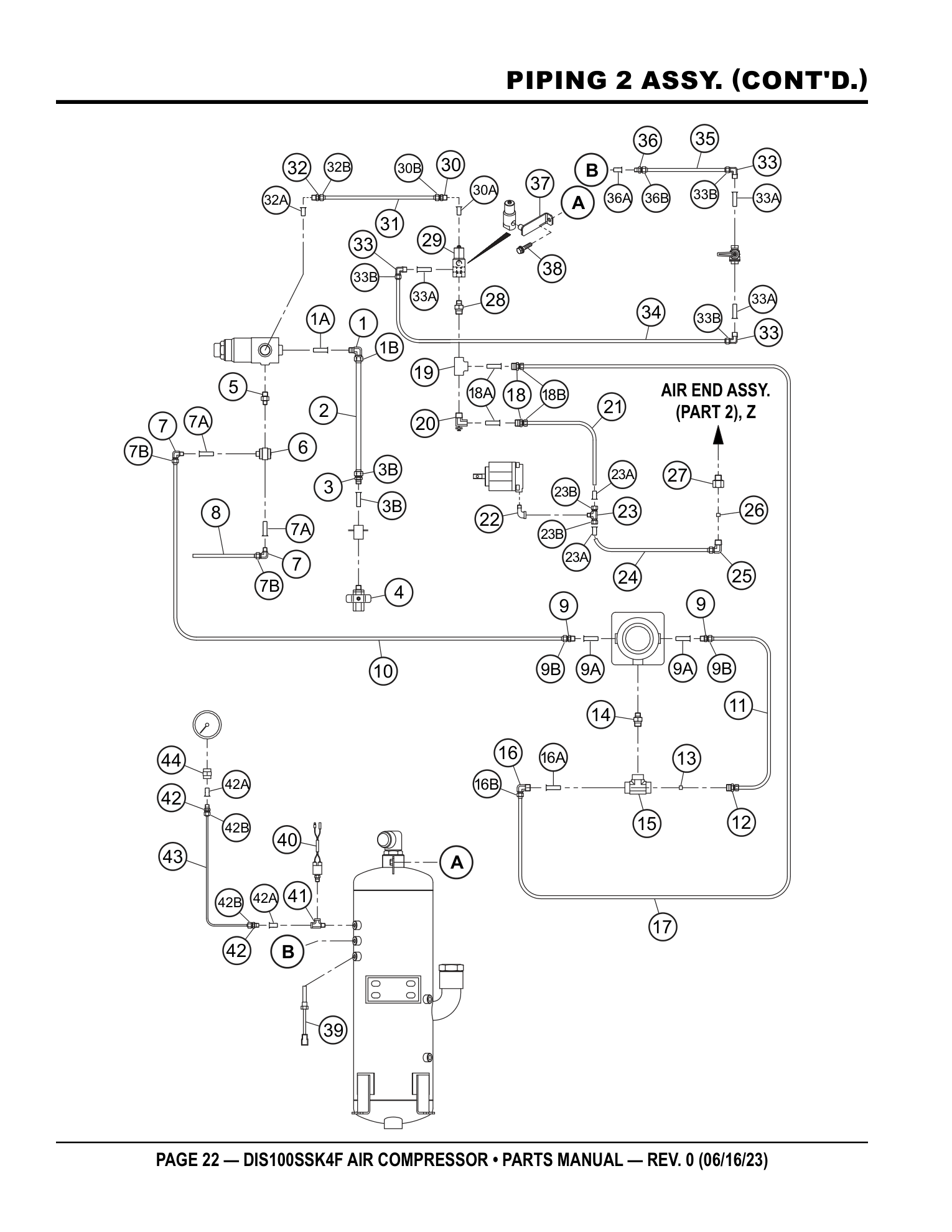

Page 22 — PIPING 2 ASSY. (CONT'D.)
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 31 | Y0261300600 | NYLON TUBE | 1 | ADD TO CART | |
| 32 | Y0603300049 | ELBOW UNION | 1 | ADD TO CART | |
| 32A | 0603302021 | SLEEVE | 1 | ADD TO CART | |
| 32B | 0603303021 | NUT | 1 | ADD TO CART | |
| 33 | 0603301032 | ELBOW UNION | 3 | ADD TO CART | |
| 33A | 0603302021 | SLEEVE | 3 | ADD TO CART | |
| 33B | 0603303021 | NUT | 3 | ADD TO CART | |
| 34 | Y0261300850 | NYLON TUBE | 1 | ADD TO CART | |
| 35 | Y0261300700 | NYLON TUBE | 1 | ADD TO CART | |
| 36 | Y0603300048 | HALF UNION | 1 | ADD TO CART | |
| 36A | 0603302021 | SLEEVE | 1 | ADD TO CART | |
| 36B | 0603303021 | NUT | 1 | ADD TO CART | |
| 37 | E2611200404 | BRACKET, PRESSURE REG. VALVE | 1 | PARTS REQUEST | |
|
COMING BRACKET, PRESSURE REG. VALVE
E2611200404 · qty on machine: 1 | |||||
| 38 | 011008020 | HEX. HEAD BOLT | 1 | REPLACES P/N 0016908020 | ADD TO CART |
| 39 | 0603210230 | TEMPERATURE SENSOR | 1 | ADD TO CART | |
| 40 | Y0602210090 | RESIDUAL PRESSURE SWITCH | 1 | ADD TO CART | |
| 41 | Y0603306684 | MALE RUN TEE, 1/8" | 1 | PARTS REQUEST | |
|
COMING MALE RUN TEE, 1/8"
Y0603306684 · qty on machine: 1 | |||||
| 42 | Y0603300061 | HALF UNION | 2 | PARTS REQUEST | |
|
COMING HALF UNION
Y0603300061 · qty on machine: 2 | |||||
| 42A | Y0603302020 | SLEEVE | 2 | PARTS REQUEST | |
|
COMING SLEEVE
Y0603302020 · qty on machine: 2 | |||||
| 42B | Y0603303020 | NUT | 2 | PARTS REQUEST | |
|
COMING NUT
Y0603303020 · qty on machine: 2 | |||||
| 43 | Y0190600650 | NYLON TUBE | 1 | PARTS REQUEST | |
|
COMING NYLON TUBE
Y0190600650 · qty on machine: 1 | |||||
| 44 | Y0603307681 | PIPE COUPLING, 1/4"×1/8" | 1 | PARTS REQUEST | |
|
COMING PIPE COUPLING, 1/4"×1/8"
Y0603307681 · qty on machine: 1 | |||||

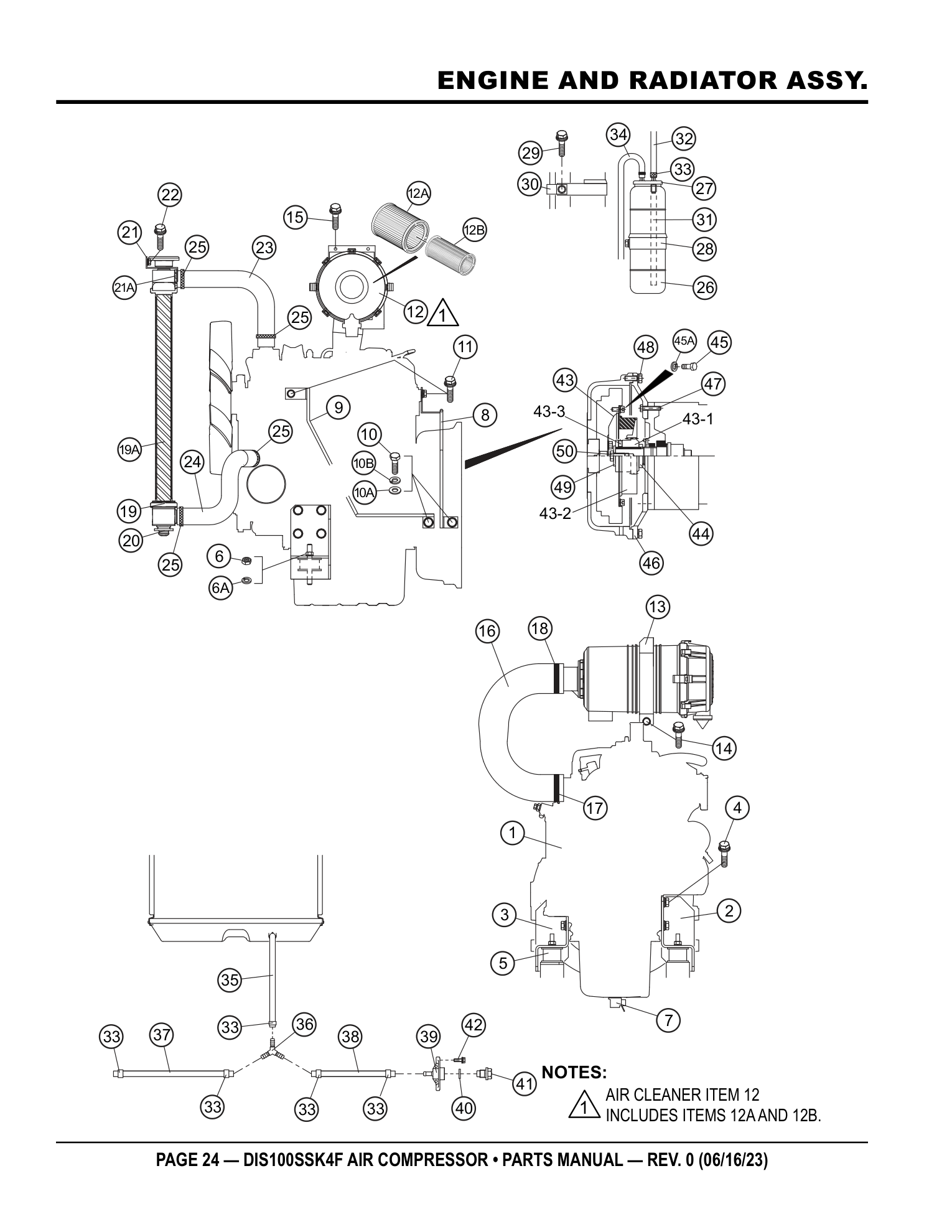

Page 24 — ENGINE AND RADIATOR ASSY.
Parts list — exactly as printed42 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | D1005E4B | ENGINE, KUBOTA | 1 | REPLACES P/N E2924200434 | PARTS REQUEST |
|
COMING ENGINE, KUBOTA
D1005E4B · qty on machine: 1 REPLACES P/N E2924200434 | |||||
| 2 | E2304202704 | ENGINE FOOT | 1 | PARTS REQUEST | |
|
COMING ENGINE FOOT
E2304202704 · qty on machine: 1 | |||||
| 3 | E2304202604 | ENGINE FOOT | 1 | PARTS REQUEST | |
|
COMING ENGINE FOOT
E2304202604 · qty on machine: 1 | |||||
| 4 | 0012410025 | HEX. HEAD BOLT | 8 | ADD TO CART | |
| 5 | Y0605000046 | RUBBER SUSPENSION | 2 | PARTS REQUEST | |
|
COMING RUBBER SUSPENSION
Y0605000046 · qty on machine: 2 | |||||
| 6 | 020108060 | HEX. NUT | 2 | REPLACES P/N 0030008000 | ADD TO CART |
| 6A | 0040008000 | LOCK WASHER | 2 | ADD TO CART | |
| 7 | Y0605511363 | OIL CHANGER | 1 | PARTS REQUEST | |
|
COMING OIL CHANGER
Y0605511363 · qty on machine: 1 | |||||
| 8 | E2355300903 | CLAMPER ROD | 1 | PARTS REQUEST | |
|
COMING CLAMPER ROD
E2355300903 · qty on machine: 1 | |||||
| 9 | E2355301004 | CLAMPER ROD | 1 | PARTS REQUEST | |
|
COMING CLAMPER ROD
E2355301004 · qty on machine: 1 | |||||
| 10 | 012210020 | HEX. HEAD BOLT | 3 | REPLACES P/N 0010710020 | ADD TO CART |
| 10A | Y0041210000 | FLAT WASHER | 3 | ADD TO CART | |
| 10B | 0040010000 | LOCK WASHER | 3 | ADD TO CART | |
| 11 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 12 | Y0602046544 | AIR CLEANER | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING AIR CLEANER
Y0602046544 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 12A#, 12B# | |||||
| 12A# | 0602046611 | PRIMARY ELEMENT, P821575 | 1 | ADD TO CART | |
| 12B# | Y0602046635 | SAFETY ELEMENT, P822858 | 1 | ADD TO CART | |
| 13 | E2374200604 | BRACKET, AIR CLEANER | 1 | PARTS REQUEST | |
|
COMING BRACKET, AIR CLEANER
E2374200604 · qty on machine: 1 | |||||
| 14 | 011008020 | HEX. HEAD BOLT | 1 | REPLACES P/N 0016908020 | ADD TO CART |
| 15 | 0016906015 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 16 | E2374102803 | ENGINE INTAKE HOSE | 1 | PARTS REQUEST | |
|
COMING ENGINE INTAKE HOSE
E2374102803 · qty on machine: 1 | |||||
| 17 | 0605515147 | HOSE BAND | 1 | ADD TO CART | |
| 18 | 0605515199 | HOSE BAND | 1 | ADD TO CART | |
| 19 | E2924200454 | RADIATOR | 1 | PARTS REQUEST | |
|
COMING RADIATOR
E2924200454 · qty on machine: 1 | |||||
| 19A | E2494206504 | ACOUSTIC SHEET | 1 | PARTS REQUEST | |
|
COMING ACOUSTIC SHEET
E2494206504 · qty on machine: 1 | |||||
| 20 | M9312200104 | MOUNT RUBBER | 2 | ADD TO CART | |
| 21 | E2311200804 | RADIATOR BRACKET | 2 | PARTS REQUEST | |
|
COMING RADIATOR BRACKET
E2311200804 · qty on machine: 2 | |||||
| 21A | Y0222100030 | SEAL RUBBER | 2 | PARTS REQUEST | |
|
COMING SEAL RUBBER
Y0222100030 · qty on machine: 2 | |||||
| 22 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 23 | E2311601603 | RADIATOR HOSE | 1 | PARTS REQUEST | |
|
COMING RADIATOR HOSE
E2311601603 · qty on machine: 1 | |||||
| 24 | E2311601703 | RADIATOR HOSE | 1 | PARTS REQUEST | |
|
COMING RADIATOR HOSE
E2311601703 · qty on machine: 1 | |||||
| 25 | 0605515134 | HOSE BAND | 4 | ADD TO CART | |
| 26 | 0802081403D | RESERVE TANK | 1 | REPLACES P/N M9300000003 | ADD TO CART |
| 27 | 0802081104 | CAP, RESERVE TANK | 1 | REPLACES P/N M9300100003 | ADD TO CART |
| 28 | M1317100004 | BRACKET, RESERVE TANK | 1 | ADD TO CART | |
| 29 | 011008020 | HEX. HEAD BOLT | 1 | REPLACES P/N 0016908020 | ADD TO CART |
| 30 | 0602220911 | COATING CLAMPER | 1 | ADD TO CART | |
| 31 | 0199100215 | HOSE | 1 | ADD TO CART | |
| 32 | 0199900350 | OVER FLOW HOSE | 1 | ADD TO CART | |
| 33 | 0605515189 | HOSE BAND | 8 | ADD TO CART | |
| 34 | 0193600700 | OVER FLOW HOSE | 1 | ADD TO CART | |
| 35 | Y0199900250 | DRAIN HOSE | 1 | PARTS REQUEST | |
|
COMING DRAIN HOSE
Y0199900250 · qty on machine: 1 | |||||
Page 26 — ENGINE AND RADIATOR ASSY. (CONT'D.)
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 36 | 0602022929 | Y-JOINT | 1 | ADD TO CART | |
| 37 | 0199900450 | DRAIN HOSE | 1 | ADD TO CART | |
| 38 | Y0199900380 | DRAIN HOSE | 1 | PARTS REQUEST | |
|
COMING DRAIN HOSE
Y0199900380 · qty on machine: 1 | |||||
| 39 | 7812014003B | DRAIN JOINT | 1 | REPLACES P/N M2320300103 | ADD TO CART |
| 40 | 0150000018 | O-RING | 1 | ADD TO CART | |
| 41 | 0802011104 | DRAIN BOLT | 1 | REPLACES P/N M9200200004 | ADD TO CART |
| 42 | 011206020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0019206020 | ADD TO CART |
| 43 | E2924000444 | COUPLING | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING COUPLING
E2924000444 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 43-1%, 43-2% | |||||
| 43-1% | E2924000414 | GEAR HUB | 1 | PARTS REQUEST | |
|
COMING GEAR HUB
E2924000414 · qty on machine: 1 Also included in kit 43 - COUPLING (E2924000444) | |||||
| 43-2% | E2924000454 | FLANGE | 1 | PARTS REQUEST | |
|
COMING FLANGE
E2924000454 · qty on machine: 1 Also included in kit 43 - COUPLING (E2924000444) | |||||
| 43-3 | E2924000474 | HEX. SOCKET SCREW | 1 | PARTS REQUEST | |
|
COMING HEX. SOCKET SCREW
E2924000474 · qty on machine: 1 | |||||
| 44 | E2164600604 | SPACER | 1 | PARTS REQUEST | |
|
COMING SPACER
E2164600604 · qty on machine: 1 | |||||
| 45 | Y0013203019 | HEX. SOCKET HEAD CAP SCREW | 6 | PARTS REQUEST | |
|
COMING HEX. SOCKET HEAD CAP SCREW
Y0013203019 · qty on machine: 6 | |||||
| 45A | 0040008000 | LOCK WASHER | 6 | ADD TO CART | |
| 46 | E2164500503 | HOUSING | 1 | PARTS REQUEST | |
|
COMING HOUSING
E2164500503 · qty on machine: 1 | |||||
| 47 | Y0013608040 | HEX. HEAD BOLT | 8 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0013608040 · qty on machine: 8 | |||||
| 48 | 012010030 | HEX. HEAD BOLT | 8 | REPLACES P/N 0012810030 | ADD TO CART |
| 49 | E2164800304 | PLATE | 1 | PARTS REQUEST | |
|
COMING PLATE
E2164800304 · qty on machine: 1 | |||||
| 50 | Y0013612025 | HEX. HEAD BOLT | 1 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
Y0013612025 · qty on machine: 1 | |||||

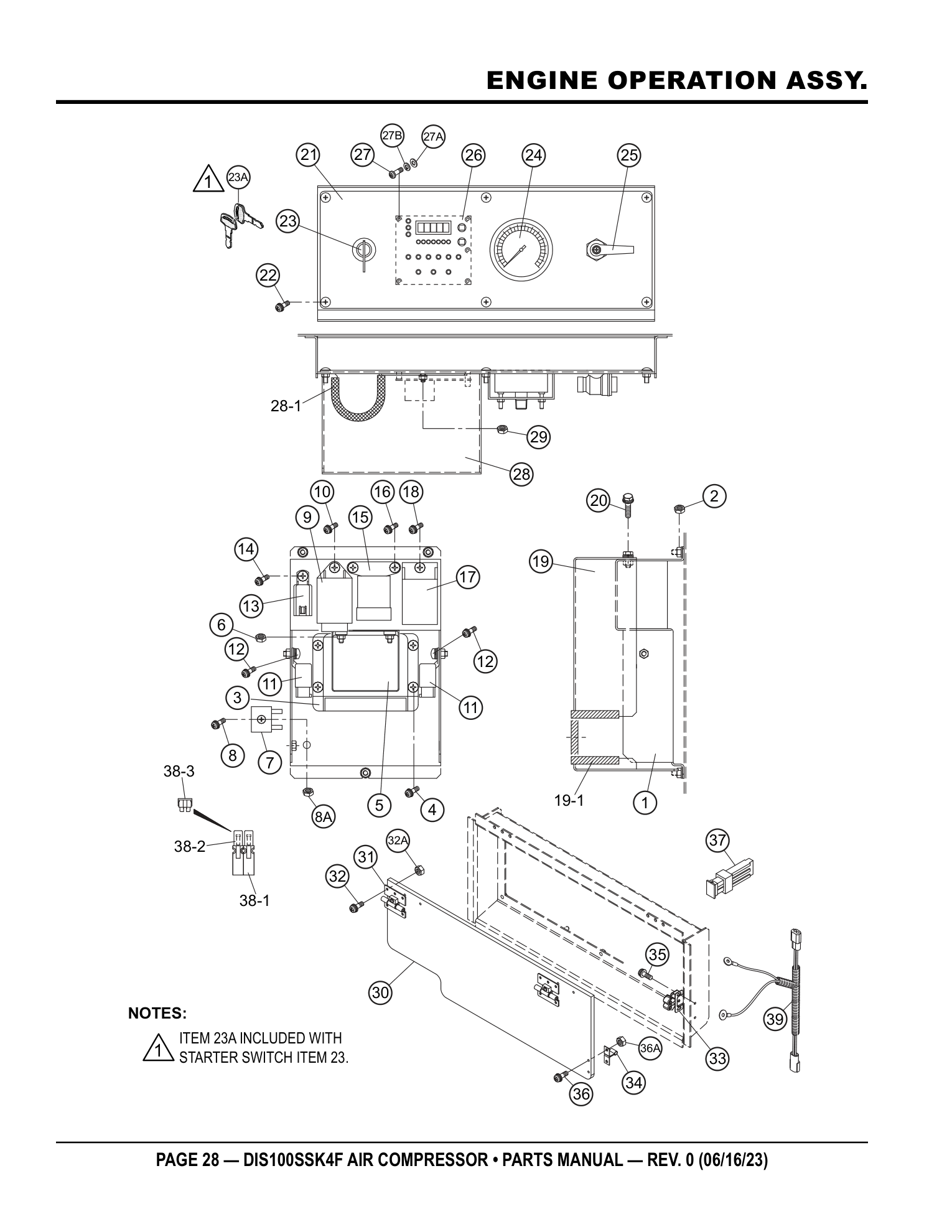

Page 28 — ENGINE OPERATION ASSY.
Parts list — exactly as printed36 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2352602703 | CONTROL BOX | 1 | PARTS REQUEST | |
|
COMING CONTROL BOX
E2352602703 · qty on machine: 1 | |||||
| 2 | Y0207006000 | SELF-LOCK NUT | 3 | ADD TO CART | |
| 3 | 1746260600 | EMERGENCY UNIT, EG3 | 1 | REPLACES P/N 0602200467 | ADD TO CART |
| 4 | 0027106025 | MACHINE SCREW | 4 | PARTS REQUEST | |
|
COMING MACHINE SCREW
0027106025 · qty on machine: 4 | |||||
| 5 | Y0601829251 | SPEED RELAY | 1 | PARTS REQUEST | |
|
COMING SPEED RELAY
Y0601829251 · qty on machine: 1 | |||||
| 6 | Y0207006000 | SELF-LOCK NUT | 2 | ADD TO CART | |
| 7 | 0601821370 | RECTIFIER | 2 | REPLACES P/N 0601823240 | ADD TO CART |
| 8 | 0021004035 | MACHINE SCREW | 1 | REPLACES P/N 0027104035 | ADD TO CART |
| 8A | OEMAA8 | SELF-LOCK NUT | 1 | REPLACES P/N 0207004000 | ADD TO CART |
| 9 | 1641565661 | CONTROLLER | 1 | REPLACES P/N Y0602202564 | PARTS REQUEST |
|
COMING CONTROLLER
1641565661 · qty on machine: 1 REPLACES P/N Y0602202564 | |||||
| 10 | 011206020 | MACHINE SCREW | 1 | REPLACES P/N 0027106020 | ADD TO CART |
| 11 | 0601824527 | RELAY | 2 | ADD TO CART | |
| 12 | 011808015 | MACHINE SCREW | 2 | REPLACES P/N 0027106015 | ADD TO CART |
| 13 | 0601824525 | RELAY | 1 | ADD TO CART | |
| 14 | 011808015 | MACHINE SCREW | 1 | REPLACES P/N 0027106015 | ADD TO CART |
| 15 | 1641565602 | GLOW RELAY | 1 | REPLACES P/N Y0602202563 | PARTS REQUEST |
|
COMING GLOW RELAY
1641565602 · qty on machine: 1 REPLACES P/N Y0602202563 | |||||
| 16 | 011808015 | MACHINE SCREW | 2 | REPLACES P/N 0027106015 | ADD TO CART |
| 17 | E9924800034 | THERMISTOR UNIT | 1 | PARTS REQUEST | |
|
COMING THERMISTOR UNIT
E9924800034 · qty on machine: 1 | |||||
| 18 | 011206020 | MACHINE SCREW | 1 | REPLACES P/N 0027106020 | ADD TO CART |
| 19 | E2352701804 | COVER, CONTROL BOX | 1 | PARTS REQUEST | |
|
COMING COVER, CONTROL BOX
E2352701804 · qty on machine: 1 | |||||
| 19-1 | Y0411100260 | EDGE TRIM | 1 | ADD TO CART | |
| 20 | 0016906015 | HEX HEAD BOLT | 3 | ADD TO CART | |
| 21 | E2352101403 | OPERATING PANEL | 1 | PARTS REQUEST | |
|
COMING OPERATING PANEL
E2352101403 · qty on machine: 1 | |||||
| 22 | 0021805015 | MACHINE SCREW | 6 | ADD TO CART | |
| 23 | 1742263590 | STARTER SWITCH | 1 | REPLACES P/N Y0602100057 INCLUDES ITEMS W/# | ADD TO CART |
| 23A# | 1742263701 | KEY | 2 | REPLACES P/N Y0602100223 | PARTS REQUEST |
|
COMING KEY
1742263701 · qty on machine: 2 REPLACES P/N Y0602100223 Also included in kit 23 - STARTER SWITCH (1742263590) | |||||
| 24 | E2924100494 | AIR PRESSURE GAUGE | 1 | PARTS REQUEST | |
|
COMING AIR PRESSURE GAUGE
E2924100494 · qty on machine: 1 | |||||
| 25 | E1924100134 | UNLOADER VALVE | 1 | PARTS REQUEST | |
|
COMING UNLOADER VALVE
E1924100134 · qty on machine: 1 | |||||
| 26 | E2266200024 | MONITOR | 1 | ADD TO CART | |
| 27 | Y0021003008 | MACHINE SCREW | 5 | ADD TO CART | |
| 27A | Y0042103000 | WASHER | 5 | PARTS REQUEST | |
|
COMING WASHER
Y0042103000 · qty on machine: 5 | |||||
| 27B | 0040003000 | LOCK WASHER | 5 | PARTS REQUEST | |
|
COMING LOCK WASHER
0040003000 · qty on machine: 5 | |||||
| 28 | E2352101503 | OPERATING PANEL BOX | 1 | PARTS REQUEST | |
|
COMING OPERATING PANEL BOX
E2352101503 · qty on machine: 1 | |||||
| 28-1 | Y0411100120 | EDGE TRIM | 1 | PARTS REQUEST | |
|
COMING EDGE TRIM
Y0411100120 · qty on machine: 1 | |||||
| 29 | 0030005000 | SELF-LOCK NUT | 3 | REPLACES P/N 0207005000 | ADD TO CART |
| 30 | E2352400904 | OPERATING PANEL COVER | 1 | PARTS REQUEST | |
|
COMING OPERATING PANEL COVER
E2352400904 · qty on machine: 1 | |||||

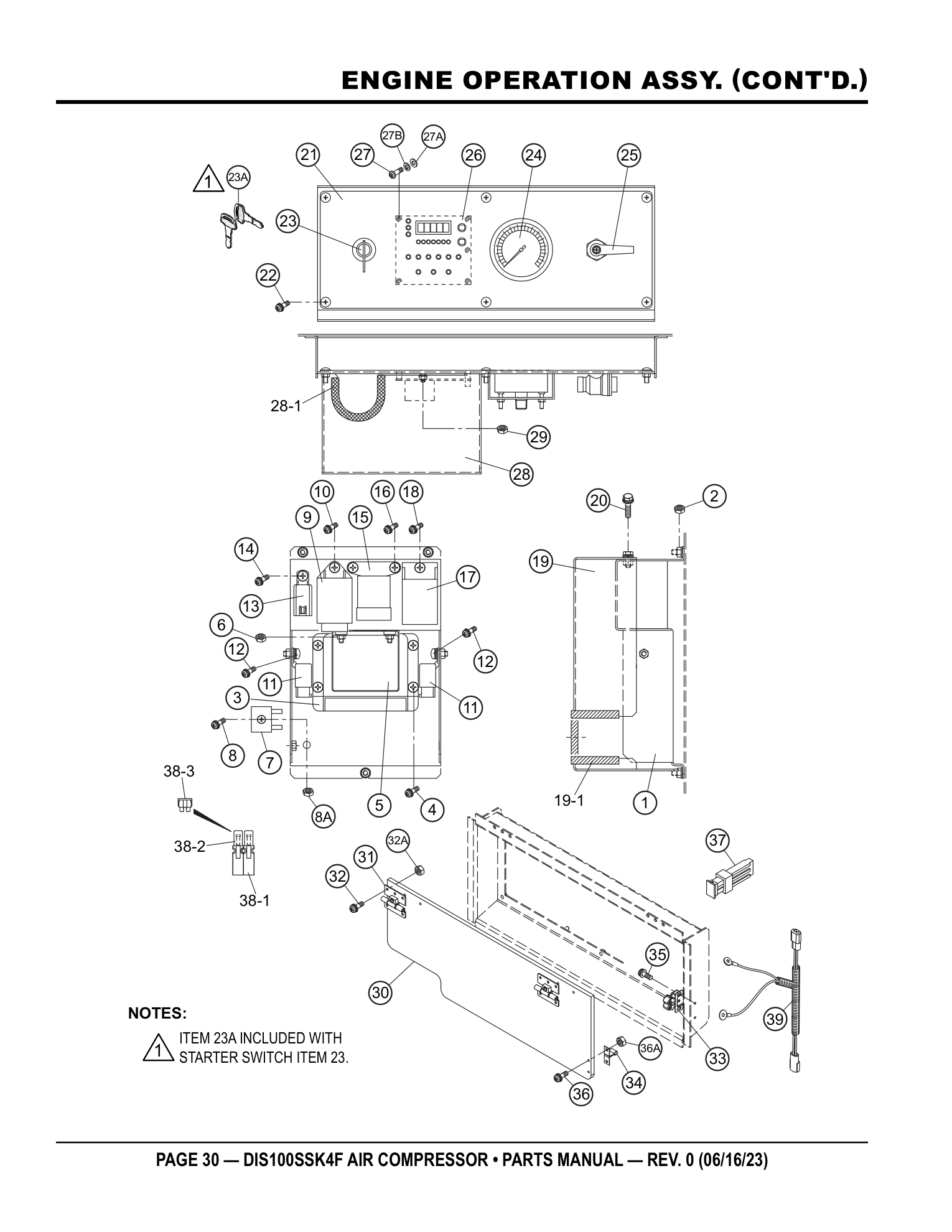

Page 30 — ENGINE OPERATION ASSY. (CONT'D.)
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 31 | Y0605012034 | FLAT TORQUE HINGE | 2 | ADD TO CART | |
| 32 | 0027103015 | MACHINE SCREW | 10 | ADD TO CART | |
| 32A | 0207003000 | SELF-LOCK NUT | 10 | ADD TO CART | |
| 33 | Y0605012100 | ROLLER CATCHER | 1 | ADD TO CART | |
| 34 | Y0605012101 | KEEPER | 1 | ADD TO CART | |
| 35 | Y0025303010 | MACHINE SCREW | 2 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0025303010 · qty on machine: 2 | |||||
| 36 | Y0025303010 | MACHINE SCREW | 2 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0025303010 · qty on machine: 2 | |||||
| 36A | 0207003000 | HEX. NUT | 2 | REPLACES P/N 0030003000 | ADD TO CART |
| 37 | 0601806640 | FUSE, 65A | 1 | ADD TO CART | |
| 38 | E2267000104 | FUSE BOX ASSY | 1 | INCLUDES ITEMS W/% | PARTS REQUEST |
|
COMING FUSE BOX ASSY
E2267000104 · qty on machine: 1 INCLUDES ITEMS W/% Kit includes: 38-1%, 38-2%, 38-3% | |||||
| 38-1% | Y0601818010 | HOUSING | 2 | PARTS REQUEST | |
|
COMING HOUSING
Y0601818010 · qty on machine: 2 Also included in kit 38 - FUSE BOX ASSY (E2267000104) | |||||
| 38-2% | Y0601818011 | COVER | 2 | PARTS REQUEST | |
|
COMING COVER
Y0601818011 · qty on machine: 2 Also included in kit 38 - FUSE BOX ASSY (E2267000104) | |||||
| 38-3% | 0601806642 | FUSE, 5A | 2 | ADD TO CART | |
| 39 | E2355204002 | WIRE HARNESS, ENGINE | 1 | PARTS REQUEST | |
|
COMING WIRE HARNESS, ENGINE
E2355204002 · qty on machine: 1 | |||||

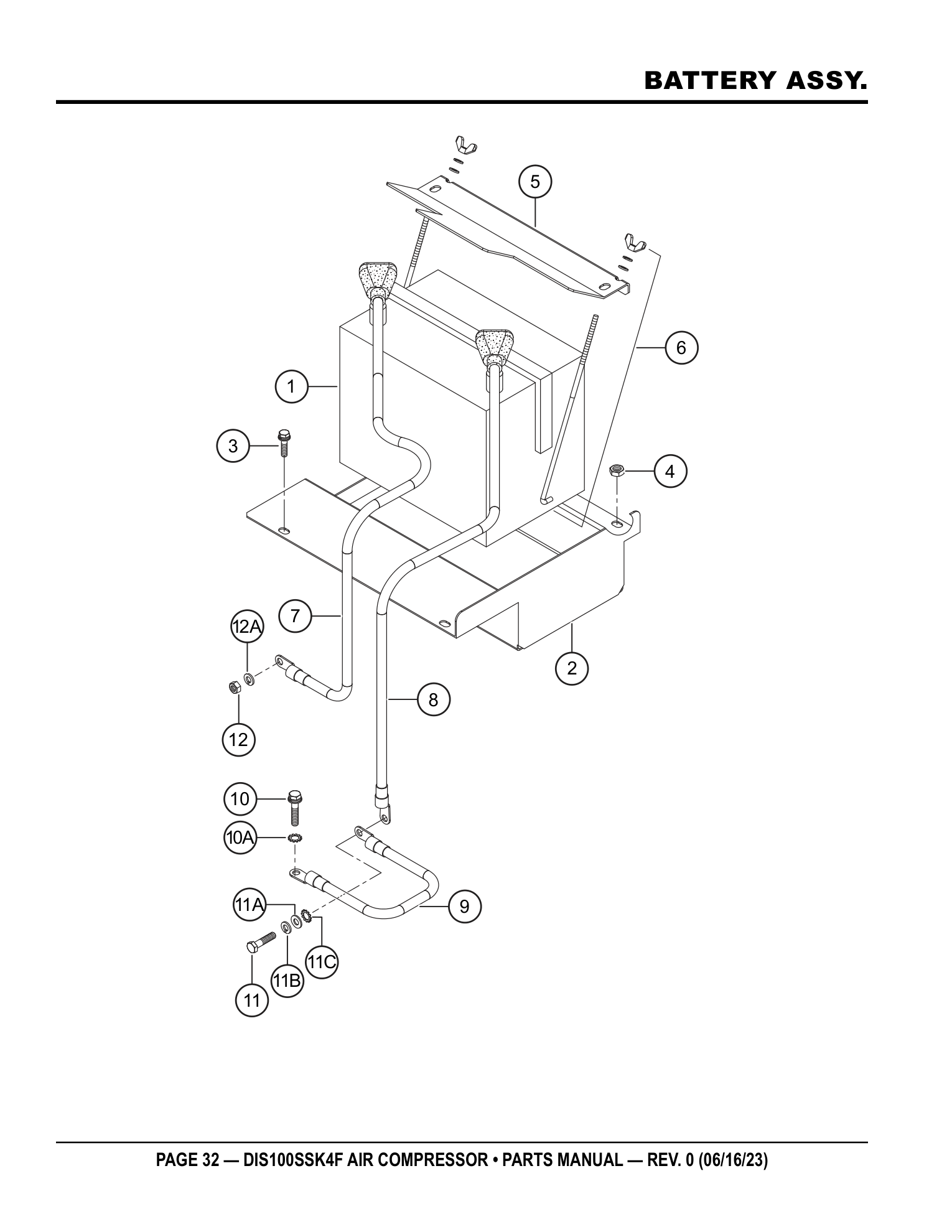

Page 32 — BATTERY ASSY.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 0602220193 | BATTERY | 1 | ADD TO CART | |
| 2 | E2487800704 | BATTERY BOX | 1 | PARTS REQUEST | |
|
COMING BATTERY BOX
E2487800704 · qty on machine: 1 | |||||
| 3 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 4 | Y0207008000 | SELF-LOCK NUT | 2 | ADD TO CART | |
| 5 | E2344200004 | BATTERY BAND | 1 | PARTS REQUEST | |
|
COMING BATTERY BAND
E2344200004 · qty on machine: 1 | |||||
| 6 | 0602220920 | BATTERY BOLT SET | 2 | ADD TO CART | |
| 7 | E2347200604 | BATTERY CABLE | 1 | PARTS REQUEST | |
|
COMING BATTERY CABLE
E2347200604 · qty on machine: 1 | |||||
| 8 | E2347200704 | BATTERY CABLE | 1 | PARTS REQUEST | |
|
COMING BATTERY CABLE
E2347200704 · qty on machine: 1 | |||||
| 9 | E2347200804 | EARTH CABLE | 1 | ADD TO CART | |
| 10 | 0016910025 | HEX. HEAD BOLT | 1 | ADD TO CART | |
| 10A | 0040510000 | TOOTHED WASHER | 1 | ADD TO CART | |
| 11 | 012210020 | HEX. HEAD BOLT | 1 | REPLACES P/N 0010710020 | ADD TO CART |
| 11A | Y0041210000 | FLAT WASHER | 1 | ADD TO CART | |
| 11B | 0040010000 | LOCK WASHER | 1 | ADD TO CART | |
| 11C | 0040510000 | TOOTHED WASHER | 1 | ADD TO CART | |
| 12 | 020108060 | HEX. NUT | 1 | REPLACES P/N 0030008000 | ADD TO CART |
| 12A | 0040008000 | LOCK WASHER | 1 | ADD TO CART | |

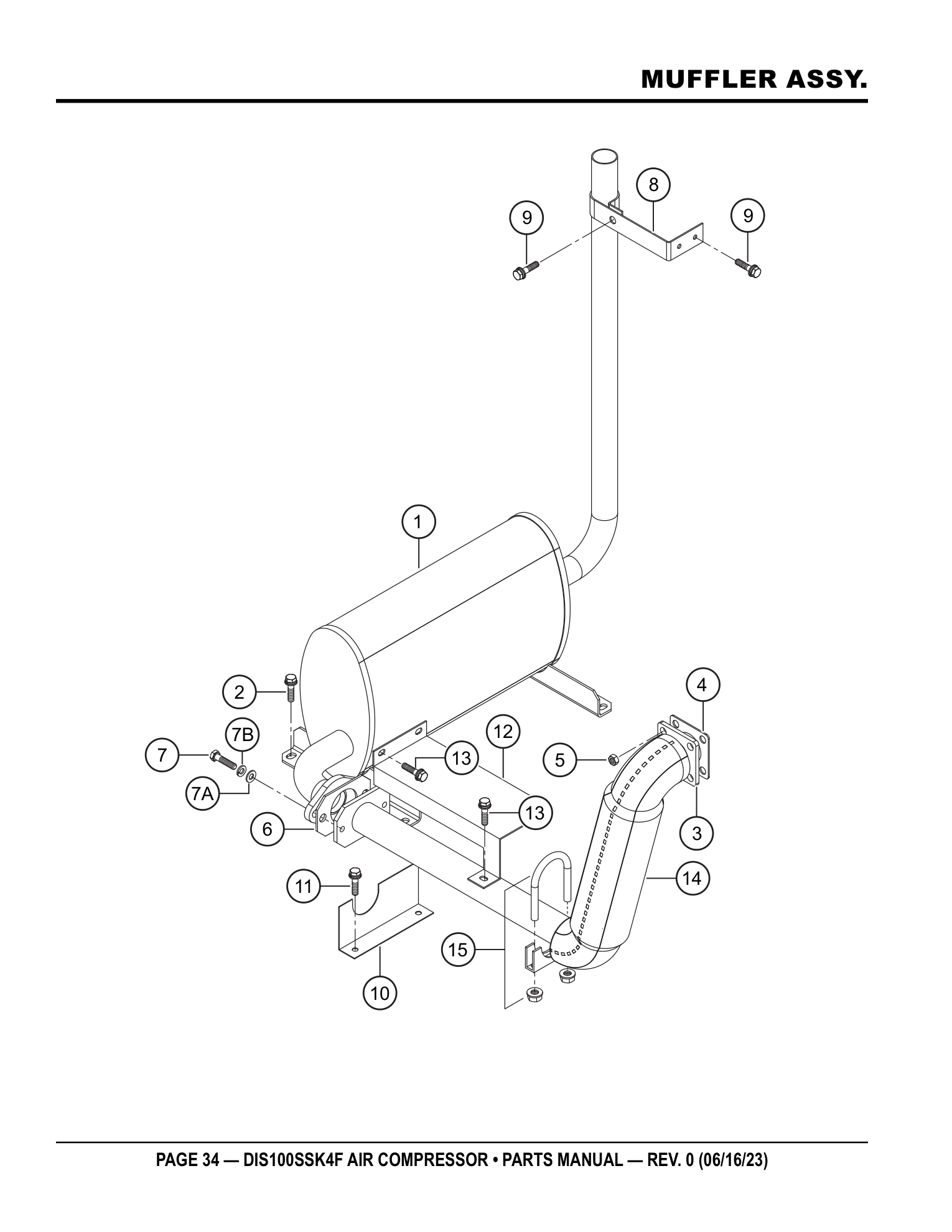

Page 34 — MUFFLER ASSY.
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2331102302 | MUFFLER | 1 | PARTS REQUEST | |
|
COMING MUFFLER
E2331102302 · qty on machine: 1 | |||||
| 2 | 011008020 | HEX. HEAD BOLT | 4 | REPLACES P/N 0016908020 | ADD TO CART |
| 3 | E2334002103 | EXHAUST PIPE | 1 | PARTS REQUEST | |
|
COMING EXHAUST PIPE
E2334002103 · qty on machine: 1 | |||||
| 4 | 1526312370 | GASKET | 1 | REPLACES P/N 1526312371 | ADD TO CART |
| 5 | 0207108000 | NUT, SELF-LOCKING | 4 | ADD TO CART | |
| 6 | E2334200204 | GASKET | 1 | PARTS REQUEST | |
|
COMING GASKET
E2334200204 · qty on machine: 1 | |||||
| 7 | 0012108035 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 7A | 0401450080 | FLAT WASHER | 2 | REPLACES P/N 0041208000 | ADD TO CART |
| 7B | 0040008000 | LOCK WASHER | 2 | ADD TO CART | |
| 8 | E2334802404 | BRACKET, TAIL PIPE | 1 | PARTS REQUEST | |
|
COMING BRACKET, TAIL PIPE
E2334802404 · qty on machine: 1 | |||||
| 9 | 011008020 | HEX. HEAD BOLT | 3 | REPLACES P/N 0016908020 | ADD TO CART |
| 10 | E2331300504 | COVER, EXHAUST PIPE | 1 | PARTS REQUEST | |
|
COMING COVER, EXHAUST PIPE
E2331300504 · qty on machine: 1 | |||||
| 11 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 12 | E2331300604 | COVER, EXHAUST PIPE | 1 | PARTS REQUEST | |
|
COMING COVER, EXHAUST PIPE
E2331300604 · qty on machine: 1 | |||||
| 13 | 0016906015 | HEX. HEAD BOLT | 3 | ADD TO CART | |
| 14 | E2334802604 | EXHAUST HEAT SHIELD A | 1 | PARTS REQUEST | |
|
COMING EXHAUST HEAT SHIELD A
E2334802604 · qty on machine: 1 | |||||
| 15 | Y0602326069 | U-BOLT | 1 | PARTS REQUEST | |
|
COMING U-BOLT
Y0602326069 · qty on machine: 1 | |||||

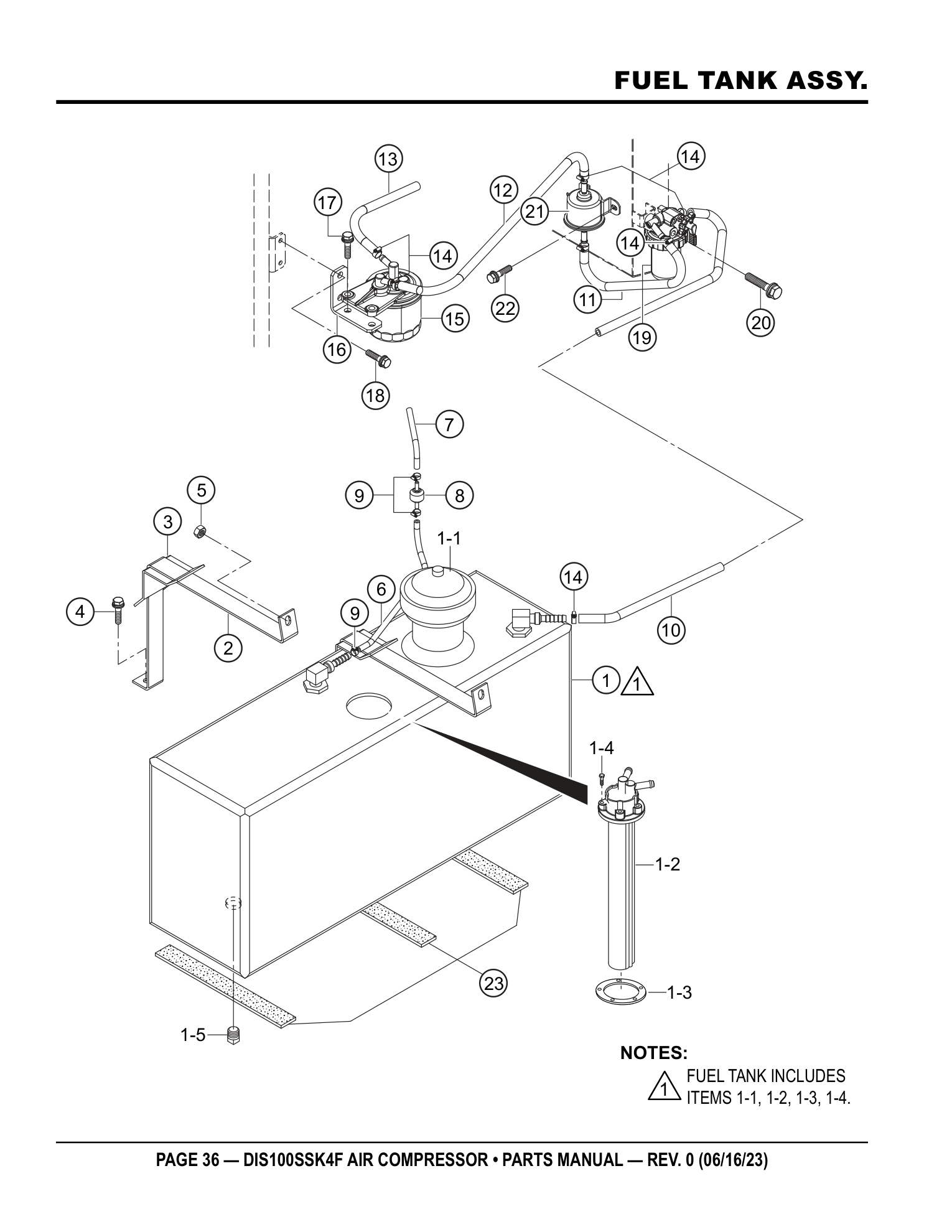

Page 36 — FUEL TANK ASSY.
Parts list — exactly as printed28 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2364001702 | FUEL TANK | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING FUEL TANK
E2364001702 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 1-1#, 1-2#, 1-3#, 1-4#, 1-5# | |||||
| 1-1# | 0605505070 | CAP, FUEL TANK | 1 | ADD TO CART | |
| 1-2# | FUEL SENDER UNIT | 1 | INCLUDED IN KIT | ||
|
COMING FUEL SENDER UNIT
· qty on machine: 1 Included in kit 1 - FUEL TANK (E2364001702) INCLUDED IN KIT
| |||||
| 1-3# | Y0605516090 | GASKET | 1 | ADD TO CART | |
| 1-4# | Y0605053020 | HEX. HEAD BOLT W/WASHER | 5 | ADD TO CART | |
| 1-5# | Y0138104000 | PLUG | 1 | PARTS REQUEST | |
|
COMING PLUG
Y0138104000 · qty on machine: 1 Also included in kit 1 - FUEL TANK (E2364001702) | |||||
| 2 | E2364300804 | FUEL TANK BRACKET | 2 | PARTS REQUEST | |
|
COMING FUEL TANK BRACKET
E2364300804 · qty on machine: 2 | |||||
| 3 | M9310500104 | SUPPORTER SHEET | 2 | ADD TO CART | |
| 4 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 5 | Y0207008000 | SELF-LOCKING NUT | 2 | ADD TO CART | |
| 6 | Y0191000500 | RETURN HOSE | 1 | ADD TO CART | |
| 7 | Y0191000100 | RETURN HOSE | 1 | PARTS REQUEST | |
|
COMING RETURN HOSE
Y0191000100 · qty on machine: 1 | |||||
| 8 | 1C01042461 | CHECK VALVE | 1 | REPLACES P/N Y0605511348 | ADD TO CART |
| 9 | Y0605515104 | HOSE BAND | 4 | ADD TO CART | |
| 10 | Y0191200690 | FUEL HOSE | 1 | PARTS REQUEST | |
|
COMING FUEL HOSE
Y0191200690 · qty on machine: 1 | |||||
| 11 | Y0191200440 | FUEL HOSE | 1 | PARTS REQUEST | |
|
COMING FUEL HOSE
Y0191200440 · qty on machine: 1 | |||||
| 12 | Y0191200900 | FUEL HOSE | 1 | PARTS REQUEST | |
|
COMING FUEL HOSE
Y0191200900 · qty on machine: 1 | |||||
| 13 | Y0191200250 | FUEL HOSE | 1 | PARTS REQUEST | |
|
COMING FUEL HOSE
Y0191200250 · qty on machine: 1 | |||||
| 14 | 0605515198 | HOSE BAND | 8 | ADD TO CART | |
| 15 | 1522443010 | FUEL FILTER (MAIN) | 1 | REPLACES P/N 1522443013 | ADD TO CART |
| 16 | E2367700804 | FILTER BRACKET | 1 | PARTS REQUEST | |
|
COMING FILTER BRACKET
E2367700804 · qty on machine: 1 | |||||
| 17 | 011208025 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908025 | ADD TO CART |
| 18 | 011008020 | HEX. HEAD BOLT | 2 | REPLACES P/N 0016908020 | ADD TO CART |
| 19 | RD81951260 | FUEL FILTER (PRE) | 1 | REPLACES P/N Y0602042256 | ADD TO CART |
| 20 | 0016908070 | HEX. HEAD BOLT | 1 | PARTS REQUEST | |
|
COMING HEX. HEAD BOLT
0016908070 · qty on machine: 1 | |||||
| 21 | Y0602023236 | FUEL FEED PUMP | 1 | ADD TO CART | |
| 22 | 0016906015 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 23 | 0222100260 | RUBBER SEAL | 3 | ADD TO CART | |

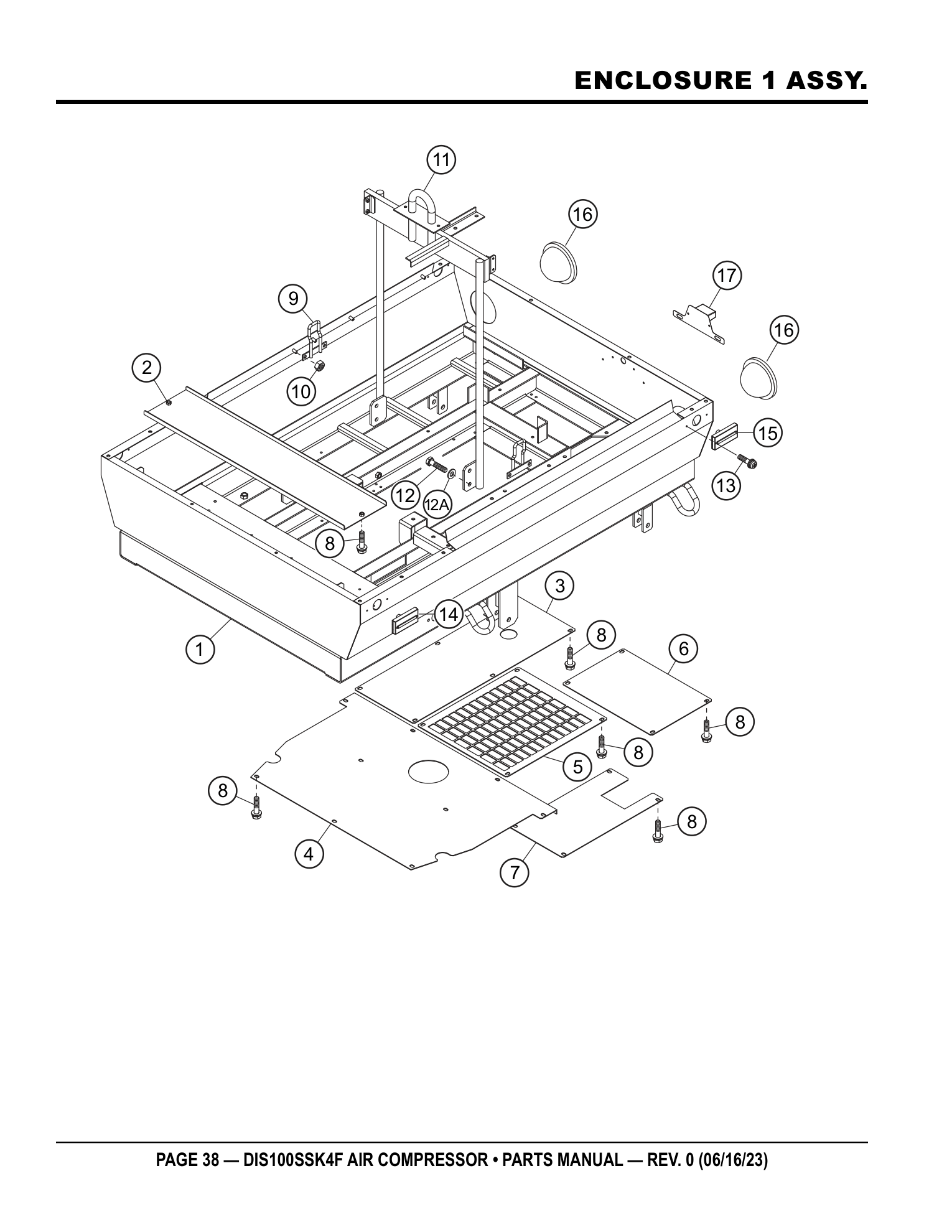

Page 38 — ENCLOSURE 1 ASSY.
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2414002703 | BASE ASSY. | 1 | ADD TO CART | |
| 2 | E2414103604 | BASE COVER | 1 | PARTS REQUEST | |
|
COMING BASE COVER
E2414103604 · qty on machine: 1 | |||||
| 3 | E2414103704 | BASE COVER | 1 | PARTS REQUEST | |
|
COMING BASE COVER
E2414103704 · qty on machine: 1 | |||||
| 4 | E2414103804 | BASE COVER | 1 | PARTS REQUEST | |
|
COMING BASE COVER
E2414103804 · qty on machine: 1 | |||||
| 5 | E2414104004 | BASE COVER | 1 | PARTS REQUEST | |
|
COMING BASE COVER
E2414104004 · qty on machine: 1 | |||||
| 6 | E2414104104 | BASE COVER | 1 | PARTS REQUEST | |
|
COMING BASE COVER
E2414104104 · qty on machine: 1 | |||||
| 7 | E2414104304 | BASE COVER | 1 | PARTS REQUEST | |
|
COMING BASE COVER
E2414104304 · qty on machine: 1 | |||||
| 8 | 0019208020 | HEX. HEAD BOLT | 29 | ADD TO CART | |
| 9 | E2457800604 | HOOK, SPLASHER PANEL | 2 | NO LONGER AVAILABLE | |
|
COMING HOOK, SPLASHER PANEL
E2457800604 · qty on machine: 2 NO LONGER AVAILABLE
| |||||
| 10 | Y0207008000 | SELF-LOCK NUT | 4 | ADD TO CART | |
| 11 | E2434302203 | CENTER FRAME | 1 | ADD TO CART | |
| 12 | 012010030 | HEX. HEAD BOLT | 4 | REPLACES P/N 0012810030 | ADD TO CART |
| 12A | Y0041210000 | FLAT WASHER | 4 | ADD TO CART | |
| 13 | Y0021104025 | MACHINE SCREW | 8 | PARTS REQUEST | |
|
COMING MACHINE SCREW
Y0021104025 · qty on machine: 8 | |||||
| 14 | EE58989 | LIGHT, RECT. SIDE MARKER, AMBER | 2 | ADD TO CART | |
| 15 | EE58990 | LIGHT, RECT. SIDE MARKER, RED | 2 | ADD TO CART | |
| 16 | 29610 | LIGHT KIT, STOP/TAIL DLT | 2 | ADD TO CART | |
| 17 | 29552 | BRACKET, LICENSE PLATE W/ LIGHT | 1 | ADD TO CART | |

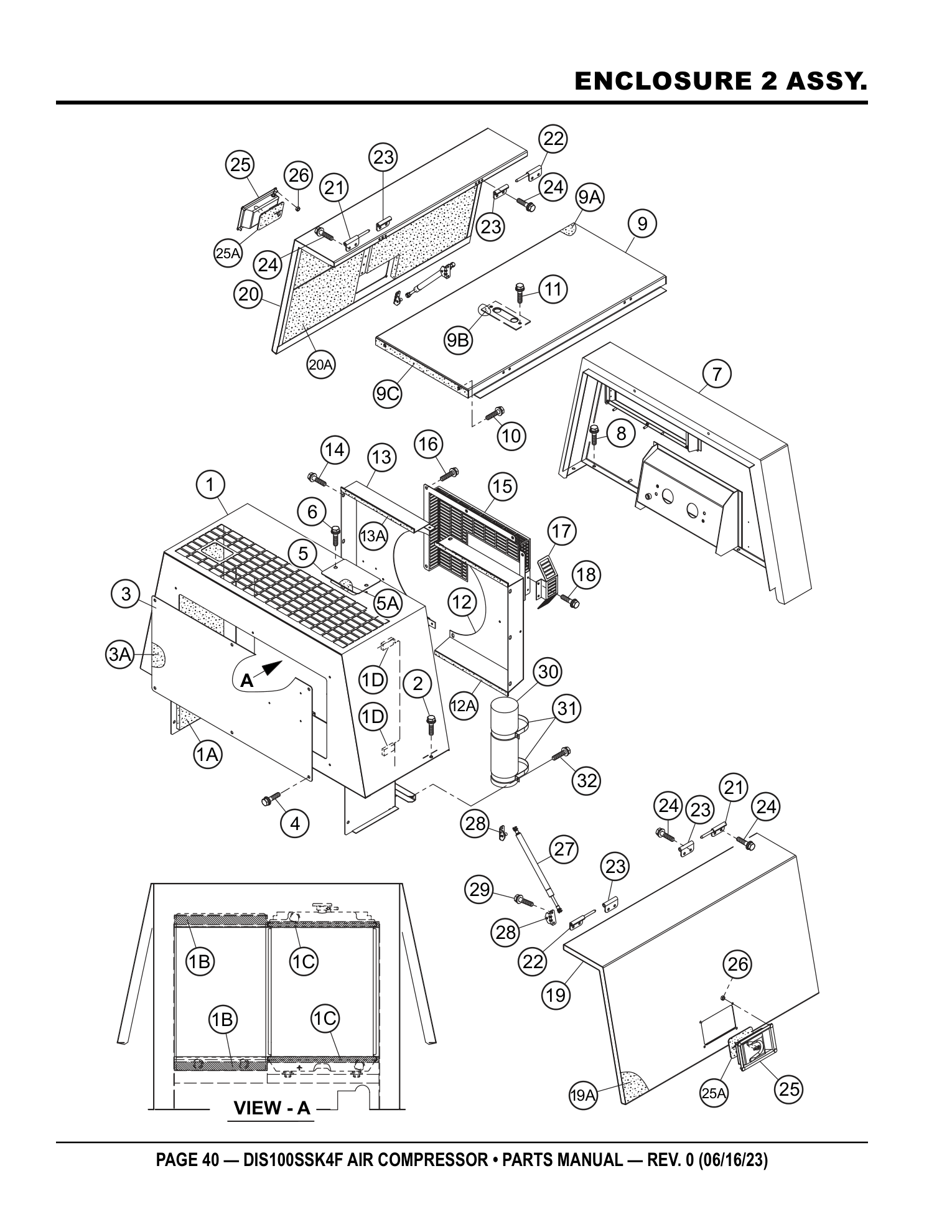

Page 40 — ENCLOSURE 2 ASSY.
Parts list — exactly as printed46 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2424002602 | FRONT FRAME | 1 | ADD TO CART | |
| 1A | E2494206304 | ACOUSTIC SHEET | 1 | PARTS REQUEST | |
|
COMING ACOUSTIC SHEET
E2494206304 · qty on machine: 1 | |||||
| 1B | Y0222100320 | SEAL RUBBER | 2 | PARTS REQUEST | |
|
COMING SEAL RUBBER
Y0222100320 · qty on machine: 2 | |||||
| 1C | Y0228800385 | SEAL RUBBER | 2 | PARTS REQUEST | |
|
COMING SEAL RUBBER
Y0228800385 · qty on machine: 2 | |||||
| 1D | E2494206504 | SEAL RUBBER | 1 | PARTS REQUEST | |
|
COMING SEAL RUBBER
E2494206504 · qty on machine: 1 | |||||
| 2 | 011008020 | HEX. HEAD BOLT | 17 | REPLACES P/N 0016908020 | ADD TO CART |
| 3 | E2424202304 | FRONT FRAME COVER | 1 | PARTS REQUEST | |
|
COMING FRONT FRAME COVER
E2424202304 · qty on machine: 1 | |||||
| 3A | E2494206404 | ACOUSTIC SHEET | 2 | PARTS REQUEST | |
|
COMING ACOUSTIC SHEET
E2494206404 · qty on machine: 2 | |||||
| 4 | 0019208020 | HEX. HEAD BOLT | 6 | ADD TO CART | |
| 5 | E2424202004 | RADIATOR CAP COVER | 1 | PARTS REQUEST | |
|
COMING RADIATOR CAP COVER
E2424202004 · qty on machine: 1 | |||||
| 5A | E2491200104 | SEAL RUBBER | 1 | PARTS REQUEST | |
|
COMING SEAL RUBBER
E2491200104 · qty on machine: 1 | |||||
| 6 | 0019208020 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 7 | E2444003002 | REAR FRAME | 1 | ADD TO CART | |
| 8 | 011008020 | HEX. HEAD BOLT | 6 | REPLACES P/N 0016908020 | ADD TO CART |
| 9 | E2464002403 | ROOF PANEL | 1 | ADD TO CART | |
| 9A | E2494603204 | ACOUSTIC SHEET | 1 | PARTS REQUEST | |
|
COMING ACOUSTIC SHEET
E2494603204 · qty on machine: 1 | |||||
| 9B | E2491600304 | SEAL RUBBER | 1 | ADD TO CART | |
| 9C | E2491600504 | SEAL RUBBER | 2 | PARTS REQUEST | |
|
COMING SEAL RUBBER
E2491600504 · qty on machine: 2 | |||||
| 10 | 011008020 | HEX. HEAD BOLT | 4 | REPLACES P/N 0016908020 | ADD TO CART |
| 11 | 0019208020 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 12 | E2311303003 | FAN SHROUD | 1 | PARTS REQUEST | |
|
COMING FAN SHROUD
E2311303003 · qty on machine: 1 | |||||
| 12A | Y0314900355 | SEAL RUBBER | 2 | PARTS REQUEST | |
|
COMING SEAL RUBBER
Y0314900355 · qty on machine: 2 | |||||
| 13 | E2311303103 | FAN SHROUD | 1 | PARTS REQUEST | |
|
COMING FAN SHROUD
E2311303103 · qty on machine: 1 | |||||
| 13A | Y0314900355 | SEAL RUBBER | 2 | PARTS REQUEST | |
|
COMING SEAL RUBBER
Y0314900355 · qty on machine: 2 | |||||
| 14 | 011008020 | HEX. HEAD BOLT | 8 | REPLACES P/N 0016908020 | ADD TO CART |
| 15 | E2311401503 | FAN GUARD | 1 | PARTS REQUEST | |
|
COMING FAN GUARD
E2311401503 · qty on machine: 1 | |||||
| 16 | 011008020 | HEX. HEAD BOLT | 7 | REPLACES P/N 0016908020 | ADD TO CART |
| 17 | E2314800404 | ALTERNATOR COVER | 1 | PARTS REQUEST | |
|
COMING ALTERNATOR COVER
E2314800404 · qty on machine: 1 | |||||
| 18 | 0016906015 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 19 | E2454004203 | SIDE DOOR | 1 | ADD TO CART | |
| 19A | E2494513304 | ACOUSTIC SHEET | 1 | PARTS REQUEST | |
|
COMING ACOUSTIC SHEET
E2494513304 · qty on machine: 1 | |||||
| 20 | E2454004303 | SIDE DOOR | 1 | ADD TO CART | |
| 20A | E2494513404 | ACOUSTIC SHEET | 1 | PARTS REQUEST | |
|
COMING ACOUSTIC SHEET
E2494513404 · qty on machine: 1 | |||||
| 21 | M9112100504 | HINGE | 2 | ADD TO CART | |
| 22 | M9112100404 | HINGE | 2 | ADD TO CART | |
| 23 | M9112100604 | HINGE | 4 | ADD TO CART | |
| 24 | 0019208020 | HEX. HEAD BOLT | 16 | ADD TO CART | |
| 25 | Y0605012309 | DOOR HANDLE ASSY. W/STUD BOLTS | 2 | ADD TO CART | |
| 25A | C9312500004 | SEAL RUBBER | 2 | ADD TO CART | |
| 26 | Y0207006000 | SELF-LOCKING NUT | 8 | ADD TO CART | |
| 27 | Y0605001032 | GAS SPRING | 2 | ADD TO CART | |
| 28 | Y0605001031 | BRACKET | 4 | ADD TO CART | |
| 29 | 0016906015 | HEX. HEAD BOLT | 8 | ADD TO CART | |
| 30 | 0600800321 | MANUAL PAK, 9000-14 | 1 | ADD TO CART | |
| 31 | M1483600804 | BOX CLAMPER, MANUAL-PAK | 2 | ADD TO CART | |
| 32 | 0016906015 | HEX. HEAD BOLT | 4 | ADD TO CART | |

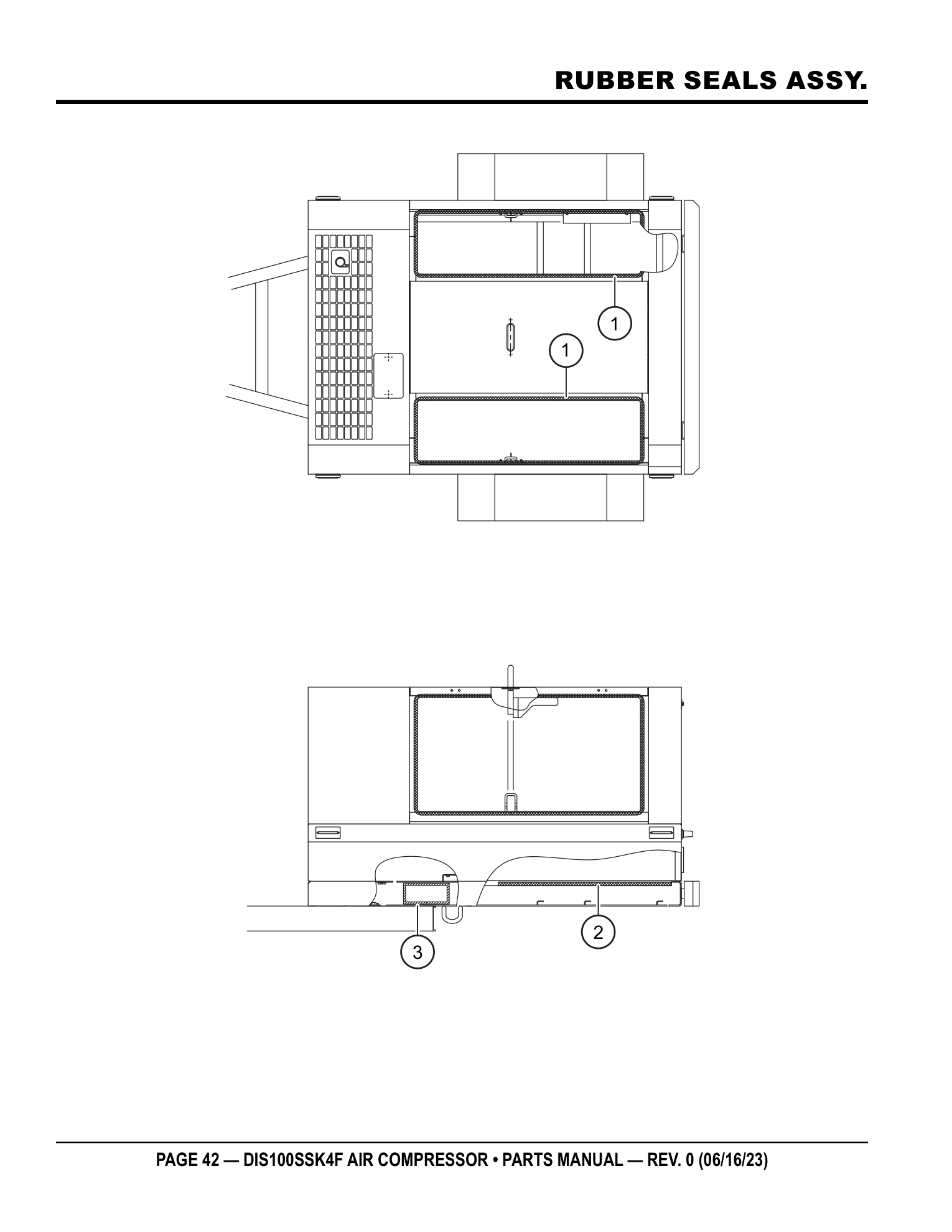

Page 42 — RUBBER SEALS ASSY.
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | Y0419003120 | RUBBER SEAL | 2 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0419003120 · qty on machine: 2 | |||||
| 2 | 0221700695 | RUBBER SEAL | 1 | ADD TO CART | |
| 3 | Y0411100470 | RUBBER SEAL | 1 | PARTS REQUEST | |
|
COMING RUBBER SEAL
Y0411100470 · qty on machine: 1 | |||||

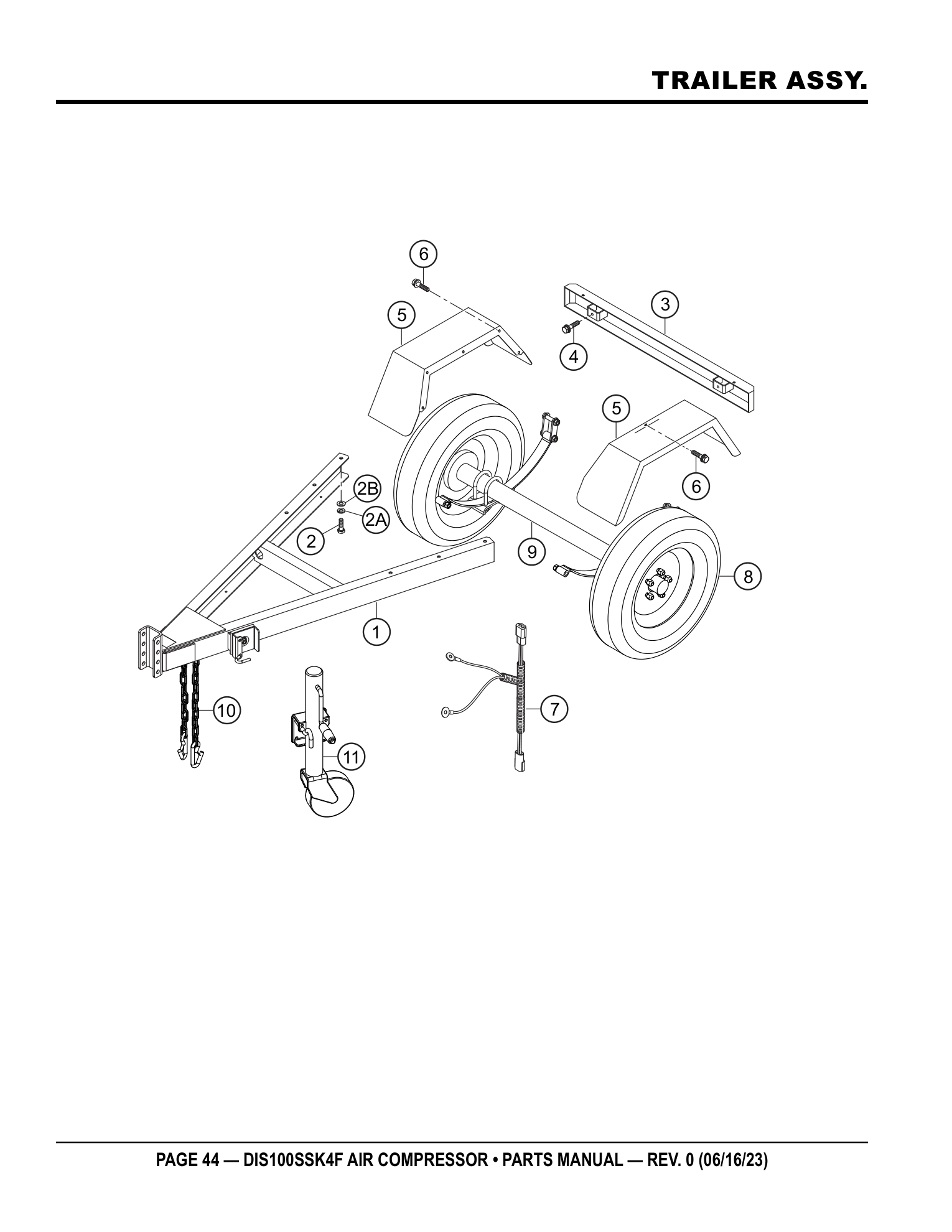

Page 44 — TRAILER ASSY.
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2417804302 | TRACTION ROD | 1 | ADD TO CART | |
| 2 | 0012312030 | HEX. HEAD BOLT | 6 | REPLACES P/N 0013612030 | ADD TO CART |
| 2A | 0040012000 | LOCK WASHER | 6 | ADD TO CART | |
| 2B | 031112230 | FLAT WASHER | 6 | REPLACES P/N 0041212000 | ADD TO CART |
| 3 | E2417804403 | REAR BUMPER | 1 | PARTS REQUEST | |
|
COMING REAR BUMPER
E2417804403 · qty on machine: 1 | |||||
| 4 | 0016910025 | HEX. HEAD BOLT | 2 | ADD TO CART | |
| 5 | E2454400503 | TIRE COVER | 2 | PARTS REQUEST | |
|
COMING TIRE COVER
E2454400503 · qty on machine: 2 | |||||
| 6 | 0019208020 | HEX. HEAD BOLT | 10 | ADD TO CART | |
| 7 | E2355203903 | TRAILER WIRE HARNESS | 1 | PARTS REQUEST | |
|
COMING TRAILER WIRE HARNESS
E2355203903 · qty on machine: 1 | |||||
| 8 | EE63287 | WHEEL ASSY., ST205/75R14 L/R C | 2 | ADD TO CART | |
| 9 | EE58462DEX | AXLE ASSY., 3.5K SPRING SUSP. | 1 | ADD TO CART | |
| 10 | 49537 | CHAIN, SAFETY TOWING 6600 LB | 2 | ADD TO CART | |
| 11 | 29496 | JACK, TRAILER RD 1K LIFT | 1 | ADD TO CART | |

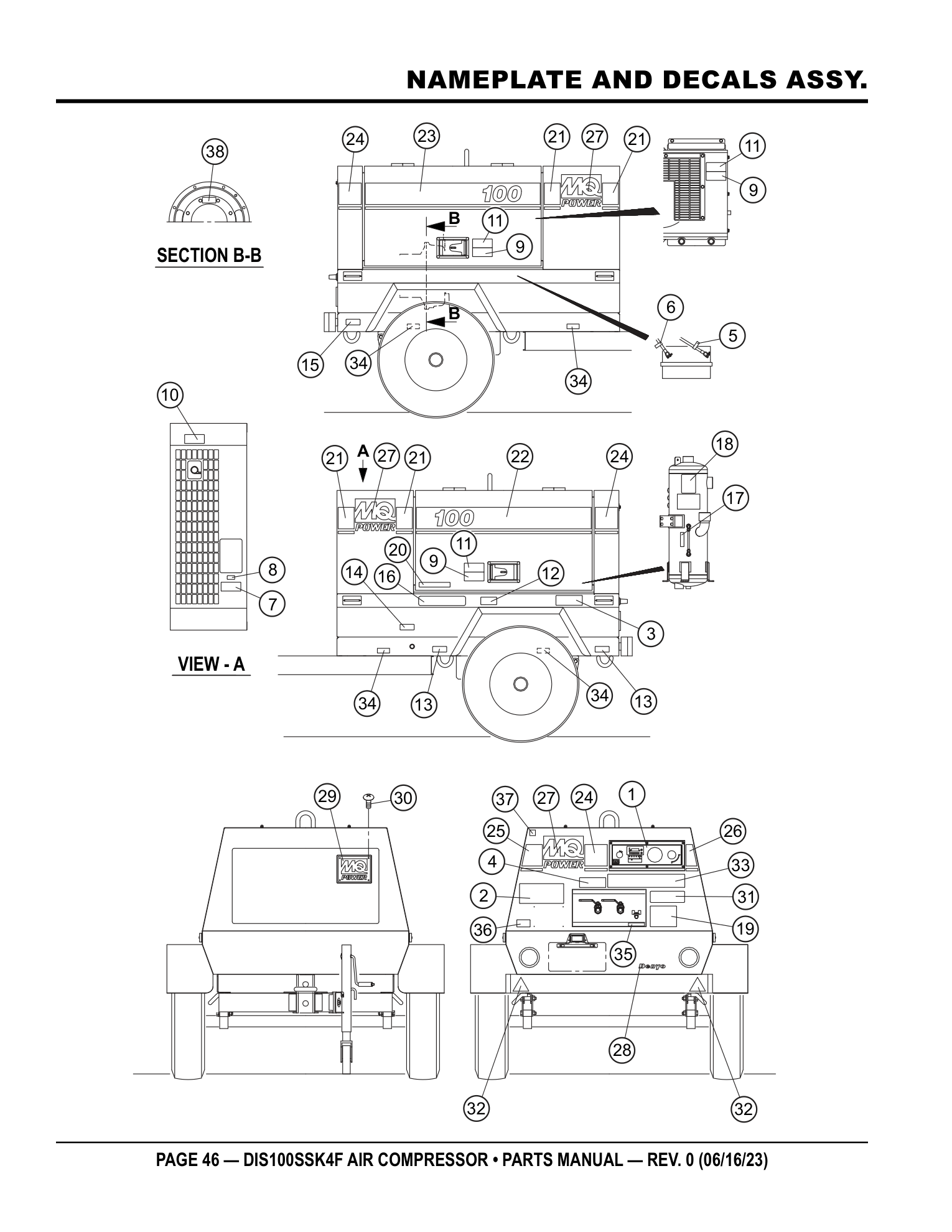

Page 46 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed38 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | E2511208303 | DECAL: OPERATING PANEL | 1 | E21120830 | PARTS REQUEST |
|
COMING DECAL: OPERATING PANEL
E2511208303 · qty on machine: 1 E21120830 | |||||
| 2 | E2551002803 | DECAL: WARNING SAFETY INSTRUCTION | 1 | E25100280 | ADD TO CART |
| 3 | E2551003004 | DECAL: WARNING HIGH PRESSURE | 1 | E25100300 | ADD TO CART |
| 4 | E2551003104 | DECAL: WARNING RESIDUAL PRESSURE | 1 | E25100310 | ADD TO CART |
| 5 | M9500300104 | DECAL: + | 1 | M90030010 | ADD TO CART |
| 6 | M9500300004 | DECAL: − | 1 | M90030000 | ADD TO CART |
| 7 | M9503100004 | DECAL: WARNING RADIATOR CAP | 1 | M90310000 | ADD TO CART |
| 8 | M9500100004 | DECAL: WATER | 1 | M90010000 | ADD TO CART |
| 9 | M9510100004 | DECAL: CAUTION HIGH TEMP | 3 | M91010000 | ADD TO CART |
| 10 | M9503200004 | DECAL: WARNING EXHAUST GAS | 1 | M90320000 | ADD TO CART |
| 11 | M9503000004 | DECAL: WARNING ROTATING PART | 3 | M90300000 | ADD TO CART |
| 12 | M9501500004 | DECAL: DIESEL FUEL | 1 | M90150000 | ADD TO CART |
| 13 | M9500000004 | DECAL: OIL DRAIN | 2 | M90000000 | ADD TO CART |
| 14 | M9500100104 | DECAL: WATER DRAIN | 1 | M90010010 | ADD TO CART |
| 15 | M9500500104 | DECAL: FUEL DRAIN | 1 | M90050010 | ADD TO CART |
| 16 | M9503000103 | DECAL: DAILY CHECK WATER AND OIL | 1 | M90300010 | ADD TO CART |
| 17 | E2531200104 | DECAL: COMP. OIL LEVEL GAUGE | 1 | E23120010 | PARTS REQUEST |
|
COMING DECAL: COMP. OIL LEVEL GAUGE
E2531200104 · qty on machine: 1 E23120010 | |||||
| 18 | E9541102104 | DECAL: DISCHARGE AIR OIL MIXED | 1 | E94110210 | ADD TO CART |
| 19 | E2531100303 | DECAL: NOISE EMISSION | 1 | E23110030 | PARTS REQUEST |
|
COMING DECAL: NOISE EMISSION
E2531100303 · qty on machine: 1 E23110030 | |||||
| 20 | M9510000104 | DECAL: DOCUMENT BOX LOCATED | 1 | M91000010 | ADD TO CART |
| 21 | E2561100904 | STRIPE | 4 | PARTS REQUEST | |
|
COMING STRIPE
E2561100904 · qty on machine: 4 | |||||
| 22 | E2561101003 | STRIPE | 1 | PARTS REQUEST | |
|
COMING STRIPE
E2561101003 · qty on machine: 1 | |||||
| 23 | E2561101103 | STRIPE | 1 | PARTS REQUEST | |
|
COMING STRIPE
E2561101103 · qty on machine: 1 | |||||
| 24 | E2561101204 | STRIPE | 3 | PARTS REQUEST | |
|
COMING STRIPE
E2561101204 · qty on machine: 3 | |||||
| 25 | E2561101304 | STRIPE | 1 | PARTS REQUEST | |
|
COMING STRIPE
E2561101304 · qty on machine: 1 | |||||
| 26 | E2561101404 | STRIPE | 1 | PARTS REQUEST | |
|
COMING STRIPE
E2561101404 · qty on machine: 1 | |||||
| 27 | E2561002904 | STICKER, MQ | 3 | ADD TO CART | |
| 28 | E9511202104 | STICKER, DENYO | 1 | ADD TO CART | |
| 29 | 0600500092 | EMBLEM | 1 | ADD TO CART | |
| 30 | 0021106015 | MACHINE SCREW | 4 | ADD TO CART | |
| 31 | M9511200103 | TIER 4F | 1 | M91120010 | ADD TO CART |
| 32 | W6140635004 | REFLECTION SHEET | 2 | PARTS REQUEST | |
|
COMING REFLECTION SHEET
W6140635004 · qty on machine: 2 | |||||
| 33 | E2551004003 | DECAL: HANDLING PROCEDURES | 1 | E25100400 | PARTS REQUEST |
|
COMING DECAL: HANDLING PROCEDURES
E2551004003 · qty on machine: 1 E25100400 | |||||
| 34 | E9511102704 | DECAL: FORK POSITION | 4 | E91110270 | ADD TO CART |
| 35 | E2551004104 | DECAL: COLD START RUN VALVE | 1 | E25100410 | PARTS REQUEST |
|
COMING DECAL: COLD START RUN VALVE
E2551004104 · qty on machine: 1 E25100410 | |||||
| 36 | M9504200104 | DECAL: WARNING PROPOSITION | 65 | 1 M90420010 | ADD TO CART |
| 37 | Y0600500094 | E-CORT MARK | 1 | ADD TO CART | |
| 38 | E9531100304 | DECAL: NEVER HAMMER | 1 | E93110030 | PARTS REQUEST |
|
COMING DECAL: NEVER HAMMER
E9531100304 · qty on machine: 1 E93110030 | |||||
The machine itself
Price by quote
Get a quote
Tell us where the machine is headed and we'll quote it with freight. One call, no games.
Machine
Engine
The Multiquip DIS100SSK4F is an air compressor built for powering pneumatic tools and equipment on the job site. It runs a Kubota D1005-E4B engine. Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
0126004005
Multiquip 0126004005 Valve Check - OEM Replacement Part for Air Compressors
$127.95
0600800321
Multiquip 0600800321 PAK DENYO Manual - OEM Replacement Part
$33.95
0602022929
Multiquip 0602022929 Joint Denyo - OEM Replacement Part
$38.95
0602046611
Multiquip 0602046611 Element A/C Denyo - OEM Replacement Part
$64.95
0602220193
Multiquip 0602220193 Battery Denyo - OEM Replacement Part
$291.95
0603301044
Multiquip 0603301044 Elbow Union 12mm - OEM Replacement Part
$203.95
0603325037
Multiquip 0603325037 Mini Ball Valve - OEM Replacement Part
$51.95
1522443010
Multiquip 1522443010 Fuel Filter Assembly V1205B - OEM Replacement Part
$142.95
1742263590
Multiquip 1742263590 Switch Assembly - OEM Replacement Part
$250.95
1746260600
Multiquip 1746260600 Emergency Unit D1703EB - OEM Replacement Part
$471.95
1C01042461
Multiquip 1C01042461 In-Line Fuel Filter GBX24BK - OEM Replacement Part
$47.95
29496
Multiquip 29496 Trailer Jack 1000 lb Lift Capacity - OEM Replacement Part
$124.95
49537
Multiquip 49537 Safety Towing Chain 6600 LB - OEM Replacement Part
$40.95
E2266200024
Multiquip E2266200024 Control Monitor (JP) - OEM Replacement Part
$441.95
E2347200804
Multiquip E2347200804 Earth Cable - OEM Replacement Part for Air Compressors
$194.95
E2414002703
Multiquip E2414002703 Base Frame (KY) - OEM Replacement Part for Air Compressors
$5,146.95
E2417804302
Multiquip E2417804302 Traction Rod - OEM Replacement Part for Air Compressors
$1,358.95
E2424002602
Multiquip E2424002602 Front Frame (KY) - OEM Replacement Part for Air Compressors
$2,418.95
E2434302203
Multiquip E2434302203 Center Frame (KY) - OEM Replacement Air Compressor Part
$1,259.95
E2444003002
Multiquip E2444003002 Rear Frame (KY) - OEM Replacement Part for Air Compressors
$1,825.95
E2454004203
Multiquip E2454004203 Side Door (KY) - OEM Replacement Part for Air Compressors
$992.95
E2454004303
Multiquip E2454004303 Side Door (KY) - OEM Replacement Part for Air Compressors
$1,006.95
E2604203204
Multiquip E2604203204 Air Hose - OEM Replacement Part
$184.95
E2604203604
Multiquip E2604203604 Oil Hose - OEM Replacement Part
$78.95
E2604203804
Multiquip E2604203804 Pipe (KY) - OEM Replacement Part for Air Compressors
$2,748.95
E2614803504
Multiquip E2614803504 Elbow (12mm) - OEM Replacement Part
$145.95
E2624200202
Multiquip E2624200202 Oil/Air Separator Filter Base - OEM Replacement Part
$988.95
E2624200302
Multiquip E2624200302 Pressure Valve (KY) - OEM Replacement Part
$1,031.95
E2624800603
Multiquip E2624800603 Bypass Thermo Valve Assembly - OEM Replacement Part
$1,421.95
E2631001104
Multiquip E2631001104 Piston - OEM Replacement Part for Air Compressors
$49.95
E2924000214
Multiquip E2924000214 Air Oil Separator - OEM Replacement Part
$281.95
E2924000224
Multiquip E2924000224 Nipple VST (JP) - OEM Replacement Part
$79.95
E2924100384
Multiquip E2924100384 Compressor Oil Thermostat - OEM Replacement Part
$191.95
EE58462DEX
Multiquip EE58462DEX Axle Spring Assembly 3500# Dexter - OEM Replacement Part
$451.95
EE63287
Multiquip EE63287 Wheel Assembly ST205/75R14 "C" 5 Lug - OEM Replacement Part
$271.95
M9112100404
Multiquip M9112100404 Hinge (White) Denyo - OEM Replacement Part
$49.95
M9510100004
Multiquip M9510100004 Hot Parts Caution Safety Decal - OEM Replacement Part
$68.95
P822769
Multiquip P822769 Air Filter Safety Element - OEM Replacement Part
$100.95
RD81951260
Multiquip RD81951260 Fuel Filter Element-Pre - Kubota OEM Replacement Part
$217.95
Y0602023236
Multiquip Y0602023236 Fuel Feed Pump - OEM Replacement Part
$439.95
Y0602046635
Multiquip Y0602046635 Safety Element - OEM Replacement Part for Air Compressors
$60.95
Y0602210090
Multiquip Y0602210090 Residual Pressure Switch - OEM Replacement Part
$133.95
Y0603300048
Multiquip Y0603300048 Half Union 32.5mm - OEM Replacement Part
$47.95
Y0603300049
Multiquip Y0603300049 Half Union - OEM Replacement Part for DIS Series Air Compressors
$150.95
Y0603301038
Multiquip Y0603301038 Elbow Union Assembly (JP) - OEM Replacement Part
$68.95
Y0603301039
Multiquip Y0603301039 Elbow Union (JP) - OEM Replacement Part
$97.95
Y0603306236
Multiquip Y0603306236 3/4" Elbow - OEM Replacement Part
$42.95
Y0603306650
Multiquip Y0603306650 T-Union (KY) - OEM Replacement Part for Air Compressors
$37.95
Y0603320048
Multiquip Y0603320048 Male Connector (KY) - OEM Replacement Part
$79.95
Y0603320059
Multiquip Y0603320059 Elbow (KY) - OEM Replacement Part
$250.95
Y0603324155
Multiquip Y0603324155 Pressure Regulator Valve - OEM Replacement Part
$561.95
Y0603325034
Multiquip Y0603325034 Ball Valve AIRCOM - OEM Replacement Part
$111.95
Y0605001032
Multiquip Y0605001032 Gas Spring (KY) - OEM Replacement Part
$193.95
Y0605012034
Multiquip Y0605012034 Flat Torque Hinge - OEM Replacement Part
$54.95
Y0605012309
Multiquip Y0605012309 Door Handle with Bolts - OEM Replacement Part
$49.95
0012108035
HEX. HEAD BOLT
$1.95
0012312030
HEX. HEAD BOLT
$6.95
0012410025
HEX. HEAD BOLT
$1.95
0013616040
HEX HEAD BOLT
$5.95
0016906015
HEX HEAD BOLT
$0.95
0016910020
HEX. HEAD BOLT
$17.95
0016910025
HEX. HEAD BOLT
$1.56
0019208020
HEX HEAD BOLT
$3.95
0021106015
MACHINE SCREW
$0.17
0021805015
MACHINE SCREW
$0.58
0027103015
MACHINE SCREW
$0.64
0030005000
SELF-LOCK NUT
$0.29
0040003000
LOCK WASHER
0040008000
LOCK WASHER
$0.63
0040010000
LOCK WASHER
$0.39
0040016000
LOCK WASHER
$4.95
0040510000
TOOTHED WASHER
$0.77
0041216000
WASHER
$1.95
011008020
HEX. HEAD BOLT
$2.68
011206020
HEX. HEAD BOLT
$0.95
011208025
HEX. HEAD BOLT
$0.41
011808015
MACHINE SCREW
$6.95
012010030
HEX HEAD BOLT
$0.95
012210020
HEX. HEAD BOLT
$0.95
0130200000
STREET ELBOW, 1/8"
$10.95
0130202000
STREET ELBOW, 1/4"
$10.95
0130404000
TEE, 3/8"
$10.95
0155600123
O-RING
$27.95
0176060030
FLANGE HEX. NUT
$2.95
0193600700
OVER FLOW HOSE
$13.95
0199100215
HOSE
$3.95
0199900350
OVER FLOW HOSE
$6.95
0199900450
DRAIN HOSE
$8.95
020108060
HEX. HEAD NUT
$0.28
0207003000
SELF-LOCK NUT
$0.21
0221700695
RUBBER SEAL
$10.95
0222100260
RUBBER SEAL
$9.95
031112230
FLAT WASHER
$0.95
0401450080
FLAT WASHER
$0.56
0600500092
EMBLEM
$21.95
0601806642
FUSE, 5A
$2.77
0601821370
RECTIFIER
$28.95
0601824525
RELAY
$25.95
0602180106
BALL JOINT
$22.95
0602220920
BATTERY BOLT SET
$5.95
0603300042
HALF UNION
$3.95
0603301032
ELBOW UNION
$14.95
0603302021
SLEEVE
$3.95
0603303010
NUT
$4.95
0603303021
NUT
$5.95
0603324283
PILOT VALVE
$25.95
0605515134
HOSE BAND
$4.95
0605515146
HOSE BAND
$10.95
0605515147
HOSE BAND
$3.95
0605515189
HOSE BAND
$1.85
0605515198
HOSE BAND
$1.71
0605515199
HOSE BAND
$2.95
0802081403D
RESERVE TANK
1526312370
GASKET
$13.95
1742263701
KEY
19-1
Y0411100260
$328.95
29552
BRACKET, LICENSE PLATE W/ LIGHT
$21.95
29610
LIGHT KIT, STOP/TAIL DLT
$17.95
505015300
SNAP PIN
$0.95
7812014003B
DRAIN JOINT
$25.95
BELLOFRAM
1
C9312500004
SEAL RUBBER
$10.95
D1005E4B
ENGINE, KUBOTA
E1924100134
UNLOADER VALVE
E2141502203
COMPRESSOR INTAKE HOSE
E2151100804
AIR END FOOT
E2154800704
COUPLING COVER
E2164500503
HOUSING
E2164600604
SPACER
E2211100604
BRACKET
E2267000104
FUSE BOX ASSY
E2304202604
ENGINE FOOT
E2311200804
RADIATOR BRACKET
E2311303003
FAN SHROUD
E2311303103
FAN SHROUD
E2311601703
RADIATOR HOSE
E2314101604
OIL COOLER BRACKET
E2331102302
MUFFLER
E2334200204
GASKET
E2334802404
BRACKET, TAIL PIPE
E2334802604
EXHAUST HEAT SHIELD A
E2344200004
BATTERY BAND
E2347200604
BATTERY CABLE
E2347200704
BATTERY CABLE
E2352101403
OPERATING PANEL
E2352101503
OPERATING PANEL BOX
E2352602703
CONTROL BOX
E2355203903
TRAILER WIRE HARNESS
E2355204002
WIRE HARNESS, ENGINE
E2355300903
CLAMPER ROD
E2355301004
CLAMPER ROD
E2364001702
FUEL TANK
E2364300804
FUEL TANK BRACKET
E2374102803
ENGINE INTAKE HOSE
E2374200604
BRACKET, AIR CLEANER
E2414103604
BASE COVER
E2414103704
BASE COVER
E2414103804
BASE COVER
E2414104004
BASE COVER
E2414104104
BASE COVER
E2414104304
BASE COVER
E2424202004
RADIATOR CAP COVER
E2454400503
TIRE COVER
E2457800604
HOOK, SPLASHER PANEL
E2484001104
SUPPORT LEG
E2487800704
BATTERY BOX
E2491200104
SEAL RUBBER
E2491600304
SEAL RUBBER
$5.95
E2491600504
SEAL RUBBER
E2494206304
ACOUSTIC SHEET
E2494206404
ACOUSTIC SHEET
E2494206504
ACOUSTIC SHEET
E2494513304
ACOUSTIC SHEET
E2494513404
ACOUSTIC SHEET
E2494603204
ACOUSTIC SHEET
E2511208303
DECAL: OPERATING PANEL
E2531100303
DECAL: NOISE EMISSION
E2531200104
DECAL: COMP. OIL LEVEL GAUGE
E2551003004
DECAL: WARNING HIGH PRESSURE
$27.95
E2551004003
DECAL: HANDLING PROCEDURES
E2551004104
DECAL: COLD START RUN VALVE
E2561002904
STICKER, MQ
$23.95
E2561100904
STRIPE
E2561101003
STRIPE
E2561101103
STRIPE
E2561101204
STRIPE
E2561101304
STRIPE
E2561101404
STRIPE
E2604204404
OIL HOSE
E2604204704
OIL HOSE
E2604204804
OIL HOSE
E2604204904
DISCHARGE HOSE
E2604205004
AIR HOSE
E2607104803
AIR MANIFOLD
E2607201403
DISCHARGE PIPE
E2610000104
ORIFICE PLUG
E2610000204
ORIFICE PLUG
E2611200404
BRACKET, PRESSURE REG. VALVE
E2614804604
SPACER
E2614804704
SPACER
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
