Multiquip FU162 High-Frequency Inverter Concrete Vibrator
The parts bench

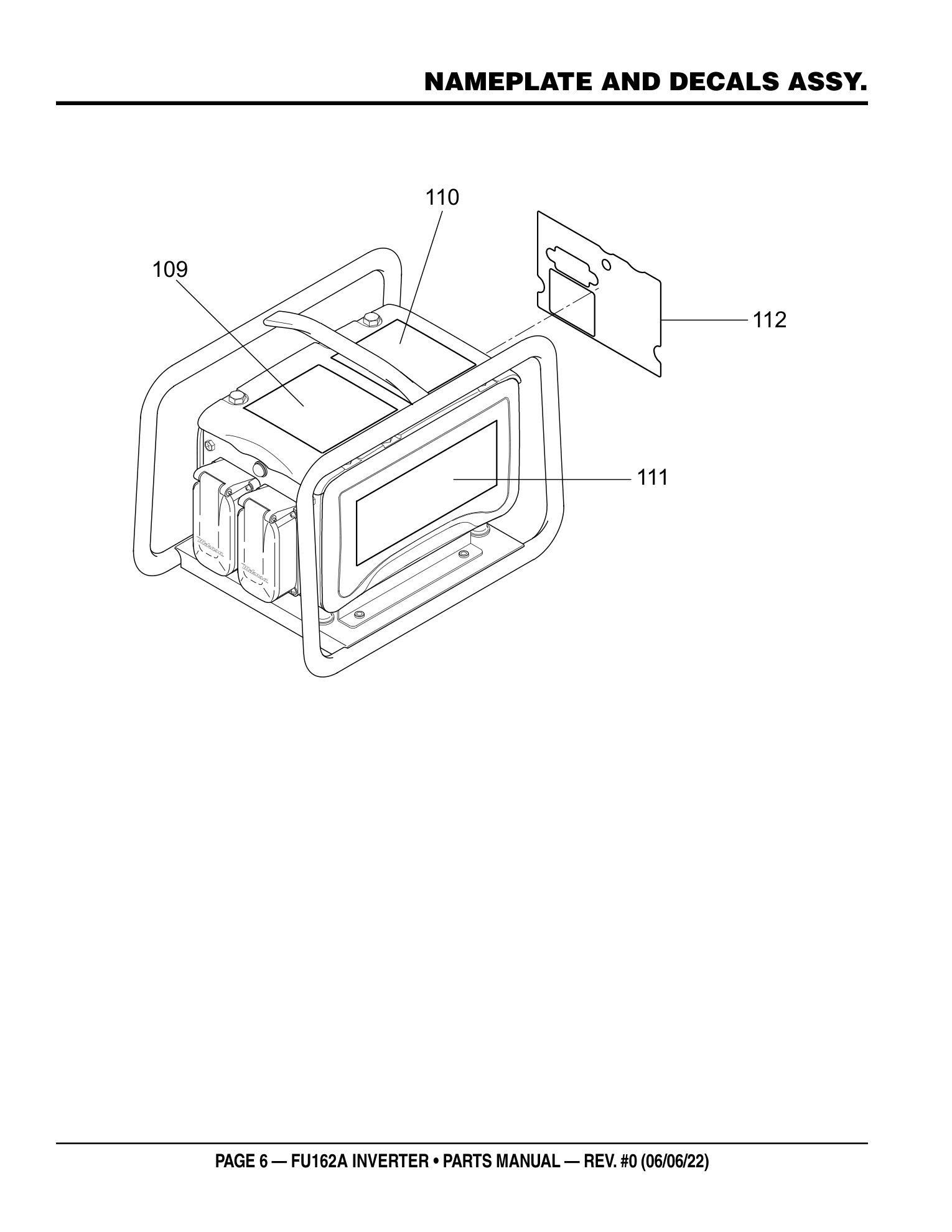

Need the PDF? ↓Page 6 — NAMEPLATE AND DECALS ASSY.
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 109 | 920223740 | DECAL: LED, EXPLAIN (EXP) | 1 | PARTS REQUEST | |
|
COMING DECAL: LED, EXPLAIN (EXP)
920223740 · qty on machine: 1 | |||||
| 110 | 920223770 | DECAL: CAUTION | 1 | PARTS REQUEST | |
|
COMING DECAL: CAUTION
920223770 · qty on machine: 1 | |||||
| 111 | 920223730 | DECAL: MODEL VOLTAGE | 2 | PARTS REQUEST | |
|
COMING DECAL: MODEL VOLTAGE
920223730 · qty on machine: 2 | |||||
| 112 | 920224850 | PLATE, SERIAL NO. | 1 | PARTS REQUEST | |
|
COMING PLATE, SERIAL NO.
920224850 · qty on machine: 1 | |||||

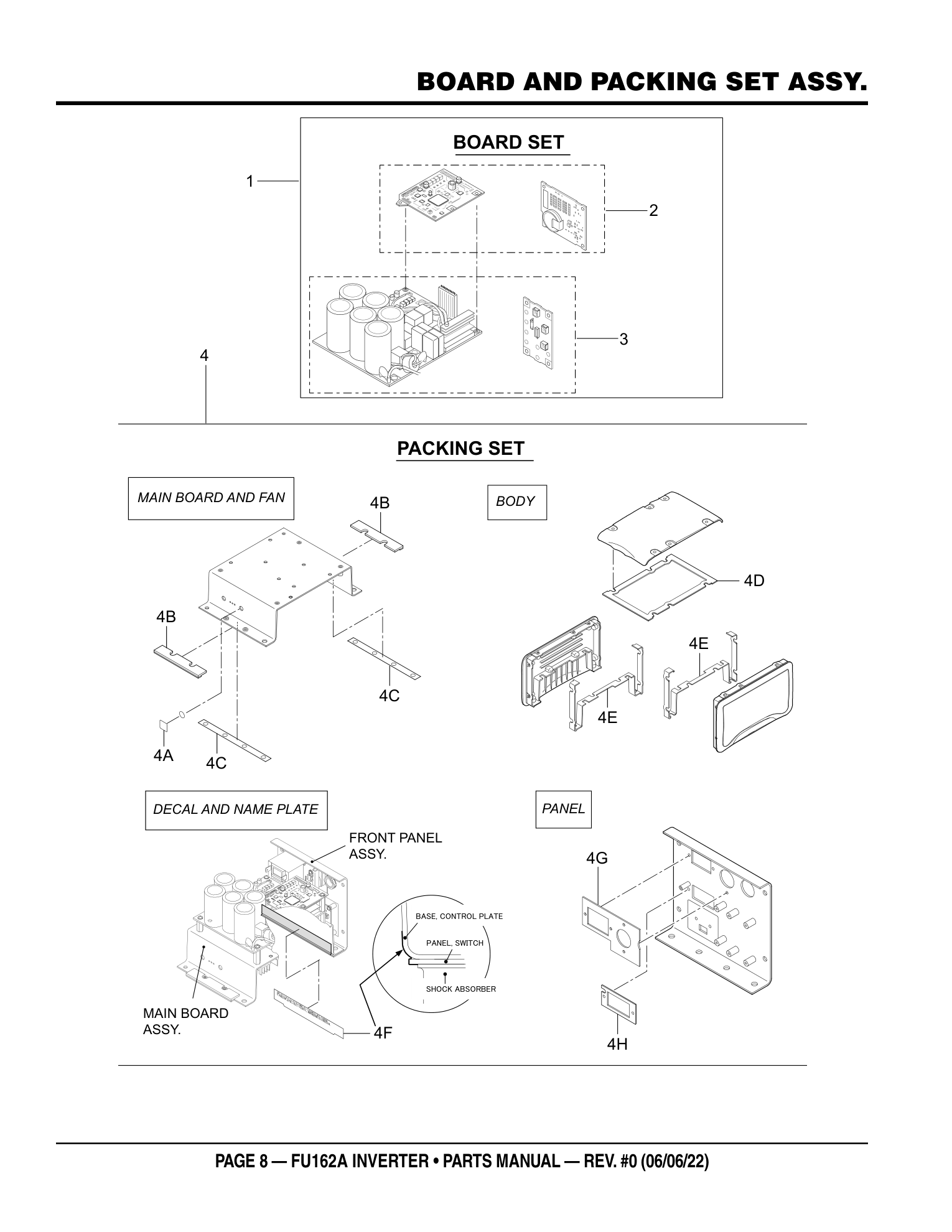

Page 8 — BOARD AND PACKING SET ASSY.
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 137930100 | BOARD SET | 1 | INCLUDES ITEMS W/$ | ADD TO CART |
 BOARD SET
137930100 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 2$, 3$ view full part page → $2381.95 IN A KIT + SOLD SOLO | |||||
| 2$ | 137930150 | MAIN AND DISPLAY, PLATE | 1 | ADD TO CART | |
| 3$ | 137930070 | DRIVE AND RELAY, PLATE | 1 | ADD TO CART | |
| 4 | 137930160 | WATER PROOF PACKING SET | 1 | INCLUDES ITEMS W/# | PARTS REQUEST |
|
COMING WATER PROOF PACKING SET
137930160 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 4A#, 4B#, 4C#, 4D#, 4E#, 4F#, 4G#, 4H# | |||||
| 4A# | MAIN BOARD AND FAN GASKET | 1 | INCLUDED IN KIT | ||
|
COMING MAIN BOARD AND FAN GASKET
· qty on machine: 1 Included in kit 4 - WATER PROOF PACKING SET (137930160) INCLUDED IN KIT
| |||||
| 4B# | MAIN BOARD AND FAN GASKET | 2 | INCLUDED IN KIT | ||
|
COMING MAIN BOARD AND FAN GASKET
· qty on machine: 2 Included in kit 4 - WATER PROOF PACKING SET (137930160) INCLUDED IN KIT
| |||||
| 4C# | MAIN BOARD AND FAN GASKET | 2 | INCLUDED IN KIT | ||
|
COMING MAIN BOARD AND FAN GASKET
· qty on machine: 2 Included in kit 4 - WATER PROOF PACKING SET (137930160) INCLUDED IN KIT
| |||||
| 4D# | BODY GASKET | 1 | INCLUDED IN KIT | ||
|
COMING BODY GASKET
· qty on machine: 1 Included in kit 4 - WATER PROOF PACKING SET (137930160) INCLUDED IN KIT
| |||||
| 4E# | BODY GASKET | 2 | INCLUDED IN KIT | ||
|
COMING BODY GASKET
· qty on machine: 2 Included in kit 4 - WATER PROOF PACKING SET (137930160) INCLUDED IN KIT
| |||||
| 4F# | DECAL AND NAME PLATE GASKET | 1 | INCLUDED IN KIT | ||
|
COMING DECAL AND NAME PLATE GASKET
· qty on machine: 1 Included in kit 4 - WATER PROOF PACKING SET (137930160) INCLUDED IN KIT
| |||||
| 4G# | PANEL GASKET | 1 | INCLUDED IN KIT | ||
|
COMING PANEL GASKET
· qty on machine: 1 Included in kit 4 - WATER PROOF PACKING SET (137930160) INCLUDED IN KIT
| |||||
| 4H# | PANEL GASKET | 1 | INCLUDED IN KIT | ||
|
COMING PANEL GASKET
· qty on machine: 1 Included in kit 4 - WATER PROOF PACKING SET (137930160) INCLUDED IN KIT
| |||||

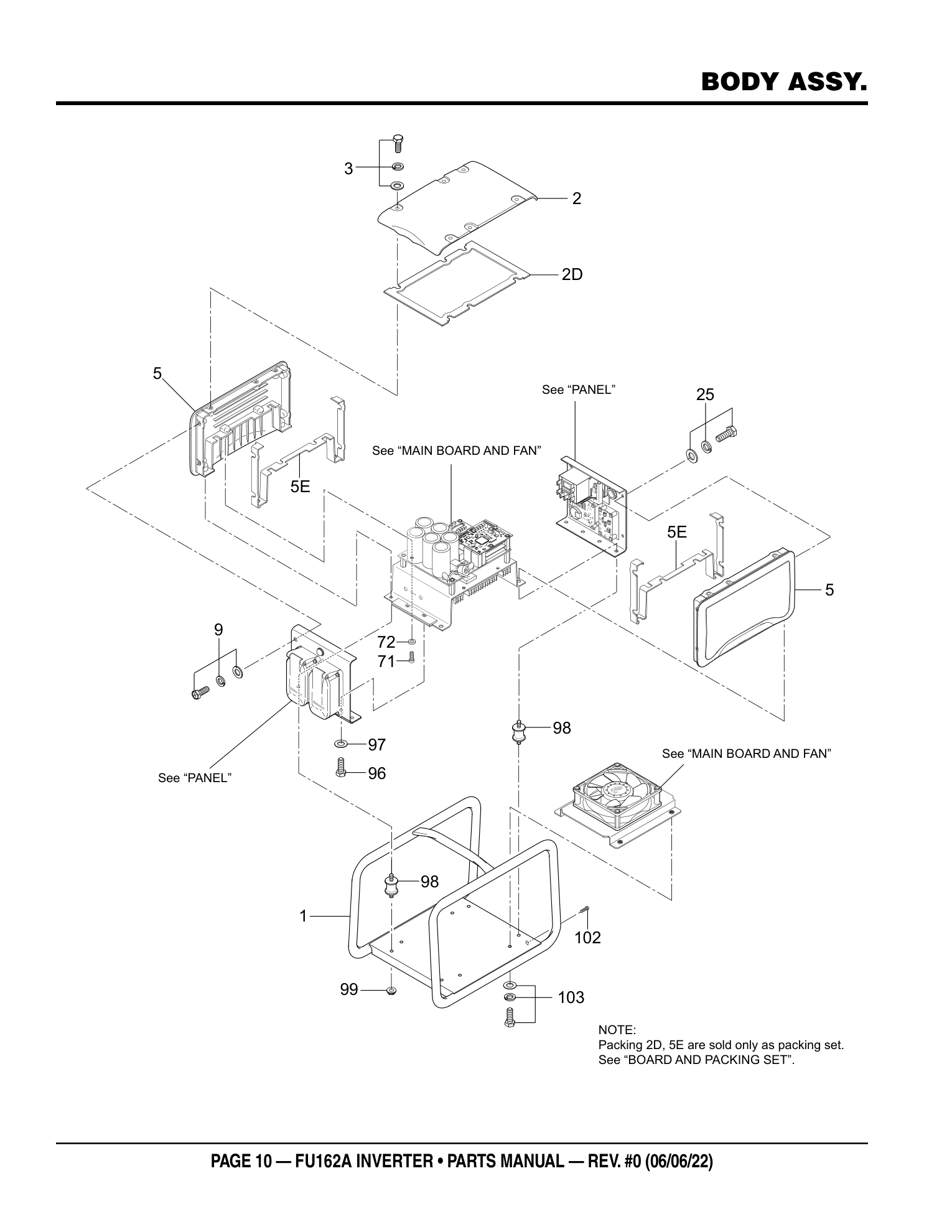

Page 10 — BODY ASSY.
Parts list — exactly as printed16 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 137118220 | FRAME | 1 | ADD TO CART | |
| 2 | 137118160 | COVER UP | 1 | ADD TO CART | |
| 2D | BODY GASKET | 1 | REFERENCE P/N 137930160 WATER PROOF PACKING SET | SEE REMARKS | |
|
COMING BODY GASKET
· qty on machine: 1 REFERENCE P/N 137930160 WATER PROOF PACKING SET SEE REMARKS
| |||||
| 3 | 002440616 | BOLT 6 X 16, W/LOCK/FLAT WASHER SUS | 6 | PARTS REQUEST | |
|
COMING BOLT 6 X 16, W/LOCK/FLAT WASHER SUS
002440616 · qty on machine: 6 | |||||
| 5 | 137118150 | COVER, REAR | 2 | PARTS REQUEST | |
|
COMING COVER, REAR
137118150 · qty on machine: 2 | |||||
| 5E | BODY GASKET | 2 | REFERENCE P/N 137930160 WATER PROOF PACKING SET | SEE REMARKS | |
|
COMING BODY GASKET
· qty on machine: 2 REFERENCE P/N 137930160 WATER PROOF PACKING SET SEE REMARKS
| |||||
| 9 | 002440512 | BOLT 5 X 12, W/LOCK/FLAT WASHER SUS | 4 | PARTS REQUEST | |
|
COMING BOLT 5 X 12, W/LOCK/FLAT WASHER SUS
002440512 · qty on machine: 4 | |||||
| 25 | 002440512 | BOLT 5 X 12, W/LOCK/FLAT WASHER SUS | 4 | PARTS REQUEST | |
|
COMING BOLT 5 X 12, W/LOCK/FLAT WASHER SUS
002440512 · qty on machine: 4 | |||||
| 71 | 001250512 | CROSS HEAD BOLT 5 X 12 SUS | 4 | PARTS REQUEST | |
|
COMING CROSS HEAD BOLT 5 X 12 SUS
001250512 · qty on machine: 4 | |||||
| 72 | 033910210 | SEAL, WASHER SM-5 | 4 | PARTS REQUEST | |
|
COMING SEAL, WASHER SM-5
033910210 · qty on machine: 4 | |||||
| 96 | 001250512 | CROSS HEAD BOLT 5 X 12 SUS | 4 | PARTS REQUEST | |
|
COMING CROSS HEAD BOLT 5 X 12 SUS
001250512 · qty on machine: 4 | |||||
| 97 | 033910210 | SEAL, WASHER SM-5 | 4 | PARTS REQUEST | |
|
COMING SEAL, WASHER SM-5
033910210 · qty on machine: 4 | |||||
| 98 | 135010750 | SHOCK ABSORBER | 4 | ADD TO CART | |
| 99 | 022610606 | NUT FLANGE M6 H | 4 | ADD TO CART | |
| 102 | 094010047 | SCREW 4 X 6, LOCK WASHER (SUS) | 1 | PARTS REQUEST | |
|
COMING SCREW 4 X 6, LOCK WASHER (SUS)
094010047 · qty on machine: 1 | |||||
| 103 | 009110050 | BOLT 5 X 10, W/LOCK/FLAT WASHER SUS | 4 | PARTS REQUEST | |
|
COMING BOLT 5 X 10, W/LOCK/FLAT WASHER SUS
009110050 · qty on machine: 4 | |||||

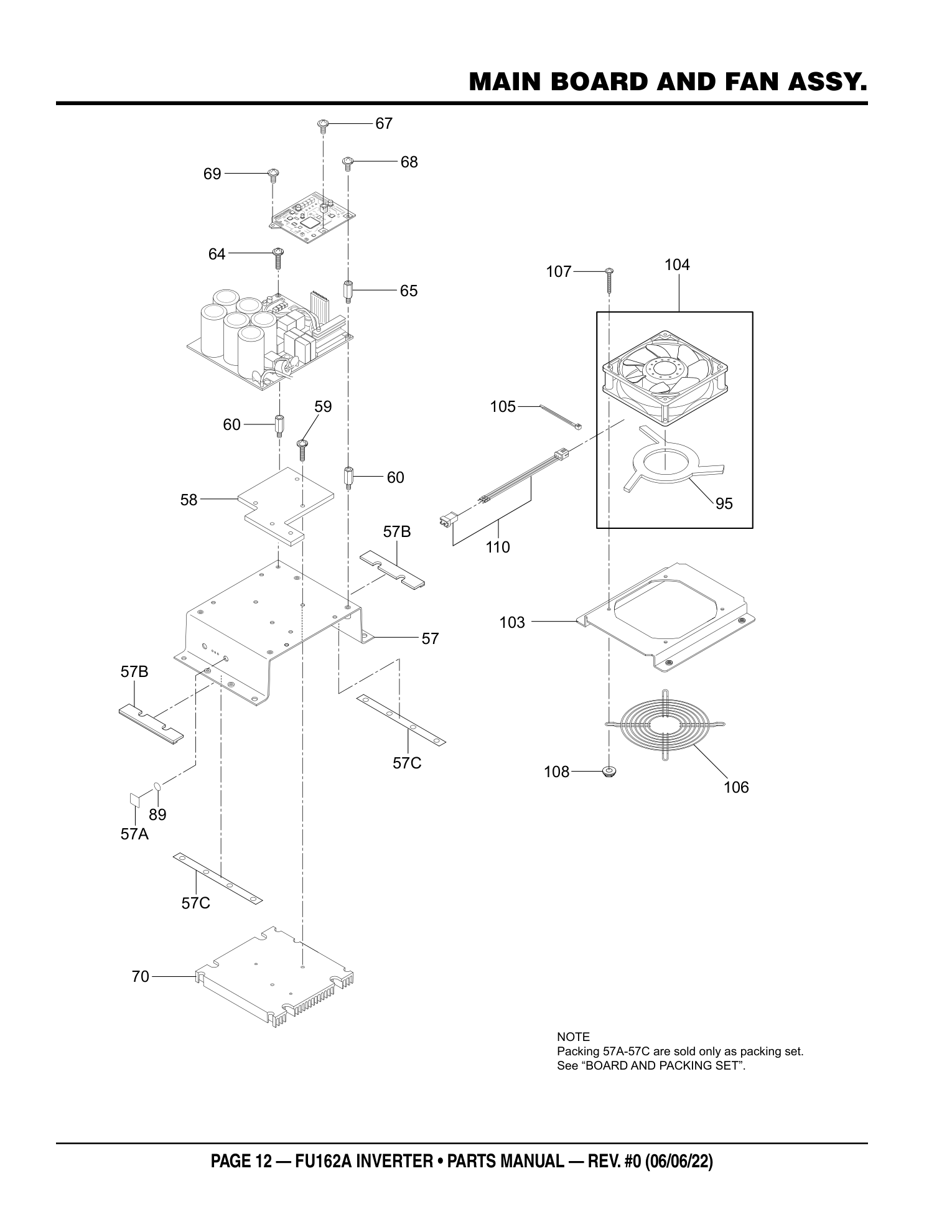

Page 12 — MAIN BOARD AND FAN ASSY.
Parts list — exactly as printed22 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 57 | 137218810 | BASE, CONTROL PLATE | 1 | PARTS REQUEST | |
|
COMING BASE, CONTROL PLATE
137218810 · qty on machine: 1 | |||||
| 57A | MAIN BOARD AND FAN GASKET | 1 | REFERENCE P/N 137930160 WATER PROOF PACKING SET | SEE REMARKS | |
|
COMING MAIN BOARD AND FAN GASKET
· qty on machine: 1 REFERENCE P/N 137930160 WATER PROOF PACKING SET SEE REMARKS
| |||||
| 57B | MAIN BOARD AND FAN GASKET | 2 | REFERENCE P/N 137930160 WATER PROOF PACKING SET | SEE REMARKS | |
|
COMING MAIN BOARD AND FAN GASKET
· qty on machine: 2 REFERENCE P/N 137930160 WATER PROOF PACKING SET SEE REMARKS
| |||||
| 57C | MAIN BOARD AND FAN GASKET | 2 | REFERENCE P/N 137930160 WATER PROOF PACKING SET | SEE REMARKS | |
|
COMING MAIN BOARD AND FAN GASKET
· qty on machine: 2 REFERENCE P/N 137930160 WATER PROOF PACKING SET SEE REMARKS
| |||||
| 58 | 137020010 | IPM SPACER | 1 | PARTS REQUEST | |
|
COMING IPM SPACER
137020010 · qty on machine: 1 | |||||
| 59 | 091605015 | SCREW 5 X 15, W/LOCK/FLAT WASHER | 2 | ADD TO CART | |
| 60 | 137020020 | METAL SPACER M4 X 20 | 4 | PARTS REQUEST | |
|
COMING METAL SPACER M4 X 20
137020020 · qty on machine: 4 | |||||
| 64 | 091604008 | SCREW 4 X 8, W/LOCK/FLAT WASHER | 3 | PARTS REQUEST | |
|
COMING SCREW 4 X 8, W/LOCK/FLAT WASHER
091604008 · qty on machine: 3 | |||||
| 65 | 137020030 | METAL SPACER M4 X 35 | 1 | PARTS REQUEST | |
|
COMING METAL SPACER M4 X 35
137020030 · qty on machine: 1 | |||||
| 67 | 091602606 | SCREW 2.6 X 6, W/LOCK/FLAT WASHER | 1 | PARTS REQUEST | |
|
COMING SCREW 2.6 X 6, W/LOCK/FLAT WASHER
091602606 · qty on machine: 1 | |||||
| 68 | 091604008 | SCREW 4 X 8, W/LOCK/FLAT WASHER | 1 | PARTS REQUEST | |
|
COMING SCREW 4 X 8, W/LOCK/FLAT WASHER
091604008 · qty on machine: 1 | |||||
| 69 | 091603006 | SCREW 3 X 6, W/LOCK/FLAT WASHER | 1 | ADD TO CART | |
| 70 | 137351670 | HEAT, SINK | 1 | PARTS REQUEST | |
|
COMING HEAT, SINK
137351670 · qty on machine: 1 | |||||
| 89 | 137010041 | MICRO-TEXTILE FABRICSX4 | 1 | PARTS REQUEST | |
|
COMING MICRO-TEXTILE FABRICSX4
137010041 · qty on machine: 1 | |||||
| 95$ | 137459210 | SPACER, COOLING FAN | 1 | PARTS REQUEST | |
|
COMING SPACER, COOLING FAN
137459210 · qty on machine: 1 Also included in kit 104 - FAN ASSY. (EXP) (137930120) | |||||
| 103 | 137218820 | FAN CONTROL, PLATE | 1 | ADD TO CART | |
| 104 | 137930120 | FAN ASSY. (EXP) | 1 | INCLUDES ITEM W/$ | ADD TO CART |
 FAN ASSY. (EXP)
137930120 · qty on machine: 1 INCLUDES ITEM W/$ Kit includes: 95$ view full part page → $170.95 IN A KIT + SOLD SOLO | |||||
| 105 | 454010020 | CLAMP | 1 | ADD TO CART | |
| 106 | 135010810 | FAN GUARD | 1 | ADD TO CART | |
| 107 | 091404050 | SCREW 4 X 50, W/LOCK/FLAT WASHER | 4 | SUS | ADD TO CART |
| 108 | 022610404 | NUT, FLANGE | 4 | ADD TO CART | |
| 110 | 137930090 | FAN CONNECTOR | 1 | ADD TO CART | |

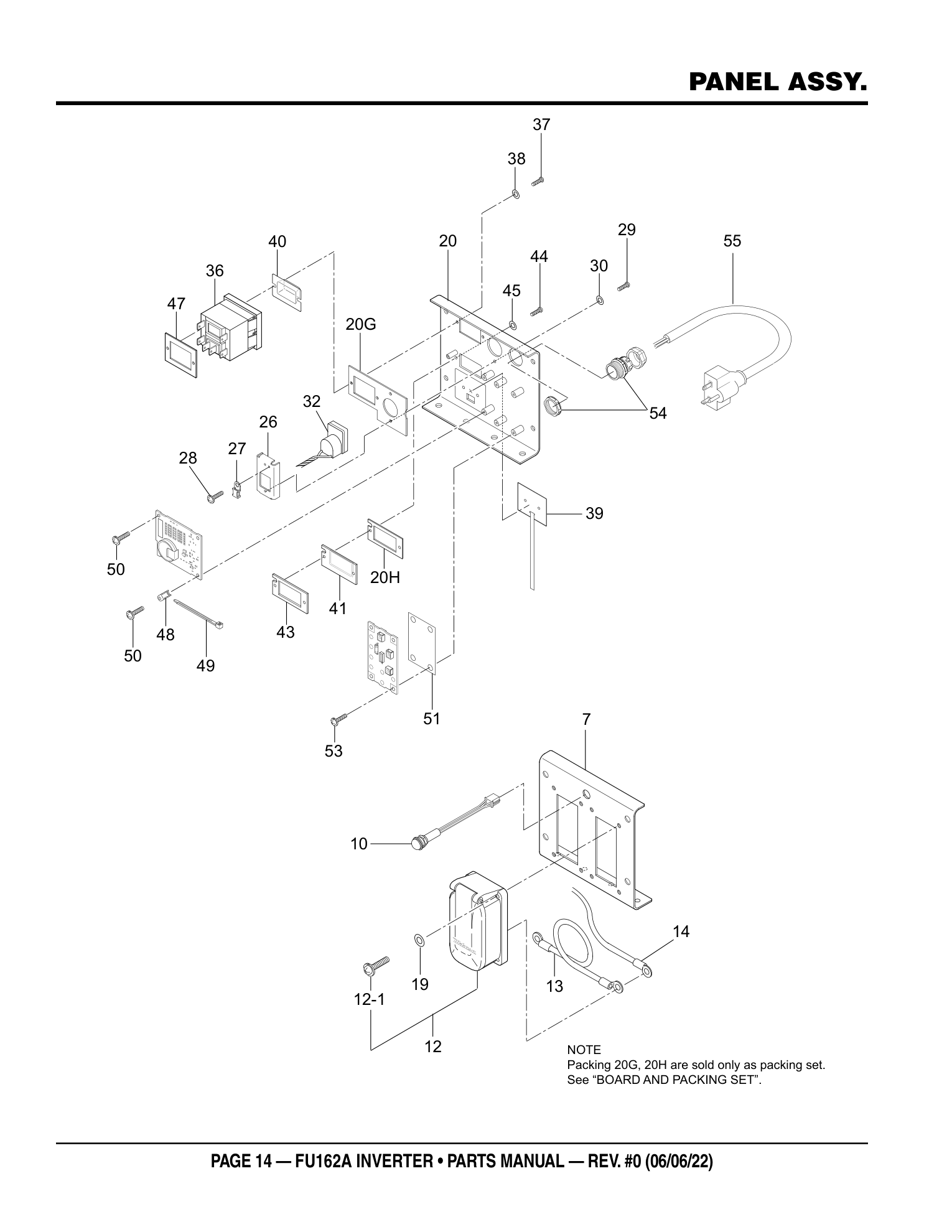

Page 14 — PANEL ASSY.
Parts list — exactly as printed33 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 7 | 137218790 | PANEL, FRONT | 1 | PARTS REQUEST | |
|
COMING PANEL, FRONT
137218790 · qty on machine: 1 | |||||
| 10 | 137930030 | PILOT LAMP ASSY. | 1 | PARTS REQUEST | |
|
COMING PILOT LAMP ASSY.
137930030 · qty on machine: 1 | |||||
| 12 | 135010122 | PLUG RECEPTACLE, GRAY | 2 | ADD TO CART | |
| 12-1 | 091404020 | SCREW 4 X 20 U | 8 | PARTS REQUEST | |
|
COMING SCREW 4 X 20 U
091404020 · qty on machine: 8 | |||||
| 13 | 137930080 | CABLE ASSY., PLUG | 1 | PARTS REQUEST | |
|
COMING CABLE ASSY., PLUG
137930080 · qty on machine: 1 | |||||
| 14 | 137930050 | CABLE ASSY., BOARD | 1 | PARTS REQUEST | |
|
COMING CABLE ASSY., BOARD
137930050 · qty on machine: 1 | |||||
| 19 | 033910200 | SEAL WASHER SM-4 | 8 | PARTS REQUEST | |
|
COMING SEAL WASHER SM-4
033910200 · qty on machine: 8 | |||||
| 20 | 137220640 | PANEL, SWITCH | 1 | PARTS REQUEST | |
|
COMING PANEL, SWITCH
137220640 · qty on machine: 1 | |||||
| 20G | PANEL GASKET | 1 | REFERENCE P/N 137930160 WATER PROOF PACKING SET | SEE REMARKS | |
|
COMING PANEL GASKET
· qty on machine: 1 REFERENCE P/N 137930160 WATER PROOF PACKING SET SEE REMARKS
| |||||
| 20H | PANEL GASKET | 1 | REFERENCE P/N 137930160 WATER PROOF PACKING SET | SEE REMARKS | |
|
COMING PANEL GASKET
· qty on machine: 1 REFERENCE P/N 137930160 WATER PROOF PACKING SET SEE REMARKS
| |||||
| 26 | 137466590 | V-METER PLATE, WATERPROOF | 1 | PARTS REQUEST | |
|
COMING V-METER PLATE, WATERPROOF
137466590 · qty on machine: 1 | |||||
| 27 | 137020040 | FIXED BASE TA1S8 | 1 | PARTS REQUEST | |
|
COMING FIXED BASE TA1S8
137020040 · qty on machine: 1 | |||||
| 28 | 091603006 | SCREW 3 X 6, W/LOCK/FLAT WASHER | 1 | ADD TO CART | |
| 29 | 091403020 | SCREW 3 X 20 SUS | 2 | PARTS REQUEST | |
|
COMING SCREW 3 X 20 SUS
091403020 · qty on machine: 2 | |||||
| 30 | 033910190 | SEAL WASHER SM-3 | 2 | PARTS REQUEST | |
|
COMING SEAL WASHER SM-3
033910190 · qty on machine: 2 | |||||
| 32 | 137930110 | VOLT-METER ASSY. | 1 | ADD TO CART | |
| 36 | 137474840 | CIRCUIT PROTECTOR | 1 | ADD TO CART | |
| 37 | 091403020 | SCREW 3 X 20 SUS | 2 | PARTS REQUEST | |
|
COMING SCREW 3 X 20 SUS
091403020 · qty on machine: 2 | |||||
| 38 | 033910190 | SEAL WASHER SM-3 | 2 | PARTS REQUEST | |
|
COMING SEAL WASHER SM-3
033910190 · qty on machine: 2 | |||||
| 39 | 137910180 | FREQUENCY SET SWITCH | 1 | ADD TO CART | |
| 40 | 137474860 | SWITCH COVER | 1 | ADD TO CART | |
| 41 | 137459380 | F. DISPLAY WINDOW | 1 | PARTS REQUEST | |
|
COMING F. DISPLAY WINDOW
137459380 · qty on machine: 1 | |||||
| 43 | 137459410 | BRACKET | 1 | PARTS REQUEST | |
|
COMING BRACKET
137459410 · qty on machine: 1 | |||||
| 44 | 091403012 | SCREW 3 X 12 SUS | 2 | PARTS REQUEST | |
|
COMING SCREW 3 X 12 SUS
091403012 · qty on machine: 2 | |||||
| 45 | 033910190 | SEAL WASHER SM-3 | 2 | PARTS REQUEST | |
|
COMING SEAL WASHER SM-3
033910190 · qty on machine: 2 | |||||
| 47 | 137474850 | BRACKET, V-METER | 1 | PARTS REQUEST | |
|
COMING BRACKET, V-METER
137474850 · qty on machine: 1 | |||||
| 48 | 137020040 | FIXED BASE TA1S8 | 1 | PARTS REQUEST | |
|
COMING FIXED BASE TA1S8
137020040 · qty on machine: 1 | |||||
| 49 | 454010020 | CLAMP | 1 | ADD TO CART | |
| 50 | 091603008 | SCREW 3 X 8, W/LOCK/FLAT WASHER | 3 | PARTS REQUEST | |
|
COMING SCREW 3 X 8, W/LOCK/FLAT WASHER
091603008 · qty on machine: 3 | |||||
| 51 | 137020050 | INSULATION SHEET | 1 | PARTS REQUEST | |
|
COMING INSULATION SHEET
137020050 · qty on machine: 1 | |||||
| 53 | 091603006 | SCREW 3 X 6, W/LOCK/FLAT WASHER | 4 | ADD TO CART | |
| 54 | 183011291 | CORD HOLDER ASSY. | 1 | ADD TO CART | |
| 55 | 137469770 | CORD WITH PLUG | 1 | ADD TO CART | |
The machine itself
Machine
Engine
The Multiquip FU162A is a concrete vibrator built for consolidating freshly poured concrete and driving trapped air out of forms, slabs, and walls. Factory-documented specs and parts support; priced by quote.
Keep-it-running spares
All listed parts →Every part that fits this machine
135010122
Multiquip 135010122 Plug Receptacle FX Gray - OEM Replacement Part
$59.95
137118160
Multiquip 137118160 Cover Up (JP) - OEM Replacement Part
$63.95
137118220
Multiquip 137118220 Frame FU-161 - OEM Replacement Part
$205.95
137218820
Multiquip 137218820 Fan Control Plate (JP) - OEM Replacement Part
$61.95
137469770
Multiquip 137469770 Cord with Plug - OEM Replacement Part
$360.95
137474840
Multiquip 137474840 Circuit Protector 162A - OEM Replacement Part
$196.95
137910180
Multiquip 137910180 Frequency Set Switch (JP) - OEM Replacement Part
$59.95
137930070
Multiquip 137930070 Drive & Relayplate - OEM Replacement Part
$1,667.95
137930090
Multiquip 137930090 Fan Connector - OEM Replacement Part
$38.95
137930100
Multiquip 137930100 Board Set - OEM Replacement Part for Concrete Vibrator Inverters
$2,381.95
137930110
Multiquip 137930110 Volt-Meter Assembly - OEM Replacement Part
$75.95
137930120
Multiquip 137930120 Fan Assembly - OEM Replacement Part
$170.95
001250512
CROSS HEAD BOLT 5 X 12 SUS
002440512
BOLT 5 X 12, W/LOCK/FLAT WASHER SUS
002440616
BOLT 6 X 16, W/LOCK/FLAT WASHER SUS
009110050
BOLT 5 X 10, W/LOCK/FLAT WASHER SUS
022610404
NUT, FLANGE
$0.77
022610606
NUT FLANGE M6 H
$0.95
033910190
SEAL WASHER SM-3
033910200
SEAL WASHER SM-4
033910210
SEAL, WASHER SM-5
091403012
SCREW 3 X 12 SUS
091403020
SCREW 3 X 20 SUS
091404020
SCREW 4 X 20 U
091404050
SCREW 4 X 50, W/LOCK/FLAT WASHER SUS
$1.95
091602606
SCREW 2.6 X 6, W/LOCK/FLAT WASHER
091603006
SCREW 3 X 6, W/LOCK/FLAT WASHER
$1.91
091603008
SCREW 3 X 8, W/LOCK/FLAT WASHER
091604008
SCREW 4 X 8, W/LOCK/FLAT WASHER
091605015
SCREW 5 X 15, W/LOCK/FLAT WASHER
$1.91
094010047
SCREW 4 X 6, LOCK WASHER (SUS)
135010750
SHOCK ABSORBER
$18.95
137010041
MICRO-TEXTILE FABRICSX4
137020010
IPM SPACER
137020020
METAL SPACER M4 X 20
137020030
METAL SPACER M4 X 35
137020040
FIXED BASE TA1S8
137020050
INSULATION SHEET
137118150
COVER, REAR
137218790
PANEL, FRONT
137218810
BASE, CONTROL PLATE
137220640
PANEL, SWITCH
137351670
HEAT, SINK
137459210
SPACER, COOLING FAN
137459380
F. DISPLAY WINDOW
137459410
BRACKET
137466590
V-METER PLATE, WATERPROOF
137474850
BRACKET, V-METER
137474860
SWITCH COVER
$13.95
137930030
PILOT LAMP ASSY.
137930050
CABLE ASSY., BOARD
137930080
CABLE ASSY., PLUG
137930160
WATER PROOF PACKING SET
183011291
CORD HOLDER ASSY.
$22.95
454010020
CLAMP
$1.40
920223730
DECAL: MODEL VOLTAGE
920223740
DECAL: LED, EXPLAIN (EXP)
920223770
DECAL: CAUTION
920224850
PLATE, SERIAL NO.
CLAMP
1
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
