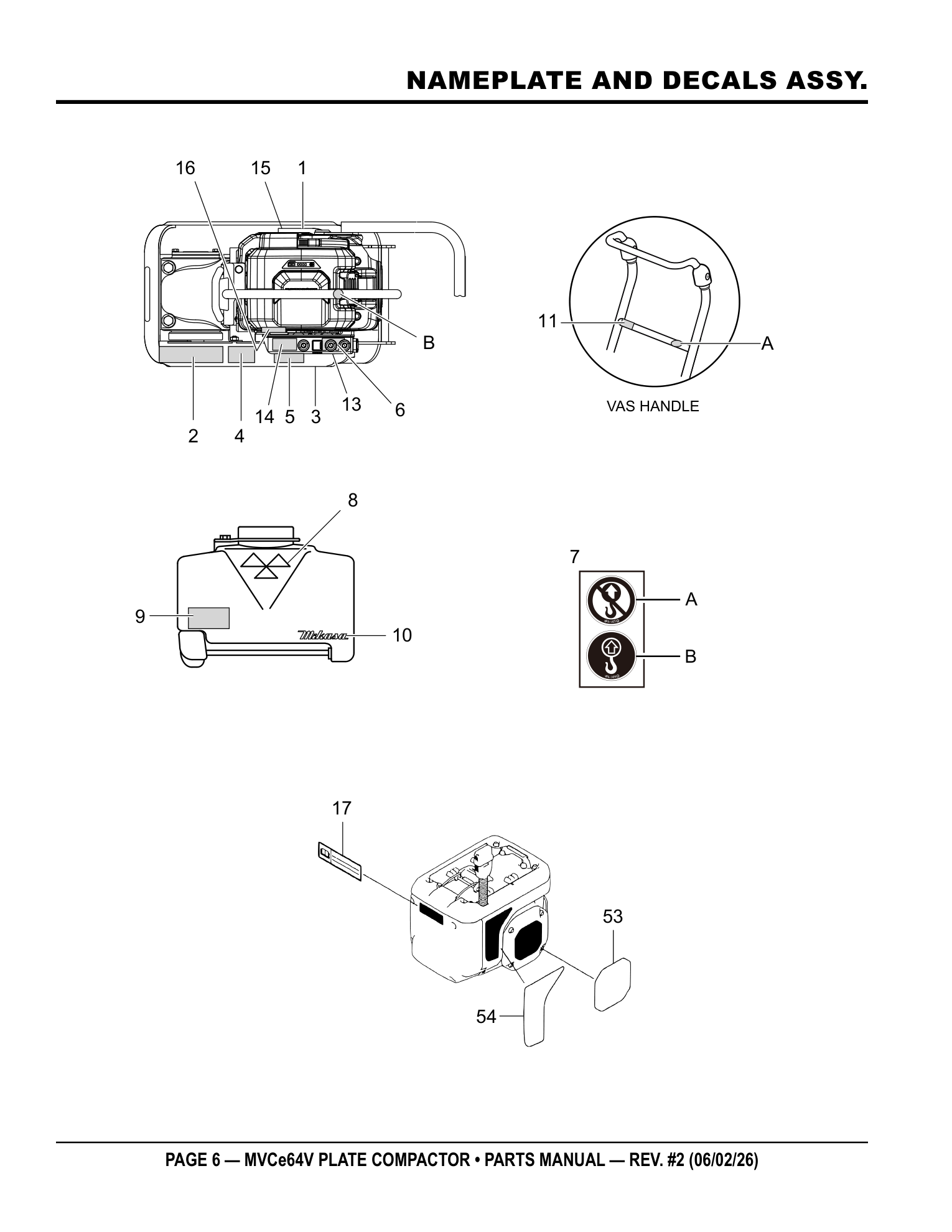

Page 6 — NAMEPLATE AND DECALS ASSY.

Multiquip MVCe64V Plate Compactor NAMEPLATE AND DECALS ASSY. parts diagram

Parts list — exactly as printed19 rows

No.	Part No.	Part Name	Qty	Remarks
1	920224570	PLATE; SERIAL NO./E64V/MQ	1	NPA-2457	PARTS REQUEST
PHOTO COMING PLATE; SERIAL NO./E64V/MQ 920224570 · qty on machine: 1 NPA-2457 PARTS REQUEST
1	920224580	PLATE; SERIAL NO./E64VW/MQ	1	NPA-2458	PARTS REQUEST
PHOTO COMING PLATE; SERIAL NO./E64VW/MQ 920224580 · qty on machine: 1 NPA-2458 PARTS REQUEST
2	920224710	DECAL; MVC-E64	1	NPA-2471	PARTS REQUEST
PHOTO COMING DECAL; MVC-E64 920224710 · qty on machine: 1 NPA-2471 PARTS REQUEST
3	920207590	DECAL; V-BELT (RPF-3310)	1	NPA-759	ADD TO CART
DECAL; V-BELT (RPF-3310) 920207590 · qty on machine: 1 NPA-759 view full part page → $2.95
4	920224350	DECAL; CAUTION /COMBI./E60	1	NPA-2435	PARTS REQUEST
PHOTO COMING DECAL; CAUTION /COMBI./E60 920224350 · qty on machine: 1 NPA-2435 PARTS REQUEST
5	920224360	DECAL; START-STOP/EGX	1	NPA-2436	PARTS REQUEST
PHOTO COMING DECAL; START-STOP/EGX 920224360 · qty on machine: 1 NPA-2436 PARTS REQUEST
6	920224390	DECAL; LED/E60	1	NPA-2439	PARTS REQUEST
PHOTO COMING DECAL; LED/E60 920224390 · qty on machine: 1 NPA-2439 PARTS REQUEST
7	920900180	DECAL; SET TWO KINDS	1	NPA-1473, 74	PARTS REQUEST
PHOTO COMING DECAL; SET TWO KINDS 920900180 · qty on machine: 1 NPA-1473, 74 PARTS REQUEST
8	920113140	DECAL; MIKASA (BLACK, 40X80)	1	NP-1314	PARTS REQUEST
PHOTO COMING DECAL; MIKASA (BLACK, 40X80) 920113140 · qty on machine: 1 NP-1314 PARTS REQUEST
9	920201580	DECAL; MQ MARK 71X55	1	NPA-158	ADD TO CART
DECAL; MQ MARK 71X55 920201580 · qty on machine: 1 NPA-158 view full part page → $3.95
10	920114000	DECAL; MIKASA (125 MM) BLACK	1	NP-1400	PARTS REQUEST
PHOTO COMING DECAL; MIKASA (125 MM) BLACK 920114000 · qty on machine: 1 NP-1400 PARTS REQUEST
11	920220740	DECAL; HANDLE ASSEMBLY/CAUTION NPA-2074	1		PARTS REQUEST
PHOTO COMING DECAL; HANDLE ASSEMBLY/CAUTION NPA-2074 920220740 · qty on machine: 1 PARTS REQUEST
13	920224690	DECAL; EARTH SMART NPA-2469	1		PARTS REQUEST
PHOTO COMING DECAL; EARTH SMART NPA-2469 920224690 · qty on machine: 1 PARTS REQUEST
14	920222240	DECAL; PROPOSITION NPA-2224	65	1	ADD TO CART
DECAL; PROPOSITION NPA-2224 920222240 · qty on machine: 65 1 view full part page → $3.95
15	920224750	DECAL; MQ, 3 YEAR WARRANTY NPA-2475	1		ADD TO CART
DECAL; MQ, 3 YEAR WARRANTY NPA-2475 920224750 · qty on machine: 1 view full part page → $5.95
16	920224760	DECAL; CAUTION RAINY AND WASH NPA-2476	1		PARTS REQUEST
PHOTO COMING DECAL; CAUTION RAINY AND WASH NPA-2476 920224760 · qty on machine: 1 PARTS REQUEST
17	875168A0620	MARK; OPER CAUTION (E) HONDA	1		PARTS REQUEST
PHOTO COMING MARK; OPER CAUTION (E) HONDA 875168A0620 · qty on machine: 1 PARTS REQUEST
53	875218A0600	MARK; EMBLEM HONDA	1		PARTS REQUEST
PHOTO COMING MARK; EMBLEM HONDA 875218A0600 · qty on machine: 1 PARTS REQUEST
54	875238A0600	MARK; ELECTRIC PW HONDA	1		PARTS REQUEST
PHOTO COMING MARK; ELECTRIC PW HONDA 875238A0600 · qty on machine: 1 PARTS REQUEST

Page 8 — BODY ASSY.

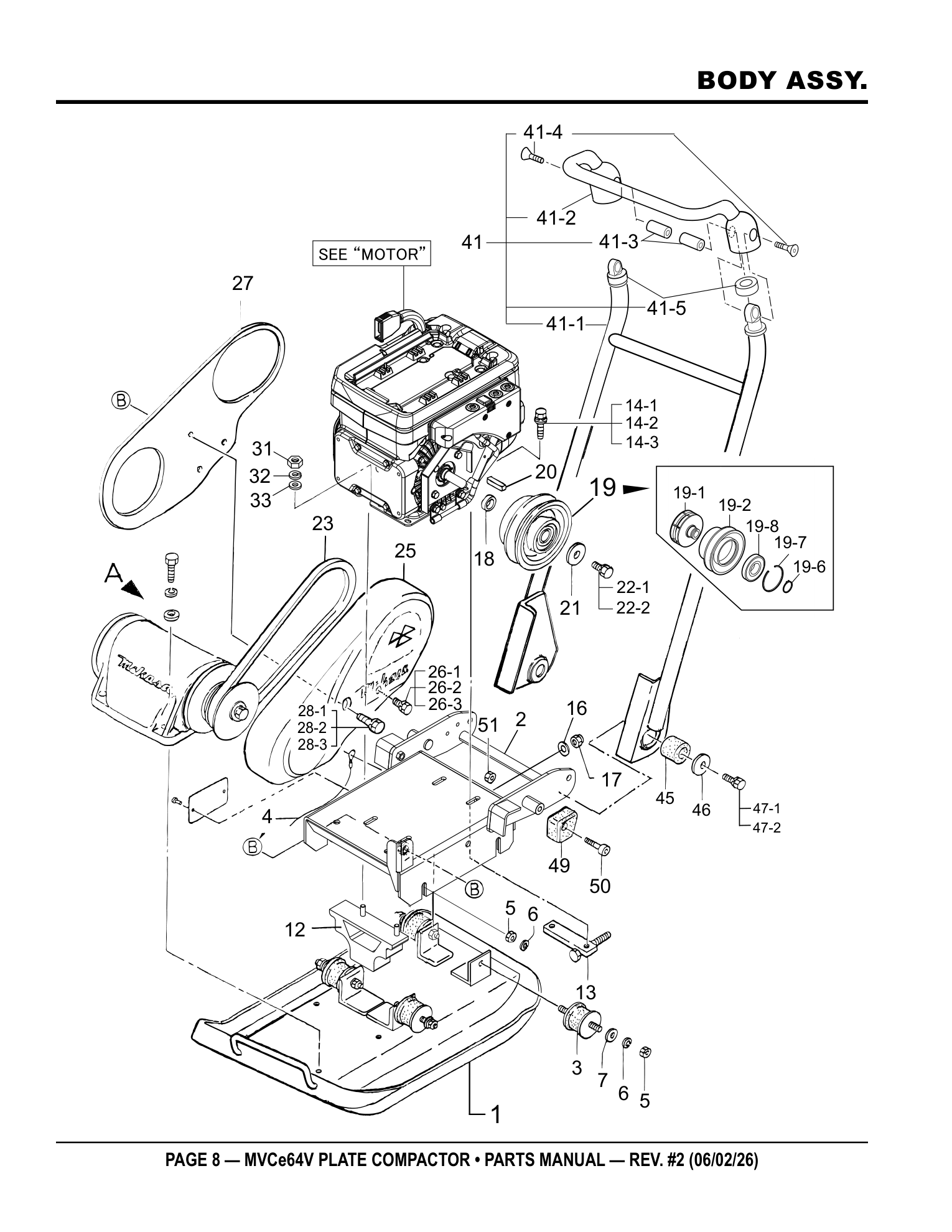

Multiquip MVCe64V Plate Compactor BODY ASSY. parts diagram

Parts list — exactly as printed37 rows

No.	Part No.	Part Name	Qty	Remarks
1	418118545OR	VIBRATORY PLATE, 570X350	1		PARTS REQUEST
PHOTO COMING VIBRATORY PLATE, 570X350 418118545OR · qty on machine: 1 PARTS REQUEST
2	421220320OR	BASE-OR	1		PARTS REQUEST
PHOTO COMING BASE-OR 421220320OR · qty on machine: 1 PARTS REQUEST
3	939010254	SHOCK ABSORBER	4	REPLACES P/N 939010400	ADD TO CART
SHOCK ABSORBER 939010254 · qty on machine: 4 REPLACES P/N 939010400 view full part page → $33.95
4	959404350	EARTH WIRE	1		ADD TO CART
EARTH WIRE 959404350 · qty on machine: 1 view full part page → $9.95
5	020310080	NUT M10	8		ADD TO CART
NUT M10 020310080 · qty on machine: 8 view full part page → $1.67
6	030210250	WASHER, LOCK M10	8		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 8 view full part page → $0.28
7	031110160	WASHER, FLAT M10	4		ADD TO CART
WASHER, FLAT M10 031110160 · qty on machine: 4 view full part page → $0.4
12	421473480	BOLT, ENGINE	1		PARTS REQUEST
PHOTO COMING BOLT, ENGINE 421473480 · qty on machine: 1 PARTS REQUEST
13	413436870	NUT, REAR ENGINE	1		ADD TO CART
NUT, REAR ENGINE 413436870 · qty on machine: 1 view full part page → $30.95
14-1	011208025	BOLT, 8X25	2	REPLACES P/N 001220825	ADD TO CART
BOLT, 8X25 011208025 · qty on machine: 2 REPLACES P/N 001220825 view full part page → $0.41
14-2	030208200	WASHER, LOCK M8	2		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 2 view full part page → $0.23
14-3	0401450080	WASHER, FLAT M8	2	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 2 REPLACES P/N 031108160 view full part page → $0.56
16	0401450080	WASHER, FLAT M8	1	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 1 REPLACES P/N 031108160 view full part page → $0.56
17	022710809	NUT, NYLON M8	1		ADD TO CART
NUT, NYLON M8 022710809 · qty on machine: 1 view full part page → $1.55
18	404418150	SPACER, CLUTCH 18X25X8	1		ADD TO CART
SPACER, CLUTCH 18X25X8 404418150 · qty on machine: 1 view full part page → $42.95
19	460446780	CLUTCH ASSEMBLY	1	INCLUDES ITEMS W/$	ADD TO CART
CLUTCH ASSEMBLY 460446780 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 19-1$, 19-2$, 19-6$, 19-7$, 19-8$ view full part page → $213.95 IN A KIT + SOLD SOLO
19-1$	943920080	CLUTCH, SHAFT	1		PARTS REQUEST
PHOTO COMING CLUTCH, SHAFT 943920080 · qty on machine: 1 Also included in kit 19 - CLUTCH ASSEMBLY (460446780) PARTS REQUEST
19-2$	941010400	CLUTCH PULLEY	1		PARTS REQUEST
PHOTO COMING CLUTCH PULLEY 941010400 · qty on machine: 1 Also included in kit 19 - CLUTCH ASSEMBLY (460446780) PARTS REQUEST
19-6$	080200300	SNAP RING	1		ADD TO CART
SNAP RING 080200300 · qty on machine: 1 Also included in kit 19 - CLUTCH ASSEMBLY (460446780) view full part page → $1.71 IN A KIT + SOLD SOLO
19-7$	080600550	CLIP	1		ADD TO CART
CLIP 080600550 · qty on machine: 1 Also included in kit 19 - CLUTCH ASSEMBLY (460446780) view full part page → $6.95 IN A KIT + SOLD SOLO
19-8$	042006006	BEARING	1	REPLACES P/N 046006006	ADD TO CART
BEARING 042006006 · qty on machine: 1 REPLACES P/N 046006006 Also included in kit 19 - CLUTCH ASSEMBLY (460446780) view full part page → $30.95 IN A KIT + SOLD SOLO
20	0320050150	KEY, 5X5X35	1	REPLACES P/N 951400100	ADD TO CART
KEY, 5X5X35 0320050150 · qty on machine: 1 REPLACES P/N 951400100 view full part page → $6.95
21	952400130	SPACER	1		ADD TO CART
SPACER 952400130 · qty on machine: 1 view full part page → $13.95
22-1	011208025	BOLT, 8X25	1	REPLACES P/N 001220825	ADD TO CART
BOLT, 8X25 011208025 · qty on machine: 1 REPLACES P/N 001220825 view full part page → $0.41
22-2	030208200	WASHER, LOCK M8	1		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 1 view full part page → $0.23
23	070100312	V-BELT RPF-3310	1		ADD TO CART
V-BELT RPF-3310 070100312 · qty on machine: 1 view full part page → $40.95
25	418216470	BELT COVER	1		ADD TO CART
BELT COVER 418216470 · qty on machine: 1 view full part page → $170.95
26-1	012210035	BOLT, 10X35	1	REPLACES P/N 001221035	ADD TO CART
BOLT, 10X35 012210035 · qty on machine: 1 REPLACES P/N 001221035 view full part page → $1.95
26-2	030210250	WASHER, LOCK M10	1		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 1 view full part page → $0.28
26-3	031110160	WASHER, FLAT M10	1		ADD TO CART
WASHER, FLAT M10 031110160 · qty on machine: 1 view full part page → $0.4
27	418216480	BELT COVER (IN)	1		ADD TO CART
BELT COVER (IN) 418216480 · qty on machine: 1 view full part page → $170.95
28-1	001221053	BOLT, 10X65	1		ADD TO CART
BOLT, 10X65 001221053 · qty on machine: 1 view full part page → $2.95
28-2	030210250	WASHER, LOCK M10	1		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 1 view full part page → $0.28
28-3	031110160	WASHER, FLAT M10	1		ADD TO CART
WASHER, FLAT M10 031110160 · qty on machine: 1 view full part page → $0.4
31	020108060	NUT M8	2	REPLACES P/N 020308060	ADD TO CART
NUT M8 020108060 · qty on machine: 2 REPLACES P/N 020308060 view full part page → $0.28
32	030208200	WASHER, LOCK M8	2		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 2 view full part page → $0.23
33	0401450080	WASHER, FLAT M8	2	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 2 REPLACES P/N 031108160 view full part page → $0.56

Page 10 — BODY ASSY. (CONT'D.)

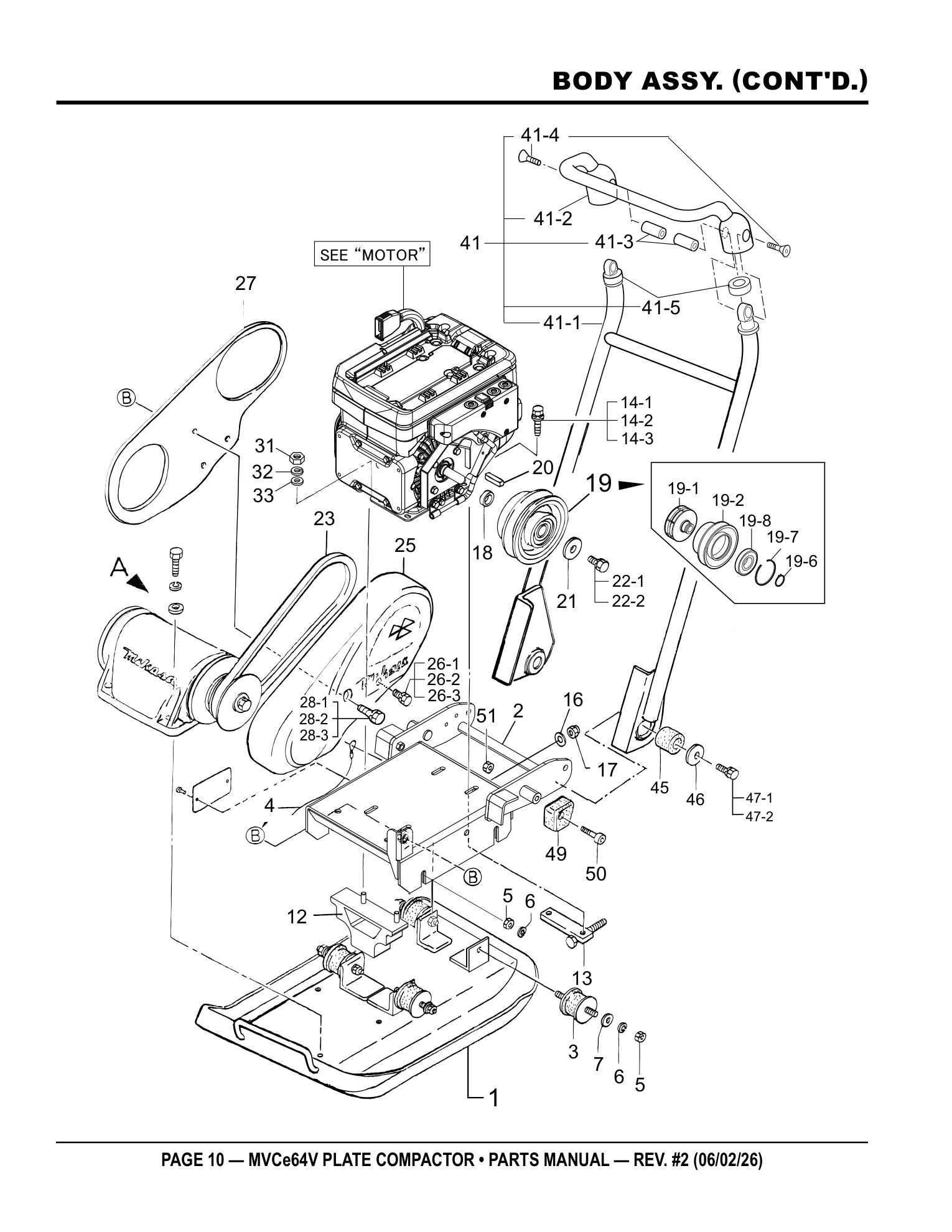

Multiquip MVCe64V Plate Compactor BODY ASSY. (CONT'D.) parts diagram

Parts list — exactly as printed13 rows

No.	Part No.	Part Name	Qty	Remarks
41	418910120	VAS HANDLE ASSEMBLY	1	INCLUDES ITEMS W/#	ADD TO CART
VAS HANDLE ASSEMBLY 418910120 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 41-1#, 41-2#, 41-3#, 41-4#, 41-5# view full part page → $298.95 IN A KIT + SOLD SOLO
41-1#	418217051	VAS HANDLE BODY	1		PARTS REQUEST
PHOTO COMING VAS HANDLE BODY 418217051 · qty on machine: 1 Also included in kit 41 - VAS HANDLE ASSEMBLY (418910120) PARTS REQUEST
41-2#	418217060	GRIP, HANDLE	1		PARTS REQUEST
PHOTO COMING GRIP, HANDLE 418217060 · qty on machine: 1 Also included in kit 41 - VAS HANDLE ASSEMBLY (418910120) PARTS REQUEST
41-3#	416459320	THREADED NUT, HANDLE	2		ADD TO CART
THREADED NUT, HANDLE 416459320 · qty on machine: 2 Also included in kit 41 - VAS HANDLE ASSEMBLY (418910120) view full part page → $15.95 IN A KIT + SOLD SOLO
41-4#	416459341	RUBBER, VAS HANDLE	2		ADD TO CART
RUBBER, VAS HANDLE 416459341 · qty on machine: 2 Also included in kit 41 - VAS HANDLE ASSEMBLY (418910120) view full part page → $2.61 IN A KIT + SOLD SOLO
41-5#	009120407	BOLT, SUNK HEAD 10X20	2		ADD TO CART
BOLT, SUNK HEAD 10X20 009120407 · qty on machine: 2 Also included in kit 41 - VAS HANDLE ASSEMBLY (418910120) view full part page → $1.95 IN A KIT + SOLD SOLO
45	404433430	RUBBER, 20X32X28.5	2		ADD TO CART
RUBBER, 20X32X28.5 404433430 · qty on machine: 2 view full part page → $13.95
46	952403450	WASHER, 11X35X4.5	2		ADD TO CART
WASHER, 11X35X4.5 952403450 · qty on machine: 2 view full part page → $6.95
47-1	012210020	BOLT, 10X20	2	REPLACES P/N 001221020	ADD TO CART
BOLT, 10X20 012210020 · qty on machine: 2 REPLACES P/N 001221020 view full part page → $0.95
47-2	030210250	WASHER, LOCK M10	2		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 2 view full part page → $0.28
49	413436720	HANDLE, RUBBER	2		ADD TO CART
HANDLE, RUBBER 413436720 · qty on machine: 2 view full part page → $8.95
50	009110052	SOCKET HEAD BOLT, 8X45	2		PARTS REQUEST
PHOTO COMING SOCKET HEAD BOLT, 8X45 009110052 · qty on machine: 2 PARTS REQUEST
51	020108060	NUT, M8	2	REPLACES P/N 020308060	ADD TO CART
NUT, M8 020108060 · qty on machine: 2 REPLACES P/N 020308060 view full part page → $0.28

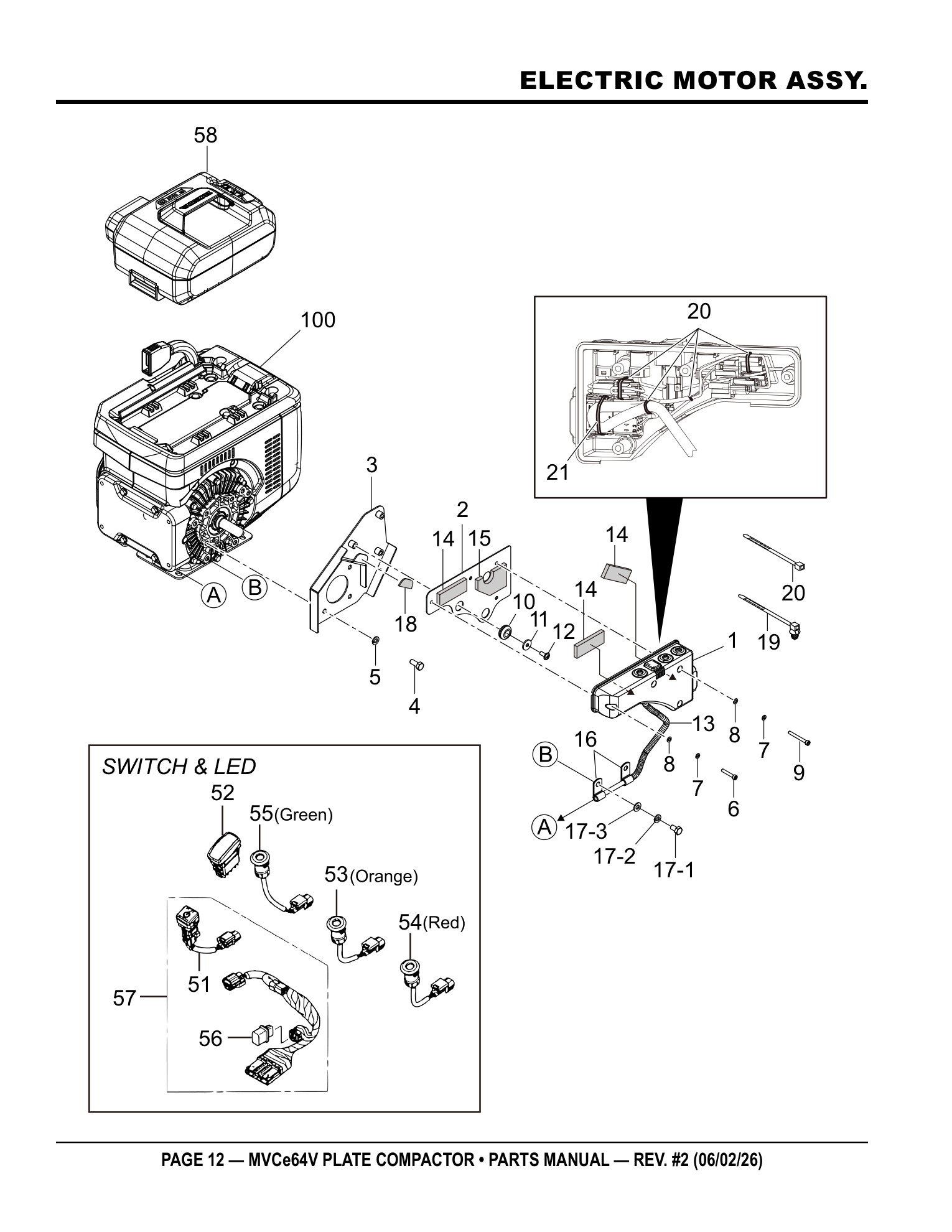

Page 12 — ELECTRIC MOTOR ASSY.

Multiquip MVCe64V Plate Compactor ELECTRIC MOTOR ASSY. parts diagram

Parts list — exactly as printed32 rows

No.	Part No.	Part Name	Qty	Remarks
1	421220330	SWITCH BOX	1		PARTS REQUEST
PHOTO COMING SWITCH BOX 421220330 · qty on machine: 1 PARTS REQUEST
2	421357130	SWITCH BOX PANEL	1		PARTS REQUEST
PHOTO COMING SWITCH BOX PANEL 421357130 · qty on machine: 1 PARTS REQUEST
3	421357140	SWITCH BOX HOLDER	1		PARTS REQUEST
PHOTO COMING SWITCH BOX HOLDER 421357140 · qty on machine: 1 PARTS REQUEST
4	001220820	HEX HEAD BOLT, 8X20	4		ADD TO CART
HEX HEAD BOLT, 8X20 001220820 · qty on machine: 4 view full part page → $1.49
5	030208200	WASHER, LOCK M8	4		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 4 view full part page → $0.23
6	001520530	SOCKET HEAD BOLT, 5X30	1		ADD TO CART
SOCKET HEAD BOLT, 5X30 001520530 · qty on machine: 1 view full part page → $0.77
7	030205130	WASHER, LOCK M5	4		ADD TO CART
WASHER, LOCK M5 030205130 · qty on machine: 4 view full part page → $0.26
8	58151	WASHER, FLAT M5	4	REPLACES P/N 031105080	ADD TO CART
WASHER, FLAT M5 58151 · qty on machine: 4 REPLACES P/N 031105080 view full part page → $0.41
9	001520545	SOCKET HEAD BOLT, 5X45	3		PARTS REQUEST
PHOTO COMING SOCKET HEAD BOLT, 5X45 001520545 · qty on machine: 3 PARTS REQUEST
10	421473460	GROMMET	3		PARTS REQUEST
PHOTO COMING GROMMET 421473460 · qty on machine: 3 PARTS REQUEST
11	952410670	WASHER, 6.5X20X2.3	3		PARTS REQUEST
PHOTO COMING WASHER, 6.5X20X2.3 952410670 · qty on machine: 3 PARTS REQUEST
12	009110117	SOCKET HEAD SCREW, 6X15	3		PARTS REQUEST
PHOTO COMING SOCKET HEAD SCREW, 6X15 009110117 · qty on machine: 3 PARTS REQUEST
13	952410680	CORRUGATE TUBE, 10MM-250L	1		PARTS REQUEST
PHOTO COMING CORRUGATE TUBE, 10MM-250L 952410680 · qty on machine: 1 PARTS REQUEST
14	421473430	CUSHION, 30X80	3		PARTS REQUEST
PHOTO COMING CUSHION, 30X80 421473430 · qty on machine: 3 PARTS REQUEST
15	421473440	CUSHION, 55X85	1		PARTS REQUEST
PHOTO COMING CUSHION, 55X85 421473440 · qty on machine: 1 PARTS REQUEST
16	959408920	CLIP 8 (M8)	2		PARTS REQUEST
PHOTO COMING CLIP 8 (M8) 959408920 · qty on machine: 2 PARTS REQUEST
17-1	011008015	BOLT, 8X15	2	REPLACES P/N 001220815	ADD TO CART
BOLT, 8X15 011008015 · qty on machine: 2 REPLACES P/N 001220815 view full part page → $0.85
17-2	030208200	WASHER, LOCK M8	2		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 2 view full part page → $0.23
17-3	0401450080	WASHER, FLAT M8	2	REPLACES P/N 031108160	ADD TO CART
WASHER, FLAT M8 0401450080 · qty on machine: 2 REPLACES P/N 031108160 view full part page → $0.56
18	421473450	CUSHION (WASHER, LOCK-BOX HOLDER)	1		PARTS REQUEST
PHOTO COMING CUSHION (WASHER, LOCK-BOX HOLDER) 421473450 · qty on machine: 1 PARTS REQUEST
19	421010010	FIR TREE TIE	1		ADD TO CART
FIR TREE TIE 421010010 · qty on machine: 1 view full part page → $4.95
20	454010020	CLAMP, TC-100	8		ADD TO CART
CLAMP, TC-100 454010020 · qty on machine: 8 view full part page → $1.4
21	507010110A	CLAMP, TC-200	1	REPLACES P/N 507010110	ADD TO CART
CLAMP, TC-200 507010110A · qty on machine: 1 REPLACES P/N 507010110 view full part page → $0.76

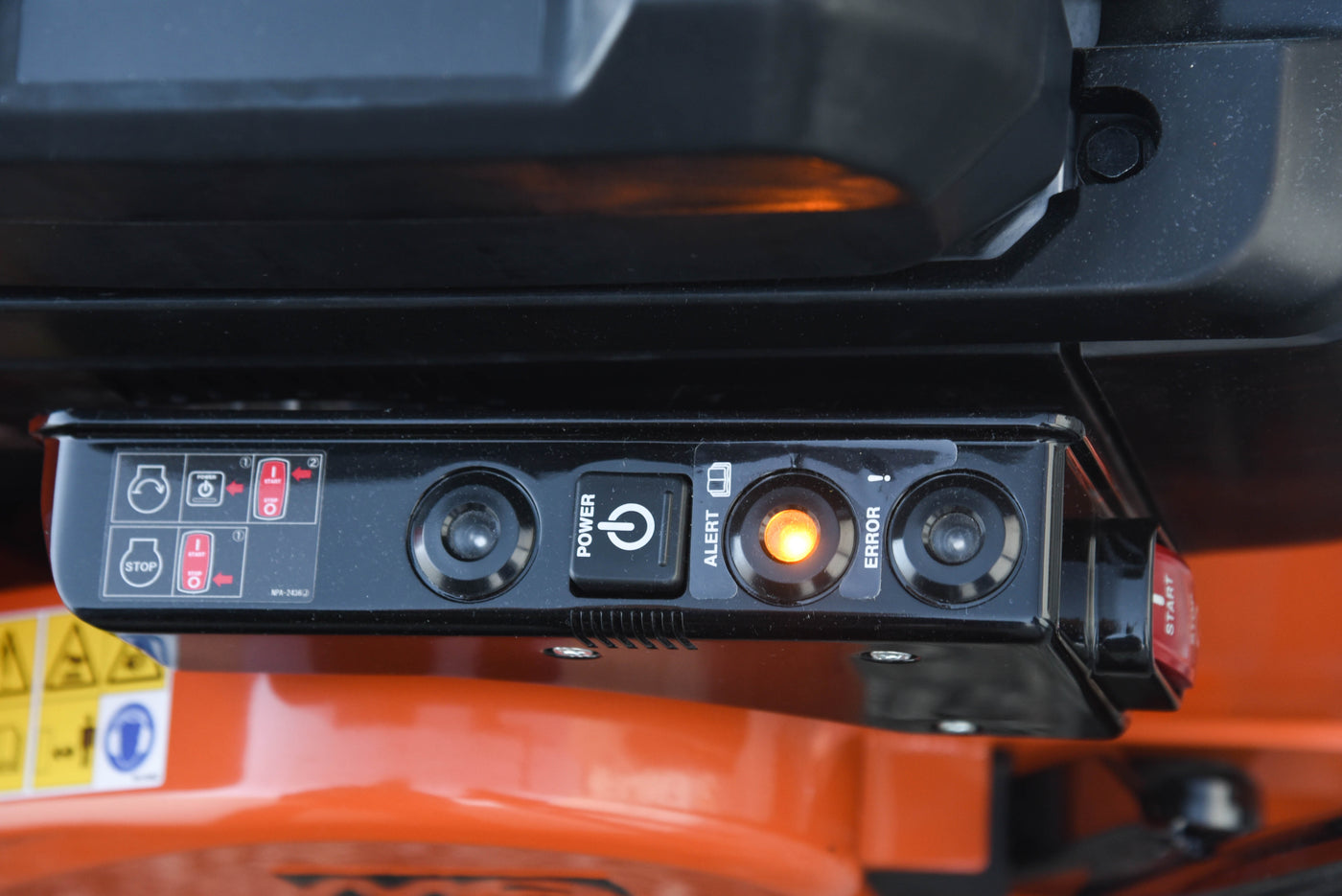

51$	1N3118A0003	SWITCH ASSEMBLY, POWER	1		PARTS REQUEST
PHOTO COMING SWITCH ASSEMBLY, POWER 1N3118A0003 · qty on machine: 1 Also included in kit 57 - CORD, PC F (321358A0PA0) PARTS REQUEST
52	1N3308A0003	SWITCH ASSEMBLY, START	1		ADD TO CART
SWITCH ASSEMBLY, START 1N3308A0003 · qty on machine: 1 view full part page → $149.95
53	1N4218A0003	LAMP ASSEMBLY, IND (ORANGE)	1		PARTS REQUEST
PHOTO COMING LAMP ASSEMBLY, IND (ORANGE) 1N4218A0003 · qty on machine: 1 PARTS REQUEST
54	1N4228A0003	LAMP ASSEMBLY, IND (RED)	1		PARTS REQUEST
PHOTO COMING LAMP ASSEMBLY, IND (RED) 1N4228A0003 · qty on machine: 1 PARTS REQUEST
55	1N4238A0003	LAMP ASSEMBLY, IND (GREEN)	1		PARTS REQUEST
PHOTO COMING LAMP ASSEMBLY, IND (GREEN) 1N4238A0003 · qty on machine: 1 PARTS REQUEST
56$	32107ZVL003	TERMINATOR ASSEMBLY	1		PARTS REQUEST
PHOTO COMING TERMINATOR ASSEMBLY 32107ZVL003 · qty on machine: 1 Also included in kit 57 - CORD, PC F (321358A0PA0) PARTS REQUEST
57	321358A0PA0	CORD, PC F	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING CORD, PC F 321358A0PA0 · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 51$, 56$ PARTS REQUEST
58	MCB7210	BATTERY PACK, LITHIUM-ION 72V 10AH	1		ADD TO CART
BATTERY PACK, LITHIUM-ION 72V 10AH MCB7210 · qty on machine: 1 view full part page → $2514.25
100	912721601	HONDA GXE2.0H ELEC. MOTOR (INTEGR.)	1		PARTS REQUEST
PHOTO COMING HONDA GXE2.0H ELEC. MOTOR (INTEGR.) 912721601 · qty on machine: 1 PARTS REQUEST

Page 14 — BATTERY TRAY ASSY.

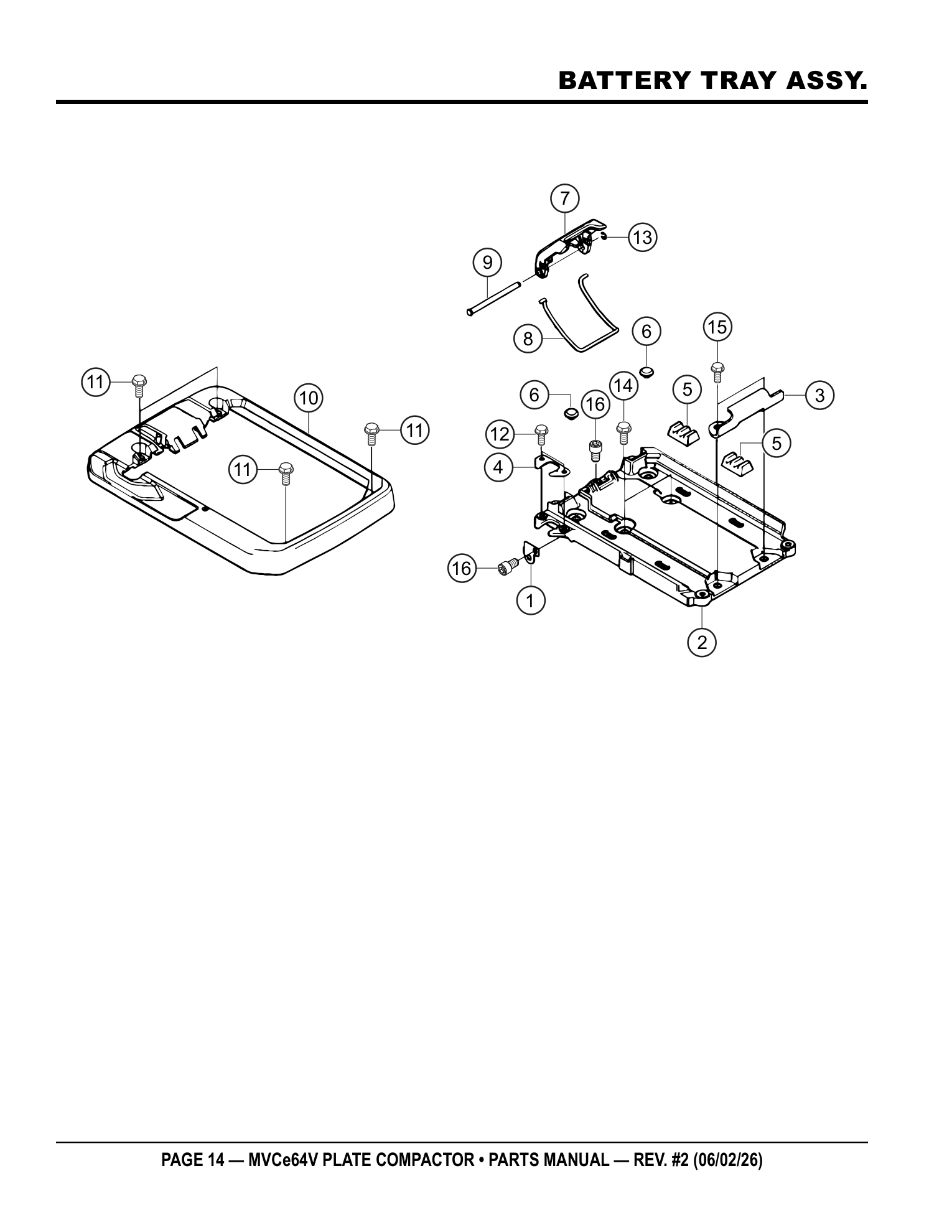

Multiquip MVCe64V Plate Compactor BATTERY TRAY ASSY. parts diagram

Parts list — exactly as printed16 rows

No.	Part No.	Part Name	Qty
1	1F2228A0600	BRACKET, HARN CLIP A	1	PARTS REQUEST
PHOTO COMING BRACKET, HARN CLIP A 1F2228A0600 · qty on machine: 1 PARTS REQUEST
2	601058A0000	TRAY, BATTERY	1	PARTS REQUEST
PHOTO COMING TRAY, BATTERY 601058A0000 · qty on machine: 1 PARTS REQUEST
3	601078A0000	HOOK, BATTERY	1	PARTS REQUEST
PHOTO COMING HOOK, BATTERY 601078A0000 · qty on machine: 1 PARTS REQUEST
4	601238A0600	STAY, CONNECTOR	1	PARTS REQUEST
PHOTO COMING STAY, CONNECTOR 601238A0600 · qty on machine: 1 PARTS REQUEST
5	608018A0000	RUBBER, BATTERY MOUNT	4	PARTS REQUEST
PHOTO COMING RUBBER, BATTERY MOUNT 608018A0000 · qty on machine: 4 PARTS REQUEST
6	608068A0600	CAP, HOLE 8MM	2	PARTS REQUEST
PHOTO COMING CAP, HOLE 8MM 608068A0600 · qty on machine: 2 PARTS REQUEST
7	609028A0000ZA	LAVER, FASTENER	1	ADD TO CART
LAVER, FASTENER 609028A0000ZA · qty on machine: 1 view full part page → $46.3
8	609038A0000	WIRE, FASTENER	1	ADD TO CART
WIRE, FASTENER 609038A0000 · qty on machine: 1 view full part page → $29.73
9	609048A0000	PIN, LOCK LEVER	1	ADD TO CART
PIN, LOCK LEVER 609048A0000 · qty on machine: 1 view full part page → $23.46
10	611058A0600ZB	COVER, BATTERY TRAY NH1 (BLACK)	1	PARTS REQUEST
PHOTO COMING COVER, BATTERY TRAY NH1 (BLACK) 611058A0600ZB · qty on machine: 1 PARTS REQUEST
11	900028A0000	BOLT, SPECIAL 6X16	4	PARTS REQUEST
PHOTO COMING BOLT, SPECIAL 6X16 900028A0000 · qty on machine: 4 PARTS REQUEST
12	90007892000	BOLT, FLANGE 5X12	2	PARTS REQUEST
PHOTO COMING BOLT, FLANGE 5X12 90007892000 · qty on machine: 2 PARTS REQUEST
13	9454004018	E RING, 4	1	ADD TO CART
E RING, 4 9454004018 · qty on machine: 1 view full part page → $5.95
14	957010801608	BOLT, FLANGE 8X16	2	PARTS REQUEST
PHOTO COMING BOLT, FLANGE 8X16 957010801608 · qty on machine: 2 PARTS REQUEST
15	957010802008	BOLT, FLANGE 8X20	2	PARTS REQUEST
PHOTO COMING BOLT, FLANGE 8X20 957010802008 · qty on machine: 2 PARTS REQUEST
16	966000601208	BOLT, SOCKET 6X12	2	PARTS REQUEST
PHOTO COMING BOLT, SOCKET 6X12 966000601208 · qty on machine: 2 PARTS REQUEST

Page 16 — BATTERY CHARGER ASSY.

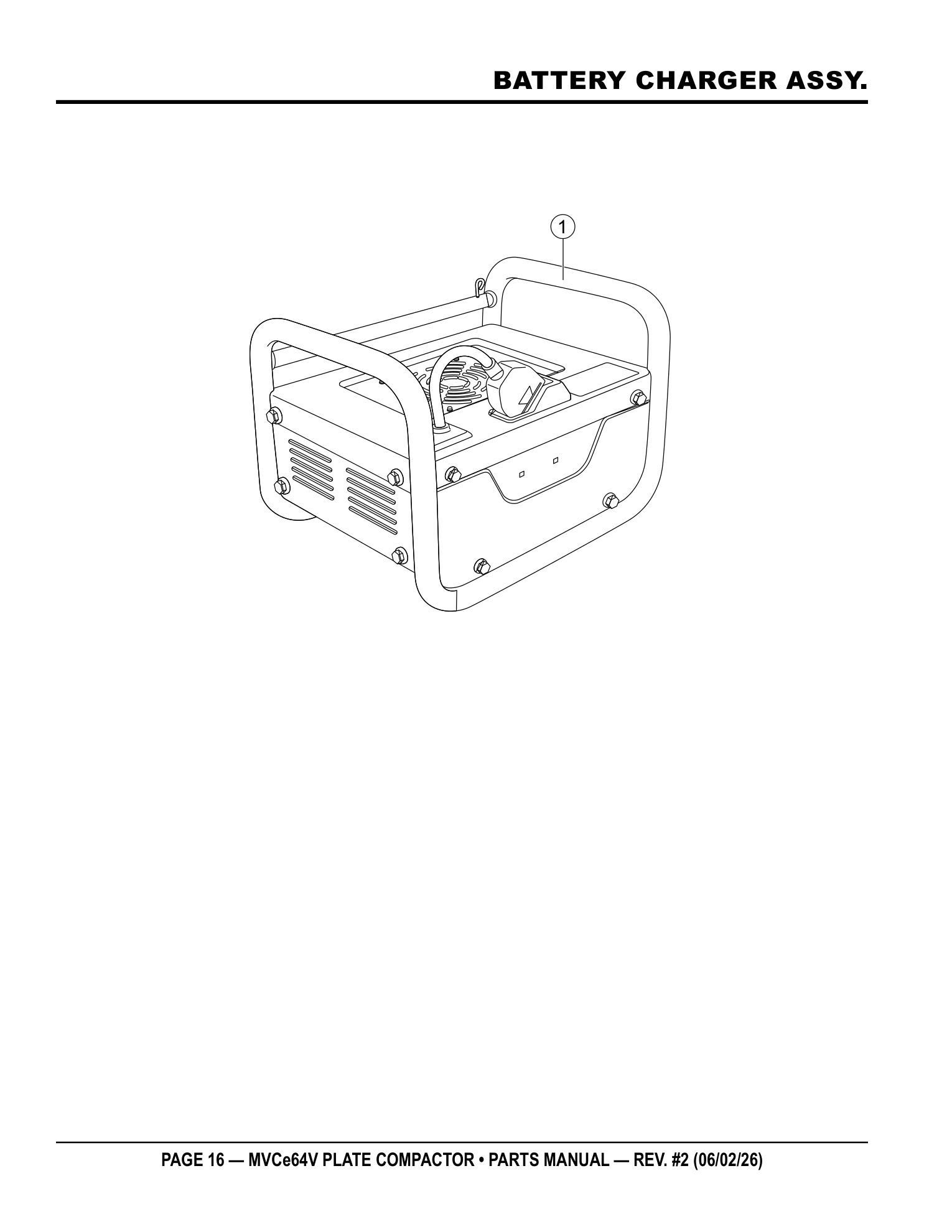

Multiquip MVCe64V Plate Compactor BATTERY CHARGER ASSY. parts diagram

Parts list — exactly as printed1 rows

No.	Part No.	Part Name	Qty	Remarks
1	MCB0190	BATTERY CHARGER	1		ADD TO CART
BATTERY CHARGER MCB0190 · qty on machine: 1 view full part page → $1134.52

Page 18 — WATER TANK ASSY. (OPTION)

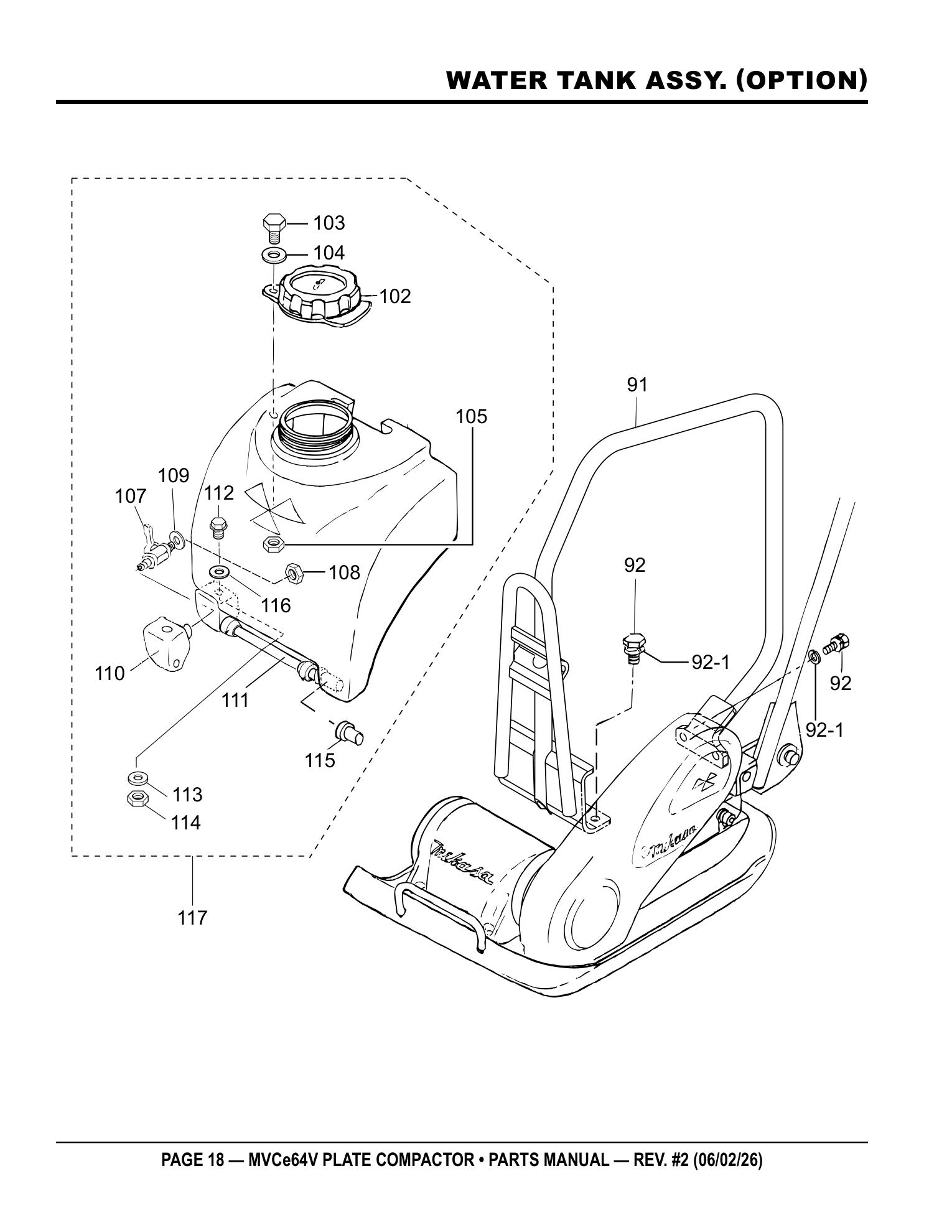

Multiquip MVCe64V Plate Compactor WATER TANK ASSY. (OPTION) parts diagram

Parts list — exactly as printed18 rows

No.	Part No.	Part Name	Qty	Remarks
91	421122890	GUARD HOOK	1		PARTS REQUEST
PHOTO COMING GUARD HOOK 421122890 · qty on machine: 1 PARTS REQUEST
92	0105091025	BOLT, 10X25	4	REPLACES P/N 001221025	ADD TO CART
BOLT, 10X25 0105091025 · qty on machine: 4 REPLACES P/N 001221025 view full part page → $0.68
92-1	030210250	WASHER, LOCK M10	4		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 4 view full part page → $0.28
102#	954300343	CAP, WATER TANK	1		PARTS REQUEST
PHOTO COMING CAP, WATER TANK 954300343 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) PARTS REQUEST
103#	001241030	BOLT, 10X30	1		ADD TO CART
BOLT, 10X30 001241030 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $3.95 IN A KIT + SOLD SOLO
104#	033910160	WASHER, FLAT M10	2		ADD TO CART
WASHER, FLAT M10 033910160 · qty on machine: 2 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $0.94 IN A KIT + SOLD SOLO
105#	022910270	NUT, M10	1		ADD TO CART
NUT, M10 022910270 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $3.95 IN A KIT + SOLD SOLO
107#	954403241	COCK PT 1/4, BH-1211AL/R	1		ADD TO CART
COCK PT 1/4, BH-1211AL/R 954403241 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $48.95 IN A KIT + SOLD SOLO
108#	959403790	LOCKNUT, PS-1/4	1		ADD TO CART
LOCKNUT, PS-1/4 959403790 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $13.95 IN A KIT + SOLD SOLO
109#	953408270	PACKING, 11.5X19.5X1	1		ADD TO CART
PACKING, 11.5X19.5X1 953408270 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $1.95 IN A KIT + SOLD SOLO
110#	416338940	HOLDER, PIPE (L)	1		ADD TO CART
HOLDER, PIPE (L) 416338940 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $19.95 IN A KIT + SOLD SOLO

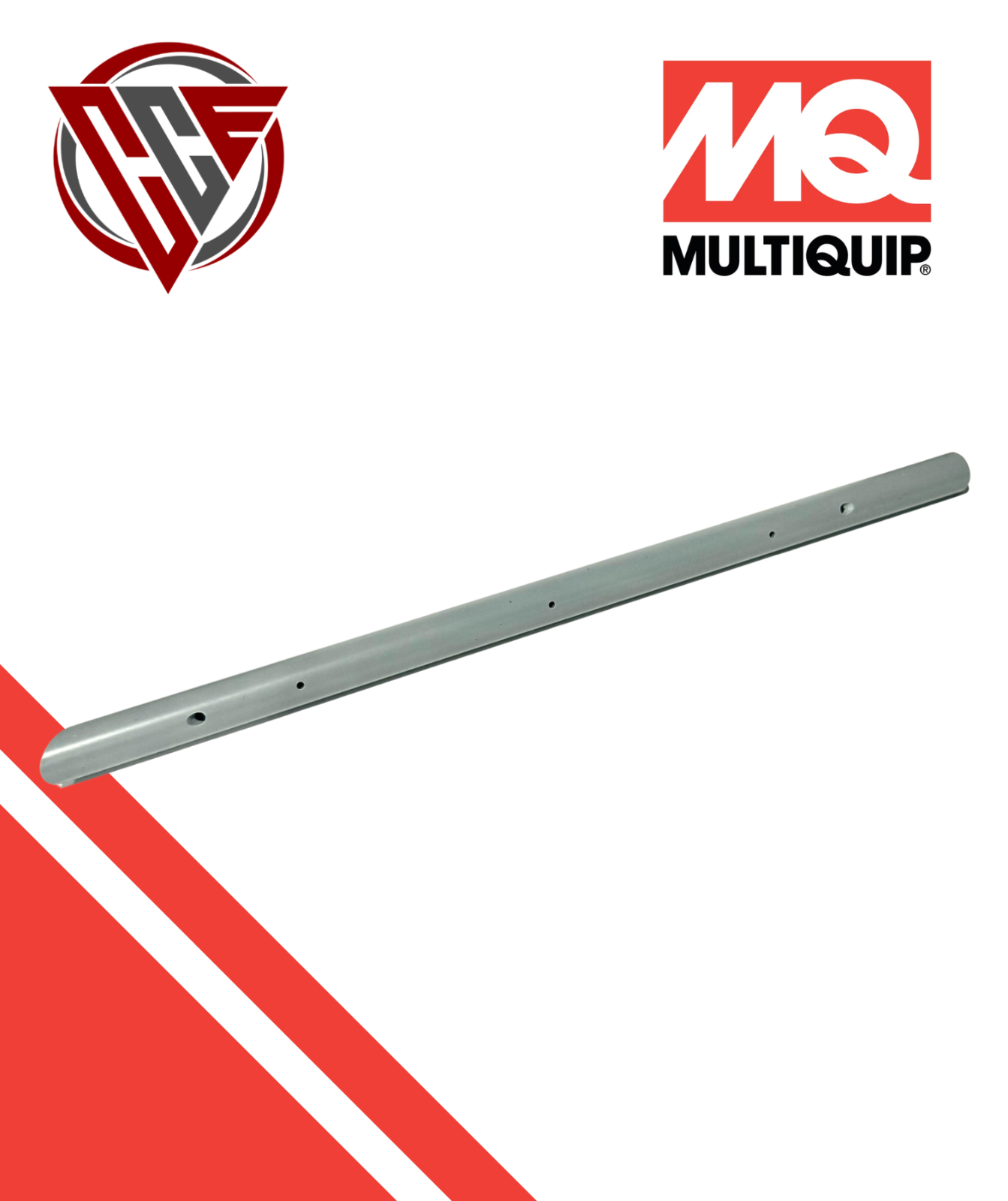

111#	418344110	SPRINKLING, PIPE	1		ADD TO CART
SPRINKLING, PIPE 418344110 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $13.95 IN A KIT + SOLD SOLO
112#	001740825	FLANGE BOLT, 8X25	1		ADD TO CART
FLANGE BOLT, 8X25 001740825 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $2.78 IN A KIT + SOLD SOLO
113#	030208200	WASHER, FLAT M8	1	REPLACES P/N 033910110	ADD TO CART
WASHER, FLAT M8 030208200 · qty on machine: 1 REPLACES P/N 033910110 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $0.23 IN A KIT + SOLD SOLO
114#	020108060	NUT, M8	1	REPLACES P/N 020308064	ADD TO CART
NUT, M8 020108060 · qty on machine: 1 REPLACES P/N 020308064 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $0.28 IN A KIT + SOLD SOLO
115#	418457010	CAP, RUBBER	1		ADD TO CART
CAP, RUBBER 418457010 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $3.95 IN A KIT + SOLD SOLO
116#	953407410	PACKING, 8X15X2	1		ADD TO CART
PACKING, 8X15X2 953407410 · qty on machine: 1 Also included in kit 117 - WATER TANK KIT (52677) view full part page → $2.95 IN A KIT + SOLD SOLO
117	52677	WATER TANK KIT	1	INCLUDES ITEMS W/#	ADD TO CART
WATER TANK KIT 52677 · qty on machine: 1 INCLUDES ITEMS W/# Kit includes: 102#, 103#, 104#, 105#, 107#, 108#, 109#, 110#, 111#, 112#, 113#, 114#, 115#, 116# view full part page → $215.95 IN A KIT + SOLD SOLO

Page 20 — TRANSPORT WHEEL ASSY. (OPTION)

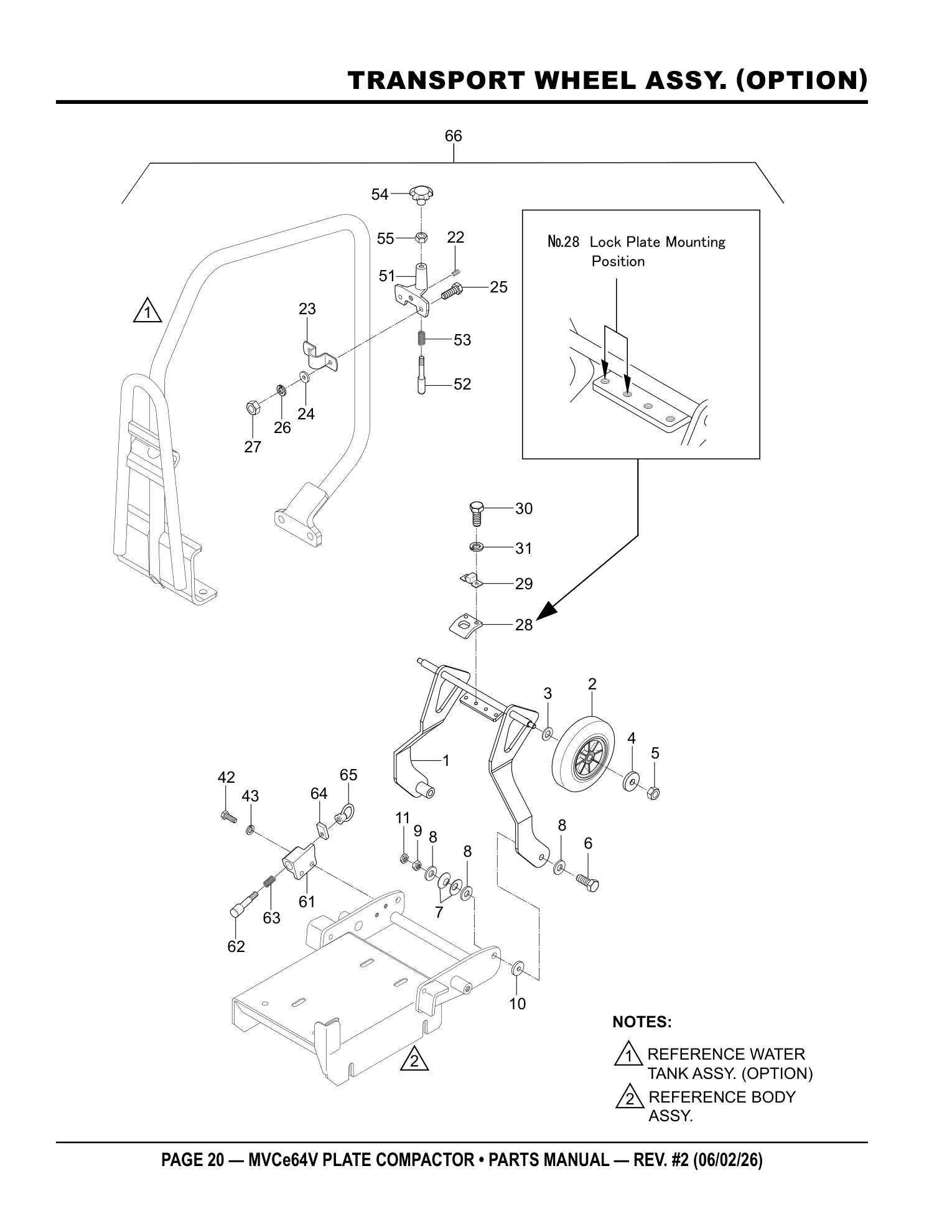

Multiquip MVCe64V Plate Compactor TRANSPORT WHEEL ASSY. (OPTION) parts diagram

Parts list — exactly as printed34 rows

No.	Part No.	Part Name	Qty	Remarks
1#	421357120	FRAME AXLE, CART	1		PARTS REQUEST
PHOTO COMING FRAME AXLE, CART 421357120 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) PARTS REQUEST
2#	959301000	WHEEL, 12.2DX130X42B/T90	2		ADD TO CART
WHEEL, 12.2DX130X42B/T90 959301000 · qty on machine: 2 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $54.95 IN A KIT + SOLD SOLO
3#	031112230	WASHER, FLAT M12	2		ADD TO CART
WASHER, FLAT M12 031112230 · qty on machine: 2 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.95 IN A KIT + SOLD SOLO
4#	952402610	WASHER, 8.5X25X3	2		ADD TO CART
WASHER, 8.5X25X3 952402610 · qty on machine: 2 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $6.95 IN A KIT + SOLD SOLO
5#	020108060	NUT, M8	2	REPLACES P/N 020308060	ADD TO CART
NUT, M8 020108060 · qty on machine: 2 REPLACES P/N 020308060 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.28 IN A KIT + SOLD SOLO
6#	012210035	BOLT, 10X35	2	REPLACES P/N 001221035	ADD TO CART
BOLT, 10X35 012210035 · qty on machine: 2 REPLACES P/N 001221035 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $1.95 IN A KIT + SOLD SOLO
7#	032110180	CONICAL LOCK WASHER, M10	4		ADD TO CART
CONICAL LOCK WASHER, M10 032110180 · qty on machine: 4 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $1.95 IN A KIT + SOLD SOLO
8#	031110160	WASHER, FLAT M10	6		ADD TO CART
WASHER, FLAT M10 031110160 · qty on machine: 6 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.4 IN A KIT + SOLD SOLO
9#	020310080	NUT, M10	2		ADD TO CART
NUT, M10 020310080 · qty on machine: 2 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $1.67 IN A KIT + SOLD SOLO
10#	031110160	WASHER, 11X25X3.2	2	REPLACES P/N 952401440	ADD TO CART
WASHER, 11X25X3.2 031110160 · qty on machine: 2 REPLACES P/N 952401440 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.4 IN A KIT + SOLD SOLO
11#	020310080	NUT, M10	2	REPLACES P/N 020410060	ADD TO CART
NUT, M10 020310080 · qty on machine: 2 REPLACES P/N 020410060 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $1.67 IN A KIT + SOLD SOLO
22#	098208008	SOCKET HEAD BOLT, 8X8	1		ADD TO CART
SOCKET HEAD BOLT, 8X8 098208008 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $1.95 IN A KIT + SOLD SOLO
23#	418467140	SUPPORT FITTING, PIPE	1		ADD TO CART
SUPPORT FITTING, PIPE 418467140 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $8.95 IN A KIT + SOLD SOLO
24#	952401690	WASHER, 6.5X17X3	2		ADD TO CART
WASHER, 6.5X17X3 952401690 · qty on machine: 2 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $5.95 IN A KIT + SOLD SOLO
25#	011206020	BOLT, 6X20	2	REPLACES P/N 001220620	ADD TO CART
BOLT, 6X20 011206020 · qty on machine: 2 REPLACES P/N 001220620 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.95 IN A KIT + SOLD SOLO
26#	030206150	WASHER, LOCK M6	2		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 2 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.07 IN A KIT + SOLD SOLO
27#	020106050	NUT, M6	2	REPLACES P/N 020306050	ADD TO CART
NUT, M6 020106050 · qty on machine: 2 REPLACES P/N 020306050 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.12 IN A KIT + SOLD SOLO
28#	418467270	LOCK PLATE, V-AXLE	1		ADD TO CART
LOCK PLATE, V-AXLE 418467270 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $20.95 IN A KIT + SOLD SOLO
29#	418467150	STOPPER RUBBER	1		ADD TO CART
STOPPER RUBBER 418467150 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $5.95 IN A KIT + SOLD SOLO
30#	001220616	BOLT, 6X16	2		ADD TO CART
BOLT, 6X16 001220616 · qty on machine: 2 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $1.36 IN A KIT + SOLD SOLO
31#	030206150	WASHER, LOCK M6	2		ADD TO CART
WASHER, LOCK M6 030206150 · qty on machine: 2 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.07 IN A KIT + SOLD SOLO
42#	011008015	BOLT, 8X15	2	REPLACES P/N 001220815	ADD TO CART
BOLT, 8X15 011008015 · qty on machine: 2 REPLACES P/N 001220815 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.85 IN A KIT + SOLD SOLO
43#	030208200	WASHER, LOCK M8	2		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 2 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.23 IN A KIT + SOLD SOLO
51#	418352500	LOCK BRACKET	1		ADD TO CART
LOCK BRACKET 418352500 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $61.95 IN A KIT + SOLD SOLO
52#	418467260	STOPPER, PIN L-BRACKET	1		ADD TO CART
STOPPER, PIN L-BRACKET 418467260 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $20.95 IN A KIT + SOLD SOLO
53#	458450880	SPRING	1		ADD TO CART
SPRING 458450880 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $25.95 IN A KIT + SOLD SOLO
54#	959408900	KNOB, M8	1		ADD TO CART
KNOB, M8 959408900 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $25.95 IN A KIT + SOLD SOLO
55#	020408050	NUT, M8	1		ADD TO CART
NUT, M8 020408050 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $0.95 IN A KIT + SOLD SOLO
61#	418352520	STOPPER BRACKET	1		ADD TO CART
STOPPER BRACKET 418352520 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $88.95 IN A KIT + SOLD SOLO
62#	418467290	STOPPER PIN, HANDLE	1		ADD TO CART
STOPPER PIN, HANDLE 418467290 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $35.95 IN A KIT + SOLD SOLO
63#	418467160	SPRING, STOPPER	1		ADD TO CART
SPRING, STOPPER 418467160 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $3.95 IN A KIT + SOLD SOLO
64#	418467280	STOPPER, S-BRACKET	1		ADD TO CART
STOPPER, S-BRACKET 418467280 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) view full part page → $12.95 IN A KIT + SOLD SOLO
65#	959010412	EYE NUT, M8	1		PARTS REQUEST
PHOTO COMING EYE NUT, M8 959010412 · qty on machine: 1 Also included in kit 66 - WHEEL KIT (WHLE64) PARTS REQUEST
66	WHLE64	WHEEL KIT	1	INCLUDES ITEMS W/# CONTACT SALES DEPT.	ADD TO CART
WHEEL KIT WHLE64 · qty on machine: 1 INCLUDES ITEMS W/# CONTACT SALES DEPT. Kit includes: 1#, 2#, 3#, 4#, 5#, 6#, 7#, 8#, 9#, 10#, 11#, 22#, 23#, 24#, 25#, 26#, 27#, 28#, 29#, 30#, 31#, 42#, 43#, 51#, 52#, 53#, 54#, 55#, 61#, 62#, 63#, 64#, 65# view full part page → $355.95 IN A KIT + SOLD SOLO

Page 22 — VIBRATOR ASSY.

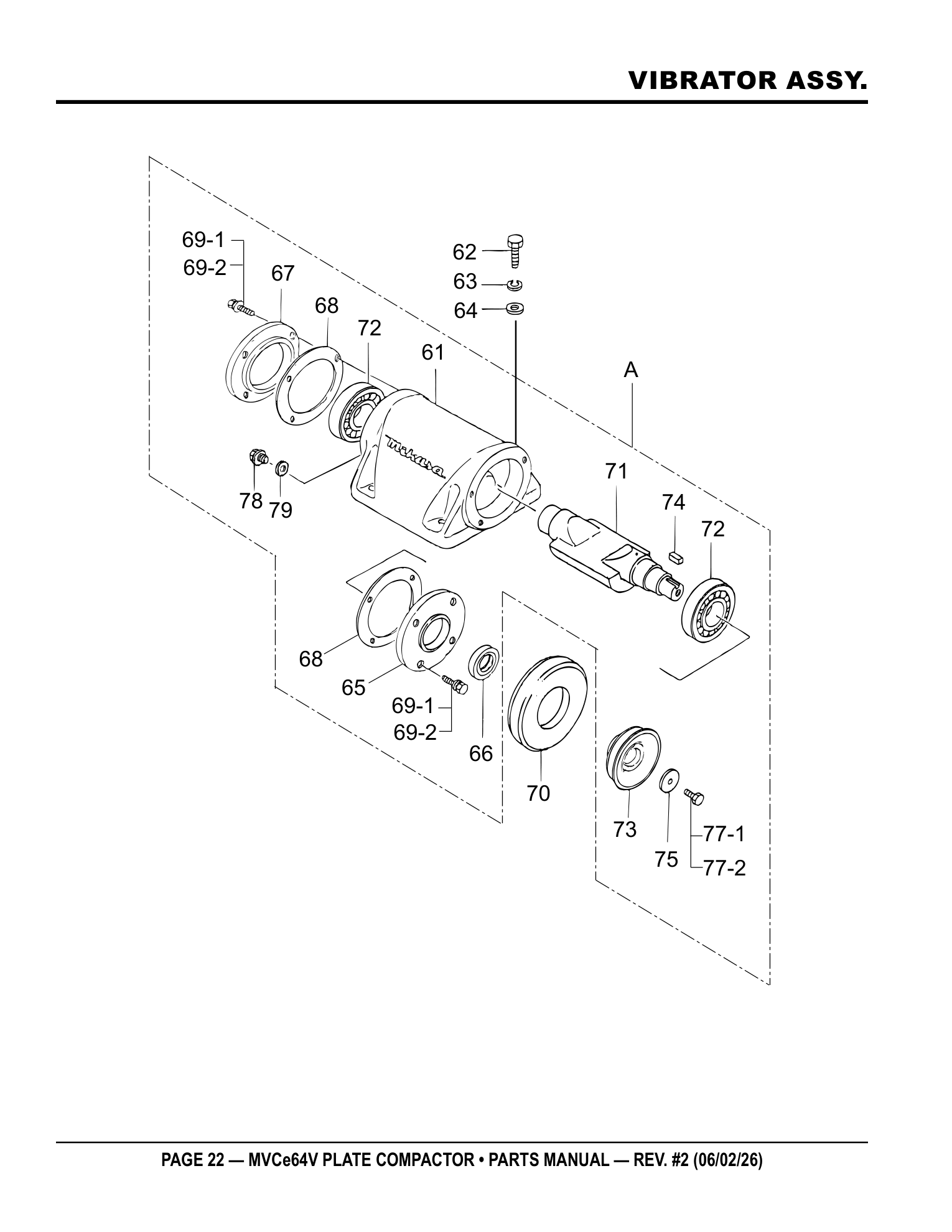

Multiquip MVCe64V Plate Compactor VIBRATOR ASSY. parts diagram

Parts list — exactly as printed21 rows

No.	Part No.	Part Name	Qty	Remarks
A	418910049OR	VIBRATING CASE ASSEMBLY	1	INCLUDES ITEMS W/$	PARTS REQUEST
PHOTO COMING VIBRATING CASE ASSEMBLY 418910049OR · qty on machine: 1 INCLUDES ITEMS W/$ Kit includes: 61$, 62$, 63$, 64$, 65$, 66$, 67$, 68$, 69-1$, 69-2$, 71$, 72$, 73$, 74$, 75$, 77-1$, 77-2$, 78$, 79$ PARTS REQUEST
61$	418117739OR	VIBRATING CASE	1		PARTS REQUEST
PHOTO COMING VIBRATING CASE 418117739OR · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) PARTS REQUEST
62$	001221445	BOLT, 14X45	4		ADD TO CART
BOLT, 14X45 001221445 · qty on machine: 4 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $2.95 IN A KIT + SOLD SOLO
63$	030214350	WASHER, LOCK M14	4		ADD TO CART
WASHER, LOCK M14 030214350 · qty on machine: 4 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $0.46 IN A KIT + SOLD SOLO
64$	031114260	WASHER, FLAT M14	4		ADD TO CART
WASHER, FLAT M14 031114260 · qty on machine: 4 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $0.69 IN A KIT + SOLD SOLO
65$	418464310	CASE COVER, PULLEY	1		ADD TO CART
CASE COVER, PULLEY 418464310 · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $28.95 IN A KIT + SOLD SOLO
66$	060403020	SEAL, OIL TC-30458	1		ADD TO CART
SEAL, OIL TC-30458 060403020 · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $25.95 IN A KIT + SOLD SOLO
67$	418456960	CASE COVER, SHUT OFF	1		ADD TO CART
CASE COVER, SHUT OFF 418456960 · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $28.95 IN A KIT + SOLD SOLO
68$	418456971	PACKING	2		ADD TO CART
PACKING 418456971 · qty on machine: 2 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $7.95 IN A KIT + SOLD SOLO
69-1$	001220820	BOLT, 8X20	8		ADD TO CART
BOLT, 8X20 001220820 · qty on machine: 8 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $1.49 IN A KIT + SOLD SOLO
69-2$	030208200	WASHER, LOCK M8	8		ADD TO CART
WASHER, LOCK M8 030208200 · qty on machine: 8 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $0.23 IN A KIT + SOLD SOLO
70	418464511	COVER SEAL, VIB.	1		ADD TO CART
COVER SEAL, VIB. 418464511 · qty on machine: 1 view full part page → $16.95
71$	418343400	ECC. ROTOR SHAFT	1		ADD TO CART
ECC. ROTOR SHAFT 418343400 · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $284.95 IN A KIT + SOLD SOLO
72$	040306307	BEARING	2	REPLACES P/N 040406307	ADD TO CART
BEARING 040306307 · qty on machine: 2 REPLACES P/N 040406307 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $28.95 IN A KIT + SOLD SOLO
73$	418456981	PULLEY, VIB.	1		ADD TO CART
PULLEY, VIB. 418456981 · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $79.95 IN A KIT + SOLD SOLO
74$	951401920	KEY, 7X7X30	1		ADD TO CART
KEY, 7X7X30 951401920 · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $5.95 IN A KIT + SOLD SOLO
75$	952403450	WASHER, 11X35X4.5	1		ADD TO CART
WASHER, 11X35X4.5 952403450 · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $6.95 IN A KIT + SOLD SOLO
77-1$	012010030	BOLT, 10X30	1	REPLACES P/N 001221030	ADD TO CART
BOLT, 10X30 012010030 · qty on machine: 1 REPLACES P/N 001221030 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $0.95 IN A KIT + SOLD SOLO
77-2$	030210250	WASHER, LOCK M10	1		ADD TO CART
WASHER, LOCK M10 030210250 · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $0.28 IN A KIT + SOLD SOLO
78$	953400270	PLUG, 1/4X14 10L	1		ADD TO CART
PLUG, 1/4X14 10L 953400270 · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $18.95 IN A KIT + SOLD SOLO
79$	953405260	PACKING, 1/4 (CU)	1		ADD TO CART
PACKING, 1/4 (CU) 953405260 · qty on machine: 1 Also included in kit A - VIBRATING CASE ASSEMBLY (418910049OR) view full part page → $7.95 IN A KIT + SOLD SOLO

The machine itself

Price by quote Get a quote

Tell us where the machine is headed and we'll quote it with freight. One call, no games.

The Multiquip MVCe64V is a plate compactor built for compacting granular soils, gravel, and asphalt on grading, paving, and repair work. It runs a Honda DP72104Z engine. Factory-documented specs and parts support; priced by quote.

Keep-it-running spares

All listed parts →

Every part that fits this machine

52677 Multiquip 52677 Water Kit - OEM Replacement Part for Plate Compactors $215.95

070100312 Multiquip 070100312 V-Belt - OEM Replacement Part for Plate Compactors $40.95

1N3308A0003 Multiquip 1N3308A0003 Switch Assembly (JP) - OEM Replacement Part $149.95

404418150 Multiquip 404418150 Clutch Spacer - OEM Replacement Part $42.95

418216470 Multiquip 418216470 Belt Cover MVC-64H/EW - OEM Replacement Part $170.95

418216480 Multiquip 418216480 Belt Cover (Inner) - OEM Replacement Part for Plate Compactors $170.95

418343400 Multiquip 418343400 Eccentric Rotor Shaft - OEM Replacement Part $284.95

418352500 Multiquip 418352500 Lock Bracket WHL82 - OEM Replacement Part $61.95

418352520 Multiquip 418352520 Bracket WHL82 - OEM Replacement Part $88.95

418467290 Multiquip 418467290 Handle Pin WHL82 - OEM Replacement Part $35.95

418910120 Multiquip 418910120 VAS Handle Assembly - OEM Replacement Part for Plate Compactors $298.95

460446780 Multiquip 460446780 Clutch Assembly 18MM Bore - OEM Replacement Part $213.95

939010254 Multiquip 939010254 Shock Absorber - OEM Replacement Part for Plate Compactors $33.95

954403241 Multiquip 954403241 Water Valve Assembly - OEM Replacement Part for Compactors $48.95

959301000 Multiquip 959301000 Wheel - OEM Replacement Part for Plate Compactors $54.95

001220616 BOLT, 6X16 $1.36

001220820 HEX HEAD BOLT, 8X20 $1.49

001221053 BOLT, 10X65 $2.95

001221445 BOLT, 14X45 $2.95

001241030 BOLT, 10X30 $3.95

001520530 SOCKET HEAD BOLT, 5X30 $0.77

001740825 FLANGE BOLT, 8X25 $2.78

009110052 SOCKET HEAD BOLT, 8X45

009110117 SOCKET HEAD SCREW, 6X15

009120407 BOLT, SUNK HEAD 10X20 $1.95

0105091025 BOLT, 10X25 $0.68

011008015 BOLT, 8X15 $0.85

011206020 BOLT, 6X20 $0.95

011208025 BOLT, 8X25 $0.41

012010030 BOLT, 10X30 $0.95

012210020 BOLT, 10X20 $0.95

012210035 BOLT, 10X35 $1.95

020106050 NUT, M6 $0.12

020108060 NUT M8 $0.28

020310080 NUT M10 $1.67

020408050 NUT, M8 $0.95

022710809 NUT, NYLON M8 $1.55

022910270 NUT, M10 $3.95

030205130 WASHER, LOCK M5 $0.26

030206150 WASHER, LOCK M6 $0.07

030208200 WASHER, LOCK M8 $0.23

030210250 WASHER, LOCK M10 $0.28

030214350 WASHER, LOCK M14 $0.46

031110160 WASHER, FLAT M10 $0.40

031112230 WASHER, FLAT M12 $0.95

031114260 WASHER, FLAT M14 $0.69

032110180 CONICAL LOCK WASHER, M10 $1.95

033910160 WASHER, FLAT M10 $0.94

0401450080 WASHER, FLAT M8 $0.56

040306307 BEARING $28.95

042006006 BEARING $30.95

060403020 SEAL, OIL TC-30458 $25.95

080200300 SNAP RING $1.71

080600550 CLIP $6.95

098208008 SOCKET HEAD BOLT, 8X8 $1.95

1N4218A0003 LAMP ASSEMBLY, IND (ORANGE)

1N4228A0003 LAMP ASSEMBLY, IND (RED)

1N4238A0003 LAMP ASSEMBLY, IND (GREEN)

32107ZVL003 TERMINATOR ASSEMBLY

321358A0PA0 CORD, PC F

404433430 RUBBER, 20X32X28.5 $13.95

413436720 HANDLE, RUBBER $8.95

413436870 NUT, REAR ENGINE $30.95

416338940 HOLDER, PIPE (L) $19.95

416459320 THREADED NUT, HANDLE $15.95

416459341 RUBBER, VAS HANDLE $2.61

418117739OR VIBRATING CASE

418118545OR VIBRATORY PLATE, 570X350

418217060 GRIP, HANDLE

418344110 SPRINKLING, PIPE $13.95

418456960 CASE COVER, SHUT OFF $28.95

418456971 PACKING $7.95

418457010 CAP, RUBBER $3.95

418464310 CASE COVER, PULLEY $28.95

418464511 COVER SEAL, VIB. $16.95

418467140 SUPPORT FITTING, PIPE $8.95

418467150 STOPPER RUBBER $5.95

418467160 SPRING, STOPPER $3.95

418467260 STOPPER, PIN L-BRACKET $20.95

418467280 STOPPER, S-BRACKET $12.95

421010010 FIR TREE TIE $4.95

421122890 GUARD HOOK

421220320OR BASE-OR

421220330 SWITCH BOX

421357120 FRAME AXLE, CART

421357130 SWITCH BOX PANEL

421357140 SWITCH BOX HOLDER

421473430 CUSHION, 30X80

421473440 CUSHION, 55X85

421473460 GROMMET

421473480 BOLT, ENGINE

454010020 CLAMP, TC-100 $1.40

458450880 SPRING $25.95

507010110A CLAMP, TC-200 $0.76

58151 WASHER, FLAT M5 $0.41

875168A0620 MARK; OPER CAUTION (E)

875238A0600 MARK; ELECTRIC PW

912721601 HONDA GXE2.0H ELEC. MOTOR (INTEGR.)

920113140 DECAL; MIKASA (BLACK, 40X80)

920114000 DECAL; MIKASA (125 MM) BLACK

920224350 DECAL; CAUTION /COMBI./E60

920224390 DECAL; LED/E60

920224570 PLATE; SERIAL NO./E64V/MQ

920224690 DECAL; EARTH SMART

920224710 DECAL; MVC-E64

920224750 DECAL; MQ, 3 YEAR WARRANTY $5.95

941010400 CLUTCH PULLEY

951401920 KEY, 7X7X30 $5.95

952400130 SPACER $13.95

952401690 WASHER, 6.5X17X3 $5.95

952402610 WASHER, 8.5X25X3 $6.95

952403450 WASHER, 11X35X4.5 $6.95

952410670 WASHER, 6.5X20X2.3

952410680 CORRUGATE TUBE, 10MM-250L

953400270 PLUG, 1/4X14 10L $18.95

953405260 PACKING, 1/4 (CU) $7.95

953407410 PACKING, 8X15X2 $2.95

953408270 PACKING, 11.5X19.5X1 $1.95

954300343 CAP, WATER TANK

959010412 EYE NUT, M8

959403790 LOCKNUT, PS-1/4 $13.95

959408900 KNOB, M8 $25.95

959408920 CLIP 8 (M8)

MCB0190 BATTERY CHARGER $1,134.52

WHLE64 WHEEL KIT $355.95

From the guides desk

Guide · 2026-08-04

Multiquip Plate Compactor Maintenance Guide

Keep your Multiquip plate compactor running at full strength. Practical maintenance intervals, service specs, and storage steps for contr...

Read it →

Ask ARIA about your machine.

Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.

Chat with ARIA

Multiquip MVCe64V Plate Compactor

The parts bench

The machine itself

Machine

Engine

Keep-it-running spares

Every part that fits this machine

Service notices & part changes

Take the factory book with you

Get the download pack

From the guides desk

Multiquip Plate Compactor Maintenance Guide

Ask ARIA about your machine.

Your cart is empty

Your cart is empty
