Multiquip QP15 High-Pressure Pump
The parts bench

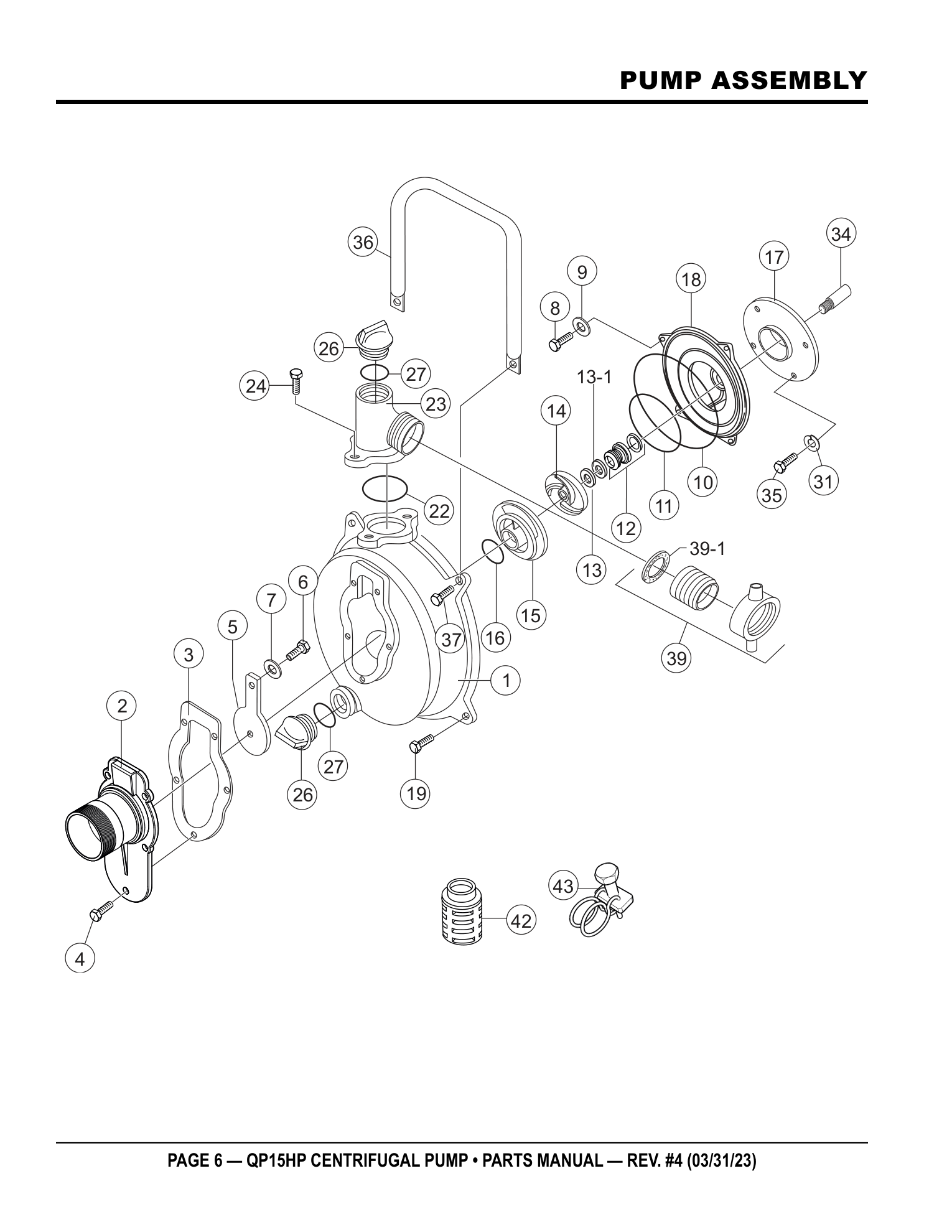

Need the PDF? ↓Page 6 — PUMP ASSEMBLY
Parts list — exactly as printed34 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1714100010 | CASING | 1 | ADD TO CART | |
| 2 | 1749100160 | SUCTION COVER | 1 | ADD TO CART | |
| 3 | 1714330370 | SUCTION COVER PACKING | 1 | ADD TO CART | |
| 4 | 0141050512 | SCREW | 5 | PARTS REQUEST | |
|
COMING SCREW
0141050512 · qty on machine: 5 | |||||
| 5 | 1701350350 | CHECK VALVE | 1 | ADD TO CART | |
| 6 | 0141090510 | SCREW | 1 | ADD TO CART | |
| 7 | 0401450050 | WASHER | 1 | ADD TO CART | |
| 8 | 0105050620 | BOLT | 4 | ADD TO CART | |
| 9 | 0458220060 | SEAL WASHER | 4 | PARTS REQUEST | |
|
COMING SEAL WASHER
0458220060 · qty on machine: 4 | |||||
| 10 | 0489311810 | O-RING | 1 | ADD TO CART | |
| 11 | 0489241380 | O-RING | 1 | ADD TO CART | |
| 12 | 0806112515 | MECHANICAL SEAL | 1 | ADD TO CART | |
| 13 | 0852831812 | ADJUST LINER | 1 | ADD TO CART | |
| 13-1 | 0852851812 | ADJUST LINER | 1 | ADD TO CART | |
| 14 | 1129100030 | IMPELLER | 1 | ADD TO CART | |
| 15 | 1714100130 | VOLUTE CASING | 1 | ADD TO CART | |
| 16 | 0482200380 | O-RING | 1 | ADD TO CART | |
| 17 | 1129060600 | CASING COVER SET PLATE | 1 | ADD TO CART | |
| 18 | 1714100021 | CASING COVER | 1 | ADD TO CART | |
| 19 | 0181051025 | BOLT SET WITH LOCK WASHER | 2 | ADD TO CART | |
| 22 | 0480350440 | O-RING | 1 | ADD TO CART | |
| 23 | 1749100090 | DELIVERY ELBOW | 1 | ADD TO CART | |
| 24 | 0181050820 | BOLT SET WITH LOCK WASHER | 2 | ADD TO CART | |
| 26 | 0631211060 | FLOODING/DRAIN CAP | 2 | PARTS REQUEST | |
|
COMING FLOODING/DRAIN CAP
0631211060 · qty on machine: 2 Factory replaced this part - current number 0631211060ASSY | |||||
| 27 | 0481310250 | FLOODING/DRAIN CAP O-RING | 2 | ADD TO CART | |
| 31 | 0451250060 | LOCK WASHER | 4 | ADD TO CART | |
| 34 | 1129221010 | PUMP SHAFT | 1 | ADD TO CART | |
| 35 | 0141050620 | SCREW | 4 | PARTS REQUEST | |
|
COMING SCREW
0141050620 · qty on machine: 4 | |||||
| 36 | 17462070100014 | HANDLE | 1 | PARTS REQUEST | |
|
COMING HANDLE
17462070100014 · qty on machine: 1 | |||||
| 37 | 0181051030 | BOLT SET WITH LOCK WASHER | 2 | NO LONGER AVAILABLE | |
|
COMING BOLT SET WITH LOCK WASHER
0181051030 · qty on machine: 2 NO LONGER AVAILABLE
| |||||
| 39 | 0741158040 | HOSE COUPLING SET | 2 | INCLUDES ITEM W/# | ADD TO CART |
| 39-1# | 0744310401 | HOSE COUPLING PACKING | 2 | PARTS REQUEST | |
|
COMING HOSE COUPLING PACKING
0744310401 · qty on machine: 2 Also included in kit 39 - HOSE COUPLING SET (0741158040) | |||||
| 42 | 0742214040 | STRAINER | 1 | ADD TO CART | |
| 43 | 0932251120 | WIRE HOSE BAND | 3 | NO LONGER AVAILABLE | |
|
COMING WIRE HOSE BAND
0932251120 · qty on machine: 3 NO LONGER AVAILABLE
| |||||

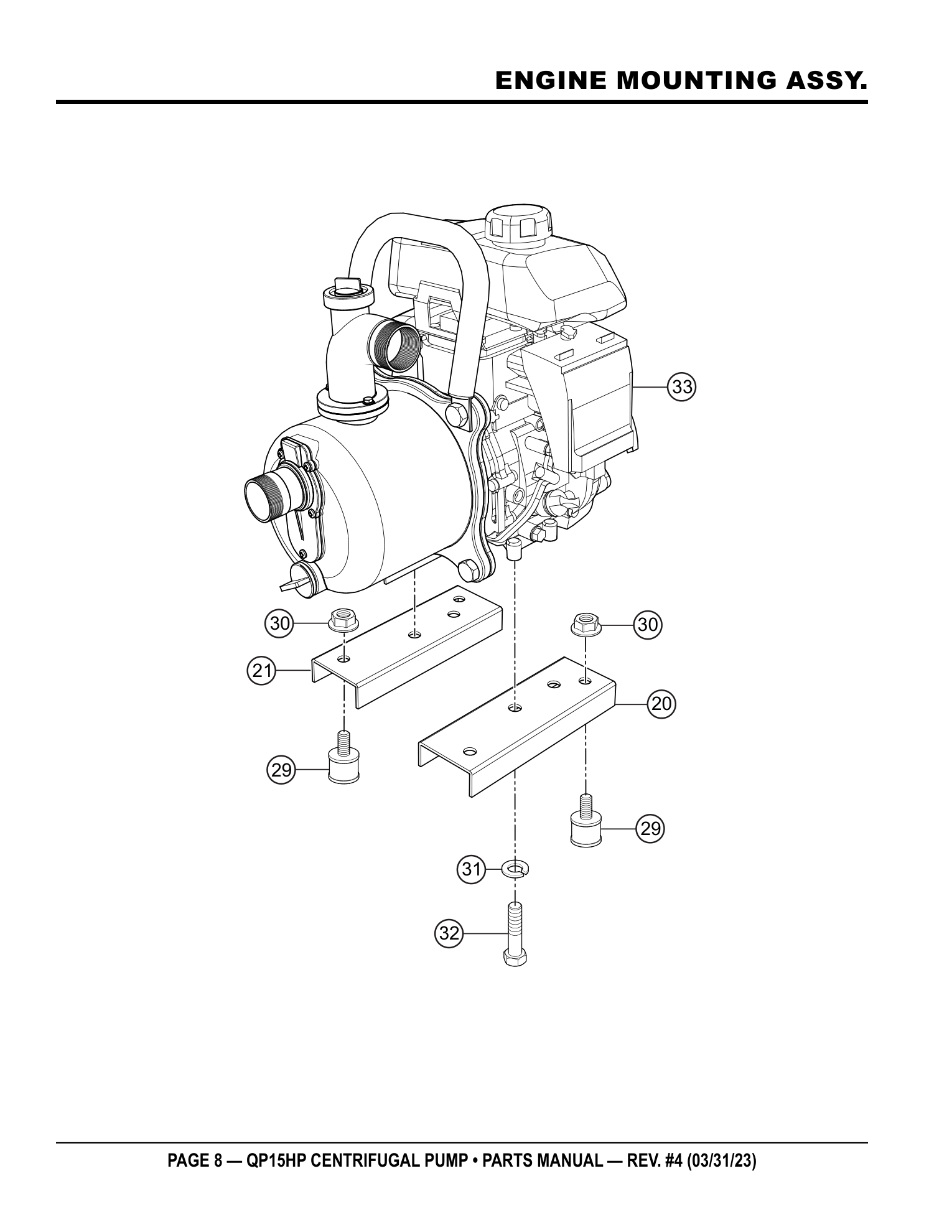

Page 8 — ENGINE MOUNTING ASSY.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 20 | 17492040100014 | BASE, RIGHT | 1 | PARTS REQUEST | |
|
COMING BASE, RIGHT
17492040100014 · qty on machine: 1 | |||||
| 21 | 17492042600014 | BASE, LEFT | 1 | PARTS REQUEST | |
|
COMING BASE, LEFT
17492042600014 · qty on machine: 1 | |||||
| 29 | 0723322030R | CUSHION RUBBER | 4 | ADD TO CART | |
| 30 | 0209150060 | FLANGE NUT | 4 | ADD TO CART | |
| 31 | 0451250060 | WASHER, LOCK | 4 | ADD TO CART | |
| 32 | 0105050616 | BOLT | 4 | ADD TO CART | |
| 33 | GXH50UWKE4 | ENGINE, GASOLINE 2.1 HP | 1 | PARTS REQUEST | |
|
COMING ENGINE, GASOLINE 2.1 HP
GXH50UWKE4 · qty on machine: 1 | |||||
Page 10 — OIL LEVEL SWITCH ASSY.
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 17620ZL8023 | CAP, FUEL | 1 | ADD TO CART | |
| 2 | 9805655777 | SPARK PLUG (NKG) | 1 | ADD TO CART | |
| 3 | 35480ZM7801 | OIL LEVEL SWITCH ASSY. | 1 | ADD TO CART | |
| 4 | 28462ZM70003 | ROPE, STARTER | 1 | PARTS REQUEST | |
|
COMING ROPE, STARTER
28462ZM70003 · qty on machine: 1 | |||||
| 5 | 28461ZM3003 | KNOB, RECOIL STARTER | 1 | ADD TO CART | |
| 6 | 17211ZM7000 | ELEMENT, AIR | 1 | ADD TO CART | |
The machine itself
Machine
Engine

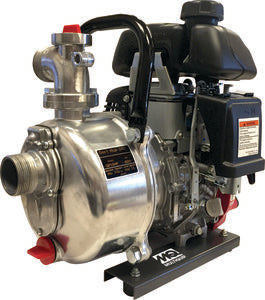

The Multiquip QP15HP is a water pump built for moving water fast for dewatering, flood cleanup, and site drainage. It runs a HONDA GXH50UWKE4 engine. Factory-documented specs and parts support; priced by quote.
