Multiquip QP2 Centrifugal Pump
Factory parts book · interactive
Multiquip QP2 Centrifugal Pump
The parts bench

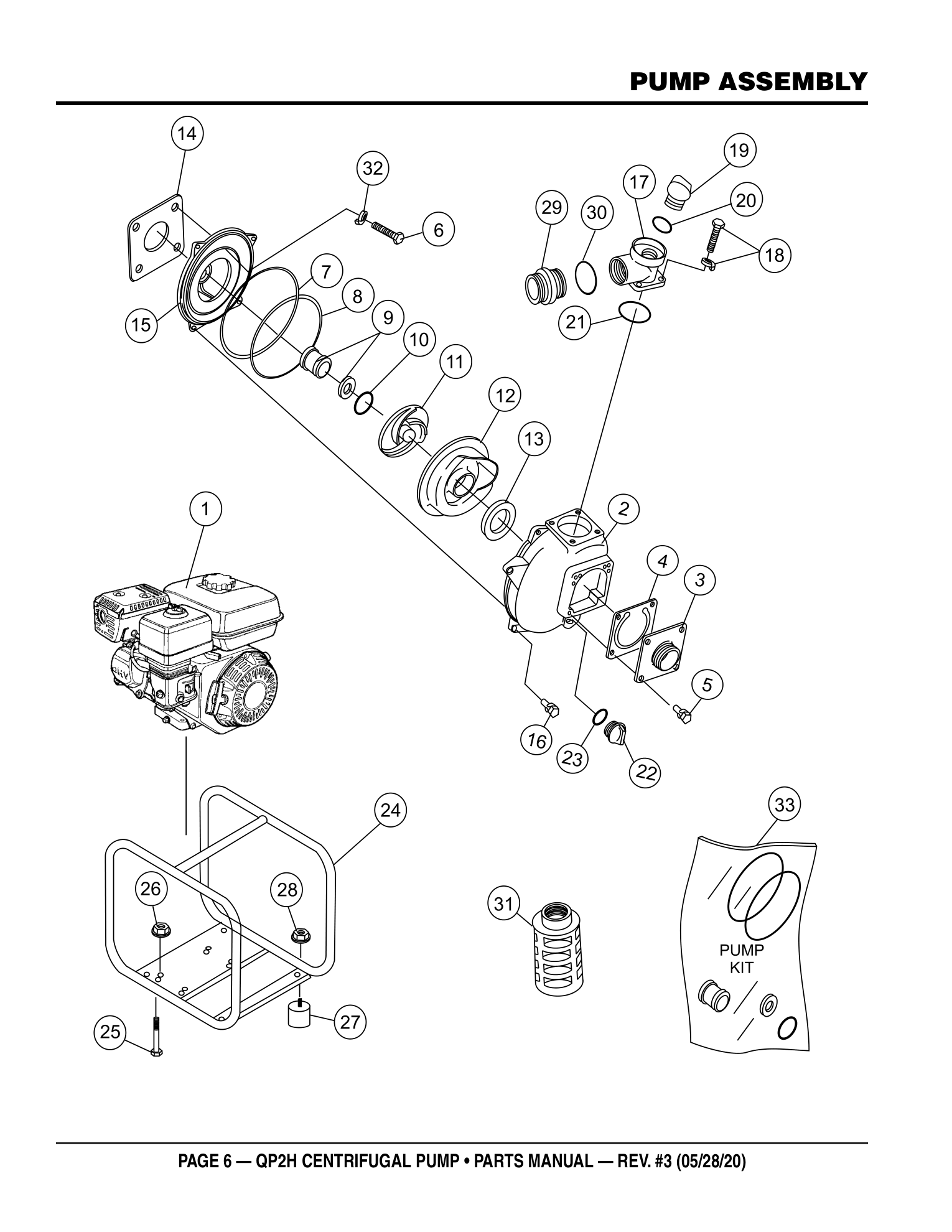

Need the PDF? ↓Page 6 — PUMP ASSEMBLY
Parts list — exactly as printed34 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | GX120UT2PX2 | ENGINE, HONDA | 1 | PARTS REQUEST | |
|
COMING ENGINE, HONDA
GX120UT2PX2 · qty on machine: 1 Factory replaced this part - current number GX120UT2PX2NH1 | |||||
| 2 | 7204100010 | CASING | 1 | ADD TO CART | |
| 3 | 72040001600014 | SUCTION COVER NPT2” | 1 | ADD TO CART | |
| 4 | 1889350351 | CHECK VALVE | 1 | ADD TO CART | |
| 5 | 0181050820 | BOLT SET WITH WASHER, LOCK M8X20 | 4 | ADD TO CART | |
| 6 | 0191150520 | BOLT | 4 | ADD TO CART | |
| 7% | 0489242100 | O-RING (CASING). DIA 2.4 X DIA. 210 | 1 | ADD TO CART | |
| 8% | 0489241780 | O-RING (VOLUTE CASING) | 1 | ADD TO CART | |
| 9% | 0803442320 | MECHANICAL SEAL SILCON CARBIDE | 1 | SET | ADD TO CART |
| 10% | 0852831600 | ADJUST LINER DIA. 0.3 THICKNESS | 1~3 | ADD TO CART | |
| 10% | 0852851600 | ADJUST LINER DIA. 0.5 THICKNESS | 1~3 | ADD TO CART | |
| 11 | 7204000030 | IMPELLER 3/4”-16UNF | 1 | ADD TO CART | |
| 12 | 1808000130 | VOLUTE CASING | 1 | ADD TO CART | |
| 13 | 1293330620 | VOLUTE CASING PACKING | 1 | ADD TO CART | |
| 14 | 1211390610 | CASING COVER PACKING | 1 | ADD TO CART | |
| 15 | 7204100020 | CASING COVER | 1 | ADD TO CART | |
| 16 | 0181050825 | BOLT SET WITH WASHER, LOCK (DELIVERY ELBOW) M8 X 25 | 6 | ADD TO CART | |
| 17 | 9246100090 | DELIVERY ELBOW NPS2” | 1 | ADD TO CART | |
| 18 | 0181050820 | BOLT SET WITH WASHER, LOCK | 4 | ADD TO CART | |
| 19 | 0631211100ASSY | FLOODING CAP PF1” | 1 | ADD TO CART | |
| 20 | 0480350300 | O-RING (FLOODING CAP) | 1 | ADD TO CART | |
| 21 | 0481310550 | O-RING (DELIVERY ELBOW) | 1 | ADD TO CART | |
| 22 | 0631211100ASSY | DRAIN CAP PF1” | 1 | ADD TO CART | |
| 23 | 0480350300 | O-RING (DRAIN CAP) | 1 | ADD TO CART | |
| 24 | 7204214010P002 | BASE | 1 | ADD TO CART | |
| 25 | 0105050840 | BOLT (ENGINE) M8 X 40 | 4 | PARTS REQUEST | |
|
COMING BOLT (ENGINE) M8 X 40
0105050840 · qty on machine: 4 | |||||
| 26 | 0209150080 | FLANGE NUT (ENGINE) M8 | 4 | ADD TO CART | |
| 27 | 0723322030R | CUSHION RUBBER | 4 | ADD TO CART | |
| 28 | 0209150060 | FLANGE NUT (CUSHION RUBBER) M6 | 4 | ADD TO CART | |
| 29 | 07904320200014 | NIPPLE (DELIVERY) NPS2” X NPT2” | 1 | ADD TO CART | |
| 30 | 0481310550 | O-RING (NIPPLE) | 1 | ADD TO CART | |
| 31 | 0742303050 | STRAINER NPT2” | 1 | ADD TO CART | |
| 32 | 0451250080 | WASHER, SPRING | 4 | ADD TO CART | |
| 33 | KIT204 | KIT, PUMP | 1 | INCLUDES ITEMS W/ % | ADD TO CART |

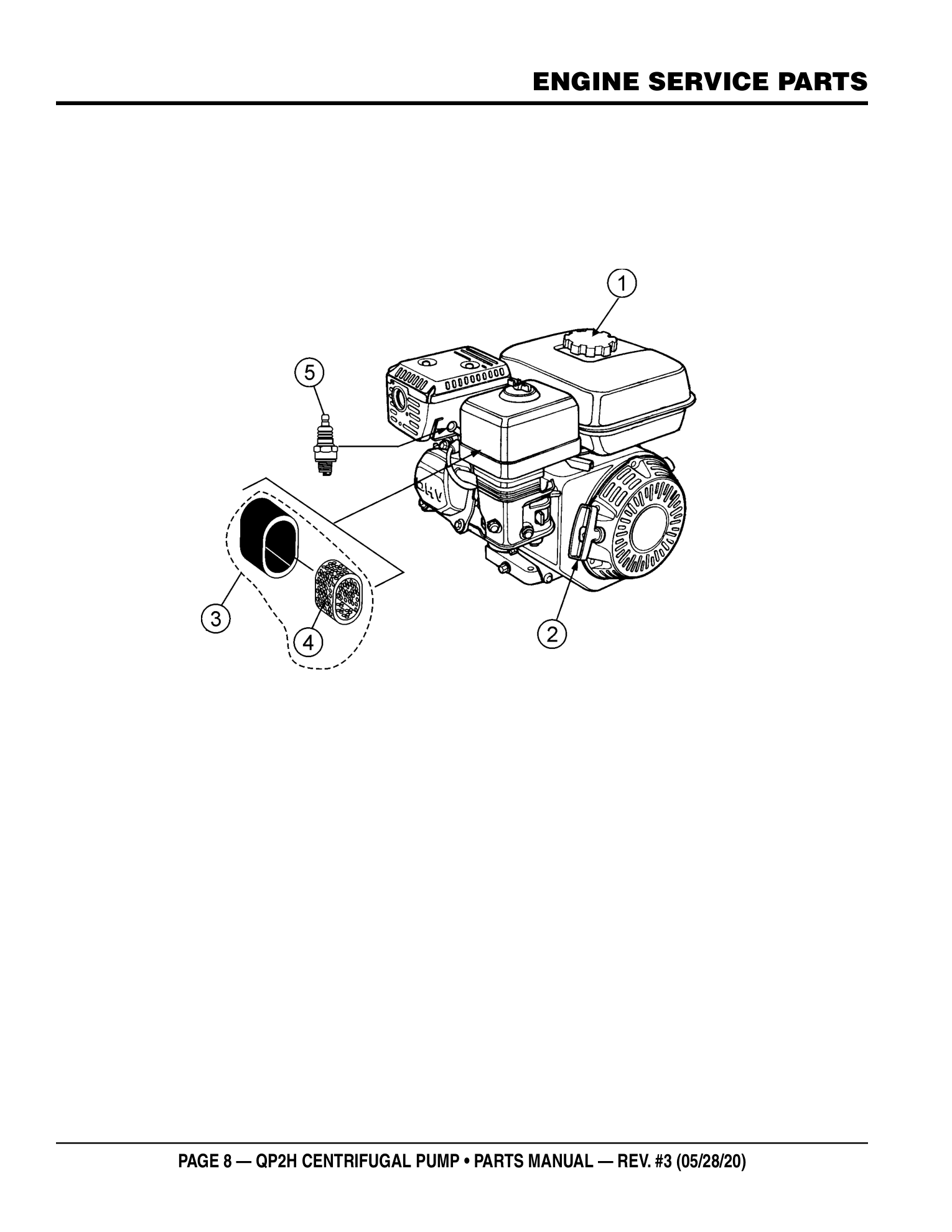

Page 8 — UNKNOWN
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 17620Z4H020 | CAP, WITH GASKET, FUEL FILLER | 1 | ADD TO CART | |
| 2 | 28462ZH8003 | ROPE, RECOIL STARTER | 1 | ADD TO CART | |
| 3 | 17210ZE0822 | ELEMENT, AIR CLEANER | 1 | INCLUDES ITEM W/ # | ADD TO CART |
| 4# | 17218ZE0505 | FILTER, OUTER | 1 | ADD TO CART | |
| 5 | 9807955855 | SPARK PLUG | 1 | ADD TO CART | |
The machine itself
Machine
Engine

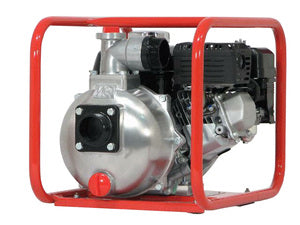

The Multiquip QP2H is a water pump built for moving water fast for dewatering, flood cleanup, and site drainage. It runs a HONDA GX120UT2PX2 engine. Factory-documented specs and parts support; priced by quote.
