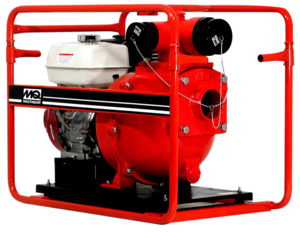

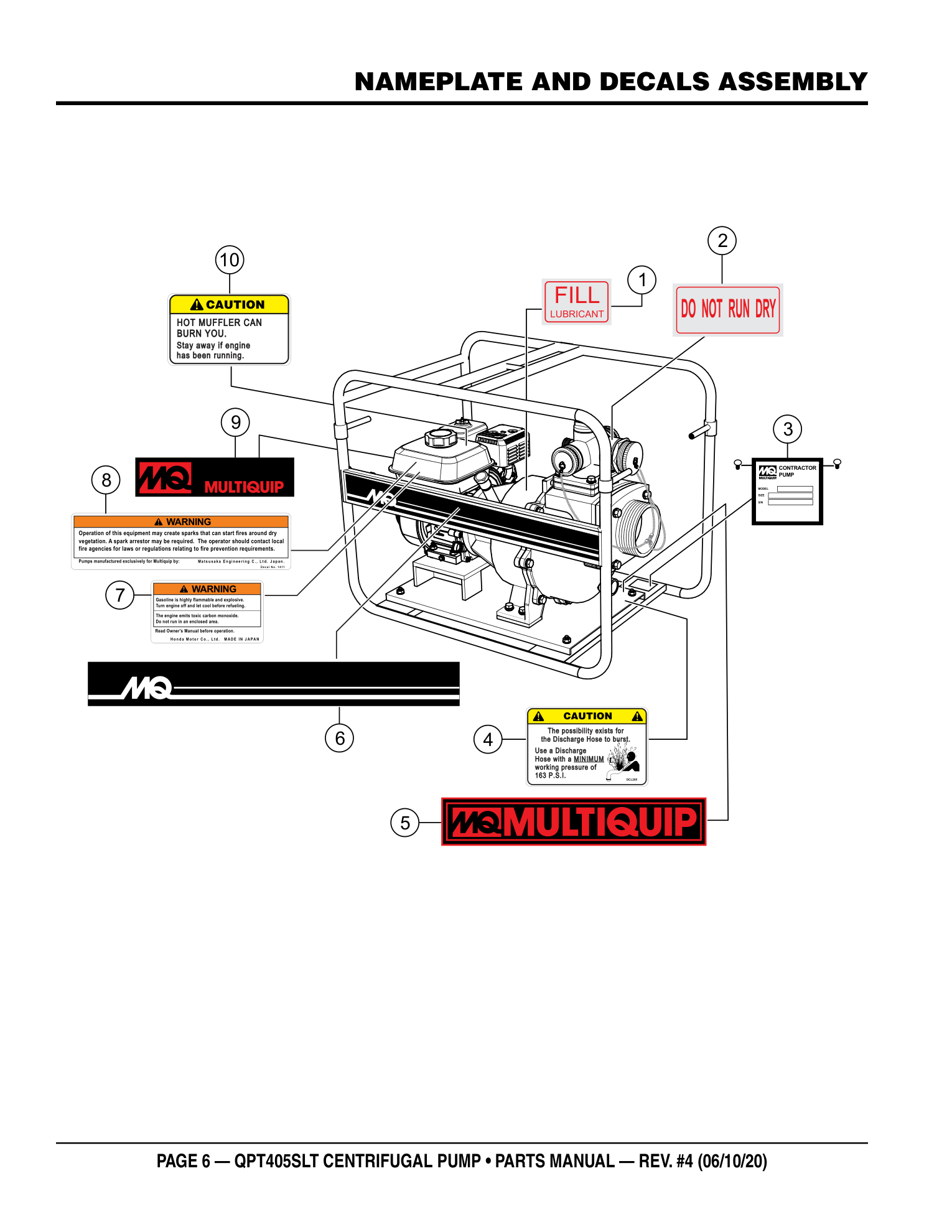

Need the PDF? ↓Page 6 — NAMEPLATE AND DECALS ASSEMBLY
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 2200241 | DECAL; FILL LUBRICANT | 1 | PARTS REQUEST | |
|
COMING DECAL; FILL LUBRICANT
2200241 · qty on machine: 1 | |||||
| 2 | 1200111 | DECAL; DO NOT RUN DRY | 1 | ADD TO CART | |
| 3 | SERIAL PLATE | 1 | CONTACT MQ PARTS DEPT. | SEE REMARKS | |
|
COMING SERIAL PLATE
· qty on machine: 1 CONTACT MQ PARTS DEPT. SEE REMARKS
| |||||
| 4 | DCL285 | DECAL; CAUTION, DISCHARGE HOSE | 1 | ADD TO CART | |
| 5 | 2200111 | DECAL; MQ MULTIQUIP LOGO | 1 | ADD TO CART | |
| 6 | 2200131 | DECAL; MQ STRIPE | 1 | NO LONGER AVAILABLE | |
|
COMING DECAL; MQ STRIPE
2200131 · qty on machine: 1 NO LONGER AVAILABLE
| |||||
| 7 | 87516Z4H0100 | DECAL; WARNING, GASOLINE FLAMMABLE | 1 | PARTS REQUEST | |
|
COMING DECAL; WARNING, GASOLINE FLAMMABLE
87516Z4H0100 · qty on machine: 1 | |||||
| 8 | 2200231 | DECAL; WARNING, START FIRES | 1 | ADD TO CART | |
| 9 | 2200191 | DECAL; MQ MULTIQUIP LOGO | 1 | ADD TO CART | |
| 10 | 22000191 | DECAL; CAUTION, HOT MUFFLER | 1 | PARTS REQUEST | |
|
COMING DECAL; CAUTION, HOT MUFFLER
22000191 · qty on machine: 1 | |||||

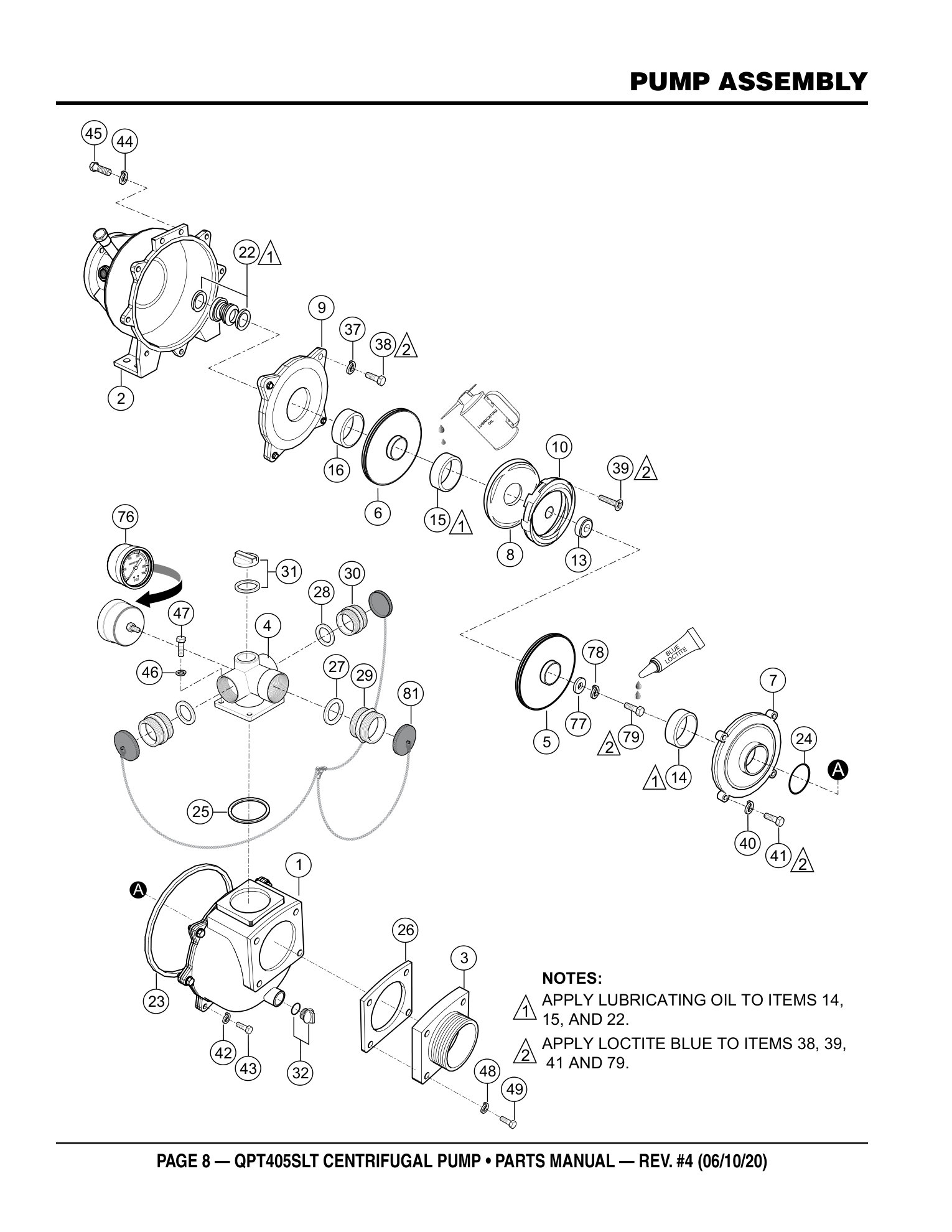

Page 8 — PUMP ASSEMBLY
Parts list — exactly as printed43 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 14730600100002 | CASING | 1 | ADD TO CART | |
| 2 | 14730600200002 | CASING COVER | 1 | ADD TO CART | |
| 3 | 14730001600002 | SUCTION COVER | 1 | PARTS REQUEST | |
|
COMING SUCTION COVER
14730001600002 · qty on machine: 1 | |||||
| 4 | 14730600900002 | DELIVERY COVER (3-WAY OUTLET) | 1 | PARTS REQUEST | |
|
COMING DELIVERY COVER (3-WAY OUTLET)
14730600900002 · qty on machine: 1 | |||||
| 5 | 1473060030 | IMPELLER 1 | 1 | ADD TO CART | |
| 6 | 1473060040 | IMPELLER 2 | 1 | PARTS REQUEST | |
|
COMING IMPELLER 2
1473060040 · qty on machine: 1 | |||||
| 7 | 1473060130 | VOLUTE CASING 1 | 1 | ADD TO CART | |
| 8 | 1473060120 | VOLUTE CASING 2 | 1 | ADD TO CART | |
| 9 | 1473060110 | VOLUTE CASING 3 | 1 | ADD TO CART | |
| 10 | 1473060140 | GUIDE VANE | 1 | ADD TO CART | |
| 13 | 1473221270 | SHAFT SPACER | 1 | ADD TO CART | |
| 14 | 1473251220 | LINER RING 1 | 1 | ADD TO CART | |
| 15 | 1473081220 | LINER RING 2 | 1 | ADD TO CART | |
| 16 | 1473081220 | LINER RING 3 | 1 | ADD TO CART | |
| 22 | 0805404235 | MECHANICAL SEAL | 1 | ADD TO CART | |
| 23 | 0481573750 | O-RING | 1 | ADD TO CART | |
| 24 | 0480571150 | O-RING | 1 | ADD TO CART | |
| 25 | 0481571650 | O-RING | 1 | ADD TO CART | |
| 26 | 1601350350 | CHECK VALVE | 1 | ADD TO CART | |
| 27 | 0481311100 | O-RING | 1 | ADD TO CART | |
| 28 | 0481310800 | O-RING | 2 | ADD TO CART | |
| 29 | 07905340400014 | NIPPLE (4") | 1 | PARTS REQUEST | |
|
COMING NIPPLE (4")
07905340400014 · qty on machine: 1 | |||||
| 30 | 07905330310014 | NIPPLE (3") | 2 | PARTS REQUEST | |
|
COMING NIPPLE (3")
07905330310014 · qty on machine: 2 | |||||
| 31 | 0631211159 | FLOODING CAP | 1 | ADD TO CART | |
| 32 | 0631211100ASSY | DRAIN CAP | 1 | REPLACES P/N 0631211100 | ADD TO CART |
| 37 | 0451250100 | WASHER, LOCK | 4 | REPLACES P/N 0451290100 | ADD TO CART |
| 38 | 0105091040 | BOLT | 4 | ADD TO CART | |
| 39 | 0161090645 | FLAT SCREW | 3 | PARTS REQUEST | |
|
COMING FLAT SCREW
0161090645 · qty on machine: 3 | |||||
| 40 | 0451250100 | WASHER, LOCK | 4 | REPLACES P/N 0451290100 | ADD TO CART |
| 41 | 0105191010 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
0105191010 · qty on machine: 4 | |||||
| 42 | 045129-0120 | WASHER, LOCK | 7 | PARTS REQUEST | |
|
COMING WASHER, LOCK
045129-0120 · qty on machine: 7 | |||||
| 43 | 0105091235 | BOLT | 7 | PARTS REQUEST | |
|
COMING BOLT
0105091235 · qty on machine: 7 | |||||
| 44 | 0451250100 | WASHER, LOCK | 2 | REPLACES P/N 0451290100 | ADD TO CART |
| 45 | 0105091035 | BOLT | 2 | ADD TO CART | |
| 46 | 0451290160 | WASHER, LOCK | 4 | PARTS REQUEST | |
|
COMING WASHER, LOCK
0451290160 · qty on machine: 4 | |||||
| 47 | 0105091640 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
0105091640 · qty on machine: 4 | |||||
| 48 | 0451290160 | WASHER, LOCK | 4 | PARTS REQUEST | |
|
COMING WASHER, LOCK
0451290160 · qty on machine: 4 | |||||
| 49 | 0105091650 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
0105091650 · qty on machine: 4 | |||||
| 76 | 1473809360 | PRESSURE GAUGE | 1 | PARTS REQUEST | |
|
COMING PRESSURE GAUGE
1473809360 · qty on machine: 1 | |||||
| 77 | 1466251241 | IMPELLER WASHER | 1 | ADD TO CART | |
| 78 | 0451250100 | WASHER, LOCK | 1 | REPLACES P/N 0451290100 | ADD TO CART |
| 79 | 0105091025 | BOLT | 1 | ADD TO CART | |
| 81 | 1473068050ASSY | BALL CHAIN WITH CAP | 1 | PARTS REQUEST | |
|
COMING BALL CHAIN WITH CAP
1473068050ASSY · qty on machine: 1 | |||||

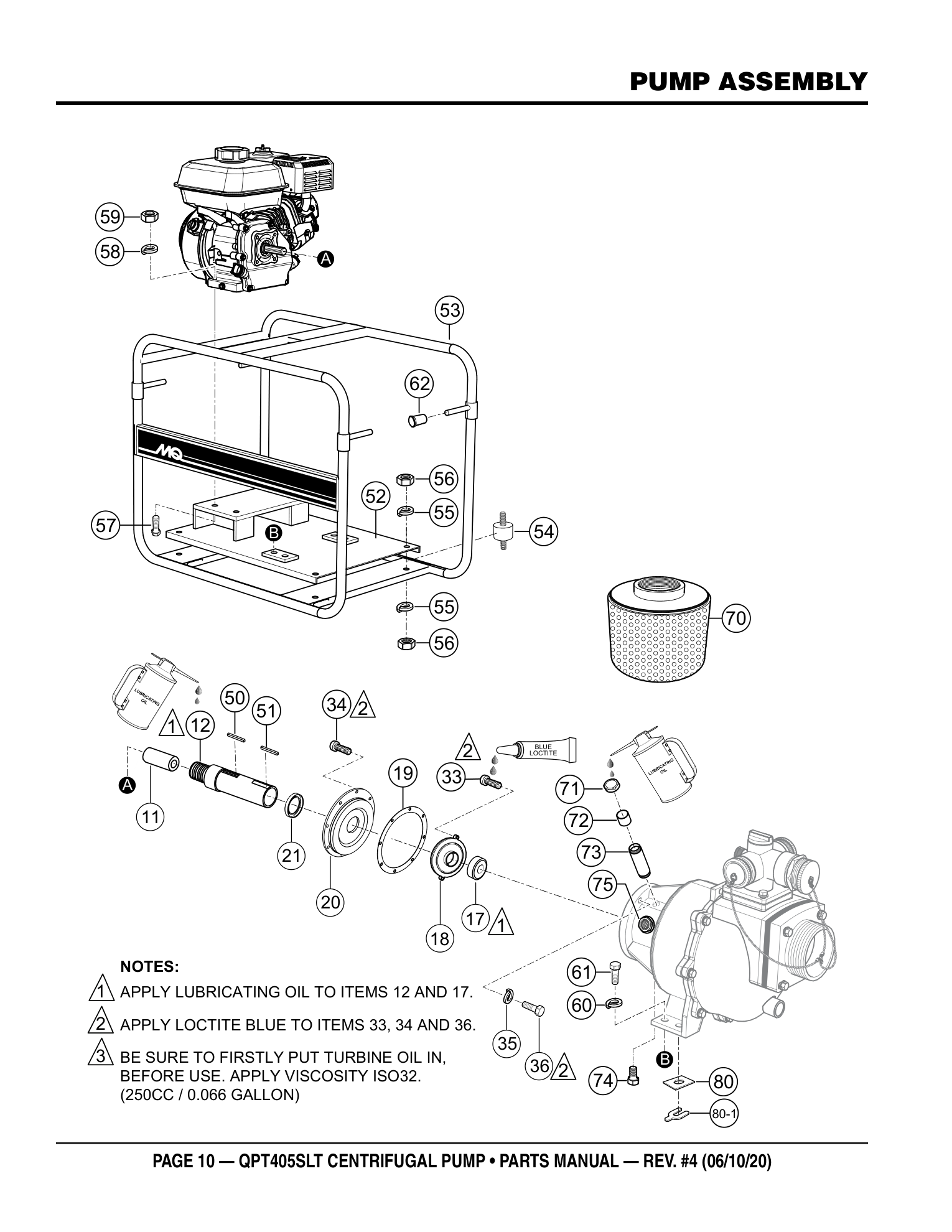

Page 10 — PUMP ASSEMBLY
Parts list — exactly as printed32 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 11 | 1473221010 | PUMP SHAFT | 1 | ADD TO CART | |
| 12 | 1473221020 | EXTENSION SHAFT | 1 | ADD TO CART | |
| 17 | 0670006207 | BALL BEARING | 1 | ADD TO CART | |
| 18 | 1473201320 | BEARING SET PLATE | 1 | ADD TO CART | |
| 19 | 1473390780 | OIL ROOM COVER PACKING | 1 | ADD TO CART | |
| 20 | 1473130760 | OIL ROOM COVER | 1 | PARTS REQUEST | |
|
COMING OIL ROOM COVER
1473130760 · qty on machine: 1 Factory replaced this part - current number 1473200760 | |||||
| 21 | 0861354808 | OIL SEAL | 1 | REPLACES P/N 0862354808 | ADD TO CART |
| 33 | 0131190515 | CAP SCREW | 3 | PARTS REQUEST | |
|
COMING CAP SCREW
0131190515 · qty on machine: 3 | |||||
| 34 | 0131190515 | CAP SCREW | 4 | PARTS REQUEST | |
|
COMING CAP SCREW
0131190515 · qty on machine: 4 | |||||
| 35 | 0451290070 | WASHER, LOCK | 4 | ADD TO CART | |
| 36 | 0191170632 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
0191170632 · qty on machine: 4 | |||||
| 50 | 0505070825 | KEY | 1 | PARTS REQUEST | |
|
COMING KEY
0505070825 · qty on machine: 1 | |||||
| 51 | 0515070825 | KEY | 1 | PARTS REQUEST | |
|
COMING KEY
0515070825 · qty on machine: 1 | |||||
| 52 | 14732140200014 | ENGINE BASE | 1 | PARTS REQUEST | |
|
COMING ENGINE BASE
14732140200014 · qty on machine: 1 | |||||
| 53 | 1473214010P002 | BASE | 1 | PARTS REQUEST | |
|
COMING BASE
1473214010P002 · qty on machine: 1 | |||||
| 54 | 0723303032 | CUSHION RUBBER | 4 | ADD TO CART | |
| 55 | 0451290080 | WASHER, LOCK | 8 | ADD TO CART | |
| 56 | 0205490080 | NUT | 8 | ADD TO CART | |
| 57 | 0105091060 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
0105091060 · qty on machine: 4 | |||||
| 58 | 0451250100 | WASHER, LOCK | 4 | REPLACES P/N 0451290100 | ADD TO CART |
| 59 | 020310080 | NUT | 4 | REPLACES P/N 0205490100 | ADD TO CART |
| 60 | 030212300 | WASHER, LOCK | 4 | REPLACES P/N 0451290120 | ADD TO CART |
| 61 | 0105091235 | BOLT | 4 | PARTS REQUEST | |
|
COMING BOLT
0105091235 · qty on machine: 4 | |||||
| 62 | 1412317030 | CAP | 4 | ADD TO CART | |
| 70 | 0742217100 | STRAINER | 1 | ADD TO CART | |
| 71 | 1473807150 | OIL CAP | 1 | PARTS REQUEST | |
|
COMING OIL CAP
1473807150 · qty on machine: 1 | |||||
| 72 | 0772253838 | SOCKET | 1 | PARTS REQUEST | |
|
COMING SOCKET
0772253838 · qty on machine: 1 | |||||
| 73 | E120038100 | LONG NIPPLE | 1 | PARTS REQUEST | |
|
COMING LONG NIPPLE
E120038100 · qty on machine: 1 | |||||
| 74 | 1473807160 | OIL PLUG | 1 | PARTS REQUEST | |
|
COMING OIL PLUG
1473807160 · qty on machine: 1 Factory replaced this part - current number 1473177160 | |||||
| 75 | 1473809370 | OIL GAUGE, SIGHT GLASS | 1 | ADD TO CART | |
| 80 | 0852830000 | BASE LINER | 4 | ADD TO CART | |
| 80-1 | 0852850000 | BASE LINER | 4 | PARTS REQUEST | |
|
COMING BASE LINER
0852850000 · qty on machine: 4 | |||||

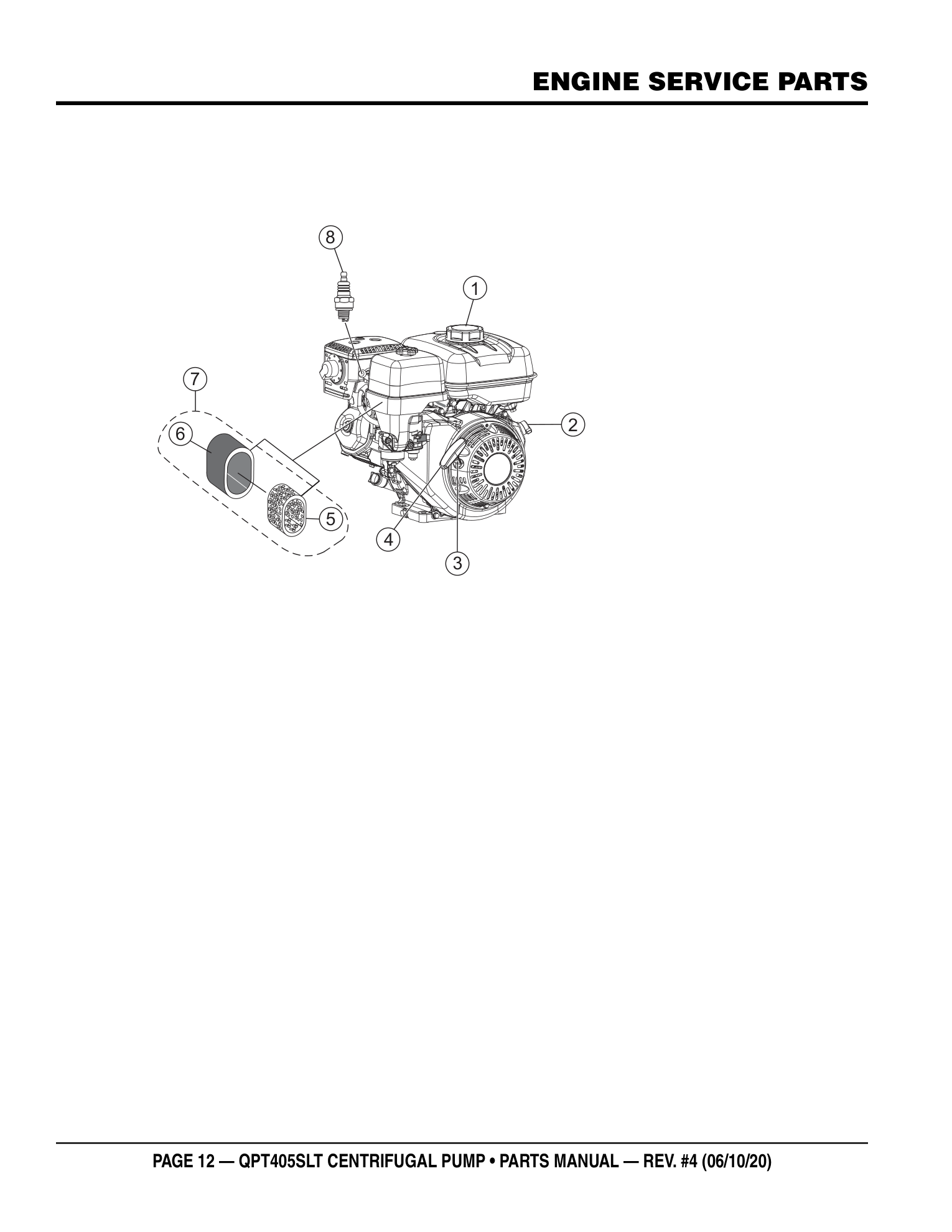

Page 12 — SWITCH ASSY.
Parts list — exactly as printed8 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 17620Z4H900 | TANK CAP, CHROME PLATED | 1 | ADD TO CART | |
| 2 | 35120Z5T003 | SWITCH ASSY. | 1 | ADD TO CART | |
| 3 | 28462ZE3W01 | ROPE, RECOIL | 1 | ADD TO CART | |
| 4 | 28461Z5T305 | GRIP, STARTER | 1 | ADD TO CART | |
| 5 | AIR CLEANER ELEMENT | 1 | NOT SOLD SEPARATELY | NOT SOLD SEPARATELY | |
|
COMING AIR CLEANER ELEMENT
· qty on machine: 1 NOT SOLD SEPARATELY NOT SOLD SEPARATELY
| |||||
| 6 | 17218ZE3000 | FILTER OUTER | 1 | ADD TO CART | |
| 7 | 17210ZE3505 | ELEMENT A/C DUAL H-5252697 | 1 | ADD TO CART | |
| 8 | 9807955846 | SPARK PLUG, BPR5ES (NGK) | 1 | ADD TO CART | |
