Wacker Neuson BPS2050 Vibratory Plate
Factory parts book · interactive
Wacker Neuson BPS2050 Vibratory Plate
Pick your options below. We build the exact machine and start your quote.
The parts bench
Need the PDF? ↓Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||

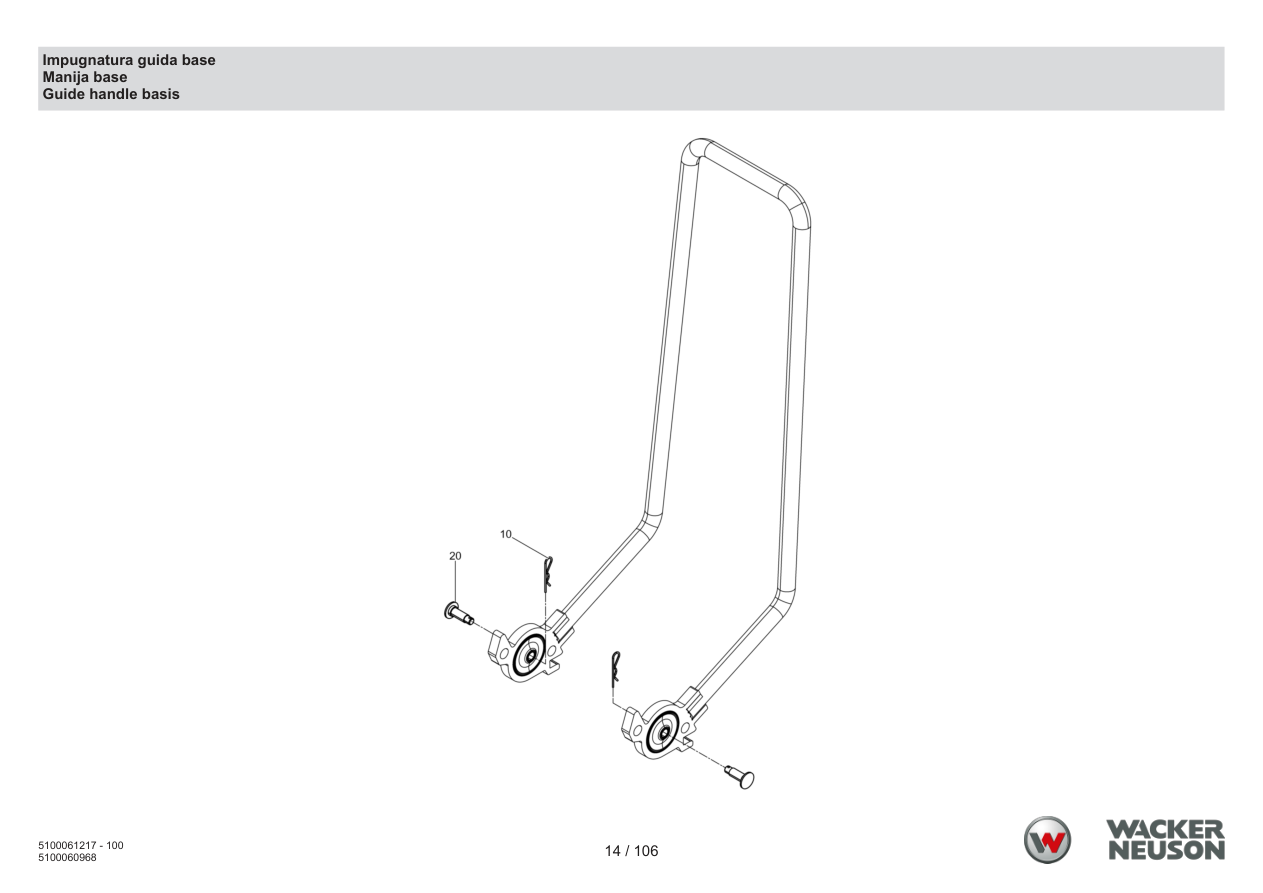

Page 14 — Handle guide base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052432 | Spring pin | 2 | ADD TO CART | |
| 20 | 5100052431 | Bolt | 2 | ADD TO CART | |

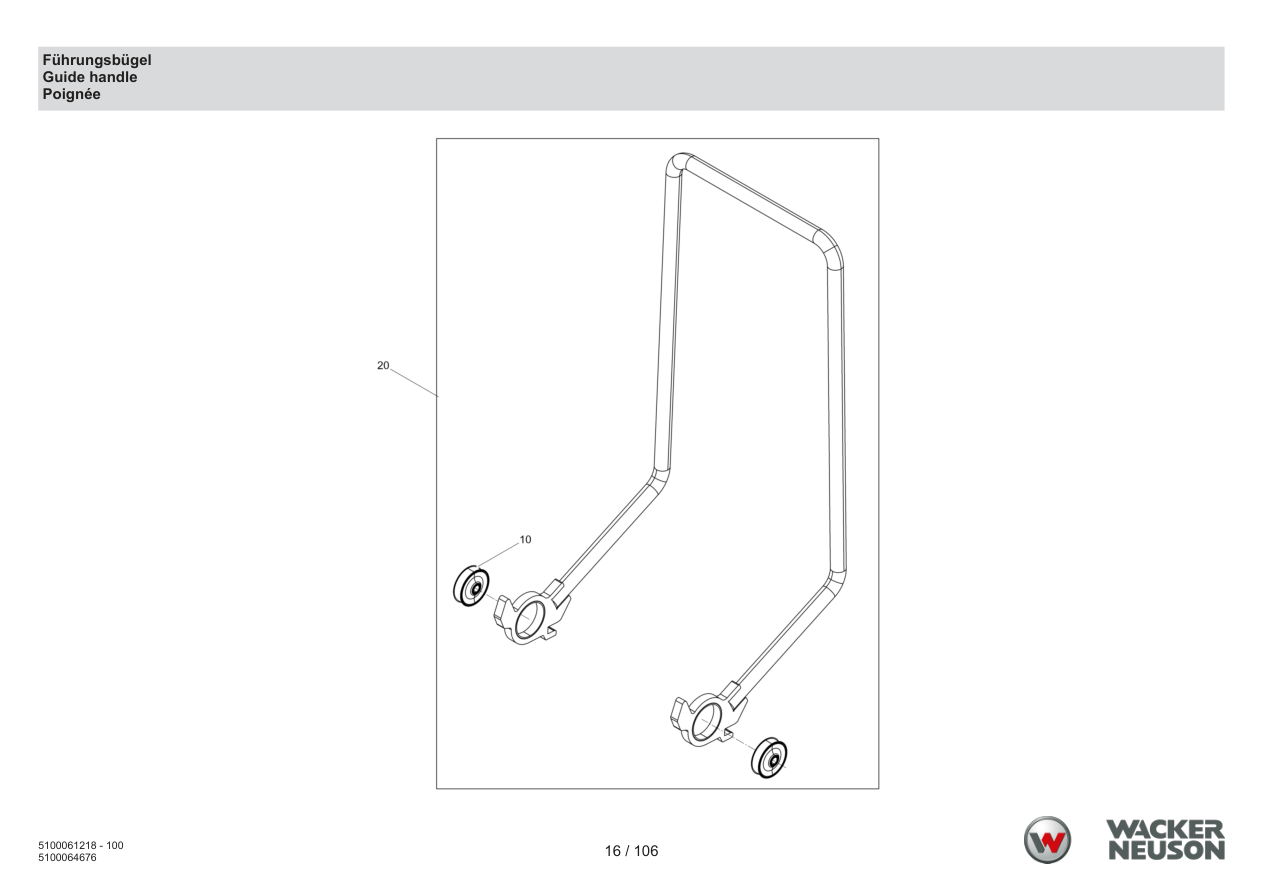

Page 16 — Handle guide
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052430 | Bearing | 2 | ADD TO CART | |
| 20 | 5100060526 | Guiding frame cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

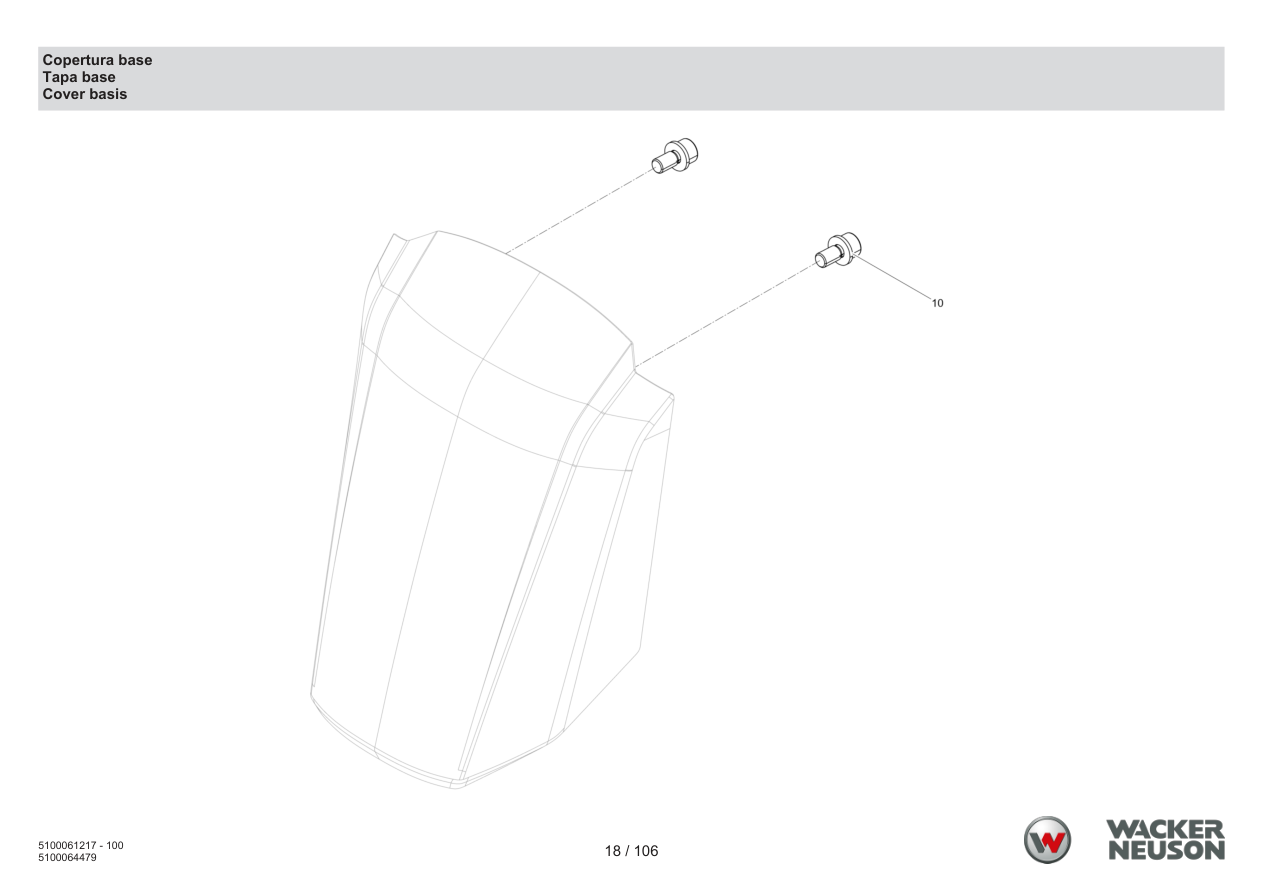

Page 18 — Base cover
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059594 | Cheese head screw | 2 | ADD TO CART | |

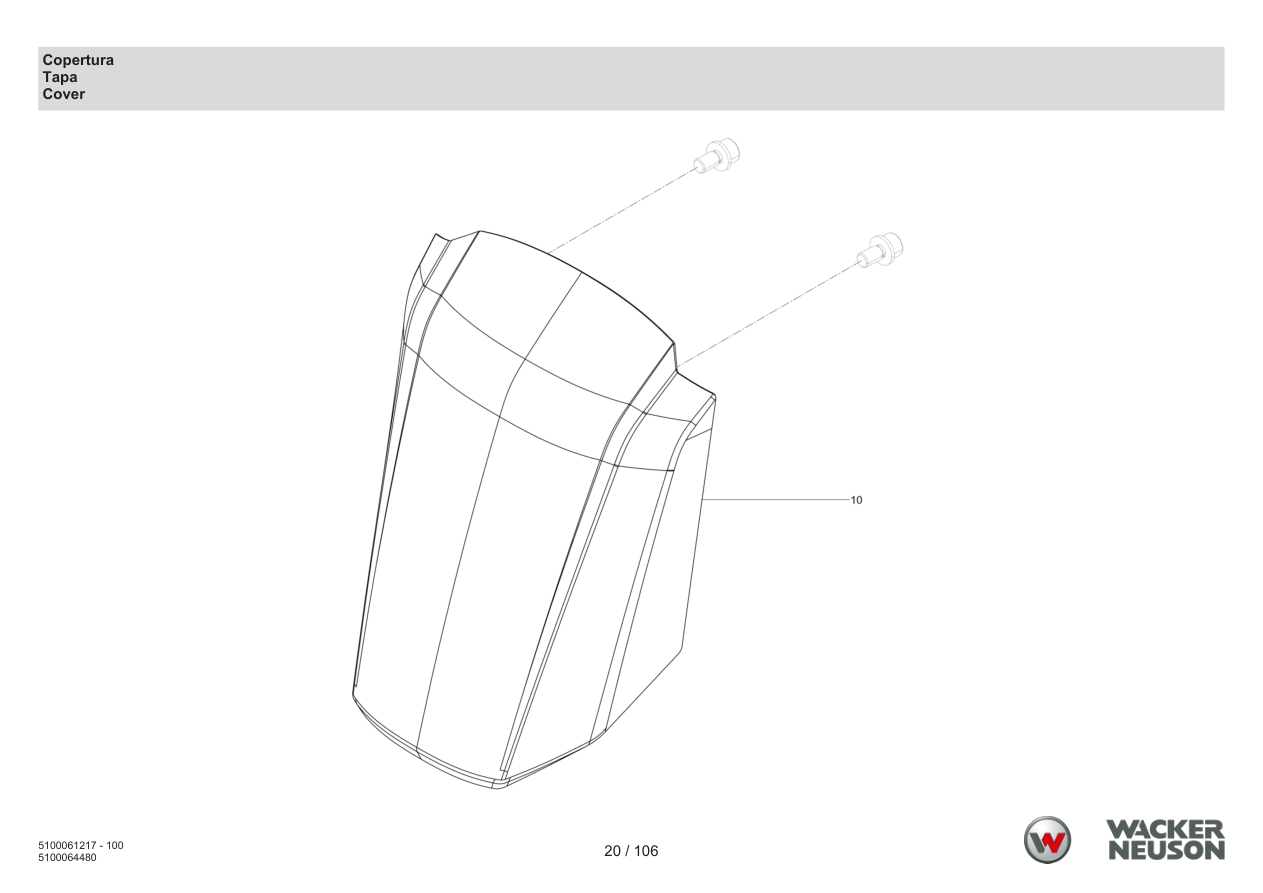

Page 20 — Cover
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059052 | Cover | 1 | ADD TO CART | |

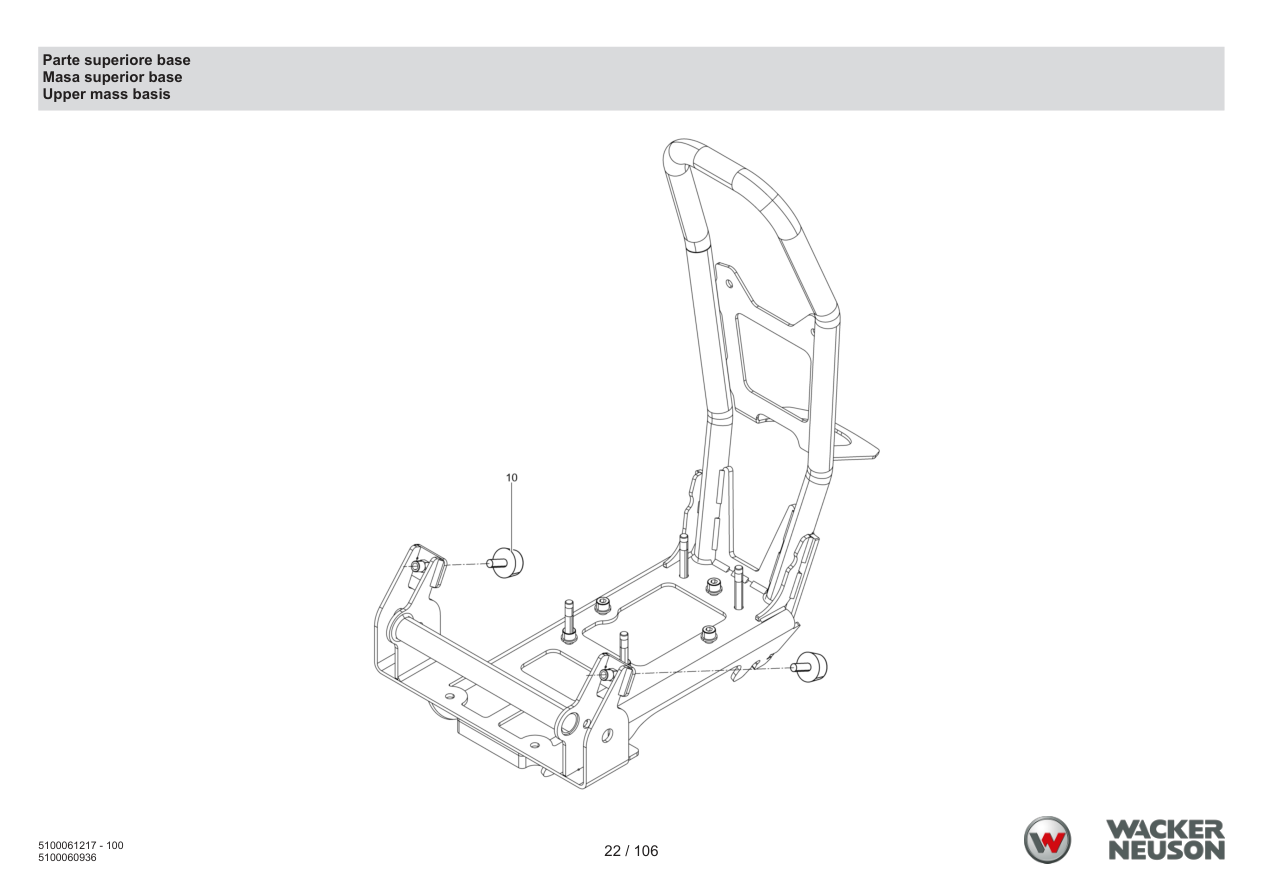

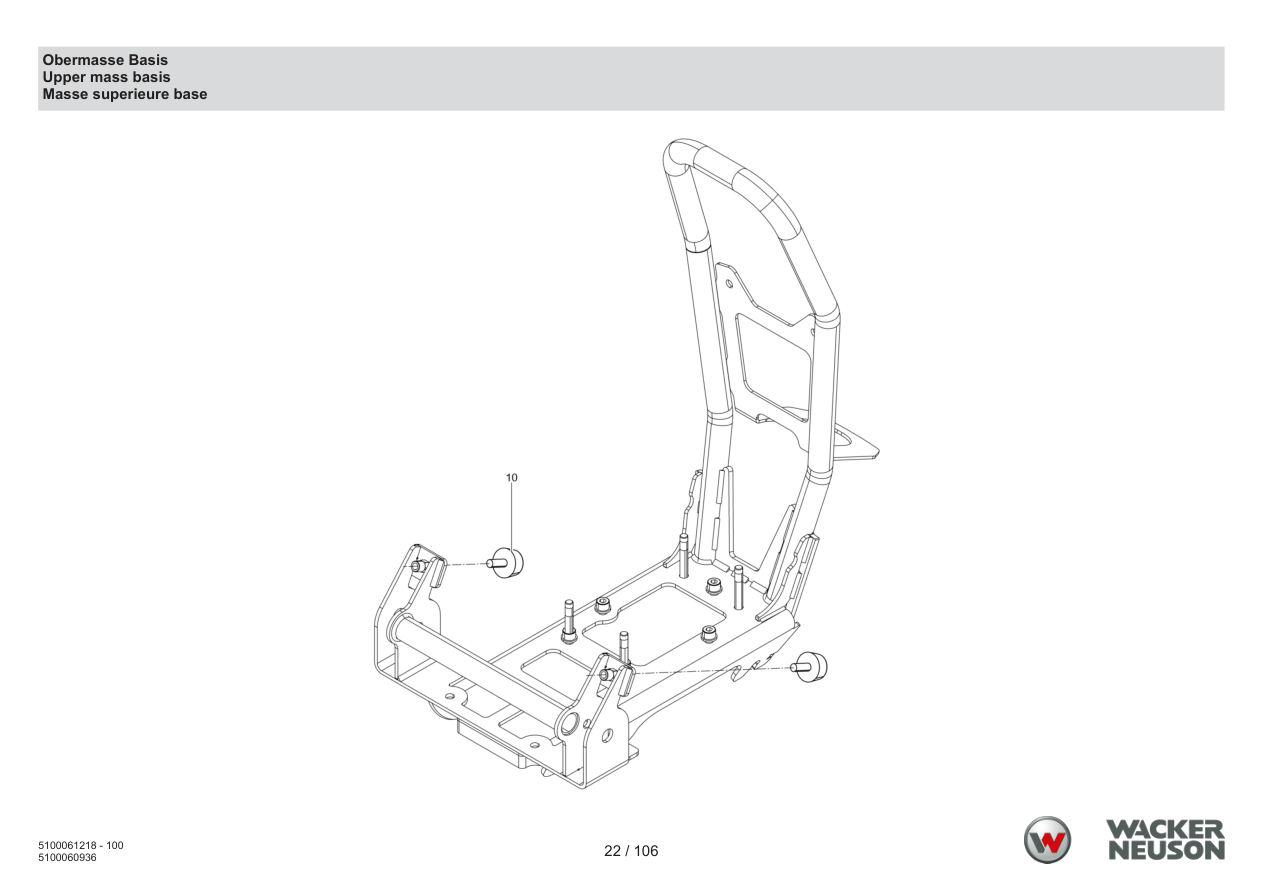

Page 22 — Upper part base
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100016317 | Shockmount | 2 | ADD TO CART | |

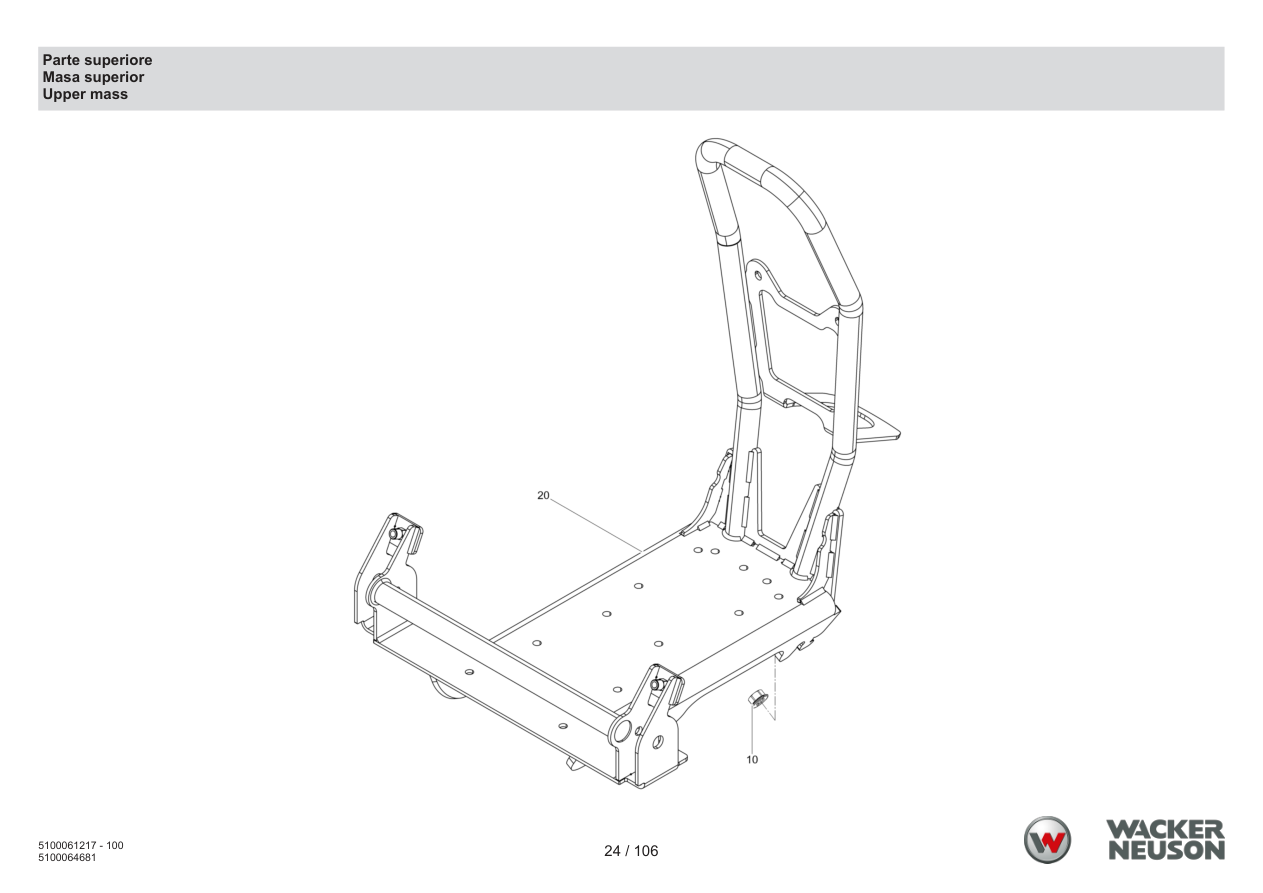

Page 24 — Upper part
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000096087 | Hexagon nut | 4 | ADD TO CART | |
| 20 | 5100060524 | Upper mass | 1 | ADD TO CART | |

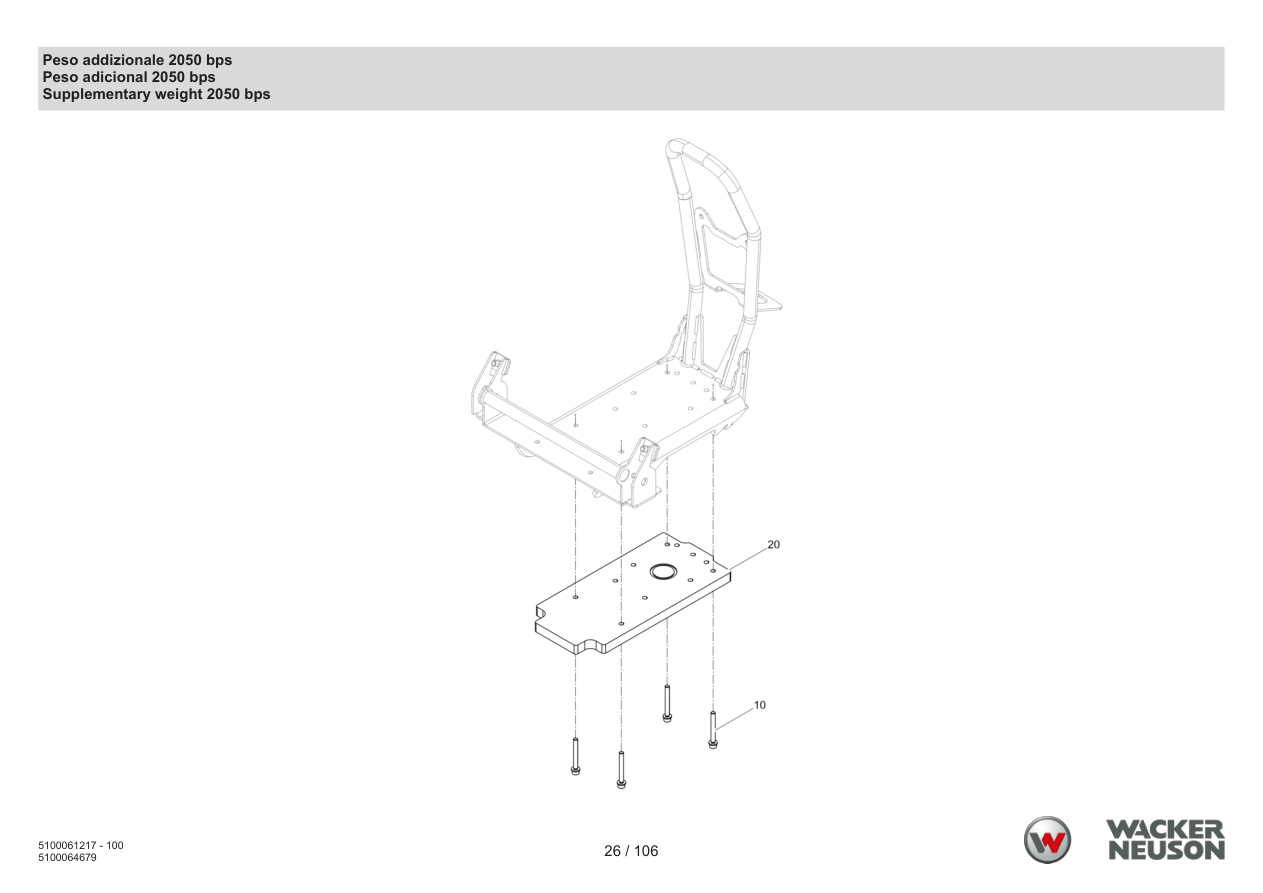

Page 26 — Additional weight 2050 bps
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059596 | Cheese head screw | 4 | ADD TO CART | |
| 20 | 5100060546 | Supplementary weight 10kg | 1 | ADD TO CART | |

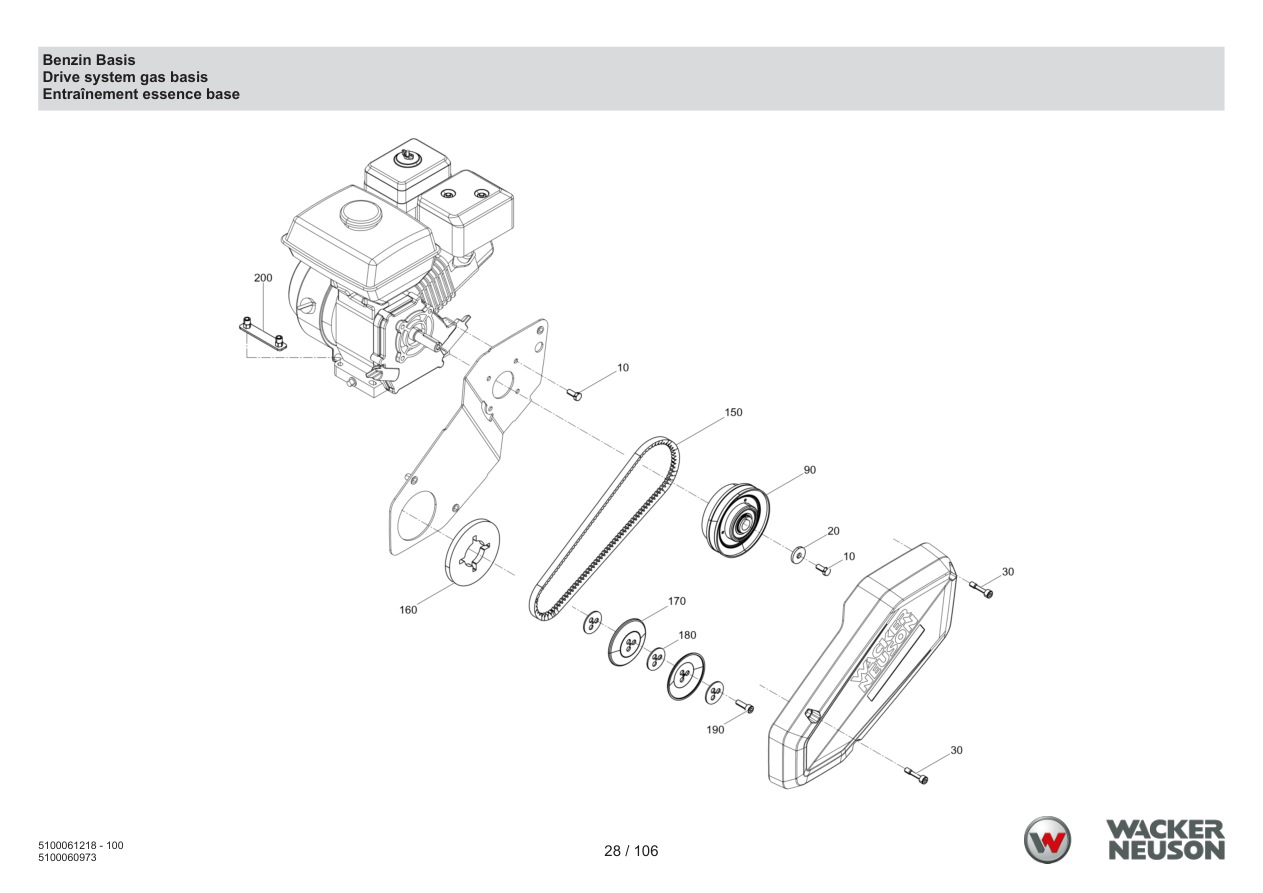

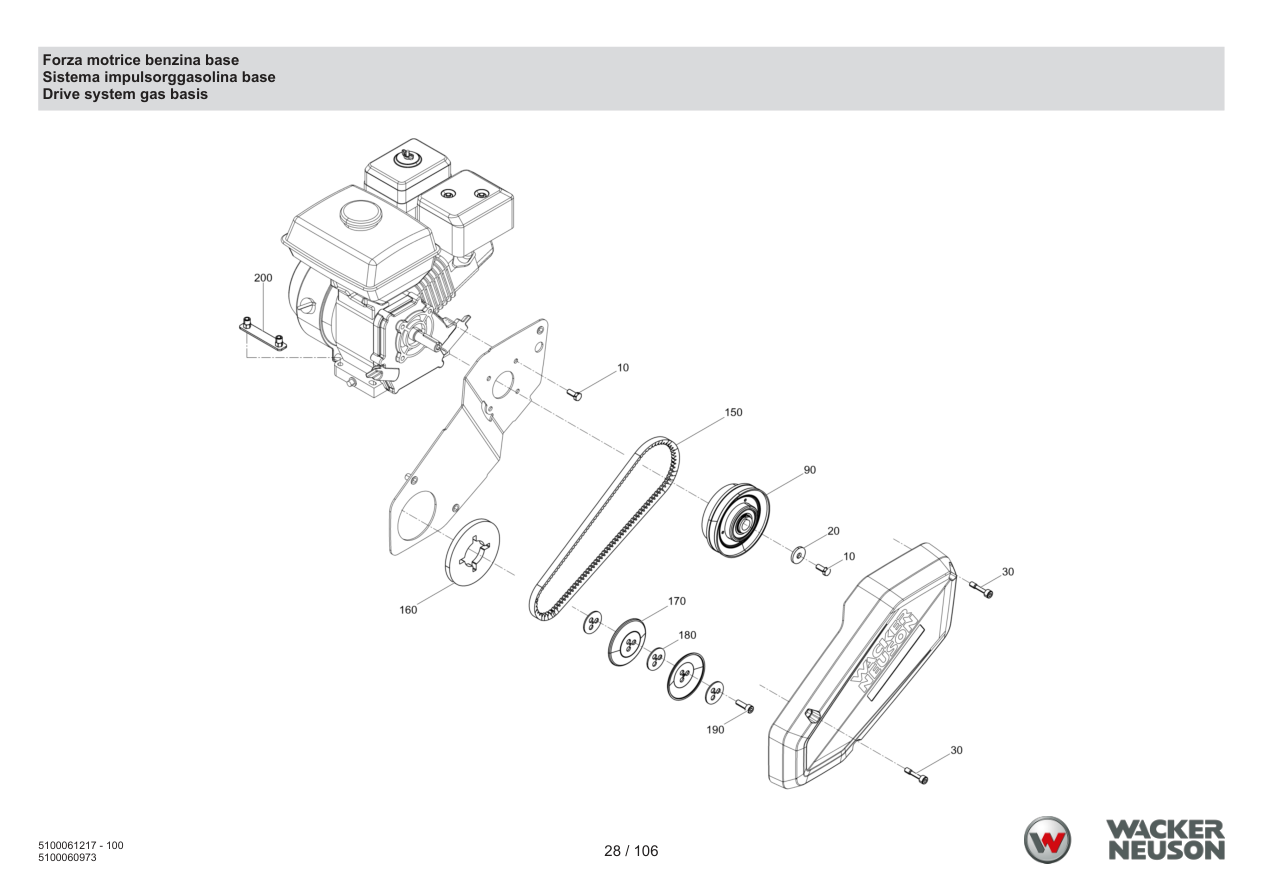

Page 28 — Gasoline drive unit base
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000026169 | Hexagonal head cap screw | 5 | ADD TO CART | |
| 20 | 5100016321 | Washer | 1 | ADD TO CART | |
| 30 | 5000216658 | Screw | 3 | ADD TO CART | |
| 90 | 5100054097 | Centrifugal clutch | 1 | ADD TO CART | |
| 150 | 5100031195 | V-belt | 1 | ADD TO CART | |
| 160 | 5100054135 | Gasket | 1 | ADD TO CART | |
| 170 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 180 | 5100064172 | Plate | 3 | ADD TO CART | |
| 190 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 200 | 5100058806 | Bar cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5100060554 | Guard plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 40 | 5100060550 | Belt guard | 1 | ADD TO CART | |

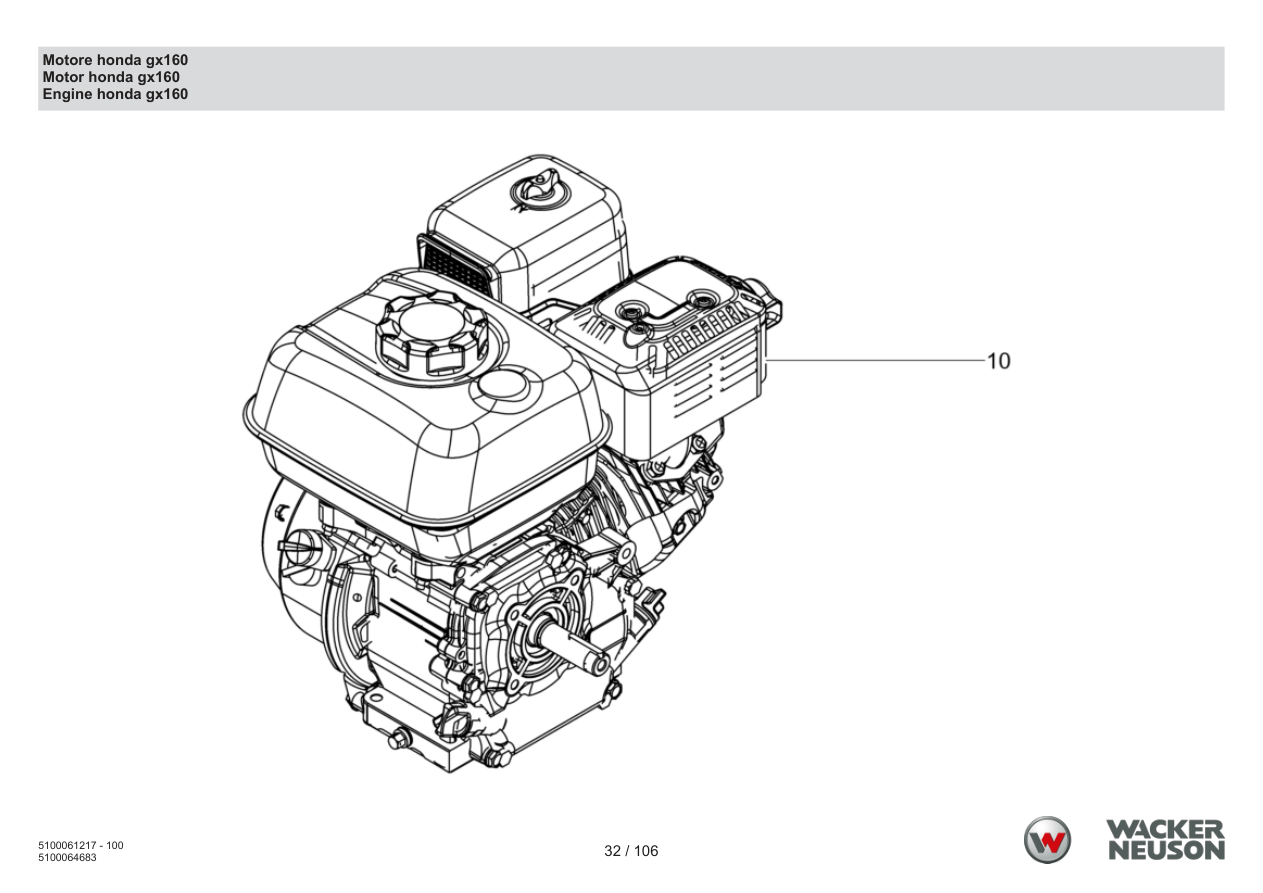

Page 32 — Honda GX160 Engine
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100045995 | Gas engine | 1 | ADD TO CART | |

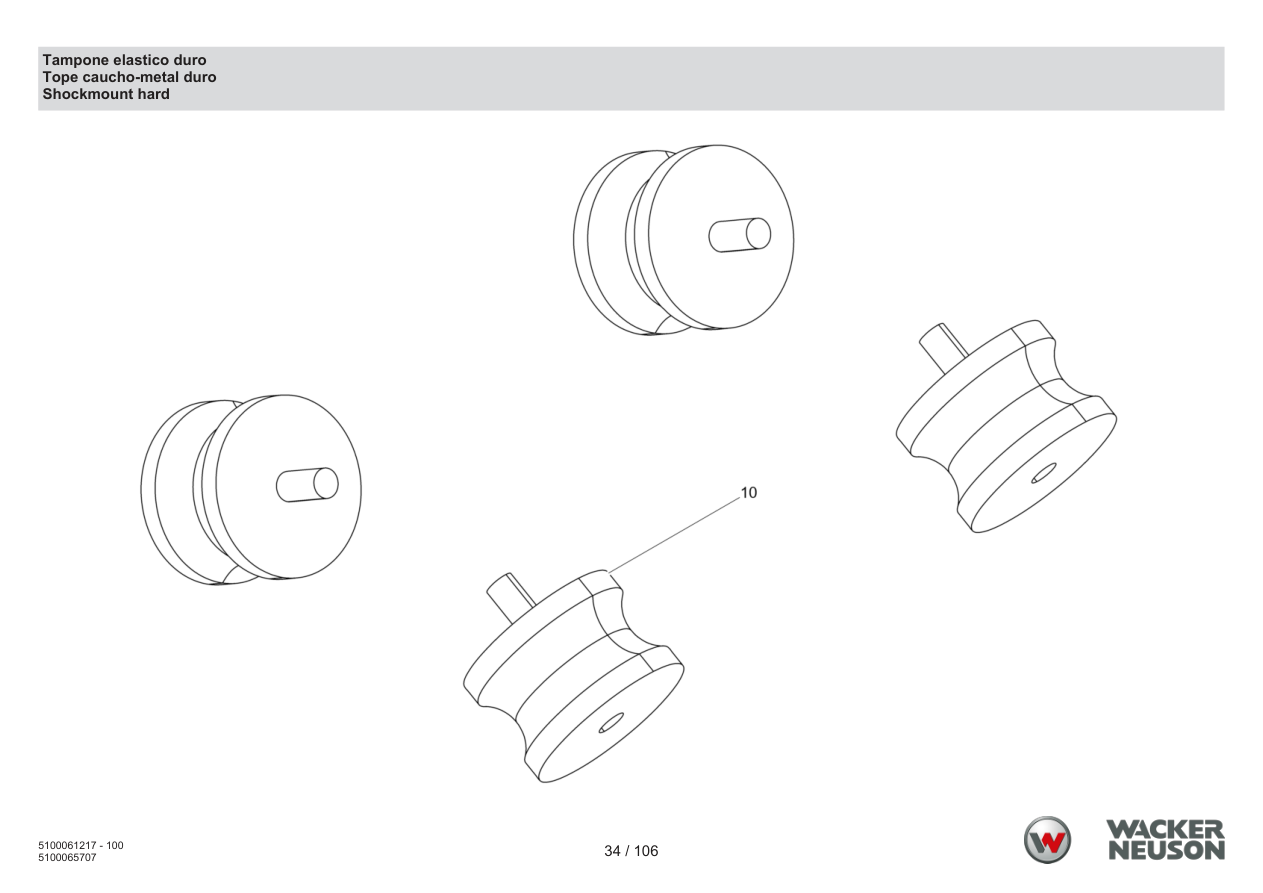

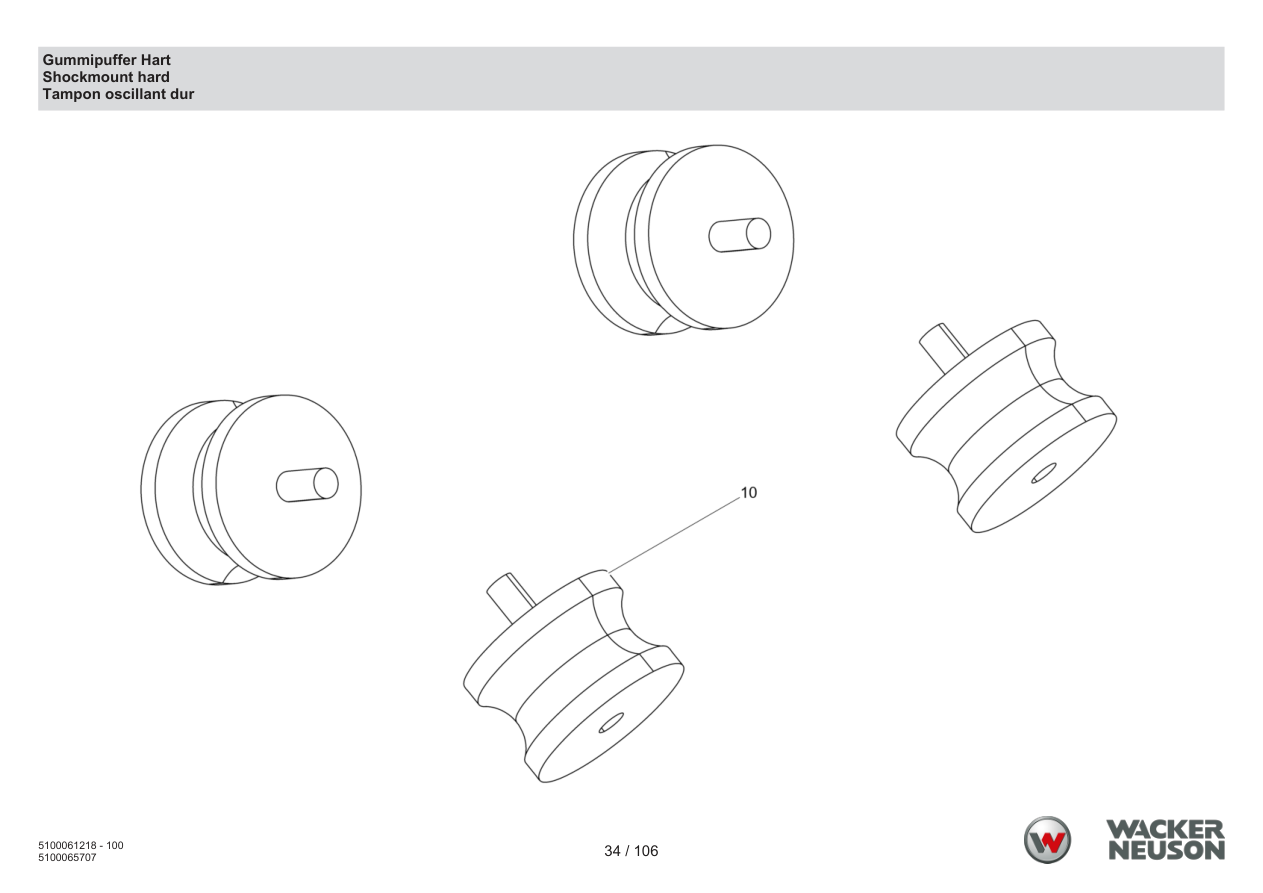

Page 34 — Hard rubber buffer
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000037378 | Shockmount | 4 | ADD TO CART | |

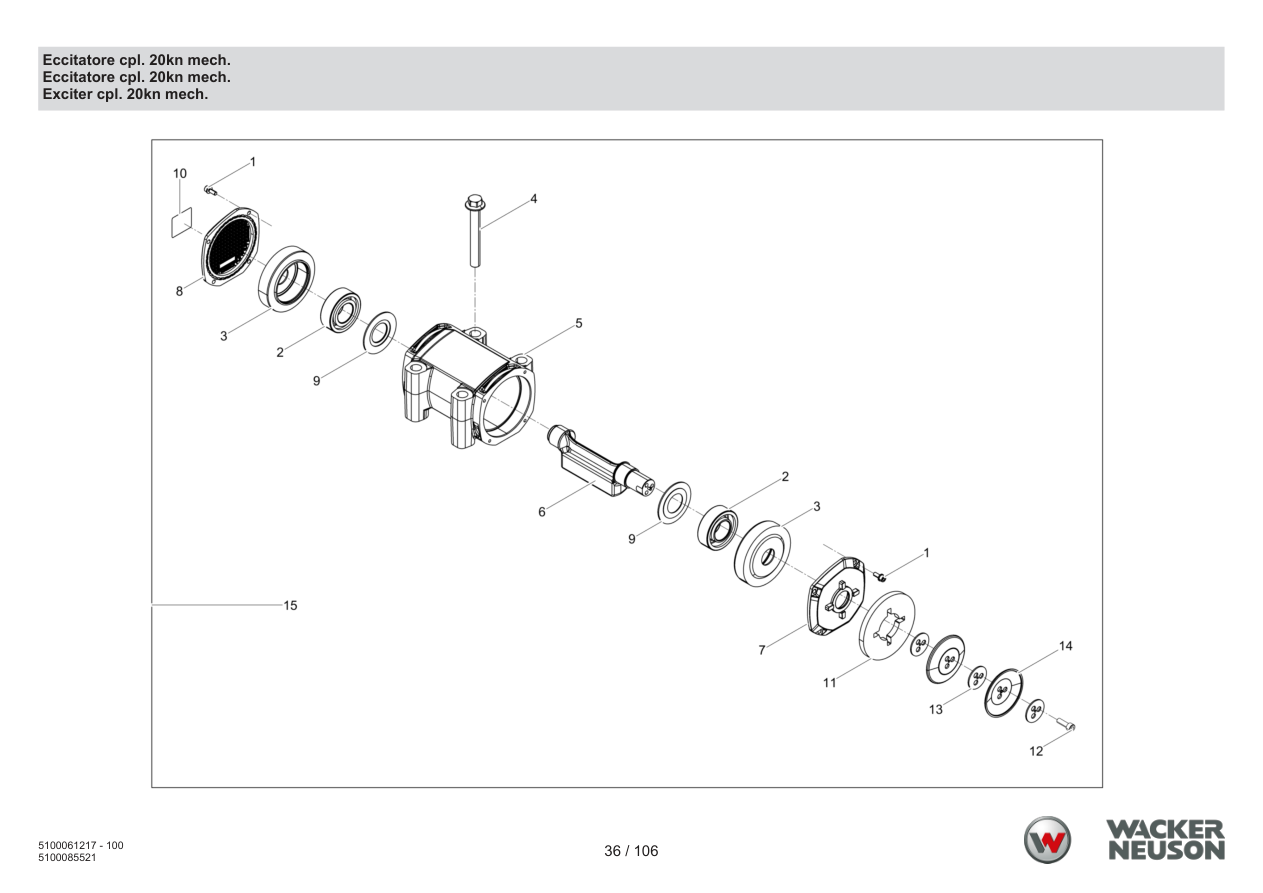

Page 36 — Exciter cpl. 20kn mech.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059593 | Cheese head screw | 8 | ADD TO CART | |
| 2 | 5000105139 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 3 | 5100062507 | Bearing seat | 2 | ADD TO CART | |
| 4 | 5100063187 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 5 | 5100063189 | Exciter housing | 1 | ADD TO CART | |
| 6 | 5100062381 | Eccentric shaft | 1 | ADD TO CART | |
| 7 | 5100054628 | Bearing cover right | 1 | ADD TO CART | |
| 8 | 5100054629 | Bearing cover left | 1 | ADD TO CART | |
| 9 | 5100063663 | Seal washer | 2 | ADD TO CART | |
| 10 | 5100068062 | Label | 1 | ADD TO CART | |
| 11 | 5100054135 | Gasket | 1 | ADD TO CART | |
| 12 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 13 | 5100064172 | Plate | 3 | ADD TO CART | |
| 14 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 15 | 5100084114 | Exciter cpl. 20kn | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. 20kn
5100084114 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

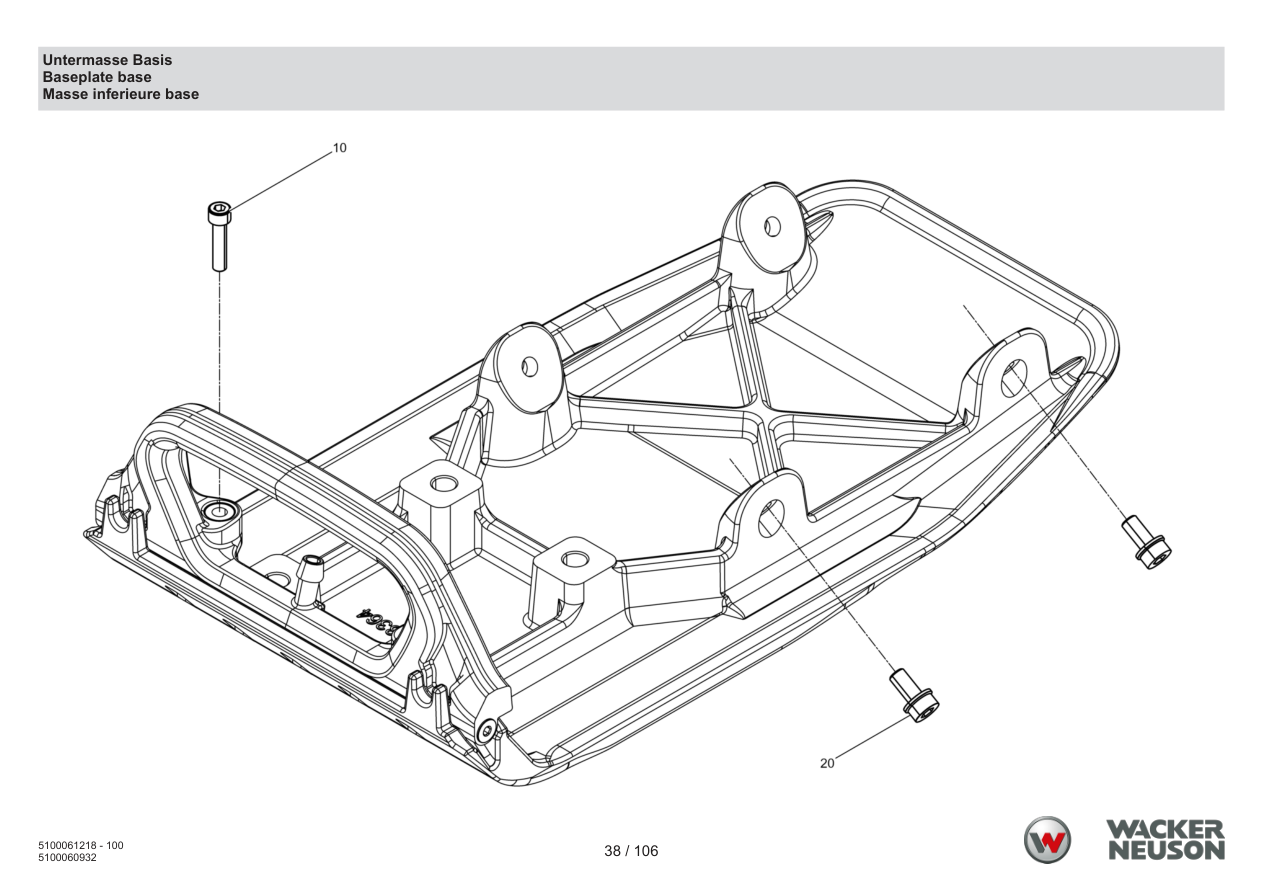

Page 38 — Lower part base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 20 | 5000210111 | Corrugated-head screw | 4 | ADD TO CART | |

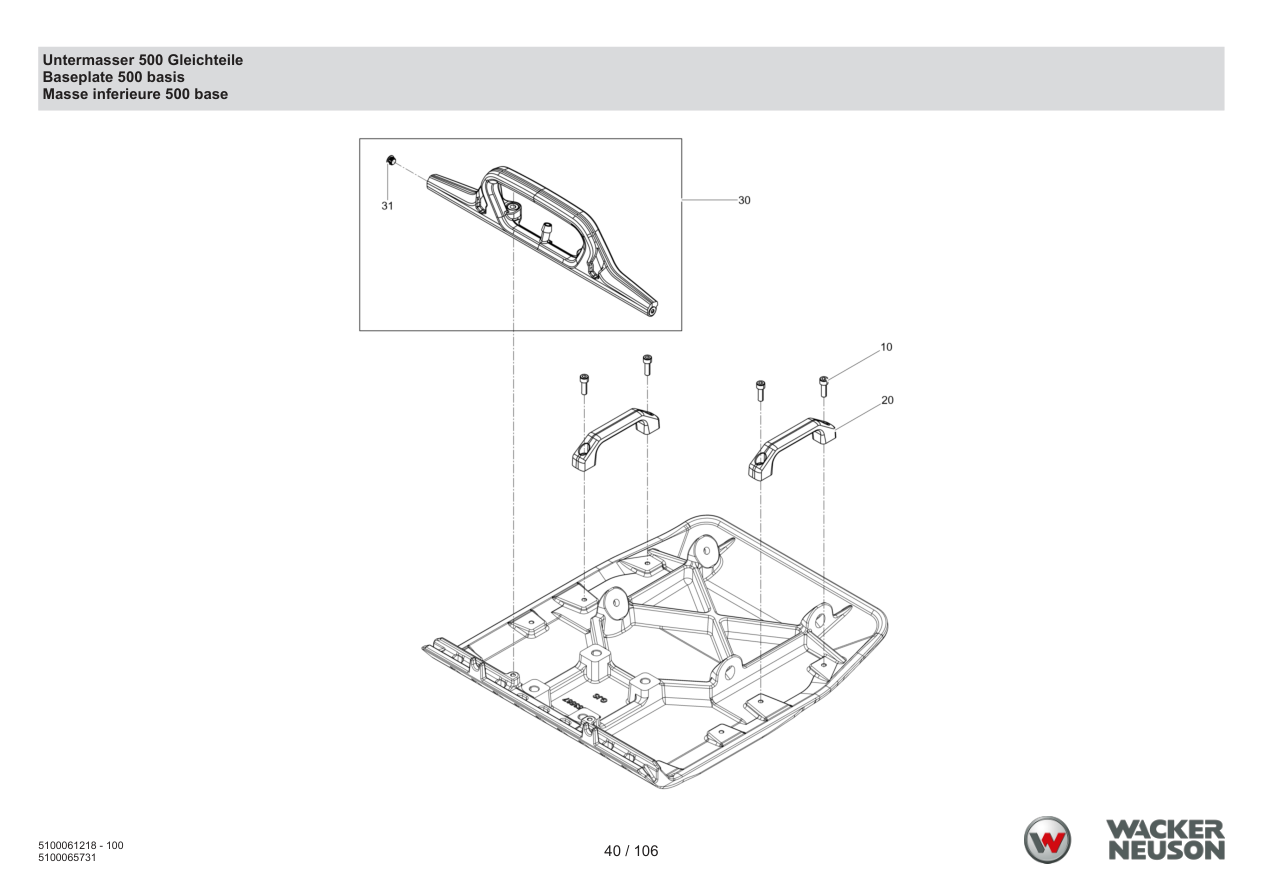

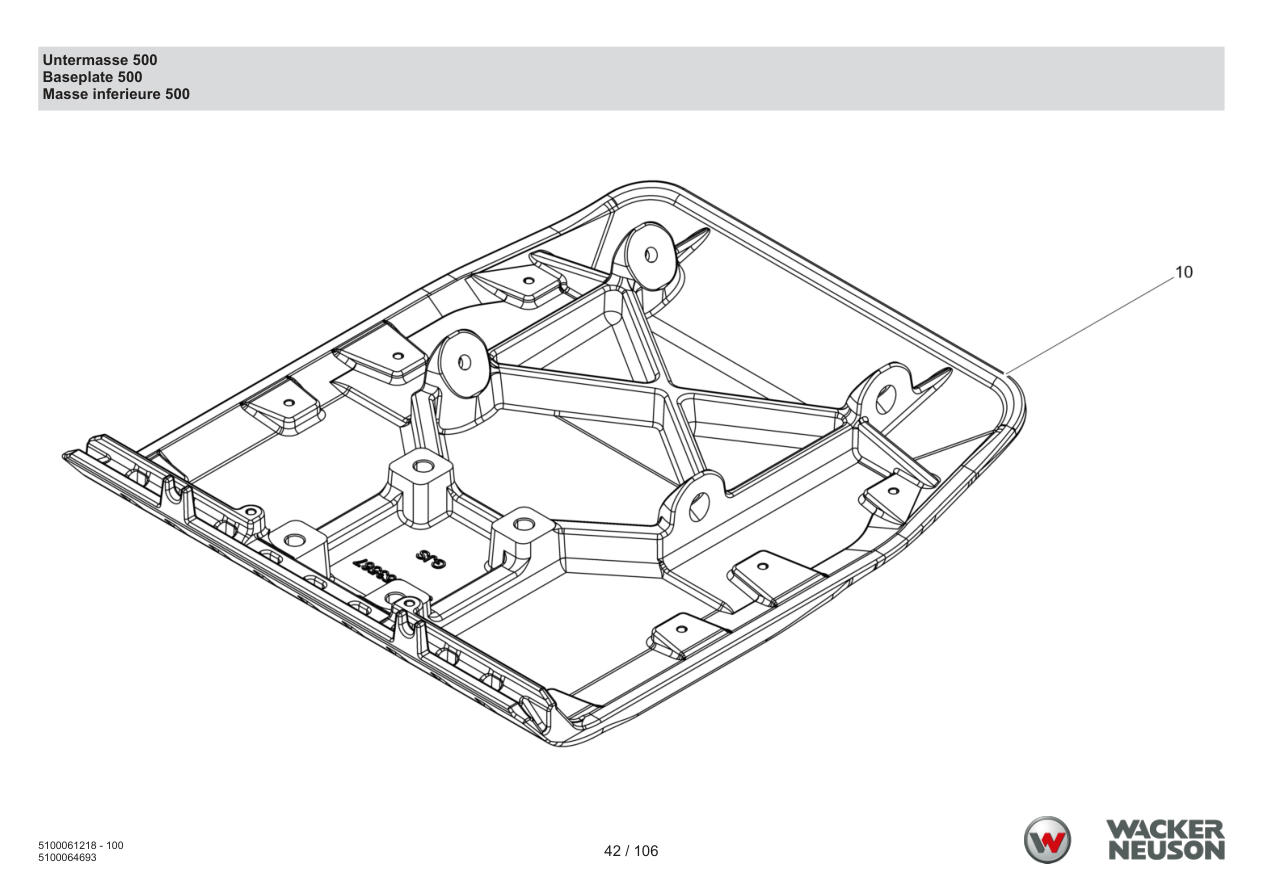

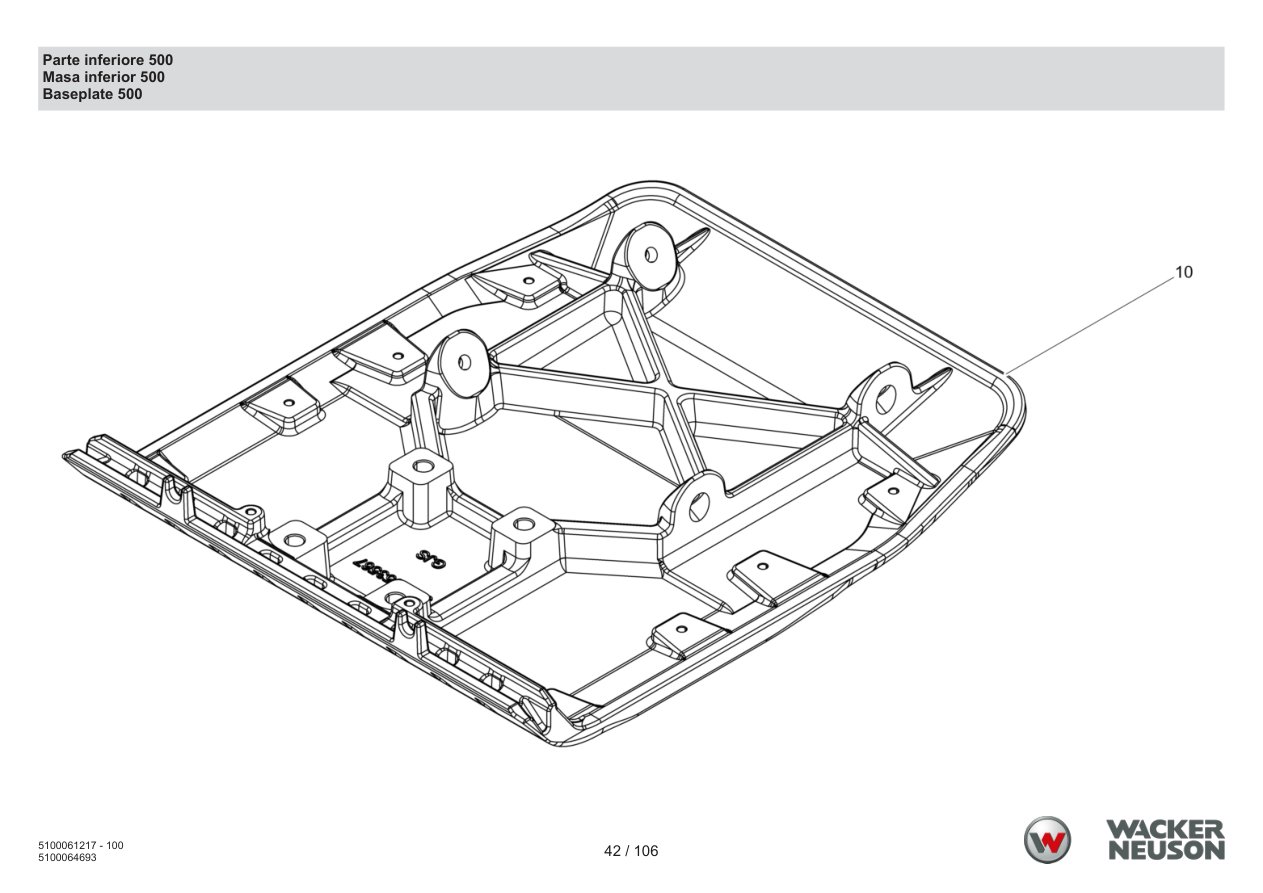

Page 40 — Lower part 500 base
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100029787 | Cheese head screw | 8 | ADD TO CART | |
| 20 | 5100024557 | Bow handle | 4 | ADD TO CART | |
| 30 | 5100058123 | Spinkler system cpl. 50cm | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5100041150 | Locking plug | 2 | ADD TO CART | |
Page 42 — Lower part 500
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100053568 | Baseplate 50cm | 1 | ADD TO CART | |

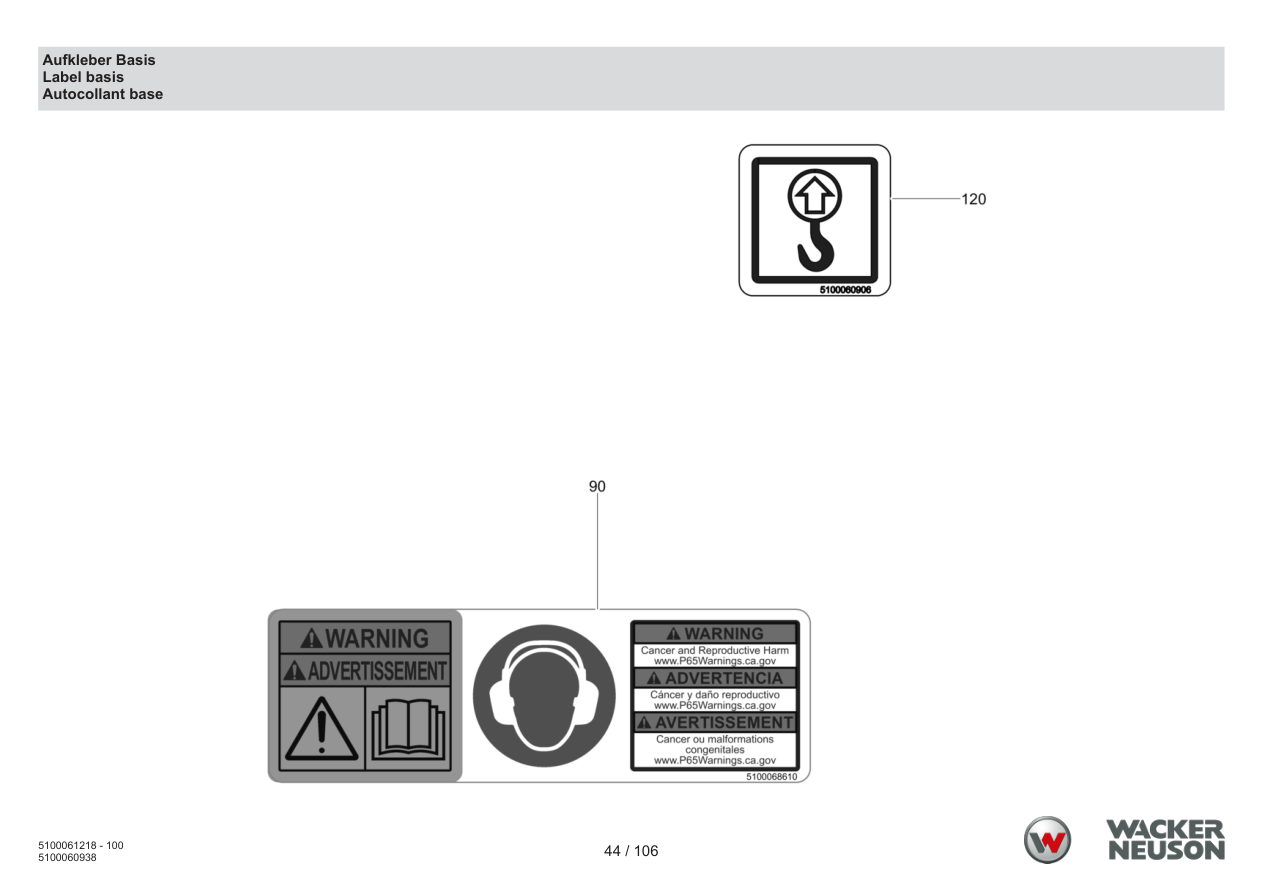

Page 44 — Base sticker
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 90 | 5100068610 | Label | 2 | ADD TO CART | |
| 120 | 5100060906 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100060906 · qty on machine: 1 | |||||

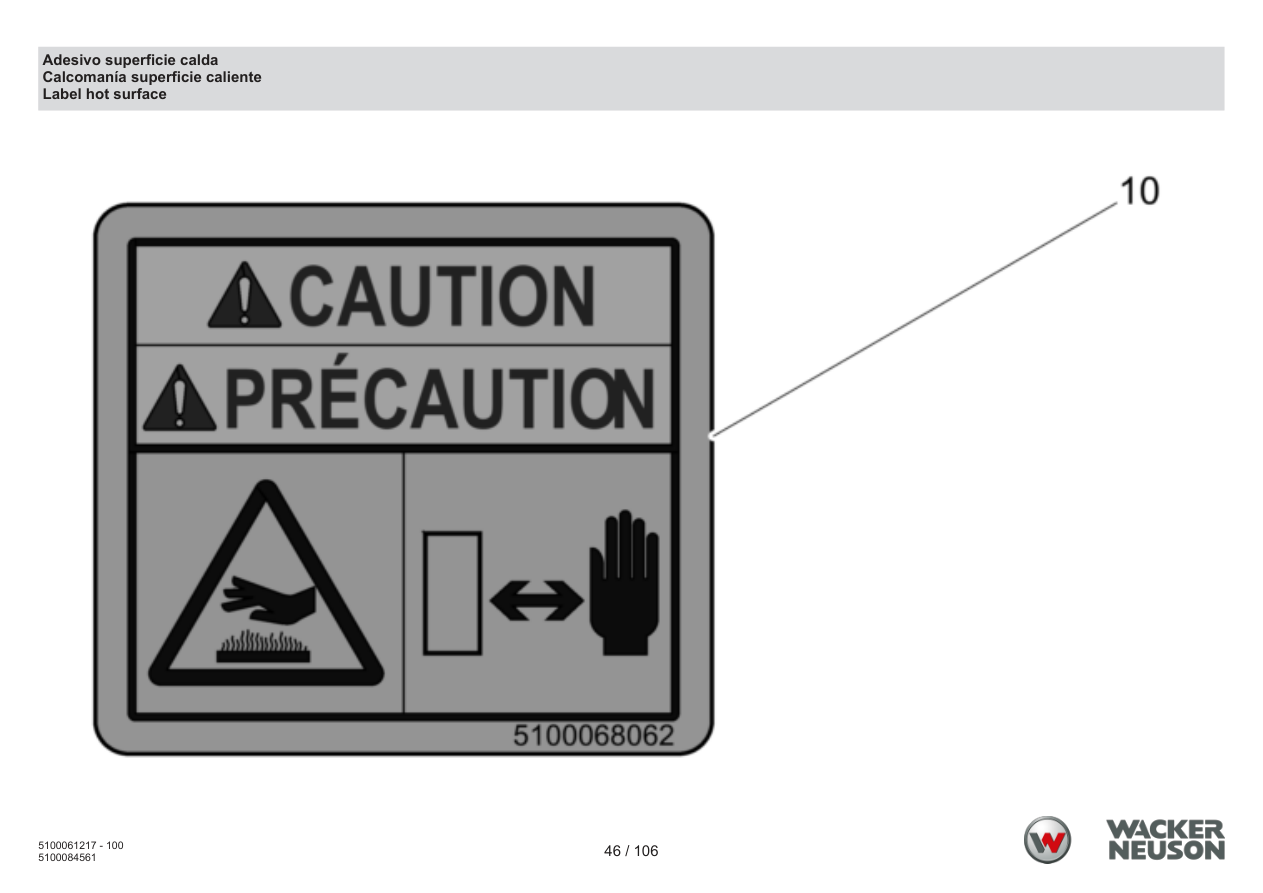

Page 46 — Hot surface sticker
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068062 | Label | 1 | ADD TO CART | |

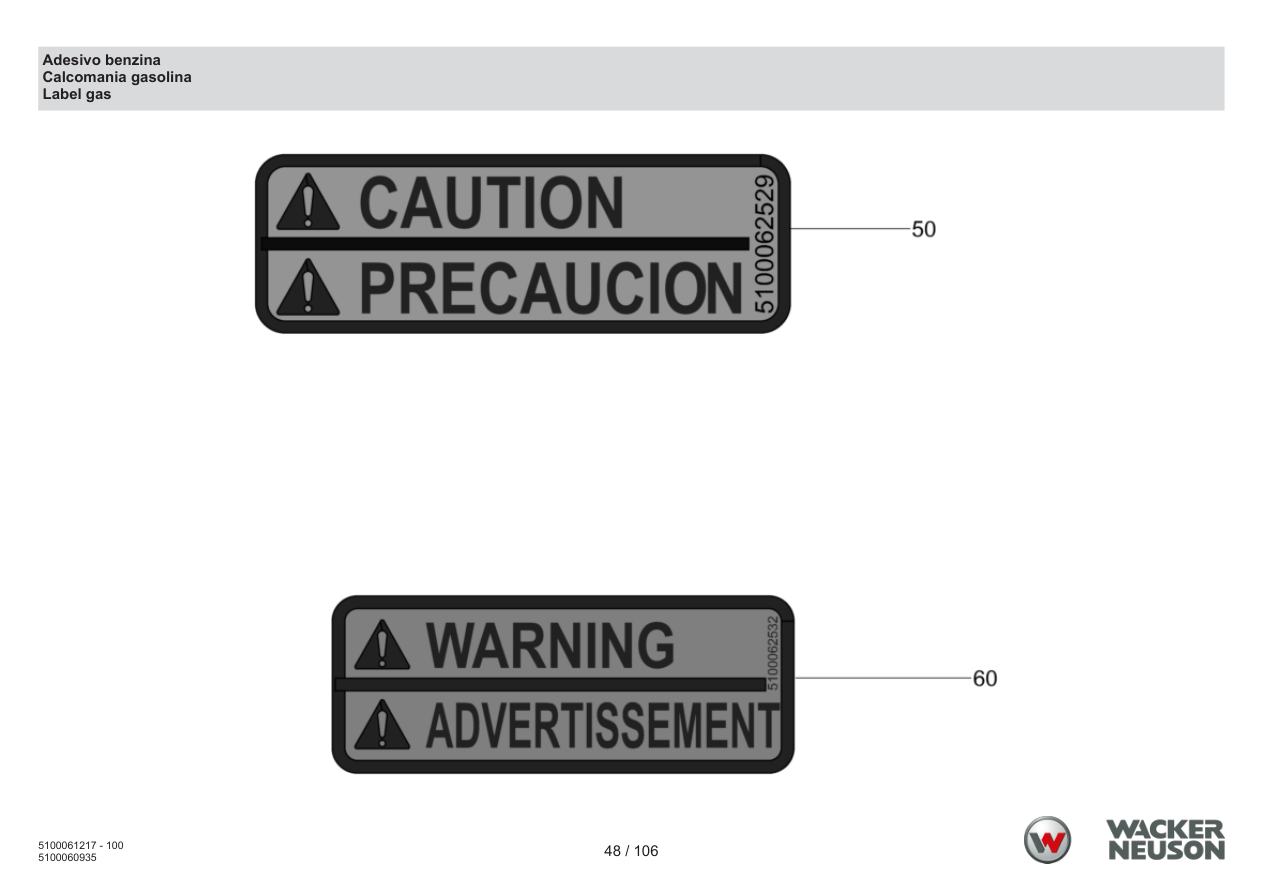

Page 48 — Gasoline sticker
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100062529 | Label | 1 | ADD TO CART | |
| 60 | 5100062532 | Label | 1 | ADD TO CART | |

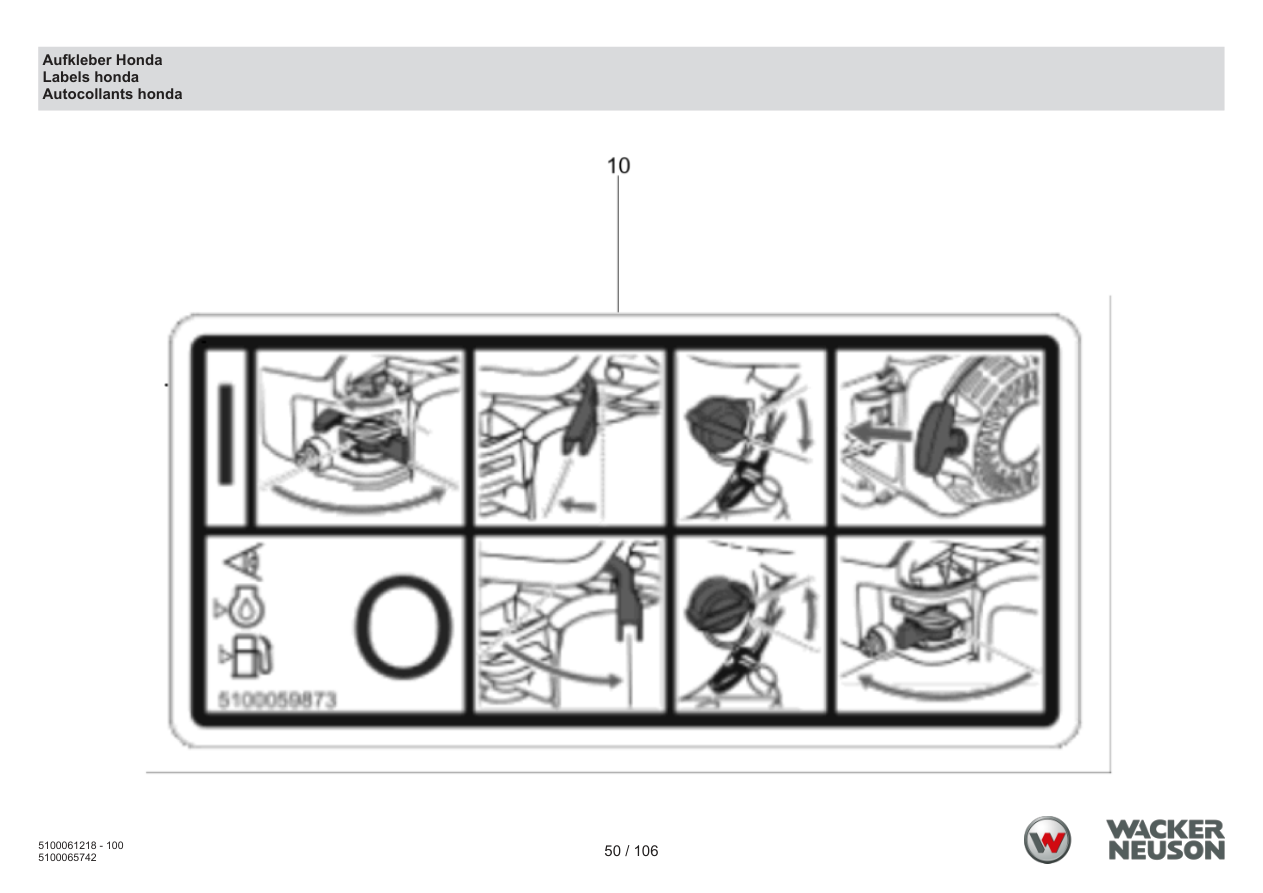

Page 50 — Honda sticker
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059873 | Starting note decal | 1 | PARTS REQUEST | |
|
COMING Starting note decal
5100059873 · qty on machine: 1 | |||||

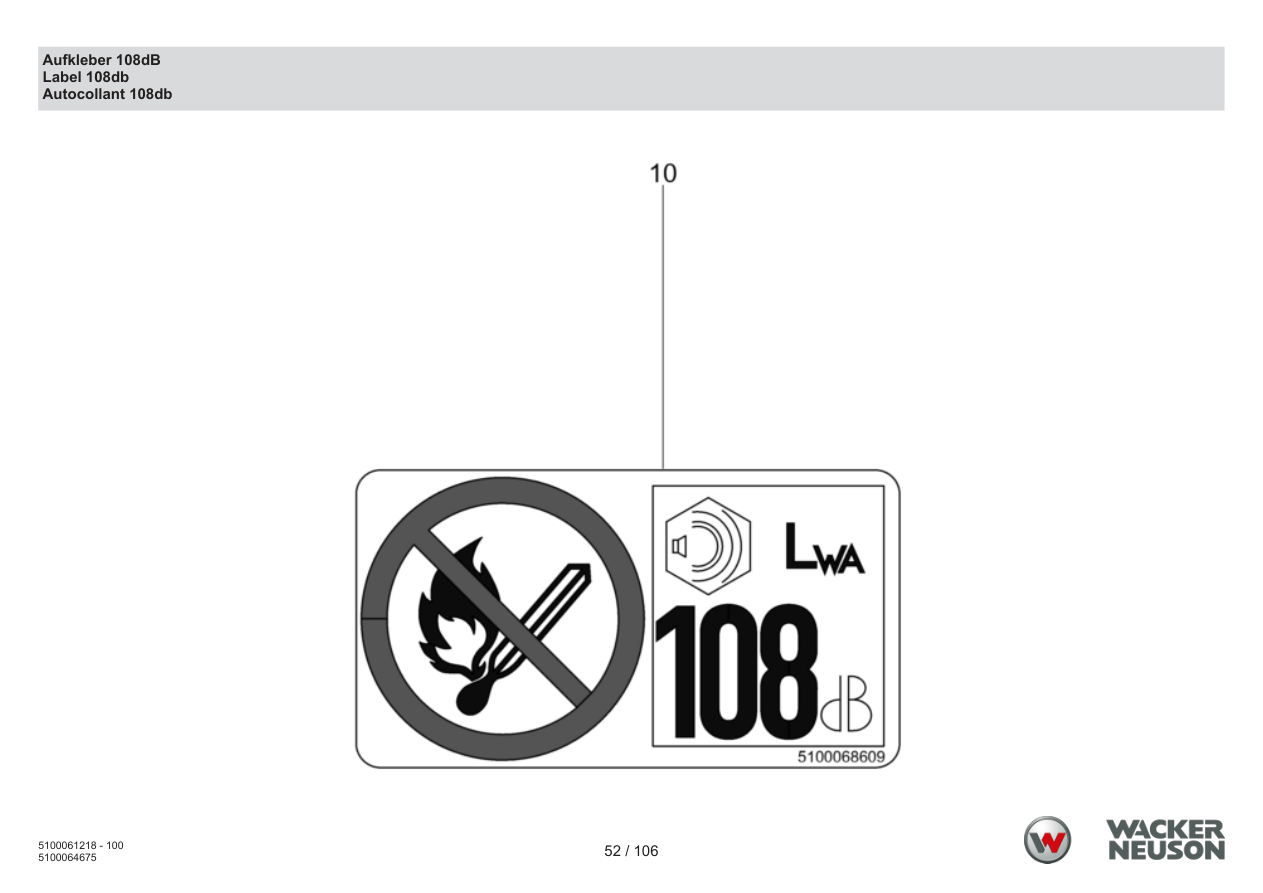

Page 52 — Adhesive label 108db
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068609 | Label | 1 | ADD TO CART | |

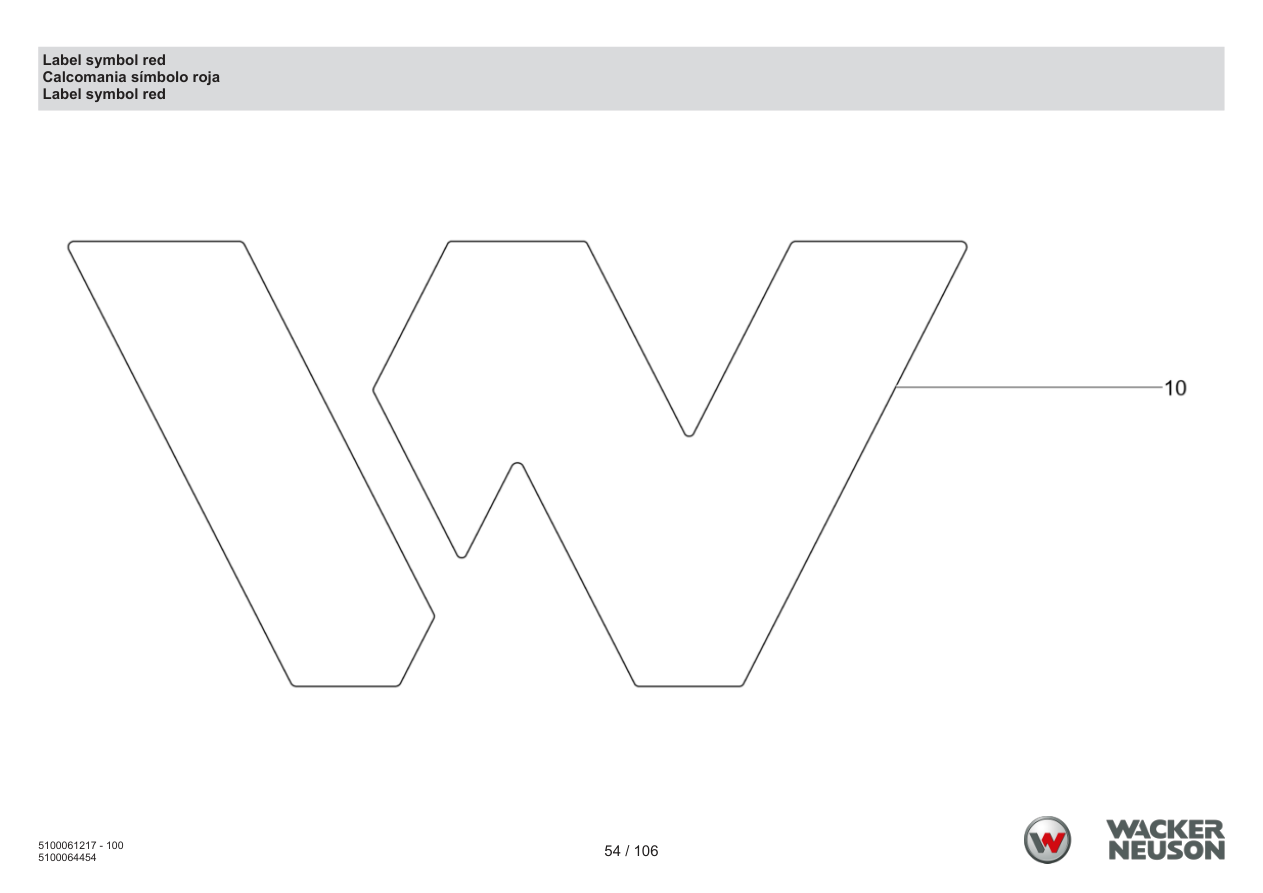

Page 54 — Label symbol red
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058733 | Label symbol | 1 | ADD TO CART | |

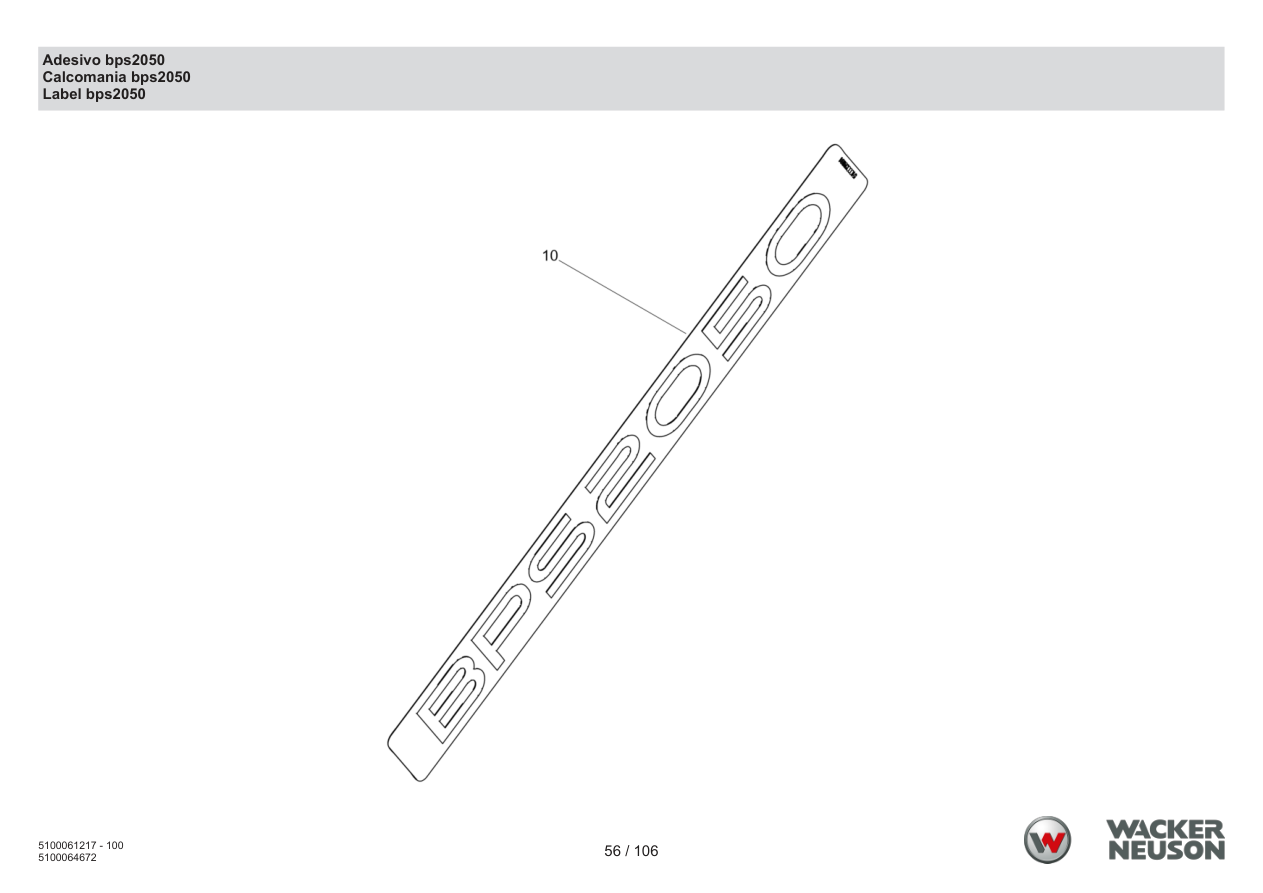

Page 56 — Sticker bps2050
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059361 | Type label | 1 | ADD TO CART | |

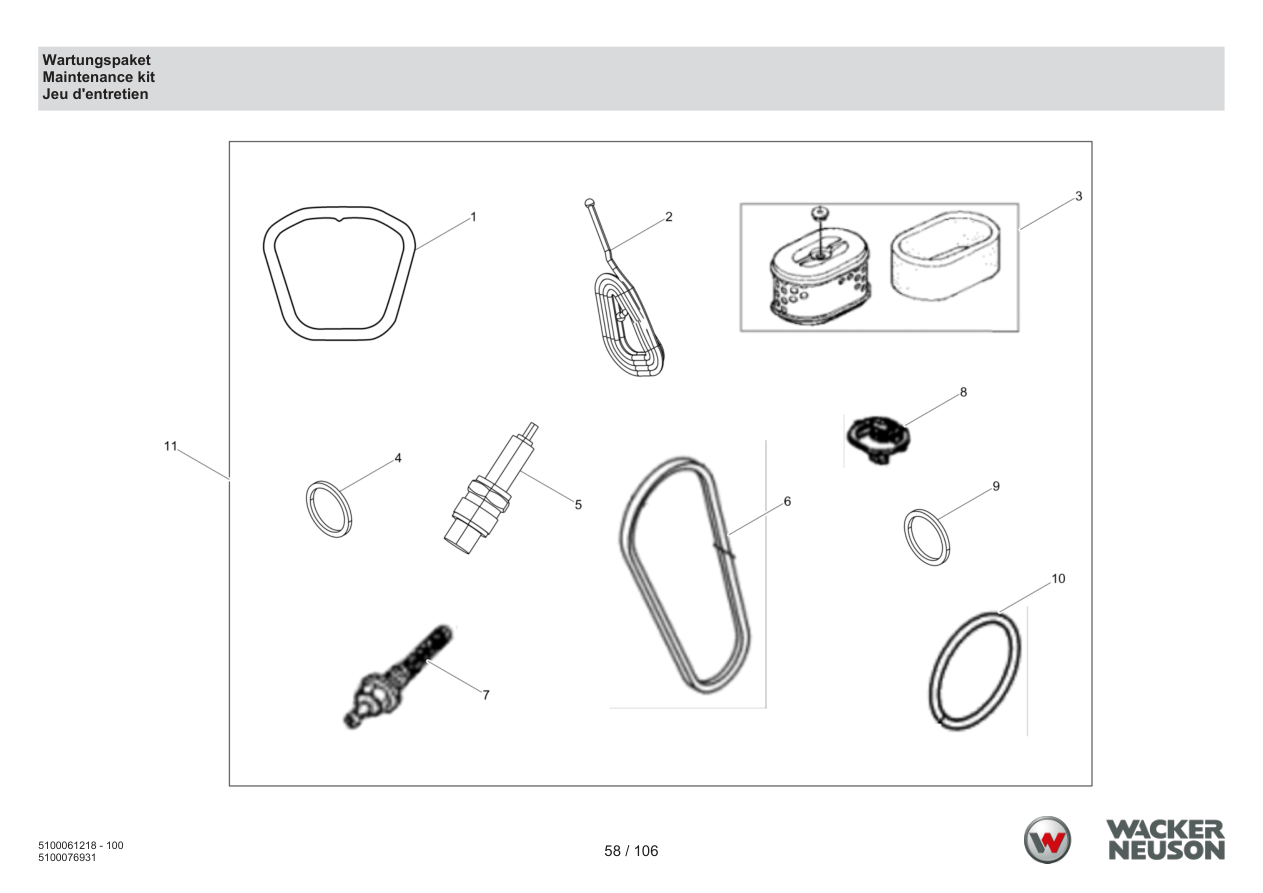

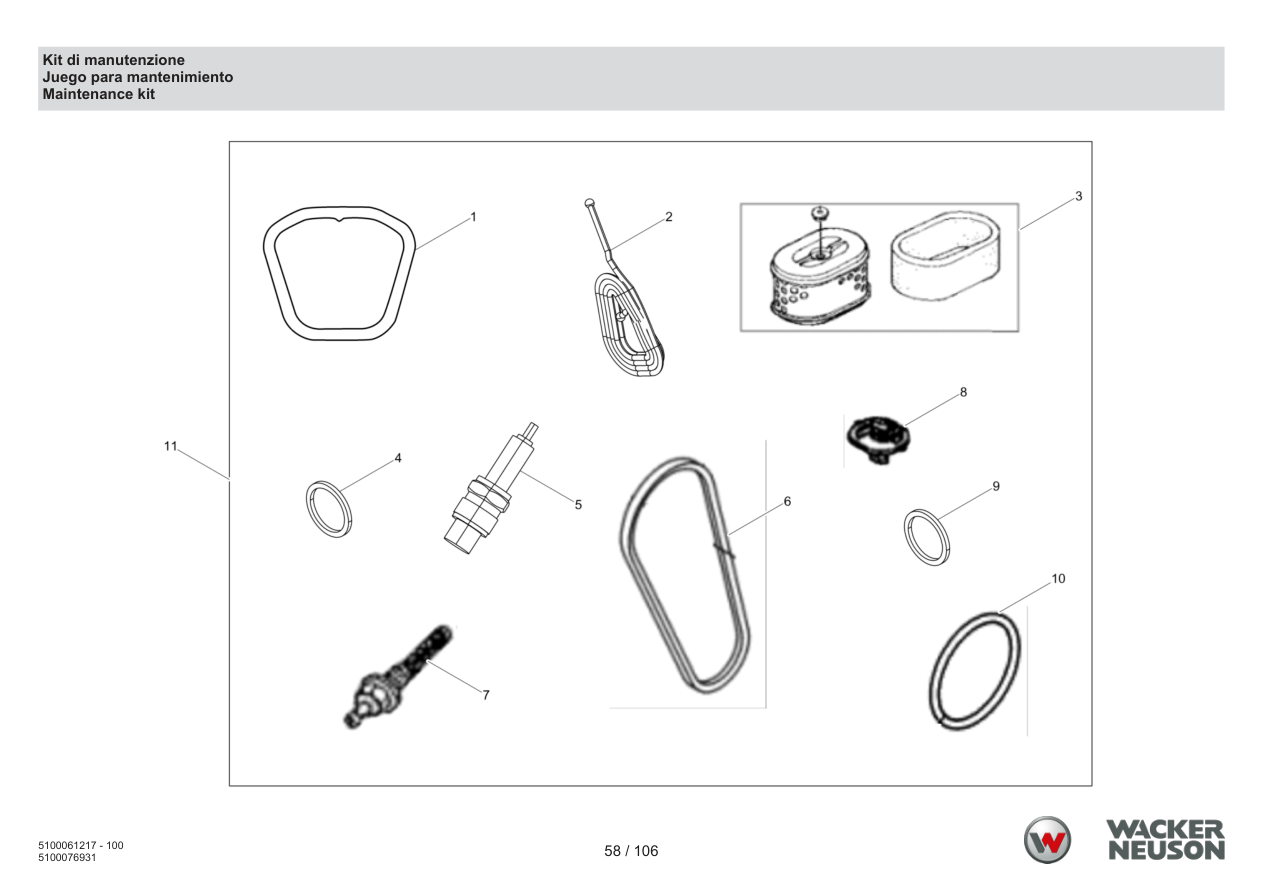

Page 58 — Maintenance kit
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000070942 | Gasket | 1 | ADD TO CART | |
| 2 | 5000081781 | Rope | 1 | ADD TO CART | |
| 3 | 5100049539 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000071032 | Gasket | 1 | ADD TO CART | |
| 5 | 5000203788 | Spark plug | 1 | ADD TO CART | |
| 6 | 5100031195 | V-belt | 1 | ADD TO CART | |
| 7 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 8 | 5100000396 | Filter | 1 | ADD TO CART | |
| 9 | 5000071024 | Gasket | 1 | ADD TO CART | |
| 10 | 5000071082 | O-ring | 1 | ADD TO CART | |
| 11 | 5100060013 | Maintenance kit | 1 | ADD TO CART | |

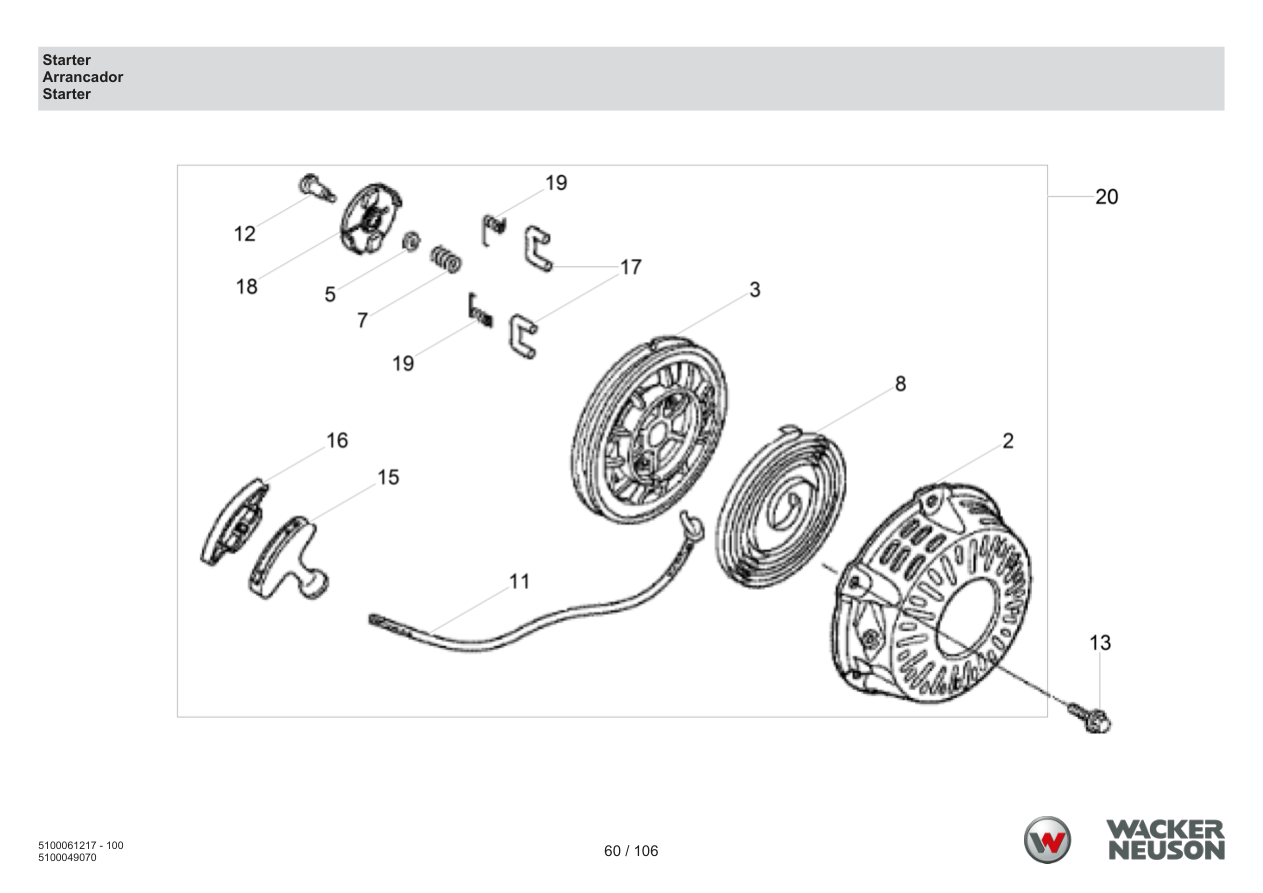

Page 60 — Starter
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 13 | 5000081750 | Screw | 3 | ADD TO CART | |
| 2 | 5100005307 | Housing cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Housing cpl. (black)
5100005307 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000406627 | Starter reel | 1 | PARTS REQUEST | |
|
COMING Starter reel
5000406627 · qty on machine: 1 | |||||
| 3 | 5100036077 | Starter pulley | 1 | PARTS REQUEST | |
|
COMING Starter pulley
5100036077 · qty on machine: 1 | |||||
| 5 | 5000160748 | Friction plate | 1 | ADD TO CART | |
| 6 | 5000160745 | Guide | 1 | ADD TO CART | |
| 7 | 5000160747 | Friction spring | 1 | ADD TO CART | |
| 8 | 5000081777 | Spring | 1 | ADD TO CART | |
| 11 | 5000081781 | Rope | 1 | ADD TO CART | |
| 12 | 5000207991 | Screw | 1 | ADD TO CART | |
| 13 | 5000158458 | Flange bolt | 3 | ADD TO CART | |
| 15 | 5100005309 | Starter handle us | 1 | ADD TO CART | |
| 15 | 5100005413 | Starter handle | 1 | PARTS REQUEST | |
|
COMING Starter handle
5100005413 · qty on machine: 1 | |||||
| 16 | 5100005310 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005310 · qty on machine: 1 | |||||
| 17 | 5100036078 | Ratchet | 2 | ADD TO CART | |
| 18 | 5100036079 | Guide | 1 | ADD TO CART | |
| 19 | 5100036230 | Return spring | 2 | ADD TO CART | |
| 20 | 5100039021 | Recoil starter | 1 | PARTS REQUEST | |
|
COMING Recoil starter
5100039021 · qty on machine: 1 | |||||
| 20 | 5100047597 | Recoil starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

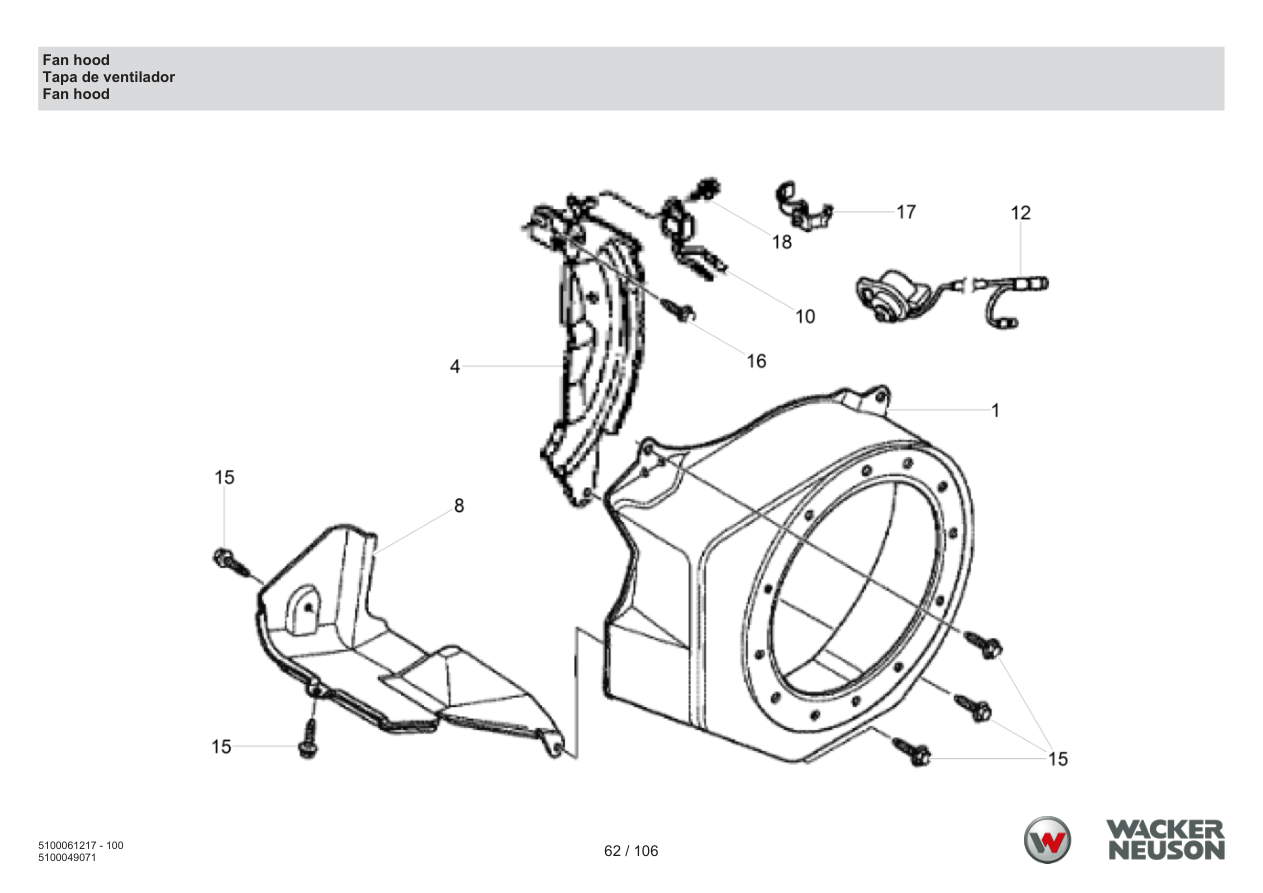

Page 62 — Fan hood
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005311 | Fan hood cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100005312 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005312 · qty on machine: 1 | |||||
| 8 | 5100047598 | Air ducting | 1 | ADD TO CART | |
| 10 | 5100005313 | Oil sensor | 1 | ADD TO CART | |
| 12 | 5100049537 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100049537 · qty on machine: 1 | |||||
| 15 | 5000053990 | Screw | 6 | ADD TO CART | |
| 16 | 5000071055 | Screw | 1 | ADD TO CART | |
| 17 | 5000151700 | Clamp | 1 | ADD TO CART | |
| 18 | 5000081750 | Screw | 1 | ADD TO CART | |
Page 64 — Carburetor
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000072781 | Set-gaskets | 1 | ADD TO CART | |

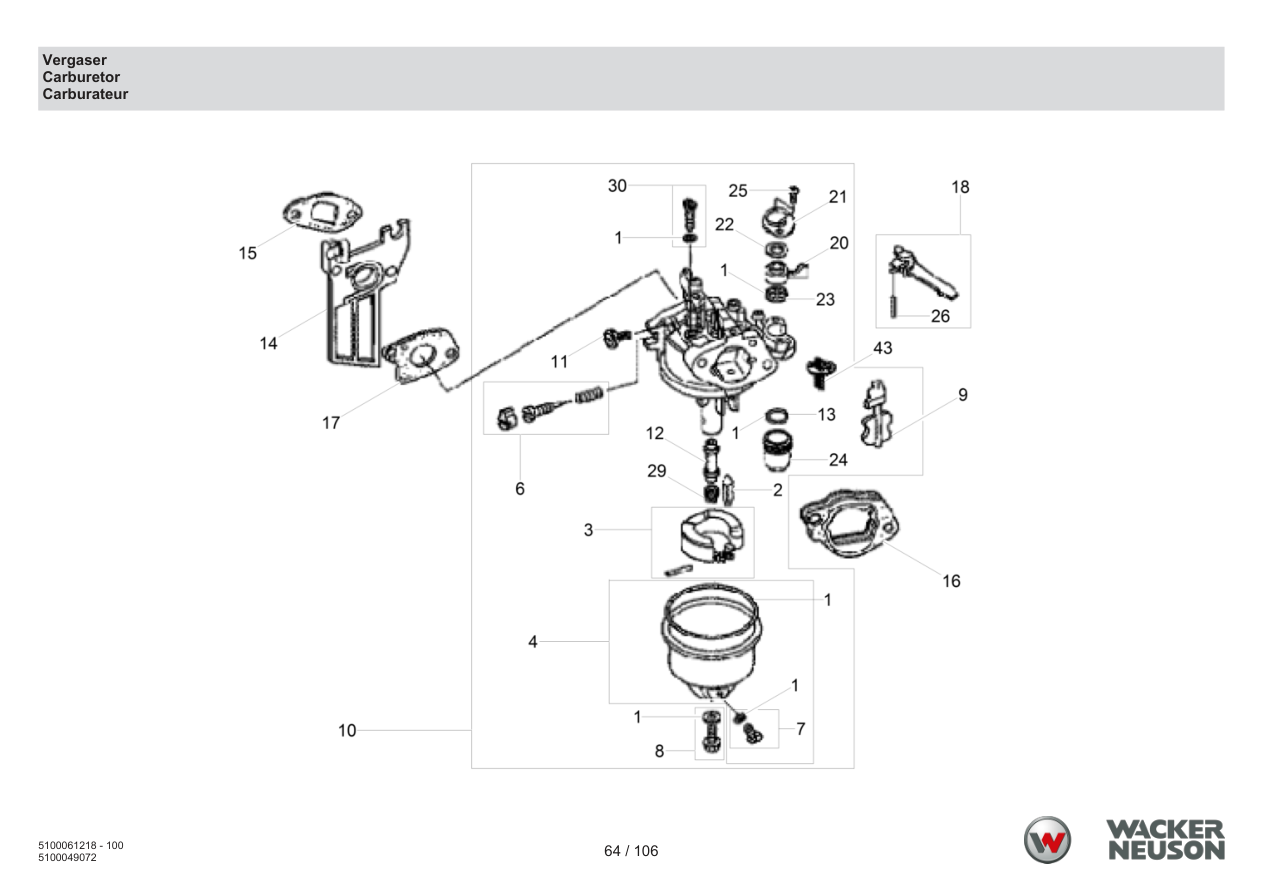

| 2 | 5000071022 | Set-float valve | 1 | ADD TO CART | |
| 3 | 5000209764 | Set-carburetor float | 1 | ADD TO CART | |
| 4 | 5100005314 | Float housing | 1 | PARTS REQUEST | |
|
COMING Float housing
5100005314 · qty on machine: 1 | |||||
| 6 | 5000089286 | Setscrew | 1 | ADD TO CART | |
| 7 | 5200000430 | Screw w/washer | 1 | ADD TO CART | |
| 8 | 5200000431 | Screw w/washer | 1 | ADD TO CART | |
| 9 | 5100005415 | Starter flap | 1 | PARTS REQUEST | |
|
COMING Starter flap
5100005415 · qty on machine: 1 | |||||
| 10 | 5000406637 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Carburetor cpl.
5000406637 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 11 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 12 | 5100009310 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100009310 · qty on machine: 1 | |||||
| 13 | 5000125839 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000125839 · qty on machine: 1 | |||||
| 14 | 5100005416 | Isolator | 1 | PARTS REQUEST | |
|
COMING Isolator
5100005416 · qty on machine: 1 | |||||
| 15 | 5000082009 | Gasket | 1 | ADD TO CART | |
| 16 | 5000071015 | Spacer | 1 | ADD TO CART | |
| 17 | 5000081762 | Gasket | 1 | ADD TO CART | |
| 18 | 5000071013 | Choke control lever | 1 | ADD TO CART | |
| 19 | 5000150266 | Fuel valve lever | 1 | ADD TO CART | |
| 20 | 5000073269 | Plate | 1 | ADD TO CART | |
| 21 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 22 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 23 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 24 | 5100005317 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005317 · qty on machine: 2 | |||||
| 25 | 5000071014 | Pin | 1 | ADD TO CART | |
| 29 | 5100005417 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100005417 · qty on machine: 1 | |||||
| 29 | 5100005418 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100005418 · qty on machine: 1 | |||||
| 29 | 5100049538 | Main jet 62 | 1 | ADD TO CART | |
| 30 | 5000071016 | Pilot jet | 1 | ADD TO CART | |
| 43 | 5100000396 | Filter | 1 | ADD TO CART | |

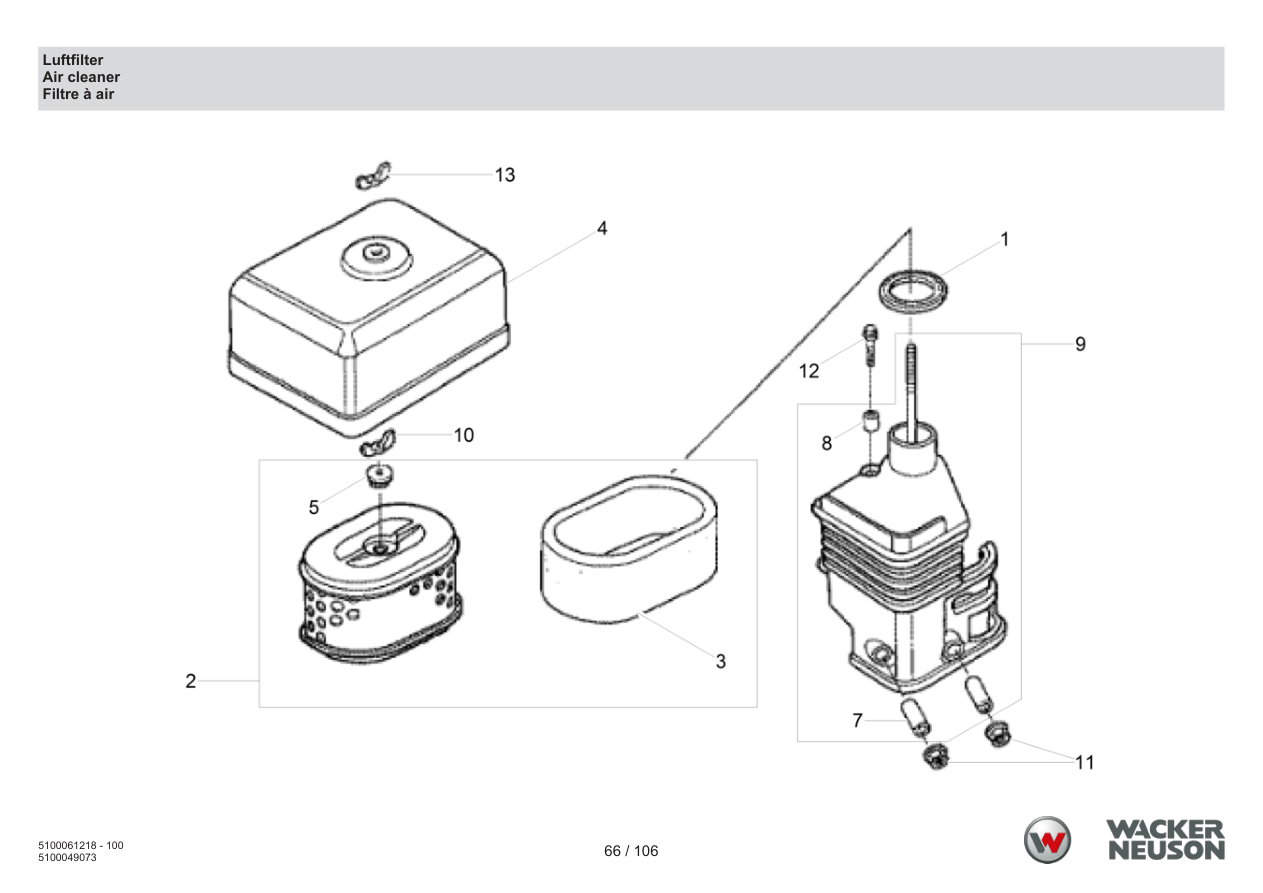

Page 66 — Air cleaner
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000071032 | Gasket | 1 | ADD TO CART | |
| 2 | 5100049539 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5200006430 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Air filter cpl.
5200006430 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000217459 | Air filter insert | 1 | PARTS REQUEST | |
|
COMING Air filter insert
5000217459 · qty on machine: 1 | |||||
| 4 | 5100019660 | Air cleaner cover | 1 | ADD TO CART | |
| 5 | 5000072343 | Grommet | 1 | ADD TO CART | |
| 7 | 5000081746 | Sleeve | 2 | ADD TO CART | |
| 8 | 5000071035 | Sleeve | 1 | ADD TO CART | |
| 9 | 5000406642 | Air cleaner mount | 1 | ADD TO CART | |
| 10 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 11 | 5000071056 | Nut | 2 | ADD TO CART | |
| 12 | 5100003499 | Flange screw | 1 | PARTS REQUEST | |
|
COMING Flange screw
5100003499 · qty on machine: 1 | |||||
| 13 | 5100005421 | Nut | 1 | PARTS REQUEST | |
|
COMING Nut
5100005421 · qty on machine: 1 | |||||

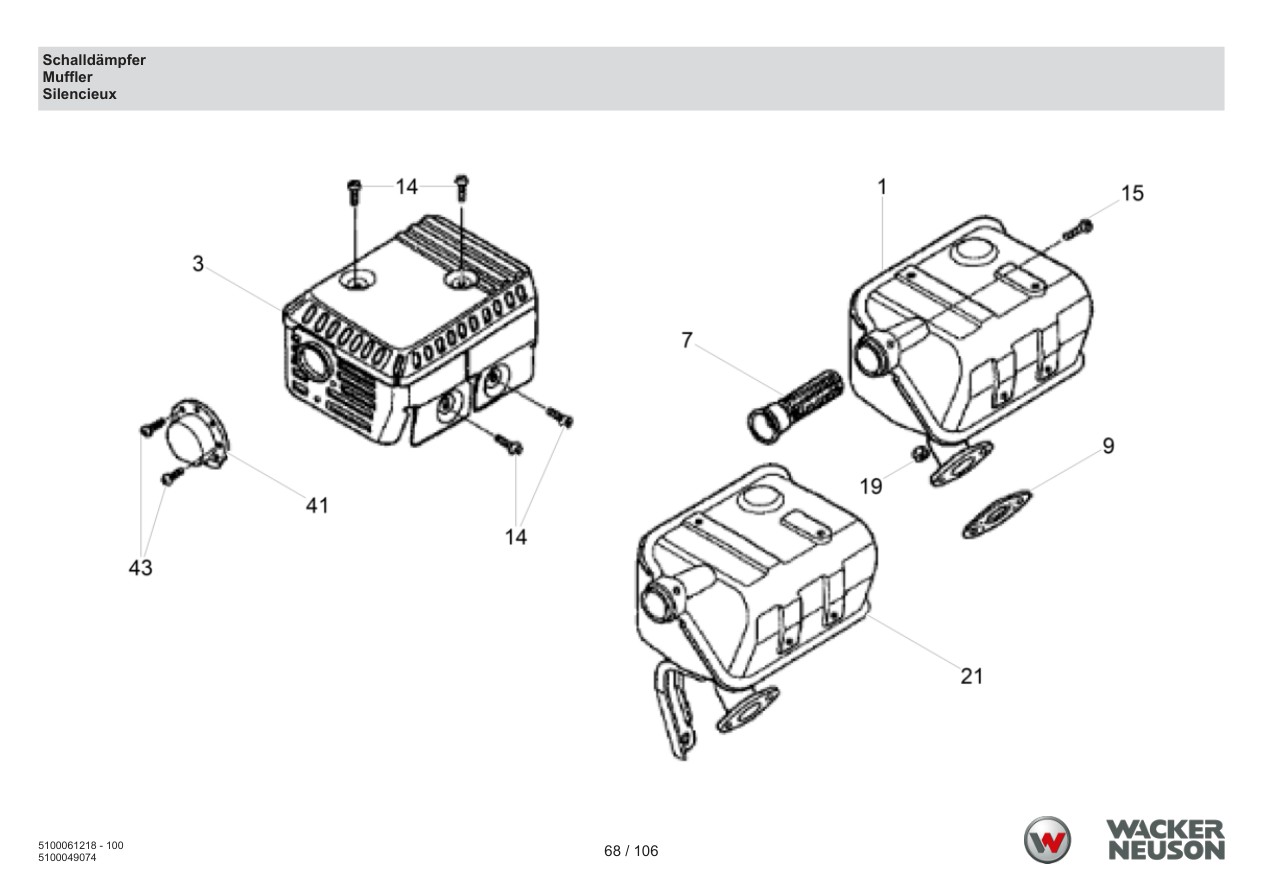

Page 68 — Muffler
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000406644 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5000406644 · qty on machine: 1 | |||||
| 1 | 5100048122 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Muffler cpl.
5100048122 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000406646 | Guard | 1 | PARTS REQUEST | |
|
COMING Guard
5000406646 · qty on machine: 1 | |||||
| 6 | 5000081756 | Exhaust baffle | 1 | ADD TO CART | |
| 7 | 5000071075 | Spark arrester | 1 | ADD TO CART | |
| 9 | 5000216516 | Gasket | 1 | ADD TO CART | |
| 12 | 5000209783 | Self-tapping screw | 2 | ADD TO CART | |
| 14 | 5000071070 | Screw | 4 | ADD TO CART | |
| 15 | 5000150916 | Screw | 1 | ADD TO CART | |
| 19 | 5100003492 | Hexagon nut | 2 | PARTS REQUEST | |
|
COMING Hexagon nut
5100003492 · qty on machine: 2 | |||||
| 41 | 5000081756 | Exhaust baffle | 1 | ADD TO CART | |
| 43 | 5000209783 | Self-tapping screw | 2 | ADD TO CART | |

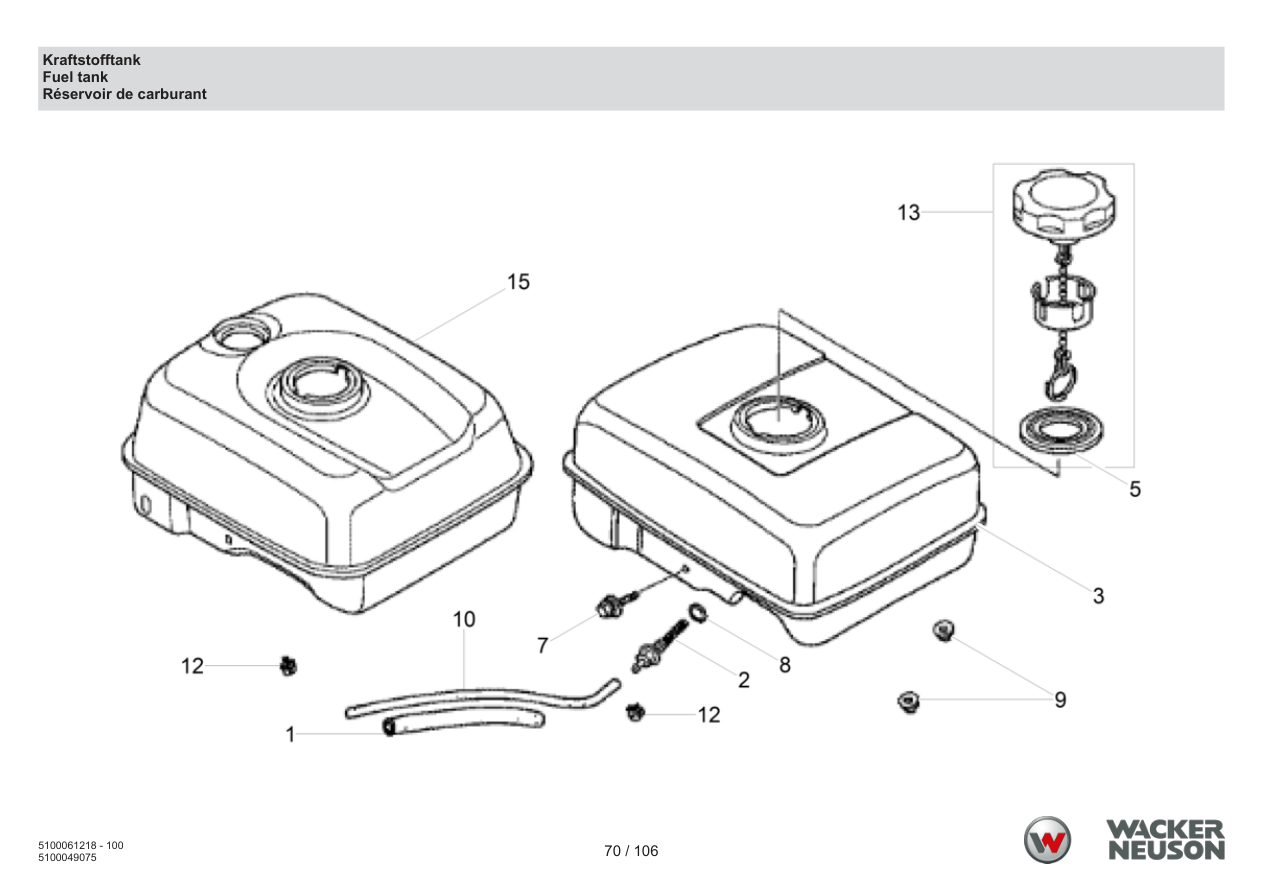

Page 70 — Fuel tank
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 2 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 3 | 5000110765 | Fuel tank | 1 | ADD TO CART | |
| 5 | 5000209770 | Gasket | 1 | ADD TO CART | |
| 7 | 5000209771 | Flange bolt | 1 | ADD TO CART | |
| 8 | 5000208616 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000208616 · qty on machine: 1 | |||||
| 9 | 5000071056 | Nut | 2 | ADD TO CART | |
| 10 | 5100005325 | Fuel hose | 1 | PARTS REQUEST | |
|
COMING Fuel hose
5100005325 · qty on machine: 1 | |||||
| 12 | 5000208617 | Clamp | 2 | ADD TO CART | |
| 13 | 5100005356 | Tank cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Tank cover cpl.
5100005356 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 15 | 5100005323 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel tank cpl.
5100005323 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 15 | 5100005358 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel tank cpl.
5100005358 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

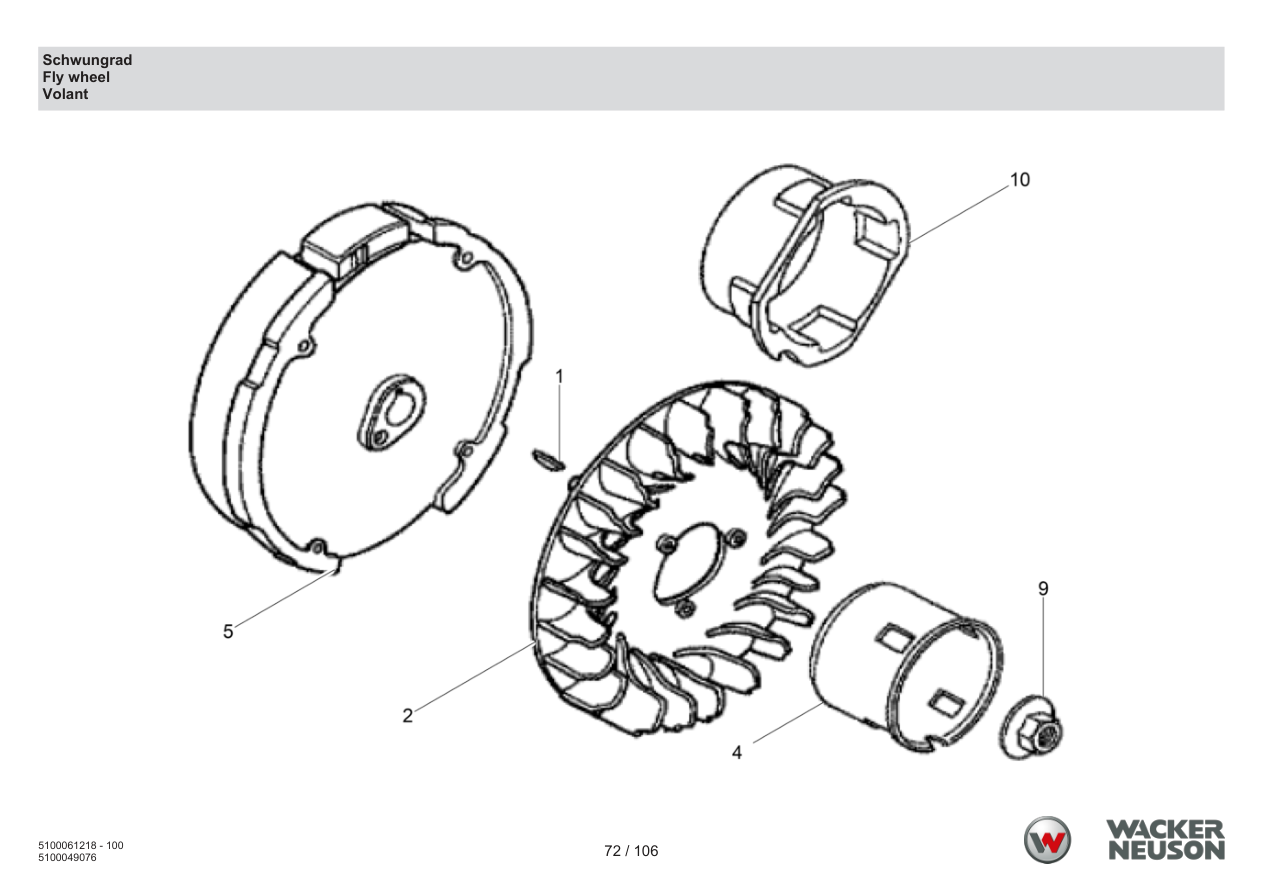

Page 72 — Fly wheel
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000068967 | Woodruff key | 1 | ADD TO CART | |
| 2 | 5000071652 | Fan | 1 | ADD TO CART | |
| 4 | 5000210396 | Pulley | 1 | ADD TO CART | |
| 5 | 5100005422 | Fly wheel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fly wheel cpl.
5100005422 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 9 | 5000162686 | Nut | 1 | ADD TO CART | |
| 10 | 5100048123 | Starter v-belt pulley | 1 | ADD TO CART | |

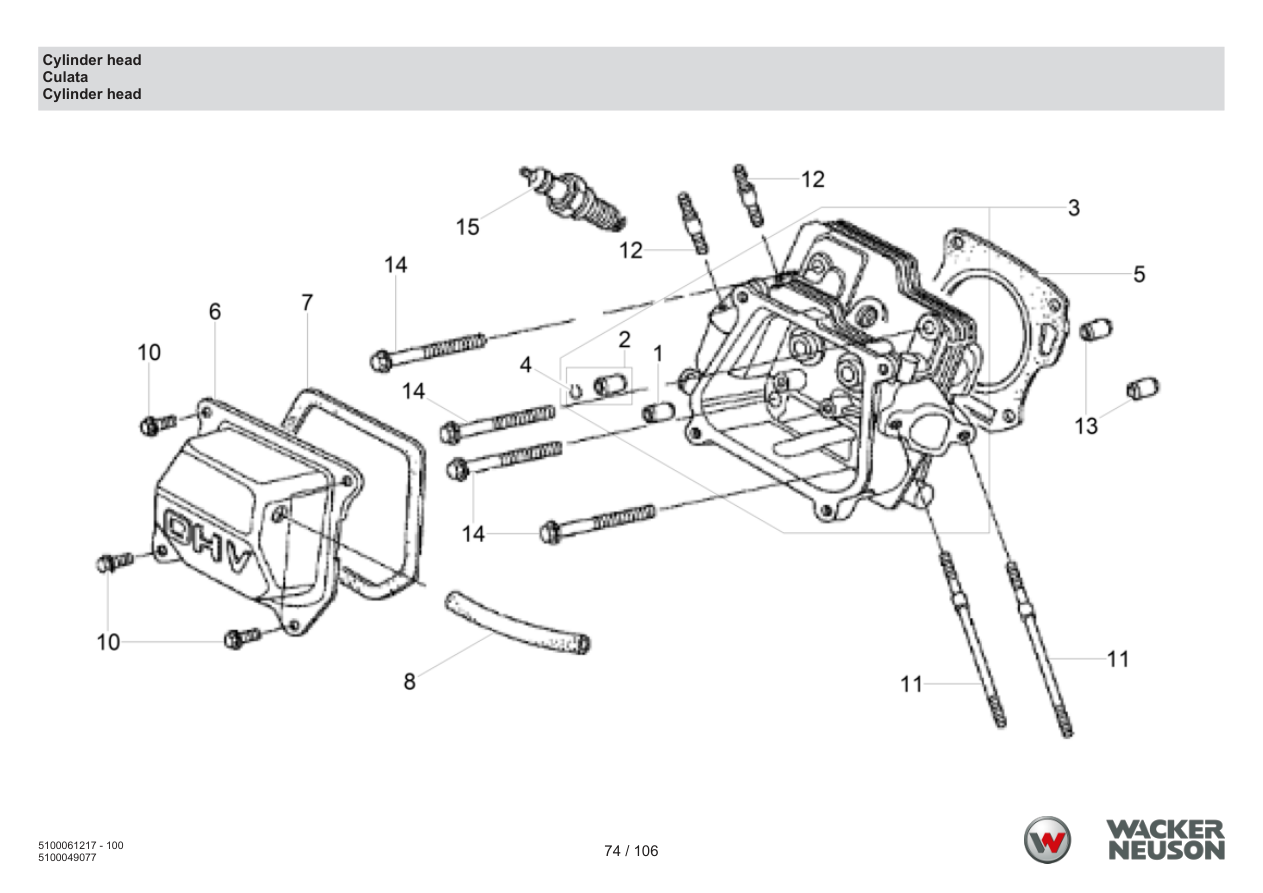

Page 74 — Cylinder head
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000070945 | Valve guide | 1 | PARTS REQUEST | |
|
COMING Valve guide
5000070945 · qty on machine: 1 | |||||
| 2 | 5000070944 | Valve guide | 1 | ADD TO CART | |
| 3 | 5100005423 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cylinder head cpl.
5100005423 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5000081744 | Retaining ring | 1 | ADD TO CART | |
| 5 | 5100005329 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100005329 · qty on machine: 1 | |||||
| 6 | 5100049540 | Cover-cylinder head | 1 | ADD TO CART | |
| 7 | 5000070942 | Gasket | 1 | ADD TO CART | |
| 8 | 5000081761 | Breather tube | 1 | ADD TO CART | |
| 10 | 5000053990 | Screw | 4 | ADD TO CART | |
| 11 | 5000073263 | Stud | 2 | ADD TO CART | |
| 12 | 5000070948 | Stud | 2 | ADD TO CART | |
| 13 | 5000070950 | Dowel pin | 2 | ADD TO CART | |
| 14 | 5000213398 | Flange screw | 4 | ADD TO CART | |
| 15 | 5000209776 | Spark plug | 1 | PARTS REQUEST | |
|
COMING Spark plug
5000209776 · qty on machine: 1 | |||||

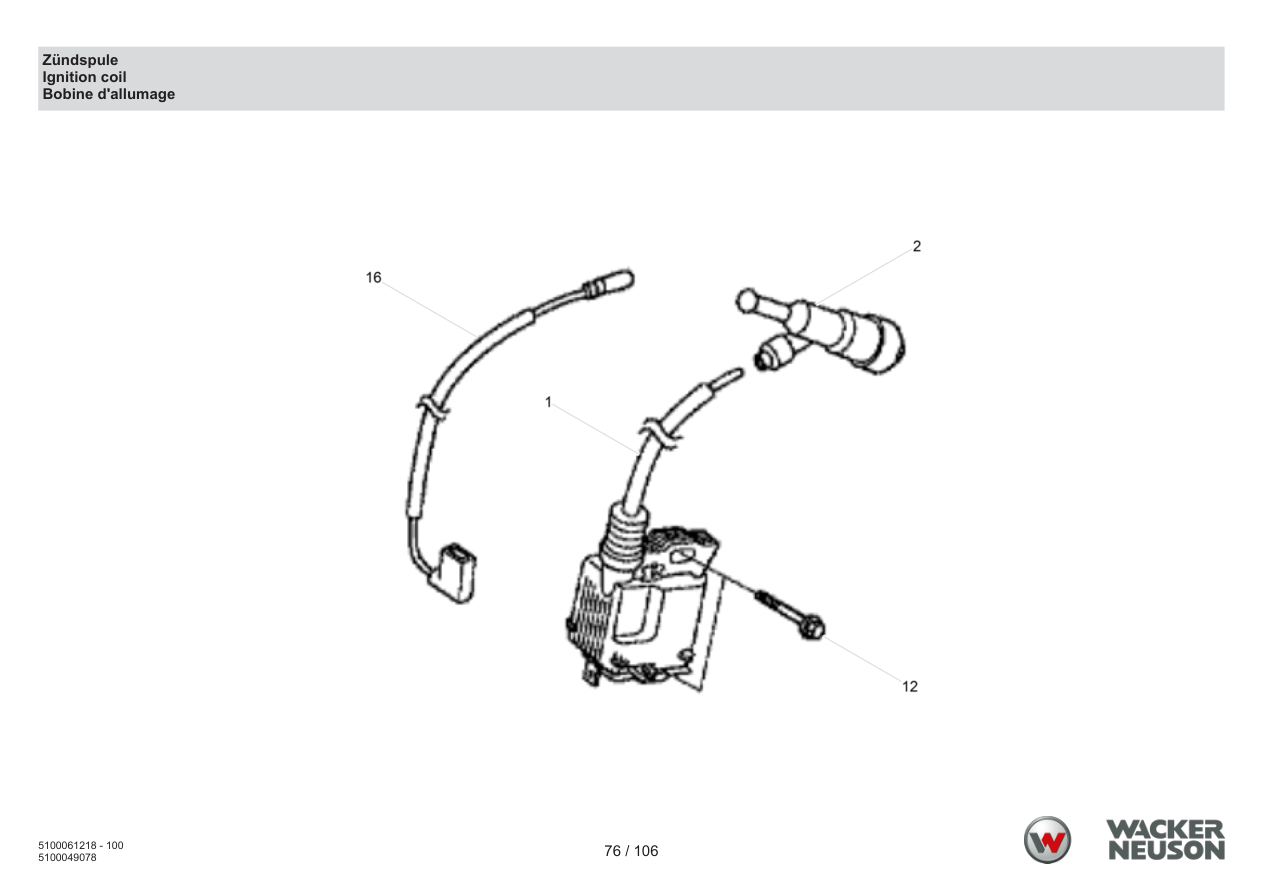

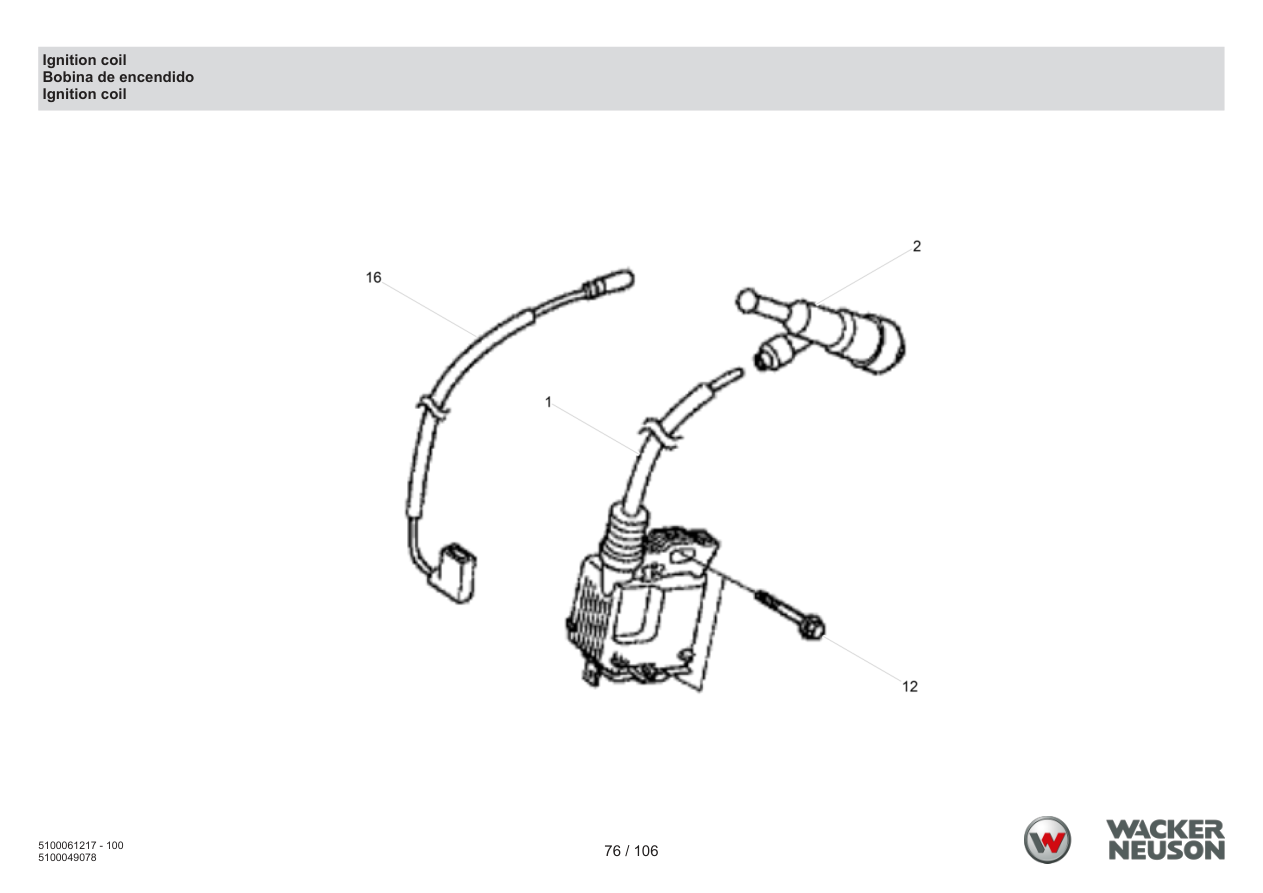

Page 76 — Ignition coil
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049541 | Magneto cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Magneto cpl.
5100049541 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5200006484 | Spark plug (terminal) cap | 1 | PARTS REQUEST | |
|
COMING Spark plug (terminal) cap
5200006484 · qty on machine: 1 | |||||
| 9 | 5100049542 | Leitung | 1 | ADD TO CART | |
| 12 | 5000081737 | Screw | 2 | ADD TO CART | |
| 16 | 5100031335 | Cable | 1 | ADD TO CART | |

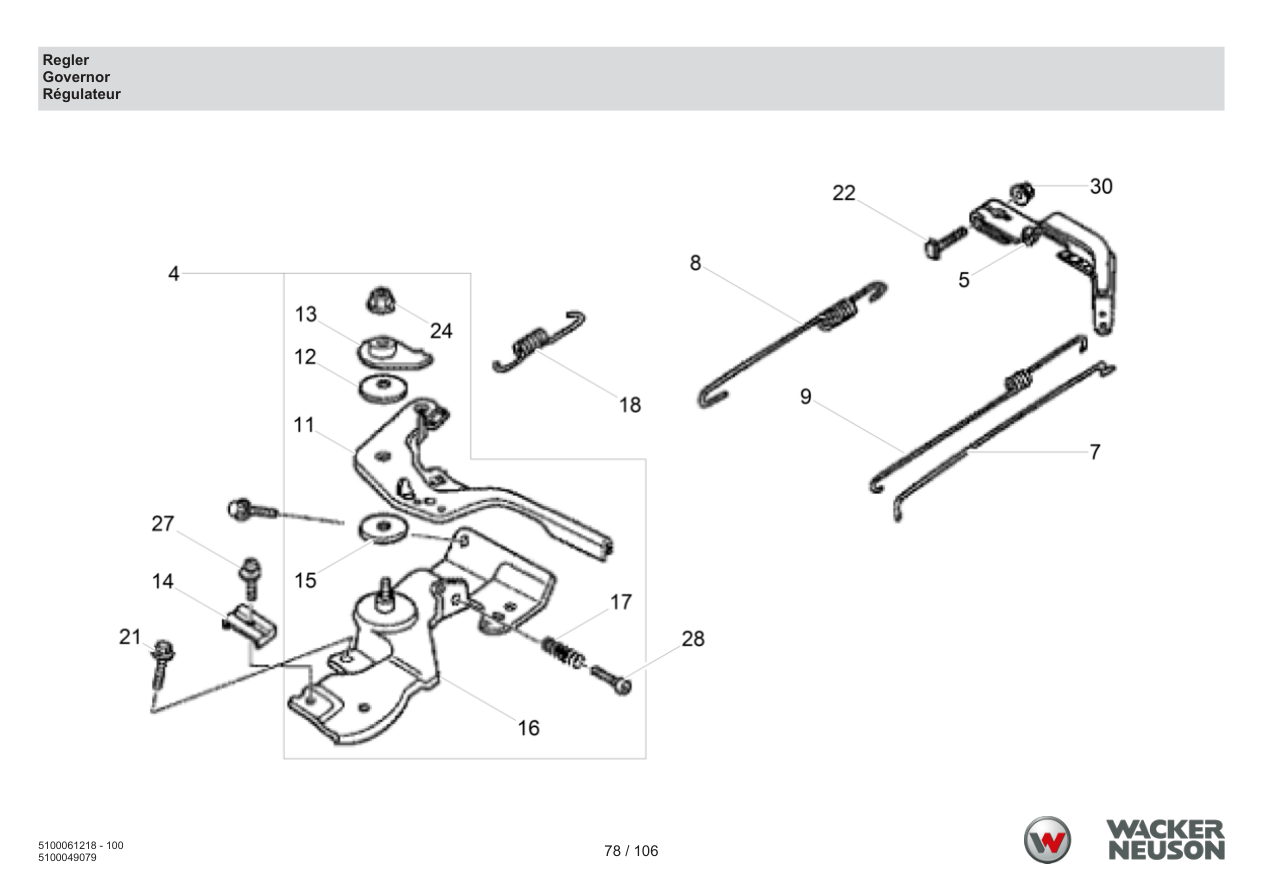

Page 78 — Governor
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100009311 | Governor cpl. us | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100009312 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100009312 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 5 | 5100005425 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5100005425 · qty on machine: 1 | |||||
| 7 | 5100005332 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5100005332 · qty on machine: 1 | |||||
| 8 | 5100005426 | Spring | 1 | ADD TO CART | |
| 9 | 5100005427 | Return spring | 1 | ADD TO CART | |
| 11 | 5100005333 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5100005333 · qty on machine: 1 | |||||
| 12 | 5000071058 | Spring | 1 | ADD TO CART | |
| 13 | 5000071057 | Washer | 1 | ADD TO CART | |
| 14 | 5000071062 | Cable holder | 1 | ADD TO CART | |
| 15 | 5000071064 | Spacer | 2 | ADD TO CART | |
| 16 | 5100005363 | Bracket cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 17 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 18 | 5000071667 | Spring | 1 | ADD TO CART | |
| 21 | 5000053990 | Screw | 2 | ADD TO CART | |
| 22 | 5100000451 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100000451 · qty on machine: 1 | |||||
| 24 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 27 | 5000110112 | Screw | 1 | ADD TO CART | |
| 28 | 5000081990 | Screw | 1 | ADD TO CART | |
| 30 | 5000071056 | Nut | 1 | ADD TO CART | |

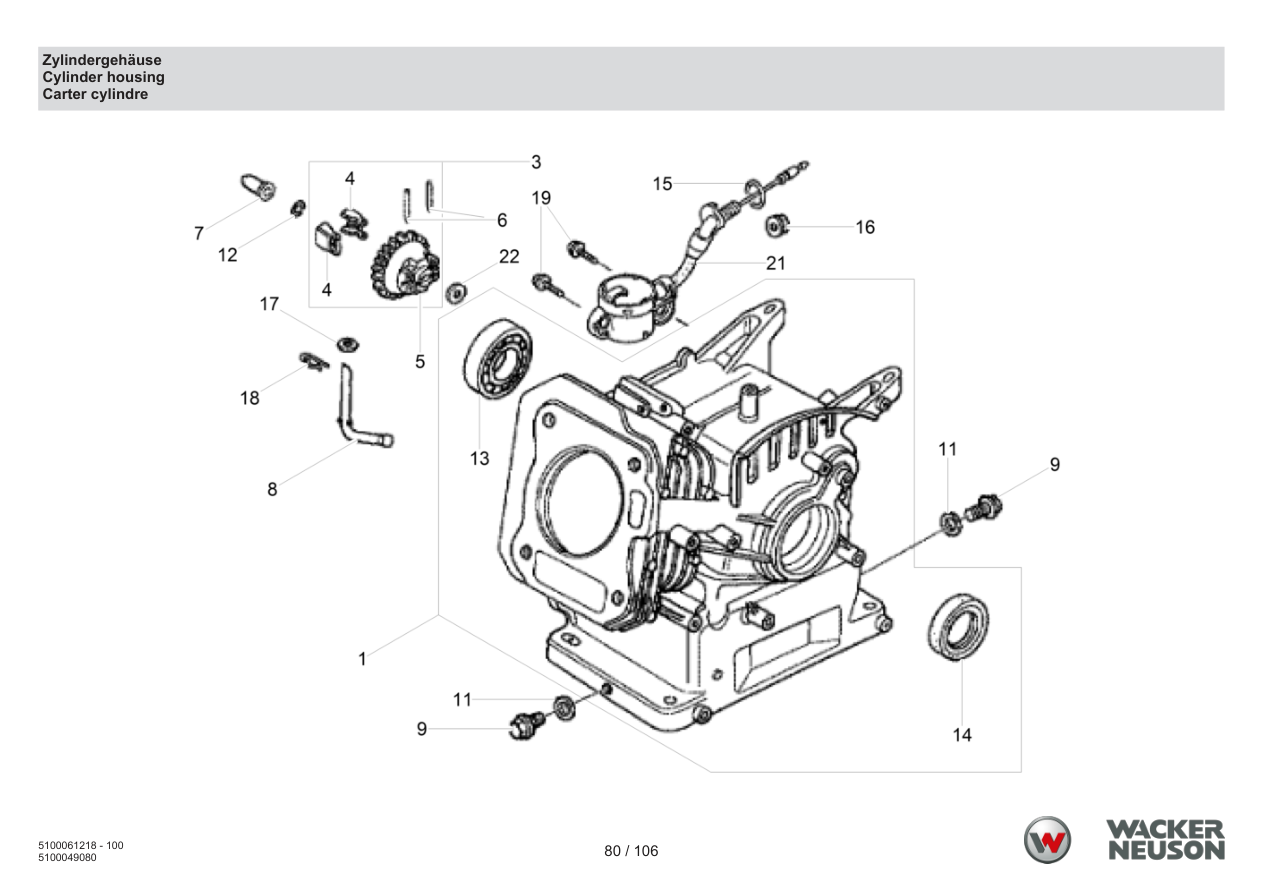

Page 80 — Cylinder housing
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005428 | Cylinder housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cylinder housing cpl.
5100005428 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100005429 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100005429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100005430 | Weight | 2 | PARTS REQUEST | |
|
COMING Weight
5100005430 · qty on machine: 2 | |||||
| 5 | 5100005431 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100005431 · qty on machine: 1 | |||||
| 6 | 5000156689 | Pin | 2 | ADD TO CART | |
| 7 | 5100005432 | Governor pin | 1 | PARTS REQUEST | |
|
COMING Governor pin
5100005432 · qty on machine: 1 | |||||
| 8 | 5100005433 | Governor | 1 | PARTS REQUEST | |
|
COMING Governor
5100005433 · qty on machine: 1 | |||||
| 9 | 5000070964 | Plug (threaded) | 2 | ADD TO CART | |
| 11 | 5000070963 | Washer | 2 | ADD TO CART | |
| 12 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 13 | 5100003485 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003485 · qty on machine: 1 | |||||
| 14 | 5100039035 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000208616 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000208616 · qty on machine: 1 | |||||
| 16 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 17 | 5000071639 | Washer | 1 | ADD TO CART | |
| 18 | 5000054033 | Pin | 1 | ADD TO CART | |
| 19 | 5100003498 | Flange screw | 2 | PARTS REQUEST | |
|
COMING Flange screw
5100003498 · qty on machine: 2 | |||||
| 21 | 5000216513 | Oil alert switch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5000071639 | Washer | 1 | ADD TO CART | |

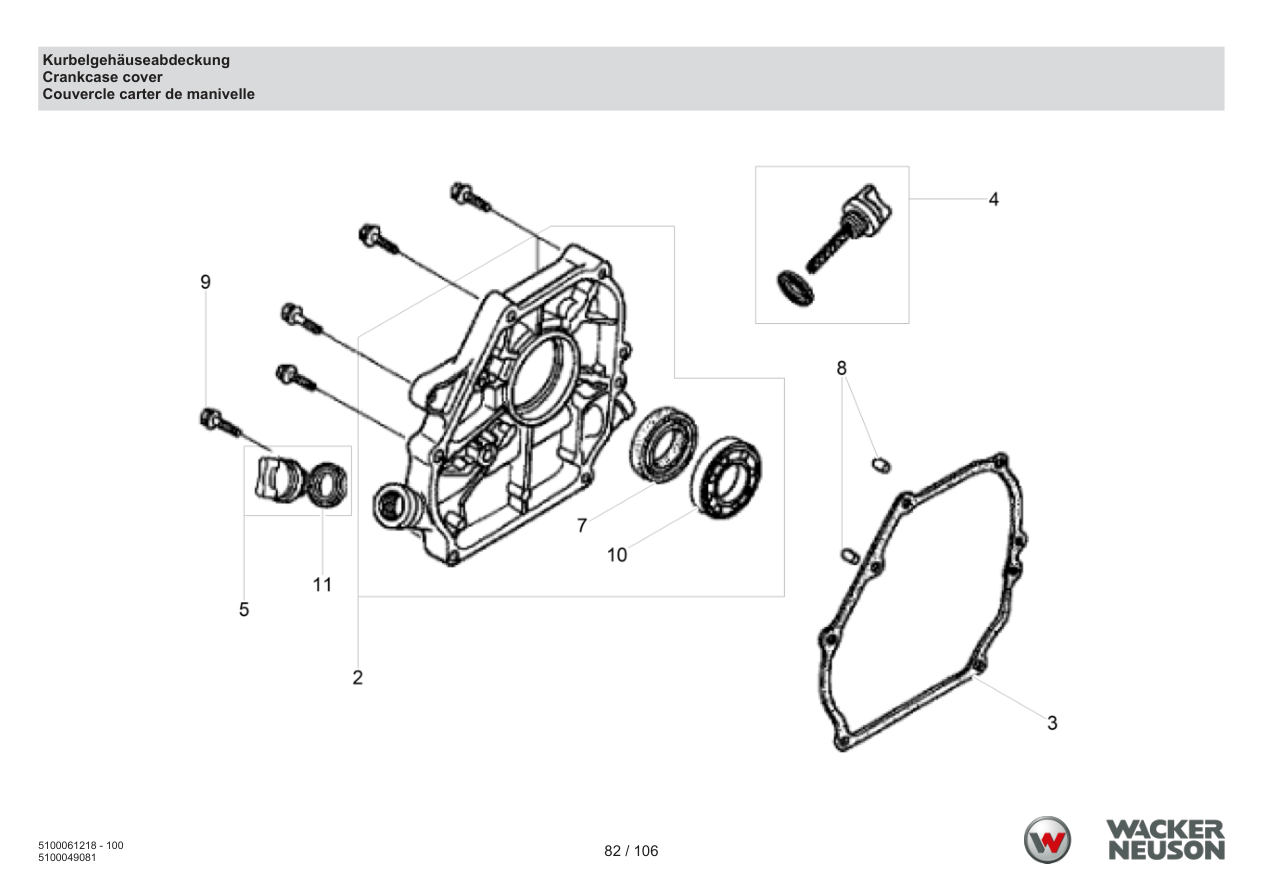

Page 82 — Crankcase cover
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000081991 | Cover | 1 | ADD TO CART | |
| 3 | 5100009314 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100009314 · qty on machine: 1 | |||||
| 4 | 5000162645 | Dipstick assembly | 1 | ADD TO CART | |
| 5 | 5100031607 | Oil filler cap | 1 | ADD TO CART | |
| 7 | 5000053983 | Shaft seal | 1 | ADD TO CART | |
| 7 | 5100039035 | Ring seal | 1 | ADD TO CART | |
| 8 | 5000053995 | Dowel pin | 2 | ADD TO CART | |
| 9 | 5100003504 | Flange screw | 6 | PARTS REQUEST | |
|
COMING Flange screw
5100003504 · qty on machine: 6 | |||||
| 10 | 5100003510 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003510 · qty on machine: 1 | |||||
| 11 | 5000162647 | Gasket | 1 | ADD TO CART | |

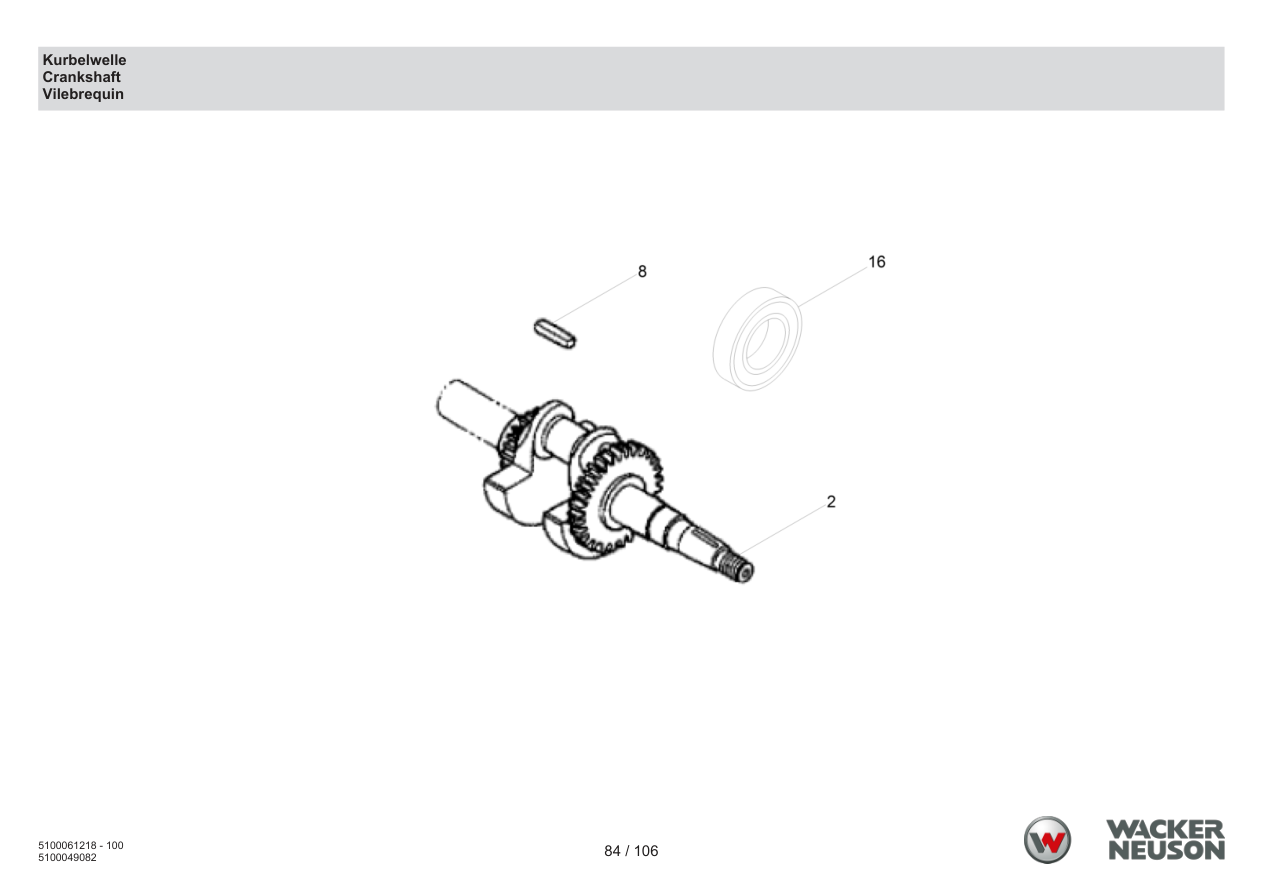

Page 84 — Crankshaft
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100005359 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000070999 | Fitting key | 1 | ADD TO CART | |
| 16 | 5100003485 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003485 · qty on machine: 1 | |||||

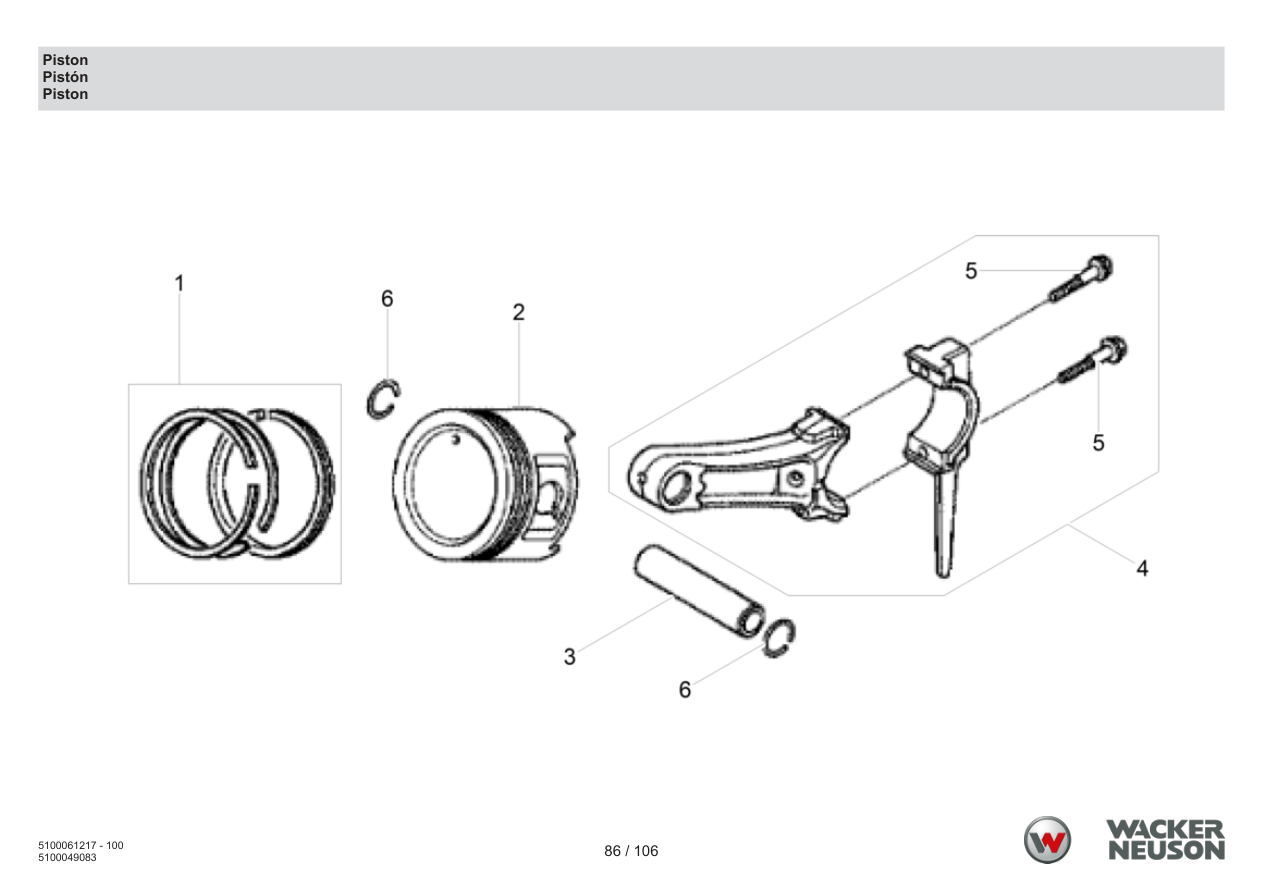

Page 86 — Piston
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217531 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5000217531 · qty on machine: 1 | |||||
| 1 | 5000217532 | Set of piston rings | 1 | ADD TO CART | |
| 1 | 5100005435 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5100005435 · qty on machine: 1 | |||||
| 2 | 5100005436 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100005436 · qty on machine: 1 | |||||
| 2 | 5100019661 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100019661 · qty on machine: 1 | |||||
| 2 | 5100019662 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100019662 · qty on machine: 1 | |||||
| 3 | 5100005348 | Piston pin | 1 | PARTS REQUEST | |
|
COMING Piston pin
5100005348 · qty on machine: 1 | |||||
| 4 | 5100050571 | Connecting rod | 1 | ADD TO CART | |
| 5 | 5100005438 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005438 · qty on machine: 2 | |||||
| 6 | 5000081994 | Retaining ring | 2 | ADD TO CART | |

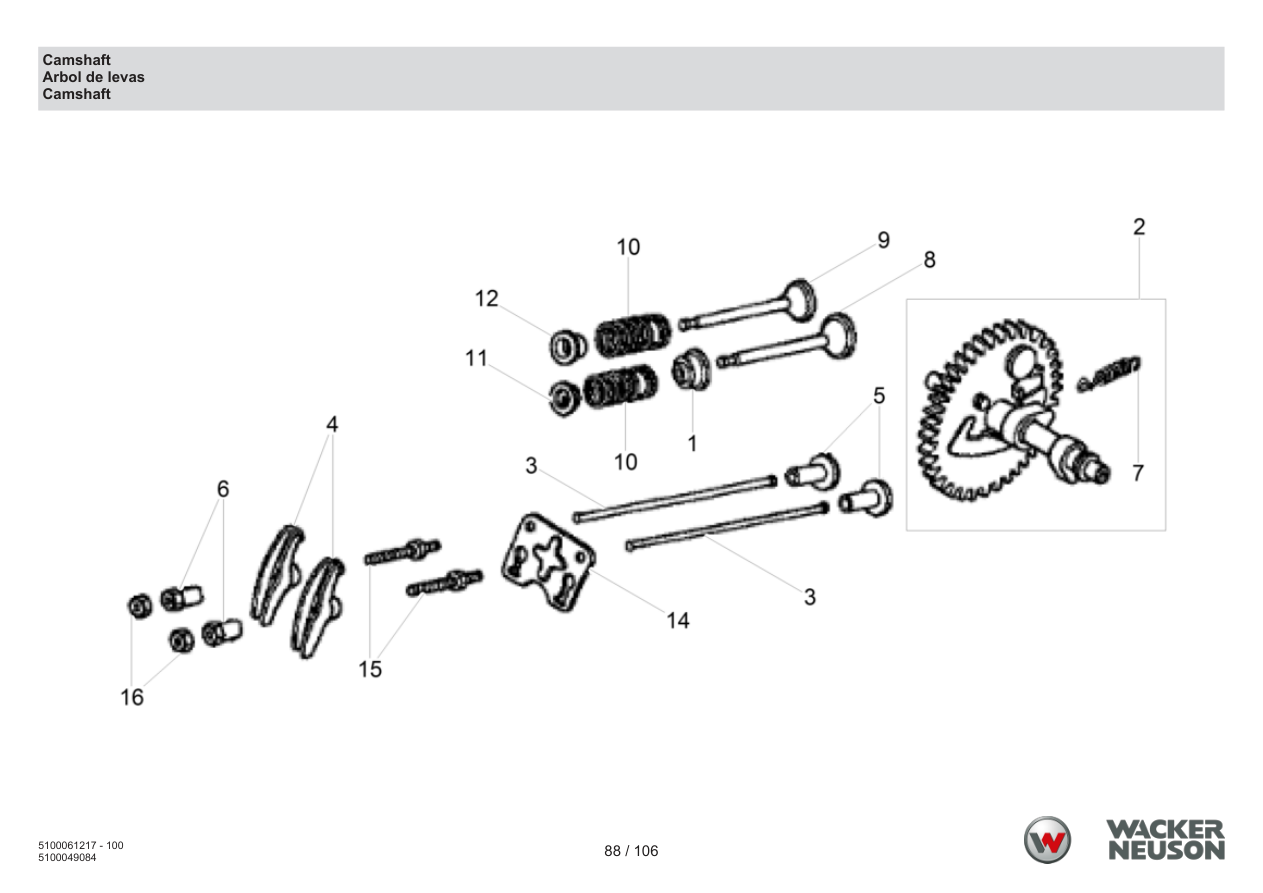

Page 88 — Camshaft
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005349 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100005349 · qty on machine: 1 | |||||
| 2 | 5100005439 | Camshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Camshaft cpl.
5100005439 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100005440 | Push rod | 2 | PARTS REQUEST | |
|
COMING Push rod
5100005440 · qty on machine: 2 | |||||
| 4 | 5000070986 | Rocker arm | 2 | ADD TO CART | |
| 5 | 5000070990 | Valve tappet | 2 | ADD TO CART | |
| 6 | 5100031338 | Pin | 2 | ADD TO CART | |
| 7 | 5000151028 | Spring | 1 | ADD TO CART | |
| 8 | 5100005441 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5100005441 · qty on machine: 1 | |||||
| 9 | 5100005442 | Outlet valve | 1 | PARTS REQUEST | |
|
COMING Outlet valve
5100005442 · qty on machine: 1 | |||||
| 10 | 5000081760 | Spring | 2 | ADD TO CART | |
| 11 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 12 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 14 | 5100005443 | Guide plate | 1 | PARTS REQUEST | |
|
COMING Guide plate
5100005443 · qty on machine: 1 | |||||
| 15 | 5000072778 | Stud | 2 | ADD TO CART | |
| 16 | 5000070984 | Locknut | 2 | ADD TO CART | |
Page 90 — Labels
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100005352 | Label gx160 | 1 | PARTS REQUEST | |
|
COMING Label gx160
5100005352 · qty on machine: 1 | |||||
| 4 | 5100005336 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100005336 · qty on machine: 1 | |||||
| 5 | 5000208623 | Labels | 1 | ADD TO CART | |
| 12 | 5100000437 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000437 · qty on machine: 1 | |||||
| 13 | 5100005337 | Label | 1 | ADD TO CART | |
| 19 | 5100000438 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000438 · qty on machine: 1 | |||||
| 20 | 5100000439 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000439 · qty on machine: 1 | |||||
| 22 | 5100005340 | Label | 1 | ADD TO CART | |
| 25 | 5100005339 | Label | 1 | ADD TO CART | |

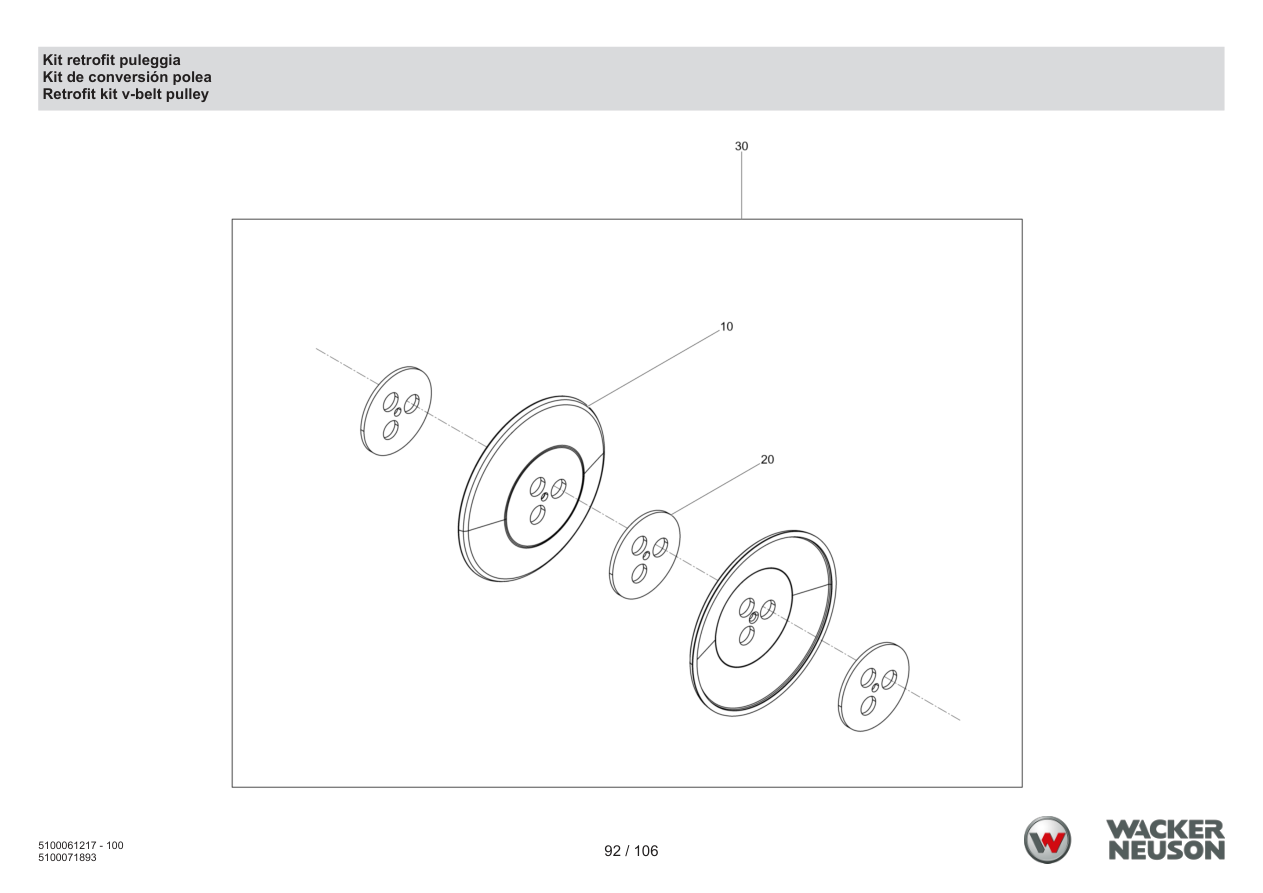

Page 92 — Pulley retrofit kit
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 20 | 5100064172 | Plate | 3 | ADD TO CART | |
| 30 | 5100065516 | Retrofit kit v-belt pulley | 1 | ADD TO CART | |

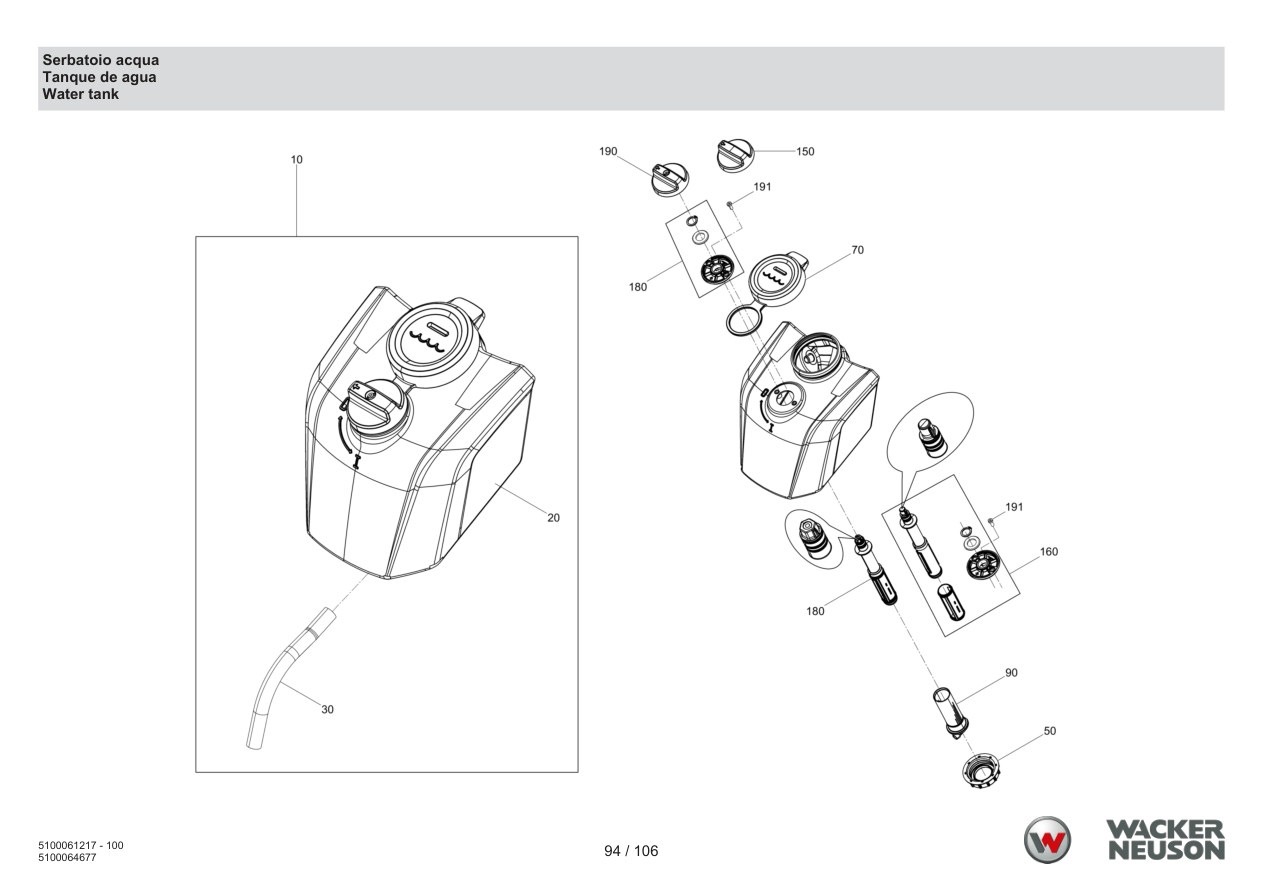

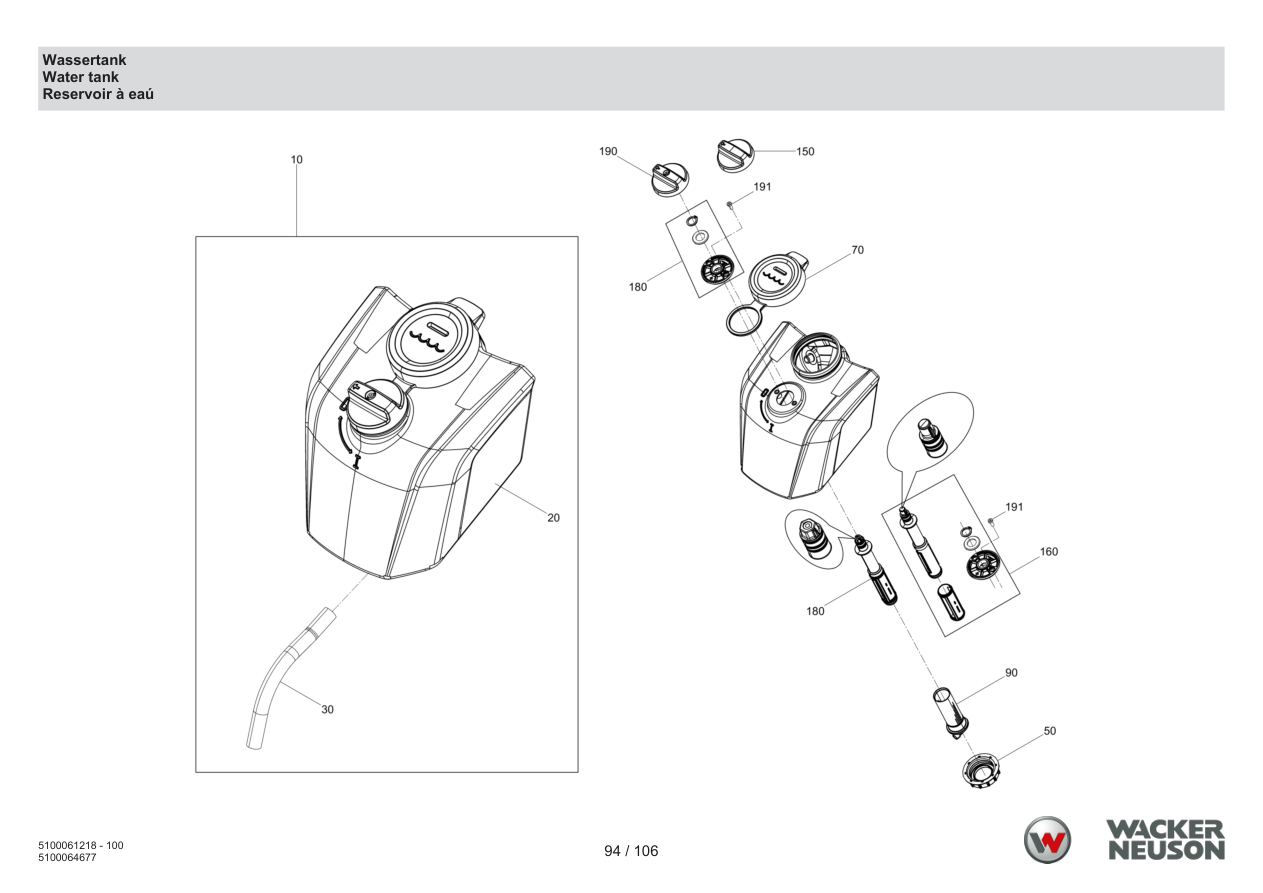

Page 94 — Water tank
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060499 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl.
5100060499 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 20 | 5100054177 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5100054175 | Hose | 1 | ADD TO CART | |
| 50 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 70 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 90 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 150 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 160 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 180 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 190 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 191 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||

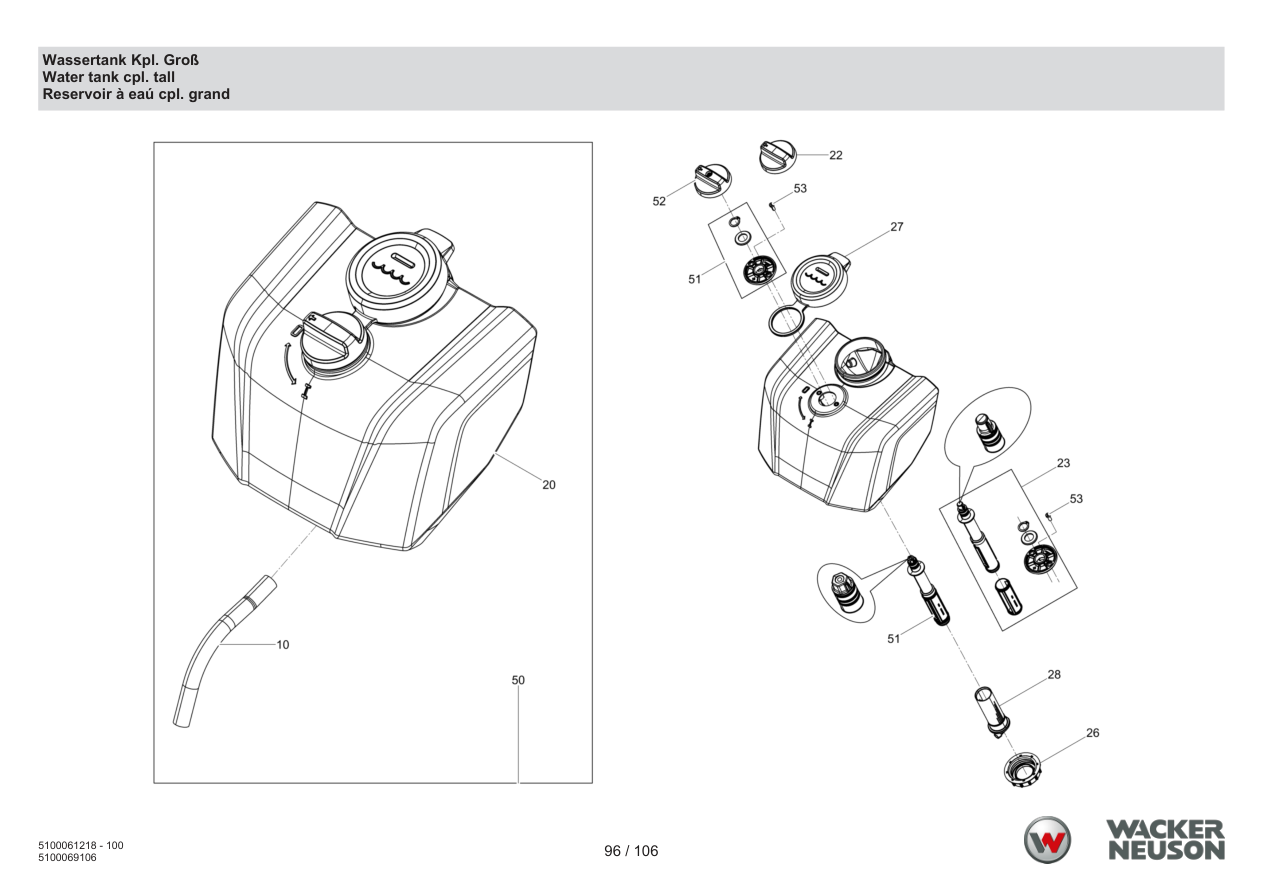

Page 96 — Water tank cpl. large
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100054175 | Hose | 1 | ADD TO CART | |
| 20 | 5100064647 | Watertank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 23 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 26 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 27 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 28 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 50 | 5100068642 | Water tank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl. big
5100068642 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 51 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 52 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 53 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||

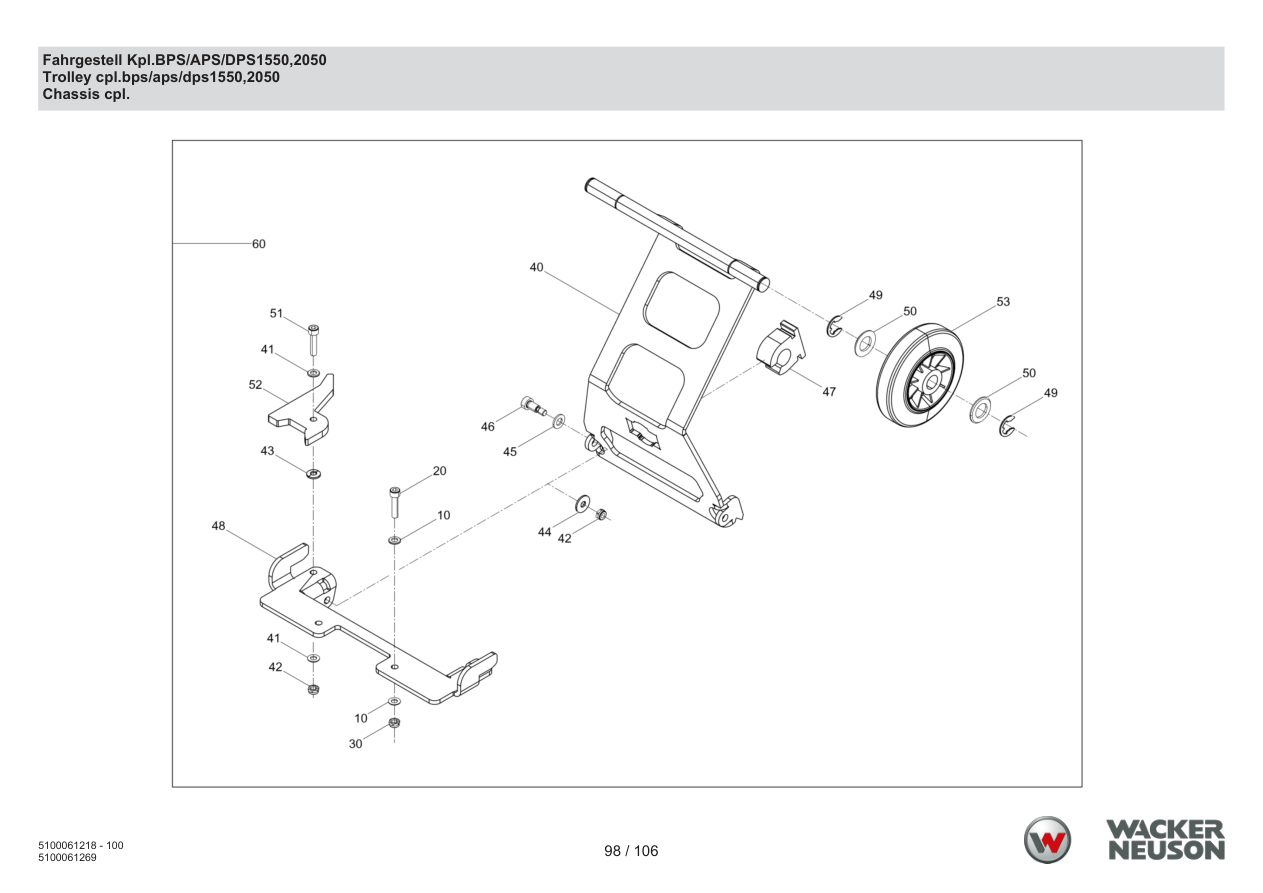

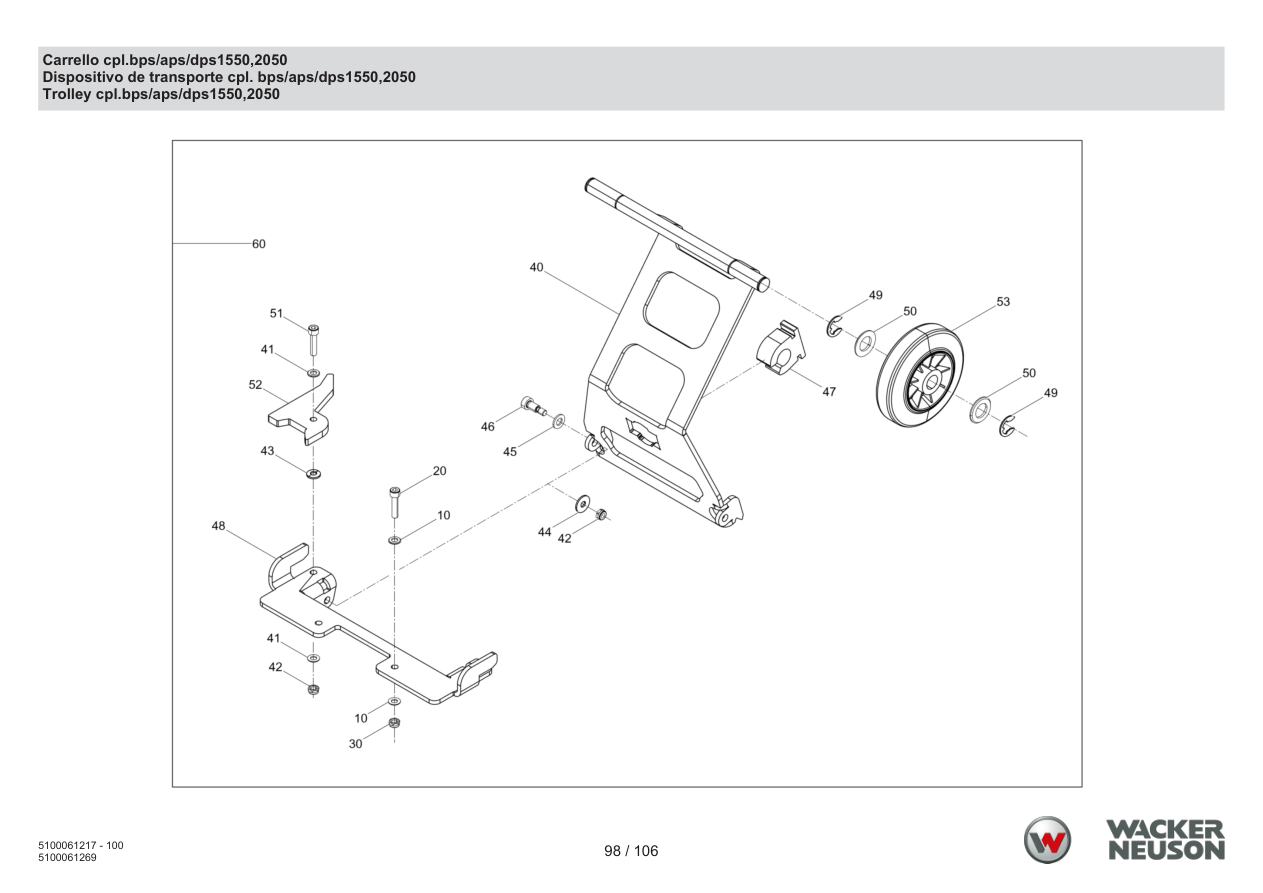

Page 98 — Undercarriage cpl.bps/aps/dps1550,2050
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 20 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 30 | 5000010367 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100060372 | Trolley | 1 | ADD TO CART | |
| 41 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 42 | 5000010367 | Hexagon nut | 4 | ADD TO CART | |
| 43 | 5000033198 | Lockwasher | 2 | ADD TO CART | |
| 44 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 45 | 5000128241 | Flat washer | 2 | ADD TO CART | |
| 46 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 47 | 5100058750 | Bracket | 1 | ADD TO CART | |
| 48 | 5100060376 | Base plate | 1 | ADD TO CART | |
| 49 | 5000103834 | Lock washer | 4 | ADD TO CART | |
| 50 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 51 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 52 | 5100077951 | Lock bolt | 2 | ADD TO CART | |
| 53 | 5000021466 | Tire | 2 | ADD TO CART | |
| 60 | 5100060543 | Trolley cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Trolley cpl.
5100060543 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||

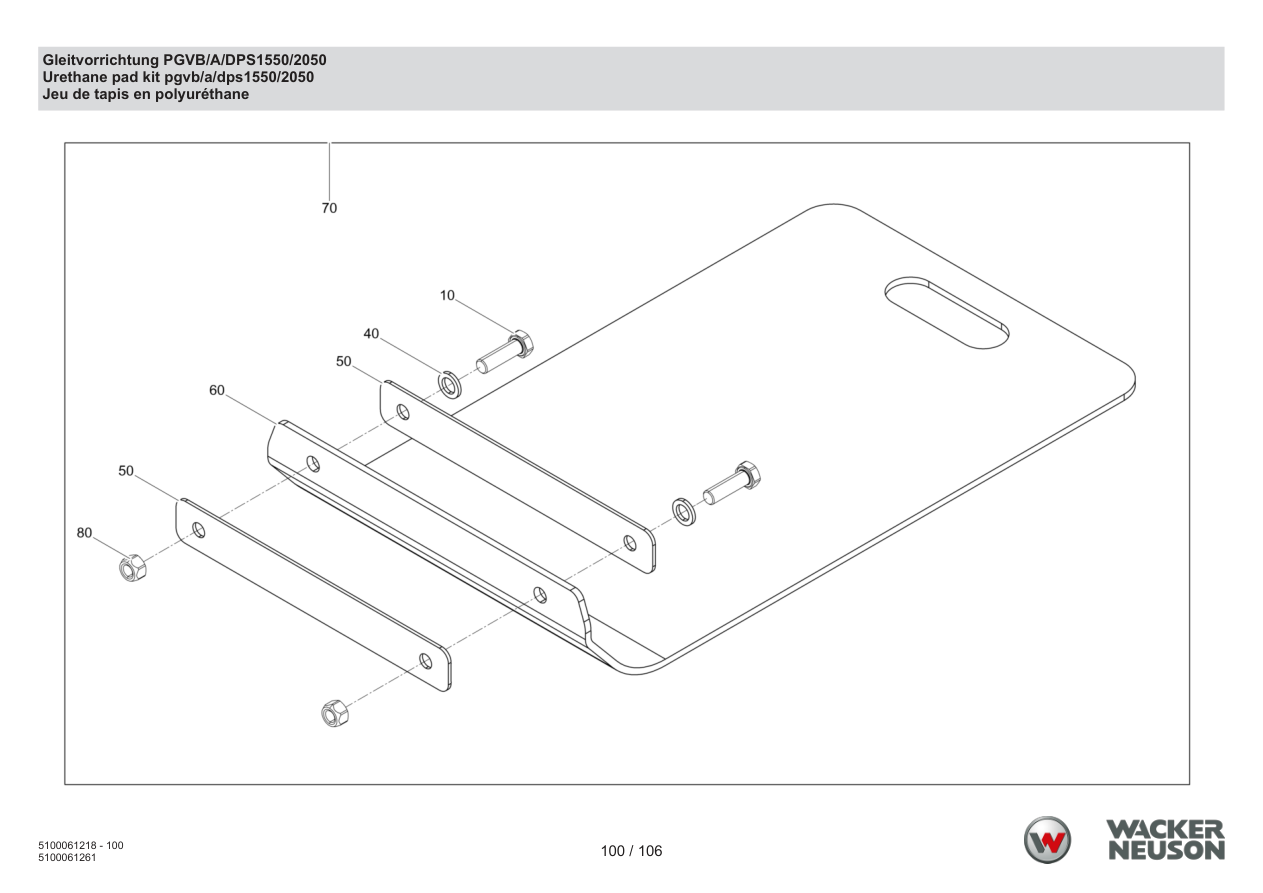

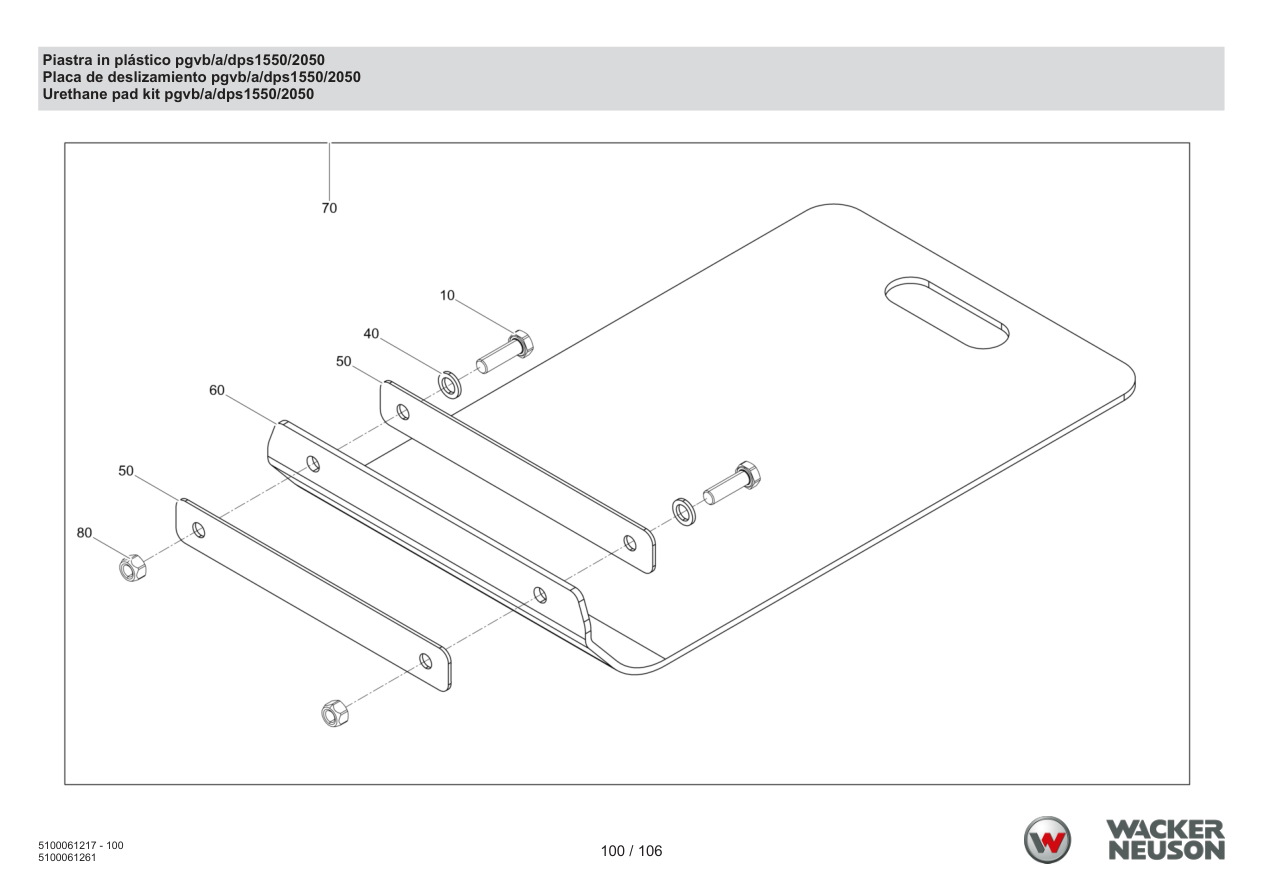

Page 100 — Sliding plate pgvb/a/dps1550/2050
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011421 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 2 | |||||
| 40 | 5000010665 | Washer | 2 | ADD TO CART | |
| 50 | 5100054241 | Bar | 2 | ADD TO CART | |
| 60 | 5100054247 | Urethane plate 50cm | 1 | ADD TO CART | |
| 70 | 5100060428 | Urethane pad kit pgv | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv
5100060428 · qty on machine: 1 | |||||
| 80 | 5000015061 | Hexagon nut | 2 | ADD TO CART | |

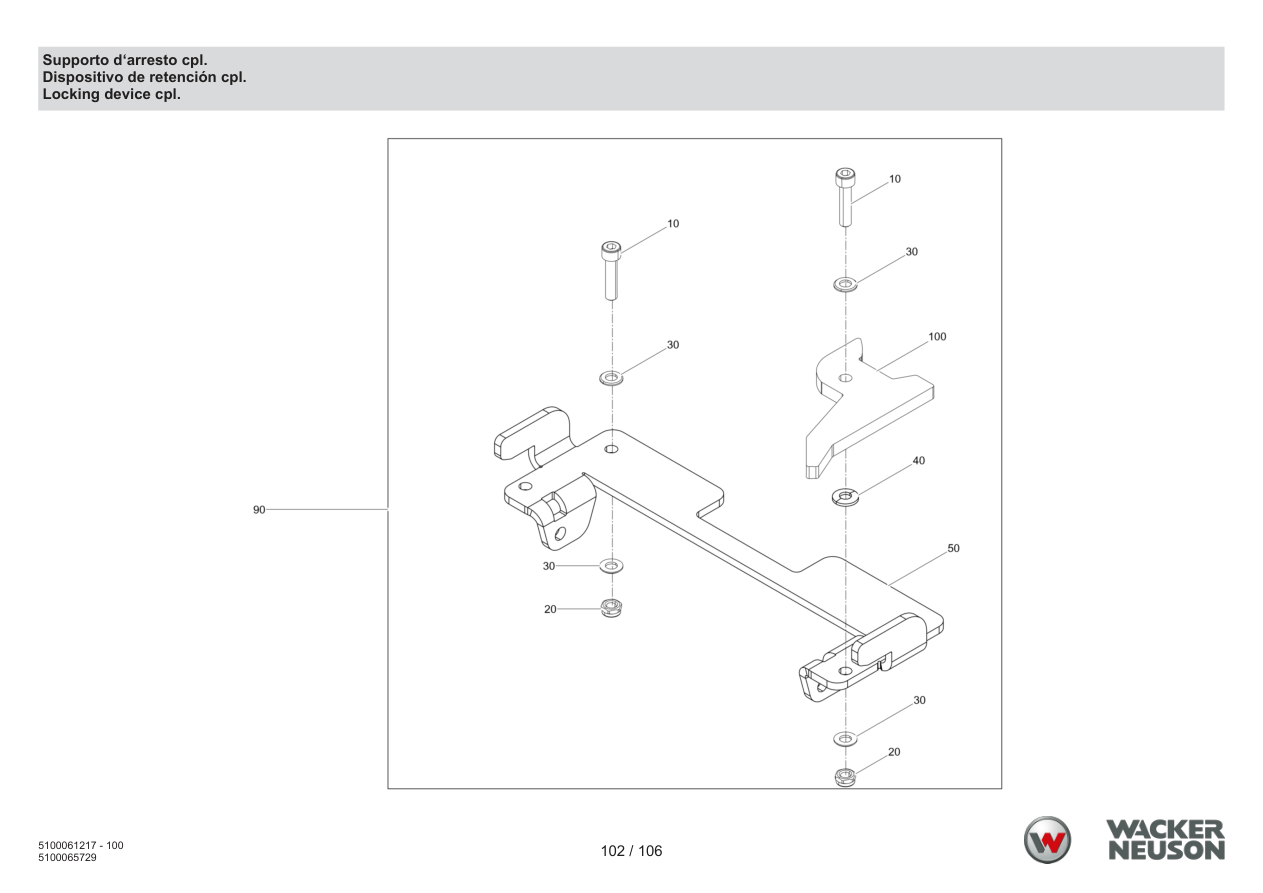

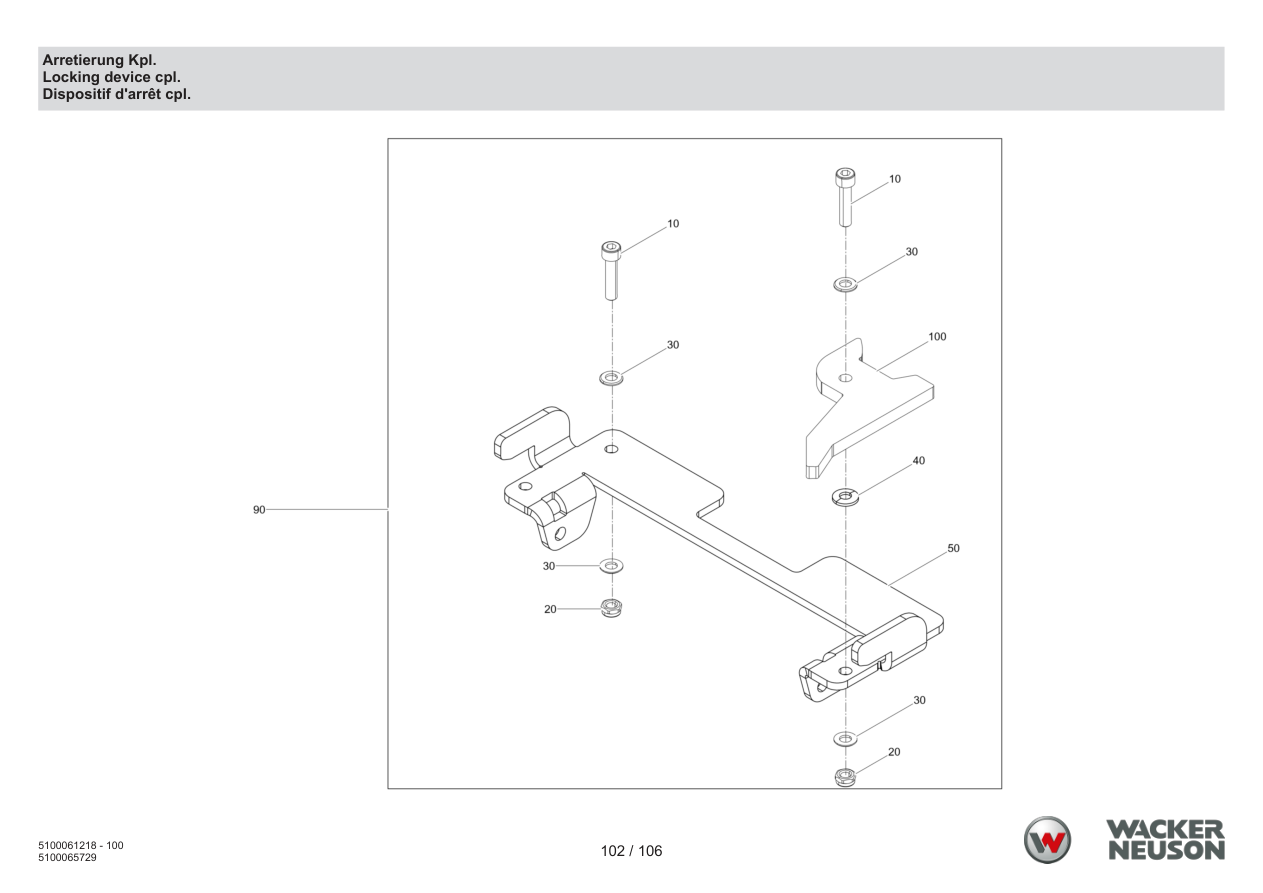

Page 102 — Supporto d‘arresto cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011540 | Cheese head screw | 4 | ADD TO CART | |
| 20 | 5000010367 | Hexagon nut | 4 | ADD TO CART | |
| 30 | 5000010622 | Flat washer | 8 | ADD TO CART | |
| 40 | 5000033198 | Lockwasher | 2 | ADD TO CART | |
| 50 | 5100060376 | Base plate | 1 | ADD TO CART | |
| 90 | 5100064994 | Locking device cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Locking device cpl.
5100064994 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 100 | 5100077951 | Lock bolt | 2 | ADD TO CART | |
Page 3 — Fuel filter (Option) SP
Parts list — exactly as printed17 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 1000386655 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000386655 · qty on machine: 1 | |||||
| 2 | 1000389249 | Plug | 1 | PARTS REQUEST | |
|
COMING Plug
1000389249 · qty on machine: 1 | |||||
| 3 | 1000389229 | Screw joint | 2 | PARTS REQUEST | |
|
COMING Screw joint
1000389229 · qty on machine: 2 | |||||
| 4 | 1000386656 | Filter insert | 1 | PARTS REQUEST | |
|
COMING Filter insert
1000386656 · qty on machine: 1 | |||||
| 5 | 1000433955 | Filter housing | 1 | PARTS REQUEST | |
|
COMING Filter housing
1000433955 · qty on machine: 1 | |||||
| 6 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 7 | 1000389241 | Hose clamp | 4 | PARTS REQUEST | |
|
COMING Hose clamp
1000389241 · qty on machine: 4 | |||||
| 8 | 1000389247 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389247 · qty on machine: 1 | |||||
| 9 | 1000434006 | Pressure limit reliefvalve | 1 | PARTS REQUEST | |
|
COMING Pressure limit reliefvalve
1000434006 · qty on machine: 1 | |||||
| 10 | 1000389230 | Fuel line | 1 | PARTS REQUEST | |
|
COMING Fuel line
1000389230 · qty on machine: 1 | |||||
| 11 | 1000139973 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
1000139973 · qty on machine: 1 | |||||
| 12 | 1000088388 | Screw | 3 | PARTS REQUEST | |
|
COMING Screw
1000088388 · qty on machine: 3 | |||||
| 13 | 1000433952 | Arm | 1 | PARTS REQUEST | |
|
COMING Arm
1000433952 · qty on machine: 1 | |||||
| 14 | 1000328508 | Clamp | 1 | PARTS REQUEST | |
|
COMING Clamp
1000328508 · qty on machine: 1 | |||||
| 15 | 1000433949 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433949 · qty on machine: 1 | |||||
| 16 | 1000433950 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
1000433950 · qty on machine: 1 | |||||
| 17 | 1000389262 | Fuel pump | 1 | PARTS REQUEST | |
|
COMING Fuel pump
1000389262 · qty on machine: 1 | |||||
Page 14 — Guide handle basis
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052432 | Spring pin | 2 | ADD TO CART | |
| 20 | 5100052431 | Bolt | 2 | ADD TO CART | |
Page 16 — Guide handle
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100052430 | Bearing | 2 | ADD TO CART | |
| 20 | 5100060526 | Guiding frame cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |

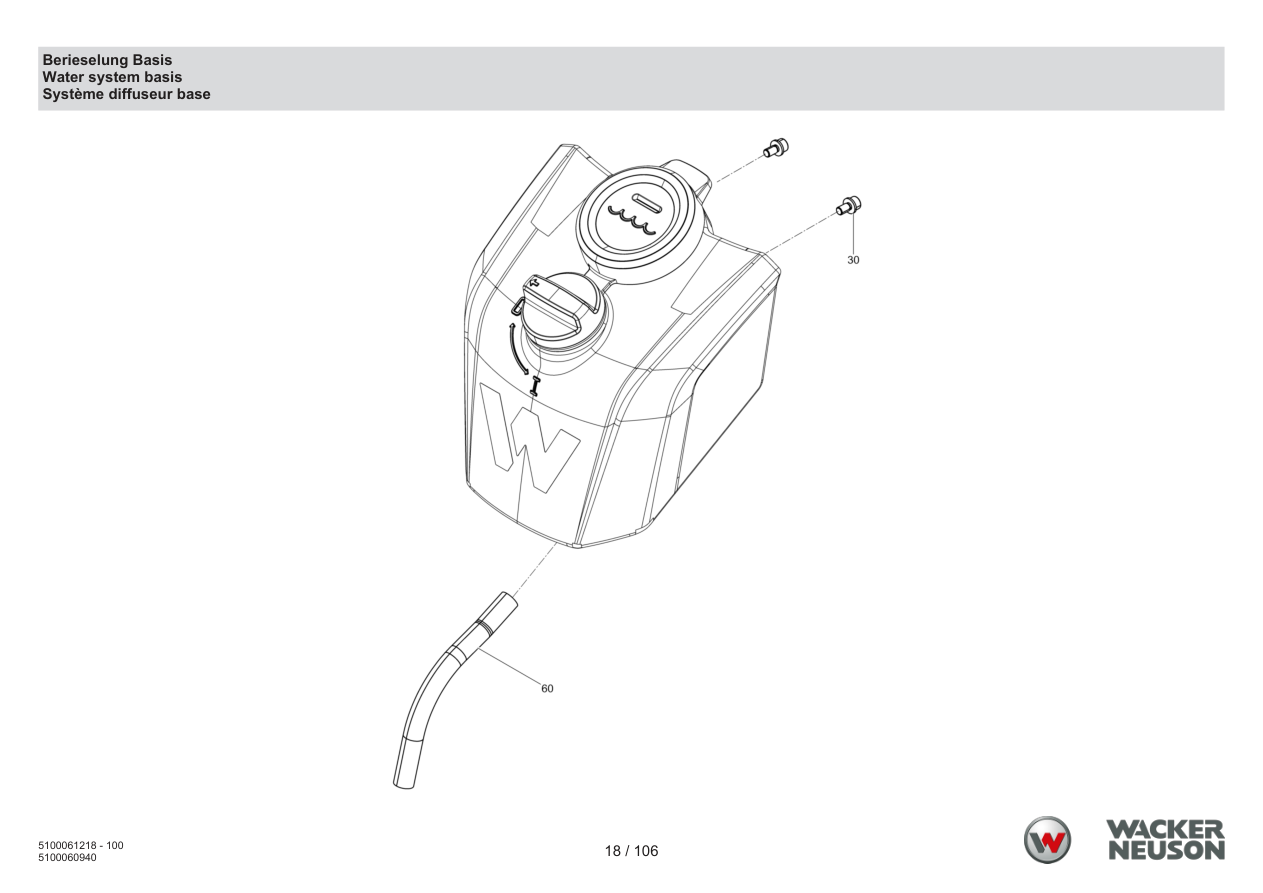

Page 18 — Sprinkler system base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 30 | 5100059594 | Cheese head screw | 2 | ADD TO CART | |
| 60 | 5100054175 | Hose | 1 | ADD TO CART | |
Page 20 — Sprinkler system
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 70 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 90 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 150 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 160 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 170 | 5100054177 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 180 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 190 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 191 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 22 — Upper mass base
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100016317 | Shockmount | 2 | ADD TO CART | |
Page 24 — Upper mass
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000096087 | Hexagon nut | 4 | ADD TO CART | |
| 20 | 5100060524 | Upper mass | 1 | ADD TO CART | |
Page 26 — Additional weight 2050 BPS
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059596 | Cheese head screw | 4 | ADD TO CART | |
| 20 | 5100060546 | Supplementary weight 10kg | 1 | ADD TO CART | |
Page 28 — Gasoline base
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000026169 | Hexagonal head cap screw | 5 | ADD TO CART | |
| 20 | 5100016321 | Washer | 1 | ADD TO CART | |
| 30 | 5000216658 | Screw | 3 | ADD TO CART | |
| 90 | 5100054097 | Centrifugal clutch | 1 | ADD TO CART | |
| 150 | 5100031195 | V-belt | 1 | ADD TO CART | |
| 160 | 5100054135 | Gasket | 1 | ADD TO CART | |
| 170 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 180 | 5100064172 | Plate | 3 | ADD TO CART | |
| 190 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 200 | 5100058806 | Bar cpl. | 2 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 10 | 5100060554 | Guard plate cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 40 | 5100060550 | Belt guard | 1 | ADD TO CART | |
Page 32 — Motor Honda GX160
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100045995 | Gas engine | 1 | ADD TO CART | |
Page 34 — Rubber buffer hard
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000037378 | Shockmount | 4 | ADD TO CART | |
Page 36 — Exciter cpl. 20kn mech.
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100059593 | Cheese head screw | 8 | ADD TO CART | |
| 2 | 5000105139 | Cylindrical roller bearing | 2 | ADD TO CART | |
| 3 | 5100062507 | Bearing seat | 2 | ADD TO CART | |
| 4 | 5100063187 | Hexagonal head cap screw | 4 | ADD TO CART | |
| 5 | 5100063189 | Exciter housing | 1 | ADD TO CART | |
| 6 | 5100062381 | Eccentric shaft | 1 | ADD TO CART | |
| 7 | 5100054628 | Bearing cover right | 1 | ADD TO CART | |
| 8 | 5100054629 | Bearing cover left | 1 | ADD TO CART | |
| 9 | 5100063663 | Seal washer | 2 | ADD TO CART | |
| 10 | 5100068062 | Label | 1 | ADD TO CART | |
| 11 | 5100054135 | Gasket | 1 | ADD TO CART | |
| 12 | 5100029787 | Cheese head screw | 3 | ADD TO CART | |
| 13 | 5100064172 | Plate | 3 | ADD TO CART | |
| 14 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 15 | 5100084114 | Exciter cpl. 20kn | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Exciter cpl. 20kn
5100084114 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
Page 38 — Lower mass base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 20 | 5000210111 | Corrugated-head screw | 4 | ADD TO CART | |
Page 40 — Lower mass 500 common parts
Parts list — exactly as printed4 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100029787 | Cheese head screw | 8 | ADD TO CART | |
| 20 | 5100024557 | Bow handle | 4 | ADD TO CART | |
| 30 | 5100058123 | Spinkler system cpl. 50cm | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 31 | 5100041150 | Locking plug | 2 | ADD TO CART | |
Page 42 — Lower mass 500
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100053568 | Baseplate 50cm | 1 | ADD TO CART | |
Page 44 — Decal base
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 90 | 5100068610 | Label | 2 | ADD TO CART | |
| 120 | 5100060906 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100060906 · qty on machine: 1 | |||||
Page 46 — Label hot surface
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068062 | Label | 1 | ADD TO CART | |
Page 48 — Decal gasoline
Parts list — exactly as printed2 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 50 | 5100062529 | Label | 1 | ADD TO CART | |
| 60 | 5100062532 | Label | 1 | ADD TO CART | |
Page 50 — Decal Honda
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059873 | Starting note decal | 1 | PARTS REQUEST | |
|
COMING Starting note decal
5100059873 · qty on machine: 1 | |||||
Page 52 — Decal 108dB
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100068609 | Label | 1 | ADD TO CART | |
Page 54 — Decal symbol red
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100058733 | Label symbol | 1 | ADD TO CART | |
Page 56 — Decal BPS2050
Parts list — exactly as printed1 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100059361 | Type label | 1 | ADD TO CART | |
Page 58 — Maintenance kit
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000070942 | Gasket | 1 | ADD TO CART | |
| 2 | 5000081781 | Rope | 1 | ADD TO CART | |
| 3 | 5100049539 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5000071032 | Gasket | 1 | ADD TO CART | |
| 5 | 5000203788 | Spark plug | 1 | ADD TO CART | |
| 6 | 5100031195 | V-belt | 1 | ADD TO CART | |
| 7 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 8 | 5100000396 | Filter | 1 | ADD TO CART | |
| 9 | 5000071024 | Gasket | 1 | ADD TO CART | |
| 10 | 5000071082 | O-ring | 1 | ADD TO CART | |
| 11 | 5100060013 | Maintenance kit | 1 | ADD TO CART | |
Page 60 — Recoil starter
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 18 | 5100036079 | Guide | 1 | ADD TO CART | |
| 2 | 5100005307 | Housing cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Housing cpl. (black)
5100005307 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000406627 | Starter reel | 1 | PARTS REQUEST | |
|
COMING Starter reel
5000406627 · qty on machine: 1 | |||||
| 3 | 5100036077 | Starter pulley | 1 | PARTS REQUEST | |
|
COMING Starter pulley
5100036077 · qty on machine: 1 | |||||
| 5 | 5000160748 | Friction plate | 1 | ADD TO CART | |
| 6 | 5000160745 | Guide | 1 | ADD TO CART | |
| 7 | 5000160747 | Friction spring | 1 | ADD TO CART | |
| 8 | 5000081777 | Spring | 1 | ADD TO CART | |
| 11 | 5000081781 | Rope | 1 | ADD TO CART | |
| 12 | 5000207991 | Screw | 1 | ADD TO CART | |
| 13 | 5000081750 | Screw | 3 | ADD TO CART | |
| 13 | 5000158458 | Flange bolt | 3 | ADD TO CART | |
| 15 | 5100005309 | Starter handle us | 1 | ADD TO CART | |
| 15 | 5100005413 | Starter handle | 1 | PARTS REQUEST | |
|
COMING Starter handle
5100005413 · qty on machine: 1 | |||||
| 16 | 5100005310 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005310 · qty on machine: 1 | |||||
| 17 | 5100036078 | Ratchet | 2 | ADD TO CART | |
| 19 | 5100036230 | Return spring | 2 | ADD TO CART | |
| 20 | 5100039021 | Recoil starter | 1 | PARTS REQUEST | |
|
COMING Recoil starter
5100039021 · qty on machine: 1 | |||||
| 20 | 5100047597 | Recoil starter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
Page 62 — Fan hood
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 12 | 5100049537 | Switch | 1 | PARTS REQUEST | |
|
COMING Switch
5100049537 · qty on machine: 1 | |||||
| 15 | 5000053990 | Screw | 6 | ADD TO CART | |
| 1 | 5100005311 | Fan hood cpl. (black) | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100005312 | Covering | 1 | PARTS REQUEST | |
|
COMING Covering
5100005312 · qty on machine: 1 | |||||
| 8 | 5100047598 | Air ducting | 1 | ADD TO CART | |
| 10 | 5100005313 | Oil sensor | 1 | ADD TO CART | |
| 16 | 5000071055 | Screw | 1 | ADD TO CART | |
| 17 | 5000151700 | Clamp | 1 | ADD TO CART | |
| 18 | 5000081750 | Screw | 1 | ADD TO CART | |
Page 64 — Carburetor
Parts list — exactly as printed29 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000072781 | Set-gaskets | 1 | ADD TO CART | |
| 2 | 5000071022 | Set-float valve | 1 | ADD TO CART | |
| 3 | 5000209764 | Set-carburetor float | 1 | ADD TO CART | |
| 4 | 5100005314 | Float housing | 1 | PARTS REQUEST | |
|
COMING Float housing
5100005314 · qty on machine: 1 | |||||
| 6 | 5000089286 | Setscrew | 1 | ADD TO CART | |
| 7 | 5200000430 | Screw w/washer | 1 | ADD TO CART | |
| 8 | 5200000431 | Screw w/washer | 1 | ADD TO CART | |
| 9 | 5100005415 | Starter flap | 1 | PARTS REQUEST | |
|
COMING Starter flap
5100005415 · qty on machine: 1 | |||||
| 10 | 5000406637 | Carburetor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Carburetor cpl.
5000406637 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 11 | 5000071018 | Throttle stop screw | 1 | ADD TO CART | |
| 12 | 5100009310 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100009310 · qty on machine: 1 | |||||
| 13 | 5000125839 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000125839 · qty on machine: 1 | |||||
| 14 | 5100005416 | Isolator | 1 | PARTS REQUEST | |
|
COMING Isolator
5100005416 · qty on machine: 1 | |||||
| 15 | 5000082009 | Gasket | 1 | ADD TO CART | |
| 16 | 5000071015 | Spacer | 1 | ADD TO CART | |
| 17 | 5000081762 | Gasket | 1 | ADD TO CART | |
| 18 | 5000071013 | Choke control lever | 1 | ADD TO CART | |
| 19 | 5000150266 | Fuel valve lever | 1 | ADD TO CART | |
| 20 | 5000073269 | Plate | 1 | ADD TO CART | |
| 21 | 5000073270 | Spring washer | 1 | ADD TO CART | |
| 22 | 5000073272 | Gasket | 1 | ADD TO CART | |
| 23 | 5000071023 | Fuel filter | 1 | ADD TO CART | |
| 24 | 5100005317 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005317 · qty on machine: 2 | |||||
| 25 | 5000071014 | Pin | 1 | ADD TO CART | |
| 29 | 5100005417 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100005417 · qty on machine: 1 | |||||
| 29 | 5100005418 | Main jet | 1 | PARTS REQUEST | |
|
COMING Main jet
5100005418 · qty on machine: 1 | |||||
| 29 | 5100049538 | Main jet 62 | 1 | ADD TO CART | |
| 30 | 5000071016 | Pilot jet | 1 | ADD TO CART | |
| 43 | 5100000396 | Filter | 1 | ADD TO CART | |
Page 66 — Air filter
Parts list — exactly as printed13 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000071032 | Gasket | 1 | ADD TO CART | |
| 2 | 5100049539 | Air filter insert cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 2 | 5200006430 | Air filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Air filter cpl.
5200006430 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000217459 | Air filter insert | 1 | PARTS REQUEST | |
|
COMING Air filter insert
5000217459 · qty on machine: 1 | |||||
| 4 | 5100019660 | Air cleaner cover | 1 | ADD TO CART | |
| 5 | 5000072343 | Grommet | 1 | ADD TO CART | |
| 7 | 5000081746 | Sleeve | 2 | ADD TO CART | |
| 8 | 5000071035 | Sleeve | 1 | ADD TO CART | |
| 9 | 5000406642 | Air cleaner mount | 1 | ADD TO CART | |
| 10 | 5000071621 | Wing nut | 1 | ADD TO CART | |
| 11 | 5000071056 | Nut | 2 | ADD TO CART | |
| 12 | 5100003499 | Flange screw | 1 | PARTS REQUEST | |
|
COMING Flange screw
5100003499 · qty on machine: 1 | |||||
| 13 | 5100005421 | Nut | 1 | PARTS REQUEST | |
|
COMING Nut
5100005421 · qty on machine: 1 | |||||
Page 68 — Muffler
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000406644 | Muffler | 1 | PARTS REQUEST | |
|
COMING Muffler
5000406644 · qty on machine: 1 | |||||
| 1 | 5100048122 | Muffler cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Muffler cpl.
5100048122 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5000406646 | Guard | 1 | PARTS REQUEST | |
|
COMING Guard
5000406646 · qty on machine: 1 | |||||
| 6 | 5000081756 | Exhaust baffle | 1 | ADD TO CART | |
| 7 | 5000071075 | Spark arrester | 1 | ADD TO CART | |
| 9 | 5000216516 | Gasket | 1 | ADD TO CART | |
| 12 | 5000209783 | Self-tapping screw | 2 | ADD TO CART | |
| 14 | 5000071070 | Screw | 4 | ADD TO CART | |
| 15 | 5000150916 | Screw | 1 | ADD TO CART | |
| 19 | 5100003492 | Hexagon nut | 2 | PARTS REQUEST | |
|
COMING Hexagon nut
5100003492 · qty on machine: 2 | |||||
| 41 | 5000081756 | Exhaust baffle | 1 | ADD TO CART | |
| 43 | 5000209783 | Self-tapping screw | 2 | ADD TO CART | |
Page 70 — Fuel tank
Parts list — exactly as printed12 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000081764 | Protective hose | 1 | ADD TO CART | |
| 2 | 5100000395 | Fuel filter | 1 | PARTS REQUEST | |
|
COMING Fuel filter
5100000395 · qty on machine: 1 | |||||
| 3 | 5000110765 | Fuel tank | 1 | ADD TO CART | |
| 5 | 5000209770 | Gasket | 1 | ADD TO CART | |
| 7 | 5000209771 | Flange bolt | 1 | ADD TO CART | |
| 8 | 5000208616 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000208616 · qty on machine: 1 | |||||
| 9 | 5000071056 | Nut | 2 | ADD TO CART | |
| 10 | 5100005325 | Fuel hose | 1 | PARTS REQUEST | |
|
COMING Fuel hose
5100005325 · qty on machine: 1 | |||||
| 12 | 5000208617 | Clamp | 2 | ADD TO CART | |
| 13 | 5100005356 | Tank cover cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Tank cover cpl.
5100005356 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 15 | 5100005323 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel tank cpl.
5100005323 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 15 | 5100005358 | Fuel tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fuel tank cpl.
5100005358 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
Page 72 — Flywheel
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000068967 | Woodruff key | 1 | ADD TO CART | |
| 2 | 5000071652 | Fan | 1 | ADD TO CART | |
| 4 | 5000210396 | Pulley | 1 | ADD TO CART | |
| 5 | 5100005422 | Fly wheel cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Fly wheel cpl.
5100005422 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 9 | 5000162686 | Nut | 1 | ADD TO CART | |
| 10 | 5100048123 | Starter v-belt pulley | 1 | ADD TO CART | |
Page 74 — Cylinder head
Parts list — exactly as printed14 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000070945 | Valve guide | 1 | PARTS REQUEST | |
|
COMING Valve guide
5000070945 · qty on machine: 1 | |||||
| 2 | 5000070944 | Valve guide | 1 | ADD TO CART | |
| 3 | 5100005423 | Cylinder head cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cylinder head cpl.
5100005423 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5000081744 | Retaining ring | 1 | ADD TO CART | |
| 5 | 5100005329 | Cylinder head gasket | 1 | PARTS REQUEST | |
|
COMING Cylinder head gasket
5100005329 · qty on machine: 1 | |||||
| 6 | 5100049540 | Cover-cylinder head | 1 | ADD TO CART | |
| 7 | 5000070942 | Gasket | 1 | ADD TO CART | |
| 8 | 5000081761 | Breather tube | 1 | ADD TO CART | |
| 10 | 5000053990 | Screw | 4 | ADD TO CART | |
| 11 | 5000073263 | Stud | 2 | ADD TO CART | |
| 12 | 5000070948 | Stud | 2 | ADD TO CART | |
| 13 | 5000070950 | Dowel pin | 2 | ADD TO CART | |
| 14 | 5000213398 | Flange screw | 4 | ADD TO CART | |
| 15 | 5000209776 | Spark plug | 1 | PARTS REQUEST | |
|
COMING Spark plug
5000209776 · qty on machine: 1 | |||||
Page 76 — Ignition coil
Parts list — exactly as printed5 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100049541 | Magneto cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Magneto cpl.
5100049541 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 2 | 5200006484 | Spark plug (terminal) cap | 1 | PARTS REQUEST | |
|
COMING Spark plug (terminal) cap
5200006484 · qty on machine: 1 | |||||
| 9 | 5100049542 | Leitung | 1 | ADD TO CART | |
| 12 | 5000081737 | Screw | 2 | ADD TO CART | |
| 16 | 5100031335 | Cable | 1 | ADD TO CART | |
Page 78 — Regulator
Parts list — exactly as printed20 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 4 | 5100009311 | Governor cpl. us | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 4 | 5100009312 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100009312 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 5 | 5100005425 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5100005425 · qty on machine: 1 | |||||
| 7 | 5100005332 | Governor rod | 1 | PARTS REQUEST | |
|
COMING Governor rod
5100005332 · qty on machine: 1 | |||||
| 8 | 5100005426 | Spring | 1 | ADD TO CART | |
| 9 | 5100005427 | Return spring | 1 | ADD TO CART | |
| 11 | 5100005333 | Governor lever | 1 | PARTS REQUEST | |
|
COMING Governor lever
5100005333 · qty on machine: 1 | |||||
| 12 | 5000071058 | Spring | 1 | ADD TO CART | |
| 13 | 5000071057 | Washer | 1 | ADD TO CART | |
| 14 | 5000071062 | Cable holder | 1 | ADD TO CART | |
| 15 | 5000071064 | Spacer | 2 | ADD TO CART | |
| 16 | 5100005363 | Bracket cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 17 | 5000054088 | Adjusting spring | 1 | ADD TO CART | |
| 18 | 5000071667 | Spring | 1 | ADD TO CART | |
| 21 | 5000053990 | Screw | 2 | ADD TO CART | |
| 22 | 5100000451 | Screw | 1 | PARTS REQUEST | |
|
COMING Screw
5100000451 · qty on machine: 1 | |||||
| 24 | 5000072782 | Locknut | 1 | ADD TO CART | |
| 27 | 5000110112 | Screw | 1 | ADD TO CART | |
| 28 | 5000081990 | Screw | 1 | ADD TO CART | |
| 30 | 5000071056 | Nut | 1 | ADD TO CART | |
Page 80 — Cylinder housing
Parts list — exactly as printed19 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005428 | Cylinder housing cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Cylinder housing cpl.
5100005428 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100005429 | Governor cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Governor cpl.
5100005429 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 4 | 5100005430 | Weight | 2 | PARTS REQUEST | |
|
COMING Weight
5100005430 · qty on machine: 2 | |||||
| 5 | 5100005431 | Bracket | 1 | PARTS REQUEST | |
|
COMING Bracket
5100005431 · qty on machine: 1 | |||||
| 6 | 5000156689 | Pin | 2 | ADD TO CART | |
| 7 | 5100005432 | Governor pin | 1 | PARTS REQUEST | |
|
COMING Governor pin
5100005432 · qty on machine: 1 | |||||
| 8 | 5100005433 | Governor | 1 | PARTS REQUEST | |
|
COMING Governor
5100005433 · qty on machine: 1 | |||||
| 9 | 5000070964 | Plug (threaded) | 2 | ADD TO CART | |
| 11 | 5000070963 | Washer | 2 | ADD TO CART | |
| 12 | 5000081615 | Retaining ring | 1 | ADD TO CART | |
| 13 | 5100003485 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003485 · qty on machine: 1 | |||||
| 14 | 5100039035 | Ring seal | 1 | ADD TO CART | |
| 15 | 5000208616 | O-ring | 1 | PARTS REQUEST | |
|
COMING O-ring
5000208616 · qty on machine: 1 | |||||
| 16 | 5000072332 | Flange nut | 1 | PARTS REQUEST | |
|
COMING Flange nut
5000072332 · qty on machine: 1 | |||||
| 17 | 5000071639 | Washer | 1 | ADD TO CART | |
| 18 | 5000054033 | Pin | 1 | ADD TO CART | |
| 19 | 5100003498 | Flange screw | 2 | PARTS REQUEST | |
|
COMING Flange screw
5100003498 · qty on machine: 2 | |||||
| 21 | 5000216513 | Oil alert switch cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5000071639 | Washer | 1 | ADD TO CART | |
Page 82 — Crankcase cover
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5000081991 | Cover | 1 | ADD TO CART | |
| 3 | 5100009314 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100009314 · qty on machine: 1 | |||||
| 4 | 5000162645 | Dipstick assembly | 1 | ADD TO CART | |
| 5 | 5100031607 | Oil filler cap | 1 | ADD TO CART | |
| 7 | 5000053983 | Shaft seal | 1 | ADD TO CART | |
| 7 | 5100039035 | Ring seal | 1 | ADD TO CART | |
| 8 | 5000053995 | Dowel pin | 2 | ADD TO CART | |
| 9 | 5100003504 | Flange screw | 6 | PARTS REQUEST | |
|
COMING Flange screw
5100003504 · qty on machine: 6 | |||||
| 10 | 5100003510 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003510 · qty on machine: 1 | |||||
| 11 | 5000162647 | Gasket | 1 | ADD TO CART | |
Page 84 — Crankshaft
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 2 | 5100005359 | Crankshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 8 | 5000070999 | Fitting key | 1 | ADD TO CART | |
| 16 | 5100003485 | Grooved ball bearing | 1 | PARTS REQUEST | |
|
COMING Grooved ball bearing
5100003485 · qty on machine: 1 | |||||
Page 86 — Piston
Parts list — exactly as printed10 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5000217531 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5000217531 · qty on machine: 1 | |||||
| 1 | 5000217532 | Set of piston rings | 1 | ADD TO CART | |
| 1 | 5100005435 | Set of piston rings | 1 | PARTS REQUEST | |
|
COMING Set of piston rings
5100005435 · qty on machine: 1 | |||||
| 2 | 5100005436 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100005436 · qty on machine: 1 | |||||
| 2 | 5100019661 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100019661 · qty on machine: 1 | |||||
| 2 | 5100019662 | Piston | 1 | PARTS REQUEST | |
|
COMING Piston
5100019662 · qty on machine: 1 | |||||
| 3 | 5100005348 | Piston pin | 1 | PARTS REQUEST | |
|
COMING Piston pin
5100005348 · qty on machine: 1 | |||||
| 4 | 5100050571 | Connecting rod | 1 | ADD TO CART | |
| 5 | 5100005438 | Screw | 2 | PARTS REQUEST | |
|
COMING Screw
5100005438 · qty on machine: 2 | |||||
| 6 | 5000081994 | Retaining ring | 2 | ADD TO CART | |
Page 88 — Camshaft
Parts list — exactly as printed15 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 1 | 5100005349 | Gasket | 1 | PARTS REQUEST | |
|
COMING Gasket
5100005349 · qty on machine: 1 | |||||
| 2 | 5100005439 | Camshaft cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Camshaft cpl.
5100005439 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 3 | 5100005440 | Push rod | 2 | PARTS REQUEST | |
|
COMING Push rod
5100005440 · qty on machine: 2 | |||||
| 4 | 5000070986 | Rocker arm | 2 | ADD TO CART | |
| 5 | 5000070990 | Valve tappet | 2 | ADD TO CART | |
| 6 | 5100031338 | Pin | 2 | ADD TO CART | |
| 7 | 5000151028 | Spring | 1 | ADD TO CART | |
| 8 | 5100005441 | Intake valve | 1 | PARTS REQUEST | |
|
COMING Intake valve
5100005441 · qty on machine: 1 | |||||
| 9 | 5100005442 | Outlet valve | 1 | PARTS REQUEST | |
|
COMING Outlet valve
5100005442 · qty on machine: 1 | |||||
| 10 | 5000081760 | Spring | 2 | ADD TO CART | |
| 11 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 12 | 5100031339 | Holder | 1 | PARTS REQUEST | |
|
COMING Holder
5100031339 · qty on machine: 1 | |||||
| 14 | 5100005443 | Guide plate | 1 | PARTS REQUEST | |
|
COMING Guide plate
5100005443 · qty on machine: 1 | |||||
| 15 | 5000072778 | Stud | 2 | ADD TO CART | |
| 16 | 5000070984 | Locknut | 2 | ADD TO CART | |
Page 90 — Decal
Parts list — exactly as printed9 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 3 | 5100005352 | Label gx160 | 1 | PARTS REQUEST | |
|
COMING Label gx160
5100005352 · qty on machine: 1 | |||||
| 4 | 5100005336 | Label | 1 | PARTS REQUEST | |
|
COMING Label
5100005336 · qty on machine: 1 | |||||
| 5 | 5000208623 | Labels | 1 | ADD TO CART | |
| 12 | 5100000437 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000437 · qty on machine: 1 | |||||
| 13 | 5100005337 | Label | 1 | ADD TO CART | |
| 19 | 5100000438 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000438 · qty on machine: 1 | |||||
| 20 | 5100000439 | Warning label | 1 | PARTS REQUEST | |
|
COMING Warning label
5100000439 · qty on machine: 1 | |||||
| 22 | 5100005340 | Label | 1 | ADD TO CART | |
| 25 | 5100005339 | Label | 1 | ADD TO CART | |
Page 92 — Retrofit kit v-belt pulley
Parts list — exactly as printed3 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100064173 | V-belt pulley half | 2 | ADD TO CART | |
| 20 | 5100064172 | Plate | 3 | ADD TO CART | |
| 30 | 5100065516 | Retrofit kit v-belt pulley | 1 | ADD TO CART | |
Page 94 — Water tank
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100060499 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl.
5100060499 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 20 | 5100054177 | Water tank cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 30 | 5100054175 | Hose | 1 | ADD TO CART | |
| 50 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 70 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 90 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 150 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 160 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 180 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 190 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 191 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 96 — Water tank cpl. tall
Parts list — exactly as printed11 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5100054175 | Hose | 1 | ADD TO CART | |
| 20 | 5100064647 | Watertank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 22 | 5100072172 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Turning handle cpl.
5100072172 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 23 | 5100072171 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Control rod cpl.
5100072171 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 26 | 5100053603 | Cap screw | 1 | ADD TO CART | |
| 27 | 5100051982 | Water tank cap | 1 | ADD TO CART | |
| 28 | 5100072173 | Filter cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 50 | 5100068642 | Water tank cpl. big | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Water tank cpl. big
5100068642 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 51 | 5100079293 | Control rod cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 52 | 5100079294 | Turning handle cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | ADD TO CART |
| 53 | 5000069425 | Cheese head screw | 2 | PARTS REQUEST | |
|
COMING Cheese head screw
5000069425 · qty on machine: 2 | |||||
Page 98 — Trolley cpl.bps/aps/dps1550,2050
Parts list — exactly as printed18 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 20 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 30 | 5000010367 | Hexagon nut | 2 | ADD TO CART | |
| 40 | 5100060372 | Trolley | 1 | ADD TO CART | |
| 41 | 5000010622 | Flat washer | 4 | ADD TO CART | |
| 42 | 5000010367 | Hexagon nut | 4 | ADD TO CART | |
| 43 | 5000033198 | Lockwasher | 2 | ADD TO CART | |
| 44 | 5000010374 | Flat washer | 2 | ADD TO CART | |
| 45 | 5000128241 | Flat washer | 2 | ADD TO CART | |
| 46 | 5100005556 | Shim screw | 2 | ADD TO CART | |
| 47 | 5100058750 | Bracket | 1 | ADD TO CART | |
| 48 | 5100060376 | Base plate | 1 | ADD TO CART | |
| 49 | 5000103834 | Lock washer | 4 | ADD TO CART | |
| 50 | 5000010616 | Flat washer | 4 | ADD TO CART | |
| 51 | 5000011540 | Cheese head screw | 2 | ADD TO CART | |
| 52 | 5100077951 | Lock bolt | 2 | ADD TO CART | |
| 53 | 5000021466 | Tire | 2 | ADD TO CART | |
| 60 | 5100060543 | Trolley cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Trolley cpl.
5100060543 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
Page 100 — Slip-form device PGVB/A/DPS1550/2050
Parts list — exactly as printed6 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011421 | Hexagonal head cap screw | 2 | PARTS REQUEST | |
|
COMING Hexagonal head cap screw
5000011421 · qty on machine: 2 | |||||
| 40 | 5000010665 | Washer | 2 | ADD TO CART | |
| 50 | 5100054241 | Bar | 2 | ADD TO CART | |
| 60 | 5100054247 | Urethane plate 50cm | 1 | ADD TO CART | |
| 70 | 5100060428 | Urethane pad kit pgv | 1 | PARTS REQUEST | |
|
COMING Urethane pad kit pgv
5100060428 · qty on machine: 1 | |||||
| 80 | 5000015061 | Hexagon nut | 2 | ADD TO CART | |
Page 102 — Locking device cpl.
Parts list — exactly as printed7 rows
| No. | Part No. | Part Name | Qty | Remarks | |
|---|---|---|---|---|---|
| 10 | 5000011540 | Cheese head screw | 4 | ADD TO CART | |
| 20 | 5000010367 | Hexagon nut | 4 | ADD TO CART | |
| 30 | 5000010622 | Flat washer | 8 | ADD TO CART | |
| 40 | 5000033198 | Lockwasher | 2 | ADD TO CART | |
| 50 | 5100060376 | Base plate | 1 | ADD TO CART | |
| 90 | 5100064994 | Locking device cpl. | 1 | COMPLETE ASSEMBLY (cpl.) | PARTS REQUEST |
|
COMING Locking device cpl.
5100064994 · qty on machine: 1 COMPLETE ASSEMBLY (cpl.) | |||||
| 100 | 5100077951 | Lock bolt | 2 | ADD TO CART | |
The machine itself
Machine
Engine
Wacker Neuson BPS2050 vibratory plate.
A: Honda Engine.
Available in 2 configurations.
List price: $3,540.00 – $3,725.00
Keep-it-running spares
All listed parts →Every part that fits this machine
1000088388
Screw
1000139973
Screw
1000328508
Clamp
1000386655
Fuel filter
1000386656
Filter insert
1000389229
Screw joint
1000389230
Fuel line
1000389241
Hose clamp
1000389247
Fuel line
1000389249
Plug
1000389262
Fuel pump
1000433949
Fuel filter
1000433950
Fuel filter
1000433952
Arm
1000433955
Filter housing
1000434006
Pressure limit reliefvalve
5000010367
Hexagon nut
$0.95
5000010374
Flat washer
$0.95
5000010616
Flat washer
$0.95
5000010622
Flat washer
$0.95
5000010665
Washer
$0.95
5000011421
Hexagonal head cap screw
5000011540
Cheese head screw
$0.95
5000015061
Hexagon nut
$0.95
5000021466
Tire
$13.95
5000026169
Hexagonal head cap screw
$0.95
5000033198
Lockwasher
$0.95
5000037378
Shockmount
$24.95
5000053983
Shaft seal
$10.95
5000053990
Screw
$2.95
5000053995
Dowel pin
$3.95
5000054033
Pin
$1.95
5000054088
Adjusting spring
$8.95
5000068967
Woodruff key
$8.95
5000069425
Cheese head screw
5000070942
Gasket
$5.95
5000070944
Valve guide
$15.95
5000070945
Valve guide
5000070948
Stud
$7.95
5000070950
Dowel pin
$5.95
5000070963
Washer
$1.95
5000070964
Plug (threaded)
$5.95
5000070984
Locknut
$7.95
5000070986
Rocker arm
$12.95
5000070990
Valve tappet
$24.95
5000070999
Fitting key
$25.95
5000071013
Choke control lever
$18.95
5000071014
Pin
$2.95
5000071015
Spacer
$9.95
5000071016
Pilot jet
$39.95
5000071018
Throttle stop screw
$20.95
5000071022
Set-float valve
$49.95
5000071023
Fuel filter
$24.95
5000071024
Gasket
$7.95
5000071032
Gasket
$5.95
5000071035
Sleeve
$7.95
5000071055
Screw
$5.95
5000071056
Nut
$0.95
5000071057
Washer
$9.95
5000071058
Spring
$4.95
5000071062
Cable holder
$8.95
5000071064
Spacer
$9.95
5000071070
Screw
$2.95
5000071075
Spark arrester
$26.95
5000071082
O-ring
$3.95
5000071621
Wing nut
$9.95
5000071639
Washer
$0.95
5000071652
Fan
$50.95
5000071667
Spring
$3.95
5000072332
Flange nut
5000072343
Grommet
$9.95
5000072778
Stud
$14.95
5000072781
Set-gaskets
$21.95
5000072782
Locknut
$6.95
5000073263
Stud
$11.95
5000073269
Plate
$7.95
5000073270
Spring washer
$4.95
5000073272
Gasket
$4.95
5000081615
Retaining ring
$1.95
5000081737
Screw
$4.95
5000081744
Retaining ring
$1.95
5000081746
Sleeve
$7.95
5000081750
Screw
$7.95
5000081756
Exhaust baffle
$28.95
5000081760
Spring
$7.95
5000081761
Breather tube
$7.95
5000081762
Gasket
$2.95
5000081764
Protective hose
$8.95
5000081777
Spring
$31.95
5000081781
Rope
$20.95
5000081990
Screw
$1.95
5000081991
Cover
$100.95
5000081994
Retaining ring
$1.95
5000082009
Gasket
$3.95
5000089286
Setscrew
$35.95
5000096087
Hexagon nut
$0.95
5000103834
Lock washer
$0.95
5000105139
Cylindrical roller bearing
$71.95
5000110112
Screw
$1.95
5000110765
Fuel tank
$327.95
5000125839
O-ring
5000128241
Flat washer
$0.95
5000150266
Fuel valve lever
$17.95
5000150916
Screw
$1.95
5000151028
Spring
$5.95
5000151700
Clamp
$4.95
5000156689
Pin
$2.95
5000158458
Flange bolt
$2.95
5000160745
Guide
$15.95
5000160747
Friction spring
$6.95
5000160748
Friction plate
$8.95
5000162645
Dipstick assembly
$1.95
5000162647
Gasket
$5.95
5000162686
Nut
$4.95
5000203788
Spark plug
$25.95
5000207991
Screw
$7.95
5000208616
O-ring
5000208617
Clamp
$3.95
5000208623
Labels
$5.95
5000209764
Set-carburetor float
$44.95
5000209770
Gasket
$0.95
5000209771
Flange bolt
$1.95
5000209776
Spark plug
5000209783
Self-tapping screw
$0.95
5000210111
Corrugated-head screw
$6.95
5000210396
Pulley
$33.95
5000213398
Flange screw
$2.95
5000216513
Oil alert switch cpl.
$129.95
5000216516
Gasket
$5.95
5000216658
Screw
$3.95
5000217459
Air filter insert
5000217531
Set of piston rings
5000217532
Set of piston rings
$147.95
5000406627
Starter reel
5000406637
Carburetor cpl.
5000406642
Air cleaner mount
$15.95
5000406644
Muffler
5000406646
Guard
5100000395
Fuel filter
5100000396
Filter
$8.95
5100000437
Warning label
5100000438
Warning label
5100000439
Warning label
5100000451
Screw
5100003485
Grooved ball bearing
5100003492
Hexagon nut
5100003498
Flange screw
5100003499
Flange screw
5100003504
Flange screw
5100003510
Grooved ball bearing
5100005307
Housing cpl. (black)
5100005309
Starter handle us
$15.95
5100005310
Covering
5100005311
Fan hood cpl. (black)
$55.95
5100005312
Covering
5100005313
Oil sensor
$88.95
5100005314
Float housing
5100005317
Screw
5100005323
Fuel tank cpl.
5100005325
Fuel hose
5100005329
Cylinder head gasket
5100005332
Governor rod
5100005333
Governor lever
5100005336
Label
5100005337
Label
$7.95
5100005339
Label
$7.95
5100005340
Label
$7.95
5100005348
Piston pin
5100005349
Gasket
5100005352
Label gx160
5100005356
Tank cover cpl.
5100005358
Fuel tank cpl.
5100005359
Crankshaft cpl.
$658.95
5100005363
Bracket cpl.
$45.95
5100005413
Starter handle
5100005415
Starter flap
5100005416
Isolator
5100005417
Main jet
5100005418
Main jet
5100005421
Nut
5100005422
Fly wheel cpl.
5100005423
Cylinder head cpl.
5100005425
Governor lever
5100005426
Spring
$6.95
5100005427
Return spring
$7.95
5100005428
Cylinder housing cpl.
5100005429
Governor cpl.
5100005430
Weight
5100005431
Bracket
5100005432
Governor pin
5100005433
Governor
5100005435
Set of piston rings
5100005436
Piston
5100005438
Screw
5100005439
Camshaft cpl.
5100005440
Push rod
5100005441
Intake valve
5100005442
Outlet valve
5100005443
Guide plate
5100005556
Shim screw
$2.95
Service notices & part changes
Take the factory book with you
The interactive diagram above stays open for everyone. No email wall on the good stuff. The full factory PDF pack is for the shop laptop and the glovebox.
From the guides desk
A
Chat with ARIA
Ask ARIA about your machine.
Scoped to this machine: fitment checks, torque and oil answers, part lookups from the manual behind this page.
